Harman Becker Automotive Systems BE2800 Automotive Infotainment Unit User Manual 1130540
Harman Becker Automotive Systems, Inc. Automotive Infotainment Unit 1130540
User Manual
Uconnect™ ACCESS USER’S MANUAL
CONTENTS
mIdentifying Your Radio . . . . . . . . . . . . . . . . . . . . .3
mSafety Guidelines. . . . . . . . . . . . . . . . . . . . . . . . .6
mUconnect™ Access Overview . . . . . . . . . . . . . . .10
▫How to Register with Uconnect™ Access: . . . . .10
▫Uconnect™ Access In-Vehicle Assistance
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
▫Uconnect™ Access In-Vehicle Connectivity
Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
▫Uconnect™ Access Additional Information . . . .13
mUconnect™ 3.0. . . . . . . . . . . . . . . . . . . . . . . . . .15
▫Uconnect™ 3.0 System. . . . . . . . . . . . . . . . . . .15
▫RadioMode..........................17
▫MediaMode..........................19
mUconnect™5.0..........................23
▫Uconnect™ 5.0 System. . . . . . . . . . . . . . . . . . .23
▫RadioMode..........................24
▫MediaMode..........................28
▫Uconnect™Phone......................32
▫Uconnect™ Voice Command . . . . . . . . . . . . . .35
▫Settings Main Menu . . . . . . . . . . . . . . . . . . . .39
1
▫More Main Menu . . . . . . . . . . . . . . . . . . . . . .40
mUconnect™ 8.4A . . . . . . . . . . . . . . . . . . . . . . . .41
▫Uconnect™ 8.4A System . . . . . . . . . . . . . . . . .41
▫Radio Mode . . . . . . . . . . . . . . . . . . . . . . . . . .42
▫Media Mode . . . . . . . . . . . . . . . . . . . . . . . . . .54
▫Uconnect™ Phone . . . . . . . . . . . . . . . . . . . . . .62
▫Uconnect™ Voice Command . . . . . . . . . . . . . .93
▫Navigation . . . . . . . . . . . . . . . . . . . . . . . . . .106
▫Security Features . . . . . . . . . . . . . . . . . . . . . .264
▫Remote Service Features. . . . . . . . . . . . . . . . .270
mUconnect™8.4AN ......................158
▫Uconnect™ 8.4AN System . . . . . . . . . . . . . . .158
▫RadioMode .........................159
▫MediaMode.........................171
▫Uconnect™Phone.....................179
▫Uconnect™ Voice Command. . . . . . . . . . . . . .206
▫Navigation..........................219
▫SecurityFeatures......................264
▫Remote Service Features. . . . . . . . . . . . . . . . .270
2 Uconnect™ ACCESS USER’S MANUAL

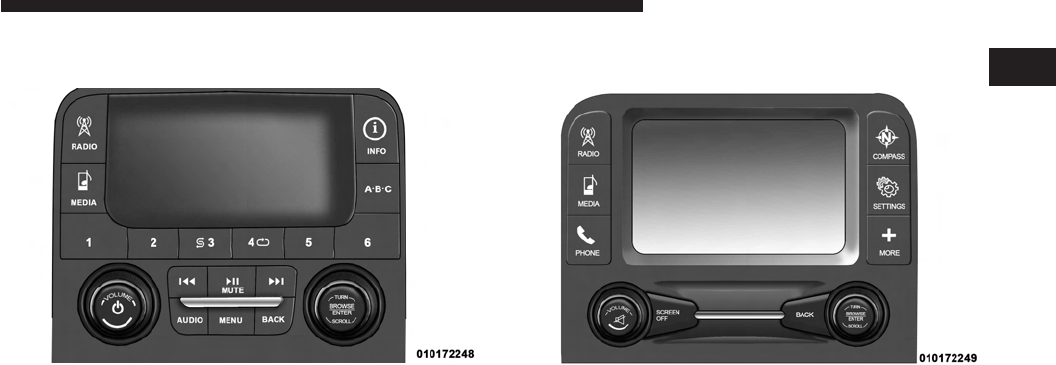

Identifying Your Radio
Uconnect™ 3.0
Key Features
•3” Screen
•Two hard-keys on either side of the display
•SiriusXM™ Optional

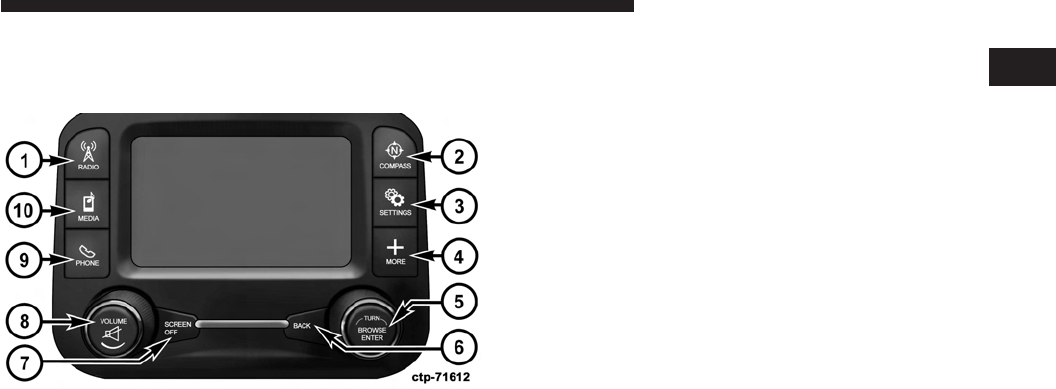

Uconnect™ 5.0
Key Features
•5” Touch-Screen
•Three hard-keys on either side of the display
1
Uconnect™ ACCESS USER’S MANUAL 3
•Hands-free/Bluetootht
•SiriusXM™ Optional

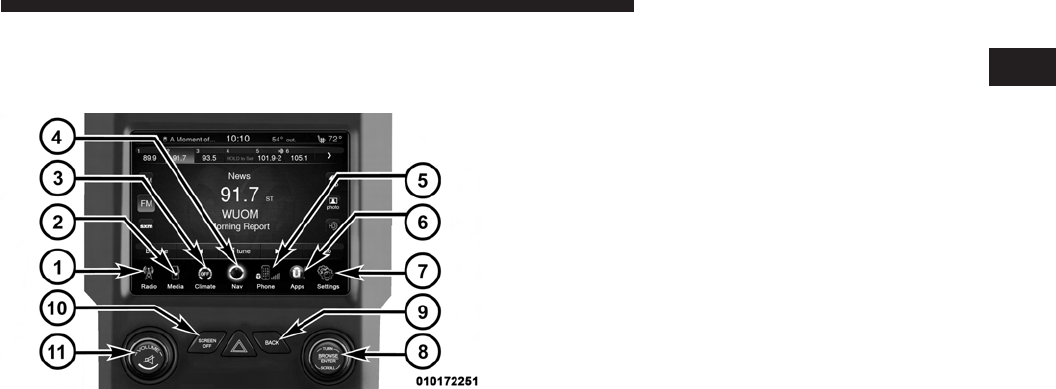

Uconnect™ 8.4A
Key Features
NOTE: The 8.4A and 8.4AN appearance is the same, but
the listed features provide the differences.
•8.4” Touch-Screen
•Navigation-Ready, see your dealer for details
•Hands-free/Bluetootht
•Touchscreen Climate Controls
•SiriusXM™
•Embedded Connectivity (US Market Only)
Uconnect™ 8.4AN
Key Features
•8.4” Touch-Screen
•Navigation Standard
•Hands-free/Bluetootht
•Touchscreen Climate Controls
•HD Radio
4 Uconnect™ ACCESS USER’S MANUAL
•SiriusXM™
•SiriusXM™ Traffic
•Embedded Connectivity (US Market Only)
1
Uconnect™ ACCESS USER’S MANUAL 5
Safety Guidelines
WARNING!
ALWAYS drive safely with your hands on the wheel.
You have full responsibility and assume all risks
related to the use of the Uconnect™ features and
applications in this vehicle. Only use Uconnect™
when it is safe to do so. Failure to do so may result in
an accident involving serious injury or death.
Ensure that all persons read this manual carefully before
using the radio system. It contains instructions on how to
use the system in a safe and effective manner.
Please read and follow these safety precautions. Failure
to do so may result in injury or property damage.
•Glance at the screen only when necessary and safe to
do so. If prolonged viewing of the screen is necessary,
park in a safe location and set the parking brake.
•Stop use immediately if a problem occurs. Failure to
do so may cause injury or damage to the product.
Return it to your authorized dealer to repair.
•Make certain that the volume level of the system is set
to a level that still allows you to hear outside traffic
and emergency vehicles.
Safe Usage of the Uconnect™ Access System
•Read all instructions in this manual carefully before
using your system to ensure proper usage!
•Your system is a sophisticated electronic device. Do
not let young children use your system.
•Permanent hearing loss may occur if you play your
music or the system at loud volumes. Exercise caution
when setting the volume on your system.
6 Uconnect™ ACCESS USER’S MANUAL
•Driving is a complex activity that requires your full
attention. If you’re engaged in driving or any activity
that requires your full attention, we recommend that
you not use your system.
NOTE: Many features of this system are speed depen-
dent. For your own safety, it is not possible to use some
of the touch screen features while the vehicle is in
motion.
•Keep drinks, rain, and other sources of moisture away
from your system. Besides damage to your system,
moisture can cause electric shocks as with any elec-
tronic device.
Touch Screen
•Do not touch the screen with any hard or sharp objects
(pen, USB stick, jewelry, etc.) which could scratch the
touch screen surface!
•Do not spray any liquid or caustic chemicals directly
on the screen! Use a clean and dry micro fiber lens
cleaning cloth in order to clean the touch screen.
•If necessary, use a lint-free cloth dampened with a
cleaning solution, such as isopropyl alcohol, or an
isopropyl alcohol and water solution ratio of 50:50. Be
sure to follow the solvent manufacturer’s precautions
and directions.
Disc Drive
•Do not insert any damaged, warped, scratched or dirty
Discs into the Disc player.
•Discs that have been modified with an adhesive label
should not be used in the Disc player.
•Do not insert more than one Disc at a time into the
drive slot.
FCC Declaration
1
Uconnect™ ACCESS USER’S MANUAL 7
This device complies with Part 15 of the FCC Rules and
with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions: (1)
this device may not cause harmful interference, and (2)
this device must accept any interference received, includ-
ing interference that may cause undesired operation.
Le présent appareil est conforme aux CNR d’Industrie
Canada applicables aux appareils radio exempts de li-
cence. L’exploitation est autorisée aux deux conditions
suivantes: (1) l’appareil ne doit pas produire de brouil-
lage, et (2) l’utilisateur de l’appareil doit accepter tout
brouillage radioélectrique subi, même si le brouillage est
susceptible d’en compromettre le fonctionnement.
NOTE: This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harm-
ful interference in a residential installation. This equip-
ment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation.
If this equipment does cause harmful interference to
radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the
following measures: - Increase the separation between
the equipment and receiver. - Consult the dealer or an
experienced radio technician for help.
Safety Information
8 Uconnect™ ACCESS USER’S MANUAL
Exposure to Radio Frequency Radiation
The radiated output power of the this internal wireless
radio is far below the FCC radio frequency exposure
limits. Nevertheless, the wireless radio shall be used in
such a manner that the radio is 20 cm or further from the
human body.
The internal wireless radio operates within guidelines
found in radio frequency safety standards and recom-
mendations, which reflect the consensus of the scientific
community.
The radio manufacturer believes the internal wireless
radio is safe for use by consumers. The level of energy
emitted is far less than the electromagnetic energy emit-
ted by wireless devices such as mobile phones. However,
the use of wireless radios may be restricted in some
situations or environments, such as aboard airplanes. If
you are unsure of restrictions, you are encouraged to ask
for authorization before turning on the wireless radio.
1
Uconnect™ ACCESS USER’S MANUAL 9
Uconnect™ Access Overview
Uconnect™ Access (Available on Uconnect™ 8.4A and
Uconnect™ 8.4AN)
With Uconnect™ Access, owners have emergency and
remote vehicle features available. These features include
9-1-1 Call, Roadside Assistance, Uconnect™ Care and
Vehicle Care. With the Uconnect™ Access, your vehicle is
also capable of remote vehicle features like Remote Start,
Remote Door Lock/Unlock, and Remote Horn and
Lights. Once registered, Uconnect™ Access customers
can purchase packages and apps at any time. For addi-
tional information, contact Uconnect™ Customer Care at
855-792-4241, or visit Owner Connect (www.Mop-
arOwnerConnect.com).
How to Register with Uconnect™ Access:
1. With the vehicle parked and the radio powered on,
select the “Apps” soft-key located near the bottom of
the radio touch screen.
2. Select the “Uconnect Registration” App soft-key from
the Apps list.
3. The Uconnect™ Registration App will open and pro-
vide step-by-step instructions on how to enter your
email address to begin the registration process.
4. You will receive a secured registration email from
Uconnect™ Access containing a link for completing
your Uconnect™ Access Registration on-line. For se-
curity reasons, this email link will be valid for 24
hours.
5. Follow the link to complete the final step of registra-
tion and to begin using Uconnect™ Access
10 Uconnect™ ACCESS USER’S MANUAL
For additional registration assistance while in the vehicle,
push the ASSIST button to contact Uconnect™ Customer
Care.
Uconnect™ Access In-Vehicle Assistance
Features
With Uconnect™ Access, your vehicle has an on-board
assistance feature located on the rear view mirror de-
signed to enhance your driving experience if you should
ever need assistance or support.

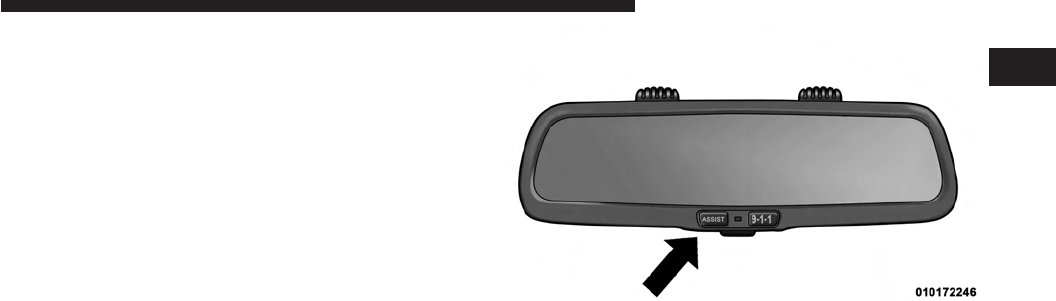

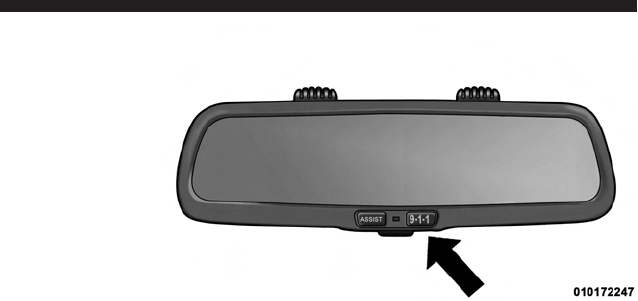

ASSIST Call
The rear view mirror contains an ASSIST push button
which automatically connects the vehicle occupants to
one of several predefined destinations for immediate
support:
Assist Call button
1
Uconnect™ ACCESS USER’S MANUAL 11
1. Roadside Assistance Call – If you get a flat tire, or need
a tow, you’ll be connected to someone who can help
anytime. Roadside Assistance will know what vehicle
you’re driving and its location. Additional fees may
apply for roadside Assistance.
2. Uconnect™ Customer Care – In-vehicle support for
Uconnect™ Access System, Apps and Features.
3. Vehicle Customer Care – Total support for your
Chrysler Group vehicle.
9–1–1 Call
Places a direct call to local 9–1–1 emergency authority.
9–1–1 Call button
12 Uconnect™ ACCESS USER’S MANUAL
Uconnect™ Access In-Vehicle Connectivity
Services
Uconnect™ Access brings the power of the internet into
your vehicle with exciting features, remote capabilities,
theft alarm notification, and stolen vehicle assistance
applications through on-board connectivity service. Once
registered with Uconnect™ Access, you can customize
the capabilities of your vehicle system using your
Uconnect™ Access account from the vehicle, the web, or
your Smartphone.
Please refer to your Uconnect™ Access account for
information on available subscriptions, applications and
packages for your vehicle. For additional information,
contact Uconnect™ Customer Care at 855-792-4241, or
visit Owner Connect (www.MoparOwnerConnect.com).
Uconnect™ Access Additional Information
My Uconnect™ Account
To use the Uconnect™ Features and Services, you must
first register your vehicle with Uconnect™ Access. Please
refer to the “Register with Uconnect Access” section of
this User’s Manual to start registration. Once registered,
you can personalize your vehicle Uconnect™ System as
desired.
How to Purchase or Cancel an App
From your Uconnect™ Access Account, you can easily
purchase or cancel Applications or subscriptions. Simply
log-in to your Uconnect™ Access Account and visit your
Uconnect™ Store.
Correcting a Download Error - How to Reset the
Uconnect™ Access System
You can easily correct any App related issues by resetting
the App. Simply log-in to your Uconnect™ Access Ac-
count and visit the Uconnect™ Store, click on My Apps,
click on Settings, and then choose Reset/Reinstall. In
minutes your App will be reinstalled and ready to go.
1
Uconnect™ ACCESS USER’S MANUAL 13
Selling my Vehicle - How to Completely Remove My
Uconnect™ Account
To completely remove your Uconnect™ Account, simply
log-in to your Uconnect™ Account and visit the
Uconnect™ Store, click on My Apps, click on Settings,
and then choose Remove Uconnect™ Account. In min-
utes your entire Uconnect™ Account and information
will be removed from your vehicle.
For further assistance call 855-792-4241, or go to the
Mopar Owner Connect site at (www.MoparOwnerCon-
nect.com).
14 Uconnect™ ACCESS USER’S MANUAL
Uconnect™ 3.0
Uconnect™ 3.0 System
1. RADIO
Press the RADIO hard-key to enter the Radio Mode. The
different tuner modes; AM, FM and SXM can be selected
by touching the corresponding soft-keys in the Radio
Mode.
2. INFO
Press the INFO button for an RDS station (one with call
letters displayed). The radio will return a Radio Text
message broadcast from an FM station (FM mode only).
3. A-B-C
Press the A-B-C hard-key to select the A, B or C preset
list.
4. ENTER/BROWSE & TUNE/SCROLL
Press the ENTER/BROWSE button to accept a high-
lighted selection on the screen. Rotate the TUNE/
SCROLL rotary knob to scroll through a list or tune a
radio station.
1
Uconnect™ ACCESS USER’S MANUAL 15
5. SEEK UP
Press the Seek Up soft-key to tune the radio to the next
listenable station or channel.
6. BACK
Press the BACK button to return to a previous menu or
screen.
7. MENU
Press the MENU button allows to scroll between the
setting sub-menus.
8. PLAY/PAUSE/MUTE
Press to Play, Pause or Mute the music.
9. AUDIO
Press the AUDIO button to adjust the Bass, Mid Range,
Treble, Balance or Fade.
10. SEEK DOWN
Press the Seek Down soft-key to tune the radio to the
previous listenable station or channel.
11. ON/VOLUME
Push the ON/VOLUME control knob to turn on the
radio. Push the ON/VOLUME control knob a second
time to turn off the radio.
The electronic volume control turns continuously (360
degrees) in either direction without stopping. Turning the
ON/VOLUME control knob to the right increases the
volume and to the left decreases it.
12. PRESETS 1–6
These buttons tune the radio to the stations that you
commit to pushbutton memory AM (A, B, C), FM (A, B,
C) and Satellite — 18 AM, 18 FM and 18 SAT stations.
13. MEDIA
16 Uconnect™ ACCESS USER’S MANUAL
Pressing the MEDIA button will allow you to switch from
AM/FM modes to Media mode (CD, USB/iPOD, AUX,
Bluetooth).
Radio Mode
The radio is equipped with the following modes:
•FM
•AM
•SXM Sirius XM™ Satellite Radio (if equipped)
Touch the RADIO button, to enter the Radio Mode. The
different tuner modes; AM, FM, and SXM, can then, be
selected by touching the corresponding soft-keys in the
Radio mode.
ON/OFF & Volume Control
•Push the ON/OFF Volume control knob to turn on the
radio. Push the ON/OFF Volume control knob a
second time to turn off the radio.
•When the audio system is turned on, the sound will be
set at the same volume level as last played.
Enter/Browse & Tune/Scroll Control
•Turn the rotary TUNE/SCROLL control knob clock-
wise to increase or counterclockwise to decrease the
radio station frequency. Push the ENTER/BROWSE
button to choose a selection.
Seek Functions
Seek Up
•Touch and release the Seek Up button to tune the radio
to the next listenable station or channel.
•During a Seek Up function, if the radio reaches the
starting station after passing through the entire band
two times, the radio will stop at the station where it
began.
Seek Down
1
Uconnect™ ACCESS USER’S MANUAL 17
•Touch and release the Seek Down button to tune the
radio to the next listenable station or channel.
•During a Seek Down function, if the radio reaches the
starting station after passing through the entire band
two times, the radio will stop at the station where it
began.
Setting Presets
The Presets are available for all Radio Modes, and are
activated by touching any of the six Preset buttons.
When you are receiving a station that you wish to
commit into memory, press and hold the desired num-
bered button for more that 2 seconds or until you hear a
confirmation beep.
The Radio stores up to 18 presets in each of the Radio
modes. Press the A-B-C hard-key to select the A, B or C
preset list.
SiriusXM™ Satellite Radio Mode
SiriusXM™ Satellite Radio uses direct satellite-to-receiver
broadcasting technology to provide clear digital sound,
coast to coast. The subscription service provider is Siri-
usXM™ Satellite Radio. This service offers over 130
channels of music, sports, news, entertainment, and
programming for children, directly from its satellites and
broadcasting studios. A one-year SiriusXM™ Satellite
Radio subscription is included.
SiriusXM™ and all related marks and logos are trade-
marks of SiriusXM™ Radio Inc. and its subsidiaries.
SiriusXM™ Satellite Radio requires a subscription, sold
separately after trial subscription included with vehicle
purchase. Prices and programming are provided by
SiriusXM™ and are subject to change. Subscriptions
governed by Terms & Conditions available at sirius.com/
serviceterms. SiriusXM™ Radio U.S. service only avail-
able to those at least 18 years of age in the 48 contiguous
United States, D.C., and PR. Service available in Canada;
see www.siriuscanada.ca.
18 Uconnect™ ACCESS USER’S MANUAL
This functionality is only available for radios equipped
with a Satellite receiver. In order to receive satellite radio,
the vehicle needs to be outside with a clear view to the
sky.
If the screen shows Acquiring Signal, you might have to
change the vehicle’s position in order to receive a signal.
In most cases, the satellite radio does not receive a signal
in underground parking garages or tunnels.

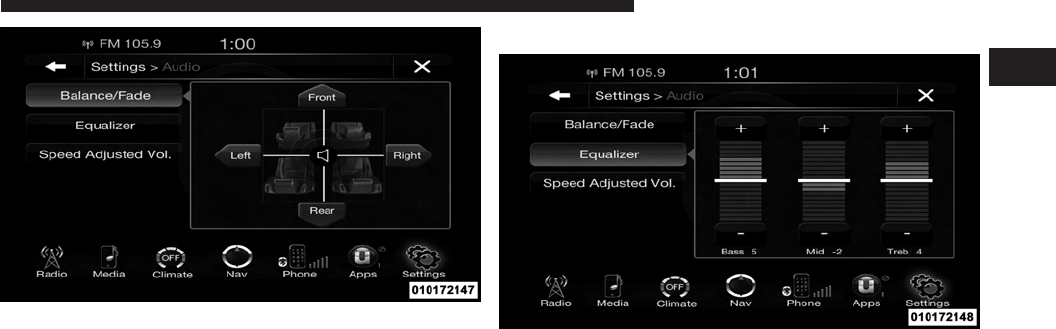

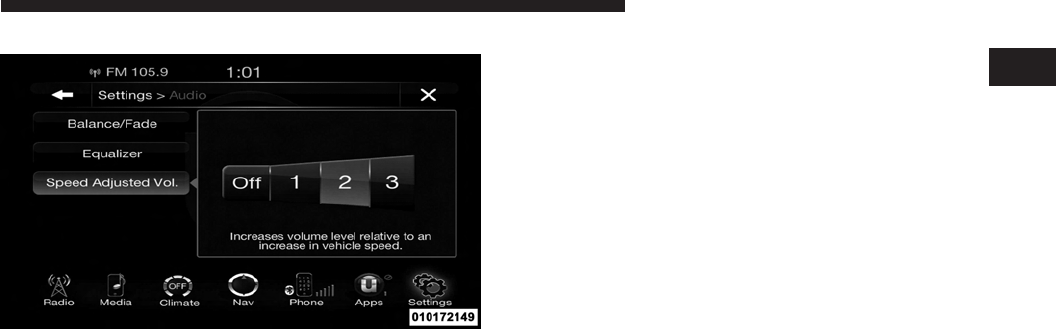

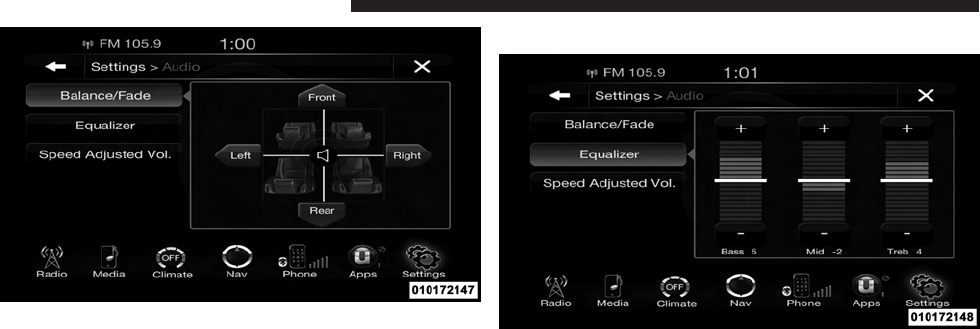

Audio
1. Press the AUDIO button at the button of the radio.
2. The Audio Menu shows the following options for you
to customize your audio settings.
Mid, Bass, Fade, Balance
•Select the desired setting to adjust, then touch the
Enter/Browse button. Turn the Tune/Scroll knob to
adjust the setting + or - 9. Press the back button when
done.
Clock Setting
1. Press the Menu button at the bottom of the radio, next
select the Time Format setting and then select Set
Time.
2. Adjust the hours or minutes by turning the Tune/
Scroll knob, then pressing the Enter/Browse button to
move to the next entry. You can also select 12hr or 24hr
format by turning the Tune/Scroll knob, then pressing
the Enter/Browse button on the desired selection.
3. Once the time is set press the “Back” button to exit the
time screen.
Media Mode
Media Mode is entered by touching the Media button
located on the side of the display. Once in Media Mode,
select your media Source by rotating the Scroll rotary
knob and pushing the Enter button.
Common Media Functions
1
Uconnect™ ACCESS USER’S MANUAL 19
Seek Up/Down
Touch and release the right arrow soft-key for the next
selection. Touch and release the left arrow soft-key to
return to the beginning of the current selection, or return
to the beginning of the previous selection if the Disc is
within the first second of the current selection.
Fast Seek Up: Touch and hold the right arrow soft-key
and the desired mode will begin to fast forward through
the current track until the soft-key is released.
Fast Seek Down: Touch and hold the left arrow soft-key
and the desired mode will begin to rewind through the
current track until the soft-key is released.
Source
Touch the Source soft-key to select the desired audio
source, Disc, AUX or USB/iPodt. This screen will time
out after a few seconds and return to the main radio
screen if no selection is made.
Info
Touch the Info soft-key to display the current track
information. Touch the “X” soft-key to cancel this feature.
Shuffle
Touch the shuffle soft-key to play the selections on the
USB/iPodtdevice in random order to provide an inter-
esting change of pace. Touch the soft-key a second time to
turn this feature off.
Audio
Refer to Radio Mode for adjusting the audio settings.
Disc Mode
If equipped, your vehicle may have a remote Disc player
located in the lower center console storage bin.
Disc Mode is entered by either inserting a Disc or by
touching the Media button located on the side of the
display. Once in Media Mode, select Disc mode.
20 Uconnect™ ACCESS USER’S MANUAL
Inserting Compact Disc
Gently insert one Disc into the Disc player with the Disc
label following the illustration indicated on the player.
The Disc will automatically be pulled into the Disc player
and the Disc icon will illuminate on the radio display. If
a Disc does not go into the slot more than 1.0 in (2.5 cm),
a disc may already be loaded and must be ejected before
a new Disc can be loaded.
If you insert a Disc with the ignition ON and the radio
ON, the unit will switch to CD/Disc mode and begin to
play when you insert the Disc. The display will show the
track number, and index time in minutes and seconds.
Play will begin at the start of track 1.
Browse
Touch the browse soft-key to scroll through and select a
desired track on the Disc. Touch the exit soft-key if you
wish to cancel the browse function.
Eject Button – Ejecting a Disc
Press the EJECT button to eject the Disc. If you have
ejected a Disc and have not removed it within 10 seconds,
it will be reloaded. If the Disc is not removed, the radio
will reinsert the Disc but will not play it.
A Disc can be ejected with the radio and ignition OFF.
USB/iPodtMode
USB/iPodtMode is entered by either inserting a USB
Jump Drive or iPodtcable into the USB port or by
touching the Media button located left of the display.
Once in Media Mode, touch the source soft-key and select
USB/iPodt.
Inserting USB/iPodtDevice
Gently insert the USB/iPodtdevice into the USB Port. If
you insert a USB/iPodtdevice with the ignition ON and
the radio ON, the unit will switch to USB/iPodtmode
and begin to play when you insert the device. The
1
Uconnect™ ACCESS USER’S MANUAL 21
display will show the track number, and index time in
minutes and seconds. Play will begin at the start of track
1.
Browse
Touch the Browse soft-key to select Artist, Albums,
Genres, Songs, Playlists or Folders from the USB/iPodt
device. Once the desired selection is made you can chose
from the available media by touching the soft-key. Touch
the exit soft-key if you wish to cancel the browse func-
tion.
AUX Mode
AUX Mode is entered by inserting a AUX device using a
cable with a 3.5 mm audio jack into the AUX port or by
touching the Media button located left of the display.
Once in Media Mode, touch the source soft-key and select
AUX.
Inserting Auxiliary Device
Gently insert the Auxiliary device cable into the AUX
Port. If you insert a Auxiliary device with the ignition ON
and the radio ON, the unit will switch to AUX mode and
begin to play when you insert the device cable.
Controlling the Auxiliary Device
The control of the auxiliary device (e.g., selecting play-
lists, play, fast forward, etc.) cannot be provided by the
radio; use the device controls instead. Adjust the volume
with the ON/OFF VOLUME rotary knob, or with the
volume of the attached device.
NOTE: The vehicle radio unit is acting as the amplifier
for audio output from the Auxiliary device. Therefore if
the volume control on the Auxiliary device is set too low,
there will be insufficient audio signal for the radio unit to
play the music on the device.
22 Uconnect™ ACCESS USER’S MANUAL
Uconnect™ 5.0
Uconnect™ 5.0 System
1. RADIO
Press the RADIO hard-key to enter the Radio Mode. The
different tuner modes; AM, FM and SXM can be selected
by touching the corresponding soft-keys in the Radio
Mode.
2. COMPASS
Press the COMPASS hard-key to display the current
direction of the vehicle.
3. SETTINGS
Press the SETTINGS hard-key to access the Settings list.
Clock, Display, Audio, Bluetooth and Sirius Settings are
described in this manual.
4. MORE
Press the MORE hard-key to access additional options.
5. ENTER/BROWSE & TUNE/SCROLL
1
Uconnect™ ACCESS USER’S MANUAL 23
Press the ENTER/BROWSE button to accept a high-
lighted selection on the screen. Rotate the TUNE/
SCROLL rotary knob to scroll through a list or tune a
radio station.
6. BACK
Press the BACK button to return to a previous menu or
screen.
7. SCREEN OFF
Press the SCREEN OFF hard-key to turn the touch-screen
OFF. To turn the screen back ON, just touch the screen.
8. VOLUME & MUTE
Rotate the rotary knob to adjust the Volume. Press the
Mute button to mute the system.
9. PHONE
Press the Phone button to access the Uconnect™ Phone
feature.
10. MEDIA
Pressing the MEDIA button will allow you to switch to
Media mode (CD, USB/iPOD, AUX, Bluetooth).
Radio Mode
The radio is equipped with the following modes:
•FM
•AM
•SXM Sirius XM™ Satellite Radio (if equipped)
Touch the RADIO hard-key, to enter the Radio Mode. The
different tuner modes; AM, FM, and SXM, can then, be
selected by touching the corresponding soft-keys in the
Radio mode.
Volume & Mute
24 Uconnect™ ACCESS USER’S MANUAL
•Rotate the rotary knob to adjust the Volume. When the
audio system is turned on, the sound will be set at the
same volume level as last played.
•Press the Mute button to mute the system. Press the
Mute button again to un-mute the system.
Enter/Browse & Tune/Scroll Control
•Turn the rotary TUNE/SCROLL control knob clock-
wise to increase or counterclockwise to decrease the
radio station frequency. Push the ENTER/BROWSE
button to choose a selection.
Seek Functions
Seek Up
•Touch and release the Seek Up soft-key to tune the
radio to the next listenable station or channel.
•During a Seek Up function, if the radio reaches the
starting station after passing through the entire band
two times, the radio will stop at the station where it
began.
Fast Seek Up
•Touch and hold the Seek Up soft-key to advance the
radio through the available stations or channels at a
faster rate, the radio stops at the next available station
or channel when the soft-key is released.
Seek Down
•Touch and release the Seek Down soft-key to tune the
radio to the next listenable station or channel.
•During a Seek Down function, if the radio reaches the
starting station after passing through the entire band
two times, the radio will stop at the station where it
began.
Fast Seek Down
1
Uconnect™ ACCESS USER’S MANUAL 25
•Touch and hold the Seek Down soft-key to advance the
radio through the available stations or channel at a
faster rate, the radio stops at the next available station
or channel when the soft-key is released.
Setting Presets
The Presets are available for all Radio Modes, and are
activated by touching any of the four Preset soft keys,
located at the top of the screen.
When you are receiving a station that you wish to
commit into memory, press and hold the desired num-
bered soft-key for more that 2 seconds or until you hear
a confirmation beep.
The Radio stores up to 12 presets in each of the Radio
modes. 4 presets are visible at the top of the radio screen.
Touching the “all” soft-key on the radio home screen will
display all of the preset stations for that mode.
SiriusXM™ Satellite Radio Mode
SiriusXM™ Satellite Radio uses direct satellite-to-receiver
broadcasting technology to provide clear digital sound,
coast to coast. The subscription service provider is Siri-
usXM™ Satellite Radio. This service offers over 130
channels of music, sports, news, entertainment, and
programming for children, directly from its satellites and
broadcasting studios. A one-year SiriusXM™ Satellite
Radio subscription is included.
SiriusXM™ and all related marks and logos are trade-
marks of SiriusXM™ Radio Inc. and its subsidiaries.
SiriusXM™ Satellite Radio requires a subscription, sold
separately after trial subscription included with vehicle
purchase. Prices and programming are provided by
SiriusXM™ and are subject to change. Subscriptions
governed by Terms & Conditions available at sirius.com/
serviceterms. SiriusXM™ Radio U.S. service only avail-
able to those at least 18 years of age in the 48 contiguous
United States, D.C., and PR. Service available in Canada;
see www.siriuscanada.ca.
26 Uconnect™ ACCESS USER’S MANUAL
This functionality is only available for radios equipped
with a Satellite receiver. In order to receive satellite radio,
the vehicle needs to be outside with a clear view to the
sky.
If the screen shows Acquiring Signal, you might have to
change the vehicle’s position in order to receive a signal.
In most cases, the satellite radio does not receive a signal
in underground parking garages or tunnels.
Audio
1. Press the SETTINGS hard-key on the right side of the
unit.
2. Then scroll down and press the Audio soft-key to get
to the Audio menu.
3. The Audio Menu shows the following options for you
to customize your audio settings.
Equalizer
•Touch the Equalizer soft-key to adjust the Bass, Mid
and Treble. Use the + or - soft-key to adjust the
equalizer to your desired settings. Press the back
arrow soft-key when done.
Balance/Fade
•Touch the Balance/Fade soft-key to adjust the sound
from the speakers. Use the arrow soft-key to adjust the
sound level from the front and rear or right and left
side speakers. Touch the Center 9C9soft-key to reset
the balance and fade to the factory setting. Press the
back arrow soft-key when done.

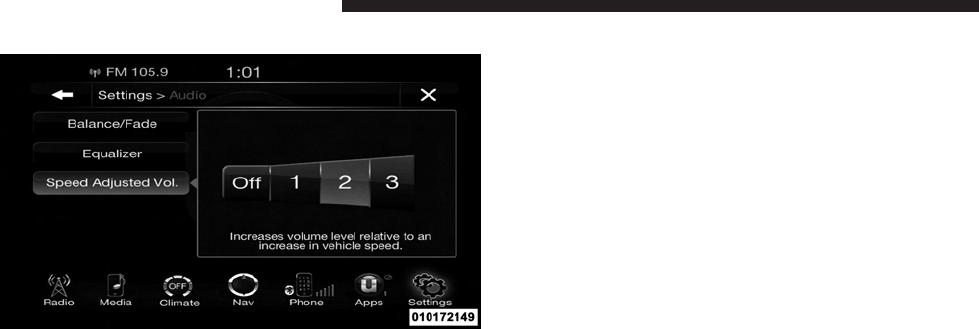

Speed Adjustable
•Touch the Speed Adjusted Volume soft-key to select
between OFF, 1, 2 or 3. This will decrease the radio
volume relative to a decrease in vehicle speed. Press
the back arrow soft-key when done.
Loudness
1
Uconnect™ ACCESS USER’S MANUAL 27
•Touch the Loudness soft-key to select the Loudness
feature. When this feature is activated it improves
sound quality at lower volumes.
Clock Setting
There are two ways to enter the clock setting procedure
on the Uconnect™ 5.0 system.
1. Press the More hard-key on the right side of the
display, next press the Time soft-key and then press
the Set soft-key. OR Press the Settings hard-key on the
right side of the display, then press the Clock soft-key.
The Time setting screen is displayed and the clock can
be adjusted as described in the following procedure.
NOTE: In the Clock Setting Menu you can also select
Display Clock. Display Clock turns the clock display in
the status bar on or off.
2. Touch the Up or Down arrows to adjust the hours or
minutes, next select the AM or PM soft-key. You can
also select 12hr or 24hr format by touching the desires
soft-key.
3. Once the time is set press the “Done” soft-key to exit
the time screen.
Media Mode
Media Mode is entered by touching the Media hard-key
located on the side of the display. Once in Media Mode,
touch Source soft-key and the desired mode soft-key.
Disc, USB, AUX and Bluetooth are the Media sources
available.
Common Media Functions
Seek Up/Down
Touch and release the right arrow soft-key for the next
selection. Touch and release the left arrow soft-key to
return to the beginning of the current selection, or return
28 Uconnect™ ACCESS USER’S MANUAL
to the beginning of the previous selection if the Disc is
within the first second of the current selection.
Fast Seek Up: Touch and hold the right arrow soft-key
and the desired mode will begin to fast forward through
the current track until the soft-key is released.
Fast Seek Down: Touch and hold the left arrow soft-key
and the desired mode will begin to rewind through the
current track until the soft-key is released.
Source
Touch the Source soft-key to select the desired audio
source, Disc, AUX or USB/iPodt. This screen will time
out after a few seconds and return to the main radio
screen if no selection is made.
Info
Touch the Info soft-key to display the current track
information. Touch the “X” soft-key to cancel this feature.
Shuffle
Touch the shuffle soft-key to play the selections on the
USB/iPodtdevice in random order to provide an inter-
esting change of pace. Touch the soft-key a second time to
turn this feature off.
Audio
Refer to Operating Instructions – Radio Mode for adjust-
ing the audio settings.
Disc Mode
If Equipped, your vehicle may have a remote Disc player
located in the lower center console storage bin.
Disc Mode is entered by either inserting a CD/Disc or by
touching the Media hard-key located on the side of the
display. Once in Media Mode, touch the source soft-key
and select Disc.
Inserting Compact Disc
1
Uconnect™ ACCESS USER’S MANUAL 29
Gently insert one Disc into the Disc player with the Disc
label following the illustration indicated on the player.
The Disc will automatically be pulled into the Disc player
and the Disc icon will illuminate on the radio display. If
a Disc does not go into the slot more than 1.0 in (2.5 cm),
a disc may already be loaded and must be ejected before
a new Disc can be loaded.
If you insert a Disc with the ignition ON and the radio
ON, the unit will switch to Disc mode and begin to play
when you insert the Disc. The display will show the track
number, and index time in minutes and seconds. Play
will begin at the start of track 1.
Browse
Touch the browse soft-key to scroll through and select a
desired track on the Disc. Touch the exit soft-key if you
wish to cancel the browse function.
Eject Button – Ejecting a Disc
Press the EJECT button to eject the Disc. If you have
ejected a Disc and have not removed it within 10 seconds,
it will be reloaded. If the Disc is not removed, the radio
will reinsert the Disc but will not play it.
A Disc can be ejected with the radio and ignition OFF.
USB/iPodtMode
USB/iPodtMode is entered by either inserting a USB
Jump Drive or iPodtcable into the USB port or by
touching the Media hard-key located left of the display.
Once in Media Mode, touch the source soft-key and select
USB/iPodt.
Inserting USB/iPodtDevice
Gently insert the USB/iPodtdevice into the USB Port. If
you insert a USB/iPodtdevice with the ignition ON, the
unit will switch to USB/iPodtmode and begin to play
30 Uconnect™ ACCESS USER’S MANUAL
when you insert the device. The display will show the
track number, and index time in minutes and seconds.
Play will begin at the start of track 1.
Browse
Touch the Browse soft-key to select Artist, Albums,
Genres, Songs, Playlists or Folders from the USB/iPodt
device. Once the desired selection is made you can chose
from the available media by touching the soft-key. Touch
the exit soft-key if you wish to cancel the browse func-
tion.
AUX Mode
AUX Mode is entered by inserting a AUX device using a
cable with a 3.5 mm audio jack into the AUX port or by
touching the Media hard-key located left of the display.
Once in Media Mode, touch the source soft-key and select
AUX.
Inserting Auxiliary Device
Gently insert the Auxiliary device cable into the AUX
Port. If you insert a Auxiliary device with the ignition
ON, the unit will switch to AUX mode and begin to play
when you insert the device cable.
Controlling the Auxiliary Device
The control of the auxiliary device (e.g., selecting play-
lists, play, fast forward, etc.) cannot be provided by the
radio; use the device controls instead. Adjust the volume
with the VOLUME rotary knob, or with the volume of the
attached device.
NOTE: The vehicle radio unit is acting as the amplifier
for audio output from the Auxiliary device. Therefore if
the volume control on the Auxiliary device is set too low,
there will be insufficient audio signal for the radio unit to
play the music on the device.
BluetoothtMode
1
Uconnect™ ACCESS USER’S MANUAL 31
BluetoothtStreaming Audio (BTSA) or BluetoothtMode
is entered by pairing a Bluetoothtdevice, containing
music, to the Uconnect™ Access system.
Before proceeding, the Bluetoothtdevice needs to be
paired through Uconnect™ Phone in order to communi-
cate with the Uconnect™ Access System.
NOTE: See the pairing procedure in the in this manual
for further details.
Once the Bluetoothtdevice is paired to the Uconnect™
Access System, touch the Media hard-key located on the
left side of the display. Once in Media Mode, touch the
source soft-key and select Bluetootht.

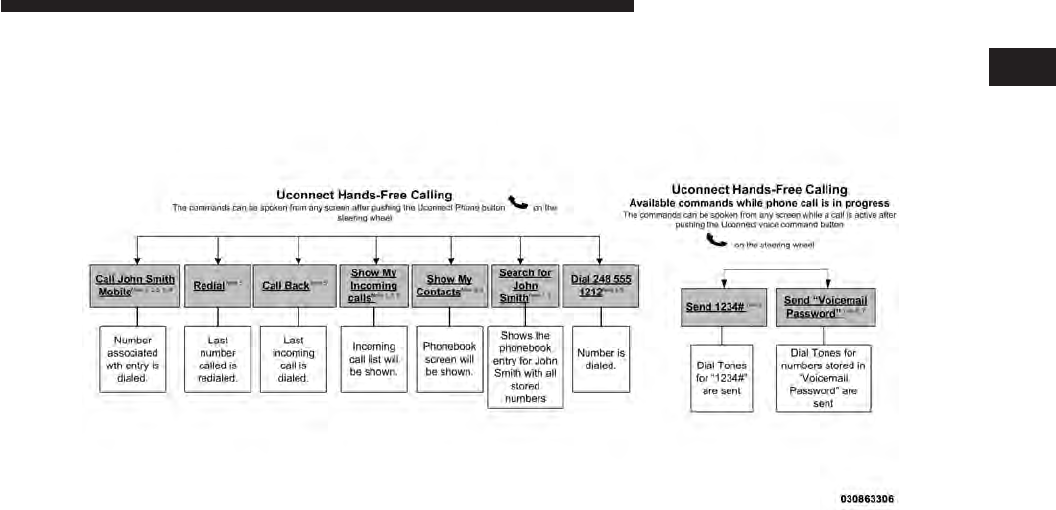

Uconnect™ Phone
The Uconnect™ Phone is a voice-activated, hands-free,
in-vehicle communications system with Voice Command
Capability (see Voice Command section).
The Uconnect™ Phone allows you to dial a phone
number with your mobile phone using simple voice
commands.
NOTE:
•The Uconnect™ Phone requires a mobile phone
equipped with the BluetoothtHands-Free Profile,
Version 1.0 or higher. For Uconnect™ customer sup-
port, call 1–877–855–8400 or visit www.Uconnect-
Phone.com.
•Prior to starting the pairing procedure, ensure all
additional Bluetoothtdevices or phones within the
vehicle have their Bluetoothtdisabled.

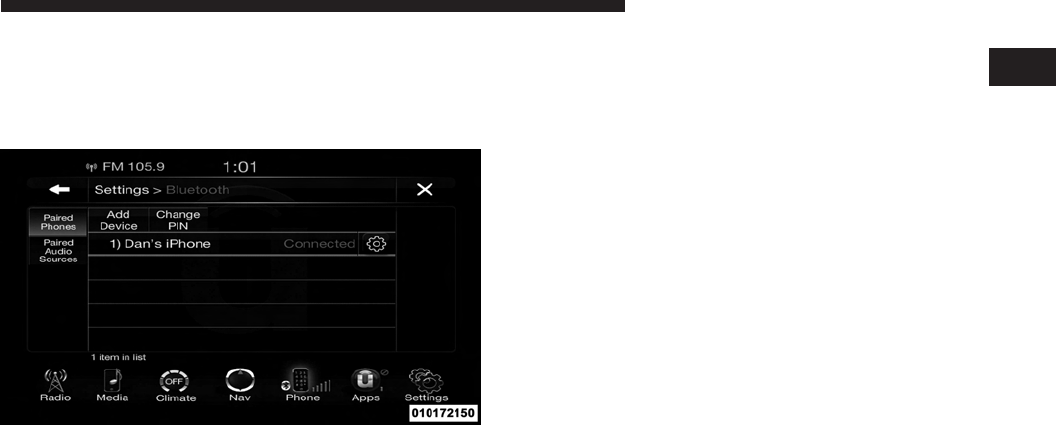

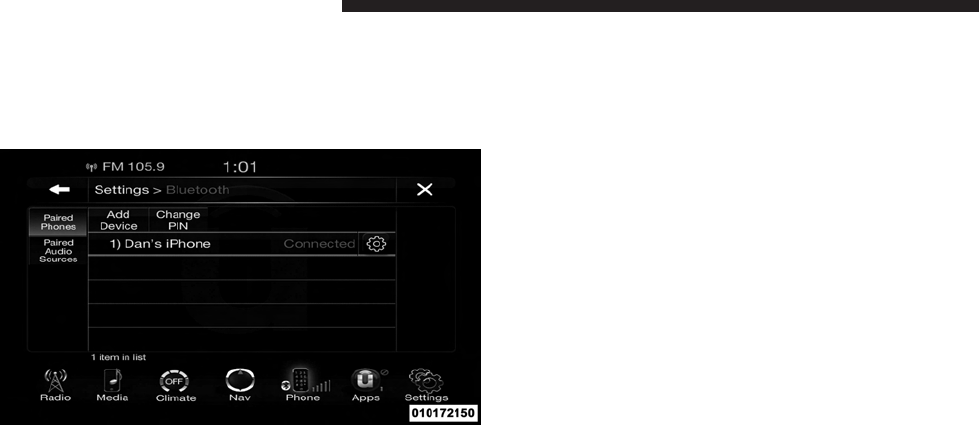

Pairing a Phone
To use the Uconnect™ Phone feature, you must first pair
your Bluetoothtphone with the Uconnect™ system.
Refer to www.UconnectPhone.com for pairing procedure
unique to your phone.
32 Uconnect™ ACCESS USER’S MANUAL
Start Pairing Procedure
•Press the “Phone” button to begin.
•Wait for the “ready” prompt and BEEP.
•(After the BEEP), say “Setup Phone Pairing”.
•(After the BEEP), say “Pair a Phone”.
•Follow the audible prompts.
•You will then be asked if paired device should be set to
favorite.
Device
•Uconnect™ Phone will say 9Start pairing procedure on
device9
•Search for available devices on your Bluetoothten-
abled mobile phone. This is usually within Settings or
Options under “Bluetooth”. See your mobile phone’s
manual for details.
NOTE: For assistance in pairing your phone, contact
Uconnect™ customer support at 1–877–855–8400 or visit
www.UconnectPhone.com for phone compatibility, pair-
ing instructions and details.
•When your phone finds the system, select “Uconnect”
as the paired device.
•When prompted on the phone, enter the 4-digit PIN
number shown on the radio display.
•If your phone asks you to accept a connection request
from Uconnect, select “Yes”. If available, check the box
telling it not to ask again – that way your phone will
automatically connect each time you start the vehicle.
Phonebook Download – Phonebook Transfer From
Mobile Phone
If equipped and specifically supported by your phone,
Uconnect™ Phone will ask you if you want to download
1
Uconnect™ ACCESS USER’S MANUAL 33
names (text names) and number entries from your mobile
phone’s phonebook. Specific BluetoothtPhones with
Phone Book Access Profile may support this feature. See
www.UconnectPhone.com for supported phones.
Download and update, if supported, begins as soon as
the Bluetoothtwireless phone connection is made to the
Uconnect™ Phone, for example, after you start the ve-
hicle.
NOTE:
•You may be asked for permission to initiate the phone-
book download.
•A maximum of 1000 entries per phone will be down-
loaded and updated every time a phone is connected
to the Uconnect™ Phone.
•Depending on the maximum number of entries down-
loaded, there may be a short delay before the latest
downloaded names can be used. Until then, if avail-
able, the previously downloaded phonebook is avail-
able for use.
•Only the phonebook of the currently connected mobile
phone is accessible.
•Only the mobile phone’s phonebook is downloaded.
SIM card phonebook is not part of the Mobile
phonebook.
•This downloaded phonebook cannot be edited or
deleted on the Uconnect™ Phone. These can only be
edited on the mobile phone. The changes are trans-
ferred and updated to Uconnect™ Phone on the next
phone connection.

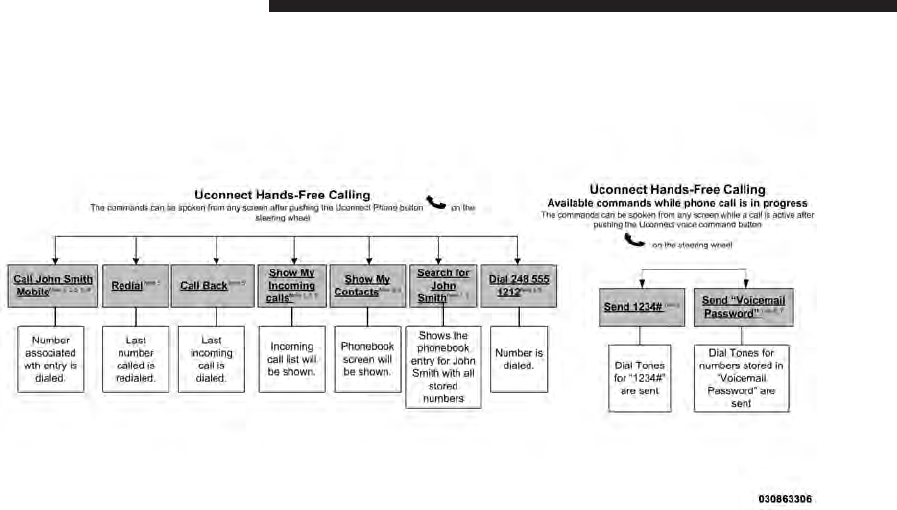

Making A Phone Call
Press the “Phone” button.
(After the BEEP), say “dial” (or “call” a name).
34 Uconnect™ ACCESS USER’S MANUAL
Receiving A Call – Accept (And End)
When an incoming call rings or is announced on
Uconnect™, press the Phone button.
To end a call, press the Phone button on steering wheel or
the Phone soft-key on the radio screen.
Mute (Or Unmute) Microphone During Call
During a call, press the “Voice Command” button.
(After the BEEP), say “mute” (or “mute off”).
Transfer Ongoing Call Between Handset And Vehicle
During a call, press the “Voice Command” button.
(After the BEEP), say “transfer call”.
Changing The Volume
Start a dialogue by pressing the “Phone” button , then
adjust the volume during a normal call.
Use the radio VOLUME rotary knob to adjust the volume
to a comfortable level while the Uconnect™ system is
speaking. Please note the volume setting for Uconnect™
is different than the audio system.

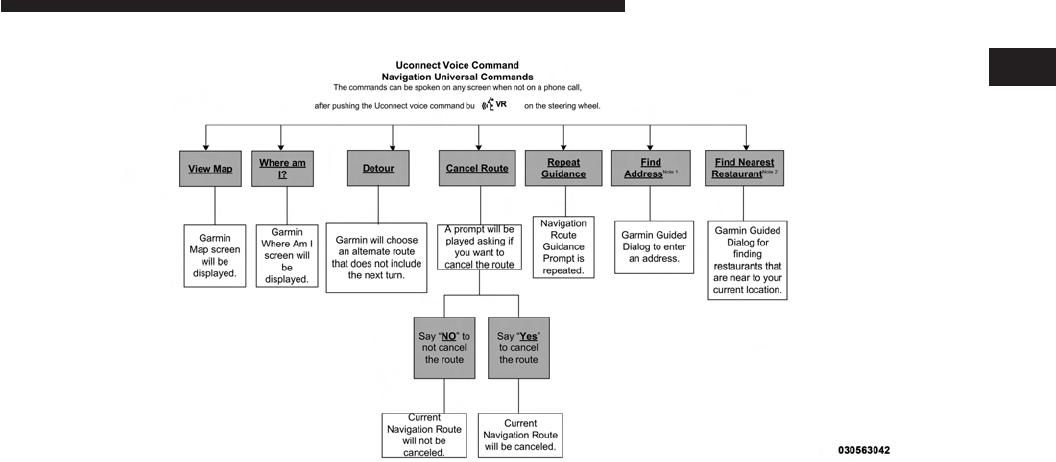

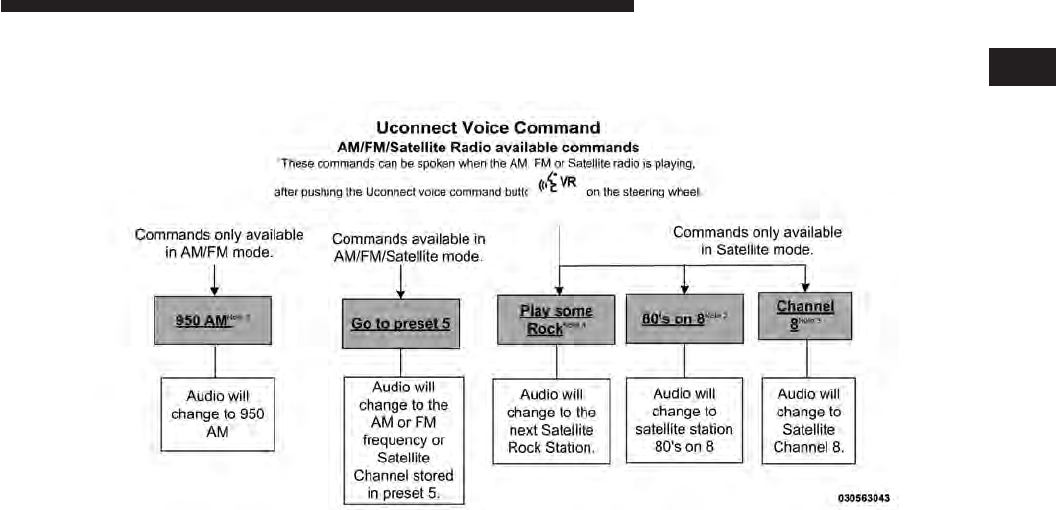

Uconnect™ Voice Command
The Uconnect™ Voice Command system allows you to
control your AM, FM, satellite radio, CD player,
Uconnect™ Phone and supported portable media de-
vices.
When you press the “Voice Command” button located on
the steering wheel, you will hear a beep. The beep is your
signal to give a command. If you do not say a command
within a few seconds, the system will present you with a
list of options. If you ever wish to interrupt the system
while it lists options, press the “Voice Command” button
, listen for the BEEP, and say your command.

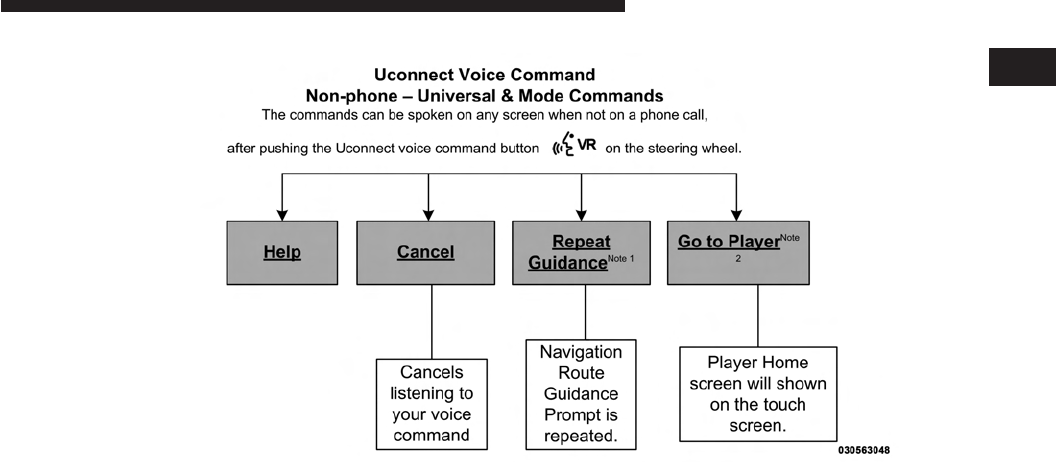

Voice Command Operation
1
Uconnect™ ACCESS USER’S MANUAL 35
Start a dialogue by pressing the “Voice Command”
button , you will hear a beep. The beep is your signal to
give a command. Below are a list of voice commands for
each of the different modes.
NOTE: To access the tutorial, press the “Voice Com-
mand” button . After the BEEP, say “tutorial”. Press any
hard-key/button or touch the display (Touch-Screen ra-
dio) to cancel the tutorial.

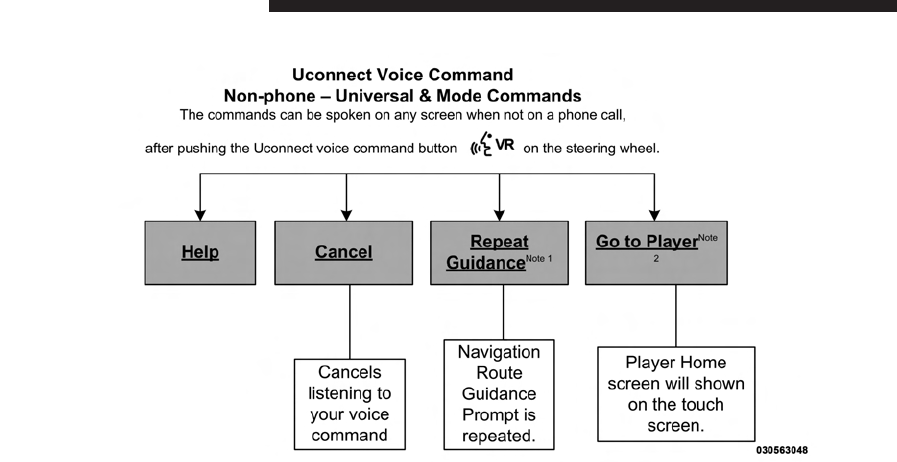

Common Voice Commands (Examples)
Main Menu “Radio AM” (to switch to the AM mode)
“Radio FM” (to switch to the FM mode)
“Satellite Radio” (to switch to the Satellite mode)
“Disc” (to switch to the disc mode)
“USB” (to switch to the USB mode)
“Bluetooth Streaming” (to switch to the Bluetooth Streaming mode)
“Memo” (to switch to the memo recorder)
“System Setup” (to switch to system setup)
36 Uconnect™ ACCESS USER’S MANUAL

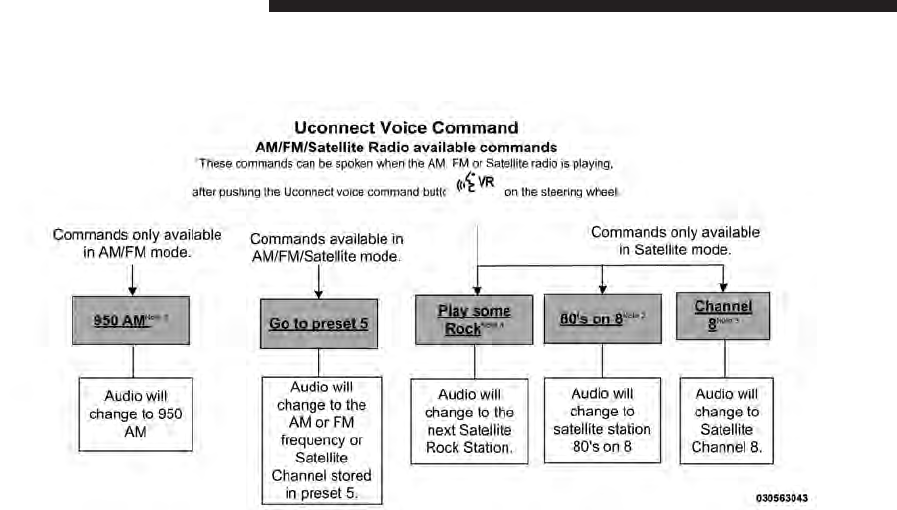

Radio AM, Radio FM
Modes
“Frequency 97.1” (to change to radio station 97.1)
“Frequency” (to change the frequency)
“Next Station” (to select the next station)
“Previous Station” (to select the previous station)
“Radio Menu” (to switch to the radio menu)
“Main Menu” (to switch to the main menu)
SiriusXM™ Satellite Ra-
dio Mode
“Channel Number” (to change the channel by its spoken number)
“Next Channel” (to select the next channel)
“Previous Channel” (to select the previous channel)
“List Channel” (to hear a list of available channels)
“Channel Name” (to change the channel by its spoken name)
“Radio Menu” (to switch to the radio menu)
“Main Menu” (to switch to the main menu)
Disc Mode “Track” (#) (to change the track)
“Next Track” (to play the next track)
“Previous Track” (to play the previous track)
“Main Menu” (to switch to the main menu)
1
Uconnect™ ACCESS USER’S MANUAL 37

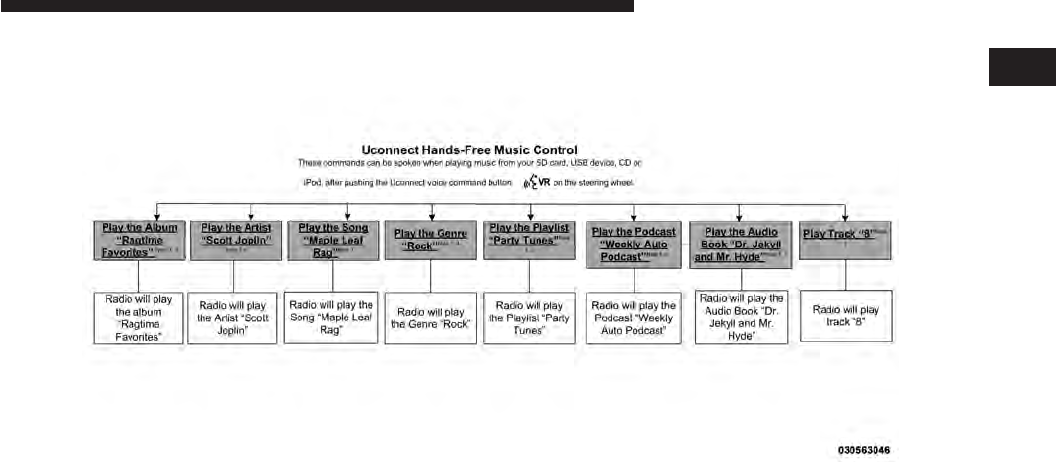

USB Mode “Next Track” (to play the next track)
“Previous Track” (to play the previous track)
“Play” (to play a Artist Name, Playlist Name, Album Name, Track Name, etc.)
“List” (to List a Artist, Playlist, Album, Track, etc.)
BluetoothtStreaming
(BT) Mode
“Next Track” (to play the next track)
“Previous Track” (to play the previous track)

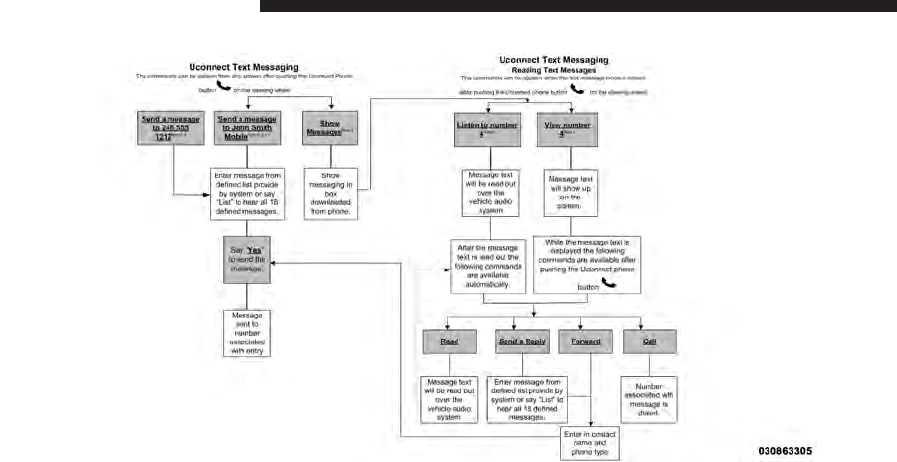

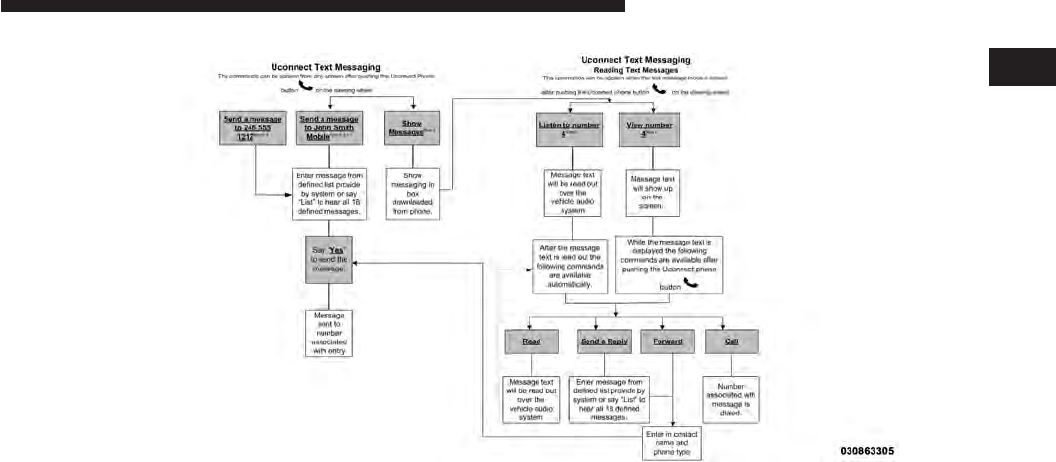

SMS (Text Messaging)
If equipped with Uconnect™ Voice Command, your
radio may be able to play incoming Short Message
Service (SMS) messages (text messages) through the
vehicle’s sound system.
It also allows you to respond by selecting from various
pre-defined phrases.
Not all phones are compatible with this feature. Refer to
the phone compatibility list at www.Uconnect-
Phone.com. Connected mobile phones must be
bluetooth-compatible, and paired with your radio.
Press the “Voice Command” button and after the BEEP,
say “SMS” to get started.
WARNING!
ALWAYS drive safely with your hands on the wheel.
You have full responsibility and assume all risks
related to the use of the Uconnect™ features and
applications in this vehicle. Only use Uconnect™
when it is safe to do so. Failure to do so may result in
an accident involving serious injury or death.
38 Uconnect™ ACCESS USER’S MANUAL
Settings Main Menu
Press the Settings hard-key to display the Settings Main
Menu. The Settings Main Menu contains the following
options:
•Display — Refer to “Understanding Your Instrument
Panel”, “Uconnect™ Access System” section in your
vehicle Owner’s Manual on the DVD for details.
•Clock — Refer to the “Radio” section for details.
•Safety/Assistance — Refer to “Understanding Your
Instrument Panel”, “Uconnect™ Access System” sec-
tion in your vehicle Owner’s Manual on the DVD for
details.
•Lights — Refer to “Understanding Your Instrument
Panel”, “Uconnect™ Access System” section in your
vehicle Owner’s Manual on the DVD for details.
•Doors & Locks — Refer to “Understanding Your
Instrument Panel”, “Uconnect™ Access System” sec-
tion in your vehicle Owner’s Manual on the DVD for
details.
•Heated Seats — Refer to “Understanding The Features
Of Your Vehicle”, “Seats” section in your vehicle
Owner’s Manual on the DVD for details.
•Engine Off Options — Refer to “Understanding Your
Instrument Panel”, “Uconnect™ Access System” sec-
tion in your vehicle Owner’s Manual on the DVD for
details.
•Compass Settings — Refer to “Understanding Your
Instrument Panel”, “Uconnect™ Access System” sec-
tion in your vehicle Owner’s Manual on the DVD for
details.
•Audio — Refer to the Operating Instructions – Radio
section in this manual for details.
1
Uconnect™ ACCESS USER’S MANUAL 39
•Phone/Bluetooth — Refer to the “Uconnect™ Phone”
section in this manual for details.
•Sirius Setup — Refer to the “Radio” section in this
manual for details.
More Main Menu
Press the More hard-key to display the More Main Menu.
The More Main Menu contains the following options:
•Phone — Refer to the “Uconnect™ Phone” section in
this manual for details.
•Outlet (If Equipped) — Refer to “Understanding The
Features Of Your Vehicle”, “Power Inverter” section in
your vehicle Owner’s Manual on the DVD for details.
•Time — Refer to the Uconnect™ 5.0 “Radio Mode”
section in this manual for details.
40 Uconnect™ ACCESS USER’S MANUAL
Uconnect™ 8.4A
Uconnect™ 8.4A System
1. Radio
Touch the Radio soft-key to enter the Radio Mode. The
different tuner modes; AM, FM and SXM can be selected
by touching the corresponding soft-keys in the Radio
Mode.
2. Media
Touch the Media soft-key to access media sources such
as: Disc, USB Device and AUX as long as the requested
media is present.
3. Climate
Refer to Climate Controls in your vehicles Owner’s
Manual on the DVD for further details.
4. Nav (If Equipped)
The Uconnect™ 8.4A System is Navigation-ready, see
your authorized dealer for details.
5. Phone
1
Uconnect™ ACCESS USER’S MANUAL 41
Touch the Phone soft-key to access the Uconnect™ Phone
feature.
6. Apps
Touch the Apps soft-key to access Smartphone and
Connected vehicle options.
7. Settings
Touch the Settings soft-key to display the list of available
settings. Refer to Understanding Your Instrument Panel
section in your vehicles Owner’s Manual on the DVD for
further details.
8. ENTER/BROWSE & TUNE/SCROLL
Press the ENTER/BROWSE button to accept a high-
lighted selection on the screen. Rotate the TUNE/
SCROLL rotary knob to scroll through a list or tune a
radio station.
9. BACK
Press the BACK button to return to a previous menu or
screen.
10. SCREEN OFF
Press the SCREEN OFF hard-key to turn the touch-screen
OFF. To turn the screen back ON, just touch the screen.
11. VOLUME & MUTE
Rotate the rotary knob to adjust the Volume. Press the
Mute button to mute the system.
Radio Mode
The radio is equipped with the following modes:
•FM
•AM
•SiriusXM™ Satellite Radio (if equipped)
42 Uconnect™ ACCESS USER’S MANUAL
Touch the RADIO Soft Key, bottom left corner, to enter
the Radio Mode. The different tuner modes; AM, FM, and
SAT, can then, be selected by touching the corresponding
soft-keys in the Radio mode.
ON/OFF & Volume Control
Push the ON/OFF Volume control knob to turn on the
radio. Push the ON/OFF Volume control knob a second
time to turn off the radio.
The electronic volume control turns continuously (360
degrees) in either direction, without stopping. Turning
the Volume control knob clockwise increases the volume,
and counter-clockwise decreases it.
When the audio system is turned on, the sound will be
set at the same volume level as last played.
Tune/Scroll Control
Turn the rotary TUNE/SCROLL control knob clockwise
to increase or counterclockwise to decrease the radio
station frequency. Push the ENTER/BROWSE button to
choose a selection.
Screen Close
The Red X Soft key at the top right, provides a means to
close the Direct Tune Screen. The Direct Tune Screen also
auto closes if no activity occurs within 10 seconds.
Seek and Direct Tune Functions
The Seek Up and Down functions are activated by
touching the double arrow soft-keys to the right and left
of the radio station display, or by pressing the left
Steering Wheel Audio Control (if equipped) up or down.
Seek Up
Touch and release the Seek Up soft-key to tune the radio
to the next listenable station or channel. During a Seek
1
Uconnect™ ACCESS USER’S MANUAL 43
Up function, if the radio reaches the starting station after
passing through the entire band two times, the radio will
stop at the station where it began.
Fast Seek Up
Touch and hold the Seek Up soft-key to advance the radio
through the available stations or channels at a faster rate,
the radio stops at the next available station or channel
when the soft-key is released.
Seek Down
Touch and release the Seek Down soft-key to tune the
radio to the next listenable station or channel. During a
Seek Down function, if the radio reaches the starting
station after passing through the entire band two times,
the radio will stop at the station where it began.
Fast Seek Down
Touch and hold the Seek Down soft-key to advance the
radio through the available stations or channel at a faster
rate, the radio stops at the next available station or
channel when the soft-key is released.
Direct Tune
Press the Tune soft-key located at the bottom of the radio
screen. The Direct Tune soft-key screen is available in
AM, FM, and SAT radio modes and can be used to direct
tune the radio to a desired station or channel.
Press the available number soft-key to begin selecting a
desired station. Once a number has been entered, any
numbers that are no longer possible (stations that cannot
be reached) will become deactivated / grayed out.
Undo
You can backspace an entry by touching the bottom left
Undo soft key.
GO
44 Uconnect™ ACCESS USER’S MANUAL
When touched, the green GO soft key allows the you to
commit an entry, at which time the radio will tune to the
entered station or channel and close the Direct Tune
Screen.
The selected Station or Channel number is displayed in
the Direct Tune text box.
Setting Presets
The Presets are available for all Radio Modes, and are
activated by touching any of the six Preset soft keys,
located at the top of the screen.
When you are receiving a station that you wish to
commit into memory, press and hold the desired num-
bered soft-key for more that 2 seconds or until you hear
a confirmation beep.
The Radio stores up to 12 presets in each of the Radio
modes. A set of 6 presets are visible at the top of the radio
screen.
You can switch between the two radio presets by touch-
ing the arrow soft key located in the upper right of the
radio screen.
Browse in AM/FM
When in either AM or FM, the Browse Screen provides a
means to edit the Presets List and is entered by touching
the browse soft key.
Scrolling Preset List
Once in the Browse Presets screen, you can scroll the
preset list by rotation of the Tune Knob, or by touching
the Up and Down arrow keys, located on the right of the
screen.
Preset Selection from List
A Preset can be selected by touching any of the listed
Presets, or by pressing the ENTER/BROWSE button on
the Tune Knob to select the currently highlighted Preset.
1
Uconnect™ ACCESS USER’S MANUAL 45
When selected, the radio tunes to the station stored in the
Preset and returns to the main radio screen.
Deleting Presets
A Preset can be deleted in the Presets Browse screen by
touching the Trash Can Icon for the corresponding Preset.
Return to Main Radio Screen
You can return to the Main Radio Screen, by touching the
X soft key when in the Browse Presets screen.
SiriusXM™ Satellite Radio Mode
SiriusXM™ Satellite radio uses direct satellite-to-receiver
broadcasting technology to provide clear digital sound,
coast to coast. The subscription service provider is Siri-
usXM™ Satellite Radio. This service offers over 130
channels of music, sports, news, entertainment, and
programming for children, directly from its satellites and
broadcasting studios. A one-year SiriusXM™ Satellite
Radio subscription is included.
SiriusXM™ and all related marks and logos are trade-
marks of SiriusXM™ Radio Inc. and its subsidiaries.
SiriusXM™ Radio requires a subscription, sold sepa-
rately after trial subscription included with vehicle pur-
chase. Prices and programming are provided by Siri-
usXM™ and are subject to change. Subscriptions
governed by Terms & Conditions available at sirius.com/
serviceterms. SiriusXM™ Radio U.S. service only avail-
able to those at least 18 years of age in the 48 contiguous
United States, D.C., and PR. Service available in Canada;
see www.siriuscanada.ca.
This functionality is only available for radios equipped
with a Satellite receiver. In order to receive satellite radio,
the vehicle needs to be outside with a clear view to the
sky.
46 Uconnect™ ACCESS USER’S MANUAL
If the screen shows Acquiring Signal, you might have to
change the vehicle’s position in order to receive a signal.
In most cases, the satellite radio does not receive a signal
in underground parking garages or tunnels.
No Subscription
Radios equipped with a Satellite receiver, require a
subscription to the Sirius Service. When the Radio does
not have the necessary subscription, the Radio is able to
receive the Traffic/Weather channel only.
Acquiring SiriusXM™ Subscription
To activate the Sirius subscription, call the toll free
number on the Weather channel. You will need to pro-
vide the Sirius ID (SID) located at the bottom of the
Channel 0 screen.
The Satellite Mode is activated by a touch of the SAT
soft-key.
When in Satellite mode:
•The SAT button is highlighted blue.
•The SiriusXM™ Presets are displayed at the top of the
screen.
•The Genre is displayed below the Presets Bar.
•The SiriusXM™ Channel Number is displayed in the
center.
•The Program Information is displayed at the bottom of
the Channel Number.
•The SiriusXM™ function soft-keys are displayed be-
low the Program Information.
Tuning is done by operating the Tune Knob or by Direct
Tune, similar to other Radio Bands, see Presets, browse,
Tune Knob, and Direct Tune.
1
Uconnect™ ACCESS USER’S MANUAL 47
In addition to the tuning Operation functions common to
all Radio modes, the replay, Traffic/Weather Jump, and
fav soft-key functions are available in SiriusXM™ Mode.
Replay
The replay function provides a means to store and replay
up to 22 minutes of music audio and 48 minutes of talk
radio. Once the channel is switched, content in replay
memory is lost
Touch the replay soft-key. The play/pause, rewind/
forward and live soft-keys will display at the top of the
screen, along with the replay time.
You can exit by touching the replay soft-key, any time
during the Replay mode.
Play/Pause
Touch the Pause or Play soft-key to pause playing of the
content at any time that the content is playing live or
rewound content. Play can be resumed again by touching
of the Pause/Play soft-key.
Rewind
Touch the RW soft-key to rewind the content in steps of
5 seconds. Touching the RW soft-key for more than 2
seconds rewinds the content. The Radio begins playing
the content at the point at which the touch is released.
Forward
Each touch of the FW soft-key forwards the content in
steps of 5 seconds. Forwarding of the content can only be
done when the content is previously rewound, and
therefore, can not be done for live content. A continuous
touch of the FW soft-key also forwards the content. The
Radio begins playing the content at the point at which the
touch is release.
48 Uconnect™ ACCESS USER’S MANUAL
Live
Touch the Live soft-key to resume playing of Live con-
tent.
Favorites
Touch the fav. soft-key to activate the favorites menu,
which will time out in 5 seconds in absence of user
interaction.
You can exit the Favorites Menu by a touch of the X in the
top right corner.
The favorites feature enables you to set a favorite artist,
or song that is currently playing. The Radio then uses this
information to alert you when either the favorite song, or
favorite artist are being played at any time by any of the
SIRIUS Channels.
The maximum number of favorites that can be stored in
the Radio is 50.
Fav. Artist While the song is playing to set a Favorite
Artist, touch the fav. soft-key and then the Fav. Artist
soft-key.
Fav. Song While the song is playing to set a Favorite
Song, touch the fav. soft-key and then the Fav Song
soft-key.
Traffic & Weather
Touch the Traffic & Weather soft-key to tune to a Siri-
usXM™ Traffic and Weather channel. To set a Traffic &
Weather alert for any one of the cities in the Jump Browse
list, see Browse in SAT.
When the Traffic & Weather soft-key is touched, the
Traffic & Weather channel is tuned.
If the Traffic & Weather alert City is not set, you are
presented with a pop up to allow you to select the
favorite city using the Browse Screen.
1
Uconnect™ ACCESS USER’S MANUAL 49
Browse in SAT
Touch the browse soft-key to edit Presets, Favorites,
Game Zone, and Jump settings, along with providing the
SiriusXM™ Channel List.
This Screen contains many sub menus. You can exit a sub
menu to get back to a parent menu by a touch of the Back
Arrow.
All
Touch the All soft-key at the left of the Browse Screen.
Channel List
Touch the Channel List to display all the SiriusXM™
Channel Numbers along with the corresponding Genre.
You can scroll the Channel list by touching the up and
down arrows, located on the right side of the screen.
Scrolling can also be done by operating the Tune/Scroll
Knob.
Genre
Touch the Genre button to display a list of Genres. You
can select any desired Genre by touching the Genre list, at
which point, the Radio tunes to a channel with the
content in the selected Genre.
Presets
Touch the Presets soft-key located at the left of the
Browse screen.
You can scroll the Presets list touching the up and down
arrows, located at the right side of the screen. Scrolling
can also be done by operating the Tune/Scroll Knob as
well.
Preset Selection
A Preset can be selected by touching any of the listed
Presets, or by pressing the ENTER/BROWSE button on
the Tune Knob to select the currently highlighted Preset.
50 Uconnect™ ACCESS USER’S MANUAL
When selected, the Radio tunes to the station stored in
the Preset, and returns to the main Radio screen.
Deleting a Preset
A Preset can be deleted in the Presets Browse screen by
touching the Trash Can Icon for the corresponding Preset.
Favorites
Touch the Favorites soft-key, located at the left of the
Browse screen.
The Favorites menu provides a means to Edit the Favor-
ites list and to configure the Alert Settings, along with
providing a list of Channels currently airing any of the
items in the Favorites list.
You can scroll the Favorites list touching the up and
down arrows, located at the right side of the screen.
Scrolling can also be done by operating the Tune/Scroll
Knob as well.
Remove Favorites
Touch the Remove Favorites tab at the top of the screen.
Touch the Delete All soft-key to delete all of the Favorites
or touch the Trash Can icon next to the Favorite to be
deleted.
Alert Settings
Touch the Alert Setting tab at the top of the screen. The
Alert Settings menu allows you to choose from a Visual
alert or Audible and Visual alert when one of your
favorites is airing on any of the SiriusXM™ channels.
Game Zone
Touch the Game Zone soft-key, located at the left of the
Browse screen. This feature provides you with the ability
to select teams, edit the selection, and set alerts.
On Air
1
Uconnect™ ACCESS USER’S MANUAL 51
Touch the On-Air tab at the top of the screen. The On-Air
list provides a list of Channels currently airing any of the
items in the Selections list, and touching any of the items
in the list tunes the radio to that channel.
Select Teams
Touch the Select Teams soft-key to activate the League
Scroll list. Touch the chosen league and a scroll list of all
teams within the league will appear, then you can select
a team by touching the corresponding box. A check mark
appears for all teams that are chosen.
Remove Selection
Touch the Remove Selection tab at the top of the screen.
Touch the Delete All soft-key to delete all of the Selections
or touch the Trash Can icon next to the Selection to be
deleted.
Alert Settings
Touch the Alert Setting tab at the top of the screen. The
Alert Settings menu allows you to choose from “Alert me
to on-air games upon start” or “Alert upon score update”
or both when one or more of your selections is airing on
any of the SiriusXM™ channels.
Audio
Touch of the Audio soft-key to activate the Audio settings
screen to adjust Balance\Fade, Equalizer, And Speed
Adjusted Volume.
You can return to the Radio screen by touching the X
located at the top right.
Balance/Fade
52 Uconnect™ ACCESS USER’S MANUAL
Touch the Balance/Fade soft-key to Balance audio be-
tween the front speakers or fade the audio between the
rear and front speakers.
Touching the Front, Rear, Left, or Right soft-keys or touch
and drag the blue Speaker Icon to adjust the Balance/
Fade.
Equalizer
Touch the Equalizer soft-key to activate the Equalizer
screen.
Touch the + or - soft-keys, or by touching and dragging
over the level bar for each of the equalizer bands. The
level value, which spans between ±9, is displayed at the
bottom of each of the Bands.
1
Uconnect™ ACCESS USER’S MANUAL 53
Speed Adjusted Volume
Touch the Speed Adjusted Volume soft-key to activate the
Speed Adjusted Volume screen.
The Speed Adjusted Volume is adjusted by touching of
the + and - buttons or by touching, and dragging over the
Level Bar This alters the automatic adjustment of the
audio volume with variation to vehicle speed. Volume
increases automatically as speed increase to compensate
for normal road noise.
Surround System (If Equipped)
Touch the On soft-key to activate Surround Sound. Touch
Off to deactivate this feature.
When Surround Sound is On, you can hear audio coming
from every direction as in a movie theatre or home
theatre system.
Media Mode
OPERATING INSTRUCTIONS – DISC MODE
Overview
Disc Mode is entered by either inserting a Disc or touch
the Disc soft-key on the left side of the display. Once in
Media Mode, touch the source soft-key and select Disc.
54 Uconnect™ ACCESS USER’S MANUAL
A “No Disc” message will be displayed on the screen in
the Disc mode when a Disc is not present in the Radio.
Seek Up/Down
Touch and release the right arrow soft-key for the next
selection on the Disc. Touch and release the left arrow
soft-key to return to the beginning of the current selec-
tion, or return to the beginning of the previous selection
if the Disc is within the first second of the current
selection.
Browse
Touch the browse soft-key to display the browse window.
The left side of the browse window displays a list of ways
you can browse through the contents of the Disc. If
supported by the device, you can browse by Folders,
Artists, Playlists, Albums, Songs, etc. Touch the desired
soft-key on the left side of the screen. The center of the
browse window shows items and it’s sub-functions,
which can be scrolled by touching the Up and Down
soft-keys to the right. The Scroll/Tune knob can also be
used to scroll.
Source
Touch the Source soft-key to select the desired audio
source, Disc, USB/iPodt, SD Card, AUX or Bluetootht.
This screen will time out after a few seconds and return
to the main radio screen if no selection is made.
Repeat
Touch the repeat soft-key to toggle the repeat function-
ality. The Repeat soft-key is highlighted when active. The
Radio will continue to play the current track, repeatedly,
as long as the repeat is active.
Shuffle
1
Uconnect™ ACCESS USER’S MANUAL 55
Touch the shuffle soft-key to play the selections on the
compact disc in random order to provide an interesting
change of pace. Touch the soft-key a second time to turn
this feature off.
Info
Touch the Info soft-key to display the current track
information. Touch the Info soft-key a second time to
cancel this feature.
Tracks
Touch the trks soft-key to display a pop up with the Song
List. The currently playing song is indicated by an arrow
and lines above and below the song title.
OPERATING INSTRUCTIONS – USB/iPodt
MODE
Overview
USB/iPodtMode is entered by either inserting a USB
device or iPodtand cable into the USB Port or touch the
iPodtsoft-key on the left side of the display. Once in
Media Mode, touch the source soft-key and select iPodt.
Seek Up/Down
Touch and release the right arrow soft-key for the next
selection on the USB device/iPodt. Touch and release the
left arrow soft-key to return to the beginning of the
current selection, or return to the beginning of the
previous selection if the USB device/iPodtis within the
first second of the current selection.
Browse
Touch the browse soft-key to display the browse window.
The left side of the browse window displays a list of ways
you can browse through the contents of the USB device/
iPodt. If supported by the device, you can browse by
Folders, Artists, Playlists, Albums, Songs, etc. Touch the
56 Uconnect™ ACCESS USER’S MANUAL
desired soft-key on the left side of the screen. The center
of the browse window shows items and it’s sub-
functions, which can be scrolled by touching the Up and
Down soft-keys to the right. The Scroll/Tune knob can
also be used to scroll.
Source
Touch the Source soft-key to select the desired audio
source, Disc, USB/iPodt, SD Card, AUX or Bluetootht.
This screen will time out after a few seconds and return
to the main radio screen if no selection is made.
Repeat
Touch the repeat soft-key to toggle the repeat function-
ality. The Repeat soft-key is highlighted when active. The
Radio will continue to play the current track, repeatedly,
as long as the repeat is active.
Shuffle
Touch the shuffle soft-key to play the selections on the
USB/iPodtdevice in random order to provide an inter-
esting change of pace. Touch the soft-key a second time to
turn this feature off.
Info
Touch the Info soft-key to display the current track
information. Touch the Info soft-key a second time to
cancel this feature.
Tracks
Touch the trks soft-key to display a pop up with the Song
List. The currently playing song is indicated by an arrow
and lines above and below the song title. When in the
Tracks List screen you can rotate the TUNE/SCROLL
knob to highlight a track (indicated by the line above and
below the track name) and then press the ENTER/
BROWSE knob to start playing that track.
1
Uconnect™ ACCESS USER’S MANUAL 57
Touching the trks soft-key while the pop up is displayed
will close the pop up.
Audio
Refer to Radio Mode for adjusting the audio settings.
OPERATING INSTRUCTIONS – AUX MODE
Overview
AUX Mode is entered by inserting an AUX device using
a cable with a 3.5 mm audio jack into the AUX port or
touch the AUX soft-key on the left side of the display.
Once in Media Mode, touch the source soft-key and select
AUX.
Inserting Auxiliary Device
Gently insert the Auxiliary device cable into the AUX
Port. If you insert an Auxiliary device with the ignition
ON and the radio ON, the unit will switch to AUX mode
and begin to play when you insert the device cable.
Controlling the Auxiliary Device
The control of the auxiliary device (e.g., selecting play-
lists, play, fast forward, etc.) cannot be provided by the
radio; use the device controls instead. Adjust the volume
with the ON/OFF VOLUME rotary knob, or with the
volume of the attached device.
NOTE: The vehicle radio unit is acting as the amplifier
for audio output from the Auxiliary device. Therefore if
the volume control on the Auxiliary device is set too low,
there will be insufficient audio signal for the radio unit to
play the music on the device.
Source
Touch the Source soft-key to select the desired audio
source, Disc, USB/iPodt, SD Card, AUX or Bluetootht.
This screen will time out after a few seconds and return
to the main radio screen if no selection is made.
Audio
58 Uconnect™ ACCESS USER’S MANUAL
Refer to Radio Mode for adjusting the audio settings.
OPERATING INSTRUCTIONS – SD CARD
MODE
Overview
SD Card Mode is entered by either inserting a SD Card
into the USB Port or touch the SD Card soft-key on the
left side of the display. Once in Media Mode, touch the
source soft-key and select SD Card.
Seek Up/Down
Touch and release the right arrow soft-key for the next
selection on the SD Card. Touch and release the left arrow
soft-key to return to the beginning of the current selec-
tion, or return to the beginning of the previous selection
if the SD Card is within the first second of the current
selection.
Browse
Touch the browse soft-key to display the browse window.
The left side of the browse window displays a list of ways
you can browse through the contents of the SD Card. If
supported by the device, you can browse by Folders,
Artists, Playlists, Albums, Songs, etc. Touch the desired
soft-key on the left side of the screen. The center of the
browse window shows items and it’s sub-functions,
which can be scrolled by touching the Up and Down
soft-keys to the right. The Scroll/Tune knob can also be
used to scroll.
Source
Touch the Source soft-key to select the desired audio
source, Disc, USB/iPodt, SD Card, AUX or Bluetootht.
This screen will time out after a few seconds and return
to the main radio screen if no selection is made.
Repeat
1
Uconnect™ ACCESS USER’S MANUAL 59
Touch the repeat soft-key to toggle the repeat function-
ality. The Repeat soft-key is highlighted when active. The
Radio will continue to play the current track, repeatedly,
as long as the repeat is active.
Shuffle
Touch the shuffle soft-key to play the selections on the SD
Card device in random order to provide an interesting
change of pace. Touch the soft-key a second time to turn
this feature off.
Info
Touch the Info soft-key to display the current track
information. Touch the Info soft-key a second time to
cancel this feature.
Tracks
Touch the trks soft-key to display a pop up with the Song
List. The currently playing song is indicated by an arrow
and lines above and below the song title. When in the
Tracks List screen you can rotate the TUNE/SCROLL
knob to highlight a track (indicated by the line above and
below the track name) and then press the ENTER/
BROWSE knob to start playing that track.
Touching the trks soft-key while the pop up is displayed
will close the pop up.
Audio
Refer to Radio Mode for adjusting the audio settings.
OPERATING INSTRUCTIONS – Bluetootht
MODE
Overview
BluetoothtStreaming Audio (BTSA) or BluetoothtMode
is entered by pairing a Bluetoothtdevice, containing
music, to the Uconnect™ Access system.
60 Uconnect™ ACCESS USER’S MANUAL
Before proceeding, the Bluetoothtdevice needs to be
paired through Uconnect™ Phone in order to communi-
cate with the Uconnect™ Access System.
NOTE: See the pairing procedure in the Uconnect™
Phone section for more details.
To access Bluetoothtmode, touch the Bluetoothtsoft-key
on the left side of the display.
Seek Up/Down
Touch and release the right arrow soft-key for the next
selection on the Bluetoothtdevice. Touch and release the
left arrow soft-key to return to the beginning of the
current selection, or return to the beginning of the
previous selection if the Bluetoothtdevice is within the
first second of the current selection.
Source
Touch the Source soft-key to select the desired audio
source, Disc, USB/iPodt, SD Card, AUX or Bluetootht.
This screen will time out after a few seconds and return
to the main radio screen if no selection is made.
Tracks
Touch the trks soft-key to display a pop up with the Song
List. The currently playing song is indicated by a blue
arrow and lines above and below the song title.
Touching the trks soft-key while the pop up is displayed
will close the pop up.
Audio
Refer to Radio Mode for adjusting the audio settings.
1
Uconnect™ ACCESS USER’S MANUAL 61
Uconnect™ Phone
Uconnect Phone™ Overview
Uconnect™ Phone is a voice-activated, hands-free, in-
vehicle communications system. Uconnect™ Phone al-
lows you to dial a phone number with your mobile
phone.
Uconnect™ Phone supports the following features:
Voice Activated Features:
•Hands Free dialing via Voice (“Call John Smiths Mo-
bile” or, “Dial 248 555-1212”).
•Hands Free text to speech listening of your incoming
SMS messages.
•Hands Free text messaging (“Send a message to John
Smiths Mobile”).
•Redialing last dialed numbers (“Redial”).
•Calling Back the last incoming call number (“Call
Back”).
•View Call logs on screen (“Show incoming calls”,
“Show Outgoing calls”, “Show missed Calls”, “Show
Recent Calls”).
•Searching Contacts phone number (“Search for John
Smith Mobile”).
Screen Activated Features
•Dialing via Keypad using touch-screen.
•Viewing and Calling contacts from Phonebooks dis-
played on the touch-screen.
•Setting Favorite Contact Phone numbers so the are
easily accessible on the Main Phone screen.
•Viewing and Calling contacts from Recent Call logs.
•Reviewing your recent Incoming SMS.
62 Uconnect™ ACCESS USER’S MANUAL
•Sending a text message via the touch-screen.
•Listen to Music on your Bluetootht Device via the
touch-screen.
•Pairing up to 10 phones/audio devices for easy access
to connect to them quickly.
NOTE: Your phone must be capable of SMS messaging
via Bluetoothtfor messaging features to work properly.
Your mobile phone’s audio is transmitted through your
vehicle’s audio system; the system will automatically
mute your radio when using the Uconnect™ Phone.
For Uconnect™ customer support, visit the following
website:
•www.UconnectPhone.com
•or call 1–877–855–8400
Uconnect™ Phone allows you to transfer calls between
the system and your mobile phone as you enter or exit
your vehicle and enables you to mute the system’s
microphone for private conversation.
WARNING!
Any voice commanded system should be used only
in safe driving conditions and all attention should be
kept on the roadway ahead. Failure to do so may
result in an accident causing serious injury or death.
The Uconnect™ Phone is driven through your
Bluetootht“Hands-Free Profile” mobile phone.
Uconnect™ features Bluetoothttechnology - the global
standard that enables different electronic devices to con-
nect to each other without wires or a docking station, so
Uconnect™ Phone works no matter where you stow your
mobile phone (be it your purse, pocket, or briefcase), as
long as your phone is turned on and has been paired to
1
Uconnect™ ACCESS USER’S MANUAL 63
the vehicle’s Uconnect™ Phone. The Uconnect™ Phone
allows up to ten mobile phones or audio devices to be
linked to the system. Only one linked (or paired) mobile
phone and one audio device can be used with the system
at a time. The system is available in English, Spanish, or
French languages.
Uconnect™ Phone Button
The Uconnect™ Phone Button is used to get
into the phone mode and make calls, show
recent, incoming, outgoing calls, view phone-
book etc., When you press the button you will
hear a BEEP. The beep is your signal to give a command.
Uconnect™ Voice Command Button
The Uconnect™ Voice Command Button
is only used for “barge in” and when you are
already in a call and you want to send Tones or
make another call.
The button is also used to access the Voice Com-
mands for the Uconnect™ Voice Command features if
your vehicle is equipped. Please see the Uconnect™ Voice
Command section for direction on how to use the
button.
The Uconnect™ Phone is fully integrated with the vehi-
cle’s audio system. The volume of the Uconnect™ Phone
can be adjusted either from the radio volume control
knob or from the steering wheel radio control (right
switch), if so equipped.
Operation
Voice commands can be used to operate the Uconnect™
Phone and to navigate through the Uconnect™ Phone
menu structure. Voice commands are required after most
Uconnect™ Phone prompts. There are two general meth-
ods for how Voice Command works:
64 Uconnect™ ACCESS USER’S MANUAL
1. Say compound commands like “Call John Smith mo-
bile”.
2. Say the individual commands and allow the system to
guide you to complete the task.
You will be prompted for a specific command and then
guided through the available options.
•Prior to giving a voice command, one must wait for the
beep, which follows the “Listen” prompt or another
prompt.
•For certain operations, compound commands can be
used. For example, instead of saying “Call” and then
“John Smith” and then “mobile”, the following com-
pound command can be said: “Call John Smith
mobile”.
•For each feature explanation in this section, only the
compound command form of the voice command is
given. You can also break the commands into parts and
say each part of the command when you are asked for
it. For example, you can use the compound command
form voice command “Search for John Smith”, or you
can break the compound command form into two
voice commands: “Search Contact” and when asked
“John Smith”. Please remember, the Uconnect™ Phone
works best when you talk in a normal conversational
tone, as if speaking to someone sitting a few feet/
meters away from you.
Natural Speech
Your Uconnect™ Phone Voice system uses a Natural
Language Voice Recognition (VR) engine.
Natural speech allows the user to speak commands in
phrases or complete sentences. The system filters out
certain non-word utterances and sounds such as “ah”
and “eh”. The system handles fill-in words such as “I
would like to”.
1
Uconnect™ ACCESS USER’S MANUAL 65
The system handles multiple inputs in the same phrase
or sentence such as “make a phone call” and “to Kelly
Smith”. For multiple inputs in the same phrase or sen-
tence, the system identifies the topic or context and
provides the associated follow-up prompt such as “Who
do you want to call?” in the case where a phone call was
requested but the specific name was not recognized.
The system utilizes continuous dialog; when the system
requires more information from the user it will ask a
question to which the user can respond without pressing
the Voice Command button.
Voice Command Tree
Refer to “Voice Tree” in this section.
Help Command
If you need assistance at any prompt, or if you want to
know your options at any prompt, say “Help” following
the beep.
To activate the Uconnect™ Phone from idle, simply press
the button and say a command or say “help”. All
Uconnect™ Phone sessions begin with a press of the
button on the radio control head.
Cancel Command
At any prompt, after the beep, you can say “Cancel” and
you will be returned to the main menu.
You can also press the or buttons when the
system is listening for a command and be returned to the
main or previous menu.
NOTE: Pressing the or buttons while the system
is playing is known as “Barging In”, refer to “Barge In —
Overriding Prompts” for further information.
Pair (Link) Uconnect™ Phone To A Mobile Phone
To begin using your Uconnect™ Phone, you must pair
your compatible Bluetoothtenabled mobile phone.
66 Uconnect™ ACCESS USER’S MANUAL
To complete the pairing process, you will need to refer-
ence your mobile phone Owner’s Manual. The
Uconnect™ website may also provide detailed instruc-
tions for pairing.
NOTE:
•You must have Bluetoothtenabled on your phone to
complete this procedure.
•The vehicle must be in PARK.
1. Press the “Phone” soft-key on the screen to begin.
2. If there is no phone currently connected with the
system, a pop-up will appear.
3. Select Yes to begin the pairing process. Then, search
for available devices on your Bluetoothtenabled
mobile phone. When prompted on the phone, enter
the name and PIN shown on the Uconnect Touch™
screen.
•If No is selected, touch the “Settings” soft-key from
the Uconnect™ Phone main screen,
•Touch the “Add Device” soft-key,
•Search for available devices on your Bluetootht
enabled mobile phone. When prompted on the
phone, enter the name and PIN shown on the
Uconnect Touch™ screen,
•See Step 4 to complete the process.
4. Uconnect™ Phone will display an in progress screen
while the system is connecting.
5. When the pairing process has successfully completed,
the system will prompt you to choose whether or not
this is your favorite phone. Selecting Yes will make
this phone the highest priority. This phone will take
precedence over other paired phones within range.
1
Uconnect™ ACCESS USER’S MANUAL 67
Pair Additional Mobile Phones
•Touch the “Settings” soft-key from the Phone main
screen,
•Next, touch the “Phone/Bluetootht” soft-key,
•Touch the “Add Device” soft-key,
•Search for available devices on your Bluetoothten-
abled mobile phone. When prompted on the phone,
enter the name and PIN shown on the Uconnect
Touch™ screen,
•Uconnect™ Phone will display an in process screen
while the system is connecting,
•When the pairing process has successfully completed,
the system will prompt you to choose whether or not
this is your favorite phone. Selecting Yes will make this
phone the highest priority. This phone will take pre-
cedence over other paired phones within range.
NOTE: For phones which are not made a favorite, the
phone priority is determined by the order in which it was
paired. The latest phone paired will have the higher
priority.
You can also use the following VR commands to bring up
the Paired Phone screen from any screen on the radio:
68 Uconnect™ ACCESS USER’S MANUAL
•“Show Paired Phones” or
•“Connect My Phone”
Pair A BluetoothtStreaming Audio Device
•Touch the “Player” or “Media” soft-key to begin,
•Change the Source to Bluetootht,
•Touch the “Bluetootht” soft-key to display the Paired
Audio Devices screen,
•Touch the “Add Device” soft-key,
NOTE: If there is no device currently connected with the
system, a pop-up will appear.
•Search for available devices on your Bluetoothten-
abled audio device. When prompted on the device,
enter the name and PIN shown on the Uconnect
Touch™ screen,
•Uconnect™ Phone will display an in process screen
while the system is connecting,
•When the pairing process has successfully completed,
the system will prompt you to choose whether or not
this is your favorite device. Selecting Yes will make
this device the highest priority. This device will take
precedence over other paired devices within range.
NOTE: For devices which are not made a favorite, the
device priority is determined by the order in which it was
paired. The latest device paired will have the higher
priority.
You can also use the following VR command to bring up
a list of paired audio devices.
•“Show Paired Audio Devices”
1
Uconnect™ ACCESS USER’S MANUAL 69
Connecting To A Particular Mobile Phone Or Audio
Device
Uconnect™ Phone will automatically connect to the
highest priority paired phone and/or Audio Device
within range. If you would need to choose a particular
phone or Audio Device follow these steps:
•Touch the “Settings” soft-key,
•Touch the “Phone/Bluetootht” soft-key,
•Touch to select the particular Phone or the “Paired
Audio Sources” soft-key and then an Audio Device,
•Touch the X to exit out of the Settings screen.
Disconnecting A Phone or Audio Device
•Touch the “Settings” soft-key,
•Touch the “Phone/Bluetootht” soft-key,
•Touch the + soft-key located to the right of the device
name,
•The options pop-up will be displayed,
•Touch the “Disconnect Device” soft-key,
•Touch the X to exit out of the Settings screen.
Deleting A Phone Or Audio Device
•Touch the “Settings” soft-key,
•Touch the Phone/Bluetoothtsoft-key,
•Touch the + soft-key located to the right of the device
name for a different Phone or Audio Device than the
currently connected device,
•The options pop-up will be displayed,
•Touch the “Delete Device” soft-key,
•Touch the X to exit out of the Settings screen.
70 Uconnect™ ACCESS USER’S MANUAL
Making A Phone Or Audio Device A Favorite
•Touch the “Settings” soft-key,
•Touch the “Phone/Bluetootht” soft-key,
•Touch the + soft-key located to the right of the device
name,
•The options pop-up will be displayed,
•Touch the “Make Favorite” soft-key; you will see the
chosen device move to the top of the list,
•Touch the X to exit out of the Settings screen.
Phonebook Download — Automatic Phonebook
Transfer From Mobile Phone
If equipped and specifically supported by your phone,
Uconnect™ Phone automatically downloads names (text
names) and number entries from the mobile phone’s
phonebook. Specific BluetoothtPhones with Phone Book
Access Profile may support this feature. See Uconnect™
website for supported phones.
•To call a name from a downloaded mobile phonebook,
follow the procedure in “Call by Saying a Name”
section.
•Automatic download and update, if supported, begins
as soon as the Bluetoothtwireless phone connection is
made to the Uconnect™ Phone, for example, after you
start the vehicle.
•A maximum of 1000 entries per phone will be down-
loaded and updated every time a phone is connected
to the Uconnect™ Phone.
•Depending on the maximum number of entries down-
loaded, there may be a short delay before the latest
1
Uconnect™ ACCESS USER’S MANUAL 71
downloaded names can be used. Until then, if avail-
able, the previously downloaded phonebook is avail-
able for use.
•Only the phonebook of the currently connected mobile
phone is accessible.
•This downloaded phonebook cannot be edited or
deleted on the Uconnect™ Phone. These can only be
edited on the mobile phone. The changes are trans-
ferred and updated to Uconnect™ Phone on the next
phone connection.
Managing Your Favorite Phonebook
There are three ways you can add an entry to your
Favorite Phonebook.
1. During an active call of a number to make a favorite,
touch and hold a favorite button on the top of the
phone main screen.
2. After loading the mobile phonebook, select phone-
book from the Phone main screen, then select the
appropriate number. Touch the + next to the selected
number to display the options pop-up. In the pop-up
select “Add to Favorites”.
NOTE: If the Favorites list is full, you will be asked to
remove an existing favorite.
3. From the Phone main screen, select phonebook. From
the phonebook screen, select the “Favorites” soft-key
and then select the + soft-key located to the right of the
phonebook record. Select an empty entry and touch
the + on that selected entry. When the Options pop-up
appears, touch “Add from Mobile”. You will then be
asked which contact and number to choose from your
mobile phonebook. When complete the new favorite
will be shown.
72 Uconnect™ ACCESS USER’S MANUAL
To Remove A Favorite
•To remove a Favorite, select phonebook from the
Phone main screen.
•Next select Favorites on the left side of the screen and
then touch the + Options soft-key.
•Touch the + next to the Favorite you would like to
remove.
•The Options pop-up will display, touch “Remove from
Favs”.
Phone Call Features
The following features can be accessed through the
Uconnect™ Phone if the feature(s) are available and
supported by Bluetoothton your mobile service plan.
For example, if your mobile service plan provides three-
way calling, this feature can be accessed through the
Uconnect™ Phone. Check with your mobile service pro-
vider for the features that you have.
Ways To Initiate A Phone Call
Listed below are all the ways you can initiate a phone call
with Uconnect™ Phone.
•Redial
•Dial by touching in the number
•Voice Commands (Dial by Saying a Name, Call by
Saying a Phonebook Name, Redial, or Call Back)
•Favorite Phonebook
•Mobile Phonebook
•Recent Call Log
•SMS Message Viewer
1
Uconnect™ ACCESS USER’S MANUAL 73
NOTE: All of the above operations except Redial can be
done with 1 call or less active.
Dial By Saying A Number
•Press the button to begin,
•After the “Listening” prompt and the following beep,
say “Dial 248-555-1212”,
•The Uconnect™ Phone will dial the number 248-555-
1212.
Call By Saying A Phonebook Name
•Press the button to begin,
•After the “Listening” prompt and the following beep,
say “Call John Doe Mobile”,
•The Uconnect™ Phone will dial the number associated
with John Doe, or if there are multiple numbers it will
ask which number you want to call for John Doe.
Call Controls
The touch-screen allows you to control the following call
features:
•Answer
•End
•Ignore
•Hold/unhold
•Mute/unmute
•Transfer the call to/from the phone
•Swap 2 active calls
•Join 2 active calls together
74 Uconnect™ ACCESS USER’S MANUAL
Touch-Tone Number Entry
•Touch the “Phone” soft-key,
•Touch the “Dial” soft-key,
•The Touch-Tone screen will be displayed,
•Use the numbered soft-keys to enter the number and
touch “Call”.
To send a touch tone using Voice Recognition (VR), press
the button while in a call and say “Send 1234#” or
you can say “Send Voicemail Password” if Voicemail
password is stored in your mobile phonebook.
Recent Calls
You may browse up to 34 of the most recent of each of the
following call types:
•Incoming Calls
•Outgoing Calls
•Missed Calls
•All Calls
These can be accessed by touching the “recent calls”
soft-key on the Phone main screen.
You can also press the button and say “Show my
incoming calls” from any screen and the Incoming calls
will be displayed.
You can also press the button and say “Show my
recent calls” from any screen and the All calls screen will
be displayed.
NOTE: Incoming can also be replaced with “Outgoing”,
“Recent” or “Missed”.
1
Uconnect™ ACCESS USER’S MANUAL 75
Answer Or Ignore An Incoming Call — No Call
Currently In Progress
When you receive a call on your mobile phone, the
Uconnect™ Phone will interrupt the vehicle audio sys-
tem, if on, and will ask if you would like to answer the
call. Press the button to accept the call. To ignore the
call, touch the “Ignore” soft-key on the touch-screen. You
can also touch the “answer” soft-key or touch the caller
ID box.
Answer Or Ignore An Incoming Call — Call Currently
In Progress
If a call is currently in progress and you have another
incoming call, you will hear the same network tones for
call waiting that you normally hear when using your
mobile phone. Press the phone button, answer soft-
key or caller ID box to place the current call on hold and
answer the incoming call.
NOTE: The Uconnect™ Phone compatible phones in the
market today do not support rejecting an incoming call
when another call is in progress. Therefore, the user can
only answer an incoming call or ignore it.
Making A Second Call While Current Call Is In
Progress
To make a second call while you are currently on a call,
press the button and say “Dial” or “Call” followed
by the phone number or phonebook entry you wish to
call. The first call will be on hold while the second call is
in progress. Or you can place a call on hold by touching
the Hold soft-key on the Phone main screen, then dial a
number from the dialpad, recent calls, SMS Inbox or from
the phonebooks. To go back to the first call, refer to
“Toggling Between Calls” in this section. To combine two
calls, refer to “Join Calls” in this section.
76 Uconnect™ ACCESS USER’S MANUAL
Place/Retrieve A Call From Hold
During an active call, touch the “Hold” soft-key on the
Phone main screen.
Toggling Between Calls
If two calls are in progress (one active and one on hold),
touch the “Swap” soft-key on the Phone main screen.
Only one call can be placed on hold at a time.
You can also press the button to toggle between the
active and held phone call.
Join Calls
When two calls are in progress (one active and one on
hold), touch the “Join Calls” soft-key on the Phone main
screen to combine all calls into a Conference Call.
Call Termination
To end a call in progress, momentarily press the but-
ton or the end soft-key. Only the active call(s) will be
terminated and if there is a call on hold, it will become
the new active call. If the active call is terminated by the
far end, a call on hold may not become active automati-
cally. This is cell phone-dependent.
Redial
•Press the “Redial” soft-key,
•or press the and after the “Listening” prompt and
the following beep, say “Redial”,
•After the “Listening” prompt and the following beep,
say “Redial”,
•The Uconnect™ Phone will call the last number that
was dialed from your mobile phone.
Call Continuation
Call continuation is the progression of a phone call on the
Uconnect™ Phone after the vehicle ignition key has been
switched to OFF.
1
Uconnect™ ACCESS USER’S MANUAL 77
NOTE: The call will remain within the vehicle audio
system until the phone becomes out of range for the
Bluetoothtconnection. It is recommended to press the
“transfer” soft-key when leaving the vehicle.
Uconnect™ Phone Features
Roadside Assistance
If you need towing assistance:
•Press the button to begin.
•After the “Listening” prompt and the following beep,
say “Roadside Assistance”.
NOTE:
•The roadside assistance call may also be initiated by
touch.
•The roadside assistance number dialed is based on the
country where the vehicle is purchased (1-800-528-
2069 for the U.S., 1-877-213-4525 for Canada, 55-14-
3454 for Mexico City and 1-800-712-3040 for outside
Mexico City in Mexico). Please refer to the Chrysler
Group LLC 24-Hour “Roadside Assistance” coverage
details in the Warranty Information Booklet and on the
24–Hour Roadside Assistance Card.
Voice Mail Calling
To learn how to access your voice mail, refer to “Working
with Automated Systems”.
Working With Automated Systems
This method is used in instances where one generally has
to press numbers on the mobile phone keypad while
navigating through an automated telephone system.
You can use your Uconnect™ Phone to access a voice
mail system or an automated service, such as a paging
78 Uconnect™ ACCESS USER’S MANUAL
service or automated customer service line. Some ser-
vices require immediate response selection. In some
instances, that may be too quick for use of the
Uconnect™ Phone.
When calling a number with your Uconnect™ Phone that
normally requires you to enter in a touch-tone sequence
on your mobile phone keypad, you can utilize the
touch-screen or press the button and say the word
“Send” then the sequence you wish to enter. For example,
if required to enter your PIN followed with a pound, (3 7
4 6 #), you can press the button and say, “Send 3 7 4
6 #”. Saying “Send” followed by a number, or sequence of
numbers, is also to be used for navigating through an
automated customer service center menu structure, and
to leave a number on a pager.
You can also send stored mobile phonebook entries as
tones for fast and easy access to voice mail and pager
entries. For example, if you previously created a Phone-
book entry with First and/or Last Name as “Voicemail
Password”, then if you press the button and say
“Send Voicemail Password” the Uconnect™ Phone will
then send the corresponding phone number associated
with the phonebook entry, as tones over the phone.
NOTE:
•The first number encountered for that contact will be
sent. All other numbers entered for that contact will be
ignored.
•You may not hear all of the tones due to mobile phone
network configurations. This is normal.
•Some paging and voice mail systems have system time
out settings that are too short and may not allow the
use of this feature.
1
Uconnect™ ACCESS USER’S MANUAL 79
•Pauses, wait or other characters that are supported by
some phones are not supported over Bluetootht.
These additional symbols will be ignored in the dialing
a numbered sequence.
Barge In — Overriding Prompts
The button can be used when you wish to skip part
of a prompt and issue your voice command immediately.
For example, if a prompt is asking “There are 2 numbers
with the name John. Say the full name” you could press
the button and say, “John Smith” to select that
option without having to listen to the rest of the voice
prompt.
Voice Response Length
It is possible for you to choose between Brief and
Detailed Voice Response Length.
•Touch the “More” soft-key (where available), then
touch the “Settings” soft-key,
•Touch the “Display” soft-key, then scroll down to Voice
Response Length,
•Select either “Brief” or “Detailed” by touching the box
next to the selection. A check-mark will appear to
show your selection.
Phone And Network Status Indicators
Uconnect™ Phone will provide notification to inform
you of your phone and network status when you are
attempting to make a phone call using Uconnect™
Phone. The status is given for network signal strength
and phone battery strength.
Dialing Using The Mobile Phone Keypad
WARNING!
Your new vehicle has many features for the comfort
(Continued)
80 Uconnect™ ACCESS USER’S MANUAL
WARNING! (Continued)
and convenience of you and your passengers. Some
of these should not be used when driving because
they take your eyes from the road or your attention
from driving. Never dial using the mobile phone
keypad while driving.
You can dial a phone number with your mobile phone
keypad and still use the Uconnect™ Phone (while dialing
via the mobile phone keypad, the user must exercise
caution and take precautionary safety measures). By
dialing a number with your paired Bluetoothtmobile
phone, the audio will be played through your vehicle’s
audio system. The Uconnect™ Phone will work the same
as if you dial the number using voice a command.
NOTE: Certain brands of mobile phones do not send the
dial ring to the Uconnect™ Phone to play it on the vehicle
audio system, so you will not hear it. Under this situa-
tion, after successfully dialing a number the user may feel
that the call did not go through even though the call is in
progress. Once your call is answered, you will hear the
audio.
Mute/Un-Mute (Mute ON/OFF)
When you mute the Uconnect™ Phone, you will still be
able to hear the conversation coming from the other
party, but the other party will not be able to hear you. In
order to mute the Uconnect™ Phone simply touch the
Mute button on the Phone main screen.
Advanced Phone Connectivity
Transfer Call To And From Mobile Phone
The Uconnect™ Phone allows ongoing calls to be trans-
ferred from your mobile phone to the Uconnect™ Phone
1
Uconnect™ ACCESS USER’S MANUAL 81
without terminating the call. To transfer an ongoing call
from your paired mobile phone to the Uconnect™ Phone
or vice versa, press the Transfer button on the Phone
main screen.
Connect Or Disconnect Link Between The Uconnect™
Phone And Mobile Phone
If you would like to connect or disconnect the Bluetootht
connection between a Uconnect™ Phone paired mobile
phone and the Uconnect™ Phone, follow the instructions
described in your mobile phone User’s Manual.
Things You Should Know About Your Uconnect™
Phone
Voice Command
•For best performance, adjust the rearview mirror to
provide at least ½ in (1 cm) gap between the overhead
console (if equipped) and the mirror.
•Always wait for the beep before speaking.
•Speak normally, without pausing, just as you would
speak to a person sitting a few feet/meters away from
you.
•Make sure that no one other than you is speaking
during a voice command period.
•Performance is maximized under:
•low-to-medium blower setting,
•low-to-medium vehicle speed,
•low road noise,
•smooth road surface,
•fully closed windows,
•dry weather condition.
•Even though the system is designed for users speaking
in North American English, French, and Spanish ac-
cents, the system may not always work for some.
82 Uconnect™ ACCESS USER’S MANUAL
•When navigating through an automated system such
as voice mail, or when sending a page, before speaking
the digit string, make sure to say “Send”.
•It is recommended that you do not store names in your
favorites phonebook while the vehicle is in motion.
•Phonebook (Mobile and Favorites) name recognition
rate is optimized when the entries are not similar.
•You can say “O” (letter “O”) for “0” (zero).
•Even though international dialing for most number
combinations is supported, some shortcut dialing
number combinations may not be supported.
•In a convertible vehicle, system performance may be
compromised with the convertible top down.
Far End Audio Performance
•Audio quality is maximized under:
•low-to-medium blower setting,
•low-to-medium vehicle speed,
•low road noise,
•smooth road surface,
•fully closed windows,
•dry weather conditions, and
•operation from the driver’s seat.
•Performance, such as audio clarity, echo, and loudness
to a large degree rely on the phone and network, and
not the Uconnect™ Phone.
•Echo at the far end can sometimes be reduced by
lowering the in-vehicle audio volume.
•In a convertible vehicle, system performance may be
compromised with the convertible top down.
SMS
Uconnect™ Phone can read or send new messages on
your phone.
1
Uconnect™ ACCESS USER’S MANUAL 83
Your phone must support SMS over Bluetoothtin order
to use this feature. If the Uconnect™ Phone determines
your phone is not compatible with SMS messaging over
Bluetoothtthe “Messaging” button will be greyed out
and the feature will not be available for use.
NOTE: Uconnect™ Phone SMS is only available when
the vehicle is not in moving.
Read Messages:
If you receive a new text message while your phone is
connected to Uconnect™ Phone, an announcement will
be made to notify you that you have a new text message.
Once a message is received and viewed or listened to,
you will have the following options:
•Send a Reply
•Forward
•Call
Send Messages Using Soft-Keys:
You can send messages using Uconnect™ Phone. To send
a new message:
•Touch the “Phone” soft-key,
•Touch the “messaging” soft-key then “New Message”,
•Touch one of the 18 preset messages and the person
you wish to send the message to,
•If multiple numbers are available for the contact select
which number you would like to have the message
sent,
•Press “Send” or “Cancel”.
Send Messages Using Voice Commands:
•Press the button,
•After the “Listening” prompt and the following beep,
say “Send message to John Smith mobile”,
84 Uconnect™ ACCESS USER’S MANUAL
•After the system prompts you for what message you
want to send, say the message you wish to send or say
“List”. There are 18 preset messages.
While the list of defined messages are being read, you can
interrupt the system by pressing the button and
saying the message you want to send.
After the system confirms that you want to send your
message to John Smith, your message will be sent.
List of Preset Messages:
1. Yes.
2. No.
3. Okay.
4. I can’t talk right now.
5. Call me.
6. I’ll call you later.
7. I’m on my way.
8. Thanks.
9. I’ll be late.
10. I will be <number> minutes late.
11. See you in <number> minutes.
12. Stuck in traffic.
13. Start without me.
14. Where are you?
15. Are you there yet?
16. I need directions.
17. I’m lost.
18. See you later.
1
Uconnect™ ACCESS USER’S MANUAL 85
BluetoothtCommunication Link
Mobile phones have been found to lose connection to the
Uconnect™ Phone. When this happens, the connection
can generally be reestablished by switching the phone
OFF/ON. Your mobile phone is recommended to remain
in BluetoothtON mode.
Power-Up
After switching the ignition key from OFF to either the
ON or ACC position, or after a language change, you
must wait at least 15 seconds prior to using the system.
86 Uconnect™ ACCESS USER’S MANUAL
Voice Tree
1
Uconnect™ ACCESS USER’S MANUAL 87
NOTE:
•You can replace “John Smith” with any name in your
mobile or favorite phone book. You can also say “Send
a message to John Smith” and the system will ask you
which phone number you want to send a message to
for John Smith.
•You can replace “Mobile” with “Home”, “Work” or
“Other”.
•You can replace “Incoming Calls” with “Outgoing
Calls” or “Missed Calls”.
•You can replace “248 555 1212” with any phone
number supported by your Mobile phone.
•These commands can be used during a phone call after
pushing the Uconnect™ Voice Command button on
the steering wheel. Please note the call will be muted
while the VR session is active.
•Send dial tones for automated systems is available
while a call is active. This is an example that uses a
Phonebook Record named “Voicemail Password.”
•Storing Dial tones in contact names is possible but only
the first number encountered in a contact name will be
sent. For example if there is a number stored in the
Home and Work numbers for the contact “Voicemail
password” only the Home number will be sent
•If your phone does not support phonebook download
or call log download over Bluetooth than these com-
mands will return a response that the contact does not
exist in the phonebook.
•Emergency and Towing assistance are contacts that
have been pre-loaded in the phonebooks. Commands
such as “Call Emergency” and “Call Towing Assis-
tance” will call the corresponding number stored with
those contacts.
88 Uconnect™ ACCESS USER’S MANUAL
NOTE: Available Voice Commands are shown in bold
face and underlined in the gray shaded boxes.
1
Uconnect™ ACCESS USER’S MANUAL 89
90 Uconnect™ ACCESS USER’S MANUAL
NOTE:
•You can replace “John Smith” with any name in your
mobile or favorite phone book. You can also say “Send
a message to John Smith” and the system will ask you
which phone number you want to send a message to
for John Smith.
•You can replace “Mobile” with “Home”, “Work” or
“Other”.
•You can replace “Incoming Calls” with “Outgoing
Calls” or “Missed Calls”.
•Messaging commands only work if the Uconnect sys-
tem is equipped with this feature and the mobile
phone supports messaging over Bluetooth.
•You can replace “248 555 1212” with any phone
number supported by your Mobile phone.
•You can replace “4” with any message number shown
on the screen.
•If your phone does not support phonebook download
or call log download over Bluetooth than these com-
mands will return a response that the contact does not
exist in the phonebook.
1
Uconnect™ ACCESS USER’S MANUAL 91
92 Uconnect™ ACCESS USER’S MANUAL
NOTE: Available Voice Commands are shown in bold
face and underlined in the gray shaded boxes.
General Information
This device complies with Part 15 of the FCC rules and
RSS 210 of Industry Canada. Operation is subject to the
following conditions:
•Changes or modifications not expressly approved by
the party responsible for compliance could void the
user’s authority to operate the equipment.
•This device may not cause harmful interference.
•This device must accept any interference received,
including interference that may cause undesired op-
eration.
Uconnect™ Voice Command
Voice Command Overview
The Uconnect™ Voice Command system al-
lows you to control your AM, FM radio, satel-
lite radio, disc player, SD Card, USB/iPod and
Sirius Travel Link.
NOTE: Take care to speak into the Voice Command
system as calmly and normally as possible. The ability of
the Voice Command system to recognize user voice
commands may be negatively affected by rapid speaking
or a raised voice level.
WARNING!
ALWAYS drive safely with your hands on the wheel.
You have full responsibility and assume all risks
(Continued)
1
Uconnect™ ACCESS USER’S MANUAL 93
WARNING! (Continued)
related to the use of the Uconnect™ features and
applications in this vehicle. Only use Uconnect™
when it is safe to do so. Failure to do so may result in
an accident involving serious injury or death.
When you press the Uconnect™ Voice Command
button, you will hear a beep. The beep is your signal
to give a command.
If no command is spoken the system will say one of two
responses:
•I didn’t understand
•I didn’t get that, etc.,
If a command is not spoken a second time, the system
will respond with an error and give some direction as
what can be said based on the context you are in. After
three consecutive failures of a spoken command the VR
session with end.
Pressing the Uconnect™ Voice Command button
while the system is speaking is known as “barging in.”
The system will be interrupted, and after the beep, you
can say a command. This will become helpful once you
start to learn the options.
NOTE: At any time, you can say the words “Cancel” or
“Help”.
These commands are universal and can be used from any
menu. All other commands can be used depending upon
the active application.
When using this system, you should speak clearly and at
a normal speaking volume.
94 Uconnect™ ACCESS USER’S MANUAL
The system will best recognize your speech if the win-
dows are closed, and the heater/air conditioning fan is
set to low.
At any point, if the system does not recognize one of your
commands, you will be prompted to repeat it.
To hear available commands, press the Uconnect™ Voice
Command button and say “Help”. You will hear
available commands for the screen displayed.
Natural Speech
Natural speech allows the user to speak commands in
phrases or complete sentences. The system filters out
certain non-word utterances and sounds such as “ah”
and “eh”. The system handles fill-in words such as “I
would like to”.
The system handles multiple inputs in the same phrase
or sentence such as “make a phone call” and “to Kelly
Smith”. For multiple inputs in the same phrase or sen-
tence, the system identifies the topic or context and
provides the associated follow-up prompt such as “Who
do you want to call?” in the case where a phone call was
requested but the specific name was not recognized.
The system utilizes continuous dialog; when the system
requires more information from the user it will ask a
question to which the user can respond without pressing
the Uconnect™ Voice Command button.
Uconnect™ Voice Commands
The Uconnect™ Voice Command system understands
two types of commands. Universal commands are avail-
able at all times. Local commands are available if the
supported radio mode is active.
Start a dialogue by pressing the Uconnect™ Voice Com-
mand button.
1
Uconnect™ ACCESS USER’S MANUAL 95
Changing the Volume
1. Start a dialogue by pressing the Voice Command
button.
2. Say a command (e.g., “Help”).
3. Use the ON/OFF VOLUME rotary knob to adjust the
volume to a comfortable level while the Voice Com-
mand system is speaking. Please note the volume
setting for Voice Command is different than the audio
system.
Starting Voice Recognition (VR) Session in
Radio/Player Modes
In this mode, you can say the following commands:
NOTE: The commands can be said on any screen when
a call is not active after pushing the Uconnect™ Voice
Command button.
Disc
To switch to the disc mode, say “Change source to Disc”.
This command can be given in any mode or screen:
•“Track” (#) (to change the track)
96 Uconnect™ ACCESS USER’S MANUAL
Voice Tree
1
Uconnect™ ACCESS USER’S MANUAL 97
NOTE:
1. You can replace “950 AM” with any other AM or FM
frequency, such as “98.7 FM”.
2. You can replace “80’s on 8” with any other satellite
station name received by the radio.
3. You can replace “8” with any other satellite station
named received by the radio.
4. You can replace “rock” with any of the satellite music
types.
NOTE: Available Voice Commands are shown in bold
face and shaded grey.
98 Uconnect™ ACCESS USER’S MANUAL
1
Uconnect™ ACCESS USER’S MANUAL 99
NOTE:
1. You can replace the album, artist, song, genre, playlist,
podcast and audio book names with any correspond-
ing names on the current device that is playing.
2. You can replace “8” with any track on the CD that is
currently playing. Command is only available when
CD is playing.
3. Playlist, Podcast and audio book commands are only
available when the iPod is connected and playing.
4. VR commands, Albums, Artists, and Genre names are
based on the music database provided by Gracenote.
NOTE: Available Voice Commands are shown in bold
face and shaded grey.
100 Uconnect™ ACCESS USER’S MANUAL
1
Uconnect™ ACCESS USER’S MANUAL 101
NOTE:
1. You can replace “NFL” with any league shown on the
sports league screen. For example you can say “Show
MLB headlines” or “Show PGA headlines”.
2. You can replace “Headlines” with any menu items
shown on a league screen. For example you can say
“Show NFL Schedule and results” or “Show NCAA
Basketball AP top 25” or “Show Major League Baseball
Teams”.
3. You can also say “Show Current Weather” or “Show
extended weather” or “Show five day forecast” or
“Show ski info” to get other forecasts.
NOTE: Available Voice Commands are shown in bold
face and shaded grey.
102 Uconnect™ ACCESS USER’S MANUAL
1
Uconnect™ ACCESS USER’S MANUAL 103
NOTE:
1. Only available with Navigation equipped vehicles.
2. You can replace “Player” with “Radio”, “Navigation”,
“Phone”, “Climate”, “More” or “Settings”.
3. Navigation commands only work if equipped with
Navigation.
NOTE: Available Voice Commands are shown in bold
face and shaded grey.
104 Uconnect™ ACCESS USER’S MANUAL
1
Uconnect™ ACCESS USER’S MANUAL 105
NOTE:
1. You can also say “Find City”, “Find Favorite”, “Find
Play by Category”, “Find Play by Name”, “Find
Recently Found”, “Where to?” or “Go Home”.
2. You can say “Find Nearest” then “Restaurant”, “Fuel”,
“Transit”, “Lodging”, “Shopping”, “Bank”, “Enter-
tainment”, “Recreation”, “Attractions”, “Commu-
nity”, “Auto Services”, “Hospitals”, “Parking”, “Air-
port”, “Police Stations”, “Fire Stations”, or “Auto
Dealers”.
NOTE: Available Voice Commands are shown in bold
face and shaded grey.
Navigation
Navigation Registration (Uconnect™ 8.4A Only)
Uconnect™ 8.4A is a Navigation-ready system, see your
authorized dealer for details
Getting Started
To access the Navigation system, touch the Nav soft-key
on bottom of the screen.
106 Uconnect™ ACCESS USER’S MANUAL
Main Menu
•Touch Where To? to find or route to a destination.
•Touch View Map to view the map.
•Touch Information to view Traffic, Where Am I? and
Trip Computer information
•Touch Emergency to search for Hospitals, Police and
Fire Stations near your current location. You can also
display your current location and save any Emergency
facility location to your Favorites.
•Touch Stop to stop a route.
•Touch Detour to detour a route.
Where To?
1
Uconnect™ ACCESS USER’S MANUAL 107
From the Nav Main Menu, touch the Where To? soft-key
and select one of the following methods to program a
route guidance.
NOTE: Refer to the individual section of the chosen
option for further information.
•Address
Touch this soft-key to search by a street address or a street
name with house number.
•Recent
Touch this soft-key to access previously routed addresses
or locations.
•Point of Interest
Touch this soft-key when you want to route to a point of
interest. The Point of Interest database allows you to
select a destination from a list of locations and public
places, or points of interest (POI).
•Favorites
Touch this soft-key to access previously saved addresses
or locations.
•Intersection
Touch this soft-key to enter in two street names as a
destination.
108 Uconnect™ ACCESS USER’S MANUAL
•Go Home
Touch this soft-key to program or confirm a route to the
saved home address.
•GEO Coordinates
Touch this soft-key to route to a GEO Coordinate. A geo
coordinate is a coordinate used in geography. You can
determine a geo coordinate with the help of a handheld
GPS receiver, a map, or the navigation system.
•Point on Map
Touch this soft-key to select a destination directly from
the Map screen. By selecting a street segment or icon, you
can quickly enter a destination without the need to input
the city name or street.
•City Center
Touch this soft-key to route to a particular city. The
navigation system will calculate a route with the desti-
nation at the center of the city.
•Closest City
Touch this soft-key to route to a nearby city. The naviga-
tion system will calculate a route with the destination at
the center of the nearby city.
•Phone Number
Touch this soft-key to route to a location or point of
interest by the phone number.
NOTE: You can touch the back arrow soft-key to return
to the previous screen or the X soft-key to exit.
Where To? – Address
To enter a destination by Address, follow these steps:
1
Uconnect™ ACCESS USER’S MANUAL 109
1. While in the Nav Main Menu, touch the Where To?
soft-key and then touch the Address soft-key.
NOTE: To change the state and/or country, touch the
state, country soft-key and follow the prompts to change
the state and/or country.
110 Uconnect™ ACCESS USER’S MANUAL
2. Touch Spell City or Spell Street to begin entering the
address of your destination.
If you touch Spell City, you will have to enter and
select/touch the desired city name, followed by the
desired street name and lastly the house number.
If you touch Spell Street, you will have to enter and
select/touch the desired street name in the correct city
and then you will have to enter the house number
3. Once the correct City, Street and Number has been
entered, you will be asked to confirm your destination
by touching OK.
4. Touch the Yes soft-key to confirm your destination and
begin your route.
1
Uconnect™ ACCESS USER’S MANUAL 111
NOTE: If you are currently on a route guidance and you
select an Address, the system will ask you to choose one
of the following:
•Cancel previous route
•Add as first destination
•Add as last destination
You can touch the back arrow soft-key to return to the
previous screen or the X soft-key to exit.
Where To? – Recent
To route to a recent destination, touch the Recent soft-key
in the NAV Main Menu.
112 Uconnect™ ACCESS USER’S MANUAL
Touch the soft-key with the name of the desired destina-
tion. Confirm the route with Yes to start the route
guidance.
To delete a destination from the list, touch the trash can
icon soft-key.
To display the options for a destination touch the Options
soft-key that looks like a gear.
The following Options are available for each destination:
•Edit Name
•Add Phone Number
1
Uconnect™ ACCESS USER’S MANUAL 113
•Move Up in the list
•Move Down in the list
•Place Pin on the location (saves the spot on the list)
NOTE: You can touch the back arrow soft-key to return
to the previous screen or the X soft-key to exit.
Where To? – Point of Interest
To enter a destination by Point of Interest (POI) touch the
Point of Interest soft-key in the Nav Main Menu.
The Point of Interest database allows you to select a
destination from a list of locations and public places, or
points of interest (POI)s.
114 Uconnect™ ACCESS USER’S MANUAL
You have the following POIs to choose from:
•Gas Stations
•Restaurants
•Hotels/Motels
•ATM/Banking
•All POIs
•Spell POI Name
You can also change your POI search area, by touching
the Change Search Area soft-key. You will have the
following options to change your search area:
•Around Me
1
Uconnect™ ACCESS USER’S MANUAL 115
•In a City
•Near Destination (only available during route
guidance)
•Along Route (only available during route guidance)
NOTE: You can touch the back arrow soft-key to return
to the previous screen or the X soft-key to exit.
POI – Gas Stations
To select a Gas Station POI, touch Point of Interest from
the Nav Main Menu, then touch the Point of Interest
soft-key and then touch the Gas Stations soft-key. You can search for a gas station by the following catego-
ries, which are soft-key tabs at the top of the screen.
•Name
•Distance
•Type
116 Uconnect™ ACCESS USER’S MANUAL
•ABC (Search)
Touch the desired Gas Station and touch Yes to confirm
the destination.
NOTE: If you are currently on a route guidance and you
select a gas station, the system will ask you to choose one
of the following:
•Cancel previous route
•Add as first destination
•Add as last destination
You can touch the back arrow soft-key to return to the
previous screen or the X soft-key to exit.
POI – Restaurants
To select a Restaurant POI, touch Point of Interest from
the Nav Main Menu, then touch the Point of Interest
soft-key and then touch the Restaurants soft-key.
You can search for a restaurants by the following catego-
ries, which are soft-key tabs at the top of the screen.
•Name
•Distance
•Type
•ABC (Search)
Touch the desired Restaurant and touch Yes to confirm
the destination.
NOTE: If you are currently on a route guidance and you
select a Restaurant, the system will ask you to choose one
of the following:
•Cancel previous route
•Add as first destination
•Add as last destination
1
Uconnect™ ACCESS USER’S MANUAL 117
You can touch the back arrow soft-key to return to the
previous screen or the X soft-key to exit.
POI – Hotels/Motels
To select a Hotel or Motel POI, touch Point of Interest
from the Nav Main Menu, then touch the Point of Interest
soft-key and then touch the Hotels/Motels soft-key.
You can search for a hotel or motel by the following
categories, which are soft-key tabs at the top of the
screen.
•Name
•Distance
•Type
•ABC (Search)
Touch the desired hotel or motel and touch Yes to confirm
the destination.
NOTE: If you are currently on a route guidance and you
select a Hotel or Motel, the system will ask you to choose
one of the following:
•Cancel previous route
•Add as first destination
•Add as last destination
You can touch the back arrow soft-key to return to the
previous screen or the X soft-key to exit.
POI – ATM/Banking
To select an ATM or Bank POI, touch Point of Interest
from the Nav Main Menu, then touch the Point of Interest
soft-key and then touch the ATM/Banking soft-key.
You can search for an ATM or Bank by the following
categories, which are soft-key tabs at the top of the
screen.
118 Uconnect™ ACCESS USER’S MANUAL
•Name
•Distance
•Type
•ABC (Search)
Touch the desired ATM or Bank and touch Yes to confirm
the destination.
NOTE: If you are currently on a route guidance and you
select an ATM or Bank POI, the system will ask you to
choose one of the following:
•Cancel previous route
•Add as first destination
•Add as last destination
You can touch the back arrow soft-key to return to the
previous screen or the X soft-key to exit.
All POIs
To select a POI type, touch Point of Interest from the Nav
Main Menu, then touch the Point of Interest soft-key and
then touch All POIs soft-key.
You can search through the available POI categories to
find your desired POI.
1
Uconnect™ ACCESS USER’S MANUAL 119
The available categories are:
•ATM/Banking
•Automotive
•Coffee Shops
•Community
•Entertainment
•Gas Stations
•Health and Beauty
•Highway Exit
•Hospital
•Hotels/Motels
•Other
•Parking
•Recreation
•Restaurants
•Shopping
•Travel
•Truck
Select a category and then select a subcategory if neces-
sary. Touch the ABC soft-key to activate a keyboard with
Alphabetic characters in order to search within the POI
categories.
Touch the desired POI and touch Yes to confirm the
destination.
NOTE: If you are currently on a route guidance and you
select a POI, the system will ask you to choose one of the
following:
•Cancel previous route
120 Uconnect™ ACCESS USER’S MANUAL
•Add as first destination
•Add as last destination
You can touch the back arrow soft-key to return to the
previous screen or the X soft-key to exit.
POI – Spell Name
To search for a specific POI, touch Point of Interest from
the Nav Main Menu, then touch the Point of Interest
soft-key and then touch the Spell Name soft-key.
A keyboard will appear on the screen. Type in the POI
that you want to search and touch the List soft-key to
display available items.
Touch the desired POI and touch Yes to confirm the
destination.
NOTE: If you are currently on a route guidance and you
select a POI, the system will ask you to choose one of the
following:
•Cancel previous route
•Add as first destination
•Add as last destination
You can touch the back arrow soft-key to return to the
previous screen or the X soft-key to exit.
Where To? – Favorite Destinations
To route to a favorite destination, touch the Favorites
soft-key in the NAV Main Menu.
1
Uconnect™ ACCESS USER’S MANUAL 121
Touch the soft-key with the name of the desired favorite
destination and confirm the route with Yes to start the
route guidance.
To delete a destination from the list, touch the trash can
icon soft-key.
To save a favorite destination, touch the Add Favorite
soft-key and follow the steps to route a destination.
To display the options for a favorite destination touch the
Options soft-key that looks like a gear.
The following Options are available for each favorite
destination:
•Edit Name
•Add Phone Number
NOTE: If you are currently on a route guidance and you
select a Favorite, the system will ask you to choose one of
the following
•Cancel previous route
•Add as first destination
•Add as last destination
122 Uconnect™ ACCESS USER’S MANUAL
You can touch the back arrow soft-key to return to the
previous screen or the X soft-key to exit.
Where To? – Intersection
To enter a destination by Intersection, follow these steps:
1. While in the Nav Main Menu, touch the Where To?
soft-key and then touch the Intersection soft-key.
This menu shows the default country and state setting.
NOTE: To change the state and/or country, touch the
state, country soft-key and follow the prompts to change
the state and/or country.
1
Uconnect™ ACCESS USER’S MANUAL 123
2. This menu shows the default country and state set-
tings.
If you touch Spell City, you will have to enter and
select/touch the desired city name, followed by the
desired street name and lastly you will have to enter
the intersection street.
If you touch Spell Street, you will have to enter and
select/touch the desired street name in the correct city
and then you will have to enter the intersecting street.
3. Once the correct City and Intersection has been en-
tered, you will be asked to confirm your destination.
4. Touch the Yes soft-key to confirm your destination and
begin your route.
NOTE: If you are currently on a route guidance and you
select a Intersection, the system will ask you to choose
one of the following:
•Cancel previous route
•Add as first destination
•Add as last destination
You can touch the back arrow soft-key to return to the
previous screen or the X soft-key to exit.
124 Uconnect™ ACCESS USER’S MANUAL
Where To? – Go Home
To enter your Home Address, follow these steps:
1. While in the Nav Main Menu, touch the Where To?
soft-key and then touch the Go Home soft-key. If there
is no Home Address entered, touch Yes to enter it now.
2. To set your set your Home Address choose one of the
following options:
NOTE: Refer to the individual section of the chosen
option for further information.
•Address
•Recent
•Point of Interest
•Favorites
•Intersection
•GEO Coordinates
•Point on Map
•City Center
•Closest Cities
•Phone Number
3. Once you have generated your Home Address, you
will be asked to Save it.
1
Uconnect™ ACCESS USER’S MANUAL 125
4. Touch the Save soft-key to confirm your destination
and begin the route to your Home Address.
5. This address will be saved as your Home Address and
it can be accessed by touching the Go Home soft-key
in the Where To? Menu.
Change/Delete Your Home Address
To change or delete your current Home Address perform
the following:
1. Touch the Go Home soft-key in the Where To? Menu
2. Touch the Options soft-key at the bottom of the
displayed map.
3. Touch Clear Home and then touch Yes to clear/delete
your Home Address.
4. To enter in a new Home Address, follow the Where
To? – Go Home procedure.
NOTE: You can touch the back arrow soft-key to return
to the previous screen or the X soft-key to exit.
Where To? – Trips
To route to a saved Trip, touch the Recent soft-key in the
NAV Main Menu.
126 Uconnect™ ACCESS USER’S MANUAL
Touch the soft-key with the name of the desired Trip and
touch the first destination in the list. Confirm the route by
touching Yes to start the route guidance.
To add a Trip, follow these steps:
1. Touch the Create new Trip soft-key.
2. Type in the new Trip Name.
3. Touch Add Destination to add destinations to your
trip.
4. Choose from the following options to add a destina-
tion
NOTE: Refer to the individual section of the chosen
option for further information.
•Address
•Recent
•Point of Interest
•Favorites
•Intersection
•GEO Coordinates
•Point on Map
•City Center
•Closest Cities
•Phone Number
5. Add more needed destinations to your trip.
NOTE: Each destination will be listed in order, with the
last destination being the final destination.
6. Your new Trip will appear on the Trips list.
To delete a Trip from the list, touch the trash can icon
soft-key.
To display the options for a trip touch the Options
soft-key that looks like a gear.
The following Options are available for each trip:
1
Uconnect™ ACCESS USER’S MANUAL 127
•Edit Name
•Move Up in the list
•Move Down in the list
NOTE: You can touch the back arrow soft-key to return
to the previous screen or the X soft-key to exit.
Where To? – GEO Coordinate
To enter a destination by GEO Coordinate, touch Where
To? in the Nav Main Menu and then touch the GEO
Coordinate soft-key.
128 Uconnect™ ACCESS USER’S MANUAL
1. Enter the Latitude by typing in the numbers. Use the
left and right arrows to select specific numbers in the
location shown.
2. Touch the OK soft-key.
3. Enter the Longitude by typing in the numbers. Use the
left and right arrows to select specific numbers in the
location shown.
NOTE: Touch the Format soft-key to change the format
of the Latitude/Longitude entry.
4. Touch OK to confirm the destination.
5. Touch the Yes soft-key to confirm your destination and
begin your route.
NOTE: If you are currently on a route guidance and you
select a Geo Coordinate, the system will ask you to
choose one of the following:
•Cancel previous route
•Add as first destination
•Add as last destination
1
Uconnect™ ACCESS USER’S MANUAL 129
You can touch the back arrow soft-key to return to the
previous screen or the X soft-key to exit.
Where To? – Point on Map
To enter a destination by Point on Map, touch Where To?
in the Nav Main Menu and then touch the Point on Map
soft-key.
1. Use the touch-screen to drag the center of the cross
over the desired destination.
2. Either touch the address bar at the top center of the
screen to confirm your location or touch the Details
soft-key in the upper right corner to display the
available locations near that point on the map.
130 Uconnect™ ACCESS USER’S MANUAL
3. Touch the Yes soft-key to confirm your destination and
begin your route.
NOTE: If you are currently on a route guidance and you
select a Point on Map, the system will ask you to choose
one of the following:
•Cancel previous route
•Add as first destination
•Add as last destination
You can touch the back arrow soft-key to return to the
previous screen or the X soft-key to exit.
Where To? – City Center
To enter a destination by City Center, touch Where To? in
the Nav Main Menu and then touch the City Center
soft-key.
1. Enter the name of the City you would like to route to.
2. Touch the desired city from the list.
1
Uconnect™ ACCESS USER’S MANUAL 131
3. Touch the Yes soft-key to confirm your destination and
begin your route.
NOTE: If you are currently on a route guidance and you
select a City Center, the system will ask you to choose one
of the following:
•Cancel previous route
•Add as first destination
•Add as last destination
You can touch the back arrow soft-key to return to the
previous screen or the X soft-key to exit.
Where To? – Closest City
To enter a destination by Closest City, touch Where To? in
the Nav Main Menu and then touch the Closest City
soft-key.
132 Uconnect™ ACCESS USER’S MANUAL
1. Touch the desired city from the list.
2. Touch the Yes soft-key to confirm your destination and
begin your route.
NOTE: If you are currently on a route guidance and you
select a Closest City, the system will ask you to choose
one of the following:
•Cancel previous route
•Add as first destination
•Add as last destination
You can touch the back arrow soft-key to return to the
previous screen or the X soft-key to exit.
Where To? – Phone
1
Uconnect™ ACCESS USER’S MANUAL 133
To enter a destination by Phone number, touch Where To?
in the Nav Main Menu and then touch the Phone
Number soft-key.
1. Enter the Phone Number of the destination you would
like to route to.
2. Touch the desired destination from the list.
3. Touch the Yes soft-key to confirm your destination and
begin your route.
NOTE: If you are currently on a route guidance and you
select a Phone number destination, the system will ask
you to choose one of the following:
•Cancel previous route
•Add as first destination
•Add as last destination
You can touch the back arrow soft-key to return to the
previous screen or the X soft-key to exit.
Before Route Guidance
Before confirming the route with the Yes soft-key, it is
possible to select options different from the default route
settings.
134 Uconnect™ ACCESS USER’S MANUAL
•Options – Touch the Options soft-key to display a list
of options to alter your route. To make a selection
touch and release the desired setting until a check-
mark appears.
•Avoid – Touch the Avoid soft-key to choose road types
to avoid during your route. To make a selection touch
and release the desired setting until a check-mark
appears.
NOTE: Since toll roads, tunnels and ferries are built for
the purpose of shortening travel distances, avoiding
these road types may increase distance and travel time.
1
Uconnect™ ACCESS USER’S MANUAL 135
•Save – Touch the Save soft-key to save the destination
as a Favorite.
Touch the Yes soft-key to confirm your destination and to
start your route guidance.
NOTE: You can touch the back arrow soft-key to return
to the previous screen or the X soft-key to exit.
View Map
Touch the View Map soft-key from the Nav Main Menu
to display a map of your current position.
With the map displayed you have the following features
available.
•Menu
Touch this soft-key to return to the Nav Main Menu.
136 Uconnect™ ACCESS USER’S MANUAL
•Zoom In +/ Zoom Out –
Touch the Zoom In (+) or Zoom Out (–) soft-keys to
change the zoom level. Roads with lower functional
classification are not shown in higher zoom levels. (E.g.
residential streets, lightly-traveled county roads.)
•Time of Arrival/Time to Destination/Distance (only
during route guidance)
Touch the soft-key in the upper right area of the screen to
the display items available. Touch the desired option
soft-key.
– Time of Arrival
– Time to Destination
– Distance
•Turn List (only during route guidance)
Touch the area in the upper center part of the screen that
displays your next turn to see a Turn List for your current
route.
Touch a turn in the displayed Turn List for the following
options:
– Show on Map
– Avoid Street
•Options (only during route guidance)
Touch the Options soft-key to display the following
options. Touch the desired soft-key.
– 2D North Up/Map View 2D/ Map View 3D
Touch this soft-key to scroll between the three viewing
options.
– Settings
Touch this soft-key to view all the available settings.
See View Map – Settings for more information.
– Repeat
Touch this soft-key to repeat the current voice prompt.
– Turn List
1
Uconnect™ ACCESS USER’S MANUAL 137
Touch this soft-key to view the turn list for the current
route.
– Stop Guidance
Touch this soft-key to stop route guidance.
•Where Am I?
Touch the area in the lower center part of the screen that
displays your current location to view the Where Am I?
view.
Where Am I? displays the address and GEO Coordinates
of your current location.
– Touch the GPS soft-key to view the GPS informa-
tion.
– Touch the Save soft-key to save the location in your
Favorites.
NOTE: You can touch the back arrow soft-key to return
to the previous screen or the X soft-key to exit.
View Map – Settings
With the Map displayed, touch the Options soft-key and
then touch the Settings soft-key. You can also access this
menu by touching the Settings soft-key in the lower right
of the Nav Main Menu.
The following Map Settings are available.
138 Uconnect™ ACCESS USER’S MANUAL
•Map Setup
Touch this soft-key to display items to customize how
your map is viewed. Settings – Map Setup for more
information.
•Speed Limit
Touch this soft-key to turn on/off speed limit warning
announcements and to enter a pre-defined speed limit for
your route.
•Guidance Options
Touch this soft-key to display items to customize your
route guidance. Settings – Guidance Options for more
information.
•Units
Touch this soft-key to change the units display. Touch the
desired soft-key.
– U.S. (mile/feet)
– Imperial (mile/yard)
– Metric (meter)
•GPS
Touch this soft-key to change the GPS display. Touch the
desired soft-key.
– Decimal
– DMS
– DM
•Copy device information to USB? (If Equipped)
Touch this soft-key to copy your radio information to a
USB jump drive through the available USB port.
Settings – Map Setup
1
Uconnect™ ACCESS USER’S MANUAL 139
With the Map displayed, touch the Options soft-key, then
touch the Settings soft-key and then the Map Setup
soft-key. You can also access this menu by touching the
Settings soft-key in the lower right of the Nav Main
Menu.
The following Map Setup options are available.
•Map View
Touch this soft-key to change how the Map View is
displayed. Touch the desired soft-key.
– 3D
– 2D
•Orientation
Touch this soft-key to change how the Map Orientation is
displayed. Touch the desired soft-key.
– North Up
– Heading Up
•Current Street
Touch this soft-key to turn on/off the current street
display on the lower center of the Map View. Touch and
release the soft-key until a check-mark appears, showing
the setting has been selected.
•Destination Information
140 Uconnect™ ACCESS USER’S MANUAL
Touch this soft-key to change the Destination Information
that is displayed in the upper right corner of the Map
View. Touch the desired soft-key.
– Time of Arrival
– Time to Destination
– Distance
•AutoZoom
Touch this soft-key to change how the AutoZoom feature
adjust the zoom level during guidance in Map View.
Touch the desired soft-key.
– Far
– Normal
– Near
– Off
•Vehicle Icon
Touch this soft-key to change the vehicle icon that is
displayed while in Map View. Touch Previous or Next to
view the available icons. Touch the back icon soft-key
when you’ve made you selection.
•Show POI Icons
Touch this soft-key to show the selected Point of Interest
icons while in Map View. Touch and release the soft-key
until a check-mark appears, showing the setting has been
selected.
•POI Icon List
Touch this soft-key to display the available Point of
Interest icons you would like displayed while in Map
View. Touch and release the desired selection soft-key
until a check-mark appears, showing the setting has been
selected.
•TMC Incidents
1
Uconnect™ ACCESS USER’S MANUAL 141
Touch this soft-key to show Traffic Message Channel
(TMC) Incidents while in Map View. Touch and release
the soft-key until a check-mark appears, showing the
setting has been selected.
•Speed and Flow
Touch this soft-key to show the Speed and Flow of traffic
while in Map View. Touch and release the soft-key until
a check-mark appears, showing the setting has been
selected.
•3D City Models
Touch this soft-key to display 3D city models while in
Map View. Touch and release the soft-key until a check-
mark appears, showing the setting has been selected.
•3D Landmarks
Touch this soft-key to display 3D landmarks while in
Map View. Touch and release the soft-key until a check-
mark appears, showing the setting has been selected.
•Digital Terrain Model
Touch this soft-key to display the areas terrain while in
Map View. Touch and release the soft-key until a check-
mark appears, showing the setting has been selected.
•Park Areas
Touch this soft-key to display Park Areas while in Map
View. Touch and release the soft-key until a check-mark
appears, showing the setting has been selected.
•Railroads
Touch this soft-key to display Railroad tracks while in
Map View. Touch and release the soft-key until a check-
mark appears, showing the setting has been selected.
•City Areas
Touch this soft-key to display City Areas while in Map
View. Touch and release the soft-key until a check-mark
appears, showing the setting has been selected.
142 Uconnect™ ACCESS USER’S MANUAL
•River Names
Touch this soft-key to display River Names while in Map
View. Touch and release the soft-key until a check-mark
appears, showing the setting has been selected.
NOTE: You can touch the back arrow soft-key to return
to the previous screen or the X soft-key to exit.
Settings – Guidance
With the Map displayed, touch the Options soft-key, then
touch the Settings soft-key and then the Guidance soft-
key. You can also access this menu by touching the
Settings soft-key in the lower right of the Nav Main
Menu.
The following Guidance options are available.
•Play Voice Guidance Prompts
Touch this soft-key to enable Voice Guidance Prompts
during route guidance. Touch and release the soft-key
until a check-mark appears, showing the setting has been
selected.
•Nav Volume Adjustment
Touch the (+) or (-) soft-key to adjust the Nav Voice
Prompt Volume.
•Lane Recommendation
Touch this soft-key to enable Lane Recommendation
during route guidance. Touch and release the soft-key
until a check-mark appears, showing the setting has been
selected.
•Junction View
Touch this soft-key to enable Junction View during route
guidance. Touch and release the soft-key until a check-
mark appears, showing the setting has been selected.
1
Uconnect™ ACCESS USER’S MANUAL 143
•Navigation Turn-by-Turn Displayed in Cluster
Touch this soft-key to enable navigation turn-by-turn
displayed in vehicles cluster during route guidance.
Touch and release the soft-key until a check-mark ap-
pears, showing the setting has been selected.
•TMC Route Mode
Touch this soft-key to change how the Traffic Message
Channel (TMC) Route Mode functions during route
guidance. Touch the desired soft-key.
– Automatic
– By Delay Time
– Manual
– Off
•TMC Avoidance Types
Touch this soft-key to display the available Traffic Mes-
sage Channel (TMC) Avoidance Types you would like
displayed while in route guidance. Touch and release the
desired selection soft-key until a check-mark appears,
showing the setting has been selected.
NOTE: You can touch the back arrow soft-key to return
to the previous screen or the X soft-key to exit.
Information
144 Uconnect™ ACCESS USER’S MANUAL
From the Nav Main Menu, touch the Information soft-
key and select one of the following options to view
additional information.
•Traffic
•Where Am I?
•Trip Computer
NOTE: You can touch the back arrow soft-key to return
to the previous screen or the X soft-key to exit.
Information – Where Am I?
To select Where Am I? information, touch the Informa-
tion soft-key from the Nav Main Menu and then touch
the Where Am I? soft-key.
1
Uconnect™ ACCESS USER’S MANUAL 145
Where Am I? displays the address and GEO Coordinates
of your current location.
•Touch the GPS soft-key to view the GPS information.
•Touch the Save soft-key to save the location in your
Favorites.
NOTE: You can touch the back arrow soft-key to return
to the previous screen or the X soft-key to exit.
Information – Trip Computer
To select Trip Computer information, touch the Informa-
tion soft-key from the Nav Main Menu and then touch
the Trip Computer soft-key.
Trip Computer displays the following trip information
from your last trip
•Travel Direction
146 Uconnect™ ACCESS USER’S MANUAL
•Distance to final Destination
•Vehicle Speed
•Distance Traveled
•Overall average speed
•Moving average speed
•Maximum speed reached
•Total time traveled
•Travel time spent moving
•Travel time spent stopped
NOTE: You can touch the back arrow soft-key to return
to the previous screen or the X soft-key to exit.
Emergency
From the Nav Main Menu, touch the Emergency soft-key
and touch one of the following options to search and
route to a specific location.
•Hospital – Search and route to a Hospital close to your
current location
•Police – Search and route to a Police Station close to
your current location
1
Uconnect™ ACCESS USER’S MANUAL 147
•Fire Department – Search and route a Fire Department
close to your current location
Touch the Location soft-key to display your exact current
location.
Touch the Save soft-key to save your current location in
Favorites.
NOTE: You can touch the back arrow soft-key to return
to the previous screen or the X soft-key to exit.
Emergency – Hospital
To search for a Hospital close to your current location,
touch Emergency from the Nav Main Menu and then
touch the Hospital soft-key.
You can search for a Hospital by the following categories,
which are soft-key tabs at the top of the screen.
•Name
148 Uconnect™ ACCESS USER’S MANUAL
•Distance
•ABC (Search)
NOTE: In case of emergency, please contact the facility
to verify their availability before proceeding.
Touch the desired Hospital and touch Yes to confirm the
destination.
NOTE:
•If you are currently on a route guidance and you select
a Hospital the system will ask you to choose one of the
following
•Cancel previous route
•Add as first destination
•Add as last destination
•You can touch the back arrow soft-key to return to the
previous screen or the X soft-key to exit.
Emergency – Police
To search for a Police Station close to your current
location, touch Emergency from the Nav Main Menu and
then touch the Police Station soft-key.
1
Uconnect™ ACCESS USER’S MANUAL 149
You can search for a Police Station by the following
categories, which are soft-key tabs at the top of the
screen.
•Name
•Distance
•ABC (Search)
NOTE: In case of emergency, please contact the facility
to verify their availability before proceeding.
Touch the desired Police Station and touch Yes to confirm
the destination.
NOTE: If you are currently on a route guidance and you
select a Police Station the system will ask you to choose
one of the following
•Cancel previous route
•Add as first destination
•Add as last destination
You can touch the back arrow soft-key to return to the
previous screen or the X soft-key to exit.
150 Uconnect™ ACCESS USER’S MANUAL
Emergency – Fire Department
To search for a Fire Department close to your current
location, touch Emergency from the Nav Main Menu and
then touch the Fire Department soft-key.
You can search for a Fire Department by the following
categories, which are soft-key tabs at the top of the
screen.
•Name
•Distance
•ABC (Search)
NOTE: In case of emergency, please contact the facility
to verify their availability before proceeding.
Touch the desired Fire Department and touch Yes to
confirm the destination.
NOTE: If you are currently on a route guidance and you
select a Fire Department the system will ask you to
choose one of the following
•Cancel previous route
•Add as first destination
1
Uconnect™ ACCESS USER’S MANUAL 151
•Add as last destination
You can touch the back arrow soft-key to return to the
previous screen or the X soft-key to exit.
Security Features
The following Security Related options are available:
•9–1–1 Call
•Roadside Assistance Call
Roadside Assistance (If Equipped)
If your vehicle is equipped with this feature and within
cellular range, you may be able to connect to Roadside
Assistance, Uconnect™ Care and Vehicle Care by press-
ing the “Assist” button on the Rearview Mirror of your
vehicle. To the extent any such calls incur additional
costs, you are responsible for them. If Roadside Assis-
tance is provided to your vehicle, you agree to be
responsible for any additional roadside assistance service
costs that you may incur.
In order to provide Uconnect™ Services to you, we may
record and monitor your conversations with Roadside
Assistance, Uconnect™ Care or Vehicle Care, whether
such conversations are initiated through the Uconnect™
Services in your vehicle, or via a landline or mobile
telephone, and may share information obtained through
such recording and monitoring in accordance with regu-
latory requirements. You acknowledge, agree and con-
sent to any recording, monitoring or sharing of informa-
tion obtained through any such call recordings.
152 Uconnect™ ACCESS USER’S MANUAL
9–1–1 Call – If Equipped
The 9-1-1 Call system is an embedded phone system that
allows you to connect to a 9-1-1 operator in an emer-
gency. You can choose to press the 9-1-1 Call button on
the Rearview Mirror to contact a 9-1-1 operator.
9–1–1 Call Operating Instructions
1. Press the 9-1-1 Call button on the Rearview Mirror;
NOTE: In case the 9-1-1 Call button is pushed in error,
there will be a 10 second delay before the 9-1-1 Call
system initiates a call to a 9-1-1 operator. To cancel the
9-1-1 Call connection, press the 9-1-1 Call button on the
Rearview Mirror or press the cancellation button on the
Phone Screen. Termination of the 9-1-1 Call will turn the
green LED light on the Rearview Mirror off.
2. The LED light on the Rearview Mirror will turn green
once a connection to a 9-1-1 operator has been made;
3. Once a connection between the vehicle and a 9-1-1
operator is made, the 9-1-1 Call system may transmit
the following important vehicle information to a 9-1-1
operator:
•indication that the occupant placed a 9-1-1 Call;
•the vehicle brand; and
•the last known GPS coordinates of the vehicle.
4. You should be able to speak with the 9-1-1 operator
through the vehicle audio system to determine if
additional help is needed.
1
Uconnect™ ACCESS USER’S MANUAL 153
NOTE: Once a connection is made between the vehicle’s
9-1-1 Call system and the 9-1-1 operator, the 9-1-1 opera-
tor may be able to open a voice connection with the
vehicle to determine if additional help is needed. Once
the 9-1-1 operator opens a voice connection with the
vehicle’s 9-1-1 Call system, the operator should be able to
speak with you or other vehicle occupants and hear
sounds occurring in the vehicle. The vehicle’s 9-1-1 Call
system will attempt to remain connected with the 9-1-1
operator until the 9-1-1 operator terminates the connec-
tion.
5. The 9-1-1 operator may attempt to contact appropriate
emergency responders and provide them with impor-
tant vehicle information and GPS coordinates.
6. If a connection between the vehicle and a 9-1-1 opera-
tor is made, the 9-1-1 Call system may transmit certain
vehicle information to a 9-1-1 operator, including the
last known GPS coordinates of your vehicle. If a
connection is made between a 9-1-1 operator and your
vehicle, you understand and agree that 9-1-1 operators
may record conversations and sounds in your car
upon connection and consent to such recordings. Your
vehicle MUST have a working electrical system for the
9-1-1 Call system, among others, to operate. IF YOUR
VEHICLE LOSES BATTERY POWER FOR ANY REA-
SON (INCLUDING DURING OR AFTER AN ACCI-
DENT) THE 9-1-1 CALL SYSTEM, AMONG OTHER
VEHICLES SYSTEMS, WILL NOT OPERATE.
WARNING!
If anyone in the vehicle could be in danger (e.g., fire
(Continued)
154 Uconnect™ ACCESS USER’S MANUAL
WARNING! (Continued)
or smoke is visible, dangerous road conditions or
location), do not wait for voice contact from a 9-1-1
operator. All occupants should exit the vehicle imme-
diately and move to a safe location.
WARNING!
The 9-1-1 Call system is embedded into the vehicle’s
electrical system. Do not add any aftermarket electri-
cal equipment to the vehicle’s electrical system. This
may prevent your vehicle from sending a signal to
initiate an emergency call. To avoid interference that
can cause the 9-1-1 Call system to fail, never add
aftermarket equipment (e.g., two-way mobile radio,
CB radio, data recorder, etc.) to your vehicle’s electri-
cal system or modify the antennas on your vehicle.
9-1-1 Call System Limitations
Vehicles sold in Canada and Mexico DO NOT have 9-1-1
Call system capabilities.
9-1-1 or other emergency line operators in Canada and
Mexico may not answer or respond to 9-1-1 system calls.
If the 9-1-1 Call system detects a malfunction, any of the
following may occur at the time the malfunction is
detected, and at the beginning of each ignition cycle:
•the Rearview Mirror light will continuously be illumi-
nated red;
•The Phone Screen will display the following message
“Vehicle phone requires service. Please contact your
dealer.”; and,
•An In-Vehicle Audio message will state “Vehicle phone
requires service. Please contact your dealer.”
1
Uconnect™ ACCESS USER’S MANUAL 155
WARNING!
Ignoring the Rearview Mirror light could mean you
will not have 9-1-1 Call services. If the Rearview
Mirror light is illuminated, have an authorized
dealer service the 9-1-1 Call system immediately.
WARNING!
The ORC turns on the Air Bag Warning Light on the
instrument panel if a malfunction in any part of the
system is detected. If the Air Bag Warning Light is
illuminated, the 9-1-1 system may not be able to send
a signal to a 9-1-1 operator. If the Air Bag Warning
Light is illuminated, have an authorized dealer ser-
vice the ORC system immediately.
Even if the 9-1-1 Call system is fully functional, factors
beyond Chrysler Group LLC’s control may prevent or
stop 9-1-1 Call system operation. These include, but are
not limited to, the following factors:
•The ignition key has been removed from the ignition
and the delayed accessories mode is active;
•The ignition key is in OFF position;
•The vehicle’s electrical systems are not intact;
•The 9-1-1 Call system software and/or hardware are
damaged during a crash;
•The vehicle battery loses power or becomes discon-
nected during a vehicle crash;
•Wireless and/or Global Positioning Satellite signals
are unavailable or obstructed;
•Equipment malfunction at the 9-1-1 operator facility;
156 Uconnect™ ACCESS USER’S MANUAL
•Operator error by the 9-1-1 operator;
•Wireless network congestion;
•Weather; and
•Buildings, structures, geographic terrain, or tunnels.
WARNING!
Never place anything on or near the vehicle’s wire-
less and GPS antennas. You could prevent wireless
and GPS signal reception, which can prevent your
vehicle from placing an emergency call. Wireless and
GPS signal reception is required for the 9-1-1 Call
system to function properly.
WARNING!
Failure to perform scheduled maintenance and regu-
larly inspect your vehicle may result in vehicle dam-
age and/or serious injury.
General Information
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2)
this device must accept any interference received, includ-
ing interference that may cause undesired operation.
Remote Service Features
If your vehicle is equipped with Remote Service Features,
for more information, refer to www.MoparOwnerCon-
nect.com or call 855-792-4241.
1
Uconnect™ ACCESS USER’S MANUAL 157
Uconnect™ 8.4AN
Uconnect™ 8.4AN System
1. Radio
Touch the Radio soft-key to enter the Radio Mode. The
different tuner modes; AM, FM and SXM can be selected
by touching the corresponding soft-keys in the Radio
Mode.
2. Media
Touch the Media soft-key to access media sources such
as: Disc, USB Device and AUX as long as the requested
media is present.
3. Climate
Refer to Climate Controls in your vehicles Owner’s
Manual on the DVD for further details.
4. Nav
Touch the Nav soft-key to access the Navigation feature.
Refer to the Navigation section in this manual for further
details.
5. Phone
158 Uconnect™ ACCESS USER’S MANUAL
Touch the Phone soft-key to access the Uconnect™ Phone
feature.
6. Apps
Touch the Apps soft-key to access Smartphone and
Connected vehicle options.
7. Settings
Touch the Settings soft-key to display the list of available
settings. Refer to Understanding Your Instrument Panel
section in your vehicles Owner’s Manual on the DVD for
further details.
8. ENTER/BROWSE & TUNE/SCROLL
Press the ENTER/BROWSE button to accept a high-
lighted selection on the screen. Rotate the TUNE/
SCROLL rotary knob to scroll through a list or tune a
radio station.
9. BACK
Press the BACK button to return to a previous menu or
screen.
10. SCREEN OFF
Press the SCREEN OFF hard-key to turn the touch-screen
OFF. To turn the screen back ON, just touch the screen.
11. VOLUME & MUTE
Rotate the rotary knob to adjust the Volume. Press the
Mute button to mute the system.
Radio Mode
The radio is equipped with the following modes:
•FM
•AM
•SiriusXM™ Satellite Radio (if equipped)
1
Uconnect™ ACCESS USER’S MANUAL 159
Touch the RADIO Soft Key, bottom left corner, to enter
the Radio Mode. The different tuner modes; AM, FM, and
SAT, can then, be selected by touching the corresponding
soft-keys in the Radio mode.
ON/OFF & Volume Control
Push the ON/OFF Volume control knob to turn on the
radio. Push the ON/OFF Volume control knob a second
time to turn off the radio.
The electronic volume control turns continuously (360
degrees) in either direction, without stopping. Turning
the Volume control knob clockwise increases the volume,
and counter-clockwise decreases it.
When the audio system is turned on, the sound will be
set at the same volume level as last played.
Tune/Scroll Control
Turn the rotary TUNE/SCROLL control knob clockwise
to increase or counterclockwise to decrease the radio
station frequency. Push the ENTER/BROWSE button to
choose a selection.
When touched, the green GO soft key allows the you to
commit an entry, at which time the radio will tune to the
entered station or channel and close the Direct Tune
Screen.
Screen Close
The Red X Soft key at the top right, provides a means to
close the Direct Tune Screen. The Direct Tune Screen also
auto closes if no activity occurs within 10 seconds.
Seek and Direct Tune Functions
The Seek Up and Down functions are activated by
touching the double arrow soft-keys to the right and left
of the radio station display, or by pressing the left
Steering Wheel Audio Control (if equipped) up or down.
160 Uconnect™ ACCESS USER’S MANUAL
Seek Up
Touch and release the Seek Up soft-key to tune the radio
to the next listenable station or channel. During a Seek
Up function, if the radio reaches the starting station after
passing through the entire band two times, the radio will
stop at the station where it began.
Fast Seek Up
Touch and hold the Seek Up soft-key to advance the radio
through the available stations or channels at a faster rate,
the radio stops at the next available station or channel
when the soft-key is released.
Seek Down
Touch and release the Seek Down soft-key to tune the
radio to the next listenable station or channel. During a
Seek Down function, if the radio reaches the starting
station after passing through the entire band two times,
the radio will stop at the station where it began.
Fast Seek Down
Touch and hold the Seek Down soft-key to advance the
radio through the available stations or channel at a faster
rate, the radio stops at the next available station or
channel when the soft-key is released.
Direct Tune
Press the Tune soft-key located at the bottom of the radio
screen. The Direct Tune soft-key screen is available in
AM, FM, and SAT radio modes and can be used to direct
tune the radio to a desired station or channel.
Press the available number soft-key to begin selecting a
desired station. Once a number has been entered, any
numbers that are no longer possible (stations that cannot
be reached) will become deactivated / grayed out.
Undo
You can backspace an entry by touching the bottom left
Undo soft key.
1
Uconnect™ ACCESS USER’S MANUAL 161
GO
Once the last digit of a station has been entered, the
DIRECT TUNE screen will close and the system will
automatically tune to that station.
The selected Station or Channel number is displayed in
the Direct Tune text box.
Setting Presets
The Presets are available for all Radio Modes, and are
activated by touching any of the six Preset soft keys,
located at the top of the screen.
When you are receiving a station that you wish to
commit into memory, press and hold the desired num-
bered soft-key for more that 2 seconds or until you hear
a confirmation beep.
The Radio stores up to 12 presets in each of the Radio
modes. A set of 6 presets are visible at the top of the radio
screen.
You can switch between the two radio presets by touch-
ing the arrow soft key located in the upper right of the
radio screen.
Browse in AM/FM
When in either AM or FM, the Browse Screen provides a
means to edit the Presets List and is entered by touching
the browse soft key.
Scrolling Preset List
Once in the Browse Presets screen, you can scroll the
preset list by rotation of the Tune Knob, or by touching
the Up and Down arrow keys, located on the right of the
screen.
Preset Selection from List
A Preset can be selected by touching any of the listed
Presets, or by pressing the ENTER/BROWSE button on
the Tune Knob to select the currently highlighted Preset.
162 Uconnect™ ACCESS USER’S MANUAL
When selected, the radio tunes to the station stored in the
Preset and returns to the main radio screen.
Deleting Presets
A Preset can be deleted in the Presets Browse screen by
touching the Trash Can Icon for the corresponding Preset.
Return to Main Radio Screen
You can return to the Main Radio Screen, by touching the
X soft key when in the Browse Presets screen.
SiriusXM™ Satellite Radio Mode
SiriusXM™ Satellite radio uses direct satellite-to-receiver
broadcasting technology to provide clear digital sound,
coast to coast. The subscription service provider is Siri-
usXM™ Satellite Radio. This service offers over 130
channels of music, sports, news, entertainment, and
programming for children, directly from its satellites and
broadcasting studios. A one-year SiriusXM™ Satellite
Radio subscription is included.
SiriusXM™ and all related marks and logos are trade-
marks of SiriusXM™ Radio Inc. and its subsidiaries.
SiriusXM™ Radio requires a subscription, sold sepa-
rately after trial subscription included with vehicle pur-
chase. Prices and programming are provided by Siri-
usXM™ and are subject to change. Subscriptions
governed by Terms & Conditions available at sirius.com/
serviceterms. SiriusXM™ Radio U.S. service only avail-
able to those at least 18 years of age in the 48 contiguous
United States, D.C., and PR. Service available in Canada;
see www.siriuscanada.ca.
This functionality is only available for radios equipped
with a Satellite receiver. In order to receive satellite radio,
the vehicle needs to be outside with a clear view to the
sky.
1
Uconnect™ ACCESS USER’S MANUAL 163
If the screen shows Acquiring Signal, you might have to
change the vehicle’s position in order to receive a signal.
In most cases, the satellite radio does not receive a signal
in underground parking garages or tunnels.
No Subscription
Radios equipped with a Satellite receiver, require a
subscription to the Sirius Service. When the Radio does
not have the necessary subscription, the Radio is able to
receive the Traffic/Weather channel only.
Acquiring SiriusXM™ Subscription
To activate the Sirius subscription, call the toll free
number on the Weather channel. You will need to pro-
vide the Sirius ID (SID) located at the bottom of the
Channel 0 screen.
The Satellite Mode is activated by a touch of the SAT
soft-key.
When in Satellite mode:
•The SAT button is highlighted blue.
•The SiriusXM™ Presets are displayed at the top of the
screen.
•The Genre is displayed below the Presets Bar.
•The SiriusXM™ Channel Number is displayed in the
center.
•The Program Information is displayed at the bottom of
the Channel Number.
•The SiriusXM™ function soft-keys are displayed be-
low the Program Information.
Tuning is done by operating the Tune Knob or by Direct
Tune, similar to other Radio Bands, see Presets, browse,
Tune Knob, and Direct Tune.
164 Uconnect™ ACCESS USER’S MANUAL
In addition to the tuning Operation functions common to
all Radio modes, the replay, Traffic/Weather Jump, and
fav soft-key functions are available in SiriusXM™ Mode.
Replay
The replay function provides a means to store and replay
up to 22 minutes of music audio and 48 minutes of talk
radio. Once the channel is switched, content in replay
memory is lost
Touch the replay soft-key. The play/pause, rewind/
forward and live soft-keys will display at the top of the
screen, along with the replay time.
You can exit by touching the replay soft-key, any time
during the Replay mode.
Play/Pause
Touch the Pause or Play soft-key to pause playing of the
content at any time that the content is playing live or
rewound content. Play can be resumed again by touching
of the Pause/Play soft-key.
Rewind
Touch the RW soft-key to rewind the content in steps of
5 seconds. Touching the RW soft-key for more than 2
seconds rewinds the content. The Radio begins playing
the content at the point at which the touch is released.
Forward
Each touch of the FW soft-key forwards the content in
steps of 5 seconds. Forwarding of the content can only be
done when the content is previously rewound, and
therefore, can not be done for live content. A continuous
touch of the FW soft-key also forwards the content. The
Radio begins playing the content at the point at which the
touch is release.
1
Uconnect™ ACCESS USER’S MANUAL 165
Live
Touch the Live soft-key to resume playing of Live con-
tent.
Favorites
Touch the fav. soft-key to activate the favorites menu,
which will time out in 5 seconds in absence of user
interaction.
You can exit the Favorites Menu by a touch of the X in the
top right corner.
The favorites feature enables you to set a favorite artist,
or song that is currently playing. The Radio then uses this
information to alert you when either the favorite song, or
favorite artist are being played at any time by any of the
SIRIUS Channels.
The maximum number of favorites that can be stored in
the Radio is 50.
Fav. Artist While the song is playing to set a Favorite
Artist, touch the fav. soft-key and then the Fav. Artist
soft-key.
Fav. Song While the song is playing to set a Favorite
Song, touch the fav. soft-key and then the Fav Song
soft-key.
Traffic & Weather
Touch the Traffic & Weather soft-key to tune to a Siri-
usXM™ Traffic and Weather channel. To set a Traffic &
Weather alert for any one of the cities in the Jump Browse
list, see Browse in SAT.
When the Traffic & Weather soft-key is touched, the
Traffic & Weather channel is tuned.
If the Traffic & Weather alert City is not set, you are
presented with a pop up to allow you to select the
favorite city using the Browse Screen.
166 Uconnect™ ACCESS USER’S MANUAL
Browse in SAT
Touch the browse soft-key to edit Presets, Favorites,
Game Zone, and Jump settings, along with providing the
SiriusXM™ Channel List.
This Screen contains many sub menus. You can exit a sub
menu to get back to a parent menu by a touch of the Back
Arrow.
All
Touch the All soft-key at the left of the Browse Screen.
Channel List
Touch the Channel List to display all the SiriusXM™
Channel Numbers along with the corresponding Genre.
You can scroll the Channel list by touching the up and
down arrows, located on the right side of the screen.
Scrolling can also be done by operating the Tune/Scroll
Knob.
Genre
Touch the Genre button to display a list of Genres. You
can select any desired Genre by touching the Genre list, at
which point, the Radio tunes to a channel with the
content in the selected Genre.
Presets
Touch the Presets soft-key located at the left of the
Browse screen.
You can scroll the Presets list touching the up and down
arrows, located at the right side of the screen. Scrolling
can also be done by operating the Tune/Scroll Knob as
well.
Preset Selection
A Preset can be selected by touching any of the listed
Presets, or by pressing the ENTER/BROWSE button on
the Tune Knob to select the currently highlighted Preset.
1
Uconnect™ ACCESS USER’S MANUAL 167
When selected, the Radio tunes to the station stored in
the Preset, and returns to the main Radio screen.
Deleting a Preset
A Preset can be deleted in the Presets Browse screen by
touching the Trash Can Icon for the corresponding Preset.
Favorites
Touch the Favorites soft-key, located at the left of the
Browse screen.
The Favorites menu provides a means to Edit the Favor-
ites list and to configure the Alert Settings, along with
providing a list of Channels currently airing any of the
items in the Favorites list.
You can scroll the Favorites list touching the up and
down arrows, located at the right side of the screen.
Scrolling can also be done by operating the Tune/Scroll
Knob as well.
Remove Favorites
Touch the Remove Favorites tab at the top of the screen.
Touch the Delete All soft-key to delete all of the Favorites
or touch the Trash Can icon next to the Favorite to be
deleted.
Alert Settings
Touch the Alert Setting tab at the top of the screen. The
Alert Settings menu allows you to choose from a Visual
alert or Audible and Visual alert when one of your
favorites is airing on any of the SiriusXM™ channels.
Game Zone
Touch the Game Zone soft-key, located at the left of the
Browse screen. This feature provides you with the ability
to select teams, edit the selection, and set alerts.
On Air
168 Uconnect™ ACCESS USER’S MANUAL
Touch the On-Air tab at the top of the screen. The On-Air
list provides a list of Channels currently airing any of the
items in the Selections list, and touching any of the items
in the list tunes the radio to that channel.
Select Teams
Touch the Select Teams soft-key to activate the League
Scroll list. Touch the chosen league and a scroll list of all
teams within the league will appear, then you can select
a team by touching the corresponding box. A check mark
appears for all teams that are chosen.
Remove Selection
Touch the Remove Selection tab at the top of the screen.
Touch the Delete All soft-key to delete all of the Selections
or touch the Trash Can icon next to the Selection to be
deleted.
Alert Settings
Touch the Alert Setting tab at the top of the screen. The
Alert Settings menu allows you to choose from “Alert me
to on-air games upon start” or “Alert upon score update”
or both when one or more of your selections is airing on
any of the SiriusXM™ channels.
Audio
Touch of the Audio soft-key to activate the Audio settings
screen to adjust Balance\Fade, Equalizer, And Speed
Adjusted Volume.
You can return to the Radio screen by touching the X
located at the top right.
Balance/Fade
1
Uconnect™ ACCESS USER’S MANUAL 169
Touch the Balance/Fade soft-key to Balance audio be-
tween the front speakers or fade the audio between the
rear and front speakers.
Touching the Front, Rear, Left, or Right soft-keys or touch
and drag the blue Speaker Icon to adjust the Balance/
Fade.
Equalizer
Touch the Equalizer soft-key to activate the Equalizer
screen.
Touch the + or - soft-keys, or by touching and dragging
over the level bar for each of the equalizer bands. The
level value, which spans between ±9, is displayed at the
bottom of each of the Bands.
170 Uconnect™ ACCESS USER’S MANUAL
Speed Adjusted Volume
Touch the Speed Adjusted Volume soft-key to activate the
Speed Adjusted Volume screen.
The Speed Adjusted Volume is adjusted by touching of
the + and - buttons or by touching, and dragging over the
Level Bar This alters the automatic adjustment of the
audio volume with variation to vehicle speed. Volume
increases automatically as speed increase to compensate
for normal road noise.
Surround System (If Equipped)
Touch the On soft-key to activate Surround Sound. Touch
Off to deactivate this feature.
When Surround Sound is On, you can hear audio coming
from every direction as in a movie theatre or home
theatre system.
Media Mode
OPERATING INSTRUCTIONS – DISC MODE
Overview
Disc Mode is entered by either inserting a Disc or touch
the Disc soft-key on the left side of the display. Once in
Media Mode, touch the source soft-key and select Disc.
1
Uconnect™ ACCESS USER’S MANUAL 171
A “No Disc” message will be displayed on the screen in
the Disc mode when a Disc is not present in the Radio.
Seek Up/Down
Touch and release the right arrow soft-key for the next
selection on the Disc. Touch and release the left arrow
soft-key to return to the beginning of the current selec-
tion, or return to the beginning of the previous selection
if the Disc is within the first second of the current
selection.
Browse
Touch the browse soft-key to display the browse window.
The left side of the browse window displays a list of ways
you can browse through the contents of the Disc. If
supported by the device, you can browse by Folders,
Artists, Playlists, Albums, Songs, etc. Touch the desired
soft-key on the left side of the screen. The center of the
browse window shows items and it’s sub-functions,
which can be scrolled by touching the Up and Down
soft-keys to the right. The Scroll/Tune knob can also be
used to scroll.
Source
Touch the Source soft-key to select the desired audio
source, Disc, USB/iPodt, SD Card, AUX or Bluetootht.
This screen will time out after a few seconds and return
to the main radio screen if no selection is made.
Repeat
Touch the repeat soft-key to toggle the repeat function-
ality. The Repeat soft-key is highlighted when active. The
Radio will continue to play the current track, repeatedly,
as long as the repeat is active.
Shuffle
172 Uconnect™ ACCESS USER’S MANUAL
Touch the shuffle soft-key to play the selections on the
compact disc in random order to provide an interesting
change of pace. Touch the soft-key a second time to turn
this feature off.
Info
Touch the Info soft-key to display the current track
information. Touch the Info soft-key a second time to
cancel this feature.
Tracks
Touch the trks soft-key to display a pop up with the Song
List. The currently playing song is indicated by an arrow
and lines above and below the song title.
OPERATING INSTRUCTIONS – USB/iPodt
MODE
Overview
USB/iPodtMode is entered by either inserting a USB
device or iPodtand cable into the USB Port or touch the
iPodtsoft-key on the left side of the display. Once in
Media Mode, touch the source soft-key and select iPodt.
Seek Up/Down
Touch and release the right arrow soft-key for the next
selection on the USB device/iPodt. Touch and release the
left arrow soft-key to return to the beginning of the
current selection, or return to the beginning of the
previous selection if the USB device/iPodtis within the
first second of the current selection.
Browse
Touch the browse soft-key to display the browse window.
The left side of the browse window displays a list of ways
you can browse through the contents of the USB device/
iPodt. If supported by the device, you can browse by
Folders, Artists, Playlists, Albums, Songs, etc. Touch the
1
Uconnect™ ACCESS USER’S MANUAL 173
desired soft-key on the left side of the screen. The center
of the browse window shows items and it’s sub-
functions, which can be scrolled by touching the Up and
Down soft-keys to the right. The Scroll/Tune knob can
also be used to scroll.
Source
Touch the Source soft-key to select the desired audio
source, Disc, USB/iPodt, SD Card, AUX or Bluetootht.
This screen will time out after a few seconds and return
to the main radio screen if no selection is made.
Repeat
Touch the repeat soft-key to toggle the repeat function-
ality. The Repeat soft-key is highlighted when active. The
Radio will continue to play the current track, repeatedly,
as long as the repeat is active.
Shuffle
Touch the shuffle soft-key to play the selections on the
USB/iPodtdevice in random order to provide an inter-
esting change of pace. Touch the soft-key a second time to
turn this feature off.
Info
Touch the Info soft-key to display the current track
information. Touch the Info soft-key a second time to
cancel this feature.
Tracks
Touch the trks soft-key to display a pop up with the Song
List. The currently playing song is indicated by an arrow
and lines above and below the song title. When in the
Tracks List screen you can rotate the TUNE/SCROLL
knob to highlight a track (indicated by the line above and
below the track name) and then press the ENTER/
BROWSE knob to start playing that track.
174 Uconnect™ ACCESS USER’S MANUAL
Touching the trks soft-key while the pop up is displayed
will close the pop up.
Audio
Refer to Radio Mode for adjusting the audio settings.
OPERATING INSTRUCTIONS – AUX MODE
Overview
AUX Mode is entered by inserting an AUX device using
a cable with a 3.5 mm audio jack into the AUX port or
touch the AUX soft-key on the left side of the display.
Once in Media Mode, touch the source soft-key and select
AUX.
Inserting Auxiliary Device
Gently insert the Auxiliary device cable into the AUX
Port. If you insert an Auxiliary device with the ignition
ON and the radio ON, the unit will switch to AUX mode
and begin to play when you insert the device cable.
Controlling the Auxiliary Device
The control of the auxiliary device (e.g., selecting play-
lists, play, fast forward, etc.) cannot be provided by the
radio; use the device controls instead. Adjust the volume
with the ON/OFF VOLUME rotary knob, or with the
volume of the attached device.
NOTE: The vehicle radio unit is acting as the amplifier
for audio output from the Auxiliary device. Therefore if
the volume control on the Auxiliary device is set too low,
there will be insufficient audio signal for the radio unit to
play the music on the device.
Source
Touch the Source soft-key to select the desired audio
source, Disc, USB/iPodt, SD Card, AUX or Bluetootht.
This screen will time out after a few seconds and return
to the main radio screen if no selection is made.
Audio
1
Uconnect™ ACCESS USER’S MANUAL 175
Refer to Radio Mode for adjusting the audio settings.
OPERATING INSTRUCTIONS – SD CARD
MODE
Overview
SD Card Mode is entered by either inserting a SD Card
into the USB Port or touch the SD Card soft-key on the
left side of the display. Once in Media Mode, touch the
source soft-key and select SD Card.
Seek Up/Down
Touch and release the right arrow soft-key for the next
selection on the SD Card. Touch and release the left arrow
soft-key to return to the beginning of the current selec-
tion, or return to the beginning of the previous selection
if the SD Card is within the first second of the current
selection.
Browse
Touch the browse soft-key to display the browse window.
The left side of the browse window displays a list of ways
you can browse through the contents of the SD Card. If
supported by the device, you can browse by Folders,
Artists, Playlists, Albums, Songs, etc. Touch the desired
soft-key on the left side of the screen. The center of the
browse window shows items and it’s sub-functions,
which can be scrolled by touching the Up and Down
soft-keys to the right. The Scroll/Tune knob can also be
used to scroll.
Source
Touch the Source soft-key to select the desired audio
source, Disc, USB/iPodt, SD Card, AUX or Bluetootht.
This screen will time out after a few seconds and return
to the main radio screen if no selection is made.
Repeat
176 Uconnect™ ACCESS USER’S MANUAL
Touch the repeat soft-key to toggle the repeat function-
ality. The Repeat soft-key is highlighted when active. The
Radio will continue to play the current track, repeatedly,
as long as the repeat is active.
Shuffle
Touch the shuffle soft-key to play the selections on the SD
Card device in random order to provide an interesting
change of pace. Touch the soft-key a second time to turn
this feature off.
Info
Touch the Info soft-key to display the current track
information. Touch the Info soft-key a second time to
cancel this feature.
Tracks
Touch the trks soft-key to display a pop up with the Song
List. The currently playing song is indicated by an arrow
and lines above and below the song title. When in the
Tracks List screen you can rotate the TUNE/SCROLL
knob to highlight a track (indicated by the line above and
below the track name) and then press the ENTER/
BROWSE knob to start playing that track.
Touching the trks soft-key while the pop up is displayed
will close the pop up.
Audio
Refer to Radio Mode for adjusting the audio settings.
OPERATING INSTRUCTIONS – Bluetootht
MODE
Overview
BluetoothtStreaming Audio (BTSA) or BluetoothtMode
is entered by pairing a Bluetoothtdevice, containing
music, to the Uconnect™ Access system.
1
Uconnect™ ACCESS USER’S MANUAL 177
Before proceeding, the Bluetoothtdevice needs to be
paired through Uconnect™ Phone in order to communi-
cate with the Uconnect™ Access System.
NOTE: See the pairing procedure in the Uconnect™
Phone section for more details.
To access Bluetoothtmode, touch the Bluetoothtsoft-key
on the left side of the display.
Seek Up/Down
Touch and release the right arrow soft-key for the next
selection on the Bluetoothtdevice. Touch and release the
left arrow soft-key to return to the beginning of the
current selection, or return to the beginning of the
previous selection if the Bluetoothtdevice is within the
first second of the current selection.
Source
Touch the Source soft-key to select the desired audio
source, Disc, USB/iPodt, SD Card, AUX or Bluetootht.
This screen will time out after a few seconds and return
to the main radio screen if no selection is made.
Tracks
Touch the trks soft-key to display a pop up with the Song
List. The currently playing song is indicated by a blue
arrow and lines above and below the song title.
Touching the trks soft-key while the pop up is displayed
will close the pop up.
Audio
Refer to Radio Mode for adjusting the audio settings.
178 Uconnect™ ACCESS USER’S MANUAL
Uconnect™ Phone
Uconnect Phone™ Overview
Uconnect™ Phone is a voice-activated, hands-free, in-
vehicle communications system. Uconnect™ Phone al-
lows you to dial a phone number with your mobile
phone.
Uconnect™ Phone supports the following features:
Voice Activated Features:
•Hands Free dialing via Voice (“Call John Smiths Mo-
bile” or, “Dial 248 555-1212”).
•Hands Free text to speech listening of your incoming
SMS messages.
•Hands Free text messaging (“Send a message to John
Smiths Mobile”).
•Redialing last dialed numbers (“Redial”).
•Calling Back the last incoming call number (“Call
Back”).
•View Call logs on screen (“Show incoming calls”,
“Show Outgoing calls”, “Show missed Calls”, “Show
Recent Calls”).
•Searching Contacts phone number (“Search for John
Smith Mobile”).
Screen Activated Features
•Dialing via Keypad using touch-screen.
•Viewing and Calling contacts from Phonebooks dis-
played on the touch-screen.
•Setting Favorite Contact Phone numbers so the are
easily accessible on the Main Phone screen.
•Viewing and Calling contacts from Recent Call logs.
•Reviewing your recent Incoming SMS.
1
Uconnect™ ACCESS USER’S MANUAL 179
•Sending a text message via the touch-screen.
•Listen to Music on your Bluetootht Device via the
touch-screen.
•Pairing up to 10 phones/audio devices for easy access
to connect to them quickly.
NOTE: Your phone must be capable of SMS messaging
via Bluetoothtfor messaging features to work properly.
Your mobile phone’s audio is transmitted through your
vehicle’s audio system; the system will automatically
mute your radio when using the Uconnect™ Phone.
For Uconnect™ customer support, visit the following
website:
•www.UconnectPhone.com
•or call 1–877–855–8400
Uconnect™ Phone allows you to transfer calls between
the system and your mobile phone as you enter or exit
your vehicle and enables you to mute the system’s
microphone for private conversation.
WARNING!
Any voice commanded system should be used only
in safe driving conditions and all attention should be
kept on the roadway ahead. Failure to do so may
result in an accident causing serious injury or death.
The Uconnect™ Phone is driven through your
Bluetootht“Hands-Free Profile” mobile phone.
Uconnect™ features Bluetoothttechnology - the global
standard that enables different electronic devices to con-
nect to each other without wires or a docking station, so
Uconnect™ Phone works no matter where you stow your
mobile phone (be it your purse, pocket, or briefcase), as
long as your phone is turned on and has been paired to
180 Uconnect™ ACCESS USER’S MANUAL
the vehicle’s Uconnect™ Phone. The Uconnect™ Phone
allows up to ten mobile phones or audio devices to be
linked to the system. Only one linked (or paired) mobile
phone and one audio device can be used with the system
at a time. The system is available in English, Spanish, or
French languages.
Uconnect™ Phone Button
The Uconnect™ Phone Button is used to get
into the phone mode and make calls, show
recent, incoming, outgoing calls, view phone-
book etc., When you press the button you will
hear a BEEP. The beep is your signal to give a command.
Uconnect™ Voice Command Button
The Uconnect™ Voice Command Button
is only used for “barge in” and when you are
already in a call and you want to send Tones or
make another call.
The button is also used to access the Voice Com-
mands for the Uconnect™ Voice Command features if
your vehicle is equipped. Please see the Uconnect™ Voice
Command section for direction on how to use the
button.
The Uconnect™ Phone is fully integrated with the vehi-
cle’s audio system. The volume of the Uconnect™ Phone
can be adjusted either from the radio volume control
knob or from the steering wheel radio control (right
switch), if so equipped.
Operation
Voice commands can be used to operate the Uconnect™
Phone and to navigate through the Uconnect™ Phone
menu structure. Voice commands are required after most
Uconnect™ Phone prompts. There are two general meth-
ods for how Voice Command works:
1
Uconnect™ ACCESS USER’S MANUAL 181
1. Say compound commands like “Call John Smith mo-
bile”.
2. Say the individual commands and allow the system to
guide you to complete the task.
You will be prompted for a specific command and then
guided through the available options.
•Prior to giving a voice command, one must wait for the
beep, which follows the “Listen” prompt or another
prompt.
•For certain operations, compound commands can be
used. For example, instead of saying “Call” and then
“John Smith” and then “mobile”, the following com-
pound command can be said: “Call John Smith
mobile”.
•For each feature explanation in this section, only the
compound command form of the voice command is
given. You can also break the commands into parts and
say each part of the command when you are asked for
it. For example, you can use the compound command
form voice command “Search for John Smith”, or you
can break the compound command form into two
voice commands: “Search Contact” and when asked
“John Smith”. Please remember, the Uconnect™ Phone
works best when you talk in a normal conversational
tone, as if speaking to someone sitting a few feet/
meters away from you.
Natural Speech
Your Uconnect™ Phone Voice system uses a Natural
Language Voice Recognition (VR) engine.
Natural speech allows the user to speak commands in
phrases or complete sentences. The system filters out
certain non-word utterances and sounds such as “ah”
and “eh”. The system handles fill-in words such as “I
would like to”.
182 Uconnect™ ACCESS USER’S MANUAL
The system handles multiple inputs in the same phrase
or sentence such as “make a phone call” and “to Kelly
Smith”. For multiple inputs in the same phrase or sen-
tence, the system identifies the topic or context and
provides the associated follow-up prompt such as “Who
do you want to call?” in the case where a phone call was
requested but the specific name was not recognized.
The system utilizes continuous dialog; when the system
requires more information from the user it will ask a
question to which the user can respond without pressing
the Voice Command button.
Voice Command Tree
Refer to “Voice Tree” in this section.
Help Command
If you need assistance at any prompt, or if you want to
know your options at any prompt, say “Help” following
the beep.
To activate the Uconnect™ Phone from idle, simply press
the button and say a command or say “help”. All
Uconnect™ Phone sessions begin with a press of the
button on the radio control head.
Cancel Command
At any prompt, after the beep, you can say “Cancel” and
you will be returned to the main menu.
You can also press the or buttons when the
system is listening for a command and be returned to the
main or previous menu.
NOTE: Pressing the or buttons while the system
is playing is known as “Barging In”, refer to “Barge In —
Overriding Prompts” for further information.
Pair (Link) Uconnect™ Phone To A Mobile Phone
To begin using your Uconnect™ Phone, you must pair
your compatible Bluetoothtenabled mobile phone.
1
Uconnect™ ACCESS USER’S MANUAL 183
To complete the pairing process, you will need to refer-
ence your mobile phone Owner’s Manual. The
Uconnect™ website may also provide detailed instruc-
tions for pairing.
NOTE:
•You must have Bluetoothtenabled on your phone to
complete this procedure.
•The vehicle must be in PARK.
1. Press the “Phone” soft-key on the screen to begin.
2. If there is no phone currently connected with the
system, a pop-up will appear.
3. Select Yes to begin the pairing process. Then, search
for available devices on your Bluetoothtenabled
mobile phone. When prompted on the phone, enter
the name and PIN shown on the Uconnect Touch™
screen.
•If No is selected, touch the “Settings” soft-key from
the Uconnect™ Phone main screen,
•Touch the “Add Device” soft-key,
•Search for available devices on your Bluetootht
enabled mobile phone. When prompted on the
phone, enter the name and PIN shown on the
Uconnect Touch™ screen,
•See Step 4 to complete the process.
4. Uconnect™ Phone will display an in progress screen
while the system is connecting.
5. When the pairing process has successfully completed,
the system will prompt you to choose whether or not
this is your favorite phone. Selecting Yes will make
this phone the highest priority. This phone will take
precedence over other paired phones within range.
184 Uconnect™ ACCESS USER’S MANUAL
Pair Additional Mobile Phones
•Touch the “Settings” soft-key from the Phone main
screen,
•Next, touch the “Phone/Bluetootht” soft-key,
•Touch the “Add Device” soft-key,
•Search for available devices on your Bluetoothten-
abled mobile phone. When prompted on the phone,
enter the name and PIN shown on the Uconnect
Touch™ screen,
•Uconnect™ Phone will display an in process screen
while the system is connecting,
•When the pairing process has successfully completed,
the system will prompt you to choose whether or not
this is your favorite phone. Selecting Yes will make this
phone the highest priority. This phone will take pre-
cedence over other paired phones within range.
NOTE: For phones which are not made a favorite, the
phone priority is determined by the order in which it was
paired. The latest phone paired will have the higher
priority.
You can also use the following VR commands to bring up
the Paired Phone screen from any screen on the radio:
1
Uconnect™ ACCESS USER’S MANUAL 185
•“Show Paired Phones” or
•“Connect My Phone”
Pair A BluetoothtStreaming Audio Device
•Touch the “Player” or “Media” soft-key to begin,
•Change the Source to Bluetootht,
•Touch the “Bluetootht” soft-key to display the Paired
Audio Devices screen,
•Touch the “Add Device” soft-key,
NOTE: If there is no device currently connected with the
system, a pop-up will appear.
•Search for available devices on your Bluetoothten-
abled audio device. When prompted on the device,
enter the name and PIN shown on the Uconnect
Touch™ screen,
•Uconnect™ Phone will display an in process screen
while the system is connecting,
•When the pairing process has successfully completed,
the system will prompt you to choose whether or not
this is your favorite device. Selecting Yes will make
this device the highest priority. This device will take
precedence over other paired devices within range.
NOTE: For devices which are not made a favorite, the
device priority is determined by the order in which it was
paired. The latest device paired will have the higher
priority.
You can also use the following VR command to bring up
a list of paired audio devices.
•“Show Paired Audio Devices”
186 Uconnect™ ACCESS USER’S MANUAL
Connecting To A Particular Mobile Phone Or Audio
Device
Uconnect™ Phone will automatically connect to the
highest priority paired phone and/or Audio Device
within range. If you would need to choose a particular
phone or Audio Device follow these steps:
•Touch the “Settings” soft-key,
•Touch the “Phone/Bluetootht” soft-key,
•Touch to select the particular Phone or the “Paired
Audio Sources” soft-key and then an Audio Device,
•Touch the X to exit out of the Settings screen.
Disconnecting A Phone or Audio Device
•Touch the “Settings” soft-key,
•Touch the “Phone/Bluetootht” soft-key,
•Touch the + soft-key located to the right of the device
name,
•The options pop-up will be displayed,
•Touch the “Disconnect Device” soft-key,
•Touch the X to exit out of the Settings screen.
Deleting A Phone Or Audio Device
•Touch the “Settings” soft-key,
•Touch the Phone/Bluetoothtsoft-key,
•Touch the + soft-key located to the right of the device
name for a different Phone or Audio Device than the
currently connected device,
•The options pop-up will be displayed,
•Touch the “Delete Device” soft-key,
•Touch the X to exit out of the Settings screen.
1
Uconnect™ ACCESS USER’S MANUAL 187
Making A Phone Or Audio Device A Favorite
•Touch the “Settings” soft-key,
•Touch the “Phone/Bluetootht” soft-key,
•Touch the + soft-key located to the right of the device
name,
•The options pop-up will be displayed,
•Touch the “Make Favorite” soft-key; you will see the
chosen device move to the top of the list,
•Touch the X to exit out of the Settings screen.
Phonebook Download — Automatic Phonebook
Transfer From Mobile Phone
If equipped and specifically supported by your phone,
Uconnect™ Phone automatically downloads names (text
names) and number entries from the mobile phone’s
phonebook. Specific BluetoothtPhones with Phone Book
Access Profile may support this feature. See Uconnect™
website for supported phones.
•To call a name from a downloaded mobile phonebook,
follow the procedure in “Call by Saying a Name”
section.
•Automatic download and update, if supported, begins
as soon as the Bluetoothtwireless phone connection is
made to the Uconnect™ Phone, for example, after you
start the vehicle.
•A maximum of 1000 entries per phone will be down-
loaded and updated every time a phone is connected
to the Uconnect™ Phone.
•Depending on the maximum number of entries down-
loaded, there may be a short delay before the latest
188 Uconnect™ ACCESS USER’S MANUAL
downloaded names can be used. Until then, if avail-
able, the previously downloaded phonebook is avail-
able for use.
•Only the phonebook of the currently connected mobile
phone is accessible.
•This downloaded phonebook cannot be edited or
deleted on the Uconnect™ Phone. These can only be
edited on the mobile phone. The changes are trans-
ferred and updated to Uconnect™ Phone on the next
phone connection.
Managing Your Favorite Phonebook
There are three ways you can add an entry to your
Favorite Phonebook.
1. During an active call of a number to make a favorite,
touch and hold a favorite button on the top of the
phone main screen.
2. After loading the mobile phonebook, select phone-
book from the Phone main screen, then select the
appropriate number. Touch the + next to the selected
number to display the options pop-up. In the pop-up
select “Add to Favorites”.
NOTE: If the Favorites list is full, you will be asked to
remove an existing favorite.
3. From the Phone main screen, select phonebook. From
the phonebook screen, select the “Favorites” soft-key
and then select the + soft-key located to the right of the
phonebook record. Select an empty entry and touch
the + on that selected entry. When the Options pop-up
appears, touch “Add from Mobile”. You will then be
asked which contact and number to choose from your
mobile phonebook. When complete the new favorite
will be shown.
1
Uconnect™ ACCESS USER’S MANUAL 189
To Remove A Favorite
•To remove a Favorite, select phonebook from the
Phone main screen.
•Next select Favorites on the left side of the screen and
then touch the + Options soft-key.
•Touch the + next to the Favorite you would like to
remove.
•The Options pop-up will display, touch “Remove from
Favs”.
Phone Call Features
The following features can be accessed through the
Uconnect™ Phone if the feature(s) are available and
supported by Bluetoothton your mobile service plan.
For example, if your mobile service plan provides three-
way calling, this feature can be accessed through the
Uconnect™ Phone. Check with your mobile service pro-
vider for the features that you have.
Ways To Initiate A Phone Call
Listed below are all the ways you can initiate a phone call
with Uconnect™ Phone.
•Redial
•Dial by touching in the number
•Voice Commands (Dial by Saying a Name, Call by
Saying a Phonebook Name, Redial, or Call Back)
•Favorite Phonebook
•Mobile Phonebook
•Recent Call Log
•SMS Message Viewer
190 Uconnect™ ACCESS USER’S MANUAL
NOTE: All of the above operations except Redial can be
done with 1 call or less active.
Dial By Saying A Number
•Press the button to begin,
•After the “Listening” prompt and the following beep,
say “Dial 248-555-1212”,
•The Uconnect™ Phone will dial the number 248-555-
1212.
Call By Saying A Phonebook Name
•Press the button to begin,
•After the “Listening” prompt and the following beep,
say “Call John Doe Mobile”,
•The Uconnect™ Phone will dial the number associated
with John Doe, or if there are multiple numbers it will
ask which number you want to call for John Doe.
Call Controls
The touch-screen allows you to control the following call
features:
•Answer
•End
•Ignore
•Hold/unhold
•Mute/unmute
•Transfer the call to/from the phone
•Swap 2 active calls
•Join 2 active calls together
1
Uconnect™ ACCESS USER’S MANUAL 191
Touch-Tone Number Entry
•Touch the “Phone” soft-key,
•Touch the “Dial” soft-key,
•The Touch-Tone screen will be displayed,
•Use the numbered soft-keys to enter the number and
touch “Call”.
To send a touch tone using Voice Recognition (VR), press
the button while in a call and say “Send 1234#” or
you can say “Send Voicemail Password” if Voicemail
password is stored in your mobile phonebook.
Recent Calls
You may browse up to 34 of the most recent of each of the
following call types:
•Incoming Calls
•Outgoing Calls
•Missed Calls
•All Calls
These can be accessed by touching the “recent calls”
soft-key on the Phone main screen.
You can also press the button and say “Show my
incoming calls” from any screen and the Incoming calls
will be displayed.
You can also press the button and say “Show my
recent calls” from any screen and the All calls screen will
be displayed.
NOTE: Incoming can also be replaced with “Outgoing”,
“Recent” or “Missed”.
192 Uconnect™ ACCESS USER’S MANUAL
Answer Or Ignore An Incoming Call — No Call
Currently In Progress
When you receive a call on your mobile phone, the
Uconnect™ Phone will interrupt the vehicle audio sys-
tem, if on, and will ask if you would like to answer the
call. Press the button to accept the call. To ignore the
call, touch the “Ignore” soft-key on the touch-screen. You
can also touch the “answer” soft-key or touch the caller
ID box.
Answer Or Ignore An Incoming Call — Call Currently
In Progress
If a call is currently in progress and you have another
incoming call, you will hear the same network tones for
call waiting that you normally hear when using your
mobile phone. Press the phone button, answer soft-
key or caller ID box to place the current call on hold and
answer the incoming call.
NOTE: The Uconnect™ Phone compatible phones in the
market today do not support rejecting an incoming call
when another call is in progress. Therefore, the user can
only answer an incoming call or ignore it.
Making A Second Call While Current Call Is In
Progress
To make a second call while you are currently on a call,
press the button and say “Dial” or “Call” followed
by the phone number or phonebook entry you wish to
call. The first call will be on hold while the second call is
in progress. Or you can place a call on hold by touching
the Hold soft-key on the Phone main screen, then dial a
number from the dialpad, recent calls, SMS Inbox or from
the phonebooks. To go back to the first call, refer to
“Toggling Between Calls” in this section. To combine two
calls, refer to “Join Calls” in this section.
1
Uconnect™ ACCESS USER’S MANUAL 193
Place/Retrieve A Call From Hold
During an active call, touch the “Hold” soft-key on the
Phone main screen.
Toggling Between Calls
If two calls are in progress (one active and one on hold),
touch the “Swap” soft-key on the Phone main screen.
Only one call can be placed on hold at a time.
You can also press the button to toggle between the
active and held phone call.
Join Calls
When two calls are in progress (one active and one on
hold), touch the “Join Calls” soft-key on the Phone main
screen to combine all calls into a Conference Call.
Call Termination
To end a call in progress, momentarily press the but-
ton or the end soft-key. Only the active call(s) will be
terminated and if there is a call on hold, it will become
the new active call. If the active call is terminated by the
far end, a call on hold may not become active automati-
cally. This is cell phone-dependent.
Redial
•Press the “Redial” soft-key,
•or press the and after the “Listening” prompt and
the following beep, say “Redial”,
•After the “Listening” prompt and the following beep,
say “Redial”,
•The Uconnect™ Phone will call the last number that
was dialed from your mobile phone.
Call Continuation
Call continuation is the progression of a phone call on the
Uconnect™ Phone after the vehicle ignition key has been
switched to OFF.
194 Uconnect™ ACCESS USER’S MANUAL
NOTE: The call will remain within the vehicle audio
system until the phone becomes out of range for the
Bluetoothtconnection. It is recommended to press the
“transfer” soft-key when leaving the vehicle.
Advanced Phone Connectivity
Transfer Call To And From Mobile Phone
The Uconnect™ Phone allows ongoing calls to be trans-
ferred from your mobile phone to the Uconnect™ Phone
without terminating the call. To transfer an ongoing call
from your paired mobile phone to the Uconnect™ Phone
or vice versa, press the Transfer button on the Phone
main screen.
Connect Or Disconnect Link Between The Uconnect™
Phone And Mobile Phone
If you would like to connect or disconnect the Bluetootht
connection between a Uconnect™ Phone paired mobile
phone and the Uconnect™ Phone, follow the instructions
described in your mobile phone User’s Manual.
Things You Should Know About Your Uconnect™
Phone
Voice Command
•For best performance, adjust the rearview mirror to
provide at least ½ in (1 cm) gap between the overhead
console (if equipped) and the mirror.
•Always wait for the beep before speaking.
•Speak normally, without pausing, just as you would
speak to a person sitting a few feet/meters away from
you.
•Make sure that no one other than you is speaking
during a voice command period.
•Performance is maximized under:
•low-to-medium blower setting,
1
Uconnect™ ACCESS USER’S MANUAL 195
•low-to-medium vehicle speed,
•low road noise,
•smooth road surface,
•fully closed windows,
•dry weather condition.
•Even though the system is designed for users speaking
in North American English, French, and Spanish ac-
cents, the system may not always work for some.
•When navigating through an automated system such
as voice mail, or when sending a page, before speaking
the digit string, make sure to say “Send”.
•It is recommended that you do not store names in your
favorites phonebook while the vehicle is in motion.
•Phonebook (Mobile and Favorites) name recognition
rate is optimized when the entries are not similar.
•You can say “O” (letter “O”) for “0” (zero).
•Even though international dialing for most number
combinations is supported, some shortcut dialing
number combinations may not be supported.
•In a convertible vehicle, system performance may be
compromised with the convertible top down.
Far End Audio Performance
•Audio quality is maximized under:
•low-to-medium blower setting,
•low-to-medium vehicle speed,
•low road noise,
•smooth road surface,
•fully closed windows,
•dry weather conditions, and
•operation from the driver’s seat.
196 Uconnect™ ACCESS USER’S MANUAL
•Performance, such as audio clarity, echo, and loudness
to a large degree rely on the phone and network, and
not the Uconnect™ Phone.
•Echo at the far end can sometimes be reduced by
lowering the in-vehicle audio volume.
•In a convertible vehicle, system performance may be
compromised with the convertible top down.
SMS
Uconnect™ Phone can read or send new messages on
your phone.
Your phone must support SMS over Bluetoothtin order
to use this feature. If the Uconnect™ Phone determines
your phone is not compatible with SMS messaging over
Bluetoothtthe “Messaging” button will be greyed out
and the feature will not be available for use.
NOTE: Uconnect™ Phone SMS is only available when
the vehicle is not in moving.
Read Messages:
If you receive a new text message while your phone is
connected to Uconnect™ Phone, an announcement will
be made to notify you that you have a new text message.
Once a message is received and viewed or listened to,
you will have the following options:
•Send a Reply
•Forward
•Call
Send Messages Using Soft-Keys:
You can send messages using Uconnect™ Phone. To send
a new message:
•Touch the “Phone” soft-key,
1
Uconnect™ ACCESS USER’S MANUAL 197
•Touch the “messaging” soft-key then “New Message”,
•Touch one of the 18 preset messages and the person
you wish to send the message to,
•If multiple numbers are available for the contact select
which number you would like to have the message
sent,
•Press “Send” or “Cancel”.
Send Messages Using Voice Commands:
•Press the button,
•After the “Listening” prompt and the following beep,
say “Send message to John Smith mobile”,
•After the system prompts you for what message you
want to send, say the message you wish to send or say
“List”. There are 18 preset messages.
While the list of defined messages are being read, you can
interrupt the system by pressing the button and
saying the message you want to send.
After the system confirms that you want to send your
message to John Smith, your message will be sent.
List of Preset Messages:
1. Yes.
2. No.
3. Okay.
4. I can’t talk right now.
5. Call me.
6. I’ll call you later.
7. I’m on my way.
8. Thanks.
198 Uconnect™ ACCESS USER’S MANUAL
9. I’ll be late.
10. I will be <number> minutes late.
11. See you in <number> minutes.
12. Stuck in traffic.
13. Start without me.
14. Where are you?
15. Are you there yet?
16. I need directions.
17. I’m lost.
18. See you later.
BluetoothtCommunication Link
Mobile phones have been found to lose connection to the
Uconnect™ Phone. When this happens, the connection
can generally be reestablished by switching the phone
OFF/ON. Your mobile phone is recommended to remain
in BluetoothtON mode.
Power-Up
After switching the ignition key from OFF to either the
ON or ACC position, or after a language change, you
must wait at least 15 seconds prior to using the system.
1
Uconnect™ ACCESS USER’S MANUAL 199
Voice Tree
200 Uconnect™ ACCESS USER’S MANUAL
NOTE:
•You can replace “John Smith” with any name in your
mobile or favorite phone book. You can also say “Send
a message to John Smith” and the system will ask you
which phone number you want to send a message to
for John Smith.
•You can replace “Mobile” with “Home”, “Work” or
“Other”.
•You can replace “Incoming Calls” with “Outgoing
Calls” or “Missed Calls”.
•You can replace “248 555 1212” with any phone
number supported by your Mobile phone.
•These commands can be used during a phone call after
pushing the Uconnect™ Voice Command button on
the steering wheel. Please note the call will be muted
while the VR session is active.
•Send dial tones for automated systems is available
while a call is active. This is an example that uses a
Phonebook Record named “Voicemail Password.”
•Storing Dial tones in contact names is possible but only
the first number encountered in a contact name will be
sent. For example if there is a number stored in the
Home and Work numbers for the contact “Voicemail
password” only the Home number will be sent
•If your phone does not support phonebook download
or call log download over Bluetooth than these com-
mands will return a response that the contact does not
exist in the phonebook.
•Emergency and Towing assistance are contacts that
have been pre-loaded in the phonebooks. Commands
such as “Call Emergency” and “Call Towing Assis-
tance” will call the corresponding number stored with
those contacts.
1
Uconnect™ ACCESS USER’S MANUAL 201
NOTE: Available Voice Commands are shown in bold
face and underlined in the gray shaded boxes.
202 Uconnect™ ACCESS USER’S MANUAL
1
Uconnect™ ACCESS USER’S MANUAL 203
NOTE:
•You can replace “John Smith” with any name in your
mobile or favorite phone book. You can also say “Send
a message to John Smith” and the system will ask you
which phone number you want to send a message to
for John Smith.
•You can replace “Mobile” with “Home”, “Work” or
“Other”.
•You can replace “Incoming Calls” with “Outgoing
Calls” or “Missed Calls”.
•Messaging commands only work if the Uconnect sys-
tem is equipped with this feature and the mobile
phone supports messaging over Bluetooth.
•You can replace “248 555 1212” with any phone
number supported by your Mobile phone.
•You can replace “4” with any message number shown
on the screen.
•If your phone does not support phonebook download
or call log download over Bluetooth than these com-
mands will return a response that the contact does not
exist in the phonebook.
204 Uconnect™ ACCESS USER’S MANUAL
1
Uconnect™ ACCESS USER’S MANUAL 205
NOTE: Available Voice Commands are shown in bold
face and underlined in the gray shaded boxes.
General Information
This device complies with Part 15 of the FCC rules and
RSS 210 of Industry Canada. Operation is subject to the
following conditions:
•Changes or modifications not expressly approved by
the party responsible for compliance could void the
user’s authority to operate the equipment.
•This device may not cause harmful interference.
•This device must accept any interference received,
including interference that may cause undesired op-
eration.
Uconnect™ Voice Command
Voice Command Overview
The Uconnect™ Voice Command system al-
lows you to control your AM, FM radio, satel-
lite radio, disc player, SD Card, USB/iPod and
Sirius Travel Link.
NOTE: Take care to speak into the Voice Command
system as calmly and normally as possible. The ability of
the Voice Command system to recognize user voice
commands may be negatively affected by rapid speaking
or a raised voice level.
WARNING!
ALWAYS drive safely with your hands on the wheel.
You have full responsibility and assume all risks
(Continued)
206 Uconnect™ ACCESS USER’S MANUAL
WARNING! (Continued)
related to the use of the Uconnect™ features and
applications in this vehicle. Only use Uconnect™
when it is safe to do so. Failure to do so may result in
an accident involving serious injury or death.
When you press the Uconnect™ Voice Command
button, you will hear a beep. The beep is your signal
to give a command.
If no command is spoken the system will say one of two
responses:
•I didn’t understand
•I didn’t get that, etc.,
If a command is not spoken a second time, the system
will respond with an error and give some direction as
what can be said based on the context you are in. After
three consecutive failures of a spoken command the VR
session with end.
Pressing the Uconnect™ Voice Command button
while the system is speaking is known as “barging in.”
The system will be interrupted, and after the beep, you
can say a command. This will become helpful once you
start to learn the options.
NOTE: At any time, you can say the words “Cancel” or
“Help”.
These commands are universal and can be used from any
menu. All other commands can be used depending upon
the active application.
When using this system, you should speak clearly and at
a normal speaking volume.
1
Uconnect™ ACCESS USER’S MANUAL 207
The system will best recognize your speech if the win-
dows are closed, and the heater/air conditioning fan is
set to low.
At any point, if the system does not recognize one of your
commands, you will be prompted to repeat it.
To hear available commands, press the Uconnect™ Voice
Command button and say “Help”. You will hear
available commands for the screen displayed.
Natural Speech
Natural speech allows the user to speak commands in
phrases or complete sentences. The system filters out
certain non-word utterances and sounds such as “ah”
and “eh”. The system handles fill-in words such as “I
would like to”.
The system handles multiple inputs in the same phrase
or sentence such as “make a phone call” and “to Kelly
Smith”. For multiple inputs in the same phrase or sen-
tence, the system identifies the topic or context and
provides the associated follow-up prompt such as “Who
do you want to call?” in the case where a phone call was
requested but the specific name was not recognized.
The system utilizes continuous dialog; when the system
requires more information from the user it will ask a
question to which the user can respond without pressing
the Uconnect™ Voice Command button.
Uconnect™ Voice Commands
The Uconnect™ Voice Command system understands
two types of commands. Universal commands are avail-
able at all times. Local commands are available if the
supported radio mode is active.
Start a dialogue by pressing the Uconnect™ Voice Com-
mand button.
208 Uconnect™ ACCESS USER’S MANUAL
Changing the Volume
1. Start a dialogue by pressing the Voice Command
button.
2. Say a command (e.g., “Help”).
3. Use the ON/OFF VOLUME rotary knob to adjust the
volume to a comfortable level while the Voice Com-
mand system is speaking. Please note the volume
setting for Voice Command is different than the audio
system.
Starting Voice Recognition (VR) Session in
Radio/Player Modes
In this mode, you can say the following commands:
NOTE: The commands can be said on any screen when
a call is not active after pushing the Uconnect™ Voice
Command button.
Disc
To switch to the disc mode, say “Change source to Disc”.
This command can be given in any mode or screen:
•“Track” (#) (to change the track)
1
Uconnect™ ACCESS USER’S MANUAL 209
Voice Tree
210 Uconnect™ ACCESS USER’S MANUAL
NOTE:
1. You can replace “950 AM” with any other AM or FM
frequency, such as “98.7 FM”.
2. You can replace “80’s on 8” with any other satellite
station name received by the radio.
3. You can replace “8” with any other satellite station
named received by the radio.
4. You can replace “rock” with any of the satellite music
types.
NOTE: Available Voice Commands are shown in bold
face and shaded grey.
1
Uconnect™ ACCESS USER’S MANUAL 211
212 Uconnect™ ACCESS USER’S MANUAL
NOTE:
1. You can replace the album, artist, song, genre, playlist,
podcast and audio book names with any correspond-
ing names on the current device that is playing.
2. You can replace “8” with any track on the CD that is
currently playing. Command is only available when
CD is playing.
3. Playlist, Podcast and audio book commands are only
available when the iPod is connected and playing.
4. VR commands, Albums, Artists, and Genre names are
based on the music database provided by Gracenote.
NOTE: Available Voice Commands are shown in bold
face and shaded grey.
1
Uconnect™ ACCESS USER’S MANUAL 213
214 Uconnect™ ACCESS USER’S MANUAL
NOTE:
1. You can replace “NFL” with any league shown on the
sports league screen. For example you can say “Show
MLB headlines” or “Show PGA headlines”.
2. You can replace “Headlines” with any menu items
shown on a league screen. For example you can say
“Show NFL Schedule and results” or “Show NCAA
Basketball AP top 25” or “Show Major League Baseball
Teams”.
3. You can also say “Show Current Weather” or “Show
extended weather” or “Show five day forecast” or
“Show ski info” to get other forecasts.
NOTE: Available Voice Commands are shown in bold
face and shaded grey.
1
Uconnect™ ACCESS USER’S MANUAL 215
216 Uconnect™ ACCESS USER’S MANUAL
NOTE:
1. Only available with Navigation equipped vehicles.
2. You can replace “Player” with “Radio”, “Navigation”,
“Phone”, “Climate”, “More” or “Settings”.
3. Navigation commands only work if equipped with
Navigation.
NOTE: Available Voice Commands are shown in bold
face and shaded grey.
1
Uconnect™ ACCESS USER’S MANUAL 217
218 Uconnect™ ACCESS USER’S MANUAL
NOTE:
1. You can also say “Find City”, “Find Favorite”, “Find
Play by Category”, “Find Play by Name”, “Find
Recently Found”, “Where to?” or “Go Home”.
2. You can say “Find Nearest” then “Restaurant”, “Fuel”,
“Transit”, “Lodging”, “Shopping”, “Bank”, “Enter-
tainment”, “Recreation”, “Attractions”, “Commu-
nity”, “Auto Services”, “Hospitals”, “Parking”, “Air-
port”, “Police Stations”, “Fire Stations”, or “Auto
Dealers”.
NOTE: Available Voice Commands are shown in bold
face and shaded grey.
Navigation
Getting Started
To access the Navigation system, touch the Nav soft-key
on bottom of the screen.
Main Menu
•Touch Where To? to find or route to a destination.
•Touch View Map to view the map.
•Touch Information to view Traffic, Where Am I? and
Trip Computer information
1
Uconnect™ ACCESS USER’S MANUAL 219
•Touch Emergency to search for Hospitals, Police and
Fire Stations near your current location. You can also
display your current location and save any Emergency
facility location to your Favorites.
•Touch Stop to stop a route.
•Touch Detour to detour a route.
Where To?
From the Nav Main Menu, touch the Where To? soft-key
and select one of the following methods to program a
route guidance.
NOTE: Refer to the individual section of the chosen
option for further information.
•Address
220 Uconnect™ ACCESS USER’S MANUAL
Touch this soft-key to search by a street address or a street
name with house number.
•Recent
Touch this soft-key to access previously routed addresses
or locations.
•Point of Interest
Touch this soft-key when you want to route to a point of
interest. The Point of Interest database allows you to
select a destination from a list of locations and public
places, or points of interest (POI).
•Favorites
Touch this soft-key to access previously saved addresses
or locations.
•Intersection
Touch this soft-key to enter in two street names as a
destination.
•Go Home
Touch this soft-key to program or confirm a route to the
saved home address.
•GEO Coordinates
Touch this soft-key to route to a GEO Coordinate. A geo
coordinate is a coordinate used in geography. You can
determine a geo coordinate with the help of a handheld
GPS receiver, a map, or the navigation system.
•Point on Map
Touch this soft-key to select a destination directly from
the Map screen. By selecting a street segment or icon, you
can quickly enter a destination without the need to input
the city name or street.
•City Center
1
Uconnect™ ACCESS USER’S MANUAL 221
Touch this soft-key to route to a particular city. The
navigation system will calculate a route with the desti-
nation at the center of the city.
•Closest City
Touch this soft-key to route to a nearby city. The naviga-
tion system will calculate a route with the destination at
the center of the nearby city.
•Phone Number
Touch this soft-key to route to a location or point of
interest by the phone number.
NOTE: You can touch the back arrow soft-key to return
to the previous screen or the X soft-key to exit.
Where To? – Address
To enter a destination by Address, follow these steps:
1. While in the Nav Main Menu, touch the Where To?
soft-key and then touch the Address soft-key.
222 Uconnect™ ACCESS USER’S MANUAL
NOTE: To change the state and/or country, touch the
state, country soft-key and follow the prompts to change
the state and/or country.
2. Touch Spell City or Spell Street to begin entering the
address of your destination.
If you touch Spell City, you will have to enter and
select/touch the desired city name, followed by the
desired street name and lastly the house number.
If you touch Spell Street, you will have to enter and
1
Uconnect™ ACCESS USER’S MANUAL 223
select/touch the desired street name in the correct city
and then you will have to enter the house number
3. Once the correct City, Street and Number has been
entered, you will be asked to confirm your destination
by touching OK.
4. Touch the Yes soft-key to confirm your destination and
begin your route.
NOTE: If you are currently on a route guidance and you
select an Address, the system will ask you to choose one
of the following:
•Cancel previous route
•Add as first destination
•Add as last destination
224 Uconnect™ ACCESS USER’S MANUAL
You can touch the back arrow soft-key to return to the
previous screen or the X soft-key to exit.
Where To? – Recent
To route to a recent destination, touch the Recent soft-key
in the NAV Main Menu.
Touch the soft-key with the name of the desired destina-
tion. Confirm the route with Yes to start the route
guidance.
To delete a destination from the list, touch the trash can
icon soft-key.
1
Uconnect™ ACCESS USER’S MANUAL 225
To display the options for a destination touch the Options
soft-key that looks like a gear.
The following Options are available for each destination:
•Edit Name
•Add Phone Number
•Move Up in the list
•Move Down in the list
•Place Pin on the location (saves the spot on the list)
NOTE: You can touch the back arrow soft-key to return
to the previous screen or the X soft-key to exit.
Where To? – Point of Interest
To enter a destination by Point of Interest (POI) touch the
Point of Interest soft-key in the Nav Main Menu.
226 Uconnect™ ACCESS USER’S MANUAL
The Point of Interest database allows you to select a
destination from a list of locations and public places, or
points of interest (POI)s.
You have the following POIs to choose from:
•Gas Stations
•Restaurants
•Hotels/Motels
•ATM/Banking
1
Uconnect™ ACCESS USER’S MANUAL 227
•All POIs
•Spell POI Name
You can also change your POI search area, by touching
the Change Search Area soft-key. You will have the
following options to change your search area:
•Around Me
•In a City
•Near Destination (only available during route
guidance)
•Along Route (only available during route guidance)
NOTE: You can touch the back arrow soft-key to return
to the previous screen or the X soft-key to exit.
POI – Gas Stations
To select a Gas Station POI, touch Point of Interest from
the Nav Main Menu, then touch the Point of Interest
soft-key and then touch the Gas Stations soft-key.
228 Uconnect™ ACCESS USER’S MANUAL
You can search for a gas station by the following catego-
ries, which are soft-key tabs at the top of the screen.
•Name
•Distance
•Type
•ABC (Search)
Touch the desired Gas Station and touch Yes to confirm
the destination.
NOTE: If you are currently on a route guidance and you
select a gas station, the system will ask you to choose one
of the following:
•Cancel previous route
•Add as first destination
•Add as last destination
You can touch the back arrow soft-key to return to the
previous screen or the X soft-key to exit.
POI – Restaurants
To select a Restaurant POI, touch Point of Interest from
the Nav Main Menu, then touch the Point of Interest
soft-key and then touch the Restaurants soft-key.
1
Uconnect™ ACCESS USER’S MANUAL 229
You can search for a restaurants by the following catego-
ries, which are soft-key tabs at the top of the screen.
•Name
•Distance
•Type
•ABC (Search)
Touch the desired Restaurant and touch Yes to confirm
the destination.
NOTE: If you are currently on a route guidance and you
select a Restaurant, the system will ask you to choose one
of the following:
•Cancel previous route
•Add as first destination
•Add as last destination
You can touch the back arrow soft-key to return to the
previous screen or the X soft-key to exit.
POI – Hotels/Motels
To select a Hotel or Motel POI, touch Point of Interest
from the Nav Main Menu, then touch the Point of Interest
soft-key and then touch the Hotels/Motels soft-key.
You can search for a hotel or motel by the following
categories, which are soft-key tabs at the top of the
screen.
•Name
•Distance
•Type
•ABC (Search)
Touch the desired hotel or motel and touch Yes to confirm
the destination.
230 Uconnect™ ACCESS USER’S MANUAL
NOTE: If you are currently on a route guidance and you
select a Hotel or Motel, the system will ask you to choose
one of the following:
•Cancel previous route
•Add as first destination
•Add as last destination
You can touch the back arrow soft-key to return to the
previous screen or the X soft-key to exit.
POI – ATM/Banking
To select an ATM or Bank POI, touch Point of Interest
from the Nav Main Menu, then touch the Point of Interest
soft-key and then touch the ATM/Banking soft-key.
You can search for an ATM or Bank by the following
categories, which are soft-key tabs at the top of the
screen.
•Name
•Distance
•Type
•ABC (Search)
Touch the desired ATM or Bank and touch Yes to confirm
the destination.
NOTE: If you are currently on a route guidance and you
select an ATM or Bank POI, the system will ask you to
choose one of the following:
•Cancel previous route
•Add as first destination
•Add as last destination
You can touch the back arrow soft-key to return to the
previous screen or the X soft-key to exit.
1
Uconnect™ ACCESS USER’S MANUAL 231
All POIs
To select a POI type, touch Point of Interest from the Nav
Main Menu, then touch the Point of Interest soft-key and
then touch All POIs soft-key.
You can search through the available POI categories to
find your desired POI.
The available categories are:
•ATM/Banking
•Automotive
•Coffee Shops
•Community
•Entertainment
•Gas Stations
•Health and Beauty
•Highway Exit
•Hospital
•Hotels/Motels
•Other
•Parking
232 Uconnect™ ACCESS USER’S MANUAL
•Recreation
•Restaurants
•Shopping
•Travel
•Truck
Select a category and then select a subcategory if neces-
sary. Touch the ABC soft-key to activate a keyboard with
Alphabetic characters in order to search within the POI
categories.
Touch the desired POI and touch Yes to confirm the
destination.
NOTE: If you are currently on a route guidance and you
select a POI, the system will ask you to choose one of the
following:
•Cancel previous route
•Add as first destination
•Add as last destination
You can touch the back arrow soft-key to return to the
previous screen or the X soft-key to exit.
POI – Spell Name
To search for a specific POI, touch Point of Interest from
the Nav Main Menu, then touch the Point of Interest
soft-key and then touch the Spell Name soft-key.
A keyboard will appear on the screen. Type in the POI
that you want to search and touch the List soft-key to
display available items.
Touch the desired POI and touch Yes to confirm the
destination.
NOTE: If you are currently on a route guidance and you
select a POI, the system will ask you to choose one of the
following:
1
Uconnect™ ACCESS USER’S MANUAL 233
•Cancel previous route
•Add as first destination
•Add as last destination
You can touch the back arrow soft-key to return to the
previous screen or the X soft-key to exit.
Where To? – Favorite Destinations
To route to a favorite destination, touch the Favorites
soft-key in the NAV Main Menu.
Touch the soft-key with the name of the desired favorite
destination and confirm the route with Yes to start the
route guidance.
To delete a destination from the list, touch the trash can
icon soft-key.
234 Uconnect™ ACCESS USER’S MANUAL
To save a favorite destination, touch the Add Favorite
soft-key and follow the steps to route a destination.
To display the options for a favorite destination touch the
Options soft-key that looks like a gear.
The following Options are available for each favorite
destination:
•Edit Name
•Add Phone Number
NOTE: If you are currently on a route guidance and you
select a Favorite, the system will ask you to choose one of
the following
•Cancel previous route
•Add as first destination
•Add as last destination
You can touch the back arrow soft-key to return to the
previous screen or the X soft-key to exit.
Where To? – Intersection
To enter a destination by Intersection, follow these steps:
1. While in the Nav Main Menu, touch the Where To?
soft-key and then touch the Intersection soft-key.
1
Uconnect™ ACCESS USER’S MANUAL 235
This menu shows the default country and state setting.
NOTE: To change the state and/or country, touch the
state, country soft-key and follow the prompts to change
the state and/or country.
2. This menu shows the default country and state set-
tings.
If you touch Spell City, you will have to enter and
select/touch the desired city name, followed by the
desired street name and lastly you will have to enter
the intersection street.
If you touch Spell Street, you will have to enter and
236 Uconnect™ ACCESS USER’S MANUAL
select/touch the desired street name in the correct city
and then you will have to enter the intersecting street.
3. Once the correct City and Intersection has been en-
tered, you will be asked to confirm your destination.
4. Touch the Yes soft-key to confirm your destination and
begin your route.
NOTE: If you are currently on a route guidance and you
select a Intersection, the system will ask you to choose
one of the following:
•Cancel previous route
•Add as first destination
•Add as last destination
You can touch the back arrow soft-key to return to the
previous screen or the X soft-key to exit.
Where To? – Go Home
To enter your Home Address, follow these steps:
1. While in the Nav Main Menu, touch the Where To?
soft-key and then touch the Go Home soft-key. If there
is no Home Address entered, touch Yes to enter it now.
1
Uconnect™ ACCESS USER’S MANUAL 237
2. To set your set your Home Address choose one of the
following options:
NOTE: Refer to the individual section of the chosen
option for further information.
•Address
•Recent
•Point of Interest
•Favorites
•Intersection
•GEO Coordinates
•Point on Map
•City Center
•Closest Cities
•Phone Number
3. Once you have generated your Home Address, you
will be asked to Save it.
4. Touch the Save soft-key to confirm your destination
and begin the route to your Home Address.
5. This address will be saved as your Home Address and
it can be accessed by touching the Go Home soft-key
in the Where To? Menu.
Change/Delete Your Home Address
To change or delete your current Home Address perform
the following:
1. Touch the Go Home soft-key in the Where To? Menu
2. Touch the Options soft-key at the bottom of the
displayed map.
3. Touch Clear Home and then touch Yes to clear/delete
your Home Address.
4. To enter in a new Home Address, follow the Where
To? – Go Home procedure.
238 Uconnect™ ACCESS USER’S MANUAL
NOTE: You can touch the back arrow soft-key to return
to the previous screen or the X soft-key to exit.
Where To? – Trips
To route to a saved Trip, touch the Recent soft-key in the
NAV Main Menu.
Touch the soft-key with the name of the desired Trip and
touch the first destination in the list. Confirm the route by
touching Yes to start the route guidance.
To add a Trip, follow these steps:
1. Touch the Create new Trip soft-key.
2. Type in the new Trip Name.
3. Touch Add Destination to add destinations to your
trip.
4. Choose from the following options to add a destina-
tion
NOTE: Refer to the individual section of the chosen
option for further information.
•Address
•Recent
•Point of Interest
•Favorites
1
Uconnect™ ACCESS USER’S MANUAL 239
•Intersection
•GEO Coordinates
•Point on Map
•City Center
•Closest Cities
•Phone Number
5. Add more needed destinations to your trip.
NOTE: Each destination will be listed in order, with the
last destination being the final destination.
6. Your new Trip will appear on the Trips list.
To delete a Trip from the list, touch the trash can icon
soft-key.
To display the options for a trip touch the Options
soft-key that looks like a gear.
The following Options are available for each trip:
•Edit Name
•Move Up in the list
•Move Down in the list
NOTE: You can touch the back arrow soft-key to return
to the previous screen or the X soft-key to exit.
Where To? – GEO Coordinate
240 Uconnect™ ACCESS USER’S MANUAL
To enter a destination by GEO Coordinate, touch Where
To? in the Nav Main Menu and then touch the GEO
Coordinate soft-key.
1. Enter the Latitude by typing in the numbers. Use the
left and right arrows to select specific numbers in the
location shown.
2. Touch the OK soft-key.
1
Uconnect™ ACCESS USER’S MANUAL 241
3. Enter the Longitude by typing in the numbers. Use the
left and right arrows to select specific numbers in the
location shown.
NOTE: Touch the Format soft-key to change the format
of the Latitude/Longitude entry.
4. Touch OK to confirm the destination.
5. Touch the Yes soft-key to confirm your destination and
begin your route.
NOTE: If you are currently on a route guidance and you
select a Geo Coordinate, the system will ask you to
choose one of the following:
•Cancel previous route
•Add as first destination
•Add as last destination
You can touch the back arrow soft-key to return to the
previous screen or the X soft-key to exit.
Where To? – Point on Map
To enter a destination by Point on Map, touch Where To?
in the Nav Main Menu and then touch the Point on Map
soft-key.
242 Uconnect™ ACCESS USER’S MANUAL
1. Use the touch-screen to drag the center of the cross
over the desired destination.
2. Either touch the address bar at the top center of the
screen to confirm your location or touch the Details
soft-key in the upper right corner to display the
available locations near that point on the map.
3. Touch the Yes soft-key to confirm your destination and
begin your route.
NOTE: If you are currently on a route guidance and you
select a Point on Map, the system will ask you to choose
one of the following:
•Cancel previous route
•Add as first destination
•Add as last destination
You can touch the back arrow soft-key to return to the
previous screen or the X soft-key to exit.
Where To? – City Center
1
Uconnect™ ACCESS USER’S MANUAL 243
To enter a destination by City Center, touch Where To? in
the Nav Main Menu and then touch the City Center
soft-key.
1. Enter the name of the City you would like to route to.
2. Touch the desired city from the list.
3. Touch the Yes soft-key to confirm your destination and
begin your route.
NOTE: If you are currently on a route guidance and you
select a City Center, the system will ask you to choose one
of the following:
•Cancel previous route
•Add as first destination
•Add as last destination
You can touch the back arrow soft-key to return to the
previous screen or the X soft-key to exit.
Where To? – Closest City
244 Uconnect™ ACCESS USER’S MANUAL
To enter a destination by Closest City, touch Where To? in
the Nav Main Menu and then touch the Closest City
soft-key.
1. Touch the desired city from the list.
2. Touch the Yes soft-key to confirm your destination and
begin your route.
NOTE: If you are currently on a route guidance and you
select a Closest City, the system will ask you to choose
one of the following:
1
Uconnect™ ACCESS USER’S MANUAL 245
•Cancel previous route
•Add as first destination
•Add as last destination
You can touch the back arrow soft-key to return to the
previous screen or the X soft-key to exit.
Where To? – Phone
To enter a destination by Phone number, touch Where To?
in the Nav Main Menu and then touch the Phone
Number soft-key.
1. Enter the Phone Number of the destination you would
like to route to.
2. Touch the desired destination from the list.
246 Uconnect™ ACCESS USER’S MANUAL
3. Touch the Yes soft-key to confirm your destination and
begin your route.
NOTE: If you are currently on a route guidance and you
select a Phone number destination, the system will ask
you to choose one of the following:
•Cancel previous route
•Add as first destination
•Add as last destination
You can touch the back arrow soft-key to return to the
previous screen or the X soft-key to exit.
Before Route Guidance
Before confirming the route with the Yes soft-key, it is
possible to select options different from the default route
settings.
•Options – Touch the Options soft-key to display a list
of options to alter your route. To make a selection
touch and release the desired setting until a check-
mark appears.
1
Uconnect™ ACCESS USER’S MANUAL 247
•Avoid – Touch the Avoid soft-key to choose road types
to avoid during your route. To make a selection touch
and release the desired setting until a check-mark
appears.
NOTE: Since toll roads, tunnels and ferries are built for
the purpose of shortening travel distances, avoiding
these road types may increase distance and travel time.
•Save – Touch the Save soft-key to save the destination
as a Favorite.
Touch the Yes soft-key to confirm your destination and to
start your route guidance.
NOTE: You can touch the back arrow soft-key to return
to the previous screen or the X soft-key to exit.
View Map
248 Uconnect™ ACCESS USER’S MANUAL
Touch the View Map soft-key from the Nav Main Menu
to display a map of your current position.
With the map displayed you have the following features
available.
•Menu
Touch this soft-key to return to the Nav Main Menu.
•Zoom In +/ Zoom Out –
Touch the Zoom In (+) or Zoom Out (–) soft-keys to
change the zoom level. Roads with lower functional
classification are not shown in higher zoom levels. (E.g.
residential streets, lightly-traveled county roads.)
•Time of Arrival/Time to Destination/Distance (only
during route guidance)
Touch the soft-key in the upper right area of the screen to
the display items available. Touch the desired option
soft-key.
– Time of Arrival
– Time to Destination
– Distance
•Turn List (only during route guidance)
Touch the area in the upper center part of the screen that
displays your next turn to see a Turn List for your current
route.
1
Uconnect™ ACCESS USER’S MANUAL 249
Touch a turn in the displayed Turn List for the following
options:
– Show on Map
– Avoid Street
•Options (only during route guidance)
Touch the Options soft-key to display the following
options. Touch the desired soft-key.
– 2D North Up/Map View 2D/ Map View 3D
Touch this soft-key to scroll between the three viewing
options.
– Settings
Touch this soft-key to view all the available settings.
See View Map – Settings for more information.
– Repeat
Touch this soft-key to repeat the current voice prompt.
– Turn List
Touch this soft-key to view the turn list for the current
route.
– Stop Guidance
Touch this soft-key to stop route guidance.
•Where Am I?
Touch the area in the lower center part of the screen that
displays your current location to view the Where Am I?
view.
Where Am I? displays the address and GEO Coordinates
of your current location.
– Touch the GPS soft-key to view the GPS informa-
tion.
– Touch the Save soft-key to save the location in your
Favorites.
NOTE: You can touch the back arrow soft-key to return
to the previous screen or the X soft-key to exit.
250 Uconnect™ ACCESS USER’S MANUAL
View Map – Settings
With the Map displayed, touch the Options soft-key and
then touch the Settings soft-key. You can also access this
menu by touching the Settings soft-key in the lower right
of the Nav Main Menu.
The following Map Settings are available.
•Map Setup
Touch this soft-key to display items to customize how
your map is viewed. Settings – Map Setup for more
information.
•Speed Limit
Touch this soft-key to turn on/off speed limit warning
announcements and to enter a pre-defined speed limit for
your route.
•Guidance Options
Touch this soft-key to display items to customize your
route guidance. Settings – Guidance Options for more
information.
•Units
Touch this soft-key to change the units display. Touch the
desired soft-key.
– U.S. (mile/feet)
1
Uconnect™ ACCESS USER’S MANUAL 251
– Imperial (mile/yard)
– Metric (meter)
•GPS
Touch this soft-key to change the GPS display. Touch the
desired soft-key.
– Decimal
– DMS
– DM
•Copy device information to USB? (If Equipped)
Touch this soft-key to copy your radio information to a
USB jump drive through the available USB port.
Settings – Map Setup
With the Map displayed, touch the Options soft-key, then
touch the Settings soft-key and then the Map Setup
soft-key. You can also access this menu by touching the
Settings soft-key in the lower right of the Nav Main
Menu.
The following Map Setup options are available.
•Map View
252 Uconnect™ ACCESS USER’S MANUAL
Touch this soft-key to change how the Map View is
displayed. Touch the desired soft-key.
– 3D
– 2D
•Orientation
Touch this soft-key to change how the Map Orientation is
displayed. Touch the desired soft-key.
– North Up
– Heading Up
•Current Street
Touch this soft-key to turn on/off the current street
display on the lower center of the Map View. Touch and
release the soft-key until a check-mark appears, showing
the setting has been selected.
•Destination Information
Touch this soft-key to change the Destination Information
that is displayed in the upper right corner of the Map
View. Touch the desired soft-key.
– Time of Arrival
– Time to Destination
– Distance
•AutoZoom
Touch this soft-key to change how the AutoZoom feature
adjust the zoom level during guidance in Map View.
Touch the desired soft-key.
– Far
– Normal
– Near
– Off
•Vehicle Icon
1
Uconnect™ ACCESS USER’S MANUAL 253
Touch this soft-key to change the vehicle icon that is
displayed while in Map View. Touch Previous or Next to
view the available icons. Touch the back icon soft-key
when you’ve made you selection.
•Show POI Icons
Touch this soft-key to show the selected Point of Interest
icons while in Map View. Touch and release the soft-key
until a check-mark appears, showing the setting has been
selected.
•POI Icon List
Touch this soft-key to display the available Point of
Interest icons you would like displayed while in Map
View. Touch and release the desired selection soft-key
until a check-mark appears, showing the setting has been
selected.
•TMC Incidents
Touch this soft-key to show Traffic Message Channel
(TMC) Incidents while in Map View. Touch and release
the soft-key until a check-mark appears, showing the
setting has been selected.
•Speed and Flow
Touch this soft-key to show the Speed and Flow of traffic
while in Map View. Touch and release the soft-key until
a check-mark appears, showing the setting has been
selected.
•3D City Models
Touch this soft-key to display 3D city models while in
Map View. Touch and release the soft-key until a check-
mark appears, showing the setting has been selected.
•3D Landmarks
Touch this soft-key to display 3D landmarks while in
Map View. Touch and release the soft-key until a check-
mark appears, showing the setting has been selected.
254 Uconnect™ ACCESS USER’S MANUAL
•Digital Terrain Model
Touch this soft-key to display the areas terrain while in
Map View. Touch and release the soft-key until a check-
mark appears, showing the setting has been selected.
•Park Areas
Touch this soft-key to display Park Areas while in Map
View. Touch and release the soft-key until a check-mark
appears, showing the setting has been selected.
•Railroads
Touch this soft-key to display Railroad tracks while in
Map View. Touch and release the soft-key until a check-
mark appears, showing the setting has been selected.
•City Areas
Touch this soft-key to display City Areas while in Map
View. Touch and release the soft-key until a check-mark
appears, showing the setting has been selected.
•River Names
Touch this soft-key to display River Names while in Map
View. Touch and release the soft-key until a check-mark
appears, showing the setting has been selected.
NOTE: You can touch the back arrow soft-key to return
to the previous screen or the X soft-key to exit.
Settings – Guidance
With the Map displayed, touch the Options soft-key, then
touch the Settings soft-key and then the Guidance soft-
key. You can also access this menu by touching the
Settings soft-key in the lower right of the Nav Main
Menu.
The following Guidance options are available.
•Play Voice Guidance Prompts
1
Uconnect™ ACCESS USER’S MANUAL 255
Touch this soft-key to enable Voice Guidance Prompts
during route guidance. Touch and release the soft-key
until a check-mark appears, showing the setting has been
selected.
•Nav Volume Adjustment
Touch the (+) or (-) soft-key to adjust the Nav Voice
Prompt Volume.
•Lane Recommendation
Touch this soft-key to enable Lane Recommendation
during route guidance. Touch and release the soft-key
until a check-mark appears, showing the setting has been
selected.
•Junction View
Touch this soft-key to enable Junction View during route
guidance. Touch and release the soft-key until a check-
mark appears, showing the setting has been selected.
•Navigation Turn-by-Turn Displayed in Cluster
Touch this soft-key to enable navigation turn-by-turn
displayed in vehicles cluster during route guidance.
Touch and release the soft-key until a check-mark ap-
pears, showing the setting has been selected.
•TMC Route Mode
Touch this soft-key to change how the Traffic Message
Channel (TMC) Route Mode functions during route
guidance. Touch the desired soft-key.
– Automatic
– By Delay Time
– Manual
– Off
•TMC Avoidance Types
Touch this soft-key to display the available Traffic Mes-
sage Channel (TMC) Avoidance Types you would like
256 Uconnect™ ACCESS USER’S MANUAL
displayed while in route guidance. Touch and release the
desired selection soft-key until a check-mark appears,
showing the setting has been selected.
NOTE: You can touch the back arrow soft-key to return
to the previous screen or the X soft-key to exit.
Information
From the Nav Main Menu, touch the Information soft-
key and select one of the following options to view
additional information.
•Traffic
•Where Am I?
•Trip Computer
1
Uconnect™ ACCESS USER’S MANUAL 257
NOTE: You can touch the back arrow soft-key to return
to the previous screen or the X soft-key to exit.
Information – Where Am I?
To select Where Am I? information, touch the Informa-
tion soft-key from the Nav Main Menu and then touch
the Where Am I? soft-key.
Where Am I? displays the address and GEO Coordinates
of your current location.
•Touch the GPS soft-key to view the GPS information.
•Touch the Save soft-key to save the location in your
Favorites.
NOTE: You can touch the back arrow soft-key to return
to the previous screen or the X soft-key to exit.
Information – Trip Computer
258 Uconnect™ ACCESS USER’S MANUAL
To select Trip Computer information, touch the Informa-
tion soft-key from the Nav Main Menu and then touch
the Trip Computer soft-key.
Trip Computer displays the following trip information
from your last trip
•Travel Direction
•Distance to final Destination
•Vehicle Speed
•Distance Traveled
•Overall average speed
•Moving average speed
•Maximum speed reached
•Total time traveled
•Travel time spent moving
•Travel time spent stopped
NOTE: You can touch the back arrow soft-key to return
to the previous screen or the X soft-key to exit.
Emergency
1
Uconnect™ ACCESS USER’S MANUAL 259
From the Nav Main Menu, touch the Emergency soft-key
and touch one of the following options to search and
route to a specific location.
•Hospital – Search and route to a Hospital close to your
current location
•Police – Search and route to a Police Station close to
your current location
•Fire Department – Search and route a Fire Department
close to your current location
Touch the Location soft-key to display your exact current
location.
Touch the Save soft-key to save your current location in
Favorites.
NOTE: You can touch the back arrow soft-key to return
to the previous screen or the X soft-key to exit.
Emergency – Hospital
260 Uconnect™ ACCESS USER’S MANUAL
To search for a Hospital close to your current location,
touch Emergency from the Nav Main Menu and then
touch the Hospital soft-key.
You can search for a Hospital by the following categories,
which are soft-key tabs at the top of the screen.
•Name
•Distance
•ABC (Search)
NOTE: In case of emergency, please contact the facility
to verify their availability before proceeding.
Touch the desired Hospital and touch Yes to confirm the
destination.
NOTE:
•If you are currently on a route guidance and you select
a Hospital the system will ask you to choose one of the
following
•Cancel previous route
•Add as first destination
•Add as last destination
•You can touch the back arrow soft-key to return to the
previous screen or the X soft-key to exit.
1
Uconnect™ ACCESS USER’S MANUAL 261
Emergency – Police
To search for a Police Station close to your current
location, touch Emergency from the Nav Main Menu and
then touch the Police Station soft-key.
You can search for a Police Station by the following
categories, which are soft-key tabs at the top of the
screen.
•Name
•Distance
•ABC (Search)
NOTE: In case of emergency, please contact the facility
to verify their availability before proceeding.
Touch the desired Police Station and touch Yes to confirm
the destination.
NOTE: If you are currently on a route guidance and you
select a Police Station the system will ask you to choose
one of the following
•Cancel previous route
•Add as first destination
262 Uconnect™ ACCESS USER’S MANUAL
•Add as last destination
You can touch the back arrow soft-key to return to the
previous screen or the X soft-key to exit.
Emergency – Fire Department
To search for a Fire Department close to your current
location, touch Emergency from the Nav Main Menu and
then touch the Fire Department soft-key.
1
Uconnect™ ACCESS USER’S MANUAL 263
You can search for a Fire Department by the following
categories, which are soft-key tabs at the top of the
screen.
•Name
•Distance
•ABC (Search)
NOTE: In case of emergency, please contact the facility
to verify their availability before proceeding.
Touch the desired Fire Department and touch Yes to
confirm the destination.
NOTE: If you are currently on a route guidance and you
select a Fire Department the system will ask you to
choose one of the following
•Cancel previous route
•Add as first destination
•Add as last destination
You can touch the back arrow soft-key to return to the
previous screen or the X soft-key to exit.
Security Features
The following Security Related options are available:
•9–1–1 Call
•Roadside Assistance Call
Roadside Assistance (If Equipped)
If your vehicle is equipped with this feature and within
cellular range, you may be able to connect to Roadside
Assistance, Uconnect™ Care and Vehicle Care by press-
ing the “Assist” button on the Rearview Mirror of your
vehicle. To the extent any such calls incur additional
264 Uconnect™ ACCESS USER’S MANUAL
costs, you are responsible for them. If Roadside Assis-
tance is provided to your vehicle, you agree to be
responsible for any additional roadside assistance service
costs that you may incur.
In order to provide Uconnect™ Services to you, we may
record and monitor your conversations with Roadside
Assistance, Uconnect™ Care or Vehicle Care, whether
such conversations are initiated through the Uconnect™
Services in your vehicle, or via a landline or mobile
telephone, and may share information obtained through
such recording and monitoring in accordance with regu-
latory requirements. You acknowledge, agree and con-
sent to any recording, monitoring or sharing of informa-
tion obtained through any such call recordings.
9–1–1 Call – If Equipped
The 9-1-1 Call system is an embedded phone system that
allows you to connect to a 9-1-1 operator in an emer-
gency. You can choose to press the 9-1-1 Call button on
the Rearview Mirror to contact a 9-1-1 operator.
9–1–1 Call Operating Instructions
1. Press the 9-1-1 Call button on the Rearview Mirror;
NOTE: In case the 9-1-1 Call button is pushed in error,
there will be a 10 second delay before the 9-1-1 Call
system initiates a call to a 9-1-1 operator. To cancel the
9-1-1 Call connection, press the 9-1-1 Call button on the
Rearview Mirror or press the cancellation button on the
Phone Screen. Termination of the 9-1-1 Call will turn the
green LED light on the Rearview Mirror off.
2. The LED light on the Rearview Mirror will turn green
once a connection to a 9-1-1 operator has been made;
1
Uconnect™ ACCESS USER’S MANUAL 265
3. Once a connection between the vehicle and a 9-1-1
operator is made, the 9-1-1 Call system may transmit
the following important vehicle information to a 9-1-1
operator:
•indication that the occupant placed a 9-1-1 Call;
•the vehicle brand; and
•the last known GPS coordinates of the vehicle.
4. You should be able to speak with the 9-1-1 operator
through the vehicle audio system to determine if
additional help is needed.
NOTE: Once a connection is made between the vehicle’s
9-1-1 Call system and the 9-1-1 operator, the 9-1-1 opera-
tor may be able to open a voice connection with the
vehicle to determine if additional help is needed. Once
the 9-1-1 operator opens a voice connection with the
vehicle’s 9-1-1 Call system, the operator should be able to
speak with you or other vehicle occupants and hear
sounds occurring in the vehicle. The vehicle’s 9-1-1 Call
system will attempt to remain connected with the 9-1-1
operator until the 9-1-1 operator terminates the connec-
tion.
5. The 9-1-1 operator may attempt to contact appropriate
emergency responders and provide them with impor-
tant vehicle information and GPS coordinates.
266 Uconnect™ ACCESS USER’S MANUAL
6. If a connection between the vehicle and a 9-1-1 opera-
tor is made, the 9-1-1 Call system may transmit certain
vehicle information to a 9-1-1 operator, including the
last known GPS coordinates of your vehicle. If a
connection is made between a 9-1-1 operator and your
vehicle, you understand and agree that 9-1-1 operators
may record conversations and sounds in your car
upon connection and consent to such recordings. Your
vehicle MUST have a working electrical system for the
9-1-1 Call system, among others, to operate. IF YOUR
VEHICLE LOSES BATTERY POWER FOR ANY REA-
SON (INCLUDING DURING OR AFTER AN ACCI-
DENT) THE 9-1-1 CALL SYSTEM, AMONG OTHER
VEHICLES SYSTEMS, WILL NOT OPERATE.
WARNING!
If anyone in the vehicle could be in danger (e.g., fire
(Continued)
WARNING! (Continued)
or smoke is visible, dangerous road conditions or
location), do not wait for voice contact from a 9-1-1
operator. All occupants should exit the vehicle imme-
diately and move to a safe location.
WARNING!
The 9-1-1 Call system is embedded into the vehicle’s
electrical system. Do not add any aftermarket electri-
cal equipment to the vehicle’s electrical system. This
may prevent your vehicle from sending a signal to
initiate an emergency call. To avoid interference that
can cause the 9-1-1 Call system to fail, never add
aftermarket equipment (e.g., two-way mobile radio,
CB radio, data recorder, etc.) to your vehicle’s electri-
cal system or modify the antennas on your vehicle.
1
Uconnect™ ACCESS USER’S MANUAL 267
9-1-1 Call System Limitations
Vehicles sold in Canada and Mexico DO NOT have 9-1-1
Call system capabilities.
9-1-1 or other emergency line operators in Canada and
Mexico may not answer or respond to 9-1-1 system calls.
If the 9-1-1 Call system detects a malfunction, any of the
following may occur at the time the malfunction is
detected, and at the beginning of each ignition cycle:
•the Rearview Mirror light will continuously be illumi-
nated red;
•The Phone Screen will display the following message
“Vehicle phone requires service. Please contact your
dealer.”; and,
•An In-Vehicle Audio message will state “Vehicle phone
requires service. Please contact your dealer.”
WARNING!
Ignoring the Rearview Mirror light could mean you
will not have 9-1-1 Call services. If the Rearview
Mirror light is illuminated, have an authorized
dealer service the 9-1-1 Call system immediately.
WARNING!
The ORC turns on the Air Bag Warning Light on the
instrument panel if a malfunction in any part of the
system is detected. If the Air Bag Warning Light is
illuminated, the 9-1-1 system may not be able to send
a signal to a 9-1-1 operator. If the Air Bag Warning
Light is illuminated, have an authorized dealer ser-
vice the ORC system immediately.
268 Uconnect™ ACCESS USER’S MANUAL
Even if the 9-1-1 Call system is fully functional, factors
beyond Chrysler Group LLC’s control may prevent or
stop 9-1-1 Call system operation. These include, but are
not limited to, the following factors:
•The ignition key has been removed from the ignition
and the delayed accessories mode is active;
•The ignition key is in OFF position;
•The vehicle’s electrical systems are not intact;
•The 9-1-1 Call system software and/or hardware are
damaged during a crash;
•The vehicle battery loses power or becomes discon-
nected during a vehicle crash;
•Wireless and/or Global Positioning Satellite signals
are unavailable or obstructed;
•Equipment malfunction at the 9-1-1 operator facility;
•Operator error by the 9-1-1 operator;
•Wireless network congestion;
•Weather; and
•Buildings, structures, geographic terrain, or tunnels.
WARNING!
Never place anything on or near the vehicle’s wire-
less and GPS antennas. You could prevent wireless
and GPS signal reception, which can prevent your
vehicle from placing an emergency call. Wireless and
GPS signal reception is required for the 9-1-1 Call
system to function properly.
1
Uconnect™ ACCESS USER’S MANUAL 269
WARNING!
Failure to perform scheduled maintenance and regu-
larly inspect your vehicle may result in vehicle dam-
age and/or serious injury.
General Information
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2)
this device must accept any interference received, includ-
ing interference that may cause undesired operation.
Remote Service Features
If your vehicle is equipped with Remote Service Features,
for more information, refer to www.MoparOwnerCon-
nect.com or call 855-792-4241.
270 Uconnect™ ACCESS USER’S MANUAL
INDEX
10
