Harman Consumer ONBEATRC RF REMOTE CONTROLLER User Manual JBL Odin Remote Control UI Spec Rv I annotated
Harman Consumer, Inc. RF REMOTE CONTROLLER JBL Odin Remote Control UI Spec Rv I annotated
Users Manual
HCG Odin Remote Control
Specifications
February 16, 2011
Revision I
Deleted: December 29, 2010
Deleted: H
Document Release Record
Date Rev. Changes Authorization
2010.10.21 A
Concept of operation
Ken. Li
2010.10.22 A+
Clarify the Treble/Bass active and setting
definition
Ken.Li
2010.11.10 B
Changed the definition of the buttons.
Changed EQ control mode into 5 EQ
scenes. Added LED Lights to indicate the
audio sources.
Ken.Li
2010.11.11 C
Change the “switch eq setting” behavior
Vincent
2010.11.11 D
Change the “Presses & holds Play/Pause”
behavior
Leon
2010.11.23 E
Change the LED behavior
Vincent
2010.11.26 F
Added the key name mapping.
Vincent
2010.11.29 G
Updated as per feedback from supplier
Vincent
2010.12.29 H
Added Video output on/off function.
Vincent
2011-2-16 I
Updated Video output on/off behavior.
Vincent Zhong

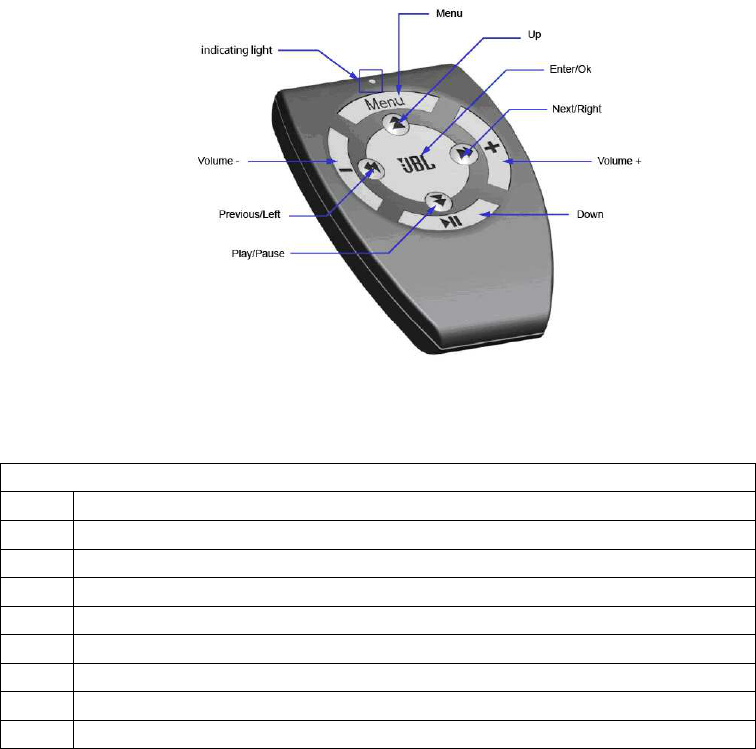

1 Layout and Buttons
The Odin has following buttons on the remote control.
Function Buttons
1 Enter/Ok (JBL Logo)
2 Menu
3 Scroll Up
4 Scroll Down
5 Left
6 Right
7 Volume -
8 Volume +
9 Play/Pause
2 Button Functions
We distinguish the function between a short and a long press of a key.
Short press - takes up to 2 seconds,
Long press - takes more than 2 seconds.
Button Event Systems response
Key
same function as iPod center “select” button, confirms selection Short Press
If an alarm is activated then this stops the playing alarm.
SELECT
Enter/OK Long press switches EQ setting in loop and the indicating light shall Flash. The on and off
rate should be 3 times.
Change_EQ
Short Press same function as “menu” button on iPod.
MENU
Menu
Long Press
Switch source among following : iPod / Bluetooth / Aux.
AUDIO_SOURCE
If audio is muted then this resumes audio at the volume level used when the
audio was muted.
If audio is not muted and the volume is at value between 30 and 1 (the volume
ranges 31 steps from 0 to 30) then this decrements the volume.
Short Press
If audio is not muted and the volume is at value 0 then there is no decrease in
volume.
Volume
-
Long Press Function same as Short Press , but continuously change the volume.
VOL_UP
If audio is muted then this resumes audio at the volume level used when the
audio was muted.
If audio is not muted and the volume is at value 29 or less (the volume ranges
31 steps from 0 to 30) then this increases the volume one increment.
Short Press
If audio is not muted and the volume is at value 30 (the volume ranges 31 steps
from 0 to 30) then there is no increase in volume.
Volume
+
Long Press Function same as Short Press , but continuously change the volume.
VOL_DOWN
Short Press play/pause of the playing Music/Photo
PLAY_PAUSE
Play/Pause
Long Press The system haves the following power modes:
Operational mode.
Standby mode.
Off mode.
When the system is off (no AC power), this command shall have no affect.
When the system is in standby mode, this command shall transition the unit
from standby to operational mode.
When the system is in operational mode, this command shall transition the unit
from operational mode to standby.
SYSTEM_POWER
Short Press Previous track/photo
PREV
Left Long Press Rewind
REW
Short Press Next track/photo
NEXT
Right Long Press Fast Forward
FF
Short Press Scroll up
UP
Scroll Up Long Press Switch ON the Video output
UP
Short Press Scroll down
DOWN
Scroll down
Long Press Switch OFF the Video output
DOWN
Presses Volume - and Volume + simultaneously will mute/unmute the volume.
MUTE
Deleted: Press Scroll Up and
Scroll down simultaneously will
toggle Video output on / off.
... [1]
Remark : For the actual key code , please refer to another document
“JBL Odin_Remote Control_key code_0.5.doc”
3 Remote Control LEDs
White LED When any remote control button is pressed , the White LED will start
blinking , once the button is released , then the white led will be off.
Page 4: [1] Deleted
Page 4: [1] DeletedPage 4: [1] Deleted
Page 4: [1] Deleted
ViZhong
ViZhongViZhong
ViZhong
2011
20112011
2011-
--
-2
22
2-
--
-16 11:29:00
16 11:29:0016 11:29:00
16 11:29:00
Press Scroll Up and Scroll down simultaneously will toggle Video output on / off.
VIDEO
FCC WARNING
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
NOTE 1: Any changes or modifications not expressly approved by the manufacturer could void
the user’s authority to operate the equipment.
NOTE 2: The manufacturer is not responsible for any radio or TV interference caused by
unauthorized modifications to this equipment. Such modifications could void the user’s authority
to operate the equipment.
