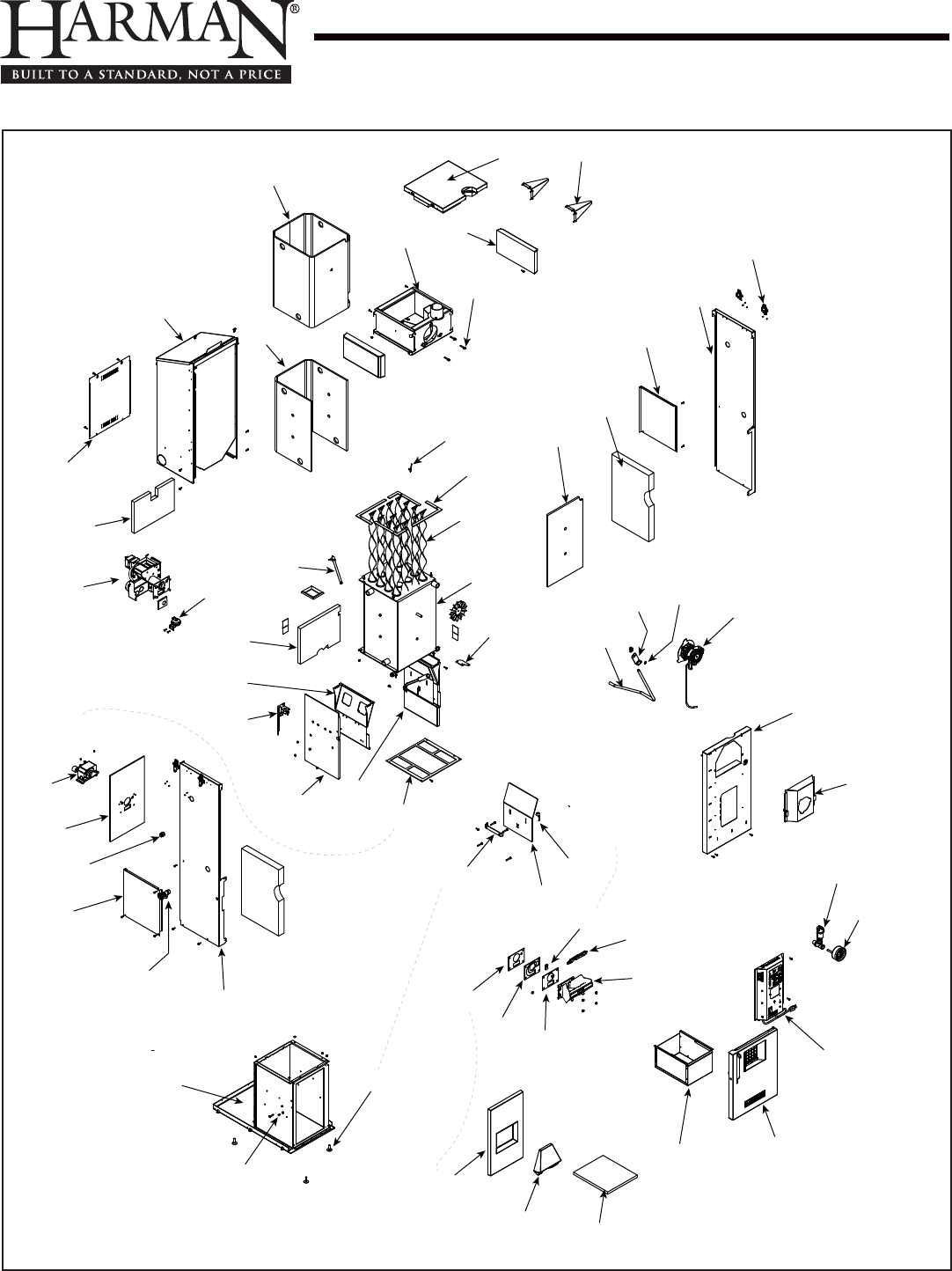

Service Parts HF60

Beginning Manufacturing Date: July 2009

Ending Manufacturing Date: Active

Part number list on following page.

1

3

2

4

5

6

7

8

11

16

17

21

22

32 33

34

36 35

37

23

25

24

38

39 40

41 42

43

44

45

46

47

48

49

51

53

54

55 56

57

58

59

60

19

52

50

20 18

26

27

28

30

31

29

19

12 13

14

15

10

9

Hydrofl ex 60 Central Heat

1-90-232000

11/13

Service Parts HF60

Beginning Manufacturing Date: July 2009

Ending Manufacturing Date: Active

IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or distributor.

Hearth and Home Technologies does not sell directly to consumers. Provide model number

and serial number when requesting service parts from your dealer or distributor. Stocked

at Depot

ITEM Description COMMENTS PART NUMBER

1 Plumbing Support Kit - Qty. 2 req. 1-10-232044

2 Firetube Cleanout Door Assembly 1-10-232060A

Firetube Lift & Clean Kit 1-00-232120

3 Draft Section Refractory Side Qty 2 req 3-40-232054

4 1/4-20 x 1-1/2" Wingscrew with Collar Pkg of 10 3-31-782124-10 Y

5 Draft Section Weldment 1-10-232011W

6 1/2" Foam Insulation Wrap Around 3-44-232089

7 1/2" Foam Insulation 3-44-232088

8 Hopper Assembly 1-10-232034A Y

Gasket, Hopper Lid 10 Ft 1-00-00248 Y

Gasket, Hopper Throat 3-44-677185 Y

Gasket, Hopper Top 20 Ft 1-00-375501 Y

Hopper Lid Assembly 1-00-232038

9 Feeder Shield Rear 2-00-232039B Y

10 1" Foil Faced Fiberglass Insulation 3-44-232085

11 UL Feeder Assembly Refer to feeder assembly page

12 Differential Switch 3-20-6866 Y

13 Tempco 450W Igniter 1-00-10450 Y

14 1" Foil Faced Fiberglass Insulation 3-44-232086

15 Tube Cleanout Plate Qty 2 req 2-00-232008B

16 Hopper Stiffener Bracket Left 2-00-232031-1B

Hopper Stiffener Bracket Right 2-00-232031-2B

17 Firebox Refractory Side Qty 2 req 3-40-232010

18 Burn Pot Scraper 1-00-232208

19 Water Jacket Gasket

Combustion 3-44-232094-1

Long Bottom 3-44-232094-2

Short Bottom 3-44-232094-3

20 Air Pump 3-20-02679 Y

Fitting & Filter Pre 008490076 1-00-02679 Y

21 1/4" Ceramic Paper Feeder Insulation 3-44-232078

22 3/4" NPT Square Plug Qty 4 req 3-10-00600

23 Feeder Cover Left 2-00-232096B

24 3/4" NPT Boiler Drain 3-10-07560

25 Outer Skin Left 2-00-232026B

26 Combustion Section Weldment 1-10-232005W

27 Steel Sleeve Bushing 3/8 OD x 1/2 OAL 3-50-05229

28 Elevator Bolt 3/8-16 x 1-1/2" Qty 4 req 3-30-937161501

29 Firebox Cleanout Cover Retainer Qty 2 req 2-00-232056B

Additional service part numbers on the following page.

Service Parts HF60

Beginning Manufacturing Date: July 2009

Ending Manufacturing Date: Active

IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or distributor.

Hearth and Home Technologies does not sell directly to consumers. Provide model number

and serial number when requesting service parts from your dealer or distributor. Stocked

at Depot

ITEM Description COMMENTS PART NUMBER

30 Tube Cleanout Cover Plate Qty 2 req 2-00-232052B Y

31 Tube Cleanout Latch Qty 2 req 2-00-232009L

32 Ceramic Insert Pkg of 10 3-20-05238-10 Y

33 Flame Guide 3-00-03000 Y

34 Burnpot Assembly 1-10-232079A Y

Clean Out Cover 2 Sets 1-00-06623 Y

Thumb Screw Pkg of 10 3-31-782108-10 Y

35 Ceramic Insert Gasket 3-44-724114 Y

36 Ceramic Insert Plate 2-00-724104 Y

37 Burn Pot Gasket 3-44-724115 Y

38 Firebox Refractory Rear 3-40-232015 Y

39 Firebrick 3-40-232093 Y

40 Firebox Refractory Bottom 3-40-232006 Y

41 Ash Pan Assembly 1-10-232049A Y

42 Ash Door Assembly 1-10-232019A

Ash Door Spacer Set w/Gasket 1-00-232074

Glass 5.25 x 5.25 3-40-5555

Refractory 3-40-232023

Tadpole Gasket, Glass 10 Ft 1-00-00539 Y

43 Control Board Plate Assembly 1-10-232055A

Circuit Board w/Knobs & Shafts 1-00-06143 Y

Knob & Shaft Set of 25 1-00-015605 Y

Fuse, 6 AMP Pkg of 5 3-20-49447-5 Y

44 Pressure / Temperature Gauge 3-10-78427 Y

45 Plumbing Assembly 1-10-232080A

46 Combustion Motor Cover Pre SN 004490643 2-00-232028A

Post SN 004490643 2-00-232028B

47 Outer Skin Front 2-00-232027B

48 Combustion Blower 3-21-08639 Y

Blade 5" Single 3-20-502221 Y

Combustion Blower Mount 1-10-73416

Combustion Motor Mounting Screws Pkg of 100 1-00-53483208

49 External Retaining Ring 3-31-004357

50 Flex Conduit Support Bracket 2-00-232071B

51 3/8" Flex Conduit 1-00-25043 Y

3/8" Flex Connector Qty 2 req 3-20-1000

52 Ash Door Hinge 2-00-232020L

53 Water Jacket Weldment 1-10-232001W

Additional service part numbers on the following page.

Service Parts HF60

Beginning Manufacturing Date: July 2009

Ending Manufacturing Date: Active

IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or distributor.

Hearth and Home Technologies does not sell directly to consumers. Provide model number

and serial number when requesting service parts from your dealer or distributor. Stocked

at Depot

ITEM Description COMMENTS PART NUMBER

54 Spiral Fire Tube Baffl e Pkg of 8 2-00-232053-8 Y

55 ESP Probe 3-20-00844 Y

Aqua Temp Sensor Cable 3-20-72180 Y

56 1/2" Foam Insulation 3-44-232087

57 2" Fiberglass Insulation Qty 2 req 3-44-232090

58 Feeder Cover Right 2-00-232097B Y

59 Outer Skin Right 2-00-232025B

60 Spring Latch Qty 4 req 3-31-00927 Y

3/8"-16 x 1/4" Alloy Steel Black Oxide Cup Point SSS Pkg of 25 3-30-2014-25 Y

3 Position Terminal Block 3-20-03018 Y

Amtrol Air Vent 3-10-70130

Circuit breaker 10 Amp (orange - on/off switch) 3-20-334110 Y

Diagnostic Dsplay Module 3-20-05401 Y

DDM Replacement Cable 1-00-05402

Differential Switch 3-20-6866 Y

Disconnect, Female Pkg of 25 1-00-00959 Y

Draft Meter Assembly 1-00-00637 Y

Draft Meter Bolt & Tube 1-00-04004

High Altitude Intake Reduction 1-00-232059

Label, Caution 3-90-00247

Labels, Caution & Danger Pkg of 10 1-00-200408541

Power Cord 3-20-39685 Y

Relay, 8 Pin 3-20-29202 Y

Rope Gasket, 3/8" 4 Strand 30 Ft 1-00-00888 Y

Safety Relief Valve 3-10-77382 Y

Silicone Tubing, 1/4" 5 Ft 1-00-5113521 Y

Silicone Tubing, 1/8" 5 Ft 1-00-5113574 Y

Swell latch & Spacer 1-00-199110 Y

Touch Up Paint, Prepaint Aerosol 3-42-7737

Wiring Harness 3-20-232076 Y

Additional service part numbers on the following page.

Service Parts HF60

Beginning Manufacturing Date: July 2009

Ending Manufacturing Date: Active

IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or distributor.

Hearth and Home Technologies does not sell directly to consumers. Provide model number

and serial number when requesting service parts from your dealer or distributor. Stocked

at Depot

ITEM Description COMMENTS PART NUMBER

11 UL Feeder Assembly 1-10-232108A

11.1 Pellet Feeder Gear Motor, 6RPM 3-20-09302 Y

Feed Motor Fan Blade Pkg of 3 3-20-09302-3 Y

11.2 UL Feeder Cam 3-31-3014 Y

11.3 Feeder Air Crossover Kit 1-00-67900 Y

9MM Silicone Tube 5 Ft 1-00-511427 Y

11.4 Pellet Air Intake Assembly 1-10-06810A

11.5 Gasket Feeder Air Intake Pkg of 6 3-44-72224-6 Y

11.6 UL Feeder Air Intake 1-10-232114

11.7 Gasket Ultra Air Intake Pkg of 10 3-44-677160-10 Y

11.8 Ultra Feeder Weldment 1-10-72226S Y

11.9 UL Feeder Pusher Arm 1-10-677187W Y

11.10 Fines Defl ector No longer available 2-00-677138-10

11.11 Gasket, UL Feeder Cover Set of 2 1-00-677122 Y

11.12 Slide Plate Assembly 1-10-677121A Y

11.13 UL Feeder Auger Assembly 3-50-00565 Y

11.14 Bearing Flange w/Hardware 1-00-04035 Y

11.15 UL Feeder Gear Motor Bracket w/Grommet 1-00-247406 Y

11.16 UL Feeder Cam Block 3-00-677154 Y

Grommet, Motor Bracket Pkg of 12 3-31-2761-12

Hopper Switch Feeder Fitting Set of 2 1-00-142818 Y

Pillow Block Pkg of 4 3-31-3614087-4 Y

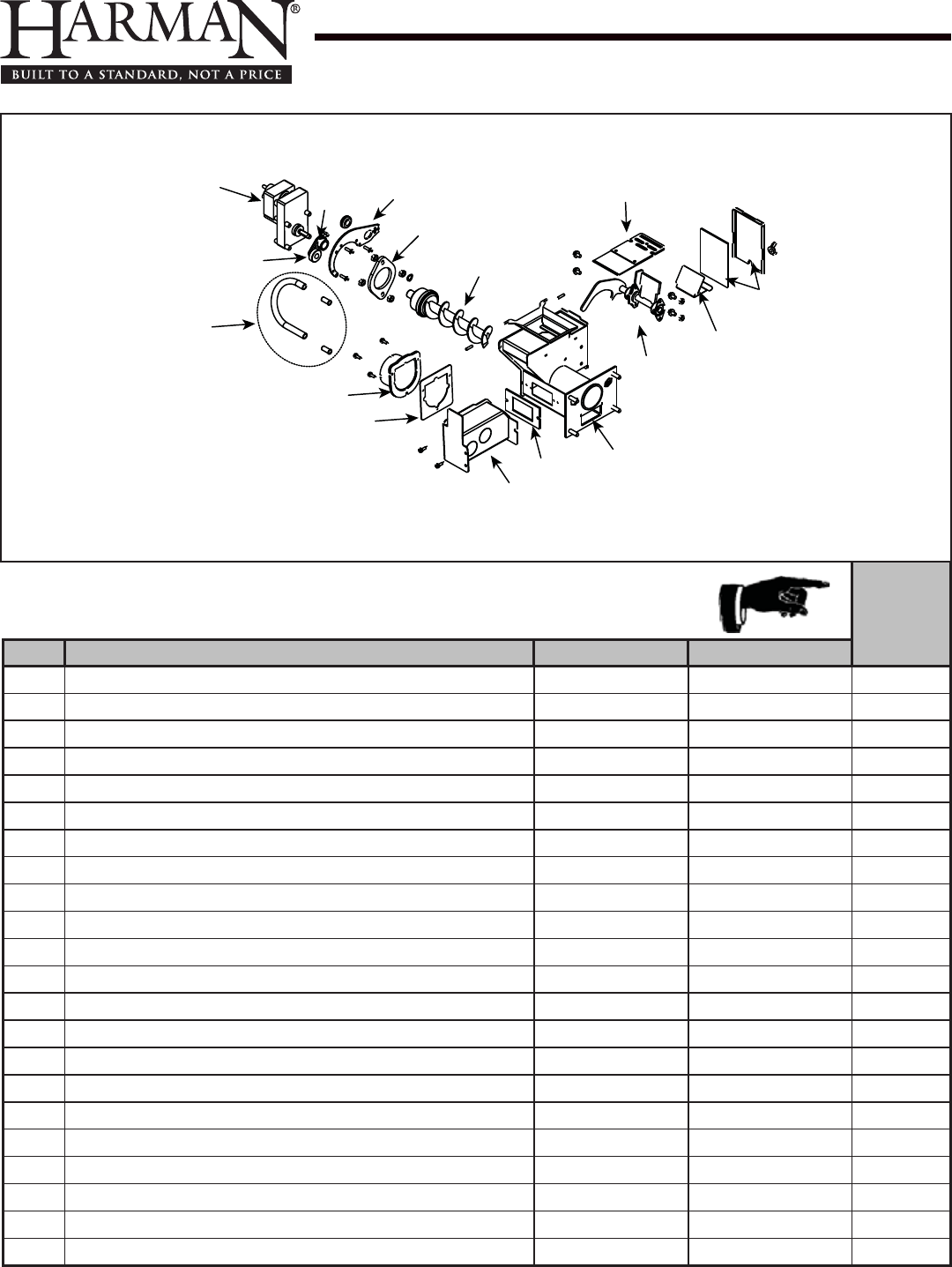

#11 Feeder Asembly

11.7

11.6

11.5

11.4

11.3

11.2

11.1 11.16 11.15

11.8

11.9

11.10

11.11

11.12

11.13

11.14
