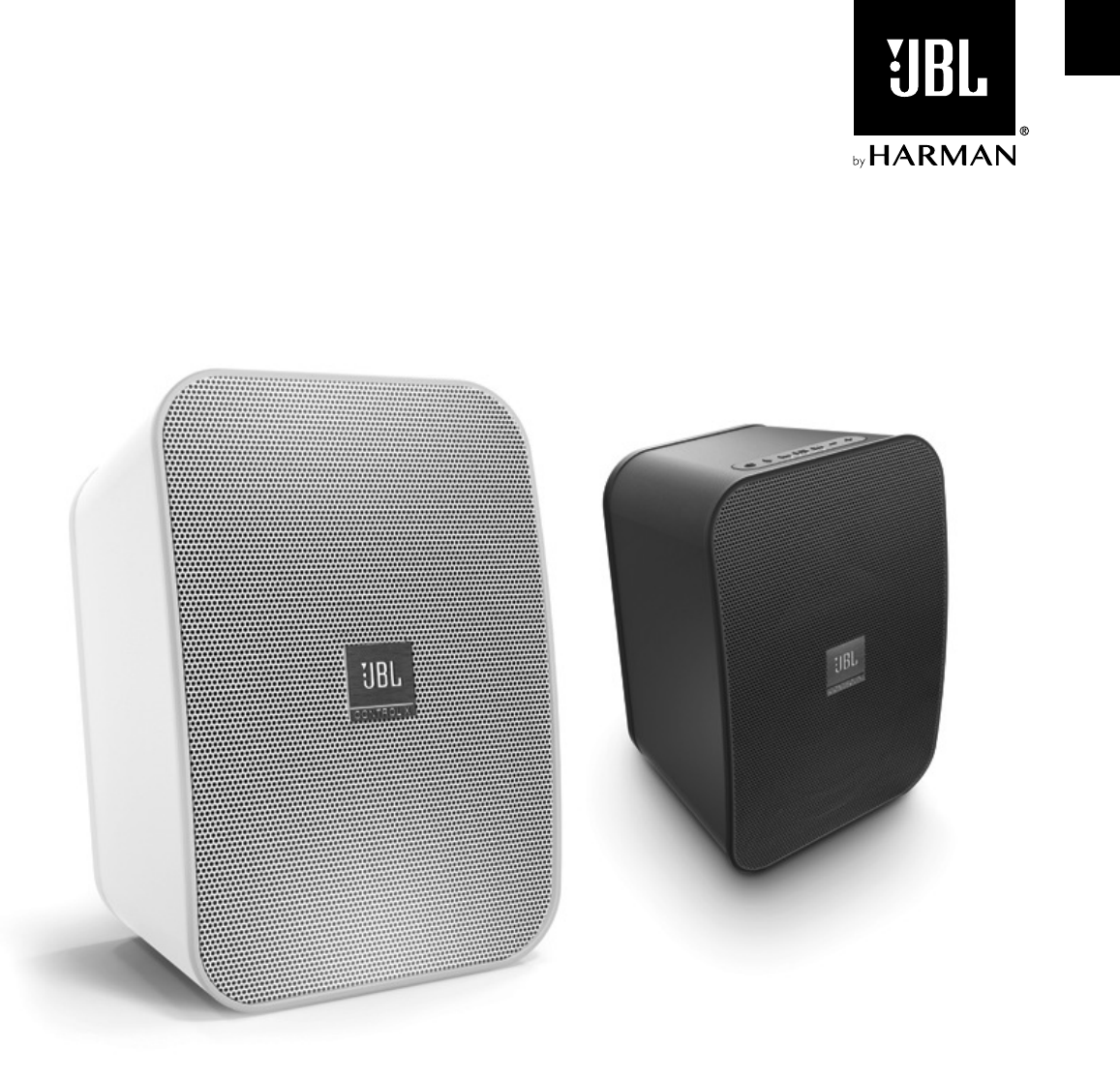

CONTROL X WIRELESS
2-way 5.25” (133mm) Portable Stereo Bluetooth® Speakers
OWNER’S MANUAL
The JBL® brand has been involved in every aspect of music,
film recording and reproduction from live performances to the
recordings you play in the home, car, or on-the-go. Were confident
that the JBL system you have chosen will provide every note
of enjoyment that you expected and that when you think about
purchasing additional audio equipment for your home, car or office,
you will once again choose a JBL product.
The JBL Control X is an advanced indoor/outdoor* Bluetooth®
active loudspeaker system that allows you to enjoy your favorite
music in remote locations around the home or in commercial
spaces. To ensure trouble-free performance, please carefully read
these instructions completely before connecting or using
the system.
*Please note that while the JBL Control X WIRELESS is
an all weather outdoor loudspeaker, it is not waterproof.
These speakers should NOT be submerged or directly
exposed to water, ice, snow or sustained moisture. Do
not spray water into the speaker’s rear port.
THANK YOU FOR CHOOSING THIS JBL® PRODUCT
ENGLISH
2
UNPACKING THE SYSTEM
Carefully unpack the system. If you suspect damage from transit,
report it immediately to your dealer and/or delivery service. Keep
the shipping carton and packing materials for future use. Open the
package and verify the following contents:
INCLUDED
1 x JBL Control X Wireless Primary speaker
1 x JBL Control X Wireless Secondary speaker
2 x AC power cord
1 x Owner’s Manual
1 x Safety sheet

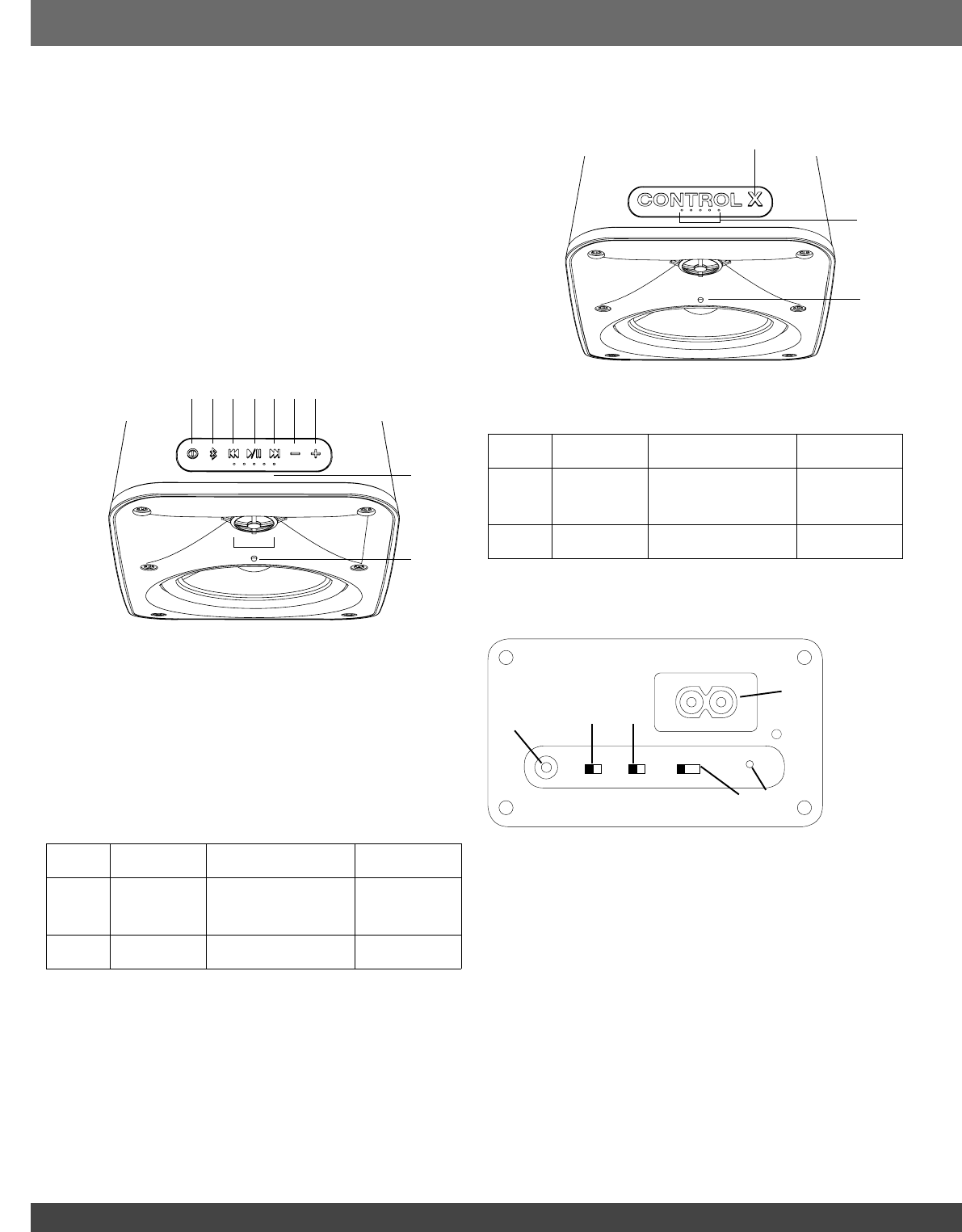

TOP-PANEL CONTROLS
PRIMARY SPEAKER
1. Power
2. Bluetooth pairing (Press and Hold 2 seconds to un-pair current
Bluetooth device)
3. Transport control button (Previous track)
4. Play / Pause
5. Transport control button (Next track)
6. Volume Down
7. Volume Up
8. Battery level indication
9. Front panel LED indication
LED
information
Fixed Quick Flash Regular Flash
White On / No Bluetooth
device connected
Additional speaker association
mode Volume Up and Down
(Stops when reaches Max
or Min)
System is waking up
Blue Bluetooth device
connected
Bluetooth pairing
mode
Note: The front LED indication times out in normal operation mode
Note: To mute the systems simply press and hold volume up and
down simultaneously for at least 2 seconds. Simply press volume up
or volume down to un-mute the system.
SECONDARY SPEAKER
1. Power
2. Battery level indication
3. Front panel LED indication
LED
information
Fixed Quick Flash Regular Flash
White On / No Bluetooth
device connected
Additional speaker association
mode Volume Up and Down
(Stops when reaches Max
or Min)
System is waking up
Blue Bluetooth device
connected
Bluetooth pairing
mode
REAR-PANEL CONTROLS
PRIMARY SPEAKER
AC IN
AUX-IN
L/R/L+R
P S
MODE WALL/OTHER
1
23 4
56
1. AC input connector
2. Auxiliary 3.5mm audio input
3. Primary-Secondary mode selector
4. Boundary compensation switch
a. Wall: Speaker equalization optimized for wall mounting.
b. Other: Speaker equalization optimized for other placement
conditions
5. Left / Right / Left + Right switch
a. Left: Speaker reproduces left channel information only
b. Right: Speaker reproduces right channel information only
c. Left + Right: Mono configuration speaker reproduces left and
right channels information
6. Association pin hole
1 2 3 4 5 6 7
8
9
1
2
3
3
www.jbl.com
ENGLISH

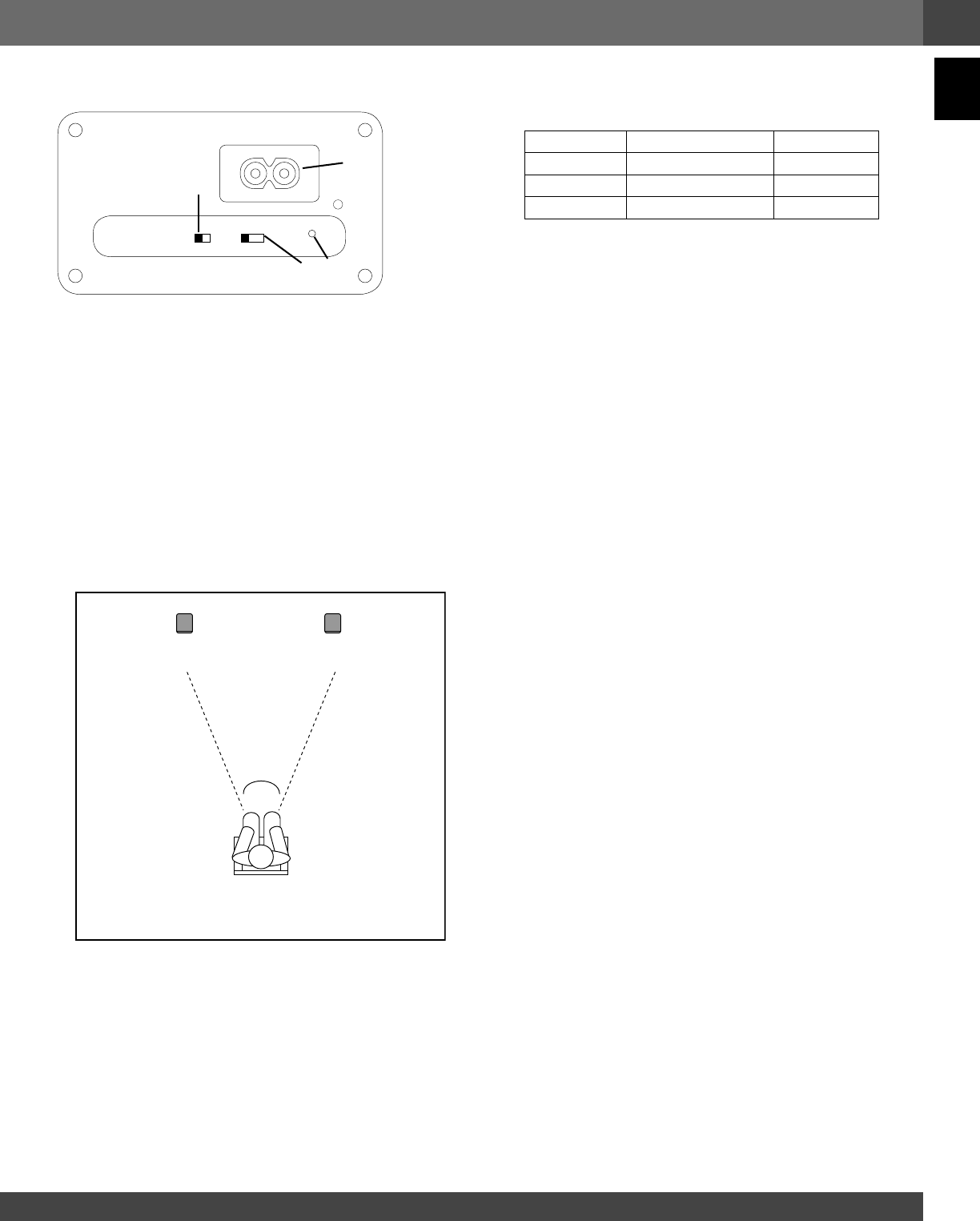

SECONDARY SPEAKER
AC IN
L/R/L+R
WALL/OTHER
1
2
34
1. AC input connector
2. Boundary compensation switch
a. Wall: Speaker equalization optimized for wall mounting.
b. Other: Speaker equalization optimized for other placement
conditions
3. Left / Right / Left + Right switch
a. Left: Speaker reproduces left channel information only
b. Right: Speaker reproduces right channel information only
c. Left + Right: Mono configuration speaker reproduces left and
right channels information
4. Association pin hole
PLACING THE SPEAKERS
These speakers can be mounted or placed on a stand, shelf or table.
The following figure shows a possible indoor application. For optimal
performance, do not block the rear port on the back of each speaker.
Left Rear
Channel
Right Rear
Channel
Center Rear
Channel
Left Front
Channel
Right Front
Channel
45 o
QUICK SETUP AND OPERATION
The speaker set is already factory setup to operate as a pair (primary
and secondary).
1. Connect AC power cords to AC-IN plug located at the rear of each
speaker. Keep AC plugged to maintain battery fully charged.
2. Press power button on each speaker(s) to start operation.
3. Press Bluetooth button and pair with streaming device. (Refer to
Listening to Audio from a Bluetooth capable device section below)
4. If desired to use in battery mode, just unplug the AC power. Speaker
and audio will not be interrupted. Reconnect to AC to recharge
battery.
Note: Primary and Secondary speakers’ factory default settings are as
follow
Control / Switch Primary Secondary
Mode (P) N/A
Wall/ Other Other Other
L/R/L+R (L) (R)
Note: When the system is not playing music it will go automatically
into auto standby mode. To reactivate the system, simply start
playing music and the system will resume automatically. A slight
delay may occur before the secondary speaker wakes up as it needs
resynchronization with the primary speaker. During this phase the front
LED of the secondary speaker will be blinking.
Note: If the system is manually powered off using the power button, it
will need to be manually powered on first to resume playing music.
The system also features sound prompt commands for the following
action / operation
1. Power On
2. Power Off
3. Bluetooth pairing mode
4. Bluetooth connection success
5. Association mode (see Speaker association section)
6. Battery low level
LISTENING TO AUDIO FROM A BLUETOOTH-
CAPABLE DEVICE
1. With speaker(s) powered on AC or Battery power, Press Bluetooth
button on primary speaker
2. An audible prompt will indicate that the speaker successfully
entered BT pairing mode. The front LED will also blink Blue as an
indication that BT pairing mode is enabled.
3. Search and pair withJBL Control Xfrom your Bluetooth streaming
device.
4. An audible confirmation will be played once the streaming device
successfully paired with the speaker. The front LED will stop blinking
and remain Blue. Secondary speaker will confirm Bluetooth pairing
by flashing front panel LED Blue for a few seconds.
Note: Only one Bluetooth device can be paired at the same time with
the system. If you need to un-pair the current Bluetooth device to
connect a new one simply press and hold the Bluetooth button on the
primary speaker for more than 2 seconds to disconnect current device.
Then resume the pairing process above from step 2.
LISTENING TO AUDIO FROM AUX-IN
Bluetooth operation has priority over Aux-In input. If you want to
use the auxiliary in input, any paired Bluetooth device need to be
disconnected or unpaired from JBL control X Wireless by pressing
and holding the Bluetooth button for more than 2 seconds or by
disconnecting it from your Bluetooth streaming device.
1. With speaker(s) powered on AC or Battery power, connect a 3.5mm
audio cable from the audio source to the AUX-IN on the primary speaker.
SPEAKER ASSOCIATION
JBL Control X Wireless speakers are factory associated to each other. In case
of association problems were the secondary speaker is not playing music,
WSLHZLMVSSV^HZZVJPH[PVUZ[LWZVUKL[HPSLKZLJ[PVUILSV^[VÄ_[OLPZZ\L6US`
one secondary speaker can be associated at the time with a primary speaker.

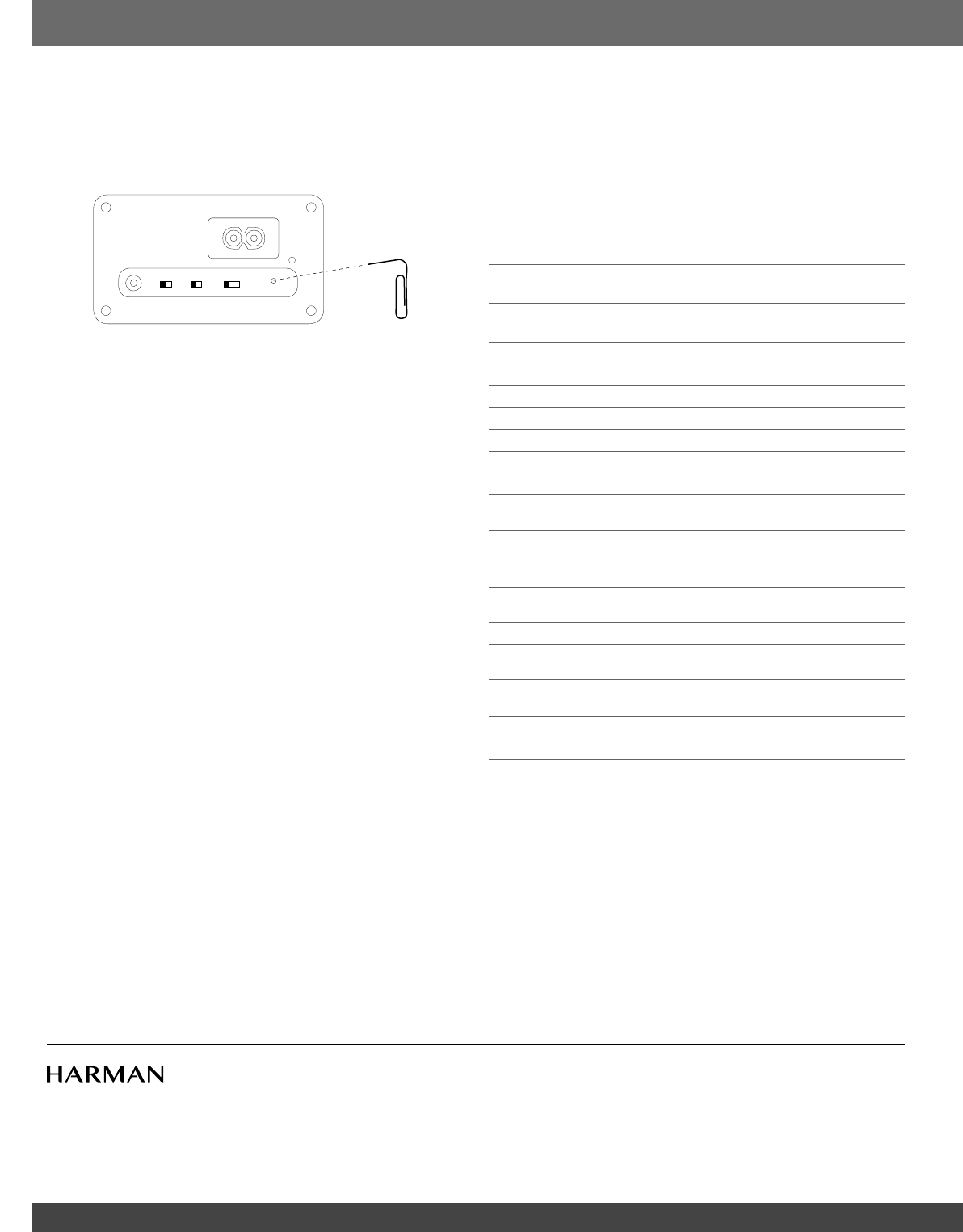

1. With both primary and secondary speaker(s) powered on AC or Battery
power, use a paper clip to press the association button on the back of the
ZLJVUKHY`ZWLHRLY;OLMYVU[3,+^PSSÅHZO^OP[LPUKPJH[PUNHZZVJPH[PVU
mode is active
4
© 2015 HARMAN International Industries, Incorporated. All rights reserved.
JBL and CMMD are trademarks of HARMAN International Industries, Incorporated, registered in the United States and/or other countries.
Bluetooth® is a registered trademark of Bluetooth SIG, Inc.
Features, specifications and appearance are subject to change without notice.
HARMAN International Industries, Inc.
8500 Balboa Boulevard, Northridge, CA 91329 USA www.jbl.com
TR01319_A
2. Press the association button on the primary speaker. An audible
confirmation will be played to indicate that the speaker successfully
entered association mode. The front LED will blink blue if already
paired with a Bluetooth device, otherwise it will blink white.
3. Wait until association process finishes. The process is complete as
soon as the front LED on each speaker stops blinking.
Note: in case the association needs to be redone for speaker replace-
ment or configuration change, the current association set up needs to
be reset. Press and hold the FWD and REV buttons on the top of the
primary speaker for more than 3 seconds.
It is also possible to associate a second pair of JBL control X wireless
speaker set to an existing pair to extend the system coverage. If you
want to have a set of 4 speakers connected.
1. With all four primary and secondary speaker(s) powered on AC or
Battery power
2. Use a paper clip to press the association button on the back of
the second set primary speaker with the back control mode switch
set to secondaryS”. The front LED will flash white indicating
Association mode is active.
3. Press the association button on the primary speaker of the first
master set. An audible confirmation will be played to indicate that
the speaker successfully entered association mode. The front LED
will blink blue if already paired with a Bluetooth device, otherwise it
will blink white.
4. Wait until association process finishes. The process is complete as
soon as the front LED on each speaker stops blinking.
5. Use a paper clip to press the association button on the back of
the second set secondary speaker. The front LED will flash White
indicating Association mode is active.
6. Press the association button on the secondary speaker of the first
master set. An audible confirmation will be played to indicate that
the speaker successfully entered association mode. The front LED
will blink blue if already paired with a Bluetooth device, otherwise it
will blink white.
7. Wait until association process finishes. The process is complete as
soon as the front LED on each speaker stops blinking.
Note: in case the association needs to be redone for speaker
replacement or configuration change, the current association set up
needs to be reset. Press and hold the FWD and REV buttons on the
top of the primary speaker for more than 3 seconds.
MAINTENANCE AND SERVICE
The speaker enclosures may be cleaned using a soft cloth to remove
fingerprints or to wipe off dust.
All wiring connections should be inspected and cleaned or remade
periodically. The frequency of maintenance depends on the metals
involved in the connections, atmospheric conditions and other factors,
but once per year is the minimum. In the event that your system ever
needs service, contact your local JBL dealer or distributor, or visit
www.jbl.com for a service center near you.
BATTERY DISPOSAL
Rechargeable batteries (i.e., nickel cadmium, nickel metalhydride,
lithium and lithium-ion) are considered hazardous household materials
and may pose an unnecessary health and safety risk.
In the European Union and other locations, it is illegal to dispose of any
battery with household trash. All batteries must be disposed of in an
environmentally sound manner. Contact your local waste management
officials for information regarding the environmentally sound collection,
recycling and disposal of used batteries.
SPECIFICATIONS
Low Frequency Transducer: 5.25" (133mm) polypropylene
graphite-filled cone
High Frequency Transducer: 1” (25mm) CMMD® Lite dome /
High Definition Imaging Waveguide
Rated Power: 30W per channel RMS (AC mode)
Frequency Response: 62Hz - 20kHz (-6db)
Sensitivity: (2.83V@1m) 87dB
Signal-to-noise ratio: >75 dB
Power supply: AC 100-240 VAC, 50-60Hz
Battery Type: Lithium-ion Polymer (7.4V, 2600mAh)
Battery Charge Time: 2.4 hours @ 0.5C
Playback Time: Up to 4 hours (varies by volume level
and audio content)
Bluetooth® 2.1 with AVRCP
profile v1.5
Bluetooth® Transmitter Power: 0-4 dBm
Bluetooth® Transmitter
Frequency Range: 2.402 2.480 GHz
Bluetooth® Transmission Range: Up to 10m (from source)
Speaker Range: Up to 30m (between primary and
secondary speakers)
Dimensions: 9-1/4x 6-1/2x 6-1/4”
(235mm x 165mm x 159mm)
Weight: 6.5 lbs (2.95 kg)
Finishes: Graphite / White / Red
AC IN
AUX-IN
L/R/L+R
P S
MODE WALL/OTHER
(For Primary Speaker Use Only)

Navigation menu
