Harsper HL-320B LCD TV Monitor User Manual 1

Harsper Co., Ltd. LCD TV Monitor 1

Users Manual

FCC ID : :O5XHL-321B REPORT NO. : HCT-F05-0105 HYUNDAI C–TECH 1/1 ATTACHMENT E. - USER’S MANUAL -
OWNER'S MANUAL1ContentsForeword■Caution 3■Important Safety Instructions 4Overviewing your the Monitor■Viewing the Control Panel 9■Viewing the Connecting Panel 10■Viewing the Remote Control- Key Description 12- Teletext / PIP(Picture In Picture) 13- Loading the Batteries 15Installation■Table Stand Installation 16■Speaker Installation 17Connection the Cable/Devices■Connection the TV Cable 18■Connection the VCR 19■Connection the DVD 20■Connection the Set Top Box 21■Connection the PC (D-Sub & DVI) 22■Displayable Monitor Specification 23 Setting the Channel■Basic Operation 24■OSD Menu Structure 25■Storing Channels Automatically 26■Storing Channels Manually 28■Fine Tunning the Channel Reception 28■Editing the Channels 29■Digest Function 30■Teletext 31Setting the Picture■Changing the Picture Mode 32-Adjusting the User Mode 33■Changing the Colour Temperature 35
OWNER'S MANUAL2ContentsSetting the Picture■Video NR (Noise Reduction) 32■Selecting the Film Mode 33■Changing the Screen Form 35■Selecting the Black Enhancer 36■Adjusting the PC Screen(Geometry) 36■Native Mode 38Setting the Sound■Adjusting the Sound Balance 40■Changing the Sound Mode 40■Adjusting User Sound Mode 41■Spatial Effect 41■AVC (Auto Volume Control) 41■MTS (Multichannel Television Sound) 42Setting the Others■Aujusting the Transparency of the OSD Window 43■PIP(Picture In Picture) 43- Changing the Size in PIP 44- Choosing the Source in PIP 44- Picture Swap in PIP 45- Changing the Position in PIP 45■Other Advanced Function- Set ID in Advanced 46- Setting the Blue Screen Mode 47- Changing the OSD Language 47- Front Key Lock in Advance 47Setting the Time■Setting the Current Time 48■Setting the On Time 48■Setting the Off Time 50■Setting the Sleep Timer 50Troubleshooting 51Spec 52Warranty Card 56

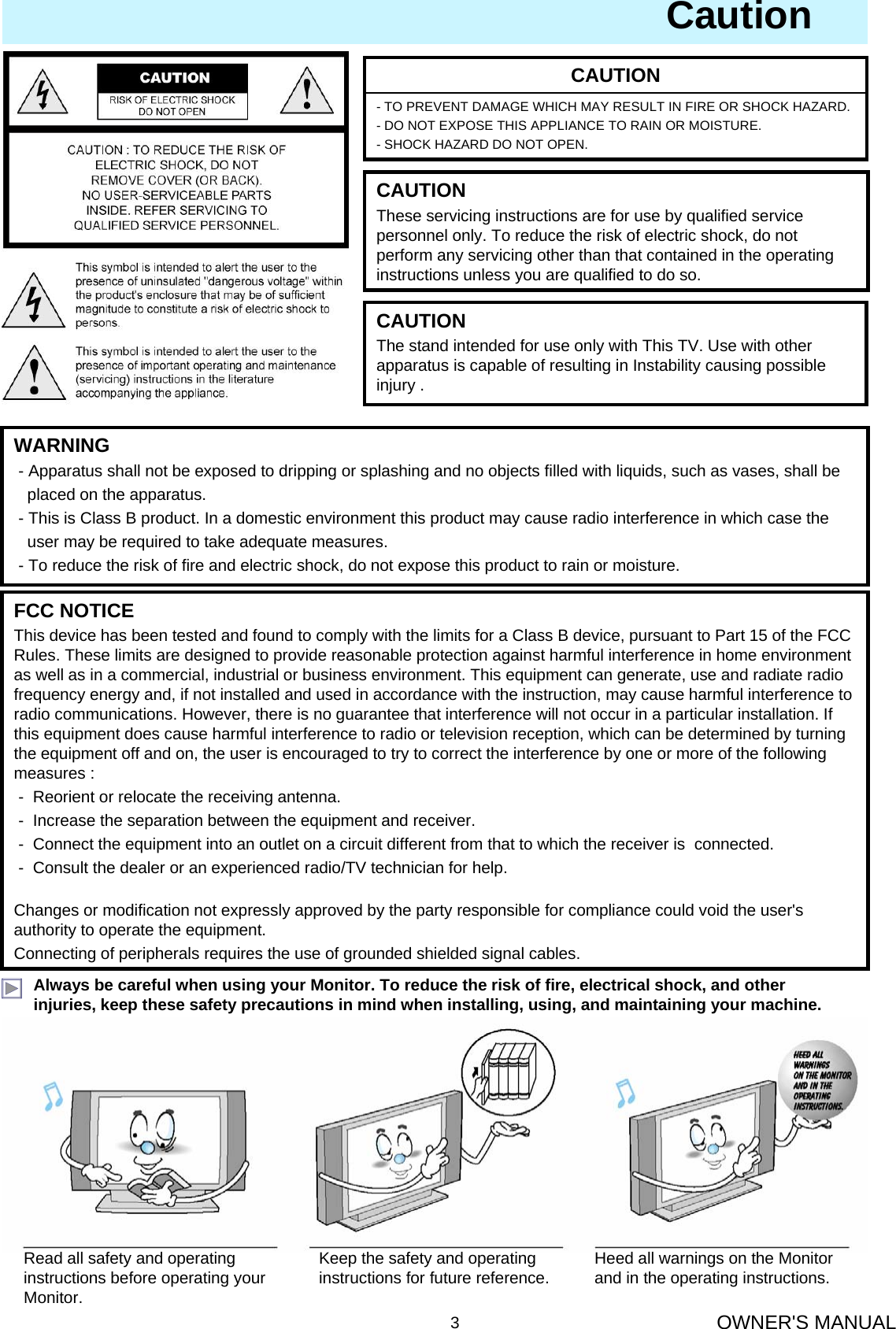

OWNER'S MANUAL3CautionAlways be careful when using your Monitor. To reduce the risk of fire, electrical shock, and other injuries, keep these safety precautions in mind when installing, using, and maintaining your machine.- TO PREVENT DAMAGE WHICH MAY RESULT IN FIRE OR SHOCK HAZARD. - DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.- SHOCK HAZARD DO NOT OPEN.CAUTIONWARNING- Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.- This is Class B product. In a domestic environment this product may cause radio interference in which case theuser may be required to take adequate measures.- To reduce the risk of fire and electric shock, do not expose this product to rain or moisture.FCC NOTICEThis device has been tested and found to comply with the limits for a Class B device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in home environment as well as in a commercial, industrial or business environment. This equipment can generate, use and radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures :- Reorient or relocate the receiving antenna.- Increase the separation between the equipment and receiver.- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.- Consult the dealer or an experienced radio/TV technician for help.Changes or modification not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.Connecting of peripherals requires the use of grounded shielded signal cables.Read all safety and operating instructions before operating your Monitor.Keep the safety and operating instructions for future reference. Heed all warnings on the Monitor and in the operating instructions.CAUTIONThese servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock, do not perform any servicing other than that contained in the operatinginstructions unless you are qualified to do so.CAUTIONThe stand intended for use only with This TV. Use with other apparatus is capable of resulting in Instability causing possible injury .

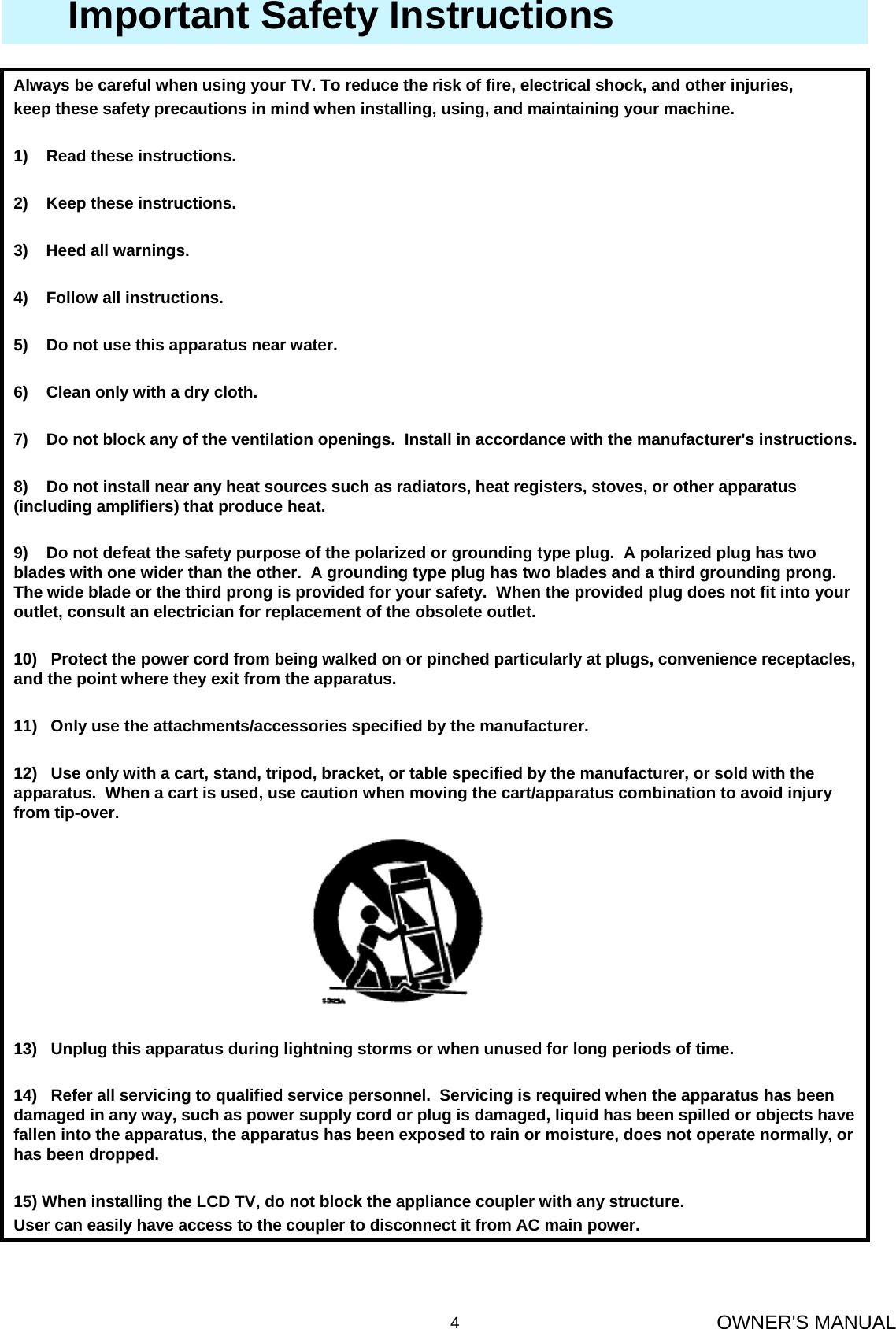

OWNER'S MANUAL4Always be careful when using your TV. To reduce the risk of fire, electrical shock, and other injuries,keep these safety precautions in mind when installing, using, and maintaining your machine.1) Read these instructions.2) Keep these instructions.3) Heed all warnings.4) Follow all instructions.5) Do not use this apparatus near water.6) Clean only with a dry cloth.7) Do not block any of the ventilation openings. Install in accordance with the manufacturer's instructions.8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.9) Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. When the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.11) Only use the attachments/accessories specified by the manufacturer.12) Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. 13) Unplug this apparatus during lightning storms or when unused for long periods of time.14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.15) When installing the LCD TV, do not block the appliance coupler with any structure.User can easily have access to the coupler to disconnect it from AC main power.Important Safety Instructions

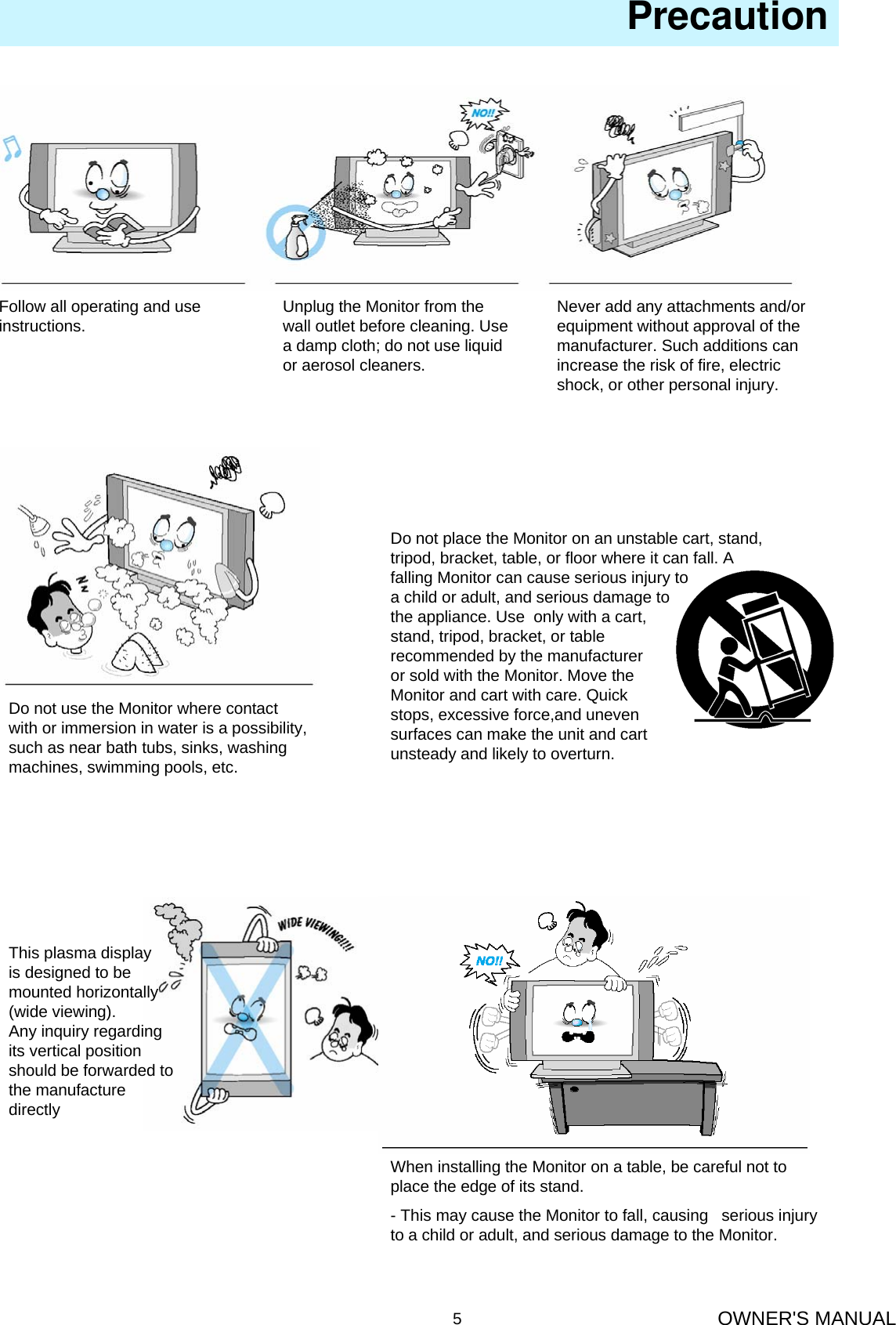

OWNER'S MANUAL5Follow all operating and use instructions. Unplug the Monitor from the wall outlet before cleaning. Use a damp cloth; do not use liquid or aerosol cleaners.Never add any attachments and/or equipment without approval of the manufacturer. Such additions can increase the risk of fire, electric shock, or other personal injury.Do not use the Monitor where contact with or immersion in water is a possibility, such as near bath tubs, sinks, washing machines, swimming pools, etc.Do not place the Monitor on an unstable cart, stand, tripod, bracket, table, or floor where it can fall. A falling Monitor can cause serious injury toa child or adult, and serious damage tothe appliance. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with the Monitor. Move theMonitor and cart with care. Quick stops, excessive force,and uneven surfaces can make the unit and cart unsteady and likely to overturn. PrecautionThis plasma displayis designed to bemounted horizontally(wide viewing).Any inquiry regarding its vertical position should be forwarded to the manufacture directlyWhen installing the Monitor on a table, be careful not to place the edge of its stand.- This may cause the Monitor to fall, causing serious injury to a child or adult, and serious damage to the Monitor.

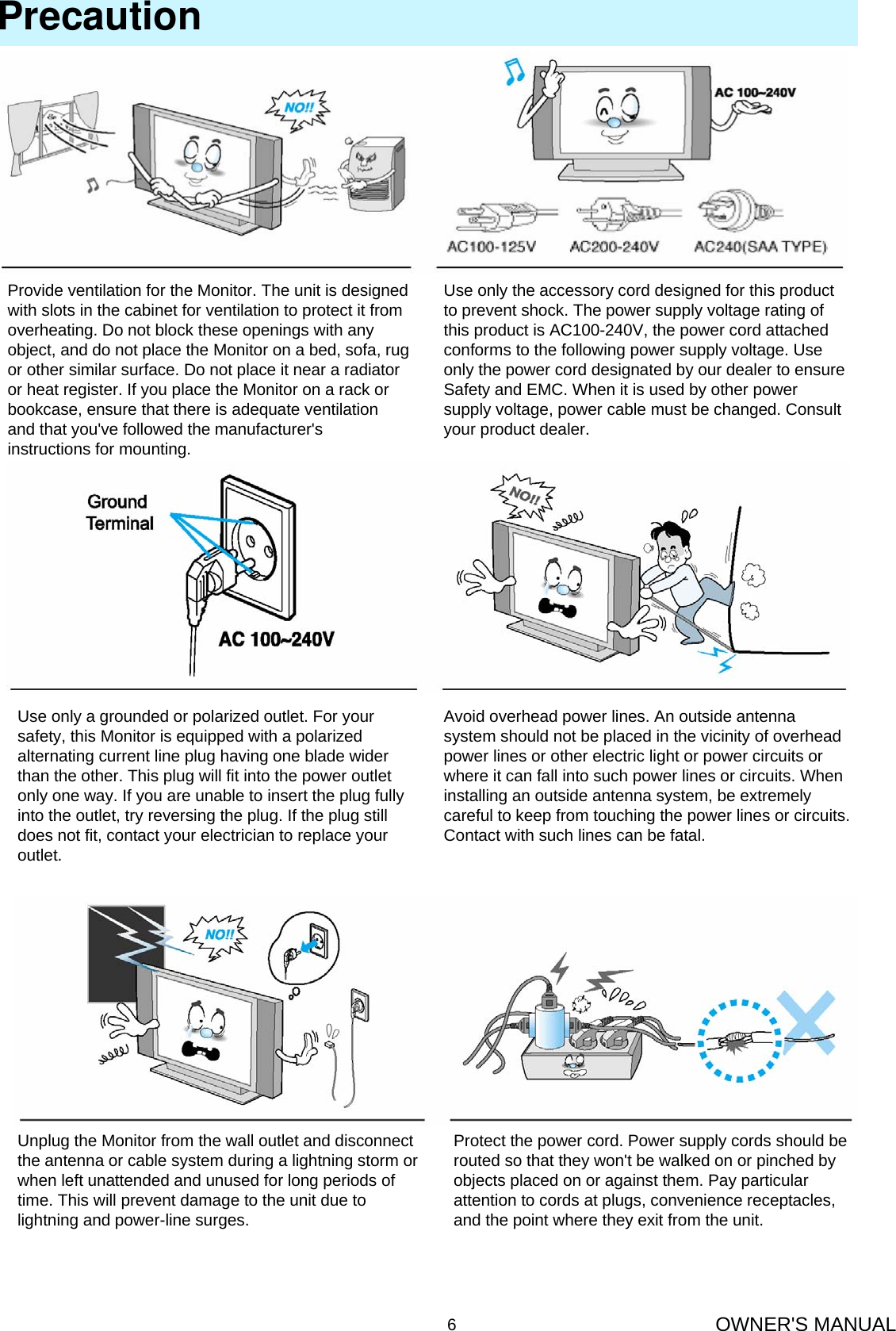

OWNER'S MANUAL6PrecautionProvide ventilation for the Monitor. The unit is designed with slots in the cabinet for ventilation to protect it from overheating. Do not block these openings with any object, and do not place the Monitor on a bed, sofa, rug or other similar surface. Do not place it near a radiator or heat register. If you place the Monitor on a rack or bookcase, ensure that there is adequate ventilation and that you've followed the manufacturer's instructions for mounting.Use only the accessory cord designed for this product to prevent shock. The power supply voltage rating of this product is AC100-240V, the power cord attached conforms to the following power supply voltage. Use only the power cord designated by our dealer to ensure Safety and EMC. When it is used by other power supply voltage, power cable must be changed. Consult your product dealer.Use only a grounded or polarized outlet. For your safety, this Monitor is equipped with a polarized alternating current line plug having one blade wider than the other. This plug will fit into the power outlet only one way. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug still does not fit, contact your electrician to replace your outlet.Avoid overhead power lines. An outside antenna system should not be placed in the vicinity of overhead power lines or other electric light or power circuits or where it can fall into such power lines or circuits. When installing an outside antenna system, be extremely careful to keep from touching the power lines or circuits. Contact with such lines can be fatal.Unplug the Monitor from the wall outlet and disconnect the antenna or cable system during a lightning storm or when left unattended and unused for long periods of time. This will prevent damage to the unit due to lightning and power-line surges.Protect the power cord. Power supply cords should be routed so that they won't be walked on or pinched byobjects placed on or against them. Pay particular attention to cords at plugs, convenience receptacles, and the point where they exit from the unit.

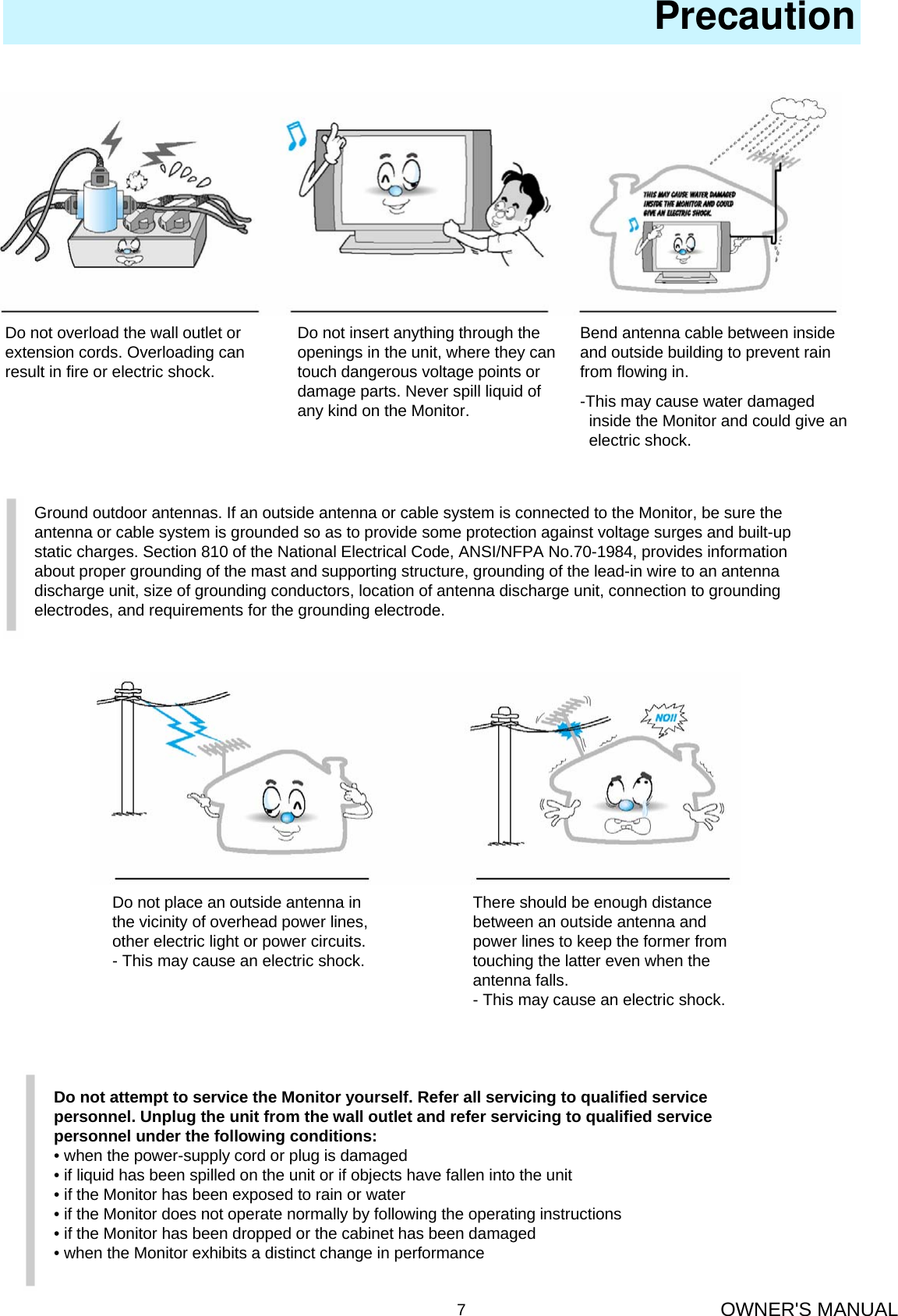

OWNER'S MANUAL7PrecautionDo not overload the wall outlet orextension cords. Overloading canresult in fire or electric shock.Do not insert anything through the openings in the unit, where they can touch dangerous voltage points or damage parts. Never spill liquid of any kind on the Monitor.Bend antenna cable between inside and outside building to prevent rain from flowing in.-This may cause water damagedinside the Monitor and could give an electric shock.Ground outdoor antennas. If an outside antenna or cable system is connected to the Monitor, be sure theantenna or cable system is grounded so as to provide some protection against voltage surges and built-upstatic charges. Section 810 of the National Electrical Code, ANSI/NFPA No.70-1984, provides informationabout proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antennadischarge unit, size of grounding conductors, location of antenna discharge unit, connection to groundingelectrodes, and requirements for the grounding electrode.Do not place an outside antenna inthe vicinity of overhead power lines,other electric light or power circuits.- This may cause an electric shock.There should be enough distancebetween an outside antenna andpower lines to keep the former fromtouching the latter even when theantenna falls.- This may cause an electric shock.Do not attempt to service the Monitor yourself. Refer all servicing to qualified servicepersonnel. Unplug the unit from the wall outlet and refer servicing to qualified servicepersonnel under the following conditions:• when the power-supply cord or plug is damaged• if liquid has been spilled on the unit or if objects have fallen into the unit• if the Monitor has been exposed to rain or water• if the Monitor does not operate normally by following the operating instructions• if the Monitor has been dropped or the cabinet has been damaged• when the Monitor exhibits a distinct change in performance

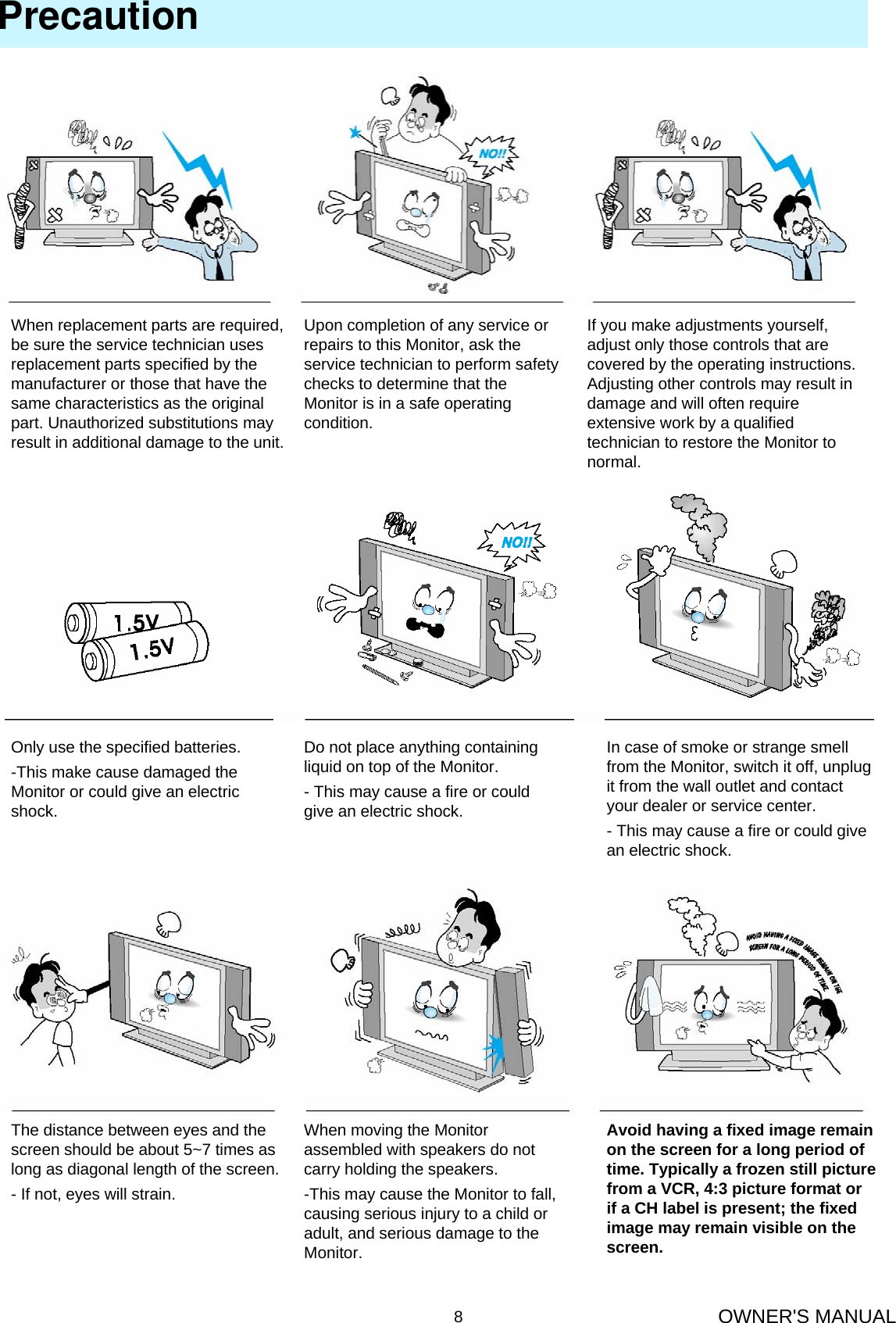

OWNER'S MANUAL8PrecautionWhen replacement parts are required, be sure the service technician uses replacement parts specified by the manufacturer or those that have the same characteristics as the original part. Unauthorized substitutions may result in additional damage to the unit.Upon completion of any service orrepairs to this Monitor, ask theservice technician to perform safetychecks to determine that the Monitor is in a safe operating condition.If you make adjustments yourself,adjust only those controls that arecovered by the operating instructions.Adjusting other controls may result indamage and will often requireextensive work by a qualifiedtechnician to restore the Monitor tonormal.Only use the specified batteries.-This make cause damaged theMonitor or could give an electricshock.Do not place anything containingliquid on top of the Monitor.- This may cause a fire or could give an electric shock.In case of smoke or strange smellfrom the Monitor, switch it off, unplugit from the wall outlet and contactyour dealer or service center.- This may cause a fire or could give an electric shock.The distance between eyes and thescreen should be about 5~7 times aslong as diagonal length of the screen.- If not, eyes will strain.When moving the Monitor assembled with speakers do not carry holding the speakers.-This may cause the Monitor to fall,causing serious injury to a child oradult, and serious damage to theMonitor.Avoid having a fixed image remainon the screen for a long period oftime. Typically a frozen still picturefrom a VCR, 4:3 picture format or if a CH label is present; the fixedimage may remain visible on thescreen.

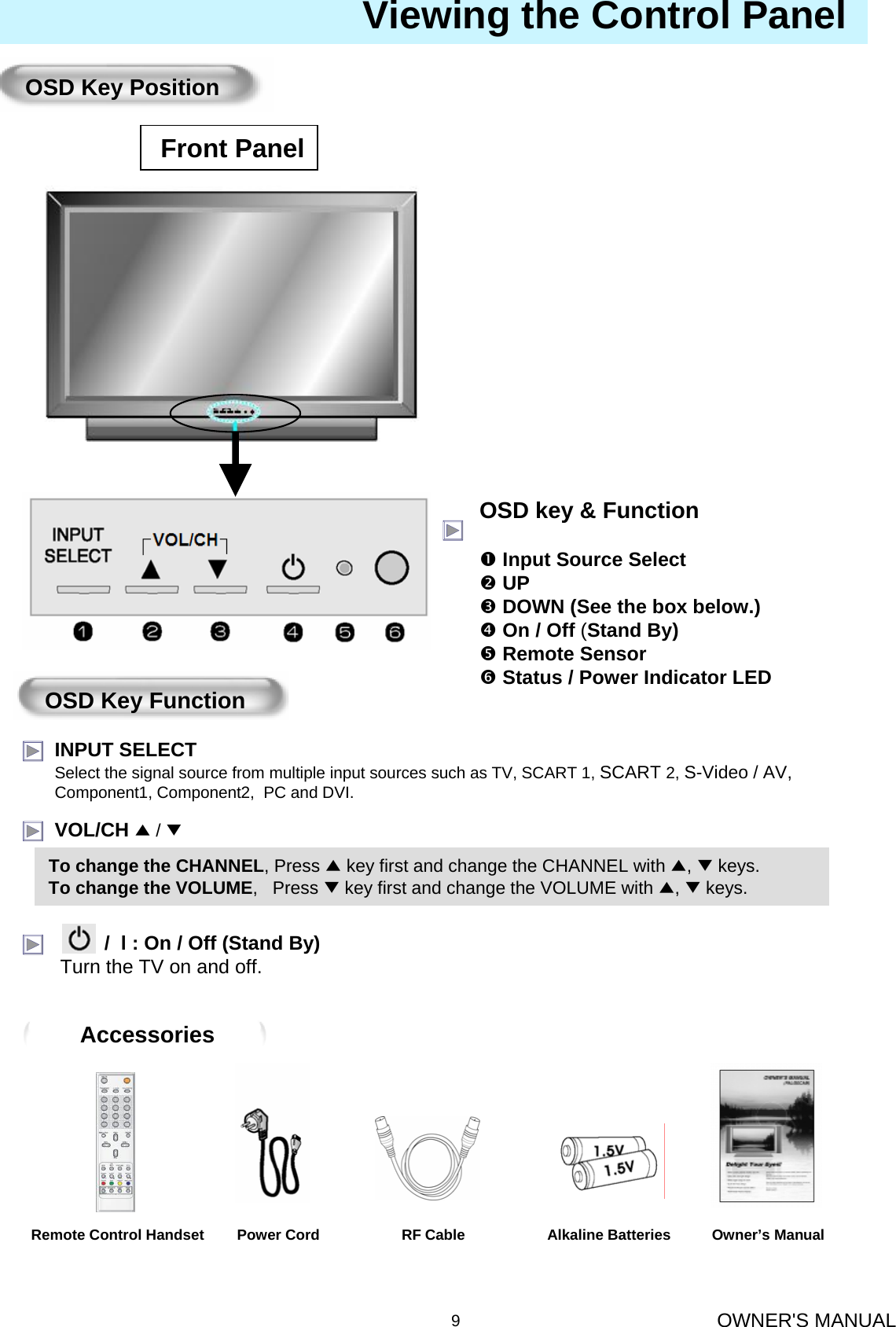

OWNER'S MANUAL9Viewing the Control PanelOSD Key PositionFront Panel OSD key & FunctionnInput Source SelectoUPpDOWN (See the box below.)qOn / Off (Stand By)rRemote SensorsStatus / Power Indicator LEDOSD Key FunctionINPUT SELECTSelect the signal source from multiple input sources such as TV, SCART 1, SCART 2, S-Video / AV, Component1, Component2, PC and DVI. VOL/CH ▲/ ▼To change the CHANNEL, Press ▲key first and change the CHANNEL with ▲, ▼keys.To change the VOLUME, Press ▼key first and change the VOLUME with ▲, ▼keys./ l : On / Off (Stand By)Turn the TV on and off.AccessoriesRemote Control Handset Power Cord RF Cable Alkaline Batteries Owner’s Manual

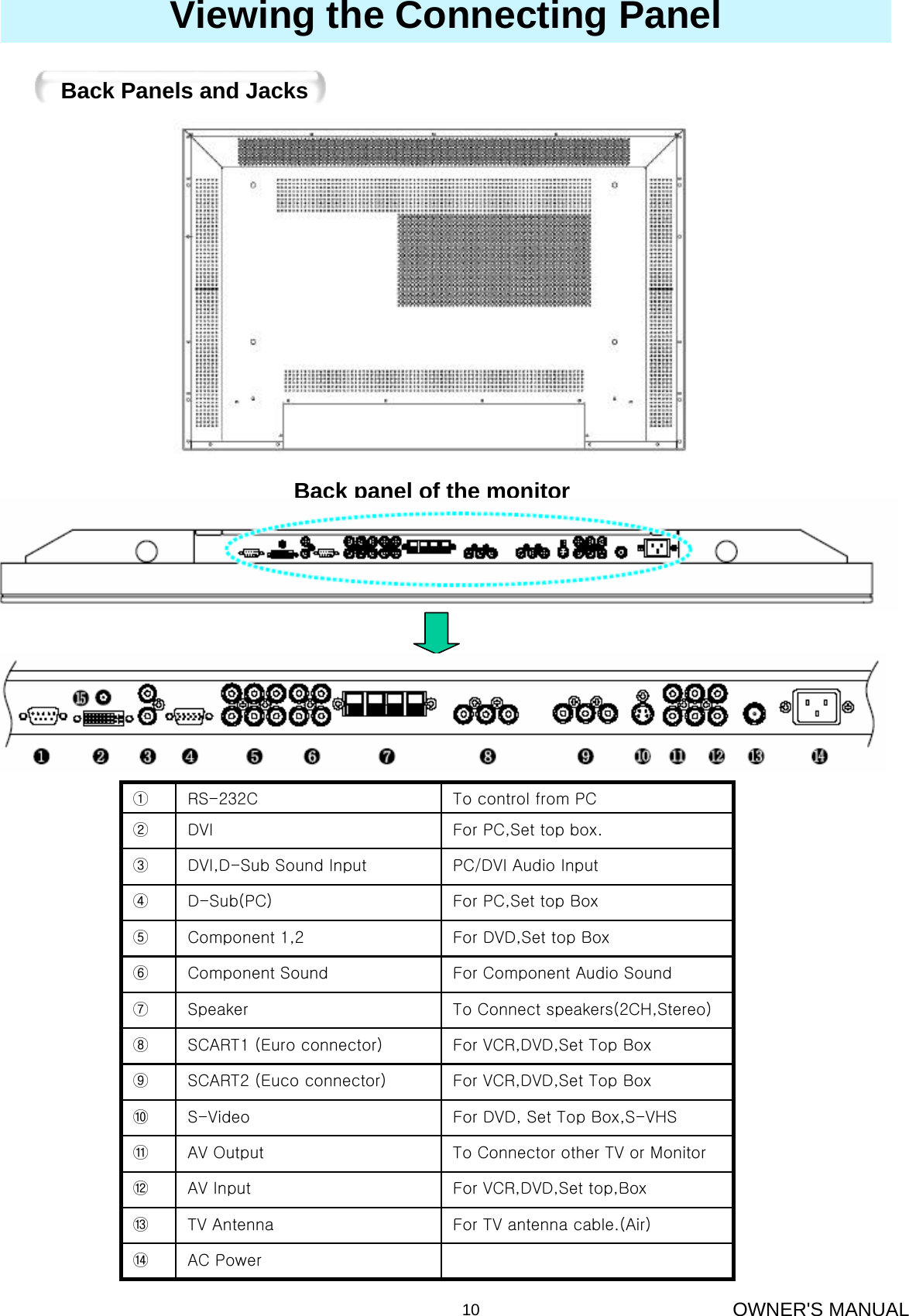

OWNER'S MANUAL10Viewing the Connecting PanelBack Panels and JacksBack panel of the monitorFor PC,Set top BoxD-Sub(PC)④For PC,Set top box.DVI②For DVD,Set top BoxComponent 1,2⑤For Component Audio SoundComponent Sound⑥To Connect speakers(2CH,Stereo)Speaker⑦For VCR,DVD,Set Top BoxSCART1 (Euro connector)⑧For VCR,DVD,Set Top BoxSCART2 (Euco connector)⑨For DVD, Set Top Box,S-VHSS-Video⑩To Connector other TV or MonitorAV Output⑪For VCR,DVD,Set top,BoxAV Input⑫PC/DVI Audio InputDVI,D-Sub Sound Input③AC Power⑭For TV antenna cable.(Air)TV Antenna⑬To control from PCRS-232C①

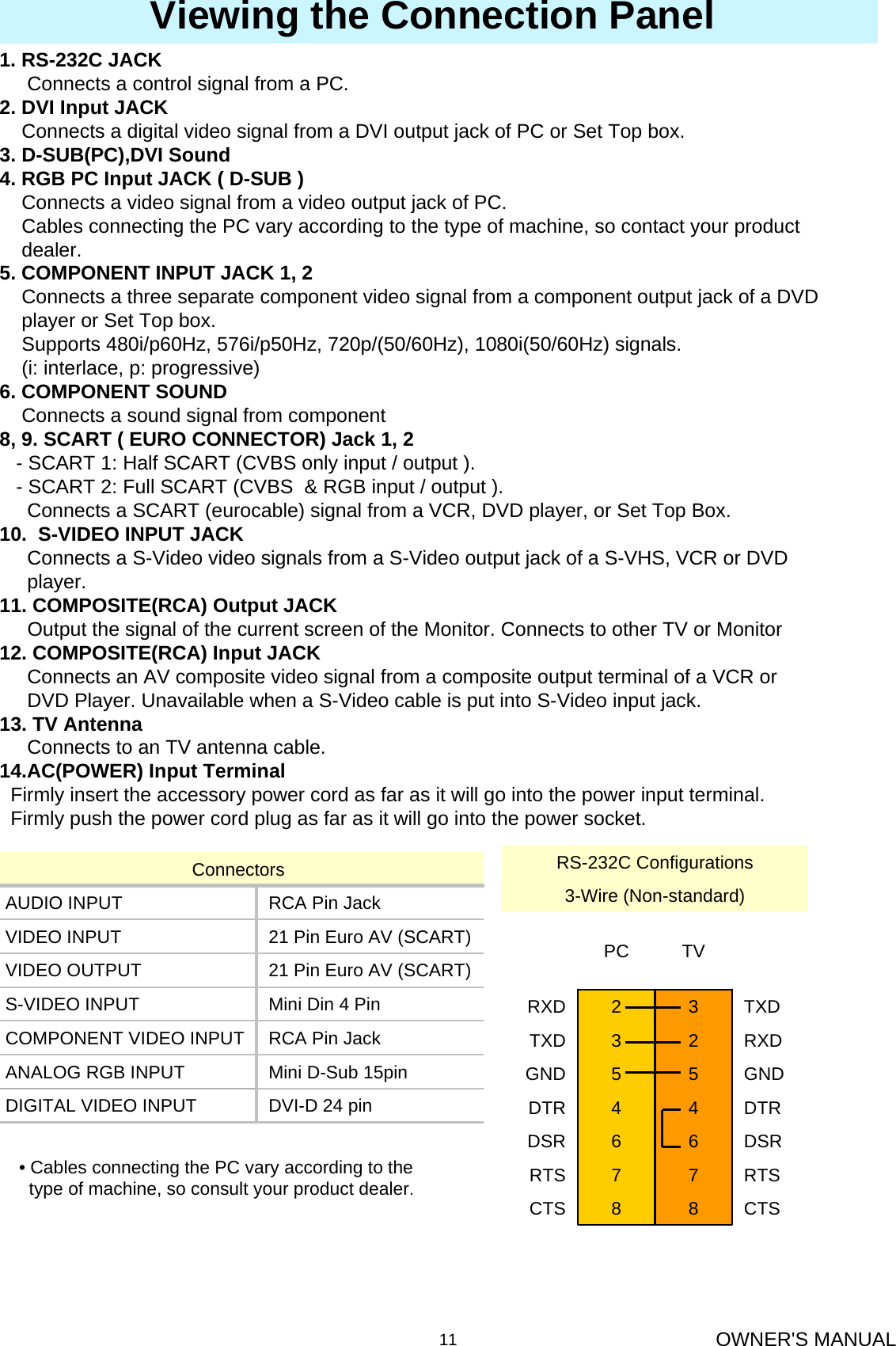

OWNER'S MANUAL111. RS-232C JACKConnects a control signal from a PC.2. DVI Input JACKConnects a digital video signal from a DVI output jack of PC or Set Top box.3. D-SUB(PC),DVI Sound4. RGB PC Input JACK ( D-SUB )Connects a video signal from a video output jack of PC. Cables connecting the PC vary according to the type of machine, so contact your product dealer.5. COMPONENT INPUT JACK 1, 2Connects a three separate component video signal from a component output jack of a DVDplayer or Set Top box.Supports 480i/p60Hz, 576i/p50Hz, 720p/(50/60Hz), 1080i(50/60Hz) signals. (i: interlace, p: progressive)6. COMPONENT SOUNDConnects a sound signal from component8, 9. SCART ( EURO CONNECTOR) Jack 1, 2- SCART 1: Half SCART (CVBS only input / output ).- SCART 2: Full SCART (CVBS & RGB input / output ).Connects a SCART (eurocable) signal from a VCR, DVD player, or Set Top Box.10. S-VIDEO INPUT JACKConnects a S-Video video signals from a S-Video output jack of a S-VHS, VCR or DVD player.11. COMPOSITE(RCA) Output JACKOutput the signal of the current screen of the Monitor. Connects to other TV or Monitor12. COMPOSITE(RCA) Input JACKConnects an AV composite video signal from a composite output terminal of a VCR or DVD Player. Unavailable when a S-Video cable is put into S-Video input jack.13. TV AntennaConnects to an TV antenna cable. 14.AC(POWER) Input TerminalFirmly insert the accessory power cord as far as it will go into the power input terminal. Firmly push the power cord plug as far as it will go into the power socket.Viewing the Connection Panel• Cables connecting the PC vary according to the type of machine, so consult your product dealer.DVI-D 24 pinDIGITAL VIDEO INPUTMini D-Sub 15pinANALOG RGB INPUTRCA Pin JackCOMPONENT VIDEO INPUTMini Din 4 Pin S-VIDEO INPUT21 Pin Euro AV (SCART)VIDEO OUTPUT21 Pin Euro AV (SCART)VIDEO INPUTRCA Pin JackAUDIO INPUTConnectorsCTS88CTSRTS77RTSDSR66DSRDTR44DTRGND55GNDRXD23TXDTXD32RXDTVPC3-Wire (Non-standard)RS-232C Configurations

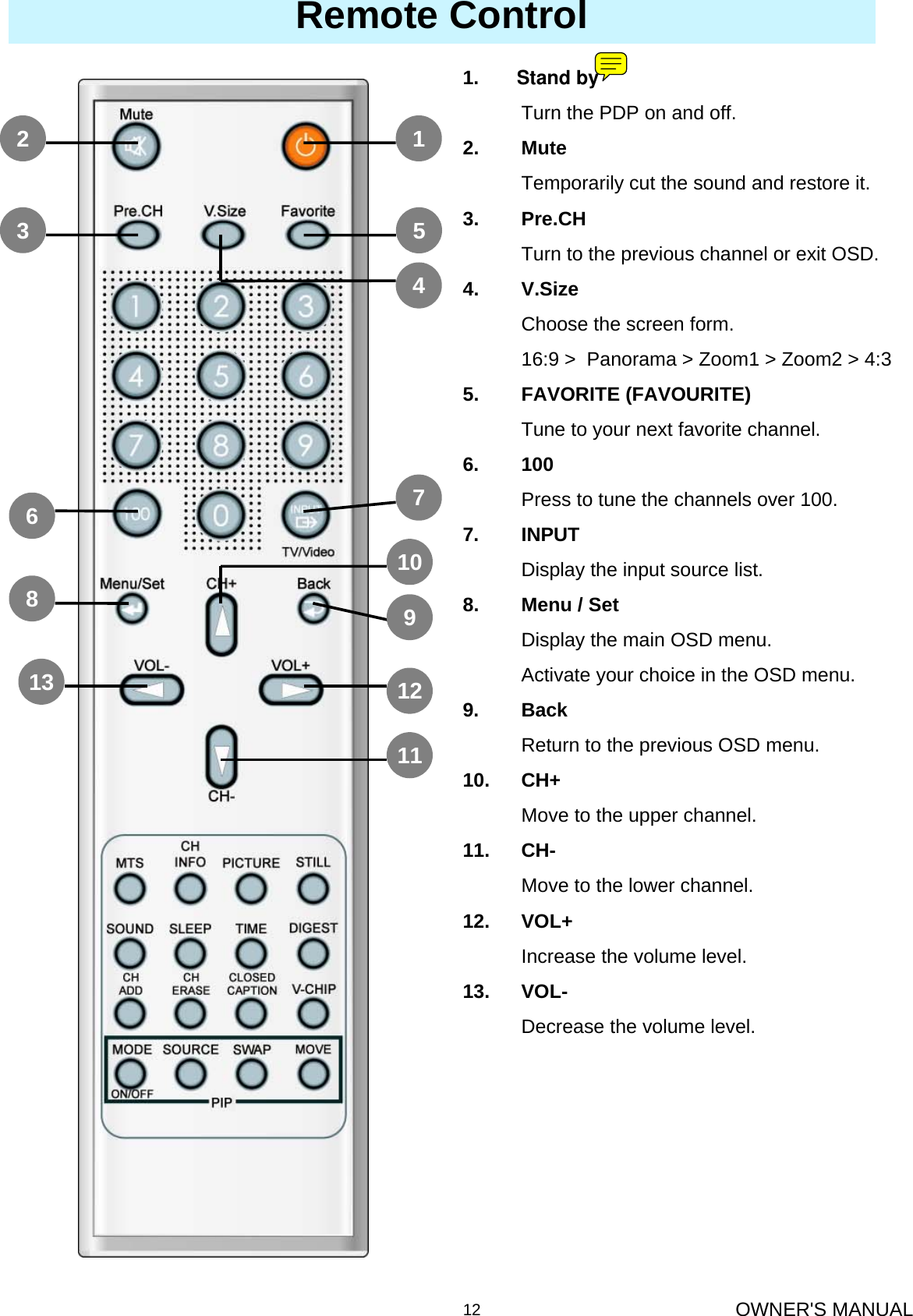

OWNER'S MANUAL12Remote Control123681354710912111. Stand byTurn the PDP on and off.2. MuteTemporarily cut the sound and restore it.3. Pre.CHTurn to the previous channel or exit OSD.4. V.SizeChoose the screen form.16:9 > Panorama > Zoom1 > Zoom2 > 4:35. FAVORITE (FAVOURITE)Tune to your next favorite channel.6. 100Press to tune the channels over 100. 7. INPUTDisplay the input source list.8. Menu / SetDisplay the main OSD menu.Activate your choice in the OSD menu.9. BackReturn to the previous OSD menu.10. CH+Move to the upper channel.11. CH-Move to the lower channel.12. VOL+Increase the volume level.13. VOL-Decrease the volume level.

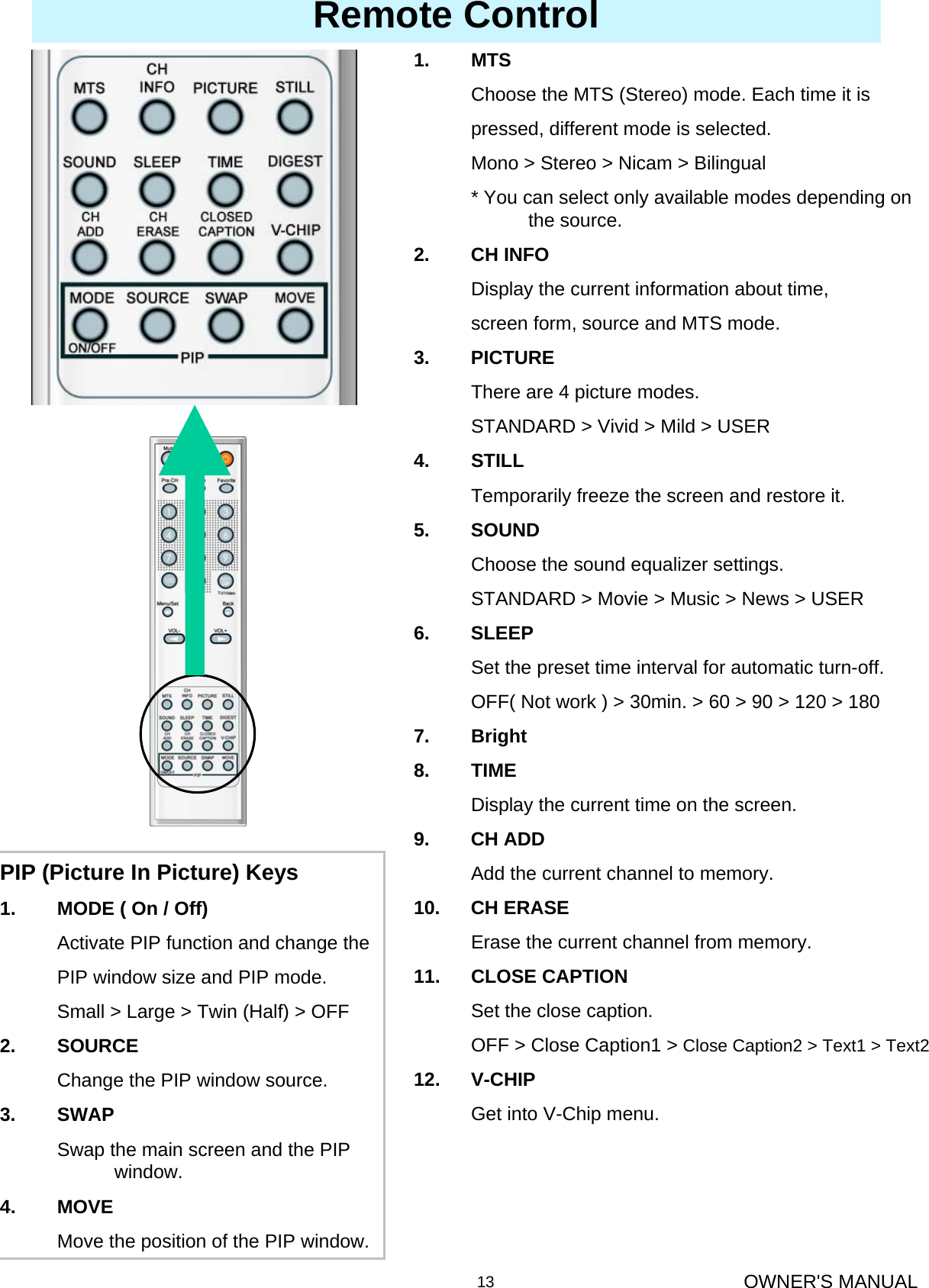

OWNER'S MANUAL13Remote Control1. MTSChoose the MTS (Stereo) mode. Each time it ispressed, different mode is selected.Mono > Stereo > Nicam > Bilingual* You can select only available modes depending on the source.2. CH INFODisplay the current information about time, screen form, source and MTS mode.3. PICTUREThere are 4 picture modes. STANDARD > Vivid > Mild > USER4. STILLTemporarily freeze the screen and restore it.5. SOUNDChoose the sound equalizer settings. STANDARD > Movie > Music > News > USER6. SLEEPSet the preset time interval for automatic turn-off.OFF( Not work ) > 30min. > 60 > 90 > 120 > 1807. Bright8. TIMEDisplay the current time on the screen.9. CH ADDAdd the current channel to memory.10. CH ERASEErase the current channel from memory.11. CLOSE CAPTIONSet the close caption.OFF > Close Caption1 > Close Caption2 > Text1 > Text212. V-CHIPGet into V-Chip menu.PIP (Picture In Picture) Keys1. MODE ( On / Off)Activate PIP function and change the PIP window size and PIP mode.Small > Large > Twin (Half) > OFF2. SOURCEChange the PIP window source.3. SWAPSwap the main screen and the PIP window.4. MOVEMove the position of the PIP window.

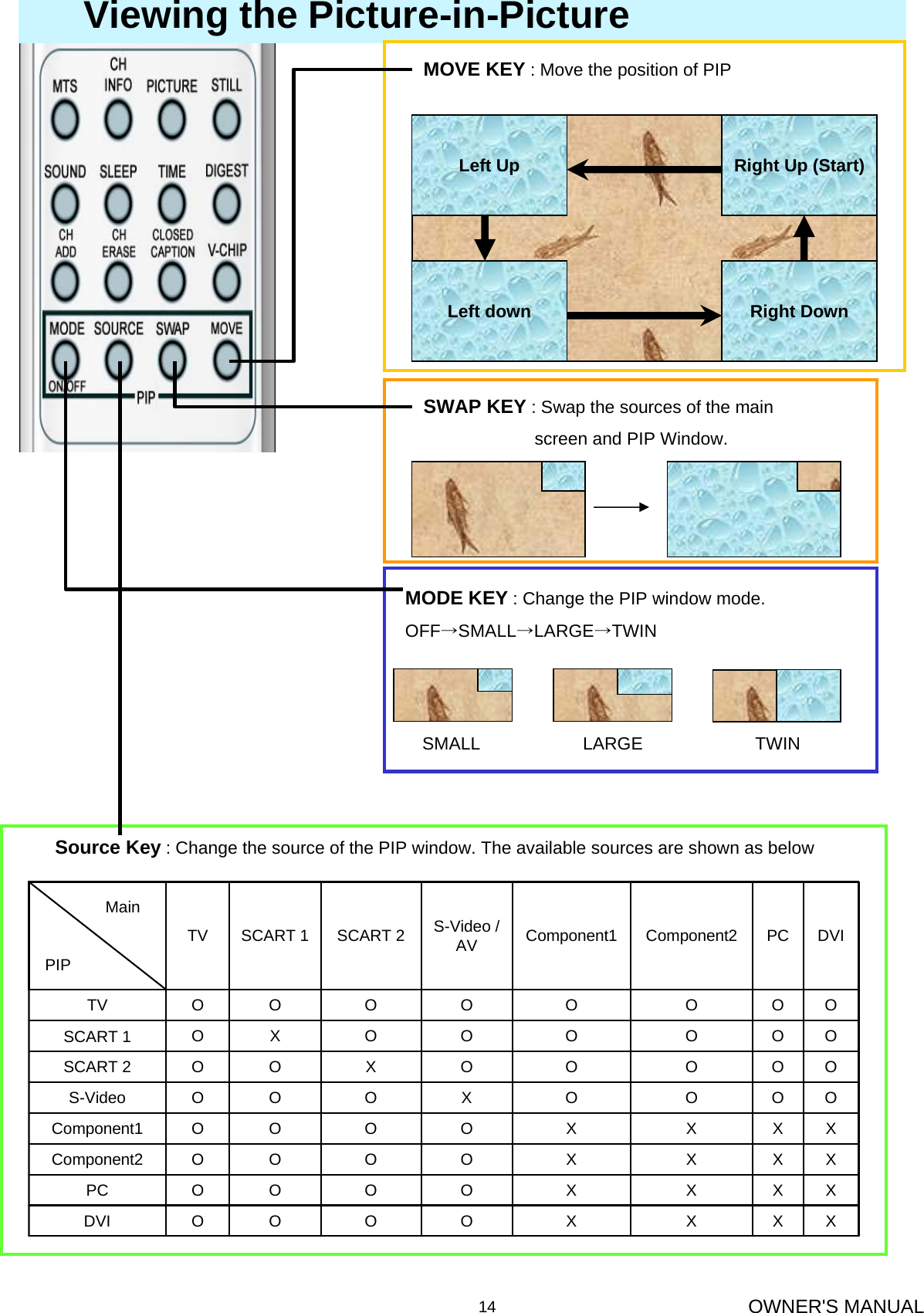

OWNER'S MANUAL14Viewing the Picture-in-PictureRight Up (Start)Left downLeft UpRight DownSMALL LARGE TWINXXXXOOOODVIXXXXOOOOPCXXXXOOOOComponent2XXXXOOOOComponent1OOOOXOOOS-VideoOOOOOXOOSCART 2OOOOOOXOSCART 1OOOOOOOOTVDVIPCComponent2Component1S-Video / AVSCART 2SCART 1TVMain PIP Source Key : Change the source of the PIP window. The available sources are shown as belowMOVE KEY : Move the position of PIPSWAP KEY : Swap the sources of the mainscreen and PIP Window.MODE KEY : Change the PIP window mode.OFF→SMALL→LARGE→TWIN

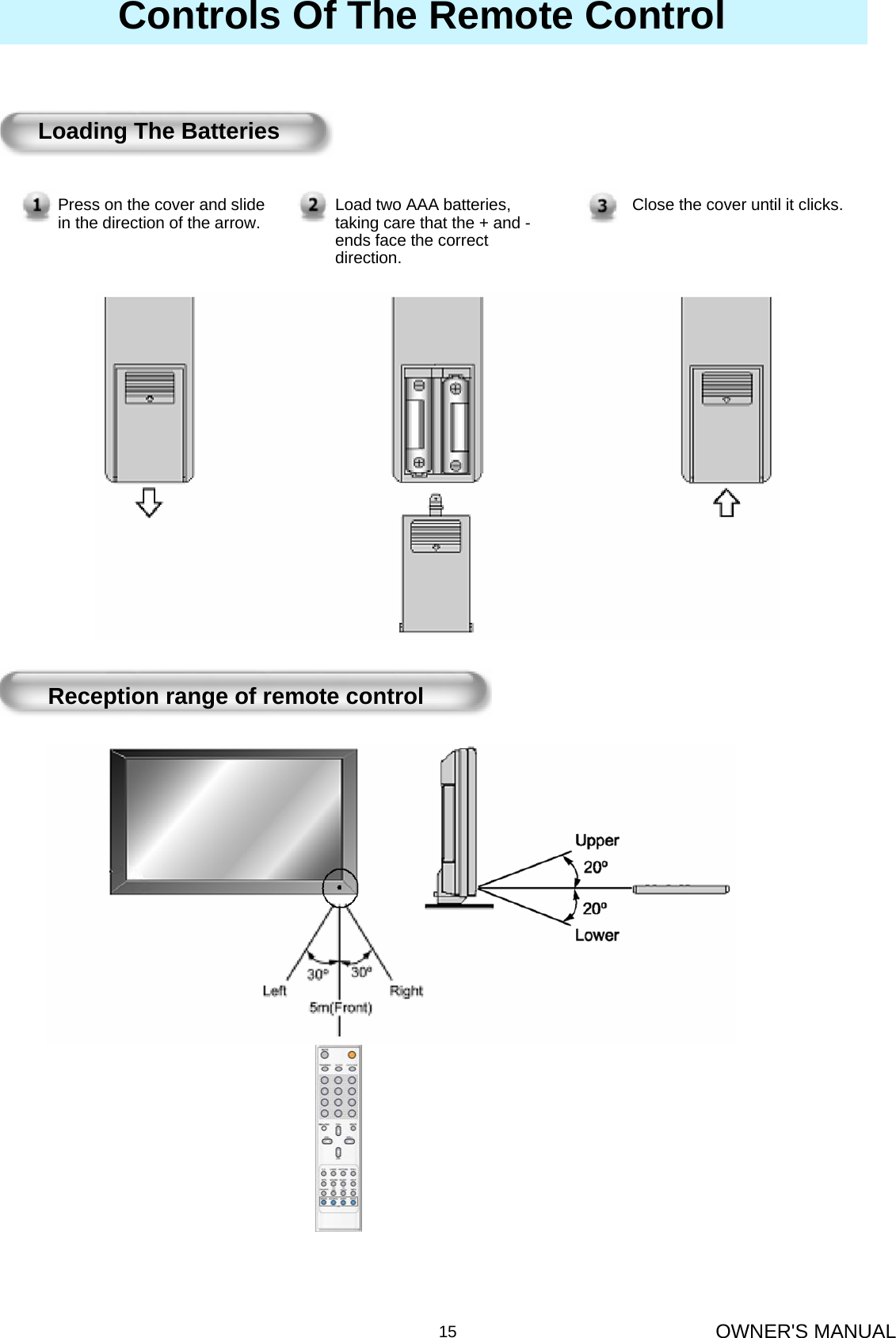

OWNER'S MANUAL15Controls Of The Remote ControlPress on the cover and slidein the direction of the arrow.Loading The BatteriesLoad two AAA batteries, taking care that the + and -ends face the correct direction.Close the cover until it clicks.Reception range of remote control

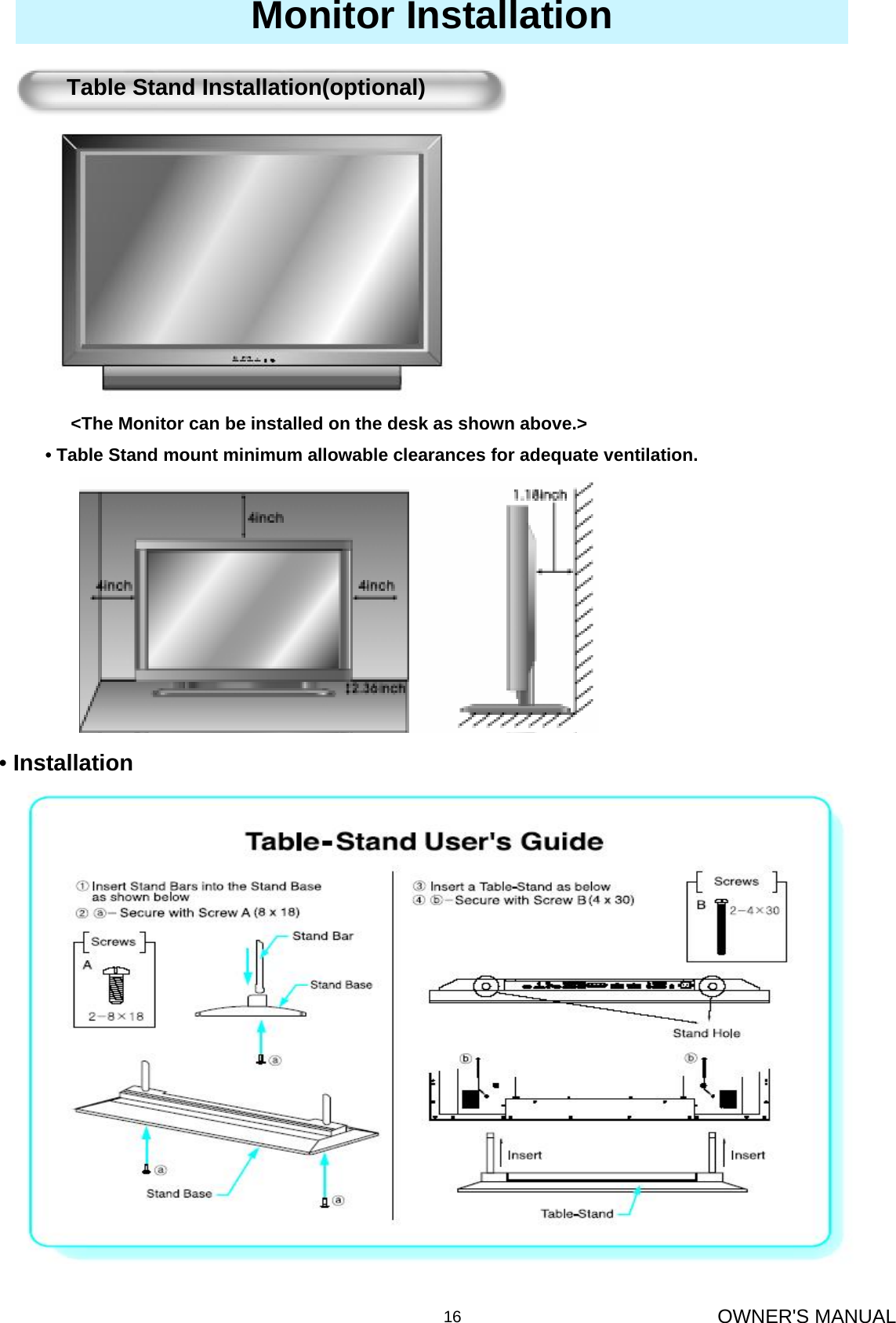

OWNER'S MANUAL16Monitor Installation<The Monitor can be installed on the desk as shown above.>• Table Stand mount minimum allowable clearances for adequate ventilation.Table Stand Installation(optional)•Installation

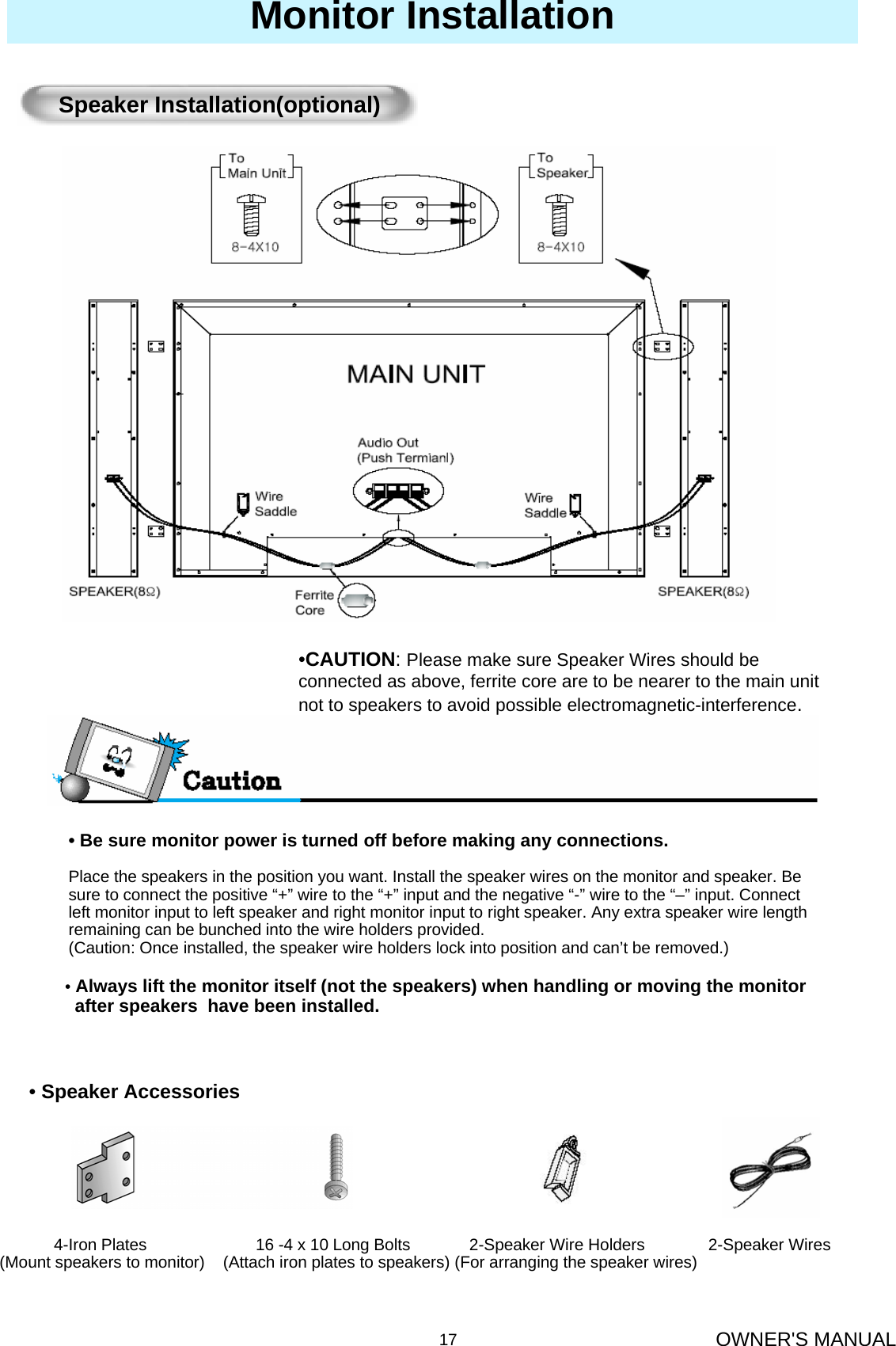

OWNER'S MANUAL17Monitor Installation• Be sure monitor power is turned off before making any connections.Place the speakers in the position you want. Install the speaker wires on the monitor and speaker. Be sure to connect the positive “+” wire to the “+” input and the negative “-” wire to the “–” input. Connect left monitor input to left speaker and right monitor input to right speaker. Any extra speaker wire length remaining can be bunched into the wire holders provided.(Caution: Once installed, the speaker wire holders lock into position and can’t be removed.)Speaker Installation(optional)•Always lift the monitor itself (not the speakers) when handling or moving the monitorafter speakers have been installed. 4-Iron Plates 16 -4 x 10 Long Bolts 2-Speaker Wire Holders 2-Speaker Wires(Mount speakers to monitor) (Attach iron plates to speakers) (For arranging the speaker wires)•Speaker Accessories•CAUTION: Please make sure Speaker Wires should be connected as above, ferrite core are to be nearer to the main unit not to speakers to avoid possible electromagnetic-interference.

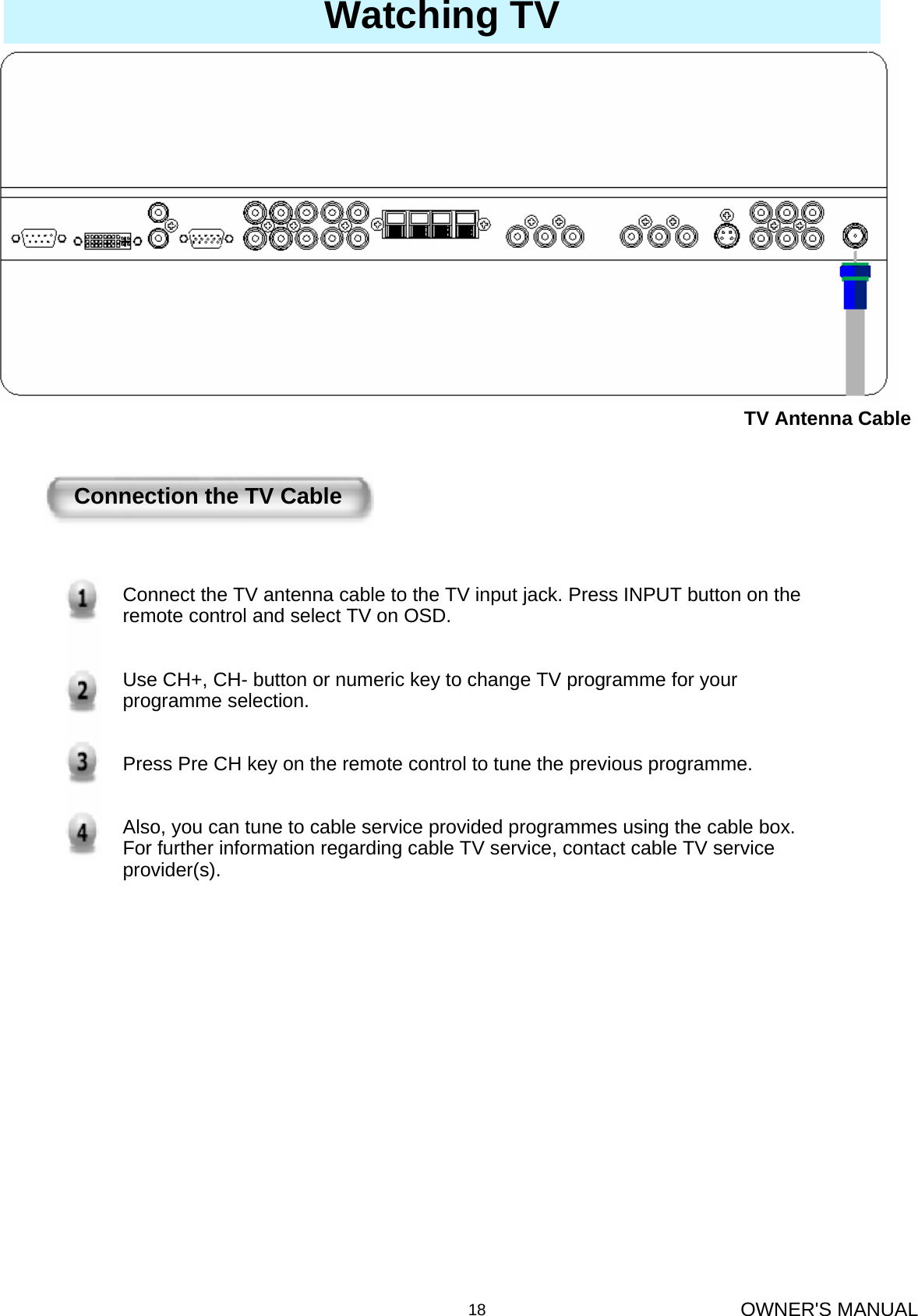

OWNER'S MANUAL18Watching TVConnection the TV CableConnect the TV antenna cable to the TV input jack. Press INPUT button on the remote control and select TV on OSD.Use CH+, CH- button or numeric key to change TV programme for your programme selection.Press Pre CH key on the remote control to tune the previous programme.Also, you can tune to cable service provided programmes using the cable box. For further information regarding cable TV service, contact cable TV service provider(s).TV Antenna Cable

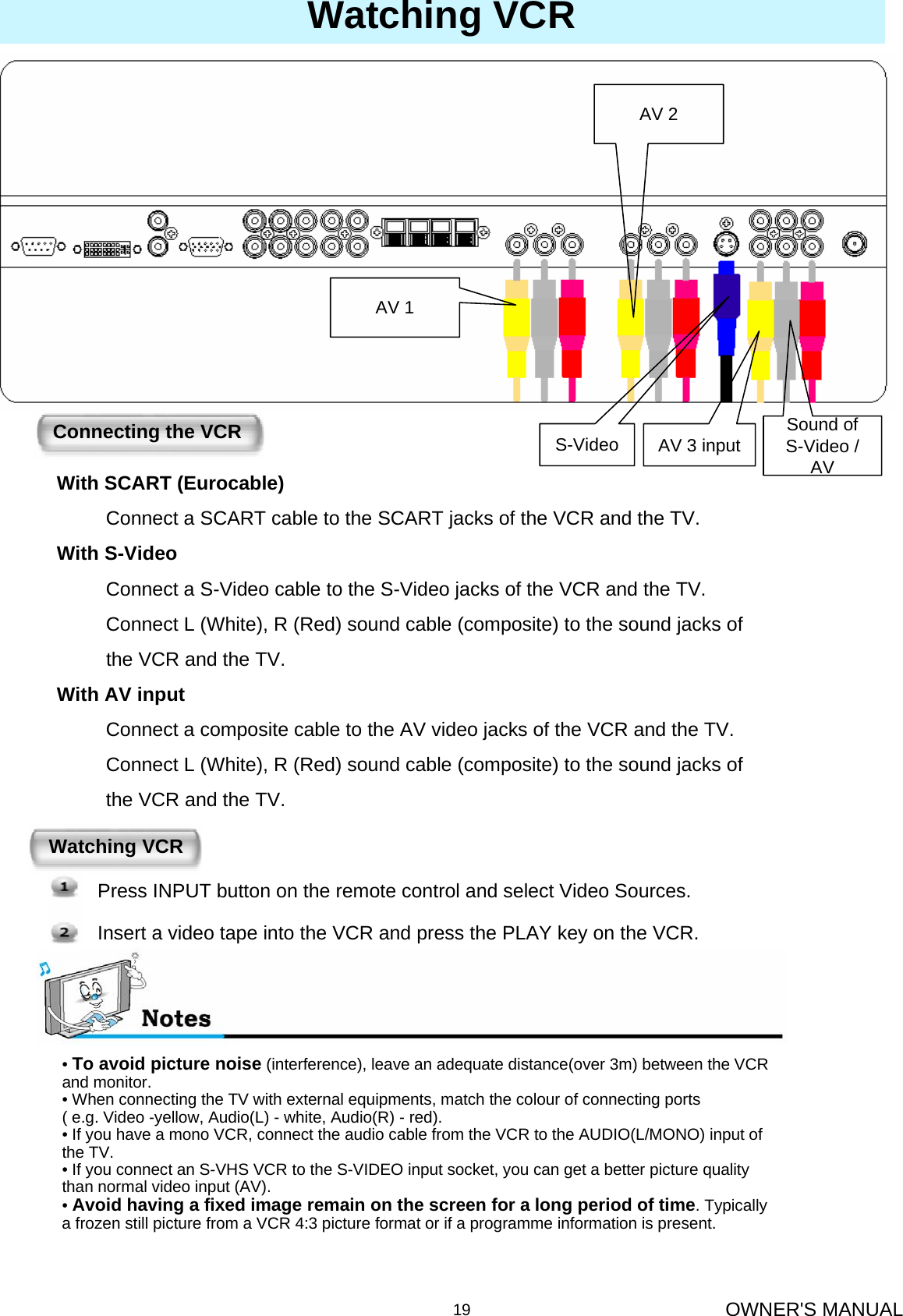

OWNER'S MANUAL19Watching VCR•To avoid picture noise (interference), leave an adequate distance(over 3m) between the VCR and monitor.• When connecting the TV with external equipments, match the colour of connecting ports ( e.g. Video -yellow, Audio(L) - white, Audio(R) - red).• If you have a mono VCR, connect the audio cable from the VCR to the AUDIO(L/MONO) input of the TV.• If you connect an S-VHS VCR to the S-VIDEO input socket, you can get a better picture quality than normal video input (AV).•Avoid having a fixed image remain on the screen for a long period of time. Typically a frozen still picture from a VCR 4:3 picture format or if a programme information is present.Watching VCRPress INPUT button on the remote control and select Video Sources. Insert a video tape into the VCR and press the PLAY key on the VCR. Connecting the VCRWith SCART (Eurocable)Connect a SCART cable to the SCART jacks of the VCR and the TV.With S-VideoConnect a S-Video cable to the S-Video jacks of the VCR and the TV.Connect L (White), R (Red) sound cable (composite) to the sound jacks of the VCR and the TV.With AV inputConnect a composite cable to the AV video jacks of the VCR and the TV.Connect L (White), R (Red) sound cable (composite) to the sound jacks of the VCR and the TV.S-Video AV 3 input Sound of S-Video / AVAV 2AV 1

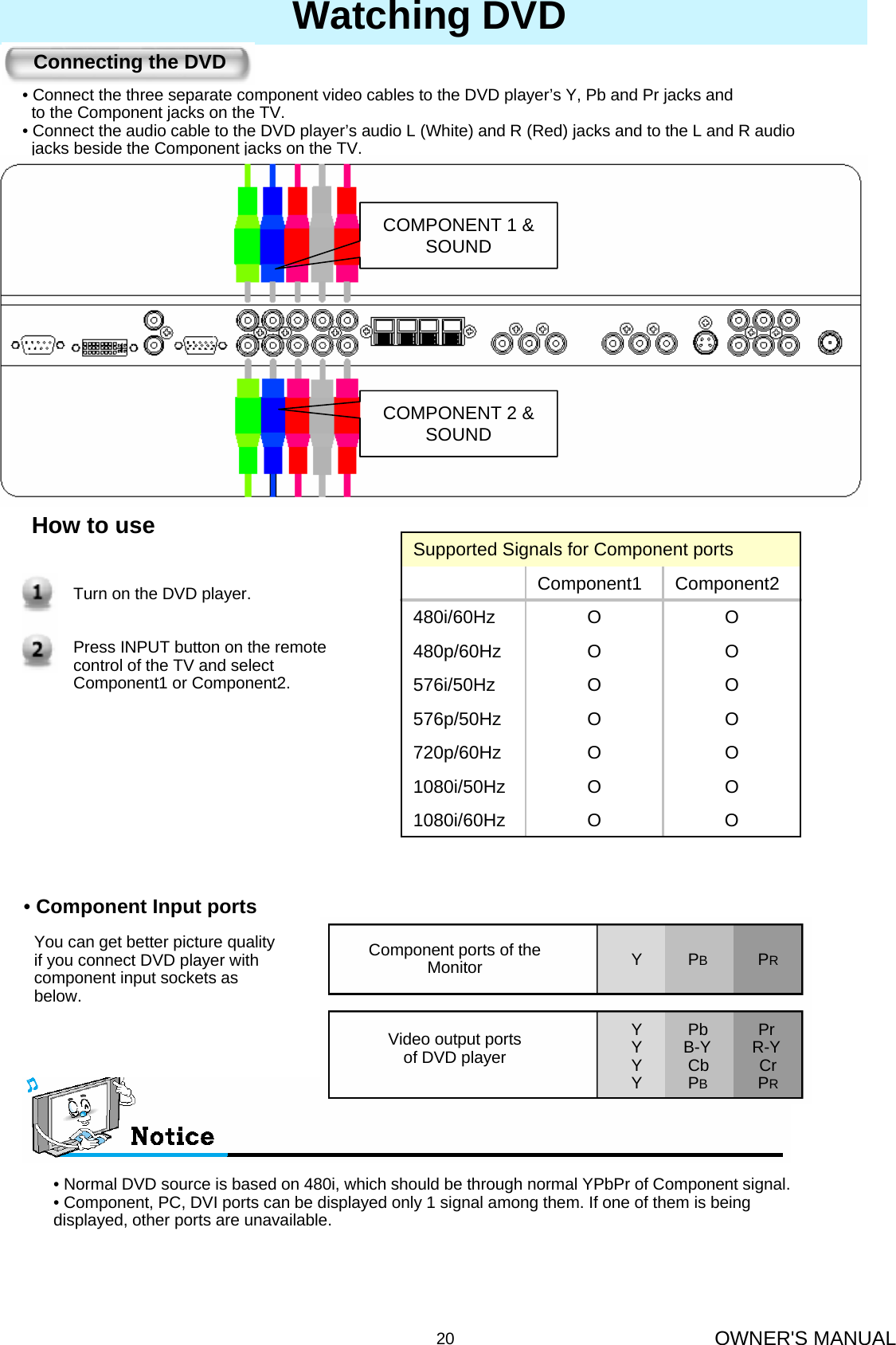

OWNER'S MANUAL20Watching DVD• Connect the three separate component video cables to the DVD player’s Y, Pb and Pr jacks and to the Component jacks on the TV.• Connect the audio cable to the DVD player’s audio L (White) and R (Red) jacks and to the L and R audio jacks beside the Component jacks on the TV.Connecting the DVDHow to useTurn on the DVD player.Press INPUT button on the remote control of the TV and select Component1 or Component2.•Component Input portsYou can get better picture quality if you connect DVD player with component input sockets as below.Component ports of theMonitorVideo output portsof DVD playerY PBPRY Pb PrY B-Y R-YY Cb CrY PBPR• Normal DVD source is based on 480i, which should be through normal YPbPr of Component signal.• Component, PC, DVI ports can be displayed only 1 signal among them. If one of them is being displayed, other ports are unavailable.OO1080i/60HzOO1080i/50HzOO720p/60HzOO576p/50HzOO576i/50HzOO480p/60HzOO480i/60HzComponent2Component1Supported Signals for Component portsCOMPONENT 1 & SOUNDCOMPONENT 2 & SOUND

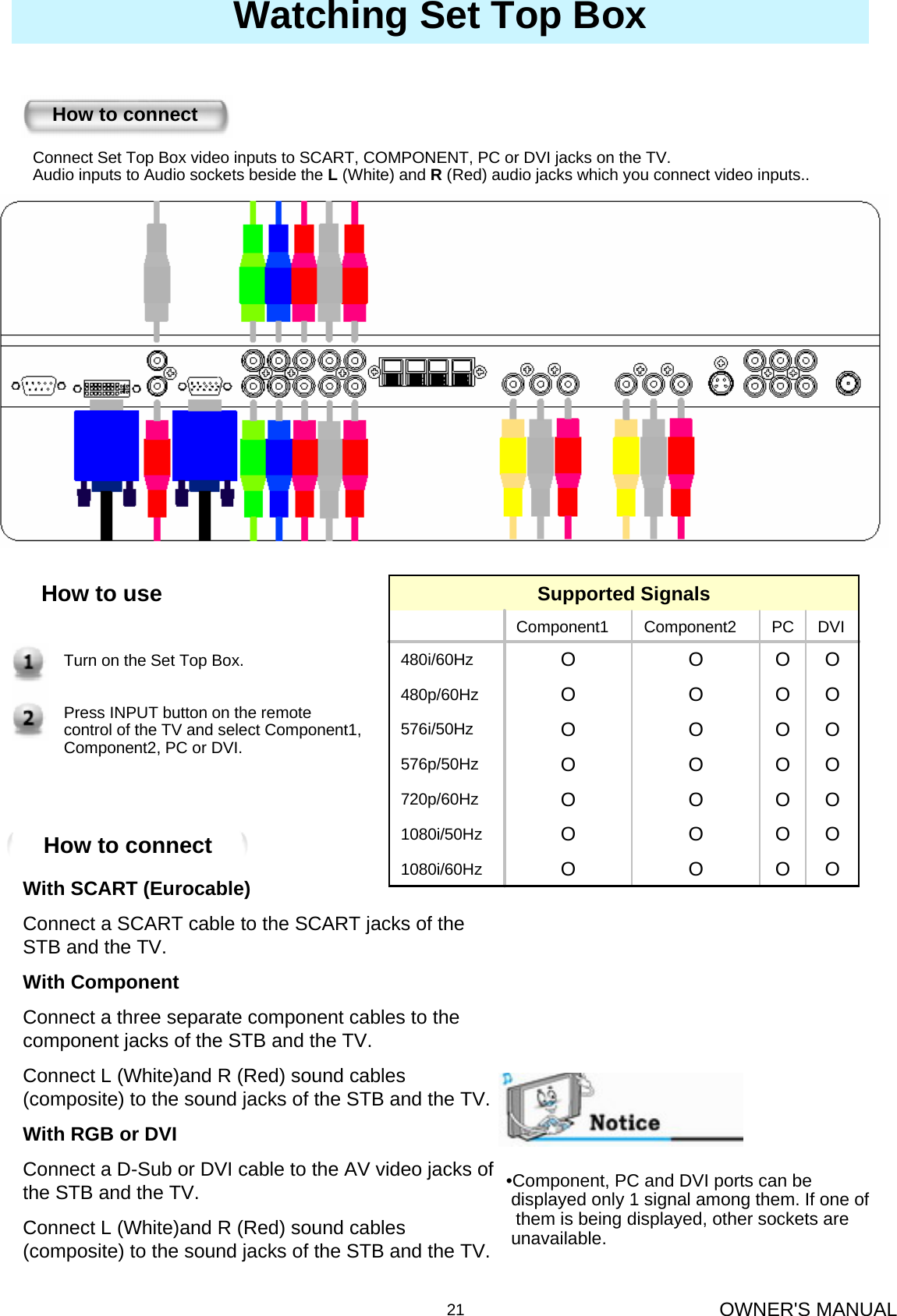

OWNER'S MANUAL21Watching Set Top BoxConnect Set Top Box video inputs to SCART, COMPONENT, PC or DVI jacks on the TV. Audio inputs to Audio sockets beside the L(White) and R (Red) audio jacks which you connect video inputs.. How to connectHow to useTurn on the Set Top Box.Press INPUT button on the remote control of the TV and select Component1, Component2, PC or DVI.•Component, PC and DVI ports can be displayed only 1 signal among them. If one ofthem is being displayed, other sockets are unavailable.OOOO1080i/60HzOOOO1080i/50HzOOOO720p/60HzOOOO576p/50HzOOOO576i/50HzOOOO480p/60HzOOOO480i/60HzDVIPCComponent2Component1Supported SignalsWith SCART (Eurocable)Connect a SCART cable to the SCART jacks of the STB and the TV.With ComponentConnect a three separate component cables to the component jacks of the STB and the TV.Connect L (White)and R (Red) sound cables (composite) to the sound jacks of the STB and the TV.With RGB or DVIConnect a D-Sub or DVI cable to the AV video jacks of the STB and the TV.Connect L (White)and R (Red) sound cables (composite) to the sound jacks of the STB and the TV.How to connect

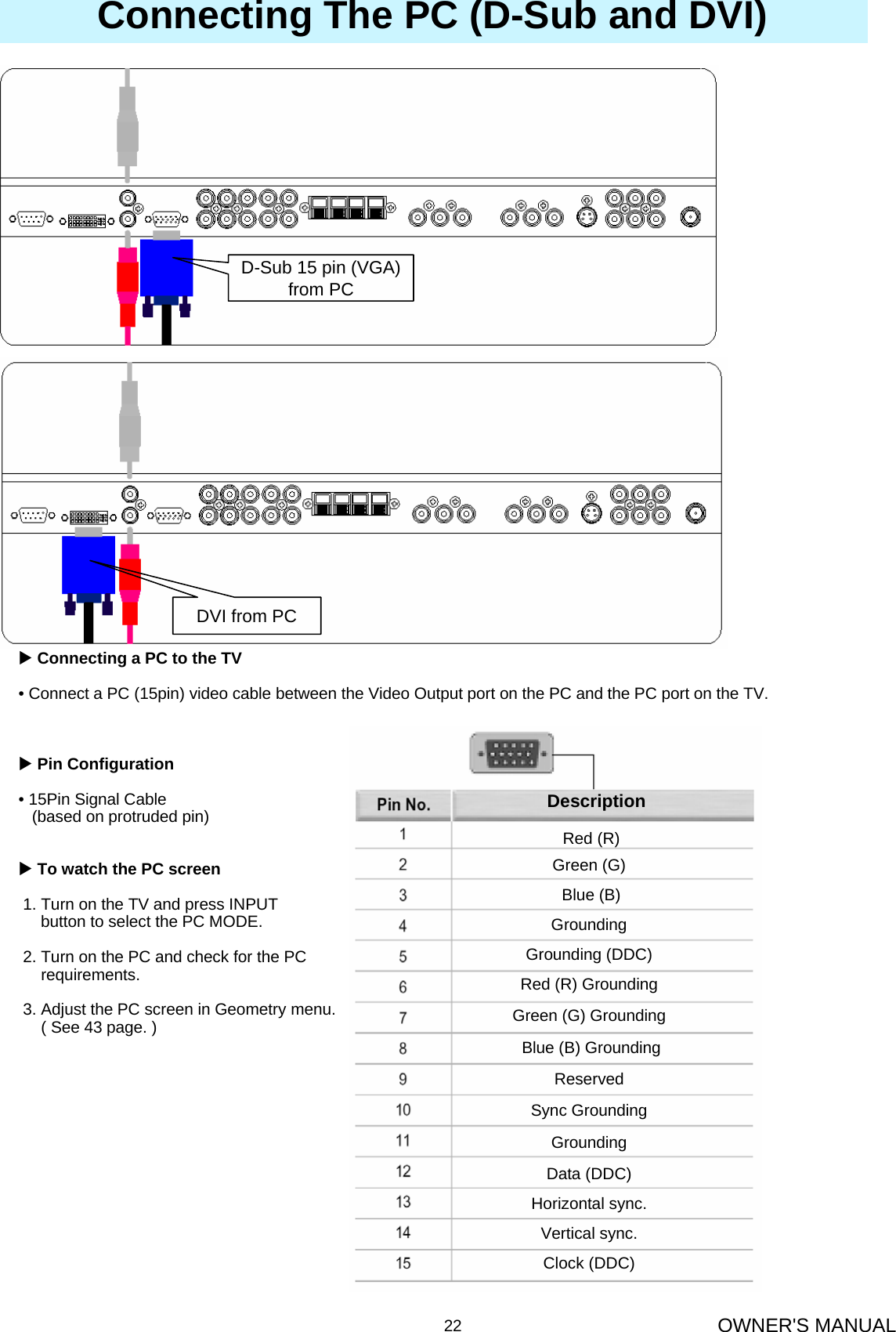

OWNER'S MANUAL22Connecting The PC (D-Sub and DVI)XConnecting a PC to the TV• Connect a PC (15pin) video cable between the Video Output port on the PC and the PC port on the TV. XPin Configuration• 15Pin Signal Cable (based on protruded pin)XTo watch the PC screen1. Turn on the TV and press INPUTbutton to select the PC MODE.2. Turn on the PC and check for the PC requirements.3. Adjust the PC screen in Geometry menu.( See 43 page. )Red (R)Green (G)Blue (B)GroundingGrounding (DDC)Red (R) GroundingGreen (G) GroundingBlue (B) GroundingReservedSync GroundingGroundingData (DDC)Horizontal sync.Vertical sync.Clock (DDC)DescriptionD-Sub 15 pin (VGA) from PCDVI from PC

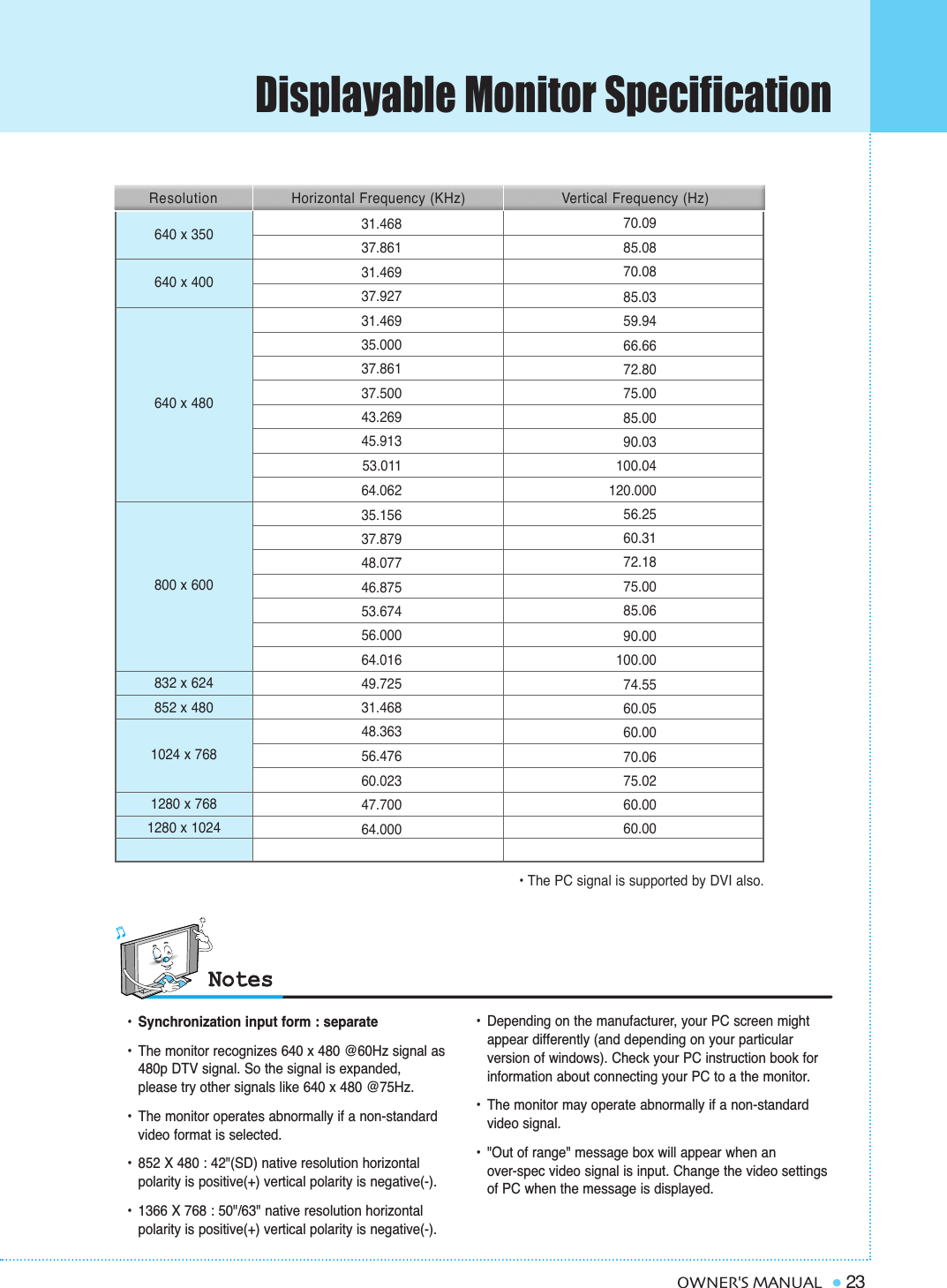

Displayable Monitor Specification23OWNER'S MANUAL31.46837.86131.46937.92731.46935.00037.86137.50043.26945.91353.01164.06235.15637.87948.07746.87553.67456.00064.01649.72531.46848.36356.47660.02347.70064.000 70.0985.0870.0885.0359.9466.6672.8075.0085.0090.03100.04120.00056.2560.3172.1875.0085.0690.00100.0074.5560.0560.0070.0675.0260.0060.00 Resolution Horizontal Frequency (KHz) Vertical Frequency (Hz)640 x 350640 x 400640 x 480800 x 600832 x 624852 x 4801024 x 7681280 x 7681280 x 1024 • The PC signal is supported by DVI also.•Synchronization input form : separate•The monitor recognizes 640 x 480 @60Hz signal as 480p DTV signal. So the signal is expanded, please try other signals like 640 x 480 @75Hz.•The monitor operates abnormally if a non-standard video format is selected. •852 X 480 : 42"(SD) native resolution horizontalpolarity is positive(+) vertical polarity is negative(-).•1366 X 768 : 50"/63" native resolution horizontalpolarity is positive(+) vertical polarity is negative(-).•Depending on the manufacturer, your PC screen might appear differently (and depending on your particular version of windows). Check your PC instruction book for information about connecting your PC to a the monitor.• The monitor may operate abnormally if a non-standard video signal.• "Out of range" message box will appear when an over-spec video signal is input. Change the video settings of PC when the message is displayed.

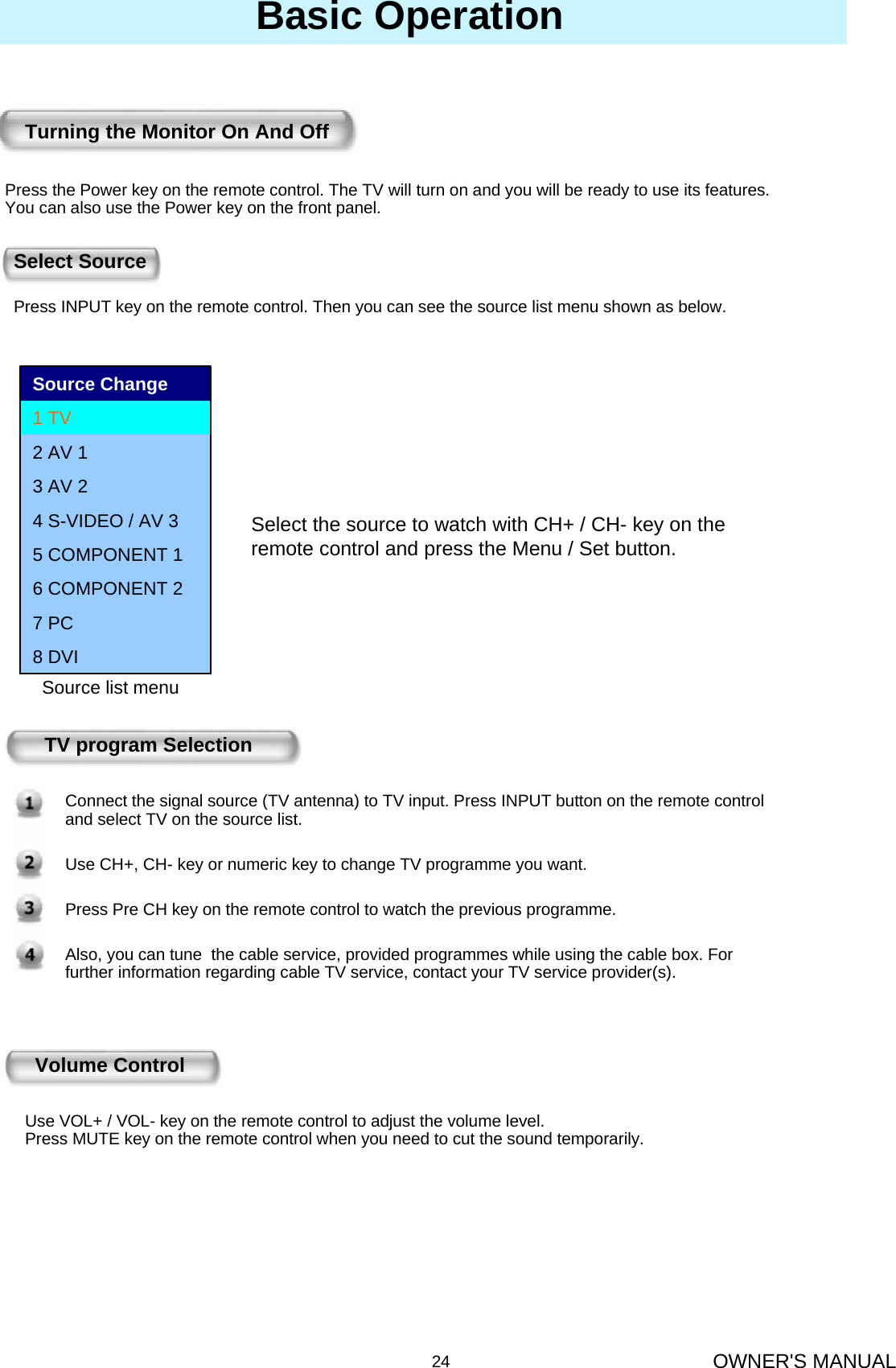

OWNER'S MANUAL24Basic OperationTurning the Monitor On And OffPress the Power key on the remote control. The TV will turn on and you will be ready to use its features. You can also use the Power key on the front panel.TV program SelectionConnect the signal source (TV antenna) to TV input. Press INPUT button on the remote control and select TV on the source list.Use CH+, CH- key or numeric key to change TV programme you want.Press Pre CH key on the remote control to watch the previous programme.Also, you can tune the cable service, provided programmes while using the cable box. For further information regarding cable TV service, contact your TV service provider(s).Volume ControlUse VOL+ / VOL- key on the remote control to adjust the volume level.Press MUTE key on the remote control when you need to cut the sound temporarily.Select Source Press INPUT key on the remote control. Then you can see the source list menu shown as below.8 DVI7 PC6 COMPONENT 25 COMPONENT 14 S-VIDEO / AV 33 AV 22 AV 11 TVSource ChangeSelect the source to watch with CH+ / CH- key on the remote control and press the Menu / Set button.Source list menu

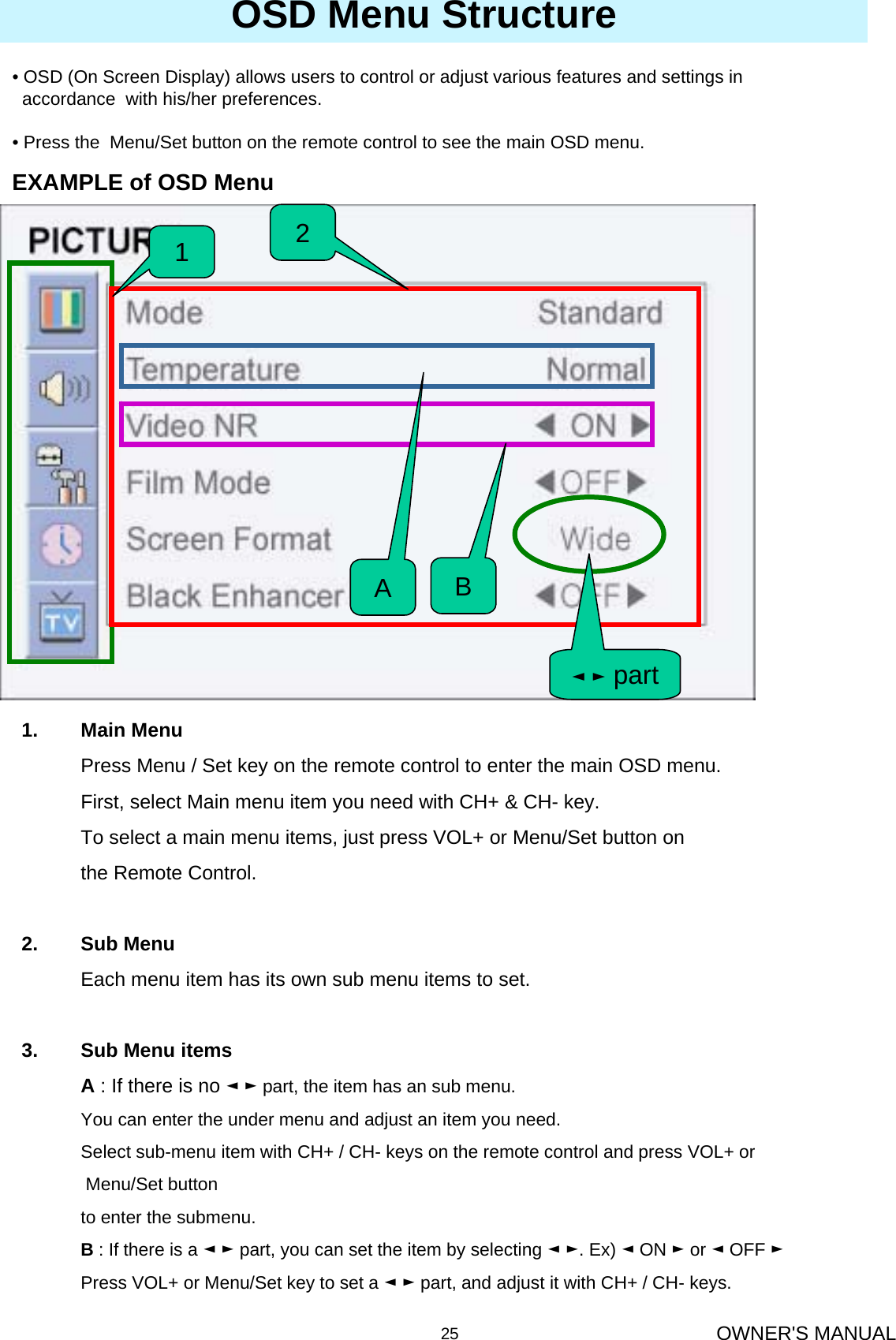

OWNER'S MANUAL25• OSD (On Screen Display) allows users to control or adjust various features and settings in accordance with his/her preferences. • Press the Menu/Set button on the remote control to see the main OSD menu.OSD Menu StructureEXAMPLE of OSD Menu12B1. Main MenuPress Menu / Set key on the remote control to enter the main OSD menu.First, select Main menu item you need with CH+ & CH- key.To select a main menu items, just press VOL+ or Menu/Set button on the Remote Control.2. Sub MenuEach menu item has its own sub menu items to set.3. Sub Menu itemsA: If there is no ◄►part, the item has an sub menu. You can enter the under menu and adjust an item you need.Select sub-menu item with CH+ / CH- keys on the remote control and press VOL+ orMenu/Set button to enter the submenu.B: If there is a ◄►part, you can set the item by selecting ◄►. Ex) ◄ON ►or ◄OFF ►Press VOL+ or Menu/Set key to set a ◄►part, and adjust it with CH+ / CH- keys.A◄►part

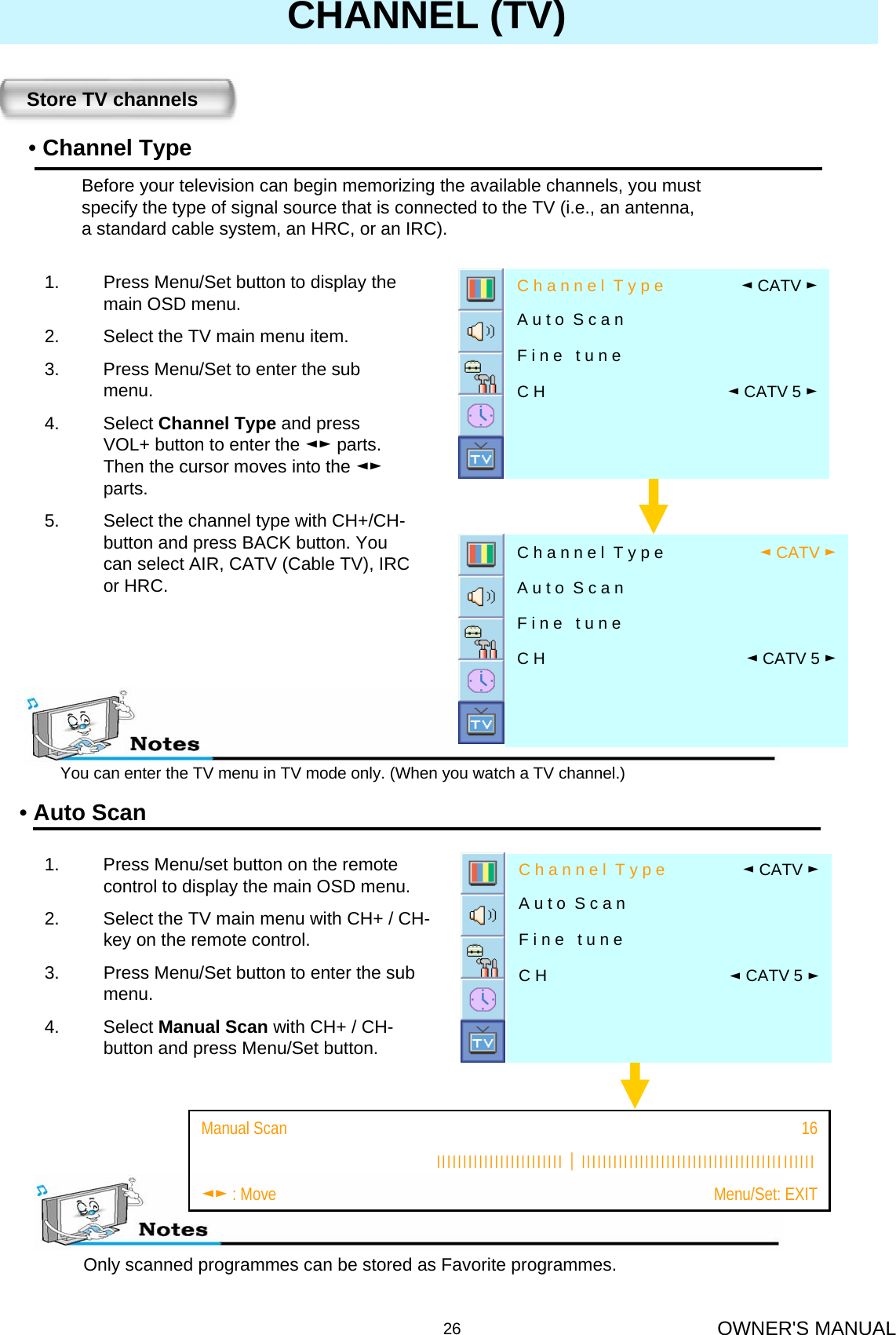

OWNER'S MANUAL26CHANNEL (TV)You can enter the TV menu in TV mode only. (When you watch a TV channel.)Store TV channels•Channel TypeBefore your television can begin memorizing the available channels, you mustspecify the type of signal source that is connected to the TV (i.e., an antenna,a standard cable system, an HRC, or an IRC).◄CATV 5 ►C HF i n e t u n eA u t o S c a n◄CATV ►C h a n n e l T y p e◄CATV 5 ►C HF i n e t u n eA u t o S c a n◄CATV ►C h a n n e l T y p e1. Press Menu/Set button to display the main OSD menu.2. Select the TV main menu item.3. Press Menu/Set to enter the sub menu.4. Select Channel Type and press VOL+ button to enter the ◄► parts. Then the cursor moves into the ◄►parts.5. Select the channel type with CH+/CH-button and press BACK button. You can select AIR, CATV (Cable TV), IRC or HRC.•Auto ScanOnly scanned programmes can be stored as Favorite programmes.1. Press Menu/set button on the remote control to display the main OSD menu.2. Select the TV main menu with CH+ / CH-key on the remote control.3. Press Menu/Set button to enter the sub menu. 4. Select Manual Scan with CH+ / CH-button and press Menu/Set button. Menu/Set: EXIT◄► : MoveІІІІІІІІІІІІІІІІІІІІІІІІ│ІІІІІІІІІІІІІІІІІІІІІІІІІІІІІІІІІІІІІІІІІІІІ16Manual Scan ◄CATV 5 ►C HF i n e t u n eA u t o S c a n◄CATV ►C h a n n e l T y p e

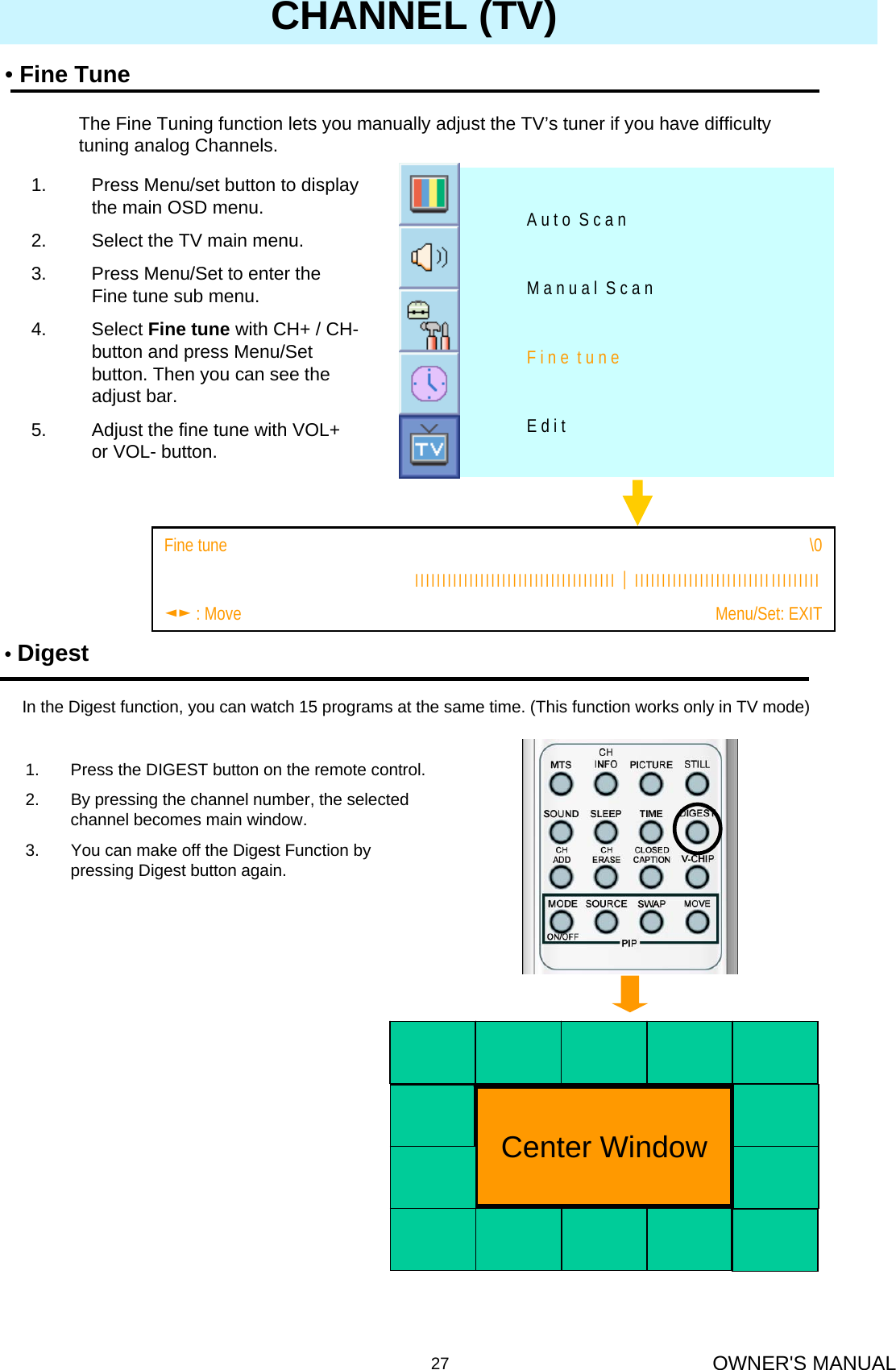

OWNER'S MANUAL27CHANNEL (TV)E d i tF i n e t u n eM a n u a l S c a nA u t o S c a n1. Press Menu/set button to display the main OSD menu.2. Select the TV main menu.3. Press Menu/Set to enter the Fine tune sub menu.4. Select Fine tune with CH+ / CH-button and press Menu/Set button. Then you can see the adjust bar.5. Adjust the fine tune with VOL+ or VOL- button.•Fine TuneThe Fine Tuning function lets you manually adjust the TV’s tuner if you have difficulty tuning analog Channels.Menu/Set: EXIT◄► : MoveІІІІІІІІІІІІІІІІІІІІІІІІІІІІІІІІІІІІІ│ІІІІІІІІІІІІІІІІІІІІІІІІІІІІІІІІІІ\0Fine tune •DigestIn the Digest function, you can watch 15 programs at the same time. (This function works only in TV mode)1. Press the DIGEST button on the remote control.2. By pressing the channel number, the selected channel becomes main window.3. You can make off the Digest Function by pressing Digest button again.Center Window

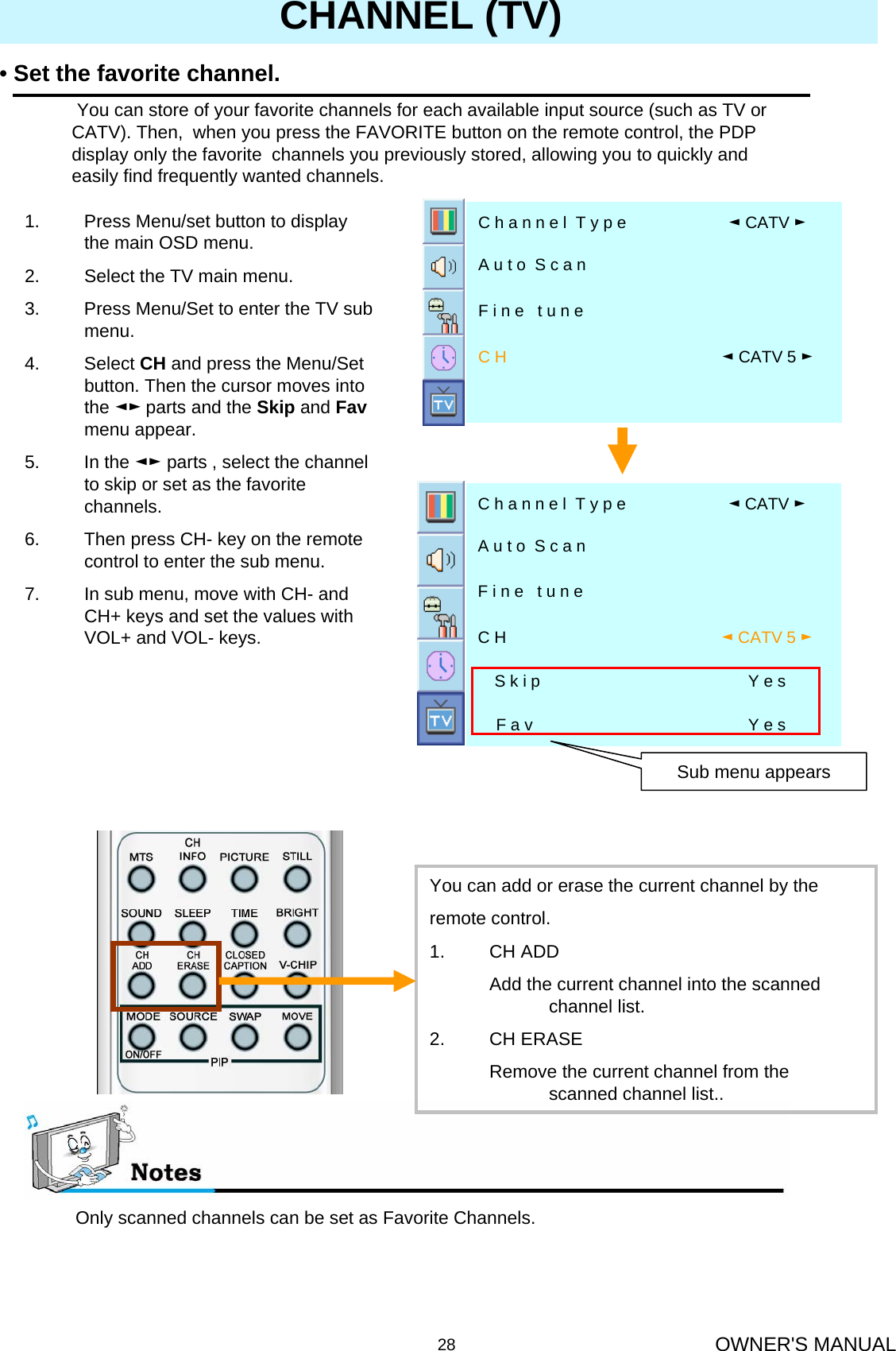

OWNER'S MANUAL28CHANNEL (TV)•Set the favorite channel.You can store of your favorite channels for each available input source (such as TV or CATV). Then, when you press the FAVORITE button on the remote control, the PDP display only the favorite channels you previously stored, allowing you to quickly and easily find frequently wanted channels.1. Press Menu/set button to display the main OSD menu.2. Select the TV main menu.3. Press Menu/Set to enter the TV sub menu.4. Select CH and press the Menu/Set button. Then the cursor moves into the ◄► parts and the Skip and Favmenu appear.5. In the ◄► parts , select the channel to skip or set as the favorite channels.6. Then press CH- key on the remote control to enter the sub menu.7. In sub menu, move with CH- and CH+ keys and set the values with VOL+ and VOL- keys.Only scanned channels can be set as Favorite Channels.You can add or erase the current channel by the remote control.1. CH ADDAdd the current channel into the scanned channel list.2. CH ERASERemove the current channel from the scanned channel list..◄CATV 5 ►C HF i n e t u n eA u t o S c a n◄CATV ►C h a n n e l T y p eY e sF a v Y e sS k i p◄CATV 5 ►C HF i n e t u n eA u t o S c a n◄CATV ►C h a n n e l T y p eSub menu appears

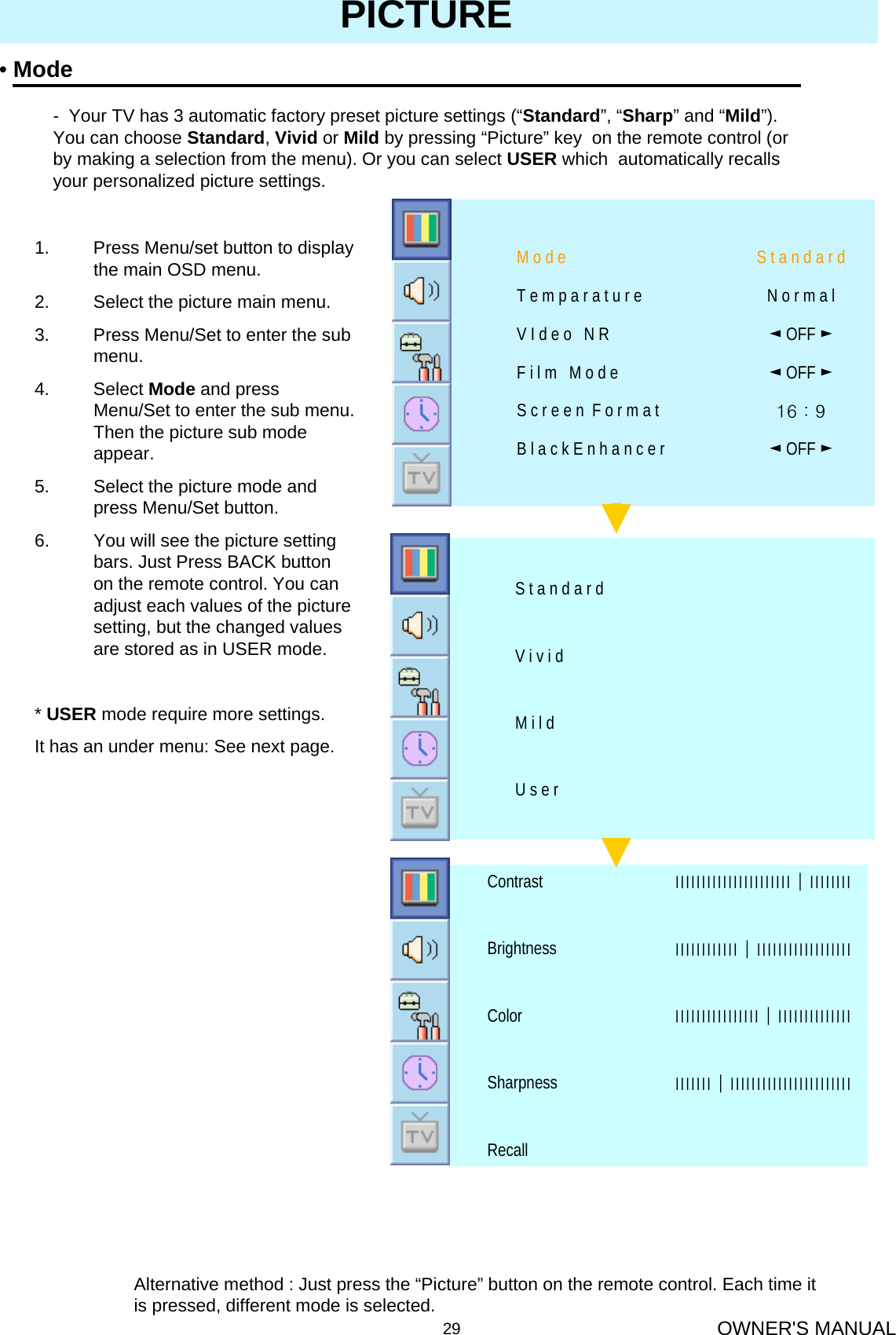

OWNER'S MANUAL29PICTURE•ModeAlternative method : Just press the “Picture” button on the remote control. Each time it is pressed, different mode is selected.- Your TV has 3 automatic factory preset picture settings (“Standard”, “Sharp” and “Mild”). You can choose Standard, Vivid or Mild by pressing “Picture” key on the remote control (or by making a selection from the menu). Or you can select USER which automatically recalls your personalized picture settings.1. Press Menu/set button to display the main OSD menu.2. Select the picture main menu.3. Press Menu/Set to enter the sub menu.4. Select Mode and press Menu/Set to enter the sub menu. Then the picture sub mode appear.5. Select the picture mode and press Menu/Set button.6. You will see the picture setting bars. Just Press BACK button on the remote control. You can adjust each values of the picture setting, but the changed values are stored as in USER mode.* USER mode require more settings.It has an under menu: See next page.16 : 9 S c r e e n F o r m a t◄OFF ►B l a c k E n h a n c e r◄OFF ►V I d e o N R◄OFF ►F i l m M o d eN o r m a lT e m p a r a t u r eS t a n d a r dM o d eU s e rM i l dV i v i dS t a n d a r dRecallІІІІІІІ│ІІІІІІІІІІІІІІІІІІІІІІІSharpnessІІІІІІІІІІІІІІІІ│ІІІІІІІІІІІІІІColorІІІІІІІІІІІІ│ІІІІІІІІІІІІІІІІІІBrightnessІІІІІІІІІІІІІІІІІІІІІІ│ІІІІІІІІContrast

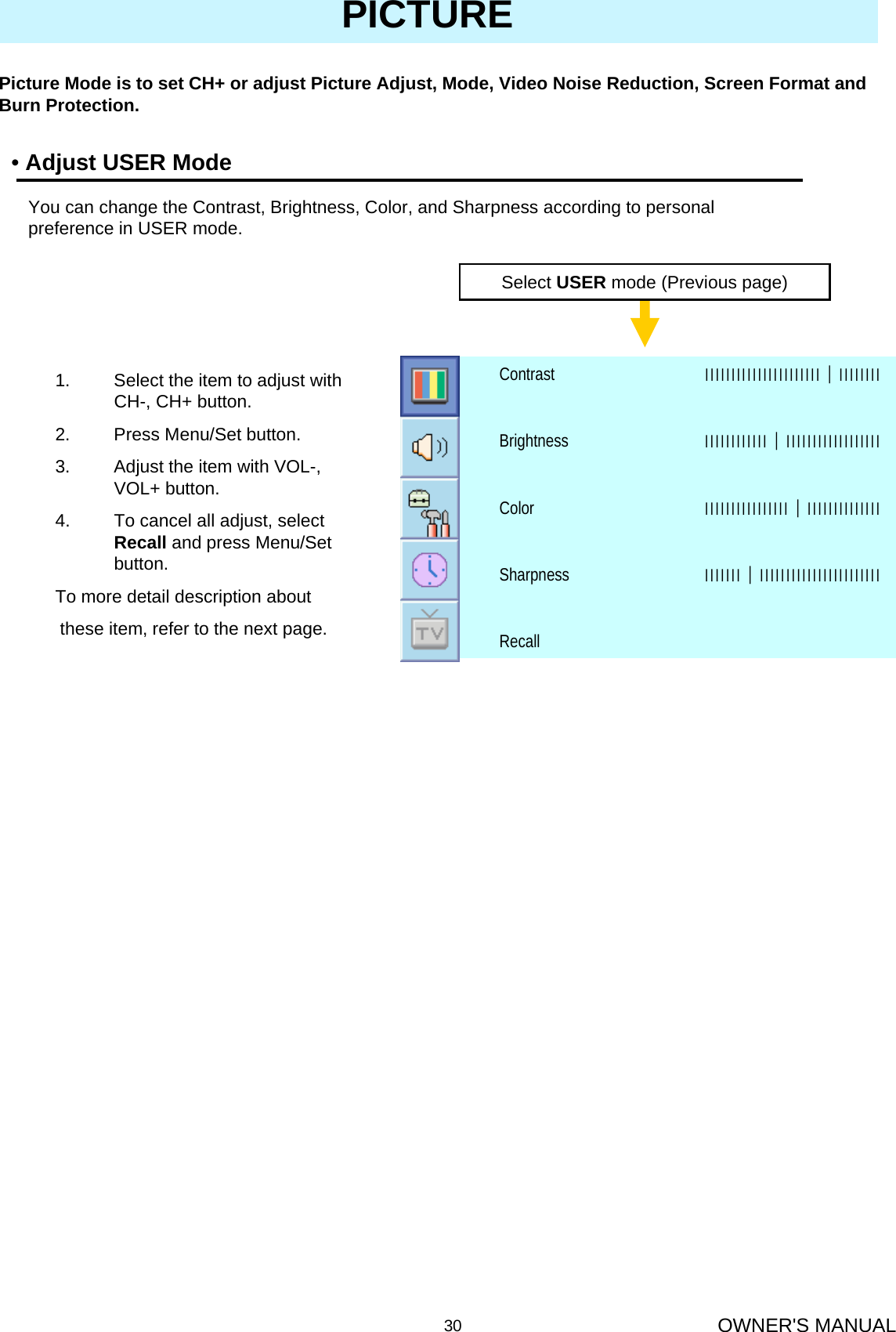

OWNER'S MANUAL30PICTURE•Adjust USER ModePicture Mode is to set CH+ or adjust Picture Adjust, Mode, Video Noise Reduction, Screen Format and Burn Protection.You can change the Contrast, Brightness, Color, and Sharpness according to personal preference in USER mode.Select USER mode (Previous page)RecallІІІІІІІ│ІІІІІІІІІІІІІІІІІІІІІІІSharpnessІІІІІІІІІІІІІІІІ│ІІІІІІІІІІІІІІColorІІІІІІІІІІІІ│ІІІІІІІІІІІІІІІІІІBrightnessІІІІІІІІІІІІІІІІІІІІІІ│ІІІІІІІІContrast1. Select the item to adjust with CH-, CH+ button.2. Press Menu/Set button.3. Adjust the item with VOL-, VOL+ button.4. To cancel all adjust, select Recall and press Menu/Set button.To more detail description aboutthese item, refer to the next page.

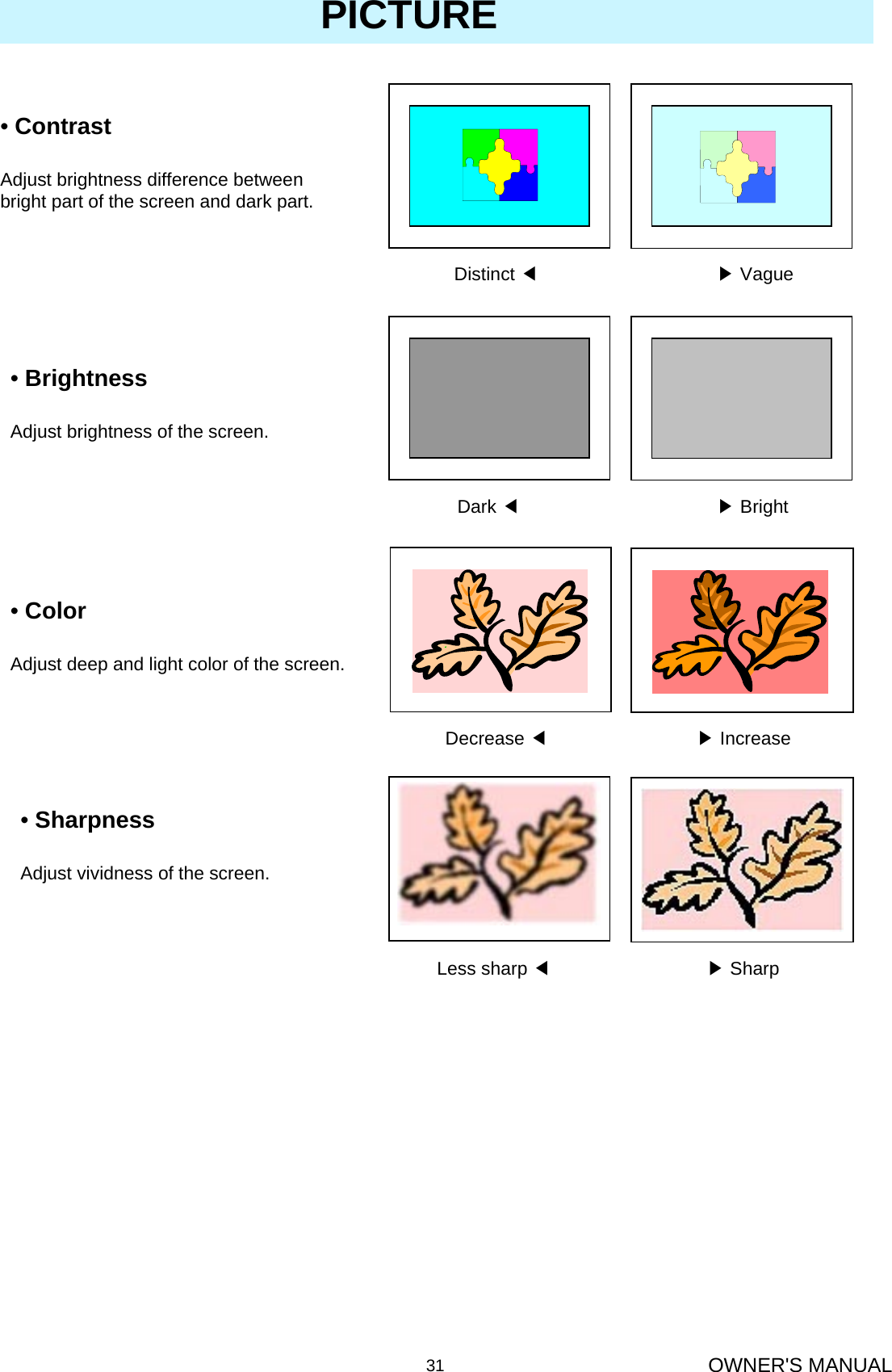

OWNER'S MANUAL31•BrightnessAdjust brightness of the screen.Dark ◀▶BrightDistinct ◀▶Vague•ContrastAdjust brightness difference between bright part of the screen and dark part.PICTUREDecrease ◀▶Increase•ColorAdjust deep and light color of the screen.Less sharp ◀▶Sharp•SharpnessAdjust vividness of the screen.

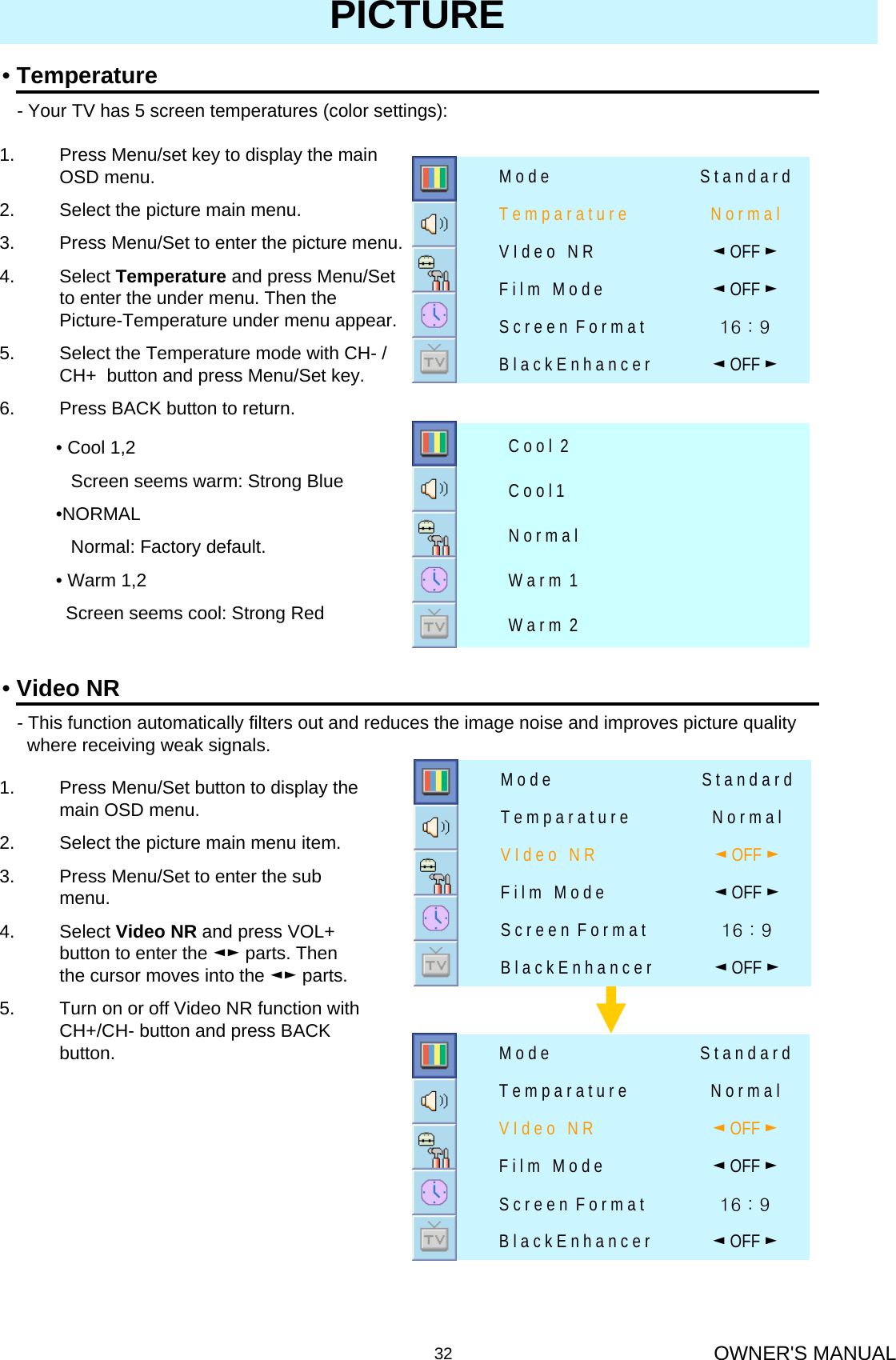

OWNER'S MANUAL32•Temperature- Your TV has 5 screen temperatures (color settings): PICTURE1. Press Menu/set key to display the main OSD menu.2. Select the picture main menu.3. Press Menu/Set to enter the picture menu.4. Select Temperature and press Menu/Set to enter the under menu. Then the Picture-Temperature under menu appear.5. Select the Temperature mode with CH- / CH+ button and press Menu/Set key.6. Press BACK button to return.W a r m 2W a r m 1N o r m a lC o o l 1C o o l 2• Cool 1,2Screen seems warm: Strong Blue•NORMALNormal: Factory default.• Warm 1,2Screen seems cool: Strong Red16 : 9 S c r e e n F o r m a t◄OFF ►B l a c k E n h a n c e r◄OFF ►V I d e o N R◄OFF ►F i l m M o d eN o r m a lT e m p a r a t u r eS t a n d a r dM o d e•Video NR- This function automatically filters out and reduces the image noise and improves picture qualitywhere receiving weak signals.1. Press Menu/Set button to display the main OSD menu.2. Select the picture main menu item.3. Press Menu/Set to enter the sub menu.4. Select Video NR and press VOL+ button to enter the ◄► parts. Then the cursor moves into the ◄► parts.5. Turn on or off Video NR function with CH+/CH- button and press BACK button.16 : 9 S c r e e n F o r m a t◄OFF ►B l a c k E n h a n c e r◄OFF ►V I d e o N R◄OFF ►F i l m M o d eN o r m a lT e m p a r a t u r eS t a n d a r dM o d e16 : 9 S c r e e n F o r m a t◄OFF ►B l a c k E n h a n c e r◄OFF ►V I d e o N R◄OFF ►F i l m M o d eN o r m a lT e m p a r a t u r eS t a n d a r dM o d e

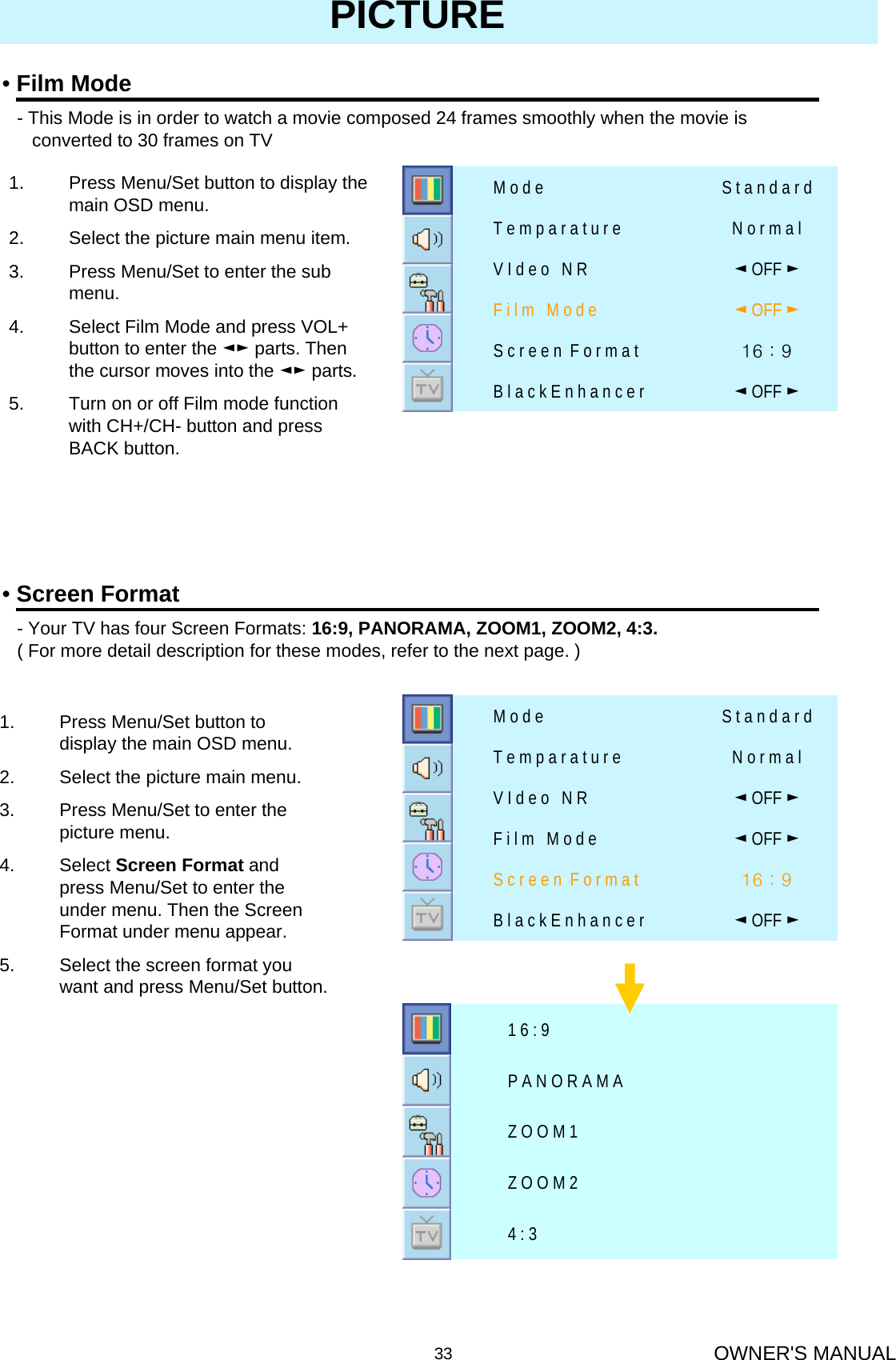

OWNER'S MANUAL33PICTURE•Screen Format- Your TV has four Screen Formats: 16:9, PANORAMA, ZOOM1, ZOOM2, 4:3.( For more detail description for these modes, refer to the next page. )1. Press Menu/Set button to display the main OSD menu.2. Select the picture main menu.3. Press Menu/Set to enter the picture menu.4. Select Screen Format and press Menu/Set to enter the under menu. Then the Screen Format under menu appear.5. Select the screen format you want and press Menu/Set button.4 : 3Z O O M 2Z O O M 1P A N O R A M A1 6 : 9•Film Mode- This Mode is in order to watch a movie composed 24 frames smoothly when the movie isconverted to 30 frames on TV16 : 9 S c r e e n F o r m a t◄OFF ►B l a c k E n h a n c e r◄OFF ►V I d e o N R◄OFF ►F i l m M o d eN o r m a lT e m p a r a t u r eS t a n d a r dM o d e1. Press Menu/Set button to display the main OSD menu.2. Select the picture main menu item.3. Press Menu/Set to enter the sub menu.4. Select Film Mode and press VOL+ button to enter the ◄► parts. Then the cursor moves into the ◄► parts.5. Turn on or off Film mode function with CH+/CH- button and press BACK button.16 : 9 S c r e e n F o r m a t◄OFF ►B l a c k E n h a n c e r◄OFF ►V I d e o N R◄OFF ►F i l m M o d eN o r m a lT e m p a r a t u r eS t a n d a r dM o d e

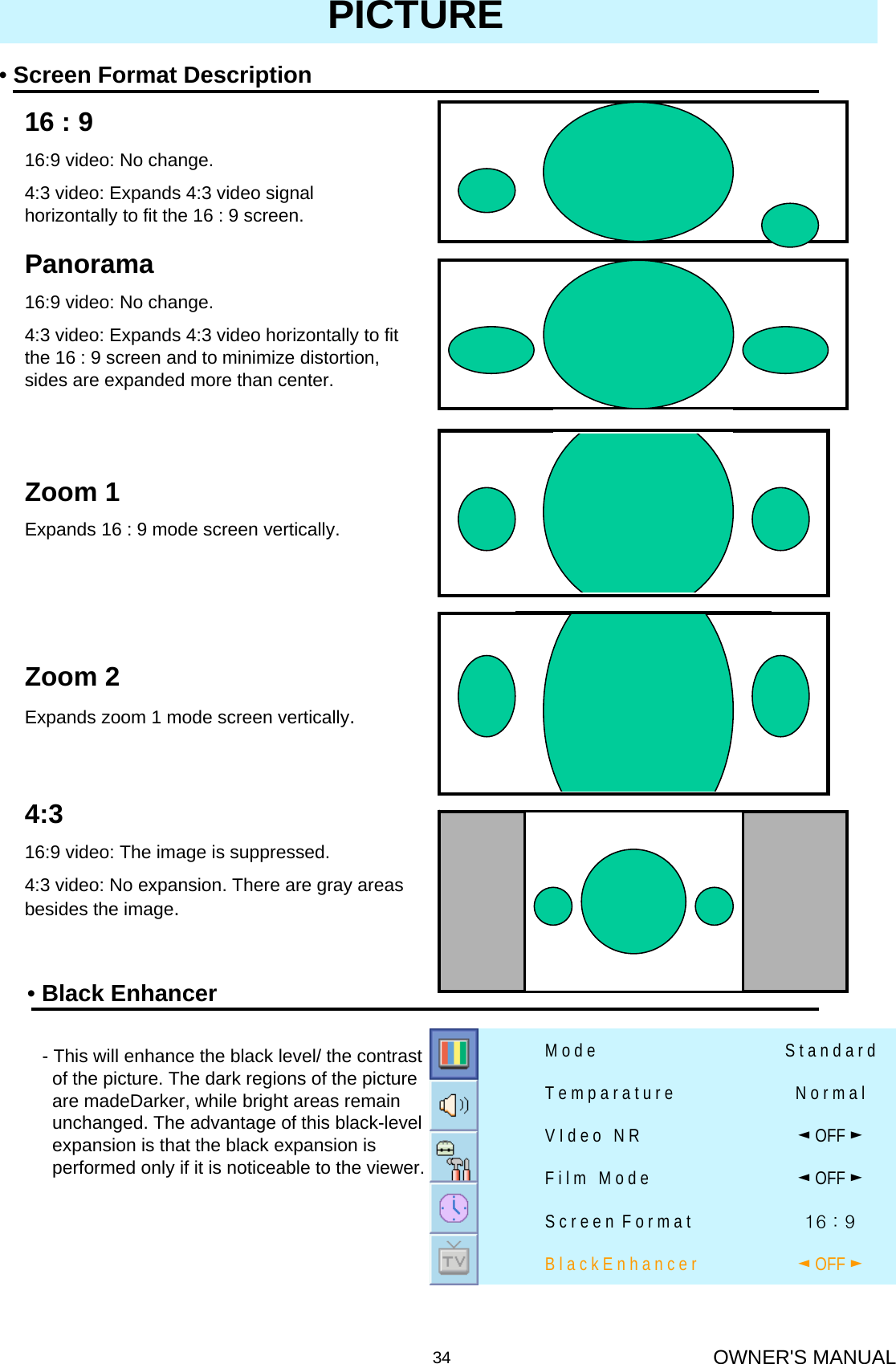

OWNER'S MANUAL34•Screen Format DescriptionPICTURE16 : 916:9 video: No change.4:3 video: Expands 4:3 video signal horizontally to fit the 16 : 9 screen.Panorama16:9 video: No change.4:3 video: Expands 4:3 video horizontally to fit the 16 : 9 screen and to minimize distortion, sides are expanded more than center.Zoom 1Expands 16 : 9 mode screen vertically.Zoom 2Expands zoom 1 mode screen vertically.4:316:9 video: The image is suppressed.4:3 video: No expansion. There are gray areas besides the image.16 : 9 S c r e e n F o r m a t◄OFF ►B l a c k E n h a n c e r◄OFF ►V I d e o N R◄OFF ►F i l m M o d eN o r m a lT e m p a r a t u r eS t a n d a r dM o d e•Black Enhancer- This will enhance the black level/ the contrastof the picture. The dark regions of the picture are madeDarker, while bright areas remainunchanged. The advantage of this black-levelexpansion is that the black expansion is performed only if it is noticeable to the viewer.

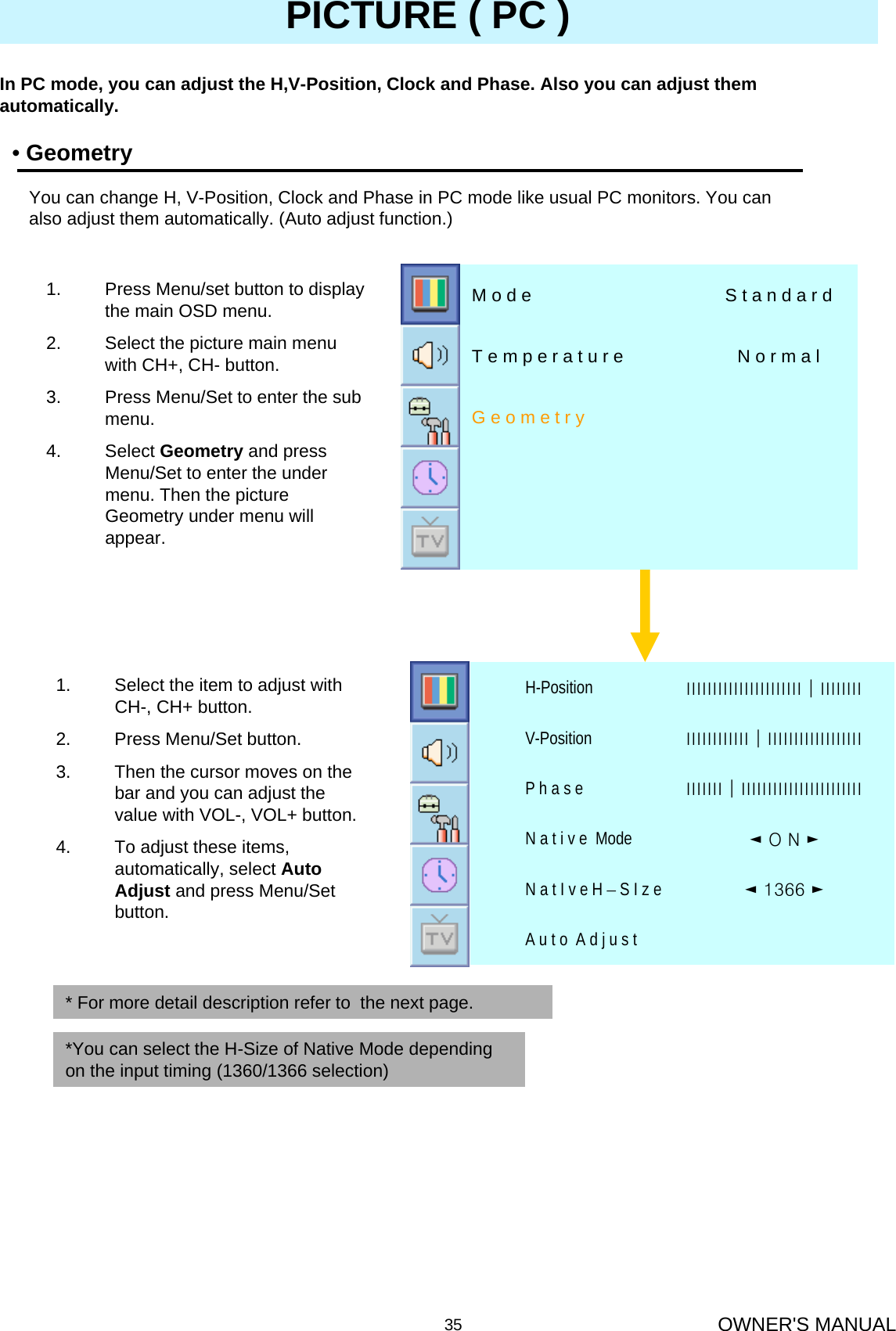

OWNER'S MANUAL35PICTURE ( PC )•GeometryIn PC mode, you can adjust the H,V-Position, Clock and Phase. Also you can adjust them automatically.You can change H, V-Position, Clock and Phase in PC mode like usual PC monitors. You can also adjust them automatically. (Auto adjust function.)1. Select the item to adjust with CH-, CH+ button.2. Press Menu/Set button.3. Then the cursor moves on the bar and you can adjust the value with VOL-, VOL+ button. 4. To adjust these items, automatically, select Auto Adjust and press Menu/Set button.G e o m e t r yN o r m a lT e m p e r a t u r eS t a n d a r dM o d e1. Press Menu/set button to display the main OSD menu.2. Select the picture main menu with CH+, CH- button.3. Press Menu/Set to enter the sub menu.4. Select Geometry and press Menu/Set to enter the under menu. Then the picture Geometry under menu will appear.A u t o A d j u s t◄ 1366 ►N a t I v e H –S I z e◄O N ►N a t i v e ModeІІІІІІІ│ІІІІІІІІІІІІІІІІІІІІІІІP h a s eІІІІІІІІІІІІ│ІІІІІІІІІІІІІІІІІІV-PositionІІІІІІІІІІІІІІІІІІІІІІ│ІІІІІІІІH-Position* For more detail description refer to the next page.*You can select the H-Size of Native Mode depending on the input timing (1360/1366 selection)

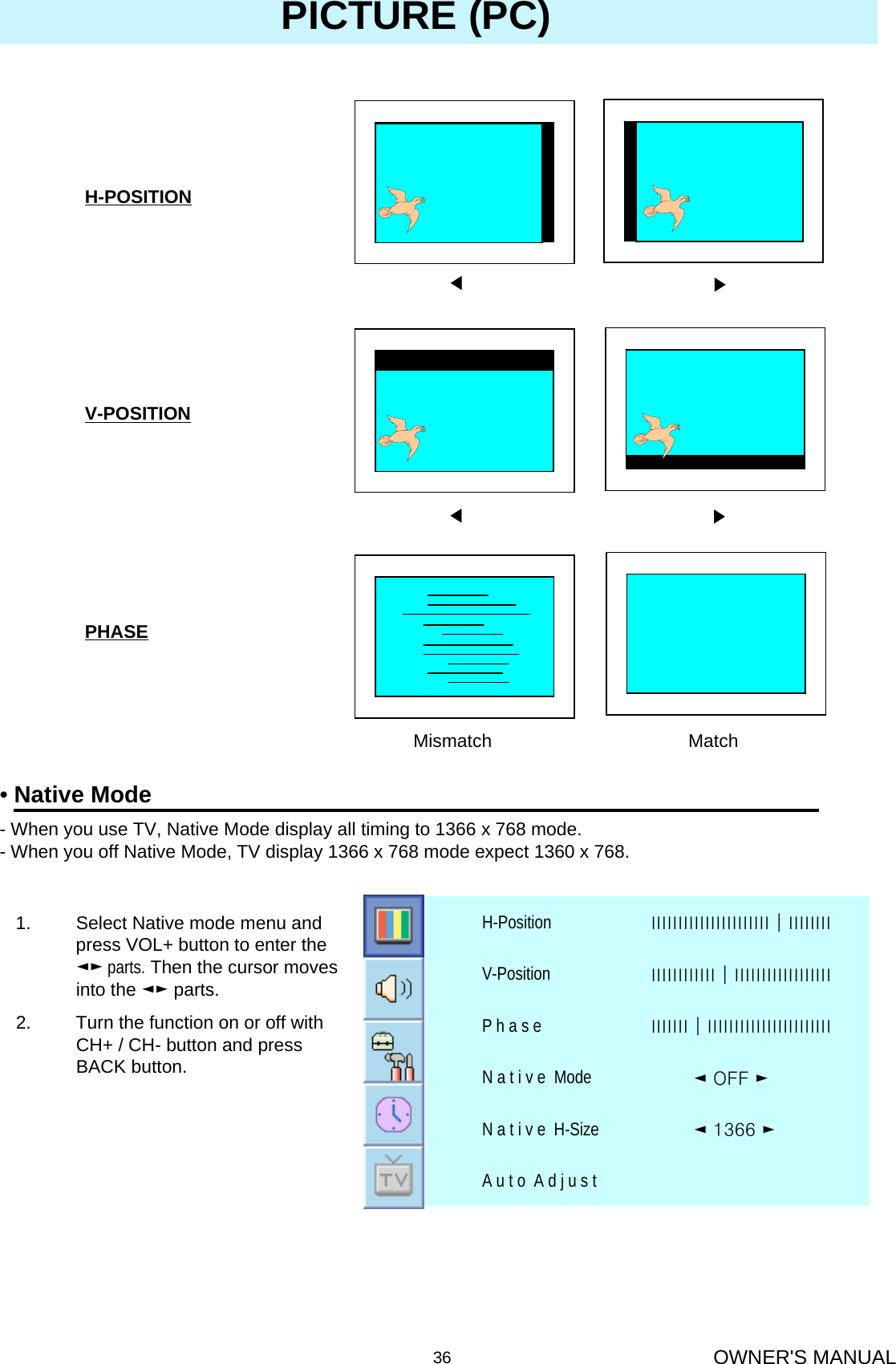

OWNER'S MANUAL36◀▶◀▶Mismatch MatchH-POSITIONV-POSITIONPHASEPICTURE (PC)•Native Mode- When you use TV, Native Mode display all timing to 1366 x 768 mode. - When you off Native Mode, TV display 1366 x 768 mode expect 1360 x 768.1. Select Native mode menu and press VOL+ button to enter the ◄► parts. Then the cursor moves into the ◄► parts.2. Turn the function on or off with CH+ / CH- button and press BACK button.A u t o A d j u s t ◄ 1366 ►N a t i v e H-Size◄ OFF ►N a t i v e ModeІІІІІІІ│ІІІІІІІІІІІІІІІІІІІІІІІP h a s eІІІІІІІІІІІІ│ІІІІІІІІІІІІІІІІІІV-PositionІІІІІІІІІІІІІІІІІІІІІІ│ІІІІІІІІH-Position

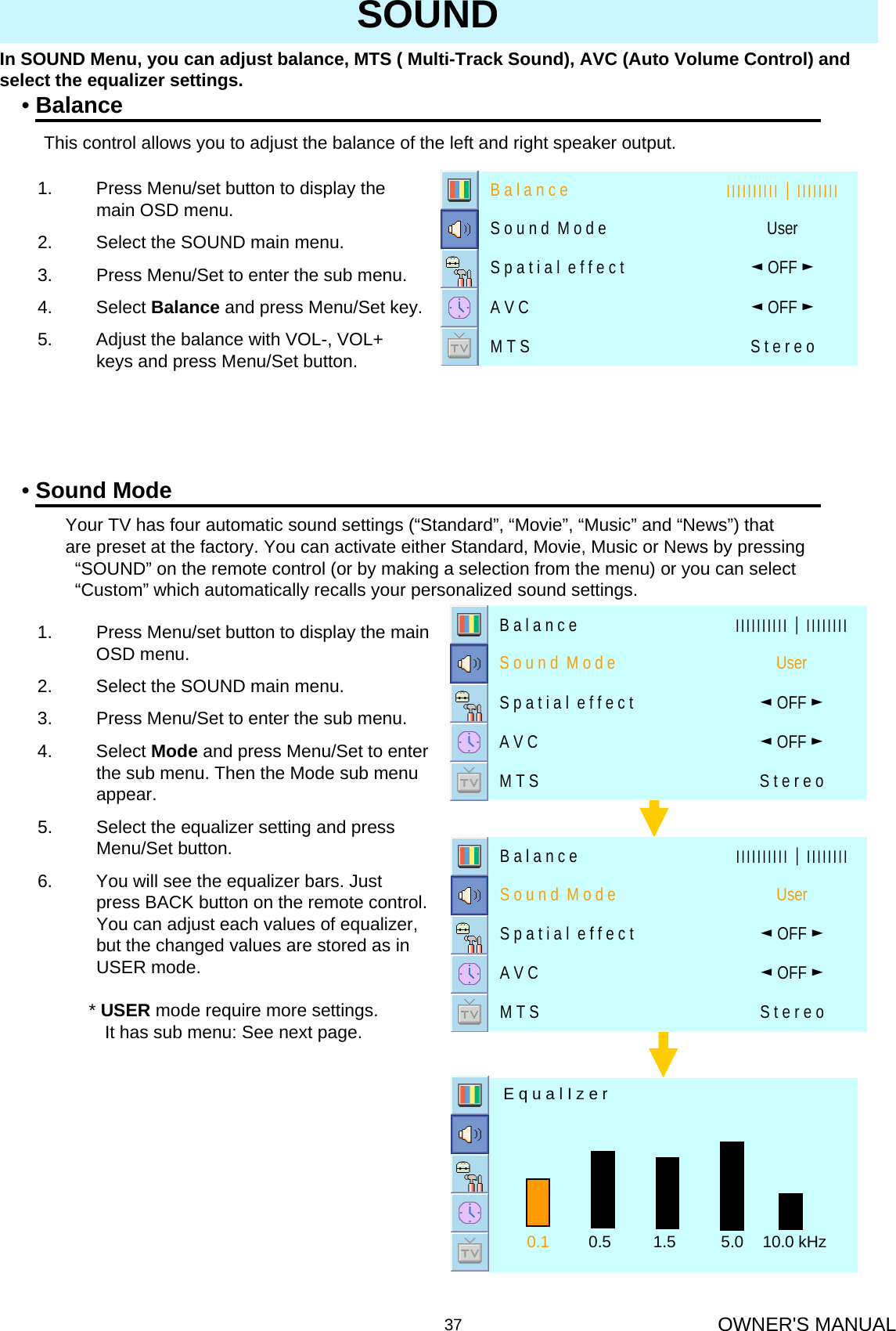

OWNER'S MANUAL37SOUNDIn SOUND Menu, you can adjust balance, MTS ( Multi-Track Sound), AVC (Auto Volume Control) and select the equalizer settings.•BalanceThis control allows you to adjust the balance of the left and right speaker output.1. Press Menu/set button to display the main OSD menu.2. Select the SOUND main menu.3. Press Menu/Set to enter the sub menu.4. Select Balance and press Menu/Set key.5. Adjust the balance with VOL-, VOL+ keys and press Menu/Set button. S t e r e oM T S◄OFF ►A V C◄OFF ►S p a t i a l e f f e c t UserS o u n d M o d e ІІІІІІІІІІ│ІІІІІІІІB a l a n c e•Sound ModeYour TV has four automatic sound settings (“Standard”, “Movie”, “Music” and “News”) that are preset at the factory. You can activate either Standard, Movie, Music or News by pressing “SOUND” on the remote control (or by making a selection from the menu) or you can select “Custom” which automatically recalls your personalized sound settings.1. Press Menu/set button to display the main OSD menu.2. Select the SOUND main menu.3. Press Menu/Set to enter the sub menu.4. Select Mode and press Menu/Set to enter the sub menu. Then the Mode sub menu appear.5. Select the equalizer setting and press Menu/Set button.6. You will see the equalizer bars. Just press BACK button on the remote control. You can adjust each values of equalizer, but the changed values are stored as in USER mode.* USER mode require more settings.It has sub menu: See next page.0.1 0.5 1.5 5.0 10.0 kHzE q u a l I z e rS t e r e oM T S◄OFF ►A V C◄OFF ►S p a t i a l e f f e c t UserS o u n d M o d e ІІІІІІІІІІ│ІІІІІІІІB a l a n c eS t e r e oM T S◄OFF ►A V C◄OFF ►S p a t i a l e f f e c t UserS o u n d M o d e ІІІІІІІІІІ│ІІІІІІІІB a l a n c e

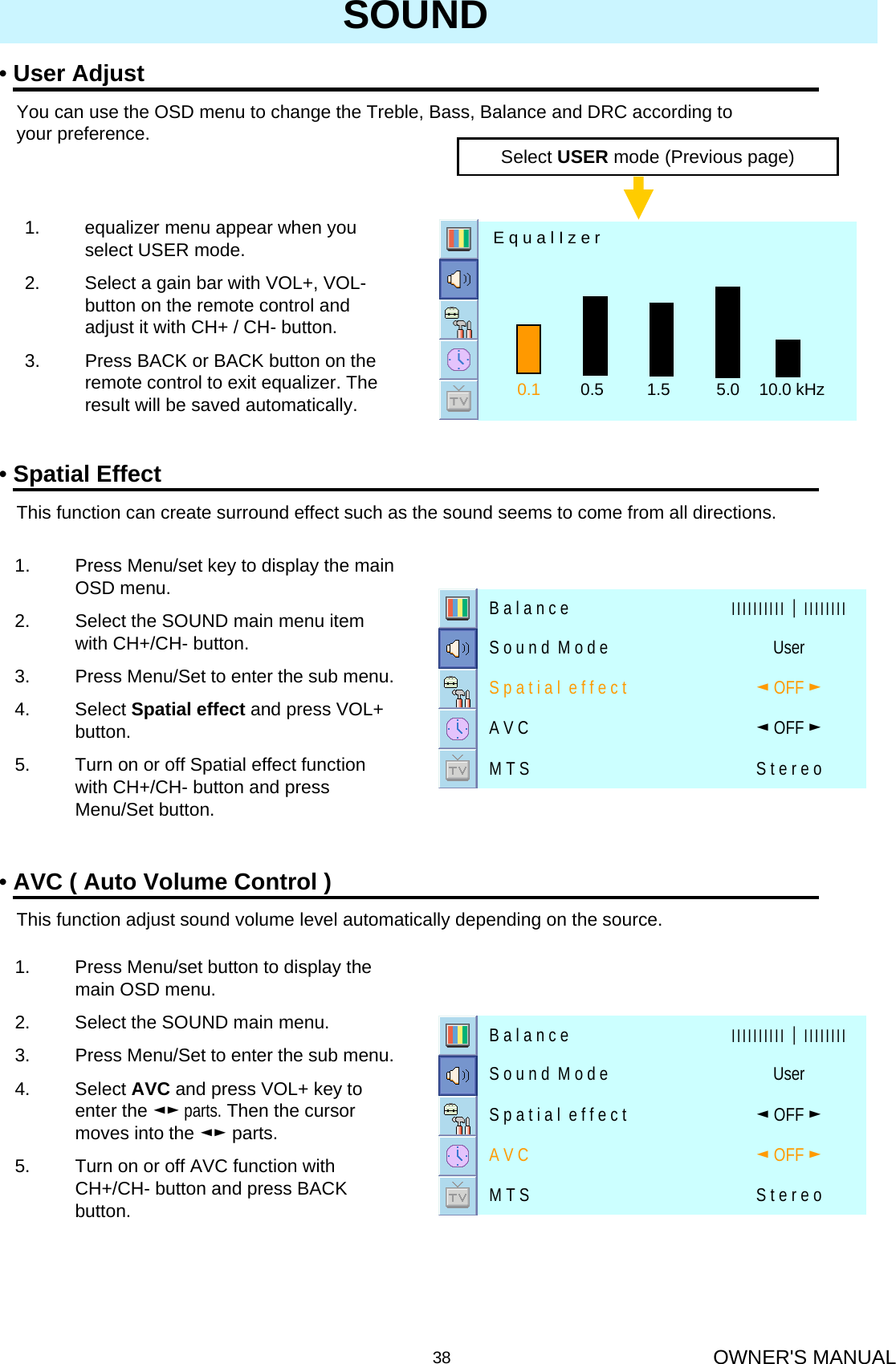

OWNER'S MANUAL38SOUND•User AdjustYou can use the OSD menu to change the Treble, Bass, Balance and DRC according to your preference.Select USER mode (Previous page)1. equalizer menu appear when you select USER mode. 2. Select a gain bar with VOL+, VOL-button on the remote control and adjust it with CH+ / CH- button.3. Press BACK or BACK button on the remote control to exit equalizer. The result will be saved automatically. 0.1 0.5 1.5 5.0 10.0 kHzE q u a l I z e r•Spatial EffectThis function can create surround effect such as the sound seems to come from all directions.•AVC ( Auto Volume Control )This function adjust sound volume level automatically depending on the source.1. Press Menu/set key to display the main OSD menu.2. Select the SOUND main menu item with CH+/CH- button.3. Press Menu/Set to enter the sub menu.4. Select Spatial effect and press VOL+ button.5. Turn on or off Spatial effect function with CH+/CH- button and press Menu/Set button.1. Press Menu/set button to display the main OSD menu.2. Select the SOUND main menu.3. Press Menu/Set to enter the sub menu.4. Select AVC and press VOL+ key to enter the ◄► parts. Then the cursor moves into the ◄► parts.5. Turn on or off AVC function with CH+/CH- button and press BACK button.S t e r e oM T S◄OFF ►A V C◄OFF ►S p a t i a l e f f e c t UserS o u n d M o d e ІІІІІІІІІІ│ІІІІІІІІB a l a n c eS t e r e oM T S◄OFF ►A V C◄OFF ►S p a t i a l e f f e c t UserS o u n d M o d e ІІІІІІІІІІ│ІІІІІІІІB a l a n c e
OWNER'S MANUAL39•MTS- Select sound signal format from the input source. There are Mono, Stereo, NICAM and Bilingual sound formats. SOUND1. Press Menu/set button to display the main OSD menu.2. Select the SOUND main menu with CH+ / CH- button on the remote control.3. Press Menu/Set to enter the sub menu.4. Select MTS and press Menu/Set to enter the sub menu. Then the MTS sub menu appear.5. Select the MTS format with CH+/CH- and press Menu/Set button.S t e r e oM T S◄OFF ►A V C◄OFF ►S p a t i a l e f f e c t USERS o u n d M o d e ІІІІІІІІІІІІІ│ІІІІІІІІB a l a n c e** The available sound formats are displayed. Usually, you can see Mono and Stereo.NICAM: A Digital stereo sound format for analog TV from BBC. If a programme transmit NICAM sound signal, you can hear high quality digital stereo sound.M o n oStereoLanguage ALanguage BLanguage AB

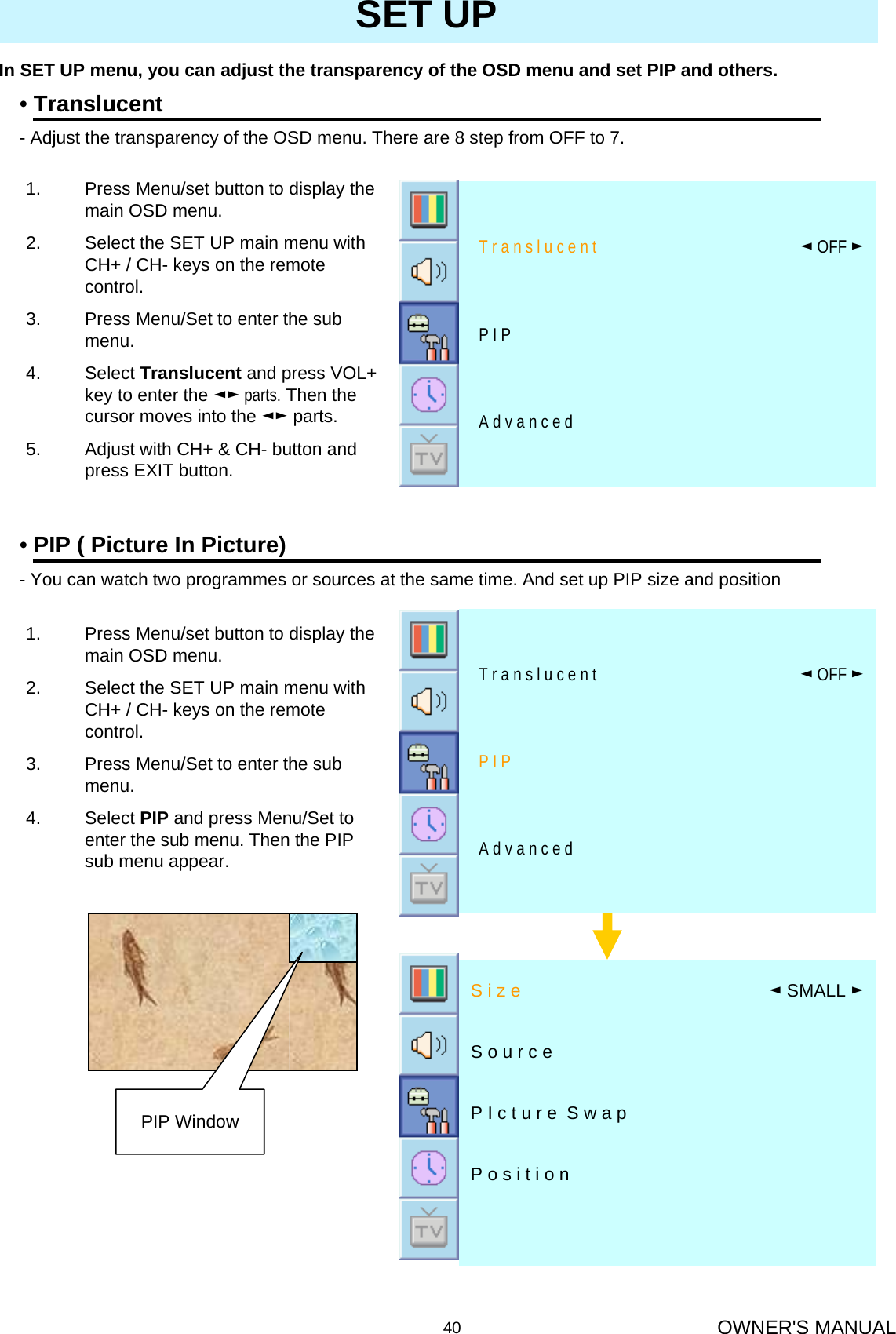

OWNER'S MANUAL40In SET UP menu, you can adjust the transparency of the OSD menu and set PIP and others.SET UP•Translucent- Adjust the transparency of the OSD menu. There are 8 step from OFF to 7.A d v a n c e dP I P◄OFF ►T r a n s l u c e n t1. Press Menu/set button to display the main OSD menu.2. Select the SET UP main menu with CH+ / CH- keys on the remote control.3. Press Menu/Set to enter the sub menu.4. Select Translucent and press VOL+ key to enter the ◄► parts. Then the cursor moves into the ◄► parts. 5. Adjust with CH+ & CH- button and press EXIT button.•PIP ( Picture In Picture)- You can watch two programmes or sources at the same time. And set up PIP size and position A d v a n c e dP I P◄OFF ►T r a n s l u c e n t1. Press Menu/set button to display the main OSD menu.2. Select the SET UP main menu with CH+ / CH- keys on the remote control.3. Press Menu/Set to enter the sub menu.4. Select PIP and press Menu/Set to enter the sub menu. Then the PIP sub menu appear.P o s i t i o n P I c t u r e S w a pS o u r c e◄SMALL ►S i z ePIP Window

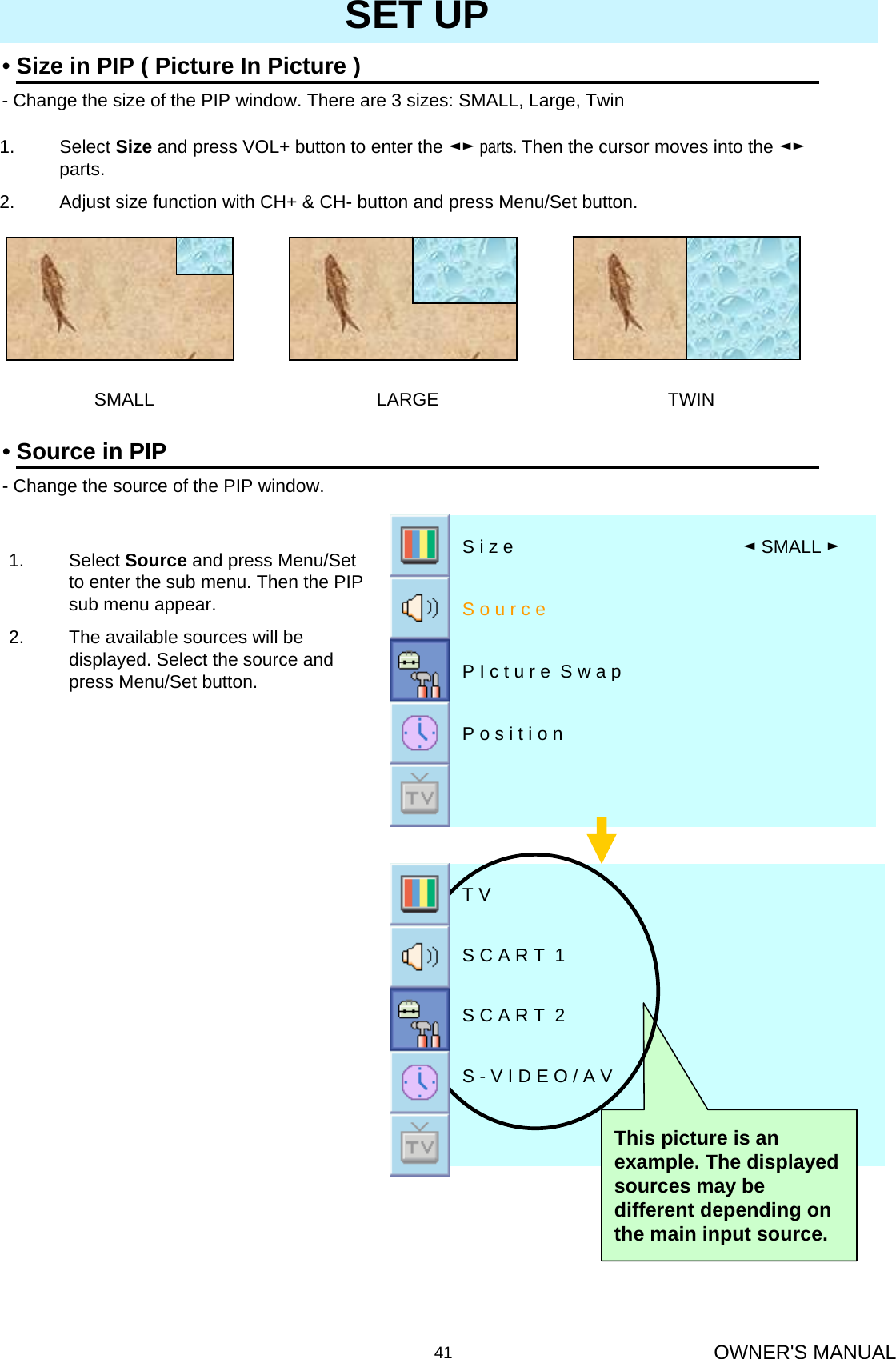

OWNER'S MANUAL41SET UP•Size in PIP ( Picture In Picture )- Change the size of the PIP window. There are 3 sizes: SMALL, Large, Twin1. Select Size and press VOL+ button to enter the ◄► parts. Then the cursor moves into the ◄►parts.2. Adjust size function with CH+ & CH- button and press Menu/Set button.SMALL LARGE TWIN•Source in PIP- Change the source of the PIP window. 1. Select Source and press Menu/Set to enter the sub menu. Then the PIP sub menu appear.2. The available sources will be displayed. Select the source and press Menu/Set button.P o s i t i o n P I c t u r e S w a pS o u r c e◄SMALL ►S i z e S - V I D E O / A VS C A R T 2S C A R T 1T VThis picture is an example. The displayed sources may be different depending on the main input source.

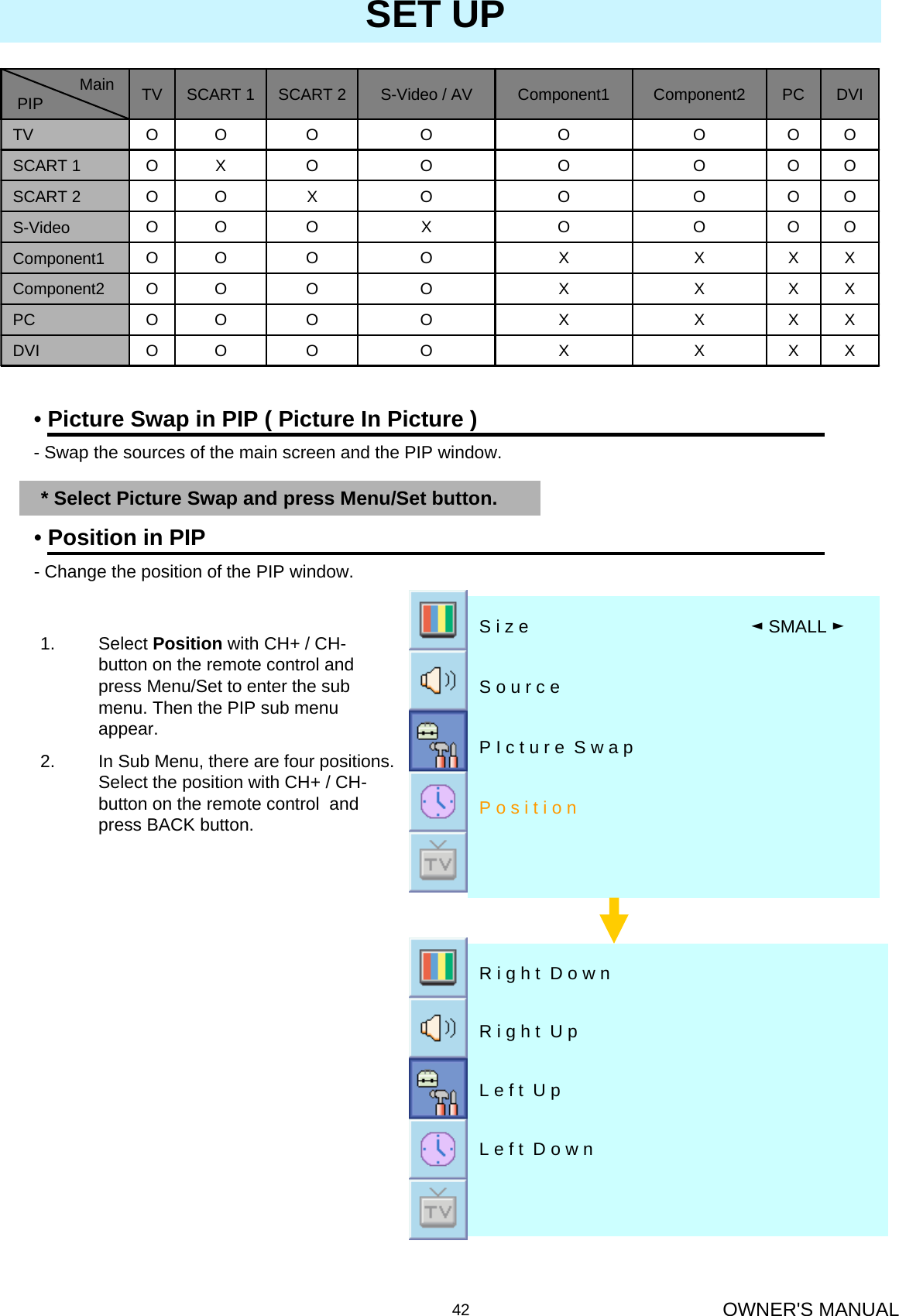

OWNER'S MANUAL42SET UP•Picture Swap in PIP ( Picture In Picture )- Swap the sources of the main screen and the PIP window.* Select Picture Swap and press Menu/Set button.XXXXOOOODVIXXXXOOOOPCXXXXOOOOComponent2XXXXOOOOComponent1OOOOXOOOS-VideoOOOOOXOOSCART 2OOOOOOXOSCART 1OOOOOOOOTVDVIPCComponent2Component1S-Video / AVSCART 2SCART 1TVMain PIP •Position in PIP- Change the position of the PIP window. 1. Select Position with CH+ / CH-button on the remote control and press Menu/Set to enter the sub menu. Then the PIP sub menu appear.2. In Sub Menu, there are four positions. Select the position with CH+ / CH-button on the remote control and press BACK button. P o s i t i o n P I c t u r e S w a pS o u r c e◄SMALL ►S i z e L e f t D o w nL e f t U pR i g h t U pR i g h t D o w n

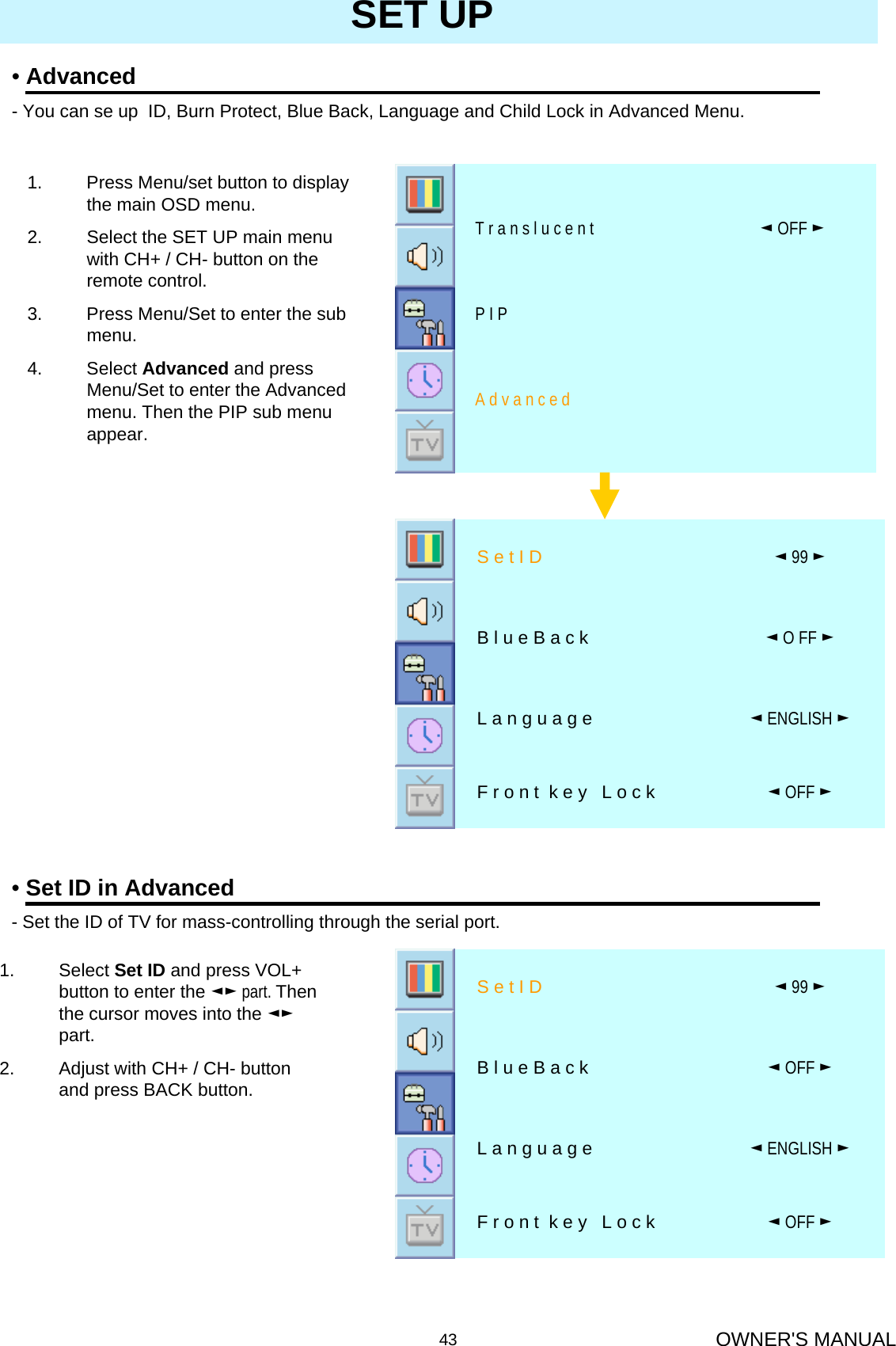

OWNER'S MANUAL43SET UP•Advanced- You can se up ID, Burn Protect, Blue Back, Language and Child Lock in Advanced Menu.A d v a n c e dP I P◄OFF ►T r a n s l u c e n t1. Press Menu/set button to display the main OSD menu.2. Select the SET UP main menu with CH+ / CH- button on the remote control. 3. Press Menu/Set to enter the sub menu.4. Select Advanced and press Menu/Set to enter the Advanced menu. Then the PIP sub menu appear.1. Select Set ID and press VOL+ button to enter the ◄► part. Then the cursor moves into the ◄►part.2. Adjust with CH+ / CH- button and press BACK button.•Set ID in Advanced- Set the ID of TV for mass-controlling through the serial port.◄OFF ►F r o n t k e y L o c k◄ENGLISH ►L a n g u a g e◄OFF ►B l u e B a c k ◄99 ►S e t I D◄OFF ►F r o n t k e y L o c k◄ENGLISH ►L a n g u a g e◄O FF ►B l u e B a c k◄99 ►S e t I D

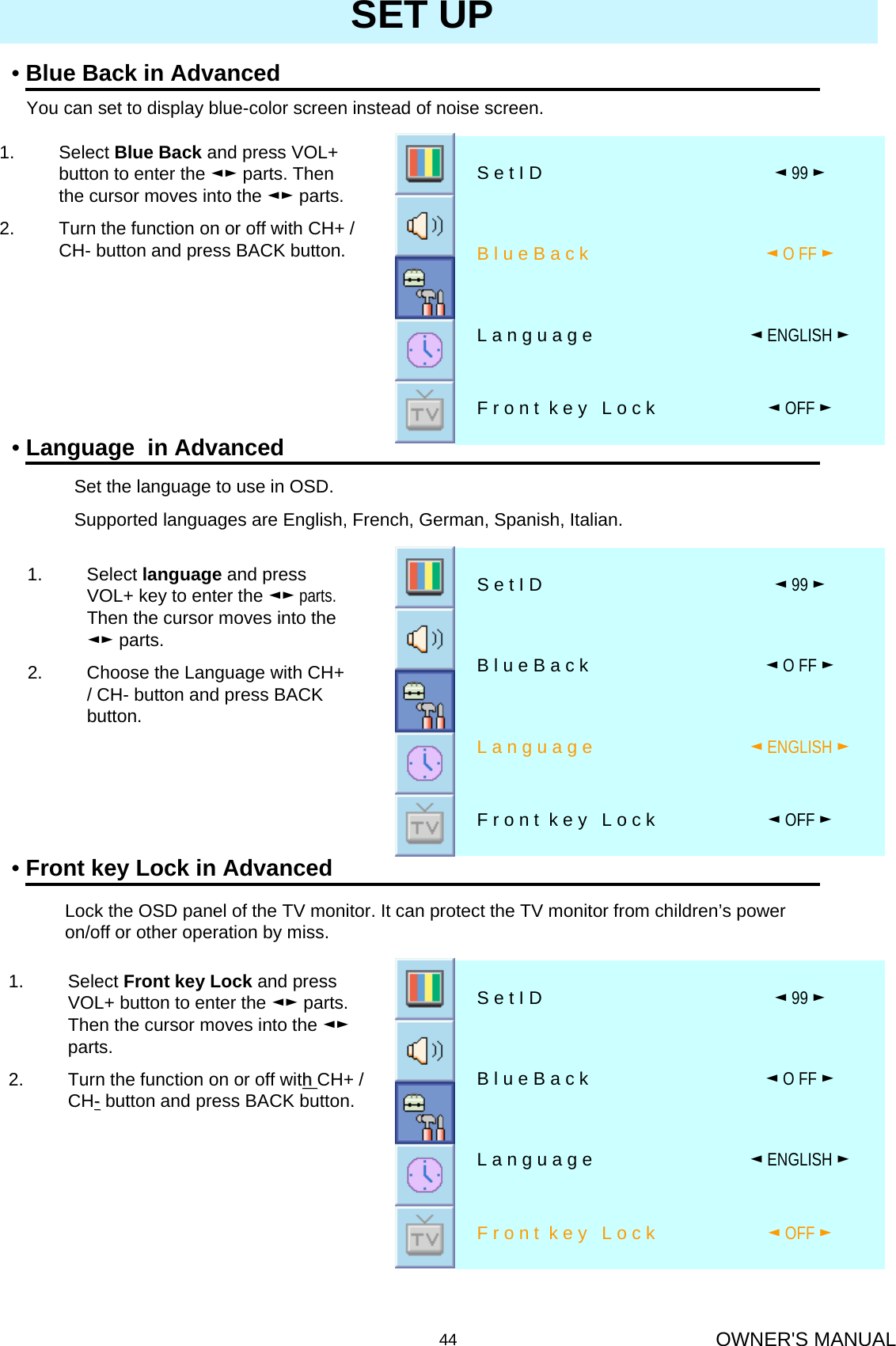

OWNER'S MANUAL44SET UP1. Select Blue Back and press VOL+ button to enter the ◄► parts. Then the cursor moves into the ◄► parts. 2. Turn the function on or off with CH+ / CH- button and press BACK button.•Blue Back in AdvancedYou can set to display blue-color screen instead of noise screen.◄OFF ►F r o n t k e y L o c k◄ENGLISH ►L a n g u a g e◄O FF ►B l u e B a c k◄99 ►S e t I D•Language in Advanced1. Select Front key Lock and press VOL+ button to enter the ◄► parts. Then the cursor moves into the ◄►parts.2. Turn the function on or off with h CH+ / CH--button and press BACK button.•Front key Lock in AdvancedSet the language to use in OSD.Supported languages are English, French, German, Spanish, Italian.1. Select language and press VOL+ key to enter the ◄► parts. Then the cursor moves into the ◄► parts.2. Choose the Language with CH+ / CH- button and press BACK button.Lock the OSD panel of the TV monitor. It can protect the TV monitor from children’s power on/off or other operation by miss.◄OFF ►F r o n t k e y L o c k◄ENGLISH ►L a n g u a g e◄O FF ►B l u e B a c k◄99 ►S e t I D◄OFF ►F r o n t k e y L o c k◄ENGLISH ►L a n g u a g e◄O FF ►B l u e B a c k◄99 ►S e t I D

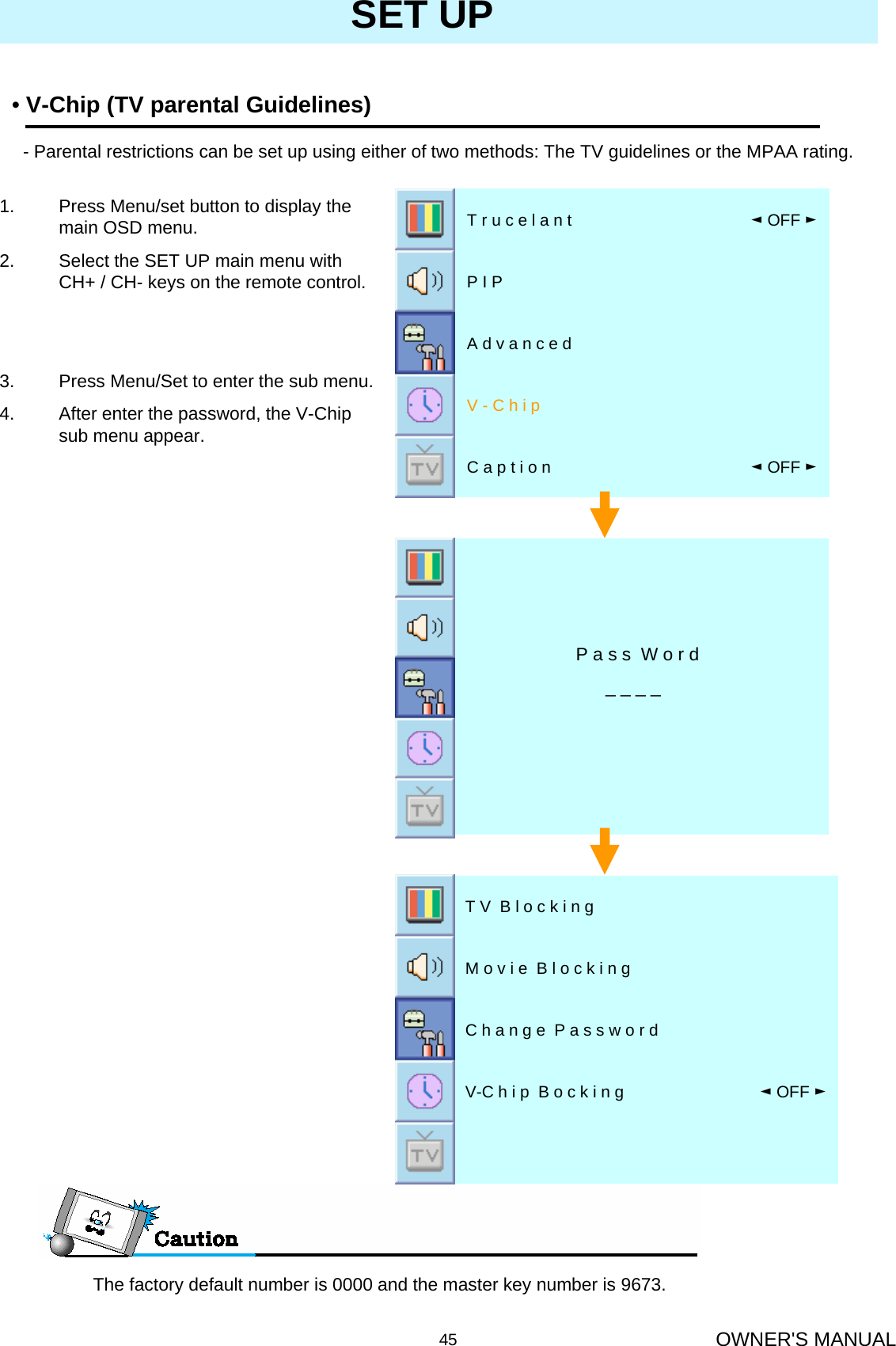

OWNER'S MANUAL45SET UP•V-Chip (TV parental Guidelines)1. Press Menu/set button to display the main OSD menu.2. Select the SET UP main menu with CH+ / CH- keys on the remote control.3. Press Menu/Set to enter the sub menu.4. After enter the password, the V-Chip sub menu appear.◄OFF ►C a p t i o nV - C h i pA d v a n c e dP I P◄OFF ►T r u c e l a n t- Parental restrictions can be set up using either of two methods: The TV guidelines or the MPAA rating.P a s s W o r d_ _ _ _◄OFF ►V-C h i p B o c k i n gC h a n g e P a s s w o r dM o v i e B l o c k i n gT V B l o c k i n gThe factory default number is 0000 and the master key number is 9673.

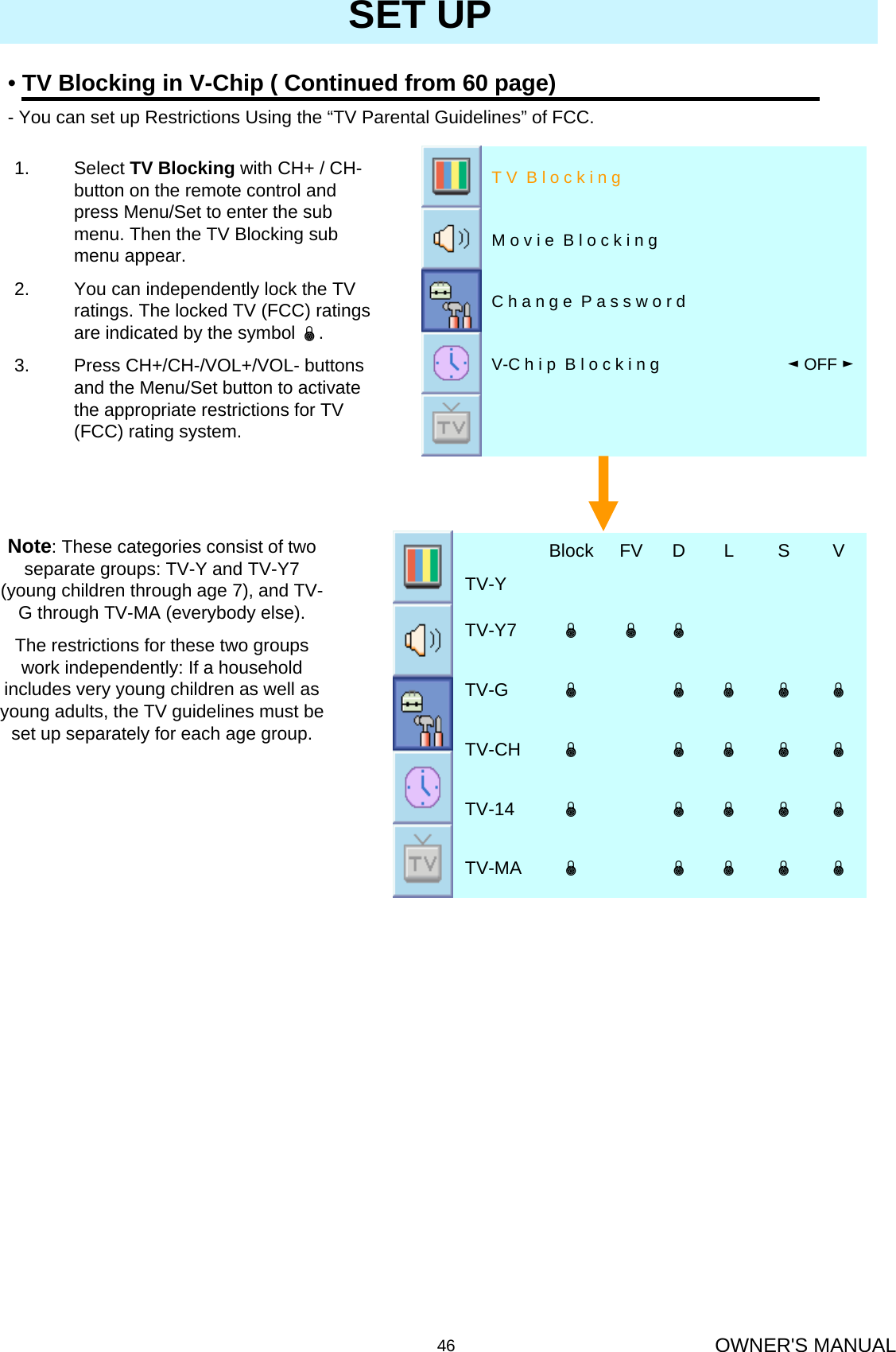

OWNER'S MANUAL46SET UP1. Select TV Blocking with CH+ / CH-button on the remote control and press Menu/Set to enter the sub menu. Then the TV Blocking sub menu appear.2. You can independently lock the TV ratings. The locked TV (FCC) ratings are indicated by the symbol ±.3. Press CH+/CH-/VOL+/VOL- buttons and the Menu/Set button to activate the appropriate restrictions for TV (FCC) rating system.◄OFF ►V-C h i p B l o c k i n gC h a n g e P a s s w o r dM o v i e B l o c k i n gT V B l o c k i n g±±±±±TV-MA±±±±±TV-14±±±±±TV-CH±±±±±TV-G±±±TV-Y7TV-YVSLDFVBlockNote: These categories consist of two separate groups: TV-Y and TV-Y7 (young children through age 7), and TV-G through TV-MA (everybody else).The restrictions for these two groups work independently: If a household includes very young children as well as young adults, the TV guidelines must be set up separately for each age group.•TV Blocking in V-Chip ( Continued from 60 page) - You can set up Restrictions Using the “TV Parental Guidelines” of FCC.

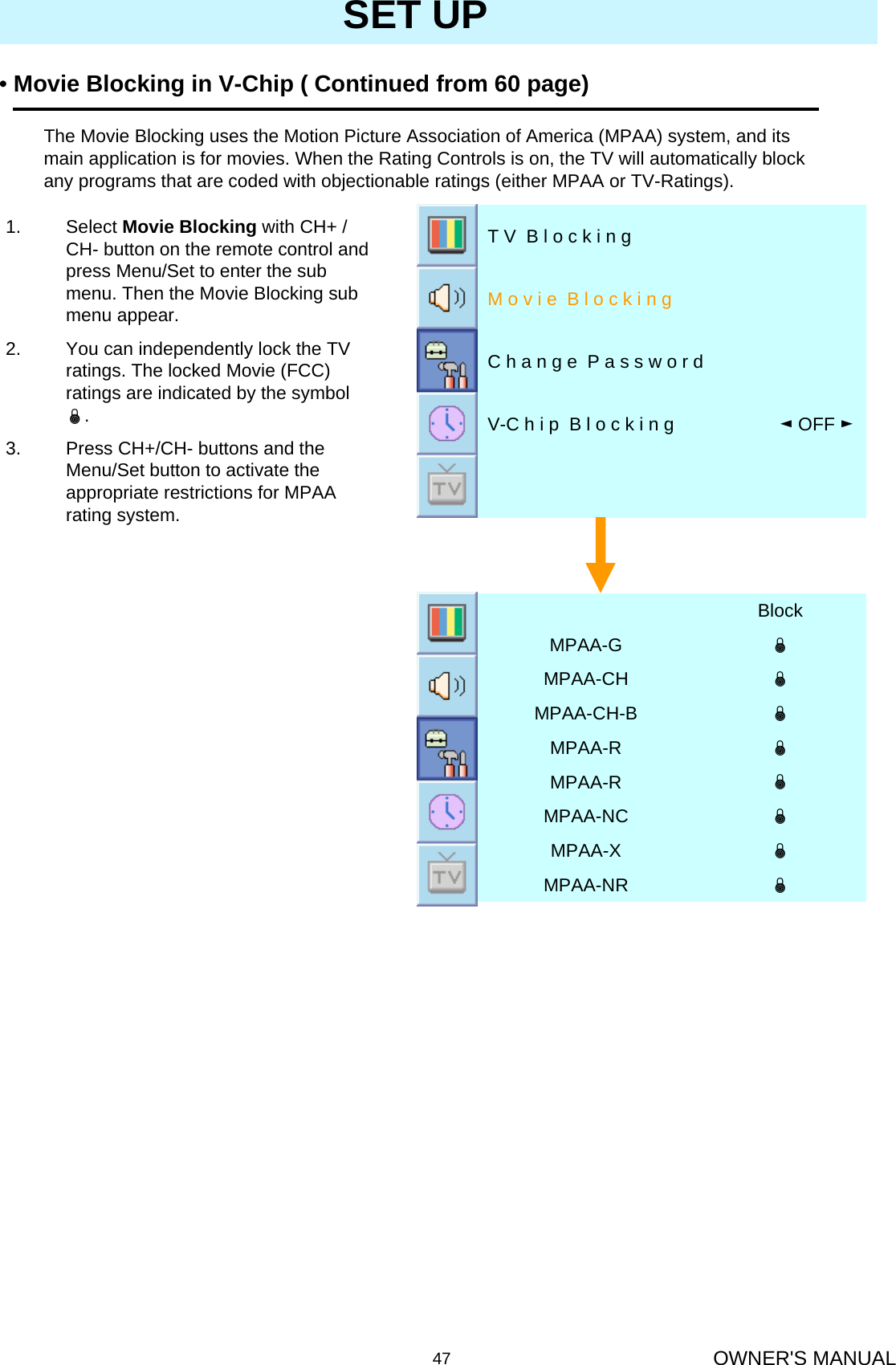

OWNER'S MANUAL47SET UP•Movie Blocking in V-Chip ( Continued from 60 page) 1. Select Movie Blocking with CH+ / CH- button on the remote control and press Menu/Set to enter the sub menu. Then the Movie Blocking sub menu appear.2. You can independently lock the TV ratings. The locked Movie (FCC) ratings are indicated by the symbol ±.3. Press CH+/CH- buttons and the Menu/Set button to activate the appropriate restrictions for MPAA rating system.◄OFF ►V-C h i p B l o c k i n gC h a n g e P a s s w o r dM o v i e B l o c k i n gT V B l o c k i n gThe Movie Blocking uses the Motion Picture Association of America (MPAA) system, and its main application is for movies. When the Rating Controls is on, the TV will automatically block any programs that are coded with objectionable ratings (either MPAA or TV-Ratings).±MPAA-NR±MPAA-X±MPAA-NC±MPAA-R±MPAA-R±MPAA-CH-B±MPAA-CH±MPAA-GBlock

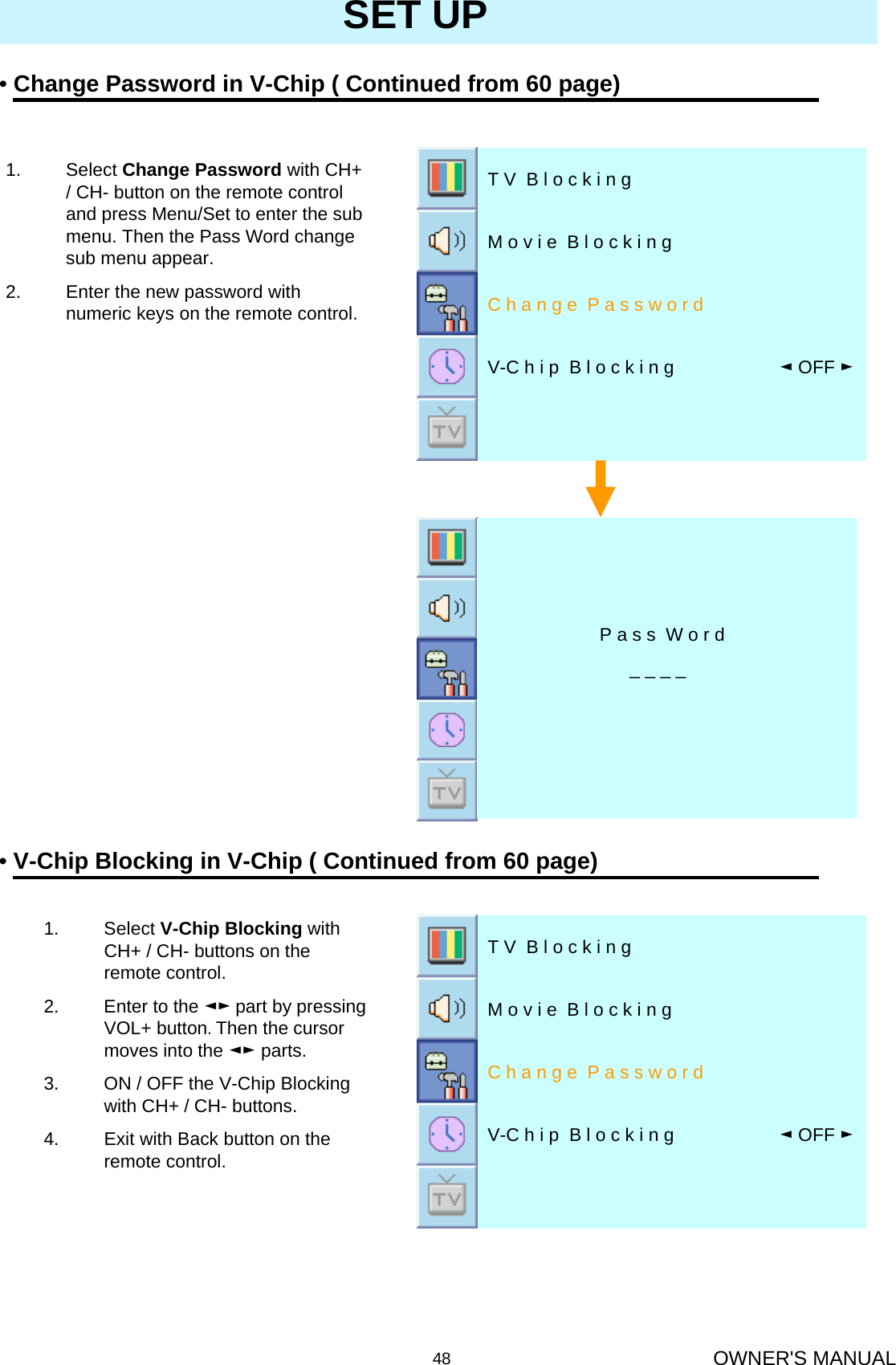

OWNER'S MANUAL48SET UP1. Select Change Password with CH+ / CH- button on the remote control and press Menu/Set to enter the sub menu. Then the Pass Word change sub menu appear.2. Enter the new password with numeric keys on the remote control.◄OFF ►V-C h i p B l o c k i n gC h a n g e P a s s w o r dM o v i e B l o c k i n gT V B l o c k i n g•Change Password in V-Chip ( Continued from 60 page) P a s s W o r d_ _ _ _•V-Chip Blocking in V-Chip ( Continued from 60 page) ◄OFF ►V-C h i p B l o c k i n gC h a n g e P a s s w o r dM o v i e B l o c k i n gT V B l o c k i n g1. Select V-Chip Blocking with CH+ / CH- buttons on the remote control.2. Enter to the ◄► part by pressing VOL+ button. Then the cursor moves into the ◄► parts.3. ON / OFF the V-Chip Blocking with CH+ / CH- buttons.4. Exit with Back button on the remote control.

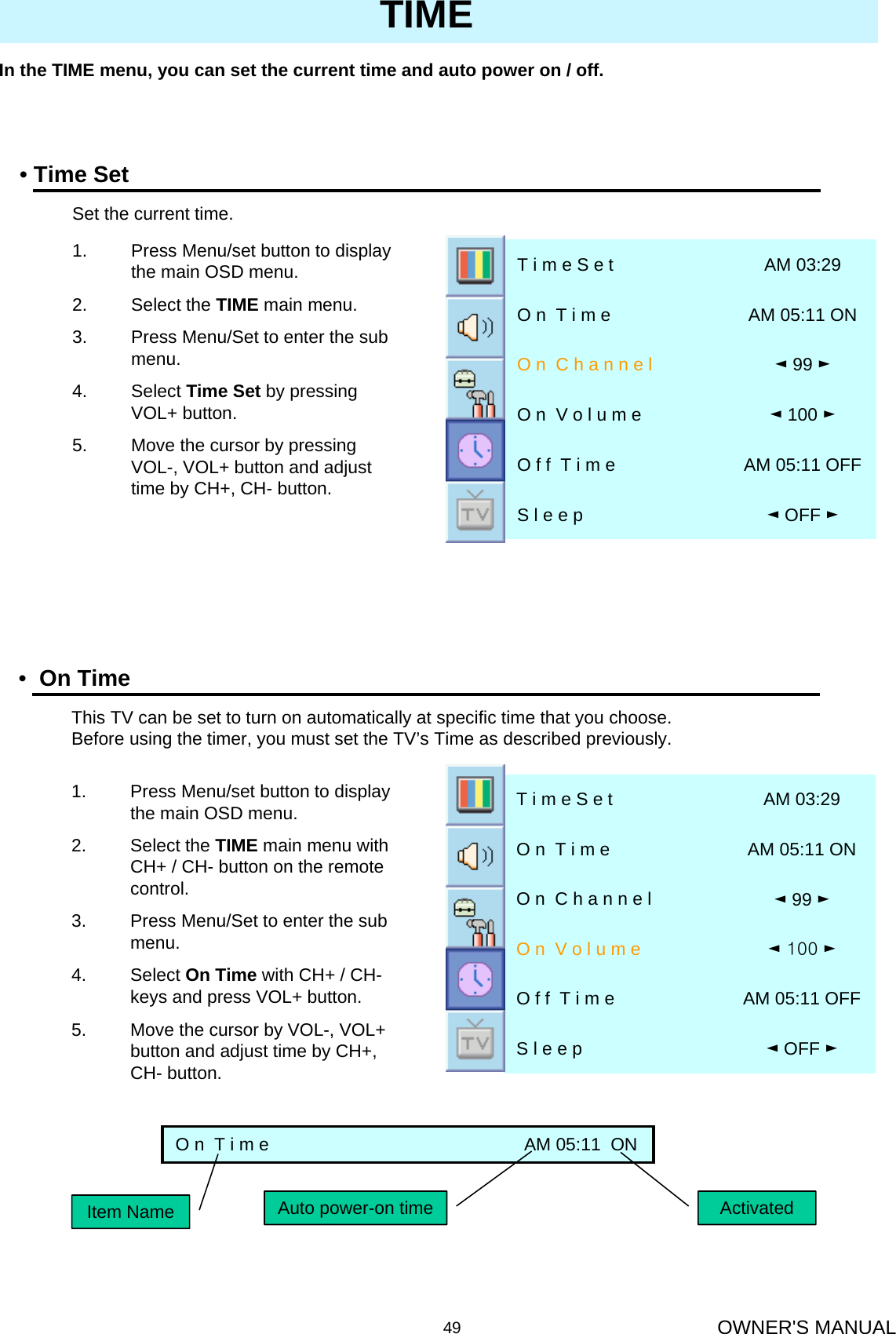

OWNER'S MANUAL49In the TIME menu, you can set the current time and auto power on / off.TIME•Time Set◄OFF ►S l e e p AM 05:11 OFFO f f T i m e◄100 ►O n V o l u m e◄99 ►O n C h a n n e lAM 05:11 ONO n T i m eAM 03:29T i m e S e t1. Press Menu/set button to display the main OSD menu.2. Select the TIME main menu.3. Press Menu/Set to enter the sub menu.4. Select Time Set by pressing VOL+ button. 5. Move the cursor by pressing VOL-, VOL+ button and adjust time by CH+, CH- button.Set the current time.•On Time◄OFF ►S l e e pAM 05:11 OFFO f f T i m e◄100►O n V o l u m e◄99 ►O n C h a n n e lAM 05:11 ONO n T i m eAM 03:29T i m e S e t1. Press Menu/set button to display the main OSD menu.2. Select the TIME main menu with CH+ / CH- button on the remote control.3. Press Menu/Set to enter the sub menu.4. Select On Time with CH+ / CH-keys and press VOL+ button. 5. Move the cursor by VOL-, VOL+ button and adjust time by CH+, CH- button.This TV can be set to turn on automatically at specific time that you choose. Before using the timer, you must set the TV’s Time as described previously.O n T i m e AM 05:11 ONItem Name Auto power-on time Activated

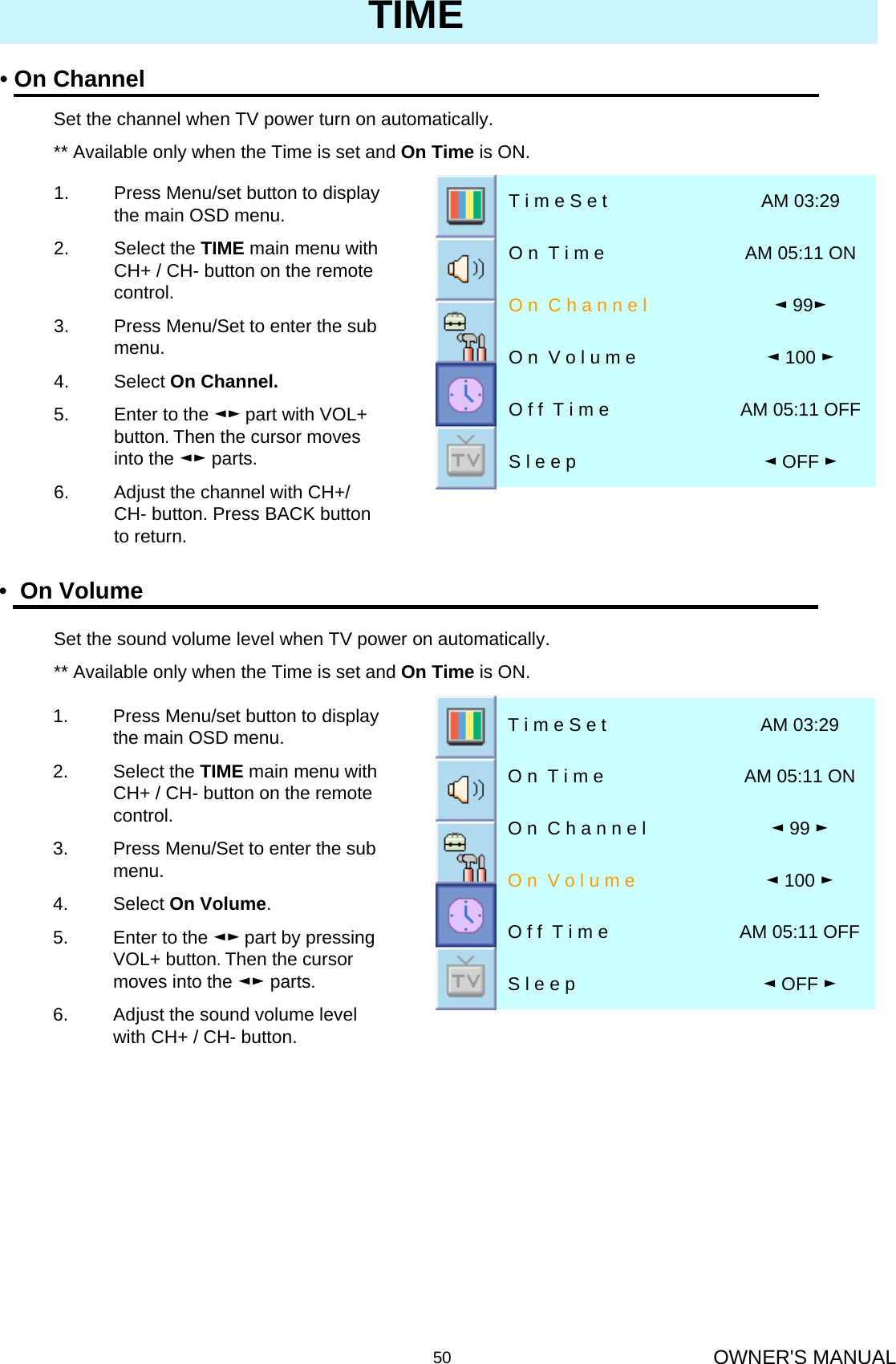

OWNER'S MANUAL50TIME•On Volume◄OFF ►S l e e pAM 05:11 OFFO f f T i m e◄100 ►O n V o l u m e◄99 ►O n C h a n n e lAM 05:11 ONO n T i m eAM 03:29T i m e S e t1. Press Menu/set button to display the main OSD menu.2. Select the TIME main menu with CH+ / CH- button on the remote control.3. Press Menu/Set to enter the sub menu.4. Select On Volume. 5. Enter to the ◄► part by pressing VOL+ button. Then the cursor moves into the ◄► parts.6. Adjust the sound volume level with CH+ / CH- button.•On Channel◄OFF ►S l e e pAM 05:11 OFFO f f T i m e◄100 ►O n V o l u m e◄99►O n C h a n n e lAM 05:11 ONO n T i m eAM 03:29T i m e S e tSet the channel when TV power turn on automatically.** Available only when the Time is set and On Time is ON.1. Press Menu/set button to display the main OSD menu.2. Select the TIME main menu with CH+ / CH- button on the remote control.3. Press Menu/Set to enter the sub menu.4. Select On Channel.5. Enter to the ◄► part with VOL+ button. Then the cursor moves into the ◄► parts.6. Adjust the channel with CH+/ CH- button. Press BACK button to return.Set the sound volume level when TV power on automatically.** Available only when the Time is set and On Time is ON.

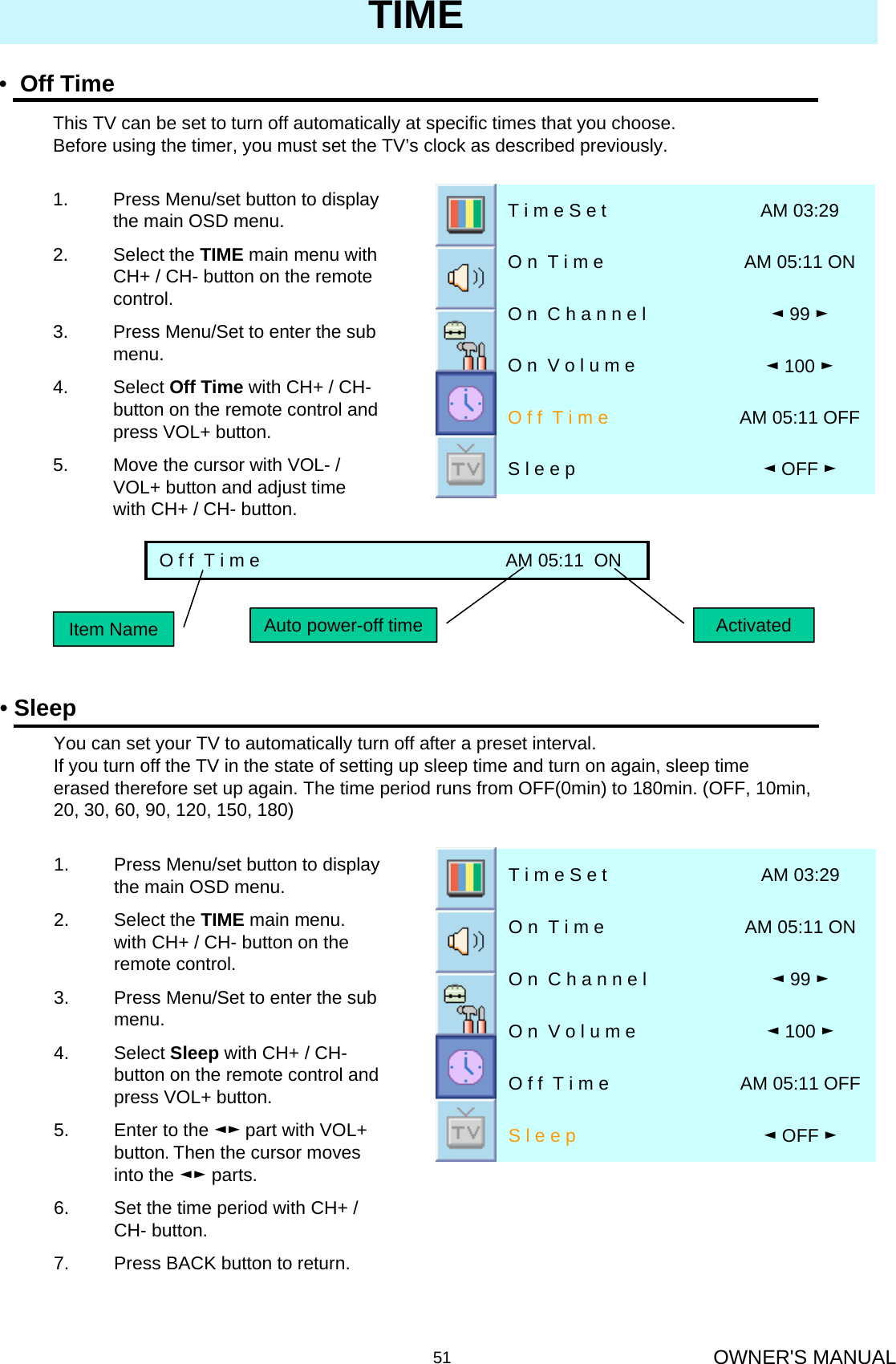

OWNER'S MANUAL51TIME•Off Time◄OFF ►S l e e pAM 05:11 OFFO f f T i m e◄100 ►O n V o l u m e◄99 ►O n C h a n n e lAM 05:11 ONO n T i m eAM 03:29T i m e S e t1. Press Menu/set button to display the main OSD menu.2. Select the TIME main menu with CH+ / CH- button on the remote control.3. Press Menu/Set to enter the sub menu.4. Select Off Time with CH+ / CH-button on the remote control and press VOL+ button. 5. Move the cursor with VOL- / VOL+ button and adjust time with CH+ / CH- button.This TV can be set to turn off automatically at specific times that you choose. Before using the timer, you must set the TV’s clock as described previously.O f f T i m e AM 05:11 ONItem Name Auto power-off time Activated•Sleep◄OFF ►S l e e pAM 05:11 OFFO f f T i m e◄100 ►O n V o l u m e◄99 ►O n C h a n n e lAM 05:11 ONO n T i m eAM 03:29T i m e S e tYou can set your TV to automatically turn off after a preset interval.If you turn off the TV in the state of setting up sleep time and turn on again, sleep time erased therefore set up again. The time period runs from OFF(0min) to 180min. (OFF, 10min, 20, 30, 60, 90, 120, 150, 180)1. Press Menu/set button to display the main OSD menu.2. Select the TIME main menu. with CH+ / CH- button on the remote control.3. Press Menu/Set to enter the sub menu.4. Select Sleep with CH+ / CH-button on the remote control and press VOL+ button. 5. Enter to the ◄► part with VOL+ button. Then the cursor moves into the ◄► parts.6. Set the time period with CH+ / CH- button.7. Press BACK button to return.

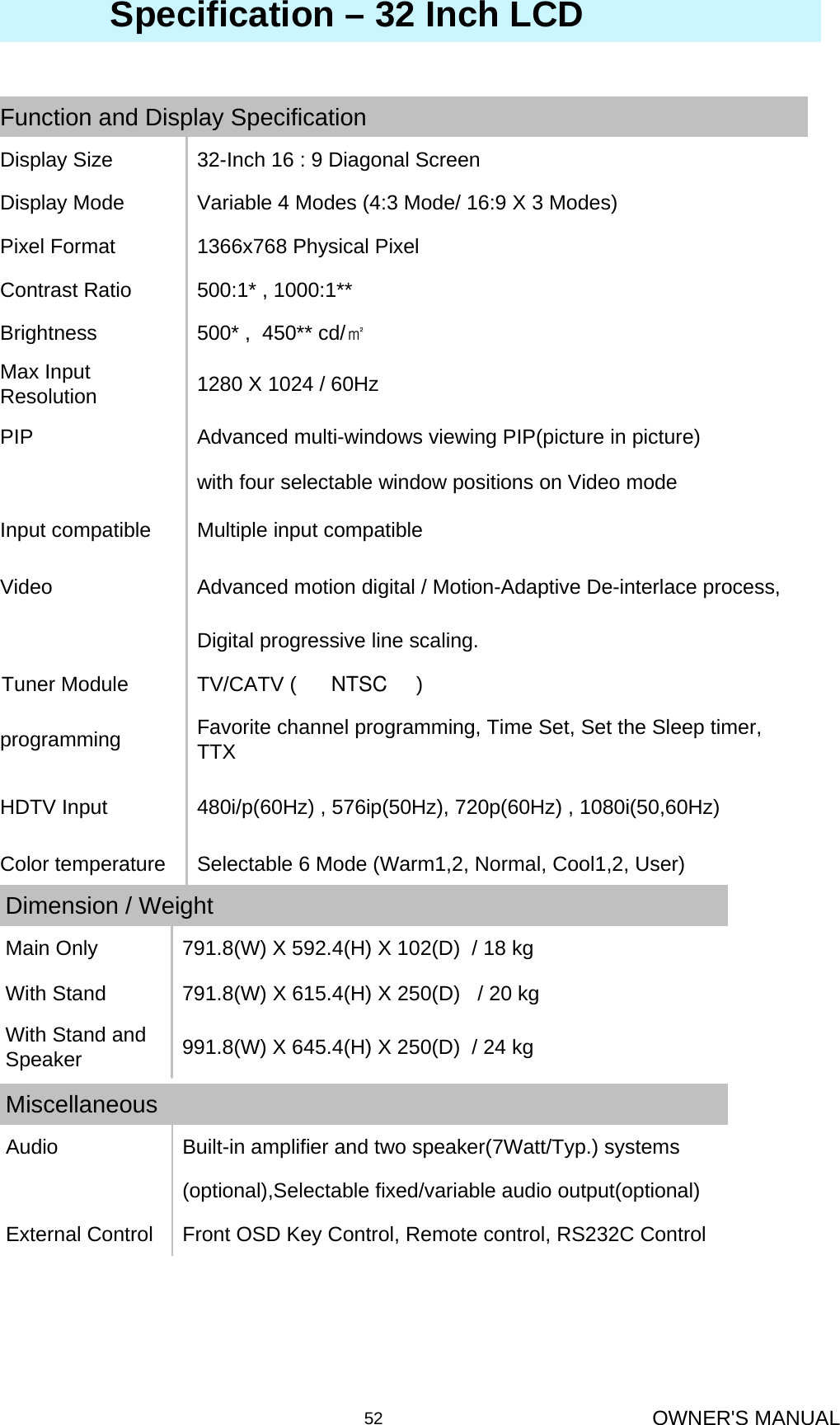

OWNER'S MANUAL52Selectable 6 Mode (Warm1,2, Normal, Cool1,2, User)Color temperature 480i/p(60Hz) , 576ip(50Hz), 720p(60Hz) , 1080i(50,60Hz) HDTV InputFavorite channel programming, Time Set, Set the Sleep timer, TTXprogrammingTV/CATV ( NTSC )Tuner ModuleDigital progressive line scaling.Advanced motion digital / Motion-Adaptive De-interlace process,VideoMultiple input compatibleInput compatiblewith four selectable window positions on Video modeAdvanced multi-windows viewing PIP(picture in picture) PIP1280 X 1024 / 60Hz Max Input Resolution 500* , 450** cd/㎡Brightness500:1* , 1000:1**Contrast Ratio1366x768 Physical Pixel Pixel FormatVariable 4 Modes (4:3 Mode/ 16:9 X 3 Modes)Display Mode32-Inch 16 : 9 Diagonal ScreenDisplay SizeFunction and Display Specification991.8(W) X 645.4(H) X 250(D) / 24 kgWith Stand and Speaker791.8(W) X 615.4(H) X 250(D) / 20 kgWith Stand791.8(W) X 592.4(H) X 102(D) / 18 kgMain OnlyDimension / WeightSpecification – 32 Inch LCDFront OSD Key Control, Remote control, RS232C ControlExternal Control(optional),Selectable fixed/variable audio output(optional)Built-in amplifier and two speaker(7Watt/Typ.) systemsAudioMiscellaneous

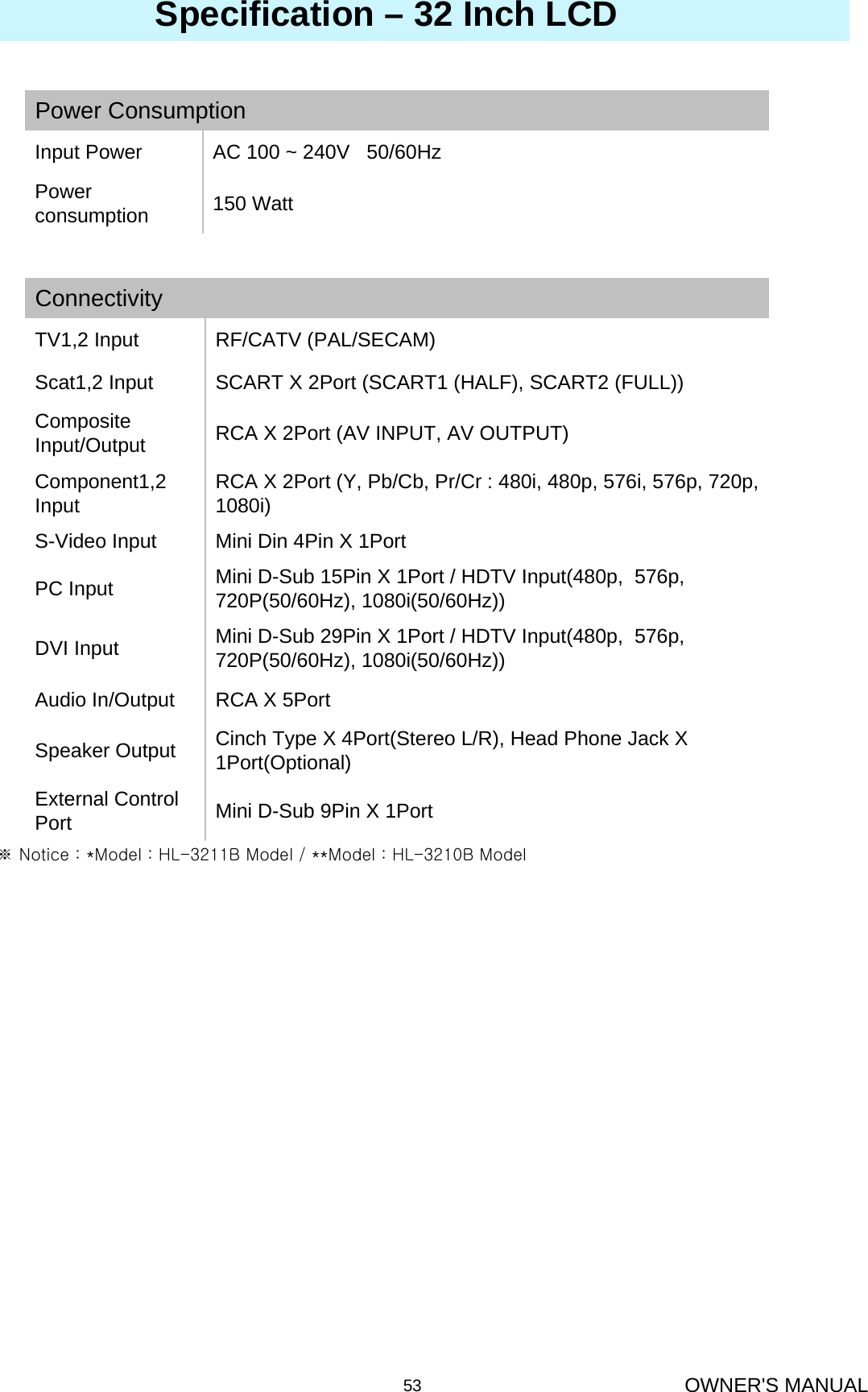

OWNER'S MANUAL53150 WattPower consumptionAC 100 ~ 240V 50/60HzInput PowerPower ConsumptionMini D-Sub 9Pin X 1PortExternal Control Port Cinch Type X 4Port(Stereo L/R), Head Phone Jack X 1Port(Optional)Speaker OutputRCA X 5PortAudio In/OutputMini D-Sub 29Pin X 1Port / HDTV Input(480p, 576p, 720P(50/60Hz), 1080i(50/60Hz))DVI InputMini D-Sub 15Pin X 1Port / HDTV Input(480p, 576p, 720P(50/60Hz), 1080i(50/60Hz))PC InputMini Din 4Pin X 1PortS-Video InputRCA X 2Port (Y, Pb/Cb, Pr/Cr : 480i, 480p, 576i, 576p, 720p, 1080i)Component1,2 InputRCA X 2Port (AV INPUT, AV OUTPUT)Composite Input/OutputSCART X 2Port (SCART1 (HALF), SCART2 (FULL))Scat1,2 InputRF/CATV (PAL/SECAM)TV1,2 InputConnectivitySpecification – 32 Inch LCD※ Notice : *Model : HL-3211B Model / **Model : HL-3210B Model

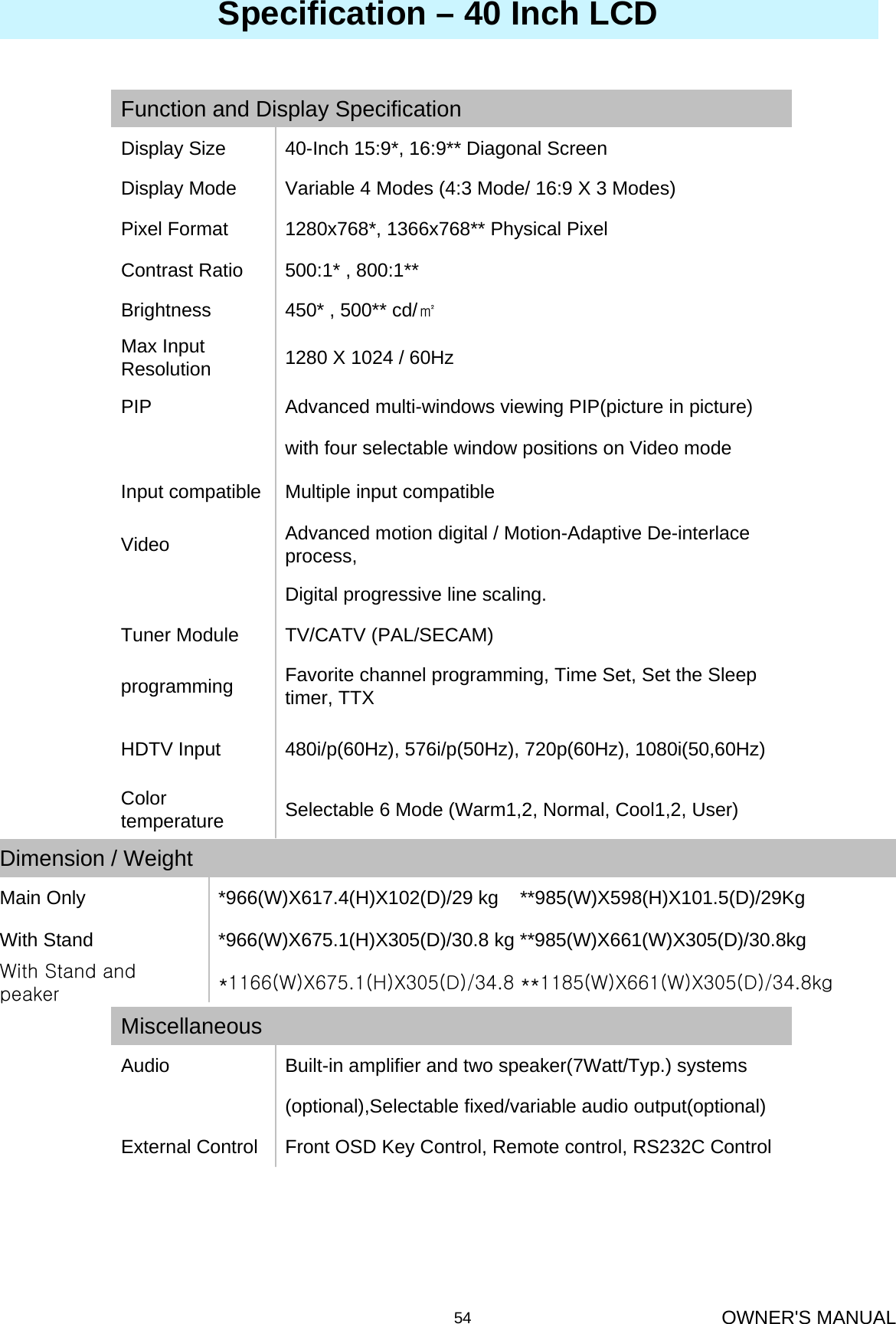

OWNER'S MANUAL54Selectable 6 Mode (Warm1,2, Normal, Cool1,2, User)Color temperature 480i/p(60Hz), 576i/p(50Hz), 720p(60Hz), 1080i(50,60Hz) HDTV InputFavorite channel programming, Time Set, Set the Sleep timer, TTXprogrammingTV/CATV (PAL/SECAM)Tuner ModuleDigital progressive line scaling.Advanced motion digital / Motion-Adaptive De-interlace process,VideoMultiple input compatibleInput compatiblewith four selectable window positions on Video modeAdvanced multi-windows viewing PIP(picture in picture) PIP1280 X 1024 / 60Hz Max Input Resolution 450* , 500** cd/㎡Brightness500:1* , 800:1**Contrast Ratio1280x768*, 1366x768** Physical Pixel Pixel FormatVariable 4 Modes (4:3 Mode/ 16:9 X 3 Modes)Display Mode40-Inch 15:9*, 16:9** Diagonal ScreenDisplay SizeFunction and Display Specification*1166(W)X675.1(H)X305(D)/34.8 **1185(W)X661(W)X305(D)/34.8kgWith Stand and peaker*966(W)X675.1(H)X305(D)/30.8 kg **985(W)X661(W)X305(D)/30.8kgWith Stand*966(W)X617.4(H)X102(D)/29 kg **985(W)X598(H)X101.5(D)/29KgMain OnlyDimension / WeightSpecification – 40 Inch LCDFront OSD Key Control, Remote control, RS232C ControlExternal Control(optional),Selectable fixed/variable audio output(optional)Built-in amplifier and two speaker(7Watt/Typ.) systemsAudioMiscellaneous

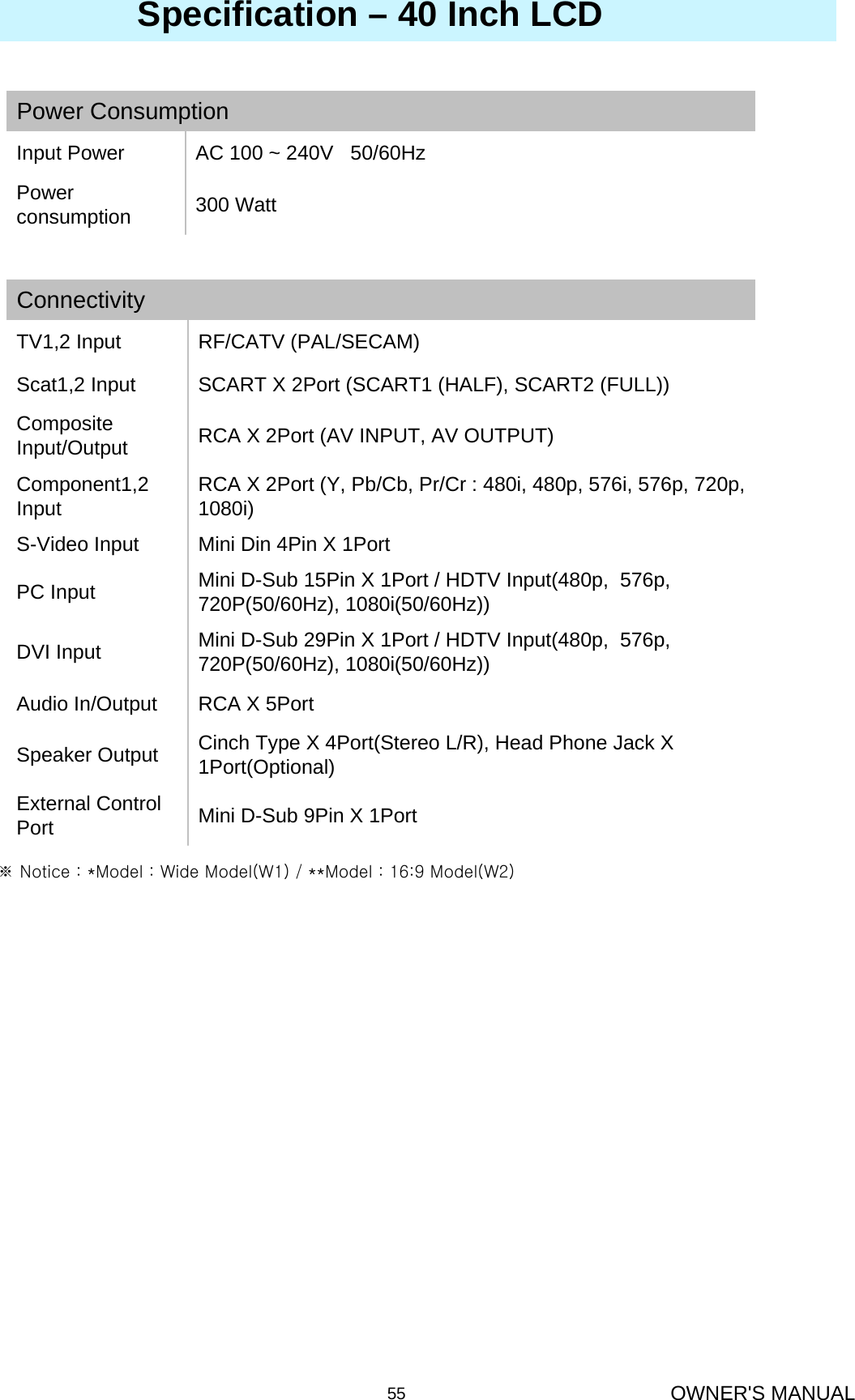

OWNER'S MANUAL55300 WattPower consumptionAC 100 ~ 240V 50/60HzInput PowerPower ConsumptionMini D-Sub 9Pin X 1PortExternal Control Port Cinch Type X 4Port(Stereo L/R), Head Phone Jack X 1Port(Optional)Speaker OutputRCA X 5PortAudio In/OutputMini D-Sub 29Pin X 1Port / HDTV Input(480p, 576p, 720P(50/60Hz), 1080i(50/60Hz))DVI InputMini D-Sub 15Pin X 1Port / HDTV Input(480p, 576p, 720P(50/60Hz), 1080i(50/60Hz))PC InputMini Din 4Pin X 1PortS-Video InputRCA X 2Port (Y, Pb/Cb, Pr/Cr : 480i, 480p, 576i, 576p, 720p, 1080i)Component1,2 InputRCA X 2Port (AV INPUT, AV OUTPUT)Composite Input/OutputSCART X 2Port (SCART1 (HALF), SCART2 (FULL))Scat1,2 InputRF/CATV (PAL/SECAM)TV1,2 InputConnectivitySpecification – 40 Inch LCD※ Notice : *Model : Wide Model(W1) / **Model : 16:9 Model(W2)

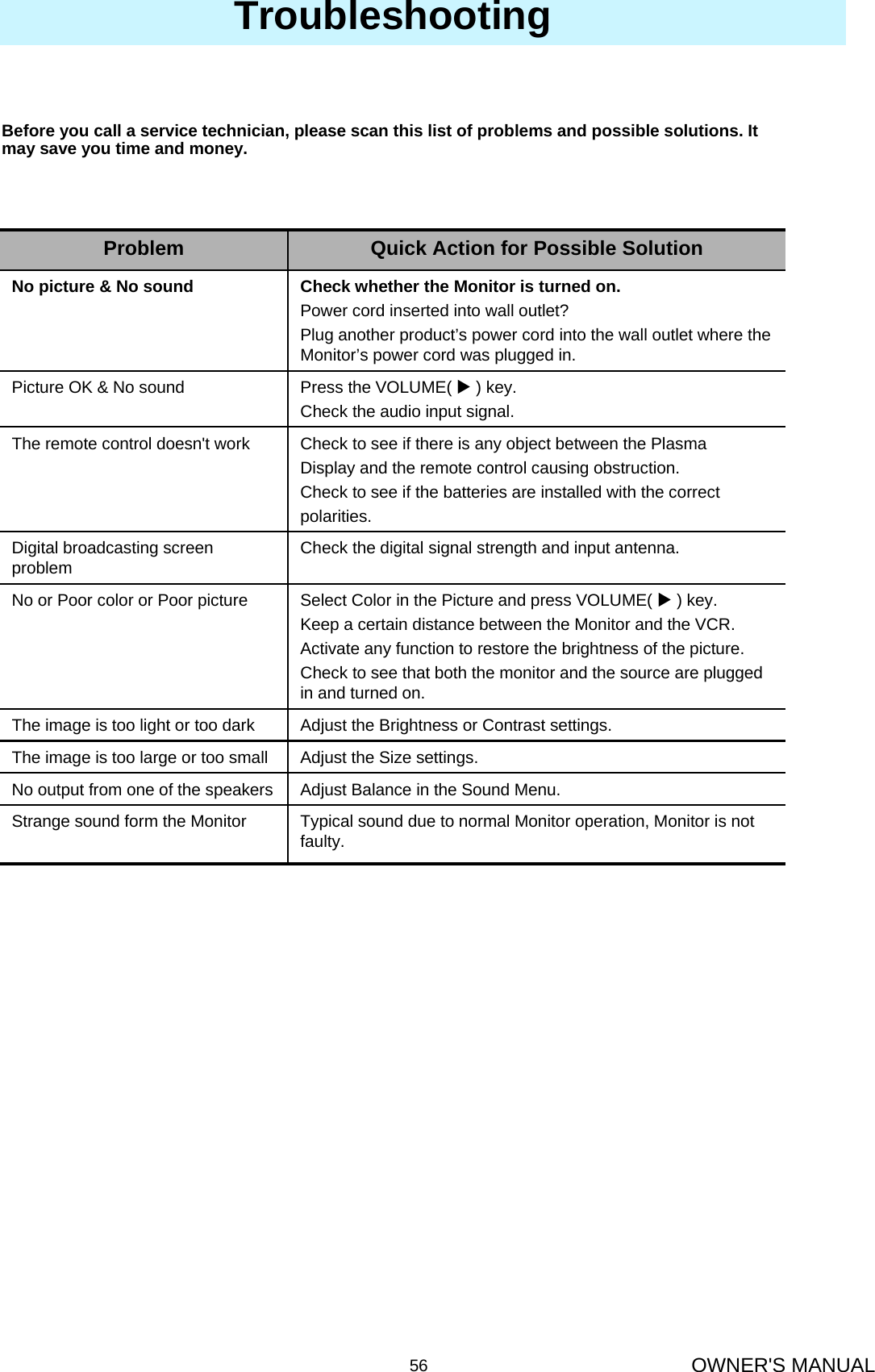

OWNER'S MANUAL56TroubleshootingCheck the digital signal strength and input antenna.Digital broadcasting screen problemTypical sound due to normal Monitor operation, Monitor is not faulty.Strange sound form the MonitorAdjust Balance in the Sound Menu.No output from one of the speakersAdjust the Size settings.The image is too large or too smallAdjust the Brightness or Contrast settings.The image is too light or too darkSelect Color in the Picture and press VOLUME( X) key.Keep a certain distance between the Monitor and the VCR.Activate any function to restore the brightness of the picture.Check to see that both the monitor and the source are plugged in and turned on.No or Poor color or Poor pictureCheck to see if there is any object between the PlasmaDisplay and the remote control causing obstruction.Check to see if the batteries are installed with the correctpolarities.The remote control doesn't workPress the VOLUME( X) key.Check the audio input signal.Picture OK & No soundCheck whether the Monitor is turned on.Power cord inserted into wall outlet?Plug another product’s power cord into the wall outlet where the Monitor’s power cord was plugged in.No picture & No soundQuick Action for Possible SolutionProblemBefore you call a service technician, please scan this list of problems and possible solutions. It may save you time and money.
