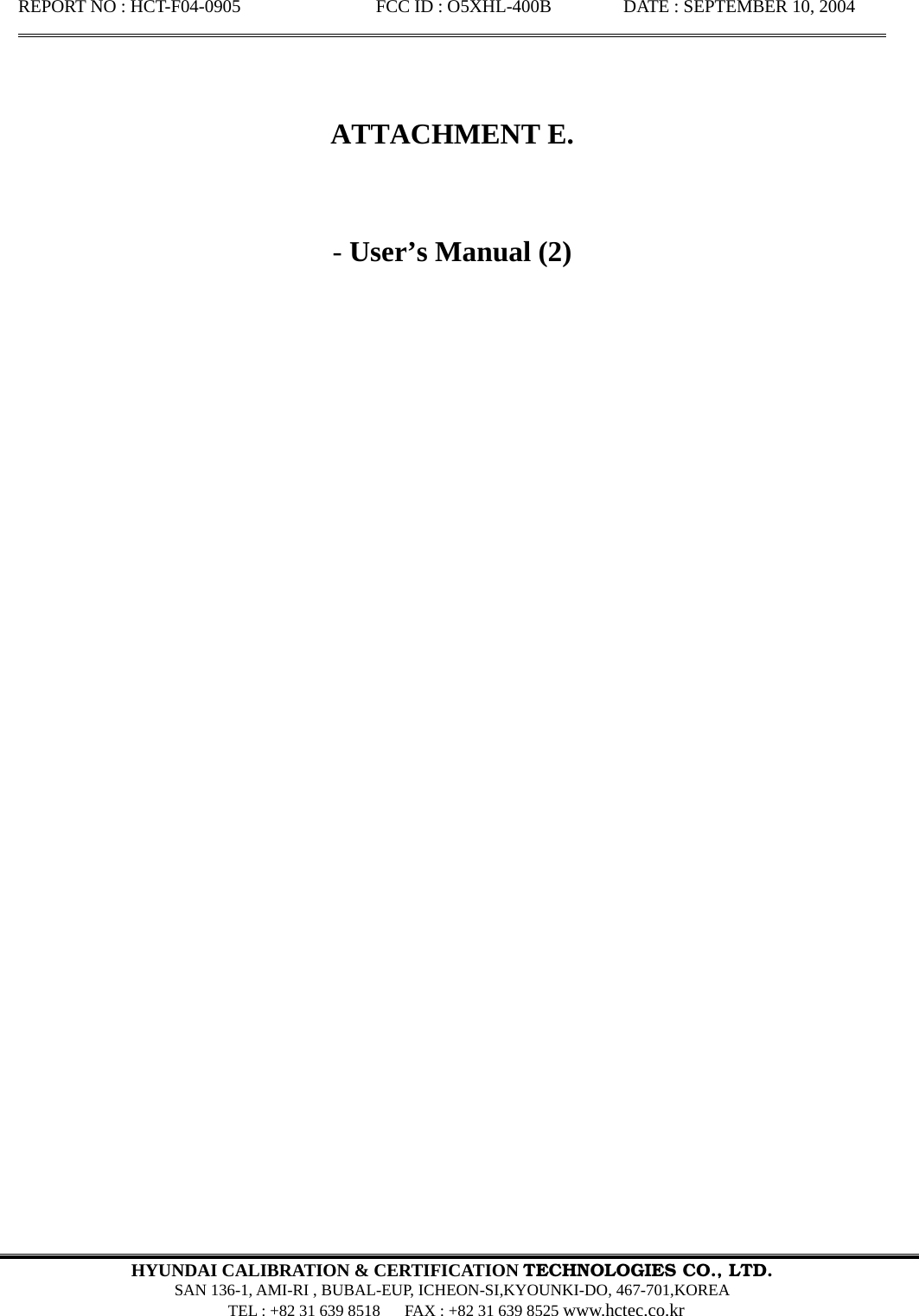

REPORT NO : HCT-F04-0905 FCC ID : O5XHL-400B DATE : SEPTEMBER 10, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr ATTACHMENT E. - User’s Manual (2)

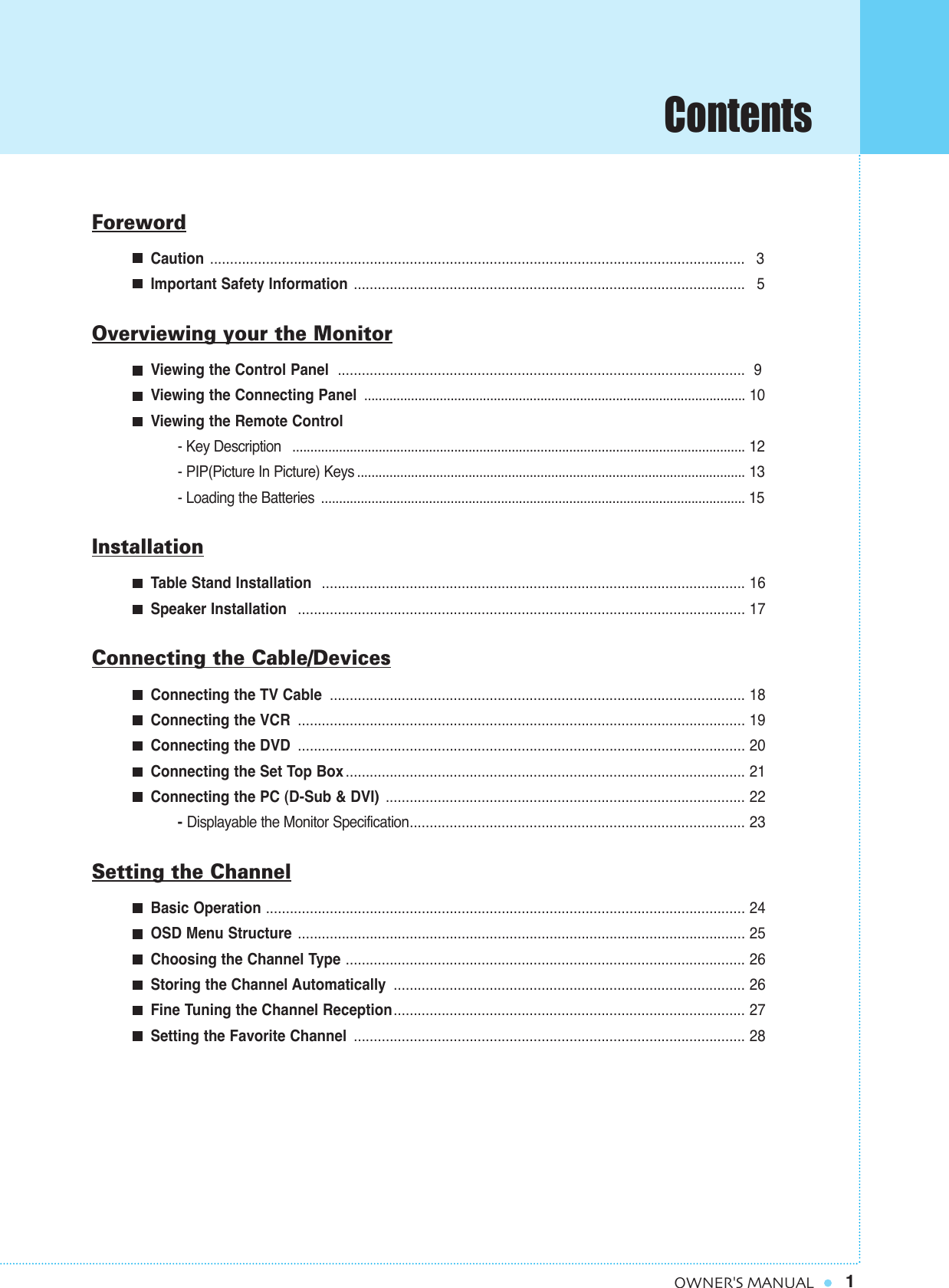

Contents1OWNER'S MANUALForewordCaution ...................................................................................................................................... 3Important Safety Information .................................................................................................. 5Overviewing your the MonitorViewing the Control Panel ...................................................................................................... 9Viewing the Connecting Panel .......................................................................................................... 10Viewing the Remote Control- Key Description .............................................................................................................................. 12- PIP(Picture In Picture) Keys ............................................................................................................ 13- Loading the Batteries ...................................................................................................................... 15InstallationTable Stand Installation .......................................................................................................... 16Speaker Installation ................................................................................................................ 17Connecting the Cable/DevicesConnecting the TV Cable ........................................................................................................ 18Connecting the VCR ................................................................................................................ 19Connecting the DVD ................................................................................................................ 20Connecting the Set Top Box .................................................................................................... 21Connecting the PC (D-Sub & DVI) .......................................................................................... 22- Displayable the Monitor Specification.................................................................................... 23Setting the ChannelBasic Operation ........................................................................................................................ 24OSD Menu Structure ................................................................................................................ 25Choosing the Channel Type .................................................................................................... 26Storing the Channel Automatically ........................................................................................ 26Fine Tuning the Channel Reception........................................................................................ 27Setting the Favorite Channel .................................................................................................. 28

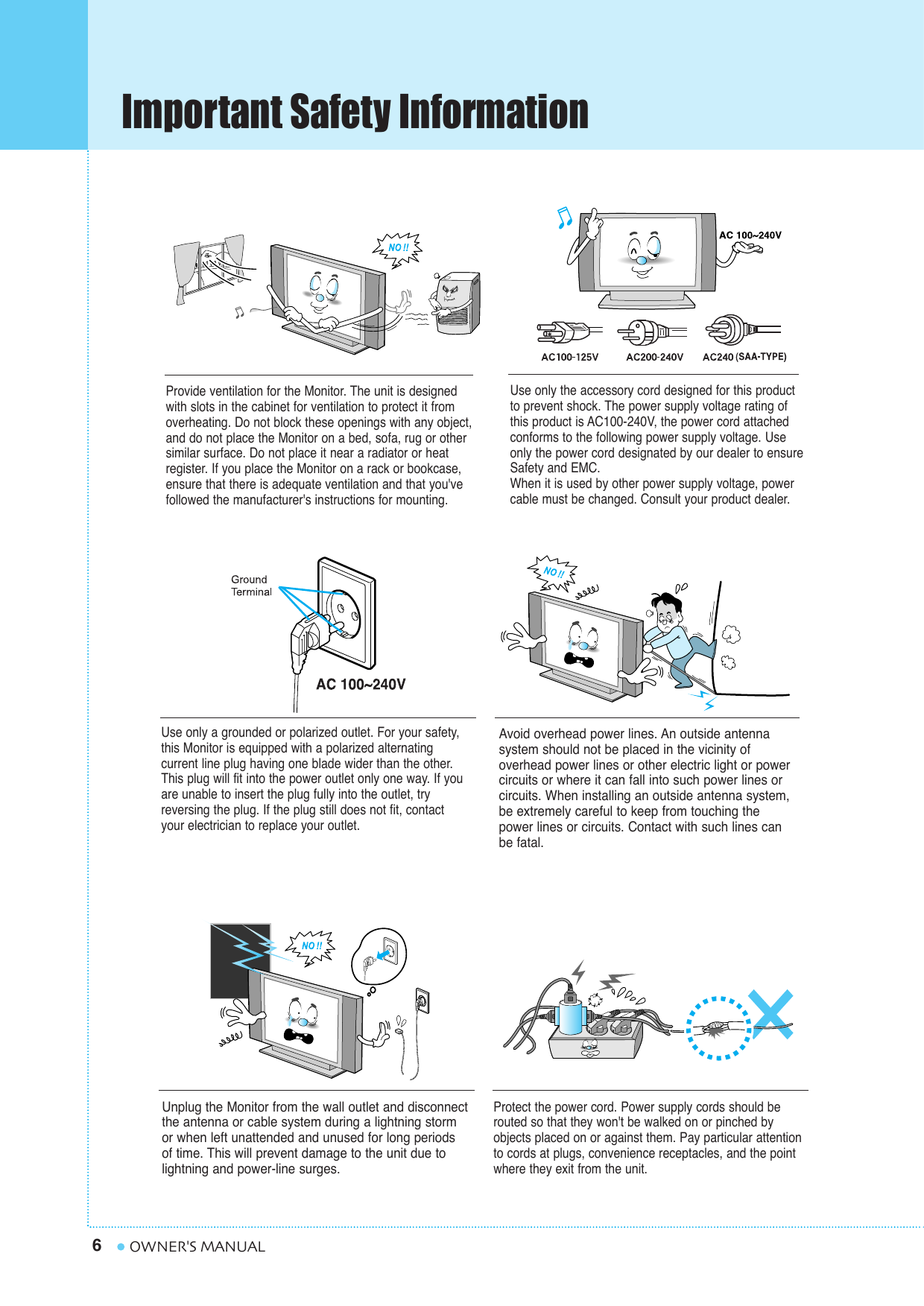

Important Safety Information6OWNER'S MANUALProvide ventilation for the Monitor. The unit is designedwith slots in the cabinet for ventilation to protect it fromoverheating. Do not block these openings with any object,and do not place the Monitor on a bed, sofa, rug or othersimilar surface. Do not place it near a radiator or heatregister. If you place the Monitor on a rack or bookcase,ensure that there is adequate ventilation and that you'vefollowed the manufacturer's instructions for mounting. Use only the accessory cord designed for this productto prevent shock. The power supply voltage rating ofthis product is AC100-240V, the power cord attachedconforms to the following power supply voltage. Useonly the power cord designated by our dealer to ensureSafety and EMC.When it is used by other power supply voltage, powercable must be changed. Consult your product dealer.Use only a grounded or polarized outlet. For your safety,this Monitor is equipped with a polarized alternating current line plug having one blade wider than the other.This plug will fit into the power outlet only one way. If youare unable to insert the plug fully into the outlet, tryreversing the plug. If the plug still does not fit, contactyour electrician to replace your outlet.Avoid overhead power lines. An outside antenna system should not be placed in the vicinity of overhead power lines or other electric light or powercircuits or where it can fall into such power lines orcircuits. When installing an outside antenna system,be extremely careful to keep from touching thepower lines or circuits. Contact with such lines canbe fatal.Unplug the Monitor from the wall outlet and disconnectthe antenna or cable system during a lightning storm or when left unattended and unused for long periods of time. This will prevent damage to the unit due tolightning and power-line surges.Protect the power cord. Power supply cords should berouted so that they won't be walked on or pinched byobjects placed on or against them. Pay particular attentionto cords at plugs, convenience receptacles, and the pointwhere they exit from the unit.
13OWNER'S MANUALMTSChoose the MTS (Stereo) mode. Each time it ispressed, different mode is selected.Mono ➔ Stereo ➔ SAP• You can select only available modes depending on the source.CH INFODisplay the current information about time, screenform, source and MTS mode.PICTUREThere are 4 picture modes.Standard ➔ Vivid ➔ Mild ➔ UserSTILLTemporarily freeze the screen and restore it.SOUNDChoose the sound equalizer settings.Standard ➔ Movie ➔ Music ➔ News ➔ UserSLEEPSet the preset time interval for automatic turn-off.OFF ➔ 10 ➔ 20 ➔ 30 ➔ 60 ➔ 90 ➔ 120 ➔ 150 ➔180TIMEDisplay the current time on the screen.DigestDisplay 15 TV programs at the same time.CH ADDAdd the current channel to memory.CH ERASEErase the current channel from memory.CLOSE CAPTIONSet the close caption.OFF ➔ Close Caption1 ➔ Close Caption2 ➔ Text1➔ Text2V-CHIPGet into V-Chip menu.123456789121110PIP (Picture In Picture) KeysMODE (On / Off)Activate PIP function and change the PIPwindow size and PIP mode.Small ➔ Large ➔ Twin (Half) ➔ OFFSOURCEChange the PIP window source.SWAPSwap the main screen and the PIP window.MOVEMove the position of the PIP window.2610437159812111615131413141516Viewing the Remote Control

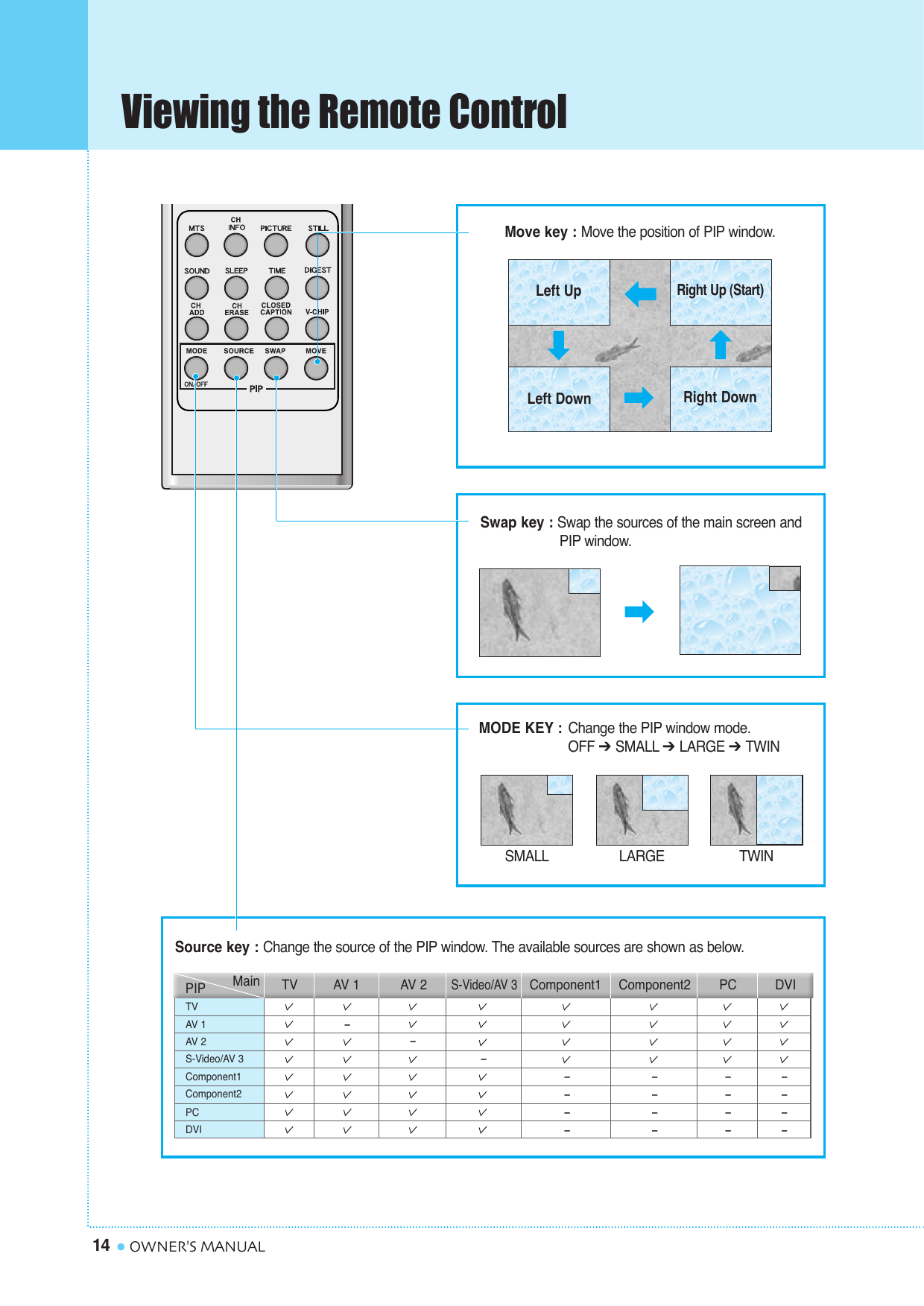

Viewing the Remote Control14 OWNER'S MANUALSource key : Change the source of the PIP window. The available sources are shown as below.Move key : Move the position of PIP window.Swap key : Swap the sources of the main screen and PIP window.Left UpRight Up (Start)Left Down Right DownMODE KEY : Change the PIP window mode.OFF ➔ SMALL ➔ LARGE ➔ TWINSMALL LARGE TWINTVAV 1AV 2S-Video/AV 3Component1Component2PCDVI––––––––––––––––––PIP Main TV AV 1–AV 2S-Video/AV 3Component1 Component2 PC DVI

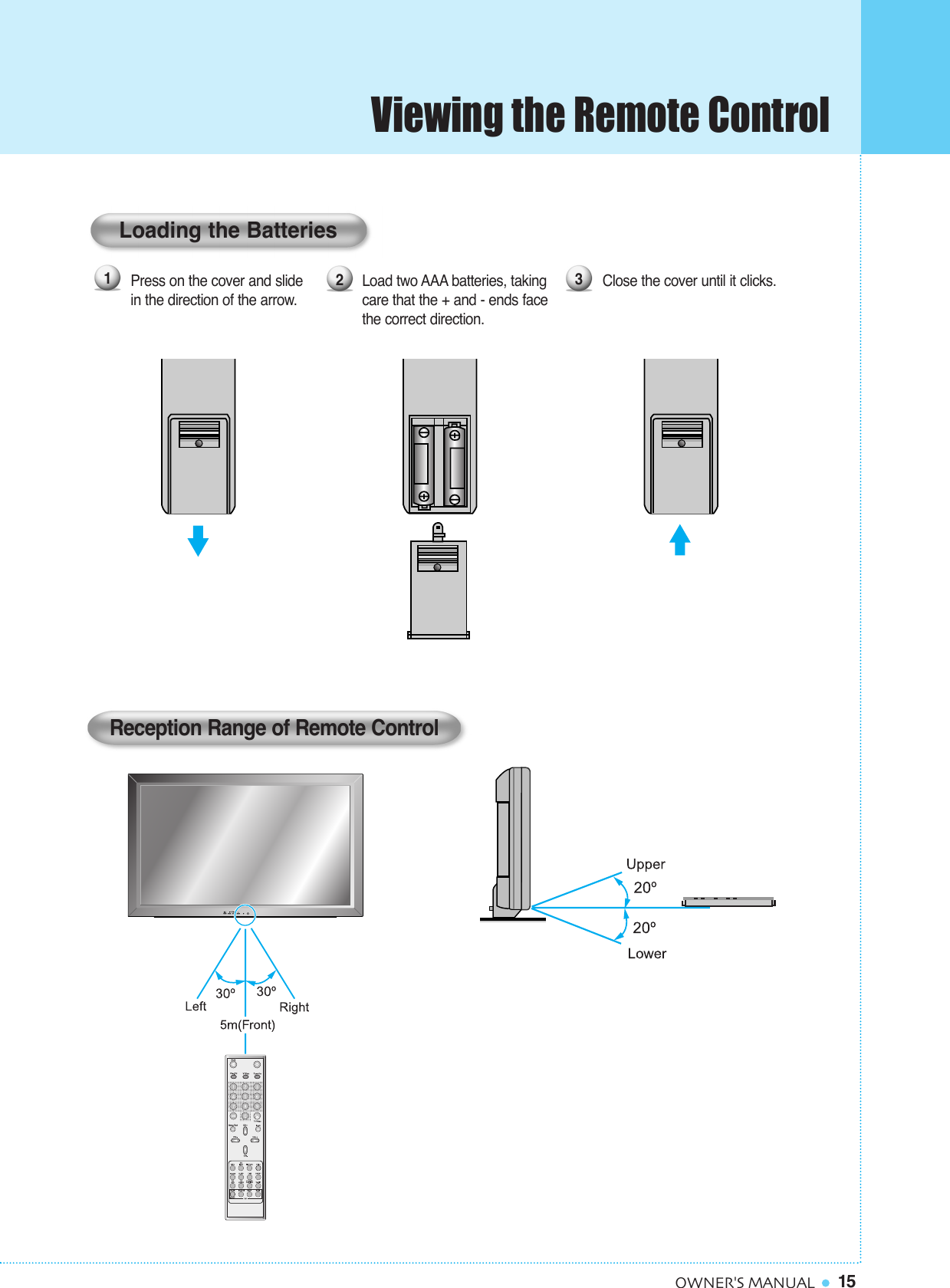

15OWNER'S MANUALClose the cover until it clicks. Load two AAA batteries, takingcare that the + and - ends facethe correct direction.Press on the cover and slide in the direction of the arrow.123Loading the BatteriesReception Range of Remote ControlViewing the Remote Control

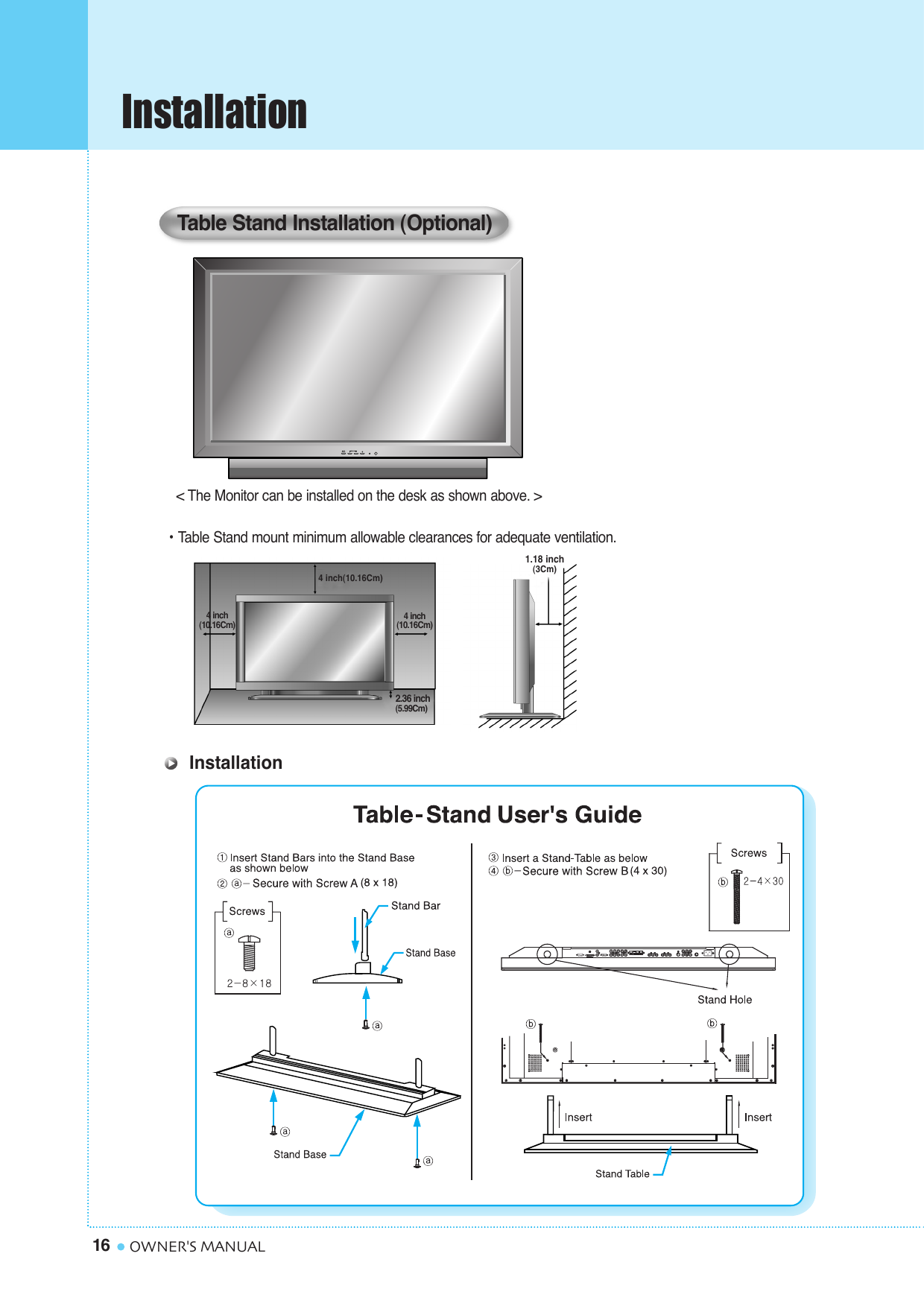

Installation16 OWNER'S MANUAL< The Monitor can be installed on the desk as shown above. >• Table Stand mount minimum allowable clearances for adequate ventilation.Table Stand Installation (Optional)1.18 inch(3Cm)2.36 inch(5.99Cm)4 inch(10.16Cm)4 inch(10.16Cm)4 inch(10.16Cm)Installation

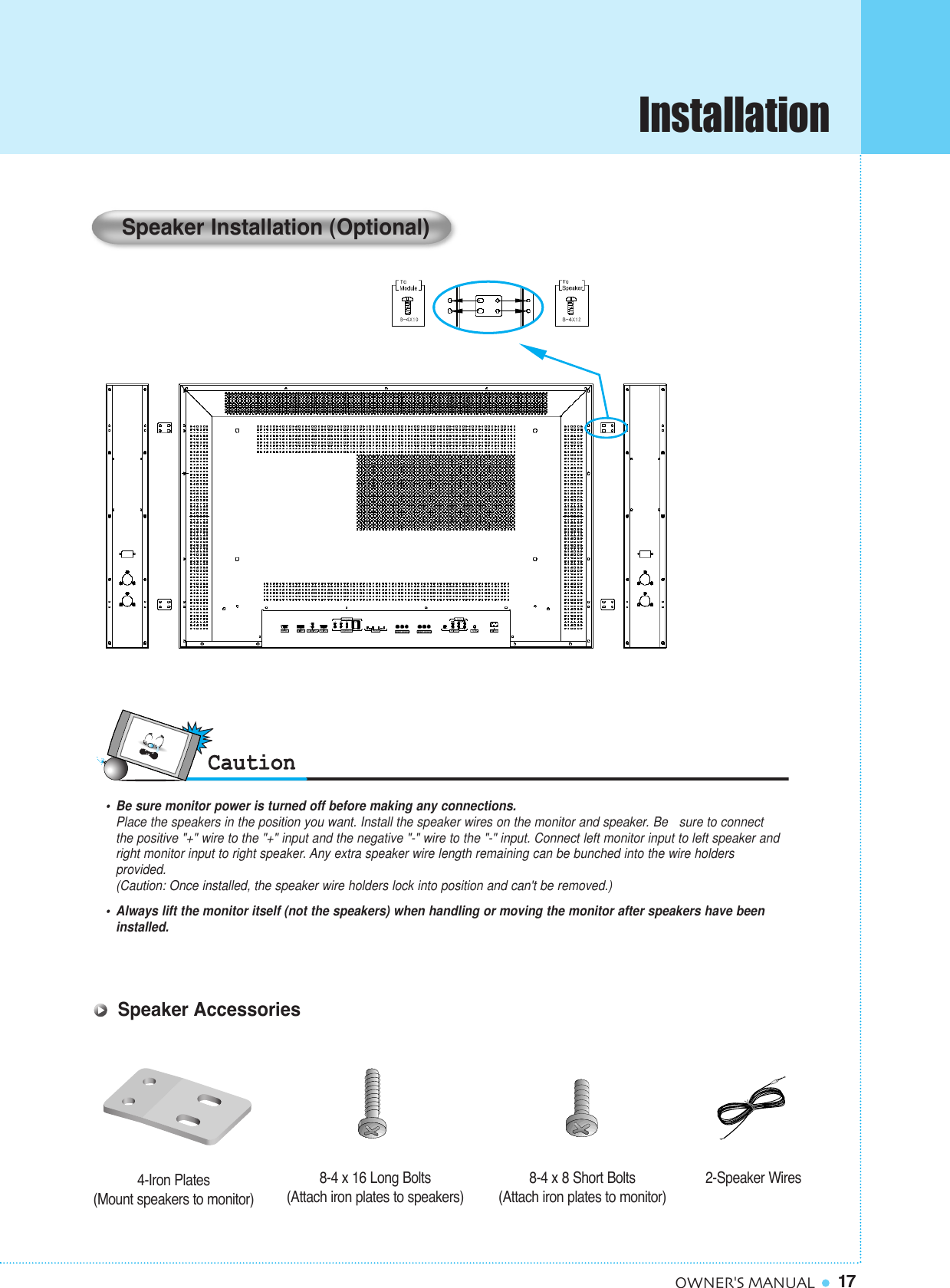

17OWNER'S MANUAL• Be sure monitor power is turned off before making any connections.Place the speakers in the position you want. Install the speaker wires on the monitor and speaker. Be sure to connect the positive "+" wire to the "+" input and the negative "-" wire to the "-" input. Connect left monitor input to left speaker and right monitor input to right speaker. Any extra speaker wire length remaining can be bunched into the wire holders provided.(Caution: Once installed, the speaker wire holders lock into position and can't be removed.)• Always lift the monitor itself (not the speakers) when handling or moving the monitor after speakers have been installed. Speaker Installation (Optional)4-Iron Plates(Mount speakers to monitor) 8-4 x 16 Long Bolts(Attach iron plates to speakers)8-4 x 8 Short Bolts(Attach iron plates to monitor) 2-Speaker WiresSpeaker AccessoriesInstallation

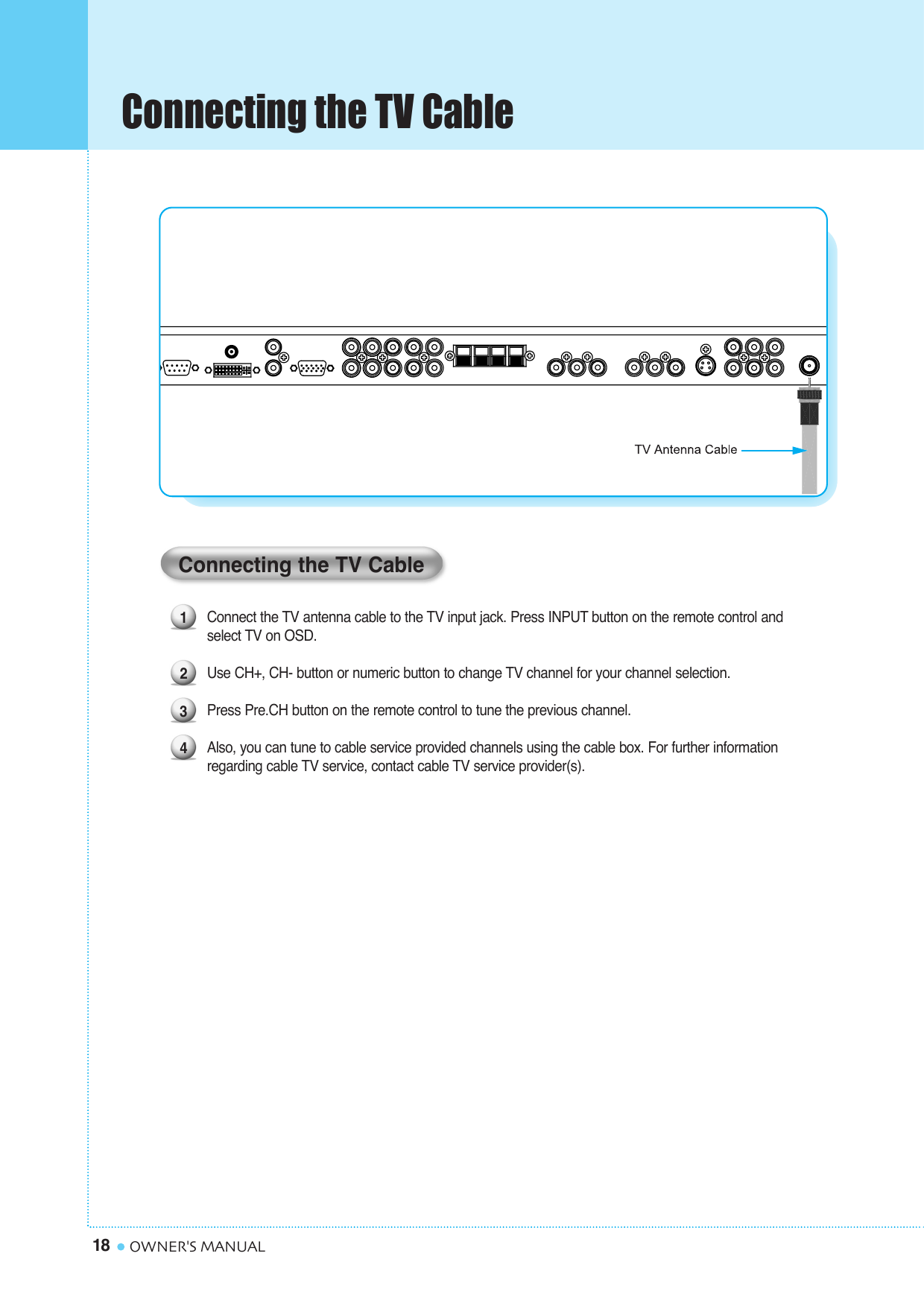

Connecting the TV Cable18 OWNER'S MANUAL1234Connecting the TV CableConnect the TV antenna cable to the TV input jack. Press INPUT button on the remote control and select TV on OSD.Use CH+, CH- button or numeric button to change TV channel for your channel selection. Press Pre.CH button on the remote control to tune the previous channel.Also, you can tune to cable service provided channels using the cable box. For further information regarding cable TV service, contact cable TV service provider(s).

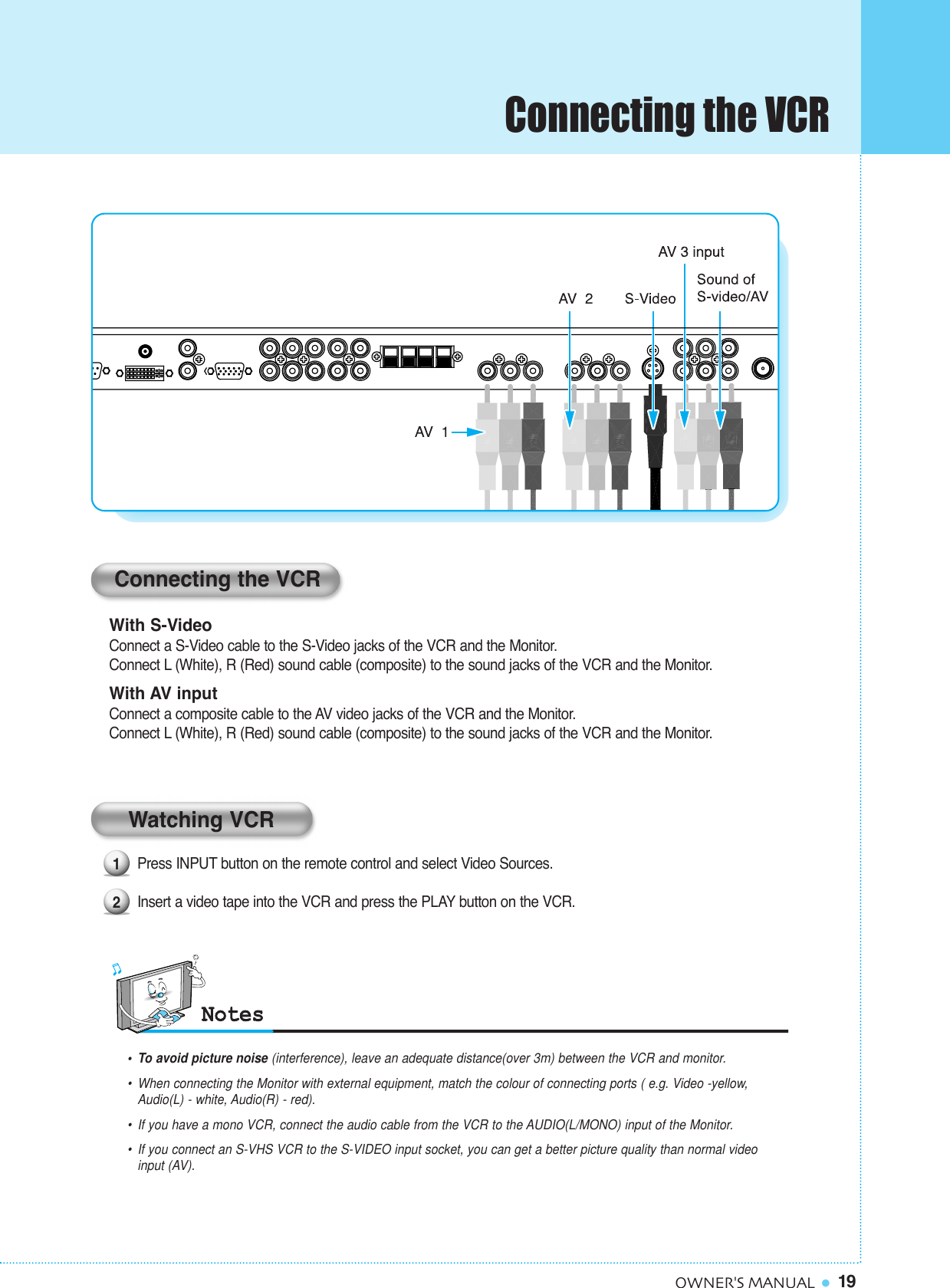

19OWNER'S MANUALPress INPUT button on the remote control and select Video Sources. Insert a video tape into the VCR and press the PLAY button on the VCR. With S-VideoConnect a S-Video cable to the S-Video jacks of the VCR and the Monitor.Connect L (White), R (Red) sound cable (composite) to the sound jacks of the VCR and the Monitor.With AV inputConnect a composite cable to the AV video jacks of the VCR and the Monitor.Connect L (White), R (Red) sound cable (composite) to the sound jacks of the VCR and the Monitor.Connecting the VCR12Watching VCR•To avoid picture noise (interference), leave an adequate distance(over 3m) between the VCR and monitor.• When connecting the Monitor with external equipment, match the colour of connecting ports ( e.g. Video -yellow, Audio(L) - white, Audio(R) - red).•If you have a mono VCR, connect the audio cable from the VCR to the AUDIO(L/MONO) input of the Monitor.• If you connect an S-VHS VCR to the S-VIDEO input socket, you can get a better picture quality than normal video input (AV).Connecting the VCR

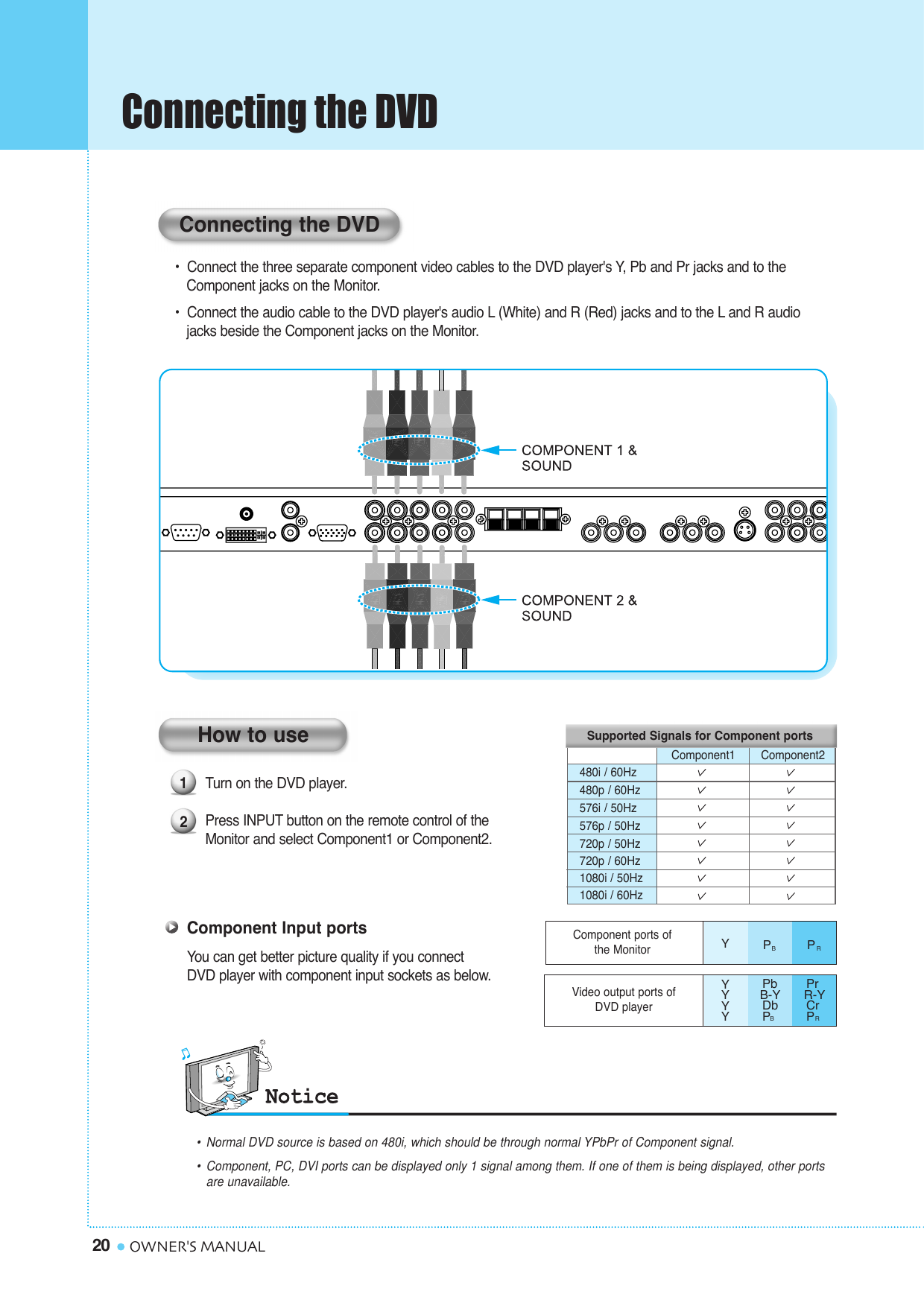

Connecting the DVD20 OWNER'S MANUALTurn on the DVD player. Press INPUT button on the remote control of theMonitor and select Component1 or Component2.• Connect the three separate component video cables to the DVD player's Y, Pb and Pr jacks and to the Component jacks on the Monitor.• Connect the audio cable to the DVD player's audio L (White) and R (Red) jacks and to the L and R audio jacks beside the Component jacks on the Monitor.Connecting the DVD12How to useComponent Input portsYou can get better picture quality if you connect DVD player with component input sockets as below.Video output ports of DVD playerYYYYPbB-YDbPBPrR-YCrPRYPBPR480i / 60Hz480p / 60Hz576i / 50Hz576p / 50Hz720p / 50Hz720p / 60Hz1080i / 50Hz1080i / 60HzSupported Signals for Component portsComponent1 Component2Component ports of the Monitor•Normal DVD source is based on 480i, which should be through normal YPbPr of Component signal.•Component, PC, DVI ports can be displayed only 1 signal among them. If one of them is being displayed, other portsare unavailable.

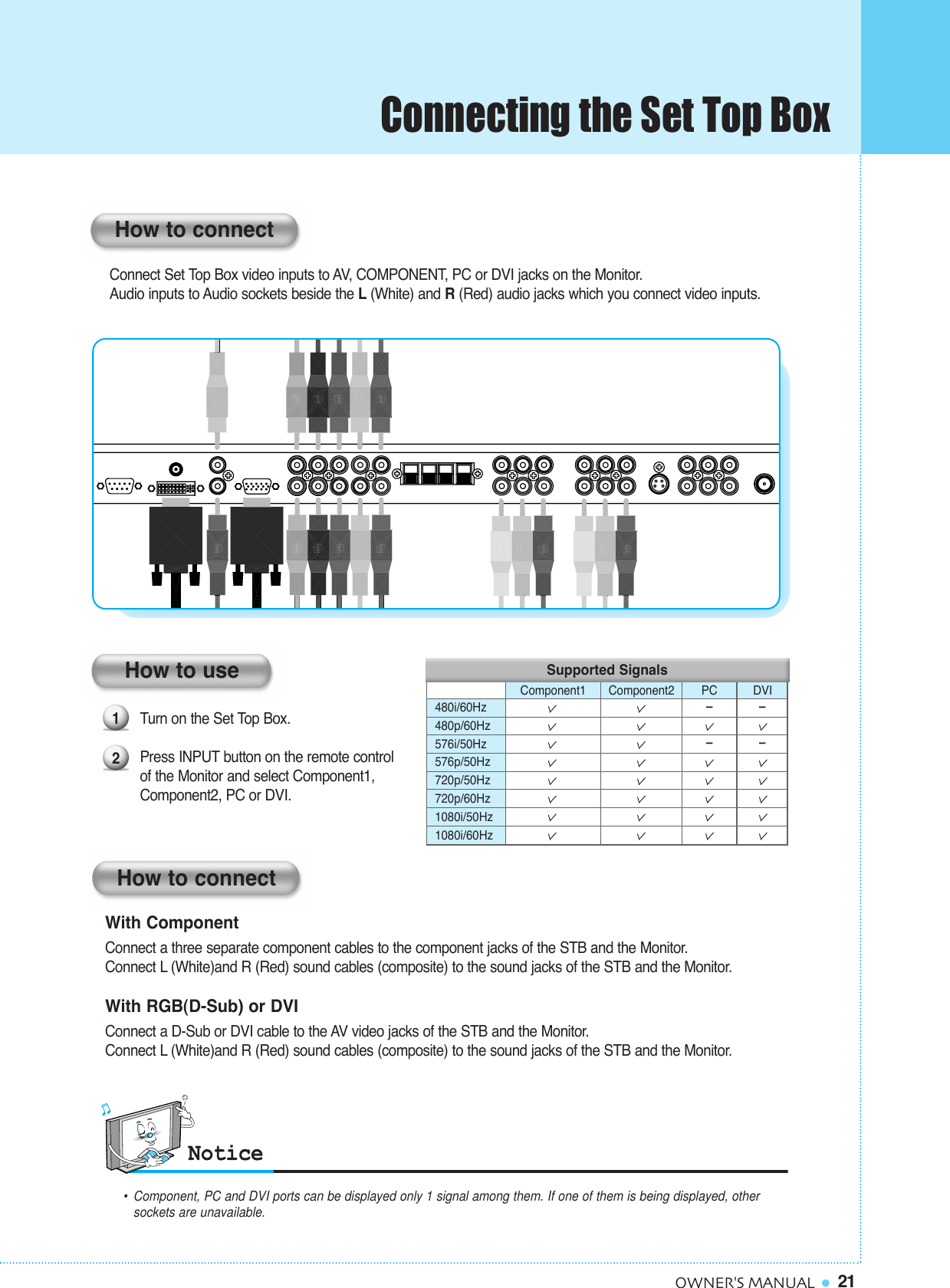

21OWNER'S MANUALTurn on the Set Top Box. Press INPUT button on the remote controlof the Monitor and select Component1,Component2, PC or DVI.Connect Set Top Box video inputs to AV, COMPONENT, PC or DVI jacks on the Monitor. Audio inputs to Audio sockets beside the L(White) and R(Red) audio jacks which you connect video inputs.How to connect12How to useHow to connectWith ComponentConnect a three separate component cables to the component jacks of the STB and the Monitor.Connect L (White)and R (Red) sound cables (composite) to the sound jacks of the STB and the Monitor.With RGB(D-Sub) or DVIConnect a D-Sub or DVI cable to the AV video jacks of the STB and the Monitor.Connect L (White)and R (Red) sound cables (composite) to the sound jacks of the STB and the Monitor.•Component, PC and DVI ports can be displayed only 1 signal among them. If one of them is being displayed, other sockets are unavailable.Supported Signals480i/60Hz480p/60Hz576i/50Hz576p/50Hz720p/50Hz720p/60Hz1080i/50Hz1080i/60Hz––––Component1 Component2 PC DVIConnecting the Set Top Box

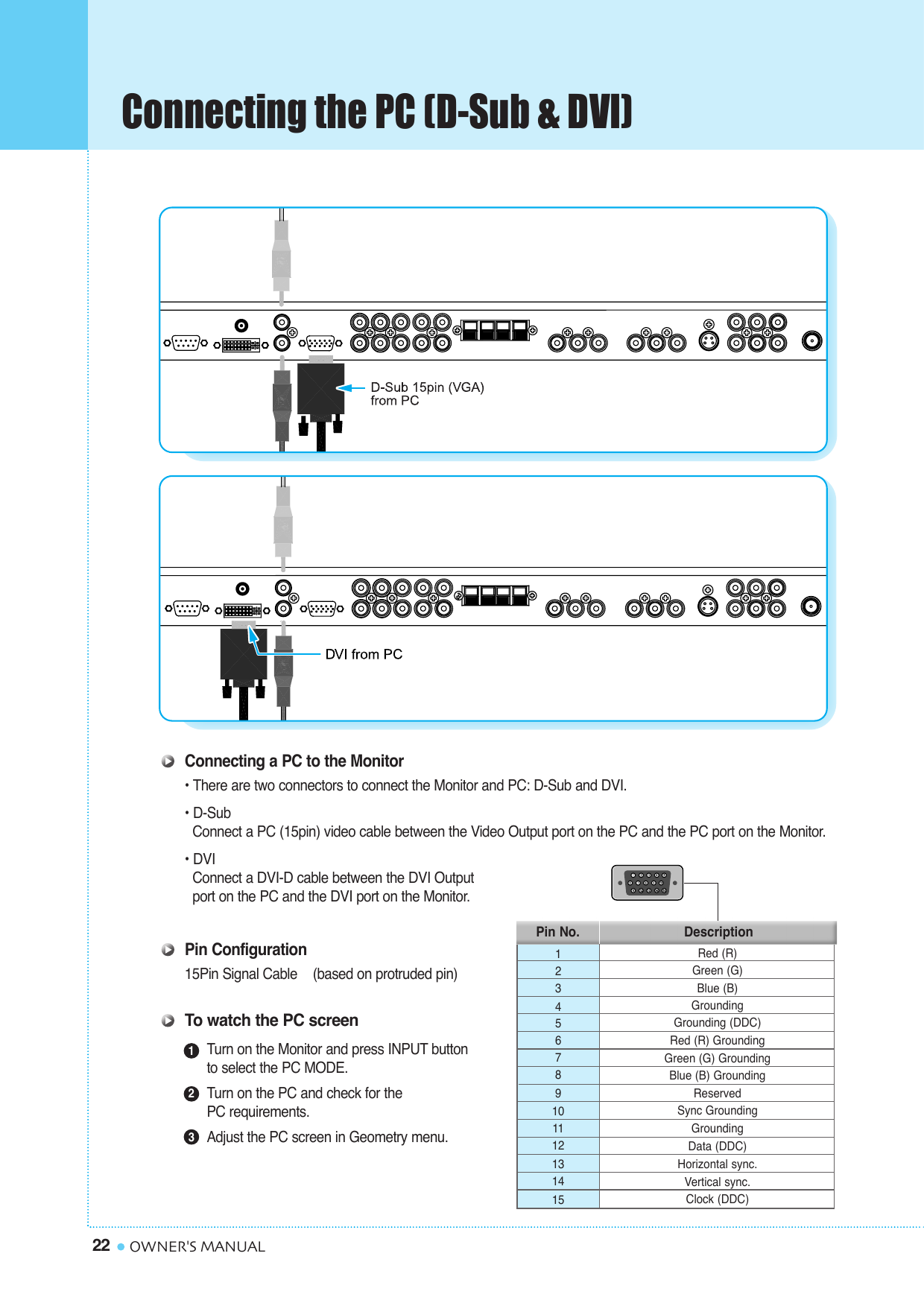

Connecting the PC (D-Sub & DVI)22 OWNER'S MANUALPin Configuration15Pin Signal Cable (based on protruded pin)To watch the PC screenTurn on the Monitor and press INPUT button to select the PC MODE.Turn on the PC and check for the PC requirements.Adjust the PC screen in Geometry menu. 123123456789101112131415Red (R)Green (G)Blue (B)GroundingGrounding (DDC)Red (R) GroundingGreen (G) GroundingBlue (B) GroundingReservedSync GroundingGroundingData (DDC)Horizontal sync.Vertical sync.Clock (DDC)Pin No. DescriptionConnecting a PC to the Monitor• There are two connectors to connect the Monitor and PC: D-Sub and DVI.• D-SubConnect a PC (15pin) video cable between the Video Output port on the PC and the PC port on the Monitor. • DVIConnect a DVI-D cable between the DVI Output port on the PC and the DVI port on the Monitor.
23OWNER'S MANUAL31.46837.86131.46937.92731.46935.00037.86137.50043.26945.91353.01164.06235.15637.87948.07746.87553.67456.00064.01649.72531.46848.36356.47660.02347.70064.00070.0985.0870.0885.0359.9466.6672.8075.0085.0090.03100.04120.00056.2560.3172.1875.0085.0690.00100.0074.5560.0560.0070.0675.0260.0060.00Resolution Horizontal Frequency (KHz) Vertical Frequency (Hz)•Synchronization input form : separate•The Monitor recognizes 640x480@60Hz signal as 480p DTV signal. So the signal is expanded, please try other signals like 640x480@75Hz.•The Monitor operates abnormally if a non-standard video format is selected. •1280 X 768 : 40" Native Resolution Horizontal Polarity is Positive(+) Vertical Polarity is Negative(-)•Depending on the manufacturer, your PC screen might appear differently (and depending on your particular version of Windows).Check your PC instruction book for information about connecting your PC to a the Monitor.• The Monitor may operate abnormally if a non-standard video signal.• "Out of range" message box will appear when an over-spec video signal is input. Change the video settings of PC when the message is displayed.• The PC signal is supported by DVI also.640 x 350640 x 400640 x 480800 x 600832 x 624852 x 4801024 x 7681280 x 7681280 x 1024Displayable Monitor Specification

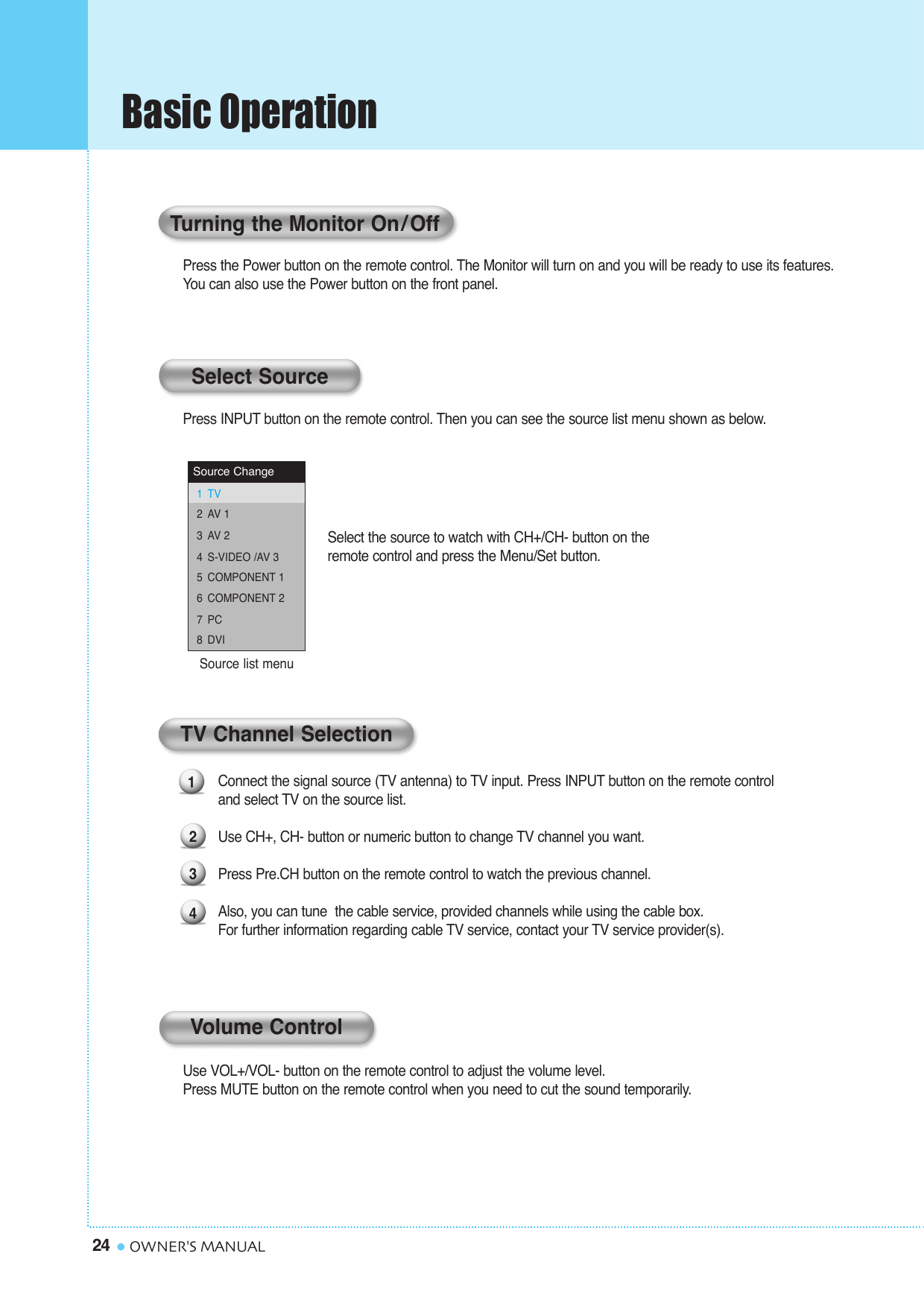

Basic Operation24 OWNER'S MANUALPress the Power button on the remote control. The Monitor will turn on and you will be ready to use its features. You can also use the Power button on the front panel.Press INPUT button on the remote control. Then you can see the source list menu shown as below.Connect the signal source (TV antenna) to TV input. Press INPUT button on the remote control and select TV on the source list.Use CH+, CH- button or numeric button to change TV channel you want. Press Pre.CH button on the remote control to watch the previous channel. Also, you can tune the cable service, provided channels while using the cable box. For further information regarding cable TV service, contact your TV service provider(s).Use VOL+/VOL- button on the remote control to adjust the volume level.Press MUTE button on the remote control when you need to cut the sound temporarily.1234Select the source to watch with CH+/CH- button on theremote control and press the Menu/Set button.Source list menu Source ChangeTVAV 1AV 2S-VIDEO /AV 3COMPONENT 1COMPONENT 2PCDVI12345678Turning the Monitor On / OffSelect SourceVolume ControlTV Channel Selection

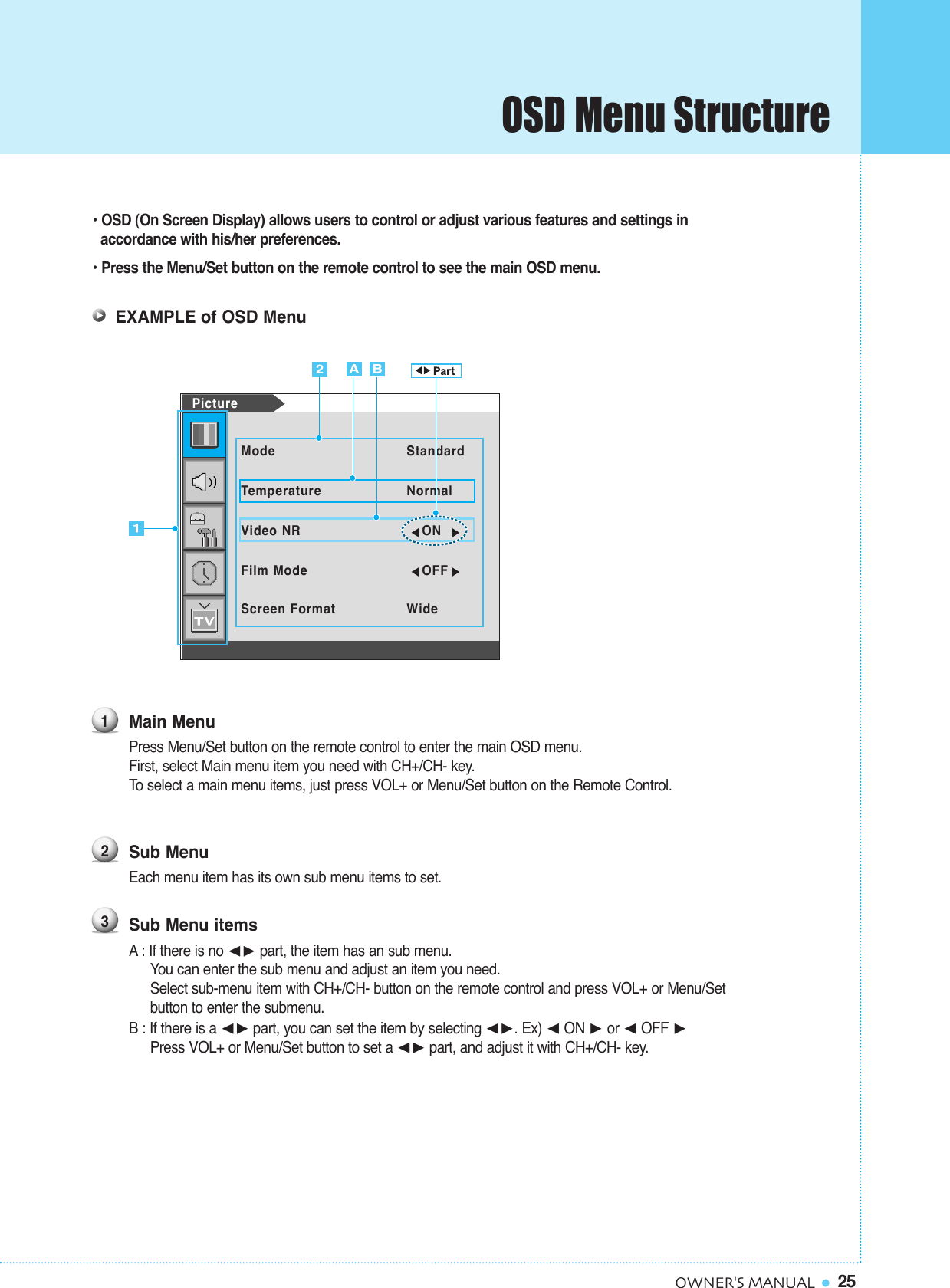

25OWNER'S MANUAL• OSD (On Screen Display) allows users to control or adjust various features and settings in accordance with his/her preferences.• Press the Menu/Set button on the remote control to see the main OSD menu.EXAMPLE of OSD MenuMain MenuPress Menu/Set button on the remote control to enter the main OSD menu.First, select Main menu item you need with CH+/CH- key.To select a main menu items, just press VOL+ or Menu/Set button on the Remote Control.Sub MenuEach menu item has its own sub menu items to set.Sub Menu itemsA: If there is no ¥part, the item has an sub menu.You can enter the sub menu and adjust an item you need.Select sub-menu item with CH+/CH- button on the remote control and press VOL+ or Menu/Set button to enter the submenu.B : If there is a ¥part, you can set the item by selecting ¥. Ex) ¥ON or ¥OFF Press VOL+ or Menu/Set button to set a ¥part, and adjust it with CH+/CH- key.123ModeTemperatureVideo NRFilm ModeScreen FormatStandardNormalONOFFWidePictureOSD Menu Structure
Setting the Channel26 OWNER'S MANUALBefore your television can begin memorizing the available channels, you must specify the type of signal source that is connected to the TV (i.e., an antenna, a standard cable system, an HRC, or an IRC).Press Menu/set button to display the main OSD menu.Select the TV main menu item. Press Menu/Set to enter the sub menu. Select Channel Type and press VOL+ button to enter the ¥ parts. Then the cursor movesinto the ¥ parts.Select the channel type with CH+/CH- buttonand press BACK button. You can select AIR, CATV (Cable TV), IRC or HRC.Press Menu/set button to display the main OSD menu. Select the TV Main menu.Press Menu/Set to enter the sub menu. Select Auto Scan with CH+/CH- buttonand press Menu/Set buttonon the remote control. Then the tuning bar will appear and scanning will start.12345•You can enter the TV menu in TV mode only. (When you watch a TV channel.)Channel Type¥CATV Auto ScanFine TuneCH¥CATV 5 Channel Type¥CATV Auto ScanFine TuneCH¥CATV 5 1234Auto Scan UHF 16•Only scanned channels can be stored as Favorite channels.Channel Type¥CATV Auto ScanFine TuneCH¥CATV 5 Channel TypeAuto Scan

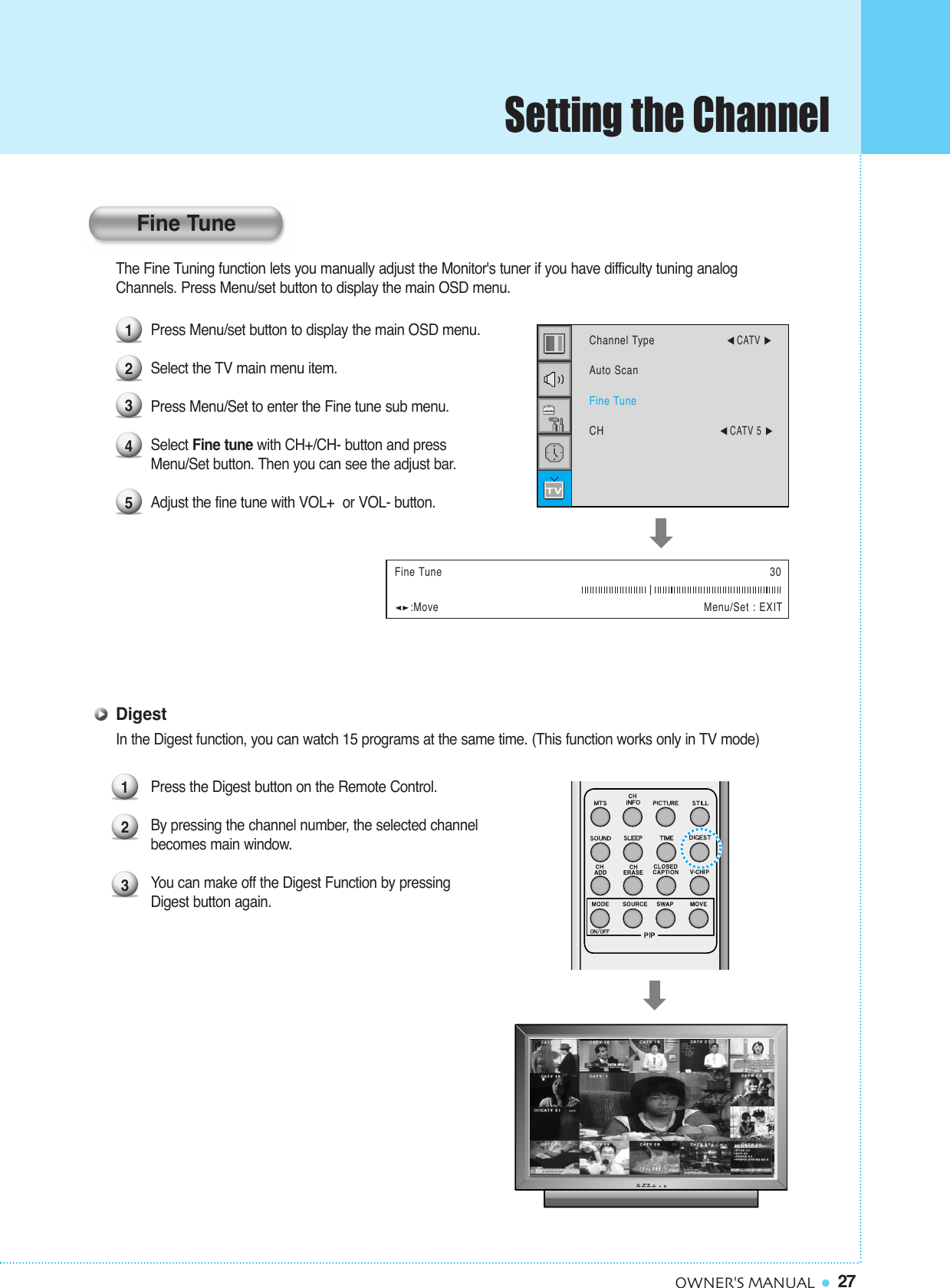

27OWNER'S MANUALThe Fine Tuning function lets you manually adjust the Monitor's tuner if you have difficulty tuning analog Channels. Press Menu/set button to display the main OSD menu.Press Menu/set button to display the main OSD menu. Select the TV main menu item.Press Menu/Set to enter the Fine tune sub menu.Select Fine tune with CH+/CH- button and press Menu/Set button. Then you can see the adjust bar.Adjust the fine tune with VOL+ or VOL- button.DigestIn the Digest function, you can watch 15 programs at the same time. (This function works only in TV mode)Press the Digest button on the Remote Control.By pressing the channel number, the selected channel becomes main window.You can make off the Digest Function by pressing Digest button again.12345Fine Tune 30:Move Menu/Set : EXITChannel Type¥CATV Auto ScanFine TuneCH¥CATV 5 123Fine TuneSetting the Channel

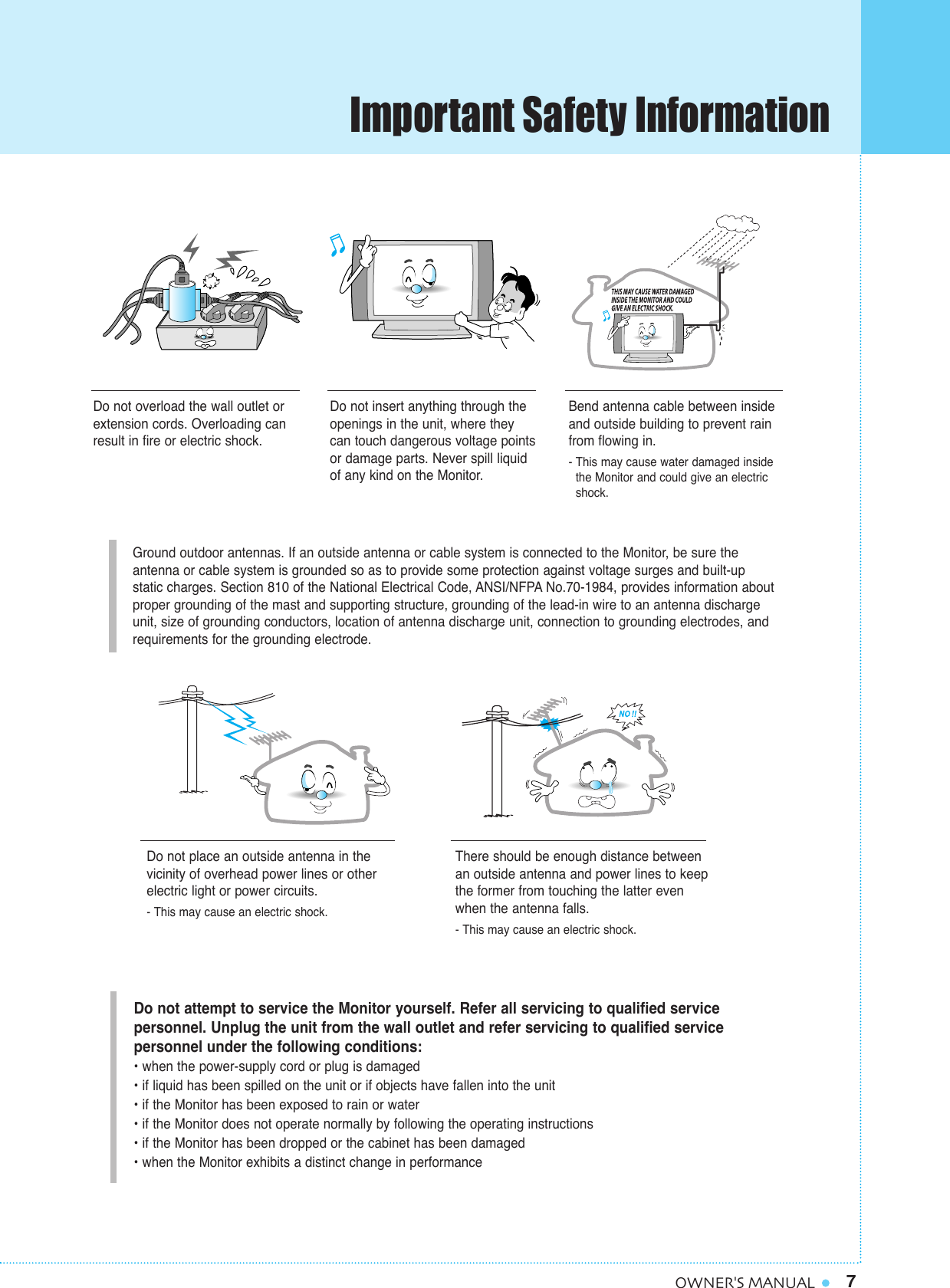

7OWNER'S MANUALGround outdoor antennas. If an outside antenna or cable system is connected to the Monitor, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Section 810 of the National Electrical Code, ANSI/NFPA No.70-1984, provides information aboutproper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna dischargeunit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.Do not overload the wall outlet orextension cords. Overloading canresult in fire or electric shock.Do not insert anything through theopenings in the unit, where theycan touch dangerous voltage pointsor damage parts. Never spill liquidof any kind on the Monitor.Bend antenna cable between insideand outside building to prevent rainfrom flowing in. - This may cause water damaged inside the Monitor and could give an electric shock.Do not place an outside antenna in thevicinity of overhead power lines or other electric light or power circuits.- This may cause an electric shock.There should be enough distance betweenan outside antenna and power lines to keepthe former from touching the latter evenwhen the antenna falls.- This may cause an electric shock.Do not attempt to service the Monitor yourself. Refer all servicing to qualified service personnel. Unplug the unit from the wall outlet and refer servicing to qualified service personnel under the following conditions:• when the power-supply cord or plug is damaged• if liquid has been spilled on the unit or if objects have fallen into the unit• if the Monitor has been exposed to rain or water• if the Monitor does not operate normally by following the operating instructions• if the Monitor has been dropped or the cabinet has been damaged• when the Monitor exhibits a distinct change in performanceImportant Safety Information

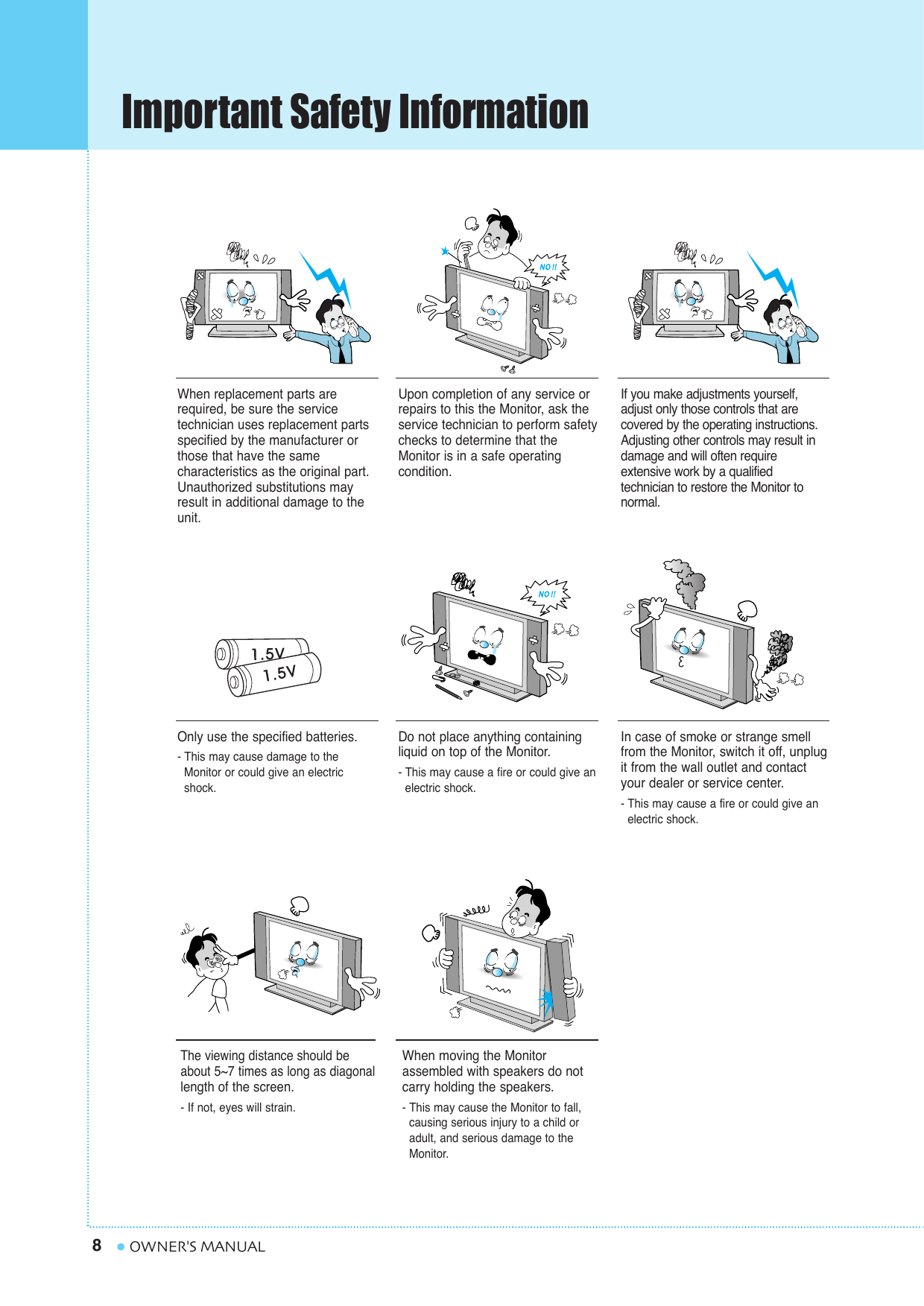

Important Safety Information8OWNER'S MANUALWhen replacement parts arerequired, be sure the service technician uses replacement partsspecified by the manufacturer orthose that have the same characteristics as the original part.Unauthorized substitutions mayresult in additional damage to theunit. Upon completion of any service orrepairs to this the Monitor, ask the service technician to perform safetychecks to determine that theMonitor is in a safe operating condition. If you make adjustments yourself,adjust only those controls that are covered by the operating instructions.Adjusting other controls may result indamage and will often require extensive work by a qualifiedtechnician to restore the Monitor tonormal.Only use the specified batteries.- This may cause damage to the Monitor or could give an electric shock.Do not place anything containingliquid on top of the Monitor.- This may cause a fire or could give an electric shock.In case of smoke or strange smellfrom the Monitor, switch it off, unplugit from the wall outlet and contactyour dealer or service center.- This may cause a fire or could give an electric shock.The viewing distance should beabout 5~7 times as long as diagonallength of the screen. - If not, eyes will strain.When moving the Monitor assembled with speakers do notcarry holding the speakers.- This may cause the Monitor to fall, causing serious injury to a child or adult, and serious damage to the Monitor.

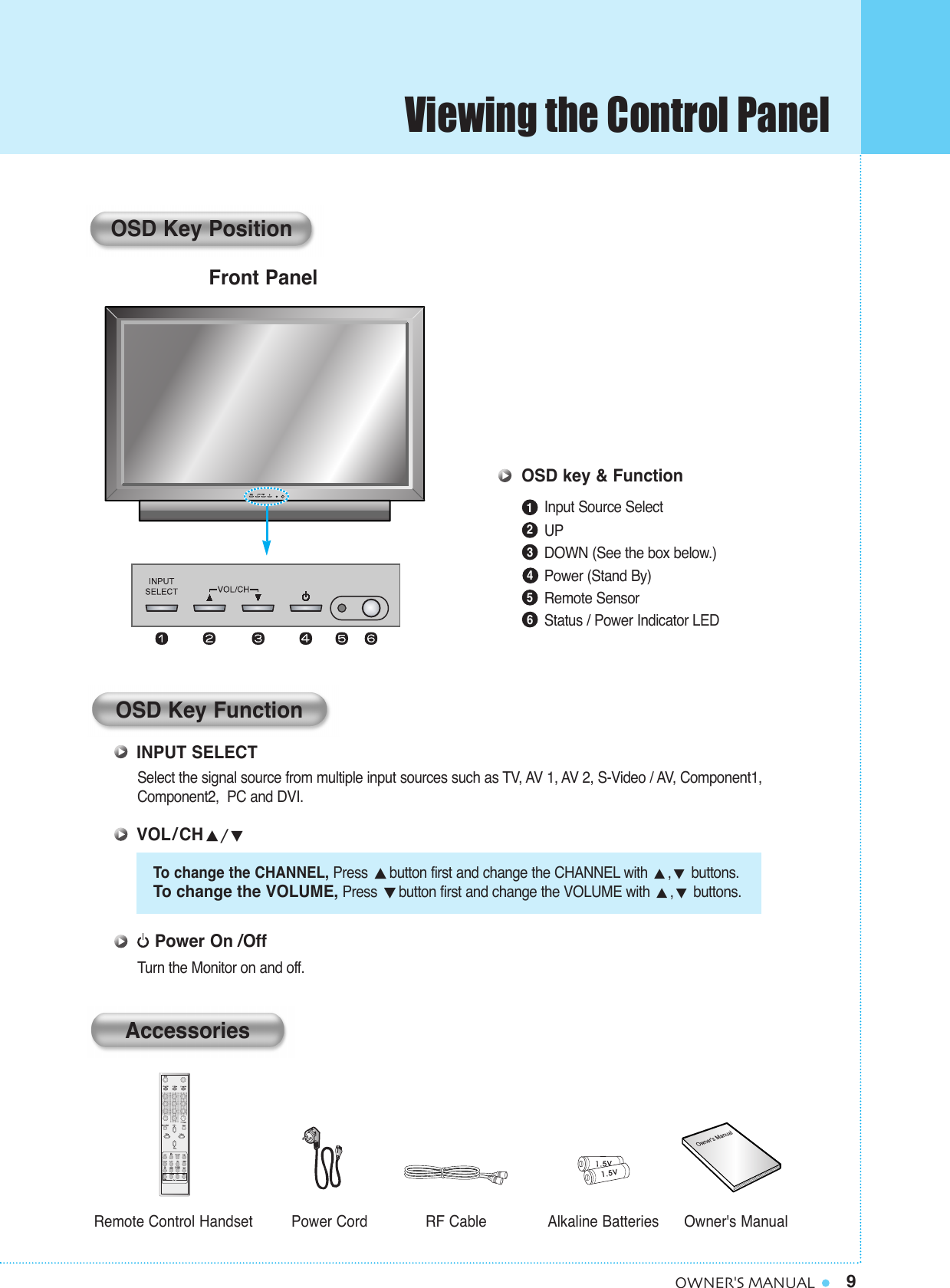

9OWNER'S MANUALSelect the signal source from multiple input sources such as TV, AV 1, AV 2, S-Video / AV, Component1,Component2, PC and DVI. To change the CHANNEL, Press button first and change the CHANNEL with ,buttons.To change the VOLUME,Press button first and change the VOLUME with ,buttons.Turn the Monitor on and off.Front PanelInput Source SelectUPDOWN (See the box below.)Power (Stand By)Remote SensorStatus / Power Indicator LED123456OSD Key PositionOSD key & FunctionINPUT SELECTVOL/CHPower On /OffOSD Key FunctionAccessoriesRemote Control Handset Power Cord RF Cable Owner's ManualAlkaline BatteriesViewing the Control Panel

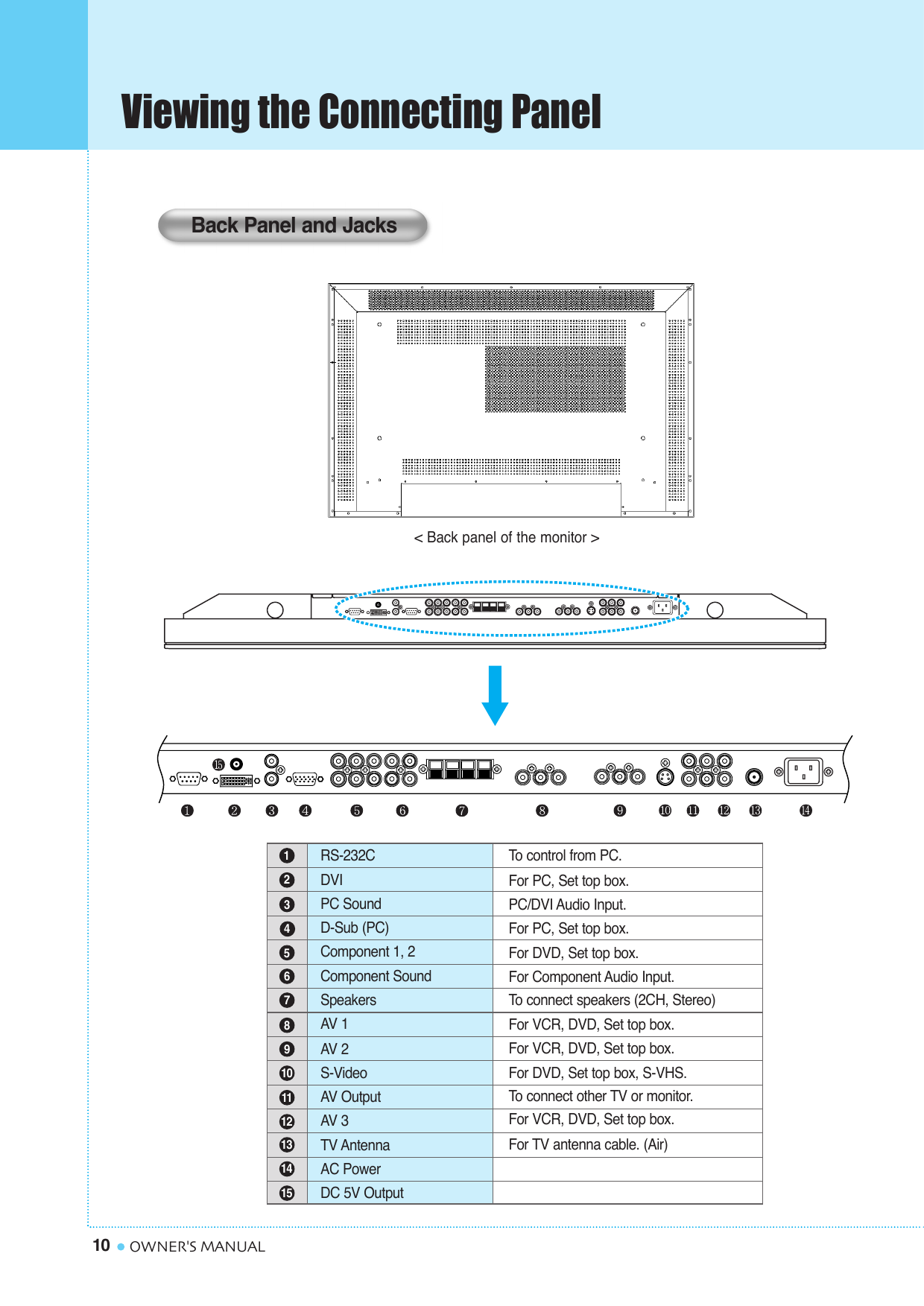

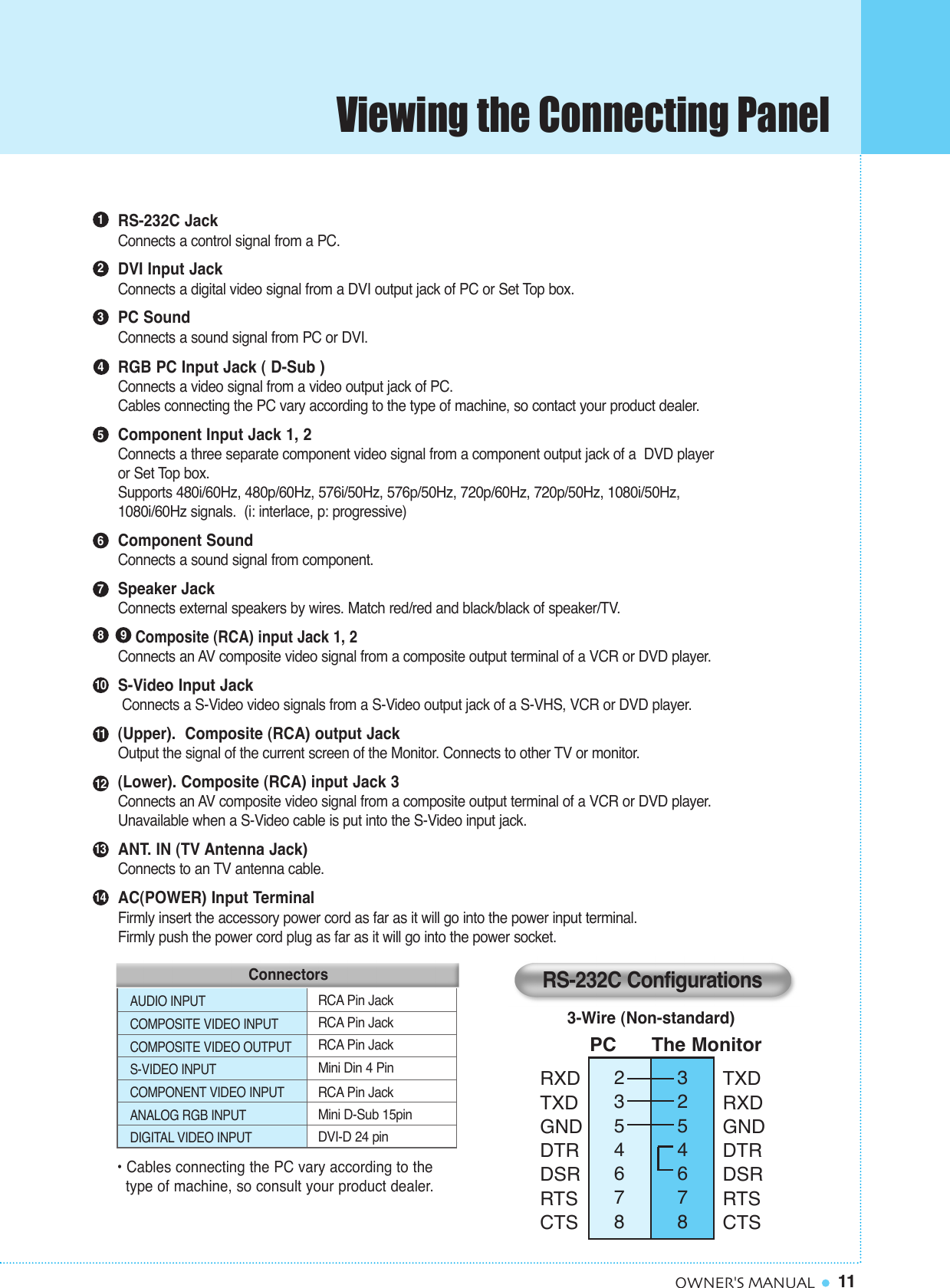

Viewing the Connecting Panel10 OWNER'S MANUALTo control from PC.For PC, Set top box.PC/DVI Audio Input.For PC, Set top box.For DVD, Set top box.For Component Audio Input.To connect speakers (2CH, Stereo)For VCR, DVD, Set top box.For VCR, DVD, Set top box.For DVD, Set top box, S-VHS.To connect other TV or monitor.For VCR, DVD, Set top box.For TV antenna cable. (Air)RS-232CDVIPC SoundD-Sub (PC)Component 1, 2Component SoundSpeakersAV 1 AV 2 S-VideoAV OutputAV 3TV AntennaAC PowerDC 5V Output< Back panel of the monitor >123456789101112131415Back Panel and Jacks
11OWNER'S MANUAL23546783254678PC The Monitor3-Wire (Non-standard)AUDIO INPUTCOMPOSITE VIDEO INPUTCOMPOSITE VIDEO OUTPUTS-VIDEO INPUTCOMPONENT VIDEO INPUTANALOG RGB INPUTDIGITAL VIDEO INPUTRCA Pin JackRCA Pin JackRCA Pin JackMini Din 4 PinRCA Pin JackMini D-Sub 15pinDVI-D 24 pin• Cables connecting the PC vary according to the type of machine, so consult your product dealer.12345678 91110121314RS-232C Jack Connects a control signal from a PC.DVI Input Jack Connects a digital video signal from a DVI output jack of PC or Set Top box.PC Sound Connects a sound signal from PC or DVI.RGB PC Input Jack ( D-Sub ) Connects a video signal from a video output jack of PC.Cables connecting the PC vary according to the type of machine, so contact your product dealer.Component Input Jack 1, 2 Connects a three separate component video signal from a component output jack of a DVD player or Set Top box.Supports 480i/60Hz, 480p/60Hz, 576i/50Hz, 576p/50Hz, 720p/60Hz, 720p/50Hz, 1080i/50Hz,1080i/60Hz signals. (i: interlace, p: progressive)Component Sound Connects a sound signal from component.Speaker Jack Connects external speakers by wires. Match red/red and black/black of speaker/TV.Composite (RCA) input Jack 1, 2 Connects an AV composite video signal from a composite output terminal of a VCR or DVD player. S-Video Input Jack Connects a S-Video video signals from a S-Video output jack of a S-VHS, VCR or DVD player.(Upper). Composite (RCA) output Jack Output the signal of the current screen of the Monitor. Connects to other TV or monitor.(Lower). Composite (RCA) input Jack 3 Connects an AV composite video signal from a composite output terminal of a VCR or DVD player. Unavailable when a S-Video cable is put into the S-Video input jack.ANT. IN (TV Antenna Jack) Connects to an TV antenna cable.AC(POWER) Input Terminal Firmly insert the accessory power cord as far as it will go into the power input terminal. Firmly push the power cord plug as far as it will go into the power socket.RS-232C ConfigurationsRXDTXDGNDDTRDSRRTSCTSTXDRXDGNDDTRDSRRTSCTSConnectorsViewing the Connecting Panel

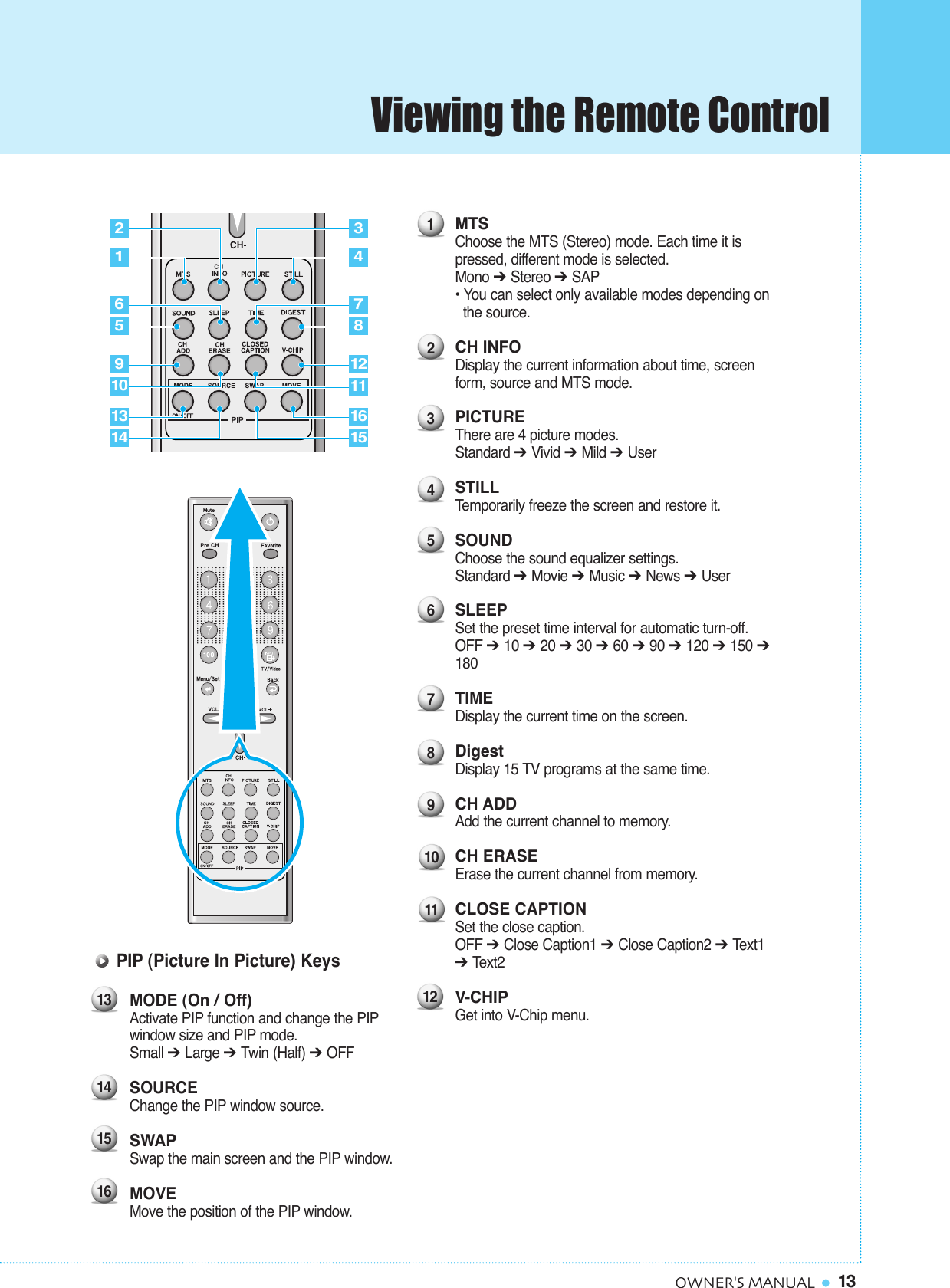

Viewing the Remote Control12 OWNER'S MANUALPowerTurn the Monitor on and off.MuteTemporarily cut the sound and restore it.Pre.CHTurn to the previous channel or exit OSD.V.SizeChoose the Screen Form.Wide ➔ Panorama ➔ Zoom1 ➔ Zoom2 ➔ 4:3FAVORITE (FAVOURITE)Tune to your next favorite channel.100Press to tune the channels over 100. INPUTDisplay the input source list.Menu / SetDisplay the main OSD menu.Activate your choice in the OSD menu.BackReturn to the previous OSD menu.CH+Move to the upper channel.CH-Move to the lower channel.VOL+Increase the volume level.VOL-Decrease the volume level.12345678910111213Key Description

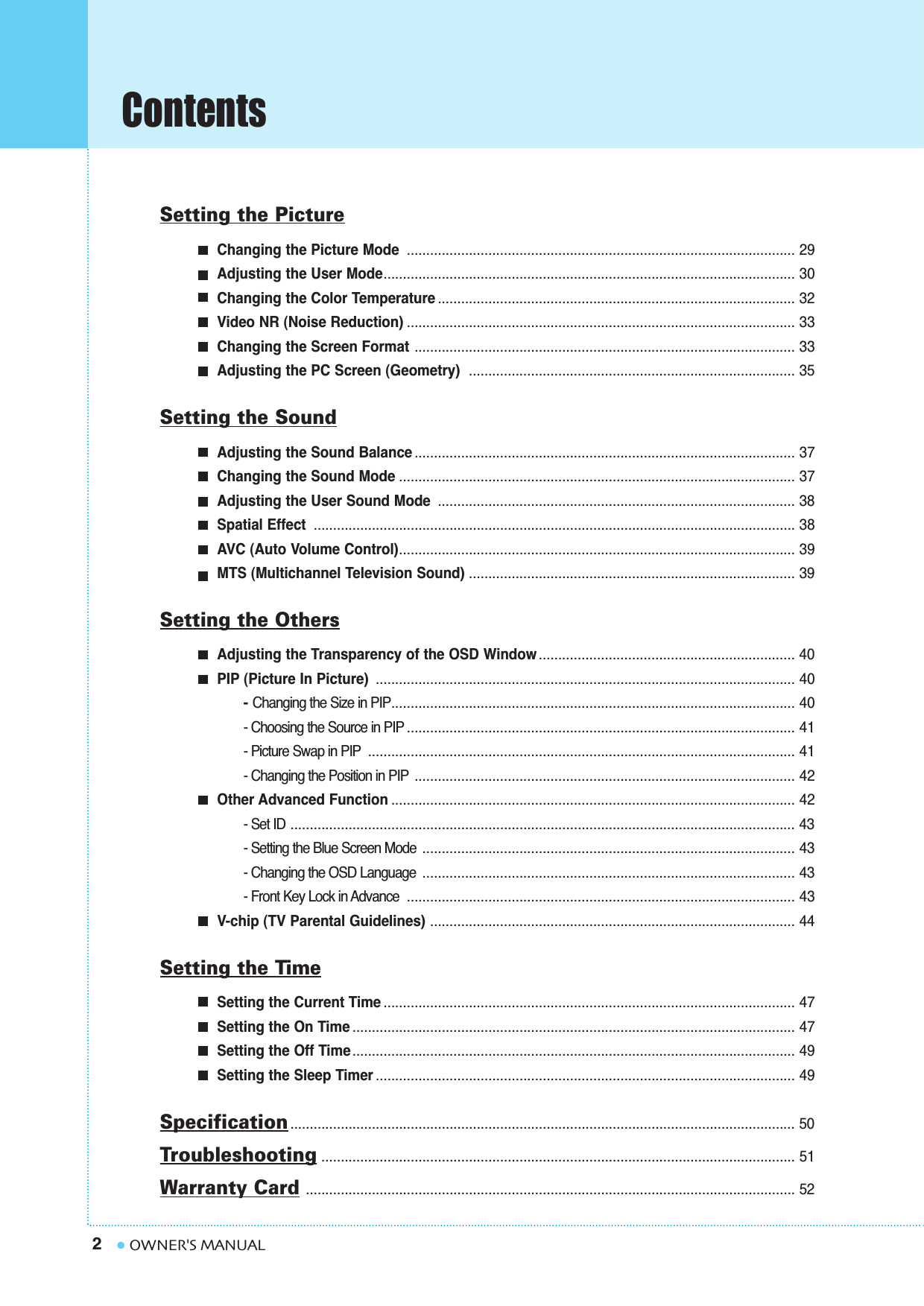

Contents2OWNER'S MANUALSetting the PictureChanging the Picture Mode .................................................................................................... 29Adjusting the User Mode.......................................................................................................... 30Changing the Color Temperature ............................................................................................ 32Video NR (Noise Reduction) .................................................................................................... 33Changing the Screen Format .................................................................................................. 33Adjusting the PC Screen (Geometry) .................................................................................... 35Setting the SoundAdjusting the Sound Balance .................................................................................................. 37Changing the Sound Mode ...................................................................................................... 37Adjusting the User Sound Mode ............................................................................................ 38Spatial Effect ............................................................................................................................ 38AVC (Auto Volume Control)...................................................................................................... 39MTS (Multichannel Television Sound) .................................................................................... 39Setting the OthersAdjusting the Transparency of the OSD Window .................................................................. 40PIP (Picture In Picture) ............................................................................................................ 40- Changing the Size in PIP........................................................................................................ 40- Choosing the Source in PIP .................................................................................................... 41- Picture Swap in PIP .............................................................................................................. 41- Changing the Position in PIP .................................................................................................. 42Other Advanced Function ........................................................................................................ 42- Set ID .................................................................................................................................. 43- Setting the Blue Screen Mode ................................................................................................ 43- Changing the OSD Language ................................................................................................ 43- Front Key Lock in Advance .................................................................................................... 43V-chip (TV Parental Guidelines) .............................................................................................. 44Setting the TimeSetting the Current Time .......................................................................................................... 47Setting the On Time .................................................................................................................. 47Setting the Off Time.................................................................................................................. 49Setting the Sleep Timer ............................................................................................................ 49Specification .................................................................................................................................. 50Troubleshooting .......................................................................................................................... 51Warranty Card.............................................................................................................................. 52

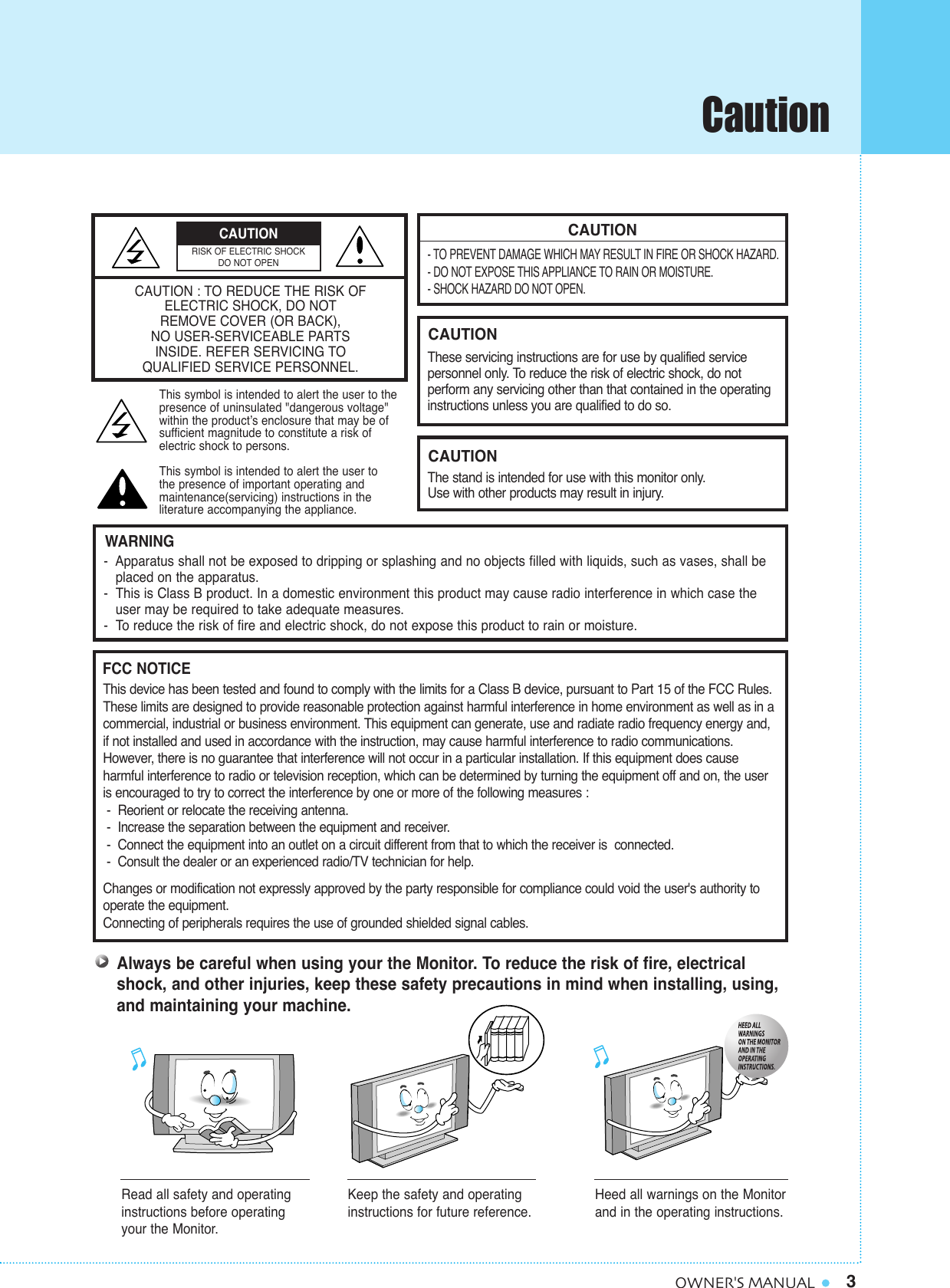

3OWNER'S MANUALCAUTION- TO PREVENT DAMAGE WHICH MAY RESULT IN FIRE OR SHOCK HAZARD.- DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.- SHOCK HAZARD DO NOT OPEN.CAUTIONThese servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock, do not perform any servicing other than that contained in the operatinginstructions unless you are qualified to do so.CAUTIONThe stand is intended for use with this monitor only. Use with other products may result in injury.Always be careful when using your the Monitor. To reduce the risk of fire, electricalshock, and other injuries, keep these safety precautions in mind when installing, using,and maintaining your machine.- Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.- This is Class B product. In a domestic environment this product may cause radio interference in which case theuser may be required to take adequate measures.- To reduce the risk of fire and electric shock, do not expose this product to rain or moisture.WARNINGThis device has been tested and found to comply with the limits for a Class B device, pursuant to Part 15 of the FCC Rules.These limits are designed to provide reasonable protection against harmful interference in home environment as well as in acommercial, industrial or business environment. This equipment can generate, use and radiate radio frequency energy and,if not installed and used in accordance with the instruction, may cause harmful interference to radio communications.However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the useris encouraged to try to correct the interference by one or more of the following measures :- Reorient or relocate the receiving antenna.- Increase the separation between the equipment and receiver.- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.- Consult the dealer or an experienced radio/TV technician for help.Changes or modification not expressly approved by the party responsible for compliance could void the user's authority tooperate the equipment.Connecting of peripherals requires the use of grounded shielded signal cables.FCC NOTICERead all safety and operatinginstructions before operatingyour the Monitor.Keep the safety and operatinginstructions for future reference.Heed all warnings on the Monitorand in the operating instructions.CAUTION : TO REDUCE THE RISK OFELECTRIC SHOCK, DO NOTREMOVE COVER (OR BACK),NO USER-SERVICEABLE PARTSINSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.This symbol is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.This symbol is intended to alert the user to the presence of important operating and maintenance(servicing) instructions in the literature accompanying the appliance.CAUTIONRISK OF ELECTRIC SHOCKDO NOT OPENCaution

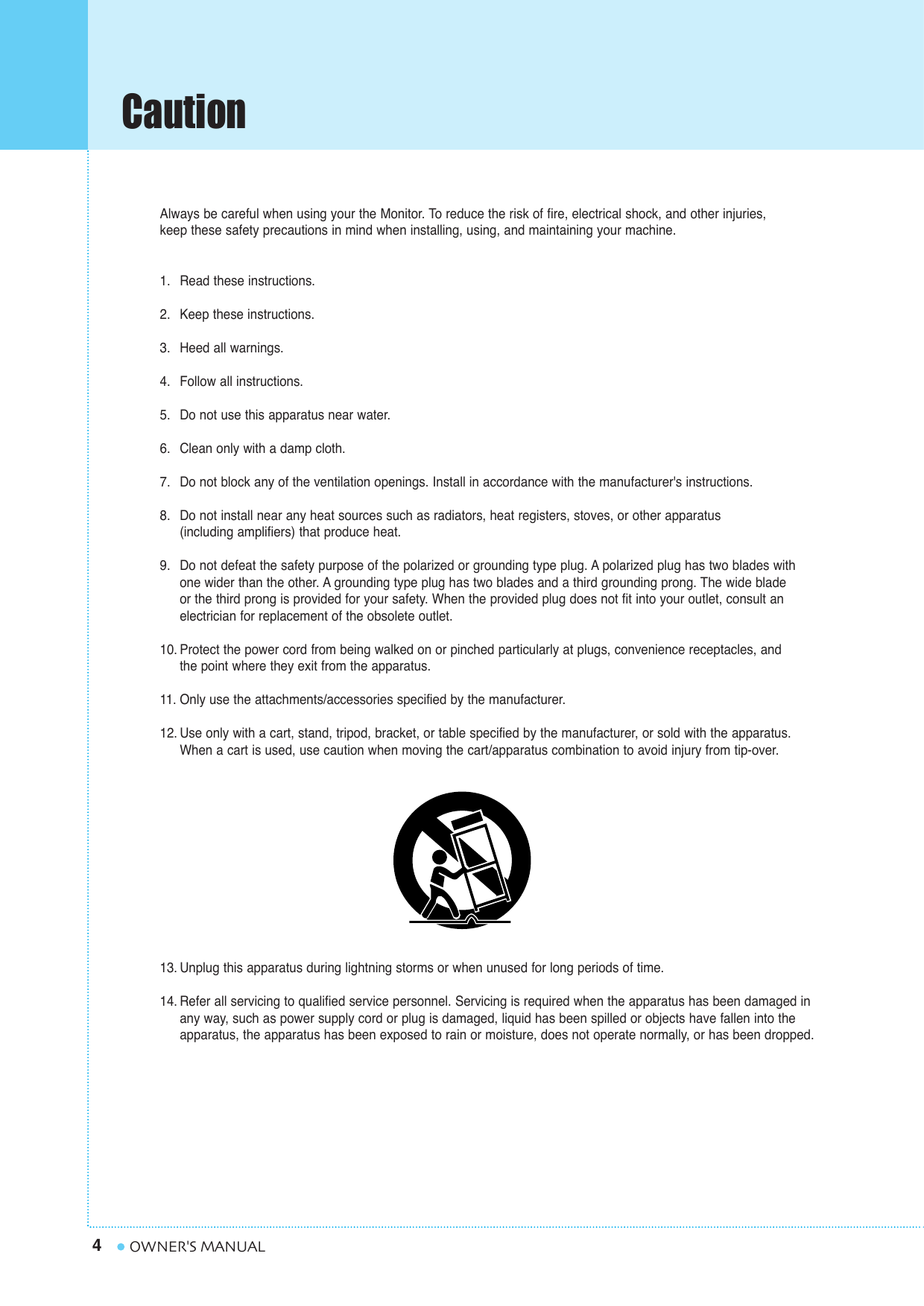

Caution4OWNER'S MANUALAlways be careful when using your the Monitor. To reduce the risk of fire, electrical shock, and other injuries, keep these safety precautions in mind when installing, using, and maintaining your machine.1. Read these instructions.2. Keep these instructions.3. Heed all warnings.4. Follow all instructions.5. Do not use this apparatus near water.6. Clean only with a damp cloth.7. Do not block any of the ventilation openings. Install in accordance with the manufacturer's instructions.8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.9. Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. When the provided plug does not fit into your outlet, consult anelectrician for replacement of the obsolete outlet.10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.11. Only use the attachments/accessories specified by the manufacturer.12. Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.13. Unplug this apparatus during lightning storms or when unused for long periods of time.14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

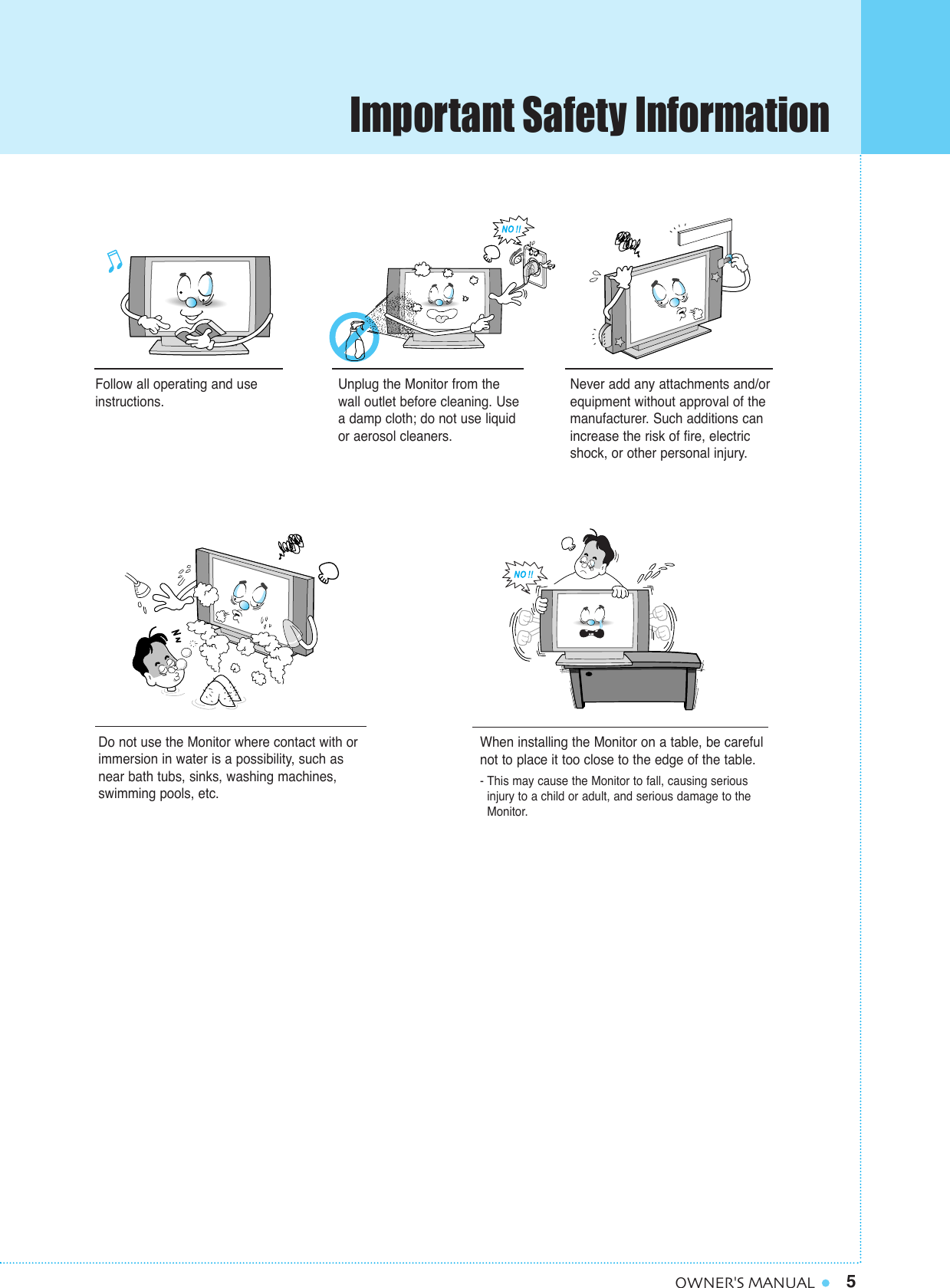

5OWNER'S MANUALFollow all operating and useinstructions.Do not use the Monitor where contact with orimmersion in water is a possibility, such asnear bath tubs, sinks, washing machines,swimming pools, etc.When installing the Monitor on a table, be carefulnot to place it too close to the edge of the table.- This may cause the Monitor to fall, causing serious injury to a child or adult, and serious damage to the Monitor.Unplug the Monitor from thewall outlet before cleaning. Usea damp cloth; do not use liquidor aerosol cleaners.Never add any attachments and/orequipment without approval of themanufacturer. Such additions canincrease the risk of fire, electricshock, or other personal injury.Important Safety Information
