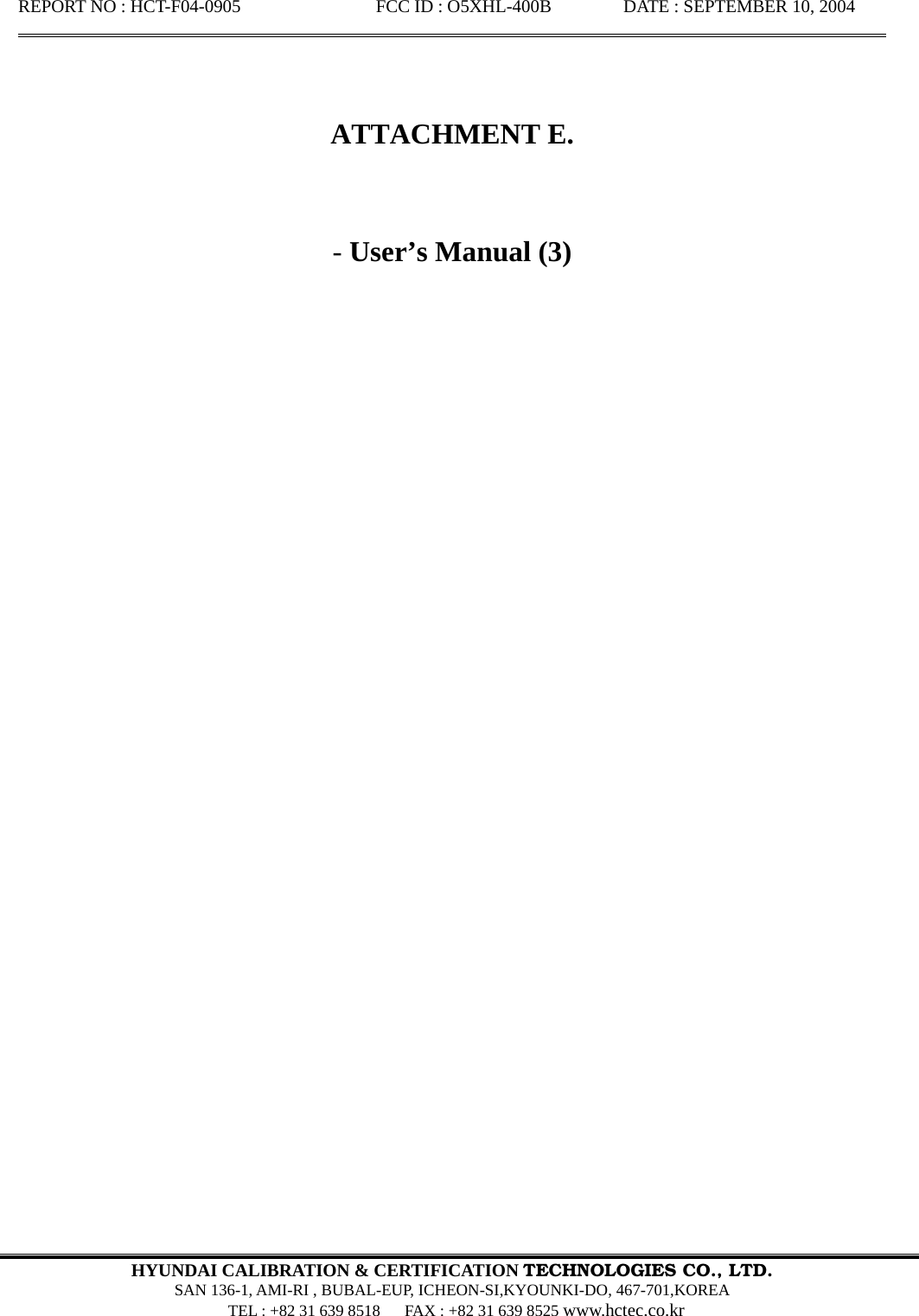

REPORT NO : HCT-F04-0905 FCC ID : O5XHL-400B DATE : SEPTEMBER 10, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr ATTACHMENT E. - User’s Manual (3)

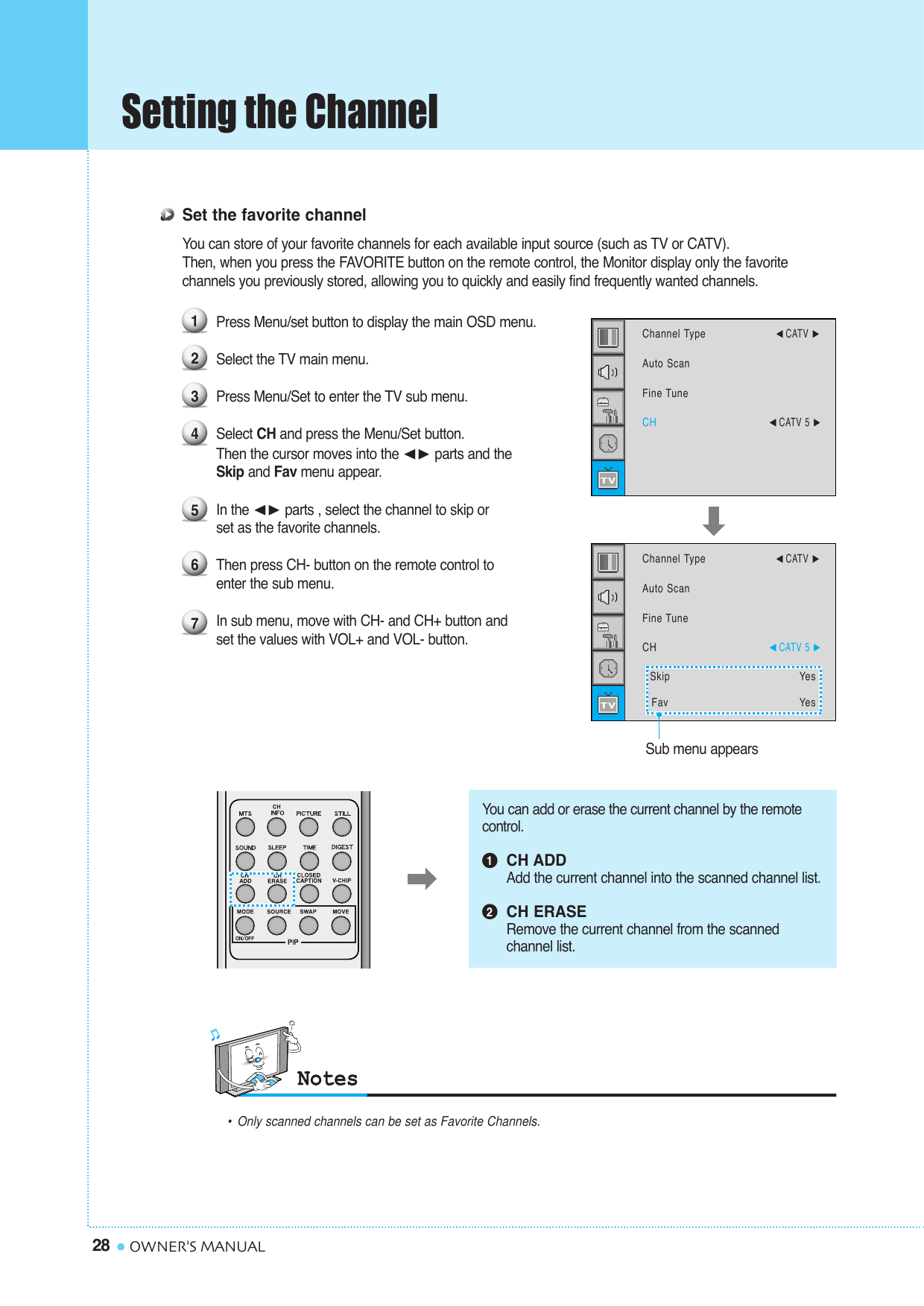

Setting the Channel28 OWNER'S MANUALaSet the favorite channelYou can store of your favorite channels for each available input source (such as TV or CATV). Then, when you press the FAVORITE button on the remote control, the Monitor display only the favorite channels you previously stored, allowing you to quickly and easily find frequently wanted channels. Press Menu/set button to display the main OSD menu. Select the TV main menu.Press Menu/Set to enter the TV sub menu.Select CH and press the Menu/Set button. Then the cursor moves into the ¥ parts and the Skip and Fav menu appear.In the ¥ parts , select the channel to skip or set as the favorite channels.Then press CH- button on the remote control to enter the sub menu. In sub menu, move with CH- and CH+ button and set the values with VOL+ and VOL- button.1234567You can add or erase the current channel by the remote control.CH ADD Add the current channel into the scanned channel list.CH ERASERemove the current channel from the scanned channel list.12•Only scanned channels can be set as Favorite Channels.Channel Type¥CATV Auto ScanFine TuneCH¥CATV 5 Channel Type¥CATV Auto ScanFine TuneCH¥CATV 5 Skip Yes Fav YesSub menu appears

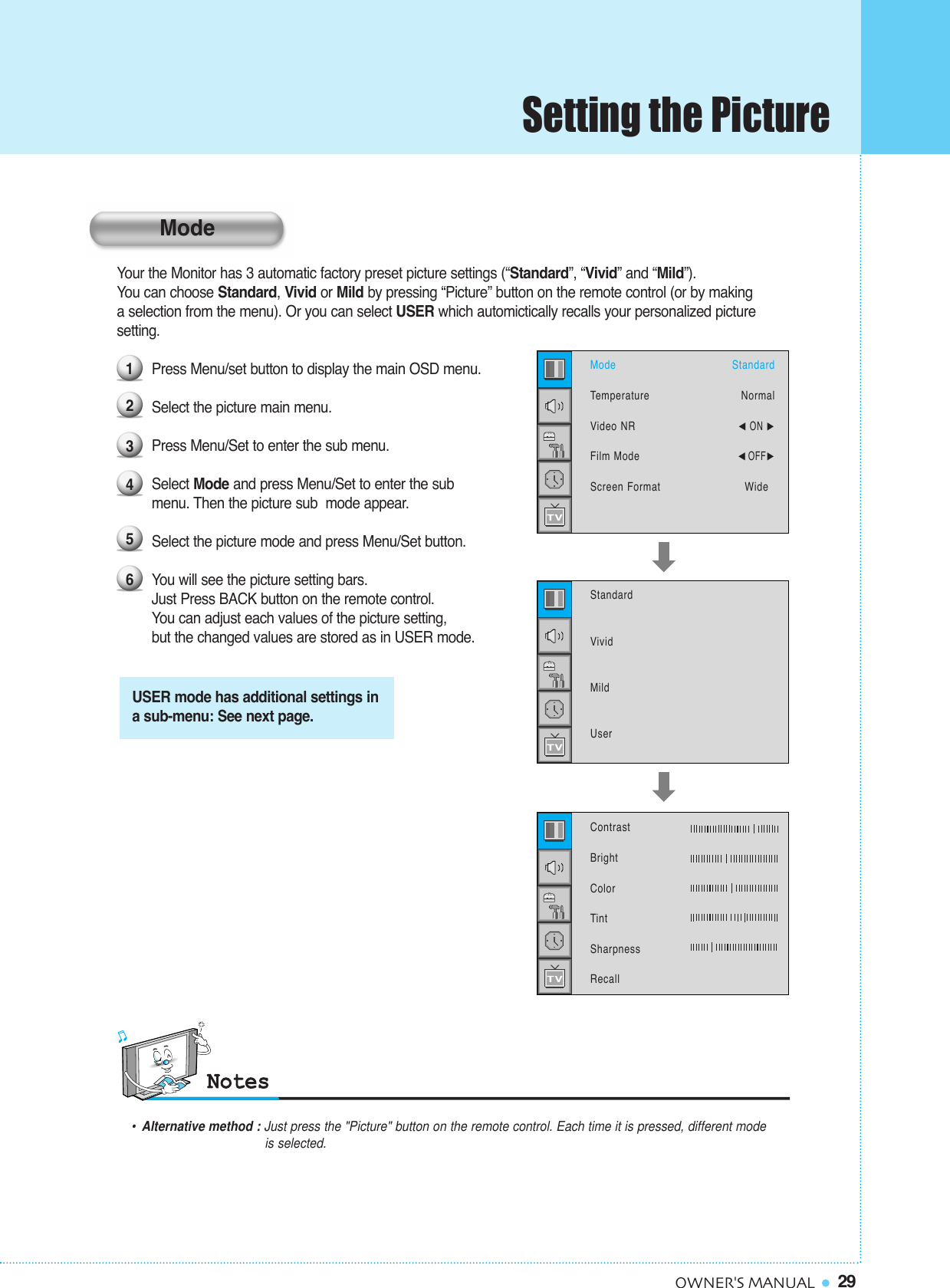

29OWNER'S MANUALYour the Monitor has 3 automatic factory preset picture settings (“Standard”, “Vivid” and “Mild”). You can choose Standard, Vivid or Mild by pressing “Picture” button on the remote control (or by making a selection from the menu). Or you can select USER which automictically recalls your personalized picture setting.Press Menu/set button to display the main OSD menu. Select the picture main menu.Press Menu/Set to enter the sub menu.Select Mode and press Menu/Set to enter the submenu. Then the picture sub mode appear.Select the picture mode and press Menu/Set button.You will see the picture setting bars. Just Press BACK button on the remote control. You can adjust each values of the picture setting, but the changed values are stored as in USER mode.123456ModeTemperatureVideo NRFilm ModeScreen FormatStandardNormal¥ON ¥OFFWide StandardVividMildUserUSER mode has additional settings ina sub-menu: See next page.ContrastBrightColorTintSharpnessRecall•Alternative method : Just press the "Picture" button on the remote control. Each time it is pressed, different mode is selected.ModeSetting the Picture

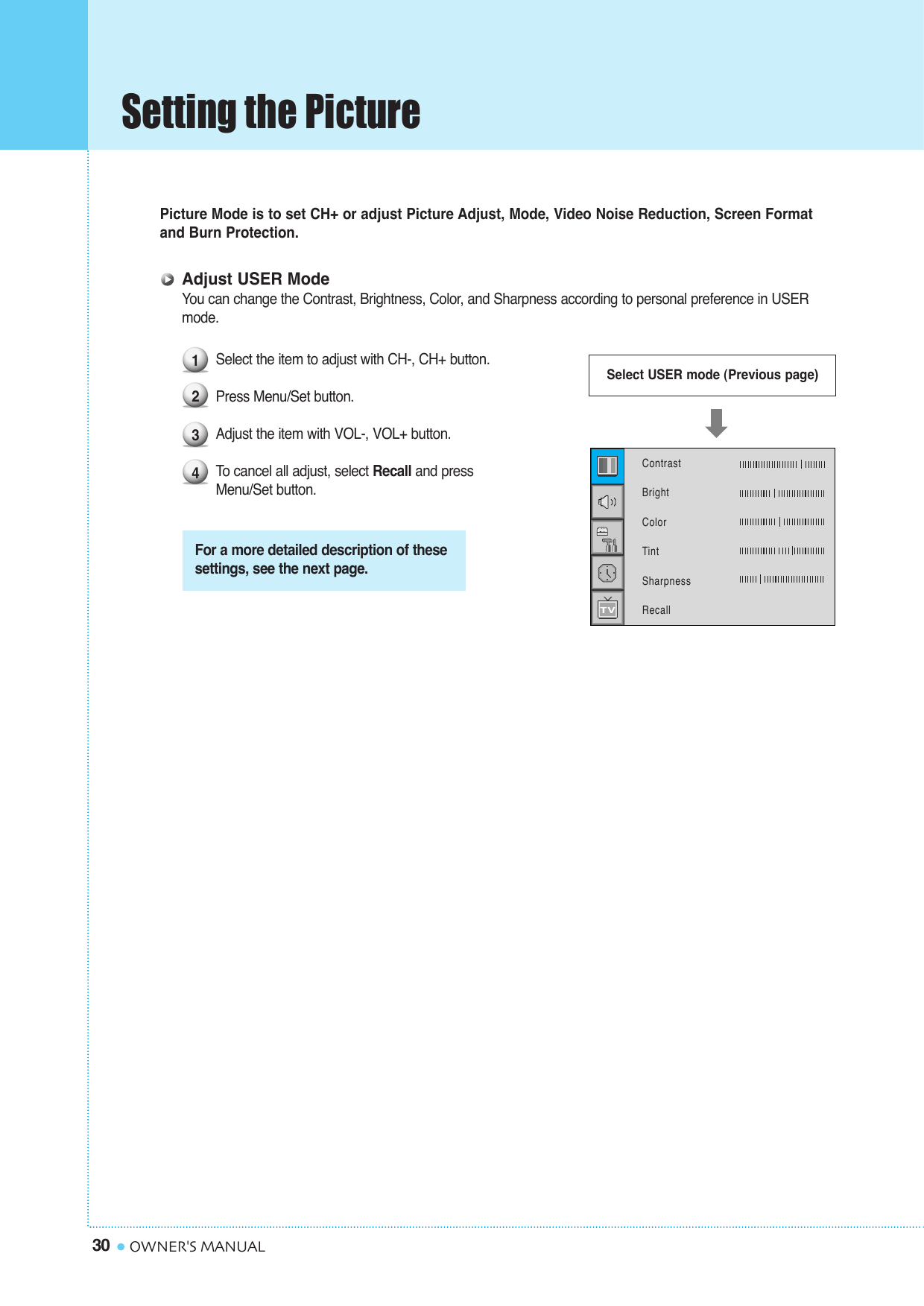

Setting the Picture30 OWNER'S MANUALPicture Mode is to set CH+ or adjust Picture Adjust, Mode, Video Noise Reduction, Screen Formatand Burn Protection.Adjust USER ModeYou can change the Contrast, Brightness, Color, and Sharpness according to personal preference in USER mode.Select the item to adjust with CH-, CH+ button.Press Menu/Set button. Adjust the item with VOL-, VOL+ button.To cancel all adjust, select Recall and press Menu/Set button.1234For a more detailed description of thesesettings, see the next page.Select USER mode (Previous page)ContrastBrightColorTintSharpnessRecall

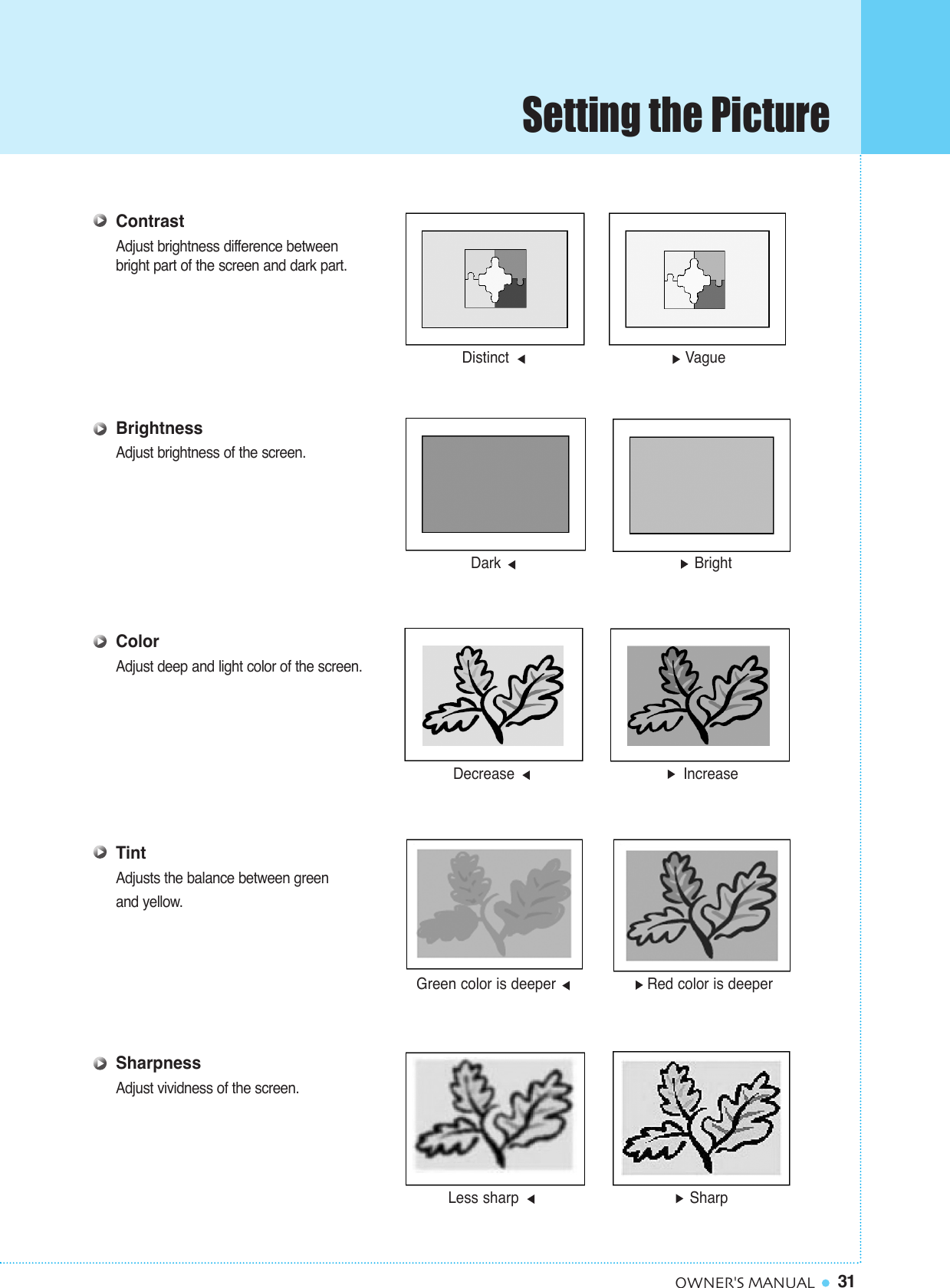

31OWNER'S MANUALContrastAdjust brightness difference between bright part of the screen and dark part.BrightnessAdjust brightness of the screen.ColorAdjust deep and light color of the screen.TintAdjusts the balance between green and yellow. SharpnessAdjust vividness of the screen.Distinct VagueDark BrightDecrease IncreaseGreen color is deeper Red color is deeperLess sharp SharpSetting the Picture

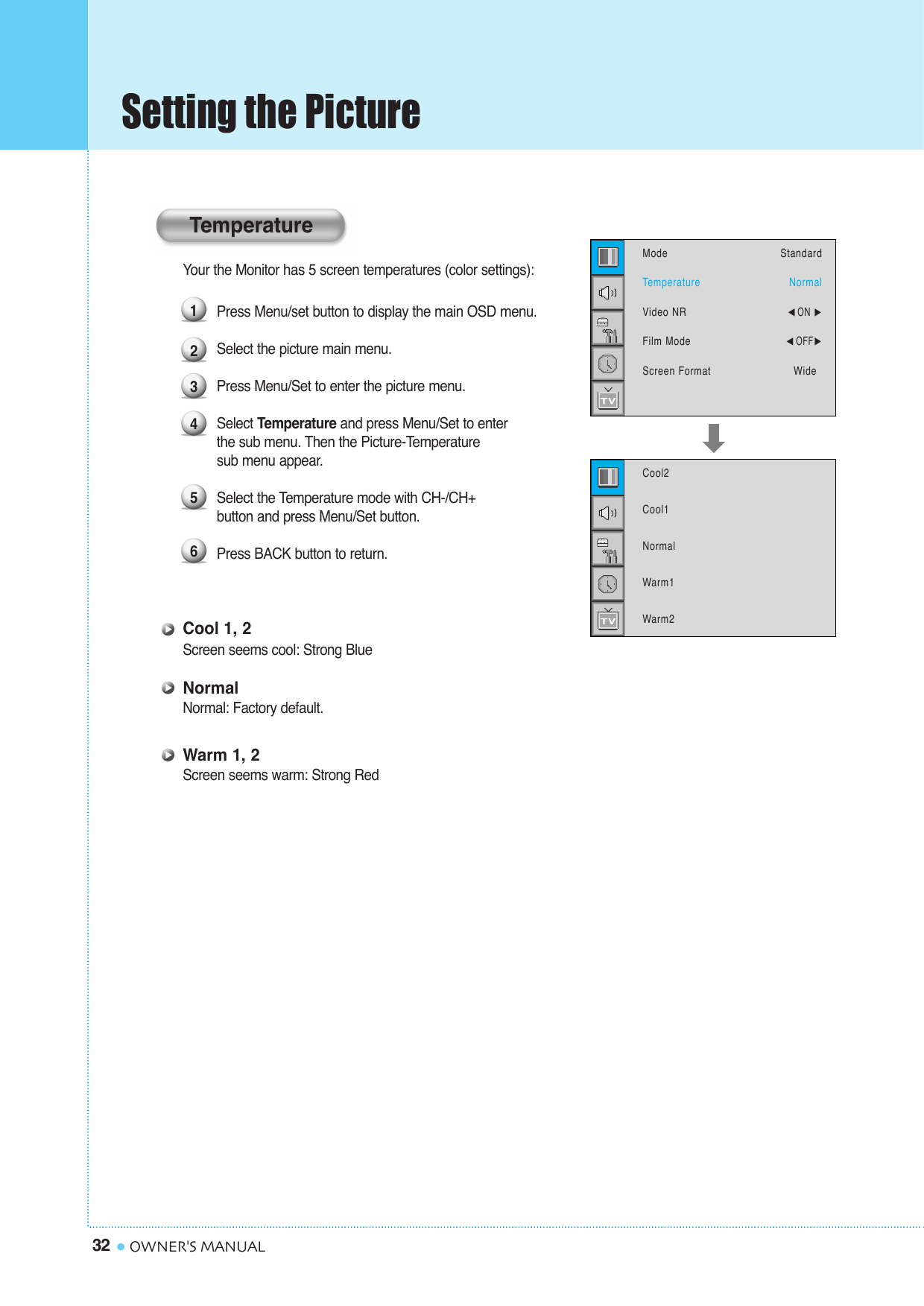

Setting the Picture32 OWNER'S MANUALYour the Monitor has 5 screen temperatures (color settings): Press Menu/set button to display the main OSD menu.Select the picture main menu.Press Menu/Set to enter the picture menu.Select Temperature and press Menu/Set to enterthe sub menu. Then the Picture-Temperature sub menu appear.Select the Temperature mode with CH-/CH+ button and press Menu/Set button.Press BACK button to return. Cool 1, 2Screen seems cool: Strong BlueNormalNormal: Factory default.Warm 1, 2Screen seems warm: Strong Red123456ModeTemperatureVideo NRFilm ModeScreen FormatStandardNormal¥ON ¥OFFWideCool2Cool1NormalWarm1Warm2Temperature

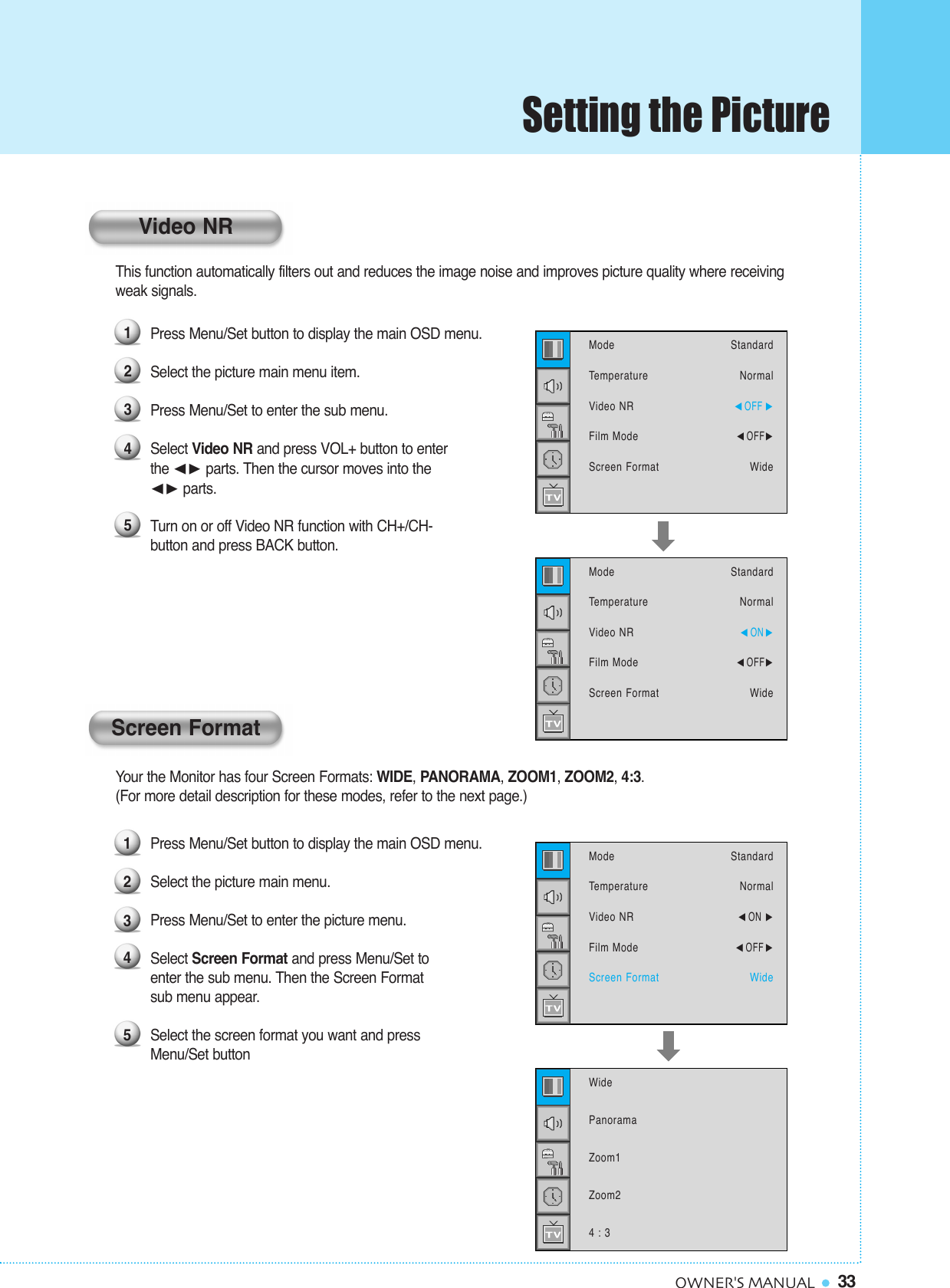

33OWNER'S MANUALThis function automatically filters out and reduces the image noise and improves picture quality where receivingweak signals.Press Menu/Set button to display the main OSD menu.Select the picture main menu item. Press Menu/Set to enter the sub menu. Select Video NR and press VOL+ button to enterthe ¥ parts. Then the cursor moves into the ¥ parts.Turn on or off Video NR function with CH+/CH-button and press BACK button.Your the Monitor has four Screen Formats: WIDE, PANORAMA, ZOOM1, ZOOM2, 4:3.(For more detail description for these modes, refer to the next page.)Press Menu/Set button to display the main OSD menu.Select the picture main menu. Press Menu/Set to enter the picture menu. Select Screen Format and press Menu/Set to enter the sub menu. Then the Screen Format sub menu appear.Select the screen format you want and press Menu/Set button12345ModeTemperatureVideo NRFilm ModeScreen FormatStandardNormal¥ON ¥OFF WideWidePanoramaZoom1Zoom24 : 312345ModeTemperatureVideo NRFilm ModeScreen FormatStandardNormal¥OFF ¥OFFWideModeTemperatureVideo NRFilm ModeScreen FormatStandardNormal¥ON ¥OFFWideVideo NRScreen FormatSetting the Picture
Setting the Picture34 OWNER'S MANUALScreen Format DescriptionWideWide video: No change.4:3 video: Expands 4:3 video signal horizontally to fit theWide screen.PanoramaWide video: No change.4:3 video: Expands 4:3 video horizontally to fit the Wide screen and to minimize distortion, sides are expanded more than center.Zoom 1Expands Wide mode screen vertically.Zoom 2Expands zoom 1 mode screen vertically.4 : 3Wide video: The image is suppressed.4:3 video: No expansion. There are gray areas besides the image.

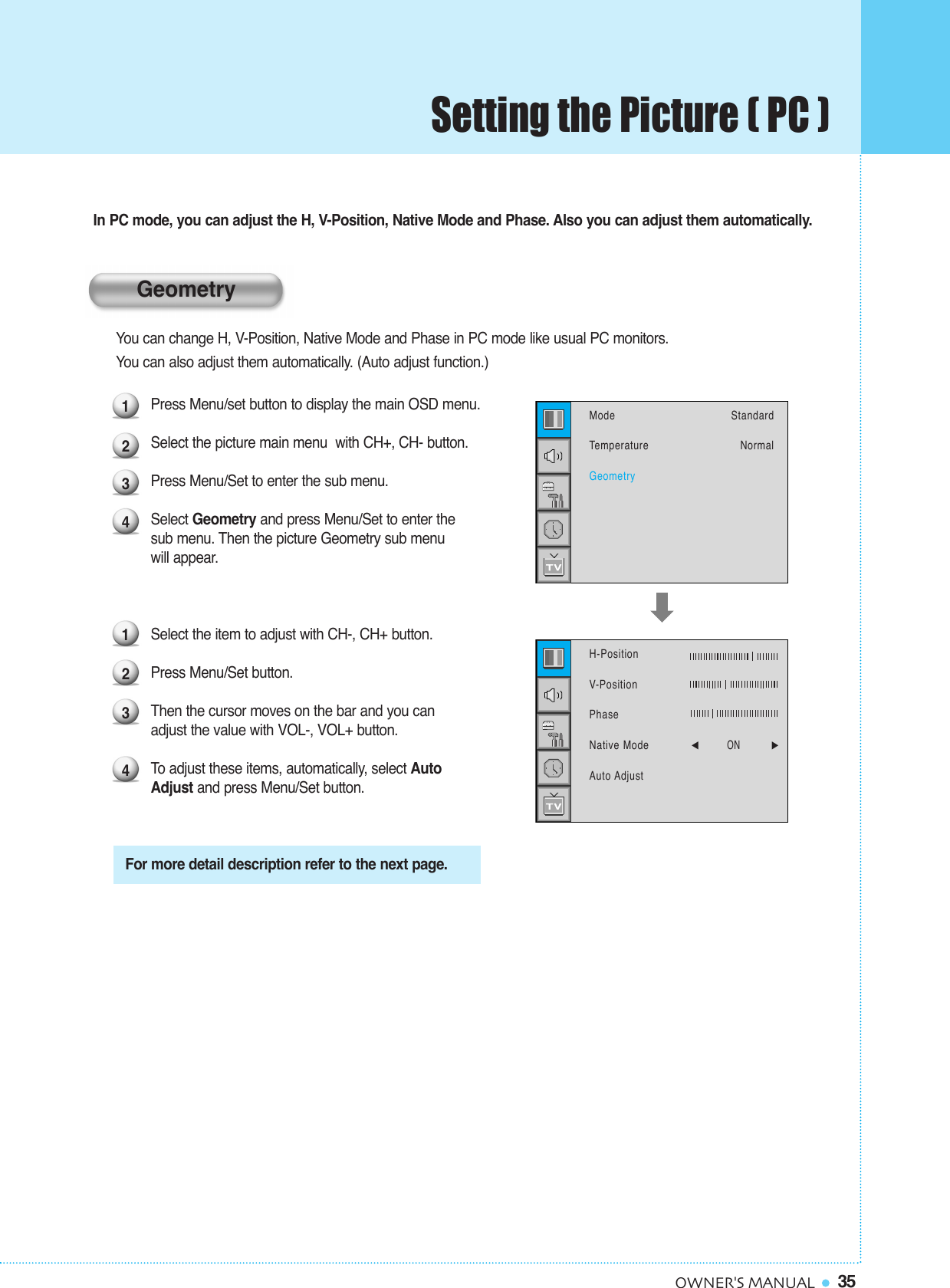

35OWNER'S MANUALIn PC mode, you can adjust the H, V-Position, Native Mode and Phase. Also you can adjust them automatically.You can change H, V-Position, Native Mode and Phase in PC mode like usual PC monitors. You can also adjust them automatically. (Auto adjust function.)Press Menu/set button to display the main OSD menu.Select the picture main menu with CH+, CH- button.Press Menu/Set to enter the sub menu.Select Geometry and press Menu/Set to enter the sub menu. Then the picture Geometry sub menuwill appear.Select the item to adjust with CH-, CH+ button.Press Menu/Set button. Then the cursor moves on the bar and you can adjust the value with VOL-, VOL+ button. To adjust these items, automatically, select Auto Adjust and press Menu/Set button.1234For more detail description refer to the next page.1234ModeTemperatureGeometryStandardNormalH-PositionV-PositionPhaseNative Mode ¥ ON Auto AdjustGeometrySetting the Picture ( PC )

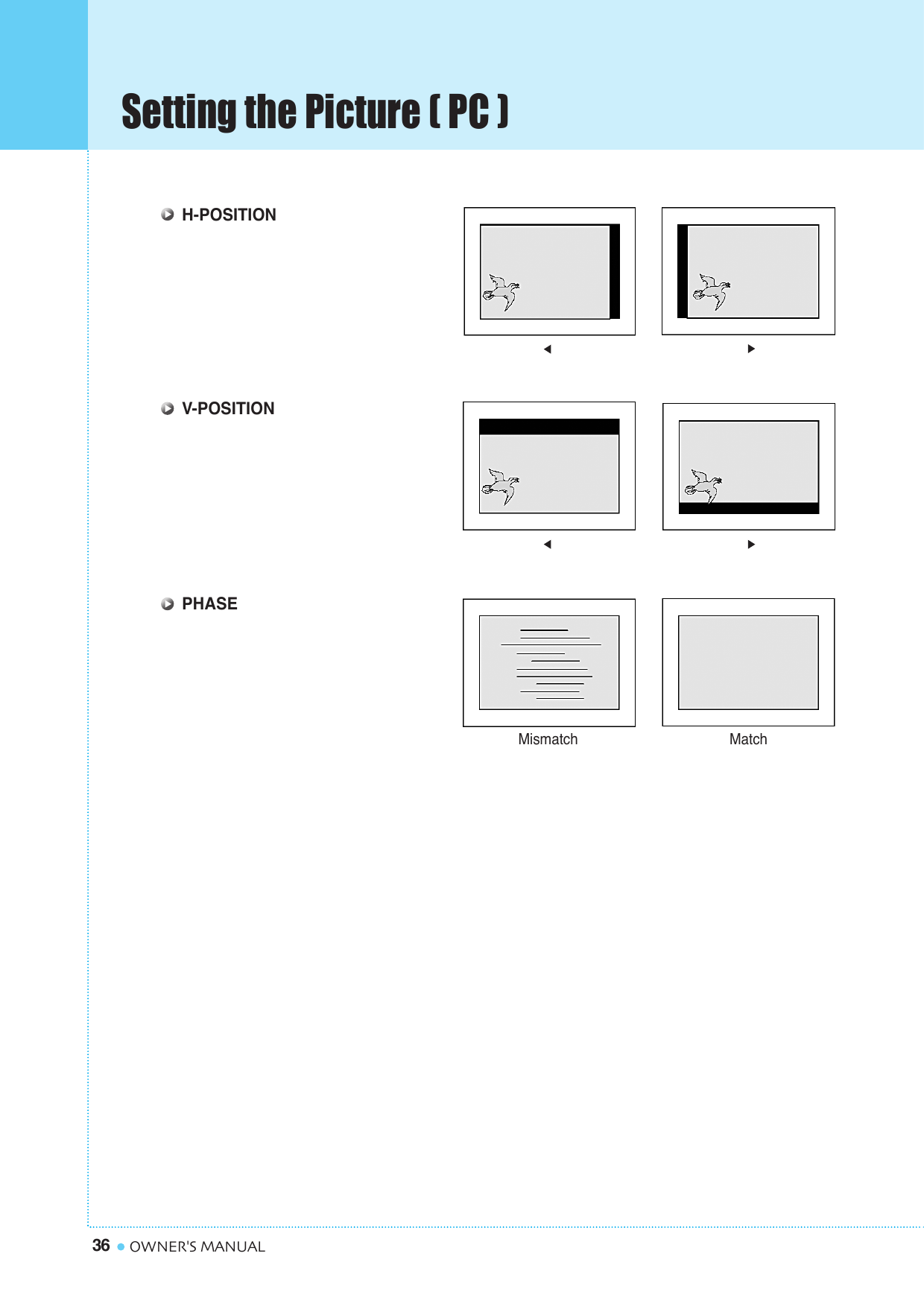

Setting the Picture ( PC )36 OWNER'S MANUALH-POSITIONV-POSITIONPHASEMismatch Match

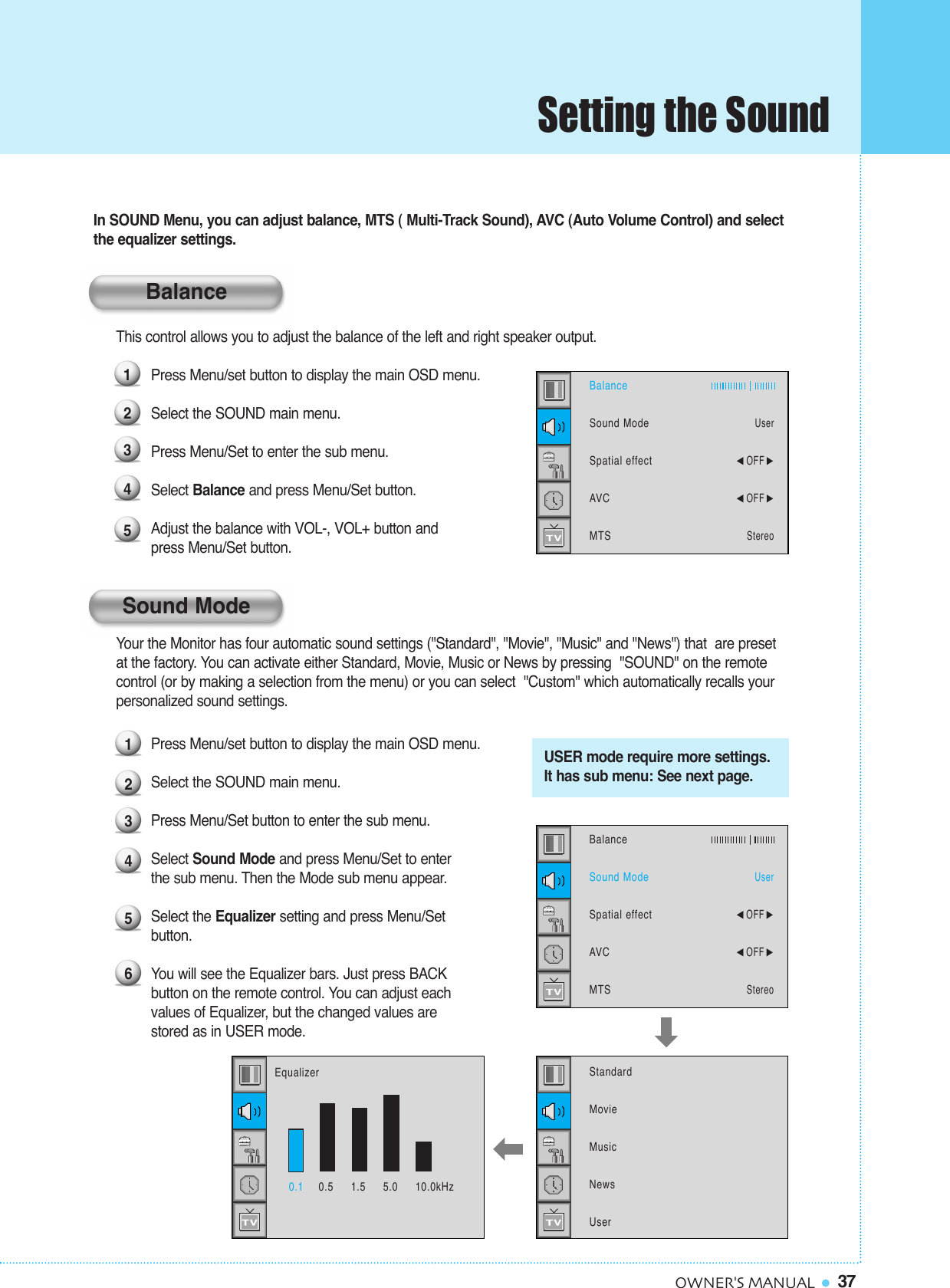

37OWNER'S MANUALYour the Monitor has four automatic sound settings ("Standard", "Movie", "Music" and "News") that are preset at the factory. You can activate either Standard, Movie, Music or News by pressing "SOUND" on the remote control (or by making a selection from the menu) or you can select "Custom" which automatically recalls your personalized sound settings.Press Menu/set button to display the main OSD menu.Select the SOUND main menu.Press Menu/Set button to enter the sub menu.Select Sound Mode and press Menu/Set to enter the sub menu. Then the Mode sub menu appear.Select the Equalizer setting and press Menu/Set button.You will see the Equalizer bars. Just press BACK button on the remote control. You can adjust each values of Equalizer, but the changed values are stored as in USER mode.1234560.1 0.5 1.5 5.0 10.0kHzUSER mode require more settings.It has sub menu: See next page.EqualizerBalanceSound ModeSpatial effectAVCMTSUser¥OFF ¥OFF StereoStandardMovieMusicNewsUserIn SOUND Menu, you can adjust balance, MTS ( Multi-Track Sound), AVC (Auto Volume Control) and selectthe equalizer settings.This control allows you to adjust the balance of the left and right speaker output.Press Menu/set button to display the main OSD menu.Select the SOUND main menu.Press Menu/Set to enter the sub menu. Select Balance and press Menu/Set button. Adjust the balance with VOL-, VOL+ button and press Menu/Set button.12345BalanceSound ModeSpatial effectAVCMTSUser¥OFF ¥OFF StereoBalanceSound ModeSetting the Sound

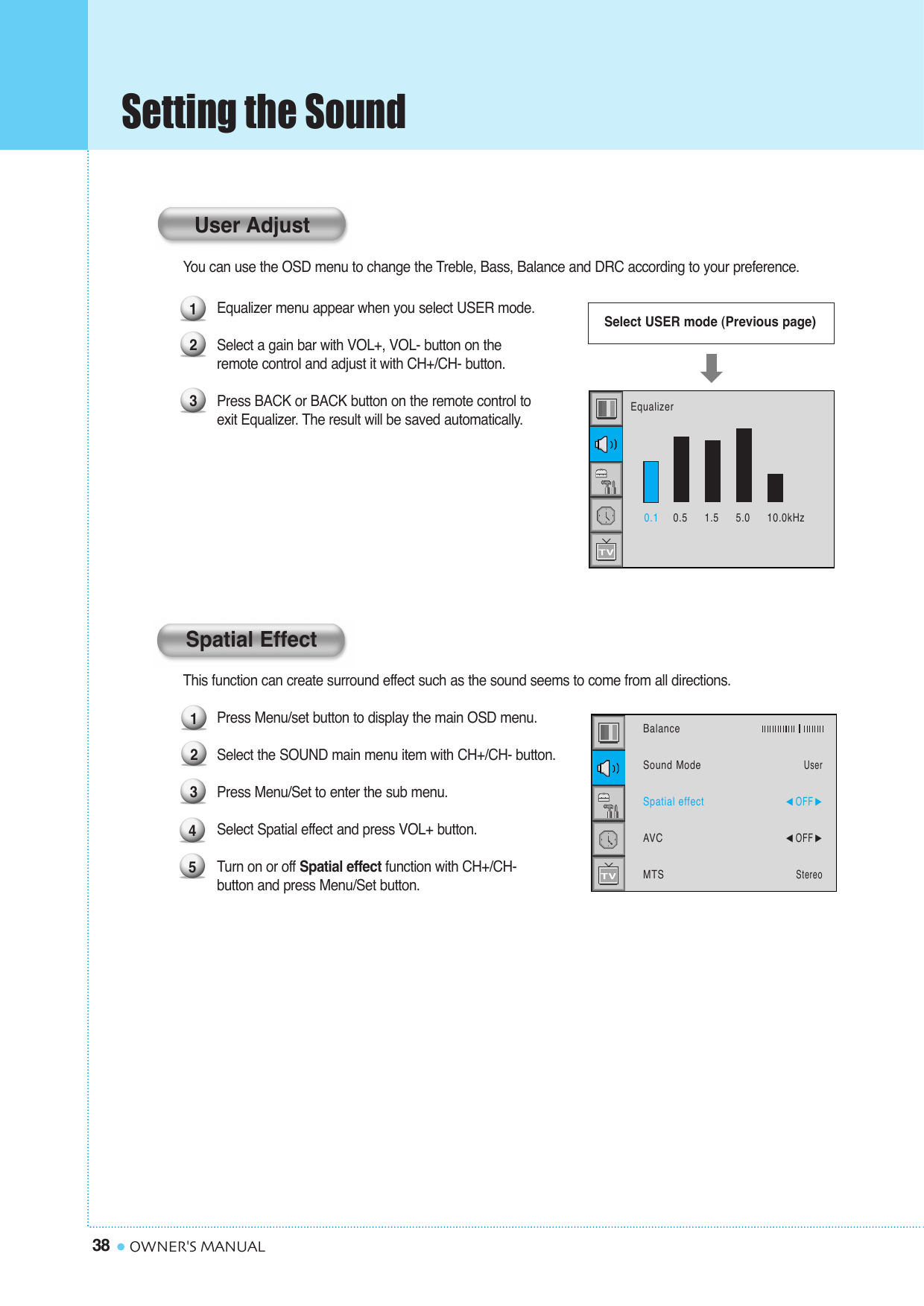

Setting the Sound38 OWNER'S MANUALYou can use the OSD menu to change the Treble, Bass, Balance and DRC according to your preference.Equalizer menu appear when you select USER mode.Select a gain bar with VOL+, VOL- button on the remote control and adjust it with CH+/CH- button.Press BACK or BACK button on the remote control to exit Equalizer. The result will be saved automatically.This function can create surround effect such as the sound seems to come from all directions.Press Menu/set button to display the main OSD menu.Select the SOUND main menu item with CH+/CH- button.Press Menu/Set to enter the sub menu. Select Spatial effect and press VOL+ button.Turn on or off Spatial effect function with CH+/CH- button and press Menu/Set button.12345BalanceSound ModeSpatial effectAVCMTSUser¥OFF ¥OFF StereoSpatial Effect123Select USER mode (Previous page)0.1 0.5 1.5 5.0 10.0kHzEqualizerUser Adjust

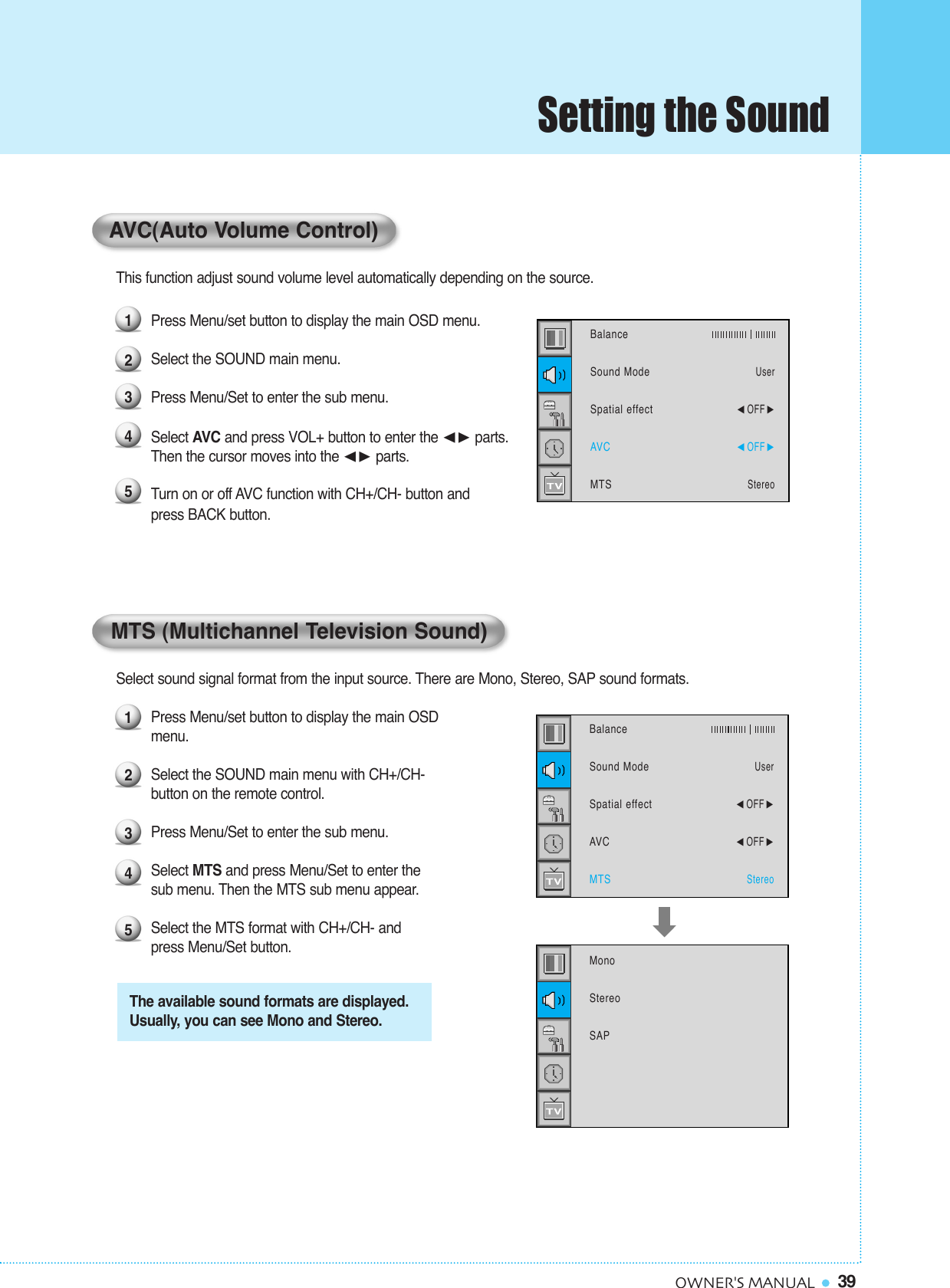

39OWNER'S MANUALThis function adjust sound volume level automatically depending on the source.Press Menu/set button to display the main OSD menu.Select the SOUND main menu. Press Menu/Set to enter the sub menu.Select AVC and press VOL+ button to enter the ¥ parts. Then the cursor moves into the ¥ parts.Turn on or off AVC function with CH+/CH- button and press BACK button.Select sound signal format from the input source. There are Mono, Stereo, SAP sound formats.Press Menu/set button to display the main OSD menu.Select the SOUND main menu with CH+/CH- button on the remote control.Press Menu/Set to enter the sub menu. Select MTS and press Menu/Set to enter thesub menu. Then the MTS sub menu appear.Select the MTS format with CH+/CH- and press Menu/Set button.12345The available sound formats are displayed.Usually, you can see Mono and Stereo.BalanceSound ModeSpatial effectAVCMTSUser¥OFF ¥OFF StereoMonoStereoSAPMTS (Multichannel Television Sound)12345BalanceSound ModeSpatial effectAVCMTSUser¥OFF ¥OFF StereoAVC(Auto Volume Control)Setting the Sound

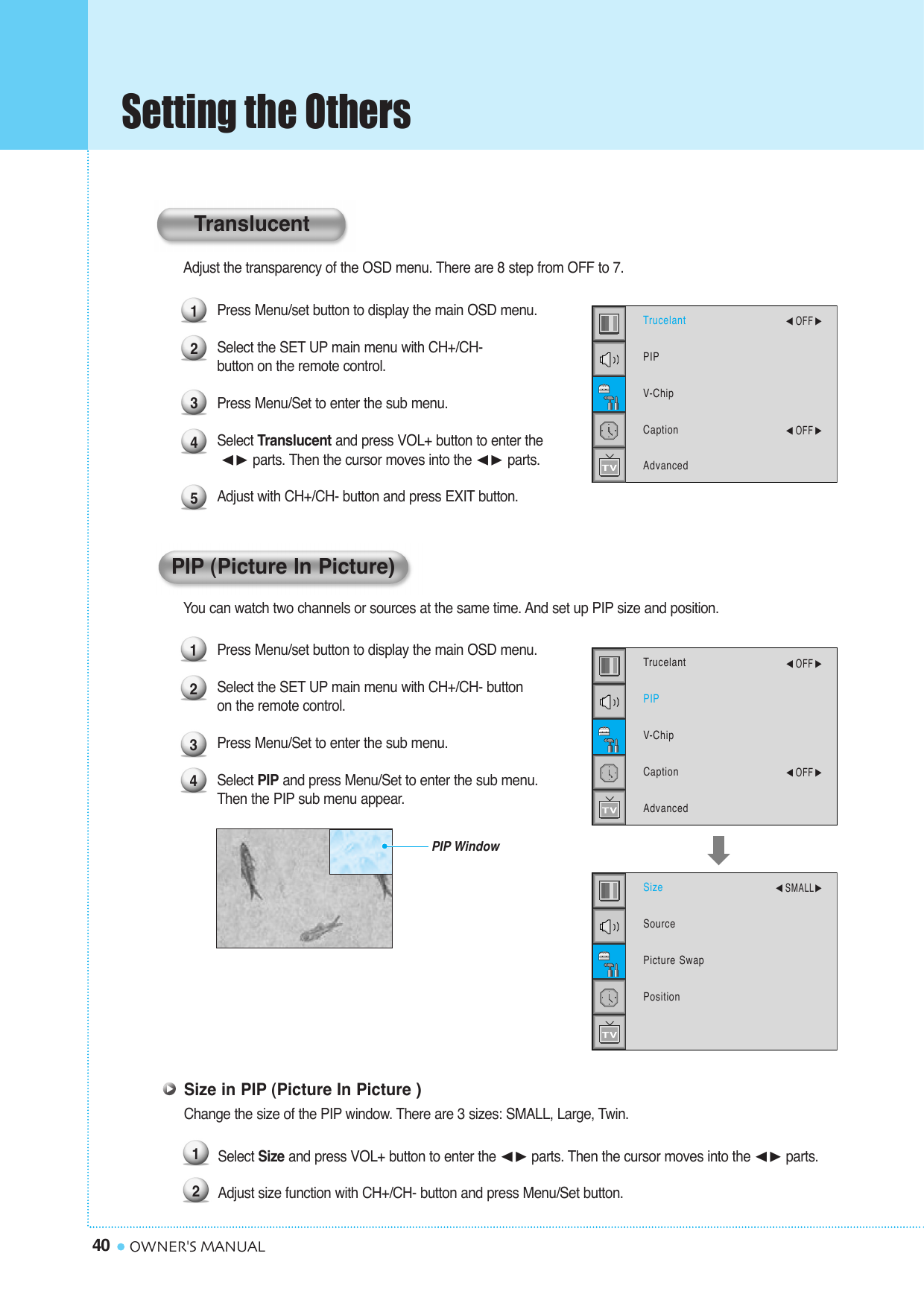

Setting the Others40 OWNER'S MANUALAdjust the transparency of the OSD menu. There are 8 step from OFF to 7.Press Menu/set button to display the main OSD menu.Select the SET UP main menu with CH+/CH- button on the remote control.Press Menu/Set to enter the sub menu.Select Translucent and press VOL+ button to enter the¥ parts. Then the cursor moves into the ¥ parts. Adjust with CH+/CH- button and press EXIT button.You can watch two channels or sources at the same time. And set up PIP size and position.Press Menu/set button to display the main OSD menu.Select the SET UP main menu with CH+/CH- button on the remote control.Press Menu/Set to enter the sub menu. Select PIP and press Menu/Set to enter the sub menu. Then the PIP sub menu appear.1234PIP WindowTrucelantPIPV-ChipCaptionAdvanced¥OFF ¥OFF SizeSourcePicture SwapPosition¥SMALLPIP (Picture In Picture)12345TrucelantPIPV-ChipCaptionAdvanced¥OFF ¥OFF TranslucentSize in PIP (Picture In Picture )Change the size of the PIP window. There are 3 sizes: SMALL, Large, Twin.Select Size and press VOL+ button to enter the ¥parts. Then the cursor moves into the ¥parts.Adjust size function with CH+/CH- button and press Menu/Set button. 12

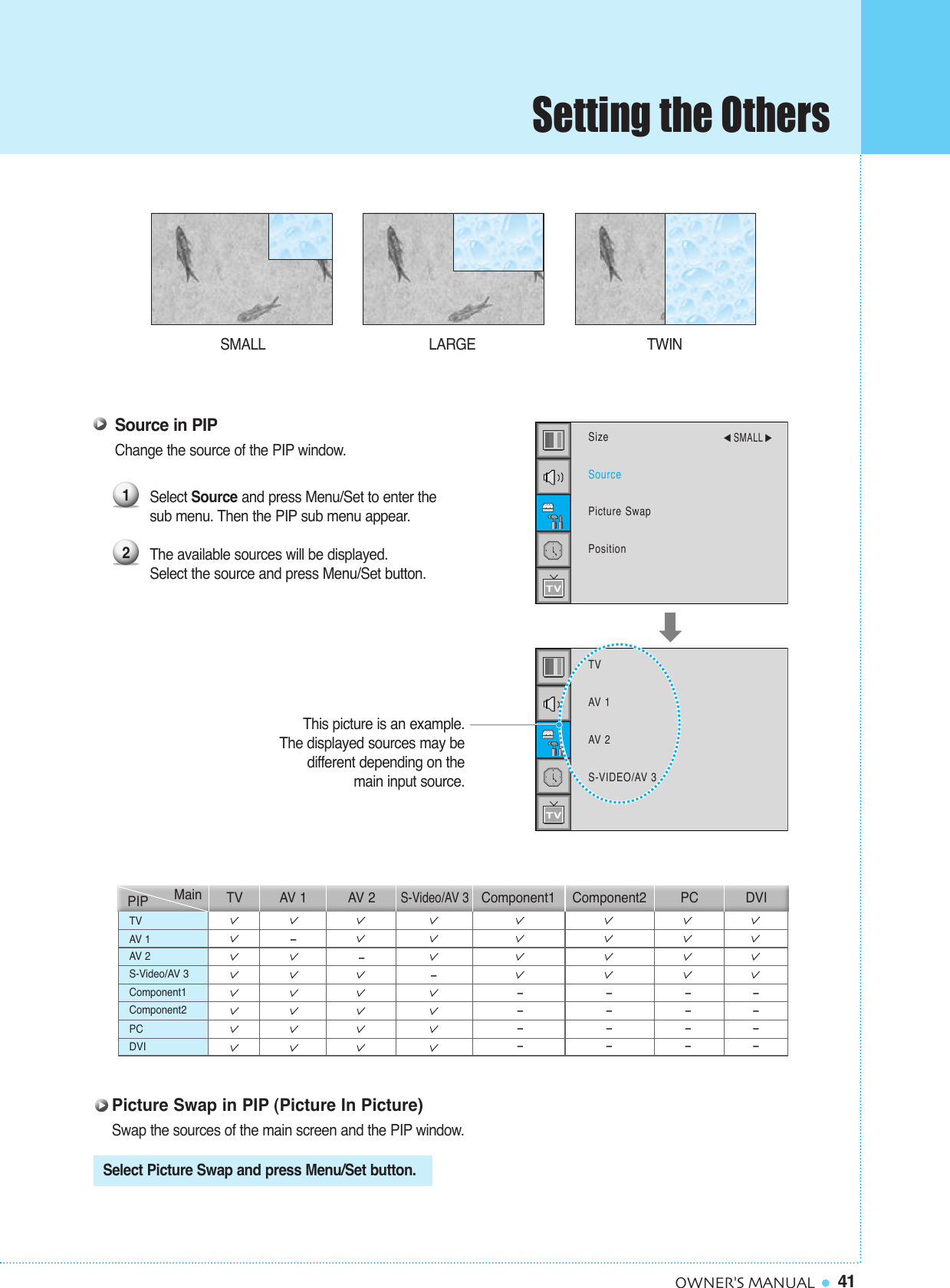

41OWNER'S MANUALSMALL LARGE TWINSource in PIPChange the source of the PIP window.Select Source and press Menu/Set to enter the sub menu. Then the PIP sub menu appear.The available sources will be displayed.Select the source and press Menu/Set button.SizeSourcePicture SwapPosition¥SMALL TVAV 1AV 2S-VIDEO/AV 312This picture is an example.The displayed sources may be different depending on the main input source.TVAV 1AV 2S-Video/AV 3Component1Component2PCDVI––––––––––PIP Main TV AV 1–AV 2S-Video/AV 3Component1 Component2 PC DVISelect Picture Swap and press Menu/Set button.Picture Swap in PIP (Picture In Picture)Swap the sources of the main screen and the PIP window.Setting the Others––––––––

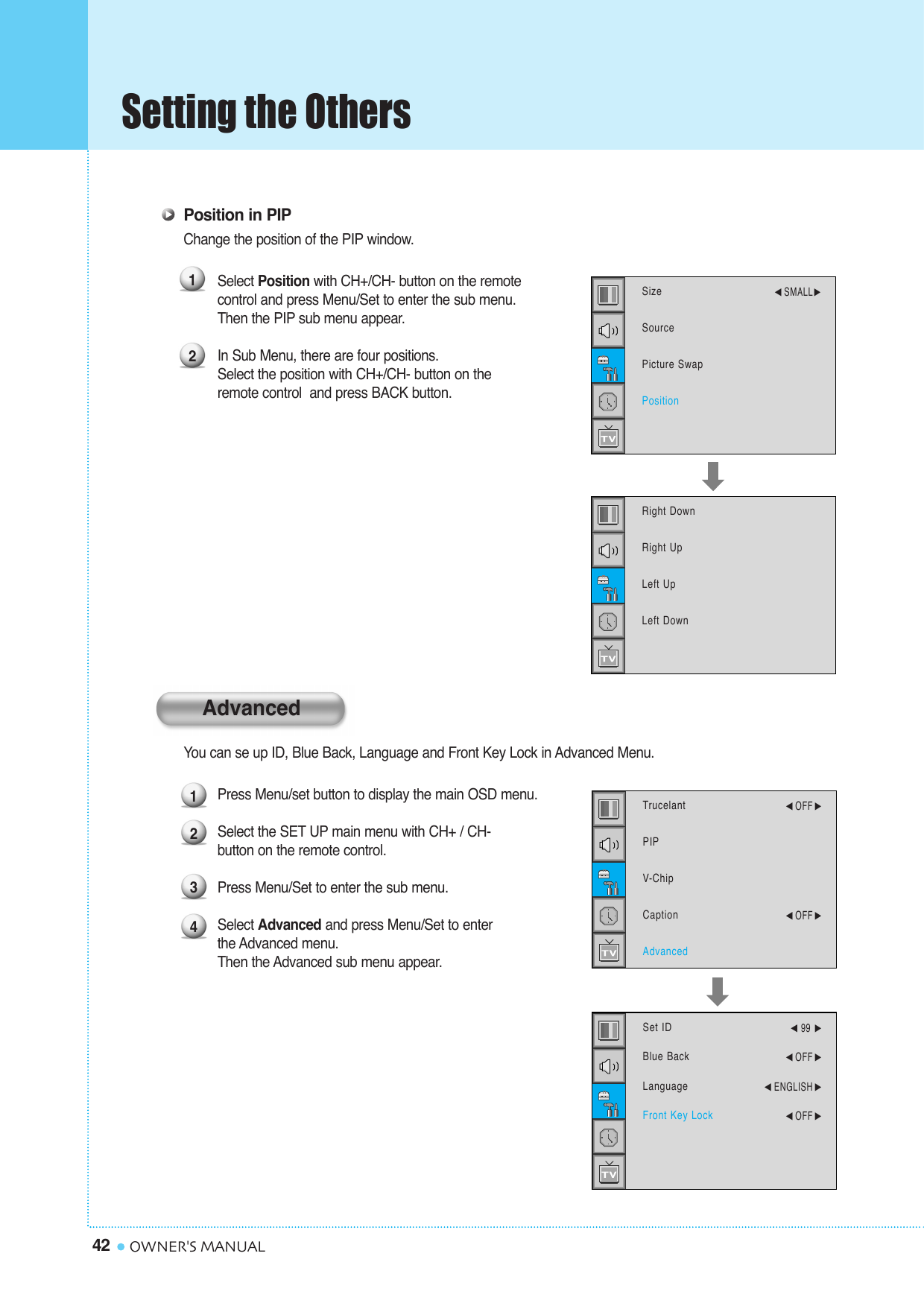

Setting the Others42 OWNER'S MANUALPosition in PIPChange the position of the PIP window.Select Position with CH+/CH- button on the remotecontrol and press Menu/Set to enter the sub menu.Then the PIP sub menu appear.In Sub Menu, there are four positions. Select the position with CH+/CH- button on the remote control and press BACK button.You can se up ID, Blue Back, Language and Front Key Lock in Advanced Menu.Press Menu/set button to display the main OSD menu.Select the SET UP main menu with CH+ / CH- button on the remote control. Press Menu/Set to enter the sub menu. Select Advanced and press Menu/Set to enter the Advanced menu. Then the Advanced sub menu appear.12SizeSourcePicture SwapPosition¥SMALLRight DownRight UpLeft UpLeft Down1234TrucelantPIPV-ChipCaptionAdvanced¥OFF ¥OFF Set IDBlue BackLanguageFront Key Lock¥99 ¥OFF ¥ENGLISH ¥OFF Advanced
43OWNER'S MANUALSet ID in AdvancedSet the ID of the Monitor for mass-controlling through the serial port.Select Set ID and press VOL+ button to enter the¥ part. Then the cursor moves into the ¥ part.Adjust with CH+ / CH- button and press BACK button.Blue Back in AdvancedYou can set to display blue-color screen instead of noise screen.Select Blue Back and press VOL+ button to enter the ¥ parts. Then the cursor moves into the ¥ parts. Turn the function on or off with CH+/CH- button and press BACK button.Language in AdvancedSet the language to use in OSD.Supported languages are English, French, German, Spanish, Italian.Select Language and press VOL+ button to enter the ¥ parts. Then the cursor moves into the ¥ parts.Choose the Language with CH+ / CH- button and press BACK button.Front Key Lock in AdvancedLock the OSD panel of the Monitor. It can protect the Monitor from children's power on/off or other operation by miss.Select Front Key Lock and press VOL+ button to enterthe ¥ parts. Then the cursor moves into the ¥ parts.Turn the function on or off with CH+/CH- button and press BACK button.12Set IDBlue BackLanguageFront Key Lock¥99 ¥OFF ¥ENGLISH ¥OFF 12Set IDBlue BackLanguageFront Key Lock¥99 ¥OFF ¥ENGLISH ¥OFF 12Set IDBlue BackLanguageFront Key Lock¥99 ¥OFF ¥ENGLISH ¥OFF 12Set IDBlue BackLanguageFront Key Lock¥99 ¥OFF ¥ENGLISH ¥OFF Setting the Others

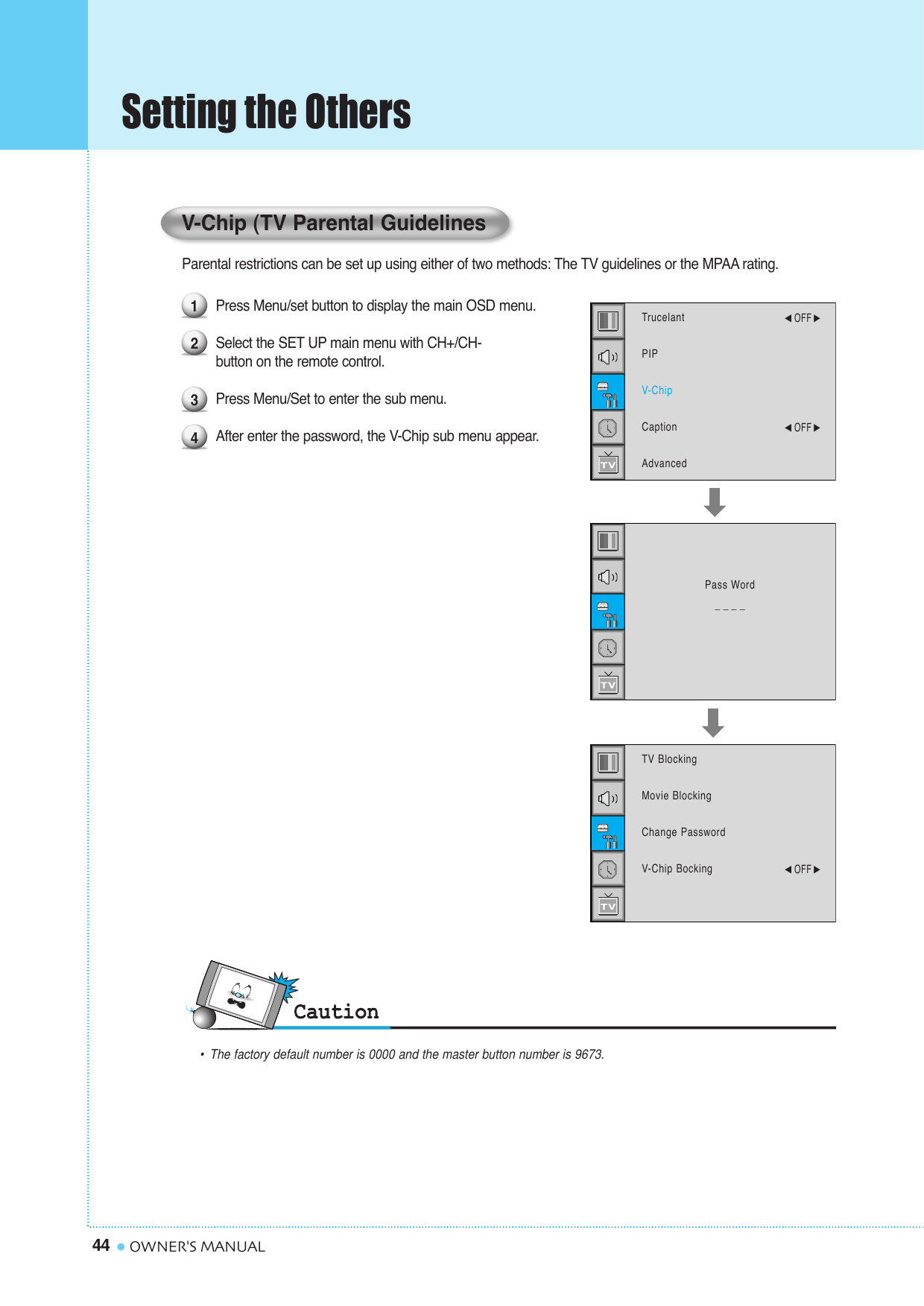

Setting the Others44 OWNER'S MANUALParental restrictions can be set up using either of two methods: The TV guidelines or the MPAA rating.Press Menu/set button to display the main OSD menu.Select the SET UP main menu with CH+/CH- button on the remote control.Press Menu/Set to enter the sub menu.After enter the password, the V-Chip sub menu appear.1234•The factory default number is 0000 and the master button number is 9673.TrucelantPIPV-ChipCaptionAdvanced¥OFF ¥OFF TV BlockingMovie BlockingChange PasswordV-Chip Bocking¥OFF Pass Word____V-Chip (TV Parental Guidelines
45OWNER'S MANUALTV Blocking in V-Chip You can set up Restrictions Using the "TV Parental Guidelines" of FCC.Select TV Blocking with CH+/CH- button on the remote control and press Menu/Set to enter the sub menu. Then the TV Blocking sub menu appear.You can independently lock the TV ratings. The locked TV (FCC) ratings are indicated by the symbol .Press CH+/CH-/VOL+/VOL- buttons and the Menu/Set button to activate the appropriate restrictions for TV (FCC) rating system.Note: These categories consist of two separate groups: TV-Y and TV-Y7 (young children through age 7),and TV-G through TV-MA (everybody else).The restrictions for these two groups work independently: If a household includes very young children as well as young adults, the TV guidelines must be set up separately for each age group.123TV BlockingMovie BlockingChange PasswordV-Chip Bocking¥OFF TV-YTV-Y7TV-GTV-PGTV-14TV-MABlock FV D L SMovie Blocking in V-Chip The Movie Blocking uses the Motion Picture Association of America (MPAA) system, and its main application is for movies. When the Rating Controls is on, the TV will automatically block any programs that are coded with objectionable ratings (either MPAA or TV-Ratings).Select Movie Blocking with CH+/CH- button on the remote control and press Menu/Set to enter the sub menu. Then the Movie Blocking sub menu appear.You can independently lock the TV ratings. The locked Movie (FCC) ratings are indicated by the symbol .Press CH+/CH- buttons and the Menu/Set buttonto activate the appropriate restrictions for MPAArating system. 123TV BlockingMovie BlockingChange PasswordV-Chip Blocking¥OFF MPAA-GMPAA-PGMPAA-PG-BMPAA-RMPAA-RMPAA-NCMPAA-XMOZZ-NRBlockSetting the Others

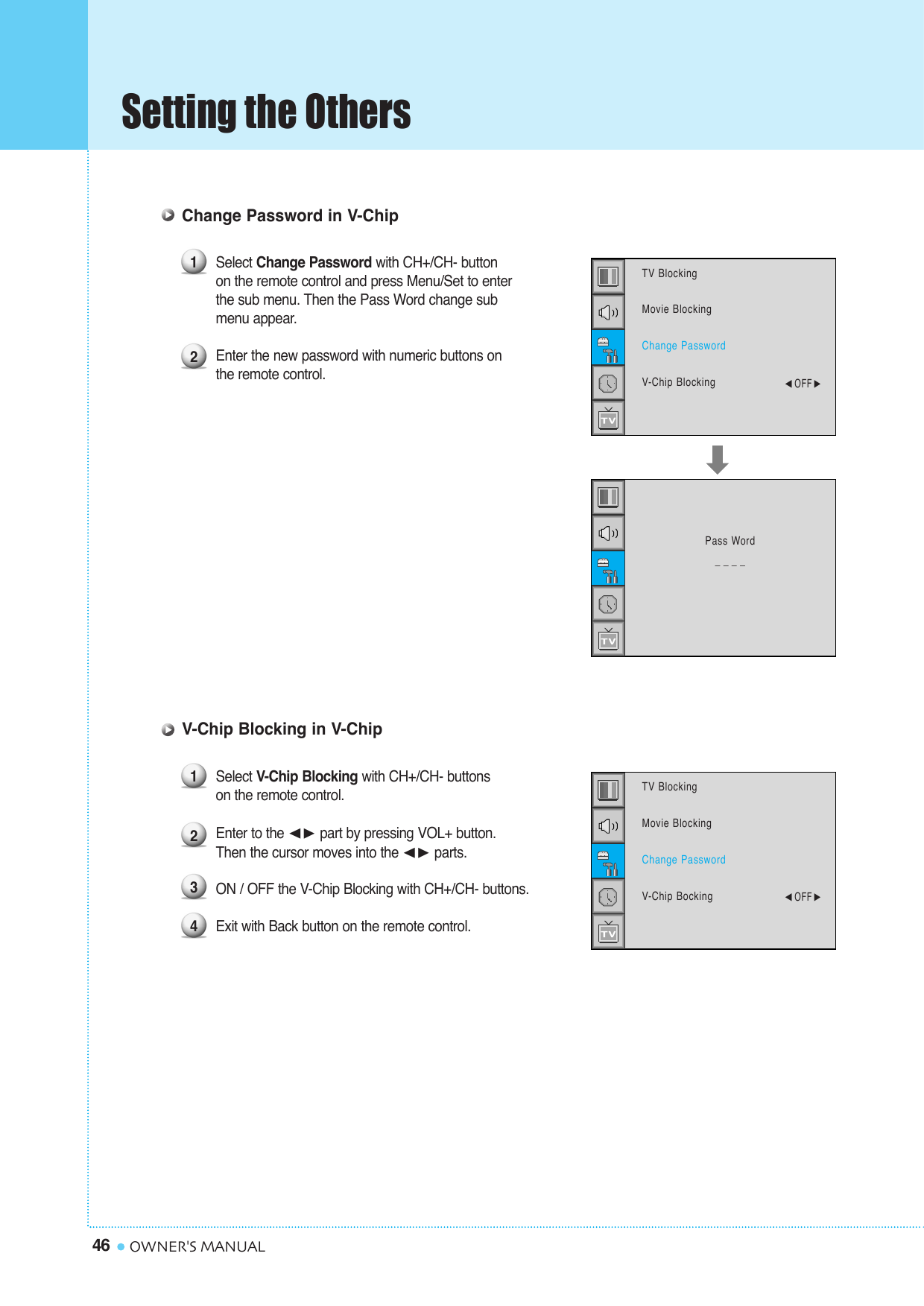

Setting the Others46 OWNER'S MANUALChange Password in V-Chip Select Change Password with CH+/CH- button on the remote control and press Menu/Set to enter the sub menu. Then the Pass Word change sub menu appear.Enter the new password with numeric buttons onthe remote control.V-Chip Blocking in V-Chip Select V-Chip Blocking with CH+/CH- buttons on the remote control.Enter to the ¥ part by pressing VOL+ button. Then the cursor moves into the ¥ parts.ON / OFF the V-Chip Blocking with CH+/CH- buttons. Exit with Back button on the remote control. 121234TV BlockingMovie BlockingChange PasswordV-Chip Blocking¥OFF TV BlockingMovie BlockingChange PasswordV-Chip Bocking¥OFF Pass Word____
47OWNER'S MANUALIn the TIME menu, you can set the current time and auto power on / off. Set the current time.Press Menu/set button to display the main OSD menu.Select the TIME main menu.Press Menu/Set to enter the sub menu.Select Time Set by pressing VOL+ button. Move the cursor by pressing VOL-, VOL+ buttonand adjust time by CH+, CH- button.This the Monitor can be set to turn on automatically at specific time that you choose. Before using the timer, you must set the Monitor's Time as described previously.Press Menu/set button to display the main OSD menu.Select the TIME main menu with CH+/CH- button on the remote control.Press Menu/Set to enter the sub menu.Select On Time with CH+/CH- button and press VOL+ button. Move the cursor by VOL-, VOL+ button and adjust time by CH+, CH- button.1234512345On Time AM 05:11 ONTime SetOn TimeOn ChannelOn VolumeOff TimeSleepAM 03:29AM 05:11 ON¥99 ¥100AM 05:11 OFF¥OFF Time SetOn TimeOn ChannelOn VolumeOff TimeSleepAM 03:29AM 05:11 ON¥99 ¥100AM 05:11 OFF¥OFF Time SetOn TimeSetting the Time

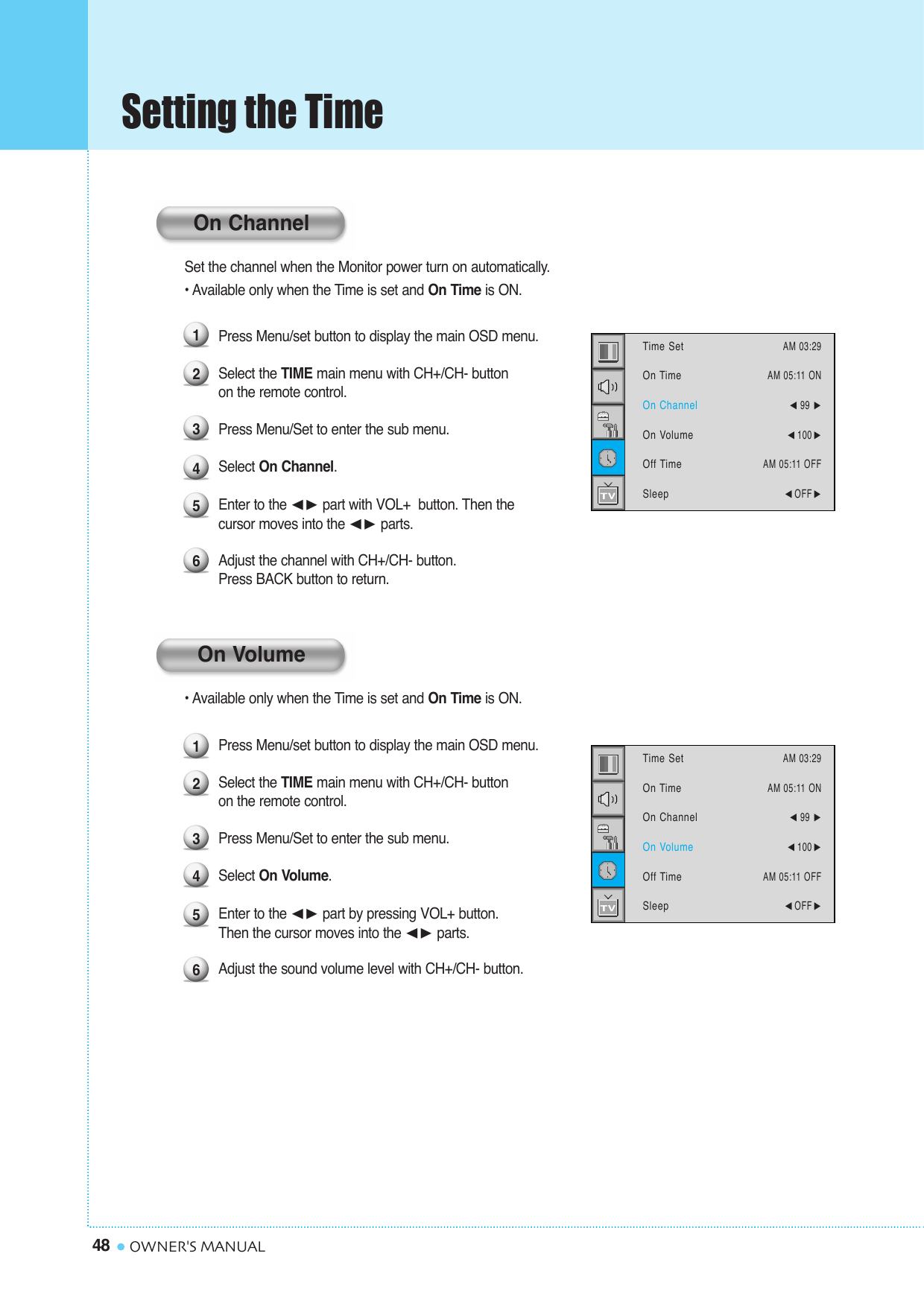

Setting the Time48 OWNER'S MANUALSet the channel when the Monitor power turn on automatically.• Available only when the Time is set and On Time is ON.Press Menu/set button to display the main OSD menu.Select the TIME main menu with CH+/CH- button on the remote control.Press Menu/Set to enter the sub menu.Select On Channel. Enter to the ¥ part with VOL+ button. Then the cursor moves into the ¥ parts.Adjust the channel with CH+/CH- button. Press BACK button to return.• Available only when the Time is set and On Time is ON.Press Menu/set button to display the main OSD menu.Select the TIME main menu with CH+/CH- button on the remote control.Press Menu/Set to enter the sub menu. Select On Volume. Enter to the ¥ part by pressing VOL+ button. Then the cursor moves into the ¥ parts.Adjust the sound volume level with CH+/CH- button. 123456123456Time SetOn TimeOn ChannelOn VolumeOff TimeSleepAM 03:29AM 05:11 ON¥99 ¥100 AM 05:11 OFF¥OFF Time SetOn TimeOn ChannelOn VolumeOff TimeSleepAM 03:29AM 05:11 ON¥99 ¥100 AM 05:11 OFF¥OFF On ChannelOn Volume

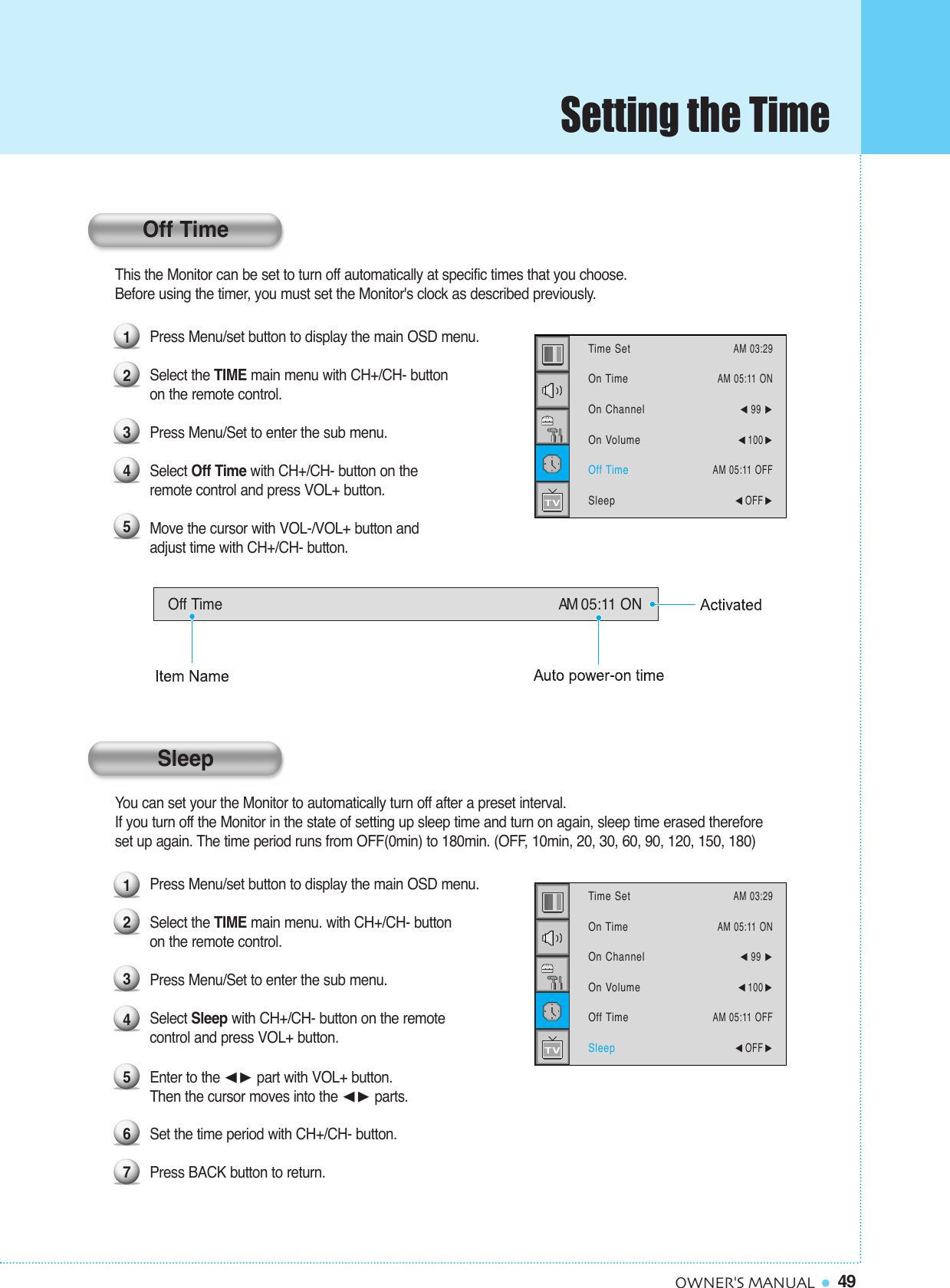

49OWNER'S MANUALThis the Monitor can be set to turn off automatically at specific times that you choose. Before using the timer, you must set the Monitor's clock as described previously.Press Menu/set button to display the main OSD menu.Select the TIME main menu with CH+/CH- button on the remote control.Press Menu/Set to enter the sub menu.Select Off Time with CH+/CH- button on the remote control and press VOL+ button. Move the cursor with VOL-/VOL+ button and adjust time with CH+/CH- button.You can set your the Monitor to automatically turn off after a preset interval.If you turn off the Monitor in the state of setting up sleep time and turn on again, sleep time erased therefore set up again. The time period runs from OFF(0min) to 180min. (OFF, 10min, 20, 30, 60, 90, 120, 150, 180)Press Menu/set button to display the main OSD menu.Select the TIME main menu. with CH+/CH- button on the remote control.Press Menu/Set to enter the sub menu.Select Sleep with CH+/CH- button on the remote control and press VOL+ button. Enter to the ¥ part with VOL+ button. Then the cursor moves into the ¥ parts.Set the time period with CH+/CH- button.Press BACK button to return.123451234567Off Time AM 05:11 ONTime SetOn TimeOn ChannelOn VolumeOff TimeSleepAM 03:29AM 05:11 ON¥99 ¥100 AM 05:11 OFF¥OFF Time SetOn TimeOn ChannelOn VolumeOff TimeSleepAM 03:29AM 05:11 ON¥99 ¥100 AM 05:11 OFF¥OFF Off TimeSleepSetting the Time
50 OWNER'S MANUALSpecificationDisplay SizeDisplay ModePixel FormatContrast RatioBrightnessResolution (RGB)PIPInput compatibleVideoTuner ModuleProgrammingHDTV InputColor temperatureDimension / WeightMain OnlyWith StandWith Stand and SpeakerMiscellaneousAudioExternal ControlPower ConsumptionInput PowerPower consumptionConnectivityTV InputScat1,2 InputComposite Input/OutputComponent1,2 InputS-Video InputPC InputDVI InputAudio In/OutputSpeaker OutputExternal Control Port40-Inch 15 : 9 DiagonalVariable 4 Modes (4:3 Mode / 16:9 X 3 Modes)1028 X 768 Physical Pixel600 : 1450 cd/m1280 X 768 / 50, 60HzAdvanced multi-windows viewing PIP(picture in picture) with fourselectable window positions on Video mode.Multiple input compatible3D Comb filter, Advanced motion digital / Motion-Adaptive De-interlaceprocess, Digital progressiveline scaling.TV / CATV (NTSC)Favorite channel programming, Time Set, Set the Sleep timer.480i/p(60Hz)/576i/p(60Hz)/720p(50,60Hz)/1080i(50,60Hz)Selectable 6 Mode (Warm1,2, Normal, Cool1,2, User)966(W) X 617(H) X 103(D) / 29 kg966(W) X 666.3(H) X 299(D) / 30.8 kg1166(W) X 675.1(H) X 305(D) / 34.8 kgBuilt-in amplifier and two speaker(7Watt/Typ.) systems (optional)Front OSD Key Control, Remote control, RS232C ControlAC 110 ~ 240V 50/60Hz300 WattRF / CATV (NTSC)RCA X 4Port (AV INPUT 1/2/3, AV OUTPUT)RCA X 2Port (AV INPUT, AV OUTPUT)RCA X 2Port (Y, Pb/Cb, Pr/Cr : 480i, 480p, 576i, 576p, 720p, 1080i)Mini Din 4Pin X 1PortMini D-Sub 15Pin X 1Port / HDTV Input(480p, 576p, 720P, 1080i)Mini D-Sub 29Pin X 1Port / HDTV Input(480p, 576p, 720p, 1080i)RCA X 5PortCinch Type X 4Port(Stereo L/R), Head Phone Jack X 1Port(Optional)Mini Din 9Pin X 1PortFunction and Specification40" LCD TV Display Panel2

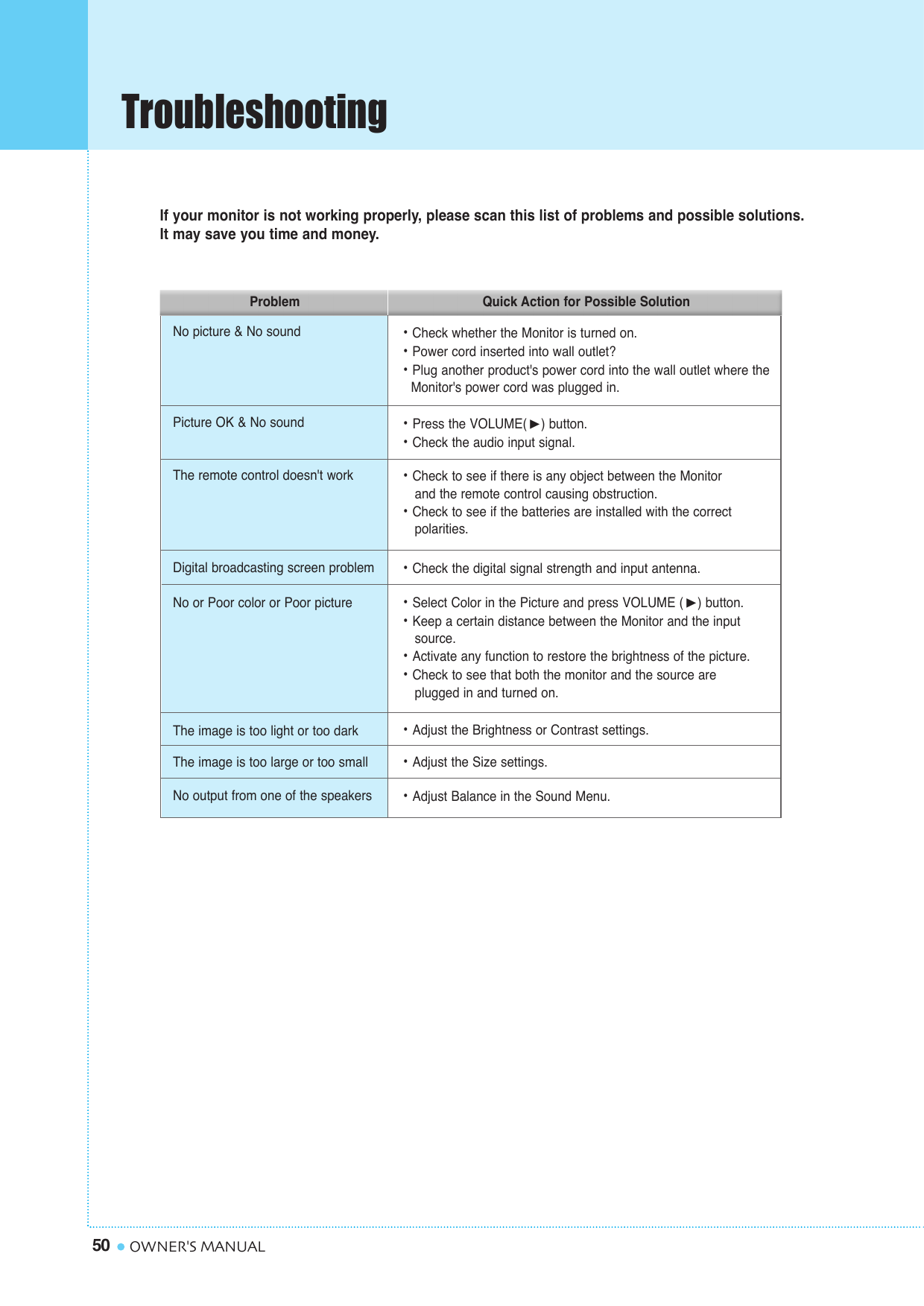

Troubleshooting50 OWNER'S MANUALIf your monitor is not working properly, please scan this list of problems and possible solutions. It may save you time and money.No picture & No sound • Check whether the Monitor is turned on.• Power cord inserted into wall outlet?• Plug another product's power cord into the wall outlet where the Monitor's power cord was plugged in.Picture OK & No sound • Press the VOLUME() button.• Check the audio input signal.The remote control doesn't work • Check to see if there is any object between the Monitor and the remote control causing obstruction.• Check to see if the batteries are installed with the correct polarities.Digital broadcasting screen problem • Check the digital signal strength and input antenna.No or Poor color or Poor picture • Select Color in the Picture and press VOLUME () button.• Keep a certain distance between the Monitor and the input source.• Activate any function to restore the brightness of the picture.• Check to see that both the monitor and the source are plugged in and turned on.The image is too light or too dark • Adjust the Brightness or Contrast settings.The image is too large or too small • Adjust the Size settings.No output from one of the speakers • Adjust Balance in the Sound Menu.Quick Action for Possible SolutionProblem
51OWNER'S MANUALWarranty CardLimited WarrantySubject to the Limitations, Exclusions and Disclaimers hereof, InFocus Corporation ("InFocus") warrants that theLCD Thin Display Device and Accessories (hereinafter collectively or individually referred to as "Product" asappropriate) purchased from InFocus, an InFocus dis tributor, or an InFocus reseller will conform to InFocus'specifications and be free from defects in material or workmanship for the respective Limited Warranty periodprovided below. InFocus does not warrant that the Product will meet the specific requirements of the end-usercustomer. If the Product while subject to this Limited Warranty, is defective in material or workmanship during thewarranty period, then InFocus, at its option, will REPAIR or REPLACE the Product. All exchanged parts andProducts replaced under this Limited Warranty will become property of InFocus. InFocus' sole obligation is tosupply (or pay for) all labor necessary to repair the Product found to be defective within the Limited Warrantyperiod and to repair or replace defective parts with new parts or, at the option of InFocus, serviceable used partsthat are equivalent or superior to new parts performance. Limited Warranty periods are as follows:Product Limited Warranty Period: one (1) year from date of purchase. Accessory Product Limited Warranty Period: one (1) year from date of purchase.WARRANTY LIMITATION AND EXCLUSIONTHIS WARRANTY SETS FORTH INFOCUS' MAXIMUM LIABILITY FOR ITS PRODUCT. THIS WARRANTY EXTENDS ONLY TO PRODUCTS PURCHASED FROM INFOCUS OR AN INFOCUSAUTHORIZED RESELLER. . InFocus shall have no further obligation under the foregoing Limited Warranty if theProduct has been damaged due to abuse, improper ventilation, fire, water, disaster, mispackaging, shipping,lightning or other acts of nature, misuse, neglect, smoke exposure (cigarette or otherwise), accident, unusualphysical or electrical stress and/or power surges, unauthorized modifications (including use of an unauthorizedmount), tampering, alterations, service other than by InFocus or its authorized service providers, or failurecaused other than from ordinary use or failure to properly use the Product in the application for which saidProduct was intended. In addition, failure of the end-user to follow maintenance procedures as outlined in theproduct's user guide, where a schedule is specified for regular cleaning of certain parts (based on usage andenvironment), and the end-user has failed to follow such schedule, the Product will not be covered under theLimited Warranty. Finally, InFocus shall have no further obligation if InFocus Product was subjected to operatingconditions outside of the range specified in the user's guide or in this Limited Warranty. This Limited Warrantyexcludes Product cleaning, repair, or replacement of plastics and glass due to cosmetic damage and damage asa result of normal wear. Product repair outside of the terms of the Limited Warranty will be on a time and materials basis. Prolonged Product "demonstration" causes unusual Product wear and is not considered normaluse under the terms of this Limited Warranty. Wide screen format displays (16:9, the aspect ratio of the screenwidth to height) are primarily designed to view wide screen format full-motion video. The images displayed onthem should primarily be in the wide screen 16:9 ratio format, or expanded to fill the screen if your model offersthis feature, and constantly moving. Displaying stationary graphics and images on screen, such as the dark side-bars on non-expanded standard 4:3 ratio format video, should be limited to no more than 15% of the totalviewing time. LCD burn-in as a result of excessive display of static images is not covered under the terms of thisLimited Warranty. The Accessory Product Limited Warranty covers the accessory item only and excludes normalwear. Remanufactured Products and Software Products are exempt from the foregoing Limited Warranty. Pleaserefer to the appropriate Remanufactured Product Limited Warranty or Software Product Limited Warranty for applicable Warranty information.DISCLAIMER OF UNSTATED WARRANTIESTHE WARRANTY PRINTED ABOVE IS THE ONLY WARRANTY APPLICABLE TO THIS PRODUCT. ALLOTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR PARTICULAR PURPOSE ARE DISCLAIMED.THERE ARE NO WARRANTIES THAT EXTEND BEYOND THE DESCRIPTION ON THE FACE HEREOF ANDTHE FOREGOING WARRANTY SHALL NOT BE EXTENDED, ALTERED OR VARIED EXCEPT BY WRITTENINSTRUMENT SIGNED BY INFOCUS. SOME JURISDICTIONS DO NOT ALLOW LIMITATIONS ON HOWLONG AN IMPLIED WARRANTY MAY LAST, SO SUCH LIMITATIONS MAY NOT APPLY TO YOU.

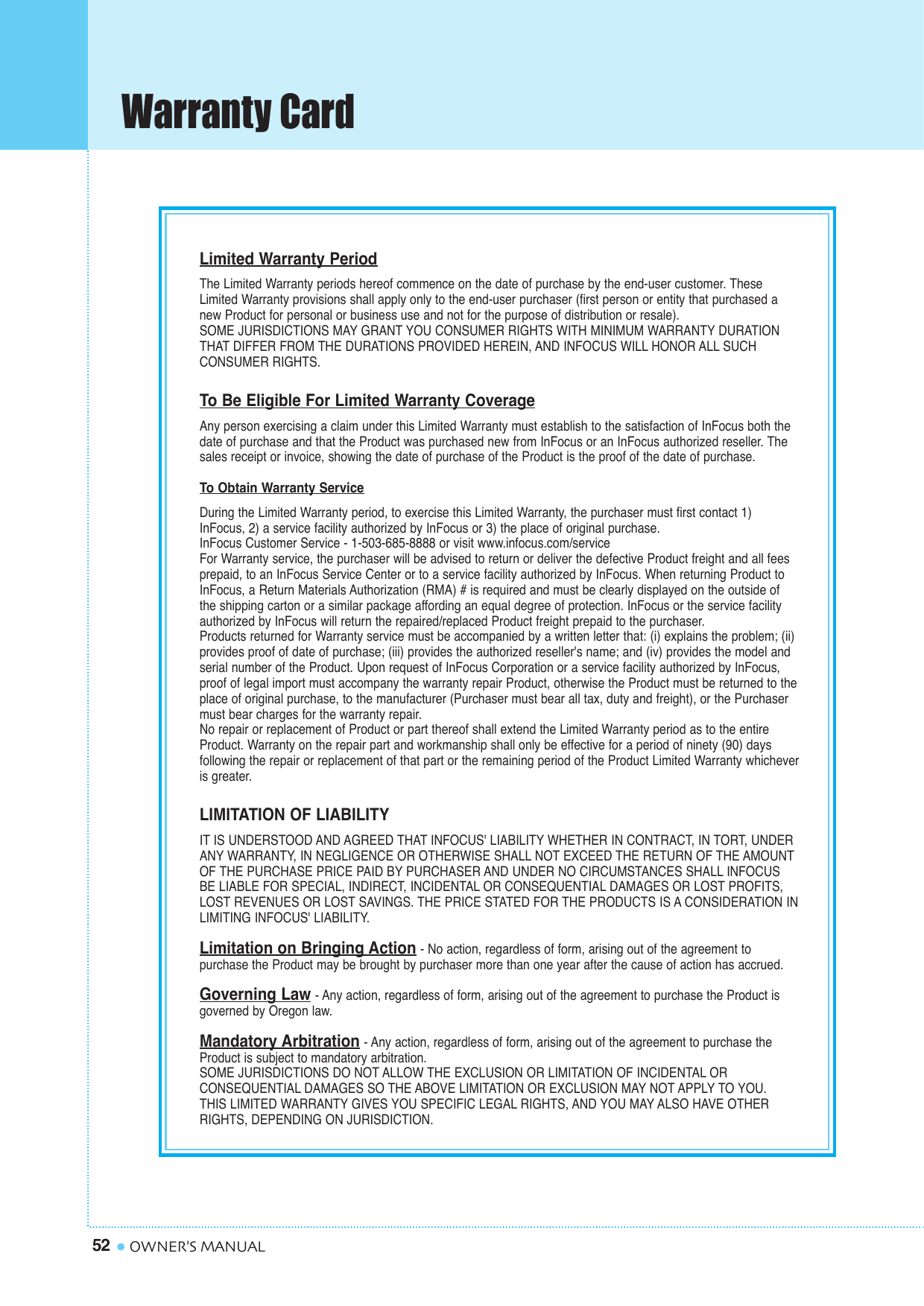

Warranty Card52 OWNER'S MANUALLimited Warranty PeriodThe Limited Warranty periods hereof commence on the date of purchase by the end-user customer. TheseLimited Warranty provisions shall apply only to the end-user purchaser (first person or entity that purchased anew Product for personal or business use and not for the purpose of distribution or resale). SOME JURISDICTIONS MAY GRANT YOU CONSUMER RIGHTS WITH MINIMUM WARRANTY DURATIONTHAT DIFFER FROM THE DURATIONS PROVIDED HEREIN, AND INFOCUS WILL HONOR ALL SUCH CONSUMER RIGHTS.To Be Eligible For Limited Warranty CoverageAny person exercising a claim under this Limited Warranty must establish to the satisfaction of InFocus both thedate of purchase and that the Product was purchased new from InFocus or an InFocus authorized reseller. Thesales receipt or invoice, showing the date of purchase of the Product is the proof of the date of purchase.To Obtain Warranty ServiceDuring the Limited Warranty period, to exercise this Limited Warranty, the purchaser must first contact 1)InFocus, 2) a service facility authorized by InFocus or 3) the place of original purchase.InFocus Customer Service - 1-503-685-8888 or visit www.infocus.com/serviceFor Warranty service, the purchaser will be advised to return or deliver the defective Product freight and all feesprepaid, to an InFocus Service Center or to a service facility authorized by InFocus. When returning Product toInFocus, a Return Materials Authorization (RMA) # is required and must be clearly displayed on the outside ofthe shipping carton or a similar package affording an equal degree of protection. InFocus or the service facilityauthorized by InFocus will return the repaired/replaced Product freight prepaid to the purchaser.Products returned for Warranty service must be accompanied by a written letter that: (i) explains the problem; (ii)provides proof of date of purchase; (iii) provides the authorized reseller's name; and (iv) provides the model andserial number of the Product. Upon request of InFocus Corporation or a service facility authorized by InFocus,proof of legal import must accompany the warranty repair Product, otherwise the Product must be returned to theplace of original purchase, to the manufacturer (Purchaser must bear all tax, duty and freight), or the Purchasermust bear charges for the warranty repair.No repair or replacement of Product or part thereof shall extend the Limited Warranty period as to the entireProduct. Warranty on the repair part and workmanship shall only be effective for a period of ninety (90) days following the repair or replacement of that part or the remaining period of the Product Limited Warranty whicheveris greater.LIMITATION OF LIABILITYIT IS UNDERSTOOD AND AGREED THAT INFOCUS' LIABILITY WHETHER IN CONTRACT, IN TORT, UNDERANY WARRANTY, IN NEGLIGENCE OR OTHERWISE SHALL NOT EXCEED THE RETURN OF THE AMOUNTOF THE PURCHASE PRICE PAID BY PURCHASER AND UNDER NO CIRCUMSTANCES SHALL INFOCUSBE LIABLE FOR SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LOST PROFITS,LOST REVENUES OR LOST SAVINGS. THE PRICE STATED FOR THE PRODUCTS IS A CONSIDERATION INLIMITING INFOCUS' LIABILITY.Limitation on Bringing Action- No action, regardless of form, arising out of the agreement to purchase the Product may be brought by purchaser more than one year after the cause of action has accrued.Governing Law- Any action, regardless of form, arising out of the agreement to purchase the Product isgoverned by Oregon law.Mandatory Arbitration- Any action, regardless of form, arising out of the agreement to purchase theProduct is subject to mandatory arbitration.SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHERRIGHTS, DEPENDING ON JURISDICTION.

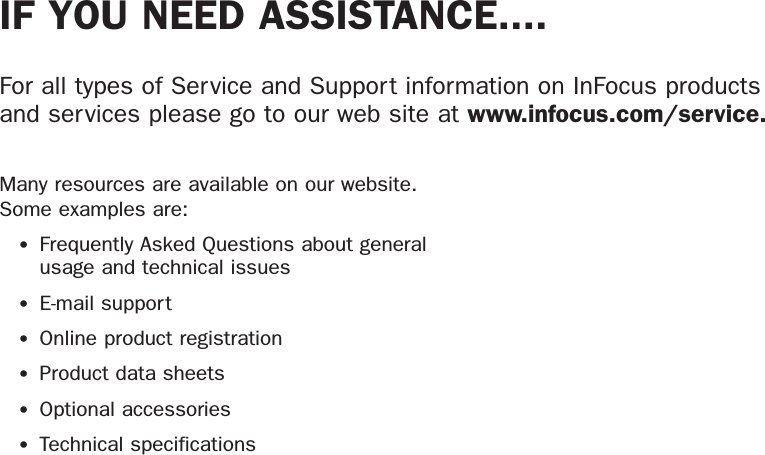

IF YOU NEED ASSISTANCE....For all types of Service and Support information on InFocus products and services please go to our web site at www.infocus.com/service.Many resources are available on our website. Some examples are:•Frequently Asked Questions about general usage and technical issues•E-mail support•Online product registration•Product data sheets•Optional accessories•Technical specifications
