Harsper HP-400 PDP Monitor User Manual

Harsper Co., Ltd. PDP Monitor

User Manual

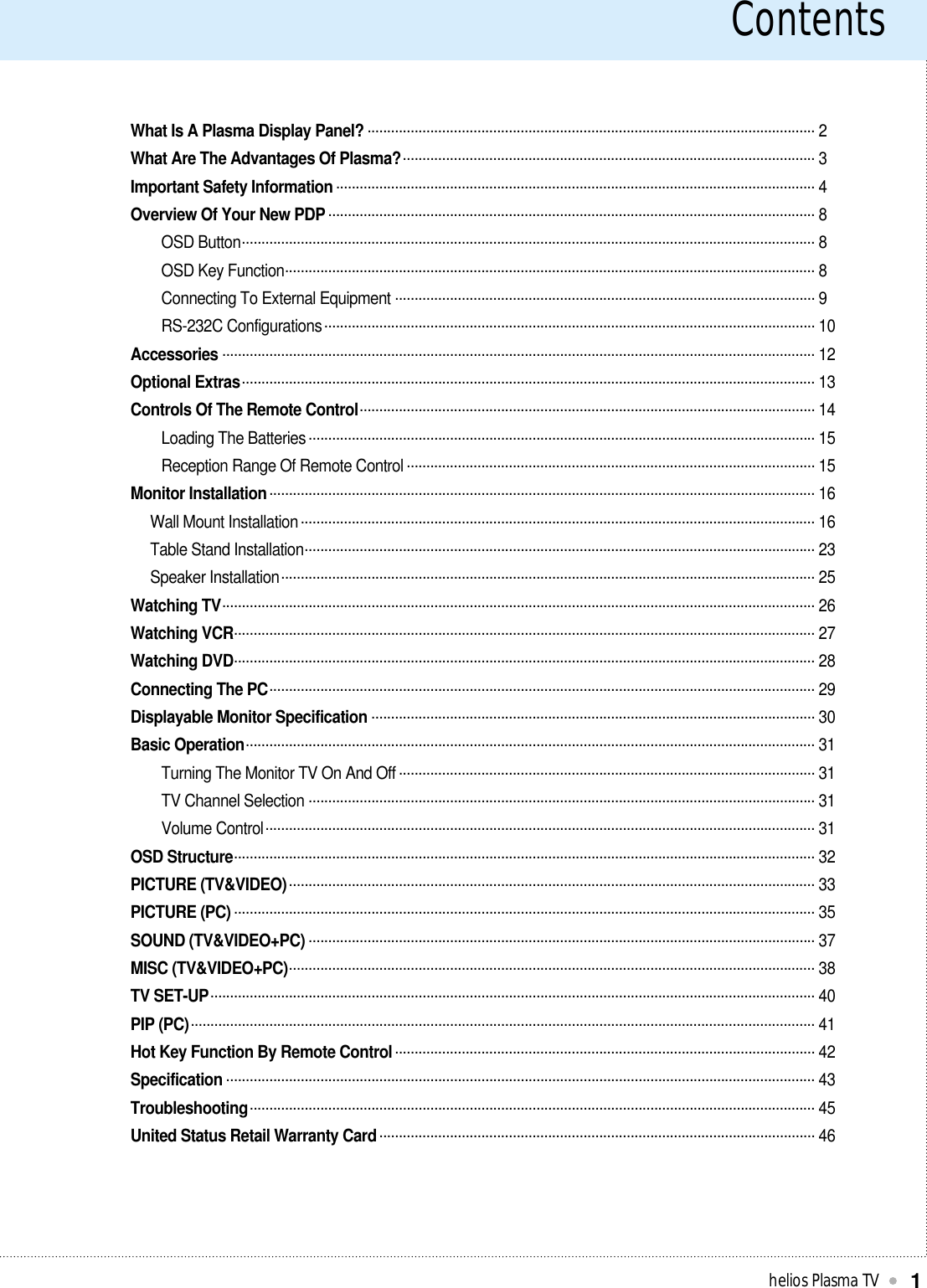

Contentshelios Plasma TV1What Is A Plasma Display Panel? .................................................................................................................. 2What Are The Advantages Of Plasma?......................................................................................................... 3Important Safety Information .......................................................................................................................... 4Overview Of Your New PDP ............................................................................................................................ 8 OSD Button.................................................................................................................................................. 8OSD Key Function....................................................................................................................................... 8Connecting To External Equipment ........................................................................................................... 9RS-232C Configurations............................................................................................................................. 10Accessories ....................................................................................................................................................... 12Optional Extras.................................................................................................................................................. 13Controls Of The Remote Control.................................................................................................................... 14Loading The Batteries ................................................................................................................................. 15Reception Range Of Remote Control ........................................................................................................ 15Monitor Installation........................................................................................................................................... 16Wall Mount Installation................................................................................................................................... 16Table Stand Installation.................................................................................................................................. 23Speaker Installation........................................................................................................................................ 25Watching TV....................................................................................................................................................... 26Watching VCR.................................................................................................................................................... 27Watching DVD.................................................................................................................................................... 28Connecting The PC........................................................................................................................................... 29Displayable Monitor Specification ................................................................................................................. 30Basic Operation................................................................................................................................................. 31 Turning The Monitor TV On And Off .......................................................................................................... 31TV Channel Selection ................................................................................................................................. 31Volume Control............................................................................................................................................ 31OSD Structure.................................................................................................................................................... 32PICTURE (TV&VIDEO)...................................................................................................................................... 33PICTURE (PC) .................................................................................................................................................... 35SOUND (TV&VIDEO+PC) ................................................................................................................................. 37MISC (TV&VIDEO+PC)...................................................................................................................................... 38TV SET-UP.......................................................................................................................................................... 40PIP (PC)............................................................................................................................................................... 41Hot Key Function By Remote Control........................................................................................................... 42Specification ...................................................................................................................................................... 43Troubleshooting................................................................................................................................................ 45United Status Retail Warranty Card............................................................................................................... 46

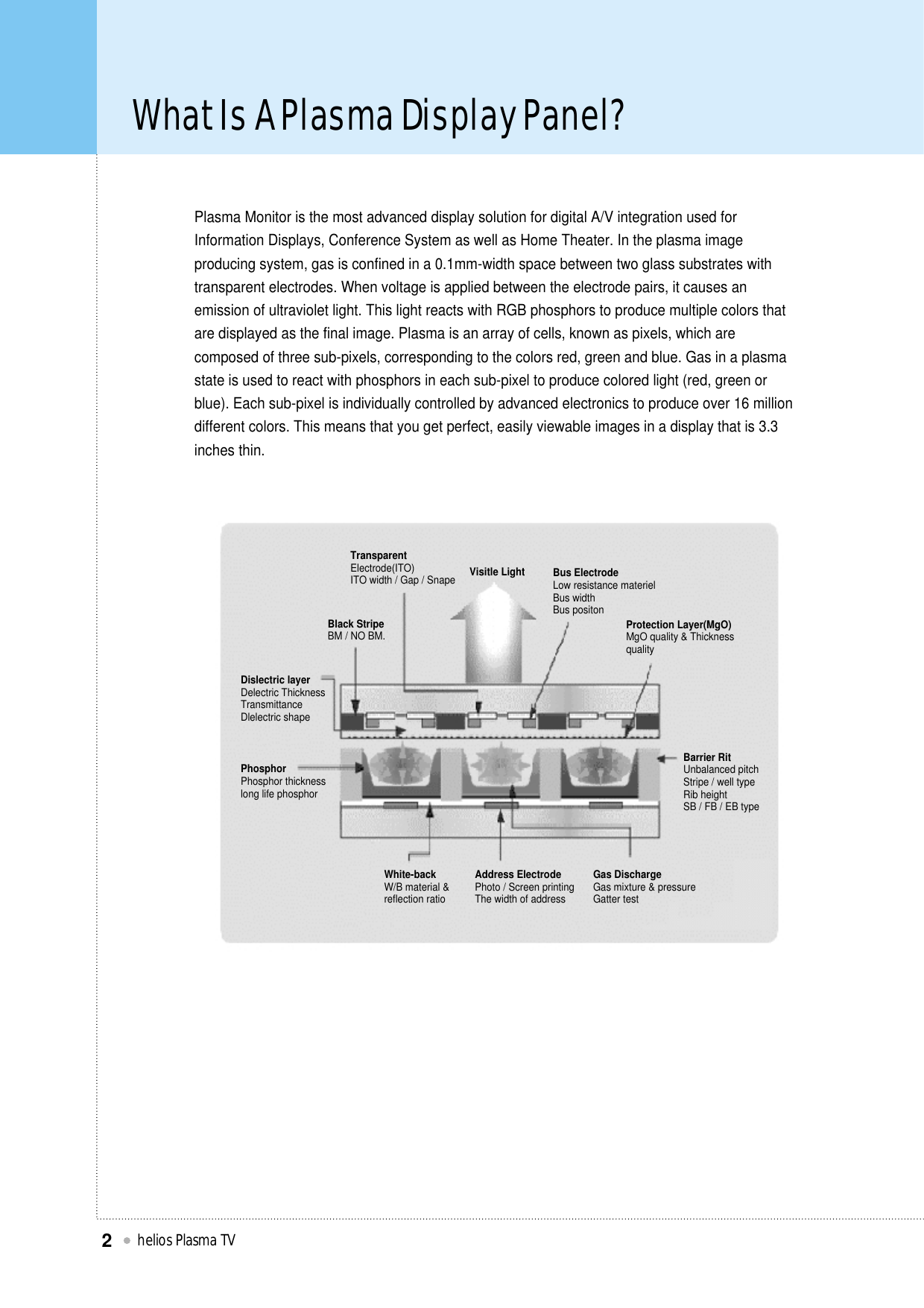

What Is A Plasma Display Panel?helios Plasma TV2Plasma Monitor is the most advanced display solution for digital A/V integration used forInformation Displays, Conference System as well as Home Theater. In the plasma imageproducing system, gas is confined in a 0.1mm-width space between two glass substrates withtransparent electrodes. When voltage is applied between the electrode pairs, it causes anemission of ultraviolet light. This light reacts with RGB phosphors to produce multiple colors thatare displayed as the final image. Plasma is an array of cells, known as pixels, which arecomposed of three sub-pixels, corresponding to the colors red, green and blue. Gas in a plasmastate is used to react with phosphors in each sub-pixel to produce colored light (red, green orblue). Each sub-pixel is individually controlled by advanced electronics to produce over 16 milliondifferent colors. This means that you get perfect, easily viewable images in a display that is 3.3inches thin.TransparentElectrode(ITO)ITO width / Gap / Snape Visitle Light Bus ElectrodeLow resistance materielBus widthBus positonProtection Layer(MgO)MgO quality & ThicknessqualityBarrier RitUnbalanced pitchStripe / well typeRib heightSB / FB / EB typeBlack StripeBM / NO BM.Dislectric layerDelectric ThicknessTransmittanceDlelectric shapePhosphorPhosphor thicknesslong life phosphorWhite-backW/B material &reflection ratioAddress ElectrodePhoto / Screen printingThe width of addressGas DischargeGas mixture & pressureGatter test
What Are The Advantages Of Plasma? helios Plasma TV3<Large Size>PDP160oPDP<Light Weight> <Good Uniformity>1/6 CRT<Wide View Angle> <Slim Size>PDP CRT<None Distortion with magetic filed>

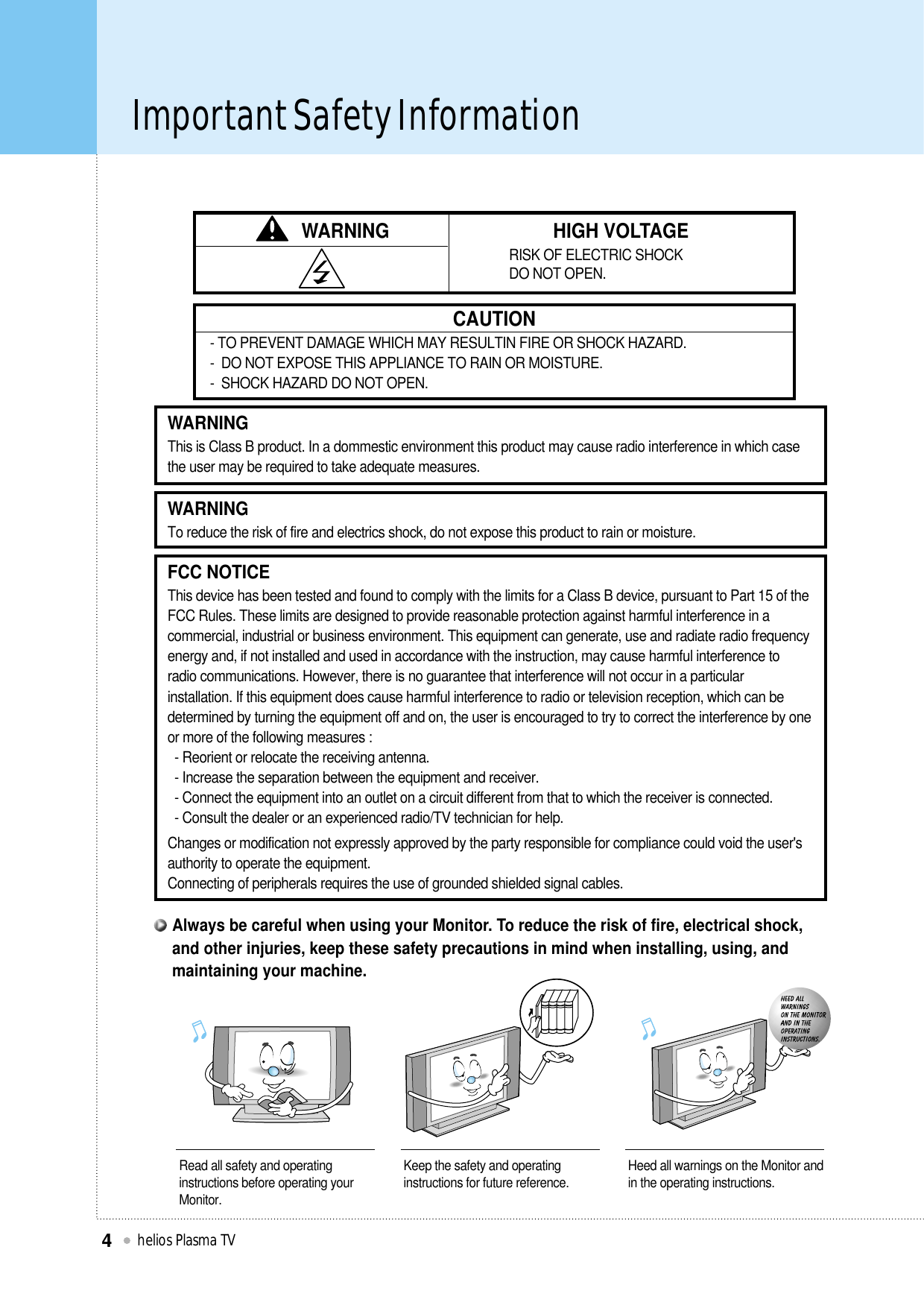

Important Safety Informationhelios Plasma TV4WARNING HIGH VOLTAGERISK OF ELECTRIC SHOCK DO NOT OPEN.CAUTION- TO PREVENT DAMAGE WHICH MAY RESULTIN FIRE OR SHOCK HAZARD. - DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.- SHOCK HAZARD DO NOT OPEN.WARNINGThis is Class B product. In a dommestic environment this product may cause radio interference in which casethe user may be required to take adequate measures.FCC NOTICEThis device has been tested and found to comply with the limits for a Class B device, pursuant to Part 15 of theFCC Rules. These limits are designed to provide reasonable protection against harmful interference in acommercial, industrial or business environment. This equipment can generate, use and radiate radio frequencyenergy and, if not installed and used in accordance with the instruction, may cause harmful interference toradio communications. However, there is no guarantee that interference will not occur in a particularinstallation. If this equipment does cause harmful interference to radio or television reception, which can bedetermined by turning the equipment off and on, the user is encouraged to try to correct the interference by oneor more of the following measures :- Reorient or relocate the receiving antenna.- Increase the separation between the equipment and receiver.- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.- Consult the dealer or an experienced radio/TV technician for help.Changes or modification not expressly approved by the party responsible for compliance could void the user'sauthority to operate the equipment.Connecting of peripherals requires the use of grounded shielded signal cables.WARNINGTo reduce the risk of fire and electrics shock, do not expose this product to rain or moisture.Read all safety and operatinginstructions before operating yourMonitor.Keep the safety and operatinginstructions for future reference. Heed all warnings on the Monitor andin the operating instructions.Always be careful when using your Monitor. To reduce the risk of fire, electrical shock,and other injuries, keep these safety precautions in mind when installing, using, andmaintaining your machine.

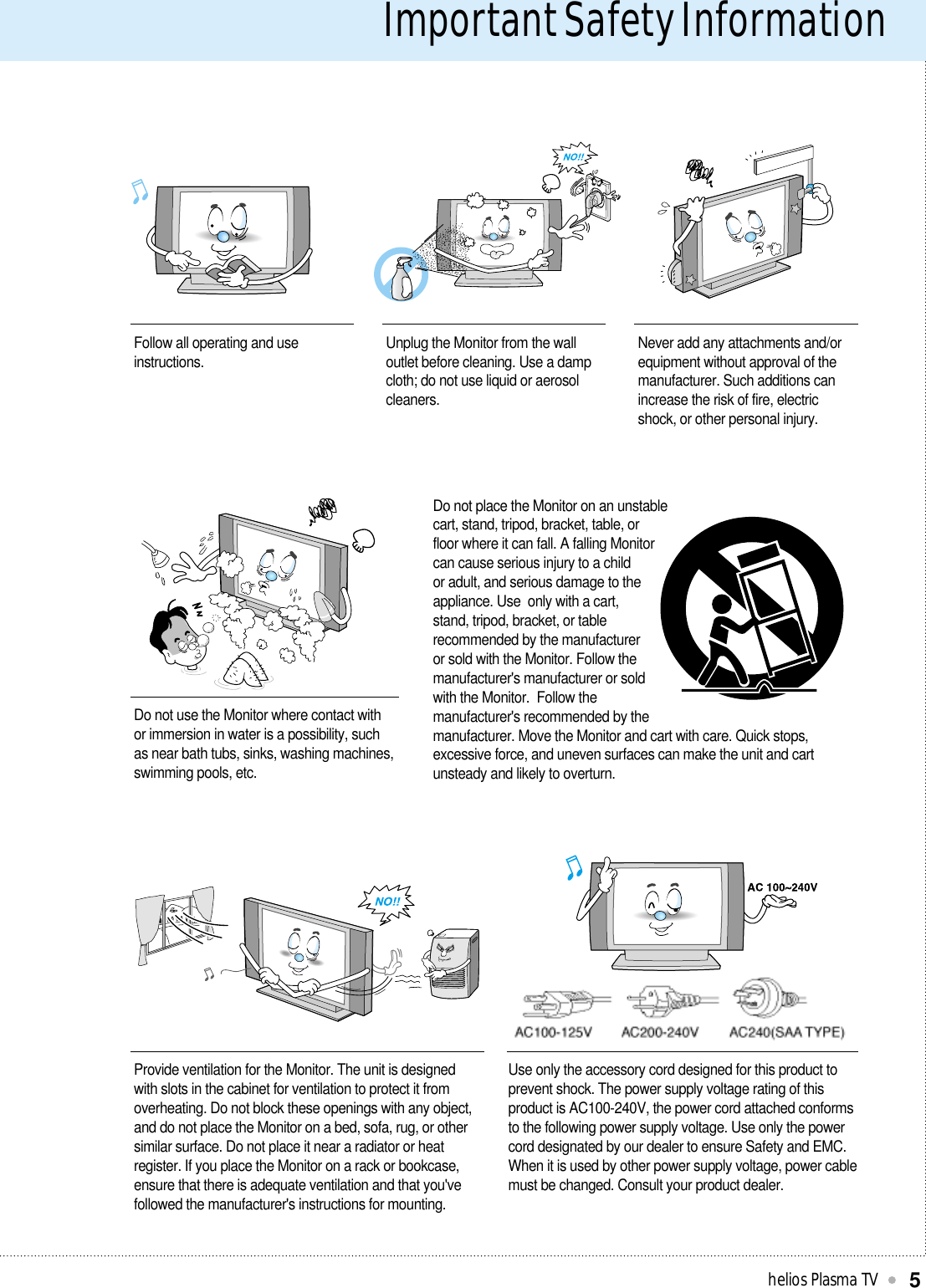

Important Safety Informationhelios Plasma TV5Follow all operating and useinstructions. Unplug the Monitor from the walloutlet before cleaning. Use a dampcloth; do not use liquid or aerosolcleaners.Never add any attachments and/orequipment without approval of themanufacturer. Such additions canincrease the risk of fire, electricshock, or other personal injury.Do not use the Monitor where contact withor immersion in water is a possibility, suchas near bath tubs, sinks, washing machines,swimming pools, etc.Do not place the Monitor on an unstablecart, stand, tripod, bracket, table, orfloor where it can fall. A falling Monitorcan cause serious injury to a childor adult, and serious damage to theappliance. Use only with a cart,stand, tripod, bracket, or tablerecommended by the manufactureror sold with the Monitor. Follow themanufacturer's manufacturer or soldwith the Monitor. Follow themanufacturer's recommended by themanufacturer. Move the Monitor and cart with care. Quick stops,excessive force, and uneven surfaces can make the unit and cartunsteady and likely to overturn.Provide ventilation for the Monitor. The unit is designedwith slots in the cabinet for ventilation to protect it fromoverheating. Do not block these openings with any object,and do not place the Monitor on a bed, sofa, rug, or othersimilar surface. Do not place it near a radiator or heatregister. If you place the Monitor on a rack or bookcase,ensure that there is adequate ventilation and that you'vefollowed the manufacturer's instructions for mounting.Use only the accessory cord designed for this product toprevent shock. The power supply voltage rating of thisproduct is AC100-240V, the power cord attached conformsto the following power supply voltage. Use only the powercord designated by our dealer to ensure Safety and EMC.When it is used by other power supply voltage, power cablemust be changed. Consult your product dealer.

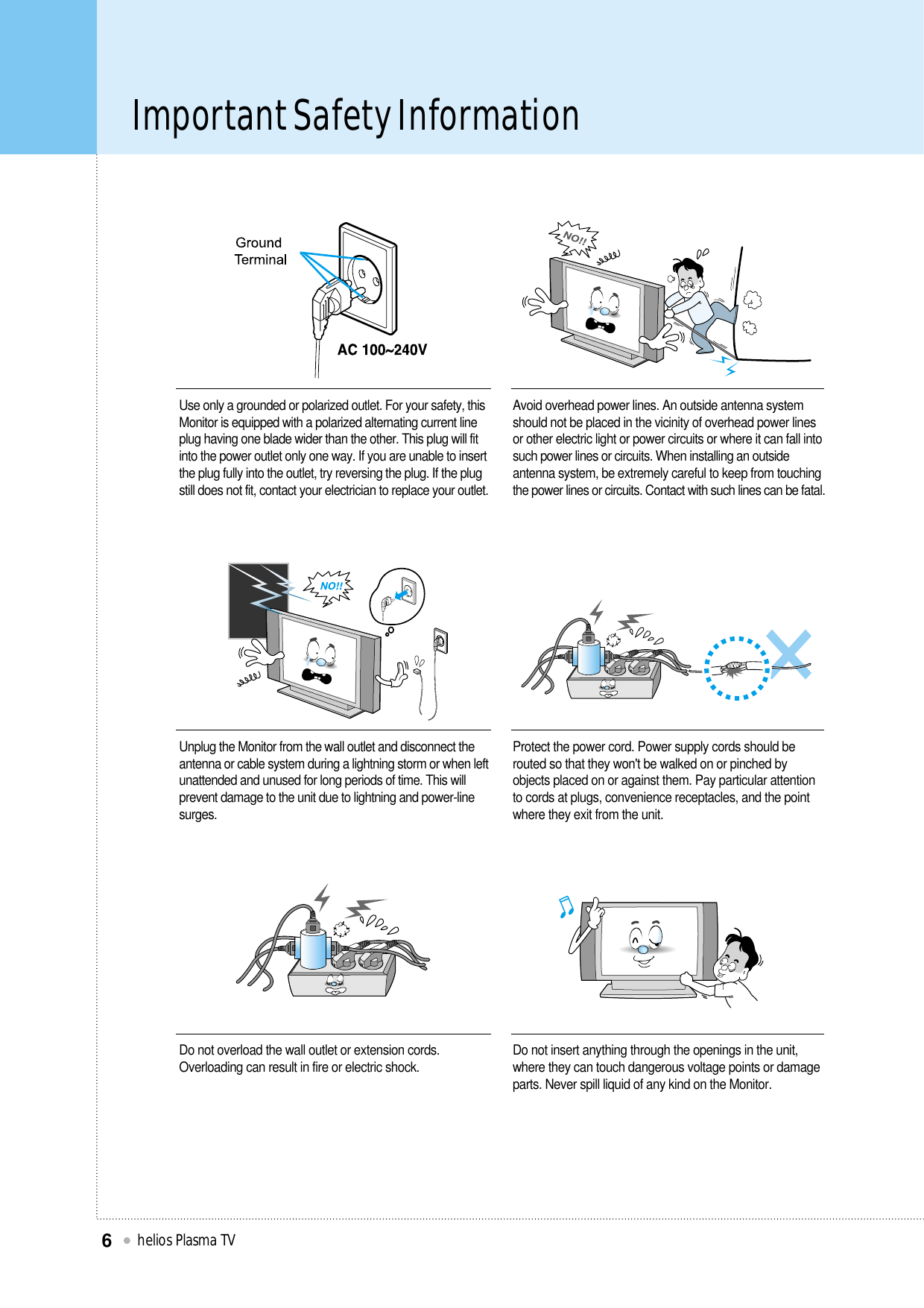

Important Safety Informationhelios Plasma TV6Unplug the Monitor from the wall outlet and disconnect theantenna or cable system during a lightning storm or when leftunattended and unused for long periods of time. This willprevent damage to the unit due to lightning and power-linesurges.Protect the power cord. Power supply cords should berouted so that they won't be walked on or pinched byobjects placed on or against them. Pay particular attentionto cords at plugs, convenience receptacles, and the pointwhere they exit from the unit.Do not overload the wall outlet or extension cords.Overloading can result in fire or electric shock. Do not insert anything through the openings in the unit,where they can touch dangerous voltage points or damageparts. Never spill liquid of any kind on the Monitor.Use only a grounded or polarized outlet. For your safety, thisMonitor is equipped with a polarized alternating current lineplug having one blade wider than the other. This plug will fitinto the power outlet only one way. If you are unable to insertthe plug fully into the outlet, try reversing the plug. If the plugstill does not fit, contact your electrician to replace your outlet.Avoid overhead power lines. An outside antenna systemshould not be placed in the vicinity of overhead power linesor other electric light or power circuits or where it can fall intosuch power lines or circuits. When installing an outsideantenna system, be extremely careful to keep from touchingthe power lines or circuits. Contact with such lines can be fatal.
Important Safety Informationhelios Plasma TV7Ground outdoor antennas. If an outside antenna or cable system is connected to the Monitor, be sure theantenna or cable system is grounded so as to provide some protection against voltage surges and built-upstatic charges. Section 810 of the National Electrical Code, ANSI/NFPA No.70-1984, provides informationabout proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antennadischarge unit, size of grounding conductors, location of antenna discharge unit, connection to groundingelectrodes, and requirements for the grounding electrode.Upon completion of any service orrepairs to this Monitor, ask theservice technician to perform safetychecks to determine that the Monitoris in a safe operating condition.If you make adjustments yourself,adjust only those controls that arecovered by the operating instructions.Adjusting other controls may result indamage and will often requireextensive work by a qualifiedtechnician to restore the Monitor tonormal.When replacement parts arerequired, be sure the servicetechnician uses replacement partsspecified by the manufacturer orthose that have the samecharacteristics as the original part.Unauthorized substitutions may resultin additional damage to the unit.Do not attempt to service the Monitor yourself. Refer all servicing to qualified servicepersonnel. Unplug the unit from the wall outlet and refer servicing to qualified servicepersonnel under the following conditions:• when the power-supply cord or plug is damaged• if liquid has been spilled on the unit or if objects have fallen into the unit• if the Monitor has been exposed to rain or water• if the Monitor does not operate normally by following the operating instructions• if the Monitor has been dropped or the cabinet has been damaged• when the Monitor exhibits a distinct change in performance

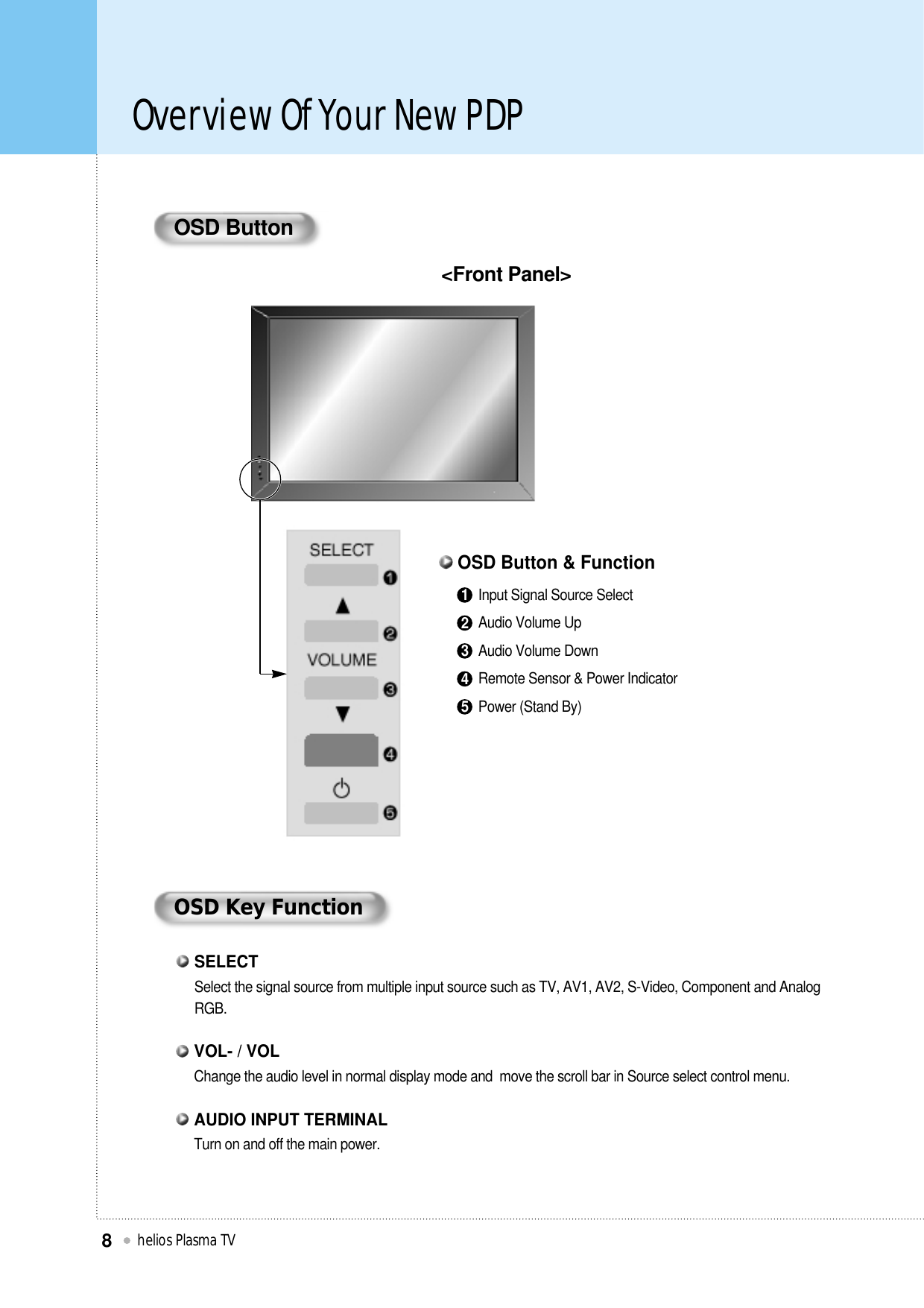

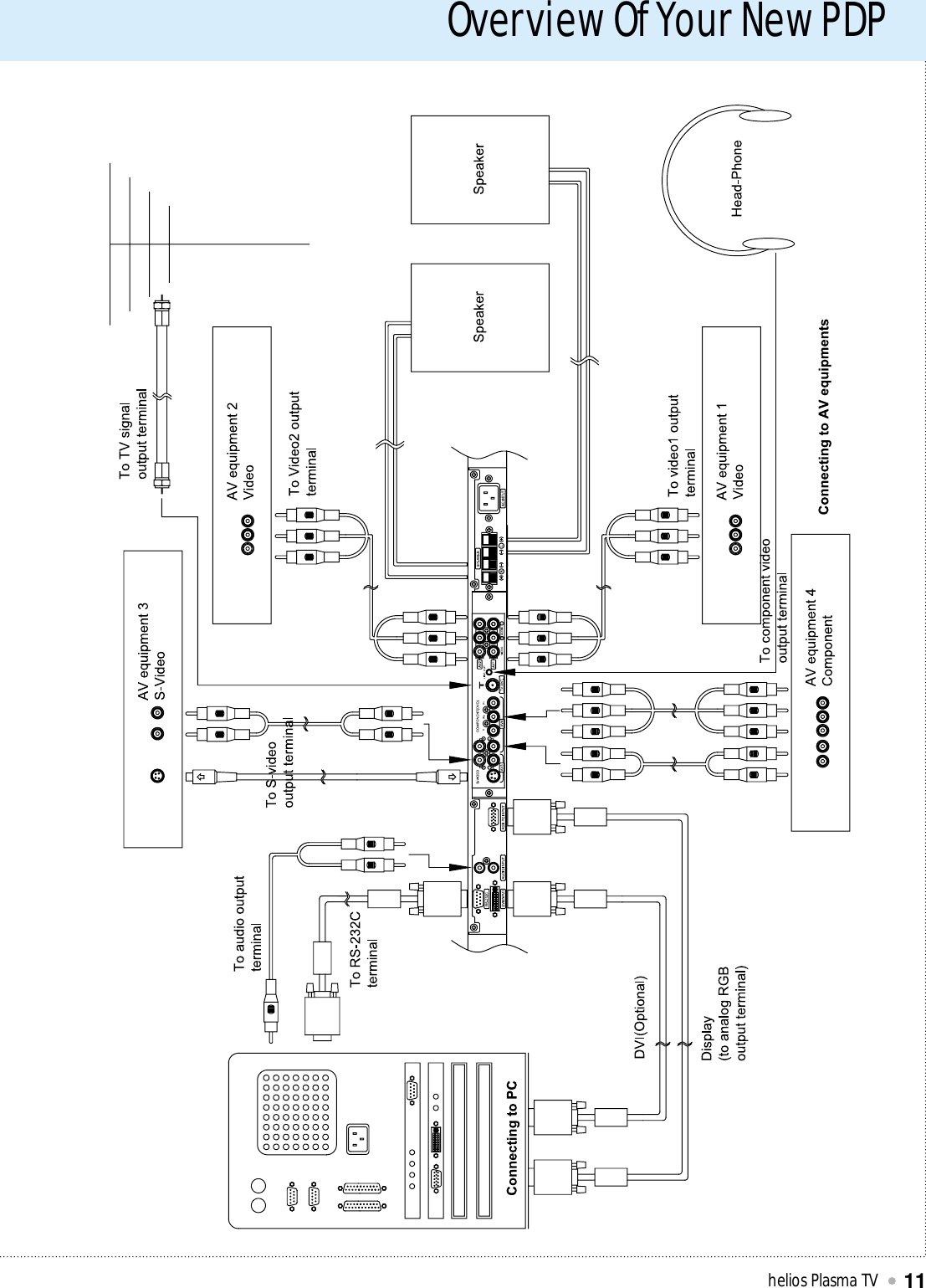

Input Signal Source SelectAudio Volume UpAudio Volume DownRemote Sensor & Power IndicatorPower (Stand By)OSD Button & Function12345Overview Of Your New PDPhelios Plasma TV8OSD Button<Front Panel>OSD Key FunctionSelect the signal source from multiple input source such as TV, AV1, AV2, S-Video, Component and AnalogRGB.SELECTChange the audio level in normal display mode and move the scroll bar in Source select control menu.VOL- / VOLTurn on and off the main power.AUDIO INPUT TERMINAL

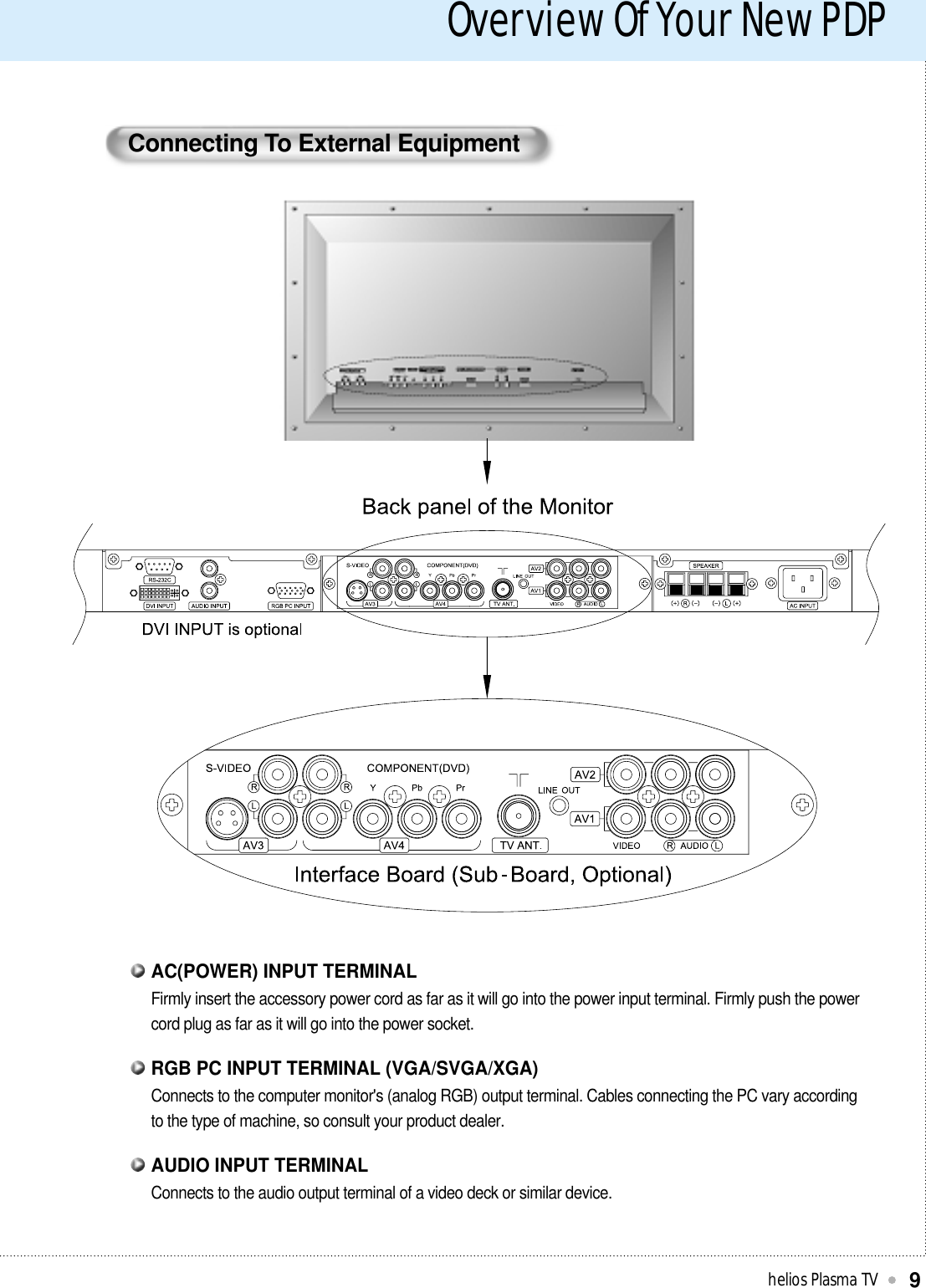

Overview Of Your New PDPhelios Plasma TV9Connecting To External EquipmentConnects to the computer monitor's (analog RGB) output terminal. Cables connecting the PC vary accordingto the type of machine, so consult your product dealer.RGB PC INPUT TERMINAL (VGA/SVGA/XGA)Connects to the audio output terminal of a video deck or similar device.AUDIO INPUT TERMINALFirmly insert the accessory power cord as far as it will go into the power input terminal. Firmly push the powercord plug as far as it will go into the power socket.AC(POWER) INPUT TERMINAL

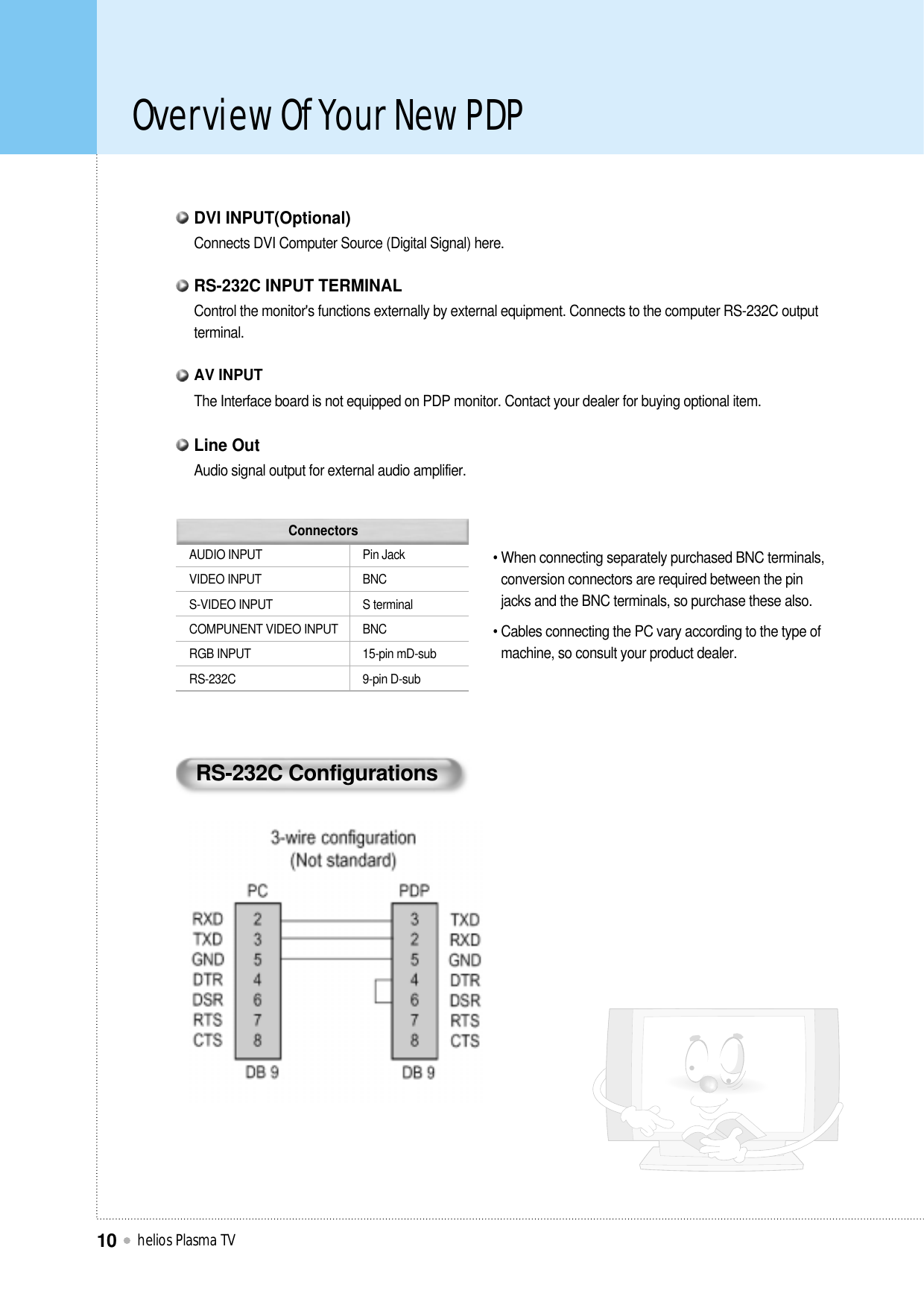

Overview Of Your New PDPhelios Plasma TV10• When connecting separately purchased BNC terminals,conversion connectors are required between the pinjacks and the BNC terminals, so purchase these also.• Cables connecting the PC vary according to the type ofmachine, so consult your product dealer.AUDIO INPUTVIDEO INPUTS-VIDEO INPUTCOMPUNENT VIDEO INPUTRGB INPUTRS-232CPin JackBNCS terminalBNC15-pin mD-sub9-pin D-subConnectorsRS-232C ConfigurationsConnects DVI Computer Source (Digital Signal) here.DVI INPUT(Optional)The Interface board is not equipped on PDP monitor. Contact your dealer for buying optional item. AV INPUTAudio signal output for external audio amplifier. Line OutControl the monitor's functions externally by external equipment. Connects to the computer RS-232C outputterminal.RS-232C INPUT TERMINAL
Overview Of Your New PDPhelios Plasma TV11L
Accessorieshelios Plasma TV12Remote Control Handset D-sub 15 pin cable Power CordVideo Cable Audio CableOwner's Manual Alkaline batteries

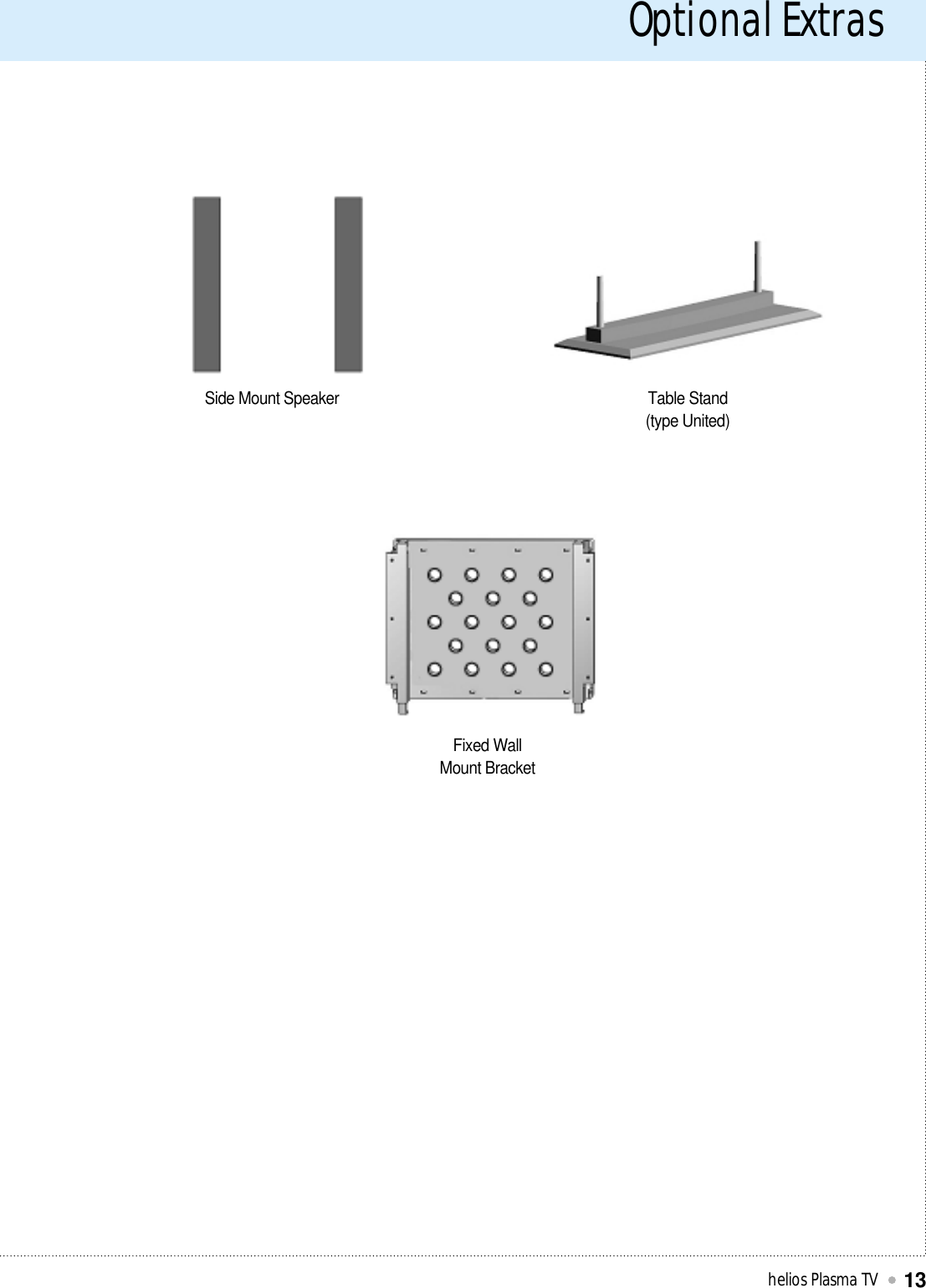

Optional Extrashelios Plasma TV13Side Mount Speaker Table Stand(type United)Fixed WallMount Bracket
Controls Of The Remote Controlhelios Plasma TV14When using the Remote Control aim it at the Remote Control sensor of the Plasma TV.Turns on and off the main power POWERMute on / offMUTEChange the brightnessBRIGHTActivate the temporary pauseSTILLActivate PIP function on PC ModePIPDirect TV channel number inputNumber keyExit from the current OSD menu or sub-menuEXITChange the TV channel on TV mode up or downCH /Change the audio level, increase or decreaseVOL+ / VOL-Activate the OSD window, enter the sub-menuSETActivate the closed caption functionCLOSED CAPTIONActivate the V-Chip functionV-CHIPChange the image size setting, ie; 16:9, 4:3, etc.VIDEO SIZEExit from the current OSD menu or sub-menuMTSGo back to previous TV channelPREV.CH.Edit the TV Channel presetCH ADD/ERASESelect the signal source from multiple input source of TV,AV1, AV2, S-Video, Component and Analog RGBTV / VIDEOTV off time setting, push button for 30 min, 60 min, 90 minand 180 minSLEEP

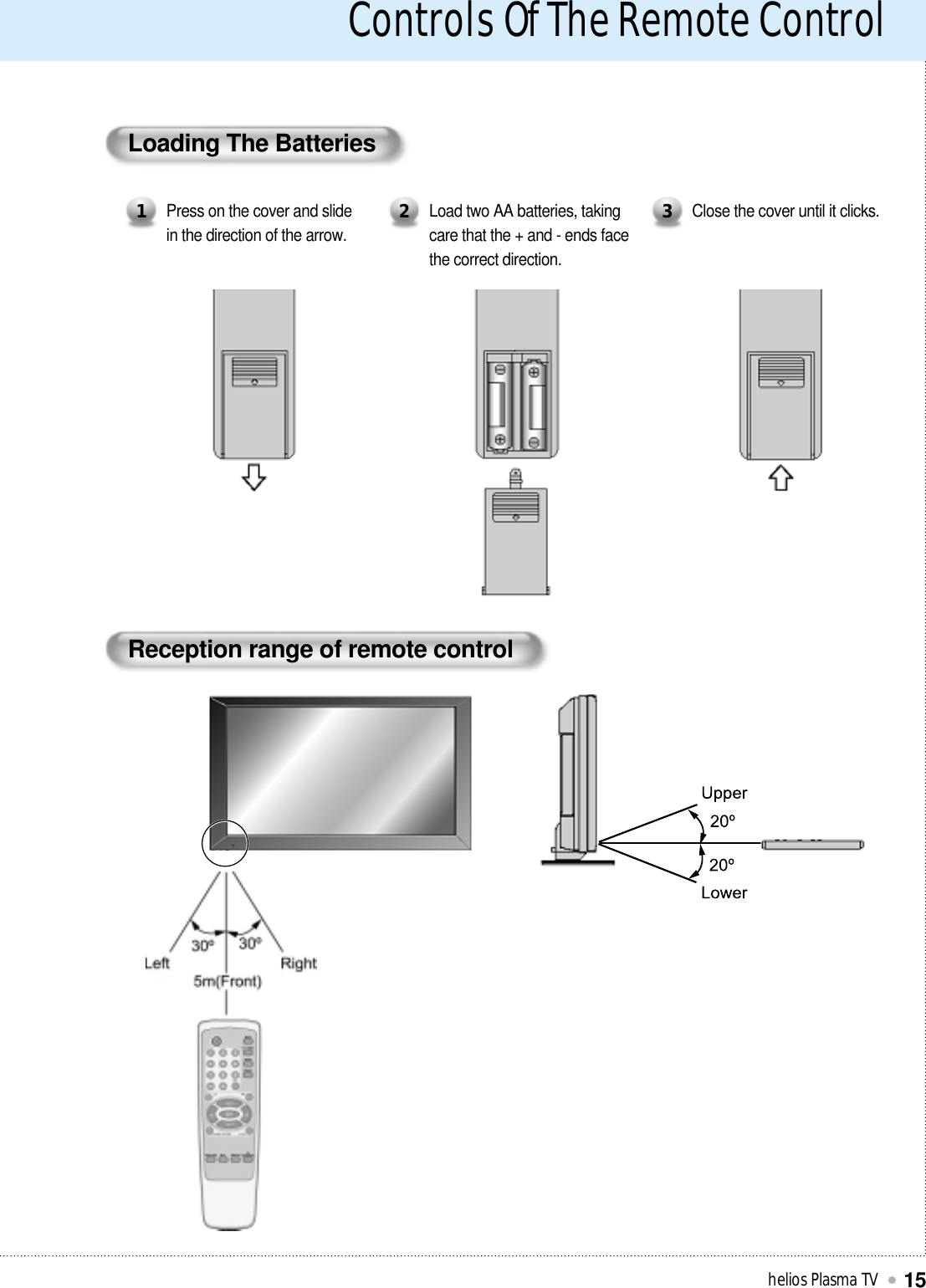

Controls Of The Remote Controlhelios Plasma TV15Loading The BatteriesPress on the cover and slide in the direction of the arrow.1Load two AA batteries, takingcare that the + and - ends face the correct direction.2Close the cover until it clicks.3Reception range of remote control

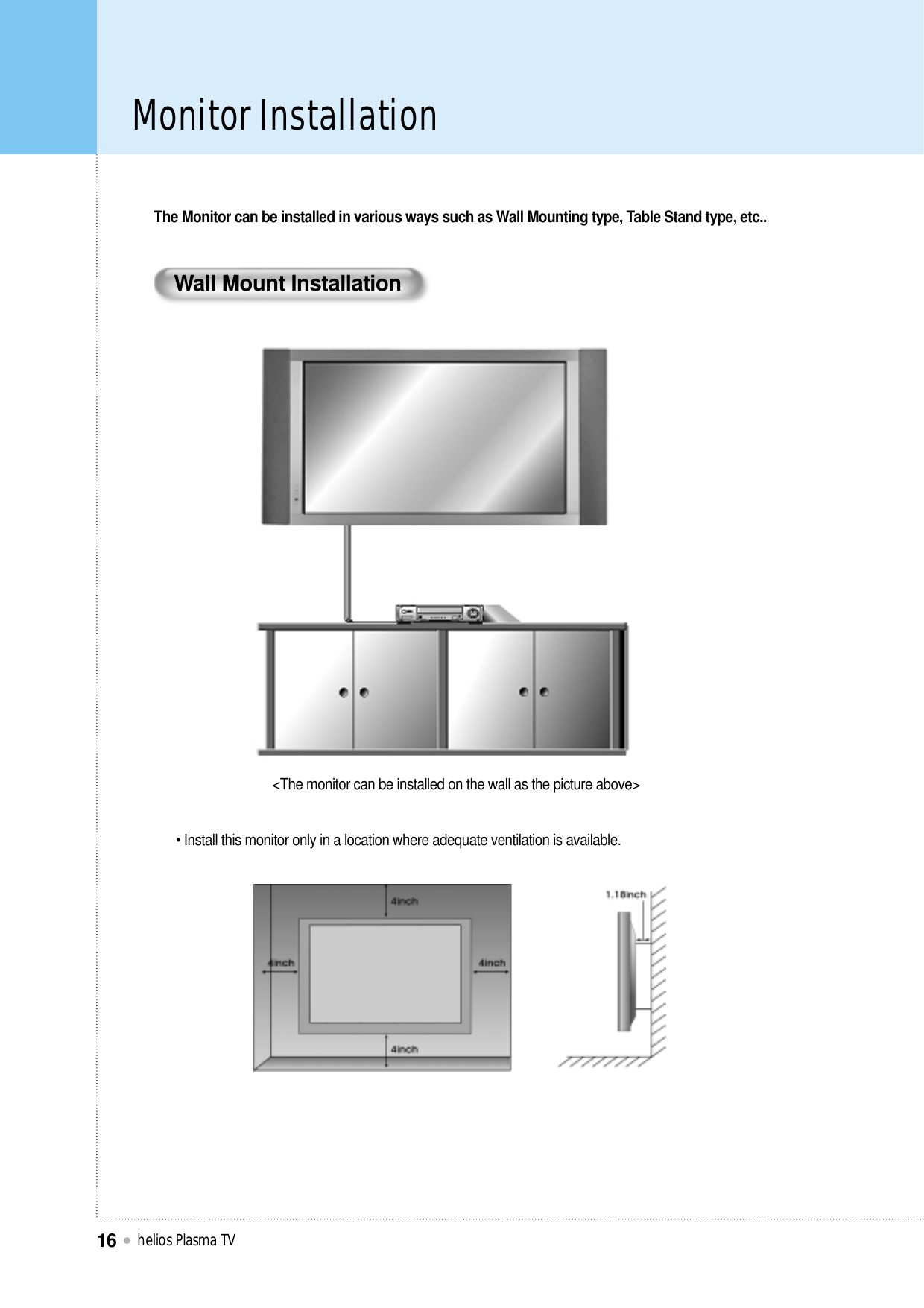

Monitor Installationhelios Plasma TV16Wall Mount InstallationThe Monitor can be installed in various ways such as Wall Mounting type, Table Stand type, etc..• Install this monitor only in a location where adequate ventilation is available.<The monitor can be installed on the wall as the picture above>
Monitor Installationhelios Plasma TV17InstallationDetach the monitor brackets from the wall mounting bracket:Pull the monitor brackets in the direction shown by arrow 1.Lift the monitor brackets in the direction shown by arrow 2.Lift the monitor brackets off the mounting frame in the direction shown by arrow 3.

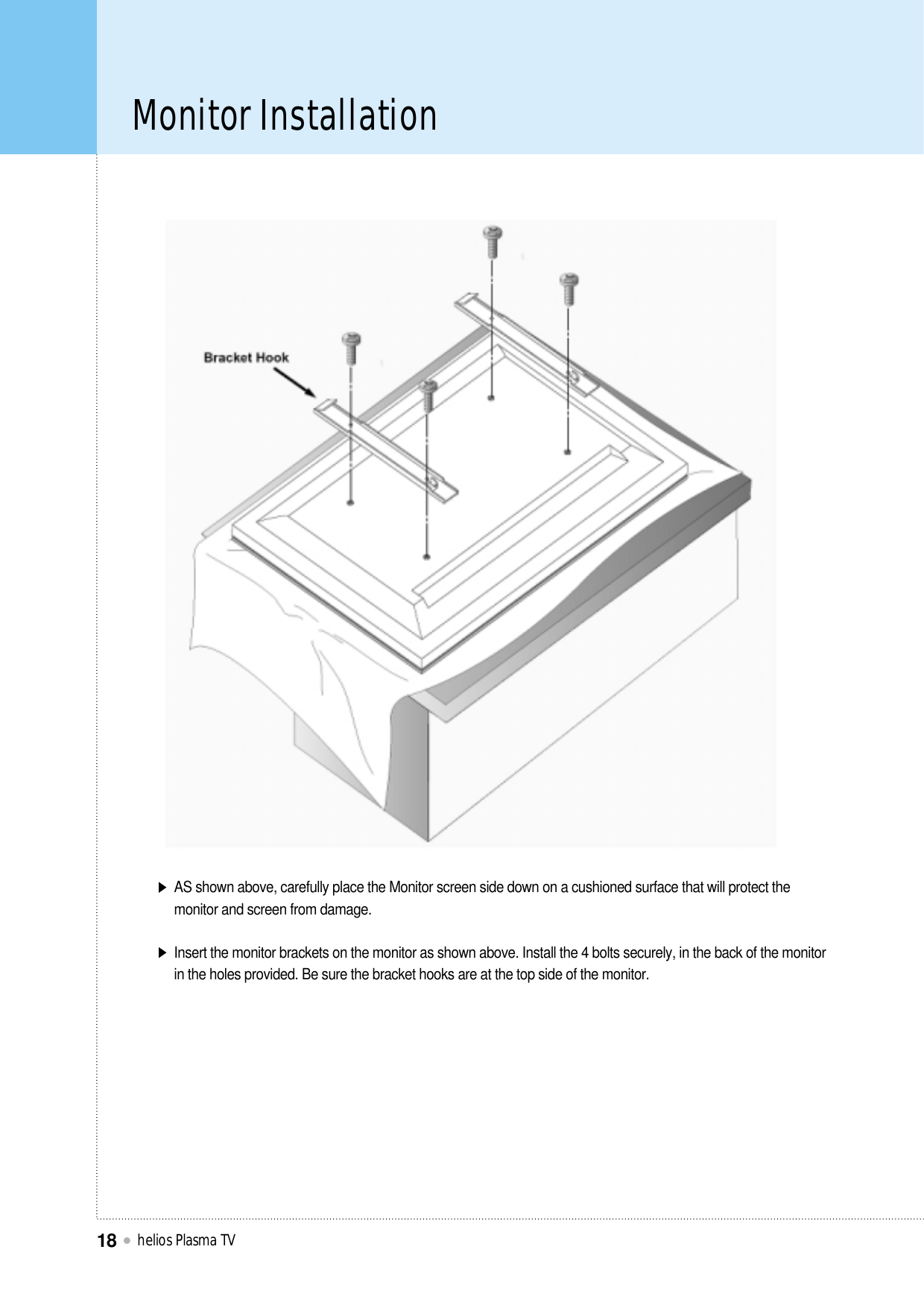

Monitor Installationhelios Plasma TV18AS shown above, carefully place the Monitor screen side down on a cushioned surface that will protect themonitor and screen from damage.Insert the monitor brackets on the monitor as shown above. Install the 4 bolts securely, in the back of the monitorin the holes provided. Be sure the bracket hooks are at the top side of the monitor.

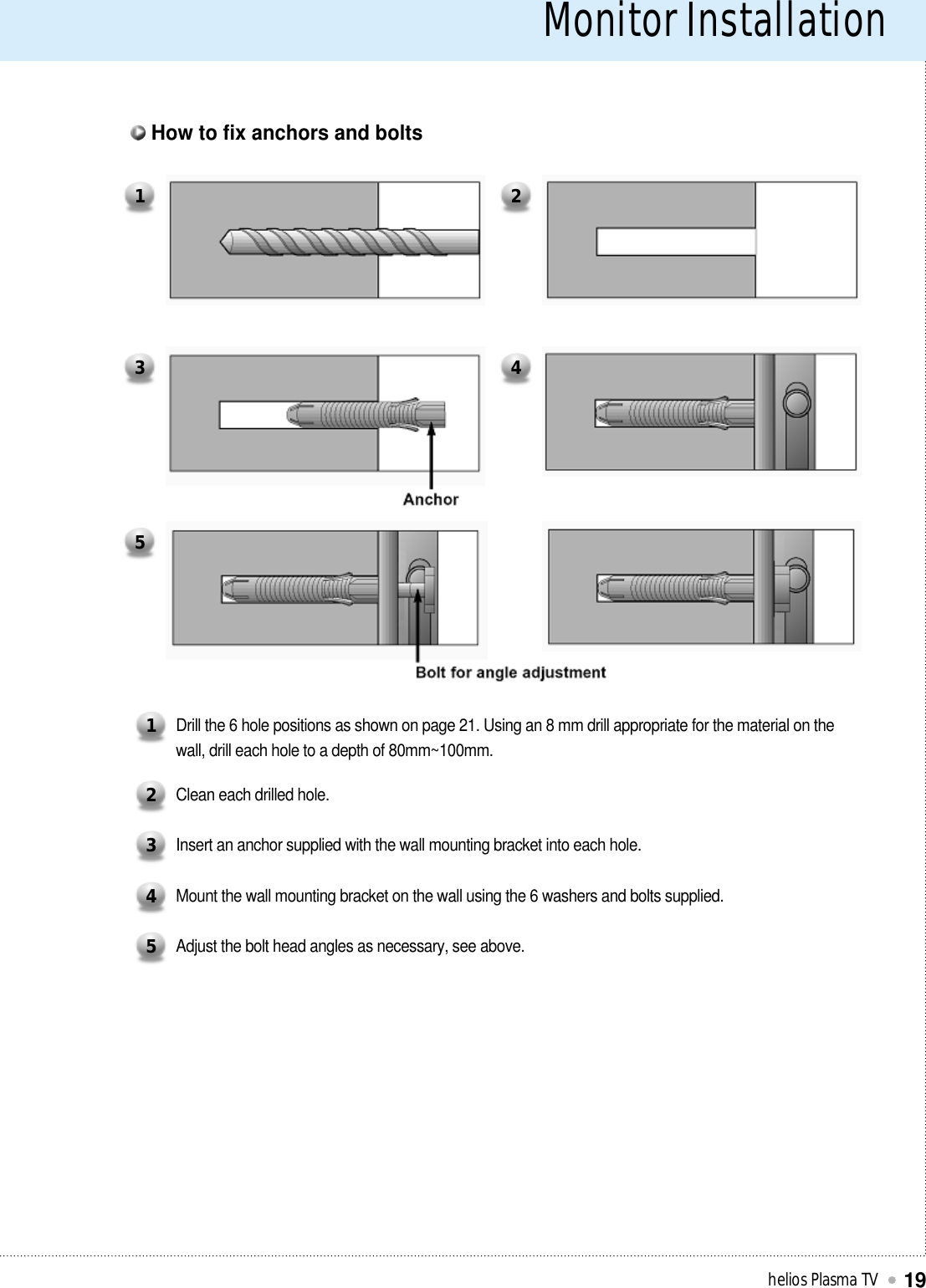

Monitor Installationhelios Plasma TV19Drill the 6 hole positions as shown on page 21. Using an 8 mm drill appropriate for the material on thewall, drill each hole to a depth of 80mm~100mm.1Clean each drilled hole.2Insert an anchor supplied with the wall mounting bracket into each hole.3Mount the wall mounting bracket on the wall using the 6 washers and bolts supplied.4Adjust the bolt head angles as necessary, see above.51 23 45How to fix anchors and bolts

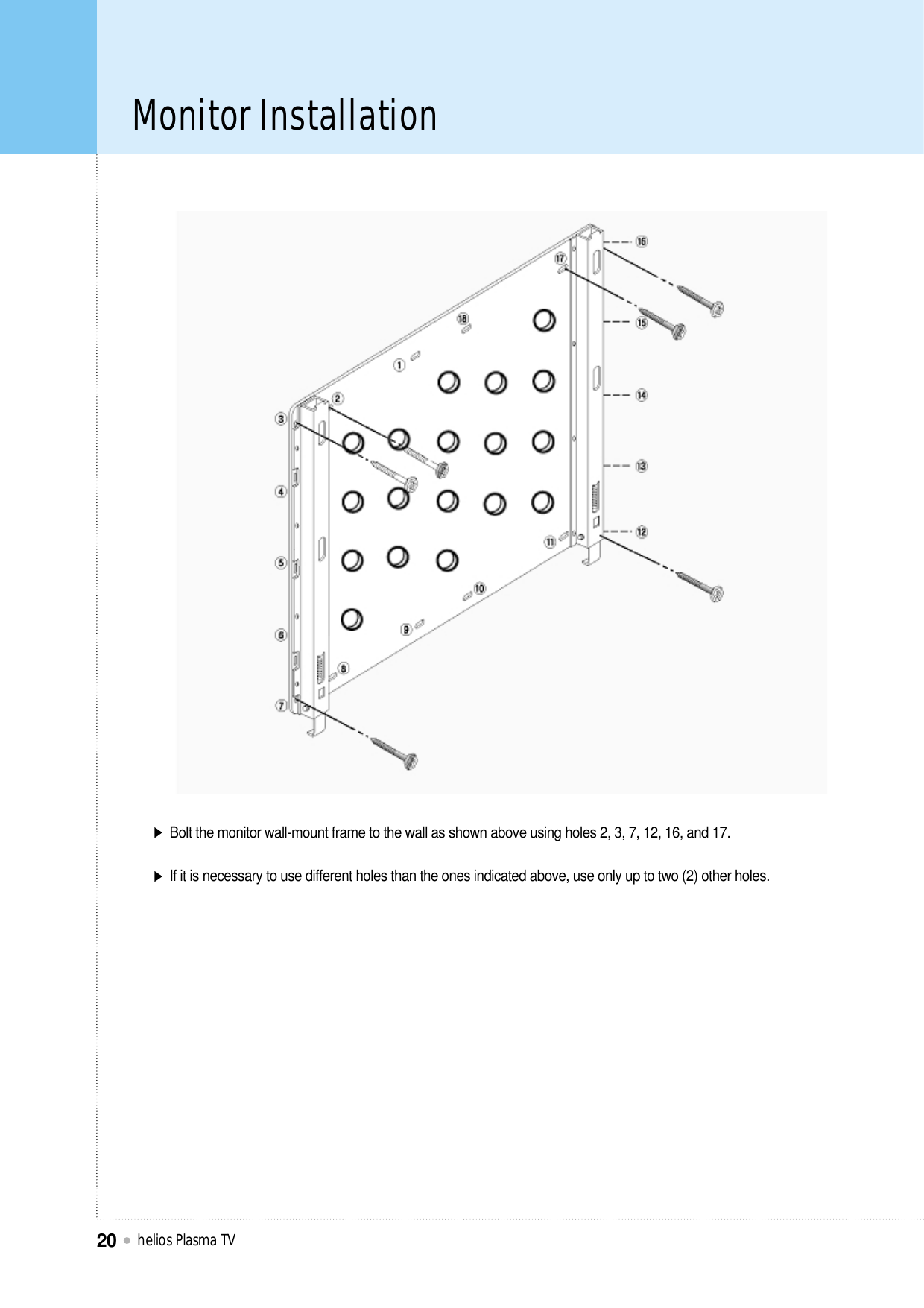

Monitor Installationhelios Plasma TV20Bolt the monitor wall-mount frame to the wall as shown above using holes 2, 3, 7, 12, 16, and 17.If it is necessary to use different holes than the ones indicated above, use only up to two (2) other holes.

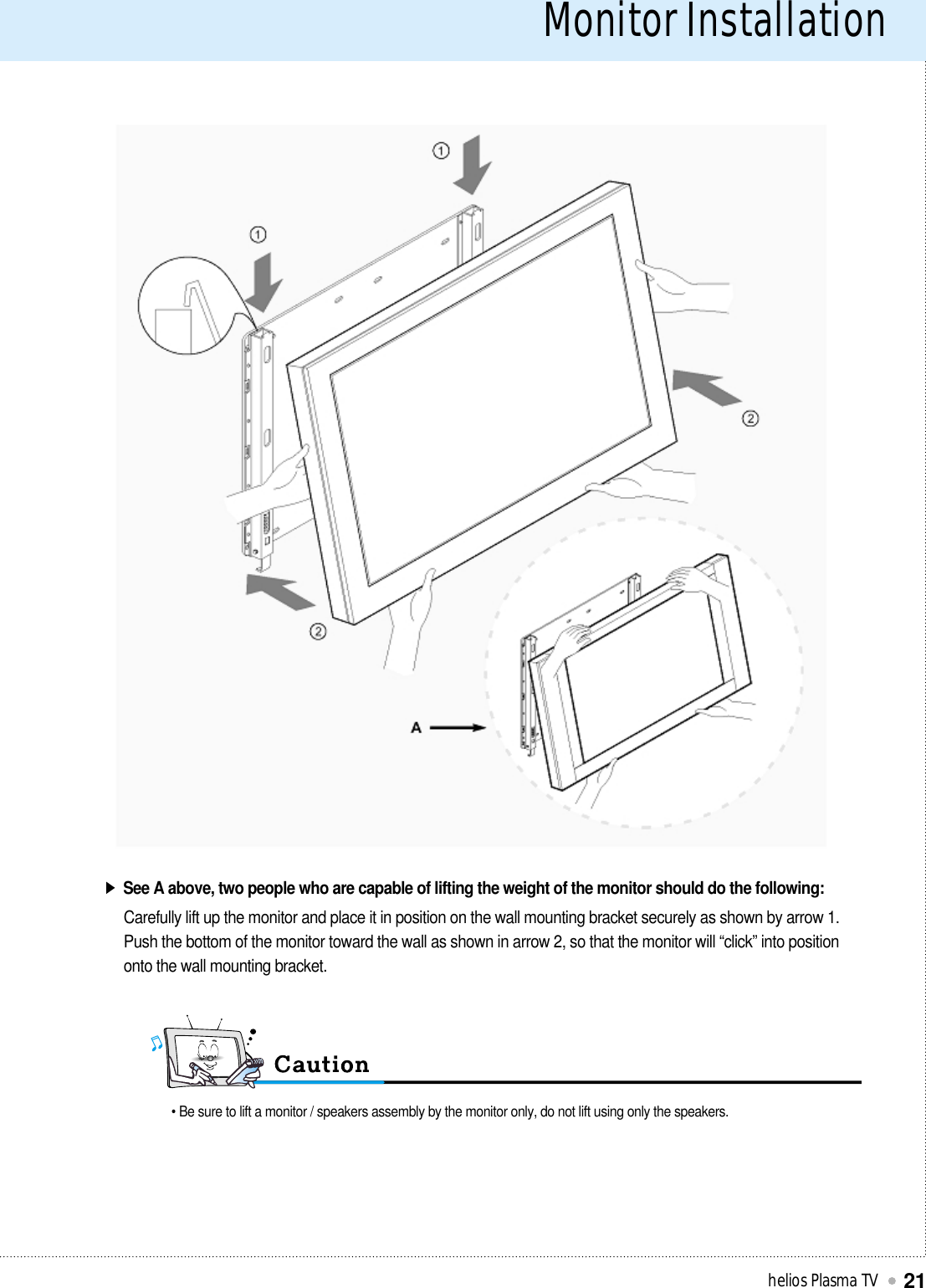

Monitor Installationhelios Plasma TV21See A above, two people who are capable of lifting the weight of the monitor should do the following:Carefully lift up the monitor and place it in position on the wall mounting bracket securely as shown by arrow 1.Push the bottom of the monitor toward the wall as shown in arrow 2, so that the monitor will “click” into positiononto the wall mounting bracket.• Be sure to lift a monitor / speakers assembly by the monitor only, do not lift using only the speakers.
Monitor Installationhelios Plasma TV224-Monitor BracketBoltsWall Mount Accessories6-Wall AnchorBolt Sleeves6-Bolts for Wallmounting bracket

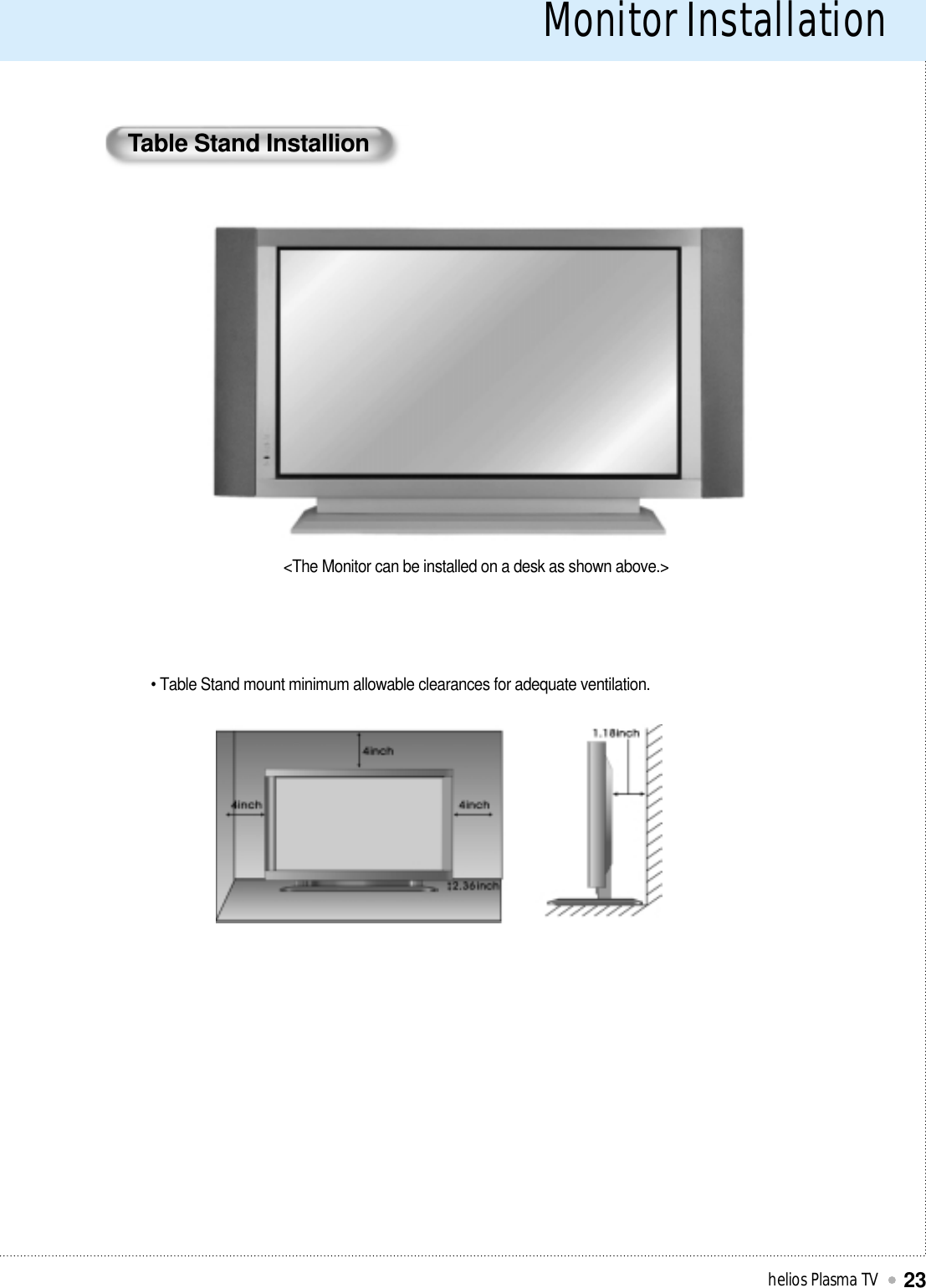

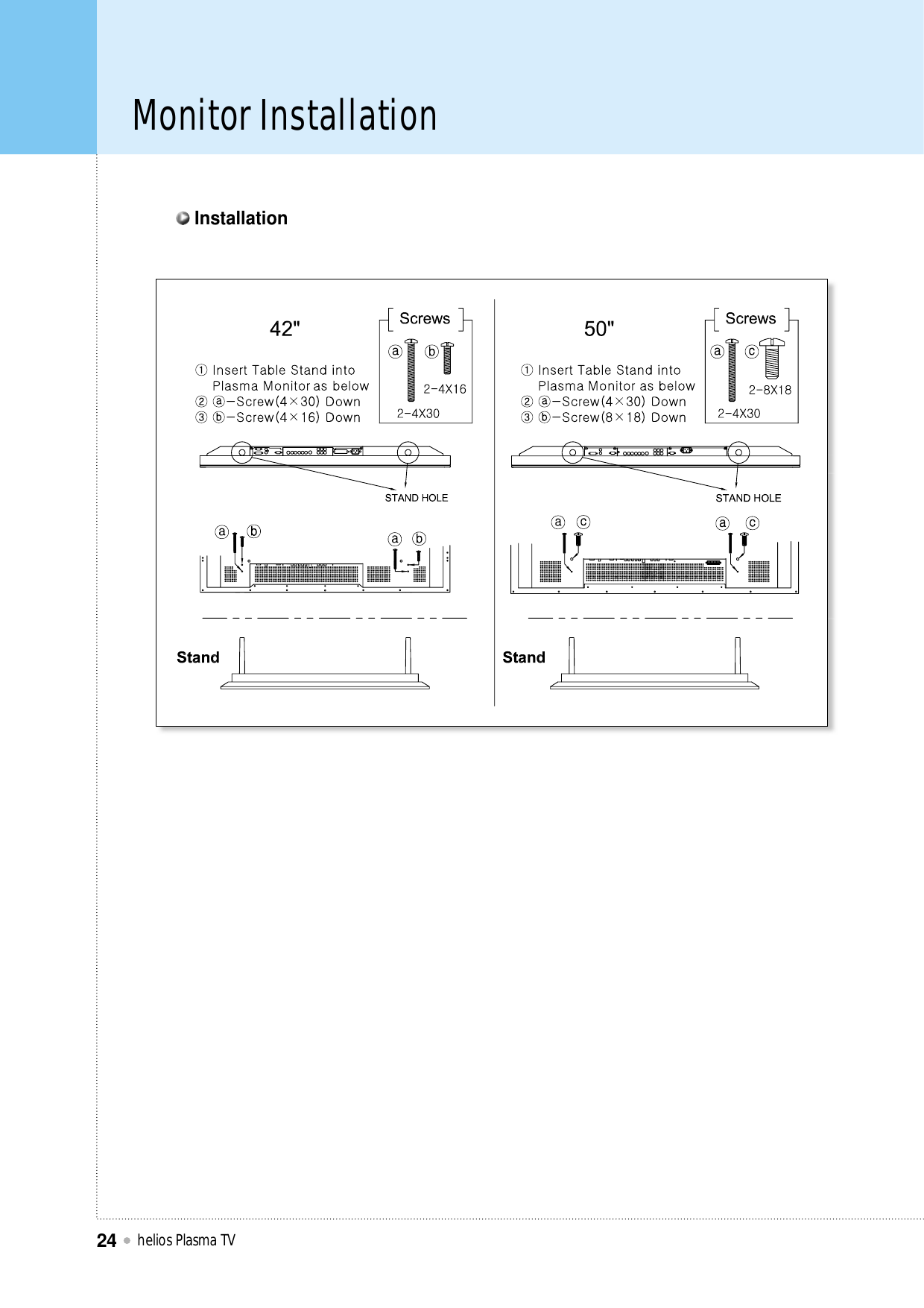

Monitor Installationhelios Plasma TV23• Table Stand mount minimum allowable clearances for adequate ventilation.<The Monitor can be installed on a desk as shown above.>Table Stand Installion
Monitor Installationhelios Plasma TV24Installation

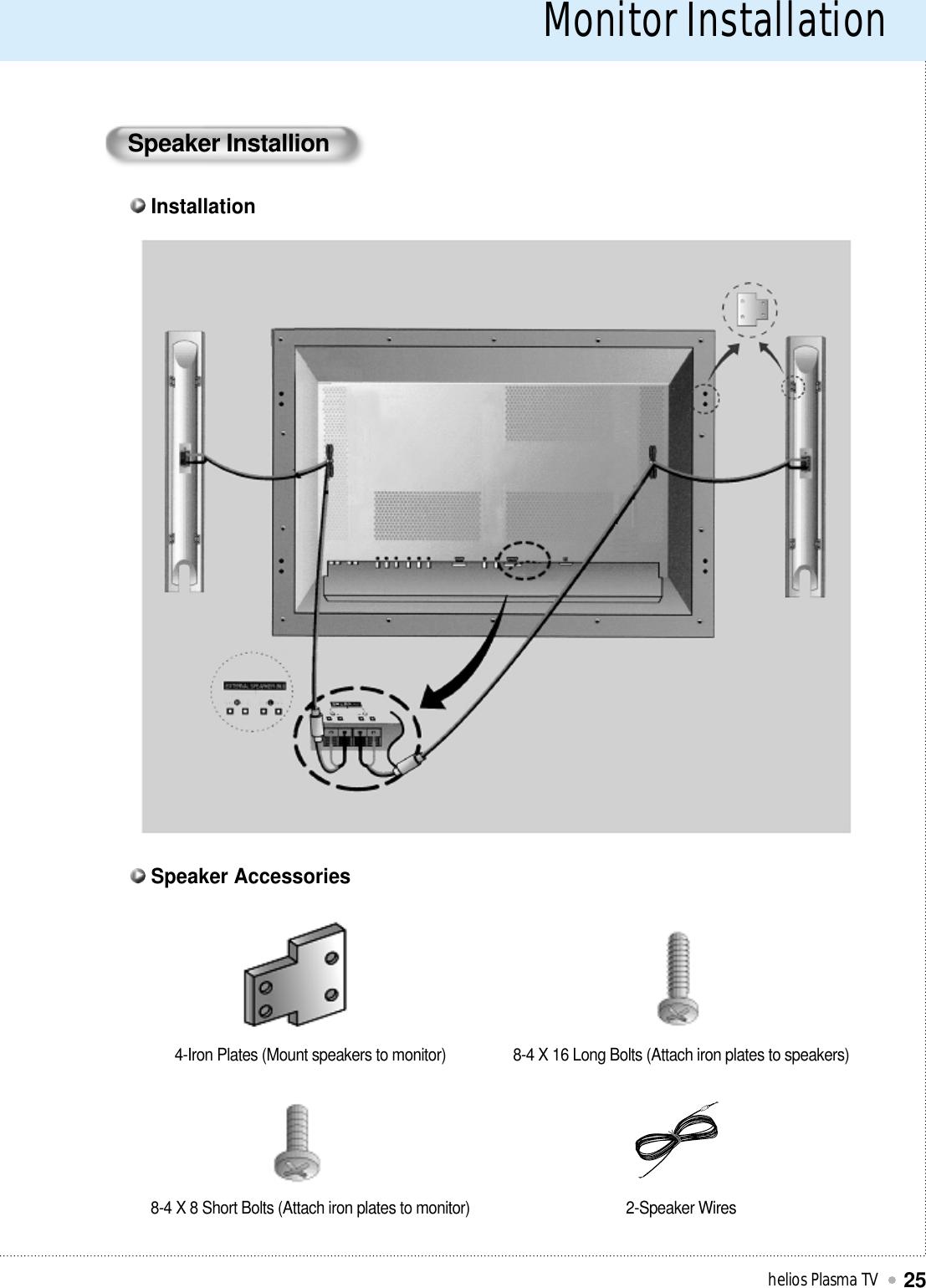

Monitor Installationhelios Plasma TV25InstallationSpeaker Accessories4-Iron Plates (Mount speakers to monitor) 8-4 X 16 Long Bolts (Attach iron plates to speakers)8-4 X 8 Short Bolts (Attach iron plates to monitor) 2-Speaker WiresSpeaker Installion

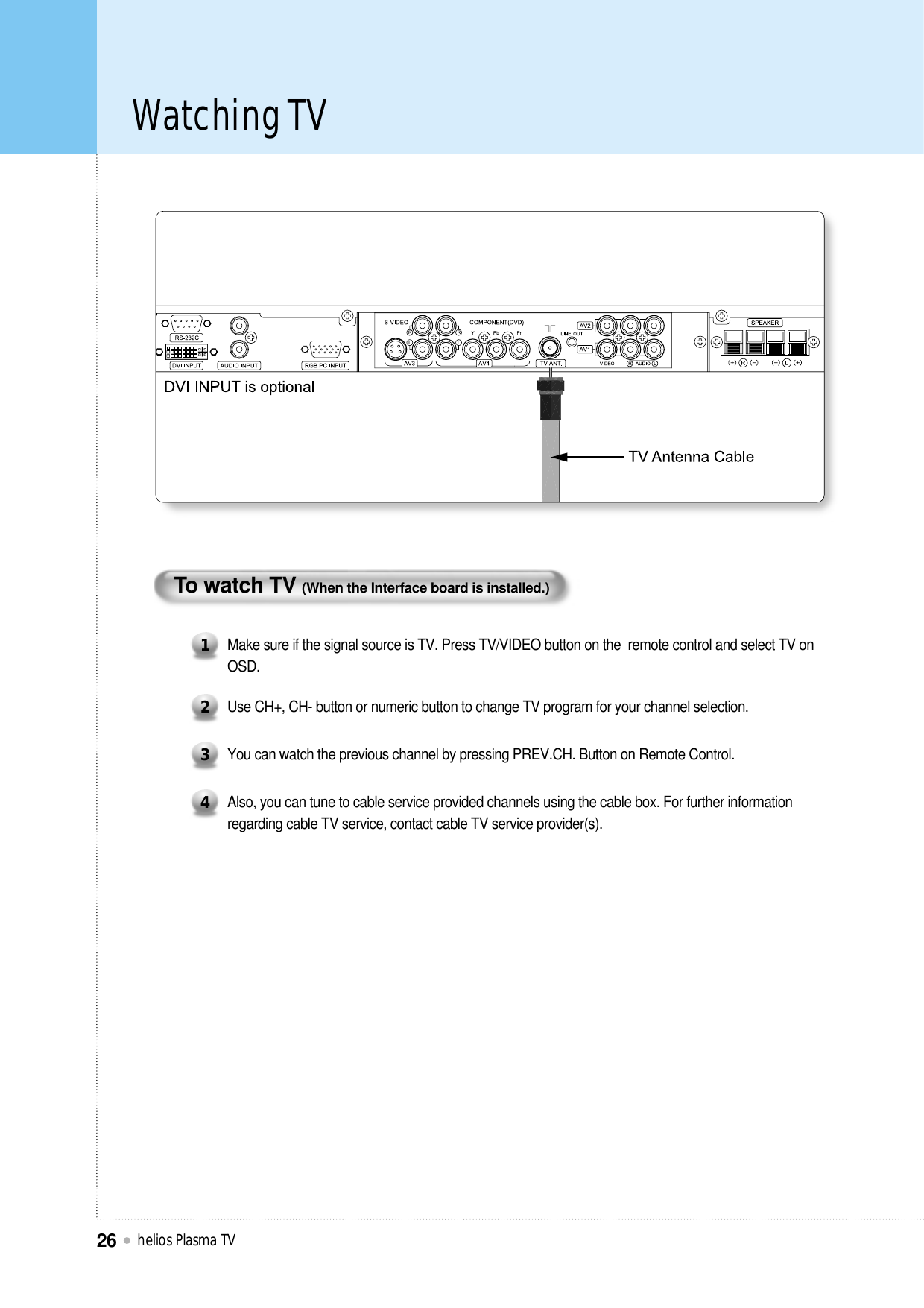

Watching TVhelios Plasma TV26To watch TV (When the Interface board is installed.)Make sure if the signal source is TV. Press TV/VIDEO button on the remote control and select TV onOSD.1Use CH+, CH- button or numeric button to change TV program for your channel selection.2You can watch the previous channel by pressing PREV.CH. Button on Remote Control.3Also, you can tune to cable service provided channels using the cable box. For further informationregarding cable TV service, contact cable TV service provider(s).4

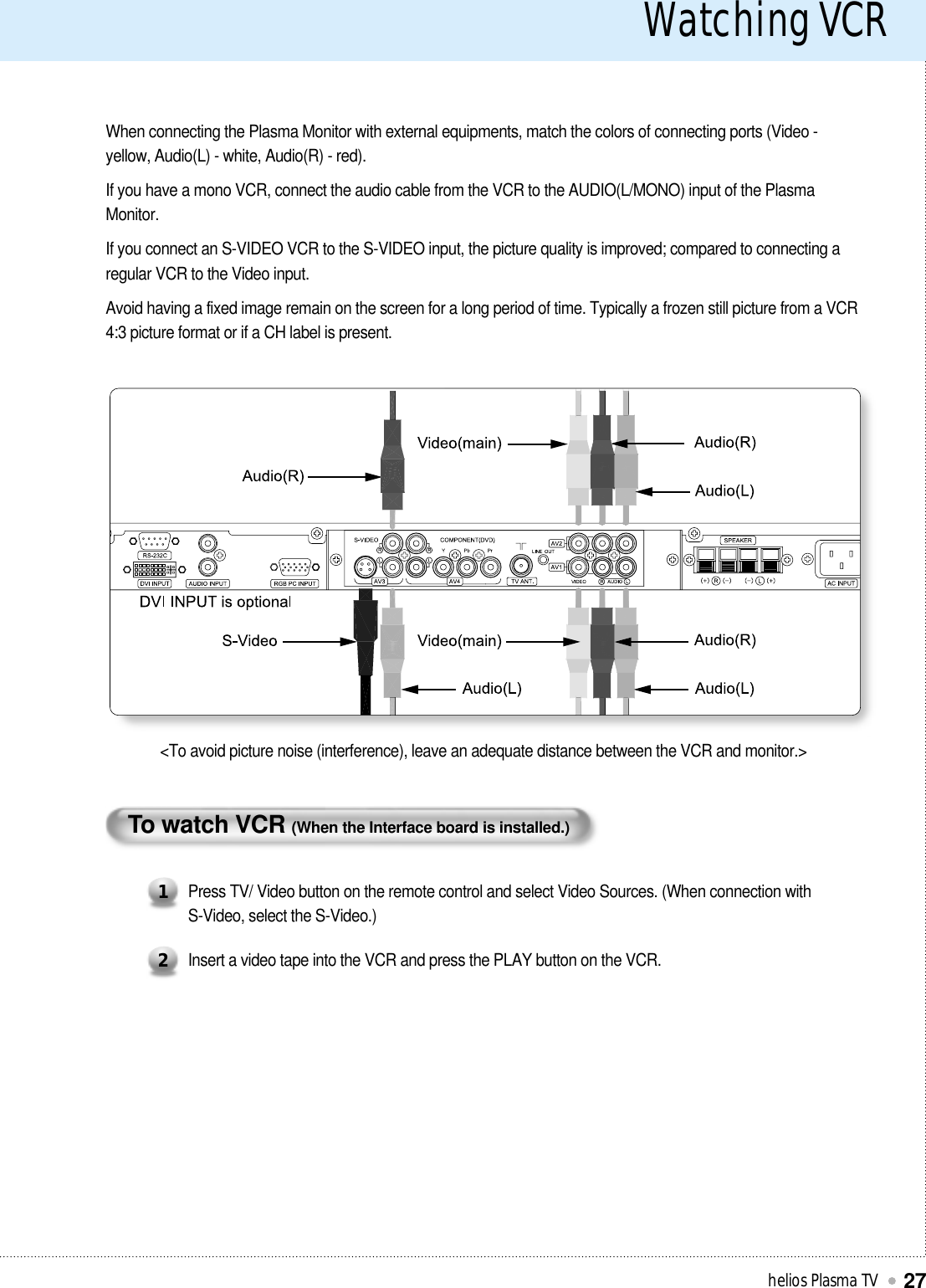

Watching VCRhelios Plasma TV27To watch VCR (When the Interface board is installed.)Press TV/ Video button on the remote control and select Video Sources. (When connection with S-Video, select the S-Video.)1Insert a video tape into the VCR and press the PLAY button on the VCR. 2When connecting the Plasma Monitor with external equipments, match the colors of connecting ports (Video -yellow, Audio(L) - white, Audio(R) - red).If you have a mono VCR, connect the audio cable from the VCR to the AUDIO(L/MONO) input of the PlasmaMonitor.If you connect an S-VIDEO VCR to the S-VIDEO input, the picture quality is improved; compared to connecting aregular VCR to the Video input.Avoid having a fixed image remain on the screen for a long period of time. Typically a frozen still picture from a VCR4:3 picture format or if a CH label is present.<To avoid picture noise (interference), leave an adequate distance between the VCR and monitor.>

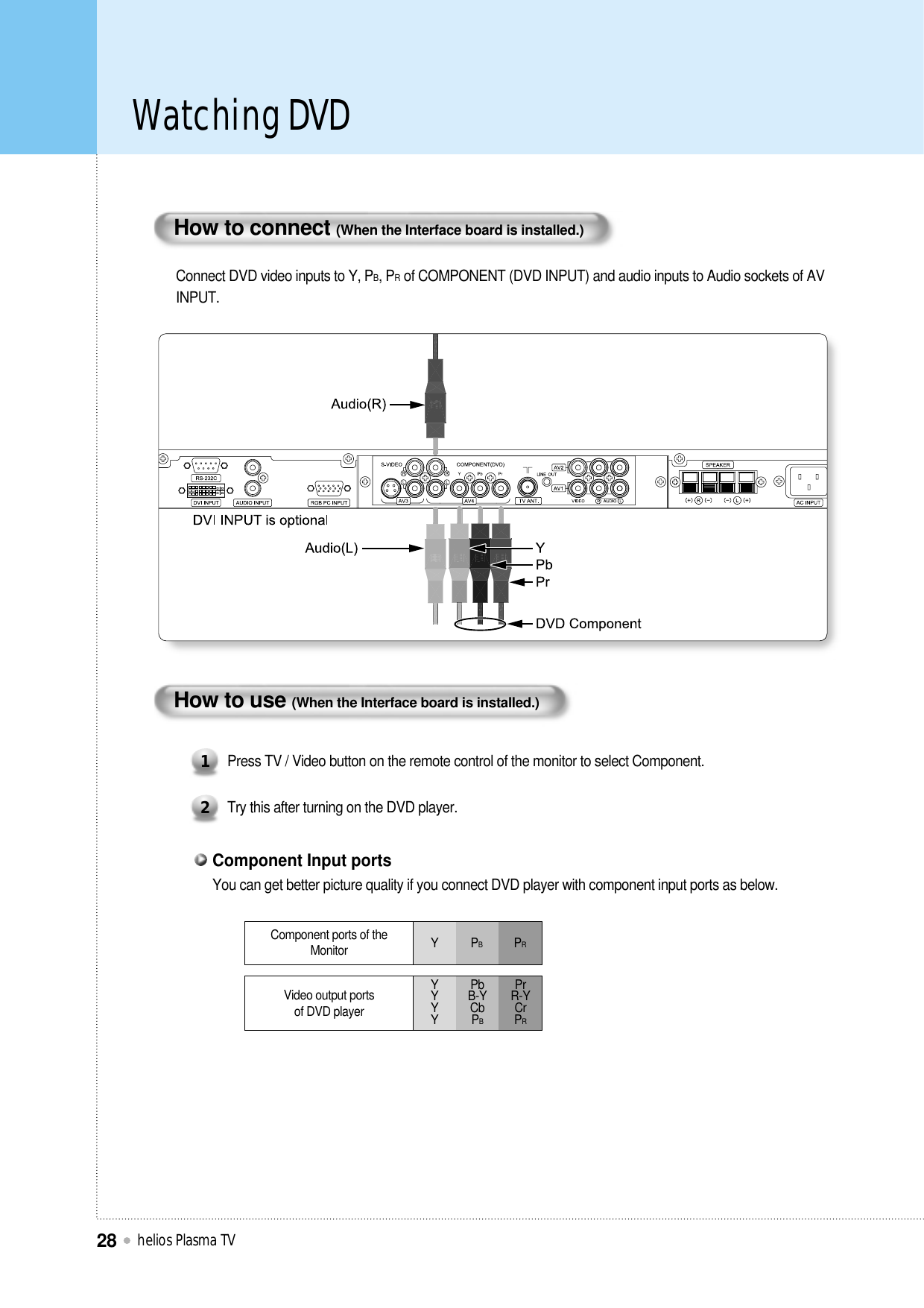

Watching DVDhelios Plasma TV28How to connect (When the Interface board is installed.)Connect DVD video inputs to Y, PB, PRof COMPONENT (DVD INPUT) and audio inputs to Audio sockets of AVINPUT. How to use (When the Interface board is installed.)Press TV / Video button on the remote control of the monitor to select Component.1Try this after turning on the DVD player.2Component ports of theMonitor YPBPRVideo output portsof DVD playerYYYYPbB-YCbPBPrR-YCrPRYou can get better picture quality if you connect DVD player with component input ports as below.Component Input ports

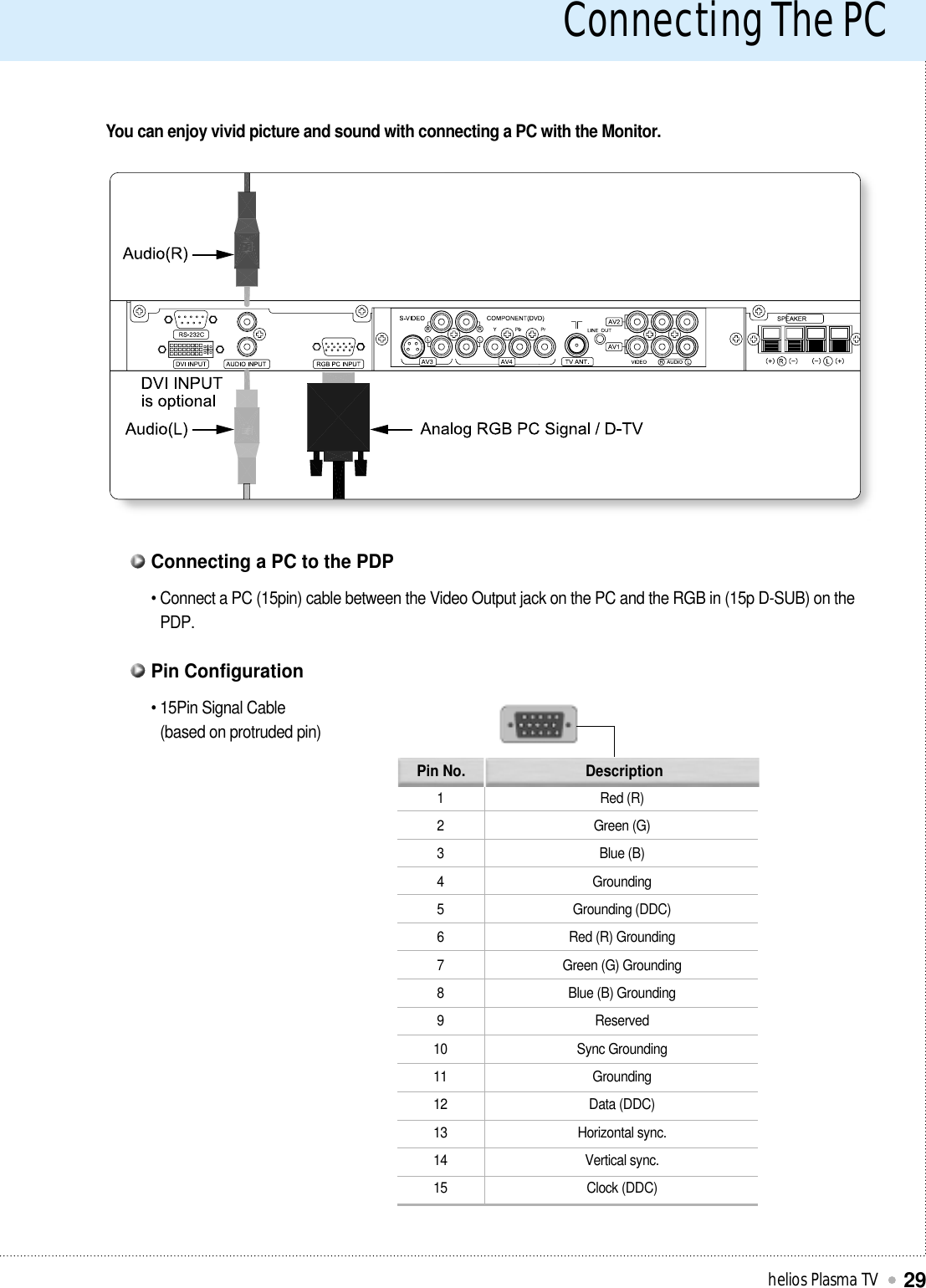

Connecting The PChelios Plasma TV29You can enjoy vivid picture and sound with connecting a PC with the Monitor.123456789101112131415Red (R)Green (G)Blue (B)GroundingGrounding (DDC)Red (R) GroundingGreen (G) GroundingBlue (B) GroundingReservedSync GroundingGroundingData (DDC)Horizontal sync.Vertical sync.Clock (DDC)Pin No. Description• Connect a PC (15pin) cable between the Video Output jack on the PC and the RGB in (15p D-SUB) on thePDP. Connecting a PC to the PDP• 15Pin Signal Cable (based on protruded pin)Pin Configuration
Displayable Monitor Specificationhelios Plasma TV30640 X 350640 X 400640 X 480800 X 600832 X 624852 X 4801024 X 7681280 X 10241366 X 76831.46837.86131.46937.92731.46935.00037.86137.50043.26945.91353.01164.06235.15637.87948.07746.87553.67456.00064.01649.72531.46848.36356.47660.02364.00048.387Resolution Horizontal Frequency (KHz)70.0985.0870.0885.0359.9466.6672.8075.0085.0090.03100.04120.0056.2560.3172.1875.0085.0690.00100.0074.5560.0560.0070.0675.0260.0060.00Vertical Frequency (Hz)• Synchronization input form : separate• 852 x480 : 42" Native ResolutionHorizontal Polarity is Positive(+)Vertical Polarity is Negative(-)• 1366 x768 : 50" Native ResolutionHorizontal Polarity is Positive(+)Vertical Polarity is Negative(-)

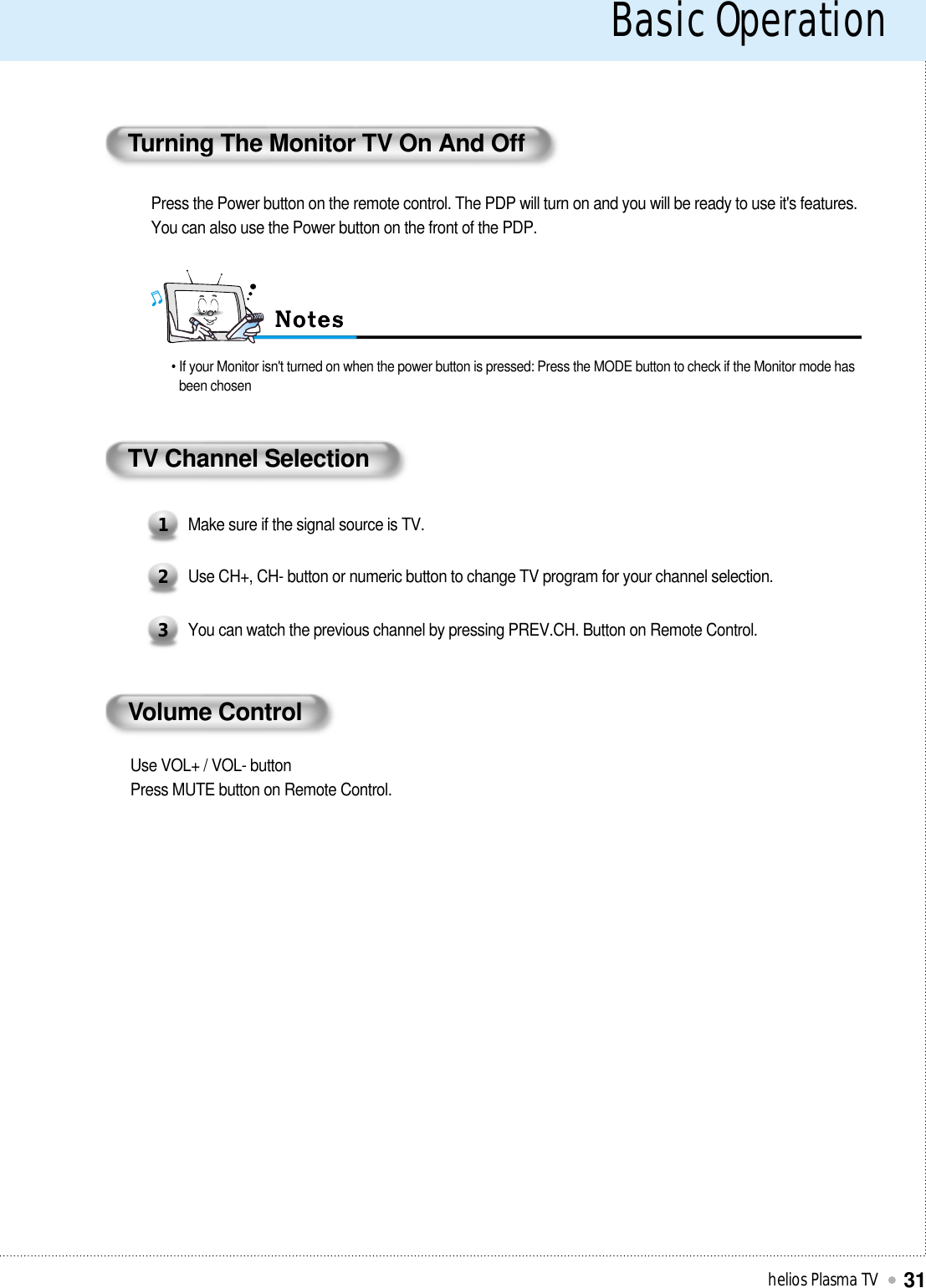

Basic Operationhelios Plasma TV31Turning The Monitor TV On And OffPress the Power button on the remote control. The PDP will turn on and you will be ready to use it's features.You can also use the Power button on the front of the PDP.• If your Monitor isn't turned on when the power button is pressed: Press the MODE button to check if the Monitor mode hasbeen chosenTV Channel SelectionMake sure if the signal source is TV.1Use CH+, CH- button or numeric button to change TV program for your channel selection.2You can watch the previous channel by pressing PREV.CH. Button on Remote Control.3Volume ControlUse VOL+ / VOL- buttonPress MUTE button on Remote Control.

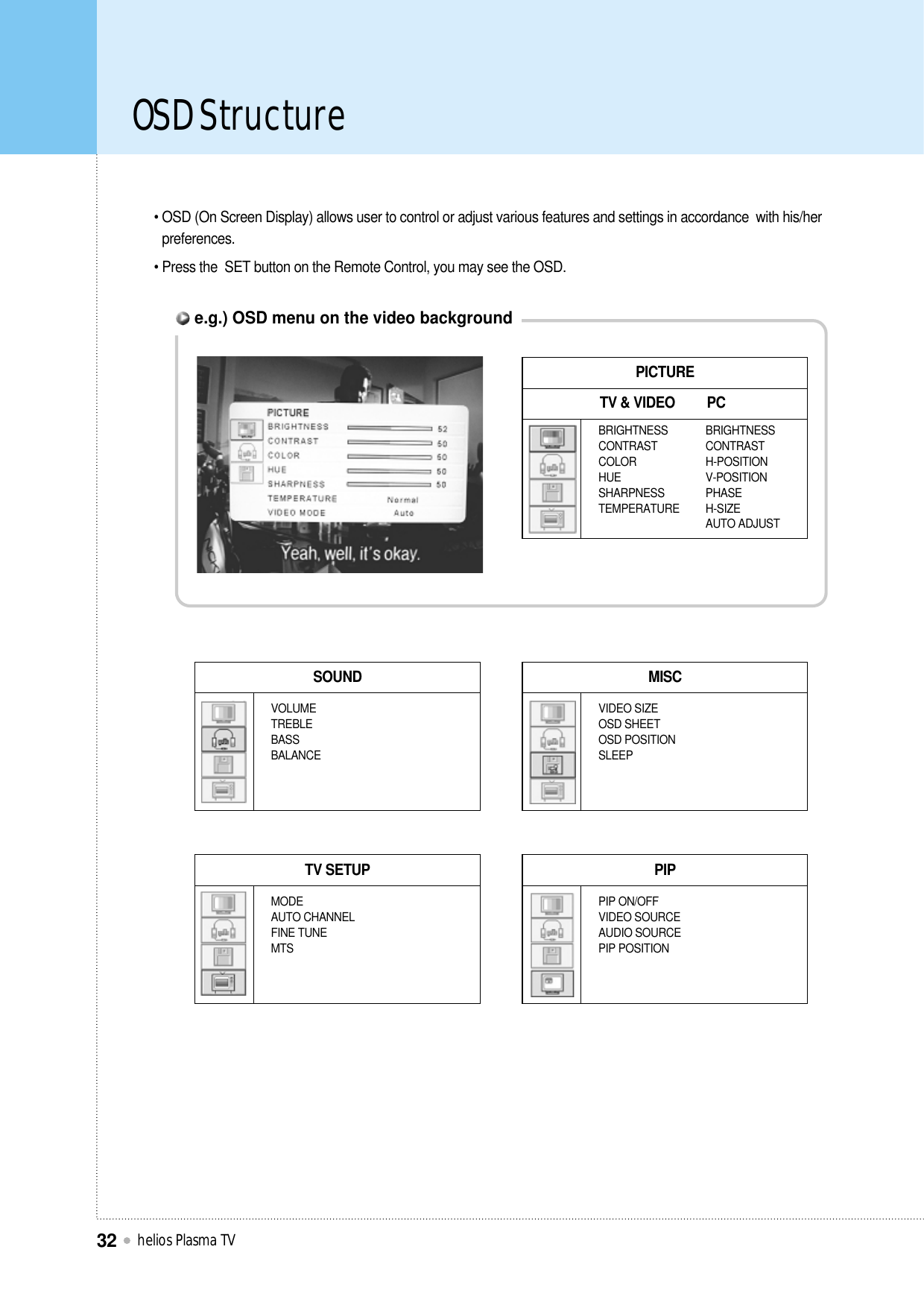

OSD Structurehelios Plasma TV32• OSD (On Screen Display) allows user to control or adjust various features and settings in accordance with his/herpreferences. • Press the SET button on the Remote Control, you may see the OSD.e.g.) OSD menu on the video backgroundPICTURETV & VIDEOBRIGHTNESSCONTRASTCOLOR HUESHARPNESSTEMPERATUREPCBRIGHTNESS CONTRASTH-POSITION V-POSITIONPHASEH-SIZEAUTO ADJUSTMISCVIDEO SIZE OSD SHEET OSD POSITIONSLEEPSOUNDVOLUMETREBLEBASSBALANCEPIPPIP ON/OFFVIDEO SOURCEAUDIO SOURCEPIP POSITIONTV SETUPMODEAUTO CHANNEL FINE TUNE MTS

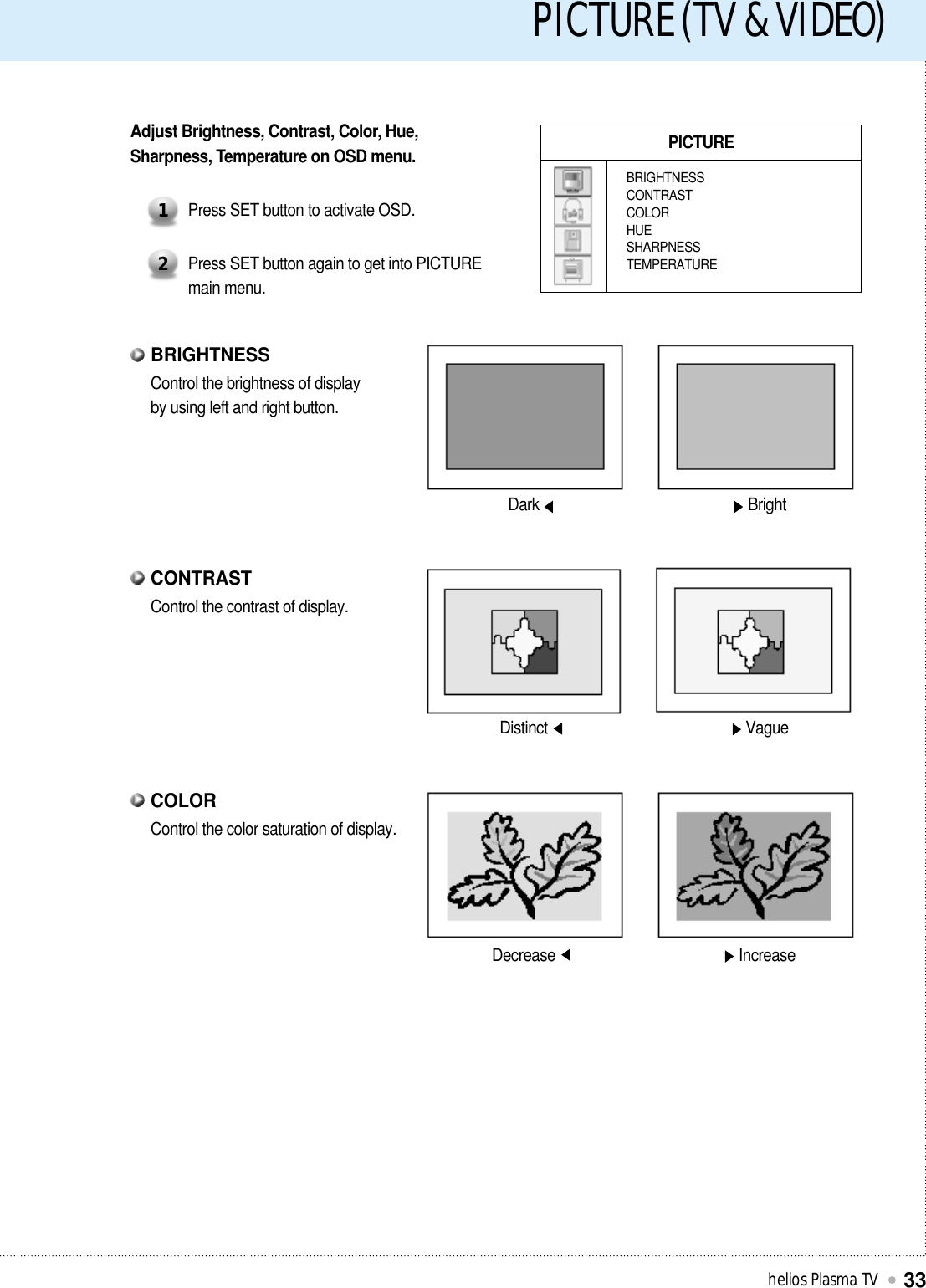

PICTURE (TV & VIDEO)helios Plasma TV33PICTUREBRIGHTNESSCONTRASTCOLORHUESHARPNESSTEMPERATUREAdjust Brightness, Contrast, Color, Hue,Sharpness, Temperature on OSD menu.Press SET button to activate OSD.1Press SET button again to get into PICTUREmain menu.2Dark BrightDistinct VagueDecrease IncreaseControl the brightness of displayby using left and right button.BRIGHTNESSControl the contrast of display.CONTRASTControl the color saturation of display.COLOR

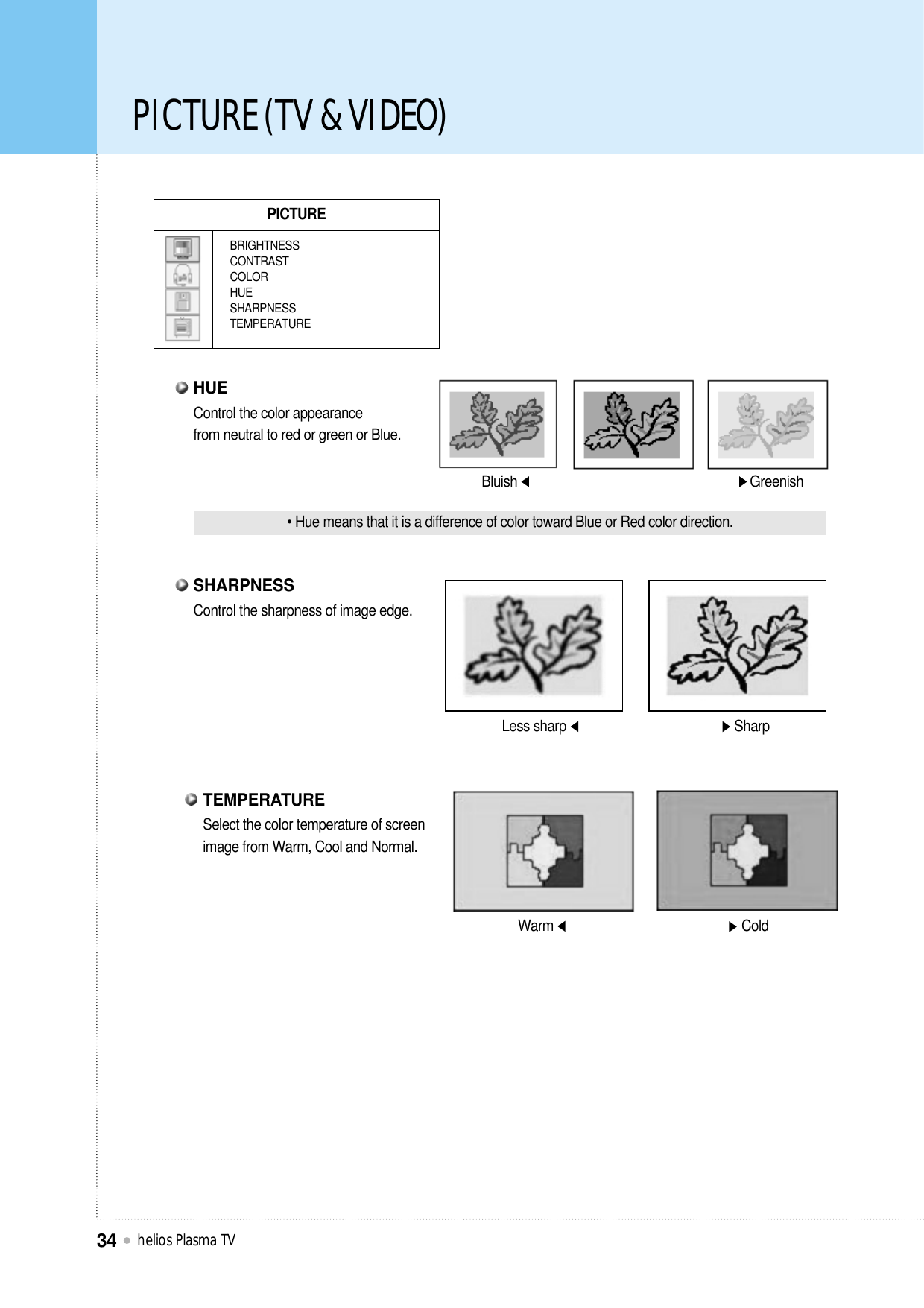

PICTURE (TV & VIDEO)helios Plasma TV34PICTUREBRIGHTNESSCONTRASTCOLORHUESHARPNESSTEMPERATUREBluish Greenish• Hue means that it is a difference of color toward Blue or Red color direction.Less sharp SharpWarm ColdControl the color appearance from neutral to red or green or Blue.HUEControl the sharpness of image edge.SHARPNESSSelect the color temperature of screenimage from Warm, Cool and Normal.TEMPERATURE

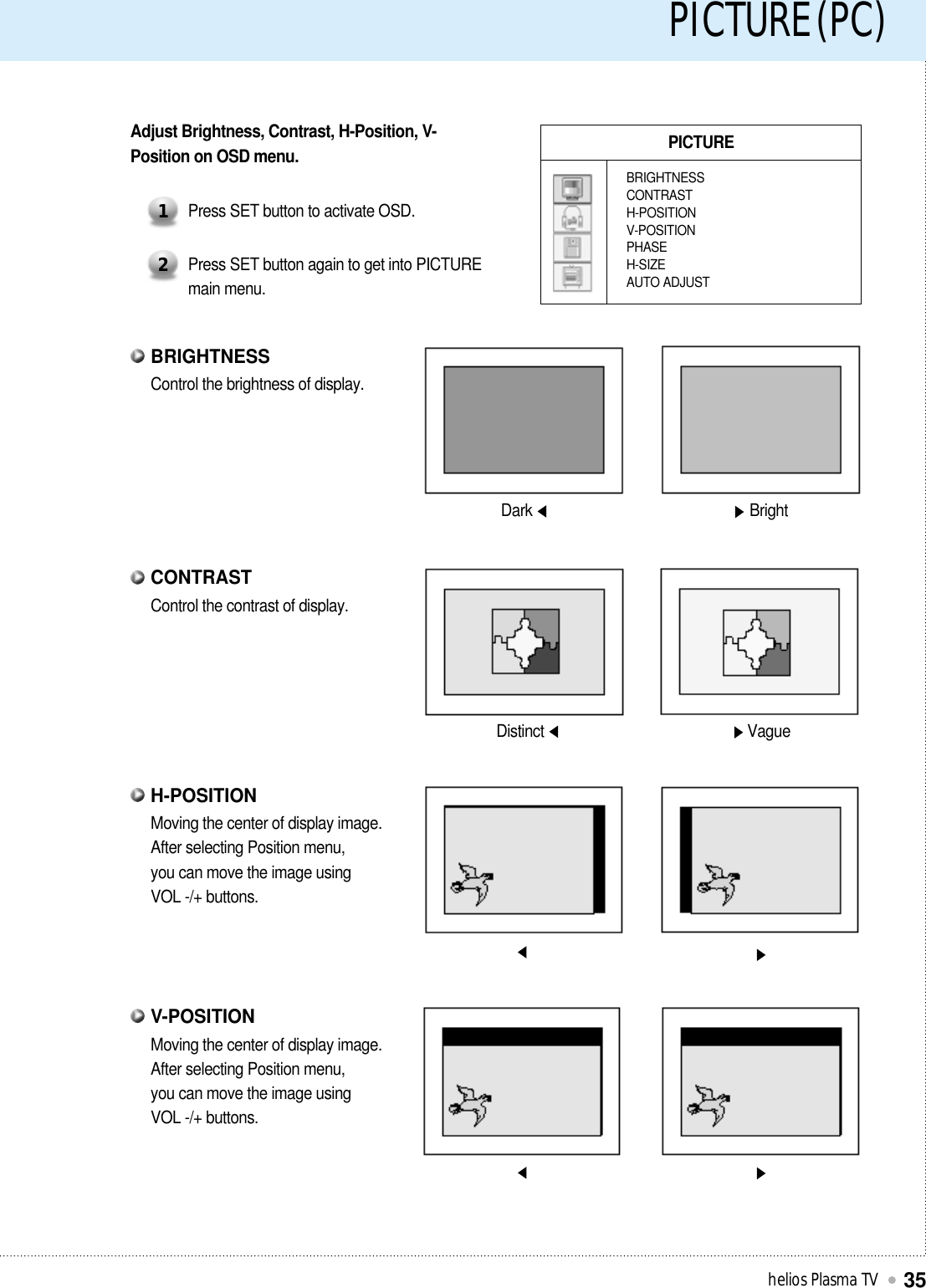

PICTURE (PC)helios Plasma TV35PICTUREBRIGHTNESSCONTRASTH-POSITIONV-POSITIONPHASEH-SIZEAUTO ADJUSTAdjust Brightness, Contrast, H-Position, V-Position on OSD menu.Press SET button to activate OSD.1Press SET button again to get into PICTUREmain menu.2Dark BrightDistinct VagueControl the brightness of display.BRIGHTNESSControl the contrast of display.CONTRASTMoving the center of display image.After selecting Position menu,you can move the image usingVOL -/+ buttons.H-POSITIONMoving the center of display image.After selecting Position menu,you can move the image usingVOL -/+ buttons.V-POSITION
PICTURE (PC)helios Plasma TV36PICTUREBRIGHTNESSCONTRASTH-POSITIONV-POSITIONPHASEH-SIZEAUTO ADJUSTMismatch MatchMismatch MatchFine tuning of display accuracy on the screen. Only available when you are in PC/HD input mode.PHASEAdjust the horizontal size of display.Only available when you are in PC/HD input mode.H-SIZEAutomatically adjust picture position and eliminate any image shaking.Auto Adjust

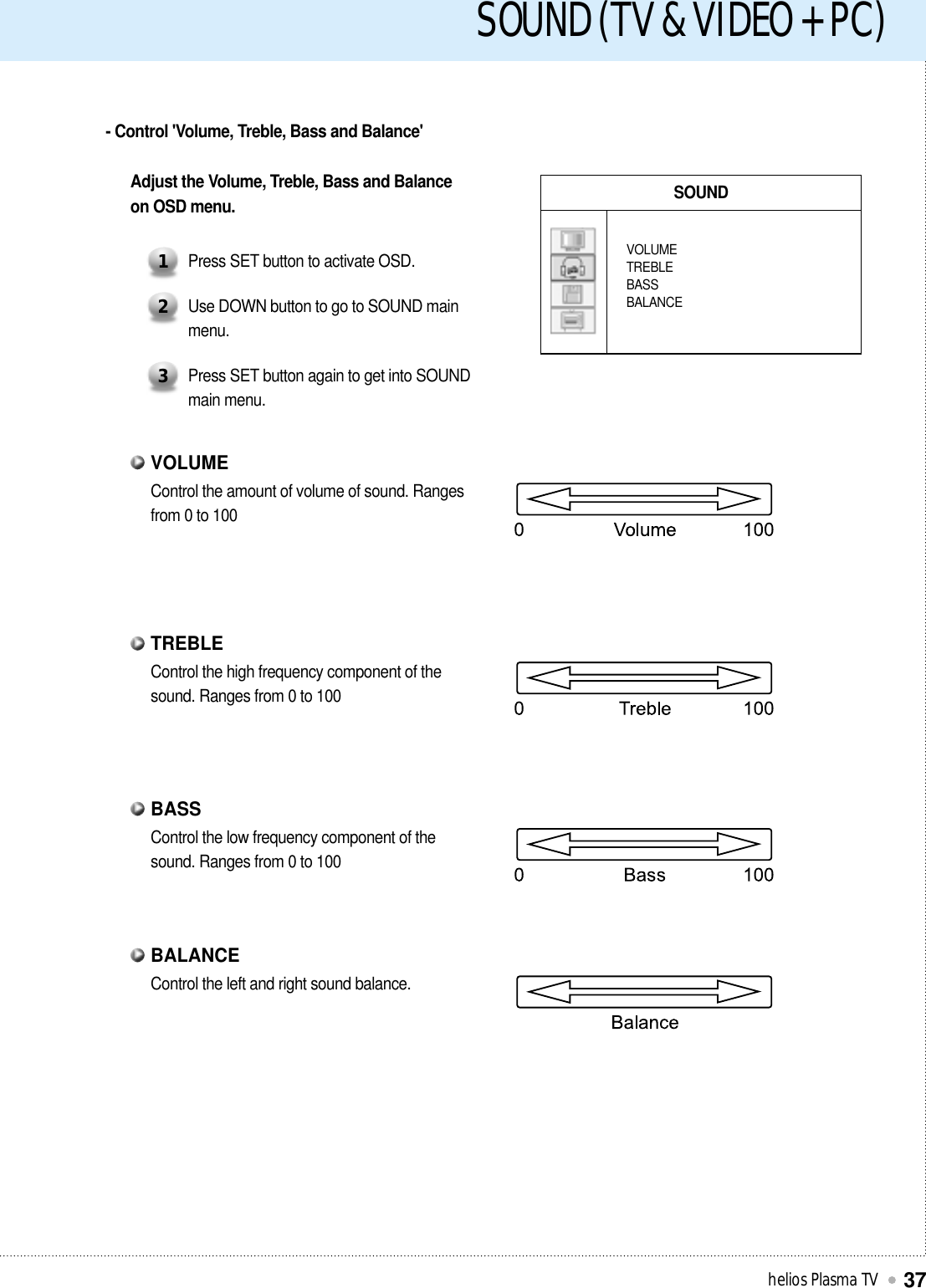

SOUND (TV & VIDEO + PC)helios Plasma TV37- Control 'Volume, Treble, Bass and Balance'SOUNDVOLUMETREBLEBASSBALANCEAdjust the Volume, Treble, Bass and Balanceon OSD menu.Press SET button to activate OSD.1Use DOWN button to go to SOUND mainmenu.2Press SET button again to get into SOUNDmain menu.3Control the amount of volume of sound. Rangesfrom 0 to 100VOLUMEControl the high frequency component of thesound. Ranges from 0 to 100TREBLEControl the low frequency component of thesound. Ranges from 0 to 100BASSControl the left and right sound balance. BALANCE

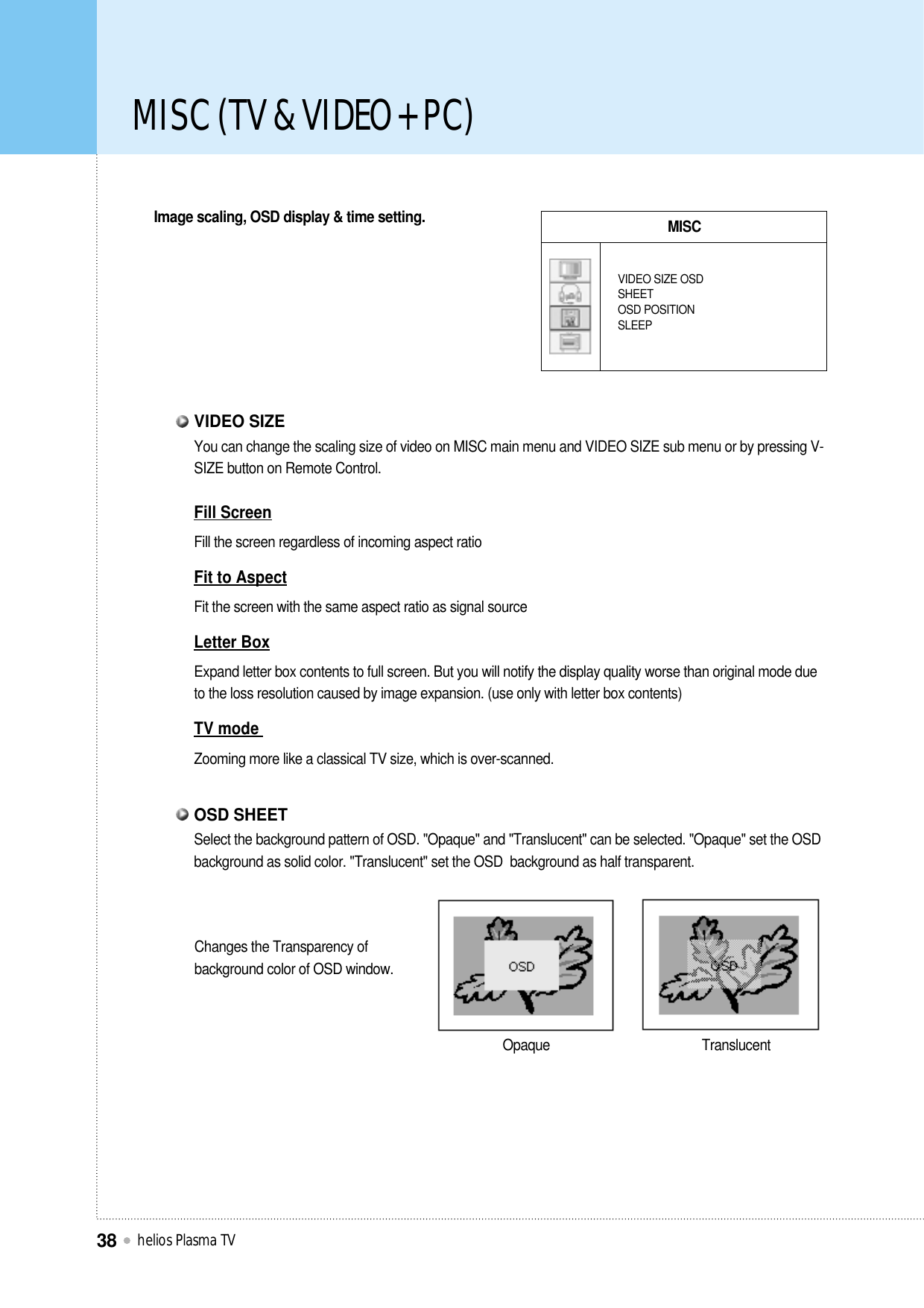

MISC (TV & VIDEO + PC)helios Plasma TV38Image scaling, OSD display & time setting. MISCVIDEO SIZE OSDSHEETOSD POSITIONSLEEPOpaque TranslucentYou can change the scaling size of video on MISC main menu and VIDEO SIZE sub menu or by pressing V-SIZE button on Remote Control.Fill ScreenFill the screen regardless of incoming aspect ratioFit to AspectFit the screen with the same aspect ratio as signal sourceLetter BoxExpand letter box contents to full screen. But you will notify the display quality worse than original mode dueto the loss resolution caused by image expansion. (use only with letter box contents)TV mode Zooming more like a classical TV size, which is over-scanned.VIDEO SIZESelect the background pattern of OSD. "Opaque" and "Translucent" can be selected. "Opaque" set the OSDbackground as solid color. "Translucent" set the OSD background as half transparent.OSD SHEETChanges the Transparency ofbackground color of OSD window.

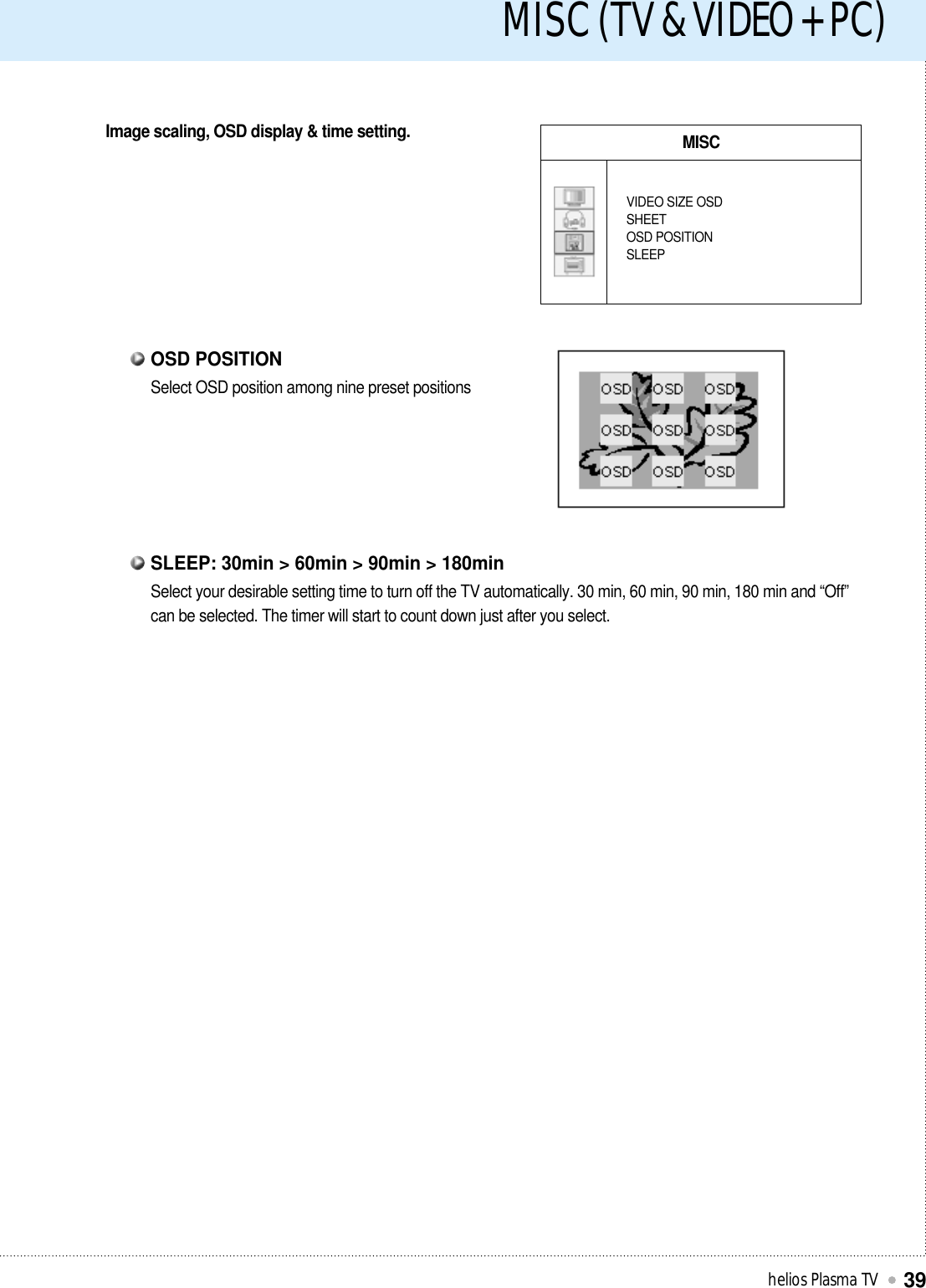

MISC (TV & VIDEO + PC)helios Plasma TV39Image scaling, OSD display & time setting. MISCVIDEO SIZE OSDSHEETOSD POSITIONSLEEPSelect OSD position among nine preset positionsOSD POSITIONSelect your desirable setting time to turn off the TV automatically. 30 min, 60 min, 90 min, 180 min and “Off”can be selected. The timer will start to count down just after you select. SLEEP: 30min > 60min > 90min > 180min

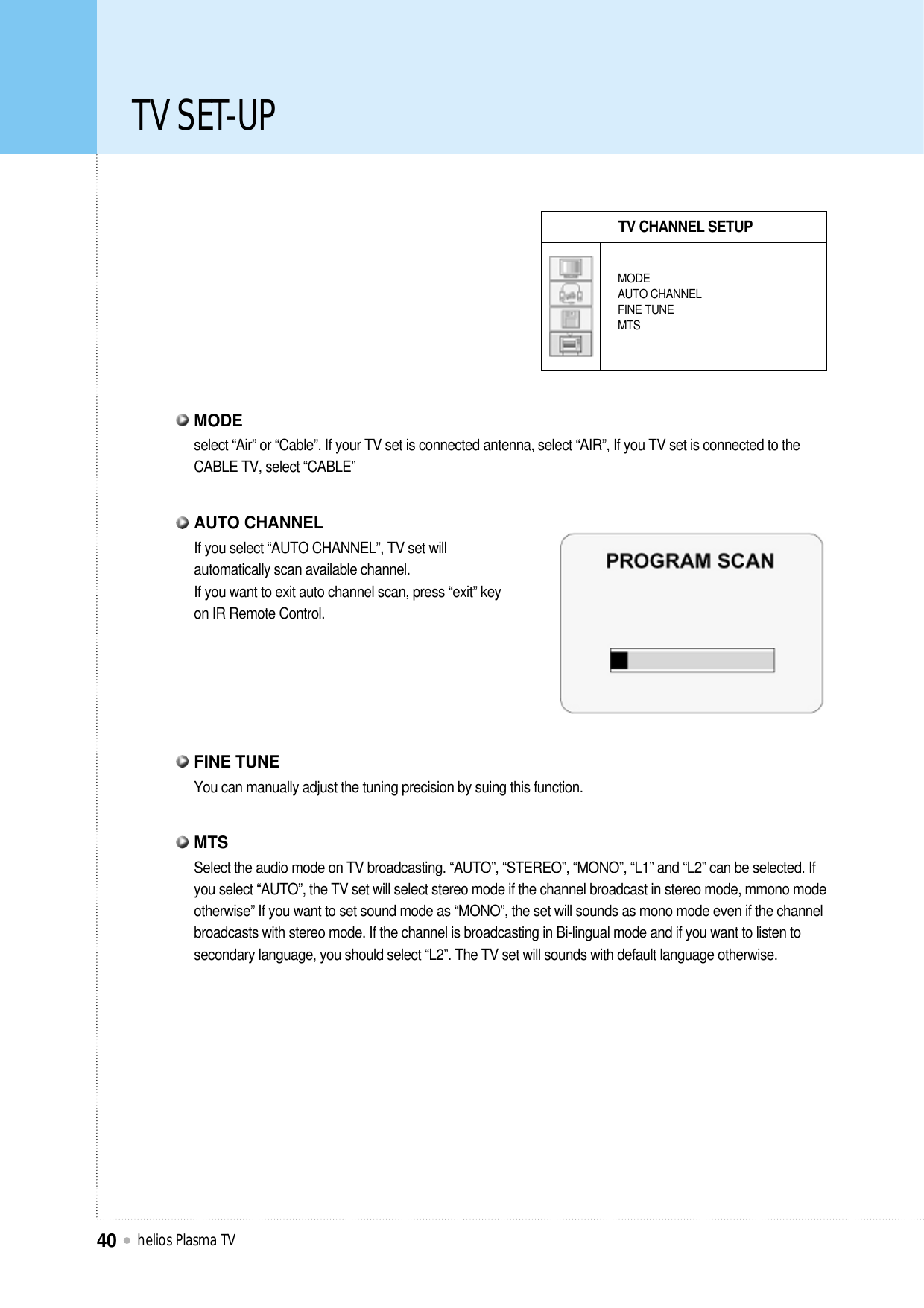

TV SET-UPhelios Plasma TV40TV CHANNEL SETUPMODEAUTO CHANNELFINE TUNEMTSselect “Air” or “Cable”. If your TV set is connected antenna, select “AIR”, If you TV set is connected to theCABLE TV, select “CABLE”MODEYou can manually adjust the tuning precision by suing this function.FINE TUNESelect the audio mode on TV broadcasting. “AUTO”, “STEREO”, “MONO”, “L1” and “L2” can be selected. Ifyou select “AUTO”, the TV set will select stereo mode if the channel broadcast in stereo mode, mmono modeotherwise” If you want to set sound mode as “MONO”, the set will sounds as mono mode even if the channelbroadcasts with stereo mode. If the channel is broadcasting in Bi-lingual mode and if you want to listen tosecondary language, you should select “L2”. The TV set will sounds with default language otherwise.MTSIf you select “AUTO CHANNEL”, TV set willautomatically scan available channel.If you want to exit auto channel scan, press “exit” keyon IR Remote Control.AUTO CHANNEL

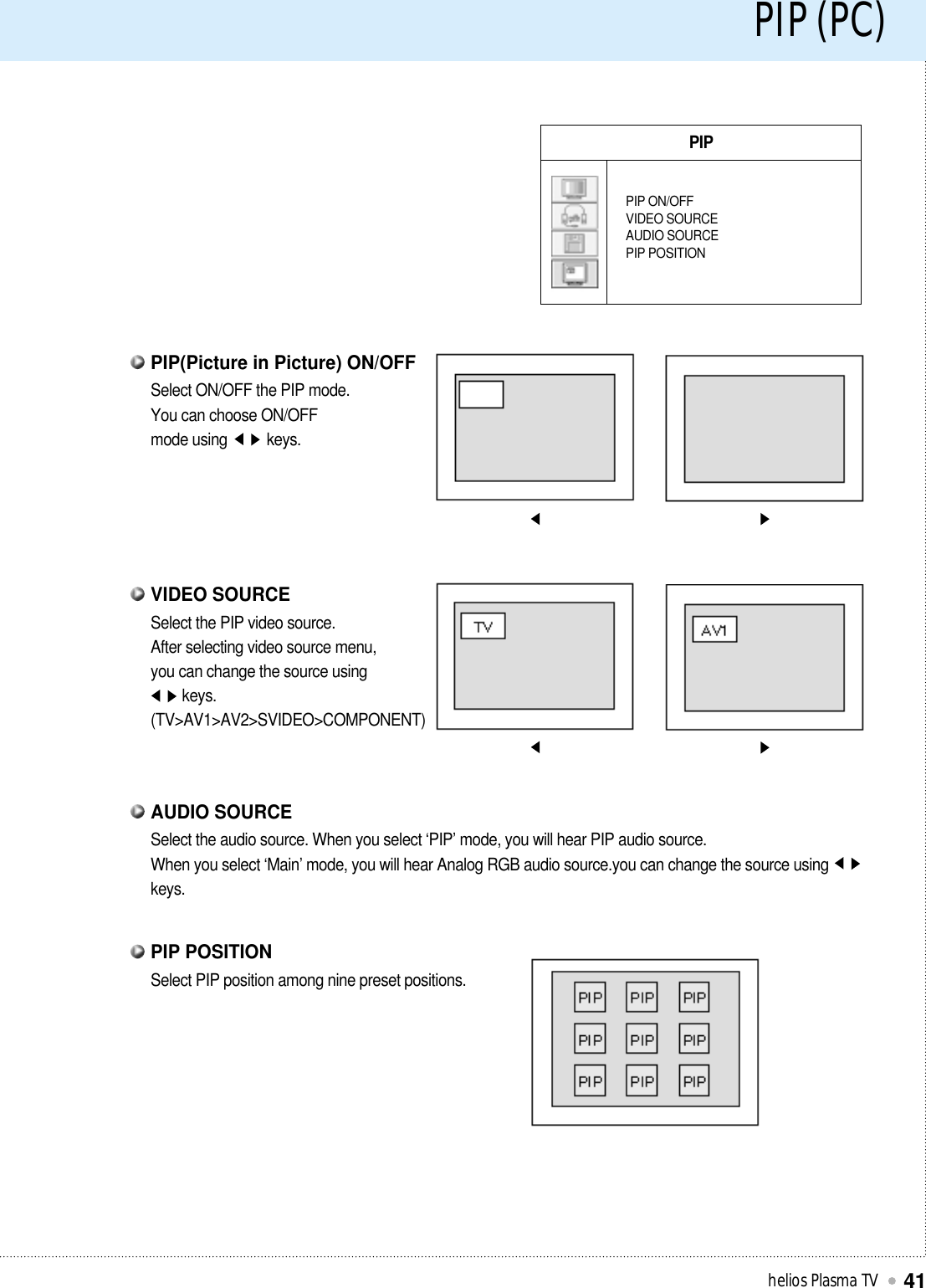

PIP (PC)helios Plasma TV41PIPPIP ON/OFFVIDEO SOURCEAUDIO SOURCEPIP POSITIONSelect ON/OFF the PIP mode.You can choose ON/OFFmode using keys.PIP(Picture in Picture) ON/OFFSelect the PIP video source.After selecting video source menu,you can change the source usingkeys.(TV>AV1>AV2>SVIDEO>COMPONENT)VIDEO SOURCESelect PIP position among nine preset positions.PIP POSITIONSelect the audio source. When you select ‘PIP’ mode, you will hear PIP audio source.When you select ‘Main’ mode, you will hear Analog RGB audio source.you can change the source usingkeys.AUDIO SOURCE

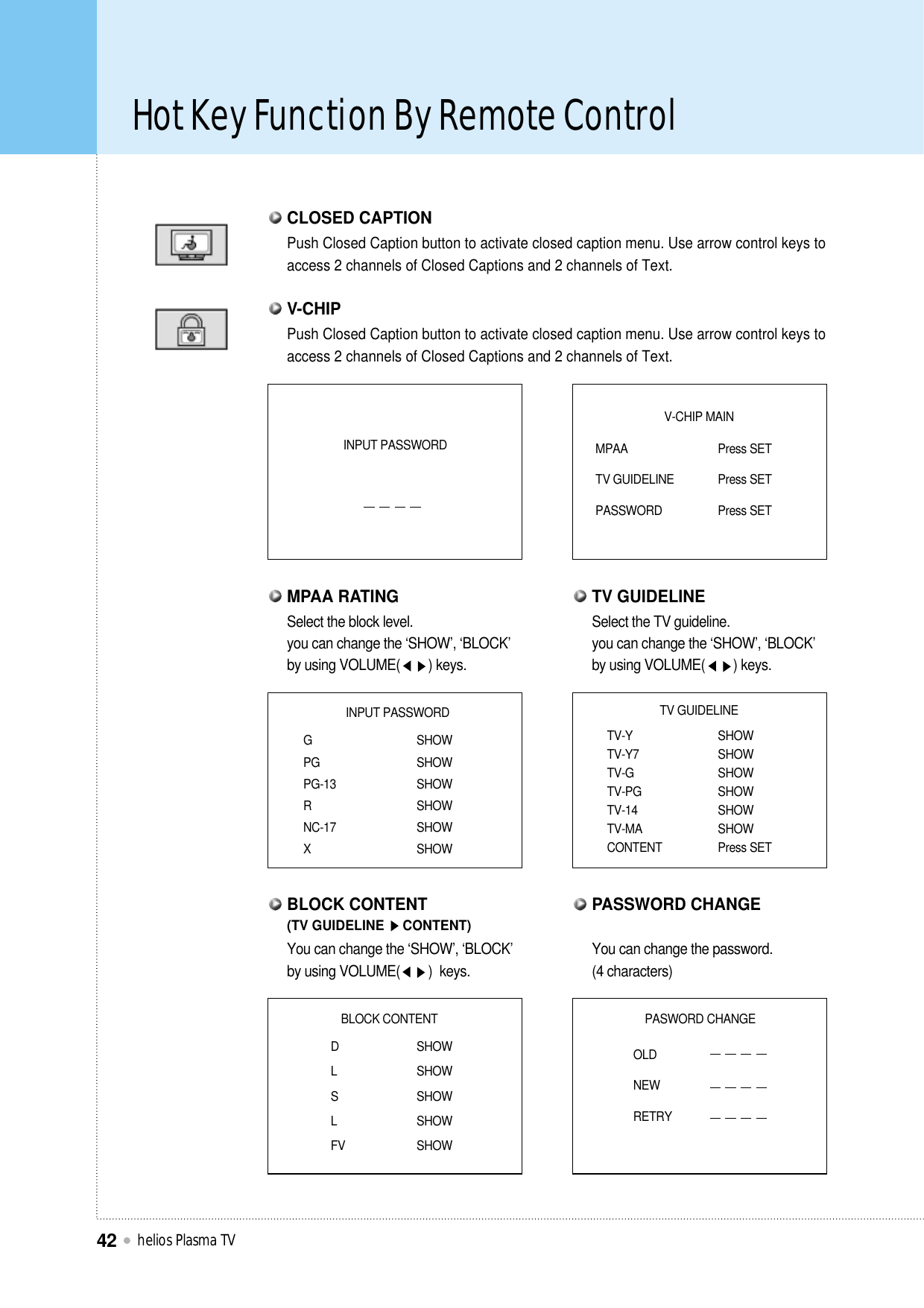

Hot Key Function By Remote Controlhelios Plasma TV42INPUT PASSWORDV-CHIP MAINMPAATV GUIDELINEPASSWORDPress SETPress SETPress SETTV GUIDELINETV-YTV-Y7TV-GTV-PGTV-14TV-MACONTENTSHOWSHOWSHOWSHOWSHOWSHOWPress SETINPUT PASSWORDGPGPG-13RNC-17XSHOWSHOWSHOWSHOWSHOWSHOWBLOCK CONTENTDLSLFVSHOWSHOWSHOWSHOWSHOWPASWORD CHANGEOLDNEWRETRYPush Closed Caption button to activate closed caption menu. Use arrow control keys toaccess 2 channels of Closed Captions and 2 channels of Text. CLOSED CAPTIONPush Closed Caption button to activate closed caption menu. Use arrow control keys toaccess 2 channels of Closed Captions and 2 channels of Text. V-CHIPSelect the block level.you can change the ‘SHOW’, ‘BLOCK’by using VOLUME( ) keys.MPAA RATINGSelect the TV guideline.you can change the ‘SHOW’, ‘BLOCK’by using VOLUME( ) keys. TV GUIDELINEYou can change the ‘SHOW’, ‘BLOCK’by using VOLUME( ) keys. BLOCK CONTENT (TV GUIDELINE CONTENT)You can change the password.(4 characters) PASSWORD CHANGE

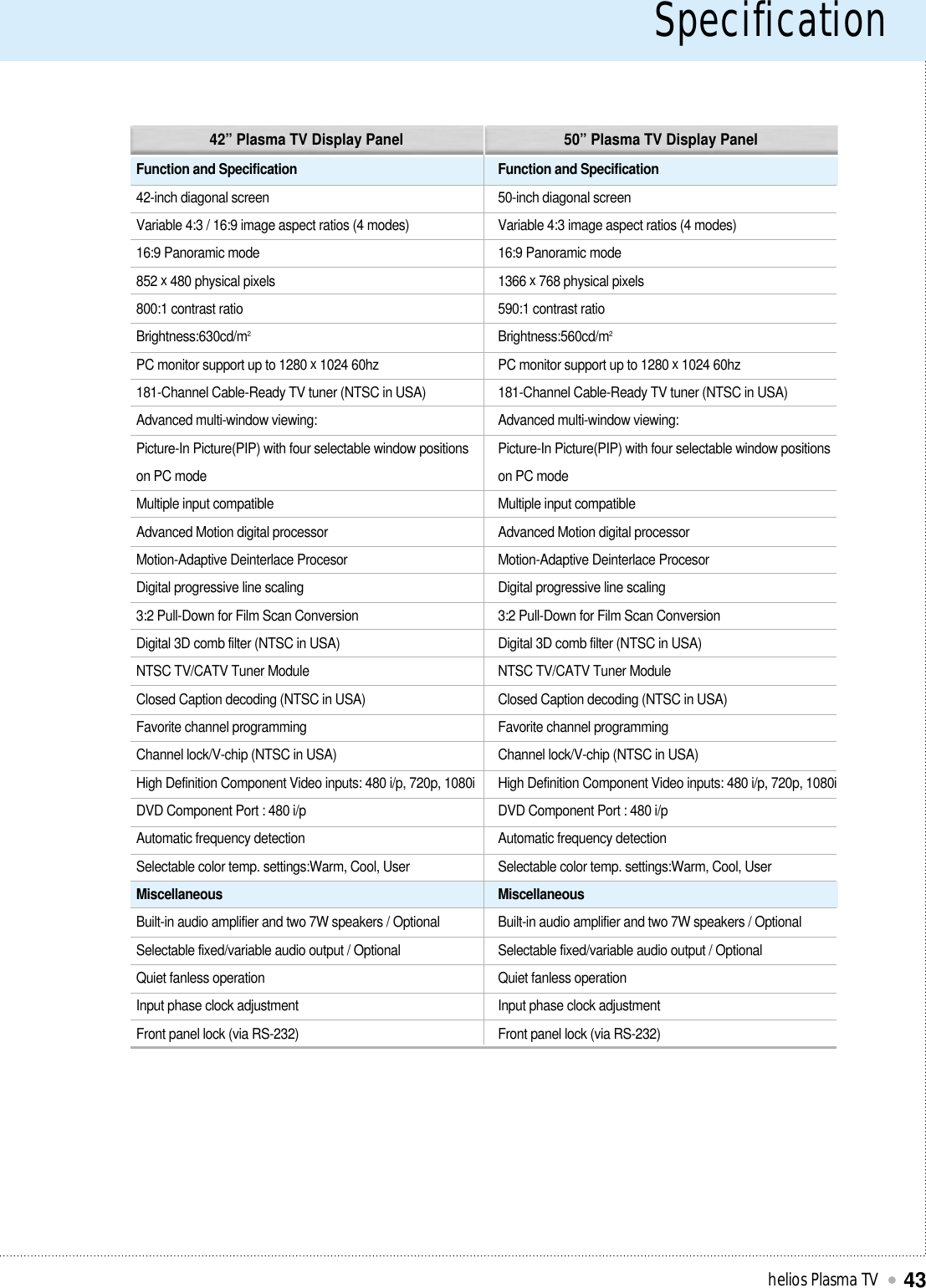

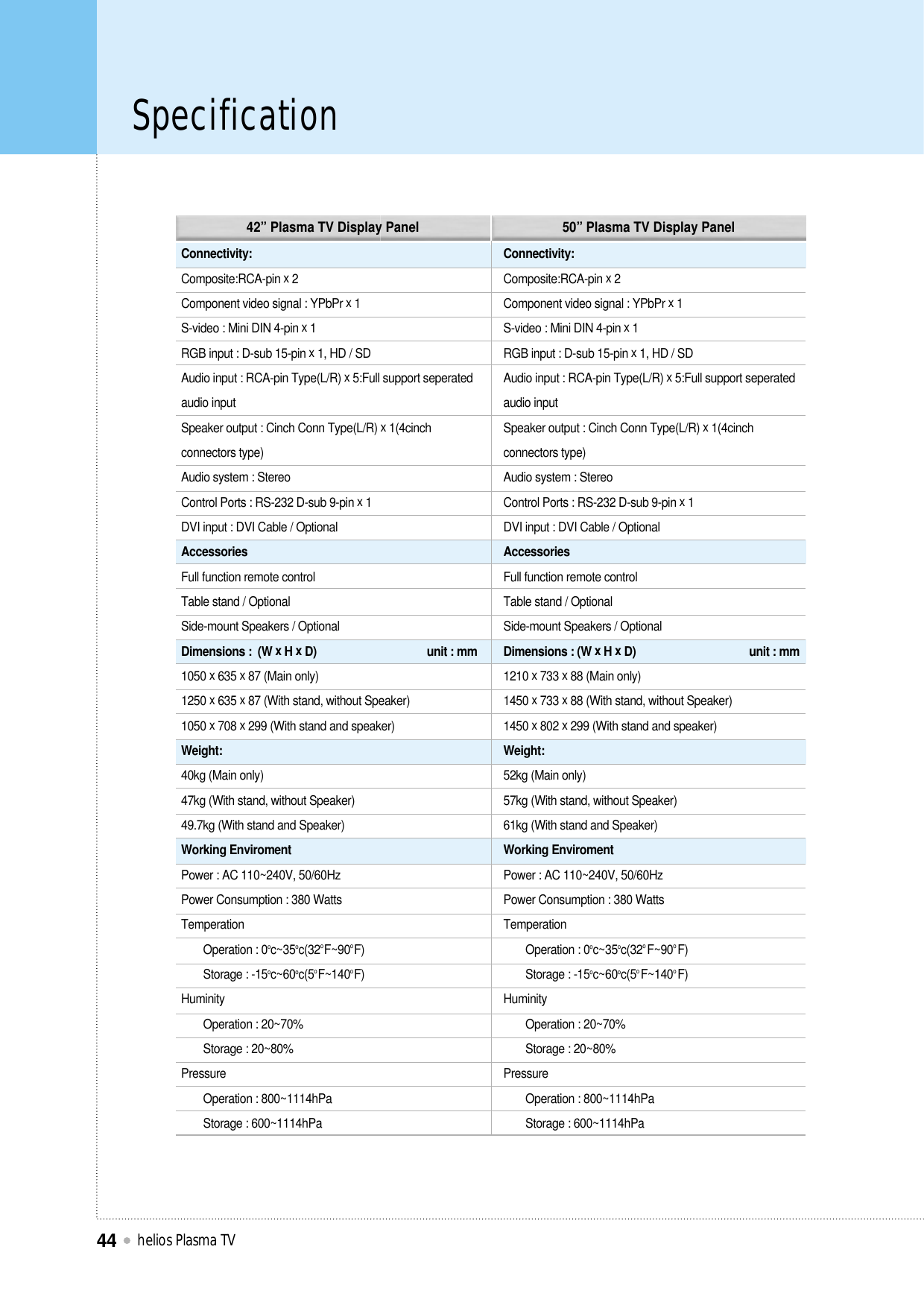

Specification helios Plasma TV43Function and Specification42-inch diagonal screenVariable 4:3 / 16:9 image aspect ratios (4 modes)16:9 Panoramic mode852 x480 physical pixels800:1 contrast ratioBrightness:630cd/m2PC monitor support up to 1280 x1024 60hz181-Channel Cable-Ready TV tuner (NTSC in USA)Advanced multi-window viewing:Picture-In Picture(PIP) with four selectable window positionson PC modeMultiple input compatibleAdvanced Motion digital processorMotion-Adaptive Deinterlace ProcesorDigital progressive line scaling3:2 Pull-Down for Film Scan ConversionDigital 3D comb filter (NTSC in USA)NTSC TV/CATV Tuner ModuleClosed Caption decoding (NTSC in USA)Favorite channel programmingChannel lock/V-chip (NTSC in USA)High Definition Component Video inputs: 480 i/p, 720p, 1080iDVD Component Port : 480 i/pAutomatic frequency detectionSelectable color temp. settings:Warm, Cool, UserMiscellaneousBuilt-in audio amplifier and two 7W speakers / OptionalSelectable fixed/variable audio output / OptionalQuiet fanless operationInput phase clock adjustmentFront panel lock (via RS-232)Function and Specification50-inch diagonal screenVariable 4:3 image aspect ratios (4 modes)16:9 Panoramic mode1366 x768 physical pixels590:1 contrast ratioBrightness:560cd/m2PC monitor support up to 1280 x1024 60hz181-Channel Cable-Ready TV tuner (NTSC in USA)Advanced multi-window viewing:Picture-In Picture(PIP) with four selectable window positionson PC modeMultiple input compatibleAdvanced Motion digital processorMotion-Adaptive Deinterlace ProcesorDigital progressive line scaling3:2 Pull-Down for Film Scan ConversionDigital 3D comb filter (NTSC in USA)NTSC TV/CATV Tuner ModuleClosed Caption decoding (NTSC in USA)Favorite channel programmingChannel lock/V-chip (NTSC in USA)High Definition Component Video inputs: 480 i/p, 720p, 1080iDVD Component Port : 480 i/pAutomatic frequency detectionSelectable color temp. settings:Warm, Cool, UserMiscellaneousBuilt-in audio amplifier and two 7W speakers / OptionalSelectable fixed/variable audio output / OptionalQuiet fanless operationInput phase clock adjustmentFront panel lock (via RS-232)42” Plasma TV Display Panel 50” Plasma TV Display Panel
Specification helios Plasma TV44Connectivity:Composite:RCA-pin x2Component video signal : YPbPr x1S-video : Mini DIN 4-pin x1RGB input : D-sub 15-pin x1, HD / SDAudio input : RCA-pin Type(L/R) x5:Full support seperatedaudio inputSpeaker output : Cinch Conn Type(L/R) x1(4cinchconnectors type)Audio system : StereoControl Ports : RS-232 D-sub 9-pin x1DVI input : DVI Cable / OptionalAccessoriesFull function remote controlTable stand / OptionalSide-mount Speakers / OptionalDimensions : (W xH xD) unit : mm1050 x635 x87 (Main only)1250 x635 x87 (With stand, without Speaker)1050 x708 x299 (With stand and speaker)Weight:40kg (Main only)47kg (With stand, without Speaker)49.7kg (With stand and Speaker)Working EnviromentPower : AC 110~240V, 50/60HzPower Consumption : 380 WattsTemperationOperation : 0oc~35oc(32oF~90oF)Storage : -15oc~60oc(5oF~140oF)HuminityOperation : 20~70%Storage : 20~80%PressureOperation : 800~1114hPaStorage : 600~1114hPaConnectivity:Composite:RCA-pin x2Component video signal : YPbPr x1S-video : Mini DIN 4-pin x1RGB input : D-sub 15-pin x1, HD / SDAudio input : RCA-pin Type(L/R) x5:Full support seperatedaudio inputSpeaker output : Cinch Conn Type(L/R) x1(4cinchconnectors type)Audio system : StereoControl Ports : RS-232 D-sub 9-pin x1DVI input : DVI Cable / OptionalAccessoriesFull function remote controlTable stand / OptionalSide-mount Speakers / OptionalDimensions : (W xH xD) unit : mm1210 x733 x88 (Main only)1450 x733 x88 (With stand, without Speaker)1450 x802 x299 (With stand and speaker)Weight:52kg (Main only)57kg (With stand, without Speaker)61kg (With stand and Speaker)Working EnviromentPower : AC 110~240V, 50/60HzPower Consumption : 380 WattsTemperationOperation : 0oc~35oc(32oF~90oF)Storage : -15oc~60oc(5oF~140oF)HuminityOperation : 20~70%Storage : 20~80%PressureOperation : 800~1114hPaStorage : 600~1114hPa42” Plasma TV Display Panel 50” Plasma TV Display Panel

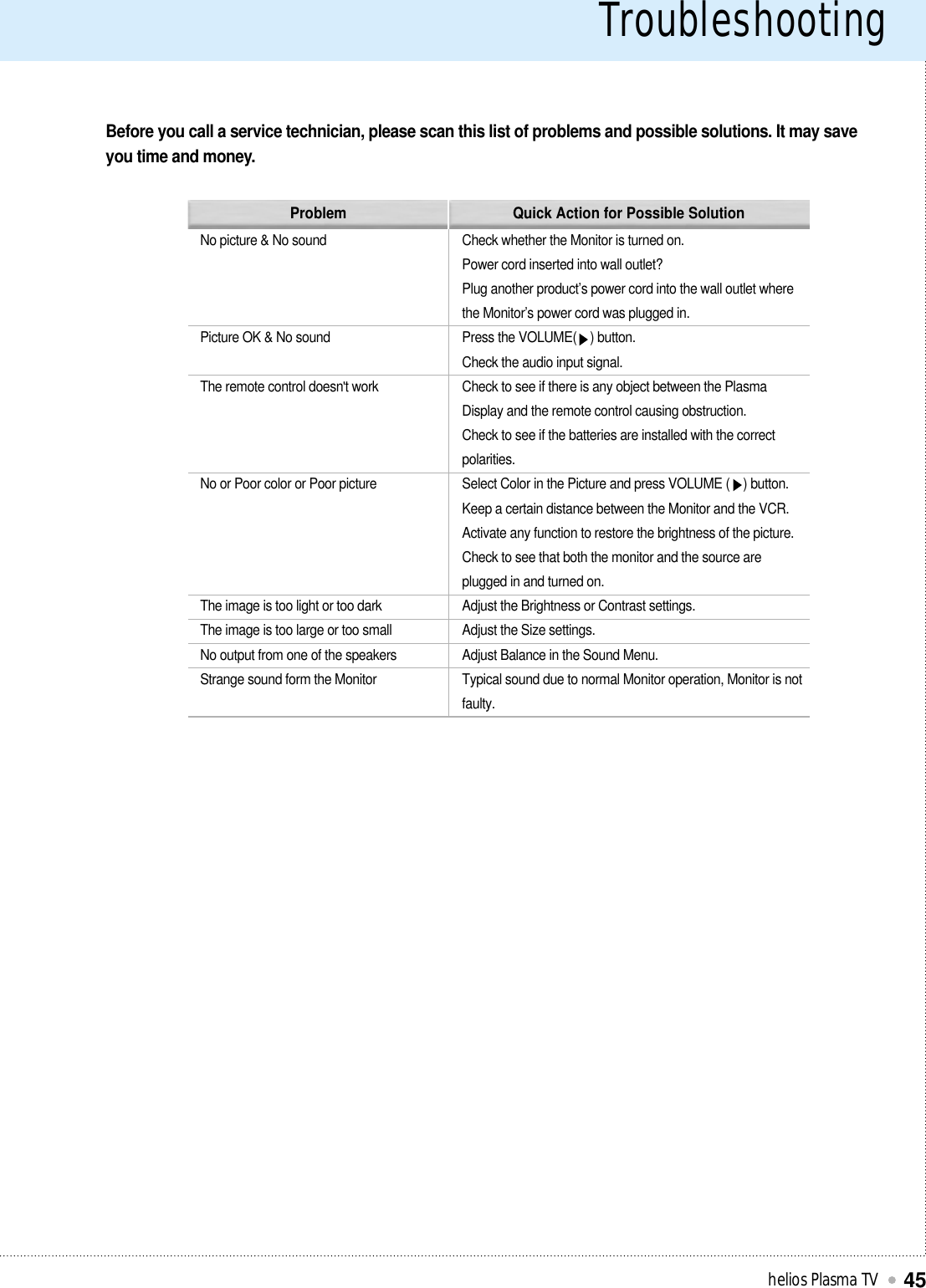

Troubleshootinghelios Plasma TV45Before you call a service technician, please scan this list of problems and possible solutions. It may saveyou time and money. No picture & No soundPicture OK & No soundThe remote control doesn't workNo or Poor color or Poor pictureThe image is too light or too darkThe image is too large or too smallNo output from one of the speakersStrange sound form the MonitorCheck whether the Monitor is turned on.Power cord inserted into wall outlet?Plug another product’s power cord into the wall outlet wherethe Monitor’s power cord was plugged in.Press the VOLUME( ) button.Check the audio input signal.Check to see if there is any object between the PlasmaDisplay and the remote control causing obstruction.Check to see if the batteries are installed with the correctpolarities.Select Color in the Picture and press VOLUME ( ) button.Keep a certain distance between the Monitor and the VCR.Activate any function to restore the brightness of the picture.Check to see that both the monitor and the source areplugged in and turned on.Adjust the Brightness or Contrast settings.Adjust the Size settings.Adjust Balance in the Sound Menu.Typical sound due to normal Monitor operation, Monitor is notfaulty.Problem Quick Action for Possible Solution

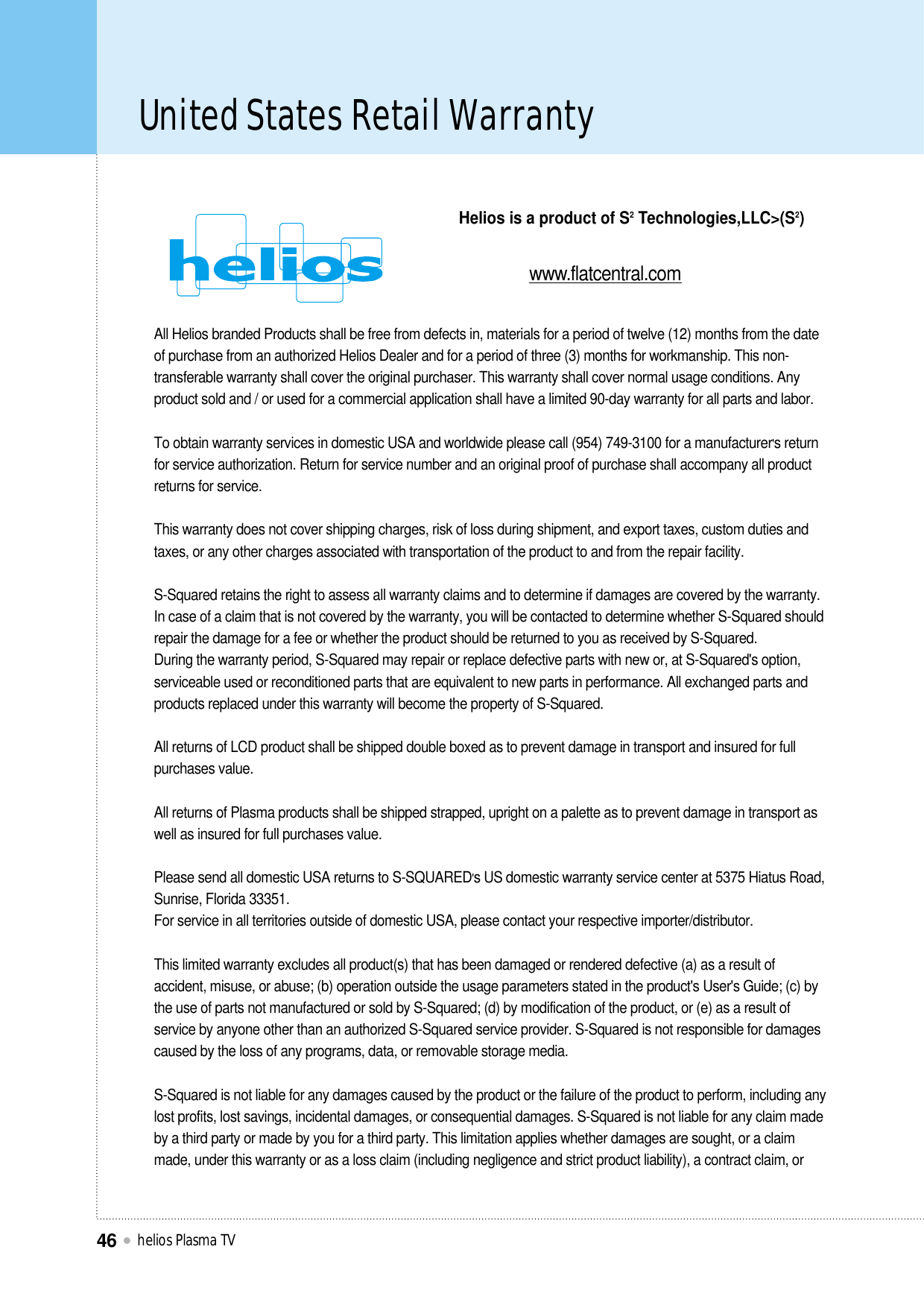

United States Retail Warranty helios Plasma TV46All Helios branded Products shall be free from defects in, materials for a period of twelve (12) months from the dateof purchase from an authorized Helios Dealer and for a period of three (3) months for workmanship. This non-transferable warranty shall cover the original purchaser. This warranty shall cover normal usage conditions. Anyproduct sold and / or used for a commercial application shall have a limited 90-day warranty for all parts and labor.To obtain warranty services in domestic USA and worldwide please call (954) 749-3100 for a manufacturer's returnfor service authorization. Return for service number and an original proof of purchase shall accompany all productreturns for service.This warranty does not cover shipping charges, risk of loss during shipment, and export taxes, custom duties andtaxes, or any other charges associated with transportation of the product to and from the repair facility.S-Squared retains the right to assess all warranty claims and to determine if damages are covered by the warranty.In case of a claim that is not covered by the warranty, you will be contacted to determine whether S-Squared shouldrepair the damage for a fee or whether the product should be returned to you as received by S-Squared.During the warranty period, S-Squared may repair or replace defective parts with new or, at S-Squared's option,serviceable used or reconditioned parts that are equivalent to new parts in performance. All exchanged parts andproducts replaced under this warranty will become the property of S-Squared.All returns of LCD product shall be shipped double boxed as to prevent damage in transport and insured for fullpurchases value. All returns of Plasma products shall be shipped strapped, upright on a palette as to prevent damage in transport aswell as insured for full purchases value.Please send all domestic USA returns to S-SQUARED's US domestic warranty service center at 5375 Hiatus Road,Sunrise, Florida 33351.For service in all territories outside of domestic USA, please contact your respective importer/distributor. This limited warranty excludes all product(s) that has been damaged or rendered defective (a) as a result ofaccident, misuse, or abuse; (b) operation outside the usage parameters stated in the product's User's Guide; (c) bythe use of parts not manufactured or sold by S-Squared; (d) by modification of the product, or (e) as a result ofservice by anyone other than an authorized S-Squared service provider. S-Squared is not responsible for damagescaused by the loss of any programs, data, or removable storage media.S-Squared is not liable for any damages caused by the product or the failure of the product to perform, including anylost profits, lost savings, incidental damages, or consequential damages. S-Squared is not liable for any claim madeby a third party or made by you for a third party. This limitation applies whether damages are sought, or a claimmade, under this warranty or as a loss claim (including negligence and strict product liability), a contract claim, orHelios is a product of S2Technologies,LLC>(S2)www.flatcentral.com

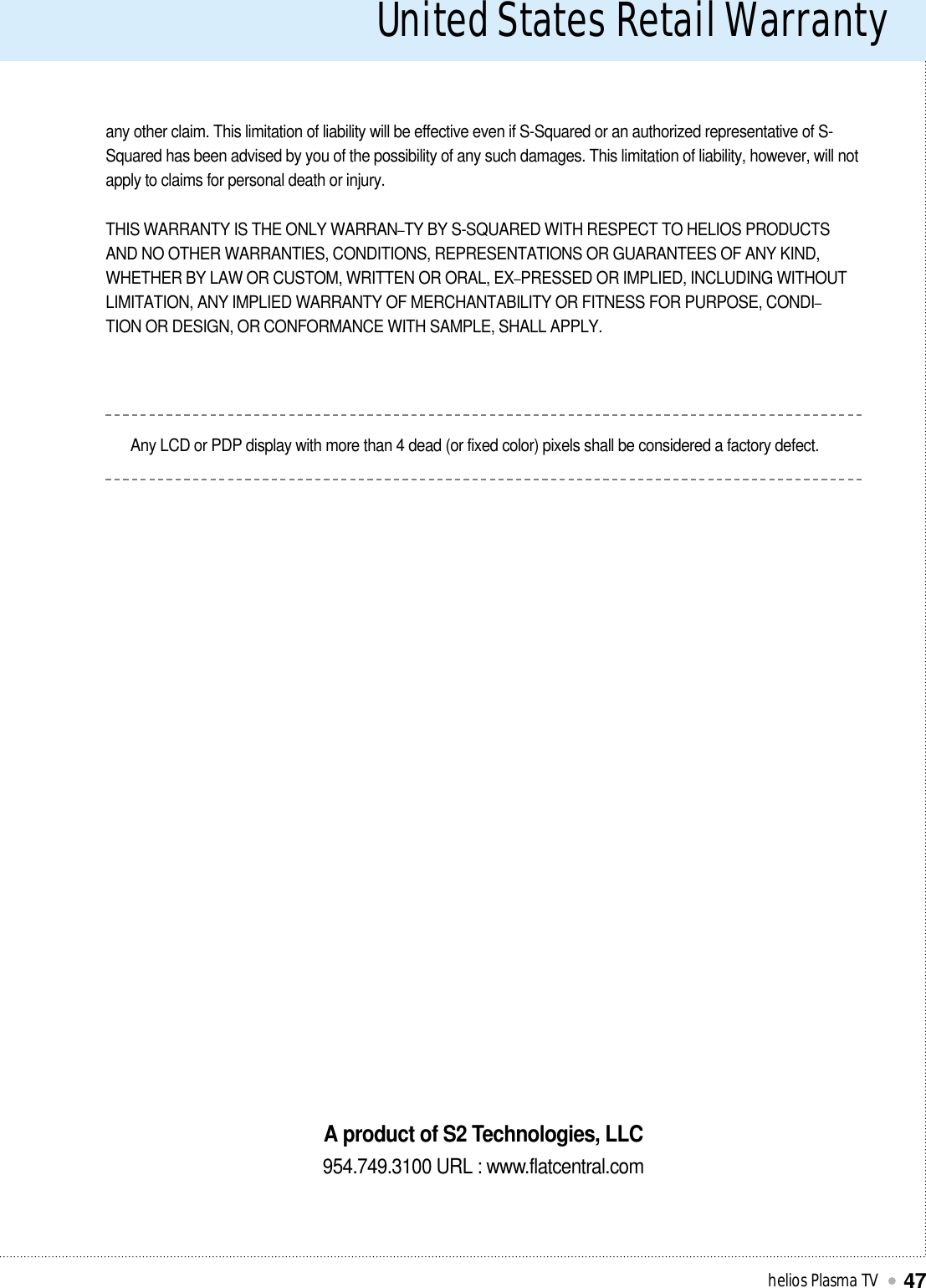

United States Retail Warranty helios Plasma TV47any other claim. This limitation of liability will be effective even if S-Squared or an authorized representative of S-Squared has been advised by you of the possibility of any such damages. This limitation of liability, however, will notapply to claims for personal death or injury.THIS WARRANTY IS THE ONLY WARRAN–TY BY S-SQUARED WITH RESPECT TO HELIOS PRODUCTSAND NO OTHER WARRANTIES, CONDITIONS, REPRESENTATIONS OR GUARANTEES OF ANY KIND,WHETHER BY LAW OR CUSTOM, WRITTEN OR ORAL, EX–PRESSED OR IMPLIED, INCLUDING WITHOUTLIMITATION, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR PURPOSE, CONDI–TION OR DESIGN, OR CONFORMANCE WITH SAMPLE, SHALL APPLY.Any LCD or PDP display with more than 4 dead (or fixed color) pixels shall be considered a factory defect.A product of S2 Technologies, LLC954.749.3100 URL : www.flatcentral.com
Memohelios Plasma TV48
