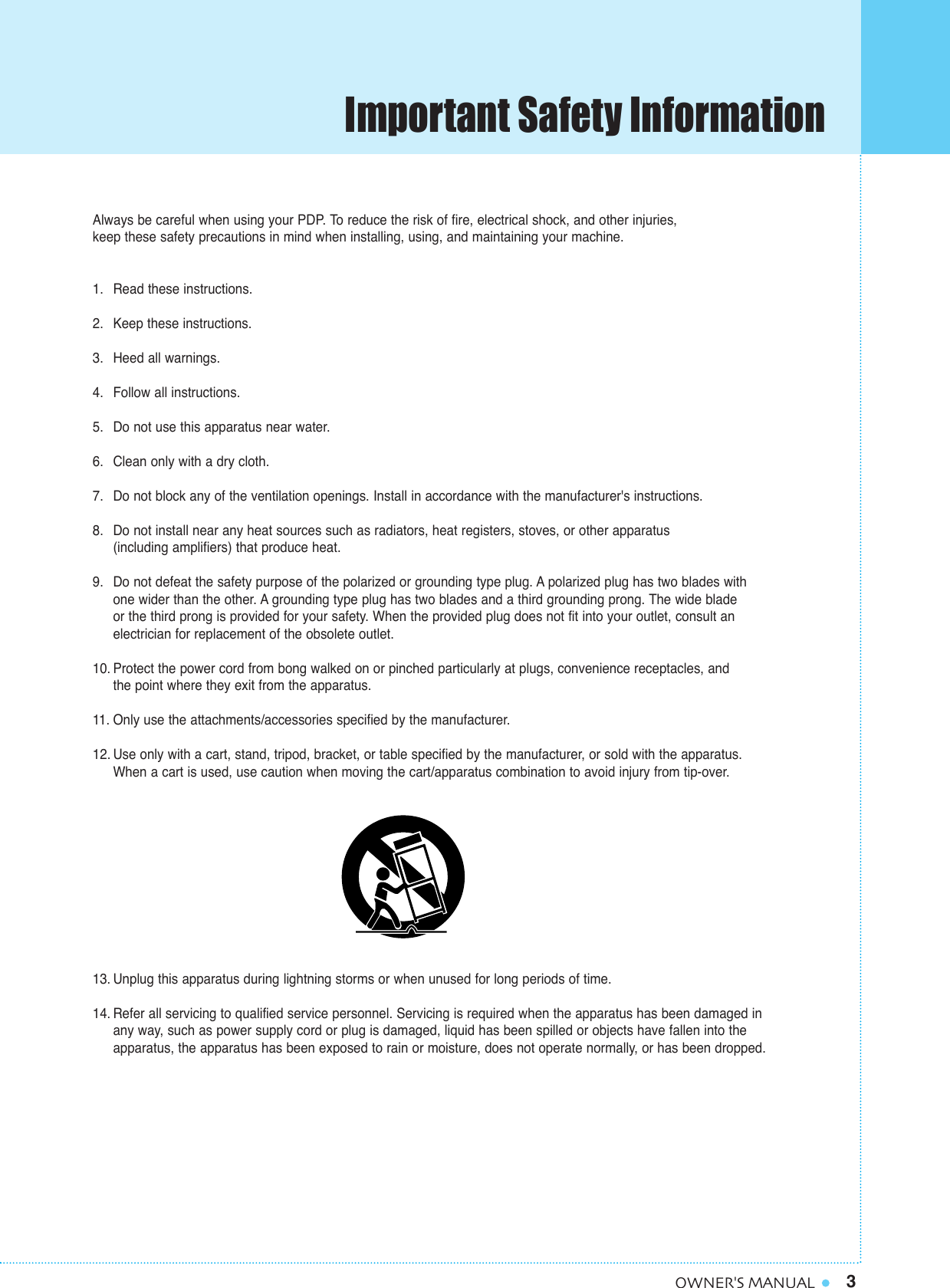

3OWNER'S MANUALImportant Safety InformationAlways be careful when using your PDP. To reduce the risk of fire, electrical shock, and other injuries, keep these safety precautions in mind when installing, using, and maintaining your machine.1. Read these instructions.2. Keep these instructions.3. Heed all warnings.4. Follow all instructions.5. Do not use this apparatus near water.6. Clean only with a dry cloth.7. Do not block any of the ventilation openings. Install in accordance with the manufacturer's instructions.8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.9. Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. When the provided plug does not fit into your outlet, consult anelectrician for replacement of the obsolete outlet.10. Protect the power cord from bong walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.11. Only use the attachments/accessories specified by the manufacturer.12. Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.13. Unplug this apparatus during lightning storms or when unused for long periods of time.14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

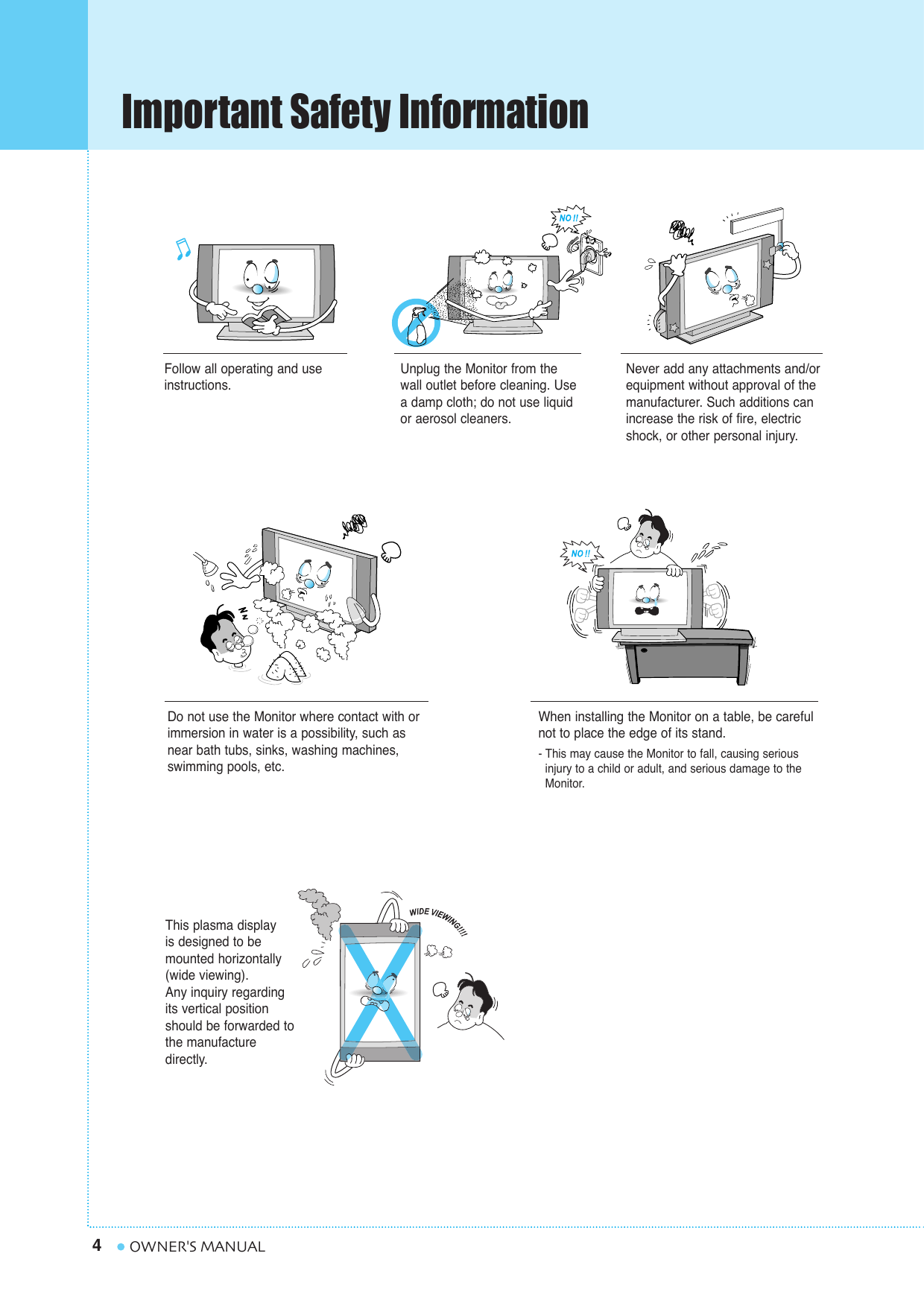

Important Safety Information4OWNER'S MANUALFollow all operating and useinstructions.Do not use the Monitor where contact with orimmersion in water is a possibility, such asnear bath tubs, sinks, washing machines,swimming pools, etc.This plasma display is designed to be mounted horizontally(wide viewing).Any inquiry regardingits vertical positionshould be forwarded tothe manufacture directly.When installing the Monitor on a table, be carefulnot to place the edge of its stand.- This may cause the Monitor to fall, causing serious injury to a child or adult, and serious damage to the Monitor.Unplug the Monitor from thewall outlet before cleaning. Usea damp cloth; do not use liquidor aerosol cleaners.Never add any attachments and/orequipment without approval of themanufacturer. Such additions canincrease the risk of fire, electricshock, or other personal injury.

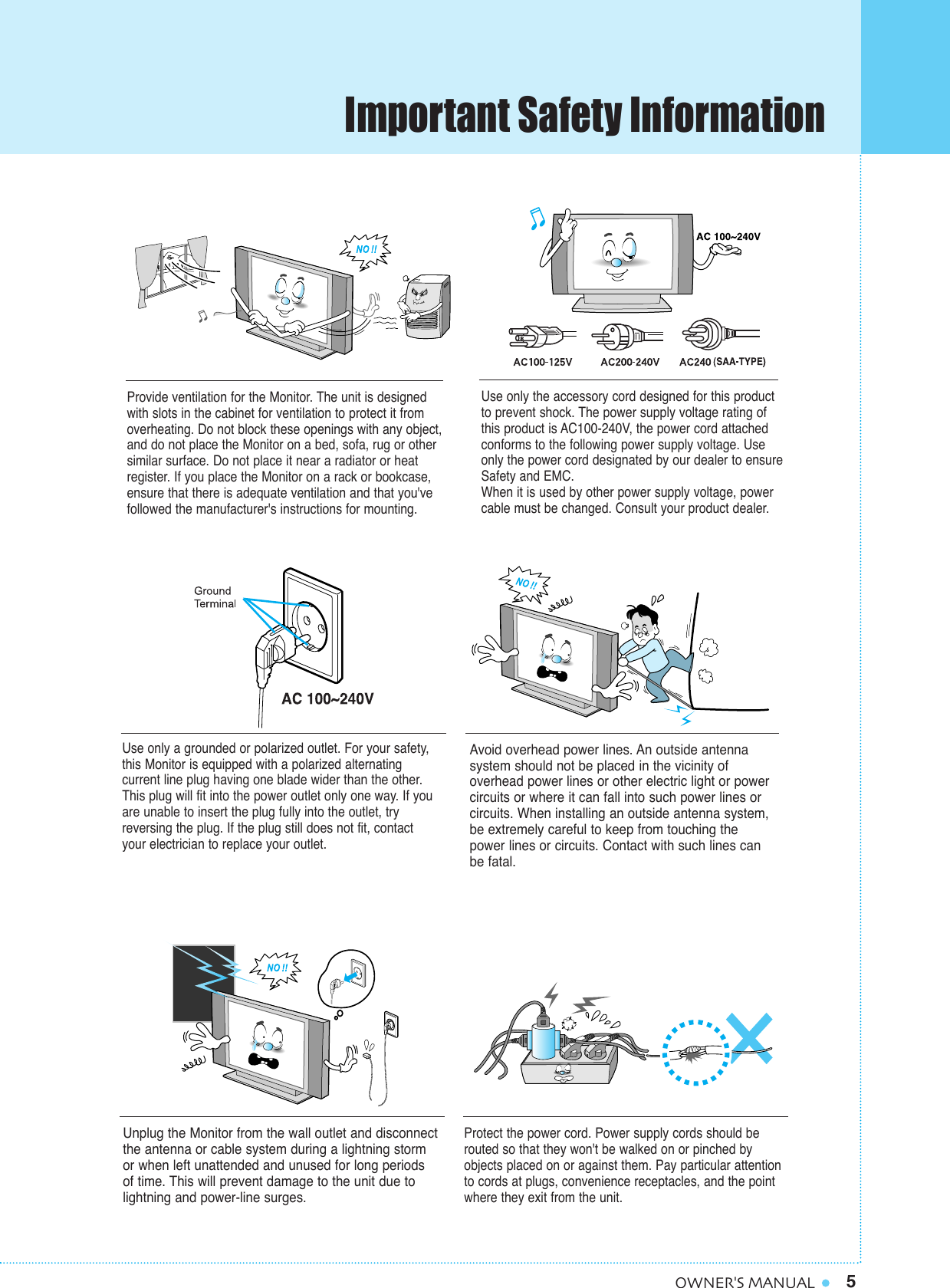

5OWNER'S MANUALProvide ventilation for the Monitor. The unit is designedwith slots in the cabinet for ventilation to protect it fromoverheating. Do not block these openings with any object,and do not place the Monitor on a bed, sofa, rug or othersimilar surface. Do not place it near a radiator or heatregister. If you place the Monitor on a rack or bookcase,ensure that there is adequate ventilation and that you'vefollowed the manufacturer's instructions for mounting. Use only the accessory cord designed for this productto prevent shock. The power supply voltage rating ofthis product is AC100-240V, the power cord attachedconforms to the following power supply voltage. Useonly the power cord designated by our dealer to ensureSafety and EMC.When it is used by other power supply voltage, powercable must be changed. Consult your product dealer.Use only a grounded or polarized outlet. For your safety,this Monitor is equipped with a polarized alternating current line plug having one blade wider than the other.This plug will fit into the power outlet only one way. If youare unable to insert the plug fully into the outlet, tryreversing the plug. If the plug still does not fit, contactyour electrician to replace your outlet.Avoid overhead power lines. An outside antenna system should not be placed in the vicinity of overhead power lines or other electric light or powercircuits or where it can fall into such power lines orcircuits. When installing an outside antenna system,be extremely careful to keep from touching thepower lines or circuits. Contact with such lines canbe fatal.Unplug the Monitor from the wall outlet and disconnectthe antenna or cable system during a lightning storm or when left unattended and unused for long periods of time. This will prevent damage to the unit due tolightning and power-line surges.Protect the power cord. Power supply cords should berouted so that they won't be walked on or pinched byobjects placed on or against them. Pay particular attentionto cords at plugs, convenience receptacles, and the pointwhere they exit from the unit.Important Safety Information

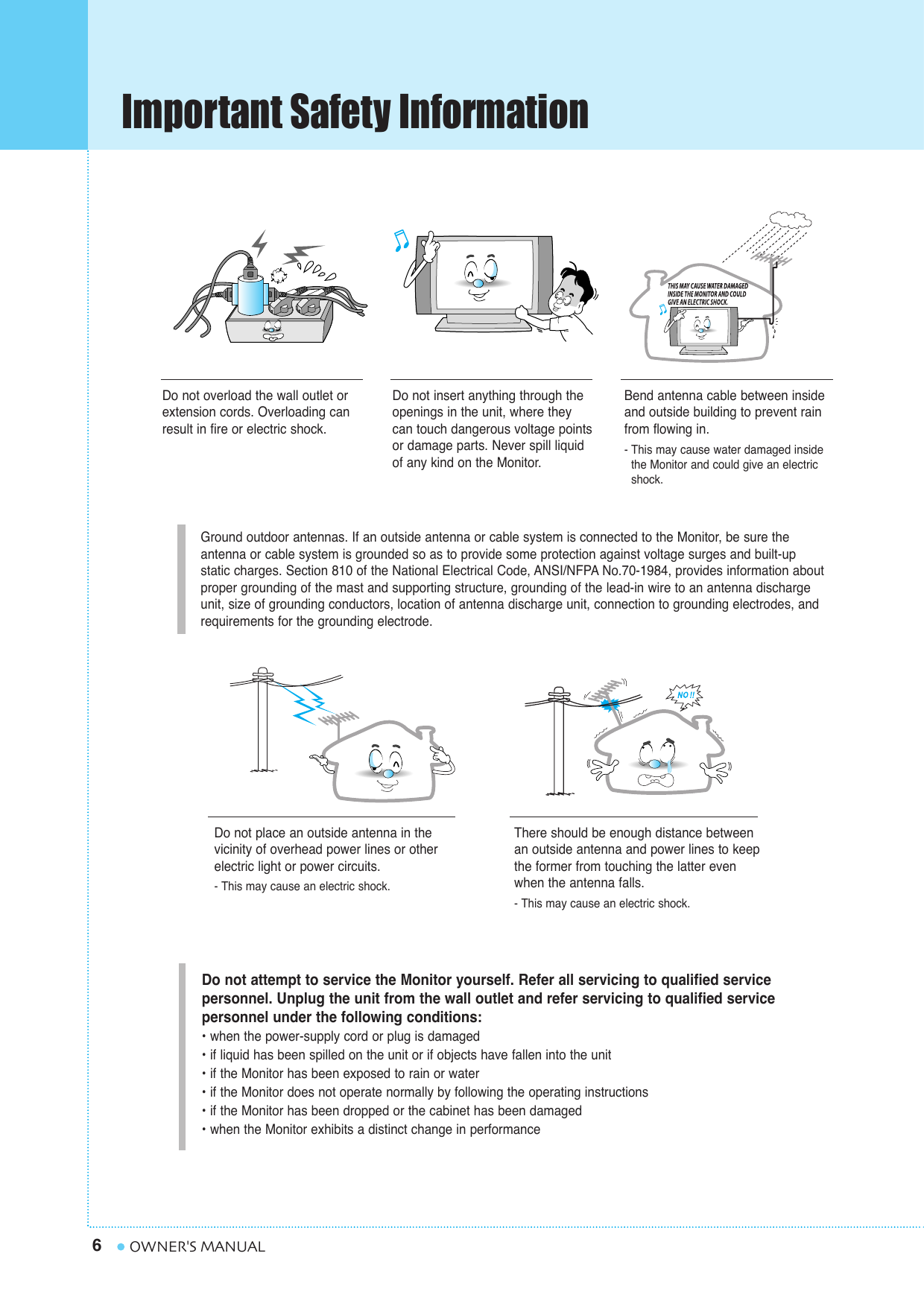

Important Safety Information6OWNER'S MANUALGround outdoor antennas. If an outside antenna or cable system is connected to the Monitor, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Section 810 of the National Electrical Code, ANSI/NFPA No.70-1984, provides information aboutproper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna dischargeunit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.Do not overload the wall outlet orextension cords. Overloading canresult in fire or electric shock.Do not insert anything through theopenings in the unit, where theycan touch dangerous voltage pointsor damage parts. Never spill liquidof any kind on the Monitor.Bend antenna cable between insideand outside building to prevent rainfrom flowing in. - This may cause water damaged inside the Monitor and could give an electric shock.Do not place an outside antenna in thevicinity of overhead power lines or other electric light or power circuits.- This may cause an electric shock.There should be enough distance betweenan outside antenna and power lines to keepthe former from touching the latter evenwhen the antenna falls.- This may cause an electric shock.Do not attempt to service the Monitor yourself. Refer all servicing to qualified service personnel. Unplug the unit from the wall outlet and refer servicing to qualified service personnel under the following conditions:• when the power-supply cord or plug is damaged• if liquid has been spilled on the unit or if objects have fallen into the unit• if the Monitor has been exposed to rain or water• if the Monitor does not operate normally by following the operating instructions• if the Monitor has been dropped or the cabinet has been damaged• when the Monitor exhibits a distinct change in performance

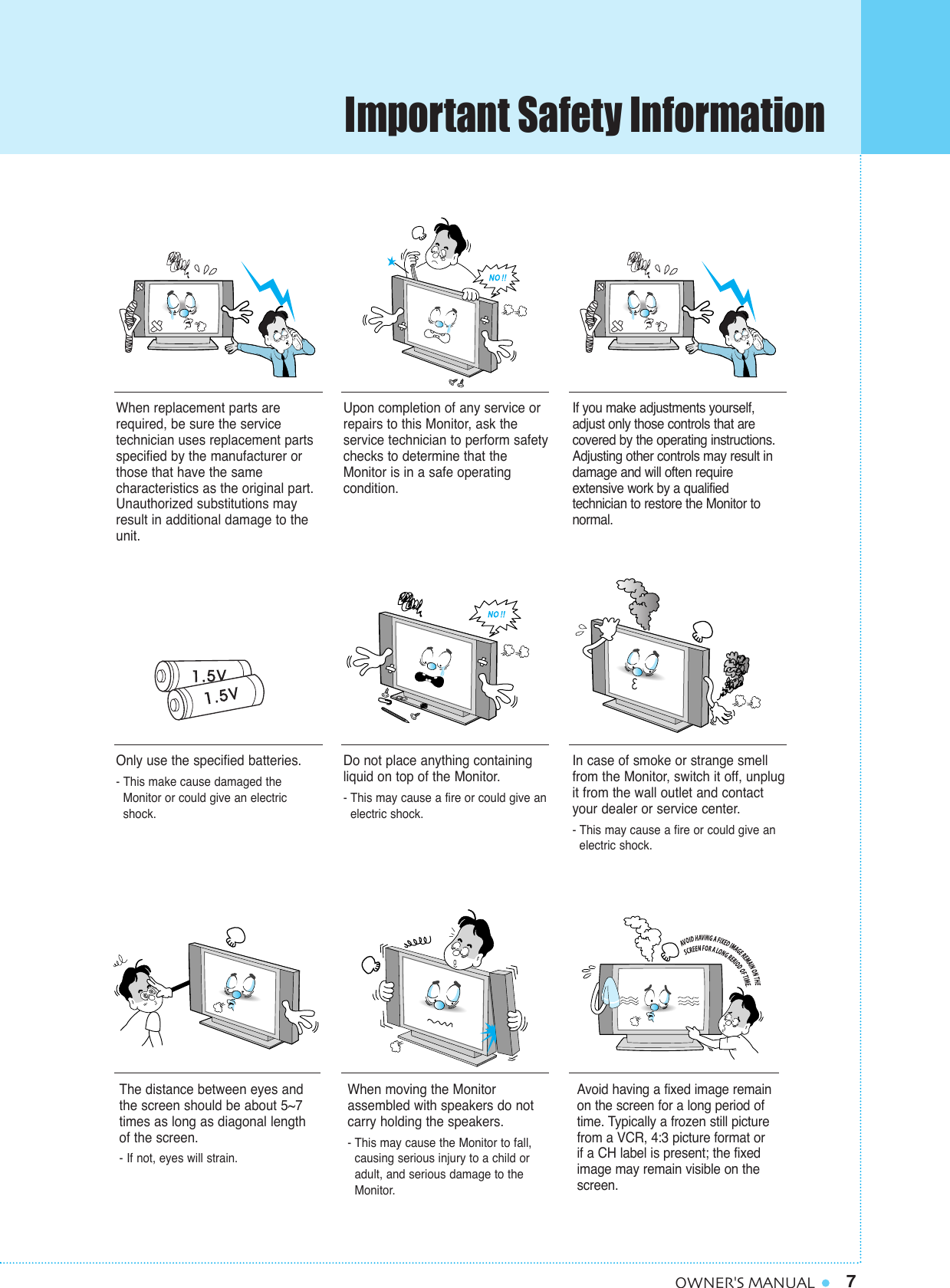

7OWNER'S MANUALWhen replacement parts arerequired, be sure the service technician uses replacement partsspecified by the manufacturer orthose that have the same characteristics as the original part.Unauthorized substitutions mayresult in additional damage to theunit. Upon completion of any service orrepairs to this Monitor, ask the service technician to perform safetychecks to determine that theMonitor is in a safe operating condition. If you make adjustments yourself,adjust only those controls that are covered by the operating instructions.Adjusting other controls may result indamage and will often require extensive work by a qualifiedtechnician to restore the Monitor tonormal.Only use the specified batteries.- This make cause damaged the Monitor or could give an electric shock.Do not place anything containingliquid on top of the Monitor.- This may cause a fire or could give an electric shock.In case of smoke or strange smellfrom the Monitor, switch it off, unplugit from the wall outlet and contactyour dealer or service center.- This may cause a fire or could give an electric shock.The distance between eyes andthe screen should be about 5~7times as long as diagonal length of the screen. - If not, eyes will strain.When moving the Monitor assembled with speakers do notcarry holding the speakers.- This may cause the Monitor to fall, causing serious injury to a child or adult, and serious damage to the Monitor.Avoid having a fixed image remainon the screen for a long period oftime. Typically a frozen still picturefrom a VCR, 4:3 picture format or if a CH label is present; the fixedimage may remain visible on thescreen.Important Safety Information

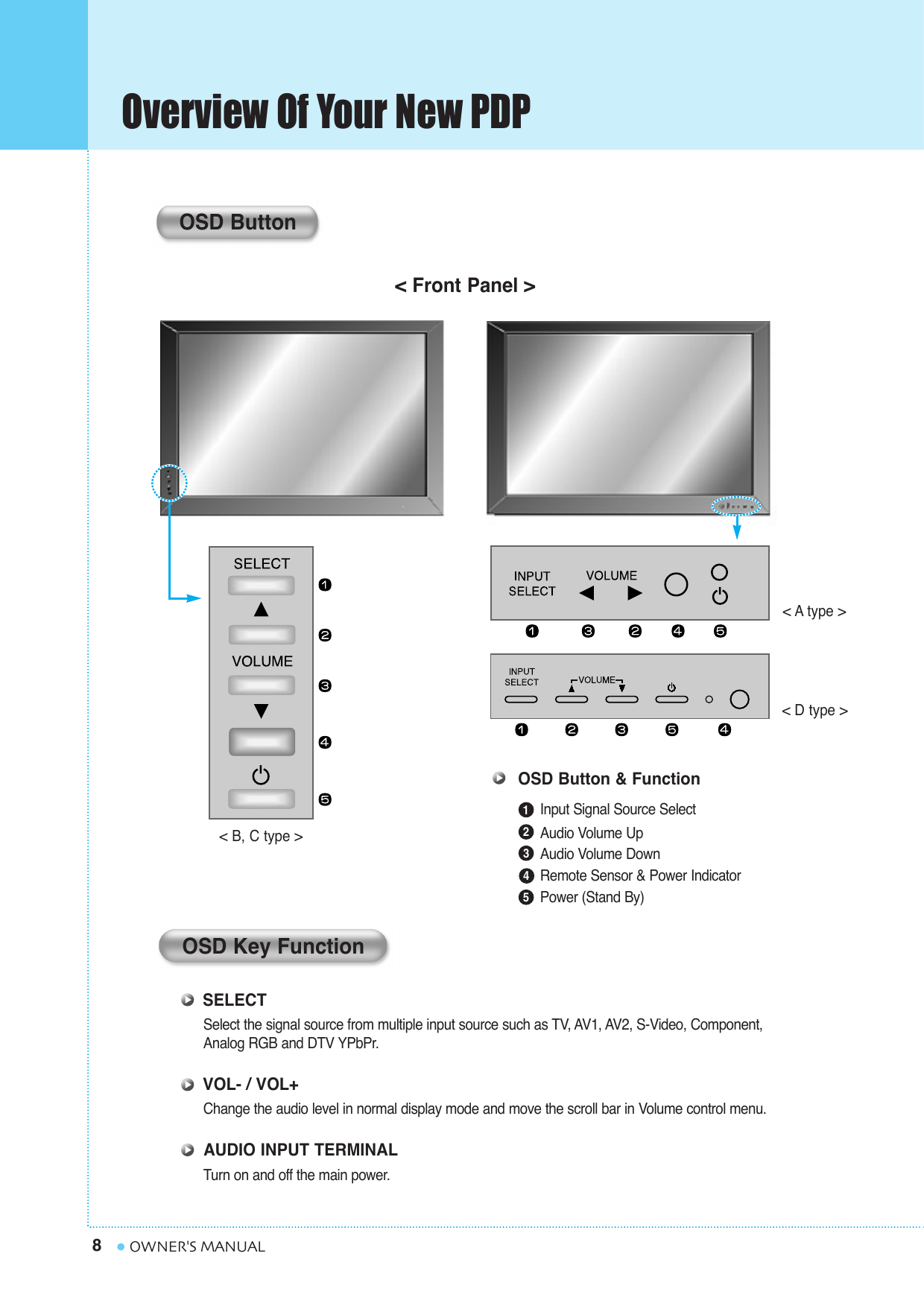

Overview Of Your New PDP8OWNER'S MANUALSelect the signal source from multiple input source such as TV, AV1, AV2, S-Video, Component, Analog RGB and DTV YPbPr.Change the audio level in normal display mode and move the scroll bar in Volume control menu.Turn on and off the main power.< Front Panel >Input Signal Source SelectAudio Volume UpAudio Volume DownRemote Sensor & Power IndicatorPower (Stand By)12345OSD ButtonOSD Button & FunctionSELECTVOL- / VOL+AUDIO INPUT TERMINALOSD Key Function< B, C type >< A type >< D type >

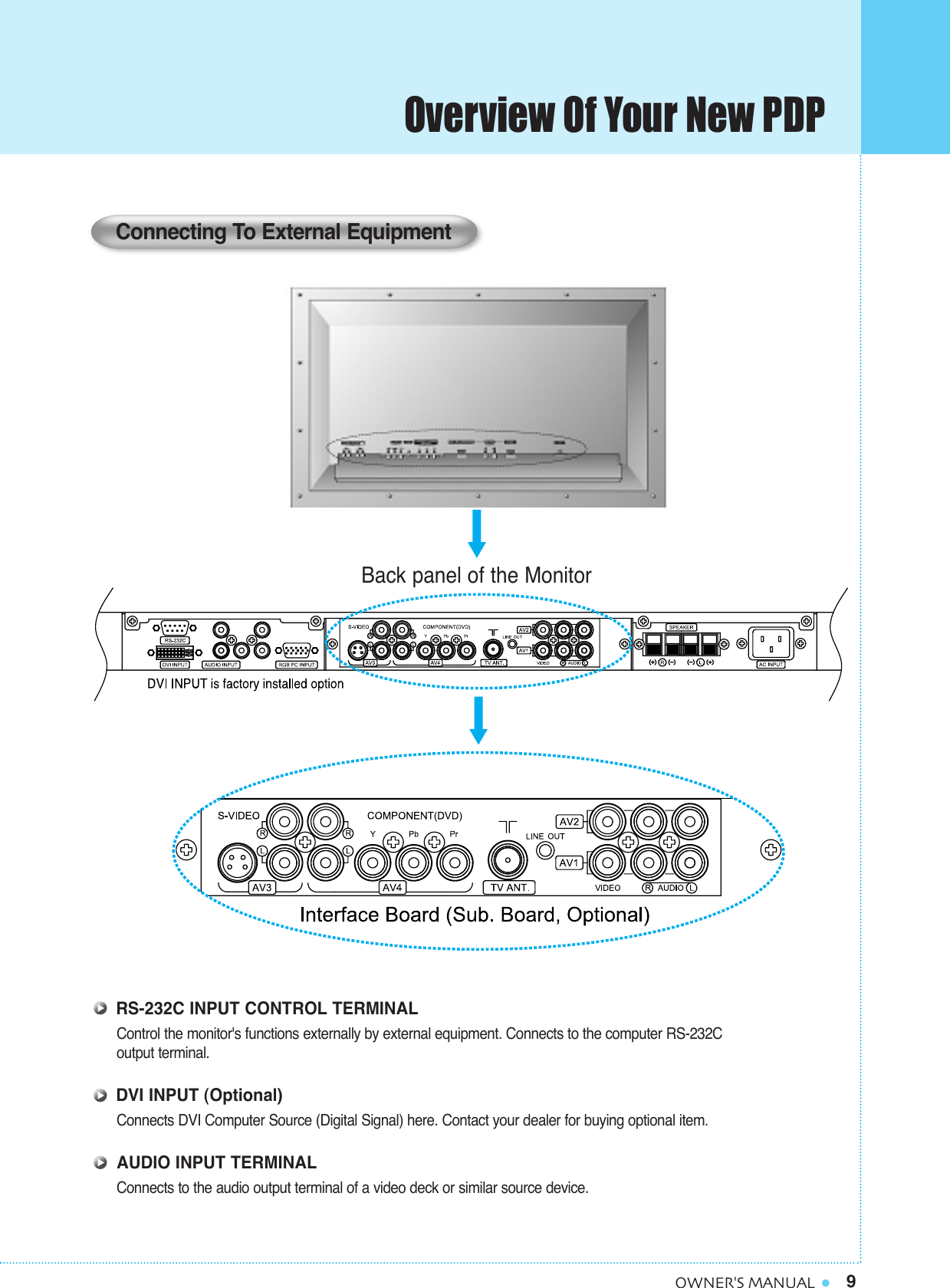

9OWNER'S MANUALBack panel of the MonitorConnecting To External EquipmentControl the monitor's functions externally by external equipment. Connects to the computer RS-232C output terminal.Connects DVI Computer Source (Digital Signal) here. Contact your dealer for buying optional item.Connects to the audio output terminal of a video deck or similar source device.RS-232C INPUT CONTROL TERMINALDVI INPUT (Optional)AUDIO INPUT TERMINALOverview Of Your New PDP

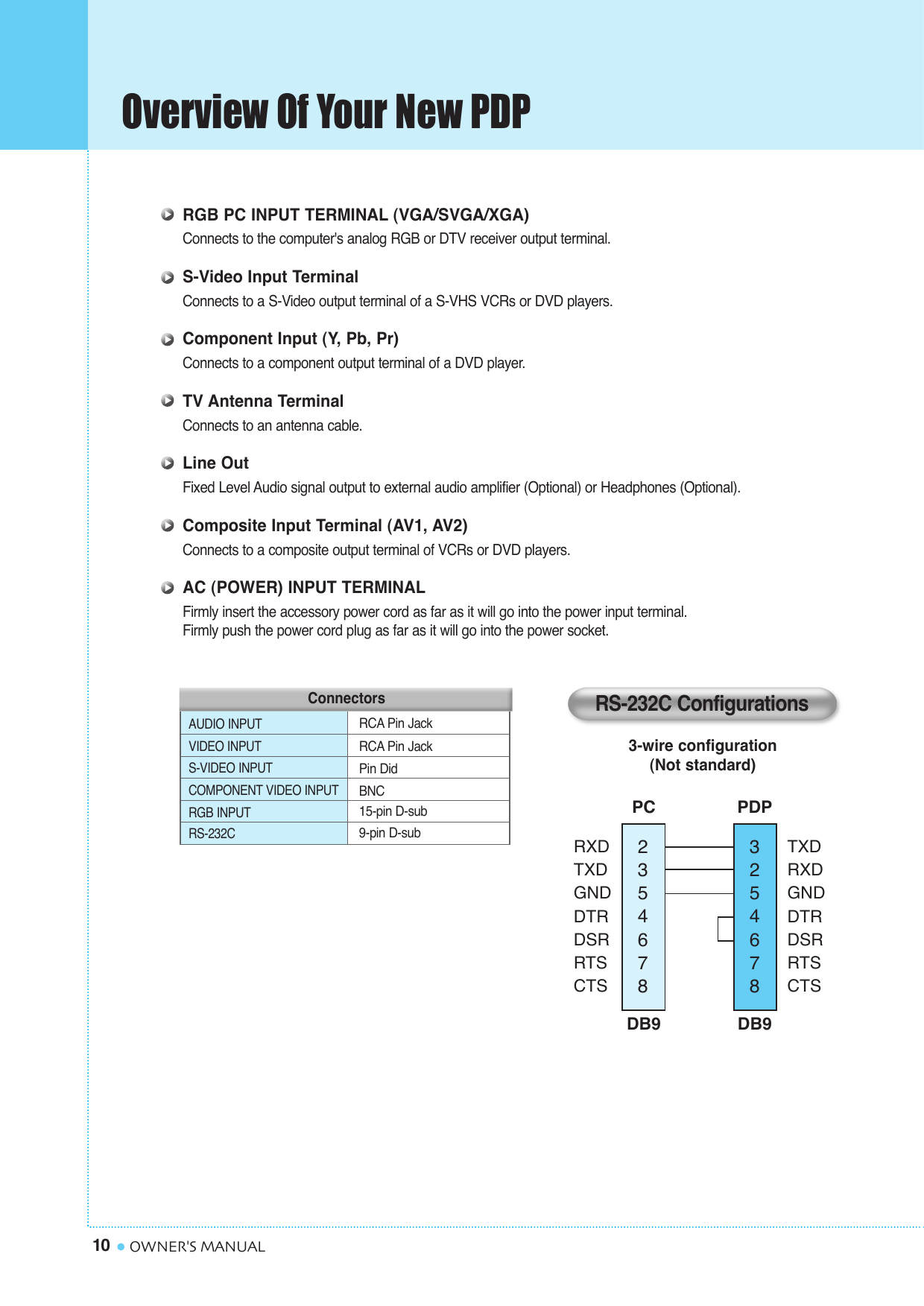

Overview Of Your New PDP10 OWNER'S MANUAL23546783254678PC PDPDB9 DB93-wire configuration(Not standard)AUDIO INPUTVIDEO INPUTS-VIDEO INPUTCOMPONENT VIDEO INPUTRGB INPUTRS-232CRCA Pin JackRCA Pin JackPin DidBNC15-pin D-sub9-pin D-subRS-232C ConfigurationsRXDTXDGNDDTRDSRRTSCTSTXDRXDGNDDTRDSRRTSCTSConnectorsRGB PC INPUT TERMINAL (VGA/SVGA/XGA)Connects to the computer's analog RGB or DTV receiver output terminal.S-Video Input TerminalConnects to a S-Video output terminal of a S-VHS VCRs or DVD players.Component Input (Y, Pb, Pr)Connects to a component output terminal of a DVD player.TV Antenna TerminalConnects to an antenna cable.Line OutFixed Level Audio signal output to external audio amplifier (Optional) or Headphones (Optional). Composite Input Terminal (AV1, AV2)Connects to a composite output terminal of VCRs or DVD players.AC (POWER) INPUT TERMINALFirmly insert the accessory power cord as far as it will go into the power input terminal. Firmly push the power cord plug as far as it will go into the power socket.

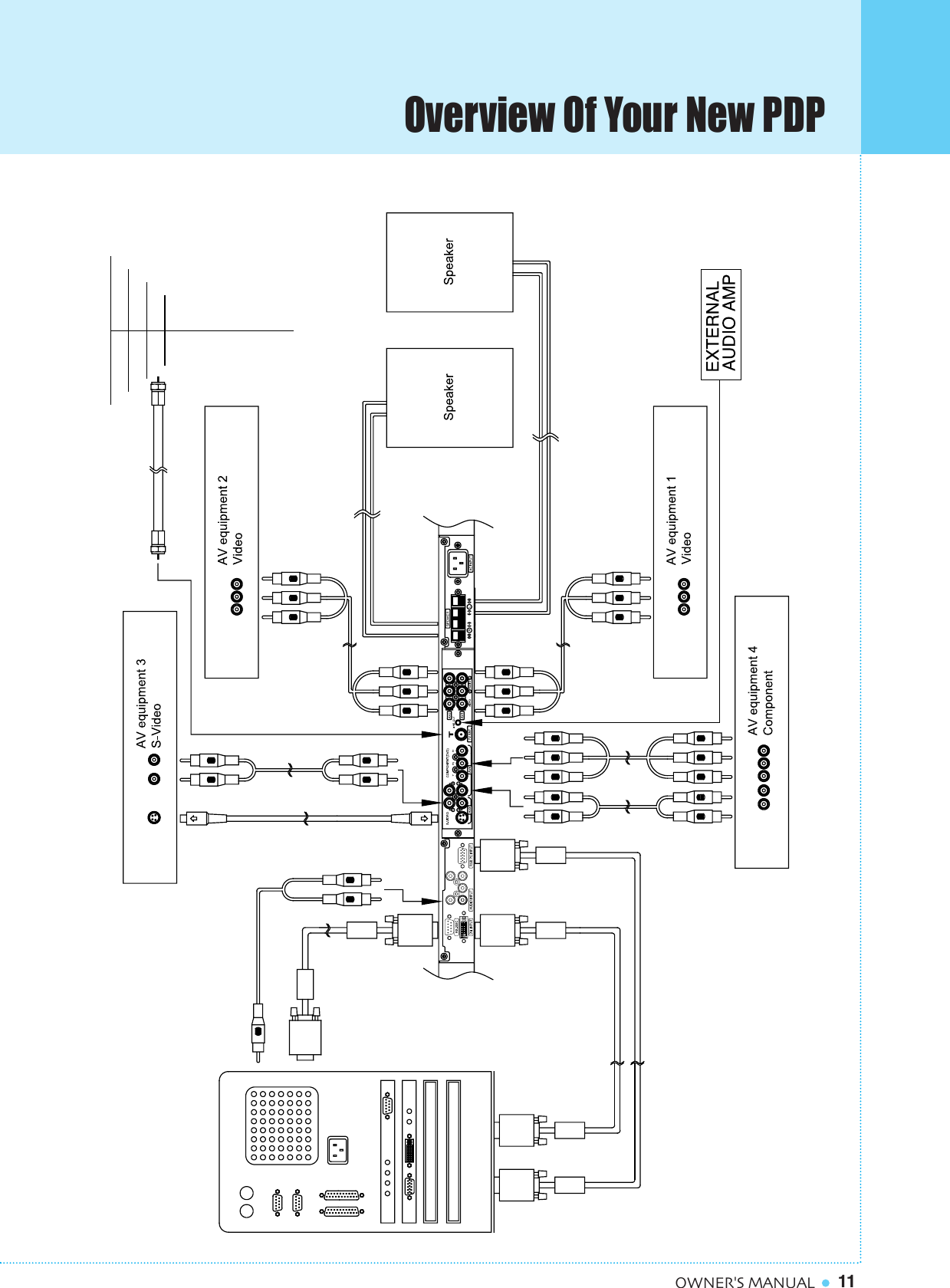

Overview Of Your New PDP11OWNER'S MANUALL

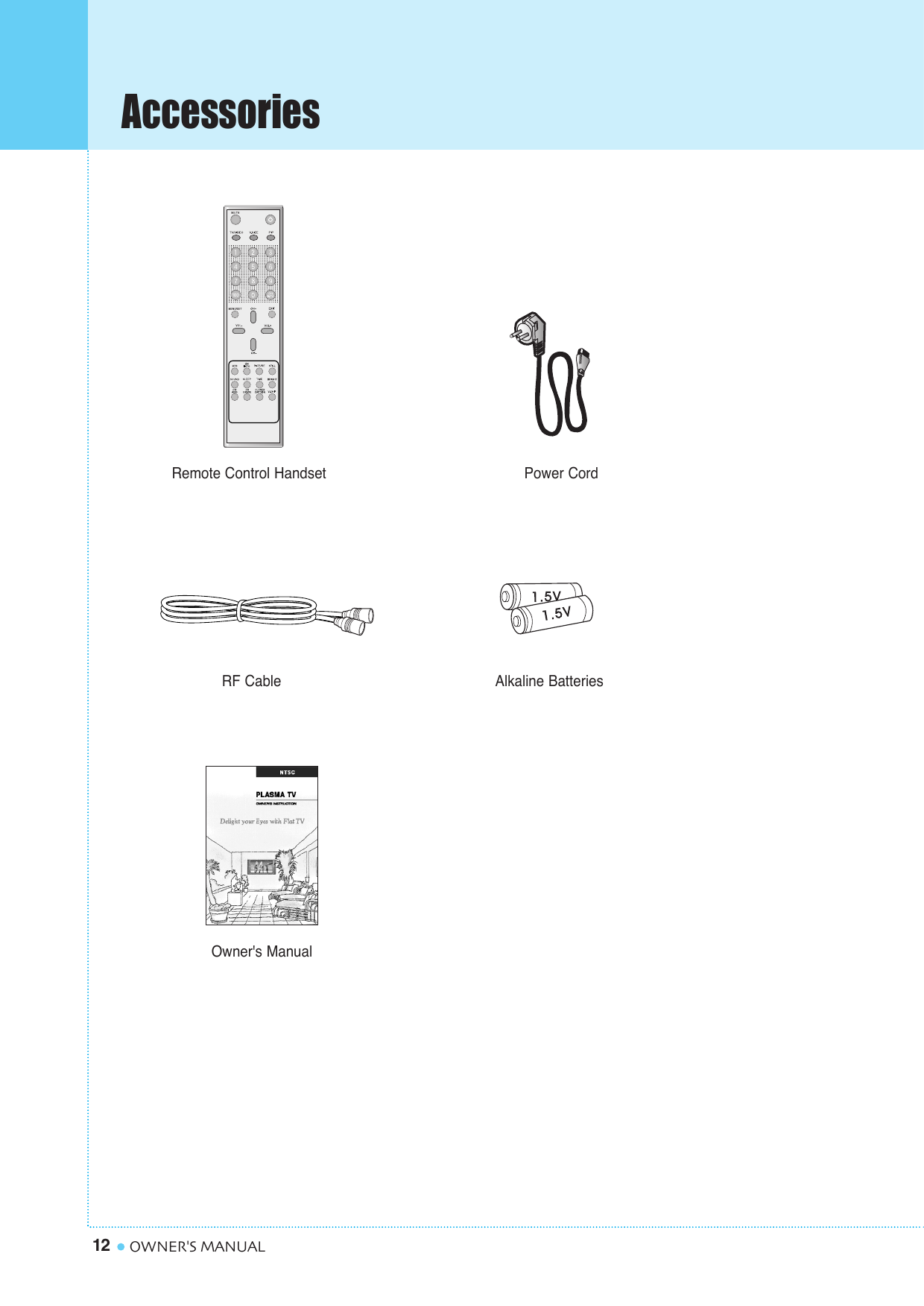

Accessories12 OWNER'S MANUALRemote Control Handset Power CordRF Cable Alkaline BatteriesOwner's Manual

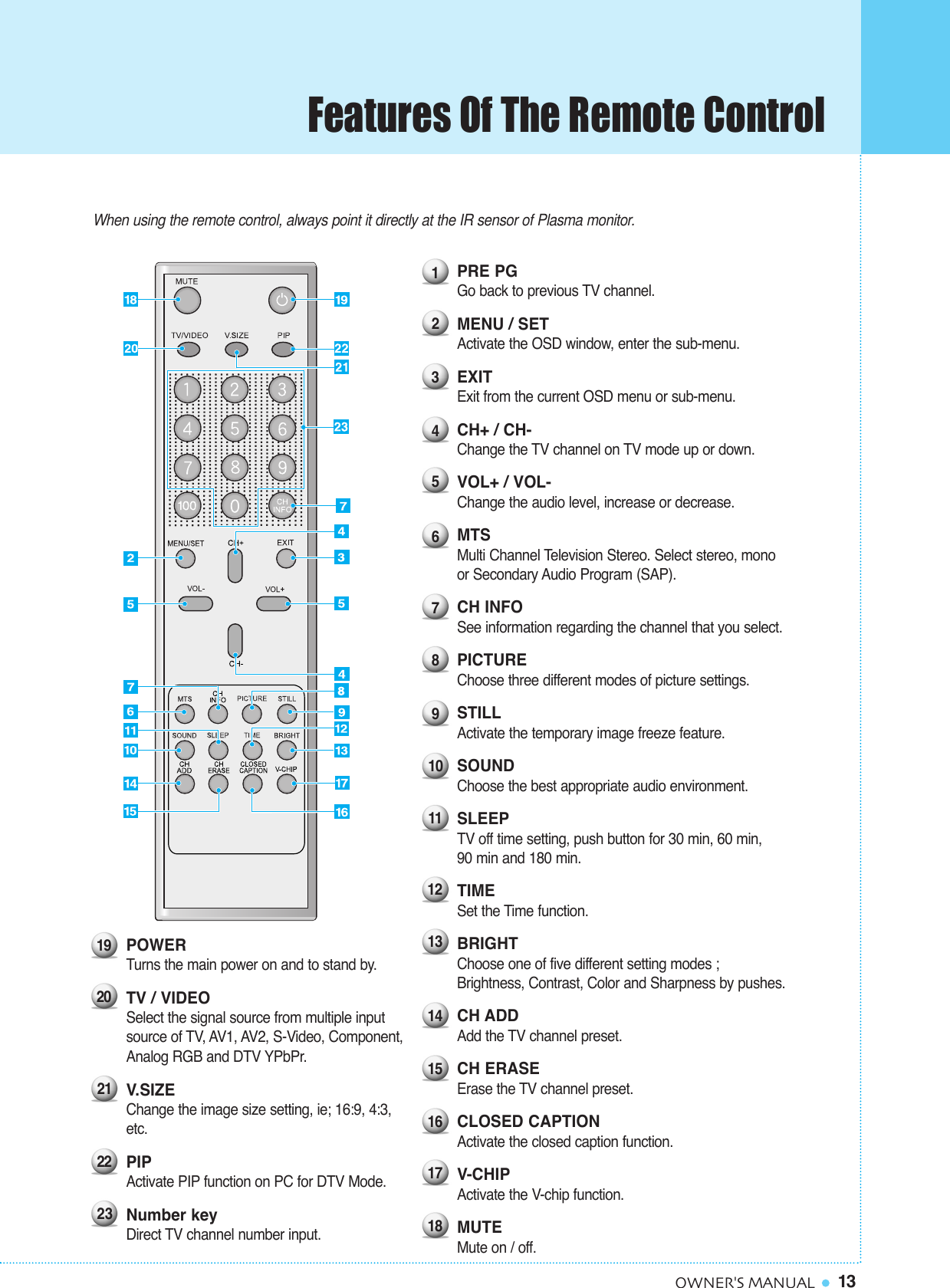

13OWNER'S MANUALPRE PGGo back to previous TV channel.MENU / SETActivate the OSD window, enter the sub-menu.EXITExit from the current OSD menu or sub-menu.CH+ / CH-Change the TV channel on TV mode up or down.VOL+ / VOL-Change the audio level, increase or decrease.MTSMulti Channel Television Stereo. Select stereo, monoor Secondary Audio Program (SAP).CH INFOSee information regarding the channel that you select.PICTUREChoose three different modes of picture settings.STILLActivate the temporary image freeze feature.SOUNDChoose the best appropriate audio environment. SLEEPTV off time setting, push button for 30 min, 60 min, 90 min and 180 min.TIMESet the Time function.BRIGHTChoose one of five different setting modes ;Brightness, Contrast, Color and Sharpness by pushes.CH ADDAdd the TV channel preset.CH ERASEErase the TV channel preset.CLOSED CAPTIONActivate the closed caption function.V-CHIPActivate the V-chip function.MUTEMute on / off.123456789101112131415161718When using the remote control, always point it directly at the IR sensor of Plasma monitor.POWERTurns the main power on and to stand by.TV / VIDEOSelect the signal source from multiple inputsource of TV, AV1, AV2, S-Video, Component, Analog RGB and DTV YPbPr.V.SIZEChange the image size setting, ie; 16:9, 4:3,etc.PIPActivate PIP function on PC for DTV Mode.Number keyDirect TV channel number input.2019212223Features Of The Remote Control

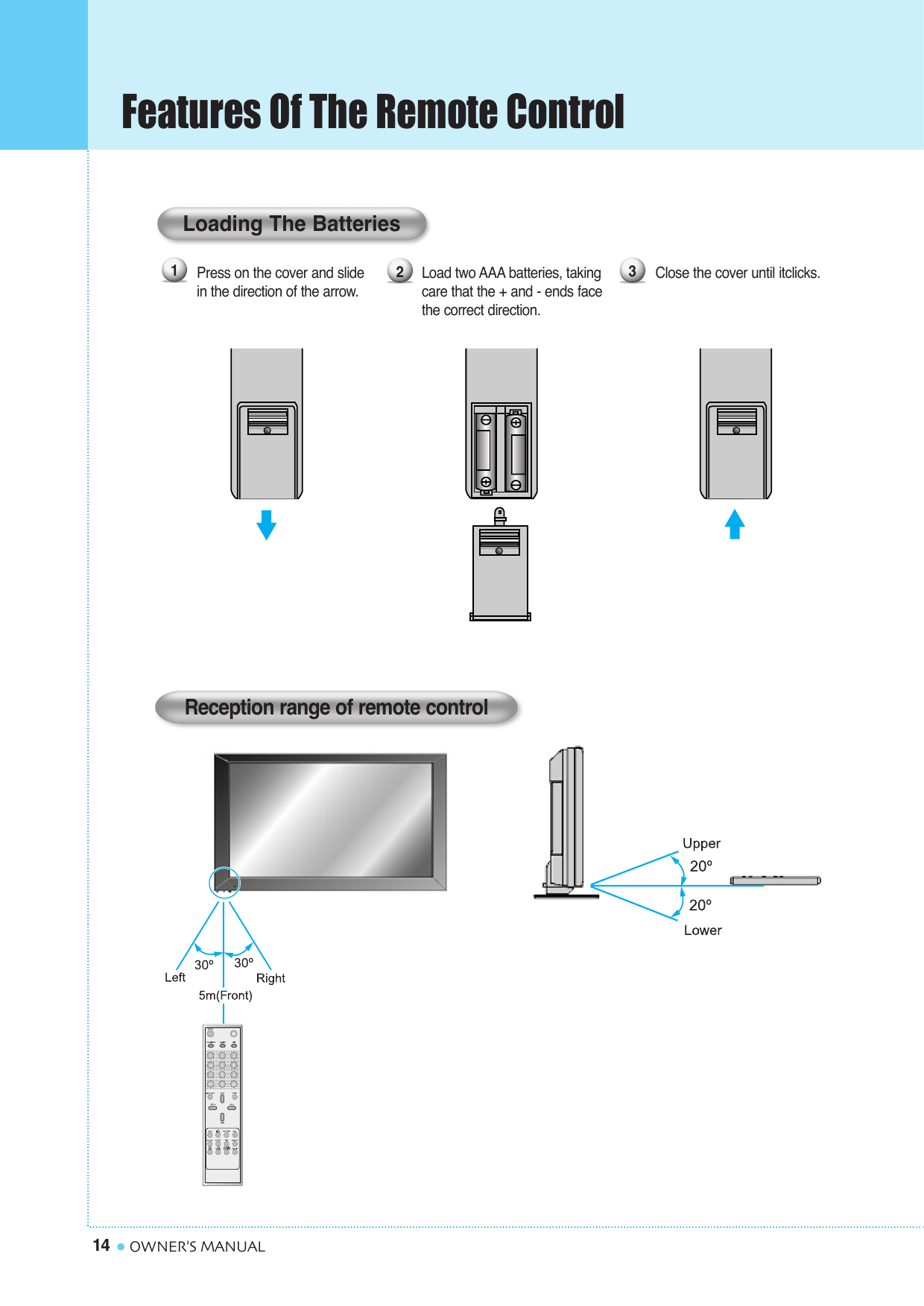

14 OWNER'S MANUALFeatures Of The Remote ControlClose the cover until itclicks. Load two AAA batteries, takingcare that the + and - ends facethe correct direction.Press on the cover and slide in the direction of the arrow.123Loading The BatteriesReception range of remote control

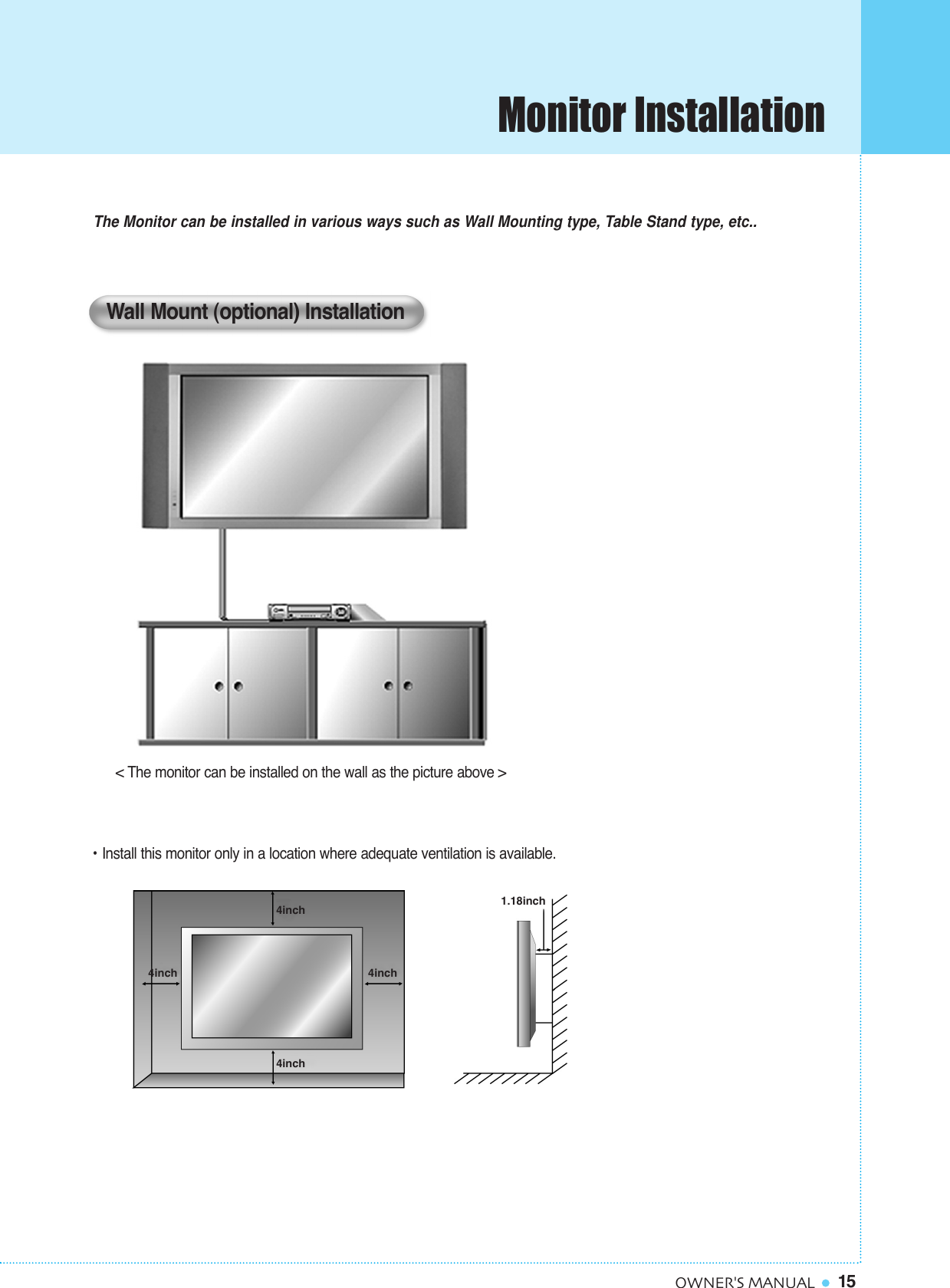

15OWNER'S MANUAL< The monitor can be installed on the wall as the picture above >The Monitor can be installed in various ways such as Wall Mounting type, Table Stand type, etc..• Install this monitor only in a location where adequate ventilation is available.Wall Mount (optional) Installation1.18inch4inch4inch4inch4inchMonitor Installation

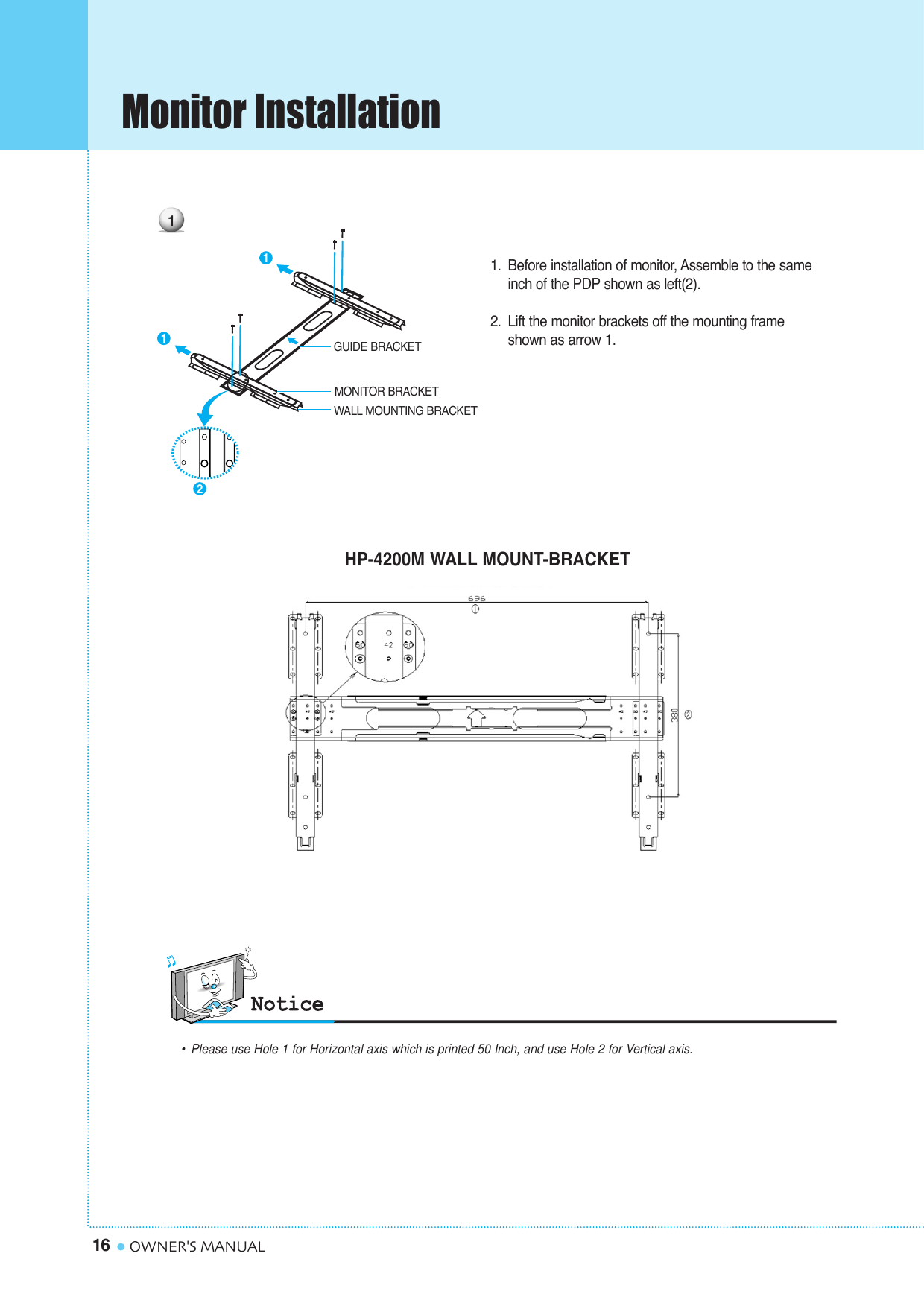

Monitor Installation16 OWNER'S MANUAL1. Before installation of monitor, Assemble to the same inch of the PDP shown as left(2).2. Lift the monitor brackets off the mounting frame shown as arrow 1. GUIDE BRACKETMONITOR BRACKETWALL MOUNTING BRACKET1211HP-4200M WALL MOUNT-BRACKET•Please use Hole 1 for Horizontal axis which is printed 50 Inch, and use Hole 2 for Vertical axis.

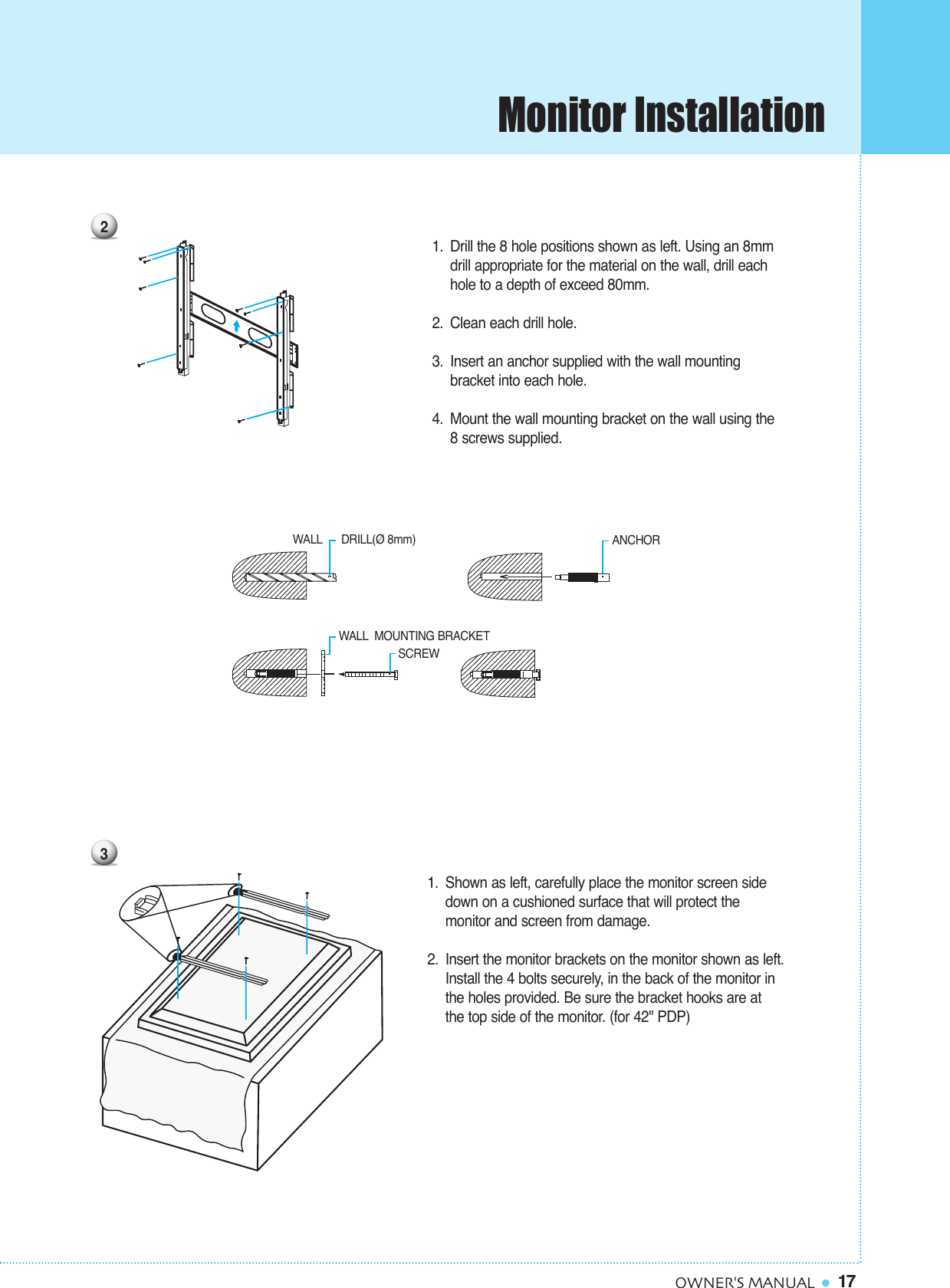

Monitor Installation17OWNER'S MANUAL1. Shown as left, carefully place the monitor screen side down on a cushioned surface that will protect the monitor and screen from damage.2. Insert the monitor brackets on the monitor shown as left.Install the 4 bolts securely, in the back of the monitor inthe holes provided. Be sure the bracket hooks are at the top side of the monitor. (for 42" PDP)3WALL DRILL(Ø 8mm) SCREWANCHORWALL MOUNTING BRACKET21. Drill the 8 hole positions shown as left. Using an 8mm drill appropriate for the material on the wall, drill each hole to a depth of exceed 80mm.2. Clean each drill hole. 3. Insert an anchor supplied with the wall mounting bracket into each hole. 4. Mount the wall mounting bracket on the wall using the8 screws supplied.

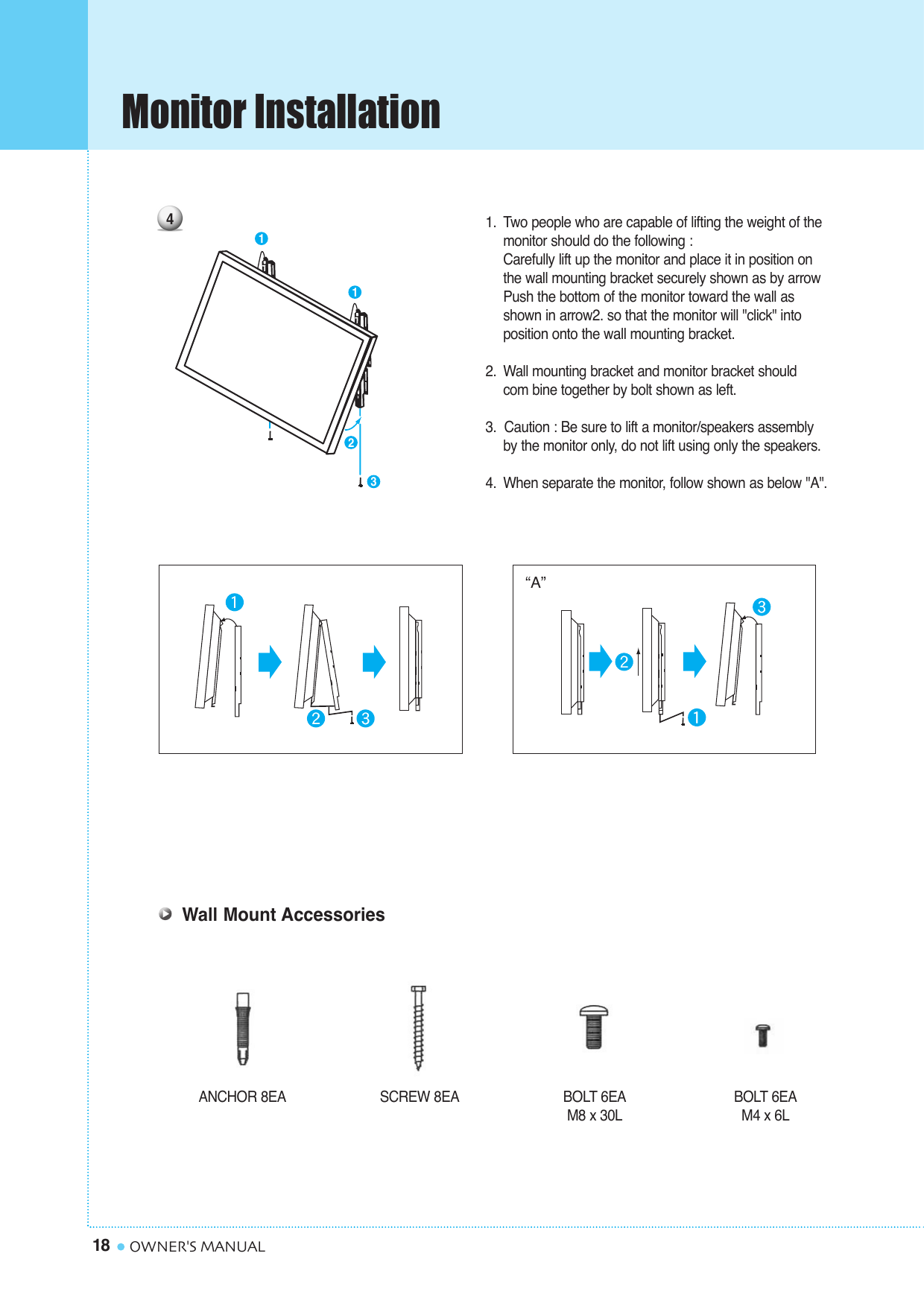

Monitor Installation18 OWNER'S MANUALANCHOR 8EA SCREW 8EA BOLT 6EAM8 x 30LBOLT 6EAM4 x 6LWall Mount Accessories1. Two people who are capable of lifting the weight of themonitor should do the following : Carefully lift up the monitor and place it in position on the wall mounting bracket securely shown as by arrow Push the bottom of the monitor toward the wall as shown in arrow2. so that the monitor will "click" into position onto the wall mounting bracket.2. Wall mounting bracket and monitor bracket should com bine together by bolt shown as left.3. Caution : Be sure to lift a monitor/speakers assembly by the monitor only, do not lift using only the speakers.4. When separate the monitor, follow shown as below "A".“A”41123

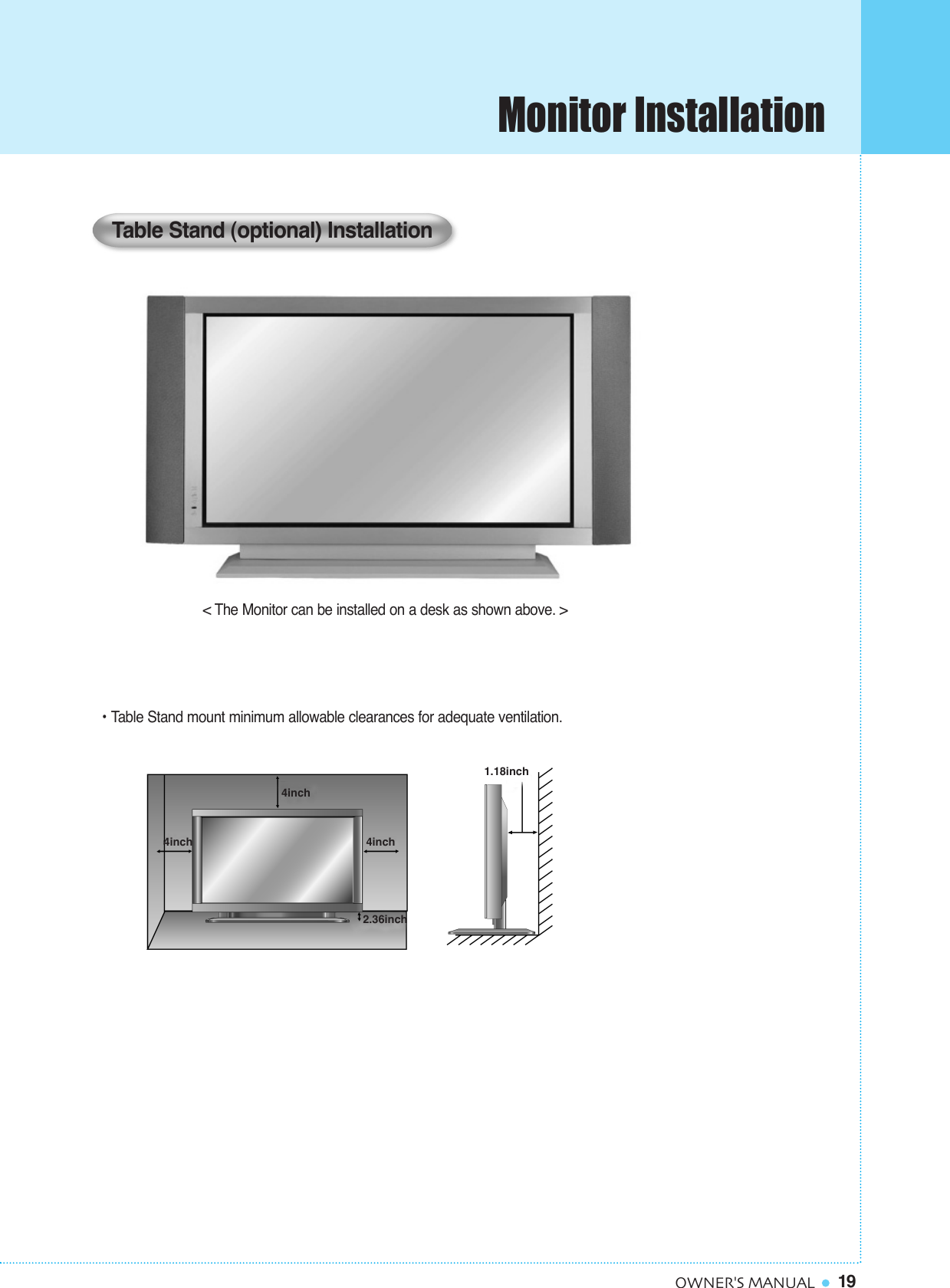

Monitor Installation19OWNER'S MANUAL< The Monitor can be installed on a desk as shown above. >• Table Stand mount minimum allowable clearances for adequate ventilation.Table Stand (optional) Installation1.18inch4inch2.36inch4inch4inch

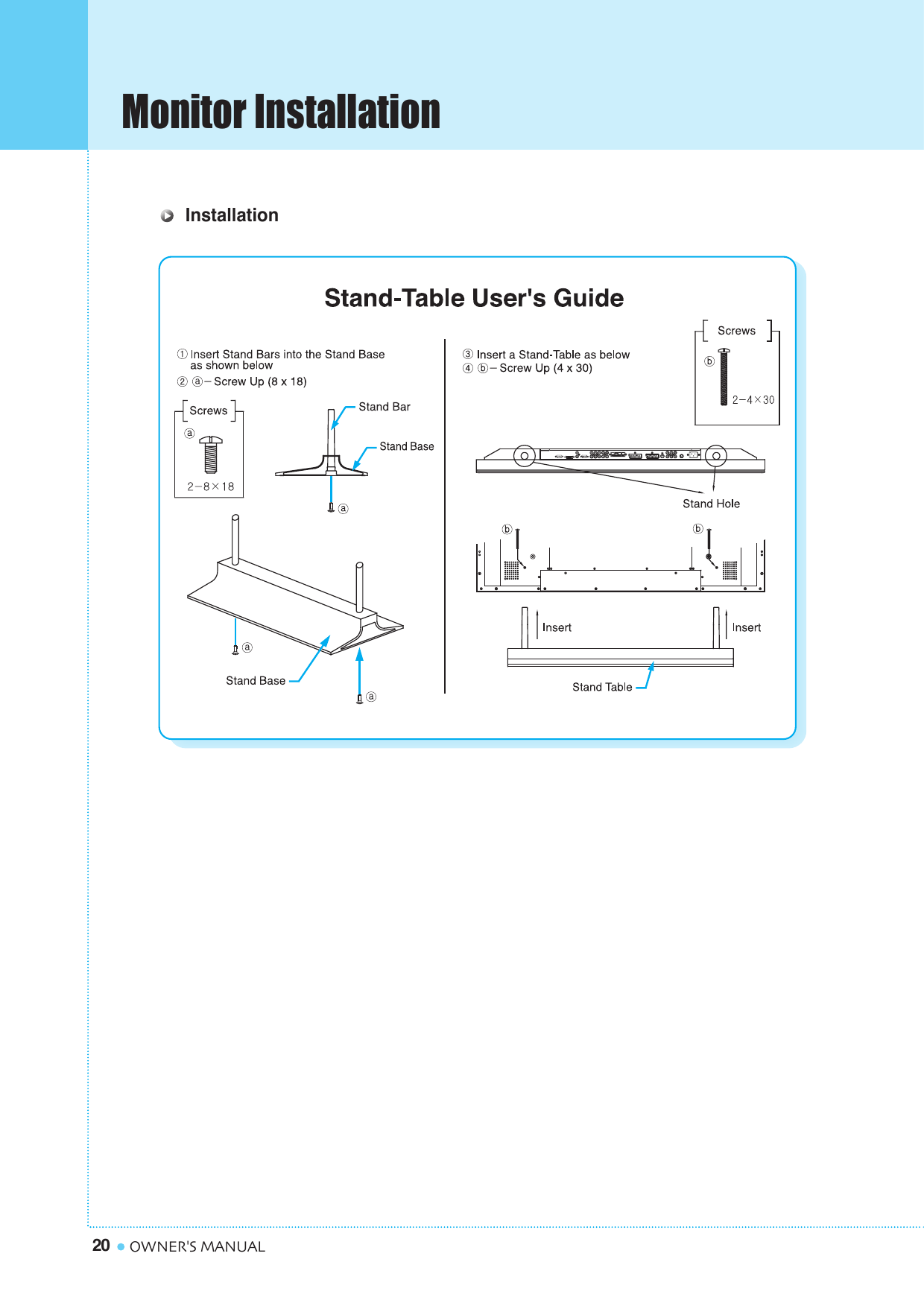

Monitor Installation20 OWNER'S MANUALInstallation

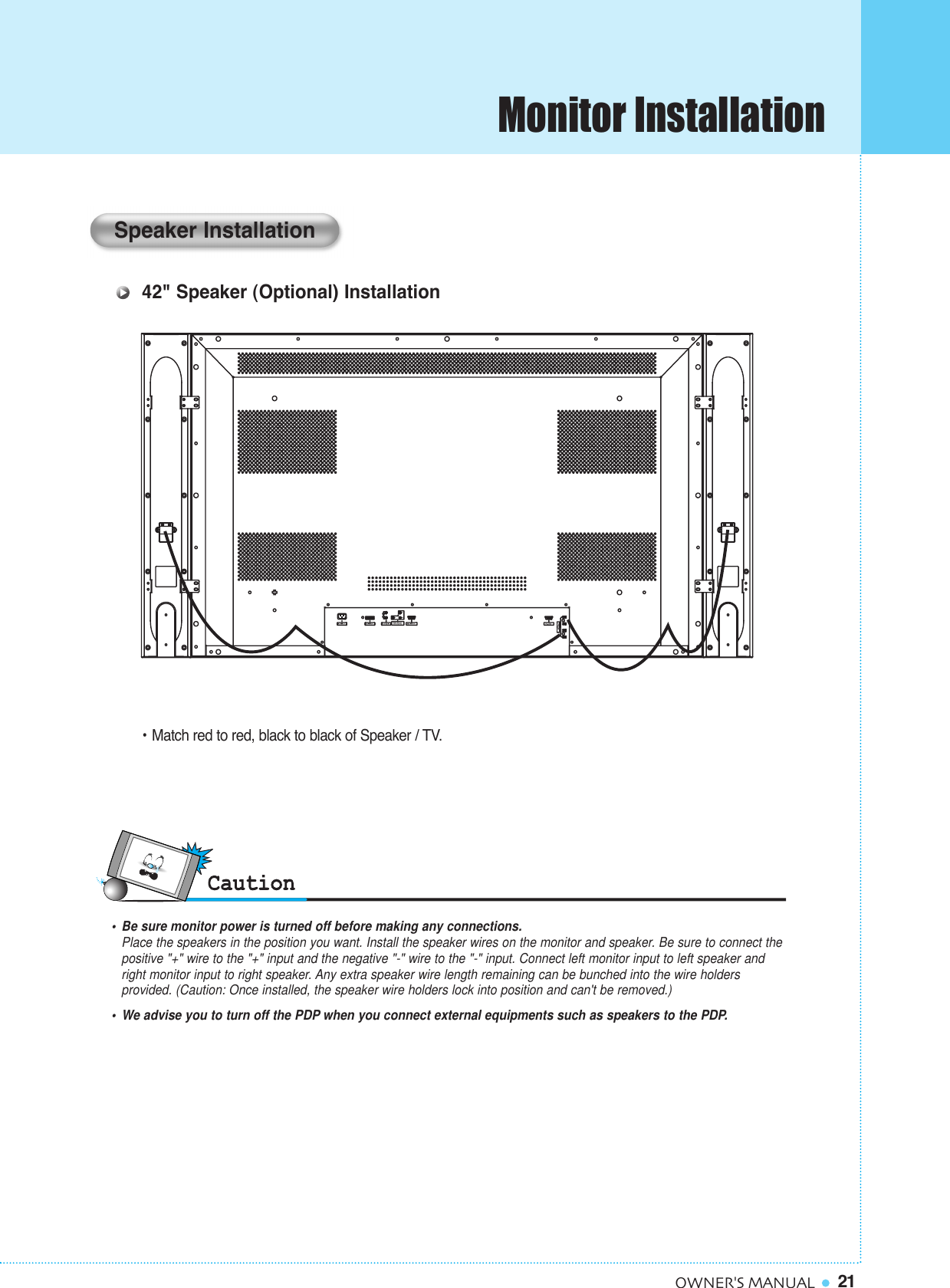

Monitor Installation21OWNER'S MANUAL• Be sure monitor power is turned off before making any connections.Place the speakers in the position you want. Install the speaker wires on the monitor and speaker. Be sure to connect thepositive "+" wire to the "+" input and the negative "-" wire to the "-" input. Connect left monitor input to left speaker and right monitor input to right speaker. Any extra speaker wire length remaining can be bunched into the wire holders provided. (Caution: Once installed, the speaker wire holders lock into position and can't be removed.)• We advise you to turn off the PDP when you connect external equipments such as speakers to the PDP.Speaker Installation42" Speaker (Optional) Installation• Match red to red, black to black of Speaker / TV.

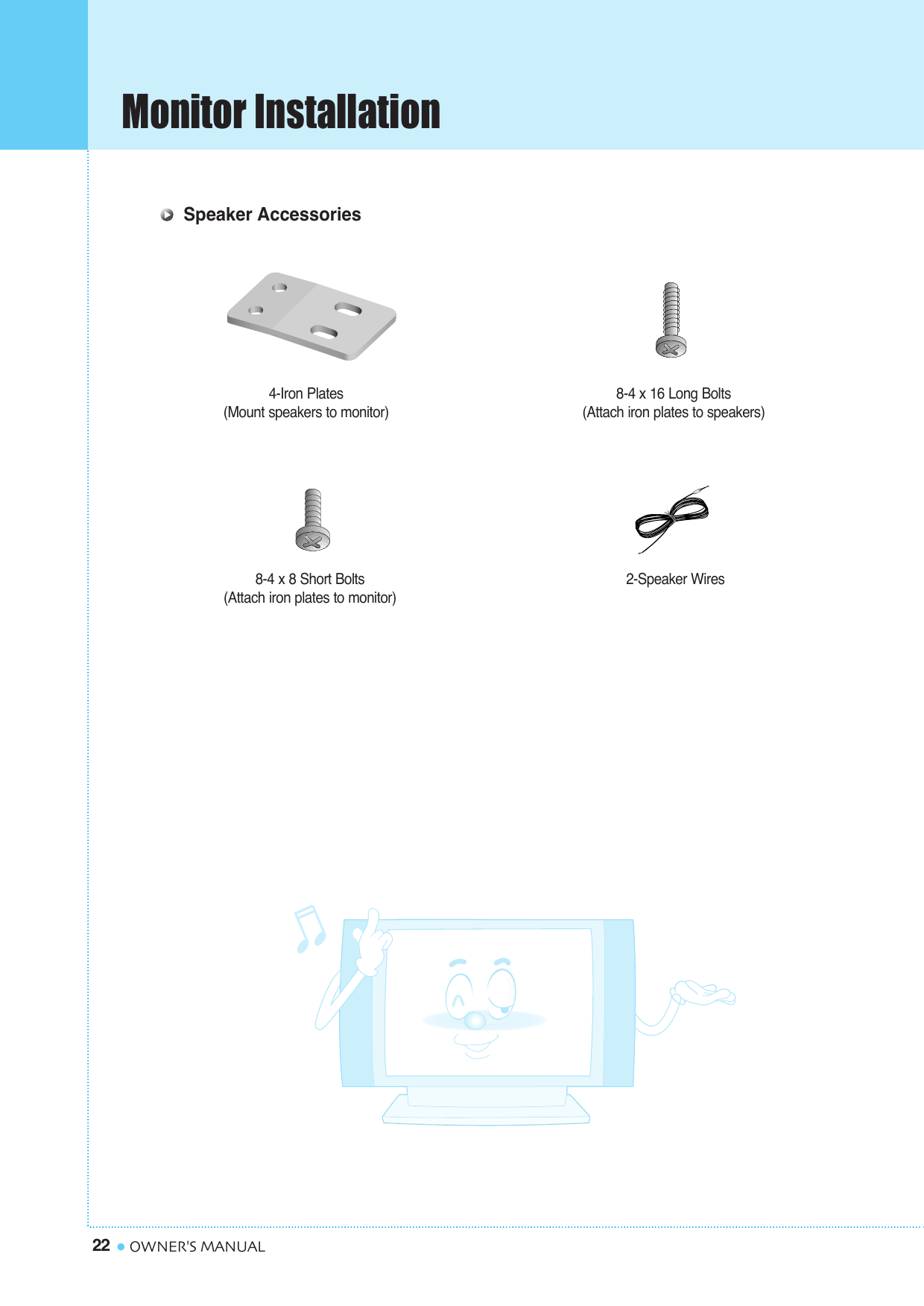

Monitor Installation22 OWNER'S MANUAL4-Iron Plates(Mount speakers to monitor) 8-4 x 16 Long Bolts(Attach iron plates to speakers)8-4 x 8 Short Bolts(Attach iron plates to monitor) 2-Speaker WiresSpeaker Accessories
