Harsper HP-425B PDP TV Monitor User Manual 1

Harsper Co., Ltd. PDP TV Monitor 1

Users Manual

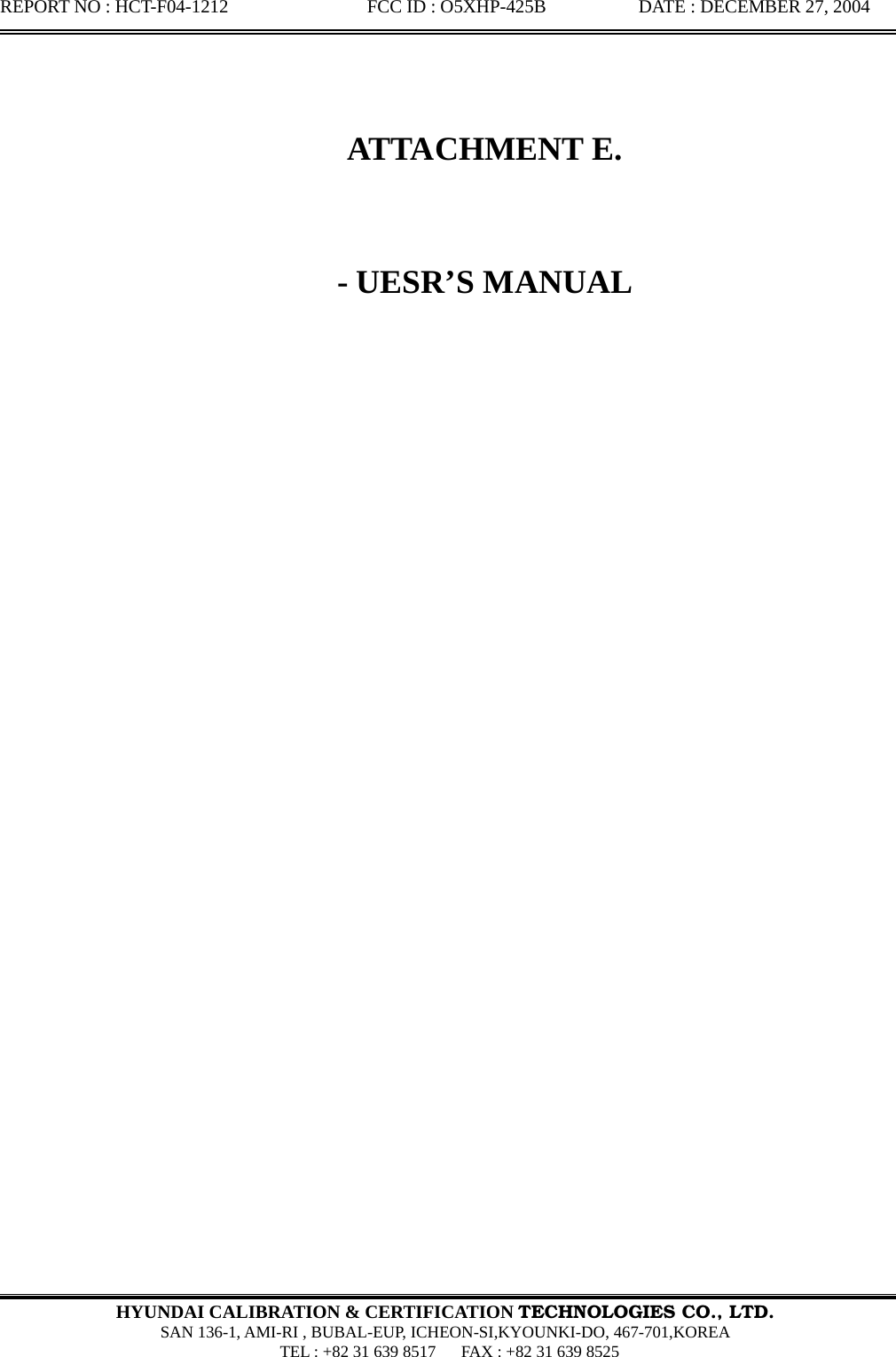

REPORT NO : HCT-F04-1212 FCC ID : O5XHP-425B DATE : DECEMBER 27, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8517 FAX : +82 31 639 8525 ATTACHMENT E. - UESR’S MANUAL
Contents1OWNER'S MANUALForewordCaution ........................................................................................................................................ 3Important Safety Information .................................................................................................... 5Overviewing the MonitorViewing the Control Panel ........................................................................................................ 9Viewing the Connecting Panel ............................................................................................................ 10Viewing the Remote Control- Button Description ............................................................................................................................ 12- PIP (Picture in Picture) Buttons ...................................................................................................... 13- Loading the Batteries........................................................................................................................ 15InstallationTable Stand Installation ............................................................................................................ 16Speaker Installation .................................................................................................................. 17Connecting the Cable/DevicesConnecting the TV Cable .......................................................................................................... 18Connecting the VCR .................................................................................................................. 19Connecting the DVD .................................................................................................................. 20Connecting the Set Top Box .................................................................................................... 21Connecting the PC [ D-Sub & DVI ].......................................................................................... 22- Displayable Monitor Specification.......................................................................................... 23Setting the ChannelBasic Operation.......................................................................................................................... 24OSD Menu Structure .................................................................................................................. 25Choosing the Channel Type...................................................................................................... 26Storing the Channel Automatically .......................................................................................... 26Fine Tuning the Channel Reception ........................................................................................ 27Setting the Favorite Channel .................................................................................................... 28Setting the PictureChanging the Picture Mode ...................................................................................................... 29- Adjust User Mode ................................................................................................................ 30Changing the Color Temperature ............................................................................................ 32Video NR (Noise Reduction) .................................................................................................... 32Selecting the Film Mode............................................................................................................ 33Changing the Screen Form ...................................................................................................... 33

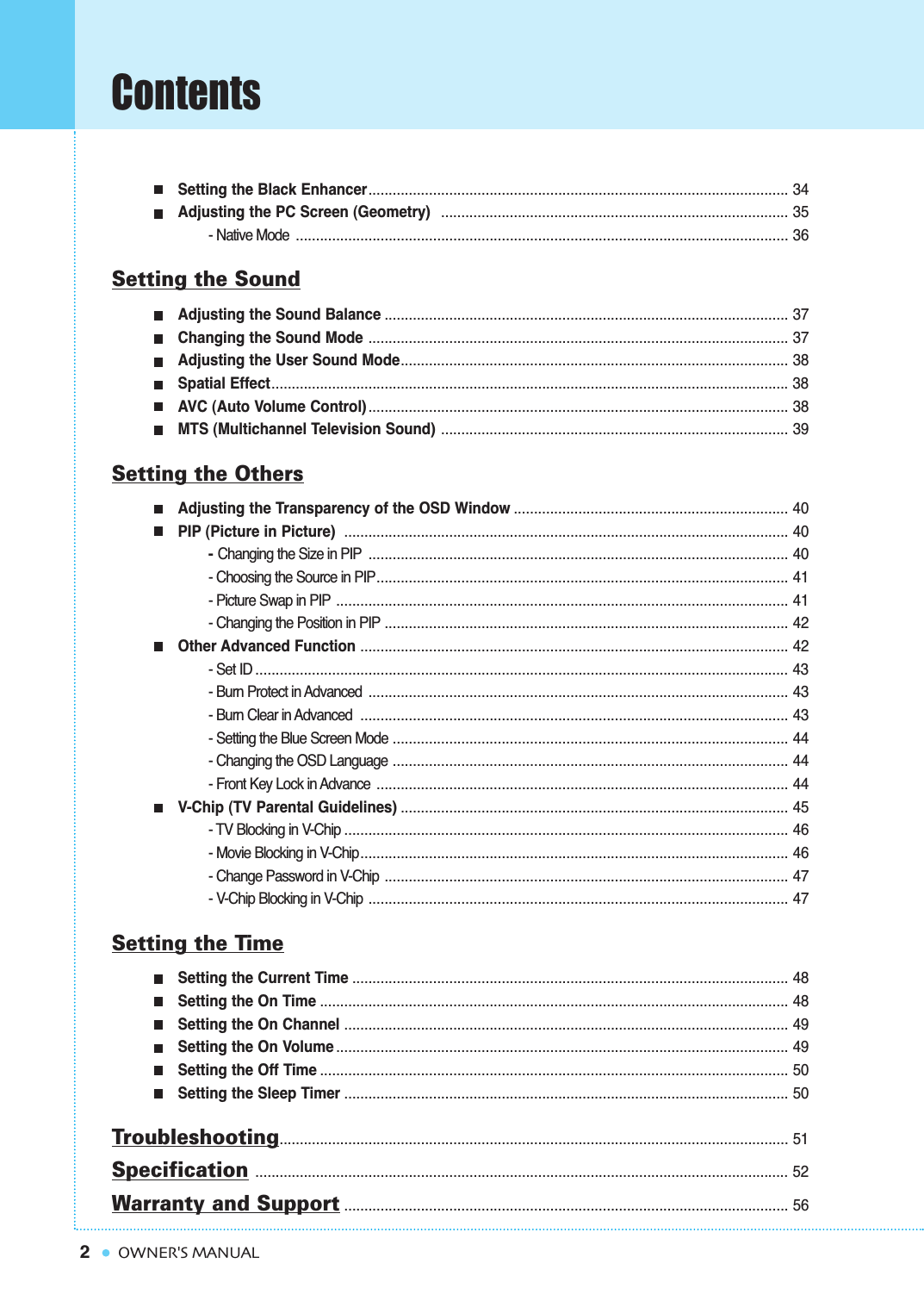

Setting the Black Enhancer........................................................................................................ 34Adjusting the PC Screen (Geometry) ...................................................................................... 35- Native Mode .......................................................................................................................... 36Setting the SoundAdjusting the Sound Balance .................................................................................................... 37Changing the Sound Mode ........................................................................................................ 37Adjusting the User Sound Mode................................................................................................ 38Spatial Effect................................................................................................................................38AVC (Auto Volume Control) ........................................................................................................ 38MTS (Multichannel Television Sound) ...................................................................................... 39Setting the OthersAdjusting the Transparency of the OSD Window .................................................................... 40PIP (Picture in Picture) .............................................................................................................. 40- Changing the Size in PIP ........................................................................................................ 40- Choosing the Source in PIP...................................................................................................... 41- Picture Swap in PIP ................................................................................................................ 41- Changing the Position in PIP .................................................................................................... 42Other Advanced Function .......................................................................................................... 42- Set ID .................................................................................................................................... 43- Burn Protect in Advanced ........................................................................................................ 43- Burn Clear in Advanced .......................................................................................................... 43- Setting the Blue Screen Mode .................................................................................................. 44- Changing the OSD Language .................................................................................................. 44- Front Key Lock in Advance ...................................................................................................... 44V-Chip (TV Parental Guidelines) ................................................................................................ 45- TV Blocking in V-Chip .............................................................................................................. 46- Movie Blocking in V-Chip.......................................................................................................... 46- Change Password in V-Chip .................................................................................................... 47- V-Chip Blocking in V-Chip ........................................................................................................ 47Setting the TimeSetting the Current Time ............................................................................................................ 48Setting the On Time .................................................................................................................... 48Setting the On Channel .............................................................................................................. 49Setting the On Volume ................................................................................................................ 49Setting the Off Time .................................................................................................................... 50Setting the Sleep Timer .............................................................................................................. 50Troubleshooting.............................................................................................................................. 51Specification .................................................................................................................................... 52Warranty and Support.............................................................................................................. 562ContentsOWNER'S MANUAL

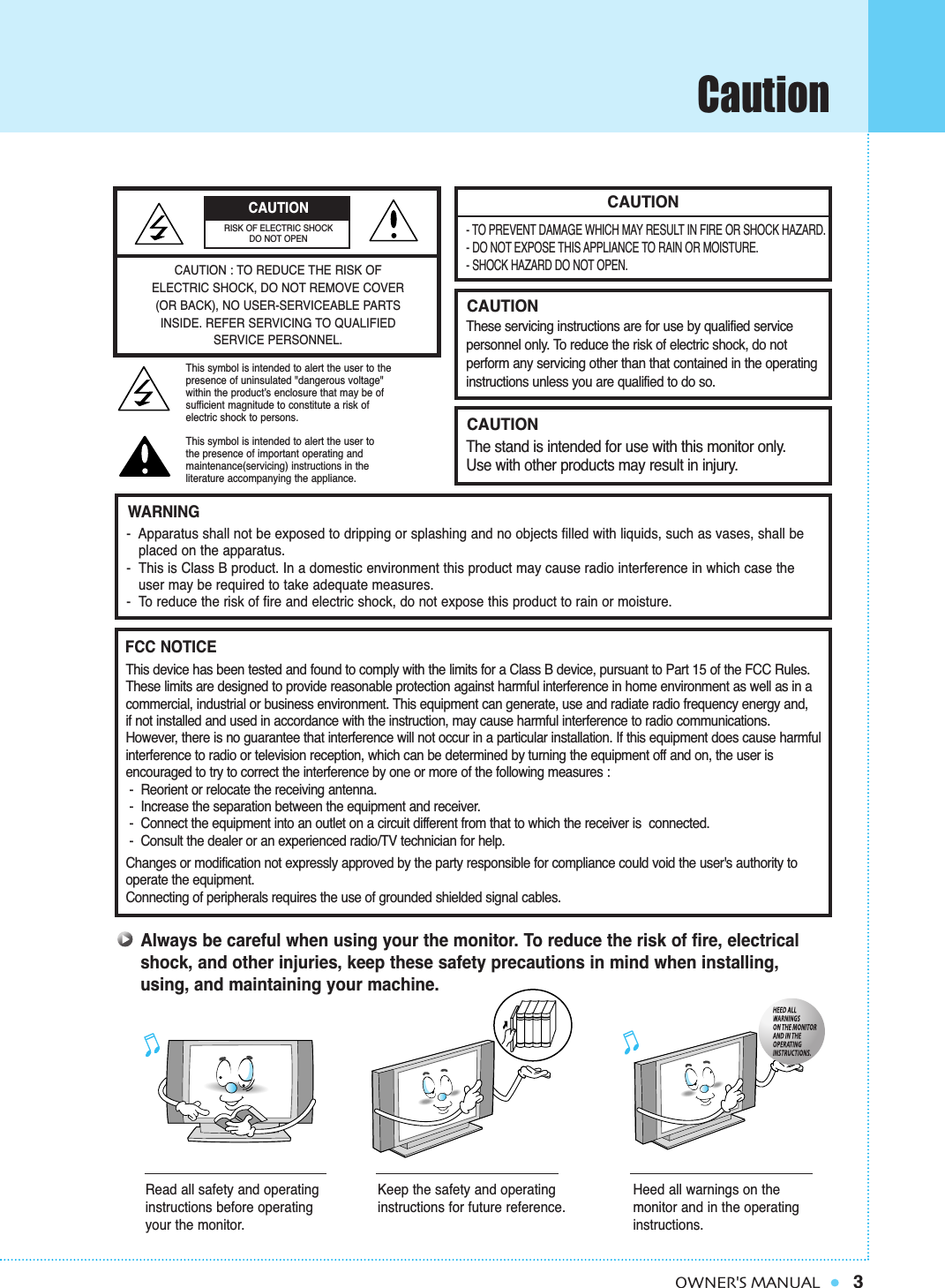

Caution3OWNER'S MANUALCAUTION- TO PREVENT DAMAGE WHICH MAY RESULT IN FIRE OR SHOCK HAZARD.- DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.- SHOCK HAZARD DO NOT OPEN.CAUTIONThese servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock, do not perform any servicing other than that contained in the operatinginstructions unless you are qualified to do so.CAUTIONThe stand is intended for use with this monitor only. Use with other products may result in injury.Always be careful when using your the monitor. To reduce the risk of fire, electricalshock, and other injuries, keep these safety precautions in mind when installing,using, and maintaining your machine.- Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.- This is Class B product. In a domestic environment this product may cause radio interference in which case theuser may be required to take adequate measures.- To reduce the risk of fire and electric shock, do not expose this product to rain or moisture.WARNINGThis device has been tested and found to comply with the limits for a Class B device, pursuant to Part 15 of the FCC Rules.These limits are designed to provide reasonable protection against harmful interference in home environment as well as in acommercial, industrial or business environment. This equipment can generate, use and radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures :- Reorient or relocate the receiving antenna.- Increase the separation between the equipment and receiver.- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.- Consult the dealer or an experienced radio/TV technician for help.Changes or modification not expressly approved by the party responsible for compliance could void the user's authority tooperate the equipment.Connecting of peripherals requires the use of grounded shielded signal cables.FCC NOTICERead all safety and operatinginstructions before operatingyour the monitor.Keep the safety and operatinginstructions for future reference.Heed all warnings on the monitor and in the operatinginstructions.CAUTION : TO REDUCE THE RISK OFELECTRIC SHOCK, DO NOT REMOVE COVER(OR BACK), NO USER-SERVICEABLE PARTSINSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.This symbol is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.This symbol is intended to alert the user to the presence of important operating and maintenance(servicing) instructions in the literature accompanying the appliance.CAUTIONRISK OF ELECTRIC SHOCKDO NOT OPEN

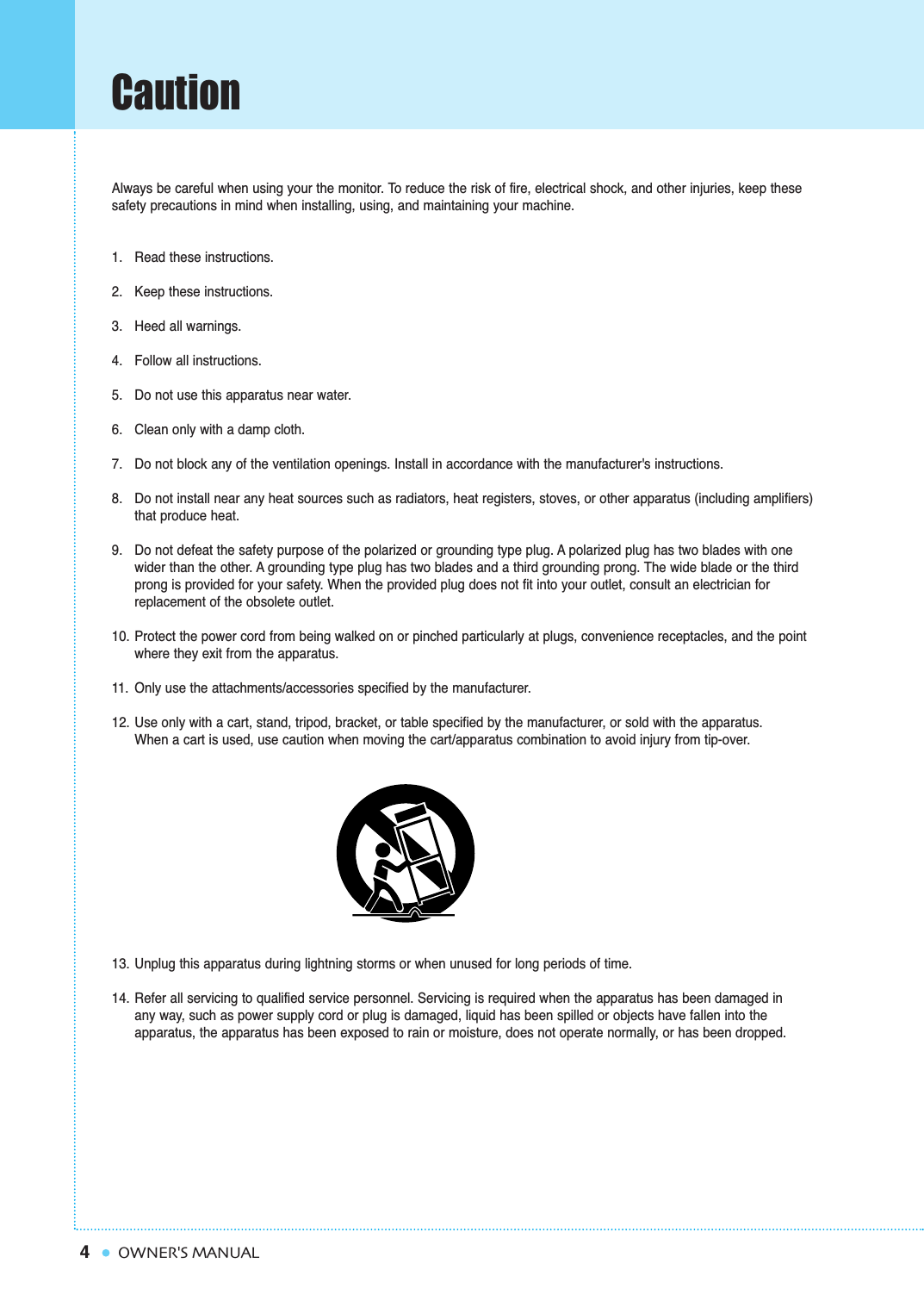

4CautionOWNER'S MANUALAlways be careful when using your the monitor. To reduce the risk of fire, electrical shock, and other injuries, keep thesesafety precautions in mind when installing, using, and maintaining your machine.1. Read these instructions.2. Keep these instructions.3. Heed all warnings.4. Follow all instructions.5. Do not use this apparatus near water.6. Clean only with a damp cloth.7. Do not block any of the ventilation openings. Install in accordance with the manufacturer's instructions.8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.9. Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. When the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.11. Only use the attachments/accessories specified by the manufacturer.12. Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.13. Unplug this apparatus during lightning storms or when unused for long periods of time.14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

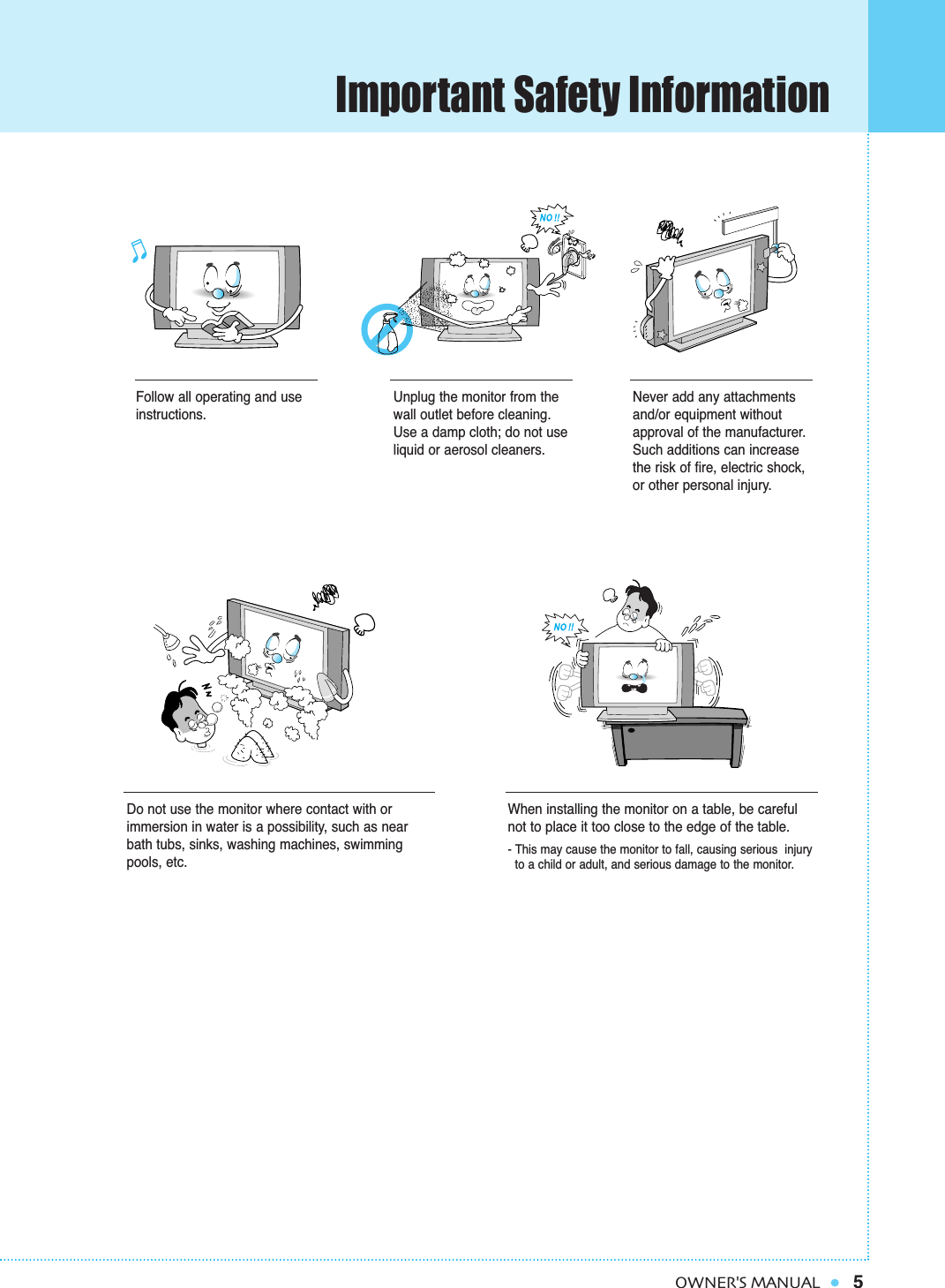

Important Safety Information5OWNER'S MANUALFollow all operating and useinstructions.Do not use the monitor where contact with orimmersion in water is a possibility, such as nearbath tubs, sinks, washing machines, swimmingpools, etc.When installing the monitor on a table, be carefulnot to place it too close to the edge of the table.- This may cause the monitor to fall, causing serious injury to a child or adult, and serious damage to the monitor.Unplug the monitor from thewall outlet before cleaning.Use a damp cloth; do not useliquid or aerosol cleaners.Never add any attachmentsand/or equipment withoutapproval of the manufacturer.Such additions can increasethe risk of fire, electric shock,or other personal injury.

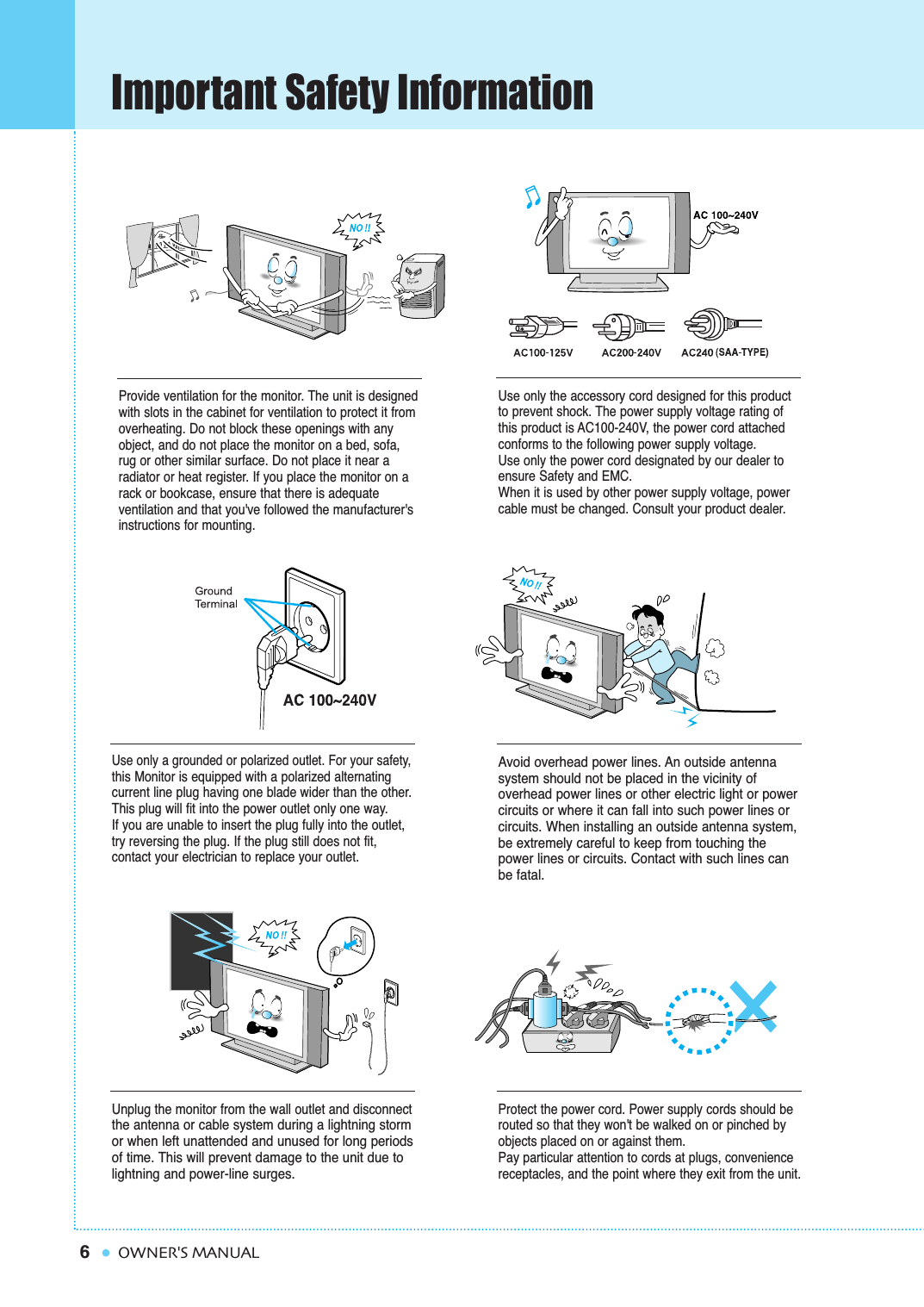

6Important Safety InformationOWNER'S MANUALProvide ventilation for the monitor. The unit is designedwith slots in the cabinet for ventilation to protect it fromoverheating. Do not block these openings with anyobject, and do not place the monitor on a bed, sofa,rug or other similar surface. Do not place it near a radiator or heat register. If you place the monitor on arack or bookcase, ensure that there is adequate ventilation and that you've followed the manufacturer'sinstructions for mounting. Use only the accessory cord designed for this productto prevent shock. The power supply voltage rating ofthis product is AC100-240V, the power cord attachedconforms to the following power supply voltage.Use only the power cord designated by our dealer toensure Safety and EMC.When it is used by other power supply voltage, powercable must be changed. Consult your product dealer.Use only a grounded or polarized outlet. For your safety,this Monitor is equipped with a polarized alternating current line plug having one blade wider than the other.This plug will fit into the power outlet only one way.If you are unable to insert the plug fully into the outlet,try reversing the plug. If the plug still does not fit,contact your electrician to replace your outlet.Avoid overhead power lines. An outside antenna system should not be placed in the vicinity of overhead power lines or other electric light or powercircuits or where it can fall into such power lines orcircuits. When installing an outside antenna system,be extremely careful to keep from touching thepower lines or circuits. Contact with such lines canbe fatal.Unplug the monitor from the wall outlet and disconnectthe antenna or cable system during a lightning stormor when left unattended and unused for long periods of time. This will prevent damage to the unit due tolightning and power-line surges.Protect the power cord. Power supply cords should berouted so that they won't be walked on or pinched byobjects placed on or against them.Pay particular attention to cords at plugs, conveniencereceptacles, and the point where they exit from the unit.

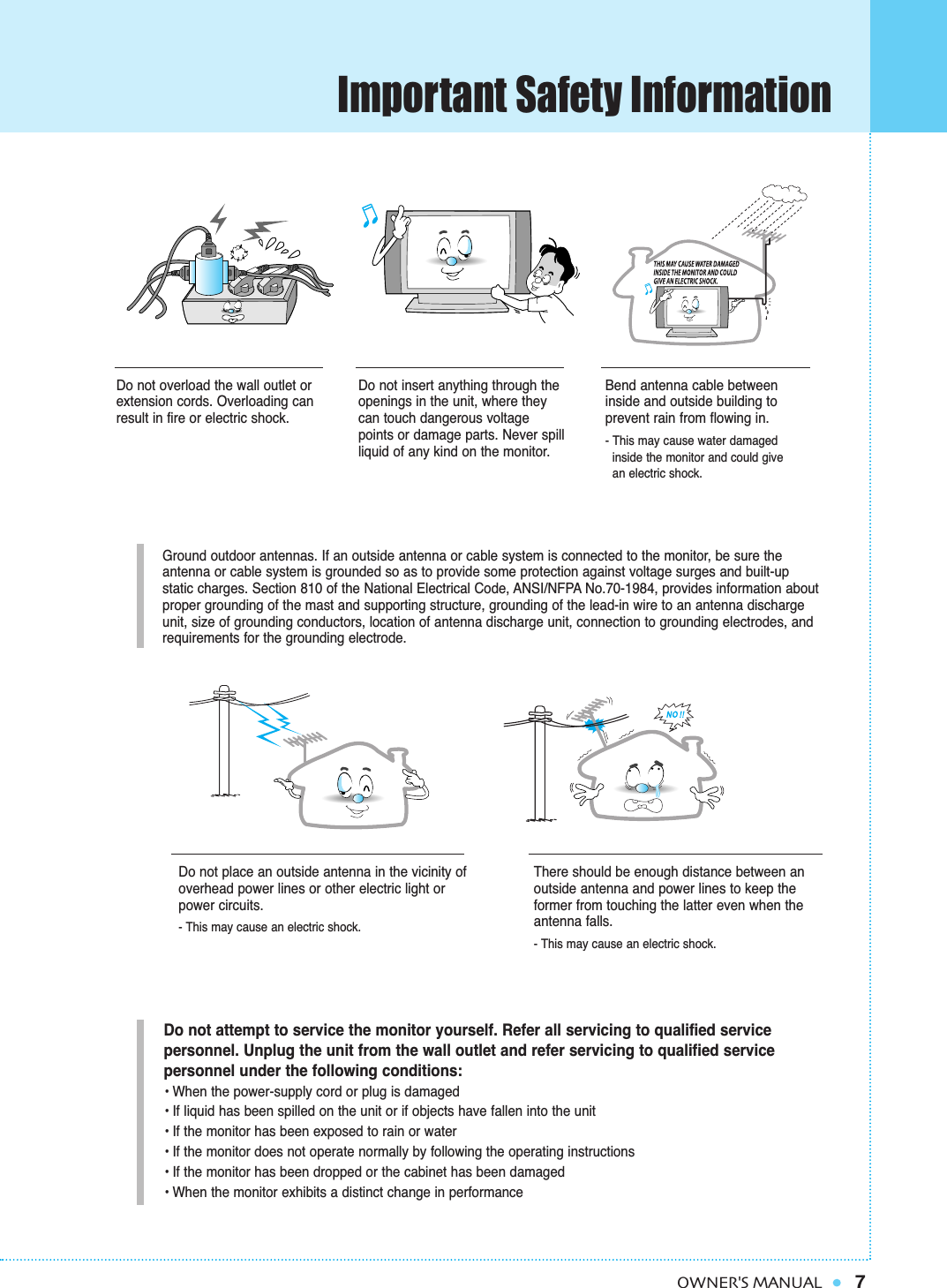

Important Safety Information7OWNER'S MANUALGround outdoor antennas. If an outside antenna or cable system is connected to the monitor, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Section 810 of the National Electrical Code, ANSI/NFPA No.70-1984, provides information aboutproper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna dischargeunit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.Do not overload the wall outlet orextension cords. Overloading canresult in fire or electric shock.Do not insert anything through theopenings in the unit, where theycan touch dangerous voltagepoints or damage parts. Never spillliquid of any kind on the monitor.Bend antenna cable betweeninside and outside building to prevent rain from flowing in. - This may cause water damaged inside the monitor and could give an electric shock.Do not place an outside antenna in the vicinity ofoverhead power lines or other electric light orpower circuits.- This may cause an electric shock.There should be enough distance between anoutside antenna and power lines to keep theformer from touching the latter even when theantenna falls.- This may cause an electric shock.Do not attempt to service the monitor yourself. Refer all servicing to qualified service personnel. Unplug the unit from the wall outlet and refer servicing to qualified service personnel under the following conditions:• When the power-supply cord or plug is damaged• If liquid has been spilled on the unit or if objects have fallen into the unit• If the monitor has been exposed to rain or water• If the monitor does not operate normally by following the operating instructions• If the monitor has been dropped or the cabinet has been damaged• When the monitor exhibits a distinct change in performance

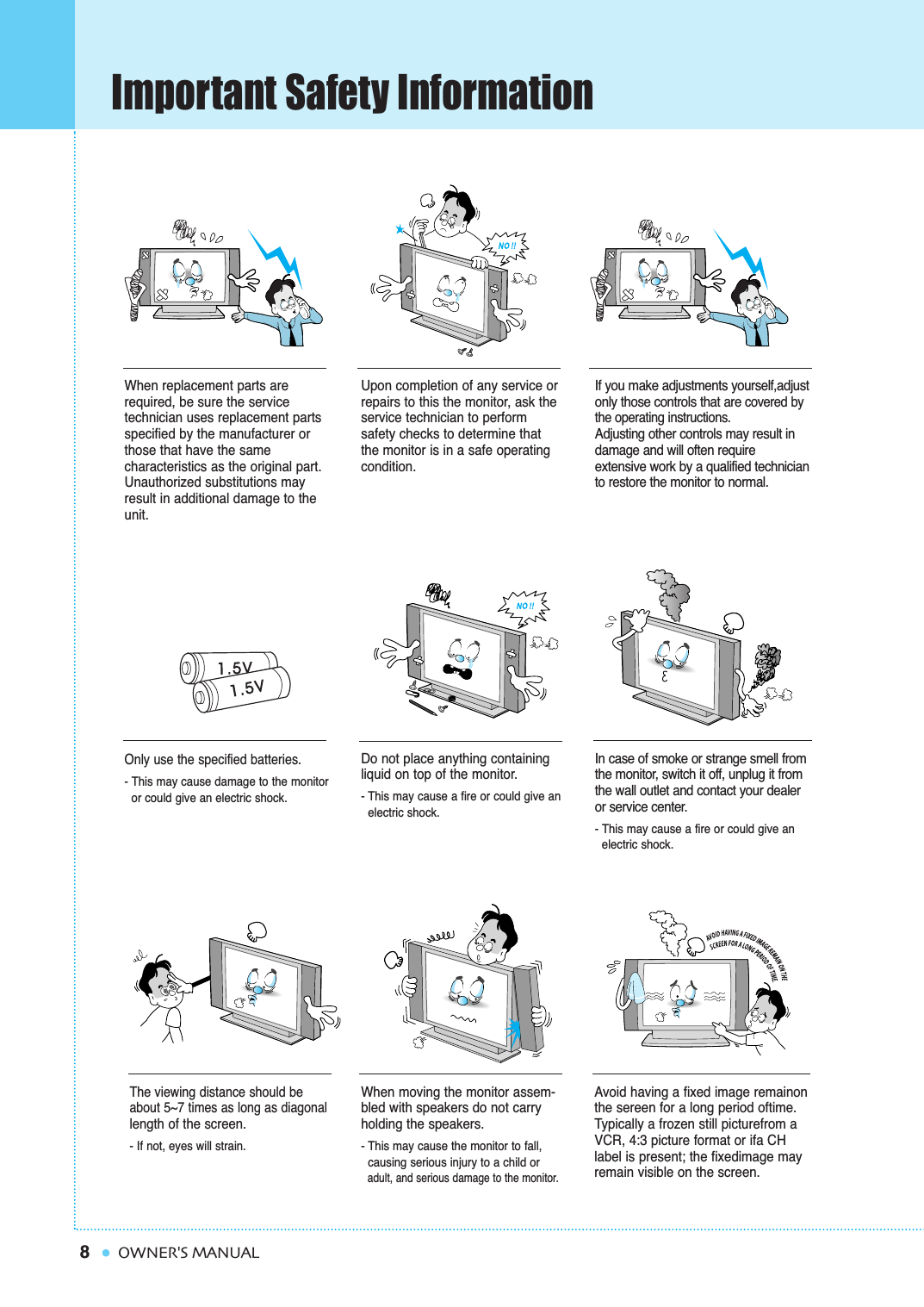

8Important Safety InformationOWNER'S MANUALWhen replacement parts arerequired, be sure the service technician uses replacement partsspecified by the manufacturer orthose that have the same characteristics as the original part.Unauthorized substitutions mayresult in additional damage to theunit. Upon completion of any service orrepairs to this the monitor, ask the service technician to perform safety checks to determine thatthe monitor is in a safe operating condition. If you make adjustments yourself,adjustonly those controls that are covered bythe operating instructions.Adjusting other controls may result indamage and will often require extensive work by a qualified technicianto restore the monitor to normal.Only use the specified batteries.- This may cause damage to the monitor or could give an electric shock.Do not place anything containingliquid on top of the monitor.- This may cause a fire or could give an electric shock.In case of smoke or strange smell fromthe monitor, switch it off, unplug it fromthe wall outlet and contact your dealeror service center.- This may cause a fire or could give an electric shock.The viewing distance should beabout 5~7 times as long as diagonallength of the screen. - If not, eyes will strain.When moving the monitor assem-bled with speakers do not carryholding the speakers.- This may cause the monitor to fall, causing serious injury to a child or adult, and serious damage to the monitor.Avoid having a fixed image remainonthe sereen for a long period oftime.Typically a frozen still picturefrom aVCR, 4:3 picture format or ifa CHlabel is present; the fixedimage mayremain visible on the screen.

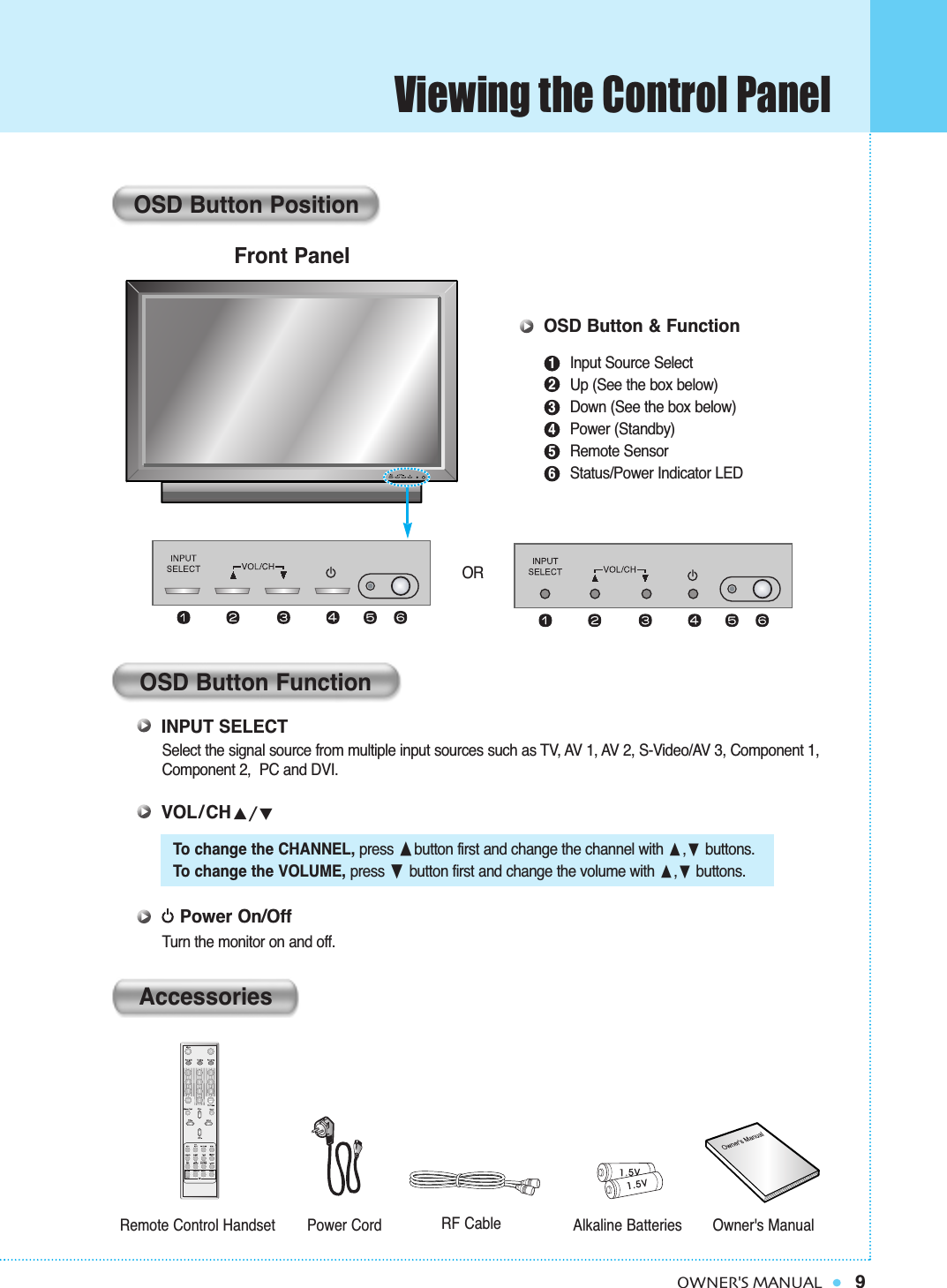

Viewing the Control Panel9OWNER'S MANUALSelect the signal source from multiple input sources such as TV, AV 1, AV 2, S-Video/AV 3, Component 1,Component 2, PC and DVI. To change the CHANNEL, press ➐button first and change the channel with ➐,❷buttons.To change the VOLUME, press ❷☎button first and change the volume with ➐,❷☎buttons.Turn the monitor on and off.OSD Button FunctionINPUT SELECTVOL/CH➐✓❷Power On/OffRemote Control Handset Power Cord Alkaline Batteries Owner's ManualRF CableAccessoriesOSD Button PositionFront PanelInput Source SelectUp (See the box below)Down (See the box below)Power (Standby)Remote SensorStatus/Power Indicator LED123456OSD Button & FunctionOR

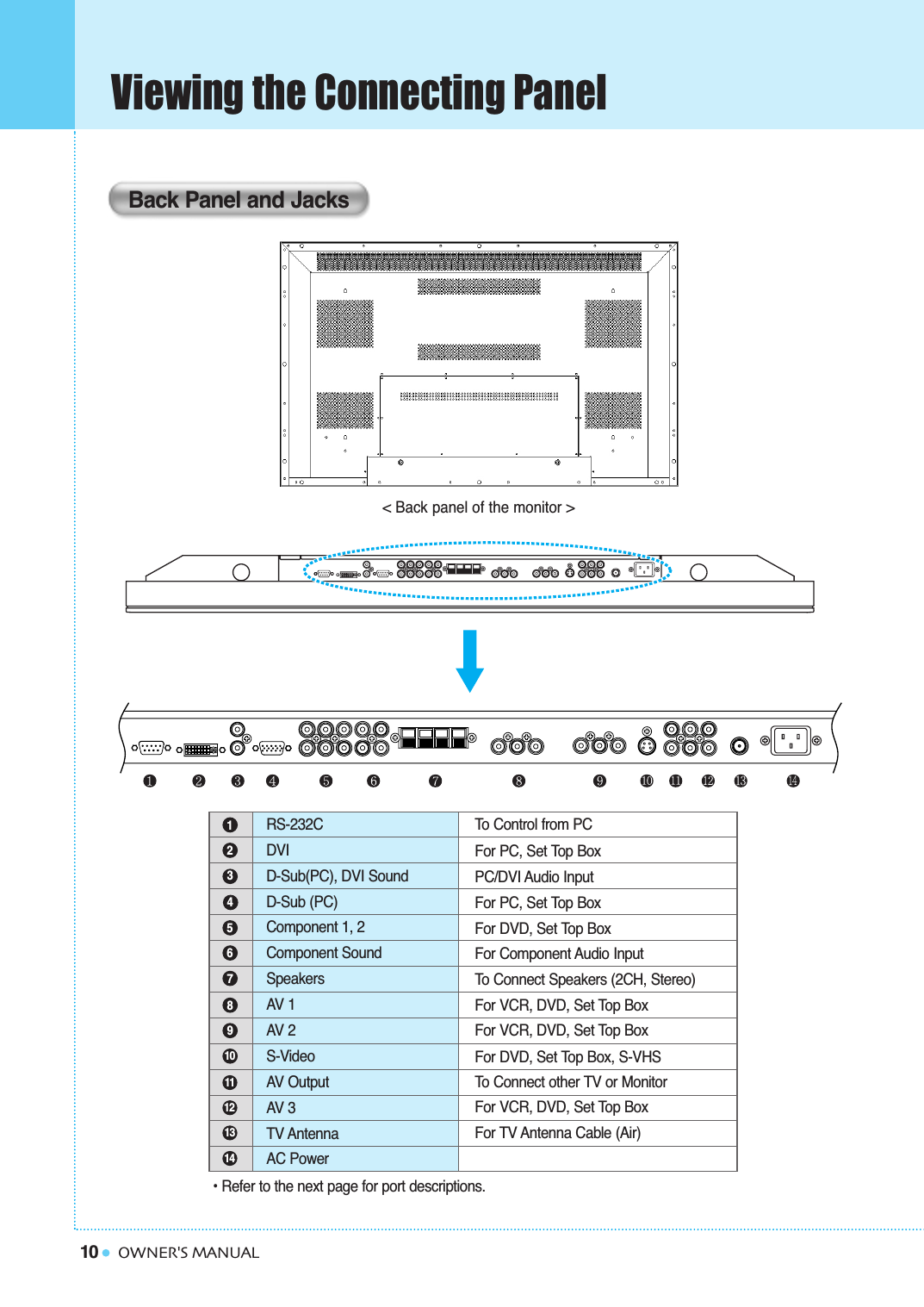

10Viewing the Connecting PanelOWNER'S MANUALTo Control from PCFor PC, Set Top BoxPC/DVI Audio InputFor PC, Set Top BoxFor DVD, Set Top BoxFor Component Audio InputTo Connect Speakers (2CH, Stereo)For VCR, DVD, Set Top BoxFor VCR, DVD, Set Top BoxFor DVD, Set Top Box, S-VHSTo Connect other TV or MonitorFor VCR, DVD, Set Top BoxFor TV Antenna Cable (Air)RS-232CDVID-Sub(PC), DVI SoundD-Sub (PC)Component 1, 2Component SoundSpeakersAV 1 AV 2 S-VideoAV OutputAV 3TV AntennaAC Power< Back panel of the monitor >Back Panel and Jacks1234567891112131410• Refer to the next page for port descriptions.
Viewing the Connecting Panel11OWNER'S MANUAL23546783254678PC3-Wire (Non-Standard)Audio InputComposite Video InputComposite Video OutputS-Video InputComponent Video Input Analog RGB InputDigital Video InputRCA Pin JackRCA Pin JackRCA Pin JackMini Din 4PinRCA Pin JackMini D-Sub 15PinDVI-D 24Pin• Cables connecting the PC vary according to the type of machine, so consult your product dealer.RS-232C Jack Connects a control signal from a PC.DVI Input Jack Connects a digital video signal from a DVI output jack of PC or set top box.D-Sub(PC), DVI SoundConnects a sound signal from PC or DVI.RGB PC Input Jack (D-Sub) Connects a video signal from a video output jack of PC.Cables connecting the PC vary according to the type of machine, so contact your product dealer.Component Input Jack 1, 2 Connects a three separate component video signal from a component output jack of a DVD player or set top box.Supports 480i/p(60Hz), 576i/p(50Hz), 720p(50/60Hz), 1080i(50/60Hz) signals. (i: interlace, p: progressive)Component Sound Connects a sound signal from component.Speaker Jack Connects external speakers by wires. Match red/red and black/black of speaker/TV.Composite (RCA) Input Jack 1, 2 Connects an AV composite video signal from a composite output terminal of a VCR or DVD player. S-Video Input Jack Connects a S-Video video signals from a S-Video output jack of a S-VHS, VCR or DVD player.(Upper). Composite (RCA) Output Jack Output the signal of the current screen of the monitor. Connects to other TV or monitor.(Lower). Composite (RCA) Input Jack 3 Connects an AV composite video signal from a composite output terminal of a VCR or DVD player. Unavailable when a S-Video cable is put into the S-Video input jack.ANT. IN (TV Antenna Jack) Connects to an TV antenna cable.AC(Power) Input Terminal Firmly insert the accessory power cord as far as it will go into the power input terminal. Firmly push the power cord plug as far as it will go into the power socket.RS-232C ConfigurationsRXDTXDGNDDTRDSRRTSCTSTXDRXDGNDDTRDSRRTSCTSConnectors1234567891011121314Monitor

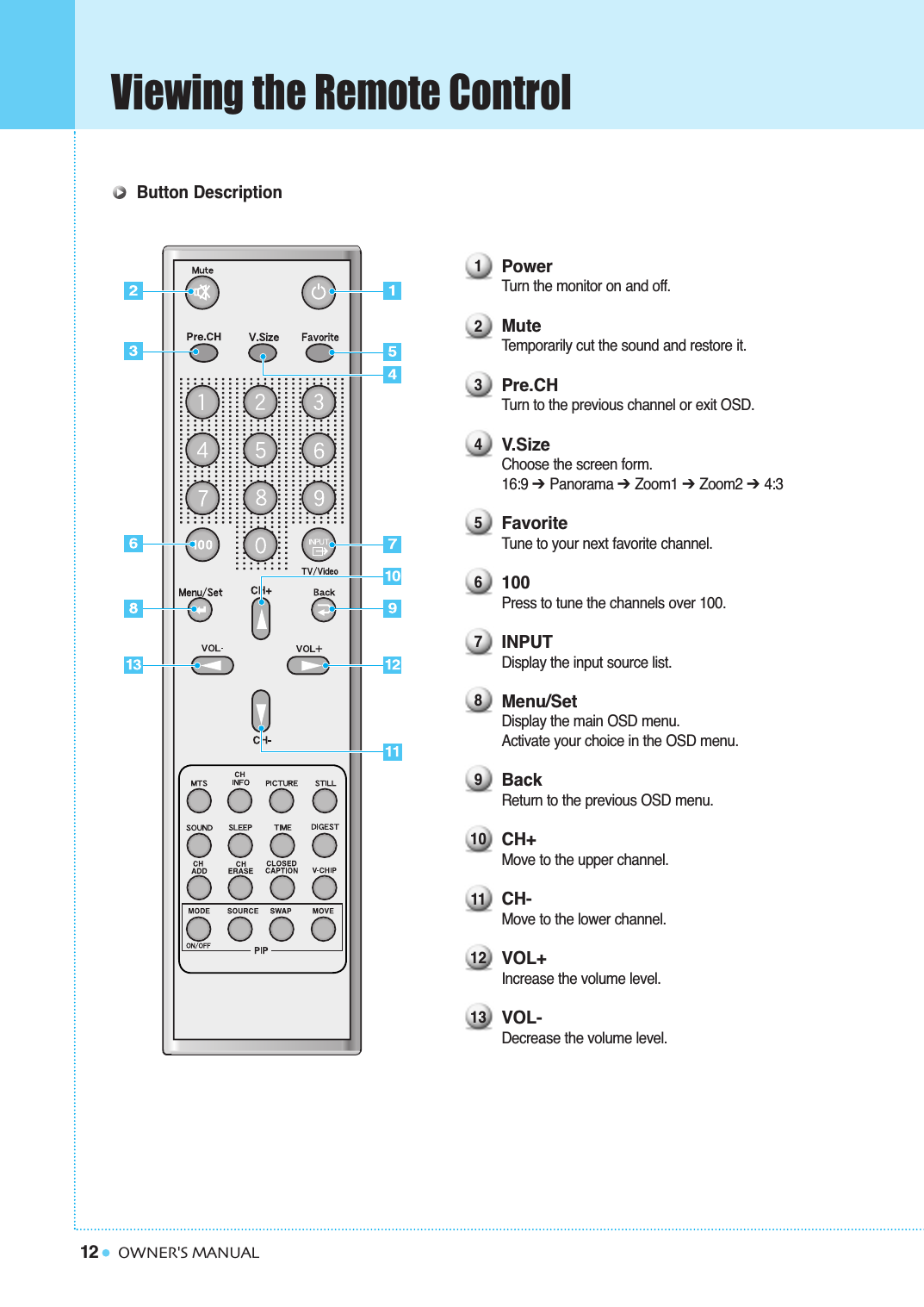

12Viewing the Remote ControlOWNER'S MANUALPowerTurn the monitor on and off.MuteTemporarily cut the sound and restore it.Pre.CHTurn to the previous channel or exit OSD.V.SizeChoose the screen form.16:9 ➔ Panorama ➔ Zoom1 ➔ Zoom2 ➔ 4:3FavoriteTune to your next favorite channel.100Press to tune the channels over 100. INPUTDisplay the input source list.Menu/SetDisplay the main OSD menu.Activate your choice in the OSD menu.BackReturn to the previous OSD menu.CH+Move to the upper channel.CH-Move to the lower channel.VOL+Increase the volume level.VOL-Decrease the volume level.12345678910111213Button Description
Viewing the Remote Control13OWNER'S MANUALMTSChoose the MTS (Stereo) mode. Each time it is pressed,different mode is selected.Mono ➔ Stereo ➔ SAP• You can select only available modes depending on the source.CH INFODisplay the current information about time, screen form,source and MTS mode.PICTUREThere are 4 picture modes.Standard ➔ Vivid ➔ Mild ➔ UserSTILLTemporarily freeze the screen and restore it.SOUNDChoose the sound equalizer settings.Standard ➔ Movie ➔ Music ➔ News ➔ UserSLEEPSet the preset time interval for automatic turn-off.OFF ➔ 10 ➔ 20 ➔ 30 ➔ 60 ➔ 90 ➔ 120 ➔ 150 ➔ 180TIMEDisplay the current time on the screen.DIGESTDisplay 9 TV programs at the same time.CH ADDAdd the current channel to memory.CH ERASEErase the current channel from memory.CLOSED CAPTIONSet the close caption.OFF ➔ Closed Caption1 ➔ Closed Caption2 ➔ Text1 ➔Text2V-CHIPGet into V-Chip menu.PIP (Picture in Picture) ButtonsMODE (ON/OFF)Activate PIP function and change the PIPwindow size and PIP mode.Small ➔ Large ➔ Twin (Half) ➔ OFFSOURCEChange the PIP window source.SWAPSwap the main screen and the PIP window.MOVEMove the position of the PIP window.1234567891011121314151626104371598121116151314

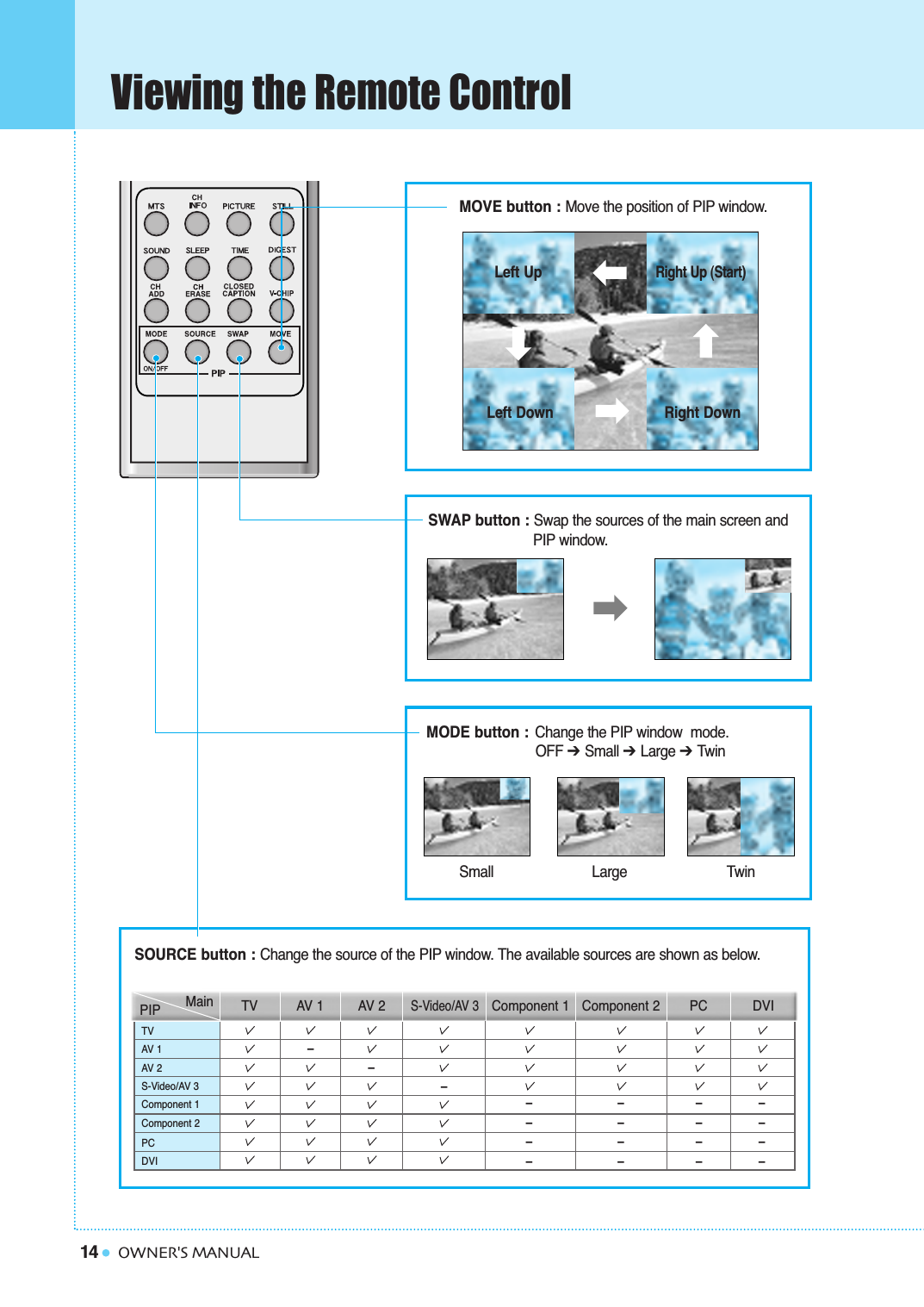

14Viewing the Remote ControlOWNER'S MANUALSOURCE button : Change the source of the PIP window. The available sources are shown as below.TVAV 1AV 2S-Video/AV 3Component 1Component 2PCDVI––––––PIP Main TV AV 1–AV 2S-Video/AV 3Component 1 Component 2 PC DVI––––––––––––MOVE button : Move the position of PIP window.SWAP button : Swap the sources of the main screen and PIP window.Left UpRight Up (Start)Left Down Right DownMODE button : Change the PIP window mode.OFF ➔ Small ➔ Large ➔ TwinSmall Large Twin

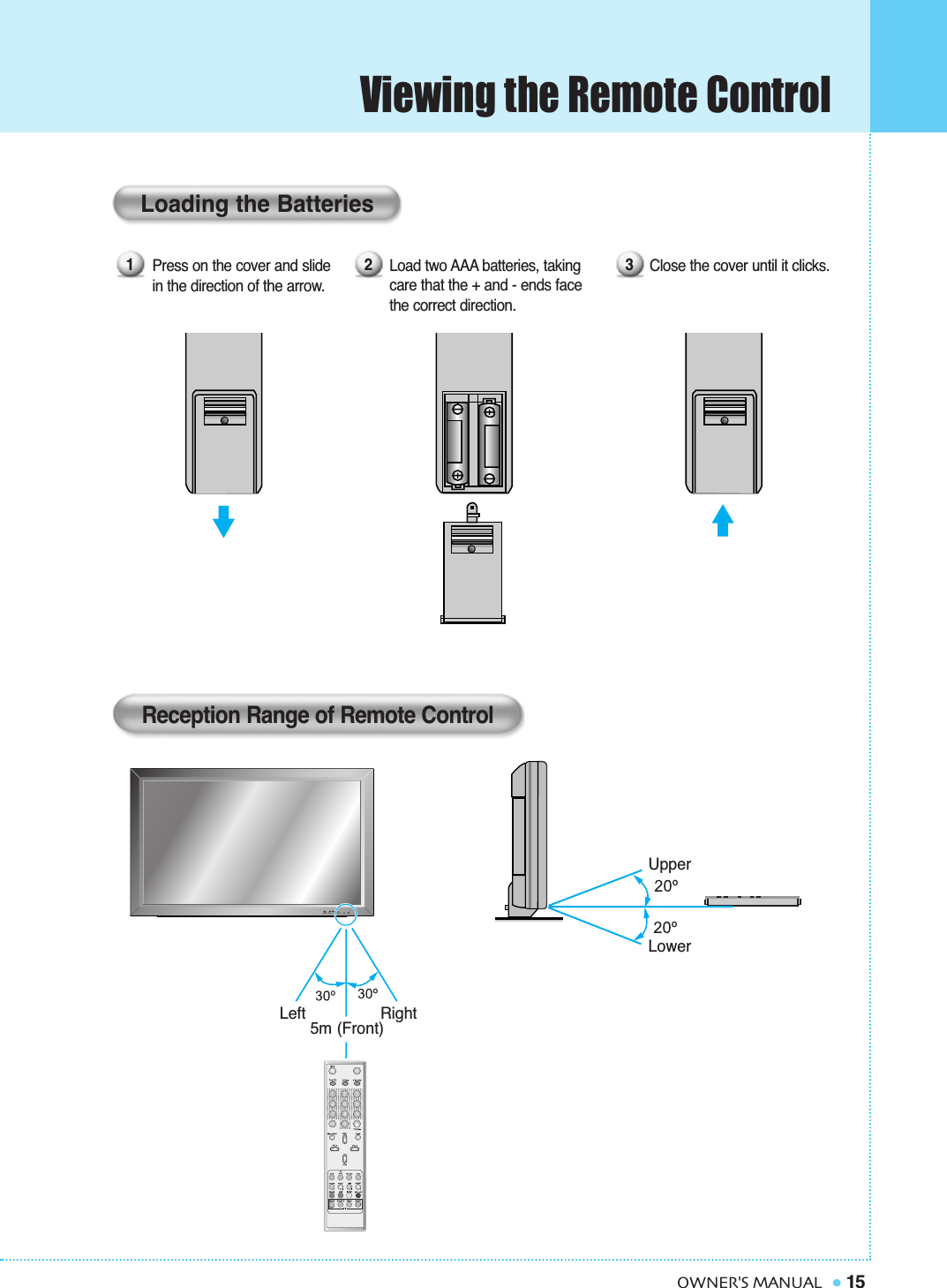

Viewing the Remote Control15OWNER'S MANUALClose the cover until it clicks. Load two AAA batteries, takingcare that the + and - ends facethe correct direction.Press on the cover and slide in the direction of the arrow.Loading the BatteriesReception Range of Remote Control1 2 3Left Right5m (Front)UpperLower

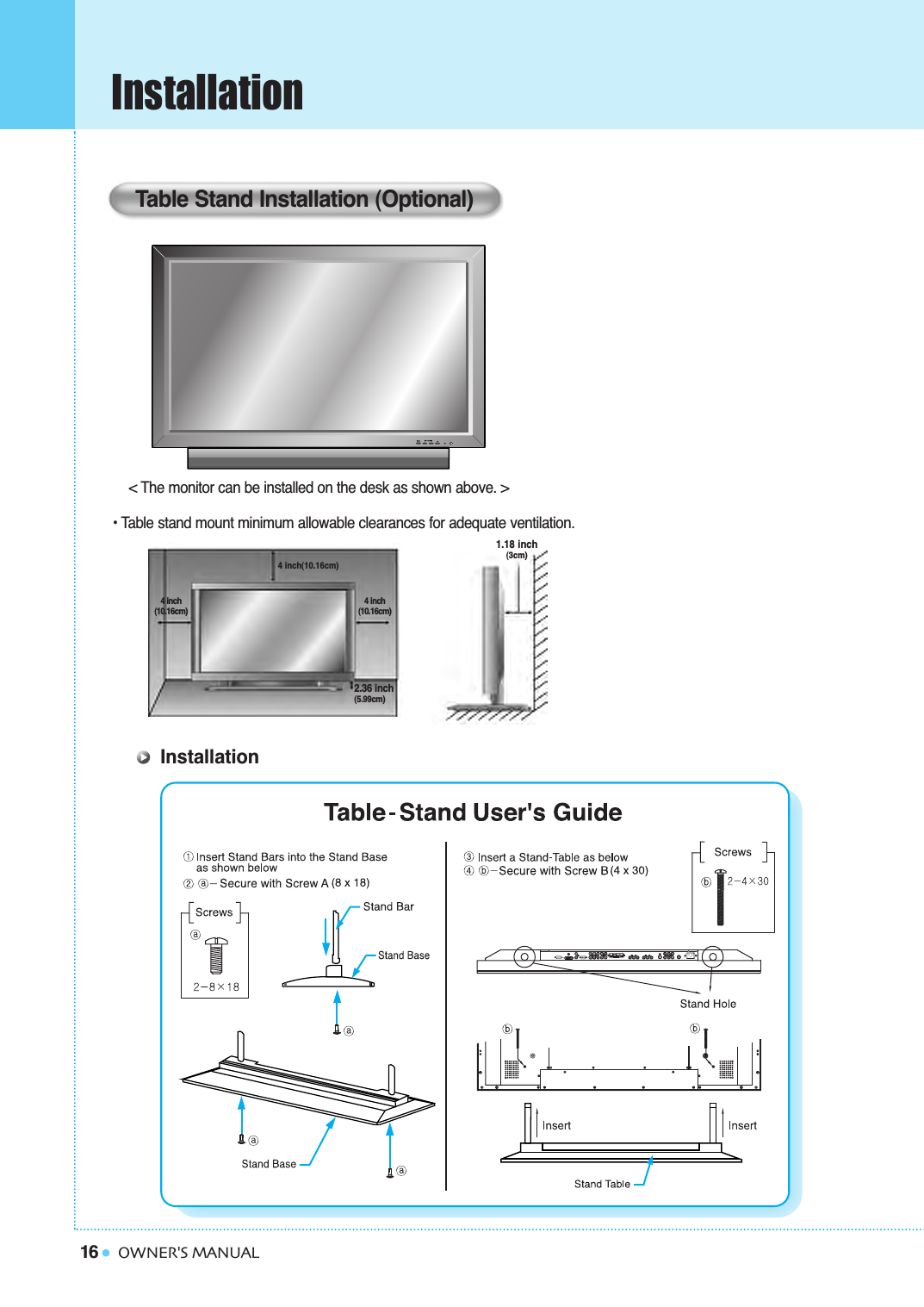

16InstallationOWNER'S MANUAL< The monitor can be installed on the desk as shown above. >• Table stand mount minimum allowable clearances for adequate ventilation.Table Stand Installation (Optional)1.18 inch(3cm)2.36 inch(5.99cm)4 inch(10.16cm)4 inch(10.16cm)4 inch(10.16cm)Installation

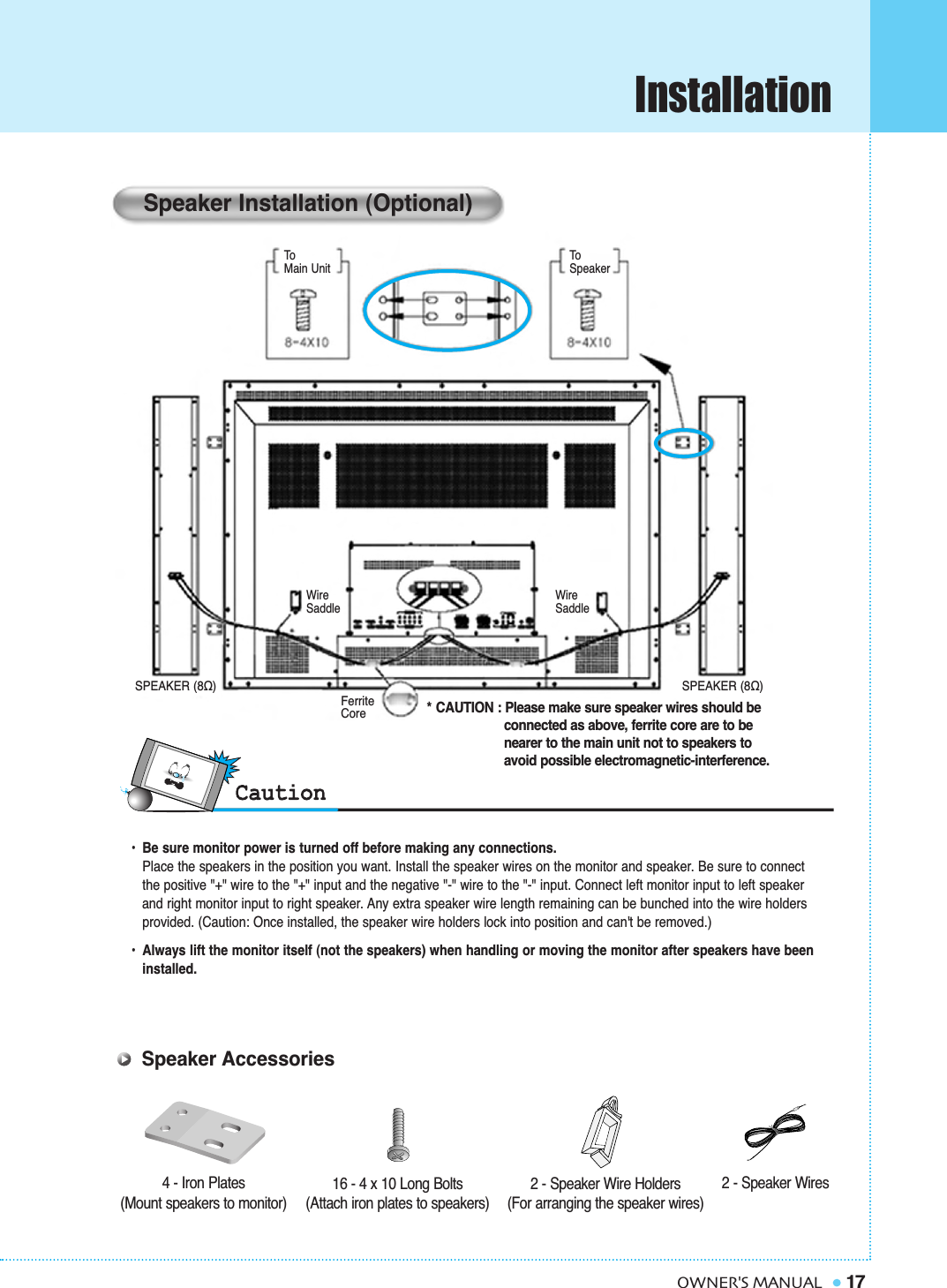

Installation17OWNER'S MANUAL• Be sure monitor power is turned off before making any connections.Place the speakers in the position you want. Install the speaker wires on the monitor and speaker. Be sure to connect the positive "+" wire to the "+" input and the negative "-" wire to the "-" input. Connect left monitor input to left speaker and right monitor input to right speaker. Any extra speaker wire length remaining can be bunched into the wire holders provided. (Caution: Once installed, the speaker wire holders lock into position and can't be removed.)• Always lift the monitor itself (not the speakers) when handling or moving the monitor after speakers have been installed. Speaker Installation (Optional)* CAUTION : Please make sure speaker wires should be connected as above, ferrite core are to be nearer to the main unit not to speakers to avoid possible electromagnetic-interference.4 - Iron Plates(Mount speakers to monitor) 16 - 4 x 10 Long Bolts(Attach iron plates to speakers)2 - Speaker Wires2 - Speaker Wire Holders(For arranging the speaker wires)Speaker AccessoriesToMain UnitToSpeakerSPEAKER (8Ω) SPEAKER (8Ω)FerriteCoreWireSaddleWireSaddle

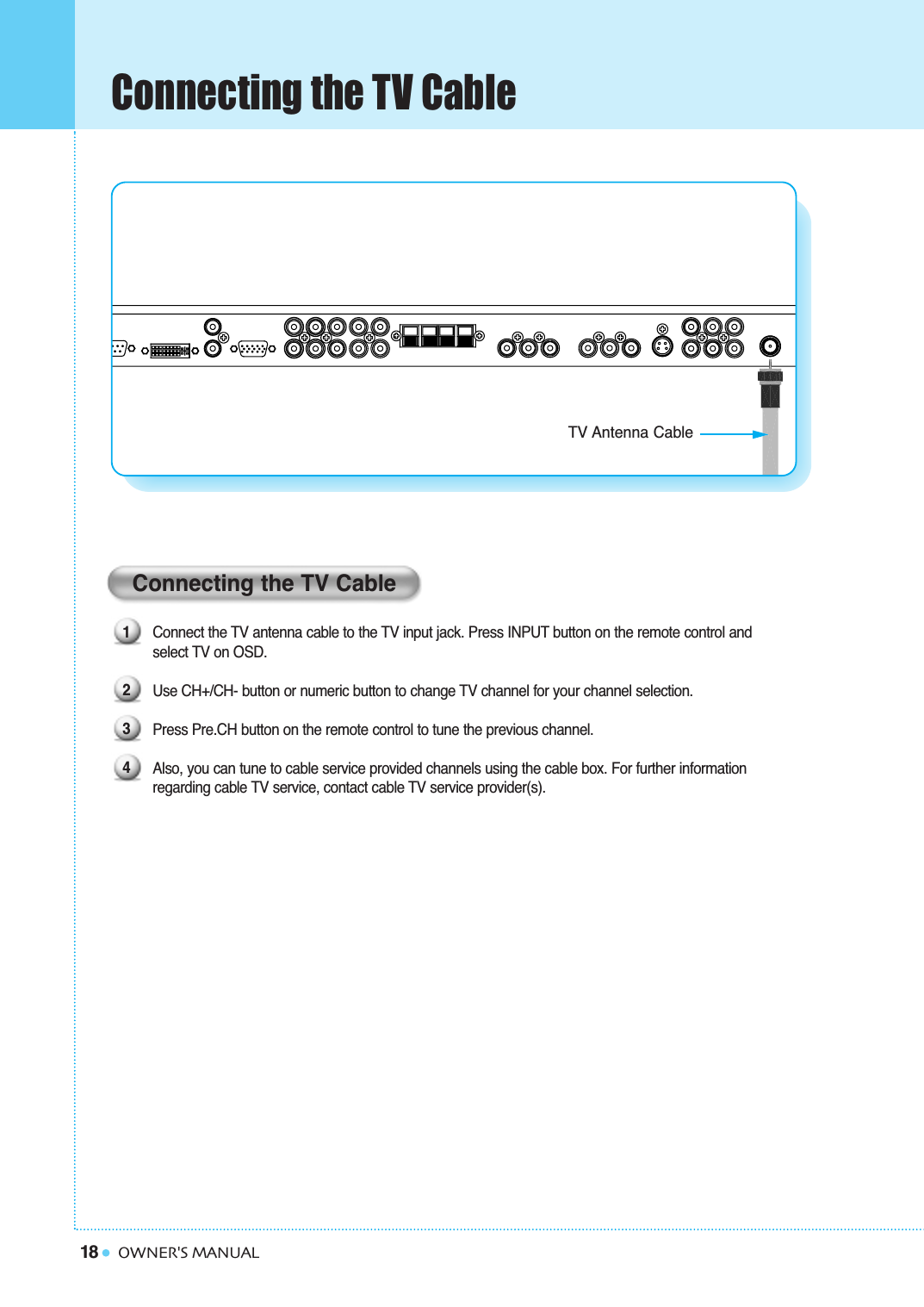

18Connecting the TV CableOWNER'S MANUALConnecting the TV CableConnect the TV antenna cable to the TV input jack. Press INPUT button on the remote control and select TV on OSD.Use CH+/CH- button or numeric button to change TV channel for your channel selection. Press Pre.CH button on the remote control to tune the previous channel.Also, you can tune to cable service provided channels using the cable box. For further information regarding cable TV service, contact cable TV service provider(s).1234TV Antenna Cable
Connecting the VCR19OWNER'S MANUALPress INPUT button on the remote control and select video sources. Insert a video tape into the VCR and press the PLAY button on the VCR. With S-VideoConnect a S-Video cable to the S-Video jacks of the VCR and the monitor.Connect L (White), R (Red) sound cable (Composite) to the sound jacks of the VCR and the monitor.With AV InputConnect a composite cable to the AV video jacks of the VCR and the monitor.Connect L (White), R (Red) sound cable (Composite) to the sound jacks of the VCR and the monitor.Connecting the VCRWatching VCR•To avoid picture noise (interference), leave an adequate distance(over 3m) between the VCR and monitor.• When connecting the monitor with external equipment, match the color of connecting ports (e.g. Video -Yellow, Audio(L) - White, Audio(R) - Red).•If you have a mono VCR, connect the audio cable from the VCR to the Audio(L/Mono) input of the monitor.• If you connect an S-VHS VCR to the S-Video input socket, you can get a better picture quality than normal video input (AV).• When both S-Video and AV are connected at the same time, S-Video has a priority than AV. (When S-Video is connected and has no Signal, the monitor displays “No Signal” on the screen.). To watch AV mode, you should disconnect S-Video.12AV 1AV 2AV 3 InputS-Video Sound ofS-Video/AV

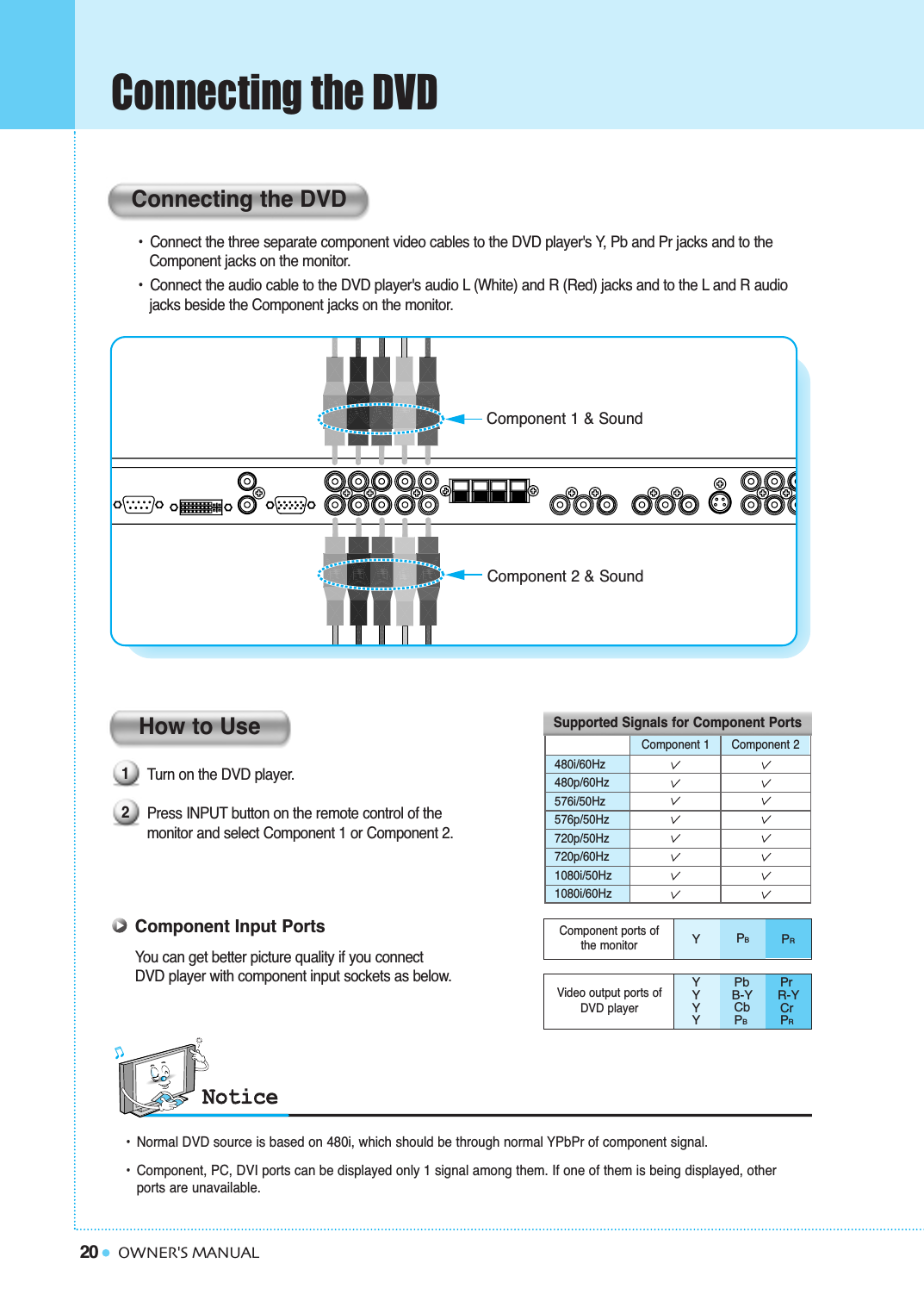

20Connecting the DVDOWNER'S MANUALTurn on the DVD player. Press INPUT button on the remote control of the monitor and select Component 1 or Component 2.• Connect the three separate component video cables to the DVD player's Y, Pb and Pr jacks and to the Component jacks on the monitor.• Connect the audio cable to the DVD player's audio L (White) and R (Red) jacks and to the L and R audio jacks beside the Component jacks on the monitor.Connecting the DVDHow to UseComponent Input PortsYou can get better picture quality if you connect DVD player with component input sockets as below.480i/60Hz480p/60Hz576i/50Hz576p/50Hz720p/50Hz720p/60Hz1080i/50Hz1080i/60HzComponent 1 Component 2•Normal DVD source is based on 480i, which should be through normal YPbPr of component signal.•Component, PC, DVI ports can be displayed only 1 signal among them. If one of them is being displayed, other ports are unavailable.12PBPRYComponent ports of the monitorPbB-YCbPBPrR-YCrPRYYYYVideo output ports of DVD playerSupported Signals for Component PortsComponent 1 & SoundComponent 2 & Sound

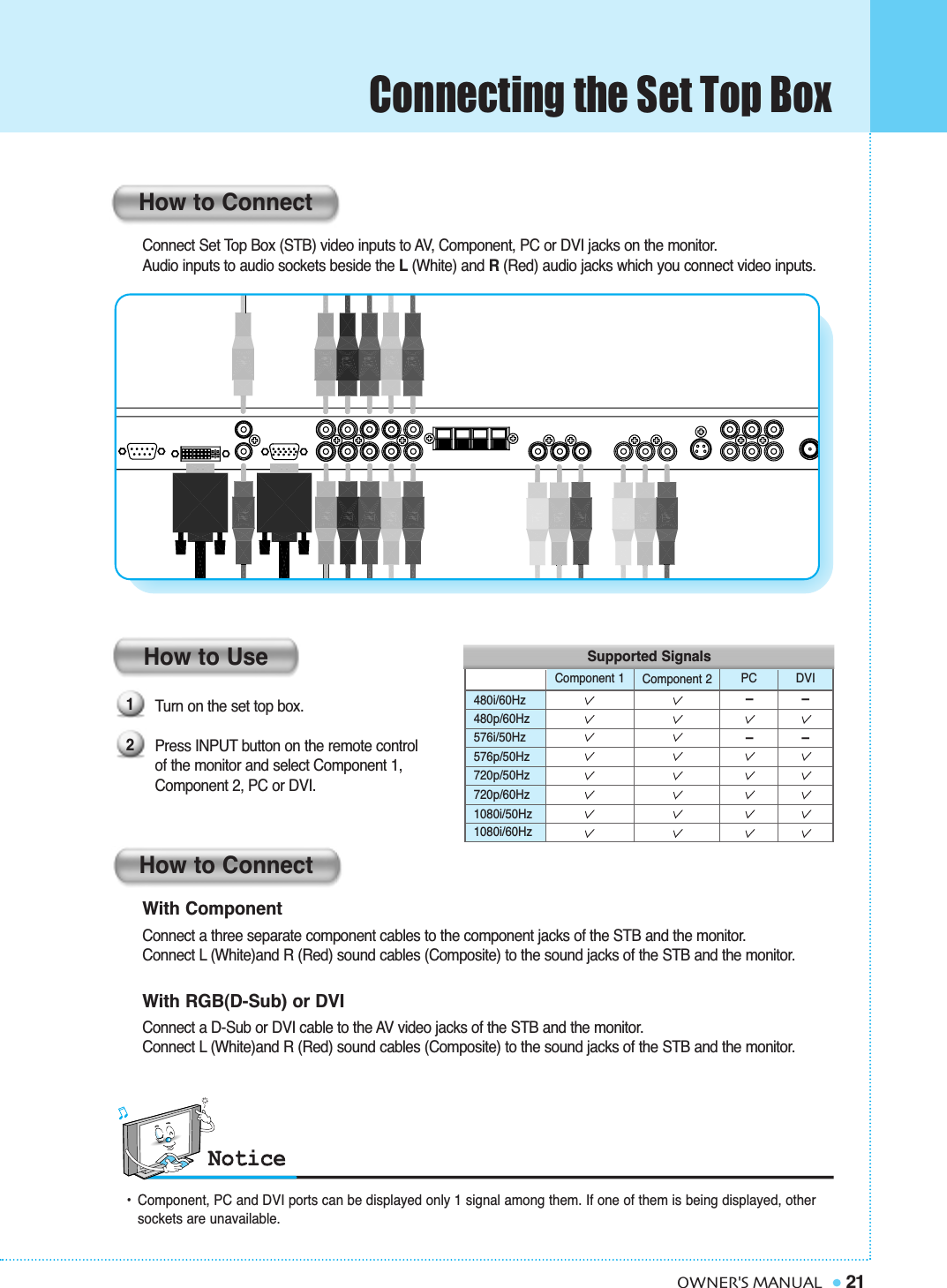

Connecting the Set Top Box21OWNER'S MANUALTurn on the set top box. Press INPUT button on the remote control of the monitor and select Component 1,Component 2, PC or DVI.Connect Set Top Box (STB) video inputs to AV, Component, PC or DVI jacks on the monitor. Audio inputs to audio sockets beside the L(White) and R(Red) audio jacks which you connect video inputs.How to ConnectHow to UseHow to ConnectWith ComponentConnect a three separate component cables to the component jacks of the STB and the monitor.Connect L (White)and R (Red) sound cables (Composite) to the sound jacks of the STB and the monitor.With RGB(D-Sub) or DVIConnect a D-Sub or DVI cable to the AV video jacks of the STB and the monitor.Connect L (White)and R (Red) sound cables (Composite) to the sound jacks of the STB and the monitor.•Component, PC and DVI ports can be displayed only 1 signal among them. If one of them is being displayed, other sockets are unavailable.––12480i/60Hz480p/60Hz576i/50Hz576p/50Hz720p/50Hz720p/60Hz1080i/50Hz1080i/60HzSupported SignalsComponent 1 Component 2 PC––DVI

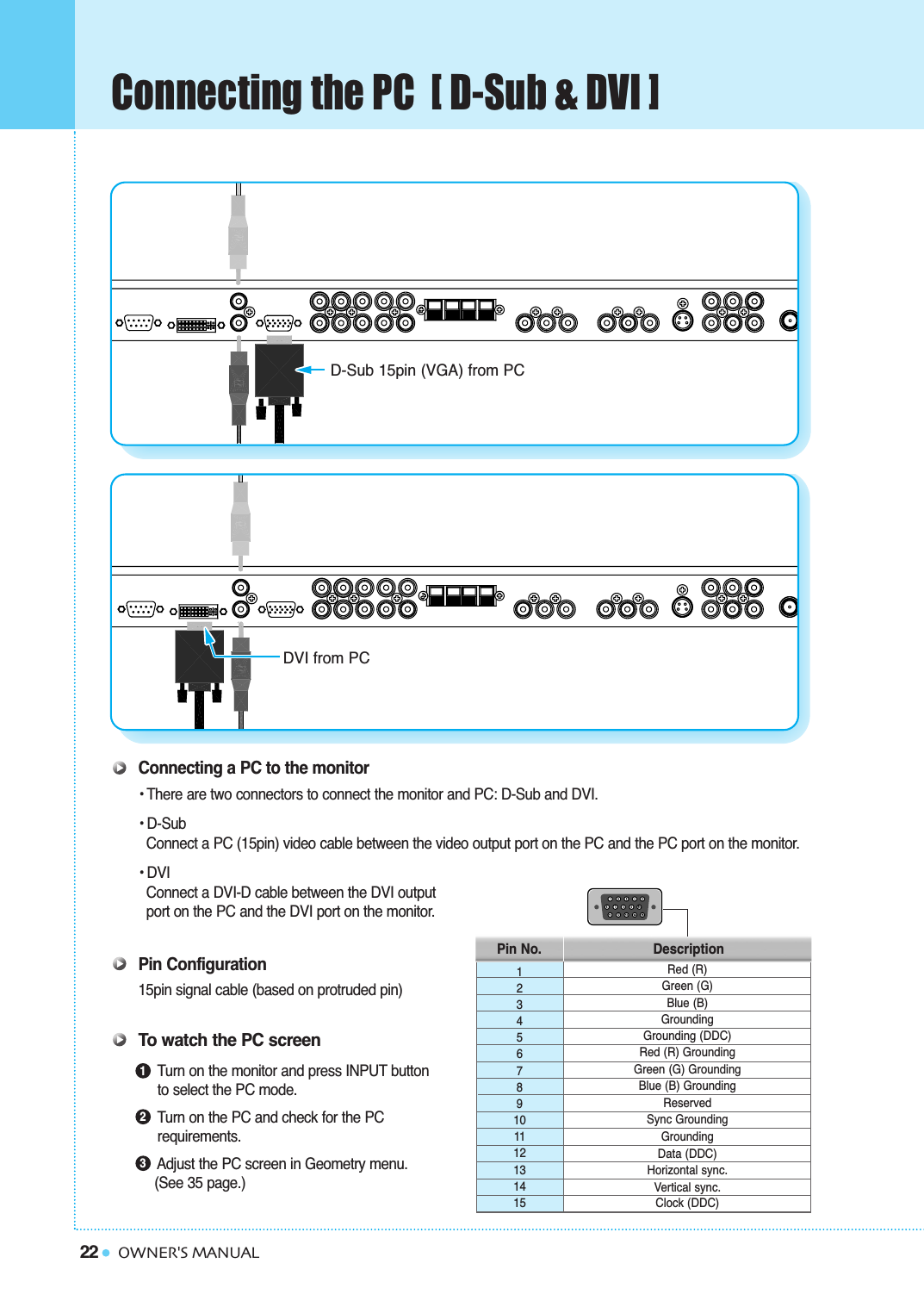

22Connecting the PC [ D-Sub & DVI ]OWNER'S MANUALPin Configuration15pin signal cable (based on protruded pin)To watch the PC screenTurn on the monitor and press INPUT button to select the PC mode.Turn on the PC and check for the PCrequirements.Adjust the PC screen in Geometry menu. (See 35 page.)Connecting a PC to the monitor• There are two connectors to connect the monitor and PC: D-Sub and DVI.• D-SubConnect a PC (15pin) video cable between the video output port on the PC and the PC port on the monitor. • DVIConnect a DVI-D cable between the DVI output port on the PC and the DVI port on the monitor. 123456789101112131415Red (R)Green (G)Blue (B)GroundingGrounding (DDC)Red (R) GroundingGreen (G) GroundingBlue (B) GroundingReservedSync GroundingGroundingData (DDC)Horizontal sync.Vertical sync.Clock (DDC)Pin No. Description123D-Sub 15pin (VGA) from PCDVI from PC

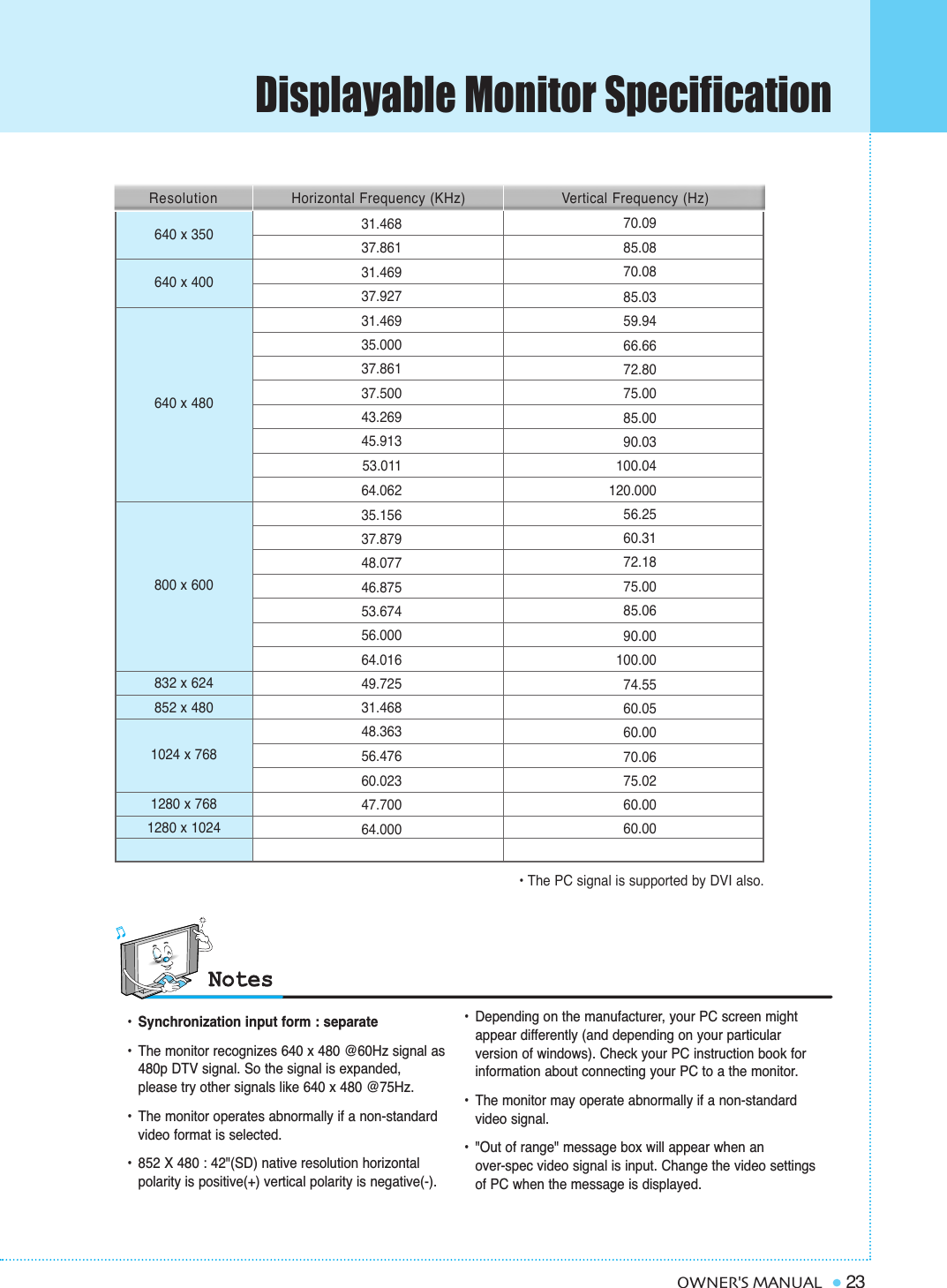

Displayable Monitor Specification23OWNER'S MANUAL31.46837.86131.46937.92731.46935.00037.86137.50043.26945.91353.01164.06235.15637.87948.07746.87553.67456.00064.01649.72531.46848.36356.47660.02347.70064.000 70.0985.0870.0885.0359.9466.6672.8075.0085.0090.03100.04120.00056.2560.3172.1875.0085.0690.00100.0074.5560.0560.0070.0675.0260.0060.00 Resolution Horizontal Frequency (KHz) Vertical Frequency (Hz)640 x 350640 x 400640 x 480800 x 600832 x 624852 x 4801024 x 7681280 x 7681280 x 1024 • The PC signal is supported by DVI also.•Synchronization input form : separate•The monitor recognizes 640 x 480 @60Hz signal as 480p DTV signal. So the signal is expanded, please try other signals like 640 x 480 @75Hz.•The monitor operates abnormally if a non-standard video format is selected. •852 X 480 : 42"(SD) native resolution horizontalpolarity is positive(+) vertical polarity is negative(-). •Depending on the manufacturer, your PC screen might appear differently (and depending on your particular version of windows). Check your PC instruction book for information about connecting your PC to a the monitor.• The monitor may operate abnormally if a non-standard video signal.• "Out of range" message box will appear when an over-spec video signal is input. Change the video settings of PC when the message is displayed.

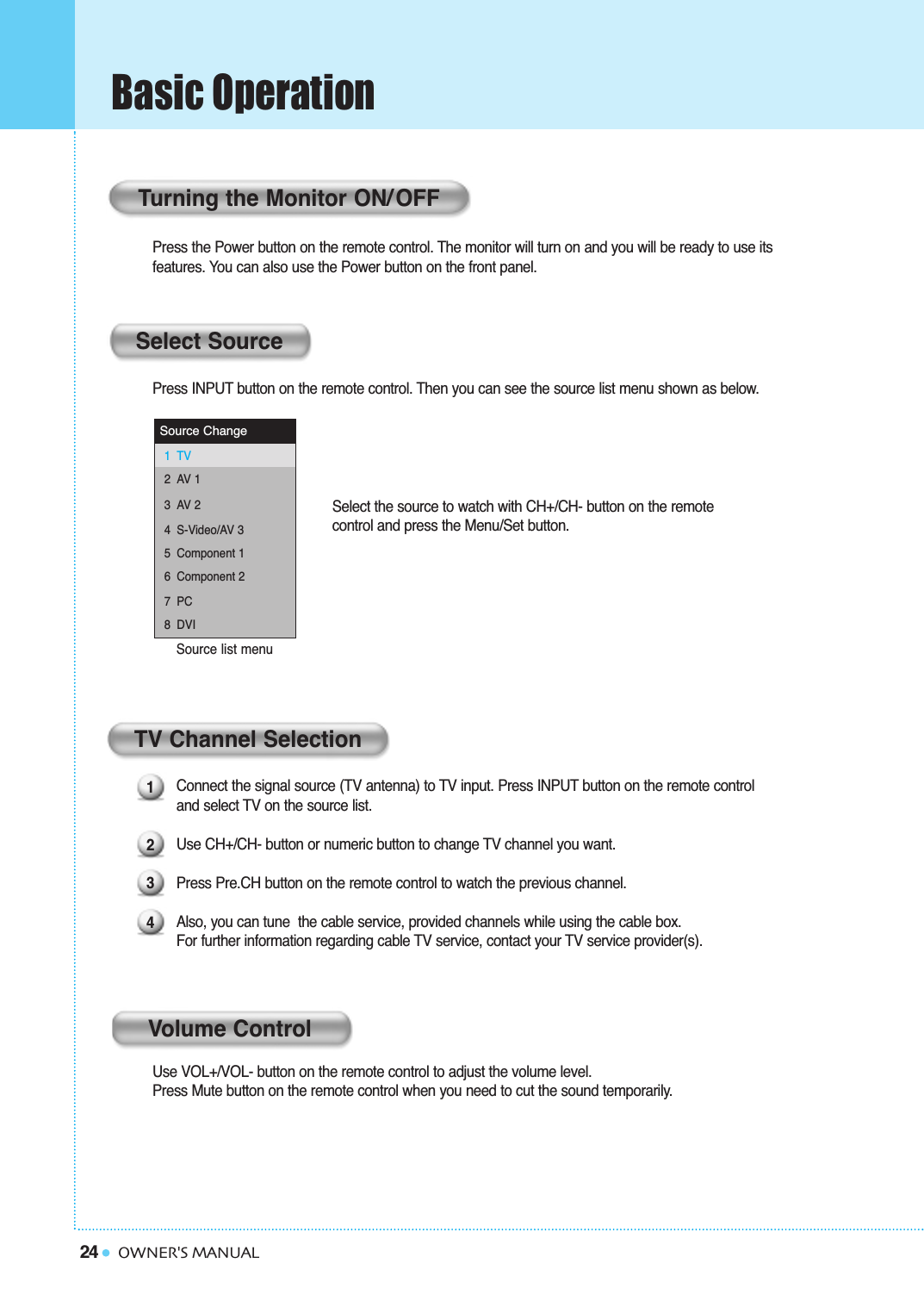

24Basic OperationOWNER'S MANUALPress the Power button on the remote control. The monitor will turn on and you will be ready to use its features. You can also use the Power button on the front panel.Press INPUT button on the remote control. Then you can see the source list menu shown as below.Connect the signal source (TV antenna) to TV input. Press INPUT button on the remote control and select TV on the source list.Use CH+/CH- button or numeric button to change TV channel you want. Press Pre.CH button on the remote control to watch the previous channel. Also, you can tune the cable service, provided channels while using the cable box. For further information regarding cable TV service, contact your TV service provider(s).Use VOL+/VOL- button on the remote control to adjust the volume level.Press Mute button on the remote control when you need to cut the sound temporarily.Select the source to watch with CH+/CH- button on the remote control and press the Menu/Set button.Source list menu Source ChangeTVAV 1AV 2S-Video/AV 3Component 1Component 2PCDVI12345678Turning the Monitor ON/OFFSelect SourceTV Channel SelectionVolume Control1234

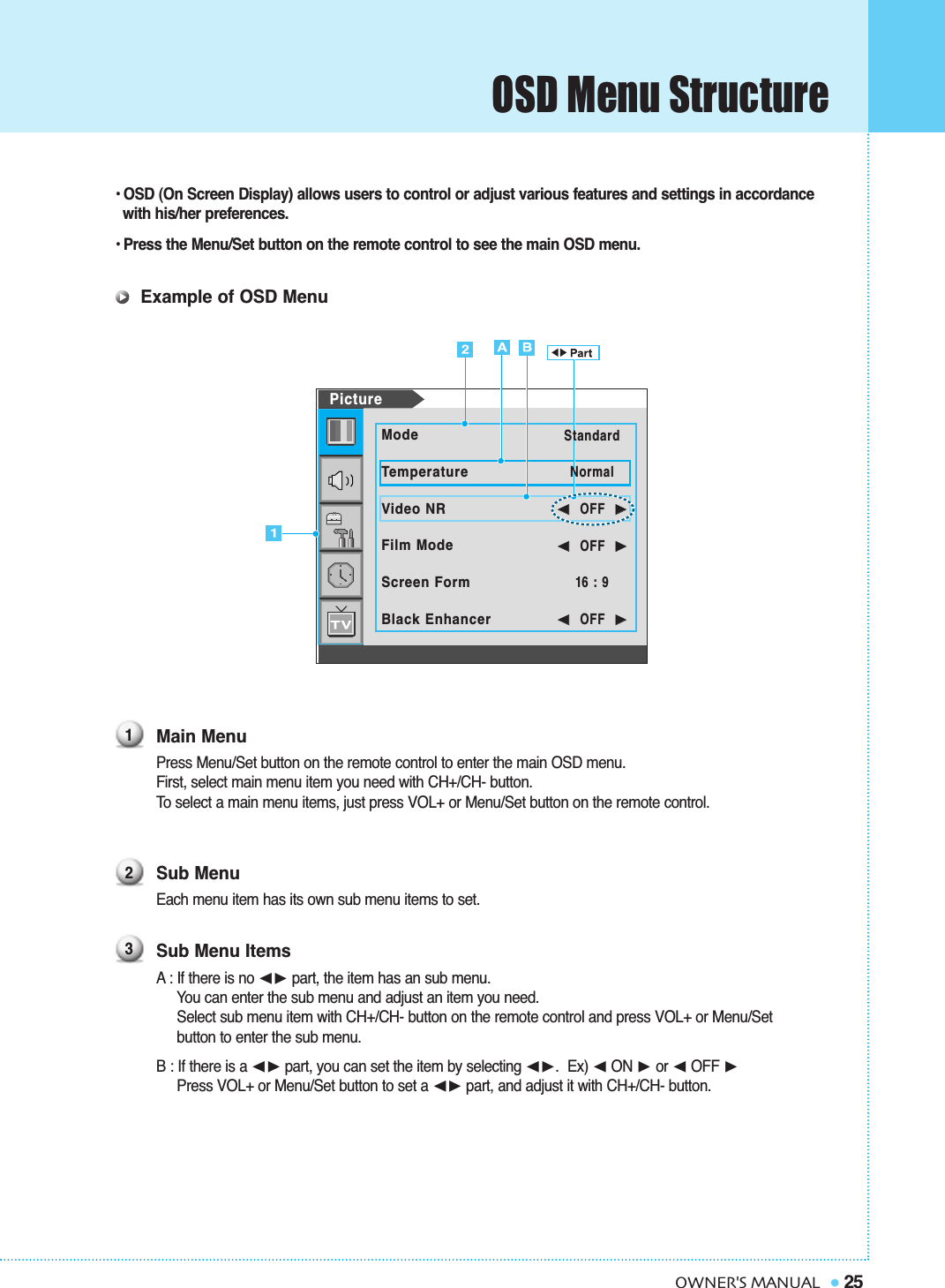

OSD Menu Structure25OWNER'S MANUAL• OSD (On Screen Display) allows users to control or adjust various features and settings in accordance with his/her preferences.• Press the Menu/Set button on the remote control to see the main OSD menu.Example of OSD MenuMain MenuPress Menu/Set button on the remote control to enter the main OSD menu.First, select main menu item you need with CH+/CH- button.To select a main menu items, just press VOL+ or Menu/Set button on the remote control.Sub MenuEach menu item has its own sub menu items to set.Sub Menu ItemsA: If there is no ➛❿☎part, the item has an sub menu.You can enter the sub menu and adjust an item you need.Select sub menu item with CH+/CH- button on the remote control and press VOL+ or Menu/Set button to enter the sub menu.B : If there is a ➛❿☎part, you can set the item by selecting ➛❿. Ex) ➛☎ON ❿or ➛☎OFF ❿Press VOL+ or Menu/Set button to set a ➛❿☎part, and adjust it with CH+/CH- button.123PictureModeTemperatureVideo NRFilm ModeScreen FormBlack Enhancer StandardNormal➛➛☎☎☎☎☎☎OFF ❿❿➛➛☎☎☎☎☎☎OFF ❿❿16 : 9➛➛☎☎☎☎☎☎OFF ❿❿
26Setting the ChannelOWNER'S MANUALBefore your television can begin memorizing the available channels, you must specify the type of signal source that is connected to the TV (i.e., an antenna, a standard cable system, an HRC, or an IRC).Press Menu/Set button to display the main OSD menu.Select the TV main menu item. Press Menu/Set button to enter the sub menu. Select Channel Type and press VOL+ button to enter the ➛❿ parts. Then the cursor moves into the ➛❿parts.Select the Channel Type with CH+/CH- button and press Back button. You can select NTSC (AIR, CATV, IRC, HRC) or PAL (AIR, CATV).Press Menu/Set button to display the main OSD menu. Select the TV main menu.Press Menu/Set button to enter the sub menu. Select Auto Scan with CH+/CH- buttonand press Menu/Set buttonon the remote control. Then the tuning bar will appear and scanning will start.Auto Scan UHF 16Choosing the Channel TypeStoring the Channel Automatically123451234•You can enter the TV menu in TV mode only. (When you watch a TV channel.)•PAL means PAL-M in channel type. •PAM-M (AIR, CATV) is used in brazil.NTSCPAL➛☎☎☎☎☎☎☎CATV ❿Channel TypeAuto ScanFine TuneCH➛NTSC - CATV ❿➛☎☎☎☎☎☎CATV 5 ❿Channel TypeAuto ScanFine TuneCH➛NTSC - CATV ❿➛☎☎☎☎☎☎CATV 5 ❿

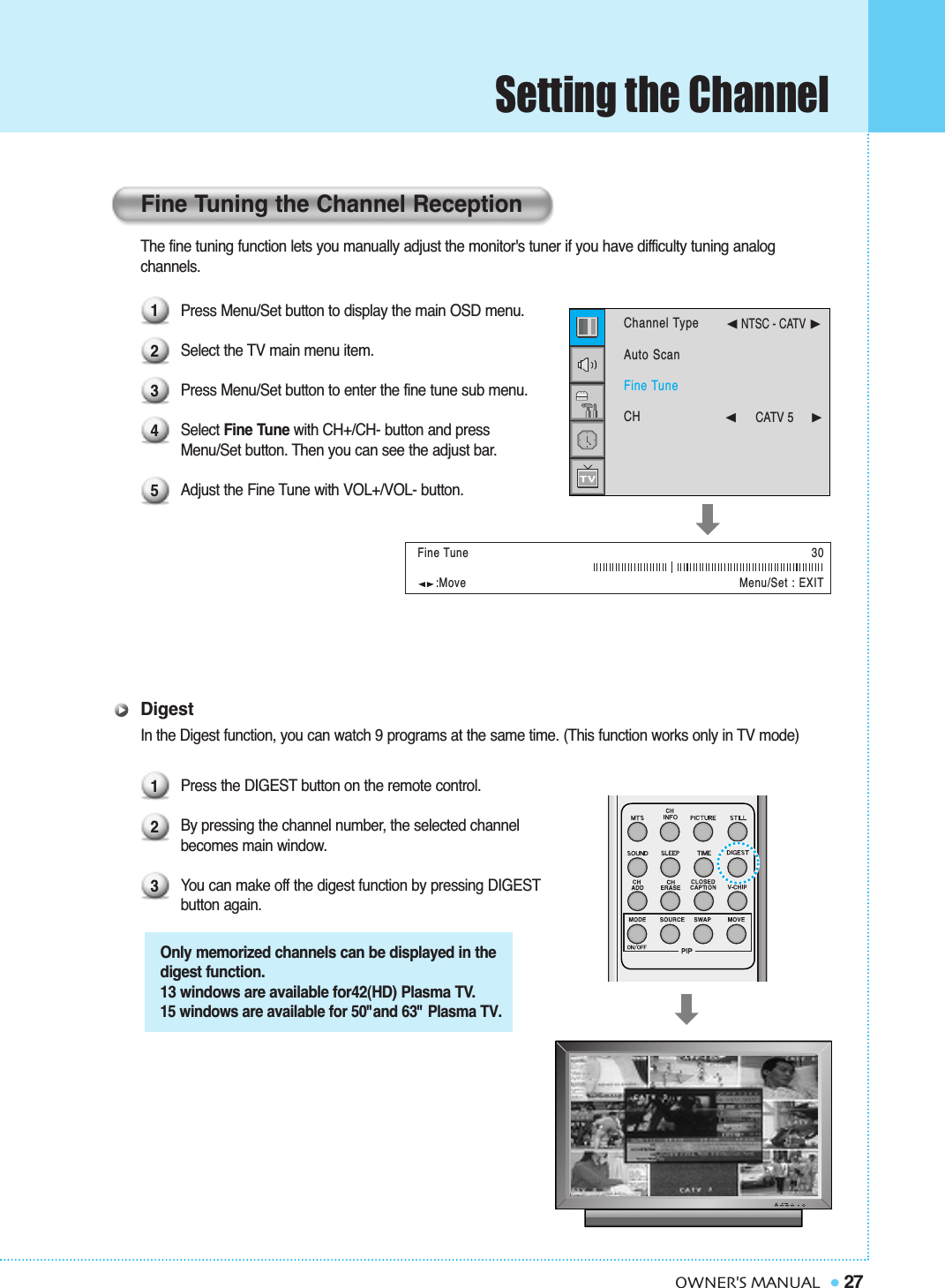

Setting the Channel27OWNER'S MANUALThe fine tuning function lets you manually adjust the monitor's tuner if you have difficulty tuning analog channels. Press Menu/Set button to display the main OSD menu. Select the TV main menu item.Press Menu/Set button to enter the fine tune sub menu.Select Fine Tune with CH+/CH- button and press Menu/Set button. Then you can see the adjust bar.Adjust the Fine Tune with VOL+/VOL- button.DigestIn the Digest function, you can watch 9 programs at the same time. (This function works only in TV mode)Press the DIGEST button on the remote control.By pressing the channel number, the selected channel becomes main window.You can make off the digest function by pressing DIGESTbutton again.:Move Menu/Set : EXITFine Tuning the Channel Reception1234512330Fine TuneChannel TypeAuto ScanFine TuneCH➛NTSC - CATV ❿➛☎☎☎☎☎☎CATV 5 ❿Only memorized channels can be displayed in thedigest function.13 windows are available for42(HD) Plasma TV.15 windows are available for 50"and 63" Plasma TV.

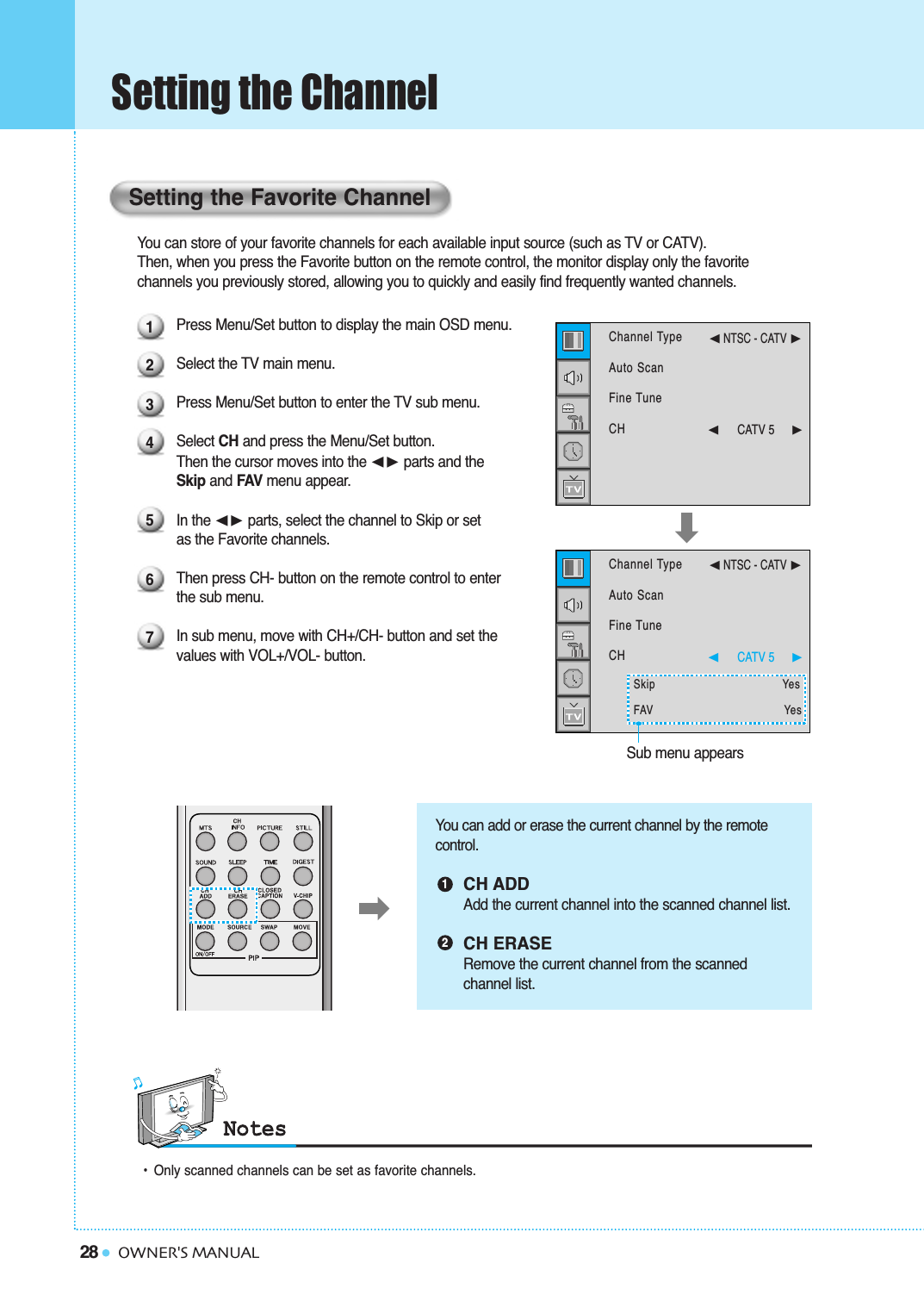

28Setting the ChannelOWNER'S MANUALYou can store of your favorite channels for each available input source (such as TV or CATV). Then, when you press the Favorite button on the remote control, the monitor display only the favorite channels you previously stored, allowing you to quickly and easily find frequently wanted channels. Press Menu/Set button to display the main OSD menu. Select the TV main menu.Press Menu/Set button to enter the TV sub menu.Select CH and press the Menu/Set button. Then the cursor moves into the ➛❿ parts and the Skip and FAV menu appear.In the ➛❿ parts, select the channel to Skip or set as the Favorite channels.Then press CH- button on the remote control to enter the sub menu. In sub menu, move with CH+/CH- button and set the values with VOL+/VOL- button.You can add or erase the current channel by the remote control.CH ADD Add the current channel into the scanned channel list.CH ERASERemove the current channel from the scanned channel list.•Only scanned channels can be set as favorite channels.121234567Channel TypeAuto ScanFine TuneCH➛NTSC - CATV ❿➛☎☎☎☎☎☎CATV 5 ❿Channel TypeAuto ScanFine TuneCH➛NTSC - CATV ❿➛☎☎☎☎☎☎CATV 5 ❿Setting the Favorite ChannelSkip YesFAV YesSub menu appears

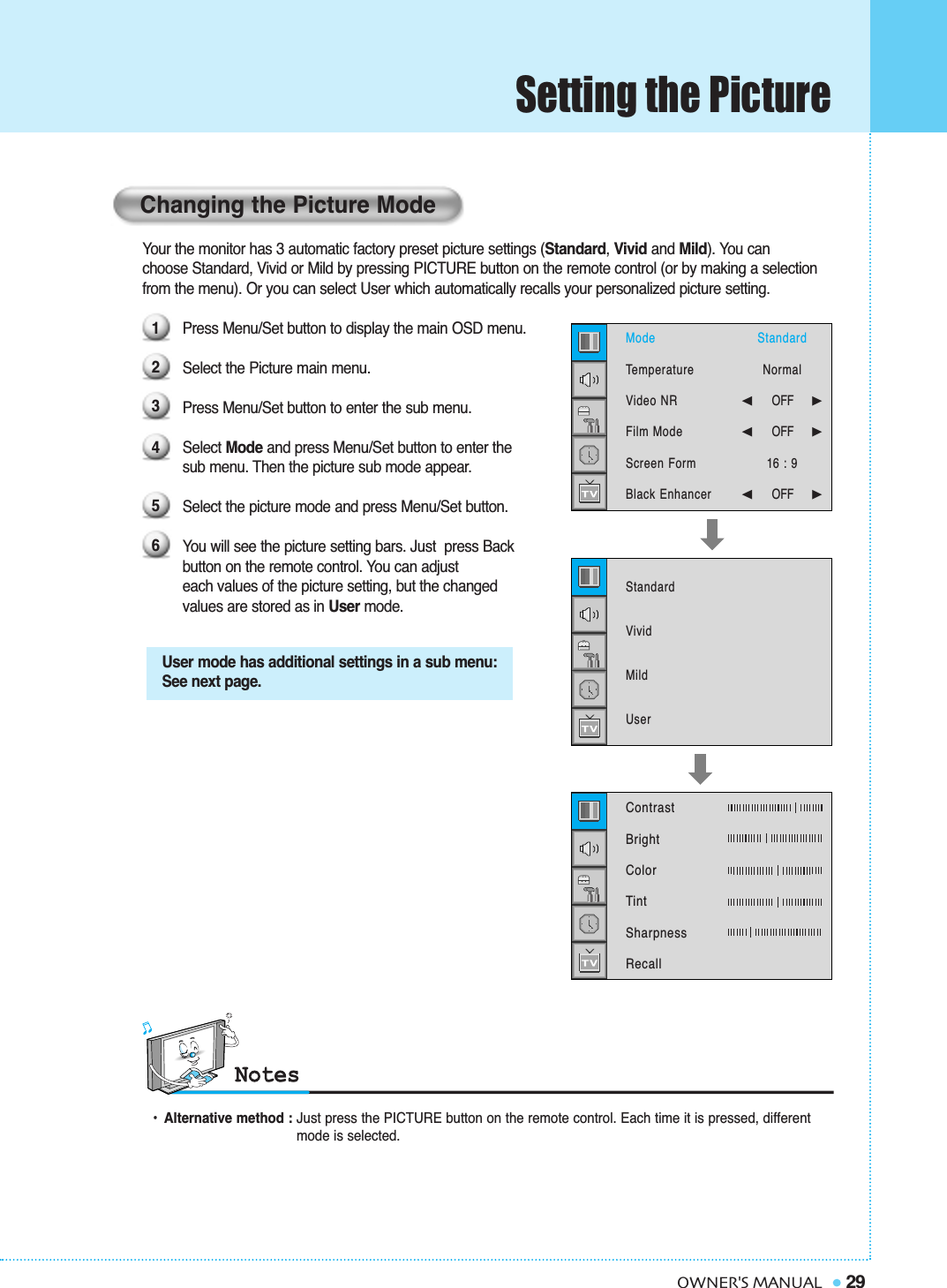

Your the monitor has 3 automatic factory preset picture settings (Standard, Vivid and Mild). You canchoose Standard, Vivid or Mild by pressing PICTURE button on the remote control (or by making a selection from the menu). Or you can select User which automatically recalls your personalized picture setting.Press Menu/Set button to display the main OSD menu. Select the Picture main menu.Press Menu/Set button to enter the sub menu.Select Mode and press Menu/Set button to enter the sub menu. Then the picture sub mode appear.Select the picture mode and press Menu/Set button.You will see the picture setting bars. Just press Back button on the remote control. You can adjust each values of the picture setting, but the changed values are stored as in User mode.Setting the Picture29OWNER'S MANUALUser mode has additional settings in a sub menu:See next page.•Alternative method : Just press the PICTURE button on the remote control. Each time it is pressed, different mode is selected.Changing the Picture Mode123456ModeTemperatureVideo NRFilm ModeScreen FormBlack Enhancer StandardVividMildUserStandardNormal➛☎☎☎☎☎☎OFF ❿➛☎☎☎☎☎☎OFF ❿16 : 9➛☎☎☎☎☎☎OFF ❿Contrast BrightColorTintSharpnessRecall

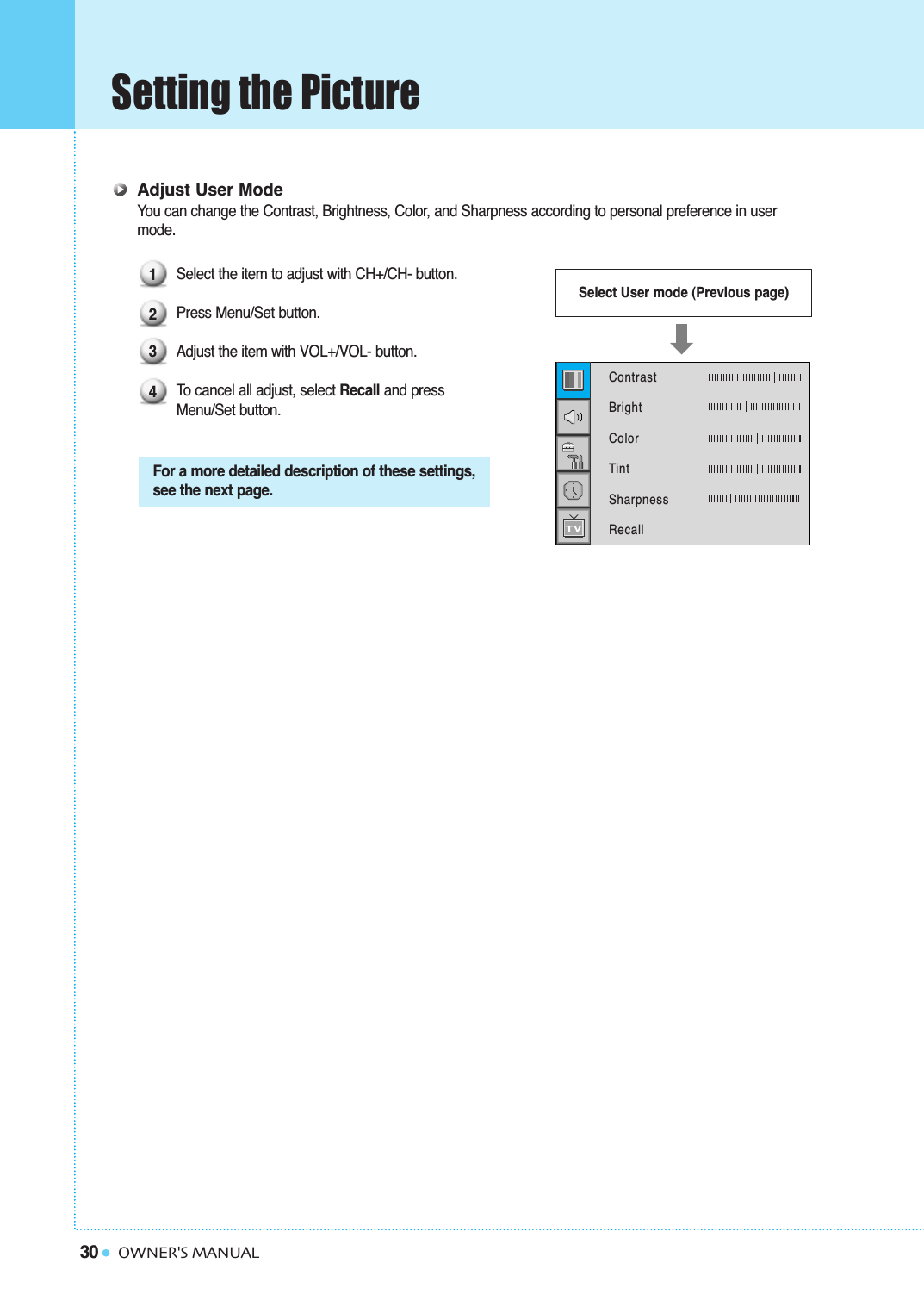

30Setting the PictureOWNER'S MANUALAdjust User ModeYou can change the Contrast, Brightness, Color, and Sharpness according to personal preference in user mode.Select the item to adjust with CH+/CH- button.Press Menu/Set button. Adjust the item with VOL+/VOL- button.To cancel all adjust, select Recall and press Menu/Set button.For a more detailed description of these settings,see the next page.Select User mode (Previous page)1234Contrast BrightColorTintSharpnessRecall

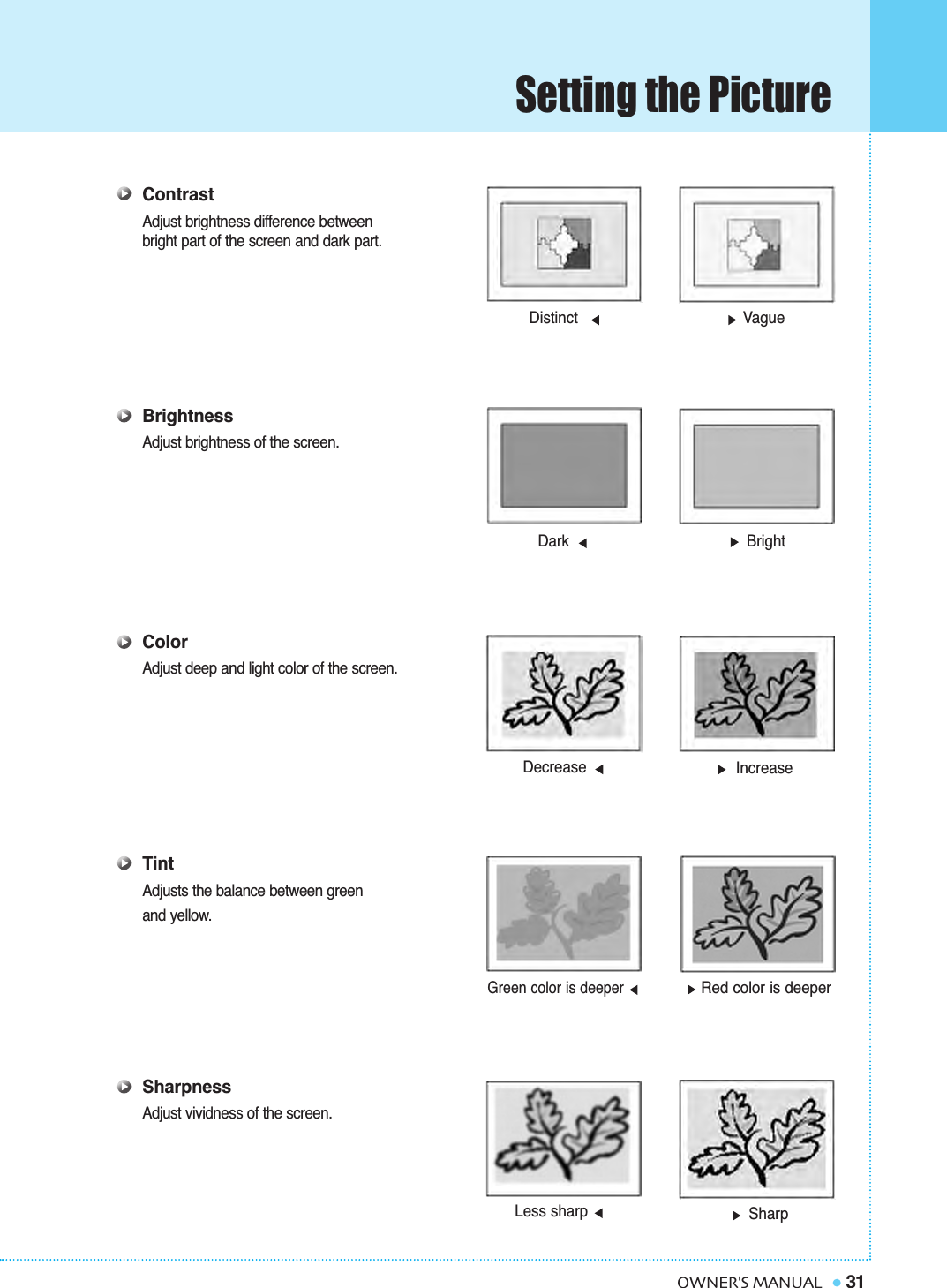

Setting the Picture31OWNER'S MANUALContrastAdjust brightness difference between bright part of the screen and dark part.BrightnessAdjust brightness of the screen.ColorAdjust deep and light color of the screen.TintAdjusts the balance between green and yellow. SharpnessAdjust vividness of the screen.Distinct VagueDark BrightDecrease IncreaseGreen color is deeperRed color is deeperLess sharp Sharp

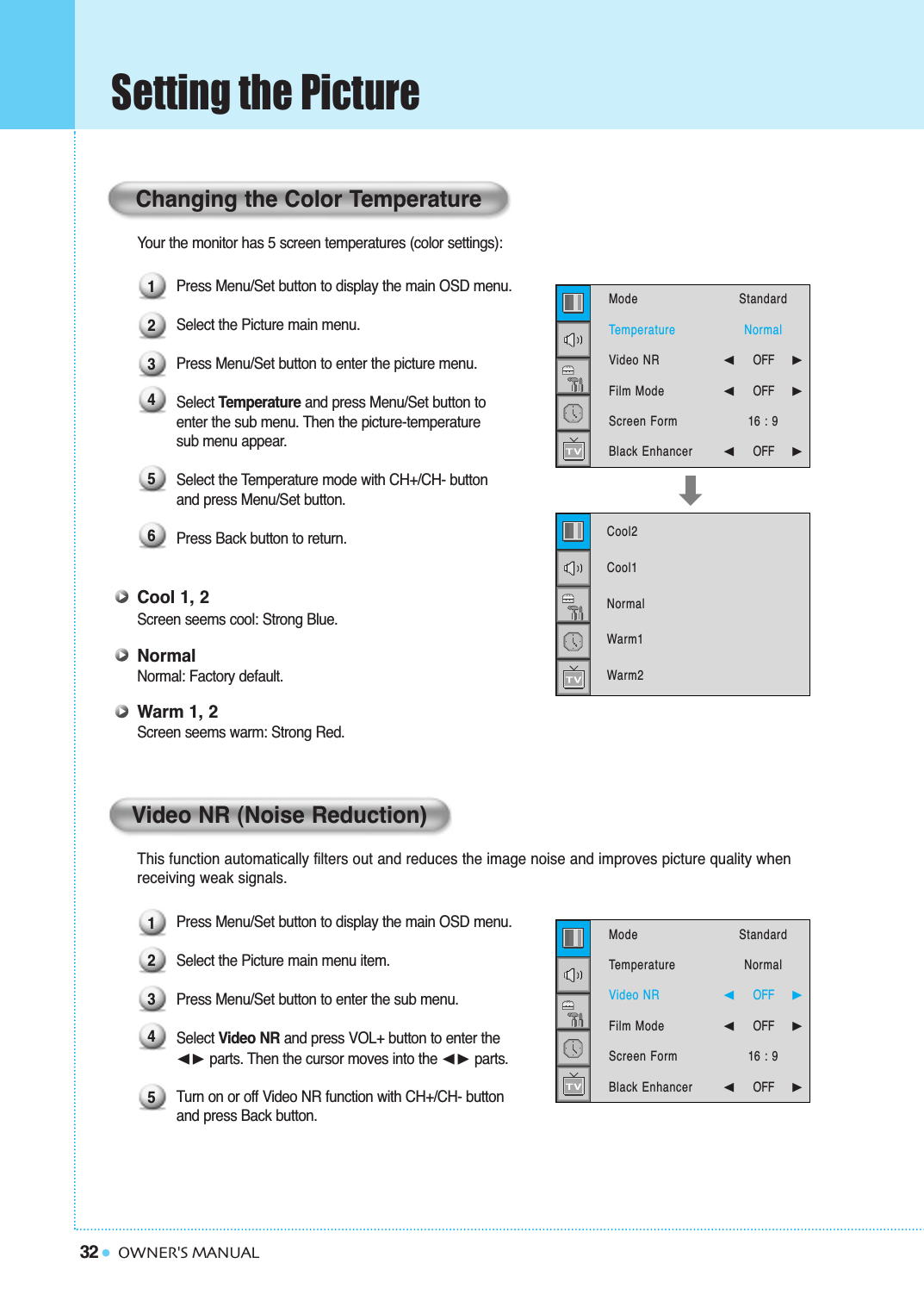

32Setting the PictureOWNER'S MANUALYour the monitor has 5 screen temperatures (color settings): Press Menu/Set button to display the main OSD menu.Select the Picture main menu.Press Menu/Set button to enter the picture menu.Select Temperature and press Menu/Set button to enter the sub menu. Then the picture-temperature sub menu appear.Select the Temperature mode with CH+/CH- button and press Menu/Set button.Press Back button to return. Cool 1, 2Screen seems cool: Strong Blue.NormalNormal: Factory default.Warm 1, 2Screen seems warm: Strong Red.This function automatically filters out and reduces the image noise and improves picture quality when receiving weak signals.Press Menu/Set button to display the main OSD menu.Select the Picture main menu item. Press Menu/Set button to enter the sub menu. Select Video NR and press VOL+ button to enter the ➛❿ parts. Then the cursor moves into the ➛❿ parts.Turn on or off Video NR function with CH+/CH- button and press Back button.Changing the Color Temperature12345123456Video NR (Noise Reduction)Cool2Cool1NormalWarm1Warm2 ModeTemperatureVideo NRFilm ModeScreen FormBlack Enhancer StandardNormal➛☎☎☎☎☎☎OFF ❿➛☎☎☎☎☎☎OFF ❿16 : 9➛☎☎☎☎☎☎OFF ❿ModeTemperatureVideo NRFilm ModeScreen FormBlack Enhancer StandardNormal➛☎☎☎☎☎☎OFF ❿➛☎☎☎☎☎☎OFF ❿16 : 9➛☎☎☎☎☎☎OFF ❿

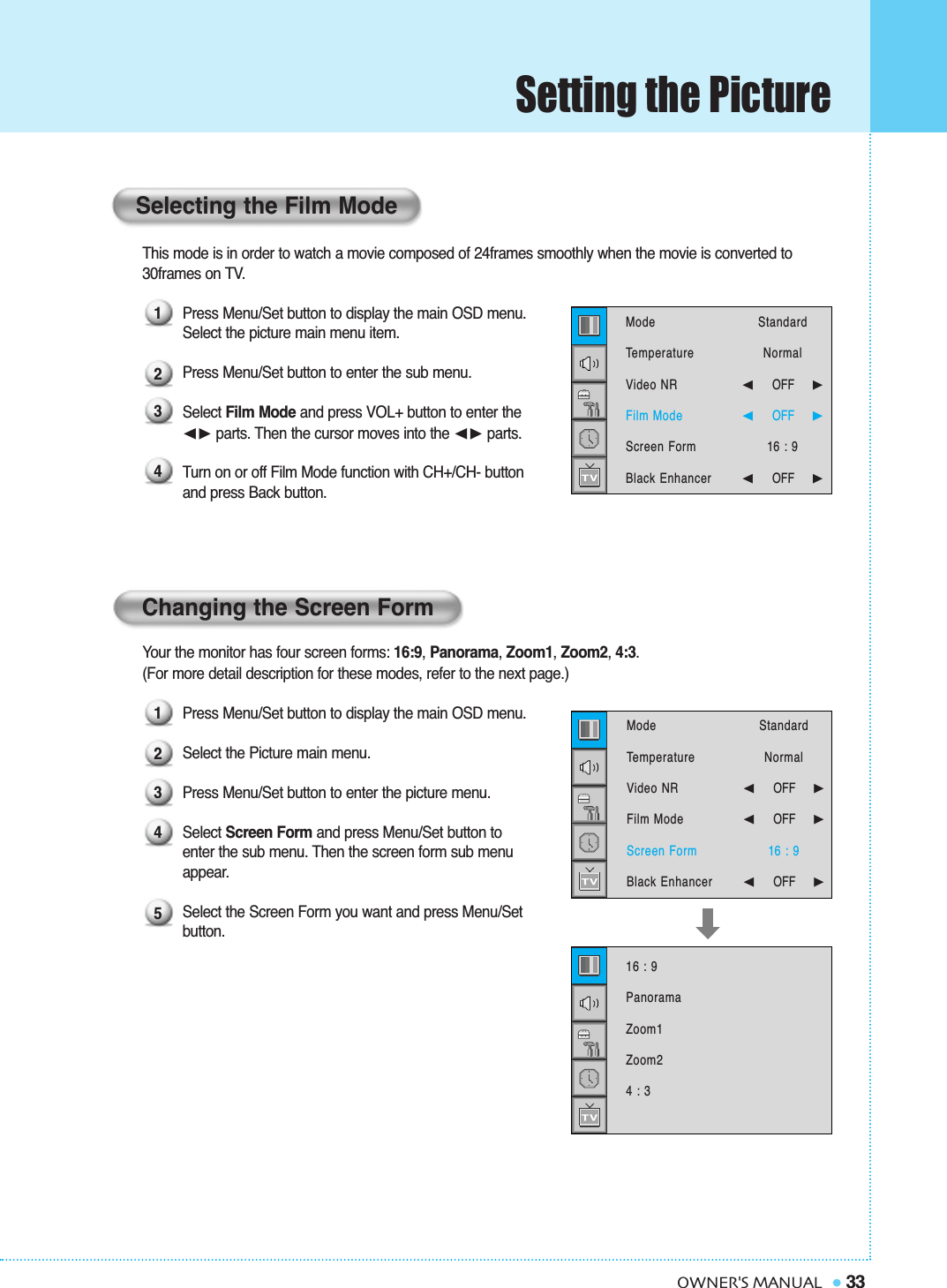

Setting the Picture33OWNER'S MANUALThis mode is in order to watch a movie composed of 24frames smoothly when the movie is converted to 30frames on TV.Press Menu/Set button to display the main OSD menu.Select the picture main menu item.Press Menu/Set button to enter the sub menu. Select Film Mode and press VOL+ button to enter the ➛❿☎parts. Then the cursor moves into the ➛❿☎parts. Turn on or off Film Mode function with CH+/CH- buttonand press Back button.Your the monitor has four screen forms: 16:9, Panorama, Zoom1, Zoom2, 4:3.(For more detail description for these modes, refer to the next page.)Press Menu/Set button to display the main OSD menu.Select the Picture main menu. Press Menu/Set button to enter the picture menu. Select Screen Form and press Menu/Set button to enter the sub menu. Then the screen form sub menu appear.Select the Screen Form you want and press Menu/Set button.Changing the Screen FormSelecting the Film Mode12341234516 : 9PanoramaZoom1Zoom24 : 3ModeTemperatureVideo NRFilm ModeScreen FormBlack Enhancer StandardNormal➛☎☎☎☎☎☎OFF ❿➛☎☎☎☎☎☎OFF ❿16 : 9➛☎☎☎☎☎☎OFF ❿ModeTemperatureVideo NRFilm ModeScreen FormBlack Enhancer StandardNormal➛☎☎☎☎☎☎OFF ❿➛☎☎☎☎☎☎OFF ❿16 : 9➛☎☎☎☎☎☎OFF ❿

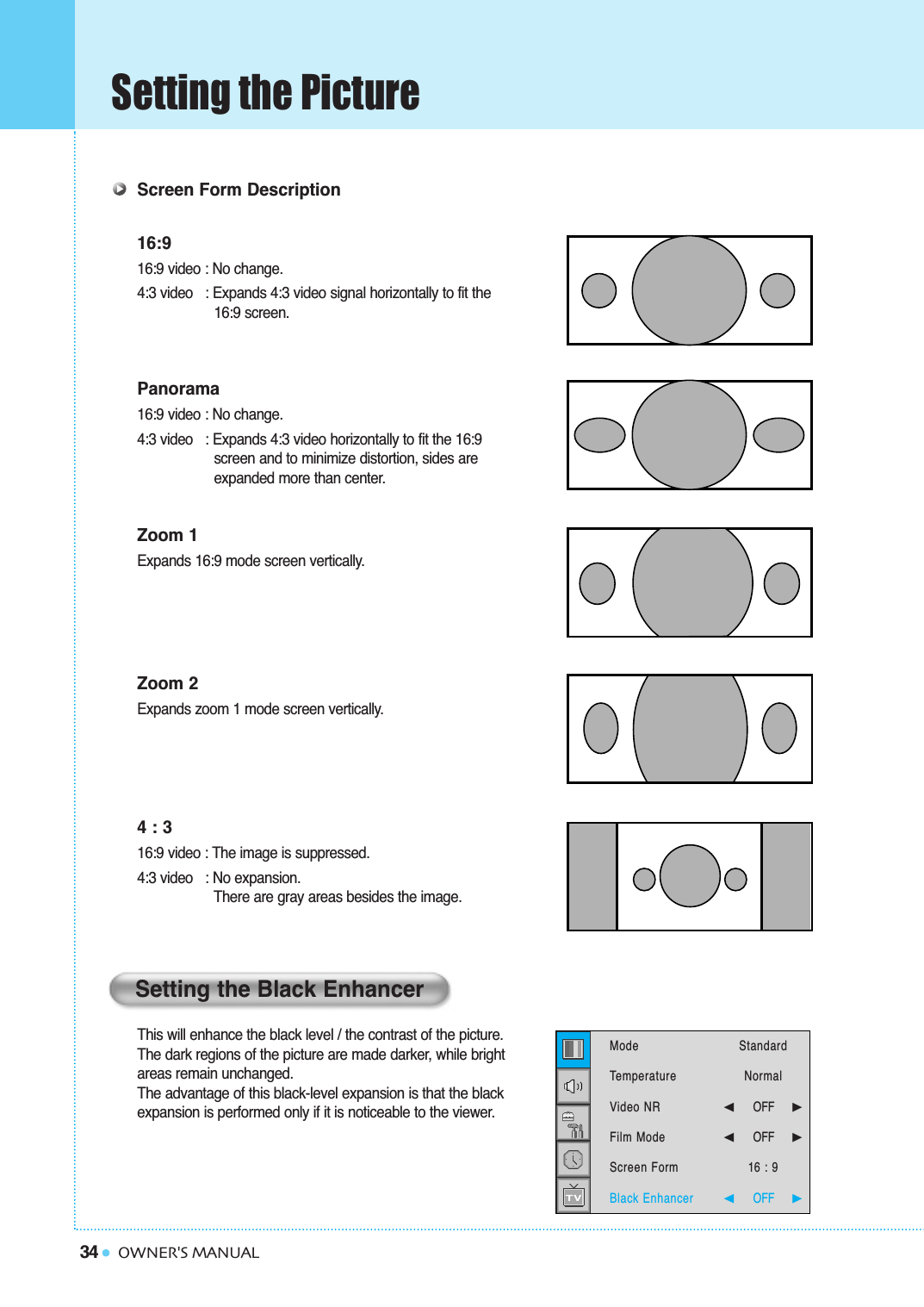

34Setting the PictureOWNER'S MANUALScreen Form Description16:916:9 video : No change.4:3 video : Expands 4:3 video signal horizontally to fit the16:9 screen.Panorama16:9 video : No change.4:3 video : Expands 4:3 video horizontally to fit the 16:9 screen and to minimize distortion, sides are expanded more than center.Zoom 1Expands 16:9 mode screen vertically.Zoom 2Expands zoom 1 mode screen vertically.4 : 316:9 video : The image is suppressed.4:3 video : No expansion. There are gray areas besides the image.This will enhance the black level / the contrast of the picture. The dark regions of the picture are made darker, while bright areas remain unchanged. The advantage of this black-level expansion is that the black expansion is performed only if it is noticeable to the viewer.Setting the Black EnhancerModeTemperatureVideo NRFilm ModeScreen FormBlack Enhancer StandardNormal➛☎☎☎☎☎☎OFF ❿➛☎☎☎☎☎☎OFF ❿16 : 9➛☎☎☎☎☎☎OFF ❿

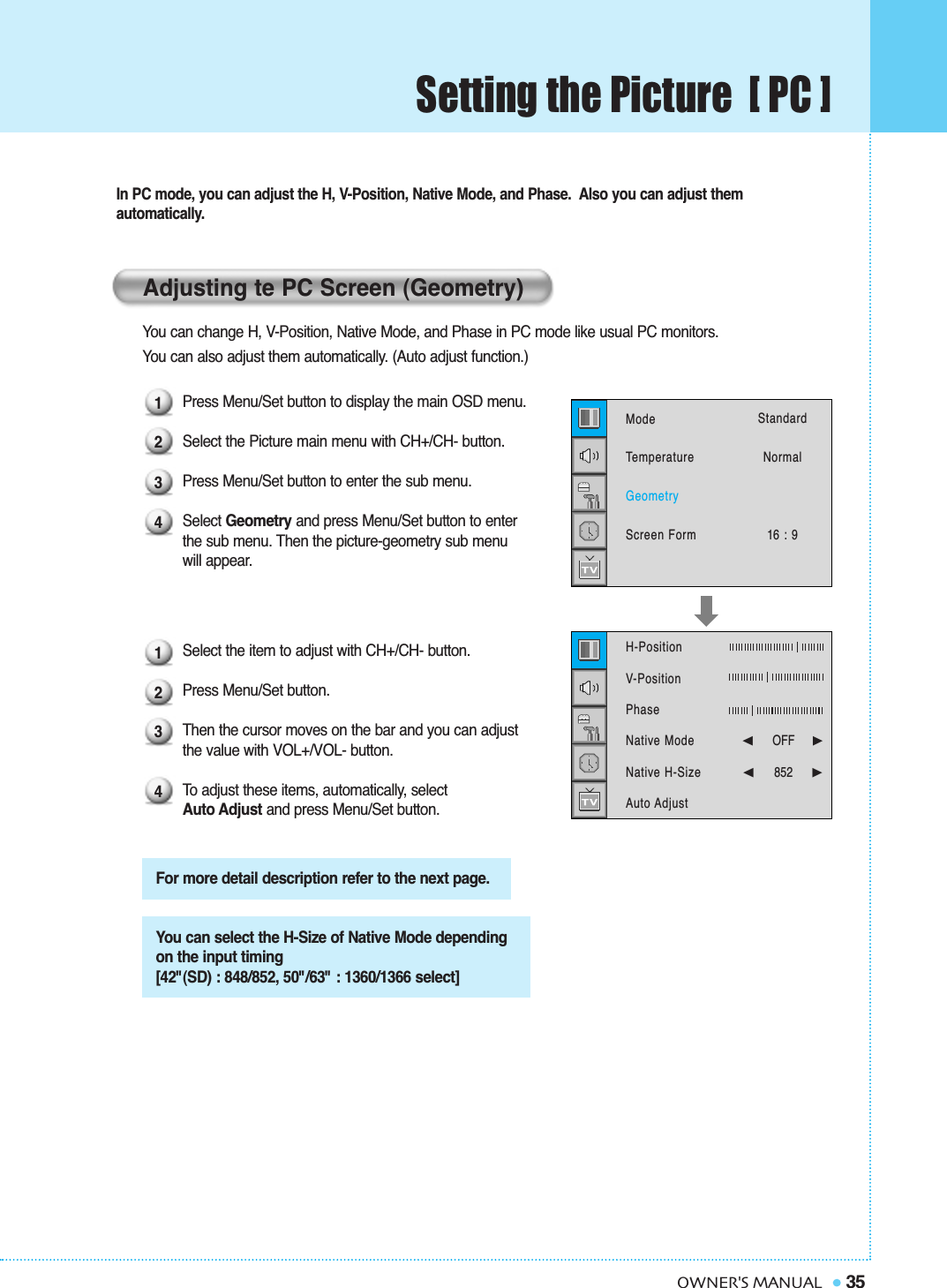

Setting the Picture [ PC ]35OWNER'S MANUALIn PC mode, you can adjust the H, V-Position, Native Mode, and Phase. Also you can adjust them automatically.You can change H, V-Position, Native Mode, and Phase in PC mode like usual PC monitors. You can also adjust them automatically. (Auto adjust function.)Press Menu/Set button to display the main OSD menu.Select the Picture main menu with CH+/CH- button.Press Menu/Set button to enter the sub menu.Select Geometry and press Menu/Set button to enter the sub menu. Then the picture-geometry sub menuwill appear.Select the item to adjust with CH+/CH- button.Press Menu/Set button. Then the cursor moves on the bar and you can adjust the value with VOL+/VOL- button. To adjust these items, automatically, select Auto Adjust and press Menu/Set button.Adjusting te PC Screen (Geometry)For more detail description refer to the next page.You can select the H-Size of Native Mode dependingon the input timing [42"(SD) : 848/852, 50"/63" : 1360/1366 select]12341234ModeTemperatureGeometryScreen FormStandardNormal16 : 9H-Position V-PositionPhaseNative ModeNative H-SizeAuto Adjust➛☎☎☎☎☎☎OFF ❿➛852 ❿

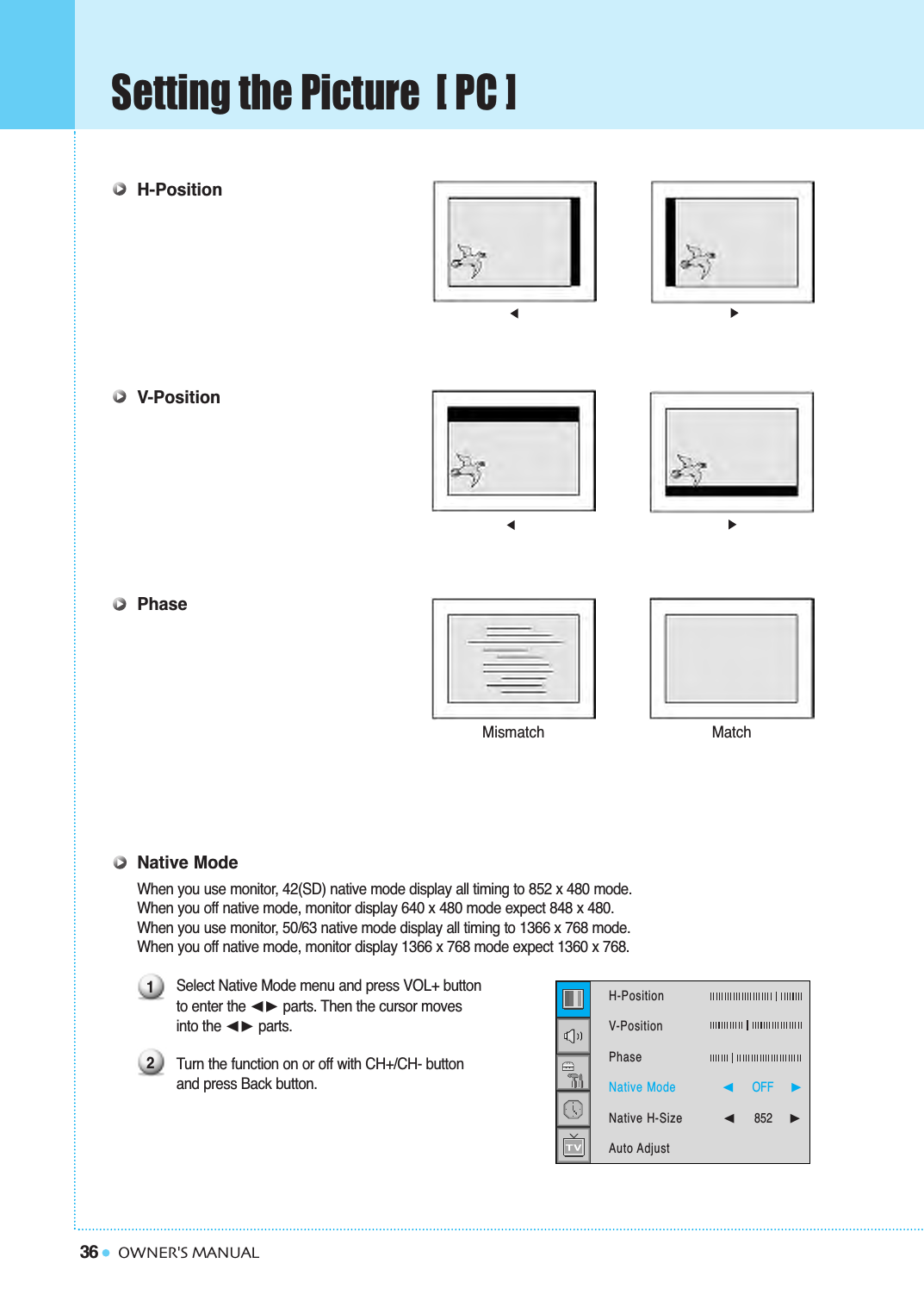

36Setting the Picture [ PC ]OWNER'S MANUALH-PositionV-PositionPhaseNative ModeWhen you use monitor, 42(SD) native mode display all timing to 852 x 480 mode.When you off native mode, monitor display 640 x 480 mode expect 848 x 480.When you use monitor, 50/63 native mode display all timing to 1366 x 768 mode.When you off native mode, monitor display 1366 x 768 mode expect 1360 x 768.Select Native Mode menu and press VOL+ button to enter the ➛❿ parts. Then the cursor moves into the ➛❿ parts.Turn the function on or off with CH+/CH- button and press Back button.Mismatch Match12H-Position V-PositionPhaseNative ModeNative H-SizeAuto Adjust➛☎☎☎☎☎☎OFF ❿➛852 ❿

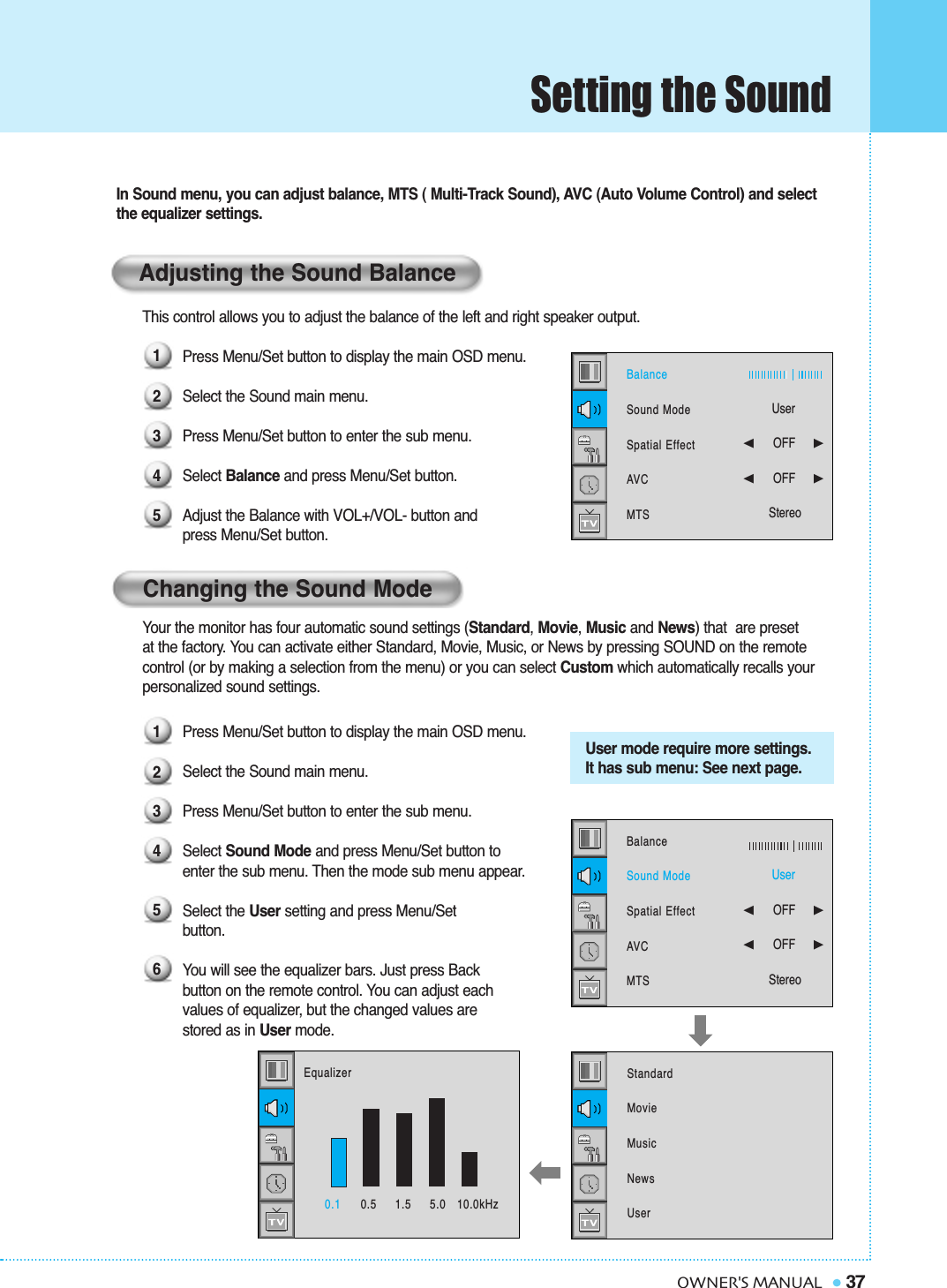

Setting the Sound37OWNER'S MANUALYour the monitor has four automatic sound settings (Standard, Movie, Music and News) that are preset at the factory. You can activate either Standard, Movie, Music, or News by pressing SOUND on the remote control (or by making a selection from the menu) or you can select Custom which automatically recalls your personalized sound settings.Press Menu/Set button to display the main OSD menu.Select the Sound main menu.Press Menu/Set button to enter the sub menu.Select Sound Mode and press Menu/Set button to enter the sub menu. Then the mode sub menu appear.Select the User setting and press Menu/Set button.You will see the equalizer bars. Just press Back button on the remote control. You can adjust each values of equalizer, but the changed values are stored as in User mode.User mode require more settings.It has sub menu: See next page.In Sound menu, you can adjust balance, MTS ( Multi-Track Sound), AVC (Auto Volume Control) and selectthe equalizer settings.This control allows you to adjust the balance of the left and right speaker output.Press Menu/Set button to display the main OSD menu.Select the Sound main menu.Press Menu/Set button to enter the sub menu. Select Balance and press Menu/Set button. Adjust the Balance with VOL+/VOL- button and press Menu/Set button.Adjusting the Sound BalanceChanging the Sound Mode12345123456BalanceSound ModeSpatial EffectAVCMTSUser➛☎☎☎☎☎☎OFF ❿➛☎☎☎☎☎☎OFF ❿StereoStandard MovieMusicNewsUserBalanceSound ModeSpatial EffectAVCMTSUser➛☎☎☎☎☎☎OFF ❿➛☎☎☎☎☎☎OFF ❿Stereo0.1 0.5 1.5 5.0 10.0kHzEqualizer

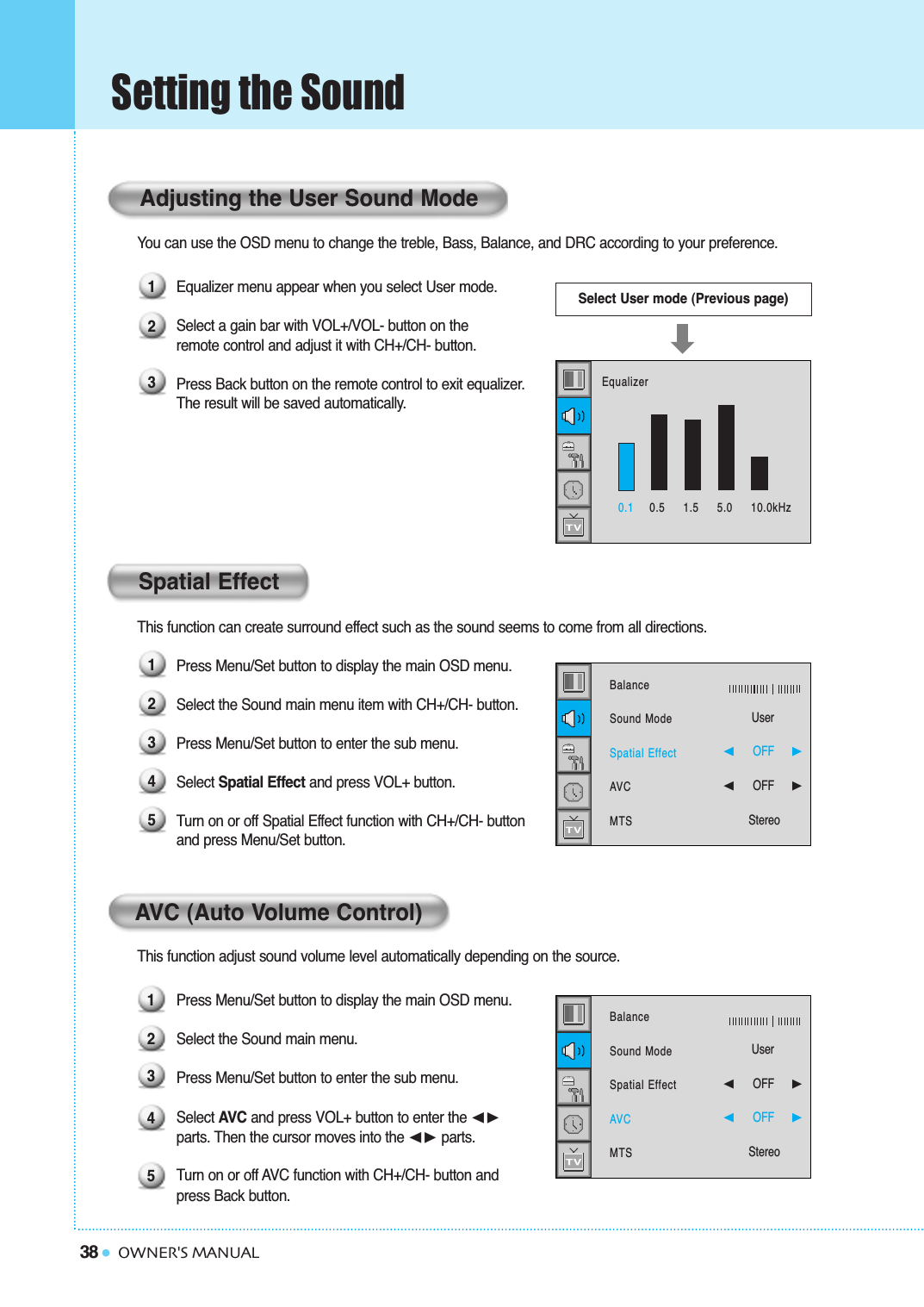

38Setting the SoundOWNER'S MANUALYou can use the OSD menu to change the treble, Bass, Balance, and DRC according to your preference.Equalizer menu appear when you select User mode.Select a gain bar with VOL+/VOL- button on the remote control and adjust it with CH+/CH- button.Press Back button on the remote control to exit equalizer. The result will be saved automatically.This function can create surround effect such as the sound seems to come from all directions.Press Menu/Set button to display the main OSD menu.Select the Sound main menu item with CH+/CH- button.Press Menu/Set button to enter the sub menu. Select Spatial Effect and press VOL+ button.Turn on or off Spatial Effect function with CH+/CH- buttonand press Menu/Set button.This function adjust sound volume level automatically depending on the source.Press Menu/Set button to display the main OSD menu.Select the Sound main menu. Press Menu/Set button to enter the sub menu.Select AVC and press VOL+ button to enter the ➛❿parts. Then the cursor moves into the ➛❿ parts.Turn on or off AVC function with CH+/CH- button and press Back button.Spatial EffectSelect User mode (Previous page)Adjusting the User Sound Mode12312345AVC (Auto Volume Control)123450.1 0.5 1.5 5.0 10.0kHzEqualizerBalanceSound ModeSpatial EffectAVCMTSUser➛☎☎☎☎☎☎OFF ❿➛☎☎☎☎☎☎OFF ❿StereoBalanceSound ModeSpatial EffectAVCMTSUser➛☎☎☎☎☎☎OFF ❿➛☎☎☎☎☎☎OFF ❿Stereo
Setting the Sound39OWNER'S MANUALSelect sound signal format from the input source. There are Mono, Stereo, SAP sound formats.Press Menu/Set button to display the main OSD menu.Select the Sound main menu with CH+/CH- button on the remote control.Press Menu/Set button to enter the sub menu. Select MTS and press Menu/Set button to enter thesub menu. Then the MTS sub menu appear.Select the MTS format with CH+/CH- and press Menu/Set button.The available sound forms are displayed.Usually, you can see Mono and Stereo.MTS (Multichannel Television Sound)12345Mono StereoSAPBalanceSound ModeSpatial EffectAVCMTSUser➛☎☎☎☎☎☎OFF ❿➛☎☎☎☎☎☎OFF ❿Stereo

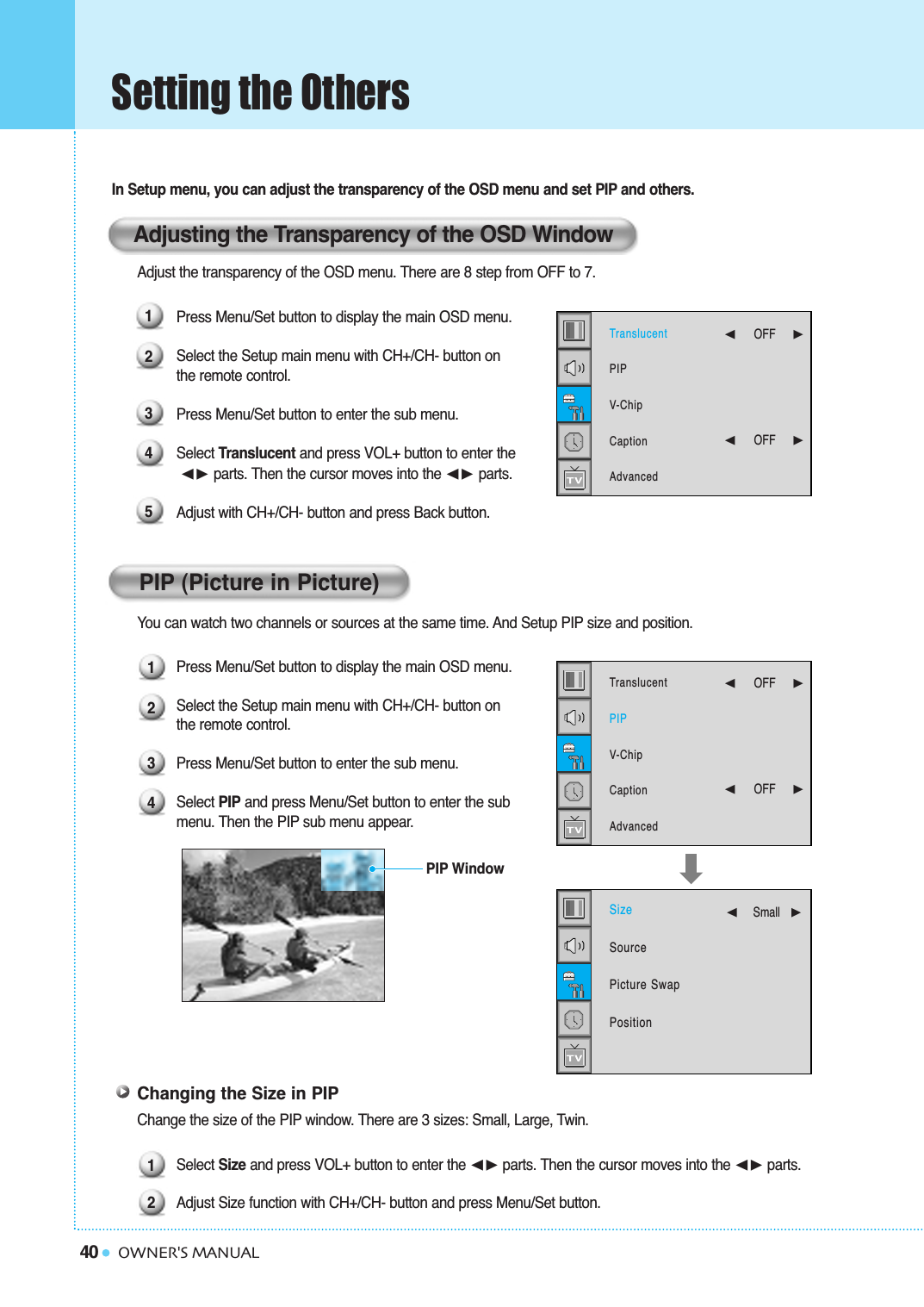

40Setting the OthersOWNER'S MANUALIn Setup menu, you can adjust the transparency of the OSD menu and set PIP and others.Adjust the transparency of the OSD menu. There are 8 step from OFF to 7.Press Menu/Set button to display the main OSD menu.Select the Setup main menu with CH+/CH- button on the remote control.Press Menu/Set button to enter the sub menu.Select Translucent and press VOL+ button to enter the➛❿ parts. Then the cursor moves into the ➛❿ parts. Adjust with CH+/CH- button and press Back button.You can watch two channels or sources at the same time. And Setup PIP size and position.Press Menu/Set button to display the main OSD menu.Select the Setup main menu with CH+/CH- button on the remote control.Press Menu/Set button to enter the sub menu. Select PIP and press Menu/Set button to enter the sub menu. Then the PIP sub menu appear.Changing the Size in PIPChange the size of the PIP window. There are 3 sizes: Small, Large, Twin.Select Size and press VOL+ button to enter the ➛❿☎parts. Then the cursor moves into the ➛❿☎parts.Adjust Size function with CH+/CH- button and press Menu/Set button. 121234PIP WindowAdjusting the Transparency of the OSD WindowPIP (Picture in Picture)12345TranslucentPIPV-ChipCaptionAdvanced➛☎☎☎☎☎☎OFF ❿➛☎☎☎☎☎☎OFF ❿TranslucentPIPV-ChipCaptionAdvanced➛☎☎☎☎☎☎OFF ❿➛☎☎☎☎☎☎OFF ❿SizeSourcePicture SwapPosition➛☎☎☎☎☎Small ❿

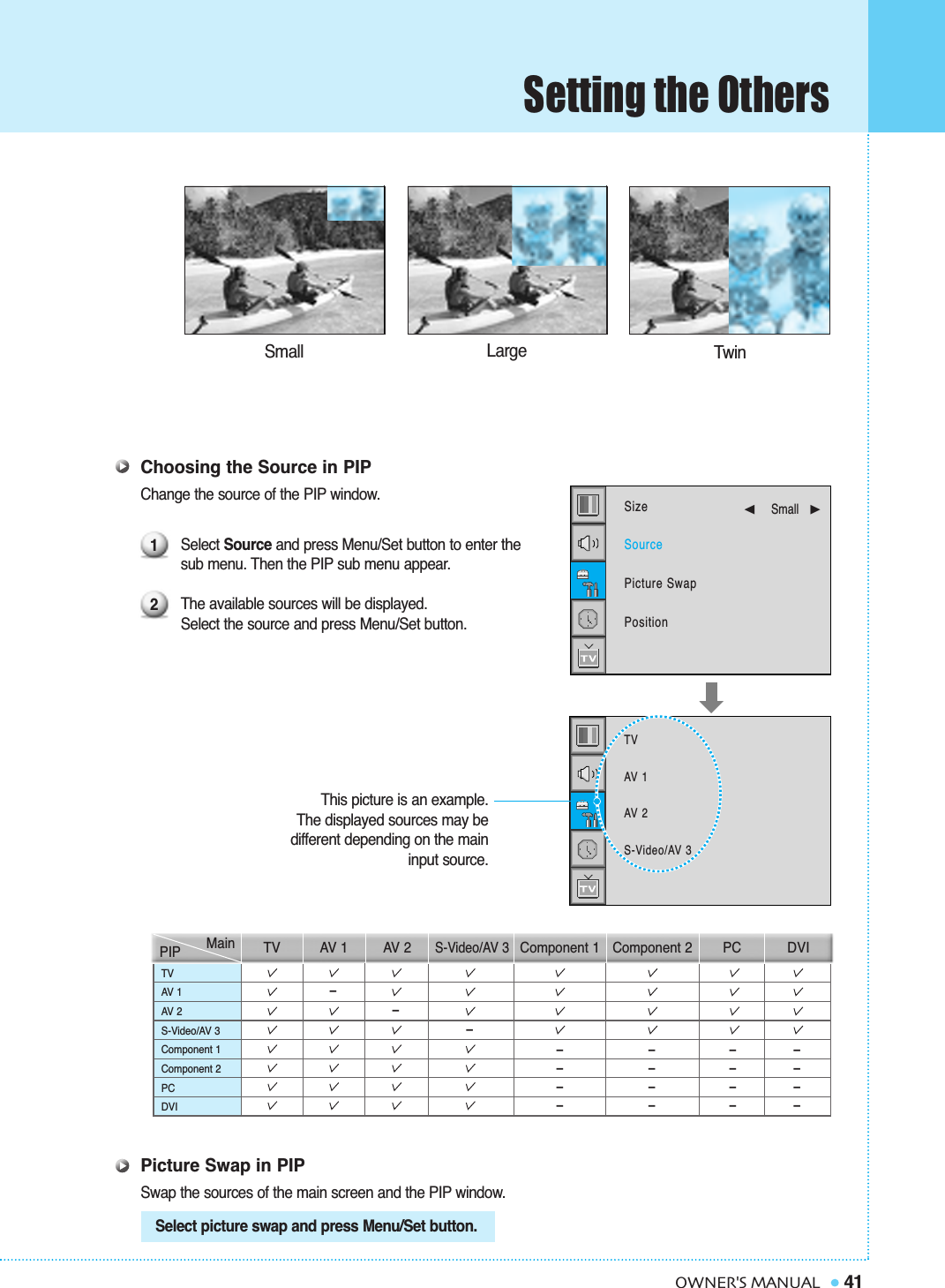

Choosing the Source in PIPChange the source of the PIP window.Select Source and press Menu/Set button to enter the sub menu. Then the PIP sub menu appear.The available sources will be displayed.Select the source and press Menu/Set button.Picture Swap in PIPSwap the sources of the main screen and the PIP window.Setting the Others41OWNER'S MANUALTVAV 1AV 2S-Video/AV 3Component 1Component 2PCDVIPIP Main TV AV 1 AV 2S-Video/AV 3Component 1 Component 2 PC DVI–––––––––––––––––––12Small Large TwinSelect picture swap and press Menu/Set button.TVAV 1AV 2S-Video/AV 3SizeSourcePicture SwapPosition➛☎☎☎☎☎Small ❿This picture is an example.The displayed sources may be different depending on the maininput source.

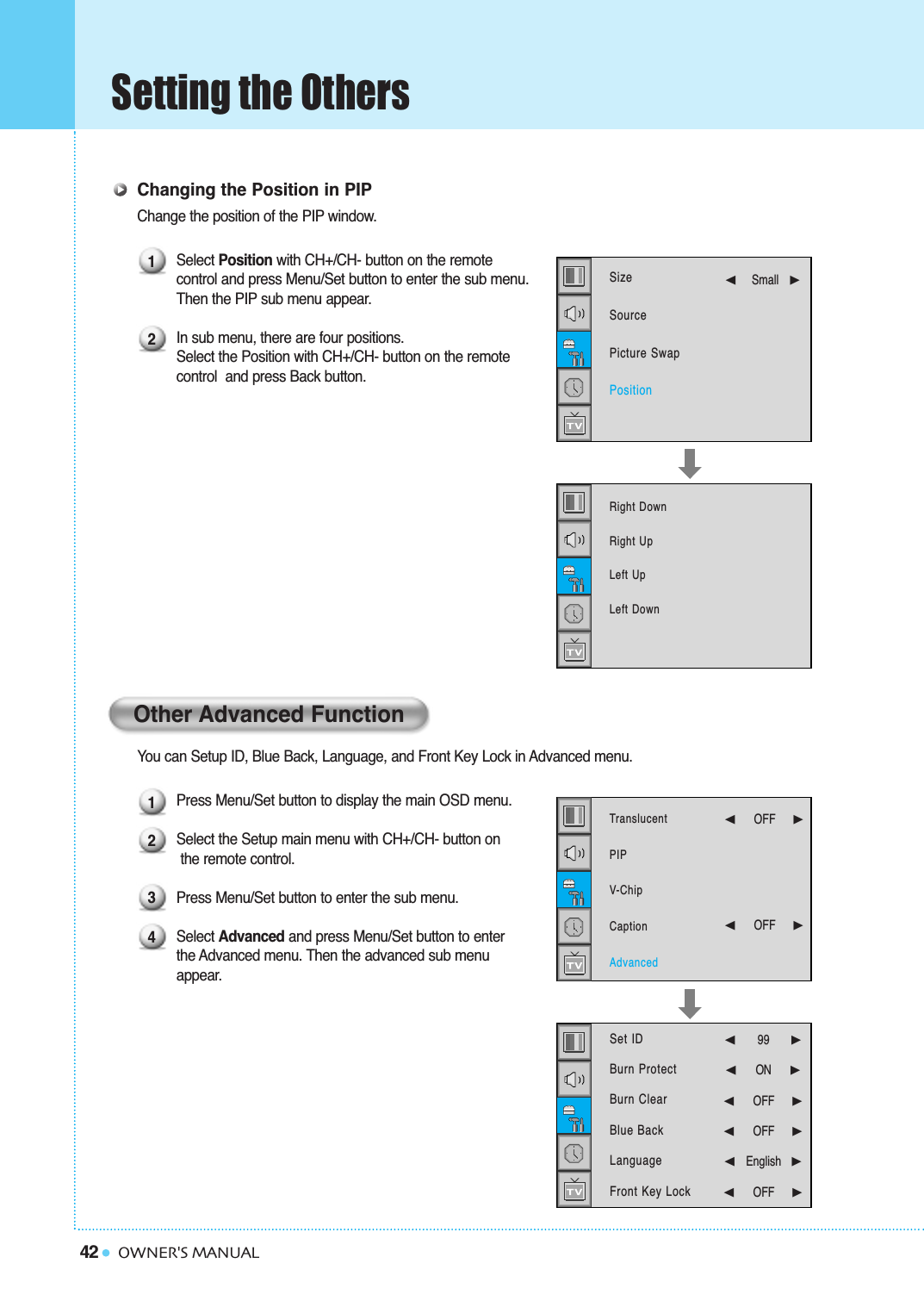

42Setting the OthersOWNER'S MANUALChanging the Position in PIPChange the position of the PIP window.Select Position with CH+/CH- button on the remotecontrol and press Menu/Set button to enter the sub menu.Then the PIP sub menu appear.In sub menu, there are four positions. Select the Position with CH+/CH- button on the remote control and press Back button.You can Setup ID, Blue Back, Language, and Front Key Lock in Advanced menu.Press Menu/Set button to display the main OSD menu.Select the Setup main menu with CH+/CH- button on the remote control. Press Menu/Set button to enter the sub menu. Select Advanced and press Menu/Set button to enter the Advanced menu. Then the advanced sub menu appear.Other Advanced Function121234Right DownRight UpLeft UpLeft DownSizeSourcePicture SwapPosition➛☎☎☎☎☎Small ❿TranslucentPIPV-ChipCaptionAdvanced➛☎☎☎☎☎☎OFF ❿➛☎☎☎☎☎☎OFF ❿Set IDBurn ProtectBurn ClearBlue BackLanguageFront Key Lock ➛99 ❿➛☎☎☎☎☎☎☎ON ❿➛☎☎☎☎☎☎OFF ❿➛☎☎☎☎☎☎OFF ❿➛English❿➛☎☎☎☎☎☎OFF ❿

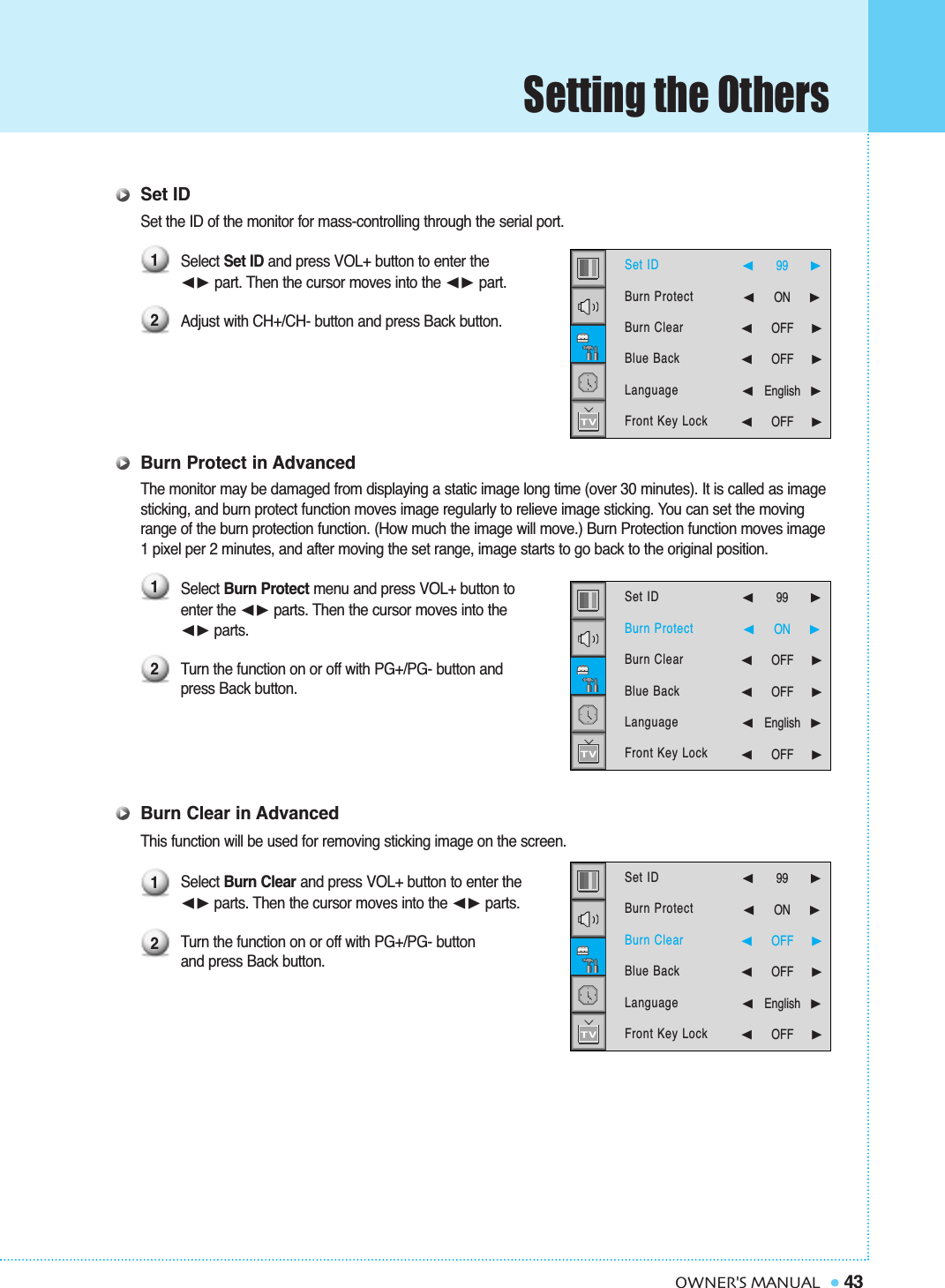

Setting the Others43OWNER'S MANUALSet IDSet the ID of the monitor for mass-controlling through the serial port.Select Set ID and press VOL+ button to enter the➛❿ part. Then the cursor moves into the ➛❿ part.Adjust with CH+/CH- button and press Back button.Burn Protect in AdvancedThe monitor may be damaged from displaying a static image long time (over 30 minutes). It is called as image sticking, and burn protect function moves image regularly to relieve image sticking. You can set the moving range of the burn protection function. (How much the image will move.) Burn Protection function moves image 1 pixel per 2 minutes, and after moving the set range, image starts to go back to the original position.Select Burn Protect menu and press VOL+ button to enter the ➛❿☎parts. Then the cursor moves into the➛❿☎parts.Turn the function on or off with PG+/PG- button and press Back button.Burn Clear in AdvancedThis function will be used for removing sticking image on the screen.Select Burn Clear and press VOL+ button to enter the ➛❿☎parts. Then the cursor moves into the ➛❿☎parts.Turn the function on or off with PG+/PG- button and press Back button.121212Set IDBurn ProtectBurn ClearBlue BackLanguageFront Key Lock ➛99 ❿➛☎☎☎☎☎☎☎ON ❿➛☎☎☎☎☎☎OFF ❿➛☎☎☎☎☎☎OFF ❿➛English❿➛☎☎☎☎☎☎OFF ❿Set IDBurn ProtectBurn ClearBlue BackLanguageFront Key Lock ➛99 ❿➛☎☎☎☎☎☎☎ON ❿➛☎☎☎☎☎☎OFF ❿➛☎☎☎☎☎☎OFF ❿➛English❿➛☎☎☎☎☎☎OFF ❿Set IDBurn ProtectBurn ClearBlue BackLanguageFront Key Lock ➛99 ❿➛☎☎☎☎☎☎☎ON ❿➛☎☎☎☎☎☎OFF ❿➛☎☎☎☎☎☎OFF ❿➛English❿➛☎☎☎☎☎☎OFF ❿

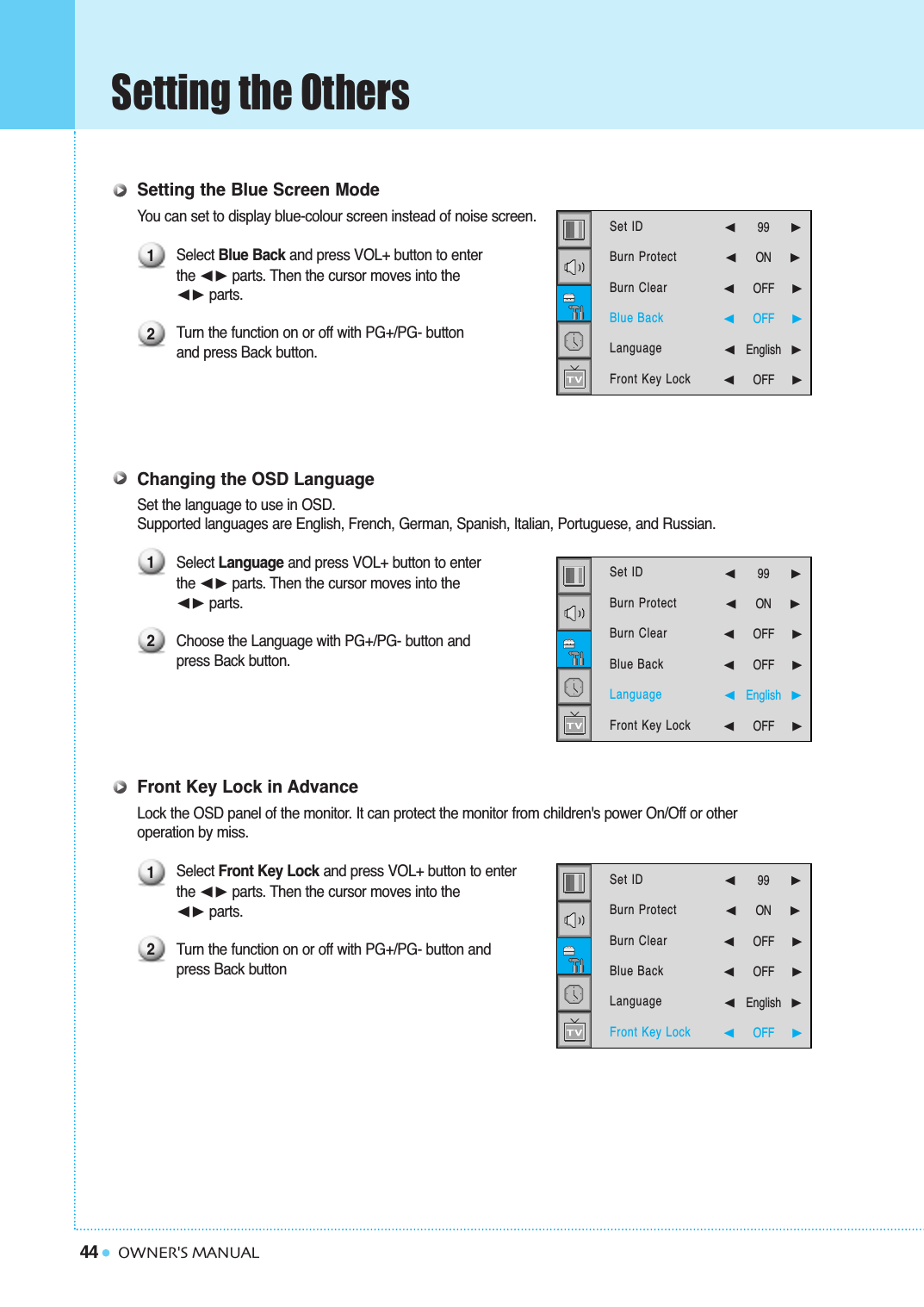

44Setting the OthersOWNER'S MANUALSetting the Blue Screen ModeYou can set to display blue-colour screen instead of noise screen.Select Blue Back and press VOL+ button to enter the ➛❿☎parts. Then the cursor moves into the ➛❿☎parts.Turn the function on or off with PG+/PG- button and press Back button.Changing the OSD LanguageSet the language to use in OSD.Supported languages are English, French, German, Spanish, Italian, Portuguese, and Russian.Select Language and press VOL+ button to enter the ➛❿☎parts. Then the cursor moves into the ➛❿☎parts.Choose the Language with PG+/PG- button and press Back button.Front Key Lock in AdvanceLock the OSD panel of the monitor. It can protect the monitor from children's power On/Off or other operation by miss.Select Front Key Lock and press VOL+ button to enterthe ➛❿☎parts. Then the cursor moves into the ➛❿☎parts.Turn the function on or off with PG+/PG- button and press Back button121212Set IDBurn ProtectBurn ClearBlue BackLanguageFront Key Lock ➛99 ❿➛☎☎☎☎☎☎☎ON ❿➛☎☎☎☎☎☎OFF ❿➛☎☎☎☎☎☎OFF ❿➛English❿➛☎☎☎☎☎☎OFF ❿Set IDBurn ProtectBurn ClearBlue BackLanguageFront Key Lock ➛99 ❿➛☎☎☎☎☎☎☎ON ❿➛☎☎☎☎☎☎OFF ❿➛☎☎☎☎☎☎OFF ❿➛English❿➛☎☎☎☎☎☎OFF ❿Set IDBurn ProtectBurn ClearBlue BackLanguageFront Key Lock ➛99 ❿➛☎☎☎☎☎☎☎ON ❿➛☎☎☎☎☎☎OFF ❿➛☎☎☎☎☎☎OFF ❿➛English❿➛☎☎☎☎☎☎OFF ❿

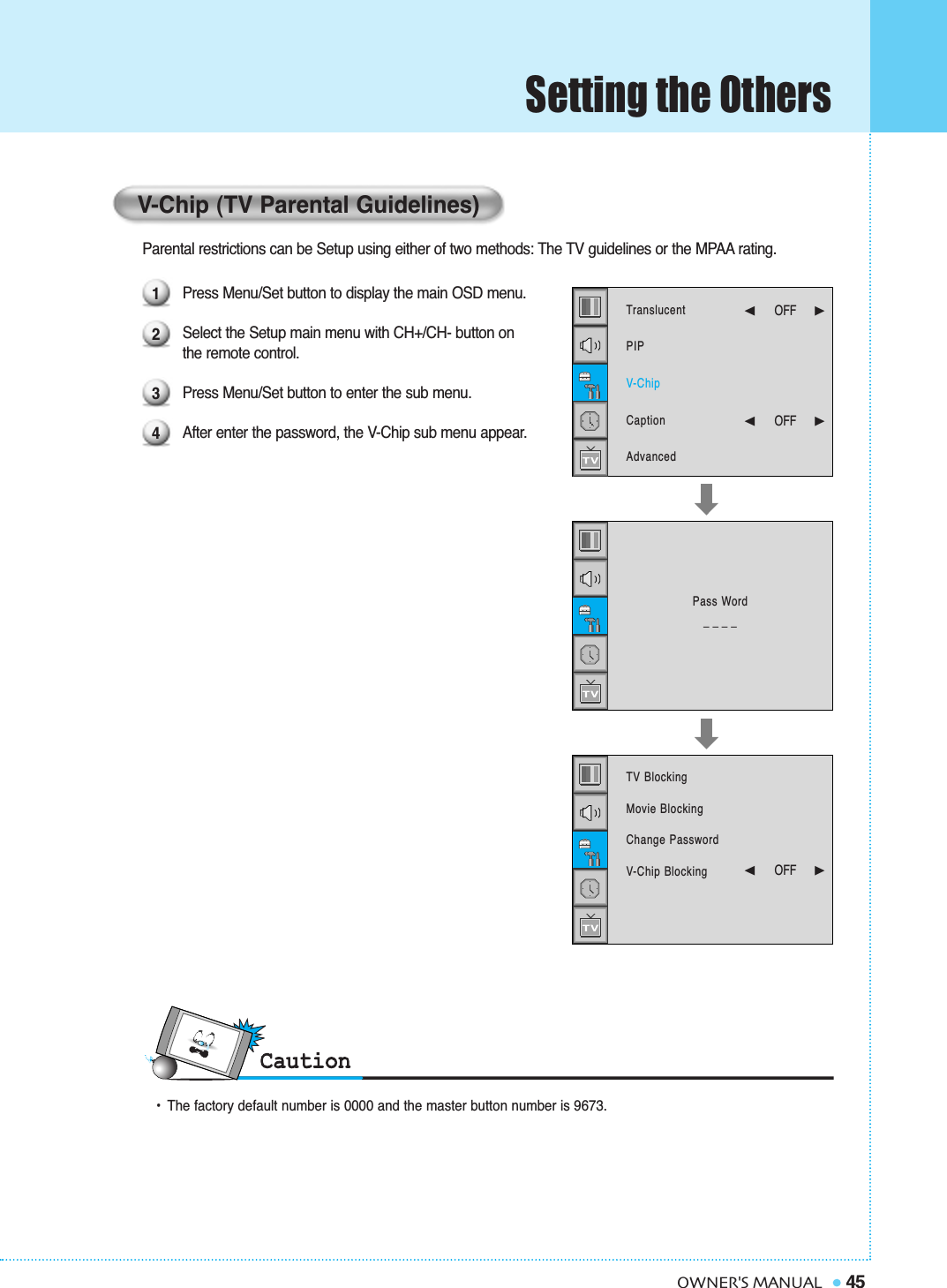

45OWNER'S MANUALSetting the OthersParental restrictions can be Setup using either of two methods: The TV guidelines or the MPAA rating.Press Menu/Set button to display the main OSD menu.Select the Setup main menu with CH+/CH- button on the remote control.Press Menu/Set button to enter the sub menu.After enter the password, the V-Chip sub menu appear.•The factory default number is 0000 and the master button number is 9673.V-Chip (TV Parental Guidelines)1234TranslucentPIPV-ChipCaptionAdvanced➛☎☎☎☎☎☎OFF ❿➛☎☎☎☎☎☎OFF ❿Pass Word____TV BlockingMovie BlockingChange PasswordV-Chip Blocking➛☎☎☎☎☎☎OFF ❿
46 OWNER'S MANUALTV Blocking in V-ChipYou can Setup restrictions using the "TV Parental Guidelines" of FCC.Select TV Blocking with CH+/CH- button on the remote control and press Menu/Set button to enter the sub menu. Then the TV Blocking sub menu appear.You can independently lock the TV ratings. The locked TV (FCC) ratings are indicated by the symbol .Press CH+/CH-/VOL+/VOL- buttons and the Menu/Set button to activate the appropriate restrictions for TV (FCC) rating system.Note: These categories consist of two separate groups: TV-Y and TV-Y7 (young children through age 7),and TV-G through TV-MA (everybody else).The restrictions for these two groups work independently: If a household includes very young children as well as young adults, the TV guidelines must be Setup separately for each age group.Movie Blocking in V-ChipThe Movie Blocking uses the motion picture association of america (MPAA) system, and its main application is for movies. When the rating controls is on, the TV will automatically block any programs that are coded with objectionable ratings (either MPAA or TV-Ratings).Select Movie Blocking with CH+/CH- button on the remote control and press Menu/Set button to enter the sub menu. Then the Movie Blocking sub menu appear.You can independently lock the TV ratings. The locked movie (FCC) ratings are indicated by the symbol .Press CH+/CH- buttons and the Menu/Set button to activate the appropriate restrictions for MPAA rating system. Setting the OthersTV-YTV-Y7TV-GTV-PGTV-14TV-MABlock FV D L SMPAA-GMPAA-PGMPAA-PG-BMPAA-RMPAA-RMPAA-NCMPAA-XMOZZ-NRBlock123123TV BlockingMovie BlockingChange PasswordV-Chip Blocking➛☎☎☎☎☎☎OFF ❿TV BlockingMovie BlockingChange PasswordV-Chip Blocking➛☎☎☎☎☎☎OFF ❿

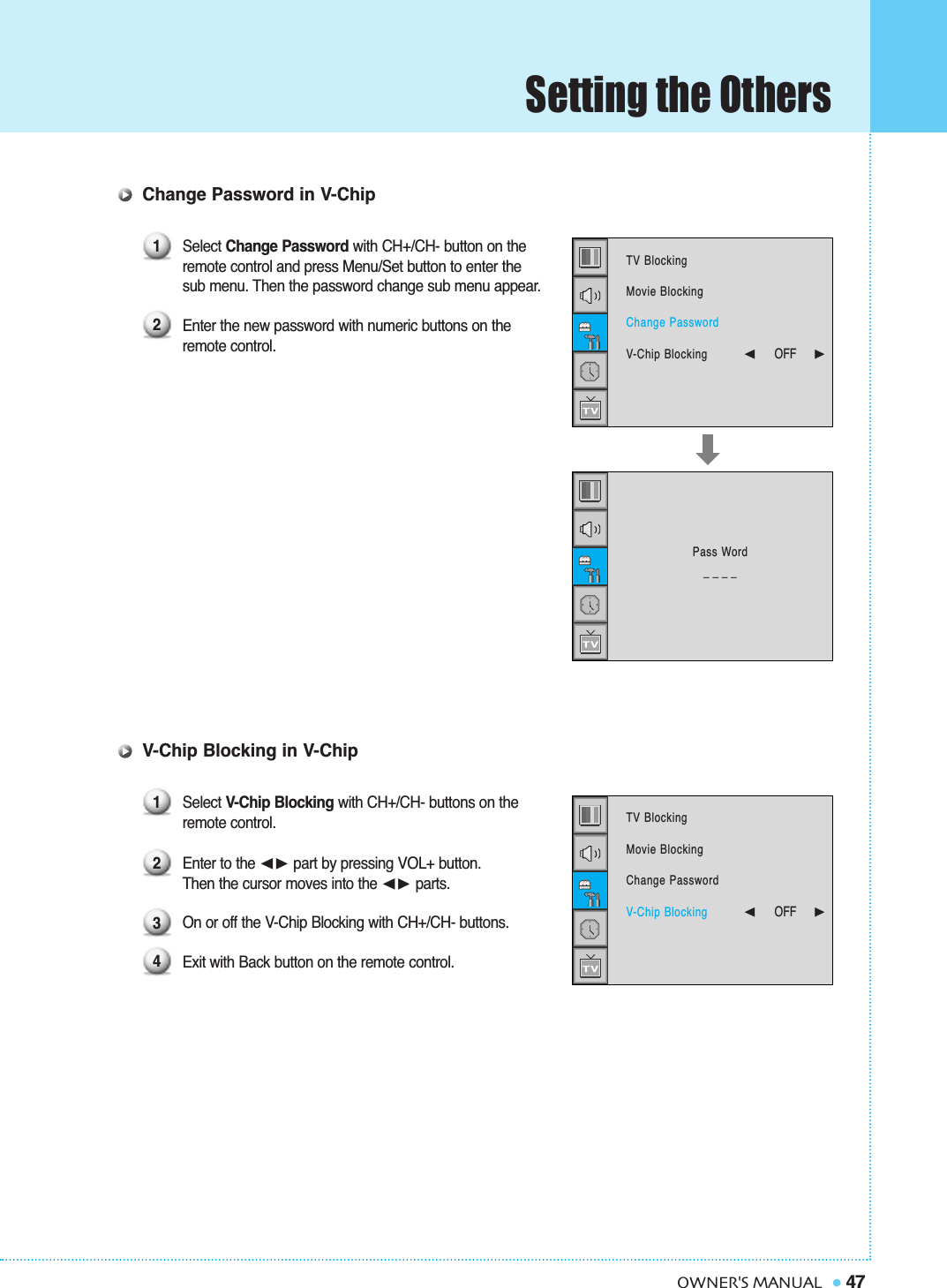

47OWNER'S MANUALSetting the OthersChange Password in V-ChipSelect Change Password with CH+/CH- button on the remote control and press Menu/Set button to enter thesub menu. Then the password change sub menu appear.Enter the new password with numeric buttons on the remote control.V-Chip Blocking in V-ChipSelect V-Chip Blocking with CH+/CH- buttons on the remote control.Enter to the ➛❿ part by pressing VOL+ button. Then the cursor moves into the ➛❿ parts.On or off the V-Chip Blocking with CH+/CH- buttons. Exit with Back button on the remote control. 121234TV BlockingMovie BlockingChange PasswordV-Chip Blocking➛☎☎☎☎☎☎OFF ❿TV BlockingMovie BlockingChange PasswordV-Chip Blocking➛☎☎☎☎☎☎OFF ❿Pass Word____

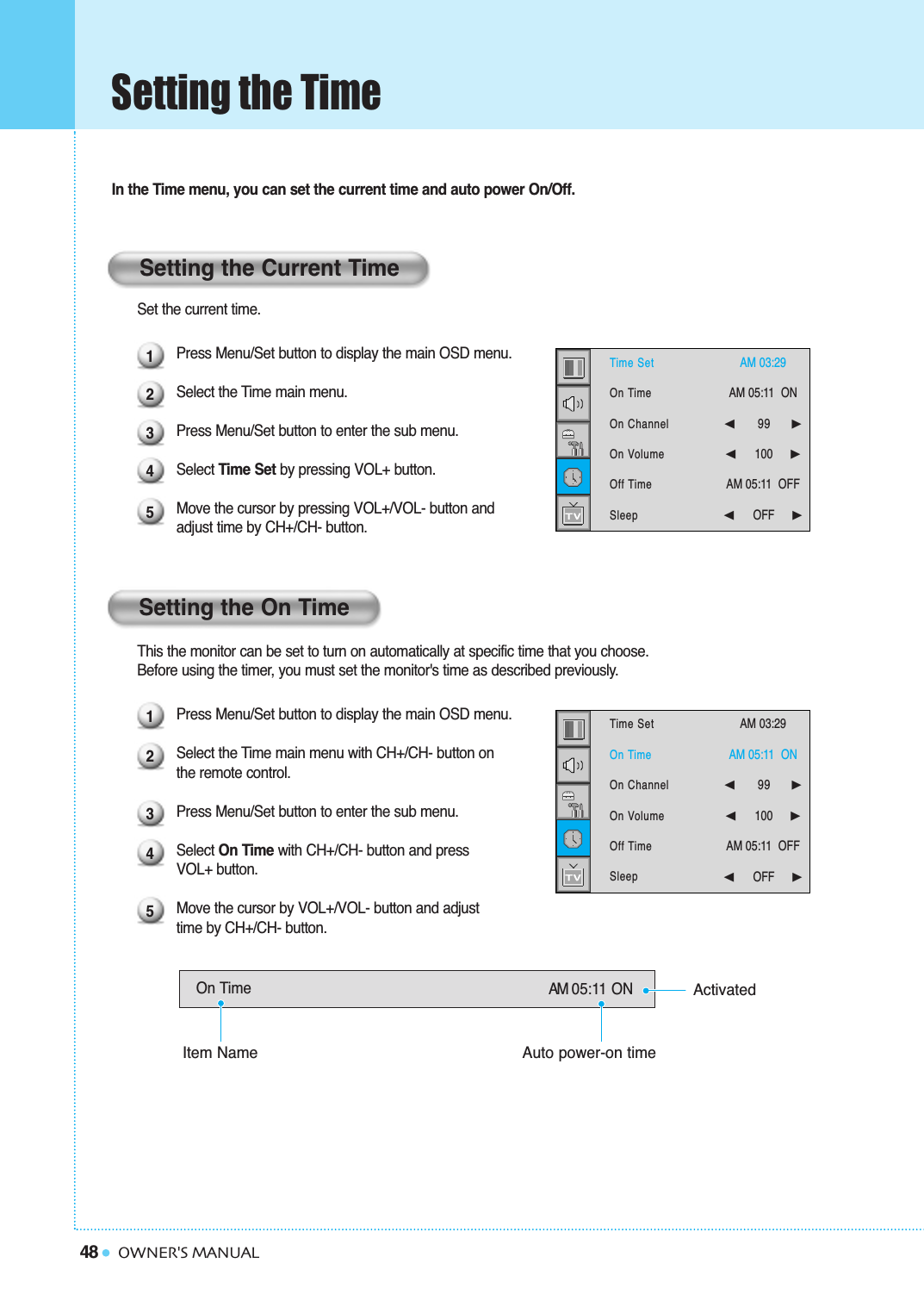

48 OWNER'S MANUALSetting the TimeIn the Time menu, you can set the current time and auto power On/Off. Set the current time.Press Menu/Set button to display the main OSD menu.Select the Time main menu.Press Menu/Set button to enter the sub menu.Select Time Set by pressing VOL+ button. Move the cursor by pressing VOL+/VOL- button and adjust time by CH+/CH- button.This the monitor can be set to turn on automatically at specific time that you choose. Before using the timer, you must set the monitor's time as described previously.Press Menu/Set button to display the main OSD menu.Select the Time main menu with CH+/CH- button on the remote control.Press Menu/Set button to enter the sub menu.Select On Time with CH+/CH- button and press VOL+ button. Move the cursor by VOL+/VOL- button and adjust time by CH+/CH- button.On Time AM 05:11 ONSetting the Current TimeSetting the On Time1234512345Time SetOn TimeOn ChannelOn VolumeOff TimeSleepAM 03:29 AM 05:11 ON ➛☎☎☎☎☎☎99 ❿➛☎☎☎☎☎☎100 ❿AM 05:11 OFF➛☎☎☎☎☎☎OFF ❿Time SetOn TimeOn ChannelOn VolumeOff TimeSleepAM 03:29 AM 05:11 ON ➛☎☎☎☎☎☎99 ❿➛☎☎☎☎☎☎100 ❿AM 05:11 OFF➛☎☎☎☎☎☎OFF ❿Item NameActivatedAuto power-on time

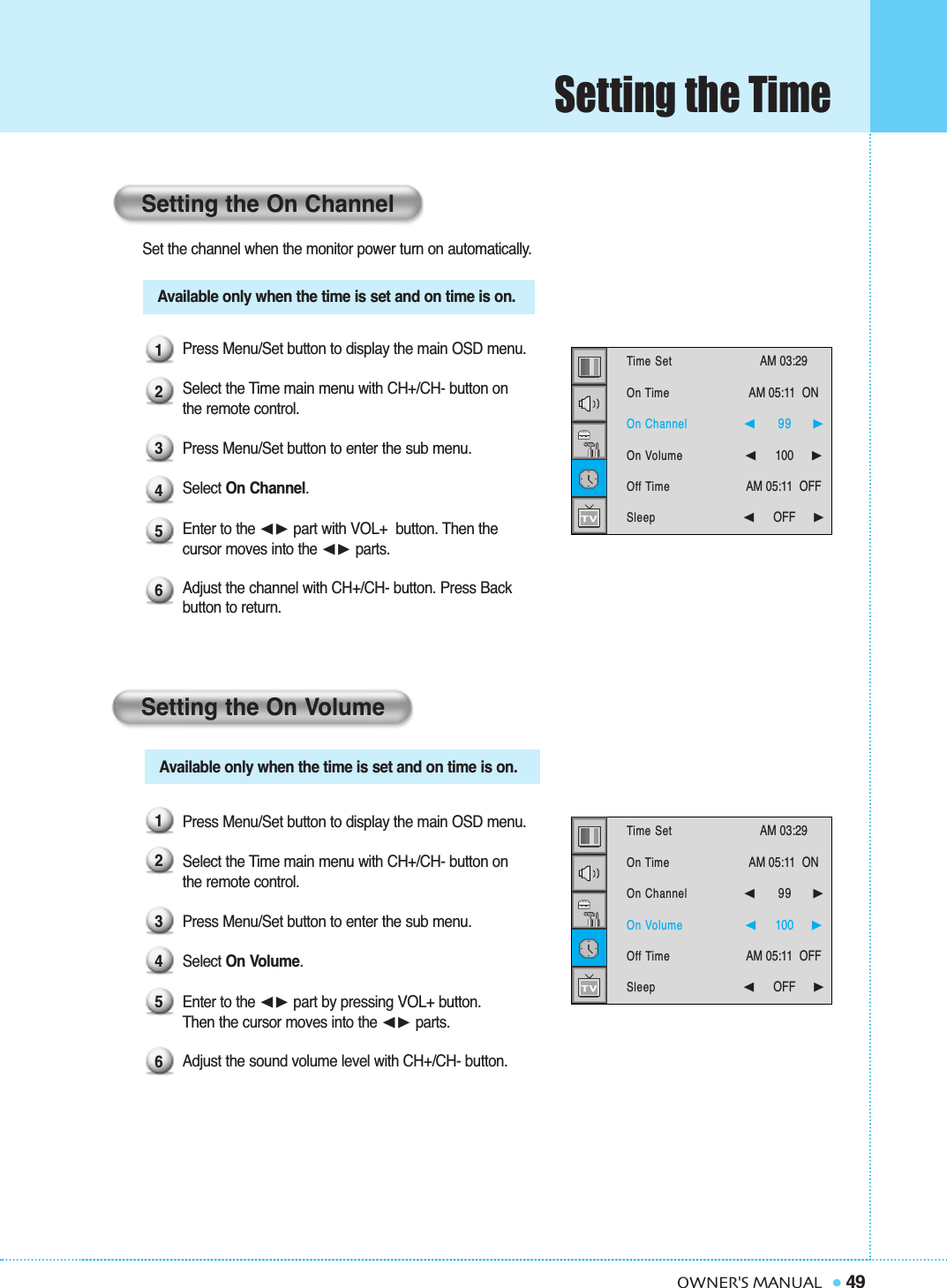

49OWNER'S MANUALSetting the TimeSet the channel when the monitor power turn on automatically.Press Menu/Set button to display the main OSD menu.Select the Time main menu with CH+/CH- button on the remote control.Press Menu/Set button to enter the sub menu.Select On Channel. Enter to the ➛❿ part with VOL+ button. Then the cursor moves into the ➛❿ parts.Adjust the channel with CH+/CH- button. Press Back button to return.Press Menu/Set button to display the main OSD menu.Select the Time main menu with CH+/CH- button on the remote control.Press Menu/Set button to enter the sub menu. Select On Volume. Enter to the ➛❿ part by pressing VOL+ button. Then the cursor moves into the ➛❿ parts.Adjust the sound volume level with CH+/CH- button. Setting the On ChannelSetting the On Volume123456123456Available only when the time is set and on time is on.Available only when the time is set and on time is on.Time SetOn TimeOn ChannelOn VolumeOff TimeSleepAM 03:29 AM 05:11 ON ➛☎☎☎☎☎☎99 ❿➛☎☎☎☎☎☎100 ❿AM 05:11 OFF➛☎☎☎☎☎☎OFF ❿Time SetOn TimeOn ChannelOn VolumeOff TimeSleepAM 03:29 AM 05:11 ON ➛☎☎☎☎☎☎99 ❿➛☎☎☎☎☎☎100 ❿AM 05:11 OFF➛☎☎☎☎☎☎OFF ❿

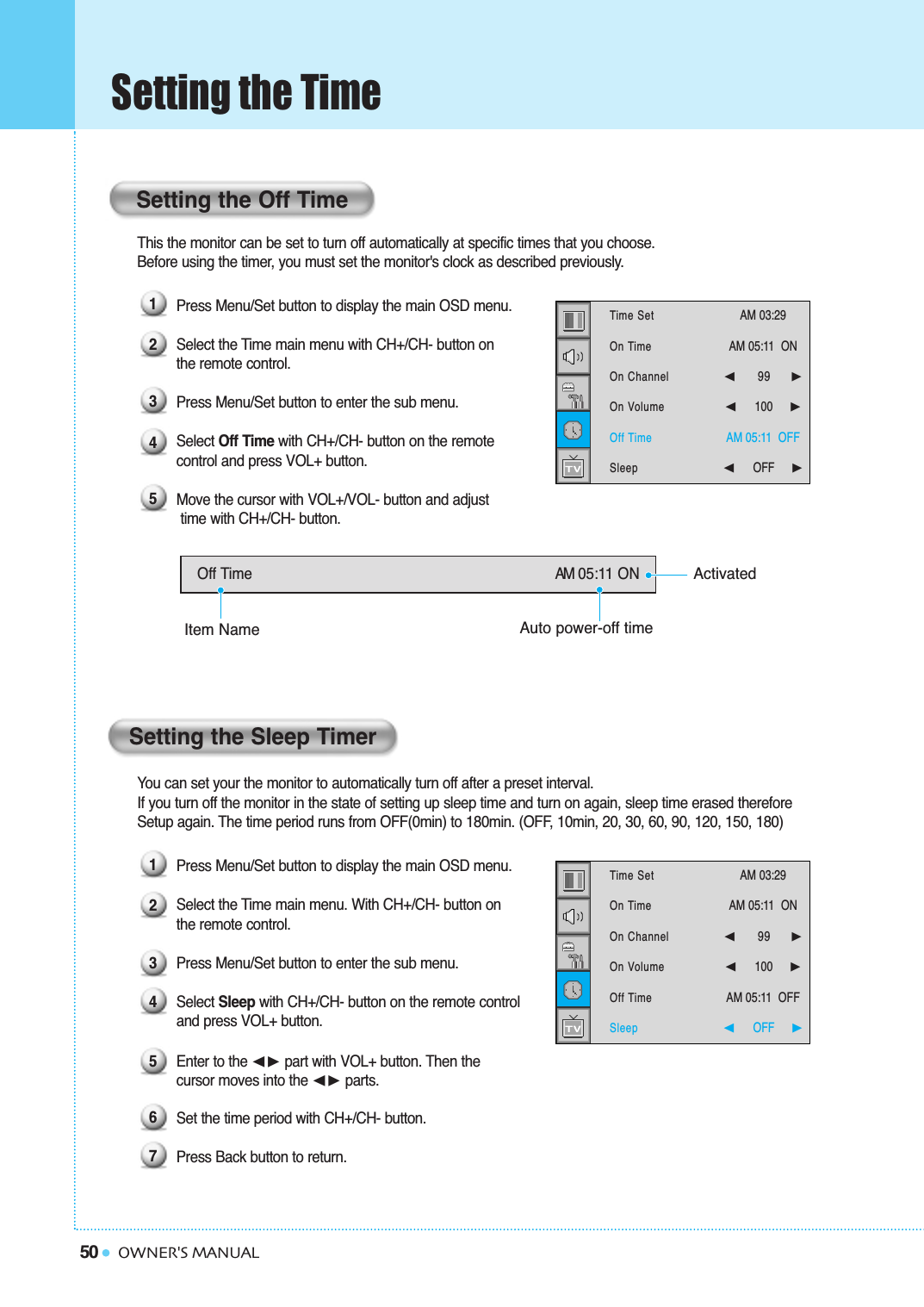

50 OWNER'S MANUALSetting the TimeThis the monitor can be set to turn off automatically at specific times that you choose. Before using the timer, you must set the monitor's clock as described previously.Press Menu/Set button to display the main OSD menu.Select the Time main menu with CH+/CH- button on the remote control.Press Menu/Set button to enter the sub menu.Select Off Time with CH+/CH- button on the remote control and press VOL+ button. Move the cursor with VOL+/VOL- button and adjusttime with CH+/CH- button.You can set your the monitor to automatically turn off after a preset interval.If you turn off the monitor in the state of setting up sleep time and turn on again, sleep time erased therefore Setup again. The time period runs from OFF(0min) to 180min. (OFF, 10min, 20, 30, 60, 90, 120, 150, 180)Press Menu/Set button to display the main OSD menu.Select the Time main menu. With CH+/CH- button on the remote control.Press Menu/Set button to enter the sub menu.Select Sleep with CH+/CH- button on the remote control and press VOL+ button. Enter to the ➛❿ part with VOL+ button. Then the cursor moves into the ➛❿ parts.Set the time period with CH+/CH- button.Press Back button to return.Setting the Off TimeSetting the Sleep TimerOff Time AM 05:11 ON123451234567Time SetOn TimeOn ChannelOn VolumeOff TimeSleepAM 03:29 AM 05:11 ON ➛☎☎☎☎☎☎99 ❿➛☎☎☎☎☎☎100 ❿AM 05:11 OFF➛☎☎☎☎☎☎OFF ❿Time SetOn TimeOn ChannelOn VolumeOff TimeSleepAM 03:29 AM 05:11 ON ➛☎☎☎☎☎☎99 ❿➛☎☎☎☎☎☎100 ❿AM 05:11 OFF➛☎☎☎☎☎☎OFF ❿ActivatedAuto power-off timeItem Name
51OWNER'S MANUALIf your monitor is not working properly, please scan this list of problems and possible solutions. It may save you time and money.TroubleshootingQuick Action for Possible SolutionProblemNo picture & no soundPicture ok & no soundThe remote control doesn't work Digital broadcasting screen problemNo or poor color or poor pictureThe image is too light or too darkThe image is too large or too smallNo output from one of the speakers•Check whether the monitor is turned on.•Power cord inserted into wall outlet?•Plug another product's power cord into the wall outlet where the monitor's power cord was plugged in.•Press the VOLUME(❿) button.•Check the audio input signal.•Check to see if there is any object between the monitor and the remote control causing obstruction.•Check to see if the batteries are installed with the correct polarities.•Check the digital signal strength and input antenna.•Select color in the picture and press VOLUME (❿) button.•Keep a certain distance between the monitor and the input source.•Activate any function to restore the brightness of the picture.•Check to see that both the monitor and the source are plugged in and turned on.•Adjust the brightness or contrast settings.•Adjust the size settings.•Adjust Balance in the sound menu.
52 OWNER'S MANUALSpecificationNotice : *Model : HP-4200B / **Model : HP-4250BDisplay SizeDisplay ModePixel FormatContrast RatioBrightnessResolution (RGB)PIPInput CompatibleVideoTuner ModuleProgrammingHDTV InputColor TemperatureDimension/WeightMain OnlyWith StandWith Stand and SpeakerMiscellaneousAudioExternal ControlPower ConsumptionInput PowerPower ConsumptionConnectivityTV InputComposite Input/OutputComponent 1, 2 InputS-Video InputPC InputDVI InputAudio In/OutputSpeaker OutputExternal Control Port42-Inch 16 : 9 Diagonal ScreenVariable 4 Modes (4:3 Mode / 16:9 X 3 Modes)852 X 480 Physical Pixel * (SD) 1024 X 768 Physical Pixel ** (HD) 3000 : 11000 cd/m1280 X 1024 / 60HzAdvanced multi-windows viewing PIP(picture in picture) with four selectable windowpositions on Video modeMultiple input compatible3D Comb filter, Advanced motion digital / Motion-Adaptive De-interlace process,Digital progressive line scaling.TV/CATV (NTSC)Favorite channel programming, Time Set, Set the Sleep timer480i/p(60Hz), 576i/p(50Hz), 720P(50/60Hz),1080i(50/60Hz)Selectable 5 Mode (Cool 1, 2 / Normal / Warm 1, 2)1046(W) X 635(H) X 87.3(D) / 38kg1046(W) X 702(H) X 299(D) / 38.9kg1246(W) X 702(H) X 299(D) / 41.5kgBuilt-in amplifier and two speaker(7Watt/Typ.) systems (optional), Selectablefixed/variable audio output(optional)Front OSD Key Control, Remote Control, RS232C ControlAC 110 ~ 240V 50/60Hz350 Watt * 400 Watt **RF / CATV (NTSC)RCA X 4Port (AV Input 1/2/3, AV Output)RCA X 2Port (Y, Pb/Cb, Pr/Cr : 480i/p(60Hz) / 576i/p(50Hz) / 720p(50/60Hz) / 1080i(50/60Hz))Mini Din 4Pin X 1PortMini D-Sub 15Pin X 1Port / HDTV Input 480p, 576p, 720P(50/60Hz),1080i(50/60Hz)Mini D-Sub 29Pin X 1Port / HDTV Input 480p, 576p, 720P(50/60Hz),1080i(50/60Hz)HDCP(Factory option)RCA X 5PortCinch Type X 4Port(Stereo L/R), Head Phone Jack X 1Port(Optional)Mini D-Sub 9Pin X 1PortFunction and Specification242" Plasma TV (1)

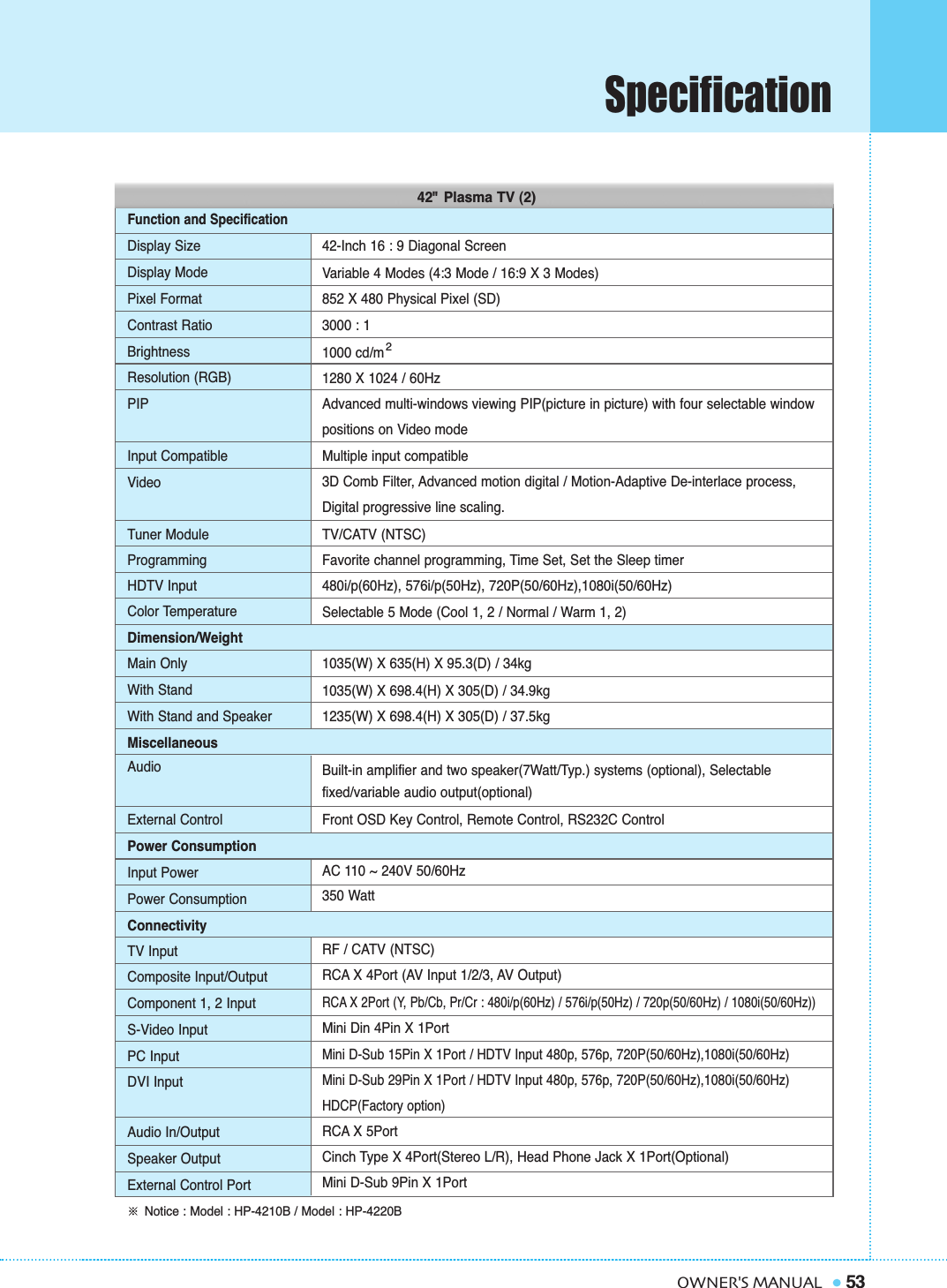

53OWNER'S MANUALSpecificationNotice : Model : HP-4210B / Model : HP-4220BDisplay SizeDisplay ModePixel FormatContrast RatioBrightnessResolution (RGB)PIPInput CompatibleVideoTuner ModuleProgrammingHDTV InputColor TemperatureDimension/WeightMain OnlyWith StandWith Stand and SpeakerMiscellaneousAudioExternal ControlPower ConsumptionInput PowerPower ConsumptionConnectivityTV InputComposite Input/OutputComponent 1, 2 InputS-Video InputPC InputDVI InputAudio In/OutputSpeaker OutputExternal Control Port42-Inch 16 : 9 Diagonal ScreenVariable 4 Modes (4:3 Mode / 16:9 X 3 Modes)852 X 480 Physical Pixel (SD) 3000 : 11000 cd/m1280 X 1024 / 60HzAdvanced multi-windows viewing PIP(picture in picture) with four selectable windowpositions on Video modeMultiple input compatible3D Comb Filter, Advanced motion digital / Motion-Adaptive De-interlace process,Digital progressive line scaling.TV/CATV (NTSC)Favorite channel programming, Time Set, Set the Sleep timer480i/p(60Hz), 576i/p(50Hz), 720P(50/60Hz),1080i(50/60Hz)Selectable 5 Mode (Cool 1, 2 / Normal / Warm 1, 2)1035(W) X 635(H) X 95.3(D) / 34kg 1035(W) X 698.4(H) X 305(D) / 34.9kg 1235(W) X 698.4(H) X 305(D) / 37.5kg Built-in amplifier and two speaker(7Watt/Typ.) systems (optional), Selectablefixed/variable audio output(optional)Front OSD Key Control, Remote Control, RS232C ControlAC 110 ~ 240V 50/60Hz350 Watt RF / CATV (NTSC)RCA X 4Port (AV Input 1/2/3, AV Output)RCA X 2Port (Y, Pb/Cb, Pr/Cr : 480i/p(60Hz) / 576i/p(50Hz) / 720p(50/60Hz) / 1080i(50/60Hz))Mini Din 4Pin X 1PortMini D-Sub 15Pin X 1Port / HDTV Input 480p, 576p, 720P(50/60Hz),1080i(50/60Hz)Mini D-Sub 29Pin X 1Port / HDTV Input 480p, 576p, 720P(50/60Hz),1080i(50/60Hz)HDCP(Factory option)RCA X 5PortCinch Type X 4Port(Stereo L/R), Head Phone Jack X 1Port(Optional)Mini D-Sub 9Pin X 1PortFunction and Specification242" Plasma TV (2)

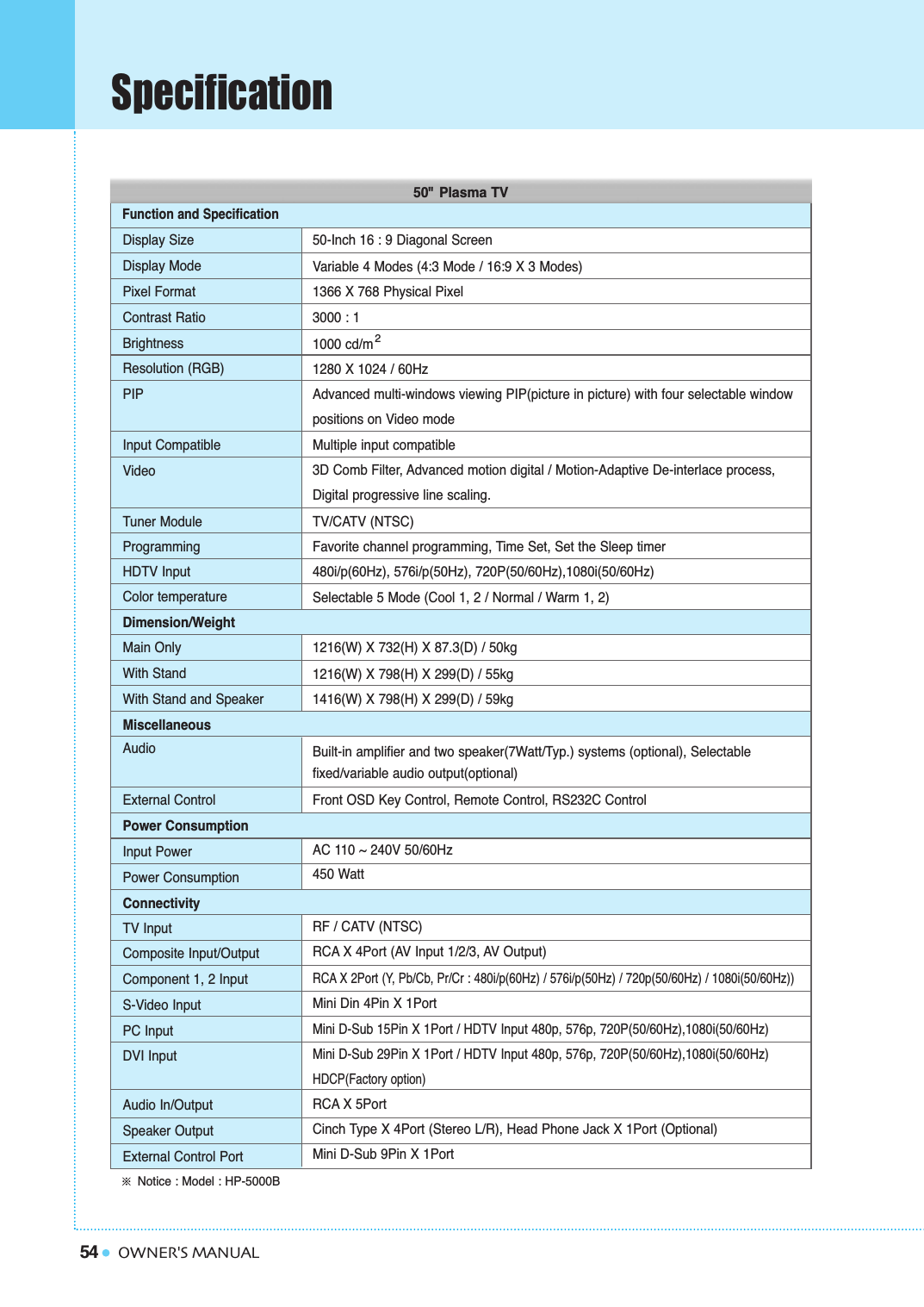

54 OWNER'S MANUALSpecificationDisplay SizeDisplay ModePixel FormatContrast RatioBrightnessResolution (RGB)PIPInput CompatibleVideoTuner ModuleProgrammingHDTV InputColor temperatureDimension/WeightMain OnlyWith StandWith Stand and SpeakerMiscellaneousAudioExternal ControlPower ConsumptionInput PowerPower ConsumptionConnectivityTV InputComposite Input/OutputComponent 1, 2 InputS-Video InputPC InputDVI InputAudio In/OutputSpeaker OutputExternal Control Port50-Inch 16 : 9 Diagonal ScreenVariable 4 Modes (4:3 Mode / 16:9 X 3 Modes)1366 X 768 Physical Pixel 3000 : 11000 cd/m1280 X 1024 / 60HzAdvanced multi-windows viewing PIP(picture in picture) with four selectable windowpositions on Video modeMultiple input compatible3D Comb Filter, Advanced motion digital / Motion-Adaptive De-interlace process,Digital progressive line scaling.TV/CATV (NTSC)Favorite channel programming, Time Set, Set the Sleep timer480i/p(60Hz), 576i/p(50Hz), 720P(50/60Hz),1080i(50/60Hz)Selectable 5 Mode (Cool 1, 2 / Normal / Warm 1, 2)1216(W) X 732(H) X 87.3(D) / 50kg1216(W) X 798(H) X 299(D) / 55kg1416(W) X 798(H) X 299(D) / 59kgBuilt-in amplifier and two speaker(7Watt/Typ.) systems (optional), Selectablefixed/variable audio output(optional)Front OSD Key Control, Remote Control, RS232C ControlAC 110 ~ 240V 50/60Hz450 WattRF / CATV (NTSC)RCA X 4Port (AV Input 1/2/3, AV Output)RCA X 2Port (Y, Pb/Cb, Pr/Cr : 480i/p(60Hz) / 576i/p(50Hz) / 720p(50/60Hz) / 1080i(50/60Hz))Mini Din 4Pin X 1PortMini D-Sub 15Pin X 1Port / HDTV Input 480p, 576p, 720P(50/60Hz),1080i(50/60Hz)Mini D-Sub 29Pin X 1Port / HDTV Input 480p, 576p, 720P(50/60Hz),1080i(50/60Hz)HDCP(Factory option)RCA X 5PortCinch Type X 4Port (Stereo L/R), Head Phone Jack X 1Port (Optional)Mini D-Sub 9Pin X 1PortFunction and Specification250" Plasma TVNotice : Model : HP-5000B
55OWNER'S MANUALSpecificationDisplay SizeDisplay ModePixel FormatContrast RatioBrightnessResolution (RGB)PIPInput CompatibleVideoTuner ModuleProgrammingHDTV InputColor temperatureDimension/WeightMain OnlyWith StandWith Stand and SpeakerMiscellaneousAudioExternal ControlPower ConsumptionInput PowerPower ConsumptionConnectivityTV InputComposite Input/OutputComponent 1, 2 InputS-Video InputPC InputDVI InputAudio In/OutputSpeaker OutputExternal Control Port63-Inch 16 : 9 Diagonal ScreenVariable 4 Modes (4:3 Mode / 16:9 X 3 Modes)1366 X 768 Physical Pixel1000 : 1800 cd/m1280 X 1024 / 60HzAdvanced multi-windows viewing PIP(picture in picture) with four selectable windowpositions on Video modeMultiple input compatible3D Comb filter, Advanced motion digital / Motion-Adaptive De-interlace process,Digital progressive line scaling.TV/CATV (NTSC)Favorite channel programming, Time Set, Set the Sleep timer480i/p(60Hz), 576i/p(50Hz), 720P(50/60Hz),1080i(50/60Hz)Selectable 5 Mode (Cool 1, 2 / Normal / Warm 1, 2)1503(W) X 893(H) X 92.6(D) / 79kg1503(W) X 927(H) X 400(D) / 98kg1703(W) X 927(H) X 400(D) / 104.7kgBuilt-in amplifier and two speaker(7Watt/Typ.) systems (optional), Selectablefixed/variable audio output(optional)Front OSD Key Control, Remote Control, RS232C ControlAC 110 ~ 240V 50/60Hz580 WattRF / CATV (NTSC)RCA X 4Port (AV Input 1/2/3, AV Output)RCA X 2Port (Y, Pb/Cb, Pr/Cr : 480i/p(60Hz) / 576i/p(50Hz) / 720p(50/60Hz) / 1080i(50/60Hz))Mini Din 4Pin X 1PortMini D-Sub 15Pin X 1Port / HDTV Input 480p, 576p, 720P(50/60Hz),1080i(50/60Hz)Mini D-Sub 29Pin X 1Port / HDTV Input 480p, 576p, 720P(50/60Hz),1080i(50/60Hz)HDCP(Factory option)RCA X 5PortCinch Type X 4Port(Stereo L/R), Head Phone Jack X 1Port(Optional)Mini D-Sub 9Pin X 1PortFunction and Specification263" Plasma TVNotice : Model : HP-6300B

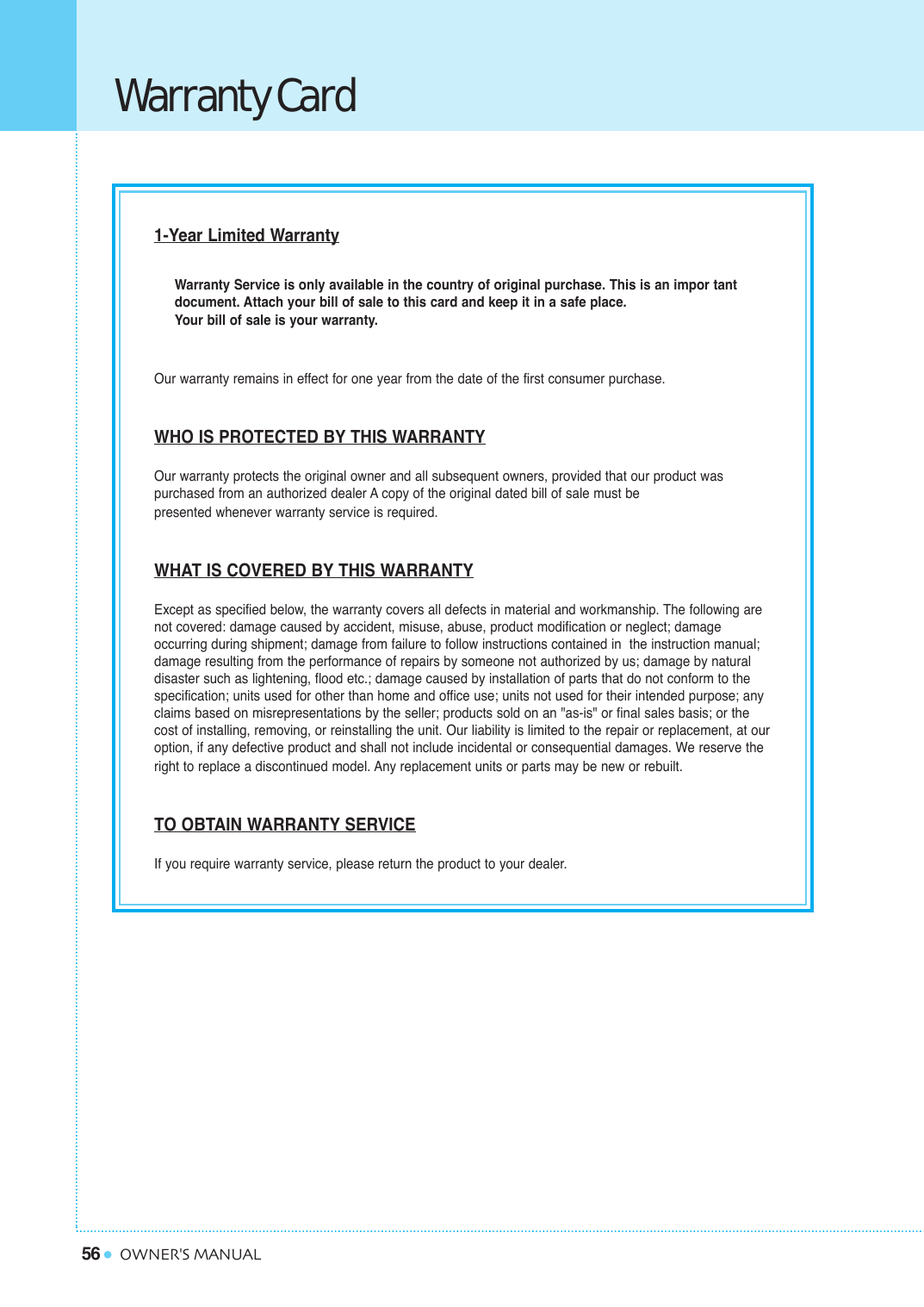

56 OWNER'S MANUALWarranty Card1-Year Limited WarrantyWarranty Service is only available in the country of original purchase. This is an impor tant document. Attach your bill of sale to this card and keep it in a safe place.Your bill of sale is your warranty.Our warranty remains in effect for one year from the date of the first consumer purchase.WHO IS PROTECTED BY THIS WARRANTYOur warranty protects the original owner and all subsequent owners, provided that our product was purchased from an authorized dealer A copy of the original dated bill of sale must be presented whenever warranty service is required.WHAT IS COVERED BY THIS WARRANTYExcept as specified below, the warranty covers all defects in material and workmanship. The following arenot covered: damage caused by accident, misuse, abuse, product modification or neglect; damage occurring during shipment; damage from failure to follow instructions contained in the instruction manual;damage resulting from the performance of repairs by someone not authorized by us; damage by natural disaster such as lightening, flood etc.; damage caused by installation of parts that do not conform to thespecification; units used for other than home and office use; units not used for their intended purpose; anyclaims based on misrepresentations by the seller; products sold on an "as-is" or final sales basis; or the cost of installing, removing, or reinstalling the unit. Our liability is limited to the repair or replacement, at ouroption, if any defective product and shall not include incidental or consequential damages. We reserve the right to replace a discontinued model. Any replacement units or parts may be new or rebuilt.TO OBTAIN WARRANTY SERVICEIf you require warranty service, please return the product to your dealer.
