Harsper HP-500B PDP TV Monitor User Manual FCC CERTIFICATION B

Harsper Co., Ltd. PDP TV Monitor FCC CERTIFICATION B

Contents

Users Manual 1 of 2

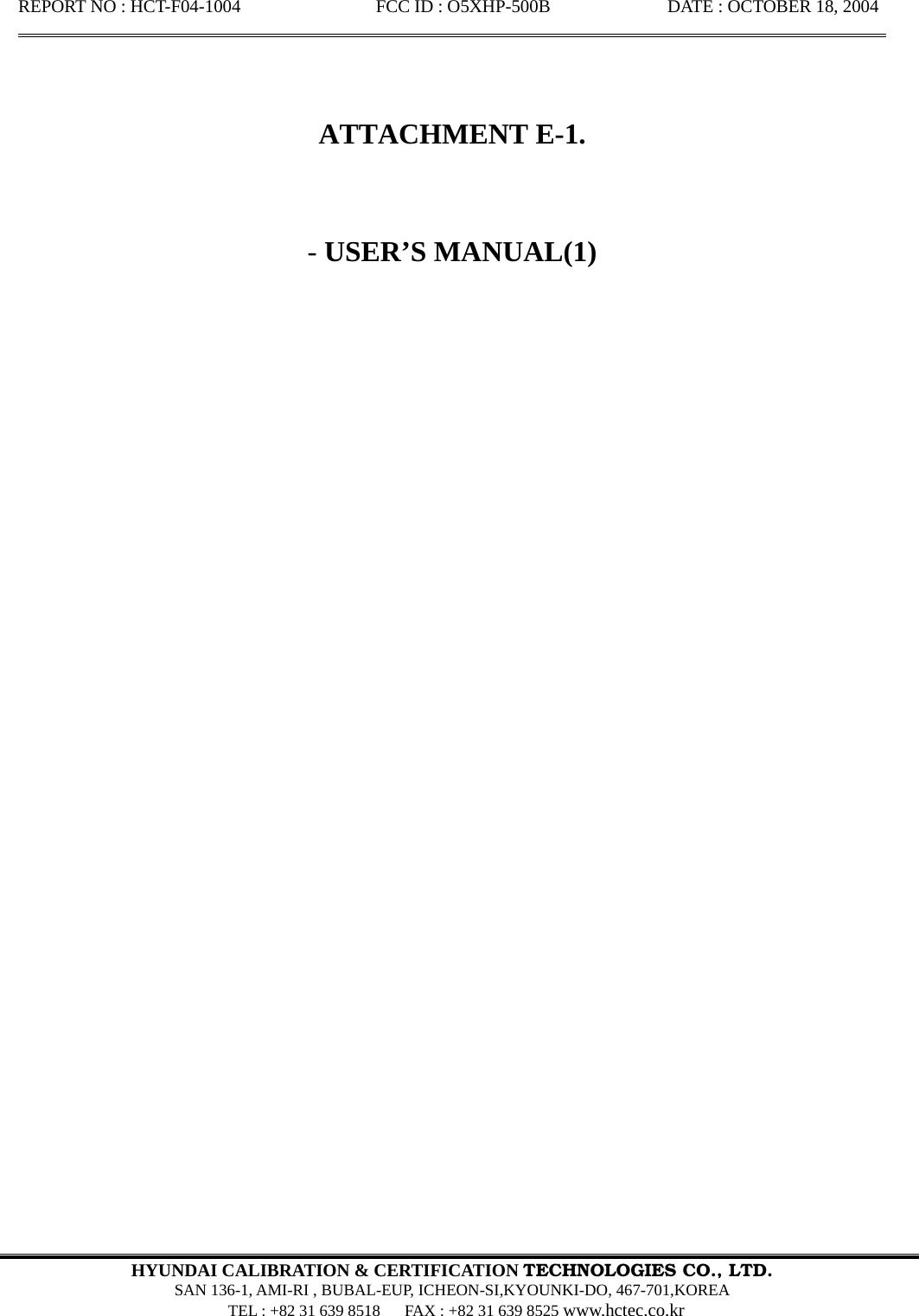

REPORT NO : HCT-F04-1004 FCC ID : O5XHP-500B DATE : OCTOBER 18, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr ATTACHMENT E-1. - USER’S MANUAL(1)

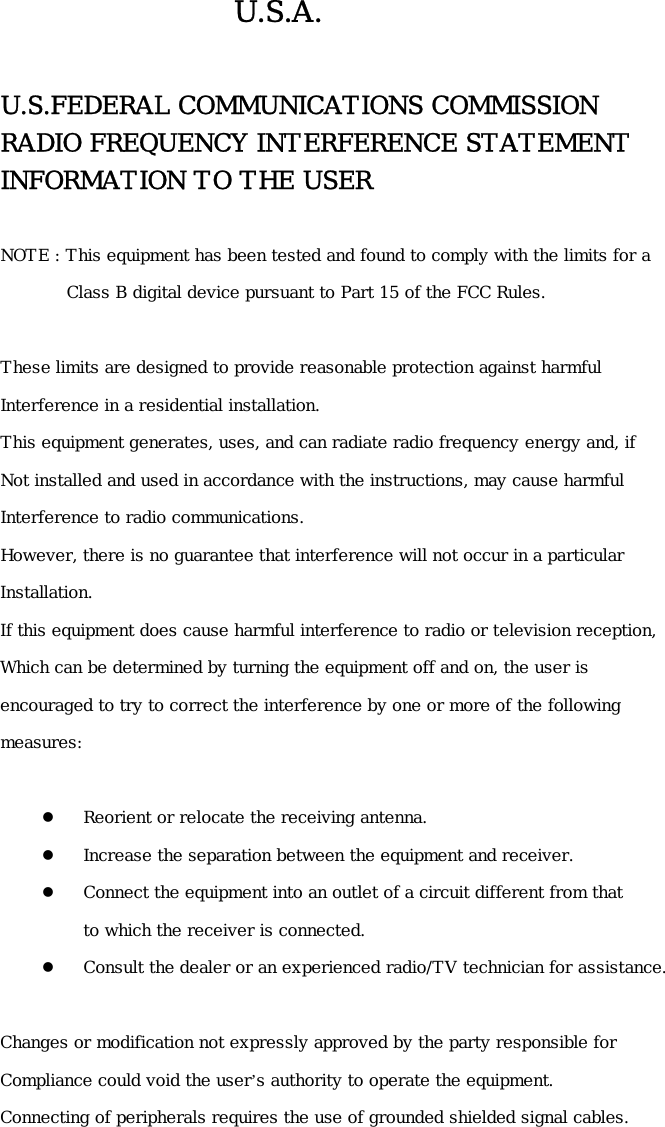

U.S.A. U.S.FEDERAL COMMUNICATIONS COMMISSION RADIO FREQUENCY INTERFERENCE STATEMENT INFORMATION TO THE USER NOTE : This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful Interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if Not installed and used in accordance with the instructions, may cause harmful Interference to radio communications. However, there is no guarantee that interference will not occur in a particular Installation. If this equipment does cause harmful interference to radio or television reception, Which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet of a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for assistance. Changes or modification not expressly approved by the party responsible for Compliance could void the user’s authority to operate the equipment. Connecting of peripherals requires the use of grounded shielded signal cables.

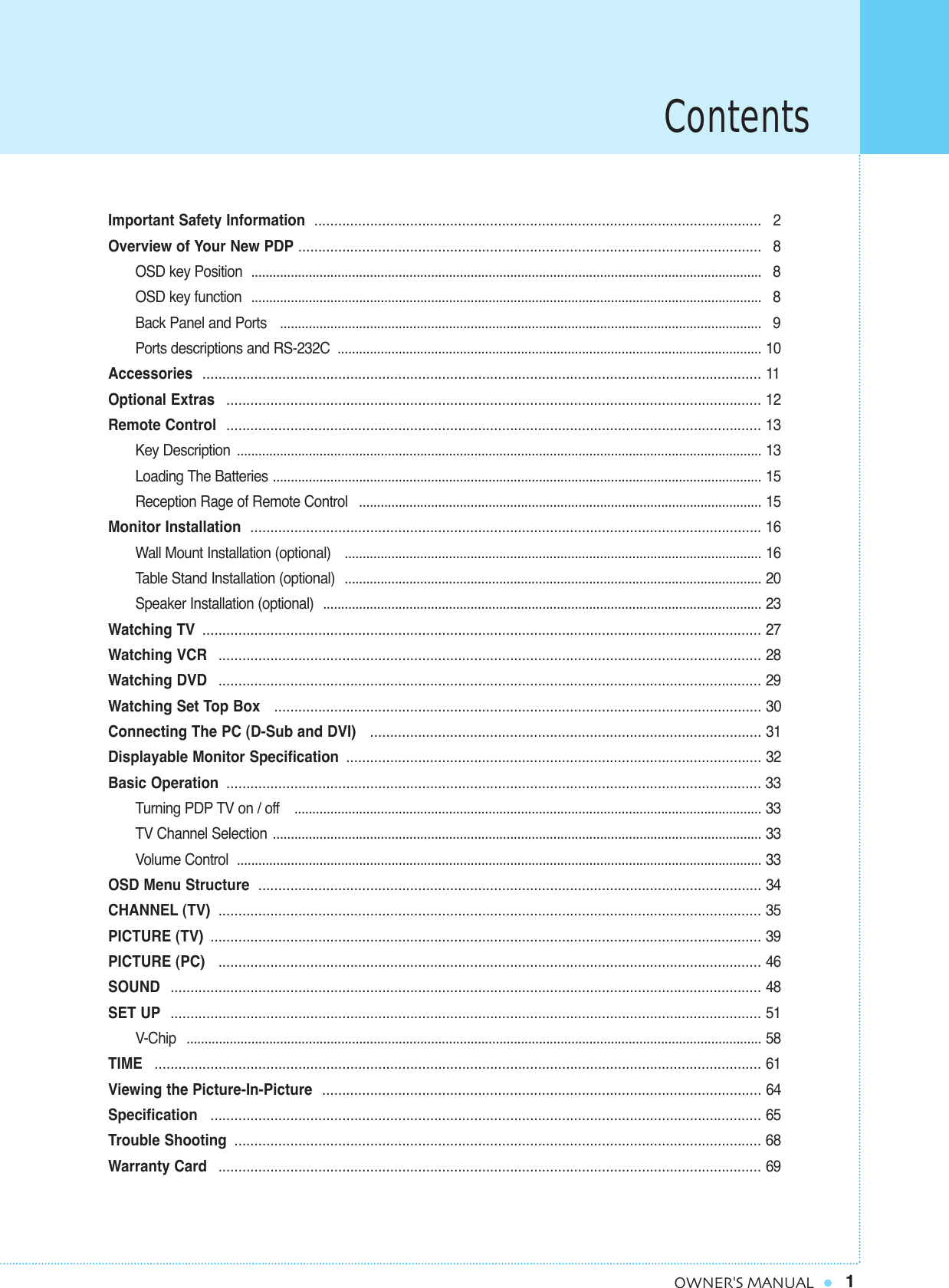

Contents1OWNER'S MANUALImportant Safety Information ................................................................................................................ 2Overview of Your New PDP .................................................................................................................... 8OSD key Position .............................................................................................................................................. 8OSD key function .............................................................................................................................................. 8Back Panel and Ports ...................................................................................................................................... 9Ports descriptions and RS-232C ...................................................................................................................... 10Accessories ............................................................................................................................................ 11Optional Extras ...................................................................................................................................... 12Remote Control ...................................................................................................................................... 13Key Description .................................................................................................................................................. 13Loading The Batteries ........................................................................................................................................ 15Reception Rage of Remote Control ................................................................................................................ 15Monitor Installation ................................................................................................................................16Wall Mount Installation (optional) .................................................................................................................... 16Table Stand Installation (optional) .................................................................................................................... 20Speaker Installation (optional) .......................................................................................................................... 23Watching TV ............................................................................................................................................ 27Watching VCR ........................................................................................................................................ 28Watching DVD ........................................................................................................................................ 29Watching Set Top Box .......................................................................................................................... 30Connecting The PC (D-Sub and DVI) .................................................................................................. 31Displayable Monitor Specification ........................................................................................................ 32Basic Operation ...................................................................................................................................... 33Turning PDP TV on / off .................................................................................................................................. 33TV Channel Selection ........................................................................................................................................ 33Volume Control .................................................................................................................................................. 33OSD Menu Structure .............................................................................................................................. 34CHANNEL (TV) ........................................................................................................................................ 35PICTURE (TV) .......................................................................................................................................... 39PICTURE (PC) ........................................................................................................................................ 46SOUND .................................................................................................................................................... 48SET UP .................................................................................................................................................... 51V-Chip ................................................................................................................................................................ 58TIME ........................................................................................................................................................ 61Viewing the Picture-In-Picture .............................................................................................................. 64Specification .......................................................................................................................................... 65Trouble Shooting .................................................................................................................................... 68Warranty Card ........................................................................................................................................ 69

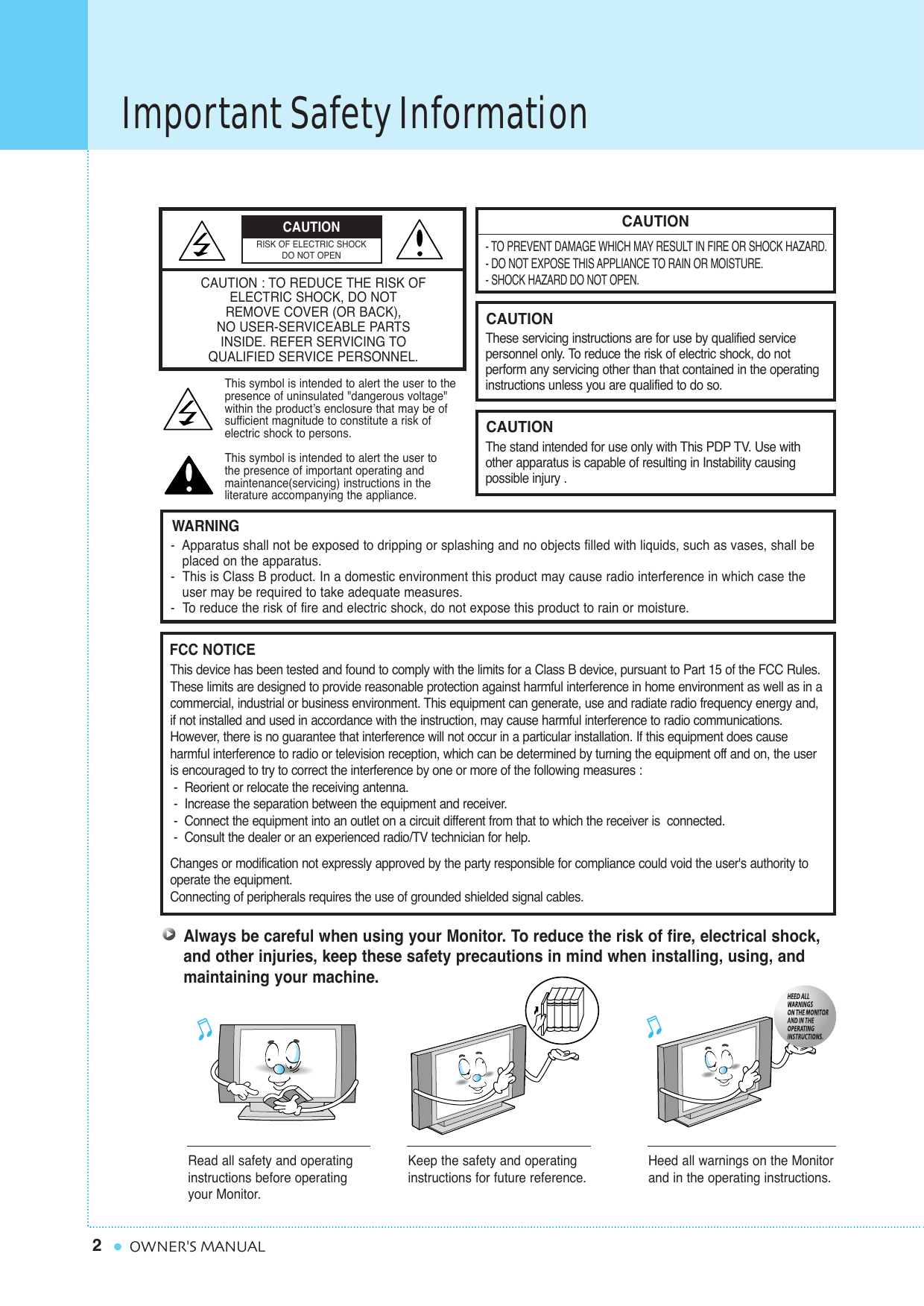

Important Safety Information2OWNER'S MANUALCAUTION- TO PREVENT DAMAGE WHICH MAY RESULT IN FIRE OR SHOCK HAZARD.- DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.- SHOCK HAZARD DO NOT OPEN.CAUTIONThese servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock, do not perform any servicing other than that contained in the operatinginstructions unless you are qualified to do so.CAUTIONThe stand intended for use only with This PDP TV. Use withother apparatus is capable of resulting in Instability causingpossible injury .Always be careful when using your Monitor. To reduce the risk of fire, electrical shock,and other injuries, keep these safety precautions in mind when installing, using, andmaintaining your machine.- Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.- This is Class B product. In a domestic environment this product may cause radio interference in which case theuser may be required to take adequate measures.- To reduce the risk of fire and electric shock, do not expose this product to rain or moisture.WARNINGThis device has been tested and found to comply with the limits for a Class B device, pursuant to Part 15 of the FCC Rules.These limits are designed to provide reasonable protection against harmful interference in home environment as well as in acommercial, industrial or business environment. This equipment can generate, use and radiate radio frequency energy and,if not installed and used in accordance with the instruction, may cause harmful interference to radio communications.However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the useris encouraged to try to correct the interference by one or more of the following measures :- Reorient or relocate the receiving antenna.- Increase the separation between the equipment and receiver.- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.- Consult the dealer or an experienced radio/TV technician for help.Changes or modification not expressly approved by the party responsible for compliance could void the user's authority tooperate the equipment.Connecting of peripherals requires the use of grounded shielded signal cables.FCC NOTICERead all safety and operatinginstructions before operatingyour Monitor.Keep the safety and operatinginstructions for future reference.Heed all warnings on the Monitorand in the operating instructions.CAUTION : TO REDUCE THE RISK OFELECTRIC SHOCK, DO NOTREMOVE COVER (OR BACK),NO USER-SERVICEABLE PARTSINSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.This symbol is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.This symbol is intended to alert the user to the presence of important operating and maintenance(servicing) instructions in the literature accompanying the appliance.CAUTIONRISK OF ELECTRIC SHOCKDO NOT OPEN

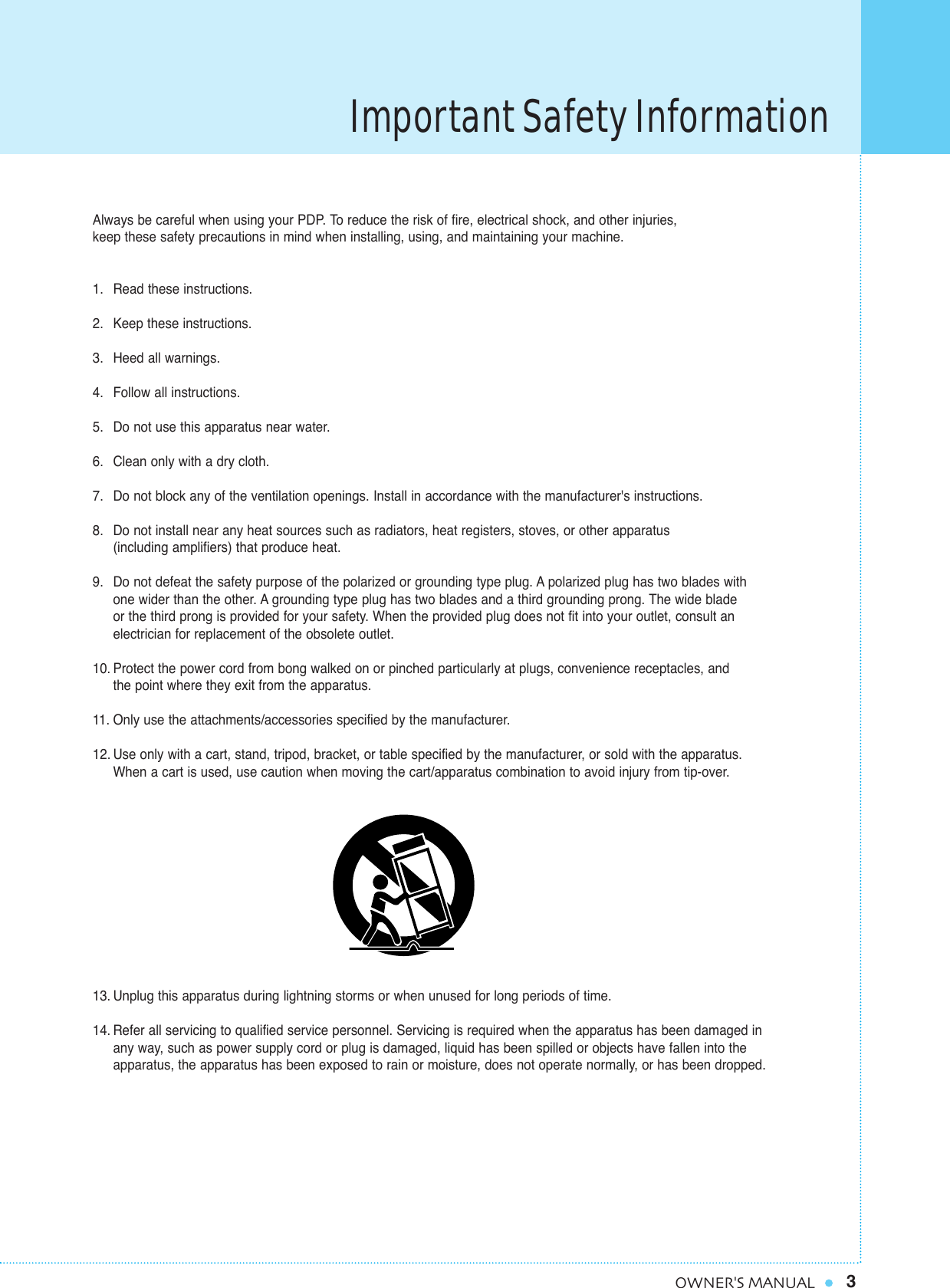

Important Safety Information3OWNER'S MANUALAlways be careful when using your PDP. To reduce the risk of fire, electrical shock, and other injuries, keep these safety precautions in mind when installing, using, and maintaining your machine.1. Read these instructions.2. Keep these instructions.3. Heed all warnings.4. Follow all instructions.5. Do not use this apparatus near water.6. Clean only with a dry cloth.7. Do not block any of the ventilation openings. Install in accordance with the manufacturer's instructions.8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.9. Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. When the provided plug does not fit into your outlet, consult anelectrician for replacement of the obsolete outlet.10. Protect the power cord from bong walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.11. Only use the attachments/accessories specified by the manufacturer.12. Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.13. Unplug this apparatus during lightning storms or when unused for long periods of time.14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

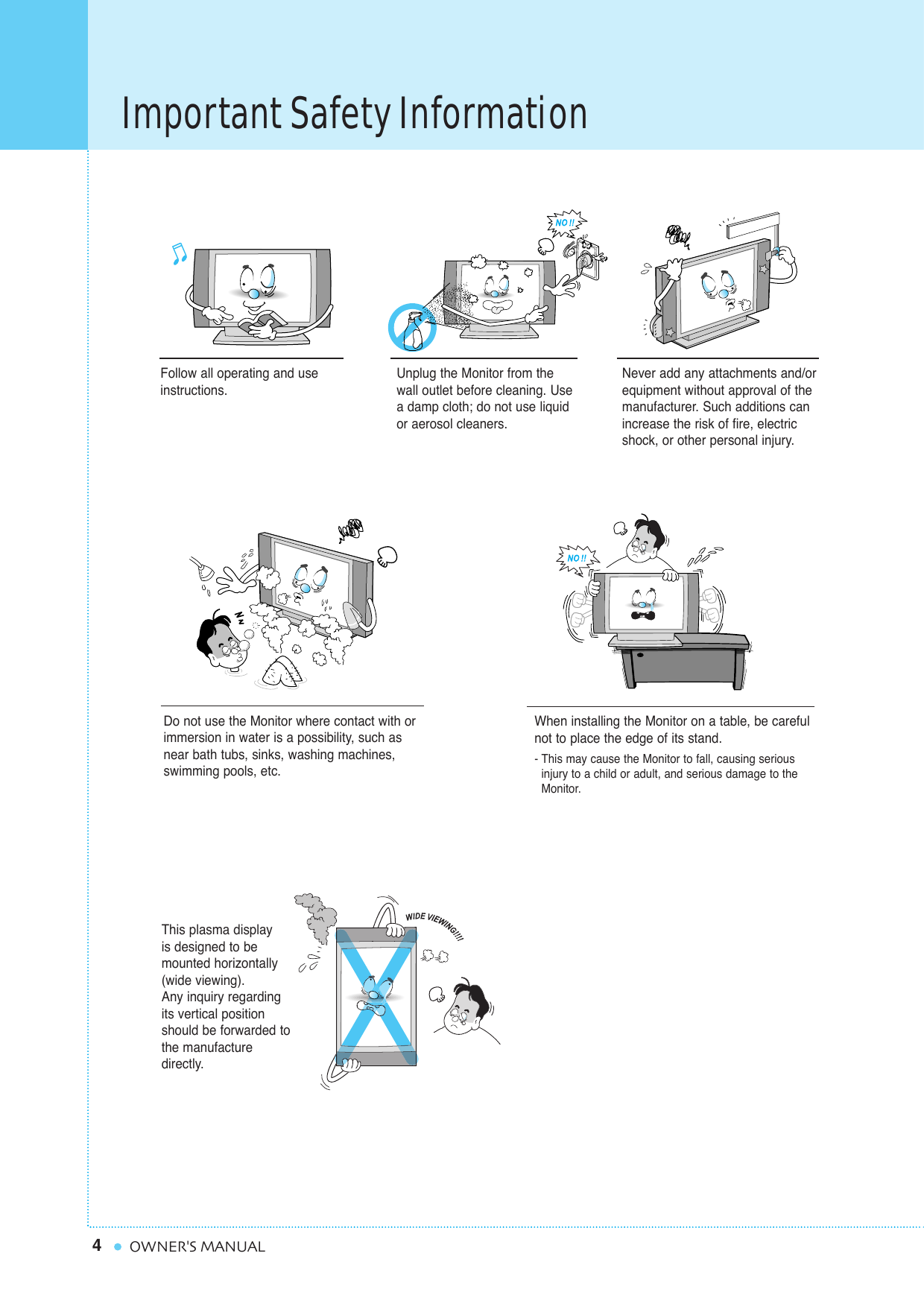

4Important Safety InformationOWNER'S MANUALFollow all operating and useinstructions.Do not use the Monitor where contact with orimmersion in water is a possibility, such asnear bath tubs, sinks, washing machines,swimming pools, etc.This plasma display is designed to be mounted horizontally(wide viewing).Any inquiry regardingits vertical positionshould be forwarded tothe manufacture directly.When installing the Monitor on a table, be carefulnot to place the edge of its stand.- This may cause the Monitor to fall, causing serious injury to a child or adult, and serious damage to the Monitor.Unplug the Monitor from thewall outlet before cleaning. Usea damp cloth; do not use liquidor aerosol cleaners.Never add any attachments and/orequipment without approval of themanufacturer. Such additions canincrease the risk of fire, electricshock, or other personal injury.

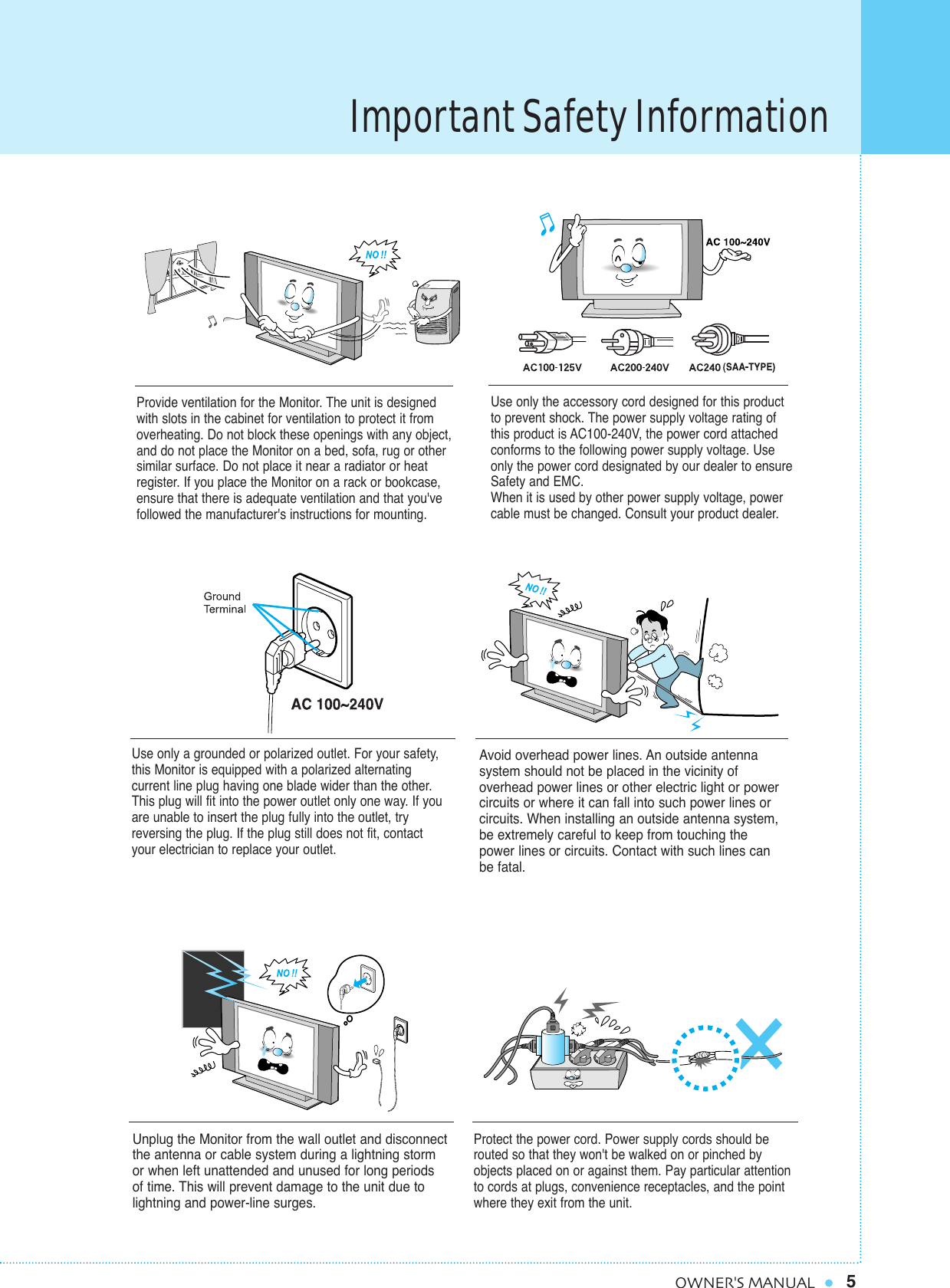

Important Safety Information5OWNER'S MANUALProvide ventilation for the Monitor. The unit is designedwith slots in the cabinet for ventilation to protect it fromoverheating. Do not block these openings with any object,and do not place the Monitor on a bed, sofa, rug or othersimilar surface. Do not place it near a radiator or heatregister. If you place the Monitor on a rack or bookcase,ensure that there is adequate ventilation and that you'vefollowed the manufacturer's instructions for mounting. Use only the accessory cord designed for this productto prevent shock. The power supply voltage rating ofthis product is AC100-240V, the power cord attachedconforms to the following power supply voltage. Useonly the power cord designated by our dealer to ensureSafety and EMC.When it is used by other power supply voltage, powercable must be changed. Consult your product dealer.Use only a grounded or polarized outlet. For your safety,this Monitor is equipped with a polarized alternating current line plug having one blade wider than the other.This plug will fit into the power outlet only one way. If youare unable to insert the plug fully into the outlet, tryreversing the plug. If the plug still does not fit, contactyour electrician to replace your outlet.Avoid overhead power lines. An outside antenna system should not be placed in the vicinity of overhead power lines or other electric light or powercircuits or where it can fall into such power lines orcircuits. When installing an outside antenna system,be extremely careful to keep from touching thepower lines or circuits. Contact with such lines canbe fatal.Unplug the Monitor from the wall outlet and disconnectthe antenna or cable system during a lightning storm or when left unattended and unused for long periods of time. This will prevent damage to the unit due tolightning and power-line surges.Protect the power cord. Power supply cords should berouted so that they won't be walked on or pinched byobjects placed on or against them. Pay particular attentionto cords at plugs, convenience receptacles, and the pointwhere they exit from the unit.

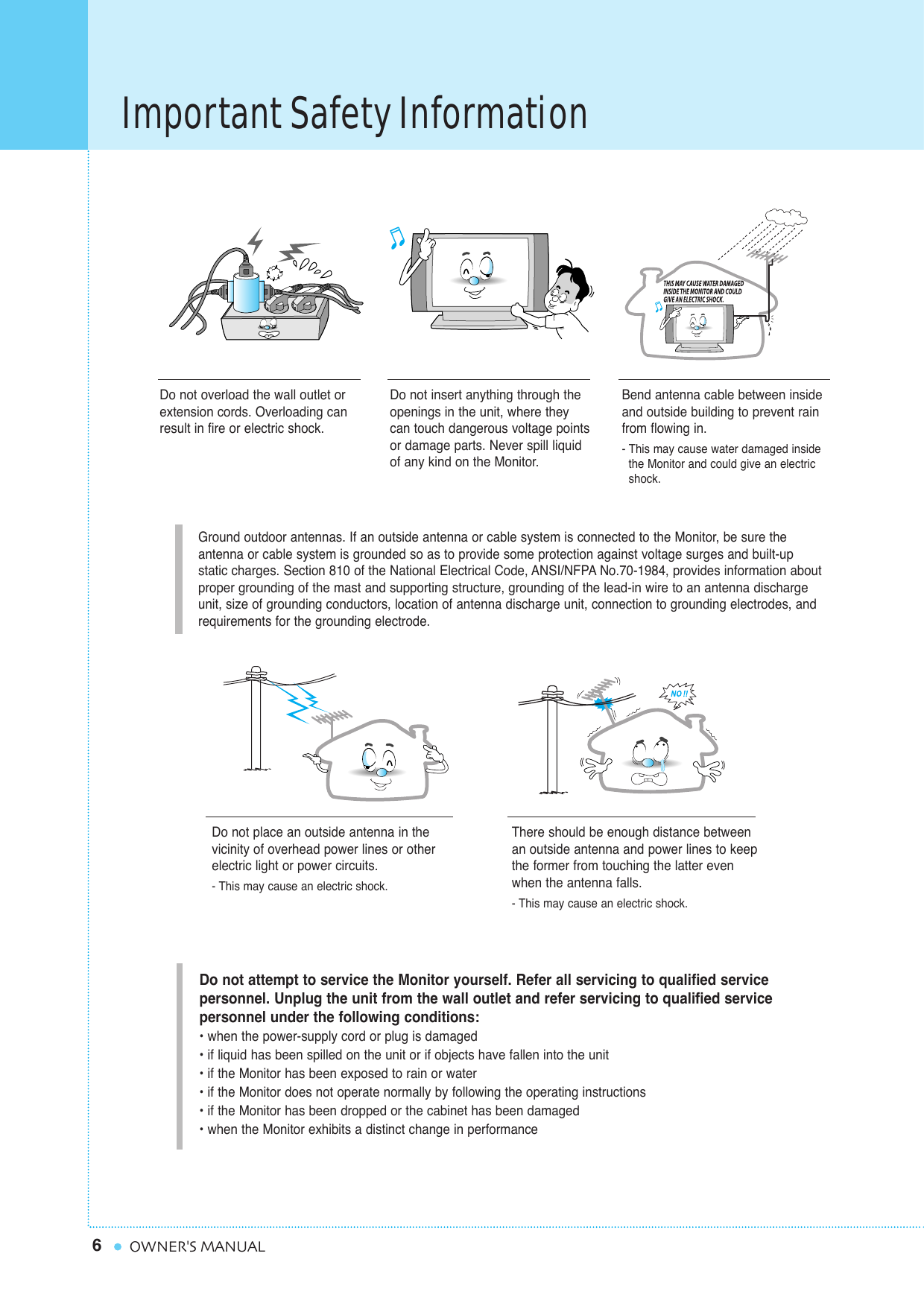

Important Safety Information6OWNER'S MANUALGround outdoor antennas. If an outside antenna or cable system is connected to the Monitor, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Section 810 of the National Electrical Code, ANSI/NFPA No.70-1984, provides information aboutproper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna dischargeunit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.Do not overload the wall outlet orextension cords. Overloading canresult in fire or electric shock.Do not insert anything through theopenings in the unit, where theycan touch dangerous voltage pointsor damage parts. Never spill liquidof any kind on the Monitor.Bend antenna cable between insideand outside building to prevent rainfrom flowing in. - This may cause water damaged inside the Monitor and could give an electric shock.Do not place an outside antenna in thevicinity of overhead power lines or other electric light or power circuits.- This may cause an electric shock.There should be enough distance betweenan outside antenna and power lines to keepthe former from touching the latter evenwhen the antenna falls.- This may cause an electric shock.Do not attempt to service the Monitor yourself. Refer all servicing to qualified service personnel. Unplug the unit from the wall outlet and refer servicing to qualified service personnel under the following conditions:• when the power-supply cord or plug is damaged• if liquid has been spilled on the unit or if objects have fallen into the unit• if the Monitor has been exposed to rain or water• if the Monitor does not operate normally by following the operating instructions• if the Monitor has been dropped or the cabinet has been damaged• when the Monitor exhibits a distinct change in performance

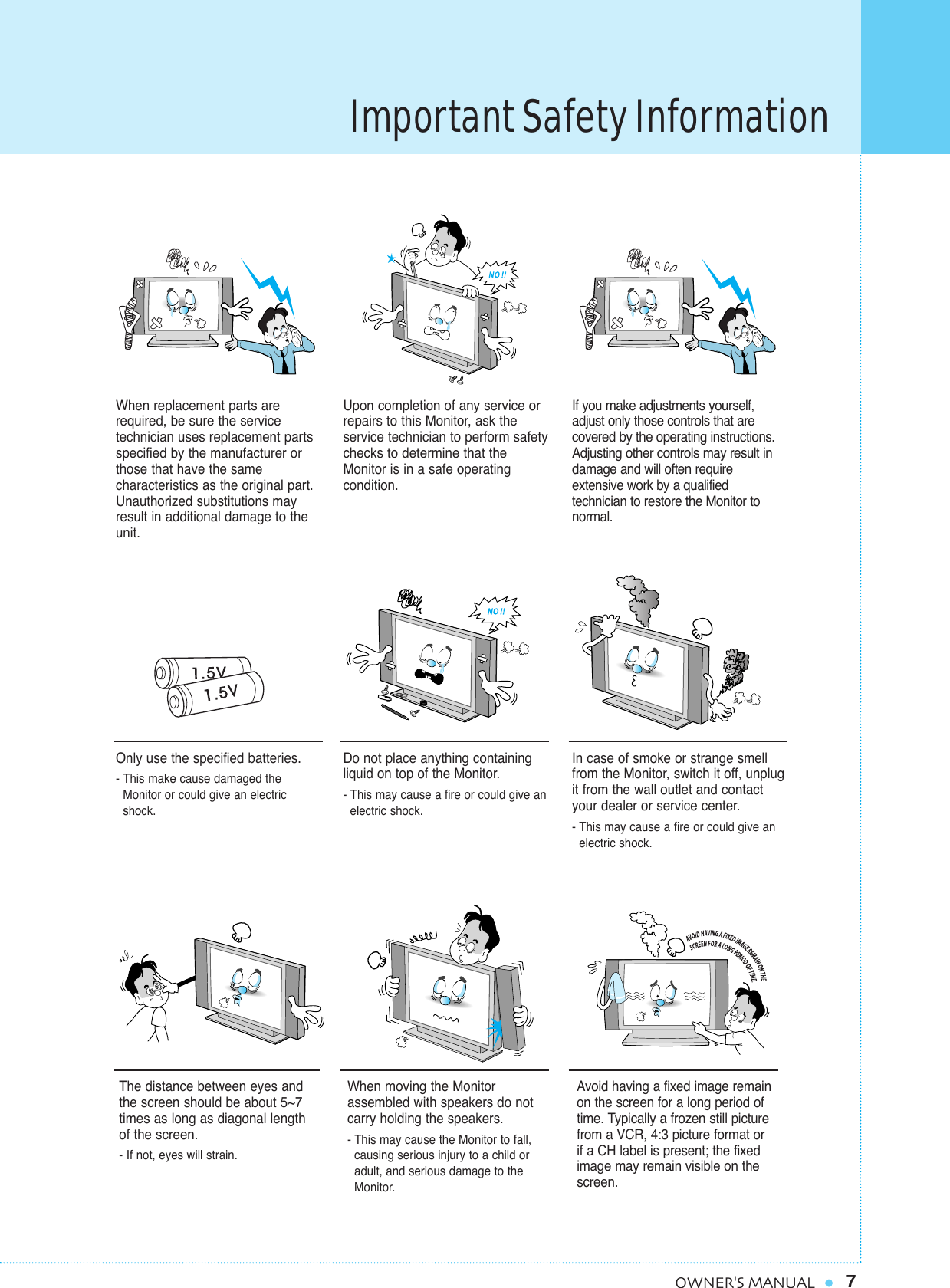

Important Safety Information7OWNER'S MANUALWhen replacement parts arerequired, be sure the service technician uses replacement partsspecified by the manufacturer orthose that have the same characteristics as the original part.Unauthorized substitutions mayresult in additional damage to theunit. Upon completion of any service orrepairs to this Monitor, ask the service technician to perform safetychecks to determine that theMonitor is in a safe operating condition. If you make adjustments yourself,adjust only those controls that are covered by the operating instructions.Adjusting other controls may result indamage and will often require extensive work by a qualifiedtechnician to restore the Monitor tonormal.Only use the specified batteries.- This make cause damaged the Monitor or could give an electric shock.Do not place anything containingliquid on top of the Monitor.- This may cause a fire or could give an electric shock.In case of smoke or strange smellfrom the Monitor, switch it off, unplugit from the wall outlet and contactyour dealer or service center.- This may cause a fire or could give an electric shock.The distance between eyes andthe screen should be about 5~7times as long as diagonal length of the screen. - If not, eyes will strain.When moving the Monitor assembled with speakers do notcarry holding the speakers.- This may cause the Monitor to fall, causing serious injury to a child or adult, and serious damage to the Monitor.Avoid having a fixed image remainon the screen for a long period oftime. Typically a frozen still picturefrom a VCR, 4:3 picture format or if a CH label is present; the fixedimage may remain visible on thescreen.

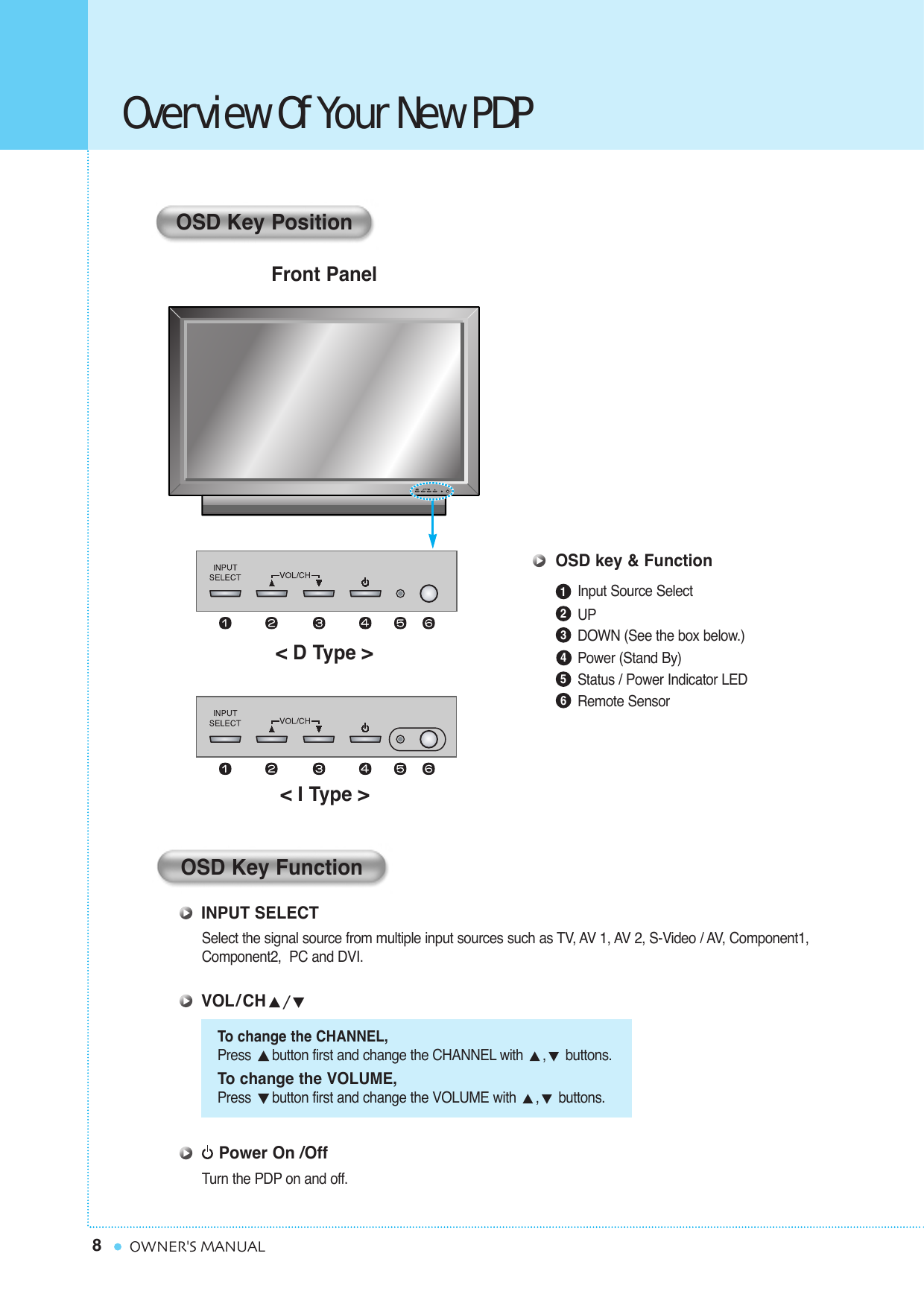

8OWNER'S MANUALSelect the signal source from multiple input sources such as TV, AV 1, AV 2, S-Video / AV, Component1,Component2, PC and DVI. To change the CHANNEL,Press button first and change the CHANNEL with ,buttons.To change the VOLUME,Press button first and change the VOLUME with ,buttons.Turn the PDP on and off.Front Panel< D Type >< I Type >Input Source SelectUPDOWN (See the box below.)Power (Stand By)Status / Power Indicator LEDRemote Sensor123456OSD Key PositionOSD key & FunctionINPUT SELECTVOL/CHPower On /OffOSD Key FunctionOverview Of Your New PDP

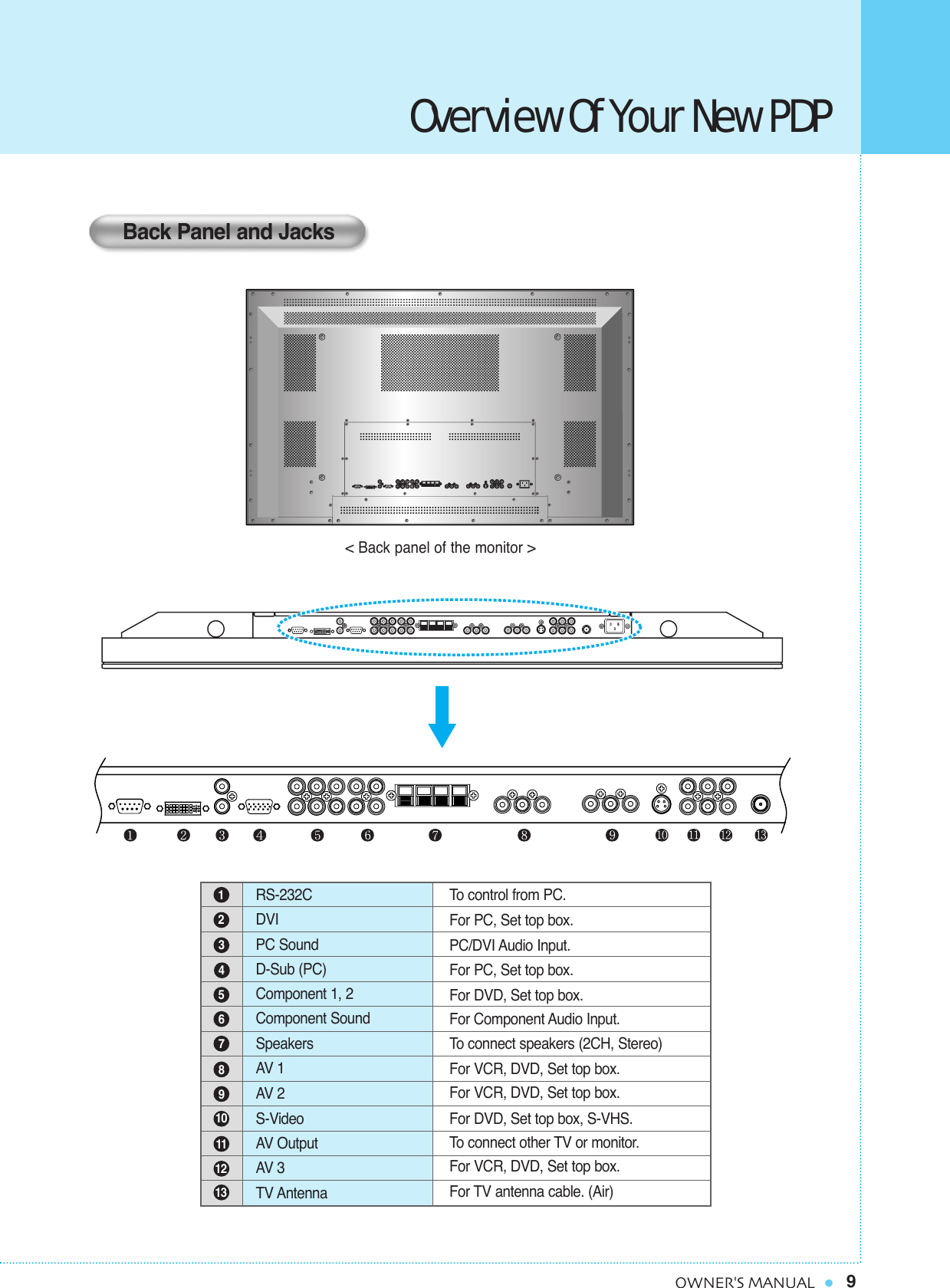

9OWNER'S MANUALTo control from PC.For PC, Set top box.PC/DVI Audio Input.For PC, Set top box.For DVD, Set top box.For Component Audio Input.To connect speakers (2CH, Stereo)For VCR, DVD, Set top box.For VCR, DVD, Set top box.For DVD, Set top box, S-VHS.To connect other TV or monitor.For VCR, DVD, Set top box.For TV antenna cable. (Air)RS-232CDVIPC SoundD-Sub (PC)Component 1, 2Component SoundSpeakersAV 1 AV 2 S-VideoAV OutputAV 3TV Antenna< Back panel of the monitor >12345678910111213Back Panel and JacksOverview Of Your New PDP

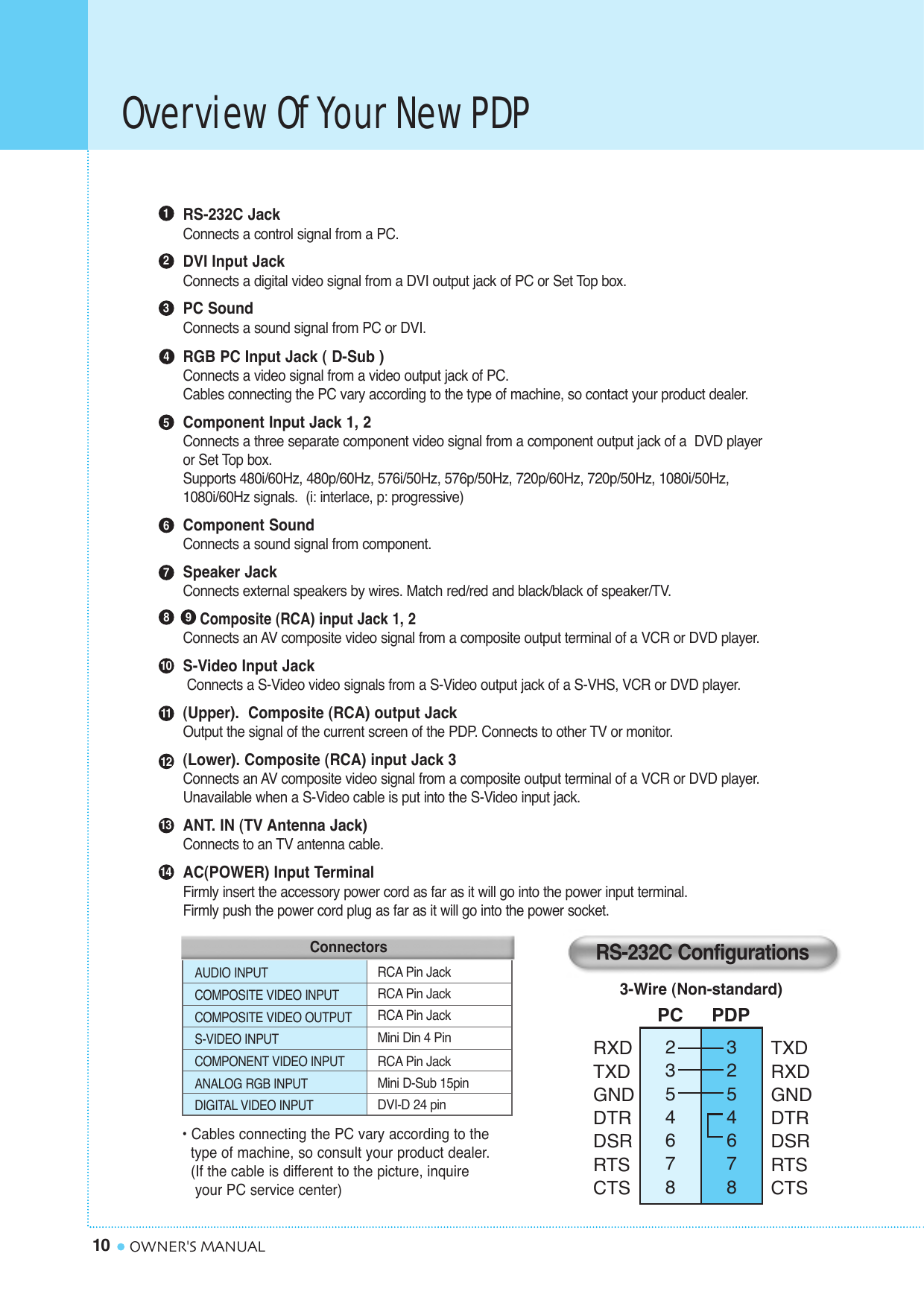

10 OWNER'S MANUAL23546783254678PC PDP3-Wire (Non-standard)AUDIO INPUTCOMPOSITE VIDEO INPUTCOMPOSITE VIDEO OUTPUTS-VIDEO INPUTCOMPONENT VIDEO INPUTANALOG RGB INPUTDIGITAL VIDEO INPUTRCA Pin JackRCA Pin JackRCA Pin JackMini Din 4 PinRCA Pin JackMini D-Sub 15pinDVI-D 24 pin• Cables connecting the PC vary according to the type of machine, so consult your product dealer.(If the cable is different to the picture, inquire your PC service center)12345678 91110121314RS-232C Jack Connects a control signal from a PC.DVI Input Jack Connects a digital video signal from a DVI output jack of PC or Set Top box.PC Sound Connects a sound signal from PC or DVI.RGB PC Input Jack ( D-Sub ) Connects a video signal from a video output jack of PC.Cables connecting the PC vary according to the type of machine, so contact your product dealer.Component Input Jack 1, 2 Connects a three separate component video signal from a component output jack of a DVD player or Set Top box.Supports 480i/60Hz, 480p/60Hz, 576i/50Hz, 576p/50Hz, 720p/60Hz, 720p/50Hz, 1080i/50Hz,1080i/60Hz signals. (i: interlace, p: progressive)Component Sound Connects a sound signal from component.Speaker Jack Connects external speakers by wires. Match red/red and black/black of speaker/TV.Composite (RCA) input Jack 1, 2 Connects an AV composite video signal from a composite output terminal of a VCR or DVD player. S-Video Input Jack Connects a S-Video video signals from a S-Video output jack of a S-VHS, VCR or DVD player.(Upper). Composite (RCA) output Jack Output the signal of the current screen of the PDP. Connects to other TV or monitor.(Lower). Composite (RCA) input Jack 3 Connects an AV composite video signal from a composite output terminal of a VCR or DVD player. Unavailable when a S-Video cable is put into the S-Video input jack.ANT. IN (TV Antenna Jack) Connects to an TV antenna cable.AC(POWER) Input Terminal Firmly insert the accessory power cord as far as it will go into the power input terminal. Firmly push the power cord plug as far as it will go into the power socket.RS-232C ConfigurationsRXDTXDGNDDTRDSRRTSCTSTXDRXDGNDDTRDSRRTSCTSOverview Of Your New PDPConnectors

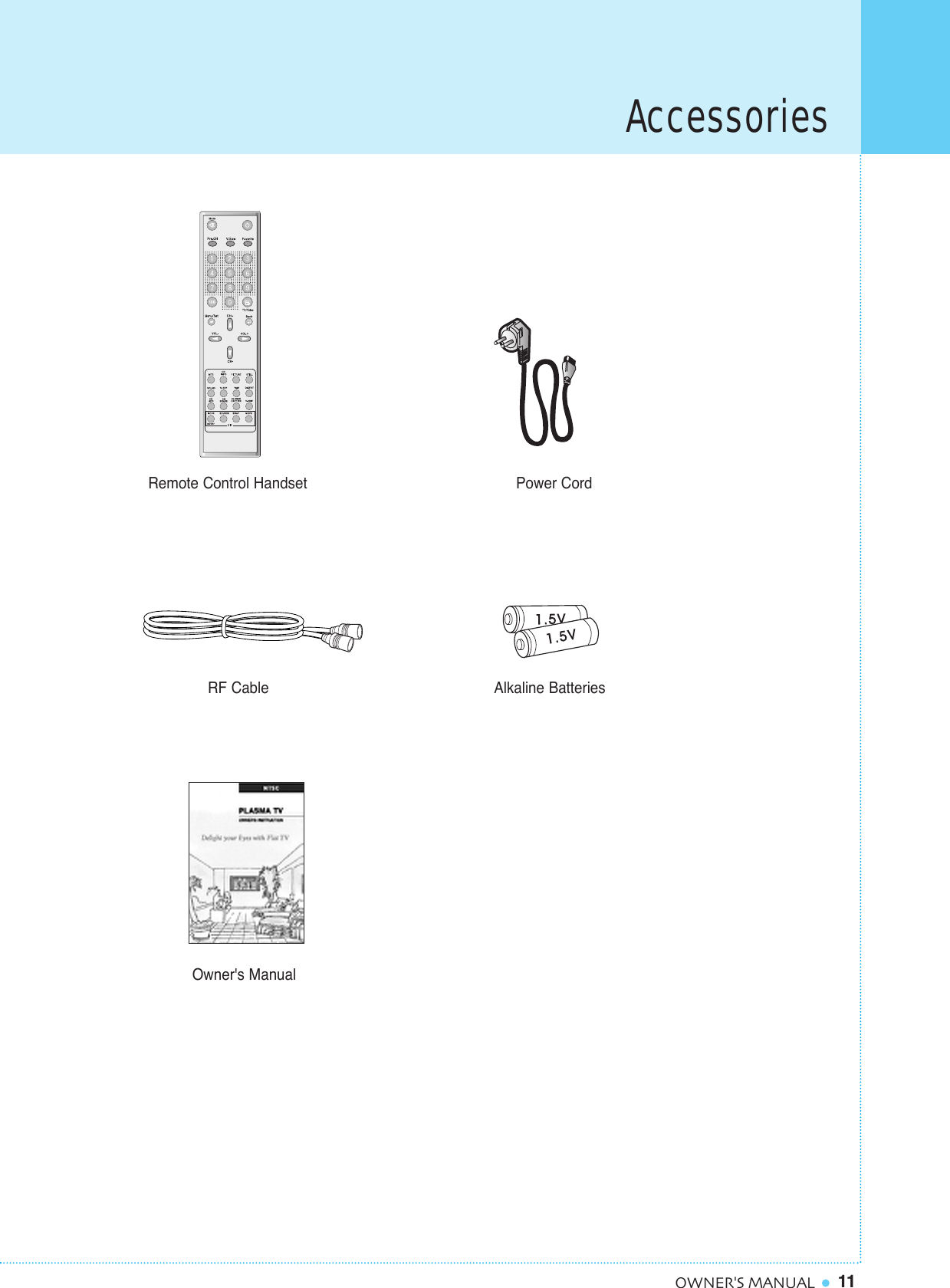

11OWNER'S MANUALRemote Control Handset Power CordRF CableOwner's ManualAlkaline BatteriesAccessories

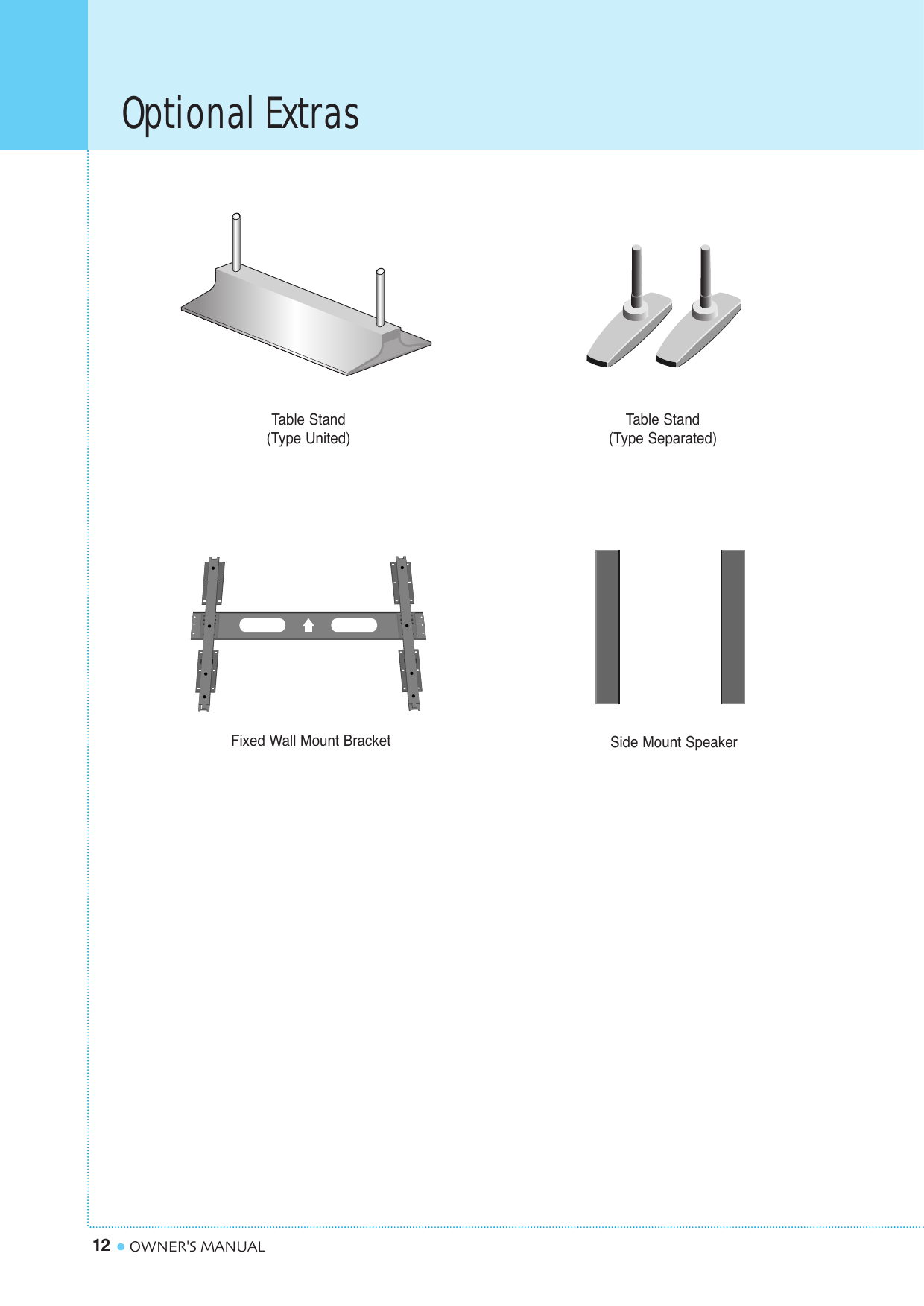

Optional Extras12 OWNER'S MANUALTable Stand(Type United)Table Stand(Type Separated)Fixed Wall Mount Bracket Side Mount Speaker

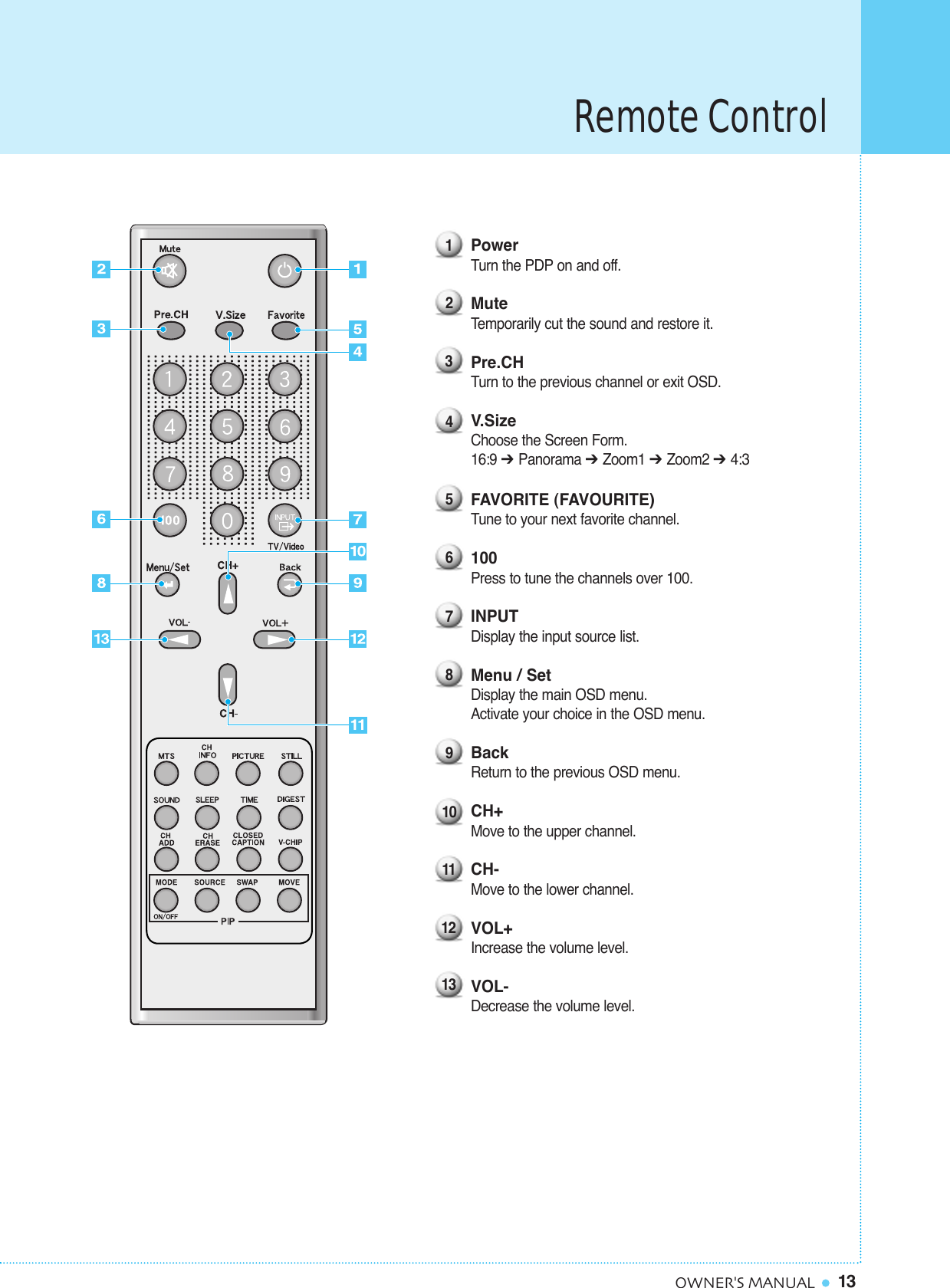

13OWNER'S MANUALPowerTurn the PDP on and off.MuteTemporarily cut the sound and restore it.Pre.CHTurn to the previous channel or exit OSD.V.SizeChoose the Screen Form.16:9 ➔ Panorama ➔ Zoom1 ➔ Zoom2 ➔ 4:3FAVORITE (FAVOURITE)Tune to your next favorite channel.100Press to tune the channels over 100. INPUTDisplay the input source list.Menu / SetDisplay the main OSD menu.Activate your choice in the OSD menu.BackReturn to the previous OSD menu.CH+Move to the upper channel.CH-Move to the lower channel.VOL+Increase the volume level.VOL-Decrease the volume level.12345678910111213Remote Control

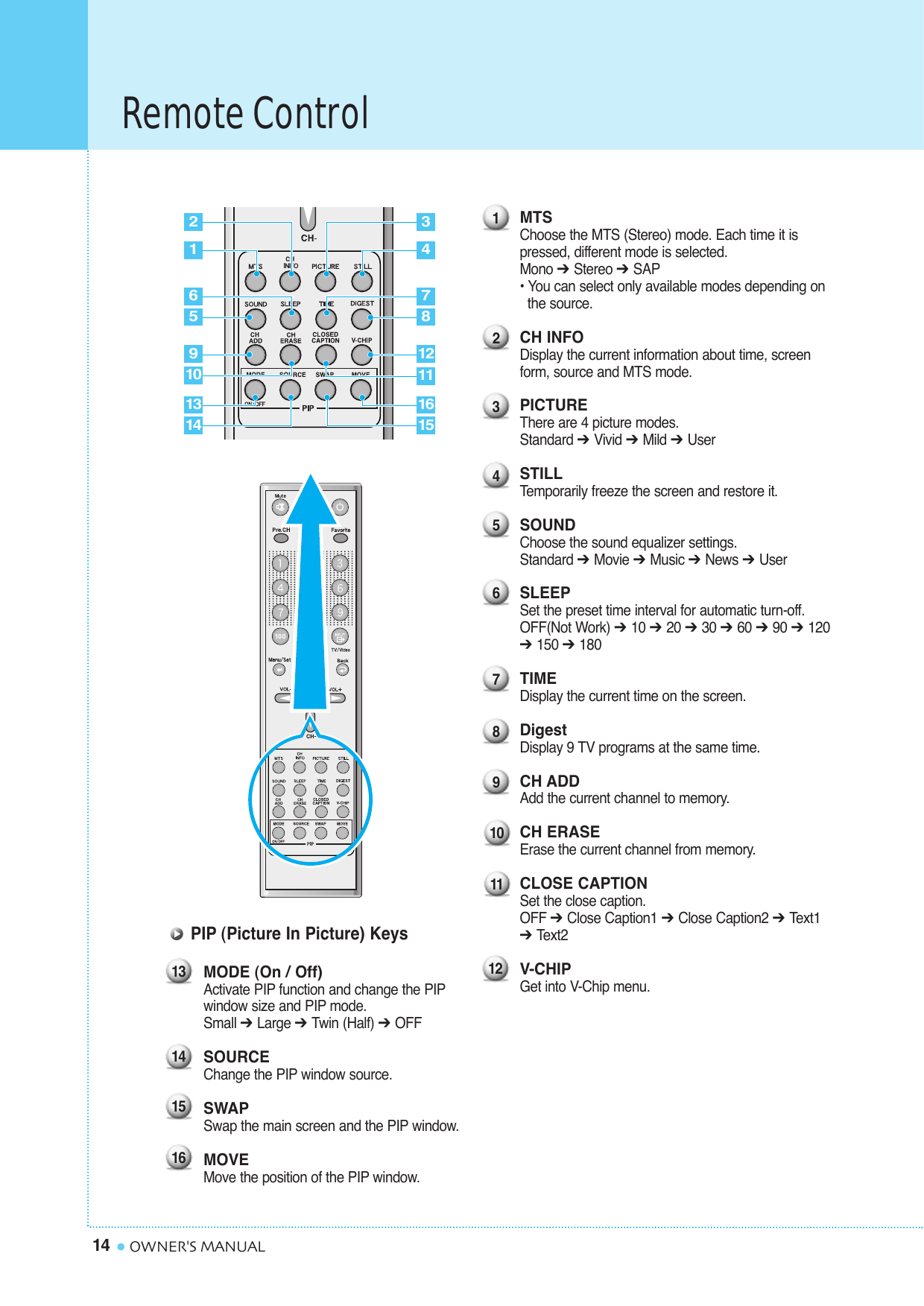

Remote Control14 OWNER'S MANUALMTSChoose the MTS (Stereo) mode. Each time it ispressed, different mode is selected.Mono ➔ Stereo ➔ SAP• You can select only available modes depending on the source.CH INFODisplay the current information about time, screenform, source and MTS mode.PICTUREThere are 4 picture modes.Standard ➔ Vivid ➔ Mild ➔ UserSTILLTemporarily freeze the screen and restore it.SOUNDChoose the sound equalizer settings.Standard ➔ Movie ➔ Music ➔ News ➔ UserSLEEPSet the preset time interval for automatic turn-off.OFF(Not Work) ➔ 10 ➔ 20 ➔ 30 ➔ 60 ➔ 90 ➔ 120➔ 150 ➔ 180TIMEDisplay the current time on the screen.DigestDisplay 9 TV programs at the same time.CH ADDAdd the current channel to memory.CH ERASEErase the current channel from memory.CLOSE CAPTIONSet the close caption.OFF ➔ Close Caption1 ➔ Close Caption2 ➔ Text1➔ Text2V-CHIPGet into V-Chip menu.123456789121110PIP (Picture In Picture) KeysMODE (On / Off)Activate PIP function and change the PIPwindow size and PIP mode.Small ➔ Large ➔ Twin (Half) ➔ OFFSOURCEChange the PIP window source.SWAPSwap the main screen and the PIP window.MOVEMove the position of the PIP window.2610437159812111615131413141516

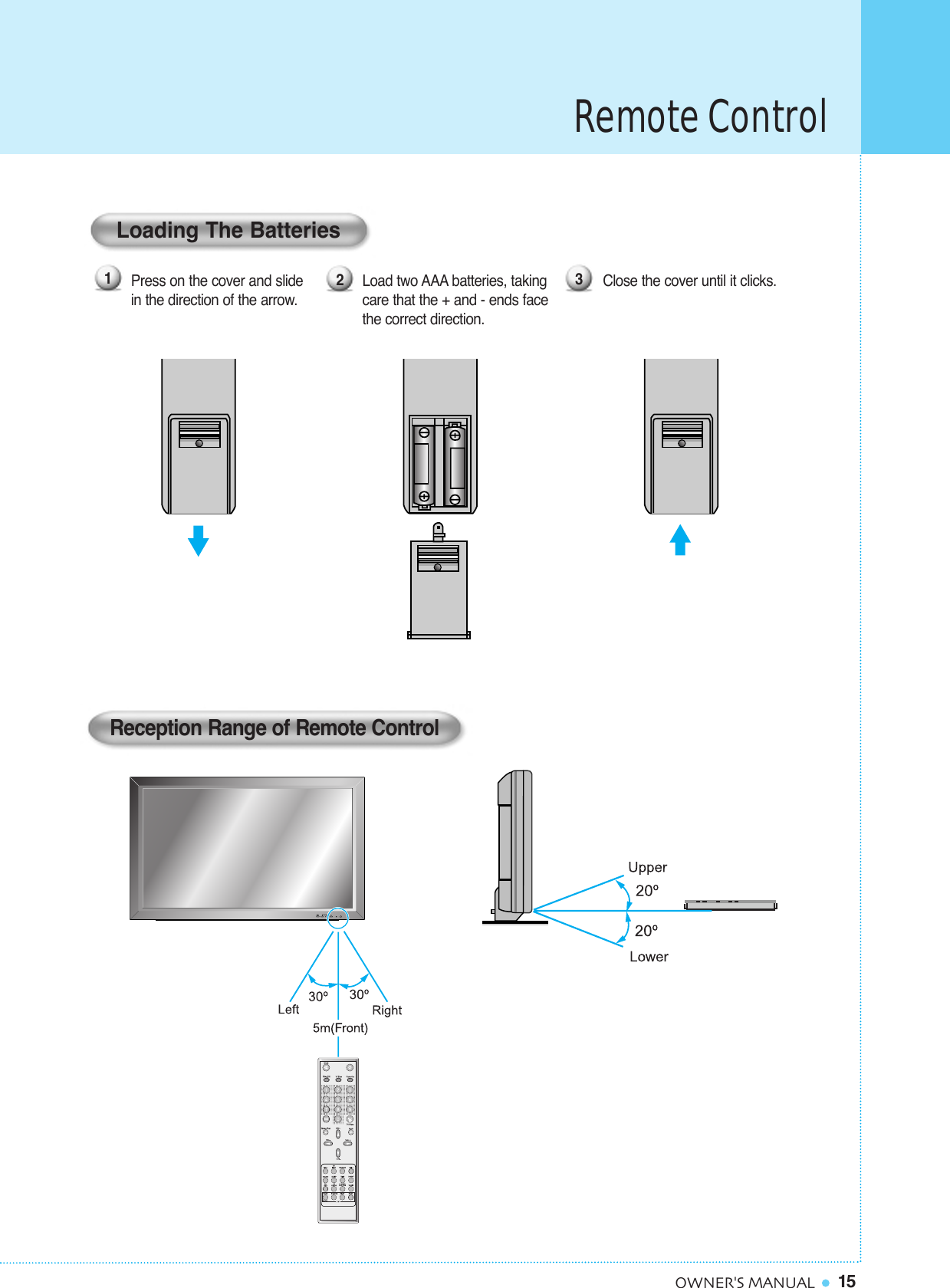

15OWNER'S MANUALClose the cover until it clicks. Load two AAA batteries, takingcare that the + and - ends facethe correct direction.Press on the cover and slide in the direction of the arrow.123Loading The BatteriesReception Range of Remote ControlRemote Control

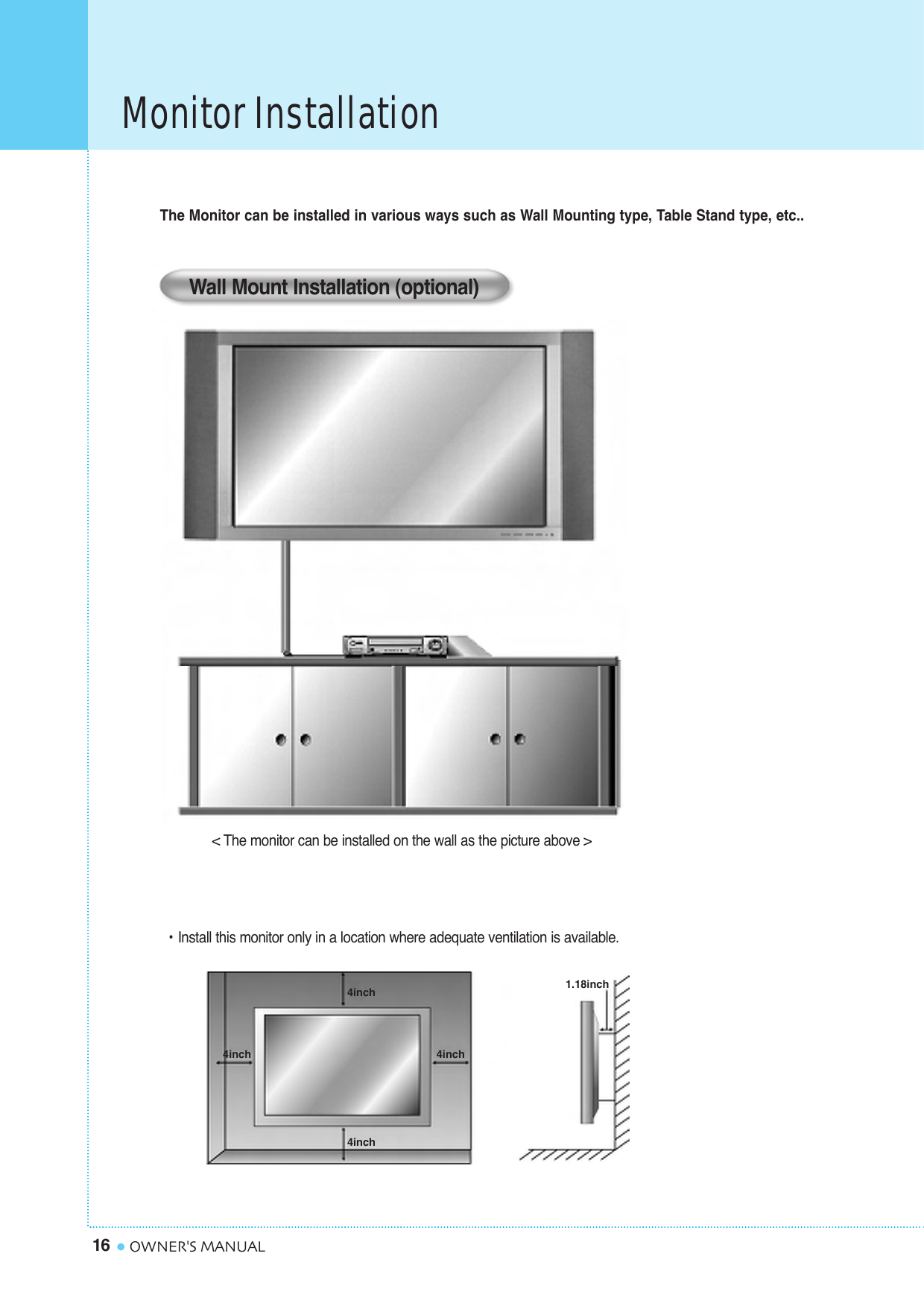

Monitor Installation16 OWNER'S MANUAL< The monitor can be installed on the wall as the picture above >The Monitor can be installed in various ways such as Wall Mounting type, Table Stand type, etc..• Install this monitor only in a location where adequate ventilation is available.Wall Mount Installation (optional) 1.18inch4inch4inch4inch4inch

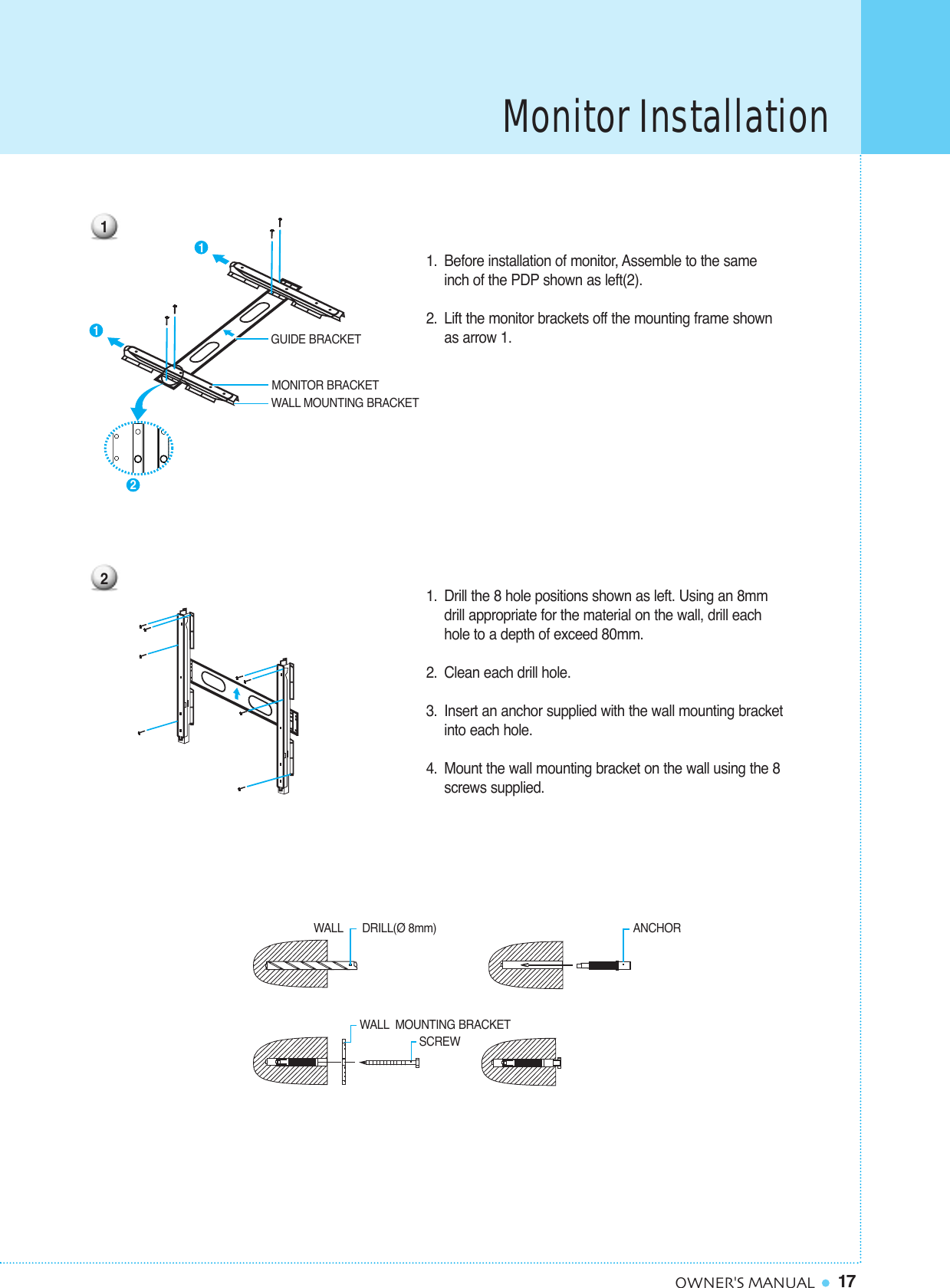

Monitor Installation17OWNER'S MANUAL1. Before installation of monitor, Assemble to the same inch of the PDP shown as left(2).2. Lift the monitor brackets off the mounting frame shown as arrow 1. 1. Drill the 8 hole positions shown as left. Using an 8mm drill appropriate for the material on the wall, drill each hole to a depth of exceed 80mm.2. Clean each drill hole. 3. Insert an anchor supplied with the wall mounting bracketinto each hole. 4. Mount the wall mounting bracket on the wall using the 8 screws supplied.GUIDE BRACKETMONITOR BRACKETWALL MOUNTING BRACKETWALL DRILL(Ø 8mm) SCREWANCHORWALL MOUNTING BRACKET12211
