Hastech HW098-R 2.4G wireless receiver User Manual
Shenzhen Hastech industries Co., Ltd 2.4G wireless receiver Users Manual
Hastech >
Users Manual
Anker® Ultra-Slim 2.4G Wireless Keyboard and receiver
Welcome Guide
Package Contents
Anker Ultra-Slim 2.4G Wireless Keyboard
USB wireless receiver
Welcome Guide

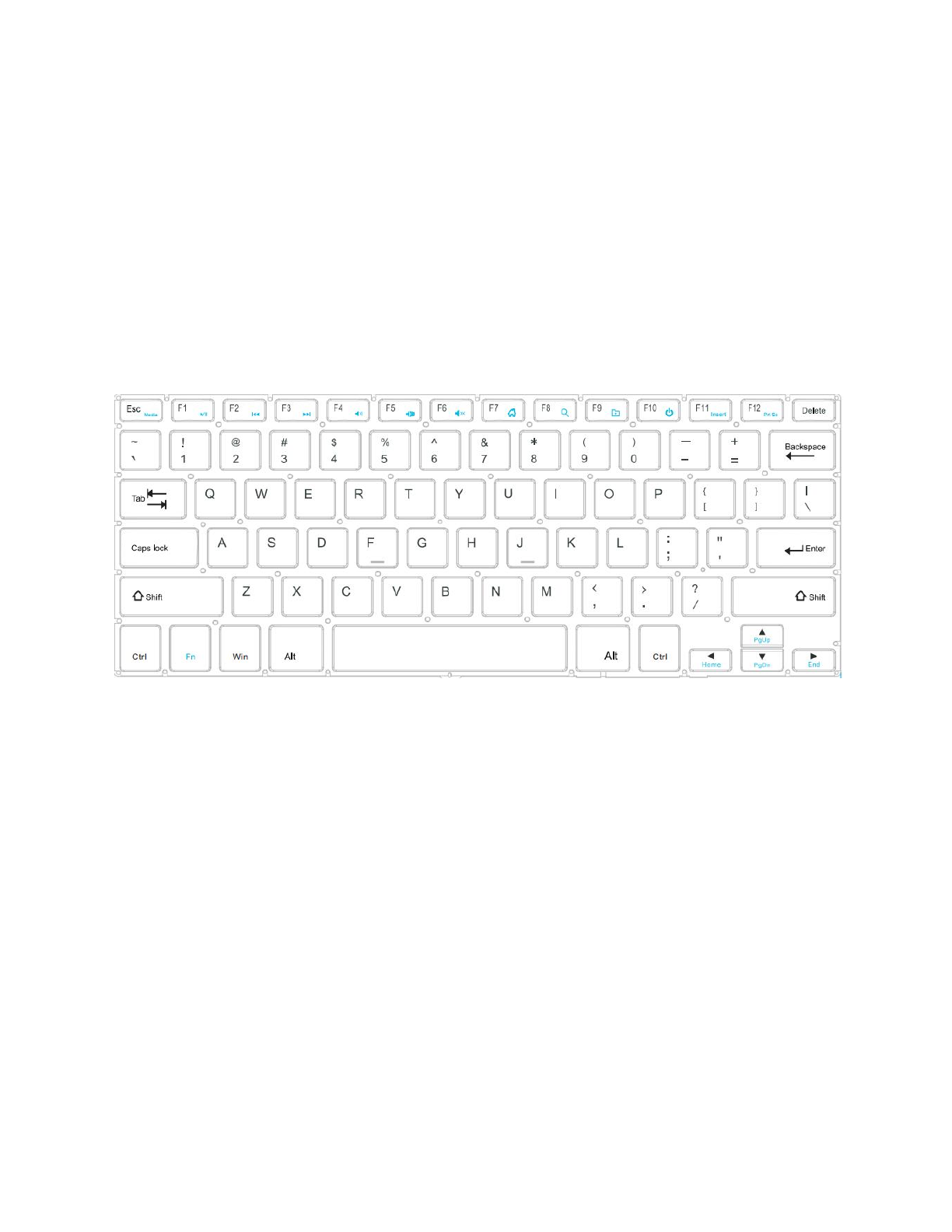

Product Overview
1. Media
2. Play / Pause
3. Last Song
4. Next Song
5. Volume Up
6. Volume Down
7. Mute
8. Home
9. Search
10. Bookmark Webpage
11. Power Off
12. Insert
13. Print Screen
14. LED Indicator
15. Battery Insertion Slot
16. USB Wireless Receiver
17. On / Off Switch
FCC ID:2AC9LHW098-R
Specifications
Wireless Specification 2.4G wireless
Product Dimensions 285 × 122 × 19mm / 11.2 ×
4.8 × 0.7in (L × W × H)
Product Weight 189g / 6.7 oz
Operating Range Up to 10 meters / 33 feet
Modulation System MSK
Battery Type 2 AAA batteries
Working Temperature -10°C to +55°C
Key Life 3 million clicks
System Requirements Windows 8 / Windows 7 /
Windows Vista / Windows
XP
Setup Instructions
1. Open the battery cover on the back of the keyboard and take it off.
2. Insert two AAA batteries (not included).
3. Take out the USB wireless receiver from the battery slot and plug it into your computer’s USB
port.
4. Replace the battery cover and you are ready to begin typing.
Replacing Batteries
When the batteries are running low, the LED indicator will turn red and begin to flash. Replace the
AAA batteries to continue typing.
Troubleshooting
If you have any problems using the keyboard, or you’re using a new Anker receiver, try the following
steps to pair the keyboard and receiver together again:
1. Unplug the USB receiver and then plug it back into the computer USB port.
2. Press the ESC and Q keys at the same time. The LED indicator will flash rapidly for about 5 seconds
and then go off. The receiver is now successfully paired to your keyboard.
FCC Statement:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause
undesired operation.
Warning: Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the interference by one
or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
RF warning statement:
The device has been evaluated to meet general RF exposure requirement. The device can be used in
portable exposure condition without restriction.
