FEATURES
•Quickly add ON/OFF control of a receptacle without the expense of new wiring.
•Four selectable channels allowing the use of up to four separate systems in the same home.
•Products are UL/cUL and/or FCC/IC tested and approved.
•Operational range of up to 50 feet.
Remote Controlled Products
Operation
1. The two buttons on the remote
will operate one or more receiver
units with matching channels.
2. Push the ON button to turn the
plugged in receiver on or the OFF
button to turn the plugged in re-
ceiver off.
Battery Replacement
The remote control requires a type A23 12 Volt
alkaline battery to operate. The remote control is
shipped with the battery installed. With typical
use, the battery will last approximately one year.
Remove battery when remote will not be used for
an extended period of time.
To replace the battery, follow the instructions
below:
1. Place remote control face down on a flat
surface.
2. Remove screw on bottom of remote with a
small phillips-head screwdriver.
2-BUTTON REMOTE CONTROL
ONOFF
3. Gently insert a small flat-head screwdriver
between the two halves on the bottom of the
remote and twist. Carefully separate the
back of the remote from the front.
4. Lift the back of the remote up and lay aside.
5. Remove battery. Install replacement bat-
tery. Make sure battery is oriented properly
(see illustration).
6. Reassemble remote in reverse order.

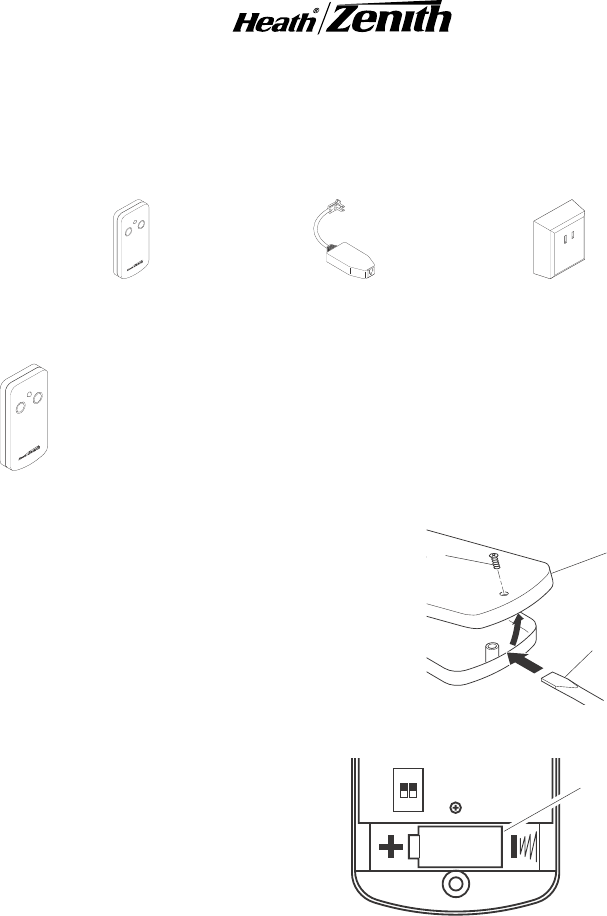

Inside of Remote Control
ON
12 V
1 2
Battery
Compartment
(Type A23)
Removing Back of Remote Control
Flat-Head
Screwdriver
Philips-Head
Screw
Remote
Control Back
ONOFF
This manual applies to the following products:
2-Button Remote Control Indoor Plug-In ReceiverIndoor/Outdoor Receiver
2
598-1119-00
DRAFT COPY
INDOOR PLUG-IN RECEIVER
Features and Ratings:
•Up to 500 Watt maximum incan-
descent load.
•Up to 300 Watt maximum fluo-
rescent load.
•Up to 400 Watt maximum TV
load.
•Up to 1/3 Hp maximum motor load.
•No wiring required.
Operation
1. Plug in indoor receiver.
2. Plug in lamp or appliance you wish to control.
Caution: Do not exceed the maximum load
limits listed above.
3. Toggle ON/OFF switches on remote control
to check operation.
Note:
Red light on remote
should come on while button is depressed.
Important: Wait 1 to 2 seconds after you
press the transmitter button before you press
it again to allow the transmission to be
completed.
Note:
If plugged in lamp or appliance does not
turn on or off when remote buttons are pushed,
see Troubleshooting section.
INDOOR/OUTDOOR RECEIVER
Features and Ratings:
•Rated for 120VAC/60Hz supply
voltage.
•Up to 13 Amps maximum resis-
tive load.
•Up to 960 Watt maximum incan-
descent load.
•Up to 960 Watt maximum fluorescent load.
•Up to 1/3 Hp maximum motor load.
•No wiring required.
Operation
1. Plug in Indoor/Outdoor Receiver. Remem-
ber, the Indoor/Outdoor Receiver requires a
grounded outlet. If you do not have a grounded
outlet, you may want to contact an electrician
to upgrade your electrical system. If you are
using the Indoor/Outdoor Receiver outdoors,
see extra precautions below.
Precautions When Using the Indoor/
Outdoor Receiver Outdoors
•The receiver must be oriented with the power
outlet down to prevent rain from entering the
unit. See illustration.
•Hang the receiver on a nail or screw as shown.
There is a hole in the back for this purpose.
DO NOT allow receiver to hang by the cord.
•Note in the illustration that the receiver is
located below the wall outlet. This is to pre-
vent rain from running down the cord into the
wall outlet.
•
Note:
The National Electrical Code and Cana-
dian Electrical Code (and most local codes)
require that outside outlets be protected by a
Ground Fault Interrupter (GFI).
2. Plug in lamp or appliance you wish to control.
Caution: Do not exceed the maximum load
limits listed above.

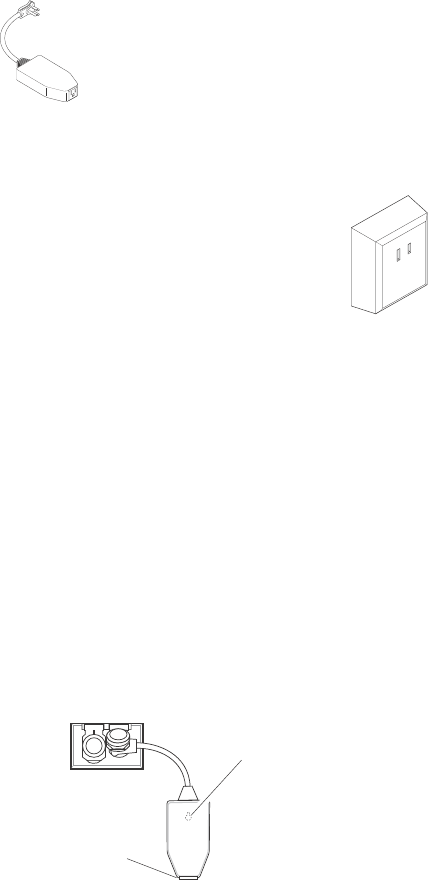

Hole to Hang Unit
Power Outlet
Connecting Indoor/Outdoor Receiver
3. Toggle ON/OFF switches on remote control
to check operation.
Note:
Red light on remote
should come on while button is depressed.
Important: Wait 1 to 2 seconds after you
press the transmitter button before you press
it again to allow the transmission to be
completed.
Note:
If plugged in lamp or appliance does not
turn on or off when remote buttons are pushed,
see Troubleshooting section.
3
598-1119-00
DRAFT COPY
CHANNEL SETTINGS
Note:
The channel is factory set. Most instal-
lations will not require you to change the two
dip switches on your remote control or re-
ceiver.
Note:
If purchasing more than one remote
control system, select different operating
channels unless you want one remote con-
trol to operate multiple receivers.
These remote control products communicate by
using channels that can be changed by sliding
dip switches into the ON or OFF position on both
the transmitter and receiver unit(s).
Note:
Switch
settings must match. Other remote controlled
unit(s) may cause interference and the system
may not function properly. Follow the instruc-
tions below for setting a new channel.
1. Locate dip switches on both the transmitter
and receiver unit(s).
2. To change the channel, slide dip switches to
ON or OFF as needed. It is recommended to
only change one dip switch at a time and then
check to see if system is functioning properly.
IMPORTANT:
Dip switches must be in the
exact same configuration on both the trans-
mitter and receiver unit(s) for this system to
function properly.

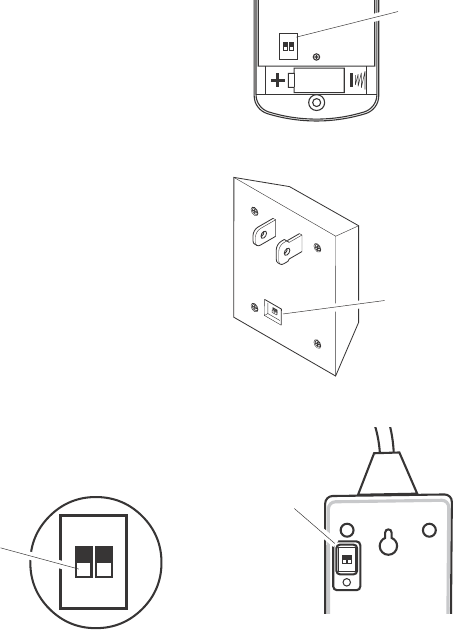

Dip Switches - Shown in the
OFF (Down) Position
(Factory Default)
Dip Switches
ON
1 2
ON
12 V
1 2
Dip Switches
2-Button Remote Control with Back Removed
ON
1 2
Dip Switches
Indoor Plug-In Receiver
DIP SWITCH LOCATIONS
ON
1 2
Dip
Switches
Indoor/Outdoor Plug-In Receiver with Back
Jumper Cover Removed
4
598-1119-00
DRAFT COPY
REGULATORY INFORMATION
This device complies with Part 15 of the FCC Rules and RSS-210 of Industry Canada. Operation is subject
to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
The term "IC:" before the radio certification number only signifies that Industry Canada technical
specifications were met.
The user is cautioned that changes or modifications not expressly approved by the party responsible
for regulatory compliance could void the user’s authority to operate the equipment.
NO SERVICE PARTS AVAILABLE FOR THESE PRODUCTS
TECHNICAL SERVICE
(Do Not Send Products)
If you experience a problem, follow this guide. You may also want to visit our Web site at:
www.desatech.com. If the problem persists, call* for assistance at 1-800-858-8501, 7:30 AM to 4:30
PM Central Time weekdays. You may also write* to:
DESA International, Inc.
P.O. Box 90004, Bowling Green, KY 42102-9004
* If contacting Technical Service, please have the following information available: Model Number,
Date of Purchase, and Place of Purchase.
TROUBLESHOOTING GUIDE
POSSIBLE CAUSE
1. Circuit breaker is tripped or
turned off or fuse is blown.
2. Switch on lamp or appliance
is turned off.
3. Lamp or appliance is defec-
tive.
4. Interrupted by another de-
vice.
5. Signals from transmitter are
being blocked, or transmitter
is out of range.
6. Weak battery in the transmitter.
7. Dip switches on transmitter
and receiver units do not
match.
1. Switching modes too quickly.
2. Same as 5, 6, and 7 above.
1. Another transmitter on the
same channel.
SYMPTOM
Lamp or appliance
does not come on.
Lamp or appliance
does not turn off.
Lamp or appliance
comes on randomly.
SOLUTION
1. Reset circuit breaker or replace
fuse.
2. Verify switch on lamp or appliance
is turned on.
3. Test using different lamp or appli-
ance.
4. Change channels on transmitter
and receiver units.
5. Check for metal objects that could
block the signal, or reposition the
transmitter.
6. Check battery charge and replace
if necessary.
7. Verify dip switch settings on trans-
mitter and receiver units are set
the same.
1. Wait 1 to 2 seconds before
swiching modes.
2. Same as 5, 6, and 7 above.
1. Change channels on transmitter
and receiver units.
5
598-1119-00
DRAFT COPY
YOUR HEATH®/ZENITH FIVE YEAR LIMITED WARRANTY
This is a "Limited Warranty" which gives you specific legal rights. You may also have other rights which
vary from state to state or province to province.
For a period of five years from the date of purchase, any malfunction caused by factory defective parts
or workmanship will be corrected at no charge to you. Light bulbs and Batteries not covered. To
obtain a refund or a replacement, return the product to the place of purchase.
Not Covered - Repair service, adjustment and calibration due to misuse, abuse or negligence, light bulbs
and other expendable items are not covered by this warranty. Unauthorized service or modification of the
product or of any furnished component will void this warranty in its entirety. This warranty does not include
reimbursement for inconvenience, installation, setup time, loss of use, or unauthorized service.
This warranty covers only Heath®/Zenith assembled products and is not extended to other equipment
and components that a customer uses in conjunction with our products.
THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED,
INCLUDING ANY WARRANTY, REPRESENTATION OR CONDITION OF MERCHANT ABILITY OR
THAT THE PRODUCTS ARE FIT FOR ANY PARTICULAR PURPOSE OR USE, AND SPECIFICALLY
IN LIEU OF ALL SPECIAL, INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES.
REPAIR OR REPLACEMENT SHALL BE THE SOLE REMEDY OF THE CUSTOMER AND THERE
SHALL BE NO LIABILITY ON THE PART OF DESA FOR ANY SPECIAL, INDIRECT, INCIDENTAL, OR
CONSEQUENTIAL DAMAGES, INCLUDING BUT NOT LIMITED TO ANY LOSS OF BUSINESS OR
PROFITS, WHETHER OR NOT FORESEEABLE. Some states or provinces do not allow the exclusion
or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply
to you. Retain receipt for warranty claims.
Heath®/Zenith reserves the right to discontinue products and to change specifications at any time
without incurring any obligation to incorporate new features in products previously sold.
