Wireless Push
Button Insert
The Heath®/Zenith Wireless Push Button Insert
works with any Heath®/Zenith wireless chime.
• Patented Technology
• Battery powered push button - No wires to
run.
• 128 selectable codes allow more than one
chime system in the same house.
• Factory installed batteries.
•LED halo lighted push button (see Halo Lighted
Push Button Feature for more information).
• Fits any mounting plate with a 5/8" diameter
opening.
• Works with stucco or aluminum siding.
© 2008 HeathCo LLC 598-1312-00
(Style may vary from illustration)
![](/img.php?id=951560&img=bg2.png)
-2- 598-1312-00
DRAFT COPY
1. Open battery cover. To open battery, press in tab on back
of push button and lift cover (see Figure 1). Pull battery tab
to activate factory installed battery (see Figure 2). Note: See
Troubleshooting for replacement battery information.
2. Test range. Temporarily position push button where you
want it mounted. Press push button to verify chime and
push button work properly. If chime does not sound, see
Troubleshooting.
Pull tab to
activate battery
WARNING: To prevent possible SERIOUS INJURY
or DEATH:
• NEVER allow small children near batteries.
• If battery is swallowed, immediately notify doctor.
Figure 1 Figure 2
Dip Switches
![](/img.php?id=951560&img=bg3.png)
-3-
598-1312-00
DRAFT COPY
3. Mount push button. Note: Use a standard 5/8" drill bit. Do
not use a spade-type bit.
• Use masking tape to mark 3 1/2" depth on drill bit (see
Figure 3).
• Drill 5/8" diameter hole 3 1/2" deep in desired mounting
location.
• Fully insert push button into mounting hole. Insert push
button into mounting hole (see Figure 4).
• Attach mounting plate to wall with screws included with
plate (see Figure 5).
Figure 3
31/2" (89 mm)
Masking Tape
Figure 5
Figure 4
Push Button Insert
Push Button
Mounting Plate
5/8" Hole Drilled 3 1/2" Deep
![](/img.php?id=951560&img=bg4.png)
-4- 598-1312-00
DRAFT COPY
ON
1 2 3 4 5 6 7 8
Tune Settings
Your wireless chime has different selectable tunes: Ding (one
note), Ding-Dong (two note), or Westminster (eight note) (Avail-
able on selected chimes). The factory setting is for the Ding-Dong
tune (or Westminster, when available). This tune can be changed
by following the instructions below.
•Ding (one note tune)
Inside Push Button: Location 8, set dip switch ON (1 or High)
or add jumper.
•Ding-Dong (two note tune)
Inside Push Button: Location 8, set dip switch OFF (0 or
Low) or remove jumper.
Chime: Remove jumper from location 8.
•Westminster (Eight note tune) (Available on selected
chimes)
Inside Push Button: Location 8, set dip switch OFF (0 or
Low) or remove jumper.
Chime: Add a jumper to location 8.
Note: All models have both front and back door tune capabilities.
We recommend the back door use the Ding tune and the front
door use the Ding-Dong tune (or Westminster tune, available
on selected chimes).
Note: Some models might require the use of tweezers to remove and
replace the jumpers.
Figure 6

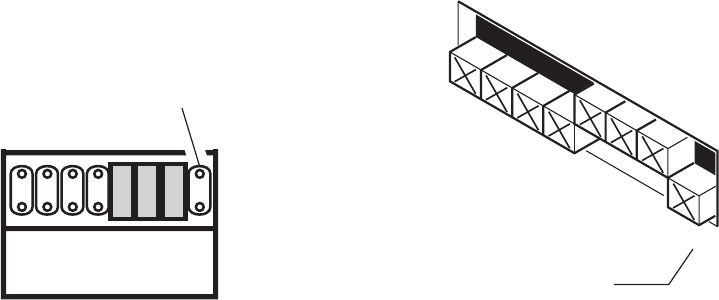

Inside Push ButtonChime
Tune Setting (Not
used on all models)
12345678 Tune Setting
-5-
598-1312-00
DRAFT COPY
Continued
Troubleshooting
A. Chime does not sound:
• Make sure push button and chime codes are the same
(see Figure 7).
• Check orientation of push button battery (See diagram
inside push button for correct battery orientation.)
•
Check charge of push button and chime batteries
(if ap-
plicable)
, replace if necessary. Note: The push button uses
a “N” type battery.
B. Chime sounds when not intended (false triggers): Chime
is receiving interference from another wireless device;
change the code setting (see Code Setting below).
C. Batteries seem OK, but the chime does not work when
installed:
• Do not mount chime or push button on metal or near
metal studs. This reduces the transmitter range. Use
1/4" to 1/2" (6 to 13 mm) wood shims to move chime or
push button off metal surface.
• Concrete floors may reduce range. Move chime away
from floor.
• Try locating chime closer to push button.
D. Code Setting:
It is recommended to only change one code position at a time
and then check to see if system is functioning properly.
1. Open the cases and locate the dip switches or jumpers on
both the push button and chime (see Figure 7).
2. The push button and chime both have eight different dip
switch or jumper locations. Positions 1 through 7 are used
for setting the code.
![](/img.php?id=951560&img=bg6.png)
-6- 598-1312-00
DRAFT COPY
12345678
Inside Push Button
Chime
Figure 7
ON
1 2 3 4 5 6 78
* Code Settings 1-7
Must Match Both Push
Button and Chime
Note: Some models might require the use of tweezers to remove and
replace the jumpers or a small screw driver to set dip switches.
3. To change the code, either:
•Add a jumper to the chime and set the matching push
button dip switch to ON or...
•Remove a jumper from the chime and set the matching
push button dip switch to OFF or...
•Move a jumper on the chime from one location to another.
Set the matching two dip switches on the push button to
match the jumper settings on the chime.
Example: In the chime, move the chime jumper at loca-
tion “5” to location “4”. In the push button, set the “5” dip
switch to OFF and the “4” dip switch to ON.
Note: Code positions 1 through 7 must be exactly the
same for both the push button and chime for this system
to function.
Note: Unit will come factory set with dip switches 5, 6, and 7
in the ON position (see Figure 7).
The range of the wireless chime can vary with location, tem-
perature, and battery condition.
-7-
598-1312-00
DRAFT COPY
Halo Lighted Push Button Feature
This Heath®/Zenith wireless push button contains a LED (Light
Emitting Diode). This patented technology lights the push button
making it more visible for your guests at night.
Regulatory Information
This device complies with Part 15 of the FCC Rules and RSS-
210 of Industry Canada. Operation is subject to the following
two conditions: (1) this device may not cause harmful interfer-
ence, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
The user is cautioned that changes or modifications not
expressly approved by the party responsible for regula-
tory compliance could void the user’s authority to operate the
equipment.
Technical Service
Please call 1-800-858-8501 (English speaking only)
for assistance before returning product to store.
If you experience a problem, follow this guide. You may also want
to visit our Web site at: www.hzsupport.com. If the problem
persists, call* for assistance at 1-800-858-8501, 7:30 AM to
4:30 PM CST (M-F). You may also write* to:
HeathCo LLC
P.O. Box 90045
Bowling Green, KY 42102-9045
ATTN: Technical Service
* If contacting Technical Service, please have the following
information available: Model Number, Date of Purchase, and
Place of Purchase.
No Service Parts Available for this Product
