Heiman Technology HS1CGZ Smart Combustible Gas Sensor User Manual
Shenzhen Heiman Technology Co.,Ltd. Smart Combustible Gas Sensor
User Manual

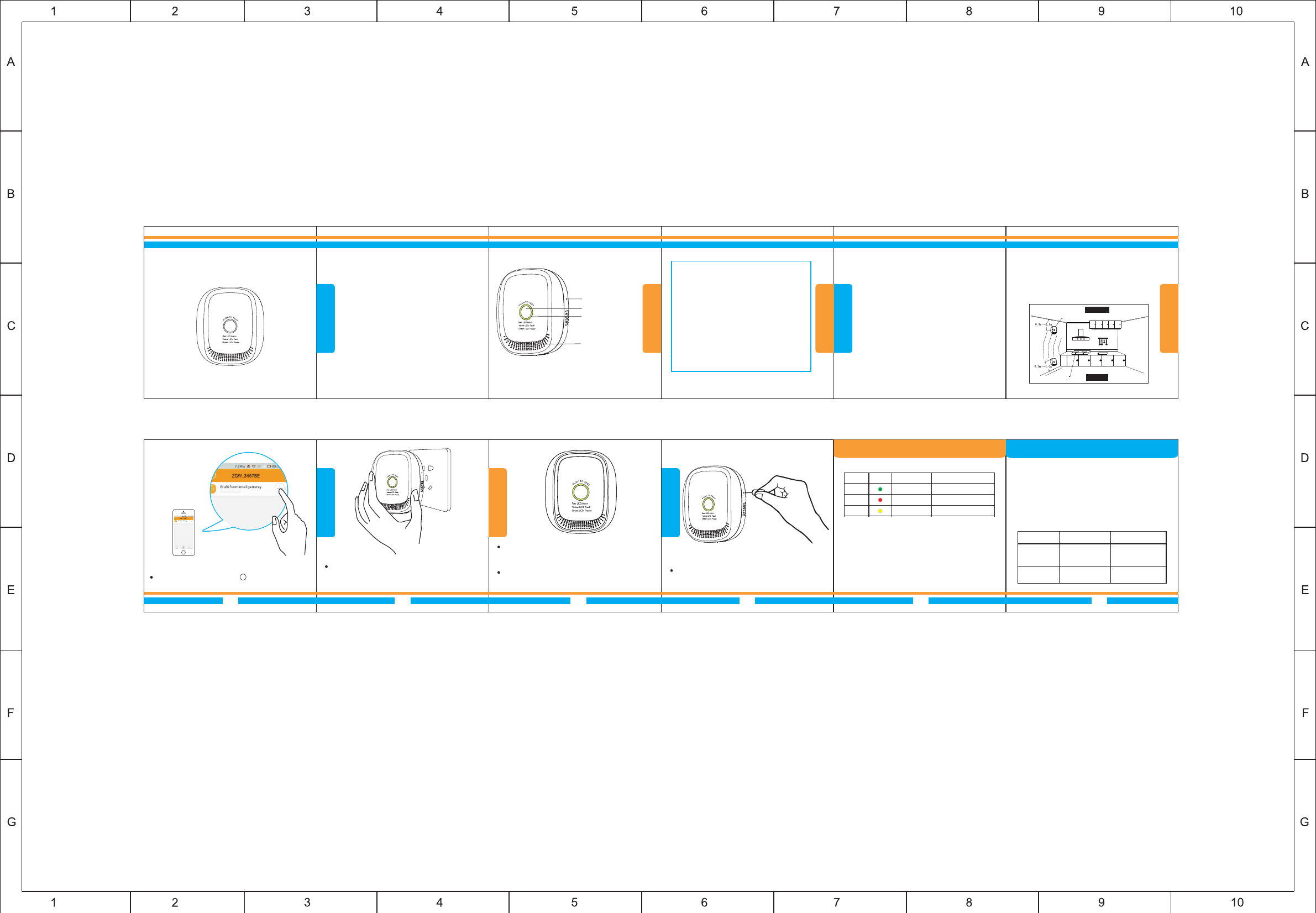

![](/img.php?id=3381789&img=bg1.png)
1.Working Voltage: AC100V~240V
2.Average Power Consumption: <1.5W
3.Alarm Sound: 75dB/1m
4.Alarm Density: 6%LEL±3%LEL(natural gas)
5.Networking: Z-Wave Ad-hoc Networking
6.Wireless Networking Distance: ≥70m (in open area)
7.Working Environment: -10℃ ~ 50℃
8.Environment Humidity: Max 95% RH
9.Dimension: 79*68*31mm ( )
+
no including plug
Please click the add button ( + ” ) to enter gateway
networking mode.
“
Specification
Light State Product Testing
Warm Prompt
Power on the sensor, the green LED will be lit and a “beep” sounded,
the sensor enters into preheating state. At this time, red LED and
yellow LED flash alternately. The flash will stop 3 minutes later,
which indicates that the sensor is in normal working state. (Don't use
gas to test sensor while preheating).
Please read the user manual carefully before operation.
The guide picture is for reference only. Please in kind prevail.
This Smart Combustible Gas Sensor adopts super low
power consumption Z-Wave wireless networking
technology. It is used for detecting combustible gas
leakage and preventing harm caused by gas leakage. it
also can be used as Z-Wave repeater to extend wireless
communication distance. It adopts high stability semi-
conductor gas sensor, with high stability, little sensitivity
drift and may other features. Sensor alarms while gas
density in air exceed alarm level. It is applicable for
kitchen or possible gas leakage in door areas.
Factory Default: Long press networking hole for 10 seconds,
then ID code will be cleared and the sensor will be reset to
factory default.
1.Shell surface will be slightly hot while working, which is
a normal phenomenon .
2.Please dismantle sensor while decorating house.
3.Avoid spraying aerosol around sensor.
4.Oil contamination around gas convection holes will
effect the sensitivity of gas sensor, after long time
using.Suggest users to clear gas convection holes with
brush mixing little detergent every 3 months (or
depends on specific oil contamination level).
Avoidletting detergent enter sensor body. Please retest
after cleaning.
5.Semi-conductor of gas sensor supports 5-year lifespan.
Please replace sensor timely.
6.Please do not use lighter to test sensor directly in case
of any damage to gas sensor inside.
7.For your safety, in addition to use sensor properly,
please be vigilant and enhance safety prevention
awareness in daily life.
State Color Light Alarm Sound
Power
Malfunction
Constantly Lit
Constantly Lit
None
Constantly Buzzing
Test button of this sensor is used for testing whether LED
indicator and buzzer can work properly. Red LED and yellow
LED flash alternatively with buzzer alarming when test button
pressed.
Networking Hole
LED Indicator
Gas Convection Holes
Test Button
Factory Default
Power On & Preheating
Network: According to APP prompting, please press
networking hole for 3 times in1.5 seconds, then green LED
will flash quickly(the longest networking time is 30 seconds),
APP interface will display icon, networking successfully.
Disconnecting: Please click delete key of the device, then
press networking hole for 3 times in 1.5 seconds, then green
LED will flash slowly for 6 times, disconnecting successfully.
Flashing
Alarm "Di-Di” Alarm Sound
Networking Mode
1 2 345
6 7 8 9 10 11
User Manual
Smart Combustible Gas Sensor
Appearance Instruction
Product Introduction
Floor
sensor
Gas stove
Max diameter 3m
Ceiling
Before installation, pls confirm the detecting gas density,
heavier or lighter than air. If detecting gas is heavier than
air: LPG., etc, install at 0.3-1m height from floor, semi-
diameter to gas source less than 1.5m. If detecting gas is
lighter than air: natural gas, manufactured gas, marsh
gas., etc, install at 0.3-1m height from ceiling, semi-
diameter to gas source less than 1.5m.
Functional Diagram
可燃气体报警器
红外探测器
门磁探测器
Emergency alarm treatment
Fault analysis and troubleshooting
The detector will keep alarming while the natural gas or LPG
density in air exceeds the alarm level. Pls do relative
treatments as below:
1.Shut down the tube valve right away.
2.Extinguish all fire sources and do not use anything can
make fire, e.g. lighters, matches., etc.
3.Avoiding switches on various electric equipments.
4.Open the window and make the air flow rapidly.
1. Power on detector and
aging test for 24 hours;
2. F Do not test detectors
when warming up.
Yellow LED keeps on and
buzzer keeps beeping
Contact dealer to repair
Symptom Reason Remedy
Always warming up
after power on(LED
keeps flashing)
1. Long time no power;
2. Test gas detector
when warming up.
Gas sensor fault
HS1CG-Z
FCC Warning:
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of
the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications to this device not explicitly approved
by manufacturer could void your authority to operate this equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including
interference that may cause undesired operation.
