Heiman Technology HS2SKZUS Smart Metering Plug User Manual
Shenzhen Heiman Technology Co.,Ltd. Smart Metering Plug
User Manual
子件代号：
文件编号：
物料名称：
HS2SK-Z智能计量插座中性英文说明书
2016-07-07
邢江涛
制作要求：
1、制作尺寸：330*55mm
2、六折扇形折页折法，折叠后尺寸为55*55mm
3、120g铜版纸彩色印刷

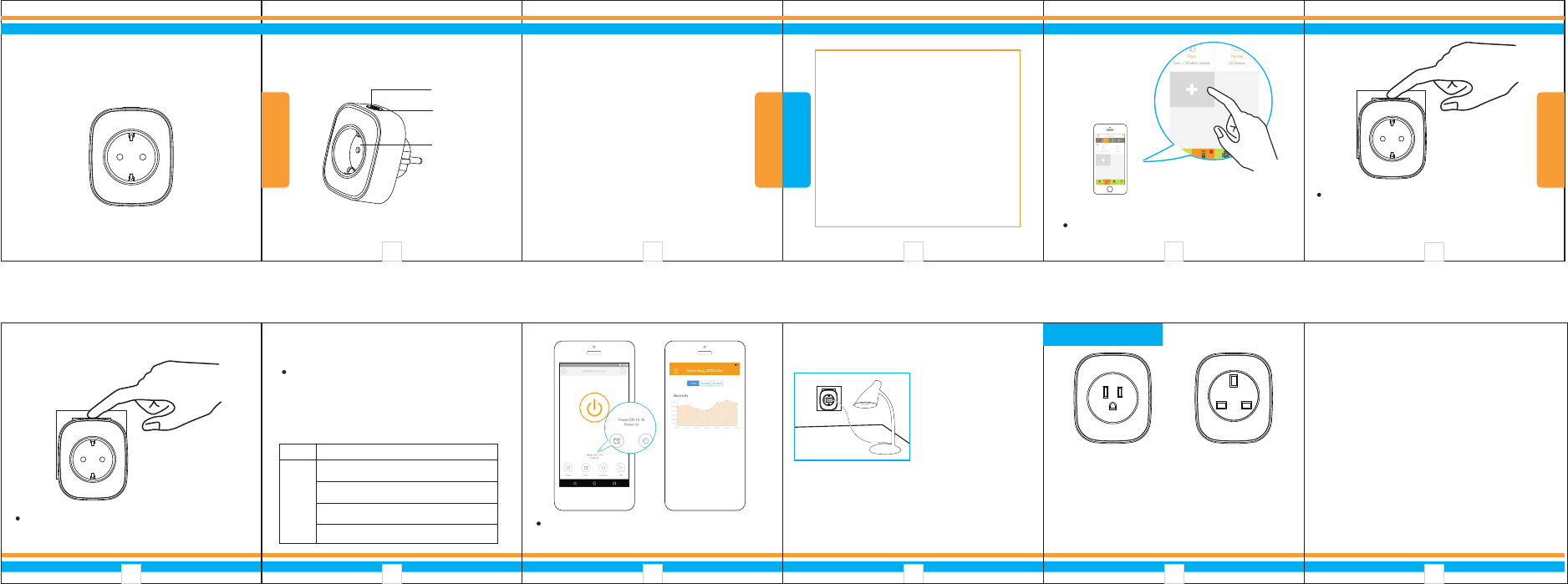

Smart M Plug
Quick Operation Guide
etering
Technical Parameters
Product Description
Product Details
1.Working Voltage: AC100V~240V (full voltage range)
2.Average Power Consumption: ＜0.5W
3.Maximum Load: 3000W
4. Metering Voltage Range: 100VAC-240VAC
5.Metering Current Range:<16A
6.Metering Power Range: <3000W
7. Wireless Networking Distance: Up to 100 meters
(in open area )
8. Working Environment: -10℃ ~ +50℃
9. Working Humidity: 95%RH
10. Networking : Z-Wave Network
11. Dimensions: 79.6*67.9*72mm
≤
1 2 3 4
Supply Hub
LED Indicator
Power Switch/
Networking Button
Please click the add button (“+”) of APP to enter gateway networking
mode.
5
Networking: According to APP prompting, please press
power on/off button of smart meter for 3 times in 1.5
seconds, then blue LED will flash quickly (the longest
networking time is 30 seconds), APP interface will indicate
networking success.
plug
*Please read the user manual carefully before operation.
The guide picture is for reference only, please in kind prevail.
This is a smart m , adopts flame
retardant housing shell, and super low power
consumption Z-Wave wireless transmission
technology.
, voltage, current overload protection.
ug and play, easy to install. ug and play,
easy to install.
etering plug
power metering
It can be used as Z-Wave wireless
repeater, to extend wireless communication
distance. It supports and
timing switch functions. With the function of
power
Pl Pl
Delete sub device
Description of LED Indicator Status
Blue
LED
Flash quickly when networking
Flash slowly when disconnecting
State
Light
Light on when is turned onplug
6 7
Disconnecting: Please click delete button of the device in
APP, then press power on/off button of smart metering
for 3 times in 1.5 seconds, blue LED will flash slowly for
6 times, APP interface will indicate disconnecting success.
plug
Factory : Long press power on/off button for 10
seconds, then ID code will be cleared and smart metering
will be reset.
Reset
plug
Factory Reset
Light off when is turned off plug
8 9
Statement
*Instruction is for reference only, please prevail in kind.
*Because of the updating of the technology, the final
interpretation right owned by factory, if there are any
inconformities when using this products under this instruction.
Power on/off: After pressing p ,
blue LED keeps on and supply hub will be powered on;
Press p
ower switch/networking button
ower switch/networking button again, blue LED turned off,
supply hub will be powered off.
55mm 55mm55mm 55mm 55mm 55mm
55mm
55mm
Networking
Chooseable Plugs
The APP interface will show the power of the appliance and
record the power consumption after appliance is plugged into
the smart .plug
Please choose proper plug type
according to your need.
!
US Standard Smart Plug UK Standard Smart Plug
10 11
It is suit to work with table lamp,
TV, air-conditioner, refrigerator,
electric fan, coffee machine,
bread machine and some other
household appliances and
metering power consumption.
601010955
M417-11Ever1.0
HS2SK-Z-US
FCC Warning:
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
o Reorient or relocate the receiving antenna.
o Increase the separation between the equipment and receiver.
o Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
o Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications to this device not explicitly approved by
manufacturer could void your authority to operate this equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
To comply with FCC RF exposure compliance requirements,this grant
is applicable to only mobile configurations. The antennas used for this
transmittermust be installed to provide a separation distance of at least 20 cm
from allpersons and must not be co-located or operating in conjunction with any
otherantenna or transmitter.
