Installing a 3Com™ Managed
Access Point (MAP)™
This document provides basic hardware installation instructions for indoor MAP models.
Cable Requirement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Suspended Ceiling Installation—Flush Ceiling Tiles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Suspended Ceiling Installation—Drop Ceiling Tiles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Junction Box Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Solid Wall or Ceiling Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Tabletop Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Configuring the MAP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
(For hardware installation instructions in Japanese, Korean, or Chinese, see the documentation
CD or the web site.)
ハードウェアの設置方法を日本語でご覧になりたい場合は、ドキュメントCDをご覧にな
るか、弊社ホームページをご利用下さい。
시스템 설치를 위한 한국어 설명서는 CD를 참조 하시기 바랍니다.
有关硬件安装说明, 请参考在附带文件CD 光盘或公司网页的中文安装手册
有關硬件安装說明, 請参考在附带文件 C D 光盤或公司網頁的中文安装手册
Installing a 3Com™ Managed Access Point (MAP)™
2
Warning! Installation must be performed by qualified service personnel only. Read and follow
all warning notices and instructions marked on the product or included in the documentation.
Before installing the product, read the rest of this document.
Waarschuwing! De installatie mag alleen worden uitgevoerd door bevoegd
onderhoudspersoneel. Het is essentieel dat u kennis neemt van alle waarschuwingen en
instructies aangebracht op het product zelf en/of opgenomen in de documentatie. Voordat u het
product installeert, dient u dit document in zijn geheel te hebben gelezen.
Warnung! Die Installation darf nur von qualifiziertem Servicepersonal vorgenommen
werden. Lesen und befolgen Sie alle Warnhinweise und -anleitungen auf dem Produkt bzw. in
der Dokumentation. Lesen Sie vor Installation des Produkts den restlichen Teil dieses
Dokuments.
Avertissement ! L’installation ne peut être effectuée que par un personnel qualifié. Lisez et
suivez tous les messages d’avertissement et les instructions inscrits sur le produit ou inclus
dans la documentation. Avant d’installer le produit, lisez le reste de ce document.
Attenzione! L’installazione deve essere effettuata unicamente da personale qualificato.
Leggere e rispettare tutte le segnalazioni di attenzione e le istruzioni indicate sul prodotto o
incluse nella documentazione. Prima d’installare il prodotto, leggere tutto il documento.
¡Advertencia! La instalación debe realizarse exclusivamente por parte de personal de
servicio cualificado. Lea y siga todas las notas de advertencia e instrucciones en el producto o la
documentación. Antes de instalar el producto deberá leer la parte restante del presente
documento.
¡Advertencia! A instalação dever ser realizada exclusivamente por pessoal de serviço
qualificado. Leia e siga todas as notas de advertência e instrucões no produto ou na
documentação. Antes de instalar o produto deverá ler a parte restante do presente documento.
Varning! Installation får endast utföras av kvalificerad servicepersonal. Läs och följ alla
varningsmeddelanden och instruktioner markerade på produkten eller inkluderade i
dokumenteringen. Innan produkten installeras skall resten av dessa dokument läsas.
Advarsel! Installation må kun gennemføres af faglært servicepersonale. Læs, og følg alle de
advarselsmeddelelser og anvisninger, der er anført på produktet eller i dokumentationen. Læs
resten af dette dokument før installation af produktet.
Advarsel! Installasjon skal kun utføres av kvalifisert service personell. Les og følg alle varsels
meldinger og instrukssjons merkinger på produktet og i veiledningen. Les resten av denne
veiledningen før produktet installeres.
Installing a 3Com™ Managed Access Point (MAP)™
3
Varoitus! Installatie dient uitsluitend plaats te vinden door bevoegde monteurs. Lees alle
waarschuwingen en instructies die op het product zijn aangegeven of in de documentatie zijn
opgenomen, en volg deze op. Lees voordat u het product installeert eerst de rest van dit
document.
Viðvörun! Aðeins hæfir þjónustufulltrúar mega sinna uppsetningu tækjanna. Lesið og fylgið
öllum viðvörunum og leiðbeiningum í þessum gögnum. Lesið restina af þessum gögnum fyrir
uppsetningu.
Προσοχή! Η εγκατάσταση πρέπει να εκτελείται μόνο από εγκεκριμένο
προσωπικό συντήρησης. Διαβάστε και ακολουθείστε όλες τις
προειδοποιήσεις και οδηγίες που αναγράφονται στο προϊόν ή που
περιλαμβάνονται στην τεκμηρίωση. Πριν προβείτε στην εγκατάσταση
του προϊόντος, διαβάστε το υπόλοιπο έγγραφο.
경고! 공인 서비스 기사만 설치 작업을 수행할 수 있습니다.
제품에 표시되어 있거나 설명서에 포함된 모든 경고 문구 및
지침을 읽어 보시고 준수하십시오. 제품을 설치하기 전에 본
설명서를 전체적으로 읽어 보시기 바랍니다.
Warning! 設置は、資格を持ったサービス要員のみが行えます。
製品に付いているあるいはドキュメントに含まれている全ての警告注意を
読み、それに従ってください。 製品を設置する前に、本ドキュメントの残りをお読みください。
警告！安装工作只能由合格服务人员进行。
请阅读且遵照所有在产品上或者在文件内标记的警告通知、说明。
在安装产品之前，请阅读这份文件的剩余部分。
Внимание! Монтаж должен производить только квалифицированный
обслуживающий персонал. Прочтите и выполняйте все предупредительные
примечания и инструкции, нанесенные на изделие или включенные в
документацию. Перед монтажом изделия прочтите данный документ до конца.
Cable Requirement
Installing a 3Com™ Managed Access Point (MAP)™
4
For more information about MAP installation as well as safety and installation requirements, see the
following:
z3Com Managed Access Point Installation Guide
z3Com Regulatory Information

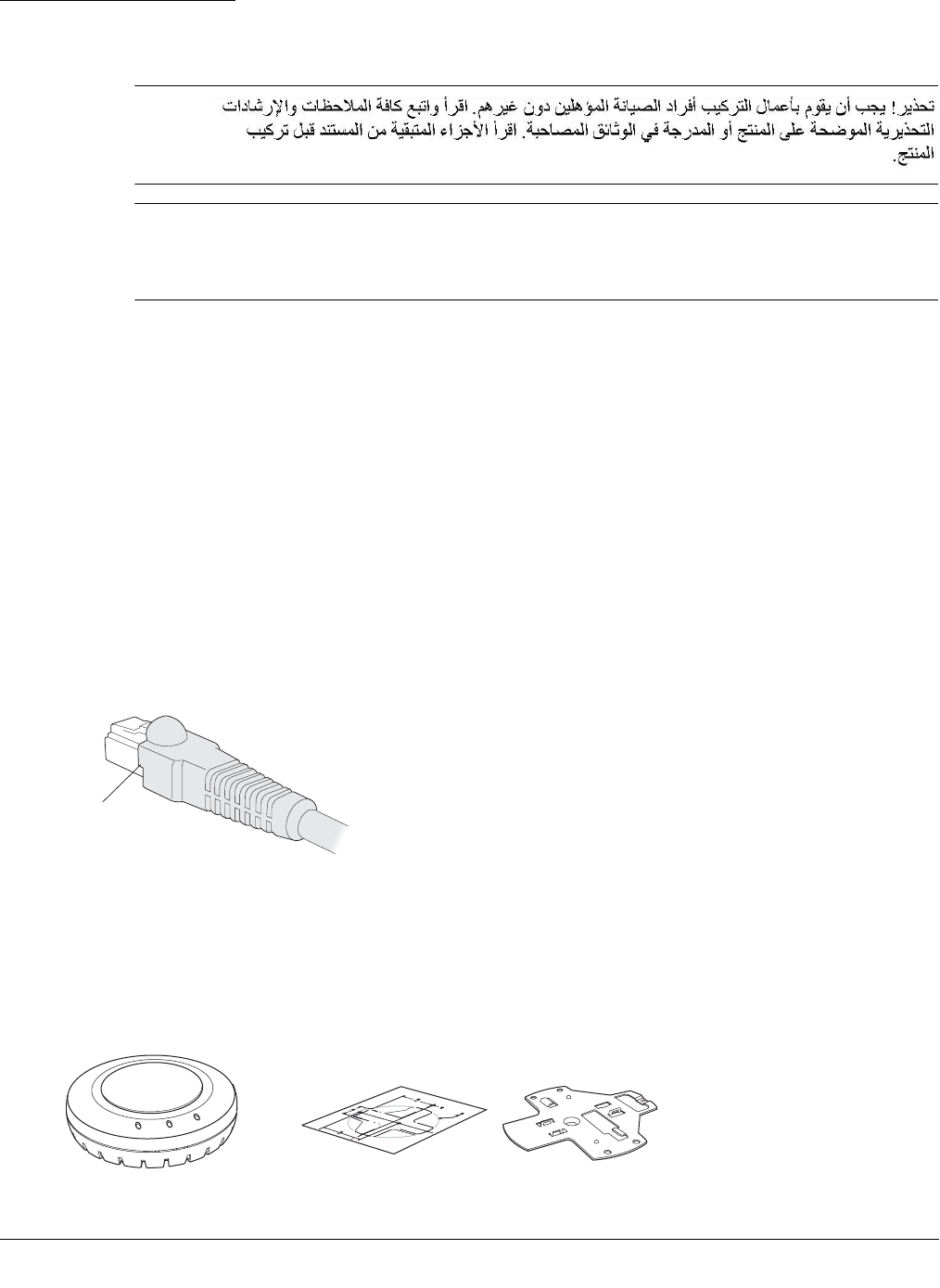

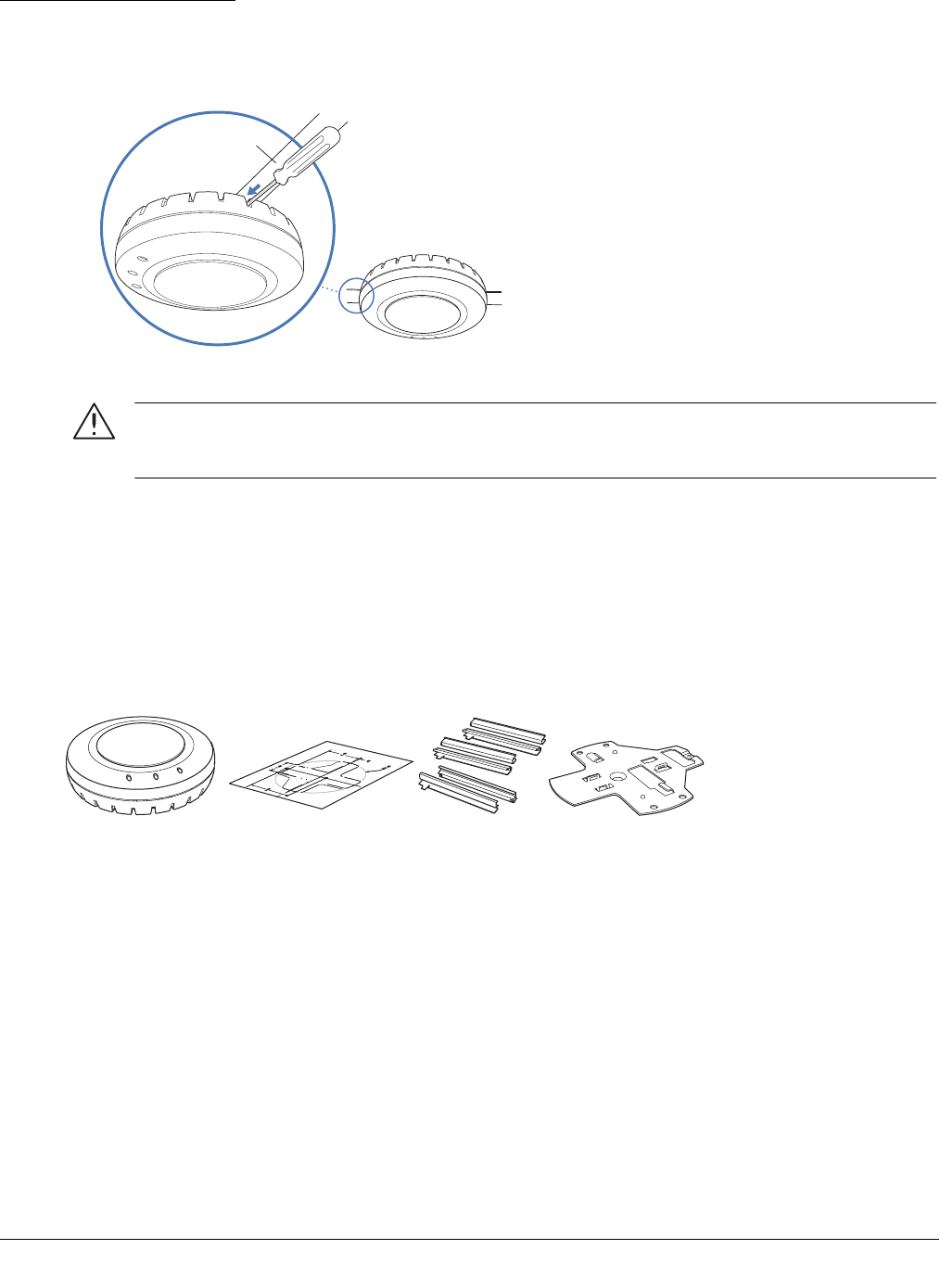

Cable Requirement
The Ethernet ports on a MAP cannot accept a Cat 5 cable that has an uneven sheath such as the one shown
in Figure 1. The RJ-45 connector on the cable will not seat properly in the receptacle on the MAP. Use a
Cat 5 cable with an even sheath instead.
Figure 1. Do Not Use a Cat 5 Cable with an Uneven Sheath
Suspended Ceiling Installation—Flush Ceiling Tiles
This procedure applies to T-bars that are 23.9 mm (15/16 inches) wide. For a 14.2-mm (9/16-inch) or
15.9-mm (5/8-inch) T-bar, go to “Suspended Ceiling Installation—Drop Ceiling Tiles” on page 6.
.דבלב ךמסומ יאנכט ידי לע עצבתת הנקתהה
!הרהזא
תונמוסמה תוארוההו תורהזאה לכל םאתהב לעפו ארק
.דועיתב תועיפומ וא רצומה לע .ואולמב הז ךמסמ ארק ,רצומה תנקתה ינפל
U
neven sheath
840-9502-0067
Mounting
bracket
Mounting
template
Mobility
point
840-9502-0089
Installing a 3Com™ Managed Access Point (MAP)™
5
Suspended Ceiling Installation—Flush Ceiling Tiles

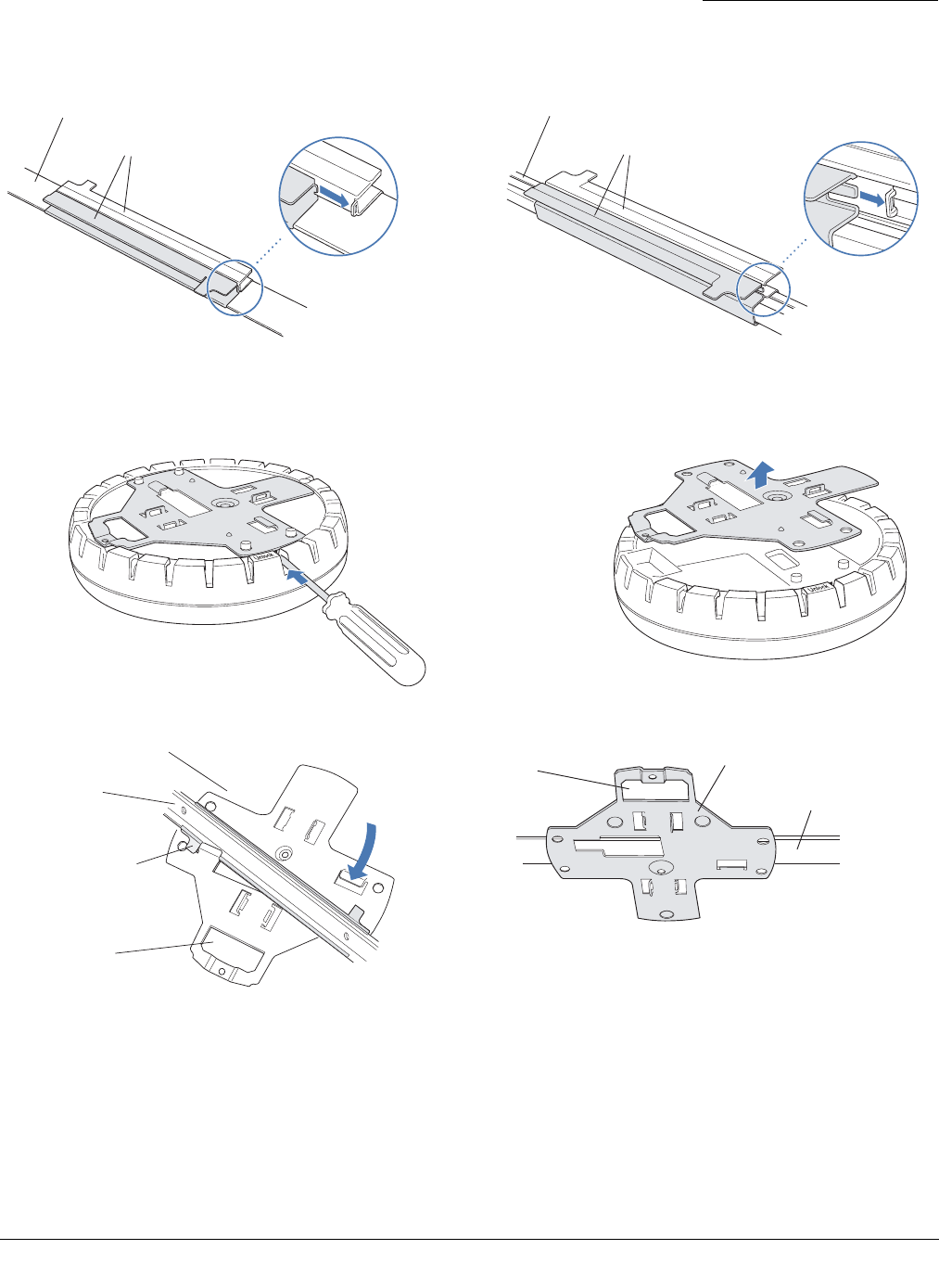

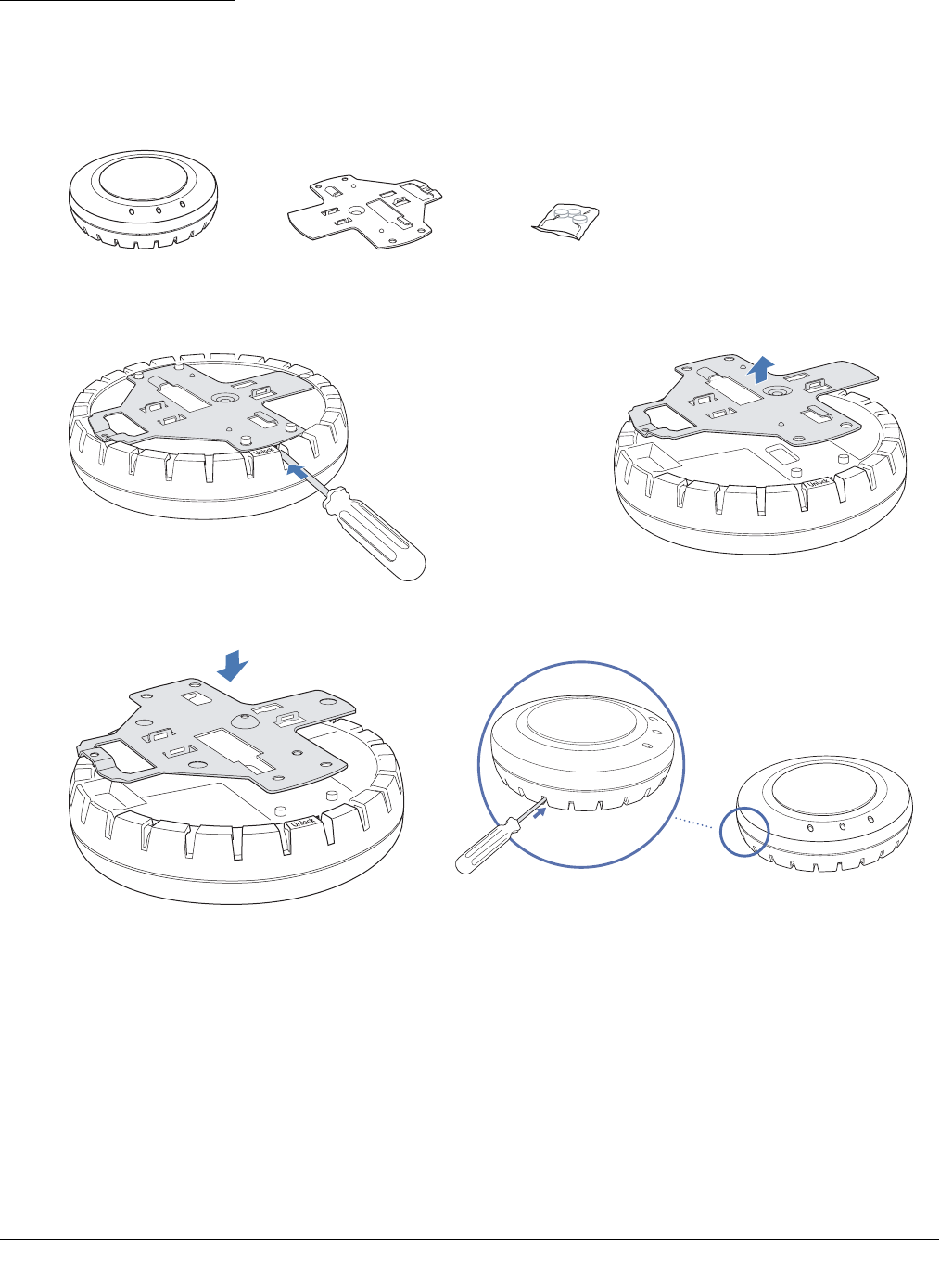

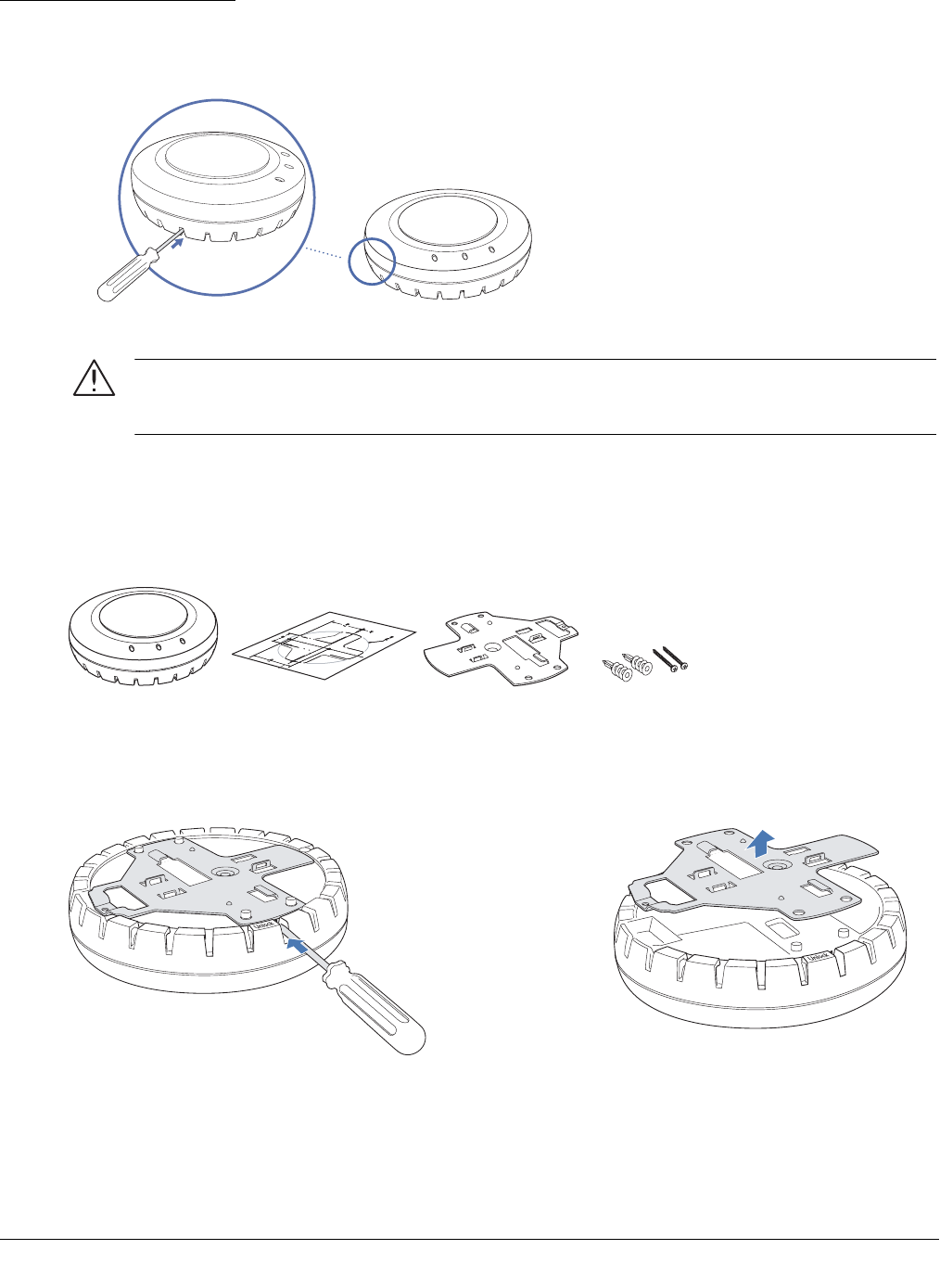

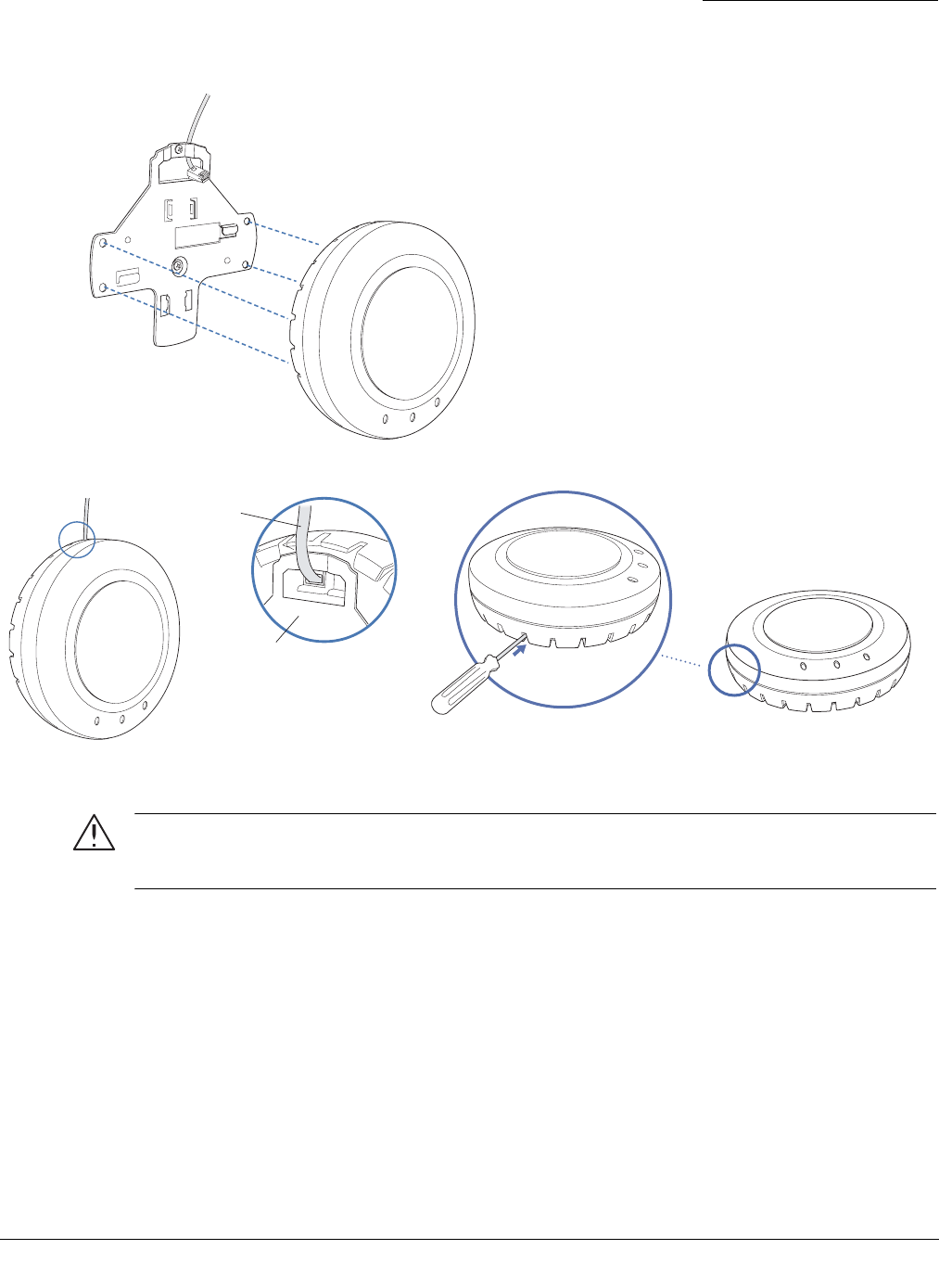

1Use the mounting template to cut a hole for the Cat 5 cable.

2Remove the mounting bracket from the MAP.
3Attach the mounting bracket to the T-bar clamp.
4Insert the Cat 5 cable through the port connector opening in the mounting bracket, then plug the cable
into the MAP.
840-9502-0011
840-9502-0008
T- b a r
(Viewed from above ceiling tiles, looking down.)
840-9502-0005
Universal mounting
bracket
Port connector
opening
T- b a r
Universal mounting bracket
840-9502-0004
Port connector
opening
840-9502-0002
Suspended Ceiling Installation—Drop Ceiling Tiles
Installing a 3Com™ Managed Access Point (MAP)™
6
5Attach the MAP to the mounting bracket.
Suspended Ceiling Installation—Drop Ceiling Tiles
This procedure applies to T-bars that are 23.9 mm (15/16 inches), 14.2-mm (9/16-inches), or 15.9-mm
(5/8-inches) wide. You also can use this procedure for flush ceilings with 14.2-mm (9/16-inch) or 15.9-mm
(5/8-inch) T-bars.
1Use the mounting template to cut a hole for the Cat 5 cable.
Caution! If you plan to use an external antenna for the 802.11b/g or 802.11a radio, install
the antenna at least 20 cm from the MAP. (For installation instructions, see Installing an
External Antenna for a 3Com Corporation Managed Access Point.)
840-9502-0006
Lock
T-bar
T-bar clamps
(use set that fits T-bar)
Mounting
template
Mounting
bracket
Mobility
point
840-9502-0088
Installing a 3Com™ Managed Access Point (MAP)™
7
Suspended Ceiling Installation—Drop Ceiling Tiles
2Install the T-bar clamp that fits the T-bar.
3Remove the mounting bracket from the MAP.
4Attach the mounting bracket to the T-bar clamp.
T-bar
T-bar clamp halves
Slide together
840-9502-0003
23.9-mm (15/16-inch) or 14.2-mm (9/16-inch) T-bar
T-bar
T-bar clamp halves
Slide together
840-9502-0066
15.9-mm (5/8-inch) T-bar
(The clamps are different widths but the assembly is the same.)
840-9502-0011
840-9502-0008
T- bar
T-bar clamps
(attached
to T-bar)
Universal mounting
bracket
840-9502-0012
(Viewed from above ceiling tiles, looking down.)
Port connector
opening
T- b a r
Universal mounting bracket
840-9502-0004
Port connector
opening
Suspended Ceiling Installation—Drop Ceiling Tiles
Installing a 3Com™ Managed Access Point (MAP)™
8
5Insert the Cat 5 cable through the port connector opening in the mounting bracket, then plug the cable
into the MAP.
6Attach the MAP to the mounting bracket.
Caution! If you plan to use an external antenna for the 802.11b/g or 802.11a radio, install
the antenna at least 20 cm from the MAP. (For installation instructions, see Installing an
External Antenna for a 3Com Corporation Managed Access Point.)
840-9502-0002
840-9502-0006
Lock
T-bar
Installing a 3Com™ Managed Access Point (MAP)™
9
Junction Box Installation
Junction Box Installation
1Remove the mounting bracket from the MAP.
2Attach the bracket to the junction box.
Mounting hardwareMounting
bracket
Mobility
point
840-9502-0090
840-9502-0011
840-9502-0008
840-9502-0017
Junction box
Port connector
opening
Solid Wall or Ceiling Installation
Installing a 3Com™ Managed Access Point (MAP)™
10
3Plug the Cat 5 cable into the MAP and attach the MAP to the mounting bracket.
Solid Wall or Ceiling Installation
1Use the mounting template to cut a hole for the Cat 5 cable.
2Remove the mounting bracket from the MAP.
Caution! If you plan to use an external antenna for the 802.11b/g or 802.11a radio, install
the antenna at least 20 cm from the MAP. (For installation instructions, see Installing an
External Antenna for a 3Com Corporation Managed Access Point.)
840-9502-0062
Lock
Mounting
hardware
Mounting
template
Mounting
bracket
Mobility
point
840-9502-0091
840-9502-0011
840-9502-0008
Installing a 3Com™ Managed Access Point (MAP)™
11
Solid Wall or Ceiling Installation
3Attach the bracket to the wall or ceiling.
4Plug the Cat 5 cable into the MAP and attach the MAP to the mounting bracket.
Caution! If you plan to use an external antenna for the 802.11b/g or 802.11a radio, install
the antenna at least 20 cm from the MAP. (For installation instructions, see Installing an
External Antenna for a 3Com Corporation Managed Access Point.)
840-9502-0015
840-9502-0016
Universal mounting bracket
Cable
840-9502-0062
Lock
Tabletop Installation
Installing a 3Com™ Managed Access Point (MAP)™
12
Tabletop Installation
1Remove the mounting bracket from the MAP.
2Reverse the bracket and reattach it to the MAP.
Rubber feet
Mounting
bracket
Mobility
point
840-9502-0092
840-9502-0011
840-9502-0008
840-9502-0061
840-9502-0062
Lock
Installing a 3Com™ Managed Access Point (MAP)™
13
Configuring the MAP
3Attach the rubber feet.
4Turn the MAP over and place it on the table.
Configuring the MAP
To configure the channels, power settings, and other MAP parameters, see the following:
z3Com Mobility System Software Quick Start Guide
z“Configuring MAP Access Points” chapter in the 3Com Mobility System Software Configuration
Guide
Caution! If you plan to use an external antenna for the 802.11b/g or 802.11a radio, install
the antenna at least 20 cm from the MAP. (For installation instructions, see Installing an
External Antenna for a 3Com Corporation Managed Access Point.)
840-9502-0013
14
Configuring the MAP
