Aruba Networks, Inc. Wireless Access Point AP210 Series IG Rev 04

Contents

Revised Manual

AP-210 Series Wireless Access Point
The Aruba AP-214 and AP-215 wireless access points support the IEEE 802.11n standard for
high-performance WLAN. These access points use MIMO (Multiple-in, Multiple-out) technology
and other high-throughput mode techniques to deliver high-performance, 802.11n 2.4 GHz and
802.11ac 5 GHz functionality while simultaneously supporting existing 802.11a/b/g wireless
services. The AP-210 Series access points work only in conjunction with an Aruba Controller.
The Aruba AP-210 Series access point provides the following capabilities:
Wireless transceiver
Protocol-independent networking functionality
IEEE 802.11a/b/g/n/ac operation as a wireless access point
IEEE 802.11a/b/g/n/ac operation as a wireless air monitor
Compatibility with IEEE 802.3at PoE+ and 802.3af PoE
Central management configuration and upgrades through a controller
Package Contents
AP-214 or AP-215 Access Point
9/16" and 15/16” Ceiling Rail Adapters
Installation Guide (this document)

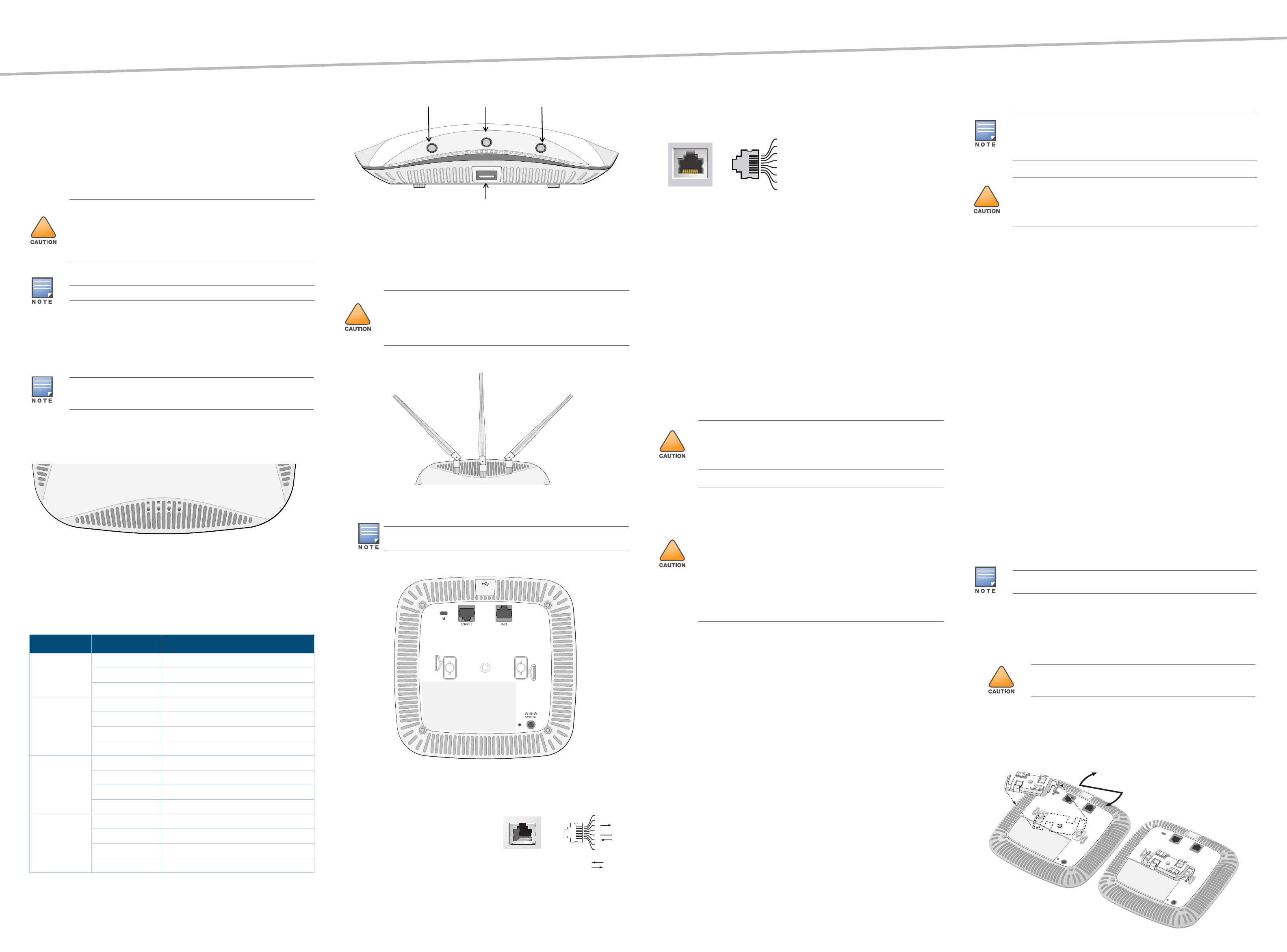

AP-210 Series Hardware Overview
Figure 1 AP-210 Series LEDs
LEDs
The AP-210 Series is equipped with four LEDs that indicate the status of the various
components of the AP.
PWR: Indicates whether or not the AP-210 Series is powered-on
ENET: Indicates the status of the AP-210 Series’ Ethernet port
5 GHz: Indicates the status of the 802.11a/n radio
2.4 GHz: Indicates the status of the 802.11b/g/n radio
Figure 2 AP-210 Series Side View (AP-214 shown)
External Antenna Connectors
The AP-214 is equipped with three external antenna connectors. The connectors are labeled
ANT0, ANT1, and ANT2, and correspond to radio chains 0, 1, and 2.
For optimal performance when using articulating direct-mount antennas, professional
installers must orient the antennas with ANT0 and ANT2 at 45 degree angles and ANT1
oriented straight out (see Figure 3).
Figure 3 AP-214 Antenna Orientation
USB Interface
The AP-210 Series is equipped with a USB interface for connectivity with cellular modems.
Figure 4 AP-210 Series Rear
Console Port
The serial console port allows you to connect the
AP to a serial terminal or a laptop for direct local
management. This port is an RJ-45 female
connector with the pinouts described in .
Connect it directly to a terminal or terminal
server using an Ethernet cable.
Ethernet Port
AP-210 Series is equipped with one 10/100/1000Base-T (RJ-45) auto-sensing, MDI/MDX wired-
network connectivity port. This port supports IEEE 802.3af and 802.3at Power over Ethernet
(PoE) compliance, accepting 48 VDC (nominal) as a standard defined Powered Device (PD)
from a Power Sourcing Equipment (PSE) such as a PoE midspan injector, or network
infrastructure that supports PoE.
The 10/100/1000 Mbps Ethernet ports are on the bottom of the AP. These ports have RJ-45
female connectors with the pin-outs shown in Figure 6.
Figure 6 Gigabit Ethernet Port Pin-Out
DC Power Socket
If PoE is not available, an optional Aruba AP AC-DC adapter kit (sold separately) can be used
to power the AP-210 Series.
Additionally, a locally-sourced AC-to-DC adapter (or any DC source) can be used to power this
device, as long as it complies with all applicable local regulatory requirements and the DC
interface meets the following specifications:
12 VDC (+/- 5%)/18W
Center-positive 1.7/4.0 mm circular plug, 9.5 mm length
Reset Button
The reset button can be used to return the AP to factory default settings. To reset the AP:
1. Power off the AP.
2. Press and hold the reset button using a small, narrow object, such as a paperclip.
3. Power-on the AP without releasing the reset button. The power LED will flash within 5
seconds.
4. Release the reset button.
The power LED will flash again within 15 seconds indicating that the reset is completed. The
AP will now continue to boot with the factory default settings.
Before You Begin
Pre-Installation Network Requirements
After WLAN planning is complete and the appropriate products and their placement have been
determined, the Aruba controller(s) must be installed and initial setup performed before the
Aruba APs are deployed.
For initial setup of the controller, refer to the ArubaOS Quick Start Guide for the software
version installed on your controller.
AP Pre-Installation Checklist
Before installing your AP-210 Series AP, ensure that you have the following:
CAT5e or better UTP cable of required length
One of the following power sources:
IEEE 802.3at or 802.3af-compliant Power over Ethernet (PoE) source. The POE source
can be any power source equipment (PSE) controller or midspan PSE device
Aruba AP AC-DC adapter kit (sold separately)
Aruba Controller provisioned on the network:
Layer 2/3 network connectivity to your access point
One of the following network services:
Aruba Discovery Protocol (ADP)
DNS server with an “A” record
DHCP Server with vendor-specific options
Summary of the Setup Process
Successful setup of an AP-210 Series access point consists of five tasks, which must be
performed in this order:
1. Verify pre-installation connectivity.
2. Identify the specific installation location for each AP.
3. Install each AP.
4. Verify post-installation connectivity.
5. Configure each AP.
Verifying Pre-Installation Connectivity
Before you install APs in a network environment, make sure that the APs are able to locate and
connect to the controller after power on.
Specifically, you must verify the following conditions:
When connected to the network, each AP is assigned a valid IP address
APs are able to locate the controller
Refer to the ArubaOS Quick Start Guide for instructions on locating and connecting to the
controller.
Identifying Specific Installation Locations
You can mount the AP-210 Series access point on a wall or on the ceiling. Use the AP
placement map generated by Aruba’s Airwave VisualRF Plan software application to determine
the proper installation location(s). Each location should be as close as possible to the center of
the intended coverage area and should be free from obstructions or obvious sources of
interference. These RF absorbers/reflectors/interference sources will impact RF propagation
and should have been accounted for during the planning phase and adjusted for in VisualRF
plan.
Identifying Known RF Absorbers/Reflectors/Interference
Sources
Identifying known RF absorbers, reflectors, and interference sources while in the field during
the installation phase is critical. Make sure that these sources are taken into consideration
when you attach an AP to its fixed location. Examples of sources that degrade RF performance
include:
Cement and brick
Objects that contain water
Metal
Microwave ovens
Wireless phones and headsets
Installing the AP
Using the Ceiling Rail Adapter
The AP-210 Series ships with two ceiling rail adapters for 9/16” and 15/16” ceiling rails.
Additional wall mount adapters and ceiling rail adapters for other rail styles are available as
accessory kits.
1. Pull the necessary cables through a prepared hole in the ceiling tile near where the AP
will be placed.
2. Place the adapter against the back of the AP with the adapter at an angle of
approximately 30 degrees to the tabs (see Figure 7).
3. Twist the adapter clockwise until it snaps into place in the tabs (see Figure 7).
Figure 7 Attaching the Ceiling Rail Adapter
!
This device must be professionally installed and serviced by a trained Aruba Certified
Mobility Professional (ACMP) or similar Aruba-certified technician. Aruba access
points are classified as radio transmission devices, and are subject to government
regulations of the host country. The network administrator(s) is/are responsible for
ensuring that configuration and operation of this equipment is in compliance with
their country’s regulations. For complete list of approved channels in your country,
refer to the Aruba Domain Regulatory Table at arubanetworks.com.
The AP-210 Series requires ArubaOS 6.4.2.0 or later.
Inform your supplier if there are any incorrect, missing, or damaged parts. If
possible, retain the carton, including the original packing materials. Use these
materials to repack and return the unit to the supplier if needed.
Table 1 AP-210 Series Series LED Meanings
LED Color/State Meaning
PWR Off No power to AP
Green - Flashing AP booting
Green - Steady AP ready
ENET Off Ethernet link unavailable
Yellow - Steady 10/100Mbps Ethernet link established
Green - Steady 1000Mbps Ethernet link established
Flashing Ethernet link activity
5 GHz Off 5 GHz radio disabled
Yellow - Steady 5 GHz radio enabled in non-HT WLAN mode
Green - Steady 5 GHz radio enabled in HT WLAN mode
Flashing - Green 5 GHz Air or Spectrum Monitor
2.4 GHz Off 2.4 GHz radio disabled
Yellow - Steady 2.4 GHz radio enabled in non-HT WLAN mode
Green - Steady 2.4 GHz radio enabled in HT WLAN mode
Flashing - Green 2.4 GHz Air or Spectrum Monitor
2.4Ghz
5Ghz
ENET
PWR
!
All Aruba devices with external antennas must be installed by an ACMP qualified
technician using manufacturer-approved antennas only. The ACMP installer(s) is/are
responsible for ensuring that Equivalent Isotopically Radiated Power (EIRP) levels for
all external antenna devices are compliant with the regulatory standards of the host
country/domain. Installer(s) are required to record the antenna gain for this device in
system management software.
The USB interface is disabled when the AP-210 Series is powered from 802.3af
PoE.
ANT2 ANT0
ANT1
USB Port
AP-110_03
Figure 5
Serial Port Pin-Out
Serial
Console Port
1
2
3
4
5
6
7
8
TxD
GND
RxD
RJ-45 Female
Pin-Out
Direction
Input
Output
GND
!
FCC Statement: Improper termination of access points installed in the United
States configured to non-US model controllers will be in violation of the FCC
grant of equipment authorization. Any such willful or intentional violation may
result in a requirement by the FCC for immediate termination of operation and
may be subject to forfeiture (47 CFR 1.80).
!
EU Statement:
Lower power radio LAN product operating in 2.4 GHz and 5 GHz bands. Please
refer to the ArubaOS User Guide for details on restrictions.
Produit réseau local radio basse puissance operant dans la bande fréquence
2.4 GHz et 5 GHz. Merci de vous referrer au ArubaOS User Guide pour les
details des restrictions.
Low Power FunkLAN Produkt, das im 2.4 GHz und im 5 GHz Band arbeitet.
Weitere Informationen bezlüglich Einschränkungen finden Sie im ArubaOS User
Guide.
Apparati Radio LAN a bassa Potenza, operanti a 2.4 GHz e 5 GHz. Fare
riferimento alla ArubaOS User Guide per avere informazioni detagliate sulle
restrizioni.
1000Base-T Gigabit
Ethernet Port
RJ-45 Female
Pin-Out
Signal Name
1
2
3
4
5
6
7
8
BI_DC+
BI_DC-
BI_DD+
BI_DD-
BI_DA+
BI_DA-
BI_DB+
BI_DB-
Function
Bi-directional pair +C
Bi-directional pair -C
Bi-directional pair +D
Bi-directional pair -D
Bi-directional pair +A
Bi-directional pair -A
Bi-directional pair +B
Bi-directional pair -B
Aruba Networks, Inc., in compliance with governmental requirements, has
designed the AP-210 Series access points so that only authorized network
administrators can change the settings. For more information about AP
configuration, refer to the ArubaOS Quick Start Guide and ArubaOS User
Guide.
!
Access points are radio transmission devices and as such are subject to
governmental regulation. Network administrators responsible for the
configuration and operation of access points must comply with local broadcast
regulations. Specifically, access points must use channel assignments
appropriate to the location in which the access point will be used.
Service to all Aruba Networks products should be performed by trained service
personnel only.
Make sure the AP fits securely on the ceiling tile rail when hanging the
device from the ceiling, because poor installation could cause it to fall
onto people or equipment.
AP-110_04
AP-210 Series Wireless
Access Point
Installation Guide
www.arubanetworks.com
1344 Crossman Avenue
Sunnyvale, California 94089
Phone: 408.227.4500
Fax 408.227.4550
AP-210 Series Wireless Access Point | Installation Guide
Part Number 0511513-04 | Febuary 2015
Contacting Aruba Networks
Web Support
Main Site http://www.arubanetworks.com
Support Site https://support.arubanetworks.com
Airheads Social Forums and Knowledge Base community.arubanetworks.com
North American Telephone 1-800-943-4526 (Toll Free)
1-408-754-1200
International Telephones arubanetworks.com/support-services/aruba-support-
program/contact-support/
Software Licensing Site licensing.arubanetworks.com/login.php
Wireless Security Incident
Response Team (WSIRT) arubanetworks.com/support/wsirt.php
Support Email Addresses
Americas and APAC support@arubanetworks.com
EMEA emea.support@arubanetworks.com
Americas and APAC Support Email support@arubanetworks.com
WSIRT Email
Please email details of any security
problem found in an Aruba product.
wsirt@arubanetworks.com
Copyright
© 2014 Aruba Networks, Inc. AirWave®, Aruba Networks®, Aruba Mobility Management System®, Bluescanner,
For Wireless That Works®, Mobile Edge Architecture, People Move. Networks Must Follow., RFProtect®, The All
Wireless Workplace Is Now Open For Business, and The Mobile Edge Company® are trademarks of Aruba
Networks, Inc. All rights reserved. All other trademarks are the property of their respective owners.
Open Source Code
Certain Aruba products include Open Source software code developed by third parties, including software code
subject to the GNU General Public License ("GPL"), GNU Lesser General Public License ("LGPL"), or other Open
Source Licenses. The Open Source code used can be found at this site:
http://www.arubanetworks.com/open_source
Legal Notice
The use of Aruba Networks, Inc. switching platforms and software, by all individuals or corporations, to terminate
other vendors' VPN client devices constitutes complete acceptance of liability by that individual or corporation for
this action and indemnifies, in full, Aruba Networks, Inc. from any and all legal actions that might be taken against
it with respect to infringement of copyright on behalf of those vendors.
Warranty
This hardware product is protected by an Aruba warranty. For details, see Aruba Networks standard warranty
terms and conditions.

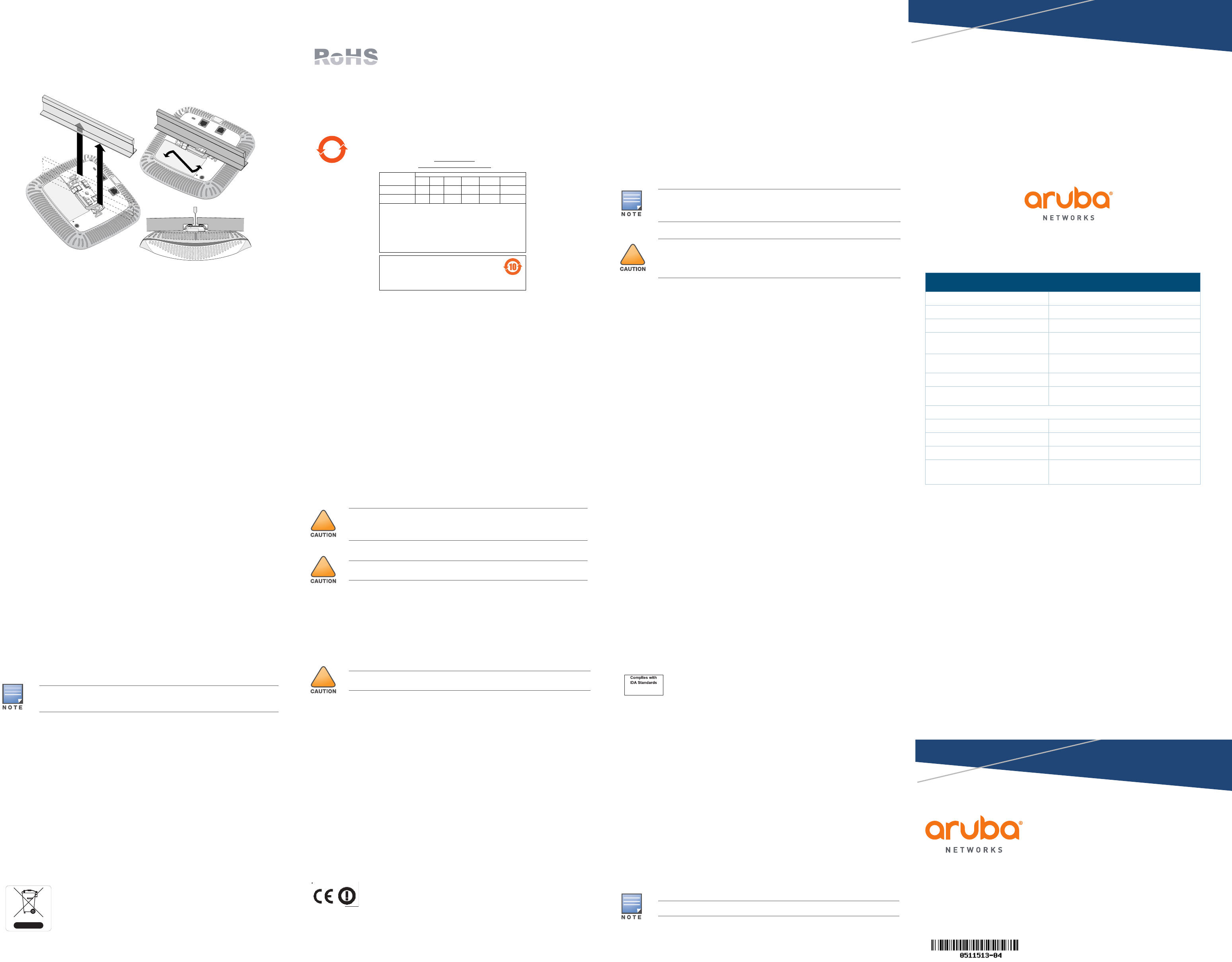

4. If necessary, connect the console cable to the console port on the back of the AP.
5. Hold the AP next to the ceiling tile rail with the ceiling tile rail mounting slots at
approximately a 30-degree angle to the ceiling tile rail (see Figure 8). Make sure that any
cable slack is above the ceiling tile.
6. Pushing toward the ceiling tile, rotate the AP clockwise until the device clicks into place on
the ceiling tile rail.
Figure 8 Mounting the AP
7. On the AP-214, install the external antennas according to the manufacturer’s instructions,
and connect the antennas to the antenna interfaces on the AP.
Connecting Required Cables
Install cables in accordance with all applicable local and national regulations and practices.
Verifying Post-Installation Connectivity
The integrated LEDs on the AP can be used to verify that the AP is receiving power and
initializing successfully (see Table 1). Refer to the ArubaOS Quick Start Guide for further
details on verifying post-installation network connectivity.
Configuring the AP-210 Series
AP Provisioning/Reprovisioning
Provisioning parameters are unique to each AP. These local AP parameters are initially
configured on the controller which are then pushed out to the AP and stored on the AP itself.
Aruba recommends that provisioning settings be configured via the ArubaOS Web UI only.
Refer to the ArubaOS User Guide for complete details.
AP Configuration
Configuration parameters are network or controller specific and are configured and stored on
the controller. Network configuration settings are pushed out to the AP(s) but remain stored on
the controller.
Configuration settings can be configured via the ArubaOS Web UI or ArubaOS CLI. Refer to
their respective guides for further details: the ArubaOS User Guide.
Product Specifications
Electrical
Ethernet:
1x 10/100/1000 auto-sensing Ethernet RJ-45 Interface
MDI/MDX
IEEE 802.3 (10Base-T), IEEE 802.3u (100Base-T). IEEE 802.3ab (1000Base-T)
Power over Ethernet (IEEE 802.3at and 802.3af compliant), 48V DC (nominal) and 56V DC
(maximum)/350mA (see Figure 6 for pin configuration)
Power:
12 VDC power interface, supports powering through an AC-to-DC power adapter
POE support on Ethernet ports: 802.3at-compliant and 802.3af-compliant POE sourcing
devices
Environmental
Operating:
Temperature: 0° C to +50° C (+32° F to +122° F)
Humidity: 5% to 95% non-condensing
Storage and transportation:
Temperature: -40° C to +70° C (-40° F to +158° F)
For additional specifications on this product, please refer to the data sheet. The data sheet can be
found at www.arubanetworks.com.
Proper Disposal of Aruba Equipment
Dispose of Aruba products per local regulations. For the most current information about Global
Environmental Compliance and Aruba products, see our website at www.arubanetworks.com.
Waste of Electrical and Electronic Equipment
Aruba products at end of life are subject to separate collection and treatment
in the EU Member States, Norway, and Switzerland and therefore are marked
with the symbol shown at the left (crossed-out wheelie bin). The treatment
applied at end of life of these products in these countries shall comply with
the applicable national laws of countries implementing Directive 2002/96EC
on Waste of Electrical and Electronic Equipment (WEEE).
European Union RoHS
Aruba products also comply with the EU Restriction of Hazardous
Substances Directive 2011/65/EC (RoHS). EU RoHS restricts the use of
specific hazardous materials in the manufacture of electrical and
electronic equipment. Specifically, restricted materials under the RoHS
Directive are Lead (including Solder used in printed circuit assemblies), Cadmium, Mercury,
Hexavalent Chromium, and Bromine. Some Aruba products are subject to the exemptions listed in
RoHS Directive Annex 7 (Lead in solder used in printed circuit assemblies). Products and packaging
will be marked with the “RoHS” label shown at the left indicating conformance to this Directive.
China RoHS
Aruba products also comply with China environmental declaration requirements
and are labeled with the “EFUP 10” label shown at the left.
India RoHS
This product complies with RoHS requirements as prescribed by E-Waste (Management & Handling)
Rules, governed by the Ministry of Environment & Forests, Government of India.
Safety and Regulatory Compliance
Aruba Networks provides a multi-language document that contains country-specific restrictions and
additional safety and regulatory information for all Aruba access points. This document can be
viewed or downloaded from the following location: www.arubanetworks.com/safety_addendum
Regulatory Model Names
The following regulatory model names apply to the AP-210 Series:
AP-214: APIN0214
AP-215: APIN0215
FCC
This device is electronically labeled. To view the FCC ID:
1. Log into the controller WebUI.
2. Navigate to Maintenance > Controller > About.
FCC Class B Part 15
This device complies with Part 15 of the Federal Communications Commission (FCC) Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause
undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the manufacturer’s instructions, may cause
interference harmful to radio communications.
If this equipment does cause interference, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment to an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio or TV technician for help.
Complies with the Class B limits for radio noise emissions as set out in the interference-causing
equipment standard entitled “Digital Apparatus,” ICES-003 of Industry Canada.
Cet apareil numerique de la classe B respecte toutes les exigencies du Reglement sur le materiel
brouilleur du Canada.
Users are advised that high power Radars are allocated as primary users of the bands 5250-5350 MHz
and 5650-5850 MHz and these Radars could cause interference and/or damage to Licensed Exempt
WLAN devices.
EU Regulatory Conformance
This product is CE marked according to the provisions of the R & TTE Directive
(1999/5/EC) - CE(!). Aruba Networks Inc., hereby declares that the APIN0114 /
APIN0115 device models are in compliance with the essential requirements and other relevant
provisions of Directive 1999/5/EC -CE(!)
The Declaration of Conformity made under Directive 1999/5/EC is available for viewing at the
following location: http://support.arubanetworks.com
Canada
(i)les dispositifs fonctionnant dans la bande 5 150-5 250 MHz sont réservés uniquement pour une
utilisation à l’intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de
satellites mobiles utilisant les mêmes canaux;
(ii) le gain maximal d’antenne permis pour les dispositifs utilisant les bandes 5 250-5 350 MHz et 5 470-
5 725 MHz doit se conformer à la limite de p.i.r.e.;
(iii) le gain maximal d’antenne permis (pour les dispositifs utilisant la bande 5 725-5 825 MHz) doit se
conformer à la limite de p.i.r.e. spécifiée pour l’exploitation point à point et non point à point, selon le
cas.
De plus, les utilisateurs devraient aussi être avisés que les utilisateurs de radars de haute puissance
sont désignés utilisateurs principaux (c.-à-d., qu’ils ont la priorité) pour les bandes 5 250-5 350 MHz et
5 650-5 850 MHz et que ces radars pourraient causer du brouillage et/ou des dommages aux dispositifs
LAN-EL.
Operation is subject to the following two conditions: (1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired
operation of the device."
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil nedoit
pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.
"This Class B digital apparatus complies with Canadian ICES-003."
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
“This device and its antenna(s) must not be co-located or operating in conjunction with any other
antenna or transmitter.”
Cet appareil et son antenne (s) ne doit pas être co-localisés ou fonctionnant en conjonction avec une
autre antenne ou transmetteur.
“This equipment should be installed and operated with a minimum distance of 20cm between the
radiator and your body”
Cet équipement doit être installé et utilisé à une distance minimale de 20cm entre le radiateur et votre
corps.
“It is the responsibility of the installer to ensure that when using the outdoor antenna kits, only those
antennas certified with the product are used. The use of any antenna other than those certified with
the product is expressly forbidden by FCC rules 47 CFR part 15.204 and IC RSS standards.”
Il est de la responsabilité de l'installateur de s'assurer que lorsque vous utilisez les kits d'antennes
extérieures, seules les antennes certifiés avec le produit sont utilisés. L'utilisation d'une antenne
autre que ceux qui sont certifiés avec le produit est expressément interdite par la réglementation FCC
partie 47 CFR 15.204 et IC normes RSS.
This radio transmitter 4567A-APIN0214215 has been approved by Industry Canada to operate with the
antenna types listed below with the maximum permissible gain and required antenna impedance for
each antenna type indicated. Antenna types not included in this list, having a gain greater than the
maximum gain indicated for that type, are strictly prohibited for use with this device.
The following antenna types have been approved for use with this device:
AP-ANT-1B; AP-ANT-1W;AP-ANT-13B; AP-ANT-16; AP-ANT-17; AP-ANT-18;
AP-ANT-19; AP-ANT-20
The Maximum permissible antenna gain is 7.5dBi and the antenna impedance is 50 ohms.
Singapore
Medical
1. Equipment not suitable for use in the presence of flammable mixtures.
2. Connect to only IEC 60950-1 or IEC 60601-1 3rd edition certified products and power sources.
The end user is responsible for the resulting medical system complies with the requirements of
IEC 60601-1 3rd edition.
3. Wipe with a dry cloth, no additional maintenance required.
4. No serviceable parts, the unit must be sent back to the manufacturer for repair.
5. No modifications are allowed without Aruba approval.
第十二條
　　經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加大
功率或變更原設計之特性及功能。
第十四條
　　低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有
干擾現象時，應立即停用，並改善至無干擾時方得繼續使用。
　　前項合法通信，指依電信法規定作業之無線電通信。
　　低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電
機設備之干擾。
If a power adapter other than the one provided by Aruba Networks is used in the US or Canada,
it should be cULus (NRTL) Listed, with an output rated 12 VDC, minimum 1.5A, marked “LPS” or
“Class 2,” and suitable for plugging into a standard power receptacle in the US and Canada.
AP-110_005
!
RF Radiation Exposure Statement: This equipment complies with FCC RF radiation exposure
limits. This equipment should be installed and operated with a minimum distance of 7.9 inches
(20 cm) between the radiator and your body for 2.4 GHz and 5 GHz operations. This transmitter
must not be co-located or operating in conjunction with any other antenna or transmitter.
!
When operated in the 5.15 to 5.25 GHz frequency range, this device is restricted to indoor use to
reduce the potential for harmful interference with co-channel Mobile Satellite Systems.
!
Changes or modifications to this unit not expressly approved by the party responsible for
compliance could void the user’s authority to operate this equipment.
10
᳝↦᳝ᆇ⠽䋼ໄᯢ
Hazardous Materials Declaration
᳝↦᳝ᆇ⠽䋼៪ܗ㋴(Hazardous Substance)
䚼ӊৡ⿄
(Parts) 䪙
3E
∲
+J
䬝
&G
݁Ӌ䫀
&U

໮⒈㘨㣃
3%%
໮⒈Ѡ㣃䝮
3%'(
⬉䏃ᵓ
(PCA Boards) hƻ ƻ ƻ ƻ ƻ
ᴎẄ㒘ӊ
(Mechanical Sub-Assemblies) hƻ ƻ ƻ ƻ ƻ
ƻ˖ 㸼⼎䆹᳝↦᳝ᆇ⠽䋼೼䆹䚼ӊ᠔᳝ഛ䋼ᴤ᭭Ёⱘ৿䞣ഛ೼ SJ/T11363-2006 ᷛޚ㾘ᅮⱘ䰤䞣㽕∖ҹϟDŽ
Indicates that the concentration of the hazardous substance in all homogeneous materials in the parts is
below the relevant threshold of the SJ/T11363-2006 standard.
h˖ 㸼⼎䆹᳝↦᳝ᆇ⠽䋼㟇ᇥ೼䆹䚼ӊⱘᶤϔഛ䋼ᴤ᭭Ёⱘ৿䞣䍙ߎ6-7ᷛޚ㾘ᅮⱘ䰤䞣㽕∖DŽ
Indicates that the concentration of the hazardous substance of at least one of all homogeneous materials
in the parts is above the relevant threshold of the SJ/T11363-2006 standard.
ᇍ䫔ଂП᮹ⱘ᠔ଂѻકᴀ㸼ᰒ⼎կᑨ䫒ⱘ⬉ᄤֵᙃѻકৃ㛑ࣙ৿䖭ѯ⠽䋼DŽ
This table shows where these substances may be found in the supply chain of electronic information
products, as of the date of sale of the enclosed product.
ℸᷛᖫЎ䩜ᇍ᠔⍝ঞѻકⱘ⦃ֱՓ⫼ᳳᷛᖫᶤѯ䳊䚼ӊӮ᳝ϔϾϡৠⱘ⦃ֱՓ⫼ᳳ
՟བ⬉∴ऩܗ῵ഫ䌈೼݊ѻકϞ
ℸ⦃ֱՓ⫼ᳳ䰤া䗖⫼Ѣѻકᰃ೼ѻક᠟ݠЁ᠔㾘ᅮⱘᴵӊϟᎹ԰
The Environment- Friendly Use Period (EFUP) for all enclosed products and their parts are
per the symbol shown here. The Environment- Friendly Use Period is valid only when the
product is operated under the conditions defined in the product manual.
Aucune émission n’est permise dans la bande 5 600-5 650 MHz. Jusqu’à nouvel avis, les
dispositifs visés par la présente annexe ne doivent pas être en mesure d’émettre dans la bande 5
600-5 650 MHz, afin de protéger les radars météorologiques d’Environnement Canada exploités
dans cette bande.
!
RF Déclaration sur la radioexposition: Cet équipement est conforme aux normes IC Limites
d'exposition aux rayonnements RF. Cet équipement doit être installé et utilisé à une distance
minimum de 7,9 pouces (20 cm) entre l'radiateur et votre corps pour 2,4 GHz et 5 GHz opérations.
cet émetteur ne doit pas être co-localisées ou opérant en conjonction avec une autre antenne ou
émetteur.
Expected Service Life 10 years.
DB101525

Navigation menu
