Aruba 320 Series Wireless Access Point
Installation Guide
The Aruba 320 Series Wireless Access Points support IEEE 802.11ac standards
for high-performance WLAN, and is equipped with two dual-band radios, which
can provide access and monitor the network simultaneously. Multi-user
Multiple-in, Multiple-output (MU-MIMO) technology allows this access point to
deliver high-performance 802.11n 2.4 GHz and 802.11ac 5 GHz functionality,
while also supporting 802.11a/b/g wireless services.
The AP-324 and AP-325 access points work in conjunction with an Aruba
controller, while the IAP-324 and IAP-325 access points can be configured using
a built-in virtual controller.
The 320 Series Wireless Access Points provide the following capabilities:
Dual wireless transceiver
IEEE 802.11a/b/g/n/ac operation as a wireless access point
IEEE 802.11a/b/g/n/ac operation as a wireless air monitor
Compatibility with IEEE 802.3at and 802.3af PoE
Centralized management configuration and upgrades
Integrated Bluetooth Low Energy (BLE) radio
Package Contents
(I)AP-324 or (I)AP-325 access point
9/16" and 15/16” Ceiling Rail Adapters
Regulatory Compliance and Safety Information Guide
Instant Quick Start Guide (for Instant access points only)
Professional Install Guide (for (I)AP-324 only)
Installation guide (this document)
Software
The AP-324 and AP-325 require ArubaOS 6.4.4 or higher. For additional
information, refer to the ArubaOS User Guide and ArubaOS Quick Start Guide.
The IAP-324 and IAP-325 require Aruba Instant 4.2.1 or higher. For additional
information, please refer to the Aruba Instant User Guide or the Aruba Instant
Quick Start Guide.

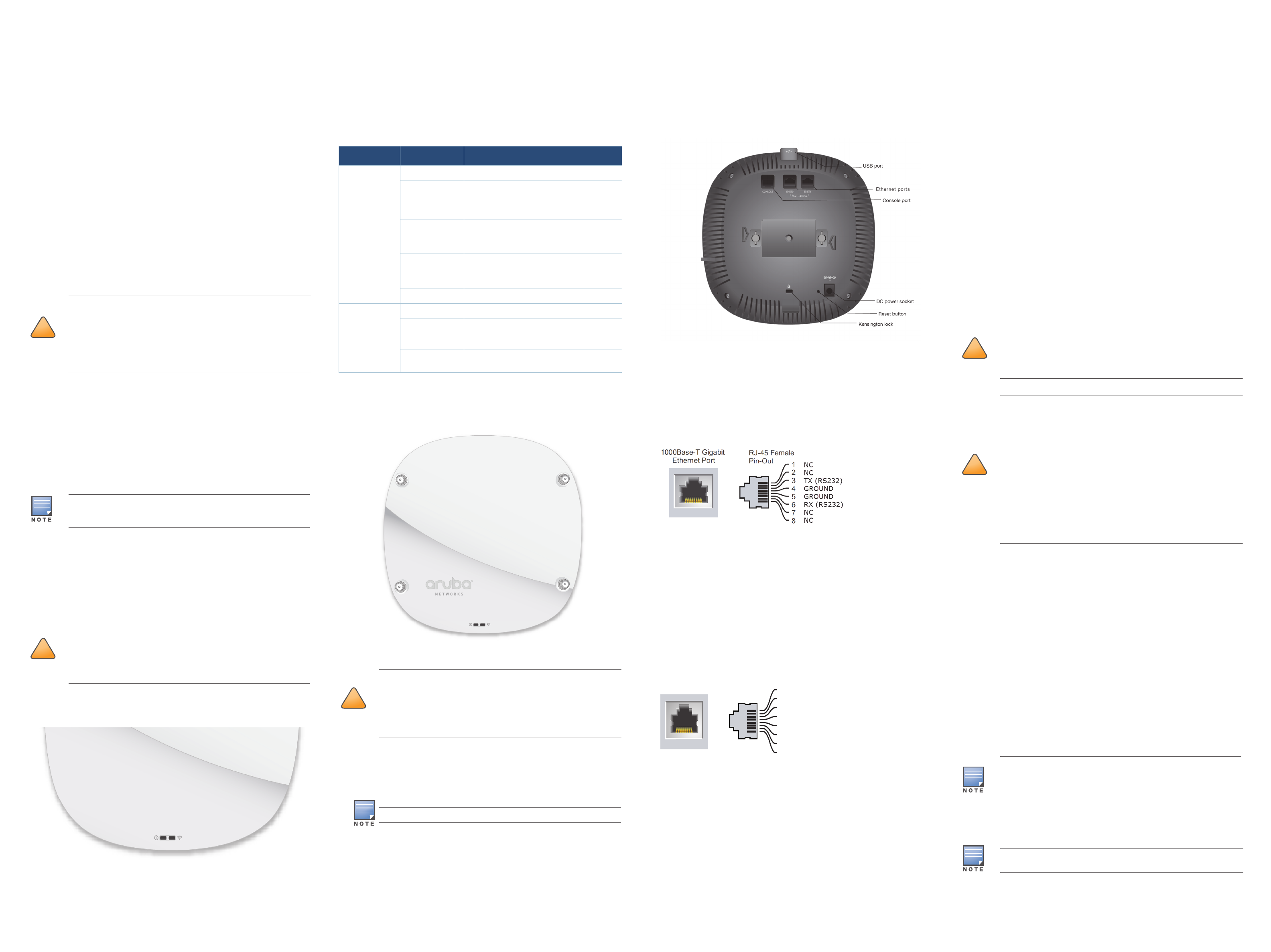

320 Series Hardware Overview
Figure 1 LEDs
LEDs
The 320 Series access points have two LEDs that indicate the system and radio
status of the device.
.
External Antenna Connectors
The (I)AP-324 access points are equipped with four external antenna connectors
located on the front corners of the access point (see Figure 2).
Figure 2 External Antenna Connectors for the (I)AP-324
USB Interface
The 320 Series is equipped with a USB port for connectivity with cellular
modems and other USB client devices. When powered by an 802.3at or DC
source the USB port can supply up to 5W.
Figure 3 Bottom Panel
Console Port
The serial console port allows the user to connect the access point to a serial
terminal or a laptop for direct local management. This port is an RJ-45
connector, with pinouts details in Figure 4. Connect it directly to a terminal or
terminal server using an Ethernet cable.
Figure 4 Serial Port Pin-Out
Ethernet Ports
The 320 Series is equipped with two 10/100/1000 Base-T (RJ-45) auto-sensing,
MDI/MDX wired-network connectivity port. These ports support IEEE
802.3af and 802.3at Power over Ethernet (PoE) compliant sources, accepting
56V DC (nominal) as a standard defined Powered Device (PD) from a Power
Sourcing Equipment (PSE), such as a PoE midspan injector, or network
infrastructure that supports PoE.
The 10/100/1000 Mbps Ethernet ports are on the bottom of the access point.
These ports have RJ-45 female connectors with the pin-outs shown in Figure
5.
Figure 5 Gigabit Ethernet Port Pin-Out
Kensington Lock Slot
The 320 Series is equipped with a Kensington lock slot for additional security.
Reset Button
The reset button can be used to return the access point to factory default
settings. To reset the access point, refer to the steps below:
1. Power off the access point.
2. Press and hold the reset button using a small, narrow object, such as a
paperclip.
3. Power-on the access point without releasing the reset button. The power LED
will flash within 5 seconds.
4. Release the reset button.
The power LED will flash again within 15 seconds indicating that the reset is
completed. The access point will now continue to boot with the factory default
settings.
Power
The E0 and E1 port support PoE-in, allowing one port to draw power from an
802.3at (recommended) or an 802.3af source. When both PoE and DC power
sources are available, the access point will default to using the DC power source.
If PoE is not available, the 320 Series has a single 12V/30W DC power jack socket
to support the AP-AC-12V30UN AC-to-DC adapter kit (sold separately).
Power Modes
The 320 Series can operate in two power modes. The modes are not configurable
and are determined by the access point based on the amount of power available.
The 320 Series Wireless Access Points operate without restrictions when
powered by a DC or 802.3at PoE source. When powered by an 802.3af PoE
source, the following restrictions apply:
Second Ethernet port disabled
USB interface disabled
2.4 GHz in 1x1:1 mode
Before You Begin
Access Point Pre-Installation Checklist
Before installing your 320 Series access point, ensure that you have the
following:
CAT5E or CAT6 UTP cable of required length
One of the following power sources:
IEEE 802.3at or 802.3af-compliant Power over Ethernet (PoE) source. The
PoE source can be any power source equipment (PSE) controller or
midspan PSE device
Aruba APAC-DC adapter kit (sold separately)
For AP-324 and AP-325 only:
Aruba Controller provisioned on the network:
Layer 2/3 network connectivity to your access point
One of the following network services:
Aruba Discovery Protocol (ADP)
DNS server with an “A” record
DHCP Server with vendor-specific options.
Verifying Pre-Installation Connectivity
Before installing access points in a network environment, make sure that they
are able to locate and connect to the controller after power on.
Specifically, you must verify the following conditions:
When connected to the network, each access point is assigned a valid IP
address
Access points are able to locate the controller
!
CAUTION
This device must be professionally installed and serviced by a trained
ACMP or similar Aruba-certified technician. Aruba access points are
classified as radio transmission devices, and are subject to government
regulations of the host country. The network administrator(s) is/are
responsible for ensuring that configuration and operation of this equipment
is in compliance with their country’s regulations. For complete list of
approved channels in your country, refer to the Aruba Downloadable
Regulatory Table at www.arubanetworks.com.
Inform your supplier if there are any incorrect, missing, or damaged parts. If
possible, retain the carton, including the original packing materials. Use
these materials to repack and return the unit to the supplier if needed.
!
CAUTION
Access points are radio transmission devices and are subject to
governmental regulation. Network administrators responsible for the
configuration and operation of access points must comply with local
broadcast regulations. Specifically, access points must use channel
assignments appropriate to the location in which the access point will be
used.
Table 1 320 Series LED Status
LED Color/State Meaning
System Status
(Left)
Off AP powered off
Green/Amber-
Alternating Device booting; not ready
Green- Solid Device ready
Amber- Solid Device ready; power-save mode (802.3af PoE):
Single radio
USB disabled
Green or Amber-
Flashing Restricted mode:
Uplink negotiated in sub optimal speed; or
Radio in non-high throughput (HT) mode
Red System error condition
Radio Status
(Right)
Off AP powered off, or both radios disabled
Green- Solid Both radios enabled in access mode
Amber- Solid Both radios enabled in monitor mode
Green/Amber-
Alternating One radio enabled in access mode, one
enabled in monitor mode
!
CAUTION
All Aruba devices with external antennas must be installed by an Aruba
Certified Mobility Professional (ACMP) qualified technician using
manufacturer-approved antennas only. The ACMP installer is responsible
for ensuring that the Equivalent Isotropically Radiated Power (EIRP) levels
for all external antenna devices are compliant with regulatory standards of
the host country/domain. Installers are required to record the antenna gain
for this device in the system management software.
The USB is disabled when powered by an 802.3af PoE.source.
ANT1 ANT0
ANT2 ANT3
12V 2.5A
. . .
12V ... 2.5A
1000Base-T Gigabit
Ethernet Port
RJ-45 Female
Pin-Out
Signal Name
1
2
3
4
5
6
7
8
BI_DC+
BI_DC-
BI_DD+
BI_DD-
BI_DA+
BI_DA-
BI_DB+
BI_DB-
Function
Bi-directional pair +C
Bi-directional pair -C
Bi-directional pair +D
Bi-directional pair -D
Bi-directional pair +A
Bi-directional pair -A
Bi-directional pair +B
Bi-directional pair -B
!
CAUTION
FCC Statement: Improper termination of access points installed in the
United States configured to non-US model controllers will be in violation of
the FCC grant of equipment authorization. Any such willful or intentional
violation may result in a requirement by the FCC for immediate termination
of operation and may be subject to forfeiture (47 CFR 1.80).
!
CAUTION
EU Statement:
Lower power radio LAN product operating in 2.4 GHz and 5 GHz bands.
Please refer to the ArubaOS User Guide/Aruba Instant User Guide for
details on restrictions.
Produit réseau local radio basse puissance operant dans la bande
fréquence 2.4 GHz et 5 GHz. Merci de vous referrer au ArubaOS User
Guide/Aruba Instant User Guide pour les details des restrictions.
Low Power FunkLAN Produkt, das im 2.4 GHz und im 5 GHz Band arbeitet.
Weitere Informationen bezlüglich Einschränkungen finden Sie im ArubaOS
User Guide/Aruba Instant User Guide.
Apparati Radio LAN a bassa Potenza, operanti a 2.4 GHz e 5 GHz. Fare
riferimento alla ArubaOS User Guide/Aruba Instant User Guide per avere
informazioni detagliate sulle restrizioni.
Aruba Networks, Inc., in compliance with governmental requirements, has
designed the 320 Series access points so that only authorized network
administrators can change the settings. For more information about access
point configuration, refer to the ArubaOS Quick Start Guide/Aruba Instant
Quick Start Guide and ArubaOS User Guide/Aruba Instant User Guide.
The instructions for this section are applicable to the AP-324 and AP-325
only.
Aruba 320 Series Wireless
Access Point
Installation Guide
www.arubanetworks.com
1344 Crossman Avenue
Sunnyvale, California 94089
Phone: 408.227.4500
Fax 408.227.4550
Aruba 320 Series Wireless Access Point | Installation Guide
Part Number 0511816-03 | May 2015
Contacting Aruba Networks
Web Support
Main Site http://www.arubanetworks.com
Support Site https://support.arubanetworks.com
Airheads Social Forums and Knowledge Base community.arubanetworks.com
North American Telephone 1-800-943-4526 (Toll Free)
1-408-754-1200
International Telephones arubanetworks.com/support-services/aruba-support-
program/contact-support/
Software Licensing Site licensing.arubanetworks.com/login.php
Wireless Security Incident
Response Team (WSIRT) arubanetworks.com/support/wsirt.php
Support Email Addresses
Americas and APAC support@arubanetworks.com
EMEA emea.support@arubanetworks.com
Americas and APAC Support Email support@arubanetworks.com
WSIRT Email
Please email details of any security
problem found in an Aruba product.
wsirt@arubanetworks.com
Copyright
© 2015 Aruba Networks, Inc. AirWave®, Aruba Networks®, Aruba Mobility Management System®, Bluescanner,
For Wireless That Works®, Mobile Edge Architecture, People Move. Networks Must Follow., RFProtect®, The All
Wireless Workplace Is Now Open For Business, and The Mobile Edge Company® are trademarks of Aruba
Networks, Inc. All rights reserved. All other trademarks are the property of their respective owners.
Open Source Code
Certain Aruba products include Open Source software code developed by third parties, including software code
subject to the GNU General Public License ("GPL"), GNU Lesser General Public License ("LGPL"), or other Open
Source Licenses. The Open Source code used can be found at this site:
http://www.arubanetworks.com/open_source
Legal Notice
The use of Aruba Networks, Inc. switching platforms and software, by all individuals or corporations, to terminate
other vendors' VPN client devices constitutes complete acceptance of liability by that individual or corporation for
this action and indemnifies, in full, Aruba Networks, Inc. from any and all legal actions that might be taken against
it with respect to infringement of copyright on behalf of those vendors.
Warranty
This hardware product is protected by an Aruba warranty. For details, see Aruba Networks standard warranty
terms and conditions.
Refer to the ArubaOS Quick Start Guide for instructions on locating and
connecting to the controller.
Pre-Installation Network Requirements
After WLAN planning is complete and the appropriate products and their
placement have been determined, the Aruba controller(s) must be installed and
initial setup performed before the Aruba access points are deployed.
For initial setup of the controller, refer to the ArubaOS Quick Start Guide for the
software version installed on your controller.
Identifying Specific Installation Locations
You can mount the 320 Series access point on a wall or on the ceiling. Use the
access point placement map generated by Aruba’s RF Plan software application
to determine the proper installation location(s). Each location should be as close
as possible to the center of the intended coverage area and should be free from
obstructions or obvious sources of interference. These RF absorbers/reflectors/
interference sources will impact RF propagation and should have been
accounted for during the planning phase and adjusted for in RF plan.
Identifying Known RF Absorbers/Reflectors/Interference
Sources
Identifying known RF absorbers, reflectors, and interference sources while in the
field during the installation phase is critical. Make sure that these sources are
taken into consideration when you attach an access point to its fixed location.
Examples of sources that degrade RF performance include:
Cement and brick
Objects that contain water
Metal
Microwave ovens
Wireless phones and headsets
Installing the Access Point
Using the Ceiling Rail Adapter
The 320 Series ships with two ceiling rail adapters for 9/16” and 15/16” ceiling
rails. Additional wall mount adapters and ceiling rail adapters for other rail styles
are available as accessory kits.
1. Pull the necessary cables through a prepared hole in the ceiling tile near
where the access point will be placed.
2. Place the adapter against the back of the access point with the adapter at an
angle of approximately 30 degrees to the tabs (see Figure 6).
3. Twist the adapter clockwise until it snaps into place in the tabs (see Figure 6).

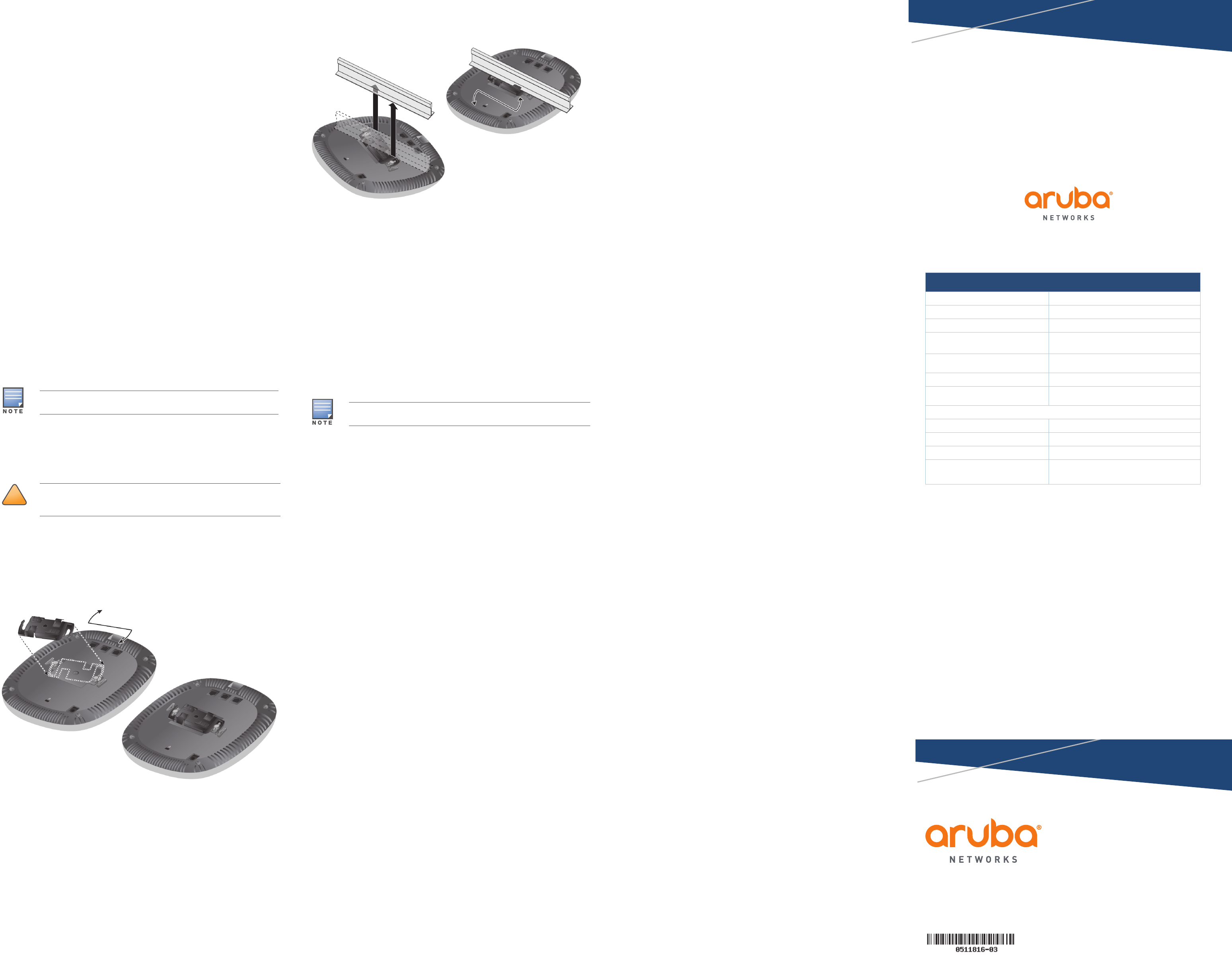

Figure 6 Attaching the Ceiling Rail Adapter
4. If necessary, connect the console cable to the console port on the back of the
access point.
5. Hold the access point next to the ceiling tile rail with the ceiling tile rail
mounting slots at approximately a 30-degree angle to the ceiling tile rail (see
Figure 7). Make sure that any cable slack is above the ceiling tile.
6. Pushing toward the ceiling tile, rotate the access point clockwise until the
device clicks into place on the ceiling tile rail.
Figure 7 Mounting the Access Point
7. On the (I)AP-324, install the external antennas according to the
manufacturer’s instructions, and connect the antennas to the antenna
interfaces on the access point.
Connecting Required Cables
Install cables in accordance with all applicable local and national regulations and
practices.
Verifying Post-Installation Connectivity
The integrated LEDs on the access point can be used to verify that the device is
receiving power and initializing successfully (see Table 1). Refer to the ArubaOS
Quick Start Guide for further details on verifying post-installation network
connectivity.
Configuring the 320 Series
Access Point Provisioning/Reprovisioning
Provisioning parameters are unique to each access point. These local access
point parameters are initially configured on the controller which are then pushed
out to the access points and stored on the devices. Aruba recommends that
provisioning settings be configured via the ArubaOS Web UI only. Refer to the
ArubaOS User Guide for complete details.
Access Point Configuration
Configuration parameters are network or controller specific and are configured
and stored on the controller. Network configuration settings are pushed out to
the access points, but remain stored on the controller.
Configuration settings can be configured via the ArubaOS Web UI or ArubaOS
CLI. Refer to their respective guides for further details: the ArubaOS User Guide.
Service to all Aruba Networks products should be performed by an AMCP
certified technician or similar.
!
CAUTION
The installer is responsible for securing the access point onto the ceiling tile
rail in accordance with the steps below. Failure to properly install this
product may result in physical injury and/or damage to property.
The instructions for this section are applicable to the AP-324 and AP-325
only.
