Hi G Tek IGRS40916 DataSeal User Manual contents 1 4

Hi-G-Tek Ltd DataSeal contents 1 4

Users Manual Part 1

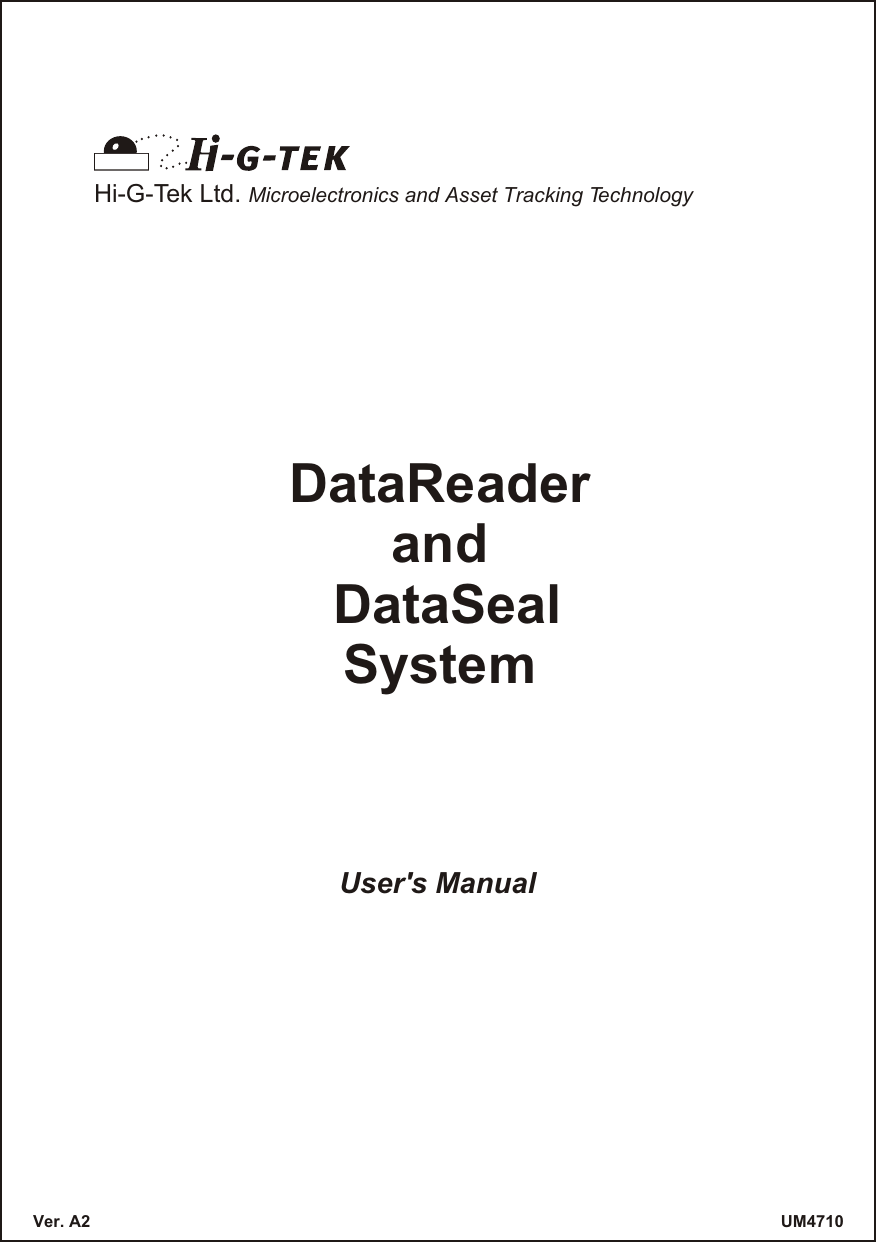

User's ManualUM4710Ver. A2Hi-G-Tek Ltd. Microelectronics and Asset Tracking TechnologyDataReaderand DataSealSystem

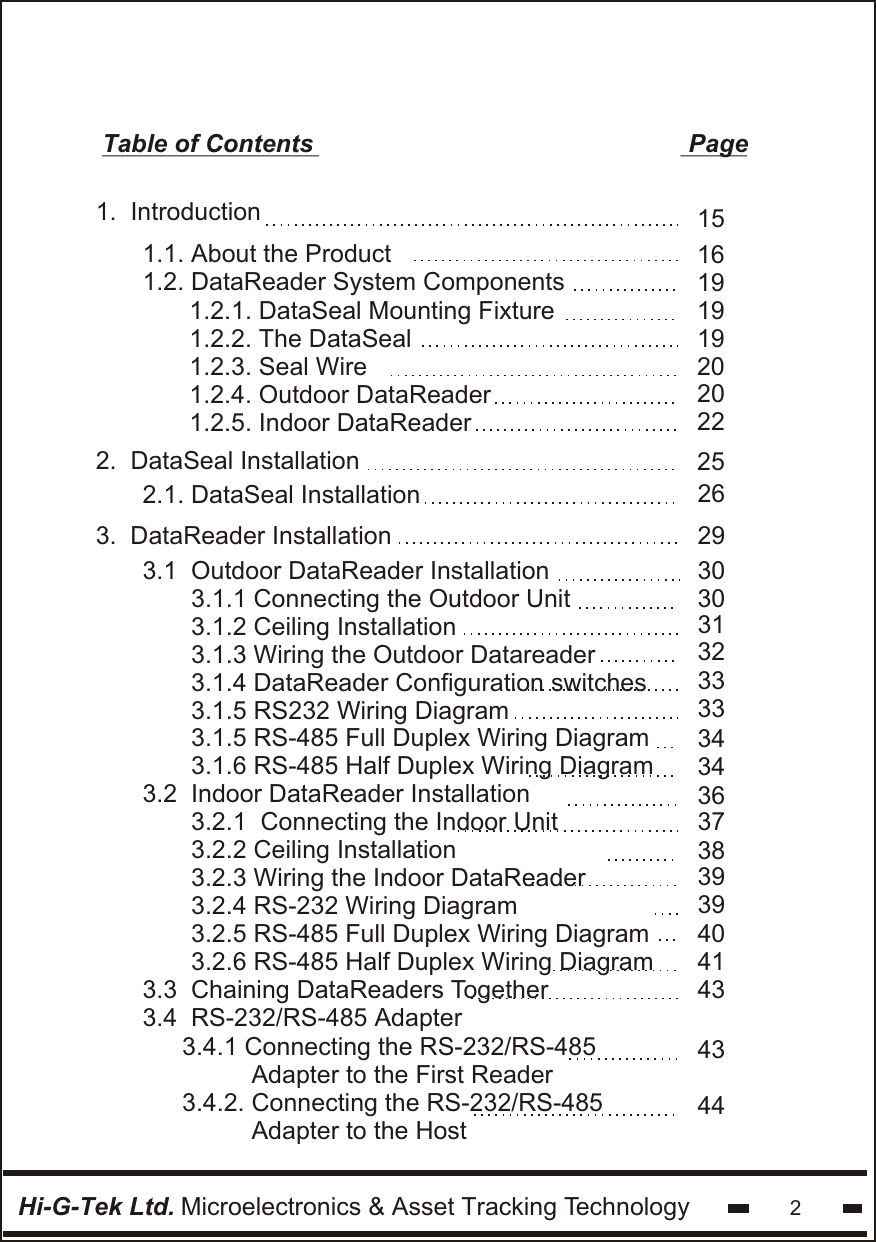

Table of Contents Page1. Introduction2. DataSeal Installation1.1. About the Product 1.2. DataReader System Components 1.2.1. DataSeal Mounting Fixture1.2.2. The DataSeal1.2.3. Seal Wire1.2.4. Outdoor DataReader1.2.5. Indoor DataReaderHi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 21619191920153. DataReader Installation3.1 Outdoor DataReader Installation 3.1.1 Connecting the Outdoor Unit 3.1.2 Ceiling Installation 3.1.3 Wiring the Outdoor Datareader 3.1.4 DataReader Configuration switches 3.1.5 RS232 Wiring Diagram 3.1.5 RS-485 Full Duplex Wiring Diagram 3.1.6 RS-485 Half Duplex Wiring Diagram3.2 Indoor DataReader Installation 3.2.1 Connecting the Indoor Unit 3.2.2 Ceiling Installation 3.2.3 Wiring the Indoor DataReader 3.2.4 RS-232 Wiring Diagram 3.2.5 RS-485 Full Duplex Wiring Diagram 3.2.6 RS-485 Half Duplex Wiring Diagram3.3 Chaining DataReaders Together3.4 RS-232/RS-485 Adapter2.1. DataSeal Installation20222526293030313233333434363738393940434143443.4.1 Connecting the RS-232/RS-485 Adapter to the First Reader3.4.2. Connecting the RS-232/RS-485 Adapter to the Host
5.1. System DescriptionTable of Contents PageHi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 35. The System 494645505057576366666768686970707071717272727373735.3. Parameters Format 5.2.1. Seal's Parameters5.2.2. Reader's Parameters5.2.3. Calculating Thw5.2.4. Calculating Tw5.2.5. Calculating Thp5.4.1. Normal Mode5.4.2. Sleep Mode5.4.3. Alert Burst Mode5.4.4. Events Footprint Mode5.4 Seal Modes of Operations5.5. Reader Modes of Operation 5.5.1. Carrier Sense Collision5.5.2. Unsynchronized Mode 5.2. System Parameters5.1.1. General5.3.1. Date & Time5.3.2. 5.3.3. ORG_ID & Department5.3.4. System5.3.5. ModeSeal Serial Number.747476765.6. System Commands 5.6.1. LSC and Reader Messages5.6.2. Error Codes5.6.3. Detailed Commands 3.5. Power Supply Requirements3.6. Communication Cable Selection3.7. Installation notes474. DataReader Operation Instructions44
Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 4Table of Contents Page775.6.3.2. Execute RF Command858689915.6.3.3. Get Results5.6.3.4. Get Status77777979808081818182838383848584858482 5.6.3.2.1. Command Transmission5.6.3.2.2. Verify5.6.3.2.3. Tamper5.6.3.2.4. Set5.6.3.2.5. Suspended Set5.6.3.2.6. Soft Set5.6.3.2.7. Deep Sleep5.6.3.2.8. Hard Wakeup 5.6.3.2.9. Start Alert Burst Mode 5.6.3.2.10. Stop Alert Burst Mode5.6.3.2.11. Ack Alert Burst Mode 5.6.3.2.12. Read Data 5.6.3.2.13. Write Data5.6.3.2.14. Reset Data5.6.3.2.15. Set/Reset Status5.6.3.2.16. Write Parameters5.6.3.2.17. Read Parameters5.6.3.2.18. Addressed Verify5.6.3.2.19. Read Events 5.6.3.5. Get Burst Message 5.6.3.6. Reset Reader5.6.3.7. Write Parameters 9276765.6.3.1. Wakeup5.6.3.1.1. Command Transmission

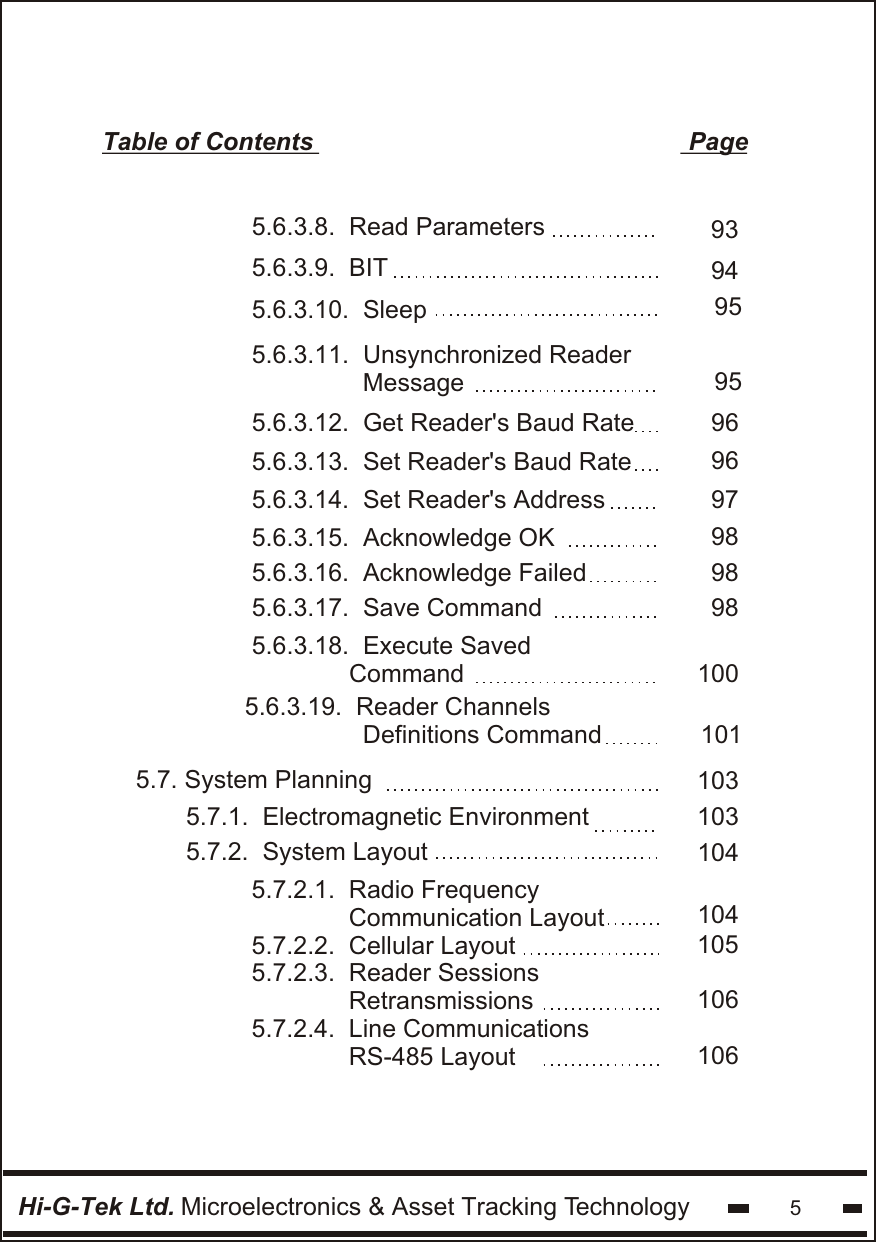

Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 5Table of Contents Page5.6.3.8. Read Parameters5.6.3.9. BIT9394959596965.6.3.10. Sleep5.6.3.11. Unsynchronized Reader Message5.6.3.12. Get Reader's Baud Rate5.6.3.13. Set Reader's Baud Rate979898985.6.3.14. Set Reader's Address5.6.3.15. Acknowledge OK5.6.3.16. Acknowledge Failed5.6.3.17. Save Command1001015.6.3.18. Execute Saved Command 5.6.3.19. Reader Channels Definitions Command1031031041041051061065.7. System Planning 5.7.1. Electromagnetic Environment5.7.2. System Layout 5.7.2.1. Radio Frequency Communication Layout5.7.2.2. Cellular Layout5.7.2.3. Reader Sessions Retransmissions5.7.2.4. Line Communications RS-485 Layout

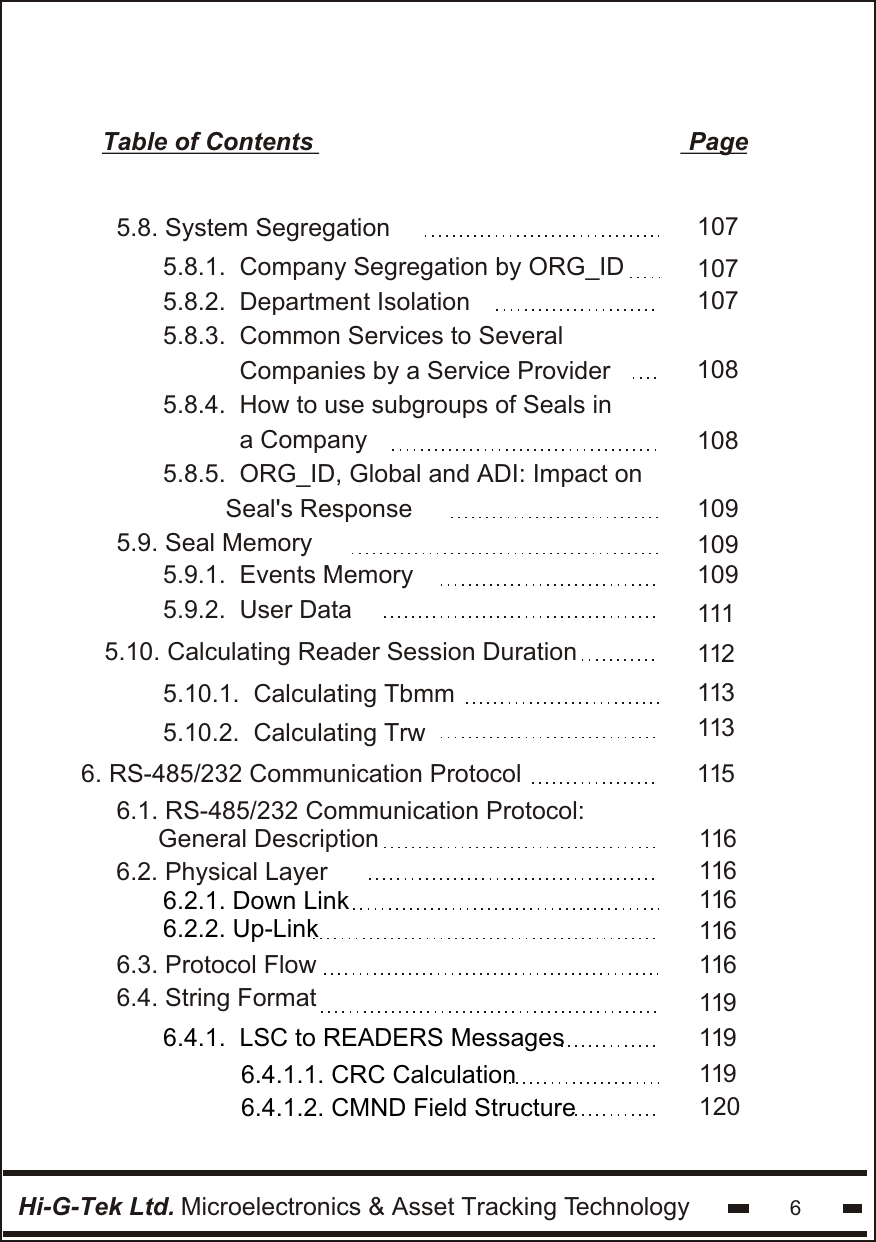

Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 6Table of Contents Page1075.8. System Segregation 1071071081081095.8.1. Company Segregation by ORG_ID5.8.2. Department Isolation 5.8.3. Common Services to Several Companies by a Service Provider5.8.4. How to use subgroups of Seals in a Company5.8.5. ORG_ID, Global and ADI: Impact on Seal's Response 1091125.9. Seal Memory 5.10. Calculating Reader Session Duration 1091131131115.9.1. Events Memory5.9.2. User Data6. RS-485/232 Communication Protocol 6.1. RS-485/232 Communication Protocol: General Description 6.2. Physical Layer6.2.1. Down Link 6.2.2. Up-Link 1151161161161166.4.1. LSC to READERS Messages6.3. Protocol Flow6.4. String Format 6.4.1.2. CMND Field Structure 6.4.1.1. CRC Calculation1161191191201195.10.1. Calculating Tbmm5.10.2. Calculating Trw
Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 7Table of Contents Page 6.5.1. LSC Commands and Acknowledge Table6.5.2. Message Table6.5.3. Parameter Table6.5. LSC and READER Messages6.5.3.1. Reader Master Firmware Vresion MVER6.5.3.2. Reader Slave1 Firmware Version SVER1.6.5.3.3. Reader Slave1 Firmware Version SVER21271271281291301301306.4.2. READER to LSC Messages 6.4.2.2. R_Status Field Structure 6.4.2.3. Reader Messages Packed Data Format6.4.2.3.1. Packed Data from the LSC6.4.2.3.2. Packed Data from the READER1231261211261266.5.3.5. Reader ID RID6.5.3.6. Group Access Identifier ADI Organization identifier OrgID6.5.3.7. 6.5.3.8. Department DEP 6.5.3.9. Reader IH length Thw 6.5.3.10. Reader Address RADD6.5.3.11. Mode MODEReader Receives Signal 6.5.3.4. Strength RSSI1 131131132133133133132132
Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 8Table of Contents Page6.5.5.1. Wakeup 6.5.5.2. Execute RF Command6.5.5.2.1. Command Transmission 6.5.5.2.2. Execute RF Command Ack6.5.5.2.3. Verify6.5.5.2.4. Tamper6.5.5.2.5. Set6.5.5.2.6. Suspended Set6.5.5.2.7. Soft Set6.5.5.2.8. Deep Sleep6.5.5.2.9. Hard Wakeup6.5.5.2.10.Start Alert Burst Mode6.5.5.2.11. Stop Alert Burst Mode 6.5.5.2.12. Acknowledge Alert Burst Mode6.5.5.2.13. Read Data6.5.5.2.14. Write Data6.5.5.2.15. Reset Data6.5.4. Error Codes6.5.5. Detailed Commands6.5.5.1.1. Command Transmission6.5.5.1.2 Wakeup Response1351351351351361381391401401401411411411421421371381391351351346.5.5.2.17. Write Parameters6.5.5.2.18. Read Parameters6.5.5.2.19. Addressed Verify6.5.5.2.20. Read Events1421431431431436.5.5.2.16 Set/Reset Status

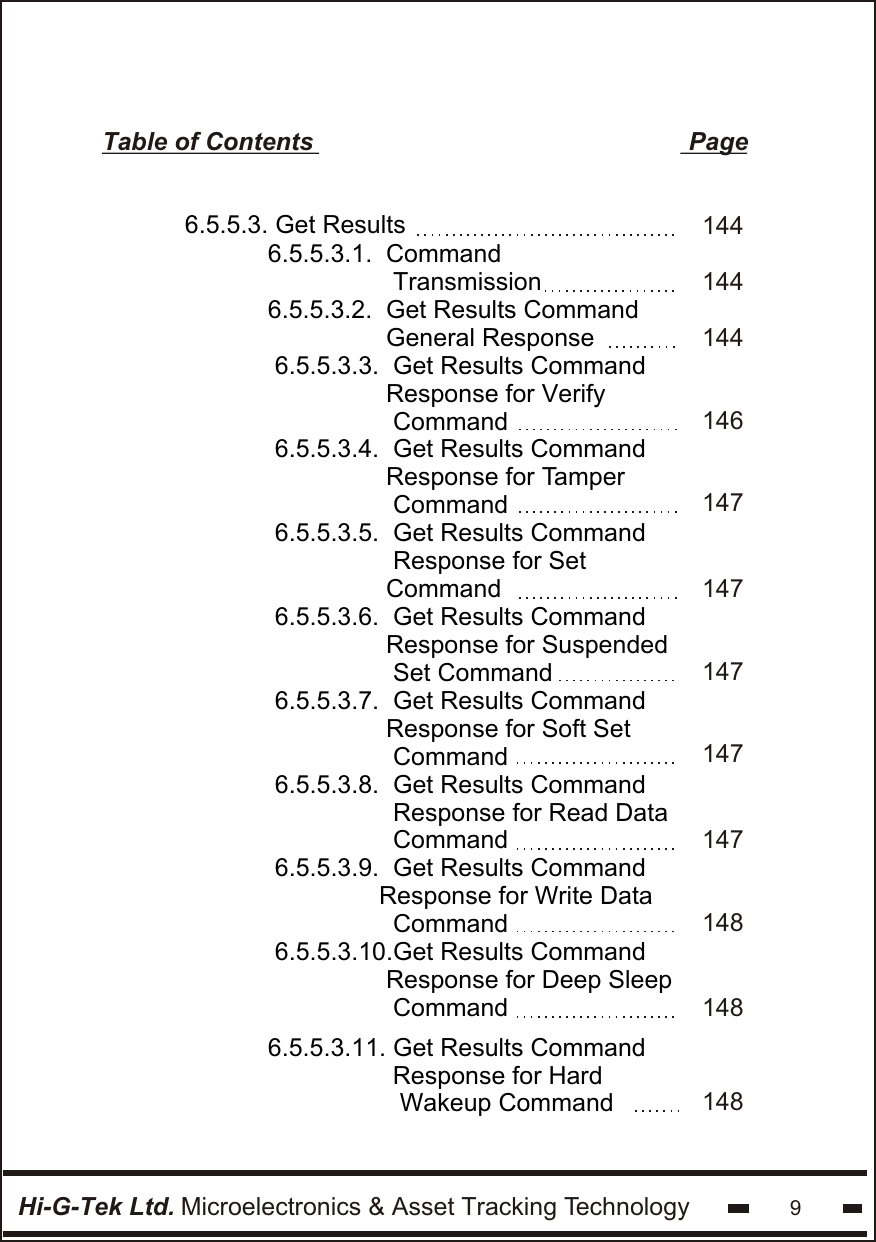

Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 9Table of Contents Page6.5.5.3.1. Command Transmission6.5.5.3.2. Get Results Command General Response 6.5.5.3.3. Get Results Command Response for Verify Command6.5.5.3.4. Get Results Command Response for Tamper Command6.5.5.3.5. Get Results Command Response for Set Command 6.5.5.3.6. Get Results Command Response for Suspended Set Command6.5.5.3.7. Get Results Command Response for Soft Set Command6.5.5.3.8. Get Results Command Response for Read Data Command6.5.5.3.9. Get Results Command Response for Write Data Command6.5.5.3.10.Get Results Command Response for Deep Sleep Command6.5.5.3. Get Results 1441441441461471471471471471481486.5.5.3.11. Get Results Command Response for Hard Wakeup Command 148

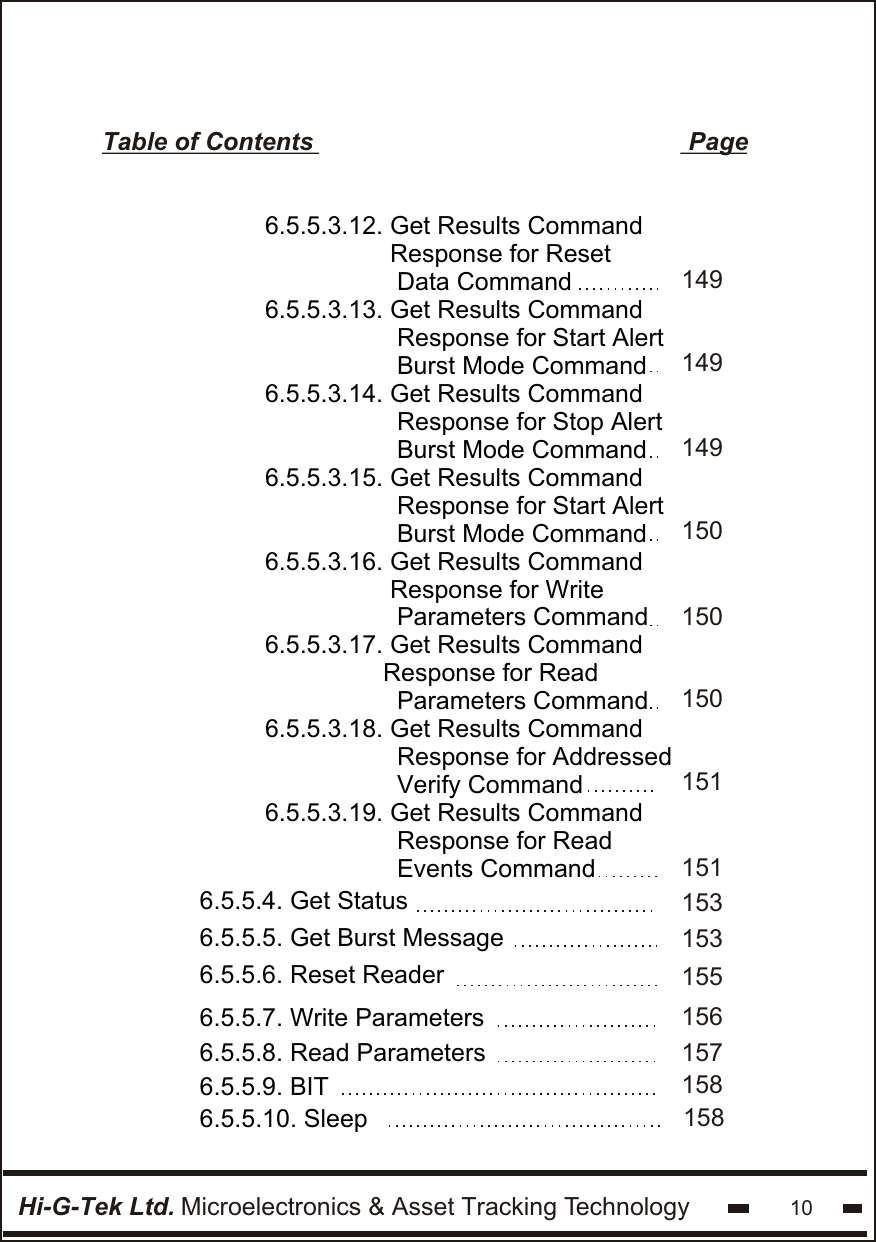

Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 106.5.5.3.12. Get Results Command Response for Reset Data Command6.5.5.3.13. Get Results Command Response for Start Alert Burst Mode Command6.5.5.3.14. Get Results Command Response for Stop Alert Burst Mode Command6.5.5.3.15. Get Results Command Response for Start Alert Burst Mode Command6.5.5.3.16. Get Results Command Response for Write Parameters Command6.5.5.3.17. Get Results Command Response for Read Parameters Command6.5.5.3.18. Get Results Command Response for Addressed Verify Command6.5.5.3.19. Get Results Command Response for Read Events CommandTable of Contents Page6.5.5.4. Get Status6.5.5.5. Get Burst Message1491491491501501501511511531536.5.5.6. Reset Reader 1556.5.5.8. Read Parameters 1576.5.5.7. Write Parameters 1566.5.5.9. BIT6.5.5.10. Sleep158158

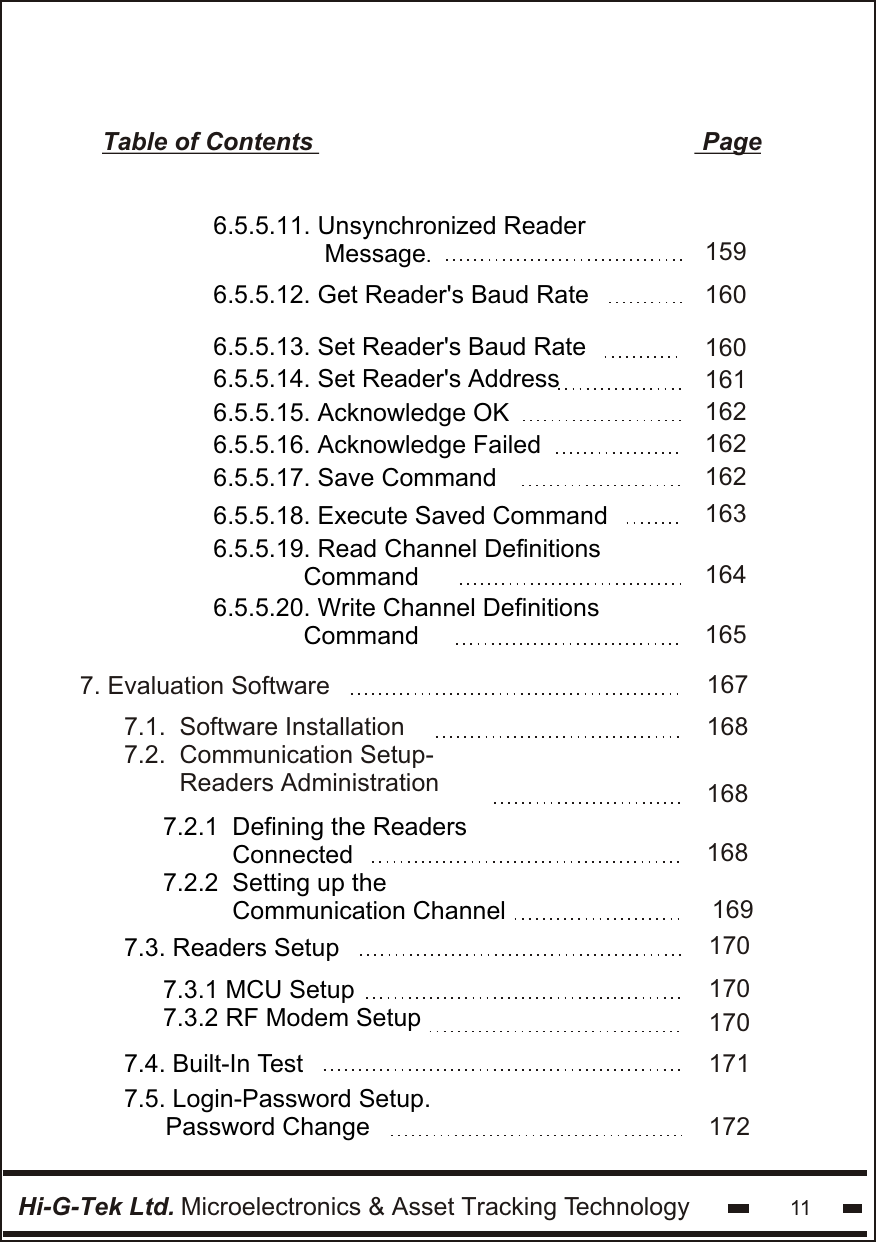

Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 11Table of Contents Page6.5.5.11. Unsynchronized Reader Message.6.5.5.12. Get Reader's Baud Rate1591606.5.5.13. Set Reader's Baud Rate6.5.5.14. Set Reader's Address6.5.5.15. Acknowledge OK6.5.5.16. Acknowledge Failed6.5.5.17. Save Command6.5.5.18. Execute Saved Command6.5.5.19. Read Channel Definitions Command 6.5.5.20. Write Channel Definitions Command 1601621621631641651621611677. Evaluation Software 1681681681697.1. Software Installation7.2. Communication Setup- Readers Administration 7.2.1 Defining the Readers Connected 7.2.2 Setting up the Communication Channel170170170 7.3. Readers Setup 7.3.1 MCU Setup7.3.2 RF Modem Setup171172 7.4. Built-In Test 7.5. Login-Password Setup. Password Change

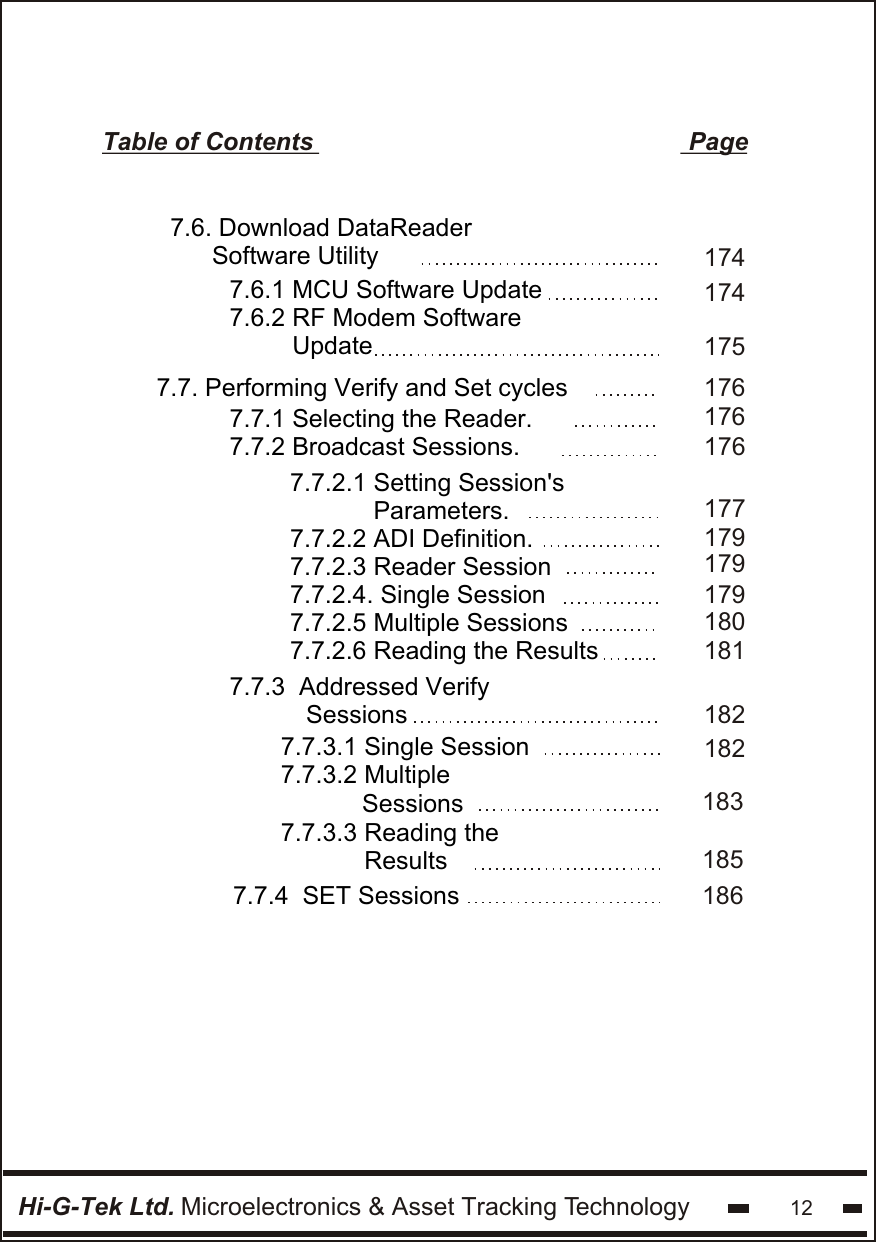

Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 12Table of Contents Page1761761767.7.1 Selecting the Reader.7.7.2 Broadcast Sessions.7.7. Performing Verify and Set cycles177179179180179181 7.7.2.1 Setting Session's Parameters.7.7.2.2 ADI Definition.7.7.2.3 Reader Session7.7.2.4. Single Session7.7.2.5 Multiple Sessions 7.7.2.6 Reading the Results 1741751747.6.1 MCU Software Update7.6.2 RF Modem Software Update 7.6. Download DataReader Software Utility1821821837.7.3 Addressed Verify Sessions7.7.3.1 Single Session 7.7.3.2 Multiple Sessions 7.7.4 SET Sessions7.7.3.3 Reading the Results 185186
Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 13Table of Contents Page7.8. Performing General Commands Cycles. 7.8.1 Selecting a Reader.7.8.2 Selecting a Command 7.8.3 Defining Seals 7.8.4 Setting the System Session Duration7.8.5 Setting the Command Parameters.7.8.6 Single or Continuous Sessions.7.8.7 Commands.1871881881891901911891877.8.7.1 Verify Command7.8.7.2 Tamper Command 7.8.7.3 Addressed Verify 7.8.7.4 Set 7.8.7.5 Soft Set 7.8.7.6 Suspended Set 7.8.7.7 Read Data7.8.7.8 Write Data7.8.7.9 Read Parameter7.8.7.10 Write Parameter7.8.7.11 Reset Data7.8.7.12 Deep Sleep7.8.7.13 Hard Wakeup7.8.7.14 Start Alert Burst7.8.7.15 Start Alert Burst (all)1931931941911961971981992002002012012022037.8.7.16 Stop Alert Burst7.8.7.17 Stop Alert Burst (all)7.8.7.18 Ack Alert7.8.7.19. Read Events204205204206195

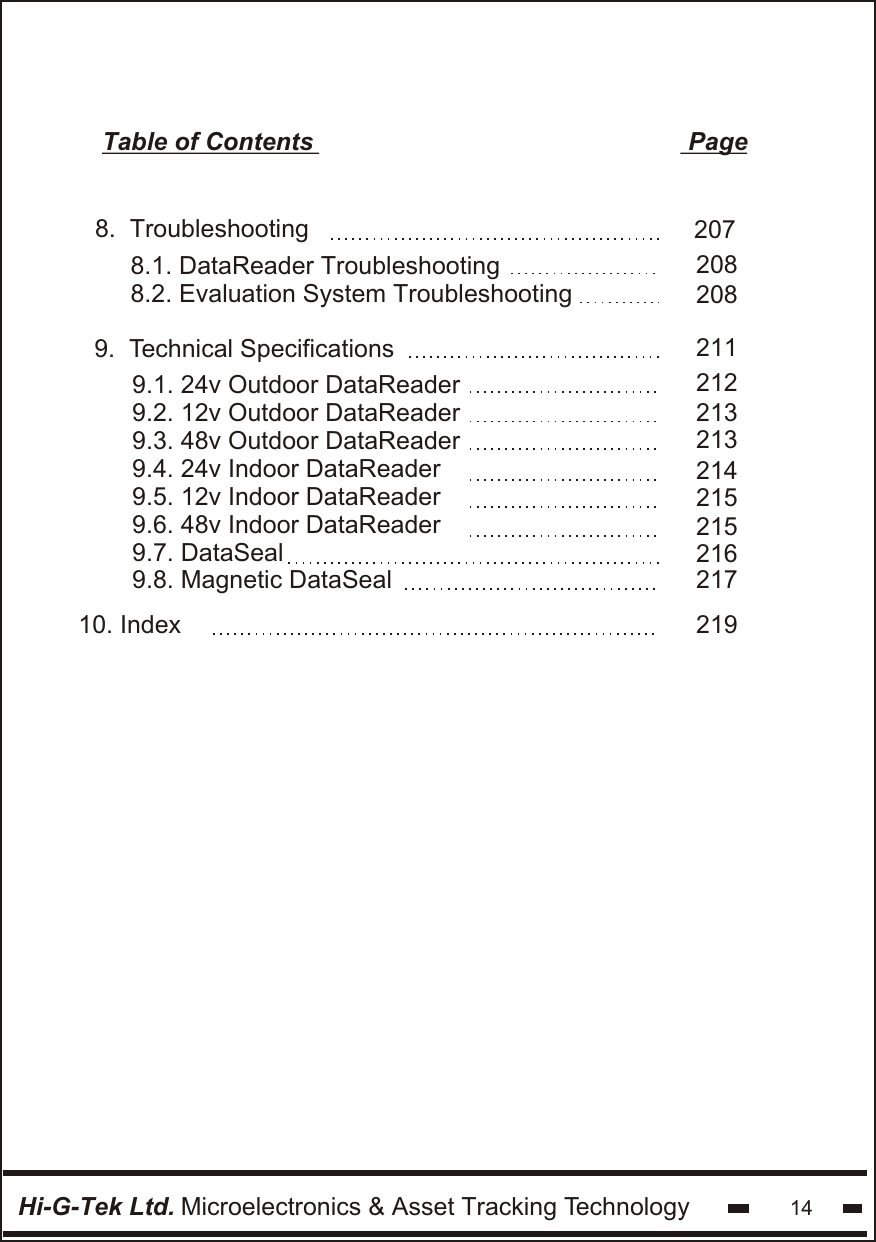

Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 142072082082112122132132142152152162172199.1. 24v Outdoor DataReader9.2. 12v Outdoor DataReader9.3. 48v Outdoor DataReader9.4. 24v Indoor DataReader9.5. 12v Indoor DataReader9.6. 48v Indoor DataReader9.7. DataSeal9.8. Magnetic DataSeal8.1. DataReader Troubleshooting8.2. Evaluation System Troubleshooting9. Technical Specifications8. TroubleshootingTable of Contents Page10. Index
IntroductionChapter 1

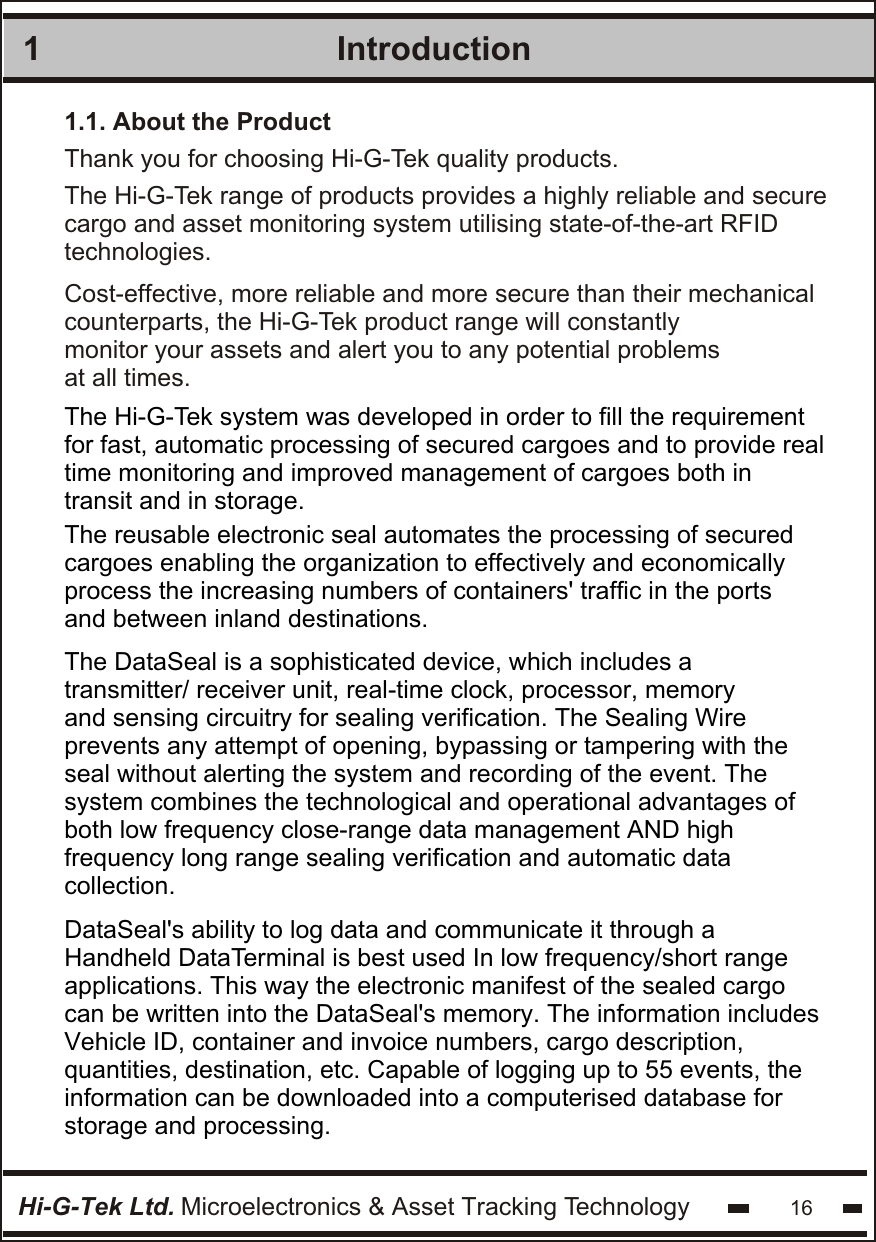

Introduction1Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 16The Hi-G-Tek range of products provides a highly reliable and securecargo and asset monitoring system utilising state-of-the-art RFIDtechnologies.1.1. About the ProductThe Hi-G-Tek system was developed in order to fill the requirement for fast, automatic processing of secured cargoes and to provide real time monitoring and improved management of cargoes both in transit and in storage. The DataSeal is a sophisticated device, which includes atransmitter/ receiver unit, real-time clock, processor, memoryand sensing circuitry for sealing verification. The Sealing Wireprevents any attempt of opening, bypassing or tampering with the seal without alerting the system and recording of the event. The system combines the technological and operational advantages of both low frequency close-range data management AND highfrequency long range sealing verification and automatic datacollection. DataSeal's ability to log data and communicate it through a Handheld DataTerminal is best used In low frequency/short range applications. This way the electronic manifest of the sealed cargo can be written into the DataSeal's memory. The information includes Vehicle ID, container and invoice numbers, cargo description, quantities, destination, etc. Capable of logging up to 55 events, theinformation can be downloaded into a computerised database for storage and processing. Cost-effective, more reliable and more secure than their mechanical counterparts, the Hi-G-Tek product range will constantly monitor your assets and alert you to any potential problemsat all times.The reusable electronic seal automates the processing of securedcargoes enabling the organization to effectively and economically process the increasing numbers of containers' traffic in the ports and between inland destinations.Thank you for choosing Hi-G-Tek quality products.

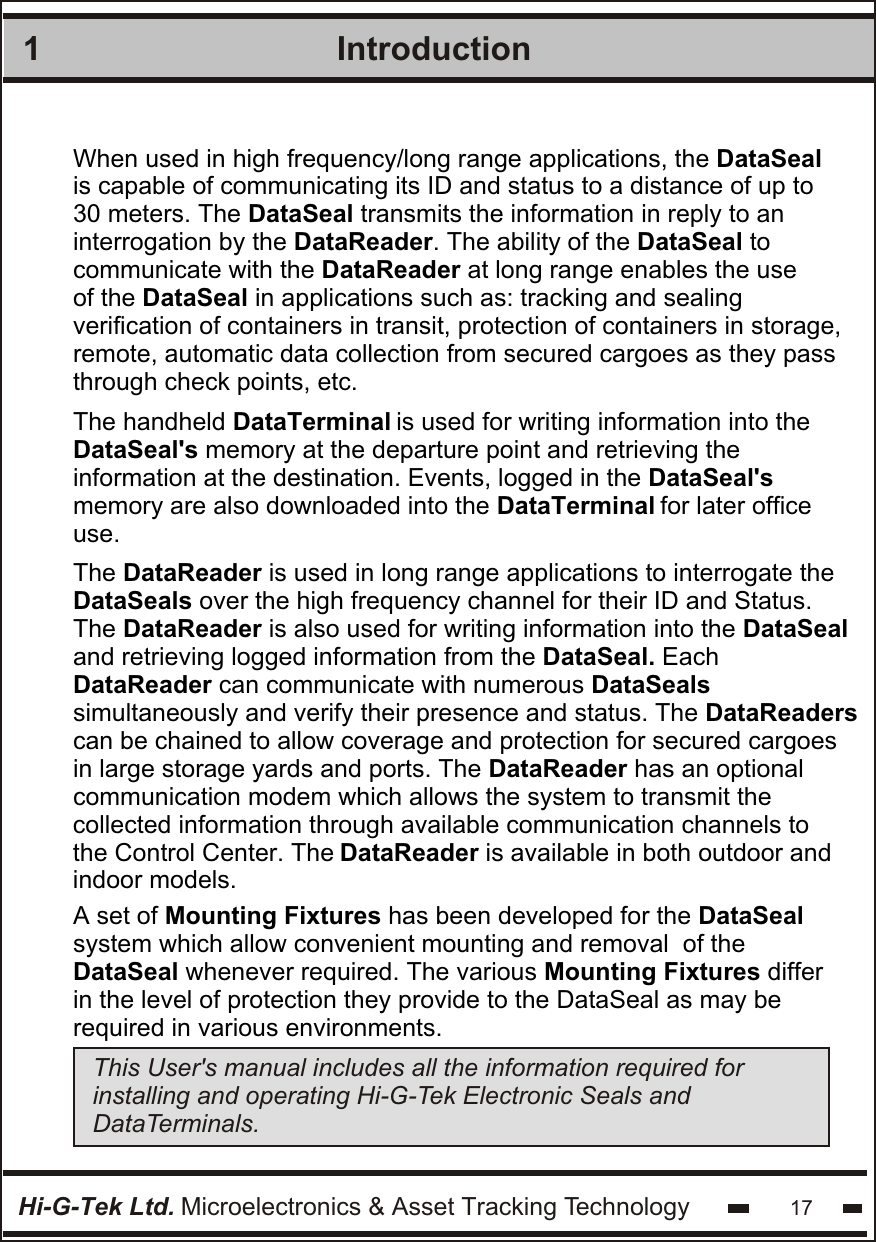

Introduction1Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 17When used in high frequency/long range applications, the DataSealis capable of communicating its ID and status to a distance of up to30 meters. The DataSeal transmits the information in reply to aninterrogation by the DataReader. The ability of the DataSeal to communicate with the DataReader at long range enables the use of the DataSeal in applications such as: tracking and sealingverification of containers in transit, protection of containers in storage,remote, automatic data collection from secured cargoes as they passthrough check points, etc.This User's manual includes all the information required for installing and operating Hi-G-Tek Electronic Seals and DataTerminals. The handheld DataTerminal is used for writing information into the DataSeal's memory at the departure point and retrieving the information at the destination. Events, logged in the DataSeal's memory are also downloaded into the DataTerminal for later officeuse. The DataReader is used in long range applications to interrogate the DataSeals over the high frequency channel for their ID and Status. The DataReader is also used for writing information into the DataSeal and retrieving logged information from the DataSeal. Each DataReader can communicate with numerous DataSeals simultaneously and verify their presence and status. The DataReaderscan be chained to allow coverage and protection for secured cargoesin large storage yards and ports. The DataReader has an optionalcommunication modem which allows the system to transmit the collected information through available communication channels to the Control Center. The DataReader is available in both outdoor and indoor models. A set of Mounting Fixtures has been developed for the DataSeal system which allow convenient mounting and removal of the DataSeal whenever required. The various Mounting Fixtures differ in the level of protection they provide to the DataSeal as may be required in various environments.

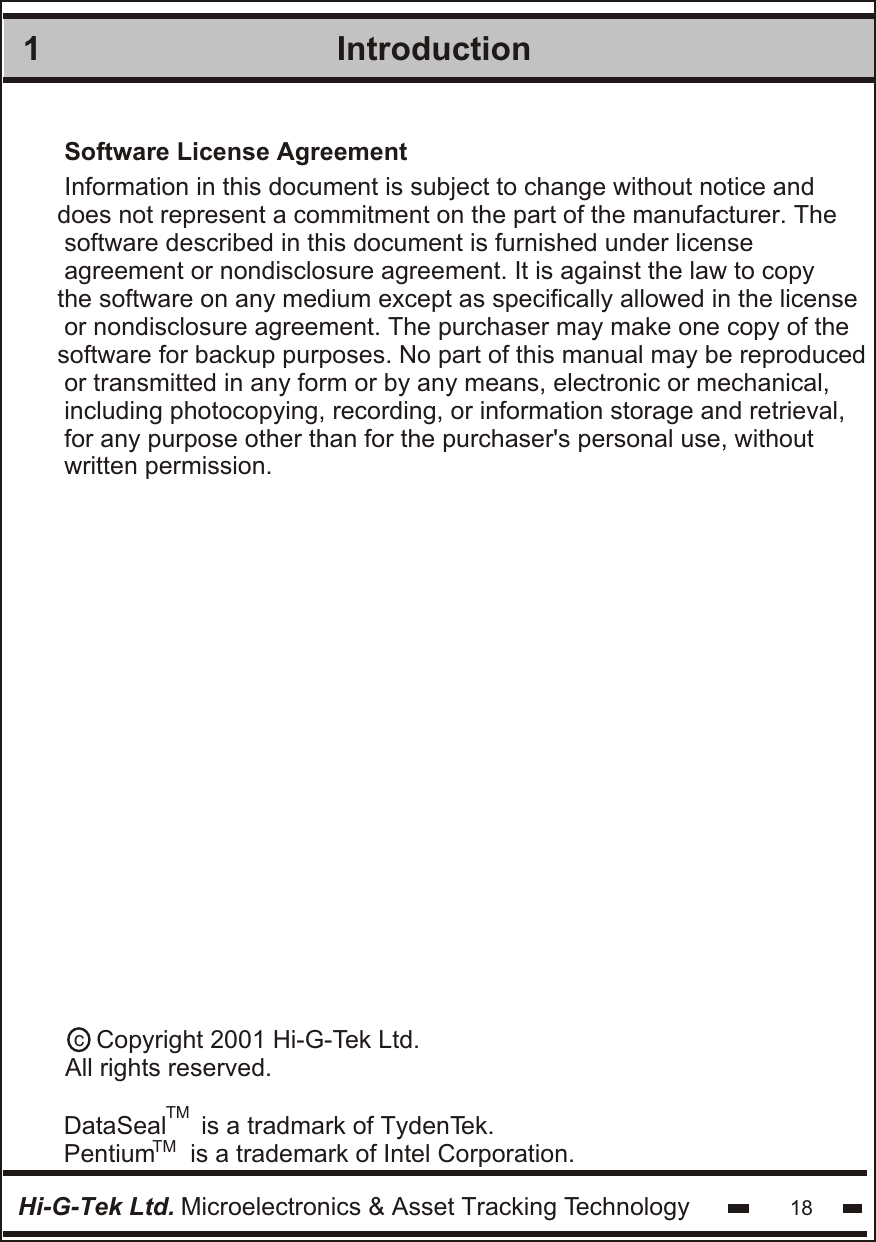

Introduction1Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 18Software License AgreementInformation in this document is subject to change without notice anddoes not represent a commitment on the part of the manufacturer. The software described in this document is furnished under licenseagreement or nondisclosure agreement. It is against the law to copythe software on any medium except as specifically allowed in the license or nondisclosure agreement. The purchaser may make one copy of thesoftware for backup purposes. No part of this manual may be reproduced or transmitted in any form or by any means, electronic or mechanical,including photocopying, recording, or information storage and retrieval,for any purpose other than for the purchaser's personal use, withoutwritten permission.DataSeal is a tradmark of TydenTek.Pentium is a trademark of Intel Corporation.c Copyright 2001 Hi-G-Tek Ltd.All rights reserved.TMTM

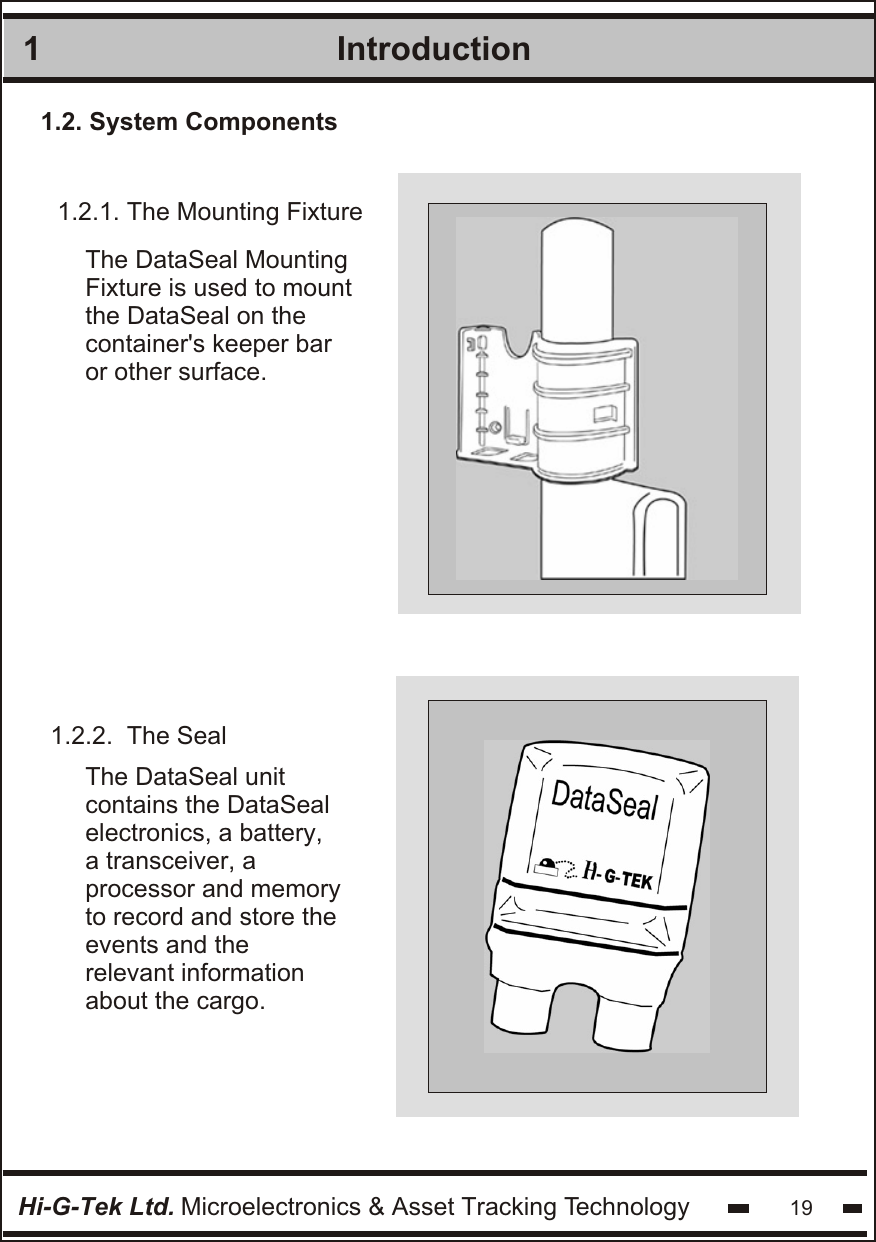

1.2.1. The Mounting Fixture1.2.2. The Seal The DataSeal MountingFixture is used to mountthe DataSeal on thecontainer's keeper baror other surface. The DataSeal unit contains the DataSeal electronics, a battery, a transceiver, a processor and memory to record and store the events and the relevant information about the cargo. 11.2. System ComponentsIntroductionHi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 19
1IntroductionHi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 20 The DataReader is comprised of two compartments. The uppercompartment is the heartof the unit and contains the DataReader's electronics section. The lower compartment containsthe terminal glands which connect the unit to the networking cable.1.2.3. Seal WireThe DataSeal Wire serves to seal the cargo. Any tampering with theDataSeal Wire at any point during transport is recorded and reported at once. 1.2.4. Outdoor DataReader The Hi-G-Tek DataSeal System uses state-of-the -art technology to secure and monitor secured cargoes in storage and duringtransport.

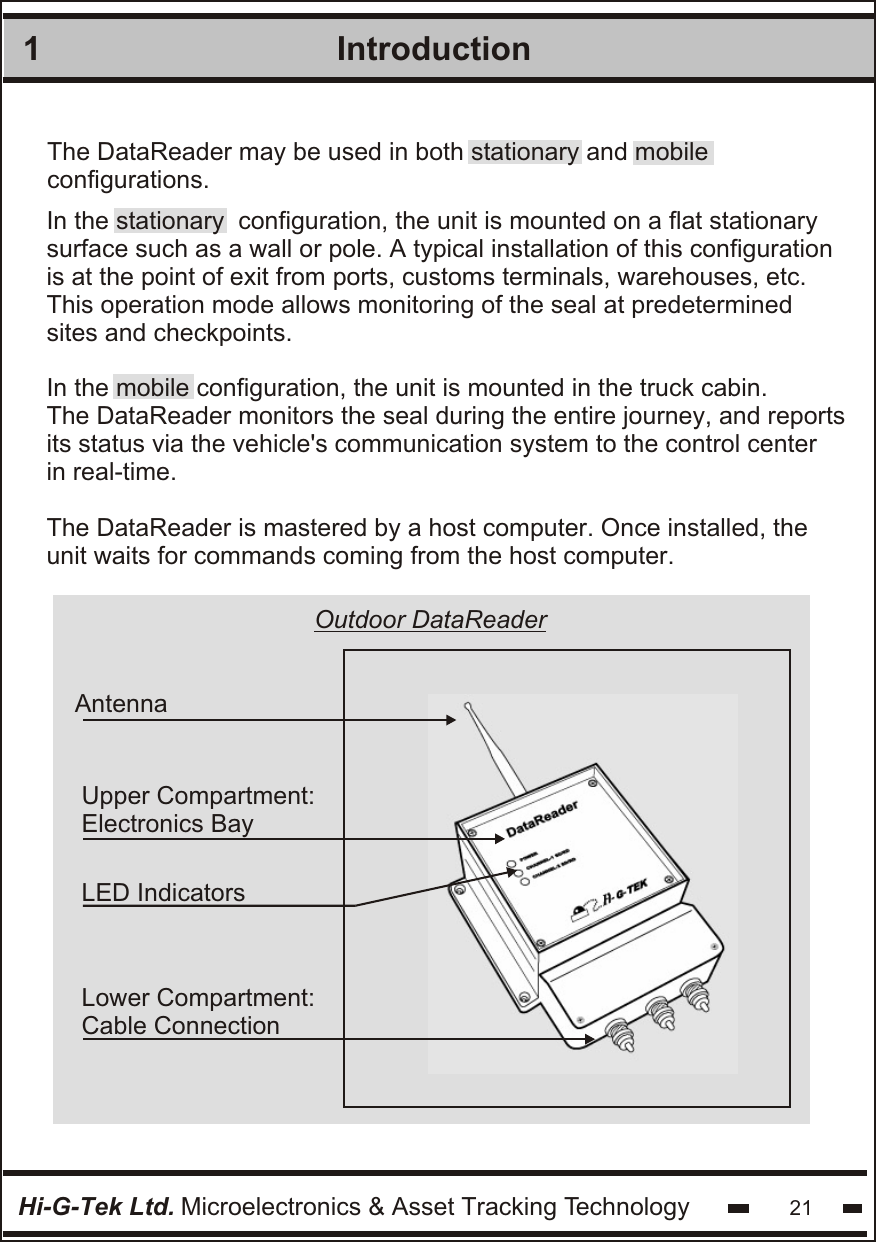

1IntroductionHi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 21In the stationary configuration, the unit is mounted on a flat stationary surface such as a wall or pole. A typical installation of this configuration is at the point of exit from ports, customs terminals, warehouses, etc. This operation mode allows monitoring of the seal at predetermined sites and checkpoints.In the mobile configuration, the unit is mounted in the truck cabin.The DataReader monitors the seal during the entire journey, and reportsits status via the vehicle's communication system to the control centerin real-time.The DataReader is mastered by a host computer. Once installed, theunit waits for commands coming from the host computer.The DataReader may be used in both stationary and mobile configurations. Upper Compartment:Electronics BayLower Compartment:Cable ConnectionAntenna LED IndicatorsOutdoor DataReader

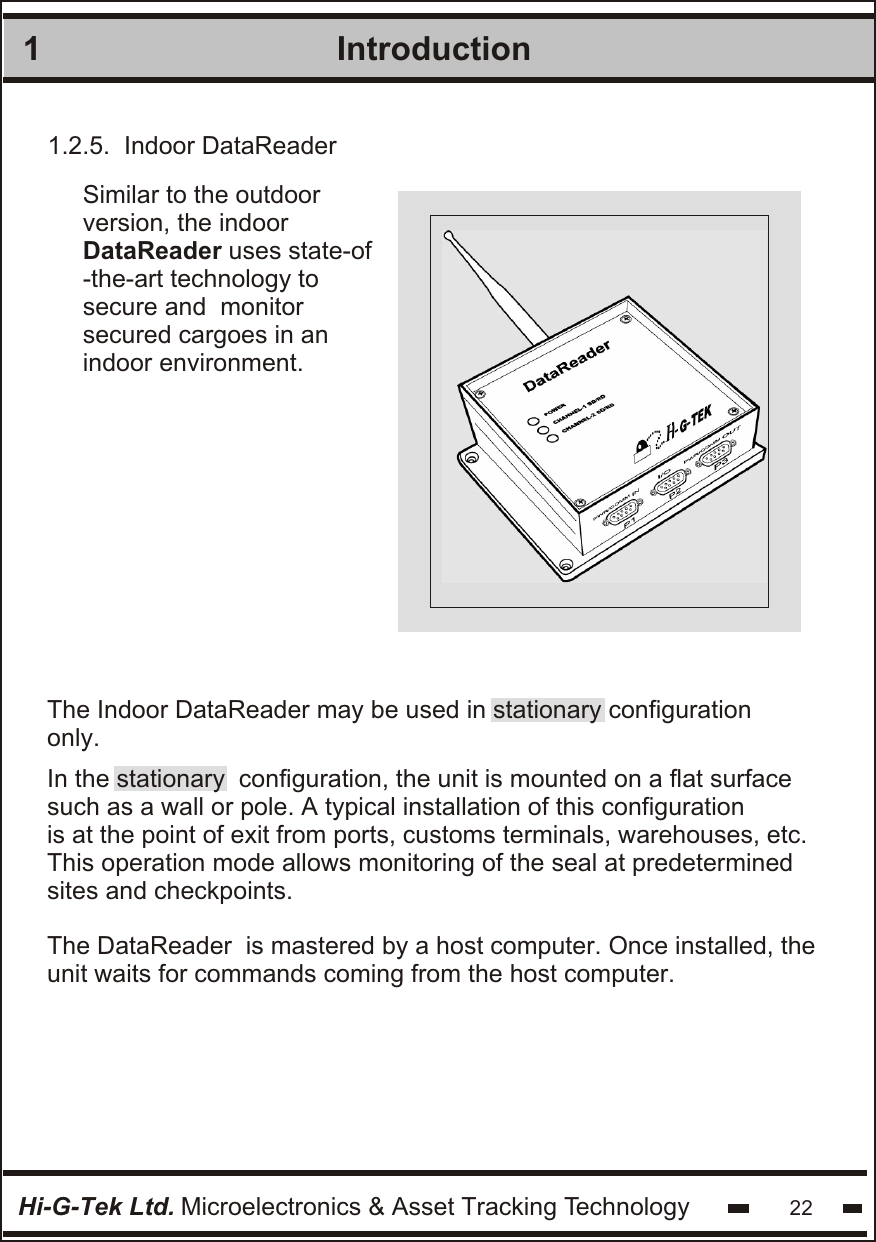

1IntroductionHi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 221.2.5. Indoor DataReaderSimilar to the outdoor version, the indoor DataReader uses state-of -the-art technology to secure and monitor secured cargoes in an indoor environment.In the stationary configuration, the unit is mounted on a flat surface such as a wall or pole. A typical installation of this configuration is at the point of exit from ports, customs terminals, warehouses, etc. This operation mode allows monitoring of the seal at predetermined sites and checkpoints.The DataReader is mastered by a host computer. Once installed, theunit waits for commands coming from the host computer.The Indoor DataReader may be used in stationary configuration only.

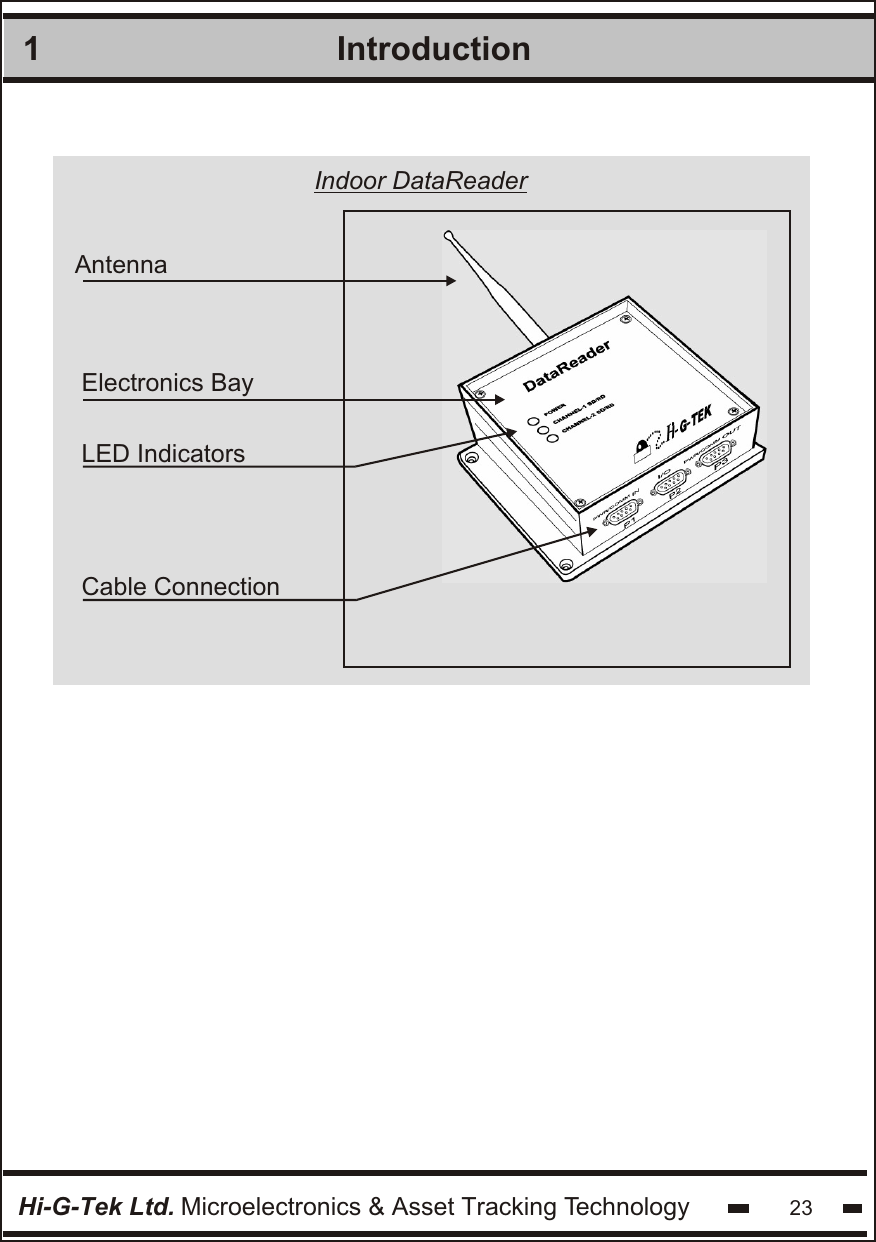

1IntroductionHi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 23Electronics BayCable ConnectionAntenna LED IndicatorsIndoor DataReader
1IntroductionHi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 24
DataSealInstallationChapter 2

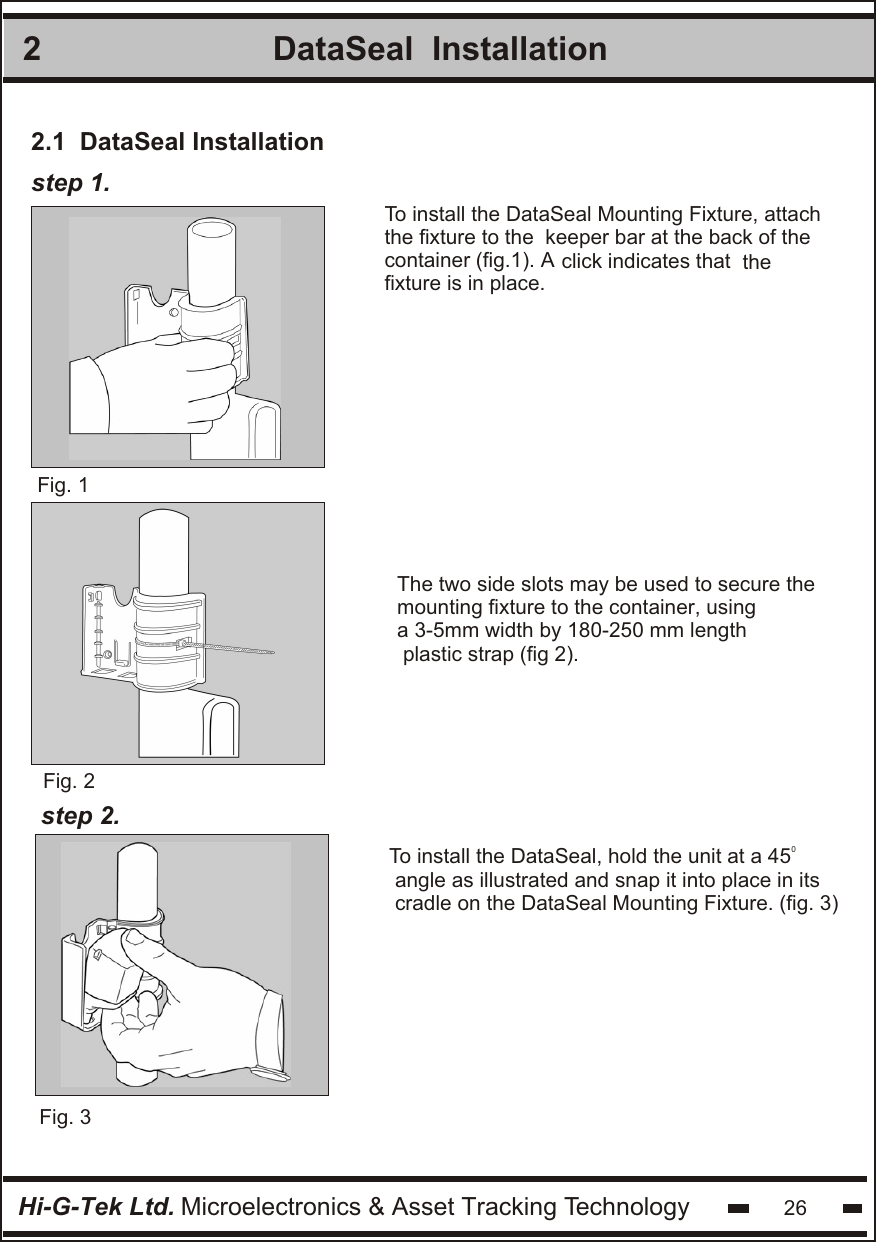

2Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 26DataSeal Installationstep 1.Fig. 1Fig. 3To install the DataSeal Mounting Fixture, attachthe fixture to the keeper bar at the back of the container (fig.1). A click indicates that thefixture is in place. Fig. 20To install the DataSeal, hold the unit at a 45 angle as illustrated and snap it into place in itscradle on the DataSeal Mounting Fixture. (fig. 3)step 2.2.1 DataSeal InstallationThe two side slots may be used to secure the mounting fixture to the container, using a 3-5mm width by 180-250 mm length plastic strap (fig 2).

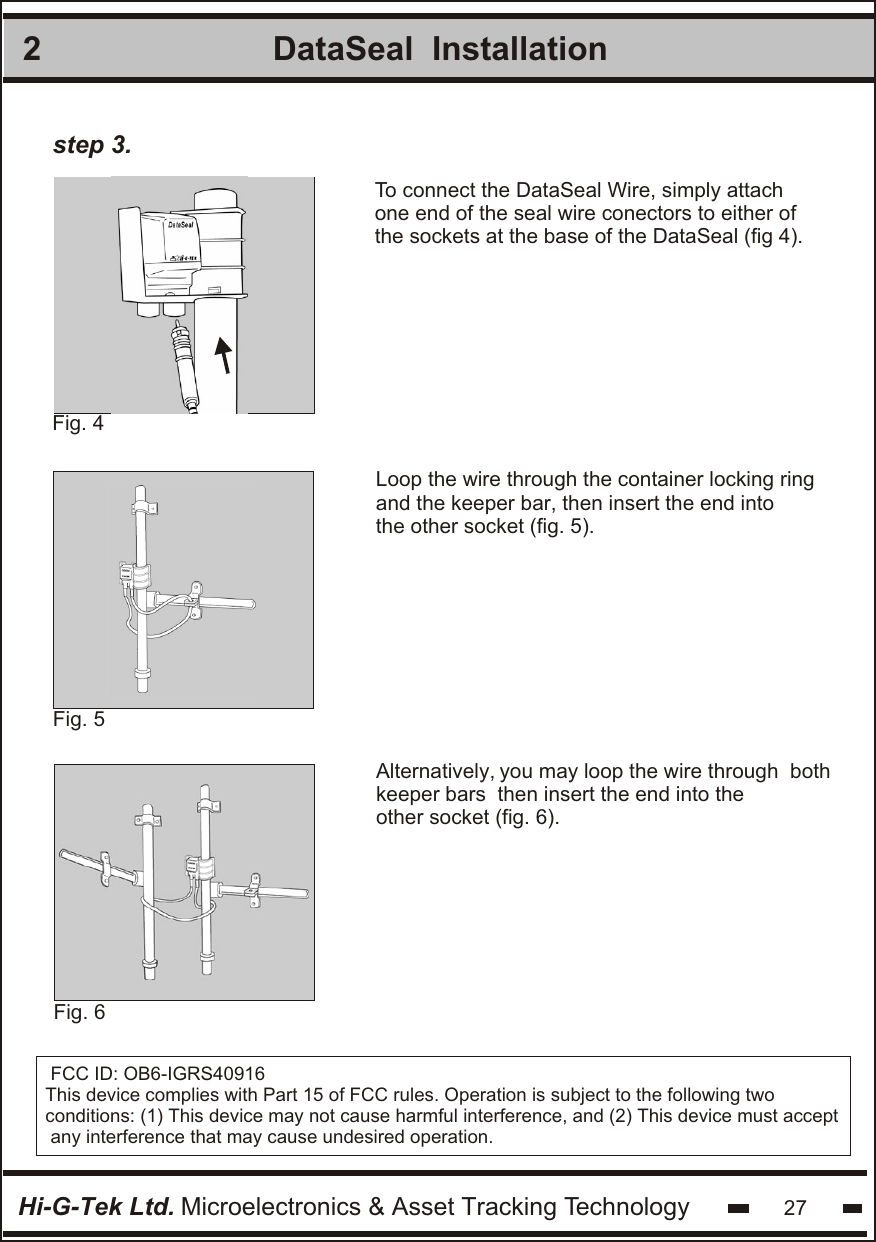

2Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 27DataSeal InstallationFig. 5 To connect the DataSeal Wire, simply attachone end of the seal wire conectors to either ofthe sockets at the base of the DataSeal (fig 4).Fig. 4 Loop the wire through the container locking ringand the keeper bar, then insert the end intothe other socket (fig. 5).step 3.Fig. 6 Alternatively, you may loop the wire through both keeper bars then insert the end into the other socket (fig. 6).FCC ID: OB6-IGRS40916This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference that may cause undesired operation.
Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 28
DataReaderInstallationChapter 3

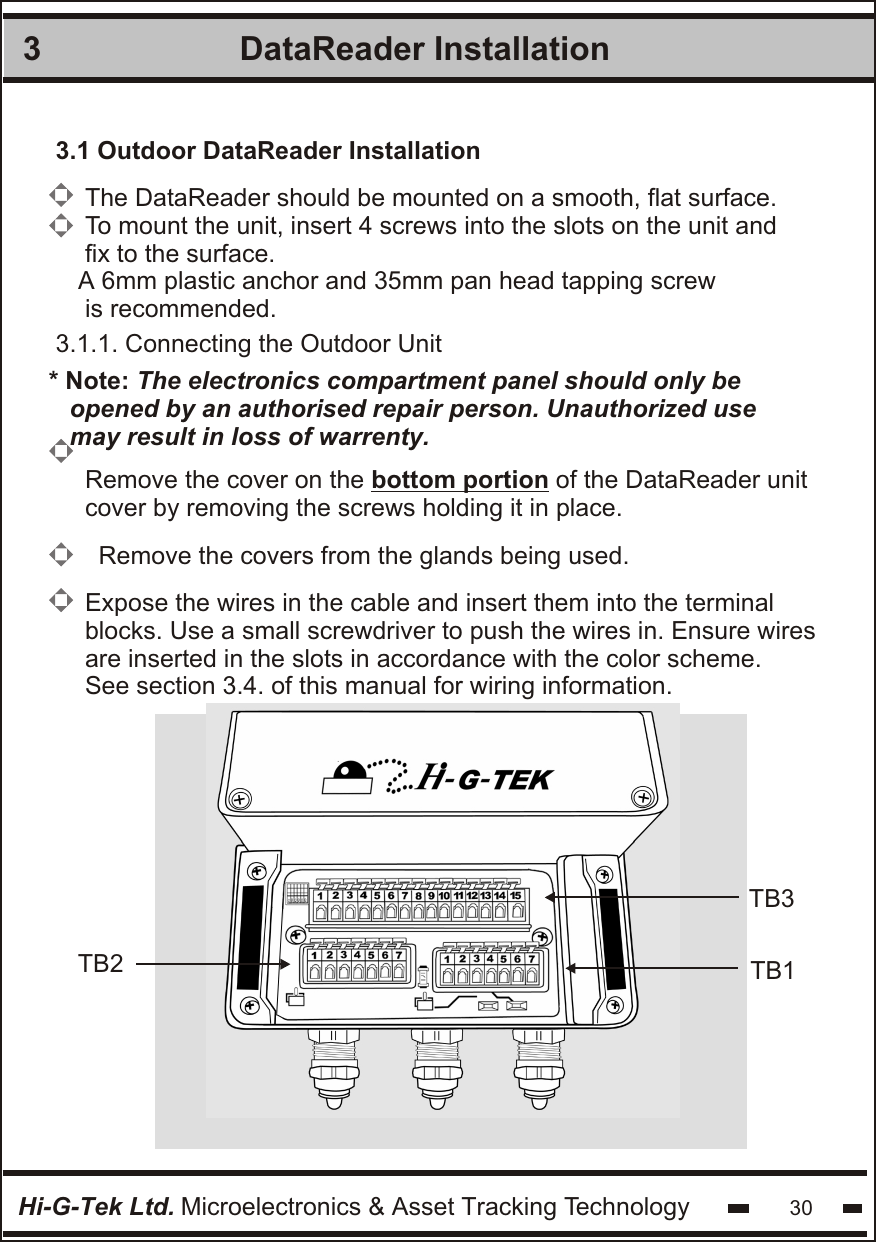

DataReader Installation 33.1 Outdoor DataReader Installation3.1.1. Connecting the Outdoor UnitThe DataReader should be mounted on a smooth, flat surface.To mount the unit, insert 4 screws into the slots on the unit andfix to the surface.A 6mm plastic anchor and 35mm pan head tapping screw is recommended.Remove the cover on the bottom portion of the DataReader unitcover by removing the screws holding it in place.Expose the wires in the cable and insert them into the terminalblocks. Use a small screwdriver to push the wires in. Ensure wiresare inserted in the slots in accordance with the color scheme.See section 3.4. of this manual for wiring information.Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 30Remove the covers from the glands being used.* Note: The electronics compartment panel should only be opened by an authorised repair person. Unauthorized use may result in loss of warrenty. TB3TB1TB2

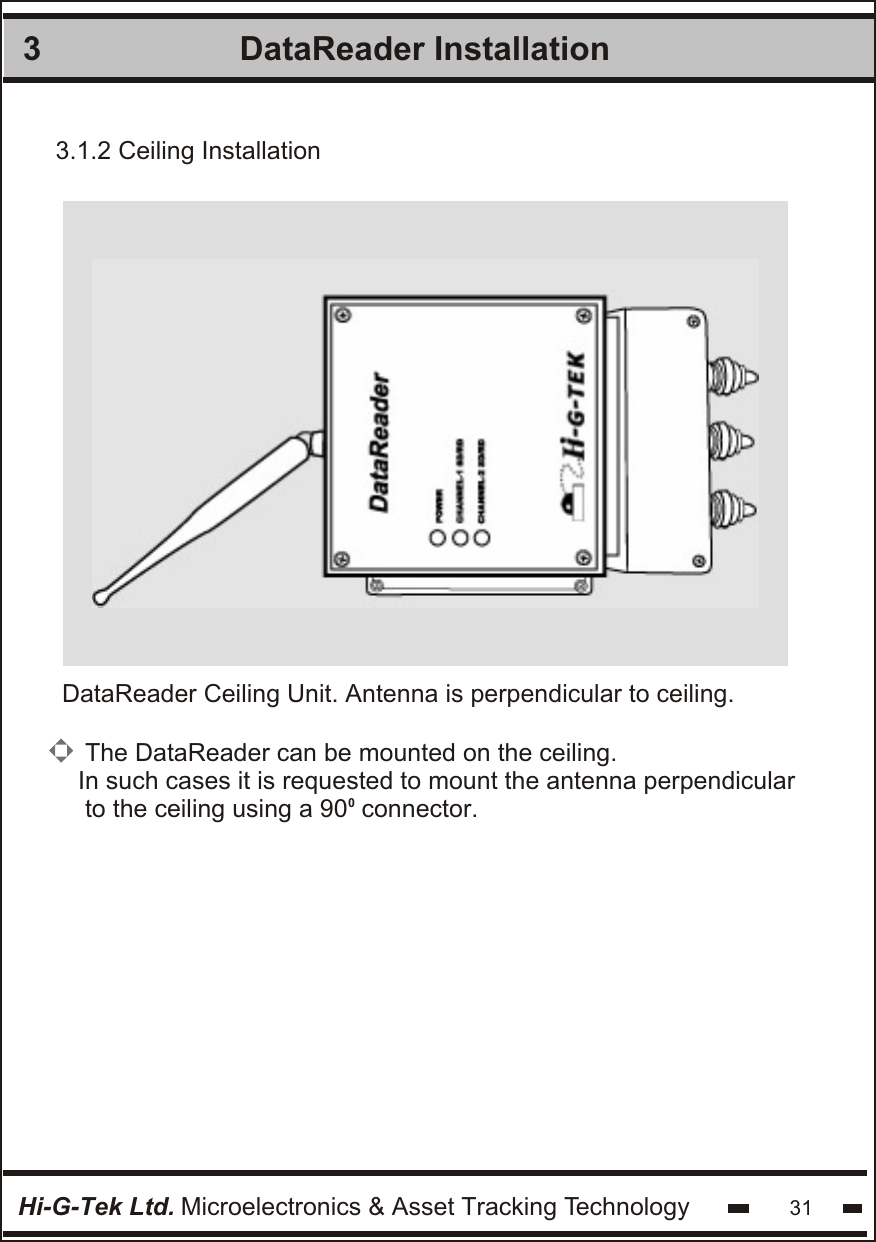

DataReader Installation 3Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 31DataReader Ceiling Unit. Antenna is perpendicular to ceiling.3.1.2 Ceiling InstallationThe DataReader can be mounted on the ceiling.In such cases it is requested to mount the antenna perpendicular to the ceiling using a 90 connector.0

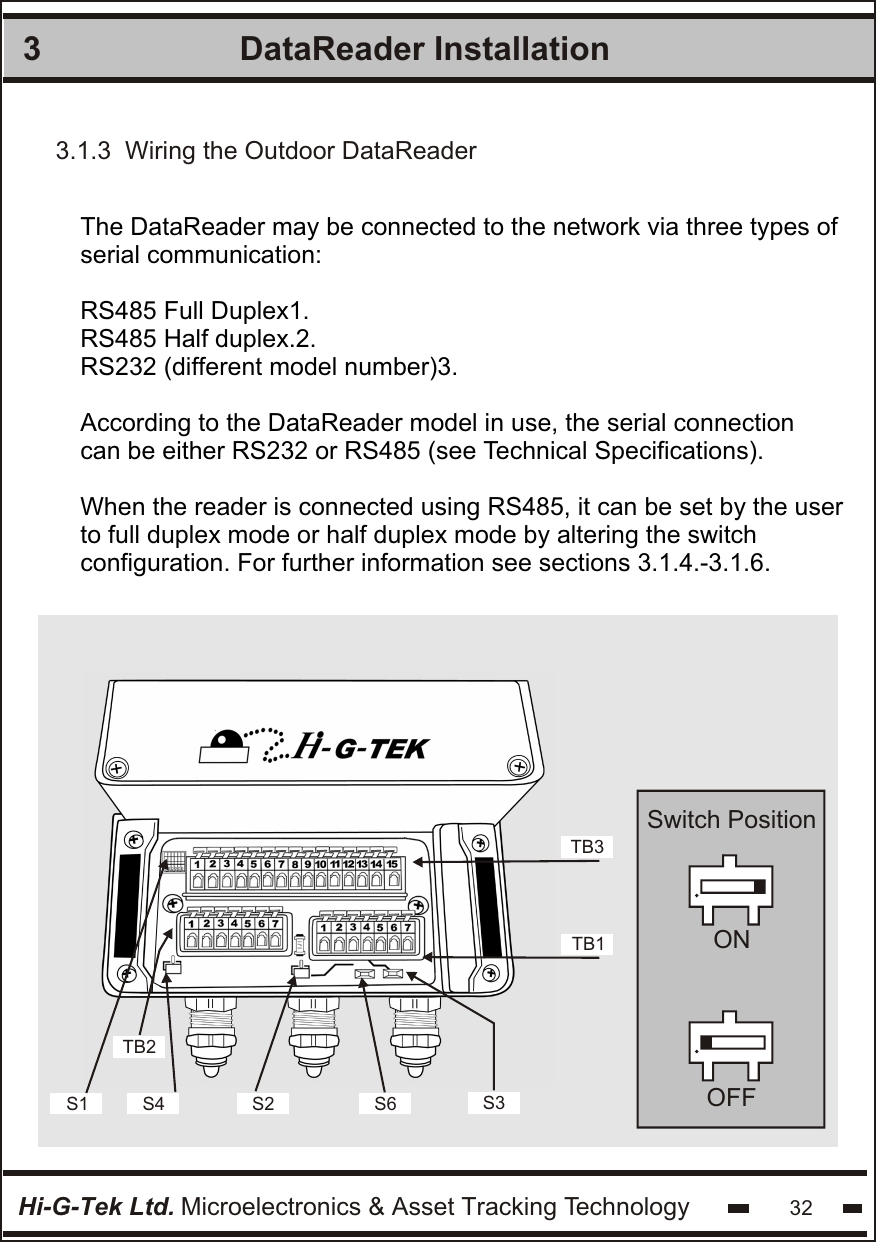

3.1.3 Wiring the Outdoor DataReaderHi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 32DataReader Installation 3The DataReader may be connected to the network via three types of serial communication: RS485 Full Duplex1.RS485 Half duplex.2.RS232 (different model number)3.According to the DataReader model in use, the serial connection can be either RS232 or RS485 (see Technical Specifications). When the reader is connected using RS485, it can be set by the user to full duplex mode or half duplex mode by altering the switch configuration. For further information see sections 3.1.4.-3.1.6.Switch PositionONOFFTB3TB1S1 S4 S2 S6 S3TB2

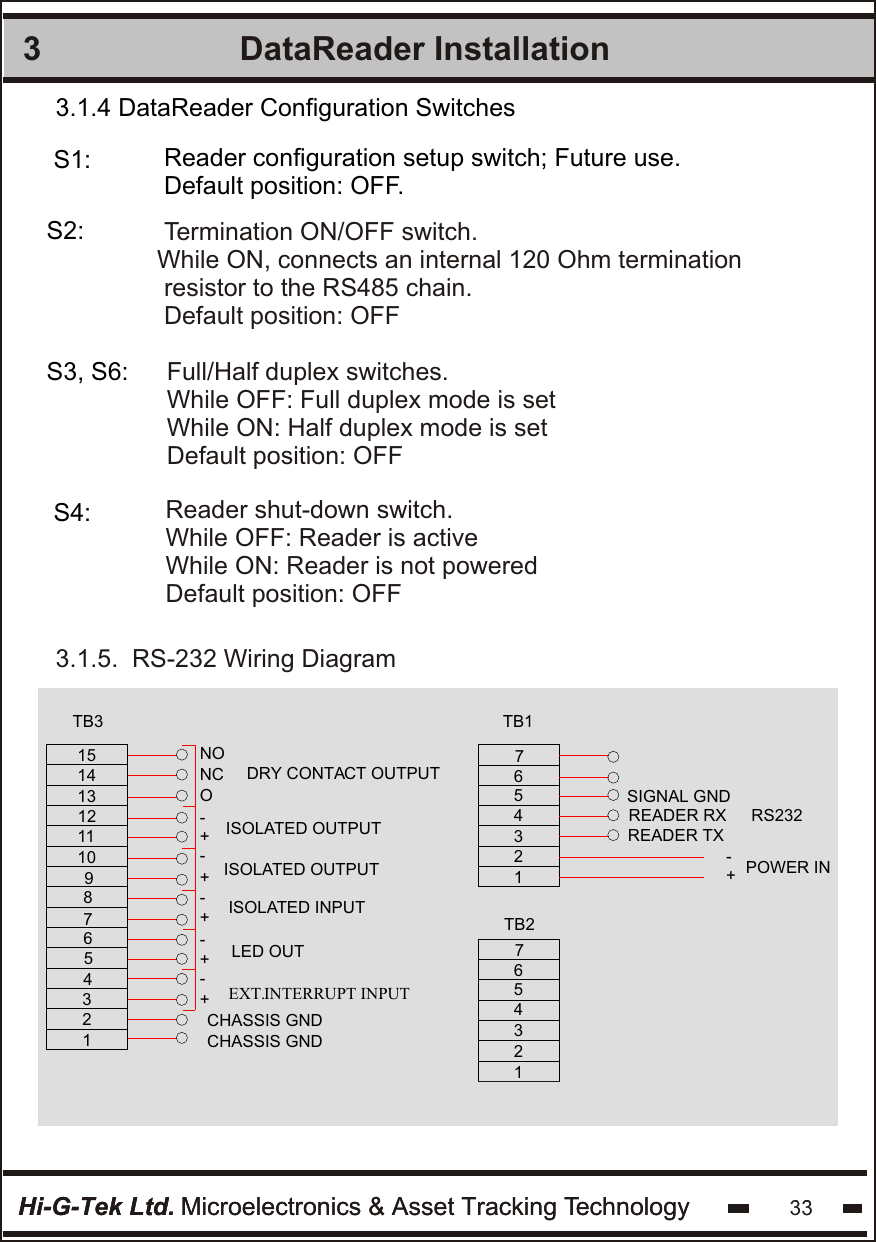

Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 10DataReader Installation 33.1.5. RS-232 Wiring DiagramS1:S2: S3, S6: S4:3.1.4 DataReader Configuration SwitchesHi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 33DataReader Installation 3+312CHASSIS GND CHASSIS GND9645781011141213TB315DRY CONTACT OUTPUTISOLATED OUTPUT ISOLATED OUTPUT EXT.INTERRUPT INPUT+LED OUTISOLATED INPUT-+--++-NC-ONOPOWER IN RS232 TB1READER TXREADER RXSIGNAL GND5321467+-TB21324567Reader configuration setup switch; Future use.Default position: OFF.Termination ON/OFF switch.While ON, connects an internal 120 Ohm termination resistor to the RS485 chain.Default position: OFFFull/Half duplex switches.While OFF: Full duplex mode is setWhile ON: Half duplex mode is setDefault position: OFFReader shut-down switch.While OFF: Reader is activeWhile ON: Reader is not poweredDefault position: OFF

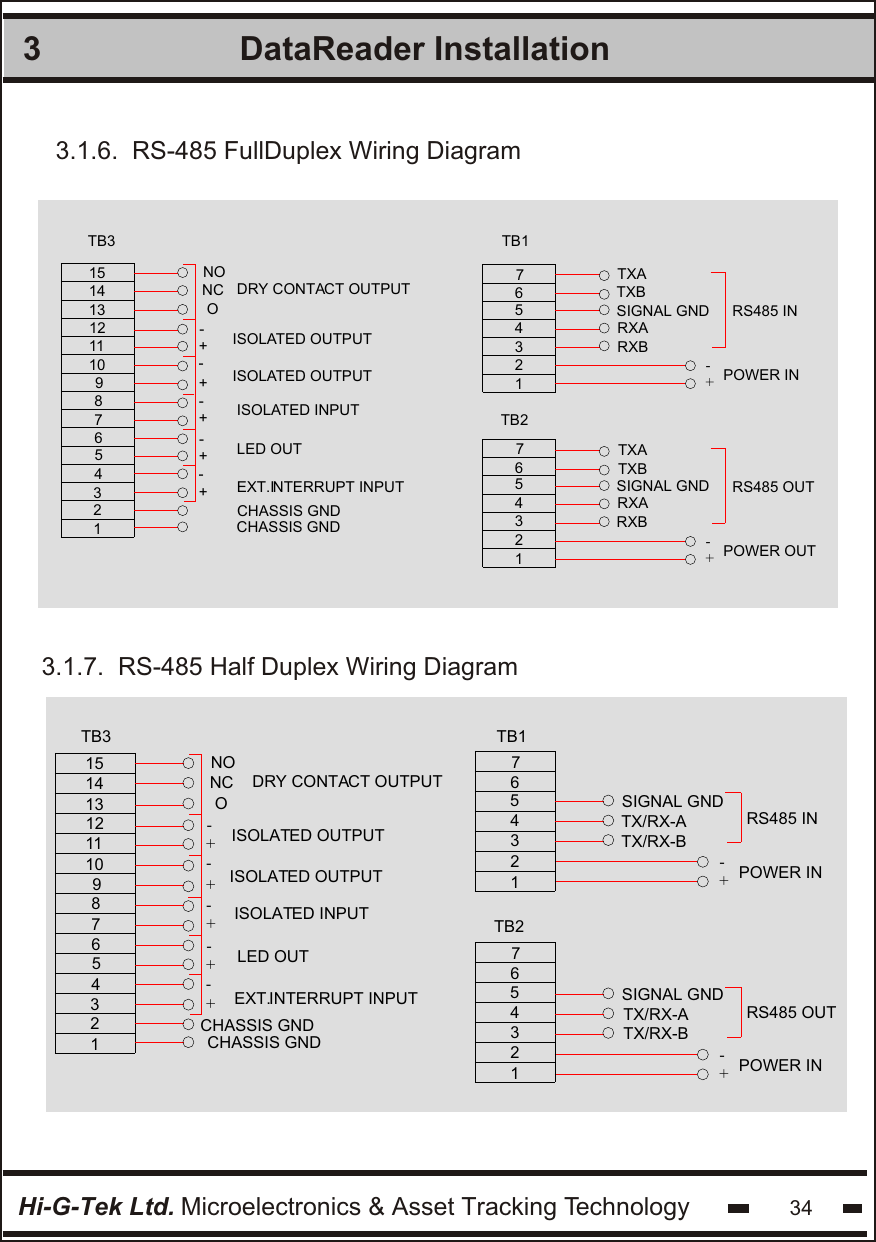

Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 34DataReader Installation 33.1.6. RS-485 FullDuplex Wiring DiagramCHASSIS GND123456789101112131415TB3 CHASSIS GNDEXT.INTERRUPT INPUT+-+-+-+-+-ONCNODRY CONTACT OUTPUTISOLATED OUTPUT LED OUTISOLATED INPUTISOLATED OUTPUT 7356421+-POWER IN RXARXBSIGNAL GNDTXATXBRS485 INTB1TB21236457RS485 OUTPOWER OUT SIGNAL GNDTXATXBRXBRXA+-3.1.7. RS-485 Half Duplex Wiring DiagramISOLATED INPUT82153467EXT.INTERRUPT INPUT CHASSIS GNDCHASSIS GNDLED OUT++-+-109131211TB31514ISOLATED OUTPUT ISOLATED OUTPUT DRY CONTACT OUTPUT-+--+ONONCPOWER IN RS485 INPOWER IN TB2TX/RX-ATX/RX-BSIGNAL GND4123657+-TB1SIGNAL GNDTX/RX-BTX/RX-A1236457+-RS485 OUT

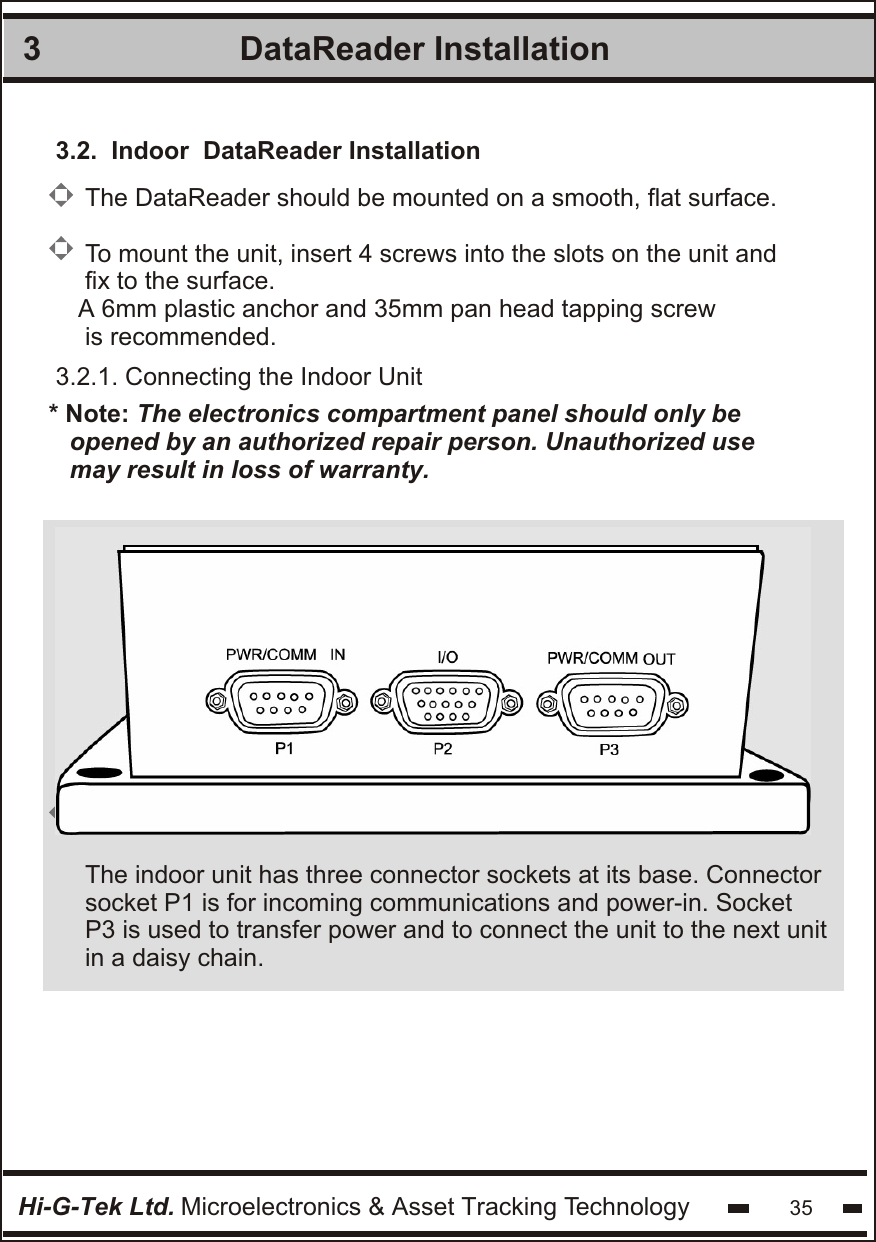

DataReader Installation 3Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 353.2. Indoor DataReader Installation3.2.1. Connecting the Indoor Unit* Note: The electronics compartment panel should only be opened by an authorized repair person. Unauthorized use may result in loss of warranty. The indoor unit has three connector sockets at its base. Connectorsocket P1 is for incoming communications and power-in. SocketP3 is used to transfer power and to connect the unit to the next unit in a daisy chain. The DataReader should be mounted on a smooth, flat surface.To mount the unit, insert 4 screws into the slots on the unit andfix to the surface.A 6mm plastic anchor and 35mm pan head tapping screw is recommended.

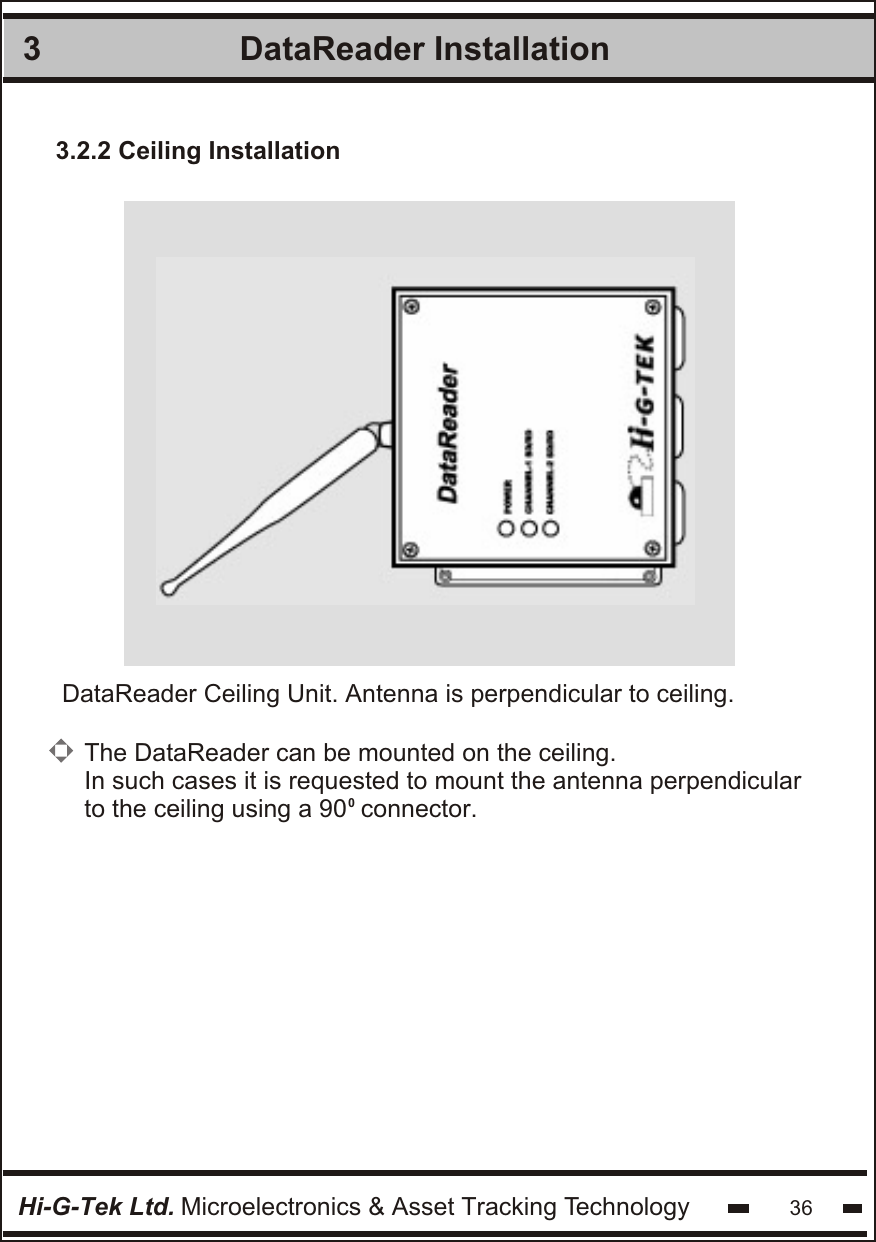

DataReader Installation 3Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 36DataReader Ceiling Unit. Antenna is perpendicular to ceiling.3.2.2 Ceiling InstallationThe DataReader can be mounted on the ceiling. In such cases it is requested to mount the antenna perpendicular to the ceiling using a 90 connector.0

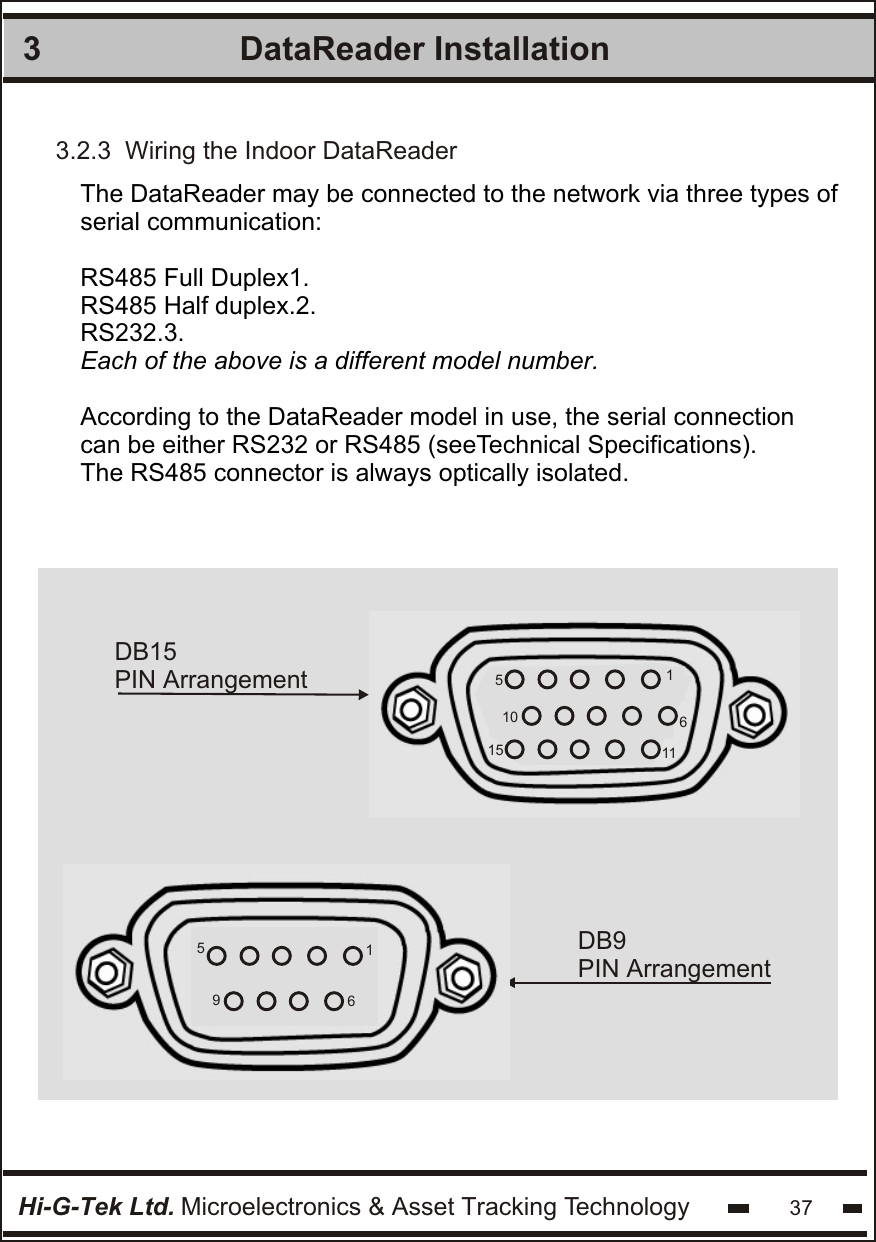

DataReader Installation 3Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 373.2.3 Wiring the Indoor DataReaderThe DataReader may be connected to the network via three types of serial communication: RS485 Full Duplex1.RS485 Half duplex.2.RS232.3.Each of the above is a different model number.According to the DataReader model in use, the serial connection can be either RS232 or RS485 (seeTechnical Specifications). The RS485 connector is always optically isolated. DB15PIN ArrangementDB9PIN Arrangement1510 611159165

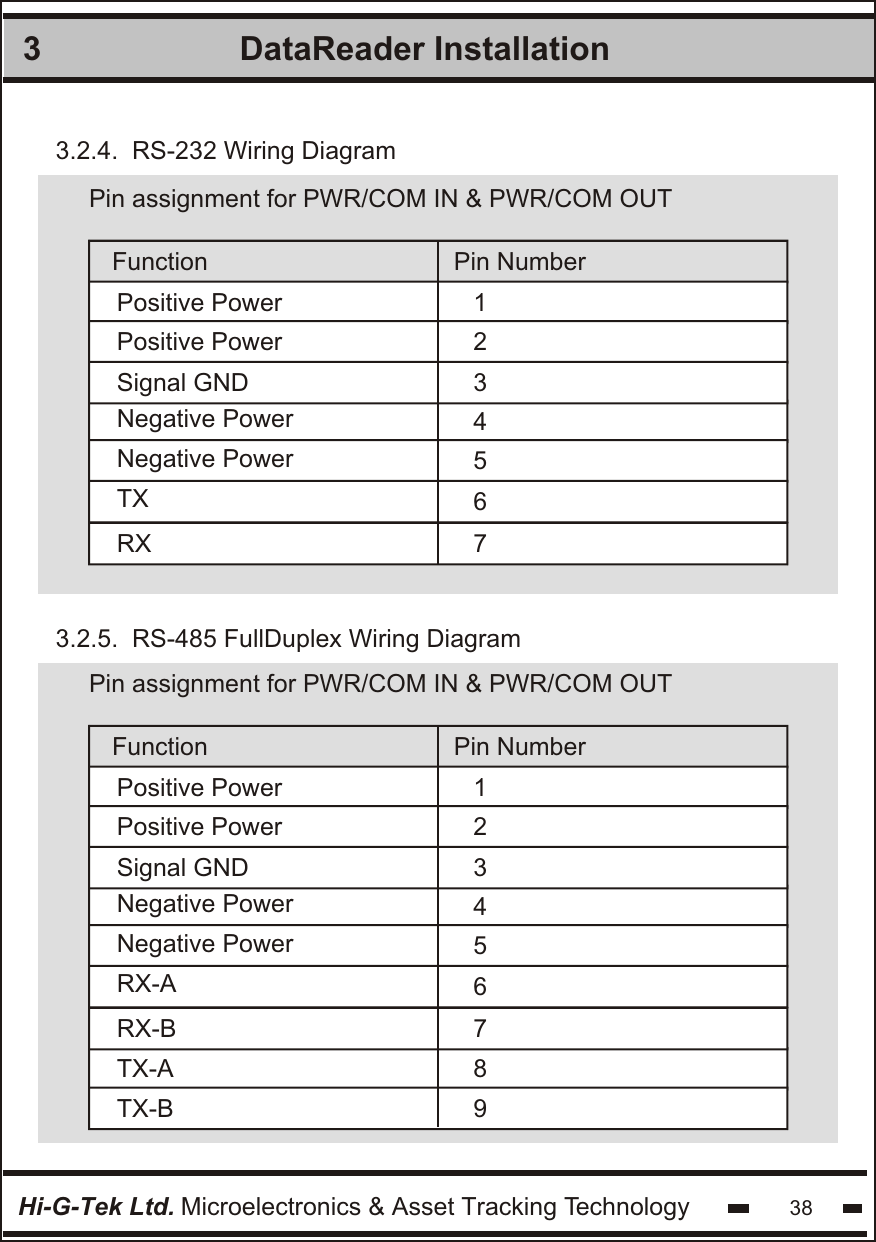

DataReader Installation 3Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 383.2.4. RS-232 Wiring DiagramPin assignment for PWR/COM IN & PWR/COM OUTFunction Pin NumberPositive PowerPositive PowerSignal GNDNegative PowerNegative PowerTXRX12345673.2.5. RS-485 FullDuplex Wiring DiagramPin assignment for PWR/COM IN & PWR/COM OUTFunction Pin NumberPositive PowerPositive PowerSignal GNDNegative PowerNegative PowerRX-ARX-BTX-ATX-B123456789

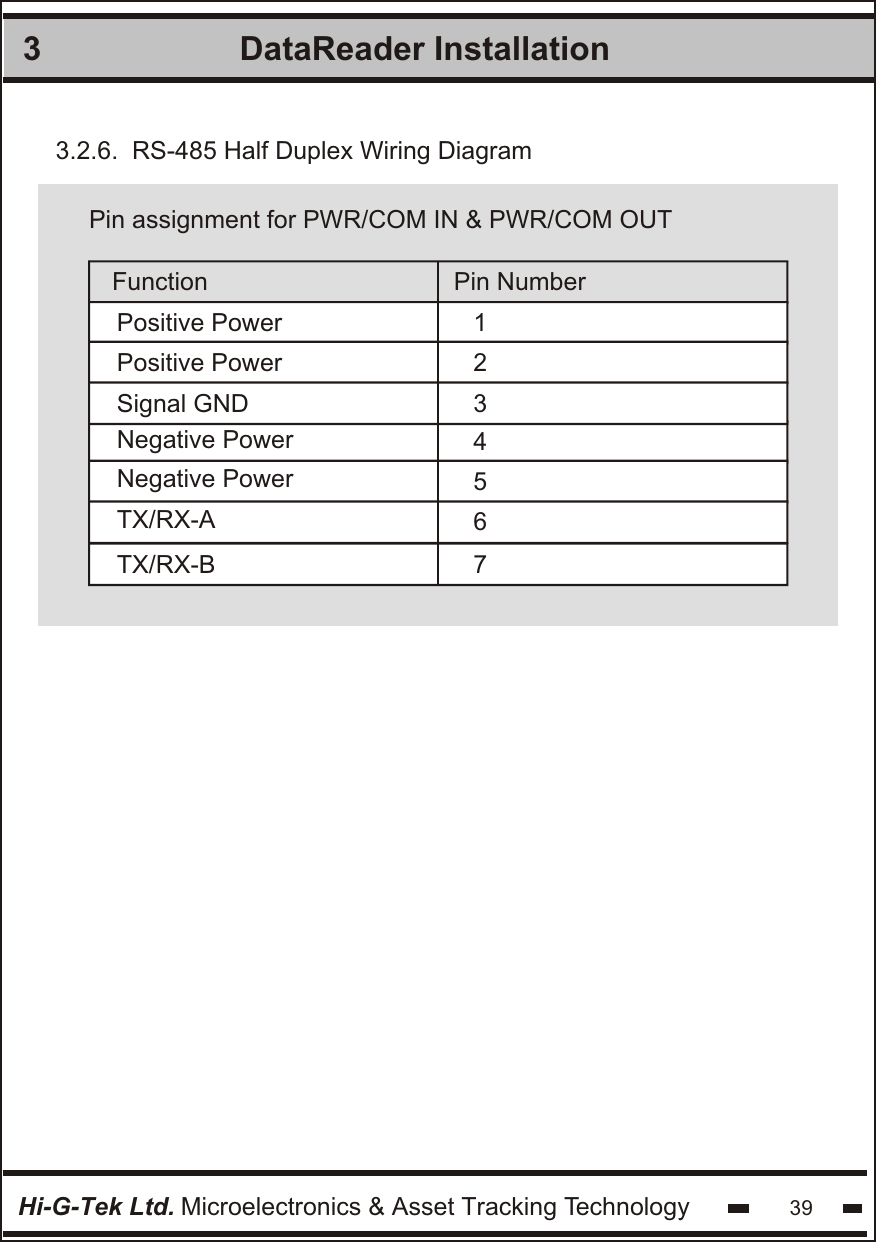

DataReader Installation 3Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 39Pin assignment for PWR/COM IN & PWR/COM OUTFunction Pin NumberPositive PowerPositive PowerSignal GNDNegative PowerNegative PowerTX/RX-ATX/RX-B12345673.2.6. RS-485 Half Duplex Wiring Diagram

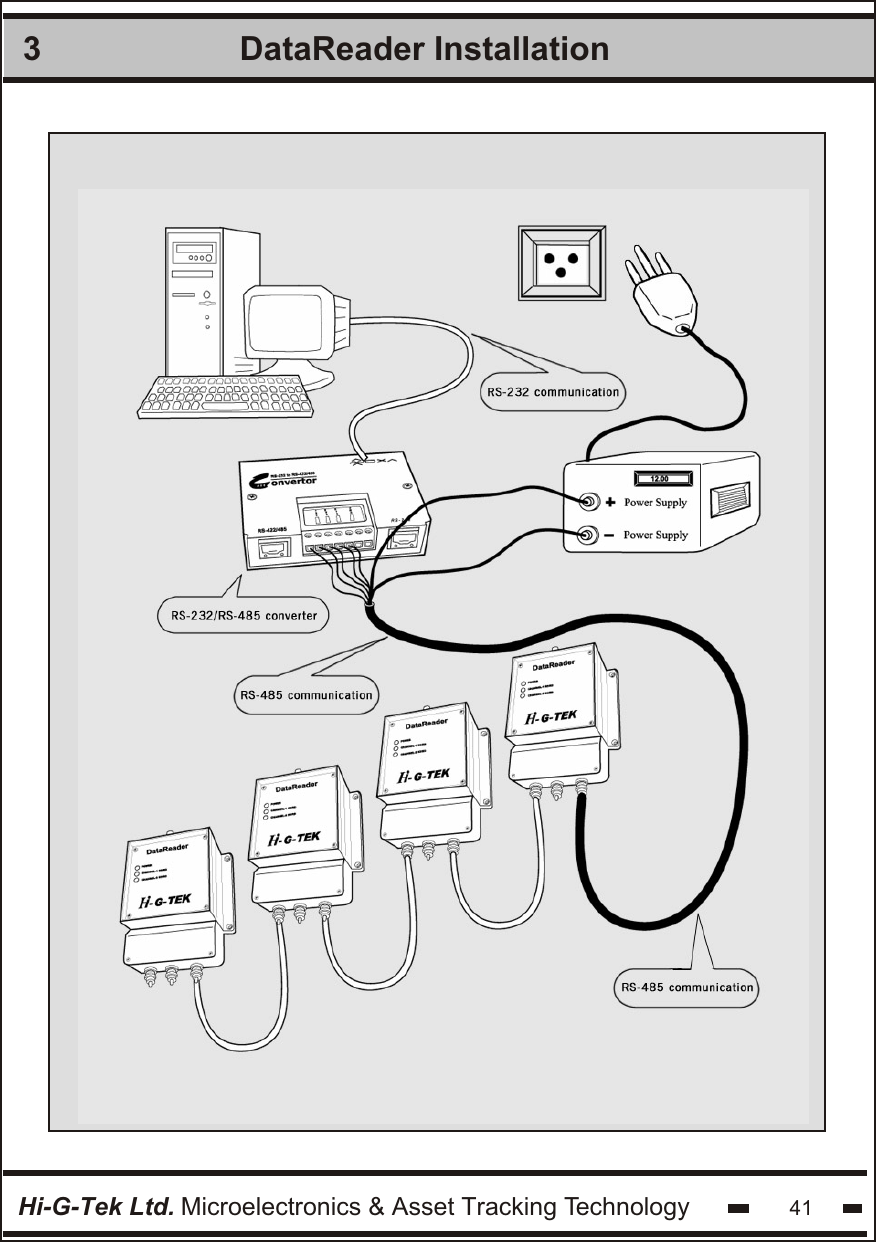

DataReader Installation 3Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 40Up to 32 DataReaders can be connected in a daisy chain using RS485. The last reader in the chain should be terminated by a 120 Ohm resistor between the RXA and the RXB.For the Outdoor version, the user can decide to create either an internal or external termination switch. The internal termination switch is created by setting to ON the termination switch (S2) of the last reader in the daisy chain.An external termination is relevant for the Indoor version only. AnRS-485 to RS-232 adapter termination should be provided for theadapter receive channel.3.3. Chaining DataReaders Together
DataReader Installation 3Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 41

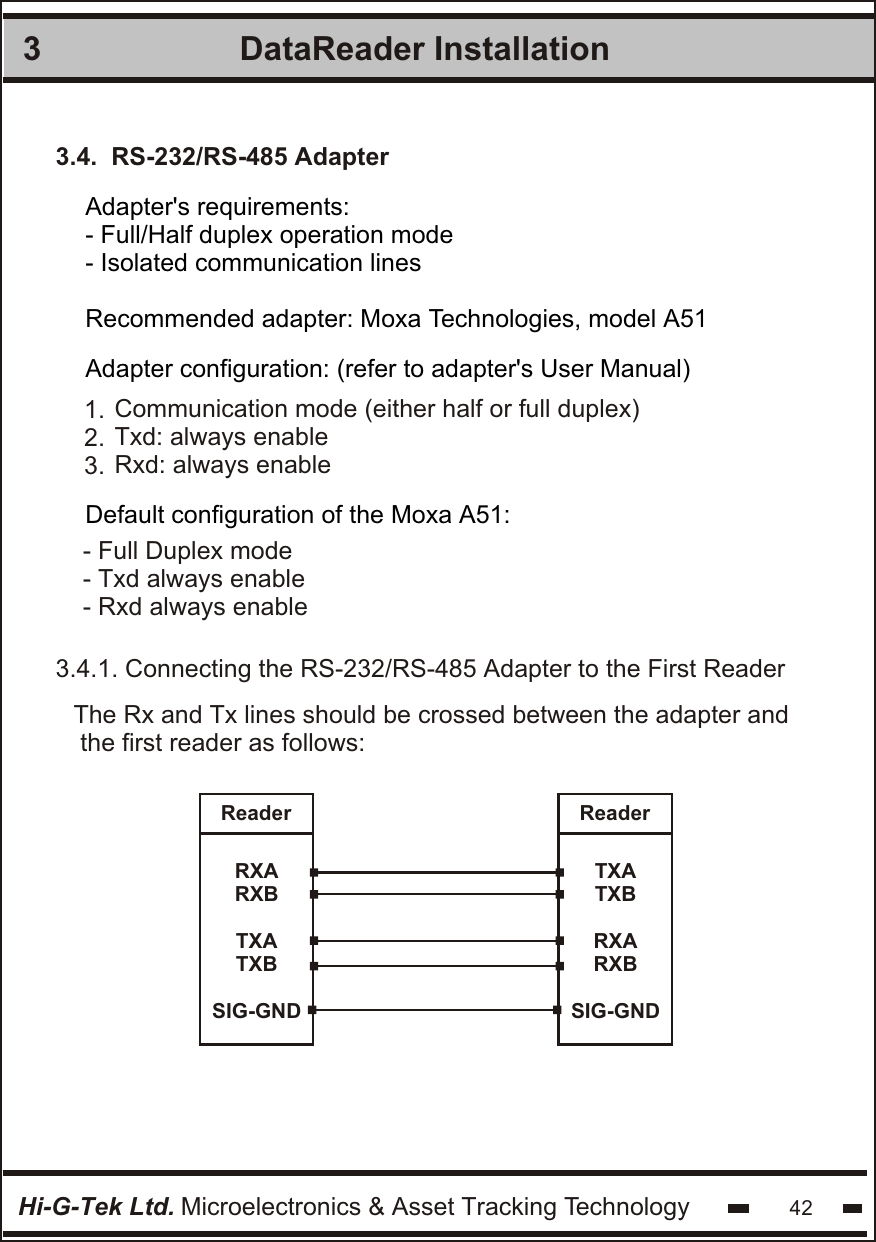

DataReader Installation 3Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 423.4. RS-232/RS-485 AdapterAdapter's requirements:- Full/Half duplex operation mode- Isolated communication linesRecommended adapter: Moxa Technologies, model A51Adapter configuration: (refer to adapter's User Manual)Default configuration of the Moxa A51:1.2.3.Communication mode (either half or full duplex)Txd: always enableRxd: always enable- Full Duplex mode- Txd always enable- Rxd always enable3.4.1. Connecting the RS-232/RS-485 Adapter to the First ReaderThe Rx and Tx lines should be crossed between the adapter and the first reader as follows:ReaderRXARXBTXATXBSIG-GNDReaderTXATXBRXARXBSIG-GND

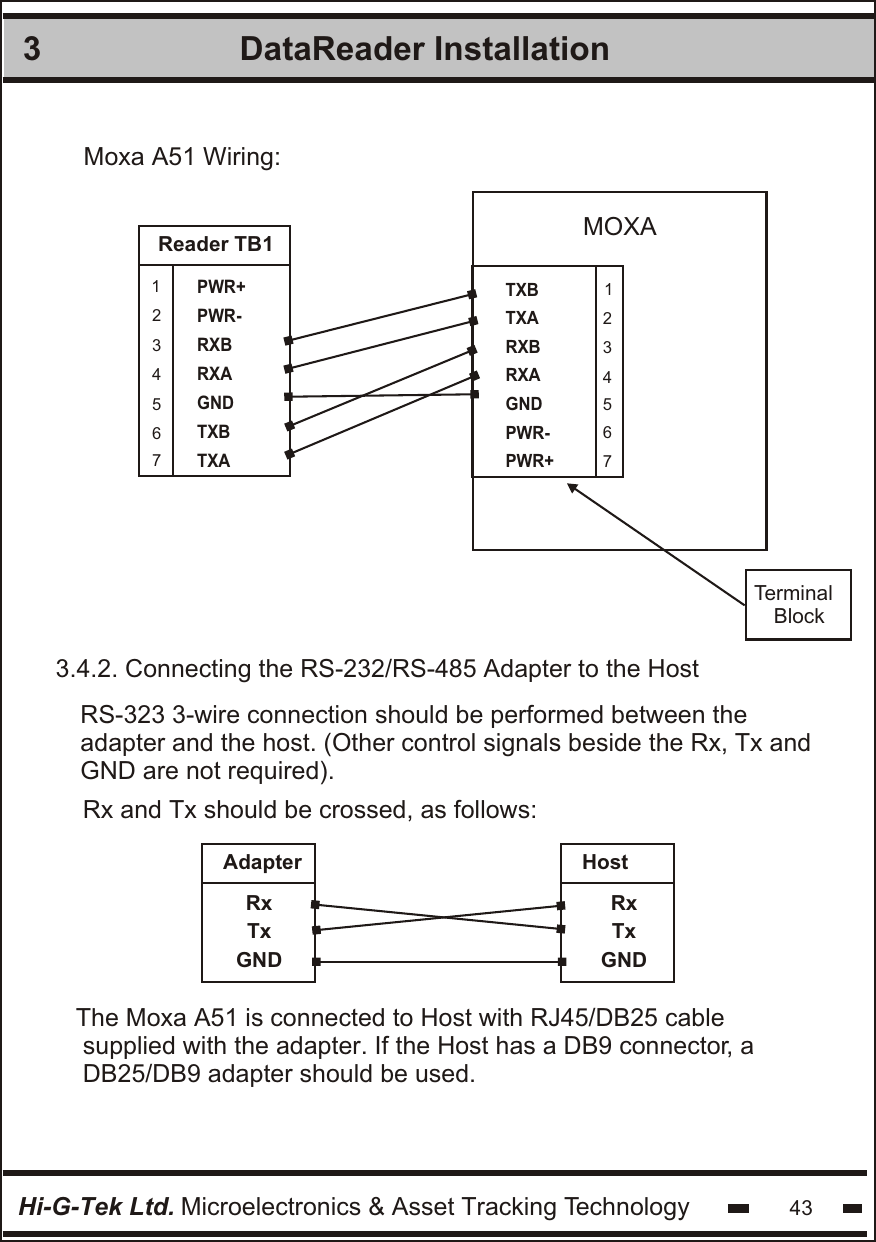

DataReader Installation 3Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 43Moxa A51 Wiring:Reader TB1PWR+PWR-RXBRXAGNDTXBTXATXBTXARXBRXAGNDPWR-PWR+Terminal Block3.4.2. Connecting the RS-232/RS-485 Adapter to the Host RS-323 3-wire connection should be performed between the adapter and the host. (Other control signals beside the Rx, Tx andGND are not required).AdapterRxTxGNDRxTxGNDHostRx and Tx should be crossed, as follows:The Moxa A51 is connected to Host with RJ45/DB25 cable supplied with the adapter. If the Host has a DB9 connector, a DB25/DB9 adapter should be used.MOXA12345671234567

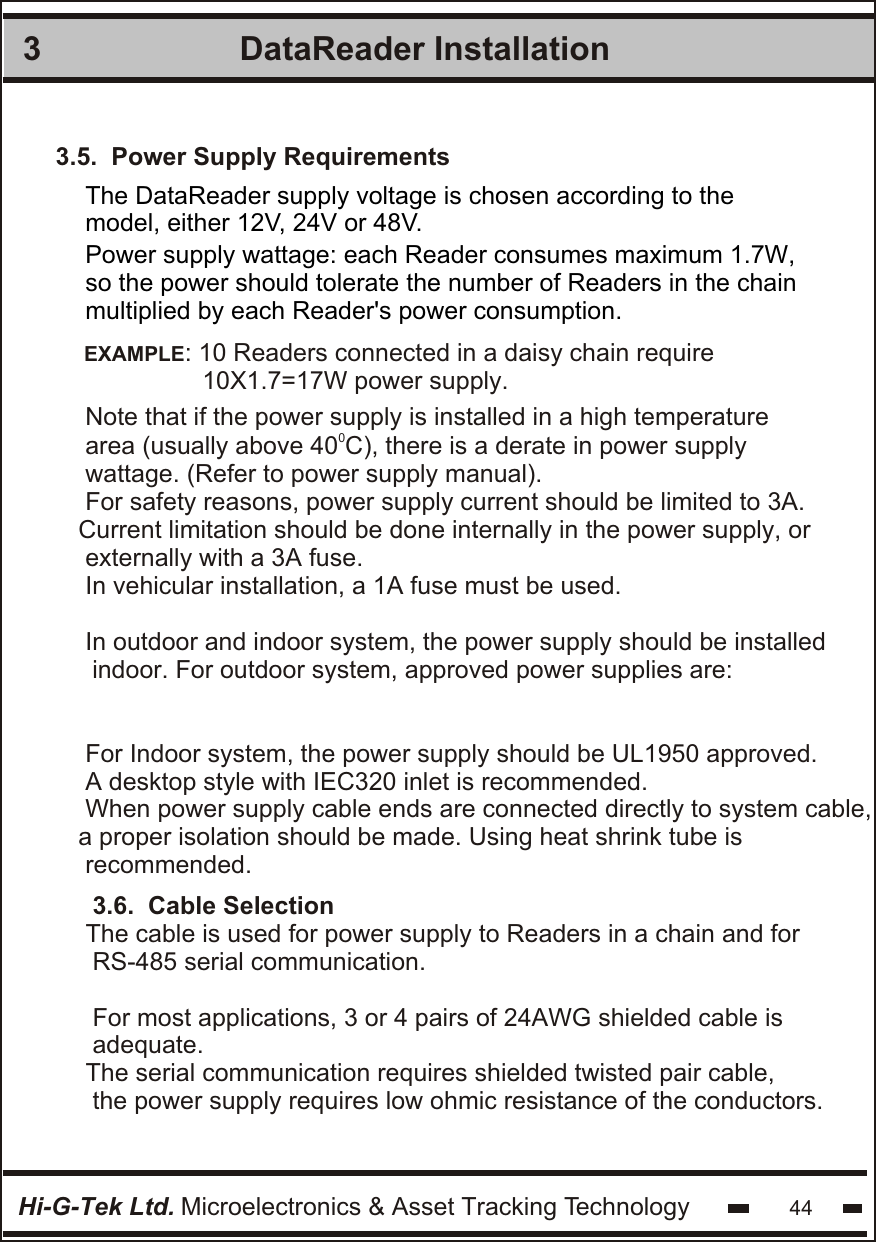

DataReader Installation 3Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 443.5. Power Supply RequirementsThe DataReader supply voltage is chosen according to themodel, either 12V, 24V or 48V. Power supply wattage: each Reader consumes maximum 1.7W, so the power should tolerate the number of Readers in the chain multiplied by each Reader's power consumption.EXAMPLE: 10 Readers connected in a daisy chain require 10X1.7=17W power supply. Note that if the power supply is installed in a high temperature 0area (usually above 40 C), there is a derate in power supplywattage. (Refer to power supply manual).For safety reasons, power supply current should be limited to 3A.Current limitation should be done internally in the power supply, or externally with a 3A fuse.In vehicular installation, a 1A fuse must be used. In outdoor and indoor system, the power supply should be installed indoor. For outdoor system, approved power supplies are:For Indoor system, the power supply should be UL1950 approved.A desktop style with IEC320 inlet is recommended.When power supply cable ends are connected directly to system cable,a proper isolation should be made. Using heat shrink tube is recommended.3.6. Cable SelectionThe cable is used for power supply to Readers in a chain and for RS-485 serial communication.For most applications, 3 or 4 pairs of 24AWG shielded cable isadequate.The serial communication requires shielded twisted pair cable, the power supply requires low ohmic resistance of the conductors.

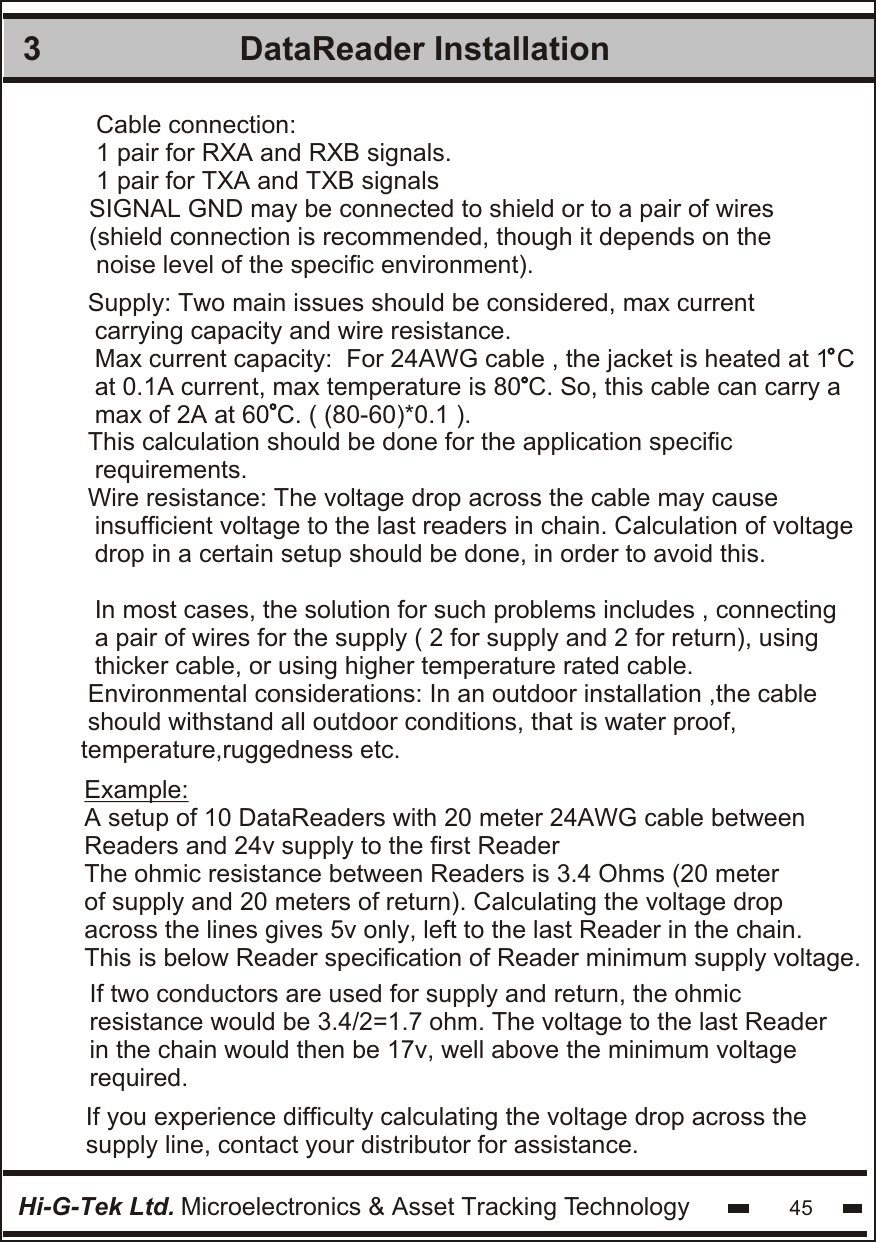

DataReader Installation 3Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 45Example:A setup of 10 DataReaders with 20 meter 24AWG cable betweenReaders and 24v supply to the first Reader The ohmic resistance between Readers is 3.4 Ohms (20 meter of supply and 20 meters of return). Calculating the voltage drop across the lines gives 5v only, left to the last Reader in the chain.This is below Reader specification of Reader minimum supply voltage.Supply: Two main issues should be considered, max current carrying capacity and wire resistance.Max current capacity: For 24AWG cable , the jacket is heated at 1 Cat 0.1A current, max temperature is 80 C. So, this cable can carry amax of 2A at 60 C. ( (80-60)*0.1 ).This calculation should be done for the application specific requirements.Wire resistance: The voltage drop across the cable may cause insufficient voltage to the last readers in chain. Calculation of voltagedrop in a certain setup should be done, in order to avoid this.In most cases, the solution for such problems includes , connectinga pair of wires for the supply ( 2 for supply and 2 for return), usingthicker cable, or using higher temperature rated cable.Environmental considerations: In an outdoor installation ,the cable should withstand all outdoor conditions, that is water proof, temperature,ruggedness etc. Cable connection:1 pair for RXA and RXB signals.1 pair for TXA and TXB signalsSIGNAL GND may be connected to shield or to a pair of wires (shield connection is recommended, though it depends on the noise level of the specific environment). If two conductors are used for supply and return, the ohmic resistance would be 3.4/2=1.7 ohm. The voltage to the last Readerin the chain would then be 17v, well above the minimum voltagerequired. If you experience difficulty calculating the voltage drop across the supply line, contact your distributor for assistance.

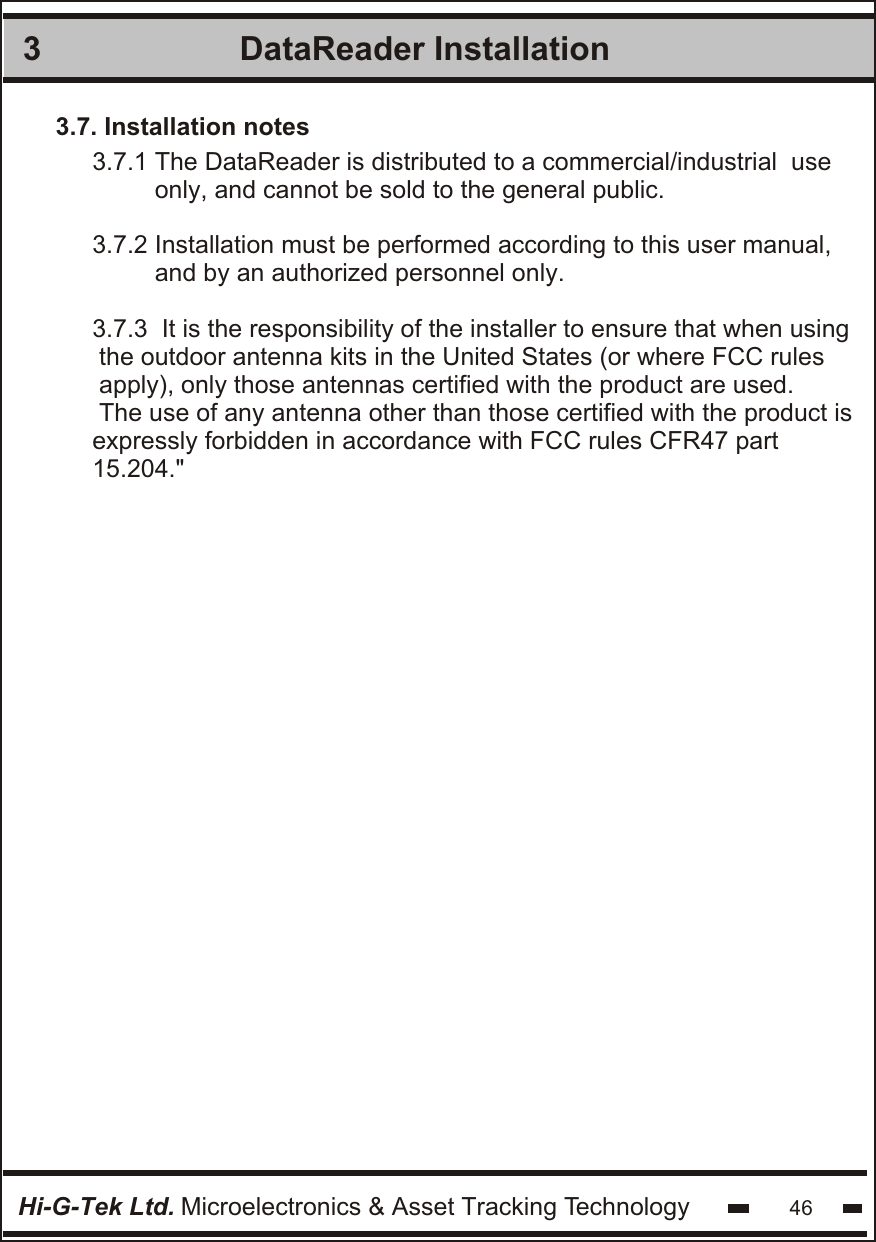

DataReader Installation 3Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 463.7. Installation notes3.7.1 The DataReader is distributed to a commercial/industrial use only, and cannot be sold to the general public.3.7.2 Installation must be performed according to this user manual, and by an authorized personnel only. 3.7.3 It is the responsibility of the installer to ensure that when using the outdoor antenna kits in the United States (or where FCC rules apply), only those antennas certified with the product are used. The use of any antenna other than those certified with the product is expressly forbidden in accordance with FCC rules CFR47 part 15.204."

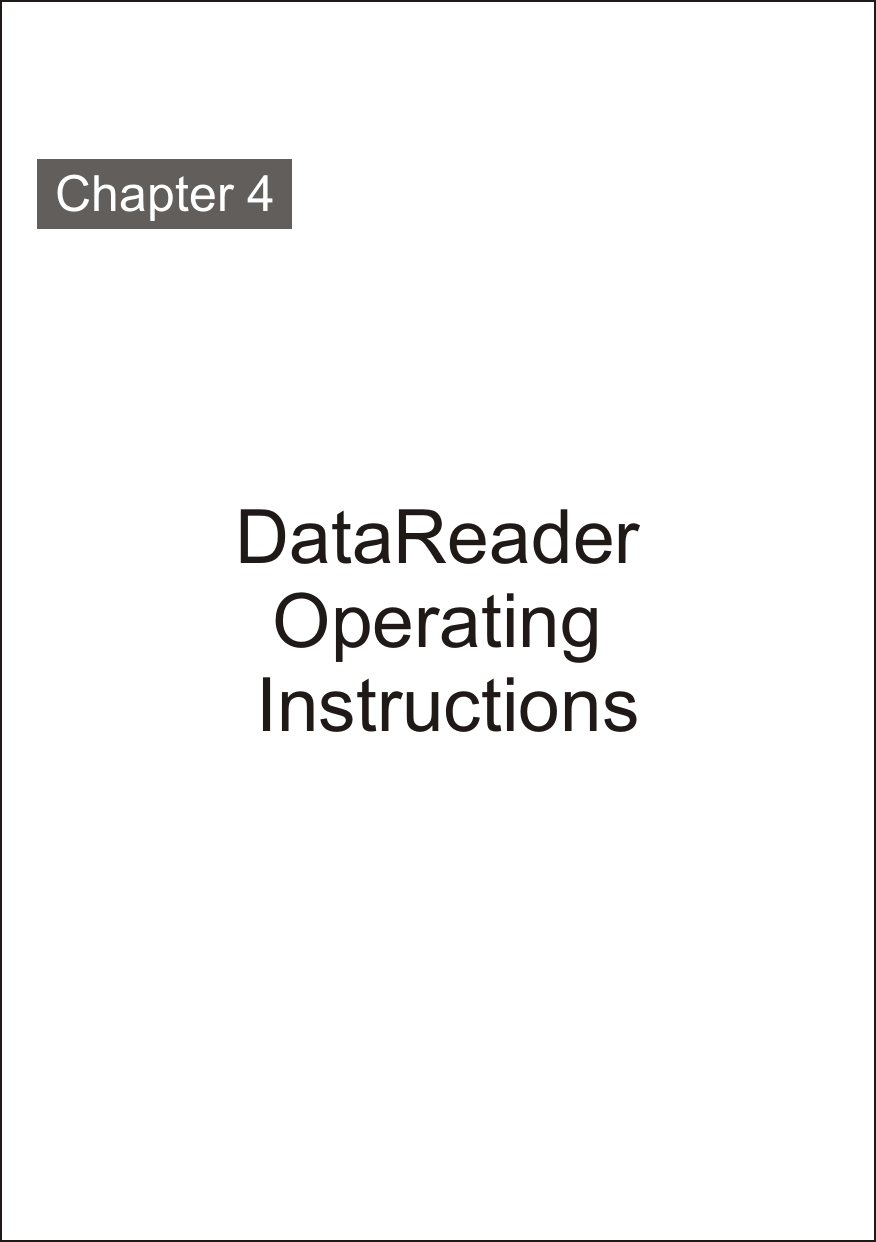

DataReaderOperating InstructionsChapter 4

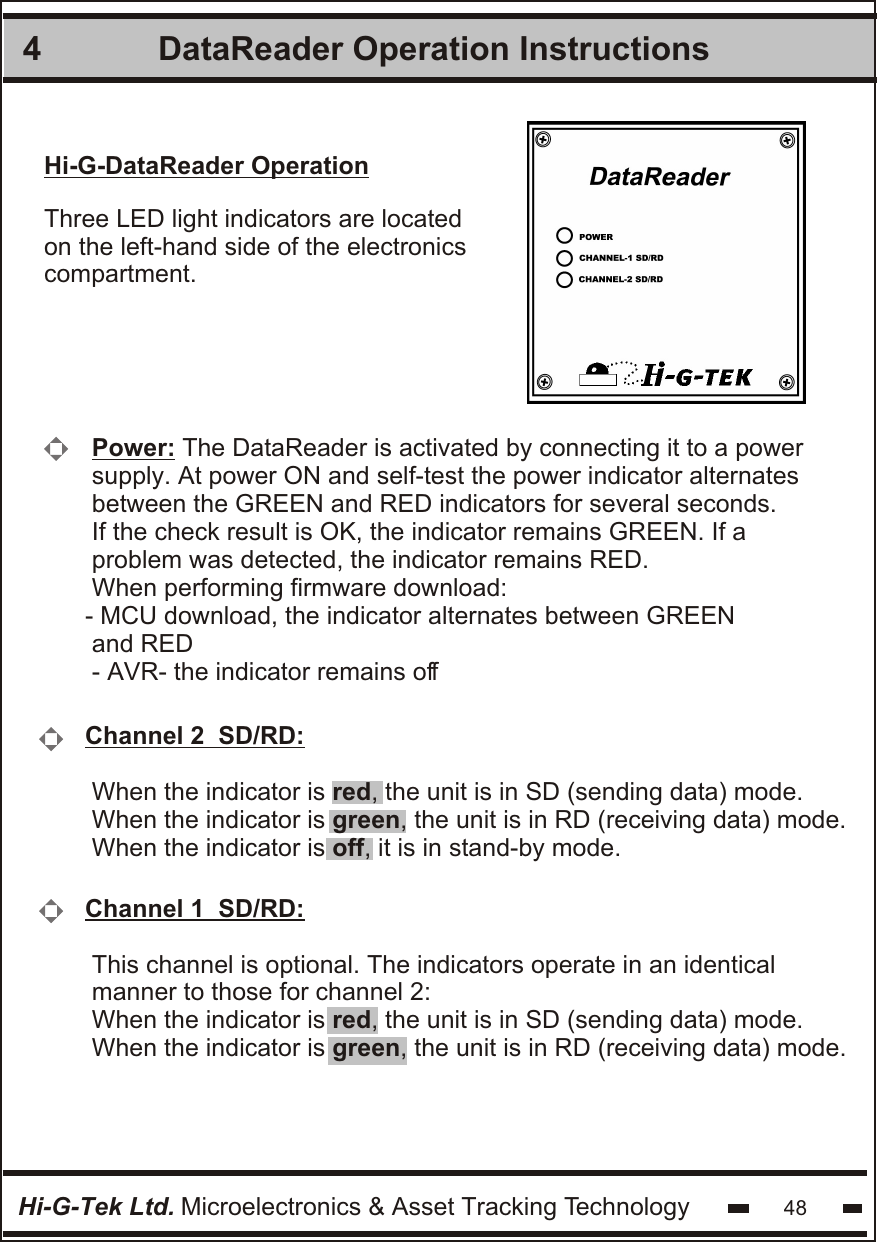

Hi-G-DataReader OperationThree LED light indicators are locatedon the left-hand side of the electronicscompartment. Power: The DataReader is activated by connecting it to a power supply. At power ON and self-test the power indicator alternates between the GREEN and RED indicators for several seconds. If the check result is OK, the indicator remains GREEN. If a problem was detected, the indicator remains RED. When performing firmware download:- MCU download, the indicator alternates between GREEN and RED- AVR- the indicator remains offChannel 2 SD/RD: When the indicator is red, the unit is in SD (sending data) mode.When the indicator is green, the unit is in RD (receiving data) mode. When the indicator is off, it is in stand-by mode. Channel 1 SD/RD: This channel is optional. The indicators operate in an identicalmanner to those for channel 2:When the indicator is red, the unit is in SD (sending data) mode. When the indicator is green, the unit is in RD (receiving data) mode. DataReader Operation Instructions4Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 48
