Hi G Tek IGRS46D916 DataReader User Manual ch6

Hi-G-Tek Ltd DataReader ch6

Users Manual 3

Chapter 6RS 485/232 Communication Protocol

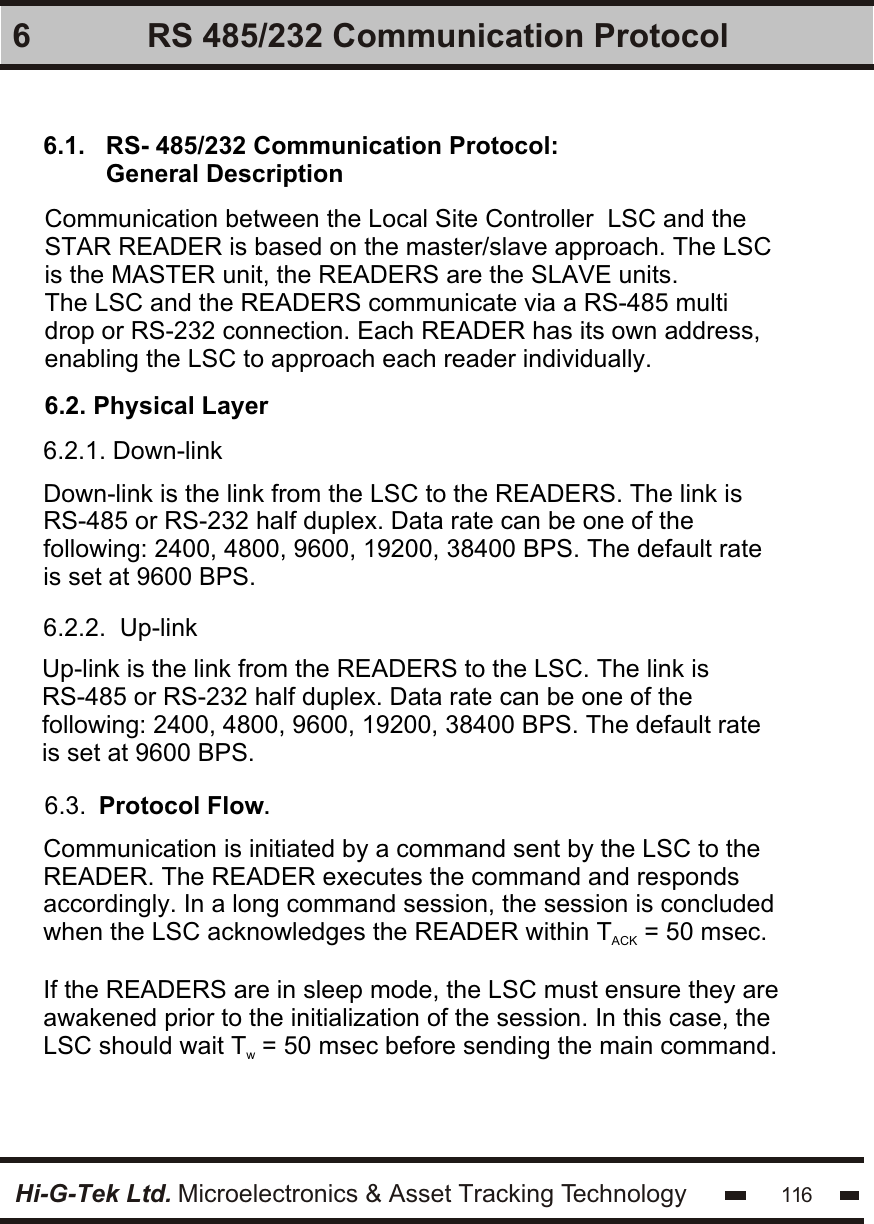

Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 116 RS 485/232 Communication Protocol66.1. RS- 485/232 Communication Protocol: General DescriptionCommunication between the Local Site Controller LSC and the STAR READER is based on the master/slave approach. The LSC is the MASTER unit, the READERS are the SLAVE units.The LSC and the READERS communicate via a RS-485 multi drop or RS-232 connection. Each READER has its own address, enabling the LSC to approach each reader individually.6.2. Physical Layer6.2.1. Down-linkDown-link is the link from the LSC to the READERS. The link is RS-485 or RS-232 half duplex. Data rate can be one of the following: 2400, 4800, 9600, 19200, 38400 BPS. The default rate is set at 9600 BPS.6.2.2. Up-linkUp-link is the link from the READERS to the LSC. The link is RS-485 or RS-232 half duplex. Data rate can be one of the following: 2400, 4800, 9600, 19200, 38400 BPS. The default rate is set at 9600 BPS.6.3. Protocol Flow.Communication is initiated by a command sent by the LSC to the READER. The READER executes the command and responds accordingly. In a long command session, the session is concluded when the LSC acknowledges the READER within T = 50 msec.ACKIf the READERS are in sleep mode, the LSC must ensure they are awakened prior to the initialization of the session. In this case, the LSC should wait T = 50 msec before sending the main command.w

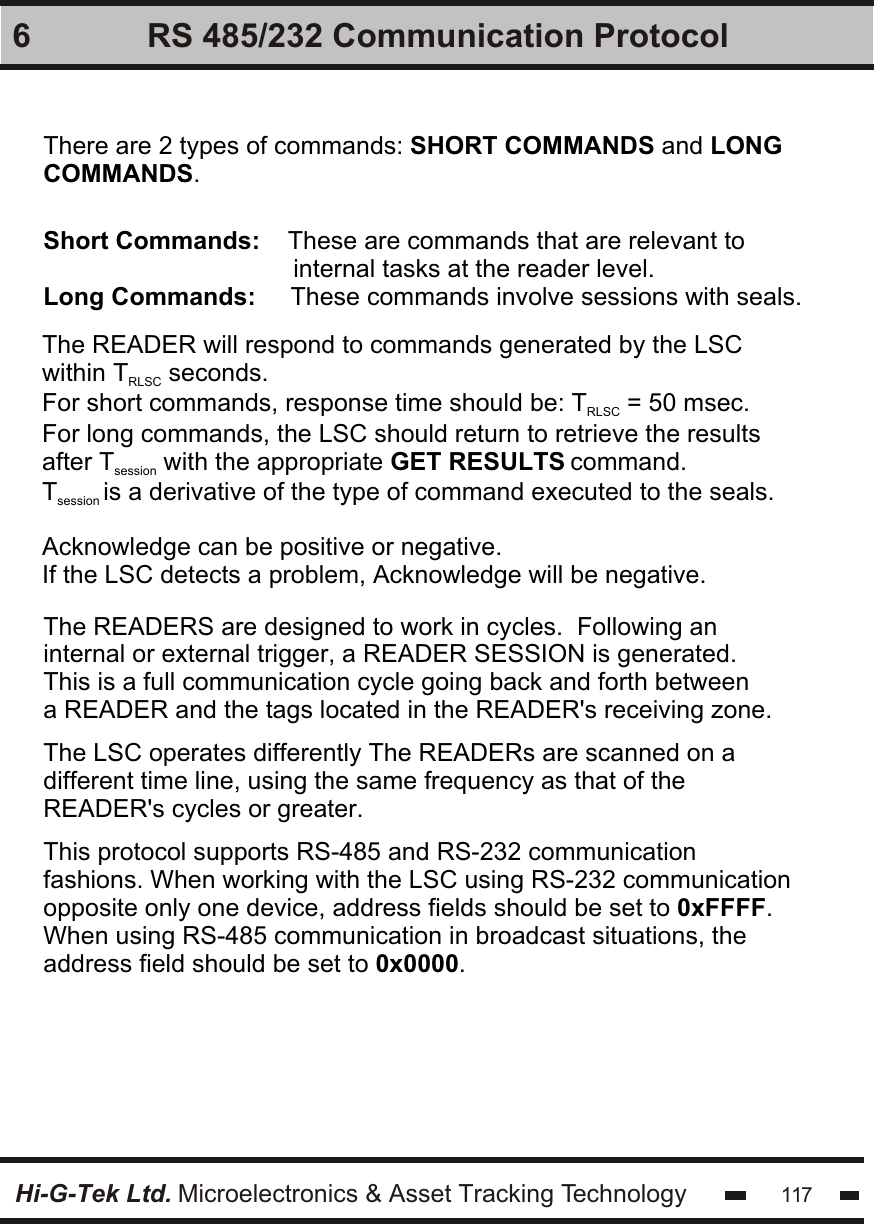

Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 1176 RS 485/232 Communication ProtocolThere are 2 types of commands: SHORT COMMANDS and LONG COMMANDS.Short Commands: These are commands that are relevant to internal tasks at the reader level.Long Commands: These commands involve sessions with seals.The READER will respond to commands generated by the LSC within T seconds.RLSCFor short commands, response time should be: T = 50 msec.RLSCFor long commands, the LSC should return to retrieve the results after T with the appropriate GET RESULTS command.sessionT is a derivative of the type of command executed to the seals.session Acknowledge can be positive or negative. If the LSC detects a problem, Acknowledge will be negative. The READERS are designed to work in cycles. Following an internal or external trigger, a READER SESSION is generated. This is a full communication cycle going back and forth between a READER and the tags located in the READER's receiving zone. The LSC operates differently The READERs are scanned on a different time line, using the same frequency as that of the READER's cycles or greater.This protocol supports RS-485 and RS-232 communication fashions. When working with the LSC using RS-232 communication opposite only one device, address fields should be set to 0xFFFF. When using RS-485 communication in broadcast situations, the address field should be set to 0x0000.

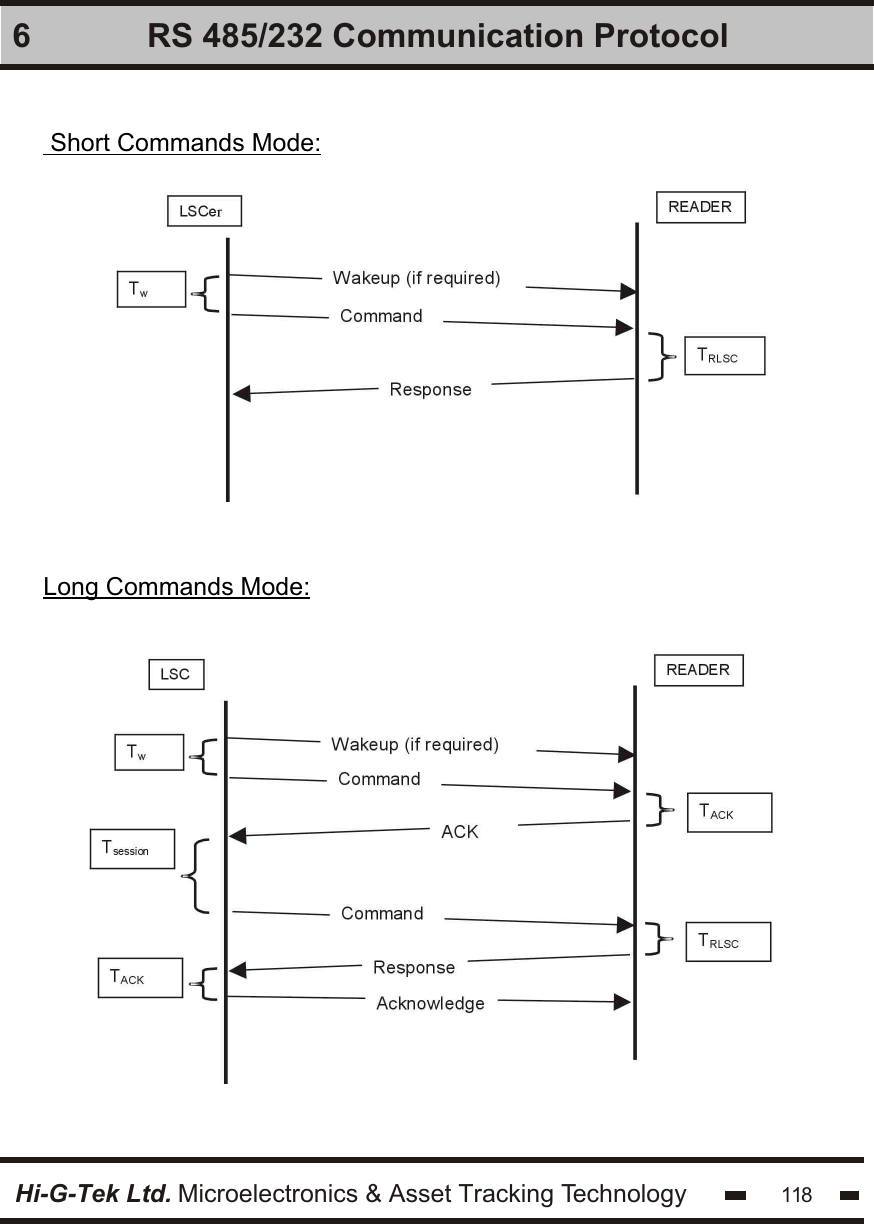

Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 1186 RS 485/232 Communication Protocol Short Commands Mode:Long Commands Mode:

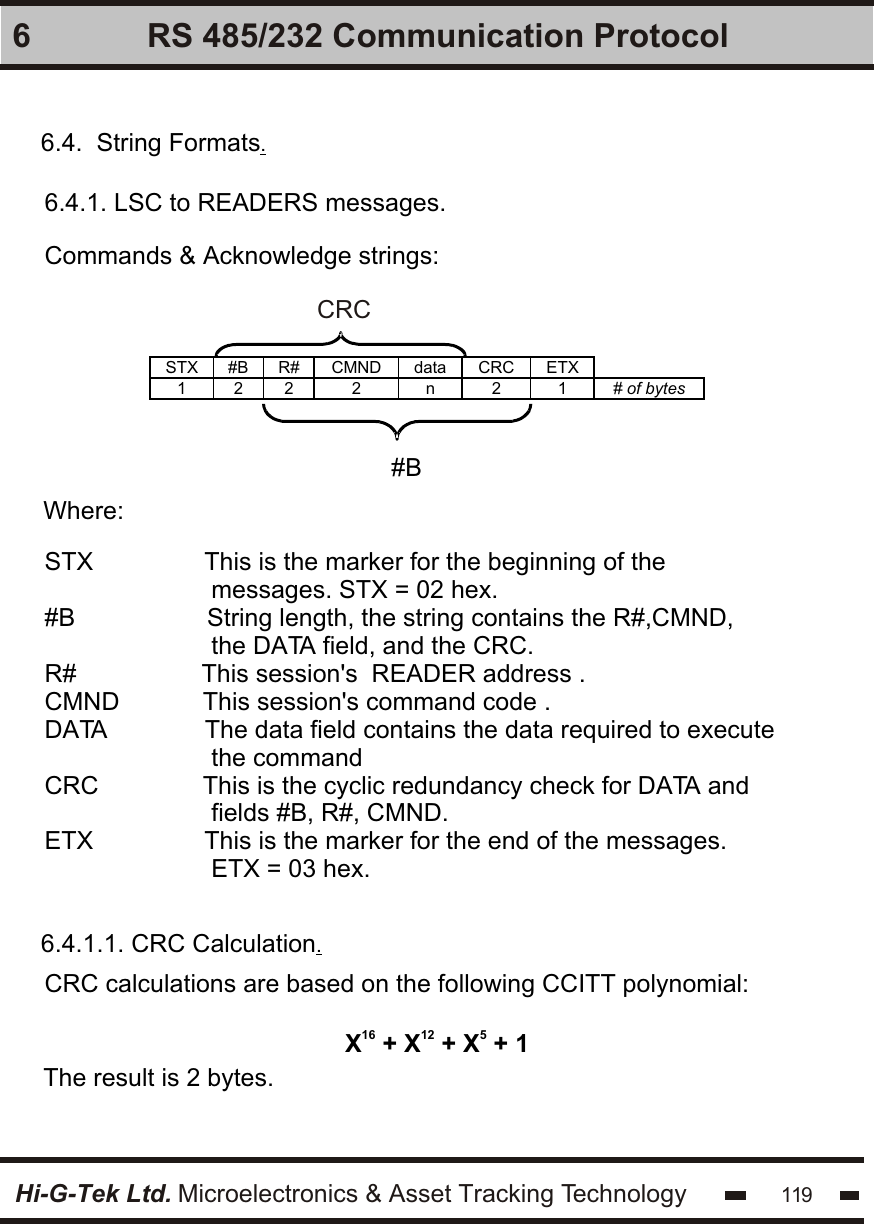

Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 1196 RS 485/232 Communication Protocol6.4. String Formats.6.4.1. LSC to READERS messages.Commands & Acknowledge strings: STX #B R# CMND data CRC ETX 1 2 2 2 n 2 1 # of bytes #B CRCWhere:STX This is the marker for the beginning of the messages. STX = 02 hex.#B String length, the string contains the R#,CMND, the DATA field, and the CRC.R# This session's READER address .CMND This session's command code .DATA The data field contains the data required to execute the commandCRC This is the cyclic redundancy check for DATA and fields #B, R#, CMND.ETX This is the marker for the end of the messages. ETX = 03 hex.6.4.1.1. CRC Calculation.CRC calculations are based on the following CCITT polynomial:16 12 5X + X + X + 1The result is 2 bytes.

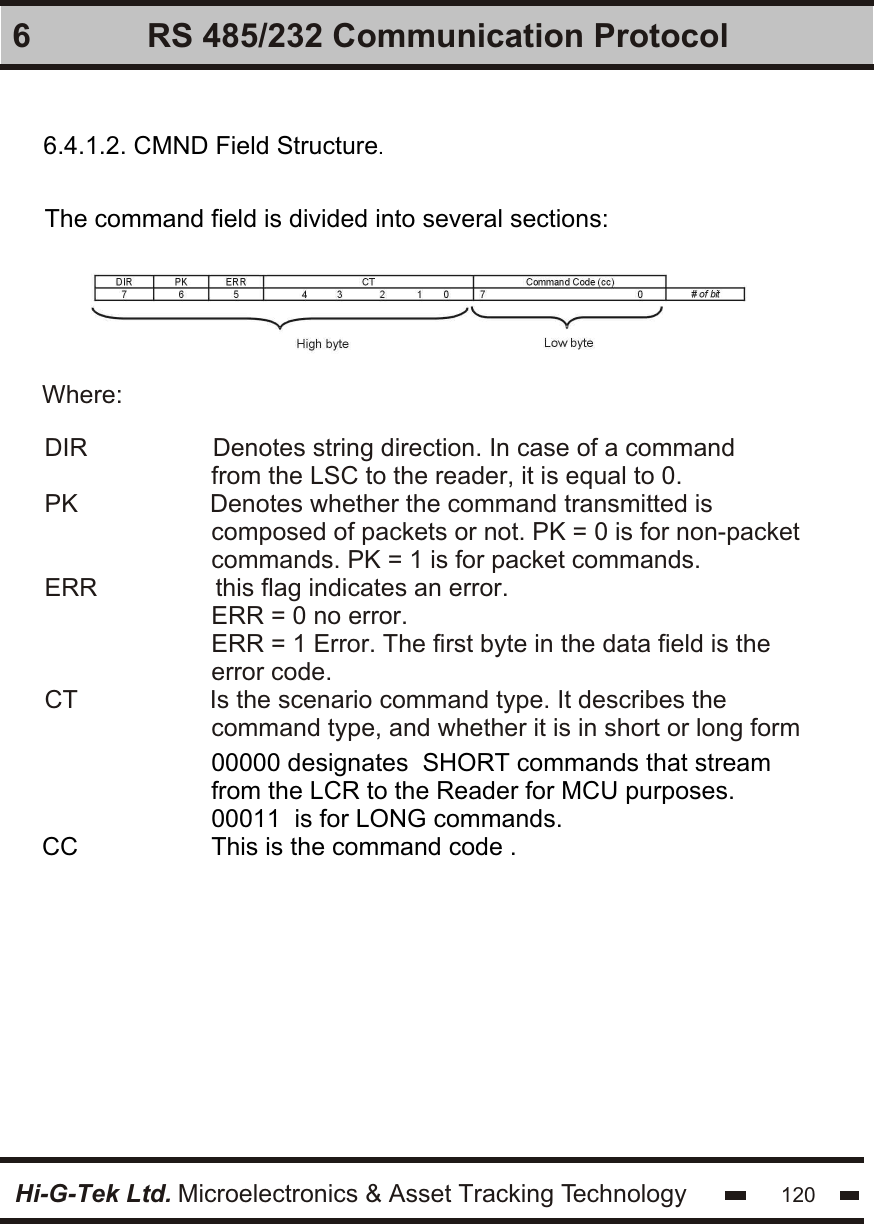

Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 1206 RS 485/232 Communication Protocol6.4.1.2. CMND Field Structure.The command field is divided into several sections:DIR Denotes string direction. In case of a command from the LSC to the reader, it is equal to 0. PK Denotes whether the command transmitted is composed of packets or not. PK = 0 is for non-packet commands. PK = 1 is for packet commands.ERR this flag indicates an error. ERR = 0 no error. ERR = 1 Error. The first byte in the data field is the error code.CT Is the scenario command type. It describes the Where:command type, and whether it is in short or long form00000 designates SHORT commands that stream from the LCR to the Reader for MCU purposes.00011 is for LONG commands.This is the command code .CC

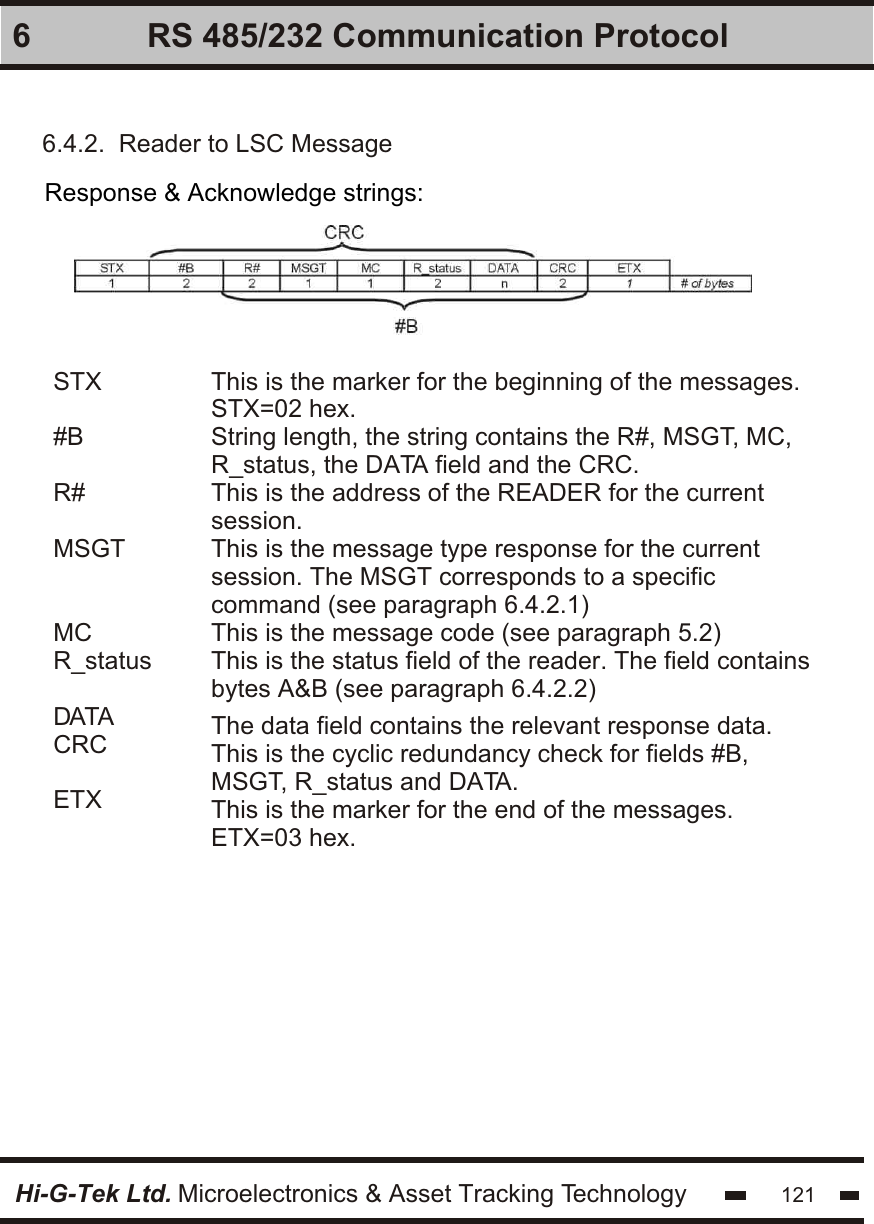

Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 1216 RS 485/232 Communication ProtocolResponse & Acknowledge strings:6.4.2. Reader to LSC MessageThis is the marker for the beginning of the messages.STX=02 hex.String length, the string contains the R#, MSGT, MC, R_status, the DATA field and the CRC.This is the address of the READER for the currentsession.This is the message type response for the current session. The MSGT corresponds to a specific command (see paragraph 6.4.2.1)This is the message code (see paragraph 5.2)This is the status field of the reader. The field containsbytes A&B (see paragraph 6.4.2.2)The data field contains the relevant response data.This is the cyclic redundancy check for fields #B, MSGT, R_status and DATA.This is the marker for the end of the messages.ETX=03 hex.STX#BR#MSGTMCR_statusDATACRCETX

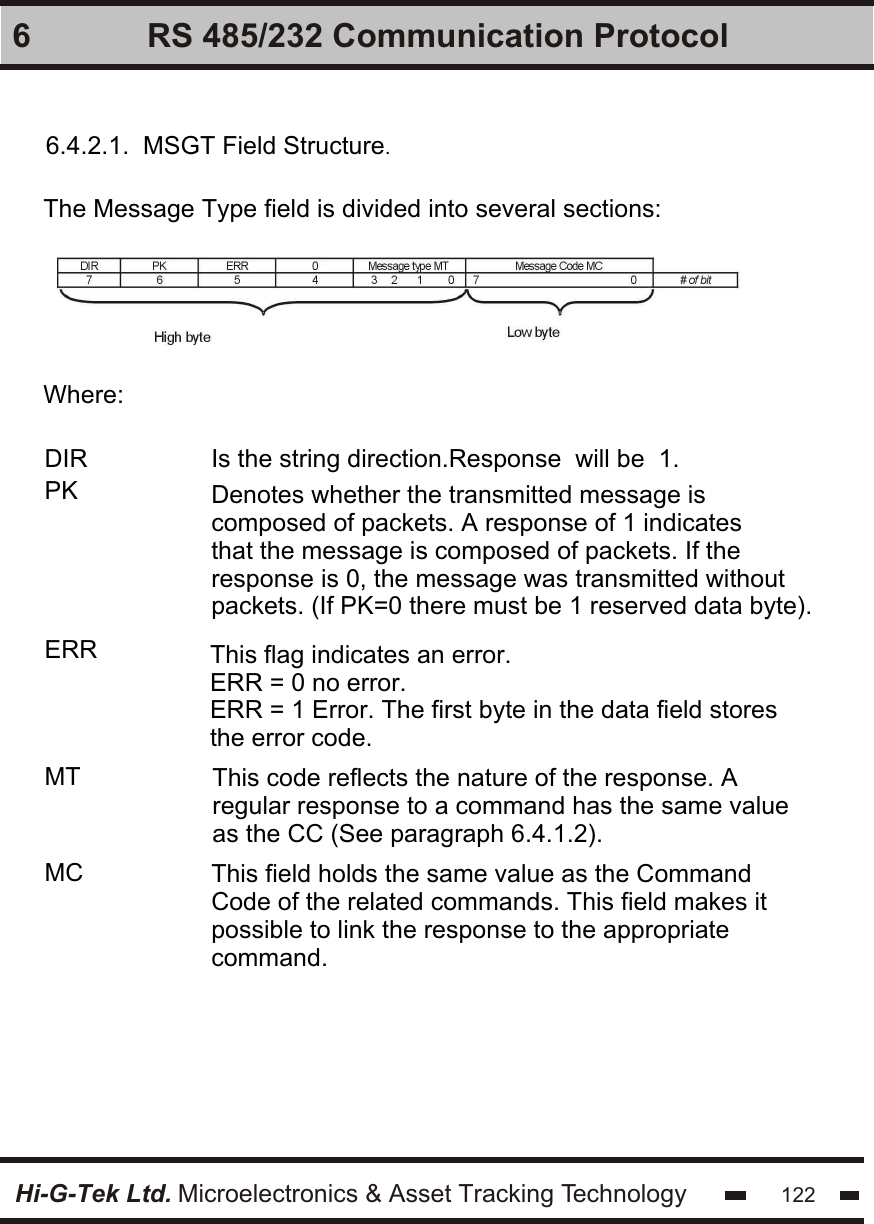

Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 1226 RS 485/232 Communication Protocol6.4.2.1. MSGT Field Structure.The Message Type field is divided into several sections:Where:Is the string direction.Response will be 1. DIR PKERRMTMC This field holds the same value as the Command Code of the related commands. This field makes it possible to link the response to the appropriate command.This code reflects the nature of the response. A regular response to a command has the same value as the CC (See paragraph 6.4.1.2). This flag indicates an error.ERR = 0 no error.ERR = 1 Error. The first byte in the data field stores the error code.Denotes whether the transmitted message is composed of packets. A response of 1 indicates that the message is composed of packets. If the response is 0, the message was transmitted without packets. (If PK=0 there must be 1 reserved data byte).

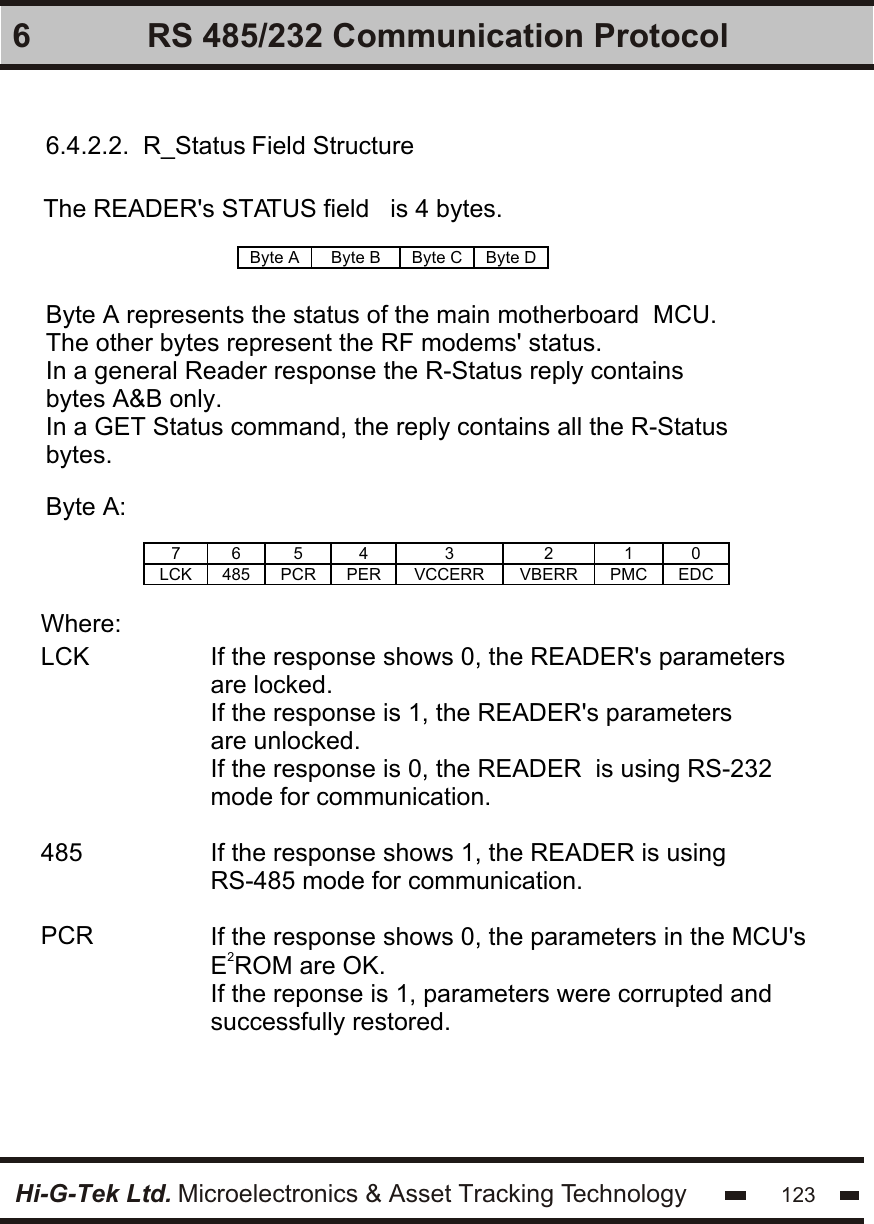

Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 1236 RS 485/232 Communication Protocol6.4.2.2. R_Status Field StructureThe READER's STATUS field is 4 bytes. Byte A Byte B Byte C Byte D Byte A represents the status of the main motherboard MCU.The other bytes represent the RF modems' status.In a general Reader response the R-Status reply contains bytes A&B only.In a GET Status command, the reply contains all the R-Status bytes.Byte A: 7 6 5 4 3 2 1 0 LCK 485 PCR PER VCCERR VBERR PMC EDC Where:LCK485PCRIf the response shows 0, the READER's parameters are locked.If the response is 1, the READER's parameters are unlocked.If the response is 0, the READER is using RS-232 mode for communication.If the response shows 1, the READER is using RS-485 mode for communication.If the response shows 0, the parameters in the MCU's 2E ROM are OK.If the reponse is 1, parameters were corrupted and successfully restored.

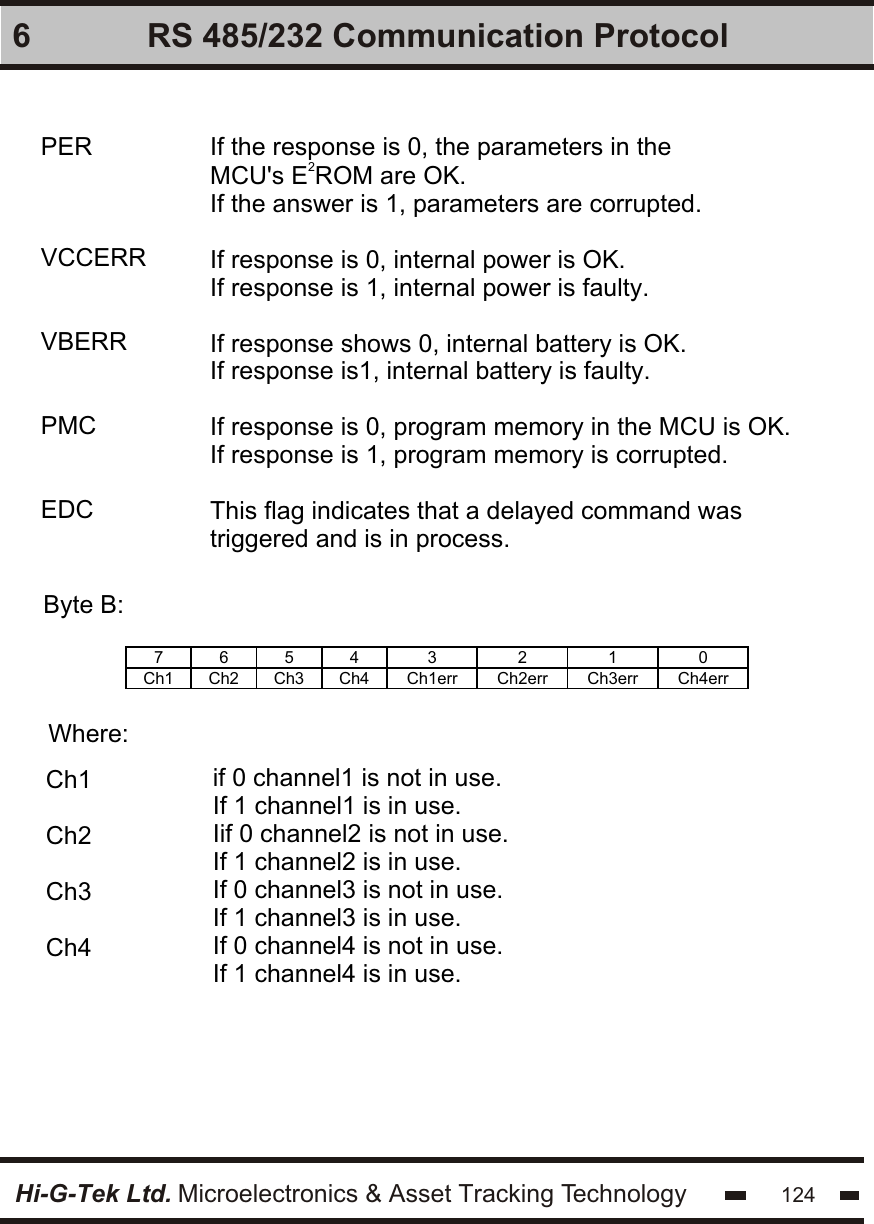

Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 1246 RS 485/232 Communication ProtocolIf the response is 0, the parameters in the 2MCU's E ROM are OK.If the answer is 1, parameters are corrupted.If response is 0, internal power is OK.If response is 1, internal power is faulty.If response shows 0, internal battery is OK.If response is1, internal battery is faulty.If response is 0, program memory in the MCU is OK.If response is 1, program memory is corrupted.This flag indicates that a delayed command was triggered and is in process.PERVCCERRVBERRPMCEDCByte B: 7 6 5 4 3 2 1 0 Ch1 Ch2 Ch3 Ch4 Ch1err Ch2err Ch3err Ch4err Where:Ch1 Ch2Ch3Ch4if 0 channel1 is not in use.If 1 channel1 is in use.Iif 0 channel2 is not in use.If 1 channel2 is in use.If 0 channel3 is not in use.If 1 channel3 is in use.If 0 channel4 is not in use.If 1 channel4 is in use.

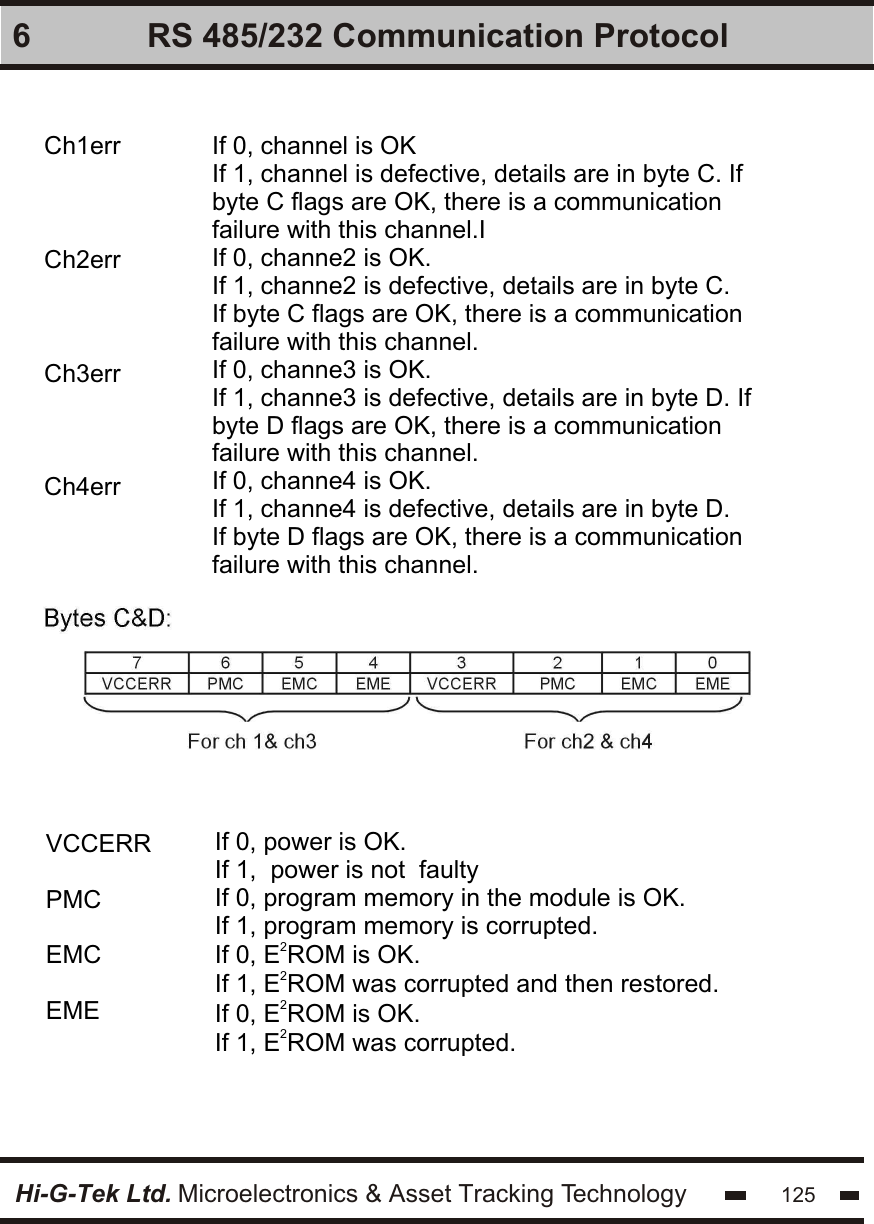

Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 1256 RS 485/232 Communication ProtocolCh1errCh2errCh3errCh4errIf 0, channel is OKIf 1, channel is defective, details are in byte C. If byte C flags are OK, there is a communication failure with this channel.IIf 0, channe2 is OK.If 1, channe2 is defective, details are in byte C. If byte C flags are OK, there is a communication failure with this channel.If 0, channe3 is OK.If 1, channe3 is defective, details are in byte D. If byte D flags are OK, there is a communication failure with this channel.If 0, channe4 is OK.If 1, channe4 is defective, details are in byte D. If byte D flags are OK, there is a communication failure with this channel.Bytes C&D:VCCERRPMCEMCEMEIf 0, power is OK.If 1, power is not faultyIf 0, program memory in the module is OK.If 1, program memory is corrupted.2If 0, E ROM is OK.2If 1, E ROM was corrupted and then restored.2If 0, E ROM is OK.2If 1, E ROM was corrupted.

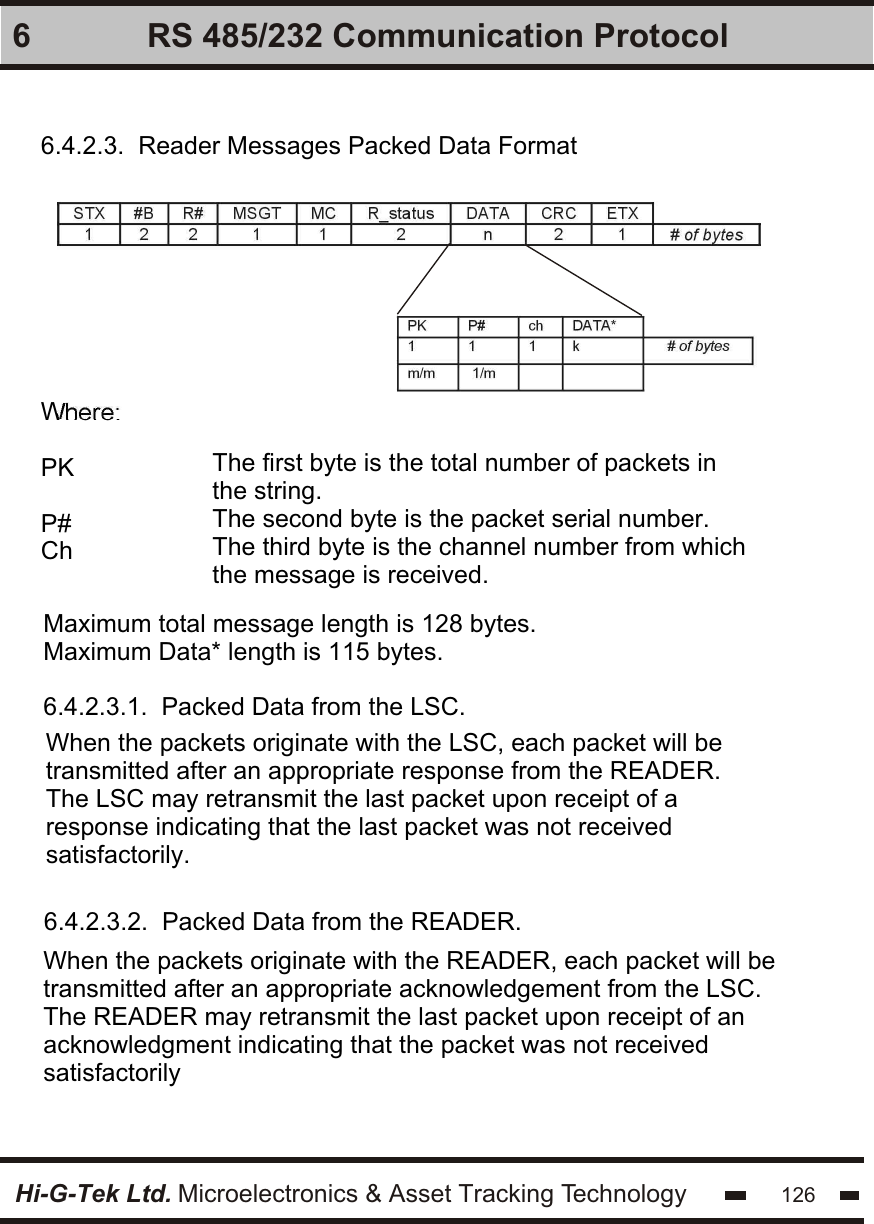

Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 1266 RS 485/232 Communication Protocol6.4.2.3. Reader Messages Packed Data FormatWhere:PKP#ChThe first byte is the total number of packets in the string.The second byte is the packet serial number.The third byte is the channel number from which the message is received.Maximum total message length is 128 bytes.Maximum Data* length is 115 bytes.6.4.2.3.1. Packed Data from the LSC.6.4.2.3.2. Packed Data from the READER.When the packets originate with the LSC, each packet will be transmitted after an appropriate response from the READER. The LSC may retransmit the last packet upon receipt of a response indicating that the last packet was not received satisfactorily.When the packets originate with the READER, each packet will be transmitted after an appropriate acknowledgement from the LSC. The READER may retransmit the last packet upon receipt of an acknowledgment indicating that the packet was not received satisfactorily

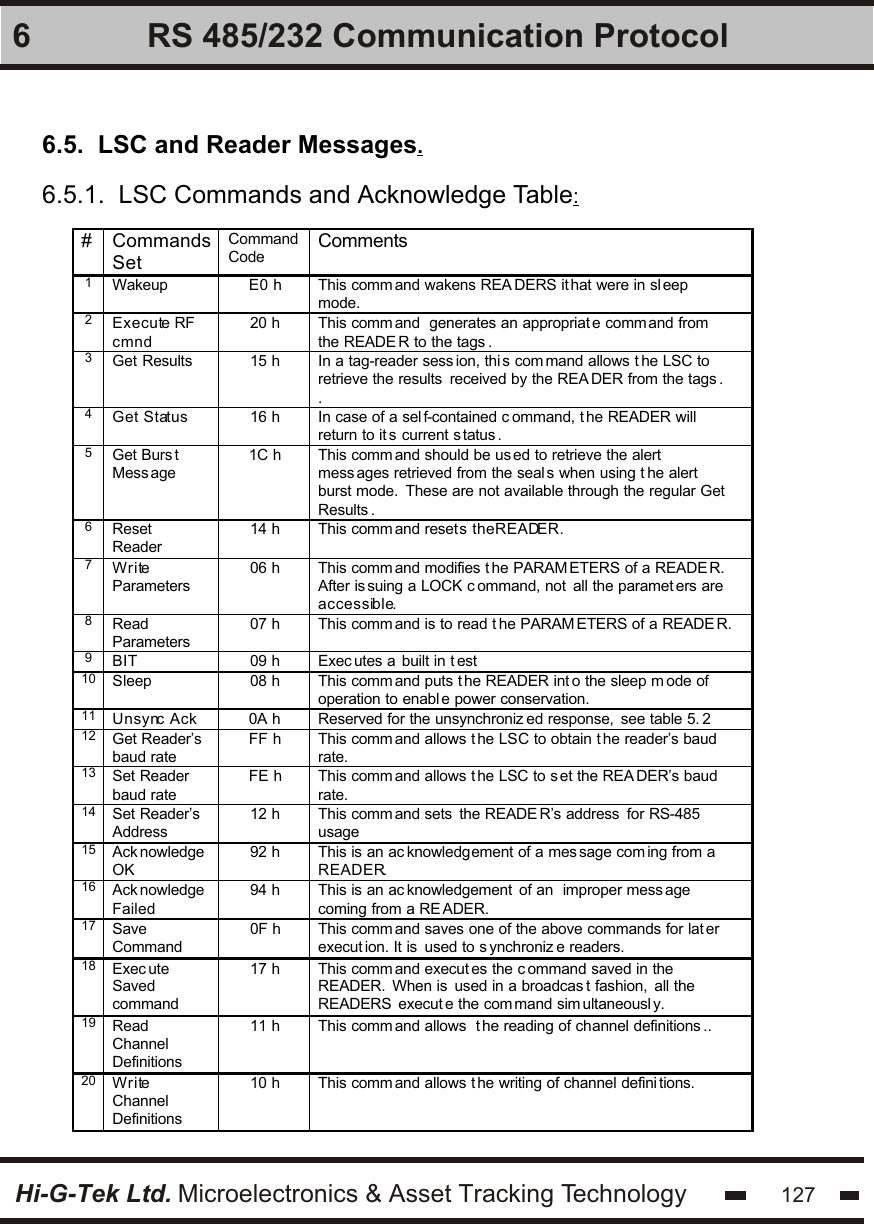

Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 1276 RS 485/232 Communication Protocol6.5. LSC and Reader Messages.6.5.1. LSC Commands and Acknowledge Table:# Commands Set Command Code Comments 1 Wakeup E0 h This comm and wakens REA DERS it hat were in sl eep mode. 2 Execute RF cmnd 20 h This comm and generates an appropriat e comm and from the READE R to the tags . 3 Get Results 15 h In a tag-reader sess ion, thi s com mand allows t he LSC to retrieve the results received by the REA DER from the tags . . 4 Get Status 16 h In case of a self-contained c ommand, t he READER will return to it s current s tatus . 5 Get Burs t Mess age 1C h This comm and should be us ed to retrieve the alert mess ages retrieved from the seal s when using t he alert burst mode. These are not available through the regular Get Results . 6 Reset Reader 14 h This comm and resets theREADER. 7 Write Parameters 06 h This comm and modifies t he PARAM ETERS of a READE R. After is suing a LOCK c ommand, not all the paramet ers are accessible. 8 Read Parameters 07 h This comm and is to read t he PARAM ETERS of a READE R. 9 BIT 09 h Exec utes a built in t est 10 Sleep 08 h This comm and puts t he READER int o the sleep m ode of operation to enabl e power conservation. 11 Unsync Ack 0A h Reserved for the unsynchroniz ed response, see table 5. 2 12 Get Reader’s baud rate FF h This comm and allows t he LSC to obtain t he reader’s baud rate. 13 Set Reader baud rate FE h This comm and allows t he LSC to s et the REA DER’s baud rate. 14 Set Reader’s Address 12 h This comm and sets the READE R’s address for RS-485 usage 15 Ack nowledge OK 92 h This is an ac knowledgement of a mes sage com ing from a READER. 16 Ack nowledge Failed 94 h This is an ac knowledgement of an improper mess age coming from a RE ADER. 17 Save Command 0F h This comm and saves one of the above commands for lat er execut ion. It is used to s ynchroniz e readers. 18 Exec ute Saved command 17 h This comm and execut es the c ommand saved in the READER. When is used in a broadcas t fashion, all the READERS execut e the com mand sim ultaneousl y. 19 Read Channel Definitions 11 h This comm and allows t he reading of channel definitions .. 20 Write Channel Definitions 10 h This comm and allows t he writing of channel defini tions.

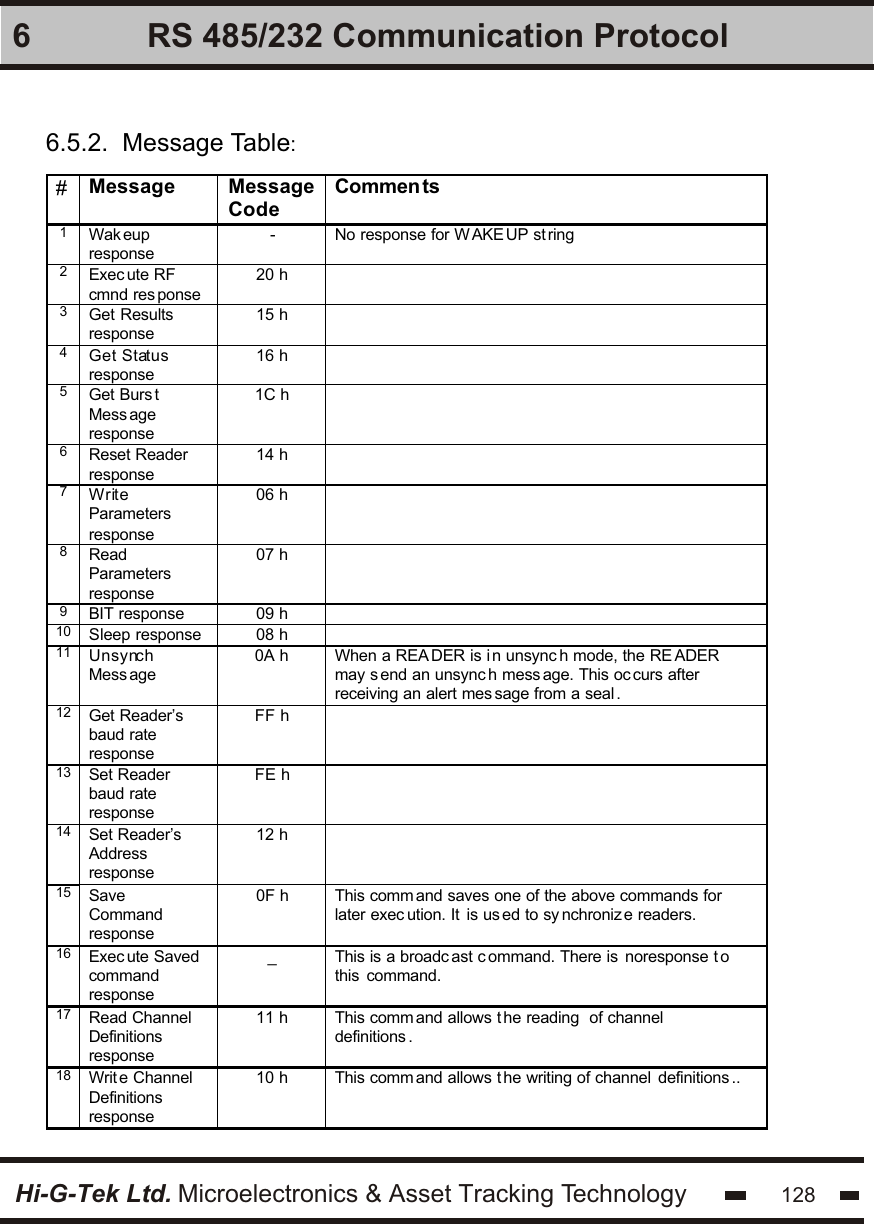

Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 1286 RS 485/232 Communication Protocol6.5.2. Message Table:# Message Message Code Commen ts 1 Wak eup response - No response for WAKEUP st ring 2 Exec ute RF cmnd res ponse 20 h 3 Get Results response 15 h 4 Get Status response 16 h 5 Get Burs t Mess age response 1C h 6 Reset Reader response 14 h 7 Write Parameters response 06 h 8 Read Parameters response 07 h 9 BIT response 09 h 10 Sleep response 08 h 11 Unsynch Mess age 0A h When a REA DER is i n unsync h mode, the RE ADER may s end an unsync h mess age. This oc curs after receiving an alert mes sage from a seal . 12 Get Reader’s baud rate response FF h 13 Set Reader baud rate response FE h 14 Set Reader’s Address response 12 h 15 Save Command response 0F h This comm and saves one of the above commands for later exec ution. It is us ed to sy nchroniz e readers. 16 Exec ute Saved command response _ This is a broadc ast c ommand. There is noresponse t o this command. 17 Read Channel Definitions response 11 h This comm and allows t he reading of channel definitions . 18 Writ e Channel Definitions response 10 h This comm and allows t he writing of channel definitions ..

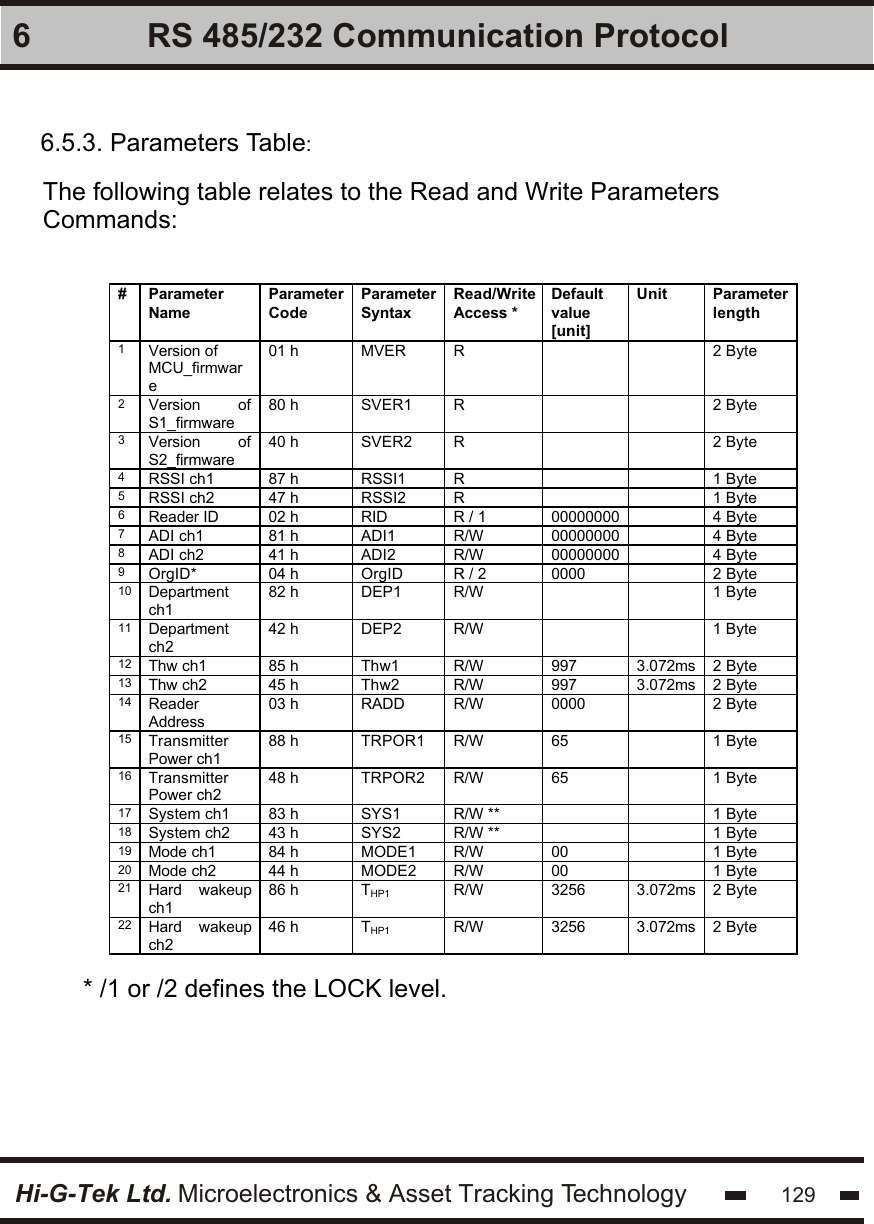

Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 1296 RS 485/232 Communication Protocol6.5.3. Parameters Table:The following table relates to the Read and Write Parameters Commands:# Parameter Name Parameter Code Parameter Syntax Read/Write Access * Default value [unit] Unit Parameter length 1 Version of MCU_firmware 01 h MVER R 2 Byte 2 Version of S1_firmware 80 h SVER1 R 2 Byte 3 Version of S2_firmware 40 h SVER2 R 2 Byte 4 RSSI ch1 87 h RSSI1 R 1 Byte 5 RSSI ch2 47 h RSSI2 R 1 Byte 6 Reader ID 02 h RID R / 1 00000000 4 Byte 7 ADI ch1 81 h ADI1 R/W 00000000 4 Byte 8 ADI ch2 41 h ADI2 R/W 00000000 4 Byte 9 OrgID* 04 h OrgID R / 2 0000 2 Byte 10 Department ch1 82 h DEP1 R/W 1 Byte 11 Department ch2 42 h DEP2 R/W 1 Byte 12 Thw ch1 85 h Thw1 R/W 997 3.072ms 2 Byte 13 Thw ch2 45 h Thw2 R/W 997 3.072ms 2 Byte 14 Reader Address 03 h RADD R/W 0000 2 Byte 15 Transmitter Power ch1 88 h TRPOR1 R/W 65 1 Byte 16 Transmitter Power ch2 48 h TRPOR2 R/W 65 1 Byte 17 System ch1 83 h SYS1 R/W ** 1 Byte 18 System ch2 43 h SYS2 R/W ** 1 Byte 19 Mode ch1 84 h MODE1 R/W 00 1 Byte 20 Mode ch2 44 h MODE2 R/W 00 1 Byte 21 Hard wakeup ch1 86 h THP1 R/W 3256 3.072ms 2 Byte 22 Hard wakeup ch2 46 h THP1 R/W 3256 3.072ms 2 Byte * /1 or /2 defines the LOCK level.

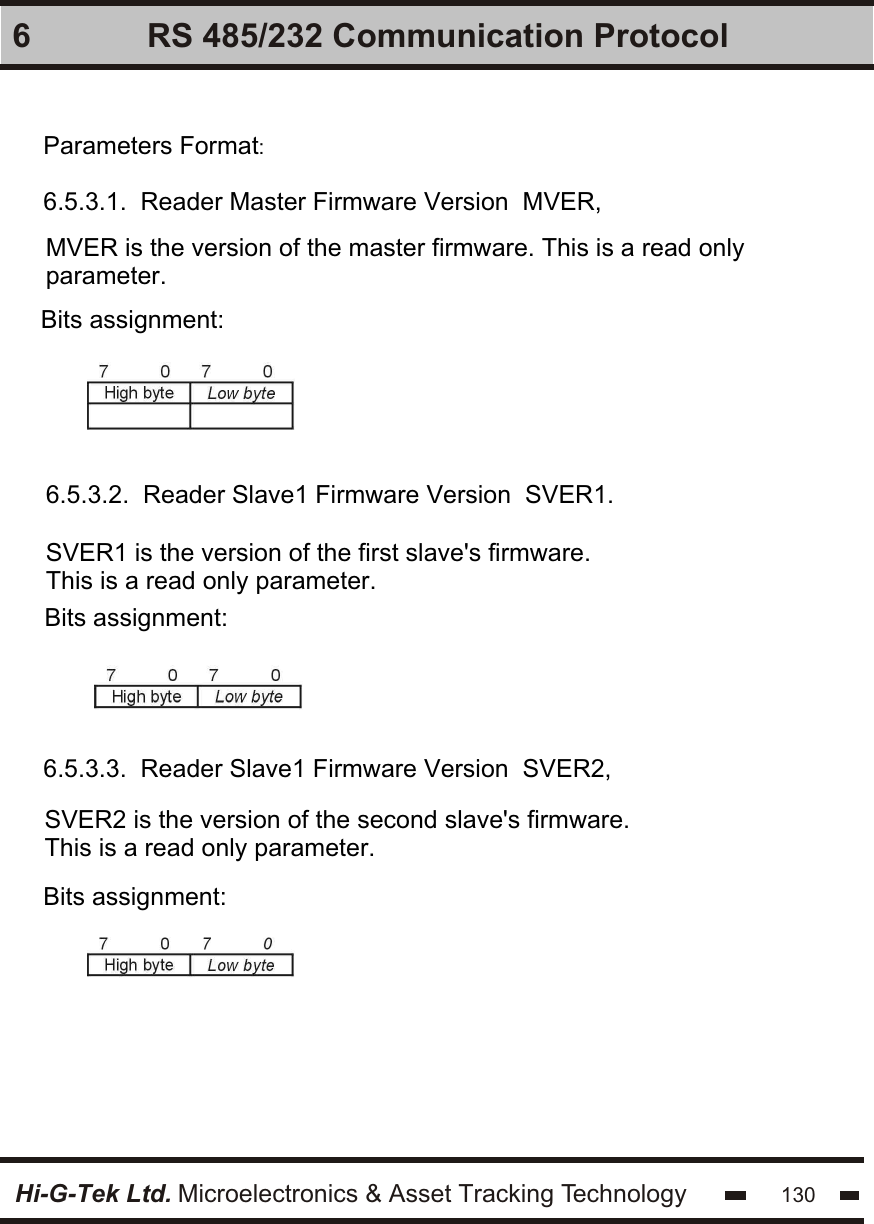

Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 1306 RS 485/232 Communication ProtocolParameters Format:6.5.3.1. Reader Master Firmware Version MVER,MVER is the version of the master firmware. This is a read onlyparameter.Bits assignment:6.5.3.2. Reader Slave1 Firmware Version SVER1.SVER1 is the version of the first slave's firmware.This is a read only parameter.Bits assignment:6.5.3.3. Reader Slave1 Firmware Version SVER2,SVER2 is the version of the second slave's firmware.This is a read only parameter.Bits assignment:

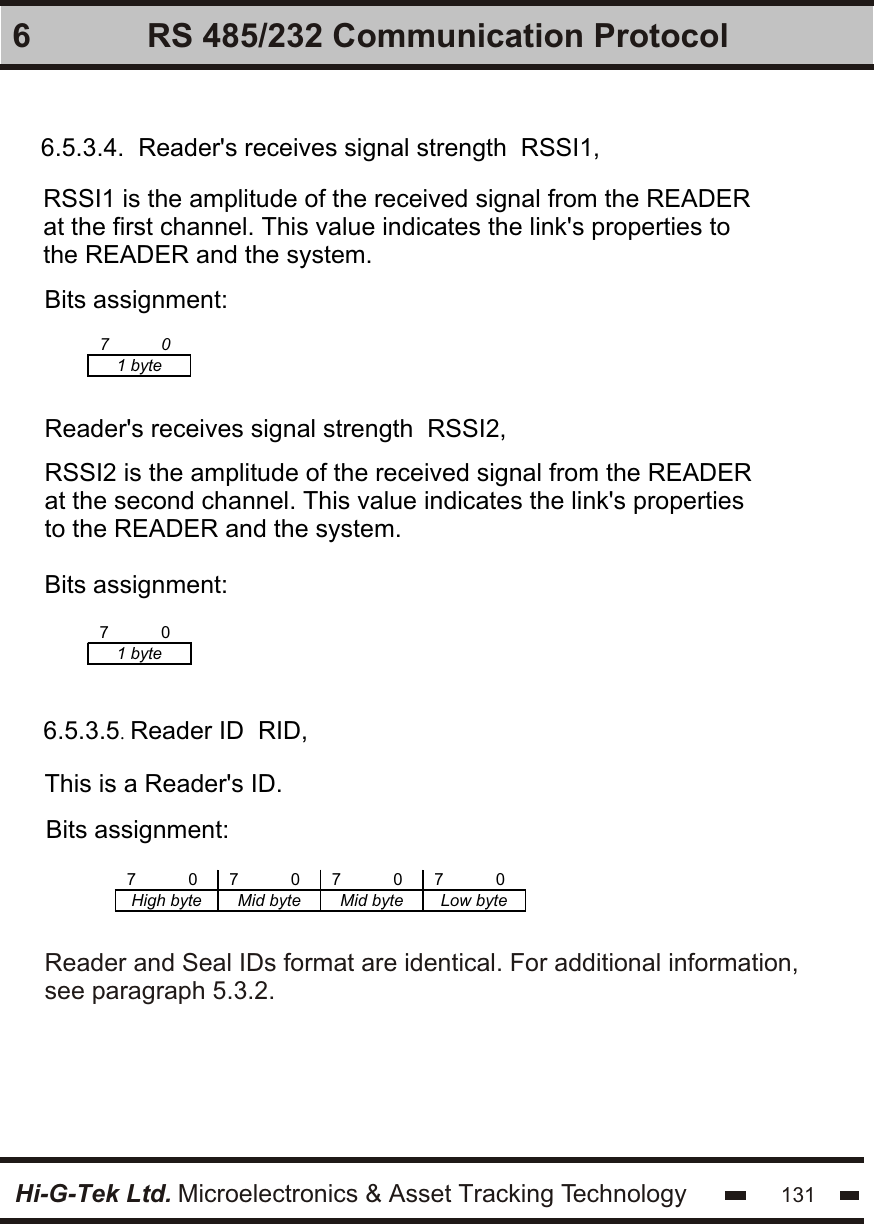

Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 1316 RS 485/232 Communication Protocol6.5.3.4. Reader's receives signal strength RSSI1,RSSI1 is the amplitude of the received signal from the READER at the first channel. This value indicates the link's properties to the READER and the system. Bits assignment:7 0 1 byte Reader's receives signal strength RSSI2,RSSI2 is the amplitude of the received signal from the READER at the second channel. This value indicates the link's properties to the READER and the system.Bits assignment:7 0 1 byte 6.5.3.5. Reader ID RID,This is a Reader's ID.Bits assignment:7 0 7 0 7 0 7 0 High byte Mid byte Mid byte Low byte Reader and Seal IDs format are identical. For additional information, see paragraph 5.3.2.

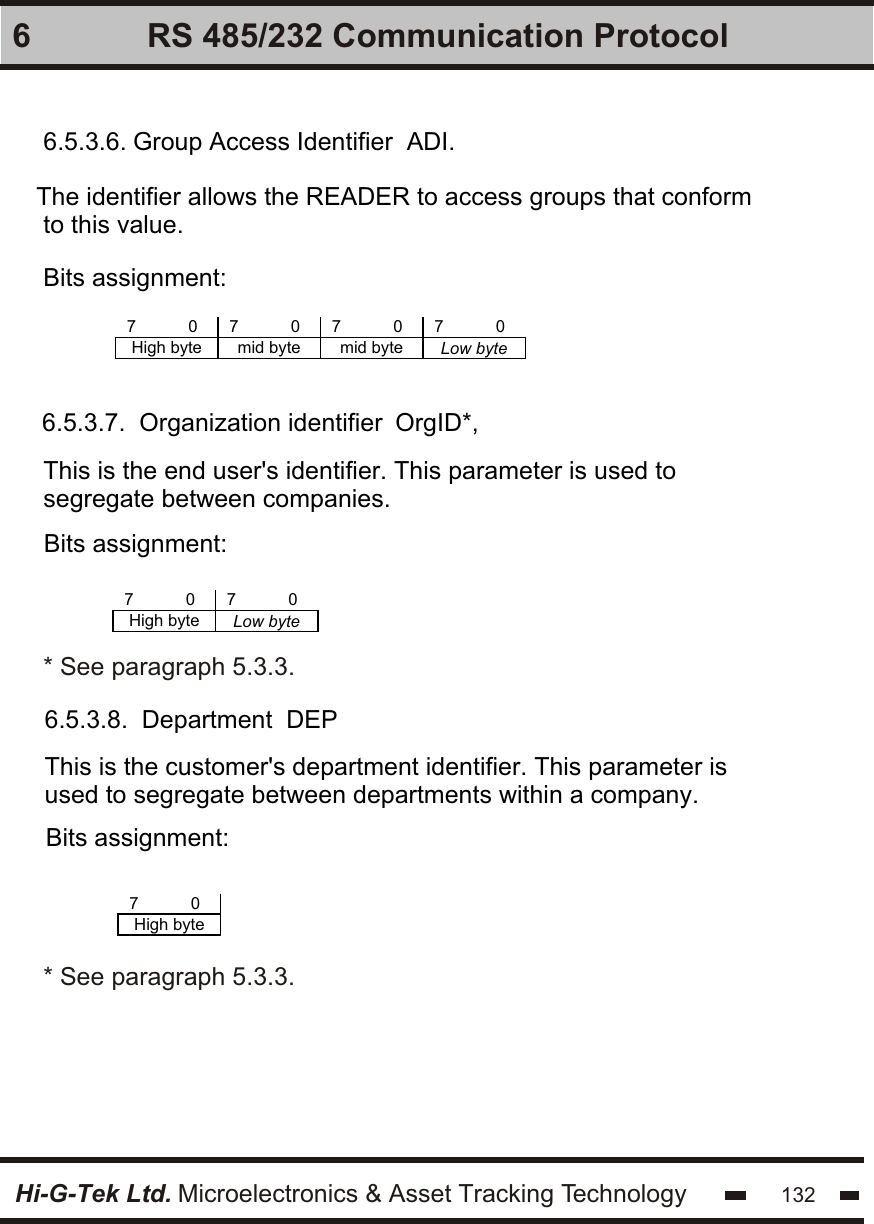

Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 1326 RS 485/232 Communication ProtocolBits assignment:Bits assignment:6.5.3.6. Group Access Identifier ADI.The identifier allows the READER to access groups that conform to this value.7 0 7 0 7 0 7 0 High byte mid byte mid byte Low byte 6.5.3.7. Organization identifier OrgID*,This is the end user's identifier. This parameter is used to segregate between companies.7 0 7 0 High byte Low byte 6.5.3.8. Department DEPThis is the customer's department identifier. This parameter is used to segregate between departments within a company.Bits assignment:7 0 High byte * See paragraph 5.3.3.* See paragraph 5.3.3.

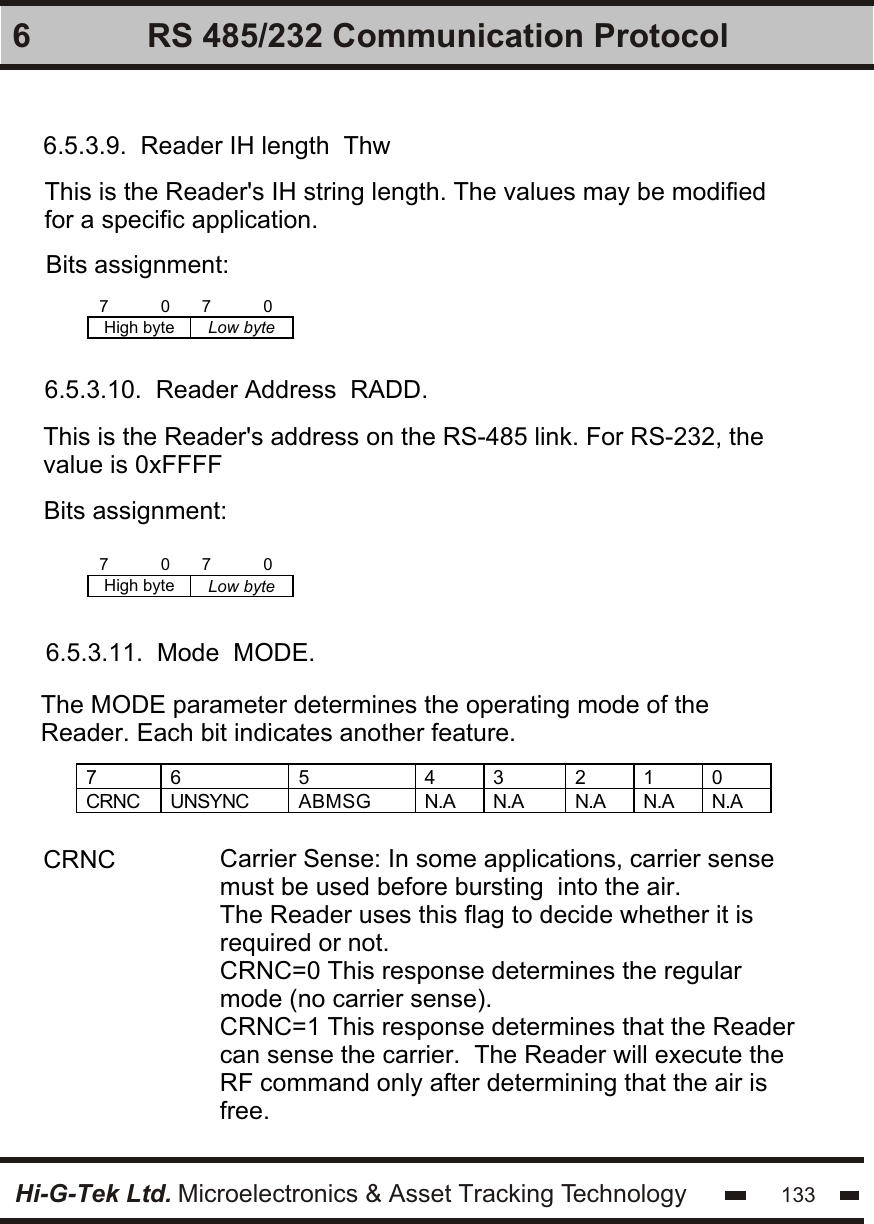

Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 1336 RS 485/232 Communication Protocol6.5.3.9. Reader IH length ThwThis is the Reader's IH string length. The values may be modified for a specific application. Bits assignment:Bits assignment:7 0 7 0 High byte Low byte 6.5.3.10. Reader Address RADD.This is the Reader's address on the RS-485 link. For RS-232, the value is 0xFFFF7 0 7 0 High byte Low byte 6.5.3.11. Mode MODE.The MODE parameter determines the operating mode of the Reader. Each bit indicates another feature.7 6 5 4 3 2 1 0 CRNC UNSYNC ABMSG N.A N.A N.A N.A N.A CRNC Carrier Sense: In some applications, carrier sense must be used before bursting into the air.The Reader uses this flag to decide whether it is required or not.CRNC=0 This response determines the regular mode (no carrier sense).CRNC=1 This response determines that the Reader can sense the carrier. The Reader will execute the RF command only after determining that the air is free.

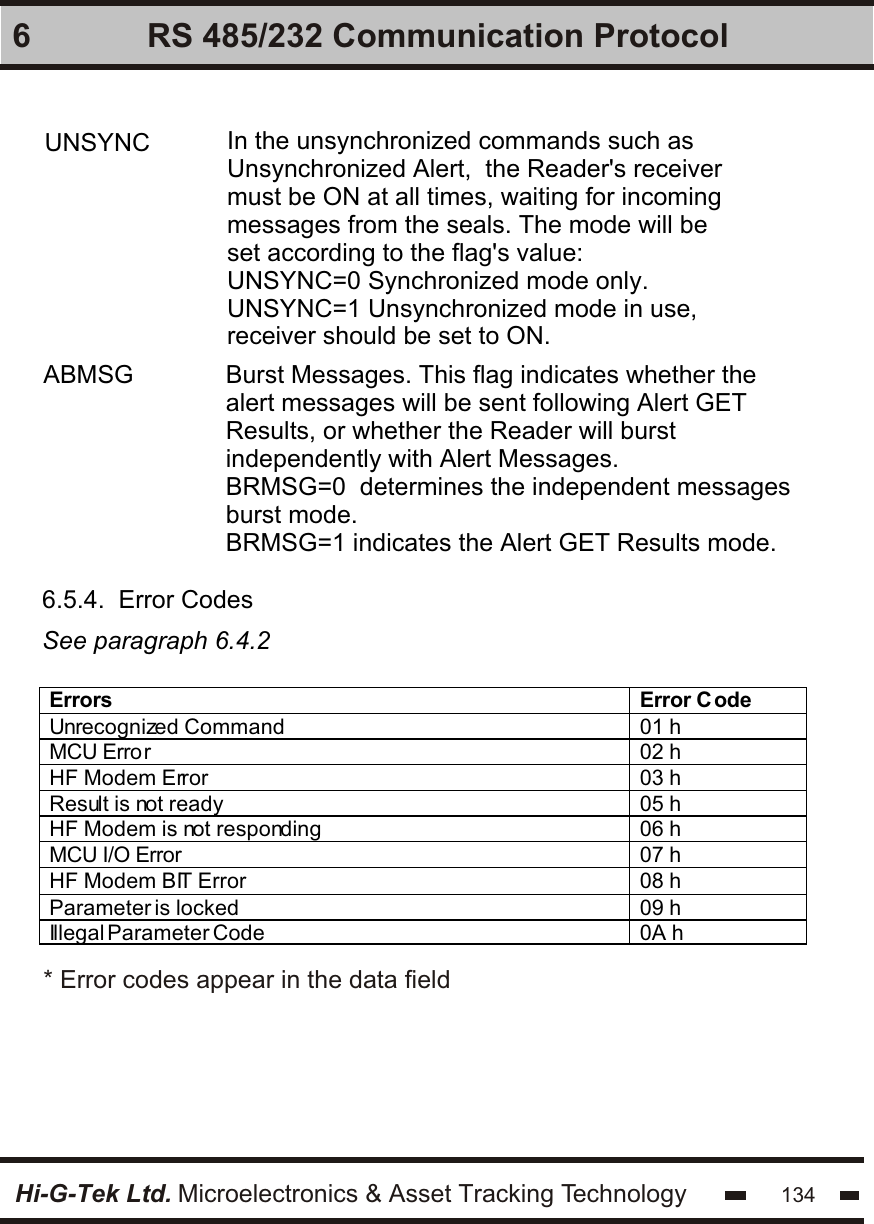

Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 1346 RS 485/232 Communication ProtocolUNSYNC In the unsynchronized commands such as Unsynchronized Alert, the Reader's receiver must be ON at all times, waiting for incoming messages from the seals. The mode will be set according to the flag's value:UNSYNC=0 Synchronized mode only.UNSYNC=1 Unsynchronized mode in use, receiver should be set to ON.ABMSG Burst Messages. This flag indicates whether the alert messages will be sent following Alert GET Results, or whether the Reader will burst independently with Alert Messages.BRMSG=0 determines the independent messages burst mode.BRMSG=1 indicates the Alert GET Results mode.6.5.4. Error CodesSee paragraph 6.4.2Errors Error C ode Unrecognized Command 01 h MCU Error 02 h HF Modem Error 03 h Result is not ready 05 h HF Modem is not responding 06 h MCU I/O Error 07 h HF Modem BIT Error 08 h Parameter is locked 09 h Illegal Parameter Code 0A h * Error codes appear in the data field

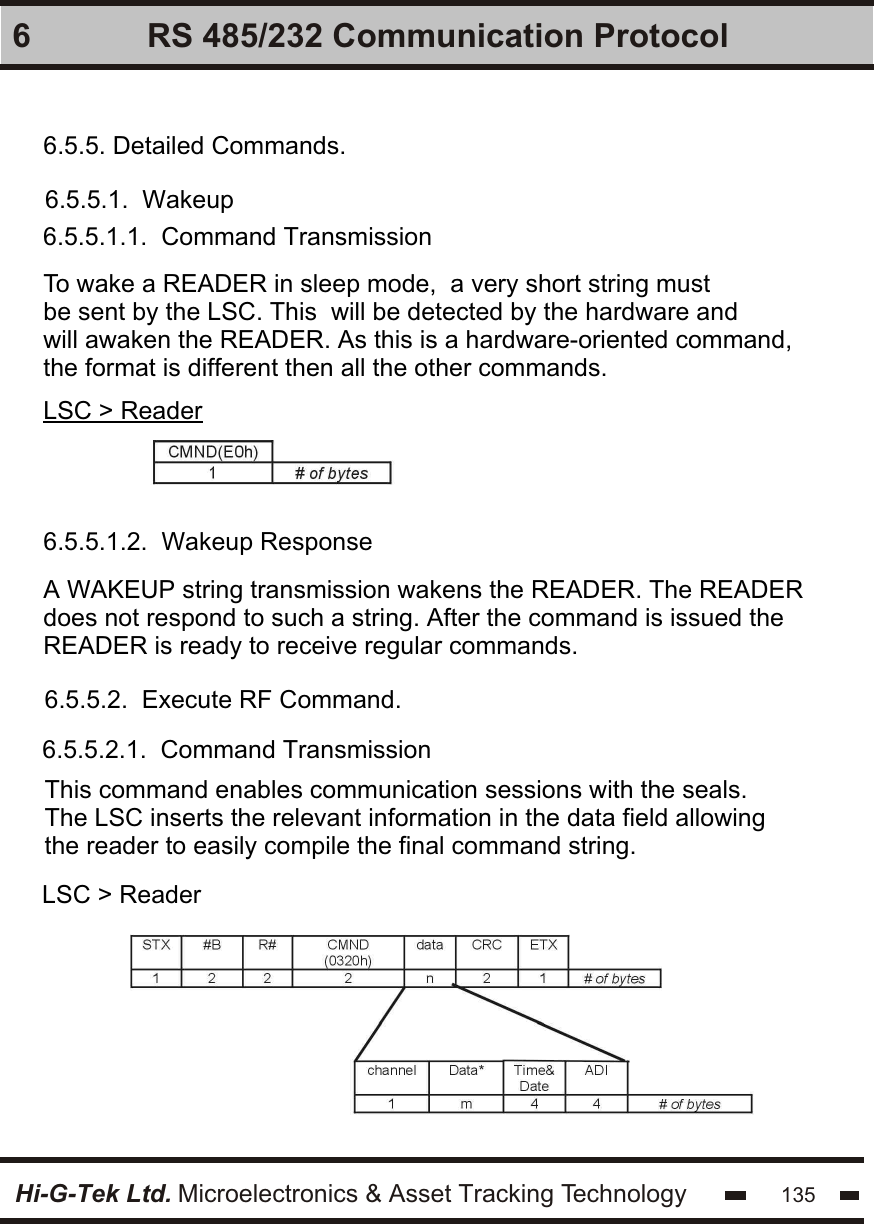

Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 1356 RS 485/232 Communication Protocol6.5.5. Detailed Commands.6.5.5.1. Wakeup6.5.5.1.1. Command Transmission6.5.5.2.1. Command Transmission6.5.5.1.2. Wakeup ResponseTo wake a READER in sleep mode, a very short string must be sent by the LSC. This will be detected by the hardware and will awaken the READER. As this is a hardware-oriented command,the format is different then all the other commands.LSC > ReaderA WAKEUP string transmission wakens the READER. The READER does not respond to such a string. After the command is issued the READER is ready to receive regular commands. 6.5.5.2. Execute RF Command.This command enables communication sessions with the seals. The LSC inserts the relevant information in the data field allowing the reader to easily compile the final command string.LSC > Reader

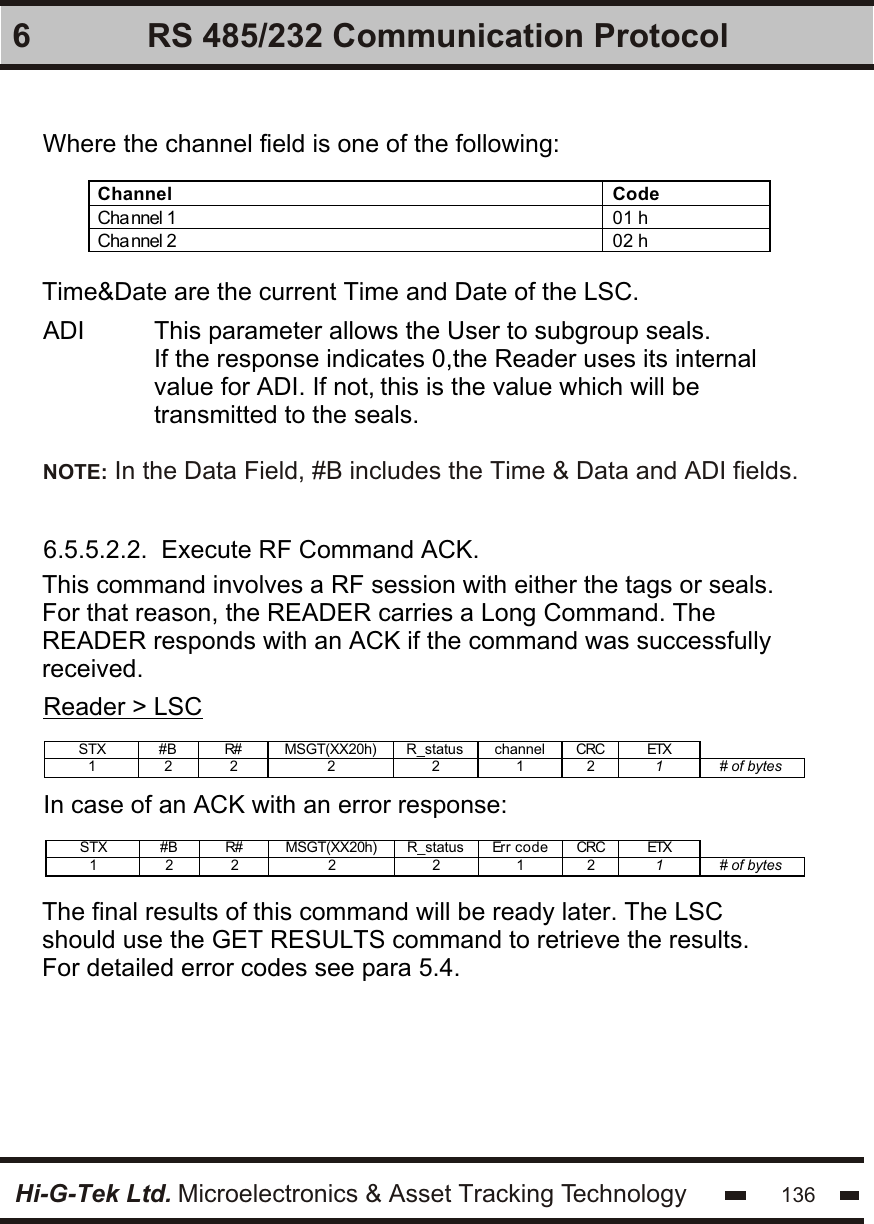

Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 1366 RS 485/232 Communication ProtocolWhere the channel field is one of the following:Channel Code Cha nnel 1 01 h Cha nnel 2 02 h ADI This parameter allows the User to subgroup seals. If the response indicates 0,the Reader uses its internal value for ADI. If not, this is the value which will be transmitted to the seals.Time&Date are the current Time and Date of the LSC.6.5.5.2.2. Execute RF Command ACK.This command involves a RF session with either the tags or seals. For that reason, the READER carries a Long Command. The READER responds with an ACK if the command was successfully received.Reader > LSCSTX #B R# MSGT(XX20h) R_status channel CRC ETX 1 2 2 2 2 1 2 1 # of bytes In case of an ACK with an error response:STX #B R# MSGT(XX20h) R_status Err code CRC ETX 1 2 2 2 2 1 2 1 # of bytes The final results of this command will be ready later. The LSC should use the GET RESULTS command to retrieve the results.For detailed error codes see para 5.4.NOTE: In the Data Field, #B includes the Time & Data and ADI fields.

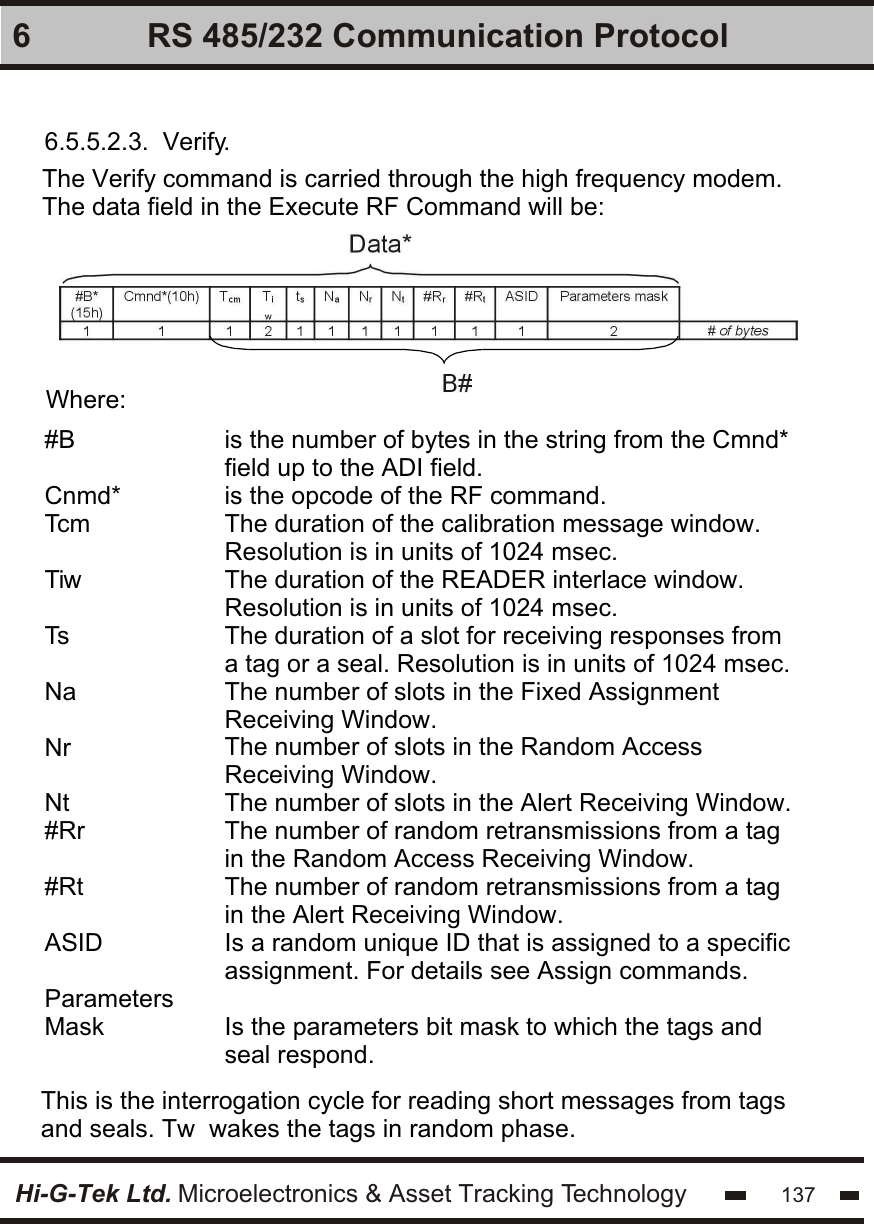

Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 1376 RS 485/232 Communication Protocol6.5.5.2.3. Verify.The Verify command is carried through the high frequency modem.The data field in the Execute RF Command will be: Where:#BCnmd*TcmTiwTsNaNrNt#Rr#RtASIDParameters Maskis the number of bytes in the string from the Cmnd* field up to the ADI field.is the opcode of the RF command.The duration of the calibration message window. Resolution is in units of 1024 msec.The duration of the READER interlace window. Resolution is in units of 1024 msec.The duration of a slot for receiving responses from a tag or a seal. Resolution is in units of 1024 msec.The number of slots in the Fixed Assignment Receiving Window.The number of slots in the Random Access Receiving Window.The number of slots in the Alert Receiving Window.The number of random retransmissions from a tag in the Random Access Receiving Window. The number of random retransmissions from a tag in the Alert Receiving Window. Is a random unique ID that is assigned to a specific assignment. For details see Assign commands. Is the parameters bit mask to which the tags and seal respond.This is the interrogation cycle for reading short messages from tags and seals. Tw wakes the tags in random phase.

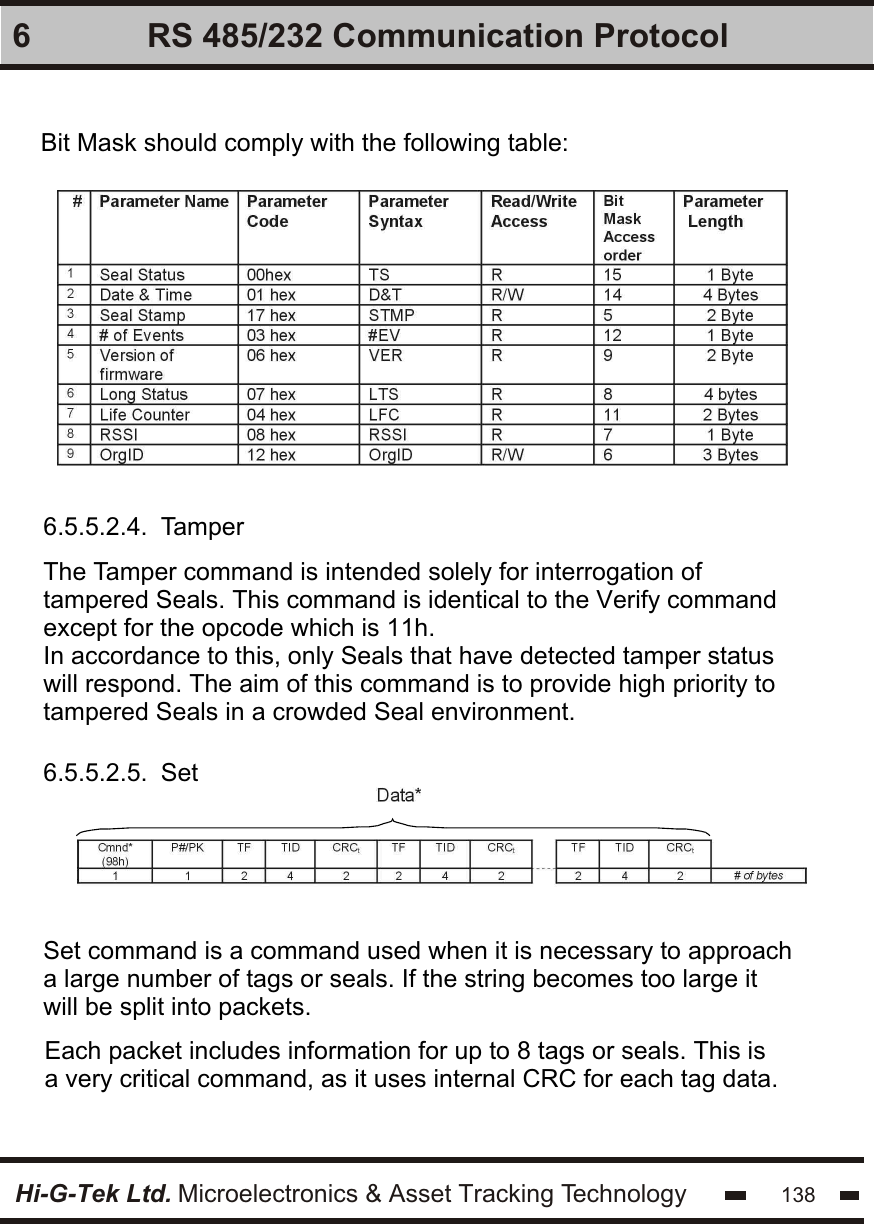

Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 1386 RS 485/232 Communication ProtocolBit Mask should comply with the following table:6.5.5.2.4. Tamper6.5.5.2.5. SetThe Tamper command is intended solely for interrogation of tampered Seals. This command is identical to the Verify command except for the opcode which is 11h.In accordance to this, only Seals that have detected tamper status will respond. The aim of this command is to provide high priority totampered Seals in a crowded Seal environment.Set command is a command used when it is necessary to approach a large number of tags or seals. If the string becomes too large it will be split into packets. Each packet includes information for up to 8 tags or seals. This is a very critical command, as it uses internal CRC for each tag data.

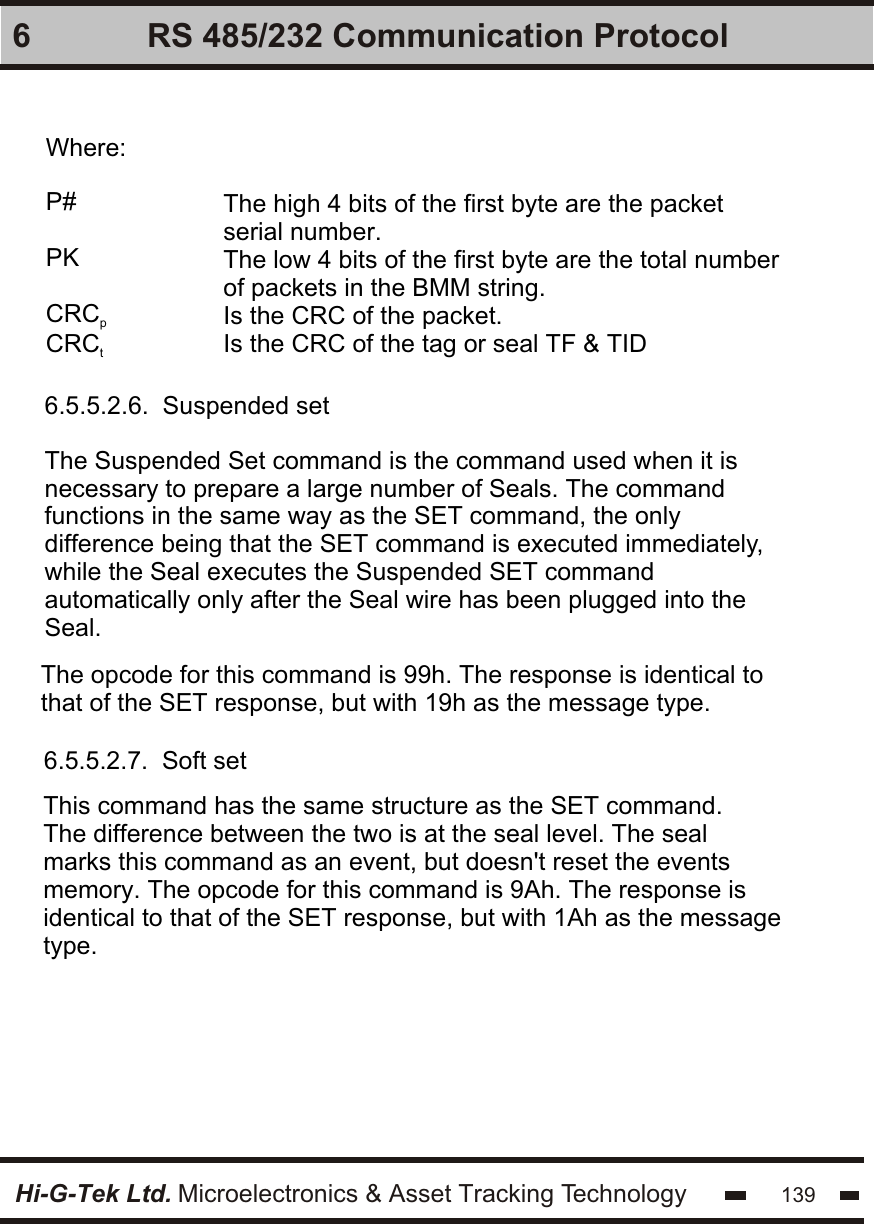

Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 1396 RS 485/232 Communication ProtocolWhere:P#PKCRCpCRCtThe high 4 bits of the first byte are the packetserial number.The low 4 bits of the first byte are the total numberof packets in the BMM string.Is the CRC of the packet.Is the CRC of the tag or seal TF & TID6.5.5.2.6. Suspended set6.5.5.2.7. Soft setThe Suspended Set command is the command used when it is necessary to prepare a large number of Seals. The command functions in the same way as the SET command, the only difference being that the SET command is executed immediately,while the Seal executes the Suspended SET command automatically only after the Seal wire has been plugged into the Seal.The opcode for this command is 99h. The response is identical tothat of the SET response, but with 19h as the message type.This command has the same structure as the SET command. The difference between the two is at the seal level. The seal marks this command as an event, but doesn't reset the events memory. The opcode for this command is 9Ah. The response is identical to that of the SET response, but with 1Ah as the message type.

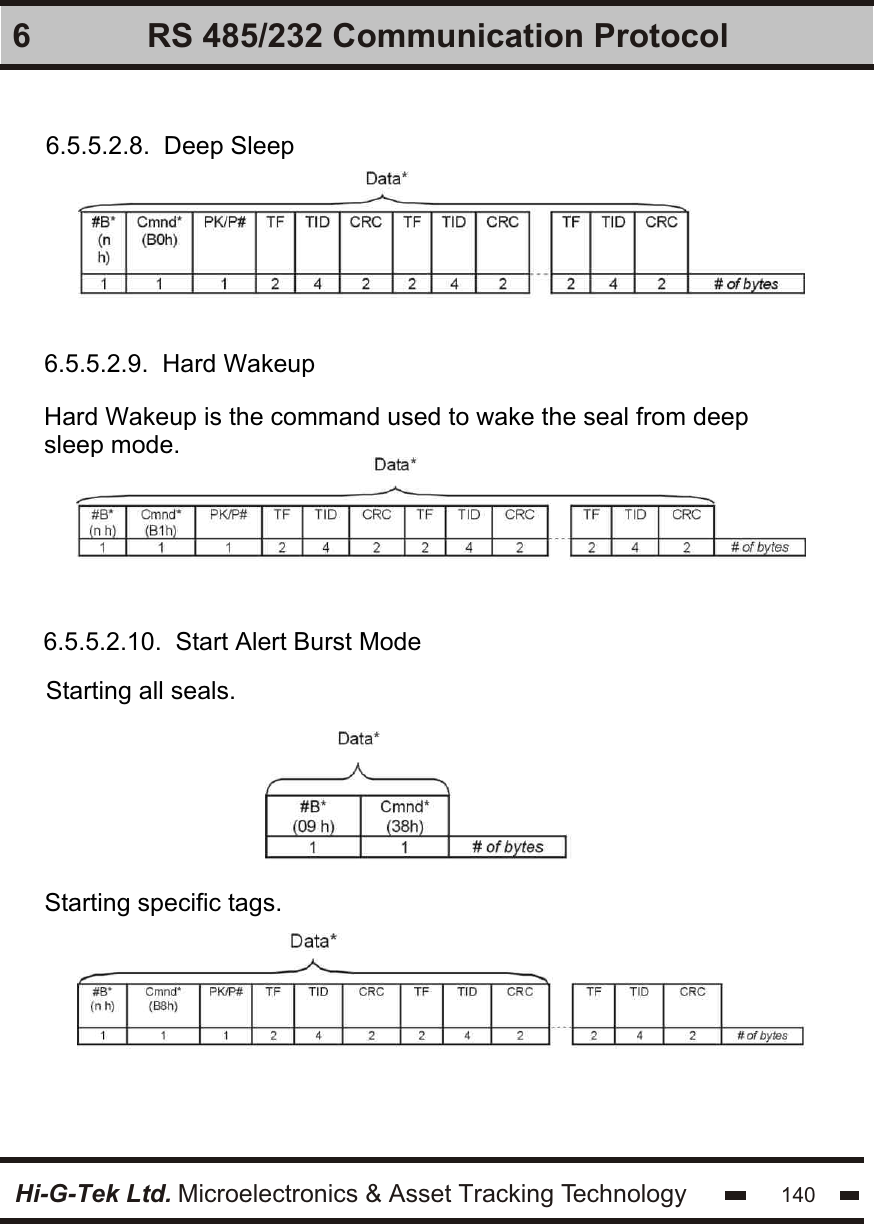

Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 1406 RS 485/232 Communication Protocol6.5.5.2.8. Deep Sleep6.5.5.2.9. Hard Wakeup6.5.5.2.10. Start Alert Burst ModeHard Wakeup is the command used to wake the seal from deep sleep mode.Starting all seals.Starting specific tags.

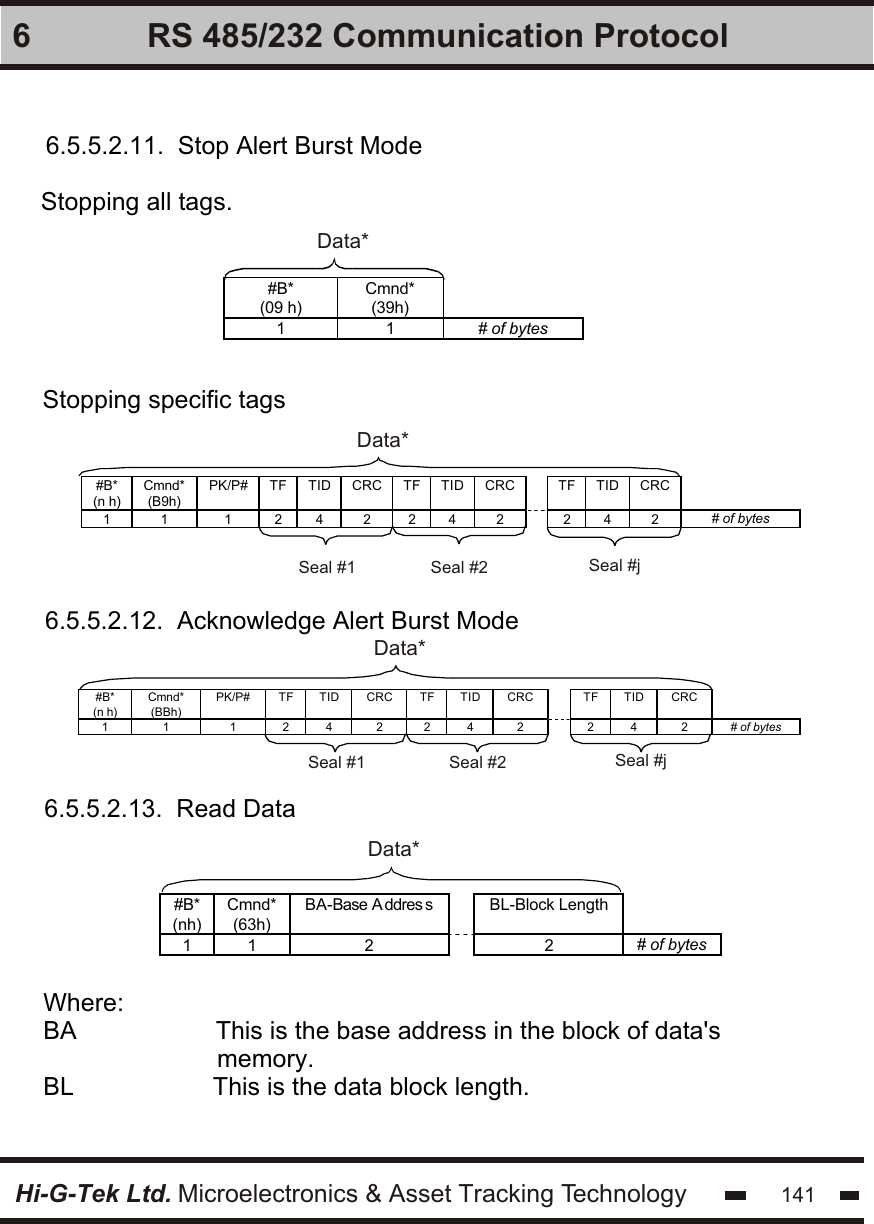

Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 1416 RS 485/232 Communication Protocol6.5.5.2.11. Stop Alert Burst Mode6.5.5.2.12. Acknowledge Alert Burst Mode6.5.5.2.13. Read DataStopping all tags.Stopping specific tags#B* (09 h) Cmnd* (39h) 1 1 # of bytes #B* (n h) Cmnd* (B9h) PK/P# TF TID CRC TF TID CRC TF TID CRC 1 1 1 2 4 2 2 4 2 2 4 2 # of bytes #B* (n h) Cmnd* (BBh) PK/P# TF TID CRC TF TID CRC TF TID CRC 1 1 1 2 4 2 2 4 2 2 4 2 # of bytes Seal #1 Seal #2 Seal #j Seal #1 Seal #2 Seal #j#B* (nh) Cmnd* (63h) BA-Base A ddres s BL-Block Length 1 1 2 2 # of bytes Where:BA This is the base address in the block of data's memory.BL This is the data block length.Data*Data*Data*Data*

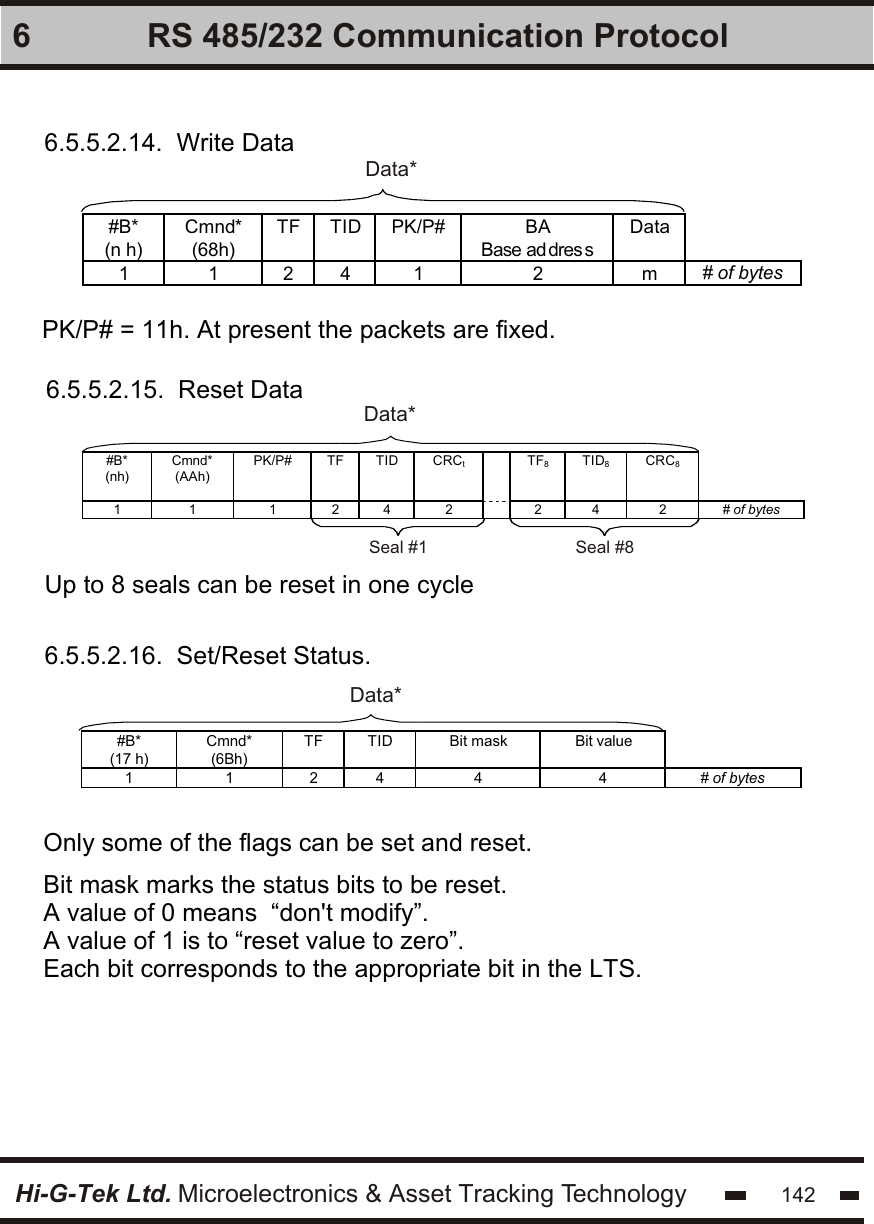

Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 1426 RS 485/232 Communication Protocol#B* (n h) Cmnd* (68h) TF TID PK/P# BA Base ad dres s Data 1 1 2 4 1 2 m # of bytes 6.5.5.2.14. Write Data6.5.5.2.15. Reset DataPK/P# = 11h. At present the packets are fixed.#B* (nh) Cmnd* (AAh) PK/P# TF TID CRCt TF8 TID8 CRC8 1 1 1 2 4 2 2 4 2 # of bytes Seal #1 Seal #8Up to 8 seals can be reset in one cycle6.5.5.2.16. Set/Reset Status.#B* (17 h) Cmnd* (6Bh) TF TID Bit mask Bit value 1 1 2 4 4 4 # of bytes Only some of the flags can be set and reset.Bit mask marks the status bits to be reset.A value of 0 means “don't modify”.A value of 1 is to “reset value to zero”.Each bit corresponds to the appropriate bit in the LTS.Data*Data*Data*

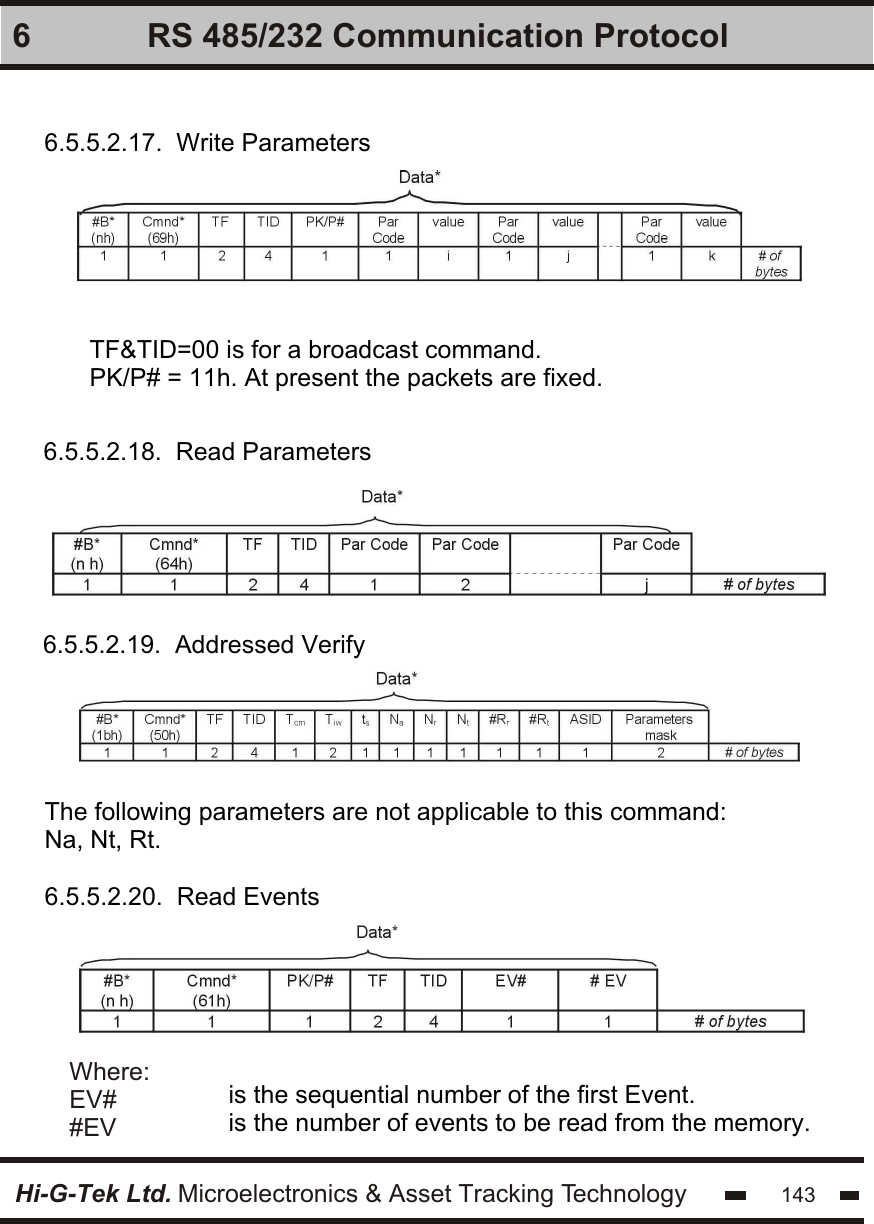

Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 1436 RS 485/232 Communication Protocol6.5.5.2.17. Write Parameters6.5.5.2.18. Read Parameters6.5.5.2.19. Addressed Verify6.5.5.2.20. Read EventsTF&TID=00 is for a broadcast command.PK/P# = 11h. At present the packets are fixed.The following parameters are not applicable to this command: Na, Nt, Rt.is the sequential number of the first Event.is the number of events to be read from the memory.Where:EV##EV

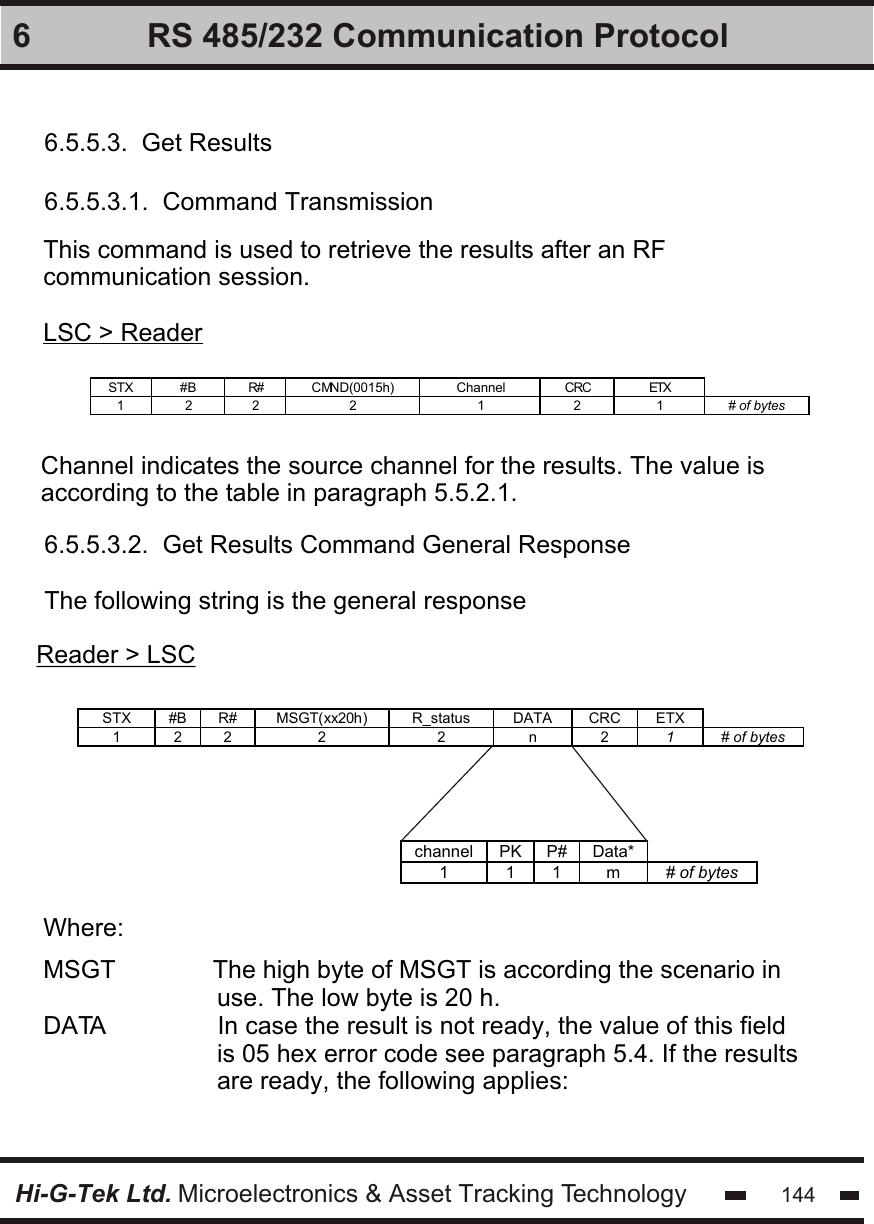

Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 1446 RS 485/232 Communication Protocol6.5.5.3. Get Results6.5.5.3.1. Command Transmission6.5.5.3.2. Get Results Command General ResponseThe following string is the general responseThis command is used to retrieve the results after an RF communication session.LSC > ReaderReader > LSC STX #B R# CMND(0015h) Channel CRC ETX 1 2 2 2 1 2 1 # of bytes Channel indicates the source channel for the results. The value is according to the table in paragraph 5.5.2.1.STX #B R# MSGT(xx20h) R_status DATA CRC ETX 1 2 2 2 2 n 2 1 # of bytes channel PK P# Data* 1 1 1 m # of bytes Where:MSGT The high byte of MSGT is according the scenario in use. The low byte is 20 h.DATA In case the result is not ready, the value of this field is 05 hex error code see paragraph 5.4. If the results are ready, the following applies:

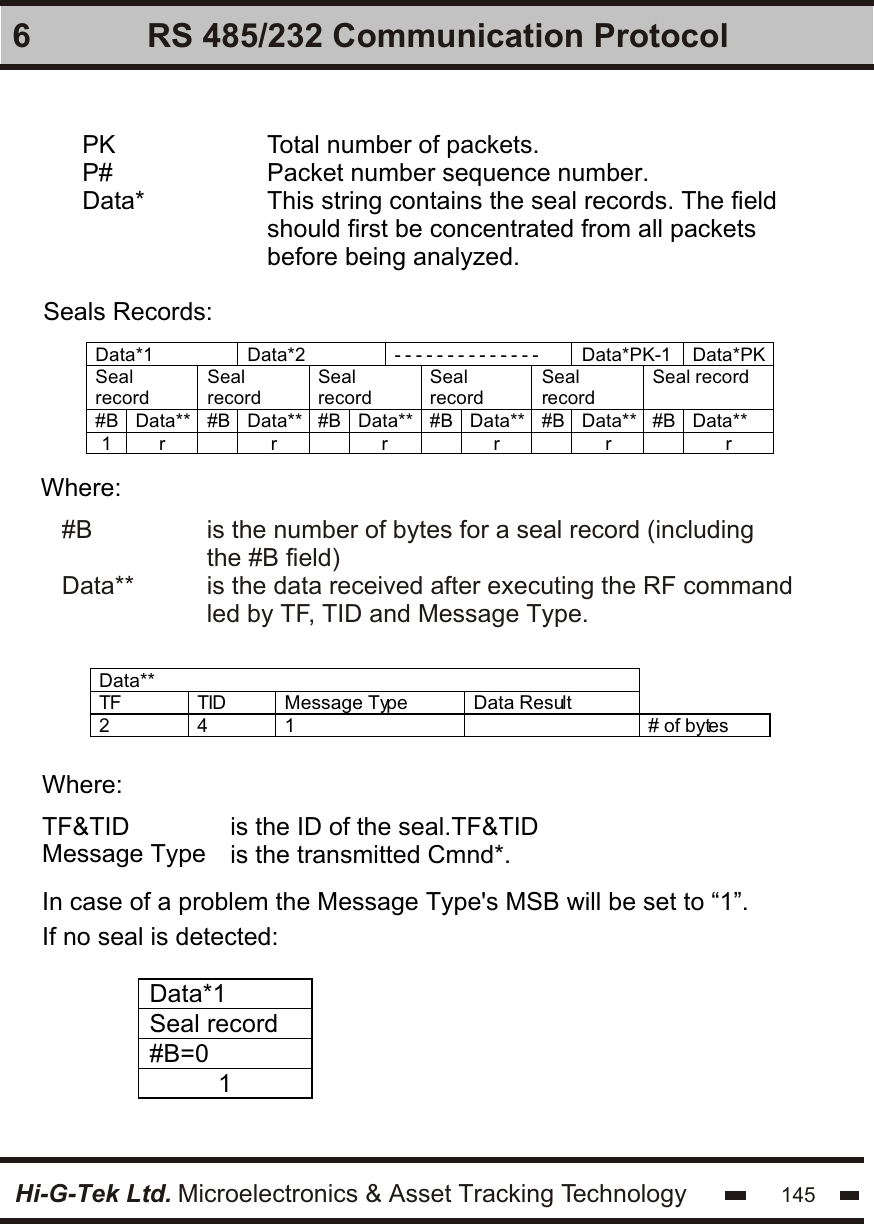

Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 1456 RS 485/232 Communication ProtocolTotal number of packets.Packet number sequence number.This string contains the seal records. The fieldshould first be concentrated from all packetsbefore being analyzed.Seals Records:Data*1 Data*2 - - - - - - - - - - - - - - Data*PK-1 Data*PK Seal record Seal record Seal record Seal record Seal record Seal record #B Data** #B Data** #B Data** #B Data** #B Data** #B Data** 1 r r r r r r Where:Data** TF TID Message Type Data Result 2 4 1 # of bytes Where:In case of a problem the Message Type's MSB will be set to “1”. If no seal is detected:Data*1 Seal record #B=0 1 PKP#Data*TF&TIDMessage Typeis the ID of the seal.TF&TIDis the transmitted Cmnd*.#BData**is the number of bytes for a seal record (includingthe #B field)is the data received after executing the RF commandled by TF, TID and Message Type.

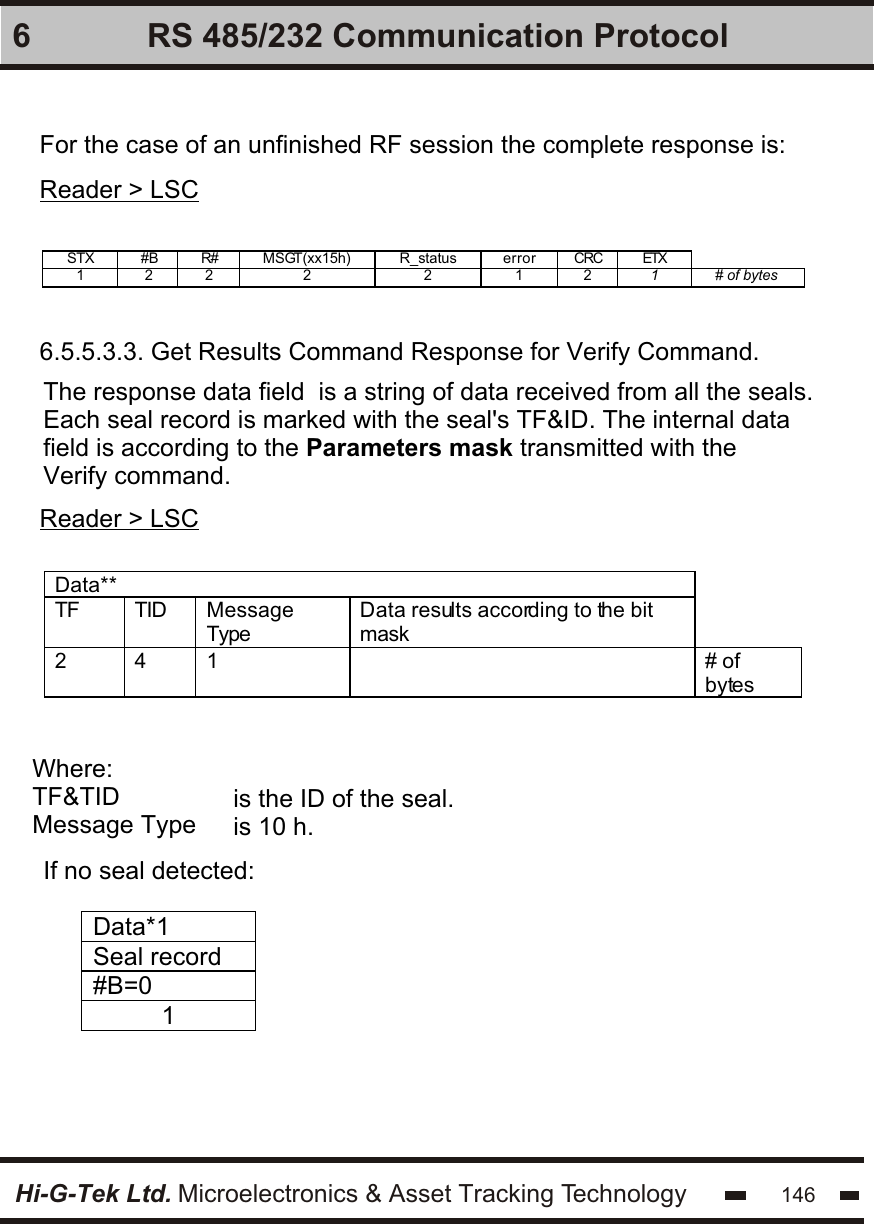

Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 1466 RS 485/232 Communication ProtocolFor the case of an unfinished RF session the complete response is:Reader > LSCReader > LSCSTX #B R# MSGT(xx15h) R_status error CRC ETX 1 2 2 2 2 1 2 1 # of bytes 6.5.5.3.3. Get Results Command Response for Verify Command.The response data field is a string of data received from all the seals.Each seal record is marked with the seal's TF&ID. The internal data field is according to the Parameters mask transmitted with the Verify command.Data** TF TID Message Type Data results according to the bit mask 2 4 1 # of bytes is the ID of the seal.is 10 h.Data*1 Seal record #B=0 1 If no seal detected:Where:TF&TID Message Type

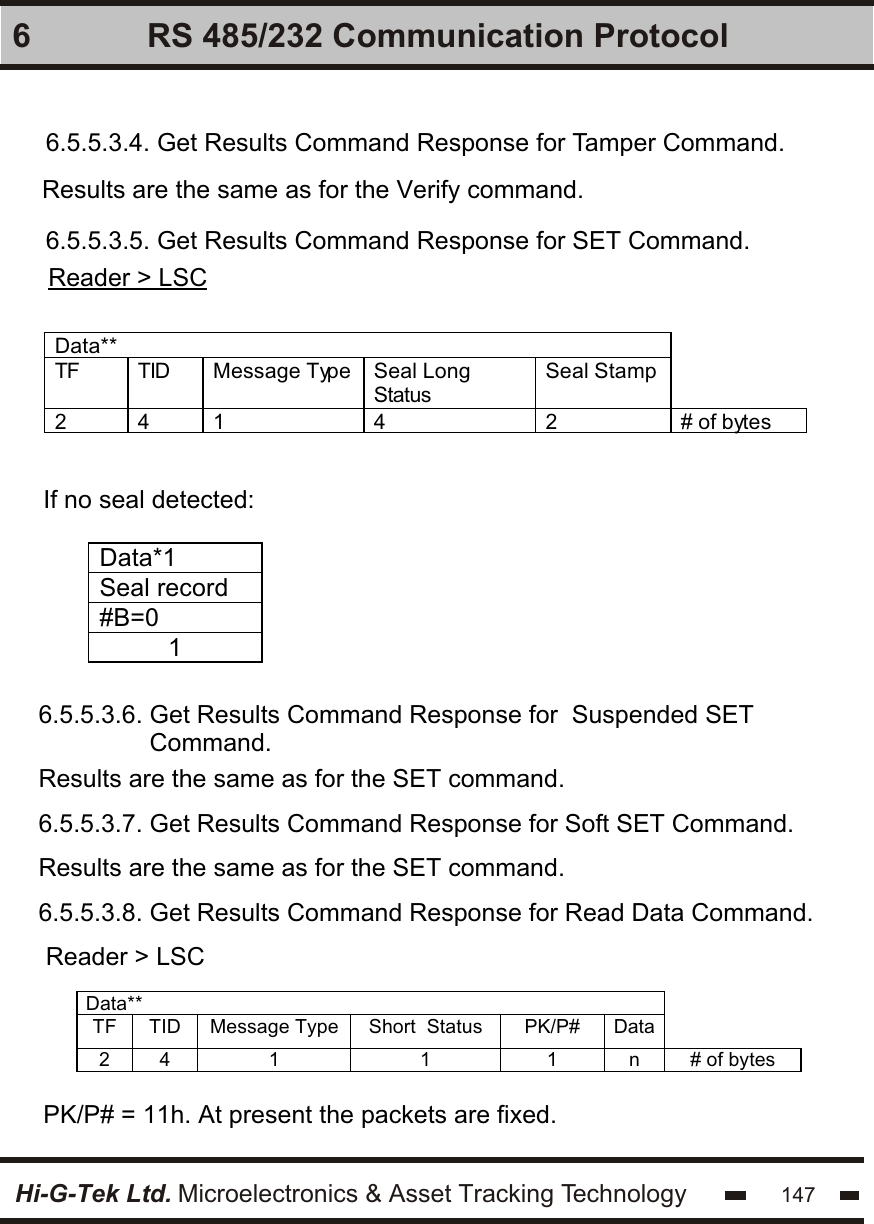

Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 1476 RS 485/232 Communication Protocol6.5.5.3.4. Get Results Command Response for Tamper Command.6.5.5.3.5. Get Results Command Response for SET Command.Results are the same as for the Verify command.Reader > LSCData** TF TID Message Type Seal Long Status Seal Stamp 2 4 1 4 2 # of bytes If no seal detected:Data*1 Seal record #B=0 1 6.5.5.3.6. Get Results Command Response for Suspended SET Command.Results are the same as for the SET command.Results are the same as for the SET command.6.5.5.3.7. Get Results Command Response for Soft SET Command.6.5.5.3.8. Get Results Command Response for Read Data Command.Reader > LSCData** TF TID Message Type Short Status PK/P# Data 2 4 1 1 1 n # of bytes PK/P# = 11h. At present the packets are fixed.

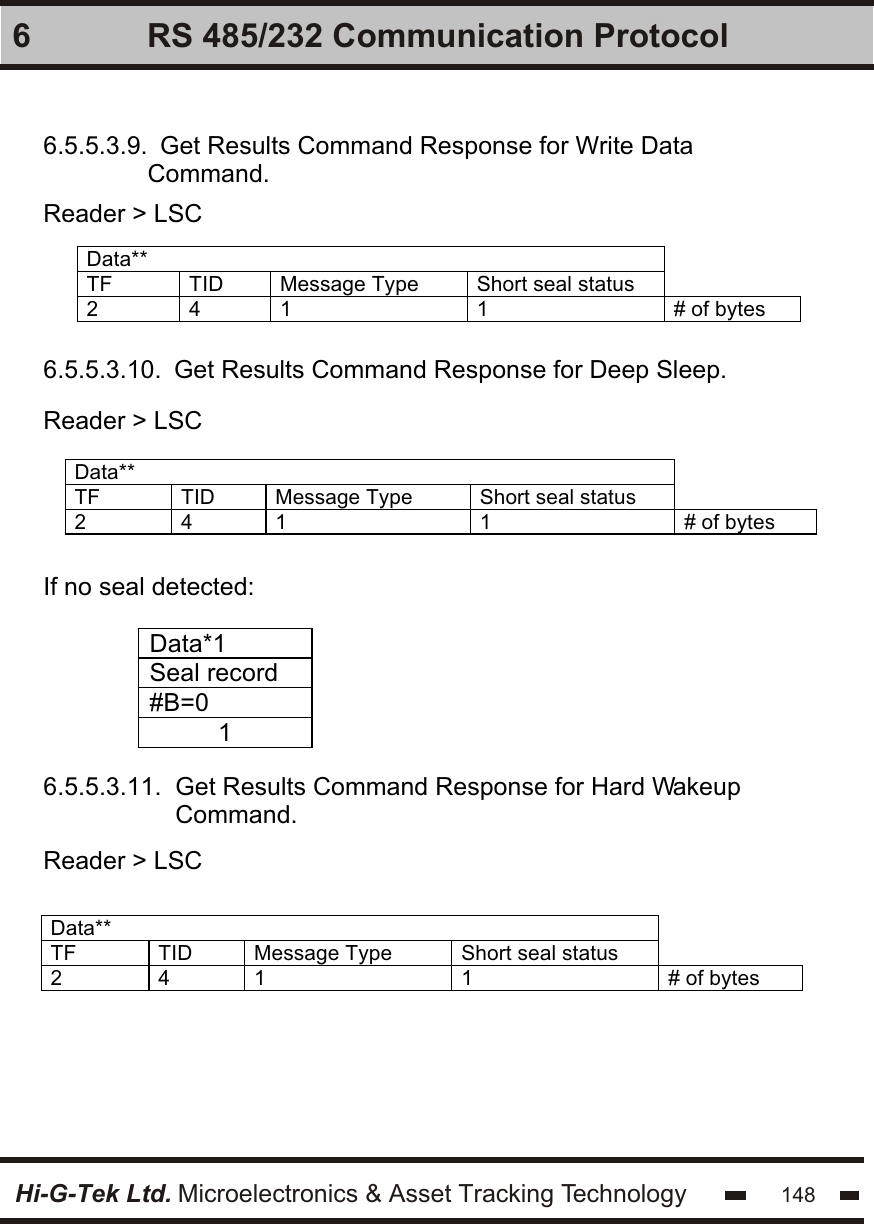

Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 1486 RS 485/232 Communication Protocol6.5.5.3.9. Get Results Command Response for Write Data Command.Reader > LSCReader > LSCReader > LSCData** TF TID Message Type Short seal status 2 4 1 1 # of bytes 6.5.5.3.10. Get Results Command Response for Deep Sleep.Data** TF TID Message Type Short seal status 2 4 1 1 # of bytes If no seal detected:Data*1 Seal record #B=0 1 6.5.5.3.11. Get Results Command Response for Hard Wakeup Command.Data** TF TID Message Type Short seal status 2 4 1 1 # of bytes

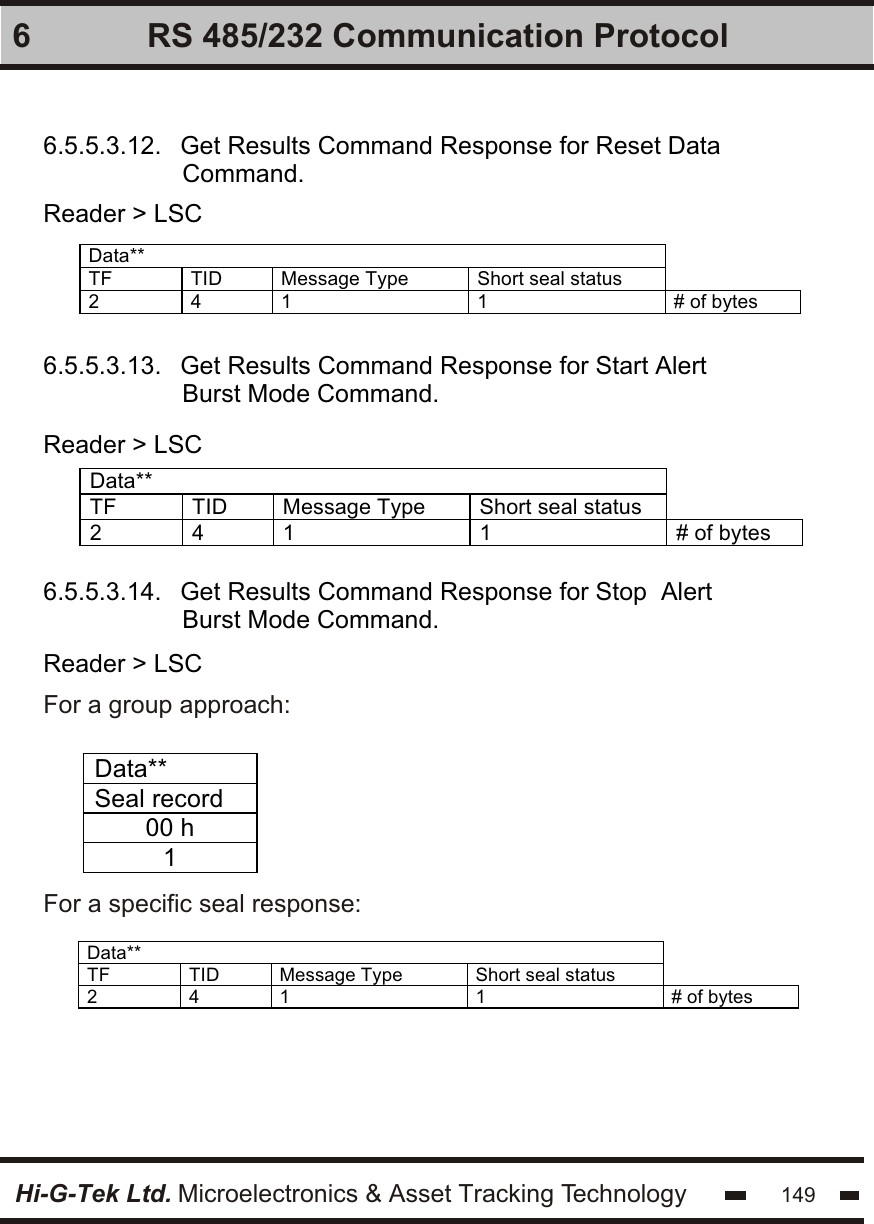

Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 1496 RS 485/232 Communication Protocol6.5.5.3.12. Get Results Command Response for Reset Data Command.6.5.5.3.13. Get Results Command Response for Start Alert Burst Mode Command.6.5.5.3.14. Get Results Command Response for Stop Alert Burst Mode Command.Reader > LSCReader > LSCReader > LSCData** TF TID Message Type Short seal status 2 4 1 1 # of bytes For a group approach:For a specific seal response:Data** TF TID Message Type Short seal status 2 4 1 1 # of bytes Data** Seal record 00 h 1 Data** TF TID Message Type Short seal status 2 4 1 1 # of bytes

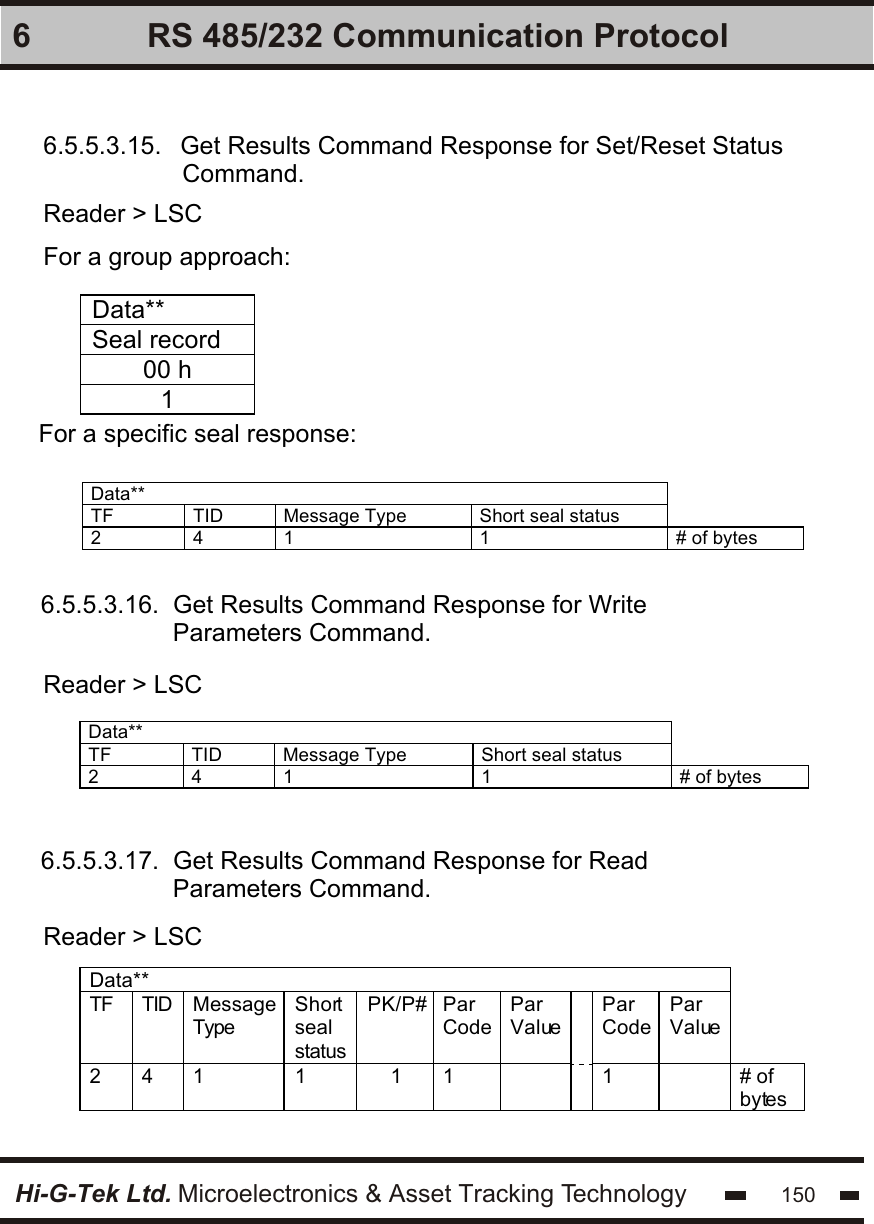

Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 1506 RS 485/232 Communication Protocol6.5.5.3.15. Get Results Command Response for Set/Reset Status Command.Reader > LSCReader > LSCReader > LSCFor a group approach:Data** Seal record 00 h 1 For a specific seal response:Data** TF TID Message Type Short seal status 2 4 1 1 # of bytes 6.5.5.3.16. Get Results Command Response for Write Parameters Command.6.5.5.3.17. Get Results Command Response for Read Parameters Command.Data** TF TID Message Type Short seal status 2 4 1 1 # of bytes Data** TF TID Message Type Short seal status PK/P# Par Code Par Value Par Code Par Value 2 4 1 1 1 1 1 # of bytes

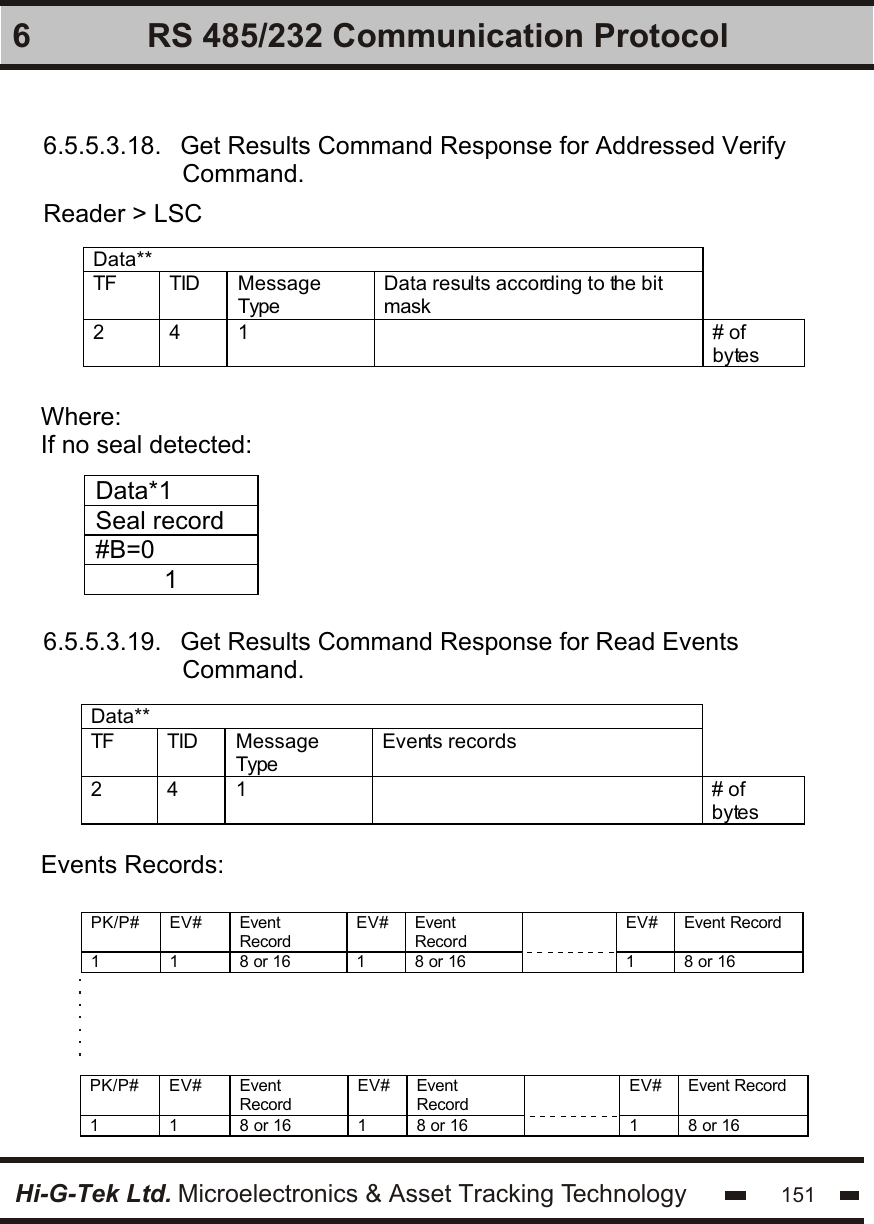

Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 1516 RS 485/232 Communication Protocol6.5.5.3.18. Get Results Command Response for Addressed Verify Command.6.5.5.3.19. Get Results Command Response for Read Events Command.Reader > LSCData** TF TID Message Type Data results according to the bit mask 2 4 1 # of bytes Where:If no seal detected:Data*1 Seal record #B=0 1 Data** TF TID Message Type Events records 2 4 1 # of bytes Events Records: PK/P# EV# Event Record EV# Event Record EV# Event Record 1 1 8 or 16 1 8 or 16 1 8 or 16 PK/P# EV# Event Record EV# Event Record EV# Event Record 1 1 8 or 16 1 8 or 16 1 8 or 16

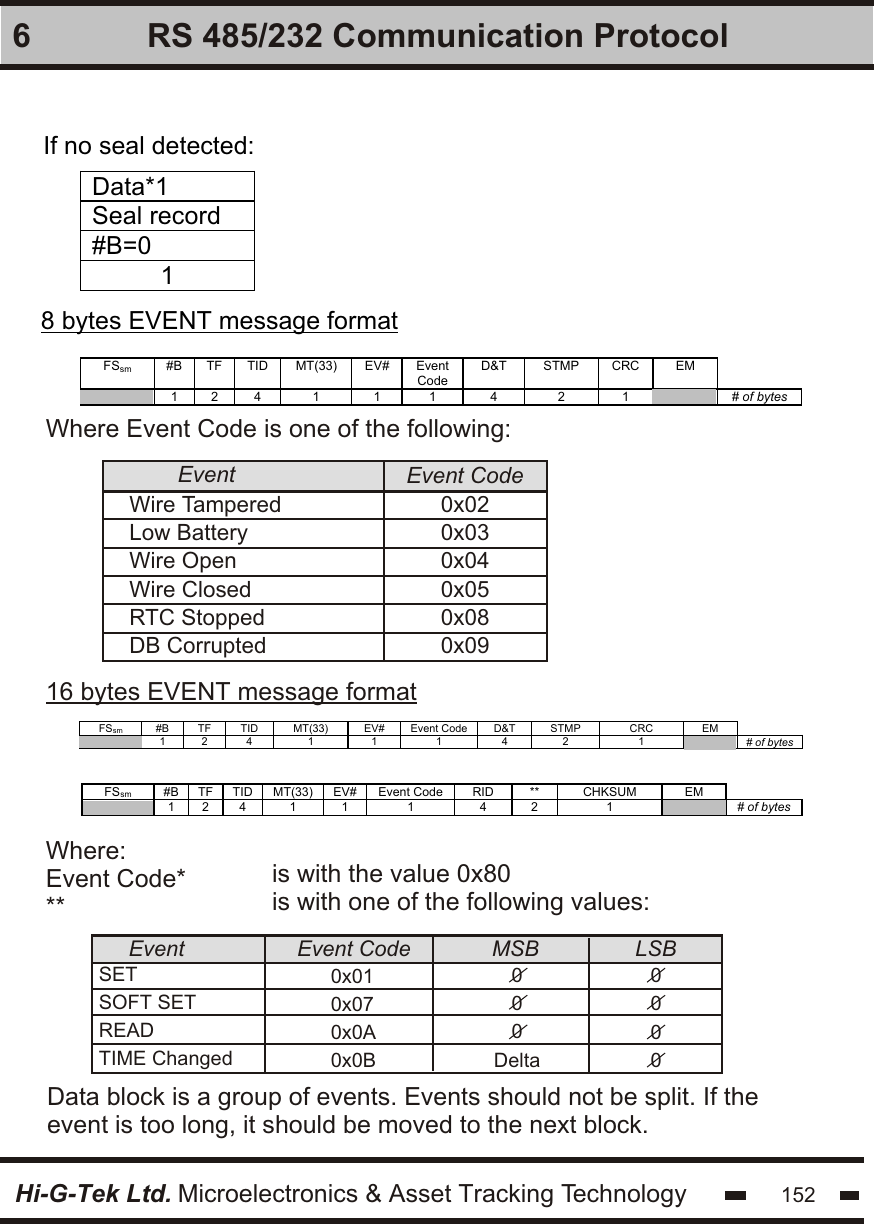

Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 1526 RS 485/232 Communication ProtocolFSsm #B TF TID MT(33) EV# Event Code D&T STMP CRC EM 1 2 4 1 1 1 4 2 1 # of bytes FSsm #B TF TID MT(33) EV# Event Code RID ** CHKSUM EM 1 2 4 1 1 1 4 2 1 # of bytes 16 bytes EVENT message formatWhere:Event Code***is with the value 0x80is with one of the following values:Data block is a group of events. Events should not be split. If the event is too long, it should be moved to the next block.If no seal detected: Data*1 Seal record #B=0 1 8 bytes EVENT message formatFSsm #B TF TID MT(33) EV# Event Code D&T STMP CRC EM 1 2 4 1 1 1 4 2 1 # of bytes Where Event Code is one of the following:Event Event CodeWire TamperedLow BatteryWire OpenWire ClosedRTC StoppedDB Corrupted0x020x030x040x050x080x09Event Event Code MSB LSBSETSOFT SETREADTIME Changed0x010x070x0A0x0B000Delta0000

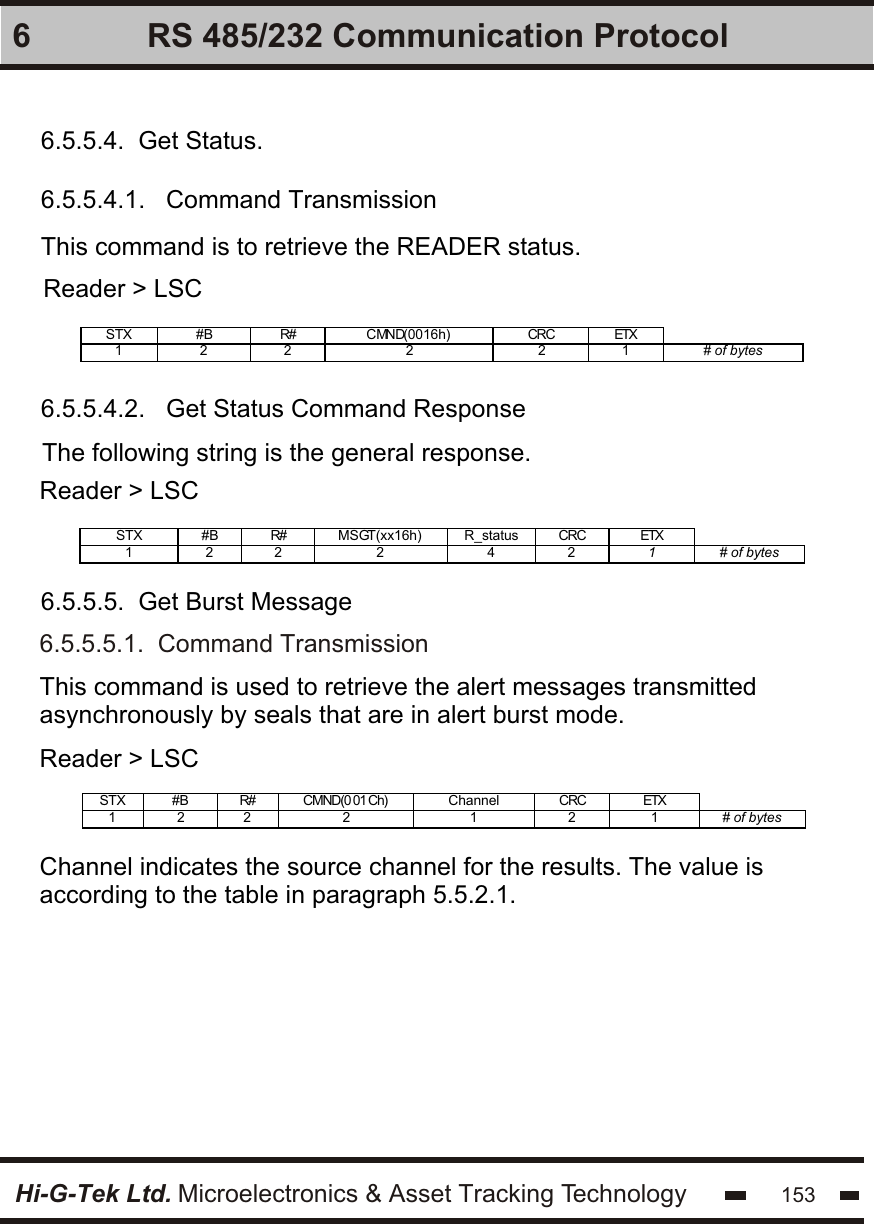

Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 1536 RS 485/232 Communication Protocol6.5.5.4. Get Status.6.5.5.5. Get Burst Message6.5.5.4.1. Command Transmission6.5.5.4.2. Get Status Command ResponseThis command is to retrieve the READER status.Reader > LSCSTX #B R# CMND(0016h) CRC ETX 1 2 2 2 2 1 # of bytes The following string is the general response.Reader > LSCReader > LSCSTX #B R# MSGT(xx16h) R_status CRC ETX 1 2 2 2 4 2 1 # of bytes 6.5.5.5.1. Command TransmissionThis command is used to retrieve the alert messages transmitted asynchronously by seals that are in alert burst mode.STX #B R# CMND(0 01 Ch) Channel CRC ETX 1 2 2 2 1 2 1 # of bytes Channel indicates the source channel for the results. The value is according to the table in paragraph 5.5.2.1.

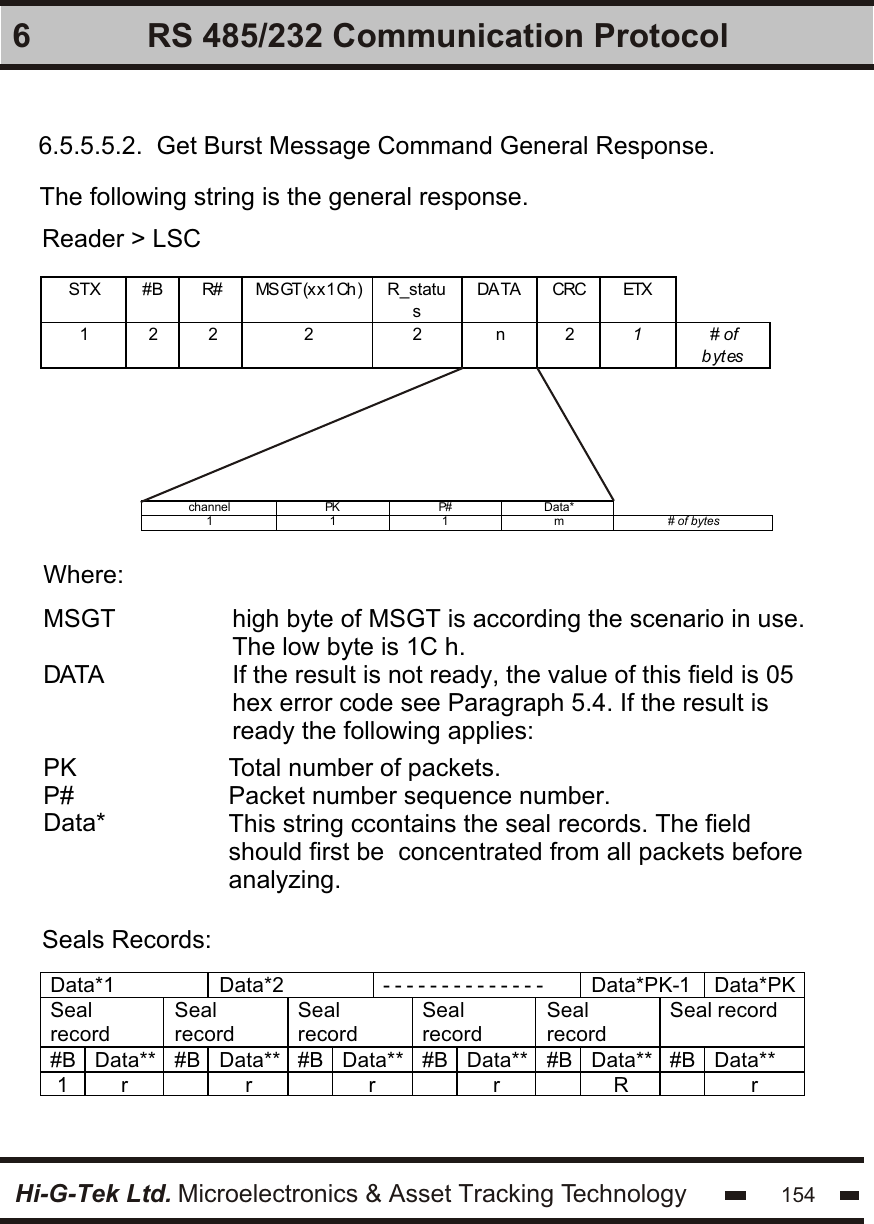

Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 1546 RS 485/232 Communication Protocol6.5.5.5.2. Get Burst Message Command General Response.The following string is the general response.Reader > LSCSTX #B R# MSGT(xx1Ch) R_status DA TA CRC ETX 1 2 2 2 2 n 2 1 # of bytes channel PK P# Data* 1 1 1 m # of bytes Where:high byte of MSGT is according the scenario in use.The low byte is 1C h.If the result is not ready, the value of this field is 05hex error code see Paragraph 5.4. If the result isready the following applies: Total number of packets.Packet number sequence number.This string ccontains the seal records. The field should first be concentrated from all packets before analyzing.Seals Records:Data*1 Data*2 - - - - - - - - - - - - - - Data*PK-1 Data*PK Seal record Seal record Seal record Seal record Seal record Seal record #B Data** #B Data** #B Data** #B Data** #B Data** #B Data** 1 r r r r R r MSGT DATA PKP#Data*

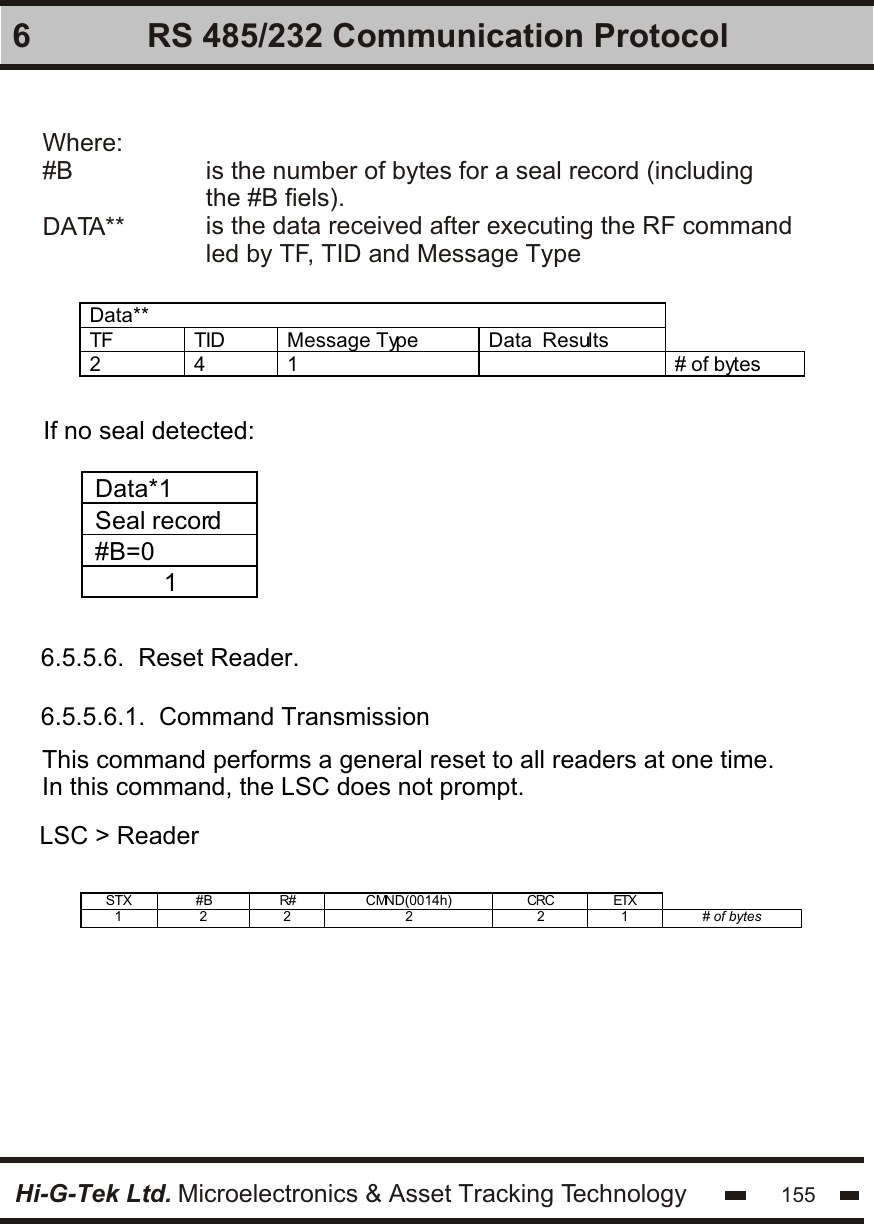

Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 1556 RS 485/232 Communication ProtocolData** TF TID Message Type Data Results 2 4 1 # of bytes If no seal detected:Data*1 Seal record #B=0 1 6.5.5.6. Reset Reader.6.5.5.6.1. Command TransmissionThis command performs a general reset to all readers at one time.In this command, the LSC does not prompt.LSC > ReaderSTX #B R# CMND(0014h) CRC ETX 1 2 2 2 2 1 # of bytes Where:#BDATA**is the number of bytes for a seal record (includingthe #B fiels).is the data received after executing the RF commandled by TF, TID and Message Type

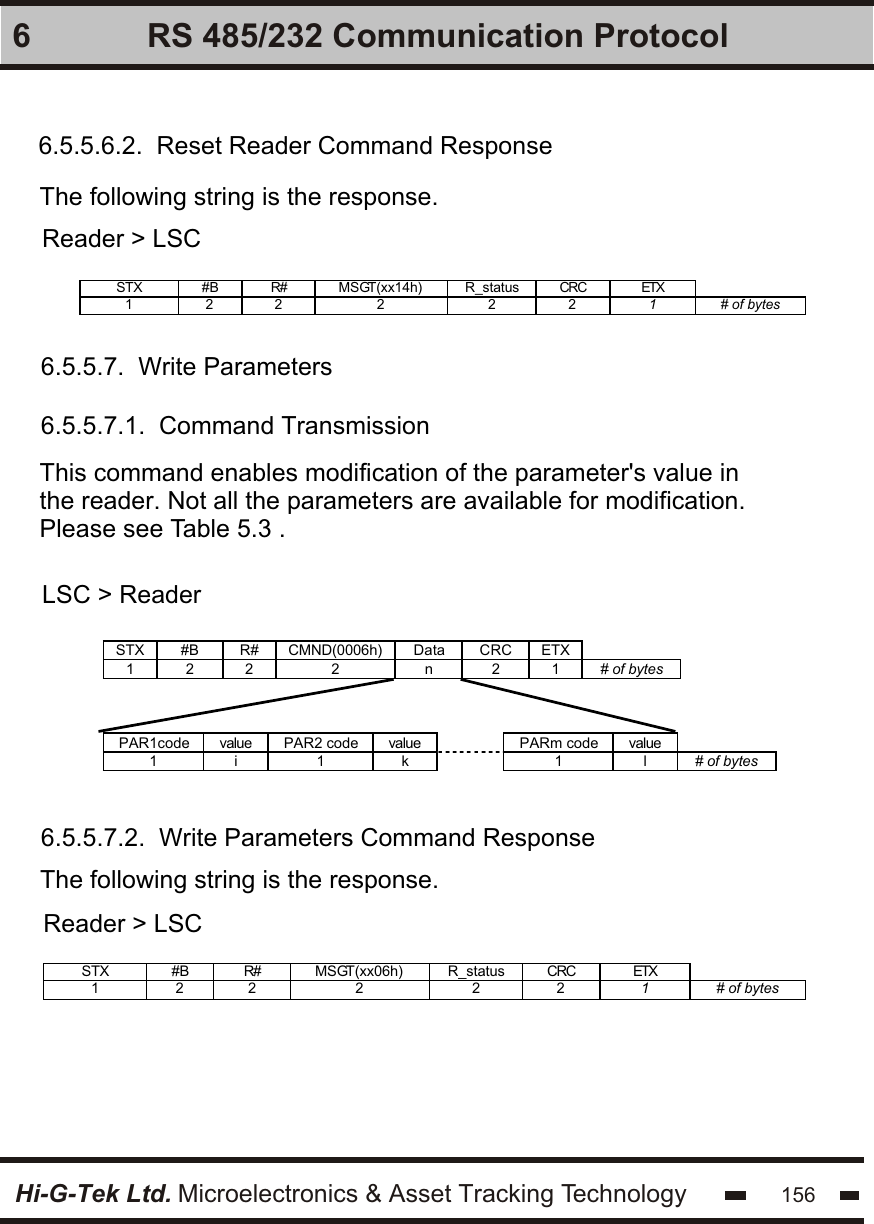

Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 1566 RS 485/232 Communication Protocol6.5.5.6.2. Reset Reader Command ResponseThe following string is the response.Reader > LSCLSC > ReaderSTX #B R# MSGT(xx14h) R_status CRC ETX 1 2 2 2 2 2 1 # of bytes 6.5.5.7. Write Parameters6.5.5.7.1. Command Transmission6.5.5.7.2. Write Parameters Command ResponseThis command enables modification of the parameter's value in the reader. Not all the parameters are available for modification. Please see Table 5.3 .STX #B R# CMND(0006h) Data CRC ETX 1 2 2 2 n 2 1 # of bytes PAR1code value PAR2 code value PARm code value 1 i 1 k 1 l # of bytes The following string is the response.Reader > LSCSTX #B R# MSGT(xx06h) R_status CRC ETX 1 2 2 2 2 2 1 # of bytes

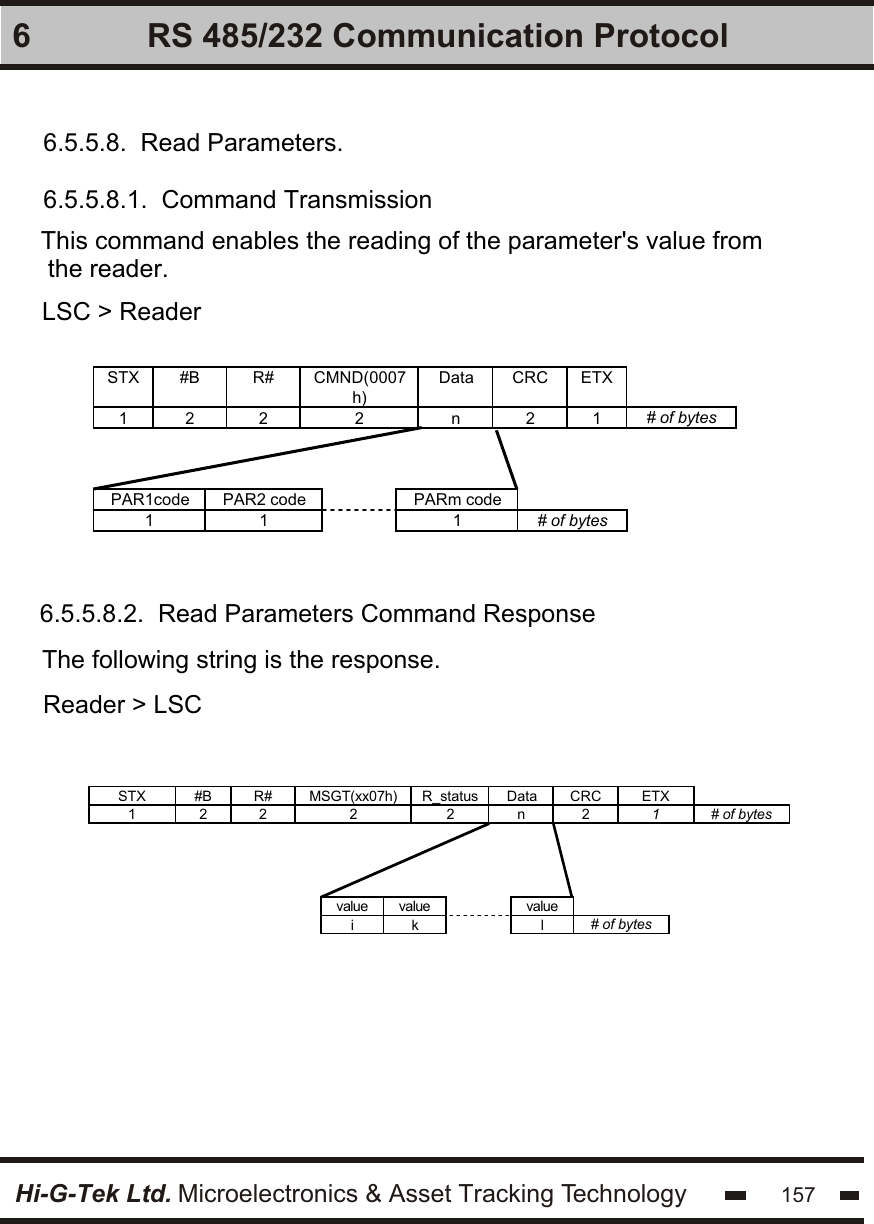

Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 1576 RS 485/232 Communication Protocol6.5.5.8. Read Parameters.6.5.5.8.1. Command TransmissionThis command enables the reading of the parameter's value from the reader.LSC > Reader STX #B R# CMND(0007h) Data CRC ETX 1 2 2 2 n 2 1 # of bytes PAR1code PAR2 code PARm code 1 1 1 # of bytes 6.5.5.8.2. Read Parameters Command ResponseThe following string is the response.Reader > LSC STX #B R# MSGT(xx07h) R_status Data CRC ETX 1 2 2 2 2 n 2 1 # of bytes value value value i k l # of bytes

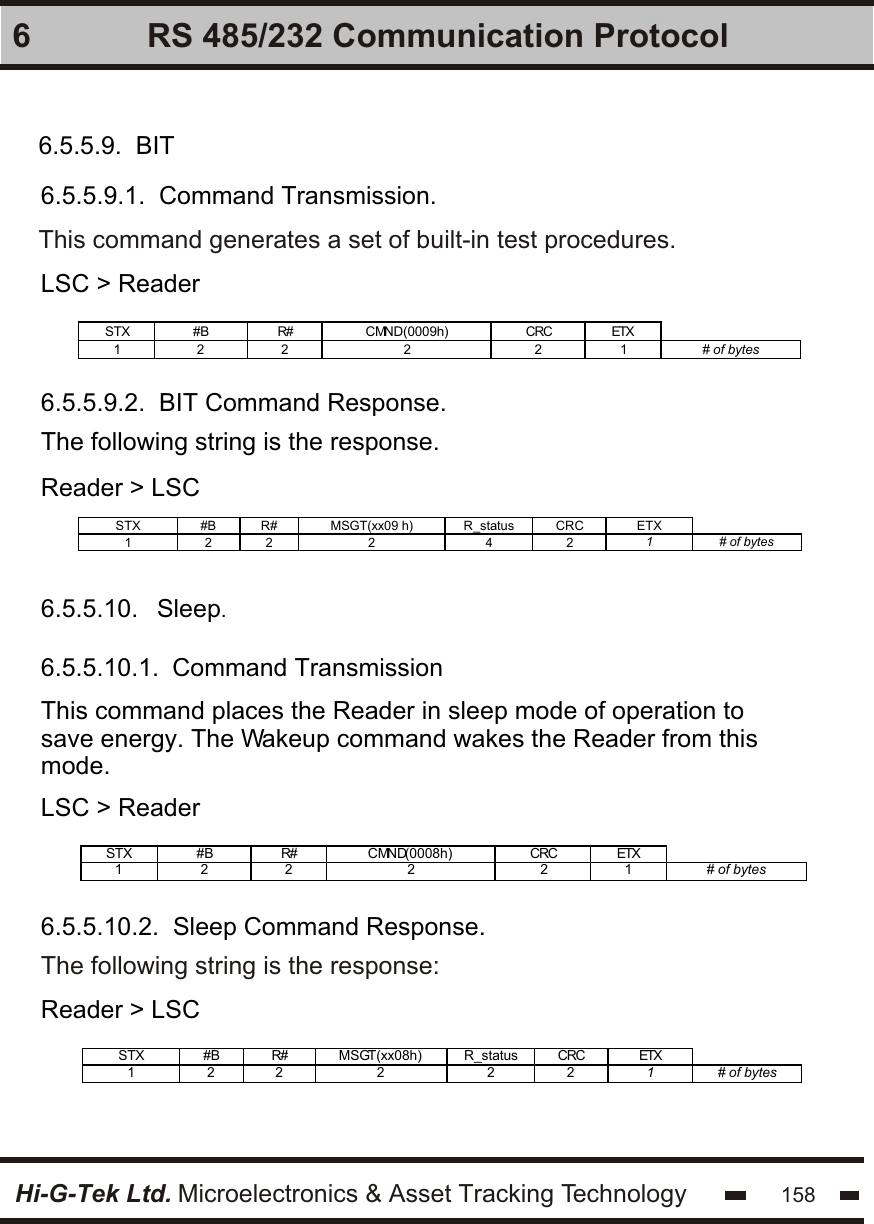

Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 1586 RS 485/232 Communication Protocol6.5.5.9. BIT6.5.5.9.1. Command Transmission.This command generates a set of built-in test procedures.LSC > ReaderSTX #B R# CMND(0009h) CRC ETX 1 2 2 2 2 1 # of bytes 6.5.5.9.2. BIT Command Response.The following string is the response.Reader > LSCSTX #B R# MSGT(xx09 h) R_status CRC ETX 1 2 2 2 4 2 1 # of bytes 6.5.5.10. Sleep.6.5.5.10.1. Command TransmissionThis command places the Reader in sleep mode of operation to save energy. The Wakeup command wakes the Reader from this mode.LSC > ReaderSTX #B R# CMND(0008h) CRC ETX 1 2 2 2 2 1 # of bytes 6.5.5.10.2. Sleep Command Response.The following string is the response:Reader > LSCSTX #B R# MSGT(xx08h) R_status CRC ETX 1 2 2 2 2 2 1 # of bytes

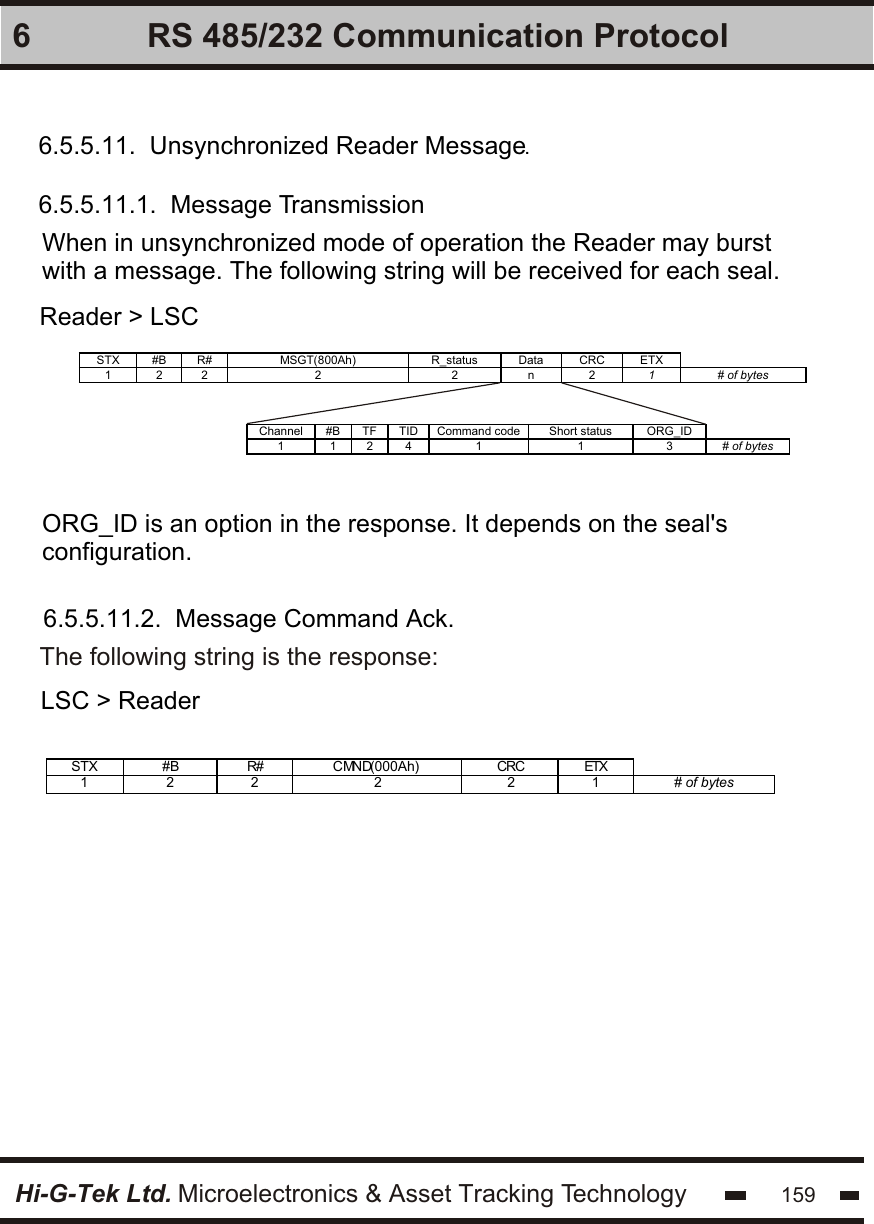

Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 1596 RS 485/232 Communication Protocol6.5.5.11. Unsynchronized Reader Message.6.5.5.11.1. Message TransmissionWhen in unsynchronized mode of operation the Reader may burst with a message. The following string will be received for each seal.Reader > LSC STX #B R# MSGT(800Ah) R_status Data CRC ETX 1 2 2 2 2 n 2 1 # of bytes Channel #B TF TID Command code Short status ORG_ID 1 1 2 4 1 1 3 # of bytes ORG_ID is an option in the response. It depends on the seal's configuration.6.5.5.11.2. Message Command Ack.The following string is the response:LSC > ReaderSTX #B R# CMND(000Ah) CRC ETX 1 2 2 2 2 1 # of bytes

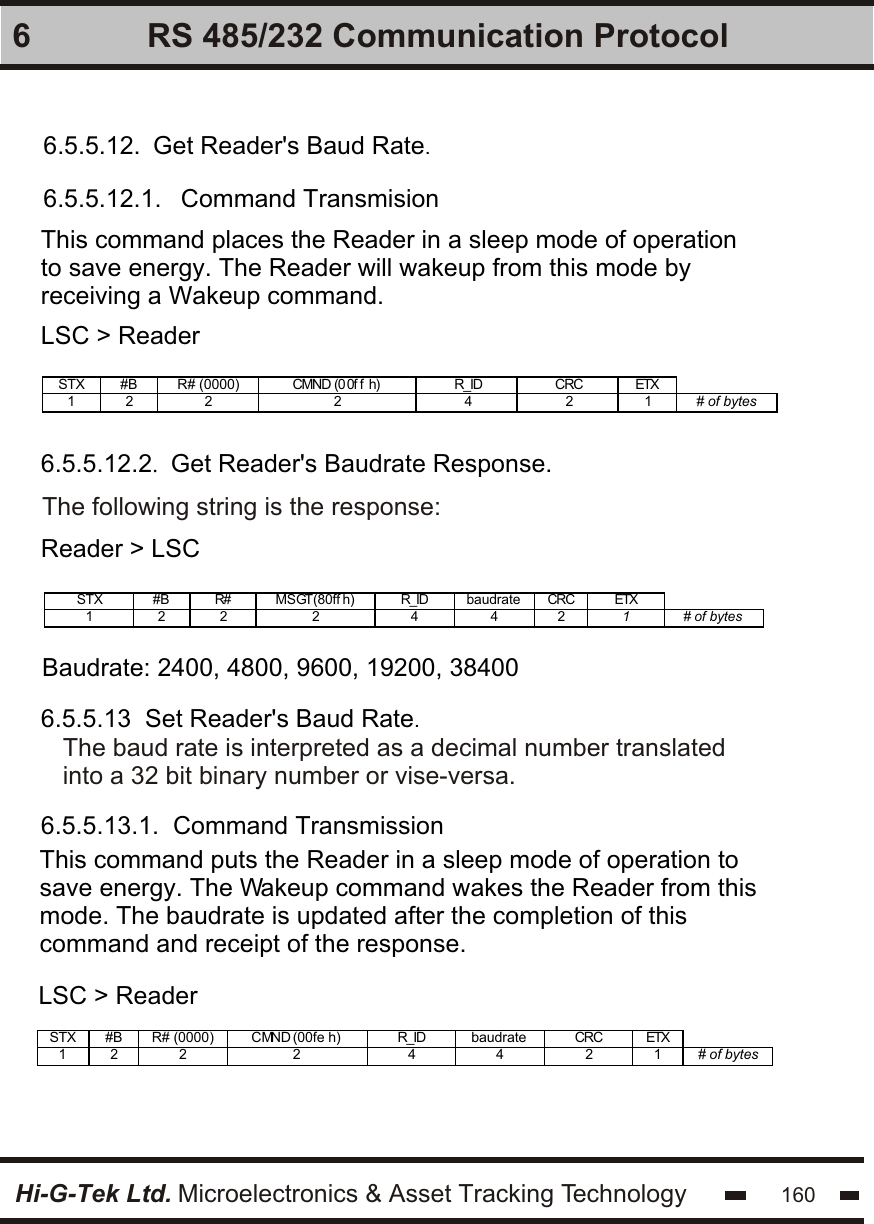

Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 1606 RS 485/232 Communication Protocol6.5.5.12. Get Reader's Baud Rate.6.5.5.12.1. Command TransmisionThis command places the Reader in a sleep mode of operation to save energy. The Reader will wakeup from this mode by receiving a Wakeup command.LSC > ReaderSTX #B R# (0000) CMND (0 0f f h) R_ID CRC ETX 1 2 2 2 4 2 1 # of bytes 6.5.5.12.2. Get Reader's Baudrate Response.The following string is the response:Reader > LSCSTX #B R# MSGT(80ff h) R_ID baudrate CRC ETX 1 2 2 2 4 4 2 1 # of bytes Baudrate: 2400, 4800, 9600, 19200, 384006.5.5.13 Set Reader's Baud Rate.6.5.5.13.1. Command TransmissionThis command puts the Reader in a sleep mode of operation to save energy. The Wakeup command wakes the Reader from this mode. The baudrate is updated after the completion of this command and receipt of the response.LSC > ReaderSTX #B R# (0000) CMND (00fe h) R_ID baudrate CRC ETX 1 2 2 2 4 4 2 1 # of bytes The baud rate is interpreted as a decimal number translated into a 32 bit binary number or vise-versa.

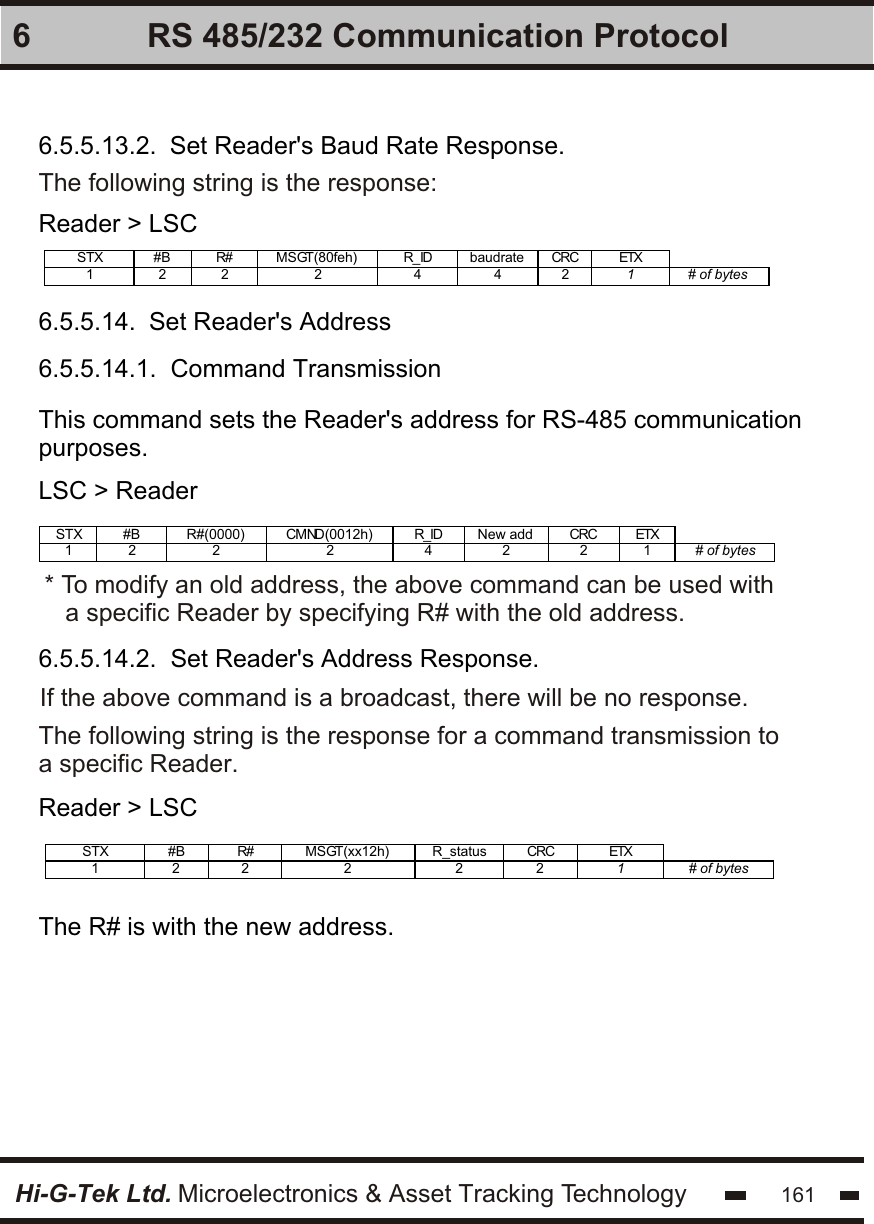

Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 1616 RS 485/232 Communication Protocol6.5.5.13.2. Set Reader's Baud Rate Response.6.5.5.14. Set Reader's Address6.5.5.14.1. Command Transmission6.5.5.14.2. Set Reader's Address Response.The following string is the response:Reader > LSCSTX #B R# MSGT(80feh) R_ID baudrate CRC ETX 1 2 2 2 4 4 2 1 # of bytes This command sets the Reader's address for RS-485 communicationpurposes.LSC > ReaderSTX #B R#(0000) CMND(0012h) R_ID New add CRC ETX 1 2 2 2 4 2 2 1 # of bytes The following string is the response for a command transmission to a specific Reader.Reader > LSCSTX #B R# MSGT(xx12h) R_status CRC ETX 1 2 2 2 2 2 1 # of bytes The R# is with the new address.* To modify an old address, the above command can be used with a specific Reader by specifying R# with the old address. If the above command is a broadcast, there will be no response.

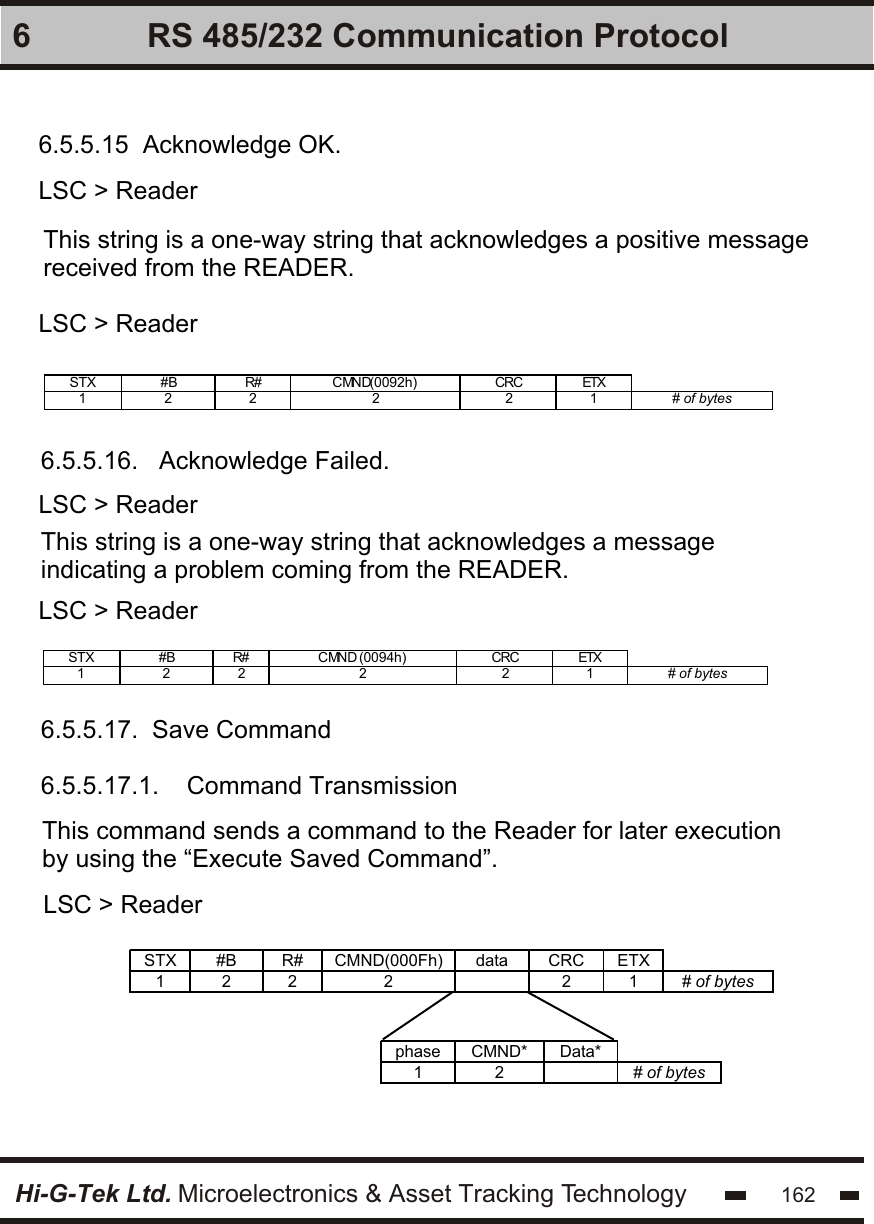

Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 1626 RS 485/232 Communication Protocol6.5.5.15 Acknowledge OK.LSC > ReaderLSC > ReaderLSC > ReaderLSC > ReaderThis string is a one-way string that acknowledges a positive message received from the READER.STX #B R# CMND(0092h) CRC ETX 1 2 2 2 2 1 # of bytes 6.5.5.16. Acknowledge Failed.6.5.5.17. Save Command6.5.5.17.1. Command TransmissionThis string is a one-way string that acknowledges a message indicating a problem coming from the READER.STX #B R# CMND (0094h) CRC ETX 1 2 2 2 2 1 # of bytes This command sends a command to the Reader for later execution by using the “Execute Saved Command”.LSC > Reader STX #B R# CMND(000Fh) data CRC ETX 1 2 2 2 2 1 # of bytes phase CMND* Data* 1 2 # of bytes

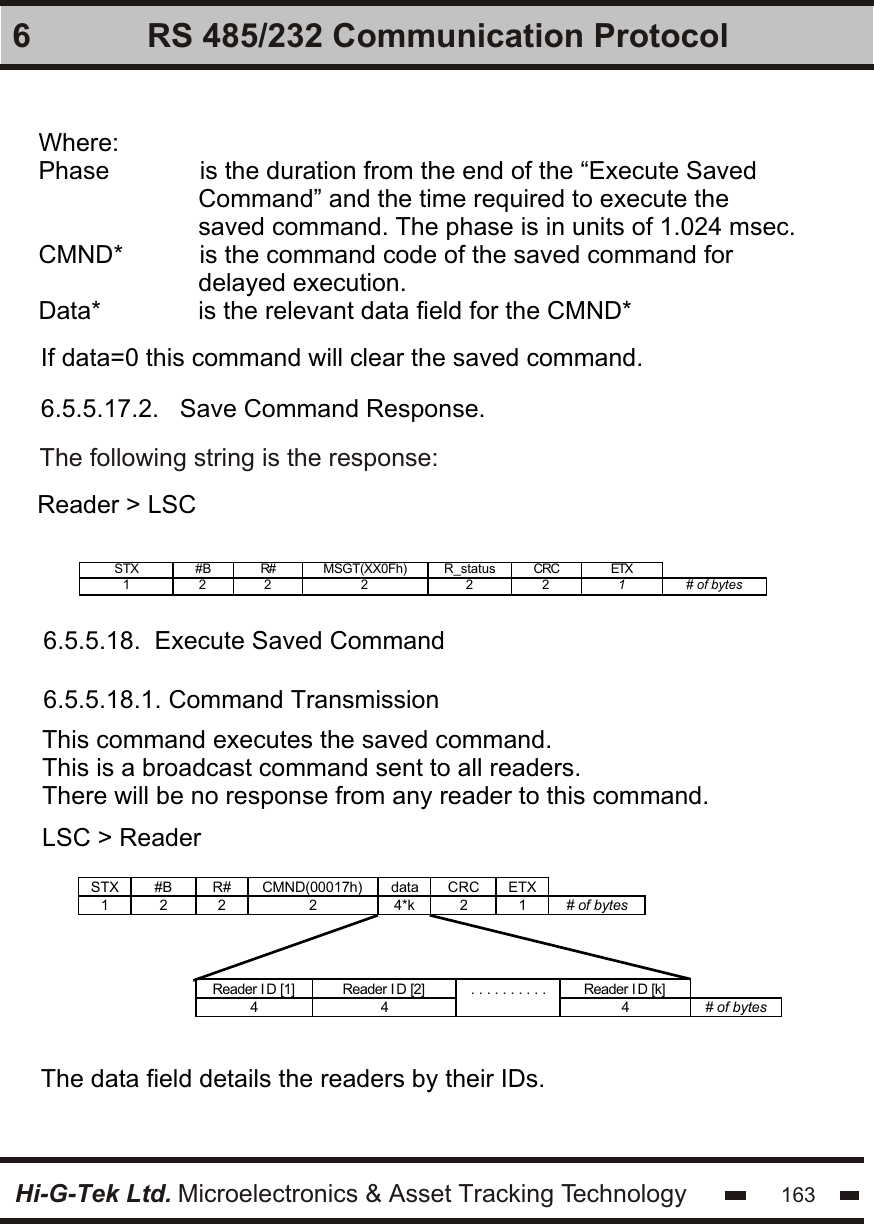

Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 1636 RS 485/232 Communication ProtocolWhere:Phase is the duration from the end of the “Execute Saved Command” and the time required to execute the saved command. The phase is in units of 1.024 msec.CMND* is the command code of the saved command for delayed execution.Data* is the relevant data field for the CMND*If data=0 this command will clear the saved command.6.5.5.17.2. Save Command Response.The following string is the response:Reader > LSCSTX #B R# MSGT(XX0Fh) R_status CRC ETX 1 2 2 2 2 2 1 # of bytes 6.5.5.18. Execute Saved Command6.5.5.18.1. Command TransmissionThis command executes the saved command.This is a broadcast command sent to all readers.There will be no response from any reader to this command.LSC > Reader STX #B R# CMND(00017h) data CRC ETX 1 2 2 2 4*k 2 1 # of bytes Reader I D [1] Reader I D [2] Reader I D [k] 4 4 . . . . . . . . . . 4 # of bytes The data field details the readers by their IDs.

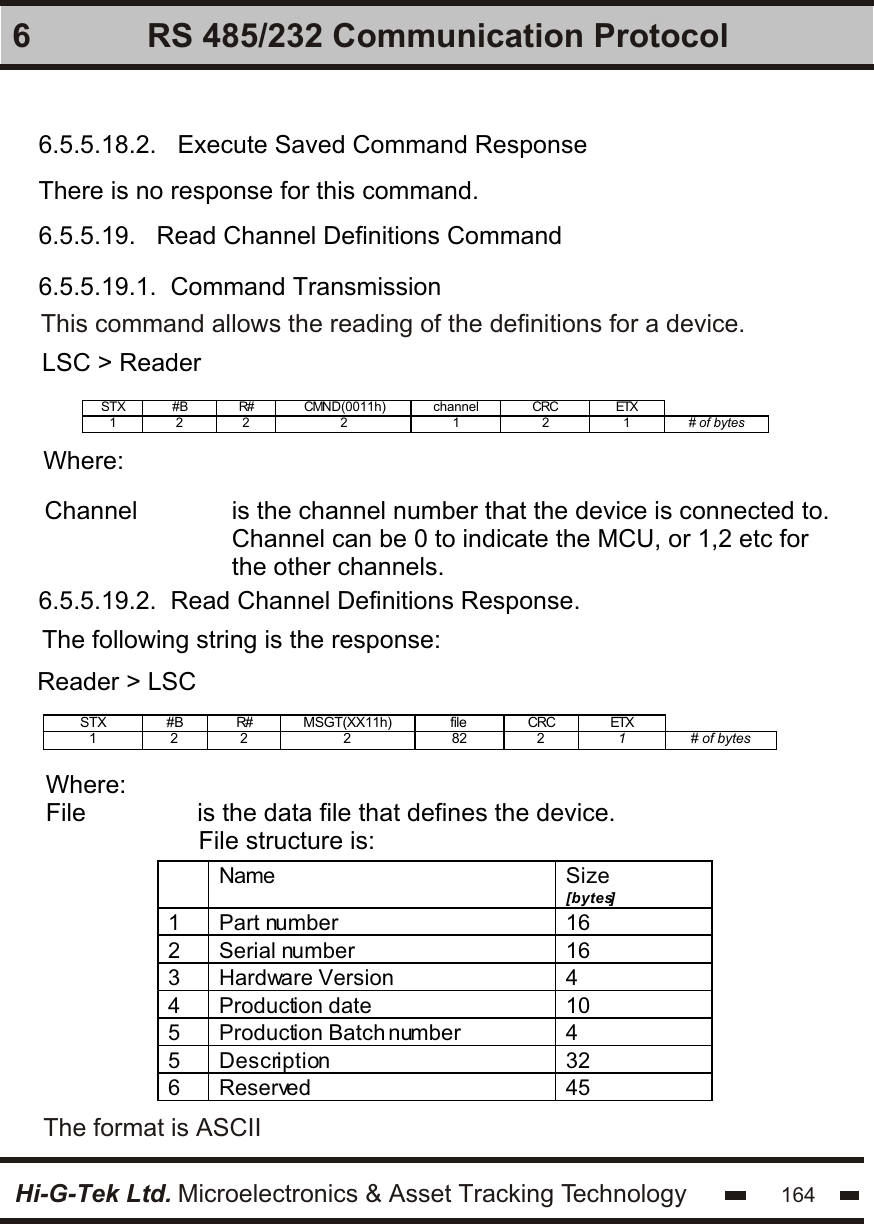

Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 1646 RS 485/232 Communication Protocol6.5.5.18.2. Execute Saved Command Response6.5.5.19. Read Channel Definitions Command6.5.5.19.1. Command Transmission6.5.5.19.2. Read Channel Definitions Response.There is no response for this command.This command allows the reading of the definitions for a device.LSC > ReaderSTX #B R# CMND(0011h) channel CRC ETX 1 2 2 2 1 2 1 # of bytes is the channel number that the device is connected to.Channel can be 0 to indicate the MCU, or 1,2 etc for the other channels.The following string is the response:Reader > LSCSTX #B R# MSGT(XX11h) file CRC ETX 1 2 2 2 82 2 1 # of bytes Where:File is the data file that defines the device. File structure is: Name Size [bytes] 1 Part number 16 2 Serial number 16 3 Hardware Version 4 4 Production date 10 5 Production Batch number 4 5 Description 32 6 Reserved 45 The format is ASCIIChannel Where:

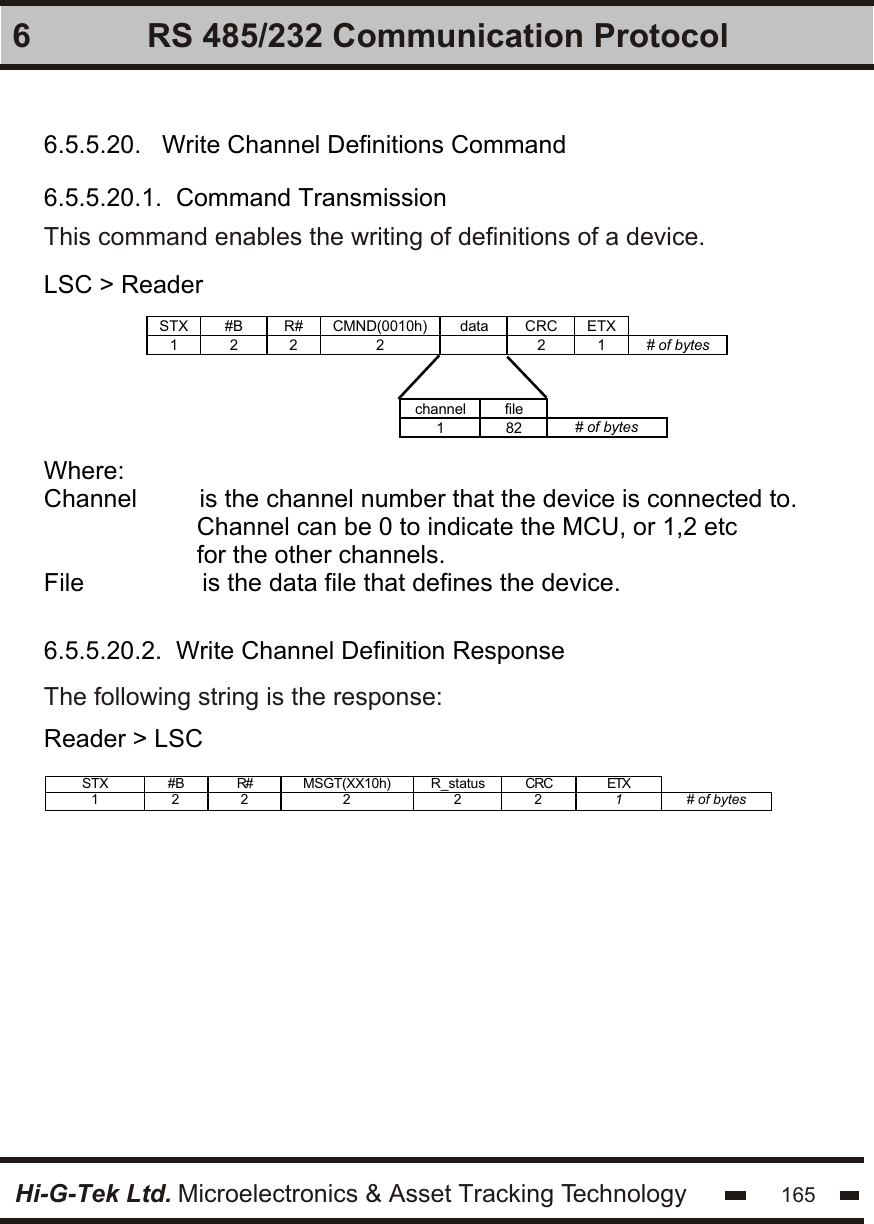

Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 1656 RS 485/232 Communication Protocol6.5.5.20. Write Channel Definitions Command6.5.5.20.1. Command Transmission6.5.5.20.2. Write Channel Definition ResponseThis command enables the writing of definitions of a device.LSC > Reader STX #B R# CMND(0010h) data CRC ETX 1 2 2 2 2 1 # of bytes channel file 1 82 # of bytes Where:Channel is the channel number that the device is connected to. Channel can be 0 to indicate the MCU, or 1,2 etc for the other channels.File is the data file that defines the device.The following string is the response:Reader > LSCSTX #B R# MSGT(XX10h) R_status CRC ETX 1 2 2 2 2 2 1 # of bytes
Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology 1666 RS 485/232 Communication Protocol
