Hi G Tek IGST51433 ISO 18000-7 SENSOR TRANSPONDER User Manual

Hi-G-Tek Ltd ISO 18000-7 SENSOR TRANSPONDER Users Manual

Users Manual

ProprietaryNotice
ThisdocumentcontainsHi‐G‐TekInc.proprietaryconfidentialinformationandmaynotbeusedor
disclosedtootherpartiesinwholeorinpartwithoutpriorwrittenauthorizationfromHi‐G‐TekInc.
UM4903_Rev1.1
18.7SecureSeriesTags
Sensor
Transponder
CLIN:0004FA,0006FA
Installation&OperationManual
Unisys
Delivering Global Visibility.
Installation&Operation:SensorTransponder
UM4903_Rev1.1 Page3of12
DisclaimerandLimitationofLiability
Hi‐G‐TekInc.affiliates,officers,directors,employeesandagentsprovidetheinformationcontainedinthis
Manualonan“as‐is”basisanddonotmakeanyexpressorimpliedwarrantiesorrepresentationswith
respecttosuchinformationincluding,withoutlimitation,warrantiesastonon‐infringement,reliability,
fitnessforaparticularpurposeorapplication,usefulness,completenessoraccuracy.
Hi‐G‐TekInc.shallnotinanycircumstancesbeliabletoanypersonforanyspecial,incidental,indirector
consequentialdamages,includingwithoutlimitation,damagesresultingfromuseoforrelianceon
informationpresentedherein,orlossofprofitsorrevenuesorcostsofreplacementgoods,evenif
informedinadvanceofthepossibilityofsuchdamages.
CopyrightNotice
Allrightsreserved.
Nopartofthisdocumentmaybereproducedortransmittedinanyformbyanymeans,photographic,
electronic,mechanicalorotherwise,orusedinanyinformationstorageandretrievalsystem,withoutthe
priorwrittenpermissionofHi‐G‐TekInc.
Thisdocumentissubjecttochangewithoutpriornotice.
ATTENTION
•ThisHi‐G‐Tekproductisdesignedforcommercial/industrialuseonly,andshouldonlybehandledby
personnelauthorizedbyHi‐G‐Tekrepresentatives.
•InstallationmustbeperformedaccordingtothisGuide.
•Usingonlycertifiedantennas:Itistheresponsibilityoftheinstallertoensurethatwhenusingtheoutdoor
antennakitsintheUnitedStates(orwhereFCCrulesapply),onlythoseantennascertifiedwiththeproductare
used.
•Theuseofanyantennaotherthanthosecertifiedwiththeproductisexpresslyforbiddeninaccordancewith
FCCrulesCFR47part15.204andpart15.203.
TheFCCWantsYoutoKnow
ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,pursuanttoPart
15oftheFCCrules.Theselimitsaredesignedtoprovidereasonableprotectionagainstharmfulinterferenceina
residentialinstallation.Thisequipmentgenerates,usesandcanradiateradiofrequencyenergyand,ifnot
installedandusedinaccordancewiththeinstructions,maycauseharmfulinterferencetoradio
communications.However,thereisnoguaranteethatinterferencewillnotoccurinaparticularinstallation.
Ifthisequipmentdoescauseharmfulinterferencetoradioortelevisionreception,whichcanbedeterminedby
turningtheequipmentoffandon,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreofthe
followingmeasures:
a)Reorientorrelocatethereceivingantenna.
b)Increasetheseparationbetweentheequipmentandreceiver.
c)Connecttheequipmenttoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected.
d)Consultthedealeroranexperiencedradio/TVtechnician.
Installation&Operation:SensorTransponder
UM4903_Rev1.1 Page4of12
FCCWarning
Modificationsnotexpresslyapprovedbythemanufacturercouldvoidtheuserauthoritytooperatethe
equipmentunderFCCRules.
Instructionsconcerninghumanexposuretoradiofrequencyelectromagneticfields:
Adistanceofatleast20cm.betweentheequipmentandallpersonsshouldbemaintainedduringtheoperationof
theequipment.
FCCID:OB6‐IGST51433
SensorTransponder–IG‐ST‐51‐433,CLIN#0004FA
SpareParts
Hi‐G‐Tekrecommendsthatonlyoriginalproducts,spareandreplacementpartsauthorizedbyHi‐G‐Tek
Inc.beusedforinstallation,serviceandrepair.
Hi‐G‐TekInc.doesnotacceptanyresponsibilityandwillnotbeliableforanyconsequencesdueto
impropermaterialsused.
Hi‐G‐Tek,Inc.
1445ResearchBlvd.
Suite150
Rockville,MD20850
USA
info@higtek.com
Office:+1‐301‐279‐0022
Fax:+1‐301‐279‐0055
Installation&Operation:SensorTransponder
UM4903_Rev1.1 Page5of12
TableofContent
1 Introduction......................................................................................................................................................6
2 Functionaldescription.................................................................................................................................6
3 Installation.........................................................................................................................................................7
3.1 Preparingfordeployment.................................................................................................................7
3.2 MountingtheTransponder..............................................................................................................8
4 Operation...........................................................................................................................................................9
4.1 LampTest.................................................................................................................................................9
5 TechnicalSpecifications............................................................................................................................10
ListofFigures
Figure1:SensorTransponder............................................................................................................................6
Figure2:Installingthebattery...........................................................................................................................7
Figure3:Magneticmountingoftransponder..............................................................................................8
Figure4:Usingamountingattachment.........................................................................................................8
Installation&Operation:SensorTransponder
UM4903_Rev1.1 Page6of12
1 I
In
nt
tr
ro
od
du
uc
ct
ti
io
on
n
TheSecureSeries18000‐7SensorTransponderCLIN#0004FAisanactiveRFIDtagfor
monitoringgoodseitherinyardlocationsorintransit.

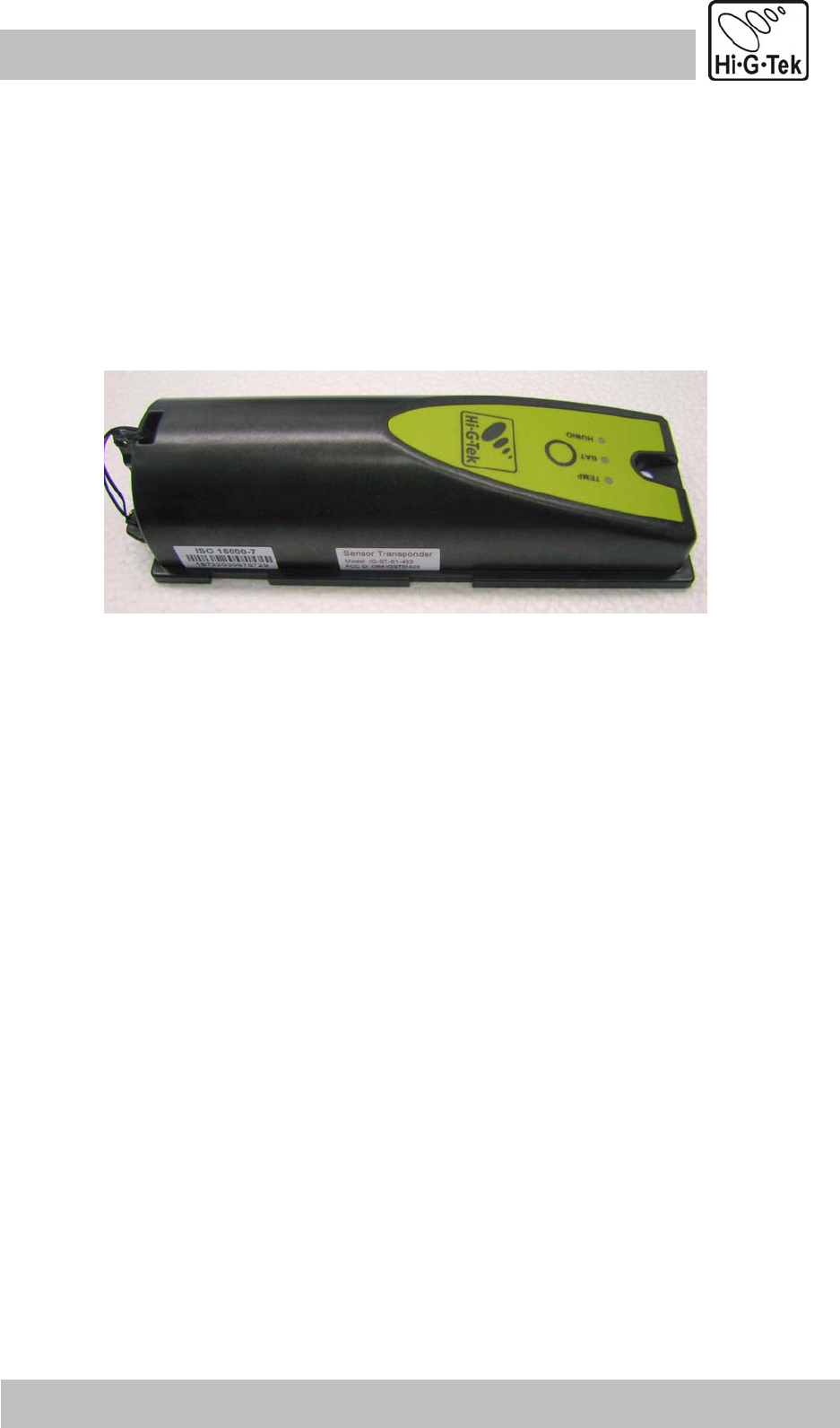

Figure1:SensorTransponder
Thetransponderisdesignedtobemagneticallyattachedtometallicsurfacesorbe
mountedonapoleorsimilarposts.
TheSensorTransponderisequippedwithenvironmentcontrolsensorsforclimate
controlofsensitivegoodsstoredincontainer.
2 F
Fu
un
nc
ct
ti
io
on
na
al
l
d
de
es
sc
cr
ri
ip
pt
ti
io
on
n
TheSensorTransponderoperatesinthe433.92MHzUHFband.
TheTransponderhasenvironmentalsensorsthatinclude:
• Temperaturesensor:MonitorsTemperatureinsidecontainer.
• Humiditysensor:Monitorshumidityinsidecontainer.
Allthesensorsincludeindicationsforactivation/deactivationandalarmstatus.
Theindicatorscolorsare:
• Greencolordesignatesallnormalcondition.
• Redcolor–indicatesanalarmevent.
Eachsensorhasthresholdvalues–thatmaybeconfiguredbythecontrolsoftware.
ALEDtestbuttonfacilitatesvalidationofsensorstatus.
TheTransponderisbatterypowered,andrespondstostatusrequisitionsfromanearby
interrogator–locatedup100mfromthetransponder.
ControlofTransponder’sfeaturesandparametersisfacilitatedbycontrolsoftware.
AccesscontrolmaybeachievedeitherviaaninterrogatorunitordirectlybyUSB
connectiontoacontrolPC.
Installation&Operation:SensorTransponder
UM4903_Rev1.1 Page7of12
3 I
In
ns
st
ta
al
ll
la
at
ti
io
on
n
3.1 Preparingfordeployment
Beforedeployment,opentheSensorTransponderbatterycoverbyhalfrotatingit
counterclockwise.


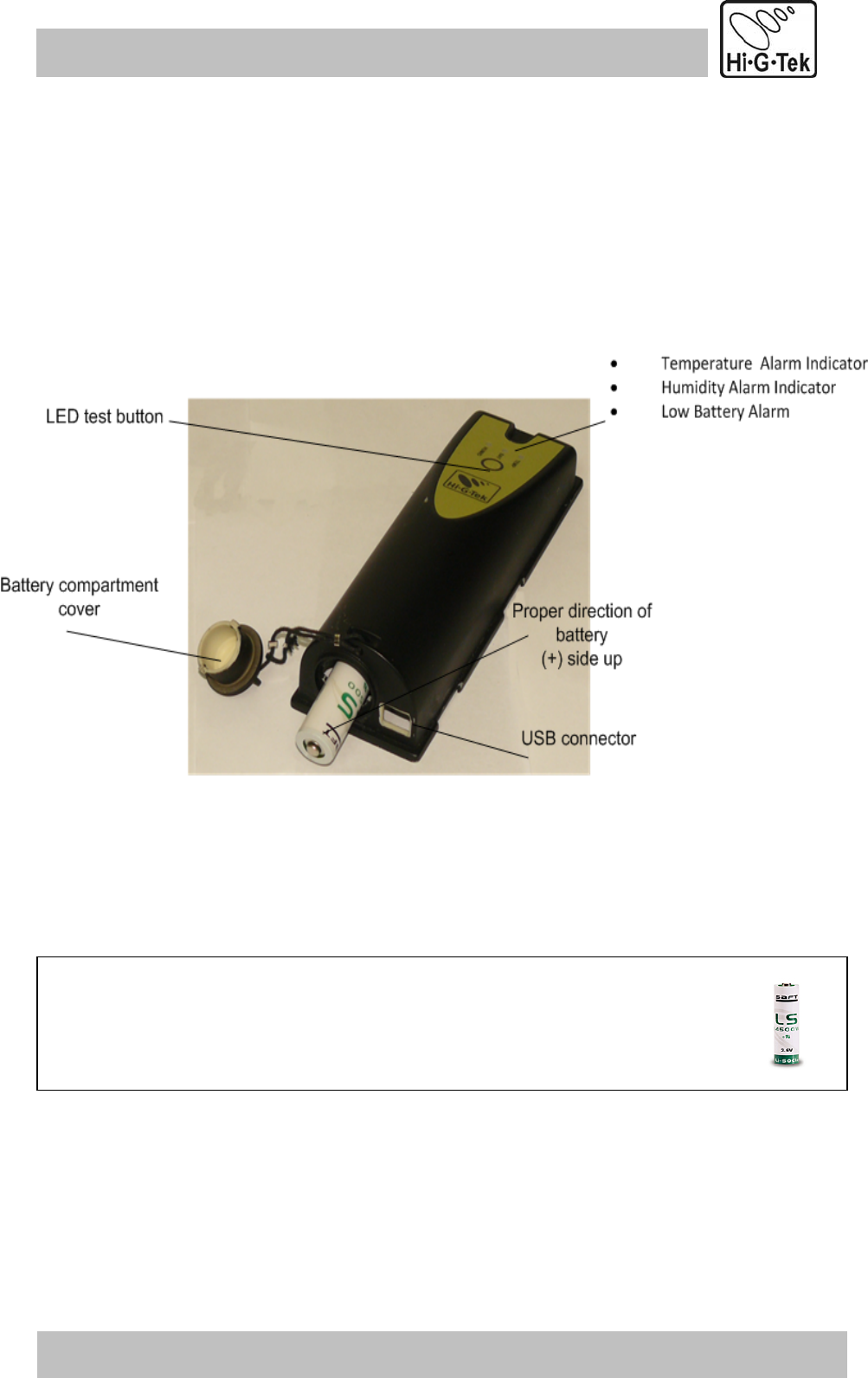

Figure2:Installingthebattery
Removethebatteryandplaceitbackwiththepolesreversed,(+)sideshouldpointout.
Whenyouhearashortbeep,thetransponderisactivatedandreadyforoperation.
Ifnobeepisheard,eitherthebatteryisnotproperlyorientedoritneedstobereplaced.
WhenpressingtheLEDtestbuttonforashortwhile,thetagwilldisplaythecurrent
Temp/Humidityalarmstatusasperits(configurable)alarmlogic,oncethetestbutton
ispressed,theLEDindicatorsshouldturnongreenandthenred,incaseofalarm,a
blinkinggreenwillappearinthecorrespondingalarmindicator.
Thetagalsoindicatesdepletedbatterywarning(batteryLEDturnsred)
Note:
Replacement of depleted Battery:
When required, use only size 3.6V Lithium Li-SOCl2 Non rechargeable batteries
Type LS 17500, manufactured by Saft Batteries.
Installation&Operation:SensorTransponder
UM4903_Rev1.1 Page8of12
3.2 MountingtheTransponder
• Option1:MagneticMountingslocatedontransponderbase–noattachments
needed.
Forlocationswithmetalsurfaces,thetransponderbyitselfcanbemagnetically
attachedtothesurface.

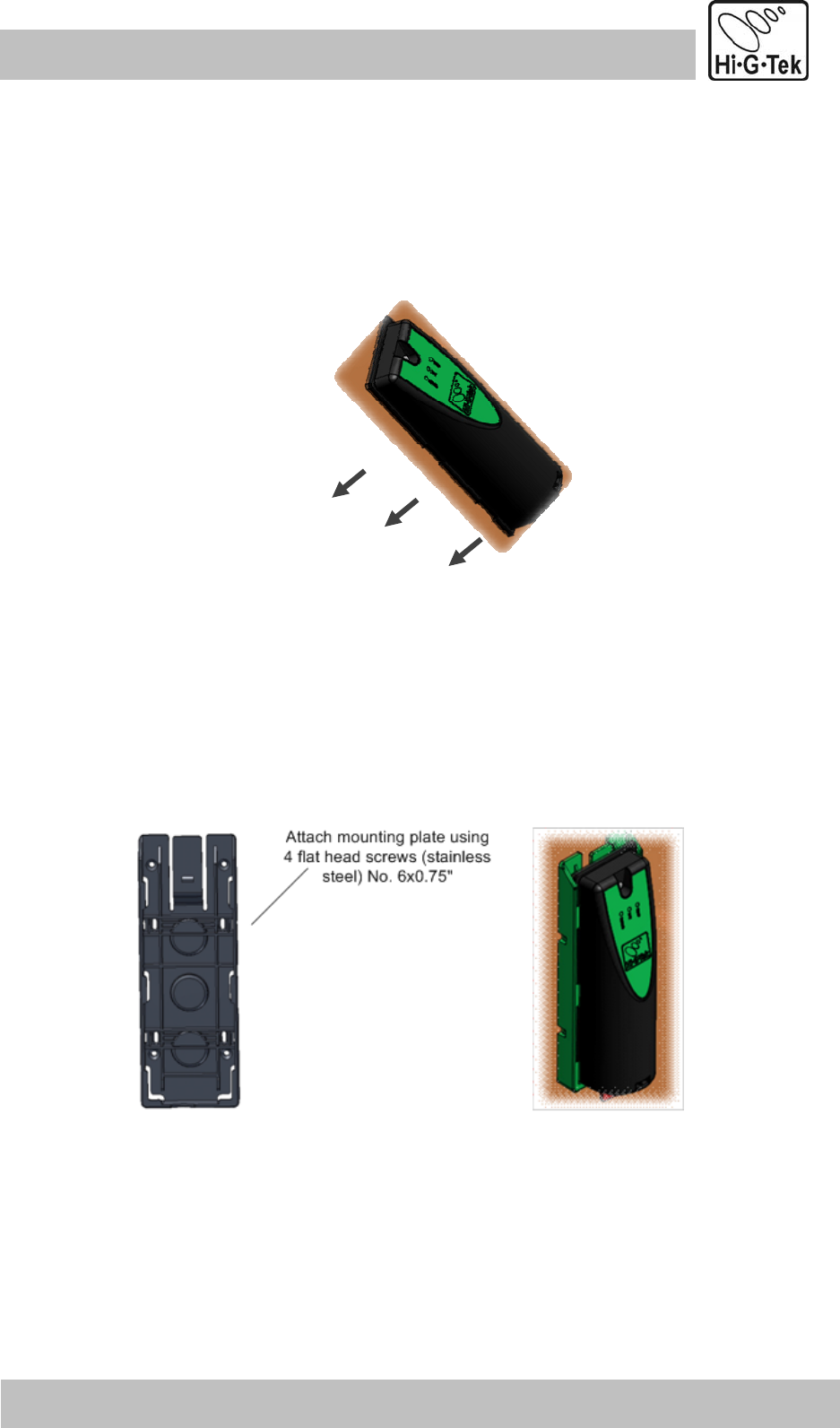

Figure3:Magneticmountingoftransponder
• Option2:MountingtransponderwithMountingBracket
Thetranspondercanutilizeamountingbracket,whichallowsforeasyremovaland
replacementoftransponder.
Attachthemountingbrackettotherequiredsurfaceusingzipties/orscrewsif
permitted–seeFigure4.
Slidethetransponderintothebracketandpresstopofbracketdownuntilthe
transponderissecurelysituated.
Figure4:Usingamountingattachment
3 magnet
Installation&Operation:SensorTransponder
UM4903_Rev1.1 Page9of12
4 O
Op
pe
er
ra
at
ti
io
on
n
TheTransponderoperatesonlyuponarequestfromtheinterrogatororwhenoperated
byacontrolPCconnectedtoitviaUSB.
4.1 LampTest
• presstheLEDtestbutton–seeFigure2.
• AlltheLEDSblinkredoncethenblinkoncegreenandthenblink3times
andshowsensorstatusasfollows:
Green:sensorisactive
Red:sensorhasdetectedanalarm(thedetectedsignalwasabove
thedefinedthresholdlevel)
Nolight:sensorisdisabled
Installation&Operation:SensorTransponder
UM4903_Rev1.1 Page10of12
5 T
Te
ec
ch
hn
ni
ic
ca
al
l
S
Sp
pe
ec
ci
if
fi
ic
ca
at
ti
io
on
ns
s
Communications
• Operatingfrequency
• OmniDirectional
read/writerange
433.92MHZ
Upto300feet(100meters)openspace
Memory
Memorysize 128Kbytesofavailabledatabasetablememory
Sensordatalogging 32Kbytesofmemoryforsensordatalogging
Dataretention Dataisstoredforaminimumoffiveyears
PowerRequirements
Battery
• Replaceable batteries, meet the requirements of the
DoDtransponderbatteryguidelines.
• Canbereplacedwithouttheneedforatool
• Supportsreversebatteryinsertionforbatterystorage
Batterytype 3.8VLithiumLi‐SOCl2batteries
Batterylife
3yearminimum
SerialCommunication
USB:forlocalaccessandconfiguration
Environmental
Operatingtemperature ‐30ºCto+70ºC
Storagetemperature ‐40ºCto+70ºC
Humidity 90%non‐condensing
Vibrationandshock ComplieswithMIL‐STD‐810Dformobile
Hardenedweatherproof ComplieswiththeIEC60529IP64rating
PhysicalDimensions
Size 185x60x50mm
Weight 250gr
Mountingbracket
Weight
185x68x17mm
160gr
Antenna Internal
Attachmentmethods:
• BracketwithmagneticmountgradeN28orhigher
• Mountingbracketwith4holesonbracketfortie
wrapattachment
Sensors
• Temperature
• Humidity
Installation&Operation:SensorTransponder
UM4903_Rev1.1 Page11of12
Indicators
• Audiblebeepindicatorforpoweron.
• Eachsensorhasitsindicationforactivation/deactivationandalarmstatus
• BatteryhasanindicationforbatteryOKandundervoltageindication
Standards
• FCCpart15subpartBclassB,subpartCsection15.231
• CompliantwithISO18000‐7:2008standardsandtheDoDinteroperabilityguidelines
• Hazardousenvironment:CertifiedasNon‐Incendive(NI)foroperationin
environmentwhereflammableandexplosivegasesandvaporsmaybepresent
• CompliantwithHEROenvironmenttestingat1‐inchseparation
• ComplieswithapplicableDoD,nationalandinternationalspectrummanagement
policiesandregulationstoincludespectrumcertificationsinaccordancewithDoD
Directive4650.1“ManagementanduseoftheRadioFrequencySpectrum”andDoD
Directive5000.1
Installation&Operation:SensorTransponder
UM4903_Rev1.1 Page12of12
