Technobeam® User Manual i
User Manual
© High End Systems, Inc. 1998, All Rights Reserved
Information and Specifications in this document are subject to change without notice.
High End Systems, Inc. assumes no responsibility or liability for any errors or
inaccuracies that may appear in this manual. The system software for the Status Cue®
lighting console described in this manual is furnished under a license agreement and
may be used or copied only in accordance with the terms of the agreement.
Technobeam User Manual
P/N 60600115 Version 2.0 July 1999
Printed in the U.S.A.
ii Technobeam® User Manual
Trademarks
Trademarks used in this text: Lightwave Research, High End Systems, Technobeam, LAD,
Status Cue, Intellabeam, Emulator, Dataflash, Fusion Fire and LithoPatterns are registered
trademarks; Laser Aiming Device is a trademark of High End Systems, Inc.
Belden is a registered trademark of Belden, Inc. Philips is a registered trademark of
Philips Lighting Company. ETL and CETL are registered trademarks of Intertek Testing
Services. Other trademarks and trade names may be used in this document to refer to
either the entities claiming the marks and names or their products. High End Systems
disclaims any proprietary interest in trademarks and trade names owned by others.
Patents
Technobeam may use one or more of the following patents: US 4,962,687; US 5,078,039;
UK 2,043,769; US 5,331,822; US 5,402,326; US D 372550; UK 2292896; US D365165; US
5,430,629; US D360,404; US 5,455,748; 0475082; US 5,506,762; M9604224.9; US
5,515,254; US D370080; UK 2.291,814; US 5,545.951; UK 2055842; UK 2,292,530; UK
2294909; UK 2292896; MR 8621996; and US 5,580,164.
Additional patents pending.
FCC Information
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own expense.
Technobeam® User Manual iii
Declaration of Conformity
according to ISO/IEC Guide 22 and EN45104
Manufacturer’s name: Lightwave Research
Manufacturer’s address: 2217 West Braker Lane
Austin, Texas 78758 U.S.A.
Distributor’s name: High End Systems Inc.
Distributor’s address: 2217 West Braker Lane
Austin, Texas 78758 U.S.A.
Declares that the product
Product Name: Technobeam
Product Number: All
Product Options: All
conforms to the following EEC directives:
73/23/EEC, as amended by 93/68/EEC
89/336/EEC, as amended by 92/31/EEC and 93/68/EEC
Equipment referred to in this declaration of conformity first manufactured in
1997 in compliance with the following standards:
Safety: EN 60598-1 : 1993
EN 60598-2-17 : 1989
A1-A3 : 1993
EN 60825-1, 1994
EMC: EN 55022, Class A ITE
IEC 801-2, 1991 Level 2 (4/8 kV)
IEC 801-3, Draft 5 Level 2 (3 V/m)
IEC 801-4, 1988 Level 2 (1 kV/0.5 kV)
U.S.A., September 1, 1999
Kenneth Stuart Hansen, Compliance Engineer
iv Technobeam® User Manual
Important Safety Information
Instructions pertaining to continued protection against fire, electric shock, exposure to
excessive ultraviolet (UV) radiation, and injury to persons are found in Appendix D.
Please read all instructions prior to assembly, mounting, and operating this equipment.
IMPORTANT: INFORMATIONS DE SÉCURITÉ
Les instructions se rapportant à la protection permanente contre les incendies,
l’électrocution, l’exposition à un rayonnement ultraviolet (UV) excessif et aux blessures
corporelles se trouvent dans l’Annexe D.
Veuillez lire toutes les instructions avant d’assembler, de monter ou d’utiliser cet
équipement.
WICHTIGE SICHERHEITSHINWEISE
Sicherheitsanleitungen zum Schutz gegen Feuer, elektrischen Schlag, übermäßige UV-
Strahlung und Verletzung von Personen finden Sie in Anhang D.
Vor der Montage, dem Zusammenbau und der Inbetriebnahme dieses Geräts alle
Anleitungen sorgfältig durchlesen.
INFORMAZIONI IMPORTANTI DI SICUREZZA
Le istruzioni sulla protezione da incendi, folgorazione, esposizione eccessiva a raggi
ultravioletti (UV) e infortuni sono contenute nell’appendice D.
Si prega di leggere tutte le istruzioni prima di assemblare, montare e azionare
l’apparecchiatura.
INFORMACION IMPORTANTE DE SEGURIDAD
En el Apéndice D de este manual se encuentran instrucciones sobre protección continua
contra incendios, descarga eléctrica, exposición excesiva a radiación ultravioleta (UV) y
lesiones personales.
Lea, por favor, todas las instrucciones antes del ensamblaje, montaje y operación de este
equipo.
Product Modification Warning
High End Systems products are designed and manufactured to meet the requirements of
United States and International safety regulations. Modifications to the product could
affect safety and render the product non-compliant to relevant safety standards.
Technobeam® User Manual v
Mise En Garde Contre La Modification Du Produit
Les produits High End Systems sont conçus et fabriqués conformément aux exigences
des règlements internationaux de sécurité. Toute modification du produit peut entraîner
sa non conformité aux normes de sécurité en vigueur.
Produktmodifikationswarnung
Design und Herstellung von High End Systemen entsprechen den Anforderungen der
U.S.A. und den internationalen Sicherheitsvorschriften. Abänderungen dieses Produktes
können dessen Sicherheit beeinträchtigen und u. U. gegen die diesbezüglichen
Sicherheitsnormen verstoßen.
Avvertenza Sulla Modifica Del Prodotto
I prodotti di High End Systems sono stati progettati e fabbricati per soddisfare i requisiti
delle normative di sicurezza statunitensi ed internazionali. Qualsiasi modifica al
prodotto potrebbe pregiudicare la sicurezza e rendere il prodotto non conforme agli
standard di sicurezza pertinenti.
Advertencia De Modificación Del Producto
Los productos de High End Systems están diseñados y fabricados para cumplir los
requisitos de las reglamentaciones de seguridad de los Estados Unidos e internacionales.
Las modificaciones al producto podrían afectar la seguridad y dejar al producto fuera de
conformidad con las normas de seguridad relevantes.
Warranty Information
Limited Warranty
Unless otherwise stated, your product is covered by a two (2) year parts and labor limited
warranty. The Laser Aiming Device (LAD™) for Technobeam is covered by a six (6) month
parts and labor limited warranty. Dichroic filters and LithoPatterns® high resolution
glass gobos are not guaranteed against breakage or scratches to coating. It is the
owner’s responsibility to furnish receipts or invoices for verification of purchase, date,
and dealer or distributor. If purchase date cannot be provided, date of manufacture will
be used to determine warranty period.
Returning an Item Under Warranty for Repair
It is necessary to obtain a Return Material Authorization number (RMA#) from your
dealer or point of purchase BEFORE any units are returned for repair. The manufacturer
will make the final determination as to whether or not the unit is covered by warranty.
Lamps are covered by the lamp manufacturer’s warranty.
Any Product unit or parts returned to High End Systems must be packaged in a suitable
manner to ensure the protection of such Product unit or parts, and such package shall be
vi Technobeam® User Manual
clearly and prominently marked to indicate that the package contains returned Product
units or parts and with a Return Material Authorization (RMA#) number. Accompany all
returned Product units or parts with a written explanation of the alleged problem or
malfunction. Ship returned Product units or parts to: 2227 West Braker Lane, Austin, TX
78758 USA.
Please Note: Freight Damage Claims are invalid for fixtures shipped in non-
factory boxes and packing materials.
Freight
All shipping will be paid by the purchaser. Items under warranty shall have return
shipping paid by the manufacturer only in the Continental United States. Under no
circumstances will freight collect shipments be accepted. Prepaid shipping does
not include rush expediting such as air freight. Air freight can be sent customer collect
in the Continental United States.
REPAIR OR REPLACEMENT AS PROVIDED FOR UNDER THIS WARRANTY IS THE EXCLUSIVE
REMEDY OF THE CONSUMER. HIGH END SYSTEMS, INC. MAKES NO WARRANTIES, EXPRESS
OR IMPLIED, WITH RESPECT TO ANY PRODUCT, AND HIGH END SPECIFICALLY DISCLAIMS
ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. HIGH
END SHALL NOT BE LIABLE FOR ANY INDIRECT, INCIDENTAL OR CONSEQUENTIAL
DAMAGE, INCLUDING LOST PROFITS, SUSTAINED OR INCURRED IN CONNECTION WITH
ANY PRODUCT OR CAUSED BY PRODUCT DEFECTS OR THE PARTIAL OR TOTAL FAILURE OF
ANY PRODUCT REGARDLESS OF THE FORM OF ACTION, WHETHER IN CONTRACT, TORT
(INCLUDING NEGLIGENCE), STRICT LIABILITY OR OTHERWISE, AND WHETHER OR NOT
SUCH DAMAGE WAS FORESEEN OR UNFORESEEN.
Warranty is void if the product is misused, damaged, modified in any way, or for
unauthorized repairs or parts. This warranty gives you specific legal rights, and you may
also have other rights which vary from state to state.
Technobeam® User Manual vii
Table of Contents
Introduction
Features ........................................................................................intro-1
Symbols ........................................................................................intro-3
Document Conventions ................................................................intro-3
Contacting High End Systems ......................................................intro-4
Chapter 1 Preparing to Install Your Fixture
Specifications .....................................................................................1-2
Optional Accessories ..........................................................................1-5
Unpacking the Fixture ........................................................................1-6
Installing the Power Cord Cap ............................................................1-7

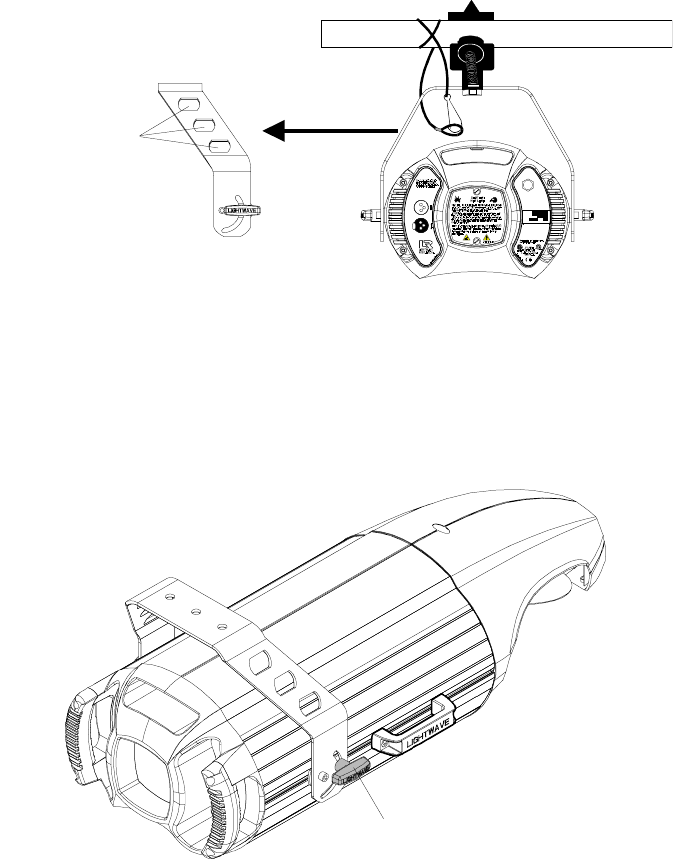

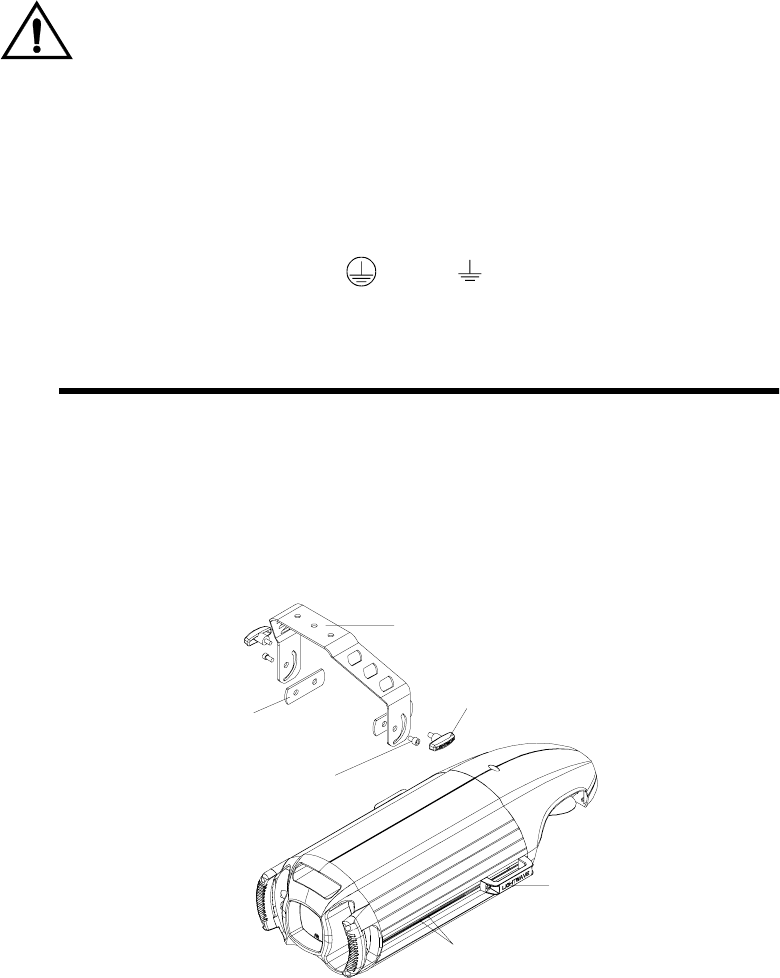

Installing the Yoke ..............................................................................1-8
Setting the Fixture Voltage .............................................................. 1-10
Setting the Beam Angle .................................................................... 1-12
Chapter 2 Setting Up Your Fixture
Powering On the Fixture .....................................................................2-2
Overview of Controller Operation ......................................................2-4

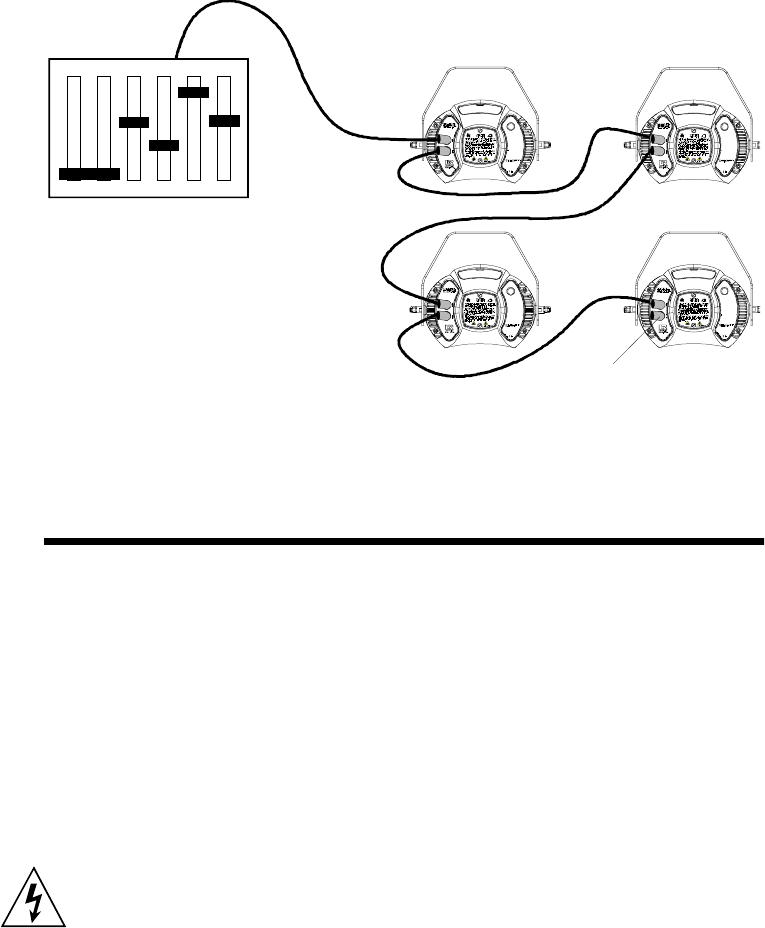

Linking the Fixtures to the Controller ................................................2-7
Mounting the Fixture ..........................................................................2-8
Configuring the Fixture ................................................................... 2-13
Upgrading Software ......................................................................... 2-18
Troubleshooting .............................................................................. 2-20
Chapter 3 Using the Menus
Menu System Overview ......................................................................3-2
Menu Map ...........................................................................................3-3
Menu Options .................................................................................. 3-10
Chapter 4 Preset Programming
Programming Overview ......................................................................4-2
Creating a Scene .................................................................................4-4
Synchronizing Preset Playback ...........................................................4-9
Capturing Presets ............................................................................ 4-11

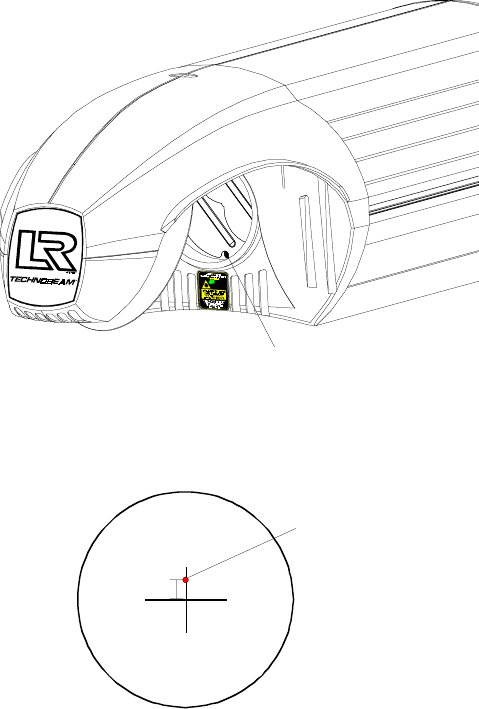

Chapter 5 Using the Laser Aiming Device™ (LAD™)
Safety Precautions ..............................................................................5-2
viii Technobeam® User Manual
Overview ............................................................................................5-3
Controlling the Laser ..........................................................................5-5
Troubleshooting .................................................................................5-6
Maintenance .......................................................................................5-8
Chapter 6 Servicing Your Fixture
Precautions .........................................................................................6-2
Replacing Fuses ..................................................................................6-2
Replacing Wheel Components ............................................................6-4
Replacing the Lamp ......................................................................... 6-11
Cleaning the Internal Components .................................................. 6-15
Technobeam Laser Aiming Device™ ................................................ 6-19
Appendix A DMX Protocols
General Information .......................................................................... A-1
Technobeam® Protocol ...................................................................... A-3
Technobeam-i™ Protocol ................................................................... A-7
MSpeed Movement Times ................................................................ A-12
Macro Channel Assignments ........................................................... A-15
Fixture Number to DMX Start Channel ............................................ A-16
Appendix B Factory-Installed Wheels
Technobeam™ Wheels ........................................................................B-1
Appendix C Important Safety Information
English Version .................................................................................. C-1
Appendice C IMPORTANT: INFORMATIONS DE SÉCURITÉ ................. C-2
Anhang C Wichtige Hinweise Für Ihre Sicherheit ............................. C-3
Appendice C Importanti Informazioni Di Sicurezza ........................ C-4
Apéndice C Información Importante De Seguridad .......................... C-5
Vigtig Sikkerhedsinformation - DANMARK ........................................ C-6
Index
Technobeam® User Manual ix
Table of Figures

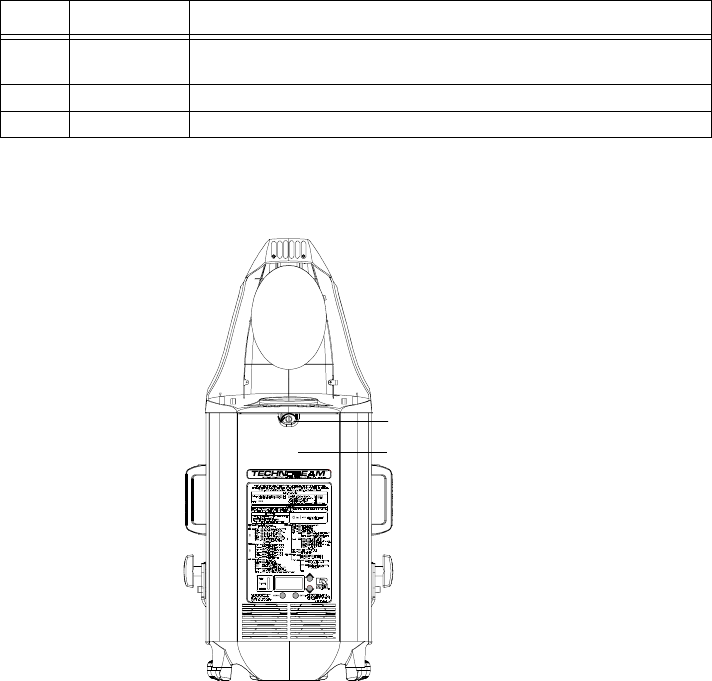

Figure 1-1. Identifying yoke components. ..................................................... 1-8

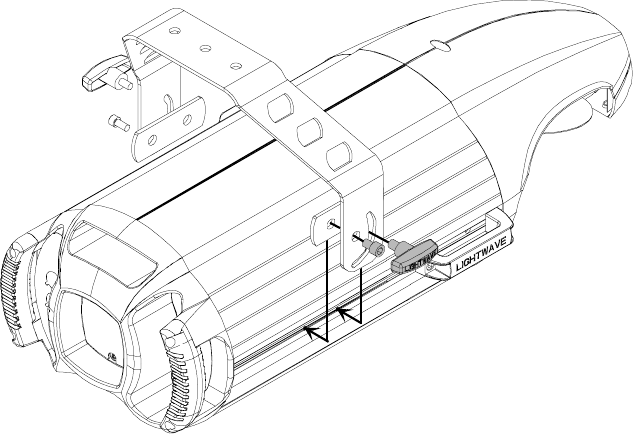

Figure 1-2. Installing the yoke on the fixture. ............................................... 1-9
Figure 1-3. Removing the door allows you to access the fixture’s voltage
selection switches, as well as wheels and optics. ................. 1-11

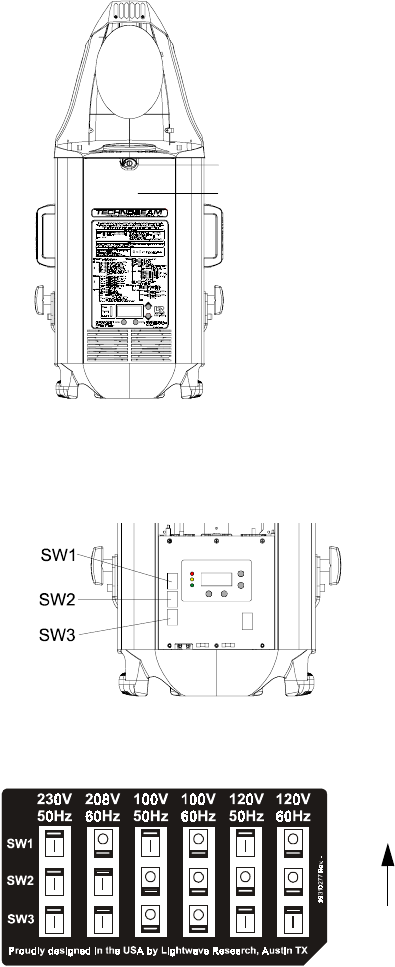

Figure 1-4. The three voltage selection switches located next to the LED
display. .................................................................................. 1-11
Figure 1-5. Setting the fixture’s voltage and frequency.............................. 1-11
Figure 1-6. The lens tube contains the zoom lenses. ................................. 1-12
Figure 1-7. Squeeze the two latches on each side of the lens tube to open
the cover. ............................................................................... 1-12
Figure 1-8. Components of the factory-installed 11 to 17 degree lens set. 1-13
Figure 2-1. The initial LED menu display shows the fixture’s software
version. ..................................................................................... 2-2

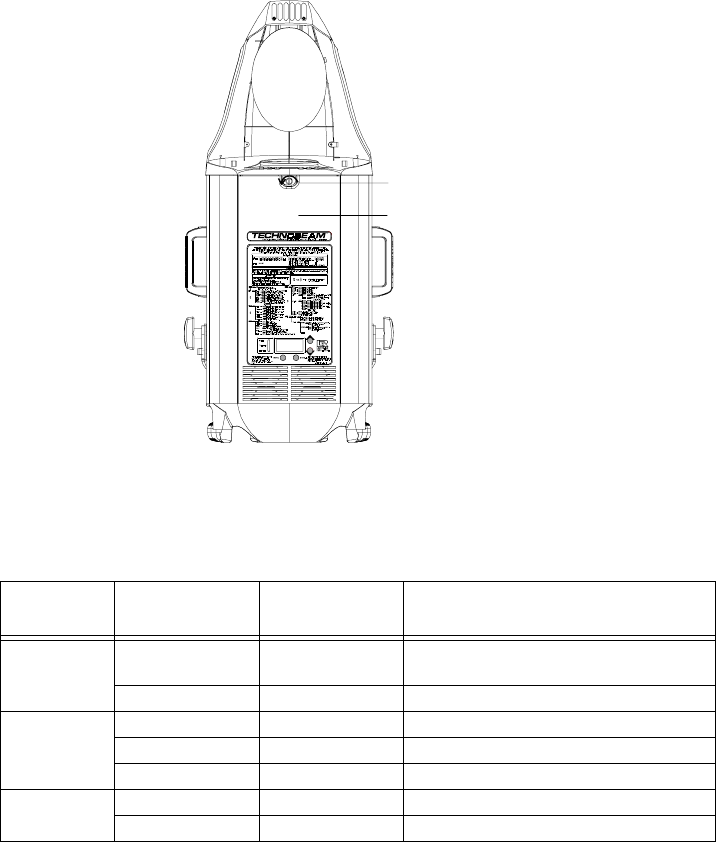

Figure 2-2. Location of the three status LEDs on the fixture’s access door... 2-3

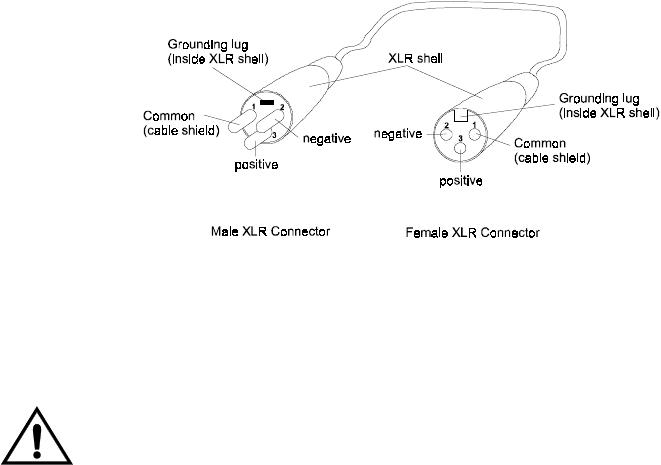

Figure 2-3. Properly-constructed data cabling............................................... 2-5
Figure 2-4. Constructing a data cable terminator.......................................... 2-6

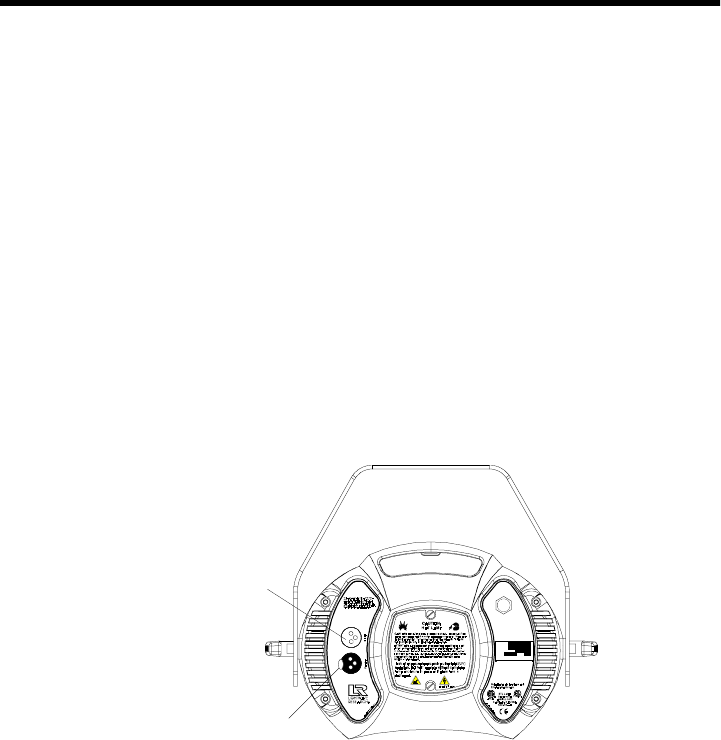

Figure 2-5. Location of the DMX data in (male) and DMX data Out (female)
ports on the fixture’s rear panel............................................... 2-7
Figure 2-6. Connecting fixtures to a controller. Make sure you terminate
the last fixture in the link......................................................... 2-8

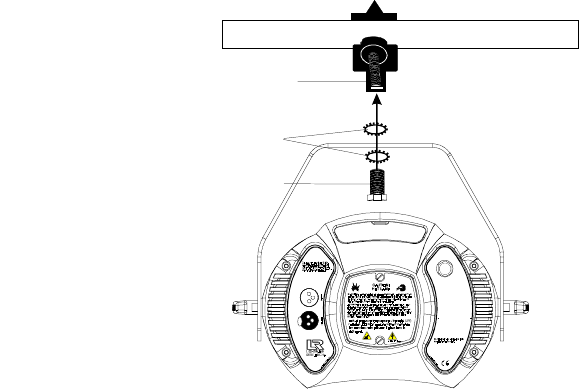

Figure 2-7. Use a locking washer when attaching a fixture to a truss. ....... 2-10
Figure 2-8. Always use a safety cable when mounting the fixture. ............ 2-11
Figure 2-9. Location of the T-handle you use to adjust the yoke position. 2-11
Figure 2-10. You can slide the yoke all the way back to allow the fixture
to hang upside-down. ............................................................ 2-12

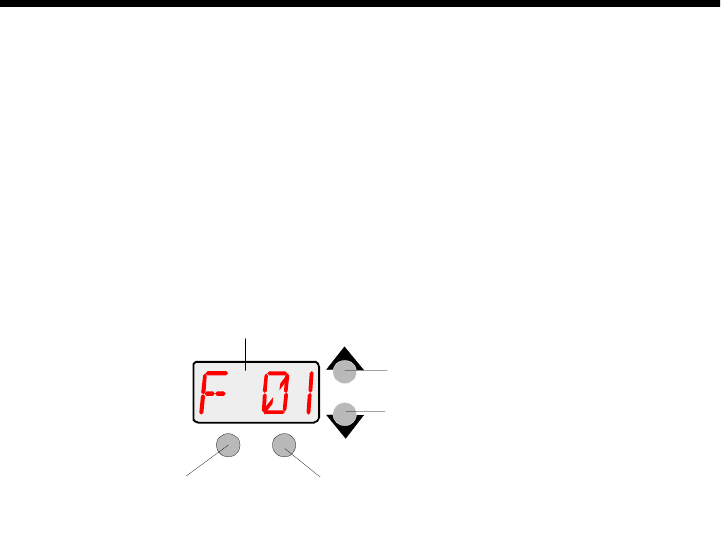

Figure 2-11. Menu navigation buttons. ....................................................... 2-13

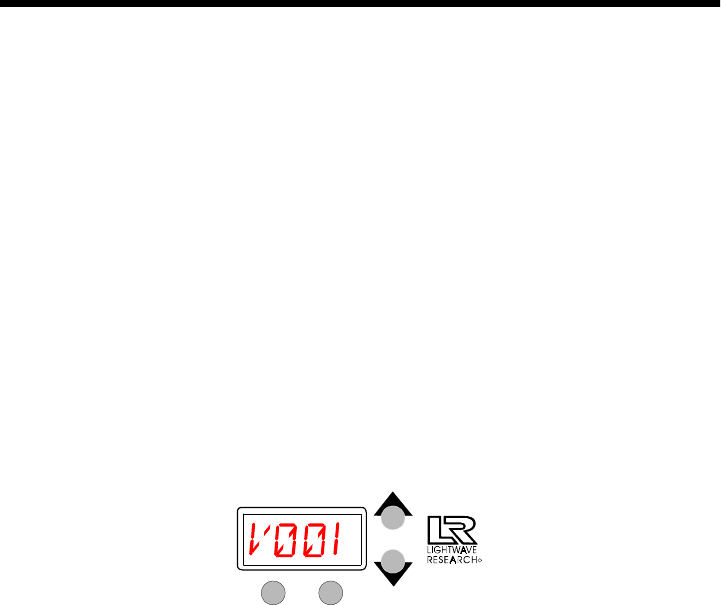

Figure 2-12. This fixture has software version 3........................................ 2-20
Figure 2-13. Location of the fixture’s exhaust vent. ................................... 2-22
Figure 3-1. Technobeam navigation buttons. ................................................ 3-2
Figure 4-1. Making sure the shutter is open. ................................................. 4-5
Figure 4-2. A dot always appears in the LED display whenever preset
playback is on........................................................................... 4-9
Figure 4-3. When you set up fixtures for synchronized playback on a
DMX 512 link, one and only one fixture must be fixture
number 1 or DMX start channel 1. The last fixture on the
link must be terminated. ....................................................... 4-10
Figure 5-1. The laser light exits the through the same aperture as the
light beam................................................................................. 5-4

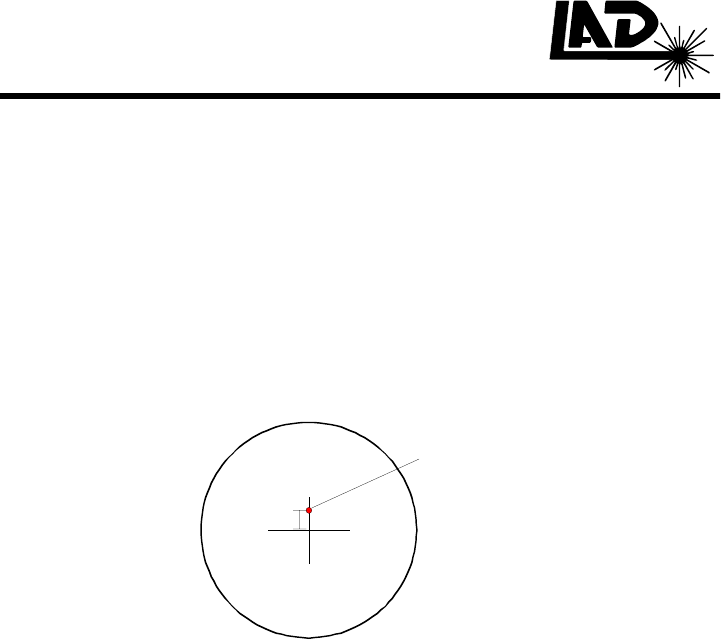

Figure 5-2. The ideal position of the laser is no more than 2” (5 cm)
directly above the center point of a perfectly round light
beam. ........................................................................................ 5-4
Figure 5-3. Removing the access door. .......................................................... 5-6

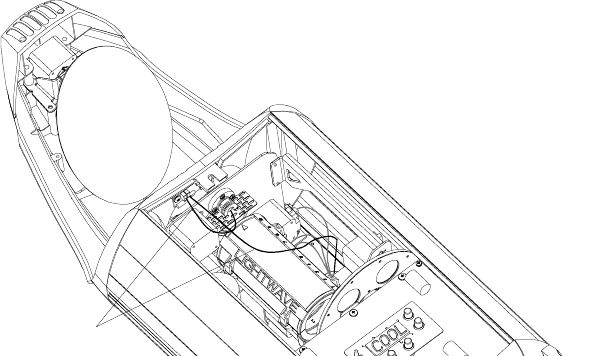

Figure 5-4. LAD wiring connections............................................................... 5-7
x Technobeam® User Manual
Figure 5-5. The laser aiming device circuit board. ........................................ 5-8

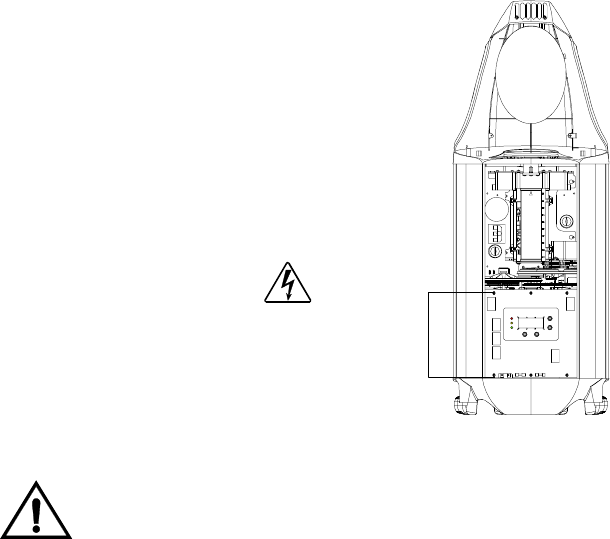

Figure 6-1. Removing the door allows you to access the fixture’s voltage
selection switches and fuses, as well as wheels and optics. .... 6-3
Figure 6-2. Locations of the three fuses on the circuit board........................ 6-4
Figure 6-3. Location of the wheels in Technobeam. ..................................... 6-5
Figure 6-4. Push the dichroic toward the large retaining tab to free it
from the wheel tabs.................................................................. 6-6
Figure 6-5. You can easily tell which side of a dichroic is coated by placing
a pen or other object near the surface; on the coated side,
the reflection from the object will appear to touch the
object. ....................................................................................... 6-6
Figure 6-6. The rotating litho wheel and rotating effects wheel have
built-in plastic tabs that hold the spring in place. ................... 6-7

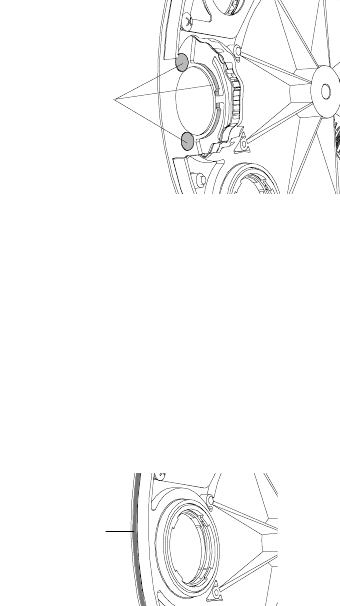

Figure 6-7. To replace a static litho in the rotating litho wheel, gently
separate the wheel and reach behind the wheel to push the
litho out. ................................................................................... 6-8
Figure 6-8. Location of the retaining tabs and slot that secure the static
litho in the rotating litho wheel. .............................................. 6-9
Figure 6-9. The gap between the two halves of the rotating litho wheel
must be uniform. ...................................................................... 6-9

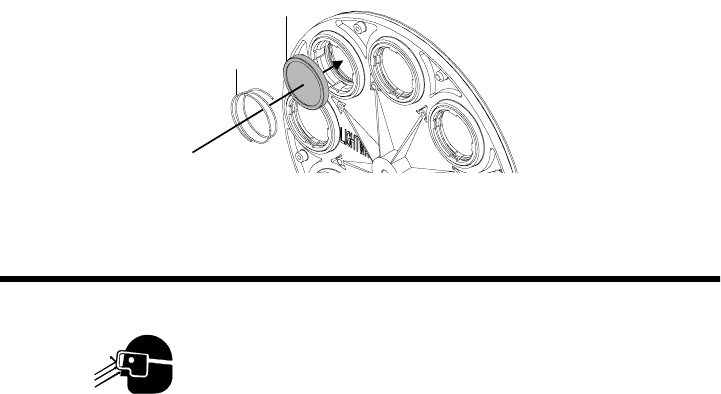

Figure 6-10. An aperture ring, if required, must be placed on top of
the litho/effect and under the spring.................................... 6-10
Figure 6-11. When you replace a rotating litho or rotating effect, make
sure the tip of the spring is fully seated under the wheel
tabs; it cannot protrude from under the tabs........................ 6-10

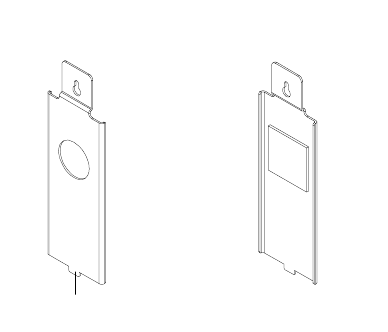

Figure 6-12. Replacing a custom multi-colored litho in the metal holder.. 6-11
Figure 6-13. Loosening the lamp assembly screws gives you access to
the fixture lamp. .................................................................... 6-12
Figure 6-14. Removing the lamp assembly from the fixture. ..................... 6-12
Figure 6-15. Pull straight up on the lamp, grasping its ceramic base, to
remove it from the assembly................................................. 6-13
Figure 6-16. Hold the lamp by its ceramic base and gently press the two
base pins into the socket....................................................... 6-13

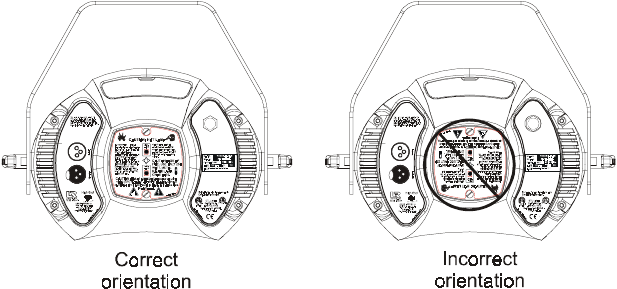

Figure 6-17. You can look at the lamp label text to make sure the lamp
plate is oriented correctly; incorrect orientation can result
in damage to the fixture and the lamp. ................................. 6-14

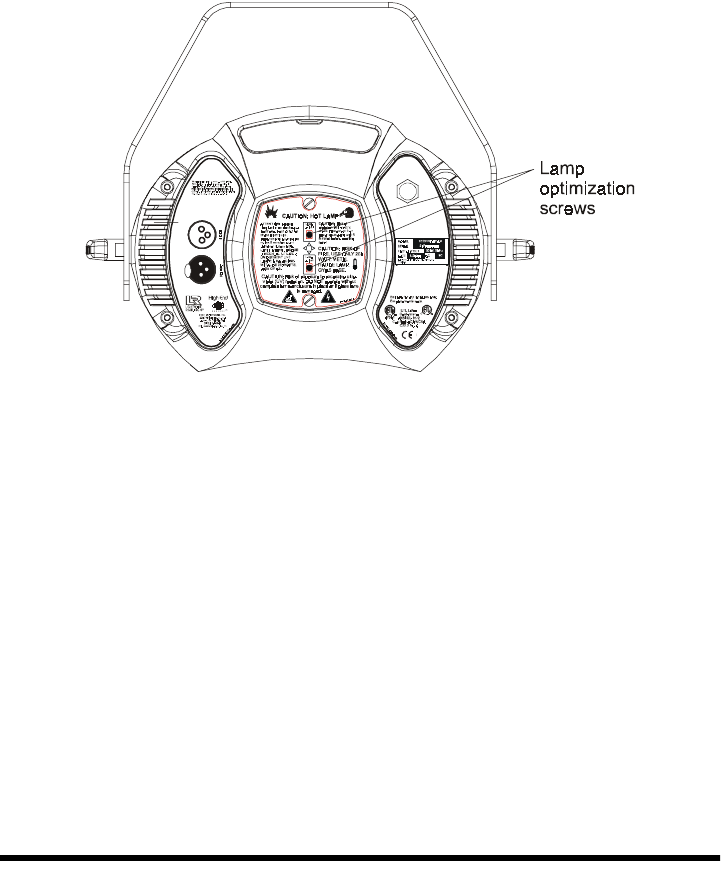

Figure 6-18. Lamp optimization screws...................................................... 6-15
Figure 6-19. Opening the fixture’s access door. ......................................... 6-16
Figure 6-20. Location of the anti-reflective glass, lenses and hot mirror... 6-17
Figure 6-21. The lens tube contains the zoom lenses. ............................... 6-17
Figure 6-22. Clean both sides of the hot mirror glass. ............................... 6-18
Figure 6-23. The ideal position of the laser is no more than 2” (5 cm)
directly above the center of a perfectly round light beam.... 6-19
Figure 6-24. High-voltage component location........................................... 6-20
Figure 6-25. Orient the fixture directly facing a wall no less than 10 ft.
(3 m) away.............................................................................. 6-21
Technobeam® User Manual xi
Figure 6-26. Locating the center point of the projected light beam. The
laser should be no more than 2” (5 cm) above the center. .... 6-24
Figure 6-27. The laser aiming device assembly has three screws that can
be used to adjust the position of the laser............................ 6-25
Figure B-1. Factory configuration of the Technobeam rotating litho wheel. . B-1
Figure B-2. Factory configuration of the Technobeam color wheel. .............. B-2
Figure B-3. Factory configuration of the Technobeam rotating effects
wheel......................................................................................... B-2
Table of Tables
Table 1-1. Optional Accessories .....................................................................1-5
Table 1-2. Beam Angles for Factory-Installed 11 to 17 Degree Lens Set ..... 1-14
Table 1-3. Beam Angles for Optional 8 to 12 Degree Narrow Angle Lens
Set ............................................................................................. 1-14
Table 2-1. Status LEDs ....................................................................................2-3
Table 2-2. Example: Determining the DMX Start Channel .......................... 2-16
Table 2-3. Example: Determining the Unique Fixture Number .................. 2-17
Table 2-4. Example of Wasted DMX Channels ............................................. 2-18
Table 3-1. Technobeam Menu Map ................................................................3-3
Table 6-1. Replacement Fuses ........................................................................6-2
Table 6-2. Fuse Failure Symptoms .................................................................6-3
Table A-1. Technobeam DMX Protocol .......................................................... A-3
Table A-2. Technobeam-i DMX Protocol ........................................................ A-8
Table A-3. MSpeed Movement Times .......................................................... A-13
Table A-4. Macro DMX Channel Assignments ............................................. A-15
Table A-5. Fixture Number to DMX Start Channel Conversion ................... A-16
xii Technobeam® User Manual
i Ecodome User Manual
Introduction
Features ........................................................................................intro-1
Symbols ........................................................................................intro-3
Document Conventions ................................................................intro-3
Contacting High End Systems ......................................................intro-4
Chapter 1 Preparing to Install Your Fixture
Specifications .....................................................................................1-2
Optional Accessories ..........................................................................1-5
Unpacking the Fixture ........................................................................1-6
Installing the Power Cord Cap ............................................................1-7
Installing the Yoke ..............................................................................1-8
Setting the Fixture Voltage .............................................................. 1-10
Setting the Beam Angle .................................................................... 1-12
Chapter 2 Setting Up Your Fixture
Powering On the Fixture .....................................................................2-2
Overview of Controller Operation ......................................................2-4
Linking the Fixtures to the Controller ................................................2-7
Mounting the Fixture ..........................................................................2-8
Configuring the Fixture ................................................................... 2-13
Upgrading Software ......................................................................... 2-18
Troubleshooting .............................................................................. 2-20
Chapter 3 Using the Menus
Menu System Overview ......................................................................3-2
Menu Map ...........................................................................................3-3
Menu Options .................................................................................. 3-10
Chapter 4 Preset Programming
Programming Overview ......................................................................4-2
Creating a Scene .................................................................................4-4
Synchronizing Preset Playback ...........................................................4-9
Capturing Presets ............................................................................ 4-11
Chapter 5 Using the Laser Aiming Device™ (LAD™)
Safety Precautions ..............................................................................5-2
Overview ............................................................................................5-3
Controlling the Laser ..........................................................................5-5
Troubleshooting .................................................................................5-6
Maintenance .......................................................................................5-8
Ecodome User Manual ii
Chapter 6 Servicing Your Fixture
Precautions .........................................................................................6-2
Replacing Fuses ..................................................................................6-2
Replacing Wheel Components ............................................................6-4
Replacing the Lamp ......................................................................... 6-11
Cleaning the Internal Components .................................................. 6-15
Technobeam Laser Aiming Device™ ................................................ 6-19
Appendix A DMX Protocols
General Information .......................................................................... A-1
Technobeam® Protocol ...................................................................... A-3
Technobeam-i™ Protocol ................................................................... A-7
MSpeed Movement Times ................................................................ A-12
Macro Channel Assignments ........................................................... A-15
Fixture Number to DMX Start Channel ............................................ A-16
Appendix B Factory-Installed Wheels
Technobeam™ Wheels ........................................................................B-1
Appendix C Important Safety Information
English Version .................................................................................. C-1
Appendice C IMPORTANT: INFORMATIONS DE SÉCURITÉ ................. C-2
Anhang C Wichtige Hinweise Für Ihre Sicherheit ............................. C-3
Appendice C Importanti Informazioni Di Sicurezza ........................ C-4
Apéndice C Información Importante De Seguridad .......................... C-5
Vigtig Sikkerhedsinformation - DANMARK ........................................ C-6
i Ecodome User Manual
Figure 1-1. Identifying yoke components. ..................................................... 1-8
Figure 1-2. Installing the yoke on the fixture. ............................................... 1-9
Figure 1-3. Removing the door allows you to access the fixture’s voltage
selection switches, as well as wheels and optics......................................... 1-11
Figure 1-4. The three voltage selection switches located next to the LED display.
1-11
Figure 1-5. Setting the fixture’s voltage and frequency.............................. 1-11
Figure 1-6. The lens tube contains the zoom lenses. ................................. 1-12
Figure 1-7. Squeeze the two latches on each side of the lens tube to open the cover.
1-12
Figure 1-8. Components of the factory-installed 11 to 17 degree lens set. 1-13
Figure 2-1. The initial LED menu display shows the fixture’s software version..
2-2
Figure 2-2. Location of the three status LEDs on the fixture’s access door... 2-3
Figure 2-3. Properly-constructed data cabling............................................... 2-5
Figure 2-4. Constructing a data cable terminator.......................................... 2-6
Figure 2-5. Location of the DMX data in (male) and DMX data Out (female) ports
on the fixture’s rear panel............................................................................... 2-7
Figure 2-6. Connecting fixtures to a controller. Make sure you terminate the last
fixture in the link............................................................................................ 2-8
Figure 2-7. Use a locking washer when attaching a fixture to a truss. ....... 2-10
Figure 2-8. Always use a safety cable when mounting the fixture. ............ 2-11
Figure 2-9. Location of the T-handle you use to adjust the yoke position. 2-11
Figure 2-10. You can slide the yoke all the way back to allow the fixture to hang
upside-down. ............................................................................................... 2-12
Figure 2-11. Menu navigation buttons........................................................ 2-13
Figure 2-12. This fixture has software version 3........................................ 2-19
Figure 2-13. Location of the fixture’s exhaust vent. ................................... 2-21
Figure 3-1. Technobeam navigation buttons. ................................................ 3-2
Figure 4-1. Making sure the shutter is open. ................................................. 4-5
Figure 4-2. A dot always appears in the LED display whenever preset playback
is on. ..................................................................................................... 4-9
Figure 4-3. When you set up fixtures for synchronized playback on a DMX 512
link, one and only one fixture must be fixture number 1 or DMX start channel 1.
The last fixture on the link must be terminated.......................................... 4-10
Figure 5-1. The laser light exits the through the same aperture as the light beam.
5-4
Figure 5-2. The ideal position of the laser is no more than 2” (5 cm) directly
above the center point of a perfectly round light beam................................. 5-4
Figure 5-3. Removing the access door. .......................................................... 5-6
Figure 5-4. LAD wiring connections............................................................... 5-7
Figure 5-5. The laser aiming device circuit board. ........................................ 5-8
Figure 6-1. Removing the door allows you to access the fixture’s voltage
selection switches and fuses, as well as wheels and optics. .......................... 6-3
Figure 6-2. Locations of the three fuses on the circuit board........................ 6-4
Figure 6-3. Location of the wheels in Technobeam. ..................................... 6-5
Ecodome User Manual ii
Figure 6-4. Push the dichroic toward the large retaining tab to free it from the
wheel tabs. ..................................................................................................... 6-6
Figure 6-5. You can easily tell which side of a dichroic is coated by placing a pen
or other object near the surface; on the coated side, the reflection from the
object will appear to touch the object. ........................................................... 6-6
Figure 6-6. The rotating litho wheel and rotating effects wheel have built-in
plastic tabs that hold the spring in place. ...................................................... 6-7
Figure 6-7. To replace a static litho in the rotating litho wheel, gently separate
the wheel and reach behind the wheel to push the litho out. ........................ 6-8
Figure 6-8. Location of the retaining tabs and slot that secure the static litho in
the rotating litho wheel. ................................................................................ 6-9
Figure 6-9. The gap between the two halves of the rotating litho wheel must be uniform.
6-9
Figure 6-10. An aperture ring, if required, must be placed on top of the litho/
effect and under the spring. ........................................................................ 6-10
Figure 6-11. When you replace a rotating litho or rotating effect, make sure the
tip of the spring is fully seated under the wheel tabs; it cannot protrude from
under the tabs.............................................................................................. 6-10
Figure 6-12. Replacing a custom multi-colored litho in the metal holder.. 6-11
Figure 6-13. Loosening the lamp assembly screws gives you access to the
fixture lamp. ................................................................................................ 6-12
Figure 6-14. Removing the lamp assembly from the fixture. ..................... 6-12
Figure 6-15. Pull straight up on the lamp, grasping its ceramic base, to remove
it from the assembly.................................................................................... 6-13
Figure 6-16. Hold the lamp by its ceramic base and gently press the two base
pins into the socket. .................................................................................... 6-13
Figure 6-17. You can look at the lamp label text to make sure the lamp plate is
oriented correctly; incorrect orientation can result in damage to the fixture and
the lamp. .................................................................................................. 6-14
Figure 6-18. Lamp optimization screws...................................................... 6-15
Figure 6-19. Opening the fixture’s access door. ......................................... 6-16
Figure 6-20. Location of the anti-reflective glass, lenses and hot mirror... 6-17
Figure 6-21. The lens tube contains the zoom lenses. ............................... 6-17
Figure 6-22. Clean both sides of the hot mirror glass. ............................... 6-18
Figure 6-23. The ideal position of the laser is no more than 2” (5 cm) directly
above the center of a perfectly round light beam. ...................................... 6-19
Figure 6-24. High-voltage component location........................................... 6-20
Figure 6-25. Orient the fixture directly facing a wall no less than 10 ft. (3 m) away.
6-21
Figure 6-26. Locating the center point of the projected light beam. The laser
should be no more than 2” (5 cm) above the center.................................... 6-24
Figure 6-27. The laser aiming device assembly has three screws that can be
used to adjust the position of the laser....................................................... 6-25
Figure B-1. Factory configuration of the Technobeam rotating litho wheel. . B-1
Figure B-2. Factory configuration of the Technobeam color wheel. .............. B-2
Figure B-3. Factory configuration of the Technobeam rotating effects wheel. B-
iii Ecodome User Manual
2
Ecodome User Manual iv
i Ecodome User Manual
Table 1-1. Optional Accessories .....................................................................1-5
Table 1-2. Beam Angles for Factory-Installed 11 to 17 Degree Lens Set ..... 1-14
Table 1-3. Beam Angles for Optional 8 to 12 Degree Narrow Angle Lens Set ..1-
14
Table 2-1. Status LEDs ....................................................................................2-3
Table 2-2. Example: Determining the DMX Start Channel .......................... 2-16
Table 2-3. Example: Determining the Unique Fixture Number .................. 2-17
Table 2-4. Example of Wasted DMX Channels ............................................. 2-18
Table 3-1. Technobeam Menu Map ................................................................3-3
Table 6-1. Replacement Fuses ........................................................................6-2
Table 6-2. Fuse Failure Symptoms .................................................................6-3
Table A-1. Technobeam DMX Protocol .......................................................... A-3
Table A-2. Technobeam-i DMX Protocol ........................................................ A-8
Table A-3. MSpeed Movement Times .......................................................... A-13
Table A-4. Macro DMX Channel Assignments ............................................. A-15
Table A-5. Fixture Number to DMX Start Channel Conversion ................... A-16
Ecodome User Manual ii
Technobeam® User Manual Introduction Intro-1
Introduction
Congratulations on your purchase of the Technobeam® automated
luminaire. Since 1989, High End Systems® has enjoyed a reputation
within the professional lighting industry as the premier manufacturer
of intelligent lighting. This tradition of excellence is carried forward
with Technobeam.
For the first time ever, stunning light output and extended lamp life
are combined with superior photolithographic image projection quality
in a compact package destined to revolutionize intelligent lighting in
retail, themed environment, entertainment, architectural and other
applications.
Technobeam has a factory-installed standard lens set with 11° to 17°
beam angle, and an optional 8° to 12° narrow angle lens set. The
fixture’s remote focus provides razor sharp beam or image projection
at various trim heights and throw distances. As with all Lightwave
Research® intelligent luminaires, Technobeam includes remotely-
controllable and programmable full optical dimming, fade-to-black,
and variable-speed strobe effects.
Features
Programming
• On-board sixteen scene memory for controller-free, stand-alone
operation.
• High-resolution DMX 512 control, with optional reduced-channel
protocol.
• DMX 512 protocol and onboard programming each feature 28
fixture-specific macros (unique combinations of constructs) to
simplify programming.
Optics and Effects
• Two-piece clear anodized elliptical/spherical reflector system
(patent pending) delivers a remarkable (>50%) gain in light output
compared with the elliptical reflectors used in other fixtures of this
type.
• Factory-installed 11° to 17° lens set.
• Optional 8° to 12° narrow angle lens set.
Intro-2 Introduction Technobeam® User Manual
• Mirror head providing 180° pan, 95° tilt.
• 12 saturated dichroic colors—including a 3000K color correction
filter—plus open position.
• Rotating 8-position LithoPatterns® wheel features 7 replaceable
positions plus open.
• Optional static litho in each of the 7 replaceable rotating litho
positions for layered moire and multi-focus effects.
• Effects wheel features five replaceable, rotating effects—including
frost, lenticular, and hammered.
• Optional open slot at one or more effects positions.
• Improved flat field beam performance.
Note All beam angles are accurate to ±1°.
Construction
• Lens tube, wheel gears, front and rear bezels manufactured from
lightweight, rugged, engineering thermopolymer.
• Tough powder-coated aluminum side panels.
• Molded handles for easy transportation, lifting and mounting.
Lamp
High End Systems recommends you use an M series, GY9.5 base, 250-
watt metal halide arc lamp (such as the MSD 250-2) which provides
6500K stable operation and extended lamp life.
The lamp can be remotely switched off, conserving approximately 70%
of the power to the unit compared to the lamp being on.
Other features
• Remote focus
• Full dimming and fade-to-black
• Variable-speed strobe
• Yoke assembly features sliding track for mounting flexibility
• Available as standard in black or white
• Power factor correction
• Self-adjusting fan speed to compensate for ambient temperature
conditions
Technobeam® User Manual Introduction Intro-3
Symbols
This section explains symbols used in this manual:
Appears adjacent to Caution messages. A Caution is an advisory
provided to protect the equipment; failure to heed a Caution message
could result in damage to the equipment and possibly injury to
persons.
Appears adjacent to Electrical Shock hazards. Failure to heed these
messages could result in injury to persons.
Appears adjacent to Explosion warnings. Failure to heed these
messages could result in injury to persons.
Indicates that eye and hand protection is required. Failure to do so
could result in injury to persons.
Document Conventions
Convention Meaning
<key> Menu keys are indicated between braces. For example,
the <Enter> key on the fixture’s key pad.
BOLD BOLD type is used to indicate selections you make in the
menu system.
Intro-4 Introduction Technobeam® User Manual
Contacting High End Systems
U.S. and the Americas Sales:
High End Systems, Inc.
2217 West Braker Lane
Austin, TX 78758
voice: (512) 836-2242
FAX: (512) 837-5290
Customer Service:
High End Systems, Inc.
2227 West Braker Lane
Austin, TX 78758
voice: (800) 890-8989
24-hour FAX: (512) 834-9195
24-hour voice mail: (512) 837-3063
or (800) 890-8989
West Coast:
High End Systems, Inc.
8200 Haskell Avenue
Van Nuys, CA 91406
voice: (818) 947-0550
FAX: (818) 908-8975
Singapore High End Systems Singapore PTE. LTd.
1 Tannery Road 06-05
Cencon 1
Singapore 1334
voice: +65 742 8266
FAX: +65 743 9322
Europe High End Systems GmbH
Lohstrasse 22
D-85445 Schwaig
Germany
voice: +49 8122 9903-0
FAX: +49 8122 9903-33
World Wide Web http://www.highend.com
Technobeam® User Manual 1-1
Chapter 1
Preparing to Install
Your Fixture
Specifications ..................................................................................................1-2
Model Numbers ..................................................................................1-2
Dimensions (with yoke and handles) .................................................1-2
Weight (including yoke) ......................................................................1-2
Electrical Specifications .....................................................................1-2
Technobeam Laser Aiming Device™ (LAD™) ......................................1-2
LAD Safety Standards ............................................................1-3
Important Power Cord Information - U.K. Only ..................................1-3
Vigtig Sikkerhedsinformation - DANMARK ............................1-3
Dichroic, Litho and Effects Specifications ..........................................1-4
Safety Standards .................................................................................1-4
Electromagnetic Standards .................................................................1-4
Environmental Specifications .............................................................1-5
DMX Data Cabling ...............................................................................1-5
Controllers .........................................................................................1-5
Optional Accessories .......................................................................................1-5
Unpacking the Fixture .....................................................................................1-6
Save the Shipping Materials ...............................................................1-6
Inspecting the Contents .....................................................................1-7
Installing the Power Cord Cap ........................................................................1-7
Important Power Cord Cap Information - U.K. Only ...........................1-7
VIGTIG FIKKER HEDS INFORMATION - DANMARK ...............................1-8
Installing the Yoke ..........................................................................................1-8
Setting the Fixture Voltage ........................................................................... 1-10
Setting the Beam Angle ................................................................................ 1-12
1-2 Specifications Technobeam® User Manual
Specifications
Model Numbers
Model: Technobeam
Manufacturer: Lightwave Research®
Distributor: High End Systems, Inc.
2217 W. Braker Lane
Austin, Texas, 78758 USA
Dimensions (with yoke and handles)
in: 34 L x 13 H x 16 W
cm: 86 L x 33 H x 41 W
Note The height of the fixture without the yoke is 9.6 in. (24
cm).
Weight (including yoke)
41 lbs (19 kg)
Electrical Specifications
•Voltages: 100/120/230 V; 50 Hz; 3.75/3.13/1.6 A
100/120/208 V; 60 Hz; 3.75/3.13/1.8 A
•Rated power: 375 W
•Power factor, 120V, 60 Hz: 0.96
•Power factor, 230V, 50 Hz: 0.90
•Fuses:
•F1—125V, 4.0A, Fast Blow Only (5mm x 20mm)
•F2—250V, 2.5A, Fast Blow Only (5mm x 20mm)
•F3—250V, 6.3A, Slow Blow Only (5mm x 20mm)
Class I equipment - This equipment must be earthed.
Technobeam Laser Aiming
Device™ (LAD™)
The specifications below apply only to Technobeam fixtures that have
the Laser Aiming Device (LAD) installed.
• Class 3a laser product
• Beam divergence angle: 0.2mRad to 0.3mRad
TM
Technobeam® User Manual Specifications 1-3
• Maximum output (continuous): 5mW at 630-650nm
• Maximum output (pulsed): <2.5mW
• Pulse modulation: 4.25Hz to 255Hz @ 50% duty cycle
• Pulse duration: 1.96ms to 117ms
• Pulse energy: 9.8µJ to 585µJ
LAD Safety Standards
• EN60825-1, 1994
• 21 CFR 1040
Important Power Cord Information - U.K. Only
IMPORTANT The cores in the mains lead are colored in accordance
with the following code:
•green and yellow: earth
•blue: neutral
•brown: live
This equipment must be earthed.
Vigtig Sikkerhedsinformation - DANMARK
Advarsel: Beskyttelse mod elektrisk chock.
Vigtigt!
Lederen med gul/groen isolation maa kun tilsluttes en klemme maerket
eller
Laser aiming device assembly
(inside fixture)
LASER RADIATION - AVOID
DIRECT EYE EXPOSURE
Max output: 5mW at 630-650 nm
CLASS 3a LASER PRODUCT
Laser radiation is emitted from this aperture
AVOID EXPOSURE
Emission indicator
Max output: 5mW at 630-650 nm
CLASS 3a LASER PRODUCT
Cert. to EN 60825-1, 1994
and 21 CFR 1040
LASER RADIATION - DO NOT
STARE INTO BEAM OR
VIEW DIRECTLY WITH
OPTICAL INSTRUMENTS
DANGER
1-4 Specifications Technobeam® User Manual
Dichroic, Litho and Effects Specifications
You can install any High End Systems-manufactured solid dichroic
filters, effects LithoPatterns lithos, ArtGlass, or Fusion Fire®—as long
as they were manufactured for use with Technobeam and not another
fixture; otherwise, the dichroics, lithos or effects might not fit in the
wheels properly.
You can also install gobos or lithos from other manufacturers as long
as they adhere to the following specifications:
Dichroics
• Diameter: 1.125” ± 0.010” (28.5 mm ± 0.25 mm)
• Thickness: 0.069” ± 0.010” (1.8 mm ± 0.25 mm)
Lithos
• Diameter/image area: 0.996”/0.860” ± 0.005” (25 mm/22 mm ±
0.13 mm)
• Maximum thickness (rotating litho only): 0.105” ± 0.005” (2.7
mm ± 0.13 mm)
• Thickness (static litho only): 0.069” ± 0.010” (1.8 mm ± 0.25
mm)
Rotating effects wheel
• Diameter/image area: 1.43”/1.04” ± 0.010” (36 mm/26 mm ±
0.25 mm)
• Maximum thickness: 0.175” ± 0.010” (4.4 mm ± 0.25 mm)
Safety Standards
Technobeam conforms to:
• EN 60598-1 : 1993
• EN 60598-2-17 : 1989
A1-A3 : 1993
• ANSI/UL-1572
• CAN/CSA C22.2 No. 9
Electromagnetic Standards
• EN 55022, Class A ITE
• IEC 801-2, 1991 Level 2 (4/8 kV)
• IEC 801-3, Draft 5 Level 2 (3 V/m)
• IEC 801-4, 1988 Level 2 (1 kV/0.5 kV)
Technobeam® User Manual Optional Accessories 1-5
Environmental Specifications
Maximum ambient temperature (Ta): 50° C (122° F)
Maximum exterior surface temperature: 70° C (158° F)
Minimum distance to flammable objects: 1.0 m (3.28 ft)
Minimum distance to lighted object: 1.0 m (3.28 ft)
DMX Data Cabling
•DMX data cables: Belden® 9841 or equivalent (meets
specifications for EIA RS-485 applications) with characteristics
listed below:
• 2-conductor, twisted pair plus a shield
• maximum capacitance between conductors - 30 pF/ft.
• maximum capacitance between conductor & shield - 55 pF/ft.
• maximum resistance of 20 Ω/1000 ft.
• nominal impedance 100–140 Ω
• 22–24 AWG with insulation having a dielectric rating of 300
volts or higher
•DMX data connectors: 3-pin male and female XLR connectors
•DMX data terminators: Male XLR connector with 120 ohm
terminator between pins 2 and 3 (see Figure 2-4 on page 2-6)
Controllers
Technobeam may be controlled with any of the following:
•The Status Cue
® lighting system
• The Technobeam LCD controller
• Another DMX 512-compatible controller
Optional Accessories
Table 1-1 below shows the optional accessories for Technobeam,
available from your High End Systems® dealer/distributor:
Table 1-1. Optional Accessories
Name Part Number
Optional lens sets Call*
Replacement MSD 250-2 lamp Call*
Custom color wheel dichroic filters Call*
LithoPatterns Call*
1-6 Unpacking the Fixture Technobeam® User Manual
† - You must obtain the Laser Aiming Device from High End Systems
Customer Service; see “Contacting High End Systems” on page Intro-4.
Call* - Contact either your High End Systems dealer/distributor, High
End Systems Sales, or the High End Systems World Wide Web site.
Unpacking the Fixture
Unpack the Technobeam box and verify that the contents arrived
complete and without any damage.
Save the Shipping Materials
Do not discard the shipping carton and packing materials. The carton
and packing materials are specifically designed to protect the product
during transport.
High End Systems, Inc. assumes no responsibility for products
damaged during transport. Therefore, you should return a product for
repair in its original shipping carton and packing materials.
Note Before sending anything to the factory, call your HES
dealer/distributor for a Return Material Authorization
(RMA) number. The factory cannot accept any goods
shipped without an RMA number.
Effects Call*
Technobeam LCD controller 29020001
Laser Aiming Device for Technobeam only†29060002
Status Cue System Call*
Heavy duty 3-pin XLR cable (10’) 55050005
Heavy duty 3-pin XLR cable (25’) 55050006
Heavy duty 3-pin XLR cable (50’) 55050007
Heavy duty 3-pin XLR cable (100’) 55050008
Deluxe C-clamp 55000004
Galvanized safety cable 12040001
Lightwave Research Upload Dongle 26040002
Table 1-1. Optional Accessories
Name Part Number
Technobeam® User Manual Installing the Power Cord Cap 1-7
Inspecting the Contents
Carefully unpack the carton and inspect the contents for damage. If
any items in the list below are missing or damaged you must notify
both the shipping agent and your sales agent immediately.
• One Technobeam fixture.
• Separate yoke packaging: one yoke, two yoke slide bezels, two
allen screws, two T-handles.
Installing the Power Cord Cap
IMPORTANT The cores in the mains lead are colored in accordance
with the following code:
•green and yellow: earth
•blue: neutral
•brown: live
In some cases, you must obtain and install a power cord cap before you
can connect your fixture to a power outlet. The type of power cord cap
you must obtain depends on the location in which you will use
Technobeam; different locations (even within the same country) might
have different power cord cap requirements.
Note Because of the wide variety of power cord caps used
worldwide, High End Systems, Inc. cannot make specific
recommendations for the particular power cord cap you
should use. Contact a local authority if you are unsure
which type of power cord cap you need.
Important Power Cord Cap Information - U.K.
Only
Since the colors of the cores in the mains lead of this equipment may
not correspond with the colored markings identifying the terminals in
your plug, proceed as follows:
• The core which is colored green and yellow must be connected to
the terminal in the plug which is marked with the letter “E” or by
the earth symbol , or colored green or green and yellow.
• The core which is colored blue must be connected to the terminal
which is marked with the letter “N” or colored black.
1-8 Installing the Yoke Technobeam® User Manual
• The core which is colored brown must be connected to the terminal
which is marked with the letter “L” or colored red.
Class 1 equipment: This equipment must be earthed.
VIGTIG FIKKER HEDS INFORMATION -
DANMARK
Advarsel: Beskyttelse mod elektrisk chock.
Vigtigt!
Lederne med gul/groen isolation maa kun tilsluttes en klemme maerket
Installing the Yoke
You will need: one 1/4” allen wrench
This section explains how to install the moving-track yoke. You can
adjust the yoke however you want to distribute the weight of the
fixture. You can even slide the yoke all the way to the end of the
fixture to hang it straight down.
1. Identify the components shown in Figure 1-1:
Figure 1-1. Identifying yoke components.
eller
Yoke
T-handle
(1 on each side)
Allen screw
(1 on each side)
Yoke slide bezel
(1 on each side)
Mounting holes
(2 on each side)
Side handle
(loosen 2 allen
screws to move yoke)
Technobeam® User Manual Installing the Yoke 1-9
2. Use a 1/4” allen wrench to attach one allen screw to each side of the
fixture (but do not fully tighten it), as shown in Figure 1-2. Make sure
you place a yoke slide bezel between the yoke and each side of the
fixture.
Figure 1-2. Installing the yoke on the fixture.
3. Manually screw one T-handle into each side of the fixture. Do not fully
tighten the T-handles.
4. If you want to reposition the yoke, use a 1/4” allen wrench to loosen
the allen screws on the side handles shown in Figure 1-1 on page 1-8.
5. After loosening the side handle allen screws, slide the yoke to the
desired position. If you want to hang the fixture straight down, see the
section titled “Hanging the Fixture Straight Down” on page 2-12 now.
6. Make sure the yoke is even (i.e., the same distance from the rear of the
fixture on both sides).
7. Securely tighten the four side handle allen screws (two on each side).
8. Tilt the fixture to the desired angle, then securely tighten the other
allen screws and T-handle.
1-10 Setting the Fixture Voltage Technobeam® User Manual
Setting the Fixture Voltage
Technobeam is shipped from the factory set for 230V, 50Hz and offer
the following switch-selectable voltage/frequency settings:
230 V, 50 Hz 208 V, 60 Hz
100 V, 50 Hz 100 V, 60 Hz
120 V, 50 Hz 120 V, 60 Hz
The recommended fuse F3 for all voltages and frequencies is:
F3 - 250V, 6.3A, Slow Blow Only.
WARNINGS (1) Check the voltage setting before
proceeding with equipment setup!
(2) The information in this section is
intended to assist qualified service
personnel because this fixture is to be
serviced by qualified service personnel only.
(3) Disconnect power before re-lamping or
servicing.
(4) Replace fuses with specified type and
rating only.
1. Make sure the fixture is disconnected from the power outlet before
proceeding.
2. Lay the fixture on its back and locate the door retaining screw, as
shown in Figure 1-3. Loosen the screw and remove the access door.
Technobeam® User Manual Setting the Fixture Voltage 1-11
Figure 1-3. Removing the door allows you to access the fixture’s voltage
selection switches, as well as wheels and optics.
3. Locate the three switch blocks—labeled SW1, SW2 and SW3—by the LED
display, as shown in Figure 1-4:
Figure 1-4. The three voltage selection switches located next to the LED
display.
4. Choose a voltage/frequency setting as shown in Figure 1-5:
Figure 1-5. Setting the fixture’s voltage and frequency.
5. Replace the access door, unless you want to install the optional narrow
lens set or set the beam angle as shown in the next section.
Door retaining screw
Access door
To p o f
fixture
1-12 Setting the Beam Angle Technobeam® User Manual
Setting the Beam Angle
This section explains how to set the fixture’s beam angle. (It also
shows how to install the optional 8 to 12 degree narrow angle lens set.)
You can change the beam angle, for example, if you are having trouble
focusing precisely on a very detailed image.
Selecting a larger beam angle results in a larger-diameter image, but
can also result in some loss of image resolution and light intensity.
Note All beam angles are accurate to ±1°.
1. Unplug the fixture and remove the access door shown in Figure 1-3 on
page 1-11 if you have not done so already.
2. Lay the fixture on its back and locate the lens tube as shown in Figure
1-6.
Figure 1-6. The lens tube contains the zoom lenses.
3. The lens tube cover has two latches on each side that secure it in place;
see Figure 1-7. Squeeze the latches together to remove the lens tube
cover.
Figure 1-7. Squeeze the two latches on each side of the lens tube to open
the cover.
Lens tube
Latches
(2 on each side)
Squeeze latches
(2 on each side of
lens tube)
Focus drive screw
located under lens tube
(turn drive screw to move
lens tube for easier access)
Technobeam® User Manual Setting the Beam Angle 1-13
Hint If the latches are difficult to access, reach under the lens
tube and manually turn the focus drive screw to move
the lens tube toward the rotating effects wheel.
4. The factory-installed 11 to 17 degree lens set is shown Figure 1-8:
Figure 1-8. Components of the factory-installed 11 to 17 degree lens set.
5. This step applies to the optional 8 to 12 degree narrow angle lens set
only.
a. Remove all lenses shown in Figure 1-8 and put them in a safe place
where they will not get scratched.
b. Use Table 1-3 on page 1-14 to install the two lenses in the 8 to 12
degree narrow angle lens set. The name and orientation of each
lens is printed on the side of the lens. The arrow printed on each
lens must point toward the aperture (i.e., away from the lamp).
6. Lens positions in the lens tube are numbered from 1 to 10, both on the
lens tube cover and on the bottom portion of the lens tube. Use those
numbers in either Table 1-2 on page 1-14 or Table 1-3 on page 1-14 to
move the lenses to correspond with the desired beam angle. The arrow
printed on the lens must point toward the front of the fixture (i.e.,
away from the lamp).
Caution Handle the lenses by the edge only.
Fingerprints can result in lower image
quality. Use only a soft, lint-free cotton
cloth to clean lenses. Use a mild glass
cleaning solution if necessary to clean built-
up dust or dirt.
Lens tube cover
Front lens
Move this lens to chang
e
the beam angle
Rear lenses
(for 11 to 17
degree lens
set only)
Always leave
these lenses
in slot 1
Arrow points to
front of fixture
1-14 Setting the Beam Angle Technobeam® User Manual
7. When you are finished, replace the lens tube cover, making sure to
point the arrow on the cover toward the front of the fixture.
Table 1-2. Beam Angles for
Factory-Installed 11 to 17
Degree Lens Set
Beam Angle Front Lens
Position*
11.5° 10
13.5° 8
15° 6
16.5° 4
17.5° 3
* - For the 11 to 17 degree lens
set, the rear lenses must always
be placed in slot 1 (see Figure
1-8 on page 1-13).
Table 1-3. Beam Angles for Optional 8 to 12 Degree Narrow Angle Lens Set
Beam Angle Rear Lens
Position Front Lens
Position
8° 1 10
8.6° 2 10
9.1° 2 9
9.7° 2 8
10.3° 3 8
10.8° 3 7
11.4° 3 6
12° 3 5
Lamp (arrow points
away from)
Aperture (arrow
points toward)
One of the following will be printed on each lens:
F W Front lens, factory-installed lens set
R W Rear lens, factory-installed lens set
F N Front lens, optional narrow angle lens set
R N Rear lens, optional narrow angle lens set
Technobeam® User Manual 2-1
Chapter 2
Setting Up Your Fixture
Powering On the Fixture .................................................................................2-2
Homing the Fixture .............................................................................2-2
LED Display ........................................................................................2-2
Status LEDs .........................................................................................2-3
Overview of Controller Operation ...................................................................2-4
What is DMX 512 Protocol? .................................................................2-4
What Kind of Cabling Should You Use? ..............................................2-4
Constructing Cabling .............................................................2-5
Terminators ...........................................................................2-5
Setting up the Link .............................................................................2-6
Linking the Fixtures to the Controller ............................................................2-7
Mounting the Fixture .......................................................................................2-8
Standing the Fixture on its End Handles ............................................2-9
Mounting the Fixture on a Truss or Other Support System ...............2-9
Hanging the Fixture Straight Down ................................................. 2-12
Configuring the Fixture ................................................................................ 2-13
Fixture Types ................................................................................... 2-13
Selecting a Control Method ............................................................. 2-14
DMX Start Channel Control Method .................................... 2-14
Fixture Number Control Method ......................................... 2-14
Assigning a Fixture Address ............................................................ 2-15
Channel Range .................................................................... 2-15
Determining the Unique DMX Start Channel ...................... 2-16
Determining the Unique Fixture Number ........................... 2-17
Wasted DMX Channels ........................................................ 2-17
Upgrading Software ...................................................................................... 2-18
Crossloading Software ..................................................................... 2-19
Troubleshooting ........................................................................................... 2-20
Troubleshooting DMX Data ............................................................. 2-24
Menu Error Messages ....................................................................... 2-25
Addr Lost ............................................................................ 2-25
Boot Diff ............................................................................. 2-25
EMEM Ack ............................................................................ 2-26
EMEM [message] .................................................................. 2-26
Erse Flsh ............................................................................. 2-26
ID Lost ................................................................................. 2-26
Lamp ................................................................................... 2-27
Link Busy ............................................................................ 2-27
Link Empty .......................................................................... 2-27
Over Temp .......................................................................... 2-28
PRST Lost ............................................................................ 2-28
PGRM Time .......................................................................... 2-28
Shut Down .......................................................................... 2-28
2-2 Powering On the Fixture Technobeam® User Manual
Powering On the Fixture
Do all of the following before powering on the fixture:
1. Select the correct voltage and frequency settings for the power outlet
you will be using. See the section titled “Setting the Fixture Voltage” on
page 1-10.
2. Install the appropriate power cord cap as described in the section
titled “Installing the Power Cord Cap” on page 1-7.
3. Replace the access door shown in Figure 2-2 on page 2-3.
Homing the Fixture
Connect the fixture to an appropriately-rated power outlet; there is no
power switch. You will hear the sounds of the motors and gears as
they home. This is normal.
LED Display
When the fixture has finished homing, the LED display should show the
fixture’s software version, similar to Figure 2-1:
Figure 2-1. The initial LED menu display shows the fixture’s software
version.
Note The LED display will alternate between the version
number (shown above) and the fixture number or DMX
start channel unless an error occurs during start-up.
If the fixture fails to home, or if the menu displays an error message,
see the section titled “Troubleshooting” on page 2-20 now.
R
MENU ENTER
Technobeam® User Manual Powering On the Fixture 2-3
Status LEDs
Technobeam fixtures have three status LEDs located on the access
door, as shown in Figure 2-2:
Figure 2-2. Location of the three status LEDs on the fixture’s access door.
Table 2-1 describes the three status LEDs:
If the LED states indicate a problem, see the section titled
“Troubleshooting” on page 2-20.
* - The Receive LED will not be ON unless the fixture is connected to a
DMX 512 link with a working controller. If you have already connected
Table 2-1. Status LEDs
LED name State Problem
Indication? Description
Motor solid red No The motors are receiving adequate
voltage.
OFF Yes Fuse or power failure. See below.
Transmit OFF Not necessarily* No data is being transmitted.
flickering yellow No A software crossload is taking place.
solid yellow Yes†Software or hardware failure.
Receive OFF Not necessarily* No data is being received.
flickering green No Fixture is receiving data.
Door retaining screw
Access door
2-4 Overview of Controller Operation Technobeam® User Manual
the fixture to a controller and are sending DMX 512 commands to the
fixture, and the Receive LED is OFF, see the section titled
“Troubleshooting” on page 2-20.
† - Unless this fixture is crossloading, the yellow Transmit LED should
never be ON solid. (The Transmit LED will flicker yellow if you have
enabled preset playback and the fixture is set for either fixture number
1 or DMX start channel 1. This is due to preset playback
synchronization, as described in “Synchronizing Preset Playback” on
page 4-9. Try unplugging the fixture, waiting a few minutes, then
plugging it back in. If the Transmit LED continues to be ON, contact
High End Systems Customer Service in one of the ways shown in the
section titled “Contacting High End Systems” on page Intro-4.
More information about crossloading software is shown in the section
titled “Upgrading Software” on page 2-18.
Overview of Controller Operation
In order to coordinate the playback of multiple Technobeam fixtures
from a central location, you need to connect the fixtures to a DMX 512-
compatible controller using XLR data-grade cabling.
What is DMX 512 Protocol?
DMX 512 is an industry-standard protocol for controlling lighting
fixtures and other devices (such as lasers and hazers). Developed by
the United States Institute of Theatre Technology (USITT), DMX 512 is
supported by leading entertainment industry equipment
manufacturers.
DMX 512 (D for digital, MX for multiplex and 512 is the number of
channels per link) is a reliable, efficient and well-understood control
protocol. Its strength lies in its ability to control virtually any mix of
DMX-compatible devices on the same link using a DMX-compatible
controller.
What Kind of Cabling Should You Use?
There are two main types of cabling you can use: microphone cable
and data-grade cable. Although pin-compatible microphone cable is
suitable for small-scale designs, data cable is recommended, especially
for longer cable runs. Data cable is designed to carry a higher-quality
signal with less susceptibility to electromagnetic interference.
The cable you use should have the characteristics listed below:
• 2-conductor twisted pair plus a shield
• maximum capacitance between conductors - 30 pF/ft.
Technobeam® User Manual Overview of Controller Operation 2-5
• maximum capacitance between conductor and shield - 55 pF/
ft.
• maximum resistance of 20 Ω/1000 ft.
• nominal impedance 100–140 Ω
• 22–24 AWG with insulation having a dielectric rating of 300
volts or higher
For example, Belden® 9841 data-grade cabling meets specifications for
EIA RS-485 applications and is highly recommended (or its equivalent)
for use with Technobeam.
Constructing Cabling
If you need to construct cabling, you must use a shielded, two-
conductor cable with a male 3-pin XLR connector on one end and a
female 3-pin XLR connector on the other end. Pin 1 is the common
(cable shield), pin 2 is the data complement (negative), and pin 3 is the
data true (positive).
Figure 2-3. Properly-constructed data cabling.
You should test each cable with a voltage/ohm meter (VOM) to verify
correct polarity and to make sure that the negative and positive pins
are not grounded or shorted to the shield or to each other. Also, make
sure that pin 1 is shielded.
Caution Do not connect anything to the ground lug
on the XLR connectors. Do not connect or
allow contact between the common (cable
shield) and the fixture’s chassis ground.
Grounding the common could cause a
ground loop and/or erratic behavior.
Terminators
The last device on each link must have a 120 ohm, 1/4 watt (minimum)
2-6 Overview of Controller Operation Technobeam® User Manual
terminator attached to its Data Out connector.
You can construct terminators by following the instructions below:
Figure 2-4. Constructing a data cable terminator.
Setting up the Link
Follow the guidelines below when setting up the DMX link:
1. Do not allow the DMX channel ranges (boundaries) used by two
different devices on the link to overlap. Overlapping boundaries can
disable one or both devices. See Chapter 3 for more information about
channel boundaries for Technobeam. Consult the documentation
provided with the other devices for their DMX channel ranges.
2. You can assign two fixtures of the same type (for example, two
Technobeam fixtures both set to full protocol) to the same DMX
channel range if you want both fixtures to respond to control
commands in exactly the same way.
3. Software uploads (updates): You must remove or bypass all controllers,
non-High End Systems fixtures, optoisolators and serial data
distributors on the link if you want to perform software uploads or
crossloads as described in the section titled “Upgrading Software” on
page 2-18.
Dataflash® AF1000 xenon strobes, Intellabeam® automated luminaires,
and Emulator® laser simulators will stop software uploads to
Technobeam fixtures farther down the link. Make sure you put all of
the Intellabeam fixtures, Emulator fixtures and AF1000 fixtures after
all of the Technobeam fixtures.
4. As long as you observe all of the rules above, you can use whatever
DMX channels and cabling scheme you want. You do not, for example,
have to assign the lowest DMX start channel to the fixture directly
connected to the controller. Use whatever channel and cabling scheme
is simplest and results in the least amount of cabling.
120Ω
1. Obtain a male XLR connector.
2. Disassemble the connector.
3. Solder a 120 ohm resistor, minimum
of 1/4 watt, between pins 2 and 3.
4. Reassemble the connector.
5. Install the terminator in the Data Out
port of the last device in the link.
Technobeam® User Manual Linking the Fixtures to the Controller 2-7
Linking the Fixtures to the
Controller
Starting with the controller, link fixtures using the procedure below.
1. Consult the documentation provided with the controller for the
procedure to connect XLR cable to its Data Out connector.
2. Connect the female end of the XLR cable from the controller to the first
fixture’s male Data In connector.
3. Connect the male end of another XLR cable to the first fixture’s female
Data Out connector.
4. Continue connecting the Data Out connector from one fixture to the
Data In connector to the next fixture until you have linked all of the
Technobeam fixtures.
5. Connect other devices to the Technobeam fixtures as desired, using
the instructions in the documentation provided with those devices.
Place a male 120 ohm terminator on the female Data Out connector of
the last device in the link. The procedure for making a terminator can
be found in the section titled “Terminators” on page 2-5.
Figure 2-5. Location of the DMX data in (male) and DMX data Out (female)
ports on the fixture’s rear panel.
DMX data in (male)
DMX data out (female)
MODEL
SERIAL
FACTORY SET
DATE
Patents issued and pending. See user manual
for listings.
QC
TECHNOBEAM
29FA000 000
230V, 50Hz
1/28/98 TC
2-8 Mounting the Fixture Technobeam® User Manual
Figure 2-6. Connecting fixtures to a controller. Make sure you terminate the
last fixture in the link.
Mounting the Fixture
You will need: - one 1/4” allen wrench
- clamps and safety cable as described in this
section
Your fixture is designed to be mounted in any orientation: you can
even hang it with its aperture pointing straight down or stand it on its
end handles. However you wish to mount the fixture, you must follow
the precautions and suggestions below:
• Verify the input voltage you are using matches the fixture’s voltage
selection switches (see the section titled “Setting the Fixture
Voltage” on page 1-10).
• Heed the warnings below to guard against personal injury and
damage to the fixture.
WARNINGS (1) This equipment for connection to a
branch circuit having a maximum overload
protection of 20 A.
(2) Class I Equipment - This fixture must be
earthed.
Controller
Data Out
Data In
Data Out
Data In
Data Out
Data In
Data Out
Data In
Terminate the
ltfit
Technobeam® User Manual Mounting the Fixture 2-9
(3) Mount the fixtures and controllers in a
location that is away from direct heat and
protected from moisture. Do not mount on a
flammable surface.
(4) Maintain minimum distance of 1.0 meter
(3.28 feet) from combustible materials.
(5) Observe minimum distance to lighted
objects of 1.0 meter (3.28 feet). This means
the fixture must be positioned at least 1
meter away from the object it is
illuminating.
(6) Use a secondary safety cable when
mounting this fixture.
Standing the Fixture on its End Handles
The fixture’s end handles are designed to support its weight; however,
make sure you observe the following guidelines:
1. The fixture must be located away from moving objects that could
strike it and cause it to become unbalanced.
2. The fixture must be mounted on a sturdy, stable surface.
3. If the surface is above floor height, make sure you use safety cables as
described in the next section.
Mounting the Fixture on a Truss or Other
Support System
If you are mounting the fixture on a truss or another type of support,
do all of the following:
1. Verify the truss or support will handle the weight of all the devices you
are mounting. Technobeam fixture weights are listed in the section
titled “Weight (including yoke)” on page 1-2.
2. The use of user-supplied safety cable is strongly recommended. You
must supply your own safety cable and you must verify the cable is
capable of supporting the weight of the fixture as listed in the section
titled “Weight (including yoke)” on page 1-2. You can order galvanized
safety cables from your High End Systems dealer/distributor (see
“Optional Accessories” on page 1-5).
3. You must supply your own clamps to attach the fixture to the support.
Verify that the clamp(s) you use are capable of supporting the weight
of the fixture as listed in the section titled “Weight (including yoke)” on
2-10 Mounting the Fixture Technobeam® User Manual
page 1-2. You can order deluxe C-clamps for a two-inch truss from
your High End Systems dealer/distributor (part number 55000004).
Also see the section titled “Optional Accessories” on page 1-5.
4. Make sure the fixture cannot be rotated all the way around (360o).
Allowing the fixture to rotate 360o could loosen the clamp mounting
bolts.
Note Because of the variety of conceivable lighting designs,
you should consider the procedure below as a suggested
guideline only. High End Systems, Inc. cannot make
specific recommendations for your particular lighting
design or venue.
Suggested mounting procedure:
1. Use two people to mount each fixture: one person to hold the fixture
while it is being secured in place, and one person to secure the fixture
to its support and to attach clamps and safety cables.
2. Always stand on a firm, stable surface when mounting a fixture to its
support. The fixture should be at a height where you can comfortably
work on it, and should either be resting on a stable surface or held in a
stable manner. Do not allow one person to both support and mount the
fixture.
3. Attach a suitable clamp through one of the holes on top of the yoke. If
you are attaching one clamp, use the middle hole on the yoke. If you
are attaching 2 clamps per fixture, attach one clamp to each of the
outer holes on the yoke. Use two locking washers per clamp when
attaching the clamp to the yoke.
Figure 2-7. Use a locking washer when attaching a fixture to a truss.
Truss
Clamp securely on truss
Use two (2) locking
washers
Insert bolt through hole in top of yoke
Technobeam® User Manual Mounting the Fixture 2-11
4. Tighten the clamp(s) firmly to the yoke and to the support.
5. Loop one or more suitable safety cables around the support and the
top of the yoke (see Figure 2-8).
Figure 2-8. Always use a safety cable when mounting the fixture.
6. Loosen the T-handles on each side of the fixture (see Figure 2-9) and
orient the fixture to the desired tilt angle.
7. Tighten the T-handles to secure the fixture in the desired position.
8. When you have the fixture in the position you want, firmly tighten the
T-handles shown in Figure 2-9.
Figure 2-9. Location of the T-handle you use to adjust the yoke position.
Side view of yoke
Loop safety cable
through any of these
holes
MODEL
SERIA L
FACTORY SET
DAT E
Pate n t s issued and pending. S ee user ma nual
for listings.
QC
TECHNOBEAM
29FA000000
230V, 50Hz
1/28/98 TC
T-handle
2-12 Mounting the Fixture Technobeam® User Manual
Hanging the Fixture Straight Down
You can mount Technobeam with the mirror head perpendicular to the
ground for projection onto a stage. This orientation also allows you to
economize truss space by hanging fixtures side by side close to each
other.
You must observe all of the precautions listed on the previous pages
regarding clamps and safety cables.
Caution You should adjust the yoke position while
the fixture is resting on a flat surface;
otherwise, the fixture may be damaged if it
slides backward.
1. Use a 1/4” allen wrench to loosen the two yoke allen screws (see Figure
2-10).
2. Use a 1/4” allen wrench to loosen the four handle allen screws (two on
each handle).
3. Slide the yoke to the rear of the fixture.
4. Loosen the T-handles on each side and rotate the yoke toward the rear
of the fixture.
Figure 2-10. You can slide the yoke all the way back to allow the fixture to
hang upside-down.
5. Tighten the allen screws and T-handles on both sides of the fixture,
then secure the fixture to the truss using a C-clamp with a locking
washer and safety cable as shown in Figure 2-10. When the fixture is
mounted like you want it, securely tighten the fixture’s T-handles.
Yoke allen screw
T-handle
Handle allen screws
Truss
Safety cable
Technobeam® User Manual Configuring the Fixture 2-13
Configuring the Fixture
This section explains how to configure your fixture for operation by
selecting a fixture type and control method and assigning a fixture
address (either a DMX start channel or fixture number).
You must select a fixture type and control method and assign a fixture
address if you want to control the fixture with a DMX 512-compatible
controller. However, you can skip this section if you plan to use the
fixture in stand-alone mode (without a controller) and program the
fixture using preset programming, as shown in Chapter 3.
Configuring your fixture requires you to access the fixture’s menu
system via the alphanumeric LED display and four menu navigation
buttons on the fixture’s front panel (see Figure 2-11). For a detailed
description of the menu system, see “Using the Menus” on page 3-1.
Figure 2-11. Menu navigation buttons.
Fixture Types
Each fixture uses a fixture-specific protocol which determines the
number of DMX channels the fixture will use. To change the fixture
type, see “Setting the Fixture Type and Protocol (TYPE)” on page 3-15.
Available Technobeam fixture types and the number of DMX channels
used per fixture are listed below:
•TB F - Technobeam full protocol - uses 18 DMX channels per
fixture. The full protocol gives you more control over pan and tilt
position and litho spin speed and is for use with fixtures that do
not have an iris. You must select full protocol if you want to use
the Laser Aiming Device™ (LAD™) or macros
•TB R - Technobeam reduced protocol - uses 14 DMX channels per
fixture. You should use this protocol if you need to conserve the
extra four DMX channels for other devices on the link, and your
fixtures do not have an iris.
<Up> arrow button: scroll upward
through menu items or options
<Down> arrow button: scroll downward
through menu items or options
<Menu> button: move back to the
previous menu level
(press and hold to enter the menu system)
<Enter> button: select the
curent menu item or option
MENU ENTER
alphanumeric LED display
2-14 Configuring the Fixture Technobeam® User Manual
•TB I - Technobeam iris protocol - uses 18 DMX channels per fixture.
This protocol should only be used with fixtures that have an iris.
•TLCD - Technopro LCD protocol - uses 18 DMX channels per
fixture. This protocol should only be used with Technopro fixtures
that are controlled with an LCD controller.
Selecting a Control Method
You must select a control method for each fixture: either a DMX start
channel (recommended) or a fixture number (for a link with fixtures
that all use the same number of DMX channels).
Note Once you choose a control method, you should use that
same control method for all the fixtures on a link.
DMX Start Channel Control Method
If you plan to combine different types of devices (and/or protocols)
that use different numbers of channels on one DMX link, you should
use the DMX start channel control method. Using the DMX start
channel method to control your fixtures allows you to assign an
explicit start channel to each fixture, so no DMX channels are wasted.
For more information, see “Wasted DMX Channels” on page 2-17.
To select the DMX start channel control method:
1. Press and hold the <Menu> button until “ADDR” appears on the LED
display.
2. Using the <Up> and <Down> arrow buttons, scroll to the “SET” menu
and press the <Enter> button to select the “SET” menu.
3. Using the <Up> and <Down> arrow buttons, scroll to the “CHNL” menu
and press the <Enter> button to select the “CHNL” menu.
4. Using the <Up> and <Down> arrow buttons, scroll to the “DMX” option
and press the <Enter> button to select the “DMX” option.
Note You must select a control method for each Technobeam
fixture on the link.
Fixture Number Control Method
When you use the fixture number control method, each fixture “thinks”
all other devices on the link use the same number of DMX channels that
it uses. Therefore, using the fixture number control method is a good
idea only if you plan to link fixtures that all use the same number of
DMX channels.
For example, assign fixture numbers if you have a link that only
controls Technobeams set to iris protocol (or other devices that use 18
DMX channels), or a link that only controls Technobeams set to reduced
protocol (or other devices that use 14 channels per link).
Technobeam® User Manual Configuring the Fixture 2-15
To select the fixture number control method:
1. Press and hold the <Menu> button until “ADDR” appears on the LED
display.
2. Using the <Up> and <Down> arrow buttons, scroll to the “SET” menu
and press the <Enter> button to select the “SET” menu.
3. Using the <Up> and <Down> arrow buttons, scroll to the “CHNL” menu
and press the <Enter> button to select the “CHNL” menu.
4. Using the <Up> and <Down> arrow buttons, scroll to the “ADDR” option
and press the <Enter> button to select the “ADDR” option.
Note You must select a control method for each Technobeam
fixture on the link.

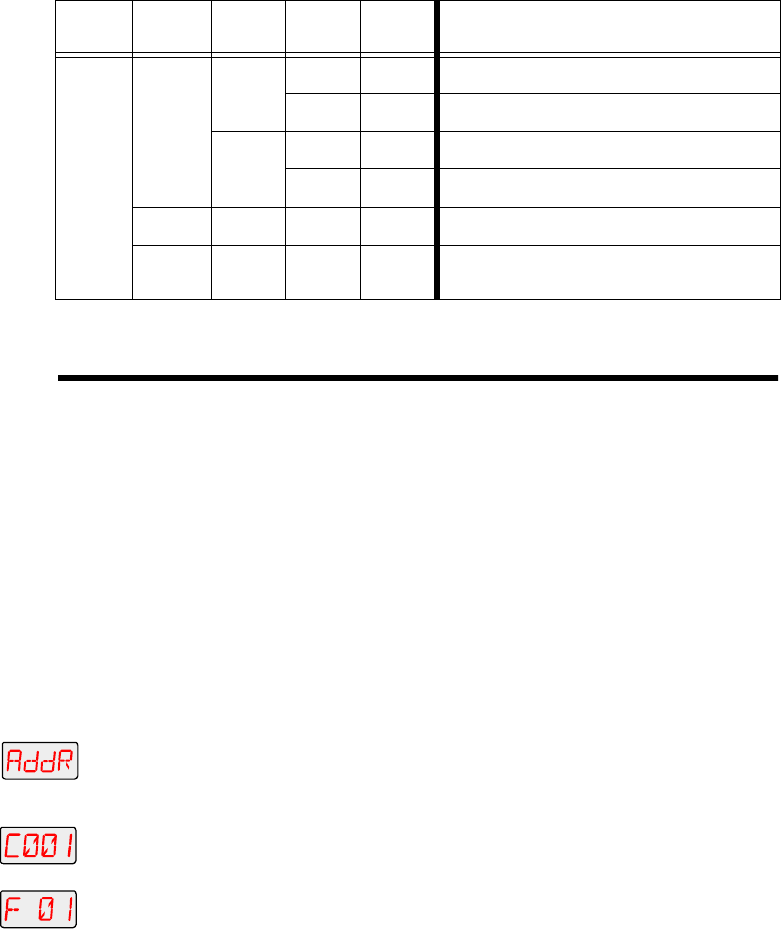

Assigning a Fixture Address
The fixture’s address identifies each fixture’s channel range on the
DMX link. After you have selected a control method, you must assign a
DMX start channel or fixture number to each fixture:
• If you chose the DMX start channel control method for the fixture,
you must assign each fixture a DMX start channel.
• If you chose the fixture number control method, you must assign
each fixture a fixture number.
You must assign a unique fixture address to each fixture that you want
to respond independently to controller commands. If you want two or
more fixtures to respond to controller commands in exactly the same
way, all fixtures must be the same type (for example two Technobeam
fixtures set to iris protocol) and must share the entire channel range.
Channel Range
There are 512 available channels on each DMX link. These 512
channels are divided among all the devices in a particular link. The
number of channels each fixture requires is called the fixture’s channel
range. The size of each fixture’s channel range is determined by the
fixture type (see “Fixture Types” on page 2-13).
Each Technobeam set to full, iris, or LCD protocol reserves a block of
18 contiguous channels. Each Technobeam set to reduced protocol
reserves a block of 14 contiguous channels. Therefore, you can control
up to 28 Technobeam fixtures set to full, iris, or LCD protocol (512
DMX channels available / 18 channels used = 28.4 fixtures per link) or
up to 32 Technobeam fixtures set to reduced protocol*.
*Note Although there are enough available DMX channels to
link up to 36 Technobeam fixtures in reduced protocol,
you must use a DMX splitter to connect more than 32
fixtures per link. The 32 device limit complies with the
EIA-485 standard. Connecting more than 32 devices per
2-16 Configuring the Fixture Technobeam® User Manual
link without a DMX splitter will eventually deteriorate
the digital signal.
The fixture’s channel range must not overlap any other device’s
channel range on the link. When two devices on the same DMX link
have overlapping channel ranges, one or both devices will be disabled
or behave erratically.
Note The single exception to the non-overlapping rule is if the
fixtures are the same type (for example two
Technobeams set to iris protocol) and share the entire
channel range.
Determining the Unique DMX Start Channel
The DMX start channel is the first channel available to a fixture in its
channel range. To determine each fixture’s DMX start channel in a link,
you must know the number of DMX channels used by each fixture (see
“Fixture Types” on page 2-13).
Knowing that the first fixture on the link will use DMX start channel 1,
you can determine the DMX start channel for each successive fixture by
adding the number of DMX channels used by the fixture to the fixture’s
DMX start channel. For example, in Table 2-2, 18 (channels used by the
Technobeam set to iris protocol) + 1 (DMX start channel for the first
fixture) = 19 (DMX start channel for the next fixture on the link).
*Note The fixture location on the link does not have to comply
with this example. The fixtures can be addressed in any
order on the link.
To assign a unique DMX start channel for the fixture:
1. Press and hold the <Menu> button until “ADDR” appears on the LED
display.
Table 2-2. Example: Determining the DMX Start Channel
Fixture
location on
the link* Fixture name Number of DMX
channels used
per fixture
DMX start
channel Channel
range used
First Technobeam
(iris protocol) 18 channels C001 1-18
Second Technobeam
(full protocol) 18 channels C019 19-36
Third Technobeam
(reduced protocol) 14 channels C037 37-50
Fourth Other Device
(using 12 channels) 12 channels C051 51-62
Fifth Technobeam
(iris protocol) 18 channels C063 63-80
Technobeam® User Manual Configuring the Fixture 2-17
2. Press the <Enter> button to enter the “ADDR” menu.
3. Using the <Up> and <Down> arrow buttons, scroll to the desired DMX
start channel and press the <Enter> button to select the desired DMX
start channel.
Note You must assign a unique fixture address to each Studio
Spot 250 or Studio Color 250 fixture that you wish to
respond independently to controller commands.
Determining the Unique Fixture Number
The fixture number is a number you assign that represents each
unique fixture’s channel range in the DMX 512 link. If you are using
one DMX link to control fixtures which all use the same number of DMX
channels (as recommended), you can assign fixture numbers in
ascending order (see Table 2-3).
To assign a unique fixture number to your fixture:
1. Press and hold the <Menu> button until “ADDR” appears on the LED
display.
2. Press the <Enter> button to enter the “ADDR” menu.
3. Using the <Up> and <Down> arrow buttons, scroll to the desired
fixture number and press the <Enter> button.
Note You must assign a unique fixture address to each
Technobeam fixture that you wish to respond
independently to controller commands.
Wasted DMX Channels
If you mix different types of devices (which use different numbers of
channel ranges) on the same DMX link and assign fixture numbers
(instead of DMX start channels) to these devices, you would waste DMX
channels.
Table 2-3. Example: Determining the Unique Fixture Number
Fixture
location
on the link Fixture name Number of DMX
channels used
per fixture
Fixture
number Channel
range used
First Technobeam
(iris protocol) 18 channels F 01 1-18
Second Technobeam
(iris protocol) 18 channels F 02 19-36
Third Technobeam
(full protocol) 18 channels F 03 37-54
Fourth Other device
(using 18 channels) 18 channels F 04 55-72
t
t
2-18 Upgrading Software Technobeam® User Manual
For example, in Table 2-4, if you assigned fixture number 2 (F 02) to the
Technobeam set to reduced protocol, it would assume that all other
fixtures on the link are also using 14 DMX channels, so it will
erroneously try to receive channel 15 as the first channel in its channel
range. This would create channel overlapping because fixture number
1 (Technobeam iris protocol) is already using channel 15 in its 18-
channel range.
In this example, to prevent overlapping channels, you must assign
fixture number 3 (F 03) to the Technobeam (reduced protocol), even
though it is physically the second fixture on the DMX link. While this
would prevent overlapping channels, it would result in wasted
channels that could not be used (see Table 2-4).
Therefore, if you choose to assign fixture numbers to different types of
devices (and/or protocols) on the same DMX link, refer to “Fixture
Number to DMX Start Channel” on page A-16, which shows the channel
ranges reserved for each Technobeam fixture type. This table will help
you determine the next available DMX start channel/fixture number for
successive Technobeam fixtures on the link.
Upgrading Software
There are three ways you can upgrade the software (fixture-specific
operational code) to Technobeam fixtures attached to a DMX link:
•Uploading software from Status Cue. You will need to obtain
updated software from High End Systems or a dealer/distributor.
Consult the Status Cue User Manual for instructions on uploading.
Table 2-4. Example of Wasted DMX Channels
Fixture
location
on the
link
Fixture name Number of DMX
channels used
per fixture
Fixture number:
DMX channel range
used (to prevent
overlapping)
Resulting
channels
wasted
First Technobeam
(iris protocol) 18 channels F 01 : 01-18
Second Technobeam
(reduced protocol) 14 channels F 03 : 29-42 11 channels
wasted
(19-29)
Third Technobeam
(iris protocol) 18 channels F 04 : 55-72 13 channels
wasted
(43-54)
Fourth Technobeam
(reduced protocol) 14 channels F 07 : 85-98 12 channels
wasted
(73-84)
Technobeam® User Manual Upgrading Software 2-19
•Attaching a High End Systems upload dongle. You will need an
upload dongle, 386-based (or faster) computer, MS DOS® version
3.3 (or later), and one MB of free disk space. To obtain an upload
dongle (with installation and operation instructions), contact your
HIgh End Systems dealer/distributor (see “Contacting High End
Systems” on page Intro-4).
•Crossloading software between fixtures. You will need one
Technobeam fixture with updated software and you can then load
the software across the DMX link to all other Technobeam fixtures
on the same link. For more information on crossloading software,
see the next section.
Crossloading Software
The procedure that follows assumes you already have some familiarity
with the menu system; if not, see Chapter 3 and the menu map located
inside the back cover of this manual.
1. Remove or bypass all controllers, non-High End Systems fixtures,
optoisolators or serial data distributors on the link. These devices will
prevent crossloading.
2. If there are any Dataflash AF1000 xenon strobe fixtures, Emulator laser
simulators or Intellabeam automated luminaires on the same link,
make sure they are all after all of the Technobeam fixtures. If not, you
must bypass all AF1000s, Emulators or Intellabeams until the upload is
complete.
3. Determine which Technobeam fixture has the newest software. Skip to
Step 4 if you already know the software version on all your fixtures.
a. Navigate to the INFO menu.
b. Press <Enter> then use the <Up> or <Down> arrow keys to navigate
to the VER option.
c. Press <Enter>; the fixture’s software version will be displayed
similar to Figure 2-12:
Figure 2-12. This fixture has software version 3.
4. Once you are sure which fixture has the newest software (the
crossloading fixture), press and keep pressing the <Menu> key on that
fixture until the ADDR option is displayed.
5. Use the <Up> or <Down> arrow keys to navigate to the MODE menu.
6. Press <Enter> and use the <Up> or <Down> arrow keys to navigate to
the XLD option.
R
MENU ENTER
2-20 Troubleshooting Technobeam® User Manual
7. Press <Enter> to start the crossload. The Transmit LED on the
crossloading fixture will remain ON (or flicker) during the crossload.
The Transmit and Receive LEDs on other Technobeam fixtures on the
link will flicker while the crossload is in progress.
8. When the crossload has finished successfully, the following will
happen:
•DONE will appear briefly in the LED display of the crossloading
fixture, followed by MENU which will alternate with the fixture’s
fixture number or DMX start channel.
• All of the other Technobeam fixtures will home themselves.
9. Otherwise, if an error message is displayed, see the section titled
“Menu Error Messages” on page 2-25.
Troubleshooting
This section lists typical symptoms and solutions for problems you
might encounter when using your fixture. If you need additional help,
contact your dealer/distributor or High End Systems Customer Service
in one of the ways shown in the section titled “Contacting High End
Systems” on page Intro-4.
WARNING This information is intended to assist qualified
service personnel because this fixture is to be
serviced by qualified service personnel only.
Fixture does not work: no LEDs, fan, lamp, or other functionality
Possible causes and solutions:
1. Cause: No input power.
Solutions: Do all of the following:
a. Verify that the fixture is plugged into a working power supply.
b. Verify the integrity of the power cord and the wiring of the
power cord cap as shown in the section titled “Installing the
Power Cord Cap” on page 1-7.
2. Cause: One or more fuses have failed.
Solution: Follow the directions in the section titled “Replacing
Fuses” on page 6-2 to replace the necessary fuses.
Lamp does not strike
Possible causes and solutions:
1. Cause: Improper voltage setting or power cord cap wiring.
Solutions: Do both of the following:
a. Make sure the fixture is set for the same voltage as the power
supply. See “Setting the Fixture Voltage” on page 1-10.
Technobeam® User Manual Troubleshooting 2-21
b. Make sure the power cord cap is wired correctly. See “Installing
the Power Cord Cap” on page 1-7.
2. Cause: One or more fuses have failed.
Solution: Follow the instructions in the section titled “Replacing
Fuses” on page 6-2 to inspect the fuses and replace them if
necessary.
3. Cause: Bad lamp.
Solution: Replace with a new or known good lamp.
Lamp shuts off
Possible causes and solutions:
1. Cause: Over-temperature. An over-temperature condition can be
confirmed by the message OVER TEMP on the fixture’s LED
display.
Solution: See the section titled “Menu Error Messages” on page 2-
25.
2. Cause: Fan has failed.
Solution: Home the fixture, either by unplugging the fixture and
plugging it back in, or by selecting HOME from the Test menu. Put
your hand over the exhaust vent shown in Figure 2-13. You should
feel a slight breeze from the fan. If not, the fan has failed. Contact
High End Systems Customer Service as shown in “Contacting High
End Systems” on page Intro-4.
Figure 2-13. Location of the fixture’s exhaust vent.
3. Cause: Lamp socket is loose, causing arcing.
Solution: Replace the lamp socket assembly. Call your High End
Systems dealer/distributor for more information.
4. Cause: Aging lamp.
Solution: Replace with a new or known good lamp.
Exhaust vent
MODEL
SERIAL
FACTORY SET
DATE
Patents iss ued an d pen ding. S ee user m anu al
for listings.
QC
TECHNOBEAM
29FA000000
230V, 5 0Hz
1/28/9 8 TC
2-22 Troubleshooting Technobeam® User Manual
Fixture is not responding to control commands—“Receive” LED does
not blink
Possible causes and solutions:
1. Cause: Faulty XLR cable.
Solutions: Do one or both of the following:
a. Replace XLR cables going to the fixture’s Data In and Data Out
connectors with known good cables.
b. Verify cable integrity using cable test equipment.
2. Cause: There is no controller attached to the link, or the controller
is not generating any output.
Solution: Verify that a controller is attached to the link. Verify that
the controller is generating output by sending commands to a
known working device.
Also see the section titled “Troubleshooting DMX Data” on page 2-
24.
3. Cause: One or more fuses have failed.
Solution: Follow the instructions in the section titled “Replacing
Fuses” on page 6-2 to inspect the fuses and replace them if
necessary.
Dim flags close, fixture does not respond to control commands, lamp
shuts off, fan turns off
Possible causes and solutions:
1. Cause: Faulty XLR cable.
Solutions: Do one or both of the following:
a. Replace XLR cables going to the fixture’s Data In and Data Out
connectors with known good cables.
b. Verify cable integrity using cable test equipment.
c. See the section titled “Troubleshooting DMX Data” on page 2-
24.
2. Cause: One or more fuses have failed.
Solution: Follow the instructions in the section titled “Replacing
Fuses” on page 6-2 to replace the necessary fuses.
Color wheel or litho wheel is not centered in the beam or is in the
wrong position
Cause: Non-High End Systems dichroic or litho does not meet
specifications. A litho that is slightly under the recommended
thickness, for example, can turn in the wheel as the wheel rotates,
causing the litho to become uncentered.
Technobeam® User Manual Troubleshooting 2-23
Solution: Make sure all dichroics and lithos meet the specifications
listed in the section titled “Specifications” on page 6-4.
Lithos or dichroic filters are cracking
Possible causes and solutions:
1. Cause: Improper installation.
Solution:
a. General: Make sure you are using dichroics and lithos that
meet the specifications shown in the section titled
“Specifications” on page 6-4.
b. Lithos: Lithos must be oriented with the coated side facing
away from the lamp and the glass (uncoated) side facing
toward the lamp. In the case of textured lithos, face the
textured side away from the lamp and the flat side toward the
lamp.
c. Color wheel dichroic filters: Dichroic filters should be
oriented with the coated side facing toward the lamp and the
glass (uncoated) side facing away from the lamp. Figure 6-5 on
page 6-6 shows how to tell which side is which.
2. Cause: Faulty hot mirror allowing overheating inside the fixture.
Solution: Visually inspect the hot mirror for cracks or deep
scratches as shown in the section titled “Cleaning the Lenses and
Mirrors” on page 6-16.
3. Cause: Fan has failed.
Solution: Home the fixture, either by unplugging the fixture and
plugging it back in, or by selecting HOME from the Test menu. Put
your hands over the air exhaust shown in Figure 2-13 on page 2-21.
You should feel air movement. If not, the fan has failed. Contact
High End Systems Customer Service as shown in “Contacting High
End Systems” on page Intro-4.
Other components cracked or heat damaged
Possible causes and solutions:
1. Cause: Faulty hot mirror allowing overheating inside the fixture.
Solution: Visually inspect the hot mirror for cracks or deep
scratches (see “Cleaning the Lenses and Mirrors” on page 6-16).
2. Cause: Fan has failed.
Solution: Home the fixture, either by unplugging the fixture and
plugging it back in, or by selecting HOME from the Test menu. Put
your hands over the air exhaust shown in Figure 2-13 on page 2-21.
You should feel a slight breeze from the fan. If not, the fan has
failed. Contact High End Systems Customer Service as shown in
“Contacting High End Systems” on page Intro-4.
2-24 Troubleshooting Technobeam® User Manual
Fixture will not accept software upload or crossload
Possible causes and solutions:
1. Cause: Incorrect Status Cue configuration.
Solution: Consult the Status Cue User Manual to make sure you are
selecting the correct fixtures to upload, that you have the correct
software file, and are using the correct DMX channels for the
fixtures.
2. Cause: No return communication (indicated by Transmit LEDs OFF
for all fixtures on the link when you are trying to perform the
crossload or upload).
Solution: Make sure you bypass any AF1000 fixtures, Intellabeam
fixtures, Emulator fixtures, non-High End Systems fixtures,
optoisolators or serial data distributors. These devices stop the
communication required for software crossloads or uploads. See
the section titled “Setting up the Link” on page 2-6 for more
information.
Low light output, fuzzy images
Possible causes and solutions:
1. Cause: Incorrect lens installation.
Solution: Make sure you have installed the lenses in the correct
orientation, as shown in the section titled “Setting the Beam Angle”
on page 1-12.
2. Cause: Aging lamp.
Solution: Replace the lamp with a new or known good lamp.
3. Cause: Dirty optical path.
Solution: Clean all lenses, filters, lithos and the anti-reflective
glass as shown in the section titled “Cleaning the Internal
Components” on page 6-15.
Troubleshooting DMX Data
This section explains how to use the DMX diagnostics built into
Technobeam to isolate the origin of data problems either in the fixture
or in the DMX 512 link. The instructions in this section should be
followed only by people with a good understanding of DMX 512
protocol and the fixture’s menu system.
If you are having trouble with a fixture(s) on your DMX 512 link, you
should first review the following:
1. Are DMX 512 control commands being “misinterpreted” by the fixture?
If so, make sure the controller is configured for the correct fixture
type. For example, if you have a Technobeam set for full, 18-channel
Technobeam® User Manual Troubleshooting 2-25
protocol, but the controller is sending Technoray channel values, none
of the values you send from the controller will have the expected
effect. Continuing the same example, sending a value on channel 8
(which is effect wheel spin speed for Technoray) will result in selecting
a rotating litho wheel position on Technobeam.
2. Is more than one device affected? If so, and the devices are addressed
sequentially on the link, check to make sure addressing was done
properly on all affected devices. In particular, if you are using fixture
numbering, review the DMX channel boundaries for all affected
fixtures. Table A-5 on page A-16 shows fixture number to DMX channel
boundaries for Technobeam.
3. Make sure the last device on the link is terminated.
4. Are the gears and motors moving at all? If not, check for a loose cable
connection or a cable break somewhere on the link. If possible, verify
cable integrity or replace questionable cable with known good cable.
5. Make sure the controller is generating output. Consult the
documentation provided with the controller for more information.
6. Verify the DMX data for other fixtures on the link (see “Viewing DMX
Status and Construct Values (FIXT)” on page 3-24 or “Viewing DMX Data
for Another Device (DATA)” on page 3-26).
Menu Error Messages
This section lists the possible error messages that can appear on the
fixture’s LED display, as well as suggested actions. If the suggested
action does not solve the problem or if you have additional questions,
contact High End Systems Customer Service in one of the ways shown
in the section titled “Contacting High End Systems” on page Intro-4.
Addr Lost
The fixture’s software was unable to retrieve the fixture number or
DMX start channel from non-volatile storage. Try unplugging the
fixture, waiting a short time, then plugging it back in. If this error
message reoccurs, contact High End Systems Customer Service in one
of the ways shown in the section titled “Contacting High End Systems”
on page Intro-4.
Boot Diff
(Boot difference error.) This message may occur after a software
upload or crossload if new boot software has been included in the
upload. Selecting BOOT from the Test menu will copy the new boot to
the boot software storage area, and correct the cause of this error
message.
2-26 Troubleshooting Technobeam® User Manual
EMEM Ack
This error may occur during data storage when an attempted write has
taken too long. Attempt the operation again. If this message reoccurs,
contact High End Systems Customer Service in one of the ways shown
in the section titled “Contacting High End Systems” on page Intro-4.
EMEM [message]
(Memory error.) This error indicates the fixture was unable to retrieve
one of the following from non-volatile storage:
•CHNL
—the fixture’s DMX start channel.
•DPLY
—LED display status (on, off, dim).
•FHRS
—number of fixture operating hours.
•LENS—lens set selection (NORM for factory-installed or optional
narrow angle set, WIDE for optional wide angle lens set).
•LHRS
—number of lamp operating hours.
•L/ST
—lamp strikes.
•MODE
—preset playback status (ON/OFF/SCN).
•PERS
—the fixture’s protocol (e.g., Technobeam full protocol).
•PINV
—pan invert status.
•TINV
—tilt invert status.
•S/DN
—shutdown time.
•SWAP
—pan/tilt swap status.
•TIMB—time base (seconds, minutes, hours) for preset playback.
The most likely cause is that an electrical event occurred and either
interrupted data storage or caused the non-volatile memory to be
corrupted. Try restoring the lost items manually. If the problem
persists, contact High End Systems Customer Service in one of the
ways shown in the section titled “Contacting High End Systems” on
page Intro-4.
Erse Flsh
Occurs during a crossload when the time required to erase a fixture’s
memory is excessive. Remove the fixture from the link and contact
High End Systems Customer Service. You might need to restart the
crossload as well.
ID Lost
The system software was unable to read the fixture’s ID number
(fixture number or DMX start channel) from its non-volatile storage
area. Try unplugging the fixture, waiting a short time, then plugging it
back in. If this error message reoccurs, contact High End Systems
Customer Service in one of the ways shown in the section titled
“Contacting High End Systems” on page Intro-4.
Technobeam® User Manual Troubleshooting 2-27
Lamp
The word LAMP can appear on the display in two situations: one is an
error; the other is normal.
•Normal: LAMP will be displayed when the fixture attempts to
strike the lamp during fixture reset and homing. This is normal.
•Not normal: If the lamp is running, and for some reason—
probably an electrical event—the fixture’s operating code loses
track of the lamp status, the lamp will turn off and the word
“LAMP” will appear in the LED display. Allow the fixture 5 to 10
minutes to cool before trying to turn the lamp on again.
Link Busy
Occurs when the crossloading fixture detects that some other source is
driving data on the link. For crossloads to work properly, you must
remove or bypass all of the following if they are on the same link:
• Serial data distributors
•Optoisolators
• Non-High End Systems fixtures
• Controllers
• AF1000, Emulator or Intellabeam fixtures: Placing all AF1000,
Emulator or Intellabeam fixtures after all Technobeam fixtures is a
good way to do this.
After removing the offending device(s) from the data link, attempt the
crossload again.
Link Empty
Occurs when the crossloading fixture fails to find any other
Technobeam fixtures. If there are indeed other fixtures on the link, a
communication failure has occurred.
Possible causes include:
1. A bad data cable between the crossloading fixture and the first fixture
on the data link. Verify cable integrity with cable test equipment or
replace with known good cabling.
2. See “Link Busy” above.
3. One or more fixtures are powered off. Connect all fixtures on the link
to appropriately-rated power outlets and try again.
4. If none of the above solves the problem, the most likely cause is that
an electronics failure has occurred in the data section of one of the
fixtures on the data link. Try powering off one fixture at a time and
attempting the crossload. If you can isolate the crossload problem to
one fixture in particular, remove that fixture from the link and contact
High End Systems Customer Service in one of the ways shown in the
section titled “Contacting High End Systems” on page Intro-4.
2-28 Troubleshooting Technobeam® User Manual
Over Temp
The internal fixture temperature has exceeded the maximum allowable
temperature. The lamp and the motors will shut down.
1. The primary external cause is high ambient air temperature. The
fixture’s maximum ambient temperature rating is shown in the section
titled “Environmental Specifications” on page 1-5. Unplug the fixture
and wait 5 to 10 minutes for it to cool before plugging it back in.
2. If allowing the fixture to cool does not solve the problem, check to
make sure the fan is working. Home the fixture, either by selecting
HOME from the Test menu, or by unplugging the fixture and plugging
it back in. Place your hand over the air exhaust shown in Figure 2-13
on page 2-21. You should feel air movement. If not, the fan has failed.
Contact High End Systems Customer Service in one of the ways shown
in the section titled “Contacting High End Systems” on page Intro-4.
3. If the fan is working, unplug the fixture and verify the voltage setting
matches the power supply as shown in the section titled “Setting the
Fixture Voltage” on page 1-10. If the voltage setting is correct, contact
High End Systems Customer Service in one of the ways shown in the
section titled “Contacting High End Systems” on page Intro-4.
PRST Lost
(Preset Lost.) Scenes (presets) stored in the fixture’s onboard sixteen-
scene memory were lost.
The causes and solution for this error are the same as for “EMEM
[message]”.
PGRM Time
Occurs during a crossload when a receiving fixture has exceeded the
maximum allowable programming time. The crossloading fixture will
make a number of attempts to send new program data to each of the
receiving fixtures. If the receiving fixtures fails to respond properly
after a number of programming attempts have been made, the
crossloading fixture will drop the offending fixture from the upload
list, and display this error message.
Remove one fixture at a time from the link and attempt the crossload
again until you can isolate the crossload problem to a particular
fixture. Contact High End Systems Customer Service in one of the ways
shown in the section titled “Contacting High End Systems” on page
Intro-4.
Shut Down
The fixture has received a Shutdown command from the controller and
has shut down; i.e., the lamp and motors have been turned off.
Homing the fixture will bring it out of shutdown.
Technobeam® User Manual 3-1
Chapter 3
Using the Menus
Menu System Overview ...................................................................................3-2
Navigation Buttons .............................................................................3-2
Accessing the Menu System ...............................................................3-2
Menu Map ........................................................................................................3-3
Menu Options ............................................................................................... 3-10
Address Menu (ADDR) ..................................................................... 3-10
Set Menu (SET) ................................................................................. 3-11
Setting Factory Defaults (FACT) .......................................... 3-11
Swapping Pan and Tilt (SWAP) ............................................ 3-12
Inverting Tilt (T/IN) ............................................................ 3-12
Inverting Pan (P/IN) ............................................................ 3-12
Changing the Display Output (DSPL) .................................. 3-13
Inverting LED Characters (D/IN) ......................................... 3-13
Changing the Control Method (CHNL) ................................ 3-13
Setting the Lamp Warning Message (LMPL) ......................... 3-14
Changing the Lens Setting (LENS) ....................................... 3-14
Mode Menu (MODE) .......................................................................... 3-15
Setting the Fixture Type and Protocol (TYPE) ..................... 3-15
Setting the User Type (USER) .............................................. 3-16
Copying User Presets (PRST) ............................................... 3-17
Copying User Settings (SETT) ............................................. 3-18
Copying User Presets and Settings (ALL) ............................ 3-18
Crossloading Fixture Software (XLD) .................................. 3-19
Test Menu (TEST) ............................................................................. 3-20
Homing the Fixture (HOME) ................................................ 3-20
Turning the Lamp On or Off (LAMP) ................................... 3-20
Copying the Boot Code (BOOT) ........................................... 3-21
Performing Self Tests (SELF) ............................................... 3-21
Placing the Fixture in Setup Mode (S/UP) ........................... 3-22
Testing the LED Display (DISP) ........................................... 3-22
Information Menu (INFO) ................................................................. 3-22
Viewing the Logic Board Temperature (TEMP) .................... 3-23
Viewing the Current Lamp Hours (L/HR) ............................ 3-23
Viewing the Current Fixture Hours (F/HR) .......................... 3-23
Viewing the Number of Current Lamp Strikes (L/ST) ......... 3-24
Viewing the Current Software Version (VER) ...................... 3-24
Viewing DMX Status and Construct Values (FIXT) ............... 3-24
Viewing DMX Data for Another Device (DATA) ................... 3-26
Viewing Sensor Information (SENS) .................................... 3-26
Resetting Fixture Hours (F/RS) ........................................... 3-27
Resetting Lamp Hours (L/RS) .............................................. 3-27
Preset Menu (PRST) .......................................................................... 3-28
Setting Preset Playback (PLAY) ............................................ 3-28
Editing or Creating an On-Board Memory Scene (EDIT) ...... 3-29
Copying an On-Board Memory Scene (COPY) ...................... 3-29
Capturing a Preset Scene (CAPT) ......................................... 3-29
Enabling the Preset Default (DFLT) ..................................... 3-30
3-2 Menu System Overview Technobeam® User Manual
Menu System Overview
The Technobeam menu system allows you to:
• Configure your fixture for operation (discussed in Chapter 2)
• Access fixture options such as homing the fixture, crossloading
software, and performing self tests (discussed in this chapter)
• Use preset programming to create, store, and play back scenes
from the fixture’s onboard memory (see Chapter 4)
Navigation Buttons
The navigation buttons on the fixture’s display panel allow you to
navigate through the onboard menu system. As you navigate the menu
system, the alphanumeric display will show the menu items you select
from the menu map.
Figure 3-1. Technobeam navigation buttons.
The alphanumeric display will flash when a new option is selected (by
pressing the <Up> and <Down> arrow buttons), and will stop flashing
when a new option is entered (by pressing the <Enter> button).
Note If you do not press the <Enter> button, the new option
you selected will not be stored.
Pressing the <Menu> button returns you to the previous option or
menu without changing the value of an option.
Accessing the Menu System
To access the menu system, press and hold the <Menu> key until
“ADDR” appears on the LED display. The menu system is protected
against inadvertent menu changes by requiring the <Menu> button to
be held for a few seconds before allowing entry to the menus.
To exit the menu system, you must keep pressing the <Menu> button
to back out of each menu level until “MENU” appears on the LED
display. “MENU” will be replaced, after a few seconds, with the default
alternating display of the fixture’s software version and the fixture
number/DMX start channel.
<Up> arrow button: scroll upward
through menu items or options
<Down> arrow button: scroll downward
through menu items or options
<Menu> button: move up
to the previous menu level
(press and hold to enter
the menu system)
<Enter> button: select the
curent menu item or option
MENU ENTER
alphanumeric LED display
Technobeam® User Manual Menu Map 3-3
Menu Map
A complete menu map and explanations of the Technobeam menu
options are listed in this section. See individual subsections in this
addendum for descriptions of each menu item.
Chapter 4 has more information about using the menus to program the
fixture’s sixteen onboard scenes (presets).
Note If your Technobeam-i does not have an iris and/or Laser
Aiming Device™ (LAD®), the iris and LAD-related menu
items listed below will have no functionality.
Although Technopro and Technoray fixtures have been
discontinued, their menu options still exist in the
protocol, and are listed below.
Table 3-1. Technobeam Menu Map
Menu
Level 1 Menu
Level 2 Menu
Level 3 Menu
Level 4 Menu
Level 5 Description
ADDR Fxx/Cxxx change the existing fixture number/DMX start
channel
SET
FACT
ON set factory defaults on
OFF set factory defaults off
Note: Selecting this option has no affect on
individual preset values.
SWAP ON set pan/tilt swap on
OFF set pan/tilt swap off
T/IN ON set tilt invert on
OFF set tilt invert off
P/IN ON set pan invert on
OFF set pan invert off
DSPL
ON set LED display on
OFF set LED display off
DIM dim LED display
D/IN ON invert LED display orientation
OFF set normal LED display orientation
CHNL DMX set control method to DMX start channel
ADDR set control method to fixture number
LMPL ON enable lamp hour warning message
OFF disable lamp hour warning message
LENS
NORM factory lens or narrow angle lens setting
WIDE wide angle lens setting
NARW
standard or narrow angle lens setting that
increases the distance the lens tube can move
to allow for a greater throw distance
Note: This option is not for use with wide angle
lenses.
3-4 Menu Map Technobeam® User Manual
MODE
TYPE
TB F Technobeam full protocol (uses 18 channels)
TB R Technobeam reduced protocol (uses 14
channels)
TR F Technoray full protocol (uses 14 channels)
TR R Technoray reduced protocol (uses 12
channels)
TPRO Technopro protocol (uses 12 channels)
TB I Technobeam-i (uses 18 channels)
TLCD Technopro used with an LCD controller (uses
18 channels)
XLD crossload fixture software to all other
Technobeam, Technoray, and Technopro
fixtures on the link
USER
A user A settings
B user B settings
COPY
PRST A -> B copy user A presets to user B
B -> A copy user B presets to user A
SETT A -> B copy user A settings to user B
B -> A copy user B settings to user A
ALL A -> B copy user A presets and settings to user B
B -> A copy user B presets and settings to user A
TEST
HOME home the fixture
LAMP LOFF extinguish the lamp
L ON strike the lamp
BOOT copy the boot sector
SELF
ALL self test all constructs
PAN self test mirror pan movement
TILT self test mirror tilt movement
COL self test color wheel movement
LTO self test litho wheel movement
FX self test effects wheel movement
FCUS self test lens tube movement
IRIS self test iris movement
SHUT self test shutter strobe movement
DIM self test shutter dim flag movement
S/UP SET
NOW
place the fixture in setup mode for mechanical
homing
Note: When the display shows “SET NOW,”
mechanically home the fixture, then press any
key to exit this menu option.
DISP self test the alphanumeric LED display
CODE Factory use only
INFO
TEMP view the fixture’s current internal temperature
L/HR view the current number of lamp hours
F/HR view the current number of fixture hours
L/ST view the current number of lamp strikes
VER view the fixture’s software version
Table 3-1. Technobeam Menu Map
Menu
Level 1 Menu
Level 2 Menu
Level 3 Menu
Level 4 Menu
Level 5 Description
Technobeam® User Manual Menu Map 3-5
INFO
DMX FIXT
BRKS view the number of framing errors with zero
data (DMX breaks)
FE view the number of framing errors with non-
zero data
OV view the number of DMX overruns
STRT view the DMX start code value
PANH view the DMX high resolution pan value
PANL view the DMX low resolution pan value
TLTH view the DMX high resolution tilt value
TLTL view the DMX low resolution tilt value
COLC view the DMX color wheel control value
COL view the DMX fixed color wheel position value
DMX
FIXT
LTOC view the DMX litho wheel control value
LTO view the DMX litho wheel position value
LTR view the DMX litho rotation value
FCUS view the DMX lens tube position value
FX view the DMX effects wheel position value
FXR view the DMX effects wheel rotation value
IRIS view the DMX iris position value
SHUT view the DMX shutter strobe value
DIM view the DMX shutter dim flag value
MSPD view the DMX MSpeed time value
LAD view the DMX Laser Aiming Device (LAD)
value
CNTL view the DMX control channel value
DATA C001 -
C512
view the DMX data for the selected DMX
channel
Note: You can only view DMX channels lower
than the last channel in the viewing fixture’s
channel range.
SENS
LTR ON the litho rotate (within the wheel) sensor is not
obstructed
OFF the litho rotate (within the wheel) sensor is
obstructed
LTO ON the litho wheel sensor is not obstructed
OFF the litho wheel sensor is obstructed
COLR ON the color wheel sensor is not obstructed
OFF the color wheel sensor is obstructed
FX ON the effects wheel sensor is not obstructed
OFF the effects wheel sensor is obstructed
F/RS reset fixture hours to zero (press and hold the
<Enter> button until the display shows “0000”)
L/RS reset lamp hours to zero (press and hold the
<Enter> button until the display shows “0000”)
UNUM Customer Service use only
PRST PLAY
OFF set preset playback off
ON set preset playback on
SCN display which scene is currently playing
Table 3-1. Technobeam Menu Map
Menu
Level 1 Menu
Level 2 Menu
Level 3 Menu
Level 4 Menu
Level 5 Description
3-6 Menu Map Technobeam® User Manual
PRST EDIT SN01 -
SN16
SHUT
CLSD shutter closed
P 01 -
P 60 periodic shutter strobe at specified intervals,
slow (P 01) to fast (P 60)
N 01 -
N 60 random shutter strobe at random intervals,
slow (N 01) to fast (N 60)
RS01 -
RS60 shutter ramp open, slow (RS01) to fast (RS60),
snap shut
SR01 -
SR60 shutter snap open, ramp shut slow (SR01) to
fast (SR60)
OPEN shutter open
DIM D000 -
D255 select a dim value from dark (D000) to bright
(D255)
PAN mirror pan from -89.9 to +89.9
TILT mirror tilt from -44.9 to +44.9
COLC
IDX color wheel indexed position (wheel snaps to
center of color), full speed
FSP color wheel forward spin, full speed
RSP color wheel reverse spin, full speed
CON color wheel continuously-variable position, full
speed
SSC color wheel slow scanning, full speed
FSC color wheel fast scanning, full speed
RND color wheel random color positions, full speed
BLK color wheel blink selection, full speed
MIDX color wheel indexed position, MSpeed
MFSP color wheel forward spin, MSpeed
MRSP color wheel reverse spin, MSpeed
MCON color wheel continuously-variable position,
MSpeed
MSSC color wheel slow scanning, MSpeed
MFSC color wheel fast scanning, MSpeed
MRND color wheel random color positions, MSpeed
MBLK blink selection (wheel snaps to center of color
and the shutter closes between positions),
MSpeed
COL
C 1 -
C 13
select a full color position (only available if you
selected a COLC construct value of IDX or
MIDX)
HC 1 -
HC13
select a half color position (only available if you
selected a COLC construct value of IDX or
MIDX)
F000 -
F255
select a forward color wheel spin speed from
none (F000) to fast (F255) (only available if
you selected a COLC construct value of FSP
or MFSP)
Table 3-1. Technobeam Menu Map
Menu
Level 1 Menu
Level 2 Menu
Level 3 Menu
Level 4 Menu
Level 5 Description
Technobeam® User Manual Menu Map 3-7
PRST EDIT SN01-
SN16
COL
R000 -
R255
select a reverse color wheel spin speed from
none (R000) to fast (R255) (only available if
you selected a COLC construct value of RSP
or MRSP)
D000 -
D358
select a color wheel position in degrees from 0°
(D000) to 358° (D358) (only available if you
selected a COLC construct value of CON or
MCON)
SC 1 -
SC26
slow scan of selected full color base position
(SC 1 - SC13) or half color base position
(SC14 - SC26) (only available if you selected a
COLC construct value of SSC or MSSC)
FC 1 -
FC26
fast scan of selected full color base position
(FC 1 - FC 13) or half color base position
(FC14 - FC26) (only available if you selected a
COLC construct value of FC or MFC)
N000 -
N255
select a pause time between random color
wheel position changes, short (N000) to long
(N255) (only available if you selected a COLC
construct value of RND or MRND)
B 1 -
B 13
shutter blink on selected full color position (only
available if you selected a COLC construct
value of BLK or MBLK)
HB 1 -
HB13
shutter blink on selected half color position
(only available if you selected a COLC
construct value of BLK or MBLK)
LTOC
IDX litho wheel indexed position (wheel snaps to
center of litho), full speed
FSP litho forward spin, full speed
RSP litho reverse spin, full speed
SC litho wheel scanning, full speed
BLK litho wheel blink selection, full speed
RND litho wheel random color positions, full speed
WSP litho wheel spin, full speed
MIDX litho wheel indexed position, MSpeed
MFSP litho forward spin, MSpeed
MRSP litho reverse spin, MSpeed
M SC litho wheel scanning, MSpeed
MBLK litho wheel blink selection (wheel snaps to
center of litho and the shutter closes between
positions), MSpeed
MRND litho wheel random color positions, MSpeed
MWSP litho wheel spin, MSpeed
LTO
L 1 -
L 8
select a litho wheel position (only available if
you selected a LTOC construct value of IDX or
MIDX)
LF 1 -
LF 8
select a forward spinning litho position (only
available if you selected a LTOC construct
value of FSP or MFSP)
Table 3-1. Technobeam Menu Map
Menu
Level 1 Menu
Level 2 Menu
Level 3 Menu
Level 4 Menu
Level 5 Description
3-8 Menu Map Technobeam® User Manual
PRST EDIT SN01-
SN16
LTO
LR 1 -
LR 8
select a reverse spinning litho position (only
available if you selected a LTOC construct
value of RSP or MRSP)
SC 1 -
SC 8
scan selected litho base position (only
available if you selected a LTOC construct
value of SC)
B 1 -
B 8
select a litho wheel position (only available if
you selected a LTOC construct of BLK or
MBLK)
RAND (because “Random” was selected for litho
control, no litho position can be assigned)
WSPN (because “Wheel Spin” was selected for litho
control, no litho position can be assigned)
LTR
D000 -
D358
select a litho angle from 0° (D000) to 358°
(D358) (only available if you selected a LTOC
construct value of IDX, BLK, MIDX, or MBLK)
F000 -
F255
select a litho’s forward spin speed from none
(F000) to fast (F255) (only available if you
selected a LTOC construct value of FSP or
MFSP)
R000 -
R255
select a litho’s reverse spin speed from none
(R000) to fast (R255) (only available if you
selected a LTOC construct value of RSP or
MRSP)
S000 -
S255
select a litho scan speed from slow (S000) to
fast (S255) (only available if you selected a
LTOC construct value of SC or MSC)
N000 -
N255
select a pause time between random litho
selections from long (N000) to short (N255)
(only available if you selected a LTOC
construct value of RND or MRND)
WF01 -
WF12
select a litho wheel forward spin speed from
slow (WF01) to fast (WF12) (only available if
you selected a LTOC construct value of WSP
or MWSP)
WR12 -
WR01
select a litho wheel reverse spin speed from
fast (WR12) to slow (WR01) (only available if
you selected a LTOC construct value of WSP
or MWSP)
FCUS 000 -
255 select the lens tube position
FX
FX 1 -
FX 5 select an effects wheel position, full speed
MFX1 -
MFX5 select an effects wheel position, MSpeed
FXR
F001 -
F121 select an individual effect’s forward spin speed
from fast (F001) to slow (F121)
STIL effect does not spin
R001 -
R121 select an individual effect’s reverse spin speed
from slow (R001) to fast (R121)
Table 3-1. Technobeam Menu Map
Menu
Level 1 Menu
Level 2 Menu
Level 3 Menu
Level 4 Menu
Level 5 Description
Technobeam® User Manual Menu Map 3-9
PRST EDIT SN01-
SN16
IRIS
OPEN fully open the iris
P 01 -
P 16 select a speed to strobe the beam diameter,
from slow (P 01) to fast (P 16)
N 01 -
N 16
select a random frequency to strobe the beam
diameter, from less often (N 01) to more often
(N 16)
RS01 -
RS16 select the speed to ramp open, slow (RS01) to
fast (RS16), then snap shut
SR01 -
SR16 select the speed to snap open, then ramp shut
slow (SR01) to fast (SR16)
RR01 -
RR16 select the speed to ramp open, then ramp shut
slow (RR01) to fast (FF16)
NR01 -
NR16
select the random frequency to ramp open,
from less often (NS01) to more often (NS16),
then snap shut
NS01 -
NS16
select the random frequency to snap open,
then ramp shut from less often (NR01) to more
often (NS16)
CLSD close the iris
I001 -
I127 select a beam diameter, from small (I001) to
large (I127)
MSPD 0.15 -
252.7 select an MSpeed value in decimal seconds
from fast (0.15) to slow (252.7)
XFAD
X 0.1 -
X 9.9 select the DIM and FCUS construct’s
crossfade time in increments of 0.1
X 10 -
X166 select the DIM and FCUS construct’s
crossfade time in increments of 1
DLAY
D 0.1 -
D 9.9 select the delay time in increments of 0.1
D 10 -
D166 select the delay time in increments of 1
MACR
MCOF set macro OFF
MC01 -
MC28 select a factory-programmed macro from 1 - 28
LROF set Laser Aiming Device (LAD™) OFF¹
LRON set Laser Aiming Device (LAD™) ON
continuously¹
LM01 -
LM30
select a LAD™ strobe speed from slow (4.25
per second - LM01) to fast (255 per second -
LM30)¹
TIME
SEC select seconds as the units of time used for the
XFAD and DLAY constructs
MIN select minutes as the units of time used for the
XFAD and DLAY constructs
HOUR select hours as the units of time used for the
XFAD and DLAY constructs
ZERO OK erase any programming of the current scene
by voiding all construct values / mark the end
of a loop
Table 3-1. Technobeam Menu Map
Menu
Level 1 Menu
Level 2 Menu
Level 3 Menu
Level 4 Menu
Level 5 Description
3-10 Menu Options Technobeam® User Manual
Menu Options
The sections below explain how to access the individual menu options
shown in the fixture’s menu map.
Address Menu (ADDR)
Use the Address menu to quickly change the current fixture number/
DMX start channel. Using this menu option, you can only change the
existing fixture number to another fixture number, or the existing DMX
start channel to another DMX start channel.
If you want to change the way you identify the fixture (i.e. change to a
fixture number instead of a DMX start channel, or vice versa), complete
the procedure described in “Changing the Control Method (CHNL)” on
page 3-13.
To change the current fixture number or DMX start channel:
1. Press and hold the <Menu> button until “ADDR” appears on the LED
display.
2. Press the <Enter> button to select the “ADDR” menu.
3. Use the <Up> and <Down> arrow buttons to select a new DMX start
channel (C001 - C512) / fixture number (F 01 - F xx). The LED display
will flash when a new option is selected.
4. Press the <Enter> button to accept the new fixture number / DMX start
channel. The LED display will stop flashing when a new option is
entered. If you do not press the <Enter> button, the new option you
selected will not be stored.
Note Be sure you do not overlap fixture channel ranges when
changing the fixture number/DMX start channel.
PRST
COPY
FROM
FA01 -
FA16 select a scene to copy from (source scene) for
user A
FB01-
FB16 select a scene to copy from (source scene) for
user B
TO
TA01 -
TA16 select a scene to copy to (destination scene)
for user A
TB01
TB16 select a scene to copy to (destination scene)
for user B
CAPT SN01 -
SN16 select a scene to capture a pre-programmed
scene to (from your DMX controller)
DFLT OK? enable the factory-programmed 16 preset
scene sequence - erases any preset scenes
previously programmed
Table 3-1. Technobeam Menu Map
Menu
Level 1 Menu
Level 2 Menu
Level 3 Menu
Level 4 Menu
Level 5 Description
or
Technobeam® User Manual Menu Options 3-11
Set Menu (SET)
The Set menu allows you to change the control method from a fixture
number to a DMX start channel or vice versa, and either set all factory
options to their default settings or change the factory options
individually. The procedures below are listed in the order that they
appear in the menu map.
Setting Factory Defaults (FACT)
Technobeam-i fixtures are shipped from the factory with the following
preset options set to the following defaults:
• Pan/tilt swap = off
• pan invert = off
• tilt invert = off
•preset playback = off
• LED display = on and bright
• LED display invert = off
• lamp hour warning = off
To return all preset options to their factory defaults settings:
5. Press and hold the <Menu> button until “ADDR” appears on the LED
display.
6. Using the <Up> and <Down> arrow buttons, scroll to the “SET” menu
and press the <Enter> button to select the “SET” menu.
7. Using the <Up> and <Down> arrow buttons, scroll to the “FACT” menu.
(This will be the first menu displayed.) Press the <Enter> button to
select the “FACT” menu.
8. Using the <Up> and <Down> arrow buttons, choose “ON” to set the
factory option defaults on and press the <Enter> button to select the
desired option.*
*Note Although “OFF” is an available option in the FACT menu,
selecting the “OFF” option will have no effect on the
individual preset values. To change the value of any of
the individual presets listed above, you must access
each preset’s corresponding menu item. When you
change any of the preset default values individually, this
menu item will automatically be turned off.
3-12 Menu Options Technobeam® User Manual
Swapping Pan and Tilt (SWAP)
To swap the fixture’s pan and tilt motion:
1. Press and hold the <Menu> button until “ADDR” appears on the LED
display.
2. Using the <Up> and <Down> arrow buttons, scroll to the “SET” menu
and press the <Enter> button to select the “SET” menu.
3. Using the <Up> and <Down> arrow buttons, scroll to the “SWAP” menu
and press the <Enter> button to select the “SWAP” menu.
4. Using the <Up> and <Down> arrow buttons, choose the “ON” option to
swap the fixture’s pan and tilt motion, or the “OFF” option to return the
fixture’s pan and tilt motion to their normal orientation. Press the
<Enter> button to select the desired option.
Inverting Tilt (T/IN)
To invert the direction of the fixture’s tilt motion:
1. Press and hold the <Menu> button until “ADDR” appears on the LED
display.
2. Using the <Up> and <Down> arrow buttons, scroll to the “SET” menu
and press the <Enter> button to select the “SET” menu.
3. Using the <Up> and <Down> arrow buttons, scroll to the “T/IN” menu
and press the <Enter> button to select the “T/IN” menu.
4. Using the <Up> and <Down> arrow buttons, choose the “ON” option to
invert the fixture’s tilt motion, or the “OFF” option to return the
fixture’s tilt motion to normal orientation. Press the <Enter> button to
select the desired option.
Inverting Pan (P/IN)
To invert the direction of the fixture’s pan motion:
1. Press and hold the <Menu> button until “ADDR” appears on the LED
display.
2. Using the <Up> and <Down> arrow buttons, scroll to the “SET” menu
and press the <Enter> button to select the “SET” menu.
3. Using the <Up> and <Down> arrow buttons, scroll to the “P/IN” menu
and press the <Enter> button to select the “P/IN” menu.
4. Using the <Up> and <Down> arrow buttons, choose the “ON” option to
invert the fixture’s pan motion, or the “OFF” option to return the
fixture’s pan motion to normal orientation. Press the <Enter> button to
select the desired option.
Technobeam® User Manual Menu Options 3-13
Changing the Display Output (DSPL)
This menu item allows you to change the appearance of the fixture’s
alphanumeric LED display. You can set the display on or off, or you
can dim the display to reduce visibility.
To change the display output:
1. Press and hold the <Menu> button until “ADDR” appears on the LED
display.
2. Using the <Up> and <Down> arrow buttons, scroll to the “SET” menu
and press the <Enter> button to select the “SET” menu.
3. Using the <Up> and <Down> arrow buttons, scroll to the “DSPL” menu
and press the <Enter> button to select the “DSPL” menu.
4. Using the <Up> and <Down> arrow buttons, choose the “ON” option to
set the LED display to normal intensity, the “OFF” option to turn the
LED display off, or the “DIM” option to reduce the LED display visibility.
Press the <Enter> button to select the desired option.
Note If you set the LED display off, the LED display will be
turned off only when you exit the menu system.
Inverting LED Characters (D/IN)
This menu item allows you to invert the orientation of the LED
display’s alphanumeric characters. This option is useful if your fixture
is standing upright (i.e., resting on its bottom panel on the floor).
To invert the LED display:
1. Press and hold the <Menu> button until “ADDR” appears on the LED
display.
2. Using the <Up> and <Down> arrow buttons, scroll to the “SET” menu
and press the <Enter> button to select the “SET” menu.
3. Using the <Up> and <Down> arrow buttons, scroll to the “D/IN” menu
and press the <Enter> button to select the “D/IN” menu.
4. Using the <Up> and <Down> arrow buttons, choose the “ON” option to
invert the fixture’s alphanumeric characters, or the “OFF” option to
return the fixture’s alphanumeric characters to normal orientation.
Press the <Enter> button to select the desired option.
Changing the Control Method (CHNL)
Use this menu item if your fixture is currently set to the fixture
number control method and instead, you want to use the DMX start
channel control method, or vice versa. To simply change an existing
fixture number to a different fixture number (or DMX start channel to a
different DMX start channel), see “Address Menu (ADDR)” on page 3-10.
3-14 Menu Options Technobeam® User Manual
To change the control method:
1. Press and hold the <Menu> button until “ADDR” appears on the LED
display.
2. Using the <Up> and <Down> arrow buttons, scroll to the “SET” menu
and press the <Enter> button to select the “SET” menu.
3. Using the <Up> and <Down> arrow buttons, scroll to the “CHNL” menu
and press the <Enter> button to select the “CHNL” menu.
4. Using the <Up> and <Down> arrow buttons, choose either the “DMX”
option to address the fixture using a DMX start channel, or the “ADDR”
option to address the fixture using a fixture number. Press the
<Enter> button to select the desired option.
Note After changing the control method, you must assign a
specific DMX start channel (C001 - C512) or fixture
number (F 01 - F xx) to each fixture (see “Address Menu
(ADDR)” on page 3-10).
Setting the Lamp Warning Message (LMPL)
Use this menu item to enable your fixture to display the warning
message “LAMP LIFE ERR” when the current lamp hours exceed 2,000.
With this option enabled, after the current lamp hours exceed 2,200
hours, the fixture will display the warning message “LAMP OUT ERR.”
Once the lamp is extinguished, the fixture will no longer strike the
lamp until the current lamp is replaced and the current lamp hours are
reset to zero (see “Replacing the Lamp” on page 6-11 or “Resetting
Lamp Hours (L/RS)” on page 3-27).
To enable the lamp warning message:
1. Press and hold the <Menu> button until “ADDR” appears on the LED
display.
2. Using the <Up> and <Down> arrow buttons, scroll to the “SET” menu
and press the <Enter> button to select the “SET” menu.
3. Using the <Up> and <Down> arrow buttons, scroll to the “LMPL” menu
and press the <Enter> button to select the “LMPL” menu.
4. Using the <Up> and <Down> arrow buttons, choose the “ON” option to
enable the lamp warning message, or the “OFF” option to disable the
lamp warning message. Press the <Enter> button to select the desired
option.
Changing the Lens Setting (LENS)
Use this menu item if you change the lenses in your fixture. Available
lens sets include standard, narrow angle, and wide angle lenses. To
obtain a different lens set, contact your High End Systems dealer/
distributor.
or
or
Technobeam® User Manual Menu Options 3-15
To change the lens setting:
1. Press and hold the <Menu> button until “ADDR” appears on the LED
display.
2. Using the <Up> and <Down> arrow buttons, scroll to the “SET” menu
and press the <Enter> button to select the “SET” menu.
3. Using the <Up> and <Down> arrow buttons, scroll to the “LENS” menu
and press the <Enter> button to select the “LENS” menu.
4. Using the <Up> and <Down> arrow buttons, choose the “NORM” option
for standard or narrow angle lenses, the “WIDE” option for wide angle
lenses, or the “NARW” option for standard or narrow angle lenses with
increased lens tube travel for a greater throw distance.
Note The “NARW” option is not for use with wide angle lenses.
5. Press the <Enter> button to select the desired option.
Mode Menu (MODE)
The Mode menu allows you to set the fixture type and protocol and
crossload software versions from one fixture to all other Technobeam-i
fixtures on the link. The procedures below are listed in the order that
they appear on the menu map.
Setting the Fixture Type and Protocol (TYPE)
Use this menu item to change the fixture type and protocol. The
protocol is specific to the fixture and determines the number of DMX
channels the fixture will use.
Note Although Technopro and Technoray fixtures have been
discontinued, their menu options still exist in the
protocol.
Available protocols are listed below:
•TB F (Technobeam full protocol) - for use with Technobeam
fixtures without an iris. This protocol uses 18 DMX
channels and is recommended, unless you need to
conserve the extra four DMX channels for other devices on
the link. The full protocol gives you more control over pan
and tilt position and litho spin speed. This protocol allows
you to access the Laser Aiming Device™ (LAD) or macros.
•TB R (Technobeam reduced protocol) - for use with Technobeam
fixtures only. This protocol uses 14 DMX channels. You
should use this protocol if you need to conserve the extra
four DMX channels for other devices on the link, and your
fixtures do not have an iris.
or
or
3-16 Menu Options Technobeam® User Manual
•TR F (Technoray full protocol) - for use with Technoray fixtures
only. This protocol uses 14 channels and is recommended,
unless you need to conserve the extra two DMX channels
for other devices on the link. The full protocol gives you
more control over the rotating litho wheel position and
litho spin speed and allows you to access the macros.
•TR R (Technoray reduced protocol) - for use with Technoray
fixtures only. This protocol uses 12 DMX channels.
•TPRO (Technopro protocol) - for use with Technopro fixtures
only. This protocol uses 12 DMX channels.
•TB I (Technobeam-i protocol) - for use with Technobeam-i
fixtures (fixtures with an iris). This protocol uses 18 DMX
channels and allows you to access the Laser Aiming
Device™ (LAD) or macros.
•TLCD (Technopro LCD protocol) - for use with Technopro fixtures
controlled with an LCD controller. This protocol uses 18
DMX channels and allows you to access the macros.
To set the fixture type and protocol:
1. Press and hold the <Menu> button until “ADDR” appears on the LED
display.
2. Using the <Up> and <Down> arrow buttons, scroll to the “MODE” menu
and press the <Enter> button to select the “MODE” menu.
3. Using the <Up> and <Down> arrow buttons, scroll to the “TYPE” menu.
(This will be the first menu displayed). Press the <Enter> button to
select the “TYPE” menu.
4. Using the <Up> and <Down> arrow buttons, choose the desired option
(listed above) and press the <Enter> button to select the desired
option.*
*Note This option has a 5-second delay to avoid inadvertent
changes. To change the fixture type, you must press and
hold the <Enter> button for at least 5 seconds.
Setting the User Type (USER)
Use this menu item to change the fixture’s user type from user A to
user B or vice versa. Each user type includes 16 different presets
(scenes) and the following fixture settings:
• Fixture Address
• Pan Invert
• Tilt Invert
• Pan/Tilt Swap
• Control Method (addressing via fixture number or DMX start
channel)
• Display Settings (On, Off, or Dim)
Technobeam® User Manual Menu Options 3-17
• Display Character Invert
• Lamp Warning Message
Changing the user type allows you to access 16 different scenes, and
allows you to access a set of “default” fixture settings. For example, if
your fixture’s settings (listed above) are designed for a specific
location in your truss and you need to move the fixture to a new
location, you could change the user type to user “B” for the settings
needed at the new location, and change the user type back to user “A”
when you move the fixture back to its original location.
To change the user type:
1. Press and hold the <Menu> button until “ADDR” appears on the LED
display.
2. Using the <Up> and <Down> arrow buttons, scroll to the “MODE” menu
and press the <Enter> button to select the “MODE” menu.
3. Using the <Up> and <Down> arrow buttons, scroll to the “USER” menu
and press the <Enter> button to select the “USER” menu.
4. Using the <Up> and <Down> arrow buttons, choose the “A” option to
select user A settings, or the “B” option to select user B settings. Press
the <Enter> button to select the desired option.
Copying User Presets (PRST)
Use this menu item to copy the fixture’s user preset scenes from user A
to user B or vice versa. Each user type includes 16 different presets
(scenes) which can be copied to a different user type.
Note This options copies all 16 presets at one time. To copy
an individual scene, see “Copying an On-Board Memory
Scene (COPY)” on page 3-29.
To copy user presets:
1. Press and hold the <Menu> button until “ADDR” appears on the LED
display.
2. Using the <Up> and <Down> arrow buttons, scroll to the “MODE” menu
and press the <Enter> button to select the “MODE” menu.
3. Using the <Up> and <Down> arrow buttons, scroll to the “USER” menu
and press the <Enter> button to select the “USER” menu.
4. Using the <Up> and <Down> arrow buttons, scroll to the “COPY” menu
and press the <Enter> button to select the “COPY” menu.
5. Using the <Up> and <Down> arrow buttons, scroll to the “PRST” menu
and press the <Enter> button to select the “PRST” menu.
or
3-18 Menu Options Technobeam® User Manual
6. Using the <Up> and <Down> arrow buttons, choose the “A → Β” option
to copy user A presets to user B, or the “B → Α” option to copy user B
presets to user A. Press the <Enter> button to select the desired
option.
Copying User Settings (SETT)
Use this menu item to copy the fixture’s user settings from user A to
user B or vice versa. The user settings for each user type are listed in
the section titled “Setting the User Type (USER)” on page 3-16.
Note This options copies all user settings at one time.
To copy user settings:
1. Press and hold the <Menu> button until “ADDR” appears on the LED
display.
2. Using the <Up> and <Down> arrow buttons, scroll to the “MODE” menu
and press the <Enter> button to select the “MODE” menu.
3. Using the <Up> and <Down> arrow buttons, scroll to the “USER” menu
and press the <Enter> button to select the “USER” menu.
4. Using the <Up> and <Down> arrow buttons, scroll to the “COPY” menu
and press the <Enter> button to select the “COPY” menu.
5. Using the <Up> and <Down> arrow buttons, scroll to the “SETT” menu
and press the <Enter> button to select the “SETT” menu.
6. Using the <Up> and <Down> arrow buttons, choose the “A → B” option
to copy user A settings to user B, or the “B → A” option to copy user B
settings to user A. Press the <Enter> button to select the desired
option.
Copying User Presets and Settings (ALL)
Use this menu item to copy the fixture’s 16 user presets and fixture
settings from user A to user B or vice versa. The user settings for each
user type are listed in the section titled “Setting the User Type (USER)”
on page 3-16.
Note This options copies all user settings and all 16 presets at
one time.
To copy user presets and settings:
1. Press and hold the <Menu> button until “ADDR” appears on the LED
display.
2. Using the <Up> and <Down> arrow buttons, scroll to the “MODE” menu
and press the <Enter> button to select the “MODE” menu.
3. Using the <Up> and <Down> arrow buttons, scroll to the “USER” menu
and press the <Enter> button to select the “USER” menu.
or
or
Technobeam® User Manual Menu Options 3-19
4. Using the <Up> and <Down> arrow buttons, scroll to the “COPY” menu
and press the <Enter> button to select the “COPY” menu.
5. Using the <Up> and <Down> arrow buttons, scroll to the “ALL” menu
and press the <Enter> button to select the “ALL” menu.
6. Using the <Up> and <Down> arrow buttons, choose the “A → B” option
to copy all user A presets and settings to user B, or the “B → A” option
to copy all user B presets and settings to user A. Press the <Enter>
button to select the desired option.
Crossloading Fixture Software (XLD)
If you have a Technobeam-i fixture with a newer software version, you
can crossload the newer software to all other Technobeam-i fixtures on
the link.
To crossload software:
1. Disconnect or bypass any controllers, serial data distributors, data line
optoisolators, and any fixtures using RS-422 communications (such as
Dataflash® AF1000 xenon strobes, Intellabeam® fixtures, and Emulator®
laser simulators). These devices will block communication between
your crossloading fixture and any other Technobeam-i fixtures on the
link.
2. On the crossloading fixture only, press and hold the <Menu> button
until “ADDR” appears on the LED display.
3. Using the <Up> and <Down> arrow buttons, scroll to the “MODE” menu
and press the <Enter> button to select the “MODE” menu.
4. Using the <Up> and <Down> arrow buttons, scroll to the “XLD” option
and press the <Enter> button to select the “XLD” option.* The fixture
will upload its software to all other Technobeam-i fixtures on the link.
*Note This option has a 5-second delay to avoid inadvertent
changes. To crossload fixture software, you must press
and hold the <Enter> button for at least 5 seconds.
The Transmit LED on the crossloading fixture will remain on (or flicker).
The Transmit and Receive LEDs on receiving fixtures will flicker while
the crossload is in progress, and “UPLD” will appear on the
alphanumeric display as each fixture receives the software upload.
When the crossload has finished successfully, “DONE” will appear
briefly in the LED display of the crossloading fixture, and all other
fixtures will home.
Note If a new boot code was included with the latest software,
the LED will display a “BOOT DIFF” error. To correct the
boot code, you must copy the new boot code for each
fixture (see “Copying the Boot Code (BOOT)” on page
3-21).
or
3-20 Menu Options Technobeam® User Manual
Test Menu (TEST)
The Test menu allows you to manually home the fixture, turn the lamp
on or off, store new boot code information, perform fixture self tests,
and place the fixture in setup mode. If you are experiencing problems
that you suspect are mechanical, performing fixture self tests will help
to determine where the problem originates. The procedures below are
listed in the order that they appear on the menu map.
Note To see the effects of the self tests, the lamp must be on.
If the lamp is off when you run the self test, the LED will
display “STRK” to indicate that the lamp is not struck,
and the fixture will attempt to strike the lamp
automatically.
Homing the Fixture (HOME)
This menu item allows you to manually home the fixture. If you want
to remotely home the fixture (using a DMX controller), use the control
channel (DMX channel 18) (see Table 1 on page A-3 or Table 2 on page
A-8).
To manually home the fixture:
1. Press and hold the <Menu> button until “ADDR” appears on the LED
display.
2. Using the <Up> and <Down> arrow buttons, scroll to the “TEST” menu
and press the <Enter> button to select the “TEST” menu.
3. Using the <Up> and <Down> arrow buttons, scroll to the “HOME”
option. (This will be the first option displayed.)
4. Press the <Enter> button to select the “HOME” option. The LED will
alternately display “RST” and “HOME” while the fixture homes.
Turning the Lamp On or Off (LAMP)
You can manually turn the lamp on and off using either the TEST menu
or the SET menu.
To manually turn the lamp on or off via the TEST menu:
1. Press and hold the <Menu> button until “ADDR” appears on the LED
display.
2. Using the <Up> and <Down> arrow buttons, scroll to the “TEST” menu
and press the <Enter> button to select the “TEST” menu.
3. Using the <Up> and <Down> arrow buttons, scroll to the “LAMP” menu
and press the <Enter> button to select the “LAMP” menu.
4. Using the <Up> and <Down> arrow buttons, choose the “ON” option to
strike the lamp, the “OFF” option to extinguish the lamp.
Technobeam® User Manual Menu Options 3-21
5. Press the <Enter> button to select the desired option.
Copying the Boot Code (BOOT)
When you upload new software to Technobeam-i fixtures, the new
software may contain a new boot code which must be copied to each
fixture. This is apparent if the LED displays a “BOOT DIFF” error. Do
not remove power from the fixture while performing a boot copy. You
can copy the new boot code using either the TEST menu or the SET
menu.
To accept and store the new boot code using the TEST menu:
1. Press and hold the <Menu> button until “ADDR” appears on the LED
display.
2. Using the <Up> and <Down> arrow buttons, scroll to the “TEST” menu
and press the <Enter> button to select the “TEST” menu.
3. Using the <Up> and <Down> arrow buttons, scroll to the “BOOT” option
and press the <Enter> button to select the “BOOT” option. The fixture
will store the new boot code, then automatically home.
Performing Self Tests (SELF)
This menu item performs the appropriate self tests for the following:
• ALL - performs all of the self tests listed below
• PAN - moves the pan motor from 0° to 180°
• TILT - moves the tilt motor from 0° to 95°
• COL - tests color wheel movement
• LTO - tests litho wheel movement
• FX - tests effects wheel movement
• FCUS - tests lens tube movement
• IRIS - tests iris movement
• SHUT - tests shutter strobe functions
• DIM - tests shutter dim flag movement
To perform a self test:
1. Press and hold the <Menu> button until “ADDR” appears on the LED
display.
2. Using the <Up> and <Down> arrow buttons, scroll to the “TEST” menu
and press the <Enter> button to select the “TEST” menu.
3. Using the <Up> and <Down> arrow buttons, scroll to the “SELF” menu
and press the <Enter> button to select the “SELF” menu.
4. Using the <Up> and <Down> arrow buttons, scroll to the desired option
(listed above). Press the <Enter> button to select the desired option.
The fixture will perform the selected self test.
5. Press the <Menu> button to exit the test.
3-22 Menu Options Technobeam® User Manual
Note The self tests will run continuously until you press the
<Menu> button to exit the test.
Placing the Fixture in Setup Mode (S/UP)
This menu item allows you to place the fixture in setup mode so that
you can mechanically home your fixture. If the fixture is out of home
(i.e., the iris or dim flags lose position), will emit an unusually loud
clicking noise when strobing or electronically homing. For more
information on how to mechanically home the fixture, contact High
End Systems customer service.
To place the fixture in setup mode:
1. Press and hold the <Menu> button until “ADDR” appears on the LED
display.
2. Using the <Up> and <Down> arrow buttons, scroll to the “TEST” menu
and press the <Enter> button to select the “TEST” menu.
3. Using the <Up> and <Down> arrow buttons, scroll to the “S/UP” option
and press the <Enter> button to select the “S/UP” option.
4. When the LED displays “SET NOW,” mechanically home the fixture.
5. After mechanically homing the fixture, press any button. This causes
the fixture to electronically home.
Testing the LED Display (DISP)
To perform a self-test on the alphanumeric LED display:
1. Press and hold the <Menu> button until “ADDR” appears on the LED
display.
2. Using the <Up> and <Down> arrow buttons, scroll to the “TEST” menu
and press the <Enter> button to select the “TEST” menu.
3. Using the <Up> and <Down> arrow buttons, scroll to the “DISP” option
and press the <Enter> button to select the “DISP” option. The LED will
run through its self test.
4. Press the <Menu> button to exit the test.
Note The self test will run continuously until you press the
<Menu> button to exit the test.
Information Menu (INFO)
The Information menu allows you to view current fixture information
such as internal temperature, lamp hours, total fixture hours, lamp
strikes, software version, DMX errors, sensor information, and DMX
data for any other device on the link. You can also reset the lamp
Technobeam® User Manual Menu Options 3-23
hours or fixture hours. The procedures below are listed in the order
that they appear on the menu map.
Viewing the Logic Board Temperature (TEMP)
To view the current logic board temperatures:
1. Press and hold the <Menu> button until “ADDR” appears on the LED
display.
2. Using the <Up> and <Down> arrow buttons, scroll to the “INFO” menu
and press the <Enter> button to select the “INFO” menu.
3. Using the <Up> and <Down> arrow buttons, scroll to the “TEMP” option.
(This will be the first menu displayed.) Press the <Enter> button to
select the “TEMP” option.
4. The LED will display the temperature of the fixture’s logic board in
degrees centigrade.
The maximum temperature reading for the logic board is 76° C. If this
maximum temperature is exceeded, the fixture’s lamp, LAD, and
motors will shut down and the LED panel will display “OVER TEMP.”
Viewing the Current Lamp Hours (L/HR)
To view the number of hours the lamp has been on since this option
was reset:
1. Press and hold the <Menu> button until “ADDR” appears on the LED
display.
2. Using the <Up> and <Down> arrow buttons, scroll to the “INFO” menu
and press the <Enter> button to select the “INFO” menu.
3. Using the <Up> and <Down> arrow buttons, scroll to the “L/HR” option
and press the <Enter> button to select the “L/HR” option. The LED will
display the number of hours the lamp has been on since this option
was reset.
Viewing the Current Fixture Hours (F/HR)
To view the number of hours the fixture has been on since this option
was reset:
1. Press and hold the <Menu> button until “ADDR” appears on the LED
display.
2. Using the <Up> and <Down> arrow buttons, scroll to the “INFO” menu
and press the <Enter> button to select the “INFO” menu.
3. Using the <Up> and <Down> arrow buttons, scroll to the “F/HR” option
and press the <Enter> button to select the “F/HR” option. The LED will
display the number of hours the fixture has been on since this option
was reset.
3-24 Menu Options Technobeam® User Manual
Viewing the Number of Current Lamp Strikes (L/ST)
To view the number of times the fixture has attempted to strike (turn
on) the current lamp:
1. Press and hold the <Menu> button until “ADDR” appears on the LED
display.
2. Using the <Up> and <Down> arrow buttons, scroll to the “INFO” menu
and press the <Enter> button to select the “INFO” menu.
3. Using the <Up> and <Down> arrow buttons, scroll to the “L/ST” option
and press the <Enter> button to select the “L/ST” option. The LED will
display the number of times the fixture has struck the current lamp.
Note Lamp strikes are automatically reset when the lamp
hours are reset (see “Resetting Lamp Hours (L/RS)” on
page 3-27 below).
Viewing the Current Software Version (VER)
To view the current software version:
1. Press and hold the <Menu> button until “ADDR” appears on the LED
display.
2. Using the <Up> and <Down> arrow buttons, scroll to the “INFO” menu
and press the <Enter> button to select the “INFO” menu.
3. Using the <Up> and <Down> arrow buttons, scroll to the “VER” option
and press the <Enter> button to select the “VER” option. The LED will
display the fixture’s current software version.
Note The software version is also displayed when you exit the
menu system and the normal alphanumeric display
cycles between displaying the software version, the
fixture name, and the fixture address.
Viewing DMX Status and Construct Values (FIXT)
This menu option allows you to view DMX status and construct values
for the fixture. You should follow this procedure if you are having a
particular problem with a fixture; for example, a color wheel that does
not respond to commands from the controller.
The following DMX status information is available for viewing:
• BRKS - number of DMX breaks (framing errors with zero data)
• FE - number of framing errors with a non-zero value (errors in data
transmission)
• OV - overruns (changing values could indicate data link/connector
problems)
•STRT - start code
Technobeam® User Manual Menu Options 3-25
The following construct values are available for viewing:
• PANH - high 8-bit pan
• PANL - low 8-bit pan
• TLTH - high 8-bit tilt
•TLTL - low 8-bit pan
• COLC - color control channel
• COL - color wheel position
• LTOC - litho control channel
• LTO - litho wheel position
• LTR - litho rotation
• FCUS - lens tube position
• FX - effects wheel position
• FXR - effects wheel rotation
• IRIS - iris position*
• SHUT - shutter strobe
• DIM - shutter dim flag
• MSPD - MSpeed time
• LAD - Laser Aiming Device*
• CNTL - control channel
*Note If your Technobeam-i does not have an iris and/or Laser
Aiming Device (LAD), the iris and LAD-related constructs
will have no functionality.
To view the DMX status and construct values:
1. Press and hold the <Menu> button until “ADDR” appears on the LED
display.
2. Using the <Up> and <Down> arrow buttons, scroll to the “INFO” menu
and press the <Enter> button to select the “INFO” menu.
3. Using the <Up> and <Down> arrow buttons, scroll to the “DMX” menu
and press the <Enter> button to select the “DMX” menu.
4. Using the <Up> and <Down> arrow buttons, scroll to the “FIXT” menu
and press the <Enter> button to select the “FIXT” menu.
5. Using the <Up> and <Down> arrow buttons, scroll to the desired DMX
status or construct (listed above) and press the <Enter> button to
select the desired option. The LED will display the selected DMX status
or construct value.
If you are having a particular problem with the fixture, follow the steps
above to select a construct and view its value. After noting the value of
the construct you selected, use your controller to change that
construct’s value.
If the value changes on the fixture’s LED display, but the fixture still
does not respond, contact High End Systems customer service.
However, if the value does not change on the fixture’s LED display,
remove the fixture from the DMX link and try to change the construct’s
3-26 Menu Options Technobeam® User Manual
value using the fixture’s menu system. If the fixture then functions
normally, the problem was likely with the DMX link. Otherwise,
contact High End Systems customer service.
Viewing DMX Data for Another Device (DATA)
This procedure allows you to use an Technobeam-i fixture to view DMX
channel values for other devices on the DMX link. You should use this
procedure either for testing devices that do not have built-in DMX
diagnostics, or for fixtures that are physically inconvenient to monitor
directly.
Note You can only view DMX channel values for devices which
have a channel range less than the viewing fixture’s
channel range.
To view DMX data for another device on the DMX link:
1. Press and hold the <Menu> button until “ADDR” appears on the LED
display.
2. Using the <Up> and <Down> arrow buttons, scroll to the “INFO” menu
and press the <Enter> button to select the “INFO” menu.
3. Using the <Up> and <Down> arrow buttons, scroll to the “DMX” menu
and press the <Enter> button to select the “DMX” menu.
4. Using the <Up> and <Down> arrow buttons, scroll to the “DATA” menu
and press the <Enter> button to select the “DATA” menu.
5. Using the <Up> and <Down> arrow buttons, scroll to the desired DMX
channel (C001 - C512) and press the <Enter> button to select the
desired DMX channel. The LED will display the selected channel’s DMX
value.
If you are experiencing a particular problem with a device on the link,
follow the steps above to select a DMX channel in the device’s channel
range and view its DMX value. After noting the value of the channel
you selected, use your controller to change that channel’s value.
If the value of the DMX channel you selected does not change, there
may be a problem with the DMX cable or your transmitting device (i.e.
controller).
However, if the DMX channel value changes, but the device does not
respond, the device may be faulty. Consult the documentation
provided with that device for more information.
Viewing Sensor Information (SENS)
This menu option allows you to view whether a specified sensor if
working correctly. If you receive a “SENS ERR” error message on the
alphanumeric LED display, this information may help you determine
where the problem originates.
to
Technobeam® User Manual Menu Options 3-27
The following sensor information is available:
• LTR - view whether the litho rotate (within the wheel) sensor is
obstructed (“OFF”) or is not obstructed (“ON”)
• LTO - view whether the litho wheel sensor is obstructed (“OFF”) or
is not obstructed (“ON”)
• COLR -view whether the color wheel sensor is obstructed (“OFF”) or
is not obstructed (“ON”)
• FX - view whether the effects wheel sensor is obstructed (“OFF”)
or is not obstructed (“ON”)
To view the specified sensor information:
1. Press and hold the <Menu> button until “ADDR” appears on the LED
display.
2. Using the <Up> and <Down> arrow buttons, scroll to the “INFO” menu
and press the <Enter> button to select the “INFO” menu.
3. Using the <Up> and <Down> arrow buttons, scroll to the “SENS” menu
and press the <Enter> button to select the “SENS” menu.
4. Using the <Up> and <Down> arrow buttons, scroll to the desired option
(listed above) and press the <Enter> button to select the desired option
to view its sensor information.
Resetting Fixture Hours (F/RS)
This menu item allows you to track the number of hours the fixture has
been operating.
To reset the fixture hours to zero:
1. Press and hold the <Menu> button until “ADDR” appears on the LED
display.
2. Using the <Up> and <Down> arrow buttons, scroll to the “INFO” menu
and press the <Enter> button to select the “INFO” menu.
3. Using the <Up> and <Down> arrow buttons, scroll to the “F/RS” option
and press the <Enter> button to select the “F/RS” option*. The LED will
display “0000” when the fixture hours are reset.
*Note This option has a 5-second delay to avoid inadvertent
changes. To reset the fixture hours, you must press and
hold the <Enter> button for at least 5 seconds.
Resetting Lamp Hours (L/RS)
This menu item allows you to track the number of hours the lamp has
been operating. You should reset the lamp hours every time you
change the lamp.
3-28 Menu Options Technobeam® User Manual
To reset the current lamp hours to zero:
1. Press and hold the <Menu> button until “ADDR” appears on the LED
display.
2. Using the <Up> and <Down> arrow buttons, scroll to the “INFO” menu
and press the <Enter> button to select the “INFO” menu.
3. Using the <Up> and <Down> arrow buttons, scroll to the “L/RS” option
and press the <Enter> button to select the “L/RS” option*. The LED will
display “0000” when the lamp hours are reset.
*Note This option has a 5-second delay to avoid inadvertent
changes. To reset the lamp hours, you must press and
hold the <Enter> button for at least 5 seconds.
Preset Menu (PRST)
The Preset menu allows you to turn preset playback off or on, view
which scene is currently playing, and create/edit a scene using the on-
board memory to program the fixture for stand-alone operation. This
menu also allows you to copy a scene within the fixture’s on-board
memory, capture a scene from your DMX controller to the fixture’s on-
board memory, and enable the fixture’s factory-programmed preset
sequence (self demo).
Setting Preset Playback (PLAY)
This menu option allows you to turn preset playback on or off and
view which scene is currently playing in preset playback mode.
To set preset playback on or off, or to view the current scene:
1. Press and hold the <Menu> button until “ADDR” appears on the LED
display.
2. Using the <Up> and <Down> arrow buttons, scroll to the “PRST” menu.
Press the <Enter> button to select the “PRST” menu.
3. Using the <Up> and <Down> arrow buttons, scroll to the “PLAY” menu.
(This will be the first option displayed). Press the <Enter> button to
select the “PLAY” menu.
4. Using the <Up> and <Down> arrow buttons, scroll to the “ON” option to
set preset playback on, the “OFF” option to set preset playback off, or
the “SCN” option to display which scene is currently playing. Press the
<Enter> button to select the desired option.
Note Scene 1 must be programmed before the fixture can play
back scenes.
Technobeam® User Manual Menu Options 3-29
Editing or Creating an On-Board Memory Scene (EDIT)
This menu item allows you to edit or create a scene using the fixture’s
on-board scene memory. Using this menu option, you can change the
value of any construct in any of the on-board scenes. For detailed
information on editing or creating a scene, see Chapter 4.
To edit/create a scene:
1. Press and hold the <Menu> button until “ADDR” appears on the LED
display.
2. Using the <Up> and <Down> arrow buttons, scroll to the “PRST” menu
and press the <Enter> button to select the “PRST” menu.
3. Using the <Up> and <Down> arrow buttons, scroll to the “EDIT” menu
and press the <Enter> button to select the “EDIT” menu.
4. Using the <Up> and <Down> arrow buttons, scroll to the scene (“SN01”
to “SN16”) that you want to edit or create and press the <Enter> button
to select the desired scene.
Copying an On-Board Memory Scene (COPY)
1. Press and hold the <Menu> button until “ADDR” appears on the LED
display.
2. Using the <Up> and <Down> arrow buttons, scroll to the “PRST” menu
and press the <Enter> button to select the “PRST” menu.
3. Using the <Up> and <Down> arrow buttons, scroll to the “COPY” menu
and press the <Enter> button to select the “COPY” menu.
4. The LED will display “FROM.” Press the <Enter> button to enter the
“FROM” menu.
5. Using the <Up> and <Down> arrow buttons, scroll to the scene that you
want to copy from (source scene) for either user A (“FA01” - “FA16”) or
user B (“FB01” - “FB16”). Press the <Enter> button to select the desired
scene.
6. The LED will display “TO.” Press the <Enter> button to enter the “TO”
menu.
7. Using the <Up> and <Down> arrow buttons, scroll to the scene that you
want to copy to (destination scene) for either user A (“TA01” - “TA16”)
or user B (“TB01” - “TB16”). Press the <Enter> button to select the
desired scene.
The fixture will copy the desired scene to the selected scene location.
When the fixture finishes the copy successfully, “DONE” will appear
briefly in the fixture’s LED display.
Capturing a Preset Scene (CAPT)
Preset capturing is a way to automate the creation of scenes on
multiple Technobeam-i fixtures connected to a DMX 512 link. Use a
to
to
to
3-30 Menu Options Technobeam® User Manual
DMX controller to create a scene, then save (capture) the scene into a
fixture’s presets to play back the scene without the controller.
After creating a scene with your DMX controller, follow the instructions
below for each fixture on which you want to capture preset scenes:
1. Press and hold the <Menu> button until “ADDR” appears on the LED
display.
2. Using the <Up> and <Down> arrow buttons, scroll to the “PRST” menu
and press the <Enter> button to select the “PRST” menu.
3. Using the <Up> and <Down> arrow buttons, scroll to the “CAPT” menu
and press the <Enter> button to select the “CAPT” menu.
4. Using the <Up> and <Down> arrow buttons, scroll to the scene you
want to copy the preset scene to (destination scene) and press the
<Enter> button.
Pressing the <Enter> button will copy the DMX-512 controller’s preset
scene to the selected scene on your fixture’s on-board 16 scene
memory. When the fixture finishes the capture successfully, “DONE”
will appear briefly in the fixture’s LED display.
Note You must use the fixture’s on-board scene memory to
manually select values for the XFAD, DLAY, and TIME
constructs, since a DMX controller will not transmit
those construct values. For more information on using
the fixture’s on-board scene memory, refer to the
Technobeam® User Manual.
Enabling the Preset Default (DFLT)
This menu item enables the factory-programmed 16 preset sequence
or fixture self demo. Enabling this menu item will erase any pre-
programmed scenes or construct values on your fixture’s on-board
memory for either user A or user B.
To enable the self-demo:
1. Press and hold the <Menu> button until “ADDR” appears on the LED
display.
2. Using the <Up> and <Down> arrow buttons, scroll to the “PRST” menu
and press the <Enter> button to select the “PRST” menu.
3. Using the <Up> and <Down> arrow buttons, scroll to the “DFLT” menu
and press the <Enter> button to select the “DFLT” menu. The LED
display will show “OK?”
4. Press the <Enter> button to enable the self-demo or press <Menu> to
exit the menu option.
Note To play the fixture’s self-demo, you must set preset
playback on (see “Setting Preset Playback (PLAY)” on page
3-28).
to
Technobeam® User Manual 4-1
Chapter 4
Preset Programming
Programming Overview ...................................................................................4-2
What is a “Scene”? ...............................................................................4-2
Stand-alone Operation vs. a Controller ..............................................4-2
Macros ................................................................................................4-2
Preset Playback Options .....................................................................4-3
General Information ...........................................................................4-3
Subject to Change ..................................................................4-3
Enter and Menu Keys .............................................................4-3
MSpeed vs. Fast Changes .......................................................4-3
Selecting Constructs and Values ...........................................4-4
Creating a Scene ..............................................................................................4-4
Orienting and Powering On the Fixture ..............................................4-4
Turning on the Lamp ..........................................................................4-4
Opening the Shutter ...........................................................................4-5
Positioning the Mirror ........................................................................4-6
Focusing on a Litho ............................................................................4-6
Selecting Color Wheel Constructs ......................................................4-6
Selecting a Color Wheel Pause Time ...................................................4-7
Selecting Effects Constructs ...............................................................4-7
Refocusing the Fixture .......................................................................4-7
Setting a Delay Time ..........................................................................4-7
Creating Scene 2 .................................................................................4-8
Playing Back Both Scenes ...................................................................4-8
Synchronizing Preset Playback .......................................................................4-9
Setting Up the Fixtures .......................................................................4-9
Adding Fixtures ............................................................................... 4-11
Capturing Presets ......................................................................................... 4-11
4-2 Programming Overview Technobeam® User Manual
Programming Overview
This chapter explains how to create and play back scenes using the
fixture’s onboard 16-scene memory, and has a step-by-step example.
More information about preset programming can be found on the
Technobeam Quick Reference Card (p/n 60600109, v1.0 or later).
What is a “Scene”?
A scene (which can also be called a page or look) is a combination of the
constructs you configure. A construct is a unique fixture feature—for
example, focus, color or rotating effects. Each scene consists of all of
the constructs you select; you can make each scene as simple or
complex as you want.
When you play back more than one scene in sequence, it becomes a
program (also called a show). A program or show that continuously
repeats is called a loop or a chase.
Technobeam fixtures always play back all contiguously-programmed
scenes in a continuous loop. The loop plays back until you either turn
the fixture off or stop scene playback. You must create the scenes
contiguously (in other words, scene 1, scene 2, scene 3, scene 4, and so
on without skipping a scene) because the fixture automatically repeats
when it encounters the first unprogrammed scene or when all available
scenes are programmed.
Stand-alone Operation vs. a Controller
You can use a controller or control device (such as DMX control
software), or onboard memory to create and play back scenes, but not
both at the same time.
In other words, you cannot create a scene using the fixture’s onboard
memory and play it back using a controller. You also cannot use a
controller at the same time onboard scenes are playing back.
You can create up to sixteen scenes using a controller and copy the
scenes to the fixture’ onboard memory. However, XFAD and DLAY
construct values cannot be copied this way, so you must manually
(using preset programming) enter values for these two constructs.
Macros
Each Technobeam fixture has 28 selectable macros. A macro is a
factory-programmed set of fixture constructs picked for their ability to
achieve a dramatic and exciting effect. Using a macro can help you
save time while programming your fixture.
Note You must select the full protocol for the fixture to use
macros.
Technobeam® User Manual Programming Overview 4-3
Preset Playback Options
Technobeam offers the following two options for use with preset
programming:
•Preset capture: Use any DMX 512-compatible controller to create
a scene(s) that can then be saved into the fixture’s own presets and
later recalled in stand-alone operation without the controller. The
only constructs that cannot be captured in this way are crossfade
(XFAD) and delay (DLAY); you must configure them manually on
each fixture.
•Synchronized preset playback: Use one fixture to synchronize
playback among all fixtures on the link. One fixture must be
configured as fixture number 1 or at DMX start channel 1. No
controllers can be attached to the link containing the synchronized
fixtures. See the section titled “Synchronizing Preset Playback” on
page 4-9 for more information.
General Information
This section lists general points you need to keep in mind while you
are creating and playing back scenes on the fixture.
Subject to Change
The information in the following sections is based on what was
available at the time this manual went to print; however, all
information—particularly constructs and construct values—is subject
to change.
Enter and Menu Keys
Whenever you are creating a scene, the <Enter> key accepts the current
selection, whether that selection is a construct—such as SHUT for the
shutter—or a value for a construct, such as OPEN. Each construct value
is automatically saved when you press <Enter>.
The <Menu> key moves you back to the previous option or menu
without changing a value.
MSpeed vs. Fast Changes
Some constructs allow you to choose either fast position selection or
position selection set by MSpeed (motor/mirror speed).
A fast change means the position selection is completed in the shortest
length of time after the wheel starts moving.
An MSpeed (motor/mirror speed) change occurs smoothly over the
entire MSpeed time value. A table of MSpeed times is shown in
Appendix A of the user manual.
4-4 Creating a Scene Technobeam® User Manual
Selecting Constructs and Values
The step-by-step example in the next section suggests particular
constructs and values that will give you an idea of how the fixture
works. You can choose different constructs or values using the
information in Appendix E.
Creating a Scene
This step-by-step example involves the following basic steps:
• Positioning and powering on the fixture
• Turning on the lamp
• Opening the shutter
• Focusing on a litho
• Selecting color and effects options
• Enabling preset playback
Orienting and Powering On the Fixture
1. Orient (physically position) the fixture so the light will be projected
onto a flat, light-colored object such as a white wall or ceiling. If you
have Technobeam, you will be able to move the mirror to a suitable
position.
2. Follow the instructions in Chapter 1 to connect the fixture to an
appropriately-rated power outlet, if you have not already done so.
(There is no power switch.) Wait for the fixture to finish homing (the
gears and motors stop moving).
Turning on the Lamp
1. Press and hold the <Menu> key until ADDR appears in the LED display.
Note If you are already in the menu system, keep pressing
(but do not hold down) the <Menu> key until ADDR is
displayed.
If MENU is displayed, press the <Enter> key to view the
ADDR option.
2. Use the <Up> and <Down> arrow keys to navigate to the TEST menu.
3. Press <Enter>, then use the <Up> and <Down> arrow keys to navigate
to the LAMP option.
Technobeam® User Manual Creating a Scene 4-5
4. Press <Enter>, then use the <Up> and <Down> arrow keys to select ON.
5. Press <Enter>. The lamp is now ON, although it might not be visible if
the dim flags (also called shutter or light gate) are closed.
Opening the Shutter
1. Press and keep pressing the <Menu> key until ADDR appears in the
LED display.
2. Use the <Up> or <Down> arrow keys to navigate to the PRST menu.
3. Press <Enter>, then use the <Up> or <Down> arrow keys to select EDIT.
4. Press <Enter>; the LED display shows SCN1 option, indicating you are
now creating scene number 1. The procedure that follows does not
cover every available construct because each fixture is slightly
different.
5. Press <Enter> to begin creating scene 1.
6. If you can see light exiting the fixture, the shutter is already open; skip
to the next section.
7. Use the <Up> and <Down> arrow keys to navigate to the SHUT
construct.
8. Press <Enter>, then press the <Up> and <Down> arrow keys to select
OPEN.
9. Press <Enter>; light should now be visible through the aperture. If so,
see the next section.
10. If no light is visible through the aperture, either the shutter is still
closed or the lamp is not on. First look through the aperture (at an
angle, not directly) and make sure the two black dim flags are open, as
shown in Figure 4-1. (The two dim flags act as both the dimming
mechanism and as the shutter.)
Figure 4-1. Making sure the shutter is open.
Aperture (dim flags are barely visible at edges when shutter is open)
4-6 Creating a Scene Technobeam® User Manual
11. If the flags are closed, repeat this procedure.
12. If the shutter is open and no light is exiting the fixture, the lamp is off.
(The lamp is automatically turned off after a period of no activity.) In
that case, turn the fixture OFF, wait a few minutes, then repeat the
procedure in the section titled “Turning on the Lamp” on page 4-4.
Positioning the Mirror
1. Use the <Up> and <Down> arrow keys to navigate to the PAN
construct.
2. Use the <Up> and <Down> arrow keys to move the mirror to the
desired location, then press <Enter>.
3. Use the <Up> and <Down> arrow keys to navigate to the TILT
construct and press <Enter>.
4. Use the <Up> and <Down> arrow keys to move the mirror to the
desired location, then press <Enter>.
Focusing on a Litho
1. Use the <Up> and <Down> arrow keys to navigate to the LTOC (control)
construct.
2. Press <Enter>, then use the <Up> and <Down> arrow keys to select
IDX.
3. Press <Enter> to accept your selection, then use the <Up> and <Down>
arrow keys to navigate to the LTO construct.
4. Press <Enter>, then press the <Up> or <Down> arrow keys to select any
litho pattern (except L 1, the open position).
5. Press <Enter> to accept your selection, then use the <Up> and <Down>
arrow keys to navigate to the FCUS construct.
6. Press <Enter>, then use the <Up> and <Down> arrow keys to bring the
litho into sharp focus.
7. Press <Enter> when you are finished focusing the fixture.
Selecting Color Wheel Constructs
1. Use the <Up> and <Down> arrow keys to select COLC.
2. Press <Enter>, then press the <Up> and <Down> arrow keys to select
RND (random color selection).
3. Press <Enter>. The color wheel spins and stops on a random position,
pausing for a length of time you will set in the next section.
Technobeam® User Manual Creating a Scene 4-7
Selecting a Color Wheel Pause Time
1. Use the <Up> and <Down> arrow keys to navigate to the COL
construct.
2. Press <Enter>, then use the <Up> and <Down> arrow keys to select a
pause time (the higher the value, the longer the pause time).
3. Press <Enter> to accept your selection.
Selecting Effects Constructs
1. Use the <Up> and <Down> arrow keys to navigate to the FX construct.
2. Press <Enter>, then use the <Up> and <Down> arrow keys to select any
effects position other than FX 1 (open).
3. Press <Enter>, then use the <Up> and <Down> arrow keys to navigate
to the FXR construct.
4. Press <Enter>, then use the <Up> and <Down> arrow keys to select
either a forward or reverse rotation speed.
5. Press <Enter> to save your settings.
Refocusing the Fixture
If you selected the suggested constructs, you should now see a litho
pattern being changed by a rotating effect and random color changes.
This section shows how you can use the fixture’s superior optics to
refocus the image.
1. Use the <Up> and <Down> arrow keys to navigate to the FCUS
construct.
2. Press <Enter>, then use the <Up> and <Down> arrow keys to change
the focus. You can focus on the effects wheel, the litho wheel, the
color wheel or anywhere in between.
3. Press <Enter> when you are done.
Setting a Delay Time
The DLAY construct determines the length of time scene 1 “plays”
before the next scene begins.
1. Use the <Up> and <Down> arrow keys to navigate to the DLAY
construct.
2. Press <Enter>, then use the <Up> and <Down> arrow keys to select a
value of 3.0. This means that scene 1 will “play” for 3 seconds before
moving on to scene 2. (You will not see the effect of the DLAY
construct until you play back your programmed scenes.)
4-8 Creating a Scene Technobeam® User Manual
3. Press <Enter> to save your setting.
Note The default unit of time is seconds, but you can change
the units to either minutes or hours using the TIME
construct on the PRST menu.
Creating Scene 2
This section shows how to use the convenient scene copy feature to
copy constructs and values from scene 1 to scene 2. Scene copy can
greatly speed up the time required to program the fixture, especially
for scenes that have minor variations in construct values.
1. Keep pressing the <Menu> key to navigate to the PLAY option. (The
dim flags close when you make this selection, so you will not see any
light exiting the fixture; this is normal).
2. Use the <Up> and <Down> arrow keys to select COPY.
3. Press <Enter>; the display then shows FROM.
4. Press <Enter> and select the scene to copy from. The default option is
the current scene number. (F001 indicates you will copy from scene
1.)
5. Press <Enter> to select scene 1 to copy from. The display then shows
TO.
6. Press <Enter>; the LED display shows the previously-selected scene
number. Use the <Up> and <Down> arrow keys to select T002 (scene
2).
7. Press <Enter> to select scene 2; the LED display shows COPY.
8. Press <Enter>. The constructs are copied from scene 1 to scene 2.
9. Keep pressing the <Menu> key to navigate to the PLAY option.
10. Use the <Up> and <Down> arrow keys to select EDIT.
11. Press <Enter>, then use the <Up> and <Down> arrow keys to select
SCN2.
12. Press <Enter> and change the DLAY construct to a value of 1.0.
13. Press <Enter> to accept your selection. Make other construct changes,
if desired (if you have Technobeam, move the mirror to a different
location using the PAN and TILT constructs.)
Playing Back Both Scenes
Turning preset playback ON starts all programmed scenes playing back
in a continuous loop. Scenes advance at the rate set by the DLAY
construct and continue playing back until you turn preset playback
OFF.
Technobeam® User Manual Synchronizing Preset Playback 4-9
If preset playback was enabled when you powered the fixture OFF,
preset playback restarts automatically when you power the fixture
back ON again. You can disable preset playback at any time by
selecting OFF from the PLAY menu.
1. Keep pressing the <Menu> key until PLAY appears in the LED display.
(The Play option allows you to turn preset playback on and off.) The
dim flags close when you make this selection, so you will not see any
light exiting the fixture; this is normal.
2. Press <Enter>, then use the <Up> and <Down> arrow keys to select ON.
3. Press <Enter> to start preset playback.
4. Your scene(s) start playing back, starting with scene 1, continuing to
the first unprogrammed scene, then returning to scene 1, etc. The LED
display should look similar to the one below:
Figure 4-2. A dot always appears in the LED display whenever preset
playback is on.
5. To turn preset playback off, keep pressing the <Menu> key to select the
PLAY option and press <Enter>.
6. Use the <Up> and <Down> arrow keys to select OFF and press <Enter>.
That stops preset playback, but leaves the currently-running scene
active. Select an unprogrammed scene to return the fixture to its
default state (with no scene active).
Synchronizing Preset Playback
Once you have programmed one or more scenes for your Technobeam
fixtures and connected them to a DMX 512 link, you can synchronize
preset playback from one fixture as described in this section.
Note Do not put a controller on the DMX 512 link if you want
to use synchronized preset playback.
Setting Up the Fixtures
Make sure you do all of the following when you set up the link. More
information about setting up a DMX 512 link is shown in Chapter 2.
Dot indicates preset playback is on
MENU ENTER
4-10 Synchronizing Preset Playback Technobeam® User Manual
1. One fixture must be set as fixture number 1 or at DMX start channel 1
as described in Chapter 2. Make sure no other fixture on the link is
configured as fixture number 1 or at DMX start channel 1.
2. The fixture in Step 1 should be physically the first fixture in the link,
as shown in Figure 4-3. The last fixture in the link must be terminated.
3. You can choose any fixture number or DMX start channel you want for
any of the other fixtures on the link. For example, fixture number 2
does not have to be directly connected to fixture number 1.
4. Make sure there are no controllers on the link.
5. Enable preset playback for all fixtures on the link.
Note After you enable preset playback on the fixture you
configured as fixture 1 or DMX start channel 1, the
Transmit LED on that fixture will continue flickering
yellow until you disable preset playback.
6. The total delay time of all the scenes on the first fixture (fixture
number 1 or DMX start channel 1) should be longer than the total delay
time of all the scenes on any other fixture in the link. Otherwise, not
all scenes on all fixtures will finish playing before looping back to
scene 1.
Figure 4-3. When you set up fixtures for synchronized playback on a DMX
512 link, one and only one fixture must be fixture number 1 or DMX start
channel 1. The last fixture on the link must be terminated.
Data Out
Data In
Data Out
Data In
Data Out
Data In
Terminate the last fixture (the fixture at
the opposite end of the link from the
first fixture)
First fixture (fixture number 1
or DMX start channel 1)
Technobeam® User Manual Capturing Presets 4-11
Adding Fixtures
Once you have started synchronized preset playback on the link, you
can add other fixtures to the link anytime you want. A fixture added
after synchronized preset playback has begun will start playing the
scene most closely matching the timeline set by the first fixture. (It
will not necessarily begin with scene 1, and it might begin in the
middle of a scene.)
When the first fixture wraps to scene 1, the added fixture also wraps to
scene 1 and continues playing its scenes normally according to the
scenes’ delay times.
Capturing Presets
Preset capturing is a way to automate the creation of scenes on
multiple Technobeam fixtures connected to a DMX 512 link. You use a
DMX 512-compatible controller to create a scene, save (capture) the
scene into a fixture's presets and later play back the scene without the
controller.
This procedure assumes you are already familiar with your controller;
if not, consult the controller’s documentation. It also assumes you
have some familiarity with using the menu system on Technobeam; if
not, review Chapter 3 and this chapter.
1. Connect a DMX 512 controller and Technobeam fixtures on a DMX 512
link as described in Chapter 2.
2. Make sure all Technobeam fixtures are configured for their respective
full protocols (see “Fixture Types” on page 2-13). Selecting the full
protocol takes advantage of all constructs available for the fixture
type.
3. Create a scene on the controller. The DMX protocols for Technobeam
are listed in Appendix A.
4. Make sure all construct values on the controller are constant. There
cannot be any mirror movement or scene-to-scene sequencing.
5. Go to the first fixture you want to store the scene on.
6. Navigate to the PRST menu.
7. Press <Enter>, then use the <Up> and <Down> arrow keys to navigate
to the CAPT option.
8. Press <Enter>, then use the <Up> and <Down> arrow keys to select a
scene to capture to. If you select SCN2, as shown, you will capture
DMX data from the controller into the fixture’s scene 2.
4-12 Capturing Presets Technobeam® User Manual
9. Press <Enter>. The scene created on the controller is now stored in the
selected scene number.
10. You will need to manually select values for the XFAD and DLAY
constructs, since the controller does not transmit those constructs.
Note If the scene you captured to was previously
programmed, you will need to make that scene active in
order to view the newly-captured scene for the first time.
(To make the scene active, select the scene number from
the EDIT menu.)
11. Repeat the procedure for each fixture you want to capture presets to.
Technobeam® User Manual 5-1
Chapter 5
Using the Laser Aiming
Device™ (LAD™)
Safety Precautions ...........................................................................................5-2
Overview .........................................................................................................5-3
Recommended Laser Operation .........................................................5-3
Intended Audience .............................................................................5-3
Using the Laser Aiming Device ...........................................................5-3
Controlling the Laser ......................................................................................5-5
Menu Control of the Laser ..................................................................5-5
DMX Control of the Laser ...................................................................5-5
Troubleshooting ..............................................................................................5-6
Laser gradually loses power ...............................................................5-6
Laser is out of position ......................................................................5-6
Emission Indicator LED OFF, Laser OFF ..............................................5-6
Emission Indicator LED ON, Laser OFF ...............................................5-7
Laser ON, Emission Indicator LED OFF ...............................................5-8
Maintenance ....................................................................................................5-8
TM
5-2 Safety Precautions Technobeam® User Manual
Safety Precautions
This section lists precautions you must follow anytime you are using
the Laser Aiming Device™ (LAD™) for Technobeam.
1. CAUTION: Use of controls or adjustments or performance of
procedures other than those specified herein may result in hazardous
radiation exposure.
2. Using the Laser Aiming Device with any fixture other than Technobeam
may result in damage to both the laser and the fixture as well as
exposure to laser radiation.
3. Do not point the laser at an audience.
4. Precautions should be taken to ensure that the laser beam is not
unintentionally directed at mirror-like (specular) surfaces (most
importantly, at flat mirror-like surfaces).
5. Only qualified and trained employees approved by a laser safety
officer should be assigned to install, adjust and operate the laser
equipment.
6. When not in use, the laser (fixture) should be stored in a location where
unauthorized personnel cannot gain access.
7. Do not remove the labels shown at the bottom of this page; they are
required by U.S. and European safety agencies.
8. Areas in which this product is used should be posted with a standard
laser warning sign.
9. Do not stare directly into the beam and do not view the beam with
optical instruments.
10. The laser path should be located well above or below eye level.
11. The laser beam should be terminated at the end of its useful path.
12. Consult local and state laws regarding laser use and possible
registration requirements.
Laser aiming device assembly
(inside fixture)
LASER RADIATION - AVOID
DIRECT EYE EXPOSURE
Max output: 5mW at 630-650 nm
CLASS 3a LASER PRODUCT
Laser radiation is emitted from this aperture
AVOID EXPOSURE
Emission indicator
Max output: 5mW at 630-650 nm
CLASS 3a LASER PRODUCT
Cert. to EN 60825-1, 1994
and 21 CFR 1040
LASER RADIATION - DO NOT
STARE INTO BEAM OR
VIEW DIRECTLY WITH
OPTICAL INSTRUMENTS
DANGER
Technobeam® User Manual Overview 5-3
Overview
The Technobeam LAD makes it easy for you to position the mirror
during daylight or high ambient light conditions. This in turn allows
you the additional flexibility to set up or verify mirror preset positions
in conditions that would otherwise make positioning difficult or
impossible.
Recommended Laser Operation
The most effective and efficient way to use the laser aiming device is
with the fixture’s lamp off and dim flags (shutter) closed. There are
three reasons for this:
• The higher the temperature, the shorter the life of the laser aiming
device. Keeping the lamp off minimizes the temperature inside the
fixture, extending the life of the laser.
• The higher the temperature, the less bright the laser will be. If the
fixture operates (with the lamp on) at 40°C (104°F) for example,
laser power will be decreased by about 25%.
• Technobeam was designed so the laser light can exit the fixture
with the dim flags (shutters) closed or completely open. At certain
intermediate dim flag positions, the laser light might be partially
blocked.
Intended Audience
Only qualified and trained employees approved by a laser safety
officer should be assigned to install, adjust and operate the laser
equipment.
Using the Laser Aiming Device
You can control the laser using either the fixture’s onboard programs,
the Technobeam LCD controller, or any DMX 512-compliant controller
as shown in the section titled “Controlling the Laser” on page 5-5.
The laser exits the fixture through the same aperture as the light beam,
as shown in Figure 5-1. Technobeam was designed so that the laser is
visible if the dim flags are completely closed or open.
5-4 Overview Technobeam® User Manual
Figure 5-1. The laser light exits the through the same aperture as the light
beam.
The laser should ideally be no more than 2” (5 cm) directly above the
center point of a perfectly round light beam, as shown in Figure 5-2:
Figure 5-2. The ideal position of the laser is no more than 2” (5 cm) directly
above the center point of a perfectly round light beam.
In its ideal position, the laser path is parallel to the path of the light
and will stay 2” (5 cm) above the center point of the beam at any throw
distance or mirror position.
If the laser becomes out of position, you might need to align it as
shown in the section titled “Technobeam Laser Aiming Device™” on
page 6-19.
However, the decision of whether or not to align the laser is entirely up
to you. If the laser strays from its optimal position, but it gives you
enough accuracy for your needs, you do not have to align it.
Laser aperture
Ideal laser spot
2" (5 cm) max
Technobeam® User Manual Controlling the Laser 5-5
Controlling the Laser
You can control the laser in one of three ways:
•The fixture’s menu system: Edit one of the fixture’s sixteen
onboard presets (scenes) using the PRST menu as described in the
next section.
•Any DMX 512-compliant controller: See the section titled “DMX
Control of the Laser” on page 5-5.
•The Technobeam LCD controller: See the controller’s user
manual.
Menu Control of the Laser
Use the PRST menu to create scenes (presets) including the laser
aiming device. You access the LAD using the MACR construct from the
PRST menu.
The complete list of options controlling the laser aiming device (with
the MACR construct) is shown below:
•LROF: laser aiming device OFF
•LRON: laser aiming device ON continuously
•LM01 to LM30: laser modulation levels. LM01 is “slow”
modulation at 4.25 times/sec and LM30 is “fast” modulation at 255
times/sec.
DMX Control of the Laser
This section explains how to control the laser using a DMX 512-
compatible controller.
1. Select a fixture number or DMX start channel for each fixture you wish
to control as described in Chapter 2.
2. Make sure you select the Technobeam full 18-channel protocol (TB
Ffrom the Mode menu); otherwise, the laser aiming device will not
function.
3. Connect the fixtures to the controller as described in Chapter 2.
4. See Appendix A for details of DMX 512 control (see in Table A-1 on page
A-3 or Table A-2 on page A-8).
5-6 Troubleshooting Technobeam® User Manual
Troubleshooting
If laser fails to illuminate, the most likely reasons are lack of power or
a failed laser.
Laser gradually loses power
This is normal; over time, the laser will gradually lose power until it
finally dims out entirely. If this is happening, contact High End
Systems Customer Service in one of the ways shown in “Contacting
High End Systems” on page Intro-4.
Laser is out of position
Align the laser as shown in the section titled “Technobeam Laser
Aiming Device™” on page 6-19.
Emission Indicator LED OFF, Laser OFF
The laser circuit board is not receiving power.
1. Unplug the fixture and remove the access door shown in Figure 5-3:
Figure 5-3. Removing the access door.
Door retaining screw
Access door
Technobeam® User Manual Troubleshooting 5-7
2. Check all wiring connections shown in Figure 5-4:
Figure 5-4. LAD wiring connections.
3. Check to make sure the cable labeled “LAD” is connected to the main
circuit board (with the LED display).
4. Replace the access door, plug the fixture in and make sure you have
enabled the laser as shown in the section titled “Controlling the Laser”
on page 5-5.
5. If the Emission Indicator LED and laser are both still OFF, contact High
End Systems Customer Service in one of the ways shown in “Contacting
High End Systems” on page Intro-4.
Emission Indicator LED ON, Laser OFF
1. The laser aiming device assembly is not receiving power. Check the
connection at the laser aiming device circuit board, shown in Figure
5-5.
LAD cables
5-8 Maintenance Technobeam® User Manual
Figure 5-5. The laser aiming device circuit board.
2. If the cable connections are good, contact High End Systems Customer
Service in one of the ways shown in “Contacting High End Systems” on
page Intro-4.
Laser ON, Emission Indicator LED OFF
The most likely reason is a faulty Emission Indicator LED. Contact
High End Systems Customer Service as shown in “Contacting High End
Systems” on page Intro-4.
Maintenance
The only laser maintenance procedure is alignment, which is covered
in the section titled “Technobeam Laser Aiming Device™” on page 6-19.
LAD circuit board
Technobeam® User Manual 6-1
Chapter 6
Servicing Your Fixture
Precautions .....................................................................................................6-2
Replacing Fuses ...............................................................................................6-2
Replacing Wheel Components .........................................................................6-4
Specifications .....................................................................................6-4
Reference Drawing .............................................................................6-5
Replacing Dichroics in the Color Wheel .............................................6-5
Replacing Lithos in the Rotating Litho Wheel ....................................6-7
Removing a Rotating Litho or Rotating Effect .......................6-7
Removing a Static Litho .........................................................6-8
Cleaning the Litho .................................................................6-8
Litho Installation Instructions ...............................................6-9
Replacing a Static Litho .........................................................6-9
Replacing a Rotating Litho or Effect ................................... 6-10
Replacing a Custom Litho ................................................... 6-11
Replacing the Lamp ...................................................................................... 6-11
Optimizing the Lamp ...................................................................... 6-14
Resetting Lamp Hours ..................................................................... 6-15
Cleaning the Internal Components ............................................................. 6-15
Opening the Fixture ......................................................................... 6-16
Cleaning the Door Vents ................................................................. 6-16
Cleaning the Lenses and Mirrors ..................................................... 6-16
Technobeam Laser Aiming Device™ ............................................................ 6-19
Safety Precautions ........................................................................... 6-19
Live Components ............................................................................. 6-20
Alignment Procedure ....................................................................... 6-21
6-2 Precautions Technobeam® User Manual
Precautions
This section lists precautions you must follow anytime you are
servicing the fixture.
WARNINGS Before performing any service or
maintenance, make note of the following:
(1) Hot lamp may be an explosion hazard. Do
not open for 5 minutes after switching off.
Wear eye and hand protection when re-
lamping.
(2) Equipment surfaces may reach
temperatures up to 70° C (158° F). Allow 5
minutes for cooling before handling.
(3) Disconnect power before re-lamping or
servicing.
(4) Replace fuses with the specified type and
rating only.
(5) Never look directly at the lamp while
lamp is on.
(6) The procedures in this chapter are
intended to assist qualified service
personnel because Technobeam fixtures are
to be serviced by qualified service
personnel only.
Replacing Fuses
This section explains how to replace any of the three fuses located on
the fixture’s circuit board. Make note of the warnings in the section
titled “Precautions” on page 6-2.
Note All fuses are 5 mm x 20 mm.
Table 6-1. Replacement Fuses
Fuse Amps Volts Fuse Type
F1 4.0 A 125 V Fast Blow Only
F2 2.5 A 250 V Fast Blow Only
F3 6.3A 250 V Slow Blow Only
Technobeam® User Manual Replacing Fuses 6-3
Table 6-2 describes the typical failure symptoms of each of the fuses:
1. Unplug the fixture from the power supply.
2. Lay the fixture on its back and locate the door retaining screw, as
shown in Figure 6-1:
Figure 6-1. Removing the door allows you to access the fixture’s voltage
selection switches and fuses, as well as wheels and optics.
3. Note which fuse(s) needs to be replaced and make sure you replace it
with a fuse of the same type and rating, as shown in Table 6-2.
Table 6-2. Fuse Failure Symptoms
Fuse Protects Symptoms of Failure
F1 Motor power Motor LED is OFF when fixture is receiving power. Receive LED
might be ON. Motors and gears will not move, lamp is OFF.
F2 Logic power Fixture shuts down, LEDs might be ON.
F3 Main fuse Fixture shuts down, LEDs are all OFF.
Door retaining screw
Access door
6-4 Replacing Wheel Components Technobeam® User Manual
Figure 6-2. Locations of the three fuses on the circuit board.
4. Replace the access door and connect the fixture to a power supply.
Replacing Wheel Components
This section explains how to remove and replace individual
components in the wheels. Follow the precautions listed in the section
titled “Precautions” on page 6-2.
Always heed the following precautions when handling and using
dichroics, lithos and effects:
• Avoid touching the coated side of the glass. Handle the edge
or uncoated side of the glass when removing or installing
lithos. If possible, wear cloth gloves when inserting and
removing lithos from the litho wheel housing.
• If necessary, clean the lithos with a mild glass cleaner and a
soft cloth.
Specifications
You can install any High End Systems-manufactured solid dichroic
filters, effects, LithoPatterns lithos, ArtGlass, or Fusion Fire®—as long
as they were manufactured for use with Technobeam, Technopro or
Technoray and not another fixture.
You can also install dichroics, gobos, lithos or effects from other
manufacturers as long as they adhere to the following specifications:
Dichroics
• Diameter: 1.125” ± 0.010” (28.5 mm ± 0.25 mm)
• Thickness: 0.069” ± 0.010” (1.8 mm ± 0.25 mm)
F3
F2
F1
Technobeam® User Manual Replacing Wheel Components 6-5
Lithos
• Diameter/image area: 0.996”/0.860” ± 0.005” (25 mm/22 mm ±
0.13 mm)
• Maximum thickness (rotating litho only): 0.105” ± 0.005” (2.7
mm ± 0.13 mm)
• Thickness (static litho only): 0.069” ± 0.010” (1.8 mm ± 0.25
mm)
Rotating effects
• Diameter/image area: 1.43”/1.04” ± 0.010” (36 mm/26 mm ±
0.25 mm)
• Maximum thickness: 0.175” ± 0.010” (4.4 mm ± 0.25 mm)
Reference Drawing
Figure 6-3 shows the location of each wheel in the Technobeam fixture.
Figure 6-3. Location of the wheels in Technobeam.
Replacing Dichroics in the Color Wheel
This section shows how to change individual dichroic filters in the
color wheel. You can replace dichroics if they are damaged or broken,
to change the order in their respective wheels, to clean them, or to add
new ones. (See the section titled “Optional Accessories” on page 1-5 for
ordering information.)
1. Manually turn the wheel so the dichroic you wish to replace is easy to
access.
Lens tube
Rotating effects wheel
Rotating litho wheel
Color wheel
6-6 Replacing Wheel Components Technobeam® User Manual
2. Push the dichroic you wish to replace toward the center of the wheel to
free it from the two wheel tabs as shown in Figure 6-4.
Figure 6-4. Push the dichroic toward the large retaining tab to free it from the
wheel tabs.
3. Once the dichroic is free of the two wheel tabs, pull it out of the wheel.
If you intend to reuse this dichroic, put it in a safe place where it will
not get scratched.
4. Clean the dichroic, if necessary, with a mild glass cleaner (containing
no ammonia) and a soft, lint-free cotton cloth.
5. Carefully install the replacement dichroic, oriented so the coated side
is facing toward the lamp and the uncoated, glass side is facing toward
the rotating litho wheel.
To determine which side is coated, place the tip of a pen against each
side of the dichroic. Look at the dichroic and pen from a slight angle.
On the coated side, the tip of the pen appears to “touch” its reflection.
On the uncoated side, there appears to be a gap between the pen and
its reflection (see Figure Figure 6-5).
Figure 6-5. You can easily tell which side of a dichroic is coated by placing a
pen or other object near the surface; on the coated side, the reflection from
the object will appear to touch the object.
coated
uncoated
Technobeam® User Manual Replacing Wheel Components 6-7
6. Install the new dichroic into its wheel by pushing it under the large
retaining clip, then pull it up so it fits under the wheel tabs. Repeat the
procedure for each dichroic you wish to replace.
7. Replace the access door shown in Figure 6-1 on page 6-3 unless there
are other dichroics, lithos or effects you want to replace.
Replacing Lithos in the Rotating Litho Wheel
This section explains how to replace either of the two lithos in each
position on the Technobeam or Technoray rotating litho wheel: the
rotating litho (facing the rotating effects wheel) and the static litho
(directly behind the rotating litho).
You can replace lithos if they are damaged or broken, to change the
order in their respective wheels, to clean them, or to add new ones.
(See the section titled “Optional Accessories” on page 1-5 for ordering
information.)
Removing a Rotating Litho or Rotating Effect
1. Rotate the wheel until the desired litho is easy to access.
2. Make note of the plastic tabs built into the wheel, as shown in Figure
6-6.
Figure 6-6. The rotating litho wheel and rotating effects wheel have built-in
plastic tabs that hold the spring in place.
3. Locate the tip of the metal spring (which should be under one of the
tabs). Carefully grasp the tip of the spring with your finger and push it
from under the tab.
4. Rotate the spring as you remove it from the housing. Continue
pressing the spring under each tab until the spring is completely free
of the wheel.
5. Keep the wheel holder in place with one hand and grasp the spring
with the other hand. Grasp the spring and carefully pull it free of the
housing.
Wheel tab
Tip of spring
(under tab)
6-8 Replacing Wheel Components Technobeam® User Manual
6. Reach in with your finger to remove the litho/effect and aperture ring
(if any) from behind the spring.
7. See one of the following:
a. Rotating litho wheel: “Litho Installation Instructions” on page 6-9.
b. Rotating effects wheel: “Replacing a Rotating Litho or Effect” on
page 6-10.
Removing a Static Litho
1. Rotate the wheel until the desired litho is easy to access.
2. Carefully spread the wheel apart and reach behind the wheel to remove
the litho as shown Figure 6-7:
Figure 6-7. To replace a static litho in the rotating litho wheel, gently separate
the wheel and reach behind the wheel to push the litho out.
Cleaning the Litho
Clean the litho, if necessary, using a mild glass cleaner (containing no
ammonia) and a soft, lint-free cotton cloth.
Litho Aperture
ring
Pull litho out
Gently separate
wheel
Reach behind
wheel with
your finger,
push litho up
1
2
3
Technobeam® User Manual Replacing Wheel Components 6-9
Litho Installation Instructions
These instructions apply to installing either a rotating or a static litho
in the rotating litho wheel. Improper installation can result in damage
to the litho.
• Custom multi-colored lithos in metal holder: See “Replacing a
Custom Litho” on page 6-11.
•Etched pattern, no texture (LithoPatterns lithos): the coated
side of the litho must face away from the lamp; face the uncoated
(glass) side toward the lamp.
•Textured pattern (flat unglazed Art Glass, or Fusion Fire):
the textured side must face away from the lamp; face the non-
textured (smooth) side toward the lamp.
Replacing a Static Litho
1. Carefully handling the litho by its edges only, separate the wheel and
drop the litho into the retaining slot and between the two retaining
tabs as shown in Figure 6-8:
Figure 6-8. Location of the retaining tabs and slot that secure the static litho
in the rotating litho wheel.
2. Insert a flat blade screwdriver or other thin object between the two
parts of the rotating litho wheel to firmly seat the static litho in the
retaining slots shown in Figure 6-8. Avoid touching any part of the
glass with your fingers.
a. Examine the gap between the two parts of the rotating litho wheel;
if the gap is uniform along the entire edge of the wheel, you are
finished.
b. If the gap is not uniform, continue seating the static litho until the
gap is uniform.
Figure 6-9. The gap between the two halves of the rotating litho wheel must
be uniform.
Retaining tabs
and slot
Gap
6-10 Replacing Wheel Components Technobeam® User Manual
Replacing a Rotating Litho or Effect
1. Carefully handling the litho/effect by its edges only, orient it as shown
when you replace it:
a. Rotating litho wheel: “Litho Installation Instructions” on page
6-9.
b. Rotating effects wheel: Orient the textured side of the effect
away from the lamp. If the effect does not have a texture (e.g., the
frost filter, orientation is not important).
2. If the litho/effect you are installing or replacing has an aperture ring,
put the aperture ring on top of the litho. See Figure 6-10.
Figure 6-10. An aperture ring, if required, must be placed on top of the litho/
effect and under the spring.
3. Carefully replace the spring, turning it as you compress it, until the
spring is fully seated in the litho holder. Make sure the spring fits
completely under all wheel tabs and that the tip of the spring does not
protrude from under the tabs. See Figure 6-11:
Figure 6-11. When you replace a rotating litho or rotating effect, make sure
the tip of the spring is fully seated under the wheel tabs; it cannot protrude
from under the tabs.
4. You are finished. Replace the access door shown in Figure 6-1 on page
6-3 unless there are other dichroics, lithos or effects you want to
replace.
Spring
(last)
Litho
(first) Aperture
ring (next)
Wheel tab
Correct placement
(completely under
tab)
Wheel tab
Incorrect placement
(spring tip protrudes
from under tab)
Technobeam® User Manual Replacing the Lamp 6-11
Replacing a Custom Litho
If you received a custom, multi-colored litho in an aluminum holder,
you must install it with the litho facing toward the lamp (i.e., the flat
side of the holder against the spring), as shown in Figure 6-12.
Improper installation can damage the litho!
Figure 6-12. Replacing a custom multi-colored litho in the metal holder.
Replacing the Lamp
You will need: – 250 watt, GY9.5 base, M series metal halide lamp
only*
– Eye protection
– Protective gloves
*Note Use only the MSD250-2 lamp in your fixture, not the MSD
250. Technobeam fixtures are optimized for the MSD
250-2 lamp and will give reduced performance with
other lamps.
WARNINGS (1) This equipment is designed for use with an
M series, GY9.5 base, 250 watt (such as the
MSD 250-2) lamp only. Use of any other type
lamp may be hazardous and may void the
warranty.
(2) Change the lamp if it becomes damaged or
thermally deformed.
(3) Change shields, lenses or ultraviolet screens
if they have become visibly damaged to such
an extent that their effectiveness is
impaired, for example, by cracks or deep
scratches.
(4) Do not operate this equipment without
complete lamp enclosure in place or if
shields, lenses or ultraviolet screens are
damaged.
Multi-color litho holder
Spring
6-12 Replacing the Lamp Technobeam® User Manual
(5) Hot lamp may be an explosion hazard. Do
not open for 5 minutes after switching off.
Wear eye and hand protection when re-
lamping.
(6) Never look directly at the lamp while lamp is
on.
(7) Disconnect power before re-lamping or
servicing.
1. Unplug the fixture from the power source.
2. Fully back out the two lamp assembly screws shown in Figure 6-13.
Figure 6-13. Loosening the lamp assembly screws gives you access to the
fixture lamp.
3. Put on your eye and hand protection. Pull the lamp assembly straight
out of the back of the fixture as shown in Figure 6-14.
Figure 6-14. Removing the lamp assembly from the fixture.
Technobeam® User Manual Replacing the Lamp 6-13
4. If you are replacing a lamp, grasp the lamp’s ceramic base and pull the
old lamp straight up and out of the assembly when the assembly is free
of the fixture, as shown in Figure 6-15:
Figure 6-15. Pull straight up on the lamp, grasping its ceramic base, to
remove it from the assembly.
5. Take the new or replacement lamp out of its container. Break the seal
on the inner plastic container and remove the lamp.
6. Hold onto the ceramic lamp base and gently press the two lamp base
pins into the brass lamp socket as shown in Figure 6-16. Do not force
the lamp into the socket; doing so could break the lamp.
Figure 6-16. Hold the lamp by its ceramic base and gently press the two
base pins into the socket.
Caution Avoid touching any part of your skin to the
lamp’s quartz envelope. Oil and residue
from your fingers can create a “hot spot” on
the lamp, causing premature lamp aging.
7. Before you insert the lamp assembly back into the fixture, clean the
lamp with the alcohol wipe shipped with the lamp. Otherwise,
fingerprints and other contaminates can shorten lamp life.
8. Carefully guide the lamp assembly straight back into the fixture. Make
sure the lamp plate is oriented correctly, as shown in Figure 6-17;
otherwise, the lamp power wires could wrap around the lamp,
resulting in damage to the fixture and the lamp.
6-14 Replacing the Lamp Technobeam® User Manual
Figure 6-17. You can look at the lamp label text to make sure the lamp plate
is oriented correctly; incorrect orientation can result in damage to the fixture
and the lamp.
9. As you insert the lamp assembly, be careful not to crimp or trap the
lamp wires and make sure the lamp is inserted into the reflector.
10. Firmly tighten the two lamp assembly screws to secure the assembly to
the fixture.
Optimizing the Lamp
You should optimize the lamp after you replace the lamp, or if you
notice a “hot spot” of brightness anywhere other than the center of the
light beam.
The optimization procedure below describes how to optimize the lamp
using the fixture’s onboard menu system. However, you can access the
same options using your DMX controller.
1. Orient the fixture so that the beam will project onto a flat, white
surface at least 10 feet (3 m) away.
2. Turn the lamp on (see “Turning the Lamp On or Off (LAMP)” on page
3-20).
3. If necessary, set any lithos, colors, or effects values to “0” to achieve an
open, white beam.
4. Make sure that the light beam is round and not oval. If necessary,
adjust the pan and tilt construct values until the beam is round (see
“Positioning the Mirror” on page 4-6).
5. Adjust the focus until the edge of the light beam is sharp (see
“Refocusing the Fixture” on page 4-7).
Technobeam® User Manual Cleaning the Internal Components 6-15
6. Locate the two lamp optimization (adjust) screws (see Figure 6-18).
Figure 6-18. Lamp optimization screws.
7. Loosen the two lamp optimization screws.
8. Look at the wall where the beam is projected and use the two
optimization screws to adjust the lamp’s position within the fixture.
9. When the beam is at its maximum brightness and the light level is even
across the beam (or the “hot spot” of brightness is at the center of the
beam), retighten the two optimization screws to secure the lamp in its
new position.
Resetting Lamp Hours
After changing a lamp, you should reset the number of lamp hours to
zero by selecting L/RS from the Info menu. See the menu system help
card inside the back cover of this manual, or consult Chapter 3 if you
need additional help using the menu system.
Cleaning the Internal Components
Before continuing, read the cautions and warnings in the section titled
“Precautions” on page 6-2.
You will need: - a soft, lint-free cotton cloth
- mild glass cleaning solution
- warm soapy water
6-16 Cleaning the Internal Components Technobeam® User Manual
Opening the Fixture
Unplug the fixture from the power outlet and allow it to cool for at
least 5 minutes if it has been running recently. Remove the access
door shown in Figure 6-19:
Figure 6-19. Opening the fixture’s access door.
Cleaning the Door Vents
Once the door is removed, use a soft, lint-free cotton cloth and warm
soapy water if necessary to clean dust and dirt from the inside and
outside of the vents shown in Figure 6-19.
Cleaning the Lenses and Mirrors
1. If you need to move the lens tube so you can access the anti-reflective
glass, reach under the lens tube and turn the focus drive screw (see
Figure 6-20).
2. Clean both sides of the anti-reflective glass (shown in Figure 6-20) with
a soft, lint-free cotton cloth and mild glass cleaning solution.
Door retaining screw
Access door
Technobeam® User Manual Cleaning the Internal Components 6-17
Figure 6-20. Location of the anti-reflective glass, lenses and hot mirror.
3. If the black dim flags (located between the lens tube and the anti-
reflective glass) are closed, carefully use your fingers to open them to
clean the inside of the glass.
4. Locate the lens tube as shown in Figure 6-21:
Figure 6-21. The lens tube contains the zoom lenses.
5. Carefully lift the cover from the lens tube. It has two latches on each
side that secure it in place.
Anti-reflective glass
Lens tube
Hot mirror assembly
(shaded)
Focus drive screw
under lens tube (turn
to move tube for easier
access)
Lens tube
Latches (4)
6-18 Cleaning the Internal Components Technobeam® User Manual
6. Write down the position of each of the lenses in the lens tube. (Each
position is numbered both on the lens tube cover and on the inside of
the lens tube.)
7. Handle each lens carefully by its edges only. Use a soft, lint-free cloth
to clean the lenses. If necessary to remove built-up dirt and dust, use a
mild glass cleaner (containing no ammonia).
8. Replace the lenses in the lens tube in the same positions as you
removed them. Refer to Table 1-2 on page 1-14 or Table 1-3 on page
1-14 for reference.
9. Replace the cover on the lens tube. Make sure all four latches are
fastened securely.
10. Use a Phillips screwdriver to loosen (but do not remove) the screw on
the hot mirror tab, shown in Figure 6-20 on page 6-17.
11. Carefully remove the hot mirror assembly. Inspect the hot mirror
(shown in Figure 6-22) for cracks, deep scratches or other damage. If
you notice significant damage, High End Systems Customer Service in
one of the ways shown in the section titled “Contacting High End
Systems” on page Intro-4.
Figure 6-22. Clean both sides of the hot mirror glass.
12. Clean both sides of the hot mirror with a soft, lint-free cotton cloth.
13. Orient the hot mirror as shown in Figure 6-22.
14. When you replace the hot mirror assembly, make sure the tab shown in
Figure 6-22 fits into a slot on the fixture chassis. When the tab is
properly seated, you will be able to push the hot mirror down until the
small end of the keyhole-shaped slot touches the Phillips screw.
15. Technobeam only: Clean the elliptical mirror on the mirror head with a
cloth soaked in warm, soapy water.
16. Replace the access door shown in Figure 6-19 on page 6-16.
Reverse side of hot mirror
(faces toward lamp)
Front side of hot mirror
(faces away from lamp,
toward wheels)
Tab (must fit into
slot in fixture chassis
)
Technobeam® User Manual Technobeam Laser Aiming Device™ 6-19
Technobeam Laser Aiming
Device™
You might need to realign the laser periodically in order to maintain its
optimal position—no more than 2” (5 cm) directly above the center
point of the light beam. If you align the laser in this way, the path of
the laser is parallel to the path of the light and will stay 2” (5 cm) above
the center point of the beam at any throw distance or mirror position.
You align the laser using the three mounting/alignment screws shown
in Figure 6-27 on page 6-25.
However, the decision of whether or not to align the laser is entirely up
to you. If the laser strays from its optimal position, but it gives you
enough accuracy for your needs, you do not have to align it.
Figure 6-23 shows the ideal position of the laser from the center of a
perfectly round light beam:
Figure 6-23. The ideal position of the laser is no more than 2” (5 cm) directly
above the center of a perfectly round light beam.
Safety Precautions
In addition to observing all of the cautions in the section titled
“Precautions” on page 6-2, you must observe the following cautions
whenever using or servicing the Laser Aiming Device (LAD):
1. CAUTION: Use of controls or adjustments or performance of
procedures other than those specified herein may result in hazardous
radiation exposure.
2. Using the Laser Aiming Device with any fixture other than Technobeam
may result in damage to both the laser and the fixture as well as
exposure to laser radiation.
3. Precautions should be taken to ensure that the laser beam is not
unintentionally directed at mirror-like (specular) surfaces (most
importantly, at flat mirror-like surfaces).
TM
Ideal laser spot
2" (5 cm) max
6-20 Technobeam Laser Aiming Device™ Technobeam® User Manual
4. Only qualified and trained employees approved by a laser safety
officer should be assigned to install, adjust and operate the laser
equipment.
5. When not in use, the laser (fixture) should be stored in a location where
unauthorized personnel cannot gain access.
6. Do not stare directly into the beam and do not view the beam with
optical instruments.
7. The laser path should be located well above or below eye level.
The section titled “Safety Precautions” on page 5-2 has a complete
listing of safety precautions for using the Laser Aiming Device.
Live Components
You will be accessing live components and adjusting the laser in the
next section. Take special care to avoid contacting high-voltage live
components, located in the area of the main circuit board, shown in
Figure 6-24:
Figure 6-24. High-voltage component location.
When you activate the laser, observe the following precaution:
Caution Do not stare into the beam or view it directly
with optical instruments. Avoid accidental
exposure to laser radiation.
High voltage components
are located in main
circuit board
Technobeam® User Manual Technobeam Laser Aiming Device™ 6-21
Alignment Procedure
The alignment procedure that follows takes advantage of
Technobeam’s built-in program storage capability to turn the laser ON.
1. Follow the instructions in Chapter 1 to select a voltage setting and
install a power cord cap, if you have not already done so.
2. Physically orient the fixture as shown in Figure 6-25 (the farther away
the wall is, the more accurate your positioning will be):
Figure 6-25. Orient the fixture directly facing a wall no less than 10 ft. (3 m)
away.
3. Connect the fixture to an appropriately-rated power outlet. You will
hear sounds as wheels and motors seek their home positions; this is
normal.
4. When the fixture has finished homing, press and hold the <Menu> key
until the LED display reads ADDR.
The next steps show how to turn the lamp ON.
5. Use the <Up> and <Down> arrow keys to navigate to the TEST menu.
6. Press <Enter>, then use the <Up> and <Down> arrow keys to navigate
to the LAMP option.
7. Press <Enter>, then use the <Up> and <Down> arrow keys to select a
value of ON.
8. Press <Enter>; the lamp should now be on (although you will not be
able to tell if the dim flags are closed).
Stand fixture on its end handles
Sturdy, flat surface
such as a table 10 ft. (3 m) minimum
White wall
6-22 Technobeam Laser Aiming Device™ Technobeam® User Manual
The next steps show you how to access the fixture’s built-in
programming menu to begin aligning the laser.
9. Keep pressing the <Menu> key until the ADDR menu is displayed.
10. Use the <Up> and <Down> arrow keys to navigate to the PRST menu.
11. Press <Enter>, then use the <Up> and <Down> arrow keys to navigate
to the EDIT menu option. The EDIT option allows you to create or edit
up to eight scenes which are stored in the fixture’s onboard memory.
12. Press <Enter>. Use the <Up> and <Down> arrow keys to select the
scene number of an unprogrammed scene. For example, selecting
SCN2 means you will edit scene number 2.
13. Press <Enter> to begin editing the scene you selected.
14. If you selected an unprogrammed scene, skip to Step 17 now;
otherwise, continue with the next step. If the fixture started making
noises of gears and wheels moving as soon as you selected the scene,
and the noises continue for more than a brief period of time, you
selected a programmed scene.
The next two steps show how to unprogram a scene; you need to
unprogram the scene in order to make sure all constructs are set to
default values. This is necessary only if all eight scenes are already
programmed.
15. Use the <Up> and <Down> arrow keys to navigate to the ZERO option.
16. Press <Enter>; you will be required to confirm the action by pressing
<Enter> again.
Step 17 through Step 22 shows how to open the shutter and set the dim
construct to full bright. You can skip these steps if you can clearly see
the light projected onto the wall.
17. Use the <Up> and <Down> arrow keys to navigate to the SHUT option.
18. Press <Enter>, then use the <Up> and <Down> arrow keys to select a
value of OPEN.
19. Press <Enter> to accept your selection.
20. Use the <Up> and <Down> arrow keys to navigate to the DIM option.
21. Press <Enter>, then use the <Up> and <Down> arrow keys to select a
value of D255 (full bright).
22. Press <Enter> to accept your selection.
You should now see the white, round shape of the beam projected onto
the wall or white surface.
• If the beam is round (not oval) in shape, continue with Step 31.
• If the beam is not round in shape, see the next step.
Technobeam® User Manual Technobeam Laser Aiming Device™ 6-23
23. Make sure the fixture is oriented directly at the wall, not at an angle. If
the fixture is at an angle to the wall, it might be impossible to align the
laser properly.
24. Use the <Up> and <Down> arrow keys to navigate to the TILT option.
25. Press <Enter>, then use the <Up> and <Down> arrow keys to adjust the
mirror position until the beam is round.
26. Press <Enter> to accept your selection for TILT.
27. If the beam needs further adjustment, use the <Up> and <Down> arrow
keys to navigate to the PAN option.
28. Press <Enter>, then use the <Up> and <Down> arrow keys to adjust the
mirror position.
29. Press <Enter> to accept your selection for PAN.
30. Continue adjusting the mirror using PAN and TILT until the beam is as
round as possible.
If you cannot see the beam at all, the lamp might be off. Select LAMP
from the Test menu and make sure a value of ON is displayed; see Step
5 through Step 8. (If the lamp still does not come on, wait a few
minutes and try again.)
31. Use the <Up> and <Down> arrow keys to navigate to the FCUS option.
32. Press <Enter>, then use the <Up> and <Down> arrow keys to focus on
the edge of the beam until it is sharp.
33. Continue moving the fixture and focusing on the edge of the beam
until the beam is as round as possible, and sharply in focus.
34. When you have focused the beam, press <Enter>.
6-24 Technobeam Laser Aiming Device™ Technobeam® User Manual
35. Find the approximate center of the beam using either a tape measure,
ruler or a piece of string, as shown in Figure 6-26.
Figure 6-26. Locating the center point of the projected light beam. The laser
should be no more than 2” (5 cm) above the center.
36. Once you have marked the center point of the beam, keep pressing the
<Menu> key until the ADDR option is displayed.
37. Use the <Up> and <Down> arrow keys to navigate to the TEST menu.
38. Press <Enter>, then use the <Up> and <Down> arrow keys to navigate
to the LAMP option.
39. Press <Enter>, then select a value of OFF.
40. Press <Enter>. The lamp now shuts off.
41. Keep pressing the <Menu> key until the ADDR option is displayed.
42. Use the <Up> and <Down> arrow keys to navigate to the PRST menu.
43. Use the <Up> and <Down> arrow keys to navigate to the EDIT option.
44. Press <Enter>, then use <Up> and <Down> arrow keys to navigate to
the SCN2 option (this selects scene number 2; select the same scene
you selected in Step 12.
Caution Do not stare into the laser beam or view it
directly with optical instruments.
1Extend the tape measure or string down
at the widest part of the beam
2Lightly mark on the wall
along the string
3Extend the string across the beam's
widest point. Laser should be no more
than 2" (5 cm) above the string, along
the center line.
Line you made in Step 2
Ideal laser spot
2" (5 cm) max
Technobeam® User Manual Technobeam Laser Aiming Device™ 6-25
45. Press <Enter>, then use the <Up> and <Down> arrow keys to navigate
to the MACR option.
46. Press <Enter>, then use the <Up> and <Down> arrow keys to select
LRON (laser on continuously).
47. Press <Enter> to accept your selection.
48. Look at the wall where the beam is projected onto to determine if the
laser is on.
49. If the laser does not come on, see the section titled “Troubleshooting”
on page 5-6; otherwise, continue with the next step.
50. Figure 6-27 shows the 3 mounting/alignment screws located on the
laser aiming device assembly. See the instructions that follow the
drawing.
Figure 6-27. The laser aiming device assembly has three screws that can be
used to adjust the position of the laser.
Alignment screws 1 and 3 (shown in Figure 6-27) move the laser
horizontally, and screw 2 moves the laser vertically. Use the three
alignment screws to adjust the position of the laser so that it is no
more than 2” (5 cm) directly above the center point of the beam, shown
in Figure 6-23 on page 6-19.
51. After you tighten/loosen each screw, release pressure from the
screwdriver before looking at the laser position on the wall; having
pressure on the screw can change the laser’s position. Do not force the
screws or fully tighten them because the ends of the screws might
interfere with the dim flags.
Hint If you have difficulty aligning the laser or turning the
screws, loosen all three screws and start over.
52. Continue repeating the procedure until the laser is aligned. (If you
cannot get your laser exactly at position shown in Figure 6-23 on page
6-19, but it is still at a position you think will give you enough
accuracy for your needs, you are finished.)
53. When you’re finished, replace the access door shown in Figure 6-19 on
page 6-16.
1
2
3
Mounting/alignment screws
6-26 Technobeam Laser Aiming Device™ Technobeam® User Manual
Technobeam® User Manual DMX Protocols A-1
Appendix A
DMX Protocols
General Information
The information in this section applies to all of the protocols listed in this
Appendix (except where noted).
Rounding Conventions
The values displayed in the columns “Value (dec.)”, “Value (%)” and “Value (hex)”
in the following tables may vary slightly depending on your controller’s
rounding convention.
16-Bit Control
The full protocol for Technobeam gives you 16-bit control over the positioning
of the mirror and the angular position of rotating lithos. However, you always
have smooth, 16-bit control over movement, even if you choose the reduced
protocol—which gives you 8-bit control over mirror and litho positioning.
The full protocols give you two channels of position control: one channel sets
the most significant 8 bits (coarse adjustment), while the second channel sets
the least significant 8 bits (fine adjustment) of a 16-bit value. The high order
bit gives you 256 times the number of litho position stops (65,536 for 16-bit
compared to 256 for 8-bit).
Macros
Technobeam full protocol offers 28 selectable macros to simplify
programming. A macro is a set of preconfigured constructs you can use with
any other combination of constructs you want, except Laser Aiming Device
constructs. Because the Technobeam Laser Aiming Device shares the same
DMX channel, you cannot use both macros and the Laser Aiming Device at the
same time.
A-2 DMX Protocols Technobeam® User Manual
MSpeed vs. Fast Changes
There are two different ways you can choose to move the color and litho
wheels: fast changes or MSpeed changes.
A fast change means the color or litho movement is completed in the shortest
amount of time after the wheel starts moving.
An MSpeed (motor/mirror speed) change occurs smoothly over the entire
MSpeed time value. For example, if you choose a numerical DMX value of 202
for an MSpeed color change from position 2 to position 4, that means the color
wheel changes gradually to position 4 over 11.41 seconds. (Most controllers
also allow you to program advanced features, like crossfade or delay time.
Make sure your MSpeed value is at least as long as the crossfade or delay time;
otherwise, the color or litho change will not complete before the next page or
scene starts.)
MSpeed time values are shown in Table A-3 on page A-13.
Ramp Open, Snap Shut
The Shutter construct includes parameters named “Ramp open, snap shut” and
“Snap open, ramp shut”. A snap is an instant shutter movement (opening or
closing); the snap time never varies. What you can vary is the timing of the
ramp, which is a gradual shutter movement. A lower value always means a
longer ramp, and a higher value always means a shorter ramp.
Forward and Reverse Spins
A forward spin on all wheels and positions means the wheel or position spins
clockwise as you’re looking at the projected image. A reverse spin means the
wheel or position spins counter-clockwise.
Technobeam® User Manual DMX Protocols A-3
Technobeam® Protocol
Table A-1 gives the DMX channel assignments for the Technobeam full 18-
channel protocol and reduced 14-channel protocol. The column “Ch. (F)” lists
channel assignments for the full protocol and the column “Ch. (R)” lists
channel assignments for the reduced protocol.
Table A-1. Technobeam DMX Protocol
Ch. (F) Ch. (R) Construct Parameter Value
(dec.) Value
(%) Value
(hex)
1 1 Pan (mirror) position Coarse adjustment 0 - 255 0 - 100 00h - FFh
2 n/a Pan (mirror) position Fine adjustment 0 - 255 0 - 100 00h - FFh
3 2 Tilt (mirror) position Coarse adjustment 0 - 255 0 - 100 00h - FFh
4 n/a Tilt (mirror) position Fine adjustment 0 - 255 0 - 100 00h - FFh
53
Color wheel functions
Fast color change (at beginning
of wheel movement)
Select the function with this
channel. Then use ch. 6 (F) or 4
(R) to set the position or spin
speed.
Indexed (wheel snaps
to center of aperture) 0 - 15 0 - 5 00h - 0Fh
Forward spin 16 - 31 6 - 12 10h - 1Fh
Reverse spin 32 - 47 13 - 18 20h - 2Fh
Continuous 48 - 63 19 - 24 30h - 3Fh
Slow scan 64 - 79 25 - 30 40h - 4Fh
Fast scan 80 - 95 31 - 37 50h - 5Fh
Random 96 - 111 38 - 43 60h - 6Fh
Blink (same as index,
except shutter closes
between apertures)
112 - 127 44 - 49 70h - 7Fh
Color changes set by MSpeed
(use ch. 16 (F) or 13 (R) to set
MSpeed time).
Select the parameter with this
channel. Then use ch. 6 (F) or 4
(R) to set the position or spin
speed.
Indexed (wheel snaps
to center of aperture) 128 - 143 50 - 56 80h - 8Fh
Forward spin 144 - 159 57 - 62 90h - 9Fh
Reverse spin 160 - 175 63 - 68 A0h - AFh
Continuous 176 - 191 69 - 74 B0h - BFh
Slow scan 192 - 207 75 - 81 C0h - CFh
Fast scan 208 - 223 82 - 87 D0h - DFh
Random 224 - 239 88 - 93 E0h - EFh
Blink (same as index,
except shutter closes
between apertures)
240 - 255 94 - 100 F0h - FFh
64
Color wheel position and
functions
Position (aperture) selection for
blink or index mode (use with
ch. 5 (F) or 3 (R))
Position 1 (open) 0 - 23
248 - 255 0 - 9
97 - 100 00h - 17h
F8h - FFh
Position 2 24 - 31 9 - 12 18h - 1Fh
Position 3 32 - 39 13 - 15 20h - 27h
A-4 DMX Protocols Technobeam® User Manual
Position 4 40 - 47 16 - 18 28h - 2Fh
Position 5 48 - 55 19 - 21 30h - 37h
Position 6 56 - 63 22 - 24 38h - 3Fh
Position 7 64 - 71 25 - 27 40h - 47h
Position 8 72 - 79 28 - 30 48h - 4Fh
Position 9 80 - 87 31 - 34 50h - 57h
Position 10 88 - 95 35 - 37 58h - 5Fh
Position 11 96 - 103 38 - 40 60h - 67h
Position 12 104 - 111 41 - 43 68h - 6Fh
Position 13 112 - 127 44 - 49 70h - 7Fh
Half color 1 and 2 128 - 143 50 - 56 80h - 8Fh
Half color 2 and 3 144 - 151 57 - 59 90h - 97h
Half color 3 and 4 152 - 159 60 - 62 98h - 9Fh
Half color 4 and 5 160 - 167 63 - 65 A0h - A7h
Half color 5 and 6 168 - 175 66 - 68 A8h - AFh
Half color 6 and 7 176 - 183 69 - 71 B0h - B7h
Half color 7 and 8 184 - 191 72 - 74 B8h - BFh
Half color 8 and 9 192 - 199 75 - 78 C0h - C7h
Half color 9 and 10 200 - 207 79 - 81 C8h - CFh
Half color 10 and 11 208 - 215 82 - 84 D0h - D7h
Half color 11 and 12 216 - 223 85 - 87 D8h - DFh
Half color 12 and 13 224 - 231 88 - 90 E0h - E7h
Half color 13 and 1 232 - 247 91 - 96 E8h - F7h
Color wheel continuous forward/
reverse spin (use with ch. 5 (F)
or 3 (R))
No spin 0 - 3 0 - 1 00h - 03h
Slowest spin to fastest
spin 4 - 255 2 - 100 04h - FFh
Color wheel continuous
variation (wheel position is 360 *
(channel dec. value / 255)
Use with ch. 5 (F) or 3 (R)
Centered on position 1
(open) 0
255 0
100 00h
FFh
Centered on position 2 19 7 13h
Centered on position 3 39 15 27h
Centered on position 4 58 23 3Ah
Centered on position 5 78 31 4Eh
Centered on position 6 98 38 62h
Centered on position 7 117 46 75h
Centered on position 8 137 54 89h
Centered on position 9 156 61 9Ch
Table A-1. Technobeam DMX Protocol
Ch. (F) Ch. (R) Construct Parameter Value
(dec.) Value
(%) Value
(hex)
Technobeam® User Manual DMX Protocols A-5
Centered on position 10 176 69 B0h
Centered on position 11 196 77 C4h
Centered on position 12 215 84 D7h
Centered on position 13 235 92 EBh
75
Litho wheel functions
Fast litho changes (at beginning
of wheel movement)
Select the function with this
channel. Then use chs. 8, 9 &
10 (F) or chs. 6 & 7 (R) to set
other options.
Random and scan pause time
set by chs. 9 & 10 (F) or ch. 7
(R)
Indexed (wheel snaps
to center of aperture) 0 - 15 0 - 5 00h - 0Fh
Forward spin 16 - 31 6 - 12 10h - 1Fh
Reverse spin 32 - 47 13 - 18 20h - 2Fh
Scan 48 - 63 19 - 24 30h - 3Fh
Blink (same as index,
except shutter closes
between apertures)
64 - 79 25 - 30 40h - 4Fh
Random 80 - 95 31 - 37 50h - 5Fh
Reserved 96 - 111 38 - 43 60h - 6Fh
Wheel spin 112 - 127 44 - 49 70h - 7Fh
Litho changes set by MSpeed
(use ch. 16 (F) or 13 (R) to set
MSpeed time)
Select the parameter with this
channel. Then use chs. 8, 9 &
10 (F) or chs. 6 & 7 (R) to set
other options.
Random and scan pause time
set by ch. 9 (F) or ch. 7 (R)
Indexed (wheel snaps
to center of aperture) 128 - 143 50 - 56 80h - 8Fh
Forward spin 144 - 159 57 - 62 90h - 9Fh
Reverse spin 160 - 175 63 - 68 A0h - AFh
Scan 176 - 191 69 - 74 B0h - BFh
Blink (same as index,
except shutter closes
between apertures)
192 - 207 75 - 81 C0h - CFh
Random 208 - 223 82 - 87 D0h - DFh
Reserved 224 - 239 88 - 93 E0h - EFh
Wheel spin 240 - 255 94 - 100 F0h - FFh
86
Litho wheel position
Position (aperture) selection for
blink or index mode (use with
ch. 5 (F) or 3 (R))
Position 1 (open) 0 - 15
240 - 255 0 - 5
94 - 100 00h - 0Fh
F0h - FFh
Position 2 16 - 47 6 - 18 10h - 2Fh
Position 3 48 - 79 19 - 30 30h - 4Fh
Position 4 80 - 111 31 - 43 50h - 6Fh
Position 5 112 - 143 44 - 56 70h - 8Fh
Position 6 144 - 175 57 - 68 90h - AFh
Position 7 176 - 207 69 - 81 B0h - CFh
Position 8 208 - 239 82 - 93 D0h - EFh
97
Litho rotation (coarse
adjustment) and functions Angular position for
blink and index modes 0 - 255 0 - 100 00h - FFh
Table A-1. Technobeam DMX Protocol
Ch. (F) Ch. (R) Construct Parameter Value
(dec.) Value
(%) Value
(hex)
A-6 DMX Protocols Technobeam® User Manual
Random Random pause time,
shortest to longest 0 - 255 0 - 100 00h - FFh
Scan Scan rate, slowest to
fastest 0 - 255 0 - 100 00h - FFh
Litho wheel spin (use with ch. 7
(F) or ch. 5 (R)
Entire wheel spins, not
individual lithos
Forward spin, fastest to
slowest 0 - 119 0 - 47 0 - 77h
No spin 120 - 135 47 - 53 78h - 87h
Reverse spin, slowest
to fastest 136 - 255 53 - 100 88h - FFh
10 n/a Litho rotation (fine
adjustment) Angular position for
blink and index modes 0 - 255 0 - 100 00h - FFh
11 8 Effects position
Fast effects changes (at
beginning of wheel movement)
Select the position with this
channel. Then use ch. 12 (F) or
ch. 9 (R) to set spin direction
and speed.
Position 1 0 - 25 0 - 9 00h - 19h
Position 2 26 - 51 10 - 20 1Ah - 33h
Position 3 52 - 76 21 - 29 34h - 4Ch
Position 4 77 - 102 31 - 40 4Dh - 66h
Position 5 103 - 127 41 - 49 67h - 7Fh
Effects changes set by MSpeed
(use ch. 16 (F) or 13 (R) to set
MSpeed time)
Select the position with this
channel. Then use ch. 12 (F) or
ch. 9 (R) to set spin direction
and speed
Position 1 128 - 153 50 - 60 80h - 99h
Position 2 154 - 178 61 - 69 9Ah - B2h
Position 3 179 - 204 70 - 80 B2h - CCh
Position 4 205 - 229 81 - 89 CDh - E5h
Position 5 230 - 255 90 - 100 E6h - FFh
12 9 Effects spin speed
(use with ch. 11 (F) or
ch. 8 (R))
Forward spin fast to
slow forward spin 0 - 120 0 - 47 00h - 78h
No spin 121 - 134 48 - 52 79h - 86h
Reverse spin slow to
fast forward spin 135 - 255 53 - 100 87h - FFh
13 10 Focus Variable focus 0 - 255 0 - 100 00h - FFh
14 11 Shutter
Longest ramp time = lowest
value (snap time is always
short)
Closed 0 - 7 0 - 2 00h - 07h
Periodic strobe 8 - 67 3 - 26 08h - 43h
Random strobe 68 - 127 27 - 49 44h - 7Fh
Ramp open, snap shut 128 - 187 50 - 73 80h - BBh
Snap open, ramp shut 188 - 247 74 - 96 BCh - F7h
Open 248 - 255 97 - 100 F8h - FFh
15 12 Dim Full dark to full bright 0 - 255 0 - 100 00h - FFh
16 13 MSpeed Movement time (see Table A-3 on page A-13)
Table A-1. Technobeam DMX Protocol
Ch. (F) Ch. (R) Construct Parameter Value
(dec.) Value
(%) Value
(hex)
Technobeam® User Manual DMX Protocols A-7
1 - “Slow” modulation is 4.25 times/sec and “fast” modulation is 255 times/sec, at 50% duty cycle.
2 - You must set the Shutter channel to zero before accessing the Control channel.
3 - When set to Safe, the control channel has no effect if the shutter is closed.
4 - Hold the Control channel at this value for at least one second. Homing the fixture in this way
does not change the state of the lamp (if the lamp was off, it stays off; if the lamp was on, it stays
on).
5 - Hold the Control channel at this value for at least one second. If the lamp is currently off, turning
the lamp on in this way causes the fixture to home. (If the lamp was already on, the command has
no effect.)
6 - Hold the Control channel at this value for at least one second. The lamp will also turn on
whenever you power up the fixture on a link when there is a controller present and it is sending data
commands.
Technobeam-i™ Protocol
Table 2 lists the 18 Technobeam-i constructs and their corresponding DMX controller
values. If you have a numeric-type controller, use the Value Decimal (dec.) column. If
you have a fader-type controller, use the Value Percentage (%) column. If your controller
allows you to program hex values, use the Value (hex) column. The values in the Value
17 n/a Laser Aiming Device (LAD) LAD off 0 - 7
120 - 127 0 - 3
47 - 49 00 - 07h
78h - 7Fh
LAD modulate slow to
fast1128 - 247 50 - 96 80h - F7h
LAD on (continuous) 248 - 255 97 - 100 F8h - FFh
Macros Macro 1—28 (see Table A-4 on page A-15)
18 14 Control2Safe30 - 7 0 - 3 00h - 07h
Display off 24 - 26 9 - 10 18h - 1Ah
Display dim 32 - 34 13 20h - 22h
Display bright 40 - 42 16 28h - 2Ah
Home464 - 66 25 - 26 40h - 42h
Lamp on580 - 82 31 - 32 50h - 52h
Lamp off696 - 98 38 60h - 62h
Shutdown 128 - 130 50 - 51 80h - 82h
Table A-1. Technobeam DMX Protocol
Ch. (F) Ch. (R) Construct Parameter Value
(dec.) Value
(%) Value
(hex)
A-8 DMX Protocols Technobeam® User Manual
Percentage (%) column may vary slightly depending on your controller’s rounding
convention. Table A-2. Technobeam-i DMX Protocol
Ch. Construct Parameter Value
(dec.) Value
(%) Value
(hex)
1 Pan (mirror)
position Coarse adjustment (8-bit) 0 - 255 0 - 100 00 - FF
2 Pan (mirror)
position Fine adjustment (8-bit) 0 - 255 0 - 100 00 - FF
3 Tilt (mirror) position Coarse adjustment (8-bit) 0 - 255 0 - 100 00 - FF
4 Tilt (mirror) position Fine adjustment (8-bit) 0 - 255 0 - 100 00 - FF
5 Color Function Full Speed Control
Indexed 0-15 0-6 00-0F
Forward Spin 16-31 7-12 10-1F
Reverse Spin 32-47 13-18 20-2F
Continuous 48-63 19-25 30-3F
Slow Scan 64-79 26-31 40-4F
Fast Scan 80-95 32-37 50-5F
Random 96-111 38-44 60-6F
Blink 112-127 45-50 70-7F
MSpeed Control
Indexed 128-143 51-56 80-8F
Forward Spin 144-159 57-62 90-9F
Reverse Spin 160-175 63-69 A0-AF
Continuous 176-191 70-75 B0-BF
Slow Scan 192-207 76-81 C0-CF
Fast Scan 208-223 82-88 D0-DF
Random 224-239 89-94 E0-EF
Blink 240-255 95-100 F0-FF
6 Color Wheel
Position Indexed and Blink Modes
Color 1 0-23 0-9 00-17
Color 2 24-31 10-12 18-1F
Color 3 32-39 13-15 20-27
Color 4 40-47 16-18 28-2F
Color 5 48-55 19-21 30-37
Color 6 56-63 22-25 38-3F
Color 7 64-71 26-28 40-47
Color 8 72-79 29-31 48-4F
Color 9 80-87 32-34 50-57
Color 10 88-95 35-37 58-5F
Color 11 96-103 38-40 60-67
Color 12 104-111 41-44 68-6F
Color 13 112-127 45-50 70-7F
Colors 1 and 2 128-143 51-56 80-8F
Colors 2 and 3 144-151 57-60 90-97
Colors 3 and 4 152-159 61-62 98-9F
Colors 4 and 5 160-167 63-66 A0-A7
Colors 5 and 6 168-175 67-69 A8-AF
Colors 6 and 7 176-183 70-72 B0-B7
Colors 7 and 8 184-191 73-75 B8-BF
Colors 8 and 9 192-199 76-78 C0-C7
Colors 9 and 10 200-207 79-81 C8-CF
Technobeam® User Manual DMX Protocols A-9
6
(cont.) Color Wheel
Position (cont.) Colors 10 and 11 208-215 82-84 D0-D7
Colors 11 and 12 216-223 85-88 D8-DF
Colors 12 and 13 224-231 89-91 E0-E7
Colors 13 and 1 232-247 92-97 E8-F7
Color 1 248-255 98-100 F8-FF
Continuously Variable Forward Spin Mode
Spin Stop 0-3 0-1 00-03
Spin Forward Slowest 4 2 04
Spin Forward Fastest 255 100 FF
Continuously Variable Reverse Spin Mode
Spin Stop 0-3 0-1 00-03
Spin Reverse Slowest 4 2 04
Spin Reverse Fastest 255 100 FF
Continuously Variable Mode
Color 1 (open) 0 0 00
Color 2 19 8 13
Color 3 39 15 27
Color 4 58 23 3A
Color 5 78 31 4E
Color 6 98 38 62
Color 7 117 46 75
Color 8 137 54 89
Color 9 156 61 9C
Color 10 176 69 B0
Color 11 196 77 C4
Color 12 215 84 D7
Color 13 235 92 EB
Color 1 (open) 255 100 FF
Scan Mode - two colors
Color 1 and 2 0-23 0-8 00-17
Color 2 and 3 24-31 9-12 18-1F
Color 3 and 4 32-39 13-15 20-27
Color 4 and 5 40-47 16-18 28-2F
Color 5 and 6 48-55 19-21 30-37
Color 6 and 7 56-63 22-25 38-3F
Color 7 and 8 64-71 26-28 40-47
Color 8 and 9 72-79 29-31 48-4F
Color 9 and 10 80-87 32-34 50-57
Color 10 and 11 88-95 35-37 58-5F
Color 11 and 12 96-103 38-40 60-67
Color 12 and 13 104-111 41-44 68-6F
Color 13 and 1 112-127 45-50 70-7F
Scan Mode - three colors
Color 13 and 1 and 2 128-151 51-59 80-97
Color 1 and 2 and 3 152-159 60-62 98-9F
Color 2 and 3 and 4 160-167 63-66 A0-A7
Color 3 and 4 and 5 168-175 67-69 A8-AF
Color 4 and 5 and 6 176-183 70-72 B0-B7
Color 5 and 6 and 7 184-191 73-75 B8-BF
Color 6 and 7 and 8 192-199 76-78 C0-C7
Table A-2. Technobeam-i DMX Protocol
Ch. Construct Parameter Value
(dec.) Value
(%) Value
(hex)
A-10 DMX Protocols Technobeam® User Manual
6
(cont.) Color Wheel
Position (cont.) Color 7 and 8 and 9 200-207 79-81 C8-CF
Color 8 and 9 and 10 208-215 82-84 D0-D7
Color 9 and 10 and 11 216-223 85-88 D8-DF
Color 10 and 11 and 12 224-231 89-91 E0-E7
Color 11 and 12 and 13 232-239 92-94 E8-EF
Color 12 and 13 and 1 240-255 95-100 F0-FF
Random Mode
Random Slowest 0 0 00
Random Fastest 255 100 FF
7 Litho Function Full Speed Control
Indexed 0-15 0-6 00-0F
Forward Spin 16-31 7-12 10-1F
Reverse Spin 32-47 13-18 20-2F
Scanning 48-63 19-25 30-3F
Blink 64-79 26-31 40-4F
Random 80-95 32-37 50-5F
Reserved for Future Use 96-111 38-44 60-6F
Wheel Spin 112-127 45-50 70-7F
MSpeed Control
Indexed 128-143 51-56 80-8F
Forward Spin 144-159 57-62 90-9F
Reverse Spin 160-175 63-69 A0-AF
Scanning 176-191 70-75 B0-BF
Blink 192-207 76-81 C0-CF
Random 208-223 82-88 D0-DF
Reserved for Future Use 224-239 89-94 E0-EF
Wheel Spin 240-255 95-100 F0-FF
8 Litho Wheel
Position Indexed, Blink, Spins, and Scanning Modes
Litho 1 (open) 0-15 0-6 00-0F
Litho 2 16-47 7-18 10-2F
Litho 3 48-79 19-31 30-4F
Litho 4 80-111 32-44 50-6F
Litho 5 112-143 45-56 70-8F
Litho 6 144-175 57-69 90-AF
Litho 7 176-207 70-81 B0-CF
Litho 8 208-239 82-94 D0-EF
Litho 1 (open) 240-255 95-100 F0-FF
9 Litho Rotate Indexed Mode
Litho Position 0-255 0-100 00-FF
Scan Mode
Slowest Scanning 0 0 00
Fastest Scanning 255 100 FF
Random Mode
Random Slowest 0 0 00
Random Fastest 255 100 FF
Wheel Spin Mode
Fastest Forward Wheel Spin 0 0 00
Slowest Forward Wheel Spin 127 49 7F
Slowest Reverse Wheel Spin 128 50 80
Fastest Reverse Wheel Spin 255 100 FF
Table A-2. Technobeam-i DMX Protocol
Ch. Construct Parameter Value
(dec.) Value
(%) Value
(hex)
Technobeam® User Manual DMX Protocols A-11
10 Iris Close 0 0 00
Variable Iris 1-127 1-50 01-7F
Open 128-135 51-53 80-87
Periodic Strobe 136-151 54-59 88-97
Random Strobe 152-167 60-66 98-A7
Ramp Open/Snap Shut 168-183 67-72 A8-B7
Snap Open/Ramp Shut 184-199 73-78 B8-C7
Ramp Open/Ramp Shut 200-215 79-84 C8-D7
Random Ramp Open/Snap Shut 216-231 85-91 D8-E7
Random Snap Open/Ramp Shut 232-247 92-97 E8-F7
Open 248-255 98-100 F8-FF
11 Effects Wheel
Position Full Speed Control
Effect 1 0-25 0-10 00-19
Effect 2 26-51 11-20 1A-33
Effect 3 52-76 21-30 34-4C
Effect 4 77-102 31-40 4D-66
Effect 5 103-127 41-50 67-7F
MSpeed Control
Effect 1 128-153 51-60 80-99
Effect 2 154-178 61-70 9A-B2
Effect 3 179-204 71-80 B3-CC
Effect 4 205-229 81-90 CD-E5
Effect 5 230-255 91-100 E6-FF
12 Effects Rotate Rotate Clockwise Fastest 0 0 00
Rotate Clockwise Slowest 120 47 78
No rotation 121-134 48-52 79-86
Rotate Counter-Clockwise Slowest 135 53 87
Rotate Counter-Clockwise Fastest 255 100 FF
13 Focus Focus In 0 0 00
Focus Out 255 100 FF
14 Shutter Close 0-7 0-3 00-07
Periodic Strobe 8-67 4-26 08-43
Random Strobe 68-127 27-50 44-7F
Ramp Open, Snap Shut 128-187 51-73 80-BB
Snap Open, Ramp Shut 188-247 74-97 BC-F7
Open 248-255 98-100 F8-FF
15 Dim Close 0 0 00
Continuously Variable 1-254 1-99 01-FE
Open 255 100 FF
16 MSpeed See Table A-3 on page A-13 for MSpeed times
17 Macro/LAD™ LAD Off 0-7 0-3 00-07
Macro 1 8-11 3-4 08-0B
Macro 2 12-15 5-6 0C-0F
Macro 3 16-19 6-8 10-13
Macro 4 20-23 8-9 14-17
Macro 5 24-27 9-11 18-1B
Macro 6 28-31 11-12 1C-1F
Macro 7 32-35 13-14 20-23
Macro 8 36-39 14-15 24-27
Table A-2. Technobeam-i DMX Protocol
Ch. Construct Parameter Value
(dec.) Value
(%) Value
(hex)
A-12 DMX Protocols Technobeam® User Manual
MSpeed Movement Times
Use Table A-3 to determine the MSpeed (motor/mirror) movement times for
Technobeam, Technopro or Technoray in seconds.
An MSpeed (motor/mirror speed) change occurs smoothly over the entire
MSpeed time value. For example, if you choose a numerical DMX value of 202
for an MSpeed color change from position 2 to position 4, that means the color
wheel changes gradually to position 4 over 11.41 seconds.
Note The values displayed in the “Value (%)” , “Value (hex)” and “Value
(num)” columns may vary slightly depending on your controller’s
rounding conventions.
17
(cont.) Macro/LAD™
(cont.) Macro 9 40-43 16-17 28-2B
Macro 10 44-47 17-18 2C-2F
Macro 11 48-51 19-20 30-33
Macro 12 52-55 20-22 34-37
Macro 13 56-59 22-23 38-3B
Macro 14 60-63 24-25 3C-3F
Macro 15 64-67 25-26 40-43
Macro 16 68-71 27-28 44-47
Macro 17 72-75 28-29 48-4B
Macro 18 76-79 30-31 4C-4F
Macro 19 80-83 31-33 50-53
Macro 20 84-87 32-34 54-57
Macro 21 88-91 34-36 58-5B
Macro 22 92-95 36-37 5C-5F
Macro 23 96-99 38-39 60-63
Macro 24 100-103 39-40 64-67
Macro 25 104-107 41-42 68-6B
Macro 26 108-111 42-44 6C-6F
Macro 27 112-115 44-45 70-73
Macro 28 116-119 46-47 74-77
LAD Off 120-127 47-50 78-7F
LAD Modulate Slowest 128 50 80
LAD Modulate Fastest 247 97 F7
LAD On Continuously 248-255 97-100 F8-FF
18 Control
Note: Shutter
(channel 14) must
be set to “0” to
access the control
functions.
Safe 0-7 0-3 00-07
Display Off 24-26 9-10 18-1A
Display Dim 32-34 12-13 20-22
Display Bright 40-42 16-17 28-2A
Home 64-66 25-26 40-42
Lamp On 80-82 31-32 50-52
Lamp Off 96-98 37-38 60-62
Shutdown 128-130 50-51 80-82
Table A-2. Technobeam-i DMX Protocol
Ch. Construct Parameter Value
(dec.) Value
(%) Value
(hex)
Technobeam® User Manual DMX Protocols A-13
Table A-3. MSpeed Movement Times
Time
(sec.) Value
(dec.) Value
(%) Value
(hex) Time
(sec.) Value
(dec.) Value
(%) Value
(hex) Time
(sec.) Value
(dec.) Value
(%) Value
(hex)
0.15 255 100 FFh 7.91 211 83 D3h 31.19 167 65 A7h
0.15 254 100 FEh 8.27 210 82 D2h 31.90 166 65 A6h
0.17 253 99 FDh 8.63 209 82 D1h 32.62 165 65 A5h
0.19 252 99 FCh 9.00 208 82 D0h 33.34 164 64 A4h
0.21 251 98 FBh 9.39 207 81 CFh 34.08 163 64 A3h
0.25 250 98 FAh 9.77 206 81 CEh 34.82 162 64 A2h
0.29 249 98 F9h 10.17 205 80 CDh 35.57 161 63 A1h
0.35 248 97 F8h 10.58 204 80 CCh 36.33 160 63 A0h
0.41 247 97 F7h 10.99 203 80 CBh 37.09 159 62 9Fh
0.47 246 96 F6h 11.41 202 79 CAh 37.87 158 62 9Eh
0.55 245 96 F5h 11.84 201 79 C9h 38.65 157 62 9Dh
0.63 244 96 F4h 12.28 200 78 C8h 39.44 156 61 9Ch
0.73 243 95 F3h 12.72 199 78 C7h 40.23 155 61 9Bh
0.83 242 95 F2h 13.17 198 78 C6h 41.04 154 60 9Ah
0.94 241 95 F1h 13.63 197 77 C5h 41.85 153 60 99h
1.05 240 94 F0h 14.10 196 77 C4h 42.68 152 60 98h
1.18 239 94 EFh 14.58 195 76 C3h 43.50 151 59 97h
1.31 238 93 EEh 15.07 194 76 C2h 44.34 150 59 96h
1.45 237 93 EDh 15.56 193 76 C1h 45.19 149 58 95h
1.60 236 93 ECh 16.06 192 75 C0h 46.04 148 58 94h
1.75 235 92 EBh 16.57 191 75 BFh 46.90 147 58 93h
1.92 234 92 EAh 17.09 190 75 BEh 47.77 146 57 92h
2.09 233 91 E9h 17.61 189 74 BDh 48.65 145 57 91h
2.27 232 91 E8h 18.14 188 74 BCh 49.54 144 56 90h
2.46 231 91 E7h 18.68 187 73 BBh 50.43 143 56 8Fh
2.66 230 90 E6h 19.23 186 73 BAh 51.33 142 56 8Eh
2.86 229 90 E5h 19.79 185 73 B9h 52.24 141 55 8Dh
3.07 228 89 E4h 20.36 184 72 B8h 53.16 140 55 8Ch
3.29 227 89 E3h 20.93 183 72 B7h 54.09 139 55 8Bh
3.52 226 89 E2h 21.51 182 71 B6h 55.02 138 54 8Ah
3.76 225 88 E1h 22.10 181 71 B5h 55.96 137 54 89h
4.00 224 88 E0h 22.70 180 71 B4h 56.91 136 53 88h
4.25 223 87 DFh 23.30 179 70 B3h 57.87 135 53 87h
4.52 222 87 DEh 23.92 178 70 B2h 58.84 134 53 86h
4.78 221 87 DDh 24.54 177 69 B1h 59.81 133 52 85h
5.06 220 86 DCh 25.17 176 69 B0h 60.79 132 52 84h
5.34 219 86 DBh 25.80 175 69 AFh 61.78 131 51 83h
5.64 218 85 DAh 26.45 174 68 AEh 62.78 130 51 82h
5.94 217 85 D9h 27.10 173 68 ADh 63.79 129 51 81h
6.25 216 85 D8h 27.76 172 67 ACh 64.80 128 50 80h
6.56 215 84 D7h 28.43 171 67 ABh 65.82 127 50 7Fh
6.89 214 84 D6h 29.11 170 67 AAh 66.85 126 49 7Eh
7.22 213 84 D5h 29.80 169 66 A9h 67.89 125 49 7Dh
7.56 212 83 D4h 30.49 168 66 A8h 68.94 124 49 7Ch
A-14 DMX Protocols Technobeam® User Manual
69.99 123 48 7Bh 125.73 78 31 4Eh 197.70 33 13 21h
71.05 122 48 7Ah 127.15 77 30 4Dh 199.48 32 13 20h
72.13 121 47 79h 128.58 76 30 4Ch 201.28 31 12 1Fh
73.20 120 47 78h 130.02 75 29 4Bh 203.08 30 12 1Eh
74.29 119 47 77h 131.47 74 29 4Ah 204.88 29 11 1Dh
75.38 118 46 76h 132.92 73 29 49h 206.70 28 11 1Ch
76.49 117 46 75h 134.39 72 28 48h 208.52 27 11 1Bh
77.60 116 45 74h 135.86 71 28 47h 210.36 26 10 1Ah
78.71 115 45 73h 137.34 70 27 46h 212.19 25 10 19h
79.84 114 45 72h 138.82 69 27 45h 214.04 24 9 18h
80.98 113 44 71h 140.32 68 27 44h 215.90 23 9 17h
82.12 112 44 70h 141.82 67 26 43h 217.76 22 9 16h
83.27 111 44 6Fh 143.33 66 26 42h 219.63 21 8 15h
84.43 110 43 6Eh 144.85 65 25 41h 221.51 20 8 14h
85.59 109 43 6Dh 146.38 64 25 40h 223.40 19 7 13h
86.77 108 42 6Ch 147.92 63 25 3Fh 225.30 18 7 12h
87.95 107 42 6Bh 149.46 62 24 3Eh 227.20 17 7 11h
89.14 106 42 6Ah 151.01 61 24 3Dh 229.11 16 6 10h
90.34 105 41 69h 152.57 60 24 3Ch 231.03 15 6 0Fh
91.55 104 41 68h 154.14 59 23 3Bh 232.96 14 5 0Eh
92.76 103 40 67h 155.71 58 23 3Ah 234.90 13 5 0Dh
93.98 102 40 66h 157.30 57 22 39h 236.84 12 5 0Ch
95.21 101 40 65h 158.89 56 22 38h 238.79 11 4 0Bh
96.45 100 39 64h 160.49 55 22 37h 240.75 10 4 0Ah
97.70 99 39 63h 162.09 54 21 36h 242.72 9 4 09h
98.95 98 38 62h 163.71 53 21 35h 244.70 8 3 08h
100.22 97 38 61h 165.33 52 20 34h 246.68 7 3 07h
101.49 96 38 60h 166.96 51 20 33h 248.68 6 2 06h
102.77 95 37 5Fh 168.60 50 20 32h 250.68 5 2 05h
104.05 94 37 5Eh 170.25 49 19 31h 252.68 4 2 04h
105.35 93 36 5Dh 171.91 48 19 30h 0.19 3 1 03h
106.65 92 36 5Ch 173.57 47 18 2Fh 0.19 2 1 02h
107.96 91 36 5Bh 175.24 46 18 2Eh 0.19 1 0 01h
109.28 90 35 5Ah 176.92 45 18 2Dh 0.19 0 0 00h
110.61 89 35 59h 178.61 44 17 2Ch
111.94 88 35 58h 180.30 43 17 2Bh
113.28 87 34 57h 182.01 42 16 2Ah
114.63 86 34 56h 183.72 41 16 29h
115.99 85 33 55h 185.44 40 16 28h
117.36 84 33 54h 187.17 39 15 27h
118.73 83 33 53h 188.90 38 15 26h
120.12 82 32 52h 190.65 37 15 25h
121.51 81 32 51h 192.40 36 14 24h
122.91 80 31 50h 194.16 35 14 23h
124.31 79 31 4Fh 195.92 34 13 22h
Table A-3. MSpeed Movement Times
Time
(sec.) Value
(dec.) Value
(%) Value
(hex) Time
(sec.) Value
(dec.) Value
(%) Value
(hex) Time
(sec.) Value
(dec.) Value
(%) Value
(hex)
Technobeam® User Manual DMX Protocols A-15
Macro Channel Assignments
Table A-4 below lists the macro channel assignments. This information is
preliminary and subject to change. A macro is predefined set of constructs
you can use when programming a scene. You do not have to use macros in
your scene, but using them can save you programming time.
Use DMX channel number 17 to access Technobeam macros.
Table A-4. Macro DMX Channel Assignments
Macro Number Value (dec.) Value (%) Value (hex)
off 0 - 7
120 - 255 0 - 3
47 - 100 00h - 07h
78h - FFh
1 8 - 11 4 08h - 0Bh
2 12 - 15 5 0Ch - 0Fh
3 16 - 19 6 - 7 10h - 13h
4 20 - 23 8 - 9 14h - 17h
5 24 - 27 10 18h - 1Bh
6 28 - 31 11 - 12 1Ch - 1Fh
7 32 - 35 13 20h - 23h
8 36 - 39 14 - 15 24h - 27h
9 40 - 43 16 28h - 2Bh
10 44 - 47 17 - 18 2Ch - 2Fh
11 48 - 51 19 - 20 30h - 33h
12 52 - 55 21 34h - 37h
13 56 - 59 22 - 23 38h - 3Bh
14 60 - 63 24 3Ch - 3Fh
15 64 - 67 25 - 26 40h - 43h
16 68 - 71 27 44h - 47h
17 72 - 75 28 - 29 48h - 4Bh
18 76 - 79 30 4Ch - 4Fh
19 80 - 83 31 - 32 50h - 53h
20 84 - 87 33 - 34 54h - 57h
21 88 - 91 35 58h - 5Bh
22 92 - 95 36 - 37 5Ch - 5Fh
23 96 - 99 38 60h - 63h
24 100 - 103 39 - 40 64h - 67h
25 104 - 107 41 68h - 6Bh
26 108 - 111 42 - 43 6Ch - 6Fh
27 112 - 115 44 - 45 70h - 73h
28 116 - 119 46 74h - 77h
A-16 DMX Protocols Technobeam® User Manual
Fixture Number to DMX Start Channel
Table A-5 below shows the conversion between fixture number and DMX start
channel. You must understand and use this information if you choose to
control Technobeam using fixture numbering.
* - A link with more than 32 fixtures requires a serial data distributor to
regenerate and retime the signal.
Table A-5. Fixture Number to DMX Start Channel Conversion
Fixture Number DMX Start Channel
18-ch. (TB F, TB I) DMX Start Channel
14-ch. (TB R)
11 1
219 15
337 29
455 43
573 57
691 71
7 109 85
8 127 99
9145 113
10 163 127
11 181 141
12 199 155
13 217 169
14 235 183
15 253 197
16 271 211
17 289 225
18 307 239
19 325 253
20 343 267
21 361 281
22 379 295
23 397 309
24 415 323
25 433 337
26 451 351
27 469 365
28 487 379
29 393
30 407
31 421
32 435
33* 449
34* 463
35* 477
36* 491
Technobeam® User Manual Factory-Installed Wheels B-1
Appendix B
Factory-Installed Wheels
This appendix shows how the litho wheel, rotating litho wheel, color
wheel and effects wheels are configured by the factory when
Technobeam is shipped. The numbers shown around the outside of
the wheels are the position numbers used by a controller to select that
effect. For example, choosing position 6 on the Technobeam rotating
litho wheel (see Figure B-1) with a controller selects the “Rip Wheel”
litho.
Technobeam™ Wheels
Technobeam rotating litho wheel:
Figure B-1. Factory configuration of the Technobeam rotating litho wheel.
1 (open)
2
3-D Blocks
3
Round Triangle
4
Silcsquare
5
TB-Lumoil
(2 lithos;
one rotating,
one stationary)
6
Rip Wheel
7
Technowedges
8
Gatlin
B-2 Factory-Installed Wheels Technobeam® User Manual
Technobeam color wheel:
Figure B-2. Factory configuration of the Technobeam color wheel.
Technobeam rotating effects wheel:
Figure B-3. Factory configuration of the Technobeam rotating effects wheel.
1
2
3
4
5
6
7
8
9
10 11
12
13
Pink
Aqua
Dark
Magenta
Green
Amber
Yellow
Dark
Blue
Red
Indigo Orange Light
Blue
CTO
Open
1 (open)
2
Prism
3
Lenticular
4
Slow
Glass
5
Frost
Technobeam® User Manual Important Safety Information C-1
Appendix C
Important Safety
Information
English Version
Warning: For Continued Protection Against Fire
1. This equipment is designed for use with Phillips M Series 250 watt, GY9.5 base metal
halide lamp only. Use of any other type lamp may be hazardous and may void the
warranty.
2. Do not mount on a flammable surface.
3. Maintain minimum distance of 1.0 meter (3.28 feet) from combustible materials.
4. Replace fuses only with the specified type and rating.
5. Observe minimum distance to lighted objects of 1.0 meter (3.28 feet).
6. This equipment for connection to branch circuit having a maximum overload
protection of 20 A.
Warning: For Continued Protection Against Electric Shock
1. If this equipment was received without a line cord plug, attach the appropriate line
cord plug according to the following code:
•brown–live
•blue–neutral
• green/yellow–earth
2. As the colours of the cores in the mains lead of this equipment may not correspond
with the coloured markings identifying the terminals in your plug, proceed as
follows:
• the core which is coloured green and yellow must be connected to the ter-
minal in the plug which is marked with the letter E or by the earth symbol
, or coloured green or green and yellow.
• the core which is coloured blue must be connected to the terminal which is
marked with the letter N or coloured black.
• the core which is coloured brown must be connected to the terminal which
is marked with the letter L or coloured red.
3. Class I equipment. This equipment must be earthed.
4. Disconnect power before re-lamping or servicing.
5. Equipment suitable for dry locations only. Do not expose this equipment to rain or
moisture.
6. Refer servicing to qualified personnel; no user serviceable parts inside.
C-2 Important Safety Information Technobeam® User Manual
Warning: For Continued Protection Against Exposure To Excessive
Ultraviolet (UV) Radiation
1. Do not operate this equipment without complete lamp enclosure in place or if
shields, lenses, or ultraviolet screens are damaged.
2. Change shields, lenses, or ultraviolet screens if they have become visibly damaged
to such an extent that their effectiveness is impaired, for example by cracks or deep
scratches.
3. Never look directly at the lamp while lamp is on.
Warning: For Continued Protection Against Injury To Persons
1. Use secondary safety cable when mounting this fixture.
2. Caution: hot lamp may be an explosion hazard. Do not open for 5 minutes after
switching off. Wear eye and hand protection when re-lamping.
3. Equipment surfaces may reach temperatures up to 140 degrees C (284 degrees F).
Allow 5 minutes for cooling before handling.
4. Change the lamp if it becomes damaged or thermally deformed.
Appendice C IMPORTANT:
INFORMATIONS DE SÉCURITÉ
Mise en garde: pour une protection permanente contre les incendies
1. Cet appareil est conçu uniquement pour une lampe métallique à halogène Philips
série M, de 250 watts, à base GY9.5. Son utilisation avec tout autre type de lampe
peut être dangereuse et annuler la garantie.
2. Ne pas monter les lampes sur une surface inflammable.
3. Maintenir à une distance minimum de 1.0 mètre de matières inflammables.
4. Ne remplacer les fusibles qu'avec des modèles et valeurs assignées recommandés.
5. Respecter une distance minimum de 1.0 mètre par rapport aux objets éclairés.
6. Cet appareil de connection au circuit comporte une protection contre les surcharges
de 20 A.
Mise en garde: pour une protection permanente contre les chocs
électriques
1. Si cet équipement est livré sans prise de cable, veuillez connecter la prise de cable
correcte selon le code suivant:
• marron - phase
• bleu - neutre
• vert/jaune - terre
2. Débrancher le courant avant de changer les lampes ou d'effectuer des réparations.
3. Cet équipement doit être uniquement utilisé dans des endroits secs. Ne pas
l'exposer à la pluie ou l'humidité.
4. À l'intérieur de l'équipement il n'y a pas de pièces remplaçables par l' utilisateur.
Confiez l'entretien à un personnel qualifié.
5. Equipement de Classe I. Cet équipement doit être mis à la terre.
Technobeam® User Manual Important Safety Information C-3
Mise en garde: pour une protection permanente contre des expositions
excessives aux rayons ultra violets (UV)
1. Ne pas utiliser cet appareil si le boîtier de la lampe n'est pas complètement fixé ou si
les blindages, lentilles, ou écrans ultraviolets sont endommagés.
2. Changer les blindages ou les écrans ultraviolets s'ils sont visiblement endommagés
au point que leur efficacité aient été altérée, par exemple par des fissures ou de
profondes égratignures.
3. Ne jamais regarder directement la lampe quand celle ci est allumée.
Mise en garde: pour une protection permanente contre les blessures
corporelles
1. Lors de l'assemblage, utiliser un câble de sécurité secondaire.
2. AVERTISSEMENT: les lampes chaudes comportent un risque d'explosion. Après
l'avoir éteinte, attendre 5 minutes avant de la dégager. Lors du remplacement de la
lampe, une protection des yeux et des mains est requise.
3. Les surfaces de l'appareil peuvent atteindre des températures de 140 C. Laisser
refroidir pendant 5 minutes avant la manipulation.
4. Changer la lampe si elle est endommagée ou thermiquement déformée.
Anhang C Wichtige Hinweise Für
Ihre Sicherheit
WARNUNG: ZUM SCHUTZ VOR BRANDGEFAHR
1. Dieses Gerät ist nur für den Gebrauch mit einer 250-Watt, Philips Serie M, Metall-
Halogen-Lampe mit GY9.5-Sockel konzipiert. Der Gebrauch irgend eines anderen
Lampentyps könnte Sie gefährden und Ihre Garantie außer Kraft setzen.
2. Das Gerät nie auf einer feuergefährlichen Fläche montieren.
3. Stets einen Mindestabstand von 1 Meter zu brennbaren Materialien einhalten.
4. Zum Ersatz nur Sicherungen verwenden, die dem vorgeschriebenen Typ und
Nennwert entsprechen.
5. Einen Mindestabstand von 1 Meter zu den angestrahlten Objekten einhalten.
6. Dieses Gerät darf nur an eine Zweigleitung mit einem Überlastungsschutz von
höchstens 20 A angeschlossen werden.
WARNUNG: ZUM SCHUTZ GEGEN GEFÄHRLICHE KÖRPERSTRÖME
1. Wenn dieses Gerät ohne einen Netzkabelstecker erhalten wurde, ist der
entsprechende Netzkabelstecker entsprenchend dem folgenden Code anzubringen:
• Braun - Unter Spannung stehend
• Blau - Neutral
• Grün/Gelb - Erde
2. Vor dem Austauschen von Lampen oder vor Wartungsarbeiten stets den Netzstecker
ziehen.
3. Diese Geräte sind nur zum Einbau in trockenen Lagen bestimmt und müssen vor
Regen und Feuchtigkeit geschützt werden.
C-4 Important Safety Information Technobeam® User Manual
4. Servicearbeiten sollten nur von Fachpersonal ausgeführt werden. Das Gerät enthält
keine wartungsbedürftigen Teile.
5. Dieses Gerät gehört zur Klasse I. Dieses Gerät muß geerdet werden.
WARNUNG: ZUM SCHUTZ GEGEN ÜBERMÄSSIGE ULTRAVIOLETT (UV)-
BESTRAHLUNG
1. Benutzen Sie dieses Gerät nur, wenn das komplette Lampengehäuse fest eingebaut
ist; ebenfalls dürfen keine der Schutzabdeckungen, Linsen oder der UV-Schutz
Beschädigungen aufweisen.
2. Die Schutzabdeckungen, Linsen und der UV-Schutz müssen ausgewechselt werden,
wenn sie sichtlich dermaßen beschädigt sind, daß sie ihre Wirksamkeit einbüßen,
z.B. infolge von Rissen oder tiefen Kratzern.
3. Nie direkt in die eingeschaltete Lampe schauen.
WARNUNG: ZUM SCHUTZ VOR VERLETZUNGEN
1. Verwenden Sie bei der Installation des Beleuchtungskörpers ein zusätzliches
Sicherheitskabel.
2. VORSICHT: Bei einer heiße Lampe besteht Explosionsgefahr. Nach dem Abschalten
der Netzspannung sollten Sie etwa 5 Minuten warten, bevor Sie das Lampengehäuse
öffnen. Schützen Sie beim Auswechseln der Lampen Ihre Hände und tragen Sie eine
Schutzbrille.
3. Die Oberflächen des Gerätes können Temperaturen bis zu 65 C erreichen. Vor dem
Anfassen stets 5 Minuten lang abkühlen lassen.
4. Falls die Lampe beschädigt oder durch Wärmeeinwirkung verformt ist, muß sie
ausgewechselt werden.
Appendice C Importanti
Informazioni Di Sicurezza
AVVERTENZA: PER PREVENIRE INCENDI:
1. Questa apparecchiatura è stata progettata per l'uso esclusivo con lampada a sali
metallici Philips da 250 watt, base GY9.5, serie M. L'uso di qualsiasi altro tipo di
lampada può essere pericoloso e può annullare la garanzia.
2. Da non montare sopra una superficie infiammabile.
3. Mantenere l' apparecchio a un minimo di 1.0 metri (3.28 piedi) di distanza dai
materiali combustibili.
4. Rimpiazare i fusibili usando soltanto quelli del tipo e della taratura adatta.
5. Mantenere una distanza minima di 1.0 metri (3.28 piedi) dagli oggetti accesi.
6. Questa apparecchiatura e' da collegarsi ad un circuito con una protezzione da
sovraccarico massima di 20 amperes.
Technobeam® User Manual Important Safety Information C-5
AVVERTENZA: PER PREVENIRE LE SCOSSE ELETTRICHE:
1. Se questa apparecchiatura è stata consegnata senza una spina del cavo di
alimentazione, collegare la spina appropriata del cavo di alimentazione in base ai
seguenti codici:
• marrone - sotto tensione
• blu - neutro
• verde/giallo - terra
2. Disinnestare la corrente prima di cambiare la lampadina o prima di eseguire
qualsiasi riparazione.
3. Questa apparecchiatura e' da usarsi in ambienti secchi. Non e' da essere esposta ne
alla pioggia ne all' umidita'.
4. Per qualsiasi riparazione rivolgersi al personale specializzato. L' utente non deve
riparare nessuna parte dentro l' unita'.
5. Aparecchio di Classe I. Questa apparecchiatura deve essere messa a terra.
AVVERTENZA: PER PROTEGGERSI CONTRO LE RADIAZIONI DEI RAGGI
ULTRAVIOLETTI:
Non usare questa apparecchiatura se il sistema di chiusura della lampadina non e' completo o
se gli scudetti, le lenti, o gli schermi ultravioletti si sono visibilmente danneggiati di maniera
tale che la loro efficacia sia stata ridotta --- ad esempio, se vi sono visibili spaccature o graffi
profondi. Mai guardare direttamente verso la lampadina quando sia accesa.
AVVERTENZA: PER NON FERIRE AD ALTRE PERSONE:
1. Al montare questa apparechiatura, usare un secondo cavo di sicurezza.
2. Avvertenza: la lampadina calda potrebbe esplodere. Spegnerla per 5 minuti prima
di aprirla. Usare protezzioni per le mani e per gli occhi prima di cambiare la
lampadina.
3. Le superfici della apparecchiatura possono arrivare a temperature di 65 gradi
centrigradi (149 gradi f). Aspettare 5 minuti prima di maneggiare.
4. Cambiare la lampadina se si danneggia o se si e' deformata dovuto alle alte
temperature.
Apéndice C Información Importante
De Seguridad
ADVERTENCIA: PARA PROTECCIÓN CONTINUA CONTRA INCENDIOS:
1. Este equipo está diseñado para utilizarse únicamente con la lámpara de haluro
metálico Philips serie M, de 250 vatios y base GY9.5. El uso de cualquier otro tipo de
lámpara puede resultar peligroso, pudiendo anular la garantía.
2. No monte el equipo sobre una superficie inflamable.
3. Mantenga una distancia mínima de materiales combustibles de 1.0 metro.
4. Cambie los fusibles únicamente por otros que sean del tipo y la clasificación
especificadas.
5. Conserve una distancia mínima a objetos iluminados de 1.0 metro.
6. Este equipo debe conectarse a un circuito que tenga una protección máxima contra
las sobrecargas de 20 A.
C-6 Important Safety Information Technobeam® User Manual
ADVERTENCIA: PARA LA PROTECCIÓN CONTINUA CONTRA
ELECTROCUCIONES
1. Si se recibió este equipo sin el enchufe de alimentacion, monte usted el enchufe
correcto según el clave siguente:
• moreno - vivo
• azul - neutral
• verde/amarillo - tierra.
2. Desconecte el suministro de energía antes de recambiar lámparas o prestar servicio
de reparación.
3. Este equipo se adecua a lugares secos solamente. no lo exponga a la lluvia o
humedad.
4. Derive el servicio de reparación de este equipo al personal calificado. el interior no
contiene repuestos que puedan ser reparados por el usuario.
5. Equipo de Clase I. Este equipo debe conectarse a la tierra.
ADVERTENCIA: PARA PROTECCIÓN CONTINUA CONTRA LA EXPOSICIÓN
A RADIACIÓN ULTRAVIOLETA (UV) EXCESIVA
1. No opere este equipo sin tener colocada en su lugar la caja protectora completa de la
lámpara o bien, si el blindaje , los lentes o las pantallas ultravioletas están dañadas.
2. Cambie el blindaje, los lentes o las pantallas ultravioleta si nota una avería visible, a
tal grado que su eficacia se vea comprometida. Por ejemplo, en el caso de grietas o
rayaduras profundas.
3. Jamás mire directamente a la lámpara en tanto ésta esté encendida.
ADVERTENCIA: PARA PROTECCIÓN CONTINUA CONTRA LESIONES
CORPORALES
1. Use cable secundario de seguridad al montar este aparato.
2. Precaución: una lámpara caliente puede constituir un peligro de explosión. No la
abra por 5 minutos luego de haberla apagado. Lleve puestos, un protector ocular, y
guantes al recambiar lámparas.
3. Las superficies del equipo pueden alcanzar temperaturas máximas de 65 grados
centígrados. Deje que se enfríen por 5 minutos antes de tocarlas.
4. Cambie la lámpara si ésta se avería o deforma por acción térmica.
Vigtig Sikkerhedsinformation -
DANMARK
Advarsel: Beskyttelse mod elektrisk chock.
Vigtigt!
Lederen med gul/groen isolation maa kun tilsluttes en klemme maerket
eller
INDEX
Technobeam® User Manual Index-i
A
Accessories ..................................1-5
Addr Lost ....................................2-25
Address menu (ADDR) ................3-10
Aligning LAD ..................6-19 to 6-25
Anti-reflective glass ...................6-16
Aperture ring ................................6-8
Arc lamp ................................. intro-2
B
Beam angle, setting ........1-12 to 1-14
Beam angles ...............................1-14
Boot Diff .....................................2-25
C
Cabling
constructing ...........................2-5
terminators ............................2-5
Capturing presets ......................4-11
C-clamps
ordering .................................1-5
using .................................... 2-10
Channel range ............................2-16
assigning .............................. 2-15
overlapping ..........................2-16
Chase ............................................4-2
Cleaning fixture .............6-15 to 6-18
Coated side of dichroic ................6-6
Construct .....................................4-2
Constructing cabling ....................2-5
Control method
changing (CHNL) .................. 3-13
selecting ..............................2-14
Controlling Laser Aiming Device .5-5
Crossload ...................................3-19
Crossloading ..............................2-19
Custom lithos .............................6-11
Customer Service ...................intro-4
D
Dichroics
coated side .............................6-6
replacing ..................... 6-5 to 6-7
Dimensions .................................. 1-2
Display ....................................... 2-13
DMX 512
cabling ....................................2-4
cabling specifications ............1-5
constructing cabling ..............2-5
control commands not
accepted .............................. 2-22
explanation ............................2-4
fixture number conversion . A-16
linking devices .......................2-7
setting up link ............. 2-6 to 2-8
terminator ..............................2-5
troubleshooting ................... 2-24
DMX 512 protocol
Technobeam ................A-3 to A-7
Technobeam-i ............A-7 to A-12
DMX channel range .................... 2-15
DMX start channel ..................... 2-14
determining ......................... 2-16
DMX start channel control
method ...................................... 2-14
DMX wasted channels ................ 2-17
Down arrow key ........................... 3-2
E
Effects, replacing ............. 6-7 to 6-11
EIA RS-485 ................................... 2-5
Electrical specifications ............... 1-2
EMEM
CHNL ................................... 2-26
DPLY .................................... 2-26
FHRS .................................... 2-26
L/ST ..................................... 2-26
LENS .................................... 2-26
LHRS .................................... 2-26
MODE ................................... 2-26
Index-ii Technobeam® User Manual
PERS .....................................2-26
PINV .....................................2-26
S/DN ..................................... 2-26
SWAP ....................................2-26
TIMB .....................................2-26
TINV ..................................... 2-26
EMEM Ack ...................................2-26
Enter key ......................................3-2
Environmental specifications ......1-5
Erse Flsh .....................................2-26
F
Factory defaults (FACT) ..............3-11
Factory-installed wheels ....... B-1, B-2
Fan failed ...................................2-21
Fast change ..................................4-3
Features ..................................intro-1
Fixture
accessories .............................1-5
cleaning ...................6-15 to 6-18
controllers .............................1-5
crossloading ...............2-18, 2-20
dichroic, litho, effects
specifications .........................1-4
DMX 512 data .......................2-24
factory-installed wheels .B-1, B-2
features ............................ intro-1
homing ...................................2-2
installing power cord cap ...... 1-7
keys ........................................3-2
lamp ................................. intro-2
LEDs ................................2-3, 2-4
macros ...................................4-2
menu ......................................3-3
mounting ...................2-8 to 2-11
powering on ...........................2-2
preset programming ....4-2 to 4-9
programming ...............4-2 to 4-9
reflector ........................... intro-1
replacing a lamp ......6-11 to 6-14
replacing fuses ............6-2 to 6-4
safety standards ....................1-4
setting beam angle ..1-12 to 1-14
setting voltage ............1-10, 1-11
specifications ...............1-2 to 1-5
troubleshooting .......2-20 to 2-24
uploading ....................2-18, 2-20
wheels .............................B-1, B-2
yoke .....................................2-12
installing ................... 1-8, 1-9
Fixture address, assigning .........2-15
Fixture number ...........................2-14
determining .........................2-17
Fixture number control method .2-14
Fixture number conversion ........A-16
Fixture options ...........................3-10
Fixture type ................................2-13
setting the fixture type
(TYPE) ...................................3-15
Focus drive screw ..............1-13, 6-17
Fuses ............................................1-2
replacing ..................... 6-2 to 6-4
H
Hanging fixture ............... 2-8 to 2-11
Help ........................................ intro-4
Homing .........................................2-2
Homing the fixture
manually (HOME) .................3-20
Hot mirror ..................................6-18
I
ID Lost ........................................2-26
Installing lenses ............ 1-12 to 1-14
Installing lithos ............................6-9
Installing the yoke ................1-8, 1-9
Iris....................................... 3-9, A-11
L
Lamp ......................................intro-2
optimizing ...........................6-14
turning on or off (LAMP) ......3-20
Lamp not working ......................2-20
Lamp or replacing ......... 6-11 to 6-14
Lamp warning message, setting
(LMPL) .........................................3-14
Laser Aiming Device (LAD)
aligning ................... 6-19 to 6-25
controlling .............................5-5
Technobeam® User Manual Index-iii
ideal position .........................5-4
maintenance ............6-19 to 6-25
recommended operation .......5-3
safety .....................................5-2
specifications .........................1-2
troubleshooting ...........5-6 to 5-8
LED display ................................2-13
changing the output (DSPL) . 3-13
inverting (D/IN) ................... 3-13
LEDs
Emission Indicator ..........5-7, 5-8
Motor ..............................2-3, 2-4
Receive ............................2-3, 2-4
Transmit .........................2-3, 2-4
Lenses, installing ...........1-12 to 1-14
Light source ........................... intro-2
Line cord cap, installing ...............1-7
Link Busy ....................................2-27
Link Empty .................................2-27
Link, setting up ..................2-6 to 2-8
Linking fixtures ............................2-7
Lithos
aperture ring ..........................6-8
cleaning .................................6-8
cracked ................................2-22
custom .................................6-11
installing ................................6-9
replacing ....................6-7 to 6-11
specifications .........................1-4
LM01 .............................................5-5
LM30 .............................................5-5
Look .............................................4-2
Loop .............................................4-2
LROF .............................................5-5
LRON ............................................5-5
M
Macros ......................... 4-2, A-1, A-15
Menu key ......................................3-2
Menu system, accessing ...............3-2
Mode menu (MODE) ....................3-15
Model numbers ............................1-2
Motor LED ..............................2-3, 2-4
Mounting fixture ..............2-8 to 2-11
MSpeed change .............................4-3
MSpeed movement times A-12 to A-14
N
Narrow angle lens set .................1-14
Navigation buttons .....................2-13
Navigational keys .........................3-2
O
Optimizing the lamp ..................6-14
Optional accessories ....................1-5
Optoisolators ...............................2-6
Orienting lithos ............................6-9
Over Temp .................................2-28
P
Page ..............................................4-2
Pan
inverting (P/IN) ....................3-12
swapping pan and tilt
(SWAP) ..................................3-12
PGRM Time .................................2-28
Power cord cap, installing ............1-7
Powering on fixture ......................2-2
Preset programming
capturing .............................4-11
chase ......................................4-2
construct ................................4-2
example ...................... 4-4 to 4-9
fast change .............................4-3
loop ........................................4-2
macros ...................................4-2
MSpeed change ......................4-3
synchronizing ........... 4-9 to 4-11
Programming
capturing presets .................4-11
chase ......................................4-2
construct ................................4-2
example ...................... 4-4 to 4-9
fast change .............................4-3
loop ........................................4-2
macros ...................................4-2
MSpeed change ......................4-3
synchronizing ........... 4-9 to 4-11
Protocol, fixture specific ............2-13
Index-iv Technobeam® User Manual
PRST Lost ....................................2-28
R
Receive LED ...........................2-3, 2-4
Reflector ................................. intro-1
Replacing a lamp ............6-11 to 6-14
Rotating litho .............................6-10
S
Safety standards ..........................1-4
Sample program .................4-4 to 4-9
Serial data distributor ..................2-6
Set menu (SET) ...........................3-11
Setting fixture voltage .......1-10, 1-11
Setting up DMX 512 link ....2-6 to 2-8
Shut Down ..................................2-28
Software
crossloading ...............2-18, 2-20
crossloading (XLD) ...............3-19
uploading ....................2-18, 2-20
Specifications .....................1-2 to 1-5
controllers .............................1-5
dichroics ................................1-4
dimensions ............................1-2
DMX 512 cabling ....................1-5
effects ....................................1-4
electrical ................................1-2
environmental .......................1-5
lithos ......................................1-4
model numbers ......................1-2
safety .....................................1-4
weight ....................................1-2
Static litho .............................6-8, 6-9
Synchronizing preset playback ....4-9
T
Technical Support .................. intro-4
Terminator ...................................2-5
Terminators .................................2-5
Test menu (TEST) .......................3-20
Tilt
inverting (T/IN) ....................3-12
swapping pan and tilt
(SWAP) ..................................3-12
Transmit LED .........................2-3, 2-4
Troubleshooting ............ 2-20 to 2-24
Truss ............................................2-9
U
United States Institute of Theatre
Technology. See USITT
Unpacking ....................................1-6
Up arrow key ................................3-2
Updating fixture software .2-18, 2-20
Uploading ...................................2-18
User presets
copying (PRST) .....................3-17
copying presets and settings
(ALL) .....................................3-18
User settings
copying (SETT) .....................3-18
copying user presets and
settings (ALL) .......................3-18
User type, setting (USER) ............3-16
Using laser ...................................5-3
USITT ............................................2-4
V
Viewing DMX 512 data ...............2-24
Voltage, setting .................1-10, 1-11
W
Weight ..........................................1-2
Wheels ...................................B-1, B-2
Y
Yoke
adjusting ..............................2-12
installing .........................1-8, 1-9
