High Flying Electronics Technology HF-LPT100 Embedded WiFi Module User Manual GPON SFU System Design

High-Flying Electronics Technology Co.,Ltd Embedded WiFi Module GPON SFU System Design

Manual

High-Flying
HF-LPB Low Power WiFi Module User Manual
Shanghai High-Flying Electronics Technology Co., Ltd
www.hi-flying.com
- 1 -
HF-LPT100
Low Power WiFi Module User Manual
V 1.3

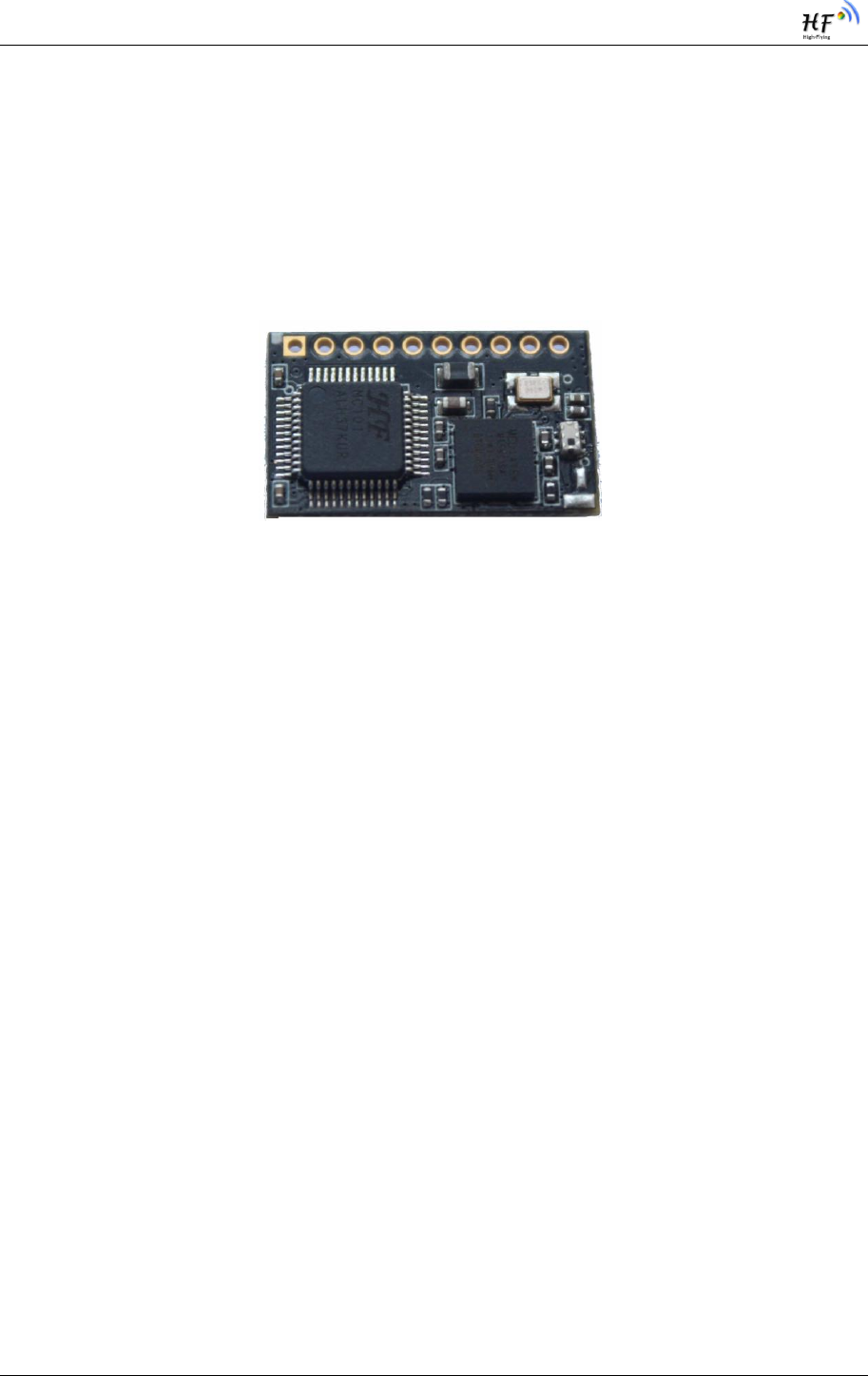

Overview of Characteristic
Support IEEE802.11b/g/n Wireless Standards
Based on Self-developed High Cost Effective MCU
Ultra-Low-Power for Battery Applications with Excellent Power Save Scheme
Support UART/PWM/GPIO Data Communication Interface
Support Work As STA/AP/AP+STA Mode
Support Smart Link Function (APP program provide)
Support Wireless and Remote Firmware Upgrade Function
support WPS Function
Support Multi-TCP Link (5 Channel) Apllication
Support Dial Switch Power Control
Support External IPEX or Pad Interface Antenna Option
Single +3.3V Power Supply
Smallest Size: 22mm x 13.5mm x 6mm, 1x10 2mm Connector
FCC/CE Certificated
High-Flying
HF-LPB Low Power WiFi Module User Manual
Shanghai High-Flying Electronics Technology Co., Ltd
www.hi-flying.com
- 2 -
TABLE OF CONTENTS
LIST OF FIGURES ................................................................................................................................... 6
LIST OF TABLES .................................................................................................................................... 7
HISTORY .................................................................................................................................................. 8
1. PRODUCT OVERVIEW ................................................................................................................ 9
1.1. General Description ................................................................................................................. 9
1.1.1 Device Features .................................................................................................................. 9
1.1.2 Device Paremeters ...........................................................................................................10
1.1.3 Key Application .................................................................................................................10
1.2. Hardware Introduction ...........................................................................................................11

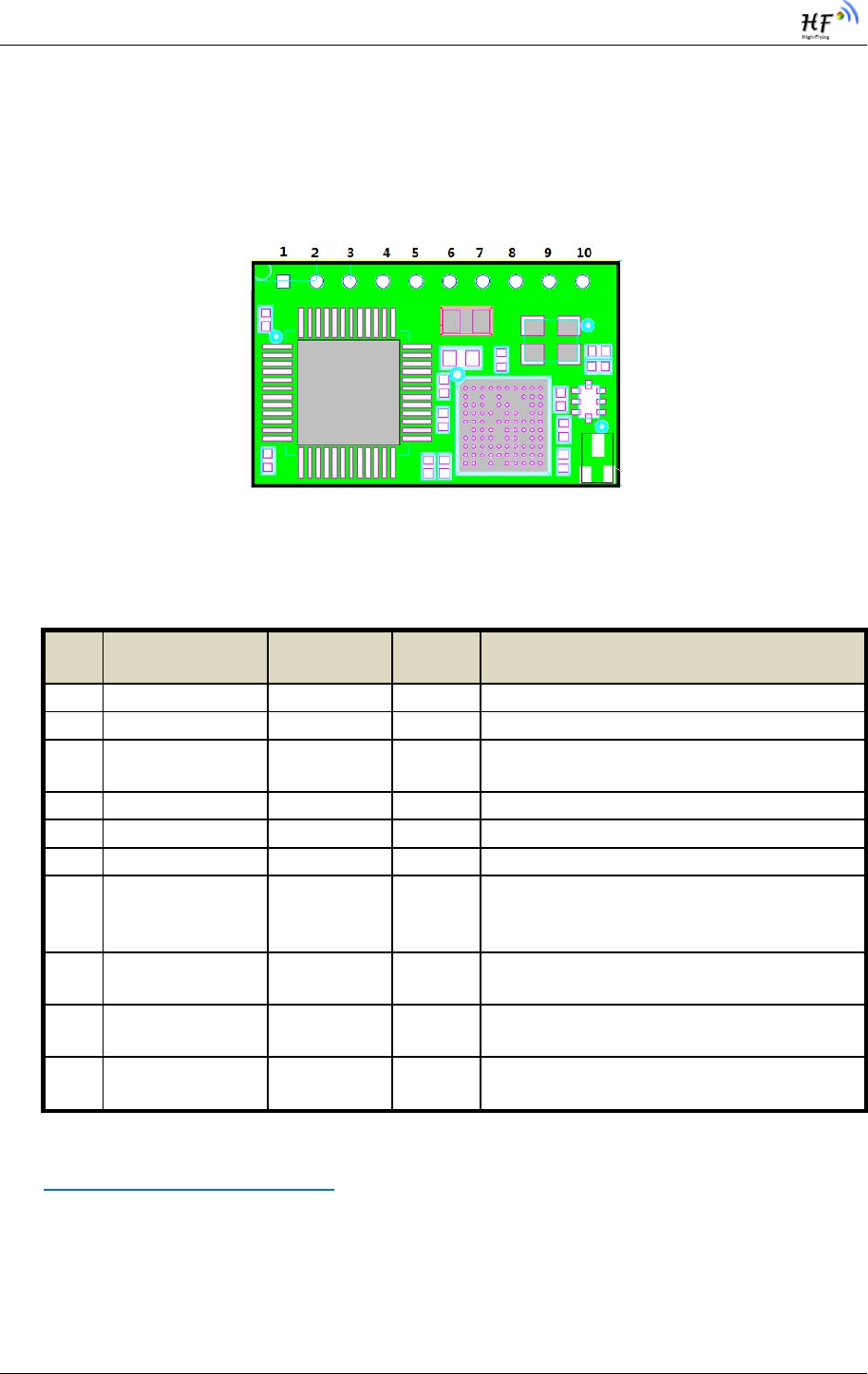

1.2.1. Pins Definition ...................................................................................................................11
1.2.2. Electrical Characteristics ..................................................................................................11
1.2.3. Mechanical Size ................................................................................................................13
1.2.4. External Antenna ..............................................................................................................13

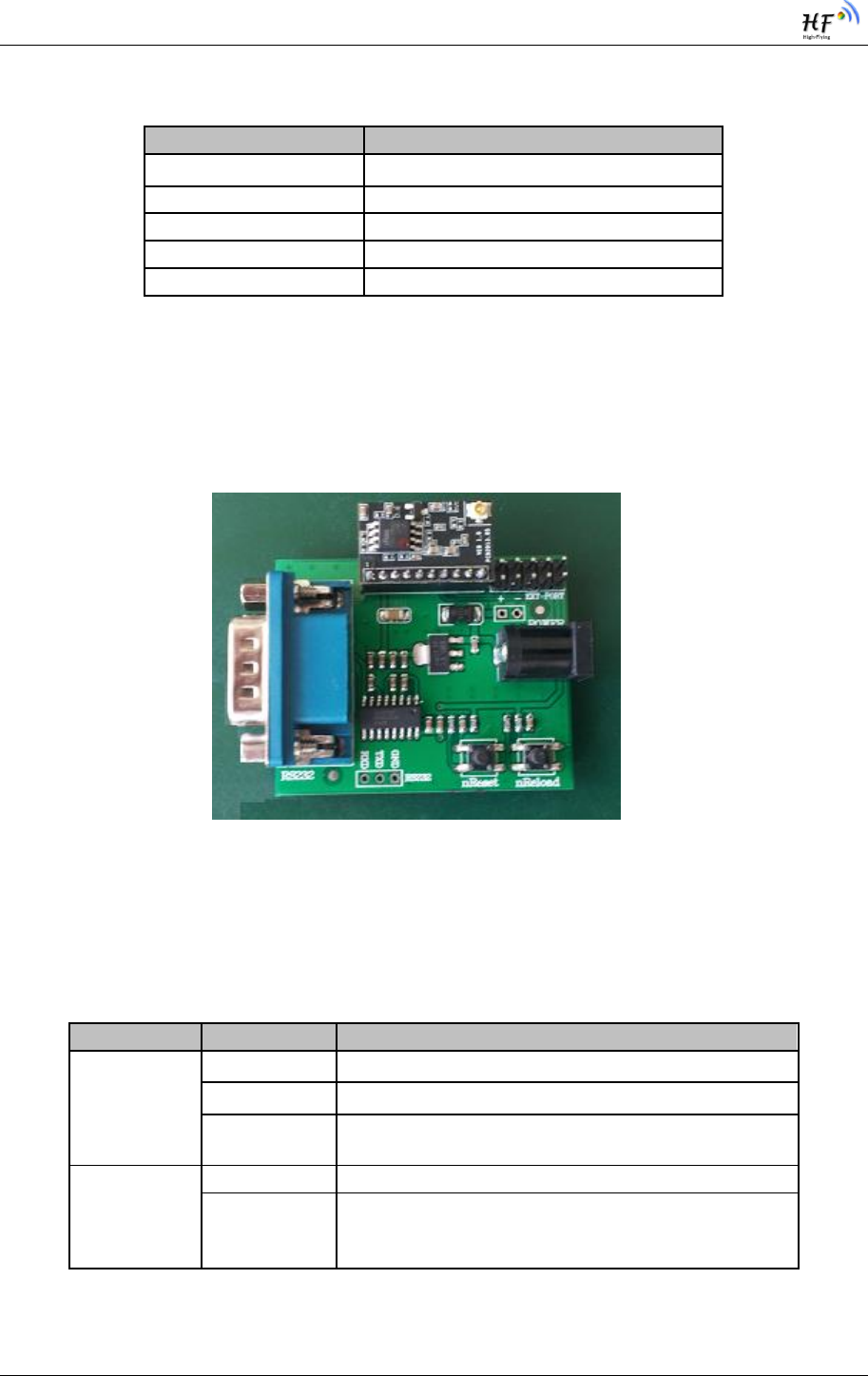

1.2.5. Evaluation Kit ....................................................................................................................14

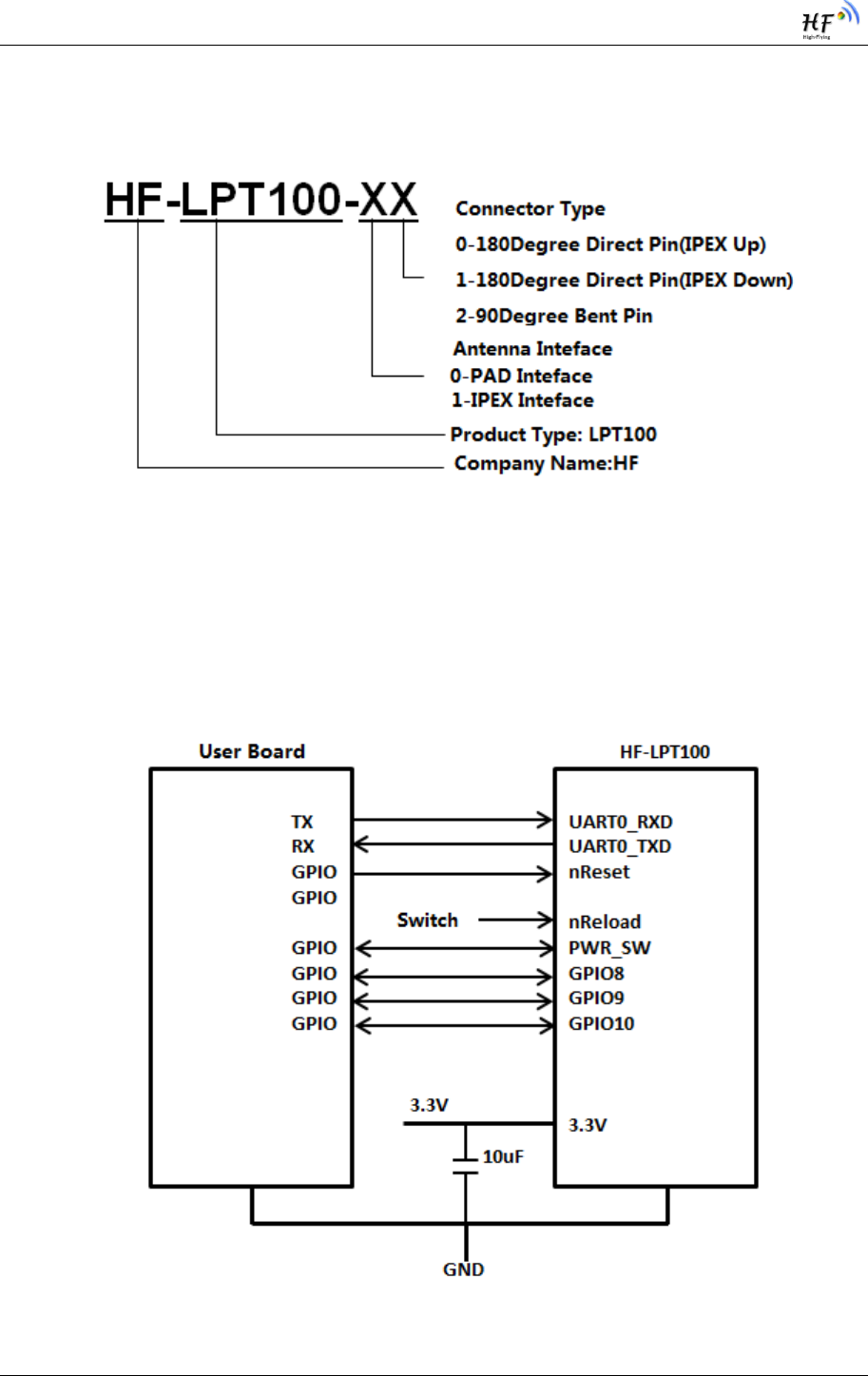

1.2.6. Order Information ..............................................................................................................15
1.3. Typical Application ................................................................................................................15
1.3.1. Hardware Typical Application ...........................................................................................15

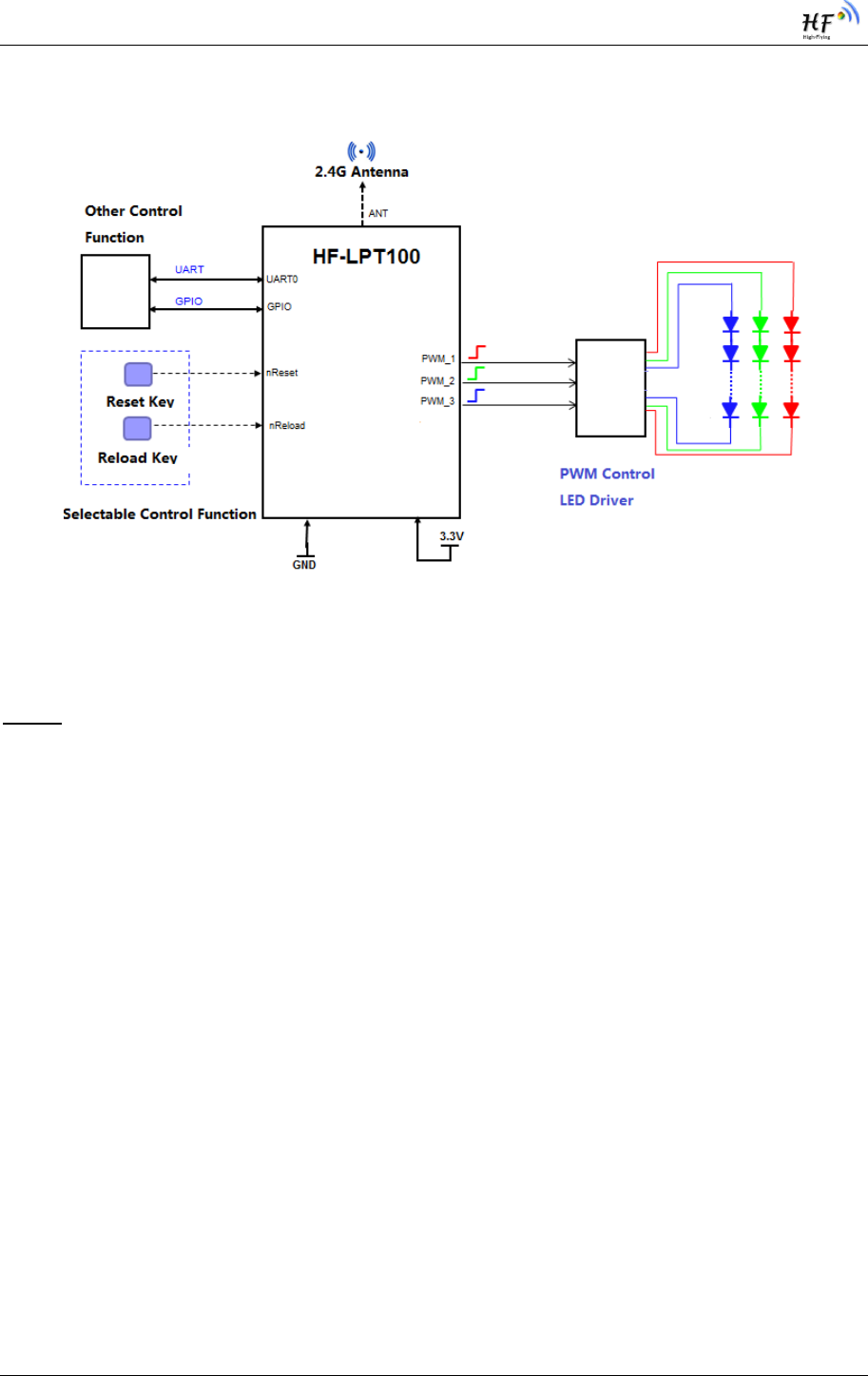

1.3.2. Smart LED Application Hardware Typical Connection ....................................................16
2. FUNCTIONAL DESCRIPTION ..................................................................................................18
2.1. Wireless Networking ..............................................................................................................18

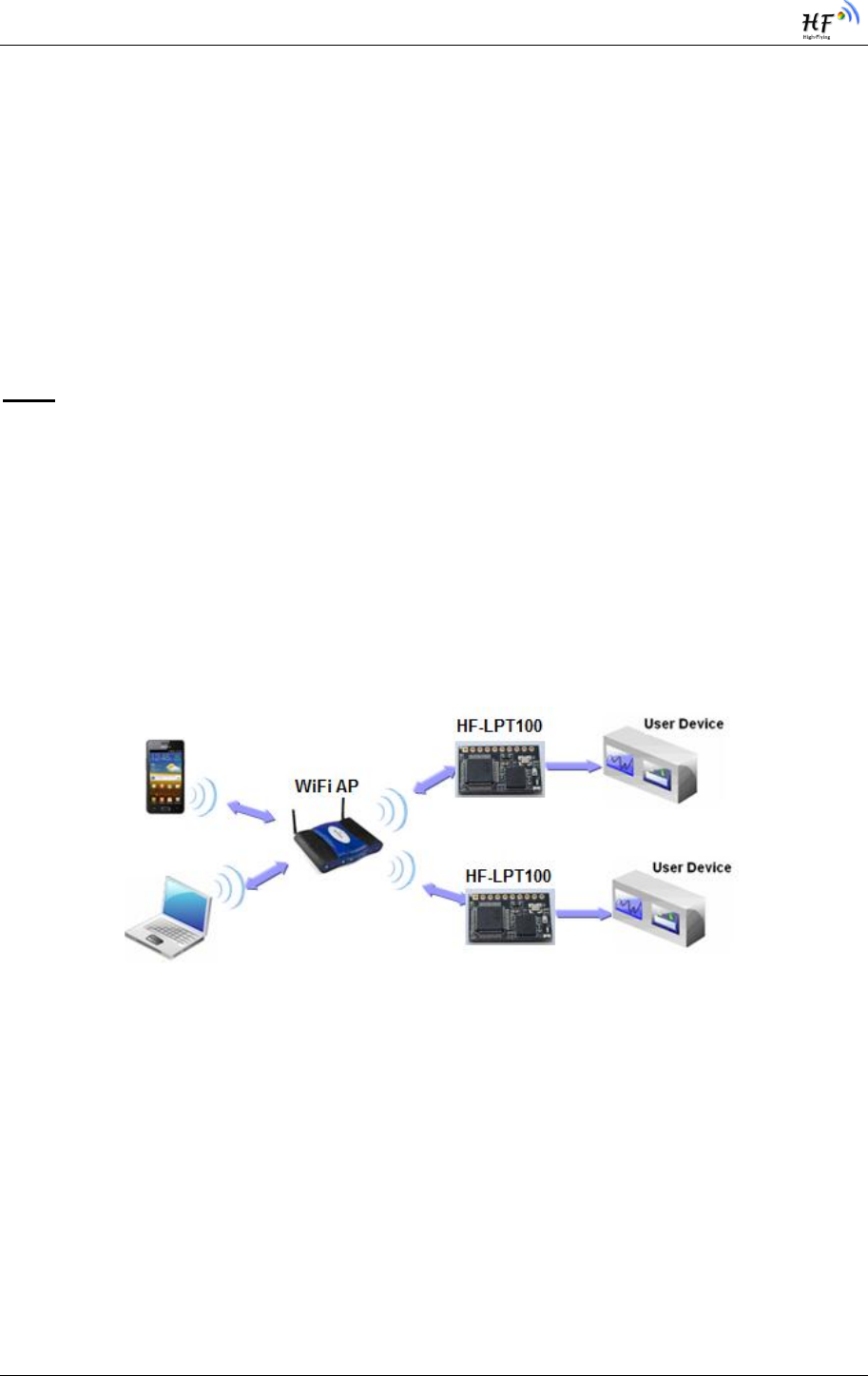

2.1.1. Basic Wireless Network Based On AP (Infrastructure) ....................................................18

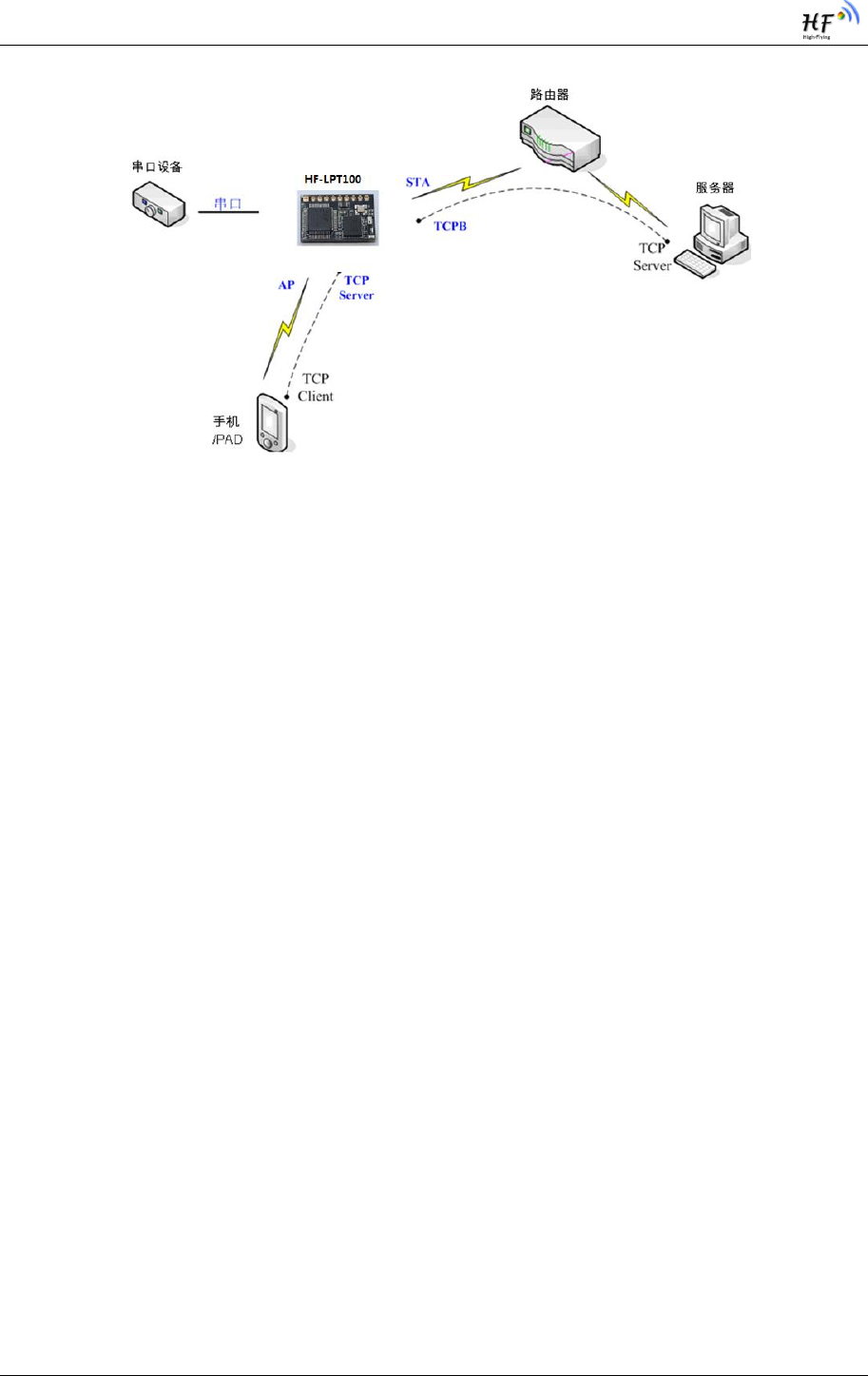

2.1.2. Wireless Network Based On AP+STA ..............................................................................18
2.2. Work Mode : Transparent Transmission Mode ...................................................................19
2.3. UART Frame Scheme.............................................................................................................20
2.3.1. UART Free-Frame ............................................................................................................20
2.3.2. UART Auto-Frame ............................................................................................................20
2.4. Encryption ..............................................................................................................................21
2.5. Parameters Configuration .....................................................................................................21
2.6. Firmware Update ....................................................................................................................21
2.7. GPIO/PWM Function ..............................................................................................................22
2.8. SOCKET B Function ..............................................................................................................23

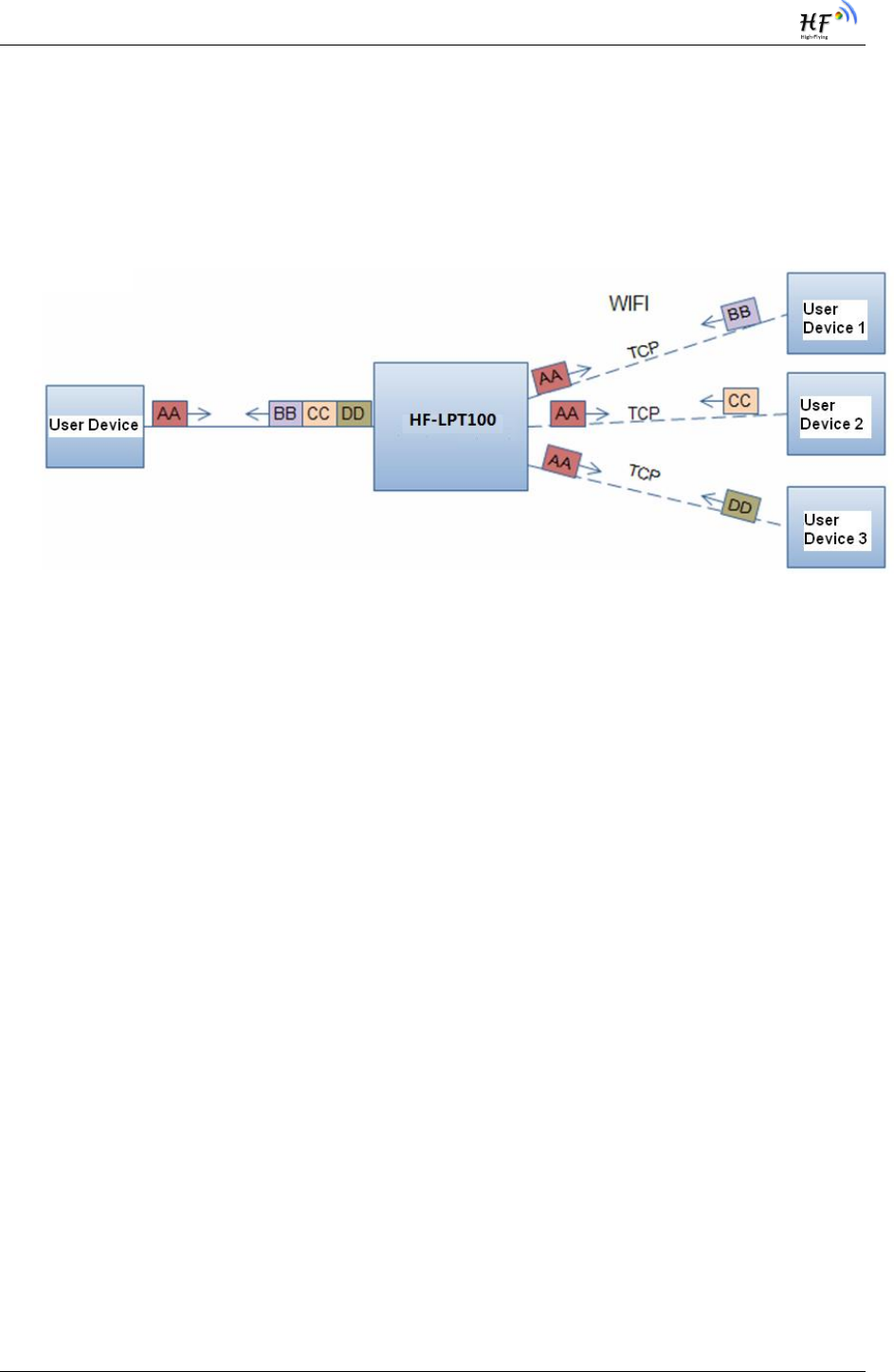

2.9. Multi-TCP Link Connection ...................................................................................................23
3. OPERATION GUIDELINE ..........................................................................................................25
3.1. Configuration via Web Accessing ........................................................................................25

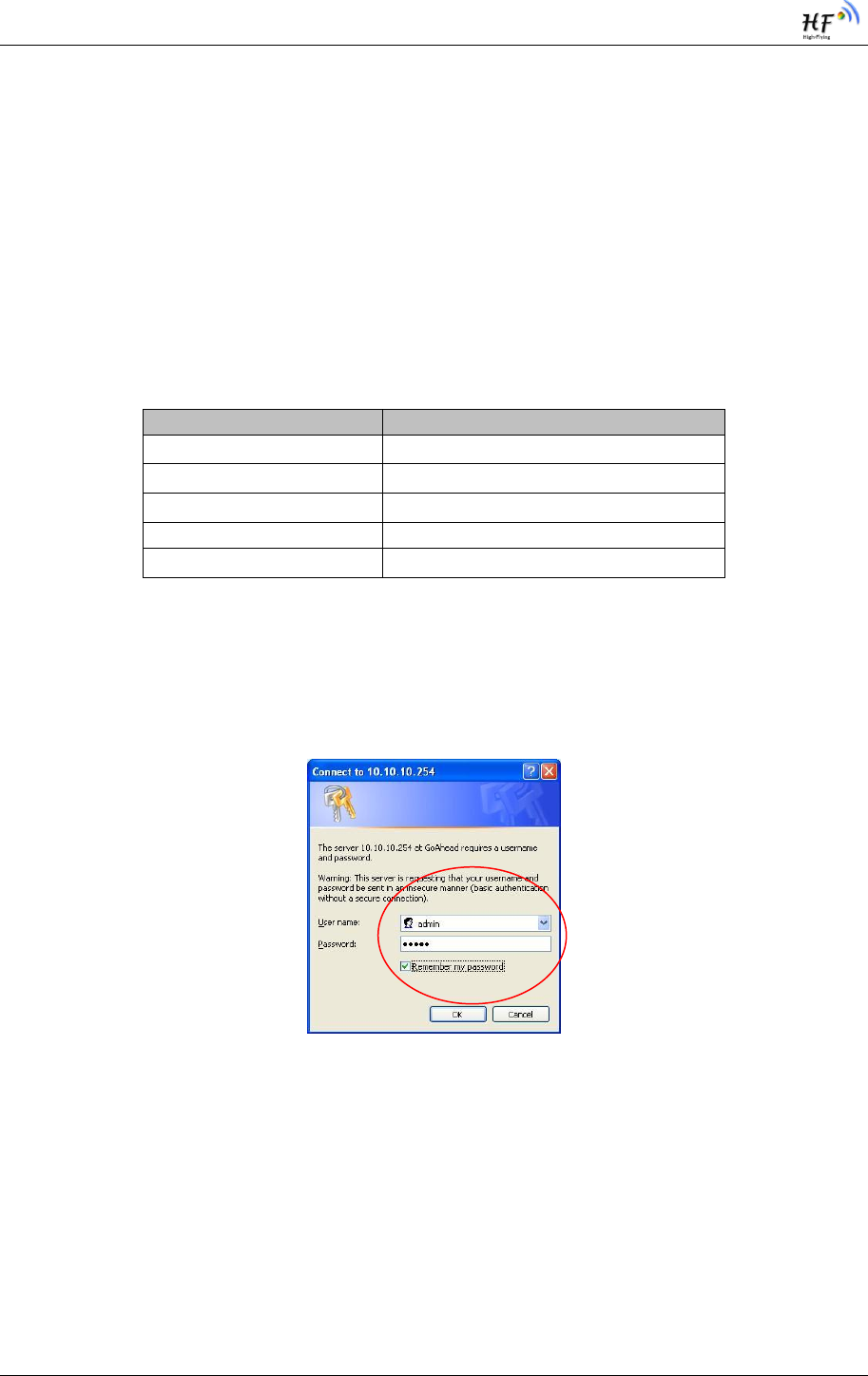

3.1.1. Open Web Management Interface ...................................................................................25

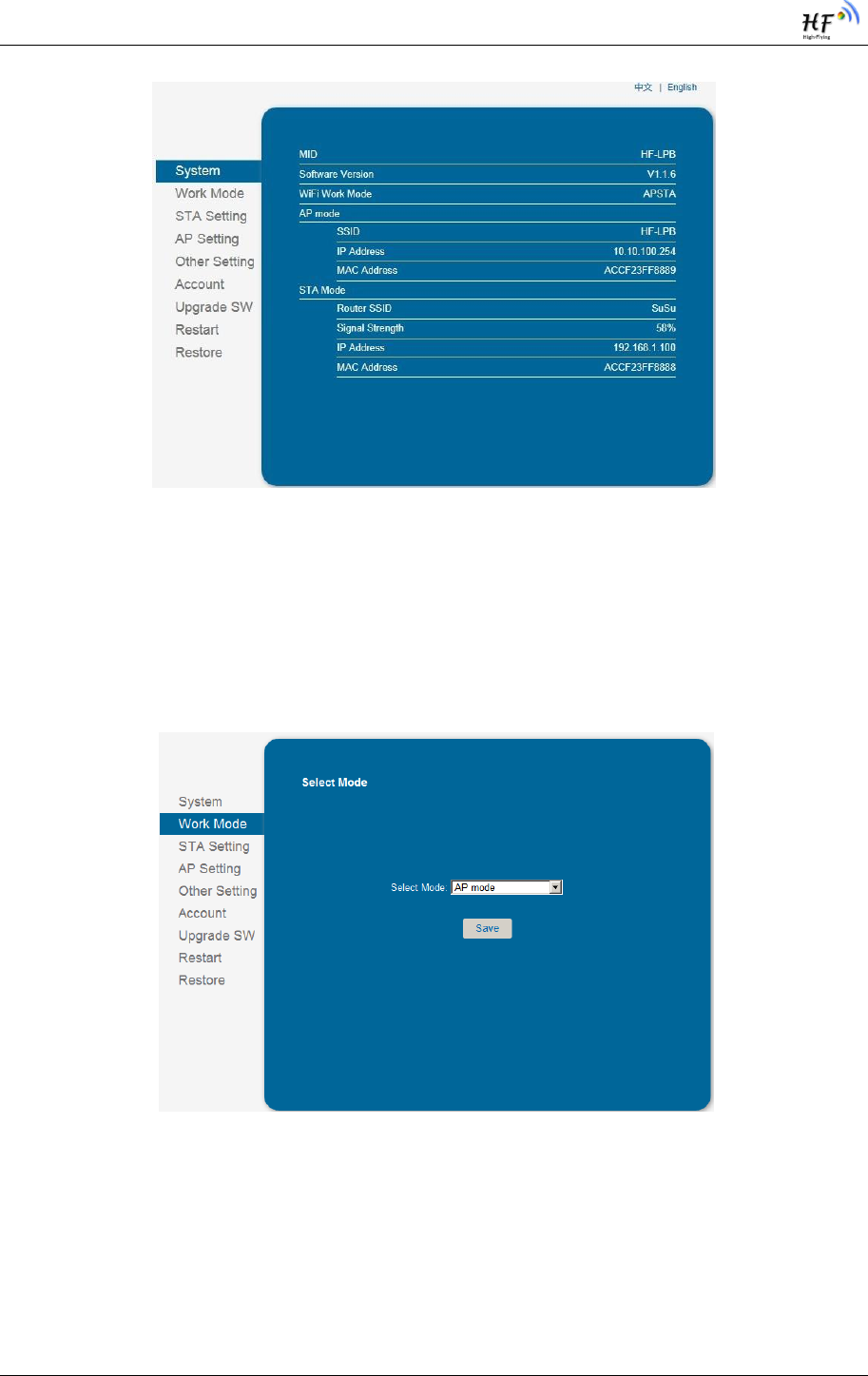

3.1.2. System Page.....................................................................................................................25
3.1.3. Work Mode Page ..............................................................................................................26

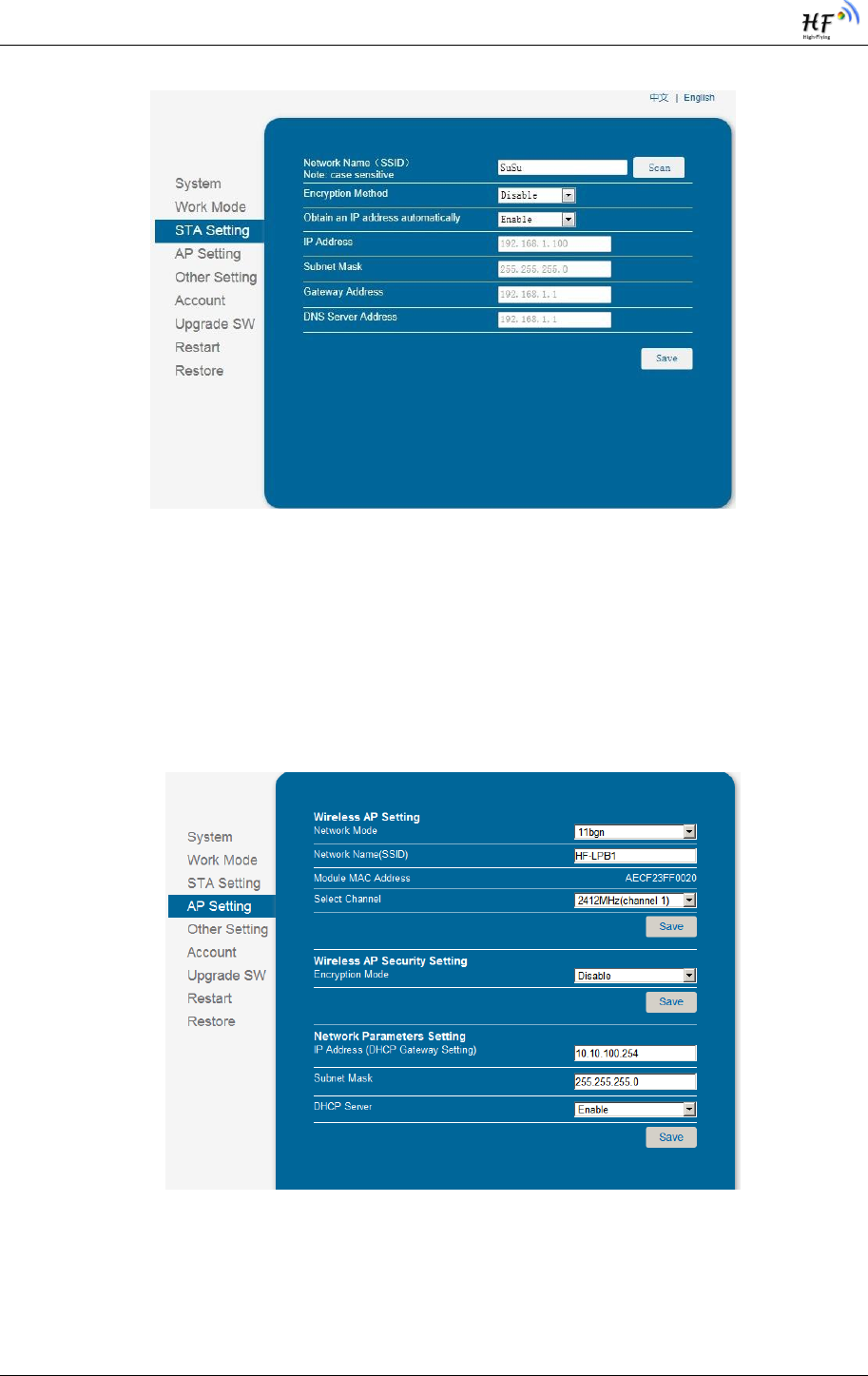

3.1.4. STA Setting Page .............................................................................................................26
3.1.5. AP Setting Page ...............................................................................................................27

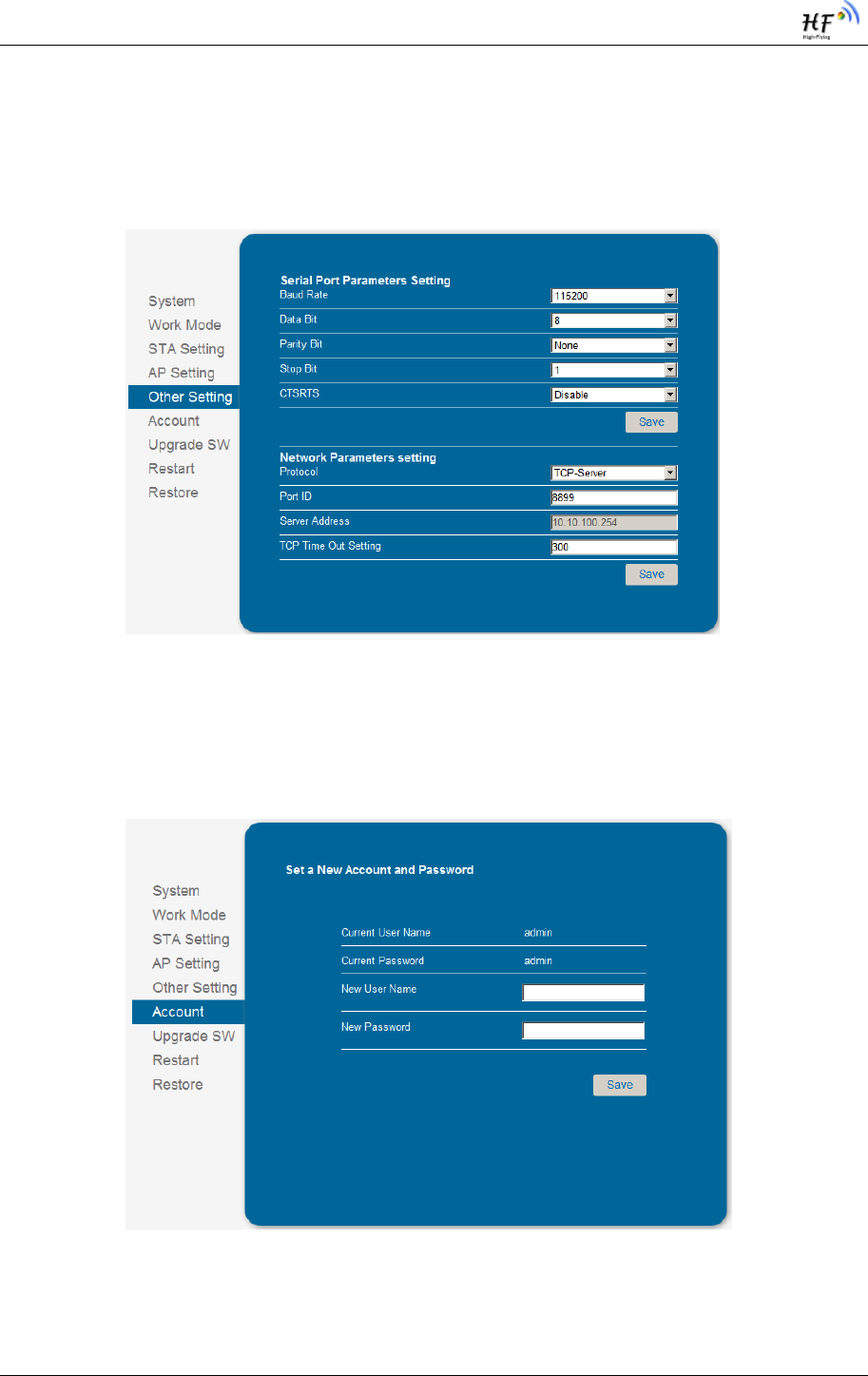

3.1.6. Other Setting Page ...........................................................................................................28
High-Flying
HF-LPB Low Power WiFi Module User Manual
Shanghai High-Flying Electronics Technology Co., Ltd
www.hi-flying.com
- 3 -
3.1.7. Account Management Page .............................................................................................28

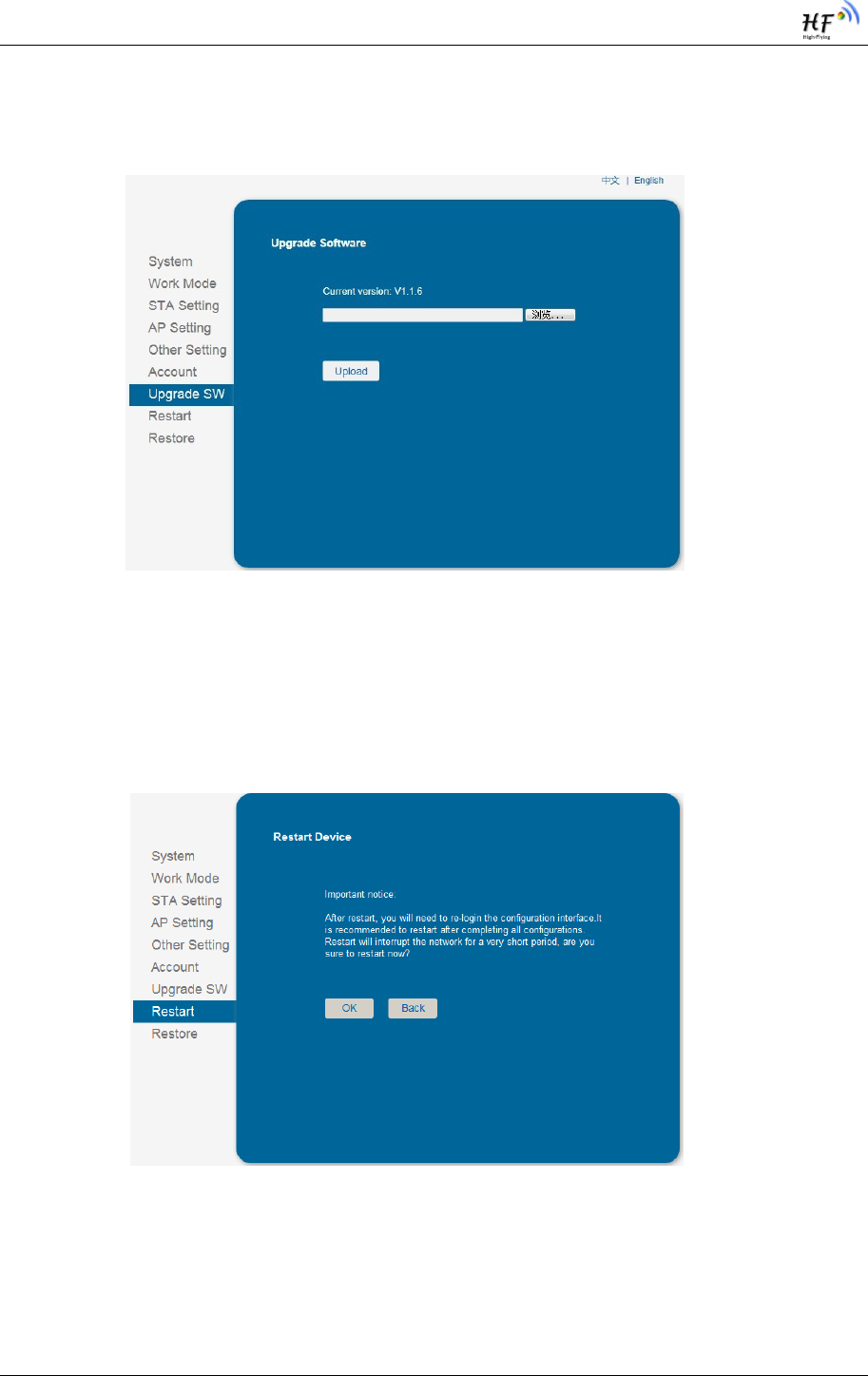

3.1.8. Upgrade Software Page ...................................................................................................29
3.1.9. Restart Page .....................................................................................................................29

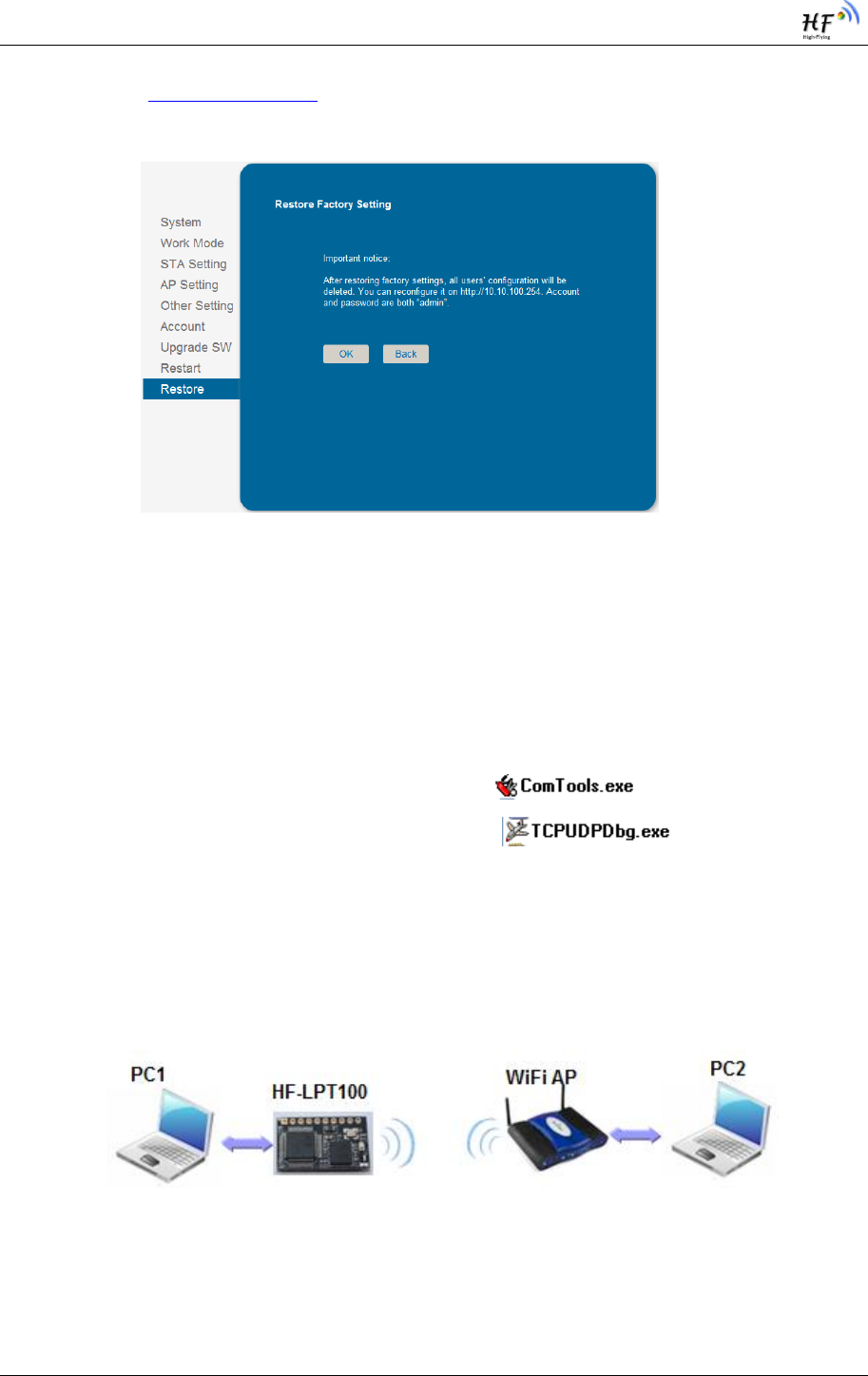

3.1.10. Restore Page ................................................................................................................29
3.2. HF-LPT100 Usage Introduction ............................................................................................30

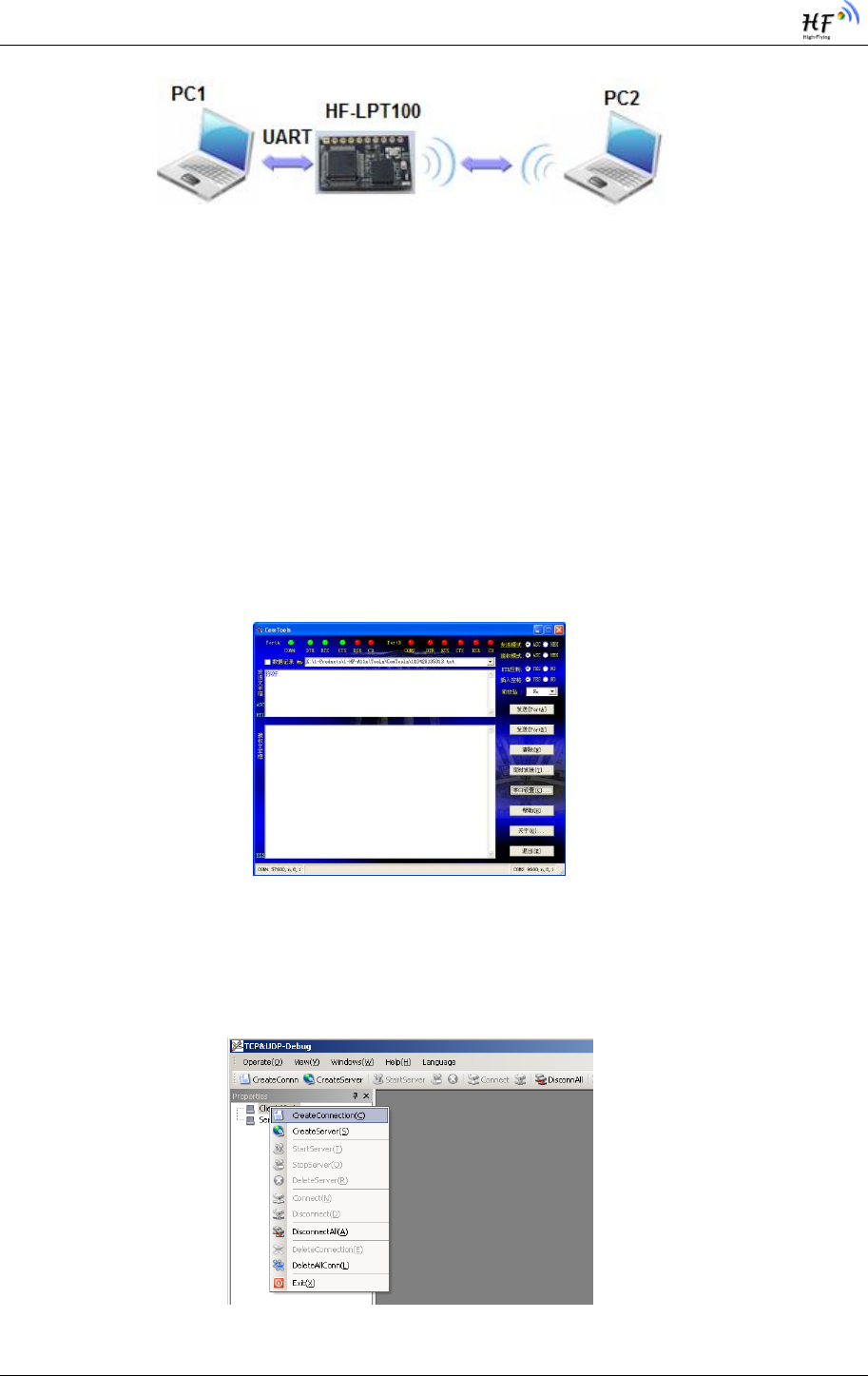

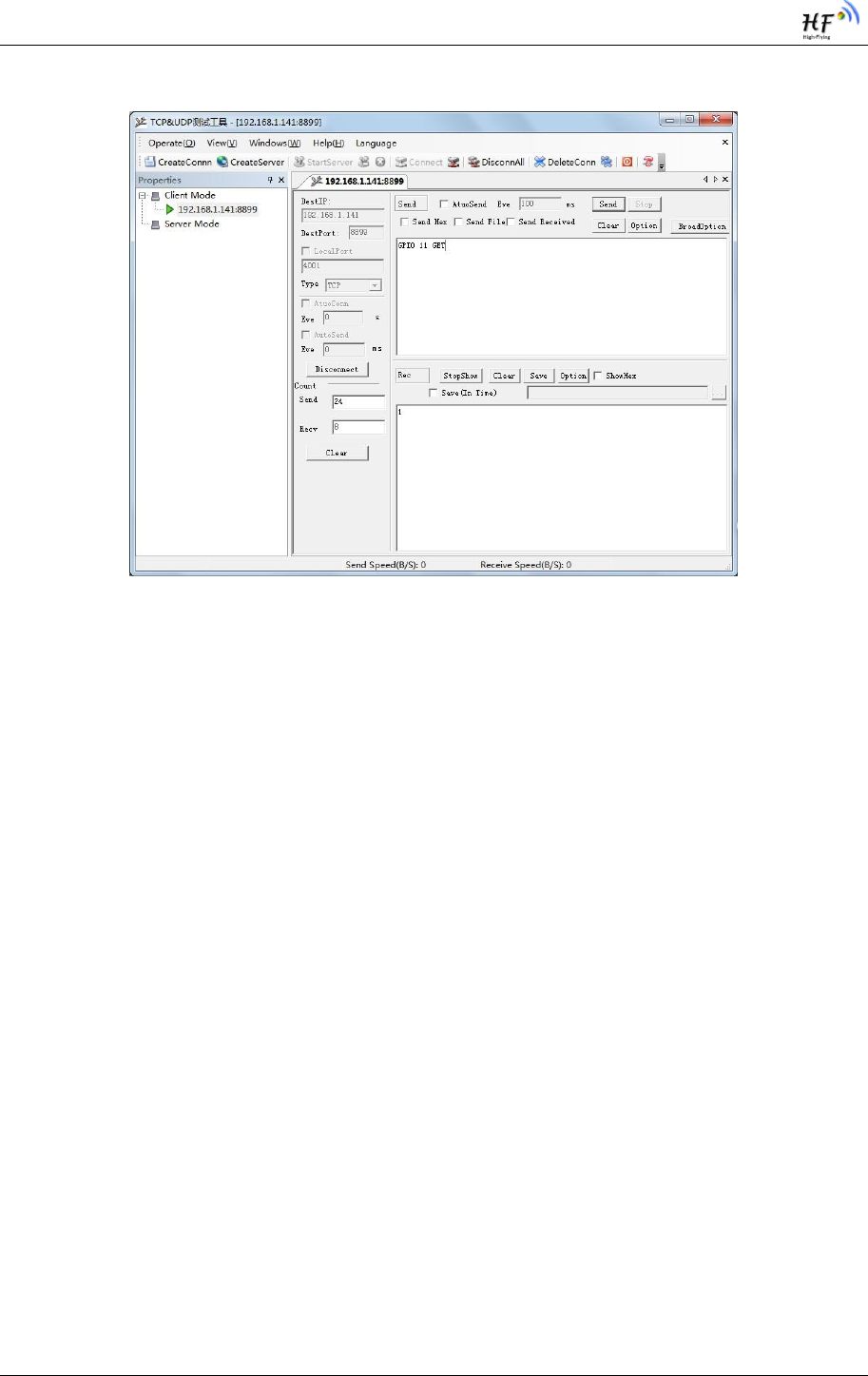

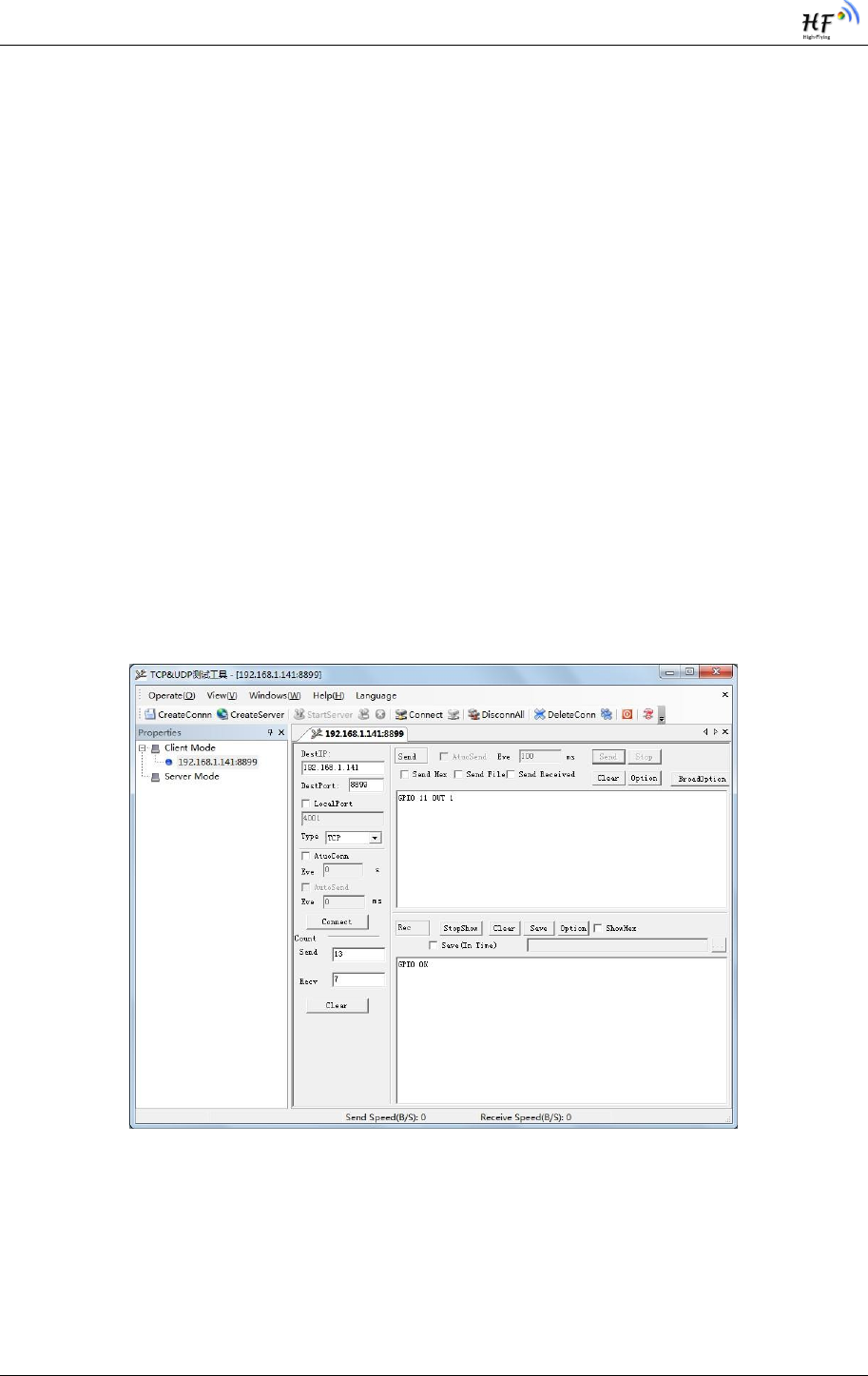

3.2.1. Software Debug Tools ......................................................................................................30
3.2.2. Network Connection .........................................................................................................30
3.2.3. Default Parameter Setting ................................................................................................31
3.2.4. Module Debug...................................................................................................................31
3.3. Typical Application Examples ..............................................................................................32
3.3.1. Wireless Control Application .............................................................................................32

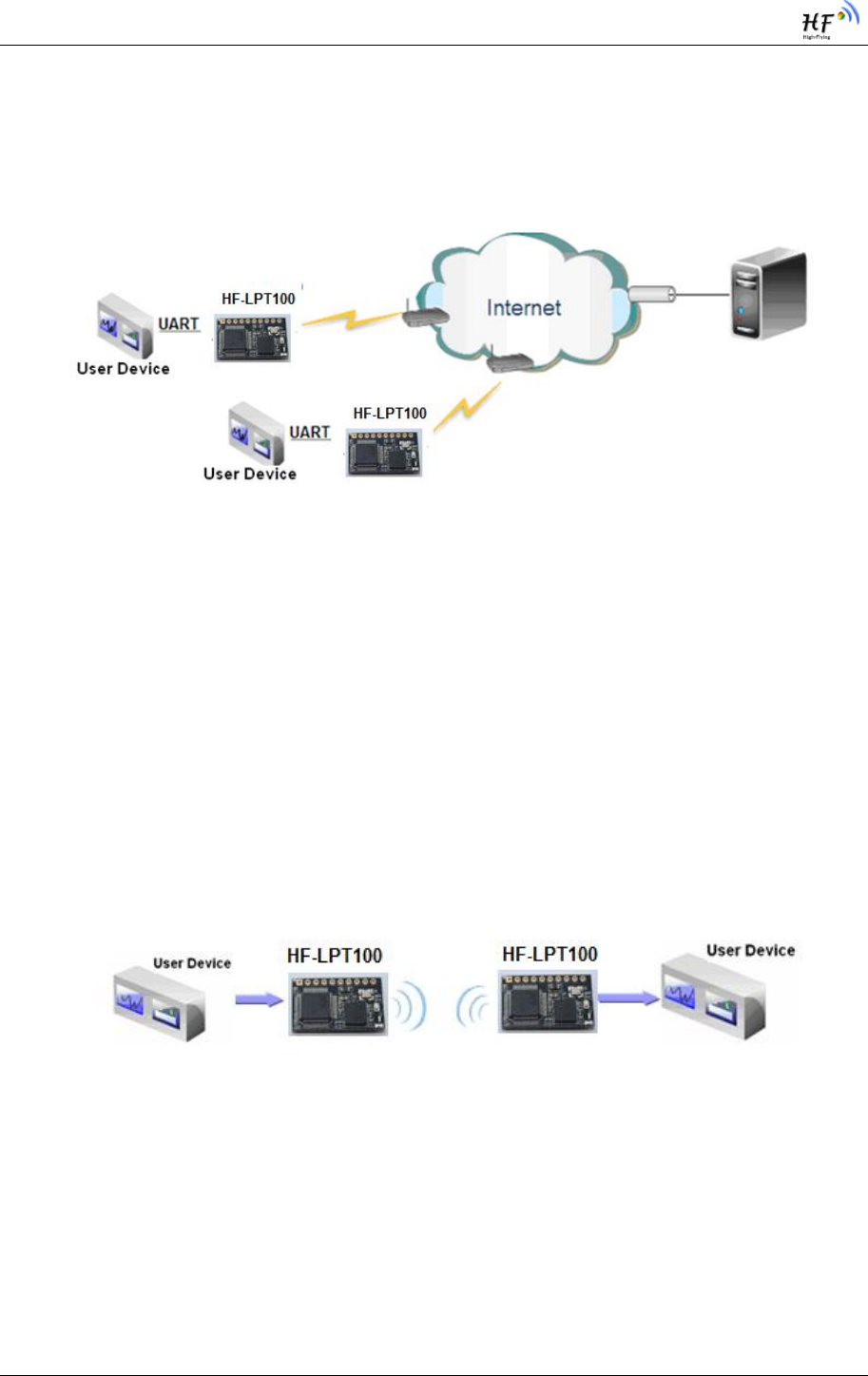

3.3.2. Remote Management Application.....................................................................................33
3.3.3. Transparent Serial Port Application ..................................................................................33
4. AT+INSTRUCTION INTRODUCTION ......................................................................................34
4.1. Configuration Mode ...............................................................................................................34
4.1.1. Switch to Configuration Mode ...........................................................................................34

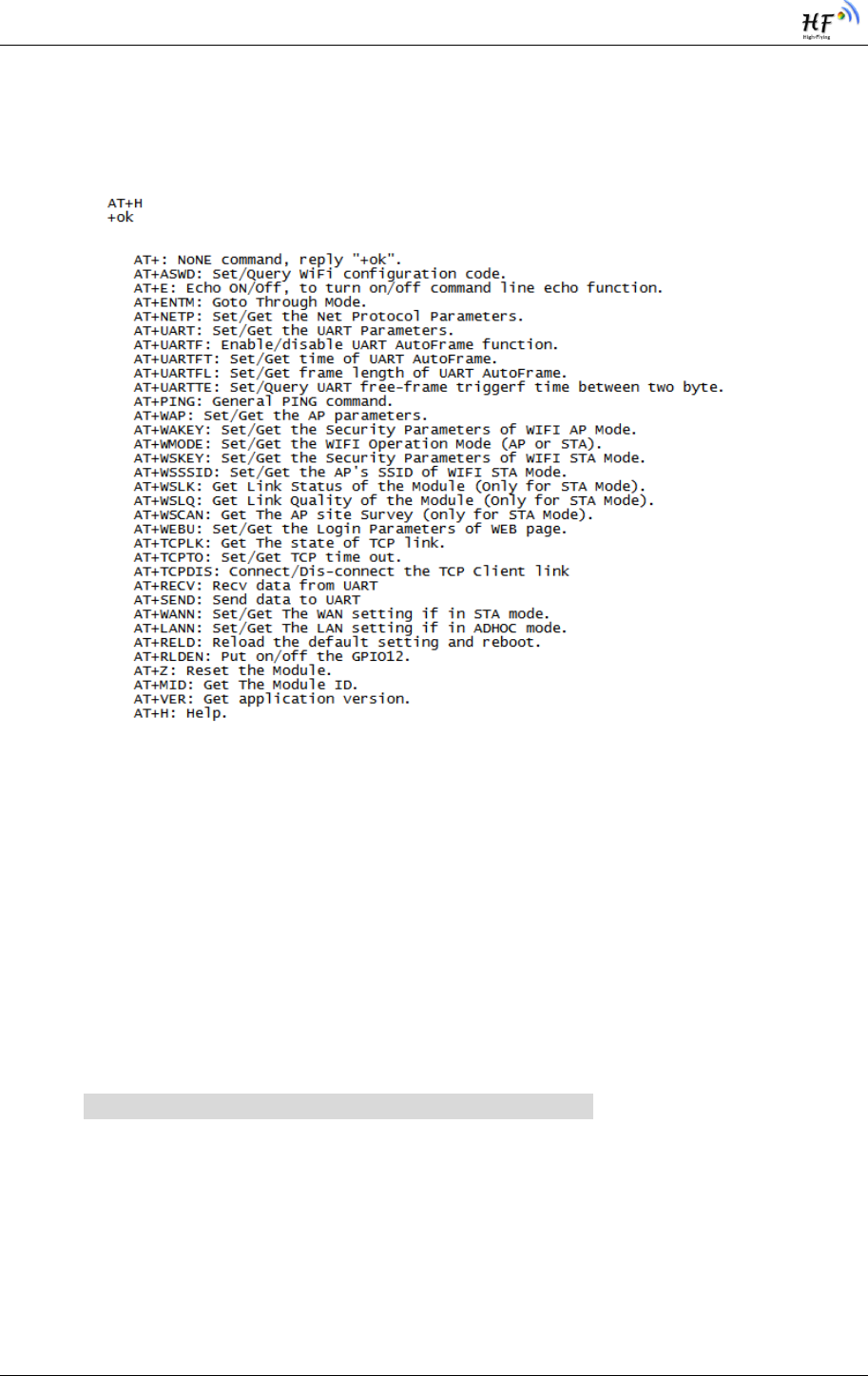

4.2. AT+ Instruction Set Overview ...............................................................................................35
4.2.1. Instruction Syntax Format .................................................................................................35
4.2.2. AT+ Instruction Set ...........................................................................................................36
4.2.2.1. AT+E .............................................................................................................................38
4.2.2.2. AT+WMODE .................................................................................................................38
4.2.2.3. AT+ENTM .....................................................................................................................38
4.2.2.4. AT+TMODE ...................................................................................................................39
4.2.2.5. AT+MID .........................................................................................................................39
4.2.2.6. AT+VER ........................................................................................................................39
4.2.2.7. AT+RELD ......................................................................................................................39
4.2.2.8. AT+FCLR ......................................................................................................................40
4.2.2.9. AT+Z..............................................................................................................................40
4.2.2.10. AT+H .........................................................................................................................40
4.2.2.11. AT+CFGRD ...............................................................................................................40
4.2.2.12. AT+CFGWR ..............................................................................................................40
4.2.2.13. AT+CFGFR ................................................................................................................41
4.2.2.14. AT+CFGTF ................................................................................................................41
4.2.2.15. AT+UART ..................................................................................................................41
4.2.2.16. AT+ UARTF ...............................................................................................................42
4.2.2.17. AT+ UARTFT .............................................................................................................42
4.2.2.18. AT+ UARTFL .............................................................................................................42
4.2.2.19. AT+ UARTTE .............................................................................................................42
4.2.2.20. AT+ SEND .................................................................................................................43
4.2.2.21. AT+ RECV .................................................................................................................43
4.2.2.22. AT+ PING ..................................................................................................................43
4.2.2.23. AT+NETP ..................................................................................................................43
4.2.2.24. AT+ MAXSK ..............................................................................................................44
High-Flying
HF-LPB Low Power WiFi Module User Manual
Shanghai High-Flying Electronics Technology Co., Ltd
www.hi-flying.com
- 4 -
4.2.2.25. AT+ TCPLK ...............................................................................................................44
4.2.2.26. AT+ TCPTO ...............................................................................................................45
4.2.2.27. AT+TCPDIS ...............................................................................................................45
4.2.2.28. AT+SOCKB ...............................................................................................................45
4.2.2.29. AT+TCPDISB ............................................................................................................46
4.2.2.30. AT+TCPTOB .............................................................................................................46
4.2.2.31. AT+TCPLKB ..............................................................................................................46
4.2.2.32. AT+SNDB ..................................................................................................................47
4.2.2.33. AT+RCVB ..................................................................................................................47
4.2.2.34. AT+WSSSID ..............................................................................................................47
4.2.2.35. AT+WSKEY ...............................................................................................................47
4.2.2.36. AT+ WANN ................................................................................................................48
4.2.2.37. AT+ WSMAC .............................................................................................................48
4.2.2.38. AT+ WSLK .................................................................................................................49
4.2.2.39. AT+ WSLQ ................................................................................................................49
4.2.2.40. AT+WSCAN ...............................................................................................................49
4.2.2.41. AT+ WSDNS ..............................................................................................................49
4.2.2.42. AT+ LANN .................................................................................................................50
4.2.2.43. AT+WAP ....................................................................................................................50
4.2.2.44. AT+WAKEY ...............................................................................................................50
4.2.2.45. AT+WAMAC ..............................................................................................................51
4.2.2.46. AT+WADHCP ............................................................................................................51
4.2.2.47. AT+WADMN ..............................................................................................................51
4.2.2.48. AT+PLANG ................................................................................................................52
4.2.2.49. AT+UPURL ................................................................................................................52
4.2.2.50. AT+UPFILE ...............................................................................................................52
4.2.2.51. AT+UPWEB ...............................................................................................................53
4.2.2.52. AT+UPCFG ...............................................................................................................53
4.2.2.53. AT+UPNVR ...............................................................................................................53
4.2.2.54. AT+UPAUTO .............................................................................................................53
4.2.2.55. AT+LOGSW ...............................................................................................................54
4.2.2.56. AT+LOGPORT ..........................................................................................................54
4.2.2.57. AT+UPST ..................................................................................................................54
4.2.2.58. AT+WEBU .................................................................................................................54
4.2.2.59. AT+MSLP ..................................................................................................................55
4.2.2.60. AT+NTPRF ................................................................................................................55
4.2.2.61. AT+NTPEN ................................................................................................................55
4.2.2.62. AT+NTPTM ................................................................................................................56
4.2.2.63. AT+WRMID ...............................................................................................................56
4.2.2.64. AT+RLDEN ................................................................................................................56
4.2.2.65. AT+ASWD .................................................................................................................56
4.2.2.66. AT+MDCH .................................................................................................................57
4.2.2.67. AT+TXPWR ...............................................................................................................57
High-Flying
HF-LPB Low Power WiFi Module User Manual
Shanghai High-Flying Electronics Technology Co., Ltd
www.hi-flying.com
- 5 -
4.2.2.68. AT+LPTIO ..................................................................................................................57
5. PACKAGE INFORMATION ........................................................................................................59
5.1. Recommended Reflow Profile ..............................................................................................59
5.2. Device Handling Instruction (Module IC SMT Preparation) ...............................................59

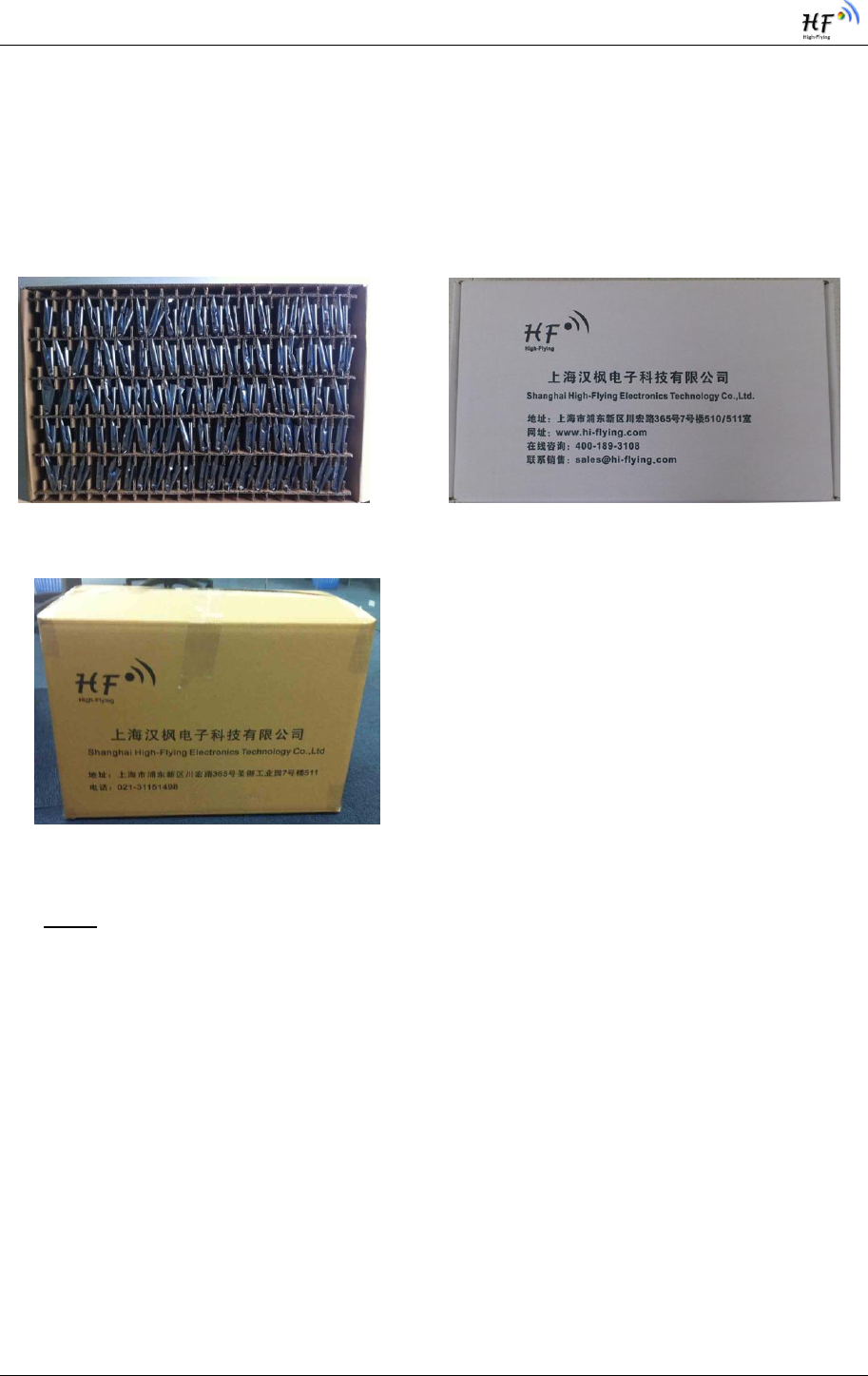

5.3. Shipping Information .............................................................................................................60

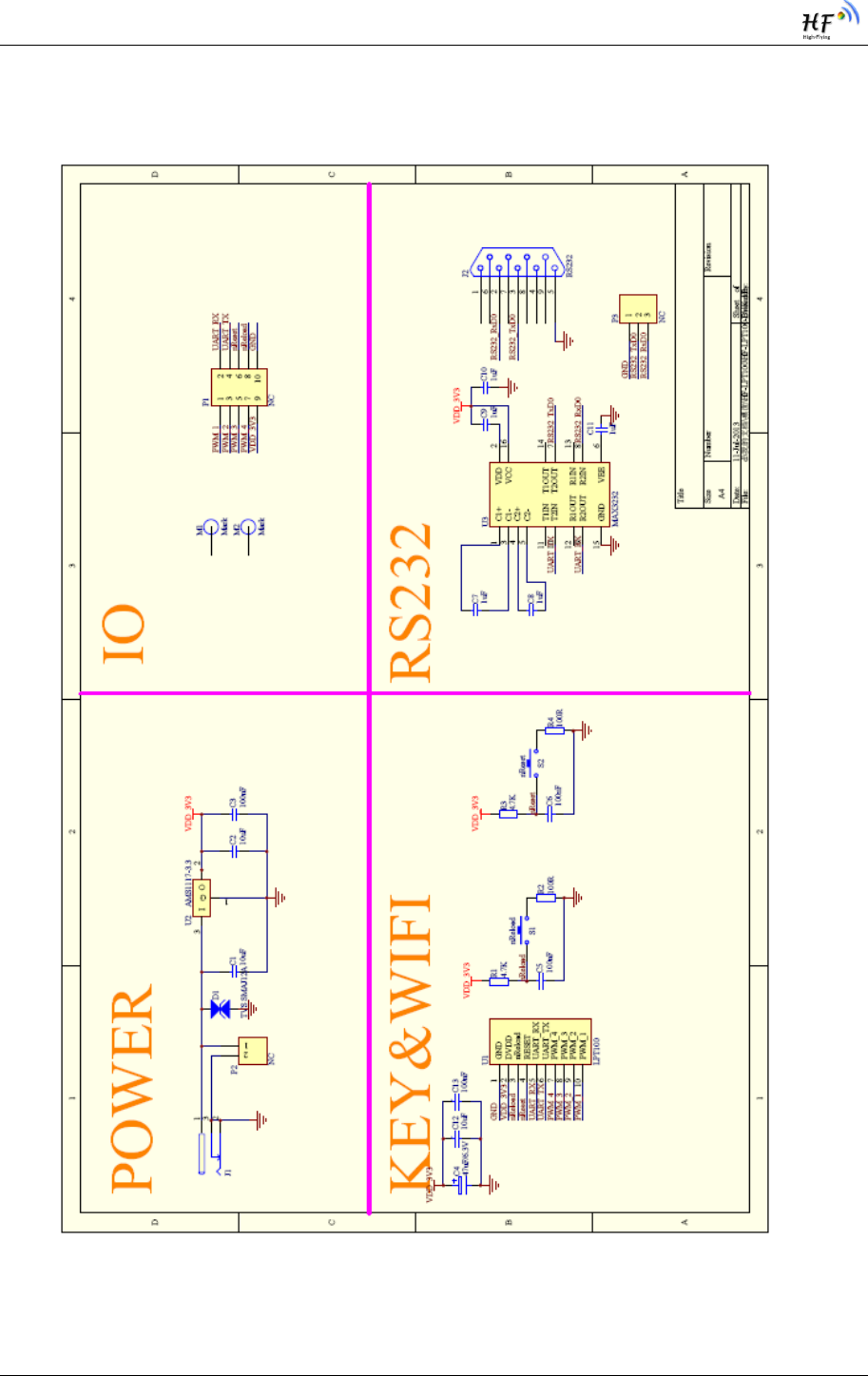

APPENDIX A: HW REFERENCE DESIGN ......................................................................................61
APPENDIX B: CONTROL GPIO/PWM FUNCTION WITH NETWORK COMMANDS ...............62
B.1 Network Command ....................................................................................................................62
B.2 Hexadecimal Network Command ............................................................................................65
APPENDIX C: HTTP PROTOCOL TRANSFER ..............................................................................67
C.1. HTTP AT command ...................................................................................................................67
C.1.1. AT+ HTTPURL ..................................................................................................................67
C.1.2. AT+ HTTPTP ....................................................................................................................67
C.1.3. AT+ HTTPPH ....................................................................................................................67
C.1.4. AT+ HTTPCN ....................................................................................................................68
C.1.5. AT+ HTTPUA ....................................................................................................................68
C.1.6. AT+ HTTPDT ....................................................................................................................68
C.2. HTTP Example ...........................................................................................................................68
APPENDIX D: CONTACT INFORMATION ......................................................................................70
High-Flying
HF-LPB Low Power WiFi Module User Manual
Shanghai High-Flying Electronics Technology Co., Ltd
www.hi-flying.com
- 6 -
LIST OF FIGURES
Figure 1. HF-LPT100 Pins Map ...........................................................................................................11
Figure 2. HF-LPT100 Mechanical Dimension......................................................................................13
Figure 3. HF-LPT100 External Antenna picture ..................................................................................13
Figure 4. HF-LPT100 Evaluation Kit ....................................................................................................14
Figure 5. HF-LPT100 Order Information ..............................................................................................15
Figure 6. HF-LPT100 Hardware Typical Application ...........................................................................15
Figure 7. HF-LPT100 Smart LED Application Hardware Connection..................................................16
Figure 8. HF-LPT100 Basic Wireless Network Structure ....................................................................18
Figure 9. HF-A11 AP+STA Network Structure ....................................................................................19
Figure 10. Socket B function demo ....................................................................................................23
Figure 11. Multi-TCP Link Data Transmition Structure ......................................................................24
Figure 12. Open Web Management page ..........................................................................................25
Figure 13. System Web Page ............................................................................................................26
Figure 14. Work Mode Page ..............................................................................................................26
Figure 15. STA Setting Page .............................................................................................................27
Figure 16. AP Setting Page ...............................................................................................................27
Figure 17. Other Setting Page ...........................................................................................................28
Figure 18. Account Page....................................................................................................................28
Figure 19. Upgrade SW page ............................................................................................................29
Figure 20. Restart Page .....................................................................................................................29
Figure 21. Restore Page ....................................................................................................................30
Figure 22. STA Interface Debug Connection .....................................................................................30
Figure 23. AP Interface Debug Connection .......................................................................................31
Figure 24. “CommTools” Serial Debug Tools ....................................................................................31
Figure 25. “TCPUDPDbg” Tools Create Connection .........................................................................31
Figure 26. “TCPUDPDbg” Tools Setting ............................................................................................32
Figure 27. “TCPUDPDbg” Tools Connection .....................................................................................32
Figure 28. Wireless Control Application .............................................................................................32
Figure 29. Remote Management Application.....................................................................................33
Figure 30. Transparent Serial Port Application ..................................................................................33

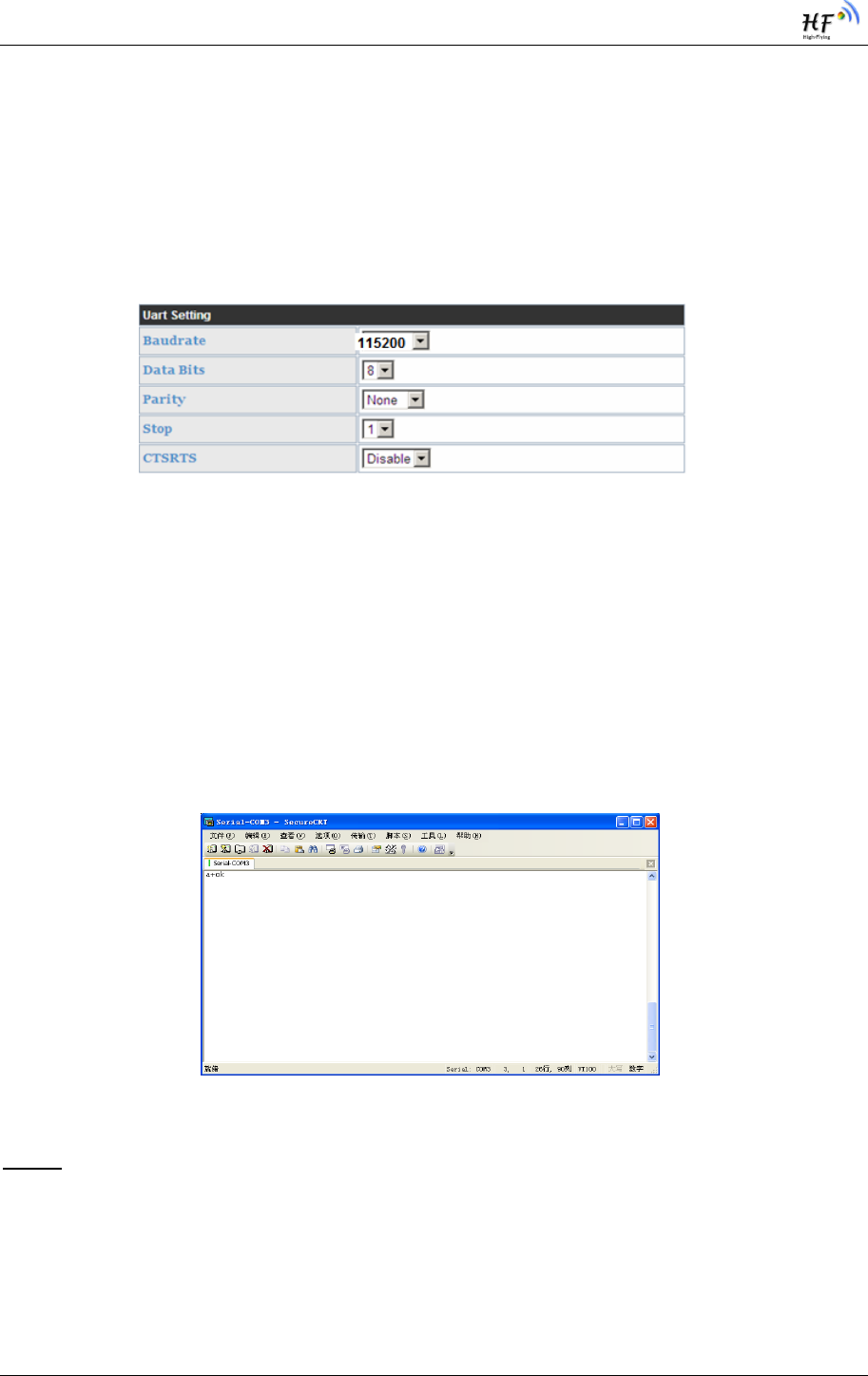

Figure 31. HF-LPT100 Default UART Port Parameters .....................................................................34
Figure 32. Switch to Configuration Mode ...........................................................................................34
Figure 33. ”AT+H” Instruction for Help ...............................................................................................35
Figure 34. Reflow Soldering Profile ...................................................................................................59
Figure 35. Shipping Information .........................................................................................................60
High-Flying
HF-LPB Low Power WiFi Module User Manual
Shanghai High-Flying Electronics Technology Co., Ltd
www.hi-flying.com
- 7 -
LIST OF TABLES
Table 1 HF-LPT100 Module Technical Specifications .......................................................................10
Table 2 HF-LPT100 Pins Definition ....................................................................................................11
Table 3 Absolute Maximum Ratings: ......................................................................................................12
Table 4 Power Supply & Power Consumption: ......................................................................................12
Table 5 HF-LPT100 External Antenna Parameters ...........................................................................14
Table 6 HF-LPT100 Evaluation Kit Interface Description ...................................................................14
Table 7 HF-LPT100 GPIO/PWM Pin Mapping Table .........................................................................22
Table 8 HF-LPT100 Web Access Default Setting ..............................................................................25
Table 9 Error Code Describtion ..........................................................................................................36
Table 10 AT+ Instruction Set List .......................................................................................................36
Table 11 Reflow Soldering Parameter .................................................................................................59
High-Flying
HF-LPB Low Power WiFi Module User Manual
Shanghai High-Flying Electronics Technology Co., Ltd
www.hi-flying.com
- 8 -
HISTORY
Ed. V1.0 08-01-2013 First Version.
Ed. V1.1 09-11-2013 Update AT command.
Ed. V1.2 10-12-2013 Update AT command. Update PWM/GPIO function. Add HTTP protocol demo.
Add auto-frame function.
Ed. V1.3 10-18-2013 Add nReload Pin wireless upgrade and config description, add nLink Pin
wireless upgrade indication description.
High-Flying
HF-LPB Low Power WiFi Module User Manual
Shanghai High-Flying Electronics Technology Co., Ltd
www.hi-flying.com
- 9 -
1. PRODUCT OVERVIEW
1.1. General Description
The HF-LPT100 is a fully self-contained small form-factor, single stream, 802.11b/g/n Wi-Fi module,
which provide a wireless interface to any equipment with a Serial/SPI/USB interface for data
transfer.HF-LPT100 integrate MAC, baseband processor, RF transceiver with power amplifier in
hardware and all Wi-Fi protocol and configuration functionality and networking stack, in embedded
firmware to make a fully self-contained 802.11b/g/n Wi-Fi solution for a variety of applications.
The HF-LPT100 employs the world's lowest power consumption embedded architecture. It has been
optimized for all kinds of client applications in the home automation, smart grid, handheld device,
personal medical application and industrial control that have lower data rates, and transmit or receive
data on an infrequent basis.
The HF-LPT100 integrates all Wi-Fi functionality into a low-profile, 23.1x32.8x 2.7mm SMT module
package that can be easily mounted on main PCB with application specific circuits. Also, module
provides built-in antenna, external antenna option.
1.1.1 Device Features
Single stream Wi-Fi @ 2.4 GHz with support for WEP security mode as well as WPA/WPA2
Based on Self-developed High Cost Performance MCU
Ultra-low-power operation with all kinds of power-save modes.
Includes all the protocol and configuration functions for Wi-Fi connectivity.
Support STA/AP/AP+STA Mode
Support Smart Link Function
Support Wireless and Remote Firmware Upgrade Function
Support External IPEX or Pad Interface antenna connector options.
Support Dial Switch to Control Power
Support Max 3 Channel PWM Output
Compact surface mount module 22mm x 13.5mm x 6mm
Full IPv4 and IPv6 stack.
Low power RTOS and drivers.
FCC Certified.
RoHS and CE compliant.
Single supply – 3.3V operation.
High-Flying
HF-LPB Low Power WiFi Module User Manual
Shanghai High-Flying Electronics Technology Co., Ltd
www.hi-flying.com
- 10 -
1.1.2 Device Paremeters
Table 1 HF-LPT100 Module Technical Specifications
Class
Item
Parameters
Wireless
Parameters
Certification
FCC/CE
Wireless standard
802.11 b/g/n
Frequency range
2.412GHz-2.484GHz
Transmit Power
802.11b: +16 +/-2dBm (@11Mbps)
802.11g: +14 +/-2dBm (@54Mbps)
802.11n: +13 +/-2dBm (@HT20, MCS7)
Receiver Sensitivity
802.11b: -93 dBm (@11Mbps ,CCK)
802.11g: -85 dBm (@54Mbps, OFDM)
802.11n: -82 dBm (@HT20, MCS7)
Antenna Option
External:I-PEX Connector
External:Pad connector
Hardware
Parameters
Data Interface
UART
PWM, GPIO
Operating Voltage
2.8~3.6V
Operating Current
Peak [Continuous TX]: ~200mA
Normal [WiFi ON/OFF, DTIM=100ms]:
Average. ~12mA, Peak: 200mA
Standby [WiFi Shutdown]: <200uA
Power Down Switch: <10uA
Operating Temp.
-40℃- 85℃
Storage Temp.
-45℃- 125℃
Dimensions and Size
22mm x 13.5mm x 6mm
External Interface
1x10, 2mm DIP
Software
Parameters
Network Type
STA /AP/STA+AP
Security Mechanisms
WEP/WPA-PSK/WPA2-PSK
Encryption
WEP64/WEP128/TKIP/AES
Update Firmware
Local Wireless, Remote
Customization
Web Page Upgrade
Support SDK for application develop
Network Protocol
IPv4, IPv6,TCP/UDP/FTP/HTTP
User Configuration
AT+instruction set. Android/ iOS
Smart Link APP tools
1.1.3 Key Application
Remote equipment monitoring
Asset tracking and telemetry
Security
Industrial sensors and controls
Home automation
Medical devices
High-Flying
HF-LPB Low Power WiFi Module User Manual
Shanghai High-Flying Electronics Technology Co., Ltd
www.hi-flying.com
- 11 -
1.2. Hardware Introduction
1.2.1. Pins Definition
Figure 1. HF-LPT100 Pins Map
Table 2 HF-LPT100 Pins Definition
Pin
Description
Signal
Type
Comments
1
Ground
Power
2
+3.3V Power
Power
3.3V@250mA
3
Restore
Configuration
I,PU
Detailed functions see <Notes>
4
Module Reset
I,PU
“Low” effective reset input.
5
UART0
I
GPIO5, No connect if not use.
6
UART0
O
GPIO6, No connect if not use.
7
Power Control
Switch
I,PU
“0” – Power Down Mode(Lowest Power
Consumption)
“1” – Normal mode
8
PWM Channel 3
I/O
Can be configured as WPS/GPIO18
No connect if not use.
9
PWM Channel 2
I/O
Can be configured as nReady/GPIO12.
No connect if not use.
10
PWM Channel 1
I/O
Can be configured as nLink/GPIO11.
Detailed functions see <Notes>
<Notes>
nReload Pin (Button) function：
1. When this pin is set to “low” during module boot up, the module will enter wireless
firmware and config upgrade mode. This mode is used for customer manufacture.
(High-Flying will provide software tools for customer batch configuration and
upgrade firmware during mass production)
High-Flying
HF-LPB Low Power WiFi Module User Manual
Shanghai High-Flying Electronics Technology Co., Ltd
www.hi-flying.com
- 12 -
2. After module is powered up, short press this button ( “Low” < 3s ) to make the
module go into “Smart Link “ config mode, waiting for APP to set password and
other information.
3. After module is powered up, long press this button ( “Low” > 3s ) to make the
module recover to factory setting.
High-Flying strongly suggest customer fan out this pin to connector or button for
“Manufacture” and “ Smart Link” application.
nLink Pin (LED) function：
1. At wireless firmware and config upgrade mode , this LED used to indicate configure
and upgrade status.
2. At “Smart Link “ config mode, this LED used to indicate APP to finish setting.
3. At normal mode, it’s Wi-Fi link status indicator
High-Flying strongly suggest customer fan out this pin to LED.
1.2.2. Electrical Characteristics
Table 3 Absolute Maximum Ratings:
Parameter
Condition
Min.
Typ.
Max.
Unit
Storage temperature range
-45
125
°C
Maximum soldering temperature
IPC/JEDEC J-STD-020
260
°C
Supply voltage
0
3.8
V
Voltage on any I/O pin
0
3.3
V
ESD (Human Body Model HBM)
TAMB=25°C
2
KV
ESD (Charged Device Model, CDM)
TAMB=25°C
1
KV
Table 4 Power Supply & Power Consumption:
Parameter
Condition
Min.
Typ.
Max.
Unit
Operating Supply voltage
2.8
3.3
3.8
V
Supply current, peak
Continuous Tx
200
mA
Supply current, IEEE PS
DTIM=100ms
12
mA
Output high voltage
Sourcing 6mA
2.8
V
Output low voltage
Sinking 6mA
0.2
V
Input high voltage
2.2
V
Input low voltage
0.8
V
High-Flying
HF-LPB Low Power WiFi Module User Manual
Shanghai High-Flying Electronics Technology Co., Ltd
www.hi-flying.com
- 13 -
1.2.3. Mechanical Size
HF-LPT100 modules physical size （Unit: mm） as follows:
Figure 2. HF-LPT100 Mechanical Dimension
1.2.4. External Antenna
HF-LPT100 supports two way of external antenna as the following picture show, The IPEX interface
or the PAD interface. The user may choose one of them. If user select external antenna, HF-LPT100
modules must be connected to the 2.4G antenna according to IEEE 802.11b/g/n standards.
The antenna parameters required as follows:
Figure 3. HF-LPT100 External Antenna picture
High-Flying
HF-LPB Low Power WiFi Module User Manual
Shanghai High-Flying Electronics Technology Co., Ltd
www.hi-flying.com
- 14 -
Table 5 HF-LPT100 External Antenna Parameters
1.2.5. Evaluation Kit
High-Flying provides the evaluation kit to promote user to familiar the product and develop the detailed
application. The evaluation kit shown as below, user can connect to HF-LPT100 module with the RS-
232 UART, or Wireless port to configure the parameters, manage the module or do the some
functional tests. The EVK support .5~18 V DC power supply.
Figure 4. HF-LPT100 Evaluation Kit
The external interface description for evaluation kit as follows:
Table 6 HF-LPT100 Evaluation Kit Interface Description
Item
Parameters
Frequency range
2.4~2.5GHz
Impedance
50 Ohm
VSWR
2 (Max)
Return Loss
-10dB (Max)
Connector Type
I-PEX or populate directly
Function
Name
Description
External
Interface
RS232
Main data/command RS-232 interface
DC5-18V
DC jack for power in, 5~18V input.
EXT PORT
HF-LPT100 GPIO function extend interface
connector
Button
nReset
Used to reset the module.
nReload
Restore factory default configuration after push this
pin more than 3s.
See 1.2.1
High-Flying
HF-LPB Low Power WiFi Module User Manual
Shanghai High-Flying Electronics Technology Co., Ltd
www.hi-flying.com
- 15 -
1.2.6. Order Information
Base on customer detailed requirement, HF-LPT100 series modules provide different variants and
physical type for detailed application.
Figure 5. HF-LPT100 Order Information
1.3. Typical Application
1.3.1. Hardware Typical Application
Figure 6. HF-LPT100 Hardware Typical Application
High-Flying
HF-LPB Low Power WiFi Module User Manual
Shanghai High-Flying Electronics Technology Co., Ltd
www.hi-flying.com
- 16 -
1.3.2. Smart LED Application Hardware Typical Connection
Figure 7. HF-LPT100 Smart LED Application Hardware Connection
Notes:
nReset- Module hardware reset signal. Input. Logics “0” effective.
There is pull-up resister internal and no external pull-up required. When module power up or some
issue happened, MCU need assert nRST signal “0” at least 10ms, then set” 1” to keep module fully
reset.
nReload- Module restore to factory default configuration.Input. Logics “0” effective.
(This pin is recommend to connect to button, is used to enter wireless upgrade mode)
User can de-assert nReload signal “0” more than 3s through button or MCU pin, then release, module
will restore to factory default configuration and re-start boot up process.. If nReload function not
required, can leave this pin open.
UART0_TXD/RXD- UART port data transmit and receive signal.
PWM-n- PWM control signal output. It can also be configured as GPIO output.
“AT+LPTIO=on” command configure PWM_1 pin as nLink、PWM_2 pin as nReady、PWM_3 as
WPS function.
nReset- Module hardware reset signal. Input. Logics “0” effective.
There is pull-up resister internal and no external pull-up required. When module power up or some
issue happened, MCU need assert nRST signal “0” at least 10ms, then set” 1” to keep module fully
reset.
High-Flying
HF-LPB Low Power WiFi Module User Manual
Shanghai High-Flying Electronics Technology Co., Ltd
www.hi-flying.com
- 17 -
nLink- Module WIFI connection status indication. Output.
(This pin is recommend to connect to LED, indicate status when the module in wireless
upgrade mode)
When module connects to AP (AP associated), this pin will output “0”. This signal used to judge if
module already at WiFi connection status. Thers is pull-up resister internal and no external pull-up
required. If nLink function not required, can leave this pin open.
High-Flying
HF-LPB Low Power WiFi Module User Manual
Shanghai High-Flying Electronics Technology Co., Ltd
www.hi-flying.com
- 18 -
2. FUNCTIONAL DESCRIPTION
2.1. Wireless Networking
HF-LPT100 module can be configured as both wireless STA and AP base on network type. Logically
there are two interfaces in HF-LPT100. One is for STA, and another is for AP. When HF-LPT100
works as AP, other STA equipments are able to connect to wireless LAN via HF-LPT100 module.
Wireless Networking with HF-LPT100 is very flexible.
Notes:
AP: that is the wireless Access Point, the founder of a wireless network and the centre of the network
nodes. The wireless router we use at home or in office may be an AP.
STA: short for Station, each terminal connects to a wireless network (such as laptops, PDA and other
networking devices) can be called with a STA device.
2.1.1. Basic Wireless Network Based On AP (Infrastructure)
Infrastructure: it’s also called basic network. It built by AP and many STAs which join in.
The characters of network of this type are that AP is the centre, and all communication between STAs
is transmitted through the AP. The figure following shows such type of networking.
Figure 8. HF-LPT100 Basic Wireless Network Structure
2.1.2. Wireless Network Based On AP+STA
HF-LPT100 module support AP+STA network mode, means module support one AP interface and one
STA interface at the same time, as following figure,
High-Flying
HF-LPB Low Power WiFi Module User Manual
Shanghai High-Flying Electronics Technology Co., Ltd
www.hi-flying.com
- 19 -
Figure 9. HF-A11 AP+STA Network Structure
When module enables AP+STA function, Module’s STA interface can connect with router and connect
to TCP server in the network. At the same time, module’s AP interface is also active and permit
phone/PAD to connect through TCPB, then phone/PAD can control user device and and setting the
module parameters,
The advantage of AP+STA mode is:
Users can easily setting and track user device through Phone/PAD and not change the
orginal network setting.
Users can easily setting module’s parameters through WiFi when module works as STA
mode.
2.2. Work Mode : Transparent Transmission Mode
HF-LPT100 module support serial interface transparent transmission mode. The benefit of this mode
is achieves a plug and play serial data port, and reduces user complexity furthest. In this mode, user
should only configure the necessary parameters. After power on, module can automatically connect to
the default wireless network and server.
As in this mode, the module's serial port always work in the transparent transmission mode, so users
only need to think of it as a virtual serial cable, and send and receive data as using a simple serial. In
other words, the serial cable of users’ original serial devices is directly replaced with the module; user
devices can be easy for wireless data transmission without any changes.
The transparent transmission mode can fully compatible with user’s original software platform and
reduce the software development effort for integrate wireless data transmission.
The parameters which need to configure include:
Wireless Network Parameters
Wireless Network Name（SSID）
Security Mode
Encryption Key
High-Flying
HF-LPB Low Power WiFi Module User Manual
Shanghai High-Flying Electronics Technology Co., Ltd
www.hi-flying.com
- 20 -
TCP/UDP Linking Parameters
Protocol Type
Link Type（Server or Client）
Target Port ID Number
Target Port IP Address
Serial Port Parameters
Baud Rate
Data Bit
Parity (Check) Bit
Stop Bit
Hardware Flow Control
2.3. UART Frame Scheme
2.3.1. UART Free-Frame
HF-LPT100 support UART free-frame function. If user select open this function, module will check the
intervals between any two bytes when reciving UART data. If this interval time exceeds defined value
(50ms default), HF-LPT100 will think it as the end of one frame and transfer this free-frame to WiFi
port, or HF-LPT100 will receive UART data untill 1000 bytes, then transfer 1000 bytes frame to WiFi
port.
HF-LPT100’s default interval time is 50ms. User can also set this interval to fast (10ms) through AT
command. But user have to consider if user MCU can send UART data with 10ms interval ,or the
UART data may be divide as fragment.
Through AT command: AT+UARTTE=fash/normal, user can set the interval time: fast (10ms) and
normal (50ms).
2.3.2. UART Auto-Frame
HF-LPT100 support UART auto-frame function. If user select open this function and setting auto-frame
trigger length and auto-frame trigger time parameters, then module will auto framing the data which
received from UART port and transmitting to the network as pre-defined data structure.
Auto-frame trigger length: The fixed data length that module used to transmitting to the
network.
Auto-frame trigger time: After the trigger time, if UART port received data can’t reach auto-
frame trigger length, then module will transmitting available data to the network and bypass
the auto-frame trigger length condition.
Detailed UART auto-frame function can refer to AT+ instruction set “UARTF/UARTFT/UARTFL”
introduction.
High-Flying
HF-LPB Low Power WiFi Module User Manual
Shanghai High-Flying Electronics Technology Co., Ltd
www.hi-flying.com
- 21 -
2.4. Encryption
Encryption is a method of scrambling a message that makes it unreadable to unwanted parties,
adding a degree of secure communications. There are different protocols for providing encryption, and
the HF-LPT100 module supports following:
WEP
WPA-PSK/TKIP
WPA-PSK/AES
WPA2-PSK/TKIP
WPA2-PSK/AES
2.5. Parameters Configuration
HF-LPT100 module supports two methods to configuration parameters: Web Accessing and
AT+instruction set.
Web accessing means users can configure parameters through Web browser. When HF-LPT100
module connected to wireless network, parameters configuration is done on a PC connected to the
same wireless network.
AT+instruction set configuration means user configure parameters through serial interface command.
Refer to “AT+instruction set” chapter for more detail.
2.6. Firmware Update
HF-LPT100 module supports two on-line upgrade methods:
Webpage Wi-Fi Upgrade
Remote Upgrade
Webpaged based Wi-Fiupgrade,please refer to 3.1.8 firmware upgrade page , user can upload
firmware file from PC to HF-LPT100.
HF-LPT100 module also support upgrade from remote HTTP server, keep module connects to AP
router before excuate remote HTTP upgrade. Remote upgrade have two methods: Direct Download
and Upgrade, Configure File Based Upgrade.
Configure File Based Upgrade
AT+UPURL command to set the remote directory which the configuration file located, such as
AT+UPURL=http://www.hi-flying.com/!admin/down/
Notes: The last ’/’ can’t be remove
AT+UPFILE command to set the configuration file name, such as AT+UPFILE=config.txt
AT+UPST command to start remote Application upgrade. After excuate this command, the module will
firstly download configuration file (“config.txt”), then download the upgrade file base on the URL
address listed in the configure file.
AT+UPWEB command to start remote Webpage upgrade. After excuate this command, the module
will firstly download configuration file (“config.txt”), then download the upgrade file base on the WEB
address listed in the configure file.
High-Flying
HF-LPB Low Power WiFi Module User Manual
Shanghai High-Flying Electronics Technology Co., Ltd
www.hi-flying.com
- 22 -
AT+UPCFG command to start remote Factory Config upgrade. After excuate this command, the
module will firstly download configuration file (“config.txt”), then download the upgrade file base on the
CFG address listed in the configure file.
AT+UPNVR command to start remote NVRAM Data upgrade. After excuate this command, the
module will firstly download configuration file (“config.txt”), then download the upgrade file base on the
NVR address listed in the configure file.
AT+UPAUTO command to start remote upgrade. After excuate this command, the module will firstly
download configuration file (“config.txt”), then download the upgrade file base on the URL,WEB,CFG
address listed in the configure file. It include the functions of AT+UPST,AT+UPWEB,AT+UPCFG.
General “config.txt” file format as following example:
[URL]=”http://10.10.100.100:80/lpb.bin”
[WEB]="http://10.10.100.100:80/web.bin"
[NVR]="http://10.10.100.100:80/nvram.dat"
[CFG]= "http://10.10.100.100:80/cfg.bin"
[URL]= the URL address of Application.
[WEB]=the URL address of Webpage
[NVR]= the URL address of NVRAM data
[CFG]= the URL address of Factory Parameter File
Direct Download and Upgrade
AT+UPURL command to set the remote directory and file name, such as:
AT+UPURL=http://www.hi-flying.com/!admin/down/,lpb.bin
After excuate this command, the module will directly download the “lpb.bin” file from remote directory
and start upgrade Application.
Notes: please contact with high-flying technical people before upgrade firmware, or maybe damage
the module and can’t work again.
2.7. GPIO/PWM Function
HF-LPT100 module can provide many GPIOs, which include max 3 PWM control pins. User devices
can read/write GPIO/PWM pins status.
Table 7 HF-LPT100 GPIO/PWM Pin Mapping Table
Pin Num
Configured Function
Describtion
Default Setting
Type
5
UART0_RX
UART0_RX
GPIO5
I
6
UART0_TX
UART0_TX
GPIO6
O
8
PWM Channel 3
PWM_3
GPIO18
I/O
9
PWM Channel 2
PWM_2
GPIO12
I/O
10
PWM Channel 1
PWM_1
GPIO11
I/O
High-Flying
HF-LPB Low Power WiFi Module User Manual
Shanghai High-Flying Electronics Technology Co., Ltd
www.hi-flying.com
- 23 -
When module works at PWM mode, PC and other equipts can setup connection (TCP/UDP) through
WiFi, then read/write GPIO/PWM information through command.
GPIO n OUT 0, Set GPIOn as output and output ‘0’, Response GPIO OK or GPIO NOK;
GPIO n OUT 1, Set GPIOn as output and output ‘1’, Response GPIO OK or GPIO NOK;
GPIO n GET, Read GPIOn pin status, Response +ok=1 or GPIO NOK
GPIO n SET, Save GPIOn set, Response GPIO OK or GPIO NOK
PWM n frequency duty, Set PWMn Channel output, Response GPIO OK or GPIO NOK
PWM n GET, Read PWMn Channel set, Response +ok=frequency duty or PWM NOK
PWM n SET, Save PWMn Channel set, Response PWM OK or PWM NOK
Notes: Please refer to Appendix B for details to use GPIO/PWM.
2.8. SOCKET B Function
HF-LPT100 support double socket communication, the socket B function is disabled by
default.
After the module is started, send command “AT+SOCKB” to set the connection parameter,
send command “AT+TCPDISB=on” to try to connect with TCP server, the module will stop
connecting after three failures. Send command “AT+TCPDISB=on” to make connection.
Send command “AT+TCPDISB=off” to close connection. Send command “AT+TCPLKB” to
inqure TCP connection.

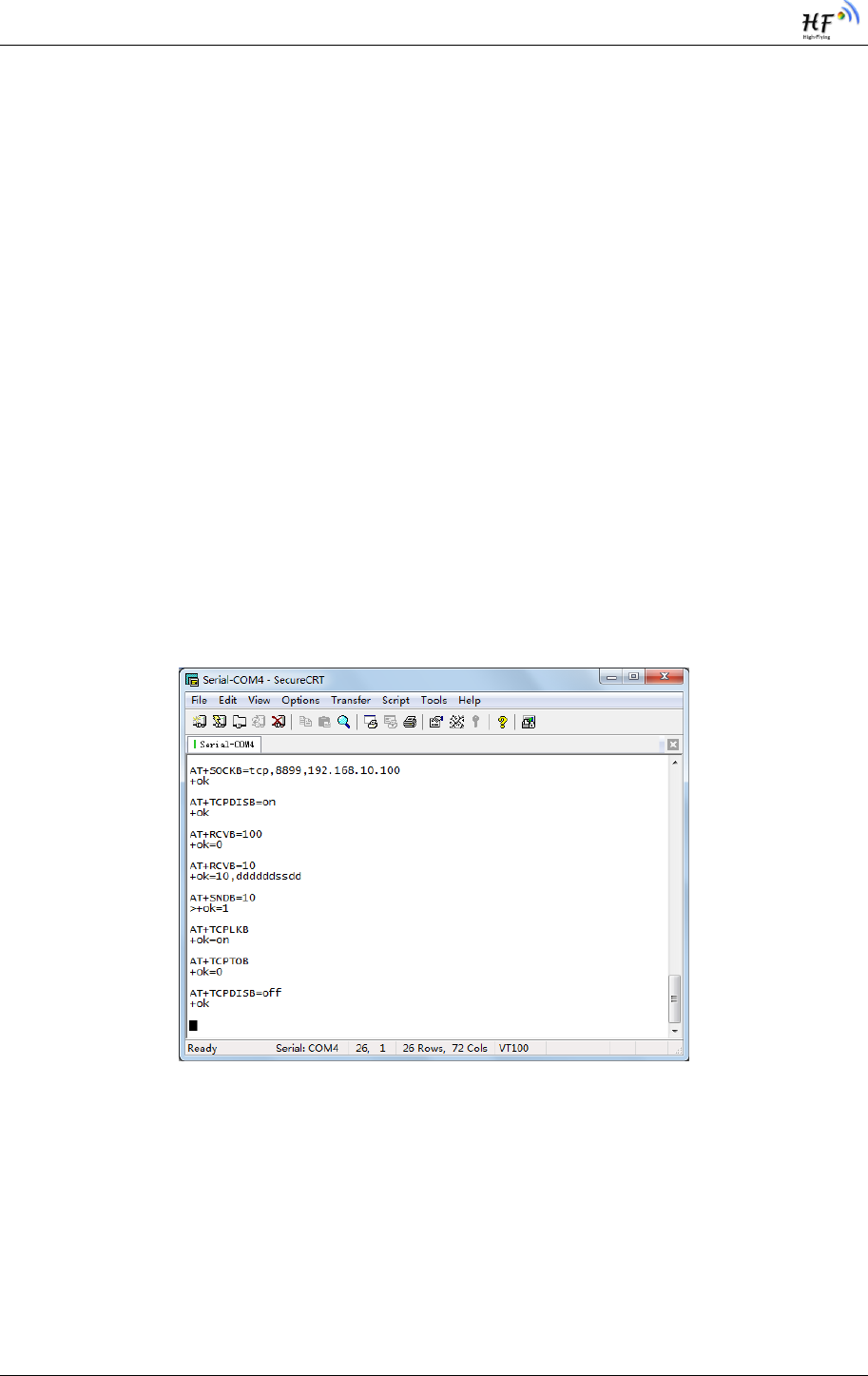

Figure 10. Socket B function demo
2.9. Multi-TCP Link Connection
When HF-LPT100 module configured as TCP Server, it supports Multi-TCP link connection,
and maximum 5 TCP clients permit to connect to HF-LPT100 module. User can realize multi-
TCP link connection at each work mode.
Multi-TCP link connection will work as following structure:
High-Flying
HF-LPB Low Power WiFi Module User Manual
Shanghai High-Flying Electronics Technology Co., Ltd
www.hi-flying.com
- 24 -
Upstream: All dates from different TCP connection or client will be transmitted to the serial
port as a sequence.
Downstream: All data from serial port (user) will be duplicate and broadcast to every TCP
connection or client.
Detailed multi-TCP link data transmition structure as following figure:
Figure 11. Multi-TCP Link Data Transmition Structure
High-Flying
HF-LPB Low Power WiFi Module User Manual
Shanghai High-Flying Electronics Technology Co., Ltd
www.hi-flying.com
- 25 -
3. OPERATION GUIDELINE
3.1. Configuration via Web Accessing
When first use HF-LPT100 modules, user may need some configuration. User can connect to HF-
LPT100 module’s wireless interface with following default setting information and configure the module
through laptop.
Table 8 HF-LPT100 Web Access Default Setting
Parameters
Default Setting
SSID
HF-LPB100
IP Address
10.10.100.254
Subnet Mask
255.255.255.0
User Name
Admin
Password
Admin
3.1.1. Open Web Management Interface
Step 1: Connect laptop to SSID “HF-LPT100” of HF-LPT100 module via wireless LAN card;
Step 2: After wireless connection OK. Open Wen browser and access “http://10.10.100.254”;
Step 3: Then input user name and password in the page as following and click “OK” button.
Figure 12. Open Web Management page
The HF-LPT100 web management page support English and Chinese language. User can select
language environment at the top right corner and click “Apply” button.
The main menu include nine pages: “System”, “Work Mode”, “STA Setting”, “AP Setting”, “Other
Setting”, “Account”, “Upgrade SW”, “Restart”, “Restore”.
3.1.2. System Page
At this page, user can check current device’s important information and status such as: device ID
(MID), software version, wireless work mode and related Wi-Fi parameters.
High-Flying
HF-LPB Low Power WiFi Module User Manual
Shanghai High-Flying Electronics Technology Co., Ltd
www.hi-flying.com
- 26 -
Figure 13. System Web Page
3.1.3. Work Mode Page
HF-LPT100 module can works at AP mode to simplify user’s configuration, can also works at STA to
connect remote server through AP router. Also, it can configure at AP+STA mode which provide very
flexible application for customers.
Figure 14. Work Mode Page
3.1.4. STA Setting Page
User can push “Scan” button to auto search Wi-Fi AP router nearby, and can connect with associate
AP through some settings. Please note the encryption information input here must be fully same with
Wi-Fi AP router’s configration, and then it can link with AP correctly.
High-Flying
HF-LPB Low Power WiFi Module User Manual
Shanghai High-Flying Electronics Technology Co., Ltd
www.hi-flying.com
- 27 -
Figure 15. STA Setting Page
3.1.5. AP Setting Page
When user select module works at AP and AP+STA mode, then need setting this page and provide
wireless and network parameters. Most of the system support DHCP to achieve IP address, so we
suggest to “Enable” DHCP server in most applications.
Figure 16. AP Setting Page
High-Flying
HF-LPB Low Power WiFi Module User Manual
Shanghai High-Flying Electronics Technology Co., Ltd
www.hi-flying.com
- 28 -
3.1.6. Other Setting Page
HF-LPT100 usually works at data transparent transmission mode. At this mode, the user device which
connected with HF-LPT100 will connect and communicate with remote PC or server. At this page,
user need setting serial port communication parameters and defines TCP related protocal parameters.
Figure 17. Other Setting Page
3.1.7. Account Management Page
This page set web server’s user name and password.
Figure 18. Account Page
High-Flying
HF-LPB Low Power WiFi Module User Manual
Shanghai High-Flying Electronics Technology Co., Ltd
www.hi-flying.com
- 29 -
3.1.8. Upgrade Software Page
User can upgrade new software (firmware) version through Wi-Fi.
Figure 19. Upgrade SW page
3.1.9. Restart Page
Most of the settting and configuration can only effective after system restart. User shall restart after
finish all setting.
Figure 20. Restart Page
3.1.10. Restore Page
After module restore factory default setting, all user configuration profile will lose.
High-Flying
HF-LPB Low Power WiFi Module User Manual
Shanghai High-Flying Electronics Technology Co., Ltd
www.hi-flying.com
- 30 -
User can access http://10.10.100.254 to set again, and user name and password is “admin”. HF-
LPT100 will restore to AP mode for factory default setting.
Figure 21. Restore Page
3.2. HF-LPT100 Usage Introduction
3.2.1. Software Debug Tools
High-Flying use two common software tools debugging and applying HF-LPT100 module.
(User can also select other tools used to debug serial port).
Serial Debugging Software: ComTools
Ethernet Debugging Software: TCPUDPDbg
3.2.2. Network Connection
User can select two methods to connect HF-LPT100 module base on dedicated application.
Use HF-LPT100 STA interface. HF-LPT100 and debug PC2 connect to a wireless AP,
another PC1 (or user device) connect to HF-LPT100 module with serial port:
Figure 22. STA Interface Debug Connection
Use HF-LPT100 AP interface. Debug PC2 connect to HF-LPT100 through wireless
connection, another PC1 (or user device) connect to HF-LPT100 module with serial port.
High-Flying
HF-LPB Low Power WiFi Module User Manual
Shanghai High-Flying Electronics Technology Co., Ltd
www.hi-flying.com
- 31 -
Figure 23. AP Interface Debug Connection
3.2.3. Default Parameter Setting
Default SSID: HF-LPB100;
Deault security mode: open,none;
User UART parameter setting:115200,8,1,None;
Default network parameter setting:TCP,Server,8899,10.10.100.254;
Module IP address: dhcp,0.0.0.0,0.0.0.0,0.0.0.0;
3.2.4. Module Debug
PC1 open “CommTools” program, setting the same serial port parameters with HF-LPT100 module
and open serial port connection.
Figure 24. “CommTools” Serial Debug Tools
PC2 open “TCPUDPDbg” program, and create a new connection. If HF-LPT100 configured as Server
mode, “TCPUDPDbg” Tools shall create “Client “mode connection. Or otherwise, create a “Server”
mode connection.
Figure 25. “TCPUDPDbg” Tools Create Connection
High-Flying
HF-LPB Low Power WiFi Module User Manual
Shanghai High-Flying Electronics Technology Co., Ltd
www.hi-flying.com
- 32 -

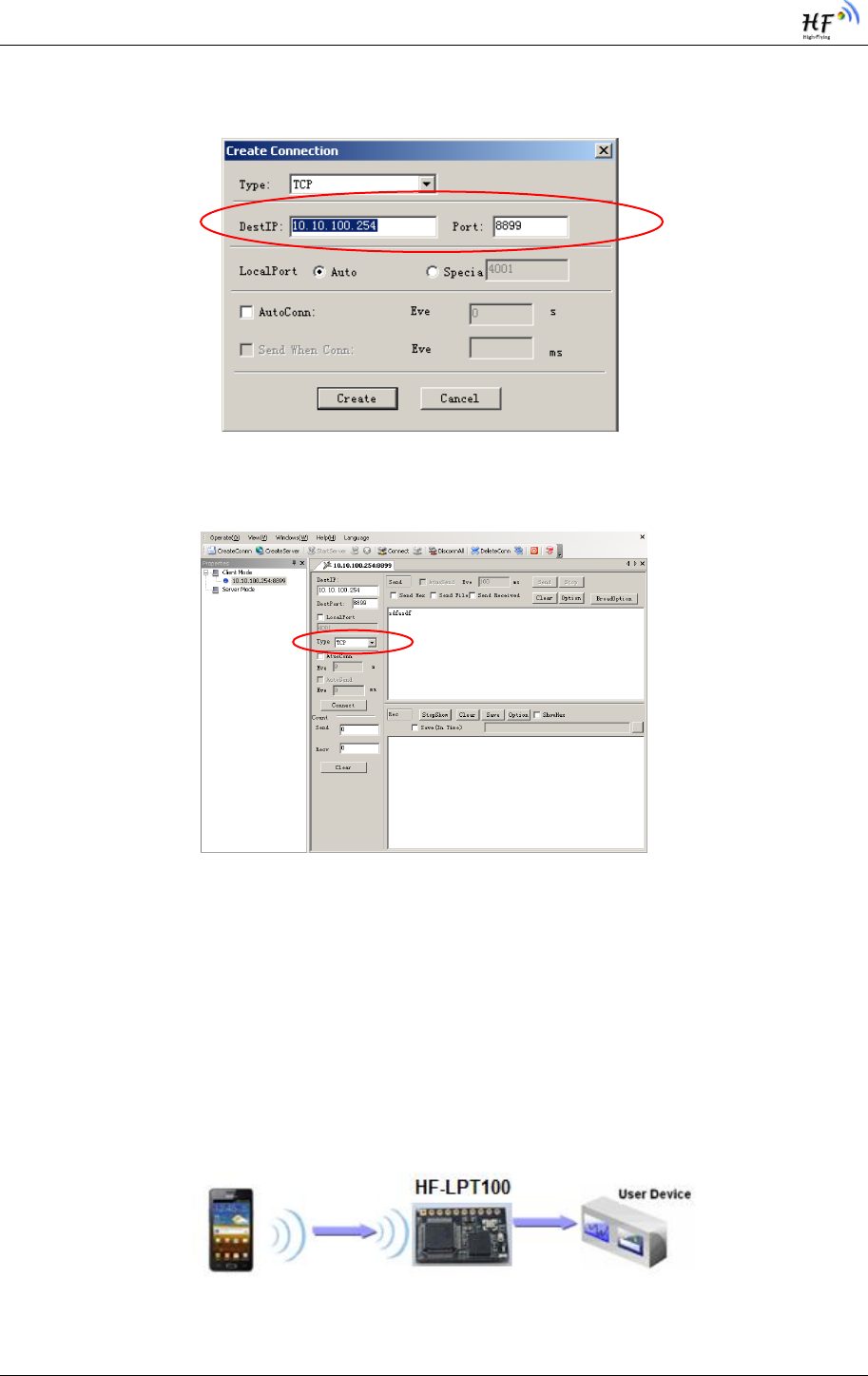

Then setting the TCP/UDP connection parameters. Default as following:
Figure 26. “TCPUDPDbg” Tools Setting
Then, click “Create” button to create a connection.
Figure 27. “TCPUDPDbg” Tools Connection
Now, in transparent transmission mode, data can be transferred from “CommTools” program to
“TCPUDPDbg” program, or in reverse. You can see data in receiver side will keep same as in sender
side.
3.3. Typical Application Examples
3.3.1. Wireless Control Application
Figure 28. Wireless Control Application
High-Flying
HF-LPB Low Power WiFi Module User Manual
Shanghai High-Flying Electronics Technology Co., Ltd
www.hi-flying.com
- 33 -
For this wireless control application, HF-LPT100 works as Ad-Hoc mode. Module’s serial port
connects to user device. So, control agent (Smart phone for this example) can manage and control the
user device through the wireless connection with HF-LPT100 module.
3.3.2. Remote Management Application
Figure 29. Remote Management Application
For this remote management application, HF-LPT100 works as STA mode and connects to Internet
through wireless AP. Module configured as TCP Client and communicates with remote TCP server at
Internet. Module’s serial port connects to user device.
So, user device’s data or sampling information can send to remote TCP server for storage or
processing. Also remote TCP server can send command to control and manage the user device
through the wireless network.
3.3.3. Transparent Serial Port Application
For this transparent serial port application, two HF-LPT100 modules connect as below figures to build
up a transparent serial port connection. HF-LPT100 works as Ad-Hoc mode to connect each other.
Figure 30. Transparent Serial Port Application
High-Flying
HF-LPB Low Power WiFi Module User Manual
Shanghai High-Flying Electronics Technology Co., Ltd
www.hi-flying.com
- 34 -
4. AT+INSTRUCTION INTRODUCTION
4.1. Configuration Mode
When HF-LPT100 power up, it will default works as transparent transmission mode, then user can
switch to configuration mode by serial port command. HF-LPT100 UART default parameters setting as
below figure,
Figure 31. HF-LPT100 Default UART Port Parameters
In configuration mode, user can setting the module through AT+ instruction set, which cover all web
page setting function.
4.1.1. Switch to Configuration Mode
Two steps to finish switching from transparent transmission mode to configuration mode.
UART input “+++”, after module receive “+++”, and feedback “a” as confirmation.
UART input “a”, after module receive “a” and feedback “+ok” to go into AT+
instruction set configuration mode.
Figure 32. Switch to Configuration Mode
Notes:
1. When user input “+++” (No “Enter” key required), the UART port will display feedback information
“a”, and not display input information”+++” as above UART display.
2. Any other input or wrong step to UART port will cause the module still works as original mode
(transparent transmission).
High-Flying
HF-LPB Low Power WiFi Module User Manual
Shanghai High-Flying Electronics Technology Co., Ltd
www.hi-flying.com
- 35 -
4.2. AT+ Instruction Set Overview
User can input AT+ Instruction through hyper terminal or other serial debug terminal, also can program
the AT+ Instruction to script. User can also input “AT+H” to list all AT+ Instruction and description to
start.
Figure 33. ”AT+H” Instruction for Help
4.2.1. Instruction Syntax Format
AT+Instruction protocol is based on the instruction of ASCII command style, the description of syntax
format as follow.
Format Description
< >: Means the parts must be included
[ ]: Means the optional part
Command Message
AT+<CMD>[op][para-1,para-2,para-3,para-4…]<CR>
AT+: Prefix of command message;
CMD: Command string;
[op]: Symbol of command operator,
“=” : The command requires parameters input;
“NULL”: Query the current command parameters setting;
[para-n]: Parameters input for setting if required;
<CR>:”Enter” Key, it’s 0x0a or 0x0d in ASCII;
High-Flying
HF-LPB Low Power WiFi Module User Manual
Shanghai High-Flying Electronics Technology Co., Ltd
www.hi-flying.com
- 36 -
Notes: When input AT+Instruction, “AT+<CMD>” character will display capital letter automatic and
other parts will not change as you input.
Response Message
+<RSP>[op] [para-1,para-2,para-3,para-4…]<CR><LF><CR><LF>
+: Prefix of response message;
RSP: Response string;
“ok” : Success
“ERR”: Failure
[op] : =
[para-n]: Parameters if query command or Error code when error happened;
<CR>: ASCII 0x0d;
<LF>: ASCIII 0x0a;
Error Code
Table 9 Error Code Describtion
Error Code
Description
-1
Invalid Command Format
-2
Invalid Command
-3
Invalid Operation Symbol
-4
Invalid Parameter
-5
Operation Not Permitted
4.2.2. AT+ Instruction Set
Table 10 AT+ Instruction Set List
Instruction
Description
<null>
NULL
Managment Instruction Set
E
Open/Close show back function
WMODE
Set/Query Wi-Fi work mode (AP/STA/APSTA)
ENTM
Set module into transparent transition mode
TMODE
Set/Query module data transfer mode
MID
Query module ID information
VER
Query module software version information
RELD
Restore to factory default setting
FCLR
Erase factory setting
Z
Re-start module
H
Help
Configure Parameters Instruction Set
CFGRD
Batch Read User Configure Parameters
CFGWR
Batch Write Configure Parameters
High-Flying
HF-LPB Low Power WiFi Module User Manual
Shanghai High-Flying Electronics Technology Co., Ltd
www.hi-flying.com
- 37 -
CFGFR
Batch Read Factory Default Configure Parameters
CFGTF
Copy User Parameters to Factory Default Parameters
UART Instruction Set
UART
Set/Query serial port parameters
UARTFT
Open/Close UART auto-frame function
UARTFT
Set/Query UART auto-frame trigger time
UARTFL
Set/Query UART auto-frame trigger length
UARTTE
Set/Query UART free-frame triggerf time between two bytes
Command Mode Set
SEND
Send Data at Command Mode
RECV
Receive Data at Command Mode
Network Instruction Set
PING
Network ”Ping” Instruction
NETP
Set/Query network protocol parameters
MAXSK
Set/Query TCP Client connection number
TCPLK
Query if TCP link already build-up
TCPTO
Set/Query TCP timeout
TCPDIS
Open/Close TCP link
SOCKB
Set/Query SOCKB parameters
TCPDISB
Open/Close SOCKB TCP link
TCPTOB
Set/Query SOCKB TCP timeout
TCPLKB
Query if SOCKB TCP link already build-up
SNDB
Send data to SOCKB in Command Mode
RCVB
Receive data from SOCKB in Command Mode
Wi-Fi STA Instruction Set (Effective when module works as STA)
WSKEY
Set/Query STA security parameters
WSSSID
Set/Query associated AP SSID parameters
WANN
Set/Query STA’s network parameters
WSMAC
Set/Query STA’s MAC address
WSLK
Query STA Wi-Fi link status
WSLQ
Query STA Wi-Fi signal strength
WSCAN
Scan AP
WSDNS
Set/Query STA’s Static DNS server address
Wi-Fi AP Instruction Set (Effective when module works as AP)
LANN
Set/Query AP’s network parameters
WAP
Set/Query AP Wi-Fi parameters
WAKEY
Set/Query AP security parameters
WAMAC
Set/Query AP MAC address
WADHCP
Set/Query AP DHCP Server status
WADMN
Set/Query AP webpage domain name
Webpage Management Instruction Set
PLANG
Set/Query Webpage Language Option
WEBU
Set/Query Webpage User name and Code
Remote Upgrade Instruction Set
UPURL
Set/Query remote upgrade URL address
UPFILE
Set/Query remote upgrade configure file name
UPWEB
Start remote web upgrade
UPCFG
Start remote config file upgrade
UPNVR
Start remote NVRAM data upgrade
High-Flying
HF-LPB Low Power WiFi Module User Manual
Shanghai High-Flying Electronics Technology Co., Ltd
www.hi-flying.com
- 38 -
UPAUTO
Start remote upgrade
LOGSW
Open/Close remote upgrade log
LOGPORT
Set/Query UDP port of remote upgrade log
UPST
Start remote Application upgrade
Power Management Instruction Set
MSLP
Set/Query deep sleep/standby mode parameters
Network Time Set
NTPRF
Set/Query time calibration interval
NTPEN
Enable/Disable time calibration function
NTPTM
Query time
Others Instruction Set
WRMID
Set module ID
RLDEN
Set/Query GPIO45 status
ASWD
Set/Query WiFi configuration code
MDCH
Set Wi-Fi Auto Switch Function
TXPWR
Set/Query Wi-Fi Transmit Power
LPTIO
Enable/Disable nReady, nLink function
WIFI Config Tools don’t support “CFGRD” command yet。
4.2.2.1. AT+E
Function: Open/Close show back function;
Format:
AT+E<CR>
+ok<CR>< LF ><CR>< LF >
When HF-LPT100 module firstly switch from transparent transmission to configuration mode, show
back status is open, input “AT+E” to close show back function, input“AT+E” again to open show back
function.
4.2.2.2. AT+WMODE
Function: Set/Query WIFI work mode;
Format:
Query Operation
AT+WMODE<CR>
+ok=<mode><CR>< LF ><CR>< LF >
Set Operation
AT+ WMODE=<mode><CR>
+ok<CR>< LF ><CR>< LF >
Parameters:
mode:Wi-Fi work mode
AP
STA
APSTA
4.2.2.3. AT+ENTM
Function: Set module into transparent transmition mode;
Format:
High-Flying
HF-LPB Low Power WiFi Module User Manual
Shanghai High-Flying Electronics Technology Co., Ltd
www.hi-flying.com
- 39 -
AT+ENTM<CR>
+ok<CR>< LF ><CR>< LF >
When operate this command, module switch from configuration mode to transparent transmission
mode.
4.2.2.4. AT+TMODE
Function: Set/Query module data transfer mode.
Format:
Query Operation
AT+TMODE<CR>
+ok=<tmode><CR>< LF ><CR>< LF >
Set Operation
AT+TMODE=<tmode><CR>
+ok<CR>< LF ><CR>< LF >
Parameters:
tmode: data transfer mode, include:
throughput
cmd
pwm
4.2.2.5. AT+MID
Function: Query module ID information;
Format:
Query Operation
AT+MID<CR>
+ok=<module_id><CR>< LF ><CR>< LF >
Parameters:
module_id: Module ID information;
HF-LPT100;
Notes: User can set this parameter through AT+WRMID.
4.2.2.6. AT+VER
Function: Query module software version information;
Format:
Query Operation
AT+VER<CR>
+ok=<ver><CR>< LF ><CR>< LF >
Parameters:
ver: Module software version information;
4.2.2.7. AT+RELD
Function: module restore to factory default setting;
Format:
Set Operation
High-Flying
HF-LPB Low Power WiFi Module User Manual
Shanghai High-Flying Electronics Technology Co., Ltd
www.hi-flying.com
- 40 -
AT+ RELD<CR>
+ok=rebooting…<CR>< LF ><CR>< LF >
When operate this command, module will restore to factory default setting and reboot.
4.2.2.8. AT+FCLR
Function: Erase factory setting;
Format:
Query Operation
AT+FCLR<CR>
+ok=<status><CR>< LF ><CR>< LF >
4.2.2.9. AT+Z
Function: Re-start module;
Format:
AT+ Z<CR>
4.2.2.10. AT+H
Function: Help;
Format:
Query Operation
AT+H<CR>
+ok=<command help><CR>< LF ><CR>< LF >
Parameters:
command help: command introduction;
4.2.2.11. AT+CFGRD
Function: Batch Read User Configure Parameters;
Format:
Query Operation
AT+CFGRD<CR>
+ok=<config><CR>< LF ><CR>< LF >
Parameters:
config: the first two bytes means the length of configuration parameters;
4.2.2.12. AT+CFGWR
Function: Batch Write User Configure Parameters;
Format:
Set Operation
AT+CFGWR=<config><CR>
+ok<CR>< LF ><CR>< LF >
Parameters:
config: the first two bytes means the length of configuration parameters;
High-Flying
HF-LPB Low Power WiFi Module User Manual
Shanghai High-Flying Electronics Technology Co., Ltd
www.hi-flying.com
- 41 -
4.2.2.13. AT+CFGFR
Function: Batch Read Factory Default Configure Parameters;
Format:
Query Operation
AT+CFGFR<CR>
+ok=<config><CR>< LF ><CR>< LF >
Parameters:
config: the first two bytes means the length of configuration parameters;
4.2.2.14. AT+CFGTF
Function: Copy User Parameters to Factory Default Parameters;
Format:
Query Operation
AT+CFGTF<CR>
+ok=<status><CR>< LF ><CR>< LF >
Parameters:
status: feedback operation status;
4.2.2.15. AT+UART
Function: Set/Query serial port parameters;
Format:
Query Operation
AT+UART<CR>
+ok=<baudrate,data_bits,stop_bit,parity><CR>< LF ><CR>< LF >
Set Operation
AT+UART=<baudrate,data_bits,stop_bit,parity><CR>
+ok<CR>< LF ><CR>< LF >
Parameters:
baudrate:
300,600,1200,1800,2400,4800,9600,19200,38400,57600,115200,230400,
380400,460800.
data_bits:
8
stop_bits:
1,2
parity:
NONE
EVEN
ODD
Flowctrl: (CTSRTS)
NFC: No hardware flow control
FC: hardware flow control
High-Flying
HF-LPB Low Power WiFi Module User Manual
Shanghai High-Flying Electronics Technology Co., Ltd
www.hi-flying.com
- 42 -
4.2.2.16. AT+ UARTF
Function: Open/Close UART auto-frame function;
Format:
Query Operation
AT+ UARTF<CR>
+ok=<para><CR>< LF ><CR>< LF >
Set Operation
AT+ UARTF=<para ><CR>
+ok<CR>< LF ><CR>< LF >
Parameters:
para:
disable - Close auto-frame function;
enable - Open auto-frame function;
4.2.2.17. AT+ UARTFT
Function: Set/Query UART auto-frame trigger time;
Format:
Query Operation
AT+ UARTFT<CR>
+ok=<time><CR>< LF ><CR>< LF >
Set Operation
AT+ UARTFT=<time ><CR>
+ok<CR>< LF ><CR>< LF >
Parameters:
time: Range 100 ~10000; Unit: ms. Auto-frame trigger time
4.2.2.18. AT+ UARTFL
Function: Set/Query UART auto-frame trigger length;
Format:
Query Operation
AT+ UARTFL<CR>
+ok=<len><CR>< LF ><CR>< LF >
Set Operation
AT+ UARTFL=<len ><CR>
+ok<CR>< LF ><CR>< LF >
Parameters:
len: Range 8 ~1000; Unit: Byte. Auto-frame trigger length;
4.2.2.19. AT+ UARTTE
Function: Set/Query UART free-frame trigger time between two bytes;
Format:
Query Operation
AT+ UARTTE<CR>
High-Flying
HF-LPB Low Power WiFi Module User Manual
Shanghai High-Flying Electronics Technology Co., Ltd
www.hi-flying.com
- 43 -
+ok=<mode><CR>< LF ><CR>< LF >
Set Operation
AT+ UARTTE=<mode><CR>
+ok<CR>< LF ><CR>< LF >
Parameters:
mode:
fast: free-frame trigger time between two bytes is 10ms;
normal: free-frame trigger time between two bytes is 50ms;
4.2.2.20. AT+ SEND
Function: Send Data at Command Mode.
Format:
AT+SEND=<data_lenth><CR>
+ok<CR>< LF ><CR>< LF >
Parameters:
data_lenth: Lenth of send data. Range: 0~1000 Byte
The UART port will wait 3 seconds for input after this command is sent OK. The data received
from UART port is sent to socket. If the interval of two bytes is more than 10ms, the data will be
sent instantly.
4.2.2.21. AT+ RECV
Function: Receive Data at Command Mode.
Format:
AT+RECV=<data_lenth><CR>
+ok=< data_lenth, data_content><CR>< LF ><CR>< LF >
Parameters:
data_lenth: Lenth of receive data. Range: 0~1000 Byte
data_content: contents of receive data.
If not receive any data in 3 second, then feedback +ok=0.
4.2.2.22. AT+ PING
Function: Network “PING” Instruction.
Format:
Set Operation
AT+ PING=<IP_address ><CR>
+ok=<sta><CR>< LF ><CR>< LF >
Parameters:
sta: feedback result
Success
Timeout
Unknown host
4.2.2.23. AT+NETP
Function: Set/Query network protocol parameters;
High-Flying
HF-LPB Low Power WiFi Module User Manual
Shanghai High-Flying Electronics Technology Co., Ltd
www.hi-flying.com
- 44 -
Format:
Query Operation
AT+NETP<CR>
+ok=<protocol,CS,port,IP><CR>< LF ><CR>< LF >
Set Operation
AT+NETP=<protocol,CS,port,IP><CR>
+ok<CR>< LF ><CR>< LF >
Parameters:
protocol:
TCP
UDP
CS: Network mode:
SERVER
CLIENT
Port: protocol port ID: Decimal digit and less than 65535
IP: Server’s IP address when module set as client
If set as UDP SERVER, the module will save the IP address and port of the latest UDP
packet received. The data will be sent to the saved IP address and port. If the module hasn’t
saved any IP address and port when power up. The data will be sent to the IP address and port
which is set by this command.
If set as UDP,CLIENT, the data will always be sent to the IP address and port set by this
command.
4.2.2.24. AT+ MAXSK
Function:Set/ Query TCP Client connection number.
Format:
Query Operation
AT+MAXSK<CR>
+ok=<num><CR>< LF ><CR>< LF >
Set Operation
AT+MAXSK=<num><CR>
+ok<CR>< LF ><CR>< LF >
Parameters:
num: TCP Client connection number. Range: 1~5. 5 is the default value it means
when the module work in TCP server , it accepts max 5 TCP client connect to it.
4.2.2.25. AT+ TCPLK
Function: Query if TCP link already build-up;
Format:
AT+ TCPLK<CR>
+ok=<sta><CR>< LF ><CR>< LF >
Parameters:
sta.: if module already setup TCP link;
High-Flying
HF-LPB Low Power WiFi Module User Manual
Shanghai High-Flying Electronics Technology Co., Ltd
www.hi-flying.com
- 45 -
on: TCP link setup;
off: TCP link not setup;
4.2.2.26. AT+ TCPTO
Function: Set/Query TCP timeout;
Format:
Query Operation
AT+ TCPTO<CR>
+ok=<time><CR>< LF ><CR>< LF >
Set Operation
AT+ TCPTO=<time ><CR>
+ok<CR>< LF ><CR>< LF >
Parameters:
time: TCP timeout time.
<= 600, (600s);
>=0, (0 means no timeout);
Default, 300s;
4.2.2.27. AT+TCPDIS
Function: Open/Close TCP link;
Format:
Query Opera
AT+TCPDIS<CR>
+ok=<sta><CR>< LF ><CR>< LF >
Set Operation
AT+ TCPDIS =<on/off><CR>
+ok<CR>< LF ><CR>< LF >
Parameters:
When query, sta.: Feedback if TCP Client can be link,
On, TCP link close
off，TCP link on
When setting, “off” means close TCP link. After finish this command, module disconnect TCP
link and not connect again. “On” means open TCP link. After finish this command, module re-
connect TCP server right away.
4.2.2.28. AT+SOCKB
Function: Set/Query SOCKB parameters
Format:
Query Operation
AT+SOCKB<CR>
+ok=<protocol,port,IP><CR>< LF ><CR>< LF >
Set Operation
AT+SOCKB=<protocol,port,IP><CR>
High-Flying
HF-LPB Low Power WiFi Module User Manual
Shanghai High-Flying Electronics Technology Co., Ltd
www.hi-flying.com
- 46 -
+ok<CR>< LF ><CR>< LF >
Parameters:
Protocol: Protocol type:
TCP: Only for TCP Client
UDP
Port: Protocol Port in decimal, less than 65535
IP: Destination IP address, domain name is support
4.2.2.29. AT+TCPDISB
Function: Open/Close TCP_B connection
Format:
Query Operation
AT+TCPDISB<CR>
+ok=<sta><CR>< LF ><CR>< LF >
Set Operation
AT+ TCPDISB =<on/off><CR>
+ok<CR>< LF ><CR>< LF >
Parameters:
When setting, “off” means close TCP link. After finish this command, module disconnect TCP
link and not connect again. “On” means open TCP link. After finish this command, module re-
connect TCP server right away.
4.2.2.30. AT+TCPTOB
Function: Set/Query OperationTCP_B timeout
Format:
Query Operation
AT+ TCPTOB<CR>
+ok=<time><CR>< LF ><CR>< LF >
Set Operation
AT+ TCPTOB=<time ><CR>
+ok<CR>< LF ><CR>< LF >
Parameters
Time: TCP timeout
<= 600:600s
>=0:0 means no timeout
Default:300s
The module will not connect TCP_B after TCP timeout. The module will make connection
after another “TCPDIS” command.
4.2.2.31. AT+TCPLKB
Function:Query TCP_B connection status
Format:
AT+ TCPLKB<CR>
High-Flying
HF-LPB Low Power WiFi Module User Manual
Shanghai High-Flying Electronics Technology Co., Ltd
www.hi-flying.com
- 47 -
+ok=<sta><CR>< LF ><CR>< LF >
Parameters:
sta.: TCP_B connection status
on: TCP connected
off: TCP disconnected
4.2.2.32. AT+SNDB
Function: Send datas to SOCKB at Command Mode
Format:
AT+SNDB=<data_lenth ><CR>
+ok<CR>< LF ><CR>< LF >
Parameters:
data_lenth: Lenth of send data. Range: 0~1000 Byte
The UART port will wait 3 seconds for input after this command is sent OK. The data received
from UART port is sent to socket. If the interval of two bytes is more than 10ms, the data will be
sent instantly.
4.2.2.33. AT+RCVB
Function: Receive datas from SOCKB at Command Mode
Format:
AT+RCVB=<data_lenth><CR>
+ok=< data_lenth, data_content><CR>< LF ><CR>< LF >
Parameters:
data_lenth: Lenth of receive data. Range: 0~1000 Byte
data_content: contents of receive data.
If not receive any data in 3 second, then feedback +ok=0.
4.2.2.34. AT+WSSSID
Function: Set/Query Wi-Fi associated AP SSID parameters.
Format:
Query Operation
AT+WSSSID<CR>
+ok=<ap’s ssid><CR>< LF ><CR>< LF >
Set Operation
AT+ WSSSID=<ap’s ssid ><CR>
+ok<CR>< LF ><CR>< LF >
Parameters:
ap’s ssid: AP’s SSID (Within 32 character);
4.2.2.35. AT+WSKEY
Function: Set/Query STA security parameters;
Format:
Query Operation
AT+WSKEY<CR>
High-Flying
HF-LPB Low Power WiFi Module User Manual
Shanghai High-Flying Electronics Technology Co., Ltd
www.hi-flying.com
- 48 -
+ok=<auth,encry,key><CR>< LF ><CR>< LF >
Set Operation
AT+ WSKEY=< auth,encry,key><CR>
+ok<CR>< LF ><CR>< LF >
Parameters:
auth: Authentication mode
OPEN
SHARED
WPAPSK
WPA2PSK
encry:Encryption algorithm
NONE: When “auth=OPEN”, effective
WEP: When “auth=OPEN” or “SHARED”, effective
TKIP: When ”auth= WPAPSK” or “WPA2PSK”, effective
AES: When “auth= WPAPSK” “WPA2PSK”, effective
key: password, ASCII code, shall less than 64 bit and greater than 8bit
4.2.2.36. AT+ WANN
Function: Set/Query STA network setting;
Format:
Query Operation
AT+WANN<CR>
+ok=<mode,address,mask,gateway><CR>< LF ><CR>< LF >
Set Operation
AT+ WANN=< mode,address,mask,gateway ><CR>
+ok<CR>< LF ><CR>< LF >
Parameters:
mode: STA’s IP network setting
static: Static IP
DHCP: Dynamic IP
address: STA IP address;
mask: STA subnet mask;
gateway: STA gateway address;
4.2.2.37. AT+ WSMAC
Function: Set/Query STA MAC address parameters;
Format:
Query Operation
AT+WSMAC<CR>
+ok=<mac_address><CR>< LF ><CR>< LF >
Set Operation
AT+ WSMAC=<code,mac_address><CR>
+ok<CR>< LF ><CR>< LF >
High-Flying
HF-LPB Low Power WiFi Module User Manual
Shanghai High-Flying Electronics Technology Co., Ltd
www.hi-flying.com
- 49 -
Parameters:
code: security code
8888 (default value)
Mac_address: STA MAC address, such as ACCF23FF1234
4.2.2.38. AT+ WSLK
Function: Query STA WiFi link status
Format:
Query Operation
AT+ WSLK<CR>
+ok=<ret><CR>< LF ><CR>< LF >
Parameters:
ret
”Disconnected”, if no WiFi connection;
”AP’ SSID（AP’s MAC” ）, if WiFi connection available;
”RF Off”, if WiFi OFF;
4.2.2.39. AT+ WSLQ
Function: Query STA WiFi signal strength;
Format:
Query Operation
AT+ WSLQ<CR>
+ok=<ret><CR>< LF ><CR>< LF >
Parameters:
ret
”Disconnected”, if no WiFi connection;
”AP’s WiFi signal strength” , if WiFi connection available;
4.2.2.40. AT+WSCAN
Function: Scan AP;
Format:
AT+ WSCAN<CR>
+ok=<ap_site><CR>< LF ><CR>< LF >
Parameters:
ap_site: AP searched;
4.2.2.41. AT+ WSDNS
Function: Set/Query STA static DNS server address;
Format:
Query Operation
AT+WSDNS<CR>
+ok=<address><CR>< LF ><CR>< LF >
Set Operation
AT+ WSDNS =<address><CR>
High-Flying
HF-LPB Low Power WiFi Module User Manual
Shanghai High-Flying Electronics Technology Co., Ltd
www.hi-flying.com
- 50 -
+ok<CR>< LF ><CR>< LF >
Parameters:
address: STA’s DNS server address; Effective right away.
4.2.2.42. AT+ LANN
Function: Set/Query AP’s network parameters;
Format:
Query Operation
AT+LANN<CR>
+ok=<ipaddress,mask><CR>< LF ><CR>< LF >
Set Operation
AT+ LANN=< ipaddress,mask><CR>
+ok<CR>< LF ><CR>< LF >
Parameters:
ipaddress: AP’s IP address;
mask: AP’s net mask;
4.2.2.43. AT+WAP
Function: Set/Query AP Wi-Fi parameters;
Format:
Query Operation
AT+WAP<CR>
+ok=<wifi_mode,ssid,channel><CR>< LF ><CR>< LF >
Set Operation
AT+ WAP =<wifi_mode,ssid,channel><CR>
+ok<CR>< LF ><CR>< LF >
Parameters:
wifi_mode: Wi-Fi mode, include:
11B
11BG
11BGN (Default Value)
ssid:SSID at AP mode
channel: Wi-Fi channel selection:
AUTO
CH1~CH11; (Default CH1)
4.2.2.44. AT+WAKEY
Function: Set/Query AP Wi-Fi secruity parameters；
Format:
Query Operation
AT+WAKEY<CR>
+ok=<auth,encry,key><CR>< LF ><CR>< LF >
Set Operation
High-Flying
HF-LPB Low Power WiFi Module User Manual
Shanghai High-Flying Electronics Technology Co., Ltd
www.hi-flying.com
- 51 -
AT+ WAKEY=< auth,encry,key><CR>
+ok<CR>< LF ><CR>< LF >
Parameters:
auth: include
OPEN
WPA2PSK
Encry: include
NONE: When “auth=OPEN” available;
AES: When “auth=WPA2PSK” available;
key: security code, ASCII code, smaller than 64bit and bigger than 8 bit;
4.2.2.45. AT+WAMAC
Function: Query AP MAC address parameters;
Format:
Query Operation
AT+WAMAC<CR>
+ok=<mac_address><CR>< LF ><CR>< LF >
Parameters:
mac_address:AP’s MAC address;
Note: Module AP mode’s MAC address is related to STA mode’s MAC address. If user need
changeto others, please contact with high-flying technical people.
4.2.2.46. AT+WADHCP
Function: Set/Query AP DHCP server status;
Format:
Query Operation
AT+WADHCP<CR>
+ok=<status><CR>< LF ><CR>< LF >
Set Operation
AT+ WADHCP=<status><CR>
+ok<CR>< LF ><CR>< LF >
Parameters:
status:AP’s DHCP server function status:
on:DHCP Server Open;
off:DHCP Server Close:
4.2.2.47. AT+WADMN
Function: Set/Query AP webpage domain name;
Format:
Query Operation
AT+WADMN<CR>
+ok=<domain_name><CR>< LF ><CR>< LF >
Set Operation
High-Flying
HF-LPB Low Power WiFi Module User Manual
Shanghai High-Flying Electronics Technology Co., Ltd
www.hi-flying.com
- 52 -
AT+ WADMN =<domain_name><CR>
+ok<CR>< LF ><CR>< LF >
Parameters:
Domain_name: Webpage domain name (within 20 characters, can’t all numbers).
4.2.2.48. AT+PLANG
Function: Set/ Query webpage language option;
Format:
Query Operation
AT+ PLANG<CR>
+ok=<language> <CR>< LF ><CR>< LF >
Set Operation
AT+ PLANG=<language> <CR>
+ok<CR>< LF ><CR>< LF >
Parameters:
language: webpage’s language
CN: Chinese Version (Default);
EN: English Version;
4.2.2.49. AT+UPURL
Function: Set/ Query remote upgrade URL address;
Format:
Query Operation
AT+ UPURL<CR>
+ok=<url> <CR>< LF ><CR>< LF >
Set Operation
AT+ UPURL=<url,filename> <CR>
+ok<CR>< LF ><CR>< LF >
Parameters:
url: the upgrade file url address; the last charter shall be “/” (within 20 characters).
filename: the upgrade file name, it’s optional and not saved parameter. If provide
this file name here, the module will start upgrade right away;
4.2.2.50. AT+UPFILE
Function: Set/ Query remote upgrade configure file name;
Format:
Query Operation
AT+ UPFILE<CR>
+ok=<filename> <CR>< LF ><CR>< LF >
Set Operation
AT+ UPFILE=<filename> <CR>
+ok<CR>< LF ><CR>< LF >
Parameters:
High-Flying
HF-LPB Low Power WiFi Module User Manual
Shanghai High-Flying Electronics Technology Co., Ltd
www.hi-flying.com
- 53 -
filename: the upgrade configure file name (within 20 characters).
4.2.2.51. AT+UPWEB
Function: Remote webpage upgrade
Format:
Query Operation
AT+UPWEB<CR>
+ok=<log><CR>< LF ><CR>< LF >
Parameters:
log: Some status print log from remote upgrade.
Note: After execute this command, the HF-LPT100 will automatic start upgrade Webpage base
on the setting of UPURL, UPFILE command contents;
4.2.2.52. AT+UPCFG
Function: Remote factory setting upgrade
Format:
Query Operation
AT+UPCFG<CR>
+ok=<log><CR>< LF ><CR>< LF >
Parameters:
log: Some status print log from remote upgrade.
Note: After execute this command, the HF-LPT100 will automatic start upgrade base on the
setting of UPURL, UPFILE command contents;
4.2.2.53. AT+UPNVR
Function: Remote NVRAM data upgrade
Format:
Query Operation
AT+UPNVR<CR>
+ok=<log><CR>< LF ><CR>< LF >
Parameters:
log: Some status print log from remote upgrade.
Note: After execute this command, the HF-LPT100 will automatic start upgrade base on the
setting of UPURL, UPFILE command contents;
4.2.2.54. AT+UPAUTO
Function: Remote Application, Webpage, factory setting upgrade
Format:
Query Operation
AT+UPAUTO<CR>
+ok=<log><CR>< LF ><CR>< LF >
Parameters:
log: Some status print log from remote upgrade.
High-Flying
HF-LPB Low Power WiFi Module User Manual
Shanghai High-Flying Electronics Technology Co., Ltd
www.hi-flying.com
- 54 -
Note: After execute this command, the HF-LPT100 will automatic start upgrade Application,
Webpage, factory setting base on the setting of UPURL, UPFILE command contents;
4.2.2.55. AT+LOGSW
Function: Open/Close remote upgrade logfile
Format:
Query Operation
AT+LOGSW<CR>
+ok=<status><CR>< LF ><CR>< LF >
Set Operation
AT+LOGSW=<status><CR>
+ok<CR>< LF ><CR>< LF >
Parameters:
status:
on: Open. The UART Port will print some upgrade status when upgrading. the
log file will be sent to UDP Port after successfully
off: Close.
4.2.2.56. AT+LOGPORT
Function: Set/Query remote upgrade UDP port of log file.
Format:
Query Operation
AT+LOGPORT<CR>
+ok=<port><CR>< LF ><CR>< LF >
Set Operatioin:
AT+ LOGPORT =<port><CR>
+ok<CR>< LF ><CR>< LF >
Parameters:
port: The remote upgrade UDP port of log file.
4.2.2.57. AT+UPST
Function: Start remote upgrade;
Format:
Query Operation
AT+ UPST<CR>
+ok=<log> <CR>< LF ><CR>< LF >
Parameters:
log: feedback the status of remote upgrade;
Note: After execute this command, the HF-LPT100 will automatic start upgrade base on the
setting of UPURL, UPFILE command contents;
4.2.2.58. AT+WEBU
Function: Set/ Query webpage user name and password;
Format:
High-Flying
HF-LPB Low Power WiFi Module User Manual
Shanghai High-Flying Electronics Technology Co., Ltd
www.hi-flying.com
- 55 -
Query Operation
AT+ WEBU<CR>
+ok=<username,password> <CR>< LF ><CR>< LF >
Set Operation
AT+ WEBU=<username,password><CR>
+ok<CR>< LF ><CR>< LF >
Parameters:
username: User Name, within 15 characters, not support empty.
password: password, within 15 characters, support empty.
4.2.2.59. AT+MSLP
Function: Set/Query deep sleep/standby mode parameters;
Format:
Query Operation
AT+ MSLP<CR>
+ok=<ret><CR>< LF ><CR>< LF >
Set Operation
AT+ MSLP=<mode><CR>< LF ><CR>< LF >
Parameters:
ret:
normal: normal mode (100ms interval)
mode:
normal: normal mode (100ms interval)
standby: WiFi shut down mode
4.2.2.60. AT+NTPRF
Function: Set /Query time calibration interval
Format:
Query Operation
AT+ NTPRF<CR>
+ok=<num><CR>< LF ><CR>< LF >
Set Operation
AT+ NTPRF=<num><CR>
+ok<CR>< LF ><CR>< LF >
Parameters:
num：time calibration inverval，range:0~720, default:30 minutes, 10 minutes for
each step, set 0 means no time calibration automatically.
4.2.2.61. AT+NTPEN
Function: Enable/Disable time calibration function.
Format:
Query Operation
AT+ NTPEN<CR>
High-Flying
HF-LPB Low Power WiFi Module User Manual
Shanghai High-Flying Electronics Technology Co., Ltd
www.hi-flying.com
- 56 -
+ok=<status><CR>< LF ><CR>< LF >
Set Operation
AT+ NTPEN=<status><CR>
+ok<CR>< LF ><CR>< LF >
Parameters:
status：status of time calibration
on：Enable time calibration
off：Disable time calibration
4.2.2.62. AT+NTPTM
Function: Query network time
Format:
Query Operation
AT+ NTPTM<CR>
+ok=<time><CR>< LF ><CR>< LF >
Parameters:
time：networ time, for example: 2013-10-9 16:10:42 Wed，if it shows Not
Available means that the time calibration function is not enabled or the module
doesn’t connect to the internet.
4.2.2.63. AT+WRMID
Function: Set module ID;
Format:
Set Operation
AT+ WRMID=<wrmid> <CR>< LF ><CR>< LF >
Parameters:
wrmid: set module’s ID (within 20 characters).
4.2.2.64. AT+RLDEN
Function: Set/Query GPIO45 function status
Format:
Query Operation
AT+RLDEN<CR>
+ok=<status><CR>< LF ><CR>< LF >
Set Operation
AT+RLDEN=<status><CR>
+ok<CR>< LF ><CR>< LF >
Parameters:
status: The status of module’s GPIO45(nReload) function
on: GPIO45 function (nReload) is enabled.
off: GPIO45 function is disabled
4.2.2.65. AT+ASWD
Function: Set/Query WiFi Configuration Password;
High-Flying
HF-LPB Low Power WiFi Module User Manual
Shanghai High-Flying Electronics Technology Co., Ltd
www.hi-flying.com
- 57 -
Format:
Query Operation
AT+ ASWD<CR>
+ok=<aswd> <CR>< LF ><CR>< LF >
Set Operation
AT+ ASWD=<aswd> <CR>< LF ><CR>< LF >
Parameters:
aswd: WiFi Configuration Password (within 20 characters).
4.2.2.66. AT+MDCH
Function: Set Wi-Fi Auto Switch Function
Format:
Query Operation
AT+ MDCH<CR>
+ok=<mode> <CR>< LF ><CR>< LF >
Set Operation
AT+ MDCH=<mode> <CR>< LF ><CR>< LF >
Parameters:
mode: Wi-Fi Auto Switch Mode
off: Disable Wi-Fi auto switch.
on: Enable Wi-Fi auto switch. When the module(STA mode) fail to connect to
router, it will switch to AP mode itself in one minute.
auto: Enable Wi-Fi auto detect function. The module will reset itself when
encounter any abnormal. The default time interval is 10 minutes.
3-120: unit: minute. Set the time interval to reset itself when abnormal.
4.2.2.67. AT+TXPWR
Function: Set/Query Wi-Fi Transmit Power, Real Transmit Power=Default Transmit
Power(16dBm) – [Setting Value] * 0.5dBm
Format:
Query Operation
AT+TXPWR <CR>
+ok=<num><CR>< LF><CR>< LF>
Set Operation
AT+TXPWR=<num><CR>
+ok<CR>< LF><CR>< LF>
Parameters:
num: [Setting Value]. The default is 0, it can be sent from 0 ~ 24. If set to 24, the
moudule transmit power will be at a minium of 4dBm. Reboot to make this setting
change valid. It will not restore to default if reload the module.
4.2.2.68. AT+LPTIO
Function: Enable/Disable module’s nReady、nLink function
High-Flying
HF-LPB Low Power WiFi Module User Manual
Shanghai High-Flying Electronics Technology Co., Ltd
www.hi-flying.com
- 58 -
Format:
Query Operation
AT+LPTIO<CR>
+ok=<status><CR>< LF><CR>< LF>
Set Operation
AT+LPTIO=<status><CR>
+ok<CR>< LF><CR>< LF>
Parameters：
staus: Enable/Disable nReady、nLink function. PWM_1 pin is for nLink function,
PWM_2 pin is for nReady function.
on：Enable nReady、nLink function
off：Disable nReady、nLink function
High-Flying
HF-LPB Low Power WiFi Module User Manual
Shanghai High-Flying Electronics Technology Co., Ltd
www.hi-flying.com
- 59 -
5. PACKAGE INFORMATION
5.1. Recommended Reflow Profile
Figure 34. Reflow Soldering Profile
Table 11 Reflow Soldering Parameter
Note: 1. Recommend to supply N2 for reflow oven.
2. N2 atmosphere during reflow (O2<300ppm)
5.2. Device Handling Instruction (Module IC SMT Preparation)
1. Shelf life in sealed bag: 12 months, at <30℃ and <60% relative humidity (RH)
2. After bag is opened, devices that will be re-baked required after last baked with window time
168 hours.
3. Recommend to oven bake with N2 supplied
4. Recommend end to reflow oven with N2 supplied
5. Baked required with 24 hours at 125+-5℃ before rework process for two modules, one is
new module and two is board with module
6. Recommend to store at ≦10% RH with vacuum packing
7. If SMT process needs twice reflow:
(1) Top side SMT and reflow (2) Bottom side SMT and reflow
Case 1: Wifi module mounted on top side. Need to bake when bottom side process over 168
hours window time, no need to bake within 168 hours
Case 2: Wifi module mounted on bottom side, follow normal bake rule before process
Note: Window time means from last bake end to next reflow start that has 168 hours space.
NO.
Item
Temperature (Degree)
Time(Sec)
1
Reflow Time
Time of above 220
35~55 sec
2
Peak-Temp
260 max
High-Flying
HF-LPB Low Power WiFi Module User Manual
Shanghai High-Flying Electronics Technology Co., Ltd
www.hi-flying.com
- 60 -
5.3. Shipping Information
TRAY BOX
Size: 420*245*34 mm Size: 422*247*72 mm (inside)
CARTON
Size: 440*260*320 mm (inside)
Figure 35. Shipping Information
Note:
1 tray = 5*20pcs = 100 pcs
1 box = 2 trays = 2 * 100 pcs = 200pcs
1 carton = 4 boxes = 4 * 200 pcs = 800pcs
High-Flying
HF-LPB Low Power WiFi Module User Manual
Shanghai High-Flying Electronics Technology Co., Ltd
www.hi-flying.com
- 61 -
APPENDIX A: HW REFERENCE DESIGN
Detailed HF-LPT100 Evluation Board design source files, pls access High-Flying web download page
or contact with High-Flying technical support people to acquire.
High-Flying
HF-LPB Low Power WiFi Module User Manual
Shanghai High-Flying Electronics Technology Co., Ltd
www.hi-flying.com
- 62 -
APPENDIX B: CONTROL GPIO/PWM
FUNCTION WITH NETWORK COMMANDS

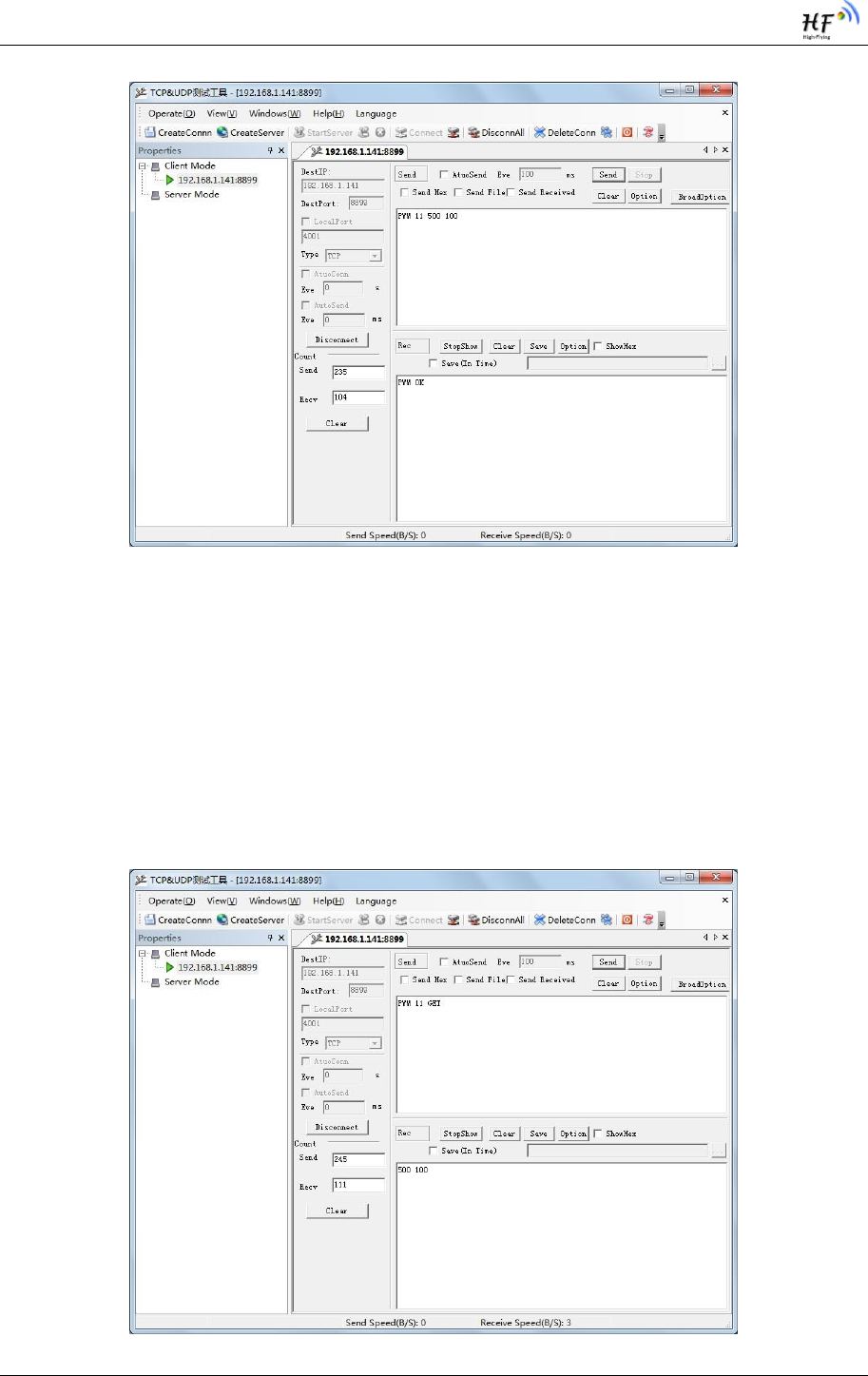

Send command data to control module’s GPIO, PWM port after make network connection with
TCP or UDP protocol. The status of GPIO won’t be changed if the module is reset.
B.1 Network Command
B.1.1 GPIO <channel> OUT <value>
Function: Set GPIO Channel value temporarily.。
Parameters:
channel:GPIO Channel number, it can be 11、12、18(GPIO Pin Number )
value:GPIO Channel value,1(high voltage)，0(low voltage)
Return Data:
GPIO OK: Command successful
GPIO NOK: Command failed
B.1.2 GPIO <channel> GET
Function: Query GPIO Channel value
Parameters:
channel: GPIO Channel number,it can be 11、12、18(GPIO Pin Number )
Return Data:
+ok=<value>
value:GPIO Channel value
High-Flying
HF-LPB Low Power WiFi Module User Manual
Shanghai High-Flying Electronics Technology Co., Ltd
www.hi-flying.com
- 63 -
GPIO NOK: Command failed
B.1.3 GPIO <channel> SET
Function: Save GPIO Channel setting
Parameters:
channel:GPIO Channel number,it can be 11、12、18(GPIO Pin Number )
Return Data:
GPIO OK: Command successful
GPIO NOK: Command failed
B.1.4 PWM <channel frequency duty>
Function: Set PWM Channel output temporarily
Parameters:
channel:PWM Channel number, it can be 11、12、18(GPIO Pin Number )
frequency:PWM Channel frequency, it can be 500~60000
duty:PWM Channel duty, it can be 0~100.
Return Data:
PWM OK: Command successful
PWM NOK: Command failed
High-Flying
HF-LPB Low Power WiFi Module User Manual
Shanghai High-Flying Electronics Technology Co., Ltd
www.hi-flying.com
- 64 -
B.1.5 PWM <channel> GET
Function: Query PWM Channel output
Parameters:
channel: PWM Channel number,it can be 11、12、18(GPIO Pin Number )
Return Data:
+ok=<frequency duty>
frequency:PWM Channel frequency
duty:PWM Channel duty
PWM NOK: Command failed
High-Flying
HF-LPB Low Power WiFi Module User Manual
Shanghai High-Flying Electronics Technology Co., Ltd
www.hi-flying.com
- 65 -
B.1.6 PWM <channel> SET
Function: Save PWM Channel setting
Parameters:
channel:PWM Channel number, it can be 11、12、18、20(GPIO Pin number)
Return Data:
PWM OK: Command successful
PWM NOK: Command failed
B.2 Hexadecimal Network Command
Send hexadecimal data to fastly read module’s port status.
B.2.1 Read All PWM Channel Frequency
Send Data:【30】:
Return Data:【b0 <value1 value2 value3 value4 value5 value6 value7 value8>】
value1: High byte of PWM Channel 0(GPIO11) frequency
value2: Low byte of PWM Channel 0(GPIO11) frequency
value3: High byte of PWM Channel 1(GPIO12) frequency
value4: Low byte of PWM Channel 1(GPIO12) frequency
value5: High byte of PWM Channel 2(GPIO18) frequency
value6: Low byte of PWM Channel 2(GPIO18) frequency
value7: Not used
value8: Not used
B.2.2 Write PWM Channel Frequency
Send Data:【32 <channel value1 value2】:
channel: PWM Channel number
value1: High byte of PWM Channel frequency
value2: Low byte of PWM Channel frequency
Return Data:【b2 <channel value1 value2>】
Channel: PWM Channel number
value1: High byte of PWM Channel frequency
value2: Low byte of PWM Channel frequency
B.2.3 Read All PWM Channel Duty
Send Data:【20】:
Return Data:【a0 <value1 value2 value3 value4>】
value1: Duty of PWM Channel 0
value2: Duty of PWM Channel 1
value3: Duty of PWM Channel 2
value4: Not used.
B.2.4 Write PWM Channel Duty
Send Data:【22 <channel value1>】:
High-Flying
HF-LPB Low Power WiFi Module User Manual
Shanghai High-Flying Electronics Technology Co., Ltd
www.hi-flying.com
- 66 -
channel:PWM Channel number
value1: Duty of PWM Channel
Return Data:【a2 <channel value1>】
Channel:PWM Channel number
value1: Duty of PWM Channel
B.2.5 Save Present GPIO,PWM Setting
Send Data:【7a】:
Return Data:【fa】
B.2.6 Read Resources of module
Send Data:【7e】:
Return Data:【fe <value1 value2 value3>】
value1: Module’s GPIO ouput pin number .
value2:Module’s GPIO input pin number
value3:Module’s PWM pin number
High-Flying
HF-LPB Low Power WiFi Module User Manual
Shanghai High-Flying Electronics Technology Co., Ltd
www.hi-flying.com
- 67 -
APPENDIX C: HTTP PROTOCOL TRANSFER
HF-LPT100 module support http data transfer in command mode. If any detailed HTTP protocol,
contact us and we may support customization.
C.1. HTTP AT command
C.1.1. AT+ HTTPURL
Function:Set /Query HTTP server IP address and Port Number.
Format:
Query Operation
AT+HTTPURL<CR>
+ok=<IP,Port><CR>< LF ><CR>< LF >
Set Operation
AT+HTTPURL=<IP,Port><CR>
+ok<CR>< LF ><CR>< LF >
Parameters:
IP：IP address.
Port：Port number.
C.1.2. AT+ HTTPTP
Function:Set /Query HTTP request type
Format:
Query Operation
AT+HTTPTP<CR>
+ok=<Type><CR>< LF ><CR>< LF >
Set Operation
AT+HTTPTP=<Type><CR>
+ok<CR>< LF ><CR>< LF >
Parameters:
Type：GET(default) or POST。
C.1.3. AT+ HTTPPH
Function:Set/Query HTTP protocol header path.
Format:
Query Operation
AT+HTTPPH<CR>
+ok=<Path><CR>< LF ><CR>< LF >
Set Operation
AT+HTTPPH=<Path><CR>
+ok<CR>< LF ><CR>< LF >
High-Flying
HF-LPB Low Power WiFi Module User Manual
Shanghai High-Flying Electronics Technology Co., Ltd
www.hi-flying.com
- 68 -
Parameters:
Path：Max length is 50 bytes.
C.1.4. AT+ HTTPCN
Function:Set/Query Connection of HTTP protocol header
Format:
Query Operation
AT+HTTPCN<CR>
+ok=<Connection><CR>< LF ><CR>< LF >
Set Operation
AT+HTTPCN=<Connection><CR>
+ok<CR>< LF ><CR>< LF >
Parameters:
Connection：Max length is 20 bytes.
C.1.5. AT+ HTTPUA
Function:Set/Query User-Agent of HTTP protocol header.
Format:
Query Operation
AT+HTTPUA<CR>
+ok=<Parameter><CR>< LF ><CR>< LF >
Set Operation
AT+HTTPUA=<Parameter><CR>
+ok<CR>< LF ><CR>< LF >
Parameters:
Parameter：Max length is 20 bytes.
C.1.6. AT+ HTTPDT
Function: Send HTTP request or data.
Format:
Set Operation
AT+HTTPDT=<Data><CR>
+ok<CR>< LF ><CR>< LF >
Parameters:
Data：HTTP request data, send AT+HTTPDT directly if no data to be sent.
C.2. HTTP Example
HTTP parameter settings are as follows：
AT+HTTPURL=192.168.1.1,80 Set HTTP server address and port
AT+HTTPTP=POST Set HTTP request type
AT+HTTPPH=/abcd Set HTTP protocol header path
AT+HTTPCN= keep-alive Set HTTP Connection area
High-Flying
HF-LPB Low Power WiFi Module User Manual
Shanghai High-Flying Electronics Technology Co., Ltd
www.hi-flying.com
- 69 -
AT+HTTPUA= lwip1.3.2 Set HTTP User-Agent area
If send “AT+HTTPDT”, the data packet will be sent as the following instance including the two
new line:
POST /abcd HTTP/1.1
Connection:keep-alive
User-Agent:lwip1.3.2
Content-Length:0
Host:192.168.0.127:8999
If send AT+HTTPDT=abcd, the data packet will be sent as the following instance:
POST /abcd HTTP/1.1
Connection:keep-alive
User-Agent:lwip1.3.2
Content-Length:4
Host:192.168.0.127:8999
abcd
The data received from HTTP server will be output to serial port and end with “+ok”.
If the module hasn’t received data from HTTP server for 5 second, it will cut the TCP link with
HTTP server.
High-Flying
HF-LPB Low Power WiFi Module User Manual
Shanghai High-Flying Electronics Technology Co., Ltd
www.hi-flying.com
- 70 -
APPENDIX D: CONTACT INFORMATION
------------------------------------------------------------------------------------------------------------
Address: Room.511/510, Building 7, No.365, Chuanhong Road, Pudong New Area,
Shanghai, China, 201202
Web: www.hi-flying.com
Service Online: 400-189-3108
Sales Contact: sales@hi-flying.com
-----------------------------------------------------------------------------------------------------------
For more information about High-Flying modules, applications, and solutions, please visit our web site
http://www.hi-flying.com/en/
END OF DOCUMENT
© Copyright High-Flying, May, 2011
The information disclosed herein is proprietary to High-Flying and is not to be used by or disclosed to unauthorized persons
without the written consent of High-Flying. The recipient of this document shall respect the security status of the information.
The master of this document is stored on an electronic database and is “write-protected” and may be altered only by
authorized persons at High-Flying. Viewing of the master document electronically on electronic database ensures access to
the current issue. Any other copies must be regarded as uncontrolled copies.
FCC STATEMENT
1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause
undesired operation.
2. Changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
　 Reorient or relocate the receiving antenna.
　 Increase the separation between the equipment and receiver.
　 Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
　 Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body
This device must be kept away from all persons by 20cm or more and installations using less
distance, or installations using antennas with gain greater than that with which this was
Certified will require additional approvals.
Antenna Specification:
Type: External Antenna
Model: EDA-1513-25GR2-B2
Brand: MAG LAYERS
Gain: 2.0dBi
