07a. HILTI_2145807_User Manual
***** For internal use only ***** 14.12.2017 / 13:06:37 - H2\DOK-Projekt\System\AI_T380\ENU\AI_T380_P1
English 1
1 Information about the documentation
1.1 About this documentation
• Read this documentation before initial operation or use. This is a prerequisite for safe, trouble-free
handling and use of the product.
• Observe the safety instructions and warnings in this documentation and on the product.
• Always keep the operating instructions with the product and make sure that the operating instructions
are with the product when it is given to other persons.
1.2 Explanation of symbols used
1.2.1 Warnings
Warnings alert persons to hazards that may occur when handling or using the product. The following signal
words are used in combination with a symbol:
DANGER! Draws attention to an imminent hazard that will lead to serious personal injury or
fatality.
WARNING! Draws attention to a potential hazard that could lead to serious personal injury or
fatality.
CAUTION! Draws attention to a potentially dangerous situation that could lead to minor personal
injury or material damage.
1.2.2 Symbols in the documentation
The following symbols are used in this document:
Read the operating instructions before use
Instructions for use and other useful information
1.2.3 Symbols in the illustrations
The following symbols are used in illustrations:
These numbers refer to the corresponding illustrations found at the beginning of these operating
instructions.
The numbering reflects the sequence of operations shown in the illustrations and may deviate
from the steps described in the text.
Item reference numbers are used in the overview illustration and refer to the numbers used in
the key in the product overview section.
This symbol is intended to draw special attention to certain points when handling the product.
1.3 Product information
Hilti products are designed for professional users and only trained, authorized personnel are permitted to
operate, service and maintain the products. This personnel must be informed of any particular hazards that
may be encountered. The product and its ancillary equipment can present hazards if used incorrectly by
untrained personnel or if used not in accordance with the intended use.

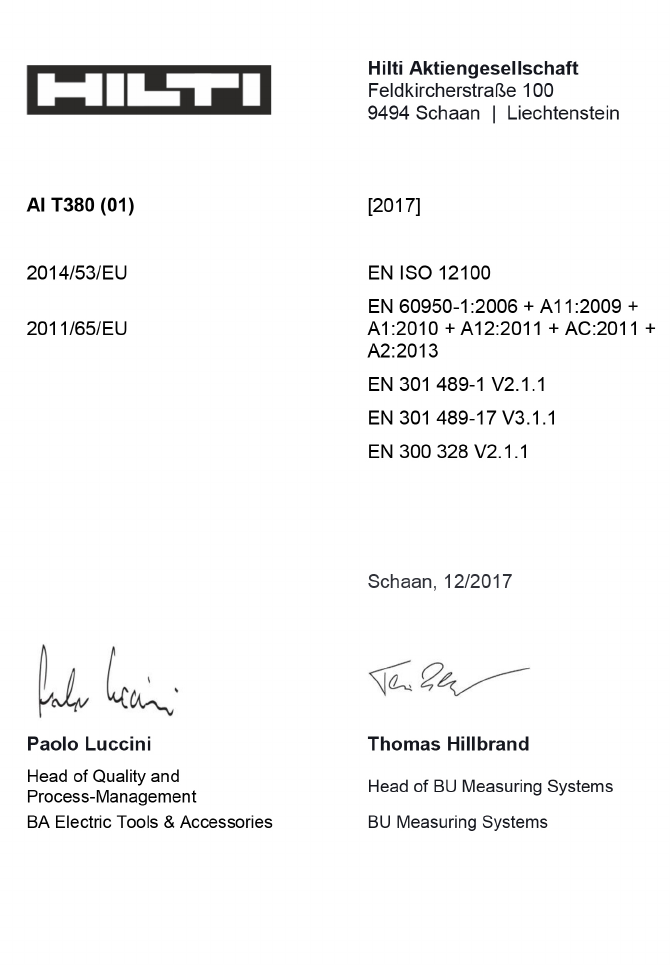

1.4 Declaration of conformity
We declare, on our sole responsibility, that the product described here complies with the applicable directives
and standards. A copy of the declaration of conformity can be found at the end of this documentation.
The technical documentation is filed and stored here:
Hilti Entwicklungsgesellschaft mbH | Tool Certification | Hiltistrasse 6 | D-86916 Kaufering, Germany
2 Safety
2.1 General safety instructions
Read all safety instructions and other instructions.
***** For internal use only ***** 14.12.2017 / 13:06:37 - H2\DOK-Projekt\System\AI_T380\ENU\AI_T380_P1
2 English
Keep all safety instructions and other instructions for future reference.
General safety instructions
▶Do not cover a type identification plate or other labels.
▶Do not cover any openings in the casing of the item of equipment.
▶Do not obstruct switches, displays and warning lights.
▶To avoid surface damage or chemical reactions, check that the adhesive is compatible with the surface
before applying the ON!Track smart tag.
▶Keep away from children.
3 Description
3.1 Intended use
The Hilti AI T380 ON!Track smart tag makes it possible to clearly identify an item of equipment by way of a
Bluetooth signal, NFC signal or a 2D-barcode. After activation, the AI T380 continuously transmits a radio
signal that allows the user of the Hilti ON!Track system to determine the location of the item of equipment.
A smartphone app and a Web application for the management of items of equipment is available from Hilti.
The battery in the Hilti AI T380 ON!Track smart tag is not replaceable.
3.2 Items supplied
20 x AI T380
1 x operating instructions
3.3 Accessories
An additional adapter that allows the AI T380 to be attached to a cable or tied / clipped to an object is
available from Hilti.
3.4 Third-party wordmarks, trademarks and logos
The Bluetooth®wordmark and the logo are registered trademarks and the property of Bluetooth SIG, Inc.
and Hilti has been granted a license to use these trademarks.
The Android™ and Chrome™ trademarks are the property of Google Inc.
The iPhone®and iOS trademarks are the property of Apple Inc.
All other trademarks and wordmarks used, even when not expressly stated or marked as such, are the
property of their applicable owners.
4 Prerequisites
4.1 Prerequisites
In order to use the functionality of the AI T380, the Hilti ON!Track app is required. In order to use this
corresponding app, a user name and a password are required.
The minimum requirements are as follows:
System requirements
Smartphone / tablet Android™ 5 (or higher)
iOS®10 (or higher)
Compatible with Bluetooth low energy devices
Near Field Communication (NFC) Necessary for activation and deactivation
Not supported by the iPhone®
Browser Internet Explorer or Chrome™
For further information about Hilti ON!Track, please contact Hilti Service or visit http://ontrack.hilti.com.
***** For internal use only ***** 14.12.2017 / 13:06:37 - H2\DOK-Projekt\System\AI_T380\ENU\AI_T380_P1
English 3
5 Technical data
5.1 Technical data
Protection class IP 67
Dimensions 38 mm x 28 mm x 11 mm (1.5''
x 1.1'' x 0.4'')
Operating temperature −20 ℃ …65 ℃
(−4 ℉ …149 ℉)
Storage temperature −25 ℃ …80 ℃
(−13 ℉ …176 ℉)
Battery (not replaceable) CR2032 button cell
Battery life (at room temperature) 3 years
Communication standard Bluetooth® 4.0
Signal range (can vary greatly depending on surrounding condi-
tions)
30 m
(98 ft - 10 in)
Signal interval 5 s
Frequency 2,402 MHz …2,480 MHz
Maximum emitted transmission power 3.20 mW

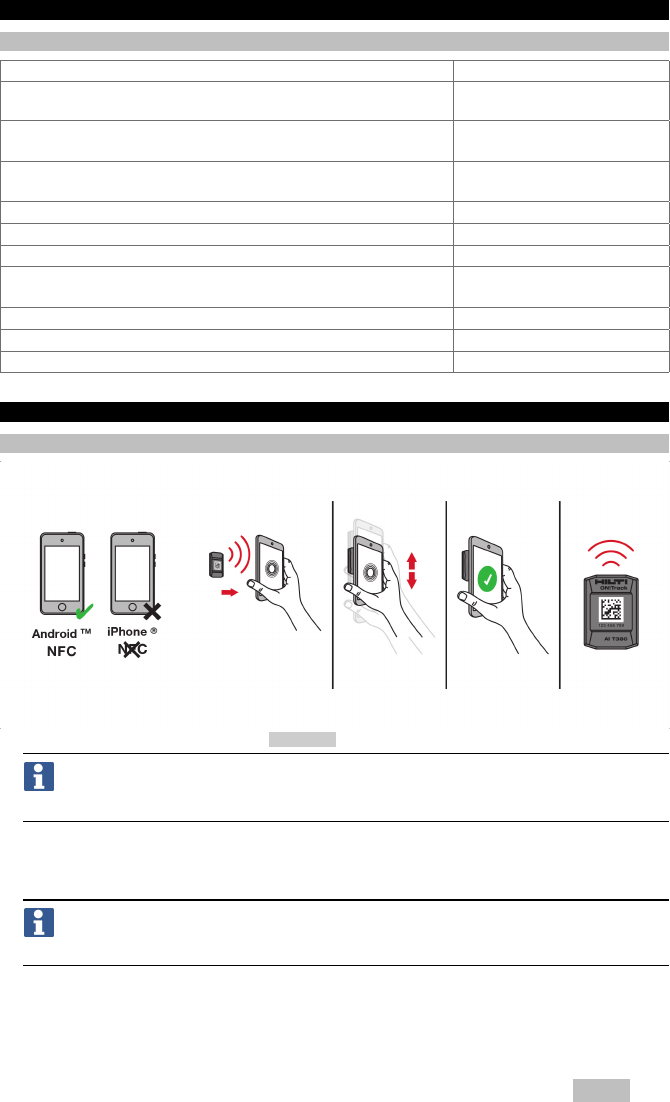

6 Operation
6.1 Activation
1. Start the Hilti ON!Track app and select Activation from the menu.
Note
The ON!Track smart tag is switched off when supplied and must be activated before use.
Activation is possible only using an Android device with NFC functionality.
2. To begin activation, hold the ON!Track smart tag against the back of the smartphone, so that both are in
contact.
3. Move the ON!Track smart tag over the back of smartphone in order to find the position of the NFC
antenna.
Note
The position of the NFC antenna on each smartphone model is different. Search for the right position
for activation by moving the ON!Track smart tag around against the back of the smartphone.
4. The smartphone provides confirmation as soon as the ON!Track smart tag has been activated.
***** For internal use only ***** 14.12.2017 / 13:06:37 - H2\DOK-Projekt\System\AI_T380\ENU\AI_T380_P1
4 English

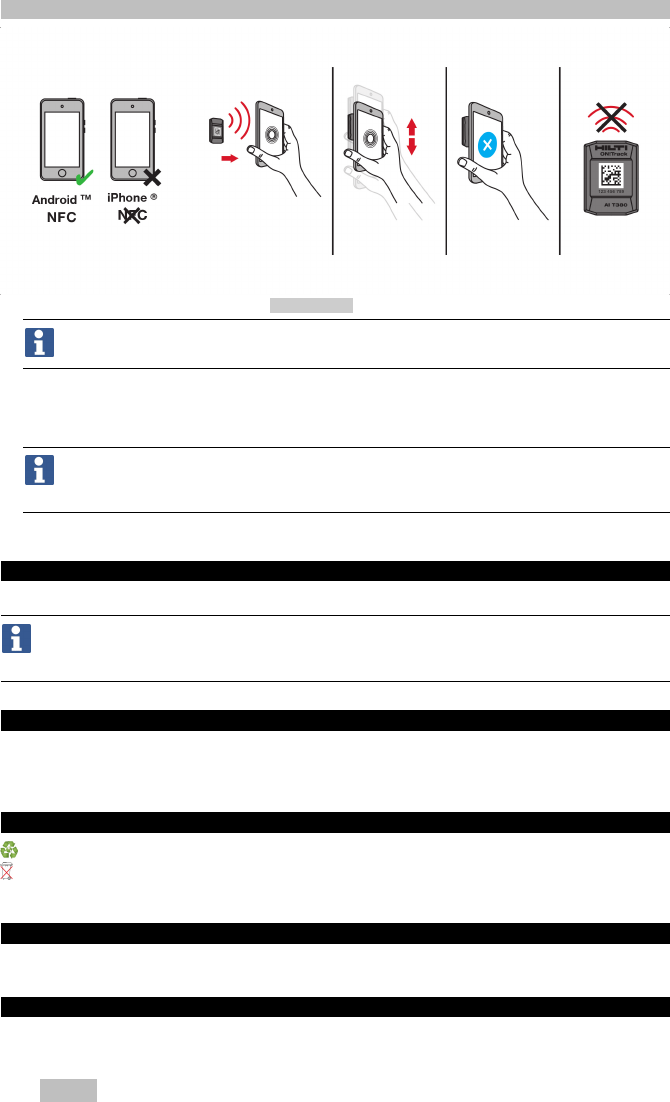

6.2 Deactivation
1. Start the Hilti ON!Track app and select Deactivation from the menu.
Note
Deactivation is possible only using an Android device with NFC functionality.
2. To begin deactivation, hold the ON!Track smart tag against the back of the smartphone, so that both are
in contact.
3. Move the ON!Track smart tag over the back of smartphone in order to find the position of the NFC
antenna.
Note
The position of the NFC antenna on each smartphone model is different. Search for the right position
for deactivation by moving the ON!Track smart tag around against the back of the smartphone.
4. The smartphone provides confirmation as soon as the ON!Track smart tag has been deactivated.
7 Transport
Deactivate the Hilti AI T380 ON!Track smart tag before transportation in an aircraft.
Note
When traveling by air, please observe the regulations regarding restriction of the use of personal
electronic devices and Bluetooth devices, as issued by the applicable airline.
8 RoHS (Restriction of Hazardous Substances)
Click on the link to go to the table of hazardous substances: qr.hilti.com/r7068430.
There is a link to the RoHS table, in the form of a QR code, at the end of this document.
9 Disposal
The Hilti AI T380 ON!Track smart tag contains a battery.
Do not dispose of the Hilti ON!Track smart tag AI T380 as household waste. Instead, dispose of it in
accordance with national regulations.
10 Manufacturer’s warranty
▶Please contact your local Hilti representative if you have questions about the warranty conditions.
11 FCC statement (applicable in US) / IC statement (applicable in Canada)
The product complies with part 15 of the FCC Rules and RSS210 of the IC.
Operation is subject to the following two conditions:
***** For internal use only ***** 14.12.2017 / 13:06:37 - H2\DOK-Projekt\System\AI_T380\ENU\AI_T380_P1
English 5
•(1) This device shall cause no harmful interference.
(2) This device must accept any interference received, including interference that may cause
undesired operation.
•Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence.
L'exploitation est autorisée aux deuxconditions suivantes :
(1)l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout
brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le
fonctionnement.
Note
Changes or modifications not expressly approved by Hilti can restrict the user’s right to operate the
device.
Remarque:
Hilti n’approuve aucune modification apportée à l’appareil par l’utilisateur, quelle qu’en soit la
nature. Tout changement ou modification peuvent annuler le droit d’utilisation de l’appareil par
l’utilisateur.
FCC Class B Digital Device Notice
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
CAN ICES-3 (B) / NMB-3 (B)
This Class B digital apparatus complies with Canadian
***** For internal use only ***** 14.12.2017 / 13:06:37 - H2\DOK-Projekt\System\AI_T380\ENU\AI_T380_P1
6 English
***** For internal use only ***** 14.12.2017 / 13:06:37 - H2\DOK-Projekt\System\AI_T380\ENU\AI_T380_P1
EN 301 489-1 V2.2.0 (Draft)
EN 301 489-3 V2.1.1 (Final Draft)
EN 301 489-17 V3.2.0 (Draft)
EN 300 328 V2.1.1
EN 62479:2010
EN 300 330 v.2.1.1 (2017-02)
