RMM-W
RMM- W User Manual
RMM-W Mounting Instruction_V1.9.docx Transportation Solutions
Updated: 2016-12-19 Author: Jens Sarup
Project RMM-W
Page 2 of 16
1 DECLARATION OF CONFORMITY
Environmental Specifications, markings and certifications
CE
EMC Directive 2014/30/EC
Low Voltage Directive 2014/35/EC
RED Directive 2014/53/EC
RoHS Directive 2011/65/EC
WEE Directive 2002/96/EC
Battery Directive 2006/66/EC
1.1 FCC and IC Rules
This device complies with Part 15 of the FCC Rules and Industry Canada’s license-exempt
RSSs. Operation is subject to the following two conditions:
1. This device may not cause harmful interference
2. This device must accept any interference received, including interference that may
cause undesired operation.
This device has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
This device has been designed to operate with the antennas listed below, and having a
maximum gain of 4 dBi (Cellular) and 6.25 dBi (Bluetooth Low Energy). Antennas not
included in this list or having a gain greater than 4 dBi (Cellular) and 6.25 dBi (Bluetooth
Low Energy) are strictly prohibited for use with this device. The required antenna
impedance is 50 ohms.
To reduce potential radio interference to other users, the antenna type and its gain should
be so chosen that the equivalent isotopically radiated power (e.i.r.p.) is not more than that
permitted for successful communication.
RMM-W Mounting Instruction_V1.9.docx Transportation Solutions
Updated: 2016-12-19 Author: Jens Sarup
Project RMM-W
Page 3 of 16
Régulations FCC/IC
Cet appareil respecte la partie 15 des regulations FCC.
.
L’utilisation est sujette aux deux conditions suivantes:
(1) cet appareil doit ne pas pouvoir causer d’ interférences nuisibles, et
(2) cet appareil doit accepter toute interférence reçue, y compris celle risquant de
causer une utilisation non-desirée.
Cet appareil est en conformité avec les normes de spécification radio exemptés de licence
de l’industrie canadienne. L’utilisation est sujette aux deux conditions suivantes:
(1) cet appareil doit ne pas pouvoir causer d’ interférences, et
(2) cet appareil doit accepter toute interférence, y compris celle risquant de causer une
utilisation non-desirée de l’appareil.
Cet équipement a été testé et respecte les limites pour un appareil numérique de classe B,
selon la partie 15 de la réglementation FCC. Ces limites sont conçues afin de fournir une
protection raisonnable contre toute interférence nocive au sein d’une installation
résidentielle. Cet équipement peut générer, utiliser et émettre de l’énergie dans le champs
des fréquences radio et, en cas d’installation et d’usage en accord avec les instructions,
causer des interférences nocives à la communication radio. Cependant, la garantie
qu’aucune interférence ne peut avoir lieu pour une installation particulière ne peut être
apportée. Si cet équipement cause des interférences nocives à la réception radio ou TV,
pouvant être mesurées en éteignant puis en rallumant l’équipement, l’utilisateur est
encouragé à essayer de corriger les interférences en prenant l’une des mesures
suivantes:
Réorienter ou déplacer l’antenne de reception.
Augmenter la distance de séparation entre l’équipement et le récepteur.
Connecter l’équipement à une prise sur un circuit différent de celui sur lequel le
récepteur est connecté.
Demander conseil au vendeur ou à un technicien radio/TV expérimenté.
Cet appareil a été concu afin d’opérer les antennes citées dans la liste figurant ci-dessous,
et ayant un gain maximal de 4 dBi (mobile) et 6,25 dBi (Bluetooth Low Energy).
Les antennes non-inclues dans cette liste ou ayant un gain supérieur à 4 dBi (mobile) et
6,25 dBi (Bluetooth Low Energy) sont strictement inderdites d’utilisation avec cet appareil.
L’impédance d’antenne requise est de 50 ohms.
Afin de réduire une éventuelle interférence radio avec d’autres utilisateurs, le type
d’antenne ainsi que son gain doivent être choisis de telle manière que la puissance
isotrope rayonnée équivalente (PIRE) ne dépasse pas celle qui est permise pour qu’une
communication soit possible.
RMM-W Mounting Instruction_V1.9.docx Transportation Solutions
Updated: 2016-12-19 Author: Jens Sarup
Project RMM-W
Page 4 of 16
WARNING!
FCC and IC Radiation Exposure Statement:
This device complies with FCC’s and IC’s RF radiation exposure limits set forth for an
uncontrolled environment under the following conditions:
1. This device should be installed and operated such that a minimum separation
distance of 20 cm is maintained between the radiator (antenna) & user’s/nearby
person’s body at all times.
2. This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
3. Changes or modifications not expressly approved by the party responsible for
compliance could void the user´s authority to operate the equipment.
ATTENTION!
Énoncé d’exposition à la radiation FCC et IC:
1. Cet équipement doit être installé et utilisé de manière à ce qu’une distance
minimale de 20cm soit maintenue en permanence entre l’émetteur (antenne) et le
corps de l’utilisateur/d’une personne à proximité.
2. Cet émetteur ne doit pas être colocalisé ou utilisé conjointement avec d’autres
antennes ou émetteurs.
3. Tout changement ou modification n’ayant pas été expressement approuvé par le
parti responsable de la mise en conformité peut entraîner une annulation de
l’autorisation de l’utilisateur à opérer l’équipement.
RMM-W Mounting Instruction_V1.9.docx Transportation Solutions
Updated: 2016-12-19 Author: Jens Sarup
Project RMM-W
Page 5 of 16
Batteries:
Rechargeable batteries
Depending on variant the RMM-W device includes one or two rechargeable
batteries.
Generally, the device has been designed that no battery replacement by the
operator is intended throughout the complete service life.
CAUTION:
RISK OF EXPLOSION IF BATTERY IS REPLACED BY ANY INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.
Batteries rechargeables
En fonction de la variante considérée, l’appareil RMM-W peut inclure une ou deux
batteries rechargeables.
En général, l’appareil a été concu de telle manière à ce qu’aucun remplacement de
batterie de la part de l’opérateur soit prévu au long de sa durée de vie complète.
ATTENTION:
RISQUE D’EXPLOSION SI LA BATTERIE EST REMPLACÉE PAR TOUT TYPE
INCORRECT. SUIVRE LES INSTRUCTIONS AFIN DE DISPOSER DES
BATTERIES USÉES.
1.2 Safety Warnings
Caution contains Static Sensitive Device
Attention
Contient des composants sensibles à la
décharge électrostatique (ESDS)
RMM-W Mounting Instruction_V1.9.docx Transportation Solutions
Updated: 2016-12-19 Author: Jens Sarup
Project RMM-W
Page 6 of 16
1.3 Variants
RMM-W single battery without BLE P/N 7916-001
RMM-W Double battery without BLE P/N 7916-002
RMM-W single battery with BLE P/N 7916-003
RMM-W Double battery with BLE P/N 7916-004
Mounting Instruction
RMM-W Mounting Instruction_V1.9.docx Transportation Solutions
Updated: 2016-12-19 Author: Jens Sarup
Project RMM-W
Page 7 of 16
Table of Contents
1 DECLARATION OF CONFORMITY 2
1.1 FCC and IC Rules 2
1.2 Safety Warnings 5
1.3 Variants 6
2 RMM-W 8
3 CONTAINER TYPES 9
3.1 Thermo King MP 3000 9
3.2 Thermo King MP4000 10
3.3 Daikin Decos II/III 11
3.4 Daikin Zestia 12
3.5 Carrier ML2i/ML3 13
3.6 Carrier ThinLine 14
3.7 StarCool 15
DOCUMENT REVISION RECORD 16
RMM-W Mounting Instruction_V1.9.docx Transportation Solutions
Updated: 2016-12-19 Author: Jens Sarup
Project RMM-W
Page 8 of 16

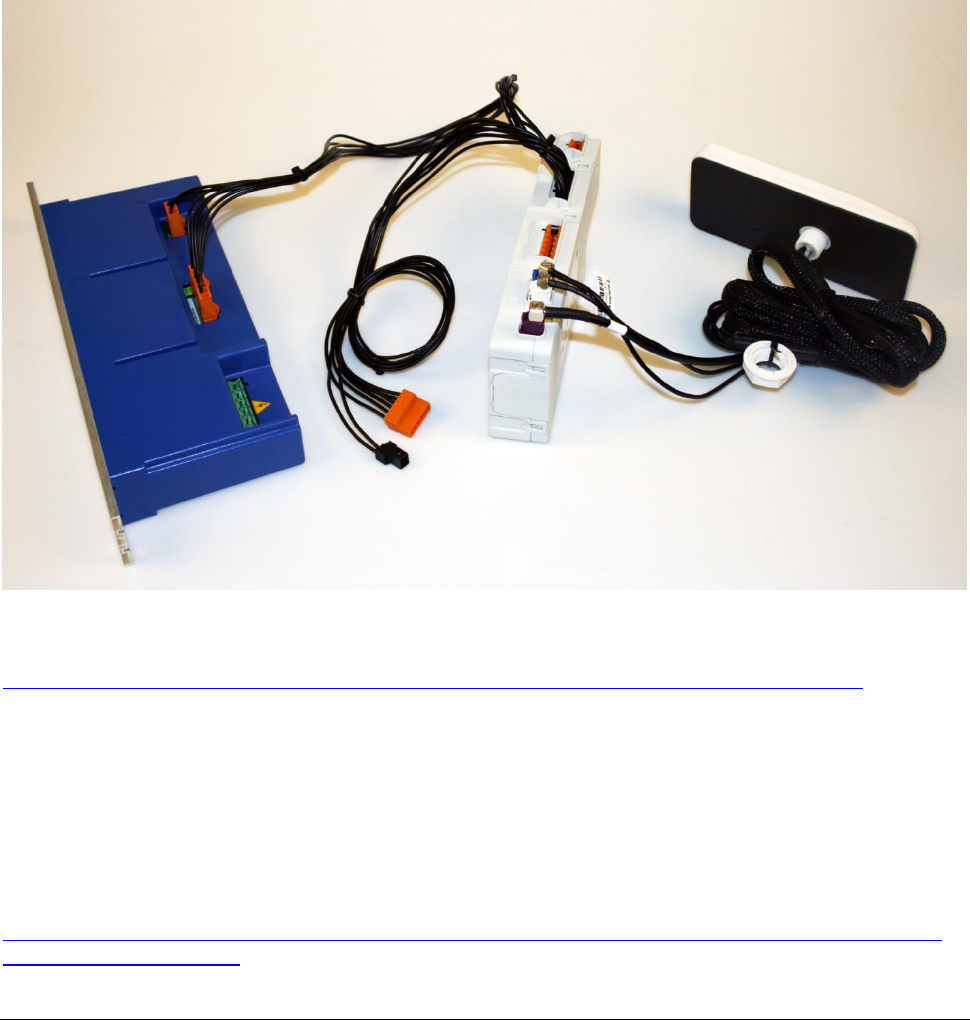

2 RMM-W
The RMM-W is a remote wireless communication device designed for refrigerated containers. The
RMM-W unit provides wireless technologies for fast data transfer, long distance communication
and tracking.
The RMM-W unit uses machine-to-machine cell phone technology to forward all exceptions such
as alarms and power on/off events as they occur, and will provide full set of data at pre-set
scheduled intervals to the Emerson - ProAct™ Server.
The RMM-W is to be fastened with tape from 3M, specification of tape can be found on below link
http://multimedia.3m.com/mws/media/1021181O/3m-acrylic-foam-tape-px5000.pdf
Attention!
In order to ensure proper and durable installation with adhesive tape it is mandatory to follow the
Tape manufacturer’s Usage Guidelines for Installation.
Surface conditioning and cleaning as well a the process window for temperature during installation
have to be respected in any case.
The guideline can be found on below link
http://multimedia.3m.com/mws/media/999184O/3m-automotive-acrylic-foam-tape-general-
instructural-manual.pdf
RMM-W Mounting Instruction_V1.9.docx Transportation Solutions
Updated: 2016-12-19 Author: Jens Sarup
Project RMM-W
Page 9 of 16
3 CONTAINER TYPES
3.1 Thermo King MP 3000
To be updated with further pictures as soon as connection board to controller is ready.
RMM-W Mounting Instruction_V1.9.docx Transportation Solutions
Updated: 2016-12-19 Author: Jens Sarup
Project RMM-W
Page 10 of 16

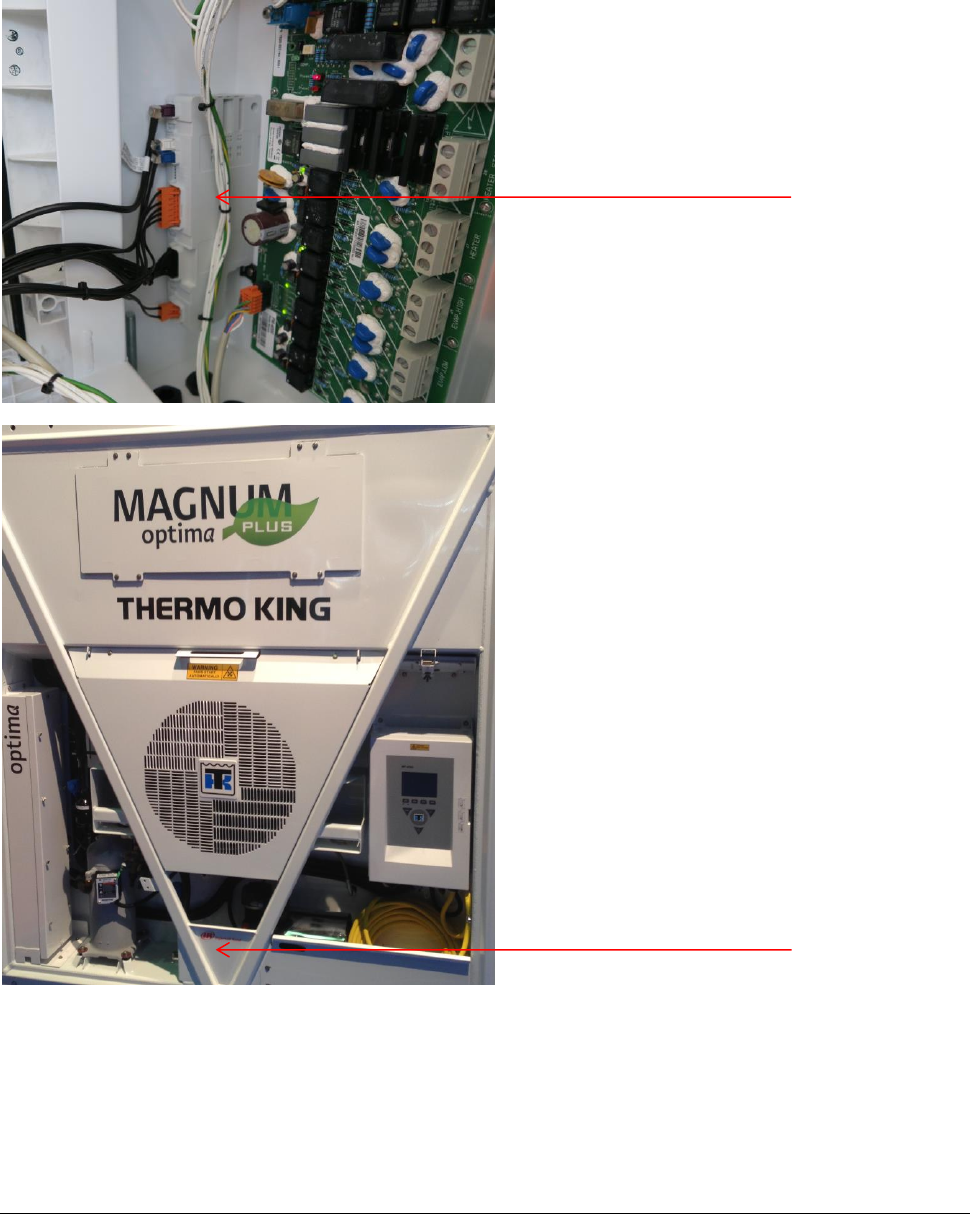

3.2 Thermo King MP4000
Antenna placement same as MP3000
RMM-W Mounting Instruction_V1.9.docx Transportation Solutions
Updated: 2016-12-19 Author: Jens Sarup
Project RMM-W
Page 11 of 16

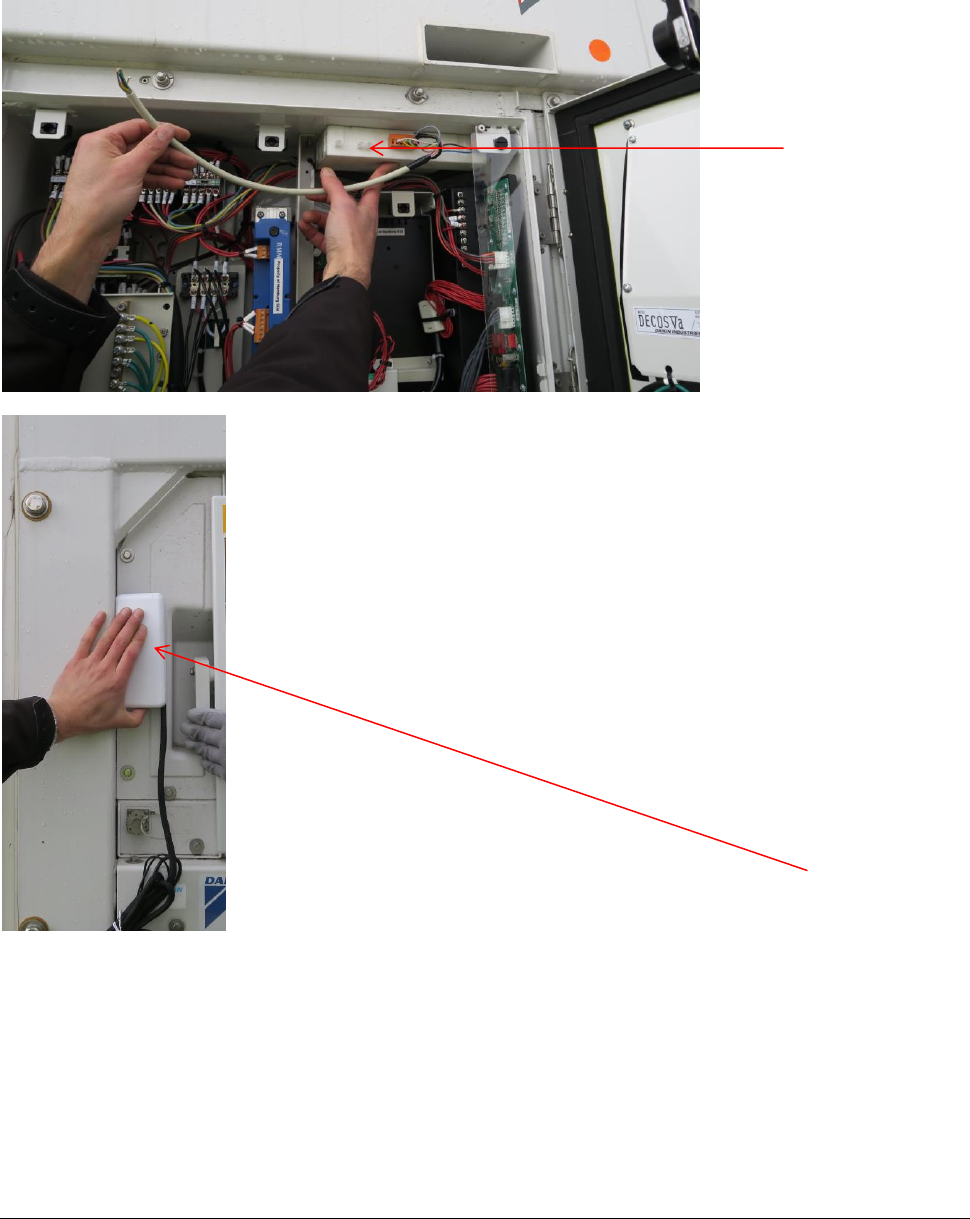

3.3 Daikin Decos II/III
RMM-W Mounting Instruction_V1.9.docx Transportation Solutions
Updated: 2016-12-19 Author: Jens Sarup
Project RMM-W
Page 12 of 16

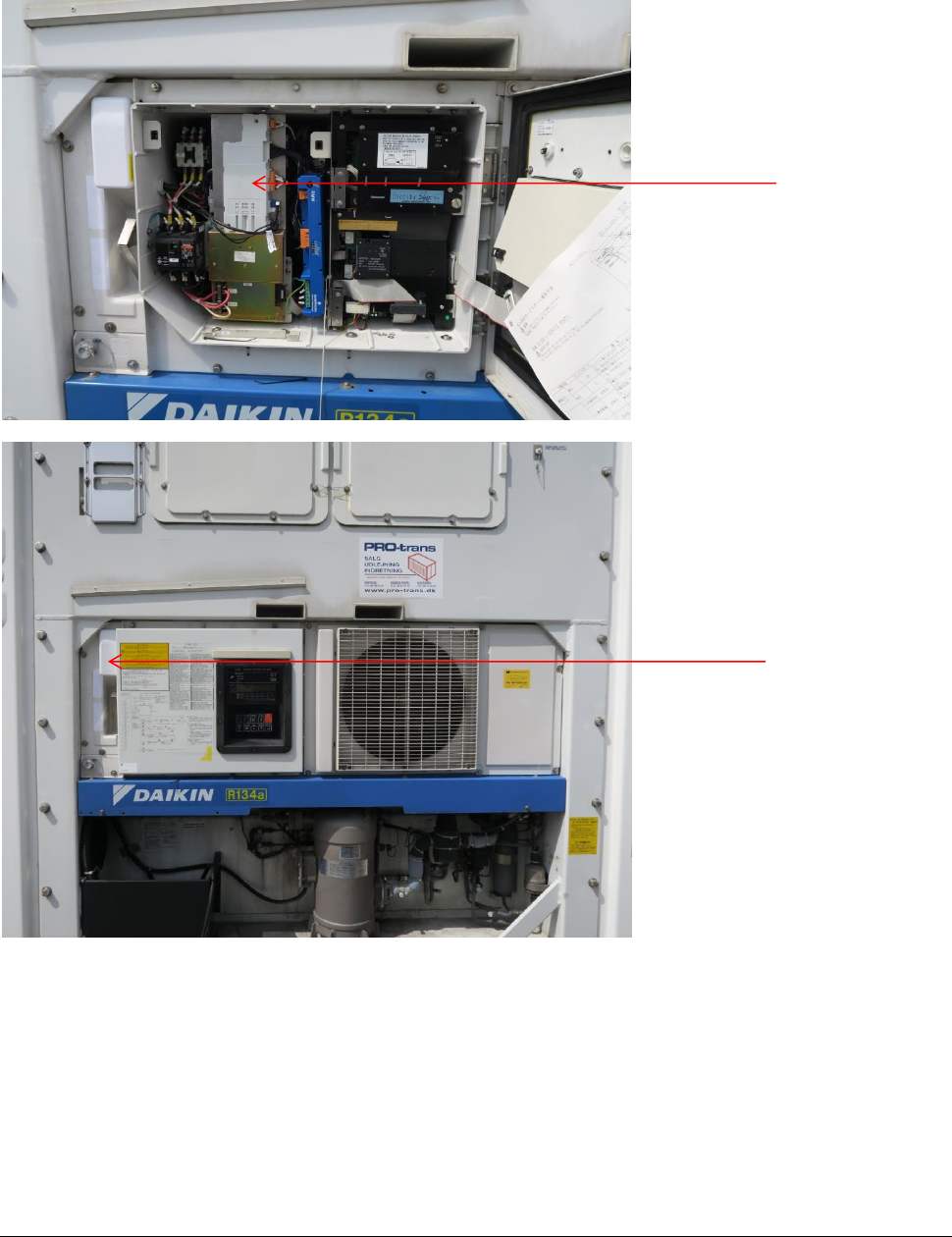

3.4 Daikin Zestia
To be updated
RMM-W Antenna
RMM-W Mounting Instruction_V1.9.docx Transportation Solutions
Updated: 2016-12-19 Author: Jens Sarup
Project RMM-W
Page 13 of 16

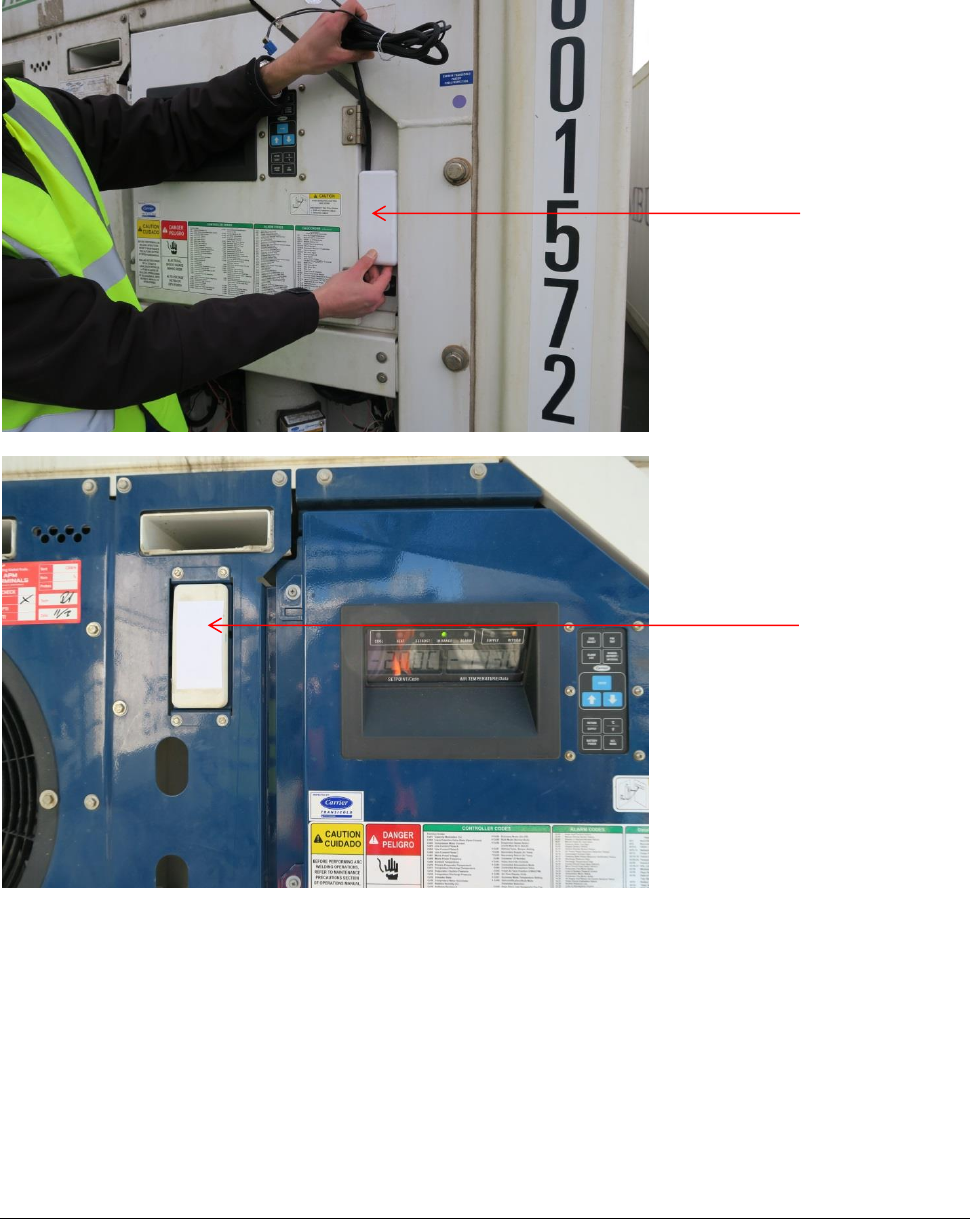

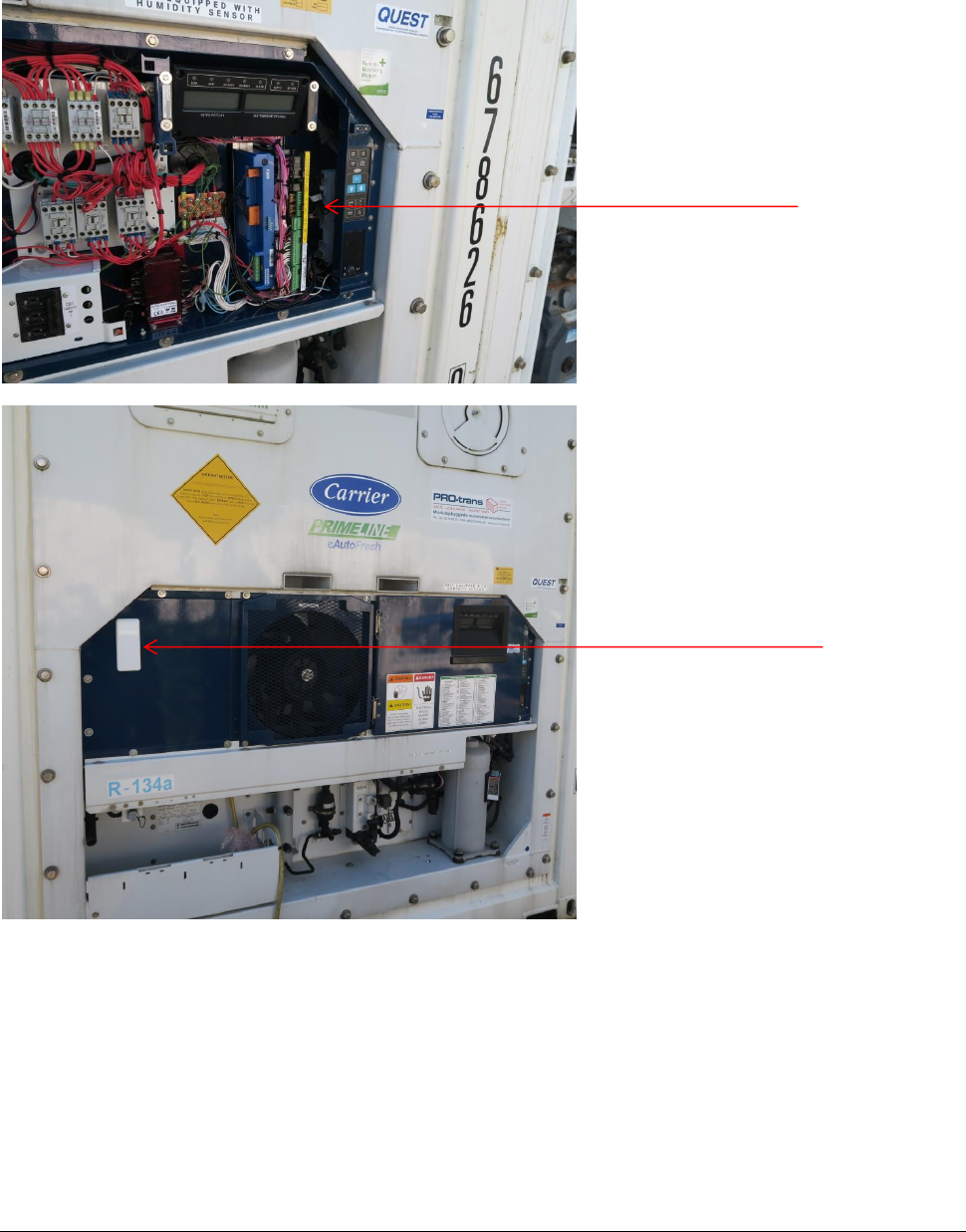

3.5 Carrier ML2i/ML3
RMM-W
RMM-W Antenna
RMM-W Mounting Instruction_V1.9.docx Transportation Solutions
Updated: 2016-12-19 Author: Jens Sarup
Project RMM-W
Page 14 of 16
3.6 Carrier ThinLine
To be updated
Optional if correct bracket installed from Carrier.
RMM-W Antenna
RMM-W Antenna
RMM-W Mounting Instruction_V1.9.docx Transportation Solutions
Updated: 2016-12-19 Author: Jens Sarup
Project RMM-W
Page 15 of 16

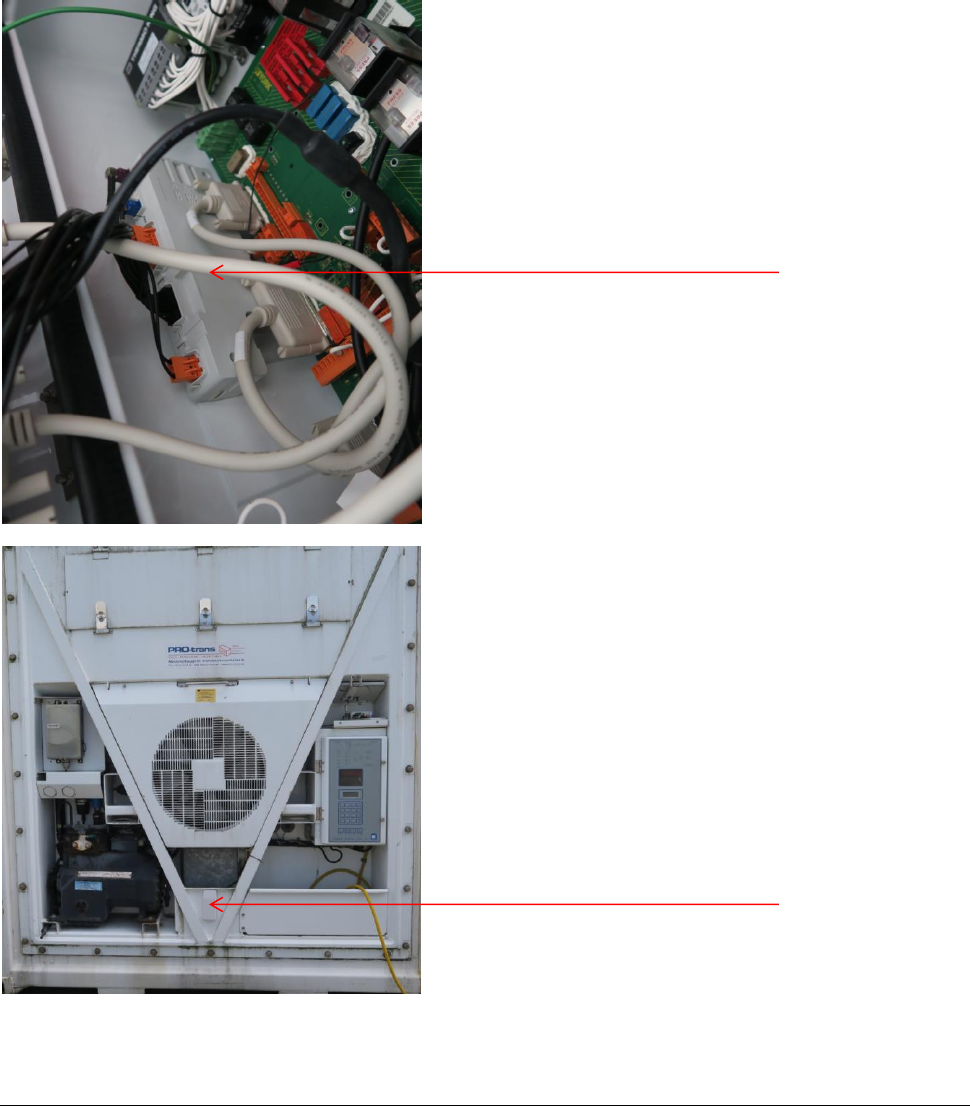

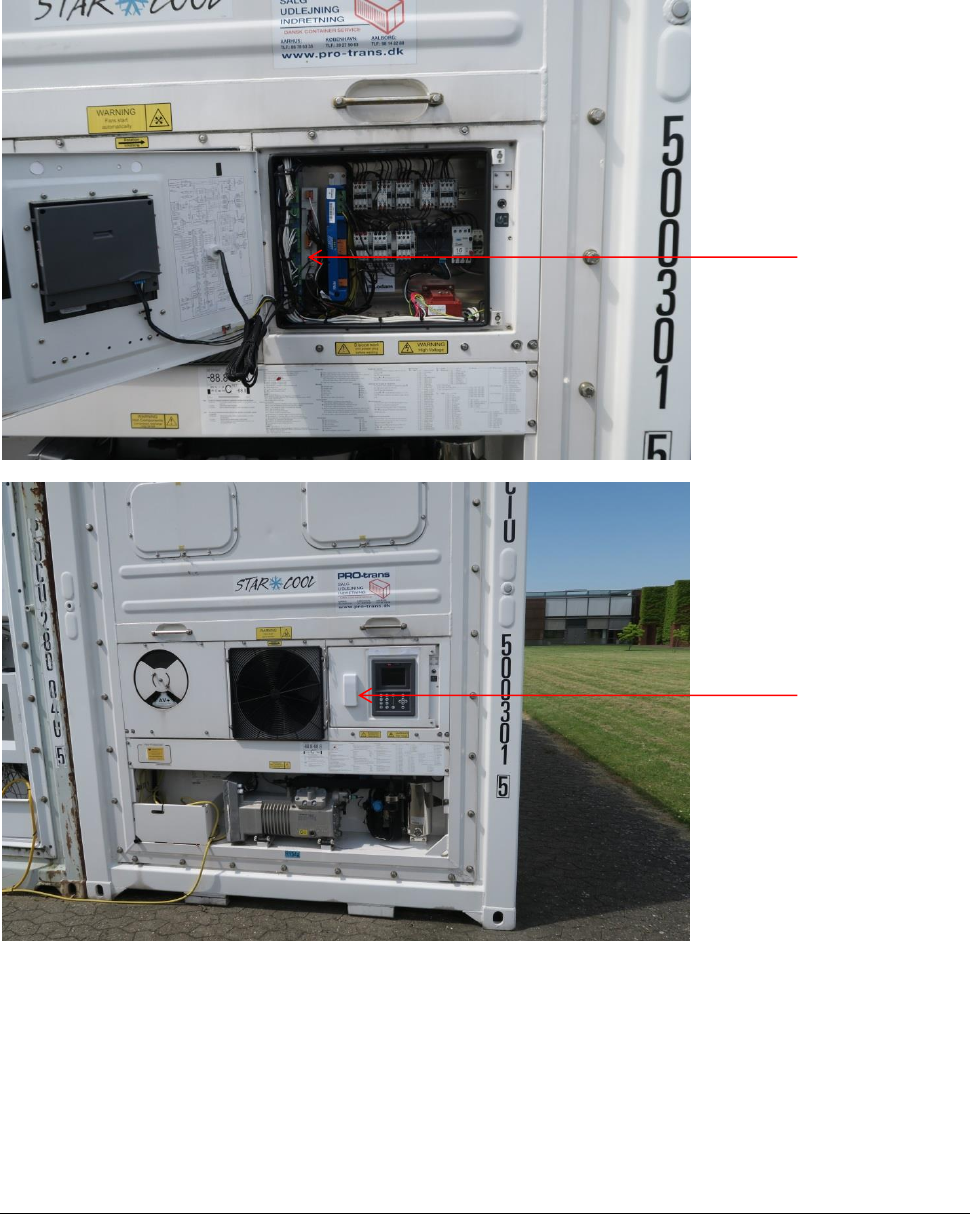

3.7 StarCool
RMM-W Antenna
RMM-W
RMM-W Mounting Instruction_V1.9.docx Transportation Solutions
Updated: 2016-12-19 Author: Jens Sarup
Project RMM-W
Page 16 of 16
Document Revision Record
Rev.
Date
Author
Brief description of change
Pages affected
1.0
060616
JES
Original issue
All
1.1
060816
YS
TK Controller added
All
1.2
310816
JES
FCC text included
All
1.3
071116
JES
Declaration of conformity and battery handling included
All
1.4
071116
JES
Variant included in the document
All
1.5
151116
JES
French cautions added
All
1.6
121216
JES
Additional French text added
All
1.7
191216
JES
Additional FCC text added
All
1.8
191216
JES
VHB tape information added
All
1.9
191216
JES
Handling of VHB tape added

Navigation menu
