Quick Start Guide
Before using the TV, please read this guide thoroughly and retain it for future reference.
For more detailed instructions, please see the Instruction Manual.
Model: RLDED4350-UHD-B-SM
1
Contents
Packaged contents.................................................................................................... 2
Attach the TV stand or wall mount bracket ............................................................................... 3
Buttons and Ports ..................................................................................................... 5
Using your TV remote control .......................................................................................... 11

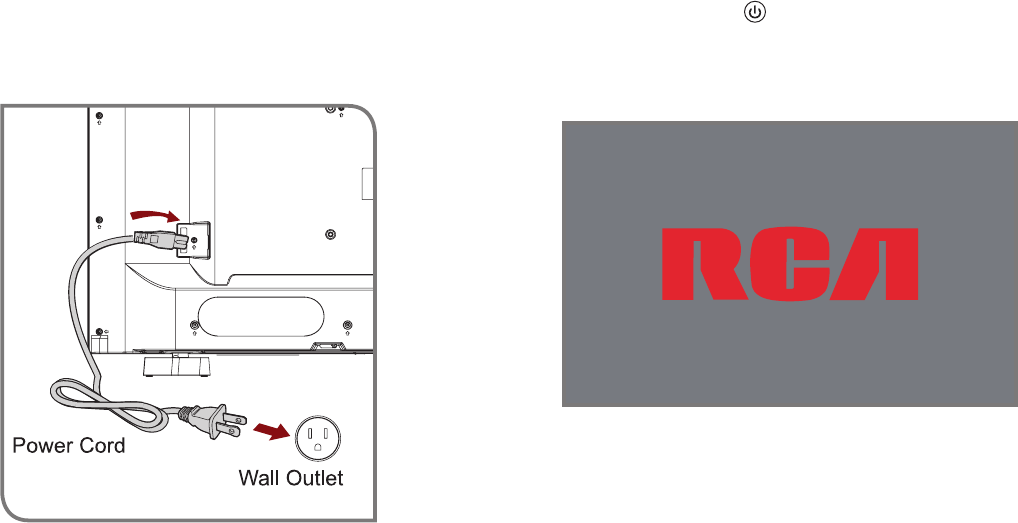

Power on the TV ..................................................................................................... 13
Product specifications ................................................................................................ 16
Quick problem-solving tips ............................................................................................ 17
Certification and Compliance .......................................................................................... 18
2

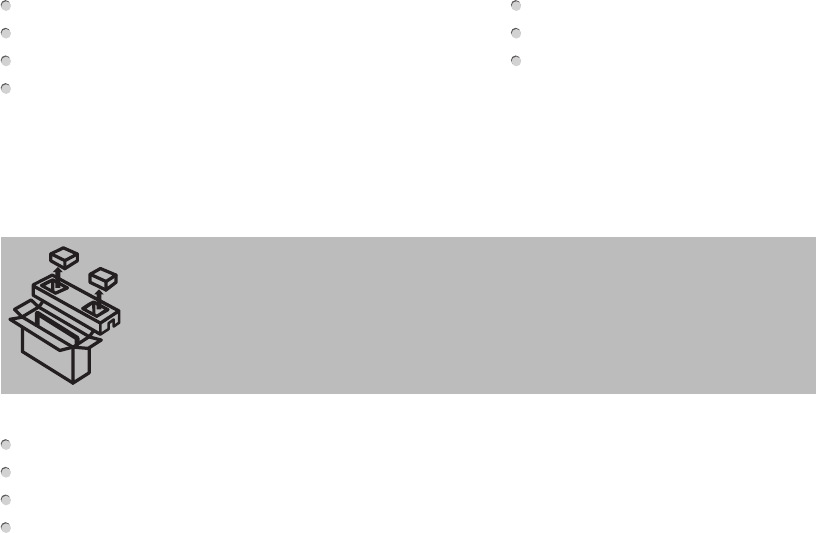

1. Packaged contents
Your package in which you purchased your new TV contains the following items:
2 AAA batteries 2 legs that form the TV stand
Quick Start Guide Instruction Manual
4 screws (ST4×16) Power Cord
Remote Control
IMPORTANT:
To prevent accidentally discarding items that came with your TV, be sure to check ALL of the foam in the carton box.
Required tools and devices
Wireless router (not included) for Internet connectivity
Phillips screwdriver (not included) to secure the TV stand
HDMI and other types of cables (not included) to connect external devices to the TV
Wall mount bracket (not included) if you prefer to mount the TV to the wall
· Please check foam for accessories before discarding.
· Veuillez vérifier la mousse pour qu'il n'y ait pas d'accessoires avant de la jeter.
· Antes de desechar la espuma, asegúrese de retirar todos los accesorios.
3
2. Attach the TV stand or wall mount bracket (not included)
Attach the TV Stand (For steps to attach the wall mount see page 4)
CAUTION:
Be sure to disconnect the A/C power cord before installing a stand or Wall-Mount brackets.
The LED display is very fragile and must be protected at all times when installing the legs that form the stand. Be sure to protect the
TV screen from getting scratched or damaged by any hard objects. In addition, DO NOT exert pressure on the front of the TV at any
time because it could crack.

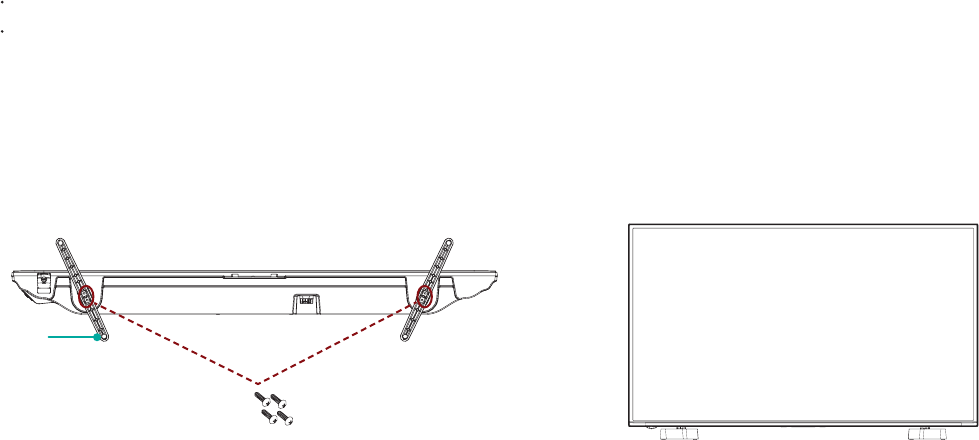

To attach the left and right leg that forms the stand:
1. Carefully place your TV face down on a soft, flat surface to prevent damage to the TV or scratching to the screen.
2. Place the legs into the bottom slots of the TV, insert and
tighten the screws (found in the accessories bag) in the circled
area with the screwdriver (not provided).
leg
Screws: ST4×16
3. Then the TV is ready for use now.
4

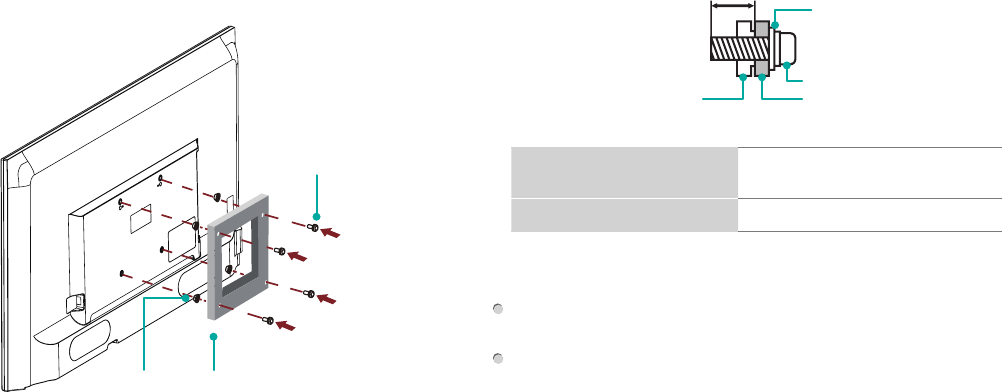

Attach the Wall Mount Bracket (not included)
Before you begin the third-party manufacturer instructions, be
sure to do the following things:
1. Place the TV face down on a clean, safe and cushioned surface.
2. Remove the TV stand if you already attached it.
3. Place the spacers (not included) in the corresponding bracket
holes.
Screw
(not provided)
CAUTION:
• Whenyouattachthemount,be suretousethespacers
(providedbythethird-partymanufacturer)betweentheTV
and the bracket.
• TopreventinternaldamagetotheTV andensureitis
mountedsecurely,besure tousefixingscrews(not
provided)thatare9.5-11.5mminlengthwhenmeasured
from the attaching surface of the mounting hook.
Rear cover of the TV Spacer
Screw
Wall mount bracket
9.5 - 11.5 mm
Wall mount hole pattern
VESA (mm) 200 × 200
Wall mount screw size (mm) M6
Follow instructions provided with the Wall mount bracket.
To complete the installation, please contact the wall-mount
manufacturer or the retailer from which you purchased the TV.
The selected screws are 9.5 - 11.5 mm in length when
measured from the attaching surface of the rear cover. The
diameter and length of the screws differ depending on the
Wallmount bracket model.
NOTE:Thediameterandlengthofthescrewsdifferdepending
on the wall mount bracket model.
Bracket
(not provided)
Spacer
(not provided)
5

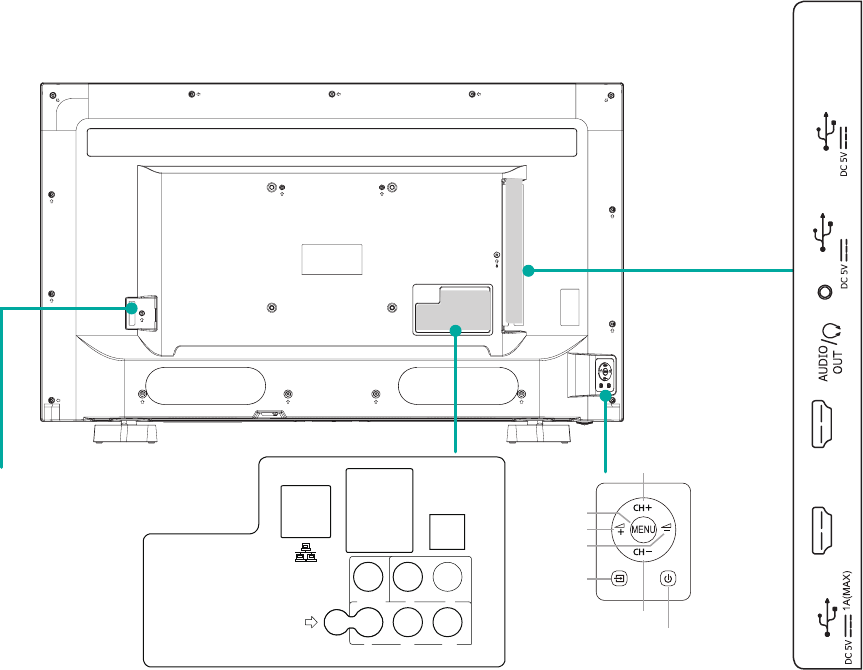

3. Buttons and Ports
Back View of the TV
TV Side View
TV Bottom View
Power Input
SERVICE
ANT/CABLE
0.5A(MAX) 0.5A(MAX)
HDMI2(4K@30Hz)HDMI1(4K@30Hz)
ARC
USB3 USB2 USB1
MHL(DC 5V 900mA)
VOL +
Power
MENU
CH +
CH -
INPUT
VOL -
DIGITAL
AUDIO OUT
HDMI 3(4K@60Hz)
HDMI 4(4K@60Hz)
S
LAN AV IN
VIDEO L R
Y PBPR
COMPONENT IN
6
ConnectdevicestoyourTV
You have several options for connecting your TV to different devices. The method in which you connect will be based upon the type of
cables you have and the available outputs on your device.
Check the jacks for position and type before making any connections. Loose connections can result in image or color problems. Make
sure that all connections are tight and secure.
The TV may not be compatible with all external devices. To check compatibility, please refer to the user manual of external device.
Do not connect external equipment while TV's power cord is plugged in. It may cause electric shock.

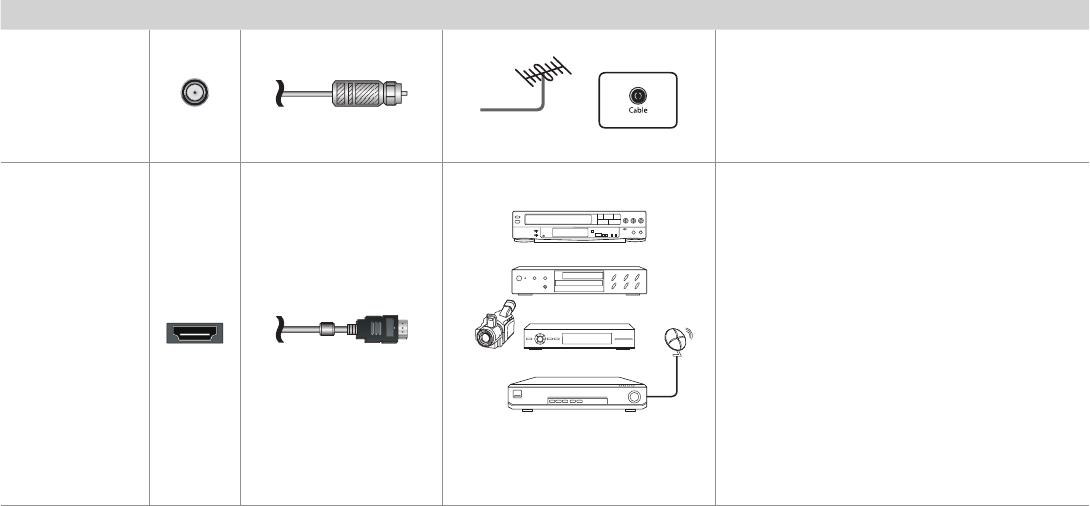

TV label Port Cable External Equipment Brief Description
ANT/CABLE
Antenna
VHF/UHF Antenna
ANT OUT
Connect an antenna,cable set-top box or satellite
receiver.
Using your remote, press the [INPUT] button and
select TV as the input source.
HDMI
DVD Player/Recorder
Set-top Box
Satellite Receiver
Satellite
antenna
cable
VCR
Video
Camera
This 4K TV has two different software versions of
HDMI ports to connect HDMI-enabled devices.
The two high-powered HDMI version 2.0(HDMI 3,
HDMI 4) inputs enable you to connect 4K Ultra-
HD external devices that require more bandwidth
to transmit to the TV screen. For example, if you
have an X-box or Blu-ray player that supports the
2.0 standard. The two HDMI version 1.4 inputs are
great for any of your external devices that support
a standard full high-denition resolution of 1080p.
Connect an HDMI cable (not provided) from an AV
device.
Using your remote, press the [INPUT] button and
select the corresponding HDMI input.
Recommend to use HDMI Cable with 2 cores as
shown in the gure.
RF Out
7

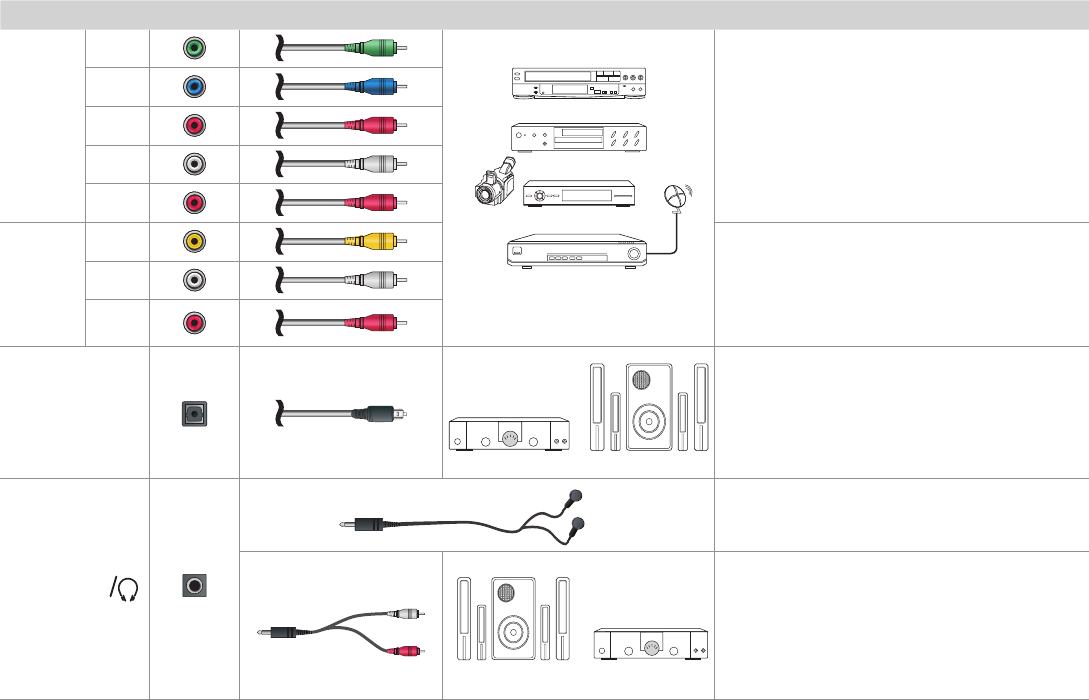

TV label Port Cable External Equipment Brief Description
COMPO-
NENT IN
YGreen
DVD Player/Recorder
Set-top Box
Satellite Receiver
Satellite
antenna
cable
VCR
Video
Camera
Connect a component video cable (not provided)
and left-right audio cables (not provided) from an
external AV device.
Using your remote, press the [INPUT] button and
select Component as the input source.
One AV device can be connected to the TV using a
component video or composite video cable.
PBBlue
PRRed
LWhite
RRed
AV IN
VIDEO Yellow Connect a composite video cable (not provided)
and left-right audio cables (not provided) from an
external AV device.
Using your remote, press the [INPUT] button and
select AV as the input source.
LWhite
RRed
DIGITAL AUDIO
OUT
SpeakerAudio Amplier
Connect an optical cable (not provided) from an
external digital audio system.
When a digital audio system is connected to the
[DIGITAL AUDIO OUT] jack, decrease the TV and
system volume.
AUDIO
OUT
Connect headphones (not provided) to hear audio
from the TV.
Connect an audio adapter (not provided) from an
external analog audio system.
White
Red
Speaker Audio Amplier
8

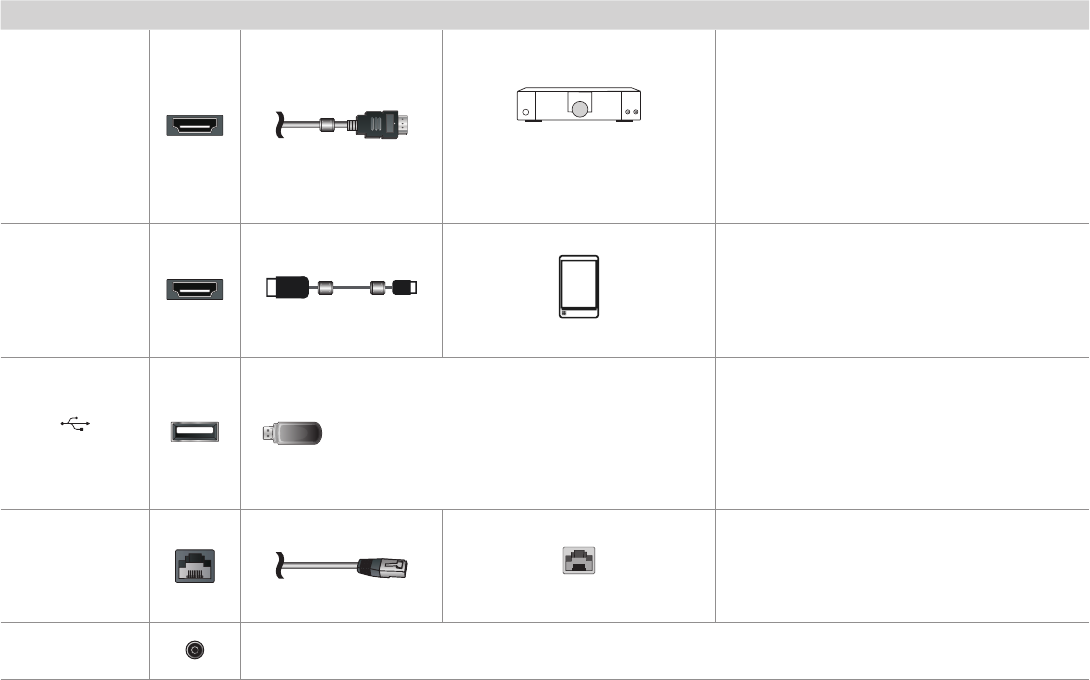

TV label Port Cable External Equipment Brief Description
HDMI2 /ARC Digital Sound Bar
Connect an HDMI cable (not provided) from a digi-
tal sound bar to use Audio Return Channel (ARC)
feature.
By using this feature, you will also be able to con-
trol the soundbar with your TV remote instead of
having to use multiple remotes for each device.
This feature of the specic operation steps to see
"Connecting a digital sound bar to use Audio Re-
turn Channel".
HDMI1 /MHL
MHL-enabled device
Connect an HDMI-to-MHL cable (not provided)
from an MHL-enabled device, such as a cell
phone, and view the screen of your device on the
TV.
Recommend to use MHL Cable with 2 core as
shown in the gure.
USB
Connect a USB 3.0 device to transfer photos, mu-
sic and movies to your TV at a rate that's 10 times
faster than the USB 2.0 port
NOTE: You can still plug a USB 2.0 device into a
USB 3.0 port; however, the rate of speed will not
be as fast. USB 3.0 devices are also backwards
compatible with USB 2.0 ports.
LAN
LAN
Connect an Ethernet cable to access a network
or the Internet. The TV also has a wireless
connectivity feature.
For more information, see "Connecting Your TV to
a Wired or Wireless Network".
SERVICE This port is not available for you to connect an external device. It can only be used by our factory for testing purposes.
9
Connecting a digital sound bar to use Audio Return
Channel (ARC)
To connect a digital sound bar with an HDMI cable:
1. Connect the cable that’s attached to the soundbar to the [HDMI
/ ARC] port on the TV.
2. Turn on the soundbar by pressing the Power button.
3. Press the QuickSetupmenu button on your remote and press
the right arrow on the [D-pad] of your remote to show the full
menu settings and go to System> HDMI Function.
4. Turn on the CEC&MHL Control setting.
5. Press the QuickSetupmenu button on your remote and press
the right arrow on the [D-pad] of your remote to show the full
menu settings.
6. Select Sound>AdvanceAudioSettings
7. Go to the section of the screen that reads TVSpeaker&ARC
and select ARC First.
NOTES:
• Onlydigitalsoundbarsthatrequireawiredconnectionare
compatiblewiththeSmartTV.
• IfthedevicehasanInputSelectorfeaturethenmakesure
to change it to TV.

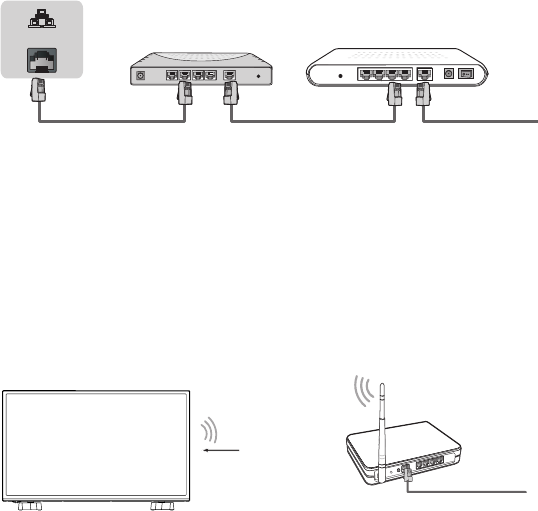

Connecting Your TV to a Wired or Wireless Network
Connecting to a Wired (Ethernet) Network
Connect your TV to your network by connecting the LAN port on
the back of your TV to an external modem or router using a LAN
(Ethernet/Cat 5) cable. See the illustration below.
We recommend to use a modem or router that supports Dynamic
Host Configuration Protocol (DHCP). Modems and routers that
support DHCP automatically provide the IP address, subnet mask,
gateway, and DNS, so you don’t have to enter them manually.
Most home networks already have DHCP.
Connecting to a Wireless Network
Connect your TV to your network wirelessly, you need a wireless
router or modem. See the illustration below.
The TV’s built-in Wireless LAN Adapter supports the IEEE 802.11
ac/b/g/n communication protocols. We recommend using IEEE
802.11ac router. Low transfer rates for b/g/n may have the
influence on the quality of streamed videos and other media.
TV JACK
Modem CableLAN Cable
LAN Cable
External Modem
(ADSL / VDSL / Cable TV)
IP Sharer (Router)
(with DHCP server)
LAN
Wireless router with
DHCP
LAN Cable
Wireless LAN Adapter
built-in TV set
10
NOTES
• Youmustusethebuilt-inWirelessLANAdaptertousea
wirelessnetworkbecausethesetdoesn’tsupportexternal
USBnetworkadapter.
• IfthewirelessroutersupportsDHCP,yourTVcanconnect
moreeasilytothewirelessnetwork.
• Ifyouapplyasecuritysystemotherthanthesystems
listedbelow,itwillnotworkwiththeTV.
Securitysystem:WPA,WEP,WPA2.
• Inordertoguaranteesmoothnetwork,thedistancebetween
router and TV is less than 10 meters.
11

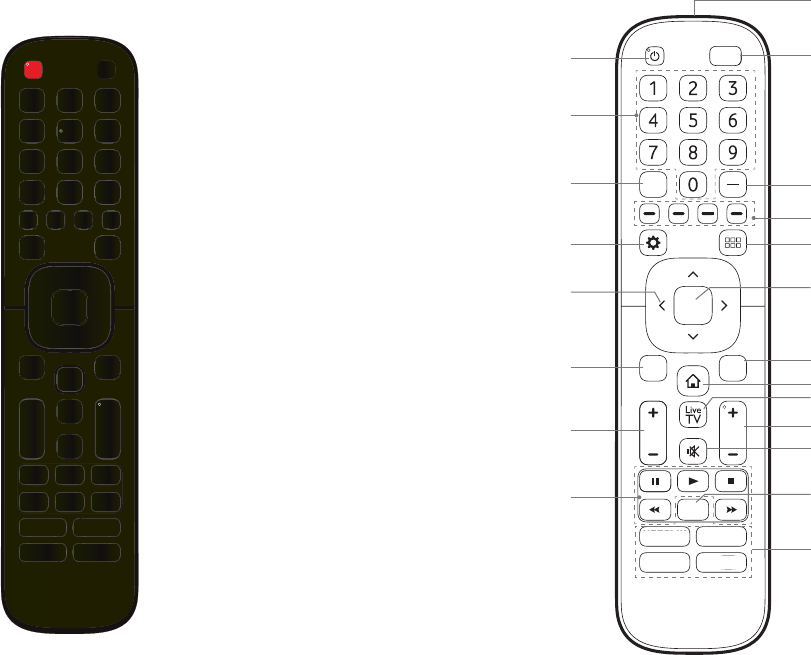

SLEEP
VO
LC
H
OK
CC
BACK EXIT
INPUT
Infrared transmitter
Power on / off
Enter Channels / input numbers
Media content control function buttons
Dash button
Select a digital sub-channel
D-pad (up/down/left/right
navigation buttons)
Volume (up/down)
Adjust Sleep timer setting
Quick Setup menu
Return to the previous place in the menu or app
Live TV
Change TV input source
All Apps
Channel (up/down)
Mute and restore sound
Exit the application
Turn Closed Caption On/Off
Special function buttons
Conrmation button
Quick access buttons to apps
Display the Home screen
4.UsingyourTVremotecontrol
ButtonsonyourTVremote
APP
APPAPP
APP
08 0B
11 12 13
14 15 16
17 18 19
VOL CH
5A
50 10 0A
52 53 54 55
43 0F
56
57
58 59
04
4A
4D
02
03
00
01
1D
09
41 42 4E
4F
1B
5B
5C
5D 49
NEC Hex codes 0000FB04(04FB)
4C
12

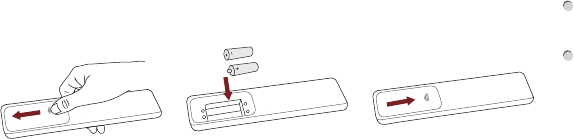

Beginusingyourremote
1. Slide the back cover to open the battery compartment of the
remote control.
2. Insert two AAA size batteries. Make sure to match the (+) and (-)
ends of the batteries with the (+) and ( - ) ends indicated in the
battery compartment.
3. Replace the battery compartment cover.
ImportantInformationabouttheremoteandbatteries:
• Discardbatteriesinadesignateddisposalarea.Donot
throw them into a fire.
• Removeoldbatteriesimmediatelytopreventthemfrom
leakingintothebatterycompartment.
• Ifyoudonotintendtousetheremotecontrolforalong
time,thenremovethebatteries.
• Batterychemicalscancausearash.Ifthebatteriesleak,
cleanthebatterycompartment withacloth.Ifchemicals
touchyourskinthenwashitimmediately.
• Donotmixoldandnewbatteries.
• Donotmixalkaline,standard(carbon-zinc)orrechargeable
(NiCd,NiMH,etc.)batteries.
• Donotcontinueusingtheremoteifitgetswarmorhot.
Insert the batteriesGently push and slide Gently push and slide
Remote Control Range Information
The remote control can work at a distance of up to 26 feet in
front of the TV set.
It can work at a 30 degree horizontal or vertical angle.
13
5. Power on the TV
Plug the power cord into a power outlet.
Press the Power button on the remote to turn on the TV.
A splash screen that shows the RCA logo appears. Next, the
First-Time Setup Menu begins by prompting you to choose your
Language, Country, and Time Zone.
14

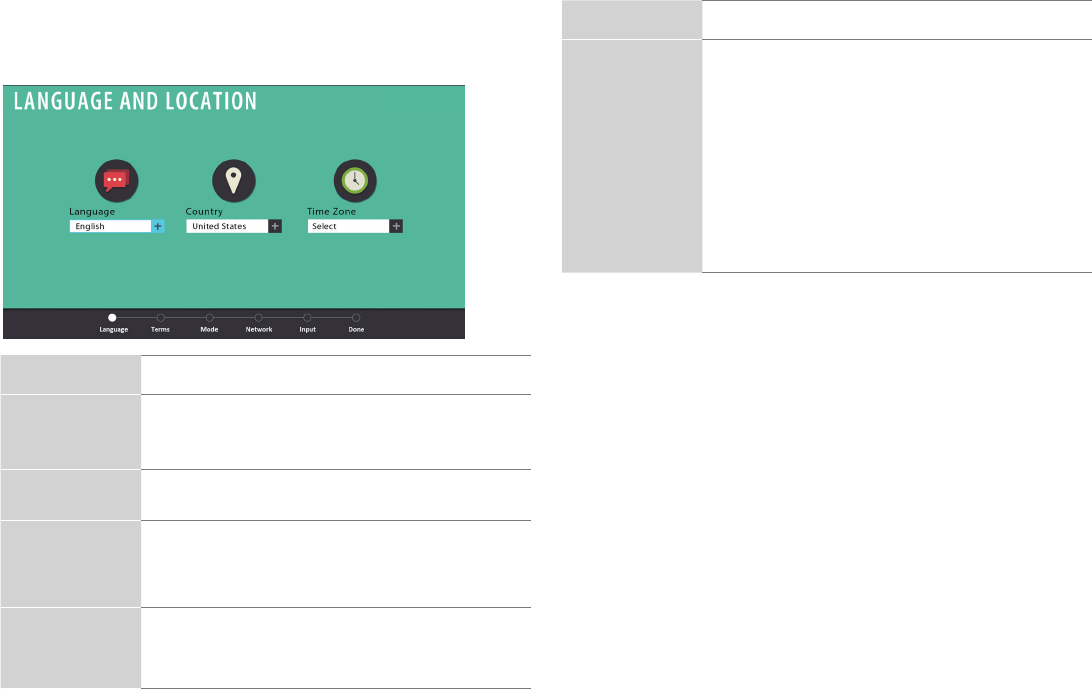

Screen Task
LANGUAGE
AND LOCATION
• Using the D-pad arrows of your remote, choose
your Language, Country and Time Zone. Next,
navigate to the Forward arrow and press OK.
TERMS OF
SERVICE
• Press OK to select AcceptAll. When you’re done
navigate to the Forward arrow and press OK.
TV USAGE
MODE
• Select Home (which appears by default).
Next,navigate to the Forward arrow and press OK.
• Note: ‘Store mode’ should only be selected by
Retailers who plan to demonstrate the TV.
NETWORK
CONNECTION
• If your TV does not automatically detect an Ethernet
connection, then select Wi-Fi. When you’re done,
select your network from the list that displays and
move to the next screen.
Completethefirst-timesetupmenu
After the splash screen that shows the RCA logo appears, begin
the first-time setup menu.
Screen Task
REMOTE
BUTTON SETUP
Select how you receive your TV channels. Choose
from one of the following sources below and then
move
to the next screen.
• TV
• AV
• COMPONENT
• HDMI
TIP: You only need to scan for channels if your TV is
connected to an Antenna.
CONGRATULATIONS!YourTVisnowreadytouse.
Press the OK conrmation button on your remote if you are ne with the
selections that appear on the screen. Otherwise, navigate to the back
arrow on the screen to change your selection.
15
BegintoenjoyyourTV
Your Smart TV is easy to use and brag-worthy!
Now that you’ve completed the first-time setup menu, the Home
screen is your starting point for navigating the TV. Gone are
the days where your TV only provides one way for you to be
entertained. This showpiece provides you the convenience
of watching a program on a live channel, accessing Video on
Demand to watch a movie and many other entertainment options.
Using your remote, press the Home button to begin enjoying your
TV.
Disclaimer: Subscriptions or other payments may be required to access content through some applications. Some or all of the
included or downloaded application services in this manufacturer device may not function depending on the Internet connection, local
limitations of included applications or other reasons outside of manufacturer’s control. MANUFACTURER EXPRESSLY DISCLAIMS
RESPONSIBILITY FOR ANY APPLICATION SERVICE FROM FUNCTIONING AT ANY TIME, FOR CONTENT IN ANY APPLICATION
SERVICE, FOR DISRUPTIONS OF SERVICE, LOCAL OR REGIONAL LIMITATIONS, WARRANTIES OF TITLE, NO INFRINGEMENT,
AND FOR IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. By purchasing this device,
you accept such Disclaimer without any claim on Manufacturer at any time.
16
6.Productspecifications
Model Name 43"
Dimension
(W × H × D)
Without Stand 38.2 × 22.2 × 3.4 inches
( 969 × 563 × 87 mm)
With Stand 38.2 × 23.6 × 8.1 inches
( 969 × 599 × 206 mm)
Weight Without Stand 22.1 lbs (10 kg)
With Stand 22.5 lbs (10.2 kg)
Active Screen Size (Diagonal) 42.6 inches
Screen Resolution 3840 × 2160
Audio Power 7 W + 7 W
Power consumption 110 W
Power Supply 120 V ~ 60 Hz
Picture Quality Screen resolution: 3840 x 2160, HDR processing, UHD Upscaler
Refresh rate
Component Input 480i / 60Hz, 480p / 60Hz, 576i / 50Hz, 576p / 50Hz, 720p / 50Hz, 720p / 60Hz, 1080i / 50Hz, 1080i / 60Hz, 1080p /
50Hz, 1080p / 60Hz
HDMI Input 60 Hz (640×480, 800×600, 1024×768), 60 Hz (480 I, 480 P, 720 P, 1080 I, 1080 P), 50 Hz (576 I, 576 P, 720 P, 1080 I,
1080 P), 24Hz 30Hz (3840x2160 for HDMI 1/HDMI 2), 24Hz 30Hz 50Hz 60Hz (3840x2160 for HDMI 3/HDMI 4)
Receiving
systems
Analog NTSC
Digital ATSC / QAM
Key Apps Netix, Vudu, YouTube, Amazon Instant Video, Pandora and Opera App (Some apps only for USA)
Ports 4 HDMI ports, 3 USB ports, LAN port for Ethernet, 1 Digital Audio Output, 1 RF Input, 1 Earphone Audio Output, 1
RCA Composite Video Input , 1 left/right Audio Input for Composite, 1 RCA Component Video Input
Other features Smart TV, Dynamic contrast Picture, VESA standard wall mount support
Disclaimer: All product, product specifications, and data are subject to change without notice to improve reliability, function, design or
otherwise.
17
7.Quickproblem-solvingtips
When you experience an issue with your TV, turn it off and on again. If this does not resolve the problem, then refer to the tips below. If
the problem is still not resolved, then contact Manufacturer Customer Care.
ISSUES POSSIBLE SOLUTIONS
No sound or picture
• Check if the power cord is plugged into a powered AC outlet.
• Press the Power button on the remote control to activate the unit from 'Standby' mode.
• Check to see if the LED light is on or not. If it is, then the TV is receiving power.
I have connected an external
source to my TV and I get no
picture and/or sound.
• Check for the correct output connection on the external source and for the correct input connection on the TV.
• Make sure you have made the correct selection for the input mode for the incoming signal.
When I turn on my TV, there is a
delay for a few seconds before the
picture appears. Is this normal?
• Yes, this is normal. The TV is initializing and searching for previous setting information.
The picture is normal but there is
no sound
• Check the volume settings.
• Check if 'Mute' mode is set to On.
Sound but no picture or black and
white picture
• If the picture is black and white, unplug the TV from the AC outlet and replug it after 60 seconds.
• Check that the Color is set to 50 or higher.
• Try different TV channels.
The sound and/or picture is
distorted or appears wavy
• An electric appliance may be affecting the TV. Turn off any appliances that are nearby and move it farther away
from the TV.
• Insert the power plug of the TV set into another power outlet.
The sound and picture is blurry or
cuts out
• If using an external antenna, check the direction, position and connection of the antenna.
• Adjust the direction of your antenna or reset or ne tune the channel.
A horizontal or vertical stripe
appears on the picture and/or the
picture is shaking
• Check if there is an appliance or electric tool nearby that is causing interference.
The plastic cabinet makes a
"clicking" type of sound
• The 'click' sound can occur when the temperature of the television changes. This change causes the television
cabinet to expand or contract, which makes the sound. This is normal and the TV is OK.
The remote control does not work
• Conrm that TV still has power and is operational.
• Change the batteries in the remote control.
• Check if the batteries are correctly installed.
18
8.Certificationandcompliance
FCC Notice
This device has been tested and found to comply with the limits
for a Class B digital device pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
device generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not
occur in a particular installation. If this device does cause
harmful interference to radio or television reception, which can
be determined by turning the device off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the device and receiver.
Connect the device into an outlet on a circuit different from that
to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for
help.
NOTE:Themanufacturerisnotresponsibleforanyradioor
TVinterferencecausedbyunauthorizedmodificationsto
thisequipment.Suchmodificationscouldvoidtheuser’s
authoritytooperatetheequipment.
The Wi-Fi Module complies with FCC radiation exposure limits
set forth for an uncontrolled environment. This device should be
installed and operated with a minimum distance of 20 centimeters
between the radiator and your body.
Manufactured under license from Dolby Laboratories. Dolby, Dolby
Audio, and the double-D symbol are trademarks of Dolby Laboratories.
The terms HDMI and HDMI High-Definition Multimedia
Interface, and the HDMI Logo are trademarks or
registered trademarks of HDMI Licensing LLC in the United States and other
countries.

Navigation menu
