Contents

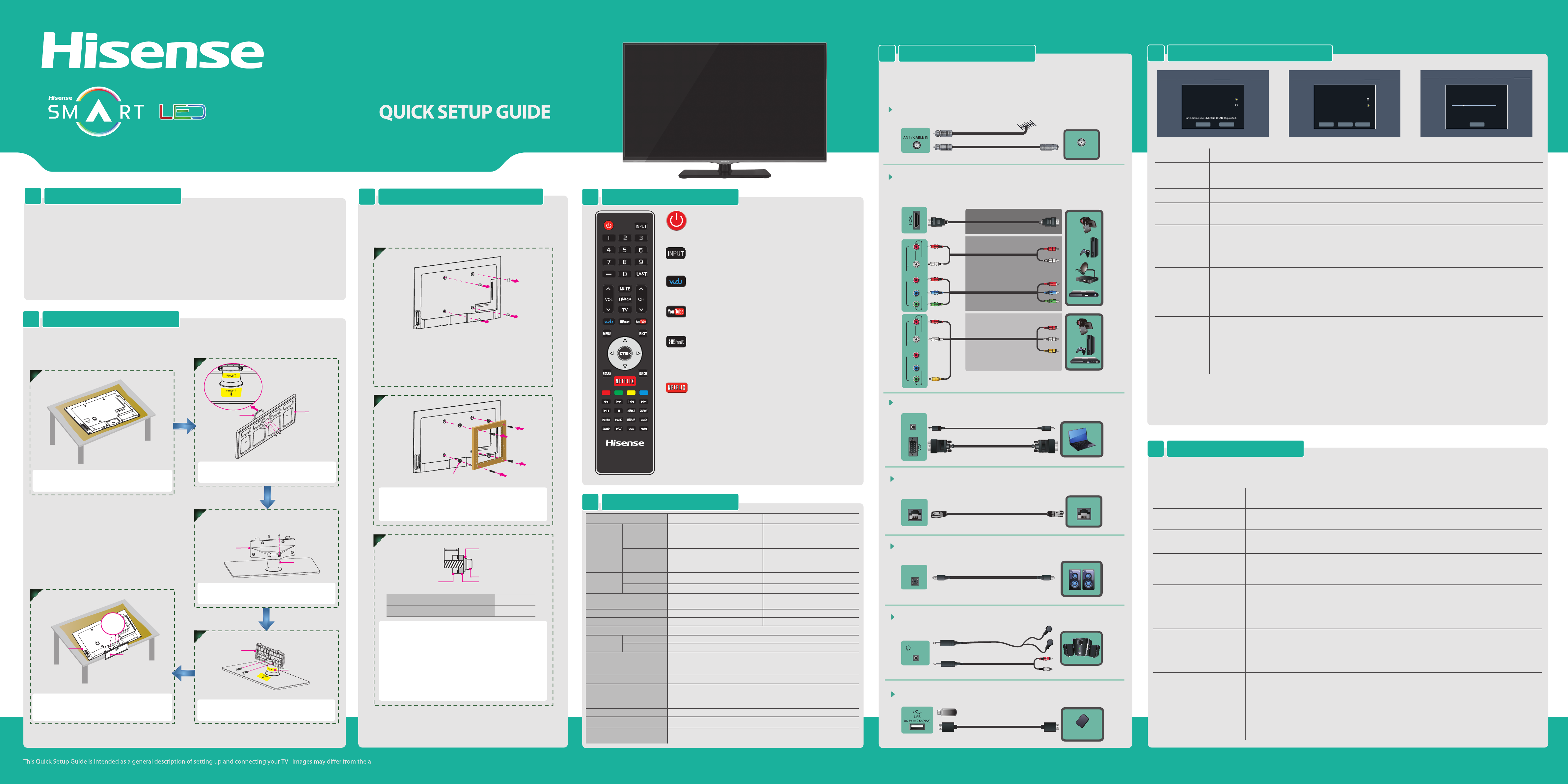

W9HLCDF0019_User Manual1

K610 Series
ctual product.
Video Eect:
Connect an outdoor VHF/UHF antenna.
ANT
Connect Headphone for audio out of the TV.
HEADPHONE
/AUDIO
OUT
OR
BEST (HDMI)
BETTER
(COMP)
GOOD
(AV)
HDMI / COMP / AV Connect an HDMI cable or Comp/AV Adapter from an
external A/V equipment.
Check the jacks for position and type before making any connections.
Loose connections can result in image or color problems. Make sure that all
connections are tight and secure.
LAN Connect an ethernet cable to access a network or the Internet. TV
also features wireless connectivity.
LAN
LAN
Connect an optical cable from an external digital
audio system.
DIGITAL AUDIO OUT
DIGITAL
AUDIO OUT
VGA & VGA AUDIO Connect a VGA cable and an audio cable from the PC.
AUDIO IN
TV CONNECTORS6
OR
Connect a USB device for browsing photos, music and movies.
USB
Mobile Hard Disk
Barcode
35*10.5mm
Power:
Input: Select source to watch.
VUDU: Press to launch VUDU, the premium video service.
NETFLIX:
Press to launch NETFLIX instant video streaming.
HiSmart:
REMOTE CONTROL4
Press to browse the Services Apps in HiSmart
Home UI. The Apps in the Home UI let you
watch movies, listen to music, and much more.
NOTE:
1. Illustrations are for your reference only.
2. Red/Green/Yellow/Cyan buttons are used for Electronic
Program Guide (EPG) . After pressing the [GUIDE] button
when viewing digital channels, the same color buttons will
appear with explanations in the on-screen display (OSD) .
Follow the steps shown in the OSD.
Turns the TV on or o.
HiSmart
INPUT
HELP TOPICS8
Turning the TV On for the First Time
7
VHF/UHF Antenna
Cable
ANT OUT
INSTALLING A WALL-MOUNT BRACKET
3
1
Make sure the TV is laid face-down on a clean, safe, and
cushioned space, remove the original screws in the bracket
holes on the TV back.
If you want to attach the TV to a wall-mount bracket (not
provided), you should rst remove the stand if it is
pre-attached (see Step 1).
SPACER x4
2
Place the provided spacers in the corresponding bracket
holes. Attach purchased bracket (1.5mm to 2.5mm thickness)
on the TV with 4 screws which are in the accessories bag.
Follow instructions provided with the wall-mount bracket.
9.5 ~ 11.5 mm
Wall-Mount Bracket
Screw
SpacerThe TV's rear cover
Wall-Mount hole pattern VESA (mm) 400 × 400
Wall-Mount screw size (mm) M6
3
Follow instructions provided with the Wall-Mount bracket.
If you are not sure of your ability to do complete the
installation, contact a professional installer or service
technician for assistance. The manufacturer is not responsible
for any damages or injuries that occur due to mishandling or
incorrect assembly.
The selected screws are 9.5 ~ 11.5 mm in length when
measured from the attaching surface of the TV's rear cover.
The diameter and length of the screws differ depending on the
Wall-Mount Bracket model.
Note: These 4 screws which got from back cover mount hole could not
be used any more.
ACCESSORIES LIST1
User Manual
Quick Setup Guide
Warranty Card
Remote Control
Battery x 2
Spacer x 4
For 50K610GWN
Screw (M4 x 12mm) x 6
Screw ( ST4 x 14 mm) x 2
Screw (M5 x 12mm) x 4
Wall-mounted screw (M6 x 45mm) x 4
For 55K610GWN
Screw ( M5 x 12mm) x 10
Screw ( ST4 x 14mm ) x 2
Wall-mounted screw (M6 x 45mm) x 4
INSTALLING THE STAND2
Follow the illustrations below to complete the installation steps.
Secure the STAND COVER to the STAND
COLUMN with 2 screws.
STAND COVER
4
3
Secure the STAND COVER to the STAND
COLUMN with 2 screws.
STAND COVER
STAND COLUMN
M4 × 12mm50K610GWN
M5 × 12mm55K610GWN
SCREWS
2
M4 x 12mm50K610GWN
M5 x 12mm55K610GWN
Secure the STAND COLUMN to the BASE with
4 screws.
BASE
STAND COLUMN
SCREWS
5
Align the BASE STAND with the screw holes on
the bottom of TV BACK, secure the BASE
STAND to the TV with the 4 screws tightly.
BASE STAND
TV BACK
M5×12mm
SCREWS
1
Carefully place your TV on a soft, cushioned,
surface to prevent damage to the screen.
M6 x 45mm
Wall monuted-screws
STAND COLUMN
SCREWS
ST4 × 14mm
CY-
YPBPR
L -AUDIO- RVIDEO
AV IN
COMPONENT IN
YPBPR
L -AUDIO- RVIDEO
AV IN
COMPONENT IN
YouTube: Press to launch YouTube, the video service.
SPECIFICATIONS5
Weight
LCD Panel Minimum size
(diagonal)
Screen resolution
50K610GWN 55K610GWNModel Name
Dimension
Without Stand
Width: 44.3 inches (1126 mm)
Height: 26 inches (661 mm)
Depth: 2.35 inches (59.8 mm)
Width: 49.1 inches (1248 mm)
Height: 29.2 inches (743 mm)
Depth: 2.32 inches (59 mm)
Width: 44.3 inches (1126 mm)
Height: 28.5 inches (724.5 mm)
Depth: 11.2 inches (285 mm)
39.7 lbs (18 kg)
46.3 lbs (21 kg)
50 inches
49.8 lbs (22.6 kg)
58.6 lbs (26.6 kg)
54.6 inches
1920 × 1080 1920 × 1080
Audio power 10 W + 10 W 10 W + 10 W
Power supply
Receiving
systems
120 V ~ 60 Hz
Receiving channels
Tuner type
Environmental conditions
VHF: 2~13 UHF: 14~69 CATV: 1 ~ 125
Digital Terrestrial Broadcast (8VSB): 2 ~ 69
Digital cable (64/256 QAM): 1 ~ 135
NTSC
ATSC / QAM
Component Input
VGA Input VGA (640×480 / 60 Hz), SVGA (800×600 / 60 Hz), XGA (1024×768 / 60 Hz)
480 I / 60 Hz, 480 P / 60 Hz, 720 P / 60 Hz, 1080 I / 60 Hz, 1080 P / 60 Hz
HDMI Input RGB / 60 Hz (640×480, 800×600, 1024×768)
YUV / 60 Hz (480 I, 480 P, 720 P, 1080 I, 1080 P)
Frequency synthesized
Temperature: 41°F ~ 95°F (5°C ~ 35°C)
Humidity: 20% ~ 80% RH
Atmospheric pressure: 86 kPa ~ 106 kPa
Width: 49.1 inches (1248 mm)
Height: 31.6 inches (803 mm)
Depth: 13 inches (330 mm)
With Stand
Analog
Digital
Without Stand
With Stand
Note:
If you are using a cable or satellite box and you have connected it to the TV using a Coaxial cable, you should select the cable option. Be sure the cable or satellite box is turned
on before starting the channel scan. If you use a cable or satellite box connected to A/V, Component or HDMI, you don't need to scan for channels.
Previous Next
4.Use Mode Next: Network Setting
Use Mode
Home mode
Retail mode
Home mode default settings are recommended
• Please press [ENTER] to start the wizard, then press [▲/
] button to select your language: English, Spanish or French,
select [Next] to confirm enter the Welcome screen.
• In the Welcome screen introduced the available input devices and interfaces.
• Please press [▲/
] button to select the country where you will operate the TV.
OPERATIONSMENU
Language setting
Country setting
• Select the local time zone according to your region.
• Daylight Saving: Set the Daylight Saving time for your area.
Time zone setting
• Select your Mode Setting: Home Mode or Retail Mode.
• If you select Retail Mode, a message appears “Are you sure to change to retail mode?” Select “OK” to continue, or select
“No” to change your selection.
• Home Mode is the recommended setting which offers full functionality of the television. If you selected Retail Mode, Energy
Saving is not realized.
Use Mode
• The Select Network : Connect your TV to access the network.
• When the Network Setting menu opens, Hisense Service Terms and Conditions will appear. Press [◄/►] to scroll through
the pages. Please read it carefully. If you want to access the internet, press the [Agree] button to set your TV’s network
connections. Otherwise, press the [Disagree] button to enter the Channel search menu.
• You can setup the network configuration in this menu. For more information,
please refer to the section titled
“Network
Connection” and “Network Setup”
in the user manual.
Select Network
• Press [▲/
] to select your Tuner Mode: Antenna or Cable, press [ENTER] button to confirm.
• Press [
/
] to set the Channel Installation: Scan or Skip Scan, press [ENTER] button to confirm. If you select “Scan”, your
TV automatically starts Channel Installation available in your viewing area; If you select “Skip Scan”, your TV does not scan
for channels; Depending on the reception condition, it may take up to 30 minutes or more to complete memorizing channels.
Please allow the process to complete without interruption.
• After scan, you will enter the complete interface. It will display all informations that you set just now and then you can press
“Go” to exit the wizard.
Channel Search
Channel Search
Please allow 30 minutes to complete.
30%
Stop
6. Channel Search
ATV Channels added:0
DTV Channels added:0
Previous Next
5.Select Network Next: Channel Search
Select Network
Wired Network
Wireless Network
Connect a wireless network with Wi-Fi
Skip
When there is something wrong with your TV, you can try turning o the TV and restarting it. You can also refer to the following chart
for problem and solution tips. If the problem cannot be resolved, please contact Hisense for additional assistance 1-888-935-8880.
• Confirm power cord is plugged into the AC outlet and the AC outlet is getting electricity.
• Attempt to power on unit using the power button on both the TV and the Remote.
• Check for the correct output connection on the external source and for the correct input connection on the TV.
• Make sure you have made the correct selection for the input mode for the incoming signal.
• Check the volume settings.
• Check if Mute mode is set "on" .
• Check network physical connection, make sure connection is correct.
• Enter "Menu" , "Network" , "Configuration" , make sure configuration is correct according to your network
service provider.
• Enter "Menu" , "Network" , "Configuration" , "Connection Test" to make sure that network connection test is
successful.
• You need a broadband (high speed) Internet service with a speed of no less than 1.5 Mbps.
• Connect the TV to the internet through your router by an Ethernet Cable or wireless. If connection fails,
check with your internet service provider or router manufacturer to determine if there is a firewall, content filter,
or proxy settings that may block the TV from accessing the internet.
• Before calling for service, check the following information for possible solutions to problems you may
experience. If none of these solutions work, turn off the TV, then turn it on again.
• Caution: Do not try to repair the TV yourself. Refer all servicing to qualified repair personnel.
POSSIBLE SOLUTIONSSYMPTOMS
No sound or picture
Picture is normal, but no sound
Network connection fail.
Connect Vudu/Netix fail.
I have connected an external
source to my TV and I get no
picture and/or sound.
How do I get easy IPTV to work
on my TV?
• Check network physical connection, make sure connection is correct.
• Enter "Menu" , "Network" , "Configuration" , make sure configuration is correct according to your network
service provider.
• Enter "Menu", "Network", "Applications", "VUDU/Netflix", "Deactivation" to reset "VUDU/Netflix" account.
