Hisense Electric LCDF0093 LED LCD TV User Manual W9HLCDF0093 1

Hisense Electric Co., Ltd. LED LCD TV W9HLCDF0093 1

W9HLCDF0093_User Manual 1

ES-G154905
English
Copyright Statement
© 2016 Hisense Company Ltd. All Rights Reserved.
All material in this User Manual is the property of Hisense Company Ltd. and its subsidiaries, and is protected under US, CANADA,
MEXICO and International copyright and/or other intellectual property laws. Reproduction or transmission of the materials, in whole
or in part, in any manner, electronic, print, or otherwise, without the prior written consent of Hisense Company Ltd. is a violation of
Hisense Company Ltd. rights under the aforementioned laws.
No part of this publication may be stored, reproduced, transmitted or distributed, in whole or in part, in any manner, electronic or
otherwise, whether or not for a charge or other or no consideration, without the prior written permission of Hisense Company Ltd.
Requests for permission to store, reproduce, transmit or distribute materials may be made to one of the following addresses:
USA: Hisense USA Corporation
PO Box 3289
Suwanee, GA 30024
CANADA: Hisense Canada Co., Ltd,
405 Britannia Rd E., Suite 11
Mississauga, Ontario,L4Z 3E6
MEXICO: Hisense Mexico S de RL de CV
Boulevard Miguel de Cervantes Saavedra No. 301, Torre Norte, Piso 2,
Colonia Ampliación Granada, C.P. 11520, en México Distrito Federal.
Hisense, and any and all other Hisense product names, logo’s, slogans or marks are registered trademarks of Hisense Company
Ltd. and its subsidiaries. All other trademarks are the property of their respective holders
Disclaimer Page
**Notwithstanding anything to the contrary, including in any or all descriptions, representations, statements or other communications
related to this Hisense device (hereinafter “Device”) made in any form whatsoever and at any time, some or all of the pre-installed,
or subsequently installed Application Services may not be available or capable of functioning as intended by the provider of the
Application Services in any or all usage areas for reasons outside of Hisense’s control, including but not limited to, Internet access,
local service limitations, etc. Any purchase or use of the Device, including any Application Services, is purely at the user’s risk.
Application Services are provided on an as-available basis without warranties of any kind, either expressed or implied, that the
Application Service will be uninterrupted or error-free, including but not limited to vagaries of weather, disruption of Service, acts
of God, warranties of title, local or regional limitations, no infringement, NOR IMPLIED WARRANTIES OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE. No advice or information given by Hisense, providers, affiliates, or contractors or their
respective employees shall create such a warranty. Hisense specifically disclaims responsibility for any or all Application Services
from functioning at any time, and by purchasing the Device, you accept such disclaimer without any claim on Hisense. You are
solely responsible for providing an active and working connection to the Internet, along with any and all hardware and/or software
necessary to use the Hisense Device as intended.
1
Table of Contents
Connecting Devices to your TV ....................................................................................................3
Connecting an antenna, cable set-top box or satellite receiver ...................................................................3
Connecting a Satellite Receiver, DVD player ..............................................................................................3
Connecting an AV device with a component video cable ............................................................................4
Connecting an AV device with an HDMI cable ............................................................................................. 4
Connecting headphones ............................................................................................................................. 5
Connecting speakers (or other audio receivers) ......................................................................................... 5
Connecting a digital sound bar to use Audio Return Channel (ARC) ..........................................................6
Connecting your TV to a Wired or Wireless Network ...................................................................7
Connecting to a Wireless network ...............................................................................................................7
Connecting to a Wired (Ethernet) network ...................................................................................................7
Using Your TV Remote Control .......................................................................................................9
Shortcuts Instructions ...................................................................................................................11
Completing the First-Time Setup Menu ........................................................................................12
Basic and Advanced TV Settings .................................................................................................14
Accessing the Quick Setup Menu .............................................................................................................. 14
Picture Menu ..............................................................................................................................................14
Sound Menu ..............................................................................................................................................15
Channel Menu ...........................................................................................................................................15
Network Menu ...........................................................................................................................................15
System Menu ............................................................................................................................................. 16
About TV Menu ......................................................................................................................................... 17
Parental Controls ...........................................................................................................................18
Getting familiar with the Home screen .........................................................................................20
2
Live TV .......................................................................................................................................... 21
Viewing channel information ......................................................................................................................21
Viewing a channel list ................................................................................................................................21
Creating a Favorites list ...........................................................................................................................21
Viewing your Favorites list ........................................................................................................................21
Apps ................................................................................................................................................ 22
Opera TV Store .........................................................................................................................................22
TV Browser ................................................................................................................................................22
Installing an App .......................................................................................................................................22
Removing an App .....................................................................................................................................22
Moving App Icons around .........................................................................................................................23
Customizing the name of your TV ............................................................................................................. 23
Media .............................................................................................................................................. 23
Panels that appear on the Media screen ...................................................................................................23
File formats that are supported ..................................................................................................................23
Viewing Videos ..........................................................................................................................................23
Browsing Content ......................................................................................................................................23
Viewing Pictures as a Slideshow ...............................................................................................................24
Mirroring content from your device to the TV ........................................................................... 24
Software updates for your TV ..................................................................................................... 25
Quick Problem-Solving Tips ......................................................................................................... 26
Table of Contents
3
Connecting Devices to your TV
Connecting an antenna, cable set-top box or satellite receiver
To connect an antenna,cable set-top box or satellite receiver:
Connecting a Satellite Receiver, DVD player (or other Audio Visual (AV) device
with a composite video cable (yellow/red/white)
You have several options for connecting your TV to different devices. The method in which you connect will be based upon the type
of cables you have and the available outputs on your device.
Connecting Devices to your TV
1. Connect one end of a coaxial cable (not included) to the [RF OUT] jack on the antenna, cable or satellite box. If you are using an
antenna with twin-lead cable, you may need a 300-75 Ohm adapter (not provided) to connect it to the back of your TV. Likewise,
if you are using several antennas, you may need a combiner (not provided).
2. Connect the other end of the cable to the [ANT/CABLE] jack on the side of TV.
3. Using your remote, press the [INPUT] button and select TV as the input source.
To connect an AV device with a composite video cable (not provided):
1. Use the audio and video cables to connect the composite video/audio jacks (of the external AV device) to the [AV IN] jacks
of the TV. (Video = yellow, Audio Left = white, and Audio Right = red).
2. Plug the connected devices into the AV connectors on the TV before switching it on.
3. Using your remote, press the [INPUT] button and select AV as the input source.

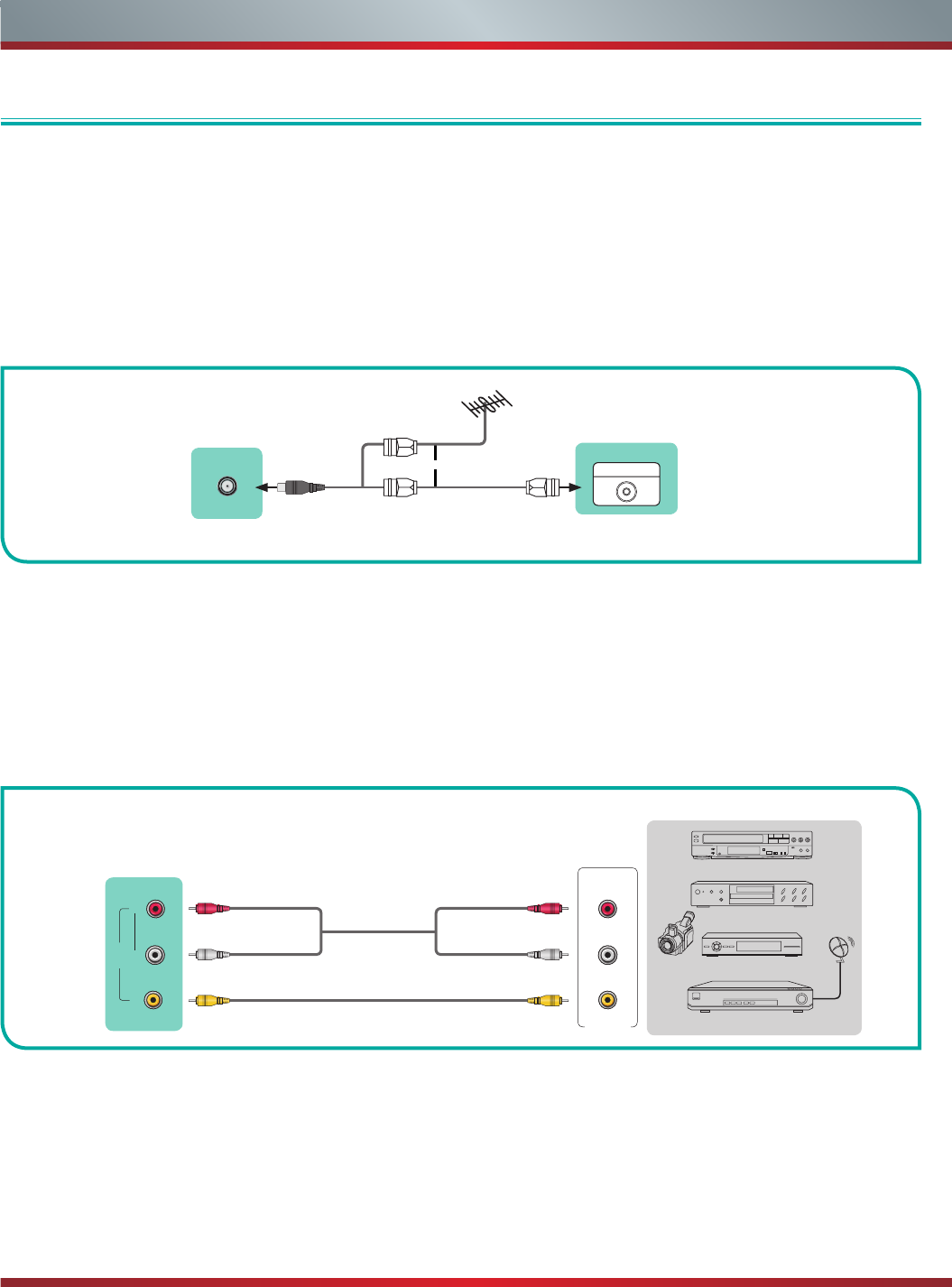

Figure 1. Antenna, cable set-top box or satellite receiver to the TV
Figure 2. AV device with a composite video cable
or ANT OUT
Cable Set top box
RF Out
EXTERNAL DEVICETV JACK
TV JACK
ANT/CABLE
(not included)
(not included)
DVD Player/Recorder
Video
Camera
EXTERNAL DEVICES
Set-top box
Satellite Receiver
Satellite
antenna
cable
VCR
AV OUT
Video
L
R
White(L)White(L)
Yellow(Video)Yellow or Green(Video)
Red(R)Red(R)
Audio Cable
VIDEO L R
AV IN
4
Connecting Devices to your TV
Y PBPR
COMPONENT IN
L R
DVD Player/Recorder
Video
Camera
EXTERNAL DEVICES
Set-top box
Satellite Receiver
Satellite
antenna
cable
VCR
White(L) White(L)
Red(R) Red(R)
Audio Cable
Component Cable
Component
R
L
PR
PB
Y
Red(PR/CR) Red(PR/CR)
Blue(PB/CB) Blue(PB/CB)
Green(Y) Green(Y)
• Because the HDMI connector provides video and audio signals, it is not necessary to connect an audio cable.
• The HDMI cable will not supplied with the product.
• We strongly recommend to use HDMI Cable with 2 cores as shown in the figure.
NOTE
One AV device can be connected to the TV using a component video or composite video cable.
TV JACK
Connecting an AV device with a component video cable (red/blue/green)
To connect an AV device with a component cable (which is red/blue/green):
1. Use a component video cable (not provided) to connect the component output jacks of the external device to the YPBPR jacks
for the TV. Use an audio cable to connect the component audio jacks of the external device to the TV AUDIO (L/R) jacks.
2. Plug the connected devices into the YPBPR and L/R ports on the TV before switching it on.
3. Using your remote, press the [INPUT] button and select Component as the input source.

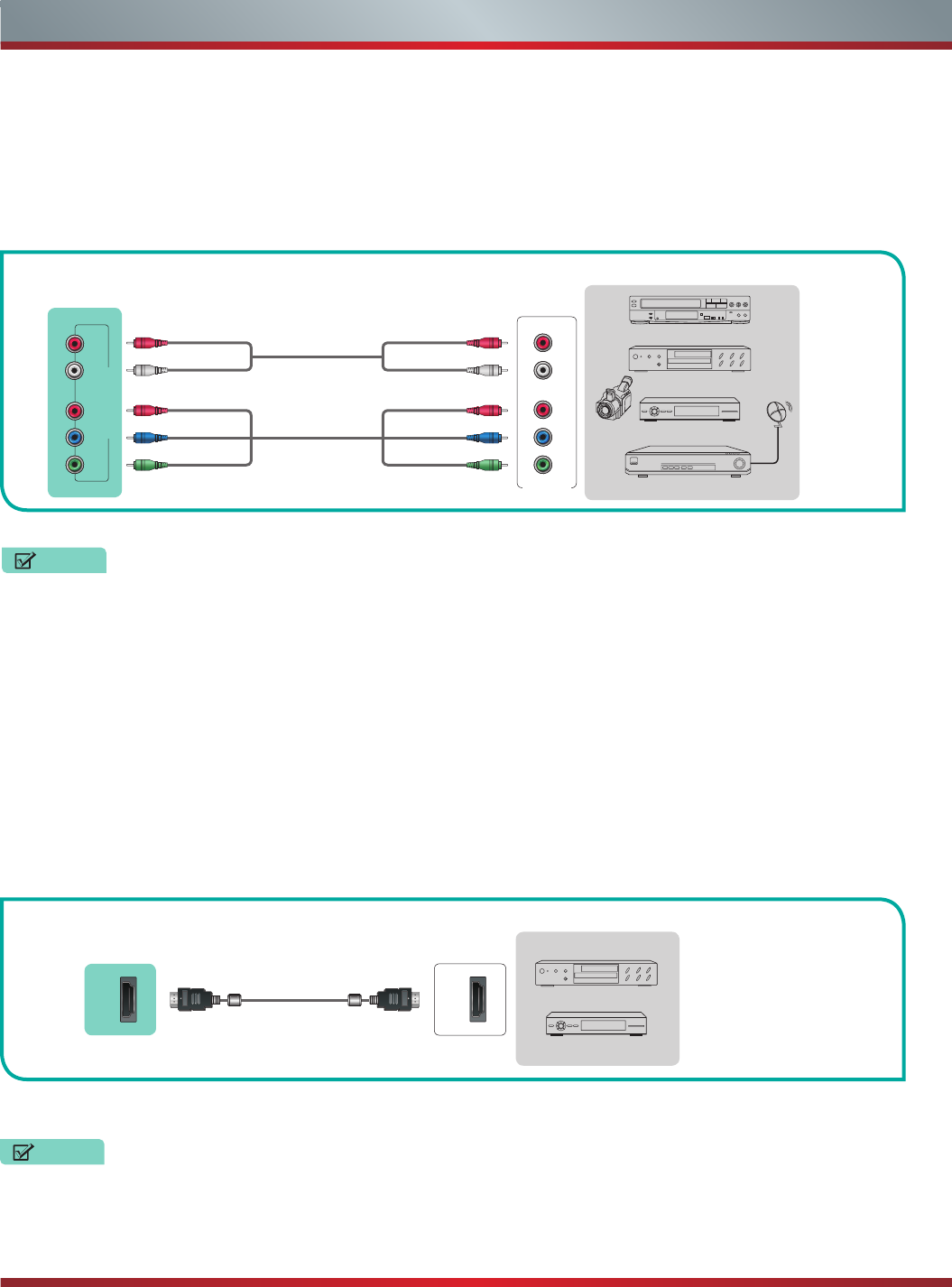

Figure 3. AV device with a component video cable
Connecting an AV device with an HDMI cable
This 4K TV has two different software versions of HDMI ports to connect HDMI-enabled devices. The two high-powered HDMI
version 2.0(HDMI 3, HDMI 4) inputs enable you to connect 4K Ultra-HD external devices that require more bandwidth to transmit to
the TV screen. For example, if you have an X-box or Blu-ray player that supports the 2.0 standard. The two HDMI version 1.4 inputs
are great for any of your external devices that support a standard full high-definition resolution of 1080p.
Please refer to the User Manual that came with your device for step-by-step instructions.
To connect an AV device with an HDMI cable:
1. Use an HDMI cable to connect the [HDMI] output port of the AV device to the [HDMI] jack of the TV.
2. Plug the connected devices into the power socket.
3. Using your remote, press the [INPUT] button and select the corresponding HDMI input.
Figure 4. AV device with an HDMI cable
NOTES
HDMI
HDMI
EXTERNAL DEVICES
DVD
Set-top Box
TV JACK
HDMI Cable
5
Connecting Devices to your TV
/
AUDIO OUT
EXTERNAL DEVICES
EXTERNAL DEVICES
Powerless
Bass Speaker
Speaker
AudioAmplier
Digital Sound Bar
DIGITAL
AUDIO OUT
/
AUDIO OUT
Connecting speakers (or other audio receivers)
To connect speakers (or other audio receivers) with an audio cable:
Connecting headphones
1. Use an audio cable (not provided) to connect the [DIGITAL AUDIO IN] jack of the audio receiver device to the [DIGITAL AUDIO
OUT] jack of the TV. Another option is to use an RCA Y-cable (1/8”-stereo mini to L/R phono) to connect an analog sound
system to the [AUDIO OUT] jack of the TV.
2. Plug the connected devices into the main power socket before switching on the TV.
You can connect headphones to the [AUDIO OUT] port on your TV. While the headphone is connected, the sound from the built-in
speakers will be disabled.
Figure 6. Headphones to the TV
Figure 7. Audio receiver with audio cable
TV JACK
Audio Cable
(not included)
TV JACKS
White(L)
Red(R)
Audio Cable
(not included)
Audio Cable
(not included)
If you prefer to use Audio Return Channel, then follow the steps on the next page under 'Connecting a digital sound bar to
use Audio Return Channel'.
NOTE
NOTES

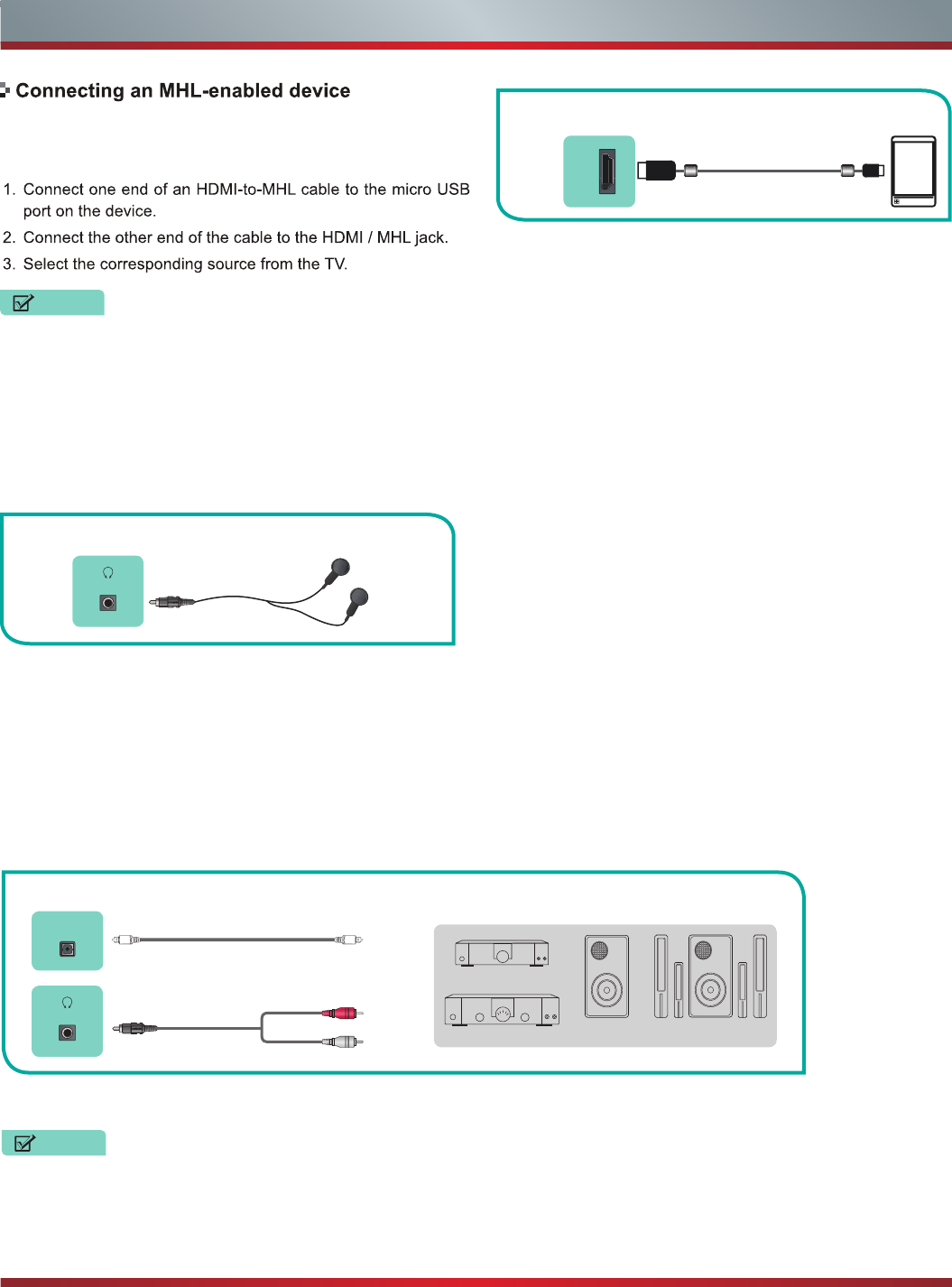

Figure 5. MHL-enabled device to the TV
You can connect an MHL-enabled device, such as a cell phone,
and view the screen of your device on the TV.
• This feature may be unavailable on some TV series.
• The MHL cable will not supplied with the product.
• We strongly recommend to use MHL Cable with 2 core as shown in the figure.
TV JACK
HDMI
MHL
HDMI-to- MHL cable
(not included)
6
Connecting Devices to your TV

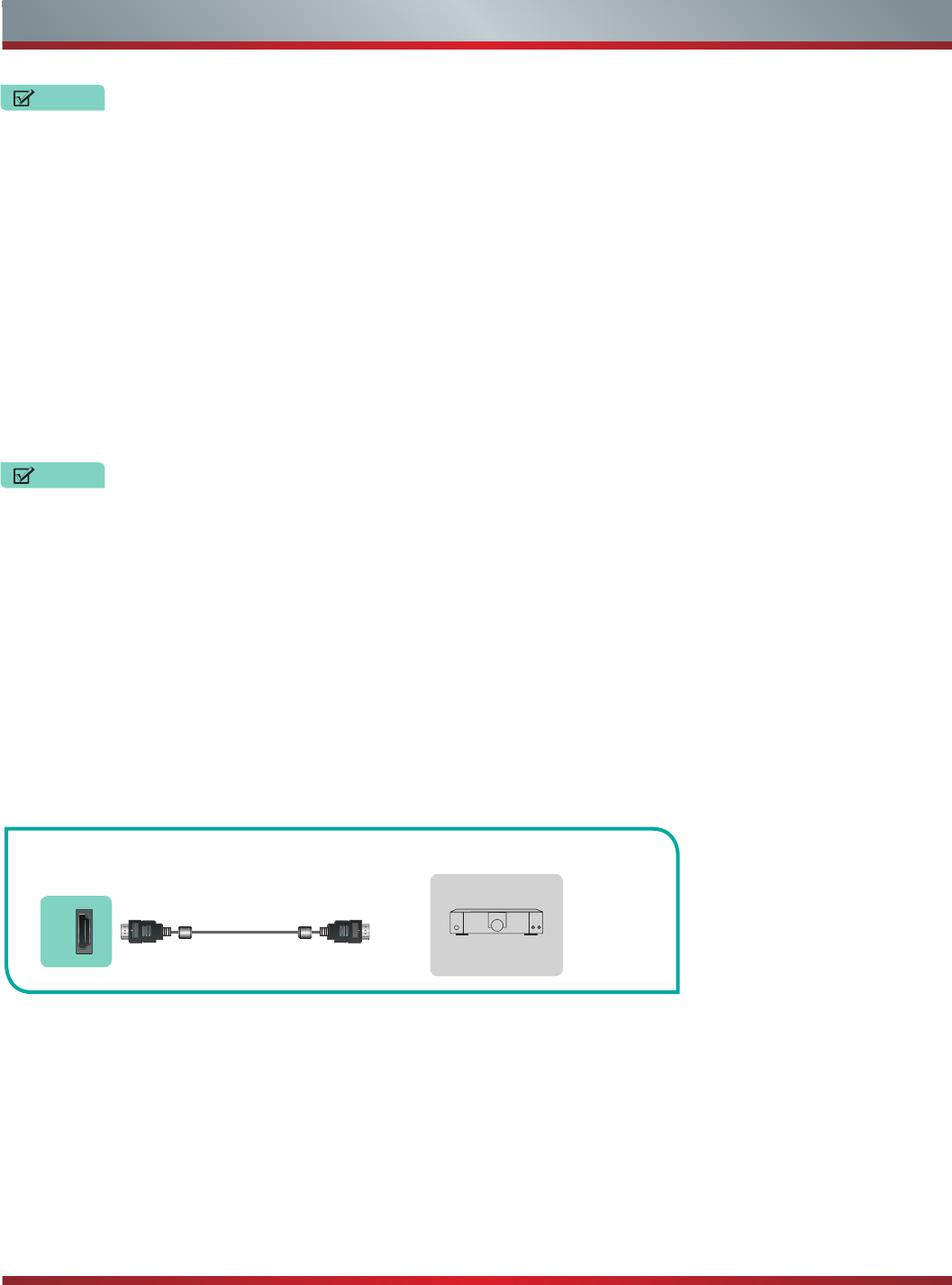

Connecting a digital sound bar to use Audio Return Channel (ARC)
If you'd like to use the Audio Return Channel (ARC) feature to have sound sent from the TV back down an HDMI cable to a digital
soundbar, then you will need to connect the cable to the [HDMI / ARC] port. By using this feature, you will also be able to control the
soundbar with your TV remote instead of having to use multiple remotes for each device.
• When a digital audio system is connected to the [DIGITAL AUDIO OUT] jack, decrease the TV and system volume.
• 5.1 CH (channel) audio is available when the TV is connected to an external device that supports a 5.1 channel surround sound
• You can receive 5.1 channel audio in one of two ways. The first way is to connect the [DIGITAL AUDIO OUT] jack from the
device to the Amplifier. The second way is to connect the [DIGITAL AUDIO OUT] jack on the back of the TV to the [Optical]
port on the Amplifier.After you’ve completed one of the two methods then be sure to go into the Advanced Audio Settings of the
TV and select RAW to receive the 5.1 channel audio. You will need to also go into the sound or audio settings of your device to
ensure it is set to 5.1 Channel output. It may read ‘Bitstream’, ‘RAW’ or ‘Digital’.
Only digital sound bars that require a wired connection are compatible with the H7 Series Smart TV.
To connect a digital sound bar with an HDMI cable:
1. Connect the cable that’s attached to the soundbar to the [HDMI / ARC] port on the TV.
2. Turn on the soundbar by pressing the Power button.
3. Press the Quick Setup menu button on your remote and press the right arrow on the [D-pad] of your remote to show the full
menu settings and go to System > HDMI Function.
4. Turn on the CEC&MHL Control setting.
5. Press the Quick Setup menu button on your remote and press the right arrow on the [D-pad] of your remote to show the full
menu settings.
6. Select Sound > Advance Audio Settings
7. Go to the section of the screen that reads TV Speaker & ARC and select ARC First.
EXTERNAL DEVICES
Digital Sound Bar
HDMI / ARC
Figure 8. Digital Sound Bar to the HDMI / ARC port
TV JACK
NOTES
NOTE
NOTE: If the device has an Input Selector feature then make sure to change it to TV.
HDMI Cable
(not included)
7
Connecting your TV to a Wired or Wireless Network
Wireless Adapter
built-in the TV set
LAN Cable
Wireless Router The LAN Port on the Wall
Connecting Your TV to a Wired or Wireless Network
Connecting to a Wired (Ethernet) Network
You have the option to connect your TV to a wireless or wired network to access the Internet.
You can attach your TV to your LAN in one of the three following ways:
Option 1.
• You can attach your TV to your LAN by connecting the LAN port on the back of your TV to an external modem using a Cat 5
LAN cable. See Figure 10.
• If your access point (AP) supports Wi-Fi Protected Setup (WPS), you can connect to the network via Push Button Configuration
(PBC) or PIN (Personal Identification Number). WPS will automatically configure the SSID
and WPA key in either mode.
Our built-in wireless LAN adapter supports the IEEE 802.11 ac/b/g/n communication protocols and we recommend that you use
an IEEE 802.11n or IEEE 802.11ac router. When you play a video over an IEEE 802.11 b/g connection, the video may not play
smoothly.
• You must use the Hisense built-in Wireless LAN Adapter to use a wireless network because the set does not support an
external USB network adapter.
• To use a wireless network, your TV must be connected to a wireless IP sharer. If the wireless IP sharer supports Dynamic Host
Configuration Protocol (DHCP), your TV can use a DHCP or static IP address to connect to the wireless network.
• Select a channel for the wireless IP sharer that is not currently being used. If the channel set for the wireless IP sharer is
currently being used by another device nearby, this will result in interference and communication failure.
• If you apply a security system other than the systems listed below, it will not work with the TV.
• If Pure High-throughput (Greenfield) 802.11N mode is selected and the Encryption type is set to WEP, TKIP or TKIP-AES (WPS2
Mixed) for your Access Point (AP), then the Hisense TV will not support a connection in compliance with these Wi-Fi certification
specifications.

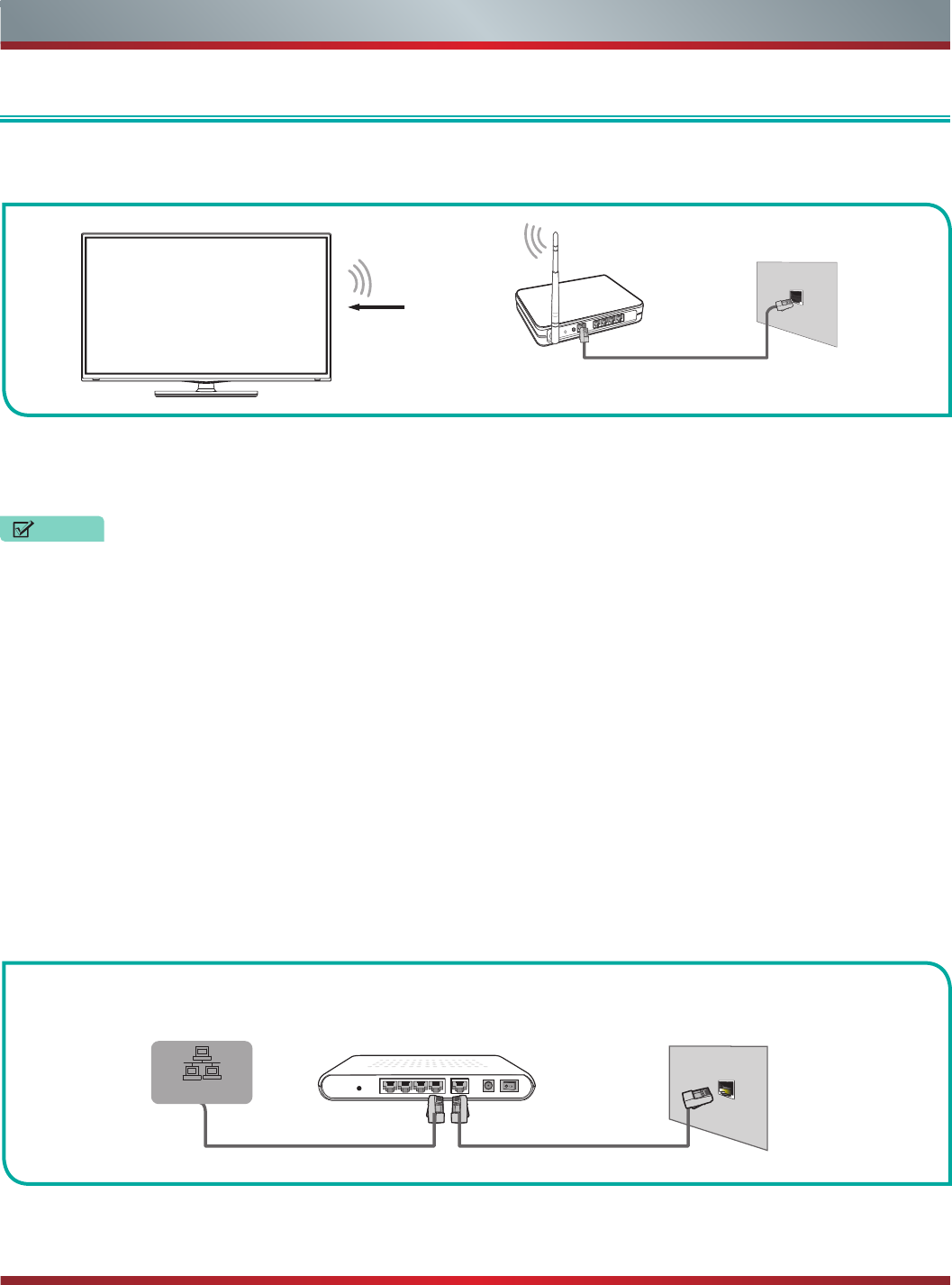

Figure 9. Connect the TV to a wireless network
Figure 10. Connect a LAN port on the TV to an external modem
Connecting to a Wireless Network
(not included)
NOTES
External Modem
(ADSL / VDSL / Cable TV)
Ethernet Cable Modem Cable
The Modem Port on the Wall
LAN Port on TV
LAN
8
Connecting your TV to a Wired or Wireless Network
• You can attach your TV to your LAN by connecting the [LAN] port on the back of your TV to an IP Sharer which is connected to
an external modem. Use an Ethernet cable for the connection. See figure 11.
• Depending on how your network is configured, you may be able to attach your TV to your LAN by connecting the [LAN] port on
the back of your TV directly to a network wall outlet with an Ethernet cable. See the diagram below.
If you have a Dynamic Network, you should use an ADSL modem or router that supports Dynamic Host Configuration Protocol
(DHCP). Modems and routers that support DHCP automatically provide the IP address, subnet mask, gateway, and DNS, so
you don’t have to enter them manually. Most home networks are Dynamic Networks.
Some networks require a Static IP address. If your network requires a Static IP address, you must enter the IP address, subnet
mask, gateway, and DNS values manually on your TV’s Cable Setup Screen when you set up the network connection. To get
the IP address, subnet mask, gateway and DNS values, contact your Internet Service Provider (ISP).

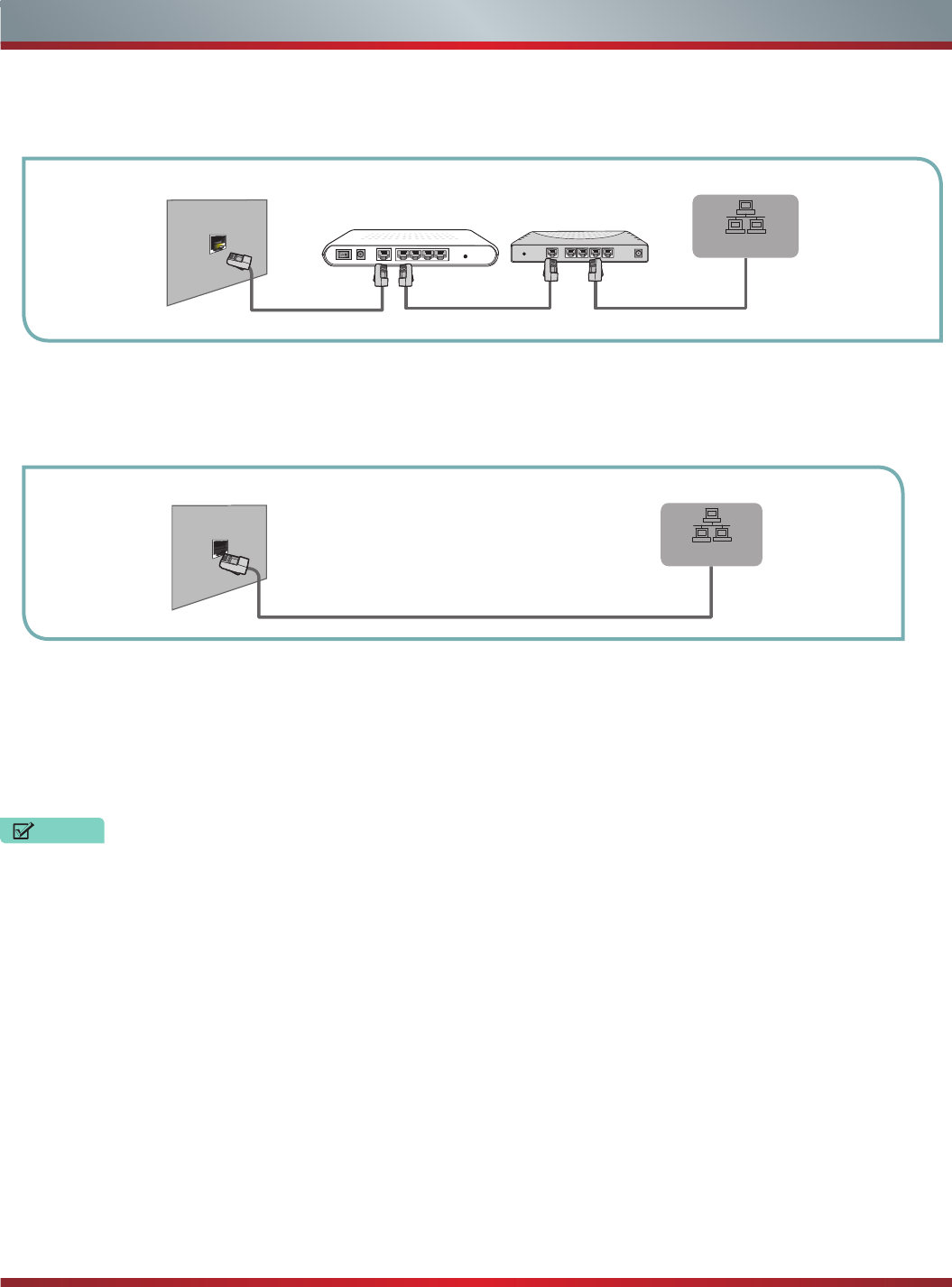

Figure 11. Connect a LAN port on the TV to an IP sharer
Figure 12. Connect a LAN port on the TV to a network wall outlet
You can use ADSL modems that support DHCP if your network requires a static IP address. ADSL modems that support DHCP
also let you use static IP addresses.
Option 2
Option 3
The LAN Port on the Wall LAN Port on TV
Ethernet Cable
LAN
The Modem Port on the Wall
Modem Cable Ethernet Cable Ethernet Cable
LAN Port on TV
External Modem
(ADSL / VDSL / Cable TV)
IP Sharer (Router)
(with DHCP server)
LAN
NOTE
9
Using Your TV Remote Control

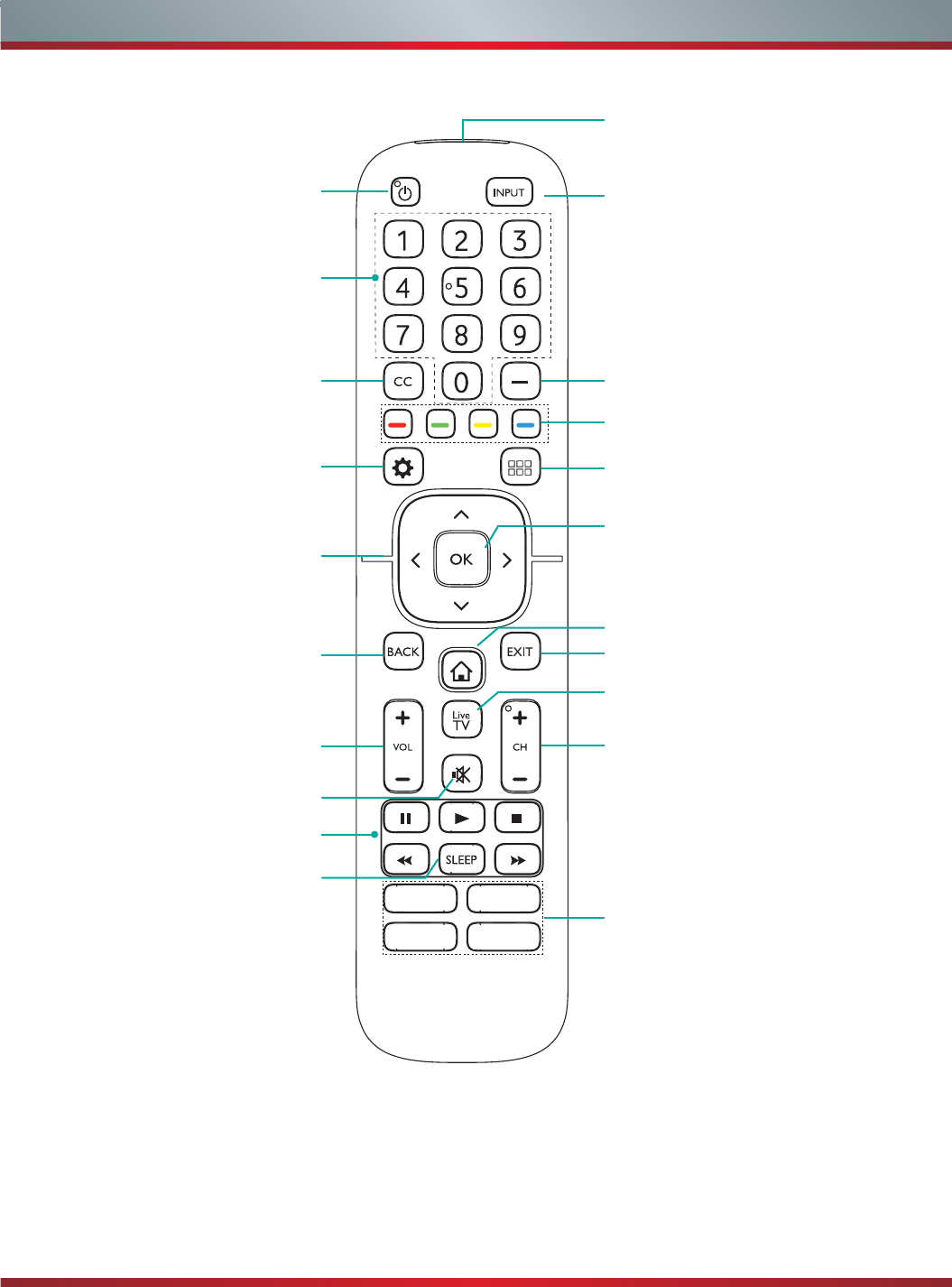

Buttons on your TV remote
Power on / off
Enter Channels / input numbers
Media content control function buttons
Dash button
Select a digital sub-channel
D-pad (up/down/left/right
navigation buttons)
Volume (up/down)
Mute and restore sound
Adjust Sleep timer setting
Quick Setup menu
Return to the previous place in
the menu or app
Live TV
Infrared transmitter
Change TV input source
Channel (up/down)
Exit the application
Turn Closed Caption On/Off
Special function buttons
All Apps
Display the Home screen
Confirm button
Quick access buttons to apps
APP
APPAPP
APP
10
Using Your TV Remote Control
Begin using your remote

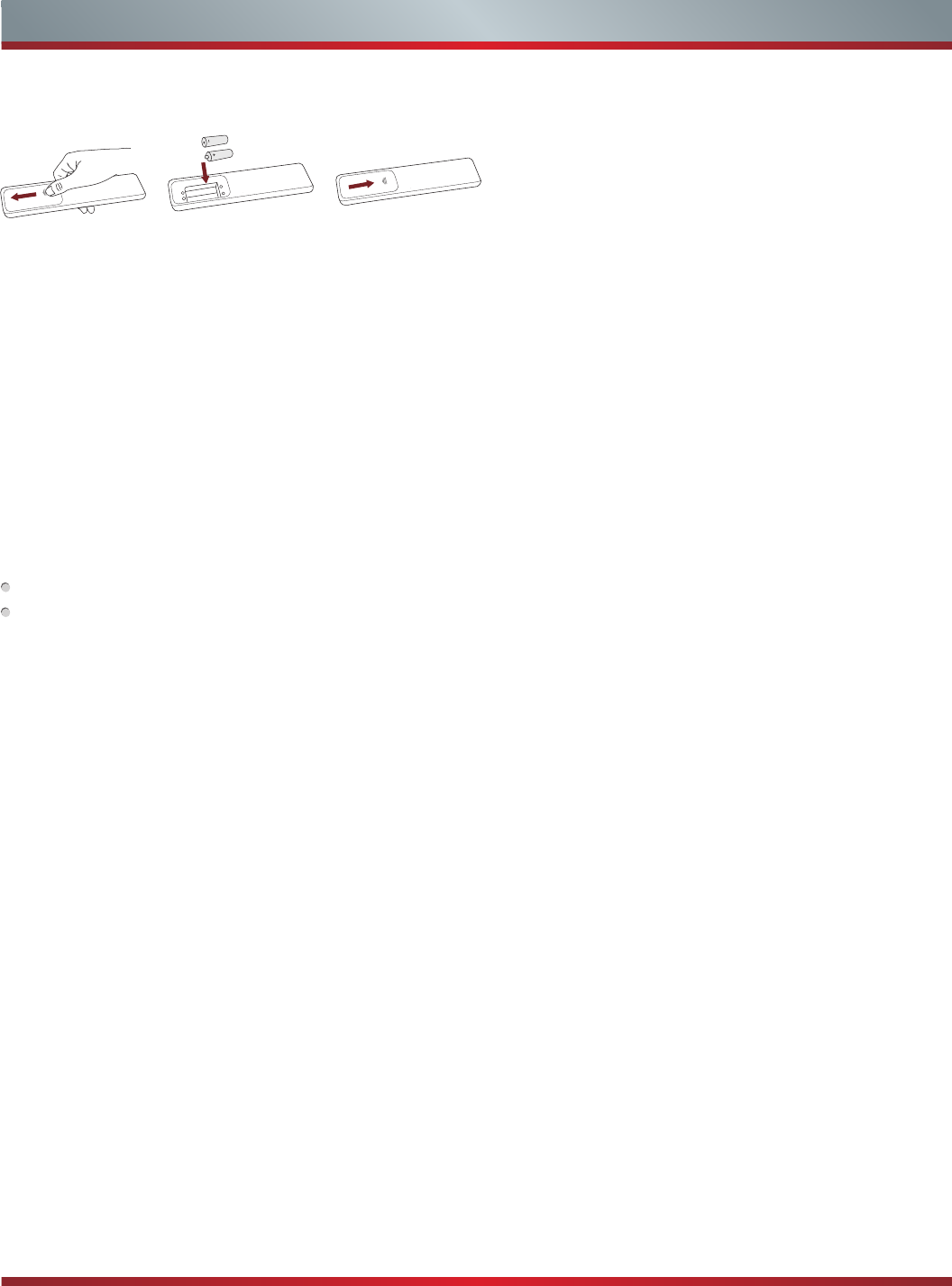

1. Slide the back cover to open the battery compartment of the remote control.
2. Insert two AAA size batteries. Make sure to match the (+) and (-) ends of the batteries with the (+) and (-) ends indicated in the
battery compartment.
3. Replace the battery compartment cover.
Important Information about the remote and batteries:
• Discardbatteriesinadesignateddisposalarea.Donotthrowthemintoafire.
• Removeoldbatteriesimmediatelytopreventthemfromleakingintothebatterycompartment.
• Ifyoudonotintendtousetheremotecontrolforalongtime,removethebatteries.
• Batterychemicalscancausearash.Ifthebatteriesleak,cleanthebatterycompartmentwithacloth.Ifchemicalstouch
your skin then wash it immediately.
• Donotmixoldandnewbatteries.
• Donotmixalkaline,standard(carbon-zinc)orrechargeable(NiCd,NiMH,etc.)batteries.
• Donotcontinueusingtheremoteifitgetswarmorhot.
Call our Support Center immediately on the Hisense support website.
Remote Control Range Information
The remote control can work at a distance of up to 26 feet in front of the TV set.
It can work at a 30 degree horizontal or vertical angle.
Program Your Universal Cable or Satellite Remote Control to Operate Your New Hisense Television
(only for USA)
If you would like to program your other household remote controls to your new Hisense television,please refer to the User's Manual
supplied by your Cable or Satellite provider. The Cable or Satellite providers' User's Manuals should include instructions on how to
program their remote to your television.
A list of Hisense codes for the most common Cable and Satellite providers are listed below. Use the Hisense code that is associated
with your Cable or Satellite provider (if applicable).
DIRECTV......0178, 10178, 10019, 10748, 11314, 11660, 11710, 11780, 12049, 10171, 11204, 11326, 11517, 11564, 11641, 11963,
12002, 12183
Time Warner Cable......386, 0178, 10178, 400, 450, 461, 456, 0748, 1463, 0463, 10463
Comcast......0178, 10178, 10463, 11463, 10748, 11314, 11660, 10171, 11204, 11326, 11517, 11641, 11780, 11785, 11892, 11963,
12002
Cox Communications......0178, 10178, 1326, 1463
Dish Network......505, 627, 538, 720, 659
If the Hisense code associated with your Cable or Satellite provider is not listed, does not work or you cannot locate the instructions
to program your remote, call your local Cable or Satellite provider’s customer service center.
Insert the batteriesGently push and slide Gently push and slide
If your Cable or Satellite provider does not have a Hisense code available, please contact us.
Using Your Cable Set-top Box or Satellite Receiver Remote as a ‘Universal’ Remote
If you prefer to use your Cable Set-top Box or Satellite Receiver Remote as a ‘Universal Remote’, then visit the Support page to view
a list of the codes.

Navigation menu
