Hisense (Guangdong) Air Conditioning Co., Ltd. WiFi Module Part 2

Contents

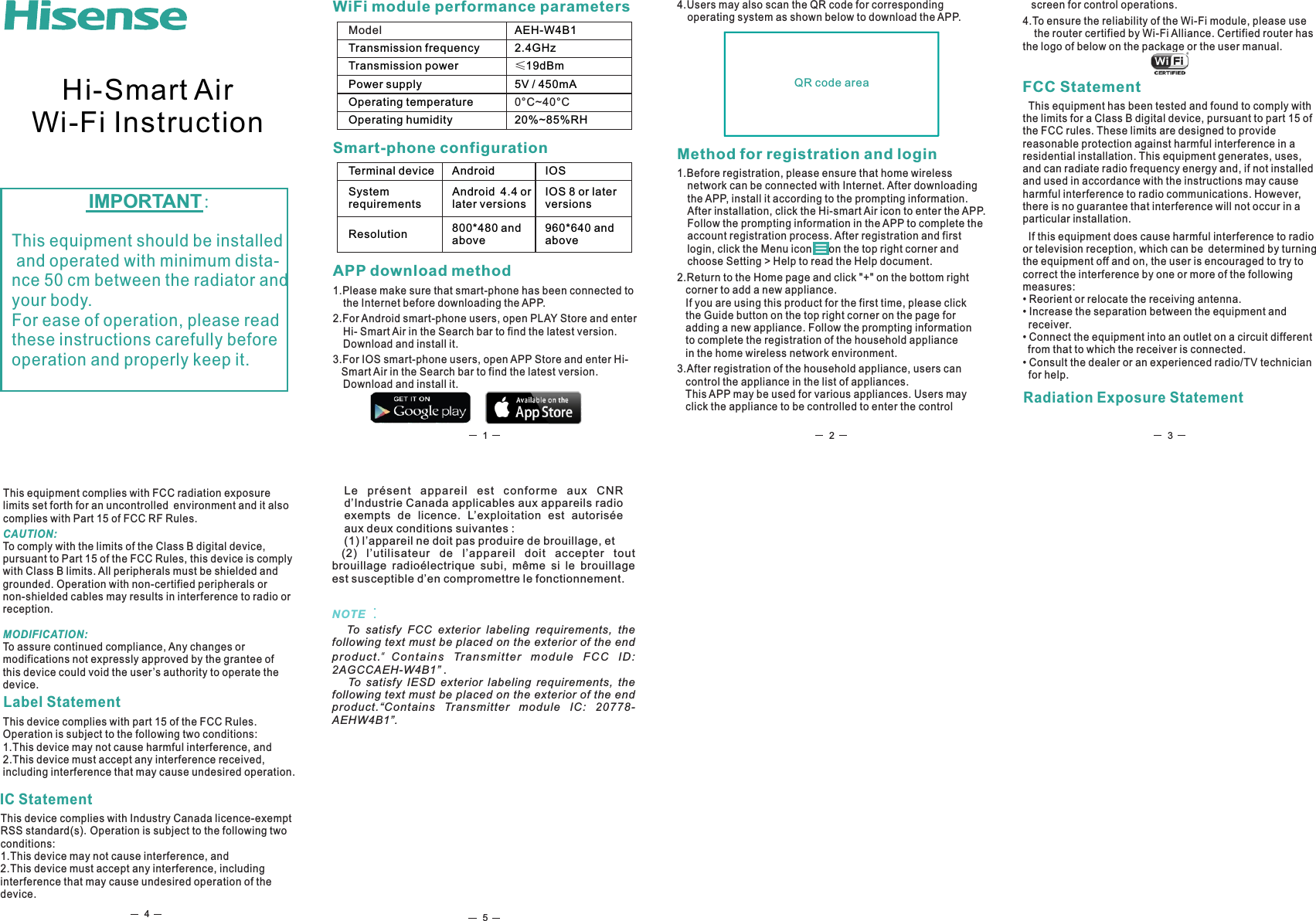

User Manual Part 2

Hi-Smart Air
Wi-Fi Instruction
IMPORTANT:
This equipment should be installed
and operated with minimum dista-
nce 50 cm between the radiator and
your body.
For ease of operation, please read
these instructions carefully before
operation and properly keep it.
WiFi module performance parameters
4.Users may also scan the QR code for corresponding
operating system as shown below to download the APP.
1.Please make sure that smart-phone has been connected to
the Internet before downloading the APP.
2.For Android smart-phone users, open PLAY Store and enter
Smart Air in the Search bar to find the latest version.
Download and install it.
Hi-
3.For IOS smart-phone users, open APP Store and enter Hi-
Smart Air in the Search bar to find the latest version.
Download and install it.
APP download method
To comply with the limits of the Class B digital device,
pursuant to Part 15 of the FCC Rules, this device is comply
with Class B limits. All peripherals must be shielded and
grounded. Operation with non-certified peripherals or
non-shielded cables may results in interference to radio or
reception.
To assure continued compliance, Any changes or
modifications not expressly approved by the grantee of
this device could void the user’s authority to operate the
device.
CAUTION:
MODIFICATION:
Radiation Exposure Statement
This equipment complies with FCC radiation exposure
limits set forth for an uncontrolled environment and it also
complies with Part 15 of FCC RF Rules.
Label Statement
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
This device may not cause harmful interference, and
2.This device must accept any interference received,
including interference that may cause undesired operation.
1.
IC Statement
This device complies with Industry Canada licence-exempt
RSS standard(s).Operation is subject to the following two
conditions:
1.This device may not cause interference, and
2.This device must accept any interference, including
interference that may cause undesired operation of the
device.
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15 of
the FCC rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions may cause
harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a
particular installation.
If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician
for help.
FCC Statement
Smart-phone configuration
QR code area
1.Before registration, please ensure that home wireless
network can be connected with Internet. After downloading
the APP, install it according to the prompting information.
After installation, click the Hi-smart Air icon to enter the APP.
Follow the prompting information in the APP to complete the
account registration process. After registration and first
login, click the Menu icon on the top right corner and
choose Setting > Help to read the Help document.
corner to add a new appliance.
If you are using this product for the first time, please click
the Guide button on the top right corner on the page for
adding a new appliance. Follow the prompting information
to complete the registration of the household appliance
in the home wireless network environment.
2.Return to the Home page and click "+" on the bottom right
control the appliance in the list of appliances.
This APP may be used for various appliances. Users may
click the appliance to be controlled to enter the control
3.After registration of the household appliance, users can
Method for registration and login
screen for control operations.
4.To ensure the reliability of the Wi-Fi module, please use
the router certified by Wi-Fi Alliance. Certified router has
the logo of below on the package or the user manual.
Model AEH-W4B1
Transmission frequency 2.4GHz
Transmission power ≤19dBm
Power supply 5V / 450mA
Operating temperature 0°C~40°C
Operating humidity 20%~85%RH
Terminal device Android
System
requirements
Android 4.4 or
later versions
Resolution 800*480 and
above
IOS
IOS 8 or later
versions
960*640 and
above
1 2 3
4
Le présent appareil est conforme au x CNR
d’Industrie Canada applicables aux appareils radio
exempts de licence. L’exploitation est autorisée
aux deux conditions suivantes :
(1) l’appareil ne doit pas produire de brouillage, et
(2) l’utilisateur de l’appareil doit accepter tout
brouillage radioélectrique subi, même si le brouillage
est susceptible d’en compromettre le fonctionnement.
To satisfy FCC exterior labeling requirements, the
following text must be placed on the exterior of the end
pro d uct.“Co nt ai ns Tran sm it ter mod u le FC C ID :
2AGCCAEH-W4B1” .
To satisfy IESD exterior labeling requirements, the
following text must be placed on the exterior of the end
product.“Contains Transmitter module IC: 20778-
AEHW4B1”.
NOTE：
5
