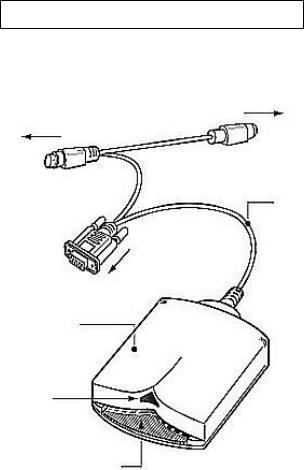

Contents & Connection to the PC
Number
R/W (M-360M, Cable is attached) 1
To PC PS/2 port
(mouse port or
keyboard port)
To mouse or
Keyboard
To PC serial port
Power & RS-232C cable
LED
R/W
IC card insertion slot
USER
MANUAL
NEEM03
DRAFT

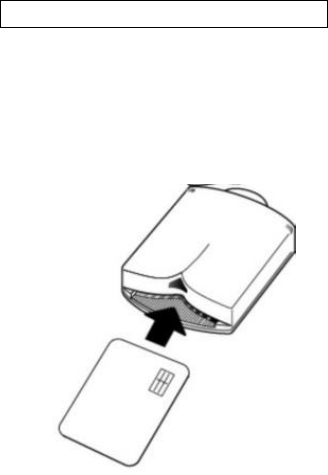

How to use
Completely insert the IC card with contact on the upper surface,
contact side first, until it reaches the end of the IC card slot. The
LED will blink green.
LED
Green light on: R/W power on
Green light blinks: IC card is inserted
Red light on: IC cart power on, active
NEEM03
DRAFT
Caution
Failure to do the following may result in a decrease in
performance of the apparatus, trouble, breakage, deformation,
discoloring, electric shock, smoke, burning, or other dangers
○ Do not disassemble or modify the product.
○ Do not use this apparatus in moist or dusty environments.
○ Do not leave this apparatus in high temperature or high
humidity environments and do not exposed to direct
sunlight.
○ Do not subject the apparatus to severe mechanical shocks.
○ Do not insert metallic plates, plastics and papers into card
slot. Do not insert cards that are out of specifications.
○When the Red light is on, do not remove the IC card from
the product, do not remove the power cable from the PC,
or do not shut down the PC.
○Do not insert IC card upside down, do not insert IC card
revers direction, especially embossed card.
NEEM03
DRAFT
General specifications
Model M-360M
Card insertion/ejection Manual/manual(durability: 100K passes)
Acceptable IC card IC card conforming to ISO7816 with
“T=0”, “T=1”.
Note : No Vpp control. The IC card
must be warped or bent under 2mm.
Host interface Based on RS-232C interface,
Asynchronous
Power supply DC5V±5%, 110mA Max.
(Supplied from PC PS/2 port)
Outer dimensions 76mm×105mm×23mm
(Cable is not included)
Weight About 160ｇ (Cable is not included)
Operating conditions 0∼50℃ 10∼85%RH (No condensation）
Indoor use only
Storage conditions -10∼60℃ 10∼90%RH (No condensation)
NEEM03
DRAFT
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance
with instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment interferes with radio or television
reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to eliminate the interference by one or more of
the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
NEEM03
DRAFT
This device complies with Part 15 of the FCC Rules/ Operation is subject
to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference receive including interference
that may cause undesired operation.
CHANGES OR MODIFICATIONS NOT EXPRESSLY APPLOVED BY
THE MANUFACTURER FOR COMPLIANCE COULD VOID THE
USER'S AUTHORITY TO OPERATE THE EQUIPMENT.
