WARNING

Improper and unsafe use of this power tool can result in death or serious bodily injury!

This manual contains important information about product safety. Please read and understand

this manual before operating the power tool. Please keep this manual available for others before

they use the power tool.

INSTRUCTION MANUAL AND SAFETY INSTRUCTIONS

Model C 10FR Jobsite Table Saw

SECTION PAGE

Know Your Table Saw ............................................................ 9

Assembly and Adjustments ................................................. 10

Operation ............................................................................... 17

Maintenance .......................................................................... 21

Troubleshooting Guide ......................................................... 22

Push Stick Pattern ................................................................. 23

Parts List ................................................................................ 24

CONTENTS

SECTION PAGE

Product Specifications ............................................................ 3

Power Tool Safety ................................................................... 4

Table Saw Safety .................................................................... 5

Electrical Requirements and Safety ...................................... 6

Accessories and Attachments ............................................... 7

Tools Needed For Assembly .................................................. 7

Carton Contents ..................................................................... 7

2

HITACHI AUTHORIZED SERVICE CENTERS

Service under this warranty is available from Hitachi Koki U.S.A., Ltd. at :

3950 Steve Reynolds Blvd. Norcross, GA 30093

9409 Owensmouth Ave. Chatsworth, CA 91311

OR CALL: (800) 546-1666 for a service center nearest you. OR CALL: (800) 970-2299 for a service center nearest you.

6395 Kestrel Road Mississauga, ON L5T 1Z5

IN THE U.S.A. IN CANADA

——

— 3 —

WARNING

Some dust created by power sanding, sawing, grinding, drilling and other construction activities contains chemicals

known to the state of California to cause cancer, birth defects or other reproductive harm. Some examples of these

chemicals are:

• Lead from lead-based paints

• Crystalline silica from bricks, cement and other masonry products

• Arsenic and chromium from chemically treated lumber

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to

these chemicals, work in a well-ventilated area and work with approved safety equipment such as dust masks that are

specially designed to filter out microscopic particles.

PRODUCT SPECIFICATIONS

SAW

Table Size....................................... 26-1/16” x 19-21/64”

Table Extensions ........................... 2- Right, Rear

Extension Fence Capacity............. 24” Right

Blade Size....................................... 10”

Rip Scale ........................................ YES

Rip Fence........................................ YES

Miter Gauge ................................... YES

Maximum Cut Depth @ 90°..........3-1/8”

Maximum Cut Depth @ 45°..........2-1/2”

Net Weight ..................................... 64.5 LBS

WARNING

To avoid electrical hazards, fire hazards or damage to the table saw, use proper circuit protection.

This table saw is wired at the factory for 110-120 Volt operation. It must be connected to a 110-120 Volt / 15 Ampere time

delay fuse or circuit breaker. To avoid shock or fire, replace power cord immediately if it is worn, cut or damaged in any

way.

Before using your table saw, it is critical that you read and understand these safety rules. Failure to follow these rules

could result in serious injury to you or damage to the table saw.

MOTOR

HP (Maximum developed)............ 3.0

Type................................................ Universal

Amps .............................................. 15

Voltage ........................................... 120

Hz .................................................... 60

RPM (no load) ................................ 5000

Overload Protection ...................... YES

— 4 —

POWER TOOL SAFETY

WARNING

Before using your table saw, it is critical that you read and understand these safety rules. Failure to follow these rules

could result in serious injury or damage to the table saw.

Good safety practices are a combination of common

sense, staying alert and understanding how to use your

power tool. To avoid mistakes that could cause serious

injury, do not plug in your power tool until you have read

and understood the following safety rules:

1. READ and become familiar with this entire Operator’s

Manual. LEARN the tool’s applications, limitations and

possible hazards.

2.

WARNING

Look for this symbol that identifies important safety

precautions. It means CAUTION! BECOME ALERT!

YOUR SAFETY IS INVOLVED!

3. NEVER OPERATE THIS MACHINE WITHOUT THE

SAFETY GUARD IN PLACE FOR ALL THROUGH

SAWING OPERATIONS.

4. DO NOT USE IN A DANGEROUS ENVIRONMENT

such as damp or wet locations or exposure to rain.

Keep work area well lighted.

5. DO NOT use power tools in the presence of flammable

liquids or gases.

6. KEEP WORK AREA CLEAN. Cluttered areas and

benches invite accidents.

7. KEEP CHILDREN AWAY. All visitors should be kept at

a safe distance from the work area.

8. DO NOT FORCE THE TOOL. It will do the job better

and safer at the rate for which it was designed.

9. USE THE RIGHT TOOL. Don’t force the tool or

attachment to do a job for which it is not designed.

10. WEAR PROPER APPAREL. DO NOT wear loose

clothing, gloves, neckties, rings, bracelets or other

jewelry that may get caught in moving parts. Non-slip

footwear is recommended. Wear protective hair

covering to contain long hair.

11. WEAR A FACE MASK OR DUST MASK. Sawing,

cutting and sanding operations produce dust.

12. DISCONNECT TOOLS before servicing and when

changing accessories such as blades, cutters, etc.

13. REDUCE THE RISK OF UNINTENTIONAL STARTING.

Make sure the switch is in the OFF position before

plugging into the power supply.

14. USE ONLY RECOMMENDED ACCESSORIES.

Consult the Operator’s Manual for recommended

accessories. The use of improper accessories may

cause injury to you or damage to the tool.

15. REMOVE ADJUSTING KEYS AND WRENCHES.

Form the habit of checking to see that keys and

adjusting wrenches are removed from the tool before

turning ON.

16. NEVER LEAVE TOOL RUNNING UNATTENDED.

TURN THE POWER “OFF”. Do not leave the tool

before it comes to a complete stop.

17. NEVER STAND ON TOOL. Serious injury could occur if

the tool is tipped or if the cutting tool is

unintentionally contacted.

18. DO NOT OVERREACH. Keep proper footing and

balance at all times.

19. MAINTAIN TOOLS WITH CARE. Keep tools sharp and

clean for most efficient and safest performance.

Follow instructions for lubricating and changing

accessories.

20. CHECK FOR DAMAGED OR LOOSE PARTS.

Before further use of the tool, a guard or other part

that is damaged should be carefully checked to ensure

it will operate properly and perform its intended

function. Check for alignment of moving parts,

binding of moving parts, loose mounting and any

other conditions that may affect its safe operation. A

guard or other part that is loose or damaged should

be properly adjusted repaired or replaced.

21. MAKE WORKSHOP CHILD PROOF with padlocks,

master switches or by removing starter keys.

22. DO NOT operate the tool if you are under the

influence of any drugs, alcohol or medication that

could impair your ability to use the tool safely.

23. USE DUST COLLECTION SYSTEM wherever possible.

Dust generated from certain materials can be

hazardous to your health and in some cases, a fire

hazard. Always operate the power tool in a well-

ventilated area with adequate dust removal.

24. ALWAYS WEAR EYE PROTECTION. Any power tool

can throw foreign objects into your eyes that could

cause permanent eye damage. ALWAYS wear safety

goggles (not glasses) that comply with ANSI safety

standard Z87.1. Everyday glasses have only impact

resistant lenses. They ARE NOT safety glasses.

NOTE: Glasses or goggles not in compliance with

ANSI Z87.1 could cause serious injury when they

break.

25. DIRECTION OF FEED. Feed work into a blade or cutter

against the direction of rotation of the blade or cutter

only.

— 5 —

TABLE SAW SAFETY

1. ALWAYS USE SAW BLADE GUARD, splitter and anti-

kickback pawls for every operation for which they can

be used, including through sawing. Through sawing

operations are those in which the blade cuts

completely through the workpiece when ripping or

crosscutting.

2. ALWAYS HOLD WORK FIRMLY against the miter

gauge or rip fence.

3. USE A PUSH STICK when required. Always use a

push stick especially when ripping narrow stock. Refer

to ripping instructions in this Operator’s Manual

where the push stick is covered in detail. A pattern for

making your own push stick is included on page 23.

4. NEVER PERFORM ANY OPERATION FREE HAND,

which means using only your hands to support or

guide the workpiece. Always use either the fence or

the miter gauge to position and guide the work.

WARNING: FREEHAND CUTTING IS THE MAJOR

CAUSE OF KICK-BACK & FINGER/HAND

AMPUTATIONS.

5. NEVER STAND or have any part of your body in line

with the path of the saw blade. Keep your hands out

of the saw blade path.

6. NEVER REACH behind or over the cutting tool for any

reason.

7. REMOVE the rip fence when crosscutting.

8. DO NOT USE a molding head with this saw.

9. FEED WORK INTO THE BLADE against the direction of

rotation only.

10. NEVER use the rip fence as a cut-off gauge when

crosscutting.

11. NEVER ATTEMPT TO FREE A STALLED SAW BLADE

without first turning the saw OFF. Turn power switch

OFF immediately to prevent motor damage.

12. PROVIDE ADEQUATE SUPPORT to the rear and the

sides of the saw table for long or wide workpieces.

13. AVOID KICKBACKS (work thrown back towards you)

by keeping the blade sharp, the rip fence parallel to

the saw blade and by keeping the splitter, anti-

kickback pawls and guards in place, aligned and

functioning. Do not release work before it has passed

all the way past the saw blade. Do not rip work that is

twisted, warped or does not have a straight edge to

guide it along the fence.

14. AVOID AWKWARD OPERATIONS and hand positions

where a sudden slip could cause your hand to move

into the saw blade.

15. NEVER USE SOLVENTS to clean plastic parts.

Solvents could possibly dissolve or otherwise damage

the material. Only a soft damp cloth should be used to

clean plastic parts.

16. MOUNT your table saw on a bench or stand before

performing any cutting operations. Refer to

ASSEMBLY AND ADJUSTMENTS on page 10.

17. NEVER CUT METALS or materials which may make

hazardous dust.

18. ALWAYS USE IN WELL-VENTILATED AREA.

Remove sawdust frequently. Clean out sawdust from

the interior of the saw to prevent a potential fire

hazard. Attach a vacuum to the dust port for

additional sawdust removal.

19. NEVER LEAVE THE SAW RUNNING UNATTENDED.

Do not leave the saw until it comes to a complete

stop.

20. For proper operation follow the instructions in this

Operator’s Manual entitled ASSEMBLY AND

ADJUSTMENTS (Page 10). Failure to provide sawdust

fall-through and removal hole will allow sawdust to

build up in the motor area resulting in a fire hazard

and potential motor damage.

— 6 —

ELECTRICAL REQUIREMENTS AND SAFETY

POWER SUPPLY REQUIREMENTS

WARNING

To avoid electrical hazards, fire hazards or damage to the

table saw, use proper circuit protection. Always use a

separate electrical circuit for your tools. This power tool is

wired at the factory for 120V operation. Connect it to a

120V, 15 Amp circuit and use a 15 Amp time delay fuse or

circuit breaker. To avoid shock or fire, replace the cord

immediately if it is worn, cut or damaged in any way.

EXTENSION REQUIREMENTS

WARNING

Any extension cord must be GROUNDED for safe

operation.

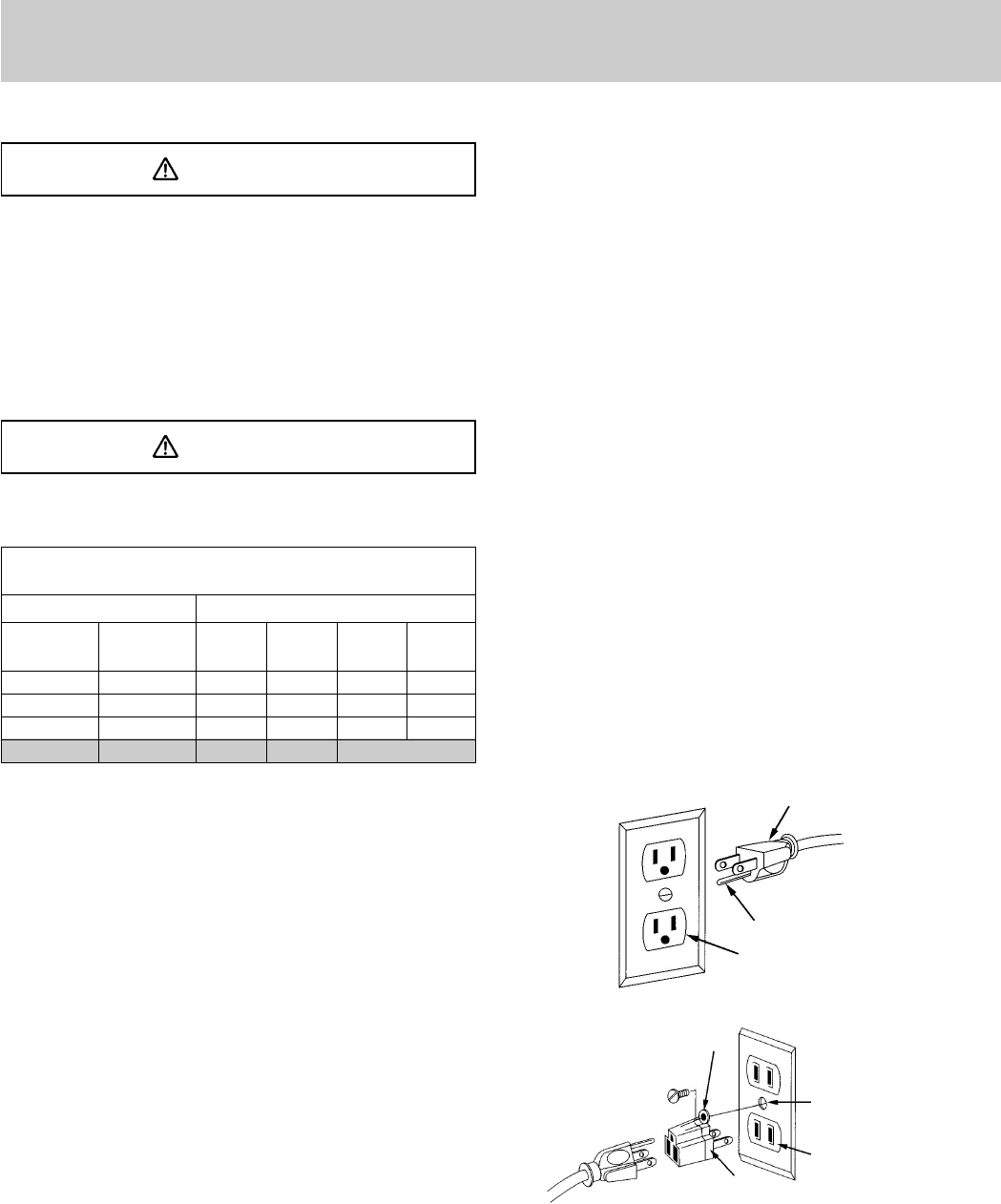

MINIMUM GAUGE FOR EXTENSION CORDS

(AWG type / 120 Volt only)

Ampere Rating Total length in feet

Not

More Than More Than 25’50’100’150’

0 6 18 16 16 14

6 10 18161412

10 12 16 16 14 12

12 16 14 12 Not Applicable

GUIDELINES FOR EXTENSION CORDS

Any extension cord used for power tools MUST be

grounded (3-wire with two flat prongs and one round

ground prong).

Make sure the extension cord is in good condition. When

using an extension cord, make sure you use one heavy

enough to carry the current the tool will draw. An

undersized cord will cause a drop in line voltage resulting

in loss of power and overheating. The table above shows

the correct size to use according to extension cord length

and nameplate ampere rating. If in doubt, use the next

heavier gauge cord. The smaller the gauge number the

heavier the cord.

NOTE: The 12 to 16 Amp rating is correct for this tool. It is

highlighted in the table above.

Be sure your extension cord is properly wired and in good

condition. Always replace a damaged extension cord or

have it repaired by a qualified person before using it.

Protect your extension cords from sharp objects,

excessive heat and damp or wet areas.

Before connecting the saw to the extension cord, make

sure the saw switch is turned OFF.

GROUNDING INSTRUCTIONS

IN THE EVENT OF A MALFUNCTION OR BREAKDOWN,

grounding provides a path of least resistance for electric

current and reduces the risk of electric shock. This saw is

equipped with an electric cord that has an equipment

grounding conductor and a grounding plug. The plug

MUST be plugged into a matching receptacle that is

properly installed and grounded in accordance with ALL

local codes and ordinances.

DO NOT MODIFY THE PLUG PROVIDED. If it will not fit the

receptacle, have the proper receptacle installed by a

qualified electrician.

IMPROPER CONNECTION of the equipment grounding

conductor can result in risk of electric shock. The

conductor (wire) with the green insulation (with or without

yellow stripes) is the equipment grounding conductor. If

repair or replacement of the electric cord or plug is

necessary, DO NOT connect the equipment grounding

conductor to a live terminal.

CHECK with a qualified electrician or service personnel if

you do not completely understand the grounding

instructions, or if you are not sure the saw is properly

grounded.

Use only 3-wire extension cords that have 3-prong

grounding plugs and 3-pole grounding receptacles that

accept the saw’s plug. Repair or replace damaged or

worn cords immediately.

3-Prong Plug

Grounding Prong

Properly Grounded

3-Prong Receptacle

2-Prong

Receptacle

Adapter

Grounding Lug

Make Sure This

is Connected to a

Known Ground

— — 7

ACCESSORIES AND ATTACHMENTS

RECOMMENDED ACCESSORIES

WARNING

Visit your Hardware Department or see the Power and

Hand Tools Catalog to purchase recommended

accessories for this power tool

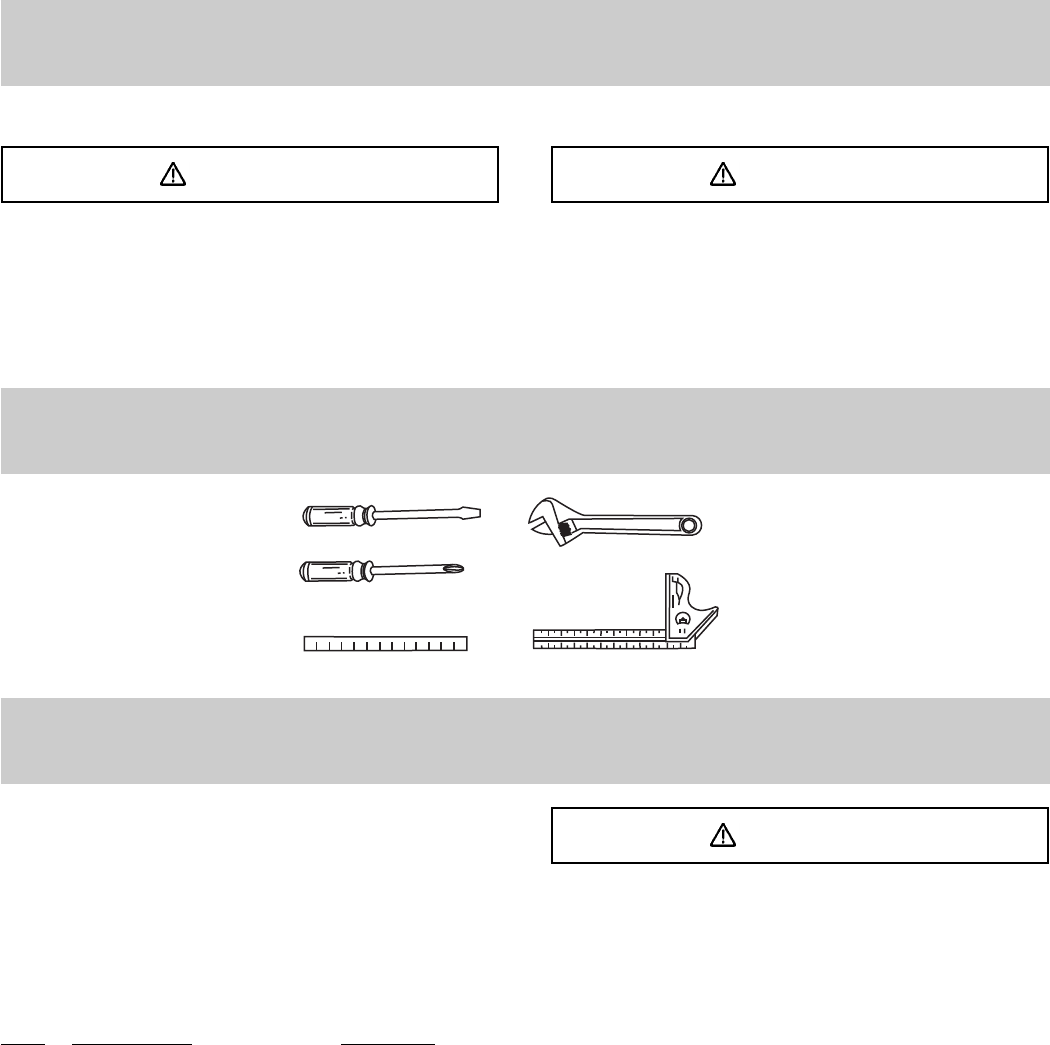

TOOLS NEEDED FOR ASSEMBLY

TOOLS NEEDED

Medium screwdriver

#2 Philips screwdriver

Straight edge

Adjustable wrench

Combination square

CARTON CONTENTS

UNPACKING AND CHECKING CONTENTS

Separate all parts from packing materials. Check each part

with the illustration on the next page and the "Table of

Loose Parts" to make certain all items are accounted for,

before discarding any packing material.

STAND:

Q. Stand assembly 1

R. Hex. head bolts 4

S. Flat washers 4

T. Roller wheels 2

U. Square neck bolts 2

V. Nuts 2

W. Support rod 1

X. Batteries 2

WARNING

If any part is missing or damaged, do not attempt to

assemble the table saw, plug in the power cord, or turn

the switch ON until the missing or damaged part is

obtained and is installed correctly.

TABLE OF LOOSE PARTS

ITEM DESCRIPTION QUANTITY

A. Table saw assembly 1

B. Blade 1

C. Blade wrenches 2

D. Miter gauge 1

E. Hex key 1

F. Bolt, flat washer, toothed washer, 1 each

Oval washer, spring washer

G. Blade guard and splitter 1

H. Rip fence 1

I. Rear table extension 1

J. Rear table extension tube 2

K. Location seat 4

L. Dome nuts 2

M. Hand wheels 2

N. Table extension 1

O. Dust collect elbow 1

P. Parallel washer hardware 1 each

NOTE: To make assembly easier, keep contents of box

together. Apply a coat of automobile wax to the table.

Wipe all parts thoroughly with a clean dry cloth. This will

reduce friction when pushing the workpiece. To avoid

injury, the styrofoam block should be removed between

the motor and the table.

WARNING

To avoid the risk of personal injury:

Do not use adjustable (wobble) type dadoes or carbide

tipped dado blades; maximum dado width is 1/2" .

Do not use a dado with a diameter larger than 6" .

Do not use molding head set with this saw.

Do not modify this power tool or use accessories not

recommended by Store.

— 8 —

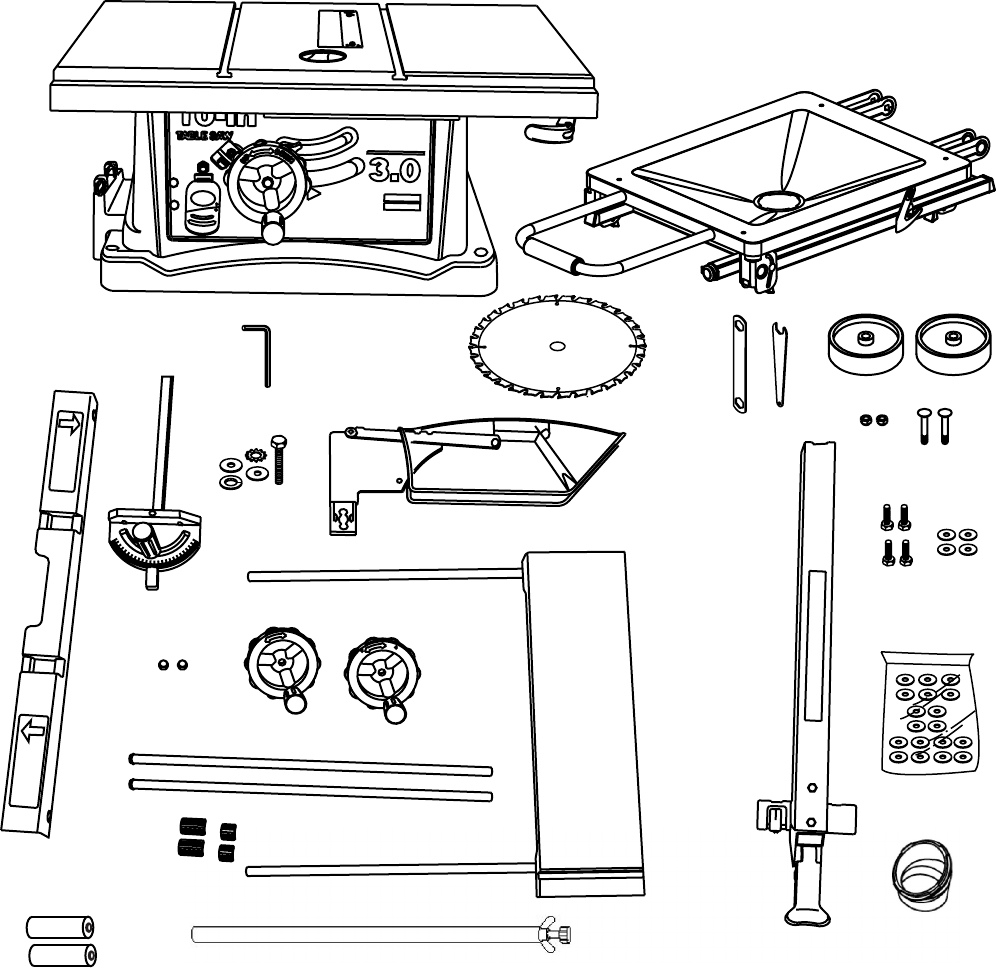

UNPACKING YOUR TABLE SAW

4

5

O

P

U

N

W

O

D

30

45

60

75

90

75

60

45

30

A

B

C

D

E

F

G

H

I

X

J

K

L

M

N

O

P

Q

RS

T

U

V

W

— 9 —

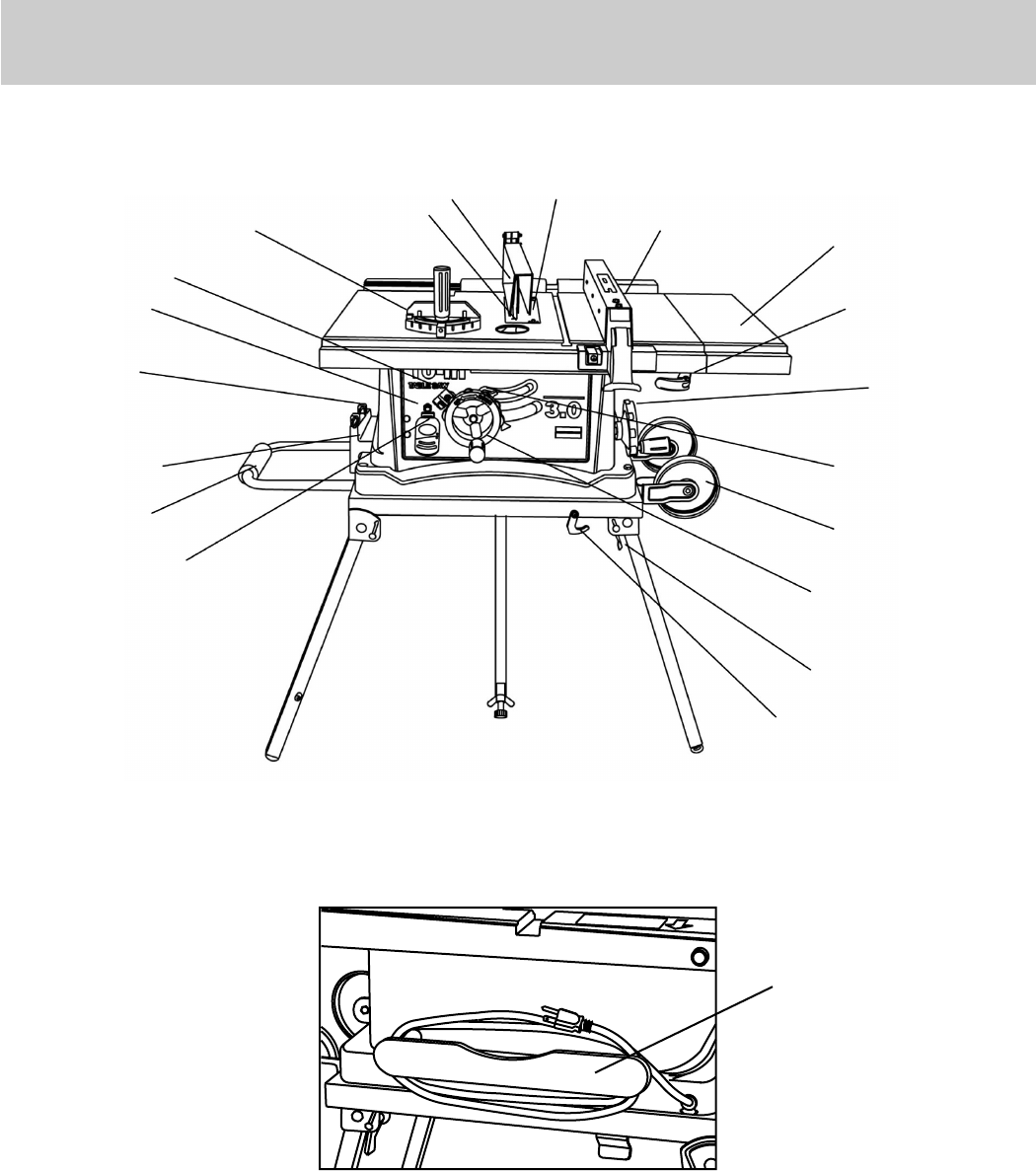

KNOW YOUR TABLE SAW

The Front of Table Saw

Miter gauge Cutting line

indicator

Blade guard with LED lighting Table Insert Rip fence Side table extension

Extension wing

locking lever

Blade tilting

handwheel

Blade bevel

lock knob

Stand wheel

Blade elevation

handwheel

Lock lever

Stand hook

Support Rod

Bevel angle

Pointer & scale

Overload reset

switch

Fence storage

Stand handle

ON/OFF switch

with key

Miter gauge

storage

The Rear of Table Saw

Cord wrap

ASSEMBLY AND ADJUSTMENTS

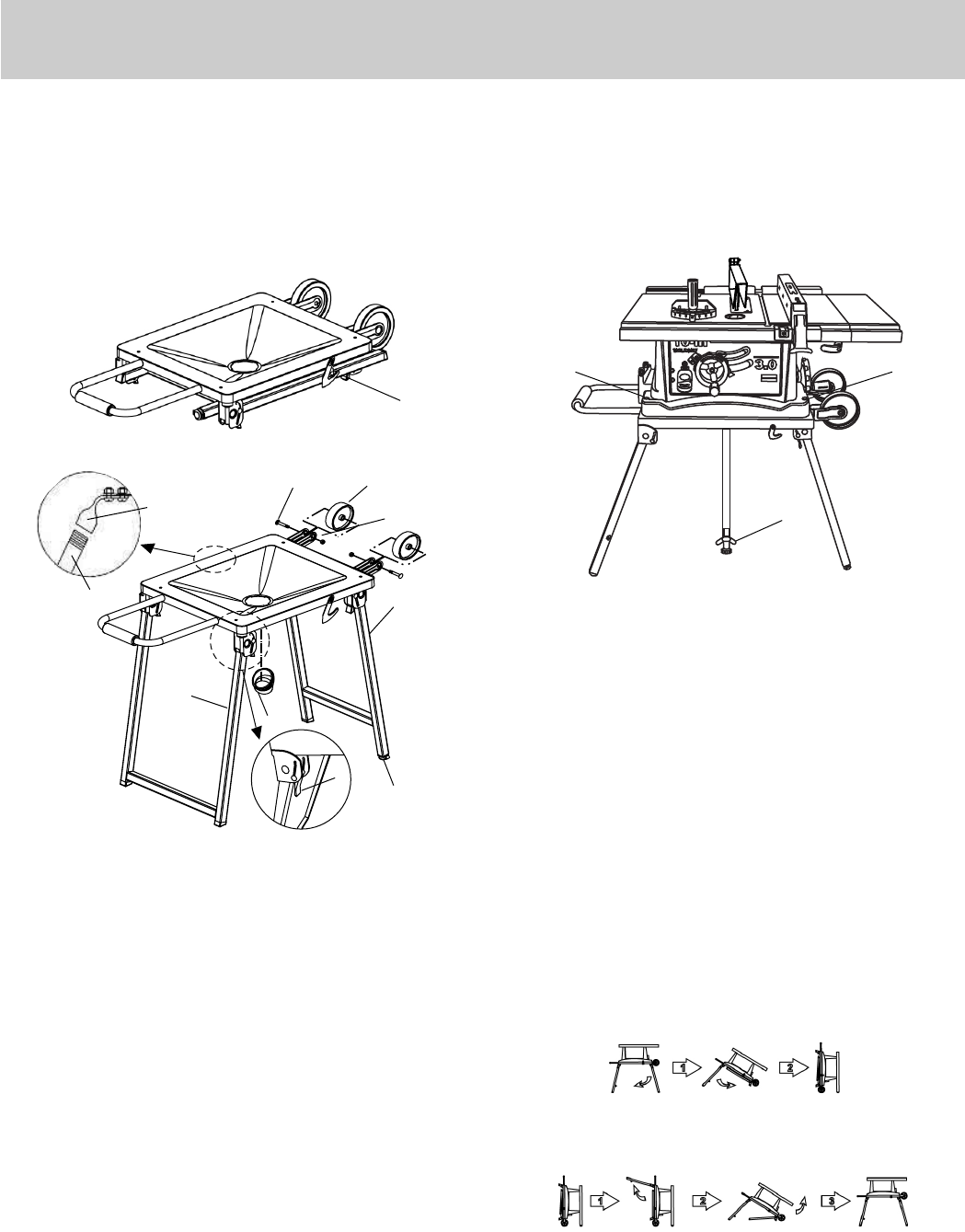

FOLDING THE STAND (Fig. A-1)

1. Release the stand hook (1).

2. Unfold the wider leg set (2). Pull the lever (3)

downward and push it to lock in place. Then, put

down the wider leg set on the ground.

3. Lift the stand up and unfold the narrower leg set (4).

4. Pull the lever downward and push it to lock in place.

NOTE: Make sure the stand is locked securely.

Fig. A-1

1

11

10

87

9

4

6

2

35

ASSEMBLING THE ROLLER WHEEL (Fig. A-1)

Attach the roller wheel (7) to roller wheel bracket using

square neck bolt (8) and nut (9) as shown.

INSTALLING THE DUST COLLECTION ELBOW

(Fig. A-1)

1. Align the dent with the slot on the exhaust port. Install

the dust collection elbow (6) onto the exhaust port.

NOTE: The elbow can be used to attach either the dust

bag or a vacuum hose to remove sawdust from the work

area.

ASSEMBLING TABLE SAW TO STAND (Fig. A-1,A-2)

1. Place stand on level surface and adjust front right

adjustable stand pad (5) to make stand stable.

2. Place table saw on the top of stand aligning holes in

base with holes in stand.

3. Insert four hex. head bolts (6) through flat washer and

holes in base and stand.

4. Tighten all four bolts.

NOTE: Do not over tighten bolts holding saw to stand.

This will damage the saw base.

5. Carefully set the saw in its upright position on a clean

level surface.

6. Thread the support rod (10) into the socket (11) at the

rear of stand. Adjust the adjustable foot (12) properly.

Fig. A-2

12

6

6

FOLDING THE TABLE SAW/STAND (Fig. A-1, A-3)

1. Release the lever of the narrower leg set and keep the

lever on top. Hold the table and lift the saw up just

above the ground and fold up the narrower leg set.

NOTE: The narrow leg set can be held by a "spring

clip" .

2. Then reposition on the saw onto the ground. Release

the lever of the wider leg and keep the lever on top set

then fold the leg set up into position.

3. Then fix the legs with stand hook.

SETTING UP THE TABLE SAW/STAND (Fig. A-3)

1. Release the stand hook.

2. Unfold the wider leg set and lock the lever in place.

3. Put down the wider leg set on the ground, lift the saw

up and unfold the narrower leg set.

4. Pull the lever downward and lock into place.

NOTE: Make sure the saw is locked in position

securely before operation.

Fig. A-3

FOLDING

SET-UP

— —10

ESTIMATED ASSEMBLY TIME 25~40 MINUTES

—— 11

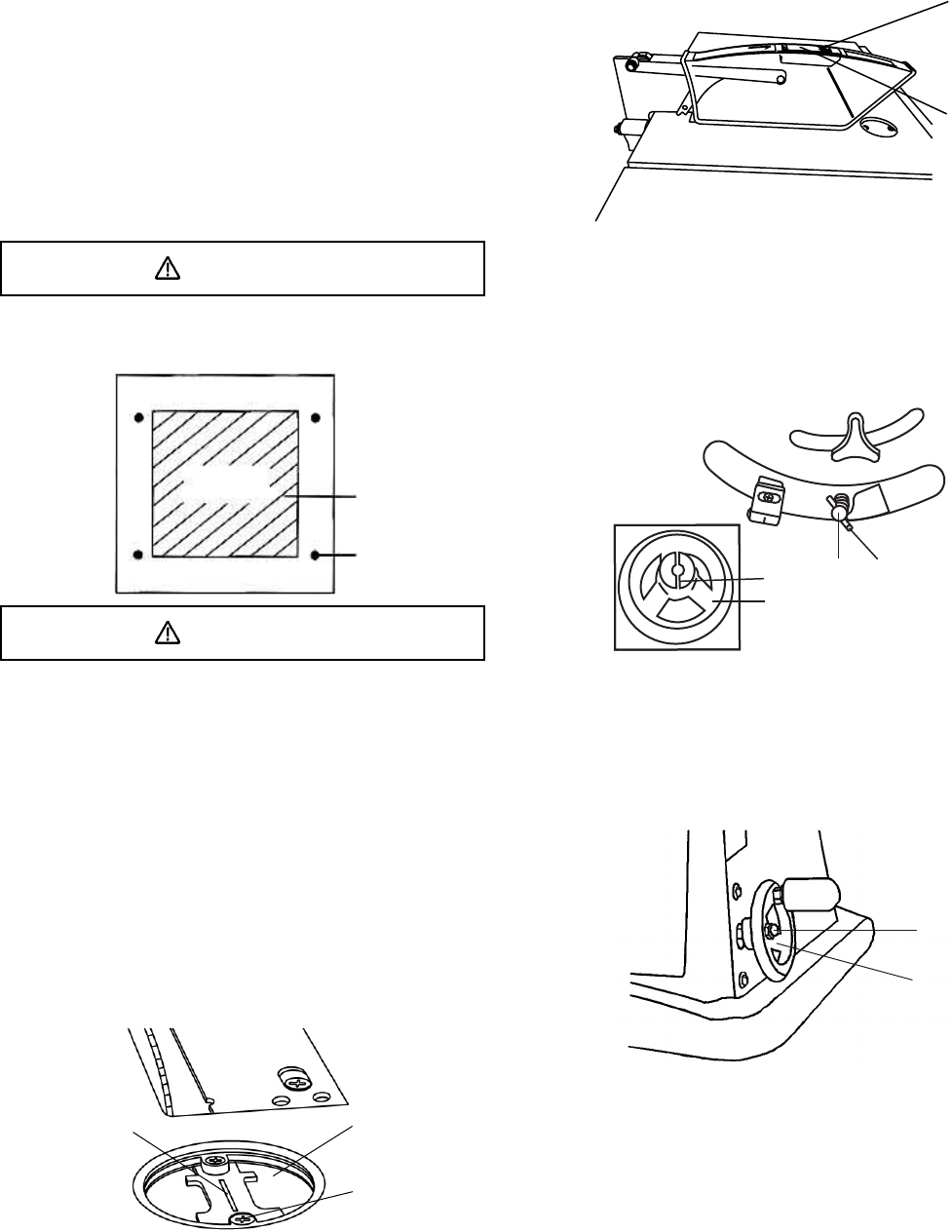

SAW MOUNTED TO WORK SURFACE (Fig. B)

1. If the leg set will not be used, the saw must be

properly secured to a sturdy workbench using the four

mounting holes at the base of the saw.

2. The surface of the table where the saw is to be

mounted must have a hole large enough to facilitate

sawdust fall-through and removal.

3. Square the saw on the mounting surface and mark the

location of the four 3/8" mounting holes (1).

4. Drill 3/8" hole into the mounting surface.

5. Mark an 11" square (2) centered between the four

mounting holes (1).

6. Cut out and remove the square.

7. This opening will allow sawdust to fall through the

saw base.

8. Place the saw on the work surface, and align the

mounting holes of the saw with those drilled through

the surface.

9. Fasten the saw to the work surface.

WARNING

Do not operate this machine on the floor. This is very

dangerous and may cause serious injury.

Fig. B

1

2

S Q U A R E

CU TOU T

WARNING

Failure to provide the sawdust fall-through hole will cause

sawdust to build up in the motor area, which may result in

fire or cause motor damage.

KEEPING THE AREA CLEAN

1. Sawdust and wood chips that fall from under the saw

will accumulate on the floor.

2. Make it a practice to pick up and discard this dust

when you have completed cutting.

ADJUSTING THE CUTTING LINE INDICATOR (Fig. C)

1. Take off the cover (1)by loosening screws (2).

2. Adjust the pointer (3) to align to the blade.

3. Mount the cover on the table to fix the pointer.

NOTE: The pointer was set up to align to the right side of

the blade when packing.

Fig. C

1

2

3

INSTALLING BATTERY FOR LED LIGHTING(Fig. B)

1. Open the cover (1) of battery box on the top of blade

guard.

2. Install 2 pieces of 1.5V 3A batteries into the battery

box in right direction.

3. Close the cover.

4. Turn on the switch (2) to check the LED lighting.

Fig. D 2

1

BLADE RAISING HANDWHEEL (Fig. E, F)

1. Attach the handwheel (1) to the elevation screw (2) at

the front of the saw.

Make sure the slots (3) in the hub of the handwheel

engage with the pins (4). (Fig. E)

2. Attach and tighten the dome nut (5) at the end of the

shaft (Fig. F).

Fig. E

3

1

24

BLADE TILTING HANDWHEEL (Fig. G, F)

1. Attach the other handwheel (6) to the blade tilting

screw on the side of the saw in the same manner as

above.

2. Attach and tighten the handwheel dome nut (5).

Fig. F

5

6

— — 12

RIP FENCE (Fig. G)

1. Lift upward on the rip fence handle (1) so that the

holding clamp (2) is fully extended.

2. Place the rip fence on the saw table and engage the

holding clamp (2) to the table rear. Lower the front

end onto the front rail (3).

3. Push down on the fence handle (1) to lock.

Fig. G

2

3

1

INSTALLING AND CHANGING THE BLADE (Fig. H, I, J)

WARNING

To avoid injury from an accidental start, make sure the

switch is in the OFF position and the plug is not

connected to the power source outlet.

To avoid serious injury, table insert must be level with

the table. If the table insert is not level with the table,

adjust the screw (3) until it is level with the table. To

raise the insert, turn the screw counterclockwise, to

lower the insert, turn the screw clockwise.

1. Remove the table insert (1) by unscrewing the two

screws (2, 3). Be careful not to lose the rubber washer

that is on the back screw (3) beneath the table insert.

(Fig. H)

Fig. H

1

3

2

2. Raise the blade arbor (4) (Fig. G) to the maximum

height by turning the blade raising handwheel

counterclockwise.

3. Place the open-end wrench jaws on the flats of the

saw arbor to keep the arbor from turning. (Fig. H) and

place the box-end wrench (8) on the arbor nut (5), and

turn anti-clockwise.

4. Remove the arbor nut (5) and flange (6), remove

blade.

5. Install the saw blade onto the arbor with the blade

teeth pointing toward the front of the saw.

6. Install the flange (6) against the blade and thread the

arbor nut (5) as far as possible by hand. Ensure that

the blade is flush against the inner side of the blade

flange.

WARNING

To avoid possible injury and damage to the workpiece be

sure to install the blade with the teeth pointing toward the

front of table in the direction of the rotation arrow on the

blade guard.

Fig. I

4

6

5

7. To tighten the arbor nut (5) place the open-end

wrench jaws on the flats of the saw arbor to keep the

arbor from turning. (Fig. J)

8. Place the box-end wrench (8) on the arbor nut (5), and

turn clockwise (to the rear of the saw table).

9. Replace the blade insert in the table recess, insert the

screws through the front and rear holes and tighten.

Fig. J

WARNING

To avoid injury from a thrown workpiece, blade parts, or

blade contact, never operate saw without the proper insert

in place. Use the saw blade insert when sawing. Use the

dado head insert when using a dado.

5

8

7

—— 13

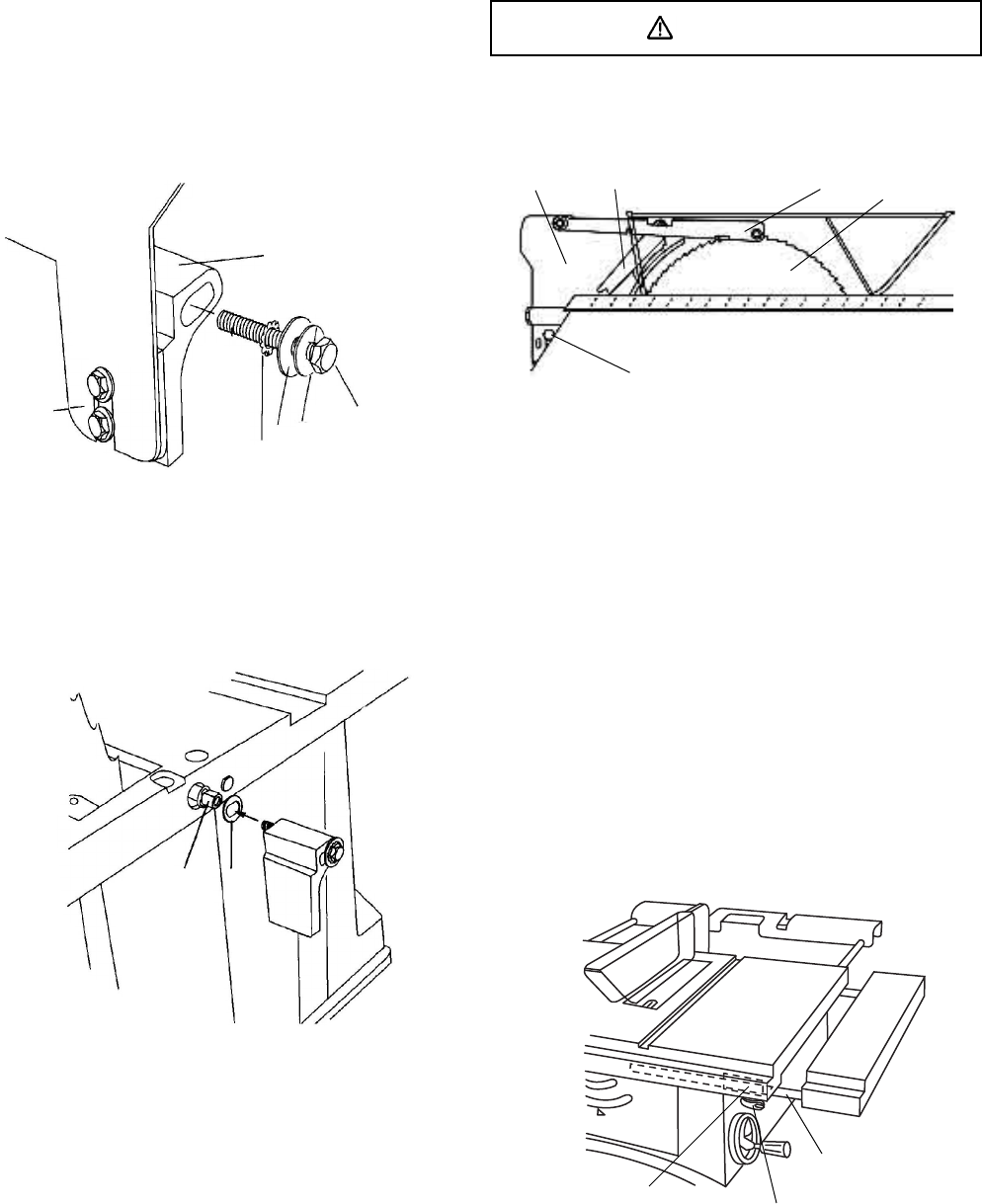

BLADE GUARD ASSEMBLY (Fig. K, L, M)

1. Set the blade to maximum height and the tilt to zero

degrees on the bevel scale with the hand wheels. Lock

the blade lock knob.

2. Place the external toothed lock washer (1), a steel flat

washer (2) and a spring washer (10) onto the long hex

head bolt (3). Insert the bolt into the splitter bracket (4)

as shown. (Fig. K)

Fig. K

4

11 3

2

1

10

3. Place the oval washer (5) on the pivot rod (6). (Fig. L)

4. Install the bracket assembly (4) at the rear of the saw

table and snugly - do not tighten. Thread the bolt (3)

into the internally threaded pivot rod.

NOTE: The splitter is removed from the illustration for

clarity.

Fig. L

65

5. Position the blade guard arm (7) to the rear of the

table.

6. Using a straight edge, check to see if the blade guard

splitter (8) is aligned with the saw blade (9).

7. If straightening adjustment is necessary, loosen the

bolt (3) and shift the splitter assembly to right or left,

or rotate.

8. When the splitter is properly aligned with the saw

blade, tighten the bolt tightly.

9. If height adjustment is necessary, loosen the bolts (11)

and raise the splitter assembly to the desired height

and tighten the bolts. (Fig. K)

10.

NOTE: The splitter must always be correctly aligned

so that the cut workpiece will pass on either side

without binding or twisting to the side.

WARNING

Improper splitter alignment can cause "kickback" and

serious injury.

Kickback pawl 79

3

8

Fig. M

INSTALLING TABLE SIDE EXTENSIONS (Fig. N)

1. Identify the right hand table extension.

NOTES:

For illustration purposes the view in Fig. N looks

"through" the saw table to the under side of the table.

The right hand table extension is the one with the

measuring scale (1) visible from the front of the saw

when it is installed to the right hand side of the saw

table (Fig. N).

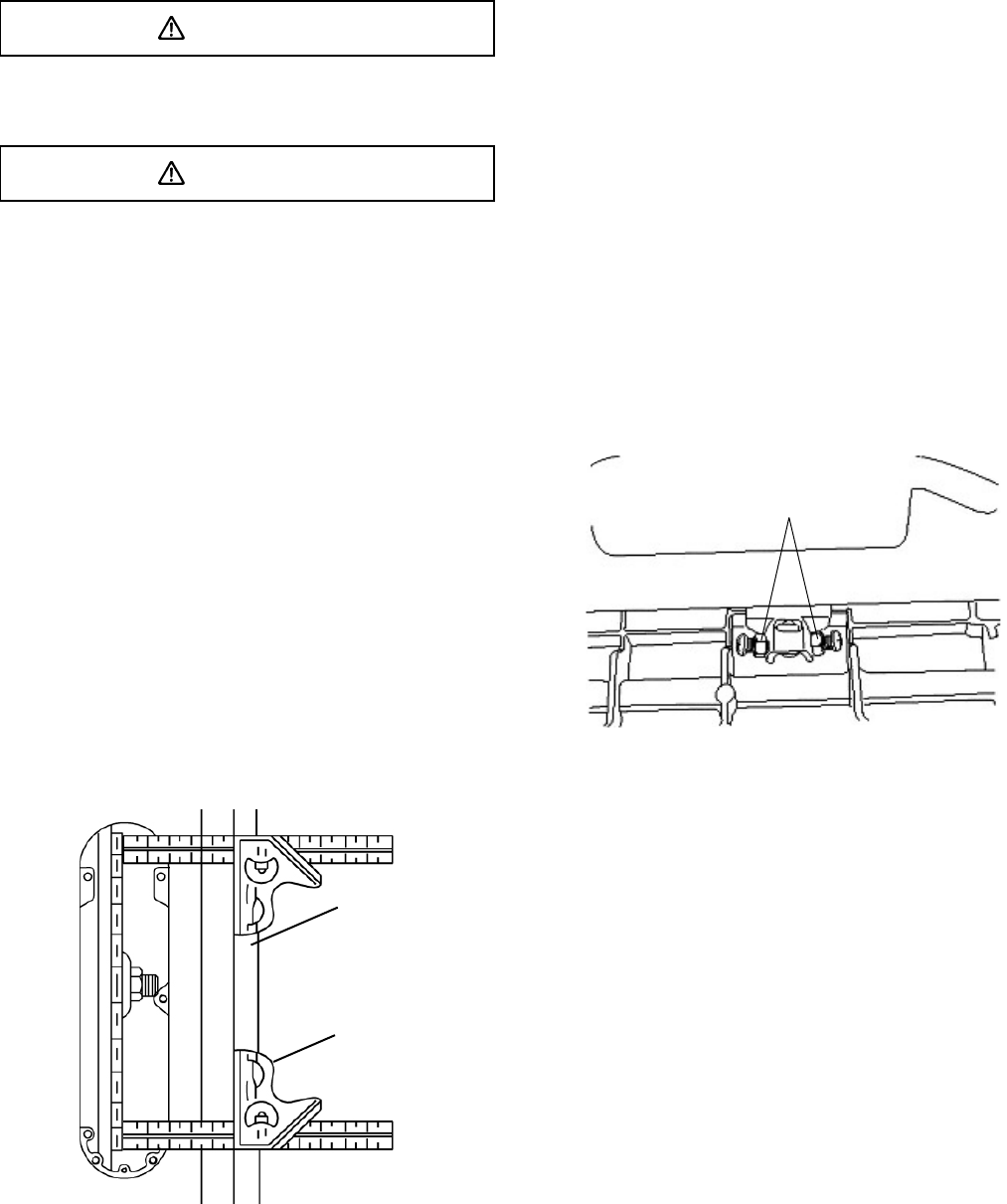

2. Open both front and rear cam locking levers (2) on the

right hand side of the saw base by pulling them out

from the cam locking assemblies (4).

3. Insert the table extension mounting tubes (3) into the

two matching holes in the cam lever assemblies.

NOTE: Make sure the front mounting tube has the

measuring scale visible from the front of the saw.

4. Slide the table extension toward the table until it rests

against the saw table.

5. Lock both cam locking levers by pushing them in

toward the cam locking lever assemblies.

4

2

3

Fig. N

—— 14

INSTALLING TABLE SIDE EXTENSIONS- cont'd (Fig. O)

6. Snap one short location seat (5) over the end of the

rear table extension tube (3). Make sure the locating

pin (6) in the location seat fits into the matching hole

in the extension tube (Fig. O).

NOTES: Install location seat on front table extension

tube.

NOTE:

For illustration purposes the view in Fig. O looks

"through" the saw table to the under side of the table.

Fig. O

5

6

3

INSTALLING REAR TABLE EXTENSION (Fig. P)

1. Place the rear table extension onto the two rear table

extension tubes (1).

2. Snap two long location seats (4) over the two rear

table extension tubes (1). Make sure the locating pin in

the location seat fits into the matching hole (5) in the

extension tube.

3. Insert rear table extension tubes (1) into the two holes

in the rear of the saw table (3) and into extension tube

brackets under the table.

4. Position rear table support so instruction labels are up.

5. Snap one short location seat (4) over the end of the

left rear table extension tube (1). Make sure the

locating pin in the location seat fits into the matching

hole in the extension tube.

Fig. P

1

5

3

4

ADJUSTING REAR TABLE EXTENSION

1. Rear table extension should be positioned as close as

possible to the rear of the table when ripping short

work pieces.

2. Rear table extension should be pulled out fully until

the location seat prevents it from moving outward

when ripping long work pieces that require extra

support as you are completing the cut.

RIP FENCE ADJUSTMENT (Fig. Q)

1. The fence (1) is moved by lifting up on the handle (2)

and sliding the fence to the desired location. Pushing

down on the handle locks the fence in position.

2. Position the fence on the right side of the table, and

along one edge of the miter gauge grooves.

3. Lock the fence handle. The fence should be parallel

with the miter gauge groove.

4. If adjustment is needed to make the fence parallel to

the groove, do the following:

Loosen the two screws (3) and lift up on the

handle (2).

Hold the fence bracket (4) firmly against the front

of the saw table. Move the far end of the fence

until it is parallel with the miter gauge groove.

Tighten both screws and push the handle to lock.

5. If fence is loose when the handle is in the locked

(downward) position, do the following:

Move the handle (2) upward and turn the

adjusting nut (5) clockwise until the rear clamp is

snug. Do not turn the adjusting screw more than

1/4 turn at a time.

Over-tightening the adjusting screw will cause the

fence to come out of alignment.

WARNING

Failure to properly align fence can cause "kickback" and

serious injury.

Fig. Q

P

U

O

D

N

W

1

3

5

4

2

— 15 —

RIP FENCE INDICATOR ADJUSTMENT (Fig. Q)

1. The rip fence indicator (6) points to the measurement

scale (8). The scale shows the distance from the side

of the fence to nearest side of the blade.

2. Measure the actual distance with a rule. If there is a

difference between the measurement and the

indicator, adjust the indicator (6).

3. Loosen the screw (7) and slide the indicator to the

correct measurement on the scale. Tighten the screw

and remeasure with the rule.

WARNING

To avoid injury from an accidental start, make sure the

switch is in the OFF position and the plug is not connected

to the power source outlet.

ADJUSTING THE 90° AND 45° POSITIVE STOPS

(Fig. Q-1, Q-2, Q-3)

Your saw has positive stops that will quickly position the

saw blade at 90° to the table. Make adjustments only if

necessary.

90° Stop

1. Disconnect the saw from the power source.

2. Turn the blade elevation handwheel and raise the

blade to the maximum elevation.

3. Loosen the blade bevel lock handle (2) and move the

blade to the maximum vertical position. Tighten the

lock handle (2).

4. Place a combination square on the table and against

the blade (1) to determine if the blade is 90° to the

table. (Fig. Q-2)

5. If the blade is not 90° to the table, loosen the two set

screws (4), located on the bottom of the table saw,

(Fig. Q-3) with the hex key, and back off the collar.

6. Loosen the bevel lock knob. Turn the blade tilting

handwheel to move the blade until it is 90° to the

table.

7. Adjust the collar (5) so it contacts the bracket (3) when

the blade is 90° to the table. Tighten the two set

screws (4).

Fig. Q-1

2

Fig. Q-2

90°45°

1

3

45° Stop

1. With the blade in the upright 90° position, loosen the

bevel lock knob and move the blade to the 45°

position as far as it will go.

2. Place the combination square on the table as shown in

(Fig. Q-2) to check if the blade is 45° to the table.

3. If the blade is not 45° to the table, adjust the screw (4)

(Fig. Q-3) with a screw driver until the blade is 45° to

the table.

4. Tighten the bevel lock handle.

5. Tighten the screw (4) until resistance is felt. Do not

overtighten.

BLADE TILT POINTER

1. When the blade is positioned at 90°, adjust the blade

tilt pointer to read 0° on the scale.

2. Loosen the holding screw, position pointer over 0°

and tighten the screw.

NOTE: Make a trial cut on scrap wood before making

critical cuts. Measure for exactness.

Fig. Q-3

4

5

3

345

— 16 —

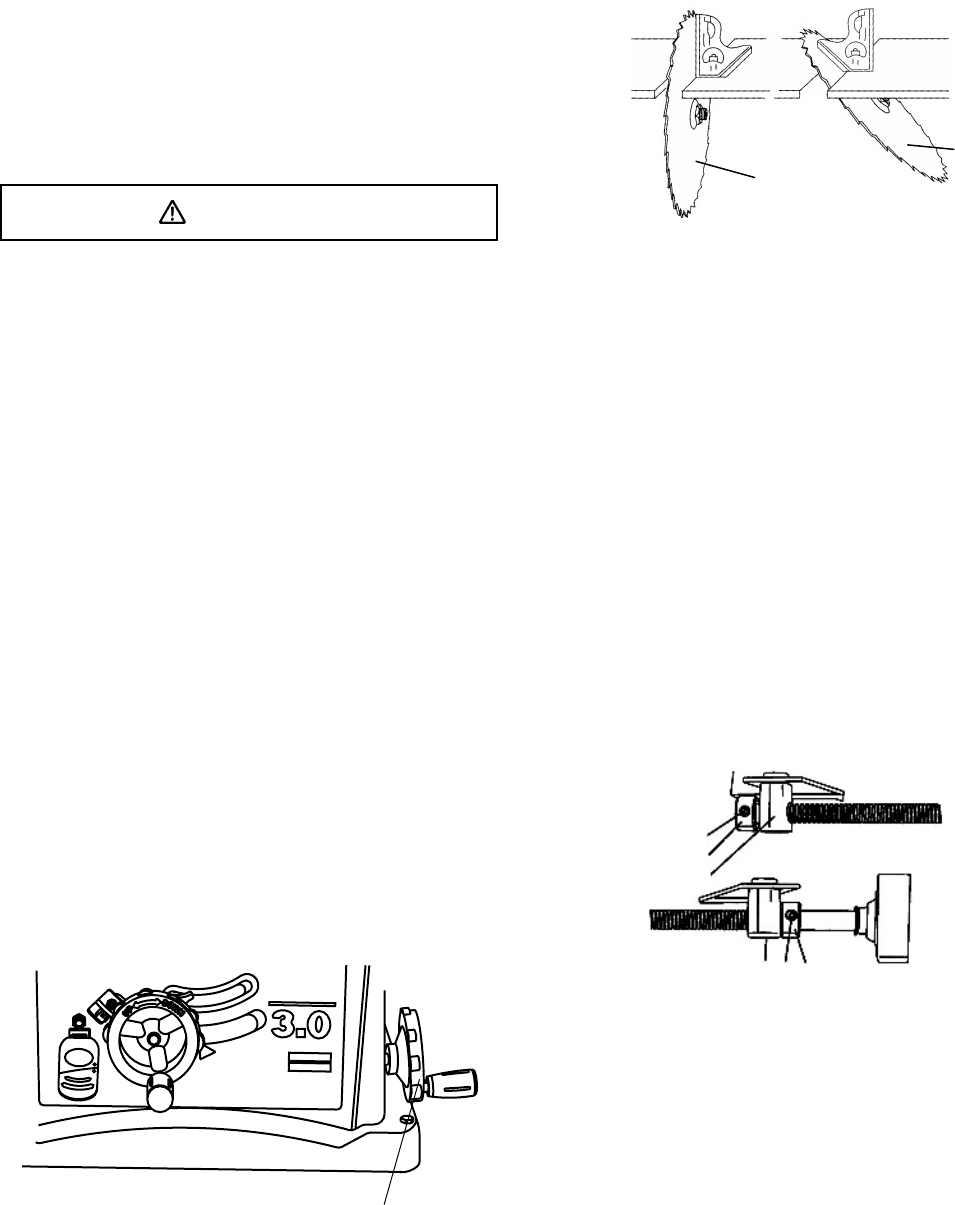

BLADE PARALLEL TO THE MITER GAUGE GROOVE

(Fig. R, S)

WARNING

This adjustment was made at the factory, but it should be

rechecked and adjusted if necessary.

WARNING

To prevent personal injury:

䢇Always disconnect plug from the power source when

making any adjustments.

䢇This adjustment must be correct or kickback could

result in a serious injury and accurate cuts can not be

made.

1. Remove the yellow switch key and unplug the saw.

2. Move the blade guard out of the way.

3. Raise the blade to the highest position and set at the

0° angle (90° straight up).

4 Select and mark, with a felt tip marker, a blade tooth

having a “right set”.

5. Place the combination square base (1) into the right

side miter gauge groove (2). (Fig. R)

6. Adjust the rule so it touches the front marked tooth

and lock ruler so it holds its position in the square

assembly.

7. Rotate the blade bringing the marked tooth to the rear

and about 1/2 inch above the blade.

8. Carefully slide the combination square to the rear until

the ruler touches the marked tooth.

9. If the ruler touches the marked tooth at the front and

rear position, no adjustment is needed at this time. If

not, perform adjustment procedure described in next

section.

Fig. R

2

1

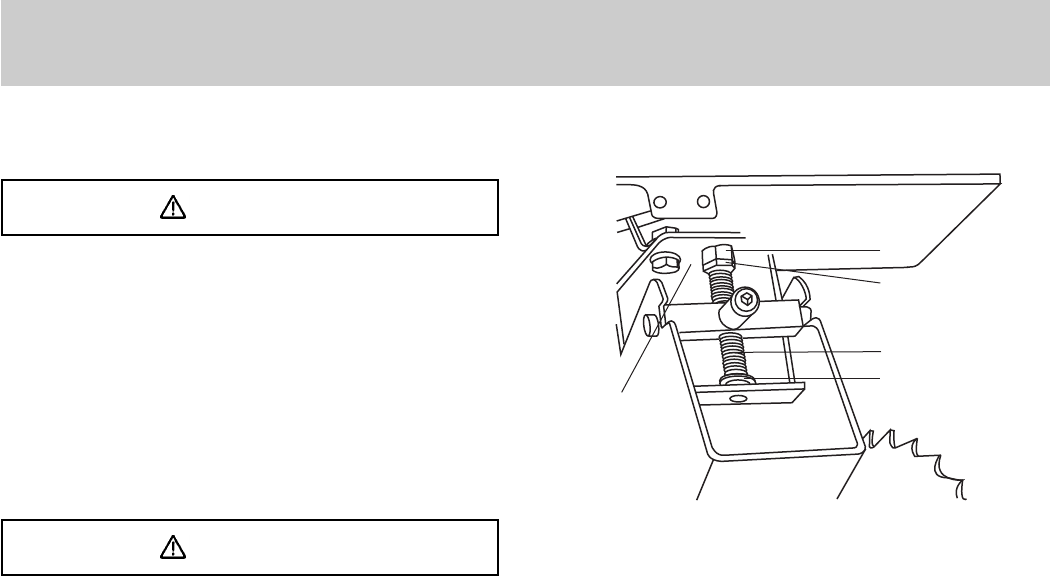

Additional blade adjustments (Fig. S)

The adjusting mechanism is located on top of blade height

adjusting hand wheel under the tabletop. If the front and

rear measurements are not the same, adjust the

alignment by the mechanism as follows:

If the blade is partial to right side:

1. Loosen the two nuts (1) and the right side screw, then

adjust the left side screw.

2. Tighten the nuts (1) and the right screw and

remeasure, as described in steps 4 to 9 in the prior

section.

If the blade is partial to left side:

3. Loosen the two nuts (1) and the left side screw, then

adjust the right screw.

4. Tighten the nuts (1) and the left screw and remeasure,

as described in steps 4 to 9 in the prior section.

5. Recheck blade clearance making sure that the blade

does not hit the table insert or other parts when at the

90° and 45° settings.

Fig. S

1

17

OPERATION

BASIC SAW OPERATIONS

RAISE THE BLADE (Fig. T)

To raise or lower the blade, turn the blade elevation

handwheel (1) to the desired blade height, and then

tighten lock handle (2) to maintain the desired blade

angle.

Fig. T

12 3

TILTING THE BLADE (Fig. T)

1. To tilt the saw blade for bevel cutting, loosen the lock

knob (2) and turn the tilting handwheel (3).

2. Tighten the lock knobs (2) to secure.

ON/OFF SWITCH (Fig. U)

The ON / OFF switch has a removal key. With the key

removed from the switch, unauthorized and hazardous

use by children and others is minimized.

1. To turn the saw ON, insert key (1) into the slot in the

switch (2). Move the switch upward to the ON

position.

2. To turn the saw OFF, move the switch downward.

3. To lock the switch in the OFF position, grasp the end

(or yellow part) of the switch toggle (1), and pull it out.

4. With the switch key removed, the switch will not

operate.

5. If the switch key is removed while the saw is running,

it can be turned OFF but cannot be restarted without

inserting the switch key (1).

Fig. U

3

2

1

OVERLOAD PROTECTION (Fig. U)

This saw has an overload relay button (3) that resets the

motor after it shuts off due to overloading or low voltage.

If the motor stops during operation, turn the ON / OFF

switch to the OFF position. Wait about five minutes for the

motor to cool. Push in on the reset button (3) and turn the

switch to the ON position.

WARNING

To avoid injury, the ON / OFF switch should be in the OFF

position and the plug removed from the power source

while the cool down takes place, to prevent accidental

starting when the reset button is pushed. Overheating

may be caused by misaligned parts or a dull blade.

Inspect your saw for proper setup before using it again.

USING THE TABLE EXTENSION (Fig. V, V-1)

If the table extension is not parallel with the table.

Remove the bolts (1) and position the parallel washers (2)

between the table extension and tube until it is parallel

with the table, then tighten the bolts.

NOTE: Parallel washer (2) see page 7 for table of loose

parts ITEM: Q.

Fig. V

2

1

NOTE: Move and lock the fence to the 15" left or right side

scale. The fence is now clear of the table.

1. Release the extension lock handles.

2. Slide the extension out until the correct measurement

is displayed on the tube scale. The user sights the

scale off the edge of the table.

3. Tighten all extension lock handles.

Fig. V-1

P

U

O

D

N

W

14 15 1 6

Right side scale of table extension

——

18

CUTTING OPERATIONS

There are two basic types of cuts: ripping and

crosscutting. Ripping is cutting along the length and the

grain of the workpiece. Crosscutting is cutting either

across the width or across the grain of the workpiece.

Neither ripping nor crosscutting may be done safely

freehand. Ripping requires the use of the rip fence, and

crosscutting requires the miter gauge.

WARNING

Before using the saw each and every time, check the

following:

1. Blade is tight on the arbor.

2. Bevel angle lock knob is tight.

3. If ripping, fence knob is tight and fence is parallel to

the miter gauge grooves.

4. Blade guard is in place and working properly.

5. Safety glasses are being worn.

The failure to adhere to these common safety rules, and

those printed in the front of this manual, can greatly

increase the likelihood of injury.

RIPPING (Fig. W, X)

WARNING

To prevent serious injury:

Never use the miter gauge when ripping.

Never use more than one rip fence during a single cut.

Do not allow familiarity or frequent use of your table

saw to cause careless mistakes. Remember that even

a careless fraction of a second is enough to cause a

severe injury.

Keep both hands away from the blade and path of the

blade.

The workpiece must have a straight edge against the

fence and must not be warped, twisted, or bowed.

1. Remove the miter gauge. Secure the rip fence to the

table.

2. Raise the blade so it is about 1/8" higher than the top

of the workpiece.

3. Place the workpiece flat on the table and against the

fence. Keep the workpiece about 1" away from the

blade.

4. Turn the saw ON and wait for the blade to come up to

speed.

5. Slowly feed the workpiece into the blade by pushing

forward only on the workpiece section (1) that will

pass between the blade and the fence. (Fig. W)

WARNING

AVOID KICKBACK by pushing forward on the section of

the workpiece that passes between the blade and the

fence.

Fig. W

1

NOTE: When width or rop is 2" to 6" wide use the push

stick to feed the work. When width of rop is narrower than

2" the push stick cannot be used because the guard will

interfere... Use the auxiliary fence as page 20.

6. Keep your thumbs off the table top. When both of

your thumbs touch the front edge of the table (2),

finish the cut with a push stick. Make a push stick

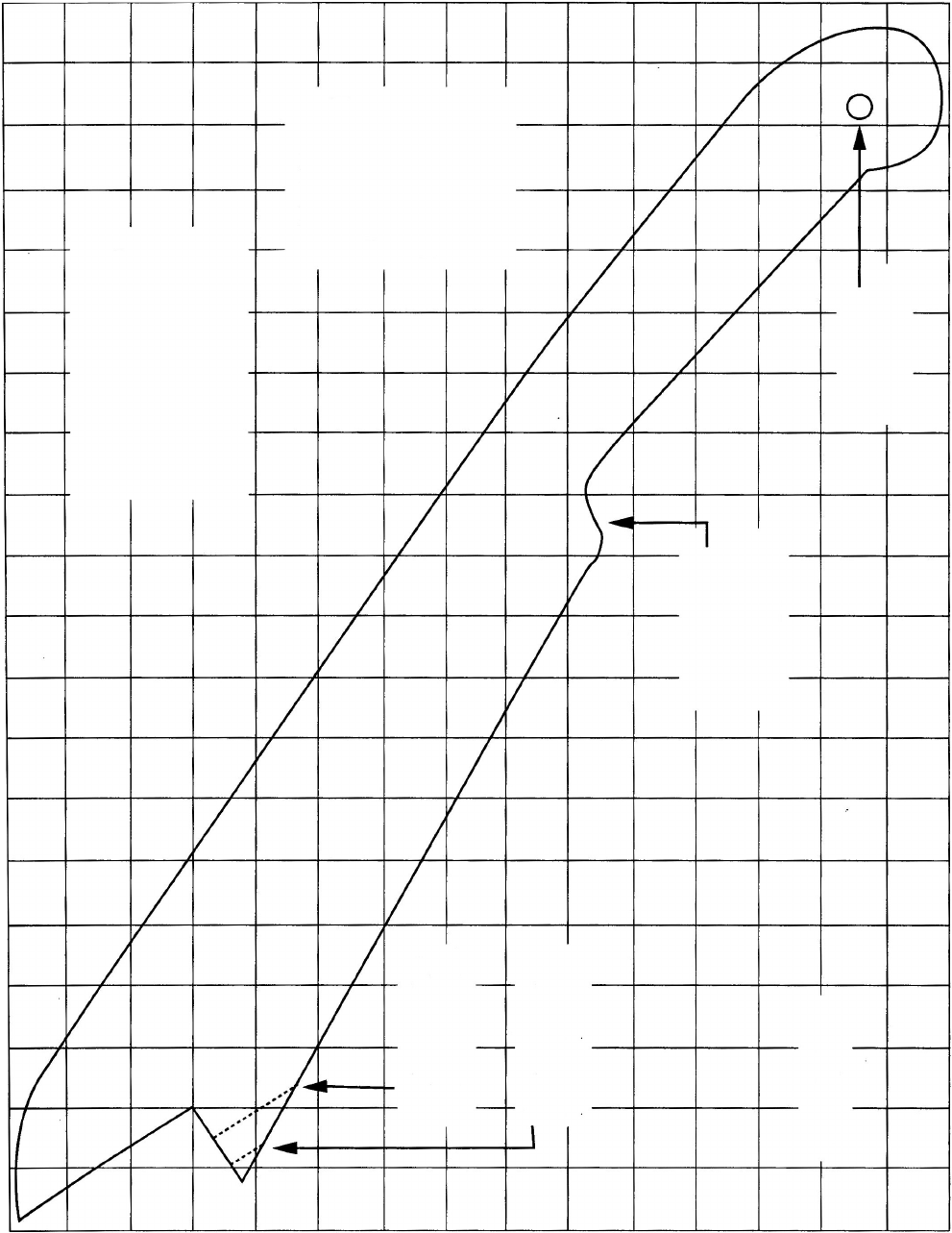

using the pattern on page 23.

7. The push stick (3) should always be used when the

ripped workpiece is 2" to 6" wide. (Fig. X)

8. Continue pushing the workpiece with the push stick

(3) until it passes the blade guard and clears the rear

of the table.

9. Never pull the piece back when the blade is turning.

Turn the switch OFF. When the blade completely stops

raise the anti-kickback pawls on each side of the

splitter and slide the workpiece out.

Fig. X

U

P

3

2

1

——

U

P

— 19 —

BEVEL RIPPING

This cut is the same as ripping except the blade bevel

angle is set to an angle other than "0".

WARNING

Cut only with the workpiece and the fence on the right

side of the blade.

RIPPING SMALL PIECES

WARNING

Avoid injury from the blade contact. Never make through

saw cuts narrower than 1/2" wide.

1. It is unsafe to rip small pieces. Instead, rip a larger

piece to obtain the size of the desired piece.

2. When a small width is to be ripped and your hand

cannot be safely put between the blade and the rip

fence, use one or more push sticks to move the

workpiece.

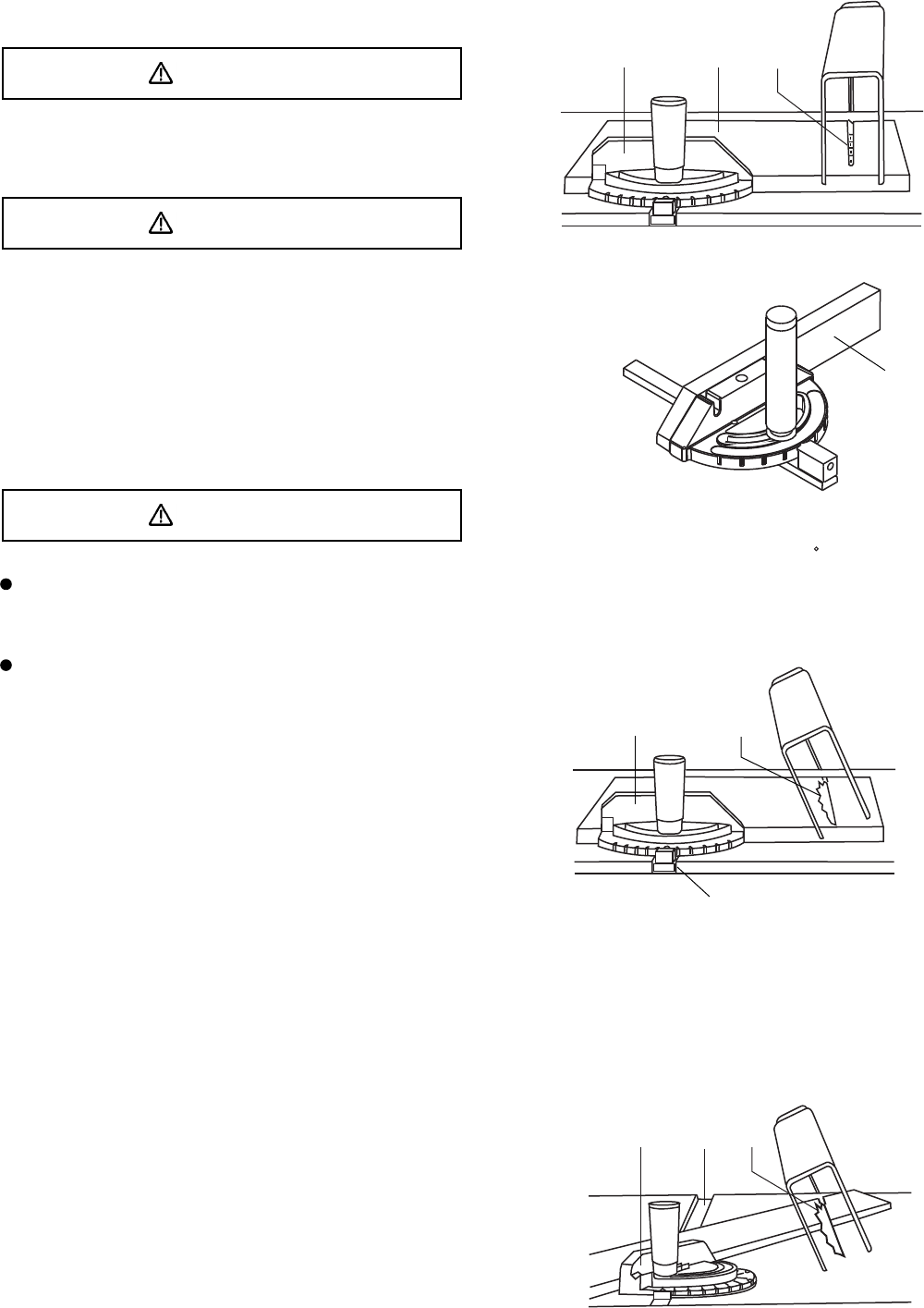

CROSSCUTTING (Fig. Y)

3

WARNING

To prevent serious injury:

Do not allow familiarity or frequent use of your table

saw to cause careless mistakes. Remember that even

a careless fraction of a second is enough to cause a

severe injury.

Keep both hands away from the blade and the path of

the blade.

1. Remove the rip fence and place the miter gauge in the

left side groove.

2. Adjust the blade height so it is 1/8" higher than the

top of the workpiece.

3. Hold the workpiece firmly against the miter gauge

with the blade path in line with the desired cut

location. Move the workpiece to one inch distance

from the blade.

4. Start the saw and wait for the blade (1) to come up to

full speed.

5. Keep the workpiece (2) against the face of the miter

gauge (3) and flat against the face of the gauge and

flat against the table. Then slowly push the workpiece

through the blade. (Fig. Y)

6. Do not try to pull the workpiece back with the blade

turning. Turn the switch OFF, and carefully slide the

workpiece out when the blade is completely stopped.

USING WOOD FACING ON THE MITER GAUGE (Fig. Y-1)

Slots are provided in the miter gauge of attaching an

auxiliary facing (1) to make it easier to cut very long or

short pieces. Select a suitable piece of smooth wood, drill

two holes through it and attach with screws. Make sure

the facing does not interfere with the proper operation of

the sawblade guard. When cutting long workpieces, you

can make a simple support by clamping a piece of

plywood to a sawhorse.

Fig. Y

12

Fig. Y-1

1

BEVEL CROSSCUTTING (Fig. Z)

This cutting operation is the same as crosscutting except

the blade is at bevel angle other than 0 .

1. Adjust the blade (1) to the desired angle, and tighten

the blade bevel lock knob.

Fig. Z

2

3 1

COMPOUND MITER CROSSCUTTING (Fig. AA)

This sawing operation is combining a miter angle with a

bevel angle.

1. Set the miter gauge (3) to the desired angle. Use only

the left side groove (2).

2. Set the blade (1) bevel to the desired angle.

3. Carefully push the miter gauge to begin the cutting

operation.

Fig. AA

32

1

2. Always work to the left side of the blade. The miter

gauge (3) must be in the left side groove (2).

— 20 —

MITERING (Fig. BB)

This sawing operation is the same as crosscutting except

the miter gauge is locked at an angle other than 90

1. Hold the workpiece (2) firmly against the miter

gauge (3).

2. Feed the workpiece slowly into the blade (1) to

prevent the workpiece from moving.

Fig. BB

321

USING WOOD FACING ON THE RIP FENCE (Fig. CC)

When performing some special cutting operations, add a

wood facing (1) to either side of the rip fence (2).

1 . Use a smooth straight 3/4" thick wood board (1) that is

as long as the rip fence.

2. Attach the wood facing to the fence with wood screw

(3) through the hole in the fence. A wood fence should

be used when ripping material such as thin paneling

to prevent the material from catching between the

bottom of the fence and the table.

Fig. CC

12

3

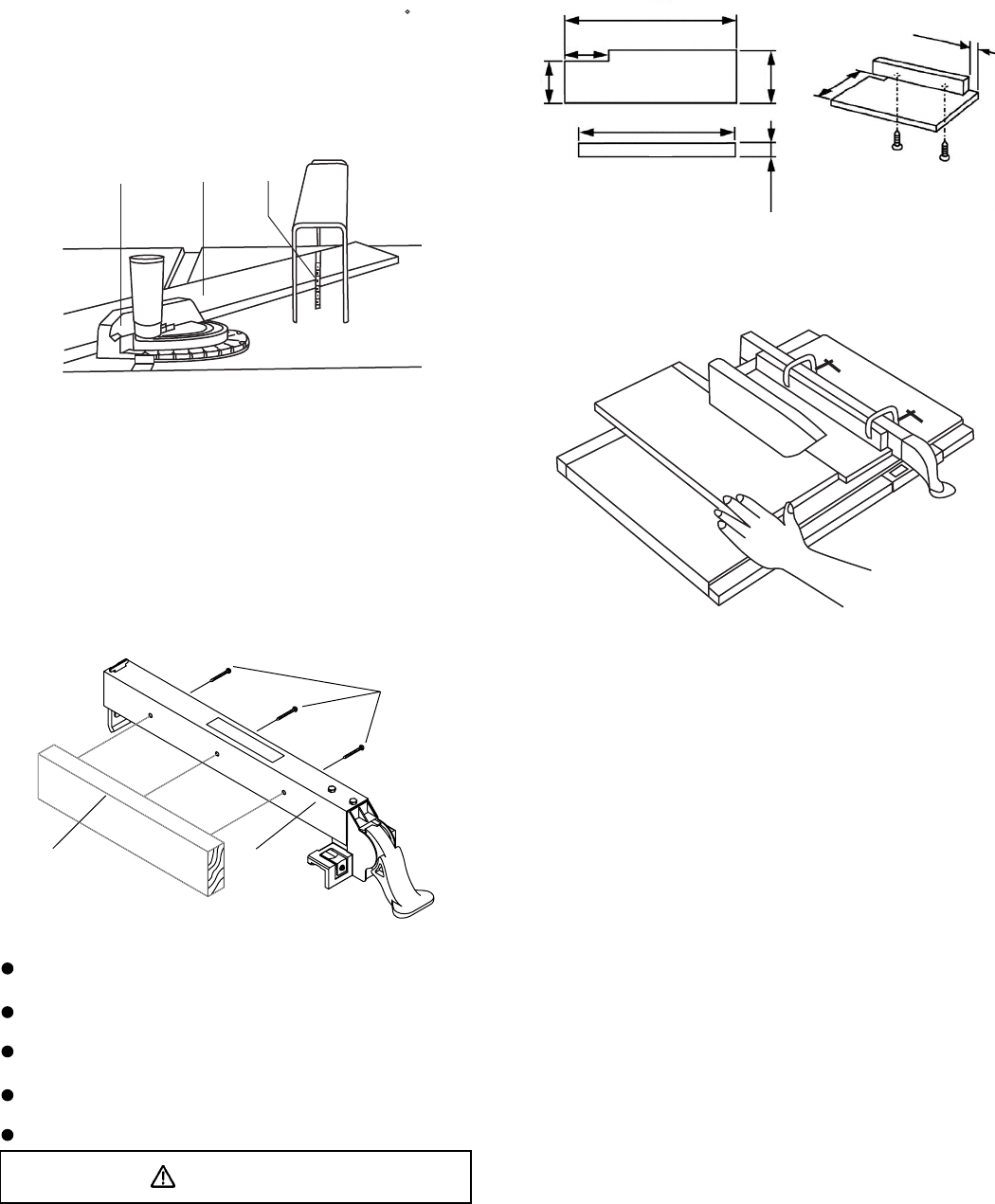

AUXILIARY FENCE (Fig. CC-1)

Making the base:

Start with a piece of 3/8" plywood at least 5-1/2" wide

or wider and 30" long or longer.

Cut the piece to shape and size shown:

Making the side:

Start with a piece of 3/4" plywood at least 2-3/8" wide

or wider and 27" long or longer.

Cut the piece to shape and size shown:

Putting it together:

Put the pieces together, as shown:

WARNING

Make sure the screw heads do not stick out from the

bottom of the base, they must be flush or recessed.

The bottom must be flat and smooth enough to rest on

the saw table without rocking.

Fig. CC-1

30"

27"

2-5/8"

3/4" Thick plywood side

3/4" Thick plywood base

3-1/2"

5-1/2"

2-3/8"

4-3/4"

1-1/4

"

Attach auxiliary fence to rip fence with two "C" clamps.

(Fig. CC-2)

Fig. CC-2

— — 21

MAINTENANCE

MAINTAINING YOUR TABLE SAW

GENERAL MAINTENANCE

WARNING

For your own safety, turn the switch OFF and remove the

switch key. Remove the plug from the power source outlet

before maintaining or lubricating your saw.

1. Clean out all sawdust that has accumulated inside the

saw cabinet and the motor.

2. Polish the saw table with an automotive wax to keep it

clean and to make it easier to slide the workpiece.

3. Clean cutting blades with pitch and gum remover.

4. A worn, cut, or damaged power cord should be

replaced immediately.

WARNING

All electrical or mechanical repairs should be attempted

only by a trained repair technician. Contact Hitachi

Authorized Service Center for service. Use only identical

replacement parts. Any other parts may create a hazard.

5. Use liquid dish washing detergent and water to clean

all plastic parts.

NOTE: Certain cleaning chemicals can damage plastic

parts.

6. Avoid use of the following cleaning chemicals or

solvents, ammonia and household detergents

containing ammonia.

BLADE RAISING AND TILTING MECHANISM (Fig. EE)

After each five hours of operation, the blade raising

mechanism and tilting mechanism should be checked for

looseness, binding, or other abnormalities. With the saw

dis-connected from the power source, turn the saw upside

down and alternately pull upward and downward on the

motor unit. Observe any movement of the motor

mounting mechanism. Looseness or play in the blade

raising screw (1) should be adjusted as follows:

1. Using a wrench, loosen nut (2).

2. Adjust nut (3) until it is finger-tight against the bracket

(4), then back off the nut (3) 1/6 turn.

3. Tighten nut (2) with the wrench, while holding nut (3)

in place. Maximum allowable play of screw rod (1) is

0.16" (4 mm).

Fig. EE

3

2

1

5

4

Place a small amount of dry lubricant on bevel gear (2).

Screw rod (1) must be kept clean and free of sawdust,

gum, pitch, and other contaminants for smooth operation.

If excessive looseness is observed in any parts of the

blade raising mechanism or tilting mechanism, take the

complete unit to Hitachi Authorized Service Center.

LUBRICATION

All motor bearings are permanently lubricated at the

factory and require no additional lubrication.

On all mechanical parts of your table saw where a pivot or

threaded rod are present, lubricate using graphite or

silicone. These dry lubricants will not hold sawdust as

would oil or grease.

— 22 —

TROUBLESHOOTING GUIDE

WARNING

To avoid injury from an accidental start, turn the switch OFF and always remove the plug from the power source before

making any adjustments.

䢇 Consult Hitachi Authorized Service Center if for any reason the motor will not run.

SYMPTOM

Saw will not start

Does not make accurate

45° and 90° rip cuts

Material pinched blade

when ripping

Material binds on splitter

Saw makes

unsatisfactory cuts

Material kicked back

from blade

Blade does not raise or

tilt freely

Blade does not come up

to speed

Machine vibrates

excessively

Does not make accurate

45° and 90° cross cuts

POSSIBLE CAUSES

1. Saw not plugged in

2. Fuse blown or circuit breaker tripped

3. Cord damaged

1. Positive stop not adjusted correctly

2. Tilt angle pointer not set accurately

1. Rip fence not aligned with blade

2. Warped wood, edge against fence is not

straight

1. Splitter not aligned correctly with blade

1. Dull blade

2. Blade mounted backwards

3. Gum or pitch on blade

4. Incorrect blade for work being done

5. Gum or pitch on blade causing erratic

feed

1. Rip fence out of adjustment

2. Splitter not aligned with blade

3. Feeding stock without rip fence

4. Splitter not in place

5. Dull blade

6. The operator letting go of material before

it is past saw blade

7. Miter angle lock knob is not tight

1. Sawdust and dirt in raising and tilting

mechanisms

1. Extension cord too light or too long

2. Low house voltage

1. Saw not mounted securely to workbench

2. Bench on uneven floor

3. Damaged saw blade

1. Miter gauge out of adjustment

CORRECTIVE ACTION

1. Plug in saw

2. Replace fuse or reset circuit breaker

3. Have cord replaced by Hitachi Authorized

Service Center

1. Check blade with square and adjust

positive stop

2. Check blade with square and adjust to

zero

1. Check and adjust rip fence

2. Select another piece of wood

1. Check and align splitter with blade

1. Replace blade

2. Turn the blade around

3. Remove blade and clean with turpentine

and coarse steel wool

4. Change the blade

5. Clean table with turpentine and steel wool

1. Align rip fence with miter gauge slot

2. Align splitter with blade

3. Install and use rip fence

4. Install and use splitter (with guard)

5. Replace blade

6. Push material all the way past saw blade

before releasing work

7. Tighten knob

1. Brush or blow out loose dust and dirt

1. Replace with adequate size cord

2. Contact your electric company

1. Tighten all mounting hardware

2. Reposition on flat level surface Fasten to

floor if necessary

3. Replace blade

1. Adjust miter gauge

— 23 —

PUSH STICK

Make from 1/2” or 3/4”

wood or thickness

less than width of

material to be cut.

CAUTION!

Use only good

strong wood

or plywood.

Use a jigsaw or

bandsaw to

cut out.

Cut off here to

push 1/4” wood.

Cut off here to

push 1/2” wood.

1/2” Squares.

Optional

hanging hole.

Notch to help

prevent hand

from slipping.

— 24 —

PARTS LIST

10" JOB SITE TABLE SAW MODEL NO. C10FR

Always order by I.D. Number

PARTS LIST FOR SCHEMATIC A

I.D. Description Size Qty

2178 E X T E N T ION W IN G

(R IG HT )

1

2771 A N G L E R OD 1

08V H C L A M P -C OR D 1

09J K W R E N CH HE X . 1

0B 22 HE IG HT R E G U LA T IN G

B OL T

1

0B 23 S A DDL E 1

0B 24 S PR IN G 1

0B 27 P O IN T E R B R A CK E T 1

0B 2B N E E DLE POIN T E R 1

0B 2E S W IT CH B OX 1

0B 3H IN S E R T 1

0B 3R W R E N CH 1

0B 84 W A S H E R 1

0B 97 M O T O R B R A CK E T 1

0B 99 S PA C E R 1

0B 9C PLU N G E R HOU S IN G 1

0B 9P C LA M P 2

0B 9S B R AC K E T 1

0B 9W B R A CK E T 1

0B A 4 S PA C E R 1

0B A 9 S PA C E R 2

0B A A C L A M P 1

0B A B S HIM 1

0B A C S E T N U T 1

0B A E A R B O R COL L A R 1

0B A T N U T 1

0B A U S U P P O R T IN G PLA T E 1

0B A X S T IF FE N E R 1

0B A Y S CR E W B A R 1

0B A Z B E A R IN G S E A T 1

0B B 1 S HA FT 1

0B B 2 PA R R LE R IN G 1

0B C2 L OCA T IO N S EA T 2

0G D 0 B L A DE 1

0J 3U W R E N C H HE X . 1

0J 4F FLA T W AS HE R 1

0J 4H FLA T W AS HE R ?10* 30-0.2

?8* 16-2.5

2

0J 5L FLA T W AS HE R ?5* 10-0.3 10

0J 6T FLA T W AS HE R 3/16* 3/4-1/16 4

0J 6U FLA T W AS HE R 3/16* 1/2-3/64 1

0J 6V FLA T W AS HE R 3/16* 3/8-0.022 8

0J 70 FLA T W AS HE R 1/4* 3/4-7/64 1

0J 76 FLA T W AS HE R 1/4* 3/4-1/16 1

0J 76 FLA T W AS HE R 1/4* 3/4-1/16 1

0J 80 FLA T W AS HE R 5/32* 13/32-3/64 2

I.D. Description Size Qty

0J 8D FLA T W AS HE R

3/8* 3/4-5/64

1

0J 8D FLA T W AS HE R

3/8* 3/4-5/64

1

0J 95 S P R IN G W AS HE R 1

0J A A W A S HE R 1

0J AE E X T E R N A L T O O T H LOC K W A S HE R 2

0J AF E X TE R N A L T O O T H LOC K W A S HE R 1

0J C9 S PR IN G PIN 1

0J CA S PR IN G PIN 1

0J CA S PR IN G PIN 1

0J CR S PR IN G PIN 1

0J E D C-R IN G A -16 1

0J E Y E -R IN G E -9 1

0J PB HE X . HD. B O LT M 5* 0.8-20 2

0J X 7 HE X . S OC. S E T S CR E W M 6* 1.0-6 2

0J X L HE X . S OC. S E T S CR E W

M 10* 1.5-12

1

0K 0Z

HE X . HD. S CR EW A N D W A S HE R

M 8* 1.25-16

4

0K 16

HE X . HD. S CR EW A N D W A S HE R

M 8* 1.25-16

1

0K 25

HE X .S OCK E T HD.CA P S CR E W S

M 5* 0.8-20 1

0K 3G

C

R .R E . PA N HD. S CR E W & W AS HE R

M 5* 0.8-12 1

0K 57

CR .R E .COU N T HD. S CR E W

M 5* 0.8-16 1

0K 7K

CR . R E . R O U ND W AS HE R HD. S CR E W

M 6* 1.0-12 2

0K 8C

CR . R E .C OU N T HD. T A P P IN G S CR EW

M 4* 18-10 4

0K 8D

CR . R E .C OU N T HD. T A P P IN G S CR EW

M 4* 18-16 2

0K 9T

HE X . HD. T A PPIN G S CR E W

M 5* 16-16 6

0K 9U

HE X . HD. T A PPIN G S CR E W

M 5* 16-25 4

0K 9U

HE X . HD. T A PPIN G S CR E W

M 5* 16-25 4

0K A 4

CR .R E . P A N HD. T A PPIN G S CR E W

M 4* 16-16 2

0K A P

CR .R E . P A N HD. T A PPIN G S CR E W

M 5* 0.8-10 1

0K C8

CR . R E . T R U S S HD. T AP P IN G S CR E W

M 4* 16-16 2

0K CA

CR . R E . T R U S S HD. T APPIN G S CR E W

M 5* 12-12 2

0K CH

CR .R E . P A N HE A D T A PP IN G & W AS HE R S CR E W

M 5* 0.8-12 2

0K CX

CR O S S -R E CE S S ED P A N HD P L AIN

W A S HE R T A PPIN G S CR E W

M 5* 0.8-10

6

0K CY

CR . R E . PA N HD PLA IN W AS HE R

T APPIN G S CR E W

M 5* 0.8-12 4

0K DR CR . R E. P A N HD. S CR E W M 5* 0.8-10 1

0K DU CR . R E. PA N HD. S CR EW M 6* 1.0-12 2

0K F6 CR . R E . PA N HD. S CR E W M 4* 0.7-8 2

0K FG CR . R E. PA N HD. S CR EW M 5* 0.8-12 2

0K HZ CA P HD. S Q.N E CK B OLT M 6* 1.0-12 2

0K J 4 CA P HD. S Q.N E C K B O L T M 6* 1.0-35 1

0K J 5 CA P HD. S Q.N E C K B O LT M 6* 1.0-80 1

0K M R HE X . N U T

M 5* 0.8 T =4

1

0K M S HE X . N U T

M 6* 1.0 T =5

1

0K M V HE X . N U T

M 10* 1.5 T =8

1

0K M W HE X . N U T

M 10* 1.5 T =4

1

0K M Y HE X . N U T

M 8* 1. 25T =6. 5

1

0K N D HE X . N U T

M 5* 0.8 T =4

2

0K QJ C R O W N N U T M 8* 1.25

T =12.5

2

0K QW N U T CHU CK

M 5* 0.8 T =5

1

I.D. Description Size Qty

0K QW N U T CHE CK

M 5* 0.8 T =5

1

0K R X

HE X AG O N N U T A N D FL A T W AS HE R

M 6* 1.0 2

0K R X

HE X AG O N N U T A N D FL A T W AS HE R

M 6* 1.0 1

0K S W S TR A IN R E LIE F 1

0K W Z LE A D W IR E A S S 'Y 1

0LM G L O CK IN G CA B LE T IE 1

0LS L C IR CU IT B R E A K E R S W IT CH 1

0T 00 S LIDIN G B A S E A S S 'Y 2

10G N U P E R T U BE 1

10G P U P E R T U B E 1

20W Q HE X . HD. B OL T

M 6* 1.0-50

1

216F S W IT CH K E Y 1

237U C O V E R 1

238S PO IN T E R 1

275D E X T E N T ION W IN G 1

275E U P E R T U B E 2

275F LOCA T ION S E AT 2

275R LOCA T ION S E AT 1

275U S P A CE R 1

27QV PA R T S B O X C A R T ON 1

287H R E T A IN IN G CLIP 1

28CK PO W E R C A B LE A S S ' Y 1

28FK T A B L E 1

28K X B ODY S HE LL 1

28L9 LO C K K N O B 1

28M C P A R A LLE L B R A CK E T A S S 'Y 1

28M D M IT E R G A U G E A S S 'Y 1

28M G HA N D W HE E L A S S ' Y 1

28M H HA N D W HE E L A S S ' Y 1

28N 2 B A T T E R Y A S S EM BLY 1

28P2 R OC K E R S W IT CH 1

28PA K N OB 1

28W 3 L A B E L 1

28W 4 S T IC K E R 1

28W 6 S T IC K E R 1

28W 7 C A U T ION LA B E L 1

28W 8 L A B E L 1

28W 9 S C A LE 1

28W A CA U T ION L AB E L 1

28W B W A R N IN G LA B E L 1

28W C W AR N IN G LA B E L 1

28W D CA U T IO N L A B E L 1

28W E S C A LE 1

28W F S CA L E 1

28W G W AR N IN G LA B E L 1

28W L W AR N IN G LA B EL 1

28X 4 B LA DE G U A R D A S S 'Y 1

290T M OT O R 1

—— 25

10" JOB SITE TABLE SAW MODEL NO. C10FR

— 26 —

I.D. Description Size Qty

01AD WING NUT 1

01AE LEVELING PAD 1

0J4E FLAT WASHER ø6*13-1 4

0J4F FLAT WASHER ø8X16-2.5 4

0JAZ WAVE WASHER WW-6 2

0K7D CR. RE. ROUND WASHER HD. SCREW M6*1.0-10 2

0K7M CR. RE. ROUND WASHER HD. SCREW M6*1.0-18 1

0KDJ CR. RE. PAN HD. SCREW M5*0.8-12 2

0KDR CR. RE. PAN HD. SCREW M5*0.8-10 4

0KKU CR.RE. PAN HD. ROUND NECK SCREW M5*08-10 1

0KMS HEX. NUT M6*1.0 T=5 1

0KQ4 WING NUT M8*1.25 1

0KQW NUT CHUCK M5*0.8 T=5 6

0KQW NUT CHUCK M5*0.8 T=5 1

0KQX NUT CHUCK M6*1.0 T=6 4

0KQY NUT CHUCK M8*1.25 T=8 4

0KQY NUT CHUCK M8*1.25 T=8 2

213T ROLLING WHEEL 2

22FZ CAP HD. SQ.NECK BOLT M8*1.25-45 2

I.D. Description Size Qty

27DJ FOAM 1

27DL HANDLE 1

27DM BRACKET ASS'Y (RIGHT) 1

27DV LEVELING PAD 3

27DW DUST COLLECTOR ASS'Y 1

27DY COUPLING 1

27DZ BRACKET ASS'Y (LEFT) 1

27E6 HOOK 1

27RQ CAP HD. SQ.NECK BOLT M8*1.25-40 4

27RR CR.-RE. TRUSS HD. SCREW M6*1.0-45 4

288R HEX. HD. BOLT M8*1.25-55 4

28BU FLOOR PLATE 1

28BX

CROSS-RECESSED PAN HD PLAIN WASHER TAPPING SCREW

M5*0.8-10 4

28L2 CLAMP HANDLE 4

28L3 FOLLOWER PLATE 1

28VU HOOK 2

28VV CONNECTOR 1

28VX SUPPORTING TUBE ASS'Y 1

28VZ LEVELING PAD 1

10" JOB SITE TABLE SAW MODEL NO. C10FR

— 27 —

407

Code No. C99135061

Printed in Taiwan

Issued by

Sinagawa Intercity Tower A, 15-1, Konan 2-chome,

Minato-ku, Tokyo 108-6020, Japan

Distributed by

3950 Steve Reynolds Blvd.

Norcross, GA 30093

6395 Kestrel Road

Mississauga ON L5T 1Z5

Hitachi Koki Co., Ltd.

Hitachi Koki U.S.A., Ltd.

Hitachi Koki Canada Co.
