User manual

USER’S GUIDE

CGN RESIDENTIAL CABLE MODEM

VERSION 2.0 - FEBRUARY 2012

ABOUT THIS USER’S GUIDE

HITRON CGN USER’S GUIDE

ABOUT THIS USER’S

GUIDE

INTENDED AUDIENCE

This manual is intended for people who want to configure the CGN’s features via its

Graphical User Interface (GUI).

HOW TO USE THIS USER’S GUIDE

This manual contains information on each the CGN’s GUI screens, and describes

how to use its various features.



Use the Introduction (page 12) to see an overview of the topics covered in this

manual.



Use the Table of Contents (page 7), List of Figures (page 10) and List of Tables

(page 11) to quickly find information about a particular GUI screen or topic.



Use the Index (page 112) to find information on a specific keyword.



Use the rest of this User’s Guide to see in-depth descriptions of the CGN’s

features.

RELATED DOCUMENTATION



Quick Installation Guide: see this for information on getting your CGN up and

running right away. It includes information on system requirements, package

contents, the installation procedure, and basic troubleshooting tips.



Online Help: each screen in the CGN’s Graphical User Interface (GUI) contains

a Help button. Click this button to see additional information about configuring

the screen.

ABOUT THIS USER’S GUIDE

HITRON CGN USER’S GUIDE

DOCUMENT CONVENTIONS

This User’s Guide uses various typographic conventions and styles to indicate

content type:



Bulleted paragraphs are used to list items, and to indicate options.

1 Numbered paragraphs indicate procedural steps.

NOTE: Notes provide additional information on a subject.

Warnings provide information about actions that could harm you or your

device.

Product labels, field labels, field choices, etc. are in bold type. For example:

A mouse click in the Graphical User Interface (GUI) is denoted by a right angle

bracket ( > ). For example:

means that you should click Settings in the GUI, then Advanced settings.

A key stroke is denoted by square brackets and uppercase text. For example:

CUSTOMER SUPPORT

For technical assistance or other customer support issues, please consult your Hitron

representative.

Select UDP to use the User Datagram Protocol.

Click Settings > Advanced Settings.

Press [ENTER] to continue.

ABOUT THIS USER’S GUIDE

HITRON CGN USER’S GUIDE

DEFAULT CREDENTIALS

The CGN’s default login credentials are as follows. For more information, see

Logging into the CGN on page 22.

registered trademarks used are the properties of their respective owners.

DISCLAIMER: The information in this User’s Guide is accurate at the time of writing.

This User’s Guide is provided “as is” without express or implied warranty of any kind.

Neither Hitron Technologies nor its agents assume any liability for inaccuracies in this

User’s Guide, or losses incurred by use or misuse of the information in this User’s

Guide.

Table 1: Default Credentials

Username cusadmin

Password password

COMPLIANCES

HITRON CGN USER’S GUIDE

COMPLIANCES

FCC INTERFERENCE STATEMENT

This equipment has been tested and found to comply with the limits for a Class B

digital device pursuant to Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against radio interference in a commercial

environment.

This equipment can generate, use and radiate radio frequency energy and, if not

installed and used in accordance with the instructions in this manual, may cause

harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause interference, in

which case the user, at his own expense, will be required to take whatever measures

are necessary to correct the interference. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the interference by one

of the following measures:



Reorient or relocate the receiving antenna.



Increase the separation between the equipment and receiver.



Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.



Consult the dealer or an experienced radio/TV technician for help.

The device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) This device may not cause harmful interference, and (2)

this device must accept any interference received, including interference that may

cause undesired operation.

FCC Caution: Any changes or modifications not expressly approved by the party

responsible for compliance could void the user’s authority to operate this equipment.

IEEE 802.11b or 802.11g operation of this product in the U.S.A is firmware-limited to

channels 1 through 11.

IMPORTANT NOTE:

COMPLIANCES

HITRON CGN USER’S GUIDE

FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an

uncontrolled environment. This equipment should be installed and operated with

minimum distance 20cm between the radiator & your body.

This transmitter must not be co-located or operating in conjunction with any other

antenna or transmitter.

The availability of some specific channels and/or operational frequency bands are

country dependent and are firmware programmed at the factory to match the

intended destination. The firmware setting is not accessible by the end user.

Note to CATV System Installer - The cable distribution system should be grounded

(earthed) in accordance with ANSI/NFPA 70, the National Electrical Code (NEC), in

particular Section 820.93, Grounding of Outer Conductive Shield of a Coaxial Cable.

107 SMCD3G3-CCR 4-Port Gateway Administrator Manual

TABLE OF CONTENTS

HITRON CGN USER’S GUIDE

TABLE OF CONTENTS

About This User’s Guide ................................................................ 2

Compliances .................................................................................... 5

Table of Contents ............................................................................ 7

List of Figures ............................................................................... 10

List of Tables ................................................................................. 11

Introduction ................................................................................... 12

1.1 CGN Overview .................................................................................. 12

1.1.1 Key Features ............................................................................ 13

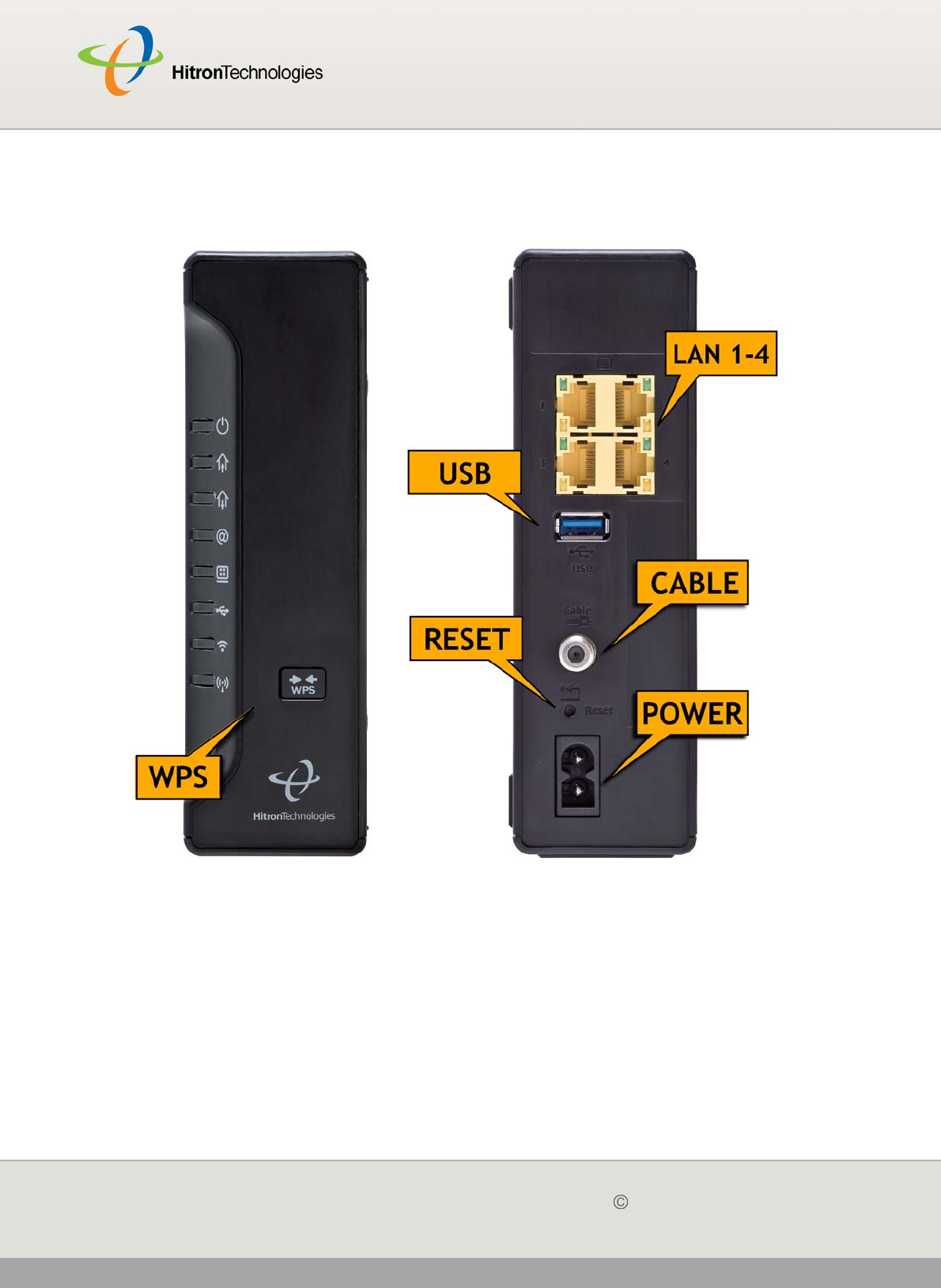

1.2 Hardware Connections ...................................................................... 14

1.3 LEDs ................................................................................................. 17

1.4 IP Address Setup .............................................................................. 20

1.4.1 Manual IP Address Setup ......................................................... 21

1.5 Logging into the CGN ........................................................................ 22

1.6 GUI Overview .................................................................................... 23

1.7 Resetting the CGN ............................................................................ 24

Status ............................................................................................. 26

2.1 Cable Overview ................................................................................. 26

2.1.1 DOCSIS .................................................................................... 26

2.1.2 IP Addresses and Subnets ....................................................... 27

2.1.2.1 IP Address Format ........................................................... 27

2.1.2.2 IP Address Assignment .................................................... 27

2.1.2.3 Subnets ............................................................................ 28

2.1.3 DHCP ........................................................................................ 29

2.1.4 DHCP Lease ............................................................................. 30

2.1.5 MAC Addresses ........................................................................ 30

TABLE OF CONTENTS

HITRON CGN USER’S GUIDE

2.1.6 Routing Mode ........................................................................... 31

2.1.7 Configuration Files .................................................................... 31

2.1.8 Downstream and Upstream Transmissions .............................. 31

2.1.9 Cable Frequencies .................................................................... 31

2.1.10 Modulation .............................................................................. 32

2.1.11 TDMA, FDMA and SCDMA .................................................... 32

2.2 The System Info Screen .................................................................... 33

2.3 The Initialization Screen .................................................................... 37

2.4 The CM Status Screen ...................................................................... 38

2.5 The Password Screen ....................................................................... 41

2.6 The Capability Screen ....................................................................... 42

WAN/LAN ....................................................................................... 45

3.1 WAN/LAN Overview .......................................................................... 45

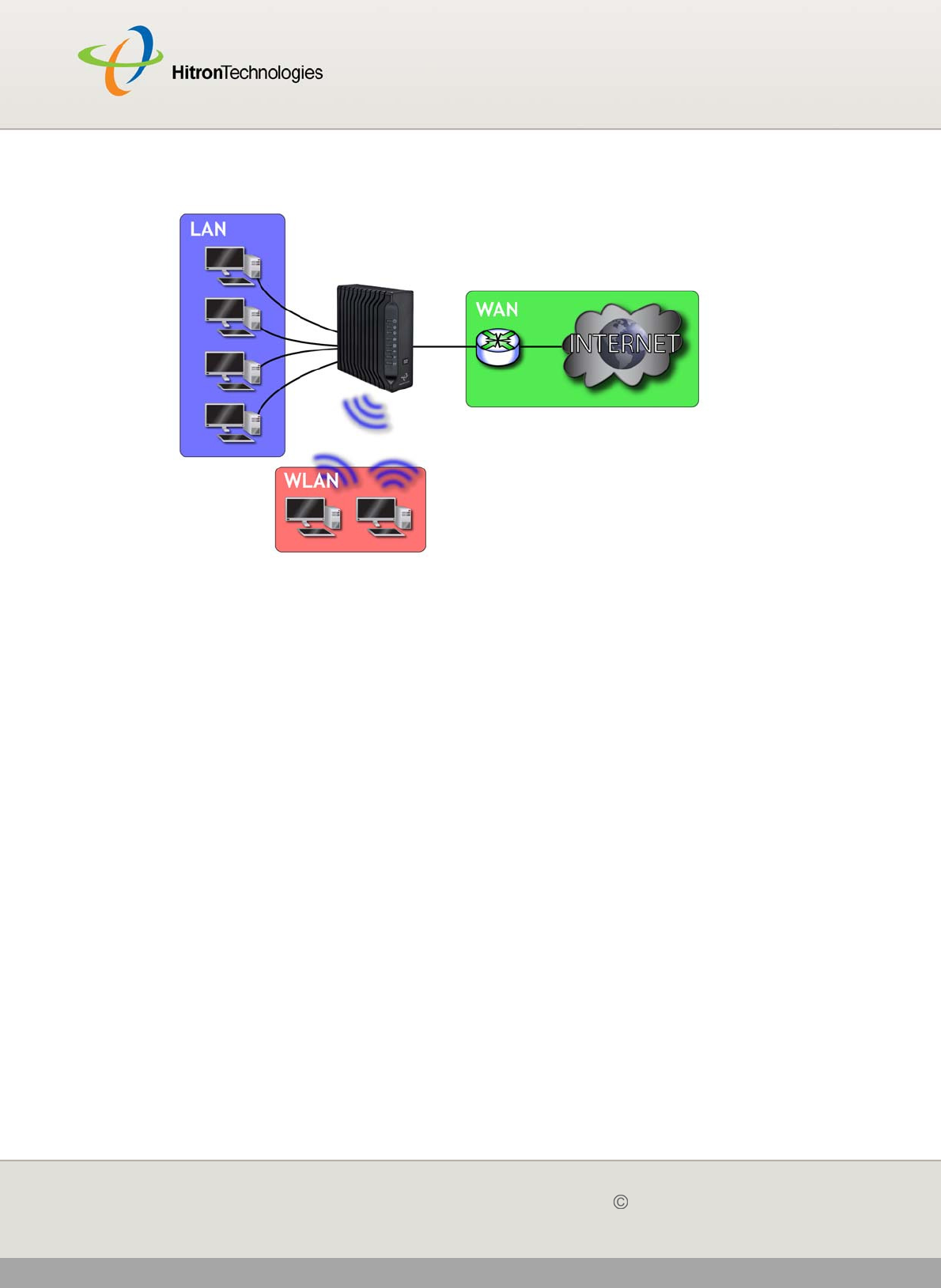

3.1.1 WAN and LAN .......................................................................... 45

3.1.2 LAN IP Addresses and Subnets ............................................... 46

3.1.3 DNS and Domain Suffix ............................................................ 46

3.1.4 Debugging (Ping and Traceroute) ............................................ 46

3.2 The IP Screen ................................................................................... 47

3.3 The Shared Media Screen ................................................................ 50

3.4 The Debug Screen ............................................................................ 51

3.5 The Backup Screen ........................................................................... 52

Firewall ........................................................................................... 54

4.1 Firewall Overview .............................................................................. 54

4.1.1 Firewall ..................................................................................... 54

4.1.2 Intrusion detection system ........................................................ 55

4.1.3 Ping ........................................................................................... 55

4.1.4 MAC Filtering ............................................................................ 55

4.1.5 IP Filtering ................................................................................. 55

4.1.6 Port Forwarding ........................................................................ 56

4.1.7 Port Triggering .......................................................................... 56

4.1.8 DMZ .......................................................................................... 56

4.2 The Firewall Options Screen ............................................................. 56

4.3 The Filter Setting Screen .................................................................. 57

TABLE OF CONTENTS

HITRON CGN USER’S GUIDE

4.3.1 Adding or Editing an IP Filtering Rule ....................................... 63

4.4 The Forwarding Screen ..................................................................... 65

4.4.1 Adding or Editing a Port Forwarding Rule ................................ 67

4.5 The Port Triggering Screen ............................................................... 69

4.5.1 Adding or Editing a Port Triggering Rule .................................. 71

4.6 The DMZ Screen ............................................................................... 72

Parental Control ............................................................................ 74

5.1 Parental Control Overview ................................................................ 74

5.1.1 Website Blocking ...................................................................... 74

5.2 The Website Blocking Screen ........................................................... 75

5.3 The Scheduling Screen ..................................................................... 77

5.4 The Email / Syslog Alert Screen ....................................................... 79

Wireless ......................................................................................... 83

6.1 Wireless Overview ............................................................................ 83

6.1.1 Wireless Networking Basics ..................................................... 83

6.1.2 Architecture ............................................................................... 83

6.1.3 Wireless Standards ................................................................... 84

6.1.4 Service Sets and SSIDs ........................................................... 84

6.1.5 Wireless Security ...................................................................... 85

6.1.5.1 WPS ................................................................................. 85

6.1.6 WMM ........................................................................................ 86

6.2 The Setup Screen ............................................................................. 86

6.3 The Access Control Screen .............................................................. 93

6.4 The Advanced Screen ....................................................................... 95

6.4.1 Configuring WMM Parameters ............................................... 103

Troubleshooting .......................................................................... 107

...................................................................................................... 109

FCC STATEMENT ........................................................................ 110

Index ............................................................................................. 112

LIST OF FIGURES

HITRON CGN USER’S GUIDE

LIST OF FIGURES

Figure 1: Application Overview ...........................................................................13

Figure 2: Hardware Connections ........................................................................15

Figure 3: LEDs ....................................................................................................18

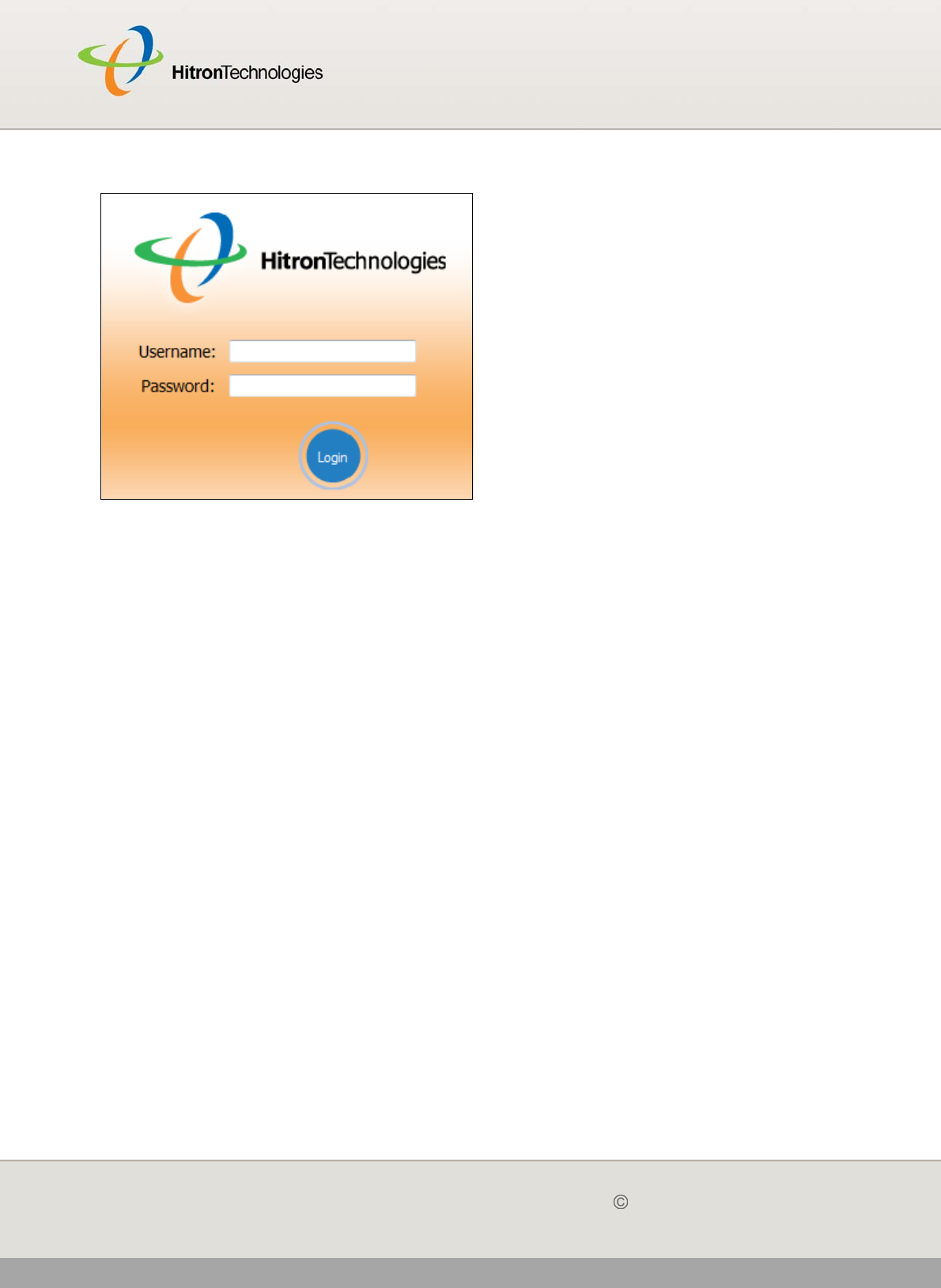

Figure 4: Login ....................................................................................................23

Figure 5: GUI Overview ......................................................................................24

Figure 6: The Status > System Info Screen ........................................................34

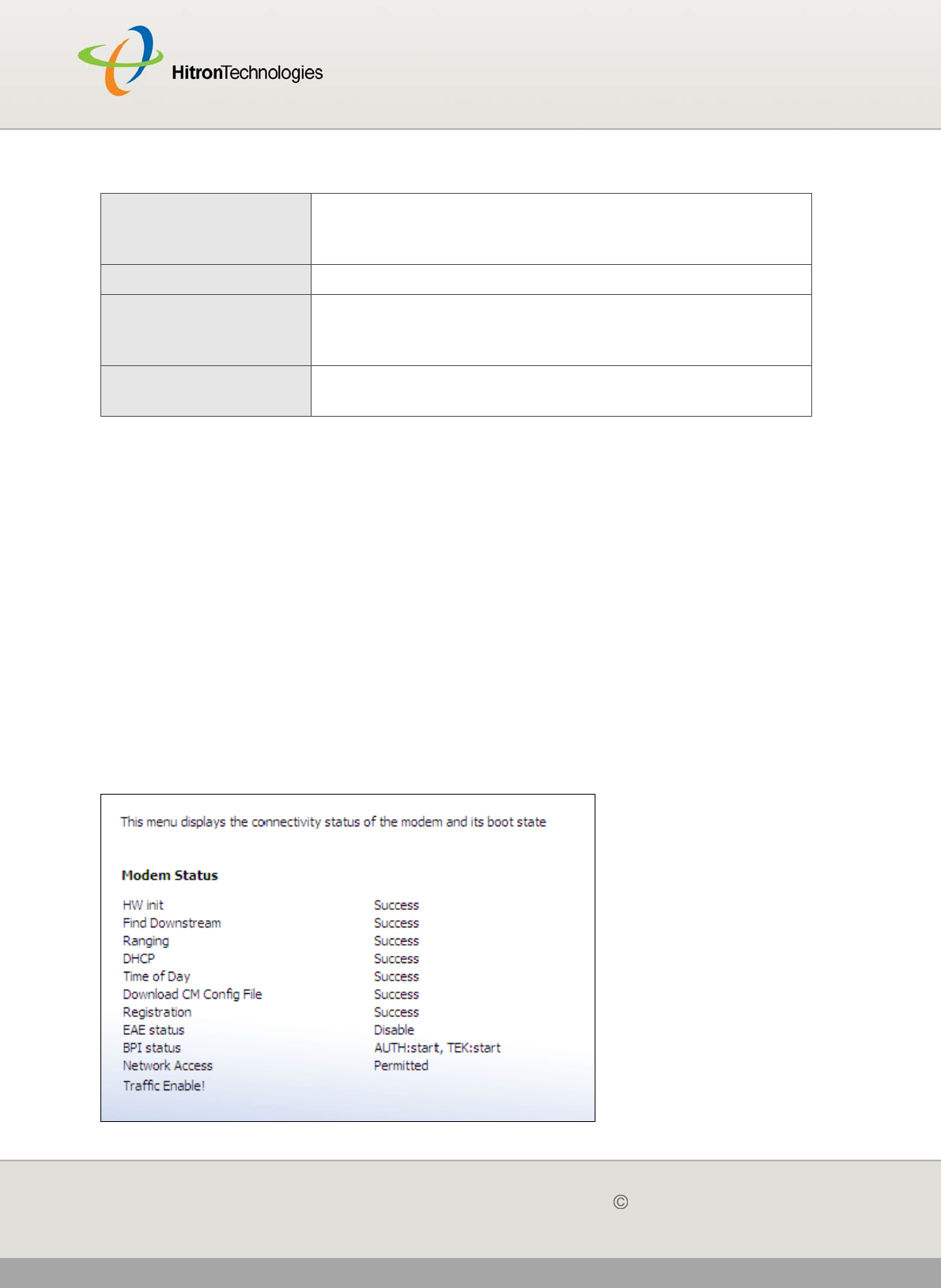

Figure 7: The Status > Initialization Screen ........................................................37

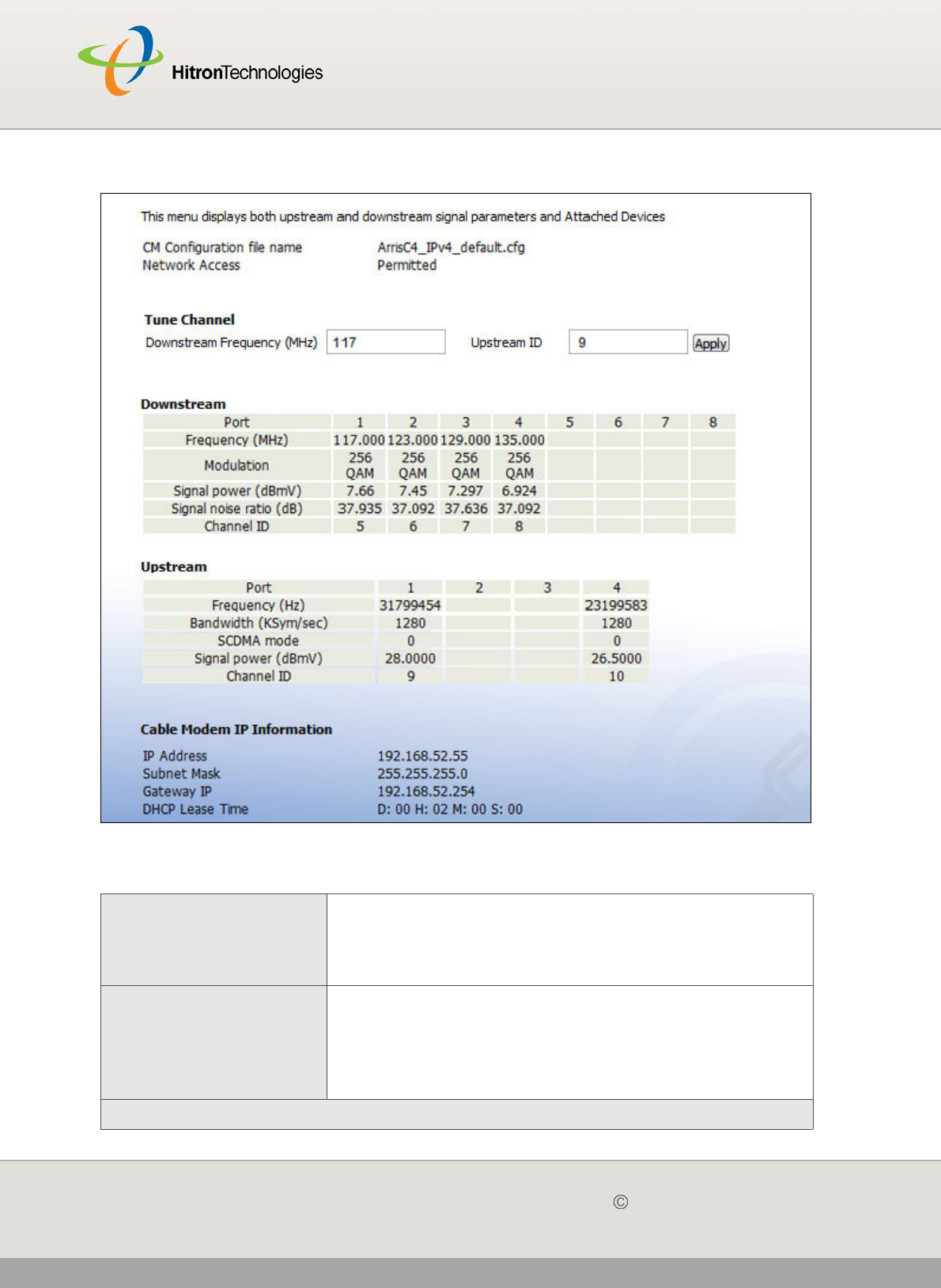

Figure 8: The Status > CM Status Screen ..........................................................39

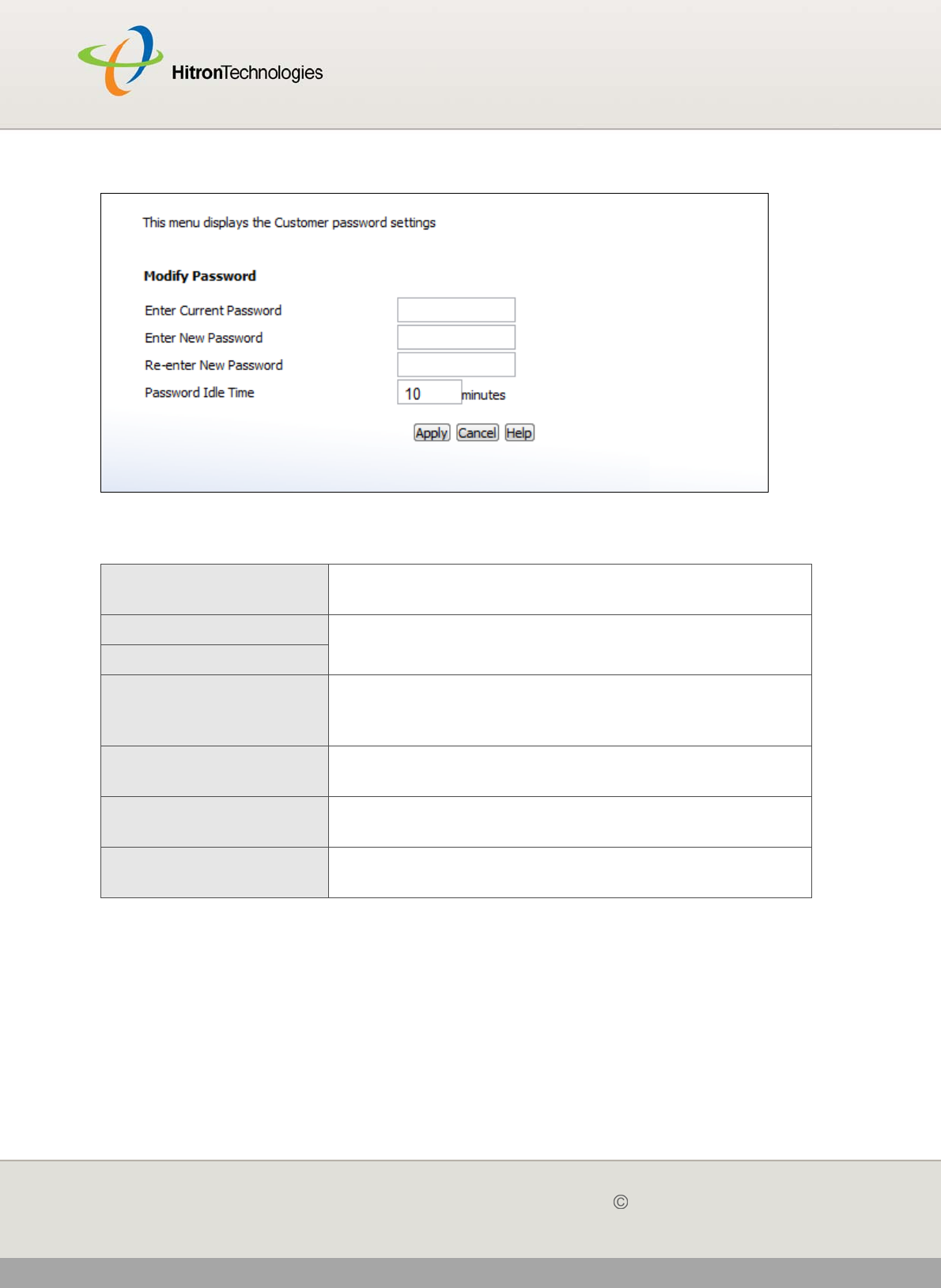

Figure 9: The Status > Password Screen ...........................................................42

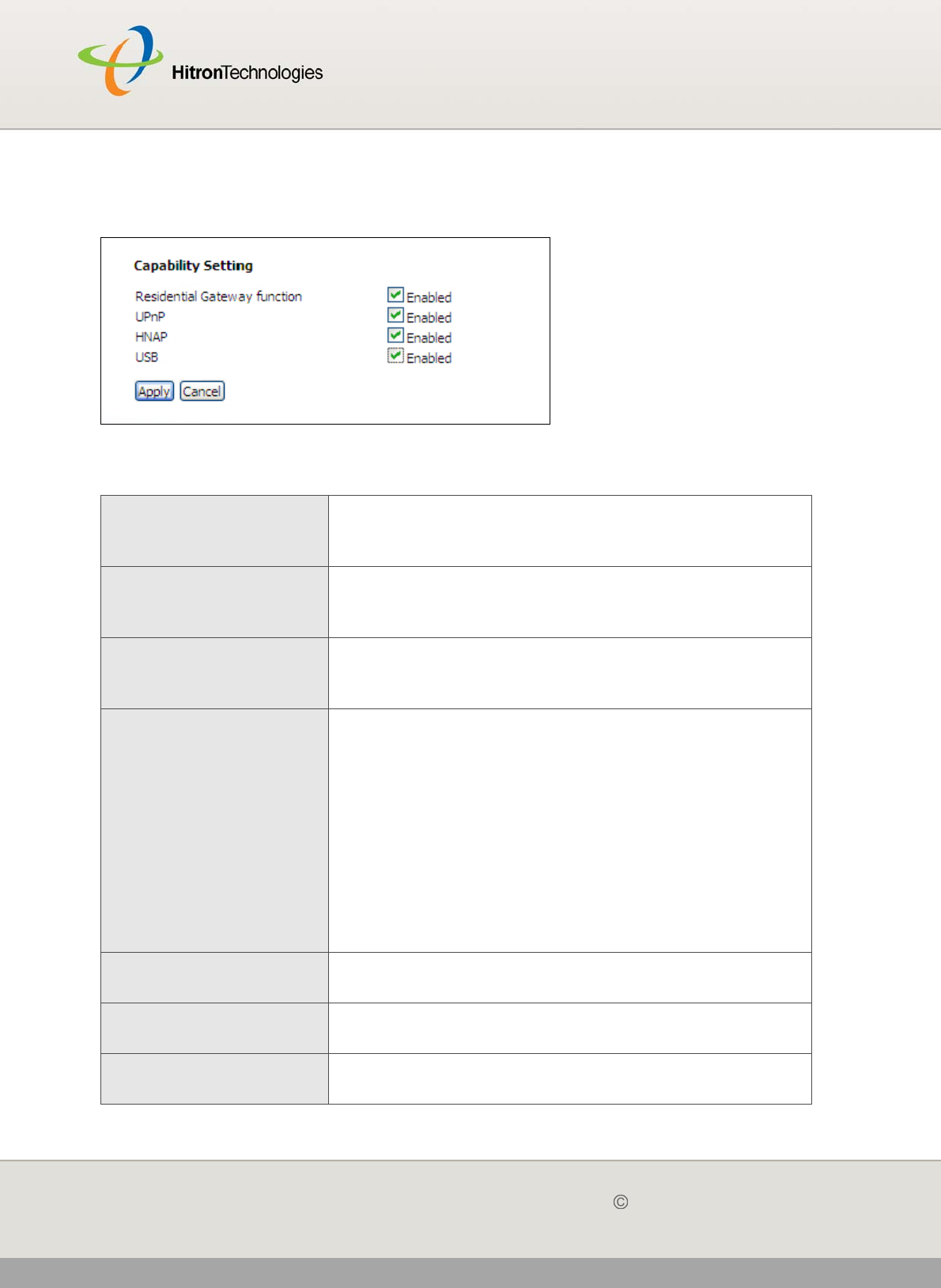

Figure 10: The Status > Capability Screen .........................................................43

Figure 11: The WAN/LAN > IP Screen ...............................................................48

Figure 12: The WAN/LAN > Shared Media Screen ............................................51

Figure 13: The WAN/LAN > Debug Screen ........................................................52

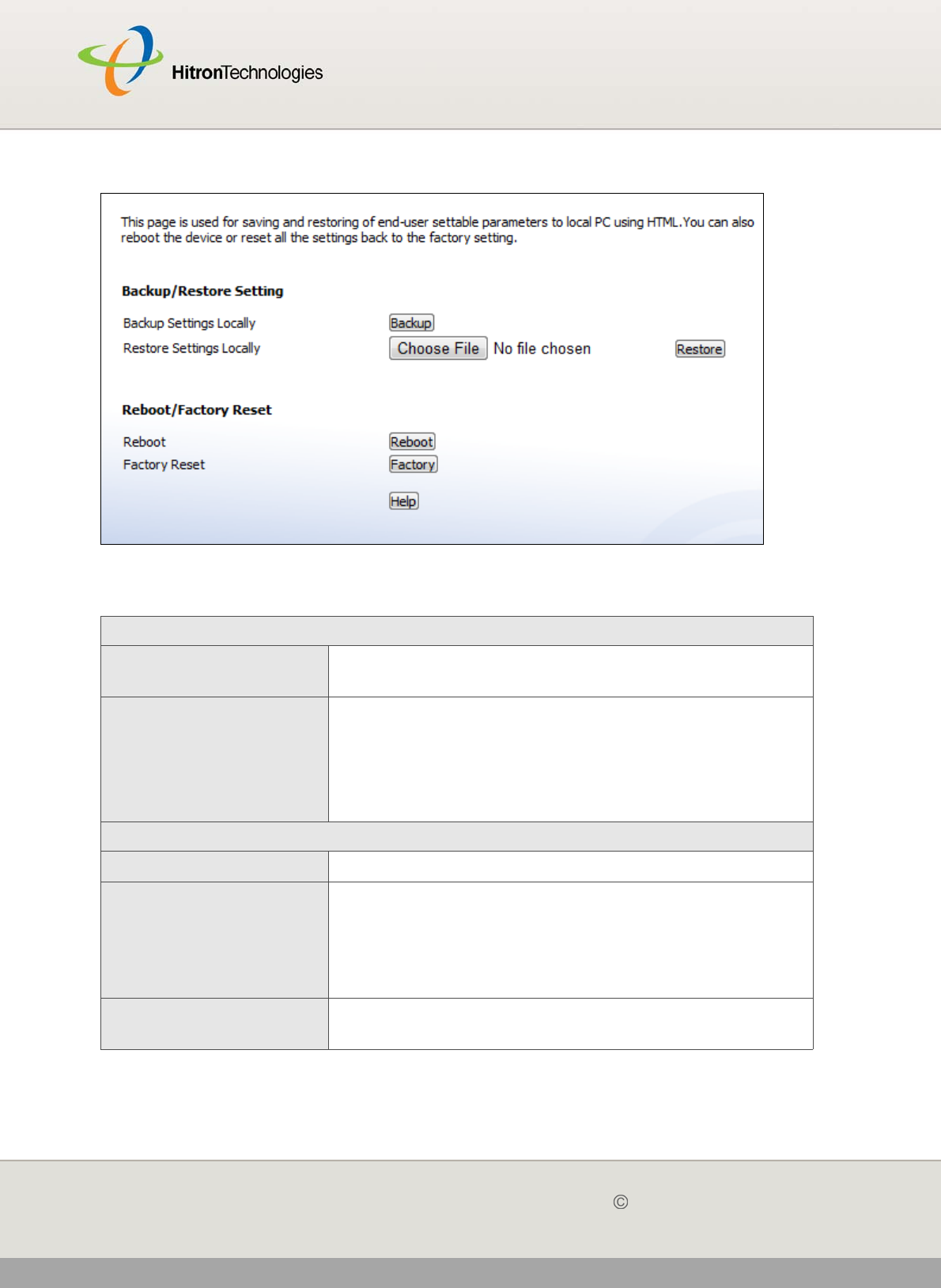

Figure 14: The WAN/LAN > Backup Screen .......................................................53

Figure 15: The Firewall > Firewall Options Screen .............................................57

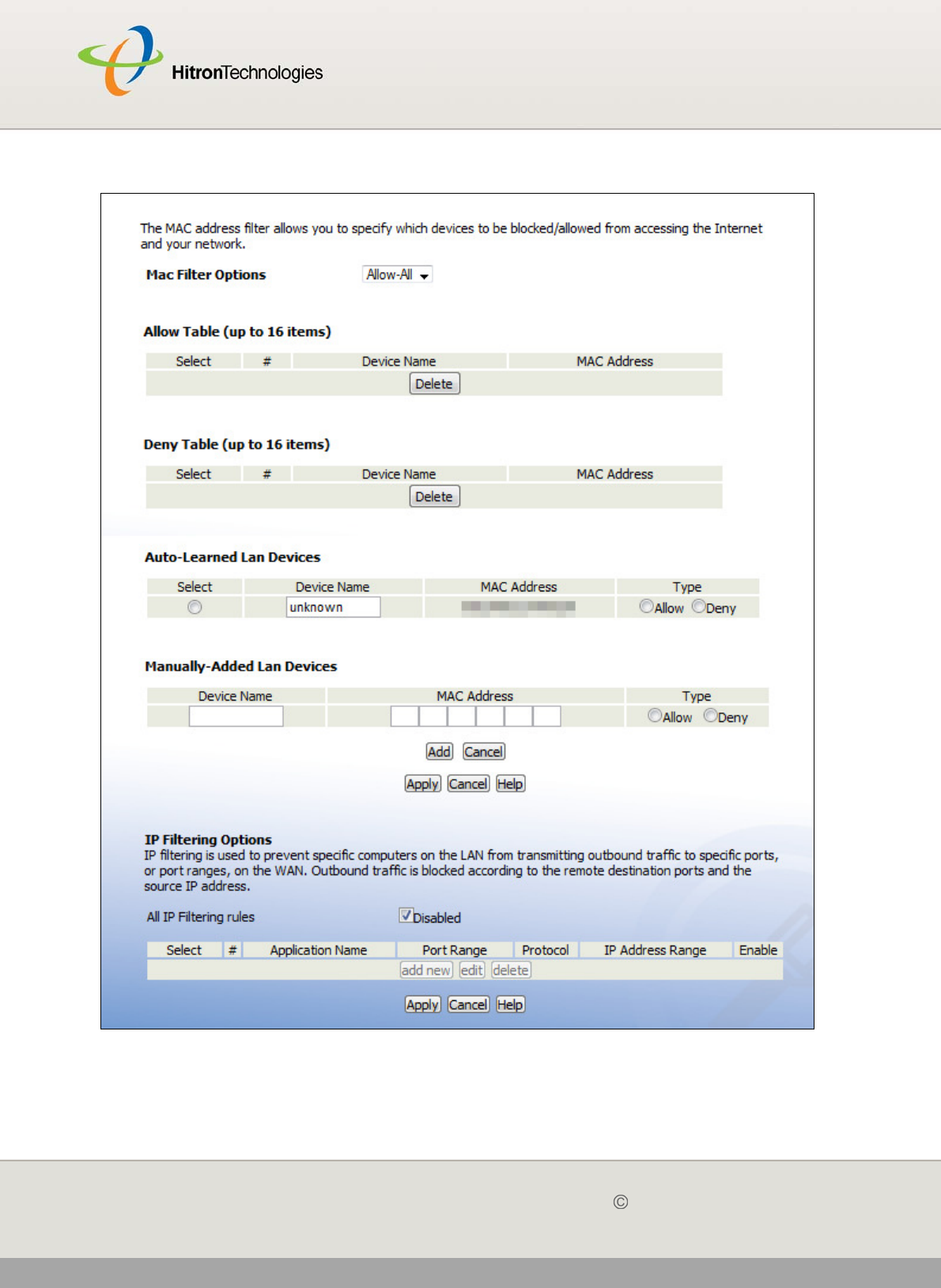

Figure 16: The Firewall > Filter Setting Screen ..................................................59

Figure 17: The Firewall > Filter Settings > Add/Edit Screen ...............................63

Figure 18: The Firewall > Forwarding Screen .....................................................65

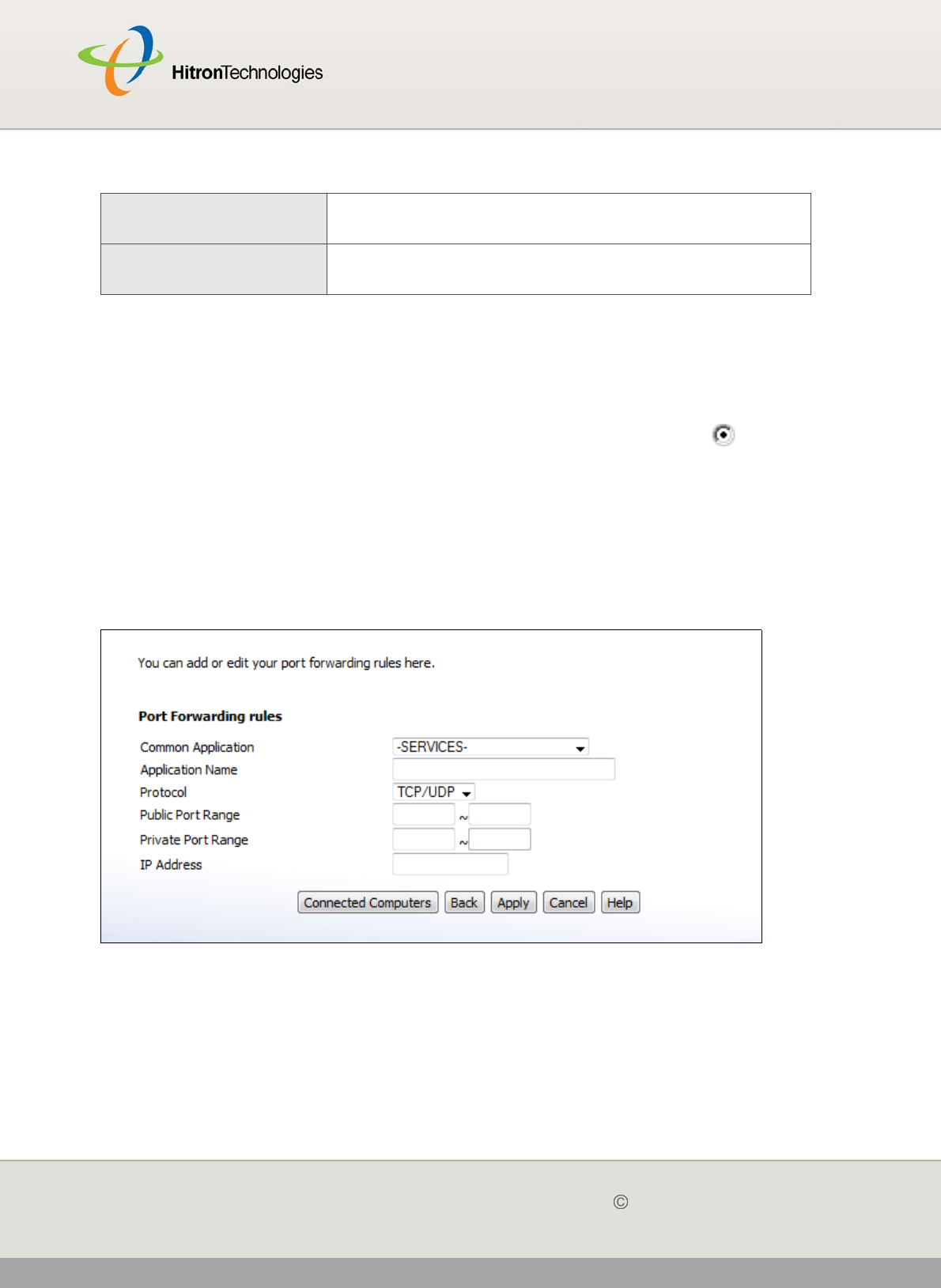

Figure 19: The Firewall > Forwarding > Add/Edit Screen ...................................67

Figure 20: The Firewall > Port Triggering Screen ...............................................69

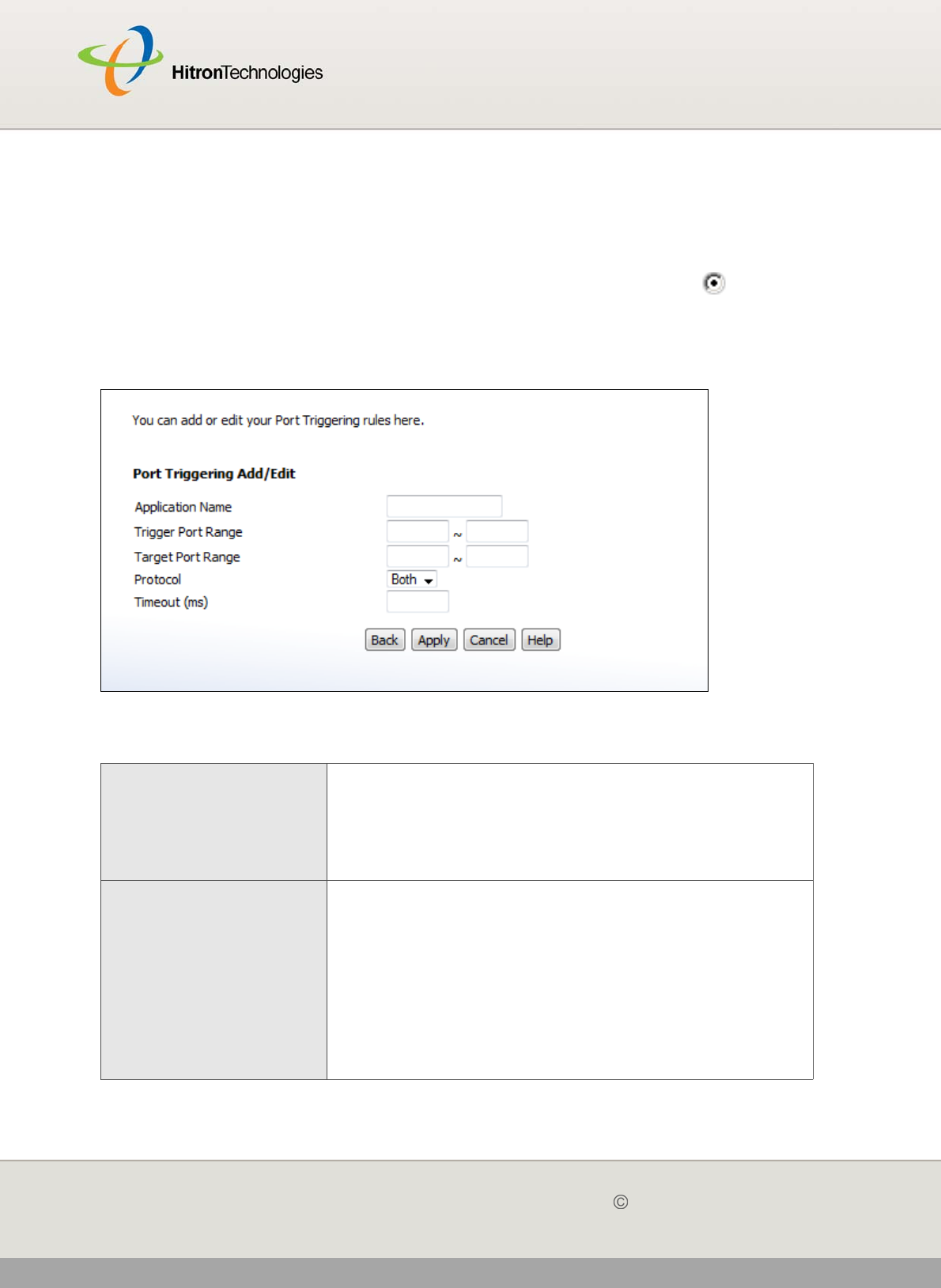

Figure 21: The Firewall > Port Triggering > Add/Edit Screen .............................71

Figure 22: The Firewall > DMZ Screen ...............................................................73

Figure 23: The Parental Control > Web Site Blocking Screen ............................75

Figure 24: The Parental Control > Scheduling Screen .......................................78

Figure 25: The Parental Control > Email / Syslog Alert Screen ..........................79

Figure 26: Add Target Email Address .................................................................81

Figure 27: The Wireless > Setup Screen ............................................................87

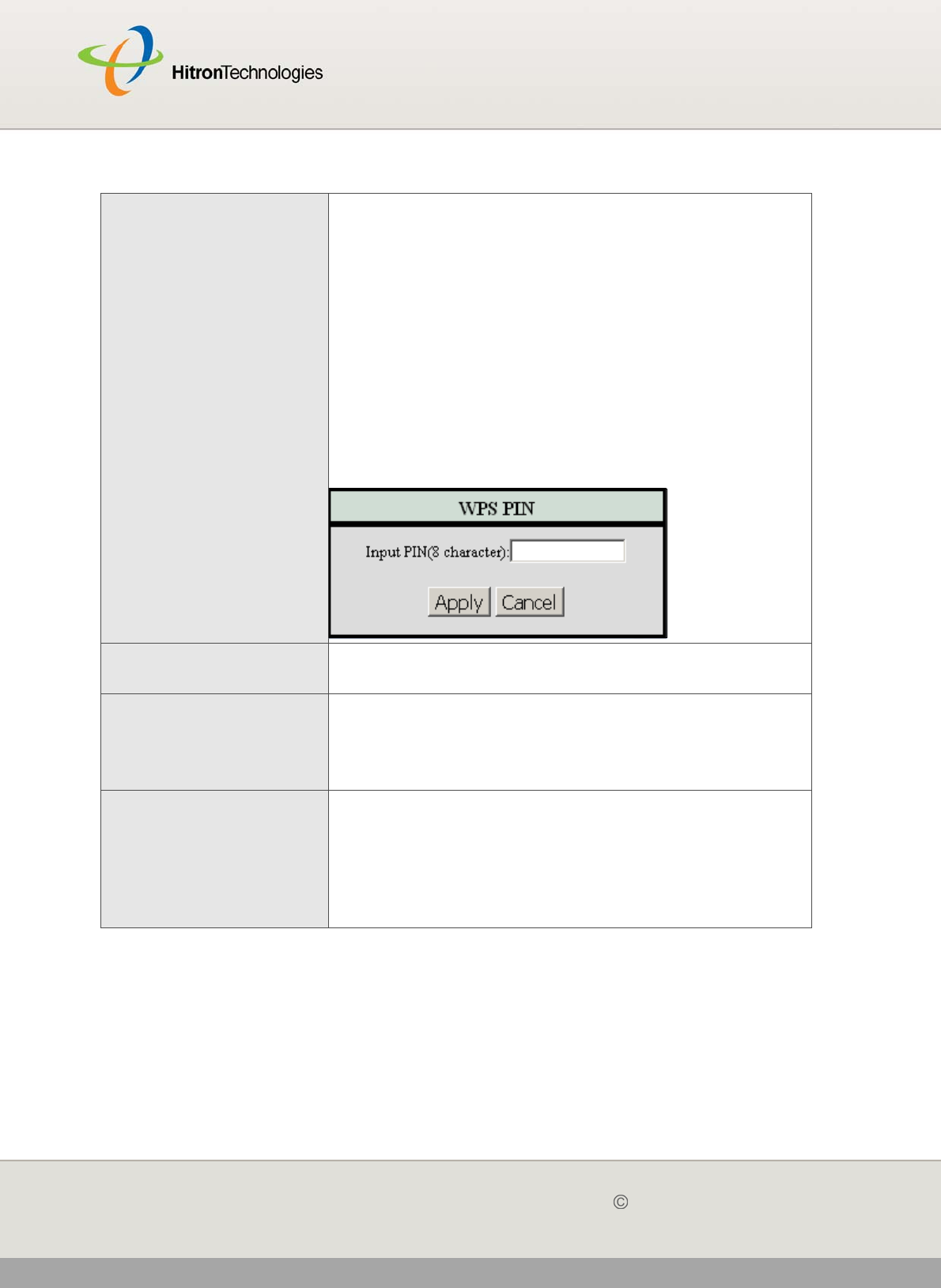

Figure 28: WPS PIN ............................................................................................89

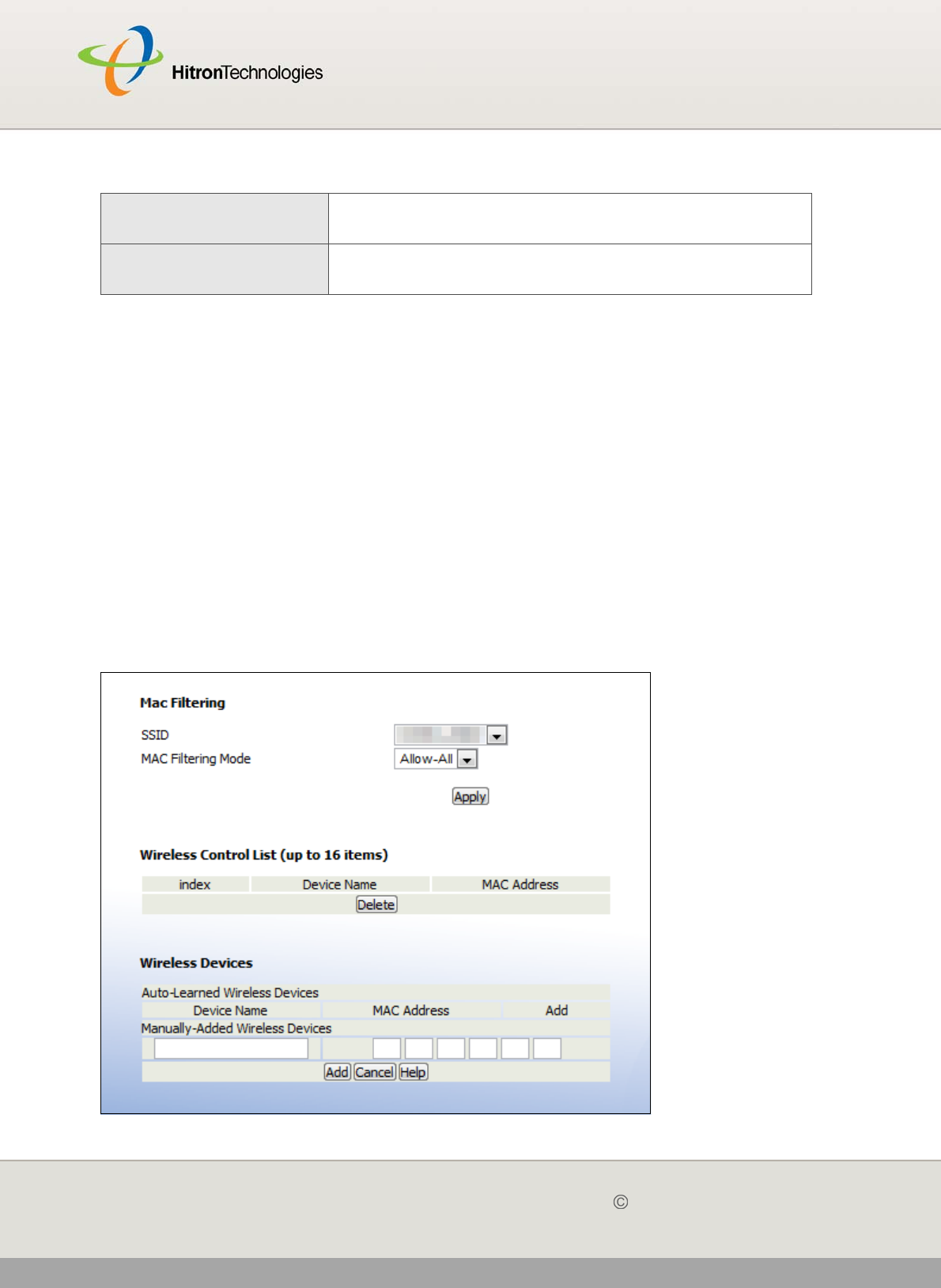

Figure 29: The Wireless > Access Control Screen .............................................93

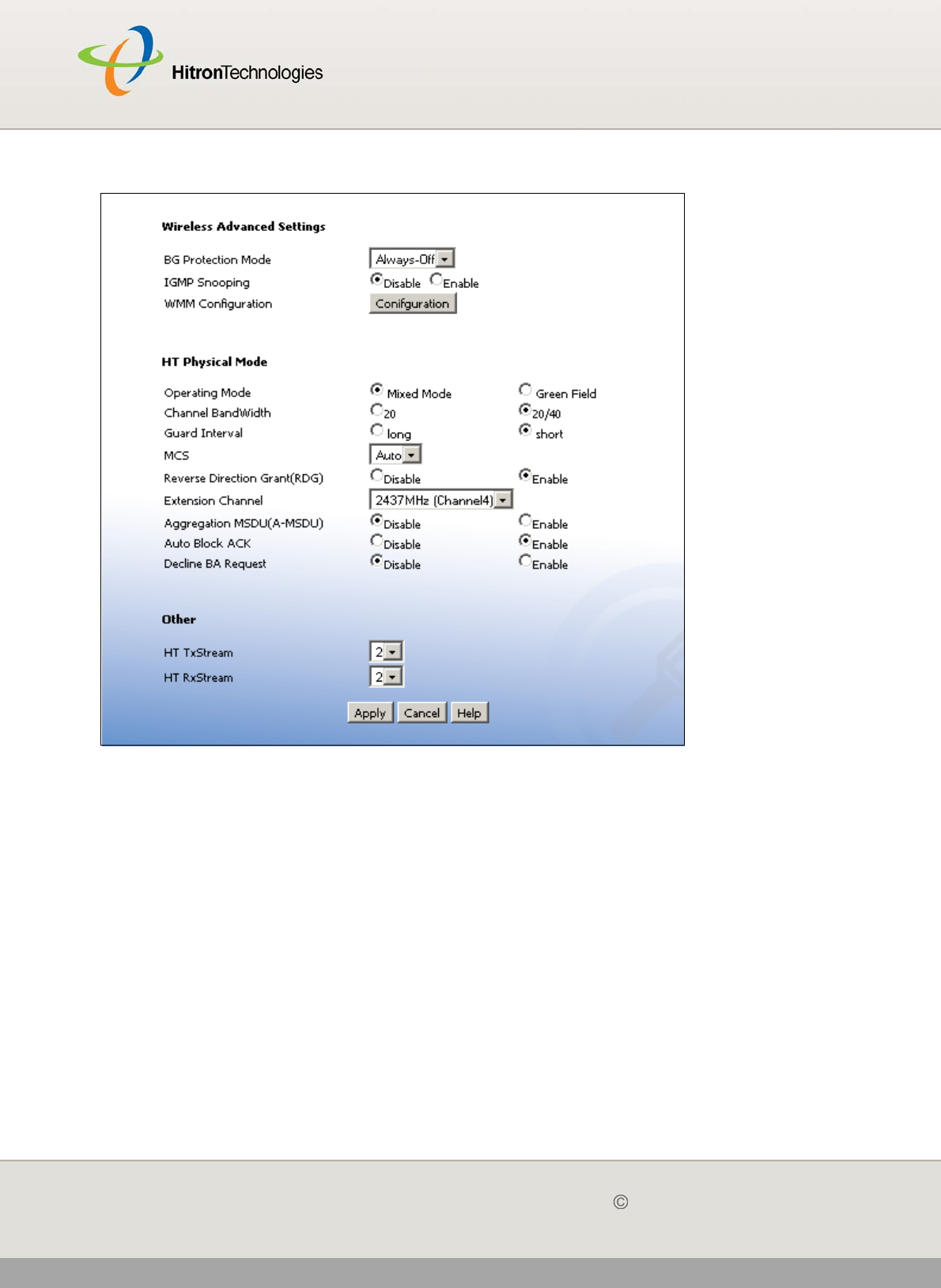

Figure 30: The Wireless > Advanced Screen .....................................................96

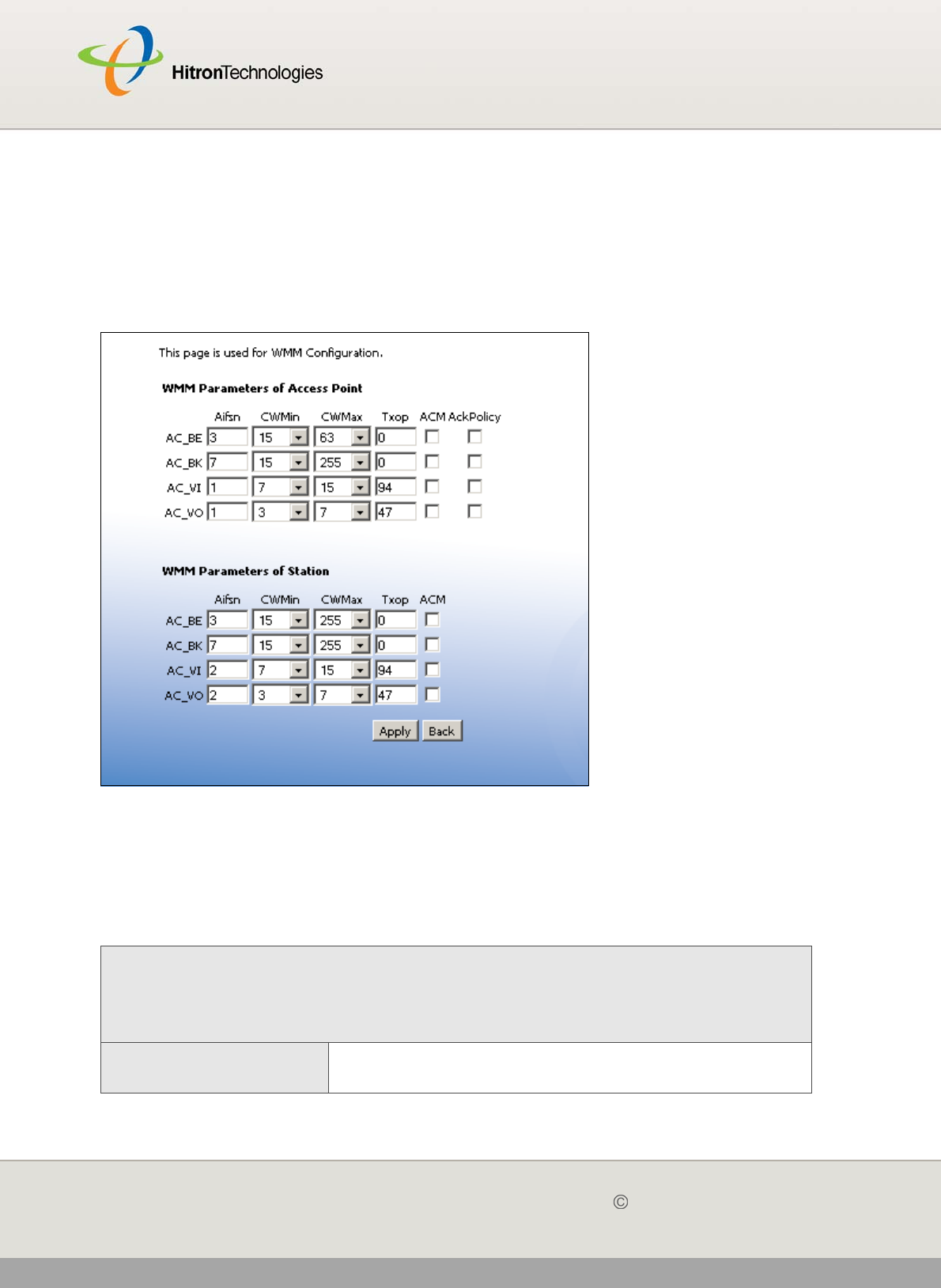

Figure 31: The Wireless > Advanced > WMM Configuration Screen ...............103

LIST OF TABLES

HITRON CGN USER’S GUIDE

LIST OF TABLES

Table 1: Default Credentials ................................................................................4

Table 2: Hardware Connections ........................................................................16

Table 3: LEDs ....................................................................................................18

Table 4: GUI Overview .......................................................................................24

Table 5: Private IP Address Ranges ..................................................................28

Table 6: IP Address: Decimal and Binary ..........................................................28

Table 7: Subnet Mask: Decimal and Binary .......................................................29

Table 8: The Status > System Info Screen ........................................................35

Table 9: The Status > CM Status Screen ..........................................................39

Table 10: The Status > Password Screen .........................................................42

Table 11: The Status > Capability Screen .........................................................43

Table 12: The WAN/LAN > IP Screen ...............................................................48

Table 13: The WAN/LAN > Shared Media Screen ............................................51

Table 14: The WAN/LAN > Debug Screen ........................................................52

Table 15: The LAN > Backup Screen ................................................................53

Table 16: The Firewall > Firewall Options Screen .............................................57

Table 17: The Firewall > Filter Setting Screen ...................................................60

Table 18: The Firewall > Filter Settings > Add/Edit Screen ...............................64

Table 19: The Firewall > Forwarding Screen .....................................................65

Table 20: The Firewall > Forwarding > Add/Edit Screen ...................................68

Table 21: The Firewall > Port Triggering Screen ...............................................69

Table 22: The Firewall > Port Triggering > Add/Edit Screen .............................71

Table 23: The Firewall > DMZ Screen ...............................................................73

Table 24: The Parental Control > Web Site Blocking Screen ............................76

Table 25: The Parental Control > Scheduling Screen .......................................78

Table 26: The Parental Control > Email / Syslog Alert Screen ..........................80

Table 27: The Wireless > Setup Screen ............................................................87

Table 28: The Wireless > Access Control Screen .............................................94

Table 29: The Wireless > Advanced Screen .....................................................97

Table 30: The Wireless > Advanced > WMM Configuration Screen ................103

INTRODUCTION

HITRON CGN USER’S GUIDE

INTRODUCTION

This chapter intoduces the CGN and its GUI (Graphical User Interface). It contains

the following sections:



CGN Overview on page 12



Hardware Connections on page 14



LEDs on page 17



IP Address Setup on page 20



Logging into the CGN on page 22



GUI Overview on page 23



Resetting the CGN on page 24

1.1 CGN OVERVIEW

Your CGN is a NAT-capable cable modem and wireless access point that allows you

to connect your computers, wireless devices, and other network devices to one

another, and to the Internet via the cable connection.

Computers with a wired connection to the CGN are on the Local Area Network (LAN),

computers with a wireless connection to the CGN are on the Wireless Local Area

Network (WLAN) and the CGN connects to the service provider over the Wide Area

Network (WAN).

INTRODUCTION

HITRON CGN USER’S GUIDE

Figure 1: Application Overview

1.1.1 KEY FEATURES

The CGN provides:



Internet connection to cable modem service via CABLE port (F-type RF

connector)



Local Area Network connection via four 10/100/1000 Mbps (megabits per

second) Ethernet ports



Dynamic Host Configuration Protocol (DHCP) for devices on the LAN



LAN troubleshooting tools (Ping and Traceroute)



IEEE 802.11b/g/n wireless MIMO (Multiple-In, Multiple-Out) networking, allowing

speeds of up to 300Mbps



Wireless security: WEP, WPA-PSK and WPA2-PSK encryption, Wifi Protected

Setup (WPS) push-button and PIN configuration, MAC filtering,



Wired security: stateful inspection firewall with intrusion detection system, IP and

MAC filtering, port forwarding and port triggering, De-Militarized Zone (DMZ)

and event logging



Parental control: scheduled website blocking and access logs

INTRODUCTION

HITRON CGN USER’S GUIDE



Settings backup and restore



Secure configuration interface, accessible by Web browser

1.2 HARDWARE CONNECTIONS

This section describes the CGN’s physical ports and buttons.

INTRODUCTION

HITRON CGN USER’S GUIDE

Figure 2: Hardware Connections

INTRODUCTION

HITRON CGN USER’S GUIDE

Table 2: Hardware Connections

WPS PBC Press this button to begin the WiFi Protected Setup

(WPS) Push-Button Configuration (PBC) procedure.

Press the PBC button on your wireless clients in the

coverage area within two minutes to enable them to join

the wireless network.

See WPS on page 85 for more information.

Reset Use this button to reboot or reset your CGN.



Press the button and hold it for less than five seconds

to reboot the CGN. The CGN restarts, using your

existing settings.



Press the button and hold it for more than five

seconds to delete all user-configured settings and

restart the CGN using its factory default settings. See

Resetting the CGN on page 24 for more information

on resetting the CGN.

NOTE: Unless you previously backed-up the CGN’s

configuration settings prior to resetting the CGN,

the settings cannot be recovered.

USB The CGN provides one USB 2.0 host port, allowing you

to plug in a USB flash disk for mounting and sharing

through the LAN interfaces via the Samba protocol

(network neighborhood).

The CGN supports the following Windows file systems:



FAT16



FAT32



NTFS

USB devices must not drain more than 500mA

from the USB port. USB devices requiring

more than 500mA should be provided with

their own power source(s).

LAN1 Use these ports to connect your computers and other

network devices, using Category 5 or 6 Ethernet cables

with RJ45 connectors.

LAN2

LAN3

LAN4

INTRODUCTION

HITRON CGN USER’S GUIDE

1.3 LEDS

This section describes the CGN’s LEDs (lights).

CABLE Use this to connect to the Internet via an F-type RF

cable.

POWER Cable modem is plugged in to an electrical outlet and is

and receiving power.

Table 2: Hardware Connections

INTRODUCTION

HITRON CGN USER’S GUIDE

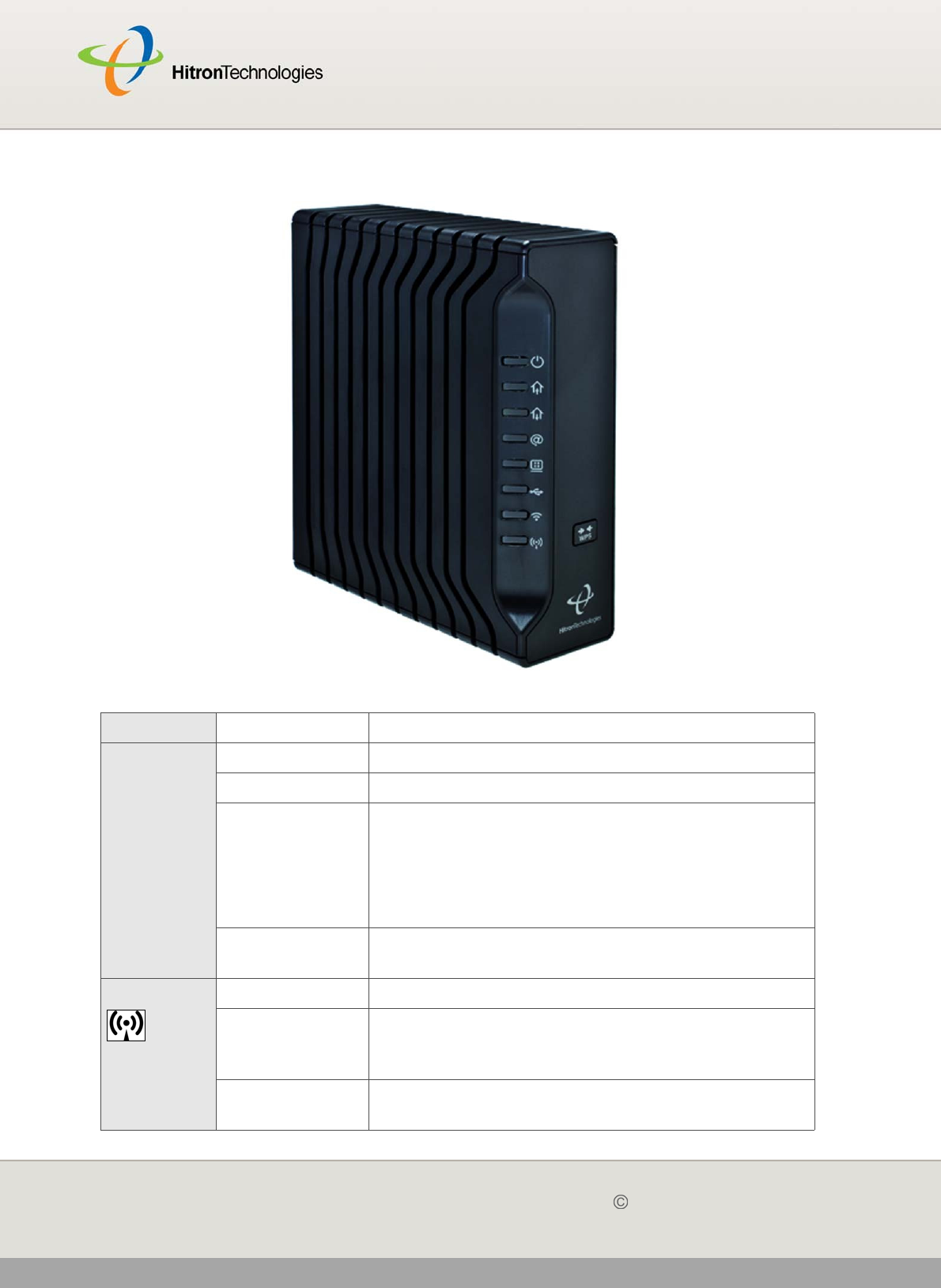

Figure 3: LEDs

Table 3: LEDs

LED STATUS DESCRIPTION

WPS Off The WPS is not enabled.

Green, steady The WPS is enabled.

Red, blinking Error: Some error occurred which was not related to

security, such as failed to find any partner or

protocol prematurely aborted.

Session Overlap Detected: Protocol detected

overlapping operation could be a security risk.

Orange, blinking The protocol is searching for a partner, connecting,

or exchanging network parameters

WIRELESS Off The wireless network is not enabled.

Green, steady The wireless network is enabled, and no data is

being transmitted or received over the wireless

network.

Green, blinking The wireless network is enabled, and data is being

transmitted or received over the wireless network.

INTRODUCTION

HITRON CGN USER’S GUIDE

USB Off The CGN is not linked up USB.

Green, steady The CGN has successfully linked up USB.

LAN/ Front Off No device is connected to the LAN port.

Green, blinking A device is connected to the LAN port via a

Ethernet link, and is transmitting or receiving data.

Green, steady A device has successfully connected to the LAN

port via a Ethernet link.

LAN/ Back Off No device is connected to the relevant LAN port.

Green, blinking A device is connected to the relevant LAN port via a

Fast Ethernet (10/100Mbps) link, and is transmitting

or receiving data.

Green, steady A device is connected to the relevant LAN port via a

Fast Ethernet (10/100Mbps) link, but is not

transmitting or receiving data.

Blue, blinking A device is connected to the relevant LAN port via a

Gigabit Ethernet (1000Mbps) link, and is

transmitting or receiving data.

Blue, steady A device is connected to the relevant LAN port via a

Gigabit Ethernet (1000Mbps) link, but is not

transmitting or receiving data.

Status Green, Blinking The CGN’s cable modem is registering with the

service provider’s CMTS.

Green The CGN’s cable modem has successfully

registered with the service provider and is ready for

data transfer.

US Green, blinking The CGN is searching for an upstream frequency

on the CABLE connection.

Green, steady The CGN has successfully located and locked onto

an upstream frequency on the CABLE connection.

Blue, steady The CGN is engaged in channel bonding on the

upstream connection.

Off There is no upstream activity on the CABLE

connection.

Table 3: LEDs

INTRODUCTION

HITRON CGN USER’S GUIDE

When you turn on the CGN, the LEDs light up in the following order:



Power



Status



The ETH 1~4 LEDs light up as soon as there is activity on the relevant port, and

the WIRELESS LED lights up once the wireless network is ready.



USB



WIRELESS

1.4 IP ADDRESS SETUP

Before you log into the CGN’s GUI, your computer’s IP address must be in the same

subnet as the CGN. This allows your computer to communicate with the CGN.

NOTE: See IP Addresses and Subnets on page 27 for background information.

The CGN has a built-in DHCP server that, when active, assigns IP addresses to

computers on the LAN. When the DHCP server is active, you can get an IP address

automatically. The DHCP server is active by default.

DS Green, blinking The CGN is searching for a downstream frequency

on the CABLE connection.

Green, steady The CGN has successfully located and locked onto

a downstream frequency on the CABLE

connection.

Blue, steady The CGN is engaged in channel bonding on the

downstream connection.

Off There is no downstream activity on the CABLE

connection.

Power Green Cable modem is plugged in to an electrical outlet

and is and receiving power

Off The CGN is not receiving power.

Table 3: LEDs

INTRODUCTION

HITRON CGN USER’S GUIDE

If your computer is configured to get an IP address automatically, or if you are not

sure, try to log in to the CGN (see Logging into the CGN on page 22).



If the login screen displays, your computer is already configured correctly.



If the login screen does not display, either the CGN’s DHCP server is not active

or your computer is not configured correctly. Follow the procedure in Manual IP

Address Setup on page 21 and set your computer to get an IP address

automatically. Try to log in again. If you cannot log in, follow the manual IP

address setup procedure again, and set a specific IP address as shown. Try to

NOTE: If you still cannot see the login screen, your CGN’s IP settings may have

been changed from their defaults. If you do not know the CGN’s new address,

you should return it to its factory defaults. See Resetting the CGN on page

24. Bear in mind that ALL user-configured settings are lost.

1.4.1 MANUAL IP ADDRESS SETUP

By default, your CGN’s local IP address is 192.168.0.1. If your CGN is using the

default IP address, you should set your computer’s IP address to be between

192.168.0.2 and 192.168.0.254.

NOTE: If your CGN DHCP server is active, set your computer to get an IP address

automatically in step 5. The CGN assigns an IP address to your computer.

The DHCP server is active by default.

Take the following steps to manually set up your computer’s IP address to connect to

the CGN:

NOTE: This example uses Windows XP; the procedure for your operating system

may be different.

1 Click Start, then click Control Panel.

2 In the window that displays, double-click Network Connections.

3 Right-click your network connection (usually Local Area Connection) and click

Properties.

4 In the General tab’s This connection uses the following items list, scroll

down and select Internet Protocol (TCP/IP). Click Properties.

INTRODUCTION

HITRON CGN USER’S GUIDE

5 You can get an IP address automatically, or specify one manually:



If your CGN’s DHCP server is active, select Get an IP address

automatically.



If your CGN’s DHCP server is active, select Use the following IP address.

In the IP address field, enter a value between 192.168.0.2 and

192.168.0.254 (default). In the Subnet mask field, enter 255.255.255.0

(default).

NOTE: If your CGN is not using the default IP address, enter an IP address and

subnet mask that places your computer in the same subnet as the CGN.

6 Click OK. The Internet Protocol (TCP/IP) window closes. In the Local Area

Connection Properties window, click OK.

Your computer now obtains an IP address from the CGN, or uses the IP address that

you specified, and can communicate with the CGN.

1.5 LOGGING INTO THE CGN

Take the following steps to log into the CGN’s GUI.

NOTE: You can log into the CGN’s GUI via the wireless interface. However, it is

strongly recommended that you configure the CGN via a wired connection on

the LAN.

1 Open a browser window.

2 Enter the CGN’s IP address (default 192.168.0.1) in the URL bar. The Login

screen displays.

INTRODUCTION

HITRON CGN USER’S GUIDE

Figure 4: Login

3 Enter the Username and Password. The default login username is cusadmin,

and the default password is password.

NOTE: The Username and Password are case-sensitive; “password” is not the same

as “Password”.

4 Click Login. The System Info screen displays (see The System Info Screen on

page 33).

1.6 GUI OVERVIEW

This section describes the CGN’s GUI.

INTRODUCTION

HITRON CGN USER’S GUIDE

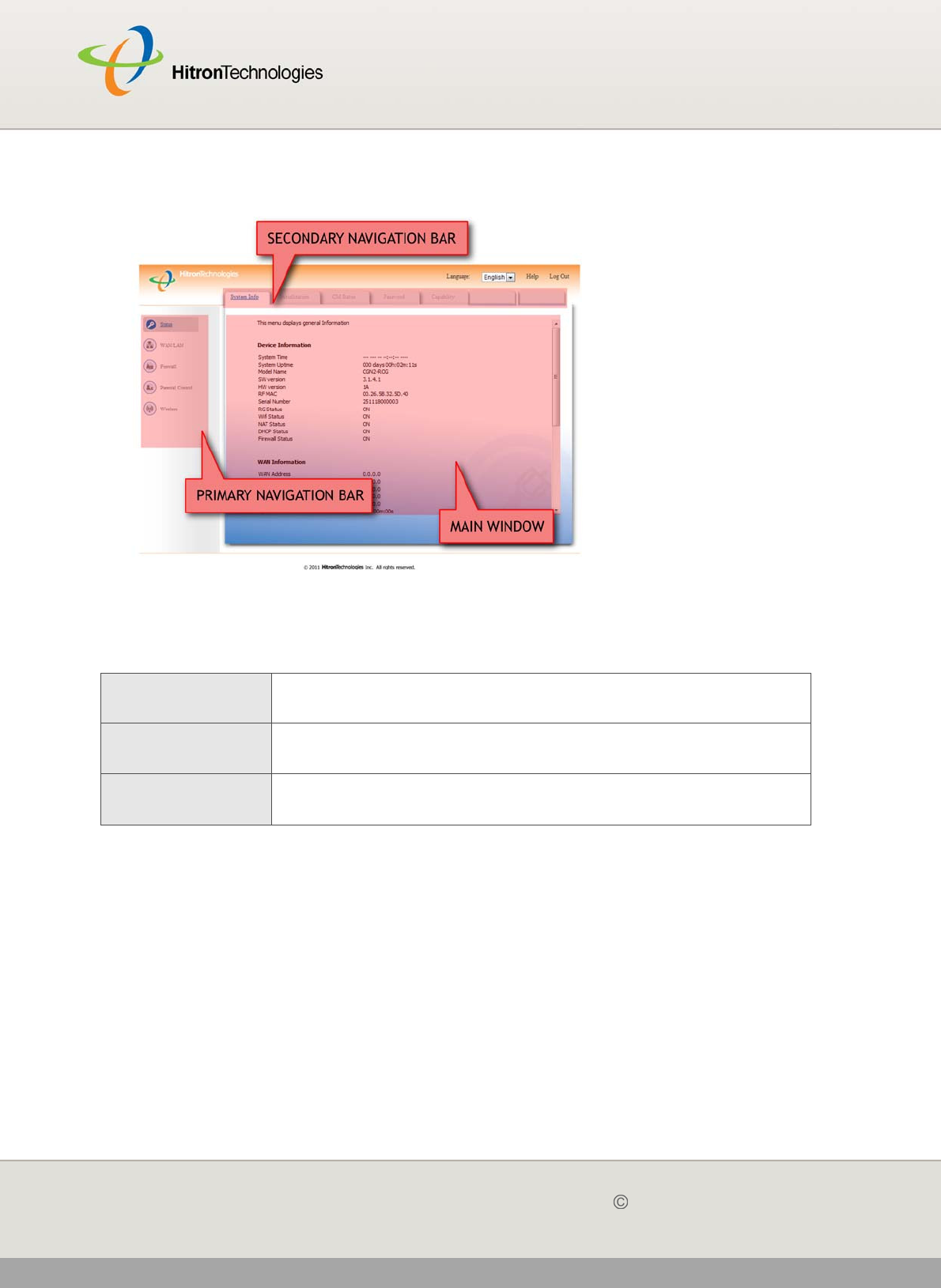

Figure 5: GUI Overview

Each item in the Primary Navigation Bar has its own chapter in this User's Guide;

items in the Secondary Navigation Bar have their own section within a chapter.

1.7 RESETTING THE CGN

When you reset the CGN to its factory defaults, all user-configured settings are lost,

and the CGN is returned to its initial configuration state.

There are two ways to reset the CGN:



Press the RESET button on the CGN, and hold it in for ten seconds or longer.

Table 4: GUI Overview

Primary

Navigation Bar

Use this section to move from one part of the GUI to another.

Secondary

Navigation Bar

Use this section to move from one related screen to another.

Main Window Use this section to read information about your CGN’s

configuration, and make configuration changes.

INTRODUCTION

HITRON CGN USER’S GUIDE



Click WAN/LAN > Backup. In the screen that displays, click the Factory Reset

button.

The CGN turns off and on again, using its factory default settings.

NOTE: Depending on your CGN’s previous configuration, you may need to re-

configure your computer’s IP settings; see IP Address Setup on page 20.

STATUS

HITRON CGN USER’S GUIDE

STATUS

This chapter describes the screens that display when you click Status in the toolbar.

It contains the following sections:



Cable Overview on page 26



The System Info Screen on page 33



The Initialization Screen on page 37



The CM Status Screen on page 38



The Password Screen on page 41



The Capability Screen on page 42

2.1 CABLE OVERVIEW

This section describes some of the concepts related to the Cable screens.

2.1.1 DOCSIS

The Data Over Cable Service Interface Specification (DOCSIS) is a

telecommunications standard that defines the provision of data services) Internet

access) over a traditional cable TV (CATV) network.

Your CGN supports DOCSIS version 3.0.

STATUS

HITRON CGN USER’S GUIDE

2.1.2 IP ADDRESSES AND SUBNETS

Every computer on the Internet must have a unique Internet Protocol (IP) address.

The IP address works much like a street address, in that it identifies a specific

location to which information is transmitted. No two computers on a network can have

the same IP address.

2.1.2.1 IP ADDRESS FORMAT

IP addresses consist of four octets (8-bit numerical values) and are usually

represented in decimal notation, for example 192.168.1.1. In decimal notation, this

means that each octet has a minimum value of 0 and a maximum value of 255.

An IP address carries two basic pieces of information: the “network number” (the

address of the network as a whole, analogous to a street name) and the “host ID”

(analogous to a house number) which identifies the specific computer (or other

network device).

2.1.2.2 IP ADDRESS ASSIGNMENT

IP addresses can come from three places:



The Internet Assigned Numbers Agency (IANA)



Your Internet Service Provider



You (or your network devices)

IANA is responsible for IP address allocation on a global scale, and your ISP assigns

IP addresses to its customers. You should never attempt to define your own IP

addresses on a public network, but you are free to do so on a private network.

In the case of the CGN:



The public network (Wide Area Network or WAN) is the link between the cable

connector and your Internet Service Provider. Your CGN’s IP address on this

network is assigned by your service provider.

STATUS

HITRON CGN USER’S GUIDE



The private network (in routing mode - see Routing Mode on page 31) is your

Local Area Network (LAN) and Wireless Local Area Network (WLAN), if

enabled. You are free to assign IP addresses to computers on the LAN and

WLAN manually, or to allow the CGN to assign them automatically via DHCP

(Dynamic Host Configuration Protocol). IANA has reserved the following blocks

of IP addresses to be used for private networks only:

If you assign addresses manually, they must be within the CGN’s LAN subnet.

2.1.2.3 SUBNETS

A subnet (short for sub-network) is, as the name suggests, a separate section of a

network, distinct from the main network of which it is a part. A subnet may contain all

of the computers at one corporate local office, for example, while the main network

includes several offices.

In order to define the extent of a subnet, and to differentiate it from the main network,

a subnet mask is used. This “masks” the part of the IP address that refers to the main

network, leaving the part of the IP address that refers to the sub-network.

Each subnet mask has 32 bits (binary digits), as does each IP address:



A binary value of 1 in the subnet mask indicates that the corresponding bit in the

IP address is part of the main network.



A binary value of 0 in the subnet mask indicates that the corresponding bit in the

IP address is part of the sub-network.

For example, the following table shows the IP address of a computer (192.168.1.1)

expressed in decimal and binary (each cell in the table indicates one octet):

Table 5: Private IP Address Ranges

FROM... ...TO

10.0.0.0 10.255.255.255

172.16.0.0 172.31.255.255

192.168.0.0 192.168.255.255

Table 6: IP Address: Decimal and Binary

192 168 0 1

11000000 10101000 00000000 00000001

STATUS

HITRON CGN USER’S GUIDE

The following table shows a subnet mask that “masks” the first twenty-four bits of the

IP address, in both its decimal and binary notation.

This shows that in this subnet, the first three octets (192.168.1, in the example IP

address) define the main network, and the final octet (1, in the example IP address)

defines the computer’s address on the subnet.

The decimal and binary notations give us the two common ways to write a subnet

mask:



Decimal: the subnet mask is written in the same fashion as the IP address:

255.255.255.0, for example.



Binary: the subnet mask is indicated after the IP address (preceded by a forward

slash), specifying the number of binary digits that it masks. The subnet mask

255.255.255.0 masks the first twenty-four bits of the IP address, so it would be

written as follows: 192.168.1.1/24.

2.1.3 DHCP

The Dynamic Host Configuration Protocol, or DHCP, defines the process by which IP

addresses can be assigned to computers and other networking devices

automatically, from another device on the network. This device is known as a DHCP

server, and provides addresses to all the DHCP client devices.

In order to receive an IP address via DHCP, a computer must first request one from

the DHCP server (this is a broadcast request, meaning that it is sent out to the whole

network, rather than just one IP address). The DHCP server hears the requests, and

responds by assigning an IP address to the computer that requested it.

If a computer is not configured to request an IP address via DHCP, you must

configure an IP address manually if you want to access other computers and devices

on the network. See IP Address Setup on page 20 for more information.

By default, the CGN is a DHCP client on the WAN (the CATV connection). It

broadcasts an IP address over the cable network, and receives one from the service

provider. By default, the CGN is a DHCP server on the LAN; it provides IP addresses

to computers on the LAN which request them.

Table 7: Subnet Mask: Decimal and Binary

255 255 255 0

11111111 11111111 11111111 00000000

STATUS

HITRON CGN USER’S GUIDE

2.1.4 DHCP LEASE

“DHCP lease” refers to the length of time for which a DHCP server allows a DHCP

client to use an IP address. Usually, a DHCP client will request a DHCP lease

renewal before the lease time is up, and can continue to use the IP address for an

additional period. However, if the client does not request a renewal, the DHCP server

stops allowing the client to use the IP address.

This is done to prevent IP addresses from being used up by computers that no longer

require them, since the pool of available IP addresses is finite.

2.1.5 MAC ADDRESSES

Every network device possesses a Media Access Control (MAC) address. This is a

unique alphanumeric code, given to the device at the factory, which in most cases

cannot be changed (although some devices are capable of “MAC spoofing”, where

they impersonate another device’s MAC address).

MAC addresses are the most reliable way of identifying network devices, since IP

addresses tend to change over time (whether manually altered, or updated via

DHCP).

Each MAC address displays as six groups of two hexadecimal digits separated by

colons (or, occasionally, dashes) for example 00:AA:FF:1A:B5:74.

NOTE: Each group of two hexadecimal digits is known as an “octet”, since it

represents eight bits.

Bear in mind that a MAC address does not precisely represent a computer on your

network (or elsewhere), it represents a network device, which may be part of a

computer (or other device). For example, if a single computer has an Ethernet card

(to connect to your CGN via one of the LAN ports) and also has a wireless card (to

connect to your CGN over the wireless interface) the MAC addresses of the two

cards will be different. In the case of the CGN, each internal module (cable modem

module, Ethernet module, wireless module, etc.) possesses its own MAC address.

STATUS

HITRON CGN USER’S GUIDE

2.1.6 ROUTING MODE

When your CGN is in routing mode, it acts as a gateway for computers on the LAN to

access the Internet. The service provider assigns an IP address to the CGN on the

WAN, and all traffic for LAN computers is sent to that IP address. The CGN assigns

private IP addresses to LAN computers (when DHCP is active), and transmits the

relevant traffic to each private IP address.

NOTE: When DHCP is not active on the CGN in routing mode, each computer on the

LAN must be assigned an IP address in the CGN’s subnet manually.

When the CGN is not in routing mode, the service provider assigns an IP address to

each computer connected to the CGN directly. The CGN does not perform any

routing operations, and traffic flows between the computers and the service provider.

Routing mode is not user-configurable; it is specified by the service provider in the

CGN’s configuration file.

2.1.7 CONFIGURATION FILES

The CGN’s configuration (or config) file is a document that the CGN obtains

automatically over the Internet from the service provider’s server, which specifies the

settings that the CGN should use. It contains a variety of settings that are not present

in the user-configurable Graphical User Interface (GUI) and can be specified only by

the service provider.

2.1.8 DOWNSTREAM AND UPSTREAM TRANSMISSIONS

The terms “downstream” and “upstream” refer to data traffic flows, and indicate the

direction in which the traffic is traveling. “Downstream” refers to traffic from the

service provider to the CGN, and “upstream” refers to traffic from the CGN to the

service provider.

2.1.9 CABLE FREQUENCIES

Just like radio transmissions, data transmissions over the cable network must exist

on different frequencies in order to avoid interference between signals.

The data traffic band is separate from the TV band, and each data channel is

separate from other data channels.

STATUS

HITRON CGN USER’S GUIDE

2.1.10 MODULATION

Transmissions over the cable network are based on a strong, high frequency periodic

waveform known as the “carrier wave.” This carrier wave is so called because it

“carries” the data signal. The data signal itself is defined by variations in the carrier

wave. The process of varying the carrier wave (in order to carry data signal

information) is known as “modulation.” The data signal is thus known as the

“modulating signal.”

Cable transmissions use a variety of methods to perform modulation (and the

“decoding” of the received signal, or “demodulation”). The modulation methods

defined in DOCSIS 3 are as follows:



QPSK: Quadrature Phase-Shift Keying



QAM: Quadrature Amplitude Modulation



QAM TCM: Trellis modulated Quadrature Amplitude Modulation

In many cases, a number precedes the modulation type (for example 16 QAM). This

number refers to the complexity of modulation. The higher the number, the more data

can be encoded in each symbol.

NOTE: In modulated signals, each distinct modulated character (for example, each

audible tone produced by a modem for transmission over telephone lines) is

known as a symbol.

Since more information can be represented by a single character, a higher number

indicates a higher data transfer rate.

2.1.11 TDMA, FDMA AND SCDMA

Time Division Multiple Access (TDMA), Frequency Division Multiple Access (FDMA)

and Synchronous Code Division Multiple Access (SCDMA) are channel access

methods that allow multiple users to share the same frequency channel.



TDMA allows multiple users to share the same frequency channel by splitting

transmissions by time. Each user is allocated a number of time slots, and

transmits during those time slots.



FDMA allows multiple users to share the same frequency channel by assigning a

frequency band within the existing channel to each user.

STATUS

HITRON CGN USER’S GUIDE



SCDMA allows multiple users to share the same frequency channel by assigning

a unique orthogonal code to each user.

2.2 THE SYSTEM INFO SCREEN

Use this screen to see general information about your CGN’s hardware, its software,

and its connection to the Internet.

NOTE: Most of the information that displays in this screen is for troubleshooting

purposes only. However, you may need to use the MAC Address information

when setting up your network.

Click Status > System Info. The following screen displays.

STATUS

HITRON CGN USER’S GUIDE

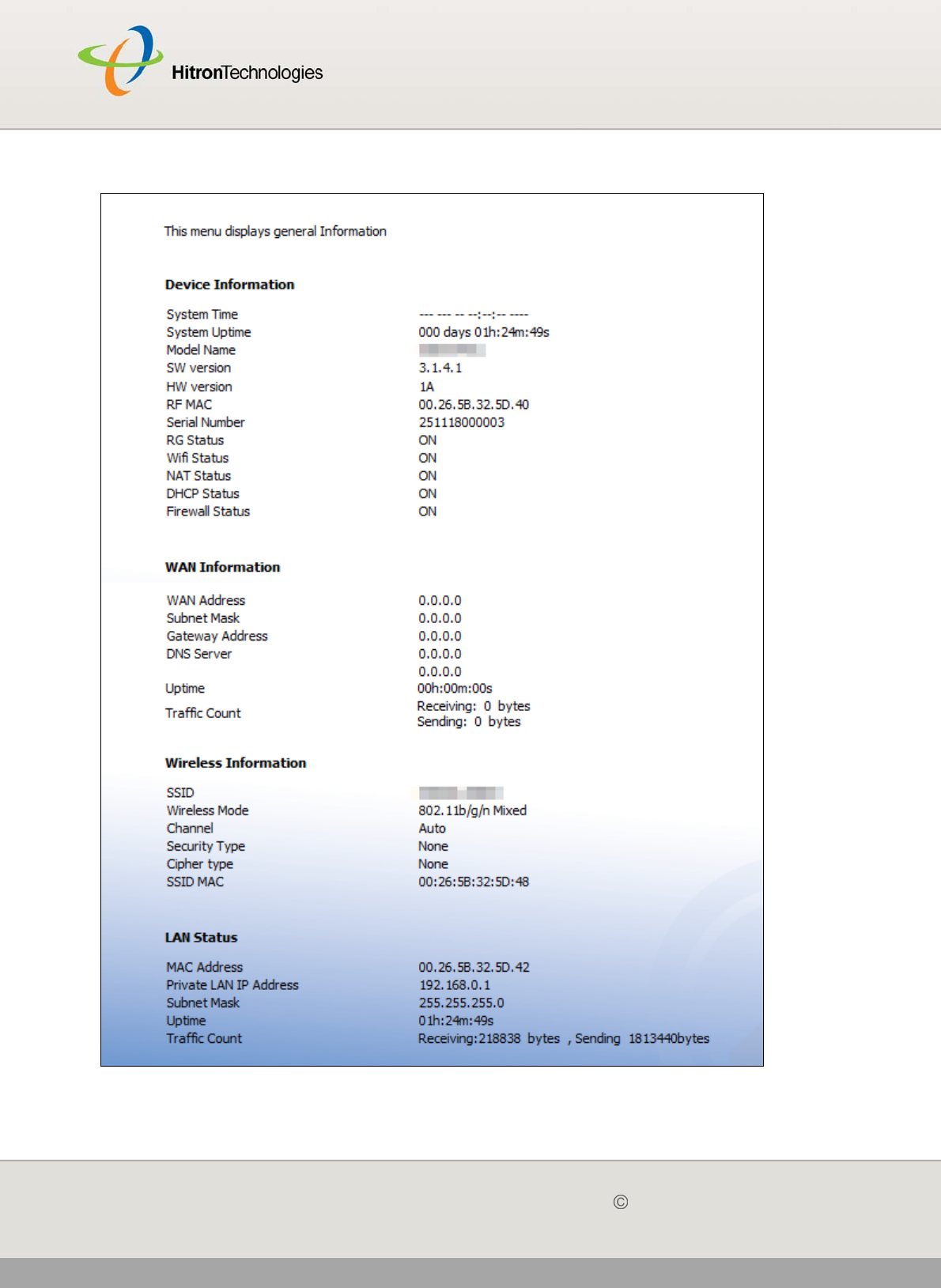

Figure 6: The Status > System Info Screen

STATUS

HITRON CGN USER’S GUIDE

The following table describes the labels in this screen.

Table 8: The Status > System Info Screen

Device Information

System Time This displays the current date and time.

System Uptime This displays the number of days, hours, minutes and

seconds since the CGN was last switched on or rebooted.

Model Name This displays the device’s model name.

SW Version This displays the version number of the software that

controls the CGN.

HW Version This displays the version number of the CGN’s physical

hardware.

RF MAC This displays the Media Access Control (MAC) address of

the CGN’s RF module. This is the module that connects to

the Internet through the CATV connection.

Serial Number This displays a number that uniquely identifies the device.

RG Status This displays whether or not the CGN is in Residential

Gateway (RG) mode.

When the CGN is in Residential Gateway mode, ON

displays. When the CGN is not in Residential Gateway

mode, OFF displays.

Wifi Status This displays whether or not the CGN’s wireless network

is active.

When the CGN’s wireless network is active, ON displays.

When the CGN’s wireless network is not active, OFF

displays.

NAT Status This displays whether or not the CGN’s Network Address

Translation (NAT) feature is active.

When NAT is active, ON displays. When NAT is not active,

OFF displays.

DHCP Status This displays whether or not the CGN’s DHCP server is

active.

When the DHCP server is active, ON displays. When the

DHCP server is not active, OFF displays.

Firewall Status This displays whether or not the CGN’s firewall is active.

When the firewall is active, ON displays. When the firewall

is not active, OFF displays.

STATUS

HITRON CGN USER’S GUIDE

WAN Information

WAN Address This field displays the CGN’s IP address on the WAN

(Wide Area Network) interface.

Subnet Mask This field displays the CGN’s WAN subnet mask.

Gateway Address This field displays the address of the device on the WAN

to which the CGN is connected.

DNS Server This field displays the Domain Name Servers that the

CGN uses to resolve domain names into IP addresses.

Uptime This displays the number of hours, minutes and seconds

that the CGN has been connected to another device over

the WAN interface.

Traffic Count This displays the number of bytes received and sent on

the WAN interface.

Wireless Information

SSID This displays the wireless network’s Service Set Identifier.

This is the name of the wireless network, to which wireless

clients connect.

Wireless Mode This displays the type of wireless network that the CGN is

using.

Channel This displays the wireless channel on which the CGN is

transmitting and receiving.

Security Type This displays the type of security the CGN’s wireless

network is currently using.

Cipher type This displays the type of encryption that the wireless

network’s security is using:



TKIP displays if it is using the Temporal Key Integrity

Protocol.



AES displays if it is using the Advanced Encryption

Standard.



TKIP and AES displays if it allows clients using either

encryption type to connect to the CGN.

SSID MAC This displays the Media Access Control (MAC) address of

the wireless module, to which wireless clients connect.

LAN Status

MAC Address This displays the Media Access Control (MAC) address of

the CGN’s Ethernet module. This is the module to which

you connect through the LAN ports.

Table 8: The Status > System Info Screen (continued)

STATUS

HITRON CGN USER’S GUIDE

2.3 THE INITIALIZATION SCREEN

This screen displays the steps successfully taken to connect to the Internet over the

CABLE connection.

Use this screen for troubleshooting purposes to ensure that the CGN has

successfully connected to the Internet; if an error has occurred you can identify the

stage at which the failure occurred.

NOTE: This screen displays when you first log in to the CGN.

Click Status > Initialization. The following screen displays.

Figure 7: The Status > Initialization Screen

Private LAN IP

Address

This displays the IP address of the CGN’s Ethernet

module. This is the IP address you use to connect with the

CGN’s admin interface via the LAN ports.

Subnet Mask This displays the CGN’s LAN subnet mask.

Uptime This displays the number of hours, minutes and seconds

that the CGN has been connected to another device over

the LAN interface.

Traffic Count This displays the number of bytes received and sent on

the LAN interface.

Table 8: The Status > System Info Screen (continued)

STATUS

HITRON CGN USER’S GUIDE

For each step:



Process displays when the CGN is attempting to complete a connection step.



Success displays when the CGN has completed a connection step.

2.4 THE CM STATUS SCREEN

Use this screen to discover information about:



The nature of the upstream and downstream connection between the CGN and

the device to which it is connected through the CABLE interface.



IP details of the CGN’s WAN connection.

You can also configure the CGN’s downstream center frequency.

Click Status > CM Status. The following screen displays.

STATUS

HITRON CGN USER’S GUIDE

Figure 8: The Status > CM Status Screen

The following table describes the labels in this screen.

Table 9: The Status > CM Status Screen

CM Configuration File

Name

This displays the name of the configuration file that the

CGN downloaded from your service provider. This file

provides the CGN with the service parameter data that it

needs to perform its functions correctly.

Network Access This displays whether or not your service provider allows

you to access the Internet over the CABLE connection.



Permitted displays if you can access the Internet.



Denied displays if you cannot access the Internet.

Tune Channel

STATUS

HITRON CGN USER’S GUIDE

Downstream Frequency This displays the center frequency in Megahertz (MHz)

at which the CGN connects over the CABLE interface.

If you want the CGN to use a different center frequency,

enter it in the field and click Apply.

NOTE: Do not change the frequency unless you have a

good reason to do so.

Upstream ID This displays the ID number of the channel on which the

upstream signal is to be transmitted. When an upstram

connection cannot be made on the specified channel,

the CGN attempts to connect on the next channel.

If you want the CGN to attempt to connect on a different

channel, enter it in the field and click Apply.

NOTE: Do not change the channel unless you have a

good reason to do so.

Downstream

NOTE: The downstream signal is the signal transmitted to the CGN.

Frequency (MHz) This displays the actual frequency in Megahertz (MHz)

of each downstream data channel to which the CGN is

connected.

Modulation This displays the type of modulation that each

downstream channel uses.

Signal Power (dBmV) This displays the power of the signal of each

downstream data channel to which the CGN is

connected, in dBmV (decibels above/below 1 millivolt).

Signal Noise Ratio

(dB)

This displays the Signal to Noise Ratio (SNR) of each

downstream data channel to which the CGN is

connected, in dB (decibels).

Upstream

NOTE: The upstream signal is the signal transmitted from the CGN.

Frequency (Hz) This displays the frequency in Herz (Hz) of each

upstream data channel to which the CGN is connected.

Bandwidth (KSym/

sec)

This displays the bandwidth of each upstream data

channel to which the CGN is connected (in thousands of

symbols per second).

Table 9: The Status > CM Status Screen (continued)

STATUS

HITRON CGN USER’S GUIDE

2.5 THE PASSWORD SCREEN

Use this screen to change the password with which you log in to the CGN.

NOTE: If you forget your password, you will need to reset the CGN to its factory

defaults.

Click Status > Password. The following screen displays.

SCDMA Mode This displays the Synchronous Code Division Multiple

Access (SCDMA) mode of each channel on which the

upstream signal is transmitted.

Signal Power (dBmV) This displays the transmitted power of the signal of each

upstream data channel to which the CGN is connected,

in dBmV (decibels above/below 1 millivolt).

Channel ID This displays the ID number of each channel on which

the upstream signal is transmitted.

Cable Modem IP Information

IP Address This displays the CGN’s WAN IP address. This IP

address is automatically assigned to the CGN

Subnet Mask This displays the CGN’s WAN subnet mask.

Gateway IP This displays the IP address of the device to which the

CGN is connected over the CABLE interface.

DHCP Lease Time This displays the time that elapses before your device’s

IP address lease expires, and a new IP address is

assigned to it by the DHCP server.

Table 9: The Status > CM Status Screen (continued)

STATUS

HITRON CGN USER’S GUIDE

Figure 9: The Status > Password Screen

The following table describes the labels in this screen.

2.6 THE CAPABILITY SCREEN

Use this screen to enable or disable the CGN’s residential gateway and Universal

Plug n Play (UPnP) functions.

Disabling the residential gateway feature sets the unit to use bridge mode only. Use

this mode when your network is already using another router.

Table 10: The Status > Password Screen

Enter Current Password Enter the password with which you currently log into the

CGN

Enter New Password Enter and re-enter the password you want to use to log

into the CGN.

Re-enter New Password

Password Idle Time Enter the number of minutes of inactivity after which you

should be automatically logged out of the CGN. Once

this period elapses, you will need to log in again.

Apply Click this to save your changes to the fields in this

screen.

Cancel Click this to return the fields in this screen to their last-

saved values without saving your changes.

Help Click this to see information about the fields in this

screen.

STATUS

HITRON CGN USER’S GUIDE

Click Status > Capability. The following screen displays.

Figure 10: The Status > Capability Screen

The following table describes the labels in this screen.

Table 11: The Status > Capability Screen

Residential Gateway

function

Select the checkbox to enable the CGN’s residential

gateway features, or deselect the checkbox to disable

them.

UPnP Select the checkbox to enable the CGN’s Universal Plug

n Play features, or deselect the checkbox to disable

them.

HNAP Select the checkbox to enable the CGN’s Home

Network Administration Protocol features, or deselect

the checkbox to disable them.

USB Select the checkbox to enable the CGN’s USB media

sharing capability, or deselect the checkbox to disable

them.

NOTE: This option is available to logged-in MSO users

only.

When you select this checkbox and apply your changes,

the CGN reboots. Once it has successfully rebooted, the

WAN/LAN > Shared Media screen displays in the

cusadmin user interface.

Apply Click this to save your changes to the fields in this

screen.

Cancel Click this to return the fields in this screen to their last-

saved values without saving your changes.

Help Click this to see information about the fields in this

screen.

STATUS

HITRON CGN USER’S GUIDE

WAN/LAN

HITRON CGN USER’S GUIDE

WAN/LAN

This chapter describes the screens that display when you click WAN/LAN in the

toolbar. It contains the following sections:



WAN/LAN Overview on page 45



The IP Screen on page 47



The Shared Media Screen on page 50



The Debug Screen on page 51



The Backup Screen on page 52

3.1 WAN/LAN OVERVIEW

This section describes some of the concepts related to the WAN/LAN screens.

3.1.1 WAN AND LAN

A Local Area Network (LAN) is a network of computers and other devices that usually

occupies a small physical area (a single building, for example). Your CGN’s LAN

consists of all the computers and other networking devices connected to the LAN 1~4

ports. This is your private network (in routing mode - see Routing Mode on page 31).

The LAN is a separate network from the Wide Area Network (WAN). In the case of

the CGN, the WAN refers to all computers and other devices available on the cable

connection.

By default, computers on the WAN cannot identify individual computers on the LAN;

they can see only the CGN. The CGN handles routing to and from individual

computers on the LAN.

WAN/LAN

HITRON CGN USER’S GUIDE

3.1.2 LAN IP ADDRESSES AND SUBNETS

IP addresses on the LAN are controlled either by the CGN’s built-in DHCP server

(see DHCP on page 29), or by you (when you manually assign IP addresses to your

computers).

For more information about IP addresses and subnets in general, see IP Addresses

and Subnets on page 27.

3.1.3 DNS AND DOMAIN SUFFIX

A domain is a location on a network, for instance example.com. On the Internet,

domain names are mapped to the IP addresses to which they should refer by the

Domain Name System. This allows you to enter “www.example.com” into your

browser and reach the correct place on the Internet even if the IP address of the

website’s server has changed.

Similarly, the CGN allows you to define a Domain Suffix to the LAN. When you enter

the domain suffix into your browser, you can reach the CGN no matter what IP

address it has on the LAN.

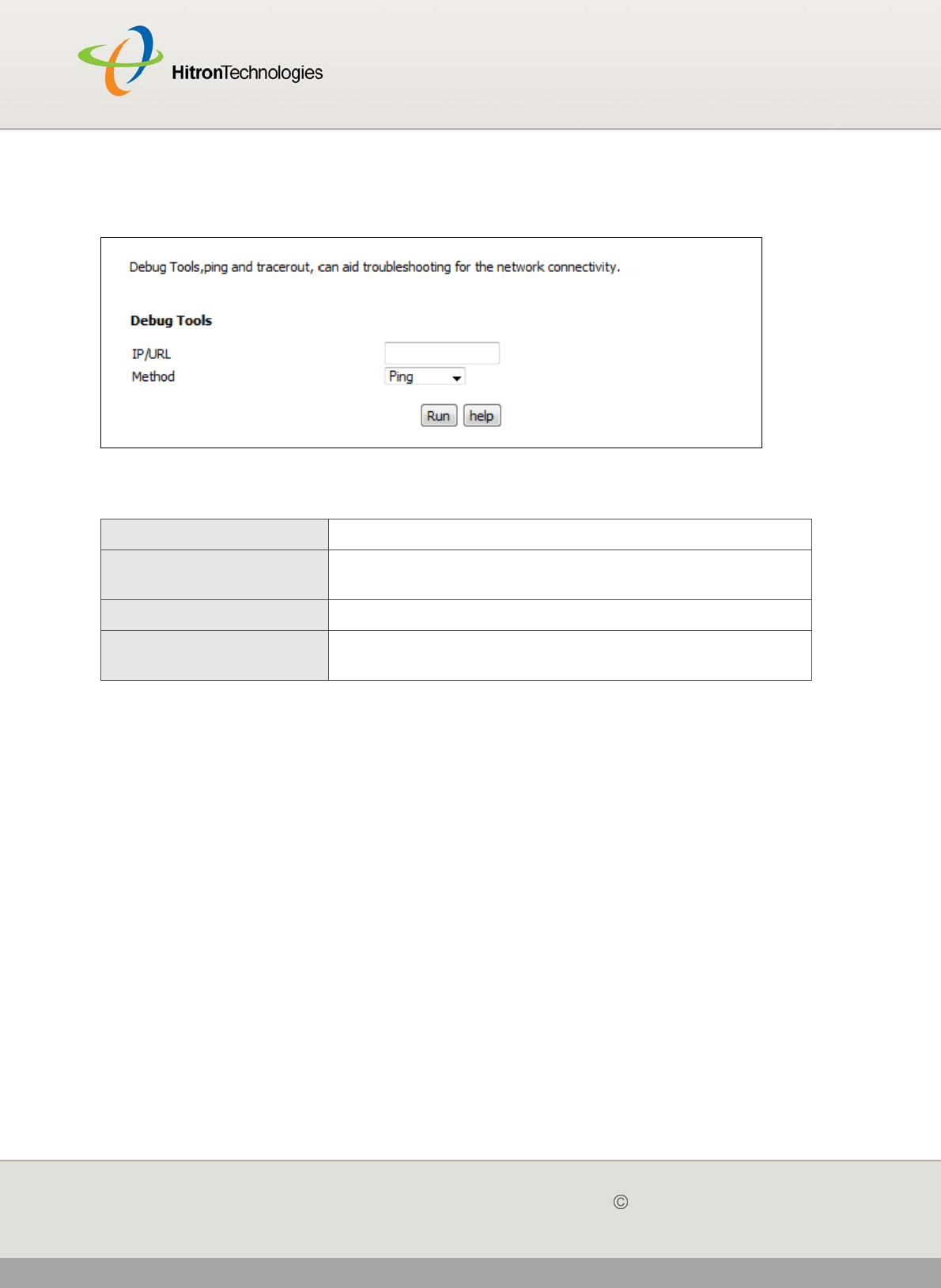

3.1.4 DEBUGGING (PING AND TRACEROUTE)

The CGN provides a couple of tools to allow you to perform network diagnostics on

the LAN:



Ping: this tool allows you to enter an IP address and see if a computer (or other

network device) responds with that address on the network. The name comes

from the pulse that submarine SONAR emits when scanning for underwater

objects, since the process is rather similar. You can use this tool to see if an IP

address is in use, or to discover if a device (whose IP address you know) is

working properly.



Traceroute: this tool allows you to see the route taken by data packets to get

from the CGN to the destination you specify. You can use this tool to solve

routing problems, or identify firewalls that may be blocking your access to a

computer or service.

WAN/LAN

HITRON CGN USER’S GUIDE

3.2 THE IP SCREEN

Use this screen to:



View information about the CGN’s connection to the WAN



Enable or disable manual DNS assignment



Define DNS servers for manual DNS assignment



Configure the CGN’s LAN IP address, subnet mask and domain suffix



Configure the CGN’s internal DHCP server



Define how the CGN assigns IP addresses on the LAN



See information about the network devices connected to the CGN on the LAN.

Click WAN/LAN > IP. The following screen displays.

WAN/LAN

HITRON CGN USER’S GUIDE

Figure 11: The WAN/LAN > IP Screen

The following table describes the labels in this screen.

Table 12: The WAN/LAN > IP Screen

WAN Information

WAN Address This field displays the CGN’s IP address on the WAN

(Wide Area Network) interface.

Subnet Mask This field displays the CGN’s WAN subnet mask.

Gateway Address This field displays the address of the device on the WAN

to which the CGN is connected.

WAN/LAN

HITRON CGN USER’S GUIDE

Assign DNS

Manually



Select the checkbox to enable manual DNS server

assignment, and enter the DNS servers that you want

to use in the DNS Server fields below.



Deslect the checkbox to disable manual DNS server

assignment. The CGN uses the DNS servers assigned

automatically when it receives an IP address over the

WAN.

It is strongly recommended that you do not enable manual

DNS server assignment unless you have good reason to

do so.

DNS Server These fields display the Domain Name Servers that the

CGN uses to resolve domain names into IP addresses.

If you selected the Assign DNS Manually checkbox,

enter the DNS servers that you want to use in these fields.

Private LAN IP Setting

IP Address Use this field to define the IP address of the CGN on the

LAN.

Subnet Mask Use this field to define the LAN subnet. Use dotted

decimal notation (for example, 255.255.255.0).

Domain Suffix Use this field to define the domain that you can enter into a

Web browser (instead of an IP address) to reach the CGN

on the LAN.

It is suggested that you make a note of your device’s

Domain Suffix in case you ever need to access the

CGN’s GUI without knowledge of its IP address.

Private LAN DHCP Setting

Enable LAN DHCP Select this if you want the CGN to provide IP addresses to

network devices on the LAN automatically.

Deselect this if you already have a DHCP server on your

LAN, or if you wish to assign IP addresses to your

computers and other network devices manually.

Lease Time Use this field to define the time after which the CGN

renews the IP addresses of all the network devices

connected to the CGN on the LAN (when DHCP is

enabled).

DHCP Start IP Use this field to specify the IP address at which the CGN

begins assigning IP addresses to devices on the LAN

(when DHCP is enabled).

Table 12: The WAN/LAN > IP Screen (continued)

WAN/LAN

HITRON CGN USER’S GUIDE

3.3 THE SHARED MEDIA SCREEN

Use this screen to manage and share data stored on devices connected to the CGN’s

USB port. The CGN provides one USB 2.0 host port, allowing you to plug in a USB

flash disk for mounting and sharing through the LAN interfaces via the Samba

protocol (network neighborhood).

NOTE: This screen is not available unless a logged-in MSO admin user previously

enabled the USB option in the Status > Capability screen; see The

Capability Screen on page 42 for more information.

Click WAN/LAN > Shared Media. The following screen displays.

DHCP End IP Use this field to specify the IP address at which the CGN

stops assigning IP addresses to devices on the LAN

(when DHCP is enabled).

NOTE: Devices requesting IP addresses once the DHCP

pool is exhausted are not assigned an IP address.

Connected Computers

Host Name This displays the name of each network device connected

on the LAN.

IP Address This displays the IP address of each network device

connected on the LAN.

MAC Address This displays the Media Access Control (MAC) address of

each network device connected on the LAN.

Type This displays whether the device’s IP address was

assigned by DHCP (DHCP-IP), or self-assigned.

Interface This displays whether the device is connected on the LAN

(Ethernet) or the WLAN (Wireless(x), where x denotes

the wireless mode; b, g or n).

Apply Click this to save your changes to the fields in this screen.

Cancel Click this to return the fields in this screen to their last-

saved values without saving your changes.

Help Click this to see information about the fields in this screen.

Table 12: The WAN/LAN > IP Screen (continued)

WAN/LAN

HITRON CGN USER’S GUIDE

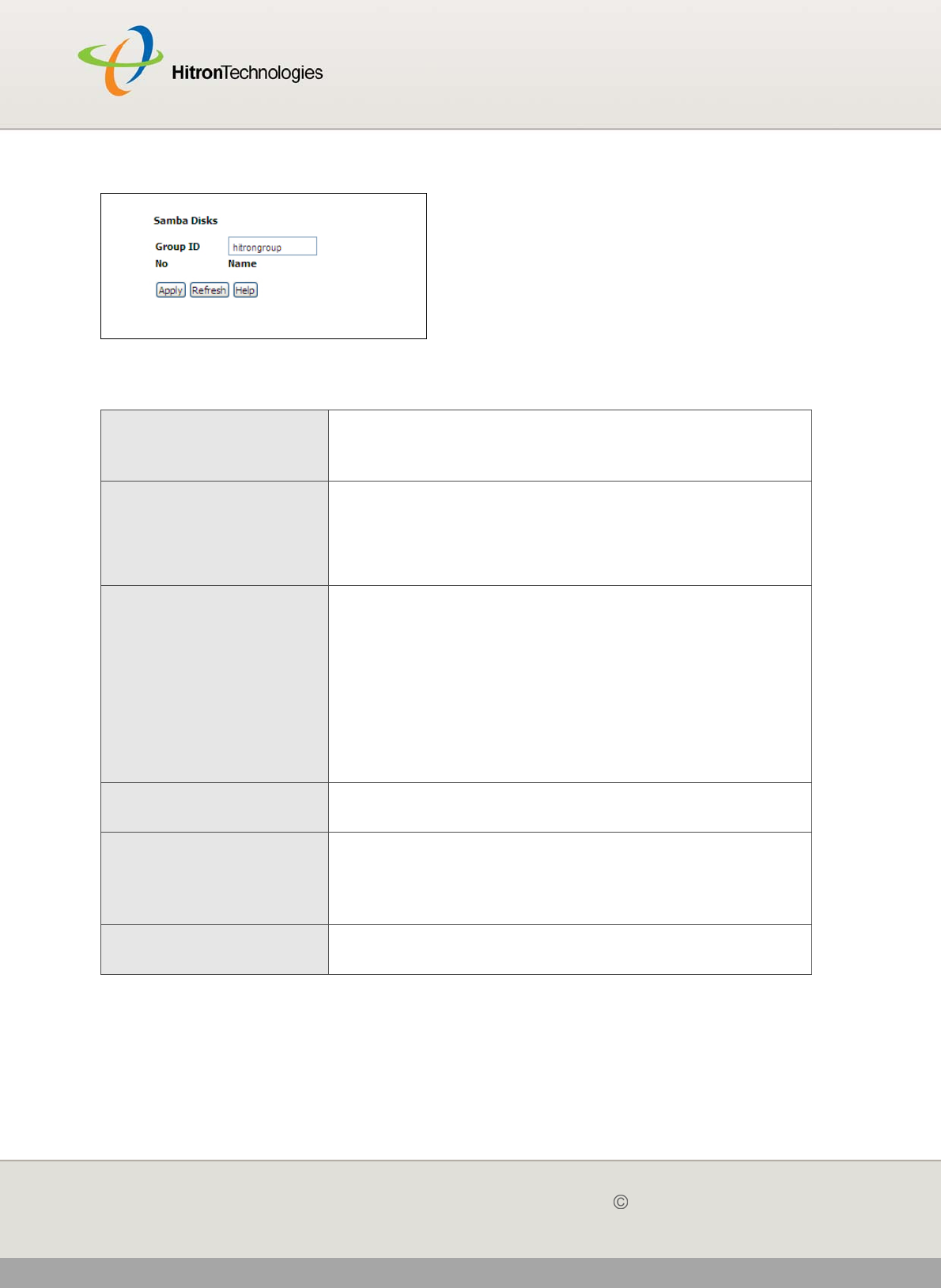

Figure 12: The WAN/LAN > Shared Media Screen

The following table describes the labels in this screen.

3.4 THE DEBUG SCREEN

Use this screen to perform ping and traceroute tests on IP addresses or URLs.

Table 13: The WAN/LAN > Shared Media Screen

Group ID Specify the name of the Network Neighborhood

workgroup whose users may access the shared media

on the USB device.

No. This field displays the index number of the connected

USB device.

When no USB device is connected, no number displays

in this column.

Name This field displays the identifying name of the connected

USB device.



When no USB device is connected, no name

displays in this column.



When a USB device is connected, click its Name to

view the files on the device. These files are shared

with the relevant user group (defined in the Group ID

field).

Apply Click this to save your changes to the fields in this

screen.

Refresh Click this to reload the information in this screen. Do this

if you connect or disconnect a device from the USB port

and the information in this screen does not update

automatically.

Help Click this to see information about the fields in this

screen.

WAN/LAN

HITRON CGN USER’S GUIDE

Click WAN/LAN > Debug. The following screen displays.

Figure 13: The WAN/LAN > Debug Screen

The following table describes the labels in this screen.

3.5 THE BACKUP SCREEN

Use this screen to back up your CGN’s settings to your computer, to load settings

from a backup you created earlier, to reboot your CGN, or to return it to its factory

default settings.

Click WAN/LAN > Backup. The following screen displays.

Table 14: The WAN/LAN > Debug Screen

IP/URL Enter the IP address or URL that you want to test.

Method Select the type of test that you want to run on the IP/

URL that you specified.

Run Click this to perform the test.

Help Click this to see information about the fields in this

screen.

WAN/LAN

HITRON CGN USER’S GUIDE

Figure 14: The WAN/LAN > Backup Screen

The following table describes the labels in this screen.

Table 15: The LAN > Backup Screen

Backup/Restore Setting

Backup Settings

Locally

Click this to create a backup of all your CGN’s settings

on your computer.

Restore Settings

Locally

Use these fields to return your CGN’s settings to those

specified in a backup that you created earlier.

Click Choose File to select a backup, then click

Restore to return your CGN’s settings to those specified

in the backup.

Reboot/Factory Reset

Reboot Click Reboot to restart your CGN.

Factory Reset Click Factory to return your CGN to its factory default

settings.

NOTE: When you do this, all your user-configured

settings are lost, and cannot be retrieved.

Help Click this to see information about the fields in this

screen.

FIREWALL

HITRON CGN USER’S GUIDE

FIREWALL

This chapter describes the screens that display when you click Firewall in the

toolbar. It contains the following sections:



Firewall Overview on page 54



The Firewall Options Screen on page 56



The Filter Setting Screen on page 57



The Forwarding Screen on page 65



The Port Triggering Screen on page 69



The DMZ Screen on page 72

4.1 FIREWALL OVERVIEW

This section describes some of the concepts related to the Firewall screens.

4.1.1 FIREWALL

The term “firewall” comes from a construction technique designed to prevent the

spread of fire from one room to another. Similarly, your CGN’s firewall prevents

intrusion attempts and other undesirable activity originating from the WAN, keeping

the computers on your LAN safe. You can also use filtering techniques to specify the

computers and other devices you want to allow on the LAN, and prevent certain traffic

from going from the LAN to the WAN.

FIREWALL

HITRON CGN USER’S GUIDE

4.1.2 INTRUSION DETECTION SYSTEM

An intrusion detection system monitors network activity, looking for policy violations,

and malicious or suspicious activity. The CGN’s intrusion detection system logs all

such activity to the Firewall > Local Logs screen.

4.1.3 PING

The CGN allows you to use the ping utility on the LAN (in the WAN/LAN > Debug

screen) and also on the WAN (in the Firewall > Firewall Options screen). For more

information, see Debugging (Ping and Traceroute) on page 46.

4.1.4 MAC FILTERING

Every networking device has a unique Media Access Control (MAC) address that

identifies it on the network. When you enable MAC address filtering on the CGN’s

firewall, you can set up a list of MAC addresses, and then specify whether you want

to:



Deny the devices on the list access to the CGN and the network (in which case

all other devices can access the network)



Allow the devices on the list to access the network (in which case no other

devices can access the network)

4.1.5 IP FILTERING

IP filtering allows you to prevent computers on the LAN from sending certain types of

data to the WAN. You can use this to prevent unwanted outgoing communications.

Specify the IP address of the computer on the LAN from which you want to prevent

communications, and specify the port range of the communications you want to

prevent. The CGN discards outgoing data packets that match the criteria you

specified.

FIREWALL

HITRON CGN USER’S GUIDE

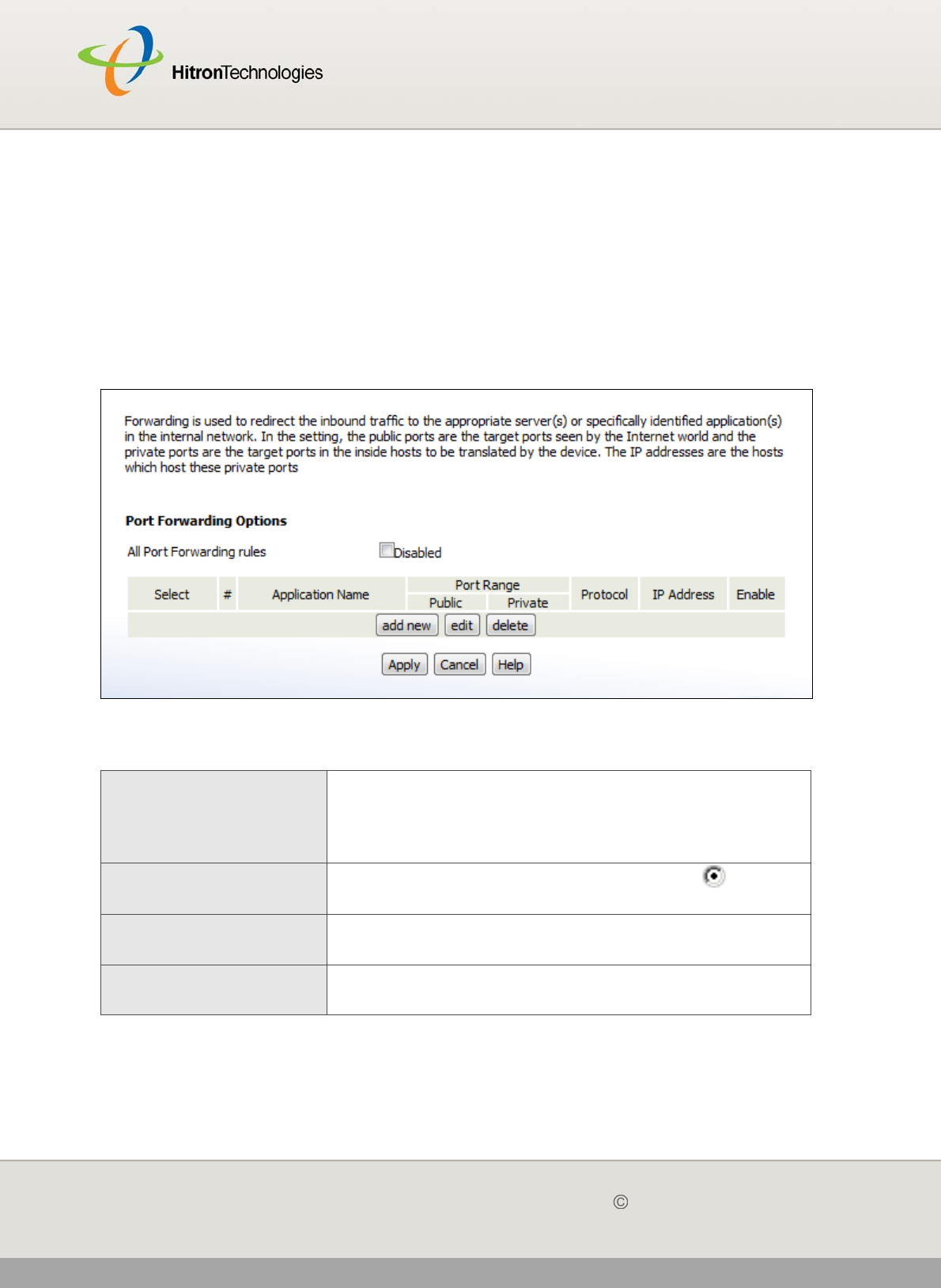

4.1.6 PORT FORWARDING

Port forwarding allows a computer on your LAN to receive specific communications

from the WAN. Typically, this is used to allow certain applications (such as gaming)

through the firewall, for a specific computer on the LAN. Port forwarding is also

commonly used for running a public HTTP server from a private network.

You can set up a port forwarding rule for each application for which you want to open

ports in the firewall. When the CGN receives incoming traffic from the WAN with a

destination port that matches a port forwarding rule, it forwards the traffic to the LAN

IP address and port number specified in the port forwarding rule.

NOTE: For information on the ports you need to open for a particular application,

consult that application’s documentation.

4.1.7 PORT TRIGGERING

Port triggering is a means of automating port forwarding. The CGN scans outgoing

traffic (from the LAN to the WAN) to see if any of the traffic’s destination ports match

those specified in the port triggering rules you configure. If any of the ports match, the

CGN automatically opens the incoming ports specified in the rule, in anticipation of

incoming traffic.

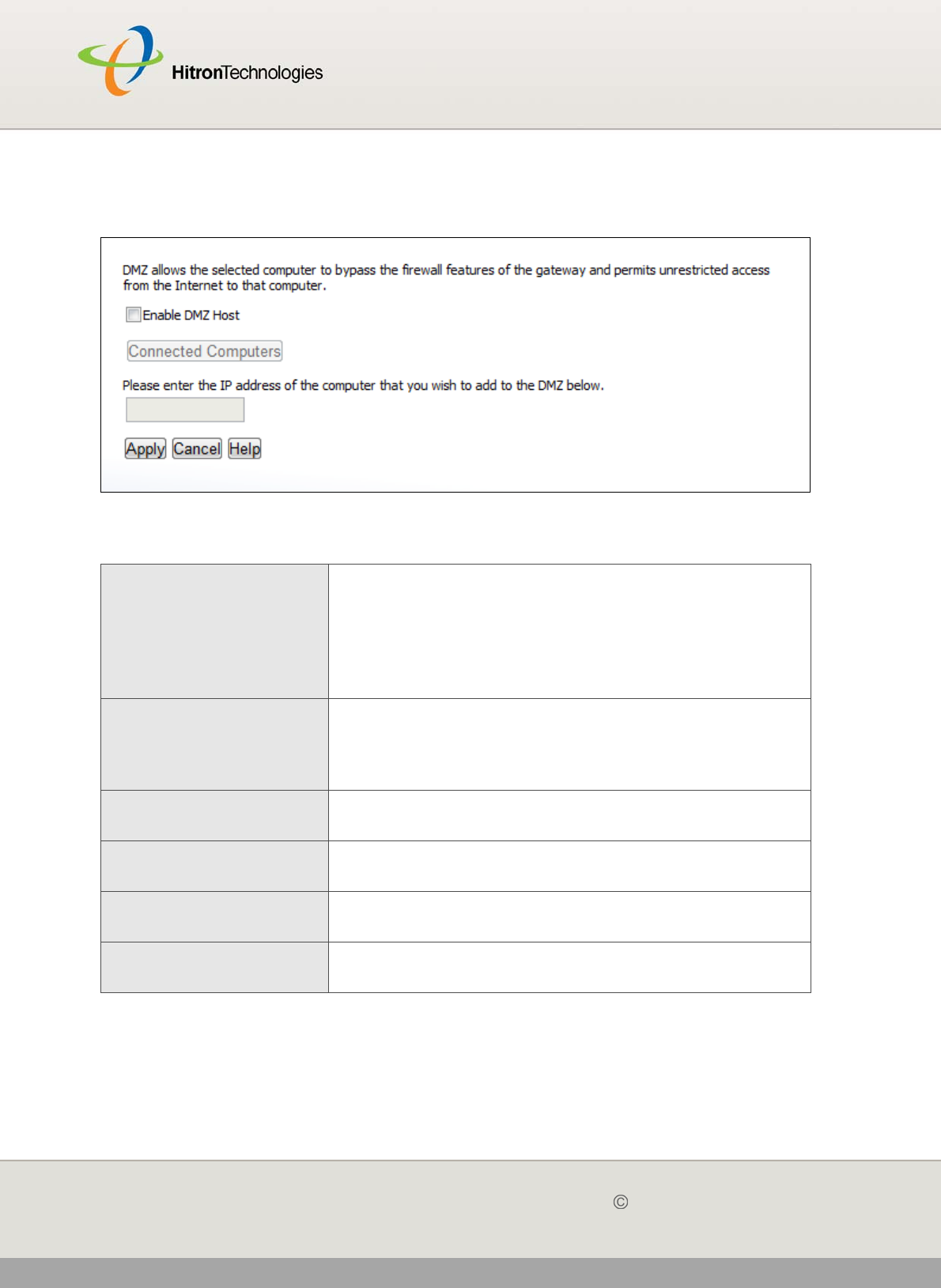

4.1.8 DMZ

In networking, the De-Militarized Zone (DMZ) is a part of your LAN that has been

isolated from the rest of the LAN, and opened up to the WAN. The term comes from

the military designation for a piece of territory, usually located between two opposing

forces, that is isolated from both and occupied by neither.

4.2 THE FIREWALL OPTIONS SCREEN

Use this screen to turn firewall features on or off. You can enable or disable the

CGN’s intrusion detection system, and allow or prevent responses to ICMP requests

from the WAN.

Click Firewall > Firewall Options. The following screen displays.

FIREWALL

HITRON CGN USER’S GUIDE

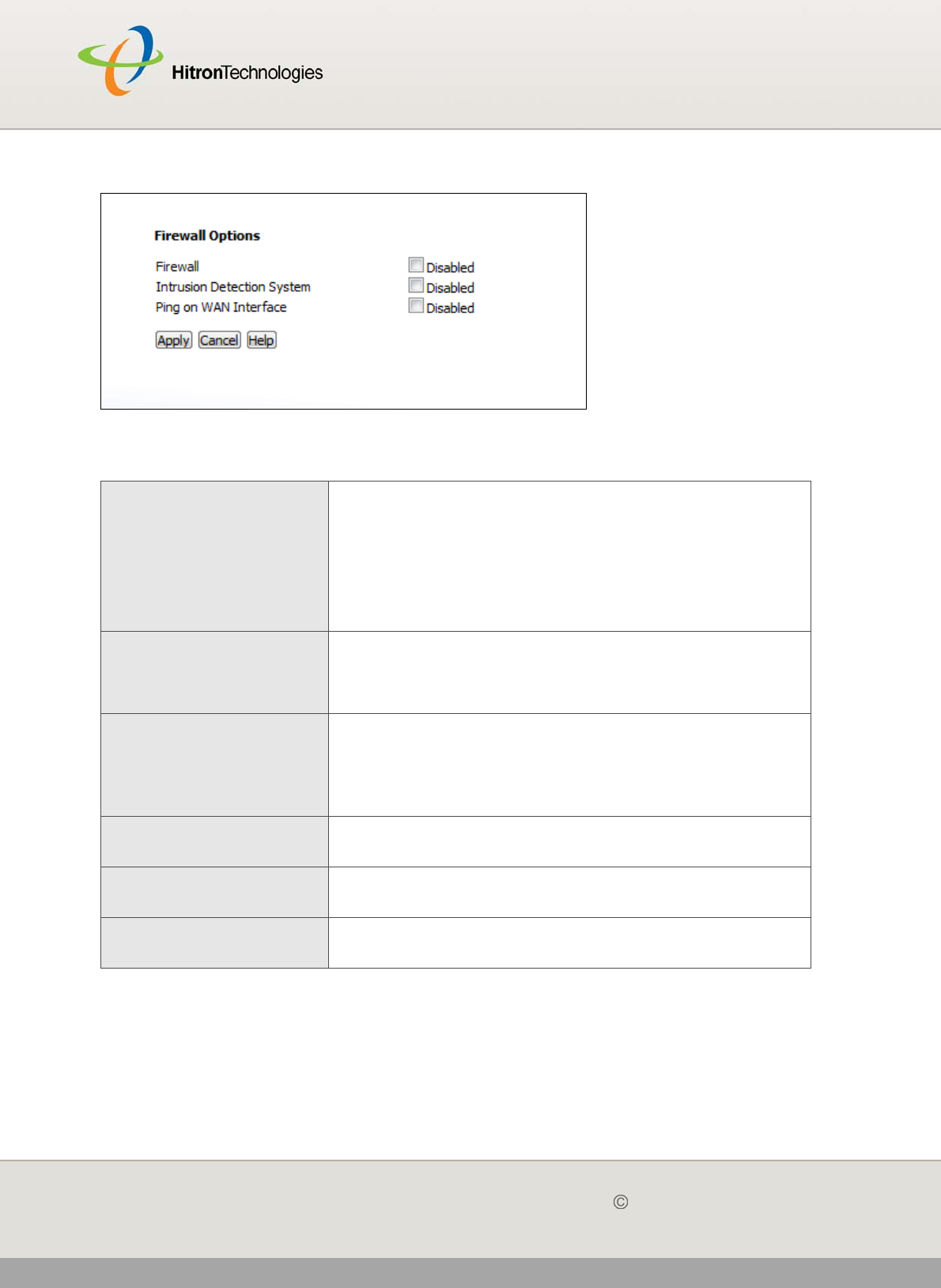

Figure 15: The Firewall > Firewall Options Screen

The following table describes the labels in this screen.

4.3 THE FILTER SETTING SCREEN

Use this screen to configure Media Access Control (MAC) address filtering on the

LAN, and to configure IP filtering.

Table 16: The Firewall > Firewall Options Screen

Firewall



Select this to turn the firewall on.



Deselect this to turn the firewall off.

NOTE: It is strongly recommended that you enable the

CGN's firewall unless LAN protection is provided

by another device or software.

Intrusion Detection

System



Select this to turn the intrusion detection system off.



Deselect this to turn the intrusion detection system

on.

Ping on WAN Interface



Select this to prevent responses to ICMP requests

originating from the WAN.



Select this to allow responses to ICMP requests

originating from the WAN.

Apply Click this to save your changes to the fields in this

screen.

Cancel Click this to return the fields in this screen to their last-

saved values without saving your changes.

Help Click this to see information about the fields in this

screen.

FIREWALL

HITRON CGN USER’S GUIDE

NOTE: To configure MAC address filtering on the wireless network, see The Access

Control Screen on page 93.

You can set the CGN to allow only certain devices to access the CGN and the

network, or to deny certain devices access.

NOTE: To see a list of all the computers connected to the CGN on the LAN, click the

Connected Computers button in the Firewall > IP Filtering, Forwarding,

Port Triggering or Firewall Options screens.

You can turn IP filtering on or off, and configure new and existing IP filtering rules.

Click Firewall > Filter Setting. The following screen displays.

FIREWALL

HITRON CGN USER’S GUIDE

Figure 16: The Firewall > Filter Setting Screen

FIREWALL

HITRON CGN USER’S GUIDE

The following table describes the labels in this screen.

Table 17: The Firewall > Filter Setting Screen

MAC Filter Options

MAC Filter Options Use this field to control whether the CGN performs MAC

filtering.



Select Allow-All to turn MAC filtering off. All devices

may access the CGN and the network.



Select Allow to permit only devices with the MAC

addresses you set up in the Allow Table to access the

CGN and the network. All other devices are denied

access.



Select Deny to permit all devices except those with the

MAC addresses you set up in the Deny Table to

access the CGN and the network. The specified

devices are denied access.

Allow Table (up to 16 Items)

# This displays the index number assigned to the permitted

device.

Device Name This displays the name you gave to the permitted device.

MAC Address This displays the MAC address of the permitted device.

Delete Select a permitted device’s radio button ( ) and click this

to remove the device from the list. The device may no

longer access the CGN and the network.

NOTE: Make sure you do not delete your management

computer from the list; if you do so, you will need

to log back in from another computer, or reset the

CGN.

Deny Table (up to 16 Items)

# This displays the index number assigned to the denied

device.

Device Name This displays the name you gave to the denied device.

MAC Address This displays the MAC address of the denied device.

Delete Select a denied device’s radio button ( ) and click this to

remove the device from the list. The device may now

access the CGN and the network.

Auto-Learned LAN Devices

FIREWALL

HITRON CGN USER’S GUIDE

Device Name This displays the name of each network device that has

connected to the CGN on the LAN. To change the name

assigned to a device, edit it in the relevant field.

MAC Address This displays the MAC address of each network device

that has connected to the CGN on the LAN.

Type Use this field to specify the list to which you want to add

the device.



Select Allow to add the device to the Allow Table.



Select Deny to add the device to the Deny Table.

Manually-Added LAN Devices

Device Name Enter the name to associate with a network device that

you want to permit or deny access to the CGN and the

network.

NOTE: This name is arbitrary, and does not affect

functionality in any way.

MAC Address Specify the MAC address of the network device that you

want to permit or deny access to the CGN and the

network.

Type Use this field to specify the list to which you want to add

the device.



Select Allow to add the device to the Allow Table.



Select Deny to add the device to the Deny Table.

Add Click this to add the device to the list you specified.

Cancel Click this to clear the Manually-Added LAN Devices

fields.

Apply Click this to save your changes to the fields in the Mac

Filter tables.

Cancel Click this to return the fields in the Mac Filter tables to

their last-saved values without saving your changes.

Help Click this to see information about the fields in this screen.

IP Filtering Options

Table 17: The Firewall > Filter Setting Screen (continued)

FIREWALL

HITRON CGN USER’S GUIDE

All IP Filtering Rules Use this to turn IP filtering on or off.



Deselect the checkbox to enable IP filtering.



Select the checkbox to disable IP filtering (default).

NOTE: You can add, edit or delete IP filtering rules only

when this checkbox is deselected.

Select Select an IP filtering rule’s radio button ( ) before

clicking Edit or Delete.

# This displays the arbitrary identification number assigned

to the IP filtering rule.

Application Name This displays the arbitrary name you assigned to the rule

when you create it.

Port Range This displays the start and end values of the ports to which

communications from the specified IP addresses is not

permitted.

Protocol This displays the type of communications that are not

permitted:



TCP displays if communications via the Transmission

Control Protocol are not permitted.



UDP displays if communications via the User

Datagram Protocol are not permitted.



TCP/UDP displays if communications via the

Transmission Control Protocol and the User Datagram

Protocol are not permitted.

IP Address Range This displays the start and end IP address from which

communications to the specified ports are not permitted.

Enable Use this field to turn each IP filtering rule on or off.



Select this checkbox to enable the IP filtering rule.



Deselect this checkbox to disable the IP filtering rule.

Add New Click this to define a new IP filtering rule. See Adding or

Editing an IP Filtering Rule on page 63 for information on

the screen that displays.

Edit Select an IP filtering rule’s radio button ( ) and click this

to make changes to the rule. See Adding or Editing an IP

Filtering Rule on page 63 for information on the screen

that displays.

Table 17: The Firewall > Filter Setting Screen (continued)

FIREWALL

HITRON CGN USER’S GUIDE

4.3.1 ADDING OR EDITING AN IP FILTERING RULE



To add a new IP filtering rule, click Add in the Firewall > Filter Setting screen’s

IP Filtering Options section.



To edit an existing IP filtering rule, select the rule’s radio button ( ) in the

Firewall > Filter Setting screen’s IP Filtering Options section and click the

Edit button.

NOTE: Ensure that the Disabled checkbox is deselected in order to add or edit IP

filtering rules.

The following screen displays.

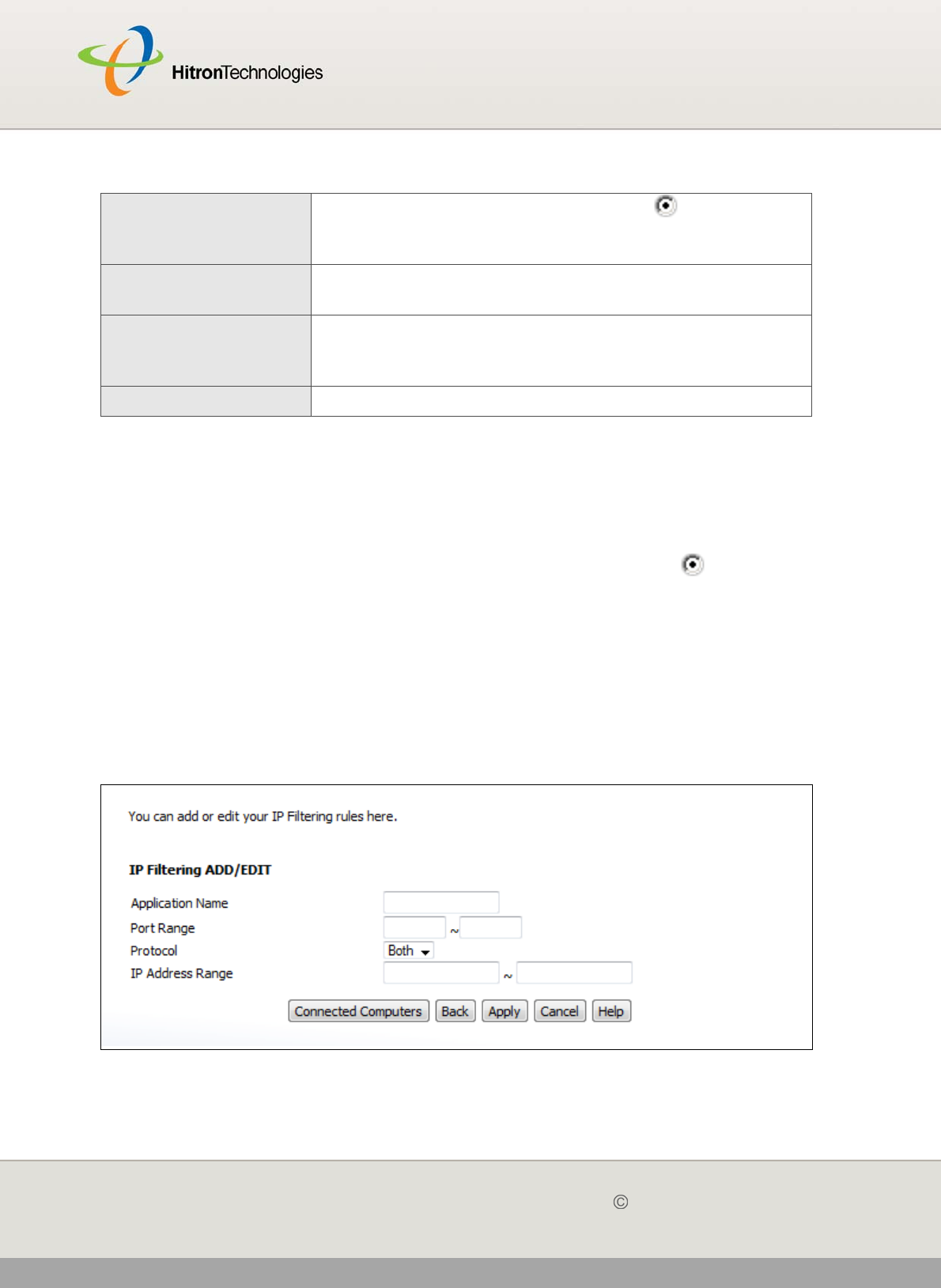

Figure 17: The Firewall > Filter Settings > Add/Edit Screen

Delete Select an IP filtering rule’s radio button ( ) and click this

to remove the rule. The deleted rule’s information cannot

be retrieved.

Apply Click this to save your changes to the fields in the IP

Filtering Options section.

Cancel Click this to return the fields in the IP Filtering Options

section to their last-saved values without saving your

changes.

Help Click this to see information about the fields in this screen.

Table 17: The Firewall > Filter Setting Screen (continued)

FIREWALL

HITRON CGN USER’S GUIDE

The following table describes the labels in this screen.

Table 18: The Firewall > Filter Settings > Add/Edit Screen

Application Name Enter a name for the application that you want to block.

NOTE: This name is arbitrary, and does not affect

functionality in any way.

Port Range Use these fields to specify the target port range to which

communication should be blocked.

Enter the start port number in the first field, and the end

port number in the second field.

To specify only a single port, enter its number in both

fields.

Protocol Use this field to specify whether the CGN should block

communication via:



Transmission Control Protocol (TCP)



User Datagram Protocol (UDP)



Both TCP and UDP.

NOTE: If in doubt, leave this field at its default (Both).

IP Address Range Use these fields to specify the range of local computers’

IP addresses from which communications should be

blocked.

Enter the start IP address in the first field, and the end IP

address in the second.

To specify only a single IP address, enter it in both fields.

Connected Computers Click this to see a list of the computers currently

connected to the CGN on the LAN.

Back Click this to return to the Firewall > Filter Settings

screen without saving your changes to the IP filtering

rule.

Apply Click this to save your changes to the fields in this

screen.

Cancel Click this to return the fields in this screen to their last-

saved values without saving your changes.

Help Click this to see information about the fields in this

screen.

FIREWALL

HITRON CGN USER’S GUIDE

4.4 THE FORWARDING SCREEN

Use this screen to configure port forwarding between computers on the WAN and

computers on the LAN. You can turn port forwarding on or off and configure new and

existing port forwarding rules.

Click Firewall > Forwarding. The following screen displays.

Figure 18: The Firewall > Forwarding Screen

The following table describes the labels in this screen.

Table 19: The Firewall > Forwarding Screen

All Port Forwarding Rules Use this field to turn port forwarding on or off.



Select the checkbox to enable port forwarding.



Deselect the checkbox to disable port forwarding.

Select Select a port forwarding rule’s radio button ( ) before

clicking Edit or Delete.

# This displays the arbitrary identification number

assigned to the port forwarding rule.

Application Name This displays the arbitrary name you assigned to the rule

when you created it.

FIREWALL

HITRON CGN USER’S GUIDE

Port Range These fields display the ports to which the rule applies:



The Public field displays the incoming port range.

These are the ports on which the CGN received

traffic from the originating host on the WAN.



The Private field displays the port range to which the

CGN forwards traffic to the device on the LAN.

Protocol This field displays the protocol or protocols to which this

rule applies:



Transmission Control Protocol (TCP)



User Datagram Protocol (UDP)



Transmission Control Protocol and User Datagram

Protocol (TCP/UDP)



Generic Routing Encapsulation (GRE)



Encapsulating Security Protocol (ESP)

IP Address This displays the IP address of the computer on the LAN

to which traffic conforming to the Public Port Range

and Protocol conditions is forwarded.

Enable Use this field to turn each port forwarding rule on or off.



Select this checkbox to enable the port forwarding

rule.



Deselect this checkbox to disable the port forwarding

rule.

Add New Click this to define a new port forwarding rule. See

Adding or Editing a Port Forwarding Rule on page 67 for

information on the screen that displays.

Edit Select a port forwarding rule’s radio button ( ) and

click this to make changes to the rule. See Adding or

Editing a Port Forwarding Rule on page 67 for

information on the screen that displays.

Delete Select a port forwarding rule’s radio button ( ) and

click this to remove the rule. The deleted rule’s

information cannot be retrieved.

Apply Click this to save your changes to the fields in this

screen.

Table 19: The Firewall > Forwarding Screen (continued)

FIREWALL

HITRON CGN USER’S GUIDE

4.4.1 ADDING OR EDITING A PORT FORWARDING RULE



To add a new port forwarding rule, click Add in the Firewall > Forwarding

screen.



To edit an existing port forwarding rule, select the rule’s radio button ( ) in the

Firewall > Forwarding screen and click the Edit button.

NOTE: Ensure that the Disabled checkbox is disabled in order to add or edit port

forwarding rules.

The following screen displays.

Figure 19: The Firewall > Forwarding > Add/Edit Screen

Cancel Click this to return the fields in this screen to their last-

saved values without saving your changes.

Help Click this to see information about the fields in this

screen.

Table 19: The Firewall > Forwarding Screen (continued)

FIREWALL

HITRON CGN USER’S GUIDE

The following table describes the labels in this screen.

Table 20: The Firewall > Forwarding > Add/Edit Screen

Application Name Enter a name for the application for which you want to

create the rule.

NOTE: This name is arbitrary, and does not affect

functionality in any way.

Public Port Range Use these fields to specify the incoming port range.

These are the ports on which the CGN received traffic

from the originating host on the WAN.

Enter the start port number in the first field, and the end

port number in the second field.

To specify only a single port, enter its number in both

fields.

Private Port Range Use these fields to specify the ports to which the

received traffic should be forwarded.

Enter the start port number in the first field. The number

of ports must match that specified in the Public Port

Range, so the CGN completes the second field

automatically.

Protocol Use this field to specify whether the CGN should forward

traffic via:



Transmission Control Protocol (TCP)



User Datagram Protocol (UDP)



Transmission Control Protocol and User Datagram

Protocol (TCP/UDP)



Generic Routing Encapsulation (GRE)



Encapsulating Security Protocol (ESP)

NOTE: If in doubt, leave this field at its default (TCP/

UDP).

IP Address Use this field to enter the IP address of the computer on

the LAN to which you want to forward the traffic.

Connected Computers Click this to see a list of the computers currently

connected to the CGN on the LAN.

Back Click this to return to the Firewall > Forwarding screen

without saving your changes to the port forwarding rule.

FIREWALL

HITRON CGN USER’S GUIDE

4.5 THE PORT TRIGGERING SCREEN

Use this screen to configure port triggering. You can turn port triggering on or off and

configure new and existing port triggering rules.

Click Firewall > Port Triggering. The following screen displays.

Figure 20: The Firewall > Port Triggering Screen

The following table describes the labels in this screen.

Apply Click this to save your changes to the fields in this

screen.

Cancel Click this to return the fields in this screen to their last-

saved values without saving your changes.

Help Click this to see information about the fields in this

screen.

Table 21: The Firewall > Port Triggering Screen

All Port Triggering Rules Use this field to turn port triggering on or off.



Select the checkbox to enable port triggering.



Deselect the checkbox to disable port triggering.

Select Select a port triggering rule’s radio button ( ) before

clicking Edit or Delete.

# This displays the arbitrary identification number

assigned to the port triggering rule.

Table 20: The Firewall > Forwarding > Add/Edit Screen

FIREWALL

HITRON CGN USER’S GUIDE

Application Name This displays the arbitrary name you assigned to the

rule when you created it.

Port Range These fields display the ports to which the rule applies:



The Trigger field displays the range of outgoing

ports. When the CGN detects activity (outgoing

traffic) on these ports from computers on the LAN, it

automatically opens the Target ports.



The Target field displays the range of triggered

ports. These ports are opened automatically when

the CGN detects activity on the Trigger ports from

computers on the LAN.

Protocol This displays the protocol of the port triggering rule.

Timeout (ms) This displays the time (in milliseconds) after the CGN

opens the Target ports that it should close them.

Enable Use this field to turn each port triggering rule on or off.



Select this checkbox to enable the port triggering

rule.



Deselect this checkbox to disable the port triggering

rule.

Add New Click this to define a new port triggering rule. See

Adding or Editing a Port Triggering Rule on page 71 for

information on the screen that displays.

Edit Select a port triggering rule’s radio button ( ) and click

this to make changes to the rule. See Adding or Editing

a Port Triggering Rule on page 71 for information on the

screen that displays.

Delete Select a port triggering rule’s radio button ( ) and click

this to remove the rule. The deleted rule’s information

cannot be retrieved.

Apply Click this to save your changes to the fields in this

screen.

Cancel Click this to return the fields in this screen to their last-

saved values without saving your changes.

Help Click this to see information about the fields in this

screen.

Table 21: The Firewall > Port Triggering Screen

FIREWALL

HITRON CGN USER’S GUIDE

4.5.1 ADDING OR EDITING A PORT TRIGGERING RULE



To add a new port triggering rule, click Add in the Firewall > Port Triggering

screen.



To edit an existing port triggering rule, select the rule’s radio button ( ) in the

Firewall > Port Triggering screen and click the Edit button.

The following screen displays.

Figure 21: The Firewall > Port Triggering > Add/Edit Screen

The following table describes the labels in this screen.

Table 22: The Firewall > Port Triggering > Add/Edit Screen

Application Name Enter a name for the application for which you want to

create the rule.

NOTE: This name is arbitrary, and does not affect

functionality in any way.

Trigger Port Range Use these fields to specify the trigger ports. When the

CGN detects activity on any of these ports originating

from a computer on the LAN, it automatically opens the

Target ports in expectation of incoming traffic.

Enter the start port number in the first field, and the end

port number in the second field.

To specify only a single port, enter its number in both

fields.

FIREWALL

HITRON CGN USER’S GUIDE

4.6 THE DMZ SCREEN

Use this screen to configure your network’s Demilitarized Zone (DMZ).

NOTE: Only one device can be on the DMZ at a time.

Target Port Range Use these fields to specify the target ports. The CGN

opens these ports in expectation of incoming traffic

whenever it detects activity on any of the Trigger ports.

The incoming traffic is forwarded to these ports on the

computer connected to the LAN.

Enter the start port number in the first field, and the end

port number in the second field.

To specify only a single port, enter its number in both

fields.

Protocol Use this field to specify whether the CGN should activate

this trigger when it detects activity via:



Transmission Control Protocol (TCP)



User Datagram Protocol (UDP)



Transmission Control Protocol and User Datagram

Protocol (Both)

NOTE: If in doubt, leave this field at its default (Both).

Timeout (ms) Enter the time (in milliseconds) after the CGN opens the

Target ports that it should close them.

Connected Computers Click this to see a list of the computers currently

connected to the CGN on the LAN.

Back Click this to return to the Firewall > Forwarding screen

without saving your changes to the port forwarding rule.

Apply Click this to save your changes to the fields in this

screen.

Cancel Click this to return the fields in this screen to their last-

saved values without saving your changes.

Help Click this to see information about the fields in this

screen.

Table 22: The Firewall > Port Triggering > Add/Edit Screen

FIREWALL

HITRON CGN USER’S GUIDE

Click Firewall > DMZ. The following screen displays.

Figure 22: The Firewall > DMZ Screen

The following table describes the labels in this screen.

Table 23: The Firewall > DMZ Screen

Enable DMZ Host Use this field to turn the DMZ on or off.



Select the checkbox to enable the DMZ.



Deselect the checkbox to disable the DMZ.

Computers that were previously in the DMZ are now

on the LAN.

Connected Computers Click this to see a list of the computers currently

connected to the CGN on the LAN. To add a connected

computer to the DMZ, click its Add button and click

Apply in the screen that displays.

[...] IP Address [...] Enter the IP address of the computer that you want to

add to the DMZ.

Apply Click this to save your changes to the fields in this

screen.

Cancel Click this to return the fields in this screen to their last-

saved values without saving your changes.

Help Click this to see information about the fields in this

screen.

PARENTAL CONTROL

HITRON CGN USER’S GUIDE

PARENTAL CONTROL

This chapter describes the screens that display when you click Parent Control in the

toolbar. It contains the following sections:



Parental Control Overview on page 74



The Website Blocking Screen on page 75



The Scheduling Screen on page 77



The Email / Syslog Alert Screen on page 79

5.1 PARENTAL CONTROL OVERVIEW

This section describes some of the concepts related to the Parental Control

screens.

5.1.1 WEBSITE BLOCKING

The Parental Control screens allow you to block access from computers on the LAN

to certain websites, or websites whose URLs (website addresses) contain the

keywords you specify.

You can also specify “trusted” computers, which should be exempted from website

blocking, and you can schedule website blocking so that it is only in effect at certain

times (evenings and weekends, for example).

PARENTAL CONTROL

HITRON CGN USER’S GUIDE

5.2 THE WEBSITE BLOCKING SCREEN

Use this screen to block access from the LAN to certain websites. You can also

specify trusted computers, which are not subject to the blocking filter.

NOTE: To apply the blocking filter only at certain times, use the Parental Control >

Scheduling screen.

Click Parental Control > Web Site Blocking. The following screen displays.

Figure 23: The Parental Control > Web Site Blocking Screen

PARENTAL CONTROL

HITRON CGN USER’S GUIDE

The following table describes the labels in this screen.

Table 24: The Parental Control > Web Site Blocking Screen

Web Site Blocking Options

Enable Web Site

Blocking

Use this field to turn web site blocking on or off.



Select the checkbox to enable web site blocking.



Deselect the checkbox to disable web site blocking.

New Key Word/URL

Blocking

Use these fields to configure the websites to which users

on the LAN are denied access:



Enter a URL (for example, “www.example.com”) to

block access to that website only.



Enter a keyword (for example, “example”) to block

access to all websites that contain the keyword in

their URL (for example, “www.example.com”,

“www.example.org”, “www.someotherwebsite.com/

example” and so forth).

Click Add to add the URL or keyword to the Blocked

Key Words/URLs list.

Blocked Key Words/

URLs

This displays the list of websites and keywords to which

users on the LAN are denied access.



Select a URL or keyword and click Remove to delete

it from the list.



Click Clear List to delete all the URLs and keywords

from the list.

Trusted Computers

New Computer MAC

Address

Enter a computer’s Media Access Control (MAC)

address and click Add to include it in the trusted

computer list.

Trusted Computer

List

This displays a list of the computers which are exempt

from the website blocking filter, identified by their MAC

addresses.

Connected

Computers

Click this to see a list of the computers that are currently

connected to the CGN. To add a computer to the New

Computer MAC Address field, select its Add checkbox

and click Apply in the screen that displays.

Remove Select a computer’s MAC address from the Connected

Computers list and click this to delete it from the list.

PARENTAL CONTROL

HITRON CGN USER’S GUIDE

5.3 THE SCHEDULING SCREEN

Use this screen to control when the website blocking filter should be in effect.

NOTE: To configure the website blocking filter, use the Parent Control > Web Site

Blocking screen.

Click Parent Control > Scheduling. The following screen displays.

Clear List Click this to delete all the computers’ MAC addresses

from the list.

Apply Click this to save your changes to the fields in this

screen.

Cancel Click this to return the fields in this screen to their last-

saved values without saving your changes.

Help Click this to see information about the fields in this

screen.

Table 24: The Parental Control > Web Site Blocking Screen (continued)

PARENTAL CONTROL

HITRON CGN USER’S GUIDE

Figure 24: The Parental Control > Scheduling Screen

The following table describes the labels in this screen.

Table 25: The Parental Control > Scheduling Screen

Days of the Week Select the days of the week on which you want the

website blocking filter to be in effect.

Time of Day Use these fields to control the time that the website

blocking filter should be in effect:



Select All Day to apply the website blocking filter at

all times.



To apply the website blocking filter only at certain

times of day, deselect All Day. Use the Start fields

to define the time that the filter should come into

effect, and use the End fields to define the time that

the filter should cease being in effect.

Apply Click this to save your changes to the fields in this

screen.

PARENTAL CONTROL

HITRON CGN USER’S GUIDE

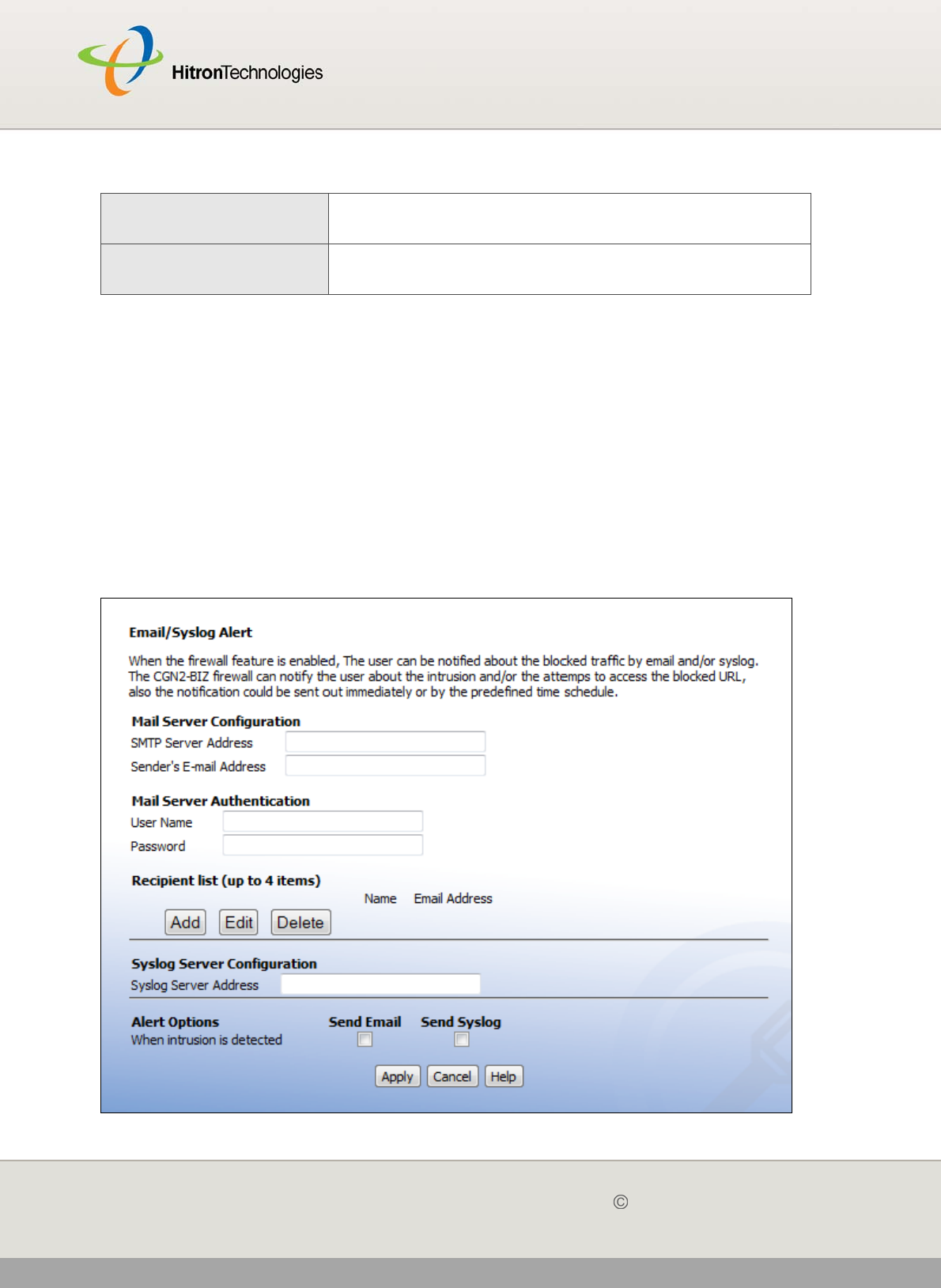

5.4 THE EMAIL / SYSLOG ALERT SCREEN

Use this screen to forward information to a target email address or system log each

time the firewall alert is triggered, and to define the time at which emails should be

sent and/or log entries created.

The firewall must be enabled for alerts to be triggered.

Click Parent Control > Email/Syslog Alert. The following screen displays.

Figure 25: The Parental Control > Email / Syslog Alert Screen

Cancel Click this to return the fields in this screen to their last-

saved values without saving your changes.

Help Click this to see information about the fields in this

screen.

Table 25: The Parental Control > Scheduling Screen (continued)

PARENTAL CONTROL

HITRON CGN USER’S GUIDE

The following table describes the labels in this screen.

Table 26: The Parental Control > Email / Syslog Alert Screen

Mail Server Configuration Use this section to define the location of the transmitting

email server, and the email address from which admin

emails appear to originate.

SMTP Server

Address

Enter the address of the email server from which admin

emails should be sent.

Sender’s Email

Address

Enter the email address from which admin emails

should appear to originate.

Mail Server

Authentication

Use this section to enter the user credentials for the

defined email server.

User Name Enter the user name for your account on the defined

email server.

Password Enter the password associated with the above user

name.

PARENTAL CONTROL

HITRON CGN USER’S GUIDE

Recipient List (up to 4

items)

Use this section to define up to four target email address

to which admin emails will be sent.



To enter a new target email address, click Add.

Enter the target email address’s Name and

Recipient’s Address in the fields that display, then

click Apply to save your changes. Alternatively, click

Cancel to return to the previous screen without

saving your changes.

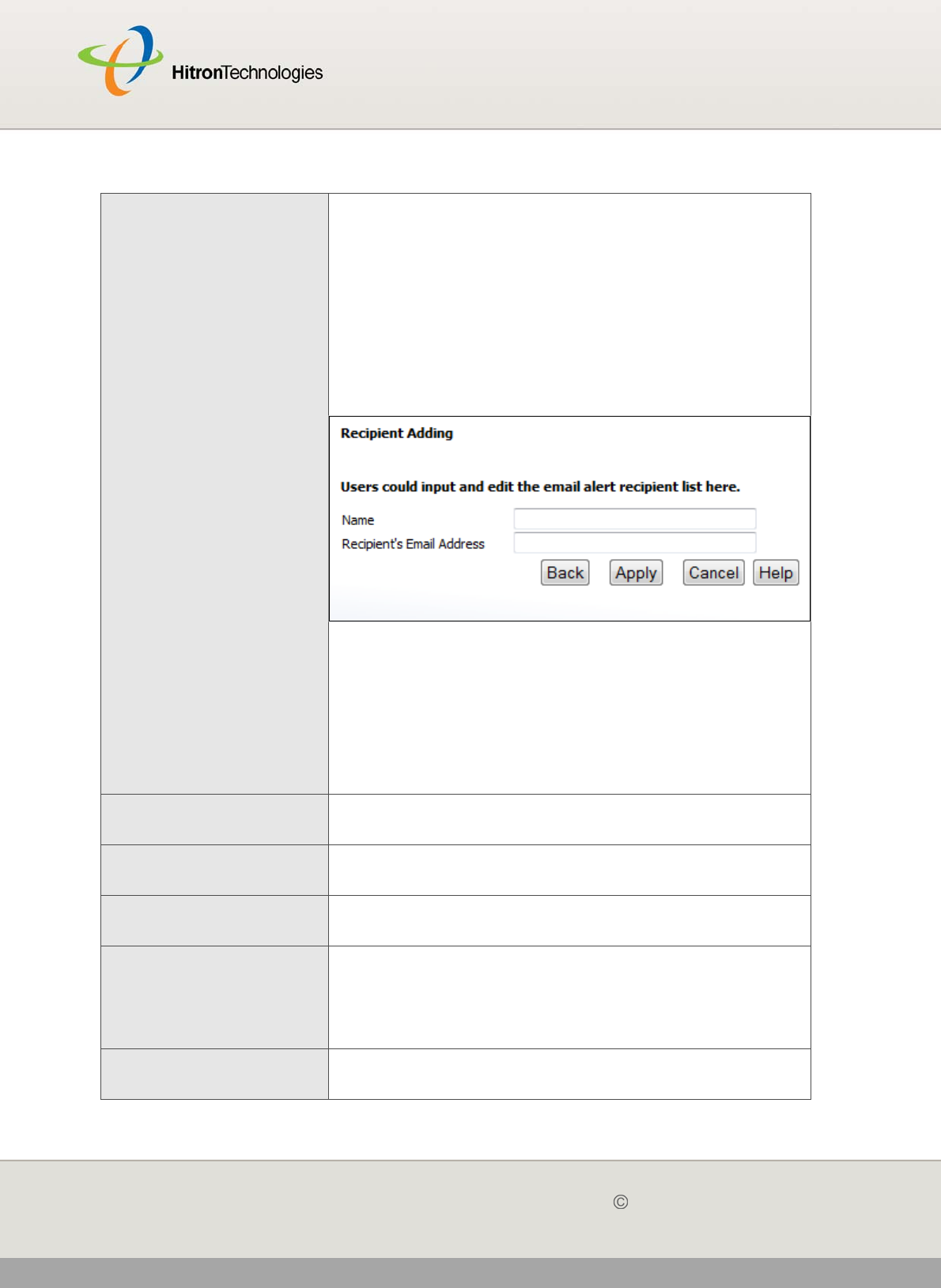

Figure 26: Add Target Email Address



To make changes to an existing target email

address, select its radio button and click Edit. The

screen that displays is the same as the Add Target

Email Address screen.



To remove an email address, select its radio button

and click Delete. The email address is removed from

the list.

Syslog Server

Configuration

Use this section to define the server on which the

system log is stored.

Syslog Server

Address

Enter the address of the server on which the system log

is stored.

Alert Options Use this section to define the actions to be taken when

an intrusion event is detected.

When Intrusion is

Detected



Select Send Email to send an email to the list when

an intrusion event is detected.



Select Send Syslog to send an entry to the system

log when an intrusion event is detected.

Apply Click this to save your changes to the fields in this

screen.

Table 26: The Parental Control > Email / Syslog Alert Screen (continued)

PARENTAL CONTROL

HITRON CGN USER’S GUIDE

Cancel Click this to return the fields in this screen to their last-

saved values without saving your changes.

Help Click this to see information about the fields in this

screen.

Table 26: The Parental Control > Email / Syslog Alert Screen (continued)

WIRELESS

HITRON CGN USER’S GUIDE

WIRELESS

This chapter describes the screens that display when you click Wireless in the

toolbar. It contains the following sections:



Wireless Overview on page 83



The Setup Screen on page 86



The Access Control Screen on page 93



The Advanced Screen on page 95

6.1 WIRELESS OVERVIEW

This section describes some of the concepts related to the Wireless screens.

6.1.1 WIRELESS NETWORKING BASICS

Your CGN’s wireless network is part of the Local Area Network (LAN), known as the

Wireless LAN (WLAN). The WLAN is a network of radio links between the CGN and

the other computers and devices that connect to it.

6.1.2 ARCHITECTURE

The wireless network consists of two types of device: access points (APs) and

clients.



The access point controls the network, providing a wireless connection to each

client.

WIRELESS

HITRON CGN USER’S GUIDE



The wireless clients connect to the access point in order to receive a wireless

connection to the WAN and the wired LAN.

The CGN is the access point, and the computers you connect to the CGN are the

wireless clients.

6.1.3 WIRELESS STANDARDS

The way in which wireless devices communicate with one another is standardized by

the Institute of Electrical and Electronics Engineers (IEEE). The IEEE standards

pertaining to wireless LANs are identified by their 802.11 designation. There are a

variety of WLAN standards, but the CGN supports the following (in order of adoption -

old to new - and data transfer speeds - low to high):



IEEE 802.11b



IEEE 802.11g



IEEE 802.11n

6.1.4 SERVICE SETS AND SSIDS

Each wireless network, including all the devices that comprise it, is known as a

Service Set.

NOTE: Depending on its capabilities and configuration, a single wireless access

point may control multiple Service Sets; this is often done to provide different

service or security levels to different clients.

Each Service Set is identified by a Service Set IDentifier (SSID). This is the name of

the network. Wireless clients must know the SSID in order to be able to connect to

the AP. You can configure the CGN to broadcast the SSID (in which case, any client

who scans the airwaves can discover the SSID), or to “hide” the SSID (in which case

it is not broadcast, and only users who already know the SSID can connect).

WIRELESS

HITRON CGN USER’S GUIDE

6.1.5 WIRELESS SECURITY

Radio is inherently an insecure medium, since it can be intercepted by anybody in the

coverage area with a radio receiver. Therefore, a variety of techniques exist to control

authentication (identifying who should be allowed to join the network) and encryption

(signal scrambling so that only authenticated users can decode the transmitted data).

The sophistication of each security method varies, as does its effectiveness. The

CGN supports the following wireless security protocols (in order of effectiveness):



WEP (the Wired Equivalency Protocol): this protocol uses a series of “keys” or

data strings to authenticate the wireless client with the AP, and to encrypt data

sent over the wireless link. WEP is a deprecated protocol, and should only be

used when it is the only security standard supported by the wireless clients.

WEP provides only a nominal level of security, since widely-available software

exists that can break it in a matter of minutes.



WPA-PSK (WiFi Protected Access - Pre-Shared Key): WPA was created to

solve the inadequacies of WEP. There are two types of WPA: the “enterprise”

version (known simply as WPA) requires the use of a central authentication

database server, whereas the “personal” version (supported by the CGN) allows

users to authenticate using a “pre-shared key” or password instead. While WPA

provides good security, it is still vulnerable to “brute force” password-guessing

attempts (in which an attacker simply barrages the AP with join requests using

different passwords), so for optimal security it is advised that you use a random

password of thirteen characters or more, containing no “dictionary” words.



WPA2-PSK: WPA2 is an improvement on WPA. The primary difference is that

WPA uses the Temporal Key Integrity Protocol (TKIP) encryption standard

(which has been shown to have certain possible weaknesses), whereas WPA2

uses the stronger Advanced Encryption Standard (AES) in the Counter mode

with Cipher block chaining Message authentication code Protocol (CCMP),

which has received the US government’s seal of approval for communications

up to the Top Secret security level. Since WPA2-PSK uses the same pre-shared

key mechanism as WPA-PSK, the same caveat against using insecure or

simple passwords applies.

6.1.5.1 WPS

WiFi-Protected Setup (WPS) is a standardized method of allowing wireless devices

to quickly and easily join wireless networks, while maintaining a good level of

security. The CGN provides two methods of WPS authentication:

WIRELESS

HITRON CGN USER’S GUIDE



Push-Button Configuration (PBC): when the user presses the PBC button on

the AP (either a physical button, or a virtual button in the GUI), any user of a

wireless client that supports WPS can press the corresponding PBC button on

the client within two minutes to join the network.



Personal Identification Number (PIN) Configuration: all WPS-capable

devices possess a PIN (usually to be found printed on a sticker on the device’s

housing). When you configure another device to use the same PIN, the two

devices authenticate with one another.

Once authenticated, devices that have joined a network via WPS use the WPA2

security standard.

6.1.6 WMM

WiFi MultiMedia (WMM) is a Quality of Service (QoS) enhancement that allows

prioritization of certain types of data over the wireless network. WMM provides four

data type classifications (in priority order; highest to lowest):



Voice



Video



Best effort



Background

If you wish to improve the performance of voice and video (at the expense of other,

less time-sensitive applications such as Internet browsing and FTP transfers), you

can enable WMM. You can also edit the WMM QoS parameters, but are disadvised

to do so unless you have an extremely good reason to make the changes.

6.2 THE SETUP SCREEN

Use this screen to configure your CGN’s basic wireless settings. You can turn the

wireless module on or off, select the wireless mode and channel, run WPS and

configure the wireless network’s SSID. You can also configure authentication and

encryption on your wireless network.

NOTE: It is strongly recommended that you set up security on your network;

otherwise, anyone in the radio coverage area can access your network.

WIRELESS

HITRON CGN USER’S GUIDE

Click Wireless > Setup. The following screen displays.

Figure 27: The Wireless > Setup Screen

The following table describes the labels in this screen.

Table 27: The Wireless > Setup Screen

Wireless Basic Settings

Wireless ON/OFF Use this field to turn the wireless network on or off.



Select ENABLE to turn the wireless network on.



Deselect DISABLE to turn the wireless network off.

WIRELESS

HITRON CGN USER’S GUIDE

Wireless Mode Select the type of wireless network that you want to use:



11B/G Mixed: use IEEE 802.11b and 802.11n



11B Only: use IEEE 802.11b



11G Only: use IEEE 802.11g



11N Only: use IEEE 802.11n



11G/N Mixed: use IEEE 802.11g and 802.11N



11B/G/N Mixed: use IEEE 802.11b, 802.11g and

802.11N

NOTE: Only wireless clients that support the network

protocol you select can connect to the wireless

network. If in doubt, use 11B/G/N (default).

Channel Select the wireless channel that you want to use, or

select Auto to have the CGN select the optimum

channel to use.

NOTE: Use the Auto setting unless you have a specific

reason to do otherwise.

WPS ON/OFF Use this field to turn Wifi Protected Setup (WPS) on or

off.



Select ENABLE to turn WPS on.



Deselect DISABLE to turn WPS off.

Table 27: The Wireless > Setup Screen (continued)

WIRELESS

HITRON CGN USER’S GUIDE

Run WPS Use these buttons to run Wifi Protected Setup (WPS):



Click the PBC button to begin the Push-Button

Configuration process. You must then press the PBC

button on your client wireless devices within two

minutes in order to register them on your wireless

network.



Click the PIN button to begin the PIN configuration

process. In the screen that displays, enter the WPS

PIN that you want to use for the CGN, or the WPS

PIN of the client device you want to add to the

network.

Figure 28: WPS PIN

WPS Current Status This displays whether or not the CGN is using Wifi

Protected Setup.

SSID Setting This displays an entry for each of the CGN’s SSIDs.

NOTE: You may have additional BSSIDs, depending on

your contract with your service provider.

SSID Name Enter the name that you want to use for your wireless

network. This is the name that identifies your network,

and to which wireless clients connect.

NOTE: It is suggested that you change the SSID from its

default, for security reasons.

Table 27: The Wireless > Setup Screen (continued)

WIRELESS

HITRON CGN USER’S GUIDE

Hidden Use this field to make your network visible or invisible to

other wireless devices.



Select the checkbox if you do not want the CGN to

broadcast the network name (SSID) to all wireless

devices in the coverage area. Anyone who wants to

connect to the network must know the SSID.



Deselect the checkbox if you want your network

name (SSID) to be public. Anyone with a wireless

device in the coverage area can discover the SSID,

and attempt to connect to the network.

In Service This field controls whether or not the SSID is in

operation.

NOTE: This field is user-configurable for the Primary

SSID only.

WMM Mode Select the checkbox if you want to apply Wifi MultiMedia

(WMM) Quality of Service (QoS) settings to this SSID.

Wireless Security

SSID Select the SSID for which you want to configure

security.

Security Mode Select the type of security that you want to use.



Select None to use no security. Anyone in the

coverage area can enter your network.



Select WEP to use the Wired Equivalent Privacy

security protocol.



Select WPA-Personal to use the WiFi Protected

Access (Personal) security protocol.

NOTE: Due to inherent security vulnerabilities, it is

suggested that you use WEP only if it is the only

security protocol your wireless clients support.

Under almost all circumstances, you should use

WPA-Personal.

WEP Settings

NOTE: These fields are only configurable when you select WEP from the Security

Mode list.

Table 27: The Wireless > Setup Screen (continued)

WIRELESS

HITRON CGN USER’S GUIDE

WEP Key Length Use this field to specify the length of the security key

used to allow wireless devices to join the network. The

longer the key, the more secure it is.



Select 64-bit to use a ten-digit security key.



Select 128-bit to use a twenty-six-digit security key.

WEP Key 1~4 Use these fields to define the security keys that all

wireless devices on the network must use to join the

network.

The CGN supports up to four WEP keys, of which you

can select one as the default. You should input the

same four keys, in the same order, in your network’s

wireless clients. Your CGN and your wireless clients can

use different default keys, as long as all four keys are

present and in the same order. If your wireless client

supports only a single WEP key, use the CGN’s default

key.

Enter the keys in hexadecimal format (using the digits

0~9 and the letters A~F).

Default WEP Key Select the number of the security key that you want the

CGN to use as its default authentication key for

transmissions.

Authentication Select the authentication mode that you want to use:



Select Open System to allow wireless clients to

authenticate (identify themselves) to the CGN before

presenting their security credentials (WEP keys).



Select Shared Key to use the WEP key in the

authentication process. When a client wants to

associate, the CGN sends an unencrypted challenge

message. The client must use the WEP key to

encrypt the challenge message and return it to the

CGN, which then decrypts the message and

compares the result with its original message.

Open System authentication is the more secure of the

two authentication types, since while the Shared Key

system appears more robust, it is possible to derive

secure data by capturing the challenge messages.



Select Automatic to have the CGN choose the

authentication method.

Table 27: The Wireless > Setup Screen (continued)

WIRELESS

HITRON CGN USER’S GUIDE

WPA_Personal

NOTE: These fields display only when you select WPA-Personal from the Security

Mode list.

WPA Mode Select the type of WPA security that you want to use:



Select WPA-PSK to use Wifi Protected Access (Pre-

Shared Key) mode



Select WPA2-PSK to use Wifi Protected Access 2

(Pre-Shared Key) mode



Select Auto (WPA-PSK or WPA2-PSK) to allow

clients operating in either mode to connect to the

CGN.

Cipher Type Select the type of encryption that you want to use:



Select TKIP to use the Temporal Key Integrity

Protocol.



Select AES to use the Advanced Encryption

Standard.



Select TKIP and AES to allow clients using either

encryption type to connect to the CGN.

Group Key Update

Interval

Enter the frequency (in seconds) with which you want

the CGN to create new pre-shared keys, and issue them

to the wireless client.

Pre-Shared Key Enter the pre-shared key that you want to use for your

wireless network. You will need to enter this key into

your wireless clients in order to allow them to connect to

the network.

Pre-Authentication Use this field to allow pre-authentication (Enable) in

WPA2, or deny pre-authentication requests (Disable).

In preauthentication, a WPA2 wireless client can

perform authentication with other wireless access points

in its range when it is still connected to its current

wireless access point. This allows mobile wireless

clients to connect to new access points more quickly,

permitting more efficient roaming.

Apply Click this to save your changes to the fields in this

screen.

Table 27: The Wireless > Setup Screen (continued)

WIRELESS

HITRON CGN USER’S GUIDE

6.3 THE ACCESS CONTROL SCREEN

Use this screen to configure Media Access Control (MAC) address filtering on the

wireless network.

NOTE: To configure MAC address filtering on the wired LAN, see The Filter Setting

Screen on page 57.

You can set the CGN to allow only certain devices to access the CGN and the

network wirelessly, or to deny certain devices access.

Click Wireless > Access Control. The following screen displays.

Figure 29: The Wireless > Access Control Screen

Cancel Click this to return the fields in this screen to their last-

saved values without saving your changes.

Help Click this to see information about the fields in this

screen.

Table 27: The Wireless > Setup Screen (continued)

WIRELESS

HITRON CGN USER’S GUIDE

The following table describes the labels in this screen.

Table 28: The Wireless > Access Control Screen

MAC Filtering

SSID Select the SSID for which you want to configure wireless

access control.

NOTE: At the time of writing, the CGN supports a single

SSID.

MAC Filtering Mode Use this field to control whether the CGN performs MAC

filtering on the wireless network.



Select Allow-All to turn MAC filtering off. All devices

may access the CGN and the network wirelessly.



Select Allow to permit only devices with the MAC

addresses you set up in the Wireless Control List to

access the CGN and the network wirelessly. All other

devices are denied access.



Select Deny to permit all devices except those with

the MAC addresses you set up in the Wireless

Control List to access the CGN and the network

wirelessly. The specified devices are denied access.

Apply Click this to save your changes in the MAC filtering

section.

Wireless Control List (up to 16 Items)

# Index This displays the index number assigned to the

permitted or denied wireless device.

Device Name This displays the name you gave to the permitted or

denied wireless device.

MAC Address This displays the MAC address of the permitted or

denied wireless device.

Delete Select a permitted or denied wireless device’s radio

button ( ) and click this to remove the device from the

list. The device may no longer access the CGN and the

network.

Wireless Devices

Auto-Learned Wireless Devices

Device Name This displays the name of each network device that has

connected to the CGN on the wireless network.

WIRELESS

HITRON CGN USER’S GUIDE

6.4 THE ADVANCED SCREEN

Click Wireless > Advanced. The following screen displays.

MAC Address This displays the MAC address of each network device

that has connected to the CGN on the wireless network.

Add Select a device’s checkbox and click Add to add the

device to the Wireless Control List.

Manually-Added Wireless Devices

Device Name Enter the name to associate with a network device that

you want to permit or deny access to the CGN and the

network wirelessly.

NOTE: This name is arbitrary, and does not affect

functionality in any way.

MAC Address Specify the MAC address of the network device that you

want to permit or deny access to the CGN and the

network wirelessly.

Add Click this to add any Manually-Added Wireless

Devices, and Auto-Learned Wireless Devices with

their Add boxes checked, to the Wireless Control List.

Cancel Click this to return the fields in this screen to their last-

saved values without saving your changes.

Help Click this to see information about the fields in this

screen.

Table 28: The Wireless > Access Control Screen (continued)

WIRELESS

HITRON CGN USER’S GUIDE

Figure 30: The Wireless > Advanced Screen

WIRELESS

HITRON CGN USER’S GUIDE

The following table describes the labels in this screen.

Table 29: The Wireless > Advanced Screen

Wireless Advanced Settings

BG Protection Mode Use this field to configure IEEE 802.11b/g protection.

Both 802.11b and 802.11g wireless communications

occur at the same radio frequencies. When the CGN is

wirelessly connected to 802.11b clients and 802.11g

clients simultaneously, the performance of the link to

802.11g clients can deteriorate due to the presence of

the 802.11b clients. Because 802.11b and 802.11g use

different modulation techniques, 802.11b clients do not

understand 802.11g’s Request To Send (RTS) and

Clear To Send (CTS) messages, which ensure that each

wireless device transmits only when other devices are

not transmitting.

When B/G protection is active, the CGN prevents

802.11b clients transmitting over 802.11g transmissions

by first transmitting an announcement (known as a CTS-

to-Self) to 802.11b clients, stating that it intends to

transmit to 802.11g clients.



Select Auto to have the CGN control whether B/G

protection is active or not.



Select Always-on to use B/G protection at all times.



Select Always-off to never use B/G protection.

WIRELESS

HITRON CGN USER’S GUIDE

IGMP Snooping Use this field to turn Internet Group Management

Protocol (IGMP) snooping on or off.

IGMP is used to manage multicast groups. In multicast

groups, data is transmitted to numerous IP addresses

simultaneously. This is the most efficient method of

providing the same data to many different recipients at

the same time, since each data packet needs to be sent

only once. Multicast groups are often used for Internet

TV and real-time streaming applications such as online

gaming.

IGMP snooping allows the CGN to “snoop” or listen in on

IGMP traffic, and to determine which computers on the

LAN belong to which IGMP groups. By keeping lists of

which computers belong to IGMP groups, the CGN can

send the IGMP data to only those computers that have

requested it, and can refrain from sending unsolicited

multicast data. This can improve your connection to

wireless clients.



Select Disable to turn IGMP snooping off.



Select Enable to turn IGMP snooping on.

WMM Configuration Click this to set up your Wifi Multimedia (WMM) Quality

of Service (QoS) settings. See Configuring WMM

Parameters on page 103 for information on the screen

that displays.

NOTE: Turn WMM on and off in the Wireless > Basic

Settings screen.

HT Physical Mode

Table 29: The Wireless > Advanced Screen (continued)

WIRELESS

HITRON CGN USER’S GUIDE

Operating Mode Use this field to configure how the CGN transmits in

IEEE 802.11n mode.

Mixed mode, on the other hand, allows 802.11a/b/g

stations to tell when 802.11n transmissions are

occurring, by transmitting RTS, CTS and CTS-to-Self

messages in a format the legacy stations can

understand. You should select this option if you have

802.11a/b/g stations in your networks, or if there are

other 802.11a/b/g networks in your area.

Green Field, also known is High Throughput (HT) mode,

assumes that there are no existing IEE 802.11a/b/g

stations using the same radio channel. In greenfield

mode, the 802.11a/b/g stations are unable to tell when

802.11n transmissions are occurring. You should select

this mode only if there are no 802.11a/b/g stations in

your network (or other networks in your location).

Otherwise these stations’ wireless transmissions will

interfere with your 802.11n transmissions. When no

802.11a/b/g stations are present, greenfield mode

allows greater wireless network speeds, because the

legacy messages (RTS, CTS and CTS-to-Self) do not

need to be sent.

Channel Bandwidth This field allows you to configure the width of the radio

channel the CGN uses to communicate with its wireless

clients (IEEE 802.11n only). Using the full 40MHz

bandwidth can double your data speed.



Select 20 to only use a 20 megahertz band.



Select 20/40 to use a 40 megahertz band when

possible, and a 20 megahertz band when a 40Mhz

band is unavailable.

Table 29: The Wireless > Advanced Screen (continued)

WIRELESS

100

HITRON CGN USER’S GUIDE

Guard Interval In 802.11n networks, the guard interval is the amount of

time that elapses between the transmission of symbols.

This is to prevent Inter-Symbol Interference, or ISI,

caused by echoes.

NOTE: In modulated signals, each distinct modulated

character (for example, each audible tone

produced by a modem for transmission over

telephone lines) is known as a symbol.



Select Long to use a long guard interval of 800

nanoseconds.



Select Short to use a short guard interval of 400

nanoseconds.

MCS Use this field to configure the Modulation and Coding

Scheme (MCS) that the CGN uses for IEEE 802.11n

transmissions.

The 802.11n protocol specifies 77 Modulation and

Coding Schemes. Each MCS refers to a combination of

a modulation technique, a coding rate, a guard interval,

and a certain number of spatial streams. The CGN

supports MCS 0~15, and 32.

Select the MCS that you wish to use for 802.11n

transmissions. If unsure, select Auto (default).

Table 29: The Wireless > Advanced Screen (continued)

WIRELESS

101

HITRON CGN USER’S GUIDE

Reverse Direction

Grant (RDG)

Use this field to configure Reverse Direction Grant in

IEEE 802.11n transmissions.

Each data transfer requires that the wireless station

initiating the transfer acquires permission from the

access point to perform the transfer. This is known as a

transmission opportunity, or TXOP. Each TXOP is time-

limited; the initiating station may transmit for only a

certain length of time, and then must cease.

Normally, if the receiving station wishes to return data to

the initiating station, it must also acquire its own TXOP.

However, when you enable Reverse Direction Grants, a

wireless station that has already obtained a TXOP may

issue a Reverse Direction Grant to the receiving station.

This allows the receiving station to transmit data back to

the initiating station for the remaining time specified in

the original TXOP. It does not need to acquire its own

TXOP.



Select Disable to disallow Reverse Direction Grants.



Select Enable to allow Reverse Direction Grants.

Extension Channel This field displays the secondary wireless radio channel

that the CGN uses for channel bonding (combining two

channels for faster data transfer) in IEEE 802.11n

transmissions.

NOTE: At the time of writing, you cannot select the

Extension channel. It is selected automatically

by the CGN.

Aggregation MSDU

(A-MSDU)

Use this field to control whether the CGN supports

Aggregation MSDUs (A-MSDUs) in IEEE 802.11n

transmissions.

Each A-MSDU consists of multiple MSDUs, added

together (aggregated) to create one large packet. This

reduces the overhead associated with transmission, but

can result in a reduced data rate if your network suffers

from a high error rate since each lost A-MSDU will

require retransmission.



Select Disable to not use A-MSDUs.



Select Enable to use A-MSDUs.

Table 29: The Wireless > Advanced Screen (continued)

WIRELESS

102

HITRON CGN USER’S GUIDE

Auto Block ACK Use this field to control how the CGN sends

acknowledgement (ACK) requests in IEEE 802.11n

transmissions.

Normally, an ACK request is sent after every data or

management frame in order to ensure that it has been

received correctly. However, when you enable Auto

Block ACK the CGN sends a burst of multiple frames

together, and follows it with a single, block ACK request.



Select Disable to not use block ACKs.



Select Enable to use block ACKs.

NOTE: Block ACK can increase your network’s speed,

as fewer ACK messages are sent. However, you

should not use it if your network is prone to

interference, since if the transmitting station

needs to retransmit information, the required

retransmission will be much longer.

Decline BA Request Use this field to control how the CGN receives

acknowledgement (ACK) requests in IEEE 802.11n

transmissions.

Select Disable to accept block ACK requests. The

transmitting device may then send multiple data frames

together, followed by the block ACK request.

Select Enable to decline block ACK requests. The

transmitting device must then follow each data frame

with an ACK request in the traditional manner.

Other

HT TxStream Select the number of 802.11n radio transmitting

channels (1 or 2) for High Throughput (HT) transmission.

HT RxStream Select the number of 802.11n radio receiving channels

(1 or 2) for High Throughput (HT) transmission.

Apply Click this to save your changes to the fields in this

screen.

Cancel Click this to return the fields in this screen to their last-

saved values without saving your changes.

Help Click this to see information about the fields in this

screen.

Table 29: The Wireless > Advanced Screen (continued)

WIRELESS

103

HITRON CGN USER’S GUIDE

6.4.1 CONFIGURING WMM PARAMETERS

To set up your CGN’s Wifi MultiMedia (WMM) Quality of Service (QoS) settings, click

the Configuration button in the Wireless > Advanced screen. The following screen

displays.

Figure 31: The Wireless > Advanced > WMM Configuration Screen

NOTE: It is strongly recommended that you do not change the default values in this

screen unless you have a good reason to do so.

The following table describes the labels in this screen.

Table 30: The Wireless > Advanced > WMM Configuration Screen

WMM Parameters of Access Point

NOTE: This section controls the parameters of data transmitted from the CGN to

the wireless clients.

AC_BE This row controls the Best Effort (BE) Access Category

(AC)

WIRELESS

104

HITRON CGN USER’S GUIDE

AC_BK This row controls the Background (BK) Access Category

(AC)

AC_VI This row controls the Video (VI) Access Category (AC)

AC_VO This row controls the Voice (VO) Access Category (AC)

AIFSN This column controls the Arbitration Inter-Frame Space

Number for each Access Category. WMM gives the

highest priority to the AC with the lowest AIFSN.

CWMin This column controls the Contention Window Minimum

for each Access Category. A smaller CWMin value

increases priority for data of the relevant type.

The contention window system is a mechanism for

providing priority to important data on the wireless

network. When a data collision occurs, each frame is

assigned a random time to wait before attempting

transmission again. This random time value is between

zero and the data’s CWMin value. If a collision occurs

again, the time value is doubled, and transmission is

attempted again. This continues until the time value

reaches the CWMax value.

CWMax This column controls the Contention Window Maximum

for each Access Category. A smaller CWMin value

decreases the access delay for data of the relevant

type, but can result in more data collisions.

TXOP This field defines the Transmission Opportunity (TXOP)

length for each Access Category. This is the length of

time during which the wireless device may to transmit

over the wireless network, once it receives a

transmission opportunity.

ACM This field specifies whether Admission Control is

Mandatory (ACM) for each Access Category. Select the

checkbox to have the CGN control ACM.

Table 30: The Wireless > Advanced > WMM Configuration Screen

WIRELESS

105

HITRON CGN USER’S GUIDE

AckPolicy WMM defines two ACK policies: NormalAck and NoAck.



NormalAck: the recipient of a transmission

acknowledges each received packet.



NoAck: the recipient of a transmission does not

acknowledge received packets. This can improve

data throughput in situations where signal quality is

excellent, but in other situations can cause a

significant increase in lost packets.

Select the checkbox to use the NoAck policy.

WMM Parameters of Station

NOTE: This section controls the parameters of data transmitted from the wireless

clients to the CGN.

AC_BE This row controls the Best Effort (BE) Access Category

(AC)

AC_BK This row controls the Background (BK) Access Category

(AC)

AC_VI This row controls the Video (VI) Access Category (AC)

AC_VO This row controls the Voice (VO) Access Category (AC)

AIFSN This column controls the Arbitration Inter-Frame Space

Number for each Access Category. WMM gives the

highest priority to the AC with the lowest AIFSN.

CWMin This column controls the Contention Window Minimum

for each Access Category. A smaller CWMin value

increases priority for data of the relevant type.

The contention window system is a mechanism for

providing priority to important data on the wireless

network. When a data collision occurs, each frame is

assigned a random time to wait before attempting

transmission again. This random time value is between

zero and the data’s CWMin value. If a collision occurs

again, the time value is doubled, and transmission is

attempted again. This continues until the time value

reaches the CWMax value.

CWMax This column controls the Contention Window Maximum

for each Access Category. A smaller CWMin value

decreases the access delay for data of the relevant

type, but can result in more data collisions.

Table 30: The Wireless > Advanced > WMM Configuration Screen

WIRELESS

106

HITRON CGN USER’S GUIDE

TXOP This field defines the Transmission Opportunity (TXOP)

length for each Access Category. This is the length of

time during which the wireless device may to transmit

over the wireless network, once it receives a

transmission opportunity.

ACM This field specifies whether Admission Control is

Mandatory (ACM) for each Access Category. Select the

checkbox to have the wireless client control ACM.

Table 30: The Wireless > Advanced > WMM Configuration Screen

TROUBLESHOOTING

107

HITRON CGN USER’S GUIDE

TROUBLESHOOTING

Use this section to solve common problems with the CGN and your network.

Problem: None of the LEDs Turn On

The CGN is not receiving power, or there is a fault with the device.

1 Ensure that you are using the correct power adaptor.

Using a power adaptor other than the one that came with your CGN can

damage the CGN.

2 Ensure that the power adaptor is connected to the CGN and the wall socket (or

other power source) correctly.

3 Ensure that the power source is functioning correctly. Replace any broken fuses

or reset any tripped circuit breakers.

4 Disconnect and re-connect the power adaptor to the power source and the CGN.

5 If none of the above steps solve the problem, consult your vendor.

Problem: One of the LEDs does not Display as Expected

1 Ensure that you understand the LED’s normal behavior (see LEDs on page 17).

2 Ensure that the CGN’s hardware is connected correctly; see the Quick

Installation Guide.

3 Disconnect and re-connect the power adaptor to the CGN.

4 If none of the above steps solve the problem, consult your vendor.

TROUBLESHOOTING

108

HITRON CGN USER’S GUIDE

Problem: I Forgot the CGN’s IP Address

1 The CGN’s default LAN IP address is 192.168.0.1.

2 You can locate the CGN’s GUI by entering the LAN domain suffix into your

browser’s address bar (on a computer connected to the LAN). The default LAN

domain suffix is displayed in the WAN/LAN > IP screen’s Domain Suffix field.

See The IP Screen on page 47 for more information.

3 Depending on your operating system and your network, you may be able to find

the CGN’s IP address by looking up your computer’s default gateway. To do this

on (most) Windows machines, click Start > Run, enter “cmd”, and then enter

“ipconfig”. Get the IP address of the Default Gateway, and enter it in your

browser’s address bar.

4 If you still cannot access the CGN, you need to reset the CGN. See Resetting

the CGN on page 24. All user-configured data is lost, and the CGN is returned to

its default settings. If you previously backed-up a more recent version your

CGN’s settings, you can now upload them to the CGN; see The Backup Screen

on page 52.

Problem: I Forgot the CGN’s Admin Username or Password

1 The default username is cusadmin, and the default password is password.

2 If the default username and password do not work, you need to reset the CGN.

See Resetting the CGN on page 24. All user-configured data is lost, and the

CGN is returned to its default settings. If you previously backed-up a more

recent version your CGN’s settings, you can now upload them to the CGN; see

The Backup Screen on page 52.

Problem: I Cannot Access the CGN or the Internet

1 Ensure that you are using the correct IP address for the CGN.

2 Check your network’s hardware connections, and that the CGN’s LEDs display

correctly (see LEDs on page 17).

3 Make sure that your computer is on the same subnet as the CGN; see IP

Address Setup on page 20.

109

HITRON CGN USER’S GUIDE

4 If you are attempting to connect over the wireless network, there may be a

problem with the wireless connection. Connect via a LAN port instead.

5 If the above steps do not work, you need to reset the CGN. See Resetting the

CGN on page 24. All user-configured data is lost, and the CGN is returned to its

default settings. If you previously backed-up a more recent version your CGN’s

settings, you can now upload them to the CGN; see The Backup Screen on

page 52.

6 If the problem persists, contact your vendor.

Problem: I Cannot Access the Internet and the DS and US LEDs

Keep Blinking

Your service provider may have disabled your Internet access; check the Cable >

System Info screen’s Network Access field (see The System Info Screen on page

33).

Problem: I Cannot Connect My Wireless Device

1 Ensure that your wireless client device is functioning properly, and is configured

correctly. See the wireless client’s documentation if unsure.

2 Ensure that the wireless client is within the CGN’s radio coverage area. Bear in

mind that physical obstructions (walls, floors, trees, etc.) and electrical

interference (other radio transmitters, microwave ovens, etc) reduce your CGN’s

signal quality and coverage area.

3 Ensure that the CGN and the wireless client are set to use the same wireless

mode and SSID (see The Setup Screen on page 86) and security settings (see

The Access Control Screen on page 93).

4 Re-enter any security credentials (WEP keys, WPA(2)-PSK password, or WPS

PIN).

5 If you are using WPS’s PBC (push-button configuration) feature, ensure that you

are pressing the button on the CGN and the button on the wireless client within 2

minutes of one another.

FCC STATEMENT

110

HITRON CGN USER’S GUIDE

FCC STATEMENT

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio frequency energy

and, if not installed and used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct the

interference by one of the following measures:



Reorient or relocate the receiving antenna.



Increase the separation between the equipment and receiver.



Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.



Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party

responsible for compliance could void the user's authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) This device may not cause harmful interference, and (2)

this device must accept any interference received, including interference that may

cause undesired operation.

For product available in the USA/Canada market, only channel 1~11 can be

operated. Selection of other channels is not possible.

This device and its antenna(s) must not be co-located or operation in conjunction with

any other antenna or transmitter.

FCC STATEMENT

111

HITRON CGN USER’S GUIDE

IMPORTANT NOTE:

FCC Radiation Exposure Statement: This equipment complies with FCC radiation

exposure limits set forth for an uncontrolled environment. This equipment should be

installed and operated with minimum distance 20cm between the radiator & your

body.

INDEX

112

HITRON CGN USER’S GUIDE

INDEX

Numbers

802.11b/g/n 13, 84, 88, 97, 99

access control 93

access logs 13

access point 12, 83

accounts, login 23

address, IP 20

address, IP, local 21

AP 12, 83

attached network devices 38

authentication 91

backup 52

backup and restore 13

bar, navigation 24

BG protection mode 97

buttons 14

cable connection 12

cable connection status 37

cable modem 12

CATV 13, 26, 27

cipher type 92

clients, wireless 83

configuration file 31, 39

connection process 38

connection status, cable 37

conventions, document 3

customer support 3

debugging 46, 50, 51

default 52

default IP address 21

default username and password 23

defaults 41, 42, 52

De-Militarized Zone 56

DHCP 13, 20, 21, 29, 49

DHCP lease 30

diagnostics 46

DMZ 56

DMZ De-Militarized Zone 13

DNS 46

DOCSIS 26

document conventions 3

Domain Name System 46

domain suffix 46

downstream transmission 31

DS 20

INDEX

113

HITRON CGN USER’S GUIDE

ETH 19

Ethernet 13

Ethernet cables 16

Ethernet port 21

event logging 13

factory defaults 41, 42, 52

factory reset 16, 24

fast Ethernet 13

FDMA 32

firewall 54

forwarding, port 13, 56, 65

frequencies, cable 31

F-type RF connector 13

Graphical User Interface 12

graphical user interface 12

GUI 12, 23

GUI overview 23

hardware 14

HNAP 43

host ID 27

HT mode 98

IANA 27

ICMP 56, 72

IEEE 802.11b/g/n 13, 84

IGMP snooping 98

interface, user 12

intrusion detection 13, 55, 56, 72

IP address 20, 21, 27, 46, 108

IP address lease 30

IP address renewal 30

IP address setup 20, 21

IP address, default 21

IP address, format 27

IP address, local 21

IP filtering 13, 55

ISP 27

keyword blocking 76

LAN 12, 45, 83

LAN 1~4 16

LAN IP 47

LEDs 17, 107, 109

lights 17

Local Area Network 12

local IP address 21

logging in 22

logs, access 13

INDEX

114

HITRON CGN USER’S GUIDE

MAC address 30

MAC address filtering 93

MAC filtering 13, 55, 57

main window 24

Media Access Control address 30

MIMO 13

modem 12

modulation 32

Multiple-In, Multiple-Out 13

navigation 24

navigation bar 24

network devices, attached 38

network diagnostics 46

network number 27

network, local 12

network, wide area 12

network, wireless 12

open system authentication 91

overview, GUI 23

parental control 13, 74

password 41, 42, 108

password and username 23

PBC configuration 85

PIN configuration 13, 85

ping 13, 46, 50, 51, 55, 56, 72

port forwarding 13, 56, 65

port triggering 13, 69

port, Ethernet 21

ports 14

pre-authentication 92

pre-shared key 92

private IP address 28

push-button configuration 13

QAM 32

QAM TCM 32

QoS 86

QPSK 32

radio coverage 86

radio links 83

reboot 52

reset 16, 24

restore and backup 13

RF connector 13

RJ45 connectors 16

routing mode 28, 31, 45

rule, IP filtering 63

rule, port forwarding 67

SCDMA 32

scheduled website blocking 13

INDEX

115

HITRON CGN USER’S GUIDE

scheduling 77

security 90

security, wireless 13

service set 84

settings backup and restore 13

shared key authentication 91

SSID 84, 86

Status 20

status 38

status, cable connection 37

subnet 20, 21, 27, 46

subnet, IP 20

support, customer 3

TCP/IP 21

TDMA 32

traceroute 13, 46, 50, 51

triggering, port 13, 69

trusted computers 74

upstream transmission 31

URL blocking 76

US 20

user interface 12

username 108

username and password 23

WAN 12, 27

WAN connection 38

website blocking 74, 75, 79

website blocking, scheduled 13

WEP 13, 85

Wide Area Network 12

Wifi MultiMedia 86

Wifi Protected Setup 13, 85

window, main 24

Windows XP 21

wired security 13

wireless 83

wireless access point 12

wireless clients 83

wireless connection 109

Wireless Local Area Network 12

wireless networking standards 84

wireless security 13, 85, 90

wireless settings, basic 86

WLAN 12, 83

WMM 86, 98, 103

WPA2 86

WPA2-PSK 13, 85

WPA-PSK 13, 85

WPS 13, 85, 86, 90

WPS PBC 16
