HL200 MIXER
TECHNICAL MANUAL
SPECIFICATION SHEET
INSTALLATION INSTRUCTIONS
OPERATION INSTRUCTIONS
CLEANING INSTRUCTIONS
MAINTENANCE INSTRUCTIONS
TROUBLE SHOOTING INSTRUCTIONS
WIRING DIAGRAMS
CATALOG OF REPLACEMENT PARTS

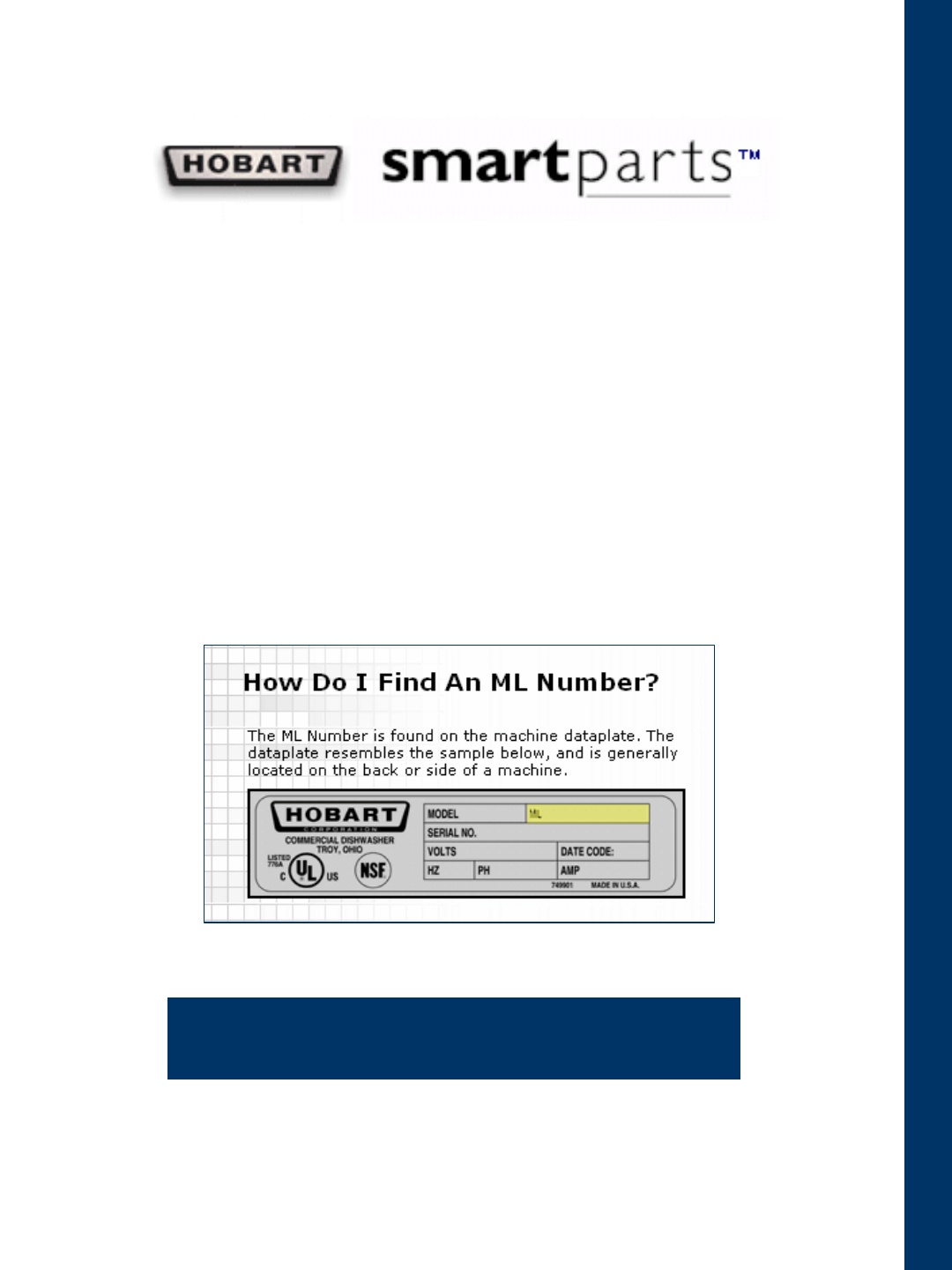

SMARTPARTS™ USER GUIDE
RECOMMENDED SPARE PARTS LIST
Need other Hobart Services?
• Warranty Registration
• Delivery and Installation
• Preventive Maintenance
• Hobart Service Contracts
• Extended Warranty Contracts
• Parts and Accessories
• Specialty Programs
• Water Treatment Programs
HL200 Mixer Technical Manual Page 2 of 111
Item # _____________________________________
Quantity ___________________________________
C.S.I. Section 11400
F-40089 – Legacy® HL200 Mixer Page 1 of 4
LEGACY®
HL200 MIXER
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
LEGACY® HL200 MIXER
STANDARD FEATURES
■ Heavy-Duty 1⁄2 H.P. Motor
■ Gear Transmission
■ Three Fixed Speeds Plus Stir Speed
■ Shift-on-the-Fly™ Controls
■ Patented soft start Agitation Technology
■ 15-Minute SmartTimer™
■ Automatic Time Recall
■ Large, Easy-To-Reach Controls
■ Single Point Bowl Installation
■ Ergonomic Swing-Out Bowl
■ #12 Taper Attachment Hub
■ Open Base
■ Stainless Steel Bowl Guard
■ Metallic Gray Hybrid Powder Coat Finish
ACCESSORY PACKAGES - featuring Hobart
Quick Release™ Agitators
❑ Deluxe Accessory Package Includes:
- 20 Quart Stainless Steel Bowl
- 20 Quart “B” Beater
- 20 Quart “D” Wire Whip
- 20 Quart Bowl Scraper
- 20 Quart Ingredient Chute
❑ Standard Accessory Package Includes:
- 20 Quart Stainless Steel Bowl
- 20 Quart “B” Beater
- 20 Quart “D” Wire Whip
MODELS
❑ HL200 – 20-Quart All Purpose Mixer
❑ HL200C – 20-Quart All Purpose Mixer with
Maximum Security Correctional
Package
OPTIONS
❑ SmartPlus2™ Programmable Recipe Timer
Specications, Details and Dimensions on Inside and Back.
HL200 Mixer Technical Manual Page 3 of 111
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
LEGACY®
HL200 MIXER
Page 2 of 4 F-40089 – Legacy® HL200 Mixer
SOLUTIONS/BENEFITS
1⁄2 H.P. Motor
Durability
■ Heavy-duty to meet the most demanding
operations
Gear Transmission
Durability, Reliability
■ Ensures consistent performance and minimum
downtime under heavy loads
Three Fixed Speeds plus Stir Speed
Flexibility, Reliability, Consistency
■ For incorporating, blending, mixing ingredients
■ Supports consistent results and thorough mixing
Shift-on-the-Fly™ Controls
Flexibility
■ Allows operator to change speeds while mixer is
running
Patented soft start Agitation Technology
Sanitation
■ Each speed has a soft transition into a higher
speed to reduce the chances of product
splash-out
15-Minute SmartTimer™
Convenience, Ease of Use, Consistency
■ Supports recipe mixing times
■ Provides accurate results and eliminates
overmixing
Automatic Time Recall
Productivity, Consistency
■ Remembers the last time set for each speed
■ Great for multiple batches
Ergonomic Swing-Out Bowl
Ease of Use, Convenience
■ Easy loading and unloading of products
■ Single Point Bowl Installation allows for simple
mounting and removal of bowl
■ Bowl Interlock ensures mixer bowl is properly in
place for mixer to operate
Stainless Steel Bowl Guard
Protection
■ Safety interlock prevents operation when front
portion of guard is out of position
Hobart Accessories
Durability, Flexibility, Simplicity
■ Hobart Quick Release™ agitators allow for
simple installation and removal from agitator
shaft
■ Hobart accessories are designed for long-term
usage under heavy-duty conditions
■ Large array of accessories provide multiple uses
for recipe and product processing
HL200 MIXER CAPACITY CHART
Recommended Maximum Capacities - dough capaci-
ties based on 70°F. water and 12% our moisture.
AGITATORS
PRODUCT SUITABLE FOR HL200
OPERATION
CAPACITY OF BOWL (QTS. LIQUID) 20
Egg Whites D 1 qt.
Mashed Potatoes B & C 15 lbs.
Mayonnaise (Qts. of Oil) B or C or D 10 qts.
Meringue (Qts. of Water) D 11⁄2 pts.
Wafe or Hot Cake Batter B 8 qts.
Whipped Cream D or C 4 qts.
Cake, Angel Food
(8-10 oz. cake) C or I 15
Cake, Box or Slab B or C 20 lbs.
Cake, Cup B or C 20 lbs.
Cake, Layer B or C 20 lbs.
Cake, Pound B 21 lbs.
Cake, Short (Sponge) C or I 15 lbs.
Cake, Sponge C or I 12 lbs.
Cookies, Sugar B 15 lbs.
Dough, Bread or Roll
(Lt.-Med.) 60% AR § ED 25 lbs.■
Dough, Heavy Bread 55% AR § ED 15 lbs.■
Dough Pie B & P 18 lbs.
Dough, Thin Pizza 40% AR
(max. mix time 5 min.) §‡ ED 9 lbs.■
Dough, Med. Pizza 50% AR §‡ ED 10 lbs.■
Dough, Thick Pizza 60% AR §‡ ED 20 lbs.■
Dough, Raised Donut 65% AR ED 9 lbs.*
Dough, Whole Wheat 70% AR ED 20 lbs.■
Eggs & Sugar for Sponge Cake B & C or I 8 lbs.
Icing, Fondant B 12 lbs.
Icing, Marshmallow C or I 2 lbs.
Shortening & Sugar, Creamed B 16 lbs.
Pasta, Basic Egg Noodle
(max. mix time 5 min.) ED 5 lbs.
NOTE: % AR (% Absorption Ratio) - Water weight divided by
our weight. Capacity depends on moisture content of dough.
Above capacities based on 12% our moisture at 70°F water
temperature.
■ 1st Speed
* 2nd Speed
† 3rd Speed
§ If high gluten our is used, reduce above dough batch size
by 10%.
‡ 2nd Speed should never be used on 50% AR or lower
products.
USE OF ICE REQUIRES A 10% REDUCTION IN BATCH SIZE.
1 gallon of water weighs 8.33 lbs.
NOTE: Attachment hub should not be used while mixing.
HL200 Mixer Technical Manual Page 4 of 111
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
F-40089 – Legacy® HL200 Mixer Page 3 of 4
LEGACY®
HL200 MIXER
SPECIFICATIONS
MOTOR:
1⁄2 H.P. high torque motor.
100-120/50/60/1 8.0 Amps
200-240/50/60/1 5.0 Amps
ELECTRICAL:
100-120/50/60/1, 200-240/50/60/1 – UL Listed.
CONTROLS:
Magnetic contactor with thermal overload protec-
tion. Internally sealed “Start-Stop” push buttons.
A 15-minute SmartTimer™ is standard.
SmartTimer™ includes Automatic Time Recall,
which remembers the last time set for each speed.
Optional SmartPlus2™ Programmable Recipe
Timer allows operators the ability to program up
to 4 recipes with 5 steps per recipe. SmartPlus2™
automatically changes speeds and starts timer
count-down without operator intervention.
TRANSMISSION:
Gear-driven. Gears are constant mesh heat-treated
hardened alloy steel along with anti-friction ball
bearings. Grease lubricants furnished to all gears
and shafts.
SPEEDS:
Agitator
(RPM)
Attachment
(RPM)
Stir 59 33
First (Low) 107 61
Second (Intermediate) 198 113
Third (High) 365 207
BOWL GUARD:
Heavy-duty stainless steel wire front and solid rear
portion. Front portion of guard rotates easily to
add ingredients and install or remove agitator.
It detaches in seconds for cleaning in dishwasher or
sink. Rear portion of guard can be quickly cleaned
in position. Guard must be in closed position before
mixer will operate. Bowl support interlock provides
further protection.
BOWL LIFT:
Ergonomic style, hand crank operated, self-locking in
top and bottom position.
FINISH:
Metallic Gray Hybrid Powder Coat nish.
ATTACHMENT HUB:
Comes with front-mounted Hobart standard #12
taper attachment hub for use with Hobart #12 size
attachments.
ATTACHMENTS AND ACCESSORIES:
The following are available at extra cost:
Stainless Steel Bowl
“B” Flat Beater
“C” Wing Whip
“D” Wire Whip
“E” Dough Hook
“ED” Dough Hook
“P” Pastry Knife
Bowl Splash Cover
Bowl Scraper
Ingredient Chute
12 Quart Accessories
9" Vegetable Slicer
Meat Chopper Attachment
Rubber Foot Pads
Attachment Tray Support
Listed by Underwriters Laboratories Inc. and certied by NSF
International.
Hobart Bowl Scraper
Hobart Ingredient Chute
HL200 Mixer Technical Manual Page 5 of 111
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
Page 4 of 4 F-40089 – Legacy® HL200 Mixer
As continued product improvement is a policy of Hobart, specications are subject to change without notice.
LEGACY®
HL200 MIXER
F-40089 (REV. 06/07) LITHO IN U.S.A. (H-01)
SPECIFICATIONS
DETAILS AND DIMENSIONS
ELECTRICAL SPECIFICATIONS: 100-120/50/60/1,
200-240/50/60/1 – UL Listed.
WEIGHT: 189 lbs. net; 204 lbs. domestic shipping.
WARRANTY: Unit has full one-year warranty on
parts, labor and mileage against manufacturer’s
defects. Service contracts are available.
HL200 Mixer Technical Manual Page 6 of 111
F34922 Rev. D (Nov. 2008)
Models
HL120 ML-134296
HL200 ML-134331
HL200 ML-134289
PRIOR ML’S COVERED IN TH
IS
HL200 ML-134308
INSTRUCTION MANUAL
701 S. RIDGE AVENUE TROY, OHIO 45374 -0001
937-332-3000 · W W W.HOBARTCORP.COM
F34922 Rev. C (Sept. 2008)
HL 200 ML-134450
MANUAL
ML-134459
ML-134458
ML-134457
HL200 ML-134450
HL200 ML- 134455
PRIOR ML’S COVERED IN THIS CATALOG
HL200 ML-134308
HL200 Mixer Technical Manual Page 7 of 111
2
TABLE OF CONTENTS
GENERAL ............................................................................................... 3
INSTALLATION............................................................................................... 3
Unpacking .............................................................................................3
Location ................................................................................................3
Electrical Connections ...........................................................................4
OPERATION ........................................................................................... 5
Standard Controls .................................................................................6
Recipe Timer Control.............................................................................7
Bowl Placement.....................................................................................8
Agitator .................................................................................................8
Prepare for Mixing .................................................................................9
Standard Timer Operation .....................................................................9
Recipe Timer Operation ................................................................................11
View Recipe ..................................................................................................12
Programming Recipe Timer ..........................................................................12
Unloading ............................................................................................14
Wire Cage............................................................................................14
Agitators and Attachments ...................................................................16
CLEANING ...................................................................................................17
MAINTENANCE ............................................................................................18
Lubrication ............................................................................................18
Adjustments ..........................................................................................19
TROUBLESHOOTING ............................................................................. 20
Service..................................................................................................20
© HOBART 2006
HL200 Mixer Technical Manual Page 8 of 111
HL200 Mixer Technical Manual Page 9 of 111
ELECTRICAL CONNECTIONS (Cord Connected Mixers)
WARNING: THE ELECTRICAL CORD ON THIS MACHINE IS EQUIPPED WITH A THREE-
PRONGED GROUNDING PLUG WHICH MUST BE CONNECTED TO A PROPERLY GROUNDED
RECEPTACLE. IF THE RECEPTACLE IS NOT THE PROPER GROUNDING TYPE, CONTACT AN
ELECTRICIAN. DO NOT REMOVE THE GROUNDING PRONG FROM THE PLUG.
WARNING: ELECTRICAL AND GROUNDING CONNECTIONS MUST COMPLY WITH THE
APPLICABLE PORTION OF THE NATIONAL ELECTRICAL CODE AND/OR OTHER LOCAL
ELECTRICAL CODES.
Check Initial Operation
1. Apply power to the mixer by inserting the cord plug into a properly grounded outlet.
2. Install the bowl and raise into mix position, with the bowl support up and bowl guard wire
cage closed.
3. Turn the SPEED dial pointer to STIR.
4. Momentarily run the machine by pushing the START and then STOP buttons.
4
The electrical cord on this machine is equipped with a three-pronged
ELECTRICAL CONNECTIONS (Cord Connected Mixers)
Electrical and grounding connections must comply with the applicable por-
4
grounding plug which must be connected to a properly grounded receptacle. If the
receptacle is not the proper grounding type, contact an electrician. Do Not remove the
grounding prong from the plug.
tion of the national electrical code and/or other local electrical codes.
HL200 Mixer Technical Manual Page 10 of 111
OPERATION
WARNING: MOVING AGITATOR IN BOWL. KEEP HANDS, CLOTHING, AND UTENSILS OUT
OF BOWL WHILE IN OPERATION. DO NOT USE WITHOUT INTERLOCKED GUARD.
The Legacy mixer is equipped with SmartTimerTM controls. Refer to Fig. 1 for operating parts and
OPERATION section for their functions.
The bowl guard wire cage must be in closed position or the mixer will not operate.
The bowl must remain in mix position on bowl support and the bowl support must be raised (mix
position) or the mixer will not operate.
5
CONTROLS
BOWL GUARD
WIRE CAGE
ATTACHMENT
HUB
AGITATOR
SPLASH GUARD
Fig. 1
SLOT
DRIP CUP
APRON
BOWL SUPPORT
OPERATION
Moving agitator in bowl. Keep hands, clothing, and utensils out of bowl
operation. Do Not use without interlocked guard.
HL200 Mixer Technical Manual Page 11 of 111
Standard Controls
Models HL120/HL200 (With Three Mix Speeds Plus Stir Speed)
DISPLAY MIXING
TIME
STOPS MIXER
STARTS MIXER
TIME
SELECTOR
Fig. 2
SPEED SELECTOR
HL120/HL200 Mixer Speeds
STIR (Slow) The lowest speed is for incorporating ingredients.
SPEED 1 (Low) This speed is for heavy mixtures such as pizza dough, heavy batters
and potatoes.
SPEED 2 (Medium) This speed is for mixing cake batters, mashing potatoes and developing
bread dough.
SPEED 3 (High) This speed is for incorporating air into light batches, as well as finishing
whipped items
6
HL200 Mixer Technical Manual Page 12 of 111
Recipe Timer (Optional)
Models HL120/HL200 (With Three Mix Speeds Plus Stir Speed)
Fig. 15
The SmartPlus2™recipe timer has two operating modes, Standard (STD) and RECIPE.
Standard Mode
Operates exactly as the standard controls utilizing continuous and timed mixing.
Recipe Mode
xUse mode buttons to switch mixer operation between recipe and standard timed operation.
xUp to 4 recipes can be stored in memory
xEach recipe can contain 5 steps
xEach step can be programmed to operate with the following speeds and time.
SPEED SETTINGS TIME SETTINGS
SPd 1 (DEFAULT) 00:00 – 15:00 minutes (10 second increments)
SPd 2 End (default)
SPd 3
Stir
PAUS (pause – no mixing)
7
HL200 Mixer Technical Manual Page 13 of 111
BOWL PLACEMENT
The bowl must be installed before the agitator is installed.
To install the bowl, lower the bowl support and position bowl so the alignment pins on the left
side of the bowl support fit in the holes in the bowl tab. (Fig. 3) Place the slotted tab on bowl
into the lower part of the pin. Swing the bowl into the mix position on bowl support. (Fig. 4)
Fig. 3
AGITATOR
Fig. 4
To install an agitator, the bowl must be on the bowl support.
To Install
1. Lower the bowl.
2. Open the bowl guard wire cage.
3. Place the agitator inside the bowl and align the horizontal slot on the agitator with the agitator
shaft pin.
4. Slide the agitator up the agitator shaft until it stops and latches. An audible click should be
heard when the agitator locks in position.
To Remove
1. Open the bowl guard wire cage.
2. Lower the bowl.
3. Hold the agitator and pull the plunger of the agitator out (Fig. 5). Slide agitator down off the
agitator shaft.
Fig. 5
8
HL200 Mixer Technical Manual Page 14 of 111
PREPARE FOR MIXING
1. Place the mixing bowl on the bowl support.
2. Pour ingredients into the bowl.
9
3. Swing the bowl back to the mix position.
4. Place the agitator inside the bowl, and then attach it to the
agitator shaft (Fig. 6).
5. Lift bowl support.
6. Correctly close the bowl guard wire cage.
7. The mixer is now ready for mixing. (See TIMER
OPERATION.)
Fig. 6
STANDARD TIMER OPERATION
Using the Count-Up Mode (Continuous Mixing)
1. Turn the SPEED dial to select a mix speed (the SPEED setting can be changed at any
time during the mixing operation).
NOTE: STIR is to be used for incorporating ingredients. Do not use to develop dough
products.
2. Set the timer on hold by turning the TIME selector counterclockwise until HoLd appears in
the TIME window.
3. Press the START button to begin mixing. The timer starts counting forward from 00:00.
NOTE: If the wire cage is opened at any time, the mixing operation will stop. To resume
the mixing operation, close the wire cage and press the START button.
4. Use the STOP button to stop the mixer; the mixing time is displayed in the TIME
window.
5. Press the START button to resume mixing if needed.
NOTE: When the timer reaches 15:00 minutes, the beeper will sound momentarily and
timer will rollover to 00:01 and continue counting until the STOP button is pressed.
Fig. 7
HL200 Mixer Technical Manual Page 15 of 111
Using the Count-Down Mode (Timed Mixing)
1. Turn the SPEED dial to select a mix speed.
a. If the count-up mode was used for the previous batch, the desired time needs to be
entered.
b. If the count-down mode was used for the previous batch, the previous time will be
displayed. If a different time is needed, turn the TIME selector to the desired time in
10 second increments.
2. Press the START button to begin mixing; the timer starts counting down from the set time.
a. To stop the mixer at any time, press the STOP button. To resume mixing, press the START
button. For example: The mixer is started at SPEED 1 for 30 seconds and is stopped after
10 seconds. Pressing the START button will resume the mixing operation.
b. If the mixer is stopped and a new time setting is entered, pressing the START button
saves the new time setting on the current speed selection.
For example: The mixer is started at SPEED 1 for 30 seconds and is stopped after 10
seconds. A new time is entered by turning the TIME selector. The new time will replace
the initial 30 seconds for SPEED 1 after the START button is pressed.
c. If the time is changed while mixing, the mixer will operate until the new time expires.
The adjustment to the time will not be stored.
d. If speed is changed while mixing, the time will change to the previous time for the
selected speed and count down.
NOTE: If the wire cage is opened at any time, the mixing operation will stop. To
resume the mixing operation, close the wire cage and press the START button.
3. When the timer reaches 00:00, the mixer stops; a beeper sounds for 1 second. The count-
down timer then displays the last-stored time.
OPERATING NOTES
xSTIR is to be used for incorporating ingredients. Do not use it to develop dough
products.
xIf the mixer is stopped during a mixing operation, the timer also stops. The timer starts
again (with the time remaining) when the START button is pressed.
xTurn the TIME selector clockwise to take the mixer out of the hold mode.
Fig. 8
10
HL200 Mixer Technical Manual Page 16 of 111
RECIPE TIMER OPERATION
Recipe Timer Notes
xIf pause is selected as a mix speed, the mixer START button must be pressed to
advance to the next recipe step after the pause time has expired.
xIf pause has been selected, the bowl guard can be opened and the time will continue to
count down.
xThe recipe step can be interrupted and then resumed by pressing the STOP button and
then the START button.
NOTE: If PAUSE has been selected, the STOP button is disabled.
xThe recipe can be terminated by stopping the mixer and pressing the STD button.
Using The Recipe Timer
1. Press Recipe mode button.
2. Turn the RECIPE selector to select a recipe.
3. Press START; mixer will operate at the programmed speed for the programmed time.
a. Speed is displayed momentarily.
b. Remaining time for the operating step will be displayed and the step light is
flashing.
NOTE: Recipe and Time selectors are disabled.
4. Mixer will continue to perform the programmed speeds and times until the recipe steps
are completed.
NOTE: If pause has been programmed for a step speed, the mixer START button must be
pressed to advance to the next recipe step after the pause time has expired.
5. When the timer reaches the end of the last programmed recipe step, the mixer stops;
the beeper sounds; the selected recipe is displayed.
11
HL200 Mixer Technical Manual Page 17 of 111
View Recipe
When the mixer is in RECIPE mode, you can view the step settings of any recipe.
1. Press the SELECT/SAVE button.
A. Display will alternate between speed and time.
B. The LED of the step being displayed will flash.
2. Use the arrow buttons to view the next step.
3. Use the Recipe selector to view other recipes.
4. Press PGM button to return to the RECIPE mode.
NOTE: If the mixer is performing a recipe, the recipe will continue to operate in normal
recipe mode sequence.
PROGRAMMING RECIPE TIMER
Fig. 16
HL200 is powered with display showing a mix time (Standard Mode) or recipe number (Recipe Mode).
1. If a mix time is displayed, Press RECIPE mode button. Display corresponds with position of recipe
(speed) selector.
2. Press and hold TIME. Continue holding TIME, then press PGM and hold until rP1 is displayed (with
step 1 blinking), buzzer sounds and programmed step LEDs are lit.
3. Use arrows to select recipe number (1-4) for programming.
4. Press SELECT/SAVE to enter program mode for the recipe number selected.
Buzzer sounds and display alternates between speed and time to indicate programming mode.
12
HL200 Mixer Technical Manual Page 18 of 111
13
NOTES:
x If a value has been assigned for a step number, that LED will be lit.
x The LED for the selected step will blink.
x If the default value is still assigned to a step, the LED will not be lit.
x When programming, the Recipe and Time Selectors are disabled.
SPEED SETTINGS TIME SETTINGS
SPd 1 (DEFAULT) 00:00 – 15:00 minutes (10 second increments)
SPd 2 End (default)
SPd 3
Stir
PAUS (pause – no mixing)
5. Use arrows to select step number (1 – 5).
6. Press SPEED. All characters will blink and buzzer will sound.
A. Use arrows to select the mixing speed for selected step.
B. Press SELECT/SAVE to set the speed. SAVE displayed momentarily and buzzer sounds.
7. Display alternates between speed and time to indicate programming mode.
8. Press TIME. Third digit will blink and buzzer will sound.
A. Use arrows to select the mixing time (increments of 10 seconds) for selected step.
NOTE: If all 5 steps are programmed, the recipe will terminate at the end of step 5. If fewer than 5
steps are used, the default time setting of END will terminate the recipe.
B. Press SELECT/SAVE to set the time for the step. SAVE momentarily displayed and buzzer
sounds.
9. Display alternates between speed and time to indicate programming mode.
NOTE: LED of step programmed will be flashing.
10. Use arrows to select next step.
11. Repeat setting speed and time for additional steps and use SELECT/SAVE to save settings.
12. After all steps for recipe are programmed, press PGM to exit programming mode.
Buzzer sounds and display will show recipe number that was programmed with the number
blinking.
13. Press PGM to enter run mode. (Buzzer sounds)
14. Press STD to return to standard mode or set recipe selector to the desired recipe.
15. Select the recipe that you programmed and verify proper operation.
HL200 Mixer Technical Manual Page 19 of 111
UNLOADING
1. Open the bowl guard wire cage assembly.
2. Lower bowl support.
3. Remove the agitator from the agitator shaft.
4. Slightly lift the bowl off the pin (right side), pull bowl to the front and remove from the bowl
support (left side).
WIRE CAGE
The bowl guard wire cage can be rotated out of the way to add ingredients or to access the
bowl and agitator.
Note how the plastic carriers allow the wire cage to ride around the circumference of the planetary
drip cup.
xOpen the bowl guard wire cage: rotate it to your left (Fig. 9).
xClose the bowl guard wire cage: rotate it to your right until it stops, closed position (Fig.
10).
NOTE: The bowl guard wire cage must be returned to the closed position for the mixer to
operate.
Fig. 9 Fig. 10
14
HL200 Mixer Technical Manual Page 20 of 111
Remove and Clean Bowl Guard Wire Cage (Fig. 11)
1. Rotate wire cage to your left until the three carriers align with the carrier escape slots in
the circular ridge of the planetary drip cup.
2. Lift the wire cage straight up so the carriers escape from the slots on the drip cup. The
bowl guard wire cage can now be removed by pulling toward you.
Escape Slots
(3)
Fig. 11
3. Wash the bowl guard wire cage in a sink, rinse with clear water, and dry with a clean
cloth.
4. The splash guard can be wiped off and/or washed with a cloth or sponge using warm,
soapy water. Rinse with clear water and dry with a clean cloth.
Reinstall Bowl Guard Wire Cage
1. Position the ring of the bowl guard wire cage so the carriers are positioned above the slots
in the planetary drip cup.
2. Lower the bowl guard wire cage so the carriers pass through the slots.
3. Rotate the bowl guard wire cage to your right until it contacts the stop, closed position.
15
HL200 Mixer Technical Manual Page 21 of 111
AGITATORS AND ATTACHMENTS
Attachments for attachment hub and agitators are covered in a separate Hobart Legacy Mixer Use
and Application Handbook on the Mixer Operator Information CD. Follow the instructions
accordingly.
Available Agitators and Attachments
12 & 20 Qt. B Flat Beater 12 & 20 Qt. D Wire Whip
12 & 20 Qt. ED Dough Hook 20 Qt. E Dough Hook
12 & 20 Qt. SST Bowl 12 & 20 Qt. Scraper
12 & 20 Qt. Splash Cover 12 & 20 Qt. C Wing Whip
16
HL200 Mixer Technical Manual Page 22 of 111
12 & 20 Qt. P Pasty Knife 12 & 20 Qt. Ingredient Chute
12 & 20 Qt. Table
CLEANING
WARNING: UNPLUG MACHINE POWER CORD BEFORE BEGINNING ANY CLEANING
PROCEDURES.
The mixer should be thoroughly cleaned daily. DO NOT use a hose to clean the mixer; it
should be washed with a clean, damp cloth. The base allows ample room for cleaning under
the mixer. The apron (Fig. 1) may be removed for cleaning by loosening the screws. The
drip cup (Fig. 1) should be removed (which is secured with 3 screws) periodically and
wiped clean. For cleaning the bowl guard wire cage refer to page 15.
17
Unplug machine power cord before beginning any cleaning
procedures.
The mixer should be thoroughly cleaned daily. DO NOT use a hose to clean the
mixer, it should be washed with a clean, damp cloth. The base allows ample room
for cleaning under the mixer. The apron (Fig 1), may be removed for cleaning by
loosening the screws. The drip cup (Fig. 1) should be removed (which is secured
with 3 screws) periodically and wiped clean. For cleaning the bowl guard wire cage
refer to page 15.
17
HL200 Mixer Technical Manual Page 23 of 111
Unplug machine power cord before beginning any maintenance procedures.
HL200 Mixer Technical Manual Page 24 of 111
HL200 Mixer Technical Manual Page 25 of 111
20
F34922 Rev D (Nov. 2008) PRINTED IN U.S.A.
HL200 Mixer Technical Manual Page 26 of 111
USE AND APPLICATIONS HANDBOOK
For Mixer
Attachments and Accessories
FORM 34901 Rev D (May 2007)
®
HL200 Mixer Technical Manual Page 27 of 111
2
HL200 Mixer Technical Manual Page 28 of 111
3
Economical, Dependable, Versatile
. . . Your Hobart Mixer
The Hobart Mixer brings profi t to your operation every time you use it. Uniform
and consistent mixing reduces waste and improves process control. Smooth
surfaces and durable construction make cleanup fast and easy. This all means
economical operation for you.
Because of its reliability, your Hobart Mixer will give years of dependable, low
cost service.
The Hobart Mixer's planetary action assures uniform mixing. The mix arm
reaches every part of the batch. It rotates on its axis opposite to the direction that
it moves around the bowl. Thorough mixing, blending and aerating of ingredients
yields consistent, predictable results every time. You can depend on it.
Hobart Mixers are fl exible in the kitchen. They quickly accept attachments to do
many different jobs. They are also designed to optimize attachment operating
speeds for various operations such as shredding, grinding and slicing. The
Hobart Legacy allows for more than one size bowl, and several agitator styles are
available to handle your specifi c mixing tasks. Your Hobart Mixer is adaptable
to your needs.
We build them that way for you. Our reputation depends on it.
HL200 Mixer Technical Manual Page 29 of 111
4
Beaters, Whips, Dough Hooks, Pastry Knives
. . . and How to Use Them
This section illustrates and names the various mixer agitators and discusses
their applications. General information on how to get the best results from your
Hobart mixer is also provided. As is always the case with the art of cooking, your
best creations are achieved by carefully proving your methods and formulas
and evaluating the results.
The discussions on mixer performance and agitator uses are similar for planetary
action mixers regardless of size. That is not to say that the same mix times will
apply. This handbook offers suggestions and guidelines only. The cooking is
up to you.
Attachments and accessories and their uses are discussed in the last section
of the handbook.
CLEANING NEW MIXER BOWLS AND ACCESSORIES
Before using the fi rst time, thoroughly wash new mixer bowls and agitators
(beaters, whips, dough hooks and pastry knives). Wash in hot water and a
mild detergent solution, rinse with either a mild soda or vinegar solution, and
thoroughly rinse with clear water. Also follow this cleaning procedure for bowls
and agitators before whipping egg whites or whole eggs.
AGITATORS AND THEIR USES
Hobart Quick ReleaseTM agitators are available for the Legacy mixers and for
the type of product that is being mixed.
The B Flat Beater is a multi-purpose agitator used for
mashing potatoes and mixing cakes, batters or icings.
It is also used in applications requiring a creaming or
rubbing action and uniform dispersion of ingredients. Use
fi rst speed for starting most operations; medium speed
for fi nishing.
The D Wire Whip is designed for maximum blending of air
into light products. Uses include: whipping cream, beating
egg whites, mixing very light icings, meringues and all
similar applications. The D Wire Whip is most commonly
used in third and fourth speed.
HL200 Mixer Technical Manual Page 30 of 111
5
The ED Dough Hook is used for mixing most bread, roll and
pizza doughs which require folding and stretching action for
best development. These agitators are suitable for use on all
yeast raised doughs and should be operated in fi rst, second
or third speed.
The C Wing Whip is used for whipping material that is too
heavy for the D Wire Whip. The heavy frame permits its use
for light creaming and beating. It is often used for whipping or
blending potatoes, butter, mayonnaise or icings. It is generally
used in fi rst and second speed for whipping heavy products
like potatoes or in third or fourth speed for lighter products like
mayonnaise or icings.
The P Pastry Knife combines shortening with fl our, and is ideal
for light pastry shells (patty shells), fl aky pie doughs and similar
mixes. The cutting action of the knife practically eliminates
rubbing and allows delicate ingredients to be combined without
overdevelopment. The P Pastry Knife is suitable for stirring
operations in low speeds and for fast cutting operations in
medium speeds. You should not use the P Pastry Knife at high
speed if you want the pastry to have a fl aky texture.
The I Wire Whip makes sponge cakes and mixes marshmallow
icing for heavy whipping.
HL200 Mixer Technical Manual Page 31 of 111
6
FORMULAS AND METHODS
Use your own formula for any products you wish to make in your Hobart mixer.
Then evaluate the fi nished product for texture, conformity, lightness, fl akiness,
etc. You will fi nd that any method of blending ingredients can be duplicated or
improved with your machine. Be careful and do not overmix. Overmixing can
adversely affect the texture of your product. You will also discover there is often
a saving in time for each mixing operation. Even delicate products usually mixed
by hand can be mixed in your Hobart mixer.
Your Hobart mixer mixes your products in the most effi cient and quickest way
possible. There is no need for you to sacrifi ce individual characteristics when
using your Hobart mixer. When results are exactly to your liking, note carefully
the time of operation and the speed setting. Under the same conditions, your
Hobart mixer will perform exactly the same, day after day, providing uniformity
in your products.
MIXER CAPACITY
The Mixer Capacity Chart is a guide for controlling the batch sizes in your
formulations. The capacities listed take into account the amount of product
which can be contained in the various sized bowls. The listed capacities are
the maximum recommended batch sizes. Whenever batch size exceeds 50
pounds, use a bowl truck to load and unload the bowl from the mixer. Recipes
for doughs used to establish the batch sizes in the Mixer Capacity Chart are
listed below:
HEAVY BREAD MEDIUM PIZZA RAISED DONUT
INGREDIENT DOUGH DOUGH DOUGH
Flour 100.0% 100.0% 100.0%
Water 55.0 50.0 65.0
Yeast 2.0 1.0 5.0
Salt 2.5 1.5 2.5
Sugar 5.0 - 0 - 15.0
Shortening 5.0 - 0 - 15.0
Oil - 0 - 2.0 - 0 -
Non-Fat Dry Milk 6.0 - 0 - 8.0
Total 175.5% 154.5% 210.5%
HL200 Mixer Technical Manual Page 32 of 111
7
The ingredient percentages are based on a fl our content of 100 percent to simplify
using the recipes to make various sized batches and compute the moisture
absorption ratio. The heavy bread dough recipe above is a criterion listed in
Section 4.4.2 of Federal Specifi cation 00-M-0038K, Standard for Electric Food
Mixing Machines.
The fl our used in the recipes is hard wheat fl our, enriched and bleached. It
contains 11 to 12 percent protein content and a 12 percent moisture content.
Flour which has a lower moisture content will decrease the moisture absorption,
cause diffi culty in proper gluten hydration, and make a heavier load on your
mixer. Flours containing high quality protein, such as high gluten fl our, result in
a dough which can be very diffi cult to mix. If high gluten fl our is used, reduce
the batch quantity noted on the Mixer Capacity Chart by 10 percent to prevent
overloading of the mixer.
The temperature of the water used in the recipes is 65°F to 75°F. Colder water
temperature will cause the dough to be harder to mix. If you plan to mix doughs
using cold water, the batch size may need to be reduced by 15 to 20%.
Also considered and noted on the Mixer Capacity Chart is the moisture absorption
ratio (AR). This is the ratio of the weight of water to the weight of fl our expressed
as a percentage.
AR = weight of water ÷ weight of fl our Q 100%
The absorption ratio gives an indication of the relative "heaviness" or "wetness"
of a batch. In fact, the capacities listed on the Mixer Capacity Chart for the
products listed below are based on the following absorption ratios:
PRODUCT ABSORPTION RATIO
Heavy Bread Dough 55%
Medium Bread Dough 60%
Light Bread Dough 65%
Thin Pizza Dough 40%
Medium Pizza Dough 50%
Thick Pizza Dough 60%
Raised Donut Dough 65%
Whole Wheat Dough 70%
HL200 Mixer Technical Manual Page 33 of 111
8
When mixing any of the above products with an absorption ratio lower than listed,
decrease the batch size proportionately to assure effi cient mixing of the product
and thus eliminate the possibility of overloading your mixer. For example: An
HL600 mixer has a thin pizza dough capacity of 40 pounds at fi rst speed based
on an AR of 40% according to the Mixer Capacity Chart. If the batch has an AR
of 30%, reduce the batch size to compensate for the difference. Compute the
size of the reduction as follows:
1. Divide the AR of the batch to be mixed
by the AR listed on the Mixer Capacity
Chart.
2. Multiply the rated batch size by the
percentage obtained in step 1. The result
is the maximum batch size of the HL600
mixer for pizza dough with 30% AR.
Another factor often overlooked is the ability of your mixer to operate at a different
speed. To prevent overloading, use the recommended mix speed from the Mixer
Capacity Chart. Because of the toughness of a 40% AR thin pizza dough, a
maximum mix time of 5 minutes on fi rst speed is recommended. Second speed
should never be used on 50% AR or lower products except on model HL662.
The speed of the mixer, length of mix time, room temperature and ingredient
temperatures all affect dough temperature. To achieve the desired fi nal dough
temperature, you may need to adjust the water temperature.
For batch size capacities on other bread doughs not mentioned on the Mixer
Capacity Chart, follow the batch size recommendation for a listed bread dough
with a similar absorption ratio.
30% Actual AR
40% Rated AR = 75%
40 lbs. Rated Batch Size
X 75%
30 lbs. Maximum Capacity
for 30% AR Dough
HL200 Mixer Technical Manual Page 34 of 111
9
Mixer Capacity Chart — HL120 & HL200
Recommended Maximum Capacities — dough capacities based on 70°F water and 12% fl our moisture.
ABBREVIATIONS - AGITATORS
SUITABLE FOR OPERATION
B - Flat Beater
C - Wing Whip
D - Wire Whip
ED - Dough Hook
P - Pastry Knife
* 1st Speed
** 2nd Speed
*** 3rd Speed
NOTE: %AR (% Absorption Ratio) = Water weight divided
by fl our weight. Capacity depends on moisture content of
dough. Above capacities based on 12% fl our moisture at
70°F water temperature.
§ If high gluten fl our is used, reduce above dough batch
size by 10%.
† 2nd speed should never be used on 50% AR or lower
products.
Use of ice requires a 10% reduction in batch size.
1 gallon of water weighs 8.33 lbs.
NOTE: Attachment hub should not be used while mixing.
AGITATORS
PRODUCT SUITABLE FOR HL120 HL200
OPERATION
CAPACITY OF BOWL (QTS. LIQUID) 12 20
Egg Whites D 1
1/4
pts. 1 qt.
Mashed Potatoes B & C 10 lbs. 15 lbs.
Mayonnaise (Qts. of Oil) B or C or D 4
1
/2
qts. 10 qts.
Merinque (Qty. of Water) D 3/4 pts. 1
1/2
pts.
Waffl e or Hot Cake Batter B 5 qts. 8 qts.
Whipped Cream D or C 2
1/2
qts. 4 qts.
Cake, Angel Food (8-10 oz. cake) C 7 15
Cake, Box or Slab B or C 12 lbs. 20 lbs.
Cake, Cup B or C 12 lbs. 20 lbs.
Cake, Layer B or C 12 lbs. 20 lbs.
Cake, Pound B 12 lbs. 21 lbs.
Cake, Short (Sponge) C 8 lbs. 15 lbs.
Cake, Sponge C 6
1/2
lbs. 12 lbs.
Cookies, Sugar B 10 lbs. 15 lbs.
Dough, Bread or Roll (Lt.-Med.) 60% AR§ ED 13 lbs.* 25 lbs.*
Dough, Heavy Bread 55% AR§ ED 8 lbs.* 15 lbs.*
Dough, Pie B & P 11 lbs. 18 lbs.
Dough, Thin Pizza 40% AR § †
(max. mix time 5 min.) ED 5 lbs. *
9 lbs.*
Dough, Med. Pizza 50% AR § † ED 6 lbs. *
10 lbs.*
Dough, Thick Pizza 60% AR § † ED 11 lbs.* 20 lbs.*
Dough, Raised Donut 65% AR ED 4 lbs.** 9 lbs.**
Dough, Whole Wheat 70% AR ED 11 lbs.* 20 lbs.*
Eggs & Sugar for Sponge Cake B & C 5 lbs. 8 lbs.
Icing, Fondant B 7 lbs. 12 lbs.
Icing, Marshmallow C 1
1/4
lbs. 2 lbs.
Shortening & Sugar, Creamed B 9
1/2
lbs. 16 lbs.
Pasta, Basic Egg Noodle
(max. mix time 5 min.) ED — 5 lbs.
HL200 Mixer Technical Manual Page 35 of 111
10
Mixer Capacity Chart — HL300 & HL400
Recommended Maximum Capacities — dough capacities based on 70°F water and 12% fl our moisture.
ABBREVIATIONS - AGITATORS
SUITABLE FOR OPERATION
B - Flat Beater
C - Wing Whip
D - Wire Whip
ED - Dough Hook
I - Wire Whip
P - Pastry Knife
* 1st Speed
** 2nd Speed
*** 3rd Speed
NOTE: %AR (% Absorption Ratio) = Water weight divided
by fl our weight. Capacity depends on moisture content of
dough. Above capacities based on 12% fl our moisture at
70°F water temperature.
§ If high gluten fl our is used, reduce above dough batch
size by 10%.
† 2nd speed should never be used on 50% AR or lower
products.
Use of ice requires a 10% reduction in batch size.
1 gallon of water weighs 8.33 lbs.
NOTE: Attachment hub should not be used while mixing.
AGITATORS
PRODUCT SUITABLE FOR HL300 HL400
OPERATION
CAPACITY OF BOWL (QTS. LIQUID) 30 40
Egg Whites D 1
1/2
qts. 1 3/4 qts.
Mashed Potatoes B & C 23 lbs. 30 lbs.
Mayonnaise (Qts. of Oil) B or C or D 12 qts. 13 qts.
Merinque (Qty. of Water) D 1 qt. 1
1/2
qts.
Waffl e or Hot Cake Batter B 12 qts. 16 qts.
Whipped Cream D or C 6 qts. 9 qts.
Cake, Angel Food (8-10 oz. cake) C or I 22 30
Cake, Box or Slab B or C 30 lbs. 40 lbs.
Cake, Cup B or C 30 lbs. 45 lbs.
Cake, Layer B or C 30 lbs. 45 lbs.
Cake, Pound B 30 lbs. 40 lbs.
Cake, Short (Sponge) C or I 23 lbs. 25 lbs.
Cake, Sponge C or I 18 lbs. 40 lbs.
Cookies, Sugar B 23 lbs. 30 lbs.
Dough, Bread or Roll (Lt.-Med.) 60% AR§ ED 45 lbs.* 45 lbs.*
Dough, Heavy Bread 55% AR§ ED 30 lbs.* 35 lbs.*
Dough, Pie B & P 27 lbs. 35 lbs.
Dough, Thin Pizza 40% AR § †
(max. mix time 5 min.) ED 14 lbs. *
25 lbs.*
Dough, Med. Pizza 50% AR § † ED 20 lbs. *
32 lbs.*
Dough, Thick Pizza 60% AR § † ED 40 lbs.* 45 lbs.*
Dough, Raised Donut 65% AR ED 15 lbs.** 25 lbs.**
Dough, Whole Wheat 70% AR ED 40 lbs.* 45 lbs.*
Eggs & Sugar for Sponge Cake B & C or I 12 lbs. 18 lbs.
Icing, Fondant B 18 lbs. 25 lbs.
Icing, Marshmallow C or I 3 lbs. 4
1/2
lbs.
Shortening & Sugar, Creamed B 24 lbs. 35 lbs.
Pasta, Basic Egg Noodle
(max. mix time 5 min.) ED 8 lbs. 15 lbs.
HL200 Mixer Technical Manual Page 36 of 111
11
Mixer Capacity Chart — HL600 & HL662
Recommended Maximum Capacities — dough capacities based on 70°F water and 12% fl our moisture.
AGITATORS
PRODUCT SUITABLE FOR HL600 HL662
OPERATION
CAPACITY OF BOWL (QTS. LIQUID) 60 60
Egg Whites D 2 qts. —
Mashed Potatoes B & C 40 lbs. —
Mayonnaise (Qts. of Oil) B or C or D 18 qts. —
Merinque (Qty. of Water) D 1
1/2
qts. —
Waffl e or Hot Cake Batter B 24 qts. —
Whipped Cream D or C 12 qts. —
Cake, Angel Food (8-10 oz. cake) C or I 45 —
Cake, Box or Slab B or C 50 lbs. 75 lbs.
Cake, Cup B or C 60 lbs. 70 lbs.
Cake, Layer B or C 60 lbs. 70 lbs.
Cake, Pound B 55 lbs. 75 lbs.
Cake, Short (Sponge) C or I 45 lbs. —
Cake, Sponge C or I 36 lbs. —
Cookies, Sugar B 40 lbs. 50 lbs.
Dough, Bread or Roll (Lt.-Med.) 60% AR§ ED 80 lbs.** 90 lbs.**
Dough, Heavy Bread 55% AR§ ED 60 lbs.** 85 lbs.**
Dough, Pie B & P 50 lbs. 60 lbs.
Dough, Thin Pizza 40% AR § †
(max. mix time 5 min.) ED 40 lbs. *
60 */40 lbs.
Dough, Med. Pizza 50% AR § V† ED 70 lbs.*
90*/70 lbs.
Dough, Thick Pizza 60% AR § † ED 70 lbs.** 90 lbs.**
Dough, Raised Donut 65% AR ED 30 lbs.*** 75 lbs.**
Dough, Whole Wheat 70% AR ED 70 lbs.** 90 lbs.**
Eggs & Sugar for Sponge Cake B & C or I 24 lbs. —
Icing, Fondant B 36 lbs. —
Icing, Marshmallow C or I 5 lbs. —
Shortening & Sugar, Creamed B 48 lbs. 50 lbs.
Pasta, Basic Egg Noodle
(max. mix time 5 min.) ED 30 lbs. 40 lbs. *
ABBREVIATIONS - AGITATORS
SUITABLE FOR OPERATION
B - Flat Beater
C - Wing Whip
D - Wire Whip
ED - Dough Hook
I - Wire Whip
P - Pastry Knife
* 1st Speed
** 2nd Speed
*** 3rd Speed
NOTE: %AR (% Absorption Ratio) = Water weight divided
by fl our weight. Capacity depends on moisture content of
dough. Above capacities based on 12% fl our moisture at
70°F water temperature.
§ If high gluten fl our is used, reduce above dough batch
size by 10%.
† 2nd speed should never be used on 50% AR or lower
products with the exception of the HL662.
Use of ice requires a 10% reduction in batch size.
1 gallon of water weighs 8.33 lbs.
NOTE: Attachment hub should not be used while mixing.
HL200 Mixer Technical Manual Page 37 of 111
12
Mixer Capacity Chart — HL800 & HL1400
Recommended Maximum Capacities — dough capacities based on 70°F water and 12% fl our moisture.
AGITATORS
PRODUCT SUITABLE FOR HL800 HL1400
OPERATION
CAPACITY OF BOWL (QTS. LIQUID) 80 140
Egg Whites D 2 qts. 4 qts.
Mashed Potatoes B & C 60 lbs. 100 lbs.
Mayonnaise (Qts. of Oil) B or C or D 30 qts. 50 qts.
Merinque (Qty. of Water) D 3 qts. 5 qts.
Waffl e or Hot Cake Batter B 32 qts. —
Whipped Cream D or C 16 qts. 30 qts.
Cake, Angel Food (8-10 oz. cake) C or I 60 120
Cake, Box or Slab B or C 100 lbs. 185 lbs.
Cake, Cup B or C 90 lbs. 165 lbs.
Cake, Layer B or C 90 lbs. 165 lbs.
Cake, Pound B 100 lbs. 185 lbs.
Cake, Short (Sponge) C or I 80 lbs. 150 lbs.
Cake, Sponge C or I 65 lbs. 140 lbs.
Cookies, Sugar B 60 lbs. 100 lbs.
Dough, Bread or Roll (Lt.-Med.) 60% AR§ ED 170 lbs.** 210 lbs.**
Dough, Heavy Bread 55% AR§ ED 140 lbs.** 175 lbs.**
Dough, Pie B & P 75 lbs. 125 lbs.
Dough, Thin Pizza 40% AR § †
(max. mix time 5 min.) ED 85 lbs.
* 135 lbs.*
Dough, Med. Pizza 50% AR § † ED 155 lbs.*
190 lbs.*
Dough, Thick Pizza 60% AR § † ED 155 lbs.** 190 lbs.**
Dough, Raised Donut 65% AR ED 60 lbs.*** 100 lbs.***
Dough, Whole Wheat 70% AR ED 150 lbs.** 185 lbs.**
Eggs & Sugar for Sponge Cake B & C or I 40 lbs. 75lbs.
Icing, Fondant B 65 lbs. 100 lbs.
Icing, Marshmallow C or I 10 lbs. 20 lbs.
Shortening & Sugar, Creamed B 65 lbs. 120 lbs.
Pasta, Basic Egg Noodle
(max. mix time 5 min.) ED 65 lbs.* 100 lbs. *
ABBREVIATIONS - AGITATORS
SUITABLE FOR OPERATION
B - Flat Beater
C - Wing Whip
D - Wire Whip
ED - Dough Hook
I - Wire Whip
P - Pastry Knife
* 1st Speed
** 2nd Speed
*** 3rd Speed
NOTE: %AR (% Absorption Ratio) = Water weight divided
by fl our weight. Capacity depends on moisture content of
dough. Above capacities based on 12% fl our moisture at
70°F water temperature.
§ If high gluten fl our is used, reduce above dough batch
size by 10%.
† Requires a 50% reduction in batch size to mix in Speed
2 with 50% or less AR doughs.
Use of ice requires a 10% reduction in batch size.
1 gallon of water weighs 8.33 lbs.
NOTE: Attachment hub should not be used while mixing.
HL200 Mixer Technical Manual Page 38 of 111
13
CREAMING OR RUBBING WITH THE B FLAT BEATER
When making cakes or similar products, the fi rst step is normally rubbing or
creaming the shortening. Start this work on fi rst speed and complete it on second
speed. If a very light consistency is desired, it may be beaten on third speed
before adding more ingredients.
In most formulas, the second step is adding sugar. Most operators prefer to add
sugar slowly while the mixer is operating in second or third speed. If you wish
to add the sugar all at one time, complete the creaming of the shortening and
then stop the machine. When adding the sugar, place it toward the center of
the bowl. Start the machine in fi rst speed for the fi rst few turns around the bowl,
then increase the speed to complete the operation. After all the sugar has been
added, you may want to scrape down the bowl, if you don't have the option bowl
scraper. To scrape the bowl, fi rst stop the mixer. After the beater has stopped,
scrape down the sides of the bowl with a bowl scraper or spatula. This returns
to the mixture any material which may have accumulated on the bowl sides
above the beater shoulder. After scraping down the material, restart the mixer.
Beat until smooth using a three speed. Be careful and do not overmix.
CAKES WITH A HIGH SUGAR CONTENT
Do not add the total amount of whole eggs to the batch at one time.
Darkening of the butter and sugar mix can also result if:
You add the sugar before the shortening is creamed,
You add the sugar too quickly to the creamed shortening, or
You add more sugar than the creamed base can absorb.
When mixing whole eggs, it is unnecessary to separate the whites from the
yolks. Add the eggs slowly and allow them to become thoroughly incorporated
into the shortening base.
Flour and any leavening agent, such as baking powder, soda or special
combinations of dry ingredients, may be sifted together. When incorporating dry
ingredients, stop the mixer (wait for the beater to stop), scrape down the bowl
if necessary, if you don't have the optional bowl scraper, and then add about
1/3 of the fl our and a portion of the milk or added moisture in any form. Resume
mixing in fi rst speed. When the fl our is incorporated, add half of the remaining
liquid and fl our. When this is blended, add the remaining liquid and fl our. Use
only Stir or fi rst speed while adding fl our. If necessary, use the Stir speed during
incorporation of the fl our. This prevents raw fl our from being thrown out of the
mixer and avoids toughening of the mix by overmixing.
Exercise caution not to overmix the batch during or after the addition of the fl our.
Usually, by the time the fl our is thoroughly incorporated, the mix is completed.
Further beating is of no benefi t and may cause toughening of the product. The
time for beating and creaming is before adding the fl our. After the fl our and fi nal
moisture is added, do as little mixing as possible.
HL200 Mixer Technical Manual Page 39 of 111
14
WHIPPING
Use either the D Wire Whip or the C Wing Whip for whipping operations. Although
some special operations require other adaptations of the same general type of
agitator, our discussion centers on the D Wire Whip and the C Wing Whip.
The D Wire Whip (sometimes called balloon or cage whip) is recommended
for whipping cream. With today's marketing conditions, most raw or fresh
cream whips well. All cream should be at least 36 to 48 hours old, and should
be suffi ciently high in butterfat to allow the air to be introduced by whipping.
Cream should be cold, but not so cold that ice crystals are formed. When cream
is too warm, it turns to butter when whipped. Start the mixer in fi rst speed and
gradually increase the speed fi nishing in third or fourth. The amount of total
whipping will depend on the condition, temperature and butterfat content of the
cream and the type of product being prepared. An experienced operator will
recognize the point of greatest fi rmness or stiffness in the whipped product. Use
care, the small diameter wires that produce good whipping can break if used
to mix heavy product or if the whip is rapped on the side of the bowl to remove
excess product.
The C Wing Whip may be used for cream whipping, but it is somewhat slower
in operation. One of its principal uses in the kitchen is for whipping potatoes. Of
course, whipped potatoes are cooked and then whipped while hot. The potatoes
must be soft enough to break up easily by the action of the C Wing Whip in low
speed. It is not advisable to whip potatoes in fourth speed without using a splash
cover. If other ingredients (hot milk, butter or other enriching material) are added,
use Stir speed. The C Wing Whip is excellent for whipping butter.
The C Wing Whip may also be used for mixing salad dressing and light
mayonnaise. Since it is an aerating type whip, it reaches its greatest effi ciency
at the higher speeds.
HL200 Mixer Technical Manual Page 40 of 111
15
The D Wire Whip is generally used for eggs. When you whip only egg whites,
begin in fi rst speed. When the material begins to expand, progress to second
speed. Due to the expansion of the product from the incorporation of air, bowl
capacity is limited by the volume of the fi nal product, not by the amount of liquid
ingredients at the beginning.
When egg whites are whipped, they are generally fi nished in high speed. When
adding sugar to make a meringue, add the sugar at slow speed and then whip
briefl y in third speed.
Over-whipping will result in a refi ning action which liberates air. Stop the mixer
as soon as a dry-appearing peak is reached.
When whipping eggs, either whites or whole eggs, it is important to have the
bowl and the agitator completely free of any trace of shortening or other oily
material. The slightest amount of fat will prevent proper incorporation of air.
See CLEANING NEW MIXER BOWLS AND ACCESSORIES. In some kitchens
and bakeries, it has become general practice to keep certain bowls only for this
purpose.
You may also use the C Wing Whip for whipping eggs or egg whites. However,
the results are somewhat slower than produced by the D Wire Whip.
HL200 Mixer Technical Manual Page 41 of 111
16
MAYONNAISE
The C Wing Whip, because of its strength, high effi ciency and durability when
used on larger mixers, is most commonly used for making mayonnaise. However,
the D Wire Whip may be preferred when making very light batches or when
using step-down bowls.
When you do not need a high emulsion, you may use the B Flat Beater. The B
Flat Beater may be used for French or other thin types of salad dressings. The
C Wing Whip can also provide satisfactory results by operating the machine at
a slow speed.
Because of the great variation in types of mayonnaise and a still wider range
of salad dressings known under other names, we will not supply a specifi c
mayonnaise formula. All formulas, however, require the introduction of liquid
ingredients, the most important of which is vegetable oil. This may be corn oil,
peanut oil, soybean oil, palm oil, saffl ower oil or several others. You must add
the oil slowly, and the operator must pay close attention.
When making mayonnaise, eggs are fi rst thoroughly whipped, then spices,
fl avoring or other ingredients are added at slow speed. These may have been
previously mixed together, perhaps with a portion of vinegar or other mild acid.
After blending these ingredients, the mixer may be operated in third speed (or
fourth). Add the oil very slowly over an interval of 10 to 20 minutes. Add vinegar
or vinegar and water toward the end of the interval when oil can be added. You
may wish to stop the mixer (wait for the beater to stop), then scrape the sides
of the bowl to return any splashed materials to the batch, if you don't have the
optional bowl scraper. Start the mixer on slow speed, then advance to medium
for a short period of mixing.
The times given are approximate and not based on any particular formula.
However, do not continue beating or mixing after adding the last of the
vinegar.
HL200 Mixer Technical Manual Page 42 of 111
17
Attachments and Accessories
Several valuable time and labor saving attachments and accessories are
available for use with Hobart mixers. These tools will extend your usage of the
mixer and enhance your operation by effi ciently producing additional consistent,
uniform products. Thoroughly clean all parts which come in contact with food
both before and after use.
9" VEGETABLE SLICER
The 9" Vegetable Slicer attachment allows you to prepare many additional foods
with your Hobart mixer. The standard knife and shaft is adjustable to provide
variation in slice thickness from a maximum of about
5
/8"
to wafer thin. Thicker
settings are used for slicing vegetables for salads or cole slaw, slicing potatoes
for German (cottage fries) or American fried potatoes, slicing cucumbers,
bananas, nuts, apples, etc.
The 9" VS is easily adapted for grating or shredding processes by removing the
knife and shaft and using the shaft with the wheel, called a plate holder. One
grater plate and four shredder plates (with hole sizes of
3
/32,
3
/16,
5
/16 and
1
/2") are
used for fi ne grating or fi ne to coarse shredding. The most coarse shredder plate
(
1
/2") is used for slaw, cutting soup stock, salad blends or hash brown potatoes.
Experience with the unit will suggest many other products to the operator. The
medium and fi ne shredder plates are for fi ner cuts on carrots, mushrooms or
cabbage hearts for salad or quick cooking uses. Medium shredder plates are
also used for shredding processed cheese for a topping when desired. The
grater plate is used for natural hard cheeses for pizza, grating hard vegetables,
spices, and crumbling dried bread.
Many different products can be prepared with the 9" Vegetable Slicer - in kitchens,
bakeries or delicatessen operations. As a mixer attachment, the vegetable
slicer should operate at second or third speed on the HL120, HL200, HL300
and HL400, third or fourth speed on the HL600 and dedicated speeds on the
HL662 mixer.
Never use the highest speed setting when shredding cheese.
The 9" VS easily disassembles for cleaning.
SHREDDER AND GRATER PLATES 9" VS 9" VEGETABLE SLICER
HL200 Mixer Technical Manual Page 43 of 111
18
MEAT CHOPPER ATTACHMENT
The Meat Chopper Attachment allows you to prepare many additional foods
with your Hobart mixer. A plate having 1/8" holes comes with the Meat Chopper
Attachment when shipped from the factory. Other plates are available with hole
sizes 5/64, 3/16, 1/4, 3/8, 1/2, 5/8 and 11/16" for fi ne to coarse chopping. The results are the
same as produced by Hobart commercial meat choppers. Operate Meat Chopper
Attachments in slower speeds.
The feed pan should be kept in place in the cylinder for ease of feeding. Cut meat
into strips and feed it into the chopper using the feed stomper only as needed.
Substances that could become packed tight in the chopper like bread crumbs
are not recommended. If material in the cylinder stalls the mixer, push the
STOP button at once. DO NOT attempt to restart at a slower speed. Remove
the adjusting ring, knife, plate and worm and clear the obstruction.
Always keep the drain hole on both the Attachment Hub and Meat Chopper
clean, clear and free of obstruction.
MEAT CHOPPER ATTACHMENT
HL200 Mixer Technical Manual Page 44 of 111
19
INGREDIENT CHUTE
The Ingredient Chute can be attached to the Wire Cage on the Bowl Guard.
The Ingredient Chute allows ingredients to be added to the bowl while the mixer
is mixing.
BOWL SCRAPER ATTACHMENT
The mixer Bowl Scraper Attachment is available to scrape the sides of the bowl
as the agitator rotates to re-introduce material into the mixture.
INGREDIENT CHUTE BOWL SCRAPER ATTACHMENT
SPLASH COVER AND BOWL EXTENSION RING
Splash Covers and Bowl Extension Rings provide a means for reducing splashing
for certain mixes at higher speeds. Splash covers fi t under the Bowl Guard. The
stainless steel Bowl Extension Ring is also available.
Splash Covers and Bowl Extensions, while convenient accessories, should not
be used to increase the mixing capacity beyond the recommended maximum.
The best functioning of Hobart mixers requires room at the top of the bowl for
aeration and manipulation. Follow the Hobart Mixer Capacity Chart of the best
quality of mix.
Splash Covers on larger mixers have a smaller diameter opening at the top
due to their inverted cone shape. Overloading the mixer while a splash cover
is in use reduces aeration because of restriction in the area where air enters
the batch.
SPLASH COVER BOWL EXTENSION RING
HL200 Mixer Technical Manual Page 45 of 111
20
BOWL TRUCK
Bowl Trucks or dollies provide convenience, save time, and reduce effort in
handling large batches. Use a Bowl Truck for any batches over 50 pounds.
Remove heavy batches of dough or batter from the mixer by unlocking the bowl
and lowering the bowl to the Bowl Truck. Then, carefully roll the truck away to
make room for the next batch. Move the material to another location where it is
to be used, or refrigerate between mixing and further processing. Bowl Trucks
save time, reduce handling, and improve work fl ow. They are valuable tools in
a work place.
BOWL TRUCK
HL200 Mixer Technical Manual Page 46 of 111
21
NOTES
HL200 Mixer Technical Manual Page 47 of 111
22
NOTES
HL200 Mixer Technical Manual Page 48 of 111
Backing Up Your Purchase . . . .
Dependable Hobart Service
Should your Hobart mixer, attachments or
accessories ever require service, it’s good
to know that more than 1600 factory trained
technicians in more than 200 Hobart service
facilities nationwide, can keep your mixer
working like new.
For ready reference, write down your mixer
model and serial numbers here. Should a
question or problem arise that this booklet or
the instructions you received with the machine
cannot answer, expert Hobart assistance is as
close as your telephone.
Or, contact Hobart on the internet . . .
www.hobartcorp.com
Model No. __________________________________
Serial No. __________________________________
Hobart Service Location ______________________
Telephone Number: __________________________
HL200 Mixer Technical Manual Page 49 of 111
FORM 34901 Rev D (May 2007) PRINTED IN U.S.A.
HL200 Mixer Technical Manual Page 50 of 111
U
V
L1
L2 L1/L
1MTR
AC
INDUCTION
MOTOR
13
12
T1-BLUE
T3-ORANGE
FWD
PLC
MIXER RUN
24 VDC
GND
DISPLAY
30C
30B
1K
01
1CR
TIMER
READY
OUTPUT
1LS
BOWL
GUARD
SWITCH
L2/N
GROUND
8
4
6
2
CONTACT-NORMALLY OPEN (N.O.)
CONTACT-NORMALLY CLOSED (N.C.)
GND GROUND
PB PUSH BUTTON-STOP (N.C.)
PB PUSH BUTTON-START (N.O.)
INSEPARABLE CONNECTION
SEPARABLE CONNECTION
HEAVY LINE DENOTES EXTERNAL WIRING
DASHED LINE DENOTES BOUNDARY
OF PRINTED WIRING BOARD
MOTOR
LS LIMIT SWITCH - N.O.
CR CONTROL RELAY COIL
LIGHT LINE DENOTES FIXED PREWIRING
(PRINTED CIRCUIT WIRING OR OTHER).
SYMBOL DEFINITIONS
100-120/50/60/1
200-230/50/60/1
1CR
DERIVED FROM F34936A
TIME
TIME
ADJUSTMENT
SPEED
SELECTOR
A
11
SWITCH STATE TABLE
SWITCH CONDITION RESULT
BOWL
SWITCH
BOWL
GUARD
OPEN
CLOSED
OPEN
CLOSED
CAGE IN MIX POSTION
CAGE OPEN
BOWL IN MIX POSTION
BOWL OUT MIX POSTION
G
MIXER
DRIVE
X1
X2
CM¹
X3
RS485
1K
RS485
Y1
Y1E
BUZZER
1K
C
CN1-16
CN1-14
CN1-11
CN1-12
CN1-5
CN1-7
CN1-6
CN1-8
CN1-9
CN1-10
CN1-13
CN3-1
CN1-15
CN1-4
CN1-1
CN2-1 CN2-6
24
10
9
w
T2-BROWN
CN3-2
CM²
2LS
BOWL
SWITCH
1MTR
2K
STD
4PB
2K
RECIPE 3PB
2K
RECIPE PROGRAM KEYS
PGM
SPEED
SELECT
SAVE
TIME
SYMBOLS AND LABELS IN ITALICS
USED ON RECIPE TIMER ONLY
STD
4PB
CN4
-1
CN4
-2
CN4
-3
STOP 2PB START 1PB
1234
CN5-3 CN5-2 CN5-1
ELECTRICAL AND GROUNDING CONNECTIONS
MUST COMPLY WITH THE APPLICABLE
PORTIONS OF THE NATIONAL ELECTRICAL
CODE AND/OR OTHER LOCAL ELECTRICAL CODES.
WARNING
HL200 MIXER
ELECTRICAL DIAGRAM
AI 2721
HL200 Mixer Technical Manual Page 51 of 111
MIXER
MOTOR
ASSEMBLY
874781
917819
T3
T1
T2
X3
X2
X1
PLC
Y1E
Y1
30C
30B
30A
11
12
13
CM1
FWD
CM2
U
V
W
L2/N
L1/L
GND
GND
MOTOR
DRIVE
RS
485
WHITE
BLACK
GREEN
BOWL
GUARD
SWITCH
0
1
73
84
62
BOWL SWITCH
1 CR
4
2
AC
10
9
CN2
CN1
CN3
CN4
CN5
STOPPB1
STOPPB2
STARTPB3
STARTPB4
STOP
SWITCH
916592
START
SWITCH
916593
SPEED SELECT
SWITCH ASSY
937061
POTENTIOMETER
ASSY 916594
TIMER BOARD ASSEMBLY
00-937135 STD. TIMER
00-937136 RECIPE TIMER
CONTROLLER PART NO. 00-916893 100-120/50/60/1
CONTROLLER PART NO. 00-916894 200-240/50/60/1
CORD AND PLUG ASSEMBLY
PART NUMBER 117542-100 (REF)
87714-67 (REF)
87711-352
SWITCH
HARNESS
916566
HARNESS PART
NO. 917132-1 (REF)
DERIVED FROM 477208-27 REV D HL200 CONNECTION DIAGRAM AI2720
HL200 Mixer Technical Manual Page 52 of 111
CATALOG OF
REPLACEMENT
PARTS
LEGACY MIXER
HL120 ML-134459
HL200 ML-134455
HL200C ML-134456
HL200 ML-134457
HL200 ML-134458
A product of HOBART 701 S. RIDGE AVENUE TROY, OHIO 45374-0001
FORM 43177 (May 2009)
HL200 Mixer Technical Manual Page 53 of 111
- 2 -
HL120/HL200 LEGACY MIXER REPLACEMENT PARTS
F-43177 (May 2009) © HOBART 2009
HL200 Mixer Technical Manual Page 54 of 111
- 3 -
HL120/HL200 LEGACY MIXER REPLACEMENT PARTS
F-43177 (May 2009)
Table of Contents
5 CONTROL PANEL
6 ELECTRICAL COMPONENTS
7 ATTACHMENT HUB
9 BASE AND PEDESTAL
11 FLOOR BASE AND PEDESTAL
(ML-134458)
12 BOWL SUPPORT
13 TRANSMISSION CASE AND MOTOR
15 TRANSMISSION
17 PLANETARY
19 BOWL AND BOWL GUARD
21 AGITATORS AND ACCESSORIES
23 MIXER TABLE (ML-134299)
24 WIRING HARNESS
HL200 Mixer Technical Manual Page 55 of 111
- 4 -
HL120/HL200 LEGACY MIXER REPLACEMENT PARTS
F-43177 (May 2009)
1
2
3-4
6
7-8
9
10
11
PL-58126
12
13
14
15
16
5
CONTROL PANEL
HL200 Mixer Technical Manual Page 56 of 111
- 5 -
HL120/HL200 LEGACY MIXER REPLACEMENT PARTS
F-43177 (May 2009)
CONTROL PANEL
ILLUS. PART NO. NAME OF PART AMT.
PL-58126
1 00-874831 Switch – Speed Selector Assy. ..................................................................................................1
2 SD-039-23 Self-Tapping Screw 6-32 x 1/4 Hex Washer Hd., Type RL ..........................................................5
3 00-917212 PCB Assy. ..................................................................................................................................1
4 00-917213 PCB Assy. – Recipe Timer (ML-134457) ................................................................................... 1
5 00-916594 Potentiometer Assy. ...................................................................................................................1
6 00-874811 Overlay (With Recipe Timer) (ML-134457) ................................................................................1
7 00-874881 Overlay (Without Recipe Timer) (ML-134455, ML-134456, ML-134457, & ML-134458) ........... 1
8 00-874868 Overlay (ML-134459) .................................................................................................................1
9 00-874809 Knob .......................................................................................................................................... 1
10 WS-031-55 Washer .......................................................................................................................................1
11 00-874809 Knob ..........................................................................................................................................1
12 00-874921 Cover – Weldment (ML-134456)................................................................................................1
13 SC-128-62 Mach. Screw 10-24 x 1/2 Tx. Button Hd. (ML-134456) ............................................................... 6
14 00-874923 Latch (ML-134456) ....................................................................................................................1
15 00-874931 Plate – Backer (ML-134456) ...................................................................................................... 1
16 NS-038-13 Lock Nut 10-24 Hex (ML-134456) .............................................................................................6
HL200 Mixer Technical Manual Page 57 of 111
- 6 -
HL120/HL200 LEGACY MIXER REPLACEMENT PARTS
F-43177 (May 2009)
ELECTRICAL COMPONENTS
ILLUS. PART NO. NAME OF PART AMT.
PL-58127
1 SC-018-38 Mach. Screw 8-32 x 1/2 Slotted Pan Hd......................................................................................2
2 00-874763 Bracket – Controller ...................................................................................................................1
3 00-087714-042-5 Relay (2 Pole, 30 Amp.) .............................................................................................................1
4 00-539847 Tie – Cable (8 In.) ......................................................................................................................1
5 SD-015-37 Self-Tapping Screw 6-32 x 1/4 Phil. Pan Hd., Type TT ...............................................................1
6 00-065890-00090 Terminal (2-Tab) .........................................................................................................................1
7 NS-009-12 Mach. Nut 8-32 Hex ................................................................................................................... 2
8 00-916893 Controller – GE Low Voltage .....................................................................................................1
9 00-916894 Controller – GE High Voltage ..................................................................................................... 1
10 SC-114-80 Mach. Screw
1/4-20 x 3/8 Slotted Pan Hd. ................................................................................... 2
11 SC-089-01 Cap Screw
1/4-20 x 1/2 Hex Socket Hd. (ML-134308 & ML-134331) ..........................................2
7
PL-58127
2
3
8-9
4
6
5
10-11
1
HL200 Mixer Technical Manual Page 58 of 111
- 7 -
HL120/HL200 LEGACY MIXER REPLACEMENT PARTS
F-43177 (May 2009)
ATTACHMENT HUB
ILLUS. PART NO. NAME OF PART AMT.
PL-57679
1 00-917221 Plug – Attachment ......................................................................................................................1
2 00-874925-00004 Seal – Neopreme .......................................................................................................................1
3 00-108197-00001 Screw – Thumb 11/8 .................................................................................................................... 1
4 OR-001-03 O-Ring – Quad ...........................................................................................................................1
5 00-874837 Spacer ....................................................................................................................................... 1
6 00-012746-00005 Washer – Thrust (0.080) ...........................................................................................................AR
7 00-012746-00006 Washer – Thrust (0.106) ...........................................................................................................AR
8 00-012746-00007 Washer – Thrust (0.092) ...........................................................................................................AR
9 00-012746-00008 Washer – Thrust (0.086) ...........................................................................................................AR
10 00-012746-00009 Washer – Thrust (0.098) ...........................................................................................................AR
11 00-012746-00010 Washer – Thrust (0.112) ...........................................................................................................AR
12 00-012746-00012 Washer – Thrust (0.119) ...........................................................................................................AR
13 00-012746-00013 Washer – Thrust (0.121) ...........................................................................................................AR
14 00-012746-00016 Washer – Thrust (0.129) ...........................................................................................................AR
15 00-012746-00019 Washer – Thrust (0.115) ...........................................................................................................AR
16 00-435065-00002 Bevel Gear Seal Assy. (Incls. Item 17)....................................................................................... 1
17 PL-003-17 Plug – Expansion ....................................................................................................................... 1
3
2
1
4
5
16-17
6 THRU 15
PL-57679
HL200 Mixer Technical Manual Page 59 of 111
- 8 -
HL120/HL200 LEGACY MIXER REPLACEMENT PARTS
F-43177 (May 2009)
BASE AND PEDESTAL
PL-58131
23
19
20
21
24
25
18
22
17
32
33
34
16
12
3
5-6
7-8
4
12-13
14
26
27
28
35
36
38
9
10
15
11
37
29
30
31
39
HL200 Mixer Technical Manual Page 60 of 111
- 9 -
HL120/HL200 LEGACY MIXER REPLACEMENT PARTS
F-43177 (May 2009)
BASE AND PEDESTAL
ILLUS. PART NO. NAME OF PART AMT.
PL-58131
1 00-916262 Cover – Top................................................................................................................................1
2 SD-024-01 Self-Tapping Screw 10-24 x 3/8 Slotted Pan Hd., Type TT .........................................................2
3 00-874829 Tab – Cover Mounting ................................................................................................................ 2
4 00-874857 Plug – Hole ................................................................................................................................ 1
5 SC-066-20 Mach. Screw 10-32 x 1/2 Phil. Truss Hd. (SST) .......................................................................... 2
6 SC-128-81 Mach. Screw 10-32 x 1/2 Tx. Button Hd. (ML-134456) ............................................................... 2
7 00-874925-00001 Seal – Neopreme .......................................................................................................................1
8 00-874925-00002 Seal – Neopreme .......................................................................................................................1
9 00-874756 Arm – Bowl Lift ...........................................................................................................................1
10 00-479510 Bushing – Bowl Lift ....................................................................................................................2
11 PS-004-15 Pin – Spirol (1/4) ..........................................................................................................................1
12 SC-015-34 Mach. Screw 10-24 x 1/2 Slotted Oval Hd................................................................................... 4
13 SC-128-75 Mach. Screw 10-24 x 5/8 Flat. Hd. (SST) (ML-134456) .............................................................. 4
14 00-917231 Cover – Pedestal (Back) ............................................................................................................ 1
15 00-874745-00002 Handle & Bushing – Bowl Lift ....................................................................................................1
16 00-874833-00001 Cord & Plug Assy. (120 V.) .........................................................................................................1
17 FE-026-34 Relief – Strain (Electrical) (ML-134456) ..................................................................................... 1
18 00-874760 Cover – Controller (ML-134456) ................................................................................................1
19 SC-114-80 Mach. Screw
1/4-20 x 3/8 Phil. Pan Hd. (ML-134455, & ML-134456) .......................................... 4
20 FE-026-43 Bushing – Electric Snap (ML-134455, ML-134457, & ML-134459) ........................................... 1
21 00-874879 Pad – Rear (ML-134456) ...........................................................................................................2
22 WS-018-24 Washer (ML-134456) .................................................................................................................4
23 SC-118-11 Cap Screw
3/8-16 x 7/8 Hex Hd. (ML-134456) ............................................................................. 4
24 00-874896 Pad – Front (RH) (ML-134456) .................................................................................................. 1
25 00-874720-00002 Base (ML-134456) .....................................................................................................................1
26 SC-118-12 Cap Screw
3/8-16 x 3/4 Hex Hd. (ML-134456) ............................................................................. 4
27 WS-018-34 Washer (ML-134456) .................................................................................................................4
28 00-874878 Pad – Front (LH) (ML-134456) ..................................................................................................4
29 NS-036-15 Stop Nut
3/8-24 Special...............................................................................................................1
30 WS-006-26 Washer .......................................................................................................................................1
31 00-012782 Spring ........................................................................................................................................ 1
32 00-874723-00002 Pedestal .....................................................................................................................................1
33 00-874925-00003 Seal – Neopreme ....................................................................................................................... 1
34 SC-100-08 Mach. Screw
1/4-20 x 3/8 Hex Washer Hd. .................................................................................. 2
35 WS-006-26 Washer .......................................................................................................................................1
36 PC-003-55 Cotter Pin
1/8...............................................................................................................................1
37 00-874748 Rod – Bowl Lift ........................................................................................................................... 1
38 PC-003-55 Cotter Pin
1/8...............................................................................................................................1
39 00-874870 Plate – Spring Bowl Yoke ...........................................................................................................1
00-917167 Barrier – Steam .......................................................................................................................... 1
HL200 Mixer Technical Manual Page 61 of 111
- 10 -
HL120/HL200 LEGACY MIXER REPLACEMENT PARTS
F-43177 (May 2009)
FLOOR BASE AND PEDESTAL (ML-134458)
PL-58132
8
7
3
2
1
16
11
6
4
5
13
14
15
12 9
10
HL200 Mixer Technical Manual Page 62 of 111
- 11 -
HL120/HL200 LEGACY MIXER REPLACEMENT PARTS
F-43177 (May 2009)
FLOOR BASE AND PEDESTAL (ML-134458)
ILLUS. PART NO. NAME OF PART AMT.
PL-58132
1 00-916548-00002 Block – Riser ..............................................................................................................................1
2 WS-018-24 Washer ....................................................................................................................................... 8
3 SC-118-10 Cap Screw
3/8-16 x 1 Hex Hd. ....................................................................................................4
4 00-874833-00001 Cord & Plug Assy. (120 V.) ......................................................................................................... 1
5 00-117542-00001 Cord & Plug ...............................................................................................................................1
6 FE-022-84 Relief – Strain (Electrical) .......................................................................................................... 1
7 00-916549 Screen – Air Floor ......................................................................................................................1
8 SC-124-91 Cap Screw
3/8-16 x 21/2 Hex Hd. .................................................................................................4
9 WS-018-24 Washer ....................................................................................................................................... 8
10 00-916309 Pad – Rear ................................................................................................................................. 2
11 00-916308 Pad – Front (RH) .......................................................................................................................1
12 00-916213-00004 Base ...........................................................................................................................................1
13 SC-118-12 Cap Screw
3/8-16 x 3/4 Hex Hd. ...................................................................................................4
14 WS-018-34 Washer .......................................................................................................................................4
15 00-916307 Pad – Front (LH) ........................................................................................................................1
16 PG-005-25 Pin – Grooved ............................................................................................................................1
HL200 Mixer Technical Manual Page 63 of 111
- 12 -
HL120/HL200 LEGACY MIXER REPLACEMENT PARTS
F-43177 (May 2009)
BOWL SUPPORT
ILLUS. PART NO. NAME OF PART AMT.
PL-58128
1 00-874726 Pin – Bowl (LH) ..........................................................................................................................1
2 00-874841-00002 Support – Bowl ..........................................................................................................................1
3 SC-129-22 Set Screw
1/4-20 x 1/4 Sq. Hd. Cup Pt. ........................................................................................ 2
4 00-874727 Pin – Bowl (RH) ......................................................................................................................... 1
5 SC-122-59 Mach. Screw 8-32 x 1/4 Phil. Pan Hd. (SST) .............................................................................. 4
6 00-874742 Apron .........................................................................................................................................1
7 00-011800-00187 Dowel .........................................................................................................................................2
8 SC-040-09 Cap Screw
1/4-20 x 11/4 Hex Socket Hd. .....................................................................................6
9 00-874738-00001 Slideway – Bowl Lift (LH) ...........................................................................................................1
10 00-011800-00187 Dowel .........................................................................................................................................1
11 00-874738-00002 Slideway – Bowl Lift (RH) .......................................................................................................... 1
12 00-874884 Cover – Bowl Interlock ............................................................................................................... 1
13 00-087711-00352 Switch – Reed ............................................................................................................................1
14 00-874842 Hold Down – Bowl (Rear) .......................................................................................................... 1
15 SC-062-69 Cap Screw
1/4-20 x 13/4 Hex Hd. .................................................................................................2
PB-004-97 Cap ............................................................................................................................................4
1
2
5
36
7
12
11
8
15
10
14
13
9
4
PL-58128
HL200 Mixer Technical Manual Page 64 of 111
- 13 -
HL120/HL200 LEGACY MIXER REPLACEMENT PARTS
F-43177 (May 2009)
TRANSMISSION CASE AND MOTOR
ILLUS. PART NO. NAME OF PART AMT.
PL-58129
1 NS-032-23 Lock Nut
7/16-20 Special ............................................................................................................. 1
2 00-012430-00004 Key
1/8 x 1/8 x 11/4 ........................................................................................................................ 1
3 00-291221 Worm – Gear 60 Cycle .............................................................................................................. 1
4 00-012754 Washer .......................................................................................................................................1
5 00-012757 Absorber – Shock Spring ...........................................................................................................1
6 00-874820 Defl ector – Grease (LH) .............................................................................................................1
7 00-916445 Bushing – Motor Mounting .........................................................................................................1
8 00-917810 Motor (100-120 V.) ..................................................................................................................... 1
9 00-874634 Motor (200-240 V.) ..................................................................................................................... 1
10 SC-089-01 Cap Screw
1/4-20 x 1/2 Hex Socket Hd. (HL200) .........................................................................6
11 SC-089-02 Cap Screw
1/4-20 x 3/4 Hex Socket Hd. (HL120) .........................................................................6
12 00-874755 Cover – Transmission ................................................................................................................1
13 SC-118-11 Cap Screw
3/8-16 x 7/8 Hex Hd. ...................................................................................................4
14 WS-018-24 Washer .......................................................................................................................................4
15 00-874857 Plug ............................................................................................................................................ 1
16 00-874876 Plug – Cupped Expansion .........................................................................................................1
17 00-270776 Dowel .........................................................................................................................................2
18 00-917805 Transmission Case – Lower ......................................................................................................1
00-917983 Label Assy. – Warning Shield ....................................................................................................1
00-438131-00187 Label – Warning .........................................................................................................................1
SD-039-23 Self-Tapping Screw 6-32 x 1/4 Hex Washer Hd. ......................................................................... 2
PL-58129
15-16
17
18
13
14
10-11
12
1
2
3
4
5
6
8-9
7
HL200 Mixer Technical Manual Page 65 of 111
- 14 -
HL120/HL200 LEGACY MIXER REPLACEMENT PARTS
F-43177 (May 2009)
TRANSMISSION
1
19-20
21
24
2
3
4
5
18
25
28-29
26
6
7
836
27
30
31
32
33
34
35
9
11
13
14
15
16-17
10
12
PL-58130
22-23
HL200 Mixer Technical Manual Page 66 of 111
- 15 -
HL120/HL200 LEGACY MIXER REPLACEMENT PARTS
F-43177 (May 2009)
TRANSMISSION
ILLUS. PART NO. NAME OF PART AMT.
PL-58130
1 NS-032-37 Lock Nut
5/8-18 Special .............................................................................................................. 1
2 WS-031-41 Washer ....................................................................................................................................... 1
3 SC-114-80 Mach. Screw
1/4-20 x 3/8 Phil. Pan Hd. .......................................................................................4
4 00-874787 Retainer – Planetary Bearing .....................................................................................................1
5 00-874795 Gasket – Bearing .......................................................................................................................1
6 BB-005-34 Bearing – Ball ............................................................................................................................1
7 00-874793 Spacer – Planetary .................................................................................................................... 1
8 00-124733-00002 Gear – Bevel (46T, 14P) ............................................................................................................ 1
9 00-874873-00001 Key .............................................................................................................................................1
10 00-874873-00002 Key .............................................................................................................................................1
11 00-874635 Shaft – Planetary ....................................................................................................................... 1
12 00-012430-00017 Key
1/8 x 1/8 x 27/16 .......................................................................................................................1
13 00-874778 Gear (55T, 14P) ......................................................................................................................... 1
14 BB-020-06 Bearing – Ball Fafnir 204K ......................................................................................................... 1
15 00-114695 Seal – Oil ...................................................................................................................................1
16 00-437342 Spacer – Bearing .......................................................................................................................1
17 00-067500-00078 O-Ring .......................................................................................................................................1
18 00-012710 Nut – Retaining ..........................................................................................................................2
19 WS-006-36 Washer (ML-134455, ML-134456, ML-134457, & ML-134458) ................................................. 1
20 WS-008-13 Washer (ML-134459) ................................................................................................................. 1
21 SC-114-80 Mach. Screw
1/4-20 x 3/8 Phil. Pan Hd. .......................................................................................3
22 00-874788 Retainer – Bearing ..................................................................................................................... 1
23 BB-005-02 Bearing – Ball ............................................................................................................................1
24 BB-005-01 Bearing – Ball Fafnir 200K ......................................................................................................... 1
25 00-064871 Plug – Friction ............................................................................................................................ 1
26 WS-006-26 Washer .......................................................................................................................................1
27 00-916962 Spacer – Gear ...........................................................................................................................1
28 00-917797 Gear – Worm (100-120 V.) .........................................................................................................1
29 00-874934 Gear – Worm (29T) (200-240 V.) ...............................................................................................1
30 00-916961 Shaft – Worm Wheel .................................................................................................................. 1
31 00-012430-00024 Key
1/8 x 1/8 x 11/2 ........................................................................................................................ 1
32 WS-006-26 Washer (ML-134308, ML-134331, & ML-134312) ..................................................................... 1
33 00-874777 Gear (18T, 14P) ......................................................................................................................... 1
34 BB-005-01 Bearing – Ball Fafnir 200K ......................................................................................................... 1
35 SL-002-08 Spring – Loading ........................................................................................................................ 1
36 00-012430-00024 Key
1/8 x 1/8 x 11/2 ........................................................................................................................ 1
HL200 Mixer Technical Manual Page 67 of 111
- 16 -
HL120/HL200 LEGACY MIXER REPLACEMENT PARTS
F-43177 (May 2009)
PLANETARY
13
14
15
19
20
21
22
1
9
16
18
17
11
5
6
8
7
10
12
4
2
3
PL-57685
HL200 Mixer Technical Manual Page 68 of 111
- 17 -
HL120/HL200 LEGACY MIXER REPLACEMENT PARTS
F-43177 (May 2009)
PLANETARY
ILLUS. PART NO. NAME OF PART AMT.
PL-57685
1 00-438524-00002 Gear – Internal ...........................................................................................................................1
2 WL-003-35 Lockwasher
1/4 Helical................................................................................................................6
3 SC-040-09 Cap Screw
1/4-20 x 11/4 Hex Socket Hd. .....................................................................................6
4 SC-066-13 Mach. Screw 8-32 x 1/4 Phil. Truss Hd. (SST) ............................................................................ 3
5 RR-004-18 Ring – Retaining ........................................................................................................................1
6 00-916336 Plug – Friction (1 In. Dia.) ..........................................................................................................1
7 00-916335 Pinion – Beater Shaft .................................................................................................................1
8 00-916512 Seal – Upper Agitator Shaft ....................................................................................................... 1
9 BB-018-17 Bearing – Ball Hoover/NSK 6203 DDU ......................................................................................1
10 00-916333-00001 Planetary ....................................................................................................................................1
11 00-874770 Spacer Bowl Scraper ................................................................................................................. 2
12 SC-053-46 Mach. Screw
1/4-20 x 3/4 Slotted Truss Hd. (SST) ...................................................................... 2
13 BB-005-34 Bearing – Ball Hoover/NSK 6204 DDU ...................................................................................... 1
14 00-023482 Seal – Grease 1 In. Dia. Shaft ................................................................................................... 1
15 00-874753 Plunger Assy. .............................................................................................................................1
16 00-916334 Shaft – Agitator ..........................................................................................................................1
17 00-065062-00001 Pin – Dowel ................................................................................................................................ 1
18 00-012430-00055 Key
3/16 x 3/16 x 1 .........................................................................................................................1
19 00-124946 Washer
1/32 ................................................................................................................................1
20 WS-030-83 Washer .......................................................................................................................................1
21 00-010928-00002 Nut .............................................................................................................................................1
22 00-024715-00003 Acorn Nut
1/2-20 .........................................................................................................................1
00-916332 Planetary Subassy. (Incls. Items 5 thru 15, 17, & 20) ................................................................ 1
HL200 Mixer Technical Manual Page 69 of 111
- 18 -
HL120/HL200 LEGACY MIXER REPLACEMENT PARTS
F-43177 (May 2009)
BOWL AND BOWL GUARD
1
7
15
19
27
29
28
23
24
26
25
22
21
20
2
13
14 12
3
4
16
18
17
5
8
9
6
10
11
PL-58133
20 QUART BOWL
12 QUART BOWL
HL200 Mixer Technical Manual Page 70 of 111
- 19 -
HL120/HL200 LEGACY MIXER REPLACEMENT PARTS
F-43177 (May 2009)
BOWL AND BOWL GUARD
ILLUS. PART NO. NAME OF PART AMT.
PL-58133
1 SC-129-39 Mach. Screw 6-32 x 5/16 Slotted Oval Hd. ..................................................................................1
2 00-917349 Carrier – Wire Cage ...................................................................................................................1
3 NS-048-96 Crown Nut 6-32 .......................................................................................................................... 1
4 SC-129-39 Mach. Screw 6-32 x 5/16 Slotted Oval Hd. ..................................................................................1
5 00-917349-00002 Carrier – Wire Cage (Slotted) .................................................................................................... 1
6 NS-048-96 Crown Nut 6-32 .......................................................................................................................... 1
7 SC-129-39 Mach. Screw 6-32 x 5/16 Slotted Oval Hd. ..................................................................................1
8 00-917349 Carrier – Wire Cage ...................................................................................................................1
9 00-917357 Holder – Magnet (Upper) ...........................................................................................................1
10 00-874875 Magnet – Disc ............................................................................................................................ 1
11 00-917358 Holder – Magnet (Lower) ........................................................................................................... 1
12 NS-048-96 Crown Nut 6-32 ..........................................................................................................................1
13 00-874822 Wire Cage Assy. (Incls. Items 1 thru 12) .................................................................................... 1
14 00-874822-00002 Wire Cage Assy. (Incls. Items 1 thru 12) .................................................................................... 1
15 00-917234 Guard – Splash .......................................................................................................................... 1
16 00-087711-00352 Switch – Reed ............................................................................................................................1
17 00-917232 Holder – Switch Reed ................................................................................................................1
18 00-874839 Pin – Sensor ..............................................................................................................................1
19 SC-118-18 Cap Screw
1/4-20 x 7/8 Hex Hd. ...................................................................................................2
20 WS-003-19 Washer (HL200) .........................................................................................................................2
21 WS-003-46 Washer (HL120) .........................................................................................................................4
22 00-917272 Cup – Drip & Flange ..................................................................................................................1
23 00-917357 Holder – Magnet (Upper) ...........................................................................................................1
24 00-874875 Magnet – Disc ............................................................................................................................ 1
25 00-917358 Holder – Magnet (Lower) ...........................................................................................................1
26 00-874864 Bowl Assy. (12 Qt.) (SST) (Packaged) (Incls. Items 23, 24, & 25) ............................................. 1
27 00-917527 Housing – Magnet ...................................................................................................................... 1
28 NS-025-11 Crown Nut
3/8-24 ........................................................................................................................1
29 00-917720 Bowl Assy. (20 Qt.) (SST) (Packaged) (Incls. Items 27 & 28) .................................................... 1
HL200 Mixer Technical Manual Page 71 of 111
- 20 -
HL120/HL200 LEGACY MIXER REPLACEMENT PARTS
F-43177 (May 2009)
AGITATORS AND ACCESSORIES
1
23456
13 14 15
16
17
18
78 9 101112
PL-57686
HL200 Mixer Technical Manual Page 72 of 111
- 21 -
HL120/HL200 LEGACY MIXER REPLACEMENT PARTS
F-43177 (May 2009)
AGITATORS AND ACCESSORIES
ILLUS. PART NO. NAME OF PART AMT.
PL-57686
1 00-913049 Scraper – Bowl ..........................................................................................................................1
2 00-874828 “B” Beater (12 Qt.) (Packaged) (Incls. Item 1) ...........................................................................1
3 00-873360 “D” Wire Whip (12 Qt.) (Packaged) (Incls. Item 1) .....................................................................1
4 00-873343 “ED” Dough Arm (12 Qt.) (Packaged) (Incls. Item 1) .................................................................1
5 00-875893 “C” Whip (12 Qt.) (Packaged) (Incls. Item 1) ............................................................................. 1
6 00-873370 Pastry Knife (12 Qt.) (Packaged) (Incls. Item 1) ........................................................................1
7 00-873294 Pastry Knife (20 Qt.) (Packaged) (Incls. Item 1) ........................................................................1
8 00-873313 “EDA” Dough Arm (20 Qt.) (Packaged) (Incls. Item 1) ...............................................................1
9 00-873331 “C” Whip (20 Qt.) (Packaged) (Incls. Item 1) ............................................................................. 1
10 00-873335 “E” Dough Arm (20 Qt.) (Packaged) (Incls. Item 1) ....................................................................1
11 00-874792 “D” Wire Whip (20 Qt.) (Packaged) (Incls. Item 1) .....................................................................1
12 00-874791 “ED” Dough Arm (20 Qt.) (Packaged) (Incls. Item 1) ................................................................. 1
13 00-874790 “B” Beater (20 Qt.) (Packaged) (Incls. Item 1) ...........................................................................1
14 00-873373 Scraper (12 Qt.) (Packaged) ...................................................................................................... 1
15 00-874836 Scraper (20 Qt.) (Packaged) ...................................................................................................... 1
16 00-438078 Splash Cover (12 Qt.) (Packaged) ............................................................................................. 1
17 00-438079 Splash Cover (20 Qt.) (Packaged) ............................................................................................. 1
18 00-875677 Splash Cover (20 Qt.) (SST) (Packaged) .................................................................................. 1
00-874885 Ingredient Chute (Packaged) ..................................................................................................... 1
00-874899 Tray – Support (Packaged) ........................................................................................................1
HL200 Mixer Technical Manual Page 73 of 111
- 22 -
HL120/HL200 LEGACY MIXER REPLACEMENT PARTS
F-43177 (May 2009)
MIXER TABLE (ML-134299)
PL-57731
11
12
13
5
15
9
14
7
1
2
16
17
19
8
4
3
6
18
20
10
HL200 Mixer Technical Manual Page 74 of 111
- 23 -
HL120/HL200 LEGACY MIXER REPLACEMENT PARTS
F-43177 (May 2009)
MIXER TABLE (ML-134299)
ILLUS. PART NO. NAME OF PART AMT.
PL-57731
1 00-124075 Post ............................................................................................................................................4
2 00-124067 Support – Cross Top ..................................................................................................................1
3 WL-004-06 Lockwasher
3/8 Helical................................................................................................................8
4 SC-037-71 Cap Screw
3/8-16 x 3/4 Hex Hd. ...................................................................................................8
5 00-123427 Shelf – Table .............................................................................................................................. 1
6 00-124076 Grommet ....................................................................................................................................4
7 00-124073 Leg – Rear (LH) .........................................................................................................................1
8 00-124074-00002 Rod (Short) ................................................................................................................................ 2
9 SC-094-26 Bolt
1/4-20 x 1/2 Sq. Neck Rd. Hd. .............................................................................................. 22
10 00-205003 Caster – Locking ........................................................................................................................ 4
11 00-124070 Leg – Rear (RH) ........................................................................................................................1
12 WS-005-01 Washer ......................................................................................................................................22
13 NS-013-02 Nut
1/4-20 Hex ...........................................................................................................................22
14 00-124074-00001 Rod (Long) ................................................................................................................................. 4
15 00-124071 Leg – Front (RH) ........................................................................................................................ 1
16 00-124076 Grommet ....................................................................................................................................8
17 00-124072 Leg – Front (LH) ........................................................................................................................1
18 00-875983 Support – Cross Top ..................................................................................................................1
19 00-124069 Support – Cross Top ..................................................................................................................1
20 00-875982 Top ............................................................................................................................................. 1
HL200 Mixer Technical Manual Page 75 of 111
FORM 43177 MAY 2009 PRINTED IN U.S.A.
HL120/HL200 LEGACY MIXER REPLACEMENT PARTS
WIRING HARNESS
00-917132-00001 Harness - Main Wiring
PL-58135
HL200 Mixer Technical Manual Page 76 of 111
CATALOG OF
REPLACEMENT
PARTS
LEGACY MIXER
HL120 ML-134296
HL200 ML-134289
HL200 ML-134331
HL200C ML-134312
HL200 ML-134308
A product of HOBART 701 S. RIDGE AVENUE TROY, OHIO 45374-0001
FORM 43101 Rev. A (May 2006)
PREVIOUS MLS COVERED IN THIS MANUAL
HL200 Mixer Technical Manual Page 77 of 111
- 2 -
HL120/HL200 LEGACY MIXER REPLACEMENT PARTS
F-43101 Rev. A (May 2006) © HOBART
HL200 Mixer Technical Manual Page 78 of 111
- 3 -
HL120/HL200 LEGACY MIXER REPLACEMENT PARTS
F-43101 Rev. A (May 2006)
Table of Contents
5 CONTROL PANEL
6 ELECTRICAL COMPONENTS
7 ATTACHMENT HUB
9 BASE AND PEDESTAL
11 FLOOR BASE AND PEDESTAL
(ML-134308 & ML-134331)
12 BOWL SUPPORT
13 TRANSMISSION CASE AND MOTOR
15 TRANSMISSION
17 PLANETARY
19 BOWL AND BOWL GUARD
21 AGITATORS AND ACCESSORIES
23 MIXER TABLE (ML-134299)
24 WIRING HARNESSES
HL200 Mixer Technical Manual Page 79 of 111
- 4 -
HL120/HL200 LEGACY MIXER REPLACEMENT PARTS
F-43101 Rev. A (May 2006)
1
2
5
6-7
8
9
1 0
3-4
PL-58126
1 1
1 2
1 3
1 4
1 5
CONTROL PANEL
HL200 Mixer Technical Manual Page 80 of 111
- 5 -
HL120/HL200 LEGACY MIXER REPLACEMENT PARTS
F-43101 Rev. A (May 2006)
CONTROL PANEL
ILLUS. PART NO. NAME OF PART AMT.
PL-58126
1 00-874831 Switch – Speed Selector Assy. .................................................................................................. 1
2 SD-039-23 Self-Tapping Screw 6-32 x 1/4 Hex Washer Hd., Type RL .......................................................... 5
3 00-874883 Board – Timer ............................................................................................................................ 1
4 00-874806 Board – Timer (Recipe) (ML-134289) ........................................................................................ 1
5 00-874811 Overlay (W/Recipe Timer) (ML-134289) ....................................................................................1
6 00-874881 Overlay (W/O Recipe Timer) (ML-134289, ML-134308, ML-134331, & ML-134312) ................ 1
7 00-874868 Overlay (ML-134296) .................................................................................................................1
8 00-874809 Knob ..........................................................................................................................................1
9 WS-031-44 Washer .......................................................................................................................................1
10 00-874809 Knob ..........................................................................................................................................1
11 00-874921 Cover – Weldment (ML-134312) ...............................................................................................1
12 SC-128-62 Mach. Screw 10-24 x 1/2 Tx. Button Hd. (ML-134312) ............................................................... 6
13 00-874923 Latch (ML-134312) ....................................................................................................................1
14 00-874931 Plate – Backer (ML-134312) ...................................................................................................... 1
15 NS-038-13 Lock Nut 10-24 Hex (ML-134312) ............................................................................................. 6
HL200 Mixer Technical Manual Page 81 of 111
- 6 -
HL120/HL200 LEGACY MIXER REPLACEMENT PARTS
F-43101 Rev. A (May 2006)
ELECTRICAL COMPONENTS
ILLUS. PART NO. NAME OF PART AMT.
PL-58127
1 SC-018-38 Mach. Screw 8-32 x 1/2 Slotted Pan Hd. ....................................................................................2
2 00-874763 Bracket – Controller ................................................................................................................... 1
3 00-087714-042-5 Relay (2 Pole, 30 Amp.) .............................................................................................................1
4 00-539847 Tie – Cable 8 In. ......................................................................................................................... 1
5 SD-015-37 Self-Tapping Screw 6-32 x 1/4 Phil. Pan Hd., Type TT ..............................................................1
6 00-065890-00090 Terminal (2-Tab) ......................................................................................................................... 1
7 NS-009-12 Mach. Nut 8-32 Hex ................................................................................................................... 2
8 00-874775-00002 Motor Drive (120 V.) ................................................................................................................... 1
9 00-874776-00002 Motor Drive (240 V.) (ML-134289, ML-134296, ML-134331, & ML-134308) ............................. 1
10 SC-114-80 Mach. Screw 1/4-20 x 3/8 Slotted Pan Hd. ................................................................................... 2
11 SC-089-01 Cap Screw 1/4-20 x 1/2 Hex Socket Hd. (ML-134308 & ML-134331) ....................................... 2
7
PL-58127
2
3
8-9
4
6
5
10-11
1
HL200 Mixer Technical Manual Page 82 of 111
- 7 -
HL120/HL200 LEGACY MIXER REPLACEMENT PARTS
F-43101 Rev. A (May 2006)
ATTACHMENT HUB
ILLUS. PART NO. NAME OF PART AMT.
PL-57679
1 00-114824-00001 Plug – Attachment ......................................................................................................................1
2 00-874925-00004 Seal – Neopreme .......................................................................................................................1
3 00-108197-00001 Screw – Thumb 1.125 ................................................................................................................ 1
4 OR-001-03 O-Ring – Quad ...........................................................................................................................1
5 00-874837 Spacer .......................................................................................................................................1
6 00-012746-00005 Washer – Thrust (0.080) .......................................................................................................... AR
7 00-012746-00006 Washer – Thrust (0.106) .......................................................................................................... AR
8 00-012746-00007 Washer – Thrust (0.092) .......................................................................................................... AR
9 00-012746-00008 Washer – Thrust (0.086) .......................................................................................................... AR
10 00-012746-00009 Washer – Thrust (0.098) .......................................................................................................... AR
11 00-012746-00010 Washer – Thrust (0.112) .......................................................................................................... AR
12 00-012746-00012 Washer – Thrust (0.119) .......................................................................................................... AR
13 00-012746-00013 Washer – Thrust (0.121) .......................................................................................................... AR
14 00-012746-00016 Washer – Thrust (0.129) .......................................................................................................... AR
15 00-012746-00019 Washer – Thrust (0.115) .......................................................................................................... AR
16 00-435065-00002 Bevel Gear Seal Assy. (Incls. Item 17) ...................................................................................... 1
17 PL-003-17 Plug – Expansion ....................................................................................................................... 1
3
2
1
4
5
16-17
6 THRU 15
PL-57679
HL200 Mixer Technical Manual Page 83 of 111
- 8 -
HL120/HL200 LEGACY MIXER REPLACEMENT PARTS
F-43101 Rev. A (May 2006)
BASE AND PEDESTAL
PL-58131
2 4
2 0
2 1
2 2
2 5
2 6
1 9
2 3
1 8
3 3
3 4
3 5
16-17
12
3
5-6
7-8
4
12-13
1 4
2 7
2 8
2 9
3 6
3 7
3 9
9
10
1 5
1 1
3 8
3 0
3 1
3 2
HL200 Mixer Technical Manual Page 84 of 111
- 9 -
HL120/HL200 LEGACY MIXER REPLACEMENT PARTS
F-43101 Rev. A (May 2006)
BASE AND PEDESTAL
ILLUS. PART NO. NAME OF PART AMT.
PL-58131
1 00-916262 Cover – Top ...............................................................................................................................1
2 SD-024-01 Self-Tapping Screw 10-24 x 3/8 Slotted Pan Hd., Type TT ......................................................... 2
3 00-874829 Tab – Cover Mounting ................................................................................................................ 2
4 00-874857 Plug – Hole ................................................................................................................................ 1
5 SC-066-20 Mach. Screw 10-32 x 1/2 Phil. Truss Hd. (SST) .......................................................................... 2
6 SC-128-81 Mach. Screw 10-32 x 1/2 Tx. Button Hd. (ML-134312) ............................................................... 2
7 00-874925-00001 Seal – Neopreme .......................................................................................................................1
8 00-874925-00002 Seal – Neopreme .......................................................................................................................1
9 00-874756 Arm – Bowl Lift ...........................................................................................................................1
10 00-479510 Bushing – Bowl Lift .................................................................................................................... 2
11 PS-004-15 Pin – Spirol (1/4) .......................................................................................................................... 1
12 SC-015-34 Mach. Screw 10-24 x 1/2 Slotted Oval Hd. ................................................................................. 4
13 SC-128-75 Mach. Screw 10-24 x 5/8 Flat. Hd. (SST) (ML-134312) .............................................................. 4
14 00-874749 Cover – Pedestal (Back) ............................................................................................................ 1
15 00-874745-00002 Handle & Bushing – Bowl Lift ....................................................................................................1
16 00-874833-00001 Cord & Plug Assy. (120 V.) .........................................................................................................1
17 00-874833-00002 Cord & Plug Assy. (220 V.) (ML-134289 & ML-134296) ............................................................1
18 FE-026-34 Relief – Strain (Electrical) (ML-134289, ML-134296, & ML-134312) ......................................... 1
19 00-874760 Cover – Controller (ML-134289, ML-134296, & ML-134312) .................................................... 1
20 SC-114-80 Mach. Screw 1/4-20 x 3/8 Phil. Pan Hd. (ML-134289, ML-134296, & ML-134312) ...................... 4
21 FE-026-43 Bushing – Electric Snap (ML-134296 & ML-134289) ................................................................1
22 00-874879 Pad – Rear (ML-134289, ML-134296, & ML-134312) ............................................................... 2
23 WS-018-24 Washer (ML-134289, ML-134296, & ML-134312) ..................................................................... 4
24 SC-118-11 Cap Screw 3/8-16 x 7/8 Hex Hd. (ML-134289, ML-134296, & ML-134312) ................................. 4
25 00-874896 Pad – Front (RH) (ML-134289, ML-134296, & ML-134312) ...................................................... 1
26 00-874720-00002 Base (ML-134289, ML-134296, & ML-134312) ......................................................................... 1
27 SC-118-12 Cap Screw 3/8-16 x 3/4 Hex Hd. (ML-134289, ML-134296, & ML-134312) ................................. 4
28 WS-018-34 Washer (ML-134289, ML-134296, & ML-134312) ..................................................................... 4
29 00-874878 Pad – Front (LH) (ML-134289, ML-134296, & ML-134312) ....................................................... 4
30 NS-036-15 Stop Nut 3/8-24 Special .............................................................................................................. 1
31 WS-006-26 Washer .......................................................................................................................................1
32 00-012782 Spring ........................................................................................................................................1
33 00-874723-00002 Pedestal ..................................................................................................................................... 1
34 00-874925-00003 Seal – Neopreme ....................................................................................................................... 1
35 SC-100-08 Mach. Screw 1/4-20 x 3/8 Hex Washer Hd. .................................................................................. 2
36 WS-006-26 Washer .......................................................................................................................................1
37 PC-003-55 Cotter Pin 1/8 ............................................................................................................................. 1
38 00-874748 Rod – Bowl Lift ........................................................................................................................... 1
39 PC-003-55 Cotter Pin 1/8 ............................................................................................................................. 1
HL200 Mixer Technical Manual Page 85 of 111
- 10 -
HL120/HL200 LEGACY MIXER REPLACEMENT PARTS
F-43101 Rev. A (May 2006)
FLOOR BASE AND PEDESTAL (ML-134308& ML-134331)
PL-58132
8
7
3
2
1
16
1 1
6
4
5
1 3
1 4
1 5 1 2 9
1 0
HL200 Mixer Technical Manual Page 86 of 111
- 11 -
HL120/HL200 LEGACY MIXER REPLACEMENT PARTS
F-43101 Rev. A (May 2006)
FLOOR BASE AND PEDESTAL (ML-134308 & ML-134331)
ILLUS. PART NO. NAME OF PART AMT.
PL-58132
1 00-916222-00002 Block – Riser ..............................................................................................................................1
2 WS-018-24 Washer .......................................................................................................................................8
3 SC-118-10 Cap Screw 3/8-16 x 1 Hex Hd. .................................................................................................... 4
4 00-874833-00001 Cord & Plug Assy. (120 V.) ......................................................................................................... 1
5 00-874833-00002 Cord & Plug Assy. (220 V.) ......................................................................................................... 1
6 FE-022-84 Relief – Strain (Electrical) .......................................................................................................... 1
7 00-916330 Screen – Air Floor ...................................................................................................................... 1
8 SC-124-91 Cap Screw 3/8-16 x 21/2 Hex Hd. ................................................................................................. 4
9 WS-018-24 Washer .......................................................................................................................................8
10 00-916309 Pad – Rear ................................................................................................................................. 2
11 00-916308 Pad – Front (RH) .......................................................................................................................1
12 00-916213-00002 Base ........................................................................................................................................... 1
13 00-916307 Pad – Front (LH) ........................................................................................................................1
14 WS-018-34 Washer .......................................................................................................................................4
15 SC-118-12 Cap Screw 3/8-16 x 3/4 Hex Hd. ...................................................................................................4
16 PG-005-25 Pin – Grooved ............................................................................................................................1
HL200 Mixer Technical Manual Page 87 of 111
- 12 -
HL120/HL200 LEGACY MIXER REPLACEMENT PARTS
F-43101 Rev. A (May 2006)
BOWL SUPPORT
ILLUS. PART NO. NAME OF PART AMT.
PL-58128
1 00-874726 Pin – Bowl (LH) ..........................................................................................................................1
2 00-874841-00002 Support – Bowl ..........................................................................................................................1
3 SC-129-22 Set Screw 1/4-20 x 1/4 Sq. Hd. Cup Pt. ........................................................................................ 2
4 00-874727 Pin – Bowl (RH) ......................................................................................................................... 1
5 SC-122-59 Mach. Screw 8-32 x 1/4 Phil. Pan Hd. (SST) .............................................................................. 4
6 00-874742 Apron ......................................................................................................................................... 1
7 00-011800-00187 Dowel .........................................................................................................................................2
8 SC-040-09 Cap Screw 1/4-20 x 11/4 Hex Socket Hd. ..................................................................................... 6
9 00-874738-00001 Slideway – Bowl Lift (LH) ...........................................................................................................1
10 00-011800-00187 Dowel ......................................................................................................................................... 2
11 00-874738-00002 Slideway – Bowl Lift (RH) .......................................................................................................... 1
12 00-874884 Cover – Bowl Interlock ............................................................................................................... 1
13 00-087711-00352 Switch – Reed ............................................................................................................................ 1
14 00-874842 Hold Down – Bowl (Rear) .......................................................................................................... 1
15 SC-062-69 Cap Screw 1/4-20 x 13/4 Hex Hd. ................................................................................................. 2
PB-004-97 Cap ............................................................................................................................................ 4
1
2
5
3
6
7
1 2
1 1
8
1 5
1 0
1 4
1 3
9
4
PL-58128
HL200 Mixer Technical Manual Page 88 of 111
- 13 -
HL120/HL200 LEGACY MIXER REPLACEMENT PARTS
F-43101 Rev. A (May 2006)
TRANSMISSION CASE AND MOTOR
ILLUS. PART NO. NAME OF PART AMT.
PL-58129
1 NS-032-23 Lock Nut 7/16-20 Special ............................................................................................................. 1
2 00-012430-00004 Key 1/8 x 1/8 x 11/4 .......................................................................................................................1
3 00-291221 Worm – Gear 60 Cycle .............................................................................................................. 1
4 00-012754 Washer .......................................................................................................................................1
5 00-012757 Absorber – Shock Spring ...........................................................................................................1
6 00-874820 Deflector – Grease (LH) .............................................................................................................1
7 00-874634 Motor ..........................................................................................................................................1
8 SC-089-01 Cap Screw 1/4-20 x 1/2 Hex Socket Hd. (HL200) ......................................................................... 6
9 SC-089-02 Cap Screw 1/4-20 x 3/4 Hex Socket Hd. (HL120) ......................................................................... 6
10 00-874755 Cover – Transmission ................................................................................................................ 1
11 SC-118-11 Cap Screw 3/8-16 x 7/8 Hex Hd. ................................................................................................... 4
12 WS-018-24 Washer .......................................................................................................................................4
13 00-874857 Plug ............................................................................................................................................ 1
14 00-874876 Plug – Cupped Expansion ......................................................................................................... 1
15 00-270776 Dowel ......................................................................................................................................... 2
16 00-874783 Transmission Case – Lower ......................................................................................................1
PL-58129
13-14
1 5
1 6
1 1
1 2
8-9
1 0
1
2
3
4
5
6
7
HL200 Mixer Technical Manual Page 89 of 111
- 14 -
HL120/HL200 LEGACY MIXER REPLACEMENT PARTS
F-43101 Rev. A (May 2006)
TRANSMISSION
1
1 9
2 1
2 2
2 0
2 3
2
3
4
5
1 8
2 4
2 7
2 5
6
7
8
28
1 3
2 6
2 9
3 0
3 1
3 2
3 3
3 4
3 5
9
1 1
1 4
1 5
16-17
1 0
1 2
PL-58130
HL200 Mixer Technical Manual Page 90 of 111
- 15 -
HL120/HL200 LEGACY MIXER REPLACEMENT PARTS
F-43101 Rev. A (May 2006)
TRANSMISSION
ILLUS. PART NO. NAME OF PART AMT.
PL-58130
1 NS-032-37 Lock Nut 5/8-18 Special ..............................................................................................................1
2 WS-031-41 Washer .......................................................................................................................................1
3 SC-114-80 Mach. Screw 1/4-20 x 3/8 Phil. Pan Hd. .......................................................................................4
4 00-874787 Retainer – Planetary Bearing .....................................................................................................1
5 00-874795 Gasket – Bearing ....................................................................................................................... 1
6 BB-005-34 Bearing – Ball ............................................................................................................................1
7 00-874793 Spacer – Planetary .................................................................................................................... 1
8 00-124733-00002 Gear – Bevel (46T, 14P) ............................................................................................................ 1
9 00-874873-00001 Key .............................................................................................................................................1
10 00-874873-00002 Key ............................................................................................................................................. 1
11 00-874635 Shaft – Planetary ....................................................................................................................... 1
12 00-012430-00017 Key 1/8 x 1/8 x 27/16 ...................................................................................................................... 1
13 00-874778 Gear (55T, 14P) ......................................................................................................................... 1
14 BB-020-06 Bearing – Ball Fafnir 204K ......................................................................................................... 1
15 00-114695 Seal – Oil ................................................................................................................................... 1
16 00-437342 Spacer – Bearing .......................................................................................................................1
17 00-067500-00078 O-Ring .......................................................................................................................................1
18 00-012710 Nut – Retaining ..........................................................................................................................2
19 WS-006-36 Washer (ML-134289, ML-134308, ML-134331, & ML-134312) ................................................. 1
20 SC-114-80 Mach. Screw 1/4-20 x 3/8 Phil. Pan Hd. ....................................................................................... 3
21 00-874788 Retainer – Bearing ..................................................................................................................... 1
22 BB-005-02 Bearing – Ball ............................................................................................................................1
23 BB-005-01 Bearing – Ball Fafnir 200K ......................................................................................................... 1
24 00-064871 Plug – Friction ............................................................................................................................ 1
25 WS-006-26 Washer .......................................................................................................................................1
26 00-874780 Spacer – Gear ...........................................................................................................................1
27 00-874934 Gear – Worm (29T) .................................................................................................................... 1
28 00-012430-00024 Key 1/8 x 1/8 x 11/2 .......................................................................................................................1
29 00-874779 Shaft – Worm Wheel .................................................................................................................. 1
30 00-012430-00024 Key 1/8 x 1/8 x 11/2 .......................................................................................................................1
31 WS-010-36 Washer (ML-134296 & ML-134289) ..........................................................................................1
32 WS-006-26 Washer (ML-134308, ML-134331, & ML-134312) ..................................................................... 1
33 00-874777 Gear (18T, 14P) ......................................................................................................................... 1
34 BB-005-01 Bearing – Ball Fafnir 200K ......................................................................................................... 1
35 SL-002-08 Spring – Loading ........................................................................................................................ 1
HL200 Mixer Technical Manual Page 91 of 111
- 16 -
HL120/HL200 LEGACY MIXER REPLACEMENT PARTS
F-43101 Rev. A (May 2006)
PLANETARY
1 1
1 2
2 0
1 6
1 7
1 8
1 9
1
1 0
1 5
1 3
1 4
8
5
6
7
9
4
2
3
PL-57685
HL200 Mixer Technical Manual Page 92 of 111
- 17 -
HL120/HL200 LEGACY MIXER REPLACEMENT PARTS
F-43101 Rev. A (May 2006)
PLANETARY
ILLUS. PART NO. NAME OF PART AMT.
PL-57685
1 00-438524-00002 Gear – Internal ...........................................................................................................................1
2 WL-003-35 Lockwasher 1/4 Helical ...............................................................................................................6
3 SC-040-09 Cap Screw 1/4-20 x 11/4 Hex Socket Hd. ..................................................................................... 6
4 SC-066-13 Mach. Screw 8-32 x 1/4 Phil. Truss Hd. (SST) ............................................................................ 3
5 RR-004-18 Ring – Retaining ........................................................................................................................ 1
6 00-015217 Pinion – Beater (19T) .................................................................................................................1
7 00-874766-00002 Planetary ....................................................................................................................................1
8 00-874770 Spacer Bowl Scraper ................................................................................................................. 2
9 SC-053-46 Mach. Screw 1/4-20 x 3/4 Slotted Truss Hd. (SST) ...................................................................... 2
10 BB-018-17 Bearing – Ball Hoover/NSK 6203 DDU ...................................................................................... 1
11 BB-005-34 Bearing – Ball Hoover/NSK 6204 DDU ...................................................................................... 1
12 00-023482 Seal – Grease 1 In. Dia. Shaft ...................................................................................................1
13 00-012430-00055 Key 3/16 x 3/16 x 1 .........................................................................................................................1
14 00-065062-00001 Pin – Dowel ................................................................................................................................ 1
15 00-874739 Shaft – Agitator .......................................................................................................................... 1
16 00-124946 Washer 1/32 ................................................................................................................................1
17 WS-030-83 Washer .......................................................................................................................................1
18 00-010928-00002 Nut ............................................................................................................................................. 1
19 00-024715-00003 Acorn Nut 1/2-20 ......................................................................................................................... 1
20 00-874753 Plunger Assy. ............................................................................................................................. 1
00-874767 Planetary Subassy. (Incls. Items 5 thru 15) ............................................................................... 1
HL200 Mixer Technical Manual Page 93 of 111
- 18 -
HL120/HL200 LEGACY MIXER REPLACEMENT PARTS
F-43101 Rev. A (May 2006)
BOWL AND BOWL GUARD
1
7
1 5
1 9
2 7
2 9
2 8
2 3
2 4
2 6
2 5
2 2
2 1
2 0
2
1 3
1 4 1 2
3
4
1 6
1 8
1 7
5
8
9
6
1 0
1 1
PL-58133
20 QUART BOWL
12 QUART BOWL
HL200 Mixer Technical Manual Page 94 of 111
- 19 -
HL120/HL200 LEGACY MIXER REPLACEMENT PARTS
F-43101 Rev. A (May 2006)
BOWL AND BOWL GUARD
ILLUS. PART NO. NAME OF PART AMT.
PL-58133
1 SC-129-39 Mach. Screw 6-32 x 5/16 Slotted Oval Hd. ..................................................................................1
2 00-874816 Carrier – Wire Cage ................................................................................................................... 1
3 NS-048-96 Crown Nut 6-32 .......................................................................................................................... 1
4 SC-129-39 Mach. Screw 6-32 x 5/16 Slotted Oval Hd. ..................................................................................1
5 00-874816-00002 Carrier – Wire Cage (Slotted) .................................................................................................... 1
6 NS-048-96 Crown Nut 6-32 .......................................................................................................................... 1
7 SC-129-39 Mach. Screw 6-32 x 5/16 Slotted Oval Hd. ..................................................................................1
8 00-874816 Carrier – Wire Cage ................................................................................................................... 1
9 00-874887 Holder – Magnet (Upper) ........................................................................................................... 1
10 00-874875 Magnet – Disc ............................................................................................................................ 1
11 00-874886 Holder – Magnet (Lower) ........................................................................................................... 1
12 NS-048-96 Crown Nut 6-32 ..........................................................................................................................1
13 00-874822 Wire Cage Assy. (Incls. Items 1 thru 12) ....................................................................................1
14 00-874822-00002 Wire Cage Assy. (Incls. Items 1 thru 12) (ML-134312) .............................................................. 1
15 00-874815 Guard – Splash .......................................................................................................................... 1
16 00-087711-00352 Switch – Reed ............................................................................................................................ 1
17 00-874786 Holder – Switch Reed ................................................................................................................1
18 00-874839 Pin – Sensor .............................................................................................................................. 1
19 SC-118-18 Cap Screw 1/4-20 x 7/8 Hex Hd. ...................................................................................................2
20 WS-003-19 Washer (HL200) .........................................................................................................................2
21 WS-003-46 Washer (HL120) .........................................................................................................................4
22 00-916408 Cup – Drip & Flange .................................................................................................................. 1
23 00-874887 Holder – Magnet (Upper) ...........................................................................................................1
24 00-874875 Magnet – Disc ............................................................................................................................ 1
25 00-874886 Holder – Magnet (Lower) ...........................................................................................................1
26 00-874864 Bowl Assy. (12 Qt.) (SST) (Packaged) (Incls. Items 23, 24, & 25) .............................................1
27 00-874847 Housing & Magnet ..................................................................................................................... 1
28 NS-025-11 Crown Nut 3/8-24 ........................................................................................................................ 1
29 00-874834 Bowl Assy. (20 Qt.) (SST) (Packaged) (Incls. Items 27 & 28) ....................................................1
HL200 Mixer Technical Manual Page 95 of 111
- 20 -
HL120/HL200 LEGACY MIXER REPLACEMENT PARTS
F-43101 Rev. A (May 2006)
AGITATORS AND ACCESSORIES
1
2 3 4 5 6
13 1 4 1 5
1 6
1 7
1 8
7 8 9 1 0 1 1 1 2
PL-57686
HL200 Mixer Technical Manual Page 96 of 111
- 21 -
HL120/HL200 LEGACY MIXER REPLACEMENT PARTS
F-43101 Rev. A (May 2006)
AGITATORS AND ACCESSORIES
ILLUS. PART NO. NAME OF PART AMT.
PL-57686
1 00-118801 Scraper – Bowl (Handheld) ........................................................................................................1
2 00-874828 “B” Beater (12 Qt.) (Packaged) (Incls. Item 1) ........................................................................... 1
3 00-873360 “D” Wire Whip (12 Qt.) (Packaged) (Incls. Item 1) ..................................................................... 1
4 00-873343 “ED” Dough Arm (12 Qt.) (Packaged) (Incls. Item 1) ................................................................. 1
5 00-875893 “C” Whip (12 Qt.) (Packaged) (Incls. Item 1) ............................................................................. 1
6 00-873370 Pastry Knife (12 Qt.) (Packaged) (Incls. Item 1) ........................................................................ 1
7 00-873294 Pastry Knife (20 Qt.) (Packaged) (Incls. Item 1) ........................................................................ 1
8 00-873313 “EDA” Dough Arm (20 Qt.) (Packaged) (Incls. Item 1) ............................................................... 1
9 00-873331 “C” Whip (20 Qt.) (Packaged) (Incls. Item 1) ............................................................................. 1
10 00-873335 “E” Dough Arm (20 Qt.) (Packaged) (Incls. Item 1) .................................................................... 1
11 00-874792 “D” Wire Whip (20 Qt.) (Packaged) (Incls. Item 1) ..................................................................... 1
12 00-874791 “ED” Dough Arm (20 Qt.) (Packaged) (Incls. Item 1) ................................................................. 1
13 00-874790 “B” Beater (20 Qt.) (Packaged) (Incls. Item 1) ...........................................................................1
14 00-873373 Scraper (12 Qt.) (Packaged) ...................................................................................................... 1
15 00-874836 Scraper (20 Qt.) (Packaged) ...................................................................................................... 1
16 00-438078 Splash Cover (12 Qt.) (Packaged) ............................................................................................. 1
17 00-438079 Splash Cover (20 Qt.) (Packaged) ............................................................................................. 1
18 00-875677 Splash Cover (20 Qt.) (SST) (Packaged) .................................................................................. 1
00-874885 Ingredient Chute (Packaged) ..................................................................................................... 1
00-874899 Tray – Support (Packaged) ........................................................................................................ 1
HL200 Mixer Technical Manual Page 97 of 111
- 22 -
HL120/HL200 LEGACY MIXER REPLACEMENT PARTS
F-43101 Rev. A (May 2006)
MIXER TABLE (ML-134299)
PL-57731
1 1
1 2
1 3
5
1 5
9
1 4
7
1
2
1 6
1 7
1 9
8
4
3
6
1 8
2 0
1 0
HL200 Mixer Technical Manual Page 98 of 111
- 23 -
HL120/HL200 LEGACY MIXER REPLACEMENT PARTS
F-43101 Rev. A (May 2006)
MIXER TABLE (ML-134299)
ILLUS. PART NO. NAME OF PART AMT.
PL-57731
1 00-124075 Post ............................................................................................................................................4
2 00-124067 Support – Cross Top .................................................................................................................. 1
3 WL-004-06 Lockwasher 3/8 Helical ...............................................................................................................8
4 SC-037-71 Cap Screw 3/8-16 x 3/4 Hex Hd. ................................................................................................... 8
5 00-123427 Shelf – Table .............................................................................................................................. 1
6 00-124076 Grommet ....................................................................................................................................4
7 00-124073 Leg – Rear (LH) ......................................................................................................................... 1
8 00-124074-00002 Rod (Short) ................................................................................................................................ 2
9 SC-094-26 Bolt 1/4-20 x 1/2 Sq. Neck Rd. Hd. .............................................................................................. 22
10 00-205003 Caster – Locking ........................................................................................................................ 4
11 00-124070 Leg – Rear (RH) ........................................................................................................................1
12 WS-005-01 Washer ......................................................................................................................................22
13 NS-013-02 Nut 1/4-20 Hex ...........................................................................................................................22
14 00-124074-00001 Rod (Long) ................................................................................................................................. 4
15 00-124071 Leg – Front (RH) ........................................................................................................................ 1
16 00-124076 Grommet .................................................................................................................................... 8
17 00-124072 Leg – Front (LH) ........................................................................................................................1
18 00-875983 Support – Cross Top .................................................................................................................. 1
19 00-124069 Support – Cross Top .................................................................................................................. 1
20 00-875982 Top ............................................................................................................................................. 1
HL200 Mixer Technical Manual Page 99 of 111
FORM 43101 Rev. A MAY 2006 PRINTED IN U.S.A.
HL120/HL200 LEGACY MIXER REPLACEMENT PARTS
WIRING HARNESSES
00-874804-00001 Harness - Power
00-874803-00002 Harness - Intermediate
00-874888-00001 Harness - Drive
PL-58135
HL200 Mixer Technical Manual Page 100 of 111
User Guide
Online Parts Catalog
Section 1 – If Equipment ML Number is known
Section 2 – If Equipment ML Number is not known
Note: It is helpful, but not essential to know
the ML (Material List) Number of the
equipment for which a part is needed
HL200 Mixer Technical Manual Page 101 of 111
User Guide
Next
select
SMARTPARTS
From
hobartservice.com
select
PARTS
Web Browser Pop-up blocker must be turned off for this site in order for SmartParts to operate
HL200 Mixer Technical Manual Page 102 of 111
This is SmartParts
home page
If the ML Number of
the Equipment is
known,
select
Use SmartParts Now
(We’ll explain what to
do if the ML number of
the Equipment is not
known in Section 2)
Enter the ML number
and click on
Search SmartParts
For this example, the part needed is a Water
Pressure Gauge used on the LX 30 Undercounter
Dishwasher
The ML number of this dishwasher is 104352
104352
104352
Section 1 – If Equipment ML Number is known
HL200 Mixer Technical Manual Page 103 of 111
•
Click on the
Radio button
to select the
Parts Catalog
Then click on
Continue
The Water Pressure Gauge is
on the Base Assembly
Select Base Assembly
Then click on Continue
Section 1 – If Equipment ML Number is known
HL200 Mixer Technical Manual Page 104 of 111
•
Select an appropriate figure size
Locate the part needed (Water
Pressure Gauge) on the drawing
Placing the cursor on the number
will display the Description of the
Part
Click on the number pointing to
the part
Section 1 – If Equipment ML Number is known
19: Gauge – Water Pressure (LX30/40, LXG, & LXiG Series)
HL200 Mixer Technical Manual Page 105 of 111
•Selecting the part on the figure causes the part to be highlighted on the parts list
•Click on the Add button to add the part to the shopping cart
•You can add more parts or change the quantity of the parts already in the cart
•When finished, click on the Confirm Parts Selected and then on Print Parts List if
you want to print
Section 1 – If Equipment ML Number is known
Use SMARTPARTS Now
HL200 Mixer Technical Manual Page 106 of 111
Section 2 – If Equipment ML Number is not known
This (again) is SmartParts
home page
For this example, the part
needed is a Water
Pressure Gauge used on
the LX 30 Undercounter
Dishwasher
If the ML Number of the
Equipment is not known,
click on the Radio button
to select Warewash /
Waste Equipment
Then click on Continue
(Go to Section 1 if you do know
the ML number of the
Equipment)
Click on the Radio button
to select UnderCounter
Dishwasher
Then click on
Continue
HL200 Mixer Technical Manual Page 107 of 111
Click on the Radio button
to select LX Series
Dishwashers
Then click on
Continue
Section 2 – If Equipment ML Number is not known
The Water Pressure Gauge
is on the Base Assembly
Select Base Assembly
Then click on Continue
HL200 Mixer Technical Manual Page 108 of 111
Locate the part needed (Water
Pressure Gauge) on the
drawing
Placing the cursor on the
number will display the
Description of the Part
Click on the number pointing to
the part
Section 2 – If Equipment ML Number is not known
19: Gauge – Water Pressure (LX30/40, LXG, & LXiG Series)
Select an appropriate figure size
HL200 Mixer Technical Manual Page 109 of 111
•Selecting the part on the figure causes the part to be highlighted on the parts list
•Click on the Add button to add the part to the shopping cart
•You can add more parts or change the quantity of the parts already in the cart
•When finished, click on the Confirm Parts Selected and then on Print Parts List if
you want to print
Section 2 – If Equipment ML Number is not known
Use SMARTPARTS Now
HL200 Mixer Technical Manual Page 110 of 111
Page 1 of 1 HL200 Mixer
 
HL200 MIXER
JANUARY 2010
PRODUCT SERVICE DEPARTMENT TROY, OH. 45374-0001
RECOMMENDED SPARE PARTS LIST
HL200 LEGACY MIXER
Qty Part Number Description
1 23482 Seal, Grease
1 087711-352 Switch, Reed
1 087714-42-5 Relay
1 114695 Seal, Oil
1 874809 Knob
1 937164-1 Carrier, Wire Cage
1 937164-2 Carrier, Wire Cage Slotted
1 937061 Switch, Speed Selector
1 917529 Housing, Magnet
1 917358 Holder, Lower
1 917357 Holder, Upper
1 874875 Magnet, Disc
1 937135 PBC, Timer
1 OR 001-03 Quad Ring
HL200 Mixer Technical Manual Page 111 of 111

Navigation menu
