Hobbico >
Users Manual
T4-2400 Transmitter operation Introduction
1. Electronic Specification
a. Operation frequency: 2402- 2480MHz, total 79 frequencies (the space of close
frequencies is 1 MHz)
b. FHSS transmitter mode
c. Output power≤4Mw
d. Channel: 4 proportional
e. Operation voltage: 4.8V
f. Operation current＜25mA
2. Using Guide
a. Power on the transmitter, the voltage of the battery no less than 4.8V, all the 3 LED s
(from left to right: red, yellow and green) illuminated; when the voltage of the battery
between 4.4V-4V, green light off; when the voltage below 4V, just the red light on, and
then we must charge the battery with the included charger. Please review the attached
circuit diagram of the charger.

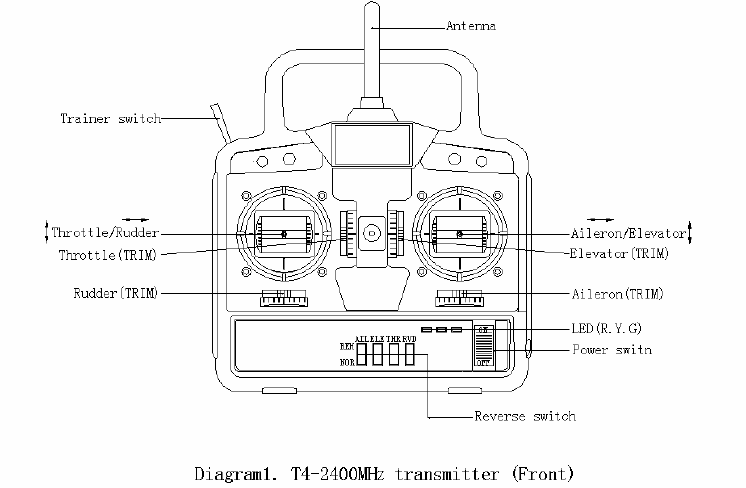

b. As the diagram 1 shown, the top transmitter case has 2 control sticks, and their
performance as following:
Left stick,
Up and down, control the Throttle
Left and right, control the Rudder
Right stick,
UP and down, control the Elevator
Left and Right, control the Rudder
There are 4 trim levers near the 2 sticks, respectively trim the throttle, rudder, elevator
and aileron throw.
c. There are 4 switches on the right bottom of the top case of the transmitter, respectively
for aileron, elevator, throttle and rudder reverse switches.
d. In the left corner, there is a trainer switch, when the 2 transmitters connected by a trainer
core with the trainer jack at the back of the transmitter; stir the trainer switch can make
the two transmitters have the trainer function.

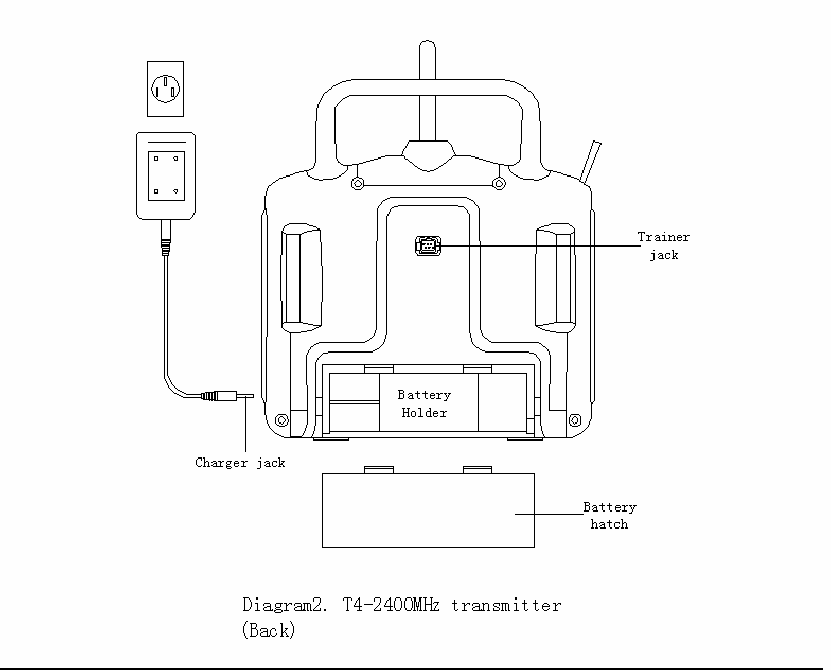

e. As the diagram 2 shown, it the back sight diagrams of the transmitter, the charger jack on
the left side.

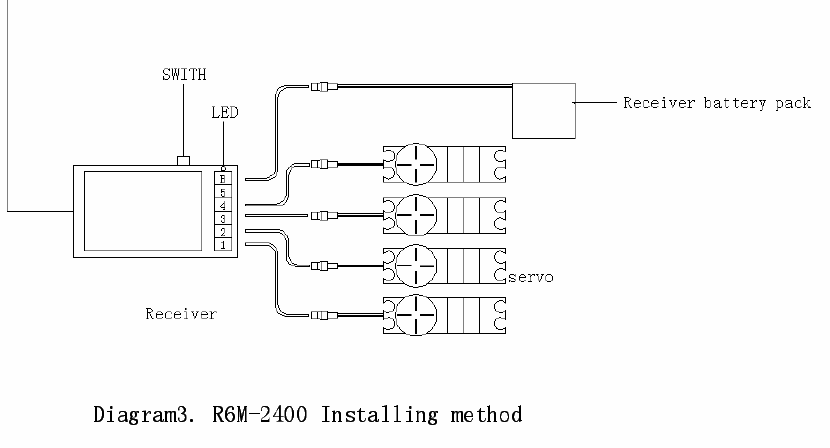

f. Diagram is showing the receiver, there are a code knob and a LED. First time to use this
radio, should be turn on the transmitter firstly, and then connect the receiver battery, and
press the code knob on the receiver for 5 seconds, then the LED of receiver be on.
Notes: while coding the transmitter and receiver, do not allow any other transmitter in the
same series to operate within the range of receiver.
FCC NOTE:
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions:(1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
The manufacturer is not responsible for any radio or TV interference caused
by unauthorized modifications to this equipment. Such modifications could
void the user's authority to operate the equipment.
