Homewerks Worldwide 7130-02-BT ventilating bath fan with bluetooth speaker User Manual 2

Homewerks Worldwide, LLC ventilating bath fan with bluetooth speaker Users Manual 2

Contents

Users Manual-2

9
www.homewerksww.com
ASSEMBLY INSTRUCTIONS
Wall switch
back view
White
wire
Black
wire
Red
wire
Green
wire
Wall
switch
NIGHT LIGHT
8
9
7. Secure the suspension bracket I (C) to fan
housing using short machine screw (BB)
(included).
8. Remove junction box cover. As shown in wiring
diagram on page 5, using quick connect ports
connect house wires to switch and fan.
9. Connect a 4 in. circular duct and vent to the
outside. Secure it with duct tape or clamp
(not supplied).
Turn on power source. Test the fan.
7
1. Join the connectors for the BLUETOOTH®
speaker and power adapter.
BLUETOOTH® SPEAKER FAN GRILLE INSTALLATION
Housing must be installed ush with ceiling board or the grille mounting spring will not be long
enough to insert into the slots inside the fan housing.
1
10 www.homewerksww.com
2
1. To play your personal music les, you need a wireless BLUETOOTH® device.
2. Set your device to a midrange volume before connecting to the speaker.
3. Follow the instructions that came with your BLUETOOTH® device to make it discoverable or to set it
to search for other BLUETOOTH® accessories. This may involve entering a passkey or PIN (Personal
Identication Number).
4. From the Home screen, choose Settings > BLUETOOTH®, the device searches for Homewerks®
speaker.
Note: While your device can maintain multiple pairing records, it can only connect to one accessory
at a time. This prevents your device from sending your data to the wrong BLUETOOTH® accessory.
5. Choose the Homewerks® speaker, and then enter a passkey or PIN (0000) if prompted.
6. When pairing is complete, you can use the BLUETOOTH® speaker to play audio with your device.
7. Optimal volume setting for the BLUETOOTH® speaker is 70% or lower. Settings higher than 70%
may cause sound distortion.
This is a one-time pairing to be done after turning on the power source.
1. Turn switch to on ON. The white LED light on the fan should be on. NOTE: the other functions on
the light switch will not be working until the end of this section.
2. Cycle the switch ON & OFF 4 times until the Blue LED night light on the fan is ashing.
3. While the Blue LED night light is ashing, press any of the top three setting buttons on the switch –
NIGHT LIGHT, LIGHT or FAN.
4. Blue LED night light will stop ashing. The switch is now paired with fan. All four setting buttons
on the switch should now be functional.
5. Any combination of settings can be achieved by individually pressing each setting button, except
LED light and night light.
EG: LIGHT and FAN will turn on the exhaust fan and LED light.
EG: LIGHT and MUSIC will turn on LED light and Bluetooth speaker.
Should you ever lose pairing between the switch and fan, repeat steps 2-4.
PAIRING YOUR BLUETOOTH® DEVICE TO THE SPEAKER
PAIRING LIGHT SWITCH WITH FAN

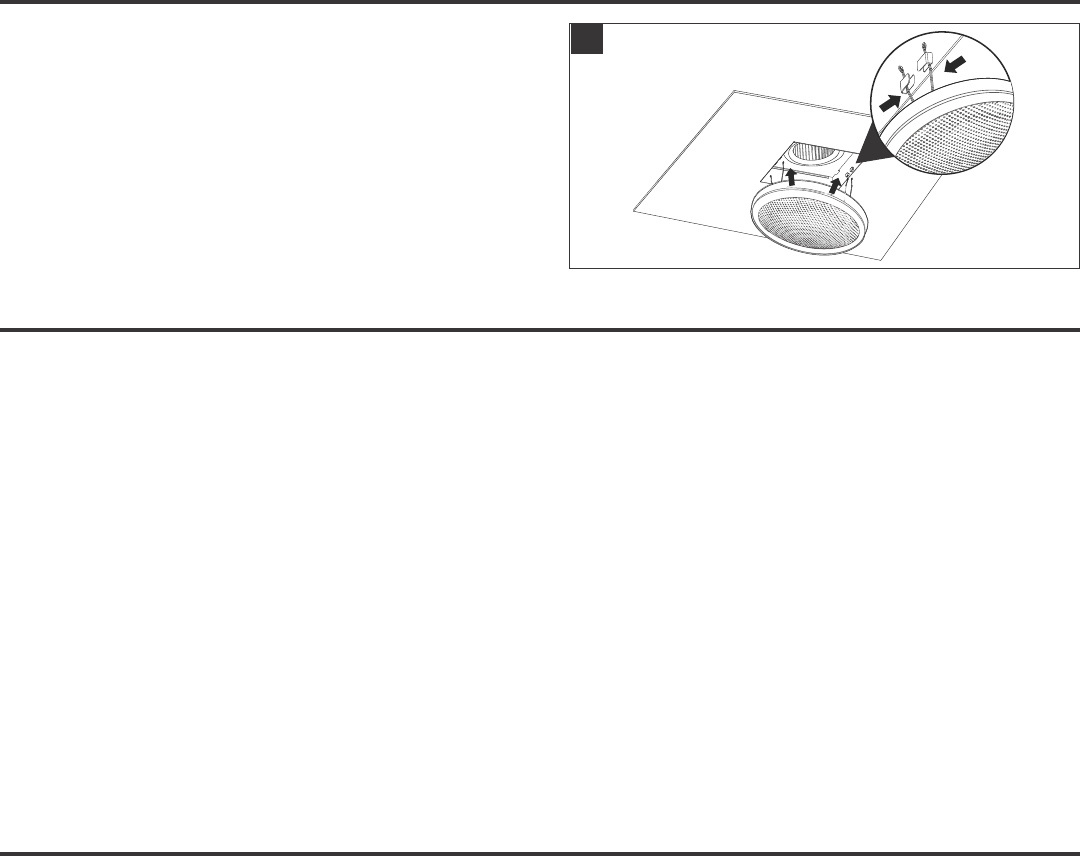

2. Attach grille by pinching mounting springs
and insert into narrow rectangular slots in
the fan housing.
Turn on power source.
BLUETOOTH SPEAKER FAN GRILLE INSTALLATION
11
www.homewerksww.com

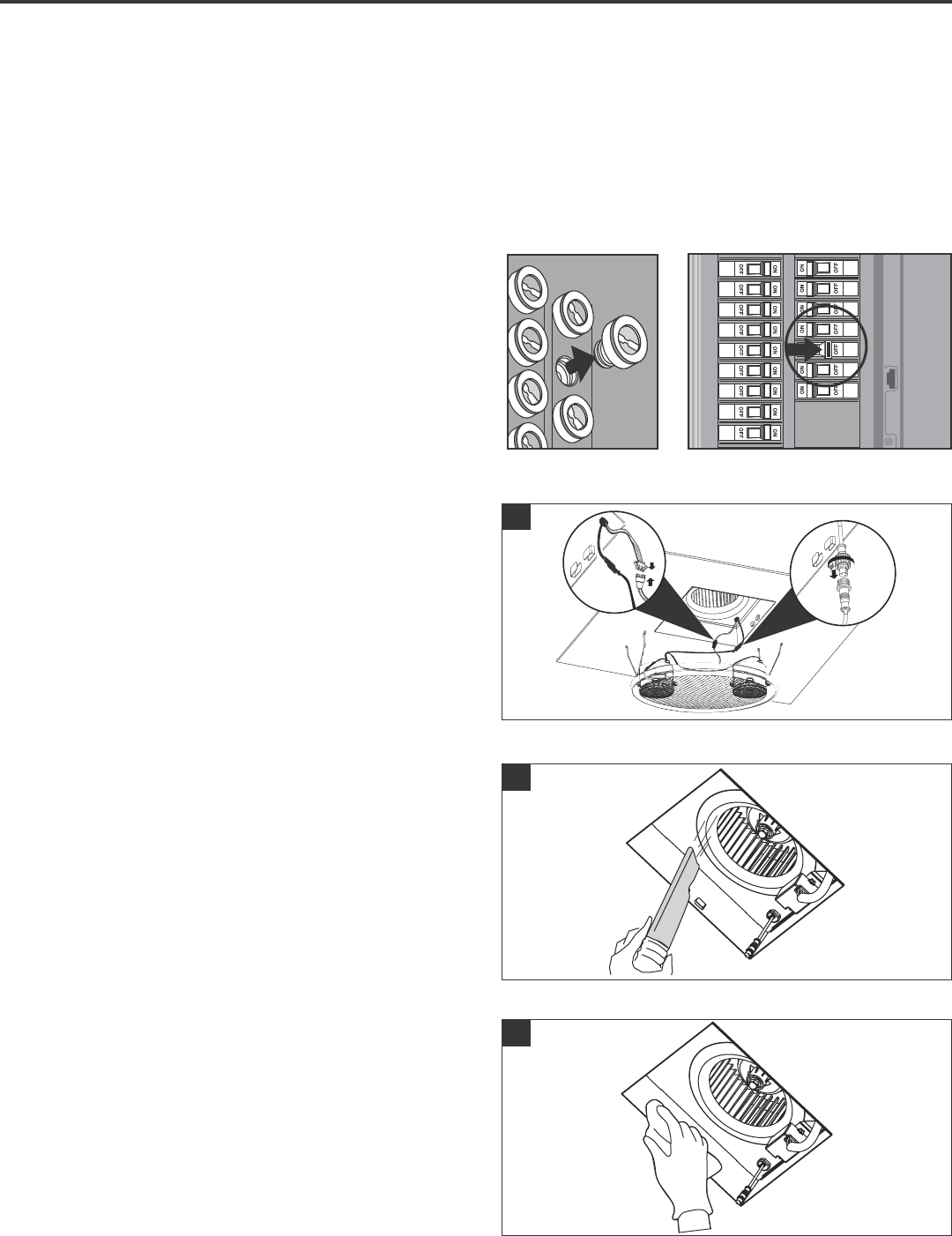

CARE AND MAINTENANCE
Turn off power source. Review all safety
precautions.
See safety information before proceeding. Routine maintenance should be done at least once a year.
• Never use solvents, thinner or harsh chemicals for cleaning the fan.
• Do not allow water to enter the motor.
• Do not immerse metal parts in water.
• Do not immerse resin parts in water over 140 degrees Fahrenheit.
• Do not immerse BLUETOOTH® speaker in water
1. Remove grille by squeezing spring and pull
down. Wipe clean with damp cloth.
Caution: Do not immerse speaker into water.
2. Remove dust and dirt from the fan housing
with a vacuum cleaner.
3. Wipe the fan housing with a damp cloth. Dry.
1
2
3
12 www.homewerksww.com
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
The fan seems louder than
it should
CFM too great Be sure the CFM rating on the fan matches the
size of your room.
Damper not working properly or damaged Check damper to ensure it is opening and closing
properly. If the damper has become damaged,
please call Customer Service.
Bend in duct too close to fan discharge Be sure you do not have any sharp bends in duct
closer than 18 in. to the fan discharge.
Fan discharge reduced to t smaller duct Use recommended size ducting to reduce fan
noise.
Fan body not securely attached Be sure the fan is securely attached to your ceiling
joists.
The fan is not
clearing the room
Insufcient intake airow within room Be sure a door or window is slightly ajar or opened
to allow airow. The fan is not able to draw air out of
the room without enough airow to draw from.
Insufcient CFM
Be sure the CFM rating on the fan matches the
requirements for your room size.
NOTE: Using a tissue is not an accurate method
for determining if the fan is operating properly. If the
fan clears steam from the room
within approximately 15 minutes of completing your
shower, then the fan is operating properly.
Device will not pair Another device is already paired. Make sure BLUETOOTH® signal is turned off on
other devices.

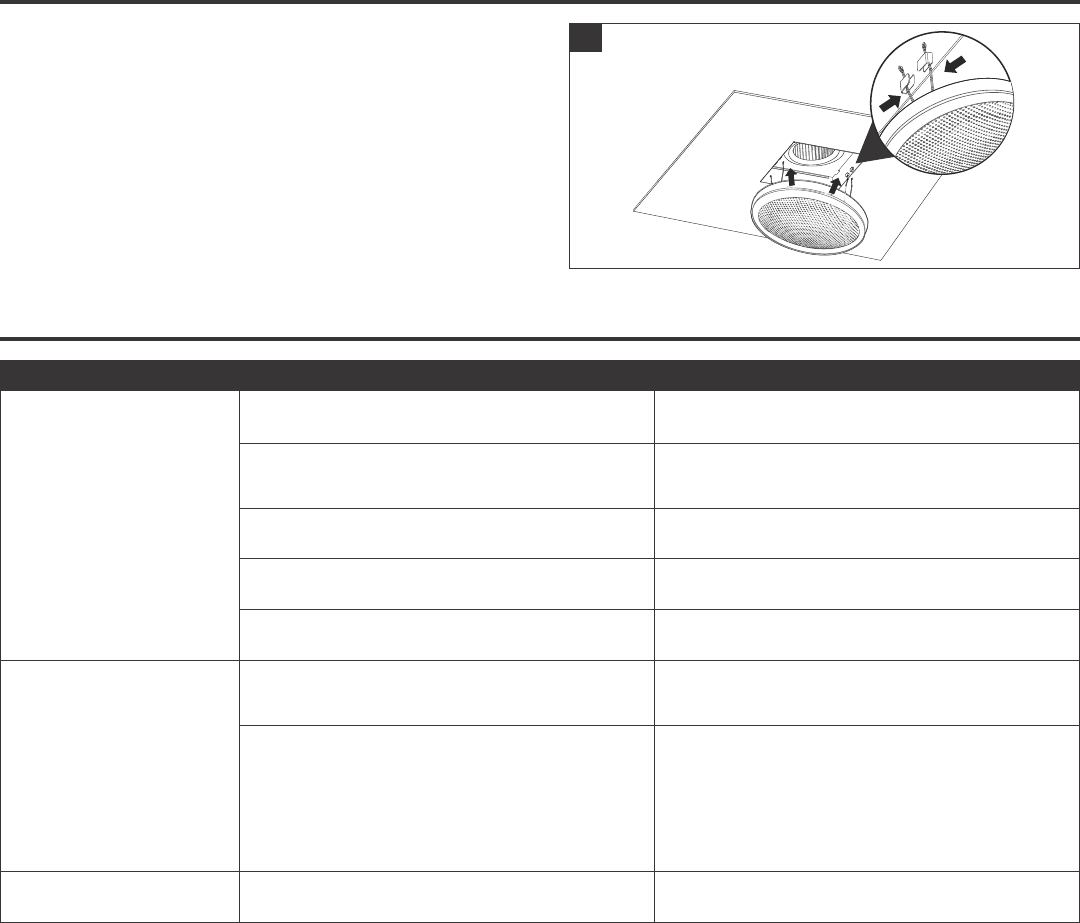

4. Replace the BLUETOOTH® speaker and grille.
Turn on power source.
CARE AND MAINTENANCE
4
