Homewerks Worldwide 7130-04-BT ventilating bath fan with bluetooth speaker User Manual
Homewerks Worldwide, LLC ventilating bath fan with bluetooth speaker
User Manual
VENTILATING BATH FAN
WITH BLUETOOTH®
SPEAKER
MODEL #7130-04-BT
Español p. 13
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-877-319-3757, 8 a.m. - 5 p.m., CST, Monday - Friday.
Jan. 11, 2016www.homewerksww.com
Home NetWerks
SIMPLE SOLUTIONS FOR A SMARTER HOME
The BLUETOOTH® word mark and logos are registered trademarks owned by BLUETOOTH SIG, Inc. and any use of the said
mark by Homewerks Worldwide is under license. Other trademark and trade names are those of their respective owners.
READ AND SAVE THESE INSTRUCTIONS
2
TABLE OF CONTENTS
PRODUCT SPECIFICATIONS
SPECIFICATIONS SPECIFICATIONS
Airow: 70 CFM Power consumption: 10.05 W
120 V, 60 Hz Exhaust fan speed: 1150 RPM
Duct diameter: 4 in. Weight: 4.608 lbs.
Sound output: 1.5 Sones
Product Specications ........................................................................................................................2
Package Contents ..............................................................................................................................3
Safety Information ..............................................................................................................................4
Preparation .........................................................................................................................................5
New Construction Assembly Instructions ...........................................................................................6
Existing Construction Assembly Instructions ......................................................................................8
Pairing BLUETOOTH® Device to Speaker .......................................................................................10
Care and Maintenance .....................................................................................................................10
Troubleshooting ................................................................................................................................ 12
Warranty ...........................................................................................................................................12
www.homewerksww.com
FCC COMPLIANCE
This equipment complies with FCC RF radiation exposure limits
set forth for an uncontrolled environment.
This device complies with part 15 of the FCC rules. Operation is
subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
NOTE: The manufacturer is not responsible for any radio or TV
interference caused by unauthorized modications or changes
to this equipment. Such modications or changes could void the
user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
3

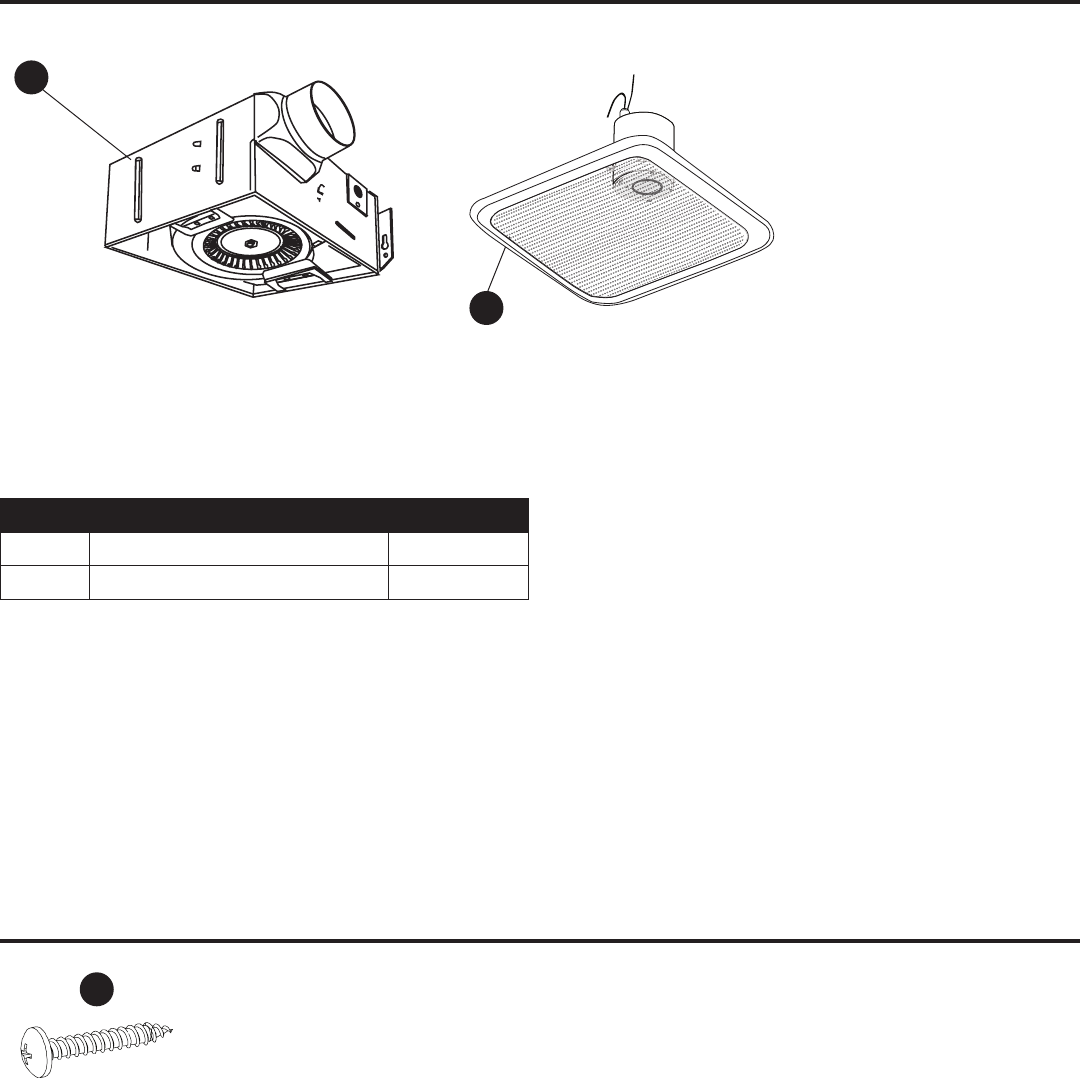

PACKAGE CONTENTS
PART DESCRIPTION QUANTITY
A Fan body 1
B Grille with speaker 1
A
B
HARDWARE CONTENTS (shown actual size)
AA
Long Wood
Screw
Qty. 2
www.homewerksww.com
4
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate or install
the product.
1. Always disconnect the power supply prior to servicing the fan, motor or junction box.
2. Installation work must be carried out by a qualied person(s) in accordance to all local and safety
codes including the rules for re-rated construction.
3. Follow all local building, safety and electrical codes as well as NEC (National Electrical Code)
and OSHA (Occupational Safety and Health Act).
4. Electric service supply must be 120 volts, 60 hertz.
5. This unit must be properly grounded.
6. Do not bend or kink the power wires.
7. Exercise care to not damage existing wiring when cutting or drilling into walls or ceilings.
8. Sufcient air supply is required for proper combustion and the exhaustion of gases through the
chimney (ue) of fuel burning equipment to prevent back-drafting. See the standards of NFPA
(National Fire Protection Association) and ASHRAE (American Society for Heating Refrigeration
and Air Conditioning Engineers) and the local building code authorities.
9. Do not use this fan with any solid state control device, such as a remote control, dimmer switch, or
certain timers. Mechanical timers are not solid state devices.
10. This ventilation fan is approved for use over a bathtub or shower when installed in a GFCI protected
circuit. Do not use fans over a bathtub or shower that are not approved for that application and
marked accordingly.
11. Do not install in a cooking area.
12. Do not use to exhaust hazardous or explosive vapors.
13. Fans should always be vented to the exterior and in compliance with local codes.
14. Do not install in a ceiling with insulation greater than R42.
15. Duct work should be installed in a straight line with minimal bends.
16. Duct work size must be the same size as the discharge and should not be reduced. Reducing
the duct size may increase fan noise.
17. Prior to service or cleaning this unit, shut off power supply at the panel and lock to prevent the
power from being turned on. If the panel cannot be locked, clearly mark the panel with a warning
tag to prevent the power from being turned on.
18. Use this unit in the manner intended by the manufacturer. If you have any questions, please call
customer service.
19. The fan is intended to be mounted at least 7.6 ft. above the oor.
www.homewerksww.com
5
PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare parts with package
contents list and hardware contents list. If any part is missing or damaged, do not attempt to assemble
the product.
Tools Required for Assembly (not included): Hammer, Drill Bits, Flathead Screwdriver, Wire Nuts, Nails,
Duct Tape, Phillips Screwdriver, Utility Knife
Helpful Tools (not included): Electric Drill, Wood Screws
WARNING: Turn off electricity at breaker box before beginning installation.
Carefully remove unit from carton.
Check area above installation location to be sure that wiring can run to the planned location and that
duct work can be run and the area is sufcient for proper ventilation.
Inspect duct work and wiring before proceeding with installation.
Before installation, provide inspection and future maintenance access at a location that will not interfere
with installation work.
You may need the help of a second person to install this fan; one person on the attic side and one on
the room side.
Note: Installations may vary depending on how the previous bath fan was installed. Supplies necessary
for the installation of your bath fan are not all included; however, most are available at your local
home improvement or hardware store.
DIMENSION REQUIREMENTS
Ceiling
Opening (L)
Ceiling
Opening (W)
Ceiling
Opening (H)
7-1/2 in. 7-5/32 in. 7 in.

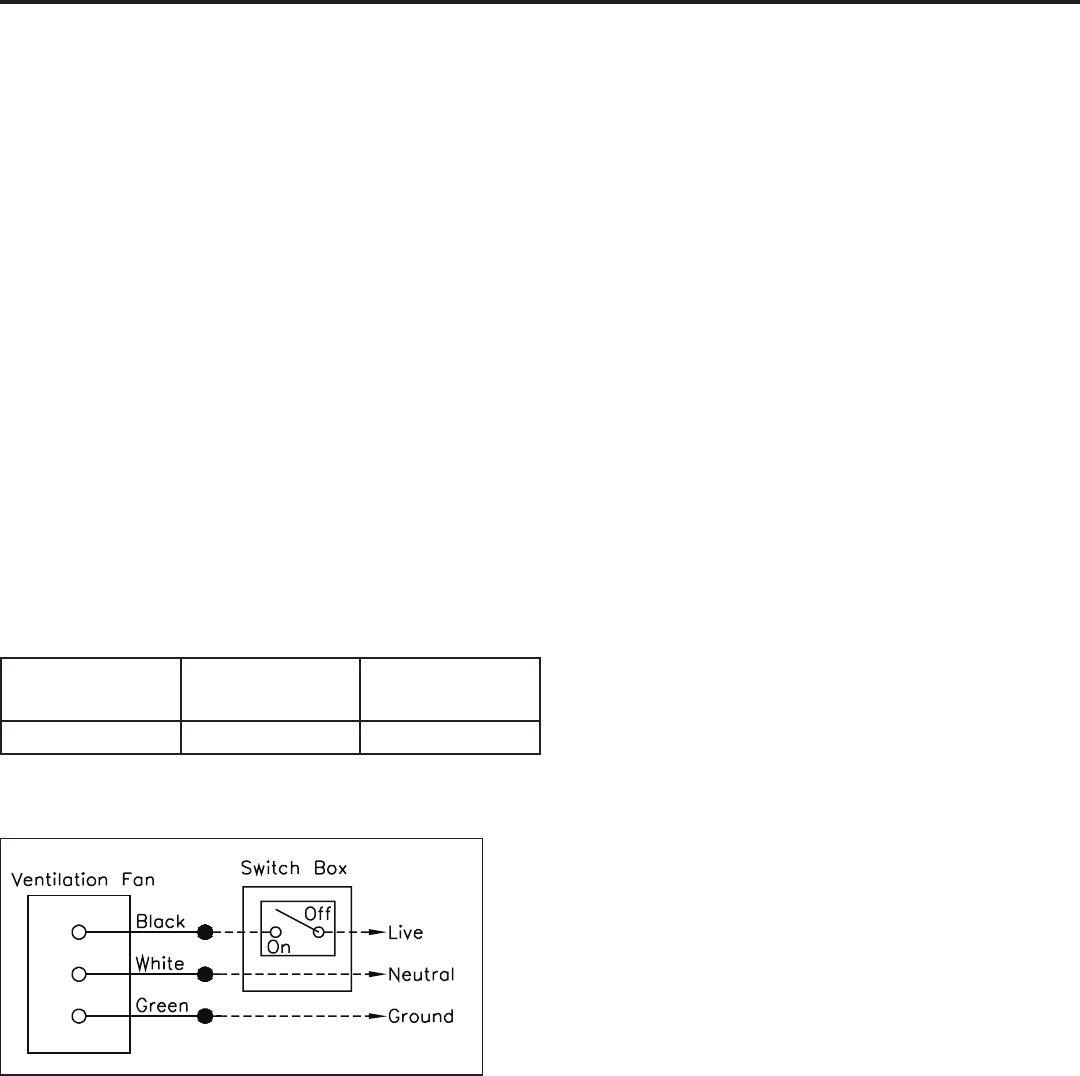

WIRING DIAGRAM
www.homewerksww.com
6
NEW CONSTRUCTION ASSEMBLY INSTRUCTIONS
NEW CONSTRUCTION – ATTACHING TO THE
JOIST
BEFORE INSTALLATION
Turn off power source. Review all safety precautions.

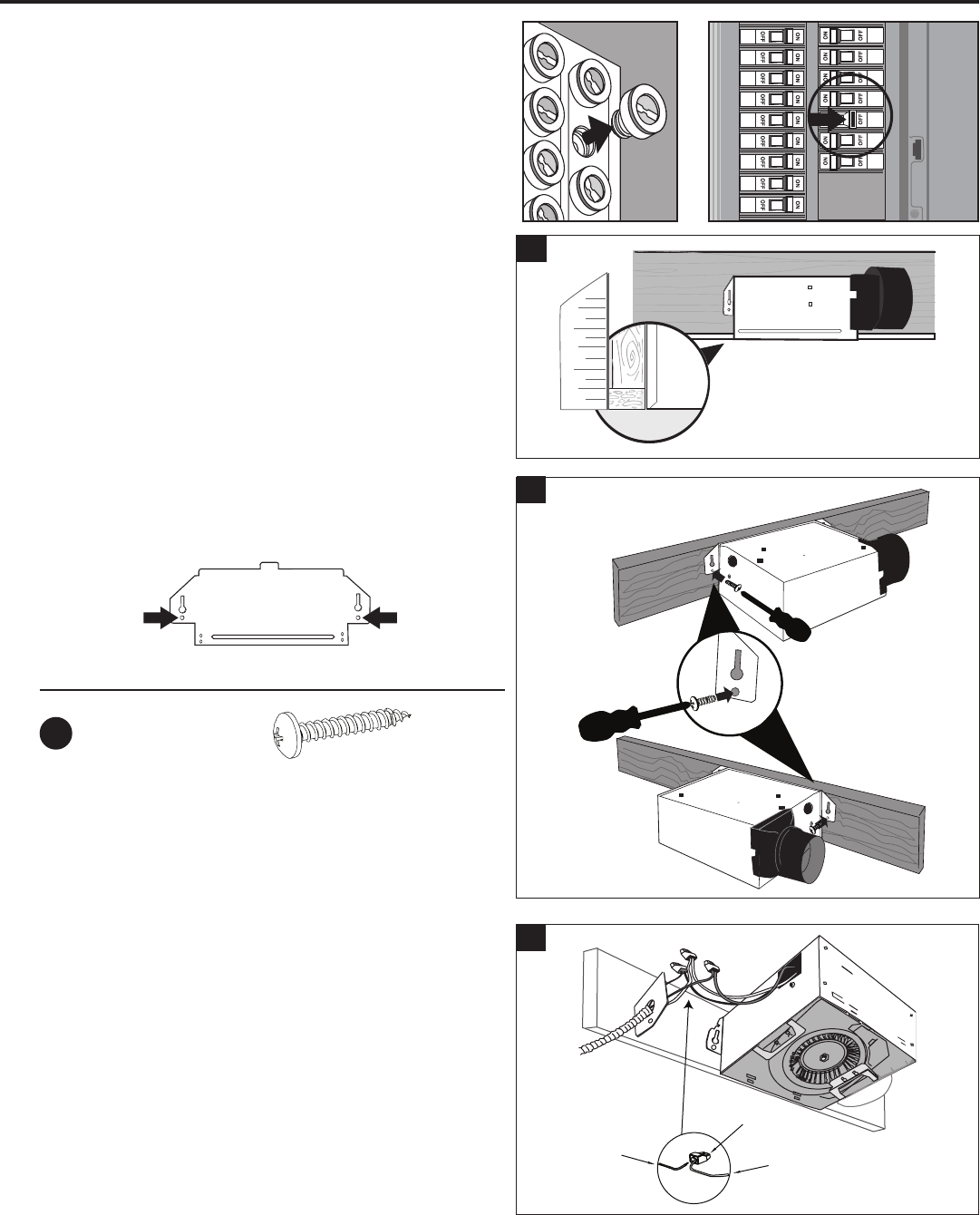

1. Place the fan body (A) next to a ceiling joist or
wall stud. The fan housing should be level and
perpendicular to the joist or stud. Allow for
thickness of ceiling board used in your applica-
tion. DO NOT ush mount to joist. Bottom of fan
(A) should be ush with ceiling board.
2. Mount fan body to the joist or stud using long
wood screws (AA) where indicated by arrows
outside fan body (A).
Hardware Used
AA Long wood screws x 2
3. Pull wire through hole and into junction box
(not included). Using quick connector, secure
120-volt AC house wiring from wall switch to fan
as shown in wiring diagram on page 5.
Note: 12 AWG is the minimum conductor to be
used for branch-circuit wiring.
CAUTION: If your electrical wires do not match
the colors listed, you must determine what each
house wire represents before connecting. You
may need to consult an electrical contractor to
determine safely.
1 2
1
2
3
House
wires
Quick
connectors
Product
wires
www.homewerksww.com
7
NEW CONSTRUCTION ASSEMBLY INSTRUCTIONS
4

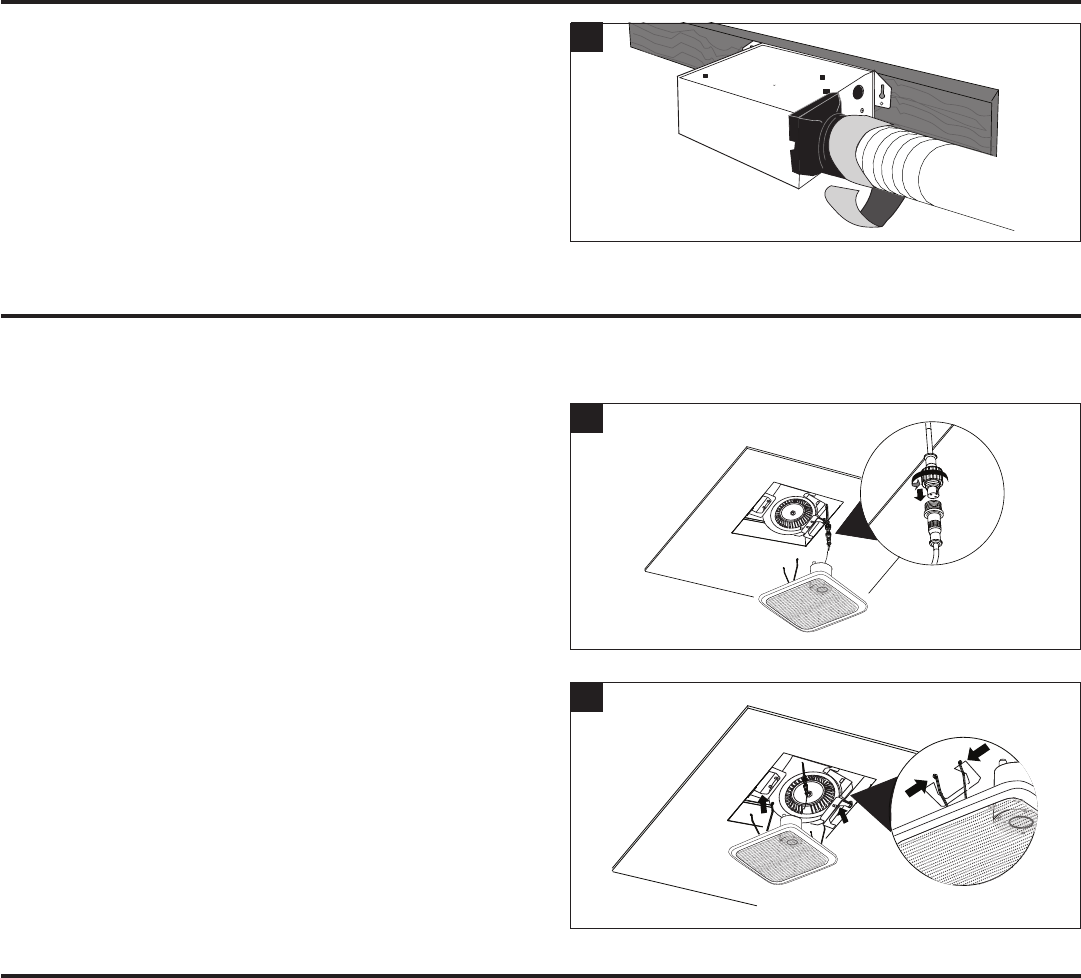

4. Install a circular 4 in. duct (not included) and
secure it with duct tape or clamps (neither
included).
Finish ceiling work. Ceiling hole should be aligned
with edge of fan body (A).
www.homewerksww.com
2

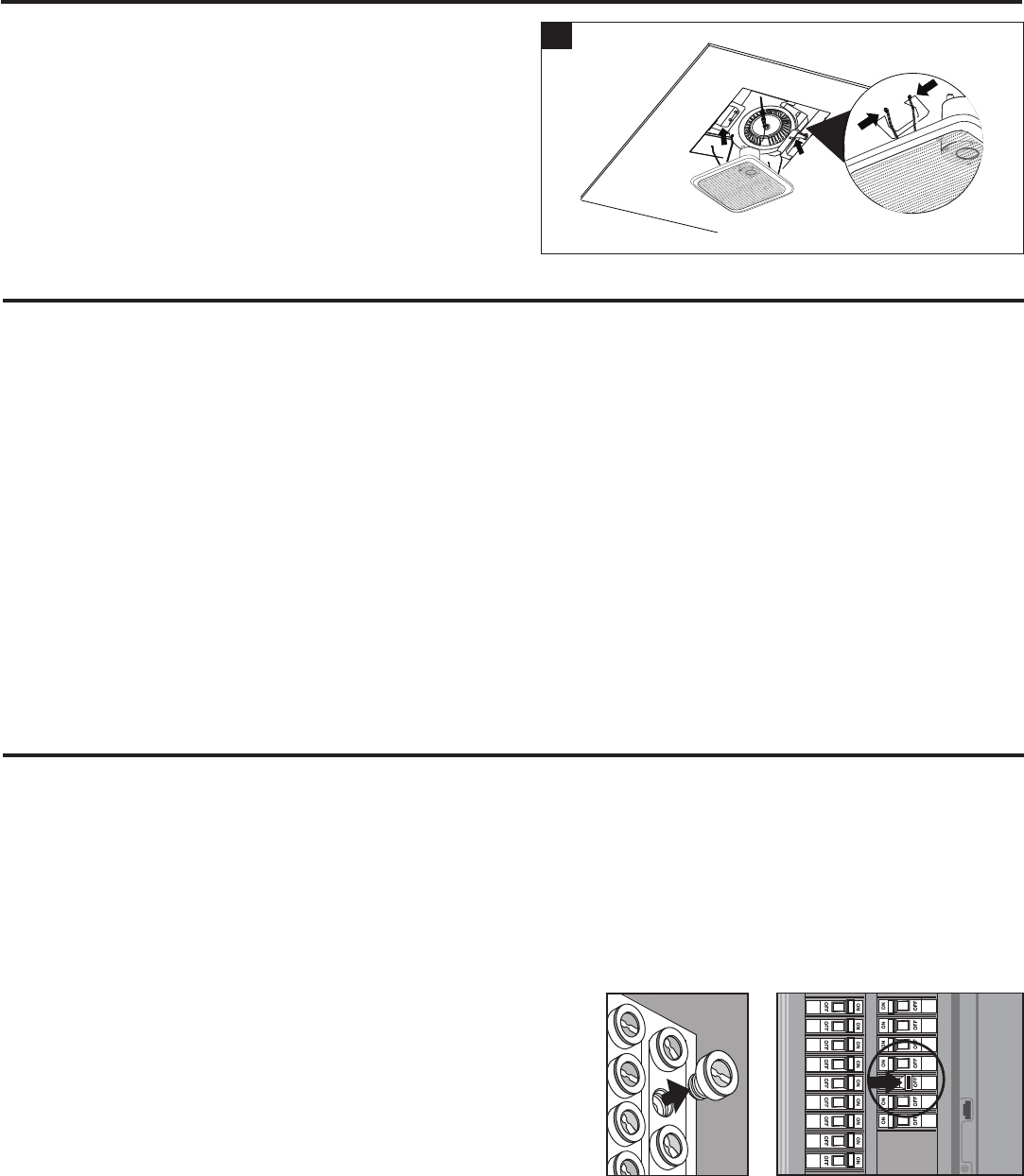

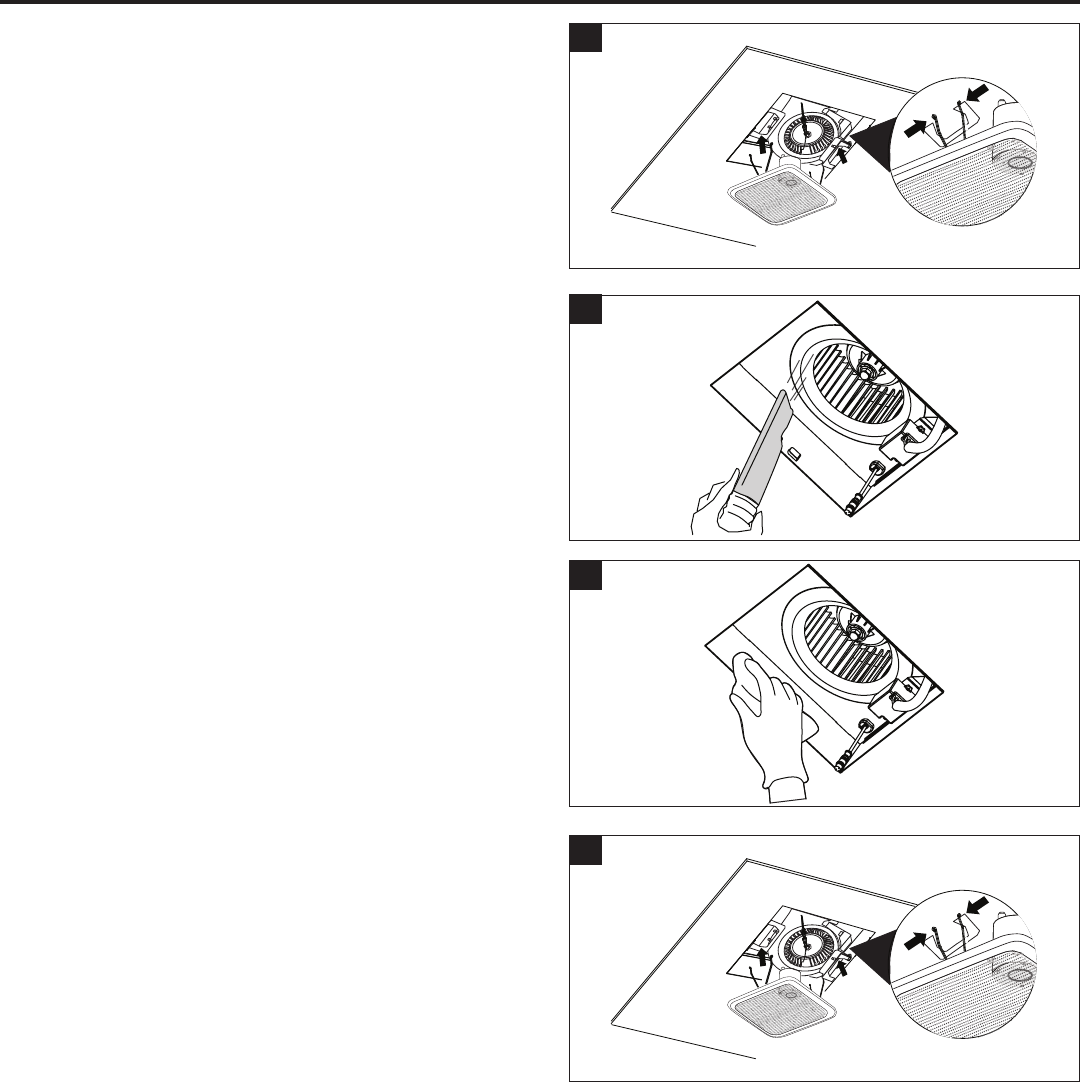

1. Join the connectors for the BLUETOOTH®
speaker and power adapter.
2. Attach grille by pinching mounting springs and
insert into narrow rectangular slots in the fan
housing.
Turn on power source.
BLUETOOTH® SPEAKER FAN GRILLE INSTALLATION
Housing must be installed ush with ceiling board or the grille mounting spring will not be long
enough to insert into the slots inside the fan housing.
1
1. Turn ON bath fan.
2. To play your personal music les, you need a wireless BLUETOOTH® device.
3. Set your device to a midrange volume before connecting to the speaker.
4. Follow the instructions that came with your BLUETOOTH® device to make it discoverable or to set it to
search for other BLUETOOTH® accessories. This may involve entering a passkey or PIN (Personal
Identication Number).
5. From the Home screen, choose Settings > BLUETOOTH®, the device searches for HomeWerks®
speaker.
Note: While your device can maintain multiple pairing records, it can only connect to one accessory at a
time. This prevents your device from sending your data to the wrong BLUETOOTH® accessory.
6. Choose the HomeWerks® speaker, and then enter a passkey or PIN (0000) if prompted.
7. When pairing is complete, you can use the BLUETOOTH® speaker to play audio with your device.
8. Optimal volume setting for the BLUETOOTH® speaker is 70% or lower. Settings higher than 70% may
cause sound distortion.
PAIRING YOUR BLUETOOTH® DEVICE TO THE SPEAKER
8
Installing the fan body in an existing building
REQUIRES AN ACCESSIBLE AREA (attic or
crawl space) above the planned installation
location and existing duct and wiring.
BEFORE INSTALLATION
Turn off power source. Review all safety precautions.

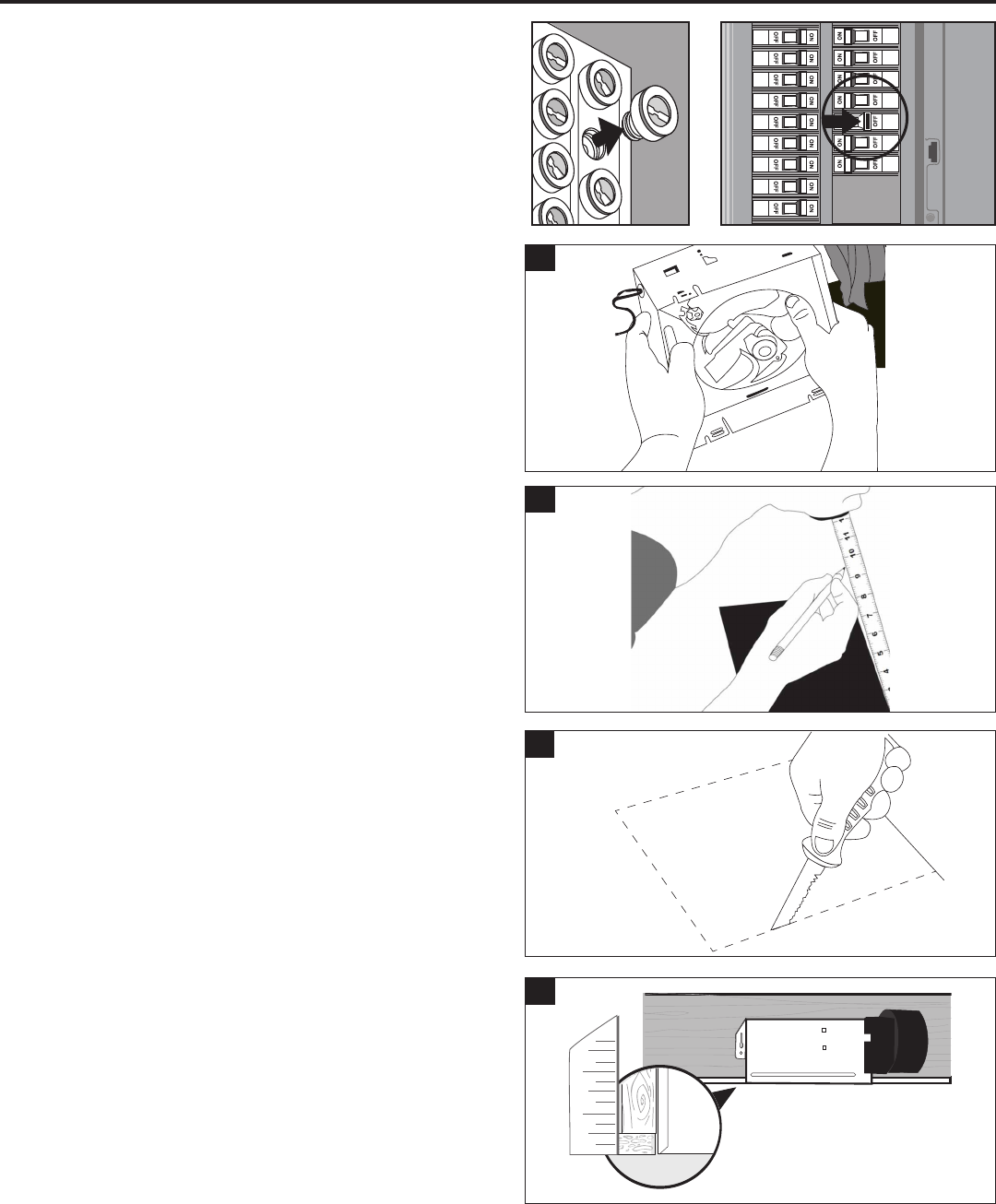

1. Remove existing fan.
2. Measure the opening to ensure it is large
enough to accommodate the new fan body (A)
(7-1/2 in. x 7-5/32 in.).
3. If this fan is not replacing an old fan, be sure
to cut a 7-1/2 in. x 7-5/32 in. opening for the
fan body (A).
4. Place the fan body (A) next to a ceiling joist or
wall stud. The fan housing should be level and
perpendicular to the joist or stud. Allow for
thickness of ceiling board used in your applica-
tion. DO NOT ush mount to joist. Bottom of fan
(A) should be ush with ceiling board.
1
2
3
9.4"
9.4"
7-5/32 in.
7-1/2 in.
EXISTING CONSTRUCTION ASSEMBLY INSTRUCTIONS
1 2
4
www.homewerksww.com
9
EXISTING CONSTRUCTION ASSEMBLY INSTRUCTIONS

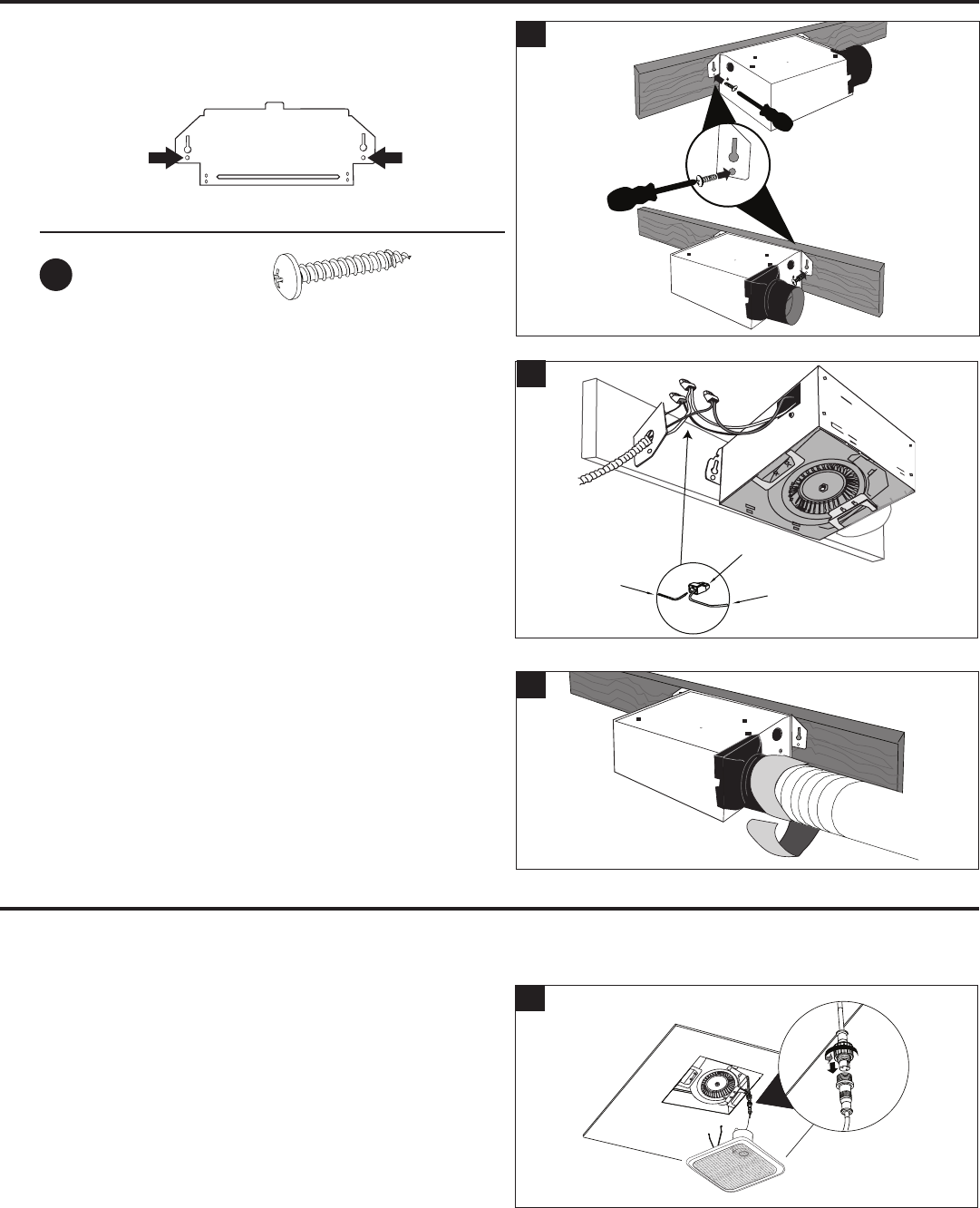

5. Mount fan body to the joist or stud using long
wood screws (AA) where indicated by arrows
outside fan body (A).
Hardware Used
AA Long wood screws x 2
6. Pull wire through hole (5.1) and into junction box
(not included). Using quick connector, secure
120-volt AC house wiring from wall switch to fan
as shown in wiring diagram on page 5.
Note: 12 AWG is the minimum conductor to be
used for branch-circuit wiring.
CAUTION: If your electrical wires do not match
the colors listed, you must determine what each
house wire represents before connecting. You
may need to consult an electrical contractor to
determine safely.
7. Install a circular 4 in. duct (not included) and
secure it with duct tape or clamps (neither
included).
Finish ceiling work. Ceiling hole should be aligned
with edge of fan body.
5
6
House
wires
Quick
connectors
Product
wires
7
www.homewerksww.com
1. Join the connectors for the BLUETOOTH®
speaker and power adapter.
BLUETOOTH® SPEAKER FAN GRILLE INSTALLATION
Housing must be installed ush with ceiling board or the grille mounting spring will not be long
enough to insert into the slots inside the fan housing.
1
10
CARE AND MAINTENANCE
www.homewerksww.com
2. Attach grille by pinching mounting springs and
insert into narrow rectangular slots in the fan
housing.
Turn on power source.
BLUETOOTH® SPEAKER FAN GRILLE INSTALLATION
1. Turn ON bath fan.
2. To play your personal music les, you need a wireless BLUETOOTH® device.
3. Set your device to a midrange volume before connecting to the speaker.
4. Follow the instructions that came with your BLUETOOTH® device to make it discoverable or to set it to
search for other BLUETOOTH® accessories. This may involve entering a passkey or PIN (Personal
Identication Number).
5. From the Home screen, choose Settings > BLUETOOTH®, the device searches for HomeWerks®
speaker.
Note: While your device can maintain multiple pairing records, it can only connect to one accessory at a
time. This prevents your device from sending your data to the wrong BLUETOOTH® accessory.
6. Choose the HomeWerks® speaker, and then enter a passkey or PIN (0000) if prompted.
7. When pairing is complete, you can use the BLUETOOTH® speaker to play audio with your device.
8. Optimal volume setting for the BLUETOOTH® speaker is 70% or lower. Settings higher than 70% may
cause sound distortion.
PAIRING YOUR BLUETOOTH® DEVICE TO THE SPEAKER
2
Turn off power source. Review all safety
precautions.
See safety information before proceeding. Routine maintenance should be done at least once a year.
• Never use solvents, thinner or harsh chemicals for cleaning the fan.
• Do not allow water to enter the motor.
• Do not immerse metal parts in water.
• Do not immerse resin parts in water over 140 degrees Fahrenheit.
• Do not immerse BLUETOOTH® speaker in water
11
CARE AND MAINTENANCE
www.homewerksww.com
1. Remove grille by squeezing spring and pull
down. Wipe grille with a damp cloth.
2. Remove dust and dirt from the fan housing with
a vacuum cleaner.
3. Dampen cloth with dust detergent, wipe the fan
housing and wipe dry with a cloth.
4. Replace the BLUETOOTH® speaker and grille.
Turn on power source.
1
2
3
4
12
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
The fan seems louder
than it should
CFM too great Be sure the CFM rating on the fan matches
the size of your room.
Damper not working properly or damaged Check damper to ensure it is opening and
closing properly. If the damper has become
damaged, please call Customer Service.
Bend in duct too close to fan discharge Be sure you do not have any sharp bends in
duct closer than 18 in. to the fan discharge.
Fan discharge reduced to t smaller duct Use recommended size ducting to reduce fan
noise.
Fan body not securely attached Be sure the fan is securely attached to your
ceiling joists.
The fan is not
clearing the room
Insufcient intake airow within room
Be sure a door or window is slightly ajar or
opened to allow airow. The fan is not able to
draw air out of the room without enough airow
to draw from.
Insufcient CFM
Be sure the CFM rating on the fan matches the
requirements for your room size.
NOTE: Using a tissue is not an accurate
method for determining if the fan is operating
properly. If the fan clears steam from the room
within approximately 15 minutes of completing
your shower, then the fan is operating properly.
FAN – LIMITED 3-YEAR WARRANTY
BLUETOOTH® SPEAKER – LIMITED 1-YEAR WARRANTY
If the fan fails due to a defect in materials or workmanship at any time during the rst THREE years of ownership, the manufacturer will
replace it free of charge, postage-paid at their option. This warranty does not cover products that have been abused, altered, damaged,
misused, cut or worn. This warranty does not cover use in commercial applications. Use only manufacturer-supplied genuine warranty
repair replacement parts to repair this fan. Use of non-genuine repair parts will void your warranty. The manufacturer DISCLAIMS all
other implied or express warranties including all warranties of merchantability and/or tness for a particular purpose. As some states do
not allow exclusions or limitations on an implied warranty, the above exclusions and limitations may not apply. This warranty gives
you specic legal rights, and you may have other rights that vary from state to state.
This warranty is limited to the replacement of defective parts only. Labor charges and/or damage incurred during installation, repair,
replacement as well as incidental and consequential damages connected with the above are excluded. Any damage to this product
as a result of neglect, misuse, accident, improper installation or use other than the purpose SHALL VOID THIS WARRANTY.
Shipping costs for return product as part of a claim on the warranty must be paid for by the customer.
Inquiries regarding warranty claims can be directed to 1-877-319-3757, 8 a.m. - 5 p.m., CST, Monday - Friday.
If the BLUETOOTH® speaker fails due to a defect in materials or workmanship at any time during the rst year of ownership, the
manufacturer will replace it free of charge, postage-paid at their option. This warranty does not cover products that have been abused,
altered, damaged, misused, cut or worn. This warranty does not cover use in commercial applications. Use only manufacturer-supplied
genuine warranty repair replacement parts to repair this fan. Use of non-genuine repair parts will void your warranty. The manufacturer
DISCLAIMS all other implied or express warranties including all warranties of merchantability and/or tness for a particular purpose. As
some states do not allow exclusions or limitations on an implied warranty, the above exclusions and limitations may not apply. This
warranty gives you specic legal rights, and you may have other rights that vary from state to state.
This warranty is limited to the replacement of defective parts only. Labor charges and/or damage incurred during installation, repair,
replacement as well as incidental and consequential damages connected with the above are excluded. Any damage to this product
as a result of neglect, misuse, accident, improper installation or use other than the purpose SHALL VOID THIS WARRANTY.
Shipping costs for return product as part of a claim on the warranty must be paid for by the customer.
Inquiries regarding warranty claims can be directed to 1-877-319-3757, 8 a.m. - 5 p.m., CST, Monday - Friday.
www.homewerksww.com
