Hon Hai Precision Industry WFU032 WLAN 802.11b/g/n 2T2R Module User Manual

WFU032

IEEE 802.11 b/g/n 2x2 Module

Product Specification 2.5

Approved:

Prepared by:

________________________

_________________________

Zeke Wu

Anson Yang

Hans Huang

Manager

Supervisor

Engineer

WFU032 PRODUCT SPECIFICATION

FOXCONN CONFIDENTIAL 1

This preliminary specification is subject to change without notice.

Revision History

Date

Number

Approver

Comments

June 16, 2016

1.0

Hans Huang

Initial Draft

July 18, 2016

2.0

Hans Huang

(1) Update Tx Power Consumption

(2) Update Tx Power

(3) Update Label Specification

(4) Update EEPROM information

(5) Update Module Photo

Nov 10,2016

2.1

Hans Huang

(1) Add connector drawing

(2) Add power on sequence

(3) Add certification

Nov 14,2016

2.2

Hans Huang

Update Power Consumption

Mar 08,2017

2.3

Cathy Kuo

Added Waring Statement

Mar 10,2017

2.4

Cathy Kuo

Updated TX Power table

Mar 27,2017

2.5

Cathy Kuo

Updated TX Power table

RESTRICTED AND CONFIDENTIAL INFORMATION STATEMENT

All information contained in this document is the exclusive property of Foxconn Technology Inc. and its

development partners. Any reproduction or disclosure of all or part of this document without the

expressed written consent of Foxconn Technology Inc. is strictly prohibited.

WFU032 PRODUCT SPECIFICATION

FOXCONN CONFIDENTIAL 2

This preliminary specification is subject to change without notice.

TABLE OF CONTENTS

Revision History .................................................................................................. 1

Chapter 1. Module Overview ............................................................................. 4

1-1 Key Characteristic ......................................................................................................................... 4

1-2 Certification ................................................................................................................................... 4

1-3 USB Pin Definition ......................................................................................................................... 5

Chapter 2. Electrical and RF Specificaiton .......................................................... 7

2-1 Recommended Operation Rating ......................................................................................... 7

2-2 Power On Sequence .............................................................................................................. 7

2-3 Power Consumption.............................................................................................................. 8

2-4 WiFi RF Specification – TX ..................................................................................................... 8

2-5 WiFi RF Specification – RX ..................................................................................................... 9

Chapter 3. MECHANICAL SPECIFICATION ......................................................... 10

3-1 Module Assembly Dimension ............................................................................................. 10

3-2 Label Specification .............................................................................................................. 11

Chapter 4. Additional Information ................................................................... 12

4-1 EEPROM Information .......................................................................................................... 12

4-2 Module Photo ............................................................................................................................. 12

4-3 Environment Specifications ........................................................................................................ 12

WFU032 PRODUCT SPECIFICATION

FOXCONN CONFIDENTIAL 3

This preliminary specification is subject to change without notice.

Figures:

Figure 1 Connector Drawing .......................................................................................................................................... 6

Figure 2 Power on sequence ......................................................................................................................................... 7

Figure 3 Mechanical Drawing ...................................................................................................................................... 10

Figure 4 Label Drawing ................................................................................................................................................ 11

Figure 5 Top Side Photo ............................................................................................................................................... 12

Figure 6 Bottom Side Photo ......................................................................................................................................... 12

Tables

Table 1 Pin Definitions ................................................................................................................................................... 5

Table 2 Operation Rating ............................................................................................................................................... 7

Table 3 Power Consumption.......................................................................................................................................... 8

Table 4 IEEE 802.11 b/g/n TX Output Power (WLAN0 & WLAN1) ................................................................................. 8

Table 5 IEEE 802.11 b/g/n Rx sensitivity (WLAN0 & WLAN1) ........................................................................................ 9

WFU032 PRODUCT SPECIFICATION

FOXCONN CONFIDENTIAL 4

This preliminary specification is subject to change without notice.

CHAPTER 1. MODULE OVERVIEW

The Foxconn WFU032 WLAN module contains the MTK® MT7603U single-chip which is a highly

integrated Wi-Fi single chip which supports 300 Mbps PHY rate. It fully complies with IEEE 802.11n and

IEEE 802.11 b/g standards, offering feature-rich wireless connectivity at high standards, and delivering

reliable, cost-effective throughput from an extended distance.

1-1 Key Characteristic

 CMOS technology with an integrated PA, LNA, RF, Baseband, and MAC

 2T2R mode with support for a 300 Mbps Tx/Rx PHY rate

 20/40MHz bandwidth

 WoWLAN via GPIO(client mode), Support Host Sleep(AP mode)

 Reverse direction grant data flow and frame aggregation

 Security : WFA WPA/WPA2 personal, WPS2.0, WAPI

 QoS: WFA WMM, WMM PS

 A full-speed USB 2.0-compliant interface for WLAN

1-2 Certification

China SRRC

WFU032 PRODUCT SPECIFICATION

FOXCONN CONFIDENTIAL 5

This preliminary specification is subject to change without notice.

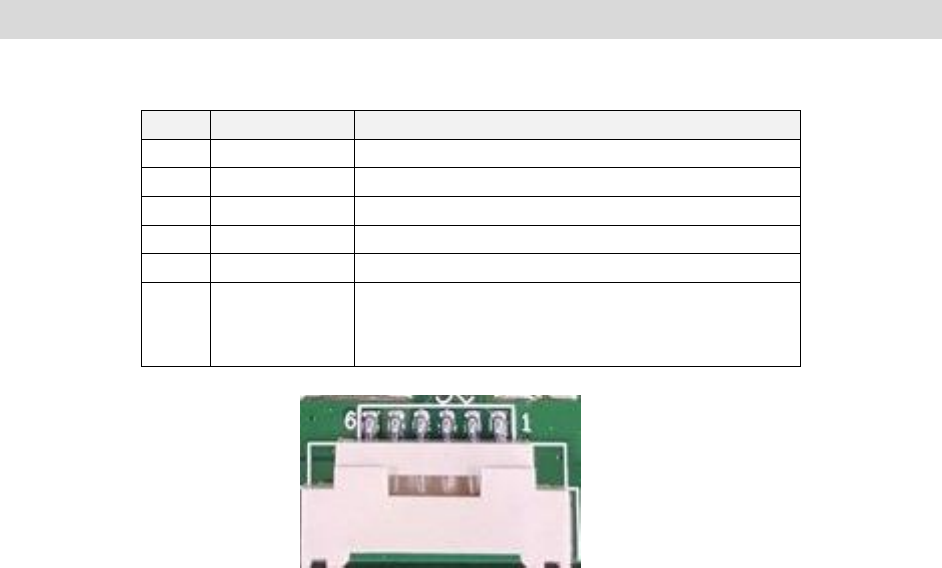

1-3 USB Pin Definition

Table 1 Pin Definitions

Pin#

Name

Description

1

RST

Reset pin, active low.

2

Vcc

+5V Power Supply

3

D-

USB Data D-

4

D+

USB Data D+

5

GND

6

WOW

Wake on WLAN.

Default active low to wake-up the system.

(If not used, please floating it.)

Vendor: Jiangsu Lezhi Electronics CO.,LTD (江蘇樂智電子科技有限公司)

PN: LZE 12500-06AWB

WFU032 PRODUCT SPECIFICATION

FOXCONN CONFIDENTIAL 6

This preliminary specification is subject to change without notice.

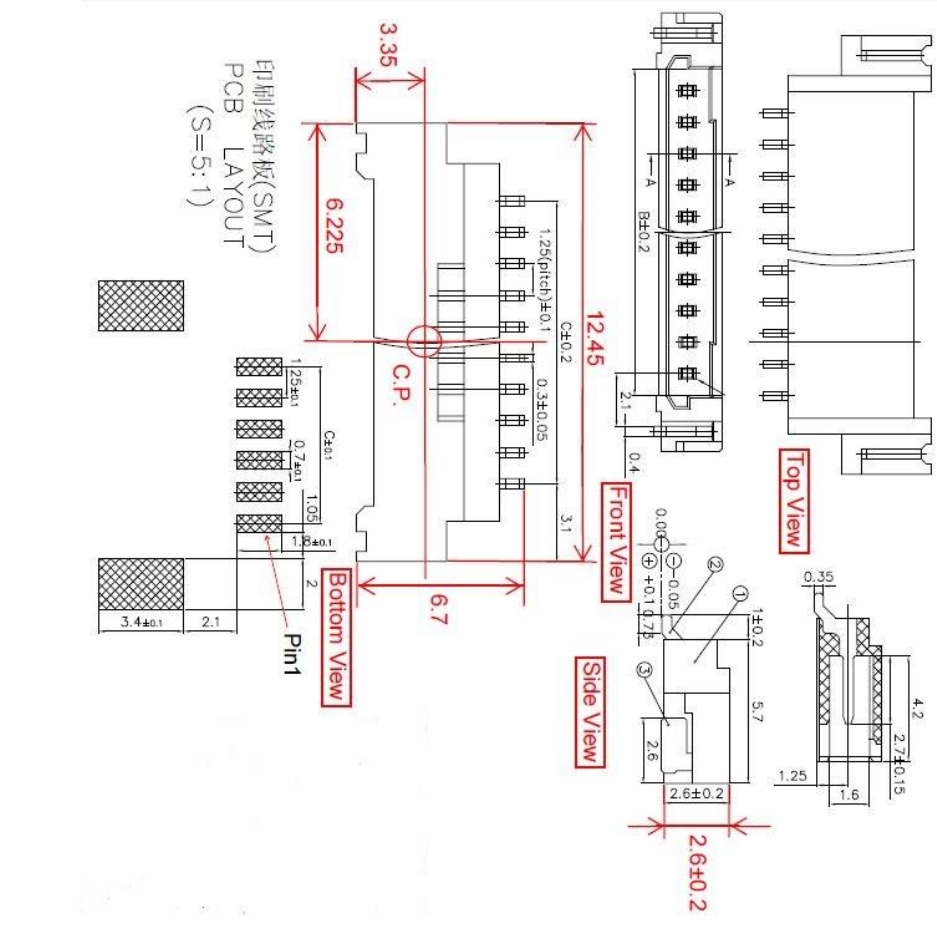

Figure 1 Connector Drawing

WFU032 PRODUCT SPECIFICATION

FOXCONN CONFIDENTIAL 7

This preliminary specification is subject to change without notice.

CHAPTER 2. ELECTRICAL AND RF SPECIFICAITON

2-1 Recommended Operation Rating

Table 2 Operation Rating

Parameter

Min

Typ.

Max.

Unit

Vcc

4.5

5

5.5

V

RST (Active Low)

2.97

3.3

3.63

V

WOW

2.97

3.3

3.63

V

VDP / VDM

0

5.5

V

RF Interface

50

Ohm

Note: WoW is an output pin for wake up host and can be set active high or low by MT7603U WiFi driver.

If you don’t use the WoW function, keep floating in hardware design.

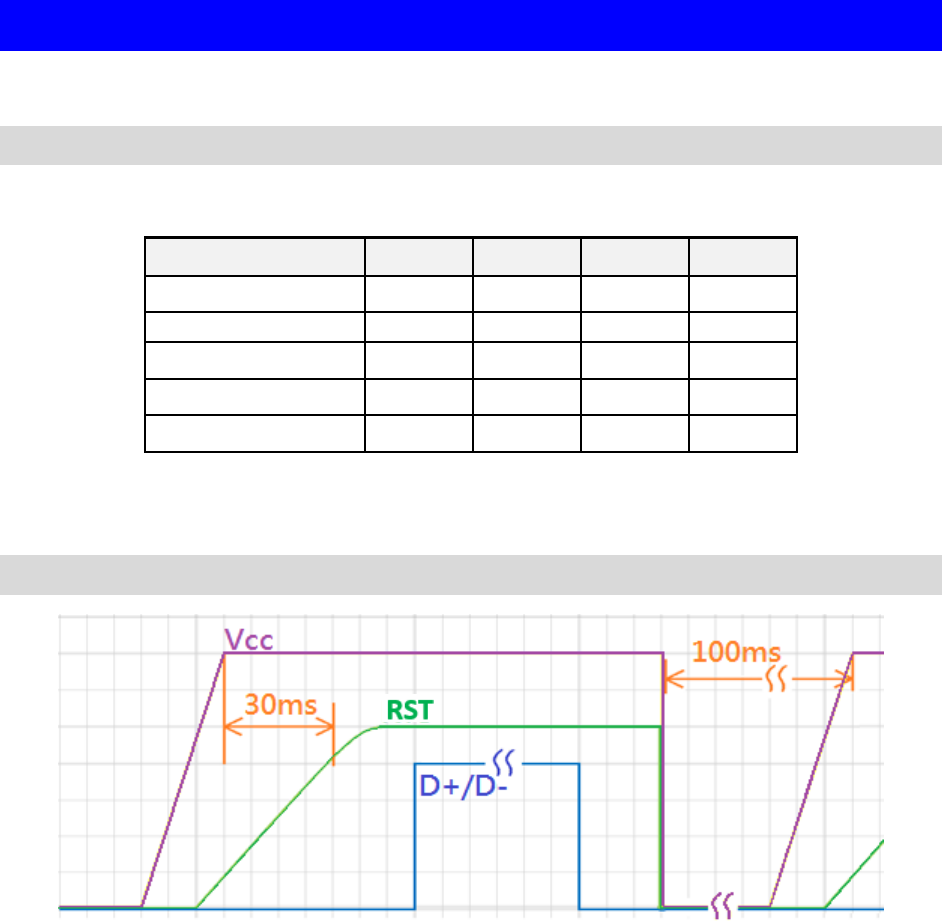

2-2 Power On Sequence

Figure 2 Power on sequence

Note :

1. RST_N must be 30 ms delay at least after Vcc(5V) ready.

2. USB_DP/DM must be delay at least after RST_N.

3. Restart time should be 100ms.

WFU032 PRODUCT SPECIFICATION

FOXCONN CONFIDENTIAL 8

This preliminary specification is subject to change without notice.

2-3 Power Consumption

Power consumption is measured using current probe loop on the Power rails of the USB interface (Pins).

Table 3 Power Consumption

Description

Typical (Max)

Unit

IDLE

56 (61)

mA

2G/2T- N mode HT 40MHz MCS 7(14dBm)

131

mA

2G/2T- N mode HT 20MHz MCS 7(14dBm)

206

mA

2G/2T- G mode OFDM54M(15dBm)

220

mA

2G/2T- B mode CCK11M (15dBm)

375

mA

2G/2R- N mode HT 40MHz MCS 7 (-60dBm)

70

mA

2G/2R- N mode HT 20MHz MCS 7 (-60dBm)

65

mA

2G/2R- G mode OFDM54M (-60dBm)

63

mA

2G/2R- B mode CCK11M (-60dBm)

61

mA

2-4 WiFi RF Specification – TX

Table 4 IEEE 802.11 b/g/n TX Average Output Power (WLAN0&WLAN1)

Data Rate

(Mbps)

Modulation

Tx Typical

Power (dBm)

Data Rate

(Mbps)

Modulation

Tx Typical

Power (dBm)

1

DBPSK

14

HT20-MCS0

BPSK

12

2

DQPSK

14

HT20-MCS1

BPSK

12

5.5

CCK

14

HT20-MCS2

QPSK

12

11

CCK

14

HT20-MCS3

QPSK

12

6

OFDM

15

HT20-MCS4

16-QAM

12

9

OFDM

15

HT20-MCS5

16-QAM

12

OFDM

15

HT20-MCS6

64-QAM

12

18

OFDM

15

HT20-MCS7

64-QAM

12

24

OFDM

15

HT40-MCS0

BPSK

12

36

OFDM

15

HT40-MCS1

QPSK

12

48

OFDM

15

HT40-MCS2

QPSK

12

54

OFDM

15

HT40-MCS3

16-QAM

12

HT40-MCS4

16-QAM

12

HT40-MCS5

64-QAM

12

HT40-MCS6

64-QAM

12

HT40-MCS7

64-QAM

12

Tolerance: +0.5dBm/-2dBm

WFU032 PRODUCT SPECIFICATION

FOXCONN CONFIDENTIAL 9

This preliminary specification is subject to change without notice.

2-5 WiFi RF Specification – RX

Table 5 IEEE 802.11 b/g/n RX Sensitivity (WLAN0&WLAN1)

Data

Rate

(Mbps)

Modulation

Rx Sensitivity

(dBm)

Data Rate

(Mbps)

Modulation

Rx Sensitivity

(dBm)

Max.

Typ.

Max.

Typ.

1

DBPSK

-83

-94

HT20-7.22

BPSK

-82

-89.5

2

DQPSK

-80

-93

HT20-14.44

QPSK

-79

-86

5.5

CCK

-83

-91

HT20-21.67

QPSK

-77

-84

11

CCK

-80

-88

HT20-28.89

16-QAM

-74

-81.5

6

OFDM

-85

-90

HT20-43.33

16-QAM

-70

-78

9

OFDM

-84

-88

HT20-57.78

64-QAM

-66

-73.5

12

OFDM

-82

-87

HT20-65

64-QAM

-65

-72

18

OFDM

-80

-86

HT20-72.22

64-QAM

-64

-70

24

OFDM

-77

-83

HT40-15

BPSK

-79

-86

36

OFDM

-73

-80

HT40-30

QPSK

-76

-83

48

OFDM

-69

-77

HT40-45

QPSK

-74

-81

54

OFDM

-68

-75

HT40-60

16-QAM

-71

-78

HT40-90

16-QAM

-67

-75

HT40-120

64-QAM

-63

-70.5

HT40-135

64-QAM

-62

-69

HT40-150

64-QAM

-61

-67

WFU032 PRODUCT SPECIFICATION

FOXCONN CONFIDENTIAL 10

This preliminary specification is subject to change without notice.

CHAPTER 3. MECHANICAL SPECIFICATION

3-1 Module Assembly Dimension

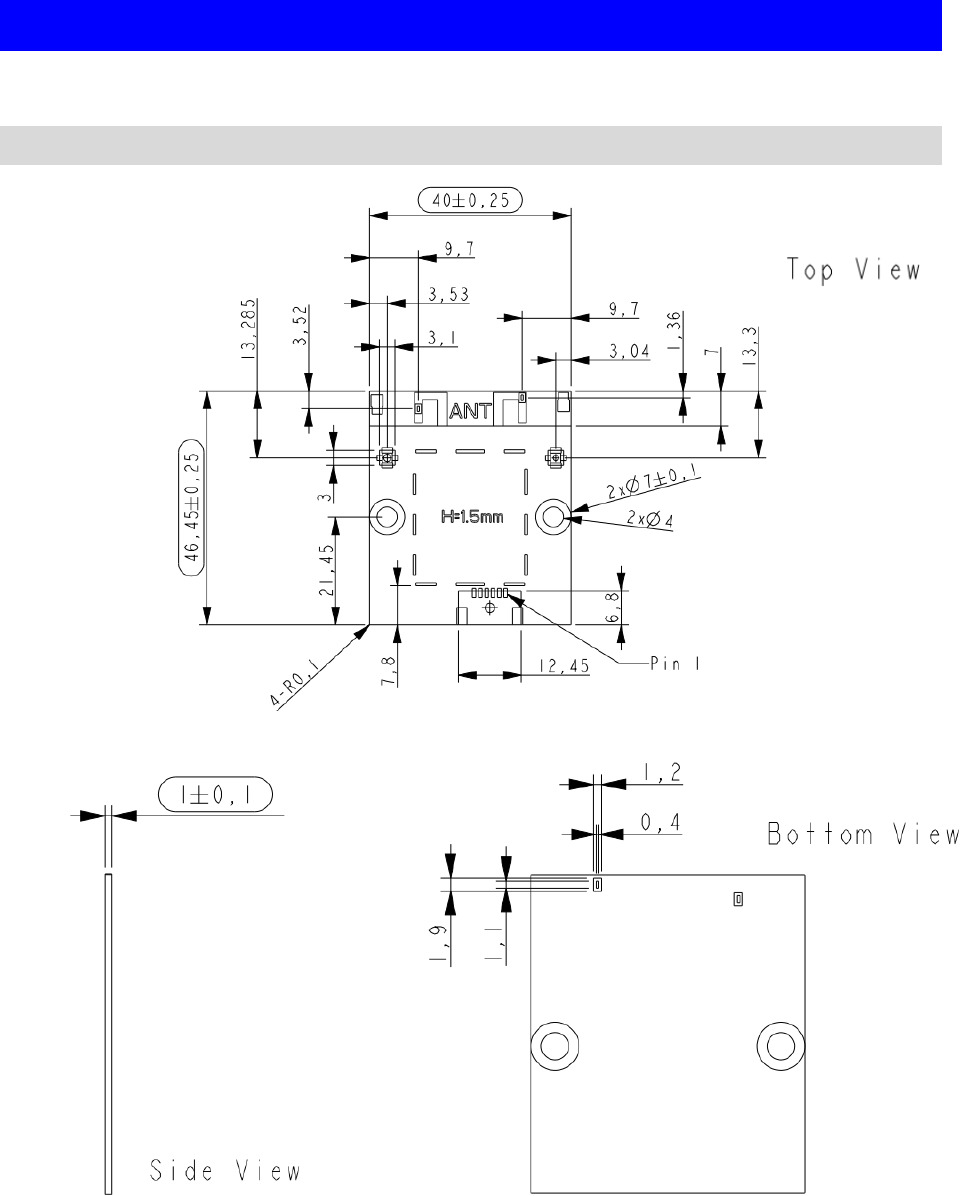

Figure 3 Mechanical Drawing

WFU032 PRODUCT SPECIFICATION

FOXCONN CONFIDENTIAL 11

This preliminary specification is subject to change without notice.

3-2 Label Specification

Figure 4 Label Drawing

WFU032 PRODUCT SPECIFICATION

FOXCONN CONFIDENTIAL 12

This preliminary specification is subject to change without notice.

CHAPTER 4. ADDITIONAL INFORMATION

4-1 EEPROM Information

4-2 Module Photo

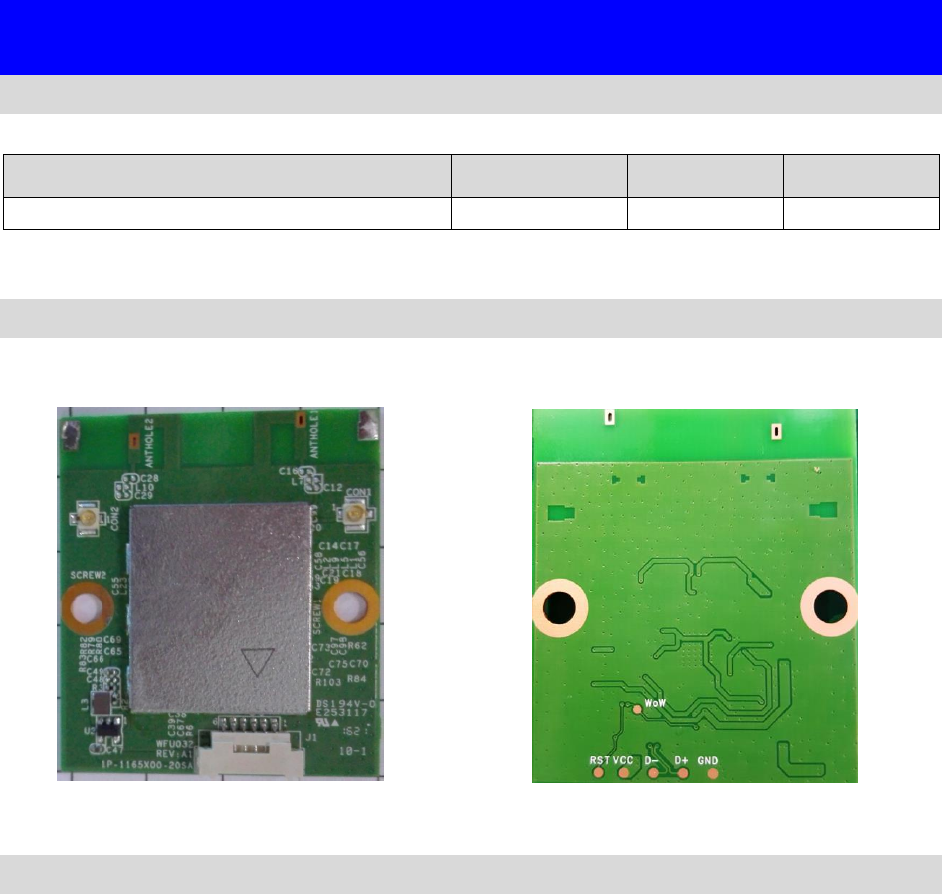

Figure 5 Top Side Photo Figure 6 Bottom Side Photo

4-3 Environment Specifications

Operation

Operation Temperature : 0~55 ℃

Relevant Humidity: 5 ~ 90% (non-condensing)

Storage

Operation Temperature : -20~105 ℃

Relevant Humidity: 5 ~ 90% (non-condensing)

WLAN Type

Mode

PID

VID

MT7603U WiFi

b/g/n

7603

0E8D

WFU032 PRODUCT SPECIFICATION

FOXCONN CONFIDENTIAL 13

This preliminary specification is subject to change without notice.

Federal Communication Commission Interference Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) This device may not cause harmful interference, and (2) this device must accept

any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses and

can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct the interference by one of

the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

- Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or

modifications not expressly approved by the party responsible for compliance could void the

user's authority to operate this equipment. This transmitter must not be co-located or

operating in conjunction with any other antenna or transmitter.

Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled

environment. This equipment should be installed and operated with minimum distance 20cm

between the radiator & your body.

This device is intended only for OEM integrators under the following conditions:

1) The antenna must be installed such that 20 cm is maintained between the antenna and users,

and 2) The transmitter module may not be co-located with any other transmitter or antenna.

As long as 2 conditions above are met, further transmitter test will not be required. However,

the OEM integrator is still responsible for testing their end-product for any additional

compliance requirements required with this module installed

IMPORTANT NOTE: In the event that these conditions can not be met (for example certain

laptop configurations or co-location with another transmitter), then the FCC authorization is no

longer considered valid and the FCC ID can not be used on the final product. In these

circumstances, the OEM integrator will be responsible for reevaluating the end product

(including the transmitter) and obtaining a separate FCC authorization.

WFU032 PRODUCT SPECIFICATION

FOXCONN CONFIDENTIAL 14

This preliminary specification is subject to change without notice.

End Product Labeling

This transmitter module is authorized only for use in device where the antenna may be installed

such that 20 cm may be maintained between the antenna and users. The final end product must

be labeled in a visible area with the following: “Contains FCC ID: RX3-WFU032”. The grantee's

FCC ID can be used only when all FCC compliance requirements are met.

Manual Information To the End User

The OEM integrator has to be aware not to provide information to the end user regarding how

to install or remove this RF module in the user’s manual of the end product which integrates this

module. The end user manual shall include all required regulatory information/warning as show

in this manual.

WFU032 PRODUCT SPECIFICATION

FOXCONN CONFIDENTIAL 15

This preliminary specification is subject to change without notice.

Canada, Industry Canada (IC) Statement

This Class B digital apparatus complies with Canadian ICES-003.

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is

subject to the following two conditions:

(1) this device may not cause interference, and

(2) this device must accept any interference, including interference that may cause undesired

operation of the device.

RF Radiation Exposure Statement:

This equipment complies with IC radiation exposure limits set forth for an uncontrolled

environment. This equipment should be installed and operated with a minimum distance of 20

centimeters between the radiator and your body.

Required end product labeling:

Any device incorporating this module must include an external, visible, permanent marking

or label which states: “Contains IC: 2878F-WFU032”

This radio transmitter (identify the device by certification number or model number if Category

II) has been approved by Industry Canada to operate with the antenna types listed below with

the maximum permissible gain indicated. Antenna types not included in this list, having a gain

greater than the maximum gain indicated for that type, are strictly prohibited for use with this

device.

Antenna Type: PIFA Peak Gain: 3.82dBi

WFU032 PRODUCT SPECIFICATION

FOXCONN CONFIDENTIAL 16

This preliminary specification is subject to change without notice.

Canada, Industrie Canada (IC ) Déclaration

Cet appareil numérique de classe B est conforme à la norme NMB-003.

Le présent appareil est conforme aux CNR d'Industrie Canada applicables auxappareils radio

exempts de licence.L'exploitation est autorisée aux deux conditions suivantes:

(1) l'appareil ne doit pas produire de brouillage, et

(2) l'utilisateur de l'appareil doit accepter tout brouillage adioélectrique subi, même si le

brouillage est susceptible d'en compromettre le fonctionnement.

Déclaration d'exposition aux radiations:

Cet appareil est conforme aux limites d'exposition aux rayonnements définies pour un

environnement non contrôlé. Cet équipement doit être installé et utilisé à une distance

minimale de 20 centimètres entre le radiateur et votre corps.

Obligation d'étiquetage du produit final:

Tout dispositif intégrant ce module doit comporter un externe, visible, marquage permanent

ou une étiquette qui dit: "Contient IC : 2878F - WBUA31".

Cet émetteur radio ( identifier le dispositif par numéro de certification ou le numéro de modèle ,

si la catégorie II ) a été approuvé par Industrie Canada pour fonctionner avec les types d'antenne

énumérés ci-dessous avec le gain maximal admissible indiqué . types d'antennes non inclus dans

cette liste , ayant un gain supérieur au gain maximum indiqué pour ce type , sont strictement

interdits pour une utilisation avec cet appareil.

Type d'antenne: PIFA Pic Gain: 3.82dBi

Hon Hai Precision Industry WFU032 WLAN 802.11b/g/n 2T2R Module User Manual

Hon Hai Precision Industry Co., Ltd. WLAN 802.11b/g/n 2T2R Module Users Manual

Users Manual

Navigation menu

Namespaces

Views

Navigation
