Honey Bee HB-1303 VITASOUND WI-MIC User Manual 1
Honey Bee (Hong Kong) Ltd. VITASOUND WI-MIC 1
Contents
- 1. User Manual Annex
- 2. User Manual
User Manual Annex
Paper size: A4 Scal e = do not scale Designer: HayHEUN
Project: VitaSound - Wi-Mic
© 2013 Honey Bee (Hong Kong) Limited
p.1/5
Rev.03A 15 Mar 2013
Paper size: A4 Scal e = do not scale Designer: HayHEUN
© 2013 Honey Bee (Hong Kong) Limited
Charging/Power LED
External Mic port
Internal Mic
Charging port for Base Unit
Micro-USB Charging port
Reset
Power button
Mute button
Wireless pair button
Hook for neck loop
Project: VitaSound - Wi-Mic
p.2/5
Rev.03A 15 Mar 2013
© 2013 Honey Bee (Hong Kong) Limited
Paper size: A4 Scal e = do not scale Designer: HayHEUN

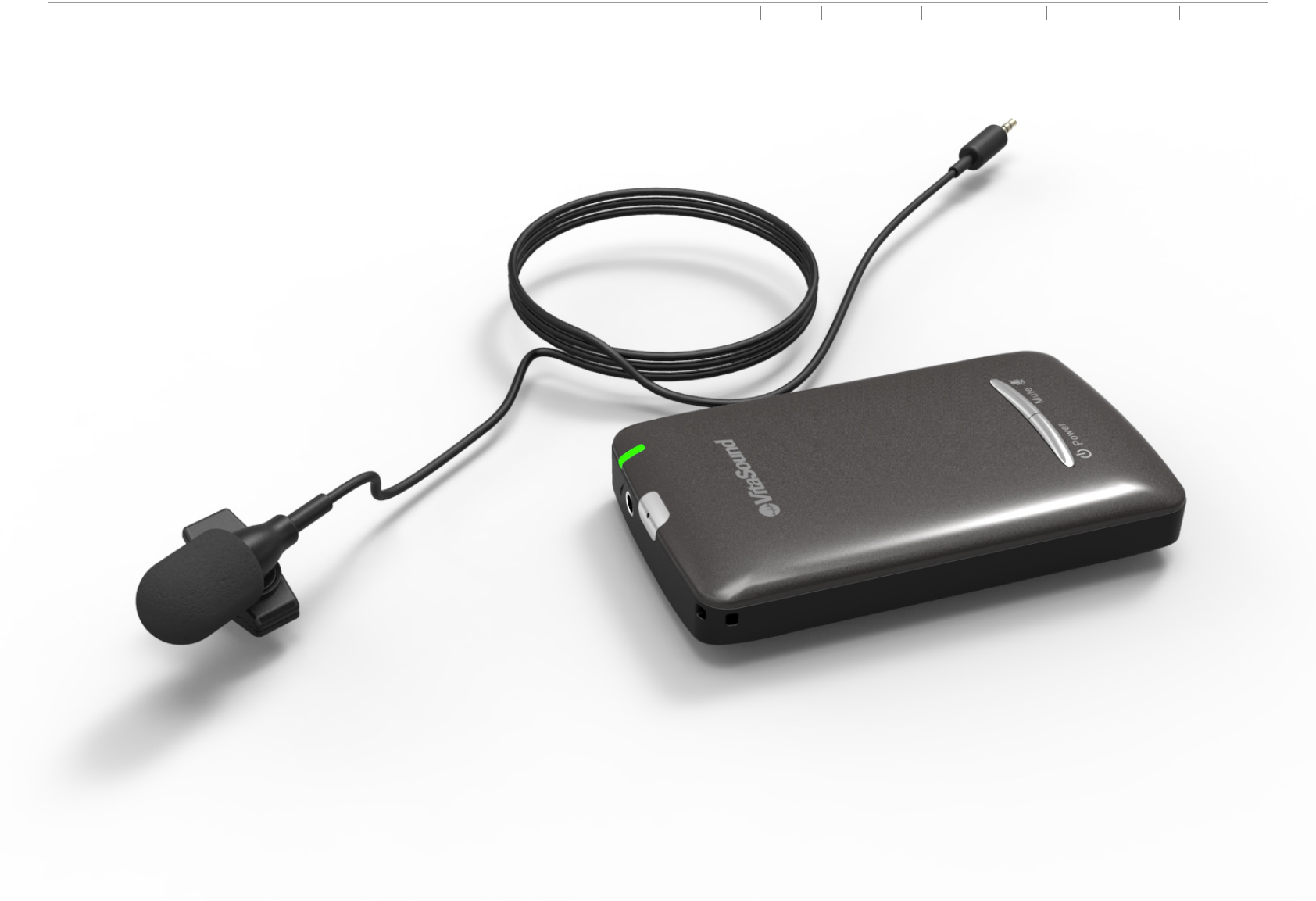

Microphone windshield
External microphone
Clip
Project: VitaSound - Wi-Mic
p.3/5
Rev.03A 15 Mar 2013
© 2013 Honey Bee (Hong Kong) Limited
Paper size: A4 Scal e = do not scale Designer: HayHEUN
PAE-300
Personal Audio Enhancer
Wi-Mic
How it Works
Wireless
Project: VitaSound - Wi-Mic
p.4/5
Rev.03A 15 Mar 2013
© 2013 Honey Bee (Hong Kong) Limited
Paper size: A4 Scal e = do not scale Designer: HayHEUN 15 Mar 2013
Rev.03A
Project: VitaSound - Wi-Mic
p.5/5
Usage Scenarios
in Office in Classroom
in Chruch
