Voyager™ 1450g/1452g Series User’s Guide

Voyager™ 1450g/1452g Series

Area-Imaging Scanner

User’s Guide

Disclaimer

Honeywell International Inc. (“HII”) reserves the right to make changes in specifications and other information contained in this

document without prior notice, and the reader should in all cases consult HII to determine whether any such changes have been

made. The information in this publication does not represent a commitment on the part of HII.

HII shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages

resulting from the furnishing, performance, or use of this material. HII disclaims all responsibility for the selection and use of

software and/or hardware to achieve intended results.

This document contains proprietary information that is protected by copyright. All rights are reserved. No part of this document

may be photocopied, reproduced, or translated into another language without the prior written consent of HII.

Web Address: www.honeywellaidc.com

Microsoft® Windows® is a trademark or registered trademark of Microsoft Corporation.

Other product names or marks mentioned in this document may be trademarks or registered trademarks of other companies

and are the property of their respective owners.

For patent information, please refer to www.hsmpats.com.

Chapter 1 - Getting Started

About This Manual ...............................................................................................................1-1

Unpacking Your Device .......................................................................................................1-1

Connecting the Device.........................................................................................................1-1

Connecting with USB .....................................................................................................1-1

Connecting with Keyboard Wedge.................................................................................1-2

Connecting with RS232 Serial Port................................................................................1-3

Connecting with RS485..................................................................................................1-4

Mounting a CCB01-010BT Charge Base.............................................................................1-6

Reading Techniques ............................................................................................................1-6

Menu Bar Code Security Settings........................................................................................1-6

Setting Custom Defaults ......................................................................................................1-7

Resetting the Custom Defaults ............................................................................................1-7

Chapter 2 - Programming the Interface

Introduction ..........................................................................................................................2-1

Programming the Interface - Plug and Play .........................................................................2-1

Keyboard Wedge .................................................................................................................2-1

Laptop Direct Connect .........................................................................................................2-1

RS232 Serial Port ................................................................................................................2-1

RS485 ..................................................................................................................................2-2

RS485 Packet Mode ......................................................................................................2-2

USB IBM SurePos ...............................................................................................................2-3

USB PC or Macintosh Keyboard..........................................................................................2-3

USB HID ..............................................................................................................................2-4

USB Serial ...........................................................................................................................2-4

CTS/RTS Emulation.......................................................................................................2-4

ACK/NAK Mode .............................................................................................................2-4

Remote MasterMind™ for USB ...........................................................................................2-5

Verifone® Ruby Terminal Default Settings...........................................................................2-5

Gilbarco® Terminal Default Settings ....................................................................................2-5

Honeywell Bioptic Aux Port Configuration ...........................................................................2-6

Datalogic™ Magellan© Bioptic Aux Port Configuration........................................................2-6

NCR Bioptic Aux Port Configuration ....................................................................................2-6

Wincor Nixdorf Terminal Default Settings ............................................................................2-6

Wincor Nixdorf Beetle™ Terminal Default Settings .............................................................2-7

Wincor Nixdorf RS232 Mode A ............................................................................................2-7

Keyboard Country Layout ....................................................................................................2-8

Keyboard Style...................................................................................................................2-15

Keyboard Conversion ........................................................................................................2-16

Control Character Output...................................................................................................2-17

Keyboard Modifiers ............................................................................................................2-17

Table of Contents

RS232 Modifiers ................................................................................................................2-18

RS232 Baud Rate........................................................................................................2-18

RS232 Word Length: Data Bits, Stop Bits, and Parity................................................. 2-19

RS232 Receiver Time-Out...........................................................................................2-20

RS232 Handshaking.................................................................................................... 2-20

RS232 Timeout............................................................................................................2-21

XON/XOFF .................................................................................................................. 2-21

ACK/NAK..................................................................................................................... 2-22

Scanner to Bioptic Communication ................................................................................... 2-22

Scanner-Bioptic Packet Mode ..................................................................................... 2-22

Scanner-Bioptic ACK/NAK Mode................................................................................. 2-22

Scanner-Bioptic ACK/NAK Timeout............................................................................. 2-23

Chapter 3 - Cordless System Operation

How the Cordless Charge Base/Access Point Works .........................................................3-1

Linking the Scanner to a Charge Base................................................................................3-1

Linking the Scanner to an Access Point .............................................................................. 3-1

Replacing a Linked Scanner................................................................................................3-2

Communication Between the Cordless System

and the Host......................................................................................................................3-2

Programming the Scanner and Base or Access Point ........................................................ 3-3

RF (Radio Frequency) Module Operation ........................................................................... 3-3

System Conditions...............................................................................................................3-3

Linking Process ............................................................................................................. 3-3

Scanner Is Out of Range ............................................................................................... 3-3

Scanner Is Moved Back Into Range ..............................................................................3-3

Out of Range and Back into Range with Batch Mode On.............................................. 3-3

Page Button......................................................................................................................... 3-3

About the Battery................................................................................................................. 3-4

Charging Information ..................................................................................................... 3-4

Battery Recommendations ............................................................................................3-4

Proper Disposal of the Battery....................................................................................... 3-4

Beeper and LED Sequences and Meaning ......................................................................... 3-5

Scanner LED Sequences and Meaning.........................................................................3-5

Base/Access Point LED Sequences and Meaning........................................................3-5

Base Power Communication Indicator........................................................................... 3-5

Reset Scanner..................................................................................................................... 3-6

Scanning While in Base Cradle ...........................................................................................3-6

Base Charging Modes......................................................................................................... 3-6

Paging ................................................................................................................................. 3-7

Paging Mode..................................................................................................................3-7

Paging Pitch...................................................................................................................3-7

Error Indicators.................................................................................................................... 3-8

Beeper Pitch - Base Error.............................................................................................. 3-8

Number of Beeps - Base Error ...................................................................................... 3-8

Scanner Report ................................................................................................................... 3-8

Scanner Address.................................................................................................................3-9

Base or Access Point Address ............................................................................................ 3-9

iii

Scanner Modes ...................................................................................................................3-9

Charge Only Mode.........................................................................................................3-9

Linked Modes ................................................................................................................3-9

Unlinking the Scanner ....................................................................................................... 3-10

Override Locked Scanner............................................................................................3-10

Out-of-Range Alarm .......................................................................................................... 3-10

Alarm Sound Type....................................................................................................... 3-11

Scanner Power Time-Out Timer........................................................................................3-11

Flexible Power Management............................................................................................. 3-12

Batch Mode ....................................................................................................................... 3-13

Batch Mode Beep ........................................................................................................ 3-14

Batch Mode Storage....................................................................................................3-14

Batch Mode Quantity ................................................................................................... 3-15

Batch Mode Output Order............................................................................................3-16

Total Records ..............................................................................................................3-17

Delete Last Code......................................................................................................... 3-17

Clear All Codes............................................................................................................3-17

Transmit Records to Host............................................................................................ 3-17

Batch Mode Transmit Delay ........................................................................................ 3-17

Multiple Scanner Operation ............................................................................................... 3-18

Scanner Name...................................................................................................................3-18

Application Work Groups................................................................................................... 3-19

Application Work Group Selection............................................................................... 3-20

Resetting the Factory Defaults: All Application Work Groups ........................................... 3-20

Resetting the Custom Defaults: All Application Work Groups ...........................................3-21

Using the Scanner with Bluetooth Devices........................................................................ 3-21

Bluetooth HID Keyboard Connect................................................................................3-21

Virtual Keyboard .......................................................................................................... 3-22

Bluetooth HID Keyboard Disconnect ...........................................................................3-23

Bluetooth Serial Port - PCs/Laptops............................................................................3-23

PDAs/Mobility Systems Devices.................................................................................. 3-23

Changing the Scanner’s Bluetooth PIN Code.............................................................. 3-23

Minimizing Bluetooth/ISM Band Network Activity.............................................................. 3-23

Auto Reconnect Mode ................................................................................................. 3-24

Maximum Link Attempts .............................................................................................. 3-24

Relink Time-Out........................................................................................................... 3-25

Bluetooth/ISM Network Activity Examples...................................................................3-25

Host Acknowledgment....................................................................................................... 3-26

Chapter 4 - Input/Output Settings

Power Up Beeper ................................................................................................................4-1

Beep on BEL Character.......................................................................................................4-1

Trigger Click ........................................................................................................................ 4-1

Good Read and Error Indicators.......................................................................................... 4-2

Beeper – Good Read..................................................................................................... 4-2

Beeper Volume – Good Read........................................................................................ 4-2

Beeper Pitch – Good Read............................................................................................ 4-2

Beeper Pitch – Error ...................................................................................................... 4-3

Beeper Duration – Good Read ...................................................................................... 4-3

LED – Good Read ......................................................................................................... 4-3

Number of Beeps – Good Read .................................................................................... 4-4

Number of Beeps – Error............................................................................................... 4-4

Good Read Delay .......................................................................................................... 4-4

User-Specified Good Read Delay..................................................................................4-4

Manual Trigger Mode ..........................................................................................................4-5

LED Illumination - Manual Trigger ................................................................................. 4-5

Serial Trigger Mode.............................................................................................................4-5

Read Time-Out .............................................................................................................. 4-5

Presentation Mode ..............................................................................................................4-6

Idle Illumination - Presentation Mode ............................................................................4-6

Presentation Sensitivity ................................................................................................. 4-6

Presentation Centering.................................................................................................. 4-6

In-Stand Sensor Mode.........................................................................................................4-8

Poor Quality Codes ............................................................................................................. 4-8

Poor Quality 1D Codes..................................................................................................4-8

Poor Quality PDF Codes ...............................................................................................4-9

CodeGate®.......................................................................................................................... 4-9

Mobile Phone Read Mode...................................................................................................4-9

Hands Free Time-Out.......................................................................................................... 4-9

Reread Delay..................................................................................................................... 4-10

User-Specified Reread Delay ............................................................................................4-10

2D Reread Delay ......................................................................................................... 4-10

Character Activation Mode ................................................................................................ 4-11

Activation Character .................................................................................................... 4-11

End Character Activation After Good Read.................................................................4-12

Character Activation Laser Timeout ............................................................................ 4-12

Character Deactivation Mode ............................................................................................ 4-12

Deactivation Character ................................................................................................ 4-12

Illumination Lights.............................................................................................................. 4-13

Aimer Delay ....................................................................................................................... 4-13

User-Specified Aimer Delay......................................................................................... 4-13

Aimer Mode ....................................................................................................................... 4-13

Centering........................................................................................................................... 4-14

No Read ............................................................................................................................ 4-15

Video Reverse ...................................................................................................................4-16

Working Orientation........................................................................................................... 4-16

Chapter 5 - Data Editing

Prefix/Suffix Overview .........................................................................................................5-1

To Add a Prefix or Suffix:............................................................................................... 5-1

To Clear One or All Prefixes or Suffixes........................................................................5-2

To Add a Carriage Return Suffix to All Symbologies.....................................................5-2

Prefix Selections.................................................................................................................. 5-2

Suffix Selections.................................................................................................................. 5-2

Function Code Transmit ......................................................................................................5-3

Intercharacter, Interfunction, and Intermessage Delays......................................................5-3

Intercharacter Delay ......................................................................................................5-3

User Specified Intercharacter Delay..............................................................................5-3

Interfunction Delay.........................................................................................................5-4

Intermessage Delay.......................................................................................................5-4

Chapter 6 - Data Formatting

Data Format Editor Introduction .......................................................................................... 6-1

Add a Data Format .............................................................................................................. 6-1

Other Programming Selections...................................................................................... 6-2

Terminal ID Table................................................................................................................ 6-3

Data Format Editor Commands........................................................................................... 6-3

Move Commands...........................................................................................................6-4

Search Commands........................................................................................................ 6-5

Miscellaneous Commands............................................................................................. 6-7

Data Formatter .................................................................................................................... 6-9

Primary/Alternate Data Formats..........................................................................................6-9

Chapter 7 - Symbologies

All Symbologies................................................................................................................... 7-1

Message Length Description...............................................................................................7-1

Codabar............................................................................................................................... 7-2

Codabar Concatenation.................................................................................................7-3

Code 39 ............................................................................................................................... 7-4

Code 32 Pharmaceutical (PARAF)................................................................................ 7-5

Full ASCII....................................................................................................................... 7-6

Code 39 Code Page ...................................................................................................... 7-6

Interleaved 2 of 5................................................................................................................. 7-7

NEC 2 of 5........................................................................................................................... 7-8

Code 93 ............................................................................................................................... 7-9

Code 93 Code Page .................................................................................................... 7-10

Straight 2 of 5 Industrial (three-bar start/stop)................................................................... 7-11

Straight 2 of 5 IATA (two-bar start/stop)............................................................................7-12

Matrix 2 of 5....................................................................................................................... 7-13

Code 11 ............................................................................................................................. 7-14

Code 128........................................................................................................................... 7-15

ISBT 128 Concatenation..............................................................................................7-15

Code 128 Code Page .................................................................................................. 7-16

GS1-128 ............................................................................................................................ 7-17

UPC-A ............................................................................................................................... 7-17

UPC-A/EAN-13 with Extended Coupon Code...................................................................7-19

Coupon GS1 DataBar Output............................................................................................ 7-20

UPC-E0 ............................................................................................................................. 7-20

UPC-E1 ............................................................................................................................. 7-22

EAN/JAN-13 ......................................................................................................................7-23

Convert UPC-A to EAN-13 .......................................................................................... 7-23

ISBN Translate ............................................................................................................ 7-25

EAN/JAN-8 ........................................................................................................................ 7-25

MSI .................................................................................................................................... 7-27

GS1 DataBar Omnidirectional ........................................................................................... 7-29

GS1 DataBar Limited.........................................................................................................7-29

GS1 DataBar Expanded.................................................................................................... 7-30

Codablock A ...................................................................................................................... 7-30

Codablock F ...................................................................................................................... 7-31

PDF417 ............................................................................................................................. 7-32

MacroPDF417 ................................................................................................................... 7-32

MicroPDF417.....................................................................................................................7-33

GS1 Composite Codes...................................................................................................... 7-33

UPC/EAN Version........................................................................................................7-34

GS1 Emulation ..................................................................................................................7-34

TCIF Linked Code 39 (TLC39) .......................................................................................... 7-35

QR Code............................................................................................................................ 7-35

QR Code Page ............................................................................................................7-36

Data Matrix ........................................................................................................................ 7-37

Data Matrix Code Page ...............................................................................................7-37

MaxiCode .......................................................................................................................... 7-38

Aztec Code ........................................................................................................................ 7-39

Aztec Code Page......................................................................................................... 7-39

Chinese Sensible (Han Xin) Code.....................................................................................7-40

Postal Codes - 2D .............................................................................................................7-41

Single 2D Postal Codes:.............................................................................................. 7-41

Combination 2D Postal Codes:....................................................................................7-42

Postal Codes - Linear........................................................................................................7-45

China Post (Hong Kong 2 of 5).................................................................................... 7-45

Korea Post...................................................................................................................7-46

Chapter 8 - Interface Keys

Keyboard Function Relationships........................................................................................ 8-1

Supported Interface Keys ....................................................................................................8-2

Chapter 9 - Utilities

To Add a Test Code I.D. Prefix to All Symbologies............................................................. 9-1

Show Decoder Revision ...................................................................................................... 9-1

Show Scan Driver Revision .................................................................................................9-1

Show Software Revision...................................................................................................... 9-1

vii

Show Data Format...............................................................................................................9-1

Test Menu............................................................................................................................ 9-2

EZConfig-Scanning Introduction.......................................................................................... 9-2

Installing EZConfig-Scanning from the Web..................................................................9-2

Resetting the Factory Defaults ............................................................................................ 9-3

Chapter 10 - Serial Programming Commands

Conventions....................................................................................................................... 10-1

Menu Command Syntax.................................................................................................... 10-1

Query Commands .............................................................................................................10-1

Responses................................................................................................................... 10-2

Trigger Commands............................................................................................................10-3

Resetting the Custom Defaults.......................................................................................... 10-3

Menu Commands ..............................................................................................................10-3

Chapter 11 - Product Specifications

Voyager 1450g Scanner Product Specifications ............................................................... 11-1

Voyager 1452g Cordless Scanner Product Specifications ................................................ 11-2

CCB01-010BT Charge Base Product Specifications......................................................... 11-3

Standard Cable Pinouts..................................................................................................... 11-4

Serial Output................................................................................................................11-4

USB ............................................................................................................................. 11-4

RS485 Output..............................................................................................................11-5

Chapter 12 - Maintenance

Repairs .............................................................................................................................. 12-1

Maintenance ...................................................................................................................... 12-1

Cleaning the Device.....................................................................................................12-1

Inspecting Cords and Connectors ...............................................................................12-1

Replacing Cables in Corded Scanners.............................................................................. 12-1

Replacing a Corded Scanner Interface Cable .............................................................12-2

Replacing Cables and Batteries in Cordless Systems ...................................................... 12-2

Replacing an Interface Cable in a Base ...................................................................... 12-2

Changing a Cordless Scanner Battery ........................................................................12-3

Troubleshooting a Corded Scanner................................................................................... 12-3

Troubleshooting a Cordless System.................................................................................. 12-3

Troubleshooting a Base...............................................................................................12-3

Troubleshooting a Cordless Scanner ..........................................................................12-4

Chapter 13 - Customer Support

Technical Assistance.........................................................................................................13-1

viii

Appendix A - Reference Charts

Symbology Charts ...............................................................................................................A-1

Linear Symbologies .......................................................................................................A-1

2D Symbologies.............................................................................................................A-2

Postal Symbologies .......................................................................................................A-2

ASCII Conversion Chart (Code Page 1252)........................................................................A-3

Lower ASCII Reference Table.............................................................................................A-4

ISO 2022/ISO 646 Character Replacements ......................................................................A-7

Unicode Key Maps ..............................................................................................................A-9

Sample Symbols

Programming Chart

1 - 1

Getting Started

About This Manual

This User’s Guide provides installation and programming instructions for the Voyager™ 1450g corded area-imaging scanners

and Voyager 1452g cordless area-imaging scanners. Product specifications, dimensions, warranty, and customer support infor-

mation are also included.

Note: The selections in this User’s Guide are dependent on the Voyager 145Xg model you have purchased.

PDF and 2 dimensional bar codes can only be read by model 145Xg2D and cannot be read by model 145Xg1D.

Honeywell bar code scanners are factory programmed for the most common terminal and communications settings. If you need

to change these settings, programming is accomplished by scanning the bar codes in this guide.

An asterisk (*) next to an option indicates the default setting.

Unpacking Your Device

After you open the shipping carton containing the product, take the following steps:

• Check for damage during shipment. Report damage immediately to the carrier who delivered the carton.

• Make sure the items in the carton match your order.

• Save the shipping container for later storage or shipping.

Connecting the Device

Connecting with USB

A scanner or a cordless base can be connected to the USB port of a computer.

1. Connect the appropriate interface cable to the device first, then to the computer.

Corded Voyager 1450g

USB Connection:

1 - 2

Note: The power supply must be ordered separately, if needed.

2. If you are connecting a CCB01-010BT Base, make sure the cables are secured in the wireways in the bottom of the

cordless base and the base sits flat on a horizontal surface.

3. The scanner beeps.

4. Verify the scanner or cordless base operation by scanning a bar code from the Sample Symbols in the back of this

manual.

The unit defaults to a USB PC Keyboard. Refer to page 2-3 for other USB terminal settings.

For additional USB programming and technical information, refer to “USB Application Note,” available at www.honey-

wellaidc.com.

Connecting with Keyboard Wedge

A scanner or cordless base can be connected between the keyboard and PC as a “keyboard wedge,” where the scanner

provides data output that is similar to keyboard entries. The following is an example of a keyboard wedge connection:

1. Turn off power and disconnect the keyboard cable from the back of the terminal/computer.

2. Connect the appropriate interface cable to the device and to the terminal/computer.

CCB01-010BT Base

USB Connection:

Corded Voyager 1450g

Keyboard Wedge Connection:

1 - 3

Note: The power supply must be ordered separately, if needed.

3. If you are connecting a CCB01-010BT Base, make sure the cables are secured in the wireways in the bottom of the

cordless base and the base sits flat on a horizontal surface.

4. Turn the terminal/computer power back on. The scanner beeps.

5. Verify the scanner or cordless base operation by scanning a bar code from the Sample Symbols in the back of this

manual. The scanner beeps once.

The unit defaults to an IBM PC AT and compatibles keyboard wedge interface with a USA keyboard. A carriage return (CR)

suffix is added to bar code data.

Connecting with RS232 Serial Port

1. Turn off power to the terminal/computer.

2. Connect the appropriate interface cable to the device.

Note: For the scanner or cordless base to work properly, you must have the correct cable for your type of terminal/computer.

CCB01-010BT Base

Keyboard Wedge Connection:

CCB01-010BT Base

Keyboard Wedge Connection:

1 - 4

Note: The power supply must be ordered separately, if needed.

3. If you are connecting a CCB01-010BT Base, make sure the cables are secured in the wireways in the bottom of the

cordless base and the base sits flat on a horizontal surface.

4. Plug the serial connector into the serial port on your computer. Tighten the two screws to secure the connector to the

port.

5. Once the scanner or cordless base has been fully connected, power up the computer.

This interface programs 115,200 baud, 8 data bits, no parity, and 1 stop bit.

Connecting with RS485

A scanner or cordless base can be connected for an IBM POS terminal interface.

1. Connect the appropriate interface cable to the device, then to the computer.

Corded Voyager 1450g

RS232 Serial Port Connection:

CCB01-010BT Base

RS232 Serial Port Connection:

1 - 5

2. Turn the terminal/computer power back on. The scanner beeps.

3. Verify the scanner or cordless base operation by scanning a bar code from the Sample Symbols in the back of this

manual. The scanner beeps once.

For further RS485 settings, refer to RS485, page 2-2.

Corded Voyager 1450g

RS232 Serial Port Connection:

CCB01-010BT Base

RS485 Connection:

1 - 6

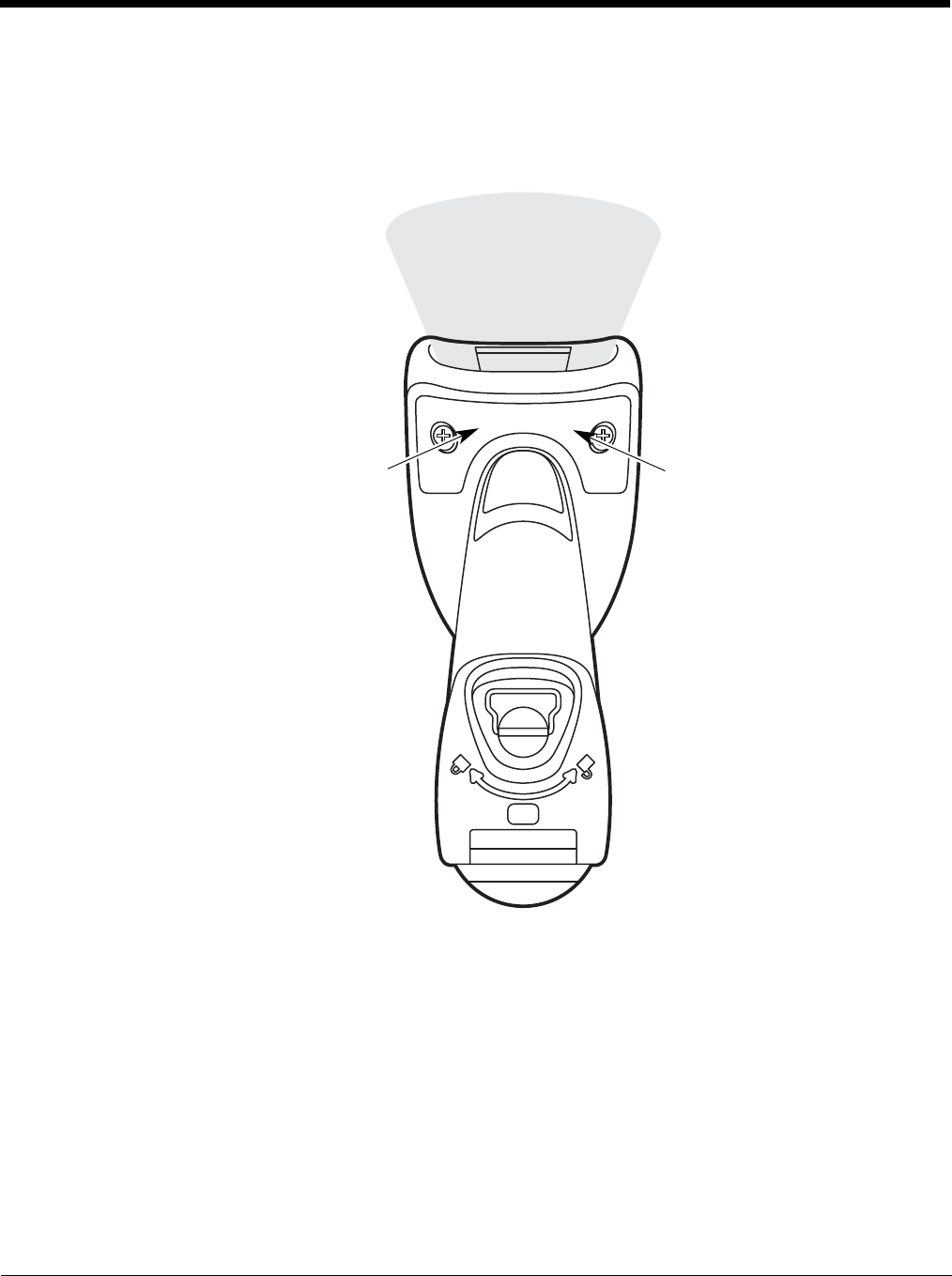

Mounting a CCB01-010BT Charge Base

Reading Techniques

The scanner has a view finder that projects a bright red aiming beam that corresponds to the scanner’s horizontal field of view.

The aiming beam should be centered over the bar code, but it can be positioned in any direction for a good read.

The aiming beam or pattern is smaller when the scanner is closer to the code and larger when it is farther from the code. Sym-

bologies with smaller bars or elements (mil size) should be read closer to the unit. Symbologies with larger bars or elements

(mil size) should be read farther from the unit. To read single or multiple symbols (on a page or on an object), hold the scanner

at an appropriate distance from the target, press the trigger, and center the aiming beam or pattern on the symbol. If the code

being scanned is highly reflective (e.g., laminated), it may be necessary to tilt the code up 15° to 18° to prevent unwanted reflec-

tion.

Menu Bar Code Security Settings

Honeywell scanners are programmed by scanning menu bar codes or by sending serial commands to the scanner. If you want

to restrict the ability to scan menu codes, you can use the Menu Bar Code Security settings. Please contact the nearest techni-

cal support office (see Customer Support on page 13-1) for further information.

8x32 thread

x .39 in. (10mm) deep

2.36 in.

59.84mm

3.35 in.

85.09mm

2.8 in.

72.1mm

Linear bar code 2D Matrix symbol

1 - 7

Setting Custom Defaults

You have the ability to create a set of menu commands as your own, custom defaults. To do so, scan the Set Custom Defaults

bar code below before scanning the menu commands for your custom defaults. If a menu command requires scanning numeric

codes from the back cover, then a Save code, that entire sequence will be saved to your custom defaults. When you have

entered all the commands you want to save for your custom defaults, scan the Save Custom Defaults bar code.

Note: When using a cordless system, the Custom Defaults settings apply to all workgroups. Scanning the Save Defaults bar

code also causes both the scanner and the base or Access Point to perform a reset and become unlinked. The scanner

must be placed in its base to re-establish the link before any setup codes are entered. If using an Access Point, the linking

bar code must be scanned. See Cordless System Operation beginning on page 3-1 for additional information.

You may have a series of custom settings and want to correct a single setting. To do so, just scan the new setting to overwrite

the old one. For example, if you had previously saved the setting for Beeper Volume at Low to your custom defaults, and decide

you want the beeper volume set to High, just scan the Set Custom Defaults bar code, then scan the Beeper Volume High

menu code, and then Save Custom Defaults. The rest of the custom defaults will remain, but the beeper volume setting will be

updated.

Resetting the Custom Defaults

If you want the custom default settings restored to your scanner, scan the Activate Custom Defaults bar code below. This is

the recommended default bar code for most users. It resets the scanner to the custom default settings. If there are no custom

defaults, it will reset the scanner to the factory default settings. Any settings that have not been specified through the custom

defaults will be defaulted to the factory default settings.

Note: If using a cordless system, scanning this bar code also causes both the scanner and the base or Access Point to perform

a reset and become unlinked. The scanner must be placed in its base to re-establish the link. If using an Access Point,

the linking bar code must be scanned. See Cordless System Operation beginning on page 3-1 for additional information.

Set Custom Defaults

Save Custom Defaults

Activate Custom Defaults

1 - 8

2 - 1

Programming the Interface

Introduction

This chapter describes how to program your system for the desired interface.

Programming the Interface - Plug and Play

Plug and Play bar codes provide instant scanner set up for commonly used interfaces.

Note: After you scan one of the codes, power cycle the host terminal to have the interface in effect.

Keyboard Wedge

If you want your system programmed for an IBM PC AT and compatibles keyboard wedge interface with a USA keyboard, scan

the bar code below. Keyboard wedge is the default interface.

Note: The following bar code also programs a carriage return (CR) suffix.

Laptop Direct Connect

For most laptops, scanning the Laptop Direct Connect bar code allows operation of the scanner in parallel with the integral

keyboard. The following Laptop Direct Connect bar code also programs a carriage return (CR) suffix and turns on Emulate

External Keyboard (page 2-16).

RS232 Serial Port

The RS232 Interface bar code is used when connecting to the serial port of a PC or terminal. The following RS232 Interface

bar code also programs a carriage return (CR) and a line feed (LF) suffix, baud rate, and data format as indicated below. It also

changes the trigger mode to manual.

Option Setting

Baud Rate 115,200 bps

Data Format 8 data bits, no parity bit, 1 stop bit

IBM PC AT and Compatibles with

CR suffix

Laptop Direct Connect

with CR suffix

RS232 Interface

2 - 2

RS485

Scan one of the following “Plug and Play” codes to program the scanner for an IBM POS terminal interface.

Note: After scanning one of these codes, you must power cycle the cash register.

Each bar code above also programs the following suffixes for each symbology:

* Suffixes programmed for Code 128 with IBM 4683 Port 5B, IBM 4683 Port 9B HHBCR-1, and IBM 4683 Port 17 Interfaces

**Suffixes programmed for Code 128 with IBM 4683 Port 9 HHBCR-2 Interface

RS485 Packet Mode

The following selection allows you to break up large bar code data into smaller packets on an IBM POS terminal. To break

up large bar codes into small packets, scan the Packet Mode On bar code below. Scan the Packet Mode Off bar code if you

want large bar code data to be sent to the host in a single chunk. Default = Packet Mode Off.

Symbology Suffix Symbology Suffix

EAN 8 0C Code 39 00 0A 0B

EAN 13 16 Interleaved 2 of 5 00 0D 0B

UPC A 0D Code 128 * 00 0A 0B

UPC E 0A Code 128 ** 00 18 0B

MaxiCode 00 2F 0B

IBM Port 5B Interface

IBM Port 9B

HHBCR-1 Interface

IBM Port 17 Interface

IBM Port 9B

HHBCR-2 Interface

* Packet Mode Off

Packet Mode On

2 - 3

RS485 Packet Length

If you are using Packet mode, you can specify the size of the data “packet” that is sent to the host. Scan the Packet

Length bar code, then then the packet size (from 20 - 256) from the Programming Chart inside the back cover of this

manual, then Save. Default = 40.

USB IBM SurePos

Scan one of the following “Plug and Play” codes to program the scanner for an IBM SurePos (USB handheld scanner) or IBM

SurePos (USB tabletop scanner) interface.

Note: After scanning one of these codes, you must power cycle the cash register.

Each bar code above also programs the following suffixes for each symbology:

USB PC or Macintosh Keyboard

Scan one of the following codes to program the scanner for USB PC Keyboard or USB Macintosh Keyboard. Scanning these

codes also adds a CR and LF.

Symbology Suffix Symbology Suffix

EAN 8 0C Code 39 00 0A 0B

EAN 13 16 Interleaved 2 of 5 00 0D 0B

UPC A 0D Code 128 00 18 0B

UPC E 0A Code 39 00 0A 0B

Packet Length

USB IBM SurePos

(USB Handheld Scanner)

Interface

USB IBM SurePos

(USB Tabletop Scanner)

Interface

USB Keyboard (PC)

USB Keyboard (Mac)

USB Japanese Keyboard (PC)

2 - 4

USB HID

Scan the following code to program the scanner for USB HID bar code scanners.

USB Serial

Scan the following code to program the scanner to emulate a regular RS232-based COM Port. If you are using a Microsoft®

Windows® PC, you will need to download a driver from the Honeywell website (www.honeywellaidc.com). The driver will use

the next available COM Port number. Apple® Macintosh computers recognize the scanner as a USB CDC class device and

automatically uses a class driver.

Note: No extra configuration (e.g., baud rate) is necessary.

CTS/RTS Emulation

ACK/NAK Mode

USB HID Bar Code Scanner

USB Serial

CTS/RTS Emulation On

* CTS/RTS Emulation Off

ACK/NAK Mode On

* ACK/NAK Mode Off

2 - 5

Remote MasterMind™ for USB

When using a USB interface, you may wish to configure your scanner to communicate with Remote MasterMind Scanner Man-

agement Software (ReM). Scan the ReM On bar code to communicate with ReM. To disable this capability, scan ReM Off.

Default = ReM On.

Note: Remote MasterMind settings apply only to the Voyager 1450g. They are not supported by the Voyager 1452g.

Verifone® Ruby Terminal Default Settings

Scan the following Plug and Play code to program the scanner for a Verifone Ruby terminal. This bar code sets the baud rate to

1200 bps and the data format to 8 data bits, mark parity bit, 1 stop bit. It also adds a line feed (LF) suffix and programs the fol-

lowing prefixes for each symbology:

Gilbarco® Terminal Default Settings

Scan the following Plug and Play code to program the scanner for a Gilbarco terminal. This bar code sets the baud rate to 2400

bps and the data format to 7 data bits, even parity, 2 stop bits. It also also adds a carriage return (CR) suffix and programs the

following prefixes for each symbology:

Symbology Prefix

UPC-A A

UPC-E A

EAN-8 FF

EAN-13 F

Symbology Prefix

UPC-A A

UPC-E E0

EAN-8 FF

EAN-13 F

ReM Off

* ReM On

Verifone Ruby Settings

Gilbarco Settings

2 - 6

Honeywell Bioptic Aux Port Configuration

Scan the following Plug and Play code to program the scanner for a Honeywell bioptic scanner auxiliary port configuration. This

bar code sets the baud rate to 38400 bps and the data format to 8 data bits, no parity, 1 stop bit.

Datalogic™ Magellan© Bioptic Aux Port Configuration

Scan the following Plug and Play code to program the scanner for a Datalogic Magellan bioptic scanner auxiliary port configura-

tion. This bar code sets the baud rate to 9600 bps and the data format to 8 data bits, no parity, 1 stop bit.

NCR Bioptic Aux Port Configuration

Scan the following Plug and Play code to program the scanner for an NCR bioptic scanner auxiliary port configuration. The fol-

lowing prefixes are programmed for each symbology:

Wincor Nixdorf Terminal Default Settings

Scan the following Plug and Play code to program the scanner for a Wincor Nixdorf terminal. This bar code sets the baud rate

to 9600 bps and the data format to 8 data bits, no parity, 1 stop bit.

Symbology Prefix Symbology Prefix

UPC-A A Interleaved 2 of 5 b

UPC-E E0 Code 128 f

GS1 DataBar

Omnidirecitonal

EAN-8 FF GS1 DataBar

Expanded

EAN-13 F Codabar N

Code 39 a Code 32

Pharmaceutical

(PARAF)

Honeywell Bioptic Settings

Datalogic Magellan Bioptic Settings

NCR Bioptic Settings

Wincor Nixdorf Terminal Settings

2 - 7

Wincor Nixdorf Beetle™ Terminal Default Settings

Scan the following Plug and Play code to program the scanner for a Wincor Nixdorf Beetle terminal. This bar code sets the

baud rate to 115200 bps and the data format to 8 data bits, no parity, 1 stop bit. The following prefixes are programmed for each

symbology:

Wincor Nixdorf RS232 Mode A

Scan the following Plug and Play code to program the scanner for a Wincor Nixdorf RS232 Mode A terminal. This bar code sets

the baud rate to 9600 bps and the data format to 8 data bits, odd parity, 1 stop bit. The following prefixes are programmed for

each symbology:

Symbology Prefix Symbology Prefix

Aztec Code V Interleaved 2 of 5 I

Codabar N MaxiCode T

Code 93 L MicroPDF417 S

Code 128 K PDF417 Q

Data Matrix R QR Code U

EAN-8 B Straight 2 of 5 IATA H

EAN-13 A UPC-A A0

GS1 DataBar E UPC-E C

GS1-128 P All other bar codes M

Symbology Prefix Symbology Prefix

Code 128 K EAN-13 A

Code 93 L GS1-128 K

Codabar N Interleaved 2 of 5 I

UPC-A A0 Plessey O

UPC-E C Straight 2 of 5 IATA H

EAN-8 B GS1 DataBar E

All other bar codes M

Wincor Nixdorf Beetle Settings

Wincor Nixdorf RS232 Mode A

Settings

2 - 8

Keyboard Country Layout

Scan the appropriate country code below to program the keyboard layout for your country or language. As a general rule, the

following characters are supported, but need special care for countries other than the United States:

@ | $ # { } [ ] = / ‘ \ < > ~

Keyboard Countries

* United States

Albania

Azeri (Cyrillic)

Azeri (Latin)

Belarus

Belgium

Bosnia

Brazil

Brazil (MS)

Bulgaria (Cyrillic)

2 - 9

Keyboard Countries (Continued)

Bulgaria (Latin)

Canada (French legacy)

Canada (French)

Canada (Multilingual)

Croatia

Czech

Czech (Programmers)

Czech (QWERTY)

Czech (QWERTZ)

Denmark

Dutch (Netherlands)

2 - 10

Keyboard Countries (Continued)

Estonia

Faroese

Finland

France

Gaelic

Germany

Greek

Greek (220 Latin)

Greek (220)

Greek (319 Latin)

Greek (319)

2 - 11

Keyboard Countries (Continued)

Greek (Latin)

Greek (MS)

Greek (Polytonic)

Hebrew

Hungarian (101 key)

Hungary

Iceland

Irish

Italian (142)

Italy

Japan ASCII

2 - 12

Keyboard Countries (Continued)

Kazakh

Kyrgyz (Cyrillic)

Latin America

Latvia

Latvia (QWERTY)

Lithuania

Lithuania (IBM)

Macedonia

Malta

Mongolian (Cyrillic)

Norway

2 - 13

Keyboard Countries (Continued)

Poland

Polish (214)

Polish (Programmers)

Portugal

Romania

Russia

Russian (MS)

Russian (Typewriter)

SCS

Serbia (Cyrillic)

Serbia (Latin)

2 - 14

Keyboard Countries (Continued)

Slovakia

Slovakia (QWERTY)

Slovakia (QWERTZ)

Slovenia

Spain

Spanish variation

Sweden

Switzerland (French)

Switzerland (German)

Tatar

Turkey F

2 - 15

Keyboard Style

This programs keyboard styles, such as Caps Lock and Shift Lock. If you have used Keyboard Conversion settings, they will

override any of the following Keyboard Style settings. Default = Regular.

Regular is used when you normally have the Caps Lock key off.

Caps Lock is used when you normally have the Caps Lock key on.

Keyboard Countries (Continued)

Turkey Q

Ukrainian

United Kingdom

United States (Dvorak)

United States (Dvorak left)

United Stated (Dvorak right)

United States (International)

Uzbek (Cyrillic)

* Regular

Caps Lock

2 - 16

Shift Lock is used when you normally have the Shift Lock key on (not common to U.S. keyboards).

Automatic Caps Lock is used if you change the Caps Lock key on and off. The software tracks and reflects if you have Caps

Lock on or off . This selection can only be used with systems that have an LED that notes the Caps Lock status (AT keyboards).

Autocaps via NumLock bar code should be scanned in countries (e.g., Germany, France) where the Caps Lock key cannot be

used to toggle Caps Lock. The NumLock option works similarly to the regular Autocaps, but uses the NumLock key to retrieve

the current state of the Caps Lock.

Emulate External Keyboard should be scanned if you do not have an external keyboard (IBM AT or equivalent).

Note: After scanning the Emulate External Keyboard bar code, you must power cycle your computer.

Keyboard Conversion

Alphabetic keyboard characters can be forced to be all upper case or all lowercase. So if you have the following bar code:

“abc569GK,” you can make the output “ABC569GK” by scanning Convert All Characters to Upper Case, or to “abc569gk” by

scanning Convert All Characters to Lower Case.

These settings override Keyboard Style selections.

Note: If your interface is a keyboard wedge, first scan the menu code for Automatic Caps Lock (page 2-16). Otherwise, your

output may not be as expected.

Default = Keyboard Conversion Off.

Shift Lock

Automatic Caps Lock

Autocaps via NumLock

Emulate External Keyboard

* Keyboard Conversion Off

Convert All Characters

to Upper Case

Convert All Characters

to Lower Case

2 - 17

Control Character Output

This selection sends a text string instead of a control character. For example, when the control character for a carriage return is

expected, the output would display [CR] instead of the ASCII code of 0D. Refer to ASCII Conversion Chart (Code Page

1252) on page A-3. Only codes 00 through 1F are converted (the first column of the chart). Default = Off.

Note: Control + ASCII Mode overrides this mode.

Keyboard Modifiers

This modifies special keyboard features, such as CTRL+ ASCII codes and Turbo Mode.

Control + ASCII Mode On: The scanner sends key combinations for ASCII control characters for values 00-1F. Windows is

the preferred mode. All keyboard country codes are supported. DOS mode is a legacy mode, and it does not support all key-

board country codes. New users should use the Windows mode. Refer to Keyboard Function Relationships, page 8-1 for

CTRL+ ASCII Values.

Windows Mode Prefix/Suffix Off: The scanner sends key combinations for ASCII control characters for values 00-1F, but it

does not translate any prefix or suffix information.

Default = Control + ASCII Mode Off.

Control Character Output On

* Control Character Output Off

Windows Mode Control + X

Mode On

* Control + X Mode Off

DOS Mode Control + X Mode On

Windows Mode Prefix/Suffix Off

2 - 18

Turb o Mode: The scanner sends characters to a terminal faster. If the terminal drops characters, do not use Turbo Mode.

Default = Off.

Numeric Keypad Mode: Sends numeric characters as if entered from a numeric keypad. Default = Off.

Automatic Direct Connect Mode: This selection can be used if you have an IBM AT style terminal and the system is dropping

characters. Default = Off.

RS232 Modifiers

RS232 Baud Rate

Baud Rate sends the data from the scanner to the terminal at the specified rate. The host terminal must be set for the

same baud rate as the scanner. Default = 9600.

Turbo Mode On

* Turbo Mode Off

Numeric Keypad Mode On

* Numeric Keypad Mode Off

Automatic Direct Connect Mode

* Automatic Direct Connect

Mode Off

300

600

2 - 19

RS232 Word Length: Data Bits, Stop Bits, and Parity

Data Bits sets the word length at 7 or 8 bits of data per character. If an application requires only ASCII Hex characters 0

through 7F decimal (text, digits, and punctuation), select 7 data bits. For applications that require use of the full ASCII set,

select 8 data bits per character. Default = 8.

Stop Bits sets the stop bits at 1 or 2. Default = 1.

Parity provides a means of checking character bit patterns for validity.

Default = None.

1200

2400

4800

* 9600

19200

38400

57,600

115,200

7 Data, 1 Stop, Parity Even

2 - 20

RS232 Receiver Time-Out

The unit stays awake to receive data until the RS232 Receiver Time-Out expires. A manual trigger resets the time-out.

When an RS232 receiver is sleeping, a character may be sent to wake up the receiver and reset the time-out. A transaction

on the CTS line will also wake up the receiver. The receiver takes 300 milliseconds to completely come up. Change the

RS232 receiver time-out by scanning the bar code below, then scanning digits from the inside back cover of this manual,

then scanning Save. The range is 0 to 300 seconds. Default = 0 seconds (no time-out - always on).

RS232 Handshaking

RS232 Handshaking allows control of data transmission from the scanner using software commands from the host device.

When RTS/CTS is turned Off, no data flow control is used.

Flow Control, No Timeout: The scanner asserts RTS when it has data to send, and will wait indefinitely for CTS to be

asserted by the host.

7 Data, 1 Stop, Parity None

7 Data, 1 Stop, Parity Odd

7 Data, 2 Stop, Parity Even

7 Data, 2 Stop Parity None

7 Data, 2 Stop, Parity Odd

8 Data, 1 Stop, Parity Even

* 8 Data, 1 Stop, Parity None

8 Data, 1 Stop, Parity Odd

RS232 Receiver Time-Out

2 - 21

Two-Direction Flow Control: The scanner asserts RTS when it is OK for the host to transmit. The host asserts CTS

when it is OK for the device to transmit.

Flow Control with Timeout: The scanner asserts RTS when it has data to send and waits for a delay (see RS232

Timeout on page 2-21) for CTS to be asserted by the host. If the delay time expires and CTS is not asserted, the device

transmit buffer is cleared and scanning may resume. Default = RTS/CTS Off.

RS232 Timeout

When using Flow Control with Timeout, you must program the length of the delay you want to wait for CTS from the host.

Set the length (in milliseconds) for a timeout by scanning the bar code below, then setting the timeout (from 1-5100 millisec-

onds) by scanning digits from the inside back cover, then scanning Save.

XON/XOFF

Standard ASCII control characters can be used to tell the scanner to start sending data (XON/XOFF On) or to stop sending

data (XON/XOFF Off). When the host sends the XOFF character (DC3, hex 13) to the scanner, data transmission stops.

To resume transmission, the host sends the XON character (DC1, hex 11). Data transmission continues where it left off

when XOFF was sent. Default = XON/XOFF Off.

Flow Control, No Timeout

Two-Direction Flow Control

Flow Control with Timeout

* RTS/CTS Off

RS232 Timeout

XON/XOFF On

* XON/XOFF Off

2 - 22

ACK/NAK

After transmitting data, the scanner waits for an ACK character (hex 06) or a NAK character (hex 15) response from the

host. If ACK is received, the communications cycle is completed and the scanner looks for more bar codes. If NAK is

received, the last set of bar code data is retransmitted and the scanner waits for ACK/NAK again. Turn on the ACK/NAK

protocol by scanning the ACK/NAK On bar code below. To turn off the protocol, scan ACK/NAK Off. Default = ACK/NAK

Off.

Scanner to Bioptic Communication

The following settings are used to set up communication between Honeywell scanners and bioptic scanners.

Note: The scanner’s baud rate must be set to 38400 and the RS232 timeout must be set to 3000 in order to communicate with

a bioptic scanner. See "RS232 Baud Rate" on page 2-18, and RS232 Timeout on page 2-21 for further information.

Scanner-Bioptic Packet Mode

Packet Mode On must be scanned to set the scanner’s format so it is compatible with a bioptic scanner. Default = Packet

Mode Off.

Scanner-Bioptic ACK/NAK Mode

Bioptic ACK/Nak On must be scanned so the scanner will wait for an ACK or NAK from a bioptic scanner after each packet

is sent. The Scanner-Bioptic ACK/NAK Timeout (below) controls how long the scanner will wait for a response. Default =

Bioptic ACK/NAK Off.

ACK/NAK On

* ACK/NAK Off

* Packet Mode Off

Packet Mode On

* Bioptic ACK/NAK Off

Bioptic ACK/NAK On

2 - 23

Scanner-Bioptic ACK/NAK Timeout

This allows you to set the length (in milliseconds) for a timeout for a bioptic scanner’s ACK/NAK response. Scan the bar

code below, then set the timeout (from 1-30,000 milliseconds) by scanning digits from the inside back cover, then scanning

Save. Default = 5100.

ACK/NAK Timeout

2 - 24

3 - 1

Cordless System Operation

Note: This chapter applies only to cordless scanning systems. It does not apply to corded scanners.

How the Cordless Charge Base/Access Point Works

A cordless charge base or an Access Point provide the link between the cordless scanner and the host system. The base/

Access Point contains an interface assembly and an RF communication module. The RF communication module performs the

data exchange between the cordless scanner and the interface assembly. The control assembly coordinates the central inter-

face activities including: transmitting/receiving commands and data to/from the host system, performing software activities

(parameter menuing, visual indicator support, power-on diagnostics), and data translation required for the host system.

The cordless charge base is also a scanner’s battery charger. Refer to Charging Information, page 3-4, for additional informa-

tion.

Linking the Scanner to a Charge Base

Turn off power before connecting a base, then power up the computer once the base is fully connected. When the base is con-

nected and powered up, put the scanner in the base to establish a link. The green LED on the base flashes to indicate the scan-

ner’s battery is charging.

If the scanner and base have previously been linked, you do not receive any feedback. If this is the first time that the scanner

and base are linked, both devices emit a short chirp when their radios link. At this point, that one scanner is linked to one base.

To determine if your cordless system is set up correctly, scan one of the sample bar codes in the back of this manual. If the

scanner provides a single good read beep and the green LED lights, the scanner has successfully linked to the base. If you

receive an error tone and the red LED lights, the scanner has not linked to the base. Refer to page 12-4 for troubleshooting

information.

Linking the Scanner to an Access Point

Turn on the computer (laptop/desktop). Plug the interface cable into the Access Point first and

then into the appropriate port on the computer. The Page button lights up when the connection to

the host is made.

CCB01-010BT Charge Base

Page Button and Base LEDs

Page

Button

3 - 2

Scan the linking bar code on the top of the Access Point to establish a connection

between the Access Point and the scanner. The scanner emits a short beep and

flashes the green LED to confirm a connection with the Access Point. The Access

Point’s Page button remains blue.

Replacing a Linked Scanner

If you need to replace a broken or lost scanner that is linked to a base or an Access Point, scan the Override Locked Scanner

bar code below with a new scanner and place that scanner in the base, or scan the Access Point linking bar code. The locked

link will be overridden; the broken or lost scanner’s link with the base or Access Point will be removed, and the new scanner will

be linked.

Communication Between the Cordless System

and the Host

The cordless scanner provides immediate feedback in the form of a “good read” indication with a green LED on the scanner and

an audible beep. This indicates that the bar code has been scanned correctly and the base or Access Point has acknowledged

receiving the data. This is possible since the cordless system provides two-way communication between the scanner and the

base or Access Point.

When data is scanned, the data is sent to the host system via the base or Access Point. The cordless scanner recognizes data

acknowledgement (ACK) from the base or Access Point. If it cannot be determined that the data has been properly sent to the

base or Access Point, the scanner issues an error indication. You must then check to see if the scanned data was received by

the host system.

1. Scanner reads code and gets ACK from base or Access Point

2. Base or Access Point sends data to host

Override Locked Scanner

(Single Scanner)

3 - 3

Programming the Scanner and Base or Access Point

When using the scanner and charge base or Access Point together as a system, menu parameters and configuration settings

are stored in the charge base or Access Point. Therefore, when programming any menu configuration settings, the scanner

must be linked to the intended charge base or Access Point.

Note: This only applies when the scanner is linked to a charge base or Access Point. If the scanner is in a non-base mode,

configuration settings are stored in the scanner.

RF (Radio Frequency) Module Operation

The cordless system uses a two-way Bluetooth® radio to transmit and receive data between the scanner and the base or

Access Point. Designed for point-to-point and multipoint-to-single point applications, the radio operates using a license free ISM

band, which sends relatively small data packets at a fast data rate over a radio signal with randomly changing frequencies,

makes the cordless system highly responsive to a wide variety of data collection applications and resistant to noisy RF environ-

ments. The CCB01-010BT (Bluetooth Class 2) provides a communication range of 33 feet (10m) between the scanner and

base or Access Point, depending on the environment. See Flexible Power Management, page 3-12, for information about con-

trolling this range.

System Conditions

The components of the cordless system interact in specific ways as you associate a scanner to a base or Access Point, as you

move a scanner out of range, bring a scanner back in range, or swap scanners between two cordless systems. The following

information explains the cordless system operating conditions.

Linking Process

Once a scanner is placed into a cordless charge base, the scanner’s battery charge status is checked, and software auto-

matically detects the scanner and links it to the base depending on the selected link mode.

Refer to Linking the Scanner to an Access Point, page 3-1, for information about linking to an Access Point.

Scanner Is Out of Range

The cordless scanner is in communication with its base or Access Point, even when it is not transmitting bar code data.

Whenever the scanner can’t communicate with the base or Access Point for a few seconds, it is out of range. If the scanner

is out of range and you scan a bar code, the scanner issues an error tone indicating no communication with the base or

Access Point. A cordless charge base can also sound an alarm. Refer to Out-of-Range Alarm, page 3-10.

Scanner Is Moved Back Into Range

The scanner relinks if the scanner or the base or Access Point have been reset, or the scanner comes back into range. If

the scanner relinks, you will hear a single chirp when the relinking process (uploading of the parameter table) is complete.

Refer to Out-of-Range Alarm on page 3-10 for further information.

Out of Range and Back into Range with Batch Mode On

The scanner may store a number of symbols (approximately 500 U.P.C. symbols; others may vary) when it is out of range

and then send them to the base or Access Point when back in range (see Batch Mode on page 3-13).

You will not hear a communication error tone in this mode, but you will hear a short buzz when you pull the trigger if the

radio communication is not working. Once the radio connection is made, the scanner produces a series of beeps while the

data is being transferred to the base or Access Point.

Page Button

When you press the Page button on the base or Access Point, the scanners associated with that base or Access Point will

begin beeping (3 short and 1 long beep). If you pull the trigger on a scanner that is beeping in response, or press the Page

button on the base or Access Point a second time, all associated scanners will stop beeping. See Paging on page 3-7 for

further information about Page Button settings.

3 - 4

About the Battery

There is a danger of explosion if the batteries are incorrectly replaced. Replace the batteries with only the same or

equivalent type recommended by the manufacturer. Dispose of used batteries according to the recycle program for

batteries as directed by the governing agency for the country where the batteries are to be discarded.

Power is supplied to the cordless scanner by a rechargeable battery that is integrated in the scanner handle. Batteries are

shipped approximately 30% to 60% charged. The battery should be charged for a minimum of 4 hours before initial use to

ensure optimal performance.

Charging Information

The battery is designed to charge while the scanner is positioned in the cordless base unit. Refer to Base/Access Point

LED Sequences and Meaning, page 3-5, for an interpretation of the Charge Status indicators. Refer to Charge Only Mode

(page 3-9) if you need to charge a scanner without linking it to the base.

Place the scanner in the base that is connected to an appropriate power supply. Use only a Listed Limited Power Source

(LPS) or Class 2 type power supply with output rated 5 to 5.2Vdc, 1A.

Note: If you are powering the base through the interface cable (for example, a USB cable) and not using an external power

supply plugged into the aux port, the current available for charging is reduced and charge times are increased.

Battery Recommendations

• The battery is a lithium ion cell and can be used without a full charge, and can also be charged without fully discharging,

without impacting the battery life. There is no need to perform any charge/discharge conditioning on this type of battery.

• Keep the base connected to power when the host is not in use.

• Replace a defective battery immediately since it could damage the scanner.

• Although your battery can be recharged many times, it will eventually be depleted. Replace it after the battery is unable

to hold an adequate charge.

• If you are not sure if the battery or charger is working properly, send it to Honeywell International Inc. or an authorized

service center for inspection. Refer to Customer Support on page 13-1 for additional information.

Caution:

Use only Honeywell Li-ion battery packs, model number BAT-SCN01, rated 3.7 Vdc, 7.4Whr in this device. Use

of any non-Honeywell battery may result in damage not covered by the warranty.

Safety Precautions for Lithium Batteries

• Do not place batteries in fire or heat the batteries.

• Do not store batteries near fire or other high temperature locations.

• Do not store or carry batteries together with metal objects.

• Do not expose batteries to water or allow the batteries to get wet.

• Do not connect (short) the positive and negative terminals, of the batteries, to each other with any metal object.

• Do not pierce, strike or step on batteries or subject batteries to strong impacts or shocks.

• Do not disassemble or modify batteries.

Caution:

Danger of explosion if batteries are incorrectly replaced. Dispose of used batteries according to the recycle

program for batteries as directed by the governing agency for the country where the batteries are to be

discarded.

Proper Disposal of the Battery

When the battery has reached the end of its useful life, the battery should be disposed of by a qualified

recycler or hazardous materials handler. Do not incinerate the battery or dispose of the battery with gen-

eral waste materials. You may send the scanner’s battery to us. (postage paid). The shipper is responsi-

ble for complying with all federal, state, and local laws and regulations related to the packing, labeling,

manifesting, and shipping of spent batteries. Contact the Product Service Department (page 13-1) for

recycling or disposal information. Since you may find that your cost of returning the batteries significant,

it may be more cost effective to locate a local recycle/disposal company.

3 - 5

Beeper and LED Sequences and Meaning

The scanner contains LEDs on the rear of the unit that indicate linking status, decoding state, and battery condition. The base

has LEDs on the top of the unit that indicate its power up, communication, and battery charge condition. The red LED = error;

green LED = success of any type. Scanners and the CCB01-010BT base have audible indicators as well: 1 razz or error tone =

error; 2 beeps = menu change; 1 beep = all other successes.

The table below lists the indication and cause of the LED indication, beeps, and vibrations for the scanner.

Scanner LED Sequences and Meaning

Base/Access Point LED Sequences and Meaning

The base contains a red LED and the Access Point has a blue LED that indicate the status of the unit and verifies its com-

munication with the host system. The base also has a green LED that indicates scanner battery charge condition.

Base Power Communication Indicator

To display the power indicator on a base or an Access Point, scan the Base Power Communication Indicator On bar

code. To turn off the power indicator, scan the Off bar code. Default = On.

LED Indication Beeper Indication Vibrate Indication Cause

Normal Operation

Red Flash None None Battery low

Green Flash 1 beep None Successful communication or linking

Red, blinking Razz or error tone None Failed communication

Menu Operation

Green Flash 2 beeps 2 vibrations Successful menu change

Red, blinking Razz or error tone 1 long vibration Unsuccessful menu change

Red or Blue LED - Host Communication

Red or Blue LED Communication Condition

Off USB suspend

On continuously Power on, system idle

Short blinks in multiple pulses. Occurs while transferring data to/

from the RF module or the Host port.

Receiving data

Green LED - Scanner Battery

(base only, does not apply to Access Point)

Green LED Charge Condition

Off Battery not detected or charge suspended

Slow flash, 1 second on, 1 second off Pre-charge and charging

On continuously Charge complete

Fast flash, 300 mSec on, 300 mSec off Charge Error

* Base Power Communication

Indicator On

3 - 6

Reset Scanner

Scanning this bar code reboots the scanner and causes it to relink with the base or Access Point.

Scanning While in Base Cradle

If you want to be able to scan bar codes while the scanner is in the base cradle, scan the Scanning in Cradle On bar code

below. If you want to only allow scanning when the scanner is out of the base cradle, scan Scanning in Cradle Off. If you want

the scanner to shut down when in the base cradle, scan Shut Down Scanner in Cradle. Default = Scanning in Cradle On.

Base Charging Modes

When the base has both an external power supply (plugged into the auxiliary power port) and a host interface cable, it will draw

its power from the external power supply. When the base does not have an external power supply, it draws its power from the

interface cable. However, the scanner battery charges more slowly from a host interface cable than if auxiliary power were

available. Using the following selections, you can specify whether the scanner battery is charged from power supplied via the

host interface cable.

When Base Charge Off is selected, the scanner battery does not charge when the scanner is in the base cradle.

When External or Interface Cable Power is selected, the scanner battery charges from the base’s external power supply, if

there is one. If there is no external power supply to the base, the scanner battery charges from the interface cable.

When External Power Only is selected, the scanner battery only charges from the base’s external power supply. If there is no

external power supply, the scanner battery does not charge.

Note: If you are using a cordless charge base in Presentation Mode, External Power Only is the only setting available.

Base Power Communication

Indicator Off

Reset Scanner

Scanning in Cradle Off

* Scanning in Cradle On

Shut Down Scanner in Cradle

3 - 7

Default = External or Interface Cable Power.

Paging

Paging Mode

By default, the paging button on the base or Access Point pages the scanners associated with that base or Access Point. If

you want the paging button on your base or Access Point to be disabled, scan the Paging Mode Off bar code, below.

When Paging Mode is off, the base or Access Point will no longer page scanners when the button is pressed. The red LED

on the base or blue LED on the Access Point will remain lit to indicate that Paging Mode is off. (This light will go out when

the button is pressed, then back on when it’s released.) Default = Paging Mode On.

Paging Pitch

When you press the Page button on the base or Access Point, the scanners associated with that base or Access Point will

begin beeping (see Page Button on page 3-3). You can set the pitch of the paging beep for each scanner by scanning one

of the following bar codes. Default = Low.

Base Charge Off

External or Interface Cable

Power

External Power Only

* Paging Mode On

Paging Mode Off

* Low (1000 Hz)

Medium (3250 Hz)

3 - 8

Error Indicators

Beeper Pitch - Base Error

The CCB01-010BT base can be configured to beep at a particular pitch when an error occurs, such as transmission prob-

lems to a host system. The beeper pitch codes modify the pitch (frequency) of the error tone the base emits when there is

an error. Default = Low.

Number of Beeps - Base Error

The number of beeps and LED flashes emitted by the CCB01-010BT base for an error condition can be programmed from

1 - 9. For example, if you program this option to have five error beeps, there will be five error beeps and five LED flashes in

response to an error. To change the number of error beeps, scan the bar code below and then scan a digit (1-9) bar code

and the Save bar code on the Programming Chart inside the back cover of this manual. Default = 1.

Scanner Report

Scan the bar code below to generate a report for the connected scanners. The report indicates the port, work group, scanner

name, and address. To assign a name to your scanner, refer to Menu Command Syntax, page 10-1.

High (4200 Hz)

* Razz (250 Hz)

Medium (3250 Hz)

High (4200 Hz)

Number of Base Error Beeps/LED Flashes

Scanner Report

3 - 9

Scanner Address

Scan the bar code below to determine the address of the scanner you are using.

Base or Access Point Address

Scan the bar code below to determine the address of the base or Access Point you are using.

Scanner Modes

Your scanner is capable of working in single scanner mode, multiple scanner mode, or with Bluetooth devices other than the

charge base or Access Point.

Charge Only Mode

There may be times when you want to charge your scanner, but not link to the base. For example, if a scanner is linked to

an Access Point or other Bluetooth device and you need to charge the scanner, but want to retain your existing link.

In order to program the base for Charge Only Mode, you must link a scanner to it. Once the scanner is linked to the base,

scan the Charge Only Mode bar code. Any subsequent scanners placed in that base will charge without linking to it. The

scanner used to program the base remains linked to the base. To unlink this scanner, scan Unlink Scanner on page 3-10.

Note: When in Charge Only Mode, the scanner periodically wakes up and beeps. See "Power Up Beeper" on page 4-1 to

change this setting.

If you want to charge a scanner and link to the base, use Charge and Link Mode. If the base is programmed for Charge

Only Mode, you must link a scanner to it first in order to program it for Charge and Link Mode. Scan the linking bar code on

the base to link the scanner, then scan Charge and Link Mode. Default = Charge and Link Mode.

Linked Modes

Locked Link Mode and Open Link Mode are the link modes that accommodate different applications. Scan the appropriate

bar codes included in the Open Link and Locked Link Mode explanations that follow to switch from one mode to another.

Default = Open Link Mode.

Scanner Address

Base Address

Charge Only Mode

* Charge and Link Mode

3 - 10

Locked Link Mode - Single Scanner

If you link a scanner to a base or an Access Point using the Locked Link Mode, other scanners are blocked from being

linked if they are inadvertently placed into the base, or if the Access Point linking bar code is scanned. If you do place

a different scanner into a base, it will charge the scanner, but the scanner will not be linked.

To use a different scanner, you need to unlink the original scanner by scanning the Unlink Scanner bar code. (See

Scanner Modes, page 3-9.)

Open Link Mode - Single Scanner

When newly shipped or defaulted to factory settings, a scanner is not linked to a base or an Access Point. A link is

established when the scanner is placed into a base, or an Access Point linking bar code is scanned. When in Open

Link Mode, a new link is established when a new scanner is placed in the base, or you scan an Access Point linking bar

code. Each time a scanner is placed into a base or scans an Access Point linking bar code, the scanner becomes

linked to the base or Access point and the old scanner is unlinked.

Unlinking the Scanner

If a base or an Access Point has a scanner linked to it, that scanner must be unlinked before a new scanner can be linked.

Once the previous scanner is unlinked, it will no longer communicate with the base or Access Point. To unlink the scanner from

a base or an Access Point, scan the Unlink Scanner bar code below.

Override Locked Scanner

If you need to replace a broken or lost scanner that is linked to a base or an Access Point, scan the Override Locked

Scanner bar code below with a new scanner and place that scanner in the base, or scan the Access Point linking bar code.

The locked link will be overridden; the broken or lost scanner’s link with the base or Access Point will be removed, and the

new scanner will be linked.

Out-of-Range Alarm

If your scanner is out range of the base, an alarm sounds from both your base and scanner. If your scanner is out range of an

Access Point, an alarm sounds from just the scanner. The alarm stops when the scanner is moved closer to the base or Access

Point, when the base or Access Point connects to another scanner, or when the alarm duration expires. To activate the alarm

Locked Link Mode

(Single Scanner)

* Open Link Mode

(Single Scanner)

Unlink Scanner

Override Locked Scanner

(Single Scanner)

3 - 11

options for the scanner or the base and to set the alarm duration, scan the appropriate bar code below and then set the time-out

duration (from 0-3000 seconds) by scanning digits on the Programming Chart inside the back cover, then scanning Save.

Default = 0 sec (no alarm).

Note: If you are out of range when you scan a bar code, you will receive an error tone even if you do not have the alarm set.

You receive the error tone since the data could not be communicated to the base or Access Point or the host.

Alarm Sound Type

You may change the alarm type for the scanner or a CCB01-010BT base by scanning the appropriate bar code below and

then scanning a digit (0-7) bar code and the Save bar code on the Programming Chart inside the back cover of this manual.

Default = 0.

The sounds are as follows:

Scanner Power Time-Out Timer

Note: Scanner Power Time-out Timer only applies to cordless systems. It does not apply to corded scanners.

When there is no activity within a specified time period, the scanner enters low power mode. Scan the appropriate scanner

power time-out bar code to change the time-out duration (in seconds).

Note: Scanning zero (0) is the equivalent of setting no time-out.

Note: The Access Point does not have a base alarm.

Setting Sound

0 3 long beeps, medium pitch

1 3 long beeps, high pitch

2 4 short beeps, medium pitch

3 4 short beeps, high pitch

4 single chirps, medium pitch

5 2 chirps, then 1 chirp, medium pitch

6 single chirps, high pitch

7 2 chirps, then 1 chirp, high pitch

Base Alarm Duration

Scanner Alarm Duration

Base Alarm Type

Scanner Alarm Type

3 - 12

If there are no trigger pulls during the timer interval, the scanner goes into power down mode. Whenever the trigger is enabled,

the timer is reset. If the scanner is placed in the charge base cradle and the battery is in the process of being charged, the

scanner will not go into power down mode. Default = 3600 seconds.

Note: When the scanner is in power down mode, pull the trigger to power the unit back up. There will be a set of power up beeps

and a delay of up to a few seconds for the radio to join. The scanner will then be ready to use.

Flexible Power Management

If you are experiencing network performance issues, and suspect the scanner is interfering with other devices, you can turn

down the power output of the scanner. This reduces the range between the scanner and a base or an Access Point as shown

in the following illustration:

0 seconds

200 seconds

400 seconds

900 seconds

* 3600 seconds

7200 seconds

1902

Scanner

802.11

LAN

3 - 13

Scan one of the bar codes below to set the scanner’s power output to Full Power (100%), Medium Power (35%), Medium Low

Power (5%), or Low Power (1%). Default = Full Power.

Batch Mode

Batch mode is used to store bar code data when a scanner is out of range of its base or Access Point, or when performing

inventory. The data is transmitted to the base or Access Point once the scanner is back in range or when the records are man-

ually transmitted.

Note: Batch mode has limitations when using multiple scanners to one base or Access Point. If a cordless system is being used

in "multiple link mode," where up to 7 scanners are to be connected to one base or Access Point, some accumulated or

batched scans could be lost if scanners are constantly being moved in and out of range.

Automatic Batch Mode stores bar code data when the scanner is out of range of the base or Access Point. The data is auto-

matically transmitted to the base or Access Point once the scanner is back in range. When the scanner’s buffer space is full,

any bar codes scanned generate an error tone. In order to scan bar codes again, the scanner must be moved back into range

of the base or Access Point so data can be transmitted.

Inventory Batch Mode stores bar code data, whether or not you are in range of the base or Access Point. To transmit the

stored data to the base or Access Point, either place the scanner in the base, or scan Transmit Inventory Records (page 3-17).

When the scanner’s buffer space is full, any bar codes scanned generate an error tone. In order to scan bar codes again, the

data must be transmitted to the base or Access Point. Once the data is transmitted, it is cleared in the scanner.

Persistent Batch Mode is the same as Inventory Batch Mode, except that once the data is transmitted to the base or Access

Point, it is retained in the scanner. If you want to transmit more than once, you can do so using this mode. In order to clear the

scanner’s buffer, you must scan Clear All Codes (see page 3-17).

Default = Batch Mode Off.

* Full Power

Medium Power

Medium Low Power

Low Power

* Batch Mode Off

Automatic Batch Mode

3 - 14

Batch Mode Beep

When scanning in Inventory Batch Mode (page 3-14), the scanner beeps every time a bar code is scanned. When Batch

Mode Beep is On, you will also hear a click when each bar code is sent to the host. If you do not want to hear these clicks,

scan Batch Mode Beep Off. Default = Batch Mode Beep On.

Batch Mode Storage

When a scanner is storing data during a Batch Mode process, you can select whether the data is stored in Flash memory

or in RAM.

Flash Storage: The scanner writes any untransmitted data to flash memory prior to powering down. The data will still be

there when the scanner powers back up. However, the scanner will power down, even with untransmitted data, if it reaches

a power down timeout or if the battery power is very low.

RAM Storage: The scanner will not power down while it contains data that has not been transmitted to the base or Access

Point, even if it reaches a power down timeout. However, if the scanner runs out of battery power, it will power down and

the data will be lost.

Default = Flash Storage.

Inventory Batch Mode

Persistent Batch Mode

Batch Mode Beep Off

* Batch Mode Beep On

* Flash Storage

RAM Storage

3 - 15

Batch Mode Quantity

When in Batch Mode, you may wish to transmit the number of multiple bar codes scanned, rather than a single bar code

multiple times. For example, if you scan three bar codes called XYZ with Batch Mode Quantity Off, when you transmit

your data it will appear as XYZ three times. Using Batch Mode Quantity On and the Quantity Codes (page 3-16), you

could output your data as “XYZ, 00003” instead.

Note: If you wish to format your output, for example, place a CR or tab between the bar code data and the quantity, refer

to Data Formatting beginning on page 6-1.

Default = Batch Mode Quantity Off.

Entering Quantities

Quantity Codes (page 3-16) allow you to enter a quantity for the last item scanned, up to 9999 (default = 1). Quantity digits

are shifted from right to left, so if a 5th digit is scanned, the 1st digit scanned is discarded and the 2nd, 3rd and 4th digits

are moved to the left to accommodate the new digit.

For example, if the Quantity 5 bar code is scanned after the quantity has been set to 1234, then the 1 is dropped, the quan-

tity will be 2345.

Example: Add a quantity of 5 for the last item scanned.

1. Scan the item's bar code.

2. Scan the quantity 5 bar code.

Example: Add a quantity of 1,500 for the last item scanned.

1. Scan the item's bar code.

2. Scan the quantity 1 bar code.

3. Scan the quantity 5 bar code.

4. Scan the quantity 0 bar code.

5. Scan the quantity 0 bar code.

Example: Change a quantity of 103 to 10.

To correct an incorrect quantity, scan the quantity 0 bar code to replace the incorrect digits, then scan the correct quantity

bar codes.

1. Scan the quantity 0 bar code to change the quantity to 1030.

2. Scan the quantity 0 bar code to change the quantity to 0300.

3. Scan the quantity 1 bar code to change the quantity to 3001.

4. Scan the quantity 0 bar code to change the quantity to 0010.

Default = 1.

Quantity Codes

* Batch Mode Quantity Off

Batch Mode Quantity On

3 - 16

Batch Mode Output Order

When batch data is transmitted, select whether you want that data sent as FIFO (first-in first-out), or LIFO (last-in first-out).

Default = Batch Mode FIFO.

* Batch Mode FIFO

Batch Mode LIFO

3 - 17

Total Records

If you wish to output the total number of bar codes scanned when in Batch Mode, scan Total Records.

Delete Last Code

If you want to delete the last bar code scanned when in Batch Mode, scan Delete Last Code.

Clear All Codes

If you want to clear the scanner’s buffer of all data accumulated in Batch Mode, scan Clear All Codes.

Transmit Records to Host

If you are operating in Inventory Batch Mode (see Inventory Batch Mode on page 3-14), you must scan the following bar

code to transmit all the stored data to the host system.

Batch Mode Transmit Delay

Sometimes when accumulated scans are sent to the host system, the transmission of those scans is too fast for the appli-

cation to process. To program a transmit delay between accumulated scans, scan one of the following delays. Default =

Off.

Note: In most cases, a short (250 ms (milliseconds)) delay is ideal, however, longer delays may be programmed. Contact

Technical Support (page 13-1) for additional information.

Total Records

Delete Last Code

Clear All Codes

Transmit Inventory Records

* Batch Mode Transmit Delay Off

(No Delay)

Batch Mode Transmit Delay Short

(250 ms)

3 - 18

Multiple Scanner Operation

Note: Multiple Scanner Operation Mode allows you to link up to 7 scanners to one base or Access Point. You cannot join an

8th scanner until you unlink one of the 7 scanners or take a scanner out of range.

To put the scanner in multiple scanner mode, scan the bar code below. Once you scan this bar code, the scanner is unlinked

from the base or Access Point and must either be placed into the base, or you must scan the Access Point linking bar code in

order to relink.

Scanner Name

You may assign a name to each scanner you are using for identification purposes. For example, you may want to have a unique

identifier for a scanner that is receiving imaging commands sent from the base or Access Point.

The default name is in the format “ScannerName_Model_SN_XXXXXXXXXX” If you have more than one scanner linked to a

base, and they all have the same name, the first scanner linked to the base receives commands. When renaming a series of

scanners with identical names, unlink all except one of the scanners from the base.

Perform the rename operation using either the bar codes on page 3-19, or by sending the serial command :Scanner-

Name:BT_NAMNewName. where ScannerName is the current name of the scanner, and NewName is the new name for the

scanner. If you wish to change the names of additional scanners, link them one at a time and repeat the :ScannerName:BT_N-

AMNewName. command for each scanner.

To rename scanners with sequential, numeric names, scan the bar codes below. Scan the Reset code after each name change

and wait for the scanner to relink to the base or Access Point before scanning a bar code to rename the next scanner.

Batch Mode Transmit Delay Medium

(500 ms)

Batch Mode Transmit Delay Long

(1000 ms)

Multiple Scanner Operation

0001

0002

0003

3 - 19

You may also scan the Scanner Name bar code below and scan a number for the scanner name. For example, if you wanted to

name the linked scanner “312,” you would scan the bar code below, scan the 3, 1, and 2 bar codes on the Programming Chart

inside the back cover of this manual, then scan Save. Scan the Reset bar code and wait for the scanner to relink to the base.

Application Work Groups

Your cordless system can have up to 7 scanners linked to one base or Access Point. You can also have up to 7 work groups. If

you want to have all of the scanners’ settings programmed alike, you don’t need to use more than 1 work group. If you want

each scanner to have unique settings (e.g., beeper volume, prefix/suffix, data formatter), then you may program each scanner to

its own unique work group and may program each scanner independently. For example, you might want to have multiple work

groups in a retail/warehouse application where you need to have different data appended to bar codes used in the warehouse

area versus the retail area. You could assign all the scanners in the retail area to one work group and those in the warehouse to

another. Consequently, any desired changes to either the retail or warehouse area would apply to all scanners in that particular

work group. Honeywell’s online configuration tool, EZConfig-Scanning (page 9-2), makes it easy for you to program your sys-

tem for use with multiple scanners and multiple work groups.

The scanner keeps a copy of the menu settings it is using. Whenever the scanner is connected or reconnected to a base or an

Access Point, the scanner is updated with the latest settings from the base or Access Point for its work group. The scanner also

receives menu setting changes processed by the base or Access Point. If a scanner is removed from a base or an Access Point

and placed into another base or linked to another Access Point, it will be updated with the new base/Access Point settings for

whatever work group to which that the scanner was previously assigned. For example, if the scanner was in work group 1 linked

to the first base, it will be placed in work group 1 in the second base with the associated settings.

0004

0005

0006

0007

Reset

Scanner Name

3 - 20

Application Work Group Selection

This programming selection allows you to assign a scanner to a work group by scanning the bar code below. You may then

program the settings (e.g., beeper volume, prefix/suffix, data formatter) that your application requires. Default = Group 0.

Resetting the Factory Defaults: All Application Work Groups

The following bar code defaults all of the work groups to the factory default settings.

To see what the factory default settings are, refer to the table of Menu Commands, beginning on page 10-3. The standard prod-

uct default settings for each of the commands are indicated by an asterisk (*).

Note: Scanning this bar code also causes both the scanner and the base or Access Point to perform a reset and become

unlinked. The scanner must be placed in the base, or the Access Point linking bar code must be scanned to re-establish

the link. Refer to Scanner Modes, page 3-9 for additional information.

If your scanner is in multiple scanner mode, you will hear up to 30 seconds of beeping while all scanners are relinked to

the base or Access Point and the settings are changed.

* Group 0

Group 1

Group 2

Group 3

Group 4

Group 5

Group 6

Factory Default Settings:

All Work Groups

PAPDFT&

3 - 21

Resetting the Custom Defaults: All Application Work Groups

If you want the custom default settings restored to all of the work groups, scan the Custom Product Default Settings bar code

below. (If there are no custom defaults, it will reset the work groups to the factory defaults.) See "Setting Custom Defaults" on

page 1-7 for further information about custom defaults.

Note: Scanning this bar code also causes both the scanner and the base or Access Point to perform a reset and become

unlinked. The scanner must be placed in its base, or the Access Point linking bar code must be scanned to re-establish

the link. Refer to Scanner Modes, page 3-9 for additional information.

If your scanner is in multiple scanner mode, you will hear up to 30 seconds of beeping while all scanners are relinked to

the base or Access Point and the settings are changed.

Using the Scanner with Bluetooth Devices

The scanner can be used either with the charge base, an Access Point, or with other Bluetooth devices. Those devices include

personal computers, laptops, PDAs, and Honeywell mobility systems devices.

Bluetooth HID Keyboard Connect

Your scanner can be paired with Bluetooth-capable devices, such as iPads, smart phones, and laptops, so that scanned

data appears on your device screen as though it was entered on the keyboard. In order to pair with the Bluetooth device:

1. Scan the Bluetooth HID Keyboard Connect bar code below.

2. Set the Bluetooth-capable host device so it searches for other Bluetooth devices. (Refer to your device’s User’s Guide

for pairing instructions.)

3. Once your host device has located the scanner, select the scanner name. The host generates and displays a random

PIN that must be scanned within 60 seconds. You must quickly scan Bluetooth PIN Code, then the numbers below,

then Save.

Custom Default Settings:

All Work Groups

Bluetooth HID Keyboard

Connect

Bluetooth PIN Code

3 - 22

Virtual Keyboard

Once your scanner has been connected directly to an iPad, smart phone, or laptop, you can toggle the virtual keyboard on

your device with a quick double pull of the scanner trigger.

Save

3 - 23

Bluetooth HID Keyboard Disconnect

If your scanner has been connected directly to an iPad, smart phone, or laptop using Bluetooth HID Keyboard Connect

(page 3-21), you must disconnect it in order to once again communicate with the base or Access Point. Scan the Blue-

tooth HID Keyboard Disconnect bar code to unlink the scanner from the currently linked host. Scan the linking bar code

on the base or Access Point to relink the scanner.

Bluetooth Serial Port - PCs/Laptops

Scanning the Non-Base BT Connection bar code below allows the scanner to be used with other Bluetooth devices (e.g.,

PC/laptop). When in this mode, the scanner behaves like an RS-232 serial device, and you will need to open a COM port

on the host to read scanned data.

After you scan the bar code below, follow the instructions supplied with your Bluetooth device to locate the scanner and

connect to it. If you go out of range with your scanner, the scanner will not reconnect to the Bluetooth device when it is back

in range. If you want to relink to the charge base or Access Point, refer to Override Locked Scanner, page 3-10.

Note: The multiple work groups option is not available when you are using the scanner with Bluetooth devices other than

the charge base or Access Point.

PDAs/Mobility Systems Devices

You may also use the scanner with a PDA or a Honeywell Mobility Systems device. Scan the bar code below and follow the

instructions supplied with your Bluetooth device to locate the scanner, and connect with it.

Changing the Scanner’s Bluetooth PIN Code

Some devices require a PIN code as part of the Bluetooth security features. Your scanner’s default PIN is 1234, which you

may need to enter the first time you connect to your PDA or PC. The PIN code must be between 1 and 16 characters. To

change the PIN, scan the bar code below and then scan the appropriate numeric bar codes from the Programming Chart

inside the back cover of this manual. Scan Save to save your selection.

Minimizing Bluetooth/ISM Band Network Activity

The settings described below can help you customize the relinking behavior of the cordless area-imaging system to obtain the

best compromise between convenience and low interference.

Note: ISM band refers to the 2.4 to 2.48 GHz frequency band used by wireless networks, cordless phones, and Bluetooth.

Bluetooth HID Keyboard Disconnect

Non-Base BT Connection

BT Connection - PDA/Mobility Systems Device

Bluetooth PIN

3 - 24

Auto Reconnect Mode

Auto Reconnect controls whether or not the scanner automatically begins the relink process when a loss of connection is

detected. When the Auto Reconnect On bar code is scanned, the scanner begins the relink process immediately, without

user intervention. Default = Auto Reconnect On.

Note: If you are connecting to a Bluetooth Interface Module, set Auto Reconnect to Off.

The table below shows the results of the Auto Reconnect On and Off settings:

Maximum Link Attempts

The Maximum Link Attempts setting controls the number of times the scanner tries to form a connection with a base or an

Access Point. During the connection setup process, the scanner transmits in order to search for and connect to a base or

an Access Point. In order to prevent continuous transmissions that could interfere with other users of the ISM band, the

number of attempts to connect is limited by this setting. After the maximum number of attempts is reached, the scanner will

not attempt to reconnect to a base or an Access Point. Pressing the trigger, scanning an Access Point linking bar code, or

placing the scanner in the cradle resets the attempt count and the scanner will again try to link.

Event Auto Reconnect On Auto Reconnect Off

Scanner out of range Relink occurs automatically. If maximum

number of link attempts is unsuccessful,

then the scanner must be relinked by

either pulling the trigger, placing the

scanner in the base, or scanning the

Access Point linking bar code. (See

"Maximum Link Attempts" on page 3-24.)

The scanner is relinked by pulling the

trigger, or scanning the Access Point

linking bar code.

Base or Access point reset

(firmware upgrade or power cycle)

Scanner behaves as if out of range. No attempt to relink made while base

or Access Point is powered off.

Trigger must be pulled to initiate

relinking.

Scanner power down due to

Power Time-Out Timer setting

(see page 3-11)

Trigger must be pulled, Access Point linking bar code must be scanned, or the

scanner must be placed in the base unit to relink.

(Note: scanner relinks on power up, but powers on due to one of the above

actions.)

Scanner reset due to firmware

upgrade

Relink occurs automatically.

Scanner reset due to battery

change

Relink occurs automatically.

Scanner placed in different base

unit

Relink to new base occurs automatically.

* Auto Reconnect On

Auto Reconnect Off

3 - 25

Scan the Maximum Link Attempts bar code, then scan the number of attempts for the setting (from 0-100) from the inside

back cover. Scan Save to save the setting. Default = 0.

Note: When Auto Reconnect Mode is On, setting Maximum Link Attempts to zero will cause the scanner to try to link until

the Power Time-Out Timer setting (see page 3-11) expires. When Auto Reconnect Mode is Off, setting Maximum

Link Attempts to zero will cause the scanner to only attempt linking one time after a trigger pull.

Relink Time-Out

Relink Time-Out controls the idle time between relink attempts. An attempt to link a scanner to a base or an Access Point

typically lasts up to 5 seconds. This is the time when the scanner is actually attempting a contact . Relink Time-Out con-

trols the amount of time, in seconds, that elapses between the end of one connection attempt and the start of the next.

Note: The length of time for an attempt depends on the number of scanners connected to a base unit or Access Point. An

extra 7 seconds may be required when a connection is successful.

Scan the Relink Time-Out bar code, then scan the number of seconds for the setting (from 1-100) from the inside back

cover. Scan Save to save the setting. Default = 3 seconds.

Bluetooth/ISM Network Activity Examples

Default values

When the scanner goes out of range, the scanner repeatedly attempts to connect to the base unit or Access Point. Each

attempt consists of approximately 5 seconds of active time followed by 3 seconds of idle time. After one hour, the scanner

powers off and batch mode data is lost.

Maximum Link Attempts set to 15

Other values at default setting

When the scanner goes out of range, 15 attempts are made to link to the base unit or Access Point. Each attempt consists

of approximately 5 seconds of active time followed by 3 seconds of idle time. After 15 cycles (8*15 =120), or about 2 min-

utes, the scanner stops trying to connect to the base or Access Point, but retains any bar codes that may have been saved

in batch mode. After one hour, the scanner powers off and batch mode data is lost.

Auto Reconnect Mode set to 0

Maximum Link Attempts set to 15

Other values at default setting

When the scanner goes out of range, no action is taken to relink. When the trigger is pulled, 15 attempts are made to link

to the base or Access Point. Each attempt consists of approximately 5 seconds of active time followed by 3 seconds of idle

time. After 15 cycles (8*15 =120), or about 2 minutes, the scanner stops trying to connect to the base or Access Point, but

retains any bar codes that may have been saved in batch mode. After one hour, the scanner powers off and batch mode

data is lost. Refer to Auto Reconnect Mode, page 3-24, to review other events that can start the relink process.

Auto Reconnect Mode set to 1

Maximum Link Attempts set to 0

Relink Time-Out set to 10

Scanner Power Time-Out Timer set to 1800

Note: See Scanner Power Time-Out Timer on page 3-11.

The scanner attempts to connect to the base or Access Point every 15 seconds, measured from one attempt start to the

next attempt start. After one half hour, the scanner powers off.

Maximum Link Attempts

Relink Time-Out

3 - 26

Host Acknowledgment

Some applications require that the host terminal (or server) validate incoming bar code data (database look-up) and provide

acknowledgment to the scanner whether or not to proceed. In Host ACK Mode, the scanner waits for this acknowledgment after

each scan. Visual and audible acknowledgments provide valuable feedback to the scan operator. The Host ACK functionality is

controlled via a number of pre-defined escape commands that are sent to the scanner to make it behave in different ways.

Note: System performance degrades when using Host ACK at rates lower than 9600 baud.

The following criteria must be met for the Host ACK to work correctly:

• The cordless system must be configured for Host Port RS232 (terminal ID = 000) or USB COM Emulation (terminal ID = 130).

• RTS/CTS is defaulted off. You must enable it if the host system requires it.

• Host ACK must be set to On (page 3-27).

• A comma must be used as a terminator.

• The host terminal software must be capable of interpreting the bar code data, make decisions based on the data content, and

send out appropriate escape commands to the scanner.

Escape commands are addressed to the scanner via “Application Work Groups.” Once a command is sent, all scanners in a

group respond to that command. Because of this, it is recommended that each scanner is assigned to its own group in

Host ACK mode.

The commands to which the scanner responds are listed on page 3-27. The [ESC] is a 1B in hex. A typical command string is

y [ESC] x, where “y” is the application work group number, “[ESC] x” is the escape command, and the comma is the terminator,

which is required. (When “y” is not specified, the command is sent to the default Application Work Group 0.)

Example: Commands may be strung together to create custom response sequences. An example of a command string is listed

below.

0[ESC]4,[ESC]5,[ESC]6,

The above example will make a scanner that is in application work group zero beep low, then medium, then high.

Example: A good read beep is required for any item on file, but a razz or error tone is required if the item is not on file. In this

case,

[ESC]7, is sent to the host for an on-file product

[ESC]8,[ESC]8, is sent to the host for a not-on-file product

When a bar code is scanned, the scanner enters a timeout period until either the host ACK sequence is received, or the timeout

expires (in 10 seconds, by default).

Once Host ACK is enabled, the system works as follows when a bar code is scanned:

• The scanner reads the code and sends data to the base or Access Point to transmit to the host system. No audible or visual

indication is emitted until the scanner receives an escape command. The scanner read illumination goes out when there’s a

successful read.

• Scanner operation is suspended until 1) a valid escape string is received from the host system or 2) the scanner times out.

• Once condition 1 or 2 above has been met, the scanner is ready to scan again, and the process repeats.

A time-out occurs if the scanner does not receive a valid escape command within 10 seconds. A time-out is indicated by an

error tone. If a time-out occurs, the operator should check the host system to understand why a response to the scanner was

not received.

3 - 27

Host ACK On/Off

Host ACK Responses

Command Action

[ESC] a, Double beeps to indicate a successful menu change was made.

[ESC] b, Razz or error tone to indicate a menu change was unsuccessful.

[ESC] 1, The green LED illuminates for 135 milliseconds followed by a pause.

[ESC] 2, The green LED illuminates for 2 seconds followed by a pause.

[ESC] 3, The green LED illuminates for 5 seconds followed by a pause.

[ESC] 4, Emits a beep at a low pitch.

[ESC] 5, Emits a beep at a medium pitch.

[ESC] 6, Emits a beep at a high pitch.

[ESC] 7, Beeps to indicate a successful decode and communication to host.

[ESC] 8,[ESC] 8, Razz or error tone to indicate a decode/communication to host was unsuccessful.

Host ACK On

* Host ACK Off

3 - 28

4 - 1

Input/Output Settings

Power Up Beeper

The scanner can be programmed to beep when it’s powered up. If you are using a cordless system, the base can also be pro-

grammed to beep when it is powered up. Scan the Off bar code(s) if you don’t want a power up beep. Default = Power Up

Beeper On - Scanner.

Beep on BEL Character

You may wish to force the scanner to beep upon a command sent from the host. If you scan the Beep on BEL On bar code

below, the scanner will beep every time a BEL character is received from the host. Default = Beep on BEL Off.

Trigger Click

To hear an audible click every time the scanner trigger is pressed, scan the Trigger Click On bar code below. Scan the Trigger

Click Off code if you don’t wish to hear the click. (This feature has no effect on serial or automatic triggering.) Default = Trigger

Click Off.

Power Up Beeper Off -

Scanner

* Power Up Beeper On -

Scanner

Power Up Beeper Off -

Cordless Base

* Power Up Beeper On -

Cordless Base

*Beep on BEL Off

Beep on BEL On

*Trigger Click Off

4 - 2

Good Read and Error Indicators

Beeper – Good Read

The beeper may be programmed On or Off in response to a good read. Turning this option off, only turns off the beeper

response to a good read indication. All error and menu beeps are still audible. Default = Beeper - Good Read On.

Beeper Volume – Good Read

The beeper volume codes modify the volume of the beep the scanner emits on a good read. Default = High.

Beeper Pitch – Good Read

The beeper pitch codes modify the pitch (frequency) of the beep the scanner emits on a good read. Default = Medium.

Trigger Click On

Beeper - Good Read Off

* Beeper - Good Read On

Low

Medium

* High

Off

Low (1600 Hz)

4 - 3

Beeper Pitch – Error

The beeper pitch codes modify the pitch (frequency) of the sound the scanner emits when there is a bad read or error.

Default = Razz.

Beeper Duration – Good Read

The beeper duration codes modify the length of the beep the scanner emits on a good read. Default = Normal.

LED – Good Read

The LED indicator can be programmed On or Off in response to a good read. Default = On.

* Medium (2400 Hz)

High (4200 Hz)

* Razz (250 Hz)

Medium (3250 Hz)

High (4200 Hz)

* Normal Beep

Short BeepShort Beep

* LED - Good Read On

LED - Good Read Off

4 - 4

Number of Beeps – Good Read

The number of beeps of a good read can be programmed from 1 - 9. The same number of beeps will be applied to the

beeper and LED in response to a good read. For example, if you program this option to have five beeps, there will be five

beeps and five LED flashes in response to a good read. The beeps and LED flashes are in sync with one another. To

change the number of beeps, scan the bar code below and then scan a digit (1-9) bar code and the Save bar code on the

Programming Chart inside the back cover of this manual. Default = 1.

Number of Beeps – Error

The number of beeps and LED flashes emitted by the scanner for a bad read or error can be programmed from 1 - 9. For

example, if you program this option to have five error beeps, there will be five error beeps and five LED flashes in response

to an error. To change the number of error beeps, scan the bar code below and then scan a digit (1-9) bar code and the

Save bar code on the Programming Chart inside the back cover of this manual. Default = 1.

Good Read Delay

This sets the minimum amount of time before the scanner can read another bar code. Default = 0 ms (No Delay).

User-Specified Good Read Delay

If you want to set your own length for the good read delay, scan the bar code below, then set the delay (from 0-30,000 milli-

seconds) by scanning digits from the inside back cover, then scanning Save.

Number of Good Read Beeps/LED Flashes

Number of Error Beeps/LED Flashes

* No Delay

Short Delay (500 ms)

Medium Delay (1,000 ms)

Long Delay (1,500 ms)

User-Specified Good Read Delay

4 - 5

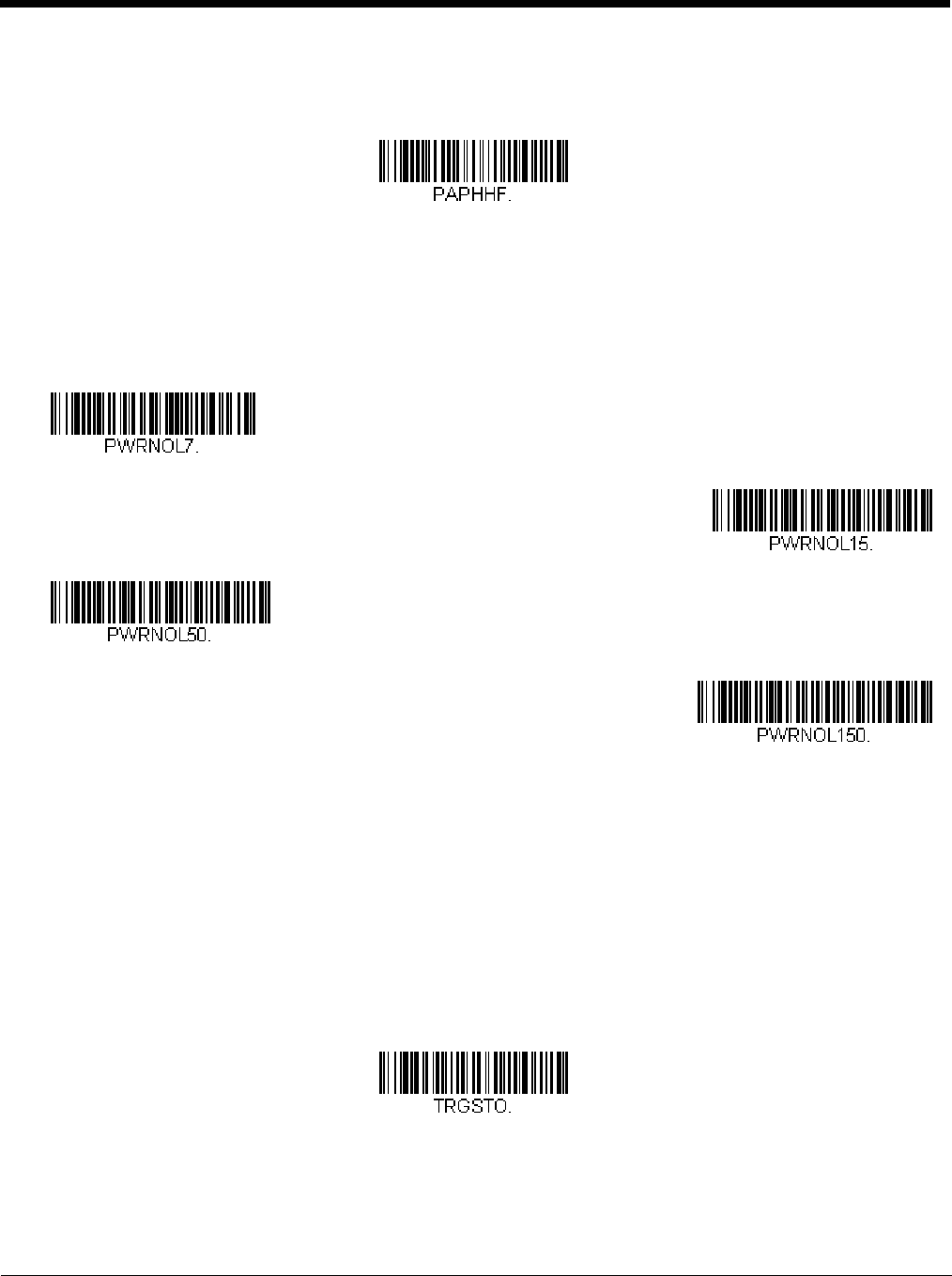

Manual Trigger Mode

When in manual trigger mode, the scanner scans until a bar code is read, or until the trigger is released. Default = Manual Trig-

ger-Normal.

LED Illumination - Manual Trigger

If you wish to set the illumination LED brightness, scan one of the bar codes below. This sets the LED illumination for the

scanner when the trigger is pressed. Default = High.

Note: The LEDs are like a flash on a camera. The lower the ambient light in the room, the brighter the LEDs need to be so

the scanner can “see” the bar codes.

Serial Trigger Mode

You can activate the scanner either by pressing the trigger, or using a serial trigger command (see Trigger Commands on page

10-3). When in serial mode, the scanner scans until a bar code has been read or until the deactivate command is sent. The

scanner can also be set to turn itself off after a specified time has elapsed (see Read Time-Out, which follows).

Read Time-Out

Use this selection to set a time-out (in milliseconds) of the scanner’s trigger when using serial commands to trigger the

scanner. Once the scanner has timed out, you can activate the scanner either by pressing the trigger or using a serial trig-

ger command. After scanning the Read Time-Out bar code, set the time-out duration (from 0-300,000 milliseconds) by

scanning digits on the Programming Chart inside the back cover, then scanning Save. Default = 30,000 ms.

* Manual Trigger - Normal

Low

Medium

Medium High

* High

Read Time-Out

4 - 6

Presentation Mode

Presentation Mode uses ambient light to detect bar codes. The LED dims until a bar code is presented to the scanner, then the

LED brightens to read the code. If the light level in the room is not high enough, Presentation Mode may not work properly.

Note: If you are using a cordless charge base in Presentation Mode, the battery will not charge unless the power supply is

plugged into the base’s auxiliary power port.

Scan the following bar code to program your scanner for Presentation Mode.

Idle Illumination - Presentation Mode

Scan one of the bar codes below to set the LED illumination for the scanner when it is in an idle state in Presentation Mode.

Default = High.

Note: If you use one of the lower Idle Illumination settings, and there is not enough ambient light, the scanner may have

difficulty detecting when a bar code is presented to it. If the scanner has difficulty “waking up” to read bar codes, you

may need to set the Idle Illumination to a brighter setting.

Presentation Sensitivity

Presentation Sensitivity is a numeric range that increases or decreases the scanner's reaction time to bar code presenta-

tion. To set the sensitivity, scan the Sensitivity bar code, then scan the degree of sensitivity (from 0-20) from the inside

back cover, and Save. 0 is the most sensitive setting, and 20 is the least sensitive. Default = 1.

Presentation Centering

Use Presentation Centering to narrow the scanner’s field of view when it is in the stand to make sure the scanner reads

only those bar codes intended by the user. For instance, if multiple codes are placed closely together, Presentation Center-

ing will insure that only the desired codes are read.

Note: To adjust centering when the scanner is hand-held, see Centering (page 4-14).

If a bar code is not touched by a predefined window, it will not be decoded or output by the scanner. If Presentation Center-

ing is turned on by scanning Presentation Centering On, the scanner only reads codes that pass through the centering

window you specify using the Top of Presentation Centering Window, Bottom of Presentation Centering Window,

Left, and Right of Presentation Centering Window bar codes.

Presentation Mode

Low

Medium

* High

Sensitivity

4 - 7

In the example below, the white box is the centering window. The centering window has been set to 20% left, 30% right,

8% top, and 25% bottom. Since Bar Code 1 passes through the centering window, it will be read. Bar Code 2 does not

pass through the centering window, so it will not be read.

Note: A bar code needs only to be touched by the centering window in order to be read. It does not need to pass completely

through the centering window.

Scan Presentation Centering On, then scan one of the following bar codes to change the top, bottom, left, or right of the

centering window. Then scan the percent you want to shift the centering window using digits on the inside back cover of

this manual. Scan Save. Default Presentation Centering = 40% for Top and Left, 60% for Bottom and Right.

Bar Code 1

Bar Code 2

10 20 30 40 50 60 70 80 90 100%

100

Presentation Centering On

* Presentation Centering Off

Top of Presentation Centering

Window

Bottom of Presentation

Centering Window

4 - 8

In-Stand Sensor Mode

This feature senses when the scanner is removed from the stand and tells it to begin manual triggering. When Sensor On is

enabled, the scanner defaults to Presentation Mode when it is in the stand, and to Manual Trigger Mode when it is removed from

the stand. Default = Sensor On.

Poor Quality Codes

Poor Quality 1D Codes

This setting improves the scanner’s ability to read damaged or badly printed linear bar codes. When Poor Quality 1D

Reading On is scanned, poor quality linear bar code reading is improved, but the scanner’s snappiness is decreased, mak-

ing it less aggressive when reading good quality bar codes. This setting does not affect 2D bar code reading. Default =

Poor Quality 1D Reading Off.

Left of

Presentation Centering

Window

Right of Presentation Centering

Window

* Sensor On

Sensor Off

Poor Quality 1D Reading On

* Poor Quality 1D Reading Off

4 - 9

Poor Quality PDF Codes

This setting improves the scanner’s ability to read damaged or badly printed PDF codes by combining information from mul-

tiple images. When Poor Quality PDF On is scanned, poor quality PDF code reading is improved, but the scanner’s snap-

piness is decreased, making it less aggressive when reading good quality bar codes. This setting does not affect 1D bar

code reading. Default = Poor Quality PDF Reading Off.

CodeGate®

When CodeGate is On, the trigger is used to allow decoded data to be transmitted to the host system. The scanner remains on,

scanning and decoding bar codes, but the bar code data is not transmitted until the trigger is pressed. When CodeGate is Off,

bar code data is transmitted when it is decoded. Default = CodeGate Off Out-of-Stand.

Mobile Phone Read Mode

When this mode is selected, your scanner is optimized to read bar codes from mobile phone or other LED displays. However,

the speed of scanning printed bar codes may be slightly lower when this mode is enabled.

Note: To turn off Mobil Phone Read Mode, scan the Manual Trigger Mode bar code (see page 4-5).

Hands Free Time-Out

The Scan Stand and Presentation Modes are referred to as “hands free” modes. If the scanner’s trigger is pressed when using

a hands free mode, the scanner changes to manual trigger mode. You can set the time the scanner should remain in manual

trigger mode by setting the Hands Free Time-Out. Once the time-out value is reached, (if there have been no further trigger

presses) the scanner reverts to the original hands free mode.

Poor Quality PDF Reading On

* Poor Quality PDF Reading Off

* CodeGate Off

Out-of-Stand

CodeGate On

Out-of-Stand

Hand Held Scanning - Mobile

Phone

4 - 10

Scan the Hands Free Time-Out bar code, then scan the time-out duration (from 0-300,000 milliseconds) from the inside back

cover, and Save. Default = 5,000 ms.

Reread Delay

This sets the time period before the scanner can read the same bar code a second time. Setting a reread delay protects against

accidental rereads of the same bar code. Longer delays are effective in minimizing accidental rereads. Use shorter delays in

applications where repetitive bar code scanning is required. Reread Delay only works when in Presentation Mode (see page 4-

6). Default = Medium.

User-Specified Reread Delay

If you want to set your own length for the reread delay, scan the bar code below, then set the delay (from 0-30,000 milliseconds)

by scanning digits from the inside back cover, then scanning Save.

2D Reread Delay

Sometimes 2D bar codes can take longer to read than other bar codes. If you wish to set a separate Reread Delay for 2D

bar codes, scan one of the programming codes that follows. 2D Reread Delay Off indicates that the time set for Reread

Delay is used for both 1D and 2D bar codes. Default = 2D Reread Delay Off.

Hands Free Time-Out

Short (500 ms)

* Medium (750 ms)

Long (1000 ms)

Extra Long (2000 ms)

User-Specified Reread Delay

* 2D Reread Delay Off

4 - 11

Character Activation Mode

You may use a character sent from the host to trigger the scanner to begin scanning. When the activation character is received,

the scanner continues scanning until either the Character Activation Laser Timeout (page 4-12), the deactivation character is

received (see Deactivation Character on page 4-12), or a bar code is transmitted. Scan the following On bar code to use char-

acter activation, then use Activation Character (following) to select the character you will send from the host to start scanning.

Default = Off.

Activation Character

This sets the character used to trigger scanning when using Character Activation Mode. On the ASCII Conversion Chart

(Code Page 1252), page A-3, find the hex value that represents the character you want to use to trigger scanning. Scan

the following bar code, then use the Programming Chart to read the alphanumeric combination that represents that ASCII

character. Scan Save to finish.

Short (1000ms)

Medium (2000ms)

Long (3000ms)

Extra Long (4000ms)

* Off

Activation Character

4 - 12

End Character Activation After Good Read

After a bar code is successfully detected and read from the scanner, the laser can be programmed either to remain on and

scanning, or to turn off. When End Character Activation After Good Read is enabled, the laser turns off and stops scan-

ning after a good read. If you scan Do Not End Character Activation After Good Read, the laser remains on after a good

read. Default = End Character Activation After Good Read.

Character Activation Laser Timeout

You can set a timeout for the length of time the laser remains on and attempting to decode bar codes when using Character

Activation Mode. Set the length (in milliseconds) for a timeout by scanning the following bar code, then setting the timeout

(from 1-65535 milliseconds) by scanning digits from the Programming Chart, then scanning Save. Default = 5000 ms.

Character Deactivation Mode

If you have sent a character from the host to trigger the scanner to begin scanning, you can also send a deactivation character

to stop scanning. Scan the following On bar code to use character deactivation, then use Deactivation Character (following) to

select the character you will send from the host to terminate scanning. Default = Off.

Deactivation Character

This sets the character used to terminate scanning when using Character Deactivation Mode. On the ASCII Conversion

Chart (Code Page 1252), page A-3, find the hex value that represents the character you want to use to terminate scanning.

Scan the following bar code, then use the Programming Chart to read the alphanumeric combination that represents that

ASCII character. Scan Save to finish.

Do Not End Character Activation

After Good Read

* End Character Activation After

Good Read

Character Activation Laser

Timeout

* Off

Deactivation Character

4 - 13

Illumination Lights

If you want the illumination lights on while reading a bar code, scan the Lights On bar code, below. However, if you want to turn

just the lights off, scan the Lights Off bar code. Default = Lights On.

Note: This setting does not affect the aimer light. The aiming light can be set using Aimer Mode (below).

Aimer Delay

The aimer delay allows a delay time for the operator to aim the scanner before the picture is taken. Use these codes to set the

time between when the trigger is pulled and when the picture is taken. During the delay time, the aiming light will appear, but

the LEDs won’t turn on until the delay time is over. Default = Off.

User-Specified Aimer Delay

If you want to set your own length for the duration of the delay, scan the bar code below, then set the time-out by scanning

digits (0 - 4,000 ms) from the Programming Chart inside the back cover of this manual, then scan Save.

Aimer Mode

This feature allows you to turn the aimer on and off. When the Interlaced bar code is scanned, the aimer is interlaced with the

illumination LEDs. Default = Interlaced.

* Lights On

Lights Off

200 milliseconds

400 milliseconds

* Off (no delay)

Delay Duration

Off

4 - 14

Centering

Use Centering to narrow the scanner’s field of view to make sure that when the scanner is hand-held, it reads only those bar

codes intended by the user. For instance, if multiple codes are placed closely together, centering will insure that only the

desired codes are read.

Note: To adjust centering when the scanner is in the stand, see Presentation Centering (page 4-6).

If a bar code is not touched by a predefined window, it will not be decoded or output by the scanner. If centering is turned on by

scanning Centering On, the scanner only reads codes that pass through the centering window you specify using the Top of

Centering Window, Bottom of Centering Window, Left, and Right of Centering Window bar codes.

In the example below, the white box is the centering window. The centering window has been set to 20% left, 30% right, 8% top,

and 25% bottom. Since Bar Code 1 passes through the centering window, it will be read. Bar Code 2 does not pass through

the centering window, so it will not be read.

Note: A bar code needs only to be touched by the centering window in order to be read. It does not need to pass completely

through the centering window.

Scan Centering On, then scan one of the following bar codes to change the top, bottom, left, or right of the centering window.

Then scan the percent you want to shift the centering window using digits on the inside back cover of this manual. Scan Save.

Default Centering = 40% for Top and Left, 60% for Bottom and Right.

* Interlaced

Bar Code 1

Bar Code 2

10 20 30 40 50 60 70 80 90 100%

100

Centering On

4 - 15

No Read

With No Read turned On, the scanner notifies you if a code cannot be read. If using an EZConfig-Scanning Tool Scan Data

Window (see page 9-2), an “NR” appears when a code cannot be read. If No Read is turned Off, the “NR” will not appear.

Default = Off.

If you want a different notation than “NR,” for example, “Error,” or “Bad Code,” you can edit the output message (see Data

Formatting beginning on page 6-1). The hex code for the No Read symbol is 9C.

* Centering Off

Top of Centering Window

Bottom of Centering Window

Left of Centering Window

Right of Centering Window

* Off

4 - 16

Video Reverse

Video Reverse is used to allow the scanner to read bar codes that are inverted. The Video Reverse Off bar code below is an

example of this type of bar code. Scan Video Reverse Only to read only inverted bar codes. Scan Video Reverse and Stan-

dard Bar Codes to read both types of codes.

Note: After scanning Video Reverse Only, menu bar codes cannot be read. You must scan Video Reverse Off or Video

Reverse and Standard Bar Codes in order to read menu bar codes.

Note: Images downloaded from the unit are not reversed. This is a setting for decoding only.

Working Orientation

Some bar codes are direction-sensitive. For example, KIX codes and OCR can misread when scanned sideways or upside

down. Use the working orientation settings if your direction-sensitive codes will not usually be presented upright to the scanner.

Default = Upright.

Video Reverse Only

Video Reverse and Standard Bar

Codes

* Video Reverse Off

Upright:

Vertical, Top to Bottom:

(Rotate CW 90°)

Upside Down:

Vertical, Bottom to Top:

(Rotate CCW 90°)

4 - 17

* Upright

Vertical, Bottom to Top

Upside Down

Vertical, Top to Bottom

4 - 18

5 - 1

Data Editing

Prefix/Suffix Overview

When a bar code is scanned, additional information is sent to the host computer along with the bar code data. This group of bar

code data and additional, user-defined data is called a “message string.” The selections in this section are used to build the

user-defined data into the message string.

Prefix and Suffix characters are data characters that can be sent before and after scanned data. You can specify if they should

be sent with all symbologies, or only with specific symbologies. The following illustration shows the breakdown of a message

string:

Points to Keep In Mind

• It is not necessary to build a message string. The selections in this chapter are only used if you wish to alter the default

settings. Default prefix = None. Default suffix = None.

• A prefix or suffix may be added or cleared from one symbology or all symbologies.

• You can add any prefix or suffix from the ASCII Conversion Chart (Code Page 1252), beginning on page A-3, plus Code

I.D. and AIM I.D.

• You can string together several entries for several symbologies at one time.

• Enter prefixes and suffixes in the order in which you want them to appear on the output.

• When setting up for specific symbologies (as opposed to all symbologies), the specific symbology ID value counts as an

added prefix or suffix character.

• The maximum size of a prefix or suffix configuration is 200 characters, which includes header information.

To Add a Prefix or Suffix:

Step 1. Scan the Add Prefix or Add Suffix symbol (page 5-2).

Step 2. Determine the 2 digit Hex value from the Symbology Chart (included in the Symbology Charts, beginning on page

A-1) for the symbology to which you want to apply the prefix or suffix. For example, for Code 128, Code ID is “j” and

Hex ID is “6A”.

Step 3. Scan the 2 hex digits from the Programming Chart inside the back cover of this manual or scan 9, 9 for all

symbologies.

Step 4. Determine the hex value from the ASCII Conversion Chart (Code Page 1252), beginning on page A-3, for the prefix

or suffix you wish to enter.

Step 5. Scan the 2 digit hex value from the Programming Chart inside the back cover of this manual.

Step 6. Repeat Steps 4 and 5 for every prefix or suffix character.

Step 7. To add the Code I.D., scan 5, C, 8, 0.

To add AIM I.D., scan 5, C, 8, 1.

To add a backslash (\), scan 5, C, 5, C.

Note: To add a backslash (\) as in Step 7, you must scan 5C twice – once to create the leading backslash and then to create

the backslash itself.

Step 8. Scan Save to exit and save, or scan Discard to exit without saving.

Repeat Steps 1-6 to add a prefix or suffix for another symbology.

Prefix Scanned DataSuffix

1-11

alpha numeric &

control characters

variable length1-11

alpha numeric &

control characters

5 - 2

Example: Add a Tab Suffix to All Symbologies

Step 1. Scan Add Suffix.

Step 2. Scan 9, 9 from the Programming Chart inside the back cover of this manual to apply this suffix to all symbologies.

Step 3. Scan 0, 9 from the Programming Chart inside the back cover of this manual. This corresponds with the hex value

for a horizontal tab, shown in the ASCII Conversion Chart (Code Page 1252), beginning on page A-3.

Step 4. Scan Save, or scan Discard to exit without saving.

To Clear One or All Prefixes or Suffixes

You can clear a single prefix or suffix, or clear all prefixes/suffixes for a symbology. If you have been entering prefixes and

suffixes for single symbologies, you can use Clear One Prefix (Suffix) to delete a specific character from a symbology.

When you Clear All Prefixes (Suffixes), all the prefixes or suffixes for a symbology are deleted.

Step 1. Scan the Clear One Prefix or Clear One Suffix symbol.

Step 2. Determine the 2 digit Hex value from the Symbology Chart (included in the Symbology Charts, beginning on page

A-1) for the symbology from which you want to clear the prefix or suffix.

Step 3. Scan the 2 digit hex value from the Programming Chart inside the back cover of this manual or scan 9, 9 for all

symbologies.

Your change is automatically saved.

To Add a Carriage Return Suffix to All Symbologies

Scan the following bar code if you wish to add a carriage return suffix to all symbologies at once. This action first clears all

current suffixes, then programs a carriage return suffix for all symbologies.

Prefix Selections

Suffix Selections

Add CR Suffix

All Symbologies

Add Prefix

Clear One Prefix

Clear All Prefixes

Add Suffix

5 - 3

Function Code Transmit

When this selection is enabled and function codes are contained within the scanned data, the scanner transmits the function

code to the terminal. Charts of these function codes are provided in Supported Interface Keys starting on page 8-2. When the

scanner is in keyboard wedge mode, the scan code is converted to a key code before it is transmitted. Default = Enable.

Intercharacter, Interfunction, and Intermessage Delays

Some terminals drop information (characters) if data comes through too quickly. Intercharacter, interfunction, and intermessage

delays slow the transmission of data, increasing data integrity.

Intercharacter Delay

An intercharacter delay of up to 5000 milliseconds (in 5ms increments) may be placed between the transmission of each

character of scanned data. Scan the Intercharacter Delay bar code below, then scan the number of 5ms delays, and the

Save bar code using the Programming Chart inside the back cover of this manual.

To remove this delay, scan the Intercharacter Delay bar code, then set the number of delays to 0. Scan the Save bar code

using the Programming Chart inside the back cover of this manual.

Note: Intercharacter delays are not supported in USB serial emulation.

User Specified Intercharacter Delay

An intercharacter delay of up to 5000 milliseconds (in 5ms increments) may be placed after the transmission of a particular

character of scanned data. Scan the Delay Length bar code below, then scan the number of 5ms delays, and the Save

bar code using the Programming Chart inside the back cover of this manual.

Clear One Suffix

Clear All Suffixes

* Enable

Disable

12345

Intercharacter Delay

Prefix Scanned Data Suffix

Intercharacter Delay

5 - 4

Next, scan the Character to Trigger Delay bar code, then the 2-digit hex value for a printable character to trigger the delay

(see Lower ASCII Reference Table on page A-4).

To remove this delay, scan the Delay Length bar code, and set the number of delays to 0. Scan the Save bar code using

the Programming Chart inside the back cover of this manual.

Interfunction Delay

An interfunction delay of up to 5000 milliseconds (in 5ms increments) may be placed between the transmission of each

segment of the message string. Scan the Interfunction Delay bar code below, then scan the number of 5ms delays, and

the Save bar code using the Programming Chart inside the back cover of this manual.

To remove this delay, scan the Interfunction Delay bar code, then set the number of delays to 0. Scan the Save bar code

using the Programming Chart inside the back cover of this manual.

Intermessage Delay

An intermessage delay of up to 5000 milliseconds (in 5ms increments) may be placed between each scan transmission.

Scan the Intermessage Delay bar code below, then scan the number of 5ms delays, and the Save bar code using the

Programming Chart inside the back cover of this manual.

To remove this delay, scan the Intermessage Delay bar code, then set the number of delays to 0. Scan the Save bar code

using the Programming Chart inside the back cover of this manual.

Delay Length

Character to Trigger Delay

Interfunction Delays

Prefix Scanned Data Suffix

12345STX HT CR LF

Interfunction Delay

2nd Scan Transmission1st Scan Transmission

Intermessage Delay

6 - 1

Data Formatting

Data Format Editor Introduction

You may use the Data Format Editor to change the scanner’s output. For example, you can use the Data Format Editor to insert

characters at certain points in bar code data as it is scanned. The selections in the following pages are used only if you wish to

alter the output. Default Data Format setting = None.

Normally, when you scan a bar code, it gets outputted automatically; however when you create a format, you must use a “send”

command (see Send Commands on page 6-3) within the format program to output data.

Multiple formats may be programmed into the scanner. They are stacked in the order in which they are entered. However, the

following list presents the order in which formats are applied:

1. Specific Terminal ID, Actual Code ID, Actual Length

2. Specific Terminal ID, Actual Code ID, Universal Length

3. Specific Terminal ID, Universal Code ID, Actual Length

4. Specific Terminal ID, Universal Code ID, Universal Length

5. Universal Terminal ID, Actual Code ID, Actual Length

6. Universal Terminal ID, Actual Code ID, Universal Length

7. Universal Terminal ID, Universal Code ID, Actual Length

8. Universal Terminal ID, Universal Code ID, Universal Length

The maximum size of a data format configuration is 2000 bytes, which includes header information.

If you have changed data format settings, and wish to clear all formats and return to the factory defaults, scan the Default Data

Format code below.

Add a Data Format

Step 1. Scan the Enter Data Format symbol (page 6-2).

Step 2. Select Primary/Alternate Format

Determine if this will be your primary data format, or one of 3 alternate formats. This allows you to save a total of 4

different data formats. To program your primary format, scan 0 using the Programming Chart inside the back cover of

this manual. If you are programming an alternate format, scan 1, 2, or 3, depending on which alternate format you are

programming. (See "Primary/Alternate Data Formats" on page 6-9 for further information.)

Step 3. Terminal Type

Refer to Terminal ID Table (page 6-3) and locate the Terminal ID number for your PC. Scan three numeric bar codes

on the inside back cover to program the scanner for your terminal ID (you must enter 3 digits). For example, scan 0 0

3 for an AT wedge.

Note: The wildcard for all terminal types is 099.

Step 4. Code I.D.

In the Symbology Charts, beginning on page A-1, find the symbology to which you want to apply the data format. Locate

the Hex value for that symbology and scan the 2 digit hex value from the Programming Chart inside the back cover of

this manual.

Note: If you are creating a data format for Batch Mode Quantity, use 35 for the Code I.D.

Step 5. Length

Specify what length (up to 9999 characters) of data will be acceptable for this symbology. Scan the four digit data length

* Default Data Format

6 - 2

from the Programming Chart inside the back cover of this manual. (Note: 50 characters is entered as 0050. 9999 is a

universal number, indicating all lengths.)

Step 6. Editor Commands

Refer to Data Format Editor Commands (page 6-3). Scan the symbols that represent the command you want to enter.

Step 7. Scan Save to save your data format, or Discard to exit without saving your changes.

Other Programming Selections

Clear One Data Format

This deletes one data format for one symbology. If you are clearing the primary format, scan 0 from the Programming

Chart inside the back cover of this manual. If you are clearing an alternate format, scan 1, 2, or 3, depending on the

format you are clearing. Scan the Terminal Type and Code I.D. (see Symbology Charts on page A-1), and the bar code

data length for the specific data format that you want to delete. All other formats remain unaffected.

Clear all Data Formats

This clears all data formats.

Save to exit and save your data format changes.

Discard to exit without saving any data format changes.

Enter Data Format

Save

Discard

Clear One Data Format

Clear All Data Formats

Save

Discard

6 - 3

Data Format Editor Commands

Send Commands

Send all characters

F1 Include in the output message all of the characters from the input message, starting from current cursor position,

followed by an insert character. Syntax = F1xx where xx stands for the insert character’s hex value for its ASCII code.

Refer to the ASCII Conversion Chart (Code Page 1252), beginning on page A-3 for decimal, hex and character codes.

Send a number of characters

F2 Include in the output message a number of characters followed by an insert character. Start from the current cursor

position and continue for “nn” characters or through the last character in the input message, followed by character “xx.”

Syntax = F2nnxx where nn stands for the numeric value (00-99) for the number of characters, and xx stands for the the

insert character’s hex value for its ASCII code.

Refer to the ASCII Conversion Chart (Code Page 1252), beginning on page A-3 for decimal, hex and character codes.

F2 Example: Send a number of characters

Send the first 10 characters from the bar code above, followed by a carriage return. Command string: F2100D

F2 is the “Send a number of characters” command

10 is the number of characters to send

0D is the hex value for a CR

The data is output as: 1234567890

F2 and F1 Example: Split characters into 2 lines

Send the first 10 characters from the bar code above, followed by a carriage return, followed by the rest of the charac-

ters.

Command string: F2100DF10D

F2 is the “Send a number of characters” command

10 is the number of characters to send for the first line

0D is the hex value for a CR

F1 is the “Send all characters” command

0D is the hex value for a CR

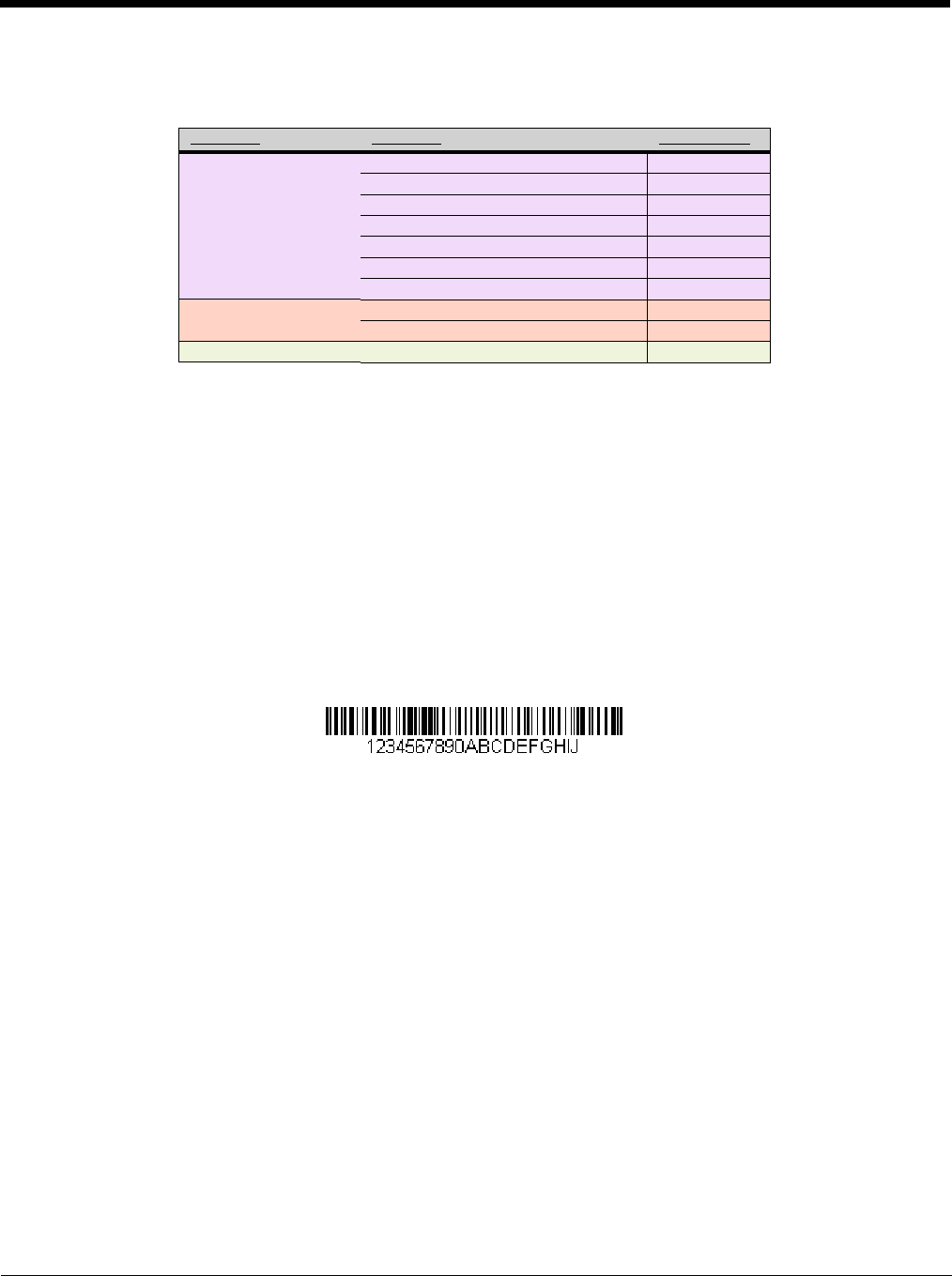

Terminal ID Table

Terminal Model(s) Terminal ID

USB PC keyboard (HID) 124

Mac Keyboard 125

PC Keyboard (Japanese) 134

Serial (COM driver required) 130

HID POS 131

USB SurePOS Handheld 128

USB SurePOS Tabletop 129

Serial RS232 TTL 000

RS232 True 000

Keyboard PS2 compatibles 003

6 - 4

The data is output as:

1234567890

ABCDEFGHIJ

<CR>

Send all characters up to a particular character

F3 Include in the output message all characters from the input message, starting with the character at the current cursor

position and continuing to, but not including, the search character “ss,” followed by an insert character. The cursor is

moved forward to the “ss” character. Syntax = F3ssxx where ss stands for the search character’s hex value for its ASCII

code, and xx stands for the insert character’s hex value for its ASCII code.

Refer to the ASCII Conversion Chart (Code Page 1252), beginning on page A-3 for decimal, hex and character codes.

F3 Example: Send all characters up to a particular character

Using the bar code above, send all characters up to but not including “D,” followed by a carriage return.

Command string: F3440D

F3 is the “Send all characters up to a particular character” command

44 is the hex value for a 'D”

0D is the hex value for a CR

The data is output as:

1234567890ABC

<CR>

Send all but the last characters

E9 Include in the output message all but the last “nn” characters, starting from the current cursor position. The cursor is

moved forward to one position past the last input message character included. Syntax = E9nn where nn stands for the

numeric value (00-99) for the number of characters that will not be sent at the end of the message.

Insert a character multiple times

F4 Send “xx” character “nn” times in the output message, leaving the cursor in the current position. Syntax = F4xxnn where

xx stands for the insert character’s hex value for its ASCII code, and nn is the numeric value (00-99) for the number of

times it should be sent.

Refer to the ASCII Conversion Chart (Code Page 1252), beginning on page A-3 for decimal, hex and character codes.

E9 and F4 Example: Send all but the last characters, followed by 2 tabs

Send all characters except for the last 8 from the bar code above, followed by 2 tabs.

Command string: E908F40902

E9 is the “Send all but the last characters” command

08 is the number of characters at the end to ignore

F4 is the “Insert a character multiple times” command

09 is the hex value for a horizontal tab

02 is the number of times the tab character is sent

The data is output as: 1234567890AB <tab><tab>

Move Commands

Move the cursor forward a number of characters

F5 Move the cursor ahead “nn” characters from current cursor position.

Syntax = F5nn where nn is the numeric value (00-99) for the number of characters the cursor should be moved ahead.

6 - 5

F5 Example: Move the cursor forward and send the data

Move the cursor forward 3 characters, then send the rest of the bar code data from the bar code above. End with a

carriage return.

Command string: F503F10D

F5 is the “Move the cursor forward a number of characters” command

03 is the number of characters to move the cursor

F1 is the “Send all characters” command

0D is the hex value for a CR

The data is output as:

4567890ABCDEFGHIJ

<CR>

Move the cursor backward a number of characters

F6 Move the cursor back “nn” characters from current cursor position.

Syntax = F6nn where nn is the numeric value (00-99) for the number of characters the cursor should be moved back.

Move the cursor to the beginning

F7 Move the cursor to the first character in the input message. Syntax = F7.

FE and F7 Example: Manipulate bar codes that begin with a 1

Search for bar codes that begin with a 1. If a bar code matches, move the cursor back to the beginning of the data and

send 6 characters followed by a carriage return. Using the bar code above:

Command string: FE31F7F2060D

FE is the “Compare characters” command

31 is the hex value for 1

F7 is the “Move the cursor to the beginning” command

F2 is the “Send a number of characters” command

06 is the number of characters to send

0D is the hex value for a CR

The data is output as:

123456

<CR>

Move the cursor to the end

EA Move the cursor to the last character in the input message. Syntax = EA.

Search Commands

Search forward for a character

F8 Search the input message forward for “xx” character from the current cursor position, leaving the cursor pointing to the

“xx” character. Syntax = F8xx where xx stands for the search character’s hex value for its ASCII code.

Refer to the ASCII Conversion Chart (Code Page 1252), beginning on page A-3 for decimal, hex and character codes.

6 - 6

F8 Example: Send bar code data that starts after a particular character

Search for the letter “D” in bar codes and send all the data that follows, including the “D.” Using the bar code above:

Command string: F844F10D

F8 is the “Search forward for a character” command

44 is the hex value for “D”

F1 is the “Send all characters” command

0D is the hex value for a CR

The data is output as:

DEFGHIJ

<CR>

Search backward for a character

F9 Search the input message backward for “xx” character from the current cursor position, leaving the cursor pointing to

the “xx” character. Syntax = F9xx where xx stands for the search character’s hex value for its ASCII code.

Refer to the ASCII Conversion Chart (Code Page 1252), beginning on page A-3 for decimal, hex and character codes.

Search forward for a non-matching character

E6 Search the input message forward for the first non-“xx” character from the current cursor position, leaving the cursor

pointing to the non-“xx” character. Syntax = E6xx where xx stands for the search character’s hex value for its ASCII

code.

Refer to the ASCII Conversion Chart (Code Page 1252), beginning on page A-3 for decimal, hex and character codes.

E6 Example: Remove zeroes at the beginning of bar code data

This example shows a bar code that has been zero filled. You may want to ignore the zeroes and send all the data that

follows. E6 searches forward for the first character that is not zero, then sends all the data after, followed by a carriage

return. Using the bar code above:

Command string: E630F10D

E6 is the “Search forward for a non-matching character” command

30 is the hex value for 0

F1 is the “Send all characters” command

0D is the hex value for a CR

The data is output as:

37692

<CR>

Search backward for a non-matching character

E7 Search the input message backward for the first non-“xx” character from the current cursor position, leaving the cursor

pointing to the non-“xx” character. Syntax = E7xx where xx stands for the search character’s hex value for its ASCII

code.

Refer to the ASCII Conversion Chart (Code Page 1252), beginning on page A-3 for decimal, hex and character codes.

6 - 7

Miscellaneous Commands

Suppress characters

FB Suppress all occurrences of up to 15 different characters, starting at the current cursor position, as the cursor is

advanced by other commands. When the FC command is encountered, the suppress function is terminated. The

cursor is not moved by the FB command.

Syntax = FBnnxxyy . .zz where nn is a count of the number of suppressed characters in the list, and xxyy .. zz is the list

of characters to be suppressed.

FB Example: Remove spaces in bar code data

This example shows a bar code that has spaces in the data. You may want to remove the spaces before sending the

data. Using the bar code above:

Command string: FB0120F10D

FB is the “Suppress characters” command

01 is the number of character types to be suppressed

20 is the hex value for a space

F1 is the “Send all characters” command

0D is the hex value for a CR

The data is output as:

34567890

<CR>

Stop suppressing characters

FC Disables suppress filter and clear all suppressed characters. Syntax = FC.

Replace characters

E4 Replaces up to 15 characters in the output message, without moving the cursor. Replacement continues until the E5

command is encountered. Syntax = E4nnxx1xx2yy1yy2...zz1zz2 where nn is the total count of of the number of

characters in the list (characters to be replaced plus replacement characters); xx1 defines characters to be replaced and

xx2 defines replacement characters, continuing through zz1 and zz2.

E4 Example: Replace zeroes with CRs in bar code data

If the bar code has characters that the host application does not want included, you can use the E4 command to

replace those characters with something else. In this example, you will replace the zeroes in the bar code above with

carriage returns.

Command string: E402300DF10D

E4 is the “Replace characters” command

02 is the total count of characters to be replaced, plus the replacement characters (0 is replaced by CR, so total char-

acters = 2)

30 is the hex value for 0

0D is the hex value for a CR (the character that will replace the 0)

F1 is the “Send all characters” command

0D is the hex value for a CR

6 - 8

The data is output as:

1234

5678

ABC

<CR>

Stop replacing characters

E5 Terminates character replacement. Syntax = E5.

Compare characters

FE Compare the character in the current cursor position to the character “xx.” If characters are equal, move the cursor

forward one position. Syntax = FExx where xx stands for the comparison character’s hex value for its ASCII code.

Refer to the ASCII Conversion Chart (Code Page 1252), beginning on page A-3 for decimal, hex and character codes.

Check for a number

EC Check to make sure there is an ASCII number at the current cursor position. The format is aborted if the character is

not numeric.

EC Example: Only output the data if the bar code begins with a number

If you want only data from bar codes that begin with a number, you can use EC to check for the number.

Command string: ECF10D

EC is the “Check for a number” command

F1 is the “Send all characters” command

0D is the hex value for a CR

If this bar code is read, the next data format, if there is one, will be used on the data. If there

is no other format, the format fails and the raw data is output as AB1234.

If this bar code is read: the data is output as:

1234AB

<CR>

Check for non-numeric character

ED Check to make sure there is a non-numeric ASCII character at the current cursor position. The format is aborted if the

character is numeric.

ED Example: Only output the data if the bar code begins with a letter

If you want only data from bar codes that begin with a letter, you can use ED to check for the letter.

Command string: EDF10D

ED is the “Check for a non-numeric character” command

F1 is the “Send all characters” command

0D is the hex value for a CR

If this bar code is read, the next data format, if there is one, will be used on this data. If there

is no other format, the format fails and the raw data is output as 1234AB.

If this bar code is read: the data is output as:

AB1234

<CR>

6 - 9

Insert a delay

EF Inserts a delay of up to 49,995 milliseconds (in multiples of 5), starting from the current cursor position. Syntax = EFnnnn

where nnnn stands for the delay in 5ms increments, up to 9999. This command can only be used with keyboard

emulation.

Data Formatter

When Data Formatter is turned Off, the bar code data is output to the host as read, including prefixes and suffixes.

You may wish to require the data to conform to a data format you have created and saved. The following settings can be applied

to your data format:

Data Formatter On, Not Required, Keep Prefix/Suffix

Scanned data is modified according to your data format, and prefixes and suffixes are transmitted.

Data Format Required, Keep Prefix/Suffix

Scanned data is modified according to your data format, and prefixes and suffixes are transmitted. Any data that does not

match your data format requirements generates an error tone and the data in that bar code is not transmitted.

Default = Data Formatter On, Not Required, Keep Prefix/Suffix.

Primary/Alternate Data Formats

You can save up to four data formats, and switch between these formats. Your primary data format is saved under 0. Your other

three formats are saved under 1, 2, and 3. To set your device to use one of these formats, scan one of the bar codes below.

Data Formatter Off

* Data Formatter On,

Not Required,

Keep Prefix/Suffix

Data Format Required,

Keep Prefix/Suffix

Primary Data Format

Data Format 1

Data Format 2

6 - 10

Data Format 3

7 - 1

Symbologies

This programming section contains the following menu selections. Refer to Chapter 10 for settings and defaults.

All Symbologies

If you want to decode all the symbologies allowable for your scanner, scan the All Symbologies On code. If on the other hand,

you want to decode only a particular symbology, scan All Symbologies Off followed by the On symbol for that particular sym-

bology.

Note: When All Symbologies On is scanned, 2D Postal Codes are not enabled. 2D Postal Codes must be enabled separately.

Message Length Description

You are able to set the valid reading length of some of the bar code symbologies. If the data length of the scanned bar code

doesn’t match the valid reading length, the scanner will issue an error tone. You may wish to set the same value for minimum

and maximum length to force the scanner to read fixed length bar code data. This helps reduce the chances of a misread.

EXAMPLE: Decode only those bar codes with a count of 9-20 characters.

Min. length = 09Max. length = 20

• All Symbologies • Interleaved 2 of 5

• Aztec Code • Korea Post

• China Post (Hong Kong 2 of 5) • Matrix 2 of 5

• Chinese Sensible (Han Xin) Code • MaxiCode

• Codabar • MicroPDF417

• Codablock A • MSI

• Codablock F • NEC 2 of 5

• Code 11 • Postal Codes - 2D

• Code 128 • Postal Codes - Linear

• Code 32 Pharmaceutical (PARAF) • PDF417

• Code 39 • GS1 DataBar Omnidirectional

• Code 93 • QR Code

• Data Matrix • Straight 2 of 5 IATA (two-bar start/stop)

• EAN/JAN-13 • Straight 2 of 5 Industrial (three-bar start/stop)

• EAN/JAN-8 • TCIF Linked Code 39 (TLC39)

• GS1 Composite Codes • UPC-A

• GS1 DataBar Expanded • UPC-A

• GS1 DataBar Limited • UPC-A/EAN-13 with Extended Coupon Code

• GS1 DataBar Omnidirectional • UPC-E0

• GS1 Emulation • UPC-E1

• GS1-128

All Symbologies On

All Symbologies Off

7 - 2

EXAMPLE: Decode only those bar codes with a count of 15 characters.

Min. length = 15Max. length = 15

For a value other than the minimum and maximum message length defaults, scan the bar codes included in the explanation of

the symbology, then scan the digit value of the message length and Save bar codes on the Programming Chart inside the back

cover of this manual. The minimum and maximum lengths and the defaults are included with the respective symbologies.

Codabar

Codabar On/Off

Codabar Start/Stop Characters

Start/Stop characters identify the leading and trailing ends of the bar code. You may either transmit, or not transmit Start/

Stop characters. Default = Don’t Transmit.

Codabar Check Character

Codabar check characters are created using different “modulos.” You can program the scanner to read only Codabar bar

codes with Modulo 16 check characters. Default = No Check Character.

No Check Character indicates that the scanner reads and transmits bar code data with or without a check character.

When Check Character is set to Validate and Transmit, the scanner will only read Codabar bar codes printed with a check

character, and will transmit this character at the end of the scanned data.

When Check Character is set to Validate, but Don’t Transmit, the unit will only read Codabar bar codes printed with a

check character, but will not transmit the check character with the scanned data.

* On

Off

Transmit

* Don’t Transmit

* No Check Character

7 - 3

Codabar Concatenation

Codabar supports symbol concatenation. When you enable concatenation, the scanner looks for a Codabar symbol having

a “D” start character, adjacent to a symbol having a “D” stop character. In this case the two messages are concatenated

into one with the “D” characters omitted.

Select Require to prevent the scanner from decoding a single “D” Codabar symbol without its companion. This selection

has no effect on Codabar symbols without Stop/Start D characters.

Codabar Message Length

Scan the bar codes below to change the message length. Refer to Message Length Description (page 7-1) for additional

information. Minimum and Maximum lengths = 2-60. Minimum Default = 4, Maximum Default = 60.

Validate Modulo 16, but

Don’t Transmit

Validate Modulo 16

and Transmit

A123 4D

D5 6 7 8 A

* Off

Require

Minimum Message Length

Maximum Message Length

7 - 4

Code 39

< Default All Code 39 Settings >

Code 39 On/Off

Code 39 Start/Stop Characters

Start/Stop characters identify the leading and trailing ends of the bar code. You may either transmit, or not transmit Start/

Stop characters. Default = Don’t Transmit.

Code 39 Check Character

No Check Character indicates that the scanner reads and transmits bar code data with or without a check character.

When Check Character is set to Validate, but Don’t Transmit, the unit only reads Code 39 bar codes printed with a check

character, but will not transmit the check character with the scanned data.

When Check Character is set to Validate and Transmit, the scanner only reads Code 39 bar codes printed with a check

character, and will transmit this character at the end of the scanned data. Default = No Check Character.

* On

Off

Transmit

* Don’t Transmit

* No Check Character

Validate, but Don’t Transmit

Validate and Transmit

7 - 5

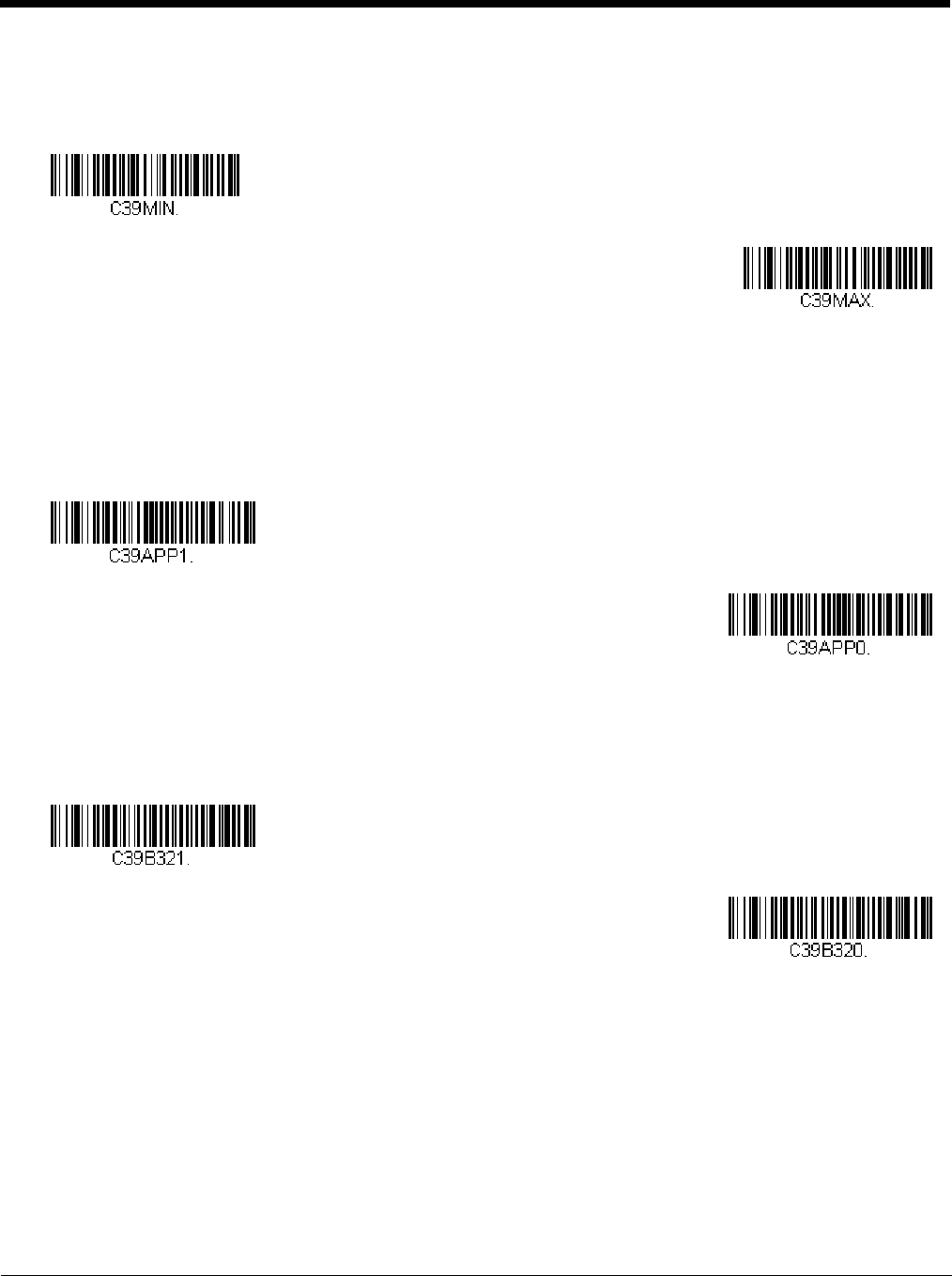

Code 39 Message Length

Scan the bar codes below to change the message length. Refer to Message Length Description (page 7-1) for additional

information. Minimum and Maximum lengths = 0-48. Minimum Default = 0, Maximum Default = 48.

Code 39 Append

This function allows the scanner to append the data from several Code 39 bar codes together before transmitting them to

the host computer. When the scanner encounters a Code 39 bar code with the append trigger character(s), it buffers Code

39 bar codes until it reads a Code 39 bar code that does not have the append trigger. The data is then transmitted in the

order in which the bar codes were read (FIFO). Default = Off.

Code 32 Pharmaceutical (PARAF)

Code 32 Pharmaceutical is a form of the Code 39 symbology used by Italian pharmacies. This symbology is also known as

PAR AF.

Minimum Message Length

Maximum Message Length

* Off

7 - 6

Full ASCII

If Full ASCII Code 39 decoding is enabled, certain character pairs within the bar code symbol will be interpreted as a single

character. For example: $V will be decoded as the ASCII character SYN, and /C will be decoded as the ASCII character #.

Default = Off.

Character pairs /M and /N decode as a minus sign and period respectively.

Character pairs /P through /Y decode as 0 through 9.

Code 39 Code Page

Code pages define the mapping of character codes to characters. If the data received does not display with the proper

characters, it may be because the bar code being scanned was created using a code page that is different from the one the

host program is expecting. If this is the case, scan the bar code below, select the code page with which the bar codes were

created (see ISO 2022/ISO 646 Character Replacements on page A-7), and scan the value and the Save bar code from

the Programming Chart on the inside the back cover of this manual. The data characters should then appear properly.

NUL %U DLE $P

SP SPACE

00@%VPP‘%Wp+P

SOH $A DC1 $Q !/A 11AAQQa+Aq+Q

STX $B DC2 $R “/B 22BBRRb+Br+R

ETX $C DC3 $S #/C 33CCSSc+Cs+S

EOT $D DC4 $T $/D 44DDTTd+Dt+T

ENQ $E NAK $U %/E 55EEUUe+Eu+U

ACK $F SYN $V &/F 66FFVVf+Fv+V

BEL $G ETB $W ‘/G77GGWWg+Gw+W

BS $H CAN $X (/H 88HHXXh+Hx+X

HT $I EM $Y )/I 99IIYYi+Iy+Y

LF $J SUB $Z */J :/ZJJZZj+Jz+Z

VT $K ESC %A +/K ;%FKK[%Kk+K{%P

FF $L FS %B ,/L <%GLL\%Ll+L|%Q

CR $M GS %C -- =%HMM]%Mm+M}%R

SO $N RS %D .. >%INN^%Nn+N~%S

SI $O US %E //O ?%JOO_%Oo+ODEL %T

Full ASCII On

* Full ASCII Off

Code 39 Code Page

7 - 7

Interleaved 2 of 5

< Default All Interleaved 2 of 5 Settings >

Interleaved 2 of 5 On/Off

Check Digit

No Check Digit indicates that the scanner reads and transmits bar code data with or without a check digit.

When Check Digit is set to Validate, but Don’t Transmit, the unit only reads Interleaved 2 of 5 bar codes printed with a

check digit, but will not transmit the check digit with the scanned data.

When Check Digit is set to Validate and Transmit, the scanner only reads Interleaved 2 of 5 bar codes printed with a

check digit, and will transmit this digit at the end of the scanned data. Default = No Check Digit.

Interleaved 2 of 5 Message Length

Scan the bar codes below to change the message length. Refer to Message Length Description (page 7-1) for additional

information. Minimum and Maximum lengths = 2-80. Minimum Default = 4, Maximum Default = 80.

* On

Off

* No Check Digit

Validate, but Don’t Transmit

Validate and Transmit

Minimum Message Length

7 - 8

NEC 2 of 5

< Default All NEC 2 of 5 Settings >

NEC 2 of 5 On/Off

Check Digit

No Check Digit indicates that the scanner reads and transmits bar code data with or without a check digit.

When Check Digit is set to Validate, but Don’t Transmit, the unit only reads NEC 2 of 5 bar codes printed with a check

digit, but will not transmit the check digit with the scanned data.

When Check Digit is set to Validate and Transmit, the scanner only reads NEC 2 of 5 bar codes printed with a check digit,

and will transmit this digit at the end of the scanned data. Default = No Check Digit.

Maximum Message Length

* On

Off

* No Check Digit

Validate, but Don’t Transmit

Validate and Transmit

7 - 9

NEC 2 of 5 Message Length

Scan the bar codes below to change the message length. Refer to Message Length Description (page 7-1) for additional

information. Minimum and Maximum lengths = 2-80. Minimum Default = 4, Maximum Default = 80.

Code 93

< Default All Code 93 Settings >

Code 93 On/Off

Code 93 Message Length

Scan the bar codes below to change the message length. Refer to Message Length Description (page 7-1) for additional

information. Minimum and Maximum lengths = 0-80. Minimum Default = 0, Maximum Default = 80.

Minimum Message Length

Maximum Message Length

* On

Off

Minimum Message Length

Maximum Message Length

7 - 10

Code 93 Append

This function allows the scanner to append the data from several Code 93 bar codes together before transmitting them to

the host computer. When this function is enabled, the scanner stores those Code 93 bar codes that start with a space

(excluding the start and stop symbols), and does not immediately transmit the data. The scanner stores the data in the

order in which the bar codes are read, deleting the first space from each. The scanner transmits the appended data when

it reads a Code 93 bar code that starts with a character other than a space. Default = Off.

Code 93 Code Page

Code pages define the mapping of character codes to characters. If the data received does not display with the proper

characters, it may be because the bar code being scanned was created using a code page that is different from the one the

host program is expecting. If this is the case, scan the bar code below, select the code page with which the bar codes were

created (see ISO 2022/ISO 646 Character Replacements on page A-7), and scan the value and the Save bar code from

the Programming Chart on the inside the back cover of this manual. The data characters should then appear properly.

* Off

Code 93 Code Page

7 - 11

Straight 2 of 5 Industrial (three-bar start/stop)

Straight 2 of 5 Industrial On/Off

Straight 2 of 5 Industrial Message Length

Scan the bar codes below to change the message length. Refer to Message Length Description (page 7-1) for additional

information. Minimum and Maximum lengths = 1-48. Minimum Default = 4, Maximum Default = 48.

* Off

Minimum Message Length

Maximum Message Length

7 - 12

Straight 2 of 5 IATA (two-bar start/stop)

Straight 2 of 5 IATA On/Off

Straight 2 of 5 IATA Message Length

Scan the bar codes below to change the message length. Refer to Message Length Description (page 7-1) for additional

information. Minimum and Maximum lengths = 1-48. Minimum Default = 4, Maximum Default = 48.

* Off

Minimum Message Length

Maximum Message Length

7 - 13

Matrix 2 of 5

Matrix 2 of 5 On/Off

Matrix 2 of 5 Message Length

Scan the bar codes below to change the message length. Refer to Message Length Description (page 7-1) for additional

information. Minimum and Maximum lengths = 1-80. Minimum Default = 4, Maximum Default = 80.

* Off

Minimum Message Length

Maximum Message Length

7 - 14

Code 11

Code 11 On/Off

Check Digits Required

This option sets whether 1 or 2 check digits are required with Code 11 bar codes. Default = Two Check Digits.

Code 11 Message Length

Scan the bar codes below to change the message length. Refer to Message Length Description (page 7-1) for additional

information. Minimum and Maximum lengths = 1-80. Minimum Default = 4, Maximum Default = 80.

* Off

One Check Digit

* Two Check Digits

Minimum Message Length

Maximum Message Length

7 - 15

Code 128

Code 128 On/Off

ISBT 128 Concatenation

In 1994 the International Society of Blood Transfusion (ISBT) ratified a standard for communicating critical blood informa-

tion in a uniform manner. The use of ISBT formats requires a paid license. The ISBT 128 Application Specification

describes 1) the critical data elements for labeling blood products, 2) the current recommendation to use Code 128 due to

its high degree of security and its space-efficient design, 3) a variation of Code 128 that supports concatenation of neigh-

boring symbols, and 4) the standard layout for bar codes on a blood product label. Use the bar codes below to turn concat-

enation on or off. Default =Off.

Code 128 Message Length

Scan the bar codes below to change the message length. Refer to Message Length Description (page 7-1) for additional

information. Minimum and Maximum lengths = 0-80. Minimum Default = 0, Maximum Default = 80.

* On

Off

* Off

Minimum Message Length

Maximum Message Length

7 - 16

Code 128 Append

This function allows the scanner to append the data from several Code 128 bar codes together before transmitting them to

the host computer. When the scanner encounters a Code 128 bar code with the append trigger character(s), it buffers

Code 128 bar codes until it reads a Code 128 bar code that does not have the append trigger. The data is then transmitted

in the order in which the bar codes were read (FIFO). Default = On.

Code 128 Code Page

Code pages define the mapping of character codes to characters. If the data received does not display with the proper

characters, it may be because the bar code being scanned was created using a code page that is different from the one the

host program is expecting. If this is the case, scan the bar code below, select the code page with which the bar codes were

created (see ISO 2022/ISO 646 Character Replacements on page A-7), and scan the value and the Save bar code from

the Programming Chart on the inside the back cover of this manual. The data characters should then appear properly.

* On

Off

Code 128 Code Page

7 - 17

GS1-128

GS1-128 On/Off

GS1-128 Message Length

Scan the bar codes below to change the message length. Refer to Message Length Description (page 7-1) for additional

information. Minimum and Maximum lengths = 1-80. Minimum Default = 1, Maximum Default = 80.

UPC-A

UPC-A On/Off

Note: To convert UPC-A bar codes to EAN-13, see Convert UPC-A to EAN-13 on page 7-23.

* On

Off

Minimum Message Length

Maximum Message Length

* On

Off

7 - 18

UPC-A Check Digit

This selection allows you to specify whether the check digit should be transmitted at the end of the scanned data or not.

Default = On.

UPC-A Number System

The numeric system digit of a U.P.C. symbol is normally transmitted at the beginning of the scanned data, but the unit can

be programmed so it will not transmit it. Default = On.

UPC-A Addenda

This selection adds 2 or 5 digits to the end of all scanned UPC-A data.

Default = Off for both 2 Digit and 5 Digit Addenda.

* On

Off

* On

Off

2 Digit Addenda On

* 2 Digit Addenda Off

5 Digit Addenda On

* 5 Digit Addenda Off

7 - 19

UPC-A Addenda Required

When Required is scanned, the scanner will only read UPC-A bar codes that have addenda. You must then turn on a 2 or

5 digit addenda listed on page 7-18. Default = Not Required.

UPC-A Addenda Separator

When this feature is on, there is a space between the data from the bar code and the data from the addenda. When turned

off, there is no space. Default = On.

UPC-A/EAN-13 with Extended Coupon Code

Use the following codes to enable or disable UPC-A and EAN-13 with Extended Coupon Code. When left on the default setting

(Off), the scanner treats Coupon Codes and Extended Coupon Codes as single bar codes.

If you scan the Allow Concatenation code, when the scanner sees the coupon code and the extended coupon code in a single

scan, it transmits both as separate symbologies. Otherwise, it transmits the first coupon code it reads.

If you scan the Require Concatenation code, the scanner must see and read the coupon code and extended coupon code in a

single read to transmit the data. No data is output unless both codes are read. Default = Off.

Required

* Not Required

* On

Off

* Off

Allow Concatenation

Require Concatenation

7 - 20

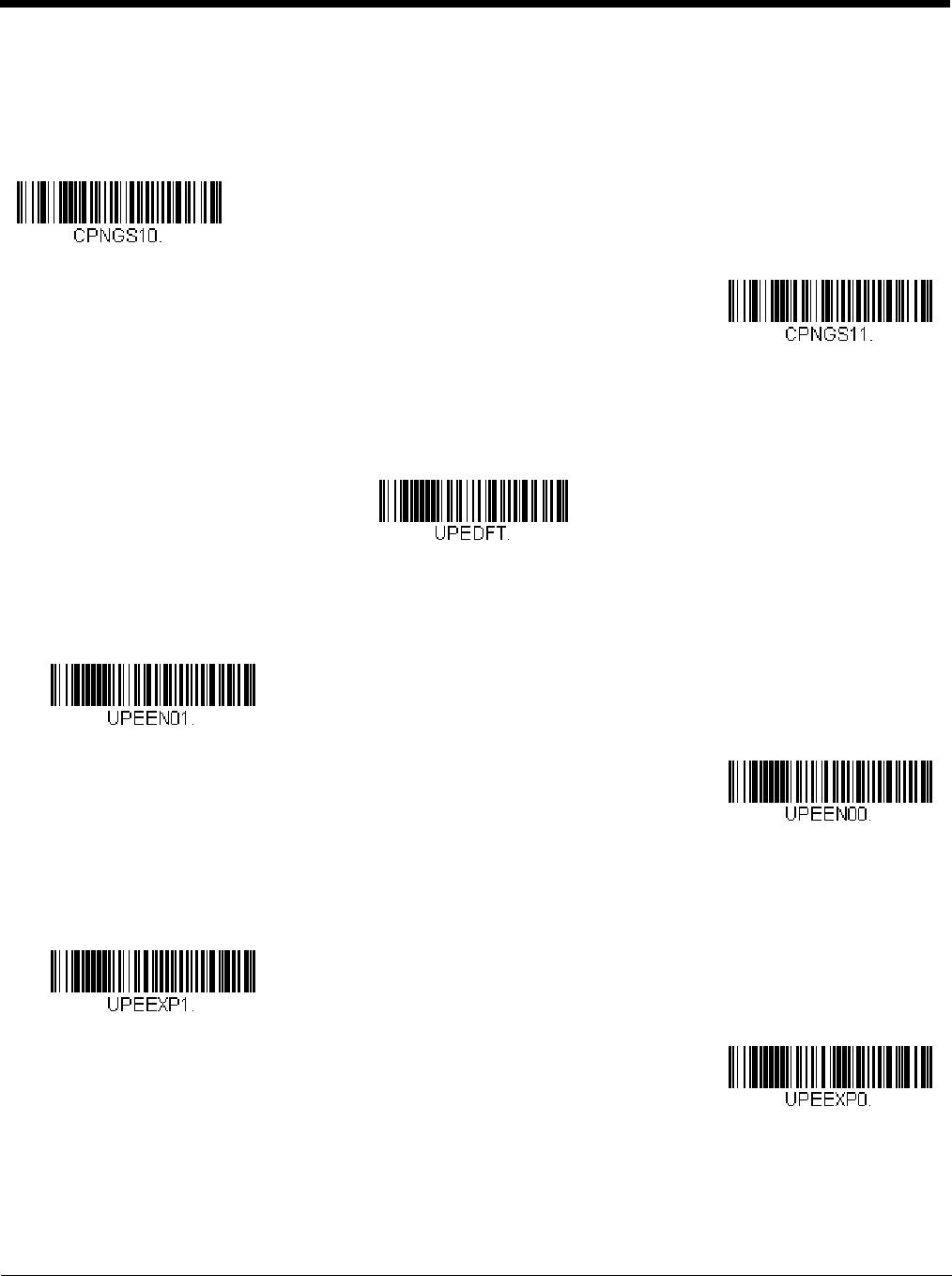

Coupon GS1 DataBar Output

If you scan coupons that have both UPC and GS1 DataBar codes, you may wish to scan and output only the data from the GS1

DataBar code. Scan the GS1 Output On code below to scan and output only the GS1 DataBar code data. Default = GS1 Out-

put Off.

UPC-E0

UPC-E0 On/Off

Most U.P.C. bar codes lead with the 0 number system. To read these codes, use the UPC-E0 On selection. If you need to

read codes that lead with the 1 number system, use UPC-E1 (page 7-22). Default = On.

UPC-E0 Expand

UPC-E Expand expands the UPC-E code to the 12 digit, UPC-A format. Default = Off.

* GS1 Output Off

GS1 Output On

* UPC-E0 On

UPC-E0 Off

* Off

7 - 21

UPC-E0 Addenda Required

When Required is scanned, the scanner will only read UPC-E bar codes that have addenda. Default = Not Required.

UPC-E0 Addenda Separator

When this feature is On, there is a space between the data from the bar code and the data from the addenda. When turned

Off, there is no space. Default = On.

UPC-E0 Check Digit

Check Digit specifies whether the check digit should be transmitted at the end of the scanned data or not. Default = On.

UPC-E0 Leading Zero

This feature allows the transmission of a leading zero (0) at the beginning of scanned data. To prevent transmission, scan

Off. Default = On.

Required

* Not Required

* On

Off

* On

Off

* On

Off

7 - 22

UPC-E0 Addenda

This selection adds 2 or 5 digits to the end of all scanned UPC-E data. Default = Off for both 2 Digit and 5 Digit Addenda.

UPC-E1

Most U.P.C. bar codes lead with the 0 number system. For these codes, use UPC-E0 (page 7-20). If you need to read codes

that lead with the 1 number system, use the UPC-E1 On selection. Default = Off.

2 Digit Addenda On

* 2 Digit Addenda Off

5 Digit Addenda On

* 5 Digit Addenda Off

UPC-E1 On

* UPC-E1 Off

7 - 23

EAN/JAN-13

EAN/JAN-13 On/Off

Convert UPC-A to EAN-13

When UPC-A Converted to EAN-13 is selected, UPC-A bar codes are converted to 13 digit EAN-13 codes by adding a

zero to the front. When Do not Convert UPC-A is selected, UPC-A codes are read as UPC-A.

EAN/JAN-13 Check Digit

This selection allows you to specify whether the check digit should be transmitted at the end of the scanned data or not.

Default = On.

* On

Off

UPC-A Converted to EAN-13

* Do not Convert UPC-A

* On

Off

7 - 24

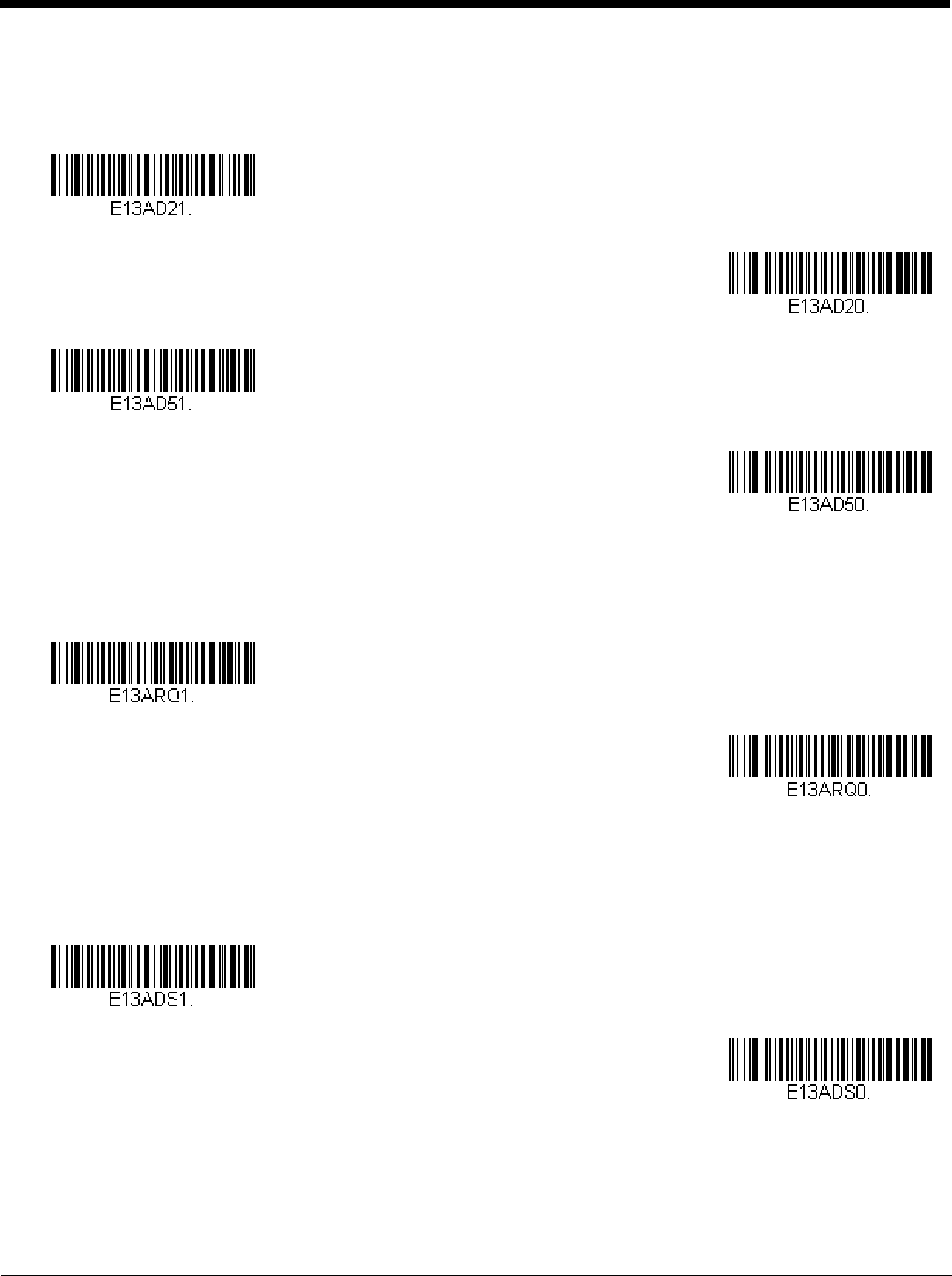

EAN/JAN-13 Addenda

This selection adds 2 or 5 digits to the end of all scanned EAN/JAN-13 data. Default = Off for both 2 Digit and 5 Digit

Addenda.

EAN/JAN-13 Addenda Required

When Required is scanned, the scanner will only read EAN/JAN-13 bar codes that have addenda. Default = Not Required.

EAN/JAN-13 Addenda Separator

When this feature is On, there is a space between the data from the bar code and the data from the addenda. When turned

Off, there is no space. Default = On.

Note: If you want to enable or disable EAN13 with Extended Coupon Code, refer to UPC-A/EAN-13 with Extended Coupon

Code (page 7-19).

2 Digit Addenda On

* 2 Digit Addenda Off

5 Digit Addenda On

* 5 Digit Addenda Off

Required

* Not Required

* On

Off

7 - 25

ISBN Translate

When On is scanned, EAN-13 Bookland symbols are translated into their equivalent ISBN number format. Default = Off.

EAN/JAN-8

EAN/JAN-8 On/Off

EAN/JAN-8 Check Digit

This selection allows you to specify whether the check digit should be transmitted at the end of the scanned data or not.

Default = On.

* Off

* On

Off

* On

Off

7 - 26

EAN/JAN-8 Addenda

This selection adds 2 or 5 digits to the end of all scanned EAN/JAN-8 data. Default = Off for both 2 Digit and 5 Digit

Addenda.

EAN/JAN-8 Addenda Required

When Required is scanned, the scanner will only read EAN/JAN-8 bar codes that have addenda. Default = Not Required.

EAN/JAN-8 Addenda Separator

When this feature is On, there is a space between the data from the bar code and the data from the addenda. When turned

Off, there is no space. Default = On.

2 Digit Addenda On

* 2 Digit Addenda Off

5 Digit Addenda On

* 5 Digit Addenda Off

Required

* Not Required

* On

Off

7 - 27

MSI

MSI On/Off

MSI Check Character

Different types of check characters are used with MSI bar codes. You can program the scanner to read MSI bar codes with

Type 10 check characters. Default = Validate Type 10, but Don’t Transmit.

When Check Character is set to Validate Type 10/11 and Transmit, the scanner will only read MSI bar codes printed with

the specified type check character(s), and will transmit the character(s) at the end of the scanned data.

When Check Character is set to Validate Type 10/11, but Don’t Transmit, the unit will only read MSI bar codes printed

with the specified type check character(s), but will not transmit the check character(s) with the scanned data.

* Off

* Validate Type 10, but Don’t

Transmit

Validate Type 10 and Transmit

Validate 2 Type 10 Characters,

but Don’t Transmit

Validate 2 Type 10 Characters

and Transmit

Validate Type 11 then Type 10

Character, but Don’t Transmit

7 - 28

MSI Message Length

Scan the bar codes below to change the message length. Refer to Message Length Description (page 7-1) for additional

information. Minimum and Maximum lengths = 4-48. Minimum Default = 4, Maximum Default = 48.

Validate Type 11 then

Type 10 Character and Transmit

Disable MSI Check Characters

Minimum Message Length

Maximum Message Length

7 - 29

GS1 DataBar Omnidirectional

< Default All GS1 DataBar Omnidirectional Settings >

GS1 DataBar Omnidirectional On/Off

GS1 DataBar Limited

< Default All GS1 DataBar Limited Settings >

GS1 DataBar Limited On/Off

* On

Off

* On

Off

7 - 30

GS1 DataBar Expanded

< Default All GS1 DataBar Expanded Settings >

GS1 DataBar Expanded On/Off

GS1 DataBar Expanded Message Length

Scan the bar codes below to change the message length. Refer to Message Length Description (page 7-1) for additional

information. Minimum and Maximum lengths = 4-74. Minimum Default = 4, Maximum Default = 74.

Codablock A

Codablock A On/Off

* On

Off

Minimum Message Length

Maximum Message Length

* Off

7 - 31

Codablock A Message Length

Scan the bar codes below to change the message length. Refer to Message Length Description (page 7-1) for additional

information. Minimum and Maximum lengths = 1-600. Minimum Default = 1, Maximum Default = 600.

Codablock F

Codablock F On/Off

Codablock F Message Length

Scan the bar codes below to change the message length. Refer to Message Length Description (page 7-1) for additional

information. Minimum and Maximum lengths = 1-2048. Minimum Default = 1, Maximum Default = 2048.

Minimum Message Length

Maximum Message Length

* Off

Minimum Message Length

Maximum Message Length

7 - 32

PDF417

< Default All PDF417 Settings >

PDF417 On/Off

PDF417 Message Length

Scan the bar codes below to change the message length. Refer to Message Length Description (page 7-1) for additional

information. Minimum and Maximum lengths = 1-2750. Minimum Default = 1, Maximum Default = 2750.

MacroPDF417

MacroPDF417 is an implementation of PDF417 capable of encoding very large amounts of data into multiple PDF417 bar

codes. When this selection is enabled, these multiple bar codes are assembled into a single data string. Default = On.

* On

Off

Minimum Message Length

Maximum Message Length

* On

Off

7 - 33

MicroPDF417

< Default All MicroPDF417 Settings >

MicroPDF417 On/Off

MicroPDF417 Message Length

Scan the bar codes below to change the message length. Refer to Message Length Description (page 7-1) for additional

information. Minimum and Maximum lengths = 1-366. Minimum Default = 1, Maximum Default = 366.

GS1 Composite Codes

Linear codes are combined with a unique 2D composite component to form a new class called GS1 Composite symbology.

GS1 Composite symbologies allow for the co-existence of symbologies already in use. Default = Off.

* Off

Minimum Message Length

Maximum Message Length

* Off

7 - 34

UPC/EAN Version

Scan the UPC/EAN Version On bar code to decode GS1 Composite symbols that have a U.P.C. or an EAN linear compo-

nent. (This does not affect GS1 Composite symbols with a GS1-128 or GS1 linear component.) Default = UPC/EAN Ver-

sion Off.

Note: If you scan coupons that have both UPC and GS1 DataBar codes, you may wish to scan and output only the data from

the GS1 DataBar code. See Coupon GS1 DataBar Output (page 7-20) for further information.

GS1 Composite Code Message Length

Scan the bar codes below to change the message length. Refer to Message Length Description (page 7-1) for additional

information. Minimum and Maximum lengths = 1-2435. Minimum Default = 1, Maximum Default = 2435.

GS1 Emulation

The scanner can automatically format the output from any GS1 data carrier to emulate what would be encoded in an equivalent

GS1-128 or GS1 DataBar symbol. GS1 data carriers include UPC-A and UPC-E, EAN-13 and EAN-8, ITF-14, GS1-128, and

GS1-128 DataBar and GS1 Composites. (Any application that accepts GS1 data can be simplified since it only needs to recog-

nize one data carrier type.)

If GS1-128 Emulation is scanned, all retail codes (U.P.C., UPC-E, EAN8, EAN13) are expanded out to 16 digits. If the AIM ID

is enabled, the value will be the GS1-128 AIM ID, ]C1 (see Symbology Charts on page A-1).

If GS1 DataBar Emulation is scanned, all retail codes (U.P.C., UPC-E, EAN8, EAN13) are expanded out to 16 digits. If the AIM

ID is enabled, the value will be the GS1-DataBar AIM ID, ]em (see Symbology Charts on page A-1).

If GS1 Code Expansion Off is scanned, retail code expansion is disabled, and UPC-E expansion is controlled by the UPC-E0

Expand (page 7-20) setting. If the AIM ID is enabled, the value will be the GS1-128 AIM ID, ]C1 (see Symbology Charts on

page A-1).

If EAN8 to EAN13 Conversion is scanned, all EAN8 bar codes are converted to EAN13 format.

Default = GS1 Emulation Off.

UPC/EAN Version On

* UPC/EAN Version Off

Minimum Message Length

Maximum Message Length

GS1-128 Emulation

7 - 35

TCIF Linked Code 39 (TLC39)

This code is a composite code since it has a Code 39 linear component and a MicroPDF417 stacked code component. All bar

code readers are capable of reading the Code 39 linear component. The MicroPDF417 component can only be decoded if

TLC39 On is selected. The linear component may be decoded as Code 39 even if TLC39 is off. Default = Off.

QR Code

< Default All QR Code Settings >

QR Code On/Off

This selection applies to both QR Code and Micro QR Code.

GS1 DataBar Emulation

GS1 Code Expansion Off

EAN8 to EAN13 Conversion

* GS1 Emulation Off

* Off

* On

Off

7 - 36

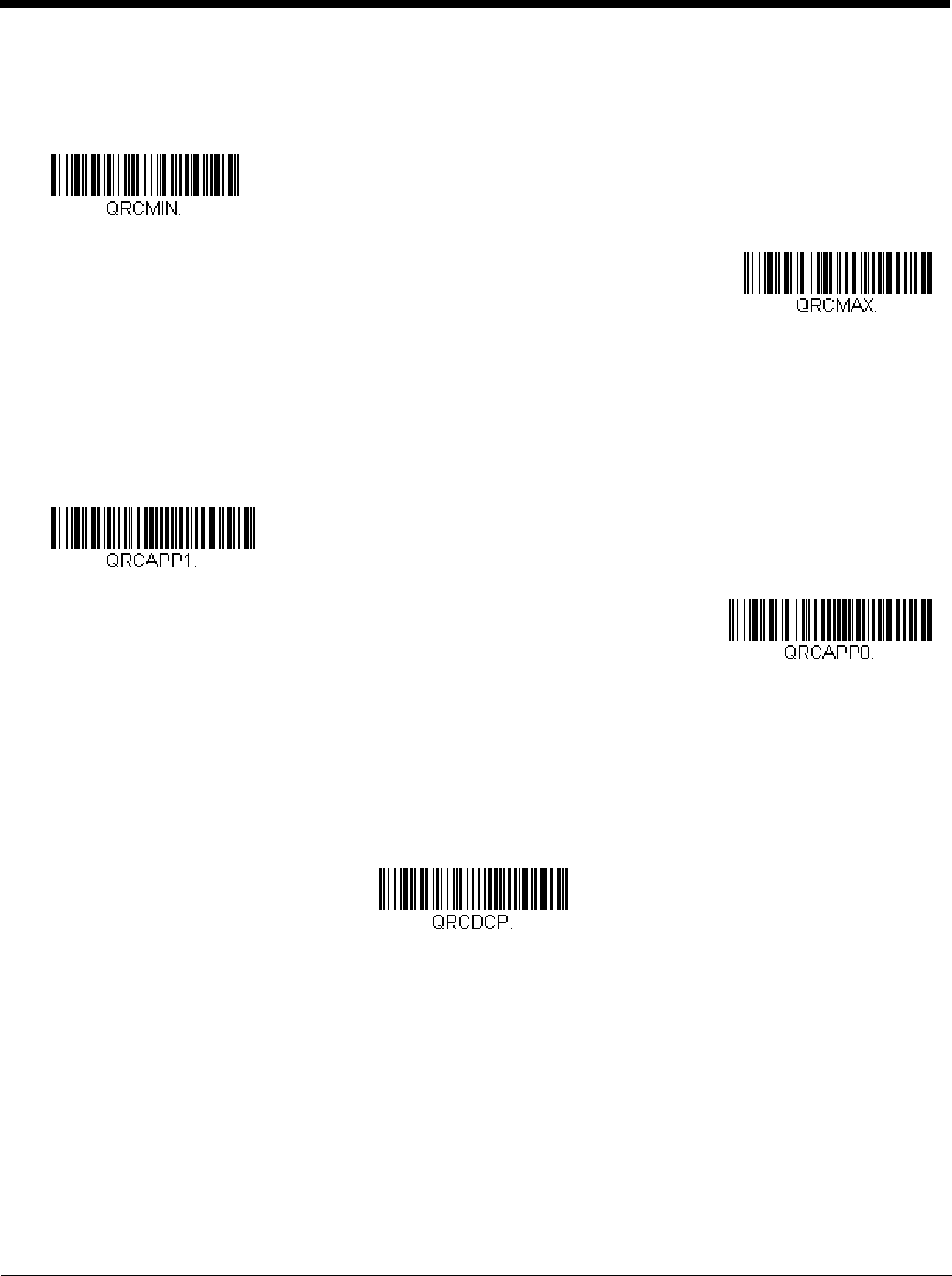

QR Code Message Length

Scan the bar codes below to change the message length. Refer to Message Length Description (page 7-1) for additional

information. Minimum and Maximum lengths = 1-7089. Minimum Default = 1, Maximum Default = 7089.

QR Code Append

This function allows the scanner to append the data from several QR Code bar codes together before transmitting them to

the host computer. When the scanner encounters an QR Code bar code with the append trigger character(s), it buffers the

number of QR Code bar codes determined by information encoded in those bar codes. Once the proper number of codes

is reached, the data is output in the order specified in the bar codes. Default = On.

QR Code Page

QR Code pages define the mapping of character codes to characters. If the data received does not display with the proper

characters, it may be because the bar code being scanned was created using a code page that is different from the one the

host program is expecting. If this is the case, scan the bar code below, select the code page with which the bar codes were

created (see ISO 2022/ISO 646 Character Replacements on page A-7), and scan the value and the Save bar code from

the Programming Chart on the inside the back cover of this manual. The data characters should then appear properly.

Minimum Message Length

Maximum Message Length

* On

Off

QR Code Page

7 - 37

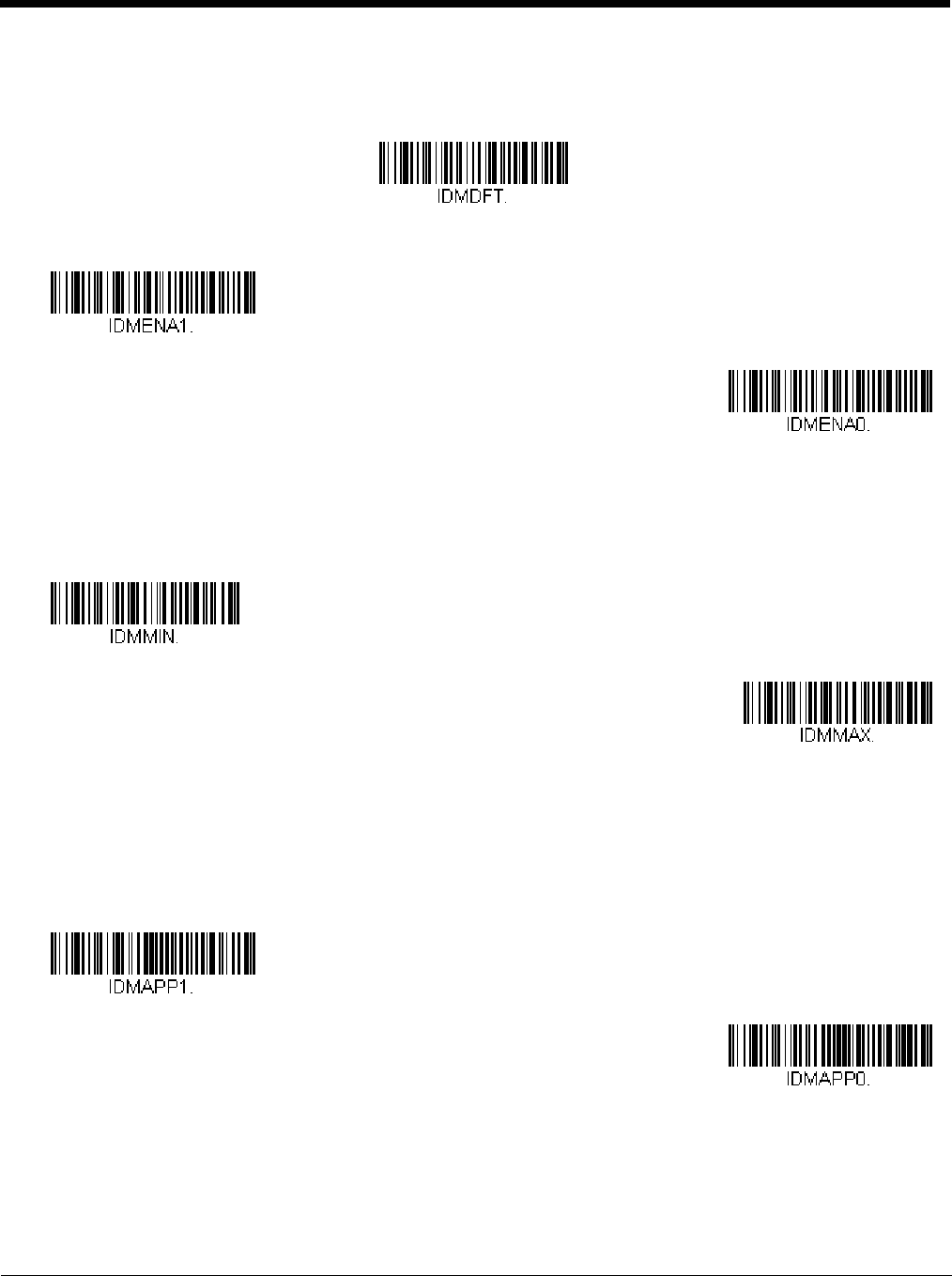

Data Matrix

< Default All Data Matrix Settings >

Data Matrix On/Off

Data Matrix Message Length

Scan the bar codes below to change the message length. Refer to Message Length Description (page 7-1) for additional

information. Minimum and Maximum lengths = 1-3116. Minimum Default = 1, Maximum Default = 3116.

Data Matrix Append

This function allows the scanner to append the data from several Data Matrix bar codes together before transmitting them

to the host computer. When the scanner encounters an Data Matrix bar code with the append trigger character(s), it buf-

fers the number of Data Matrix bar codes determined by information encoded in those bar codes. Once the proper number

of codes is reached, the data is output in the order specified in the bar codes. Default = On.

Data Matrix Code Page

Data Matrix Code pages define the mapping of character codes to characters. If the data received does not display with the

proper characters, it may be because the bar code being scanned was created using a code page that is different from the

one the host program is expecting. If this is the case, scan the bar code below, select the code page with which the bar

* On

Off

Minimum Message Length

Maximum Message Length

* On

Off

7 - 38

codes were created (see ISO 2022/ISO 646 Character Replacements on page A-7), and scan the value and the Save bar

code from the Programming Chart on the inside the back cover of this manual. The data characters should then appear

properly.

MaxiCode

< Default All MaxiCode Settings >

MaxiCode On/Off

MaxiCode Message Length

Scan the bar codes below to change the message length. Refer to Message Length Description (page 7-1) for additional

information. Minimum and Maximum lengths = 1-150. Minimum Default = 1, Maximum Default = 150.

Data Matrix Code Page

* Off

Minimum Message Length

Maximum Message Length

7 - 39

Aztec Code

< Default All Aztec Code Settings >

Aztec Code On/Off

Aztec Code Message Length

Scan the bar codes below to change the message length. Refer to Message Length Description (page 7-1) for additional

information. Minimum and Maximum lengths = 1-3832. Minimum Default = 1, Maximum Default = 3832.

Aztec Append

This function allows the scanner to append the data from several Aztec bar codes together before transmitting them to the

host computer. When the scanner encounters an Aztec bar code with the append trigger character(s), it buffers the number

of Aztec bar codes determined by information encoded in those bar codes. Once the proper number of codes is reached,

the data is output in the order specified in the bar codes. Default = On.

Aztec Code Page

Aztec Code pages define the mapping of character codes to characters. If the data received does not display with the

proper characters, it may be because the bar code being scanned was created using a code page that is different from the

one the host program is expecting. If this is the case, scan the bar code below, select the code page with which the bar

* On

Off

Minimum Message Length

Maximum Message Length

* On

Off

7 - 40

codes were created (see ISO 2022/ISO 646 Character Replacements on page A-7), and scan the value and the Save bar

code from the Programming Chart on the inside the back cover of this manual. The data characters should then appear

properly.

Chinese Sensible (Han Xin) Code

< Default All Han Xin Settings >

Han Xin Code On/Off

Han Xin Code Message Length

Scan the bar codes below to change the message length. Refer to Message Length Description (page 7-1) for additional

information. Minimum and Maximum lengths = 1-7833. Minimum Default = 1, Maximum Default = 7833.

Aztec Code Page

* Off

Minimum Message Length

Maximum Message Length

7 - 41

Postal Codes - 2D

The following lists the possible 2D postal codes, and 2D postal code combinations that are allowed. Only one 2D postal code

selection can be active at a time. If you scan a second 2D postal code selection, the first selection is overwritten. Default = 2D

Postal Codes Off.

Single 2D Postal Codes:

* 2D Postal Codes Off

Australian Post On

British Post On

Canadian Post On

Intelligent Mail Bar Code On

Japanese Post On

KIX Post On

Planet Code On

Also see Planet Code

Check Digit, page 7-44.

Postal-4i On

7 - 42

Combination 2D Postal Codes:

Postnet On

Also see Postnet Check

Digit, page 7-44.

Postnet with B and B’ Fields On

InfoMail On

InfoMail and British

Post On

Intelligent Mail Bar Code and

Postnet with B and B’ Fields On

Postnet and

Postal-4i On

Postnet and

Intelligent Mail Bar Code On

Postal-4i and

Intelligent Mail Bar Code On

Postal-4i and

Postnet with B and B’ Fields On

Planet Code and

Postnet On

7 - 43

Planet Code and

Postnet with B and B’ Fields On

Planet Code and

Postal-4i On

Planet Code and

Intelligent Mail Bar Code On

Planet Code,

Postnet, and

Postal-4i On

Planet Code,

Postnet, and

Intelligent Mail Bar Code On

Planet Code,

Postal-4i, and

Intelligent Mail Bar Code On

Postnet,

Postal-4i, and

Intelligent Mail Bar Code On

Planet Code,

Postal-4i, and

Postnet with B and B’ Fields On

Planet Code,

Intelligent Mail Bar Code, and

Postnet with B and B’ Fields On

Postal-4i,

Intelligent Mail Bar Code, and

Postnet with B and B’ Fields On

7 - 44

Planet Code Check Digit

This selection allows you to specify whether the check digit should be transmitted at the end of Planet Code data. Default

= Don’t Transmit.

Postnet Check Digit

This selection allows you to specify whether the check digit should be transmitted at the end of Postnet data. Default =

Don’t Transmit.

Australian Post Interpretation

This option controls what interpretation is applied to customer fields in Australian 4-State symbols.

Bar Output lists the bar patterns in “0123” format.

Numeric N Table causes that field to be interpreted as numeric data using the N Table.

Alphanumeric C Table causes the field to be interpreted as alphanumeric data using the C Table. Refer to the Australian

Post Specification Tables.

Planet Code,

Postal-4i,

Intelligent Mail Bar Code, and

Postnet On

Planet Code,

Postal-4i,

Intelligent Mail Bar Code, and

Postnet with B and B’ Fields On

Transmit Check Digit

* Don’t Transmit Check Digit

Transmit Check Digit

* Don’t Transmit Check Digit

7 - 45

Combination C and N Tables causes the field to be interpreted using either the C or N Tables.

Postal Codes - Linear

The following lists linear postal codes. Any combination of linear postal code selections can be active at a time.

China Post (Hong Kong 2 of 5)

China Post (Hong Kong 2 of 5) On/Off

China Post (Hong Kong 2 of 5) Message Length

Scan the bar codes below to change the message length. Refer to Message Length Description (page 7-1) for addi-

tional information. Minimum and Maximum lengths = 2-80. Minimum Default = 4, Maximum Default = 80.

* Bar Output

Numeric N Table

Alphanumeric C Table

Combination C and N Tables

* Off

Minimum Message Length

7 - 46

Korea Post

Korea Post

Korea Post Message Length

Scan the bar codes below to change the message length. Refer to Message Length Description (page 7-1) for addi-

tional information. Minimum and Maximum lengths = 2-80. Minimum Default = 4, Maximum Default = 48.

Korea Post Check Digit

This selection allows you to specify whether the check digit should be transmitted. Default = Don’t Transmit.

Maximum Message Length

* Off

Minimum Message Length

Maximum Message Length

Transmit Check Digit

* Don’t Transmit Check Digit

8 - 1

Interface Keys

Keyboard Function Relationships

The following Keyboard Function Code, Hex/ASCII Value, and Full ASCII “CTRL”+ relationships apply to all terminals that can

be used with the scanner. Refer to page 2-17 enable Control + X (Control + ASCII) Mode.

The last five characters in the Full ASCII “CTRL”+ column ( [ \ ] 6 - ), apply to US only. The following chart indicates the equiva-

lents of these five characters for different countries.

Function Code HEX/ASCII Value Full ASCII (CTRL + X Mode)

NUL 00 @

SOH 01 A

STX 02 B

ETX 03 C

EOT 04 D

ENQ 05 E

ACK 06 F

BEL 07 G

BS 08 H

HT 09 I

LF 0A J

VT 0B K

FF 0C L

CR 0D M

SO 0E N

SI 0F O

DLE 10 P

DC1 11 Q

DC2 12 R

DC3 13 S

DC4 14 T

NAK 15 U

SYN 16 V

ETB 17 W

CAN 18 X

EM 19 Y

SUB 1A Z

ESC 1B [

FS 1C \

GS 1D ]

RS 1E ^

US 1F _

Country Codes

United States [\]6-

Belgium [ < ] 6 -

Scandinavia 8<96-

France ^8$6=

Germany Ã + 6 -

Italy \ + 6 -

Switzerland <. . 6 -

United Kingdom [ ¢ ] 6 -

8 - 2

Supported Interface Keys

Denmark 8 \ 9 6 -

Norway 8 \ 9 6 -

Spain [ \ ] 6 -

ASCII HEX

IBM PC/AT and

Compatibles,

USB PC

Keyboard

Apple Mac/iMac

Supported Keys

NUL 00 Reserved Reserved

SOH 01 Enter (KP) Enter/Numpad Enter

STX 02 Cap Lock CAPS

ETX 03 ALT make ALT make

EOT 04 ALT break ALT break

ENQ 05 CTRL make CNTRL make

ACK 06 CTRL break CNTRL break

BEL 07 CR/Enter RETURN

BS 08 Reserved APPLE make

HT 09 Tab TAB

LF 0A Reserved APPLE break

VT 0B Tab TAB

FF 0C Delete Del

CR 0D CR/Enter RETURN

SO 0E Insert Ins Help

SI 0F Escape ESC

DLE 10 F11 F11

DC1 11 Home Home

DC2 12 Print Prnt Scrn

DC3 13 Back Space BACKSPACE

DC4 14 Back Tab LSHIFT TAB

NAK 15 F12 F12

SYN 16 F1 F1

ETB 17 F2 F2

CAN 18 F3 F3

EM 19 F4 F4

SUB 1A F5 F5

ESC 1B F6 F6

FS 1C F7 F7

GS 1D F8 F8

RS 1E F9 F9

US 1F F10 F10

DEL 7F BACKSPACE

Country Codes

9 - 1

Utilities

To Add a Test Code I.D. Prefix to All Symbologies

This selection allows you to turn on transmission of a Code I.D. before the decoded symbology. (See the Symbology Charts,

beginning on page A-1) for the single character code that identifies each symbology.) This action first clears all current prefixes,

then programs a Code I.D. prefix for all symbologies. This is a temporary setting that will be removed when the unit is power

cycled.

Show Decoder Revision

Scan the bar code below to output the decoder revision.

Show Scan Driver Revision

Scan the bar code below to output the scan driver revision. The scan driver controls image capture.

Show Software Revision

Scan the bar code below to output the current software revision, unit serial number, and other product information for both the

scanner and the base.

Show Data Format

Scan the bar code below to show current data format settings.

Add Code I.D. Prefix to

All Symbologies (Temporary)

Show Decoder Revision

Show Scan Driver Revision

Show Revision

Data Format Settings

DFMBK3?.

9 - 2

Test Menu

When you scan the Test Menu On code, then scan a programming code in this manual, the scanner displays the content of a

programming code. The programming function will still occur, but in addition, the content of that programming code is output to

the terminal.

Note: This feature should not be used during normal scanner operation.

EZConfig-Scanning Introduction

EZConfig-Scanning provides a wide range of PC-based programming functions that can be performed on a scanner connected

to your PC's COM port. EZConfig-Scanning allows you to download upgrades to the scanner's firmware, change programmed

parameters, and create and print programming bar codes. Using EZConfig-Scanning, you can even save/open the program-

ming parameters for a scanner. This saved file can be e-mailed or, if required, you can create a single bar code that contains all

the customized programming parameters and mail or fax that bar code to any location. Users in other locations can scan the

bar code to load in the customized programming.

To communicate with a scanner, EZConfig-Scanning requires that the PC have at least one available serial communication port,

or a serial port emulation using a physical USB port. If you are using the serial port and RS232 cable, an external power supply

is required. When using a USB serial port emulation, only a USB cable is required.

EZConfig-Scanning Operations

The EZConfig-Scanning software performs the following operations:

Scan Data

Scan Data allows you to scan bar codes and display the bar code data in a window. Scan Data lets you send serial

commands to the scanner and receive scanner response that can be seen in the Scan Data window. The data dis-

played in the Scan Data window can either be saved in a file or printed.

Configure

Configure displays the programming and configuration data of the scanner. The scanner's programming and configu-

ration data is grouped into different categories. Each category is displayed as a tree item under the "Configure" tree

node in the application explorer. When one of these tree nodes is clicked, the right-hand side is loaded with the

parameters' form belonging to that particular category. The "Configure" tree option has all the programming and con-

figuration parameters specified for a scanner. You can set or modify these parameters as required. You can later write

the modified settings to the scanner, or save them to a dcf file.

Installing EZConfig-Scanning from the Web

Note: EZConfig-Scanning requires .NET software. If .NET is not installed on your PC, you will be prompted to install it

during the EZConfig-Scanning installation.

1. Access the Honeywell web site at www.honeywellaidc.com.

2. Click on the Resources tab. Select Software.

3. Click on the dropdown for Select Product Number. Click on your product number.

4. Click on the listing for EZConfig-Scanning.

* Off

9 - 3

5. When prompted, select Save File, and save the files to the c:\windows\temp directory.

6. Once you have finished downloading the file, exit the web site.

7. Using Explorer, go to the c:\windows\temp file.

8. Double click on the Setup.exe file. Follow the screen prompts to install the EZConfig-Scanning program.

9. If you’ve selected the defaults during installation, you can click on Start Menu-All Programs-Honeywell-EZConfig-

Scanning.

Resetting the Factory Defaults

If you aren’t sure what programming options are in your scanner, or you’ve changed some options and want to restore the scan-

ner to factory default settings, first scan the Remove Custom Defaults bar code, then scan Activate Defaults. This resets the

scanner to the factory default settings.

Note: If using a cordless system, scanning the Activate Defaults bar code also causes both the scanner and the base or Access

Point to perform a reset and become unlinked. The scanner must be placed in its base to re-establish the link before any

setup codes are entered. If using an Access Point, the linking bar code must be scanned. See Cordless System

Operation beginning on page 3-1 for additional information.

The Menu Commands, beginning on page 10-3 list the factory default settings for each of the commands (indicated by an aster-

isk (*) on the programming pages).

This selection erases all your settings and resets the scanner to the original factory defaults. It also disables all plugins.

Remove Custom Defaults

Activate Defaults

9 - 4

10 - 1

Serial Programming Commands

The serial programming commands can be used in place of the programming bar codes. Both the serial commands and the

programming bar codes will program the scanner. For complete descriptions and examples of each serial programming com-

mand, refer to the corresponding programming bar code in this manual.

The device must be set to an RS232 interface (see page 2-1). The following commands can be sent via a PC COM port using

terminal emulation software.

Conventions

The following conventions are used for menu and query command descriptions:

parameterA label representing the actual value you should send as part of a command.

[option] An optional part of a command.

{Data} Alternatives in a command.

bold Names of menus, menu commands, buttons, dialog boxes, and windows that appear on the screen.

Menu Command Syntax

Menu commands have the following syntax (spaces have been used for clarity only):

Prefix [:Name:] Tag SubTag {Data} [, SubTag {Data}] [; Tag SubTag {Data}] […] Storage

Prefix Three ASCII characters: SYN M CR (ASCII 22,77,13).

:Name: This command is only used with cordless devices. It is used to specify whether you’re communicating with the base or

the scanner. To send information to the scanner (with the base connected to host), use :Voyager_1452g: The default

factory setting for a Voyager 1452g scanner is Voyager_1452 scanner. This setting is changed by using the BT_NAM

command, which accepts alphanumeric values. If the name is not known, a wildcard (*) can be used :*:.

Note: Since the base stores all work group settings and transfers to them to scanner once they are linked, changes are typically

done to the base and not to the scanner.

Tag A 3 character case-insensitive field that identifies the desired menu command group. For example, all RS232

configuration settings are identified with a Tag of 232.

SubTag A 3 character case-insensitive field that identifies the desired menu command within the tag group. For example, the

SubTag for the RS232 baud rate is BAD.

Data The new value for a menu setting, identified by the Tag and SubTag.

Storage A single character that specifies the storage table to which the command is applied. An exclamation point (!) performs

the command’s operation on the device’s volatile menu configuration table. A period (.) performs the command’s

operation on the device’s non-volatile menu configuration table. Use the non-volatile table only for semi-permanent

changes you want saved through a power cycle.

Query Commands

Several special characters can be used to query the device about its settings.

^What is the default value for the setting(s).

?What is the device’s current value for the setting(s).

*What is the range of possible values for the setting(s). (The device’s response uses a dash (-) to indicate a

continuous range of values. A pipe (|) separates items in a list of non-continuous values.)

:Name: Field Usage (Optional)

This command returns the query information from the scanner.

Tag Field Usage

When a query is used in place of a Tag field, the query applies to the entire set of commands available for the particular

storage table indicated by the Storage field of the command. In this case, the SubTag and Data fields should not be used

because they are ignored by the device.

10 - 2

SubTag Field Usage

When a query is used in place of a SubTag field, the query applies only to the subset of commands available that match the

Tag field. In this case, the Data field should not be used because it is ignored by the device.

Data Field Usage

When a query is used in place of the Data field, the query applies only to the specific command identified by the Tag and

SubTag fields.

Concatenation of Multiple Commands

Multiple commands can be issued within one Prefix/Storage sequence. Only the Tag, SubTag, and Data fields must be

repeated for each command in the sequence. If additional commands are to be applied to the same Tag, then the new

command sequence is separated with a comma (,) and only the SubTag and Data fields of the additional command are

issued. If the additional command requires a different Tag field, the command is separated from previous commands by a

semicolon (;).

Responses

The device responds to serial commands with one of three responses:

ACK Indicates a good command which has been processed.

ENQ Indicates an invalid Tag or SubTag command.

NAK Indicates the command was good, but the Data field entry was out of the allowable range for this Tag and SubTag

combination, e.g., an entry for a minimum message length of 100 when the field will only accept 2 characters.

When responding, the device echoes back the command sequence with the status character inserted directly before each

of the punctuation marks (the period, exclamation point, comma, or semicolon) in the command.

Examples of Query Commands

In the following examples, a bracketed notation [ ] depicts a non-displayable response.

Example: What is the range of possible values for Codabar Coding Enable?

Enter: cbrena*.

Response: CBRENA0-1[ACK]

This response indicates that Codabar Coding Enable (CBRENA) has a range of values from 0 to 1 (off and on).

Example: What is the default value for Codabar Coding Enable?

Enter: cbrena^.

Response: CBRENA1[ACK]

This response indicates that the default setting for Codabar Coding Enable (CBRENA) is 1, or on.

Example: What is the device’s current setting for Codabar Coding Enable?

Enter: cbrena?.

Response: CBRENA1[ACK]

This response indicates that the device’s Codabar Coding Enable (CBRENA) is set to 1, or on.

Example: What are the device’s settings for all Codabar selections?

Enter: cbr?.

Response: CBRENA1[ACK],

SSX0[ACK],

CK20[ACK],

CCT1[ACK],

MIN2[ACK],

MAX60[ACK],

DFT[ACK].

10 - 3

This response indicates that the device’s Codabar Coding Enable (CBRENA) is set to 1, or on;

the Start/Stop Character (SSX) is set to 0, or Don’t Transmit;

the Check Character (CK2) is set to 0, or Not Required;

concatenation (CCT) is set to 1, or Enabled;

the Minimum Message Length (MIN) is set to 2 characters;

the Maximum Message Length (MAX) is set to 60 characters;

and the Default setting (DFT) has no value.

Trigger Commands

You can activate and deactivate the scanner with serial trigger commands. First, the scanner must be put in Manual Trigger

Mode by scanning a Manual Trigger Mode bar code (page 4-5), or by sending a serial menu command for triggering (page 4-5).

Once the scanner is in serial trigger mode, the trigger is activated and deactivated by sending the following commands:

Activate: SYN T CR

Deactivate: SYN U CR

The scanner scans until a bar code has been read, until the deactivate command is sent, or until the serial time-out has been

reached (see "Read Time-Out" on page 4-7 for a description, and the serial command on page 10-11).

Resetting the Custom Defaults

If you want the custom default settings restored to your scanner, scan the Activate Custom Defaults bar code below. This

resets the scanner to the custom default settings. If there are no custom defaults, it will reset the scanner to the factory default

settings. Any settings that have not been specified through the custom defaults will be defaulted to the factory default settings.

Note: If using a cordless system, scanning this bar code also causes both the scanner and the base or Access Point to perform

a reset and become unlinked. The scanner must be placed in its base to re-establish the link. If using an Access Point,

the linking bar code must be scanned. See Cordless System Operation beginning on page 3-1 for additional information.

The charts on the following pages list the factory default settings for each of the commands (indicated by an asterisk (*) on the

programming pages).

Menu Commands

Selection Setting

* Indicates default

Serial Command

# Indicates a numeric entry

Page

Product Default Settings

Setting Custom Defaults Set Custom Defaults MNUCDP 1-7

Save Custom Defaults MNUCDS 1-7

Resetting the Custom Defaults Activate Custom Defaults DEFALT 1-7

Programming the Interface

Plug and Play Codes Keyboard Wedge:

IBM PC AT and Compatibles with CR suffix

PAP _ AT 2-1

Laptop Direct Connect with CR suffix PAPLTD 2-1

RS232 Serial Port PAP232 2-1

Plug and Play Codes:

RS485

IBM Port 5B Interface PAPP5B 2-2

IBM Port 9B HHBCR-1 Interface PAP9B1 2-2

IBM Port 17 Interface PAPP17 2-2

Activate Custom Defaults

10 - 4

IBM Port 9B HHBCR-2 Interface PAP9B2 2-2

RS485 Packet Mode On RTLPDF1 2-2

*RS485 Packet Mode Off RTLPDF0 2-2

RS485 Packet Length (20-256) *40 RTLMPS 2-3

Plug and Play Codes: IBM SurePos USB IBM SurePos Handheld PAPSPH 2-3

USB IBM SurePos Tabletop PAPSPT 2-3

Plug and Play Codes: USB USB Keyboard (PC) PAP124 2-3

USB Keyboard (Mac) PAP125 2-3

USB Japanese Keyboard (PC) TRMUSB134 2-3

USB HID PAP131 2-4

USB Serial TRMUSB130 2-4

CTS/RTS Emulation On USBCTS1 2-4

CTS/RTS Emulation Off* USBCTS0 2-4

ACK/NAK Mode On USBACK1 2-4

ACK/NAK Mode Off* USBACK0 2-4

Remote MasterMind for USB ReM Off REMIFC0 2-5

*ReM On REMIFC1 2-5

Plug and Play Codes Verifone Ruby Terminal PAPRBY 2-5

Gilbarco Terminal PAPGLB 2-5

Honeywell Bioptic Aux Port PAPBIO 2-6

Datalogic Magellan Bioptic Aux Port PAPMAG 2-6

NCR Bioptic Aux Port PAPNCR 2-6

Wincor Nixdorf Terminal PAPWNX 2-6

Wincor Nixdorf Beetle PAPBTL 2-7

Wincor Nixdorf RS232 Mode A PAPWMA 2-7

Program Keyboard

Country

*U.S.A. KBDCTY0 2-8

Albania KBDCTY35 2-8

Azeri (Cyrillic) KBDCTY81 2-8

Azeri (Latin) KBDCTY80 2-8

Belarus KBDCTY82 2-8

Belgium KBDCTY1 2-8

Bosnia KBDCTY33 2-8

Brazil KBDCTY16 2-8

Brazil (MS) KBDCTY59 2-8

Bulgaria (Cyrillic) KBDCTY52 2-8

Bulgaria (Latin) KBDCTY53 2-9

Canada (French legacy) KBDCTY54 2-9

Canada (French) KBDCTY18 2-9

Canada (Multilingual) KBDCTY55 2-9

Croatia KBDCTY32 2-9

Czech KBDCTY15 2-9

Czech (Programmers) KBDCTY40 2-9

Selection Setting

* Indicates default

Serial Command

# Indicates a numeric entry

Page

10 - 5

Czech (QWERTY) KBDCTY39 2-9

Czech (QWERTZ) KBDCTY38 2-9

Denmark KBDCTY8 2-9

Dutch (Netherlands) KBDCTY11 2-9

Estonia KBDCTY41 2-10

Faeroese KBDCTY83 2-10

Finland KBDCTY2 2-10

France KBDCTY3 2-10

Gaelic KBDCTY84 2-10

Germany KBDCTY4 2-10

Greek KBDCTY17 2-10

Greek (220 Latin) KBDCTY64 2-10

Greek (220) KBDCTY61 2-10

Greek (319 Latin) KBDCTY65 2-10

Greek (319) KBDCTY62 2-10

Greek (Latin) KBDCTY63 2-11

Greek (MS) KBDCTY66 2-11

Greek (Polytonic) KBDCTY60 2-11

Hebrew KBDCTY12 2-11

Hungarian (101 key) KBDCTY50 2-11

Hungary KBDCTY19 2-11

Iceland KBDCTY75 2-11

Irish KBDCTY73 2-11

Italian (142) KBDCTY56 2-11

Italy KBDCTY5 2-11

Japan ASCII KBDCTY28 2-11

Kazakh KBDCTY78 2-12

Kyrgyz (Cyrillic) KBDCTY79 2-12

Latin America KBDCTY14 2-12

Latvia KBDCTY42 2-12

Latvia (QWERTY) KBDCTY43 2-12

Lithuania KBDCTY44 2-12

Lithuania (IBM) KBDCTY45 2-12

Macedonia KBDCTY34 2-12

Malta KBDCTY74 2-12

Mongolian (Cyrillic) KBDCTY86 2-12

Norway KBDCTY9 2-12

Poland KBDCTY20 2-13

Polish (214) KBDCTY57 2-13

Polish (Programmers) KBDCTY58 2-13

Portugal KBDCTY13 2-13

Romania KBDCTY25 2-13

Russia KBDCTY26 2-13

Selection Setting

* Indicates default

Serial Command

# Indicates a numeric entry

Page

10 - 6

Russian (MS) KBDCTY67 2-13

Russian (Typewriter) KBDCTY68 2-13

SCS KBDCTY21 2-13

Serbia (Cyrillic) KBDCTY37 2-13

Serbia (Latin) KBDCTY36 2-13

Slovakia KBDCTY22 2-14

Slovakia (QWERTY) KBDCTY49 2-14

Slovakia (QWERTZ) KBDCTY48 2-14

Slovenia KBDCTY31 2-14

Spain KBDCTY10 2-14

Spanish variation KBDCTY51 2-14

Sweden KBDCTY23 2-14

Switzerland (French) KBDCTY29 2-14

Switzerland (German) KBDCTY6 2-14

Tatar KBDCTY85 2-14

Turkey F KBDCTY27 2-14

Turkey Q KBDCTY24 2-15

Ukrainian KBDCTY76 2-15

United Kingdom KBDCTY7 2-15

United Stated (Dvorak right) KBDCTY89 2-15

United States (Dvorak left) KBDCTY88 2-15

United States (Dvorak) KBDCTY87 2-15

United States (International) KBDCTY30 2-15

Uzbek (Cyrillic) KBDCTY77 2-15

Keyboard Conversion *Keyboard Conversion Off KBDCNV0 2-16

Convert all Characters to Upper Case KBDCNV1 2-16

Convert all Characters to Lower Case KBDCNV1 2-16

Keyboard Style *Regular KBDSTY0 2-15

Caps Lock KBDSTY1 2-15

Shift Lock KBDSTY2 2-16

Automatic Caps Lock KBDSTY6 2-16

Emulate External

Keyboard

KBDSTY5 2-16

Control Character Output *Control Character Output Off KBDNPE0 2-17

*Control Character Output On KBDNPE1 2-17

Keyboard Modifiers *Control + ASCII Off KBDCAS0 2-17

DOS Mode Control + ASCII KBDCAS1 2-17

Windows Mode Control + ASCII KBDCAS2 2-17

Windows Mode Prefix/Suffix Off KBDCAS3 2-17

*Turbo Mode Off KBDTMD0 2-18

Selection Setting

* Indicates default

Serial Command

# Indicates a numeric entry

Page

10 - 7

Turbo Mode On KBDTMD1 2-18

*Numeric Keypad Off KBDNPS0 2-18

Numeric Keypad On KBDNPS1 2-18

*Auto Direct Connect Off KBDADC0 2-18

Auto Direct Connect On KBDADC1 2-18

Baud Rate 300 BPS 232BAD0 2-18

600 BPS 232BAD1 2-18

1200 BPS 232BAD2 2-19

2400 BPS 232BAD3 2-19

4800 BPS 232BAD4 2-19

*9600 BPS 232BAD5 2-19

19200 BPS 232BAD6 2-19

38400 BPS 232BAD7 2-19

57600 BPS 232BAD8 2-19

115200 BPS 232BAD9 2-19

Word Length: Data Bits, Stop Bits,

and Parity

7 Data, 1 Stop, Parity Even 232WRD3 2-19

7 Data, 1 Stop, Parity None 232WRD0 2-20

7 Data, 1 Stop, Parity Odd 232WRD6 2-20

7 Data, 2 Stop, Parity Even 232WRD4 2-20

7 Data, 2 Stop, Parity None 232WRD1 2-20

7 Data, 2 Stop, Parity Odd 232WRD7 2-20

8 Data, 1 Stop, Parity Even 232WRD5 2-20

*8 Data, 1 Stop, Parity None 232WRD2 2-20

8 Data, 1 Stop, Parity Odd 232WRD8 2-20

RS232 Receiver Time-out Range 0 - 300 seconds 232LPT### 2-20

RS232 Handshaking *RTS/CTS Off 232CTS0 2-21

Flow Control, No Timeout 232CTS1 2-21

Two-Direction Flow Control 232CTS2 2-21

Flow Control with Timeout 232CTS3 2-21

RS232 Timeout 232DEL#### 2-21

*XON/XOFF Off 232XON0 2-21

XON/XOFF On 232XON1 2-21

*ACK/NAK Off 232ACK0 2-22

ACK/NAK On 232ACK1 2-22

Scanner-Bioptic Packet Mode *Packet Mode Off 232PKT0 2-22

Packet Mode On 232PKT2 2-22

Scanner-Bioptic ACK/NAK Mode *Bioptic ACK/NAK Off 232NAK0 2-22

Bioptic ACK/NAK On 232NAK1 2-22

Scanner-Bioptic ACK/NAK Timeout ACK/NAK Timeout

*5100

232DLK##### 2-23

Selection Setting

* Indicates default

Serial Command

# Indicates a numeric entry

Page

10 - 8

Cordless System Operation

Note: This section applies only to cordless systems. It does not apply to corded scanners.

Base Power Communication

Indicator

*On :*:BASRED1 3-5

Off :*:BASRED0 3-5

Reset Scanner Reset Scanner RESET_ 3-6

Scanning While in Base Cradle Scanning in Cradle Off BT_SIC0 3-6

*Scanning in Cradle On BT_SIC1 3-6

Shut Down Scanner in Cradle BT_SIC2 3-6

Base Charging Modes Base Charge Off BASCHG0 3-7

*External or Interface Cable Power BASCHG1 3-7

External Power Only BASCHG2 3-7

Paging Mode *On BEPPGE1 3-7

Off BEPPGE0 3-7

Paging Pitch Low (*1000 Hz) BEPPFQ1000 3-7

Medium (3250 Hz) BEPPFQ3250 3-8

High (4200) BEPPFQ4200 3-8

Beeper Pitch - Base Error *Razz (250) (min 200Hz) BASFQ2250 3-8

Medium (3250) BASFQ23250 3-8

High (4200) (max 9000Hz) BASFQ24200 3-8

Number of Beeps - Base Error *1 BASERR3 3-8

Range 1 - 9 BASERR# 3-8

Scanner Report Scanner Report RPTSCN 3-8

Scanner Address Scanner Address BT_LDA 3-9

Base Address Base Address :*:BASLDA 3-9

Scanner Modes Charge Only Mode :*:BASLNK0 3-9

*Charge and Link Mode :*:BASLNK1 3-9

Locked Link Mode BASCON0,DNG1 3-10

*Open Link Mode BASCON1,DNG1 3-10

Unlink Scanner BT_RMV 3-10

Override Locked Scanner BT_RPL1 3-10

Out-of-Range Alarm Base Alarm Duration (Range 1 - 3000 sec

(*0))

BASORD 3-11

Scanner Alarm Duration (Range 1 - 3000

sec (*0))

BT_ORD 3-11

Alarm Sound Type Base Alarm Type BASORW 3-11

Scanner Alarm Type BT_ORW 3-11

Scanner Power Time-Out Timer Timer (0-7200 seconds) BT_LPT0 3-12

200 Seconds BT_LPT200 3-12

400 Seconds BT_LPT400 3-12

900 Seconds BT_LPT900 3-12

3600 Seconds BT_LPT3600 3-12

7200 Seconds BT_LPT7200 3-12

Selection Setting

* Indicates default

Serial Command

# Indicates a numeric entry

Page

10 - 9

Flexible Power Management *Full Power BT_TXP100 3-13

Medium Power BT_TXP35 3-13

Medium Low Power BT_TXP5 3-13

Low Power BT_TXP1 3-13

Batch Mode Automatic Batch Mode BATENA1 3-13

*Batch Mode Off BATENA0 3-13

Inventory Batch Mode BATENA2 3-13

Persistent Batch Mode BATENA3 3-14

Batch Mode Beep Off BATBEP0 3-14

*On BATBEP1 3-14

Batch Mode Storage *Flash Storage BATNVS1 3-14

RAM Storage BATNVS0 3-14

Batch Mode Quantity *Off BATQTY0 3-15

On BATQTY1 3-15

Quantity Codes 0 BATNUM0 3-15

*1 BATNUM1 3-16

2 BATNUM2 3-16

3 BATNUM3 3-16

4 BATNUM4 3-16

5 BATNUM5 3-16

6 BATNUM6 3-16

7 BATNUM7 3-16

8 BATNUM8 3-16

9 BATNUM9 3-16

Batch Mode Output Order *FIFO BATLIF0 3-16

LIFO BATLIF1 3-16

Total Records Total Records BATNRC 3-17

Delete Last Code Delete Last Code BATUND 3-17

Clear All Codes Clear All Codes BATCLR 3-17

Transmit Records to Host Transmit Inventory Records BAT_TX 3-17

Batch Mode Transmit Delay *Off BATDLY0 3-17

Short (ms) BATDLY250 3-17

Medium (ms) BATDLY500 3-18

Long (ms) BATDLY1000 3-18

Multiple Scanner

Operation

Multiple Scanner Operation BASCON2,DNG3 3-18

Scanner Name Name 1-7 BT_NAM##### 3-18

Reset RESET_ 3-19

Scanner Name BT_NAM 3-19

Application Work Group

Selections

*Group 0 GRPSEL0 3-19

Group 1-6 GRPSEL# 3-19

Resetting the Factory Defaults: All

Application Work Groups

Factory Default Settings:

All Work Groups

PAPDFT& 3-20

Selection Setting

* Indicates default

Serial Command

# Indicates a numeric entry

Page

10 - 10

Resetting the Custom Defaults: All

Application Work Groups

Custom Default Settings:

All Work Groups

PAP DF T 3-21

Bluetooth Connection Bluetooth HID Keyboard Connect PAPBTH 3-21

Bluetooth HID Keyboard Disconnect PAPSPP 3-23

Bluetooth Serial Port - PCs/Laptops BT_TRM0;BT_DNG5 3-23

BT Connection - PDA/Mobility Systems

Device

BT_TRM0;BT_DNG1 3-23

Bluetooth PIN Code BT_PIN 3-23

Auto Reconnect Mode *Auto Reconnect On BT_ACM1 3-24

Auto Reconnect Off BT_ACM0 3-24

Maximum Link Attempts Maximum Link Attempts BT_MLA 3-25

Relink Time-Out Relink Time-Out BT_RLT 3-25

Host Command Acknowledgment Host ACK On HSTACK1 3-27

*Host ACK Off HSTACK0 3-27

Input/Output Selections

Power Up Beeper Power Up Beeper Off - Scanner BEPPWR0 4-1

*Power Up Beeper On - Scanner BEPPWR1 4-1

Beep on BEL Character Beep on BEL On BELBEP1 4-1

*Beep on BEL Off BELBEP0 4-1

Trigger Click On BEPTRG1 4-2

*Off BEPTRG0 4-1

Beep on BEL Character Beep on BEL On BELBEP1 4-1

*Beep on BEL Off BELBEP0 4-1

Beeper - Good Read Off BEPBEP0 4-2

*On BEPBEP1 4-2

Beeper Volume - Good Read Off BEPLVL0 4-2

Low BEPLVL1 4-2

Medium BEPLVL2 4-2

*High BEPLVL3 4-2

Beeper Pitch - Good Read

(Frequency)

Low (1600) (min 400Hz) BEPFQ11600 4-2

*Medium (2400) BEPFQ12400 4-3

High (4200) (max 9000Hz) BEPFQ14200 4-3

Beeper Pitch - Error (Frequency) *Razz (250) (min 200Hz) BEPFQ2800 4-3

Medium (3250) BEPFQ23250 4-3

High (4200) (max 9000Hz) BEPFQ24200 4-3

Beeper Duration - Good Read *Normal Beep BEPBIP0 4-3

Short Beep BEPBIP1 4-3

LED - Good Read Off BEPLED0 4-3

*On BEPLED1 4-3

Number of Beeps - Error *1 BEPERR3 4-4

Range 1 - 9 BEPERR# 4-4

Number of Beeps - Good Read *1 BEPRPT1 4-4

Range 1 - 9 BEPRPT# 4-4

Selection Setting

* Indicates default

Serial Command

# Indicates a numeric entry

Page

10 - 11

Good Read Delay *No Delay DLYGRD0 4-4

Short Delay (500 ms) DLYGRD500 4-4

Medium Delay (1000 ms) DLYGRD1000 4-4

Long Delay (1500 ms) DLYGRD1500 4-4

User-Specified Good Read Delay Range 0 - 30,000 ms DLYGRD##### 4-4

Manual Trigger Mode *Manual Trigger - Normal PAPHHF 4-5

LED Illumination - Manual Trigger Low PWRNOL7 4-5

Medium PWRNOL15 4-5

Medium High PWRNOL50 4-5

*High PWRNOL150 4-5

Serial Trigger Mode Read Time-Out (range 0-300,000) *30,000 TRGSTO###### 4-5

Presentation Presentation Mode PAPPST 4-6

Idle Illumination - Presentation

Mode

Low PWRIDL7 4-6

Medium PWRIDL15 4-6

*High PWRIDL50 4-6

Presentation Sensitivity Range 0-20 (*1) TRGPMS## 4-6

Presentation Centering Window Presentation Centering On PDCWIN1 4-7

*Presentation Centering Off PDCWIN0 4-7

Left of Presentation Centering Window

(*40%)

PDCLFT### 4-8

Right of Presentation Centering Window

(*60%)

PDCRGT### 4-8
