Xenon™ 1932/Xenon™ 1932BF
CCB04-010BT/CCB05-010BT
Cordless Area-Imaging Scanner and Charge Bases
Quick Start Guide
1932-EN-QS Rev (a)
3/18
1
Note: Refer to your user’s guide for information about cleaning
your device.
Getting Started
Turn off computer’s power before connecting the scanner, then
power up the computer once the scanner is fully connected.
When the base is connected and powered up, put the scanner in
the base to establish a link. The green LED on the base flashes
to indicate the scanner’s battery or charge pack is charging.

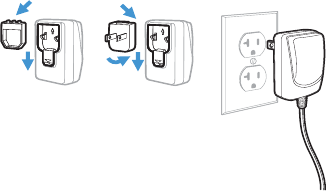

Power Supply Assembly (if included)
Note: The power supply must be ordered separately, if needed.
CCB05-010BT Base:
CCB04-010BT Base:
2

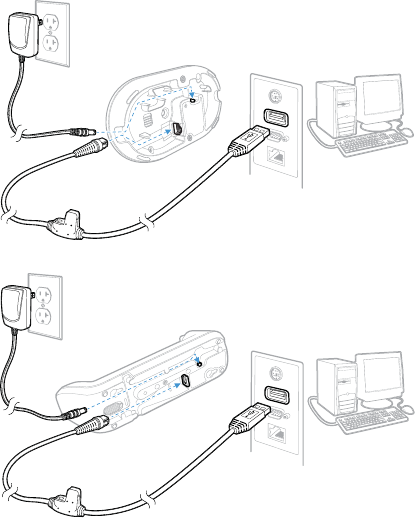

Connecting the Scanner
USB:
CCB05-010BT Base:
CCB04-010BT Base:
3

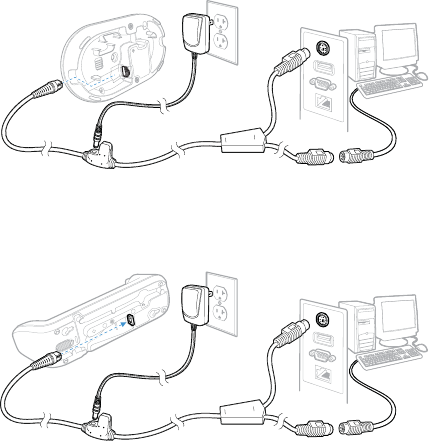

Keyboard Wedge:
CCB05-010BT Base:
CCB04-010BT Base:
4

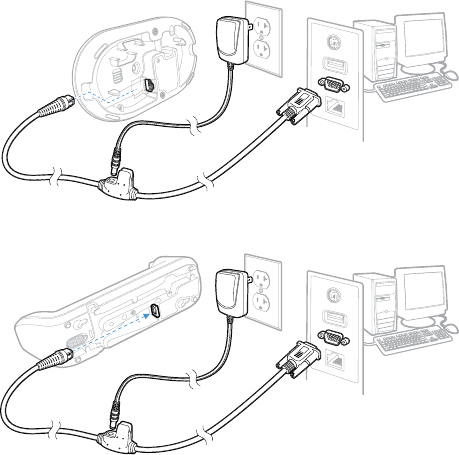

RS232 Serial Port:
CCB05-010BT Base:
CCB04-010BT Base:
5

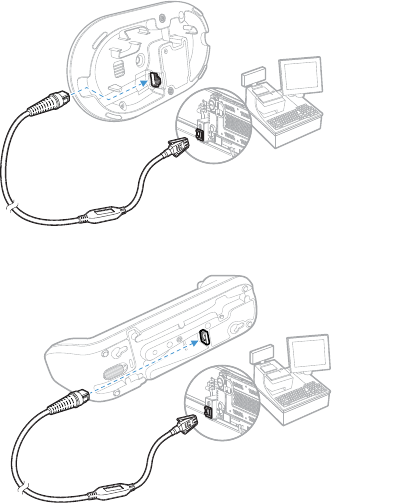

RS485:
6
Reading Techniques
The view finder projects an aiming beam that
should be centered over the bar code, but it
can be positioned in any direction for a good
read.
Standard Product Defaults
The following bar code resets all standard
product default settings.
RS485 Interface
The RS485 interface defaults to port 5B. If you have an IBM POS
terminal using port 9B, scan the appropriate code below to pro-
gram the terminal, then power cycle the cash register.
Note: For additional RS485 interface selections, see the User’s
Guide for your product.
Standard Product Defaults
IBM Port 9B HHBCR-1
Interface
IBM Port 9B HHBCR-2
Interface
7
USB Serial
Scan the following code to program the scanner to emulate a
regular RS232-based COM Port. Apple® Macintosh computers
recognize the scanner as a USB CDC class device and automati-
cally use a class driver.
Note: No extra configuration (e.g., baud rate) is necessary.
USB PC Keyboard
Scan the following code to program the scanner for a USB PC
Keyboard.
Keyboard Country
Scan the appropriate country code below to program the key-
board layout for your country or language. By default, national
character replacements are used for the following characters:
If you are using a Microsoft® Windows® PC, you must
download a driver from the Honeywell website. The
driver will use the next available COM Port number.
USB Serial
USB PC Keyboard
8
#$@[\]^‘{|}~ Refer to the ISO 646 Character Replacements chart
in your User’s Guide to view the character replacements for each
country.
USA (Default)
Belgium
Denmark
Finland
France
Germany/Austria
Great Britain
Italy
9
Note: For a complete list of country codes, see the User’s Guide
for your product.
Locked Link
If you link a scanner to a base using the Locked Link Mode,
other scanners are blocked from being linked if they are inad-
vertently placed into the base. If you do place a different scan-
ner into the base, it will charge the scanner, but the scanner will
not be linked.
To use a different scanner, you need to unlink the original scan-
ner by scanning the Unlink Scanner bar code.
Norway
Spain
Switzerland
Locked Link Mode
(Single Scanner)
10
Override Locked Scanner
If you need to replace a broken or lost scanner that is linked to a
base, scan the Override Locked Scanner bar code with a new
scanner, and place that scanner in the base. The locked link will
be overridden; the broken or lost scanner’s link with the base will
be removed, and the new scanner will be linked.
Unlinking the Scanner
If the base has a scanner linked to it, that scanner must be
unlinked before a new scanner can be linked. Once the previous
scanner is unlinked, it will no longer communicate with the
base. Scan the Unlink Scanner bar code to unlink a scanner.
Trigger
The following bar codes will allow you to use the scanner in
Manual Trigger - Normal Mode (need to press the trigger to
read) or Presentation mode (the scanner is activated when it
“sees” a bar code).
Override Locked Scanner
Unlink Scanner
Manual Trigger - Normal
(Default)
11
Streaming Presentation™
When in Streaming Presentation mode, the scanner leaves the
scan illumination on all the time and continuously searches for
bar codes.
Suffix
If you want a carriage return after the bar code, scan the Add CR
Suffix bar code. To add a tab after the bar code, scan the Add
Tab Suffix bar code. Otherwise, scan the Remove Suffix bar
code to remove the suffixes.
Presentation Mode
Streaming Presentation Mode
Add CR Suffix
Add Tab Suffix
Remove Suffix
12
Add Code ID Prefix to all Symbologies
Scan the following bar code if you wish to add a Code ID prefix to
all symbologies at once.
Note: For a complete list of Code IDs, see the User’s Guide for your
product.
Function Code Transmit
When this selection is enabled and function codes are con-
tained within the scanned data, the scanner transmits the func-
tion code to the terminal. Charts of these function codes are
provided in your User’s Guide. When the scanner is in keyboard
wedge mode, the scan code is converted to a key code before it
is transmitted.
Add Code ID Prefix To All Symbologies
(Temporary)
Enable
(Default)
Disable
13
Charge Pack Status - Xenon 1932BF only
When using a Xenon 1932BF, charge status is indicated by the
scanner’s LED when the scanner is out of the base and has been
idle for 5 seconds.
EZConfig-Scanning
To access additional features for the scanner, use EZConfig-
Scanning, an online configuration software tool, available from
our website.
Support
To search our knowledge base for a solution or to log into the
Technical Support portal and report a problem, go to
www.hsmcontactsupport.com.
User Documentation
For the user guide and other documentation, go to
www.honeywellaidc.com.
Scanner LED Scanner Beep Charge
Level
Approximate
Expected
Scans*
Yellow
3 sets of flashes
2 short beeps per
flash
30% 100
Red
3 sets of flashes
2 short beeps per
flash
10% 50
14
Limited Warranty
For warranty information, go to www.honeywellaidc.com and
click Get Resources > Product Warranty.
Patents
For patent information, see www.hsmpats.com.
Disclaimer
Honeywell International Inc. (“HII”) reserves the right to make
changes in specifications and other information contained in
this document without prior notice, and the reader should in all
cases consult HII to determine whether any such changes have
been made. The information in this publication does not repre-
sent a commitment on the part of HII.
HII shall not be liable for technical or editorial errors or omis-
sions contained herein; nor for incidental or consequential
damages resulting from the furnishing, performance, or use of
this material. HII disclaims all responsibility for the selection
and use of software and/or hardware to achieve intended
results.
This document contains proprietary information that is pro-
tected by copyright. All rights are reserved. No part of this docu-
ment may be photocopied, reproduced, or translated into
another language without the prior written consent of HII.
Copyright 2018 Honeywell International Inc. All rights
reserved.
Rev (a)
