Honeywell 51306533 51306533 User Manual Reg guide
Honeywell International Inc. 51306533 Reg guide
Contents
- 1. Reg guide
- 2. Users Guide
Reg guide
Honeywell Process Solutions 51154689
AT1 REVISIONS
FCF: OneWireless Field Device Access Point (FDAP) RF
Regulatory Compliance Guide Honeywell
FMF: IACD/Ft.W
Made by: D.S. Approval
Prints to A 51154689
Issue: 2010-11-30 SIZE Sh. No.: 1 of 25
OneWireless
Field Device Access Point (FDAP)
RF Regulatory Compliance Guide
Honeywell Process Solutions
Honeywell Process Solutions 51154689
AT1 REVISIONS
FCF: OneWireless Field Device Access Point (FDAP) RF
Regulatory Compliance Guide Honeywell
FMF: IACD/Ft.W
Made by: D.S. Approval
Prints to A 51154689
Issue: 2010-11-30 SIZE Sh. No.: 2 of 25
Revision Record
Revision
Date
Purpose/Distribution
Honeywell Process Solutions 51154689
AT1 REVISIONS
FCF: OneWireless Field Device Access Point (FDAP) RF
Regulatory Compliance Guide Honeywell
FMF: IACD/Ft.W
Made by: D.S. Approval
Prints to A 51154689
Issue: 2010-11-30 SIZE Sh. No.: 3 of 25
TABLE OF CONTENTS
1DESIGNATION, SCOPE AND PREFACE ........................................................................................... 6
1.1DESIGNATION ..................................................................................................................................... 6
1.1.1Model Numbers and Revisions : .................................................................................................. 6
1.2SCOPE ............................................................................................................................................... 6
1.3PREFACE ........................................................................................................................................... 6
1.4ABBREVIATIONS & DEFINITIONS ........................................................................................................... 7
2FEDERAL COMMUNICATION COMMISSION (FCC) ........................................................................ 8
2.1FCC COMPLIANCE STATEMENTS ......................................................................................................... 8
3INDUSTRY CANADA (IC) .................................................................................................................... 8
3.1IC COMPLIANCE STATEMENTS ............................................................................................................. 8
4RF SAFETY STATEMENT: ................................................................................................................. 9
5FCC AND INDUSTRY CANADA (IC) IDENTIFICATION NUMBERS: .............................................. 10
5.1FCC IDENTIFICATION NUMBERS: ....................................................................................................... 10
5.2INDUSTRY CANADA IDENTIFICATION NUMBERS: .................................................................................. 10
6INTENDED COUNTRY USAGE ........................................................................................................ 11
6.1NORTH AMERICA ......................................................................................................................... 11
6.2AUSTRALIA AND NEW ZEALAND ................................................................................................ 11
6.3EUROPEAN UNION ....................................................................................................................... 11
7MULTINODE GENERAL DESCRIPTION .......................................................................................... 12
7.1INTENDED USE ................................................................................................................................. 12
7.2FDAP DEVICE DIAGRAMS ................................................................................................................. 12
8PRODUCT SPECIFICATIONS ........................................................................................................... 13
8.1DIRECT SEQUENCE SPREAD SPECTRUM (DSSS) RADIO, 2.4GHZ ...................................................... 13
8.2FDAP USER ENVIRONMENT .............................................................................................................. 14
8.3FDAP POWER SPECIFICATIONS ........................................................................................................ 14
8.4ANTENNA CABLES............................................................................................................................. 15
9ANTENNA LIGHTNING ARRESTORS ............................................................................................. 15
9.1FOR USE WITH INTEGRAL OR REMOTE ANTENNA(S) ............................................................................ 15
9.2FOR USE WITH REMOTE ANTENNA(S) ................................................................................................. 15
10APPROVED ANTENNA TYPES/GAINS ........................................................................................... 16
11EQUIVALENT ISOTROPICALLY RADIATED POWER (EIRP) ........................................................ 17
12EIRP LIMITS, DSSS 2.4GHZ RADIO ................................................................................................ 18
12.1FCC, IC, ACMA .............................................................................................................................. 18
Honeywell Process Solutions 51154689
AT1 REVISIONS
FCF: OneWireless Field Device Access Point (FDAP) RF
Regulatory Compliance Guide Honeywell
FMF: IACD/Ft.W
Made by: D.S. Approval
Prints to A 51154689
Issue: 2010-11-30 SIZE Sh. No.: 4 of 25
12.2ETSI ................................................................................................................................................ 19
13SETTING POWER AND COUNTRY CODE: DSSS RADIO ............................................................. 20
14RF SAFETY, MAXIMUM PERMISSIBLE EXPOSURE (MPE) STATEMENT ................................... 21
15AGENCY COMPLIANCE ................................................................................................................... 22
15.1RADIO AND EMC CERTIFICATIONS ..................................................................................................... 22
15.1.1Federal Communication Commission (FCC)......................................................................... 22
15.1.2Industry Canada (IC) ............................................................................................................. 22
15.1.3European Telecommunications Standards Institue (ETSI) ................................................... 22
15.1.4Australian communications and media authority (ACMA) ..................................................... 22
15.2PRODUCT SAFETY AGENCY CERTIFICATIONS ..................................................................................... 23
15.2.1Canadian Standards Association (CSA) ............................................................................... 23
15.2.2Factory Mutual (FM) .............................................................................................................. 24
15.2.3European ATEX Certification (ATEX) .................................................................................... 25
15.3EUROPEAN UNION CERTIFICATION (CE-MARK) ................................................................................... 25
16REFERENCE DOCUMENTS ............................................................................................................. 25
Honeywell Process Solutions 51154689
AT1 REVISIONS
FCF: OneWireless Field Device Access Point (FDAP) RF
Regulatory Compliance Guide Honeywell
FMF: IACD/Ft.W
Made by: D.S. Approval
Prints to A 51154689
Issue: 2010-11-30 SIZE Sh. No.: 5 of 25
LIST OF FIGURES

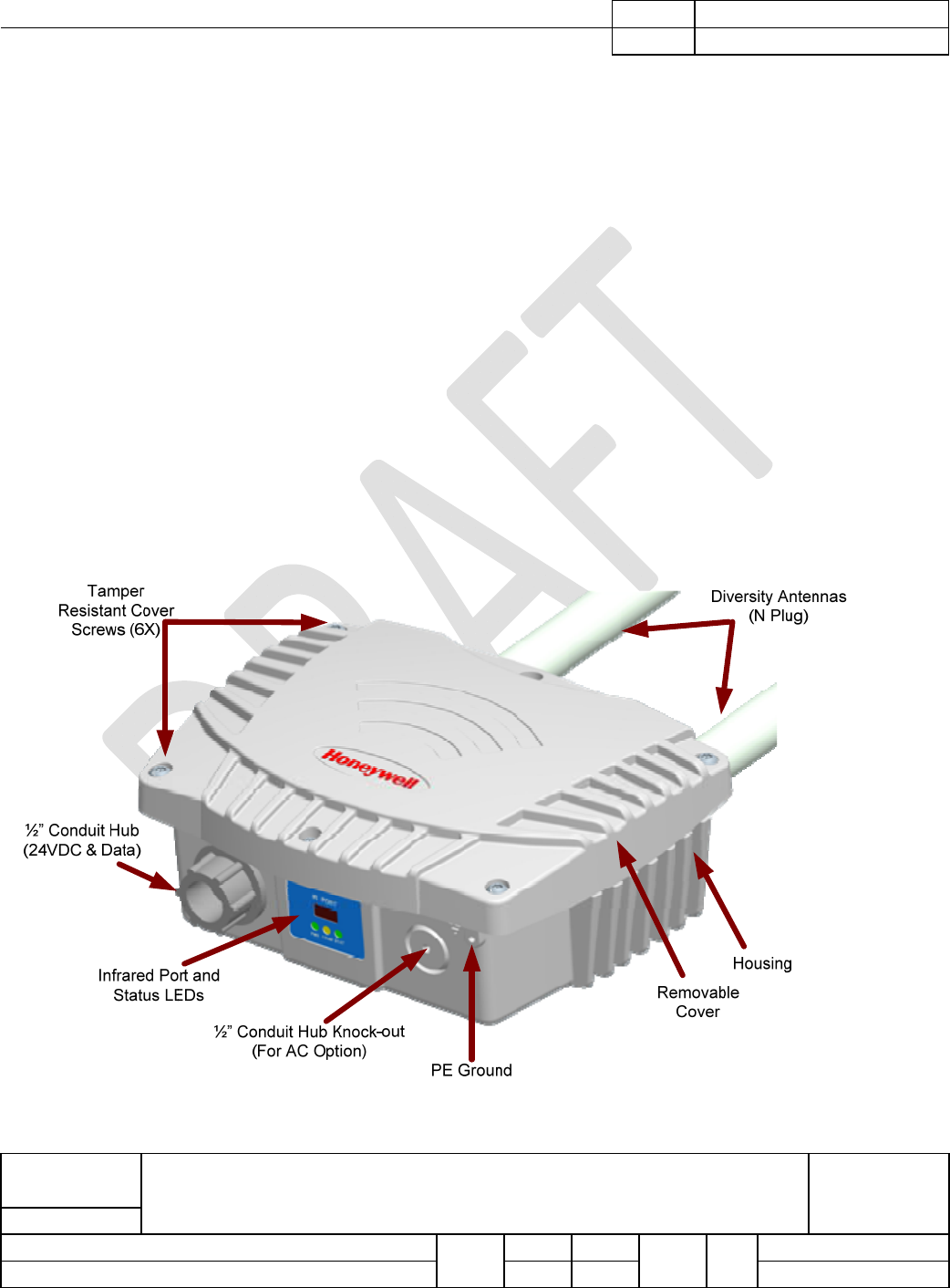

Figure 1 –Diagram of Multinode Unit showing various external attributes _____________________________ 12
Figure 2 – Dimension of the Multinode Device ___________________________ Error! Bookmark not defined.
LIST OF TABLES
Table 1 – Assembly Number and Revision ............................................................................................................. 6
Table 2 –Table of Abbreviations and Definitions .................................................................................................... 7
Table 3 – Specifications of DSSS Radio in FDAP Device. ................................................................................... 13
Table 4 – Specifications User Environment FDAP Device. .................................................................................. 14
Table 5 – Power Specifications FDAP Device. ..................................................................................................... 14
Table 6 - Antenna Cable Specifications for Multinode Device. ............................................................................. 15
Table 7 – Lightning Arrestor Specifications for Integral Antenna(s) ..................................................................... 15
Table 8 – Lightning Arrestor Specifications for Remote Antenna(s) ..................................................................... 15
Table 9 – Approved Antenna Types and Gains .................................................................................................... 16
Table 10 – EIRP Limits, DSSS 2.4GHz Radio ...................................................................................................... 18
Table 11 – EIRP Limits, DSSS 2.4GHz Radio ...................................................................................................... 19
Honeywell Process Solutions 51154689
AT1 REVISIONS
FCF: OneWireless Field Device Access Point (FDAP) RF
Regulatory Compliance Guide Honeywell
FMF: IACD/Ft.W
Made by: D.S. Approval
Prints to A 51154689
Issue: 2010-11-30 SIZE Sh. No.: 6 of 25
1 DESIGNATION, SCOPE AND PREFACE
1.1 Designation
HONEYWELL ONEWIRELESS FIELD DEVICE ACCESS POINT (FDAP).
1.1.1 Model Numbers and Revisions :
This document is valid for the following assembly number:
Model
Number Assembly # Rev. Description
FDAP1 51198665-100 A Field Device Access Point with Class 1 Div 1
certification (24VDC power input)
FDAP2 51198665-200 A Field Device Access Point with Class 1 Div 2
certification (i.e. 24VDC and 120/230V AC power
input)
Table 1 – Assembly Number and Revision
1.2 Scope
This document outlines professional installation requirements for the Honeywell Field Device
Access Point (FDAP) for the Honeywell OneWireless Network. Professional installation is
required to comply with certification agency and legal requirements. This document must be
adhered to for all installations of the Honeywell OneWireless FDAP device.
1.3 Preface
This manual covers professional installation of the optional external antennas for use with the
Honeywell OneWireless FDAP device. Since this device requires manual power limit settings
for use with the higher gain antennas, it is classified by the FCC as a professional install
device. To be in compliance with FCC requirements, the radio must be installed with one of
several approved antenna types listed in this document.
Honeywell Process Solutions 51154689
AT1 REVISIONS
FCF: OneWireless Field Device Access Point (FDAP) RF
Regulatory Compliance Guide Honeywell
FMF: IACD/Ft.W
Made by: D.S. Approval
Prints to A 51154689
Issue: 2010-11-30 SIZE Sh. No.: 7 of 25
1.4 Abbreviations & Definitions
The term Honeywell Multinode Device (or simply Multinode) will be used to describe the
composite unit which includes the Honeywell DSSS or FHSS Radio Board, 3eTI Mesh Board,
Power Supply board, and all subassemblies housed inside the Multinode enclosure.
ACMA Australian Communications and Media Authority
ATEX Potentially Explosive Atmospheres Directive
AWG American Wire Gauge
Co-located Two or more radios transmitting simultaneously and with less than
20cm of separation distance.
COTS Commercial Off-The-Shelf
CSA Canadian Standards Association
DFS Dynamic Frequency Selection
DSSS Direct Sequence Spread Spectrum
EMC Electromagnetic Compatibility
ETSI European Telecommunications Standards Institute
EU European Union
FCC Federal Communications Committee
FHSS Frequency-Hopping Spread Spectrum
FM Factory Mutual
IC Industry Canada
IEEE Institute of Electrical and Electronics Engineers
IR Infrared
IrDA Infrared Data Association
LED Light Emitting Diode
MPE Maximum Permissible Exposure
MTBF Mean Time Between Failures
NEMA National Electrical Manufacturers Association
PCB Printed Circuit Board
PCI Peripheral Components Interconnect
RAM Random Access Memory
RJ-45 Registered Jack-45
RPN Reverse Polarity N-type
SQA Supplier Quality Assurance
Wi-Fi Wireless Local Area Network based on IEEE 802.11 Specifications
WNSIA Wireless Network for Secure Industrial Application
Table 2 –Table of Abbreviations and Definitions
Honeywell Process Solutions 51154689
AT1 REVISIONS
FCF: OneWireless Field Device Access Point (FDAP) RF
Regulatory Compliance Guide Honeywell
FMF: IACD/Ft.W
Made by: D.S. Approval
Prints to A 51154689
Issue: 2010-11-30 SIZE Sh. No.: 8 of 25
2 FEDERAL COMMUNICATION COMMISSION (FCC)
2.1 FCC Compliance Statements
¾ This device complies with Part 15 of FCC Rules and Regulations. Operation is
subject to the following two conditions: (1) This device may not cause harmful
interference and (2) this device must accept any interference received, including
interference that may cause undesired operation.
¾ This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radiofrequency
energy and, if not installed and used in accordance with these instructions, may
cause harmful interference to radio communications. Operation of this equipment in
a residential area is likely to cause harmful interference in which case the user will
be required to correct the interference at his own expense.
¾ Intentional or unintentional changes or modifications must not be made to the
Multinode unless under the express consent of the party responsible for
compliance. Any such modifications could void the user’s authority to operate the
equipment and will void the manufacturer’s warranty.
3 INDUSTRY CANADA (IC)
3.1 IC Compliance Statements
¾ To reduce potential radio interference to other users, the antenna type and its gain
should be so chosen that the equivalent isotropic radiated power (EIRP) is not
more than that permitted for successful communication.
¾ Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including
interference that may cause undesired operation of the device.
¾ This Class A digital apparatus complies with Canadian ICES-003.
¾ French: Cet appareil numérique de la classe A est conforme à la norme NMB-003
du Canada.
Honeywell Process Solutions 51154689
AT1 REVISIONS
FCF: OneWireless Field Device Access Point (FDAP) RF
Regulatory Compliance Guide Honeywell
FMF: IACD/Ft.W
Made by: D.S. Approval
Prints to A 51154689
Issue: 2010-11-30 SIZE Sh. No.: 9 of 25
4 RF Safety Statement:
To comply with FCC’s and Industry Canada’s RF exposure requirements, the following
antenna installation and device operating configurations must be satisfied. .
¾ When using integral or remote antenna(s) the FDAP unit must be fixed and
mounted on outdoor permanent structures and the antennas must not be co-
located with any other antenna or transmitter device and have a separation
distance of at least 20cm from all persons.
Honeywell Process Solutions 51154689
AT1 REVISIONS
FCF: OneWireless Field Device Access Point (FDAP) RF
Regulatory Compliance Guide Honeywell
FMF: IACD/Ft.W
Made by: D.S. Approval
Prints to A 51154689
Issue: 2010-11-30 SIZE Sh. No.: 10 of 25
5 FCC and Industry Canada (IC) Identification Numbers:
5.1 FCC Identification Numbers:
• Honeywell FDAP DSSS Radio
o Limited Modular Approval
o Federal Communication Commission Identification: S57 – 51306533
5.2 Industry Canada Identification Numbers:
• Honeywell FDAP DSSS Radio
o Limited Modular Approval
o Industry Canada Identification: 573I - 51306533
Honeywell Process Solutions 51154689
AT1 REVISIONS
FCF: OneWireless Field Device Access Point (FDAP) RF
Regulatory Compliance Guide Honeywell
FMF: IACD/Ft.W
Made by: D.S. Approval
Prints to A 51154689
Issue: 2010-11-30 SIZE Sh. No.: 11 of 25
6 INTENDED COUNTRY USAGE
6.1 NORTH AMERICA
Country ISO 3166 2 letter code
UNIIITED STATES US
CANADA CA
6.2 AUSTRALIA AND NEW ZEALAND
Country ISO 3166 2 letter code
AUSTRALIA AU
NEW ZEALAND NZ
6.3 EUROPEAN UNION
Country ISO 3166
2 letter code Country ISO 3166
2 letter code
Austria AT Latvia LV
Belgium BE Liechtenstein LI
Bulgaria BG Lithuania LT
Cyprus CY Malta MT
Czech Republic CZ Netherlands NL
Denmark DK Norway NO
Estonia EE Poland PL
Finland FI Portugal PT
France FR Romania RO
Germany DE Slovakia SK
Greece GR Slovenia SI
Hungary HU Spain ES
Iceland IS Sweden SE
Ireland IE Switzerland CH
Italy IT United Kingdom BG
Honeywell Process Solutions 51154689
AT1 REVISIONS
FCF: OneWireless Field Device Access Point (FDAP) RF
Regulatory Compliance Guide Honeywell
FMF: IACD/Ft.W
Made by: D.S. Approval
Prints to A 51154689
Issue: 2010-11-30 SIZE Sh. No.: 12 of 25
7 MULTINODE GENERAL DESCRIPTION
7.1 Intended Use
The Field Device Access Point (FDAP) is a key component of the Honeywell OneWireless
system, a secure wireless network for industrial applications. It is a ruggedized industrial radio
intended for use in hazardous locations to provide wireless connectivity for wireless sensor
networks. As a wireless router, the FDAP provides connectivity between the wired DCS network
and wireless field devices. The FDAP radio uses IEEE 802.15.4 Direct Sequence Spread
Spectrum (DSSS) technology and is compliant with ISA 100.11a open-standard wireless
networking technology. The FDAP is designed to be a standalone, pole or wall mounted unit. It is
intrinsically-safe device and suitable for use in Class I, Division 1 and Zone 1 hazardous
locations.
7.2 FDAP Device Diagrams
Figure 1 shows the unit-level drawing of the FDAP Device. All cables exit the unit via a 1/2”
conduit hub. The conduit hub allows end user to land conduit on the FDAP Device. Figure 1
shows the FDAP and all of external interfaces.
Figure 1 –Diagram of FDAP Unit showing various external attributes
Honeywell Process Solutions 51154689
AT1 REVISIONS
FCF: OneWireless Field Device Access Point (FDAP) RF
Regulatory Compliance Guide Honeywell
FMF: IACD/Ft.W
Made by: D.S. Approval
Prints to A 51154689
Issue: 2010-11-30 SIZE Sh. No.: 13 of 25
8 PRODUCT SPECIFICATIONS
8.1 Direct Sequence Spread Spectrum (DSSS) Radio, 2.4GHz
Warning! The FDAP unit must be Professionally Installed in accordance with the
requirements specified in this document. See Section 12, for professional installation
maximum power setting requirements. Only the specified power settings, antenna types and
gains and cable lengths (attenuation) as outlined in this document are valid for FDAP
installations.
Table 3 – Specifications of DSSS Radio in FDAP Device.
Item Specification
Wireless Standard Direct Sequence Spread Spectrum 2.4GHz
Data Rates and Modulation Data Rate: 250kbps
Modulation: OQPSK – DSSS
Frequency Band 2,405 – 2,475MHz
Transmit Power
Maximum: 18dBm
(Maximum transmit power will vary by channel and individual country
regulations.
Receive Sensitivity
(typical) -97dBm
Honeywell Process Solutions 51154689
AT1 REVISIONS
FCF: OneWireless Field Device Access Point (FDAP) RF
Regulatory Compliance Guide Honeywell
FMF: IACD/Ft.W
Made by: D.S. Approval
Prints to A 51154689
Issue: 2010-11-30 SIZE Sh. No.: 14 of 25
8.2 FDAP User Environment
Item Specification
Operating Temperature: -40
O
C to +75
O
C
Storage Temperature: -40
O
C to +75
O
C
Operating Humidity: 0 to 100% RH
Table 4 – Specifications User Environment FDAP Device.
8.3 FDAP Power Specifications
Item Specification
DC Operating Voltage: 24VDC, +10%/-15%
AC Operating Voltage: 85 – 264VAC, 50/60Hz
Power Consumption
(typical): 2W
Table 5 – Power Specifications FDAP Device.
Honeywell Process Solutions 51154689
AT1 REVISIONS
FCF: OneWireless Field Device Access Point (FDAP) RF
Regulatory Compliance Guide Honeywell
FMF: IACD/Ft.W
Made by: D.S. Approval
Prints to A 51154689
Issue: 2010-11-30 SIZE Sh. No.: 15 of 25
8.4 Antenna Cables
Cable
Application Honeywell
Part # Cable
Type Connector
Type Frequency
(GHz) Length
(m) Loss
(dB)
DSSS, FHSS,
802.11 50018278-001 400
Series NM – NM 2.4/5.8 1 1.0 / 2.0
DSSS, FHSS,
802.11 50018278-003 400
Series NM – NM 2.4/5.8 3 1.5 / 2.5
DSSS, FHSS,
802.11 50018278-010 400
Series NM – NM 2.4/5.8 10 2.5 / 3.5
Table 6 - Antenna Cable Specifications for Multinode Device.
9 Antenna Lightning Arrestors
9.1 For use with Integral or Remote Antenna(s)
Application Honeywell
Part Number Specification Connector
Type Frequency
(GHz) Attenuation
(dB)
DSSS, FHSS,
802.11 51202359-200 50 ohm NM - NF 0 – 6 0.4 (max)
Table 7 – Lightning Arrestor Specifications for Integral Antenna(s)
9.2 For use with Remote Antenna(s)
Application Honeywell
Part Number Specification Connector
Type Frequency
(GHz) Attenuation
(dB)
DSSS, FHSS,
802.11 50018279-090 50 ohm NF to NF 0 – 3 0.4 (max)
NOTE: Depending on application needs, the “integral” arrestors may be used for remote antennas.
Table 8 – Lightning Arrestor Specifications for Remote Antenna(s)
Honeywell Process Solutions 51154689
AT1 REVISIONS
FCF: OneWireless Field Device Access Point (FDAP) RF
Regulatory Compliance Guide Honeywell
FMF: IACD/Ft.W
Made by: D.S. Approval
Prints to A 51154689
Issue: 2010-11-30 SIZE Sh. No.: 16 of 25
10 Approved Antenna Types/Gains
This radio transmitter (FCC ID: S57 – 51306533, IC: 573I - 51306533) has been approved by Industry Canada
to operate with the antenna types listed below with the maximum permissible gain and required antenna
impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater than
the maximum gain indicated for that type, are strictly prohibited for use with this device.
Antenna
Type Antenna
Application Manufacturer Manufacturer
Part Number
Honeywell Beam
Width
Peak
Gain
(dBi)
Freq.
Part Number (GHz)
Omni Point to
Multi-Point PacWireless OD24M-5 51506534-101 Omni 5 2.4
(integral)
Omni Point to
Multi-Point SMARTANT
SAA04-051000 51506534-101 Omni 5 2.4
(integral)
Omni Point to
Multi-Point SMARTANT HON04-052160 51506534-100 Omni 5 2.4
(integral)
Omni Point to
Multi-Point HUBER +
SUHNER 1324.17.0047 NA Omni 6 2.4
(integral)
Omni Point to
Multi-Point L-com HGV-2409U 50018414-001 Omni 8 2.4
(remote)
Sector Point to
Multi-Point L-com HG2414SP-120 NA 120° 14 2.4
(remote)
Patch-
RHC Point to
Multi-Point L-com HG2409PCR-NF NA 65° 8 2.4
(remote)
Patch-LHC Point to
Multi-Point L-com HG2409PCL-NF NA 65° 8 2.4
(remote)
Table 9 – Approved Antenna Types and Gains
Honeywell Process Solutions 51154689
AT1 REVISIONS
FCF: OneWireless Field Device Access Point (FDAP) RF
Regulatory Compliance Guide Honeywell
FMF: IACD/Ft.W
Made by: D.S. Approval
Prints to A 51154689
Issue: 2010-11-30 SIZE Sh. No.: 17 of 25
11 Equivalent Isotropically Radiated Power (EIRP)
In radio communication systems, Equivalent isotropically radiated power (EIRP), or
alternatively, Effective isotropic radiated power is the amount of power that would have to be
emitted by an isotropic antenna (that evenly distributes power in all directions and is a
theoretical construct) to produce the peak power density observed in the direction of
maximum antenna gain. EIRP can take into account the losses in transmission line and
connectors and includes the gain of the antenna. The EIRP is often stated in terms of
decibels over a reference power level, that would be the power emitted by an isotropic
radiator with an equivalent signal strength. The EIRP allows making comparisons between
different emitters regardless of type, size or form. From the EIRP, and with knowledge of a
real antenna's gain, it is possible to calculate real power and field strength values.
EIRP(dBm) = (Radio Power (dBm)) – (Cable Loss (dB)) + (Antenna Gain(dBi))
Antenna gain is expressed relative to a (theoretical) isotropic reference antenna (dBi).
Honeywell Process Solutions 51154689
AT1 REVISIONS
FCF: OneWireless Field Device Access Point (FDAP) RF
Regulatory Compliance Guide Honeywell
FMF: IACD/Ft.W
Made by: D.S. Approval
Prints to A 51154689
Issue: 2010-11-30 SIZE Sh. No.: 18 of 25
12 EIRP LIMITS, DSSS 2.4GHz RADIO
12.1 FCC, IC, ACMA
This radio transmitter (FCC ID: S57 – 51306533, IC: 573I - 51306533) has been approved by Industry Canada
to operate with the antenna types listed below with the maximum permissible gain and required antenna
impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater than
the maximum gain indicated for that type, are strictly prohibited for use with this device.
Antenna
Type Radio Usage /
Application Freq.
(GHz)
Max.
Ant.
Gain
(dBi)
Min.
Cable
Length
(m)
Min.
Cable
Loss
(dB)
Max. Radio
Output Power
(dBm)
Max.
EIRP
(dBm)
Agency/
Country
Omni Point to
Multi-
Point Integral 2.4 6 0 0 18 24
FCC, IC, ACMA
Omni Point to
Multi-
Point Remote 2.4 8 1 1.0 18 25
FCC, IC, ACMA
Patch Point to
Multi-
Point Remote 2.4 8 1 1.0 18 25
FCC, IC, ACMA
Sector Point to
Multi-
Point Remote 2.4 14 1 1.0 18 31
FCC, IC, ACMA
Notes:
1. The values in the above table have been determined through agency certification testing.
2. Maximum transmit power will vary by channel, data rate, and individual country regulations.
3. The following shall apply for antenna type, frequency range, application/usage and agency/country
compliance:
• Antenna gains above the maximum values shown shall not be used.
• Cable length/loss below the minimum values shown shall not be used.
• Maximum overall radio output power shown shall not be exceeded.
• Maximum EIRP values shown above shall not be exceeded.
4. Beam width, for sector and dish antenna, may range between 0 – 180degress.
5. Industry Canada Compliance Statement: This device has been designed to operate with the antenna
types listed in this document, and having a maximum gain of 14dBi. Antenna types not included in this
list or having a gain greater than 14dBi are strictly prohibited for use with this device. The required
antenna impedance is 50 ohms.
Table 10 – EIRP Limits, DSSS 2.4GHz Radio
Honeywell Process Solutions 51154689
AT1 REVISIONS
FCF: OneWireless Field Device Access Point (FDAP) RF
Regulatory Compliance Guide Honeywell
FMF: IACD/Ft.W
Made by: D.S. Approval
Prints to A 51154689
Issue: 2010-11-30 SIZE Sh. No.: 19 of 25
12.2 ETSI
Antenna
Type Radio Usage /
Application Freq.
(GHz)
Max.
Ant.
Gain
(dBi)
Min.
Cable
Length
(m)
Min.
Cable
Loss
(dB)
Max. Radio
Output Power
(dBm)
Max.
EIRP
(dBm)
Agency/
Country
Omni Point to
Multi-
Point Integral 2.4 5 0 0 3.7 8.7
ETSI5
Omni Point to
Multi-
Point Integral 2.4 6 0 0 3.2 9.2
ETSI5
Omni Point to
Multi-
Point Remote 2.4 8 10 2.5 3.7 9.2
ETSI5
Patch Point to
Multi-
Point Remote 2.4 8 10 2.5 3.7 9.2
ETSI5
Sector Point to
Multi-
Point Remote 2.4 14 10 2.5 -2.8 8.7 ETSI5
Notes:
1. The values in the above table have been determined through agency certification testing.
2. Maximum transmit power will vary by channel, data rate, and individual country regulations.
3. The following shall apply for antenna type, frequency range, application/usage and agency/country
compliance:
• Antenna gains above the maximum values shown shall not be used.
• Cable length/loss below the minimum values shown shall not be used.
• Maximum overall radio output power shown shall not be exceeded.
• Maximum EIRP values shown above shall not be exceeded.
4. Beam width, for sector and dish antenna, may range between 0 – 180degress.
5. France restricts outdoor use to 10mW (10dBm) EIRP in the frequency range of 2,454-2,483.5 MHz.
Installations in France must limit EIRP to 10dBm, for operating modes utilizing frequencies in the range
of 2,454 – 2,483.5MHz.
Table 11 – EIRP Limits, DSSS 2.4GHz Radio
Honeywell Process Solutions 51154689
AT1 REVISIONS
FCF: OneWireless Field Device Access Point (FDAP) RF
Regulatory Compliance Guide Honeywell
FMF: IACD/Ft.W
Made by: D.S. Approval
Prints to A 51154689
Issue: 2010-11-30 SIZE Sh. No.: 20 of 25
13 Setting Power and Country Code: DSSS Radio
TBD
Honeywell Process Solutions 51154689
AT1 REVISIONS
FCF: OneWireless Field Device Access Point (FDAP) RF
Regulatory Compliance Guide Honeywell
FMF: IACD/Ft.W
Made by: D.S. Approval
Prints to A 51154689
Issue: 2010-11-30 SIZE Sh. No.: 21 of 25
14 RF Safety, Maximum Permissible Exposure (MPE) statement
To comply with FCC’s and Industry Canada’s RF exposure requirements, the following
antenna installation and device operating configurations must be satisfied. .
¾ When using integral or remote antenna(s) the FDAP unit must be fixed and mounted on
outdoor permanent structures and the antennas must not be co-located with any other
antenna or transmitter device and have a separation distance of at least 20cm from all
persons.
Honeywell Process Solutions 51154689
AT1 REVISIONS
FCF: OneWireless Field Device Access Point (FDAP) RF
Regulatory Compliance Guide Honeywell
FMF: IACD/Ft.W
Made by: D.S. Approval
Prints to A 51154689
Issue: 2010-11-30 SIZE Sh. No.: 22 of 25
15 AGENCY COMPLIANCE
15.1 Radio and EMC Certifications
15.1.1 Federal Communication Commission (FCC)
¾ Specification: FCC Part 15.247 Subpart B for unintentional radiators
¾ Specification: FCC Part 15.247 Subpart C for intentional radiators
15.1.2 Industry Canada (IC)
¾ Method: RSS-210, Issue 7
¾ RSS-Gen, Issue 2
¾ ICES-003, Issue 4
15.1.3 European Telecommunications Standards Institue (ETSI)
¾ Emissions Specification and Method: EN 300 328 V1.7.1
¾ Immunity Specification: EN 301 489-17 V2.1.1
¾ Immunity Method: EN 301 489-1 V1.8.1
¾ Product Standard: IEC61326-1 (1st Edition, 2005, Industrial Locations)
15.1.4 Australian communications and media authority (ACMA)
¾ Specification: AS/NZS 4268
Honeywell Process Solutions 51154689
AT1 REVISIONS
FCF: OneWireless Field Device Access Point (FDAP) RF
Regulatory Compliance Guide Honeywell
FMF: IACD/Ft.W
Made by: D.S. Approval
Prints to A 51154689
Issue: 2010-11-30 SIZE Sh. No.: 23 of 25
15.2 Product Safety Agency Certifications
15.2.1 Canadian Standards Association (CSA)
CSA electrical equipment requirements for use within Division 2 and Zone 2 hazardous
locations.
IEC61010-1 (2nd Edition, 2001-02), "Safety Requirements for Electrical Equipment for
Measurement, Control and Laboratory Use, part 1: General Requirements
Canadian Standards Association Standard C22.2 No. 213-M1987, "Non-Incendive Electrical
Equipment for Use in Class I, Division 2 Hazardous Locations"
Canadian Standards Association Standard E60079-0:02, “Electrical Apparatus for explosive
gas atmospheres – General Requirements”
Canadian Standards Association Standard E60079-15:02, “Electrical Apparatus for explosive
gas atmospheres – Type of Protection “n””
• Temperature code: T4 (135°C) based on the maximum specified ambient of 60°C.
Honeywell Process Solutions 51154689
AT1 REVISIONS
FCF: OneWireless Field Device Access Point (FDAP) RF
Regulatory Compliance Guide Honeywell
FMF: IACD/Ft.W
Made by: D.S. Approval
Prints to A 51154689
Issue: 2010-11-30 SIZE Sh. No.: 24 of 25
15.2.2 Factory Mutual (FM)
FM electrical equipment requirements for use within Division 2 and Zone 2 hazardous
locations.
Factory Mutual Approval Standard Class No. 3600, "Electrical Equipment for Use in
Hazardous (Classified) Locations - General Requirements
Factory Mutual Approval Standard Class No. 3810, "Electrical and Electronic Test,
Measuring, and Process Control Equipment
Factory Mutual Approval Standard Class No. 3611, "Electrical Equipment for Use in Class I,
Division 2, Class II, Division 2 and Class III, Division 1 and 2 Hazardous (Classified)
Locations
ANSI/ISA 12.00.01-2002, “Electrical Apparatus for Use in Class I, Zones 0, 1 & 2 Hazardous
(Classified) Locations: General Requirements”
ANSI/ISA 12.12.02-2003, “Electrical Apparatus for explosive gas atmospheres – Type of
Protection “n””
• Temperature code: T4 (135°C) based on the maximum specified ambient of 60°C.
Honeywell Process Solutions 51154689
AT1 REVISIONS
FCF: OneWireless Field Device Access Point (FDAP) RF
Regulatory Compliance Guide Honeywell
FMF: IACD/Ft.W
Made by: D.S. Approval
Prints to A 51154689
Issue: 2010-11-30 SIZE Sh. No.: 25 of 25
15.2.3 European ATEX Certification (ATEX)
The completely assembled Multinode will conform to European electrical equipment
requirements for use within Zone 2 Hazardous Locations.
IEC 60079-0:2004-01, “Electrical Apparatus for explosive gas atmospheres – General
Requirements
IEC 60079-15:2005-03, “Electrical Apparatus for explosive gas atmospheres – Type of
Protection “n”
• Temperature code: T4 (135°C) based on the maximum specified ambient of 60°C.
15.3 European Union Certification (CE-mark)
• Compliance with:
o R&TTE Directive 1999/5/EC
o EMC Directive 2004/108/EC
o LVD Directive 73/23/EEC
o ATEX Directive 94/9/EC
16 Reference Documents
1 OneWireless Field Device Access Point User's Guide
2 Field Device Access Point Specification Release 200 EP03-640-200, August 2010
3
4
5
6
7
8
