PRODUCT CATALOG AMKT0103a

Supersedes all previous catalogs.

For fast, efficient service, contact us today at

1-800-347-2220

and look for us on the internet at

www. precisionaire.com

the filter and hvac store

Dear Customer,

As a global leader in the production of high quality air filtration prod-

ucts, Flanders Corporation continues to develop new innovations in

design, new methods of manufacturing and a higher level of cus-

tomer service to provide you, our representative and distributor, with

the most comprehensive product offering available to the filtration

industry.

The quality of air we breathe has become one of the most important

issues of the new millennium and "Indoor Air Quality" is a term that

almost everyone relates to on one level or another. At Flanders, we

are proud to offer the products presented in this catalog as a tool to

help you make a difference in providing cleaner air to your customer

and in making your business as profitable as it can be! We are dedi-

cated to your success!

The filtration industry will see phenomenal growth over the years to

come and the products in this catalog will be the basis of design for

many projects. From the simple pleated panel filter to high perform-

ance v-bed cartridge filters, from mechanical engineer to building

owner or occupant, Flanders has a product to meet the specification.

With ten manufacturing facilities in six states and sales offices

nationwide and abroad, Flanders Corporation remains poised to

meet the challenges of projects everywhere.

Thank you for choosing Flanders as your air filtration supplier.

Flanders is the name that means clean air!

Regards,

David Aaronson

Vice President of Sales-HVAC Division

the filter and hvac store

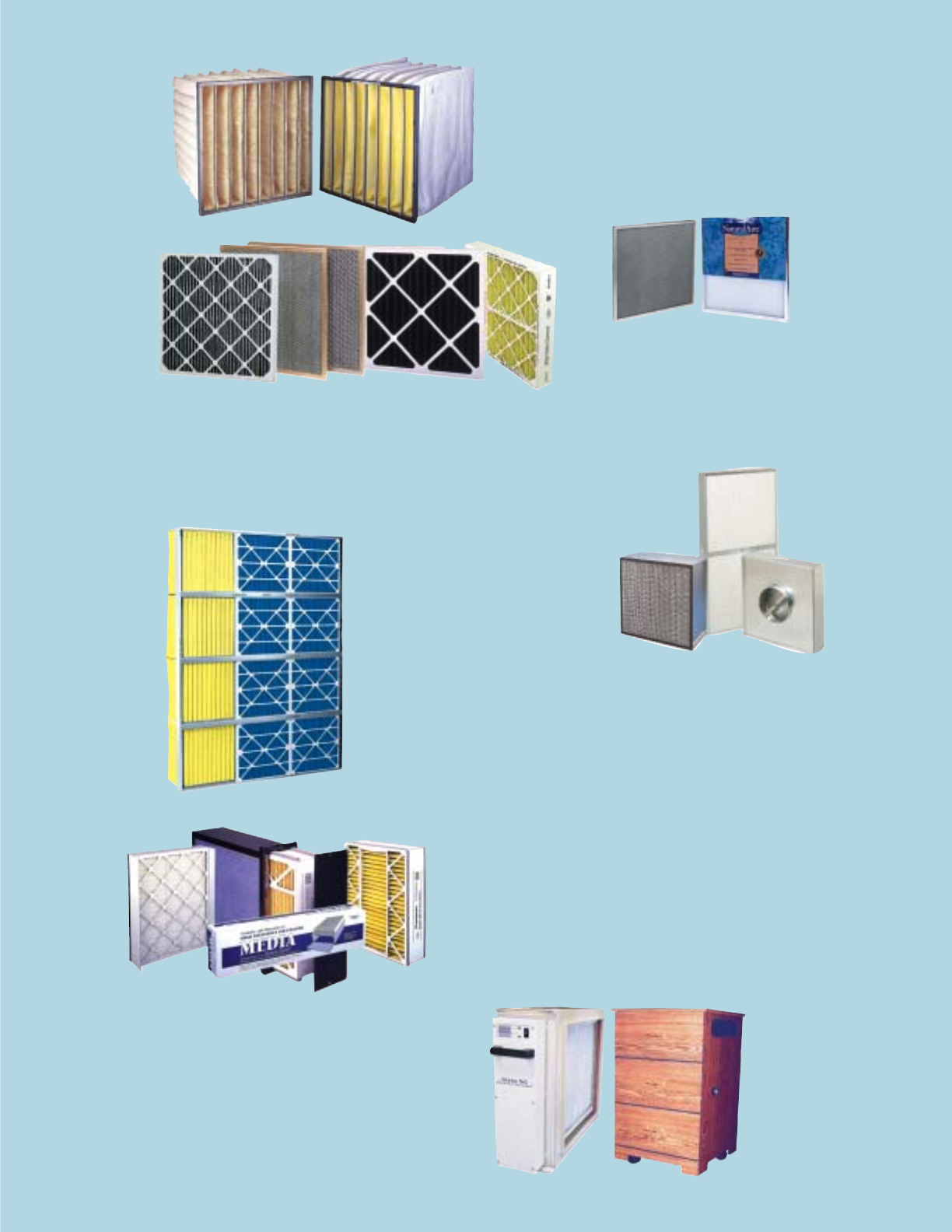

Disposable Air Filters

The widest selection of disposable

panels you will find anywhere. Spun

glass and synthetic media...all stan-

dard sizes and almost any

“special” size.

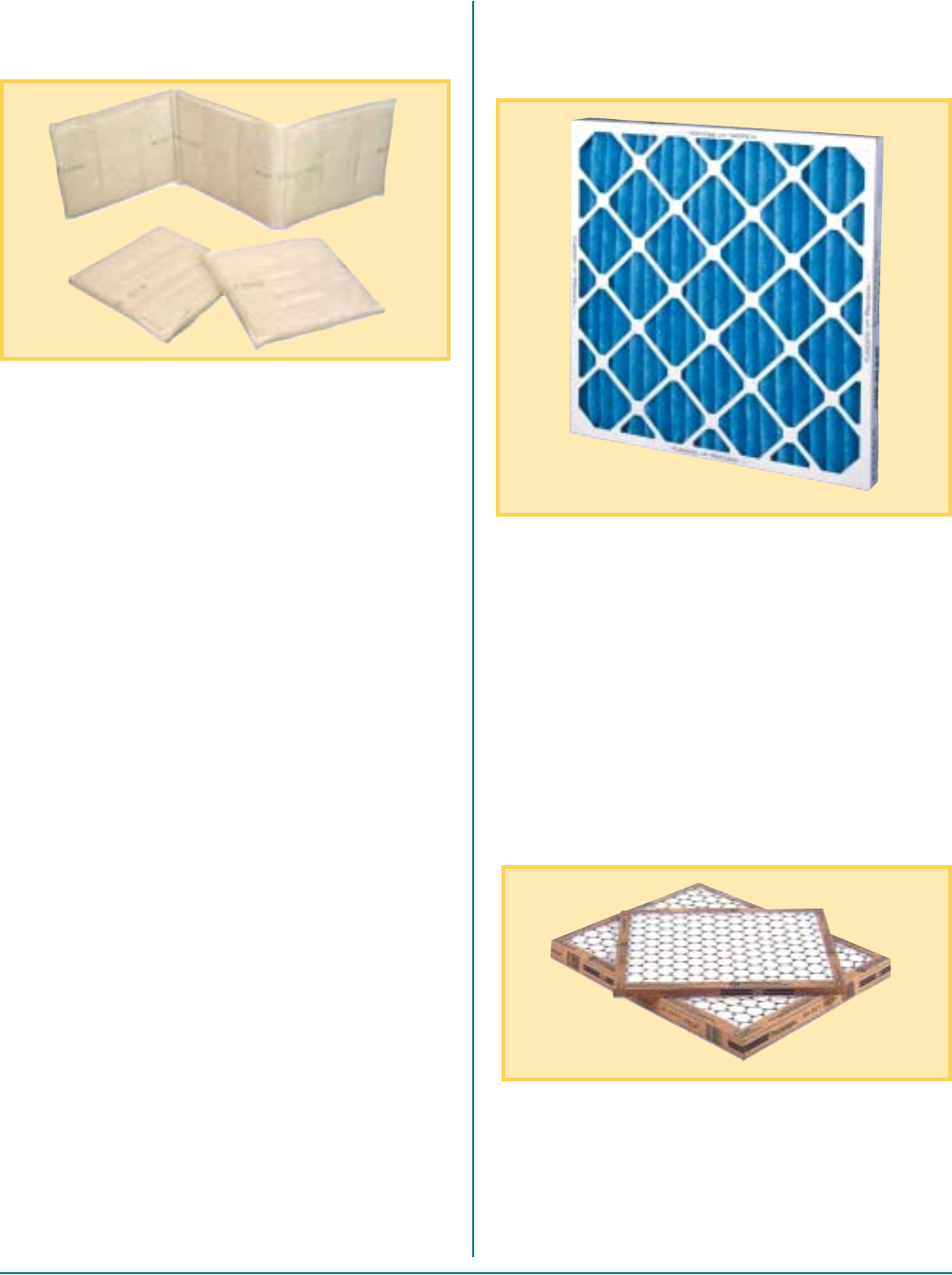

Polyester Panels, Links, Sleeves

High grade polyester synthetic fiber media in a variety of styles,

heat sealed onto heavy wire frames.

Paint Booth Products

Acomplete line of

aftermarket filter products for all

styles of paintbooth...downdraft,

cross-draft and work station.

Air Filter Media & Auto Rolls

Cut-to-fit hammock and service roll media in

a variety of styles, plus bulk rolls of spun

glass and synthetic media. Auto rolls in the

media style of your choice, wound on the

core style of your choice. Hundreds of mod-

els.

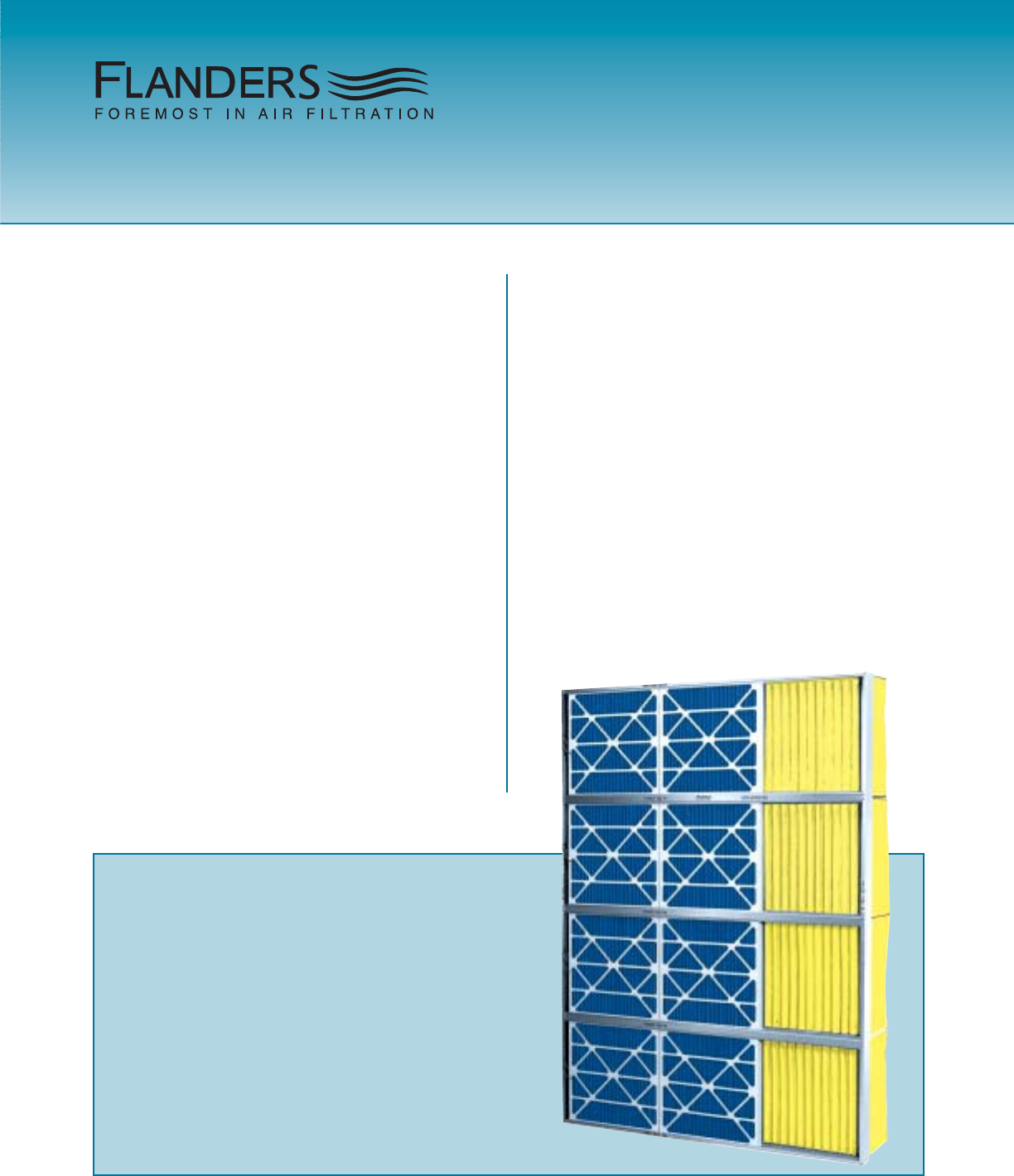

Pleated Air Filters

One of the largest inventories of

pleated panel filters you will find

anywhere. Five styles are offered

in just about any size you will

ever need.

Medium & High

Efficiency Rigid Type

Air Filters

Awide variety of styles, sizes

and efficiencies.

the filter and hvac store

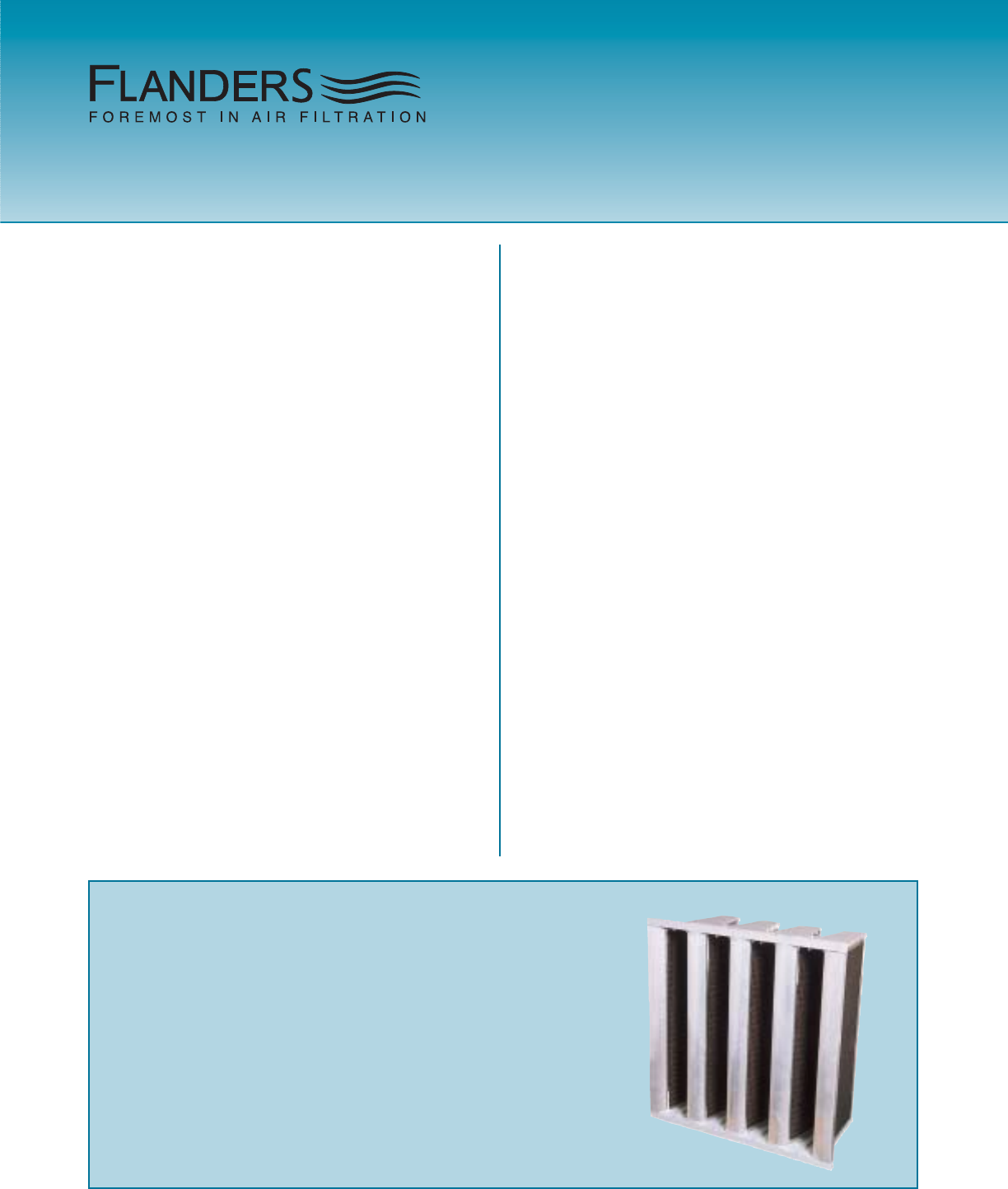

Medium & High Efficiency Extended

Surface Type Filters

Huge line of “bag” filters in all of the most popular

sizes and efficiencies, plus our new XDH bag which

holds up to twice as much dust as ordinary bags.

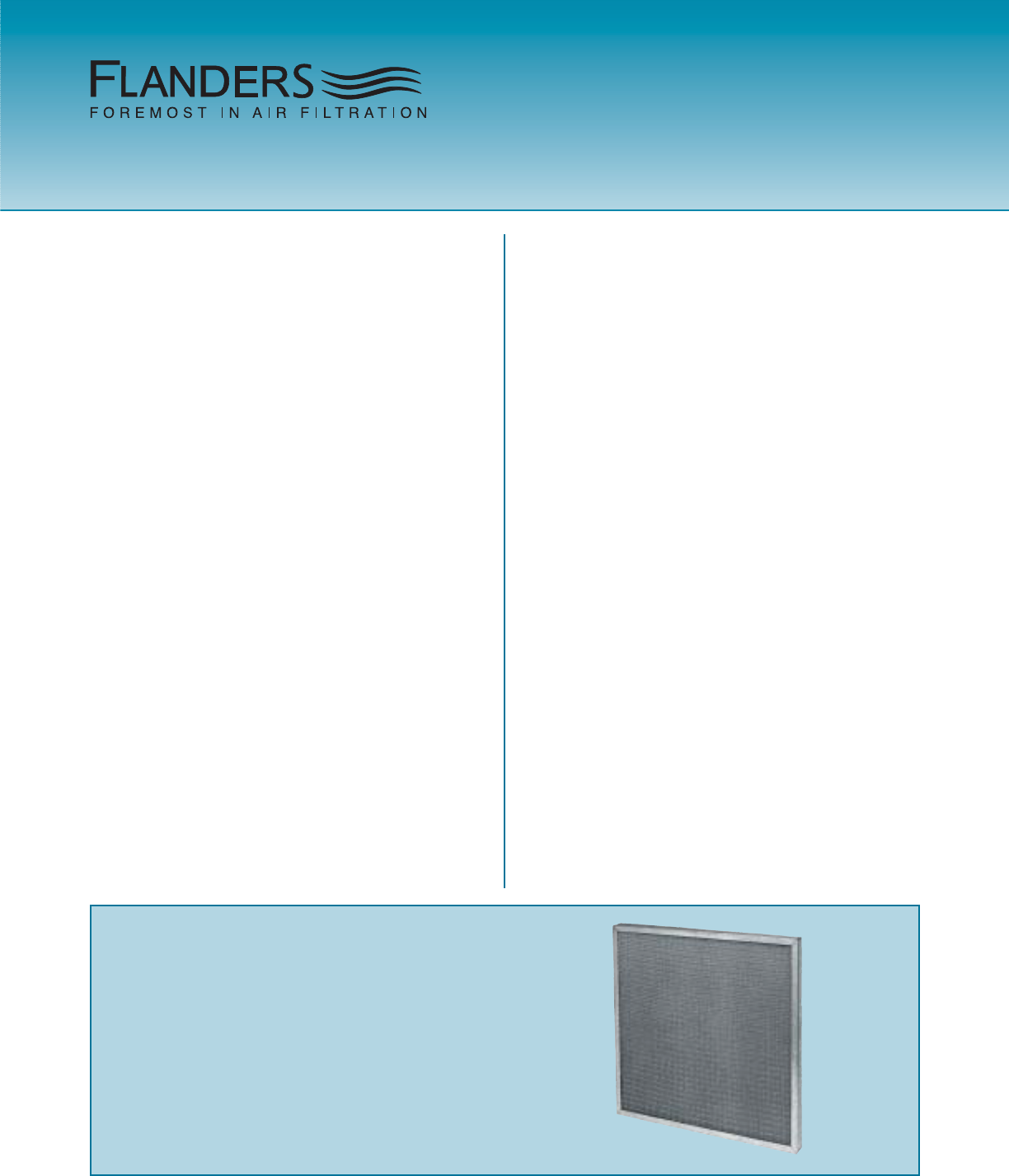

Metal Washable Filters

Rugged metal filters for a variety

of applications. Top quality

materials and workmanship.

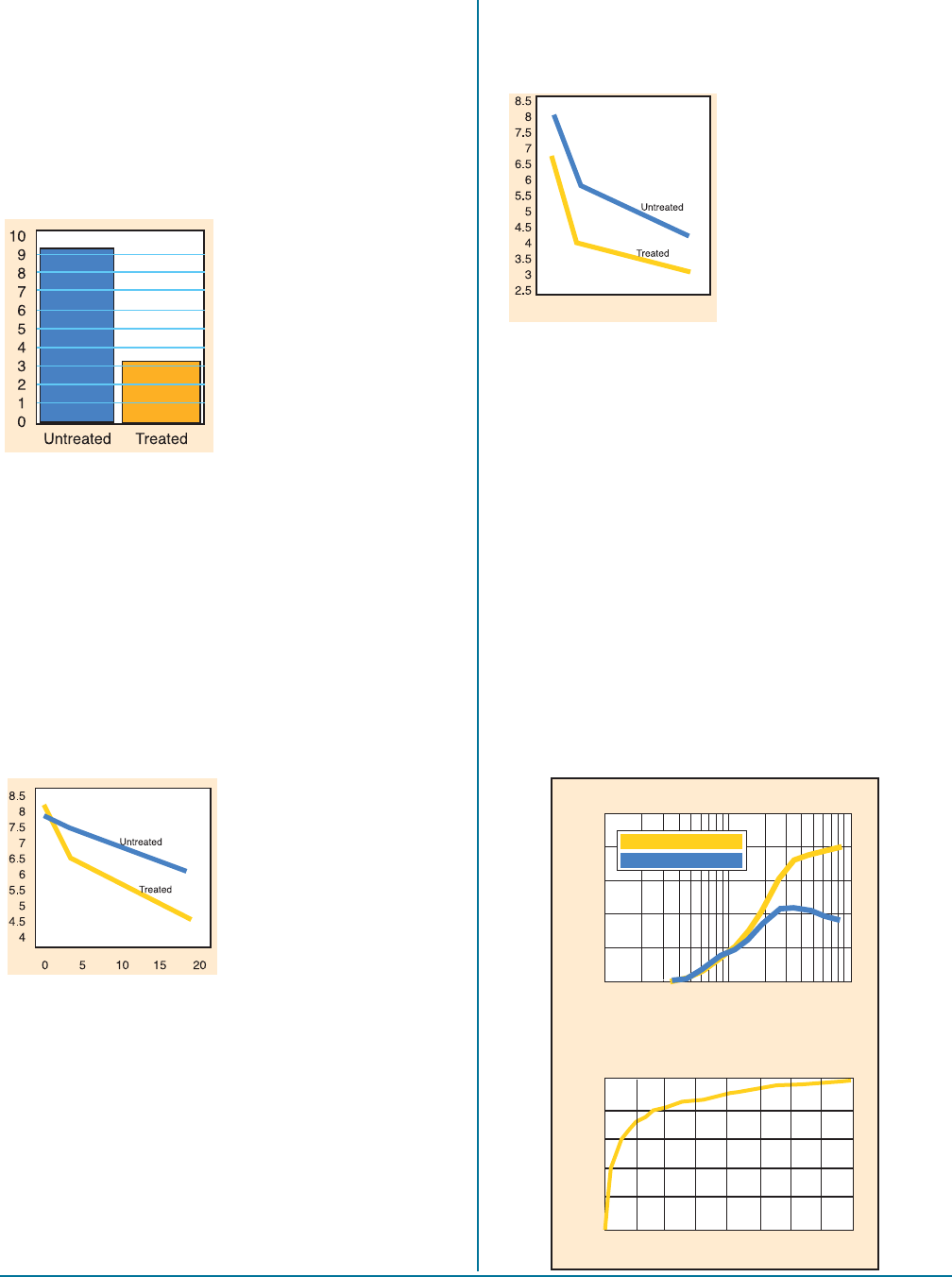

Gas Phase and Odor Control

Pleated panel filters that have been treated with special

odor adsorbing/neutralizing materials, as well as 50% &

75% fill granular carbon filters.

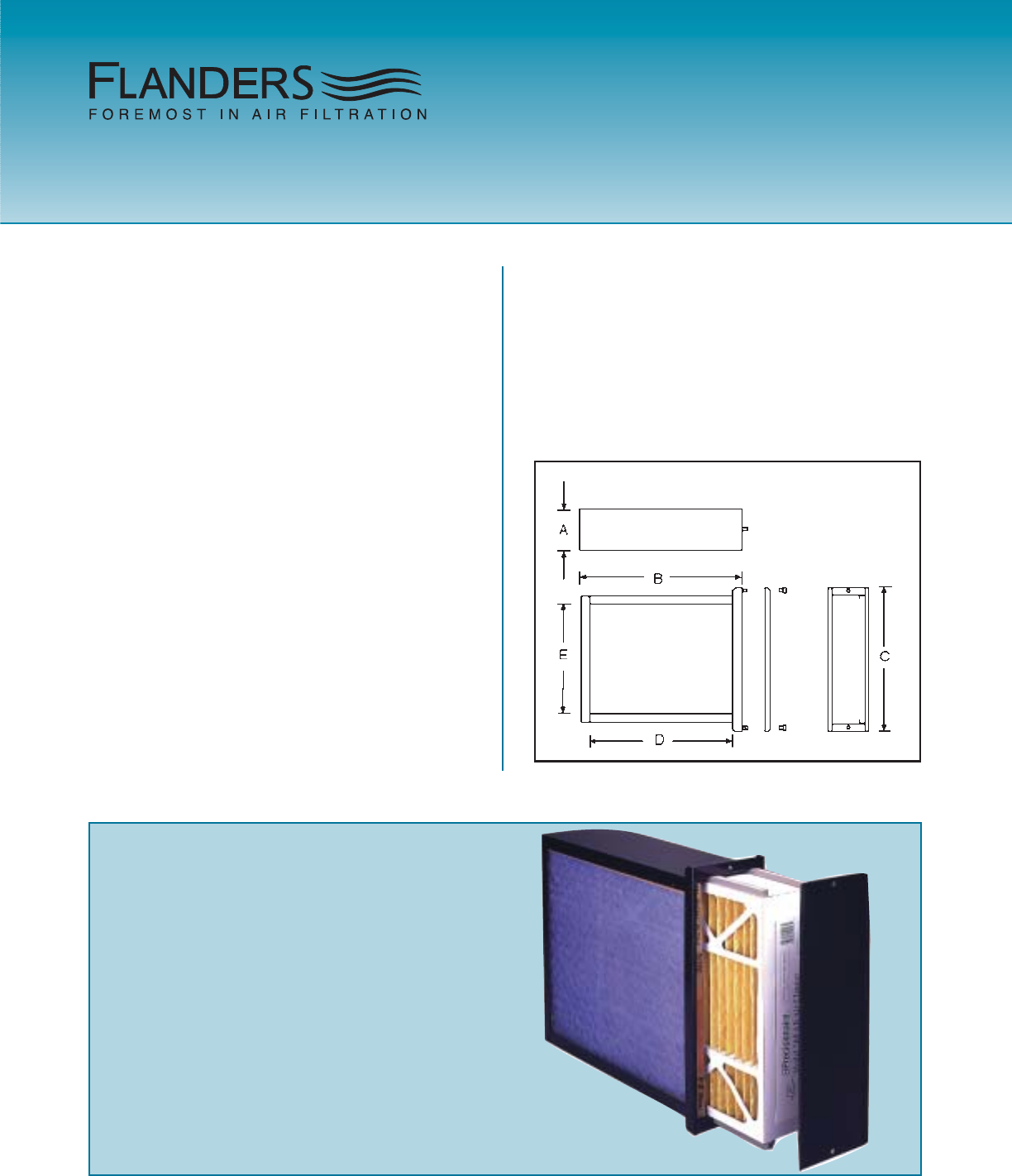

Residential/Light Commercial Air

Cleaners & Filters

Fast, easy and profitable air filtration upgrades...made

by one of the world’s leaders in critical air filtration.

Equal or superior filter media replacements for com-

peting systems...and typically easier to install.

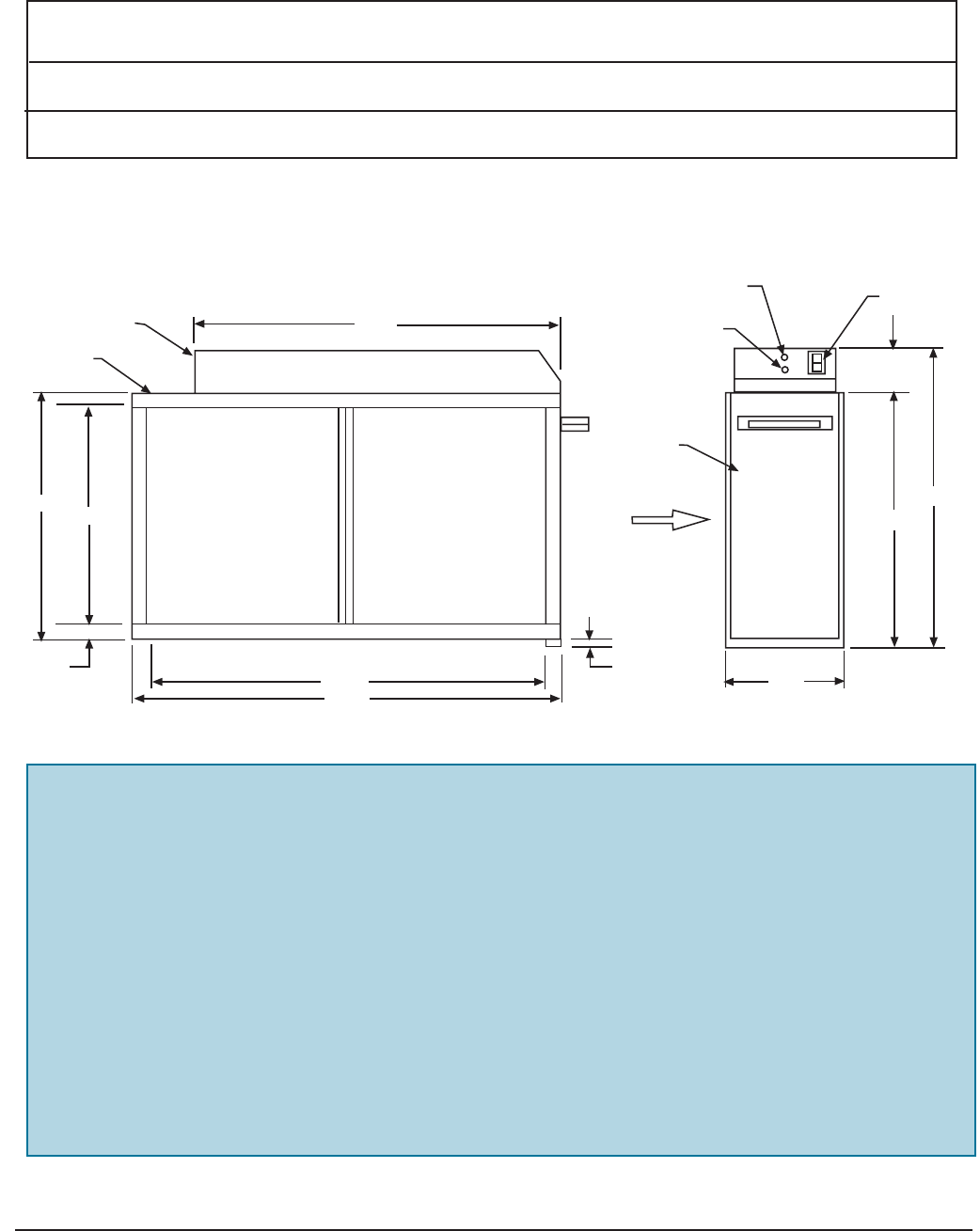

Electronic Air Cleaners

Near-HEPA quality air purification for the

whole house or just a room.

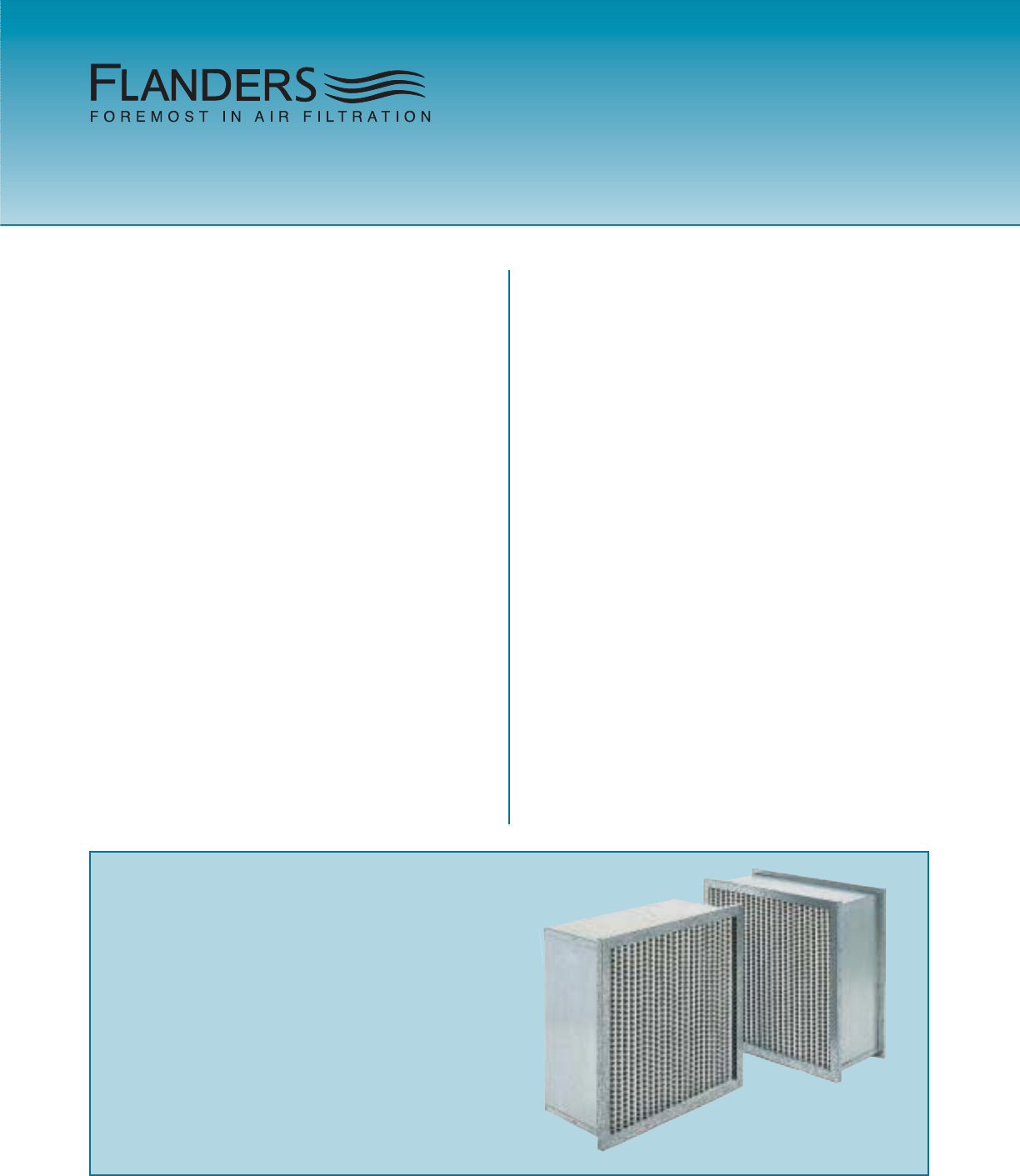

HEPA Filter

For genuine HEPA grade filtration with mini-

mum efficiency of 99.97% on

0.30 micrometer size particles.

Several types, including high

capacity, high temp, high velocity,

minipleat panels, terminal mod-

ules and fan powered modules.

Framing Systems and Holding Frames

Media holding frames, filter holding frames, modu-

lar filter framing systems and hard ceiling adaptor

framesfor Terminal Modules

the filter and hvac store

Disposable Air Filters: Page

HD Industrial Grade Heavy Duty Box Frame, Spun Glass or Synthetic Media . . . . . . . . . . . . . . . . .8

EZ Flow and EZ Flow II Continuous Filament Spun Glass, Box Frame . . . . . . . . . . . . . . . . . . . . . . .10

Pinch Frame Framed Polyester Media with Metal on One Side . . . . . . . . . . . . . . . . . . . . . .12

Polyester Panels, Links, Sleeves and Cube Filters:

Prelock Heat Sealed Polyester Support Frame Products . . . . . . . . . . . . . . . . . . . . . .14

Paint Booth Products

Paint Booth Filtration Supported Panels, Cubes, Diffusion Media and Paint Arrestors . . . . . . . . . . .16

FP319A Two-stage and Three-stage Paint Systems` . . . . . . . . . . . . . . . . . . . . . . . . . .24

Air Filter Media and Auto Rolls:

Cut-to-Fit Hammock, Permaire and Service Rolls and Pads . . . . . . . . . . . . . . . . . . . . .26

Bulk Media Fiberglass and Synthetic Media, Rolls and Pads . . . . . . . . . . . . . . . . . . . . . .28

Auto Roll Media Treated Polyester, Scrim Back, Skin Back, Fiberglass . . . . . . . . . . . . . . . . . .30

Pleated Air Filters

Pre Pleat 40 V Wedge Pleat, Carrier Board Frame, 25-30% Efficient . . . . . . . . . . . . . . . . .32

Pre Pleat HV High Velocity/Gas Turbine Filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

Pre Pleat 62R Electrostatically Charged Fibers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38

Pre Pleat 62RM11 MERV 11 Electrosttically Charged Fibers . . . . . . . . . . . . . . . . . . . . . . . . . . . .39

Pre Pleat Class 1 UL Class 1 Fire Rated Filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

Pre Pleat HT High Temperature Pleated Filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43

E35 Metal Support Grids, 25-30% Efficient . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

Medium and High Efficiency Rigid Type Filters:

Superflow V Extended Surface Minipleat Aor Filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47

Rigid-Air Extended Surface Lofted Media Box Type Filters . . . . . . . . . . . . . . . . . . . . . .59

PrecisionCell Extended Media Separator Type Rigid Filters . . . . . . . . . . . . . . . . . . . . . . . .53

PrecisionCell II Extended Surface Minipleat Filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61

EA Cartridge Replacement Filter Cartridges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65

Medium and High Efficiency Extended Surface Type Filters:

Precision Pak Extended Surface Bag Filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67

Precision Pak XDH High Capacity Extra Dust Holding Bag Filters . . . . . . . . . . . . . . . . . . . . . . . .71

Metal Washable Filters

MS/MSG Moisture/Oil Mist Separators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .75

KKM Industrial Grade Aluminum or Galvanized Filters . . . . . . . . . . . . . . . . . . . . . .78

Replacement Air Filter

Catalog

Table of Contents

the filter and hvac store

HEPA and 95DOP Filters

Alpha 95 95% DOP Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .79

Alpha Cell HEPA Filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .83

Alpha 2000 High Capacity HEPA Filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .87

Alpha HT High Temperature HEPA Filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .91

Superflow 2K High Velocity HEPA Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .93

Alpha Panel Minipleat HEPA/ULPA Filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .95

Pureflo Terminal HEPA/ULPA Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .97

Pureflo-FPM Fan Powered Terminal Filter Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .99

Gas Phase and Odor Control:

FCP Carbon Pleat Fine Mesh Carbon, Outperforms Carbon Slurry . . . . . . . . . . . . . . . . . . . . . .101

PH Odor Control Pleated Filter Treated with Sodium Bicarbonate . . . . . . . . . . . . . . . . . . . . . .103

Model C 50% and 75% Fill Granular Carbon Filters . . . . . . . . . . . . . . . . . . . . . . . . . .105

Framing Systems and Holding Frames:

Type 9 Filter Holding Frames and Fasteners . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .119

Uni-Frame Media Holding Frames . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .121

K-Trac Modular Filter Framing Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .122

Perma Frame Hard Ceiling Adaptor Frames For Terminal Modules . . . . . . . . . . . . . . . . . . .126

Residential/Light Commercial Air Cleaners and Filters:

Air Cleaner Refills Space Gard®, Air Bear®and Honeywell®Air Cleaners . . . . . . . . . . . . . . . . .128

Model 500AB Air Cleaner Housings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .130

Electronic Air Cleaners

Airia 350 High Capacity In-Room Air Cleaner In Handsome Cabinet . . . . . . . . . . . . . .132

Aria 1000 and 2000 In-Duct Electrostatic Air Cleaners. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .133

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

Replacement Air Filter

Catalog

Table of Contents

Model Numbers:

Within each section in the page heading or in the

body, you will see model number abbreviations

to help you find these products in the separate

Flanders price book. These will typically appear

as a family code followed by “xxx’s” which indi-

cate dimensions or other identifying characteris-

tic of specific products.

Important Features

•One-piece moisture-resistant chipboard

frame prevents broken corners

• Support grilles on both sides for excep-

tional strength

• Media and grilles continuously glued to

the inside perimeter of the frame for rigid-

ity

• Filters are UL 900 Class 2 listed

Synthetic

HD Industrial Grade

Heavy Duty Disposable Panel Filters

Spun Glass Media - Model 10255.xxxxxx

Synthetic Media - Model 11255.xxxxxx

General

Flanders HD Industrial Grade filters are designed

for use in any application where disposable panel

filters are recommended. They can be relied upon

for superior performance since they are specifically

designed for heavy workloads. A wide range of

standard face sizes is available, plus nearly any

“special” size.

Construction

Flanders HD Industrial Grade filters are designed

with a one-piece moisture-resistant chipboard

frame enclosing media. Standard frames are nomi-

nal 1” thick (3/4” actual) and nominal 2” thick (1-5/8”

actual).

The fiberglass media filter consists of continuous-

filament fibers bonded together with thermo-setting

resin. The synthetic media filter consists of 100%

high bulk polyester fibers that are thermo bonded

with a fire retardant resin.

Support grilles of perforated corrosion-resistant

steel or expanded metal are provided on both sides

of the filter. The media pads and support grilles are

continuously glued to the inside perimeter of the

frame, resulting in exceptional strength and rigidity.

This design virtually eliminates the possibility of

media sag within the frame.

Physical Data

Frame: One-piece moisture-resistant chipboard

Media:: Fiberglass or Synthetic

Support Grille: Perforated corrosion-resistant steel orex-

panded wire on both sides of the filter

Sealant: Hot-melt resin

the filter and hvac store

HD Industrial Grade

Heavy Duty Disposable Panel Filters

Spun Glass Media - Model 10255.xxxxxx

Synthetic Media - Model 11255.xxxxxx

Grille Sizes - Model 10355.xxxxx

General

Flanders HD Industrial Grade filters are designed

for use in any application where disposable panel

filters are recommended. They can be relied upon

for superior performance since they are specifically

designed for heavy workloads. A wide range of

standard face sizes is available, plus nearly any

“special” size.

Construction

Flanders HD Industrial Grade filters are designed

with a one-piece moisture-resistant chipboard

frame enclosing media. Standard frames are nomi-

nal 1” thick (3/4” actual) and nominal 2” thick (1-5/8”

actual).

The fiberglass media filter consists of continuous-

filament fibers bonded together with thermo-setting

resin. The synthetic media filter consists of 100%

high bulk polyester fibers that are thermo bonded

with a fire retardant resin.

Support grilles of perforated corrosion-resistant

steel or expanded metal are provided on both sides

of the filter. The media pads and support grilles are

continuously glued to the inside perimeter of the

frame, resulting in exceptional strength and rigidity.

This design virtually eliminates the possibility of

media sag within the frame.

Physical Data

Frame: One-piece moisture-resistant chipboard

Media:: Fiberglass or Synthetic

Support Grille: Perforated corrosion-resistant steel orex-

panded wire on both sides of the filter

Sealant: Hot-melt resin

Spun Glass

Important Features

•One-piece moisture-resistant chipboard

frame prevents broken corners

• Support grilles on both sides for excep-

tional strength

• Media and grilles continuously glued to

the inside perimeter of the frame for rigid-

ity

• Filters are UL 900 Class 2 listed

• 1/2”, 1”, 2” depths

• Special sizes available upon request

Synthetic

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

the filter and hvac store

Standard Sizes Performance Data - HD Industrial Grade

Typical initial (clean) pressure drop at nominal cfm is 0.07 in. w.g. for 1 in. filters and 0.10 in. w.g. for 2 in. filters. Recommended final

resistance is 0.50 in. w.g., but the system design may dictate a lower change out point.

1.0 General

1.1Disposable filters shall be Model HD Industrial

Grade filters as manufactured by Flanders.

1.2 Filters shall be UL 900 Class 2 listed.

2.0 Filter Construction

2.1 Filters shall be constructed of fiberglass or syn-

thetic media (as specified) enclosed in a one-

piece chipboard frame.

2.2 Perforated corrosion-resistant steel or expanded

metal support grilles shall be furnished on both

entry and exit sides of the filter.

2.3 Media and grilles shall be continuously glued to

the inside perimeter of the frame.

3.0 Performance

3.1 The manufacturer shall guarantee performance

as stated in its literature within tolerances as out-

lined in Section 7.4 of ARI Standard 850.

Guide Specifications

Nominal Size (in.) Actual Size H x W x D (in) cfm @ 300 fpm Standard Carton Qty. Weight per Carton (lbs.)

10x10x1 9-7/8 x 9-7/8 x 3/4 208 12 3.3

10x20x1 9-7/8 x 19-7/8 x 3/4 417 12 5.2

10x24x1 9-7/8 x 23-7/8 x 3/4 500 12 6.1

10x25x1 9-7/8 x 24-7/8 x 3/4 521 12 6.5

10x30x1 9-7/8 x 29-7/8 x 3/4 625 12 7.0

12x12x1 11 -7/8 x 11 -7/8 x 3/4 300 12 4.0

12x20x1 11 -7/8 x 19-7/8 x 3/4 500 12 5.8

12x24x1 11 -7/8 x 23-7/8 x 3/4 600 12 6.7

12x25x1 11 -7/8 x 24-7/8 x 3/4 625 12 7.5

12x30x1 11 -7/8 x 29-7/8 x 3/4 749 12 8.0

14x14x1 13-7/8 x 13-7/8 x 3/4 408 12 5.2

14x20x1 13-7/8 x 19-7/8 x 3/4 583 12 6.2

14x24x1 13-7/8 x 23-7/8 x 3/4 700 12 7.3

14x25x1 13-7/8 x 24-7/8 x 3/4 729 12 7.7

14x30x1 13-7/8 x 29-7/8 x 3/4 875 12 10.5

15x20x1 14-7/8 x 19-7/8 x 3/4 625 12 6.7

15x25x1 14-7/8 x 24-7/8 x 3/4 781 12 6.8

16x16x1 15-7/8 x 15-7/8 x 3/4 533 12 6.3

16x20x1 15-3/4 x 19-1/2 x 3/4 667 12 6.9

16x24x1 15-7/8 x 23-7/8 x 3/4 800 12 8.5

16x25x1 15-3/4 x 24-5/8 x 3/4 833 12 8.3

18x20x1 17-7/8 x 19-7/8 x 3/4 750 12 8.0

18x24x1 17-7/8 x 23-7/8 x 3/4 900 12 9.0

18x25x1 17-7/8 x 24-7/8 x 3/4 938 12 9.6

19x27x1 18-7/8 x 26-7/8 x 3/4 1069 12 11.8

20x20x1 19-5/8 x 19-5/8 x 3/4 833 12 7.9

20x24x1 19-7/8 x 23-7/8 x 3/4 1000 12 9.5

20x25x1 19-5/8 x 24-5/8 x 3/4 1042 12 9.5

20x30x1 19-7/8 x 29-7/8 x 3/4 1250 12 12.5

22x22x1 21-7/8 x 21-7/8 x 3/4 1008 12 9.5

24x24x1 23-7/8 x 23-7/8 x 3/4 1200 12 11.3

24x30x1 23-7/8 x 29-7/8 x 3/4 1500 12 14.3

25x25x1 24-7/8 x 24-7/8 x 3/4 1302 12 13.5

10x10x2 9-7/8 x 9-7/8 x 1-5/8 208 12 3.9

10x20x2 9-7/8 x 19-7/8 x 1-5/8 417 12 6.6

12x24x2 11-1/2 x 23-1/2 x 1-5/8 600 12 8.0

14x20x2 13-7/8 x 19-7/8 x 1-5/8 584 12 9.1

14x25x2 13-7/8 x 24-7/8 x 1-5/8 730 12 10.5

15x20x2 14-7/8 x 19-7/8 x 1-5/8 625 12 9.6

16x20x2 15-3/4 x 19-1/2 x 1-5/8 667 12 9.6

16x24x2 15-3/4 x 23-1/2 x 1-5/8 800 12 11.6

16x25x2 15-3/4 x 24-1/2 x 1-5/8 834 12 11.6

18x24x2 17-7/8 x 23-7/8 x 1-5/8 900 12 12.8

20x20x2 19-1/2 x 19-1/2 x 1-5/8 834 12 11.9

20x24x2 19-1/2 x 23-1/2 x 1-5/8 1000 12 14.2

20x25x2 19-1/2 x 24-1/2 x 1-5/8 1042 12 14.0

24x24x2 23-1/2 x 23-1/2 x 1-5/8 1200 12 16.0

25x25x2 24-7/8 x 24-7/8 x 1-5/8 1302 12 17.2

the filter and hvac store

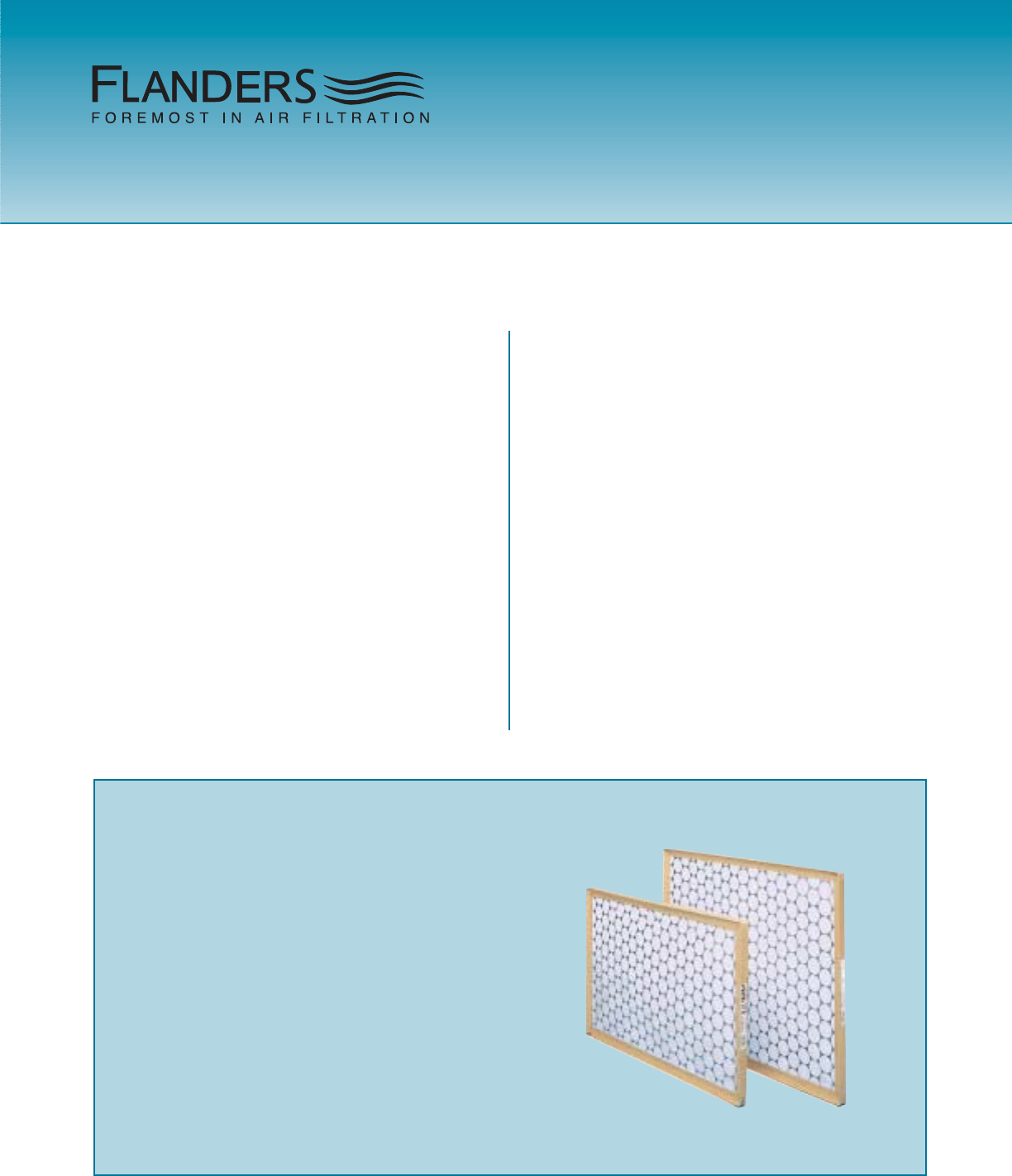

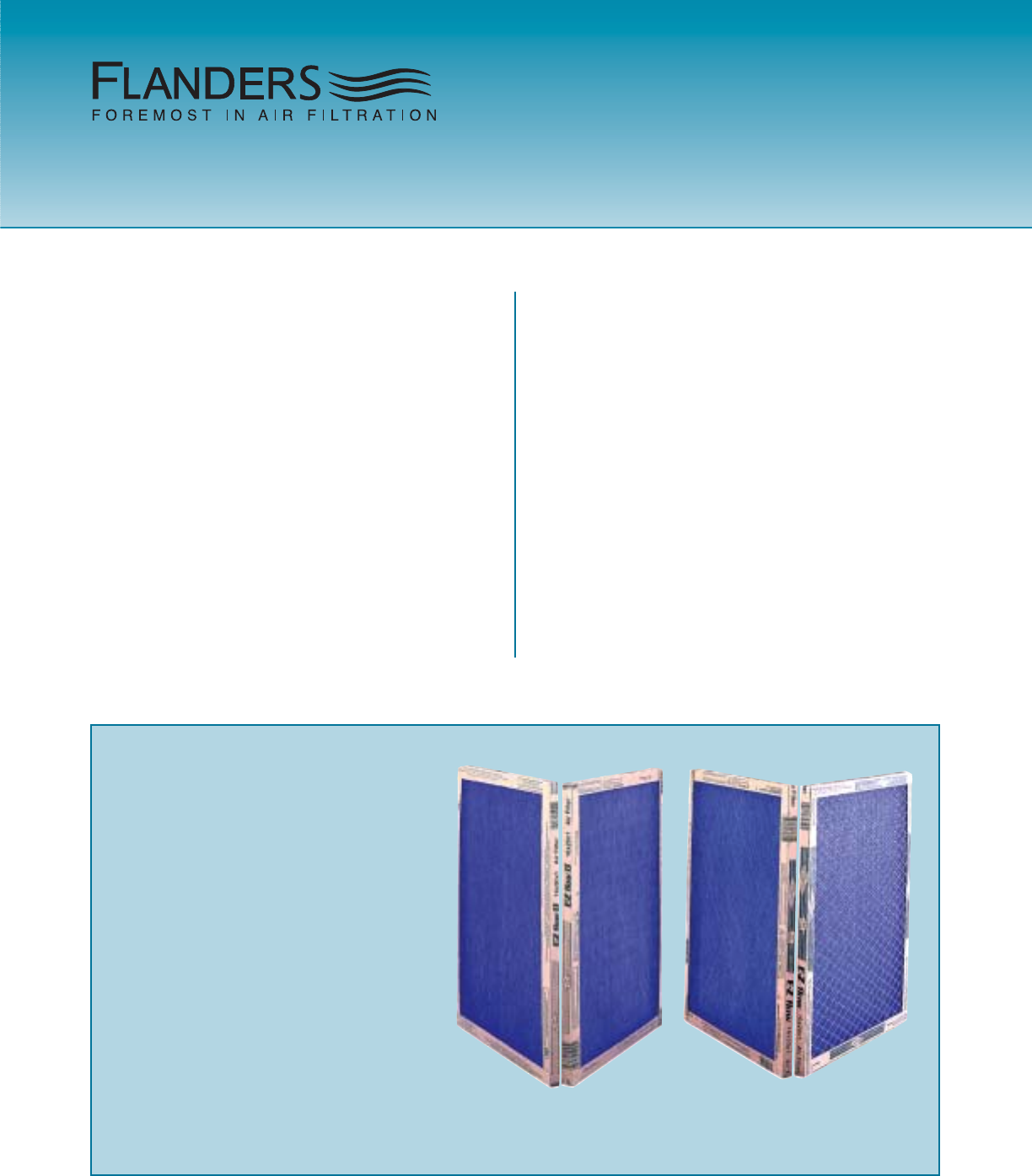

EZ Flow and EZ Flow II

Disposable Panel Air Filters

EZ Flow - Model 10155.xxxxxx

EZFlow II - Model 10055.xxxxxx

General

EZ Flow and EZ Flow II disposable filters are

designed for protection of furnace and central air

units in residential and light commercial applica-

tions. Construction of both models is identical

except for the media retainer. The EZ Flow features

a metal media retainer on the downstream side

while the EZ Flow II has no media retainer. Instead,

the media itself is adhered directly to the frame for

non-metallic applications.

Construction

The frame is made from heavy chipboard in a one-

piece design that eliminates corner separation.

The filtering media is continuous filament spun

glass. A resinous bonding agent provides rigidity

and resistance to media compression.

MEDIA SUPPORT of the EZ Flow is provided by

one metal retainer on the downstream side, either

punched metal plate or expanded metal, depending

on face size. The EZ Flow II is made to function

without a retainer, by adhering the frame directly to

the media which has a light skin to make it self-

retaining.

SEALING is accomplished with a resilient hot-melt

adhesive running the full perimeter of the frame on

both upstream and downstream sides.

UL MARKING appears on the filter frame. These fil-

ters have been tested by Underwriters Laboratories

Inc. and are classified as UL 900 Class 2 for flam-

mability.

Important Features

• One-piece frame

•UL900 Class 2

• UPC marked

• No media retainer on EZ Flow II

•Metal media retainer on EZ Flow

•1/2”, 1” and 2” depths

•All standard sizes plus special sizes

EZ Flow II

No Metal EZ Flow

Metal on Downstream Side

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

the filter and hvac store

Nominal Size (inch) Actual Size H x W x D (in) cfm @ 300 fpm Standard Carton Qty. Weight per Carton (lbs.)

10x10x1 9-7/8 x 9-7/8 x 3/4 208 12 3.3

10x20x1 9-7/8 x 19-7/8 x 3/4 417 12 5.6

10x24x1 9-7/8 x 23-7/8 x 3/4 500 12 6.1

10x25x1 9-7/8 x 24-7/8 x 3/4 521 12 6.5

10x30x1 9-7/8 x 29-7/8 x 3/4 625 12 5.8

12x12x1 11 -7/8 x 11 -7/8 x 3/4 300 12 4.0

12x20x1 11 -7/8 x 19-7/8 x 3/4 500 12 5.8

12x24x1 11 -7/8 x 23-7/8 x 3/4 600 12 6.7

12x25x1 11 -7/8 x 24-7/8 x 3/4 625 12 7.5

12x30x1 11 -7/8 x 29-7/8 x 3/4 749 12 7.8

14x14x1 13-7/8 x 13-7/8 x 3/4 408 12 5.2

14x20x1 13-7/8 x 19-7/8 x 3/4 583 12 6.2

14x24x1 13-7/8 x 23-7/8 x 3/4 700 12 7.3

14x25x1 13-7/8 x 24-7/8 x 3/4 729 12 7.7

14x30x1 13-7/8 x 29-7/8 x 3/4 875 12 10.5

15x25x1 14-7/8 x 24-7/8 x 3/4 781 12 6.8

15x20x1 14-7/8 x 19-7/8 x 3/4 625 12 6.7

15x30x1 14-7/8 x 30-1/2 x 3/4 957 12 9.8

16x16x1 15-7/8 x 15-7/8 x 3/4 533 12 6.0

16x20x1 15-3/4 x 19-1/2 x 3/4 667 12 6.9

16x22x1 15-7/8 x 22-1/8 x 3/4 742 12 8.3

16x24x1 15-7/8 x 23-7/8 x 3/4 800 12 8.5

16x25x1 15-3/4 x 24-5/8 x 3/4 833 12 8.3

18x20x1 17-7/8 x 19-7/8 x 3/4 750 12 8.0

18x24x1 17-7/8 x 23-7/8 x 3/4 900 12 9.0

18x25x1 17-7/8 x 24-7/8 x 3/4 938 12 9.6

19x27x1 18-7/8 x 26-7/8 x 3/4 1069 12 11.8

20x20x1 19-5/8 x 19-5/8 x 3/4 833 12 7.9

20x22x1 19-7/8 x 22-1/8 x 3/4 938 12 9.3

20x24x1 19-7/8 x 23-7/8 x 3/4 1000 12 9.5

20x25x1 19-5/8 x 24-5/8 x 3/4 1042 12 9.5

20x30x1 19-7/8 x 29-7/8 x 3/4 1250 12 12.5

22x22x1 21-7/8 x 21-7/8 x 3/4 1008 12 9.5

24x24x1 23-7/8 x 23-7/8 x 3/4 1200 12 11.3

24x30x1 23-7/8 x 29-7/8 x 3/4 1 500 12 14.3

25x25x1 24-7/8 x 24-7/8 x 3/4 1302 12 13.5

10x10x2 9-7/8 x 9-7/8 x 1-5/8 208 12 3.9

10x20x2 9-7/8 x 19-7/8 x 1-5/8 417 12 6.6

12x24x2 11-1/2 x 23-1/2 x 1-5/8 600 12 8.0

14x20x2 13-7/8 x 19-7/8 x 1-5/8 584 12 9.1

14x25x2 13-7/8 x 24-7/8 x 1-5/8 730 12 10.5

15x20x2 14-7/8 x 19-7/8 x 1-5/8 625 12 9.6

16x20x2 15-3/4 x 19-1/2 x 1-5/8 667 12 9.6

16x24x2 15-3/4 x 23-1/2 x 1-5/8 800 12 11.6

16x25x2 15-3/4 x 24-1/2 x 1-5/8 834 12 11.6

18x24x2 17-7/8 x 23-7/8 x 1-5/8 900 12 12.8

20x20x2 19-1/2 x 19-1/2 x 1-5/8 834 12 11.9

20x24x2 19-1/2 x 23-1/2 x 1-5/8 1000 12 14.2

20x25x2 19-1/2 x 24-1/2 x 1-5/8 1042 12 14.0

24x24x2 23-1/2 x 23-1/2 x 1-5/8 1200 12 16.0

Notes:

1. Contact your local representative or the factory for additional standard sizes. Special

sizes are also available.

2. Manufacturing tolerances are +0”, -1/8” on height and width.

3. Nominal cfm is calculated at 300 fpm gross face velocity.

4. Typical initial (clean) pressure drop at nominal cfm is 0.07” w.g. for 1” filters and 0.10”

w.g. for 2” filters.

5. Recommended final resistance is 0.50” w.g., but the system design may dictate a lower

changeout point.

Standard Sizes Performance Data - EZ Flow and EZ Flow II

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

the filter and hvac store

Pinch Frame

Disposable Panel Air Filters

Model 11655.xxxxxx

General

The Flanders Pinch Frame disposable air filter pro-

vides the user with a product of high quality and

strength.

Originally designed for light commercial and indus-

trial applications, the Flanders Pinch Frame filter is

an excellent choice for use in residential furnace

systems.

The filter is produced on state-of-the-art production

line machinery. The result is a filter of consistently

high quality at a competitive price.

Construction

This disposable heating and air conditioning filter

has a one-piece chipboard frame. This feature elim-

inates the problems associated with a four-piece

frame, such as broken corners and exposed metal

edges.

The Pinch Frame filter utilizes a heat seal to bond

the frame to the filter media and metal support grid.

This process permits the use of a single metal grid

on the air exit side only, thus maximizing filter face

area and extending service life.

The media is made of 100% nonwoven polyester

synthetic fibers chemically bonded with a fire retar-

dant resin. Because of the synthetic nature of the

fiber, the media is extremely resistant to moisture

and other environmental extremes.

Physical Data

Frame: One-piece chipboard

Media: Dry resinated polyester

Support Grid: Perforated metal on air-exit side

Sealant: Hot-melt resin

Nominal Thickness: 1”

Flammability: UL 900 Class 2

Important Features

• One-piece chipboard frame prevents broken cor-

ners and exposed metal.

•Heat-sealed frame provides unusual strength

and serviceability.

•Ametal grid on the air-exit side assures more

open face area and longer service life.

•Resinated polyester media provides resistance

to moisture.

• Filters are UL 900 Class 2 listed.

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

the filter and hvac store

Nominal Size (inch) Actual Size H x W x D (inches) cfm @ 300 fpm Standard Carton Qty. Weight per Carton (lbs.)

10x20x1 9-7/8 x 19-7/8 x 7/8 420 12 4.0

10x24x1 9-7/8 x 23-7/8 x 7/8 500 12 5.0

10x30x1 9-7/8 x 29-7/8 x 7/8 620 12 5.5

12x20x1 11 -7/8 x 19-7/8 x 7/8 500 12 4.5

12x24x1 11 -7/8 x 23-7/8 x 7/8 600 12 5.0

12x25x1 11 -7/8 x 24-7/8 x 7/8 620 12 5.0

12x27x1 11-7/8 x 26-7/8 x 7/8 670 12 6.0

12x30x1 11 -7/8 x 29-7/8 x 7/8 750 12 6.0

14x20x1 13-7/8 x 19-7/8 x 7/8 580 12 4.5

14x24x1 13-7/8 x 23-7/8 x 7/8 700 12 5.5

14x25x1 13-7/8 x 24-5/8 x 7/8 730 12 5.5

14x30x1 13-7/8 x 29-7/8 x 7/8 870 12 6.5

15x20x1 14-7/8 x 19-5/8 x 7/8 620 12 5.0

15x30x1 14-7/8 x 29-7/8 x 7/8 940 12 6.0

16x20x1 15-5/8 x 19 5/8 x 7/8 670 12 5.5

16x25x1 15-5/8 x 24-5/8 x 7/8 830 12 6.5

16x30x1 15-7/8 x 29-7/8 x 7/8 1000 12 7.5

18x25x1 17-7/8 x 24-7/8 x 7/8 940 12 6.0

20x20x1 19-5/8 x 19-5/8 x 7/8 830 12 6.0

20x24x1 19-7/8 x 23-5/8 x 7/8 980 12 6.5

20x25x1 19-5/8 x 24-5/8 x 7/8 1040 12 7.0

20x30x1 19-7/8 x 29-7/8 x 7/8 1250 12 8.5

24x24x1 23-1/2 x 23-1/2 x 7/8 1200 12 8.0

25x25x1 24-7/8 x 24-7/8 x 7/8 1300 12 8.5

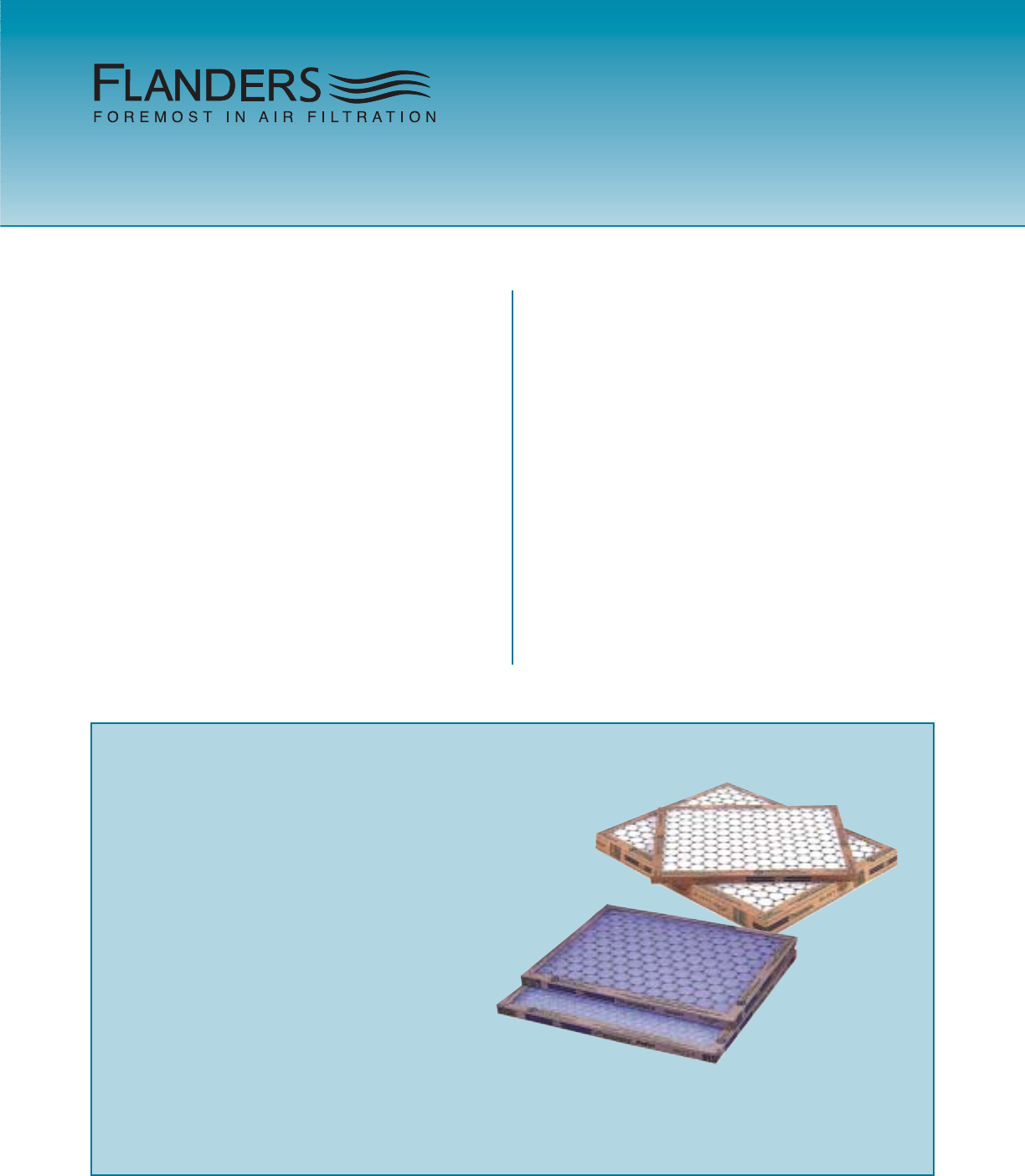

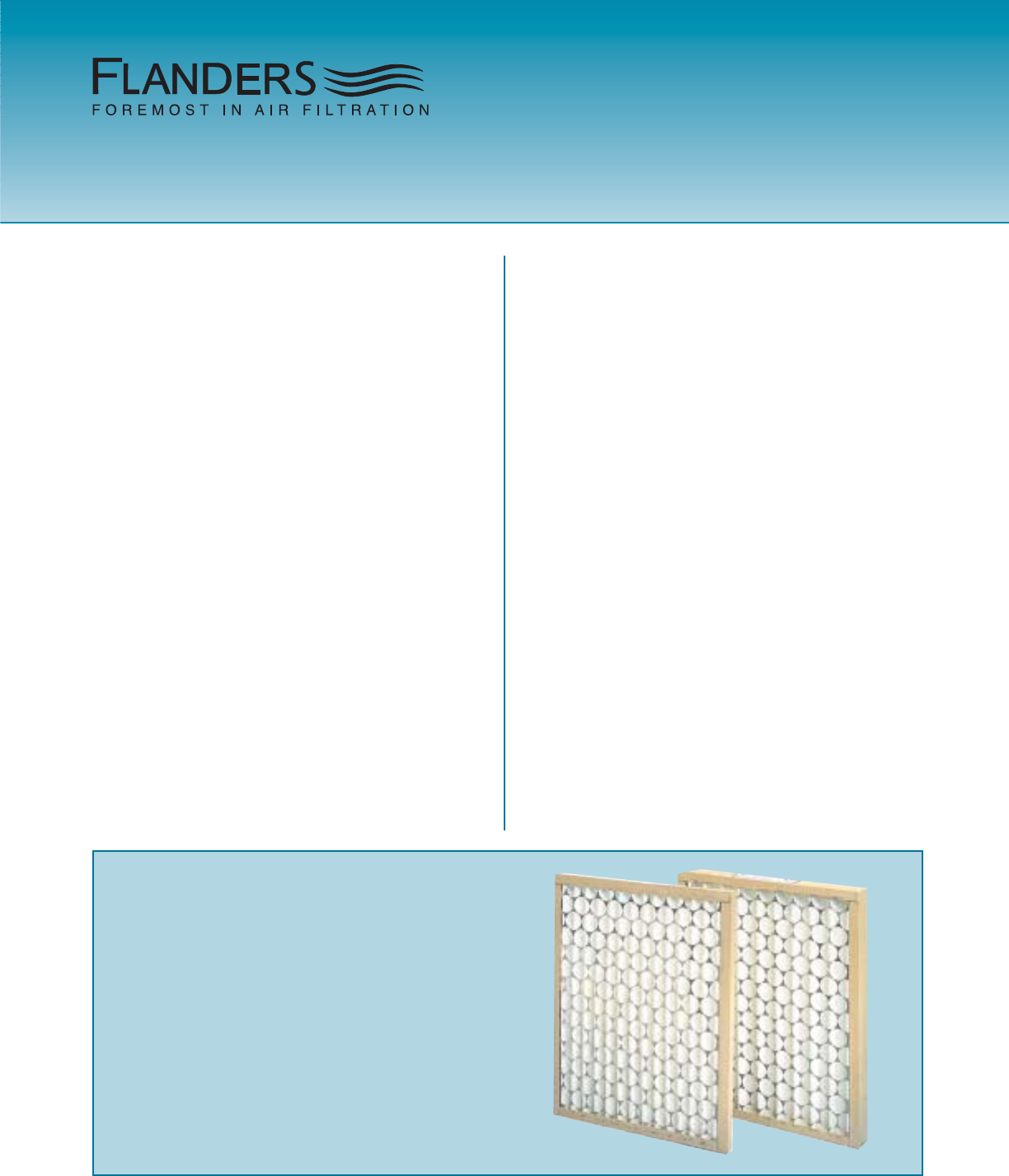

Standard Sizes Performance Data - Pinch Frame

Notes:

1. Manufacturing tolerances are +0”, -1/8”

2. All sizes are packed 12 per carton

1.0 General

1.1 Disposable filters shall be Pinch Frame filters as

manufactured by Flanders..

1.2 Filters shall be UL 900 Class 2 listed.

2.0 Filter Construction

2.1 Filters shall be constructed of resinated polyester

media and a metal air-exit grid heat sealed

together in a one-piece chipboard frame.

3.0 Performance

3.1 The average arrestance of 70% shall be as deter-

mined by the ASHRAE Standard 52.1 test

method.

3.2 The manufacturer shall guarantee performance

as stated in its literature within tolerances as

outlined in Section 7.4 of ARI Standard 850.

Guide Specifications

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

the filter and hvac store

Rugged, Heat-sealed,Construction

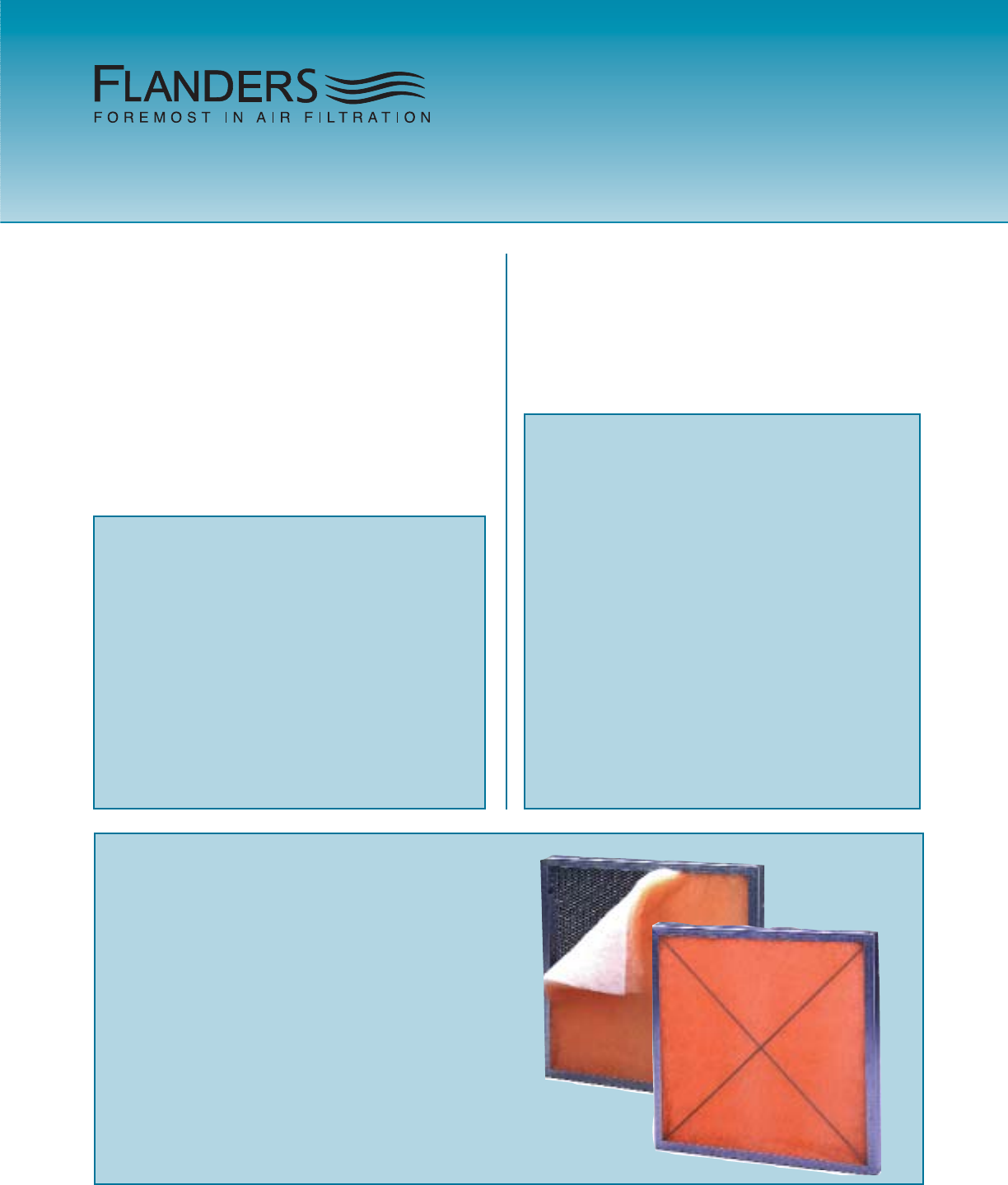

Flanders Ring Panel and

Cube filters are made by

heat sealing layers of syn-

thetic filtering media

together over an interior,

corrosion-resistant steel

support frame. An overcut

of media outside the seal-

forms a built-in gasket

(selvage) between the

wire support frame and

holding frame, which secures the filter and prevents

air bypass. This special feature allows these filters

to be installed without the use of retainer fasteners

Link Panels

Flanders Ring Panel filters can be ordered as stan-

dard single panels or as link panels. A link panel is

made by heat sealing individual Ring Panel filter

panels end to end to achieve desired dimensions.

Sleeve Panels

Sleeve Panels are nearly identical to the stan-

dard Ring Panel. The only major difference in

construction with the Sleeve Panel is that one

end is left unsealed. Therefore, the interior sup-

port frame can be removed and used over and

over again, with just the soiled media thrown

away. This is more economical and makes dis-

posal easier.

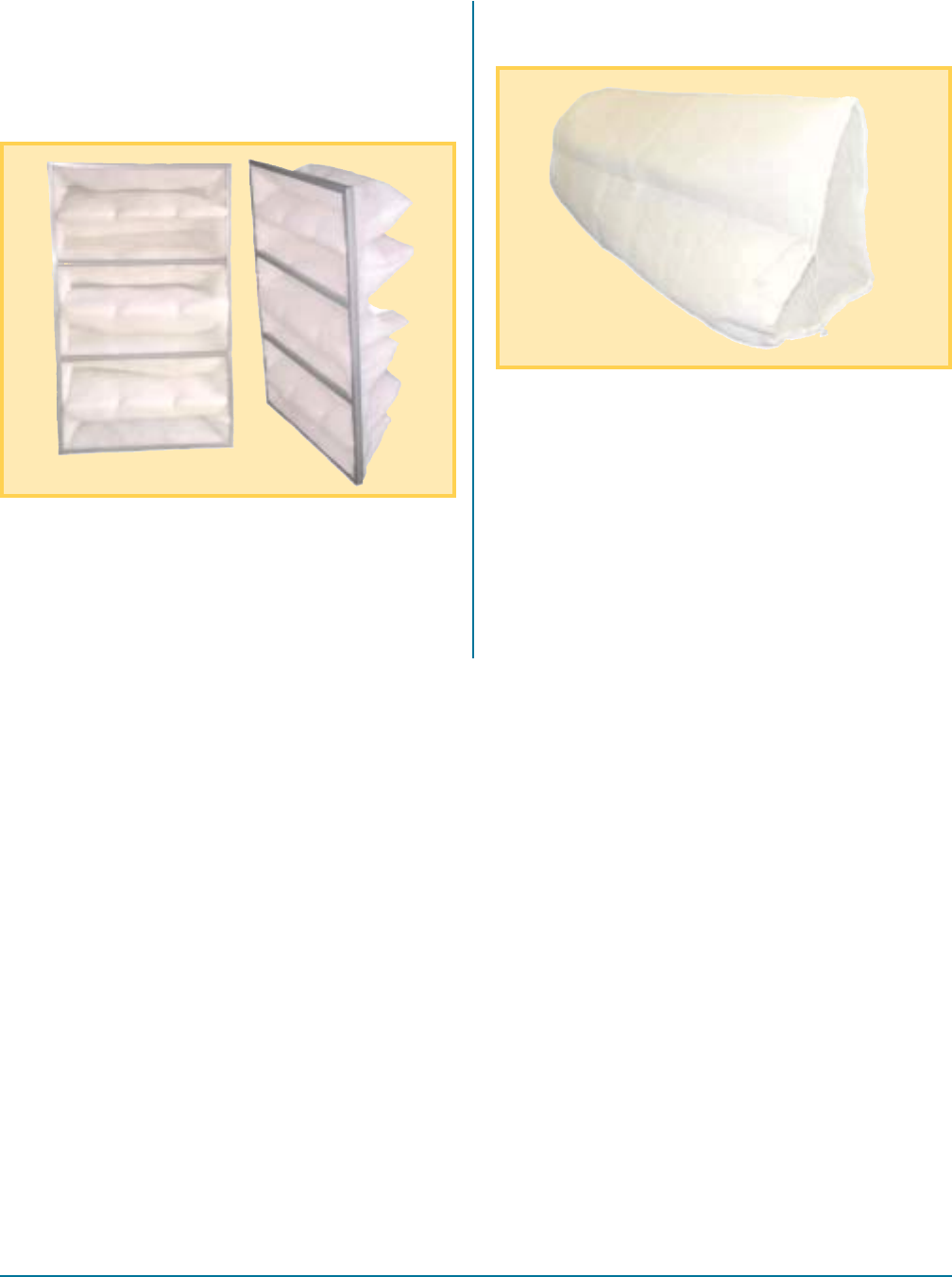

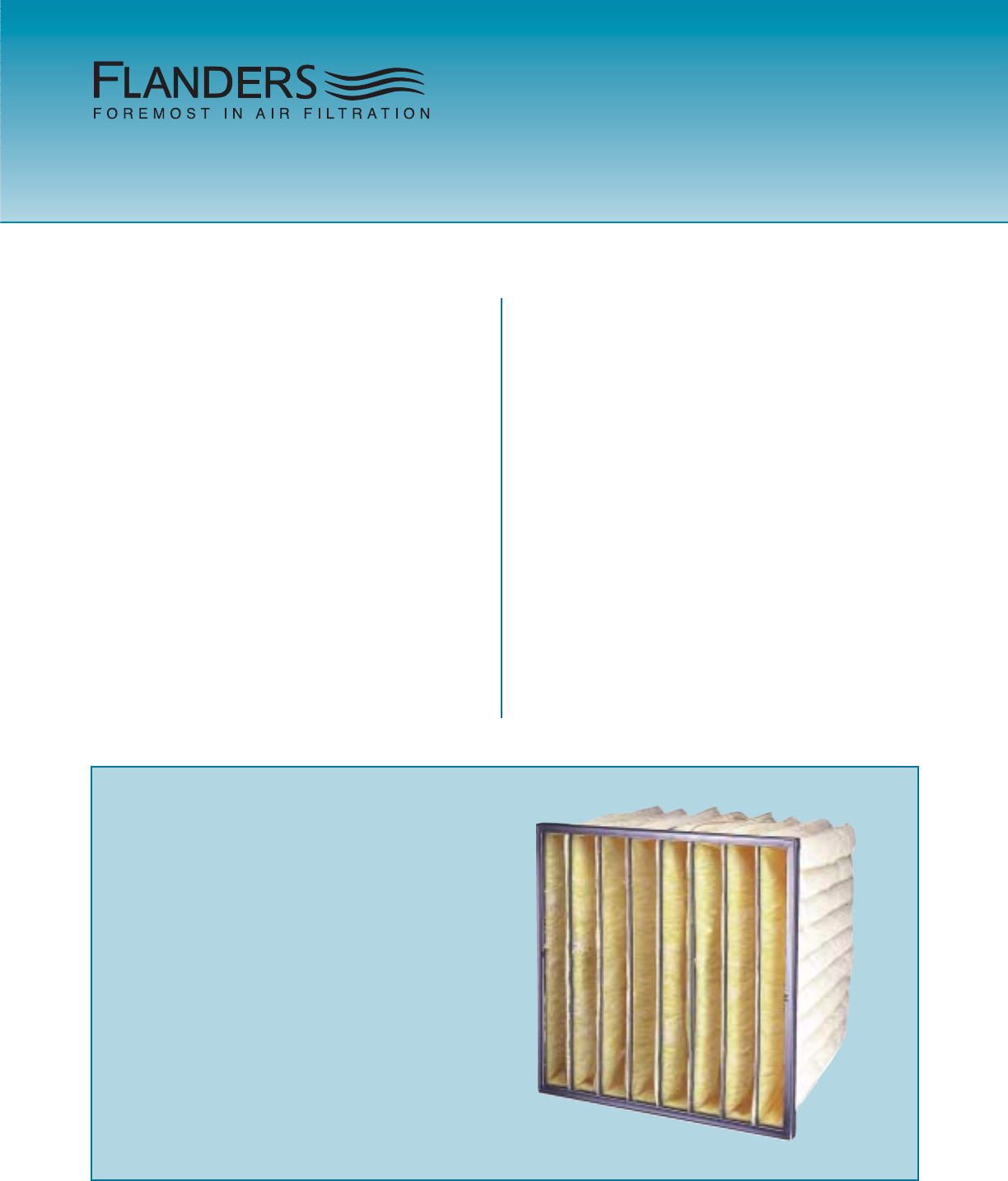

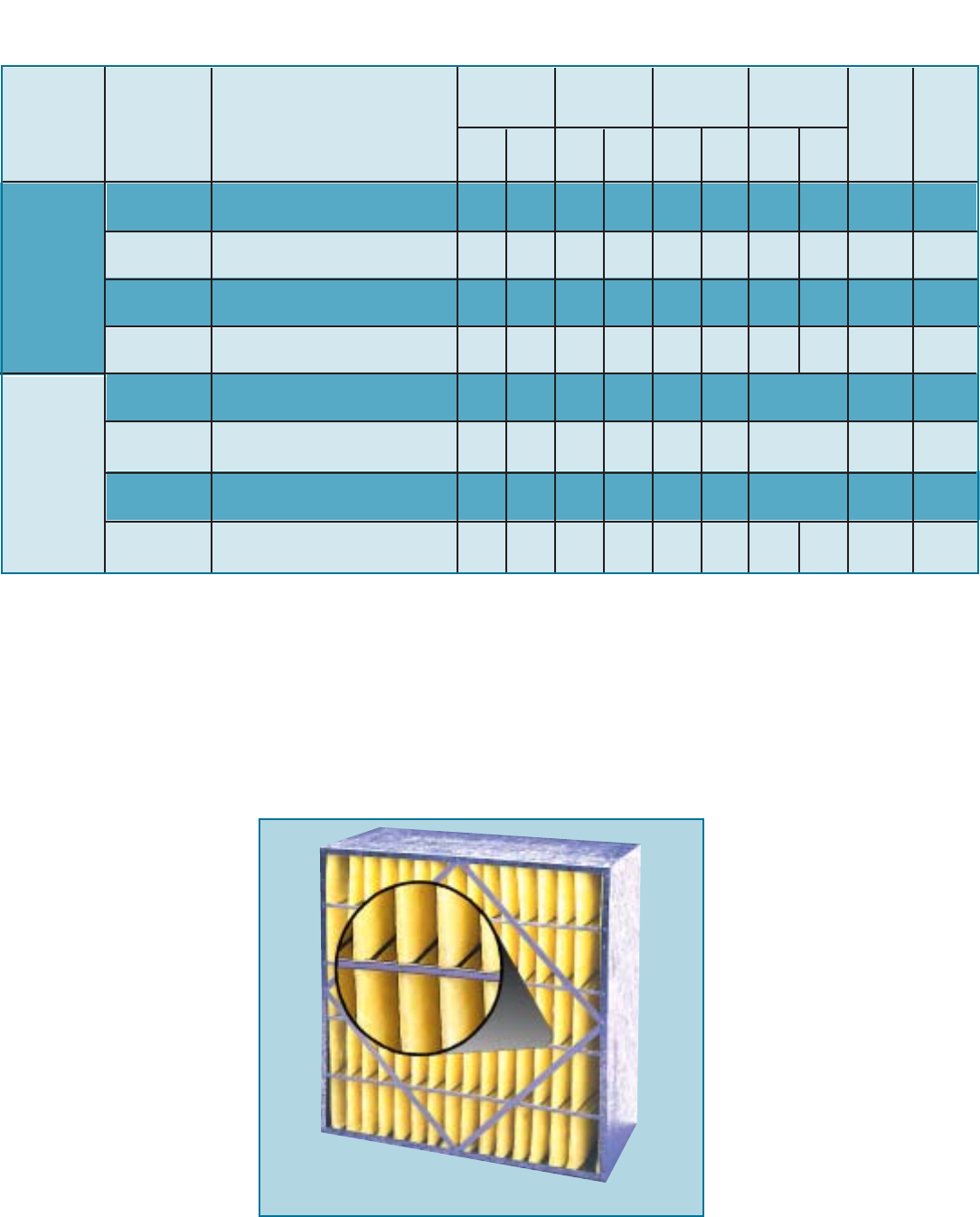

Cubes

Cubes are internally supported filters similar to the

Polyester Panel. The exception is greater surface

area for contamination capture. Unitary, 2-pocket or

3-pocket construction is available throughout our

entire product offering. Cubes are available with

13/16” thick headers for side access installations or

other systems where a header is required.

A Moisture-resistant Alternative

Because these filters are made with only metal and

synthetic materials, they are an excellent alterna-

tive to paper-frame filters in high moisture areas

because they are naturally moisture-resistant and

will not deteriorate or warp in wet or humid condi-

tions.

Ring Panels, Links, Sleeves

and Cubes

Important Features

• Heat sealed construction

• Tackified, progressive density

media

• 2, 3 and 4-ply combinations

• 100% moisture resistant

• 9 gage galvanized wire frame

• Merv 6-10 available

•UL900 Class 2

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

the filter and hvac store

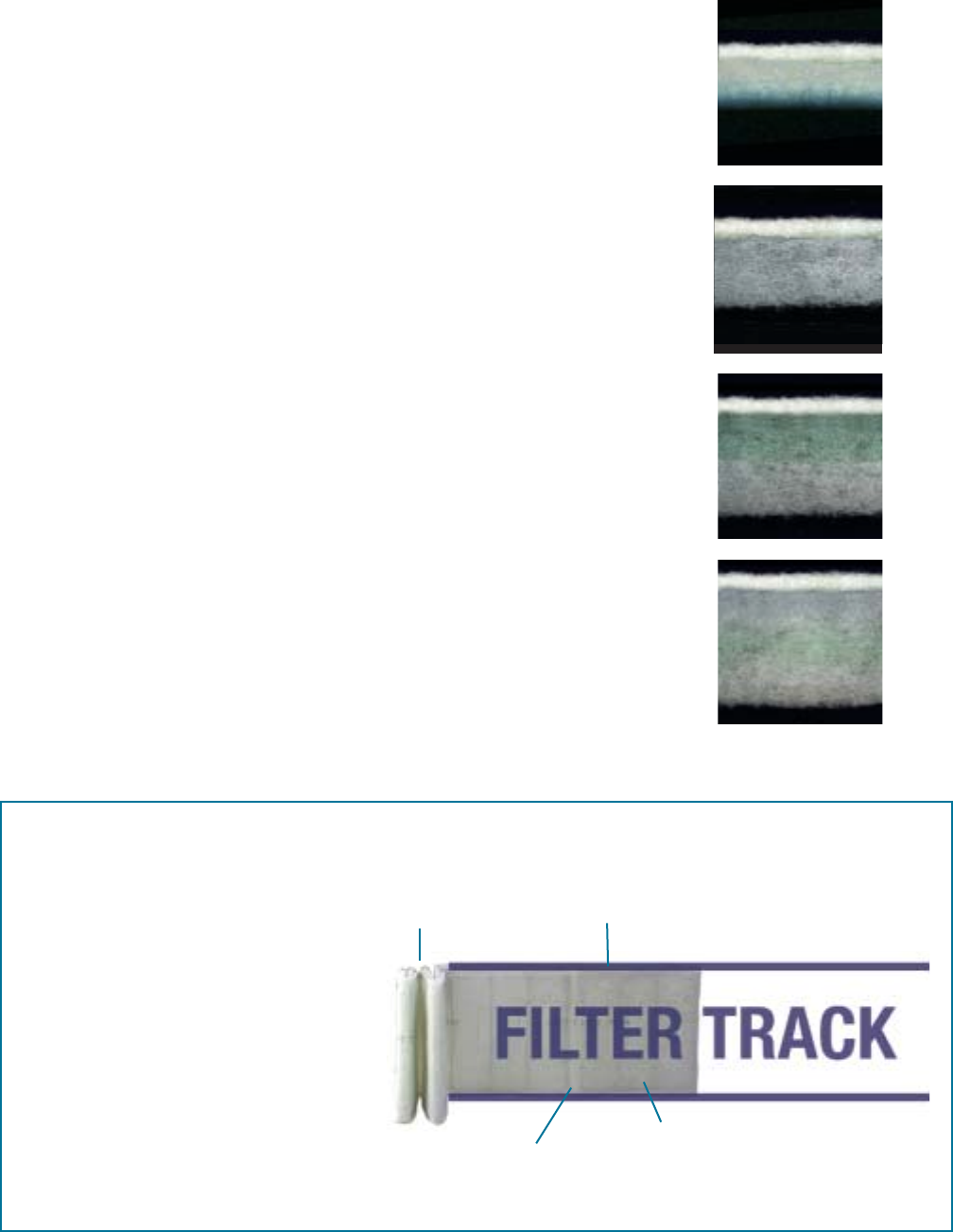

Series ST55-Polyester Panel

Models ST55R-xxxx Ring Panel and ST55L-xxxx Link

Two-ply 1” nominal media construction using a 1/2” nominal white poly-

ester on the upstream, followed by a 1/2” nominal green super tackified

polyester downstream.

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

Link Panels are heat-

sealed together.

Use link panels for easy

installation in filter

tracks and eliminate air

bypass!

Link panels make installation

easy. Just unfold the filter

and slide it into the track as

one continuous, long filter.

When time to replace it, the

whole filter comes out easily

in one piece. Plus, the seal-

ing between links and the

generous selvedge elimi-

nates air bypass.

Goes in as one

piece. Comes out

as one piece.

Overcut gaskets

against air

bypass.

Moisture

resistant

materials

Series 425T-Polyester Panel or Cubes

Models 425RT-xxxx Ring Panels and 425LT-xxxx Links

CUBx425T-xxxxxx Cube

Four-ply 1-3/4”” nominal media construction, using a 1-1/2” nominal

white/green/white tridensity, multidenier polyester upstream,with internal

tackification followed by a 1/4” dense white polyester downstream.

Series 325T-Polyester Panel or Cubes

Models 325RT-xxxx Ring Panels and 325LT-xxxx Links

CUBx325T-xxxxxx Cube

Three-ply 1-3/4”” nominal media construction, using a 1-1/2” nominal

white/green dual density, multidenier polyester upstream, with internal

tackification followed by a 1/4” dense white polyester downstream.

Series 225T-Polyester Panel or Cubes

Models 225RT-xxxx Ring Panel, 225LT-xxxx Link,

CUBx225T-xxxxxx Cube

Two-ply 1” nominal media construction, using a 3/4” nominal white poly-

ester on the up-stream, with internal tackification followed by a 1/4”

dense white polyester downstream.

the filter and hvac store

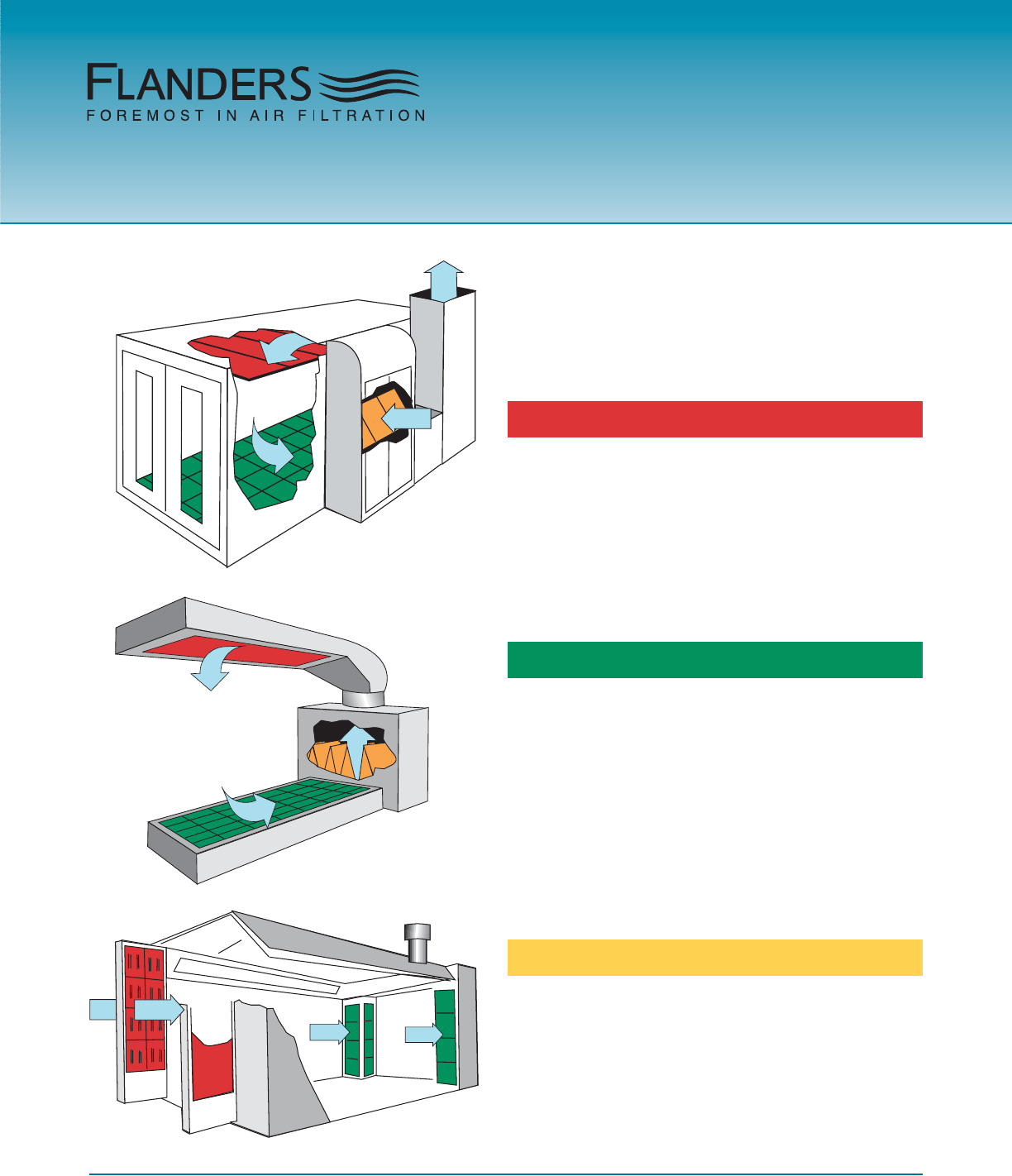

Paintbooth Filtration

Downdraft

Prep Station

Crossdraft

Flanders offers a wide variety of filtration products for

downdraft and crossdraft paintbooths and prep sta-

tions. For the most part, fitlration products required for

all of these fall into three general categories which are

color coded to the drawings at left which indicate their

placement in each type of booth.

Air Intake filters are as important to a great paint job

as the booth itself. The intake filters are the primary

defense against foreign particles landing on the paint-

ing surface. Any particle larger than 10 microns can

cause a defect on a paint job. Intake filters are typi-

cally either panels or pads. Intake filters in a down-

draft booth and prepstations are above the painting

surface. In crossdraft booths, they are typically in the

door.

Exhaust filters play an important role in maintaining

proper air flow balance, increasing cleanliness of

exhaust stacks, reducing maintenance of the exhaust

system and in controlling V.O.C. emissions. The pur-

pose of exhaust filters is to capture overspray parti-

cles and remove them from the airstream as air is

removed or recirculated back into the booth.

Crossdraft and semi-downdraft booths use media

pads which are placed on grids in the rear wall or

lower portion of the side walls in filter housings.

Downdraft booths use a long pad that is placed into a

pit below the painting surface.

Aprefilter is designed to filter out large particles

before the air reaches the intake filter. This prolongs

the life of the intake filter, increases airflow in your

booth and reduces maintenance costs on the intake

stack and mechanical parts. The prefilter is typically

found only in heated booths. Crossdraft booths will

very rarely have a prefilter. In downdraft and semi-

downdraft booths, the prefilter is located somewhere

along the duct-work bringing air into the booth.

Intake Filters

Prefilters

Exhaust/Paint Arrestor Filters

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

the filter and hvac store

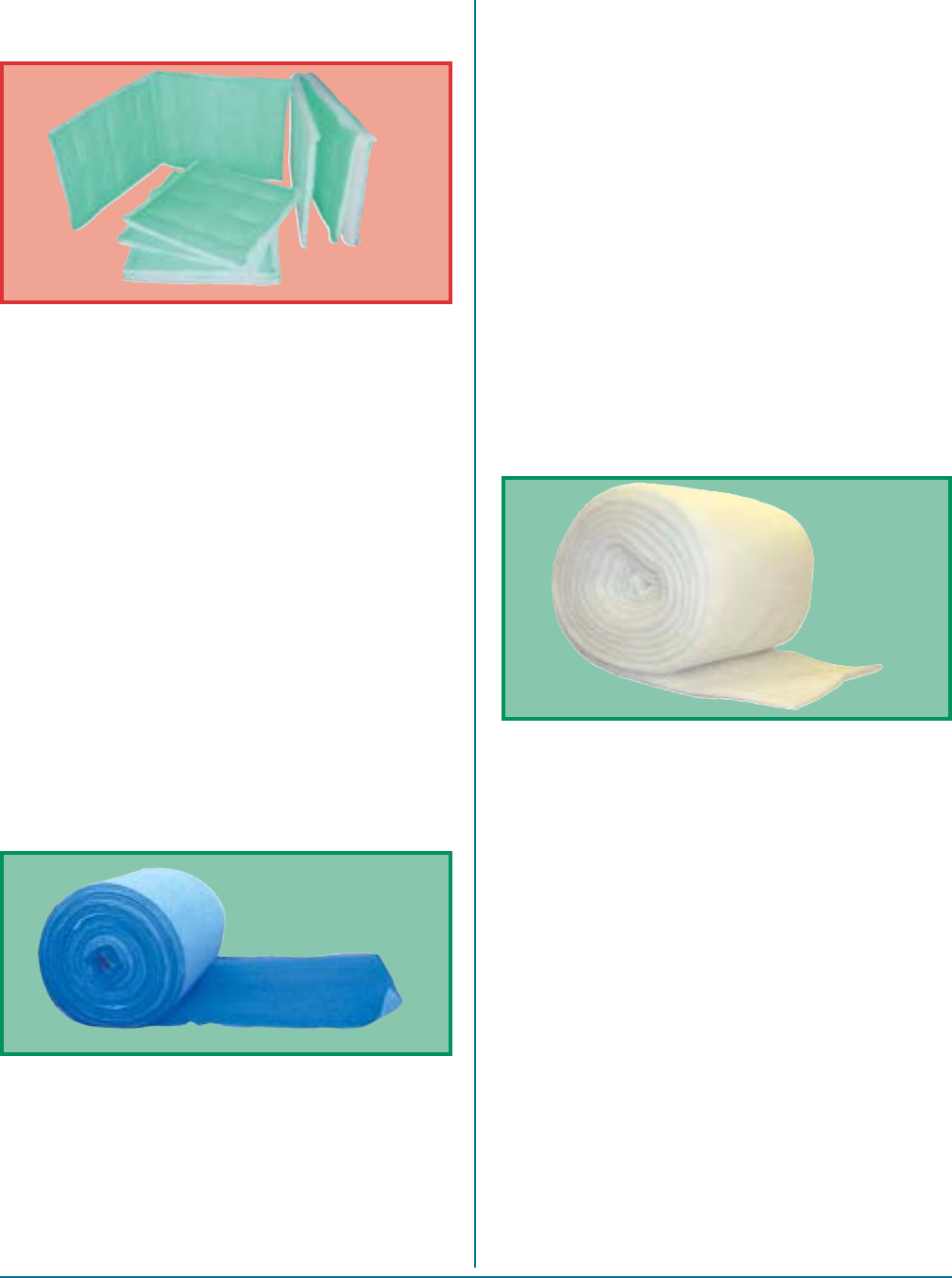

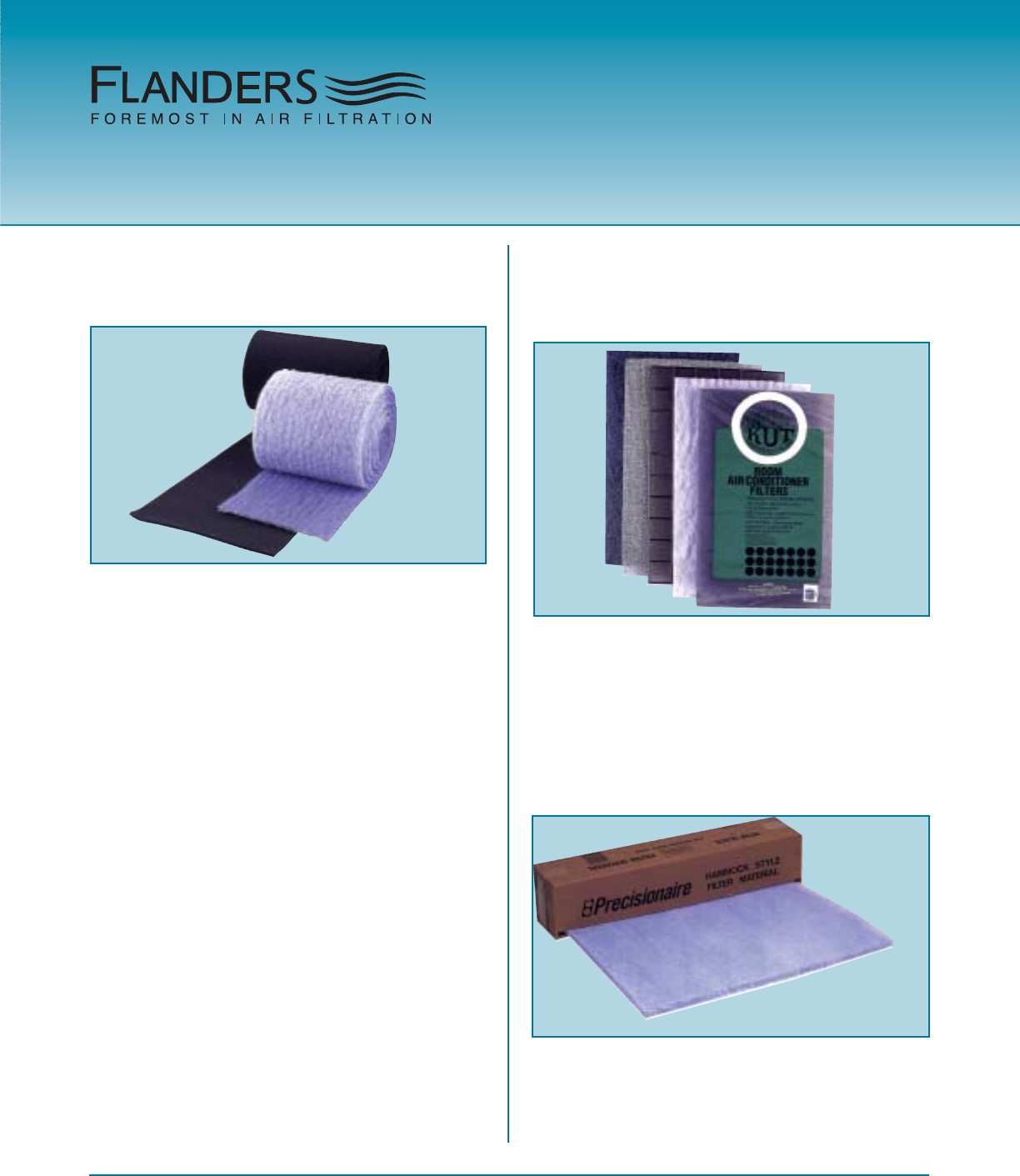

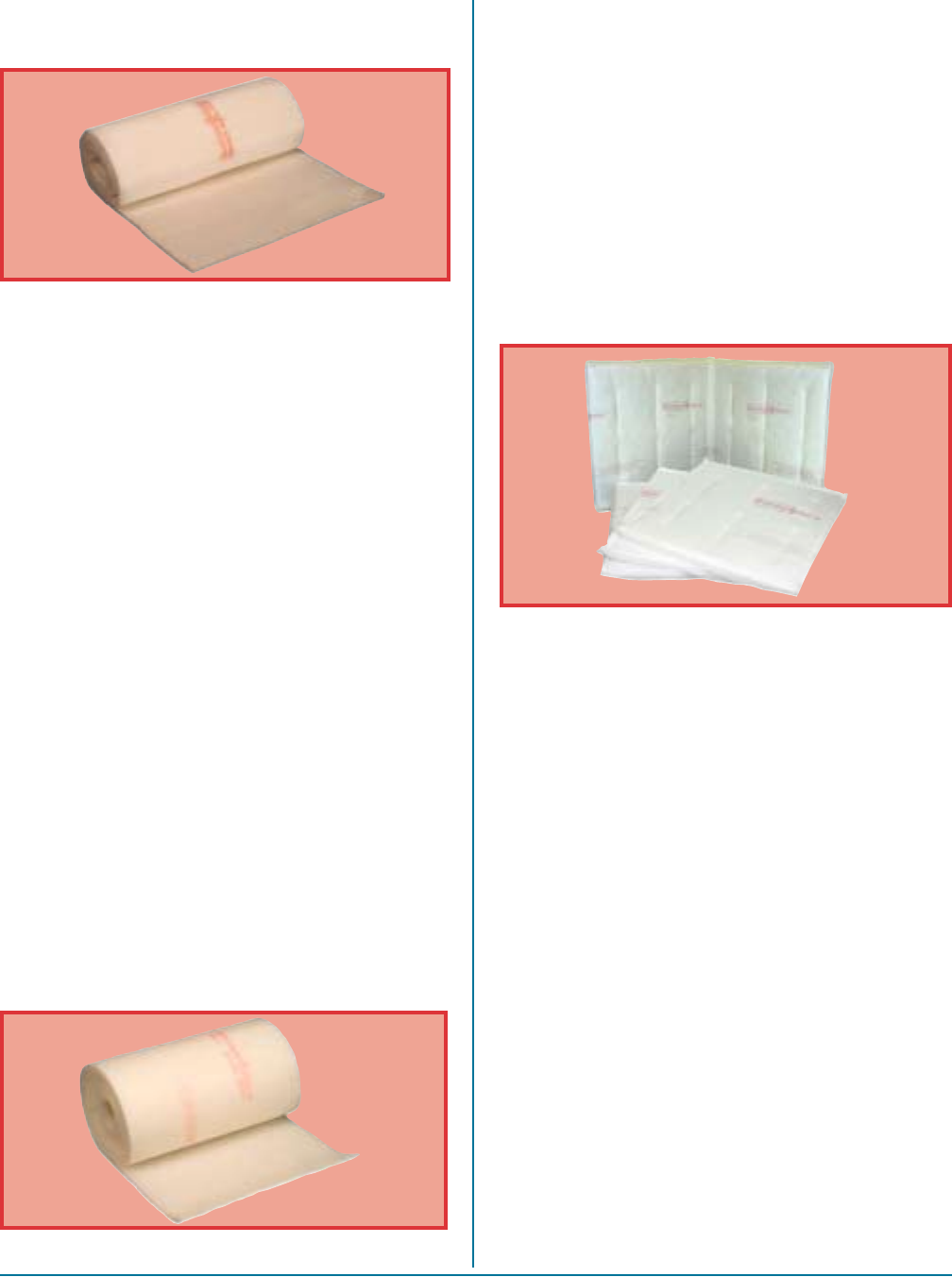

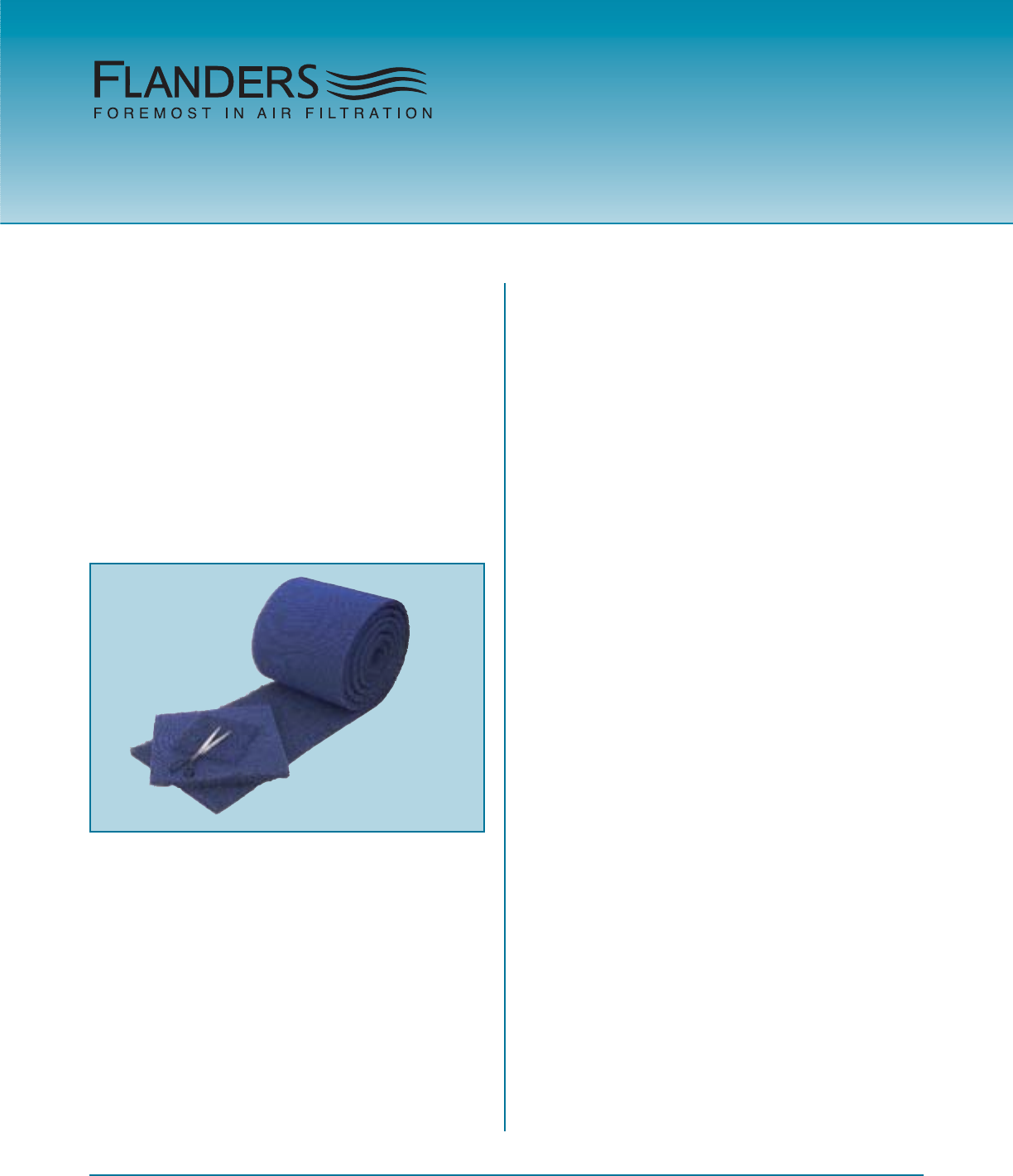

SA600-G10 Diffusion Media for Air Intake

Models SA600-xxx

For downdrafts and prep stations. This filter pro-

vides the highest level of protection against paint

damaging particles available today. In addition to

its leading reputation in filtering ability, the SA600-

G10 is able to withstand high temperature applica-

tions, up to 140 degrees Celcius! This filter does

not discolor or break down in the heated booth

environment. Other leading media using traditional

tackifiers and PVC resins, produce a heavy discol-

oration and the media expands reducing the filter-

ing ability.

Flanders’ re-engineered media and manufacturing

process has virtually eliminated these flaws. Using

ecologically sound materials, and eliminating PVC

resins, the media discoloration and media expan-

sion have been minimized. The SA600-G10 is a 1”

diffusion media, and carries the prestigious G10

mark. G10 is a European standard for test per-

formance, and only qualified media can claim this

mark of distinction. It has a high dust holding

capacity for long life, and stops all particles of paint

damaging size from entering a paintbooth when

installed properly.

This product has a normal service life of 10 to 18

months, depending on outside air quality and

usage. The filter is available in bulk rolls or cut

pads for your convenience. Cut pads are cut in our

facility to your booth requirements.

SAR-1 Pad for Air Intake

Models SAR1M-xxxxx

For use as an intake blanket on crossdraft booths.

The SAR-1 media, made in Switzerland, has a 1/2“

loft, and is optimally designed for efficiency and

dust holding capacity. For crossdraft booths, the

SAR-1 pad, sometimes referred to as a blanket, is

tucked into the doors of the booth. There is usual-

ly only one large pad on each door. Oversized

SAR-1 media pads can be easily trimmed.

The SAR-1 media is a premium choice for cross-

draft requirements. The tackifier and heavily cal-

lendered exit side allow for excellent particle reten-

tion. The SAR-1 is a premium choice for crossdraft

filtration.

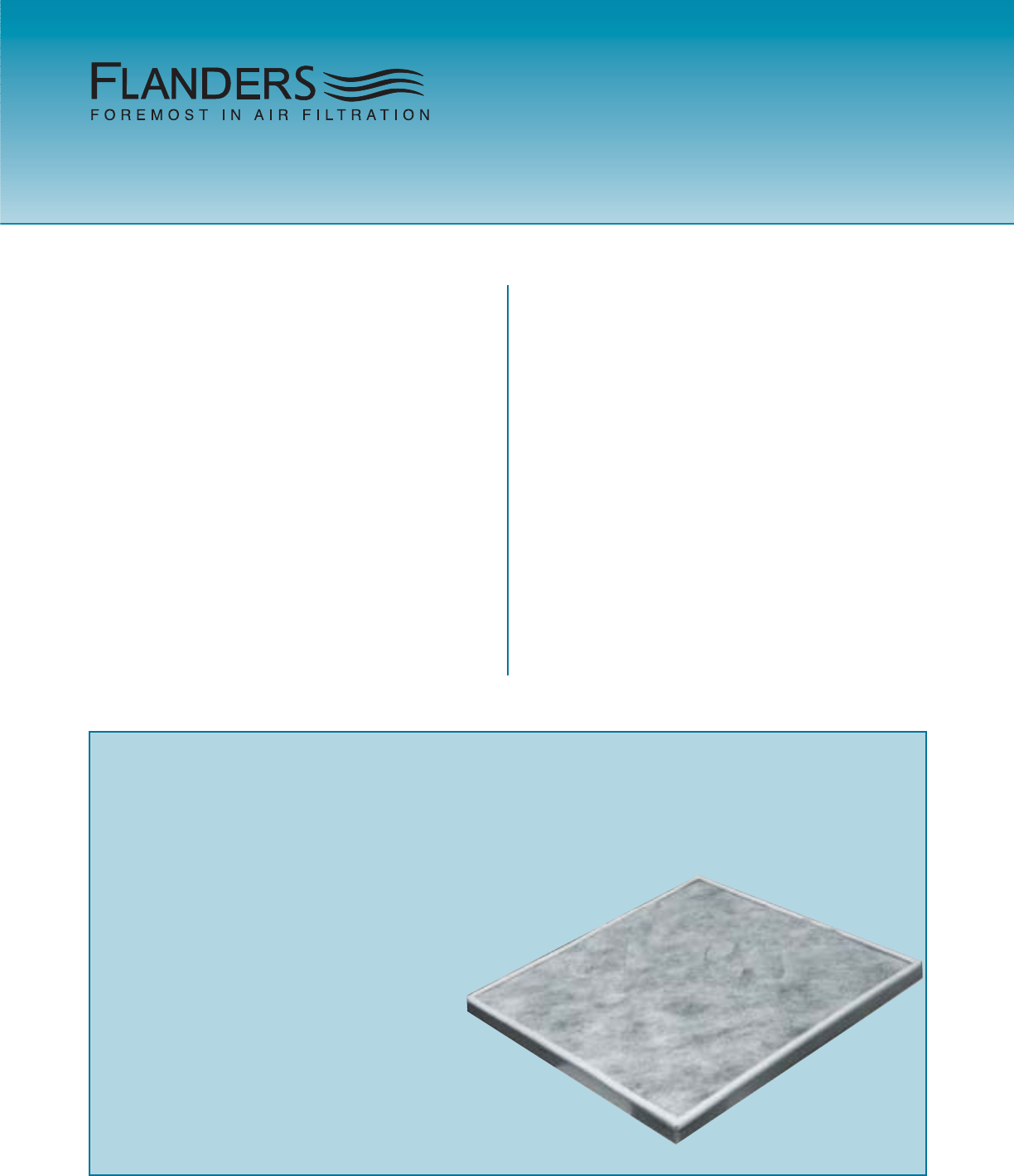

SAR-1 Panels for Air Intake

Model SAR1Pxx-xxxx

For use in crossdraft and some downdraft

booths.The SAR-1 PANEL, made in Switzerland, is

a premium choice for panel filtration. The SAR-1

PANEL is made from two media pads. A metal

support is dielectrically heat sealed in between the

two media layers providing support and rigidity.

The first media layer is designed to catch large par-

ticles entering the booth. The second media layer

is designed to catch the smaller particles. 100% of

the fibers in the second layer are tackified to retain

trapped particles. The combination of small fiber

size and a callendered exit provide unsurpassed

R-1 filtration.

The metal support is made from 9 gauge galva-

nized steel, which will not rust. The support is

formed into a rectangular shape and contains two

crossbars for added stability.

When choosing the correct size, measure the metal

support. The metal support will be 3/8” under the

listed size. For instance, a 20x20 panel’s ring will

measure 19-5/8 x 19-5/8. Crossdraft booths will

have a series of housings that look like square or

rectangular holes in the booth doors. Panel filters

have extra media overlapping the metal support

which act as gasketing when placing the panel filter

inside the housing and create a tight seal to prevent

any air bypass around the filter.

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

the filter and hvac store

Series ST55 Panel for Air Intake

Models ST55R-xxxx and ST55L-xxxx-xx

The SERIES ST55 PANEL, made in the USA, is an

economical choice for crossdraft booths. The

SERIES ST55 is made from two media pads. A

metal support is dielectrically heat sealed in

between the two media layers, providing support

and rigidity.

The first media layer is designed to catch large par-

ticles entering the booth. The second media layer

is designed to catch the smaller particles. The

downstream side of the second layer is treated with

a sticky non-migrating tackifier which holds trapped

particles inside the filter. The metal support is

made from 9 gauge galvanized steel, which will not

rust. The support is formed into a rectangular

shape and contains two crossbars for added stabil-

ity.

When choosing the correct size, measure the metal

support. The metal support will be 3/8” under the

listed size. For instance, a 20x20 panel’s ring will

measure 19-5/8 x 19-5/8.

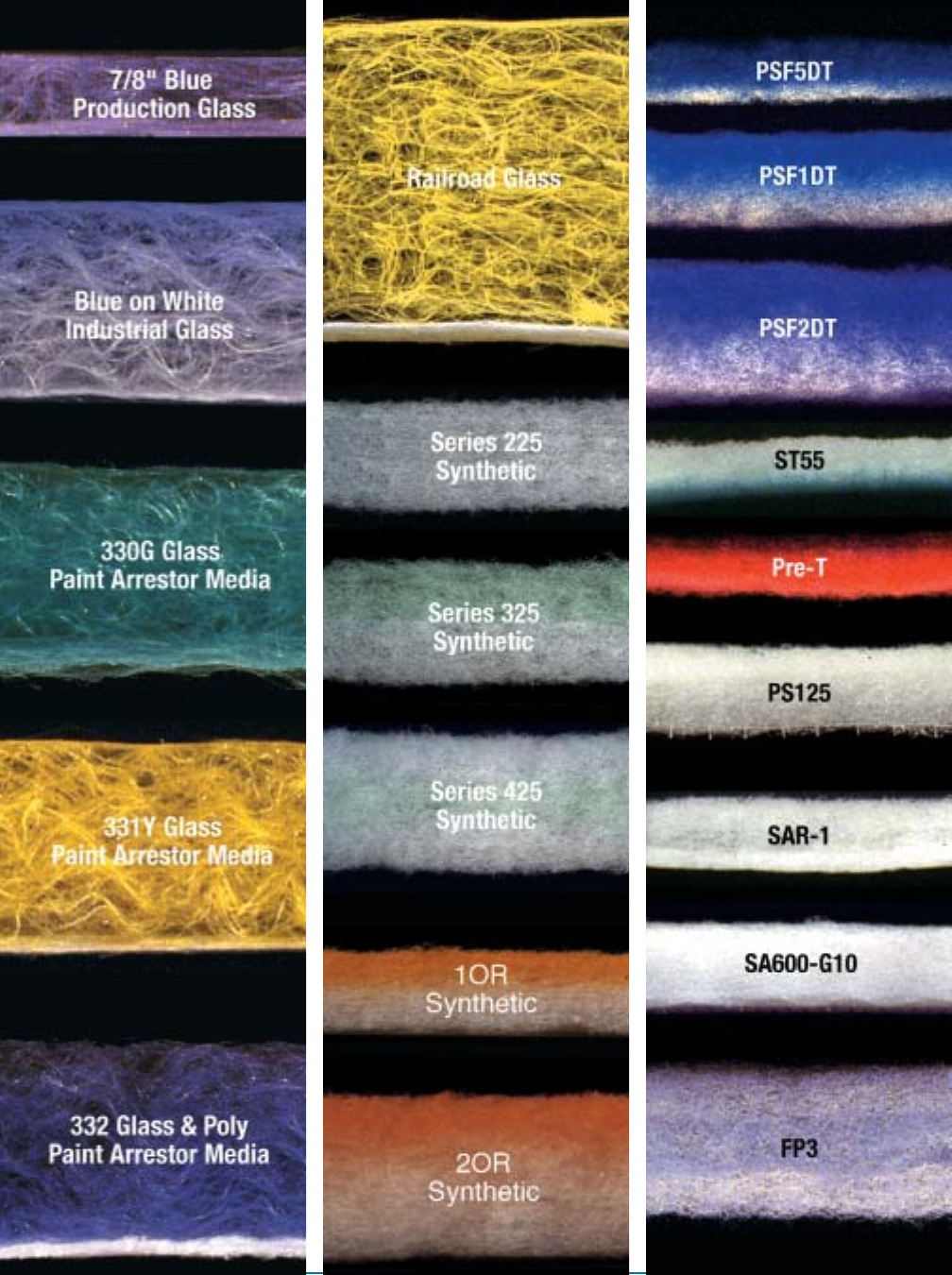

Series 332 Paint Arrestor

Models 332PA-xxxx

Fiberglass with polyester for use as a paint arrestor

in all types of booth. Series 332 is our highest qual-

ity fiberglass media available. Made with 18 grams

of fiberglass per square foot, and a polyester exit

layer, the Series 332 is more efficient and holds

more paint than almost any other fiberglass prod-

ucts.

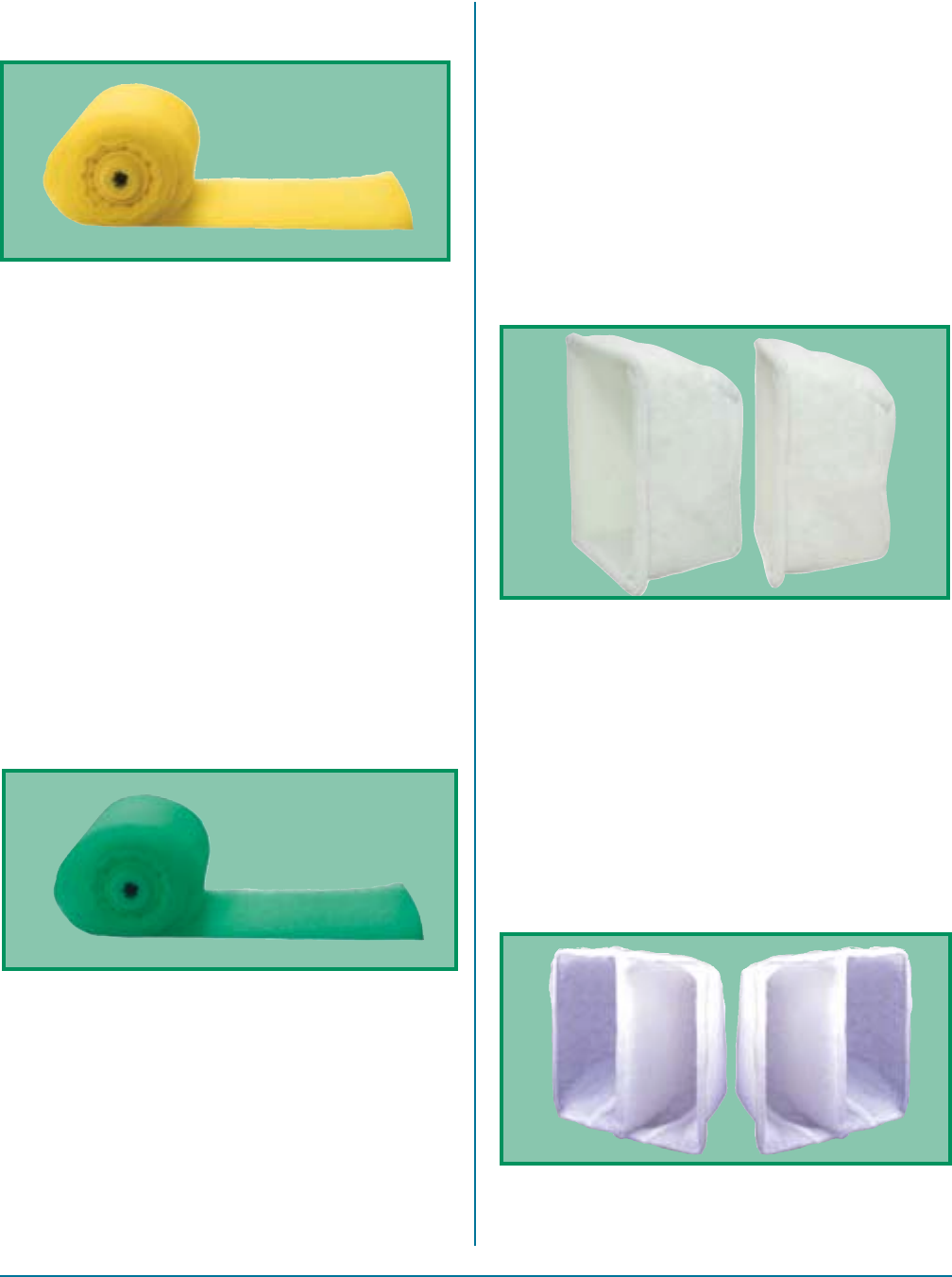

Series 332 comes in 200 ft. rolls and in pads for

crossdraft and semi-downdraft booths. Series 332

is made from air-laid fiberglass forming a 2.5”

thickness and a thin polyester layer bonded to the

exit side for added efficiency.

Series 332 fibers are ideal for paint capture due to

their loose weave. The paint particles collide with

the fiberglass fibers and are removed from the

airstream, and the fine particulate is removed by

the polyester exit layer.

Agrid is needed to hold the pad which is standard

in most booths, or are available through Flanders

customer service.

If your downdraft booth uses a pit, measure the

width of the pit to find the appropriate roll, or check

our booth guide. To change the media, simply,

unwind the roll to the proper length, and cut a pad.

FP3-Paint Arrestor

FP3PA-xxxx

FP3 media is an excellent choice for exhaust media

in any booth. Use of this media will keep the booth

exhaust system cleaner when converting from

fiberglass, however some older booths do not work

well with the resistance levels.

FP3 media combines three distinct layers of poly-

ester fibers forming a funnel effect. The first layer

captures large particles. The second and third lay-

ers catch the finer particles.

By utilizing an open weave on the first layer, parti-

cles do not cause the filter to quickly clog up allow-

ing large amounts of paint to be captured without

substantial increases in air pressure.

The pad sizes listed below are typical in crossdraft

and semi-downdraft booths. If converting from

Styrobaffle or Styrofoam, grids will be needed to

hold the pads in place. If your downdraft booth

uses a pit, measure the width of the pit to find the

appropriate roll, or check our booth guide.

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

the filter and hvac store

Series 331Y PA

Models 331Y-xxx

22 gram Fiberglass Paint Arrestor for use in all

booth types. Series 331Y is a high quality fiberglass

media. Made with 22 grams of fiberglass per

square foot, the Series 331Y is more efficient and

holds more paint than many other fiberglass prod-

ucts. It comes in 200 ft. rolls and is also available in

pads for crossdraft and semi-downdraft booths.

Series 331Y is made from air-laid fiberglass form-

ing a 2.5” thickness. The exit side has a skin back-

ing for added efficiency.

Series 331Y fibers are ideal for paint capture due to

their loose weave. The paint particles collide with

the fiberglass fibers and are removed from the

airstream.

If your downdraft booth uses a pit, measure the

width of the pit to find the appropriate roll, or check

our booth guide. To change the media, simply,

unwind the roll to the proper length, and cut a pad.

Series 330G PA

Models 330G-xxx

15 gram Fiberglass Paint Arrestor for all booth

types. Series 330G is our economy grade fiber-

glass media. Made with 15 grams of fiberglass per

square foot, the Series 330G holds more paint than

other economy fiberglass media due to its skin exit

side.

Series 330G comes in 100 ft. rolls compared to

many of our competitors 200-300 ft. rolls. The fiber-

glass is also available in pads for crossdraft and

semi-downdraft booths.

Series 330G is made from air-laid fiberglass form-

ing a 2.5” thickness. The exit side has a skin back-

ing for added efficiency.

Series 330G fibers are ideal for paint capture due to

their loose weave. The paint particles collide with

the fiberglass fibers and are removed from the

airstream.

If your downdraft booth uses a pit, measure the

width of the pit to find the appropriate roll, or check

our booth guide. To change the media, simply,

unwind the roll to the proper length, and cut a pad.

Series 225T Cube

Models CUBx225Txxxxxx

2-Ply Self Supportive Cube Filter for use as a paint

arrestor. 225T Cube filters are a single pocket

trapezoid cube filter. A 1” dual denier polyester

media is sewn into shape. The filter is then

attached to a 9 gauge wire for support when

installed in the filter housing.

Due to their unique design, cube filters have a larg-

er surface area than conventional pads. The

increase in surface area allows the filter to hold

more contaminants thereby increasing the life of

the filter.

325Tand 425T-Cubes

Models CUBx325Txxxxxx and CUBx425Txxxx

Three and Four Stage Cube Filters for use as a

paint arrestor. Two products make up our premium

exhaust cube product line. They are the Series

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

the filter and hvac store

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

325T, which is 98% efficient, and the Series 425T

which is 99% efficient. The exhaust cube filters

have a larger surface area than a conventional flat

pad. This increase in surface area reduces the

restriction to airflow, and increases the paint hold-

ing capacity of the filter. This means better airflow

and longer life.

The Series 325T is made from a polyester media

supported by a 9 gauge wire frame. The dual

denier media is used as an initial barrier, and a

tightly woven thin media is used as a final particle

barrier. This filter captures an average of 98% of

overspray in weight.

The Series 425T has an added layer of media

applied to the downstream side of the filter.

Although the construction is the same as the Series

325T, the added layer of single denier polyester

fibers gives the Series 425T a 99% efficiency rat-

ing.

PS125-Bag

Models 125BAG-xxxxxx

Scrim-Back Polyester Media Bags for use as a sec-

ondary paint arrestor in selected booths.

Each bag is hand sewn and attached to a 9 gauge

galvanized support frame, and includes a 1” head-

er for easy placement in side access housings.

Special bags may require a wire support basket, no

header or frame, or loops at the end of each pock-

et for support.

The media is a 1” single denier polyester fiber with

a scrim backing. This media has little effect on the

airflow, and has a high dust holding capacity. The

unique pocket design increases the surface area of

the media. This increase in surface area will

increase the life of the filter, and reduce the pres-

sure drop.

If the exhaust bag is the same size as a booth’s

intake bags, it is common to rotate the intake bags

to the exhaust bags to reduce costs. Bag meas-

urements are nominal in size. If a bag is 15.5” x

24.5” x 19.5”, the listed size is 16” x 25” x 20”.

Please note this difference when measuring your

exhaust bags.

Andrea and PS125 Exhaust Filters

Models ANDREA and 125PAD-xxxx

The Andrea filter is a paper paint arrestor with a

unique design. Kraft paper is pleated into an accor-

dion-like form with holes punched in the paper at

consistent intervals. A second layer of paper is

attached to the back with different hole placements.

When air passes through the filter, it hits the wall of

the second kraft paper layer and is diverted through

the second hole. This air turbulence and laws of

motion cause the paint to collect on the paper and

cleaned air to pass through the filter.

The PS125 Water Wash Pads are designed specif-

ically for use in select Spraybake brand booths.

Certain models of Spraybake use a water wash

system as a secondary exhaust. This water wash

system requires special pads to be used to filter out

particulate in the system. The fiber has a reinforced

scrim backing on the downstream side to prevent

fiber breakoff or migration. The water wash pads

are also available in custom sizes.

*Our filters are not affiliated with SPRAYBAKE®. Use of the

registered SPRAYBAKE® name is for comparative purposes

only.

Series 225-Panel

Models 225RT-xxxx and 225LT-xxxxx-xx

2-ply Panel and Link Filter for use as a prefilter in

downdraft booths. The 2 ply panel filters are con-

structed using two layers of poly-synthetic fibers.

These layers are designed to capture large parti-

cles in the first layer and smaller particles through-

out the second layer.

A9 gauge wire frame with two cross pieces is

dielectrically heat sealed inside the filter for sup

the filter and hvac store

port. The media overlaps the support, which pro-

vides a gasketing effect reducing air bypass around

the filter.

Atackifier is applied in between the last two layers

to stabilize any migrating particles and prevent the

discharge of particles from the filter. The graduat-

ed media design produces a superior dust holding

capacity that will outlast most filters on the market.

Panel filters are 100% moisture resistant and will

not warp or deteriorate in wet or humid conditions.

By utilizing one continuous panel in a filter track,

and its selvedged edge, a panel filter eliminates air

bypass so common among cardboard framed fil-

ters.

When measuring the correct filter for your booth,

first measure the entire filter track. This measure-

ment should have a track height of 14-25” and a

length of 14-100”. The height of the 2 Ply Panel is

listed as a nominal size. For instance, if a filter ring

measures 15.5” x 19.5”, then the correct size is 16”

x 20”. There are hundreds of standard sizes avail-

able. Custom sizes are also available.

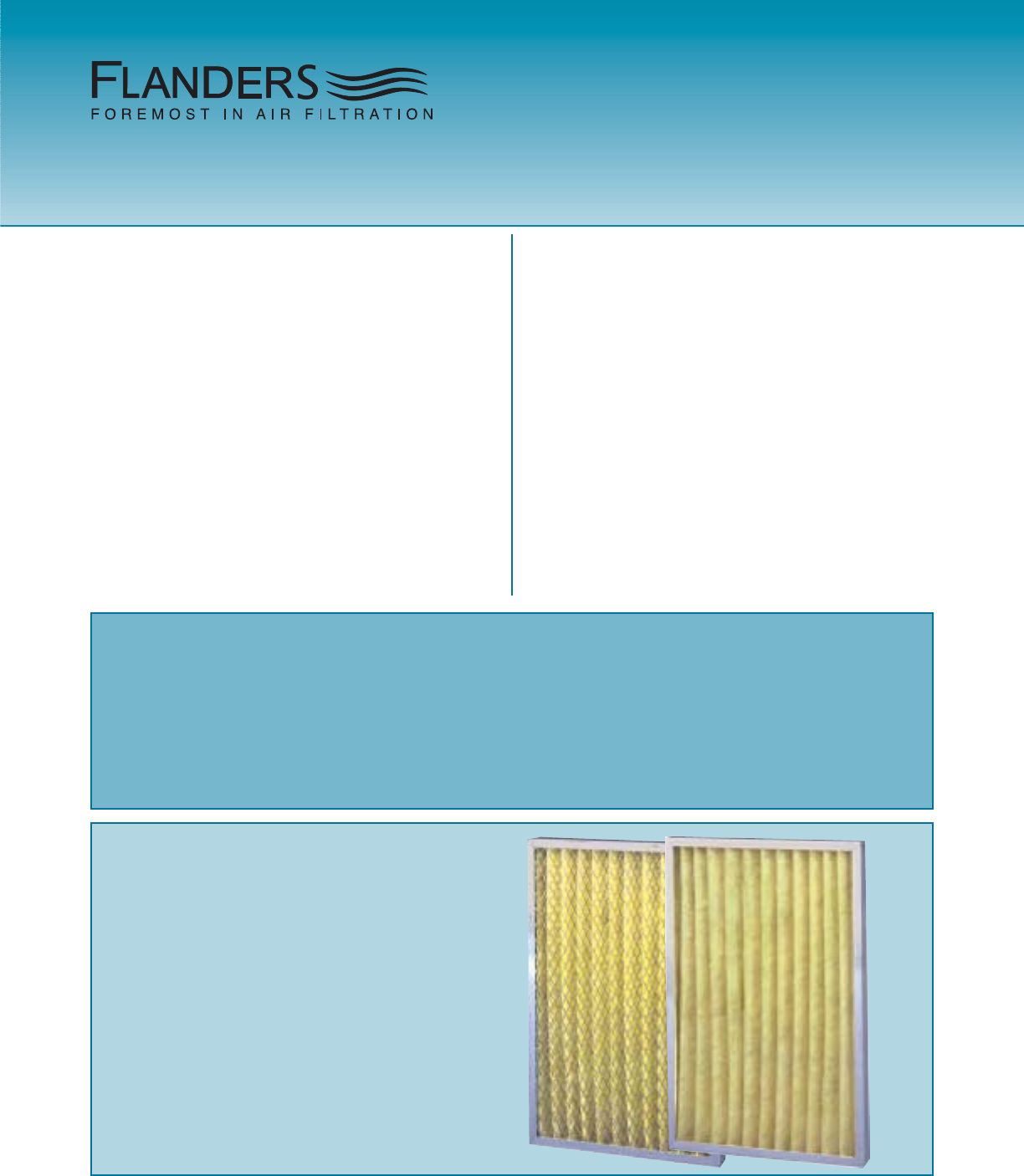

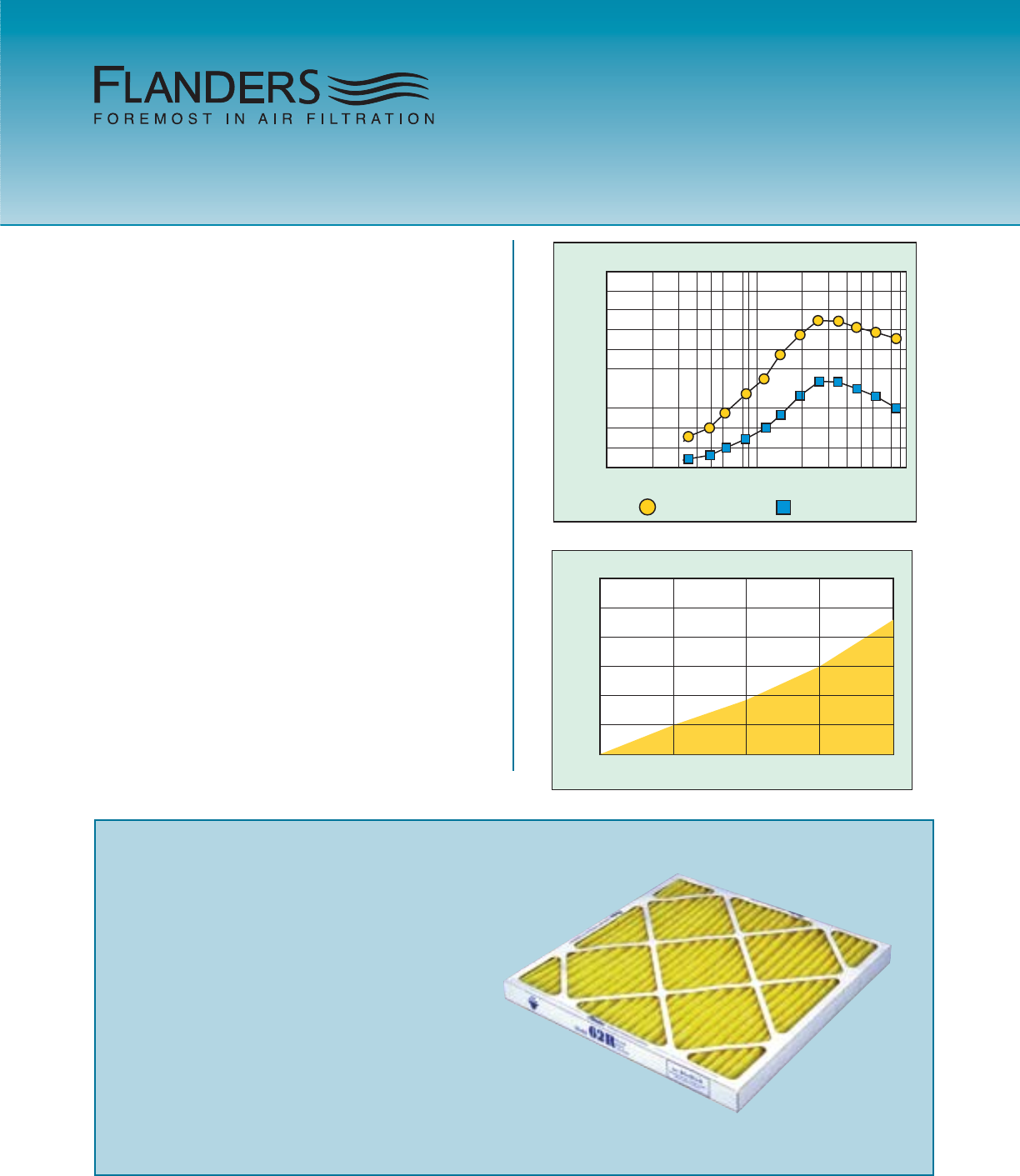

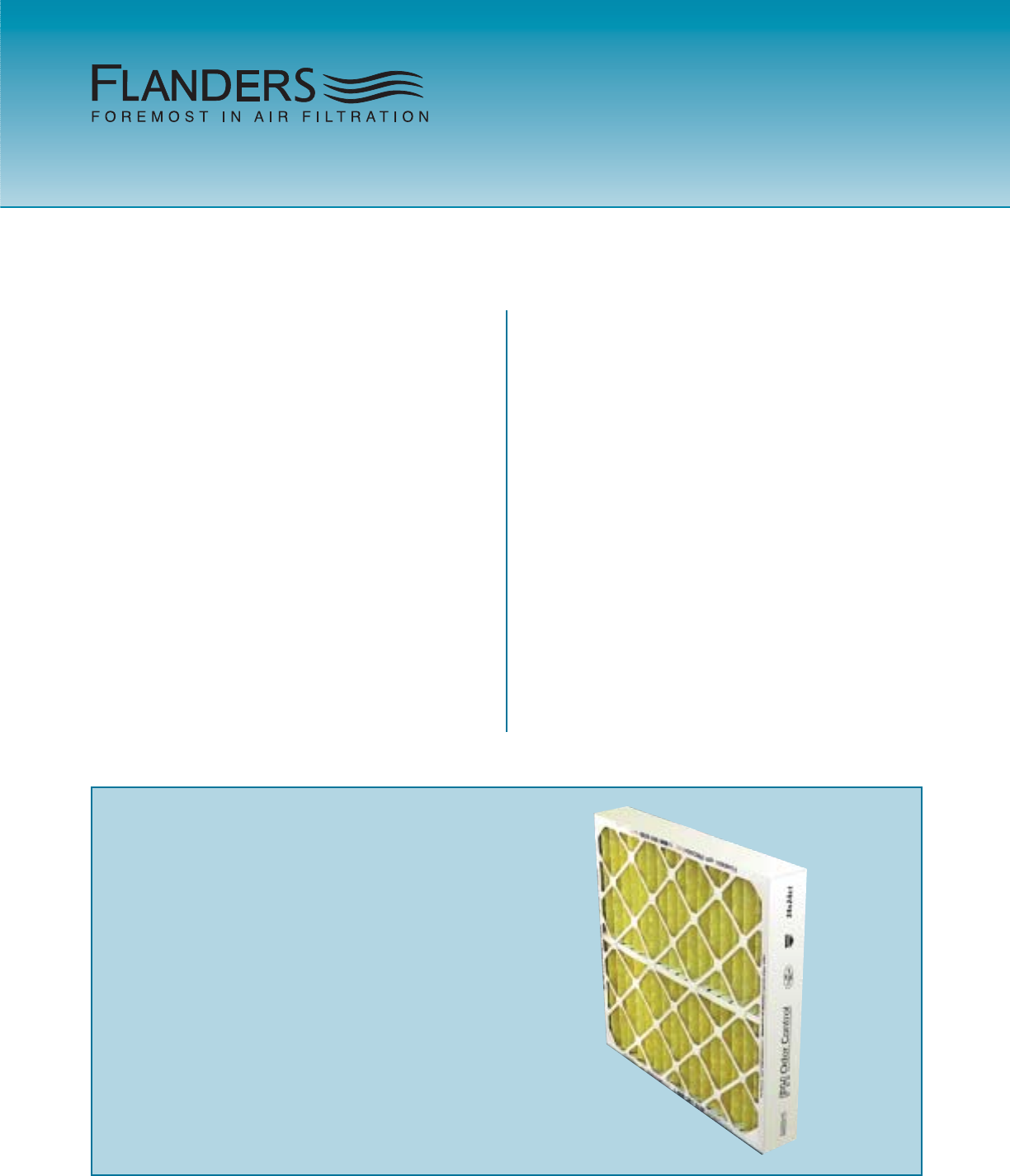

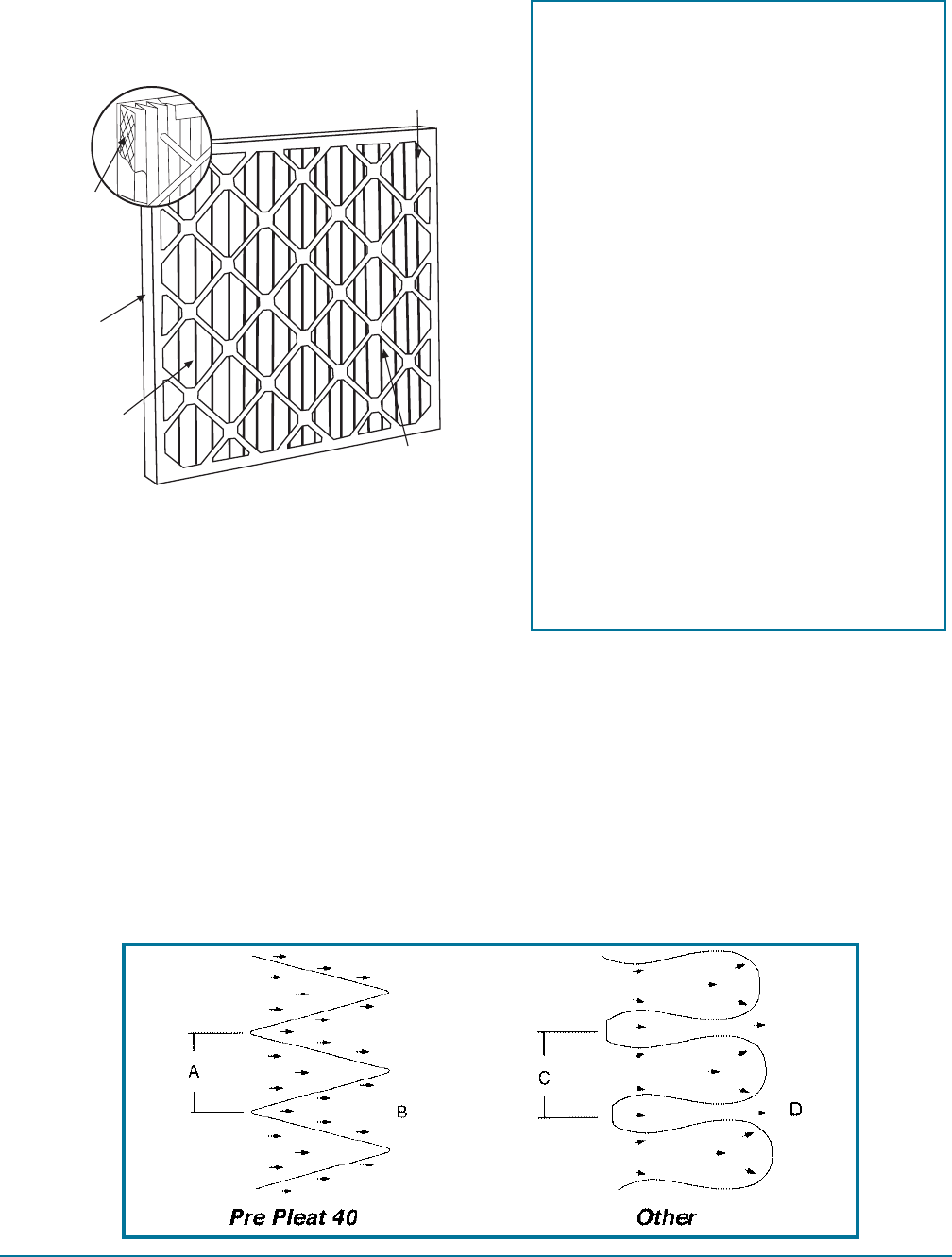

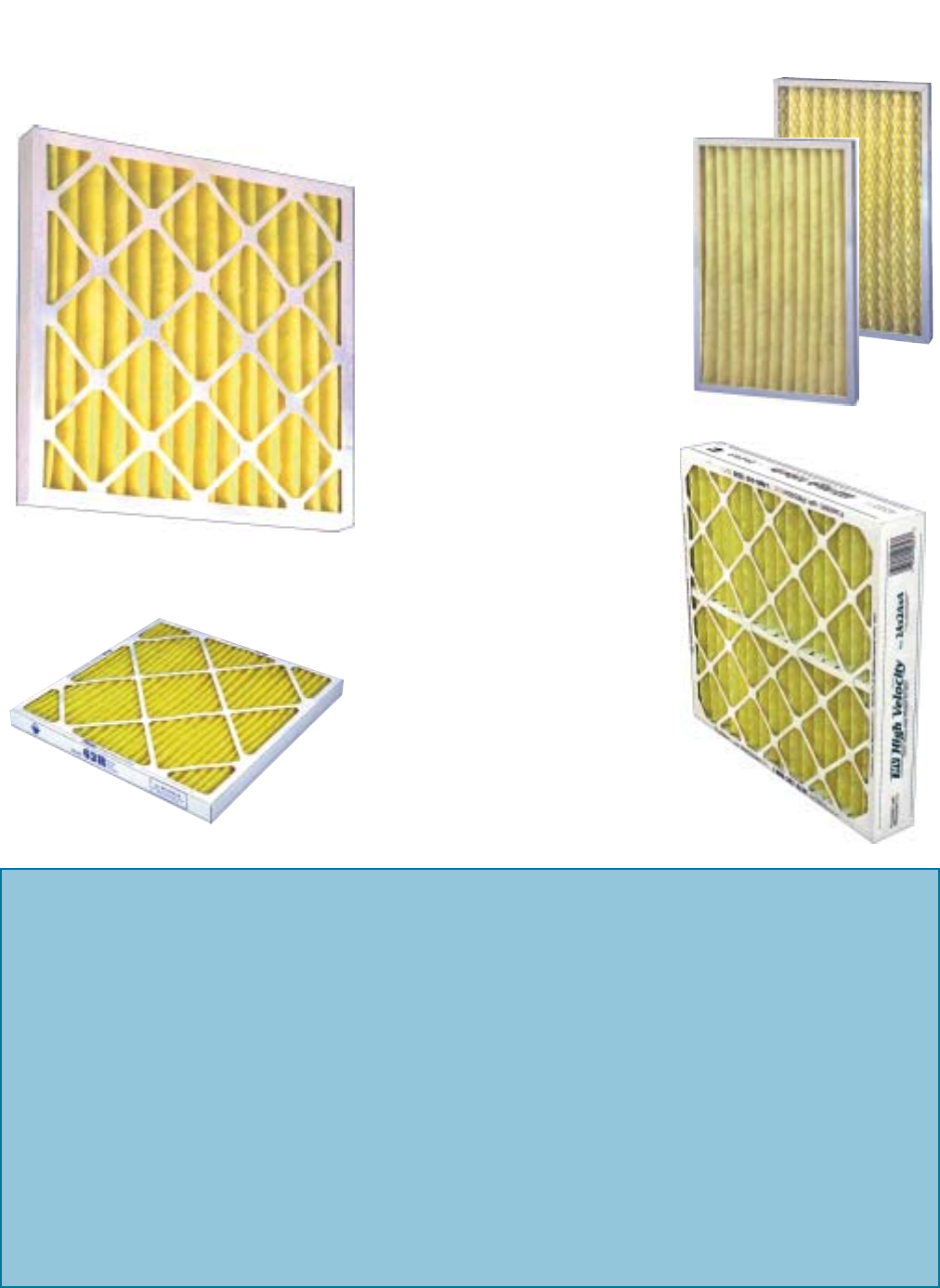

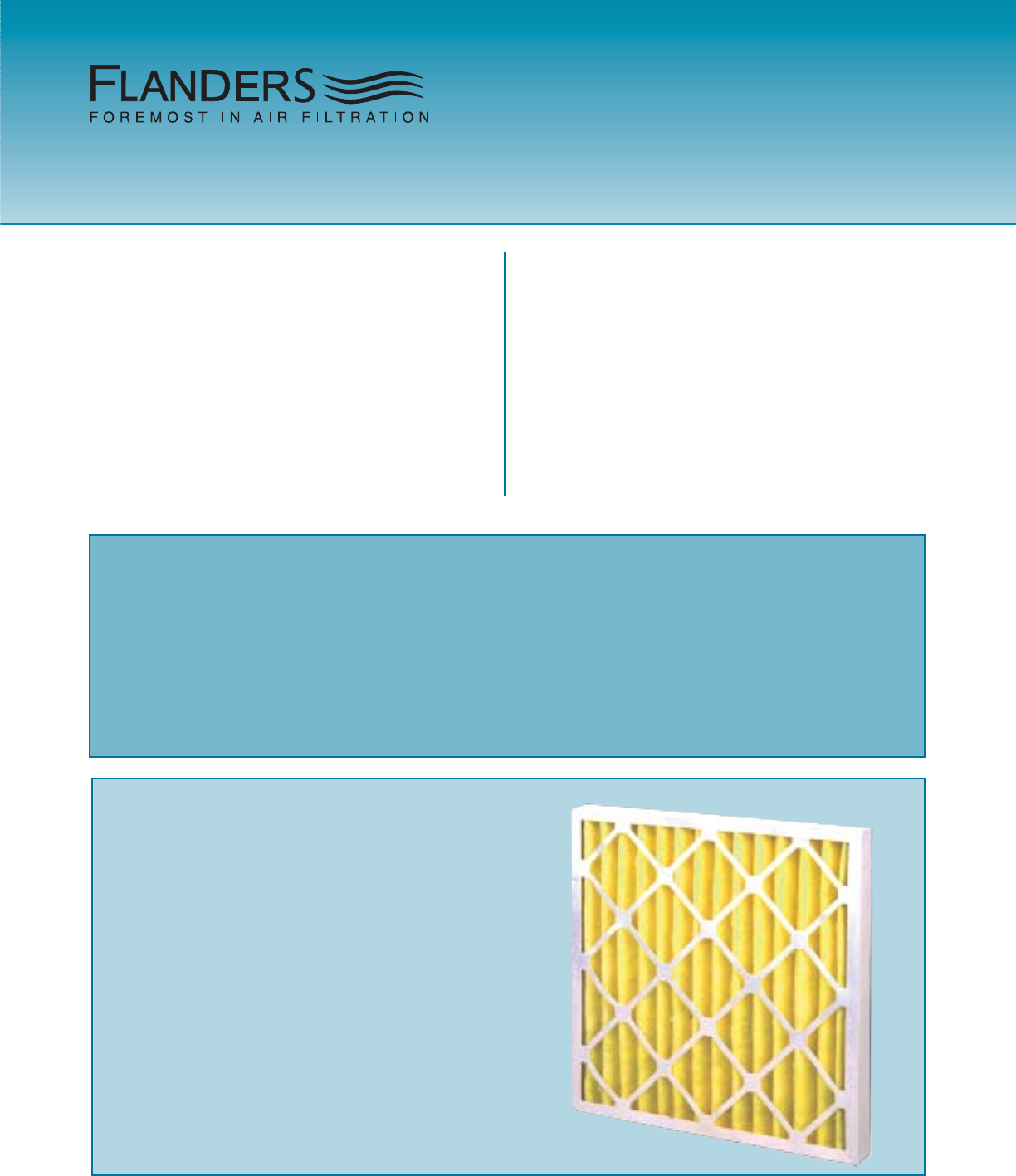

Model 40 Standard Capacity Pleat

Models 80055.xxxxxx

For use as a prefilter in downdraft booths. Model 40

Pleats are designed to operate in almost every type

of installation. Available in 1”, 2” and 4“ nominal

thicknesses, these filters have an average atmos-

pheric dust spot efficiency range of 25-30% per

ASHRAE Standard 52.1 test methods. Model 40

Pleats offer greater efficiency and service life than

disposable filters, pad and frame systems, or metal

washable filters. The overall design of this product

makes these filters the accepted choice in applica-

tions requiring high performance and extended

service.

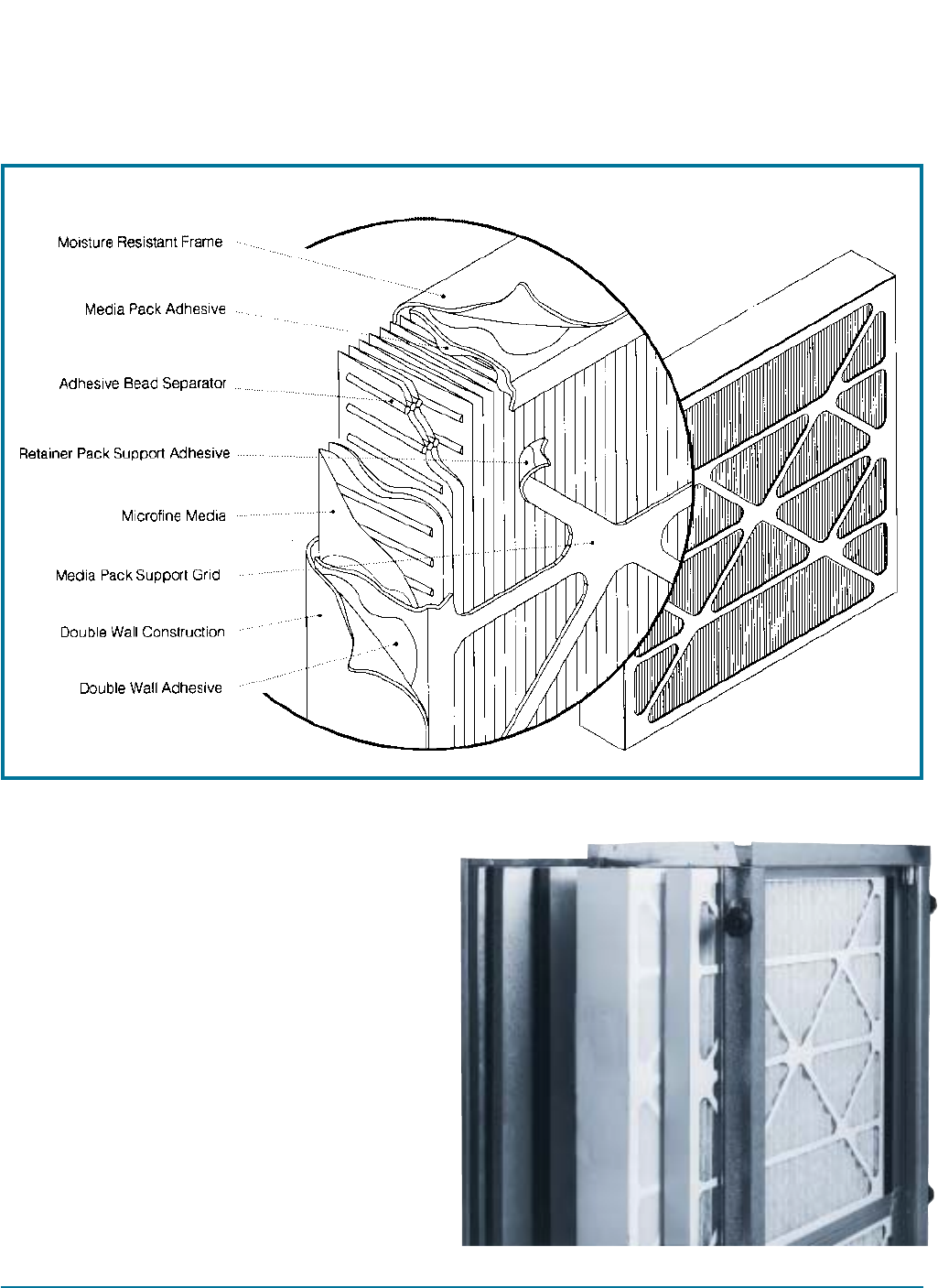

Filter frames are constructed from two pieces of

die-cut, moisture-resistant carrier board.

Components”telescope” into one another and pro-

vide double-wall construction and a precision fit.

The frame includes diagonal and horizontal support

members bonded to the media on the air entering

and leaving sides for unsurpassed frame strength,

locking corners and positive media-to-frame seal

reduces the possibility of air bypass.

The filter is made from fully synthetic, high-loft and

reinforced media. It is continuously laminated to an

expanded metal grid on the air leaving side to pro-

vide pleat stability throughout the life of the filters

and prevent media flutter while in operation. The

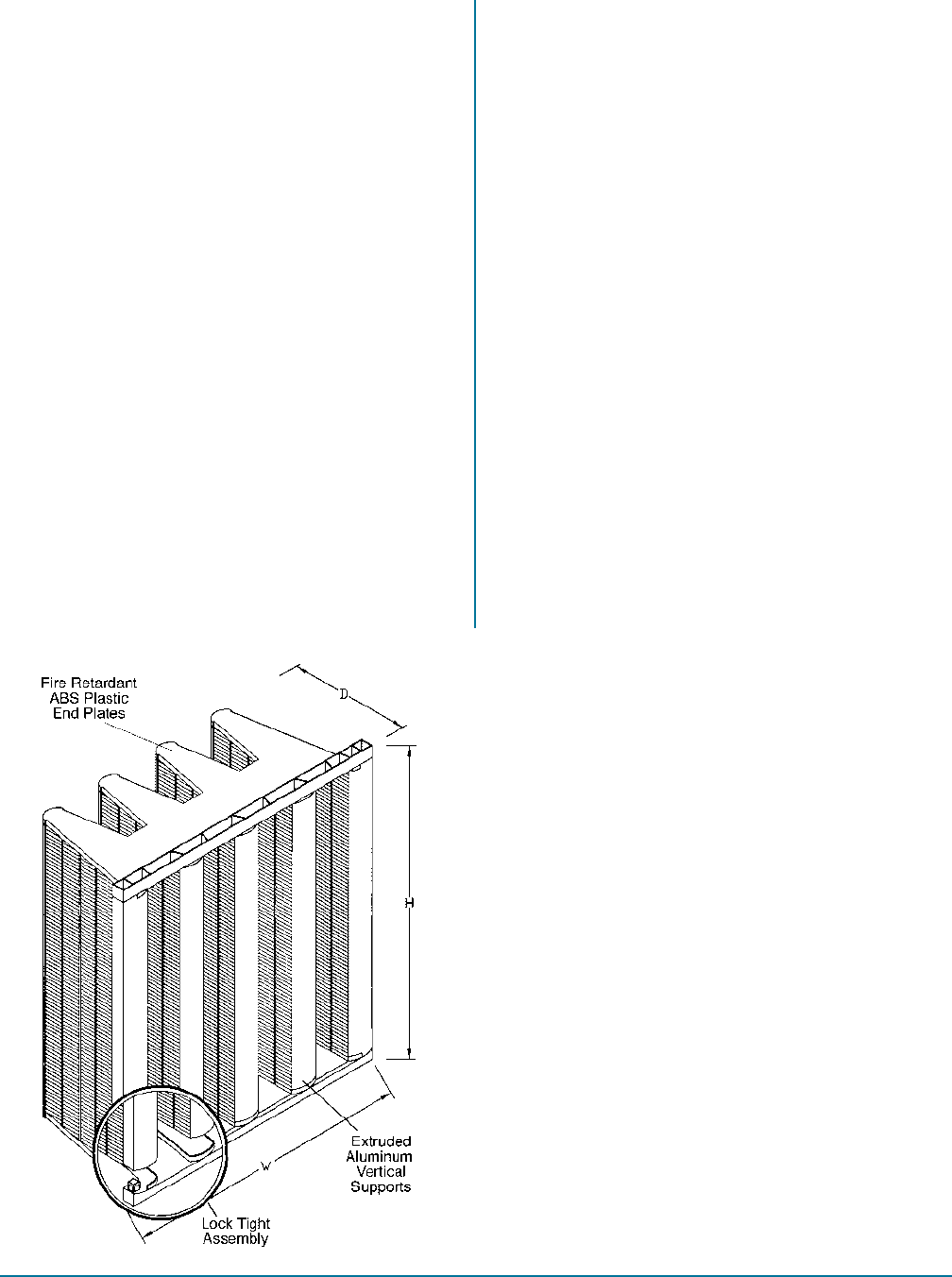

unique v wedge allows for total media usage and

provides maximum air flow.

HD Poly-T/A

Models 11255.xxxxxx

These are heavy duty synthetic filters for use as

prefilters in downdraft booths.HD Industrial Grade

filters are designed for use in any application where

disposable panel filters are recommended. They

can be relied upon for superior performance since

they are specifically designed for heavy work-loads.

Both standard and special sizes are available.HD

Industrial Grade filters are designed with a one-

piece moisture-resistant chipboard frame enclosing

progressive-density media. Standard frames are

nominal 1” thick (3/4” actual) and nominal 2“ thick

(1-5/8“ actual).

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

Model 40 Pleated

Series 225 Panel

the filter and hvac store

The filter media consists of 100% high bulk poly-

ester fibers that are thermo-bonded with a fire retar-

dant res” Support grilles of expanded metal are

provided on both sides of the filter. The media pads

and support grilles are continuously glued to the

inside perimeter of the frame, resulting in excep-

tional strength and rigidity. This design virtually

eliminates the possibility of media sag within the

frame.

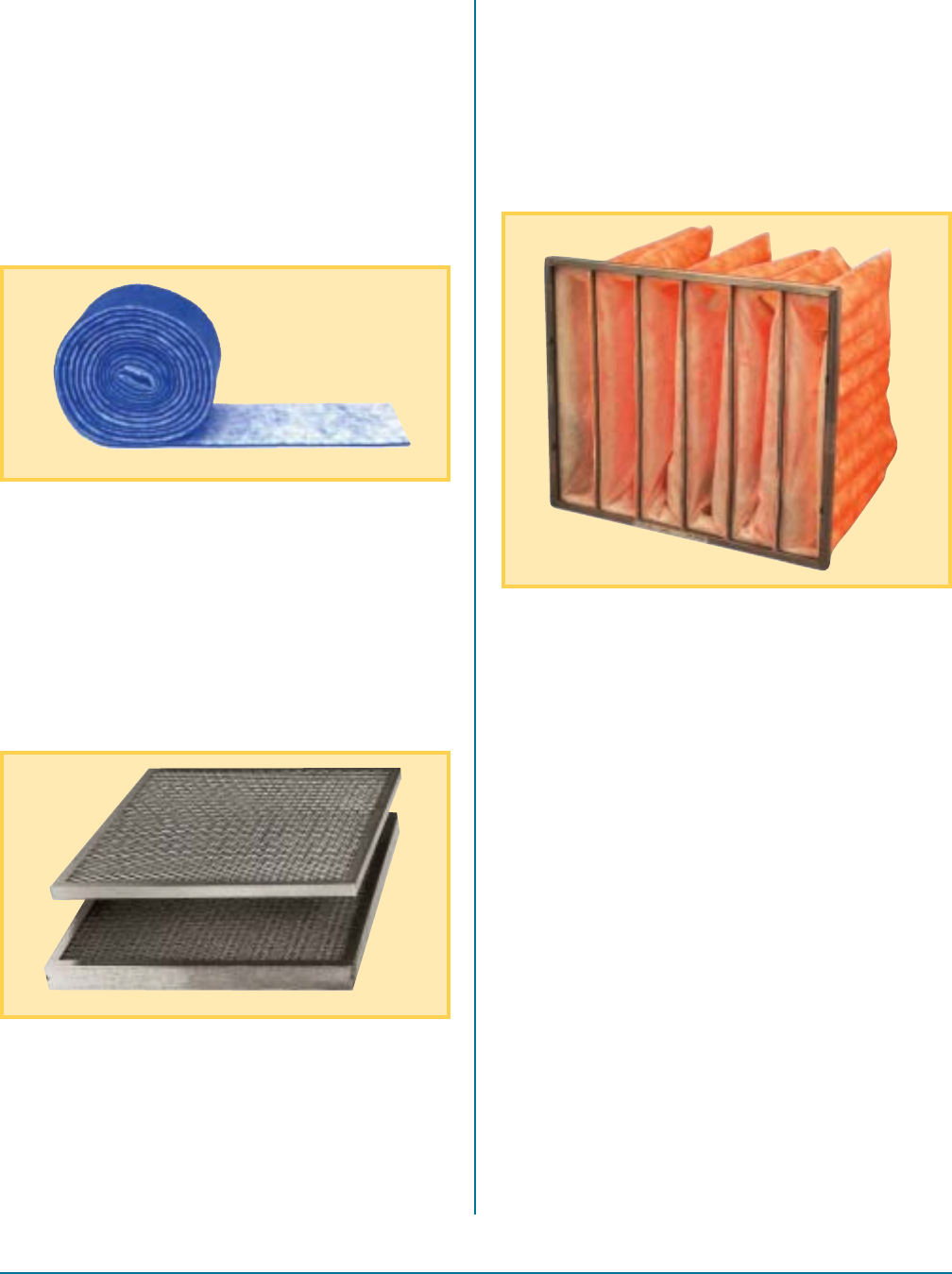

Polyester Bulk Media Rolls and Pads

Models 1Txx for 1” and 2Txx for 2”

For use as a prefilter in downdraft booths. Polyester

pads and rolls are made of a dual layer polyester

media with a dry tackifier. The filter is cut into vari-

ous pad sizes from the roll and placed into a metal

holding frame (See Uniframe on page 79). The

1DT media is a 1“ thick filter, and the 2DT media is

a 2” thick filter. The media can be ordered in pre-

cut pads or bulk rolls, and can easily be trimmed

with scissors.

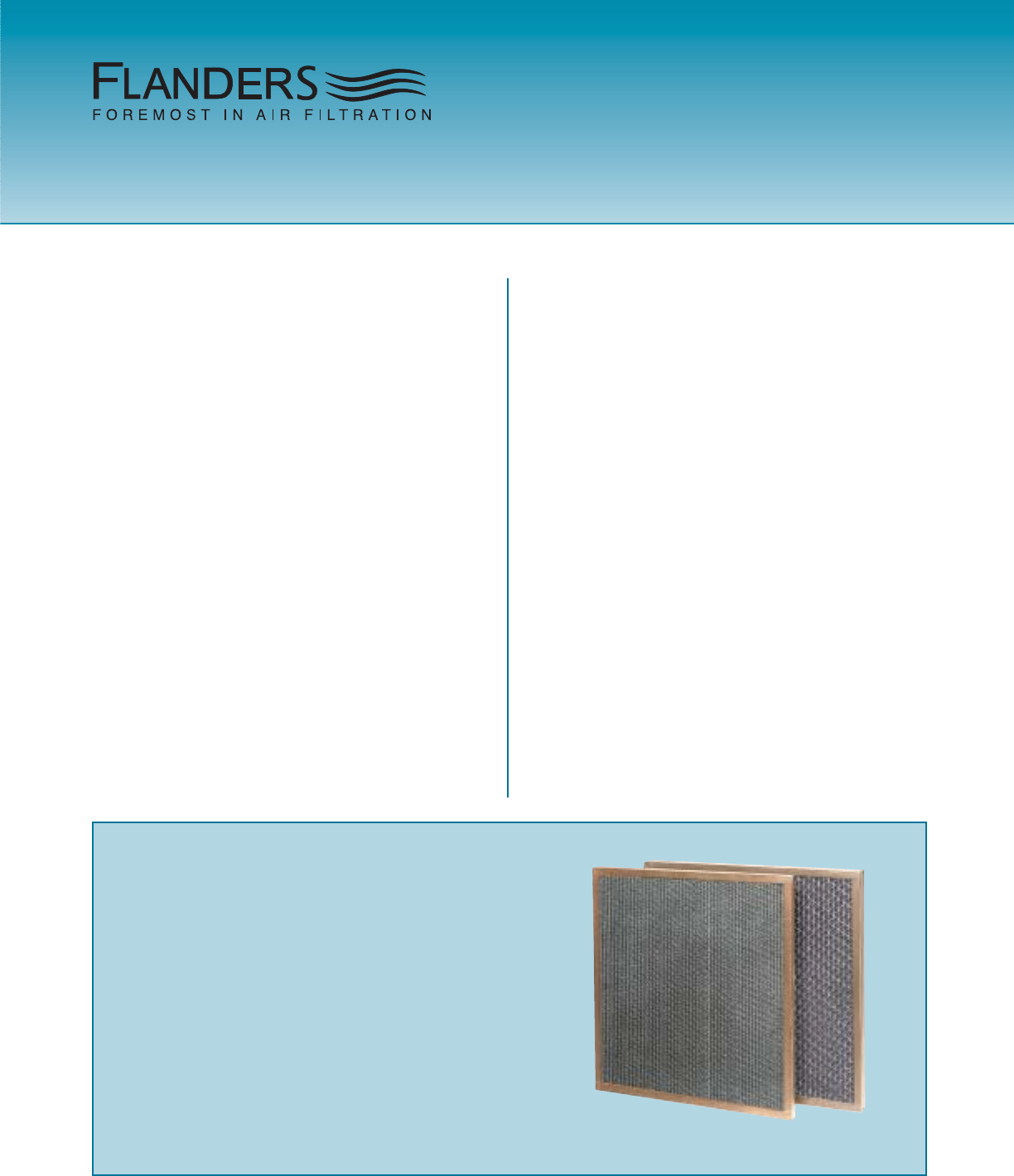

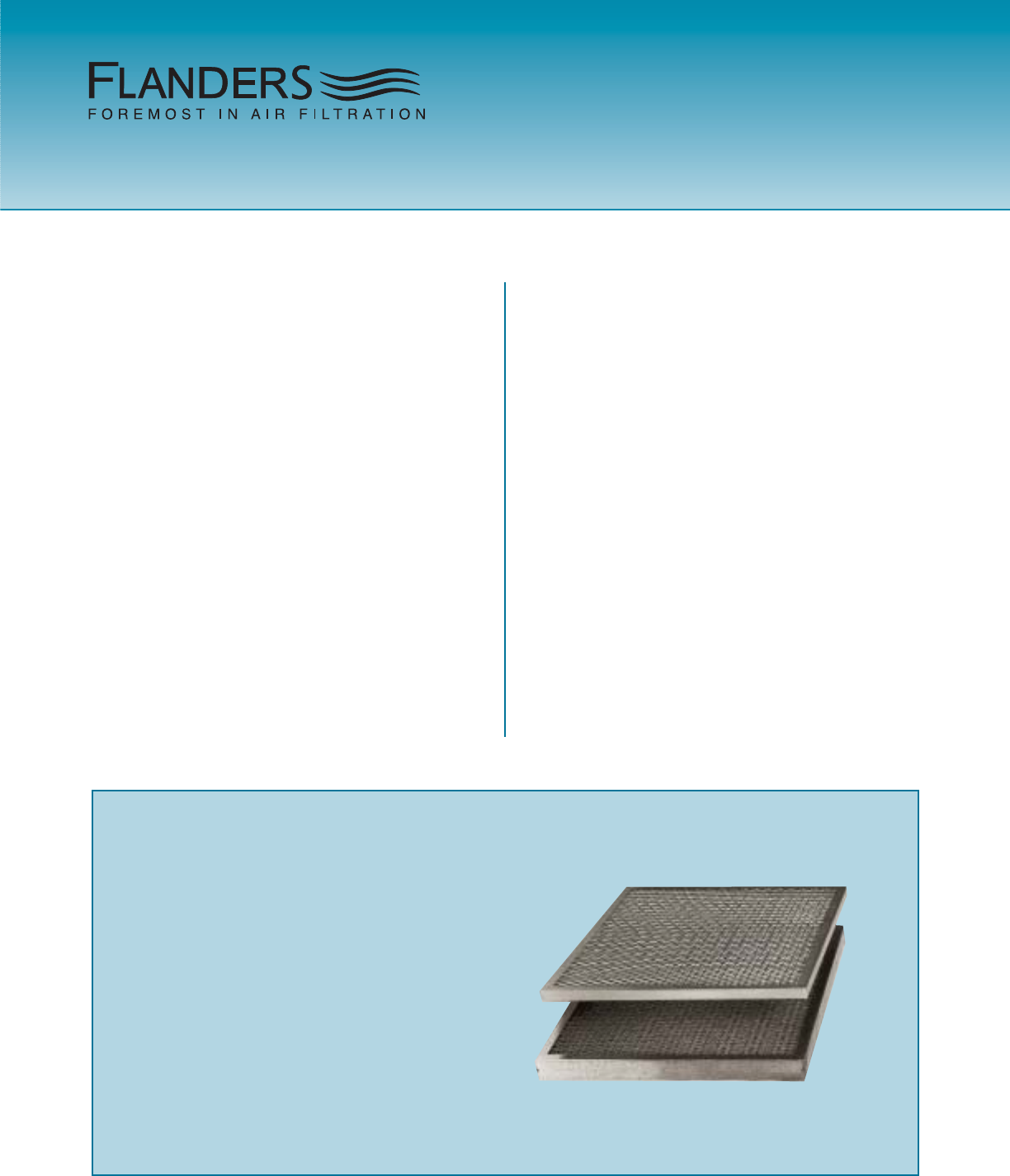

KKM Washable

Models 51255.xxxxx

Washable permanent filter for use as a prefilter in

downdraft booths. The KKM permanent filter is a

heavy duty, washable, aluminum media, all metal

filter.

The KKM offers large filtering area, high dust hold-

ing capacity, uniform loading and low resistance to

airflow. It is recommended that the filter media be

coated with dust adhesive for optimum perform-

ance.

The standard offering of KKM filters includes six of

the most popular face sizes in 1” and 2” depths.

Special face sizes and 1/2” depth filters are also

available. For ease of installation, all filters are

undercut slightly on length, width and depth.

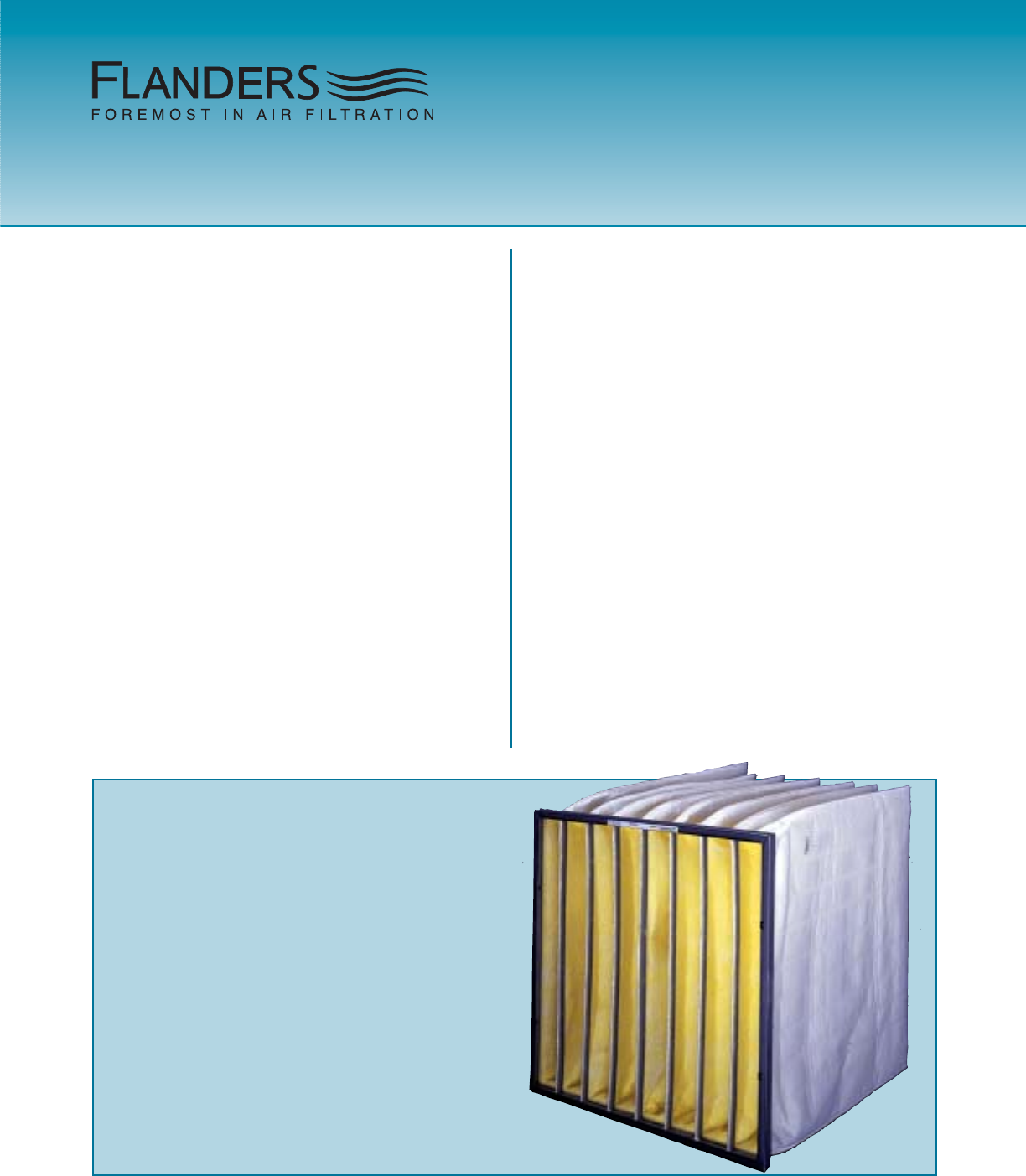

Precision Pak

Models PAPxxxSxxxx

High efficiency bag filter for use as a prefilter in

downdraft booths and prep stations.

The Precision Pak ASHRAE bag use a fully syn-

thetic media that provides an efficiency rating of 45-

55%. The pockets are hand sewn or ultrasonically

sealed and fastened to an all aluminum frame.

They are designed for specific booths and prep sta-

tions that can accommodate their special size and

performance properties. UL 900 Class 2 Listed.

Precision Pak bags have a large amount of media

surface area. This decreases the pressure drop

and increases the capacity. These bags hold sub-

stantial amounts of dirt removed from the airstream.

Use of these bags will ensure a clean environment

throughout the intake stack and prolonged life of

the ceiling diffusion media.

Bag filters are sized nominally in their length and

width. If the booth track measures 19.5” x 19.5”,

then the correct bag listed is 20” x 20”. Bag filters

also have a special depth. The depth describes the

length of the pockets. This is an exact size and is

usually an even number. There are many other

sizes available, and custom sizes can be made to

order. There are also other efficiencies ranging

from 45% through 95%. For additional sizes, UL

Ratings or efficiencies, please contact customer

service.

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

the filter and hvac store

PS125-Bag

Models125BAG-xxxxxx

Scrim-Back polyester media bags as prefilter.

PS125 Bags are made from a single denier poly-

ester media that contains a scrim backing for extra

rigidity. The PS125 Bags each contain a metal wire

support and a 1” channel frame for easy placement.

Prefilter bags have an ever-changing and diverse

selection of types and sizes. Call customer service

at any time to help with your selection.

PS125-Cube, PS125-Sock

Models125SOCK-xxxx

PSeries 225T Cubes are also used as an exhaust

filter in several applications. The Spraybake Sock

filter is made from a 1” single denier polyester

media. The filter has a draw string sewn at the top,

and a support loop at the bottom corner. The filter

fastens to the ductwork by the drawstring. After

fastening the support loop, the filter remains open

and stable.

*Our filters are not affiliated with SPRAYBAKE®. Use of the

registered SPRAYBAKE® name is for comparative purposes

only.

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

the filter and hvac store

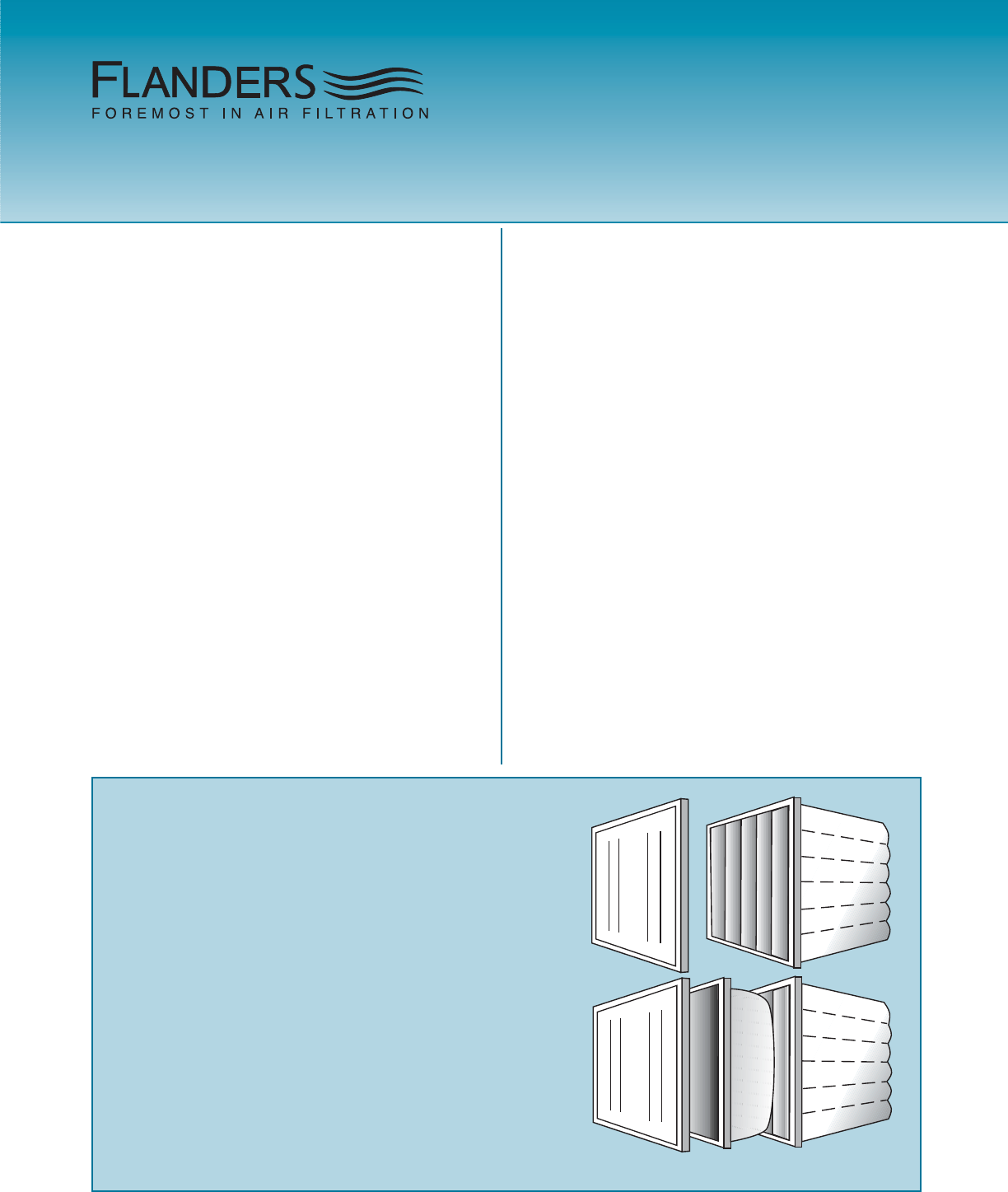

FP319A

Two-stage and Three-stage Paint Systems

Paintbooth Filtration

Pads: FP319AxxxxPAD, Ring Panels: FP319A2020PRK,

Cubes: FP319Axxxx ,Bags: FP319Axxxxxxxx

FP319A Chromate Recovery System

The Flanders FP319A-Chromate Recovery System

is offered in both two-stage and three-stage config-

urations for aerospace overspray painting environ-

ments.

The FP319A complies with EPA (Environmental

Protection Agency) Test Method 319 as it applies to

the National Emissions Standards for Hazardous

Air Pollutants (NESHAP). Reference 63 Fed. Reg.

59 (March 27, 1998) and 40 C.F.R. 9, 63.

The EPA Test Method 319 is a testing protocol in

which potassium chloride and oleic acid are substi-

tuted for chromate paint. These chemical sub-

stances attempt to simulate dry and wet overspray

characteristics of the chromate paint. This testing

protocol verifies that an air filtration system (two or

three-stage) has met minimum efficiency require-

ments, under laboratory conditions, utilizing potas-

sium chloride and oleic acid.

The Flanders FP319A two and three-stage systems

have been qualified by independent laboratory on

specific chromate paints. These tests are per-

formed in controlled environments to simulate the

“real world” painting environment.

Two-Stage

The two-stage version of the Flanders system uti-

lizes a proprietary synthetic media pad in combina-

tion with a proprietary synthetic media bag type fil-

ter. The two-stage system performed as shown

below in testing.

1 Dexter (A) 454-5 + (B) X-395 fuel tank coating mix-

yellow - With a conventional air gun operating at 45

psi, with spray feed rate of 105 gr/min @ 120 fpm.:

Initial pressure drop was .18” w.g. running to final

pressure drop at .72” w.g., average removal effi-

ciency was measured at 99.78% efficiency, with

279 grams holding capacity on the first stage and

2600 grams holding capacity on the second stage.

2. Deft 44GN72 green water-reducible coating (A) base

+ (B) activator - With a conventional air gun operat-

ing at 45 psi, with spray feed rate of 110 gr/min @

120 fpm.: Initial pressure drop was .10” w.g.

Running to final pressure drop at .74” w.g., average

removal efficiency was measured at 98.91% effi-

ciency, with 469 grams holding capacity on the first

stage and 6327 grams holding capacity on the sec-

ond stage.

Three-stage

*National Emissions Standards for Hazardous

Air Pollutant minimums, as defined in Test

Method 319 protocol.

Two-stage

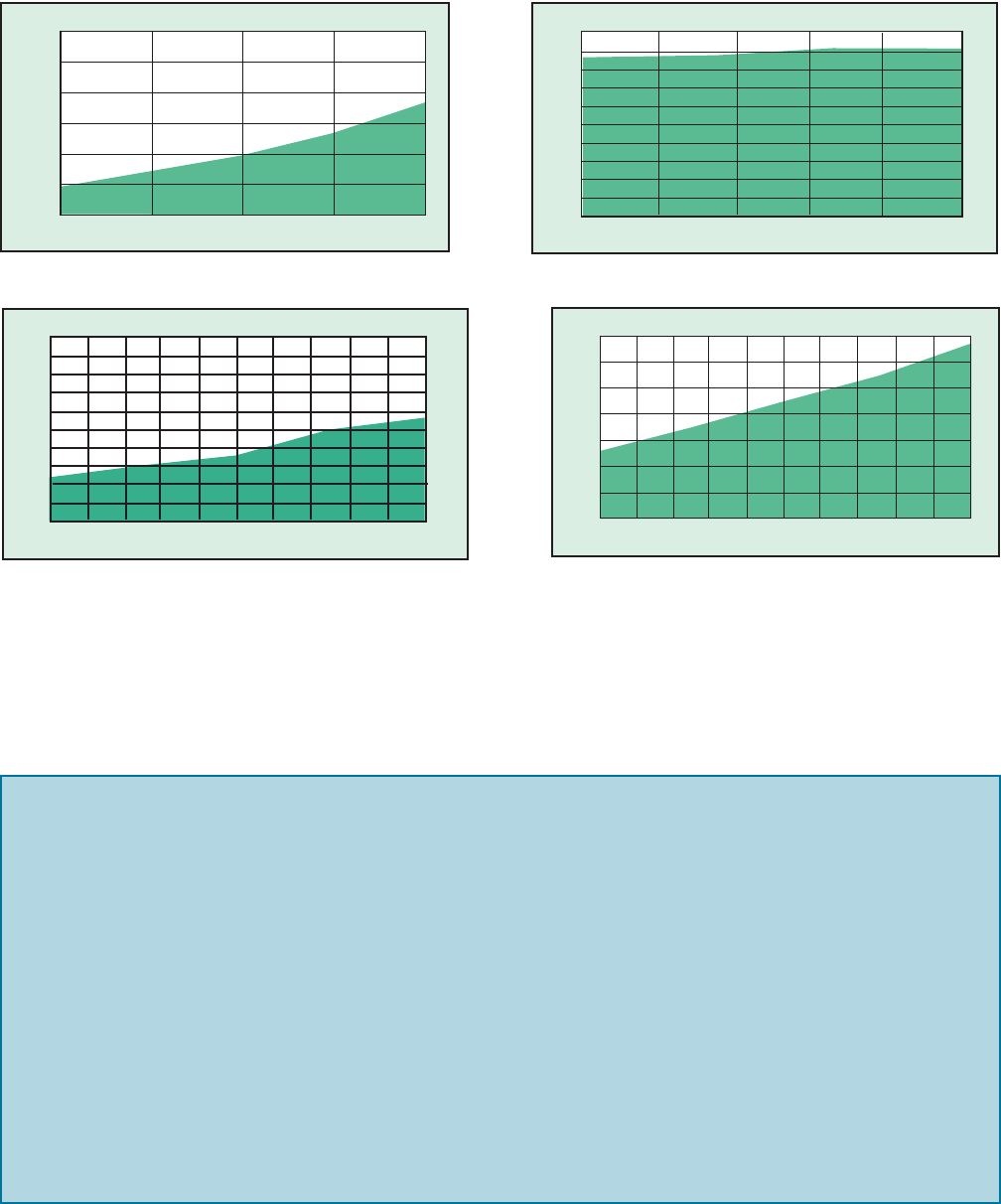

Two-Stage Test Method 319 Data NESHAP*

KCL 2.14 - 2.85 m 84.4% >10%

4.25 - 5.55 m 94.6% >50%

7.66 - 9.46 m 97.3% >90%

OLEIC 1.88 - 2.83 m 85.6% >10%

3.69 - 4.71 m 94.4% >50%

5.11 - 6.29 m 97.1% >90%

Three-Stage Test Method 319 Data NESHAP*

KCL 0.59 - 0.73 m 97.3% >75%

0.87 - 1.16 m 98.8% >85%

2.14 - 2.85 m 99.6% >95%

OLEIC 0.37 - 0.47 m 89.2% >65%

0.94 - 1.41 m 96.8% >80%

1.88 - 2.83 m 99.0% >95%

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

the filter and hvac store

Avg

3. Courtaulds yellow fuel tank coating (A)

513X390 base + (B) 910X624 activator - With

a conventional air gun operating at 45 psi,

with spray feed rate of 105 gr/min @ 120

fpm, initial pressure drop was .23” w.g.

Running to final pressure drop at .82” w.g.,

average removal efficiency was measured

at 99.35% efficiency, with 284 grams hold-

ing capacity on the first stage and 1366

grams holding capacity on the second

stage.

Three-Stage

The three-stage version of this system uti-

lizes the same filters as the two-stage, plus

a proprietary internally supported Polyester

Panel filter and a proprietary pocketed cube

filter.

The three-stage system performed as

shown below in testing.

1. Dexter (A) 454-5 + (B) X-395 fuel tank coat-

ing mix-yellow - With a conventional air gun

operating at 45 psi, with spray feed rate of

105 gr/min @ 120 fpm, Initial pressure drop

was .15” w.g. Running to final pressure drop

at .70” w.g., average removal efficiency was

measured at 99.97% efficiency, with 470

grams dust holding capacity on the first

stage, 981 grams holding capacity on the

second stage and 1140 grams holding

capacity on the third stage.

2. Deft 44GN72 green water-reducible coating

(A) base + (B) activator - With a convention-

al air gun operating at 45 psi, with spray

feed rate of 104 gr/min @ 120 fpm: Initial

pressure drop was .15” w.g.Running to final

pressure drop at .70” w.g., average removal

efficiency was measured at 99.97% effi-

ciency, with 470 grams dust holding capac-

ity on the first stage, 981 grams holding

capacity on the second stage and 1140

grams holding capacity on the third stage.

3. Courtaulds yellow fuel tank coating (A)

513X390 base + (B) 910X624 activator - With

a conventional air gun operating at 45 psi,

with spray feed rate of 93 gr/min @ 120

fpm: Initial pressure drop was .15” w.g.

Running to final pressure drop at .79” w.g.,

average removal efficiency was measured

at 99.91% efficiency, with 570 grams dust

holding capacity on the first stage, 821

grams holding capacity on the second

stage and 354 grams holding capacity on

the third stage.

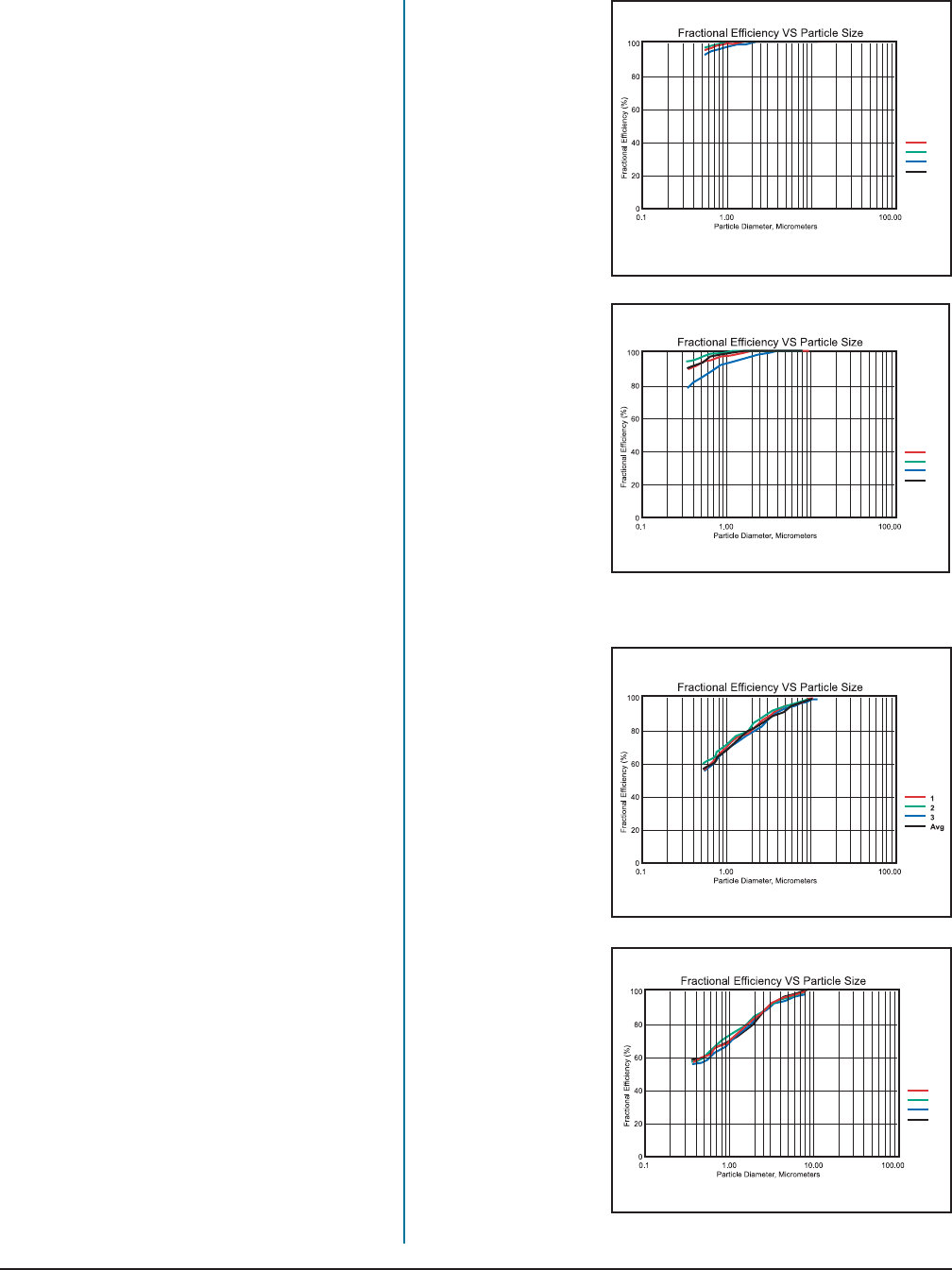

Filter ID:

FP319A (three-stage)

Descriptions:

6 Pocket synthetic, yel-

low 15” deep

Test Type:

Fractional Efficiency

Velocity:

120 fpm

Test Aerosol:

KCI, neutralized

Filter ID:

FP319A (three-stage)

Descriptions:

6 Pocket synthetic, yel-

low 15” deep

Test Type:

Fractional Efficiency

Velocity:

120 fpm

Test Aerosol:

Oleic Acid, neutralized

Filter ID:

FP319A (two-stage)

Descriptions:

Poly Panel, 6-Pkt. bag

Test Type:

Fractional Efficiency

Velocity:

120 fpm

Test Aerosol:

KCI, neutralized

Filter ID:

FP319A (two-stage)

Descriptions:

Poly Panel, 6-Pkt. bag

Test Type:

Fractional Efficiency

Velocity:

120 fpm

Test Aerosol:

Oleic Acid, neutralized

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

the filter and hvac store

Service Rolls

Flanders Service Rolls air filtration media are man-

ufactured in selected widths, prepared in roll

lengths that make manageable roll sizes. In most

cases, a single cut across the roll will produce a

ready-to-install filter pad.

The following media are offered as service rolls:

Spun Glass: (Models SGxxxxKK) This is a rigid, nominal

3/8” thick, dry spun glass. It is typically used to

make rigid pads for use in room unit air condition-

ers. It is designed for use without a frame. Since it

is untreated, it will not harm the plastic frequently

used in the construction of room units.

Foam: (Models FRxxxxx) Arugged polyurethane foam

that is designed for use in room unit air conditioners

and in pad-holding frames. It is washable and will

withstand repeated cleaning with mild soap and

water. Foam service rolls are available in 1/4”, 1/2”,

1” and 2” media thicknesses. They are washable for

repeat use.

Aluminum: (Models EAxx) The aluminum service roll is

an expanded aluminum mesh of the type used in

room unit air conditioners. It is a nominal 1/4” thick

dry filter media that requires the addition of a dust

adhesive for effective filtration.

Kwik Kuts

(Models KKxxx)

These are 15”x24” pads of filter media that can be

easily cut to fit any window or wall mounted room

air conditioner. They are offered in the same spun

glass, foam and aluminum media described above.

Also offered are 1/2” Permaire (see column at

right) and plastic-backed foam.

Hammock Rolls and Pads

Models HRxxxx

Flanders hammock rolls are available in nominal 1”

spun glass, 2” spun glass, and 1” polyester syn-

thetic fiber media. Performance data on all

Flanders hammock media is available upon

request.

Cut-to-Fit

Kwik Kuts, Hammock, Permaire and

Service Rolls and Pads

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

the filter and hvac store

Typically, these are for Lennox type furnaces.

(Lennox is a brand name. It is used here for system

identification only.) Hammock rolls are 20 foot rolls

of media cut in various widths. In most cases, a sin-

gle cut across the roll will produce a ready-to-use

filter pad. Flanders hammock rolls are packaged in

a handy carton that can be used as a dispenser.

Media used in all Flanders hammock rolls are UL

Class 2 fire rated. The 1” spun glass is also avail-

able in pre-cut hammock pads, individually pack-

aged in plastic

Permaire Rolls and Pads

Models HHxxxx

Permaire is a unique type of air filtration media that

has evolved from a natural organic fiber media to a

new completely synthetic, self-supporting and com-

pletely washable media. It has all the benefits of

organic media but has a longer service life, better

structural integrity as well as being completely odor

free. It is made of synthetic fibers and coated with a

special resin, then baked together at a high tem-

perature. The result of this process is a tough and

springy, thoroughly bonded, nearly rigid air filtration

media.

Describing Permaire as merely an air filtration

medium is telling only half of the story. Due to its

natural rigidity, a pad of Permaire cut to the proper

dimensions is actually a complete filter ready to

install. It is totally self supporting. With nothing

more than Permaire and a hefty pair of scissors or

a razor knife, you can replace almost any size 1/2”,

1” or 2” framed panel filter.

Permaire filters are passive electrostatic type prod-

ucts. Air running over the maze of fibers creates an

electrostatic charge to catch and hold airborne con-

taminants. Dust particles may become charged nat-

urally, and if so, they are held by strong electrostat-

ic forces to the oppositely charged fiber with which

they come into contact. The smaller a particle or

fiber, the relatively stronger the electrostatic

charges will be attained. Dirt loads throughout the

filter’s depth and therefore it will hold a lot more

dust than other filters before requiring changing or

cleaning.

Permaire is an ideal product for filter service pro-

fessionals. With a roll of Permaire on your truck,

you can replace almost any size panel filter. It’s a

perfect answer to “odd” size filters. A 10x32”special”

is as close as a pair of scissors...and the same low

cost as a 16x20 standard that you cut from the

same roll.

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

Cut-to-Fit

Kwik Kuts, Hammock, Permaire and

Service Rolls and Pads

the filter and hvac store

Wide selection of media types

Flanders offers a wide range of top quality air filtra-

tion media available in bulk rolls and pads.

Considering the unique characteristics of each

offering, the user can get maximum value for filter

dollar spent with relation to the intended use.

Bulk media rolls are offered in selected slit widths

with roll lengths determined by manufacturing

processes. Pre-cut pads, as the name implies, are

pads of filtration media cut to standard filter face

sizes or to your desired custom sizes.

Spun glass is a rugged industry standard, known

for low resistance while providing excellent

arrestance and high dust holding capacity. They are

designed to trap dirt throughout their thickness. A

resinous bonding agent in the media increases

rigidity and resistance to compression so the filter

will not collapse in the airstream. Flashpoint is 325

degrees Fahrenheit on the treated adhesive.

Spun Glass

7/8”Blue Production Glass (Models GMxx) Nominal 7/8”

adhesive-treated spun glass. For residential or light

industrial and commercial air filtration. Commonly

used for 1” depth disposable panel air filter produc-

tion and for pad and frame systems.

Blue on White Industrial Glass (Models Gxxx) Nominal 1”

and 2” adhesive treated spun glass. For industrial

and commercial air filtration with fairly heavy dirt

loads. Commonly used for pad and frame systems

and hammock rolls. Tinted blue on the air entering

side.

Series 330G PA Green Paint Arrestor Glass (Models 330G-

xxx) Model 330 Green glass is a 2.5” economical

dry spun glass media for prep station and paint

spraybooth applications.

Series 331Y PA Yellow Paint Arrestor Glass (Models 331Y-

xxx) Model 331 is a heavy duty version of dry spun

glass for prep station and paint spraybooth applica-

tions.

4”“Railroad”Glass Nominal 4 “ spun glass for air fil-

tration in railroad diesel engines. Manufactured

according to customer specifications.

3/8” A/C Media (Models ACxx) Nominal 3/8 “ untreated

(no adhesive) blue on white spun glass. Makes rigid

pads for use in room air conditioning units.

Polyester Synthetic Fiber

Polyester Synthetic Fiber (PSF) media is extremely

resilient and will withstand direct moisture. In many

cases, a psf media is the ideal alternative to spun

glass. It makes an excellent prefilter for high effi-

ciency filters and offers a high arrestance and dust

holding capacity.

PSF 5DT, 1DT, 2DT (Models 5Txx, 1Txx and 2Txx) Dry,

untreated psf media in nominal 1/2 “, 1 “ and 2 “

thickness for a wide range of filtration applications.

White and blue with blue on the air exit side.

ST55 (Models PRELK55Gxx) Nominal 1/2 “ tackified psf.

Light green and white with green on the air exit

side.

Pre-T (Models PTxx) Pre-T is an extremely rugged psf

designed for repeated cleaning by washing or vac-

uuming. Dry, untreated. Nominal 1/2 “ thickness

only. Red and purple with purple on the air exit side.

PS125 (Models PS125-xx) Nominal 1 “ untreated psf

which is reinforced with a scrim backing on the

downstream side.

SAR-1 (Models SAR1M-xxxxx) Nominal 1/2” or use as

an intake blanket on crossdraft spraybooths.

SA600-G10 (Models SA600-xxx) Nominal 1” diffusion

media for downdraft spraybooths.

PSF Series 225, 325, 425 (Models ENTRY225T-xx,

ENTRY325T-xx, ENTRY425T-xx) Series 225 is nominal 1

“ dual denier tackified media; 325 is nominal 1-1/2 “

three denier tackified and 425 is nominal 1-1/2 “

four denier tackified.

Bulk Media and Pads

Cut -To-Fit Room Air Conditioner,

Furnace and Central Air Filters

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

the filter and hvac store

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

the filter and hvac store

Auto Rolls

Automatic Roll Filter Replacement

Flanders automatic roll replacements are furnished wound

on spools or cores, ready for installation without modifica-

tion or adaptors. A core selection guide is printed on the

back of this sheet. Six-foot-long kraft paper leaders and

trailers are secured to the ends of every roll. Each roll con-

tains 65 linear feet of filtering media in selected widths.

Rolls are wrapped in heavy plastic and packed in cartons

for shipment. The following media types are available:

Scrim-back spun glass

(Models AESx, BLCSxx, CBSx, FSx, CRSx, CSx,AMSx,TSxx, LRSx)

Anominal 2” thickness progressive density spun glass

treated with dust-catching adhesive. The roll is backed on

the downstream side with a scrim mesh. Density of the

scrim is approximately 3 squares per square inch.

Skin-back spun glass

ModelsAEx, BLCx, CBx, Fxx, CRx, Cx,AMx,Tx, LRxx)

Anominal 2” thickness progressive density spun glass

treated with dust-catching adhesive. The roll is backed on

the downstream side with a spun glass “skin”.

Economy spun glass

(Models AEECx, BLECxx, CBECx, FECx, CRECx, CECxx, AMECx,TECx,

LRECx)

Anominal 2” thickness spun glass with a very light spun

glass skin on the downstream side which is reinforced with

a scrim mesh. Density of the scrim is approximately 1

square per square inch. Media weight is about two-thirds

that of the standard scrim-back glass.

Polyester

(Models AEPx, BLCPxx, CBPx, FPx, CRPUx, CPUxx,AMPx,TPx, LRPxx)

Anominal 1/2” thickness dry, non-woven polyester syn-

thetic fiber medium, reinforced on the downstream side

with a scrim backing. Scrim density is approximately 3

grids per square inch.

Treated Polyester

(Models AEPTx, BLCPTxx, CBTx, FPTx, CRPTx, CPTxx, AMPTx, TPTx,

LRPTx,LAPTxx)

Same medium as the polyester described above, but treat-

ed with a dust-catching adhesive.

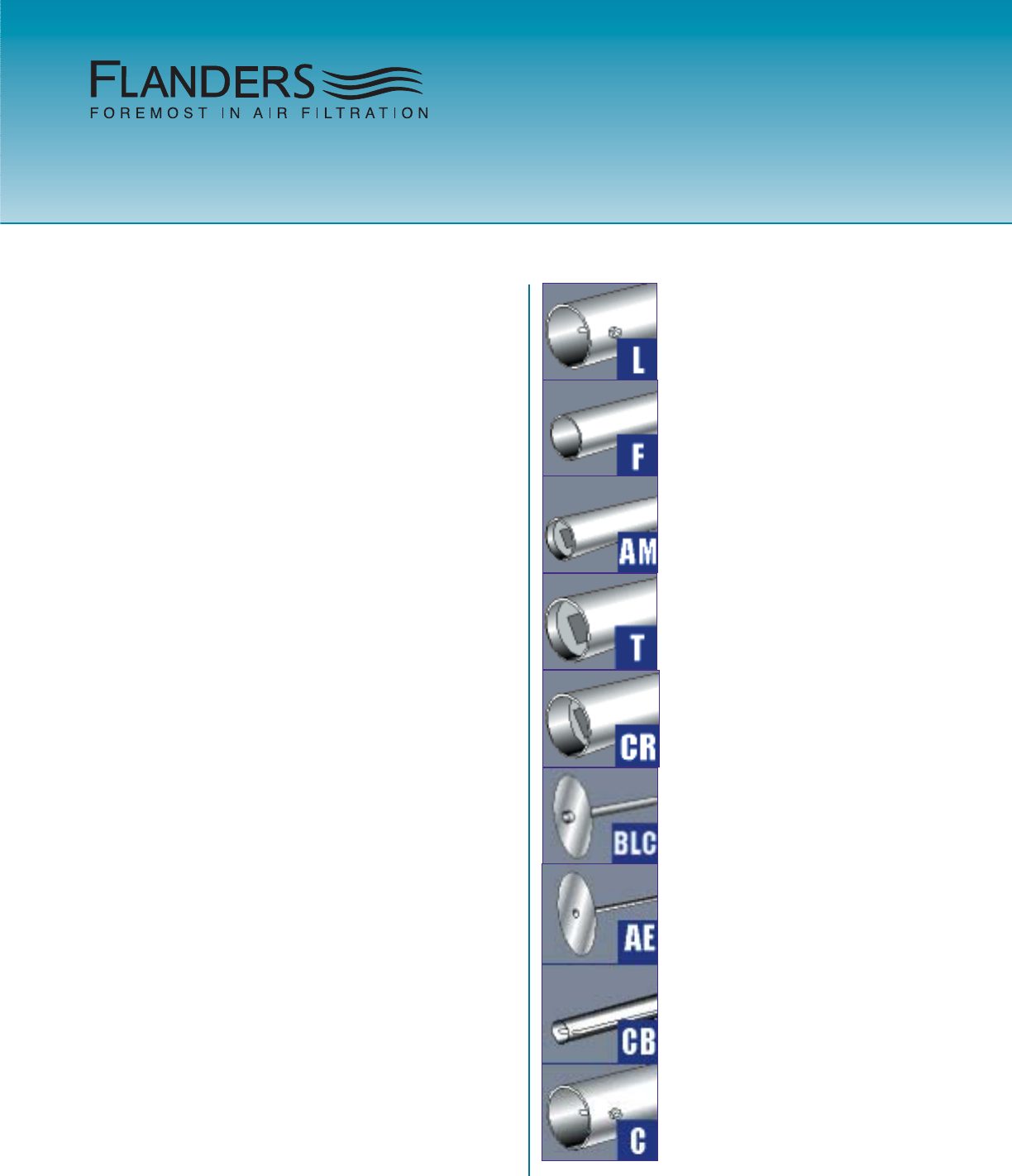

L- Designed to fit commercial

“FulFlo” and Mine Safety

Appliance machines. Core con-

sists of 3” ID fiberboard tube with

drive pin 2-1/2” from one end.

F - Designed to fit Farr “Roll

Kleen”. Core consists of 2-1/8” ID

fiberboard tube. No drive pin,

discs or cups.

AM - Designed to fit Airmaze “Roll-

A-Maze”. Core consists of 1-7/8”

ID fiberboard tube with metal cup

recessed 5/8” each end. A rectan-

gular slot, 1-1/2 x 3/4”, is stamped

in each cup.

T- Designed to fit Trane Company

“Roll Filter”. Core consists of 2-

7/16” ID fiberboard tube with

metal cup in each end, recessed

1-1/2” A 1-1/2” square is stamped

in each cup.

CR - Designed to fit Carrier series

31NA and 31NC. Core is 27/167”

BLC - Designed to fit BLC

Industries. Consists of a 1-1/2”

metal pipe with 2 drive pins that

are 1-3/8” from core end, and with

11” end plates.

AE - Designed to fit American Air

Filter “Roll-O-Matic”. Core con-

sists of 3/4” ID metal pipe with

metal end plates approximately

11” diameter attached on each

end.

CB - Designed to fit Cambridge

“Autoroll”. Core consists of 3/4”

metal pipe, no end plates unless

specified on order.

C - Designed to fit Continental

“Conomanual” or “Conomatic”.

Core consists of 3” ID fiberboard

tube with a drive pin 2-1/2” from

one end.

the filter and hvac store

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

the filter and hvac store

Important Features

• Media maximizing v-pleat design

• Expanded metal grid prevents media

flutter while in operation

• Diagonal and horizontal support members pro-

vide frame strength

• Filter media pack is sealed to eliminate air

bypass

• Average ASHRAE efficiency is 25-30%

• Average arrestance is 90%-92%

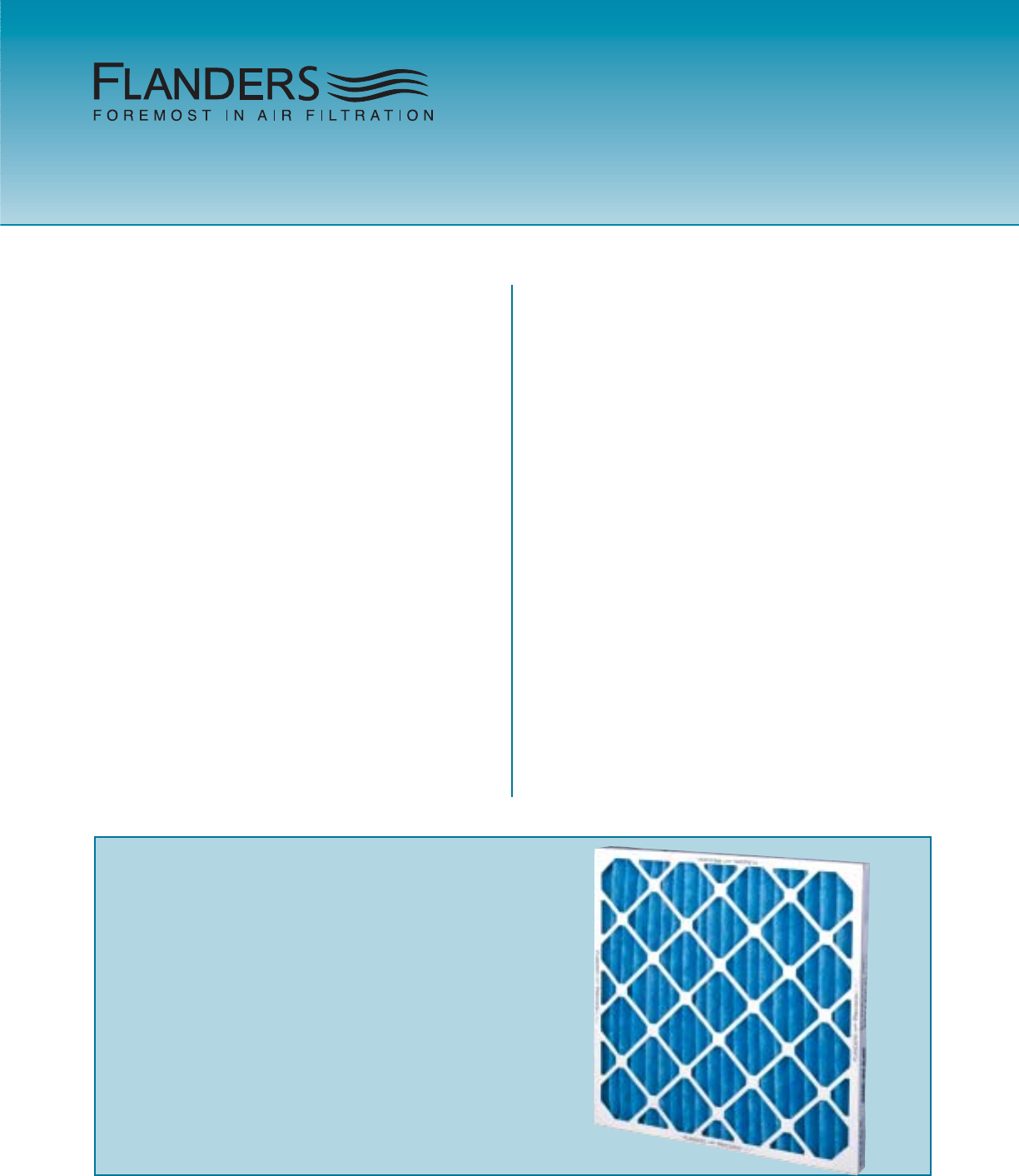

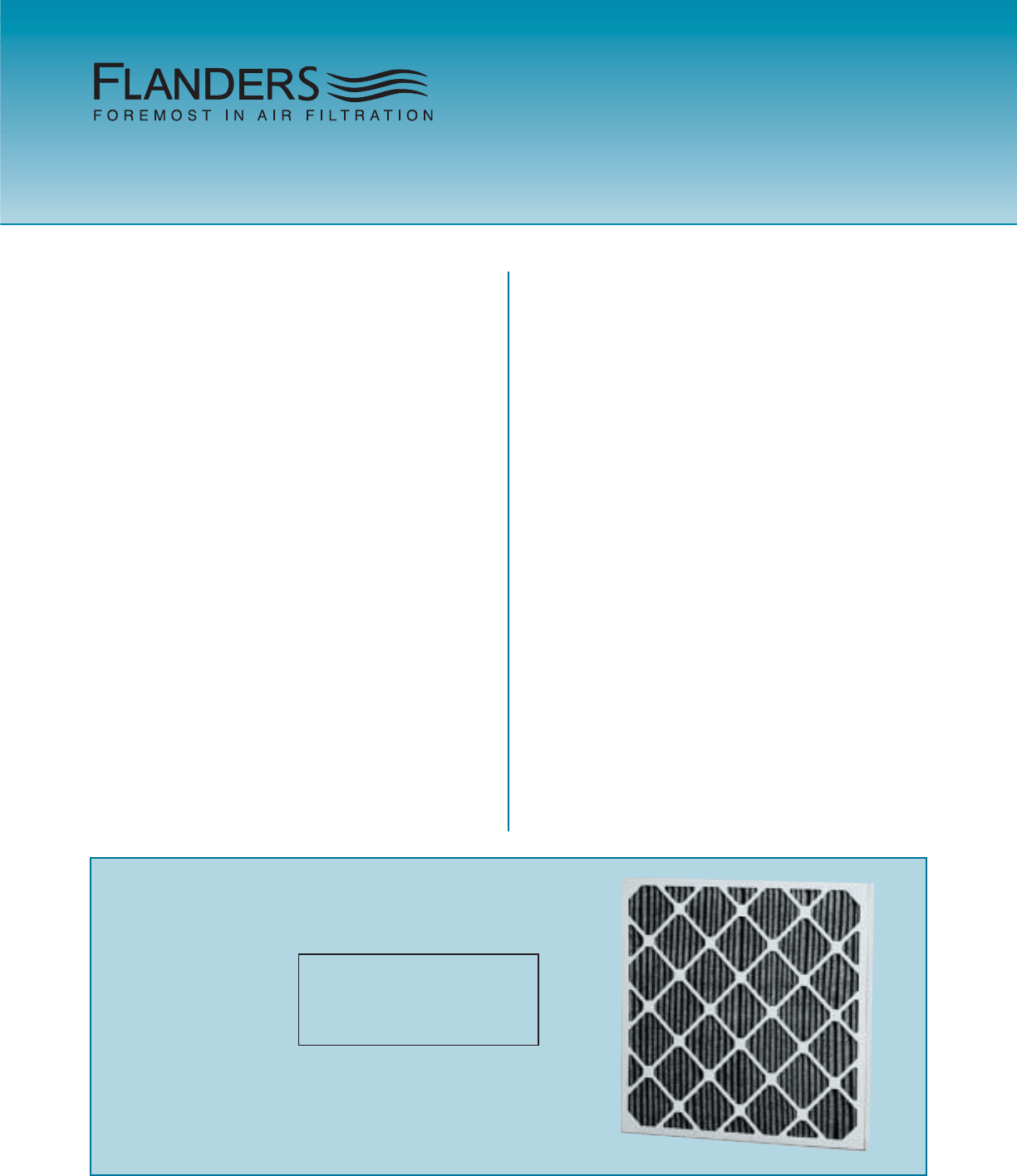

Pre Pleat 40

Extended Surface Pleated Filters

Economy Capacity: 84355.xxxxxx Standard capacity:80055.xxxxxx

High Capacity: 80255.xxxxxx

General

Flanders Pre Pleat 40 extended surface pleated fil-

ters are designed to operate in most every type of

installation. Available in 1”, 2”, and 4” nominal

thickness, these filters have an average atmos-

pheric dust spot efficiency range of 25-30% per

ASHRAE Standard 52.1 test methods. Pre Pleat

40 filters offer greater efficiency and service life

than disposable filters, pad and frame systems, or

metal washable filters. The overall design of this

product makes these filters the accepted choice in

applications requiring high performance and

extended service.

These filters are suitable for variable air volume

systems. Operating face velocity ranges are from

0 to 500 fpm for 1” and 2” filters, and from 0 to 625

fpm for 4” filters. Standard and High Capacity

designs are offered.

Pre Pleat 40 filters are UL 900 Class 2 listed but are

available with UL Class 1 listing.

Versatility

Most heating, air conditioning, or ventilating sys-

tems can be upgraded with the use of Pre Pleat 40

filters in place of existing flat panel types.

The inherent strength of the filter allows for easy

changeout as it will not collapse, warp, or bend in

normal service.

Pre Pleat 40 filters are available in a wide range of

sizes and will fit most commercial and industrial

installations with little or no system modification.

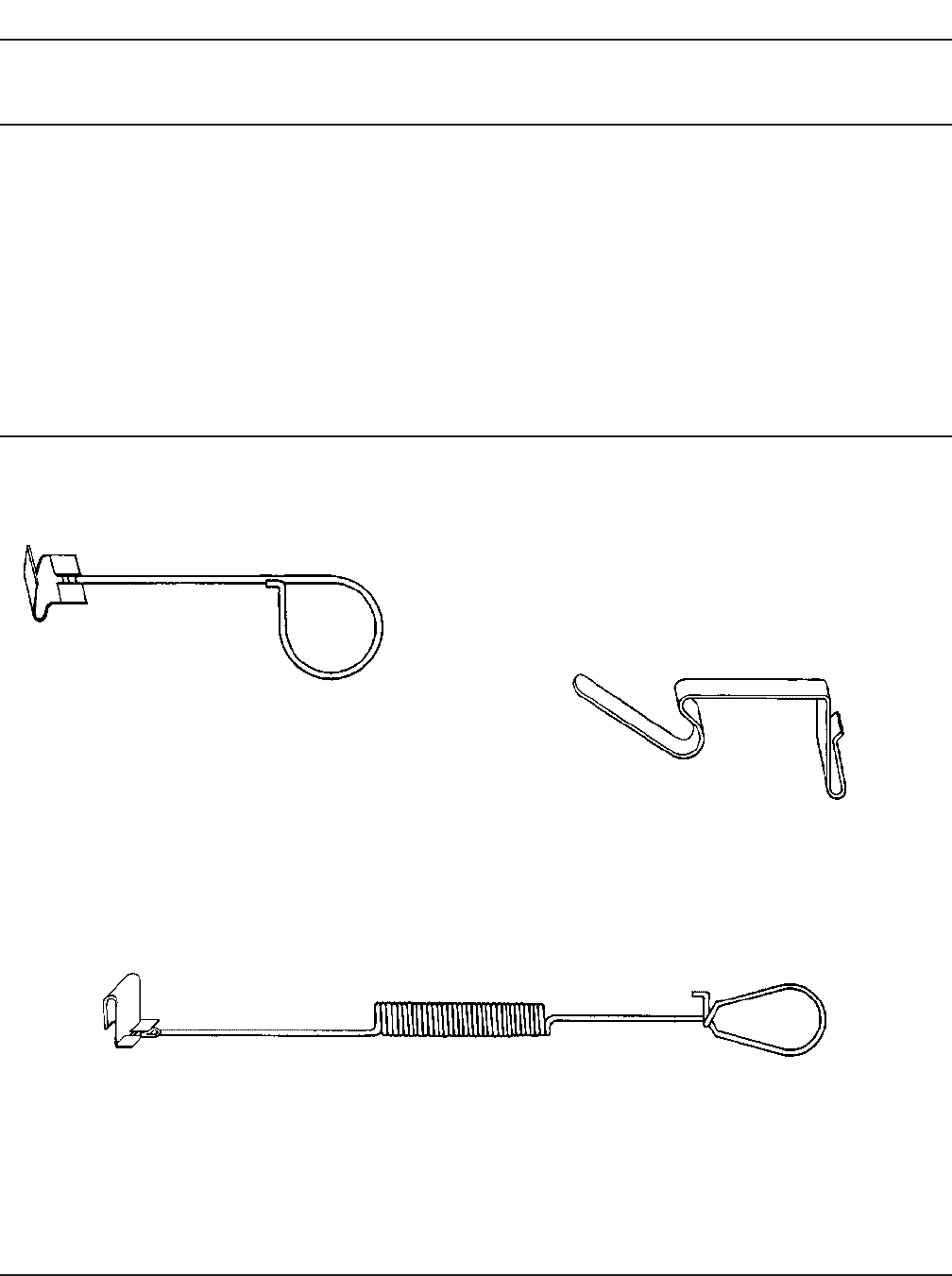

Fasteners are available to adapt the filter to exist-

ing filter banks.

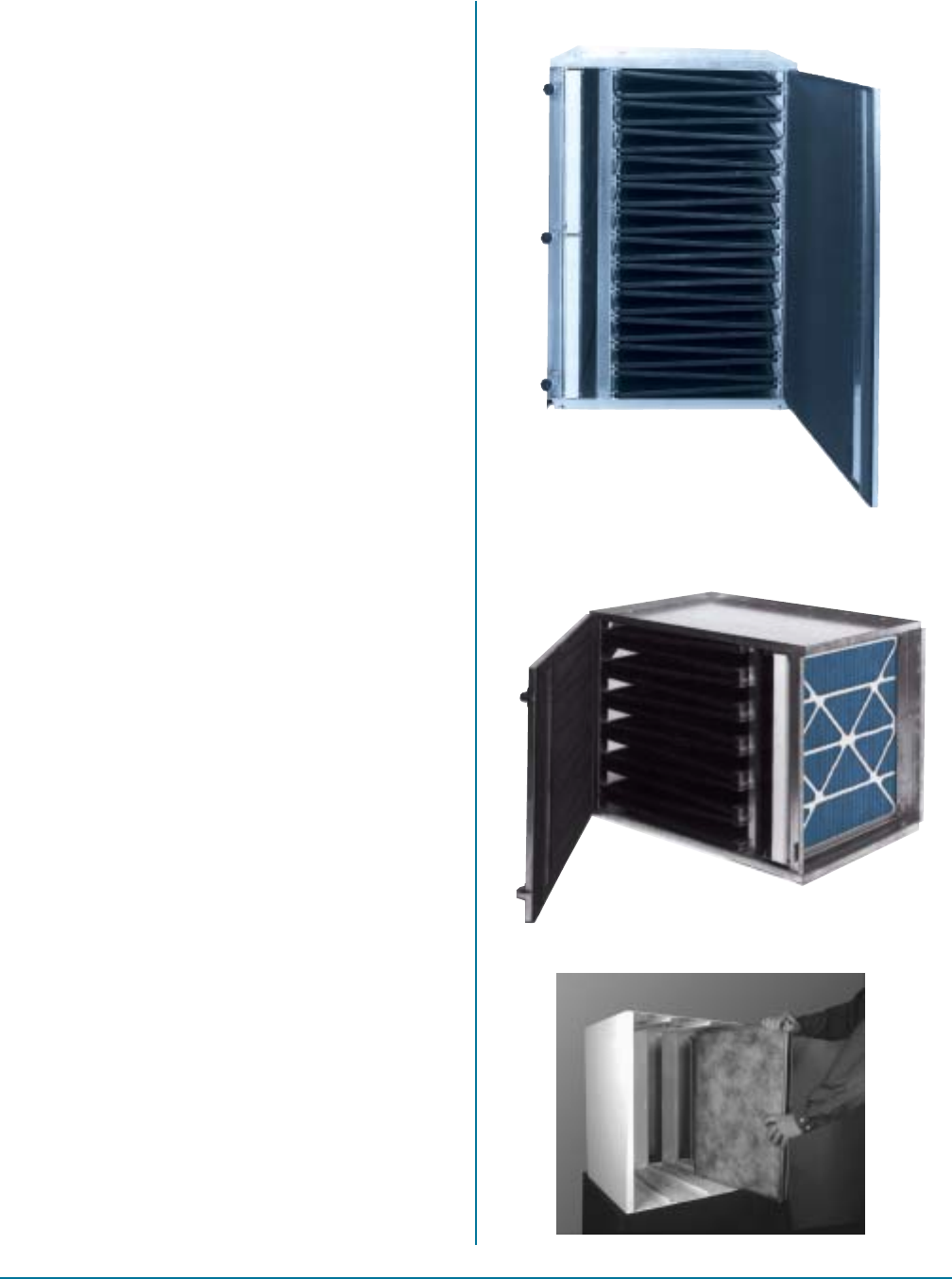

Installation Considerations

Pre Pleat 40 pleated filters are suitable as primary

filters and can be installed in Type 9 Holding

Frames, K-Trac Framing Modules, Surepleat Side

Access Housings and similar existing hardware.

They may be used as prefilters for Precision Pak,

PrecisionCell and Rigid-Air filters in these framing

systems and in Sureseal Side Access Housings.

Physical Data

Media: High-loft, non-woven cotton/synthetic blend

Media Support: Diamond-shaped expanded metal

Pleat Design: V Pleat

Frame: Moisture-resistant carrier board

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

the filter and hvac store

Expanded

Metal

Pleat Backing

V-Pleat

Design

Double

Wall

Construction

2-piece die-cut frame

Diagonal grid

supports for

maximum

strength

Efficient

High-Loft

Media

Principles of Operation

Flanders’ v-pleat design insures that the greatest media area is exposed to the air flow to promote uniform

dust loading. Competitive filters cannot maintain this rigid shape and tend to flatten out, using only a por-

tion of the media. This v-pleat design creates an air exit area (B) equal to the air entering area (A), which

minimizes end losses and reduces pressure drop.

Radial wedge pleats have unequal air exit (D) and air entering (C) areas, which cause higher resistance and

uneven use of media.

Construction

Filter frames are constructed from two

pieces of die-cut, moisture-resistant

carrier board. Components “tele-

scope” into one another and provide

double-wall construction and a preci-

sion fit. The frame includes diagonal

and horizontal support members

bonded to the media on the air enter-

ing and leaving sides for unsurpassed

frame strength. Locking corners and

positive media-to-frame seal reduces

the possibility of air bypass.

The filter media is a high-loft, rein-

forced, non-woven cotton/synthetic

blend. It is continuously laminated to

an expanded metal grid on the air

leaving side to provide pleat stability

throughout the life of the filters and

prevent media flutter while in opera-

tion.

Flanders’ unique v-pleat wedge pleat

allows for total media usage and pro-

vides maximum air flow and dust hold-

ing capacity.

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

the filter and hvac store

Capacities and Dimensions

Notes:

1. PD represents clean pressure drop in inches w.g. The recommended final pressure drop for all models is 1.0

in. w.g. System design may dictate a lower change-out point.

2. Actual filter face size for 12 x 24 and 24 x 24 filters is 5/8 in. under on height and width. Actual face size on

all other sizes is 1/2 in. under on height and width.

3. Actual filter depth is 1/8 in.under for all nominal 1 in. deep filters. Actual filter depth is 1/4 in. under for all nom-

inal 2 in. and 4 in. deep filters.

4. For capacities other than those shown, ratio the face velocities.

5. Performance tolerances conform to Section 7.4 of ARI Standard 850.

6. Performance values stated may be averages typical of the products listed. Contact factory for actual per-

formance test reports on specific products.

300 fpm 625 fpm

Nomina

l Depth

(in.)

Depth

300 fpm 500 fpm

cfm PD cfm PD

Media

Area

(sq. ft)

Weight

Each

(lbs.)

300 fpm 625 fpm

cfm PD cfm PD

Media

Area

(sq. ft)

Weight

Each

(lbs.)

Nominal Size

H x W x D (in.)

Nominal Size

H x W x D

(in.)

300 fpm 500 fpm

cfm PD cfm PD

Standard Capacity High Capacity

Performance Data

Media

Area

sq. ft.

Wt.

Each

(lbs.)

Media

Area

sq. ft.

Wt.

Each

(lbs.)

10 x 10 x 1 210 0.15 347 0.35 1.1 0.2 210 0.13 347 0.33 1.6 0.2

10 x 20 x 1 417 0.15 694 0.35 2.2 0.3 417 0.13 694 0.33 3.2 0.4

12 x 20 x 1 500 0.15 833 0.35 2.7 0.4 500 0.13 833 0.33 3.8 0.5

12 x 24 x 1 600 0.15 1000 0.35 3.5 0.5 600 0.13 1000 0.33 4.5 0.6

14 x 20 x 1 583 0.15 972 0.35 3.1 0.5 583 0.13 972 0.33 4.5 0.6

14 x 25 x 1 729 0.15 1215 0.35 4 0.6 729 0.13 1215 0.33 5.3 0.7

15 x 20 x 1 625 0.15 1042 0.35 3.3 0.6 625 0.13 1042 0.33 4.8 0.7

16 x 20 x 1 667 0.15 1110 0.35 3.6 0.6 667 0.13 1110 0.33 4.8 0.7

16 x 25 x 1 834 0.15 1390 0.35 4.6 0.7 834 0.13 1390 0.33 6.1 0.8

20 x 20 x 1 834 0.15 1390 0.35 4.6 0.7 834 0.13 1390 0.33 6.1 0.8

18 x 24 x 1 900 0.15 1500 0.35 4.8 0.7 900 0.13 1500 0.33 6.9 0.9

18 x 25 x 1 945 0.15 1575 0.35 5 0.7 945 0.13 1575 0.33 7.2 0.9

20 x 24 x 1 1000 0.15 1667 0.35 5.3 0.8 1000 0.13 1667 0.33 7.7 1.0

20 x 25 x 1 1042 0.15 1735 0.35 5.5 0.8 1042 0.13 1735 0.33 7.6 1.0

24 x 24 x 1 1200 0.15 2000 0.35 6.4 0.9 1200 0.13 2000 0.33 8.9 1.1

10 x 20 x 2 417 0.12 694 0.27 4.5 0.6 417 0.11 694 0.25 6.4 0.8

12 x 20 x 2 500 0.12 833 0.27 5.3 0.7 500 0.11 833 0.25 7.7 0.9

12 x 24 x 2 600 0.12 1000 0.27 5.8 0.8 600 0.11 1000 0.25 8.7 1.0

14 x 20 x 2 583 0.12 972 0.27 6.2 0.8 583 0.11 972 0.25 8.9 1.0

14 x 25 x 2 729 0.12 1215 0.27 7.8 1.0 729 0.11 1215 0.25 11.2 1.2

15 x 20 x 2 625 0.12 1042 0.27 6.7 0.8 625 0.11 1042 0.25 9.6 1.0

16 x 20 x 2 667 0.12 1110 0.27 6.6 0.9 667 0.11 1110 0.25 10 1.1

16 x 25 x 2 834 0.12 1390 0.27 8.3 1.1 834 0.11 1390 0.25 12.4 1.3

18 x 24 x 2 900 0.12 1500 0.27 9.6 1.2 900 0.11 1500 0.25 13.8 1.5

18 x 25 x 2 938 0.12 1563 0.27 10 1.3 938 0.11 1563 0.25 14.4 1.6

20 x 20 x 2 834 0.12 1390 0.27 8.3 1.1 834 0.11 1390 0.25 12.4 1.3

20 x 24 x 2 1000 0.12 1667 0.27 10.7 1.3 1000 0.11 1667 0.25 15.3 1.6

20 x 25 x 2 1042 0.12 1735 0.27 10.3 1.3 1042 0.11 1735 0.25 15.5 1.6

24 x 24 x 2 1200 0.12 2000 0.27 12.3 1.5 1200 0.11 2000 0.25 17.8 1.8

25 x 25 x 2 1300 0.12 2170 0.27 13.3 1.6 1300 0.11 2170 0.25 19.2 1.9

12 x 24 x 4 600 0.10 1250 0.30 11.6 1.5 600 0.09 1250 0.28 14 1.7

16 x 20 x 4 667 0.10 1390 0.30 11.8 1.7 667 0.09 1390 0.28 15.5 1.8

16 x 25 x 4 834 0.10 1735 0.30 15.0 2.0 834 0.09 1735 0.28 19.6 2.2

18 x 24 x 4 900 0.10 1500 0.30 17.4 2.1 900 0.09 1500 0.28 21.9 2.3

20 x 20 x 4 834 0.10 1735 0.30 15.0 2.0 834 0.09 1735 0.28 19.6 2.2

20 x 24 x 4 1000 0.10 1667 0.30 19.3 2.3 1000 0.09 1667 0.28 24.3 2.5

20 x 25 x 4 1042 0.10 2170 0.30 20.2 2.3 1042 0.09 2170 0.28 24 2.5

24 x 24 x 4 1200 0.10 2500 0.30 22.3 2.5 1200 0.09 2500 0.28 28 3.0

25 x 29 x 4 1500 0.10 3100 0.30 27.2 3.1 1500 0.09 3100 0.28 34 3.6

28 x 30 x 4 1680 0.10 3500 0.30 31.3 3.5 1680 0.09 3500 0.28 39 4.2

the filter and hvac store

1.0 General

1.1 Medium efficiency filters shall be Pre Pleat 40

extended surface pleated filters as manufactured

by Flanders..

1.2 Filter sizes and capacities shall be as scheduled

on the drawings.

1.3 Filters shall be UL 900 Class 1 or 2 listed.

2.0 Filter Construction

2.1 Filters shall be constructed of reinforced, non-

woven cotton/synthetic blend media laminated to

an expanded metal grid on the air leaving side

and formed into v-configuration pleats.

2.2 Frame shall be moisture-resistant board with diag-

onal and horizontal support members on the

upstream and downstream sides, and shall have

locking corners.

3.0 Performance

3.1 Initial and final resistances shall not exceed the

scheduled values.

3.2 Media area must equal or exceed that of the spec-

ified filter.

3.3 The average atmospheric dust spot efficiency

shall be 25-30% as determined by ASHRAE

Standard 52.1 test methods.

3.4 The manufacturer shall guarantee performance as

stated in the literature within tolerances as out-

lined in Section 7.4 of ARI Standard 850.

Guide Specifications

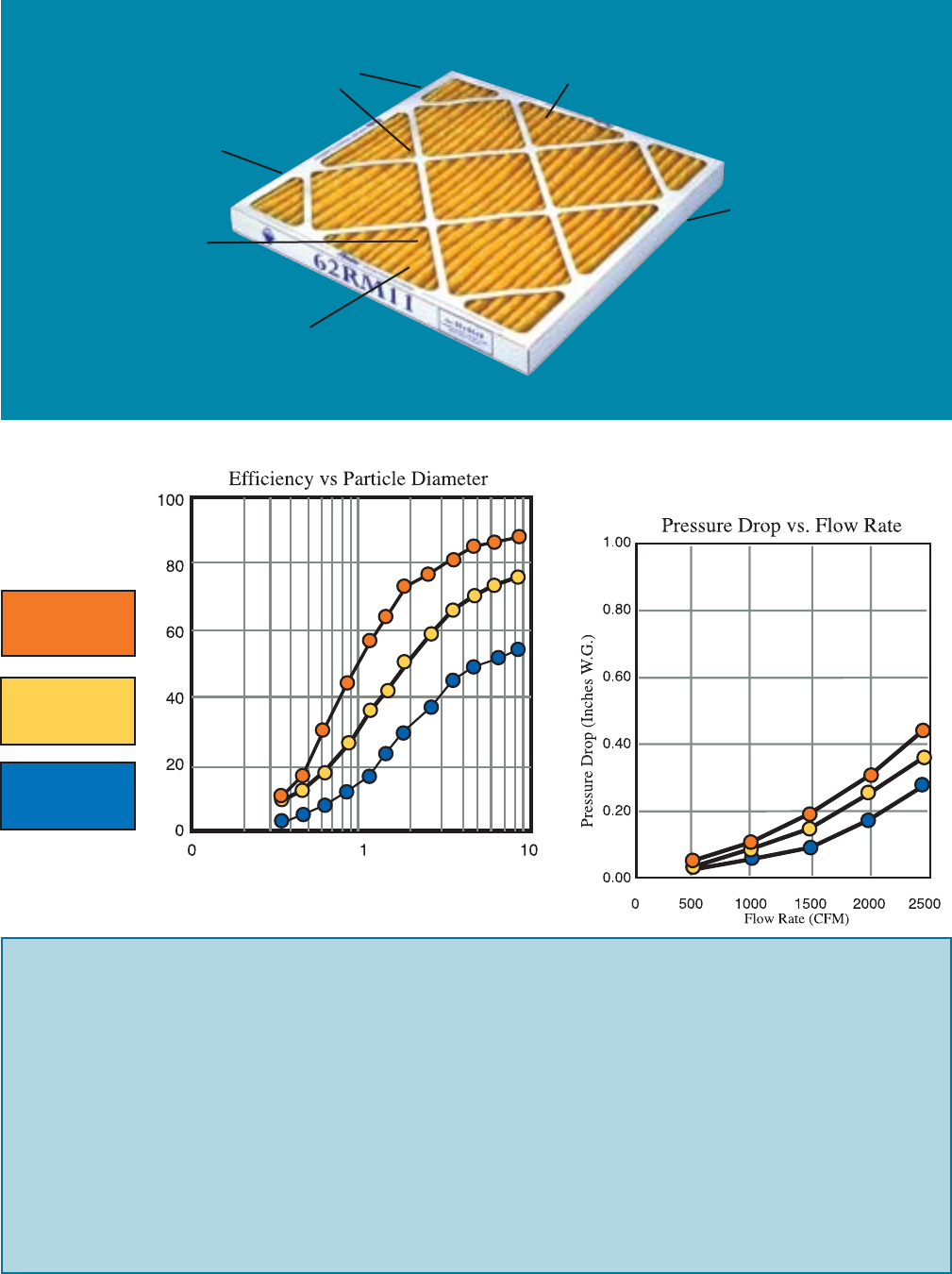

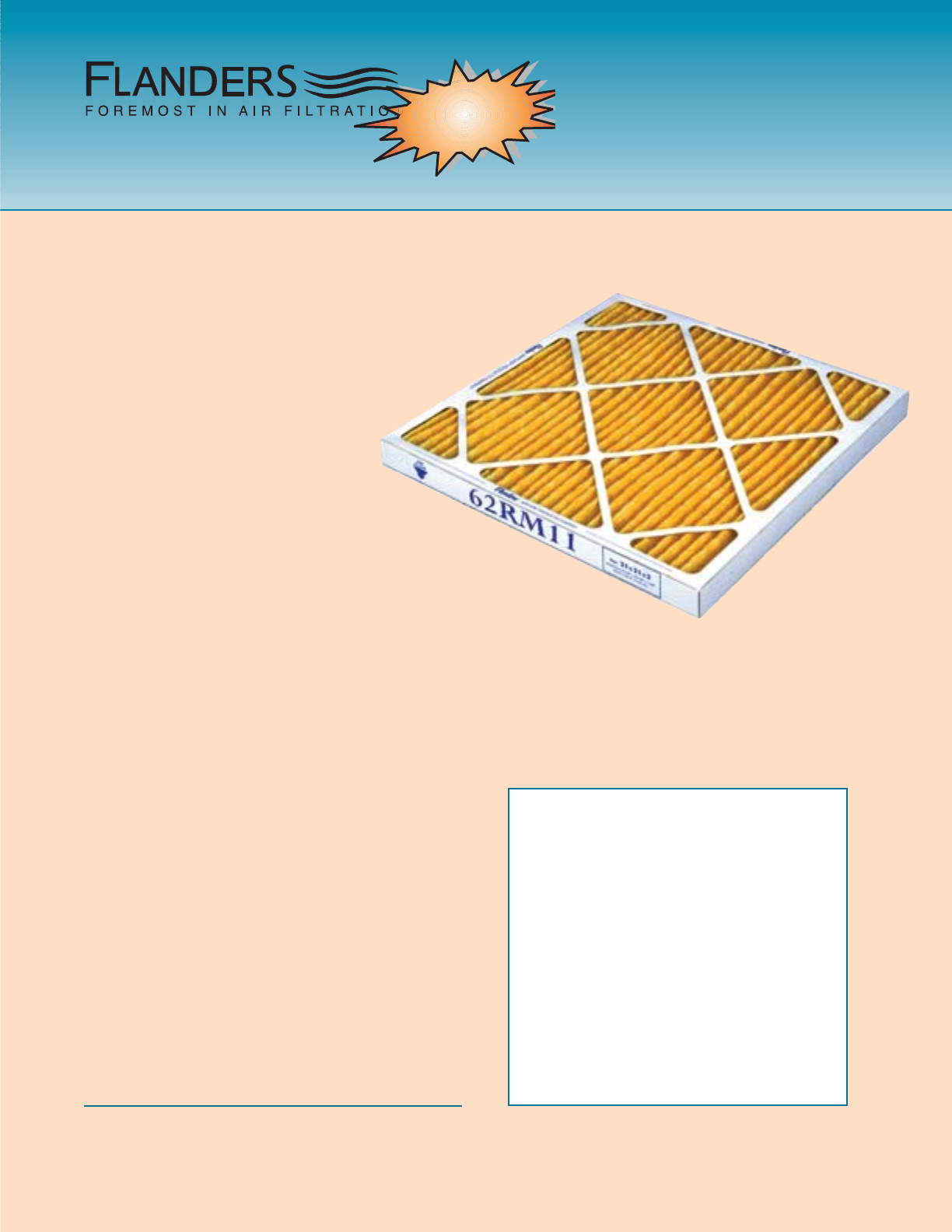

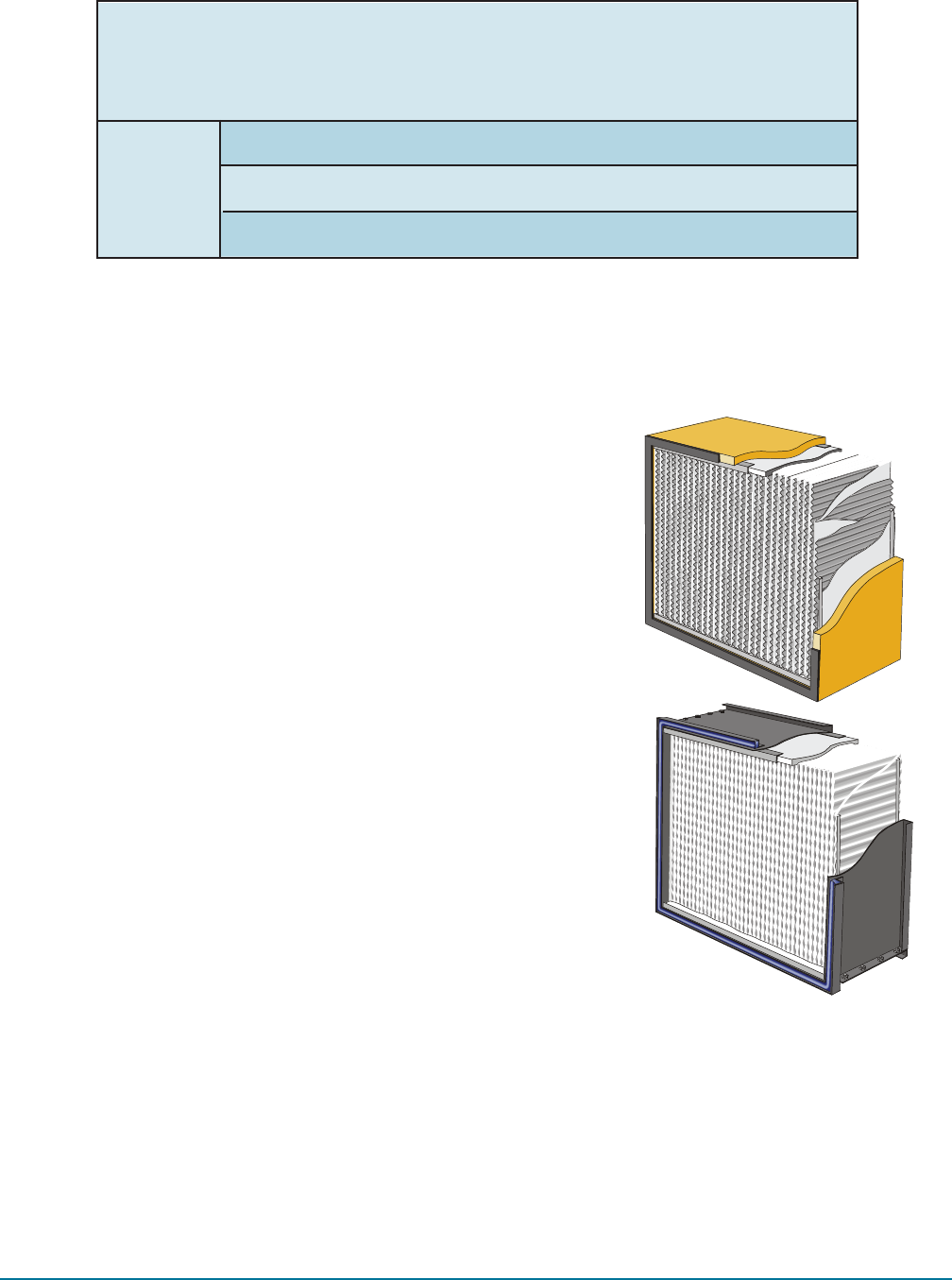

The Pre Pleat Series of Pleated Air filters

62R high efficiency pleated air

filters contain an electrostatically

charged filtration media which

has a higher dust holding capac-

ity.

Pre Pleat HV air filters are

designed to operate in

high velocity and turbulent

air applications where

standard pleated filters

tend to fail.

Pre Pleat Class 1 air filters are

designed for applications

where a UL Class 1 fire rated

filter is required and metal

frames are unsuitable.

Pre Pleat HT air filters are

designed for applications

where the temperatures

reach up to 400ºF.

the filter and hvac store

Pre Pleat HV

High Velocity and Gas Turbine Pleat

Models 85455.xxxxxx

General

The Pre Pleat HV pleated filter from Flanders is

designed to operate in high velocity and turbulent air

applications where standard pleated filters have a

tendency to fail.

They are ideal for gas turbine and rotary machinery

equipment or any area requiring a pleated filter to

operate under demanding use.

Construction

Aheavy-duty die-cut moisture resistant frame enclos-

es the media pack. The media is manufactured of

100% electrostatically charged synthetic fibers that

attract and hold airborne particulate contaminants.

The media is bonded to a zinc coated, 1-1/4” mesh

expanded metal backing which is substantially heav-

ier than standard metal backing. These features

result in a more efficient, durable and reliable prod-

uct.

Important Features

•Moisture resistant die-cut frame

•Heavy gauge metal backing for exceptional

strength

•1”, 2”, 4” depths

• Special sizes available

•MERV 8 rating, per ASHRAE Standard 52.2

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

the filter and hvac store

Depth

Nominal

Depth

(inch)

10 x 10 x 1 210 0.15 347 0.38 1.6

10 x 20 x 1 417 0.15 694 0.38 3.2

12 x 20 x 1 500 0.15 833 0.38 3.8

12 x 24 x 1 600 0.15 1000 0.38 4.5

14 x 20 x 1 583 0.15 972 0.38 4.5

14 x 25 x 1 729 0.15 1215 0.38 5.3

15 x 20 x 1 625 0.15 1042 0.38 4.8

16 x 20 x 1 667 0.15 1110 0.38 4.8

16 x 25 x 1 834 0.15 1390 0.38 6.1

20 x 20 x 1 834 0.15 1390 0.38 6.1

18 x 24 x 1 900 0.15 1500 0.38 6.9

18 x 25 x 1 945 0.15 1575 0.38 7.2

20 x 24 x 1 1000 0.15 1667 0.38 7.7

20 x 25 x 1 1042 0.15 1735 0.38 7.6

24 x 24 x 1 1200 0.15 2000 0.38 8.9

10 x 20 x 2 417 0.13 694 0.29 6.4

12 x 20 x 2 500 0.13 833 0.29 7.7

12 x 24 x 2 600 0.13 1000 0.29 8.7

14 x 20 x 2 583 0.13 972 0.29 8.9

14 x 25 x 2 729 0.13 1215 0.29 11.2

15 x 20 x 2 625 0.13 1042 0.29 9.6

16 x 20 x 2 667 0.13 1110 0.29 10.0

16 x 25 x 2 834 0.13 1390 0.29 12.4

18 x 24 x 2 900 0.13 1500 0.29 13.8

18 x 25 x 2 938 0.13 1563 0.29 14.4

20 x 20 x 2 834 0.13 1390 0.29 12.4

20 x 24 x 2 1000 0.13 1667 0.29 15.3

20 x 25 x 2 1042 0.13 1735 0.29 15.5

24 x 24 x 2 1200 0.13 2000 0.29 17.8

25 x 25 x 2 1300 0.13 2170 0.29 19.2

12 x 24 x 4 600 0.10 1250 0.35 14.0

16 x 20 x 4 667 0.10 1390 0.35 15.5

16 x 25 x 4 834 0.10 1735 0.35 19.6

18 x 24 x 4 900 0.10 1500 0.35 21.9

20 x 20 x 4 834 0.10 1735 0.35 19.6

20 x 24 x 4 1000 0.10 1667 0.35 24.3

20 x 25 x 4 1042 0.10 2170 0.35 24.0

24 x 24 x 4 1200 0.10 2500 0.35 28.0

25 x 29 x 4 1500 0.10 3100 0.35 34.0

28 x 30 x 4 1680 0.10 3500 0.35 39.0

1.0 General

1.1 High velocity Pre Pleat HV extended surface

pleated filter as manufactured by Flanders.

1.2 Filter sizes and capacities shall be as scheduled

on the drawings.

2.0 Filter Construction

2.1 Filter media shall be manufactured of 100% elec-

trostatically charged synthetic fibers and bonded

to a corrosion-resistant expanded metal backing.

2.2 The frame shall be moisture resistant

board with diagonal and horizontal support mem-

bers on the upstream and downstream sides.

3.0 Performance

3.1 Initial and final resistance shall not exceed the

scheduled values.

3.2 Media area must be equal to that of the specified

filter.

3.3 The minimum efficiency shall be a MERV 8 rating

per ASHRAE Standard 52.2 and 50% dust spot

efficiency per ASHRAE Standard 52.1.

3.4 The manufacturer shall guarantee performance

as stated in the literature within tolerances as out-

lined in Section 7.4 of ARI Standard 850.

Guide Specifications

300 fpm 625 fpm

cfm PD cfm PD

Media

Area

(sq. ft)

Nominal Size

H x W x D (inch)

Nominal Size

H x W x D

(inch)

300 fpm 500 fpm

cfm PD cfm PD

Media

Area

sq. ft.

Performance values stated may be averages typical of the products listed.

Contact factory for actual performance test reports on specific products.

the filter and hvac store

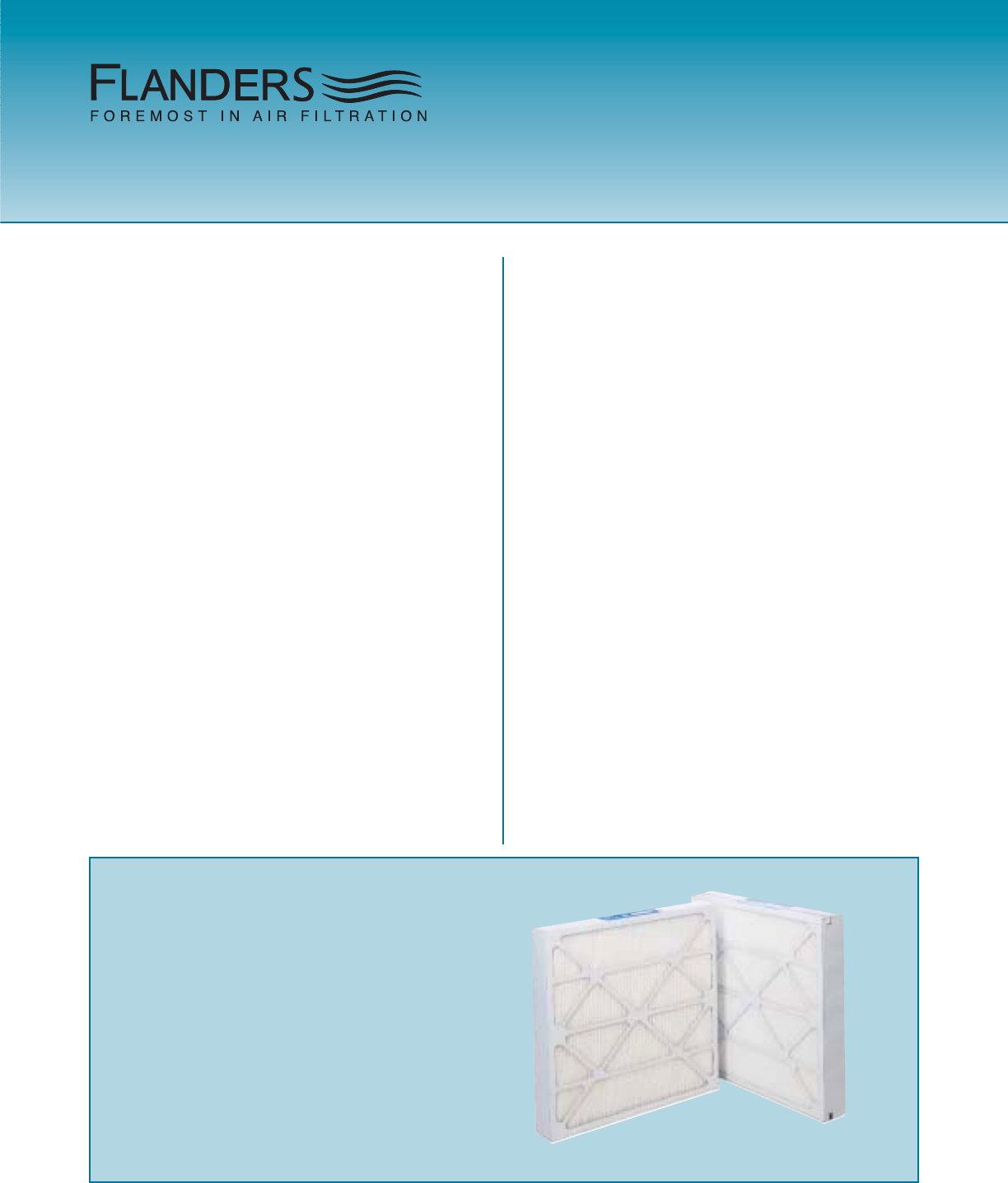

Pre Pleat 62R

High Efficiency Pleated Filters

Standard Capacity: 85655.xxxxxx

High Capacity: 85755.xxxxxx

Important Features

• MERV 8 per ASHRAE Standard 52.2

•1 in., 2 in. or 4 in. depths

•All standard sizes plus custom sizes

• Standard and high capacity designs

•ULClass 2 listed

Filtration for IAQ

Flanders Pre Pleat 62R pleated panel air filter was

specifically designed to improve indoor air quality

through a new level of particulate filtration. The fil-

ter takes its name from the ASHRAE Standard 62

which addresses indoor air quality. The Pre Pleat

62R is indeed state of the art.

Electrostatically Charged Media

The Pre Pleat 62R features a 100% synthetic elec-

trostatically charged filtration media, which actively

attracts and holds airborne contaminants. The filter

media is bonded to a corrosion resistant expanded

metal backing. This combination is then folded into

an accordian pleat arrangement and sealed within

a moisture resistant frame.

The Pre Pleat 62R is more efficient when compared

to standard pleated filters and has a high dust hold-

ing capacity that does not sacrifice airflow. Initial

resistance of a 2 in. deep filter is just 0.3 in. w.g. at

500 fpm. Dust holding capacity of a 24x24x2 in.

high capacity filter is 181 grams at 1 in. w.g. final

resistance.

100%

90%

80%

70%

60%

50%

40%

30%

20%

10%

Fractional Efficiency %

0.1 1 10

Particle Diameter (Microns)

Minimum Efficiency By Particle Size

62R Pleat Average Pleat

Rate of Air Flow vs Initial Resistance

Resistance (Inches w.g.)

Air Flow - CFM

0 1000 1500 2000 2500

.20

.10

.30

.50

.40

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL 33713

the filter and hvac store

re Pleat 62RM11 pleated panel filter enables

a significant upgrade in collection efficiency

over existing MERV 8 products at the same

resistance levels. From 30-35% to 60-65%

average per Ashrae 52.1-1992 average

dust spot efficiency at nearly the same

pricing levels.

Bi-component media: Our next-gener-

ation ultra-high performance bi-component

synthetic media contains mechanically engi-

neered tri-lobal fibers with inhomogenous domains

of positive and negative Electret charges within the

bi-component fibers to equal an ultra-high perform-

ance product.

Enhanced fibers: Mechanically and electrostatical-

ly enhanced fibers are precisely structured into a

progressive density gradient structure to enhance

airflow throughput with less resistance while pro-

viding high dust holding capacity and ultra-high effi-

ciency during operational life.

Gradient media structure: Proprietary

"Engineered Gradient Media Structure" enables

larger incoming contaminants to be trapped in the

pre-filter layer thus allowing the highly charged sec-

ondary layer to attract and hold smaller particulate,

thereby increasing the life of more expensive final

filters downstream.

High efficiency at low pressure drop: This propri-

etary media combined with Flanders’ unique V-

Pleat manufacturing design equals the highest per-

formance pleat available on the market today. The

proprietary PrePleat 62RM11 can provide an initial

efficiency of MERV 11, (60-65%) at a resistance of

.30" wg on the high capacity model. This equals

the same resistance level of our Pre-Pleat 40 62R

Merv 8 Pleat.

No competitor in the marketplace can match these

performance levels which are substantiated with

independent testing. Flanders is the first in the

marketplace with this new proprietary product.

Resistance:

Airflow resistance of a High Capacity PrePleat 62R

M11 is .30" wg @ 2000 CFM (500 FPM) Standard

Capacity is .34" wg @ 2000 CFM .

Efficiency:

1.3 to 1.6 microns 63% removal efficiency

7-10 microns 90% removal efficiency

.39

Pre Pleat 62RM11

Ultra High Efficiency Pleated Filters

Standard Capacity: 85655.xxxxxxM11

High Capacity: 85755.xxxxxxM11

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

NEW

Pre Pleat 62RM11(Merv 11 (60-65% per Ashrae 52.1-1992)

• Upgrade existing rooftop and secular sys-

tems by up to 300% in efficiency to remove

incoming contaminants not previously

removed.

• Upgrade existing prefilter plenums with

the 62RM11 Pleat to increase the life of your

more expensive final filters downstream.

• Building owners and occupants will be

significantly better protected from a

bioaerosol hazard than with conventional

filters.

• Available by special ordering in High-

Velocity design. Contact Factory for pricing

the filter and hvac store

1.0 General

1.1 Air filters shall be Model Pre Pleat 62RM11 panel

filers, as manufactured by Flanders.

2.0 Filter Construction

2.1 Each filter shall consist of an electrostatically

charged synthetic only media, with corrosion-

resistant expanded metal backing and moisture

resistant enclosing frame. The filter shall be 1”, 2”

or 4” nominal depth.The grid shall be 100% bond-

ed to the media on the air exiting side to eliminate

media vibration and pullaway.

2.2 The grid shall be formed to provide a uniform V-

wedge shaped pleat with the open area on the air

exiting side for maximum utilization of the media

and low airflow resistance. The filter shall be clas-

sified for flammability by Underwriters

Laboratories, Standard 900 as Class 2.

3.0 Performance

3.1 The filter shall have a Minimum Efficiency

Reporting Value of 11 by ASHRAE Standard 52.2.

PrePleat

62RM11

PrePleat

62R

PrePleat

Guide Specifications

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

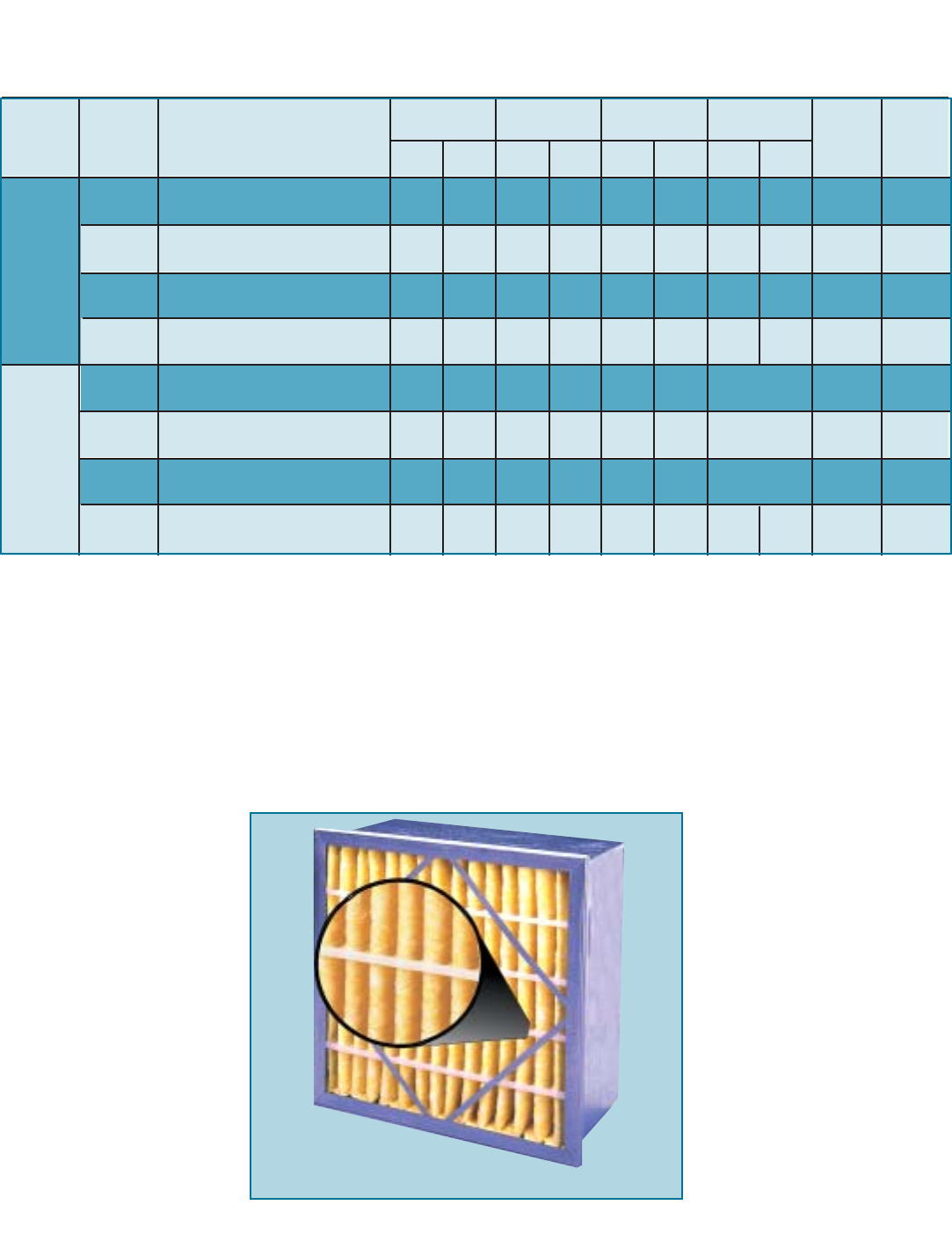

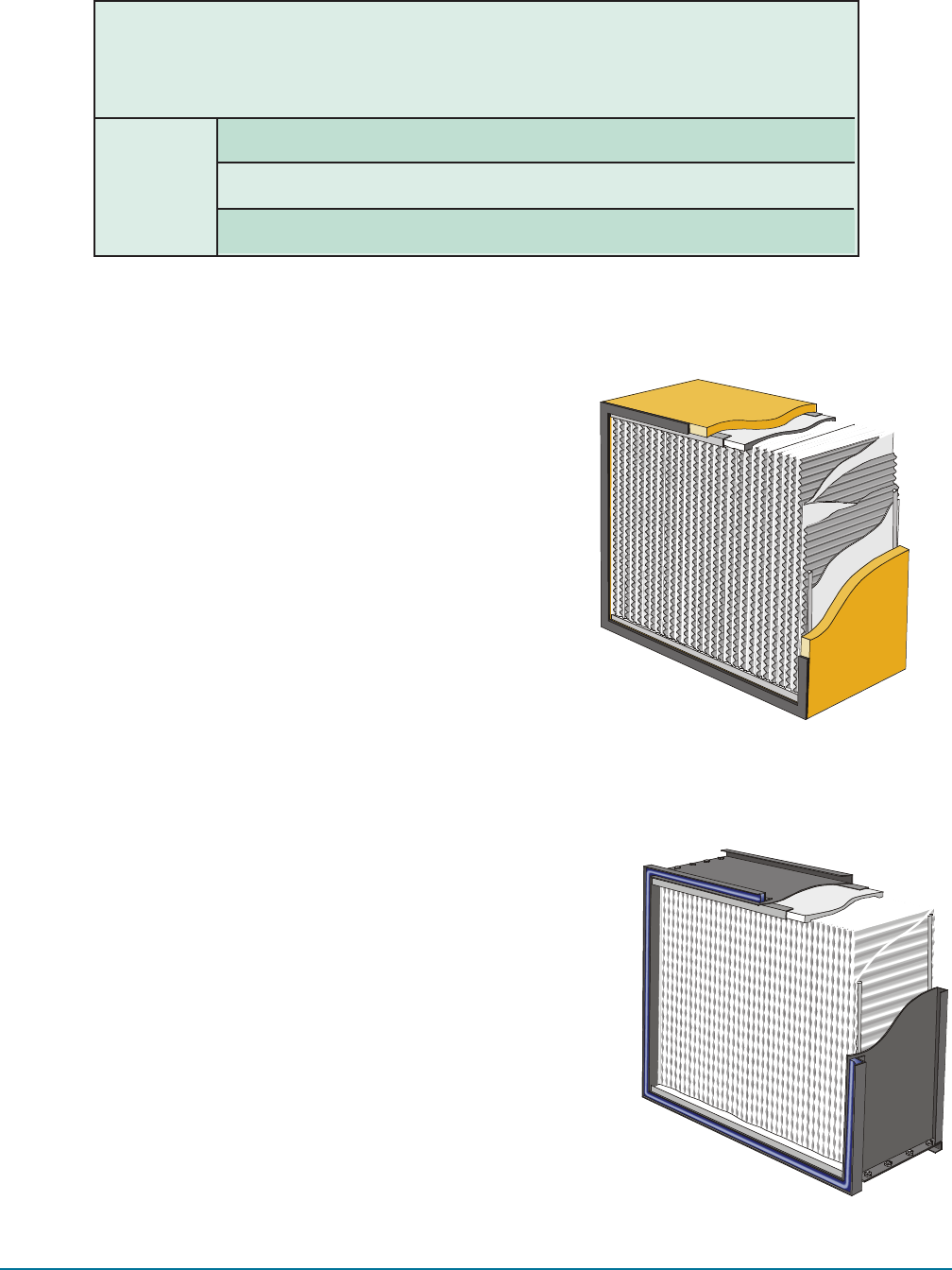

Telescoping frame

gives double perime-

ter thickness

Diagonal face strips

for extra strength

Filter pack sealed in

frame at every point

of contact.

Corosion resistant heavy

metal backing

UL Class II

Electrostatically

charged synthetic

filtering media

V-wedge pleats for

full media usage

High efficiency and

arrestance at low

pressure drop

the filter and hvac store

Pre Pleat Class 1

UL 900 Class 1 Pleated Filter

Standard Capacity: 85855.xxxxxx

High Capacity: 85955.xxxxxx

Important Features

• UL 900 Class 1 for flammability

• Easily disposable

• Offered in all standard face sizes,

2” depth

• High lofted glass pleated media

• Nominal 50% ASHRAE efficiency

• MERV 8

General

This pleated air filter is designed for applications

where a UL Class 1 fire rated filter is required and

metal frame filters are unsuitable because of dis-

posal problems. The Pre Pleat Class 1 pleated air

filter has been tested by Underwriters Laboratories,

Incorporated and found to meet the stringent per-

formance characteristics of a Class 1 air filter for

flammability, as outlined in Standard 900. Class 1

air filter units are described as "Those that, when

clean, do not contribute fuel when attacked by

flame and emit only negligible amounts of smoke.”

Construction

The filter consists of a nominal 50% dust spot effi-

ciency micro-fine fiberglass filtration media that has

been bonded to a corrosion-resistant expanded

metal backing, and then pleated into either stan-

dard or high capacity packs. Each pack is encased

and sealed within a die-cut frame which is manu-

factured of special mineral-filled board to resist

flammability.

Pre Pleat Class 1 pleated air filters are offered in

two inch depth in all of the most popular face sizes.

St. Cap. Std. Cap. High Cap. High Cap.

cfm cfm Resistance Resistance Resistance Resistance

@300 fpm @ 500 fpm @ 300 fpm @ 500 fpm @ 300 fpm @ 500 fpm

12x24x2 600 1000 .36 .64 .30 .50

16x20x2 667 1111 .36 .64 .30 .50

16x25x2 833 1389 .36 .64 .30 .50

20x20x2 833 1329 .36 .64 .30 .50

20x24x2 1000 1667 .36 .64 .30 .50

20x25x2 1041 1736 .36 .64 .30 .50

24x24x2 1200 2000 .36 .64 .30 .50

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

the filter and hvac store

1.0 General

1.1 Medium efficiency UL Class 1 fire rated pleated

filters shall be Pre Pleat Class 1 as manufactured

by Flanders.

1.2 Filter sizes and capacities shall be scheduled on

the drawings.

2.0 Filter Construction

2.1 Filter media shall be manufactured of a high loft-

ed micro-fine media with a minimum efficiency of

50% per ASHRAE Standard 52.1

2.2Acorrosion-resistant expanded metal wire grid

shall be bonded to the media to maintain pleat

integrity.

2.3 The die-cut frame shall be flame-resistant, miner-

al-filled board to meet a UL Class 1 fire rating.

3.0 Performance

3.1 Initial and final resistance shall not exceed the

final values.

3.2 Media must meet or exceed the ratings that of the

specified filter.

3.3 The manufacturer shall guarantee performance

as stated in the literature within tolerances as

outlined in Section 7.4 of ARI Standard 850.

Guide Specifications

Resistance (Inches w.g.)

0.25

0.75

0.50

1.00

1.50

1.25

Air Flow - CFM

0 1000 1500 2000 2500

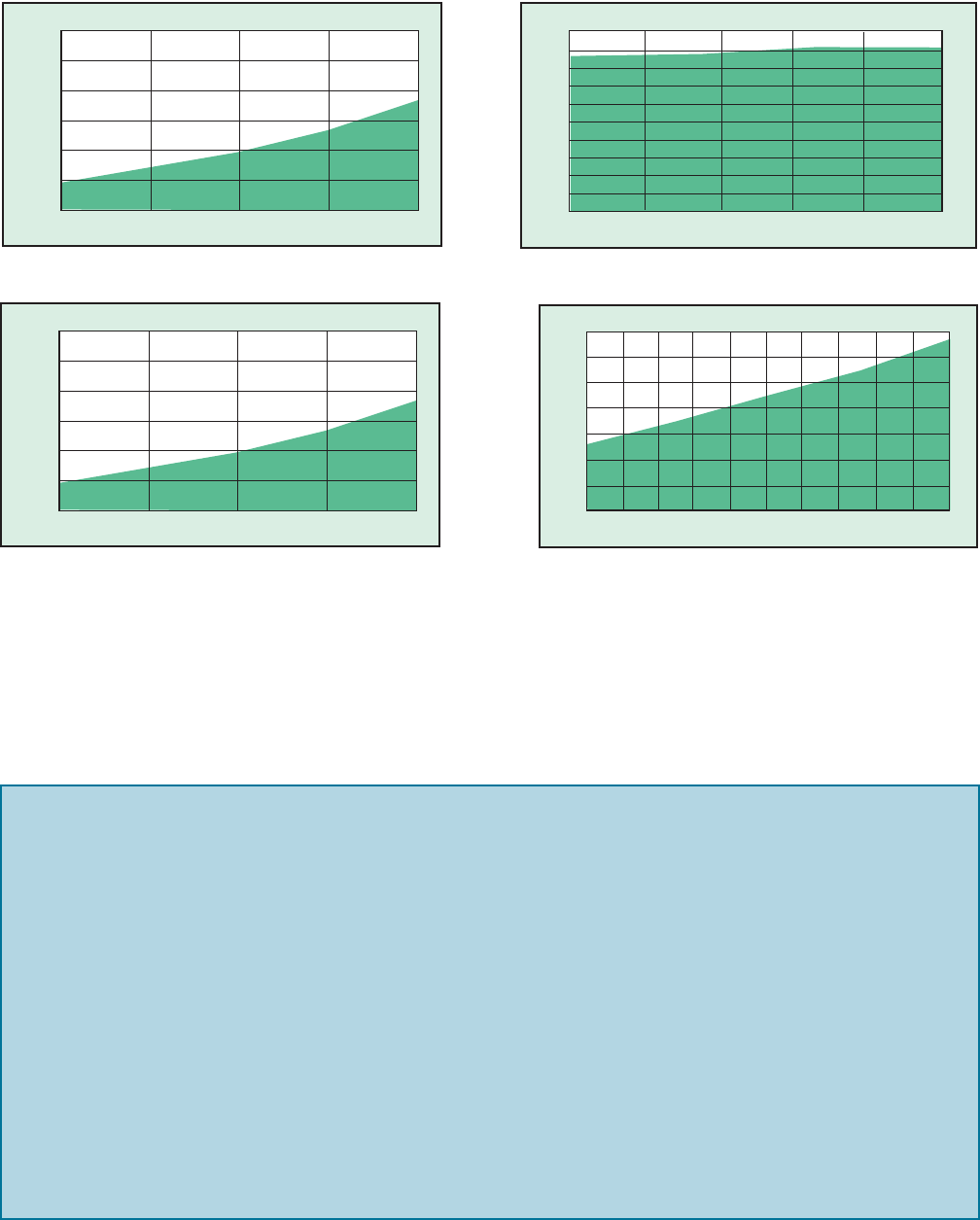

Rate of Air Flow vs Initial Resistance Arrestance vs. Dust Fed

Arrestance (%)

Dust Fed (grams)

100%

90%

80%

70%

60%

50%

40%

30%

20%

10%

25 40 55 70 85 100

Efficiency vs. Dust Fed

Dust Fed (grams)

0 10 20 30 40 50 60 70 80 90 100

100%

90%

80%

70%

60%

50%

40%

30%

20%

10%

Dust Spot Efficiency

Resistance vs. Dust Fed

Resistance (Inches w.g.)

Dust Fed (grams)

0 10 20 30 40 50 60 70 80 90 100

1.75

1.50

1.25

1.00

0.75

0.50

0.25

0.00

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

Performance values stated may be averages typical of the products listed.

Contact factory for actual performance test reports on specific products.

the filter and hvac store

Pre Pleat HT

High Temperature Pleated Filters

Standard Capacity: 84555.xxxxxx

High Capacity: 84655.xxxxxx

Up to 400

Flanders Pre Pleat HT filters are designed for

increased air filtration efficiencies in an operating

environment where temperatures reach 400

degrees Fahrenheit Typical examples include air

intakes for drying ovens or high temperature baking

applications.

Construction

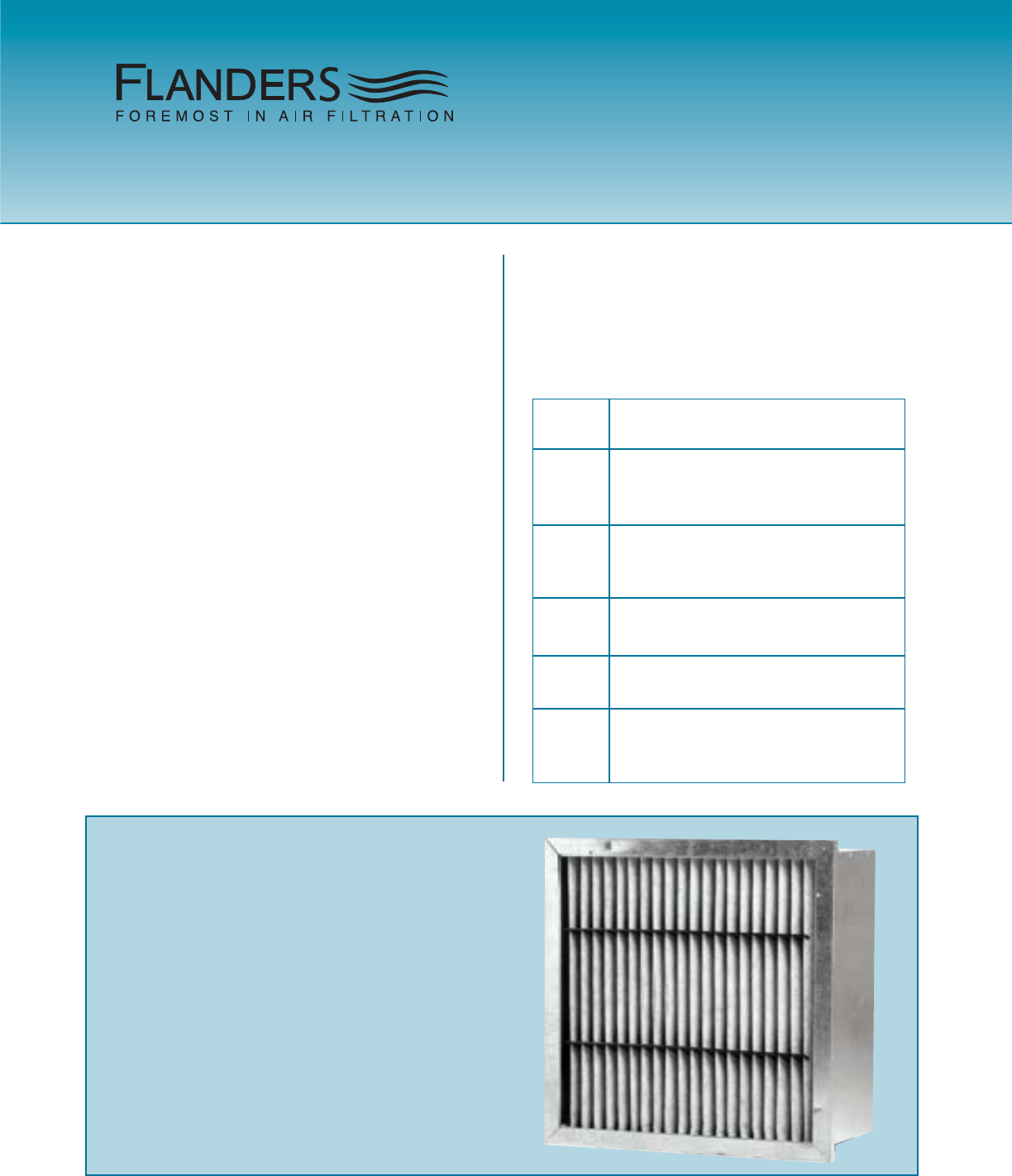

The Pre Pleat HT high temperature pleated air filter

consists of a nominal 50% dust spot efficiency

micro-fine fiberglass filtration media that has been

bonded to corrosion-resistant expanded metal

backing, then pleated into either standard or high

capacity packs.

Each pack is encased within a 24 gage corrosion-

resistant metal frame with an expanded corrosion-

resistant metal face screen on the downstream side

to increase pack rigidity while preventing blowouts.

Flanders Pre Pleat HTpleated air filters are offered

in two inch depths in all of the most popular face

sizes. They have been tested by Underwriters

Laboratories, Incorporated and found to meet the

stringent performance characteristics of a Class 1

air filter for flammability as outlined in Standard

900.

Physical Data

Frame: 24 gage corrosion-resistant steel

Media: 50% Efficient micro-fine fiberglass

Pleat Design: V-wedge Pleat

Face Screen: Expanded metal corrosion-resistant

steel

St. Cap. Std. Cap. High Cap. High Cap.

cfm cfm Resistance Resistance Resistance Resistance

@300 fpm @ 500 fpm @ 300 fpm @ 500 fpm @ 300 fpm @ 500 fpm

12x24x2 600 1000 .36 .64 .30 .50

16x20x2 667 1111 .36 .64 .30 .50

16x25x2 833 1389 .36 .64 .30 .50

20x20x2 833 1329 .36 .64 .30 .50

20x24x2 1000 1667 .36 .64 .30 .50

20x25x2 1041 1736 .36 .64 .30 .50

24x24x2 1200 2000 .36 .64 .30 .50

Important Features

• Resists temperatures up to 400º F

• Nominal 50% ASHRAE efficiency

•Rugged metal construction

•UL900 Class 1 Fire Rated

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

the filter and hvac store

1.0 General

1.1 High Temperature pleated filters shall be Pre

Pleat HT as manufactured by Flanders.

1.2 Filter sizes and capacities shall be scheduled on

the drawings.

1.3 Filters shall be UL Class 1 listed and be able to

operate up to 400 degrees Fahrenheit.

2.0 Filter Construction

2.1 Filter media shall be manufactured of a high loft-

ed micro-fine media with a minimum efficiency of

50% per ASHRAE Standard 52.1

2.2 An expanded metal wire grid shall be bonded to

the media to maintain pleat integrity.

2.3 The filter pack shall be enclosed within a corro-

sion-resistant frame and furnished with an

expanded metal facescreen on the downstream,

air leaving side.

3.0 Performance

3.1 Initial and final resistance shall not exceed the

final values.

3.2 Media efficiency and content must meet or

exceed the ratings of the specified filter.

3.3 The manufacturer shall guarantee performance

as stated in the literature within tolerances as out-

lined in Section 7.4 of ARI Standard 850.

Guide Specifications

Resistance (Inches w.g.)

0.25

0.75

0.50

1.00

1.50

1.25

Air Flow - CFM

0 1000 1500 2000 2500

Rate of Air Flow vs Initial Resistance Arrestance vs. Dust Fed

Arrestance (%)

Dust Fed (grams)

100%

90%

80%

70%

60%

50%

40%

30%

20%

10%

25 40 55 70 85 100

Resistance (Inches w.g.)

0.25

0.75

0.50

1.00

1.50

1.25

Air Flow - CFM

0 1000 1500 2000 2500

Rate of Air Flow vs Initial Resistance

Resistance vs. Dust Fed

Resistance (Inches w.g.)

Dust Fed (grams)

0 10 20 30 40 50 60 70 80 90 100

1.75

1.50

1.25

1.00

0.75

0.50

0.25

0.00

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

Performance values stated may be averages typical of the products listed.

Contact factory for actual performance test reports on specific products.

the filter and hvac store

E35

Pleated Panel Filters

Models E35-xxxxx

General

Flanders E35 extended surface pleated filters are

designed to operate in most installations. Available

in 1”, 2”, and 4” nominal thickness, these filters

have an average atmospheric dust spot efficiency

range of 25-30% per ASHRAE Standard 52.1 test

methods. E35 filters offer greater efficiency and

service life than disposable filters, pad and frame

systems, or metal washable filters. The overall

design of this product makes E35 filters the accept-

ed choice in applications requiring high perform-

ance and extended service.

These filters are suitable for variable air volume

systems. Operating face velocity ranges are from 0

to 500 fpm for 1” and 2” filters, and from 0 to 625

fpm for 4” filters. Each filter contains 11 pleats per

lineal foot. E35 filters are UL 900 Class 2 listed.

Versatility

Most heating, air conditioning, or ventilating sys-

tems can be upgraded with the use of E35 filters in

place of existing flat panel types. The inherent

strength of the filter allows for easy changeout as it

will not collapse, warp, or bend in normal service.

E35 filters are available in a wide range of sizes

and will fit most commercial and industrial installa-

tions with little or no system modification.

Fasteners are available to adapt the E35 filter to

existing filter banks.

Installation Considerations

E35 pleated filters are suitable as primary filters

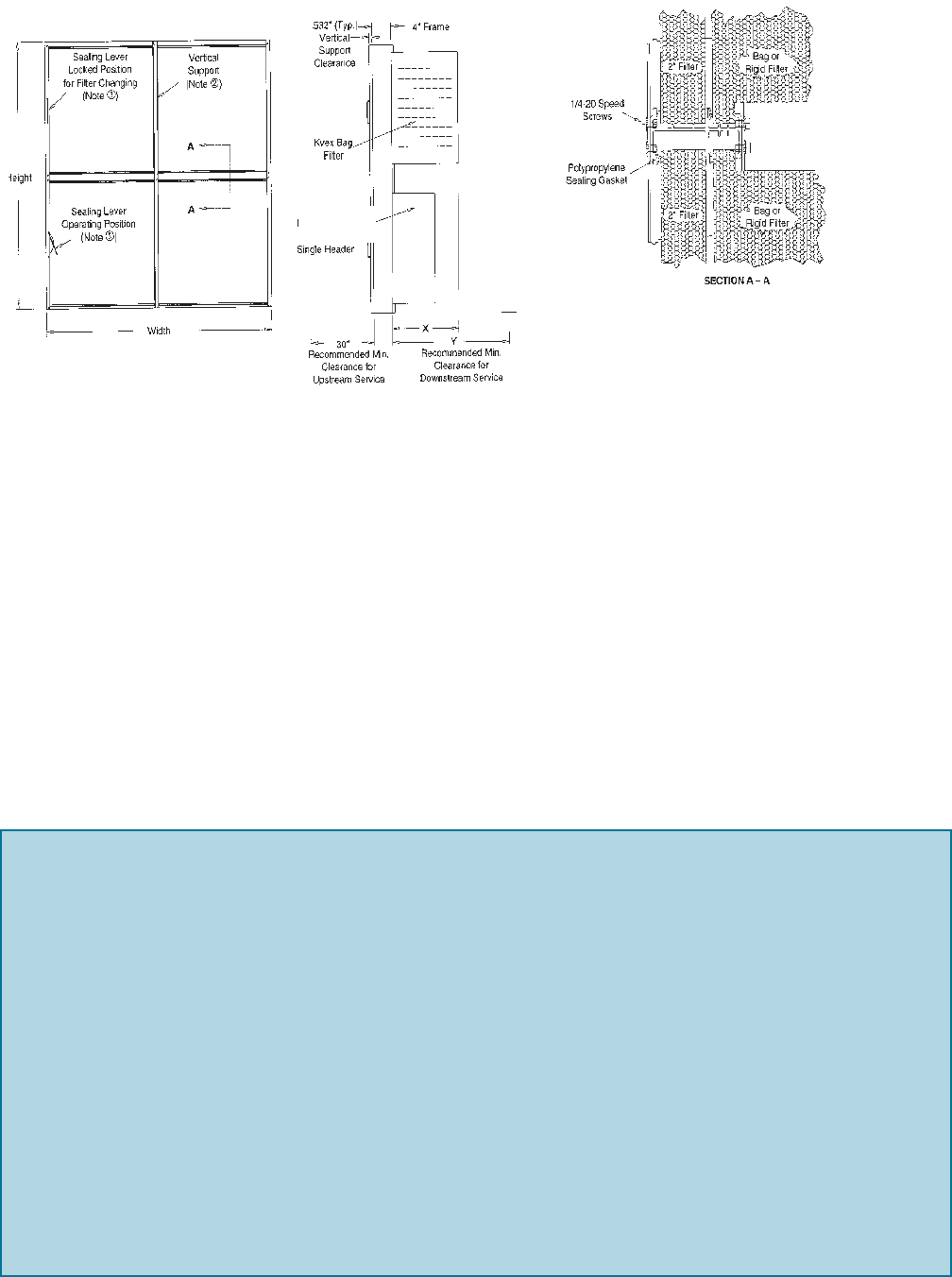

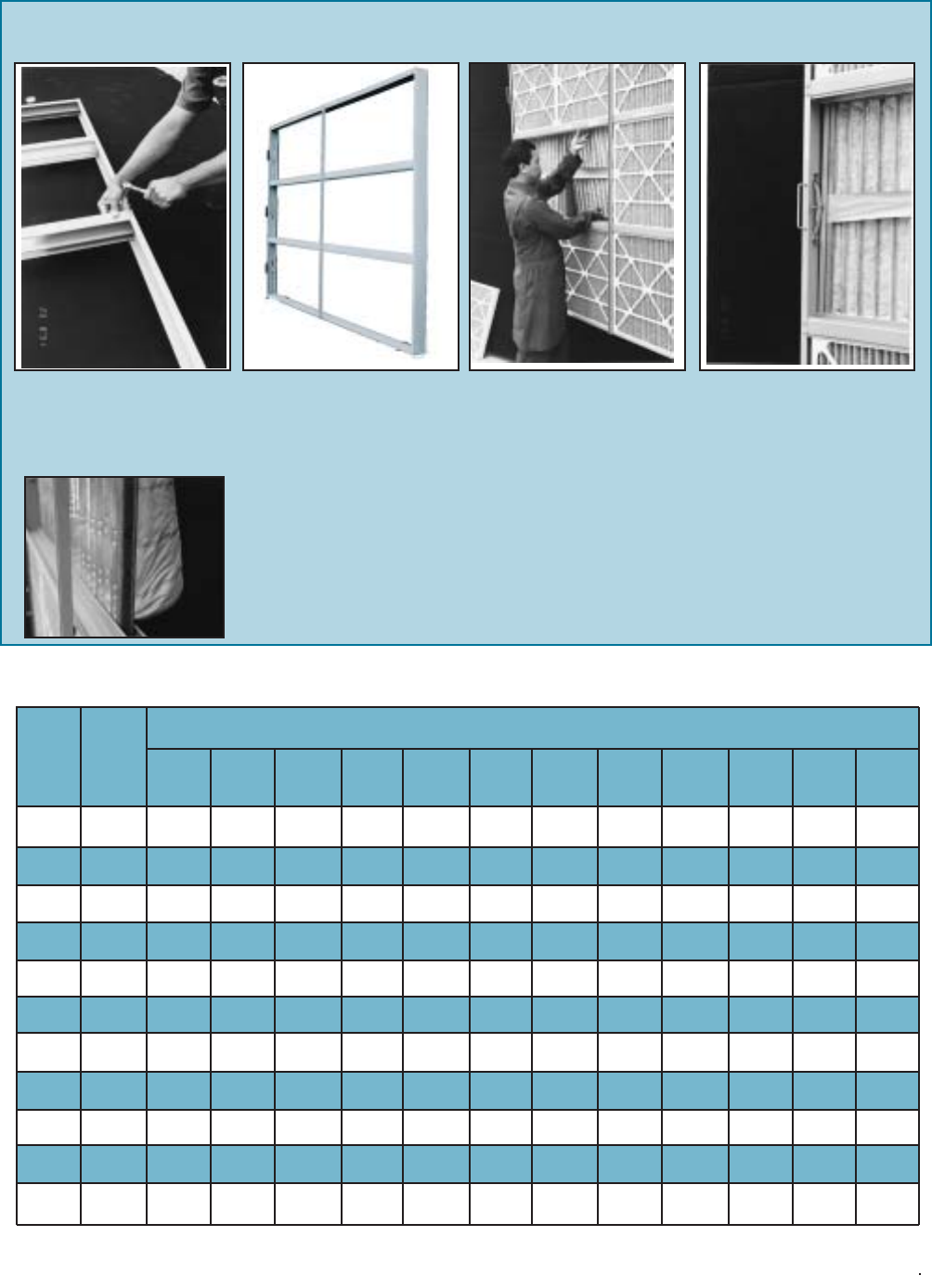

and can be installed in Type 9 Holding Frames, K-

Track Framing Modules, Surepleat Side Access

Housings and similar existing hardware. They may

be used as prefilters for Flanders Precision Pak,

PrecisionCell and Rigid-Air filters in these framing

systems and in Sureseal Side Access Housings.

Construction

E35 filter frames are constructed from moisture

resistant chipboard. Perforated steel support grilles

on the upstream and downstream sides provide

extra rigidity and strength. The entire unit is sealed

to insure a positive media-to-frame bond, eliminat-

ing the possibility of air bypass. The filter media is

a high loft reinforced non-woven cotton/synthetic

blend. It is continuously laminated to an expanded

metal grid on the air leaving side to provide pleat

stability throughout the life of the filter and to pre-

vent media flutter while in operation. The E35 V

wedge pleat allows for total media usage and pro-

vides maximum airflow and dust holding capacity.

Important Features

•V-wedge pleats minimize end losses

and reduce pressure drop.

•Expanded metal grid prevents media flutter

while in operation.

•Perforated steel support grilles strengthen

the frame.

•Filter media pack is sealed to eliminate air

bypass.

•Average ASHRAE efficiency is 25-30%.

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

the filter and hvac store

E35-10201

E35-12201

E35-12241

E35-14201

E35-14251

E35-15201

E35-16201

E35-16251

E35-18241

E35-18251

E35-20201

E35-20241

E35-20251

E35-24241

E35-10202

E35-12202

E35-12242

E35-14202

E35-14252

E35-15202

E35-16202

E35-16252

E35-18252

E35-20202

E35-20252

E35-24242

E35-12244

E35-16204

E35-16254

E35-20204

E35-20254

E35-24244

E35-25294

E35-28304

CAPACITIES AND DIMENSIONS

Nominal

Depth (inch) Nominal Size

HxWxD (inch)

10x20x1

12x20x1

12x24x1

14x20x1

14x25x1

15x20x1

16x20x1

16x25x1

18x24x1

18x25x1

20x20x1

20x24x1

20x25x1

24x24x1

10x20x2

12x20x2

12x24x2

14x20x2

14x25x2

15x20x2

16x20x2

16x25x2

18x25x2

20x20x2

20x25x2

24x24x2

12x24x4

16x20x4

16x25x4

20x20x4

20x25x4

24x24x4

25x29x4

28x30x4

375 fpm 500 fpm

cfm PD cfm PD

420

500

600

580

730

625

667

834

900

940

834

1000

1042

1200

420

500

600

580

730

625

667

834

940

834

1042

1200

600

667

834

1042

1200

1510

1750

.15

.12

.10

695

834

1000

975

1215

1040

1110

1390

1500

1565

1390

1667

1735

2000

695

834

1000

975

1215

1040

1110

1390

1565

1390

1735

2000

1250

1390

1735

2170

2500

2520

2920

.35

.27

.35

.27

.30

Media

Area

(sq. ft)

Weight

Each (lbs.)

2.4

2.9

3.5

3.4

4.3

3.7

3.6

4.6

5.3

5.5

4.6

5.8

5.5

6.4

4.0

4.8

5.8

5.6

7.1

6.0

6.6

8.3

9.1

8.3

10.3

12.3

11.6

11.8

15.0

20.2

22.3

27.7

32.1

1.1

1.3

1.1

1.3

1.5

1.7

2.0

2.3

2.5

4.0

6.0

1.0 General

1.1 Medium efficiency pleated filters shall be E35 a s

manufactured by Flanders.

1.2 Filters shall be UL 900 Class 2 listed.

2.0 Filter Construction

2.1 Filters shall be constructed of reinforced,

non-woven cotton/synthetic blend media laminat-

ed to an expanded metal grid on the air leaving

side and formed into V-wedge pleats.

2.2 Frames shall be moisture-resistant chipboard

with perforated steel support grilles on the

upstream and downstream sides.

3.0 Performance

3.1 Initial and final resistances shall not exceed the

scheduled values.

3.2 Media area must equal or exceed that of the

specified filter.

3.3 The average efficiency shall be as determined by

the ASHRAE Standard 52.1 test methods.

3.4 The manufacturer shall guarantee performance

as stated in its literature within tolerances as out-

lined in Section 7.4 of ARI Standard 850.

Guide Specifications

PD represents clean pressure drop in inches w.g. The recommended final pressure drop for all models is 1.0 inch

w.g. System design may dictate a lower change-out point.

Performance values stated may be averages typical of the products listed. Contact factory for actual performance

test reports on specific products.

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

the filter and hvac store

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

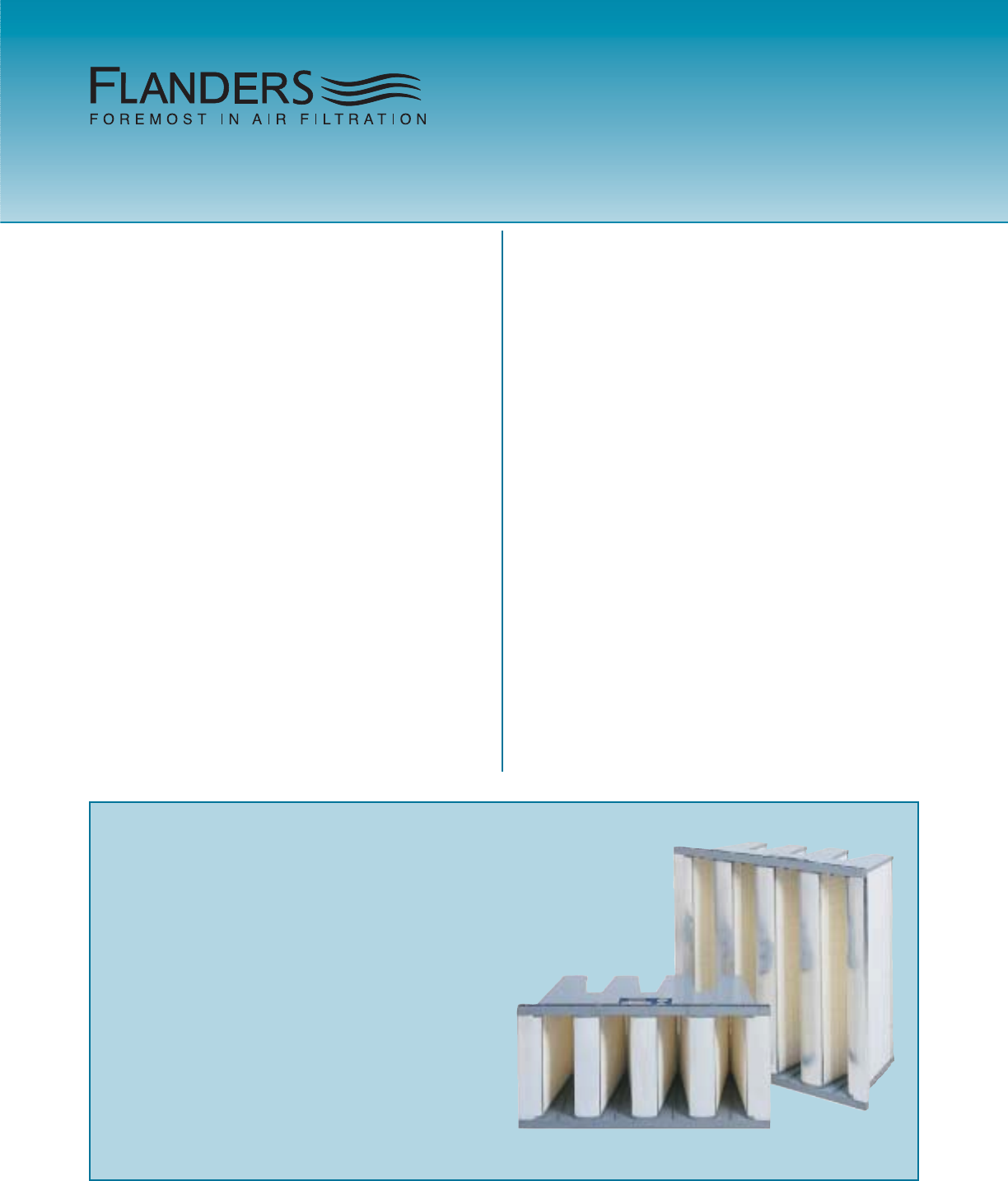

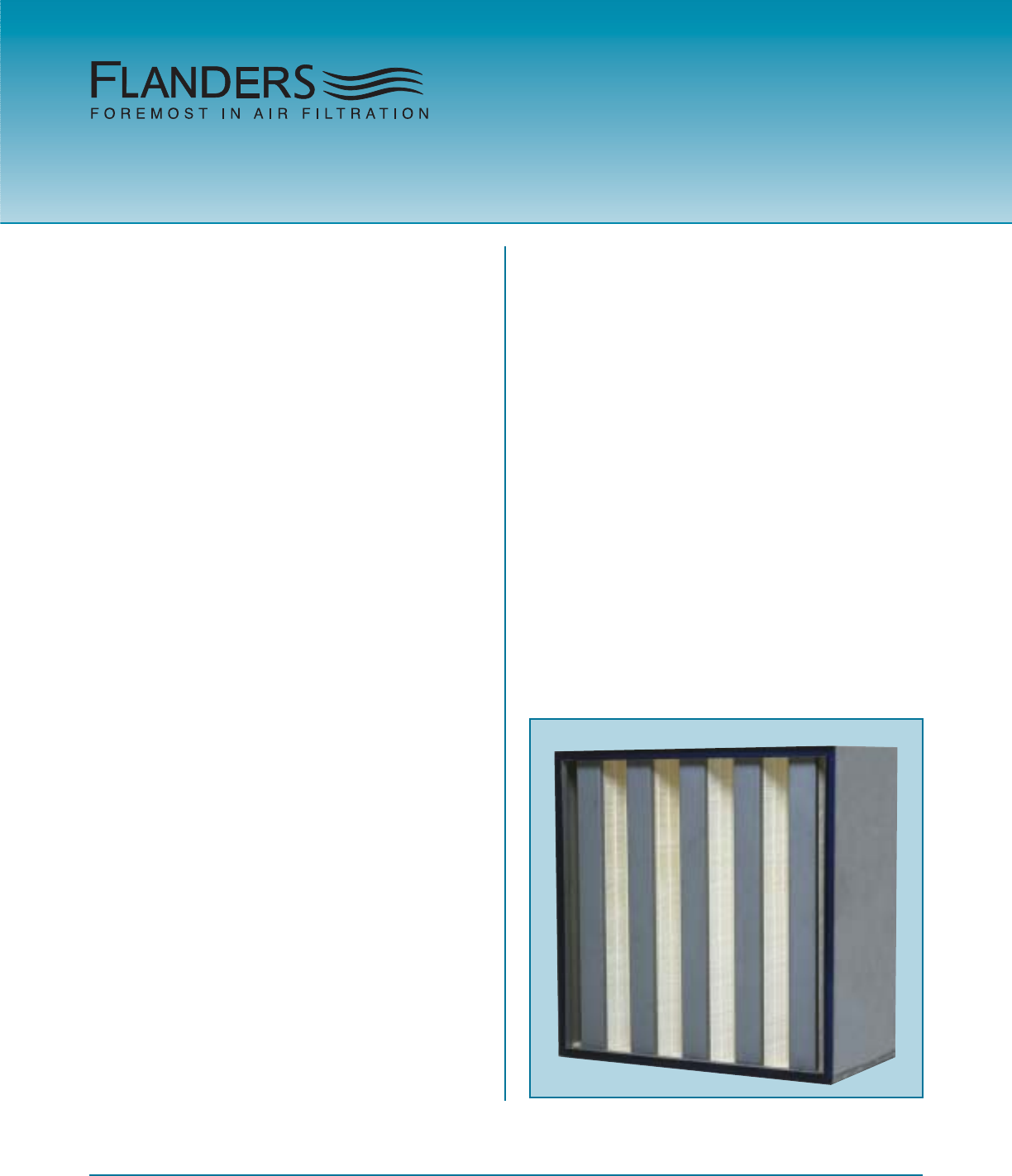

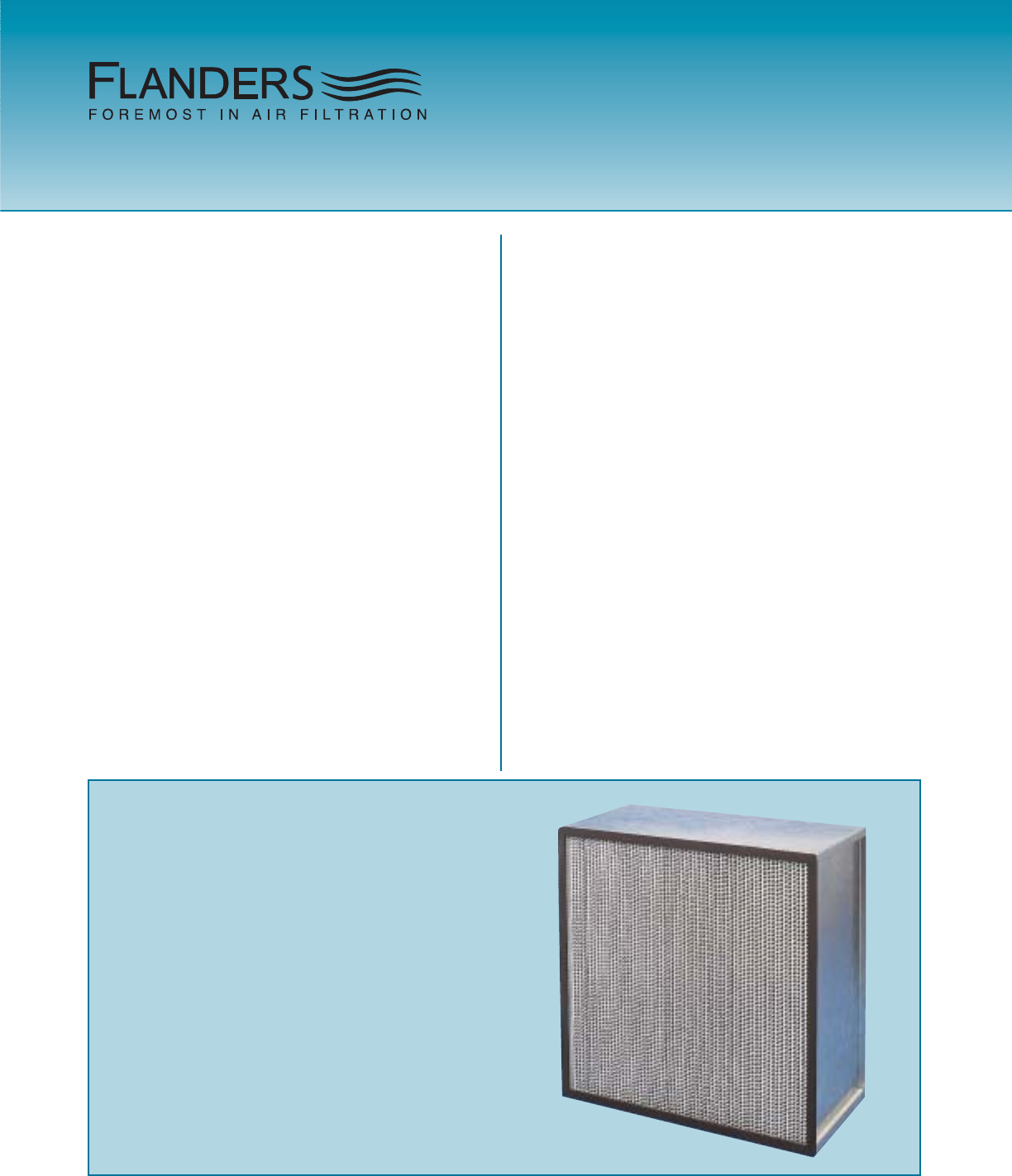

General

Superflow-V extended surface area low pressure

drop minipleat filters are designed for use in most

commercial and industrial HVAC systems where

medium to high efficiency filtration is required.

Superflow-V filters are available in average efficien-

cy ranges: 65%, 85%, 95% and 98% per ASHRAE

Standard 52.1 test methods and 95% DOP. They

may be operated at face velocities from 0 to 750

fpm. Superflow-V filters are UL 900 Class 2 listed.

Construction

Superflow-V filters are constructed of multiple mini-

pleat panels bonded to flame-retardant plastic pan-

els on top and bottom to make an unusually strong

assembly that is both corrosion and moisture resist-

ant. Aerodynamic extruded vertical supports mini-

mize air entry turbulence. Superflow-V filters are

totally rigid making them ideal for variable air vol-

ume (VAV) systems, as well as applications down-

stream of supply fans.

Lowest Pressure Drop

Superflow-V minipleat filters have an exceptionally

low clean pressure drop unmatched by most any fil-

ter of the same efficiency. This affords low fan ener-

gy costs during much of the life of the filter system.

In addition, they are the filters of choice for pack-

aged air conditioning systems that do not have the

fan capacity of larger central systems.

Longer Service Life

The ratio of media area to nominal face area of

Superflow-V filters is an extremely high 48:1, result-

ing in a much longer service life than most any filter

of comparable efficiency and depth. Longer service

life means material and labor cost savings and less

disruption of systems caused by filter change-out

shutdowns. High dust holding capacity is a key ben-

efit of a filter with increased media area.

Physical Data

Media: Moisture-resistant microfine fiberglass

Filter Pack: Minipleat panels

Media Support: Adhesive

Top and Bottom Panels: Flame-retardant plastic

Vertical Supports: Aerodynamic extruded vertical sup-

ports

Operating limits: 160 °F and 100% RH continuous duty

Actual Header Size: Nominal size less 5/8” (e.g. a nom-

inal 24” x 24” filter is actually 23-3/8” x 23-3/8”)

Actual Depth: 11-1/2”

Important Features

• Lowest clean pressure drop for energy savings

and applicability to small fan systems

• Longer service life because of a very high ratio of

media to nominal face area

• Aerodynamic vertical supports minimize air entry

turbulence

• Minipleat panels provide rigidity for VAV systems

and resistance to turbulent air flow

• May be operated from 0 to 750 fpm face velocity

in either air flow direction

• Moisture resistant for humid air applications

Superflow-V

Extended Surface Minipleat Filters

DOP: 95%: SFV D95xxxx ASHRAE 98% SFV98xxxx

ASHRAE 95% SFV95xxxx 85% SF85xxxx 75% SFV75xxxx

the filter and hvac store

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

Nominal Size 250 FPM 375 FPM 500 FPM 625 FPM 750 FPM Media Wt.

Efficiency Model HxWxD Area Each

%Number Inches (Sq.Ft) (Lbs.)

CFM PD CFM PD CFM PD CFM PD CFM PD

Guide Specifications

Performance Data Notes:

1. PD represents clean pressure drop in inches w.g.

The recommended final pressure drop for all models

is 2.0 inch w.g. Maximum final pressure drop is 3.2

inch w.g.

2. Operation down to zero air flow is satisfactory for all

models

3. Efficiency is average and is based on ASHRAE

Standard 52.1 test methods for 65, 85, 95 and 98%

filters. Performance values stated may be averages

typical of the products listed. Contact factory for actual

performance test reports on specific products.

4. Performance tolerances conform to section 7.4 of

ARI Standard 850.

5. Actual filter header is 5/16 inch under on height an

width. Actual depth is 11-1/2 inch

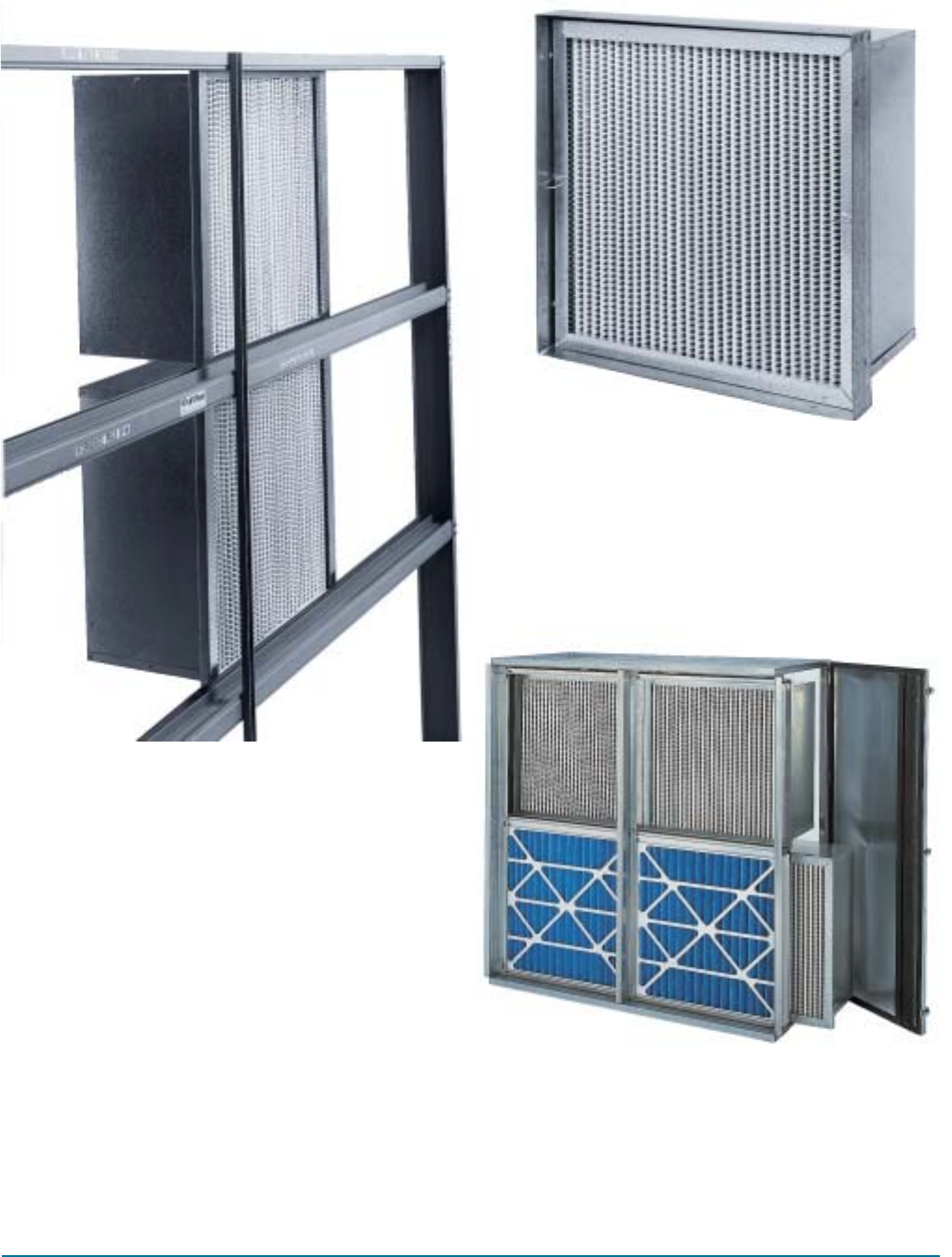

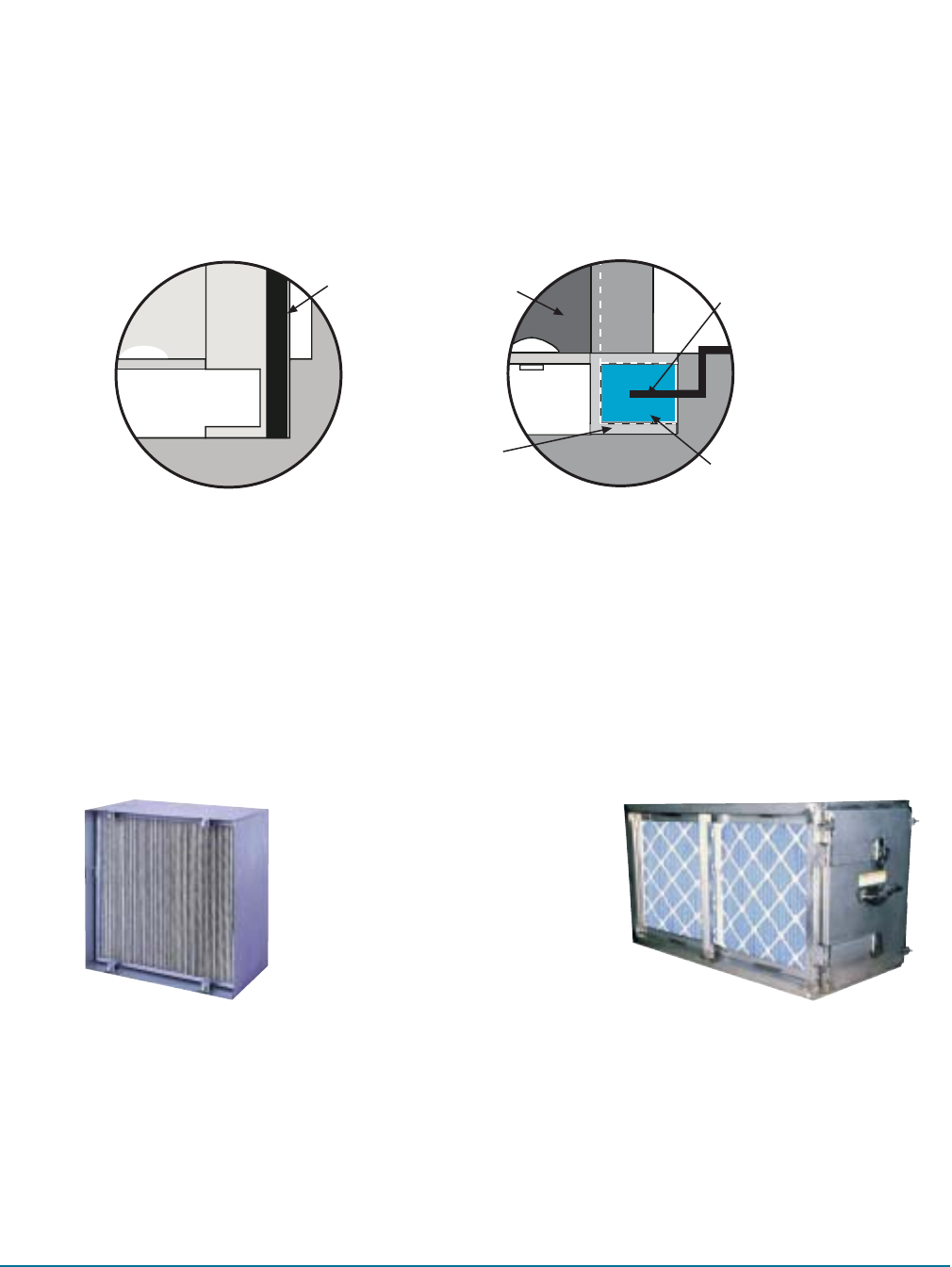

Installation Considerations

Superflow-V filters may be installed in Flanders Type 9

Holding Frames, K-Trac Filter Framing Modules,

Sureseal Side Access Housings or in similar existing

hardware. Type 9 Holding Frames are riveted

together to form a filter bank. K-Track Filter

Framing Modules are especially suitable for medium

to large built-up filter banks. Smaller systems and

systems with minimum upstream access space are

best served using Sureseal Side Access Housings.

Gasketed Headers are Standard

Superflow-V filters are furnished with a peripheral head-

er on the air entering side and with foam gaskets on

the “H” dimension for the 24 x 24 model and “W”

dimension on the 12 x 24 and 20 x 24 models.

1.0 General

1.1 Medium and high efficiency extended surface low

pressure drop minipleat filters shall be Superflow-

Vmodels as manufactured by Flanders.

1.2 Filter sizes, efficiencies and capacities shall be as

scheduled on the drawings.

2.0 Filter Construction

2.1 Filters shall consist of multiple minipleat panels

bonded to flame-retardant plastic panels on top

and bottom and encased in a corrosion-resistant

steel frame.

3.0 Performance

3.1 Initial and final resistances shall not exceed the

scheduled values.

3.2 Media area must equal or exceed that of the spec-

ified filter.

3.3 The average efficiency shall be as determined by

ASHRAE Standard 52.1 test methods.

3.4 Filters shall be UL 900 Class 2 listed.

95% DOP SFVD-95A12 24 x 24 x 12 1000 0.28 1500 0.55 2000 0.75 2500 0.80 * * 196 18

95% DOP SFVD-95B12 20 x 24 x 12 800 0.28 1200 0.55 1600 0.75 2000 0.80 * * 162 14

95% DOP SFVD-95C12 12 x 24 x 12 500 0.28 750 0.55 1000 0.75 1250 0.80 * * 98 9

98% SFV-98A12 24 x 24 x 12 1000 0.25 1500 0.45 2000 0.60 2500 1.0 * * 196 17

98% SFV-98B12 20 x 24 x 12 800 0.25 1200 0.45 1600 0.60 2000 1.0 * * 162 13

98% SFV-98C12 12 x 24 x 12 500 0.25 750 0.45 1000 0.60 1250 1.0 * * 98 8

95% SFV-95A12 24 x 24 x 12 1000 0.14 1500 0.27 2000 0.36 2500 0.51 3000 0.64 196 17

95% SFV-95B12 20 x 24 x 12 800 0.14 1200 0.27 1600 0.36 2000 0.51 2400 0.64 162 13

95% SFV-95C12 12 x 24 x 12 500 0.14 750 0.27 1000 0.36 1250 0.51 1500 0.64 98 8

85% SFV-85A12 24 x 24 x 12 1000 0.07 1500 0.18 2000 0.27 2500 0.40 3000 0.6 196 17

85% SFV-85B12 20 x 24 x 12 800 0.07 1200 0.18 1600 0.27 2000 0.40 2400 0.6 162 13

85% SFV-85C12 12 x 24 x 12 500 0.07 750 0.18 1000 0.27 1250 0.40 1500 0.6 98 8

65% SFV-65A12 24 x 24 x 12 1000 0.05 1500 0.15 2000 0.25 2500 0.38 3000 0.52 196 17

65% SFV-65B12 20 x 24 x 12 800 0.05 1200 0.15 1600 0.25 2000 0.38 2400 0.52 162 13

65% SFV-65C12 12 x 24 x12 500 0.05 750 0.15 1000 0.25 1250 0.38 1500 0.52 98 8

the filter and hvac store

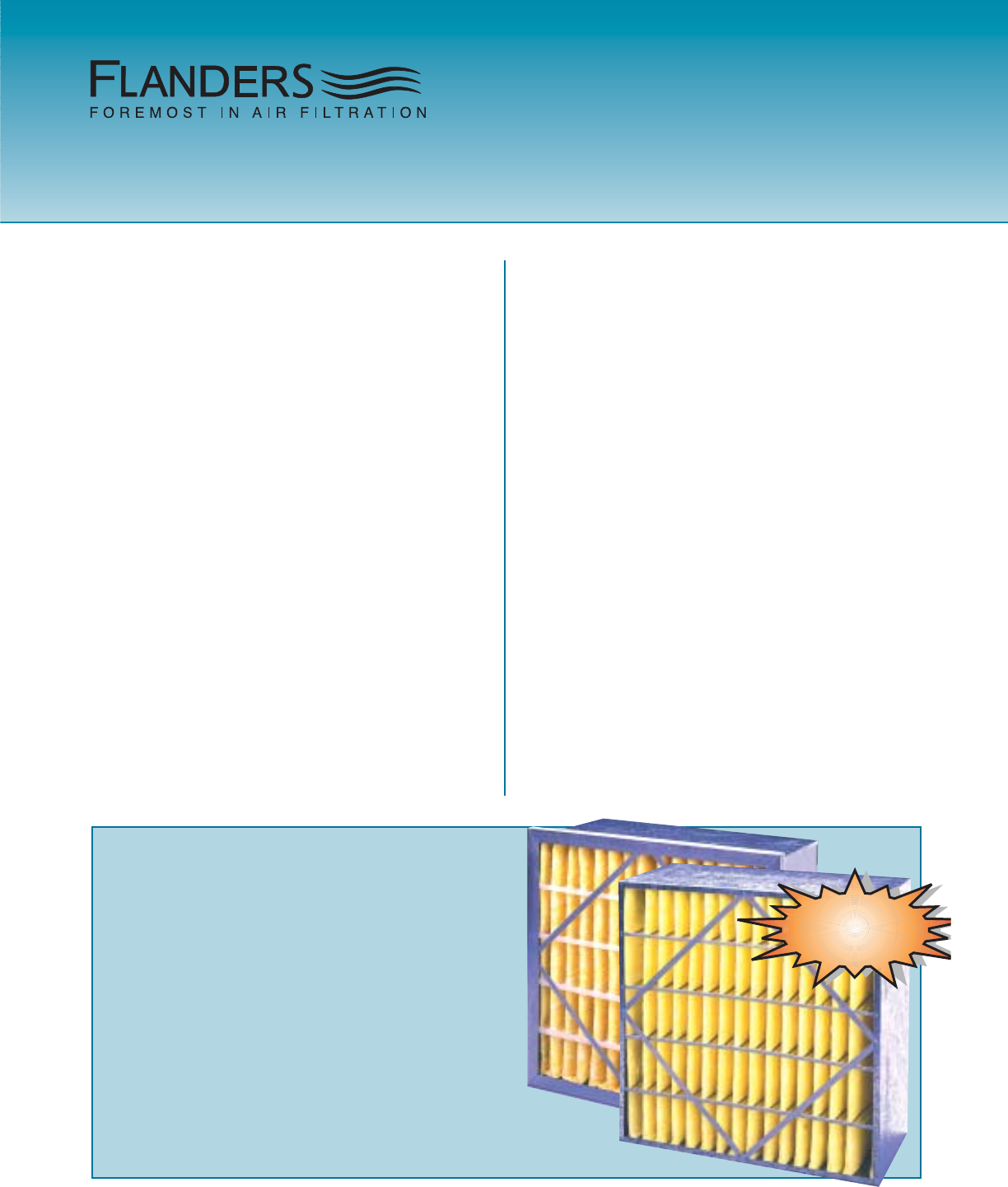

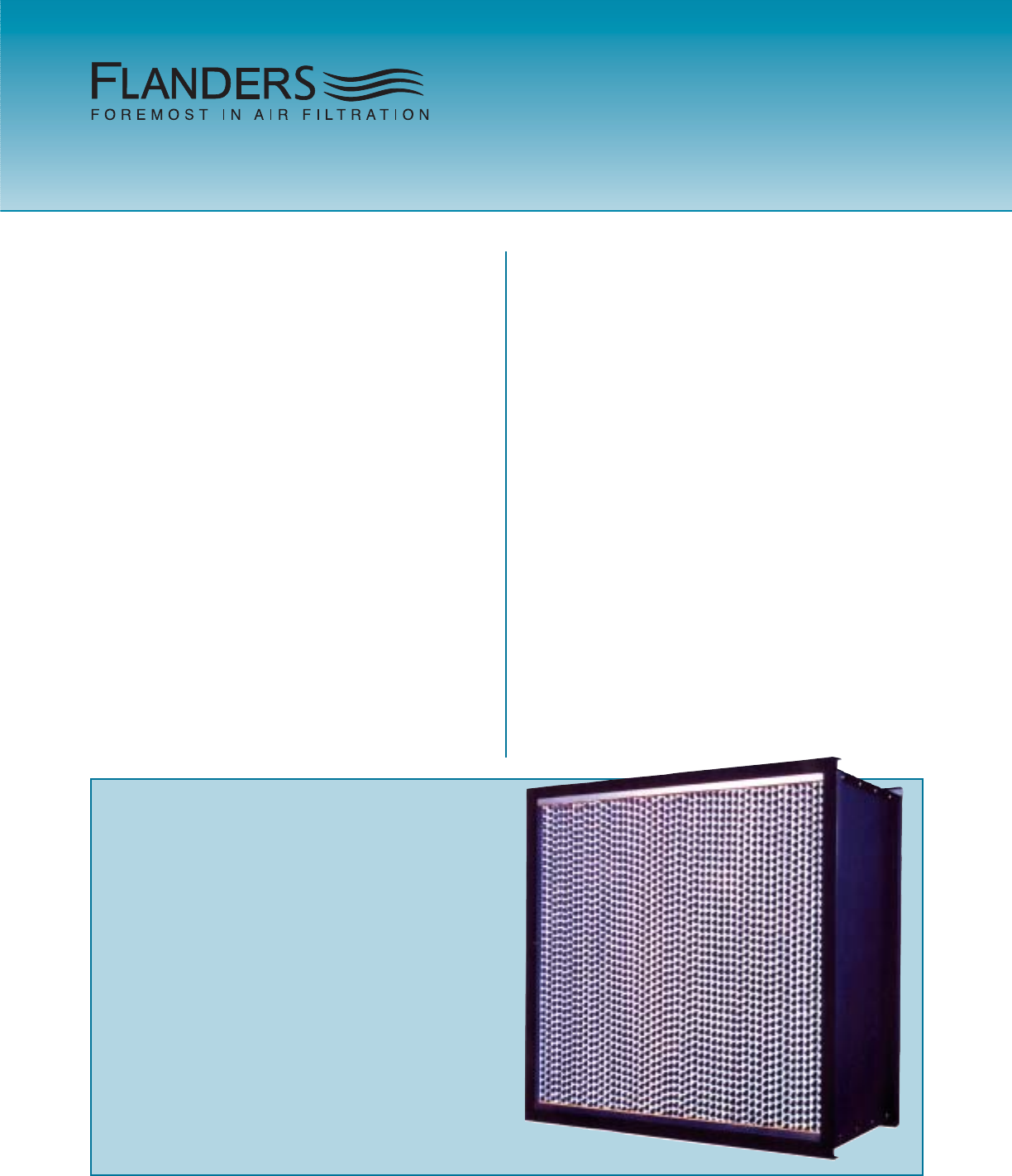

General

Rigid-Air extended media surface rigid filters are

designed for use in most commercial or industrial

HVAC systems where medium to high efficiency fil-

tration is required.

They feature your selection of media backed with

expanded metal and pleated. The pleats are held in

place by rigid pleat separators, now available in

either plastic or metal styles. Rigid-Air is available

in two media types: lofted fiberglass and micro-fine

synthetic with average efficiency ranges of 50-55%,

60-65%, 80-85% and 90-95% per ASHRAE

Standard 52.1 test methods.

These filters are especially suitable for variable air

volume systems. Operating face velocity ranges

are from 0 to 375 fpm for 6” deep filters, and from 0

to 675 fpm for 12” deep filters. Two frame styles are

available: a single header model and a box type

without header. Rigid-Air filters are UL 900 Class 2

listed. Optional Class 1 listed are available with

metal inserts and fiberglass media.

Installation Considerations

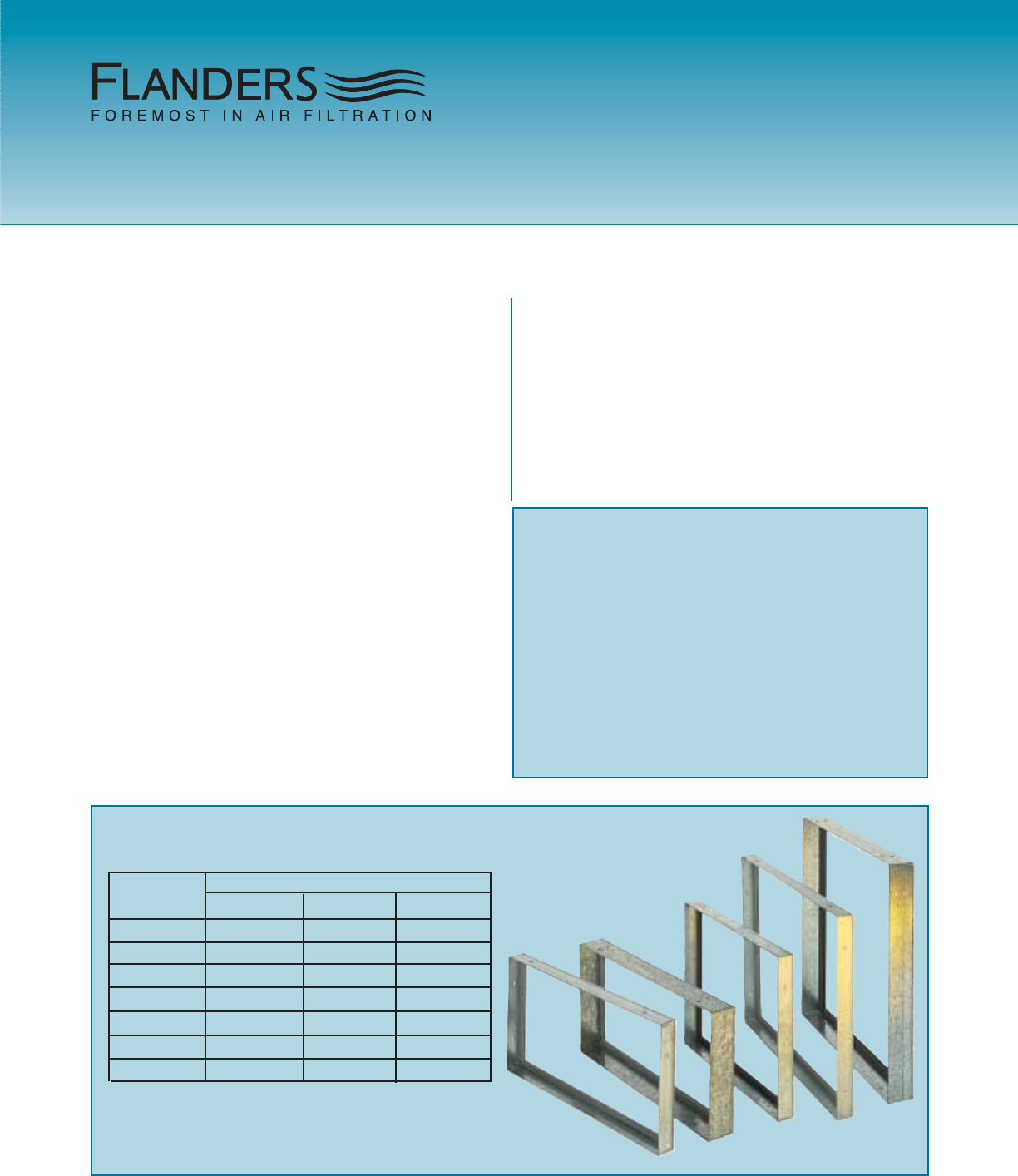

Rigid-Air filters may be installed in Type 9 Holding

Frames, K-Trac Filter Framing Modules, Sureseal

Side Access Housings or in similar existing hard-

ware. Type 9 Holding Frames are riveted together

to form a bank and may be installed for upstream or

downstream service. K-Track Filter Framing

Modules are especially suitable for medium to large

built-up filter banks. Smaller systems and systems

with minimum upstream access space are best

served using Sureseal Side Access Housings.

The headered version should be selected for use

with the hardware listed above. If the filter is to be

installed so that it protrudes upstream of the Type 9

Holding Frame, the box style filter is required.

Physical Data

Frame: 24 ga. corrosion-resistant steel

Media: Lofted fiberglass or micro-fine synthetic

Media Supports: Expanded metal grid with metal or

plastic pleat separator

Face Grid: Horizontal and diagonal metal supports

Header: 13/16” wide 26 ga. corrosion-resistant steel

Operating Limits: 180°F 100% RH %

Actual Header or Box Filter Face Size: Nominal size less

5/8” (e.g., a nominal 24” x 24” filter is actually 23 3/8”

x 23 3/8”)

Actual Depth: 5-7/8” or 11-1/2”

Rigid-Air

Fiberglass or Synthetic Media Rigid Filter

Synthetic Media PRP**Sxxxxx, PRP**SxxxxM

Glass Media: PRP**Gxxxx, PRP**GxxxxM

(** insert 55, 65, 85 or 95 for percent ASHRAE efficiency

Important Features

•Rugged corrosion-resistant steel casing mini-

mizes damage during shipping and handling.

•Lofted fiberglass micro-fine or synthetic media is

held in position by upstream and downstream

plastic or (NEW!) metal pleat supports.

•Units are available with or without header.

•Filters are completely rigid.

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

NEW

the filter and hvac store

Notes:

1. PD represents clean pressure drop in inches w.g. Recommended final pressure drop for all models is 1.5 inches w.g.

2. Operation down to zero airflow is satisfactory for all models.

3. Consult factory before operating at these velocities.

4. Efficiency is average and is based on ASHRAE Standard 52.1 test methods.

5. Performance tolerances conform to Section 7.4 of ARI Standard 850.

6. Actual filter face size is 5/8” under on height and width. Actual filter depth is 5-7/8” or 11-1/2”

7. Performance values stated may be averages typical of the products listed. Contact factory for actual performance test

reports on specific products.

Rigid-Air Box Type Filters

Nominal

Depth

(inch) Efficiency

90-95%

80-85%

60-65%

50-55%

90-95%

80-85%

60-65%

50-55%

Nominal Size

H x W x D (inch)

24 x 24 x 12

24 x 12 x 12

24 x 24 x 12

24 x 12 x 12

24 x 24 x 12

24 x 12 x 12

24 x 24 x 12

24 x 12 x 12

24 x 24 x 6

24 x 12 x 6

24 x 24 x 6

24 x 12 x 6

24 x 24 x 6

24 x 12 x 6

24 x 24 x 6

24 x 12 x 6

250 fpm 375 fpm 500 fpm 625 fpm

cfm PD cfm PD cfm PD cfm PD

.24

.20

.13

.10

.45

.35

.25

.13

1500

750

1500

750

1500

750

1500

750

1500

750

1500

750

1500

750

1500

750

.44

.34

.24

.20

.72

.60

.42

.23

Media

Area

(sq. ft.)

Weight

Each

(lbs.)

Note 3

2500

1250 .45

1000

500

1000

500

1000

500

1000

500

1000

500

1000

500

1000

500

100

500

2000

1000

2000

1000

2000

1000

2000

1000

2000

1000

2000

1000

2000

1000

2000

1000

.66

.51

.36

.30

1.00

.84

.60

.35

Rigid-Air Box Type Filter With Metal Pleat Separators

2500

1250

2500

1250

2500

1250

2500

1250

.90

.70

.49

.41

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

Rigid-Air

is now

available

with new

ALL METAL

pleat

supports.

the filter and hvac store

Notes:

1. PD represents clean pressure drop in inches w.g. Recommended final pressure drop for all models is 1.5 inches w.g.

2. Operation down to zero airflow is satisfactory for all models.

3. Consult factory before operating at these velocities.

4. Efficiency is average and is based on ASHRAE Standard 52.1 test methods.

5. Performance tolerances conform to Section 7.4 of ARI Standard 850.

6. Actual filter header face size is 5/8” under on height and width. Actual depth is 5-7/8” or 11-1/2”

7. Performance values stated may be averages typical of the products listed. Contact factory for actual performance test

reports on specific products.

Rigid-Air Filters with Header

Nominal

Depth

(inch) Efficiency

90-95%

80-85%

60-65%

50-55%

90-95%

80-85%

60-65%

50-55%

Nominal Size

H x W x D (inch)

24 x 24 x 12

24 x 12 x 12

24 x 24 x 12

24 x 12 x 12

24 x 24 x 12

24 x 12 x 12

24 x 24 x 12

24 x 12 x 12

24 x 24 x 6

24 x 12 x 6

24 x 24 x 6

24 x 12 x 6

24 x 24 x 6

24 x 12 x 6

24 x 24 x 6

24 x 12 x 6

250 cfm 375 cfm 500 cfm 625 fpm

cfm PD cfm PD cfm PD cfm PD

1000

500

1000

500

1000

500

1000

500

1000

500

1000

500

1000

500

1000

500

.36

.25

.15

.11

.50

.42

.27

.11

1500

750

1500

750

1500

750

1500

750

1500

750

1500

750

1500

750

1500

750

.60

.44

.27

.22

.81

.68

.45

.24

2000

1000

2000

1000

2000

1000

2000

1000

2000

1000

2000

1000

2000

1000

2000

1000

.87

.65

.41

.35

1.14

.96

.64

.39

Media

Area

(sq. ft.)

Weight

Each

(lbs.)

2500

1250

2500

1250

2500

1250

2500

1250

1.16

.85

.56

.48

Note 3

2500

1250 .56

Rigid-Air Filter with Header and Plastic Pleat Separators

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

the filter and hvac store

Application Guidelines

Rigid-Air filters may be used wherever job require-

ments and available space will accommodate 6” or

12” deep filters.

Rigid-Air filters should be selected using 24” x 24”

and 24” x 12” face sizes. This allows for 12” incre-

ments in height and width of the filter bank and

insures that replacement cartridges will be readily

available.

Rigid-Air filters should be installed with pleats ver-

tical wherever possible. It is permissible to install

24” x 12” face size cartridges with pleats horizontal

if necessary to meet the size requirements of the

filter bank.

VAV Systems

Filter banks should be sized so that the maximum

rated flow at design conditions falls within the pub-

lished recommended velocities. Rigid-Air filters

may be applied at any capacity between zero flow

and cataloged capacities.

Hospital Applications

Rigid-Air filters may be used on the downstream

side of the supply fan in hospitals if they are far

enough from the fan so that the high fan discharge

velocity will not affect them. Rigid-Air rigid filters

can withstand adverse air flow conditions better

than bag filters and are the preferred selection for

these applications.

Gasketed Headers

Rigid-Air headered filters installed in Flanders K-

Trac Filter Framing Modules or Sureseal Side

Access Housings require gaskets on opposite

header sides to prevent air bypass.

To specify headered version Rigid-Air filters with

gasketed headers, add suffix “S” or “H” to the

model number. Example:

Model Number - S: Gaskets are on the sides paral-

lel to the pleats.

Model Number - H: Gaskets are on the sides per-

pendicular to the pleats.

1.0 General

1.1 Medium and high efficiency self-supporting filters

shall be Rigid-Air lofted fiberglass or micro-fine

synthetic media rigid filters as manufactured by

Flanders.

1.2 Filter sizes, efficiencies and capacities shall be

as scheduled on the drawings.

2.0 Filter Construction

2.1 Filters shall be constructed of lofted micro-fine

fiberglass or micro-fine synthetic media laminat-

ed to a non-woven backing, bonded to an

expanded metal wire grid and pleated to form the

filter pack

2.2 The filter pack shall be strengthened on the air

entering and air exiting sides with horizontal and

diagonal metal support members.

2.3 The enclosing frame shall be assembled in a

rigid manner and shall incorporate a header on

the air entering side if required by the applica-

tion.

2.4 The filter pack shall be sealed into a 24 ga.

corrosion-resistant steel casing with metal or

plastic pleat separators on the upstream and

downstream sides to maintain pleat configura-

tion.

3.0 Performance

3.1 Initial and final resistances shall not exceed the

scheduled values.

3.2 Media area must equal or exceed that of the

specified filter.

3.3 The average efficiency shall be as determined by

the ASHRAE Standard 52.1 test methods.

3.4 The manufacturer shall guarantee performance

as stated in its literature within tolerances as out-

lined is Section 7.4 of ARI Standard 850.

Guide Specifications

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

the filter and hvac store

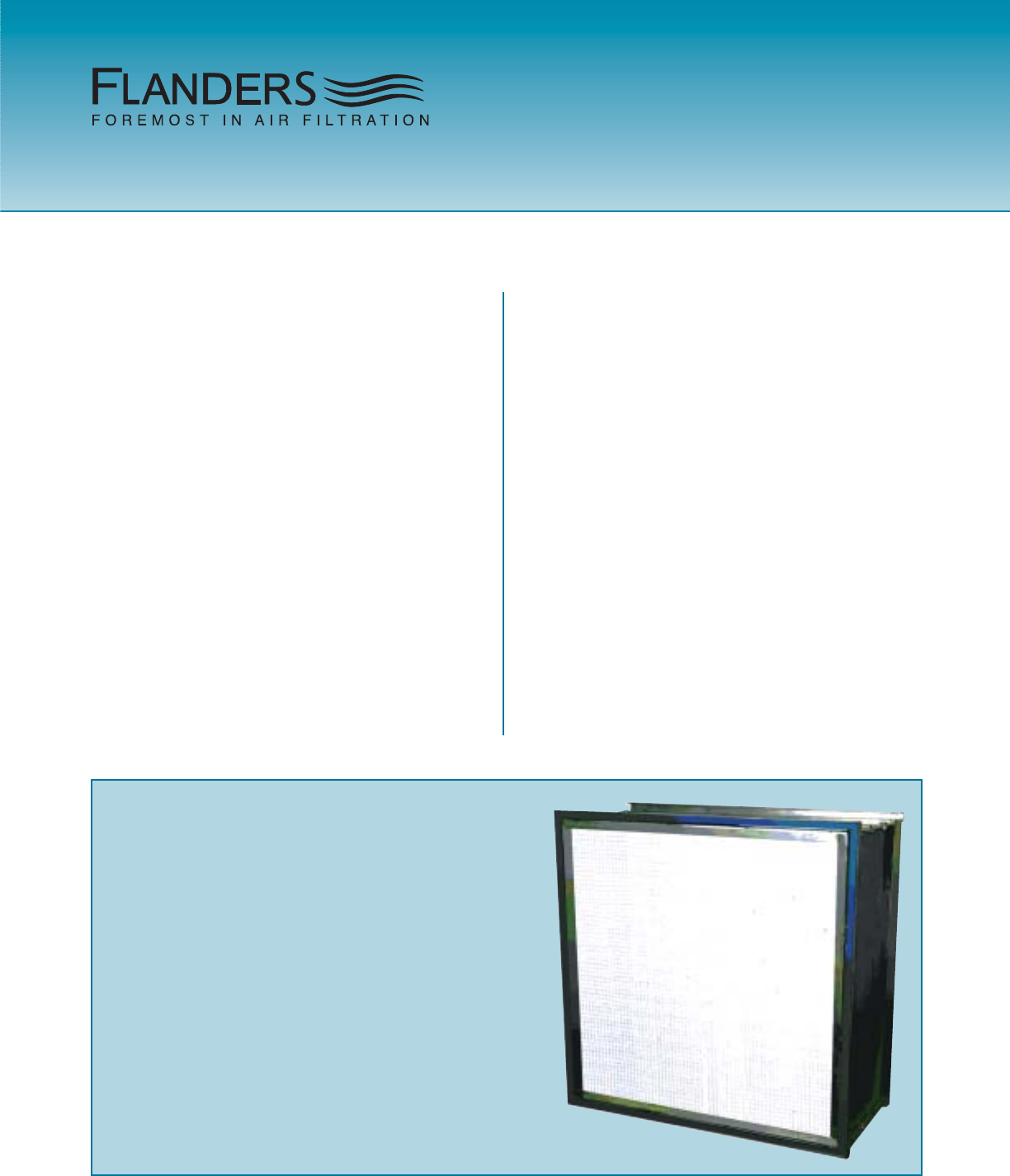

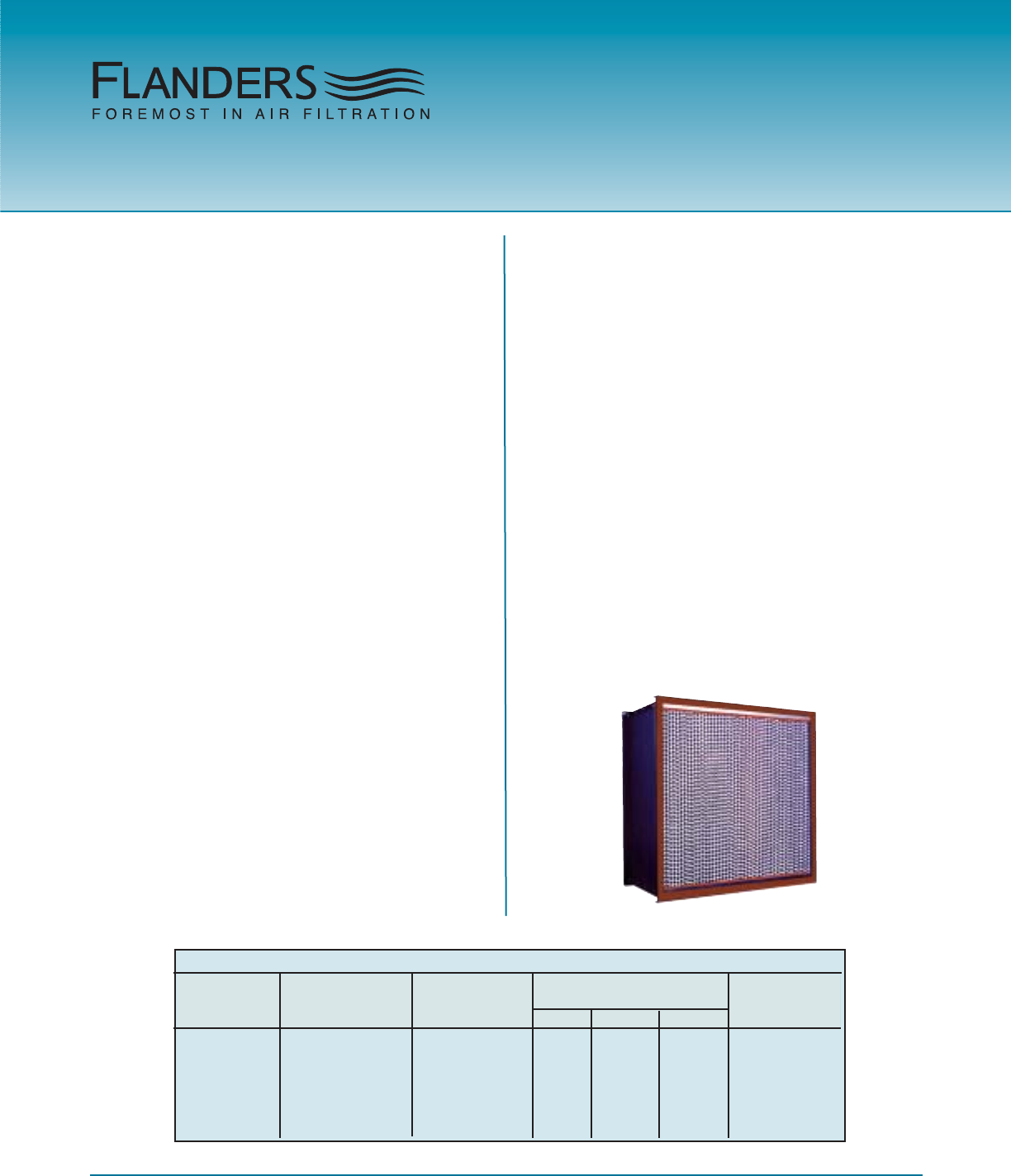

General

PrecisionCell extended media separator type rigid

filters are designed for use in most commercial or

industrial HVAC systems where medium to high effi-

ciency filtration is required. PrecisionCell filters are

available in average efficiency ranges of 60-65%,

80-85% and 90-95% per ASHRAE Standard 52.1

test methods and are available in standard and high

capacity versions.

These filters are suitable for variable air volume sys-

tems. Operating face velocity ranges are from 0 to

625 FPM for 12” deep filters. Three styles are avail-

able: box, single and double header. PrecisionCell

filters are UL 900 Class 1 listed.

Installation Considerations

PrecisionCell rigid filters may be installed in

Flanders Type 9 Holding Frames, K-Trac Filter

Framing Modules, Sureseal Side Access Housings,

or in similar existing hardware.

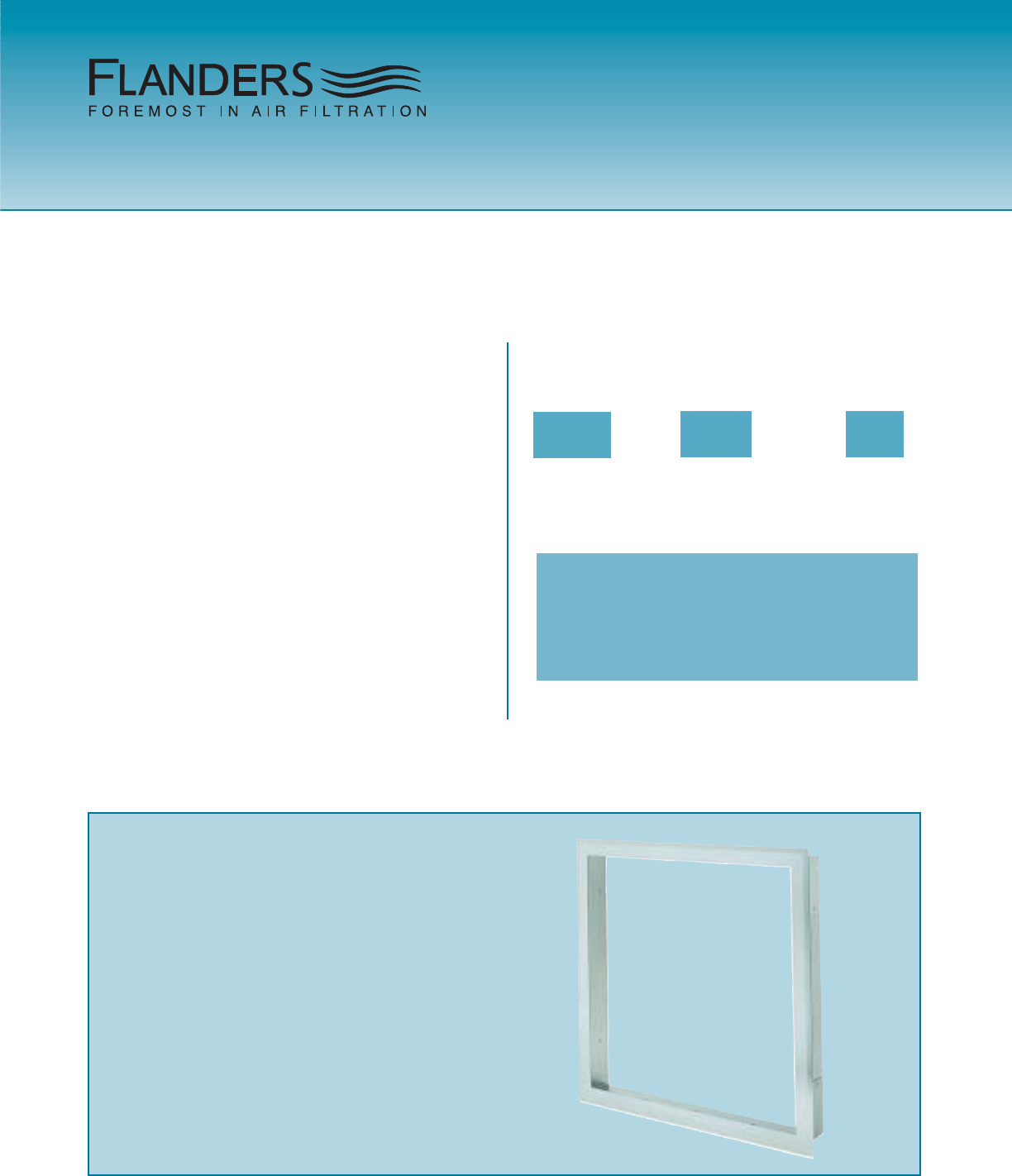

Type 9 Holding Frames are riveted together to form

a bank and may be installed for upstream or down-

stream service. K-Trac Filter Framing Modules are

especially suitable for medium to large built-up filter

banks. Smaller systems and systems with minimum

upstream access space are best served using

Sureseal Side Access Housings.

The single header version should be selected for

use with hardware framing systems and side access

housings. If the filter is installed so that it protrudes

upstream of the Type 9 Holding Frame, the double

header filter is required.

Construction Options

PrecisionCell filters are designed for temperatures

up to 350 degrees Fahrenheit For high temperature

or gas turbine models, see PrecisionCell GT and HT

bulletins.

Physical Data

Frame: 24 ga. corrosion-resistant steel

Media: Moisture-resistant micro-fine fiberglass

Separators: Hemmed corrugated aluminum

Headers: 13/16 “ wide corrosion-resistant steel

Operating Limits: 100% RH and 350º F

Actual Face: Nominal size less 5/8”

Actual Depth: 5-7/8” or 11-1/2”

PrecisionCell

Extended Media Separator Type Rigid Filters

UL Class 1, Std & Hi Cap: 8*055.xxxxxxx1, 87*55.xxxxxx1

UL Class 2, Std & Hi Cap: 8*055.xxxxxx, 87*55.xxxxxx

(Insert 6 for 65%, 8 for 85%, 9 for 95% ASHRAE Efficiency)

Important Features

•Rugged galvanized steel casing mini-

mizes damage during shipping and

handling

•Corrugated aluminum separators stabi-

lize the moisture-resistant media pack

and prevent damage in applications

downstream of the supply fan.

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

the filter and hvac store

25 x 20 x 12

25 x 16 x 12

24 x 20 x 12

24 x 18 x 12

20 x 20 x 12

20 x 16 x 12

25 x 20 x 6

25 x 16 x 6

24 x 20 x 6

24 x 18 x 6

20 x 20 x 6

20 x 16 x 6

1750

1400

1700

1600

1400

1100

875

700

850

800

700

550

108

103

1. PD represents clean pressure drop in inches w.g. The recommended final pressure drop

for all models is 1.5 inches w.g.

2. Operation down to zero airflow is satisfactory for all models.

3. Consult factory before operating at these velocities.

4. Efficiency average is based on ASHRAE Standard 52.1 test methods. Performance values

stated may be averages typical of the products listed. Contact factory for actual perform-

ance test reports on specific products.

5. Performance tolerances conform to Section 7.4 of ARI Standard 850

6. Actual face size is 5/8” under on height and width. Actual filter depth is 5-7/8” or 11-1/2”

90-95%

80-85%

60-65%

90-95%

80-85%

60-65%

Performance Data

PrecisionCell Standard Capacity Filters With Single or Double Header

Capacities and Dimensions

Nominal

Depth

(inch) Efficiency

250 fpm 375 fpm 500 fpm 625 fpm

cfm PD cfm PD cfm PD cfm PD

Media

Area

(sq. ft.)

Weight

Each

(lbs.)

1000

500

1000

500

1000

500

1000

500

1000

500

1000

500

.25

.20

.15

.45

.35

.15

1500

750

1500

750

1500

750

1500

750

1500

750

1500

750

.40

.35

.20

.65

.55

.35

2000

1000

2000

1000

2000

1000

.68

.57

.42

2500

1250

2500

1250

2500

1250

.78

.67

.52

Note 3

125

105

Additional Standard Size PrecisionCell Filters

Capacities and Dimensions

.30

.15

.50

.35

.60

.45

Nominal Size

H x W x D

(inch)

24 x 24 x 12

24 x 12 x 12

24 x 24 x 12

24 x 12 x 12

24 x 24 x 12

24 x 12 x 12

24 x 24 x 6

24 x 12 x 6

24 x 24 x 6

24 x 12 x 6

24 x 24 x 6

24 x 12 x 6

Nominal Depth

(inch)

Nominal Size

H x W x D

(inch)

Nominal

Capacity (cfm) 60-65% 80-85% 90-95% 60-65%

80-85% 90-95% 60-65%

80-85% 90-95%

Media Area (sq. ft.) Weight Each (lbs.)

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

the filter and hvac store

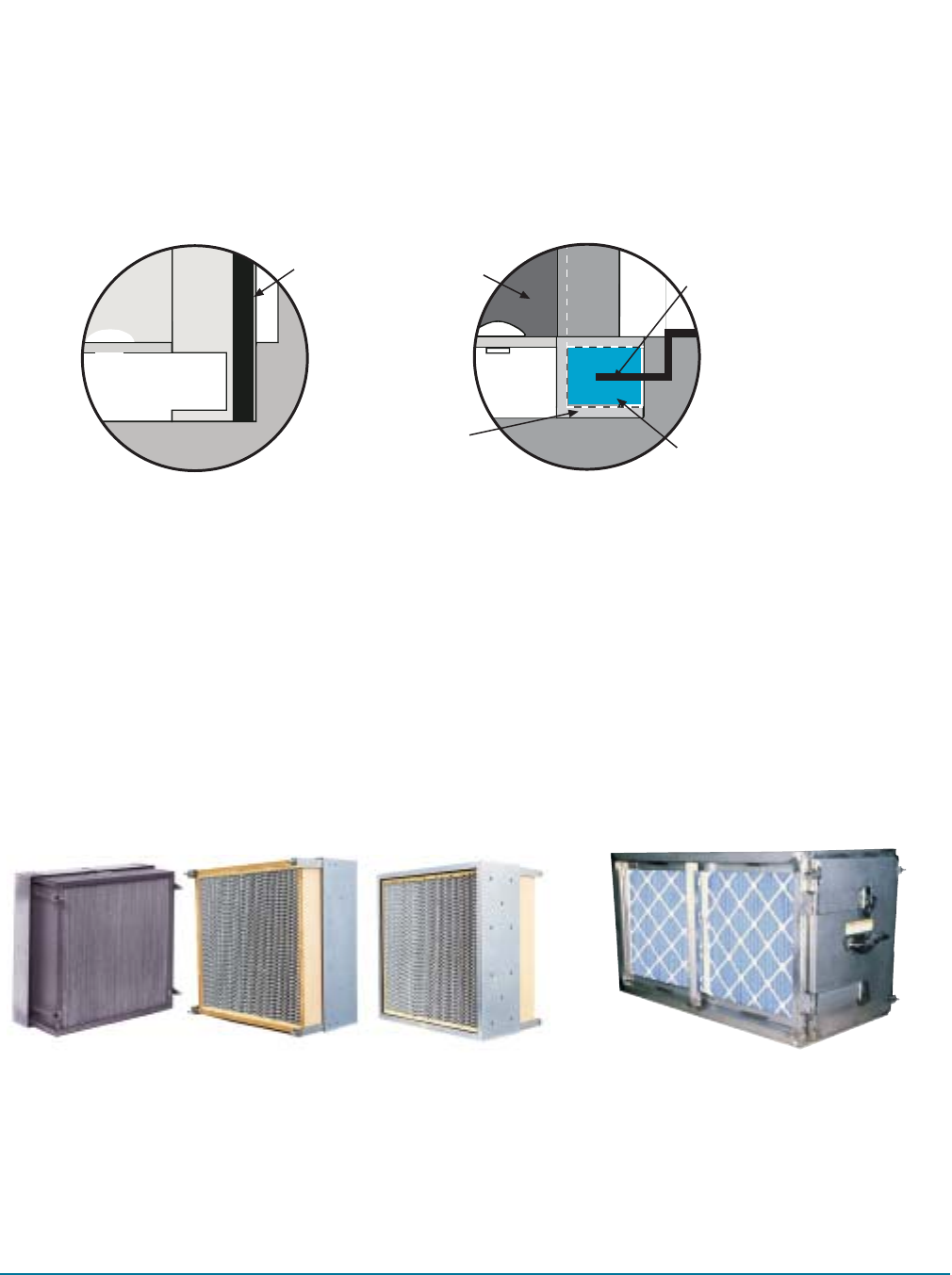

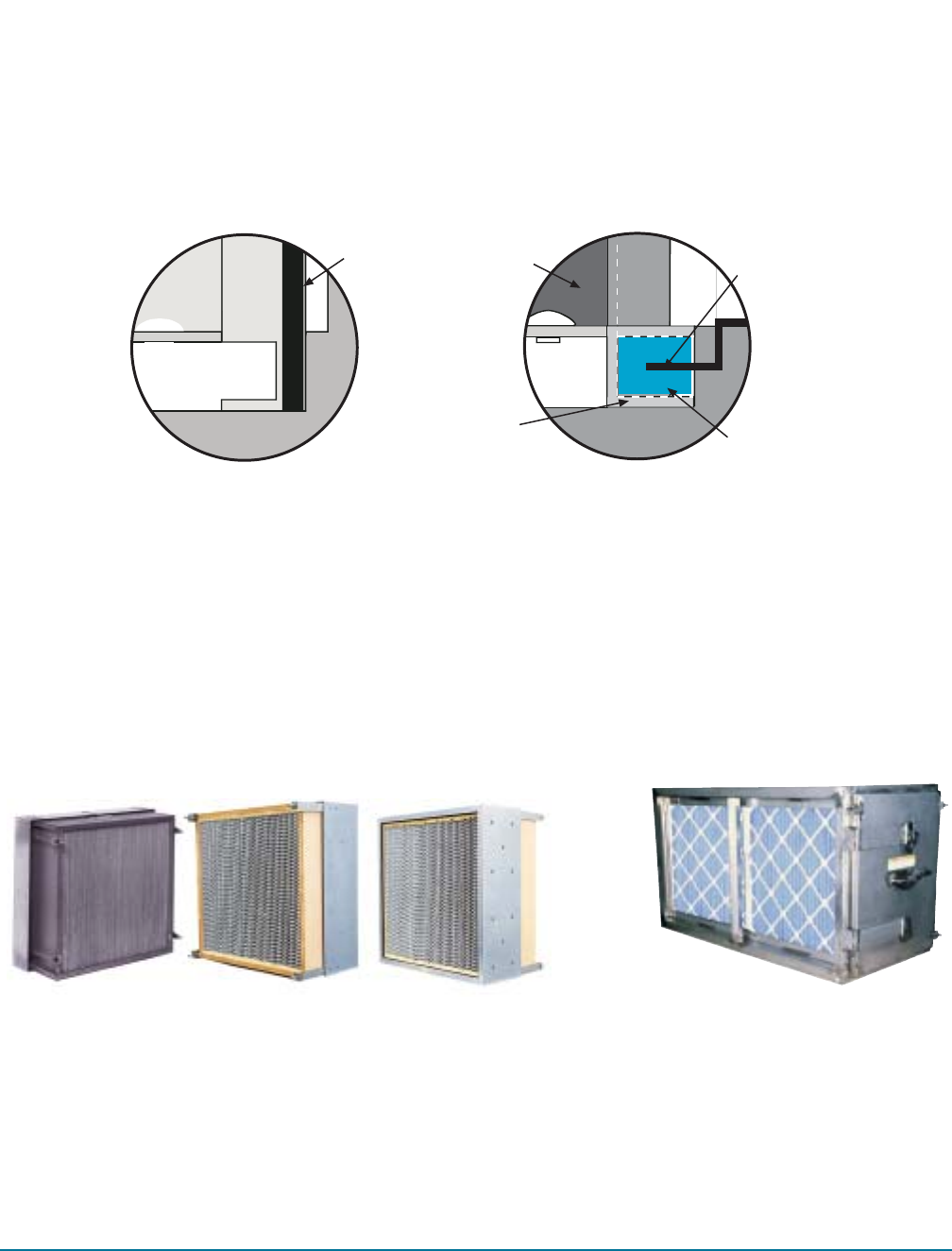

PrecisionCell Single Header filters are rec-

ommended for through-the-frame applica-

tions. Install by loading the filters through the

Type 9 frame until the header comes into

contact with the gasket on the frame. Secure

in place with Model P fasteners.

PrecisionCell Single Header filters are ideally suit-

ed for upstream or downstream installation in K-

Trac Filter Modules. Insert the horizontal sides of

the header in the gasketed 1” secondary track of

the framing system.

PrecisionCell Single Header filters are designed for

use in Sureseal Side Access Filter Housings. The

Sureseal unit provides space for prefilters to pro-

long the life of the filters. Install by sliding the head-

er of the filter into the gasketed 1” secondary filter

track.

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

the filter and hvac store

Application Guidelines

PrecisionCell filters may be used wherever job

requirements dictate totally rigid filters and available

space will allow only minimal inline depth.

PrecisionCell filters should be selected using 24” x

24” and 24” x 12” face sizes. This allows for 12”

increments in height and width of the filter bank and

insures that replacement cartridges will be readily

available.

PrecisionCell filters should be installed with separa-

tors vertical where ever possible. It is permissible to

install 24” x 12” face size cartridges with separators

horizontal if necessary to meet the size require-

ments of the filter bank.

Prefilters

We recommend that Prepleat 40 pleated panel fil-

ters or Precision Pak bag filters be used as prefilters

for PrecisionCell installations. Where there must be

long intervals between filter changes, we recom-

mend using 65% ASHRAE rated PrecisionPak as

prefilters. Refer to individual bulletins for perform-

ance data on these prefilters.

VAV Systems

Filter banks should be sized so that the maximum

rated flow at design conditions falls within the pub-

lished recommended velocities. PrecisionCell filters

may be applied at any capacity between zero flow

and cataloged capacities.

Hospital Applications

PrecisionCell filters are the preferred selection for

hospital systems where code or good practice

require that the filters be downstream of coils.

Gasketed Headers

PrecisionCell headered filters installed in Flanders

K-Trac Filter Framing Modules or Sureseal Side

Access Housings require gaskets on opposite head-

er sides to prevent air bypass.

To specify filters with gasketed headers, add suffix

“S” to “H” to the model number as follows:

Model Number - S: Gaskets are on the sides paral-

lel to the separators.

Model Number - H: Gaskets are on the sides per-

pendicular to the separators.

Guide Specifications

1.0 General

1.1 Medium and high efficiency rigid filters shall be

PrecisionCell extended media separator type

rigid filters as manufactured by Flanders.

1.2 Filter sizes, efficiencies and capacities shall be

as scheduled on the drawings.

2.0 Filter Construction

2.1 Filters shall be constructed by pleating a

continuous sheet of moisture-resistant water-

laid micro-fine glass media into closely spaced

pleats with hemmed-edge corrugated aluminum

separators.

2.2 The filter pack shall be sealed into a 24 ga. steel

frame.

2.3 The enclosing frame shall be assembled in a

rigid manner and shall incorporate a single or

double header as required by job conditions.

2.4 Filters shall be UL 900 Class 1 listed.

3.0 Performance

3.1 Initial and final resistances shall not exceed the

scheduled values.

3.2 Media area must equal or exceed that of the

specified filter.

3.3 The average efficiency shall be as determined

by the ASHRAE Standard 52.1 test methods.

3.4 The manufacturer shall guarantee performance

as stated in the literature within tolerances as

outlined in Section 7.4 of ARI Standard 850.

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

the filter and hvac store

5757

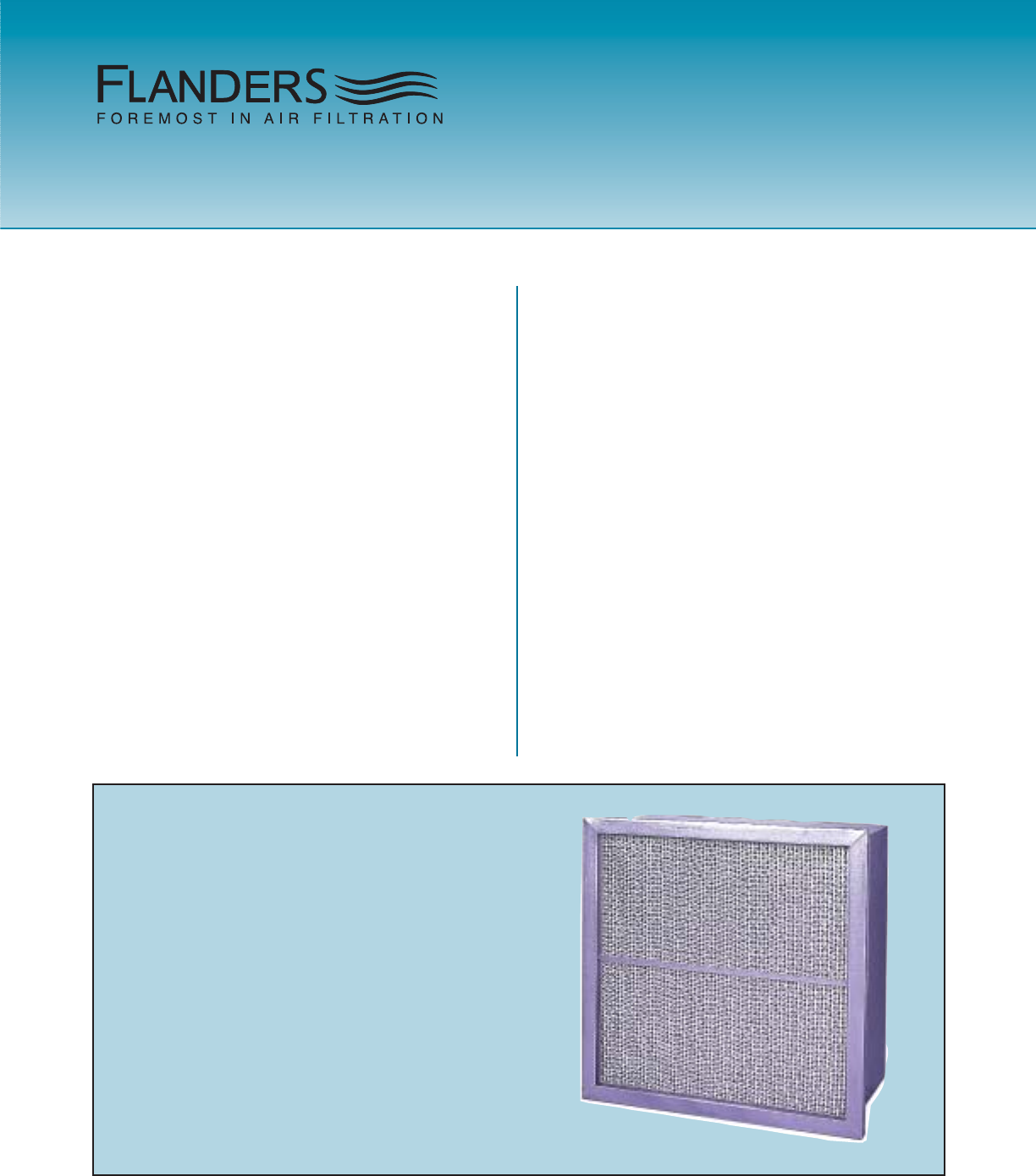

PrecisionCell HT

High Temperature Rigid Filters

ASHRAE 65% 86255.xxxxxxH ASHRAE 85% 88255.xxxxxx

ASHRAE 95% 89255.xxxxxxH

General

PrecisionCell HT filters are designed for high tem-

perature applications up to 900o F. They feature the

same rugged construction as the standard

PrecisionCell. The HT version is manufactured of

specially selected components to meet high temper-

ature requirements.

They are ideal for paint drying ovens or any appli-

cation requiring high efficiency filtration at high tem-

peratures. PrecisionCell HT filters are offered in two

high temperature operating ranges; 750o F and

900o F and efficiency ranges of 65%, 85% and 95%

per ASHRAE Standard 52.1.

Construction

The enclosing frame is manufactured of aluminized

steel, which is designed not to be negatively affect-

ed by elevated temperatures.

The media pack is protected by air entering and air

leaving retainer screens. Grid strap bracing on the

air entering and leaving sides maintain the rigidity

and integrity of the PrecisionCell HT.

The media is designed for operation in high tem-

perature applications and manufactured from one

continuous sheet of wet-laid micro-fine fiberglass,

which provides the required tensile strength and

operating pressure drop for these stringent applica-

tions.

Physical Data

Frame: 24 ga. aluminized steel

Media: Microfine fiberglass

Separators: Hemmed-edge corrugated aluminum

Header Frame: 7/8” wide aluminized steel

Faceguards: Aluminized steel expanded

Cross Bracing: 1/2” “T” strap downstream and hori-

zontal strap upstream

Important Features

• Continuous duty up to 900 oF

•Aluminized steel construction

•65%, 85%, 95% efficiencies

•Faceguards and grid straps

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

the filter and hvac store

Operating Nominal Size 500 fpm Media Weight

Efficiency Limit oFH x W x D (inch) Rating Area Each

cfm pd (sq. ft.) (lbs)

750 24 x 24 x 12 2000 .35 140 26

60-65% 24 x 12 x 12 1000 69 21

900 24 x 24 x 12 2000 .30 175 28

24 x 12 x 12 1000 90 22

750 24 x 24 x 12 2000 .55 140 26

80-85% 24 x 12 x 12 1000 69 21

900 24 x 24 x 12 2000 .50 175 28

24 x 12 x 12 1000 90 22

750 24 x 24 x 12 2000 .60 140 26

90-95% 24 x 12 x 12 1000 69 21

900 24 x 24 x 12 2000 .55 175 28

24 x 12 x 12 1000 90 22

Notes:

1. PD represents clean pressure drop in inchw.g. The recommended final pressure drop is 2.5 inch w.g.

2. Operation down to zero velocity is satisfactory for all models.

3. Efficiencies are average and are based on ASHRAE Standard 52.1 dust spot test methods. Performance val-

ues stated may be averages typical of the products listed. Contact factory for actual performance test reports

on specific products.

1.0 General

1.1High temperature rigid filters shall be

PrecisionCell HT separator type as manufactured

by Flanders.

1.2Filter sizes and temperature ranges shall be as

scheduled on the drawings.

2.0 Filter Construction

2.1Filters shall be constructed by pleating a continu-

ous sheet of wet-laid micro-fine glass media into

closely spaced pleats with hemmed-edge corru-

gated aluminum separators.

2.2The filter pack shall be sealed into a 24 ga.

aluminized steel frame with fire-retardant sealant.

2.3Expanded metal aluminized steel faceguards shall

be installed on the air entering and air leaving

sides.

2.4A 1/2” “T” strap shall be installed on the down-

stream side and 1/2” horizontal strap on the air

entering side.

3.0 Performance

3.1Initial and final resistance shall not exceed the

scheduled values.

3.2Media area shall equal that of the scheduled high

temperature filter.

3.3The manufacturer shall guarantee performance as

outlined in section 7.4 of ARI Standard 800.

Guide Specifications

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

the filter and hvac store

PrecisionCell GT

Gas Turbine Rigid Filters

ASHRAE 65%z: PGT65xxxxxxxH

ASHRAE 95%: PGT95xxxxxxxH

General

The PrecisionCell GT features heavy-duty con-

struction to meet the rigorous demands of gas tur-

bine rotary machinery air filtration applications.

They may also be utilized where extreme velocity or

turbulence have rendered other products to be inef-

fective. PrecisionCell GT filters are available in

ASHRAE efficiencies of 60-65% and 90-95% in

either single or double header versions.

Features

The PrecisionCell GT offers a high dust holding

capacity for increased service life, eliminating cost-

ly downtime and maintenance associated with filter

change out. The media is manufactured of a wet-

laid, moisture resistant, dual layer micro-fine fiber-

glass for high tensile strength and long service life.

The heavy gauge hemmed-edge corrugated alu-

minum separators offer increased pack rigidity with

optimal pleat spacing.

The heavy duty corrosion-resistant steel frame and

expanded metal faceguards on both the air entering

and air leaving sides protect the media pack.

Retainer straps on both sides prevent filter collapse

and maintain rigidity in high-pressure drop situa-

tions and blow back from turbine surges.

Physical Data

Frame: Heavy duty corrosion-resistant steel

Media: Dual layer wet-laid micro-fine fiberglass

Separators: Hemmed-edge corrugated aluminum

Media Sealant: Lofted glass mat

Headers: 13/16” wide aluminized steel

Faceguards: Galvanized steel expanded

Gridstraps: 1/2” aluminized steel”T” strap down-

stream and horizontal strap upstream

Important Features

• Dual layer media for increased service life

•Faceguards and grid straps

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

the filter and hvac store

60 60

Nominal Nominal 250 fpm 375 fpm 500 fpm 625 fpm Media Weight

Depth Efficiency Size Area Each

(inch) HxWxD cfm pd cfm pd cfm pd cfm pd (sq.ft.) (lbs.)

(inch)

24x24x12 1000 1500 2000 2500 140 26

12 65% .15 .25 .35 .40

24x12x12 500 750 1000 1250 69 21

24x24x12 1000 1500 2000 2500 140 30

12 95% .25 .45 .65 .78

24x12x12 500 750 100 1250 69 25

Notes:

1. PD represents clean pressure drop in inchw.g. The recommended final pressure drop is 2.5 inch w.g.

2. Operation down to zero velocity is satisfactory for all models.

3. Performance tolerances conform to section 7.4 of ARI Standard 850.

4. Performance values stated may be averages typical of the products listed. Contact factory for actual performance

test reports on specific products.

1.0 General

1.1Medium and high efficiency gas turbine rigid fil-

ters shall be PrecisionCell GT extended media

separator type filters as manufactured by

Flanders.

1.2Filter sizes, efficiencies and capacities shall be

as scheduled on the drawings.

2.0 Filter Construction

2.1Filters shall be constructed by pleating a contin-

uous sheet of moisture-resistant dual layer, wet-

laid micro-fine glass media into closely spaced

pleats with hemmed-edge corrugated aluminum

separators.

2.2The filter pack shall be compression sealed into

a24ga. corrosion-resistant steel frame.

2.3The enclosing frame shall be assembled in a

rigid manner and shall incorporate a single or

double header as required by job conditions.

2.4corrosion-resistant steel expanded metal face-

guards shall be installed on the air entering and

leaving sides.

2.51/2” corrosion-resistant steel “T” straps shall be

installed on the air leaving side and horizontal

strap on air entering side.

2.6Filters shall be UL 900 Class 1 listed.

3.0 Performance

3.1Initial and final resistance shall not exceed the

scheduled values.

3.2Media area must equal or exceed that of the

specified filter.

3.3The average efficiency shall be as determined

by the ASHRAE Standard 52.1 test methods.

3.4The manufacturer shall guarantee performance

as stated in the literature within tolerances as

outlined in section 7.4 of ARI Standard 800.

Guide Specifications

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

the filter and hvac store

General

PrecisionCell II extended surface minipleat rigid fil-

ters are a nominal four inches deep. They are

designed for use in most commercial and industrial

HVAC systems where medium to high efficiency fil-

tration is required. They are available in average

efficiency ranges of 60-65%, 80-85% and 90-95%

per ASHRAE Standard 52.1 atmospheric dust spot

test methods.

PrecisionCell II filters are especially suitable for

variable air volume systems and are designed to

operate at face velocities up to 625 fpm. Two styles

are available: standard box style and an optional

headered (top and bottom) version that are manu-

factured with a header for use with existing side

access housings (see Optional Model).

PrecisionCell II filters are UL 900 Class 2 listed.

Optional Model

Optional headered version PrecisionCell II filters

are the same size and have the same functional

design as the standard model. The filter is built with

a metal-reinforced header on the top and bottom of

the filter near the air entering side. The header

allows the filter to fit over the standing flanges of the

primary filter channel in existing side access hous-

ings. Headered PrecisionCell II filters are furnished

with a 1/2” wide polyfoam gasket on their vertical

sides to provide a filter-to-filter seal.

In-Line Space-Saving Design

PrecisionCell II filters dramatically reduce in-line

space requirements when compared to 12” to 36”

deep filters. Their nominal 4” depth makes a con-

venient “fit” for most installations. High efficiency fil-

tration, that is often required for acceptable Indoor

Air Quality, may now be selected by the design

engineer without having to compromise space.

Installation Considerations

PrecisionCell II filters may be installed in Flanders

Type 9 Holding Frames and Surepleat Side Access

Housings or similar existing hardware. Type 9

Holding Frames are riveted together to form a bank

and may be installed for upstream or downstream

service. Smaller systems and systems with mini-

mum upstream access space are best served using

Surepleat Side Access Housings.

Physical Data

Frame: Double-wall, moisture-resistant beverage board

Media: Water-laid microfine fiberglass with a

water-repellent binder

Media Support: Adhesive-bead pleat separators

Face Grid: Horizontal and diagonal supports bonded to

the media pack

Operating Limits: 160° F and 100% RH

Important Features

•Available in nominal 65%, 85%, and 95%

ASHRAE efficiencies

•Space-saving 4” thickness for installation flexi-

bility

•Rugged moisture-resistant bonded frame and

unitized pack for rigidity

•Cartridge design is ideal for VAV systems or tur-

bulent flow conditions

•Lightweight and easy to store and handle

PrecisionCell II

Extended Surface Mini Pleat

ASHRAE 65%: 86655.04xxxx ASHRAE 85%: 88655.04xxxx

ASHRAE 95%: 89655.04xxxx

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

the filter and hvac store

Construction

In the Flanders tradition of state-of-the-art technology, PrecisionCell II filters are built with a minipleat media

pack to achieve a rugged, compact lightweight, high efficiency filter.

Surepleat Side Access Housings

Use a Surepleat Side Access Housing as a con-

venient and space-saving method of installing

PrecisionCell II filters. SP2/4 housings have two

gasketed extruded aluminum tracks to accept 2”

pleated prefilters and 4” PrecisionCell II final fil-

ters.

The adjacent photo shows a Surepleat Side

Access Housing with 2” Prepleat 40 pleated pre-

filters and PrecisionCell II final filters.

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

the filter and hvac store

Prefilters

Prefilters are always a wise choice for the protec-

tion of minipleat filters no matter what the efficiency

or brand. The closely-spaced pleats are subject to

face-loading (bridging) by lint and coarse particles,

thus reducing their usual long life. A minimum 25-

30% ASHRAE efficiency pleated panel filter such

as the Flanders Prepleat 40 is recommended.

Save In-Line Space

Compare the airway lengths of 22” PrecisionPak

bag filters and 12” Rigid-Air filter to a 4”

PrecisionCell filter when they are installed with 2”

prefilters.

VAV Systems

Filter banks should be sized so that the face veloc-

ity at maximum design conditions is 625 fpm or

less. PrecisionCell II filters may be applied at any

capacity between 0 and 625 fpm. Operating a filter

bank at reduced flow will greatly increase expected

filter life.

Save Storage Space and Shipping Costs

Using the 24” x 24” size as an example, a carton of

four PrecisionCell II 4” filters has a volume of 5.3

cubic feet and a weight of 26 lbs. Compare this to

four 12” deep rigid separator-type filters packed in

four cartons with a total volume of 16 cubic feet and

total weight of 80 lbs.

Application Guidelines

PrecisionCell II filters should be selected for new

installations with 24” H x 24” W and 24” H x 12” W

face sizes. These are the most widely used and

stocked sizes. This allows for 12” increments in

height and width of the filter bank and insures that

replacement cartridges will be readily available.

PrecisionCell II filters should be installed with the

pleats vertical wherever possible. It is permissible

to install 24” H x 12” W face size filters with pleats

horizontal if necessary to meet the size require-

ments of the filter bank.

HEPA Prefilters

PrecisionCell II filters are ideal as prefilters for

Alpha Cell HEPA filters. Their light weight and 4”

depth make them an excellent choice for installa-

tion in the optional Prefilter Frame Assembly for the

Alpha Cell HEPA Filter Holding Frame or in

Surelock Side Access HEPA Housings.

Specify the Surelock housing with an optional 4”

wide prefilter track for the PrecisionCell II filters, in

lieu of the 2” wide prefilter track for pleated panel fil-

ters. We recommend the selection of 80-85%

PrecisionCell II filters as HEPA prefilters.

Type 9 Frame with

PrecisionPak and Pre

Pleat 40

Type 9 Frame with

PrecisionCell II and

PrePleat 40

Sureseal Housing with

12” Rigid-Air and

PrePleat 40

Surepleat Housing with

PrecisionCell II and

PrePleat 40

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

the filter and hvac store

Notes

1. PD represents clean pressure drop in inches w.g. Recommended final pressure drop for all models is 1.5 inch w.g.

2. Operation down to zero air flow is satisfactory for all models.

3.Actual filter face size of 24” x 24” and 24” x 12” is 5/8” undercut on height and width. All other sizes are 1/2” under-

cut on height and width. Actual filter depth is 3-3/4”

4. Efficiency is average and is based on ASHRAE Standard 52.1 test methods.

5. Performance tolerances conform to Section 7.4 of ARI Standard 850.

6. PrecisionCell II 24” x 12” filters are available with notches on the 24” horizontal sides. Contact factory.

7. Performance values stated may be averages typical of the products listed. Contact factory for actual performance

test reports on specific products.

1.0 General

1.1 Medium and high efficiency extended surface fil-

ters shall be PrecisionCell II minipleat panel fil-

ters as manufactured by Flanders.

1.2 Filter sizes, efficiencies and capacities shall be

as scheduled on the drawings.

1.3 Filters shall be UL 900 Class 2 listed.

2.0 Filter Construction

2.1 The filter pack shall be constructed of water-laid

microfine fiberglass media containing a water-

repellent binder formed into closely-spaced

pleats held in position by adhesive bead separa-

tors.

2.2 The filter pack shall be strengthened on the a i r

entering and air exit sides with horizontal and

diagonal support members.

2.3 The enclosing frame shall be double-wall water-

resistant beverage board sealed between the

walls and to the filter pack with adhesive.

3.0 Performance

3.1 Initial and final resistances shall not exceed the

scheduled values.

3.2 Media area must equal or exceed that of the

specified filter

3.3 The average efficiency shall be as determined by

ASHRAE Standard 52.1 test methods.

3.4 The manufacturer shall guarantee performance

as stated in the literature within tolerances as

outlined in Section 7.4 of ARI Standard 850.

Nominal Size

H x W x D (inch)

Note 3

Media

Area

(sq. ft.)

Weight

Each

(lbs.)

24 x 24 x 4

24 x 12 x 4

24 x 24 x 4

24 x 12 x 4

24 x 24 x 4

24 x 12 x 4

120

6.5

3.5

6.5

3.5

6.5

3.5

Capacities and Dimensions

125 fpm 250 fpm 375 fpm 500 fpm 625 fpm

cfm PD cfm PD cfm PD cfm PD cfm PD

500

250

500

250

500

250

.11

.08

.06

1000

500

1000

500

1000

500

.26

.21

.13

1500

750

1500

750

1500

750

.42

.36

.25

2000

1000

2000

1000

2000

1000

.68

.58

.40

2500

1250

2500

1250

2500

1250

.95

.80

.58

Other Standard Size PrecisionCell II Filters

Nominal Size

H x W x D (inch)

Note 3

Nominal

Capacity (cfm)

60-65% 80-85% 90-95%

Media Area

(sq. ft.) Weight Each

(lbs.)

20 x 20 x 4

20 x 16 x 4

24 x 20 x 4

24 x 18 x 4

25 x 20 x 4

25 x 16 x 4

1400

1100

1850

1500

1750

1400

.40

.58

.68

105

4.0

3.5

5.5

5.0

6.0

4.0

Guide Specifications

90-95%

80-85%

60-65%

Pressure Drop

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

the filter and hvac store

Important Features

• Fully interchangeable with other manufac-

turers’ hardware.

• Heavy-duty fiberboard side panels.

• Filters are UL 900 Class 2 listed.

EA Cartridge

Medium-High Efficiency Replacement Filters

ASHRAE 30%: EA-30xx ASHRAE 55%: EA-55xx

ASHRAE 85%: EA-85xx ASHRAE 95%: EA-95xx

General

EA Series Replacement Air Filters are pre-formed,

extended surface deep-pleated cartridges for use

with existing hardware in commercial and industrial

HVAC systems. EA Series filters are available in

average efficiency ranges of 25-30%, 50-55%, 80-

85% and 90-95% when tested according to

ASHRAE Standard 52.1 methods. EA Series filters

are UL 900 listed Class 2.

Construction

EA filter media is a non-woven cotton and synthet-

ic blend (25% efficient) or moisture-resistant micro-

fine lofted glass fiber (55%,85%or 95% efficient).

The media is reinforced with a non-woven remay

backing and formed into a “pack” which is then hot-

melt bonded top and bottom to 1/16” thick stiff mois-

ture-resistant fiberboard panels. Alignment of the

pleats in the media pack is carefully controlled dur-

ing the bonding operation to facilitate insertion of

the cartridge into the wire media retainer during

installation. The completed filter is folded before

being boxed to minimize shipping and storage vol-

ume.

Application

EA Series cartridge filters are designed to be used

only in existing hardware as pictured below. This

hardware consists of metal holding frames, sealer

frames and wire basket-type retainers that may be

used in either front or rear-loading built-up filter

banks or side access housings.

EA Cartridge Disposable Replacement Air Filters

are fully interchangeable with other manufacturers’

cartridge filters and hardware. Units of one effi-

ciency may be replaced in the same system hard-

ware with similar size and depth units of another

efficiency. When upgrading efficiencies, be sure to

check the capability of the fan to overcome the

increased pressure drop.

Physical Data

Media: Non-woven cotton and synthetic blend or

moisture-resistant micro-fine lofted glass fiber rein-

forced with remay backing

Panels: Top and bottom; 1/16” thick fiber

board

Adhesive: Hot-melt thermoplastic

Operating Limits: 180 degrees Fahrenheit

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

the filter and hvac store

Cfm Capacity Pressure Drop

(inch w.g.)

Efficiency

Model

Number Actual

HxWxD

(inch)

1.0 General

1.1 Filters shall be Model EA Series replacement fil-

ters as manufactured by Flanders.

1.2 Filters shall be UL 900 Class 2 listed.

2.0 Filter Construction

2.1 Filters with an efficiency of 25%-30% shall be

constructed of a non-woven cotton and synthetic

blend bonded to 1/16” thick moisture-resistant

fiberboard panels.

2.2 Filters with an efficiency of 50-55% , 80-85%

and 90-95% shall be constructed of lofted syn-

thetic media with moisture-resistant fiberboard

panels.

3.0 Performance

3.1 The manufacturer shall guarantee performance

as stated in its literature within tolerances as out-

lined in Section 7.4 ARI Standard 850.

Guide Specifications

25-30

50-55

80-85

90-95

600

750

900

950

1000

800

1500

550

600

700

800

900

600

1000

400

500

600

1000

350

400

450

500

450

900

1000

1250

1500

1750

2000

1200

2500

800

1000

1100

1250

1500

1000

2000

600

700

800

1000

1200

1000

2000

500

600

800

850

1000

750

1500

.10

.12

.25

.30

.20

.30

.45

.55

EA-30C8

EA-30K8

EA-30D8

EA-30H8

EA-30A8

EA-30C12

EA-30A12

EA-55C8

EA-55K8

EA-55D8

EA-55H8

EA-55A8

EA-55C12

EA-55A12

EA-85C8

EA-85K8

EA-85D8

EA-85H8

EA-85A8

EA-85C12

EA-85A12

EA-95C8

EA-95K8

EA-95D8

EA-95H8

EA-95A8

EA-95C12

EA-95A12

12 x 24 x 8

16 x 20 x 8

20 x 20 x 8

20 x 25 x 8

24 x 24 x 8

12 x 24 x 12

24 x 24 x 12

12 x 24 x 8

16 x 20 x 8

20 x 20 x 8

20 x 25 x 8

24 x 24 x 8

12 x 24 x 12

24 x 24 x 12

12 x 24 x 8

16 x 20 x 8

20 x 20 x 8

20 x 25 x 8

24 x 24 x 8

12 x 24 x 12

24 x 24 x 12

12 x 24 x 8

16 x 20 x 8

20 x 20 x 8

20 x 25 x 8

24 x 24 x 8

12 x 24 x 12

24 x 24 x 12

14.5

15.8

19.8

25.6

29.0

21.0

42.0

14.5

15.8

19.8

25.6

29.0

21.0

42.0

14.5

15.8

19.8

25.6

29.0

21.0

42.0

14.5

15.8

19.8

25.6

29.0

21.0

42.0

Low High Low cfm High cfm

Media

Area

(sq. ft.)

Wt per

Carton

(lbs.)

Quantity

per

Carton

1. Efficiency is average when tested per ASHRAE Standard 52.1 methods.

2. Listed pressure drop is for a clean filter. Recommended final pressure drop is 1.0 inch w.g. for all models.

3. Performance tolerances conform to Section 7.4 of ARI Standard 850.

4. Special sizes are not available.

5 . EA cartridge hardware is not available.

6. Performance values stated may be averages typical of the products listed. Contact factory for actual perform-

ance test reports on specific products.

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

the filter and hvac store

General

Precision Pak extended surface bag filters are

designed for use in most commercial or industrial

HVAC systems where medium to high efficiency fil-

tration is required. Precision Pak filters are available

in two media types: lofted fiberglass and micro-fine

synthetic media with average efficiency ranges of

55%, 65%, 85%, and 95% per ASHRAE Standard

52.1 test methods. Operating face velocities up to

625 fpm are available for all models. Precision Pak

filters in depths up to 22” are suited for variable air

volume systems. Filters with greater depth are not

recommended.

Precision Pak filters are UL 900 Class 2 listed as a

standard and are also available in UL Class l.

Installation Considerations

Precision Pak bag filters may be installed in

Flanders Type 9 Holding Frames, K-Trac Filter

Framing Modules, Sureseal Side Access Housings,

or in similar existing hardware.

Type 9 Holding Frames are riveted together to form

a bank and may be installed for upstream or down-

stream service. K-Trac Filter Framing Modules are

especially suitable for medium to large built-up filter

banks. Smaller systems and systems with minimum

upstream access space are best served using

Sureseal Side Access Housings.

Physical Data

Media: Lofted fiberglass or micro-fine synthetic

Media Backer: Non-woven polyester

Pocket Sealant: Thermoplastic resin

Pocket Retainer: 26 ga. corrosion-resistant steel

Header: 11/26” wide 26 ga. corrosion-resistant steel

Operating Limits: 100% RH and 190° F

Actual Header Face Size: Nominal size less 5/8” (e.g., a

nominal 24” x 24” filter header is actually 23-3/8” x 23-

3/8”)

Precision Pak

Extended Surface Bag Filters

Synthetic Class 1: PAPxx**Sxxxxx1 Synthetic Class 2: PAPxx**Sxxxx

Glass Class 1: PAPxx**Gxxxxx1 Glass Class 2: PAPxx**Gxxxx

(** insert 50, 65, 85 or 95 for ASHRAE efficiency)

Important Features

•Low initial pressure drop provides longer life.

•Adjustable-width stitched pockets provide

aerodynamics for optimal inflation.

•Wide range of cartridge depths, efficiencies

and operating capacities are available.

•Edges have an overlock stitch.

•Available in lofted fiberglass or synthetic media.

• 100% stake-through pocket retainers

• UL 900 Class 1 or 2 available

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

the filter and hvac store

Performance values stated may be averages typical of the products listed. Contact factory for actual performance test

reports on specific products.

How to Select a Precision Pak Filter

• Determine the ASHRAE efficiency desired.

•Determine the face velocity needed to fit the system

• Select the shortest depth possible with a pressure drop that is acceptable

•Select the most economical filter based on the number of pockets per 24” x 24” size.

Nom.

Width

(inch)

Nom.

Height

(inch)

85% Synthetic Media

Nominal

Depth

(inch)

Number

Pockets

375 fpm 500 fpm 625 fpm

cfm PD cfm PD cfm PD

1500

750

1500

750

1500

750

1500

750

1500

750

1500

750

1500

750

1500

750

1500

750

0.30

0.32

0.24

0.22

0.30

0.22

0.20

0.27

0.20

2000

1000

2000

1000

2000

1000

2000

1000

2000

1000

2000

1000

2000

1000

2000

1000

2000

1000

0.44

0.47

0.36

0.34

0.42

0.33

0.31

0.38

0.30

2500

1250

2500

1250

2500

1250

2500

1250

2500

1250

2500

1250

2500

1250

2500

1250

2500

1250

0.59

0.63

0.51

0.48

0.57

0.46

0.43

0.51

0.41

Media

Area

(sq. ft)

108

104

95% Synthetic Media

Nominal

Depth

(inch)

Number

Pockets

Nom.

Width

(inch)

Nom.

Height

(inch)

375 fpm 500 fpm 625 fpm

cfm PD cfm PD cfm PD

Media

Area

(sq. ft)

108

104

1500

750

1500

750

1500

750

1500

750

1500

750

1500

750

1500

750

1500

750

1500

750

0.40

0.42

0.36

0.34

0.36

0.25

0.24

0.32

0.23

2000

1000

2000

1000

2000

1000

2000

1000

2000

1000

2000

1000

2000

1000

2000

1000

2000

1000

0.55

0.60

0.51

0.48

0.52

0.37

0.35

0.47

0.33

2500

1250

2500

1250

2500

1250

2500

1250

2500

1250

2500

1250

2500

1250

2500

1250

2500

1250

0.75

0.79

0.67

0.64

0.73

0.52

0.49

0.66

0.47

the filter and hvac store

1500

750

1500

750

1500

750

1500

750

1500

750

1500

750

1500

750

1500

750

1500

750

0.18

0.19

0.16

0.15

0.18

0.15

0.14

0.18

0.14

2000

1000

2000

1000

2000

1000

2000

1000

2000

1000

2000

1000

2000

1000

2000

1000

2000

1000

0.28

0.30

0.25

0.24

0.29

0.23

0.22

0.26

0.22

2500

1250

2500

1250

2500

1250

2500

1250

2500

1250

2500

1250

2500

1250

2500

1250

2500

1250

0.39

0.41

0.37

0.34

0.39

0.34

0.32

0.36

0.31

108

104

375 fpm 500 fpm 625 fpm

Media

Area

(sq. ft)

Nom.

Width

(inch)

Nom

Height

(inch)

Nominal

Depth

(inch)

Number

Pockets

375 fpm 500 fpm 625 fpm

Notes:

1.PD represents clean pressure drop in inches w.g. for synthetic media filters. Add 10% for fiberglass media

Precision Pak.

2.The recommended final pressure drop for all models is 1.0 inch w.g.

3.Gross media area is approximately 7% more than the net area listed.

4. Performance values stated may be averages typical of the products listed. Contact factory for actual perform-

ance test reports on specific products.

65% Synthetic Media

CAPACITIES AND DIMENSIONS

55% Synthetic Media

Nominal

Depth

(inch)

Number

Pockets

Nom.

Width

(inch)

Nom.

Height

(inch)

cfm PD cfm PD cfm PD

1500

750

1500

750

1500

750

1500

750

1500

750

1500

750

1500

750

1500

750

1500

750

0.18

0.19

0.16

0.15

0.16

0.14

0.15

0.14

2000

1000

2000

1000

2000

1000

2000

1000

2000

1000

2000

1000

2000

1000

2000

1000

2000

1000

0.28

0.30

0.25

0.24

0.26

0.21

0.20

0.24

0.20

2500

1250

2500

1250

2500

1250

2500

1250

2500

1250

2500

1250

2500

1250

2500

1250

2500

1250

0.35

0.37

0.33

0.31

0.35

0.31

0.29

0.32

0.29

Media

Area

(sq. ft)

108

104

cfm PD cfm PD cfm PD

the filter and hvac store

Guide Specifications

Application Guidelines

Precision Pak filters should be selected using 24” x

12” face sizes. This allows for 12” increments in

height and width of the filter bank and insures that

replacement filters will be readily available.

Precision Pak filters should be installed with pockets

vertical wherever possible. It is acceptable to install

24” x 12” face size filters with pockets horizontal if

necessary to meet the size requirements of the filter

banks.

Gasketed Headers

Precision Pak filters installed in Flanders K-Trac

Filter Framing Modules or Sureseal Side Access

Housings require polyfoamgaskets on opposite

header sides to prevent air bypass. To specify

Precision Pak filters with gasketed headers, add

suffix ”S” or “H” to the model number.

Prefilters

Properly selected bag filters without prefilters will

generally require changeout annually in typical

HVAC applications. Because of the frequent main-

tenance expense and increase in fan kW input using

prefilters, they are often recommended with 85%

and 95% efficient Precision Pak final filters.

However, the energy cost to operate a prefilter sel-

dom warrants their use with 55% or 65% filters.

1.0 General

1.1 Medium and high efficiency self-supporting filters

shall be Precision Pak extended surface type as

manufactured by Flanders.

1.2 Filter sizes, efficiencies and capacities shall be

as scheduled on the drawings.

2.0 Filter Construction

2.1 Filters shall be constructed of lofted fiberglass or

micro-fine synthetic media encased in a thin non-

woven polyester backer mat.

2.2 Open area on the filter face for air passage shall

be not less than 90%.

2.3 Flexible internal support stitching shall maintain

individual pockets in a controlled form under all

rated air flow conditions. Stitchings shall be

sealed with thermoplastic sealant. Edges shall

be finished with overlock stitch to prevent air

unravelling.

2.4 Pockets shall be 100% stake-through crimped to

prevent media pull-out

2.5 Pockets shall be bonded to corrosion-resistant

steel casings and assembled into a corrosion-

resistant steel header.

2.6 Filters shall be UL 900 Class 2 or Class 1 listed.

3.0 Performance

3.1 Initial and final resistances shall not exceed the

scheduled values.

3.2 Media area must equal or exceed that of the spec-

ified filter.

3.3 The average efficiency shall be as determined by

the ASHRAE Standard 52.1 test methods.

3.4 The manufacturer shall guarantee performance

as stated in its literature within tolerances as out-

lined is Section 7.4 of ARI Standard 850.

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

the filter and hvac store

Important Features

•INTREPIDTM by Kimberly-Clark

•Extra high dust holding capacity

•Dual stage gradient density electrostatic media

•Low initial pressure drop provides long life

•Wide range of depths and face sizes

•Linear stitching for optimum pocket form

•Three ASHRAE efficiencies: 75%, 85% and

95%

General

Precision Pak XDH high dust holding capacity

extended surface bag filters are designed for use in

most commercial or industrial HVAC systems

where medium to high efficiency filtration is

required. Precision Pak XDH filters are available in

micro-fine polyolefin synthetic media with average

efficiency ranges of 75%, 85% and 95% per

ASHRAE Standard 52.1 test methods. Operating

face velocities up to 625 fpm are available for all

models. Precision Pak XDH filters in depths of 12”

and 22” are suited for variable air volume systems.

Filters with greater depth are not recommended.

Precision Pak XDH filters are UL 900 Class 2 list-

ed.

Kimberly-Clark Media

Precision Pak XDH bag filters use Kimberly-Clark

brand polyolefin synthetic media. The media is

thermally bonded without binders and consists of

non-woven continuous hydrophobic (water repel-

lent) fibers that resist water and most chemicals. In

addition, the media is gradient density, dual stage

and electrostatically enhanced for extra high dust

holding (XDH) capability. Further, the media is

non-shedding and performs exceptionally well in

high velocity and turbulent applications.

Extra High Dust Holding

Atypical XDH bag filter was tested for ASHRAE

synthetic dust holding capacity against similar fil-

ters with fiberglass and meltblown synthetic media.

Results showed that the XDH filter held approxi-

mately 110% more dust by weight than the others

when run to the same final resistance. This char-

acteristic makes it an excellent choice for very

dusty areas and for those systems where long

service life and reduced maintenance are key con-

cerns.

Physical Data

Media: Kimberly-Clark INTREPIDTM

Media Backer: Non-woven polyester

Pleat Sealant: Thermoplastic resin

Pleat Retainer: 26 ga. galvanized steel

Header: 7/8” wide 26 ga. galvanized steel

Operating Limits: 100% RH and 190° F

Actual Header Face Size: Nominal size less 5/8” (e.g.,

a nominal 24” x 24” filter header is actually 23-3/8”

x 23-3/8”)

Precision Pak XDH

High Dust Holding Capacity

Extended Surface Bag Filter

Models XDHxx**Sxxxx

(** insert 50, 65, 85 or 95 for ASHRAE efficiency)

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

the filter and hvac store

Nom.

Width

(inch)

Nom.

Height

(inch)

85% XDH Synthetic Media Filters

Nominal

Depth

(inch)

Number

Pockets

375 fpm 500 fpm 625 fpm

cfm pd cfm pd cfm pd

1500

750

1500

750

1500

750

1500

750

1500

750

1500

750

1500

750

1500

750

1500

750

1500

750

0.26

0.24

0.21

0.20

0.23

0.20

0.17

0.22

0.18

0.14

2000

1000

2000

1000

2000

1000

2000

1000

2000

1000

2000

1000

2000

1000

2000

1000

2000

1000

2000

1000

0.36

0.34

0.30

0.28

0.33

0.29

0.26

0.32

0.28

0.24

2500

1250

2500

1250

2500

1250

2500

1250

2500

1250

2500

1250

2500

1250

2500

1250

2500

1250

2500

1250

0.58

0.46

0.40

0.38

0.44

0.39

0.36

0.42

0.38

0.34

Media

Area

(sq. ft)

108

95% XDH Synthetic Media Filters

Nominal

Depth

(inch)

Number

Pockets

Nom.

Width

(inch)

Nom.

Height

(inch)

375 fpm 500 fpm 625 fpm

cfm pd cfm pd cfm pd

Media

Area

(sq. ft)

108

1500

750

1500

750

1500

750

1500

750

1500

750

1500

750

1500

750

1500

750

1500

750

1500

750

0.40

0.34

0.30

0.26

0.30

0.27

0.24

0.26

0.24

0.22

2000

1000

2000

1000

2000

1000

2000

1000

2000

1000

2000

1000

2000

1000

2000

1000

2000

1000

2000

1000

0.58

0.46

0.42

0.38

0.42

0.38

0.35

0.38

0.34

0.32

2500

1250

2500

1250

2500

1250

2500

1250

2500

1250

2500

1250

2500

1250

2500

1250

2500

1250

2500

1250

0.74

0.62

0.56

0.50

0.56

0.52

0.47

0.50

0.46

0.44

Performance values stated may be averages typical of the products listed. Contact factory for actual performance test

reports on specific products.

How to Select a Precision Pak XDH Filter:

• Determine the ASHRAE efficiency desired.

• Determine the face velocity needed to fit the system.

• Select the shortest depth possible with a pressure drop that is acceptable.

• Select the most economical filter based on the number of pockets per 24” x 24” size.

the filter and hvac store

75% XDH Synthetic Media Filters

Nominal

Depth

(inch)

Number

Pockets

Nom.

Width

(inch)

Nom

Height

(inch)

375 fpm 500 fpm 625 fpm

cfm PD cfm PD cfm PD

1500

750

1500

750

1500

750

1500

750

1500

750

1500

750

1500

750

1500

750

1500

750

1500

750

0.25

0.23

0.20

0.19

0.22

0.19

0.16

0.21

0.17

0.13

2000

1000

2000

1000

2000

1000

2000

1000

2000

1000

2000

1000

2000

1000

2000

1000

2000

1000

2000

1000

0.34

0.32

0.28

0.26

0.31

0.27

0.24

0.30

0.26

0.22

2000

1250

2000

1250

2000

1250

2000

1250

2000

1250

2000

1250

2000

1250

2000

1250

2000

1250

2000

1250

0.56

0.44

0.38

0.36

0.42

0.37

0.34

0.40

0.36

0.32

Media

Area

(sq. ft)

108

1. PD represents clean pressure drop in inches w.g.

2. The recommended final pressure drop for all models is 1.0 inch w.g.

3. Filters in all standard depths may be operated down to zero air flow on VAV systems.

4. Gross media area is approximately 7% more than the net media area listed.

5. Performance values stated may be averages typical of the products listed. Contact factory for actual per-

formance test reports on specific products.

Installation Considerations

Precision Pak bag filters may be installed in Flanders

Type 9 Holding Frames, K-Trac Filter Framing

Modules, Sureseal Side Access Housing or in simi-

lar existing hardware.

Type 9 Holding Frames are riveted together to form

a bank and may be installed for upstream or down-

stream service. K-Trac Filter Framing Modules are

especially suitable for medium to large built-up filter

banks. Smaller systems and systems with minimum

upstream access space are best served using

Sureseal Side Access Housings.

Performance Data

XDH

Fiber

Glass Synthetic

100

200

400

300

500

600

Grams of dust held

Comparison of XDH to fiberglass

and synthetic filters with the same

media content.

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

the filter and hvac store

Application Guidelines

Precision Pak XDH filters should be selected using

24” x 12” and 24” x 24” face sizes. This allows for

12” increments in height and width of the filter bank

and insures that replacement filters will be readily

available.

Precision Pak XDH filters should be installed with

pockets vertical wherever possible. It is acceptable

to install 24” x 12” face size filters with pockets hor-

izontal if necessary to meet the size requirements

of the filter banks.

VAV Systems

VAV systems can be designed using the full range

depth of Precision Pak XDH filters. Filter banks

should be sized so that the maximum rated flow at

design conditions falls within the published recom-

mended velocities. Precision Pak XDH filters in all

standard depths can be applied at any capacity

between zero flow and catalog-rated capacities.

Gasketed Headers

Precision Pak XDH filters installed in Flanders K-

Trac Filter Framing Modules or Sureseal Side

Access Housings require polyfoam gaskets on

opposite header sides to prevent air bypass.

To specify Precision Pak XDH filters with gasketed

headers, add suffix “S” or “H” to the model number.

Use “S” gaskets on the sides parallel to the pockets

and “H” for gaskets on sides perpendicular to the

pockets.

Prefilters

Properly selected bag filters without prefilters will

generally require changeout annually in typical

HVAC applications. Because of the frequent main-

tenance expense and increase in fan kW input

using prefilters, they are seldom recommended on

lower efficiency final filters. However, prefilters are

often used on 85% and 95% efficiency applications.

1.0 General

1.1 Medium and high efficiency self-supporting filters

shall be Precision Pak XDH extended

surface type as manufactured by Flanders.

1.2 Filter sizes, efficiencies and capacities shall be

as scheduled on the drawings.

2.0 Filter Construction

2.1 Filters shall be constructed of polyolefin micro-

fine synthetic media encased in a thin non-

woven polyester backer mat.

2.2 Open area on the filter face for air passage shall

be not less than 90%.

2.3 Flexible internal support stitching shall maintain

individual pockets in a controlled form under all

rated air flow conditions. Stitching shall be

sealed with thermoplastic resin. Edges shall be

finished with a four-thread overlock stitch to pre-

vent air bypass.

2.4 Pockets shall be bonded to galvanized steel cas-

ings and assembled into a galvanized steel

header with reverse-hemmed edges for safety.

2.5 Headers shall be gasketed with polyfoam on

vertical sides to prevent leakage when installed

in framing modules or Side Access Housings.

2.6 Filters shall be UL 900 Class 2 listed.

3.0 Performance

3.1 Initial and final resistances shall not exceed the

scheduled values.

3.2 Media area must equal or exceed that of the

specified filter.

3.3 The average efficiency shall be as determined by

the ASHRAE Standard 52.1 test methods.

3.4 The manufacturer shall guarantee performance

as stated in its literature within tolerances as

outlined is Section 7.4 of ARI Standard 850.

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

Guide Specifications

the filter and hvac store

General

Flanders models MS and MSG Moisture

Separators are designed for use in air handling sys-

tems requiring collection of water droplets or oil

mist. Water droplets in outside air are usually fog.

In supply air, water droplets may occur as carry

over from cooling coils and evaporative media or

unevaporated moisture downstream of humidifiers.

Oil mist in return air is most often found in produc-

tion machine shops.

Application

The optimum face velocity for MS and MSG

Moisture Separators is 500 fpm, and at this point

they are 98% efficient on 20 micrometer liquid

droplets. Performance is relatively unchanged in

the recommended range of 450 fpm to 550 fpm.

Above 550 fpm captured liquid may be re-entrained

in the airstream.

The system designer must recognize that moisture

separators will also act as low efficiency particulate

prefilters and that the separator bank pressure drop

will increase over time. System static pressure cal-

culations for fan selection should include an

allowance of at least 0.50 inch w.g. final static pres-

sure for dirty wet moisture separators.

Models MS and MSG Moisture Separators are

meant to be installed with their pleats vertical so

that collected liquid will drain easily to the bottom of

the frame and out through five 3/8” diameter holes.

The top of the frame has an arrow to guide the

installer as to the proper air flow direction and posi-

tion for proper drainage

Installation Considerations

In a mixed air (outside air/return air) system, place

the Moisture Separators in the outside air duct if

possible. Otherwise, place them as the first filtra-

tion stage ahead of the particulate filters.

Moisture Separators may be installed in built-up

banks using Flanders Type 9 Holding Frames or in

Flanders Side Access Housings specially equipped

with drain tubes. When built-up banks are used,

field-fabricated water drain pans should be installed

between each horizontal row of frames.

For banks four or five separators wide, locate 3/4”

I.D. downspouts at each end. For banks six sepa-

rators wide or wider, locate downspouts at each

end and proportionately along the width of the

bank, one for every six separators or a fraction

thereof. Example: a six separator wide bank would

have downspouts at both ends and one in the mid-

dle; an eight separator wide bank would have

downspouts at both ends and two more proportion-

ately spaced along the width of the bank. If not indi-

vidually trapped, the downspouts should be mani-

folded to a 1” I.D. or larger collector with a trap of a

depth exceeding the negative pressure expected in

the plenum where the separator bank is located.

Sureseal two-stage Side Access Housings may be

special-ordered with the 2” tracks fitted with drain

tubes to hold both Moisture Separators and partic-

ulate final filters. If the 2” tracks are to be used for

2” prefilters, a Surepleat single-stage Side Access

Housing with drain tube should be selected and

located upstream of the particulate filter housing.

MS/MSG

Moisture/Oil Mist Separators

MS Models: MS-xxxxx

MSG Models: MSG-xxxxx

Important Features

• Efficiency of 98% on 20 micrometer liquid

droplets at 500 fpm

•Corrosion-resistant construction

•Nominal 2” thick for application flexibility

•Models for both built-up banks and side

access housings

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

the filter and hvac store

Guide Specifications

Construction

Moisture separators are constructed much like permanent metal washable filters. The nominal two inch thick

media pack consists of 15 individual layers of pleated and flat aluminum wire mesh.

Air entering and exiting support grids are expanded metal, and the media enclosing frame is 16 ga. galva-

nized steel with five 3/8” diameter holes in the bottom for drainage.

Notes

1.Model MSG separators for use in side access housings with drain tube option are furnished with neoprene

gaskets on vertical sides to prevent moisture bypass.

2. Actual separator size is 5/8” under on both height and width. Actual depth is 1-7/8”

3. For maximum capture of liquid droplets, operate separators in the 500 fpm + 10% range.

4. Pd= Pressure Drop, in w.g.

5. Special sizes are available. Contact your local representative or the factory.

6. Performance values stated may be averages typical of the products listed. Contact factory for actual perform-

ance test reports on specific products.

1.0 General

1.1 Moisture separators shall be Models MS or MSG

as manufactured by Flanders.

1.2 Separator sizes and capacities shall be as

scheduled on the drawings.

2.0 Filter Construction

2.1 Enclosing frame shall be nominal 2” thick 16 ga.

galvanized steel with five 3/8” drain holes in the

bottom.

2.2 The media pack shall consist of 15 individual lay-

ers of pleated and flat aluminum wire mesh.

2.3 The face grids on the entry and exit sides shall be

expanded metal.

2.4 Arrow on top of frame shall indicate placement of

separator as to air flow and drainage position.

2.5 Model MSG separators for use in side access

housings with drain tube option shall have neo-

prene gaskets on vertical frame sides to prevent

liquid by-pass.

3.0 Performance

3.1 Separators shall have a minimum efficiency of

98% on 20 micrometer water or oil droplets when

operated at 500 fpm gross face velocity.

3.2 Initial resistance shall not exceed the scheduled

values.

4.0 Installation

4.1The installing contractor shall construct filter

banks or provide housings with drain tubes in

accordance with the separator manufacturer’s

recommendations.

4.2 Drain tubes and/or drain manifold shall be

trapped before running the piping to an open

drain.

Performance Data

Capacities and Dimensions

Model Number Recommended Range of Face Velocities (FPM)

For Built-up For Side Access Nominal Size Weight

Banks Housings HxWxD inches 375 450 500 550 625 Each

(Note 1) (Note 2) (lbs)

MS24242 MSG-24242 24x24x2 1500 .14 1800 .20 2000 .22 2200 .28 2500 .34 15

MS-12242 MSG-12242 12x24x2 750 .14 900 .20 1000 .22 1100 .28 1250 .34 9

MS-24122 MSG-24122 24x12x2 750 .14 900 .20 1000 .22 1100 .28 1250 .34 9

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

the filter and hvac store

General

Flanders Model KKM is a heavy duty, washable,

aluminum media, all metal filter. KKM is suitable for

all residential and commercial applications.

The KKM offers large filtering area, high dust hold-

ing capacity, uniform loading and low resistance to

air flow. It is recommended that the filter media be

coated with dust adhesive for optimum perform-

ance.

Construction

The KKM filter has a rugged galvanized steel frame

that encloses the bonded expanded aluminum

mesh media. The corners are mitered and the

frame is secured with pop rivet(s). The KKM has

drain holes in three corners.

The bonded aluminum media is slit and expanded

to several different size openings. This design

allows contaminants to be trapped throughout the

entire filter depth and not just at the surface. The

media is retained within the frame by expanded gal-

vanized steel.

An all-aluminum version of the KKM is also offered,

which has an aluminum frame and is constructed

with expanded aluminum retainers.

The standard offering of KKM filters includes six of

the most popular face sizes in 1” and 2” depths.

Special face sizes and 1/2” depth filters are also

available. For ease of installation, all filters are

undercut slightly on length, width and depth.

Filter Coating and Cleaning

The KKM performs best as an impingement type fil-

ter. Optimum performance requires use of a dust

adhesive on the media. Flanders offers Filter

Boost.

Wash with a mild detergent and rinse to remove

collected dust.

KKM

Washable Permanent Filters

Galvanized frame: 50055.xxxxxx

Aluminum Frame: 51255.xxxxxx

Features

• Heavy duty, steel frame construction

• Expanded steel retainers

• Bonded expanded aluminum media

• All aluminum version available

• Washable and reusable

• Standard and special sizes are available

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

the filter and hvac store

1.0 General

1.1 Washable air filters shall be KKM Air Filters as supplied by Flanders.

2.0 Filter Construction

2.1 Frame shall be galvanized steel with mitered corners and secured with pop rivet(s).

Frame shall have drain holes in three corners.

2.2 Washable filter media shall be multiple layers of slit and expanded aluminum bonded

together.

2.3 Media retainer shall be expanded, galvanized steel.

Nominal Size Actual Size Quantity Carton

H x W x D H x W x D per Carton Weight (lbs)

10 x 20 x 1 9-3/4 x 19-3/4 x 7/8 1 1.7

15 x 20 x 1 14-3/4 x 19-3/4 x 7/8 1 2.5

16 x 20 x 1 15-5/8 x 19-5/8 x 7/8 1 2.7

16 x 25 x 1 15-5/8 x 24-5/8 x 7/8 1 3.3

20 x 20 x 1 19-5/8 x 19-5/8 x 7/8 1 3.3

20 x 25 x 1 19-5/8 x 24-5/8 x 7/8 1 4.0

10 x 20 x 2 9-3/4 x 19-3/4 x 1-7/8 1 2.4

16 x 20 x 2 15-5/8 x 19-5/8 x 1-7/8 1 3.9

16 x 25 x 2 15-5/8 x 24-5/8 x 1-7/8 1 4.2

20 x 20 x 2 19-5/8 x 19-5/8 x 1-7/8 1 4.8

20 x 25 x 2 19-5/8 x 24-5/8 x 1-7/8 1 4.8

24 x 24 x 2 23-5/8 x 23-5/8 x 1-7/8 1 5.8

Standard KKM with Steel Frame

Guide Specifications

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

the filter and hvac store

General

Flanders Alpha 95 Filters are designed for use in

HVAC applications requiring cleaner air than is pos-

sible with ASHRAE - rated filters, but where HEPA

- filtered air is not required. The filters are rated at

95% efficiency on 0.30 micrometer particles by the

DOP test method. The Alpha 95 filter is approxi-

mately 99% efficient by the ASHRAE 52.1 dust spot

test methods. However, it is not rated by these

methods because the standard applies to filters no

greater than 98% efficient.

Alpha 95 Filters are 97% efficient on nebulized

staphylococcus aerosols and are used to remove

biological contaminants. Alpha 95 Filters are identi-

cal in design and construction to the Alpha Cell

HEPA Filters except that the media is 95% efficient

on 0.30 micrometer particles.

Installation Considerations

Alpha 95 Filters should be installed in Flanders leak

tight Alpha HEPA frames or Surelock Side Access

HEPA Housings on the positive-pressure side of the

system fan to prevent air bypass. Sureaire diffuser

sections, air mixing baffles or long transitions

should be used if the bank is close to the fan.

Installation of Flanders 80-85% ASHRAE efficien-

cy prefilters upstream of the fan is recommended to

ensure economical Alpha 95 Filter life.

Standard Alpha 95 Filters have 1.7 times the cfm

capacity of standard Alpha Cell 99.97% DOP HEPA

Filters at the same clean pressure drop. They are

normally rated at 500 fpm so that filter banks with

95% DOP filters can be sized the same as

ASHRAE-rated filter banks.

Typical applications for Alpha 95 Filters include:

• Hospitals

• Biomedical

• Pharmaceutical

• Biotechnology

• Genetic Research

• Universities

• Laboratories

• Food Processing

• Photo Processing

• Semiconductor Fabrication

• Industrial Processing Systems Product

Important Features

• Minimum efficiency is 95% on 0.30 micrometer

particles.

• Manufactured in a variety of wood and metal

frame types.

• Available with a media pack with aluminum sep-

arators or with a separatorless pack.

• Available in a variety of sizes with either a gas-

ket seal or gel seal.

Alpha 95

95% DOP Filter

See component chart on page 79

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

the filter and hvac store

Construction

Flanders manufactures both conventional Separator

Style and Pureform Separatorless 95 DOP Filters. To

make a Separator Style filter, the media is folded over

corrugated aluminum separators with hemmed edges

to separate the pleats in the filter pack. Flanders

manufactures its own filter media, enabling it to

develop a unique manufacturing process for the pro-

duction of Pureform Separatorless 95 DOP Filters. In

one manufacturing operation, Flanders produces a

self-supporting and self-separating Pureform Media

Pack.

The Pureform Filter offers many advantages over con-

ventional Separator Style 95% DOP Filters:

• Increased usable media area affords longer service

life and higher dust holding capacity

• Maximum utilization of the media

• Can handle some harsh environments which may

attack aluminum separators

• Media pack can be incinerated

• Media is 28 mils, significantly thicker than conven-

tional media used in Separator Style 95 DOP Filters

(15 mil)

• 11” deep PUREFORM Pack has 261 sq. ft. of media

as compared to 175 sq. ft. for a conventional

Separator Style filter.

• Ideal for heavy loading applications such as oil mist.

Alpha 95 with

Pureform Media Pack

Alpha 95 with

Separator Style

Media Pack

Alpha 95 Filter Dimensions and Capacities

Filter Depth Filter Size and Frame Actual Face Size CFM Capacity at Clean Weight

(inches) Depth Designator (Inches Pressure Drop, Inches w.g. (lbs)

.90 1.45 1.90

11-1/2 GG-F 24x24 1375 2000 2560 38

GC-F 24x12 650 920 1180 26

YY-F 23-3/8x23-3/8 1350 1900 2450 37

YUF 23-3/8x11-3/8 610 865 1150 25

GN-F 24x30 1750 2550 3250 45

CC-F` 12x12 290 430 550 14

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

the filter and hvac store

Frame Materials

Alpha 95 Filters are available in a variety of wood and metal frame materials such as particle board, plywood,

galvanized steel and stainless steel.

Gasket and Fluid Seal

The standard gasket seal is 0.75” x 0.25” neoprene for installation on either the upstream, downstream or

both sides of the filter.

The standard Fluid Seal is Flanders Blu-Jel® Seal which is a two - part silicone material suitable for tem-

peratures up to 390°F.

Gasket

Seal

Frame or

Housing Blu-Jel

Seal

Filter Knife Edge

On Frame or

Housing

Fluid

Seal

Channel

On Filter

Frame or

Housing

Faceguards (Optional)

Faceguards are used to protect the filter media from mechanical damage. The typical faceguard material is

expanded aluminized steel. Galvanized 4 x 4 mesh welded wire and Type 304 stainless steel faceguards

are also available.

UL Listings

Alpha 95 Filters are either UL900 Class 1 or Class 2 listed depending on materials of construction.

Holding Frames and Housings

Alpha Frames are designed for Alpha 95 filters in built-up filter banks. Each filter is secured in the frame with

four bolt-type fasteners that either compress the gasket or press the knife edge into the gel in the filter chan-

nel to maintain a leak-tight seal.

Surelock HEPA Filter Housings are recommended for side-access applications. The filters are sealed in

place with either spring-loaded swing arm assemblies or a locking mechanism. The swing arm assemblies or

locking mechanism either compress the gasket or press the knife edge into the gel in the filter channel to

maintain a leak-tight seal.

Alpha Frame Surelock HEPA Housing

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

the filter and hvac store

Guide Specifications

1.0 General

1.1 Alpha 95 filters shall be extended media (sepa-

rator type) (Pureform separatorless type) filters

as manufactured by Flanders.

1.2 Filter sizes, capacities and construction options

shall be as scheduled on the drawings.

1.3 Filters shall be (UL 900 Class 1)( UL 900 Class

2) listed.

2.0 Filter Construction

2.1 The filter pack shall be constructed by pleating a

continuous sheet of non-woven water-resistant

fiberglass media around hemmed-edge corru-

gated aluminum separators. The filter pack shall

be constructed by pleating a continuous sheet of

formed, corrugated medium so that the pack is

self-supporting without the use of spacers of any

kind, including separators, tape strings, adhe-

sives or strips of media.

2.2 The filter pack shall be sealed into a (galvaneal)

(409 stainless steel) (304 stainless steel) (parti-

cleboard) (fire retardant particleboard) (fire

retardant plywood) frame with a fire retardant

(polyurethane foam) ( solid urethane) sealant.

(Steel frames shall be 16 ga.) (Wood frames

shall be 3/4” thick.)

2.3(A 40-durometer closed-cell neoprene gasket)

(Silicone gel in a channel) shall be provided on

one or more sides to seal the filter in the mount-

ing device.

3.0 Performance

3.1 Initial and final resistances shall not exceed the

scheduled values.

3.2 The rated minimum efficiency of 95% on 0.3

micrometer size particles shall be as determined

by the DOP Test Method

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

the filter and hvac store

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

General

Flanders offers a complete line of Alpha Cell HEPA

Filters in two efficiencies to meet the needs of criti-

cal applications where HEPA filtration is required.

Individual testing, rigid quality control and modern

assembly methods are used to ensure confor-

mance to specifications. Alpha Cell HEPA and

ULPA Filters are either UL 900 Class 1 or Class 2

listed.

Testing

Flanders individually tests and certifies each Alpha

Cell HEPA Filter to meet the customer’s require-

ments for resistance and efficiency (penetration) at

the filters nominal rated capacity. This information

appears on a test label affixed to the filter. When

used with correctly selected and installed mounting

frames or housings, Flanders Alpha Cell HEPA

Filters will easily pass an in-place validation test to

determine the overall system efficiency.

HEPA FILTERS

Each Alpha Cell HEPA Filter has a minimum effi-

ciency of 99.97% on 0.30 micrometer size particles

when tested at rated capacity on a Q-107

Penetrometer. Filters rated for 1000 cfm or less are

challenged with an approved nearly monodis-

persed oil aerosol of 0.30 micrometer size. Filters

rated for flows greater than 1000 cfm are tested

using a polydispersed oil aerosol. By measuring the

upstream and downstream concentration of these

particles with a light scattering photometer, the pen-

etration can be determined and the efficiency can

be calculated.

Scan Tested HEPA Filters

Each Scan Tested Alpha Cell HEPA filter has a min-

imum efficiency of 99.99% on 0.30 micrometer par-

ticles. Scan testing is in accordance with Section

6.2 of IEST-RP-CC034.1, HEPA and ULPA Filter

Leak Tests. In the scan test, the filter is challenged

with a high concentration of an approved oil aerosol

or PSL (Polystyrene Latex Spheres). The media

pack and pack-to-frame seal is scanned using a

photometer or particle counter to ensure that there

are no leaks greater than .01% of the upstream

concentration at 100 fpm face velocity.

Higher Efficiency ULPA Filters

Flanders can provide Pureform®and Separator

Style ULPA Filters with efficiencies up to 99.9995%

on 0.12 micrometer size particles. Please contact

the factory for more information.

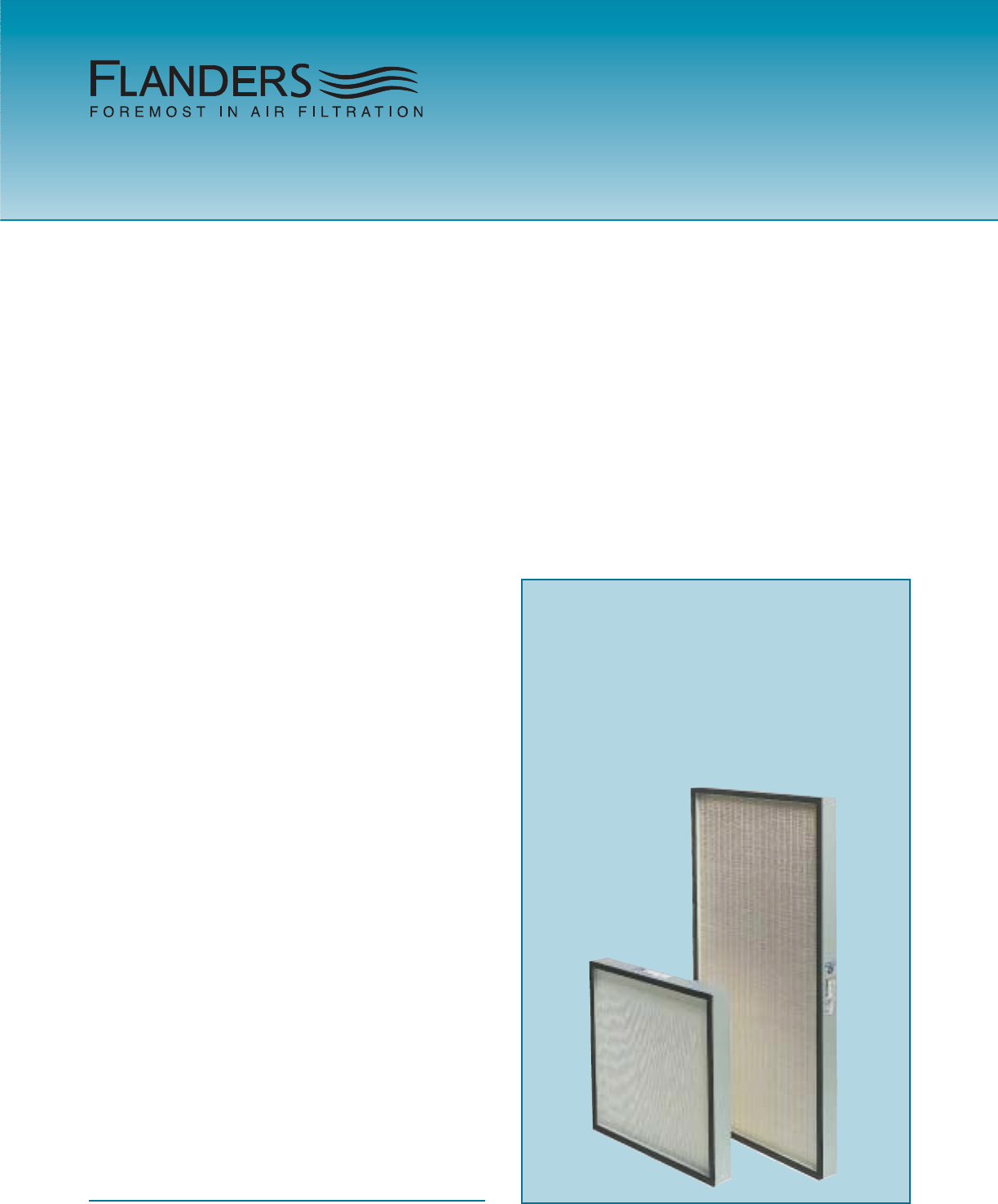

Alpha Cell

HEPA Filters

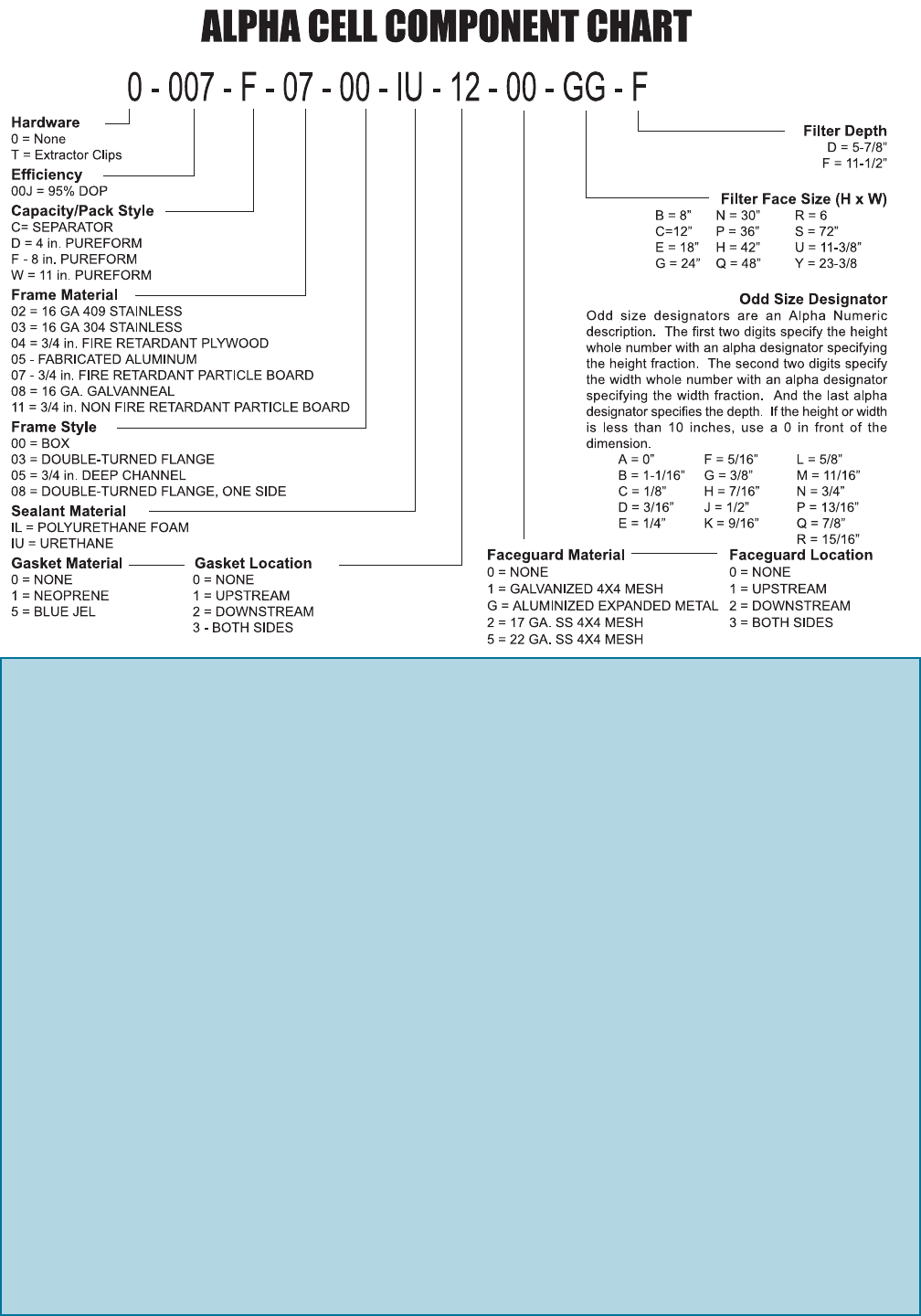

See component chart on page 83.

Typical applications for

Alpha Cell Filters include:

• Hospitals

• Biomedical

• Pharmaceutical

• Biotechnology

• Genetic Research

• Universities

• Laboratories

• Food Processing

• Photo Processing

• Semiconductor Fabrication

• Industrial Processing Systems

the filter and hvac store

Flanders manufactures both conventional

Separator Style and Pureform Separatorless

HEPA Filters. To make a Separator Style filter,

the media is folded over corrugated aluminum

separators with hemmed edges to separate the

pleats in the filter pack. Flanders manufactures

its own filter media, enabling it to develop a

unique manufacturing process for the produc-

tion of Pureform Separatorless HEPA Filters. In

one manufacturing operation, Flanders pro-

duces a self-supporting and self-separating

Pureform Media Pack. The Pureform Filter

offers many advantages over conventional

Separator Style HEPA Filters:

• More usable media area for longer service

life because of higher dust holding capacity

• Reduced cost of ownership because of

longer service life

• Maximum utilization of the media

• Can handle some harsh environments

which may attack aluminum separators

• Media pack can be incinerated

• Media is 28 mils thick, which is significantly

thicker than conventional 15 mil media

used in Separator Style HEPA Filters

CFM Dimensions and Capacities

Alpha Cell HEPA Filter Dimensions and Capacities

CG-F 24x24 650 1000 1300 38

GC-F 24x12 300 455 590 26

11-1/2 YY-F 23-3/8 x 23-3/8 615 945 1235 37

YU-F 23-3/8 x 11-3/8 275 425 550 25

GN-F 24x30 830 1275 1655 45

CC-F 12x12 135 205 265 14

GG-D 24x24 325 500 650 20

GC-D 24x12 145 225 295 12

BB-D 8x8 25 35 45 6

CC-D 12x12 70 105 135 9

YY-D 23-3/8 x 23-3/8 305 470 610 18

YU-D 23-3/8x11-3/8 270 415 540 23

GN-D 24x30 410 635 825 26

5-7/8 GP-D 24x36 505 775 1010 33

GQ-D 24x48 680 1045 1360 39

GR-D 24x60 860 1320 1715 32

GS-D 24x72 1035 1590 2065 46

NN-D 30x30 525 810 1055 26

NP-D 30x36 640 985 1280 30

NQ-D 30x48 865 1330 1730 37

NR-D 30x60 1090 1680 2185 44

NS-D 30x72 1315 2025 2630 52

PP-D 36x36 790 1215 1580 33

PQ-D 36x48 1050 1620 2105 41

PR-D 36x60 1315 2025 2630 49

PS-D 36x72 1580 2430 3160 59

Frame Depth Filter Size and Actual Face CFM Capacity at Clean Weight

(Inches) Frame Depth Size (inches) Pressure Drop, inches w.g. (LB.)

Designator .65 1.0 1.35

Alpha Cell with

Separator Style

Media Pack

Alpha Cell with

Pureform Media Pack

the filter and hvac store

Frame Materials

AlphaCell Filters are available in a variety of wood and metal frame materials such as particle board, ply-

wood, galvanized steel and stainless steel.

Gasket and Fluid Seal

The standard gasket seal is 0.75” x 0.25” neoprene for installation on either the upstream, downstream or

both sides of the filter. The standard Fluid Seal is Flanders Blu-Jel®Seal which is a two-part silicone materi-

al suitable for temperatures up to 390°F.

Faceguards (Optional)

Faceguards are used to protect the filter media from mechanical damage. The typical faceguard material is

expanded aluminized steel. Galvanized 4 x 4 mesh welded wire and Type 304 stainless steel faceguards

are also available.

UL Listings

Alpha Cell Filters are either UL900 Class 1 or Class 2 listed depending on materials of construction.

Holding Frames and Housings

Alpha Frames are designed for Alpha 95 filters in built-up filter banks. Each filter is secured in the frame with

four bolt-type fasteners that either compress the gasket or press the knife edge into the gel in the filter chan-

nel to maintain a leak-tight seal.

Surelock HEPA Filter Housings are recommended for side-access applications. The filters are sealed in

place with either spring-loaded swing arm assemblies or a locking mechanism. The swing arm assemblies

or locking mechanism either compress the gasket or press the knife edge into the gel in the filter channel

to maintain a leak-tight seal.

Gasket

Seal

Frame or

Housing Blu-Jel

Seal

Filter Knife Edge

On Frame or

Housing

Fluid

Seal

Channel

On Filter

Frame or

Housing

Alpha Frame, B1 Frame, A-4 Frame Surelock HEPA Housing

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

the filter and hvac store

1.0 General

1.1 Alpha Cell HEPA filters shall be extended media

(separator type) (Pureform separatorless type) fil-

ters as manufactured by Flanders.

1.2 Filter sizes, capacities and construction options

shall be as scheduled on the drawings.

1.3 Filters shall be (UL 900 Class 1)( UL 900 Class

2) listed.

2.0 Filter Construction

2.1 The filter pack shall be constructed by pleating a

continuous sheet of non-woven water-resistant

fiberglass media around hemmed-edge corrugat-

ed aluminum separators. The filter pack shall be

constructed by pleating a continuous sheet of

formed, corrugated medium so that the pack is

self-supporting without the use of spacers of any

kind, including separators, tape strings, adhesives

or strips of media.

2.2 The filter pack shall be sealed into a (galvaneal)

409 stainless steel) (304 stainless steel) (particle

board) (fire-retardant particleboard) (fire-retardant

plywood) frame with a fire retardant(polyurethane

foam) ( solid urethane) sealant. (Steel frames

shall be 16 ga.)(Wood frames shall be 3/4” thick.)

2.3 (A 40-durometer closed-cell neoprene gasket)

(Silicone jel in a channel) shall be provided on one

or more sides to seal the filter in the mounting

device.

3.0 Performance

3.1 Initial and final resistances shall not exceed the

scheduled values.

3.2 Alpha Cell HEPA Filters shall have a minimum effi-

ciency of 99.97% on 0.30 micrometer particles

when tested at rated capacity on a Q-107

Penetrometer Each filter shall be challenged with

an approved nearly monodispersed oil aerosol of

0.30 micrometer size.Measure the upstream and

down stream concentration of these particles with

alight scattering photometer, determine the pene-

tration and calculate the efficiency.

3.3 Alpha Cell Scan Tested HEPA Filters shall have a

minimum efficiency of 99.99% on 0.30 micrometer

particles. Scan Testing shall be in accordance with

Section 6.2 of IEST-RP-CC034.1. The scan test

shall consist of challenging the filter with a high

concentration of an approved oil aerosol or PSL

Spheres.Utilizing a photometer or particle counter,

the media pack and the pack- to- frame seal shall

be scanned to insure that there are no leaks

greater than .01% of the upstream concentration

at 100 fpmface velocity

Guide Specifications

the filter and hvac store

High Capacity Design

The Alpha 2000 High Capacity HEPA filter is avail-

able in a nominal 12” depth configuration. It is

designed for optimum performance and low operat-

ing costs in both new and replacement systems.

With 40% more media area than the standard

capacity Alpha Cell filter, the Alpha 2000 saves

space, energy, and material and labor costs.

Save Space

Alpha 2000 HEPA filters operate at 500 fpm (2000

cfm for a 24” x 24” size) at 1.45 inch w.g. clean

pressure drop versus conventional Alpha Cell filters

that operate at 250 fpm and 1.0 inch w.g. clean

pressure drop.

Construction

Apopular construction option consists of 16 ga.

galvaneal frames and moisture-resistant microfine

wet-laid fiberglass media folded over hemmed-

edge low amplitude corrugated aluminum separa-

tors. The filter pack is bonded to the frame by a fire-

retardant urethane elastomer to provide a rigid

leak-free assembly.

Save Energy

Alpha 2000 filters in a conventional HEPA filter

bank impose a lighter load on the fan when operat-

ed at conventional 250 fpm velocities during the life

of the filters. The Alpha 2000 99.97% and 99.99%

high capacity 24” X 24” X 12” filter has a clean pres-

sure drop of 1.1 inch w.g. at 1500 cfm, compared to

standard Alpha Cell filters with a clean pressure

drop of 1.50 inch w.g. at the same air flow.

Save Replacement Material and Labor

Costs

Savings are significant with high capacity Alpha

2000 filters. They operate at lower velocities and

provide life cycles up to three times the life of stan-

dard capacity filters. Savings are achieved in

replacement materials and labor costs as a result of

fewer filters.

Alpha 2000

High Capacity HEPA Filters

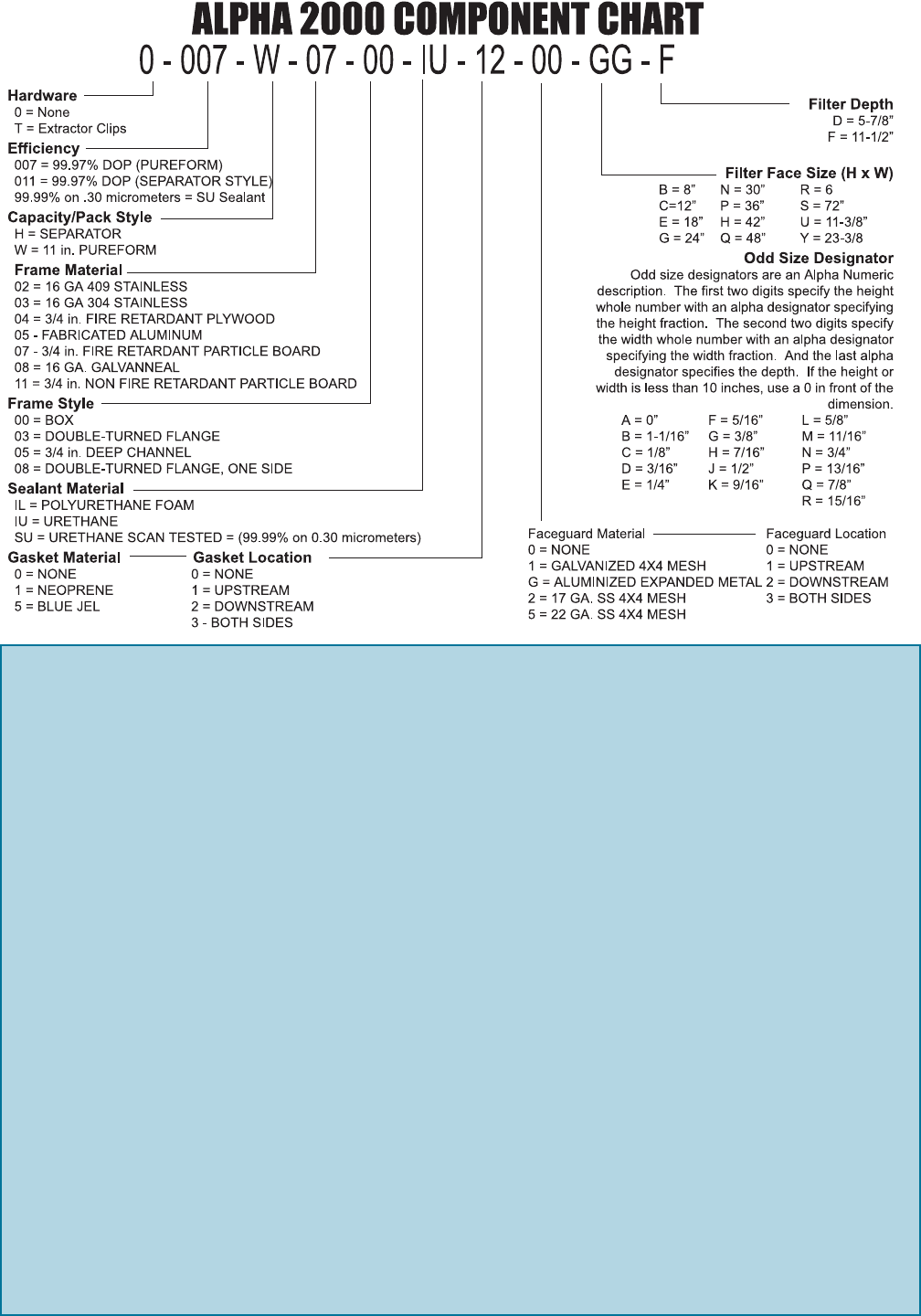

See component chart on page 87.

Important Features

• Efficiencies are 99.97% and 99.99% on 0.30

and 99.9995% on 0.12 micrometer particles.

•High capacity Alpha 2000 filters can reduce the

filter bank size

• Corrugated aluminum separators stabilize the

moisture-resistant media pack (separator style)

• Available as a separatorless media filter with a

self-supporting media pack (*Pureform)

• Available in a variety of frame materials in gas-

ket or fluid seal design.

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

the filter and hvac store

Alpha 2000 HEPA Filter Dimensions and Capacities

Filter Depth Filter Size and Frame Actual Face Size CFM Capacity at Clean Weight

(inches) Depth Designator (Inches Pressure Drop, Inches w.g. (lbs)

.90 1.45 1.90

11-1/2 CG-F 24x24 1375 2000 2560 38

GC-F 24x12 650 920 1180 26

YY-F 23-3/8x23-3/8 1350 1900 2450 37

YUF 23-3/8x11-3/8 610 865 1150 25

GN-F 24x30 1750 2550 3250 45

CC-F` 12x12 290 430 550 14

NOTE: The pressure drop for fluid seal (Separator or Pureform) and scan tested Pureform

filters will be approximately 15% higher.

Separator or Separatorless

Flanders manufactures both conventional

Separator Style and Pureform Separatorless

HEPA Filters. To make a Separator Style filter,

the media is folded over corrugated aluminum

separators with hemmed edges to separate

the pleats in the filter pack. Flanders manu-

factures its own filter media, enabling it to

develop a unique manufacturing process for

the production of Pureform Separatorless

HEPA Filters. In one manufacturing operation,

Flanders produces a self-supporting and self-

separating Pureform Media Pack.

The Pureform Filter offers many advantages

over conventional Separator Style HEPA

Filters:

• More usable media area for longer serv-

ice life because of higher dust holding

capacity

• Reduced cost of ownership because of

longer service life

• Maximum utilization of the media

• Can handle some harsh environments

which may attack aluminum separators

• Media pack can be incinerated

• Media is 28 mils thick, which is signifi-

cantly thicker than conventional 15 mil

media used in Separator Style HEPA

Filters

Alpha 2000 with

Separator Style

Media Pack

Alpha 2000 with

Pureform Media

Pack

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

the filter and hvac store

Frame Materials

Alpha 2000 Filters are available in a variety of wood and metal frame materials such as particle board, ply-

wood, galvanized steel and stainless steel.

Gasket and Fluid Seal

The standard gasket seal is 0.75” x 0.25” neoprene for installation on either the upstream, downstream or

both sides of the filter. The standard Fluid Seal is Flanders Blu-Jel® Seal which is a two - part silicone mate-

rial suitable for temperatures up to 390°F.

Faceguards (Optional)

Faceguards are used to protect the filter media from mechanical damage. The typical faceguard material is

expanded aluminized steel. Galvanized 4 x 4 mesh welded wire and Type 304 stainless steel are also avail-

able.

UL Listings

Alpha 2000 Filters are either UL900 Class 1 or Class 2 listed depending on materials of construction.

Holding Frames and Housings

Alpha Frames are designed for Alpha 2000 filters in built-up filter banks. Each filter is secured in the frame

with four bolt-type fasteners that either compress the gasket or press the knife edge into the gel in the filter

channel to maintain a leak-tight seal.

Surelock HEPA Filter Housings are recommended for side-access applications. The filters are sealed in

place with either spring-loaded swing arm assemblies or a locking mechanism. The swing arm assemblies

or locking mechanism either compress the gasket or press the knife edge into the gel in the filter channel

to maintain a leak-tight seal.

Gasket

Seal

Frame or

Housing Blu-Jel

Seal

Filter Knife Edge

On Frame or

Housing

Fluid

Seal

Channel

On Filter

Frame or

Housing

Surelock HEPA Housing

Alpha Frame, B1 Frame, A-4 Frame

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

the filter and hvac store

1.0General

1.1 Alpha Cell HEPA filters shall be extended media

(separator type) (Pureform separatorless type)

filters as manufactured by Flanders.

1.2 Filter sizes, capacities and construction options

shall be as scheduled on the drawings.

1.3 Filters shall be (UL 900 Class 1)( UL 900 Class

2) listed.

2.0 Filter Construction

2.1 The filter pack shall be constructed by pleating a

continuous sheet of non-woven water-resistant

fiberglass media around hemmed-edge corru-

gated aluminum separators. (or) The filter pack

shall be constructed by pleating a continuous

sheet of formed, corrugated medium so that the

pack is self-supporting without the use of spac-

ers of any kind, including separators, tape

strings, adhesives or strips of media.

2.2 The filter pack shall be sealed into a (galvaneal)

409 stainless steel) (304 stainless steel) (parti-

cle board) (fire-retardant particleboard) (fire-

retardant plywood) frame with a fire

retardant(polyurethane foam) ( solid urethane)

sealant. (Steel frames shall be 16 ga.)(Wood

frames shall be 3/4” thick.)

2.3 (A 40-durometer closed-cell neoprene gasket)

(Silicone jel in a channel) shall be provided on

one or more sides to seal the filter in the mount-

ing device.

3.0 Performance

3.1 Initial and final resistances shall not exceed the

scheduled values.

3.2 Alpha Cell HEPA Filters shall have a minimum

efficiency of 99.97% on 0.30 micrometer parti-

cles when tested at rated capacity on a Q-107

Penetrometer Each filter shall be challenged

with an approved nearly monodispersed oil

aerosol of 0.30 micrometer size.Measure the

upstream and down stream concentration of

these particles with a light scattering photometer,

determine the penetration and calculate the effi-

ciency.

3.3 Alpha Cell Scan Tested HEPA Filters shall have

aminimum efficiency of 99.99% on 0.30 microm-

eter particles. Scan Testing shall be in accor-

dance with Section 6.2 of IEST-RP-CC034.1.

The scan test shall consist of challenging the fil-

ter with a high concentration of an approved oil

aerosol or PSL Spheres. Utilizing a photometer

or particle counter, the media pack and the pack-

to- frame seal shall be scanned to insure that

there are no leaks greater than .01% of the

upstream concentration at 100 fpm face velocity

Guide Specifications

the filter and hvac store

General

Flanders manufactures metal-frame separator-style

HEPA filters for applications with high-temperature

requirements up to 1,000°F (540°C) for exhaust air

only and 500°F (260°C) for supply air. High-tem-

perature filters are available with either a gasket or

fluid seal. Filters with Blu-Jel®Fluid Seal have a

maximum service temperature of 390°F (199°C)

HEPA Filters

Each HEPA filter has a minimum efficiency of

99.97% on 0.30 micrometer size particles when

tested at rated capacity on a Q-107 Penetrometer.

Each filter is challenged with an approved nearly

monodispersed oil aerosol of 0.30 micrometer size

and by measuring the upstream and downstream

concentration of these particles with a light scatter-

ing photometer, the penetration can be determined

and the efficiency can be calculated.

Scan Tested HEPA Filters

Each Scan Tested HEPA filter has a minimum effi-

ciency of 99.99% on 0.30 micrometer particles.

Scan testing is in accordance with Section 6.2 of

IEST-RP-CC034.1, HEPA and ULPA Filters Leak

Tests. In the scan test, the filter is challenged with

a high concentration of an approved oil aerosol or

PSL (Polystyrene Latex Spheres). The media pack

and pack-to-frame seal is scanned using a pho-

tometer or particle counter to insure that there are

no leaks greater than .01% of the upstream con-

centration at 100 fpm face velocity. Scan testing is

only available for the 500°F model.

Sealant Types

Two types of sealants for high-temperature HEPA

filters are offered.

Silicone Sealant

This is a high temperature (RTV) silastic-sealant sil-

icone compound rated for continuous service up to

500°F(260°C). NOTE: This high-temperature

sealant is not UL 586 approved.

Glass Pack Sealant For Exhaust Air Only

The glass pack seal is rated for continuous service

up to 1,000°F(540°C) in exhaust air applications

only. It is a mat of submicron glass fibers that cre-

ates a seal when compressed between the filter

pack and filter frame. The glass packing is not an

adhesive seal but a mechanical seal that functions

much as the glass fiber medium of the filter itself.

NOTE: Due to the possibility that the glass pack

may shed glass fibers, the glass pack sealant

should be used for exhaust systems only.

Alpha HT

High Temperature HEPA Filters

See component chart on next page.

CFM CAPACITIES AND DIMENSIONS

Alpha HT Filter Dimensions and Capacities

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

Filter Depth Filter Size and Actual Face CFM Capacity at Clean Weight

(Inches) Frame Depth Size (Inches) Pressure Drop, Inches w.g. (Lb.)

Designator .65 1.0 1.35

GG-F 24x24 650 1000 1300 38

GC-F 24x12 300 455 590 26

11-1/2 YY-F` 23-3/8x23-3/8 615 945 1235 37

YU-F 23-3/8x11-3/8 275 425 550 25

GN-F 24x30 830 1275 1655 45

CC-F 12x12 135 205 265 14

the filter and hvac store

Guide Specifications

1.0 General

1.1 High temperature separator style HEPA filters

shall be Alpha HT models as manufactured by

Flanders.

1.2 Filter sizes, capacities and construction options

shall be as scheduled on the drawings.

2.0 Filter Construction

2.1 The filter pack shall be constructed by pleating a

continuous sheet of non-woven water-resistant

fiberglass media around hemmed-edge corrugat-

ed aluminum separators.

2.2 The filter pack shall be sealed into a (409 stain-

less steel) (304 stainless steel) frame with a

high temperature silicone sealant rated for 500°F

or a glass pack sealant rated for 1,000°F in

exhaust applications.

2.3 (A chlorastic silicone gasket) (a woven glass

gasket) shall be provided to seal the filter in the

mounting device (Gasket Seal). A silicone gel

shall be provided in a channel on one side to

seal the filter in the mounting device. filters with

silicone gel have a maximum service tempera-

ture of 390°F (Gel Seal)

3.0 Performance

3.1 Initial and final resistances shall not exceed the

scheduled values.

3.2 Alpha HT HEPA Filters shall have a minimum

efficiency of 99.97% on 0.30 micrometer parti-

cles when tested at rated capacity on a Q-107

Penetrometer. Each filter shall be challenged

with an approved nearly monodispersed oil

aerosol of 0.30 micrometer size. Measure the

upstream and downstream concentration of

these particles with a light scattering photometer,

determine the penetration and calculate the effi-

ciency.

3.3 Alpha HT Scan Tested HEPA Filters shall have

aminimum efficiency of 99.99% on0.30microme-

ter particles. Scan Testing shall be in accor-

dance with Section 6.2 of IEST-RP-CC034.1.

The scan test shall consist of challenging the fil-

ter with a high concentration of an approved oil

aerosol or PSL Spheres. Utilizing a photometer

or particle counter, the media pack and the pack-

to-frame seal shall be scanned to insure that

there are no leak greater than .01% of the

upstream concentration at 100 fpm face velocity.

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

the filter and hvac store

General

Flanders Superflow 2K is a V-bed HEPA filter

(99.99% at 0.30 micrometer) specifically designed

for high airflow applications requiring HEPA effi-

ciency at an ultra low pressure drop. The Superflow

2K can be incorporated into systems with air veloc-

ities of 500 fpm and a pressure drop of 1.0 inch w.g.

Product Design

The Superflow 2K filters are manufactured with wet

laid microfine fiberglass media. The media is

formed into a minipleat utilizing a hot melt separa-

tor and arranged in a V-bed configuration. There

are 10 individual minipleat packs that are sealed on

all four sides to the frame with a two component

polyurethane.

The frame is constructed of 16 ga. galvaneal steel

and consists of vertical support struts of the same

material. Vertical supports are attached to the

frame body without the use of mechanical fasten-

ers. The vertical supports act as the sealing surface

of the mini pleat packs.

Features and Benefits

The product offers the following advantages over

conventional HEPA filters.

• Longer Life – Gasket seal Superflow 2K filters

have 290 sq. ft. of media compared to 140 sq. ft. for

traditional HEPA filters. The greater media area pro-

vides a longer time period between filter replace-

ments.

• Improved Efficiency – The significant quantity of

media translates into an extremely low media

velocity. Therefore a minimum overall efficiency of

99.99% at 0.30 µm is easily assured. Traditional

HEPA filters have an overall efficiency of 99.97% at

0.30 µm.

• Lower Operating Cost – The typical HEPA filter

pressure drop can range from 1.4 inch w.g. to 1.8

inch w.g. at the rated flow. The pressure drop of the

Superflow 2K is 1.0 inch w.g. at the rated flow.

Product Options

The Superflow 2K filters are available in aluminum

or stainless steel frames and with gasket seal or gel

seal design.

Gasket Seal

The filter gasket is 1/4” x 3/4” black neoprene

attached to the frame with an adhesive and the

gasket joints are dovetailed to ensure no penetra-

tion of particulate due to the gasket. The filter is

designed for installation into Flanders front load B-

1 holding frame, Surelock C Gasket Seal Housing

and Surelock-B Side Access Housing.

Gel Seal

The filter gasket is Flanders Blu Jel filled into a

channel around the perimeter of the frame. The gel

seal design provides the highest degree of sealing

integrity between the filter and holding device. The

filter is designed for installation into Flanders front

load A-4 holding frame or Surelock-C Jel Seal

Housings.

Superflow®2K

High Velocity HEPA Filter

20 Gauge Galvaneal: SF2K-8-G*-** 0.063”Aluminun: SF2K-5-G*-**

20 Gauge 304 Stainless: SF2K-3-G*-**

(Where * indicates gasket location and ** designates size. See price book)

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

the filter and hvac store

Model Number Nominal Size Actual Size Media Area Rated Flow

SF2K-(*)-G(location)-GG 24" x 24" x 12" 24" x 24" x 11-1/2" 290 sq. ft. 2000 cfm

SF2K-(*)-G(location)-CG 12" x 24" x 12" 12" x 24" x 11-1/2" 140 sq. ft. 900 cfm

SF2K-(*)-G(location)-YY 24" x 24" x 12" 23-3/8" x 23-3/8" x 11-1/2" 280 sq. ft. 1900 cfm

SF2K-(*)-G(location)-UY 12" x 24" x 12" 11-3/8" x 23-3/8" x 11-1/2" 135 sq. ft. 855 cfm

SF2K-(*)-F(location)-GG 24" x 24" x 12" 24" x 24" x 11-1/2" 270 sq. ft. 1760 cfm

SF2K-(*)-F(location)-CG 12" x 24" x 12" 12" x 24" x 11-1/2" 130 sq. ft. 790 cfm

SF2K-(*)-F(location)-YY 24" x 24" x 12" 23-3/8" x 23-3/8" x 11-1/2" 260 sq. ft. 1670 cfm

SF2K-(*)-F(location)-UY 12" x 24" x 12" 11-3/8" x 23-3/8" x 11-1/2" 125 sq. ft. 750 cfm

Superflow 2K Performance

The Superflow 2K filters offer HEPA efficiency at an

ultra low pressure drop for HVAC systems supplying

air to critical areas.

Figure 1 illustrates the Superflow 2K pressure drop

as a function of air flow rate for gasket seal and gel

seal designs.

Superflow 2K Selection

All products have a rated overall efficiency of

99.99% at 0.30 µm and a maximum pressure drop of

1.0 inch w.g. at the rated flow. Specify the following:

Material Types: 8 = Galvanized

5 = Aluminum

3 = Stainless Steel

Gasket Types: G = Neoprene F = Blu Jel

Gasket Locations: 1 = Upstream 2 = Downstream

1.0 General

1.1 HEPA filters shall be Flanders Superflow 2K as

manufactured by Flanders.

1.2 Filter sizes, efficiencies and capacities shall be

as specified on the drawings.

2.0 Construction

2.1 Filters shall be constructed with ten 1” pleated

media packs arranged in a V-bank configuration.

The media packs shall be formed by pleating wet

laid micro-fiberglass media with continuous

beads of a nonvolatile adhesive spaced 1-1/4”

apart.

2.2The filter frame shall be 20 ga. galvaneal steel and

shall consist of eight C-channel supports

attached without the use of mechanical fasten-

ers. The media packs shall be sealed around the

entire periphery to the frame with a two compo-

nent polyurethane.

3.0 Performance

3.1 The minimum filter efficiency shall be 99.99% at

0.30 µm when tested with polydisperse DOP

aerosol at the rated air flow.

3.2 The maximum pressure drop shall be 1.0” w.g. at

the rated air flow.

Guide Specifications

* Insert Material Type

the filter and hvac store

General

Alpha Panel Minipleat HEPA/ULPA filters are avail-

able in two particle size efficiencies: 99.99% on 0.3

µm and 99.99% on 0.12 µm. They are offered in a

complete range of standard sizes to meet the needs

of critical applications where HEPA/ULPA filtration

is required. Individual testing under rigid quality

control and modern assembly methods ensures

conformance to specifications.

Construction

Filter media is manufactured of moisture resistant

microfine fiberglass that is formed into closely-

spaced pleats held firmly in place with polyurethane

sealant bead separators. The 2.1” (53 mm) sepa-

ratorless minipleat panel is urethane sealed into a

clearcoat- anodized extruded aluminum frame.

Media dividers are furnished on all filters over 36”

width. Filters over 24” height are also furnished

with media dividers and pleats that are parallel to

the width.

Alpha Panel HEPA/ULPA filters can be furnished

with 0.25” thick x 0.75” wide closed cell neoprene

gaskets as an option on either side or both sides of

the face flanges.

Testing

Each Alpha Panel HEPA/ULPA filter is scan tested

after assembly with automated laser equipment to

ensure that it has attained a particle size efficiency

of at least 99.99% on 0.30 µm or 99.99% on 0.12

µm. This performance meets the requirements of

the Institute of Environmental Sciences and

Technology (IEST) RP-1 for Type C or F filters.

Efficiency and pressure drop are certified on each

filter identification label.

Installation

Alpha Panel HEPA/ULPA filters are used in applica-

tions and equipment that require ultraclean air.

These may range from the fabrication of microelec-

tronics, semi-conductors and medical devices to

aerospace, biotech and pharmaceutical manufac-

turing.

The standard face velocity range of 70 to 110 fpm

makes them ideal for unidirectional (laminar flow)

applications in clean benches, ceiling grids, fan

powered filter units, and horizontal flow wall mod-

ules.

Filters of standard construction may be operated at

up to 150 fpm face velocity and to a final static pres-

sure drop of 2.0 inch w. g. As with all HEPA and

ULPA filters, high efficiency ASHRAE-rated pre-

filters are recommended.

Physical Data

Media: Moisture-resistant microfine fiberglass

Filter pack: 2.1” (53 mm) separatorless minipleat

Media sealant: Urethane

Pleat stabilizers: Polyurethane bead separator

Frames: Clearcoat-anodized extruded aluminum

Media dividers: Extruded aluminum channel

Gaskets: Closed cell neoprene

Alpha Panel

Minipleat HEPA/ULPA Filters

Models AP*-xxxx

(Where * indicates efficiecy designator of 493 for 99.99% efficient on 0.30

micron particles or 591 for 99.995% efficient on 0.12 micron particles.)

Important Features

• Minipleat separatorless filter pack

• Thin and lightweight easy-to-handle units

•Rugged 3” deep clearcoat-anodized extrud-

ed aluminum frame

• Available in many standard sizes

the filter and hvac store

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

Guide Specifications

1.0 General

1.1 Minipleat HEPA/ULPA filters shall be Alpha Panel

Model AP493 or AP591 as manufactured by

Flanders.

1.2 Filter sizes and capacities shall be as scheduled

on the drawings.

1.3 Filter construction shall meet UL 900 Class 2

requirements.

2.0 Construction

2.1 The filter pack shall be 2.1” (53 mm) thick and

shall consist of moisture-resistant microfine fiber-

glass co taining a water-repellant binder. The

media shall be formed into closely spaced pleats

and stabilized with polyurethane bead separa-

tors.

2.2 The filter pack shall be urethane sealed in a

clearcoat-anodized extruded aluminum frame

3”deep.

2.3 Extruded aluminum media dividers shall be pro-

vided on filters over 36” wide and 24” in height.

2.4 Furnish 0.25” thick x 0.75” wide closed cell

neoprene gaskets on the face flanges when

required.

3.0 Performance

3.1 Particle size efficiency shall be certified to be not

less than 99.99% on 0.30 micron or 99.99% on

0.12 micron. Each filter is scan tested with auto-

mated laser equipment. Filters shall meet the

requirements of IEST RP-1 for Type C or F filters.

3.2 Initial resistance shall not exceed the scheduled

values.

3.3 Filters shall be capable of operating up to 150 fpm

face velocity.

Drawing Notes:

1. Physical Data

Media: Moisture-resistant fiberglass

Filter Construction: 2.1” (53 mm) thick separatorless

minipleat

Filter Frame: Clearcoat-anodized extruded aluminum

Media Divider: Extruded aluminum channel

2. Add 0.25” to the 3” depth for each gasket.

3. Media dividers are furnished on air filters over 36” in

width. Filters over 24” in height are also furnished

with media dividers and media pleats that are paral-

lel to the width.

Performance Data Notes:

1. Filters are scan-tested for leaks after assembly and

are certified to be 99.99% on 0.30 Fm or 99.99% on

.012 Fm particles.Performance meets the require-

ments of IEST RP-1 for Type C or F filters.

2. Dimensional tolerances are +0” -.13”on height and

width, + 0.6” on depth and +.13” on diagonal dimen-

sions.

3. Maximum operating conditions: 200 degrees F, 100%

RH.

4. Filters are designed to UL 900 Class 2 requirements.

5. Gasket location: Suffix D denotes a downstream gas-

ket. Use suffix U for upstream, B for both upstream

and downstream gasketing and N if no gaskets are

required.

Performance Data - Capacities and Dimensions

Particle

Size

Efficiency

99.99% on

0.30 Fm

HW7090 110

Cfm Capacity at

Gross Face Velocity,

fpm

99.99% on

0.12 Fm

AP493-2424*

AP493-2448*

AP591-2424*

AP591-2448*

Clean Filter Resistance (inch

Model Number

280

560

.35

280

560

.50

360

720

.45

360

720

.65

440

880

.55

440

880

.80

Actual

Dimensions

(inch)

Clean Filter Resistance (inch

3” depth,

.75” Flange (typical)

*Insert gasket designator: D, U, B or N. See Note 5.

the filter and hvac store

General

Flanders Pureflo Terminal HEPA/ULPA Filter

Modules are lightweight low profile ducted units.

The mini-pleat filter packs are designed to provide

unidirectional airflow from tee-bar ceilings. Pureflo

modules are available in two sizes: nominal 24” x

24” and 24” x 48” with either 10” or 12” diameter

inlet collars. They are available in two particle size

efficiencies: 99.99% on .0.30 µm and 99.9995% on

0.12 µm and in three filter pack depths: 53, 70 and

100 mm

Installation and Application

Considerations

Pureflo Terminal HEPA/ULPA Filter Modules are

recommended for use in ultraclean applications.

They are ideal for fabrication of microelectronics,

semiconductors, and medical devices; and in aero-

space, biotech and pharmaceutical production.

Selection of the PF70 or PF100 models will help

reduce operating costs because of their lower

resistance and longer service life.

Clips on the module’s top four corners are to be

used to secure seismic restraint wires. Polyfoam

gasket should be applied to the tee-bar surface on

which the module will rest.

The standard face velocity range of 70 to 110 fpm

is easily adjusted from the room side by a screw-

driver operated damper. Static pressure and chal-

lenge aerosol measurements can be taken from a

separate room side port. Standard construction

allows the modules to be operated at a pressure

drop of 2.0 inches w.g.

Construction

The heart of the Pureflo module is a state-of-the-

art minipleat filter pack sealed in an anodized

extruded aluminum casing forming the sides of the

module. The extruded aluminum center divider

holds ports for in-room damper adjustment and

measurement of the challenge aerosol. The one

piece hood/inlet collar is made of aluminum and the

inlet collar is dimpled to secure the flex duct retain-

ing strap. A 20 ga. expanded steel white powder-

coated face grille protects the media pack. Each

module is scan-tested after assembly to meet or

exceed IEST RP-1 requirements for a Type C or F

filter.

Options

Pureflo Modules are available with either nominal

10” or 12” diameter inlet collars. One inch thick

vinyl-backed fiberglass insulation on the top and

sides of the module is also available.

Physical Data

Media: Water-resistant micro-fine fiberglass

Filter Construction: Separatorless minipleat

Sealant: Polyurethane

Filter Frame: Clearcoat-anodized extruded alu-

minum

Top: One-piece aluminum with dimpled inlet collar

Damper: Perforated aluminum, 14 ga.

Protective Grille: White powdercoat 20 ga. steel

Center Divider: Extruded aluminum rectangular

tube

Important Features

•Scan-tested after assembly to meet or exceed IEST

RP-1 requirements for Type C and F filters

•Mini-pleat separatorless filter pack for a lightweight

and low profile design

•Choice of three filter pack depths: 53, 70 and 100 mm

(2.10, 2.76, and 3.96 inches)

•In-room air flow damper adjustment and challenge

aerosol ports

•One-piece aluminum hood/inlet collar

Pureflo

Terminal HEPA/ULPA Filter Modules

99.99% on .3 microns: Models: PF†-493-xxxx-*

99.9995% on .12 microns, Models: PF†591-xxxx-*

(Where † is pack depth designator and • is collar diameter. See price book.)

the filter and hvac store

Clean Filter Resistance(“w.g)

Clean Filter Filter Resistance(inchw.g)

23-5/8

47-5/8

PF†-493-2424-*

PF†-493-2448-*

PF†-591-2424-*

PF†-591-2448-* 23-5/8

47-5/8

Physical Data Notes:

1. *Insert suffix 10 (nominal 10”collar) or 12 (nominal 12” collar).

Add “G” to suffix to designate the insulation option.

2. Tolerances: L and W: +0, -1/8” D: + - 1/8”

3. Maximum operating conditions: 200 ° F, 100%RH

4. Modules are designed to UL 900 Class 2 requirements.

5. Installed weight: PF53P F70P F100

2424: 20lbs. 25lbs. 27lbs.

2448: 35lbs. 40lbs. 43lbs.

6. D = 5 3/4” (PF 53)

D = 7 3/4” (PF 70, PF 100)

H = D + 2”

1.0 General

1.1 Terminal filter HEPA/ULPA Modules shall be

Pureflo Model PF as manufactured by Flanders

and shall be scan tested for leaks after assem-

bly.

1.2 Module sizes, filter pack depth, efficiencies and

capacities shall be as scheduled on the draw-

ings.

2.0 Module Construction

2.1 The module filter pack shall be constructed of

water-laid microfine fiberglass media containing

awater-repellent binder. The media shall be

formed into closely - spaced pleats held in posi-

tion by adhesive bead separators.

2.2 The filter pack shall be polyurethane-sealed into

aclear coat - anodized extruded aluminum

frame and rectangular tube section center

divider.

2.3 Module top/inlet collar shall be one-piece alu-

minum.

2.4 The protective face grille shall be 20 ga. expand-

ed steel finished in white powder coat paint.

2.5 Provide an airflow damper adjustable from the

room side and accessible through a port with a

removable plug located in the center divider.

2.6 Provide a separate port in the center divider that

is open to the inlet side of the filter for measure-

ment of static pressure and challenge aerosol

concentration. The port shall be fitted with a

removable plug.

3.0 Performance

3.1 Initial and final resistances shall not exceed the

scheduled values.

3.2 The airflow damper shall be capable of regulat-

ing the module face velocity from 70 fpm to 110

fpm.

3.3 Performance shall meet the requirements of

IEST RP - 1 for Type C or F filters.

Guide Specifications

Model Number

Particle

Size

Efficiency

99.99 on

0.30 µm

99.9995 on

0.12 µm

Cfm Capacity at Gross Face Velocity, Fpm

PF53 PF70 PF100

280

560

.40

280

560

.55

360

720

.50

360

720

.70

110

440

880

.60

440

880

.85

280

560

.33

280

560

.45

360

720

.42

360

720

.58

110

440

880

.50

440

880

.70

280

560

.23

280

560

.33

360

720

.30

360

720

.42

110

440

880

.37

440

880

.50

Actual Length

L(inches)

† Insert filter pack depth in mm: 53, 70, or 100

the filter and hvac store

Pureflo-FPM

Fan-Powered Terminal Filter Modules

Standard: PF-FPM*-xxxx-STD Room Side: PF-FPM*-xxxx-RSR

(Where * is efficiency designator of 493 for 99.99% efficient on .3 micron

particles and 591 is 99.9995% efficient on .12 micron particles.)

General

Pureflo-FPM Fan-Powered Terminal HEPA/ULPA

Filter Modules are lightweight unitized low profile

units consisting of a fan/motor assembly and a

minipleat HEPA/ULPA filter pack, designed to pro-

vide unidirectional vertical airflow from tee-bar ceil-

ings. The modules are available in two sizes: nom-

inal 24” x 24” and 24” x 48”; and in two types: a

standard replaceable unit and a room side replace-

able (RSR) unit. Module efficiencies are 99.99% on

0.3 micron particles or 99.9995% on 0.12 micron

particles.

Options

• Nominal 10” or 12” duct collars for conditioned air

• UL Class 1 dimple pleat HEPA filter

• 25-30% efficient pleated prefilter

• Power cord for 115V modules

• 220V 50/60 Hz fan motor

• 277V 60 Hz fan motor

• Integral dual polarity DC air ionizing bar

• Neoprene Gasketed RSR filter pack

• Power indicator light

Application and Installation Considerations

Pureflo-FPM modules are recommended for use in

clean- room applications for fabrication of micro-

electronics, semiconductors, and medical devices.

The filters in standard modules are table-top

replaceable with the entire unit removed from the

ceiling. The filters in room side replaceable (RSR)

modules have an integral extruded channel filled

with cleanroom quality sealing gel. The filters are

clamped into the fan plenum against a continuous

knife edge that is embedded into the gel for a

leakproof seal. Removal of the filter does not dis-

turb the enclosure. Neoprene gasketed filters are

available as an option. Modules include threaded

inserts with 1/4” eyebolts at each top corner for the

attachment of seismic restraint wires. Polyfoam

gasket material should be applied to the tee-bar

surfaces on which the modules rest.

Performance

Pureflo-FPM modules produce HEPA or ULPA fil-

tered air at a velocity of 90 fpm + 15 fpm six inches

below the filter face. When using the solid state

speed control, the sound level 30 inch from the fil-

ter face is approximately 53 dbA (nc45) at a 90 fpm

average face velocity and an ambient sound level

of 25 dbA.

Construction

HEPA filter: Separatorless minipleat with water-

resistant microfine fiberglass media 2.1” (53 mm)

on STD models, and 2.76” (70 mm) on RSR

models.

Fan Housing: Mil finish .063” aluminum

Protective Grille: Expanded 20 ga. steel, white pow-

der-coated

Prefilter: Washable 20 ppi foam (pleated prefilter

optional)

Integral Fan/Motor Assembly: Backward-curved fan

with sealed bearings, direct-driven by a 115 volt

single phase 1/3 HP PSC continuous duty ther-

mally protected motor.

Speed Control: Asolid state speed control is also

standard on all voltages

Important Features

• Extremely quiet fan/motor assembly

• HEPA/ULPA filters are replaceable

• Filters are scan-tested after assembly to meet or

exceed IEST RP-1 requirements for Type C and F fil-

ters

• Minipleat separatorless filter pack for a lightweight

and low profile design

• UL listed as a complete unit

the filter and hvac store

100

Standard Replaceable Module Room Side Replaceable Module

PF-FPM-493-2424-RSR PF-FPM-493-2424-STD 99.99 23.87 23.63 360 1.68 659 0.86

PF-FPM-493-2448-RSR PF-FPM-493-2448-STD 0.3 Fm47.87 47.63 720 2.04 800 0.72

PF-FPM-591-2424-RSR PF-FPM-591-2424-STD 99.9995 23.87 23.63 360 1.89 742 0.76

PF-FPM-591-2448-RSR PF-FPM-591-2448-STD 0.12Fm47.87 47.63 720 2.11 828 0.57

Standard

Replaceable

Module

Model Number

Room Side

Replaceable

Module

Model Number

Particle

Size

Efficiency,

Length in

inches Nominal

Air Qty.,

Cfm

(Note 1)

Typical

115V

Running

Amps

Sensible

Heat

Output,

BtuH

Max. Avail.

Static Press.

for Prefilter,

inch w.g.

(Note 4)

Module

Top

Module

Bottom

Performance Data Notes:

1.Nominal air quantity based on 90 fpm velocity and the module’s gross face area.

2.All fan motors are 1/3 hp single phase; 1570 rpm at 115, 230 and 227V 60Hz, and 1310 rpm at 230V

50Hz. Full load amps: 2.4 at 115V; .94 at 230V and 277V, 60Hz.

3.Based at 80% of nominal air quantity.

4. Weights: 24x48: Std.= 66 lbs, RSR = 92 lbs.

1.0 General

1.1 Fan-Powered Terminal HEPA/ULPA Filter

Modules shall be Pureflo-FPM as manufactured

by Flanders.

1.2 Modules shall be UL listed as a complete unit.

1.3 Module sizes, electrical characteristics, efficien-

cies, capacities, and options shall be as scheduled

on the drawings.

2.0 Module Construction

2.1 Filters shall be the separatorless minipleat type

scan-tested after assembly to meet IEST RP-1

requirements. The filter’s protective grille shall be

expanded 20 ga. steel white powdercoat painted.

2.2 Filters for STD models shall be 2.1” (53 mm), and

shall be sealed into an anodized aluminum frame.

Filters for RSR models shall be 2.76” (70 mm) and

shall incorporate an extruded aluminum frame

with a gel and knife edge seal design

2.3 Fan housing shall be mill finish .063” aluminum.

2.4 The integral fan/motor assembly shall consist of a

backward-curved centrifugal fan with sealed bear-

ings, direct-driven by a single phase 1/3 hp PSC

continuous duty thermally protected motor.

2.5 Motor speed shall be controlled by a solid state

speed controller.

3.0 Performance

3.1 Modules shall produce HEPA or ULPA filtered air

at a velocity of 90 fpm + 15 fpm 6” below the filter

face.

3.2 Using the solid state speed control, the sound

level 30” from the filter face shall be approximate-

ly 53 dbA at 90 fpm average face velocity and less

than 25 dbA ambient sound level.

Guide Specifications

the filter and hvac store

101

FCP Carbon Pleat

Activated Carbon Adsorbers

Models FCP*xxxxx

(Where * indicates carbon type model of

201, 202, 204, 301,302, 304. See price book.)

This table illustrates

the differences in

overall capacity of

three carbon prod-

ucts.

Capacity to

Product 75% Breakthrough

Carbon Slurry 1.6 grams

FCP 200 Series 25 grams

FCP 300 Series 63 grams

FCP Series – Activated Carbon Filled

Nonwoven Media Adsorbers

The Flanders FCP Series adsorbers are designed

for removal of malodorous compounds at low con-

centration levels. Utilizing the latest technology in

fine mesh activated carbon, the product provides

high removal efficiency of nuisance odors.

Product Design

FCP Series filters are pleated activated carbon

filled nonwoven media sealed within a moisture

resistant beverage board frame. The uniqueness of

the product is the filter media. The polyester media

is filled with fine mesh activated carbon through the

depth of the media. The ultrapure carbon is ther-

mally bonded to the polyester fibers providing supe-

rior product design and offering the following

advantages.

• Maximum Carbon Surface Area

- Optimizes Efficiency and Available Capacity

• Exceptional Adhesion of Granules

- Precludes Carbon Dusting

• Consistent Carbon Distribution

- Reduces Channeling

• Minimizes Pressure Loss

FCP Performance

The FCP products offer exceptional performance in

efficiency and capacity compared with products

manufactured from carbon slurry media or car-

bon/polyester pads. Figure 1 on the reverse side

illustrates that the FCP efficiency is at least 30%

better than a carbon slurry pleat. The minimum

capacity is six times greater as shown in the table

below.

Options

The FCP Series is available in standard capacity

and high capacity models in 2” and 4” depths.

200 Series - Standard Capacity

The filter media has a carbon mass loading of 7 oz.

per sq. yd. of material.

300 Series - High Capacity

The filter media has a carbon mass loading of 14

oz. per sq. yd. of material.

The FCP Series is available with three contaminant

specific activated carbon products.

201 or 301 - Removal of VOC’s

202 or 302 - Removal of Acid Gases

204 or 304 - Removal of Alkaline

Gases

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

the filter and hvac store

102

FCP Selection

Media Rated Flow Initial

Model Number Nominal Size Actual Size Area (cfm) Resistance

(inches) (inches) (sq. ft.) (inch w.g.)

FCP201-24242 24 x 24 x 2 23-3/8 x 23-3/8 x 1-3/4 20 2000 .55

FCP201-12242 12 x 24 x 2 11-3/8 x 23-3/8 x 1-3/4 10 1000 .55

FCP301-24242 24 x 24 x 2 23-3/8 x 23-3/8 x 1-3/4 20 2000 .65

FCP301-12242 12 x 24 x 2 11-3/8 x 23-3/8 x 1-3/4 10 1000 .65

FCP201-24244 24 x 24 x 4 23-3/8 x 23-3/8 x 3-3/4 44 2000 .40

FCP201-12244 12 x 24 x 4 11-3/8 x 23-3/8 x 3-3/4 21 1000 .40

FCP301-24244 24 x 24 x 4 23-3/8 x 23-3/8 x 3-3/4 44 2000 .50

FCP301-12244 12 x 24 x 4 11-3/8 x 23-3/8 x 3-3/4 21 1000 .50

Guide Specifications

1.0 General

1.1 Activated carbon filters shall be FCP Carbon

adsorbers as manufactured by Flanders.

1.2 Model numbers, sizes and capacities shall be as

specified on the drawings.

2.0 Construction

2.1 Filters shall be constructed of a carbon filled

polyester nonwoven media. Carbon granules

shall be thermally bonded to polyester fibers to

prevent release of carbon particulate into the air

stream.

2.2 The carbon granules shall be 30 x 50 US Mesh

with a carbon tetrachloride rating of 90%.

2.3 The carbon media shall be pleated without the

use of a support structure and sealed within a 22

point moisture resistant beverage board frame.

3.0 Performance

3.1 The pressure drop and carbon content shall be

as specified on the drawings.

3.2 The filter shall be capable of removing toluene at

an efficiency of 90% at inlet concentration of 10

ppm and a filter face velocity of 500 fpm

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

Performance values stated may be averages typical of the products listed.

Contact factory for actual performance test reports on specific products.

the filter and hvac store

103

Improves IAQ through odor abatement

and better particulate air filtration

Many strong odors in living spaces come from

materials that are either strong acids or strong

bases. For example, sauerkraut smells up the

house because it is highly acidic. And the “ammo-

nia” smell of urine is highly alkaline...a strong base.

The Flanders PH Odor Control Pleat is specifically

designed to bring both types of odor

molecules...acid or base...into a more neutral, PH

balanced, odor free state.

The secret of this filter’s odor effectiveness is sodi-

um bicarbonate. It is basically an industrial version

of the baking soda you put in the fridge to remove

odors. The media fibers of the PH Odor Control

Pleat are coated with this material.

And it is sodium bicarbonate’s natural ability to neu-

tralize both acids and bases...balance their

PH...that makes the PH Odor Control filter effective

as a wide spectrum odor neutralizer.

Bonus...better particulate filtration

Fractional efficiency tests on the sodium bicarbon-

ate treated filter medium showed it to perform bet-

ter on particulates as well as on acid and alkaline

odors. Treatment caused no change in pressure

drop.

Examples of applications that might benefit from

such a filter include family residences, hotel rooms,

nursing facilities, athletic clubs and other areas with

odors that come from strong acids or strong bases.

Construction

Cotton and polyester pleat media is prepared by

immersion in a special sodium bicarbonate slurry,

then dried. Media is adhered to galvanized

expanded metal and deep pleated. Pleated pack is

encased and sealed within a moisture resistant

kraft board frame. This filter is offered in 1”, 2” and

4” depths in all of the most popular face sizes, plus

special sizes.

PH Odor Control

Gas Phase Odor Control Air Filters

Models 82255.xxxxxx

Key Features

• Removes both acid and base type odors

• Works by reaching PH balance

• Tested technology

• With sodium bicarbonate (baking soda)

• Odor removal PLUS better particulate

filtration

• Works on pet odor, cooking odor, body odor

and more

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

the filter and hvac store

104

Sensory testing

Body Odor

Odor level testing was conducted in jars set up spe-

cially for headspace odor

testing. Sensory evalua-

tion was run 20 hours

after the jars had been

set up to allow for ade-

quate equilibration. 20

panelists participated in

headspace odor level

testing. The malodor in

the headspace was iso-

valeric acid vapor

(Synthetic Sweat Odor)

that had passed through the filter material.

Untreated filter media was tested vs filter media

treated with baking soda. The chart shows the

average odor levels reported by panelists. A 1 to 10

scale was used, where 1 is no malodor and 10 is

extreme malodor. The difference in scores was sta-

tistically significant at the 99% confidence level.

Strong Food Odor

Deodorization testing was run in sensory rooms. In

each room, a malodor source consisting of 100

grams of sauerkraut was placed behind a 20”x20”

box fan which recirculated the air. Attached to the

outlet of each fan was a

20”x20” filter. A filter

treated with baking soda

was attached to one and

an untreated filter

attached to the other.

The graph here illus-

trates results as rated by

20 panelists. Levels of

odor were rated on a 1 to

10 scale. Initially (after 1

hour), both rooms showed a high level of malodor.

As time passed, the room with the baking soda

treated filter generated lower odor scores. The 18

hour score is statistically significant at the 90% con-

fidence level.

Urine Odor

Cat urine was tested

using the same appara-

tus and method as the

sauerkraut test. The

odor source was a 6”x6”

carpet swatch that had

been sprayed with 0.70

grams of cat urine. The

chart at left shows the

perceived odor levels in

the rooms. The differ-

ences in score for hours

1 and 5 are statistically significant at the 90% con-

fidence level.

Media specification

The filter media shall be manufactured using fine

grain sodium bicarbonate (baking soda) at a rate of

2 grams per square foot of media. The baking soda

will be uniform through the thickness of the media.

Amajority of individual media fibers will be coated

with the fine-grained baking soda. The sodium

bicarbonate coating will be adhered to the fibers.

Proof of fiber coating and uniformity through the

media is to be given in the form of electron micro-

scopic photographs. The media will have a mini-

mum SO2 efficiency of 40% at one hour when test-

ed at the National Ambient Air Quality Standard

(NAAQS) at 1000 cfm.

051015 20 25

2.5 g Filter Tested at 0.15 ppm SO2

at 1000 cfm, 72º F, 62% RH

Fractional Penetration

024 6 8 10121416

Time (H)

0.8

0.6

0.4

0.2

0.1 1 10

100

Fractional Efficiency (%)

Fractional Efficiency vs. Particle Diameter

Particle Diameter

PH Odor Control Pleat

Standard 30% Pleat

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

the filter and hvac store

105

Model C

Disposable Carbon

Gas Phase Odor Control Filters

50% Fill,models: C50-xxxxx 75% fill,models: C75-xxxxxx

General

The Model C Disposable Carbon air filter is an

easy-to-install partial-bypass carbon type air purifi-

er for light duty IAQ applications in home and com-

mercial recirculated air systems. The filter uses

premium grade granular virgin coconut shell carbon

to remove odors by the adsorption process rather

than masking them with air fresheners. Odors are

controlled by surface adsorption on the carbon,

which has over one million square feet of surface

area per square foot of filter face area. Typical

household applications are the removal of odors

from bathrooms, cooking, smoking and entertain-

ing. Commercial applications may include restau-

rants, schools, medical offices, beauty salons,

health clubs, and offices.

Construction

Alaminated cellulose honeycomb material forms

the base structure of the filter. The honeycomb pro-

vides for the exposure of a great amount of surface

area for full utilization of the carbon. Each individual

honeycomb cell is filled with granular activated car-

bon to either the 50% or 75% level. The 75% fill fil-

ter has a longer life than the 50% fill filter, but its air-

way pressure drop is greater.

The carbon is retained within the honeycomb cells

by a non-woven nylon mesh on both sides of the fil-

ter. The honeycomb is given additional strength by

a moisture-resistant die-cut beverage board frame

(standard sizes) or U-channel beverage board

(special sizes). Each order is individually sealed in

plastic to retain the carbon efficiency prior to instal-

lation.

Service Life

It is difficult to predict the life of any carbon filter. It

is a function of the concentration level of dust and

gaseous contamination for each specific applica-

tion. Even though sensitivity varies with the individ-

ual, the human nose is still the best indicator of the

need to change a carbon filter.

Physical Data

Frame: Moisture-resistant die-cut beverage board

Honeycomb: Laminated cellulose paper

Mesh Grid: Non-woven nylon

Activated Carbon: Granular virgin coconut shell base

Important Features

• Low static pressure partial-bypass type odor

adsorber

• Premium virgin coconut shell activated carbon

•Completely disposable product

•Controls odors in many light duty applications

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

the filter and hvac store

106

1.0 General

1.1 Disposable carbon air filters shall be Model C as

manufactured by Flanders.

2.0 Filter Construction

2.1 Filters shall be constructed of laminated cellulose

paper honeycomb whose cells are partially filled

with granular virgin coconut shell base activated

carbon.

2.2 Fill level shall be 50% or 75% as specified.

2.3 Carbon shall be retained by a non-woven nylon

mesh.

2.4 Filter frame shall be die-cut or U-Channel mois-

ture-resistant beverage board.

2.5 Each order shall be sealed in plastic to retain

carbon efficiency prior to installation.

3.0 Carbon Fill

3.1 The minimum pounds of carbon per square foot of

filter face area shall be not less than:

C50-1” 0.80, C50-2” 1.75

C75-1” 1.13, C75-2” 2.50

Guide Specifications

Standard Size Capacities and Dimensions

Actual Actual Nominal cfm Carbon weight (lbs.)

Depth HxW at 300 fpm per filter

(inch) (inch) C50 C75

11-1/2 x 23-1/2 600 2.00 2.75

15-1/2 x 19-1/2 660 2.25 3.00

3/4 15-1/2 x 24-1/2 830 2.75 3.75

19-1/2 x 19-1/2 830 2.75 3.75

19-1/2 x 24-1/2 1040 3.25 4.75

23-1/2 x 23-1/2 1200 4.00 5.50

11-1/2 x 23-1/2 600 4.00 5.50

15-1/2 x 19-1/2 660 4.50 6.00

1-3/4 15-1/2 x 24-1/2 830 5.50 7.50

19-1/2 x 19-1/2 830 5.50 7.50

19-1/2 x 24-1/2 1040 6.50 9.50

23-1/2 x 23-1/2 1200 8.00 11.00

Installation

The Model C carbon filter can be

installed with, or in some cases, instead

of an existing dust filter. If the filter track

is 2” thick, it is often possible to slide in

a 1” prefilter and a 1” carbon filter.

Built-up filter banks with holding frames

are particularly easy to retrofit using

Model P fasteners. Model C carbon fil-

ters are ideal for use in the prefilter

track of the two-stage Sureseal filter

housing.

Notes:

1. Special size Model C filters are available. Contact your local representative or the factory.

2. Recommended maximum rated velocity is 500 fpm.

3. Pressure drop for clean Model C filters at 300 fpm face velocity is:

C50-1inch, .30 w.g. C50-2 inch, .25 w.g.

C75-1inch, .35 w.g. C75-2 inch, .30 w.g.

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

the filter and hvac store

107

Superflow-VC

Disposable Carbon Adsorber

Models SFVC*-xxxxxx

(Where * indicates carbon type: 201, 202,204, 205 or 209.

See Price book.)

Features and Benefits

•Total detention multi-panel design combines high adsorption effi-

ciency with low pressure drop

•Entire cell is disposable so installation is clean, quick and easy

• Installation flexibility: adsorbers are suitable for both initial and

retrofit applications and in front or side access arrangements.

•Gaseous contamination control can be applied to most HVAC air

systems

• Impregnated carbons are available for control of difficult contami-

nants: H2S, acid gases, formaldehyde, ammonia, aldehydes and

amines

General

Flanders Superflow-VC Disposable Activated

Carbon Adsorbers are designed for gaseous con-

tamination control in both new and existing HVAC

systems. Superflow-VC Adsorbers have total-

detention capability with all air passing through the

carbon beds. These adsorbers can help mitigate

Indoor Air Quality problems in buildings where the

air must be cleansed of gaseous contaminants.

They are also useful in a variety of other applica-

tions such as the protection of light industrial

processes and works of art.

Construction

Superflow-VC Adsorbers consist of eight activated

carbon-filled panels arranged in a V configuration

and sealed with non-volatile adhesive into top and

bottom injection molded ABS plastic end plates.

The sealant completely eliminates bypass within

the cell. The end plates incorporate a single head-

er to position the cell in holding frames or side

access housings.

Extruded aluminum vertical struts close off the

panel edges in front and are aerodynamically

designed to minimize airflow restriction and turbu-

lence. Vertical steel rods on the downstream side

provide rigidity and minimize twisting and racking.

The activated carbon panels are constructed of

one” (25 mm) thick moisture-resistant corrugated

kraft honeycomb grids. The honeycomb is filled

with granular activated carbon held in place by fine

mesh nylon screens glued to the grid. The screens

act as a secondary prefilter and also as an afterfil-

ter. The activated carbon media is premium HVAC

grade virgin coconut shell granules with a minimum

carbon tetrachloride (CTC) activity of 60% per

ASTM D-3467. Granules are 4 x 8 US mesh size

with a minimum apparent density of 0.49 g/mL. The

minimum hardness is 97 per ASTM D-3802 and the

minimum surface area is 1100 m2/g by the N2 BET

test method.

Physical Data

Top and bottom end plates: High strength ABS plas-

tic

Vertical struts: Aerodynamically-designed extruded

aluminum

Vertical supports: Steel rods on downstream side

Carbon panels: Eight one inch (25 mm) moisture

resistant corrugated kraft honeycomb grids filled

with granular activated carbon media contained by

fine mesh nylon screens on both air entering and

leaving sides

Panel sealant: Non-volatile type applied along the

entire periphery of the panel to eliminate air by-

pass

Activated carbon media: Virgin coconut shell base,

4 x 8 US mesh size, minimum 60% CTC activity

Operating limits: 150°F (65°C) and 95% RH, non-

condensing

the filter and hvac store

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

108

Application Considerations

Superflow-VC Adsorbers in HVAC airstreams can

remove many gaseous contaminants thus mitigat-

ing their effects on people and processes. They are

especially useful in controlling common contami-

nants that cause poor indoor air quality (IAQ) in

commercial and industrial buildings such as office

buildings and hospitals.Typical applications and

controlled contaminants are:

Airports SOx and NOx

Blueprint facilities Ammonia

Food processing Amines

Loading docks Diesel fumes

Museums Aldehydes and acid gases

Office buildings VOCs and aldehydes

Research facilities Animal odors

Light duty IAQ applications can usually be handled

by Superflow-VC units selected at 500 fpm (2.54

m/s) face velocity with a 0.030 second residence

time. Medium and heavy duty applications include

airports, engine exhaust, some industrial processes

and situations requiring impregnated carbon. For

these applications, adsorbers should be selected at

greatly reduced face velocities for a longer resi-

dence time.

Residence Time

Residence time is the period, usually a fraction of a

second, that the contaminant molecule is within the

boundaries of the media bed depth and is exposed

to adsorption capture and (for chemisorption)

chemical change. The efficiency of an adsorber is a

function of the bed residence time for a given con-

taminant and set of environmental conditions. The

longer the residence time, the greater the efficien-

cy. Residence time is computed as: (bed area

exposed to airflow x bed depth) airflow rate.

Installation

Superflow-VC Adsorbers are not position sensitive.

Airflow may be through the header side face or the

opposite side face. The cell may be turned so that

the panels are vertical or horizontal. Wherever pos-

sible, adsorbers should be installed with panels ver-

tical and air entering the header side face.

Frames and housings used for 12” (305 mm) deep

particulate filters are well-suited for Superflow-VC

adsorbers. In new construction, built up banks of

Flanders Type 9 Holding Frames and Clips or

Flanders K-Trac Framing Modules holding prefilters

and adsorbers are often chosen where 30 inches

(760 mm) of upstream service access space is

available. Flanders Sureseal Side Access Housings

are most often used for small systems and for sys-

tems where in-line service access space is limited.

Type 9 Holding Frames include gaskets on the

flange against which the adsorber header seals.

For side access housing applications, gaskets are

applied to the side of the adsorber header to

achieve an adsorber-to-adsorber and adsorber-to-

door seals.

Carbon Type and Typical Applications

(Weights are per 24 x 24 adsorber)

TS 201- Virgin coconut shell- VOC (volatile organic

compounds) Carbon weight = 25 lb/11.4 kg

TS 202- Impregnated for control of acid and malodor-

ous gas absorption Carbon weight = 29 lb/13.1 kg

TS 204- Impregnated for control of ammonia and light

organic amines adsorption Carbon weight = 28

lb/12.6 kg

TS 205- Impregnated for control of aldehydes Carbon

weight = 29 lb/13.1 kg

TS 209- Impregnated for universal adsorption of both

acid and alkaline gases and vapors Carbon weight=

32 lb/14.9 kg

Refer to Superflow-VC Drawing for construction

details.

Model Number Development

SFVC TS201 242412

Superflow Carbon Nominal

VC Type Size

SFVC-TS201-242412

Represents a Superflow VC Carbon

Adsorber with Type 201 carbon, nominal 24”

x 24” x 12” (610 mm x 610 mm x 305 mm)

with polyfoam gasket material shipped

loose.

the filter and hvac store

109

Adsorber Protection

Particulate contamination must be considered

when utilizing gas/vapor phase adsorbers. As a

minimum, a Flanders prefilter with an efficiency of

25-30% per ASHRAE Std. 52.1 should be installed

on the upstream side of the Superflow-VC adsorber

in order to extend the service life by significantly

reducing dirt build-up. Even higher efficiency pre-

filtration should be considered when system design

allows for additional space and static pressure.

Packaging

Each Superflow-VC Adsorber is individually sealed

in a polyethylene bag prior to placement in a heavy

duty shipping carton. The bag protects the adsorber

from being expended prematurely and also facili-

tates clean and easy jobsite changeouts. The spent

adsorber can be placed in the plastic bag and then

in the carton for disposal.

Disposal

Routine disposal is usually permitted if spent adsor-

bers with Superflow-VC 201 media have been used

for normal IAQ applications. Spent adsorbers filled

with impregnated carbon and those used in indus-

trial applications may need special handling. Local

environmental authorities should be consulted prior

to disposal.

Physical Data:

Top and bottom end plates: High strength ABS

plastic

Vertical Struts: Aerodynamically designed

extruded aluminum

Vertical Supports: Steel rods on the

downstream side

Carbon Panels: Eight 1” (25 mm) moisture-

resistant corrugated kraft honeycomb grids filled

with granular carbon media contained by fine

mesh nylon screen

Panel Sealant: Non-volatile type, applied along

the entire panel periphery

Activated Carbon Media: Virgin coconut shell

base, 4 x 8 US mesh size, minimum 60% CTC

activity

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

the filter and hvac store

110 110

Adsorber

Model Number

(See Note 1)

SFVC-242412

SFVC-122412

Nominal Size

H x W x D mm.

(See Note 2)

610 x 610 x 305

305 x 610 x 305

Adsorber

Model Number

(See Note 1)

SFVC-242412

SFVC-122412

Nominal Size

H x W x D

inch

(See Note 2)

24 x 24 x 12

cfm

500

250

0.10

Res

0.11

cfm

1000

500

0.20

Res

0.050

cfm

1500

750

0.33

Res

0.040

cfm

2000

1000

0.50

Res

0.030

Superflow-VC Performance Data

Cell

Weight

ADSORBER FACE VELOCITY, fpm

ADSORBER FACE VELOCITY, m/s

125 250 375 500

0.64 1.27 1.90 2.54

m3/s

0.24

0.12

0.02

Res

0.11

m3/s

0.47

0.24

0.05

Res

0.050

m3/s

0.71

0.35

0.08

Res

0.040

m3/s

0.94

0.47

0.12

Res

0.033

Notes:

1. *Insert Superflow-VC carbon type model number.

2. Actual size of adsorber header is 0.625” (16 mm)

under on face height and width; actual adsorber

depth is 11.5” (290 mm).

3. “PD” represents clean pressure drop in inch w.g.

or kPa.

4. “Res” represents residence time in seconds.

Adsorber

Size

Designator

242412

122412

Superflow-VC Carbon Weight Per Cell

Superflow-VC Carbon Type

201 202 204 205 209

lb kg lb kg lb kg lb kg lb kg

11.4

5.9

13.1

6.3

12.6

6.3

13.1

6.3

14.9

7.2

Cell

Weight

15.5

7.7

1.0 Products

1.1 Activated carbon adsorbers shall be total-deten-

tion type Superflow-VC models as manufactured

by Flanders.

1.2 Model numbers and capacities of the adsorbers,

particulate prefilters and holding frames or hous-

ings shall be as specified or as shown on the

drawings.

2.0 Construction

2.1 Adsorbers shall be constructed of multiple car-

bon-filled panels arranged in a V configuration.

Panels shall be 1” (25 mm) thick moisture-resist-

ant corrugated kraft honeycomb sealed to top

and bottom end plates with non-volatile adhe-

sive.

2.2 Panels shall be completely filled with 4 x 8 US

mesh size activated carbon held in place by

nylon screens.

2.3 Top and bottom end plates shall be injection-

molded high strength ABS plastic with integral

headers.

2.4 The cell shall be assembled with aerodynamical-

ly designed vertical front struts and vertical steel

rod supports on the downstream side.

2.5 Each adsorber shall be sealed in a polyethylene

bag before being placed in its shipping carton.

3.0 Performance

3.1 Activated carbon media shall be virgin coconut

shell base, minimum 60% CTC activity by the

ASTM D-3467 test method, minimum apparent

density of 0.49 g/mL, minimum hardness of 97 by

the ASTM D-3802 method and a minimum sur-

face area of 1100m2/g by the N2 BET method.

3.2 The SFVC201-242412 model shall contain no

less than 25 lb (11.4 kg) of activated carbon. At

2000 cfm (0.94 m3/s) it shall have an airway

resistance no greater than 0.50 inch w.g. (0.12

kPa) and a residence time no less than 0.030

seconds.

Guide Specifications

the filter and hvac store

111

Vaporclean

Vapor Phase Air Filter

Models VC-xxxx-xx-xx-xxxx-xx

See price book

Important Features

•Maximized carbon surface area

• Increased efficiency and capacity

• Low initial static pressure

•Consistent carbon distribution

Vaporclean

The Flanders Vaporclean vapor phase adsorbers

are designed for removal of molecular contami-

nants at low concentration levels while utilizing the

proven technology of dry processed carbon com-

posite media, (DPCC). The adsorbers provide high

efficiency removal of multiple contaminants for

applications within museums, archive storage facil-

ities, airports and semiconductor fabrication facili-

ties.

Technical Description

The carbon media is manufactured with a dry

processed carbon composite of ultrafine 30 x 50

mesh activated carbon with a minimum carbon

tetrachloride activity of 90% per ASTM D-3467. The

high efficiency carbon granules are thermally bond-

ed to polyester nonwoven bicomponent fibers. The

pleated media pack is contained within a 24 ga gal-

vanized steel casing and bonded with a polymide

hot melt adhesive to maintain rigidity and eliminate

air bypass. Pleat spacing and alignment is main-

tained with high impact polystyrene plastic separa-

tors installed on both air entering and leaving sides.

Product Options

The Vaporclean adsorbers are available with five

contaminant specific dry processed carbon com-

posites.

DPCC

Grade Application

1501 Effective removal of gas mixtures

consisting of aldehyde, acid gases

and hydrocarbons.

1076 Effective removal of

ozone,hydrocarbons & volatile organic

compounds.

1073 Effective removal of acid gases such

as SO2 and NO2.

1075 Effective removal of hydrogen sulfide,

H2S.

1090 Effective removal of alkaline gases

such as ammonia and other light

organic ammine compounds.

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

the filter and hvac store

112

Sample Model Number

VC 1501 16 01 2424 GD

Vaporclean Media type 24 ga Frame Style Size Gasket

Vaporclean Performance

The pressure drop of the Vaporclean is 0.35 inch w.g. at a face velocity of 500 fpm.

The initial efficiency of the adsorber under the following conditions shall be met.

Contaminant Matching

Match the Vaporclean media type to the

contaminant of concern.

Hydrocarbons

HCOH Formaldehyde

AG Acid

Gases

NH3

Ammonia

O3 Ozone

Application Media

Animal Odors1090

Diesel Exhaust 1501

Cooking Odors 1501

Museums 1073

Sewer Odors1075

NOTE:

1. The 16-01 indicates a header style filter and 16-00 indicates a box style filter. Other frame materials, frame

styles and sizes are available. Consult the factory.

2.Maximum operating temperature is 120°F.

3. Frame Style: 01 for Single Header or 00 for Box Style

4. Gasket: 00 for not gasket or GU for gasket upstream or GD for gasket downstream

Represents a Vaporclean, 24 ga galvanized steel frame, single header style, gasketed

downstream, with 1501 media. Actual filter size is 23-3/8 x 23-3/8 x 11-1/2”

VC-1501-16-01-2424-GD

Contaminant Challenge Efficiency Capacity @

Concentration 50% Efficiency

Toluene 25 ppm >90% 560 grams

SO2 30 ppm >90% 60 grams

NO2 5 ppm >70% 100 grams

Formaldehyde 500 ppb >80% 4 grams

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

the filter and hvac store

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL 113

General

HMZD carbon panels are available from 3/8” to 3”

depths, and are easily installed in any existing side

or front access housing without the usual clean up

caused by carbon dusting. Bonded panels do not

need to be refilled, thus eliminating the labor asso-

ciated with transporting trays. A high initial efficien-

cy can be maintained with replacement panels

which are composed of 100% virgin carbon as

opposed to reactivated carbon.

Providing Clean Air

Indoor air quality problems found within museums,

schools, airports, semiconductor manufacturing

plants, waste water treatment facilities and hospi-

tals can be solved by using HMZD carbon panels.

They offer a carbon solution for the removal of most

specific contaminants.

Carbon Selection

HMZD carbon panels can be manufactured from

virgin carbon, where contaminant removal is

accomplished by physical adsorption or from

impregnated virgin carbon where contaminant

removal by chemical mechanisms are required.

HMZD Carbon Types and Applications:

• 201- Impregnate is virgin coconut shell carbon

for general removal of VOC’s

• 202- Caustic impregnated for removal of acid

gases

• 204- Acid impregnated for removal of alkaline

gases

• 205- Chromate impregnated for removal of

amines

• 209- Universal impregnate for removal of acid

and alkaline gases.

Carbon Usages

Activated carbon is highly effective on many

gas phase contaminants:

HMZD

High Mass and Zero Dust Bonded Carbon Panels

Models HMZD-*-xxxxxxx-xx

(Where * represents carbon type: 201, 202, 204, 205, 209,225 See

price book for complete model designation)

• Adhesives

• Alcohols

• Animal odors

• Asphalt fumes

• Auto exhaust

• Body odors

• Charred Materials

• Sour milks

• Turpentine

• Waste products

• Cleaning odors

• Cosmetics

• Jet engine exhaust

• Fertilizers

• Fish odors

• Kitchen odors

• Stale odors

• Vinegar

• Liquor odors

• Mold

• Moth balls

• Onion odors

• Ozone

• Paint fumes

• Sewer odors

• Tobacco smoke

• Vinyl chloride

• Many process gases

the filter and hvac store

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

114

Pressure Drop

HMZD Panels can be incorporated into V

shaped configurations with minimal pressure

drop and impact on the system.

Please note that the breakthrough test was

based on continuous 100 ppm Hexane chal-

lenge concentration. Testing conducted at an

independent lab on virgin coconut shell car-

bon.

Efficiency

HMZD panels perform better than

loose filled systems due to increased

density of carbon and elimination of

air bypass

Carbon Selection

In general, contaminants with a

boiling point greater than 100 C

can be effectively removed with

carbon type 201.

Contaminants with a boiling

point below 100 C require other

available types of impregnated

carbon such as type 202, 204,

205, 209.

the filter and hvac store

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL 115

Clean Air is Only a Block Away

Flanders, through innovative technology, has

resolved the problems associated with loose filled

activated carbon trays by introducing HMZD bond-

ed carbon panels.

HMZD stands for High Mass and Zero Dust. High

Mass refers to the greater density of activated car-

bon installed in each panel, and Zero Dust means

the filters will not release carbon dust into the air

stream. The panels are fabricated from 100% vir-

gin coconut shell activated carbon with a minimum

60% CTC activity. The premium grade carbon is

bonded together during a sintering process to form

a rigid block and framed to provide clean air.

HMZD bonded panels are replaced right at the air

handling unit with the same quality 100% virgin car-

bon as the initial installation. Standard loose filled

tray systems are typically replaced with regenerat-

ed carbon minimizing adsorption performance.

Cleaning the Air

The uniform air velocity through the bed eliminates

high velocity zones and bed fluidization. Bed flu-

idization is a major cause of continuous dusting in

loose granular system designs. HMZD bonded pan-

els are non-dusting, therefore eliminating the need

for downstream after filters.

Superior Performance

HMZD panels provide superior adsorption perform-

ance because there is no settling within the carbon

bed. The carbon granules are bonded together to

provide a uniform density of sorbent media across

the panel eliminating air bypass and stratification

zones for high efficiency and extended service life.

The panel design creates uniform air flow distribu-

tion and uniform residence time ensuring maximum

removal efficiencies.

the filter and hvac store

116

Guide Specifications

1.0 General

1.1 Molecular contamination control filters shall be

Flanders High Mass and Zero Dust (HMZD) bond-

ed carbonpanels. Panels shall be self-supported

bonded granular carbon and be sized to fit into the

selected Flanders Pureseal front or side access

housing as well as competitive carbon systems.

Model numbers shall be as per schedule for appli-

cation specific requirements.

2.0 References

2.1 ASTM test method D 3467-88, Standard Method

for Carbon Tetrachloride Activated, American

Society for Testing and Materials, Philadelphia,

1988.

3.0 Construction

3.1 The granular carbon shall be bonded together in

abriquette form so that the panel contains no

loose carbon; loose filled tray type systems are

not permitted.

3.2 Panels shall be covered on both sides with a

white spun bonded polyester scrim and framed in

agalvanized (or stainless steel) channel; plastic

frames are not permitted. A black poly-butyl (or

silicone) gasket shall be affixed to one side of the

panel frame for front access designs.

3.3 The bonded carbon configuration shall not settle,

shall not particulate and shall not allow channeling

through the bed.

3.4 The bonded panels shall be self-supporting and

when installed in the housing shall provide a con-

tinuous seal around its periphery.

4.0 Packaging

4.1 The panels shall be individually sealed into a

polyethylene bag prior to being boxed. Filters

shall be stacked on pallets and stretch wrapped.

5.0 Carbon Material

5.1 The panels shall be composed of virgin coconut

shell granular activated carbon with a minimum

carbon tetrachloride (CTC) activity of 60% per

ASTM D-3437. The granular carbon shall be 4x8

US mesh size with an apparent density of 0.49

g/ml minimum. The minimum hardness shall be

97 per ASTM D 3802. The minimum surface area

shall be 1100 m2/g (N2BET Method) and the

moisture content shall not exceed 5%.

5.2 The carbon shall be Flanders Tech Sorb TS (car-

bon type model number) as designed for the

removal of (contaminant). The contaminant

removal capacity shall be (x%) by weight as (chal-

lenge).

Tech Sorb # Capacity Challenge

201 24% butane

202 20% hydrogen sulfide

204 10% ammonia

205 5% formaldehyde

209 12% hydrogen sulfide

The mass of carbon in the filter shall be (x)grams/ft2

Tech Sorb # 1“ 3/4” 5/8” 7/16”

201 2.6 1.9 1.6 1.1

202 2.9 2.2 1.8 1.3

204 3.7 2.8 2.3 1.6

205 3.0 2.2 1.9 1.3

209 2.8 2.1 1.8 1.2

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

the filter and hvac store

117

Techsorb

Chemical Media for

Gaseous Contaminant Removal

Models TS-*-B1

(Where * indicates chemical media designator. See price book.)

General Applications

Techsorb chemical media is specifically formulated

to control application specific nuisance and harmful

vapors. It is supplied in bulk form and may be

incorporated into Flanders gas phase media trays.

Considering the wide range of applications and that

contaminants are rarely singular in nature, Flanders

will provide application assistance that may be

required. When dealing with gaseous contamina-

tion control, particulate control or contaminant cap-

ture effectiveness, Flanders has a proven track

record to support your requirements.

Shelf Life

Techsorb chemical media is a very active material

that readily reacts with many airborne constituents.

Therefore, only the containers actually required for

the application should be opened. As shipped in

sealed containers, Techsorb has a shelf life of 18-

24 months.

Media Types and Applications

Techsorb TS-101 is a dry, activated alumina medi-

um, designed to be used in applications for the

removal of gaseous vapors such as hydrogen sul-

fide, mercaptans, sulfur dioxide and other malodor-

ous and corrosive contaminants.

Techsorb TS-101 has been used extensively in

applications ranging from Indoor Air Quality to

Corrosion Control and from Toxic Contaminants

Control to Industrial Odor Control. Within this broad

range of applications, it has been used to control

formaldehyde odors in autopsy wards and funeral

homes; odors from convalescent facilities, allowing

the reuse of ventilation air; in shopping malls to

prevent the cross contamination of food odors and

clothing shops; industrial computer rooms for the

prevention of electronics corrosion due to the high-

ly reactive sulfides; in pharmaceutical facilities and

pet stores for the control of fugitive odor emissions.

Techsorb TS-201 is a dry, granular, activated car-

bon chemical medium, designed to be used in air

filter service for the removal of gaseous vapors

such as volatile organic compounds (VOC’s).

Typical VOCs controlled include benzene, ethyl-

benzene, toluene and xylene. Other organics con-

trolled include organo-sulfides such as dimethyl

sulfide and methyl mercaptan in pulp and paper mill

communities.

Techsorb TS-201 has been used extensively in

applications ranging from Indoor Air Quality to

Industrial Odor Control. The primary application is

for the control of volatile organic gases found in

indoor environments associated with renovation

activities, new materials of construction and parti-

cleboard furnishings. This material is also ideal for

controlling odors associated with cleaning solvents,

hobby materials and automobile exhaust fumes.

Electronic office equipment odors such as ozone

and VOC’s are readily removed using TS-201

chemical media.

Techsorb TS-202 is a dry, granular, activated car-

bon chemical medium, designed to be used in air

filter service for the removal of acid gases and

vapors such as hydrogen sulfide, mercaptans, sul-

fur dioxide and other malodorous and corrosive

contaminants such as HCI and CIO2.

Techsorb TS-202 has been used extensively in

applications ranging from Corrosion Control to

Industrial Odor Control. The primary application is

for the control of corrosive gases within heavy

industries such as Pulp and Paper, Sewage

Treatment, Primary Metals, Chemical manufactur-

ing as well as oil and gas processing. Additionally,

it is used in Sewage Treatment and rendering

Facilities for the control of malodorous exhaust

emissions, either alone or as a polishing filter sys-

tem to wet scrubbers.

Techsorb TS-204 is a dry, granular, activated car-

bon chemical medium, designed to be used in air

filter service for the removal of alkaline gases and

vapors such as ammonia and light organic amines.

Applications include odor control associated with

animal storage areas and process protection within

the semiconductor industry.

(Continued on following page.)

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

the filter and hvac store

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

118

Notes

1. Contaminant removal capacity is determined by passing a moist (85% r.h.) stream of air containing 1%

by volume challenge gas through a one-inch diameter tube with a 9-inch deep bed of closely packed pel-

lets at a rate of 1450 cc/minute and monitoring a 50 ppm breakthrough. The results are reported as

grams of challenge gas adsorbed per gram of media.

2. Particle Size is 4x8, U.S. Mesh, ASTM D-2862

Media Contaminant Removal Contaminant Bulk Density

Designator Capacity (Note 1) (lbs/ft3)

TS-101 10% H2S 50

TS-201 60-70% toluene 30

TS-202 18-23% H2S 35

TS-204 10% ammonia 34

TS-205 5-10% formaldehyde 36

TS-209 12-18% H2S 34

TECHSORB TS-204 has been used extensively in

applications ranging from Odor Control to Process

Protection. The primary applications are for odor

control associated with ammonia and low molecular

weight amines typical of animal confined space

areas, decaying fish, sugar beet processing,

ammonia cleaning solutions and blue printing.

Process protection applications within the semicon-

ductor industry include removal of fugitive amines

that are known to alter the photolithography

process.

Techsorb TS-205 is a dry, granular, activated car-

bon chemical medium, designed to be used in air

filter service for the removal of gaseous vapors

such as formaldehyde, acrolein, acetaldehyde and

glutaraldehyde.

TECHSORB TS-205 has been used extensively in

Odor Control applications. The primary applications

are for odor and contamination control associated

with aldehydes and acrolein. Formaldehyde is a

suspected human carcinogen. It is often found as a

by-product of formaldehyde resins in particleboard

furniture, a decomposition product of poorly mixed

urea formaldehyde foam insulation and as a volatile

ingredient in permanent press clothing, drapery and

carpeting. Acrolein is a by-product of combustion

processes such a cooking. Acetaldehyde is a con-

stituent of vehicle emissions. Glutaraldehyde is

used as a sterilizing agent for medical instruments

that are not readily autoclaved.

Techsorb TS-209 is a dry, granular, activated car-

bon chemical medium, designed to be used in air

filter service for the removal of gaseous vapors.

TECHSORB TS-209 has been used extensively in

applications associated with mixed contaminants,

such as those found in the semiconductor industry.

It has been found effective for the control of con-

densable organics, chlorine, hydrogen sulfide,

hydrogen cyanide, sulfur dioxide and ammonia.

the filter and hvac store

General

Flanders Type 9 Holding Frames are used to con-

struct built-up filter banks for upstream or down-

stream access using ASHRAE rated filters. Type 9

frames will accommodate 1”, 2” or 4” panel filters

including metal washable filters. They are also suit-

able for bag filters, self-supporting rigid filters and

disposable type carbon elements. A filter-to-frame

seal is effected by a factory-installed gasket and

positive-sealing fasteners.

Options

The standard frame is nominal 3” deep and con-

structed of 16 ga. galvanized steel. Type 304

stainless steel is an available option. Frames are

also available in nominal 2”, 4”, and 6” depth.

Actual depth is 1/8” under nominal size.

Installation Consideration

Type 9 Frames can be assembled with pop rivets or

nuts and bolts. Prior to assembly, all sides should

be caulked with a non-hardening compound to pre-

vent air bypass. Filter banks three frames high or

higher should be strengthened with 3” wide 16 ga.

stiffeners between each vertical row.

Fasteners

Flanders offers several types of fasteners for use

with Type 9 Frames. Refer to the Fastener

Selection Chart on the reverse side of this sheet to

select the appropriate fastener.

Guide Specifications

1.0 Filter holding frames shall be Type 9 as manufac-

tured by Flanders.

1.1 Frames shall be manufactured of 16 ga. galva-

nized steel and furnished with factory-installed

gasketing.

1.2 In-line depth shall be 3” in order to effect a rigid

and secure filter bank assembly. Filter fasteners

shall be selected to meet the requirements of the

specified filters. Fasteners shall not require the

use of tools to secure the filter.

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL 119

Type 9

Filter Holding Frames and Fasteners

Models 9HF-xxxxx

9HF-12243R

9HF-16203R

9HF-16253R

9HF-20203R

9HF-20243R

9HF-20253R

9HF-24243R

2-7/8

Model

Number HWD

Dimensions, Inches

Note: 1. Tolerances are +0 inch and -1/16 inch

2. Special sizes are available upon request

Standard 3 inch Holding Frames

the filter and hvac store

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

120

Fastener Selection Chart

Model P Fastener

Model C-2 and C-4 Fastener

Model C-12 Spring Loaded Fastener

Model Length Upstream Downstream

Number (inch) Filter Usage Service Service

P-1 1 1” panel filter, Precision Pak, PrecisionCell, or Rigid-Air 2 4

P-2 2 2” panel filter 2 4

P-3 3 2” panel prefilter with Precision Pak, PrecisionCell, or Rigid-Air 2 Not Recommended

P-4 4 4” panel filter, PrecisionCell II 2 4

P-5 5 4” panel prefilter with Precision Pak bag,PrecisionCell, or Rigid-Air 2 Not Recommended

P-6 6 6” PrecisionCell or Rigid-Air 2 4

P-12 12 12” PrecisionCell, or Rigid-Air 2 4

C-2 2 2” panel prefilter with PrecisionCell or Rigid-Air 4 Not Used

C-4 4 4” panel prefilter with PrecisionCell or Rigid-Air 4 Not Used

C-12 12 12” PrecisionCell or Rigid-Air 2

Number Per Frame

the filter and hvac store

121

General

Uni-Frames are designed for retaining air filter

media pads in applications that require additional

media support.

The frame is fabricated of 26 gauge corrosion-

resistant steel channel with each corner of the

frame mitered for squareness. Filter pads are sup-

ported on the downstream side with a corrosion-

resistant steel expanded metal lathe grid. The

expanded metal lathe backing is spot welded to the

air exit side to prevent vibration. Retainer bars for

the upstream side are available as an option.

Installation

Typical applications include roof top units, spray

booths, residential units, unit ventilators and other

applications not suited for ordinary fiberglass

throwaway filters because of airflow velocity or

environmental considerations

Guide Specifications

1.0 General

1.1 Permanent pad holding frames shall be

Uni-Frame as manufactured by Flanders.

2.0 Construction

2.1 Frames shall be constructed of 26 ga. cor-

rosion-resistant steel.

2.2 Corners shall be mitered in order to elimi-

nate snagging of the media pad.

2.3 The media shall be supported on the down-

stream side by an expanded metal lathe back-

ing which is welded in place.

3.0 Installation

3.1 Install frames in accordance with the manu-

facturers specified recommendation.

24 x 24 x 1

20 x 25 x 1

20 x 20 x 1

16 x 25 x 1

16 x 20 x 1

23-1/2 x 23-1/2 x 7/8

19-1/2 x 24-1/2 x 7/8

19-1/2 x 19-1/2 x 7/8

15-1/2 x 24-1/2 x 7/8

15-1/2 x 19-1/2 x 7/8

Uni-Frame

Media Holding Frame

Models 80955.xxxxxx

Important Features

• 26 ga. corrosion-resistant steel construction

• Metal lathe support backing

• Mitered corners to ensure squareness and

eliminate snagging of media

Nominal Size

Actual Size (inches)

24 x 24 x 2

20 x 25 x 2

20 x 20 x 2

16 x 25 x 2

16 x 20 x 2

23-1/2 x 23-1/2 x 1-7/8

19-1/2 x 24-1/2 x 1-7/8

19-1/2 x 19-1/2 x 1-7/8

15-1/2 x 24-1/2 x 1-7/8

15-1/2 x 19-1/2 x 1-7/8

Standard Sizes

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

the filter and hvac store

122

K-Trac

Modular Filter Framing System

See model number development method on next page.

Important Features

•

Provides substantial savings in field assembly

•

Filters are tightly sealed to eliminate air bypass

•

Filters can be replaced quickly and easily

•

Modules are factory-engineered with built-in stiff-

ening

•

Construction is corrosion-resistant aluminum

General

K-Trac Filter Framing Modules are used for

ASHRAE rated filters 2” to 36” in depth. K-Trac

Modules are complete factory-designed units which

replace multiple field-erected holding frames. They

also provide inherent structural strength and leak-

proof assembly that is sometimes lacking in frame-

type installations.

K-Trac framing members are factory-cut to length,

pre-drilled and gasketed for easy and quick assem-

bly. Simple tools and light labor are all that are

required. Filters are easily inserted or removed and

require no clips or fasteners. Filters are angled into

the upper track, then set into the lower track.

Versatility

K-Trac Filter Framing Modules are available in

sizes up to a nominal 12 ft. high and 14 ft. wide for

upstream or downstream service. Modules may be

joined for larger banks. The 2” prefilter track

accepts disposable or pleated prefilters for single-

stage applications.

The primary filter track accommodates Precision

Pak bag filters, Superflow V, or Rigid-Air filters, or

other filters having nominal 1” thick headers.

Construction

K-Trac framing members are constructed of Type

6063-T5 mill-finish extruded aluminum. Clear

anodizing is available as an option. Prefilter and

primary filter tracks are factory-gasketed at the top

and bottom with polypropylene pile air seals.

Side-to-side gasketing is furnished on the filter

headers with every change. Side gaskets are com-

pressed by a positive-sealing spring-loaded com-

pression bar actuated by a sealing lever. The com-

pression bar is retracted when loading or unloading

filter elements.

Modules 8 ft. wide include one vertical support for

the upstream side. Wider modules are furnished

with vertical supports on the upstream and down-

stream sides. Sealing levers are located on the left

side of each horizontal row when facing in the

direction of air flow unless specified otherwise.

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

the filter and hvac store

123

Height CodeOverall Height (inch)Width Code

Height Overall Face 15W 20W 25W 30W 35W 40W 45W 50W 55W 60W 65W 70W

Code Height Velocity Overall Width (inch)

(in) (fpm) 36-1/26 48-1/16 59-7/16 71-7/16 82-13/16 94-13/16 106-13/16 118-13/16 129-9/16 141-9/16 152-15/16 164-15/16

10H 24-1/2 375 2250 3000 3750 4500 5250 6000 6750 75 82.5 90 9750 10500

500 3000 4000 5000 6000 7000 8000 9000 10000 11000 12000 13000 14000

625 3750 5000 6250 7500 8750 10000 11250 12500 13750 15000 16250 17500

15H 36-15/16 375 3000 4500 5250 6750 7500 9000 9750 11250 12000 13500 14250 15750

500 4000 6000 7000 9000 10000 12000 13000 15000 16000 18000 19000 21000

625 5000 7500 8750 11250 12500 15000 16250 18750 20000 22500 23750 28250

20H 48-13/16 375 4500 6000 7500 9000 10500 12000 13500 15000 16500 18000 19500 21000

500 6000 8000 10000 12000 14000 16000 18000 20000 22000 24000 26000 28000

625 7500 10000 12500 15000 17500 20000 22500 25000 27500 30000 32500 35000

25H 61-1/4 375 5250 7500 9000 11250 12750 15000 16500 18750 20250 22500 24000 26250

500 7000 10000 12000 15000 17000 20000 22000 25000 27000 30000 32000 35000

625 8750 12500 15000 18750 21250 25000 27500 31250 33750 37500 40000 43750

30H 73-1/8 375 6750 9000 11250 13500 15750 18000 20250 22500 24750 27000 29250 31500

500 9000 12000 15000 18000 21000 24000 27000 30000 33000 36000 39000 42000

625 11250 15000 18750 22500 27250 30000 33750 37500 41250 45000 48750 52500

35H 85-9/16 375 7500 10500 12750 15750 18000 21000 23250 26250 28500 31500 33750 36750

500 10000 14000 17000 21000 24000 28000 31000 35000 38000 42000 45000 48500

625 12500 17500 21250 26250 30000 35000 38750 43750 47500 52500 56250 61250

40H 97-7/16 375 9000 12000 15000 18000 21000 24000 27000 30000 33000 36000 39000 42000

500 12000 16000 20000 24000 28000 32000 36000 40000 44000 48000 52000 56000

625 15000 20000 25000 30000 35000 40000 45000 50000 55000 60000 65000 70000

45H 109-7/8 375 9750 13500 16500 20250 23250 27000 30000 33750 36750 40500 43500 47250

500 13000 18000 22000 27000 31000 36000 40000 45000 49000 54000 58000 63000

625 16250 22500 27500 33750 38750 45000 50000 56250 61250 67500 72500 78750

50H 121-3/4 375 11250 15000 18750 22500 27250 30000 33750 37500 41250 45000 48750 52500

500 15000 20000 25000 30000 35000 40000 45000 50000 55000 60000 65000 70000

625 18750 25000 31250 37500 43750 50000 56250 62500 68750 75000 81250 87500

55H 134-3/16 375 12000 16500 20250 24750 28500 33000 36750 41250 45000 49500 53250 57750

500 16000 22000 27000 33000 38000 44000 49000 55000 60000 66000 71000 77000

625 20000 27500 33750 41250 47500 55000 61250 68750 75000 82500 88750 96250

60H 146-1/16 375 13500 18000 22500 27000 31500 36000 40500 45000 49500 54000 58500 63000

500 18000 24000 30000 36000 42000 48000 54000 60000 66000 72000 78000 84000

625 22500 30000 37500 45000 52500 60000 67500 75000 82500 90000 97500 105000

Model Number Development:

KT U L20H 35W

KT-20H35W-ULX

K-Trac Width

Code

Height

Code Service

Location

Lever

Location

-- --

Special

•Height and Width Code: The first numeral represents the number of 24” x 24” filters high or wide. If 24” x

12” filters are also used in the height or width, the second numeral is “5”.

•Service Location: U (upstream) or D (downstream).

•Lever Location: L (left side) or R (right side) when facing in the direction of airflow (air directed at your

back).• For special features or sizes: Use Suffix “X” and describe them.

This example represents a K-Trac module, 2 filters high and 3-1/2 filters wide, upstream service and left side

levers. The letter X indicates that special features are required.

1. Height and Width Code: The first numeral represents the number of 24” x 24” filters high or wide. If 24” x 12” filters are also used in the

height or width, the second numeral is “5”.

2. Dimensions are based on using nominal size 24” x 24” and 24” x 12” filters. Select filters from capacity charts for Precision Pak bag filters

or single-headered PrecisionCell or Rigid-Air filters.

3. Sizes using 24” x 12” filters in both height and width require a 12” x 12” blankoff; for example, a KT- 15H35W has a 20 sq. ft. available,

not 21 sq. ft.

4. For capacities other than those shown, ratio the face velocities.

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

the filter and hvac store

124

How the K-Trac Works

•

A= 24” x 24” face size filter. C = 24” x 12” face size filter.

•

Weight does not include filters. Add approximately 6 lbs. per Precision Pak bag filter, 20 lbs. per PrecisionCell filter, 17 lbs. per

Superflow V filter, and 17 lbs. per Rigid-Air filter.

10H

15H

20H

25H

30H

35H

40H

45H

50H

55H

60H

Filters

Weight

Filters

Weight

Filters

Weight

Filters

Weight

Filters

Weight

Filters

Weight

Filters

Weight

Filters

Weight

Filters

Weight

Filters

Weight

Filters

Weight

1A-1C

1A-2C

2A-2C

2A-3C

3A-3C

3A-4C

4A-4C

4A-5C

5A-5C

5A-6C

6A-6C

2A-2C

4A-2C

6A-2C

8A-2C

10A

10A-2C

12A

2A-1C

2A-3C

4A-2C

4A-4C

6A-3C

6A-5C

8A-4C

8A-6C

10A-5C

10A-7C

12A-6C

3A-3C

6A-3C

9A-3C

12A

12A-3C

15A

15A-3C

18A

3A-1C

3A-4C

6A-2C

6A-5C

9A-3C

9A-6C

12A-4C

12A-7C

15A-5C

15A-8C

18A-6C

4A-4C

8A-4C

12A

12A-4C

16A

16A-4C

20A

20A-4C

107

24A

109

4A-1C

4A-5C

8A-2C

8A-6C

12A-3C

12A-7C

16A-4C

16A-8C

20A-5C

101

20A-9C

118

24A-6C

120

5A-5C

10A

10A-5C

15A

15A-5C

20A

20A-5C

108

25A

110

25A-5C

129

30A

131

5A-1C

5A-6C

10A-2C

10A-7C

15A-3C

15A-8C

20A-4C

20A-9C

118

25A-5C

119

25A-10C

140

30A-6C

142

6A-6C

12A

12A-6C

18A

18A-6C

102

24A

104

24A-6C

127

30A

128

30A-6C

151

36A

153

6A-1C

6A-7C

12A-2C

12A-8C

18A-3C

18A-9C

110

24A-4C

111

24A-10C

136

30A-5C

137

30A-11C

162

36A-6C

164

7A-7C

14A

14A-7C

21A

21A-7C

117

28A

119

28A-7C

145

35A

147

35A-7C

173

42A

175

Height

Code

Filters

Weight

(lbs.) 15W 20W 25W 30W 35W 40W 45W 50W 55W 60W 65W 70W

Width Code

Filter Usage and Module Weight

Installing filters and

prefilters Spring-loaded sealing

levers actuate pressure

bars on both the prefilter

and primary filter.

Filters with poly-

foam side gasket

Quick and easy assem-

bly with a ratchet

wrench

Assembled module

the filter and hvac store

125

Drawing Notes

1. Framing members of extruded aluminum are factory-cut to exact length, pre-drilled and gasketed.

2. One vertical support for the center of the upstream side will be furnished on modules nominal 8 ft. wide. Wider mod-

ules will be furnished with vertical supports on both the upstream and downstream sides.

3. Sealing levers are located at the end of each horizontal row on the left when facing the module on

the upstream side unless specified on the right or on the downstream side.

4. The largest single module is 12 ft. high by 14 ft. wide. Modules may be combined to form larger banks.

Installation of Final Filters:

1. Install gasketed filters with pleats vertical wherever possible.

2. Place sealing lever in locked position and hold filter on the downstream side of the module.

3. Insert the top of the filter into the upper narrow track until it clears the lower flange.

4. Drop the filter into the bottom narrow track. Fill the row with filters, moving them to the side opposite the sealing

lever.

5. Unlock the lever to seal the row airtight.

1.0 Framing Modules

1.1 Filter framing modules shall be K-Trac as manu-

factured by Flanders.

2.0 Construction

2.1 Extruded aluminum framing members shall be

Type 6063-T5, with an average thickness of .095”

They shall be cut to size and drilled for simple

speed screw assembly into modules of the sizes

noted in the schedules and plans.

2.2 Both prefilter and final filter tracks shall be perma-

nently gasketed to eliminate air bypass.

2.3 Where required, vertical support members shall be

furnished to support horizontal members.

2.4 The prefilter track shall be separate to allow

removal and insertion of prefilters without disturb-

ing the final filters.

2.5 Each horizontal row of prefilters and final filters

shall include factory-installed positive-sealing

bars to permit easy changeout of filters. Gasket

on filters must be compressed during operation.

2.6 Modules shall be complete with speed-screws

necessary for field assembly.

3.0 Features

3.1 Model number and capacities shall be as specified

and/or shown on the drawings.

3.2 Provide options as specified.

Guide Specifications

Precision Pak bag

filter

PrecisionCell,

Superflow V, or

Rigid-Air filter with

Single Header

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

the filter and hvac store

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

126

Perma Frame

Hard Ceiling Adaptor Frames

for Terminal Modules

Models HCFA-xxxx

General

Flanders Perma Frame is used to mount ducted or

fan-powered terminal modules in a hard ceiling

application such as sheet rock or plasterboard.

The Perma Frame is ideal for biotech facilities that

require frequent wash-down of the cleanroom as

well as isolation hospital rooms where HEPA type

filtration is frequently required.

Construction

Perma Frames are manufactured of 18 gage steel

and are welded on all exposed corners to guaran-

tee a smooth cleanable surface. They are finished

with a white powdercoat paint as standard. Pre-

drilled mounting holes are furnished on the vertical

flanges to facilitate an easy and level installation.

Model Number Development

HCFA 2448 SS

-- --

Model

Number Special

Features

Size

• Special Features: Use “SS” as a suffix for

stainless steel construction. Frames are furnished

with a white powdercoat as a

standard.

Important Features

• Heavy duty construction

• Powder coated washable surface

• Welded corners

• Requires no gasketing

the filter and hvac store

127

Guide Specifications

1.0 General

1.1 Sheet rock adaptor frame for ceiling mounted ter-

minal modules shall be Perma Frame as manu-

factured by Flanders.

2.0 Frame Construction

2.1 Frames shall be constructed of 18 gauge steel

and welded flush on all exposed corners.

2.2 They shall be painted with a white powder coat

paint.

2.3 The mounting flanges and alignment holes shall

be be predrilled for precise installation.

2.4 The resting flange shall accomodate standard

size terminal modules.

Construction Details

Dimensional Data

Model

Number

HCFA 2424

HCFA 2448

Weight

(lbs)

Actual Dimensions

(inches)

Drawing Notes:

Construction-18 ga. cold rolled steel or 304 stainless

steel.

IL- inside length

IW- inside width

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

the filter and hvac store

128

Residential Air Cleaner

Refills

For Space Gard®,Air Bear®,Honeywell®Air Cleaners*

See model numbers in chart on next page.

Media for high efficiency air cleaners

For over 50 years, Flanders air filters have been

protecting cleanrooms, hospital operating rooms

and other critical environments. Now, homes and

businesses can benefit from their superior crafts-

manship in a new line of Flanders filters.

Construction

Models 500AB, 600SG and replacement cartridges

for selected Honeywell®air cleaners are made with

a blend of polypropylene and polyethylene electro-

static filtration media which is adhered to an

expanded metal backing. This combination is deep

pleated and encased in a moisture resistant kraft

board frame and offers a MERV 8 rating.

Models 550AB and 650SG cartridges are similar to

our industrial grade PrecisionCell II air filter, with

perfectly spaced mini-pleats of wet laid glass

microfiber media and a moisture resistant kraft

board frame. This provides high efficiency filtration

and a longer filter life and a MERV 10 rating.

Model 650SG media inserts consist of the same

media as the 550AB and 650SG cartridges but are

provided in a convenient, easy to store package.

They are pleated to the proper depth with fastener

strips secured to each outside pleat.

Installation

Air Bear®replacements

Models 500AB and 550AB cartridges are designed

for use with the Trion Air Bear® air cleaner hous-

ings. Simply install in place of the Trion cartridge.

No alterations or equipment are required.

Space Gard®replacements

The Model 650 insert installs in Space Gard®mod-

els 2200 and 2250 air cleaner housings by using

the existing pleat separators and media holding

assembly. An easy-to-follow assembly guide is

printed on the package back.

Model 600SG and 650SG cartridges are also

designed for use in Space Gard®models 2200 and

2250 air cleaner housings. Designed to replace the

traditional collapsible media pack, Models 600SG

and 650SG provide all of the benefits of the origi-

nal, but with considerably less effort to install.

Honeywell®replacements

The Honeywell®replacement cartridges are

designed for use in Honeywell models 203719,

203720, 203721 and 203722. They offer the bene-

fit of superior performance and easy installation.

Important Features

• Equal or superior performance to original

replacements

•Replacements for several models

•Electrostatic Poly blend models offer a MERV

8 rating

•Mini-pleat models and 650SG Inserts offer a

MERV 10 rating

*Air Bear®is a registered trademark of Trion, Incorporated. Reference to their mark

is for system identification only.

*Space Gard®is a registered trademark of Research Products Corporation.

Reference to their mark is for system identification only.

*Honeywell®is a registered trademark of Honeywell Inc. Reference to their mark is

for system identification only.

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

the filter and hvac store

129

Efficiency by Particle Size

Microns Efficiency

0.35 16%

0.62 28%

0.84 38%

1.14 47%

1.88 68%

3.46 75%

4.69 71%

6.20 69%

8.37 66%

Replacement for: FP Refill(s) MERV Media Frame FP Model

Honeywell®

203719

203720

203721

203722

See FP Model 8 Electrostatic Poly

Blend Water resistant

kraft board

82655.051625

82655.0452025

82655.0452020

82655.04512520

Flanders 500

500AB Cartridge

550AB Cartridge

Electrostatic Poly

Blend

Wet laid glass

microfiber-mini

pleat

Water resistant

kraft board

Water resistant

kraft board

82655.052025

82955.052025

Initial

Resistance

@ 300 fpm

Cartridge .18

inch w.g.

Insert

.12 inch w.g.

Efficiency by Particle Size

Microns Efficiency

.3 30%

.5 62%

.7 72%

178%

290%

394%

598%

10 100%

Initial

Resistance

@ 300 fpm

.12 inch w.g.

Performance Data - Wet Laid Glass Media Performance Data - Poly Blend Media

*Air Bear® is a registered trademark of Trion, Incorporated. Reference to their mark is for system identification only.

*Space Gard® is a registered trademark of Research Products Corporation. Reference to their mark is for system

identification only.

*Honeywell® is a registered trademark of Honeywell Inc. Reference to their mark is for system identification only.

Performance values stated may be averages typical of the products listed. Contact factory for actual performance

test reports on specific products.

Products described here are competing products from Flanders®.Reference to competing brands are for system identification only.

Research

Products

Corporation

Space Gard®

2200 and 2500

600SG Cartridge

650SG Cartridge

650SG Inserts

Electrostatic Poly

Blend

Wet laid glass

microfiber-mini

pleat

Wet laid glass

microfiber

Water resistant

kraft board

Water resistant

kraft board

Insert Only

82655.062025

82955.062025

82455.062025

Trion, Inc. Air Bear®

500AB Cartridge

550AB Cartridge

Electrostatic Poly

Blend

Wet laid glass

microfiber-mini

pleat

Water resistant

kraft board

Water resistant

kraft board

82655.052025

82955.052025

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

the filter and hvac store

130

Model 500AB

Air Cleaner Housing

Model 82855.052025

General

The Model 500AB air cleaner housing is designed

for use with the Model 500AB or 550AB cartridge in

an HVAC system. Both of these cartridges feature

deep pleated media whose area is several times

the face area of the housing.

With the advent of modern air tight buildings, many

of us spend our indoor hours in air that can literally

make us feel sick with the recirculation of dirt, dust

pollen, animal dander, and other particulates. It is

for this reason that state-of-the-art air filtration is

essential. Flanders Model 500AB air cleaners offer

a solution you can trust, backed by nearly 50 years

of filtration manufacturing experience.

The non-woven media inserts capture a wide range

of airborne particles as small as 1 micron (1/25,000

of an inch in diameter). These airborne particles

include grease and soot (5 microns), dust (10

microns), pollen and mold (100 microns) which are

commonly found in homes. This type of filtration

not only provides cleaner air but keeps these parti-

cles from building up on cooling and heating equip-

ment.

Construction

The Model 500AB air cleaner housing has a built-in

prefilter track. Using a prefilter can greatly increase

the useful life of a high efficiency filter such as the

500AB or 550AB cartridges. The Model 500AB air

cleaner housing takes a standard 20 x 25 x 1 dis-

posable panel filter as a prefilter.

Dimensions

Important Features

• Allows better filtration and less

maintenance

•Rugged metal construction

•Prefilter track for particulate or gas/vapor

control

•Easy and affordable way to upgrade

residential filtration

A= 7-1/8”

B = 25-1/16”

C = 22-5/16”

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

the filter and hvac store

131

Versatile Installation

The Model 500AB air cleaner housing can be installed in a variety of configurations; Highboy, Lowboy,

Horizontal, Upflow or Vertical Downflow.

TYPICAL

TRANSITION

(VERTICAL

DOWNFLOW)

LOWBOY

HORIZONTAL

HIGHBOY

UPFLOW

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

the filter and hvac store

132

Airia 350

Electronic Room Air Cleaner

Important Features

• Super quiet operation

• Operates for pennies a day.

• 4 stage filtration removes particles, odors.

• Moves 350 cubic feet of air every minute.

• Built-in casters for easy moving.

• Easy to service

General

Airia 350 delivers high quality air filtration right into

the living space. This compact unit is filled with the

latest developments in air filtration, from high effi-

ciency HEPA technology to state-of-the art odor

control. It will purify the air in a 25’x25’ room 4

times an hour - quietly and efficiently. All of this in

a footprint of under 2 square feet.

Construction

The Airia 350 features four stages of filtration, con-

tained in a tastefully designed cabinet that has a

rich, wood grain finish.

1st stage: Spun glass panel

2nd stage: Arm and Hammer Odor Control

3rd stage: TechSorbTM Activated Carbon

4th stage: HEPA type

Physical Data

Rated capacity 350 CFM

Electrical input 120 VAC, 1Ph, 60 Hz

Power Consumption 100 watts

Weight 55 lbs.

Controls On-off-variable speed, solid

state

Cabinet Wood, vinyl laminated

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

the filter and hvac store

133

General

The Airia line of electronic air cleaners delivers

high, instantaneous filtering efficiency in a reliable,

permanent package that is built to last the life of an

air handling system. Airflow resistance is low and

constant. Operation costs only pennies per day.

Airia 1000 and 2000 are designed for easy duct-

mounted installation with today’s higher efficiency

central forced air systems. They feature a powder

coated galvanized steel cabinet, permanent all alu-

minum collector cell, odor control filter and state of

the art PWM power supply. These simple, rugged

and reliable air cleaners deliver 3 comprehensive

stages of air cleaning:

• 1st stage pleated prefilter preconditions the air

• 2nd stage electronic cell collects airborne particles

• 3rd stage Arm and Hammer®post filter removes

odors.

Airia whole house air cleaners feature a reliable,

built-in airflow sensor to cycle on and off with the

central system fan.

The unit is very easy to clean. Just lift off the

access door, remove collector cells to tub or sink

wash. Let dry and re-install.

Physical Data

Cabinet is one-piece epoxy coated steel

Cells are aluminum and can be removed for washing

Post filter shipped with unit is patented Arm and

Hammer odor control filter

Electronics are dependable high-frequency.

Air flow sensor cycles unit on and off with the system

fan.

LED operation indicators

On-off switch for convenient servicing.

Airia 1000 and 2000

Whole House Electronic Air Cleaners

Important features:

• High efficiency electronic air cleaning

• Durable one-piece steel cabinet, epoxy coated

• Permanent washable aluminum collector cells

• Dependable high frequency electronics,LED indicators,

convenient on-off switch for servicing

• High, instantaneous collection efficiency

• Low and constant resistance to airflow

• Operates for pennies per day

• Patented Arm and Hammer odor control filter

• Electronic sensor cycles unit on/off with system fan

• Easy to install

• Easy to clean

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

the filter and hvac store

134

Specifications Airia 1400 (16x25) Airia 2000 (20x25

Rated Capacity 1400 CFM 2000 CFM

Electrical Input 120 Vac, 1 Ph, 60 Hz 120 Vac, 1 Ph, 60 Hz

Power Consumption 40 watts 48 watts

Resistance to Airflow 0.2” w.g. @ 1400 CFM 0.2” w.g. @ 2000 CFM

Unit Weight 40 lbs. 45 lbs.

Prefilter Disposable pleat Disposable pleat

Main Collector 2-stage electronic 2-stage electronic

Odor Control Arm and Hammer® Pleat Arm and Hammer® Pleat

Finish Epoxy Powder Coated Epoxy Powder Coated

Mounting Options Vertical or Horizontal Vertical or Horizontal

On/Off Operation Electronic Thermister Electronic Thermister

Primary LED

Indicator

Secondary LED

Indicator

On/Off

Switch

Access Door

Air

Flow

END

VIEW

8.125”

DIM “A”

DIM “B”

DIM “C”DIM “D”

Cabinet

Power Pack

SIDE VIEW

22.489”

23.812”

26.312”

3.625”

1” .625”

Model DIM “A” DIM “B” DIM “C” DIM”D”

(inches) (inches) (inches) (inches)

AIRIA 1400 19.960 16.335 15.762 13.762

AIRIA 2000 23.960 20.335 19.762 17.762

Flanders - Foremost in Air Filtration

Corporate Headquarters, St. Petersburg, FL

the filter and hvac store
