Document 800-07361 – Rev A – 12/10
User Guide
EQUIP® Series
Indoor High Resolution
True Day/Night
IP Dome Camera
NTSC / PAL
HD3MDIH HD3MDIHX
Revisions
Issue Date Revisions
A 12/10 New document for the HD3MDIH/X model for the HD3 EQUIP Series IP Dome
Camera.
2
HD3MDIH/X EQUIP Series Indoor High Resolution True Day/Night IP Dome Camera User Guide
Document 800-07361 – Rev A – 12/10 3
Contents
Figures. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
About This Document . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Overview of Contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Cautions and Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
FCC Compliance Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Manufacturer’s Declaration of Conformance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
North America. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Europe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Warranty and Service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
2 Installation and Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Unpack Everything . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Equipment Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Overview of Installation Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Camera Components and Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Camera Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Preparing the Camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Preparing the Mounting Surface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Connecting the Wires. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Mounting the Camera. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Restore Factory Defaults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Adjusting the Camera FOV (Field of View) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Adjusting the Lens Focus. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Securing the Enclosure Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
3 Installing the Honeywell IP Utility and Web-Client Software . . . . . . . . . . . . . . . . . . . . 29
About the Honeywell IP Utility and Web-Client. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
About the Honeywell IP Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
About the Web-Client . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
User Profiles: Honeywell IP Utility and Web-Client . . . . . . . . . . . . . . . . . . . . . . . . 30
Step 1: Confirm Your System Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Step 2: Install the Honeywell IP Utility Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Downloading the EQUIP Series Installation Guides . . . . . . . . . . . . . . . . . . . . . . . 32
Step 3: Log Onto the IP Utility and Discover Network Devices . . . . . . . . . . . . . . . . . . . . . . 33
Step 4: Connect to a Device and Configure Network Settings . . . . . . . . . . . . . . . . . . . . . . 35
Connecting to or Disconnecting From Devices . . . . . . . . . . . . . . . . . . . . . . . . . 35
Configuring the IP Network Settings Automatically or Manually . . . . . . . . . . . . . . . . . 35
Interfacing with the EQUIP Device Via a Network Video Recorder . . . . . . . . . . . . . . . 38
4
Contents
Step 5: Launch the Web-Client to View Live Video . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Uninstalling IP Utility, Bonjour or the ActiveX Plug-in Software . . . . . . . . . . . . . . . . . . . . . .40
Uninstalling IP Utility Using the Start Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Uninstalling IP Utility or IP ActiveX Using the Control Panel . . . . . . . . . . . . . . . . . . . 41
4 IP Camera Web-Client . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
User Profiles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Logging On and Off the IP Web-Client . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Launching the Web-Client from IP Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Logging Onto the Web-Client from Internet Explorer . . . . . . . . . . . . . . . . . . . . . . 46
Logging Out of the Web-Client . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Navigating the Web-Client User Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Live View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Taking a SnapShot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Device Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Configuring IP and Firmware Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Resetting the Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Compression Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Video Codec Settings Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Statistics: Received Bit Rate and Frame Rate . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Camera Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Auto Exposure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
White Balance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Video Analytics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Sabotage Detection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Configuring Video Motion Detection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Alarm and Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Alarm Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Audio Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Appendix A Surface Mounting Template . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Appendix B Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Problem: Lens Out of Optical Focus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Problem: Live View Does Not Display the Expected Video . . . . . . . . . . . . . . . . . . . . . . . . 68
Problem: Cannot Connect to a Device. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Appendix C Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Appendix D Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
HD3MDIH/X EQUIP Series Indoor High Resolution True Day/Night IP Dome Camera User Guide
Document 800-07361 – Rev A – 12/10 5
Figures
Figure 2-1 HD3MDIH/X Series Camera Components. . . . . . . . . . . . . . . . . . . . . . . . . . . 17

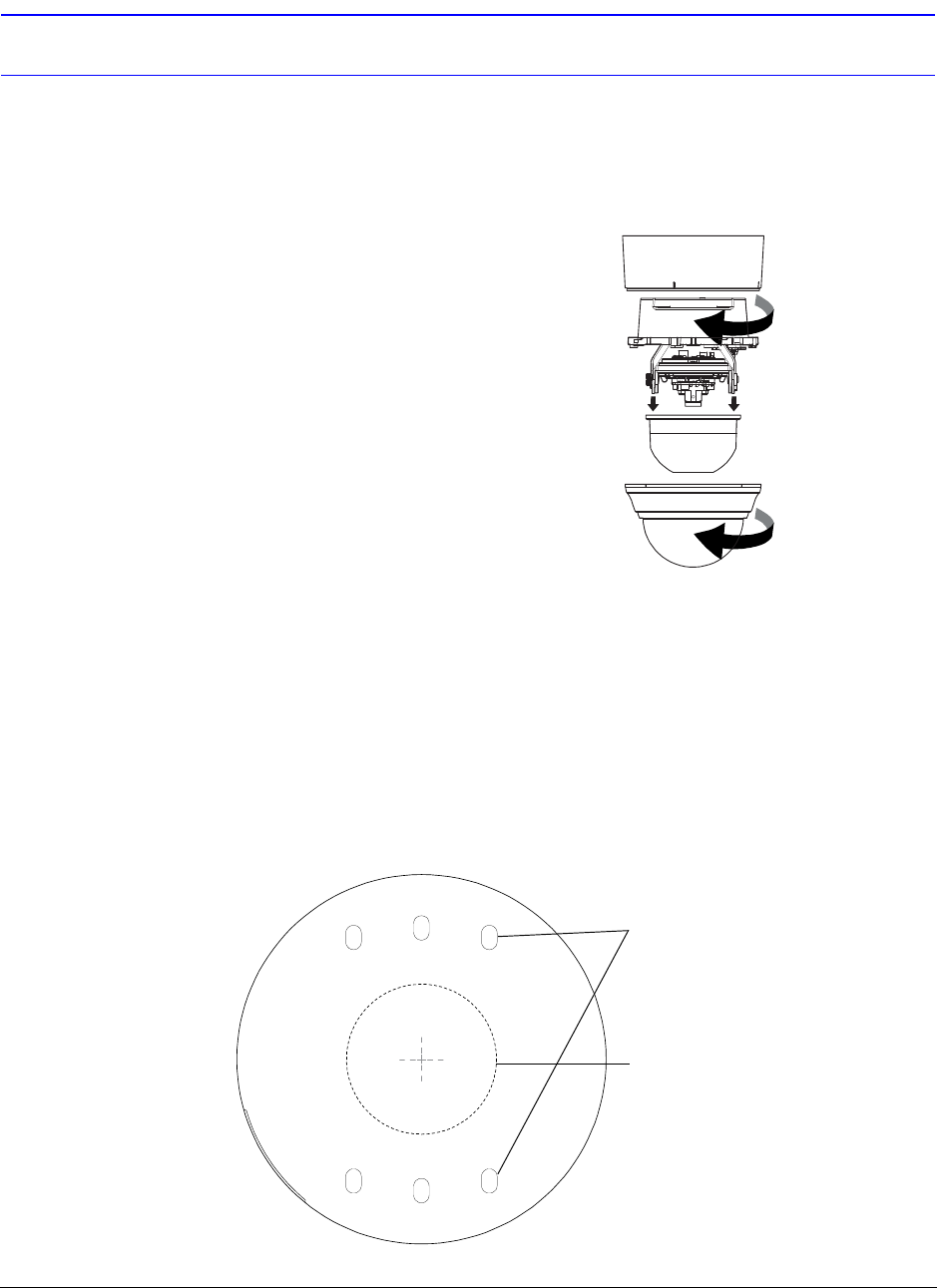

Figure 2-2 Surface Mounting Template . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

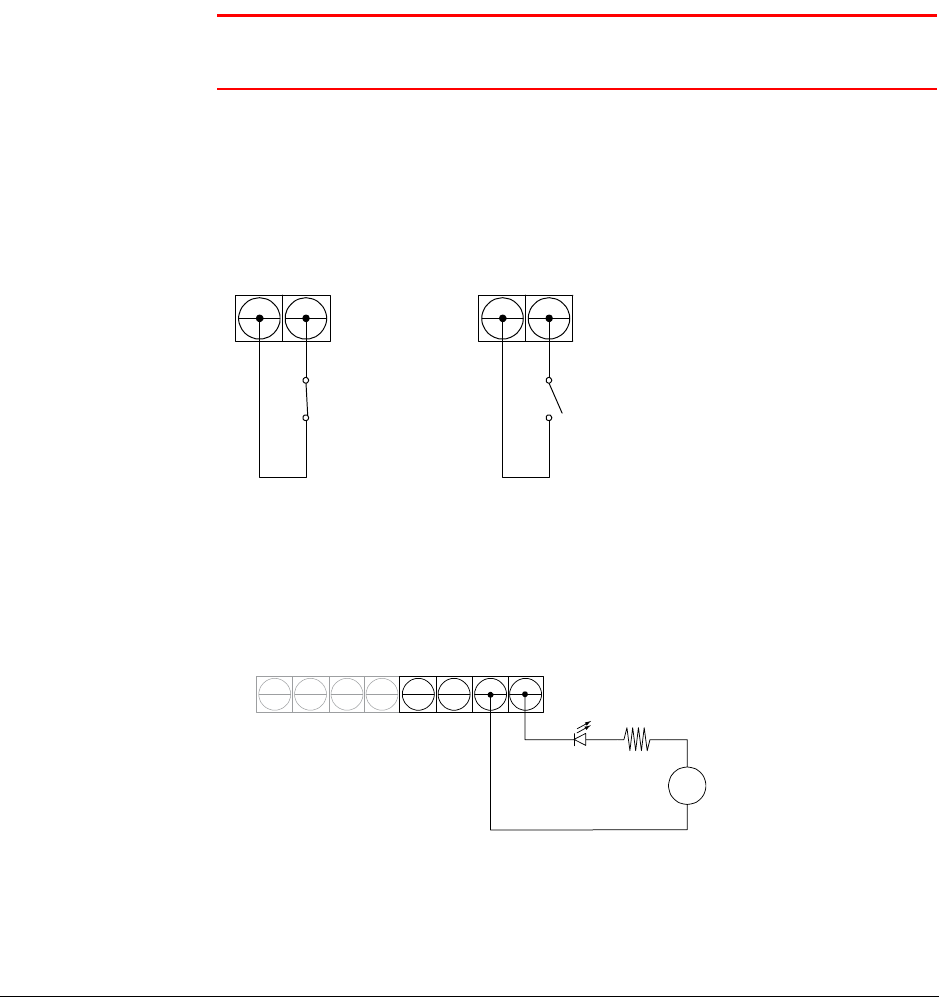

Figure 2-3 Audio and Alarm PINs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Figure 2-4 Normal Alarm States. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Figure 2-5 Alarm Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Figure 2-6 Camera and Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Figure 2-7 Wiring Connection Shown on Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Figure 2-8 Gimbal Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Figure 2-9 Installing the Enclosure Cover. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Figure 3-1 Accessing Your Installation Documents. . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Figure 3-2 Honeywell IP Utility Log On Window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Figure 3-3 Honeywell IP Utility User Interface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Figure 3-4 Set the IP Network Settings Automatically or Manually . . . . . . . . . . . . . . . . . . . . 36
Figure 3-5 ActiveX Prompt. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Figure 3-6 Web-Client Interface After Logging On . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Figure 4-1 Launching the Web-Client from the IP Utility . . . . . . . . . . . . . . . . . . . . . . . . . 45
Figure 4-2 Web-Client Window Layout: Administrator Log On . . . . . . . . . . . . . . . . . . . . . . 47
Figure 4-3 Web-Client: Administrator User . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Figure 4-4 Web-Client: Guest User . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Figure 4-5 Device Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Figure 4-6 IP and Firmware Settings: Device Information Tab . . . . . . . . . . . . . . . . . . . . . . 50
Figure 4-7 Compressions Settings Tab: Primary Stream . . . . . . . . . . . . . . . . . . . . . . . . . 51
Figure 4-8 Video Codec Settings Tab Available Functions . . . . . . . . . . . . . . . . . . . . . . . 52
Figure 4-9 Video Codec Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Figure 4-10 Camera Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Figure 4-11 Video Analytics Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Figure 4-12 Tamper Detection Settings on the Video Analytics Tab. . . . . . . . . . . . . . . . . . . . 58
Figure 4-13 Video Analytics Alarm Message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

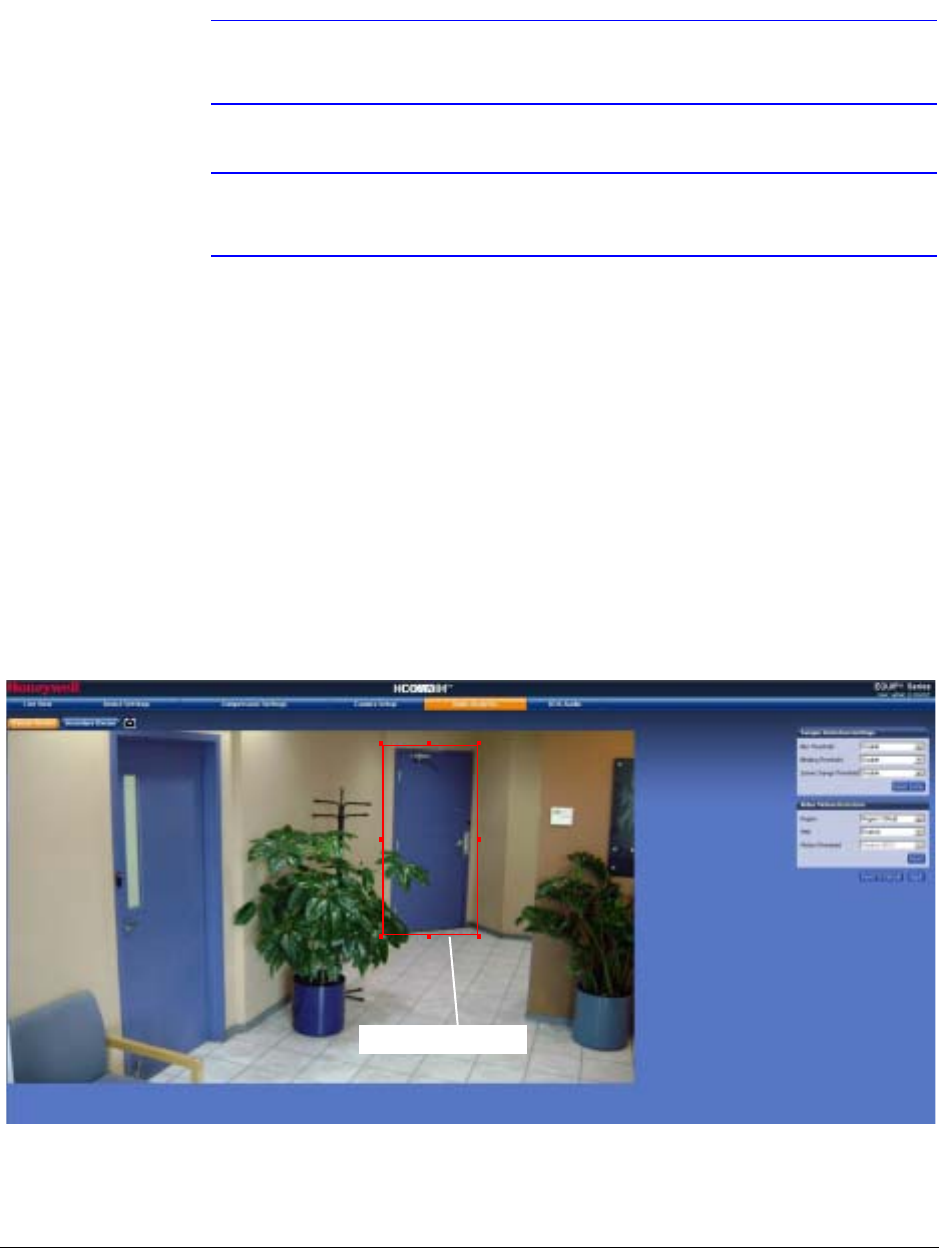

Figure 4-14 Video Analytics: Defining a Region . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Figure 4-15 Audio and IO Settings Tab. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Figure 4-16 Audio Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

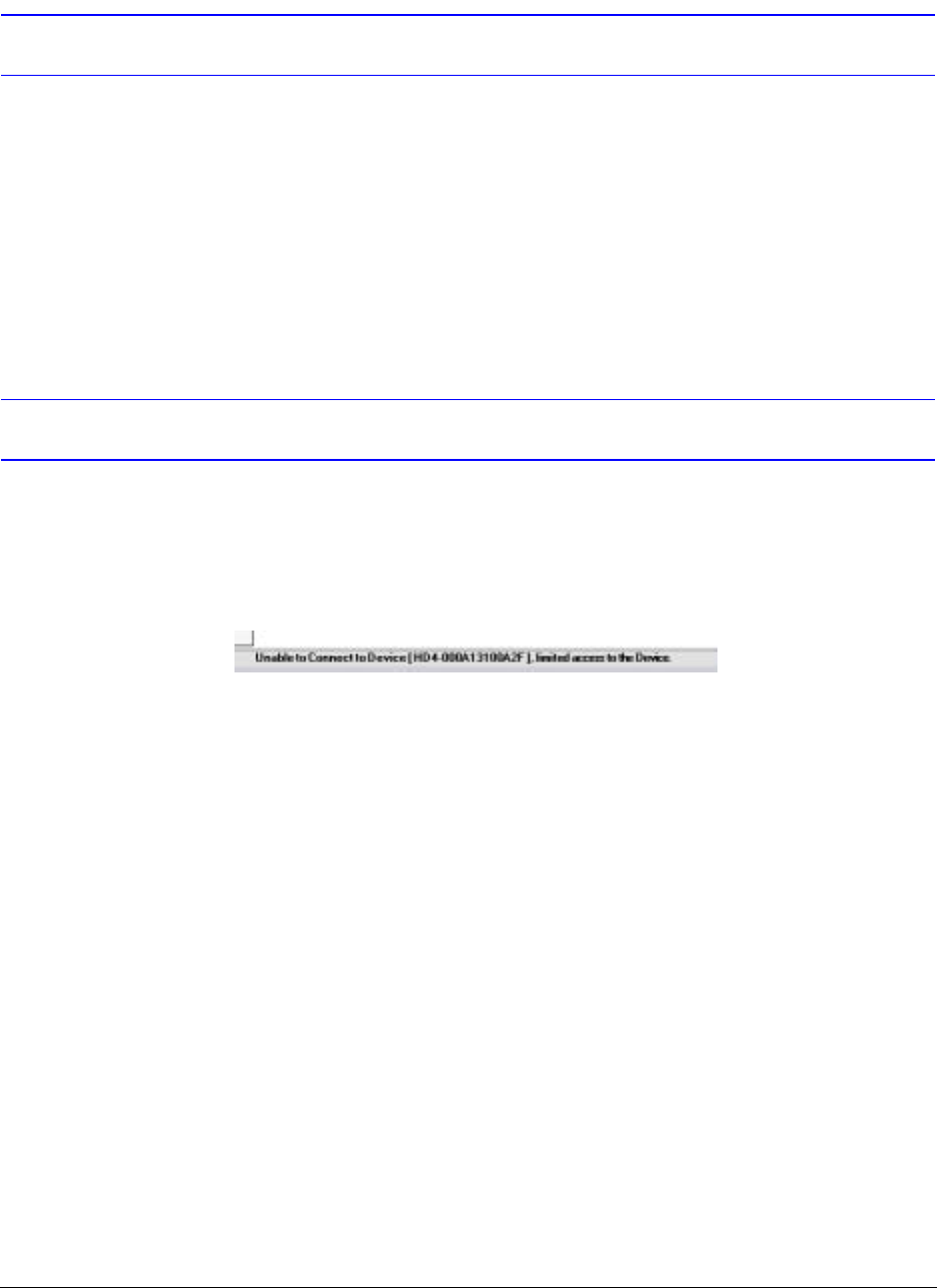

Figure B-1 Limited or No Connection Message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

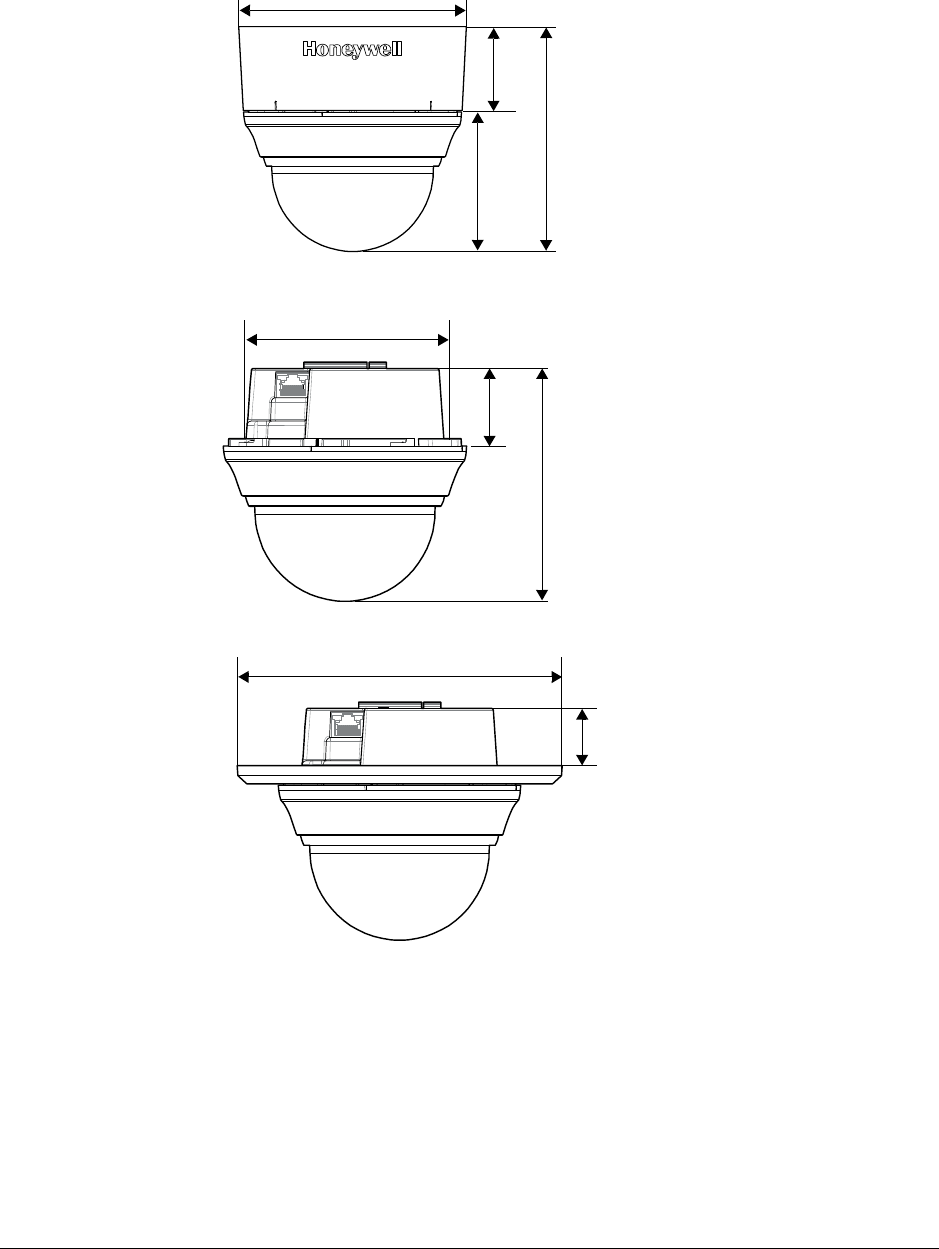

Figure C-1 HD3MDIH/X Camera Side View with Dimensions . . . . . . . . . . . . . . . . . . . . . . . 71
Figure C-2 HD3MDIH/X Camera Side View Dimensions without Skirt . . . . . . . . . . . . . . . . . . 71
6
Figures
Figure C-3 HD3MDIH/X Camera Side View Dimensions with Adapter Plate . . . . . . . . . . . . . . . 71

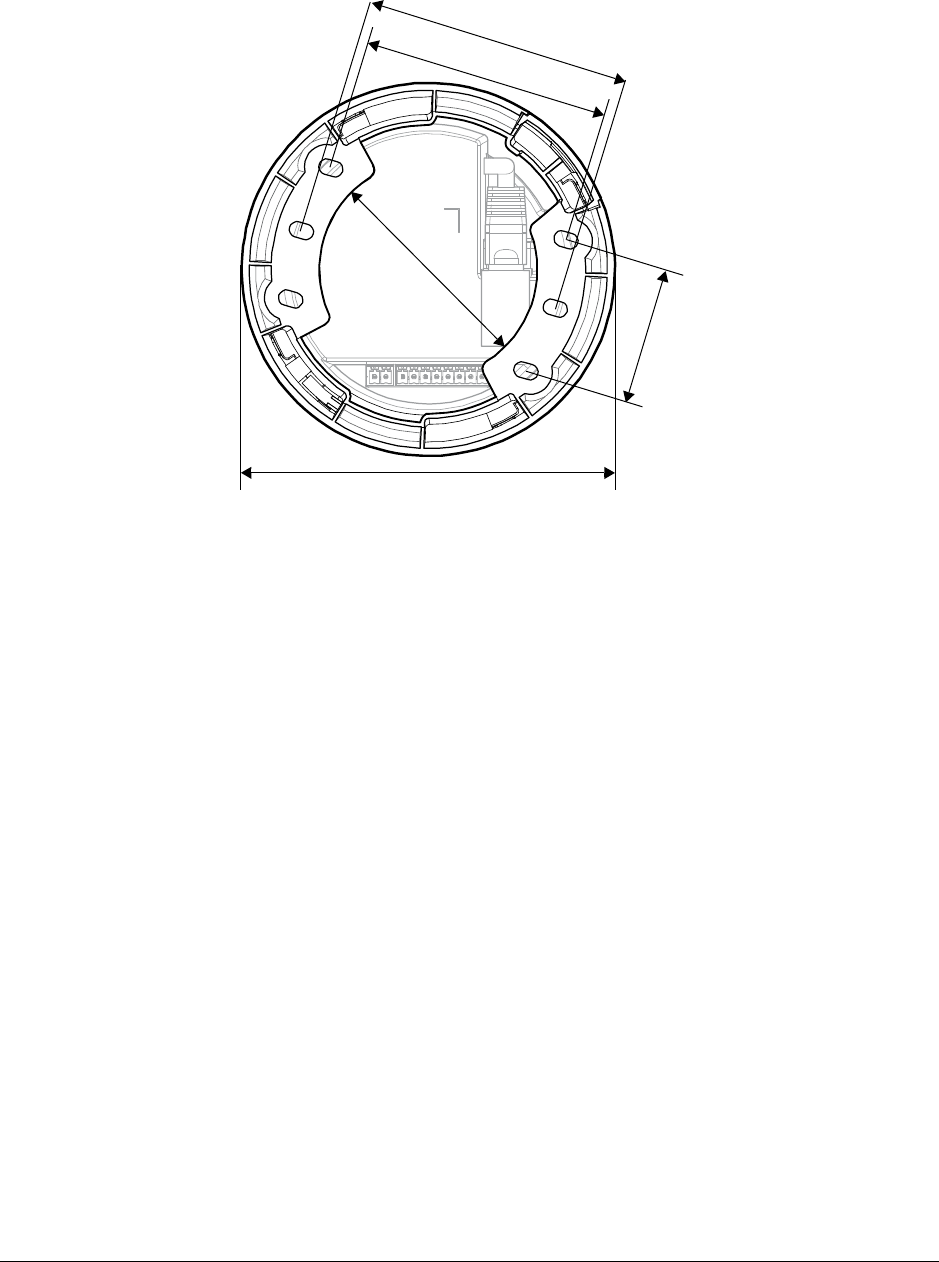

Figure C-4 HD3MDIH/X Camera Bottom View with Dimensions . . . . . . . . . . . . . . . . . . . . . 72
HD3MDIH/X EQUIP Series Indoor High Resolution True Day/Night IP Dome Camera User Guide
Document 800-07361 – Rev A – 12/10 7
Tables
Table 1-1 Fixed Mini Dome Network Camera Model Numbers . . . . . . . . . . . . . . . . . . . . . . 13
Table 2-1 Audio and Alarm Connector PIN Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Table 3-1 User Profiles for Honeywell IP Utility and the Web-Client . . . . . . . . . . . . . . . . . . . 30
Table 3-2 PC Minimum System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Table 3-3 Items Installed On Your System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Table 3-4 IP Network Device Setting Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Table 4-1 User Roles and Privileges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Table 4-2 Tabs/Views in the Web-Client Application . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Table 4-3 Video Streaming Resolutions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Table 4-4 Compression Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Table 4-5 Auto Exposure Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Table 4-6 White Balance Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Table 4-7 Blur Threshold Values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Table 4-8 Blinding Threshold Values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Table 4-9 Scene Change Threshold Values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
8
Tables
HD3MDIH/X EQUIP Series Indoor High Resolution True Day/Night IP Dome Camera User Guide
Document 800-07361 – Rev A – 12/10 9
About This Document
This document introduces the Honeywell HD3MDIH/X Indoor High Resolution True
Day/Night IP Dome Camera. It covers how to install and operate your camera in a network
environment.
This document is intended for system installers, administrators, and operators.
Overview of Contents
This document contains the following chapters and appendixes:
•Chapter 1, Introduction, introduces your HD3MDIH/X camera and gives a functional
overview of its components.
•Chapter 2, Installation and Setup, provides procedures for installing cameras,
adjusting the lens, and setting up a network camera environment.
•Chapter 3, Installing the Honeywell IP Utility and Web-Client Software, describes how
to install the Honeywell IP Utility and set up administrator privileges.
•Chapter 4, IP Camera Web-Client, describes how to use the Web-Client application
to view video and configure the available settings for the network camera.
•Appendix A, Surface Mounting Template, provides a mounting template for your
HD3MDIH/X camera.
•Appendix B, Troubleshooting, lists common problems encountered when setting up
the network camera.
•Appendix C, Specifications, provides specifications for your HD3MDIH/X camera.
•Appendix D, Glossary, explains terms and initializations used in this guide.
•The Index provides quick access to commonly searched terms.
10
Cautions and Warnings
Installation and servicing should be performed only by qualified and experienced
technicians to conform to all local codes and to maintain your warranty.
WARNING! 24 VAC models require the use of CSA Certified/UL Listed
Class 2 power adapters to ensure compliance with
electrical safety standards. Power over Ethernet (PoE)
should meet the IEEE 802.3 af PoE standard.
Caution When powering the camera from 24 VAC, a UPS source should
be considered to ensure satisfactory performance.
FCC Compliance Statement
Information to the User: This equipment has been tested and found to comply with the
limits for a Class B digital device. Pursuant to Part 15B of the FCC Rules, these limits are
designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency energy and,

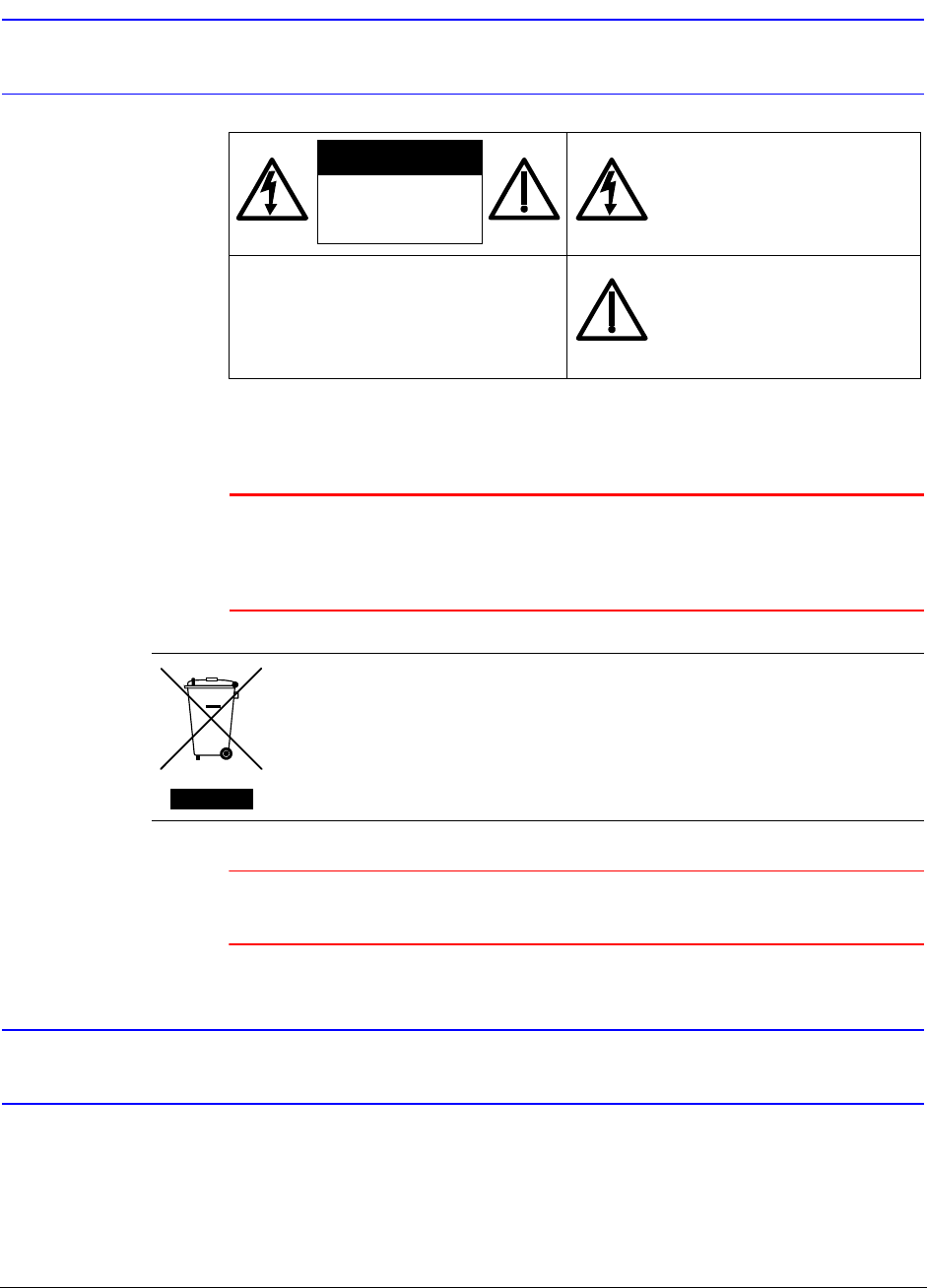

CAUTION: TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT REMOVE
THE COVER. NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
THIS SYMBOL INDICATES
THAT IMPORTANT OPERATING
AND MAINTENANCE
INSTRUCTIONS ACCOMPANY
THIS UNIT.
THIS SYMBOL INDICATES
THAT DANGEROUS VOLTAGE
CONSTITUTING A RISK OF
ELECTRIC SHOCK IS
PRESENT WITHIN THE UNIT.
RISK OF
ELECTRIC SHOCK
DO NOT OPEN
CAUTION
WEEE (Waste Electrical and Electronic Equipment). Correct disposal of this
product (applicable in the European Union and other European countries with
separate collection systems). This product should be disposed of, at the end of
its useful life, as per applicable local laws, regulations, and procedures.
HD3MDIH/X EQUIP Series Indoor High Resolution True Day/Night IP Dome Camera User Guide
Document 800-07361 – Rev A – 12/10 11
if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference. For example, try reorienting or relocating the receiving antenna,
increasing the separation between the equipment and receiver, or connecting the
equipment to an outlet on a different circuit.
Caution Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
This Class B digital apparatus complies with Canadian ICES-003.
Manufacturer’s Declaration of Conformance
North America
The equipment supplied with this guide conforms to UL 60950-1 and CSA C22.2 No.
60950-1.
Europe
The manufacturer declares that the equipment supplied with this guide is compliant with
the essential protection requirements of the EMC directive 2004/108/EC and the General
Product Safety Directive 2001/95/EC, conforming to the requirements of standards EN
55022 for emissions, EN 50024 for immunity, and EN 60950 for Electrical Equipment
safety.
Warranty and Service
Subject to the terms and conditions listed on the Product warranty, during the warranty
period Honeywell will repair or replace, at its sole option, free of charge, any defective
products returned prepaid.
In the event you have a problem with any Honeywell product, please call Customer
Service at 1.800.796.CCTV for assistance or to request a Return Merchandise
Authorization (RMA) number.
12
Be sure to have the model number, serial number, and the nature of the problem available
for the technical service representative.
Prior authorization must be obtained for all returns, exchanges, or credits. Items shipped
to Honeywell without a clearly identified Return Merchandise Authorization (RMA)
number may be refused.
Document 800-07361 Rev A 13
12/10
1
Introduction
The Honeywell HD3MDIH/X Indoor High Resolution True Day/Night IP Dome Camera
provides high quality video surveillance over a network connection. See Table 1-1 for
descriptions of the camera models.
Features
The HD3MDIH/X camera features:
• 720p (1280 x 720) resolution
• 1/4" color CMOS progressive scan sensor
• Moveable Infrared (IR) cut filter ensures excellent low light performance
• Camera Sabotage Detection
• Video Motion Detection
• H.264 and MJPEG compression
• Dual digital video streams simultaneously, independently configurable
• Remote firmware updates
• Support of both Dynamic and Static IP address assignment
• Multiple levels of password protected remote access prevents unauthorized users
from altering system settings
• Advanced IP locator software to make system setup easy
• Web server for remote setup of camera video and network parameters
• 24 VAC or PoE IEEE 802.3 af choice of power inputs
• Input and output alarm contacts support
• Bi-directional audio support
• Local video out – aim and focus
Table 1-1 Fixed Mini Dome Network Camera Model Numbers
Model number Description
HD3MDIH True Day/Night 720p, 3.3 – 12 mm VFAI Lens, NTSC
HD3MDIHX True Day/Night 720p, 3.3 – 12 mm VFAI Lens, PAL
14
Introduction
Document 800-07361 Rev A 15
12/10
2
Installation and Setup
This chapter describes how to:
•Mount the camera
• Adjust the camera for the clearest image
• Set up the camera in a network system
Before You Begin
Before installing the camera, Honeywell recommends that you:
• Carefully read this guide and keep it for future reference.
•Check www.honeywellvideo.com/products/cameras/index.html to find your camera,
then download the latest manuals and software updates.
Unpack Everything
Check that the items received match those listed on the order form and packing slip. The
HD3MDIH/X camera packing box should include, in addition to a Quick Install Guide:
• One fully-assembled HD3MDIH/X camera, including factory-installed BNC
connector for local video out aim and focus
• One adapter plate
• One HD3MDIH/X camera hardware kit that includes mounting screws and screw
caps
• One BNC cable for local video out - aim and focus
• One mounting template
• One product warranty
• One CD containing the software and this User Guide
If any parts are missing or damaged, contact the dealer from which you purchased your
camera or call Honeywell Customer Service (see Warranty and Service).
16
Installation and Setup
Equipment Required
The following tools might help you to complete the installation:
•Drill
• Screwdrivers
• Wire cutters
Overview of Installation Procedure
Note Please familiarize yourself with the installation procedure and complete each
step in the exact sequence given.
The initial installation of your HD3MDIH/X camera consists of the following steps:
Step See …
1 Preparation page 18
2 Connect the wiring. page 21
Mount the camera. page 24

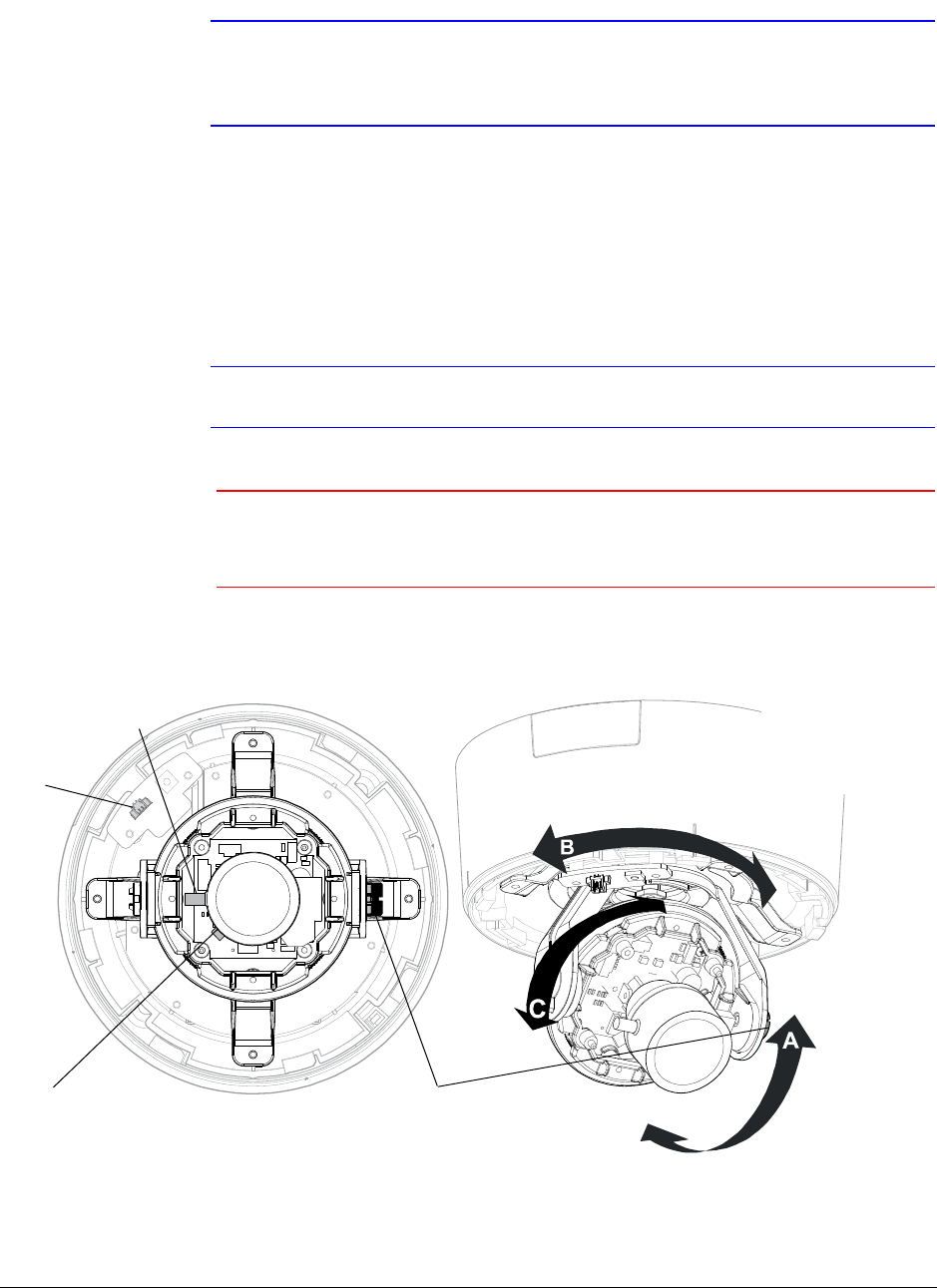

3 Adjust the camera angle, position, and
focus for optimum image.
page 25
4 Secure the enclosure cover. page 27
5 Program the camera. page 54
HD3MDIH/X EQUIP Series Indoor High Resolution True Day/Night IP Dome Camera User Guide
Document 800-07361 Rev A 17
12/10
Camera Components and Functions
Your Honeywell HD3MDIH/X camera consists of a fully-integrated enclosure with camera
and lens. The wiring can be completely concealed to reduce the risk of tampering.

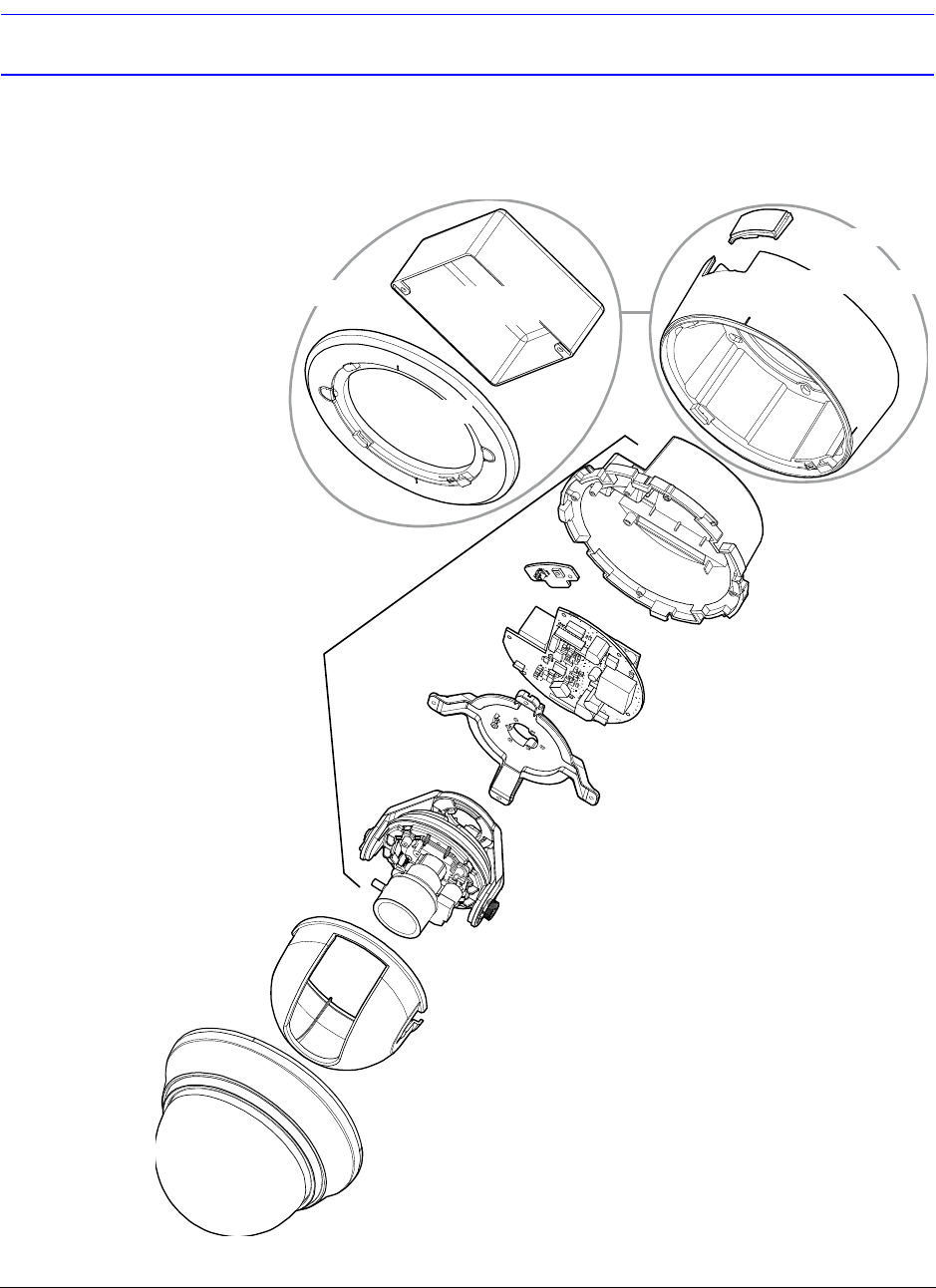

Figure 2-1 HD3MDIH/X Series Camera Components
Interface board
Dome bubble
Turret (bubble insert)
Base
Gimbal assembly
Gimbal base
Skirt
Camera
Back box
(not supplied)
Flush Mount Surface Mount
Adapter plate
Cover plate
18
Installation and Setup

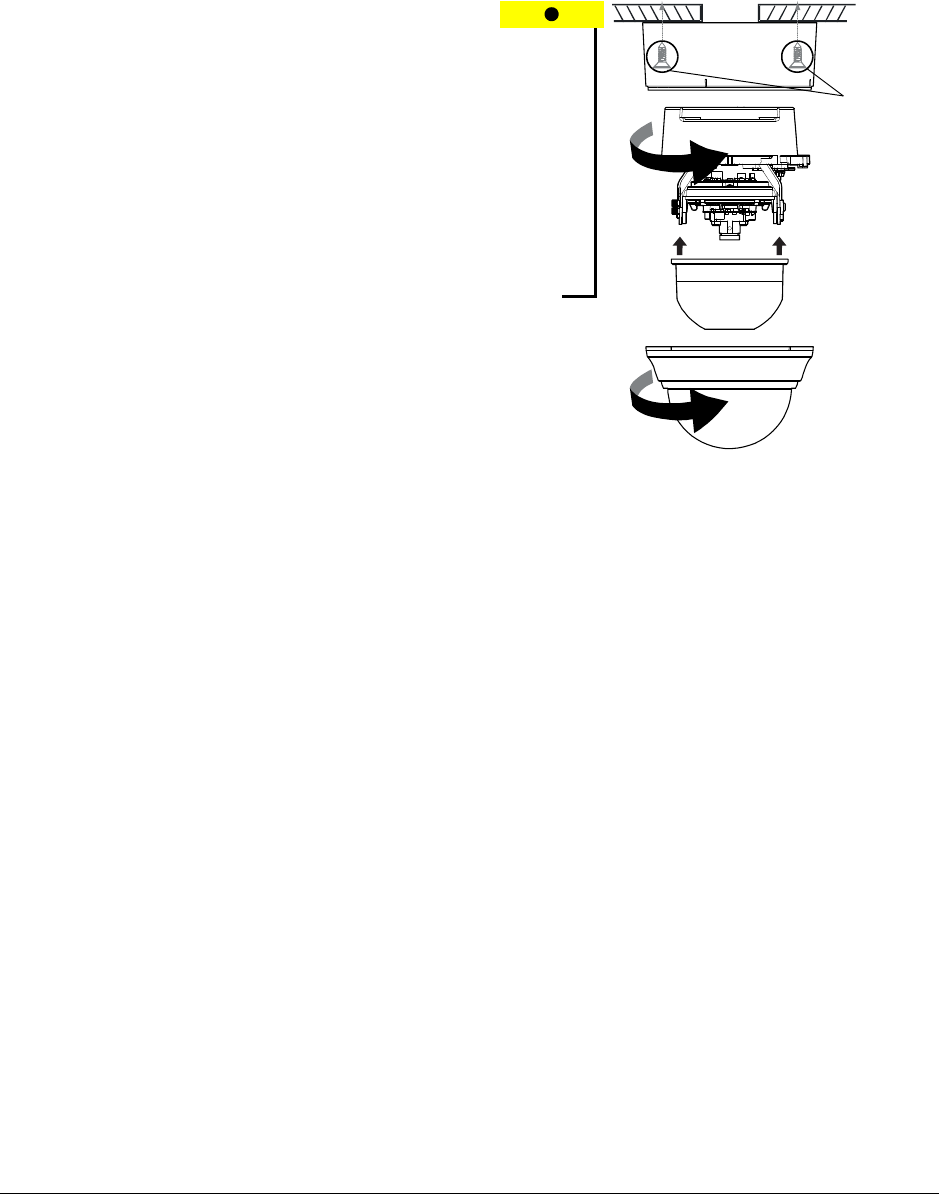

Camera Installation
Preparing the Camera

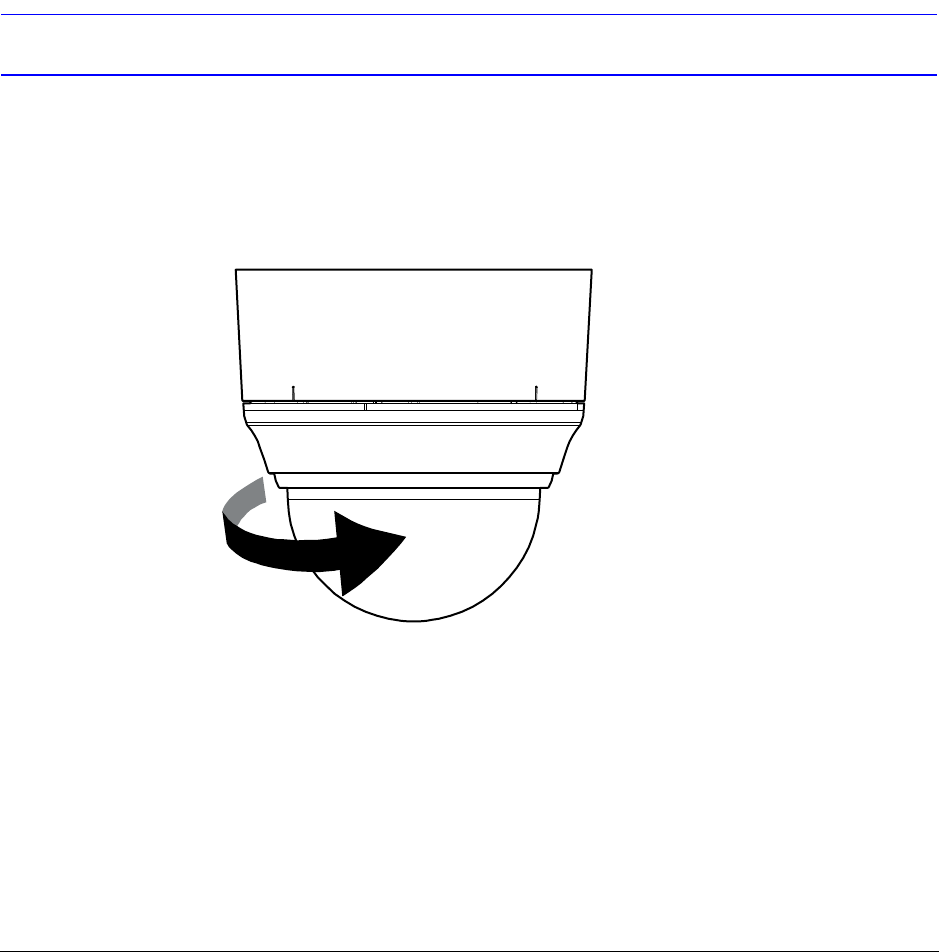

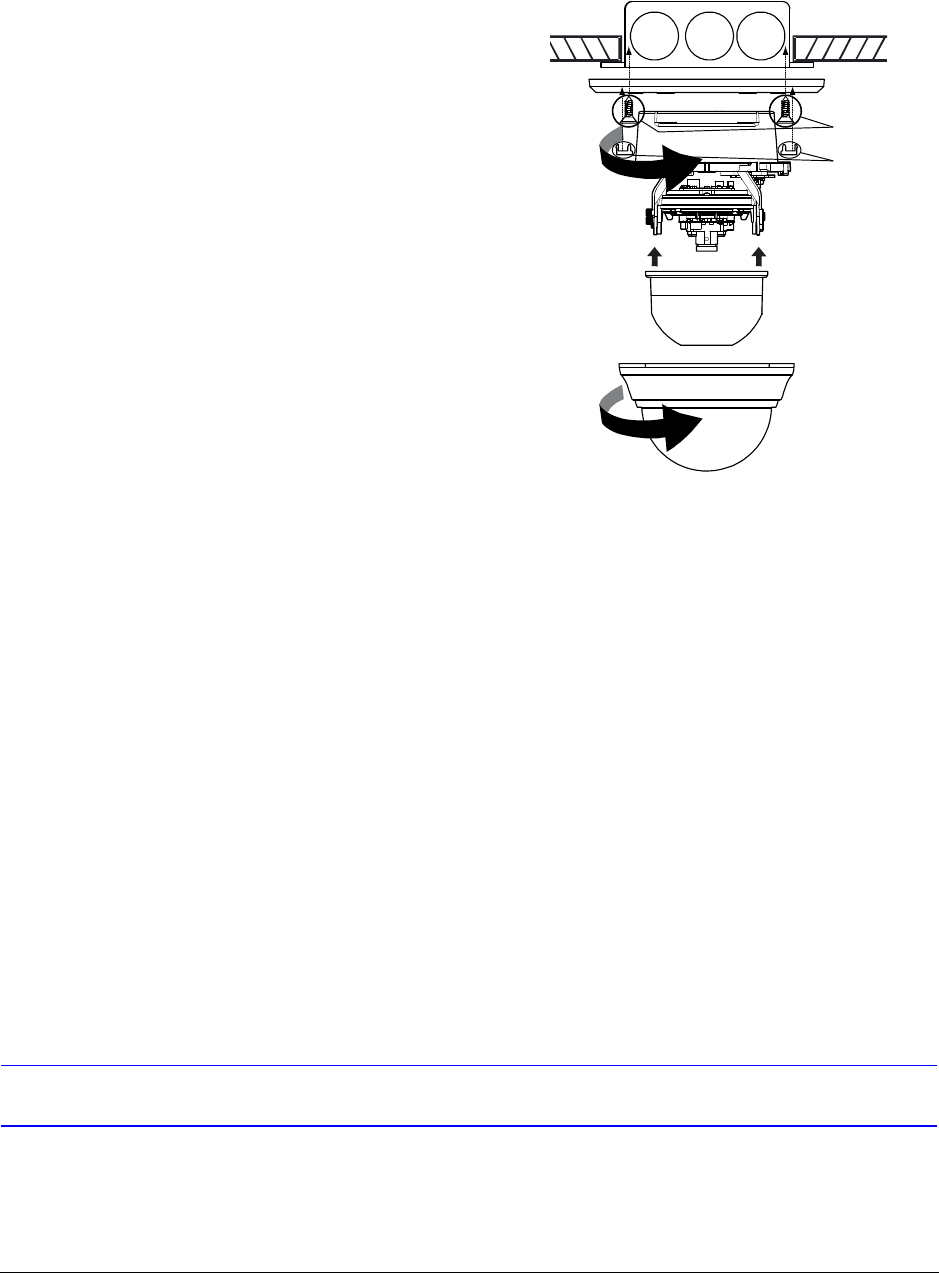

1. Rotate the dome bubble counterclockwise
until it disconnects.
2. Pull the turret to remove it.
3. Rotate the camera counterclockwise until it
disconnects from the skirt.
4. Set aside the dome bubble, turret, and
camera.
Preparing the Mounting Surface
1. Mark the mounting surface for screw holes and wire access hole.
• Use the mounting template if you are surface mounting your camera. See Surface
Mounting Template on page 65
• Use the flush mount adapter plate as a template if you are flush mounting your
camera.

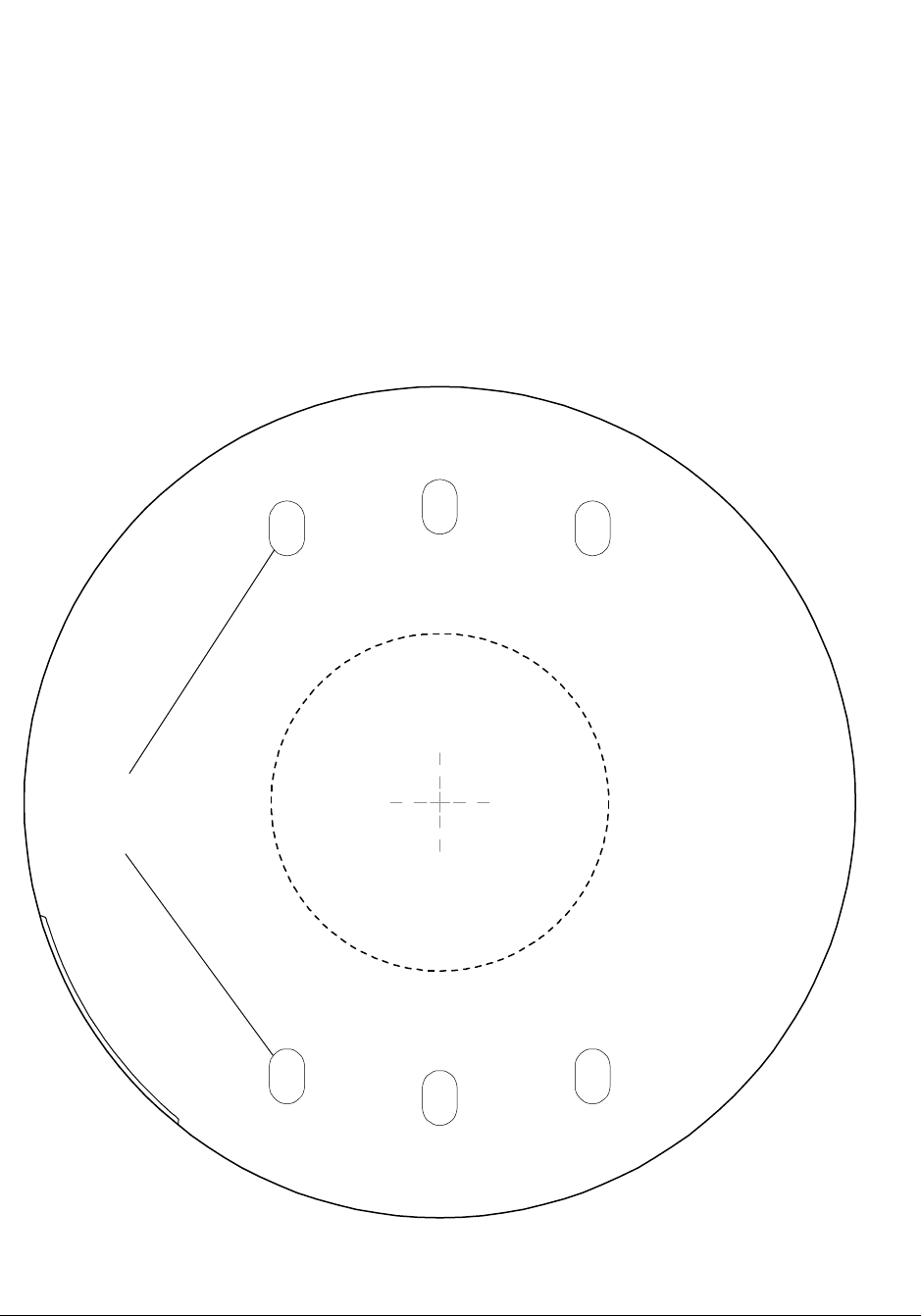

Figure 2-2 Surface Mounting Template
Skirt
Dome bubble
Camera
Turret
Drill these holes for the
mounting screws.
Cut this hole, then pull the
power, audio, and alarm
wires through it.
HD3MDIH/X EQUIP Series Indoor High Resolution True Day/Night IP Dome Camera User Guide
Document 800-07361 Rev A 19
12/10
2. Pre-drill the holes as indicated on the template, using the recommended hole size for
the screws being used.
Note Other fasteners (preferably stainless steel) can be used, provided they are not
larger than the screw holes on the mounting template.
Connecting the Wires
Caution Installation must be performed by a qualified electrician. The power
wire size for the distance and the number of cameras must be
determined to maintain 24 VAC at each camera.
Connecting Audio and Alarms
1. Pull the wires through the ceiling or wall hole until you have at least 4 inches of wire.

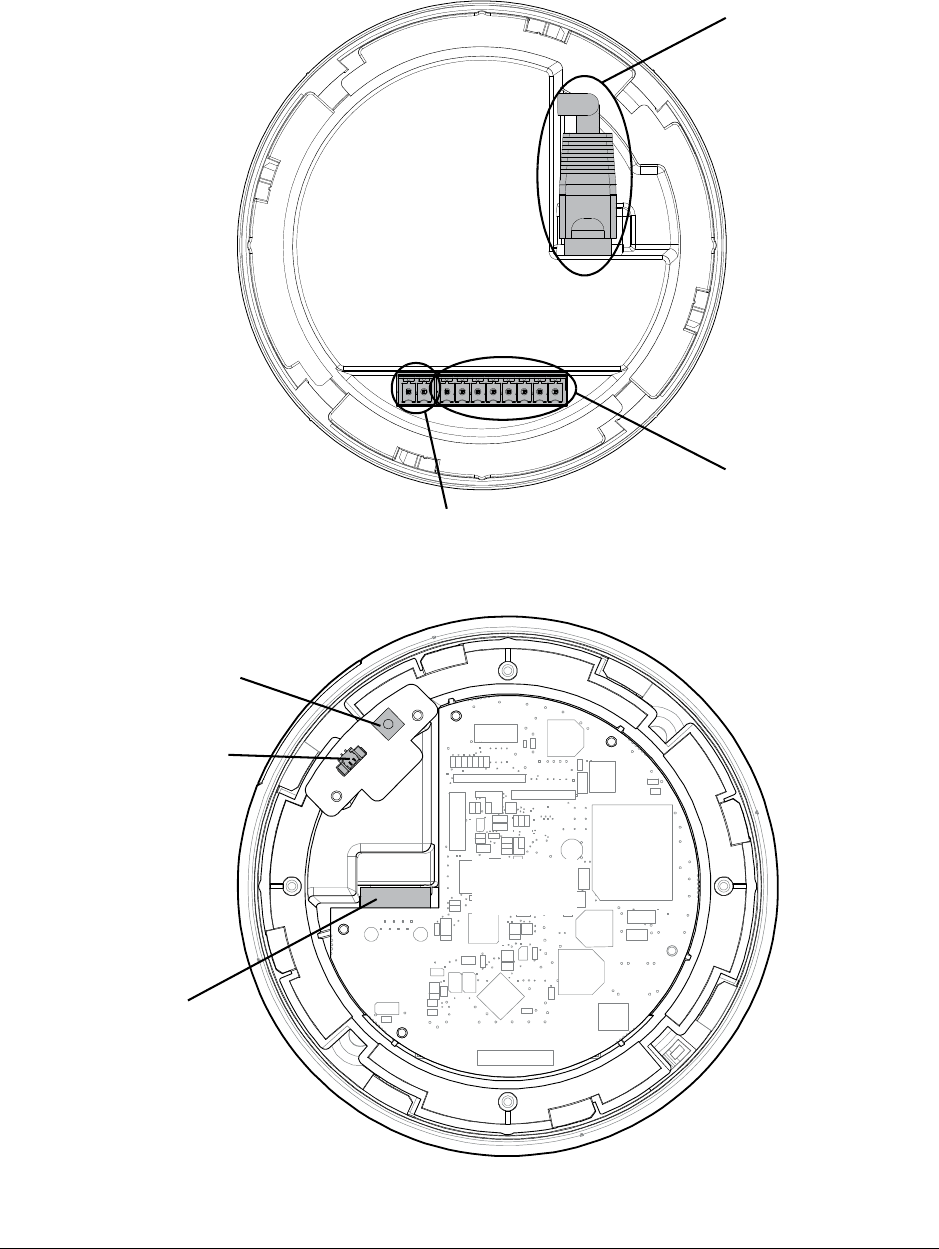

2. Remove the green connector strip (see Figure 2-6 on page 22) from the camera base
and make all the necessary alarm and audio connections.
3. Connect a twisted pair (UTP) cable from each peripheral alarm contact to each alarm
input on the terminal block, as shown in Figure 2-3 and Table 2-1.

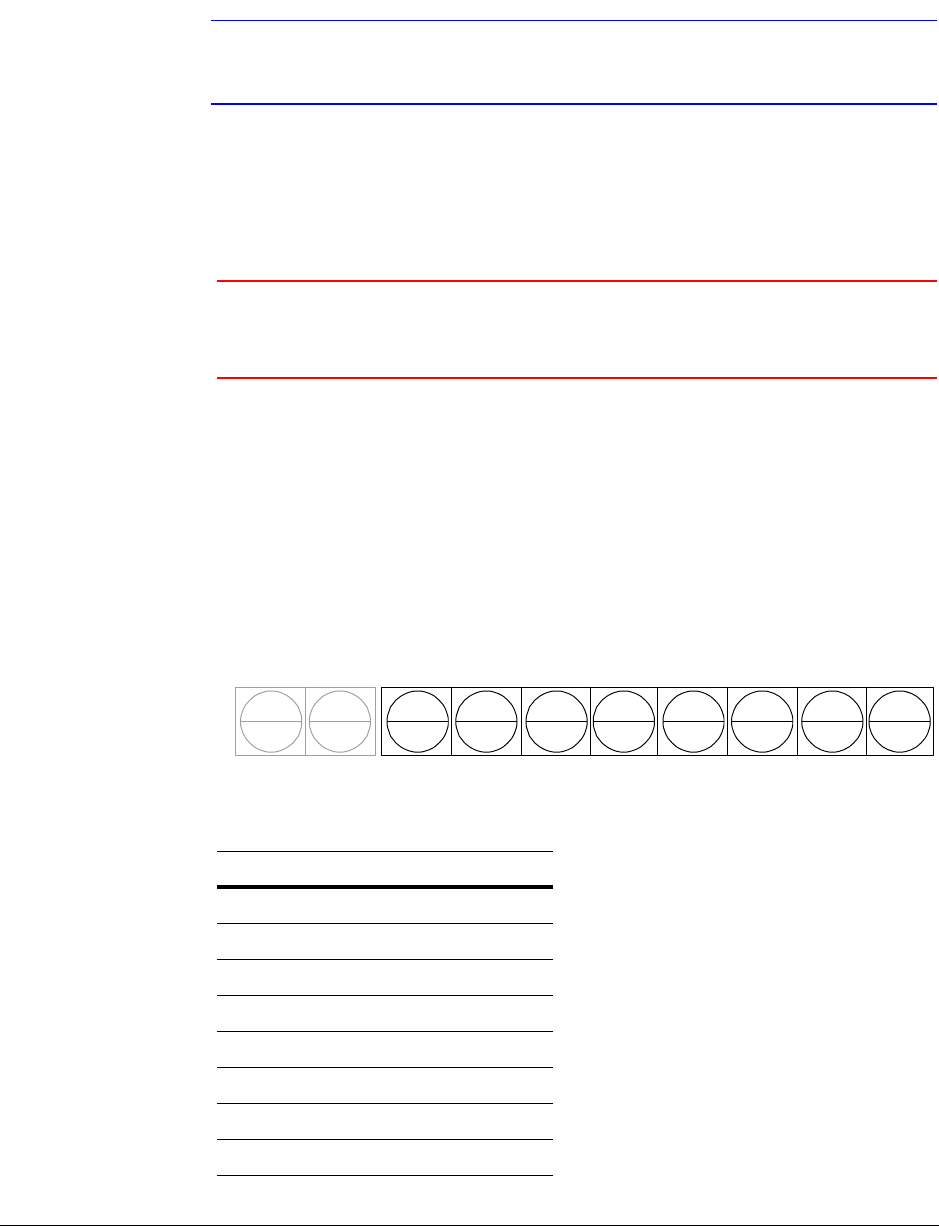

Figure 2-3 Audio and Alarm PINs
12345678
Power
Table 2-1 Audio and Alarm Connector PIN Definitions
PIN Definition
1 Audio In +
2 Audio In -
3 Audio Out +
4 Audio Out -
5Alarm In +
6Alarm In -
7Alarm Out +
8Alarm Out -
20
Installation and Setup
Connecting Audio
Your network camera supports bi-directional audio. There are two supported voice band
channels that function in full duplex mode. Your camera can transmit audio from the camera
to the client (PC) using any audio source that provides an industry standard line level input
(see the terminal strip as depicted in Figure 2-6). Your camera can also receive audio from
the client (PC) and provide an industry standard line level output suitable to connect to
audio devices. Audio input and output have 600 Ohm impedance. See Audio Settings on
page 63 to configure audio options.
Connecting Alarms
WARNING! Do not exceed the maximum rating of 12 VDC, 0.5 A on alarm
output connections.
Your HD3MDIH/X camera has one alarm input and one alarm output. Connect mechanical
or electrical switches to the alarm input connection to allow event-triggered recording.
When alarm inputs are configured, your HD3MDIH/X camera triggers an alarm only when
the normal alarm state (open or closed) changes.
Figure 2-4 Normal Alarm States
See Alarm Settings on page 62 to configure the alarm inputs.
Connect external devices such as sirens or flashing lights to the alarm output connector to
signal an activated alarm to camera users.
Figure 2-5 Alarm Connection
The alarm output can be configured to provide normally open or normally closed contacts
(see Alarm Settings on page 62 to configure the alarm output). Contacts will be rated for 12
VDC @ 0.5 A.
Normally closed Normally opened
In
Audio Alarm
Out
+
+
HD3MDIH/X EQUIP Series Indoor High Resolution True Day/Night IP Dome Camera User Guide
Document 800-07361 Rev A 21
12/10
4. Pull the cables through the back or side entries of the camera skirt, back box and/or
adapter plate (as required), then connect the green connector strip to the camera
assembly. You might have to remove the cover plate for flush mounting the camera.
Connecting Power
WARNING! The use of a CSA Certified/UL Listed Class 2 power supply is
required to ensure compliance with electrical safety
standards.
Note Check the power source from the external power supply before applying
power to the camera.
1. Connect the appropriate power supply for your installation:
• 24 VAC power supply (proceed to step 2)
or
• Power over Ethernet (IEEE 802.3af) 48 VDC power supply
Note If you are using PoE (802.3af), power will automatically be supplied to the
camera through the network cable.
2. Connect to the power supply (see Figure 2-6 on page 22).
3. Plug the power supply into an appropriate power source. The LED on the RJ45 jack
illuminates when the camera receives power. If it does not illuminate, check the
terminal block connections and the power source.
Note To ensure satisfactory performance, it is recommended that you use a UPS
source when connecting the camera to a 24 VAC power source.
22
Installation and Setup
Figure 2-6 Camera and Cables
Figure 2-7 Wiring Connection Shown on Board
24 VAC power
RJ45 Ethernet network
connection (using 10Base T
or 100Base TX cable). See
Connecting to a Network via
an RJ-45 Ethernet
Connector, page 23)
Also for Power over
Ethernet (PoE 802.3af)
Connector Strip
Audio: Input/Output
Alarm: Input/Output
(see Connecting Alarms,
page 20)
Back view of camera
Local video out connector
(for aim and focus)
RJ45 Ethernet Connector
(see Connecting to a Network via
an RJ-45 Ethernet Connector, page
23)
Factory reset button
Inside view
of camera
HD3MDIH/X EQUIP Series Indoor High Resolution True Day/Night IP Dome Camera User Guide
Document 800-07361 Rev A 23
12/10
Connecting to a Video Monitor
The local video out (see Figure 2-7) is available as a test output and should be used as
needed during installation to position, aim, and focus the camera. Use the provided BNC
connector to connect the video from the camera to the video input connector on your video
monitor.
Note If your installation involves a 24V AC power source, then please wait
approximately 60 seconds after connecting to a power source for video to
appear on the local video out.
Connecting to a Network via an RJ-45 Ethernet Connector
The main video connection for your HD3MDIH/X camera will be made through your
Ethernet network connection. Connect the Ethernet connector on your camera to your
network using an Ethernet (10Base-T, 100Base-TX) cable.
Note You can connect your camera to a network or use any type of CAT5 cable to
connect it directly to a PC or laptop.
24
Installation and Setup
Mounting the Camera
Surface Mount
1. Secure the skirt to the ceiling (hardware
not supplied) or to the wall using the
supplied screws.
Note You must use screws that are able to
support at least three times the weight
of the camera.
2. Connect the wires (see Connecting the
Wires on page 19).
3. Rotate and align the camera assembly
yellow label with the skirt yellow label.
4. Secure the camera assembly to the skirt by
pushing it into the skirt, then twisting it
clockwise until it clicks securely in place.
5. Secure the camera assembly to the skirt by
twisting it clockwise until it clicks securely
in place.
6. Adjust the camera’s field of view (see Adjusting the Camera FOV (Field of View) on
page 25).
7. Install the turret by clicking it into place.
8. Install the bubble by placing it on the camera with the tabs to the left of the slots, then
turning it clockwise until the tabs click securely into place.
HD3MDIH/X EQUIP Series Indoor High Resolution True Day/Night IP Dome Camera User Guide
Document 800-07361 Rev A 25
12/10
Flush Mount (with or
without 4S box)
1. Use the screws (not supplied) to
connect the adapter plate directly
to the ceiling or wall.
Or
Use your own screws to connect
the adapter plate to the 4S box (not
supplied) which is attached to the
ceiling or wall.
Note You must use screws that are
able to support at least three
times the weight
of the camera.
2. Connect the wires (see Connecting
the Wires on page 19).
3. Secure the camera assembly to the
adapter plate by twisting clockwise
until it clicks securely in place.
4. Adjust the camera’s field of view
(see Adjusting the Camera FOV
(Field of View) on page 25).
5. Install the turret by clicking it into place.
6. Install the dome bubble by placing it on the camera with the tabs to the left of the
slots, then turning it clockwise until the tabs click securely into place.
Restore Factory Defaults
Your HD3MDIH/X camera has a Factory Reset switch located inside the camera (see
Figure 2-6 on page 22). This switch restores your camera settings and passwords to their
default settings. Press and hold the Reset switch for three seconds. This will reset the
factory-configured parameters such as the compression settings, the camera tamper
detection settings, and the Video Motion Detection settings. This will not impact network IP
address configurations.
Adjusting the Camera FOV (Field of View)
To adjust your HD3MDIH/X camera:
1. Verify that power is supplied to your camera.
Dome bubble
Adapter plate
Camera
assembly
Turret
Note Installation with 4S box shown
4S box (not supplied and optional)
Screws
(supplied)
Screw caps
26
Installation and Setup
Note If your installation involves a 24V AC power source, then please wait
approximately 60 seconds after connecting to a power source for video to
appear on the local video out.
2. Connect the supplied video cable to the local video out connector to view the video
signal on a standard monitor (see Figure 2-8 below to connect a local video monitor).
3. Loosen the setscrew that locks the gimbal assembly in place (see Figure 2-8) to
adjust the horizontal rotation.
4. Adjust the gimbal assembly to the desired view.
5. Re-tighten the locking screw to lock the gimbal assembly in place.
Note Figure 2-8 illustrates the ways in which you can adjust your camera.
Caution Adjust the camera field of view only by moving the gimbal. Do not
move the camera lens to adjust the camera field of view as this might
result in irreparable damage.
Figure 2-8 Gimbal Adjustment
Angle view
Top view
Setscrew (loosen to
adjust horizontal
rotation)
Loosen set screw to adjust
Tilt Rotation (A)
Set focal length
(bottom)
Legend
A = Tilt rotation
B = Horizontal rotation
C = Pan rotation
Local
video
out
HD3MDIH/X EQUIP Series Indoor High Resolution True Day/Night IP Dome Camera User Guide
Document 800-07361 Rev A 27
12/10
Adjusting the Lens Focus
Lenses are pre-focused at the factory. They might require a final adjustment after
installation because the optical effect of the dome bubble might cause a slight defocusing
of the lens.
TECH TIP! To check the focus, hold the dome bubble over the lens while making any adjustments.
To adjust the camera direction, view angle, and focus, connect the local video out to the
video monitor using the supplied BNC video cable.
Securing the Enclosure Cover
Install the dome bubble when you have set up your camera and completed the network
connections (see Chapter 3, Installing the Honeywell IP Utility and Web-Client Software).
Place the enclosure cover on the camera with the tabs to the left of the slots, then turn it
clockwise until the tabs click securely into place.
Figure 2-9 Installing the Enclosure Cover
28
Installation and Setup
Document 800-07361 Rev A 29
12/10
3
Installing the Honeywell IP Utility and
Web-Client Software
This chapter describes how to:
• Install and log onto the IP Utility
• Connect to a device and configure network settings using the IP Utility
• Launch the Web-Client software
• Uninstall the IP Utility, Bonjour, or ActiveX software
About the Honeywell IP Utility and Web-Client
About the Honeywell IP Utility

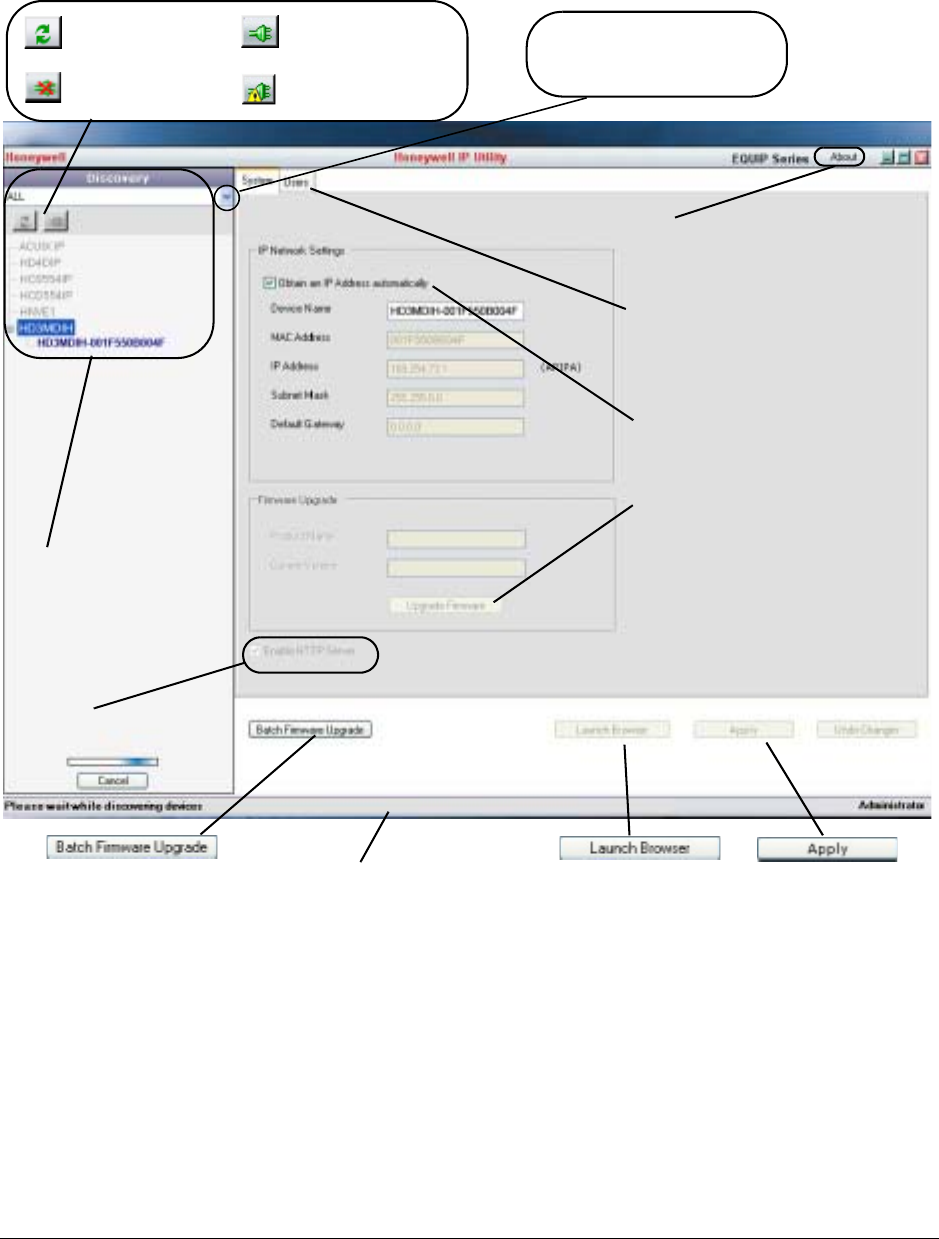

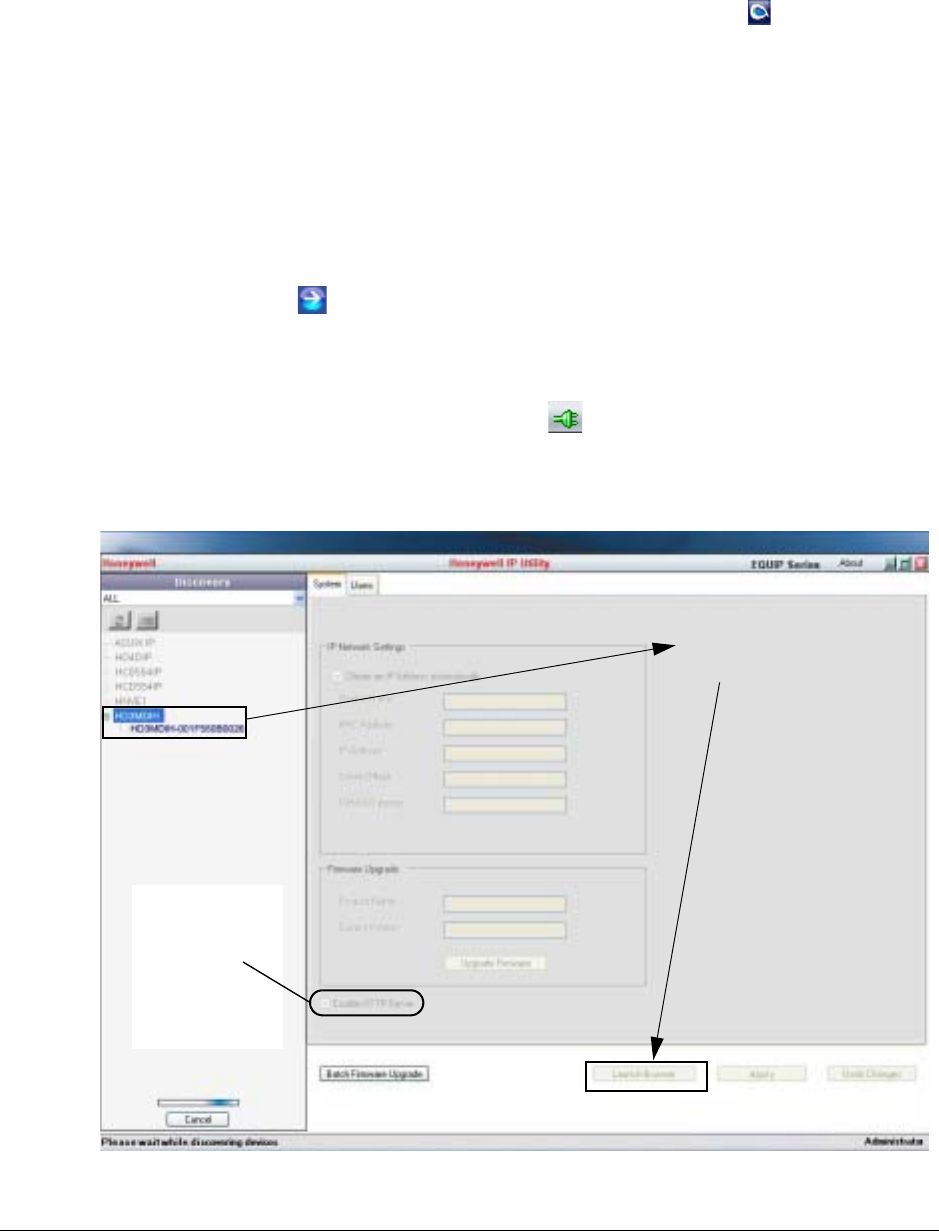

The Honeywell IP Utility is a software application that is installed from a CD or
downloaded from the Honeywell Systems Group website (www.honeywellvideo.com). It
is installed on a local workstation and primarily used by Administrators to configure the
EQUIP Series of products residing on an IP network.
The IP Utility enables users to:
• Discover device(s) on a network
• Configure the IP network settings, name device(s), upgrade firmware, change
passwords.
• Open individual Web-Client applications for each discovered device.
Note Before installing and using the Honeywell IP Utility, confirm that your
HD3MDIH/X camera is connected to the network through an Ethernet cable
(see Connecting to a Network via an RJ-45 Ethernet Connector on page 23).
30
Installing the Honeywell IP Utility and Web-Client Software

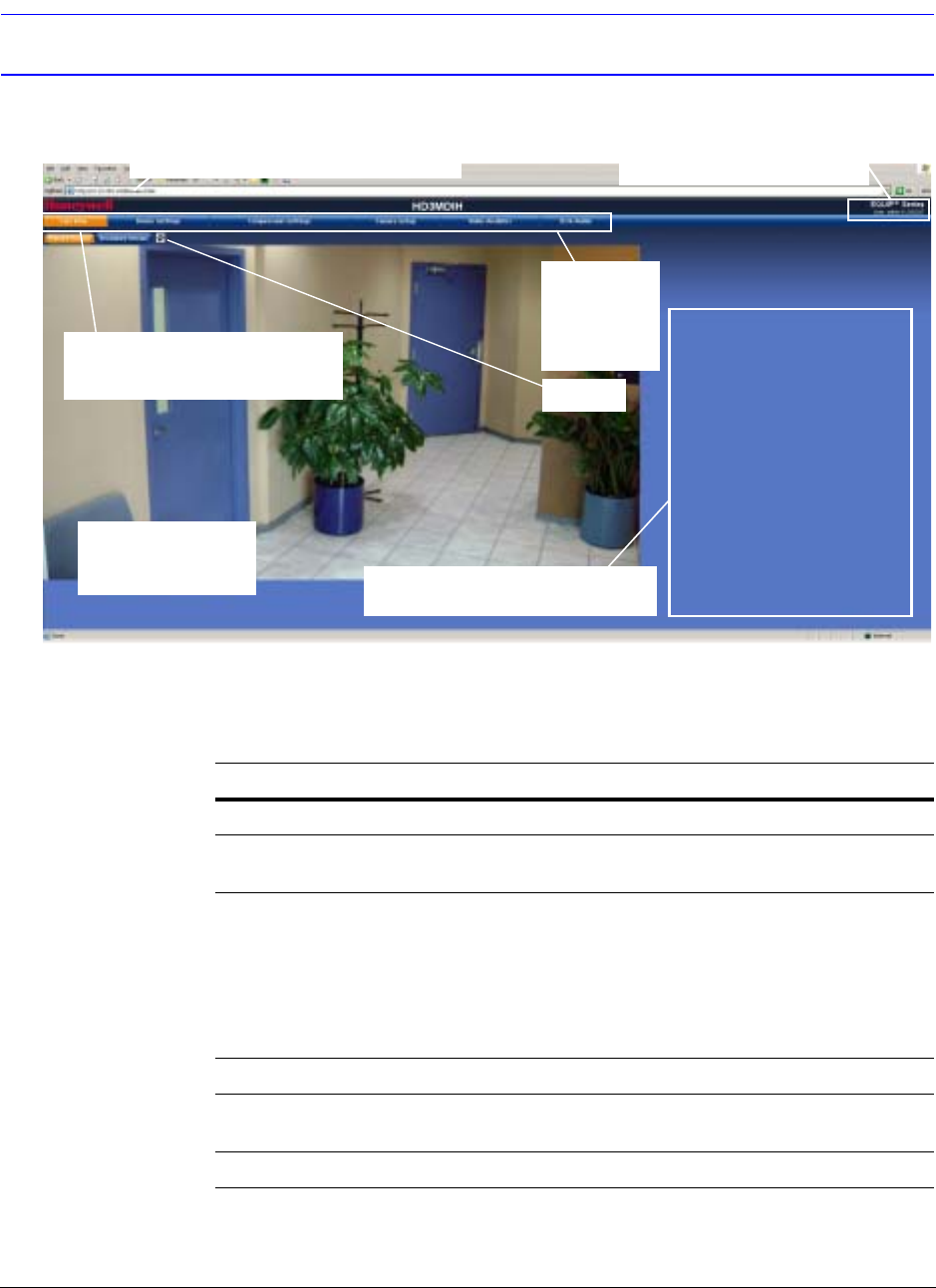

About the Web-Client
The Web-Client is the web-based application that enables users to:

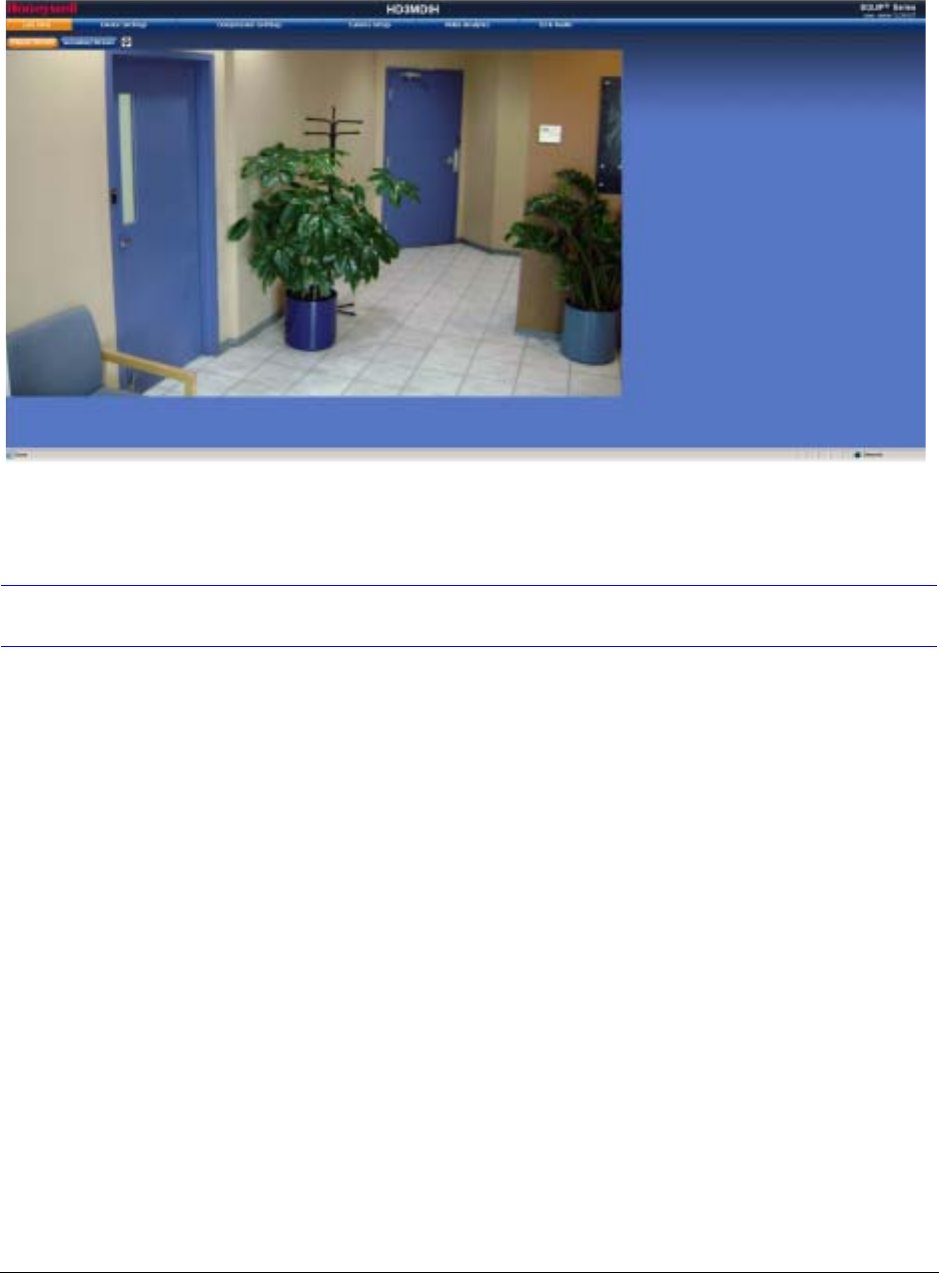

• View live-streaming video.

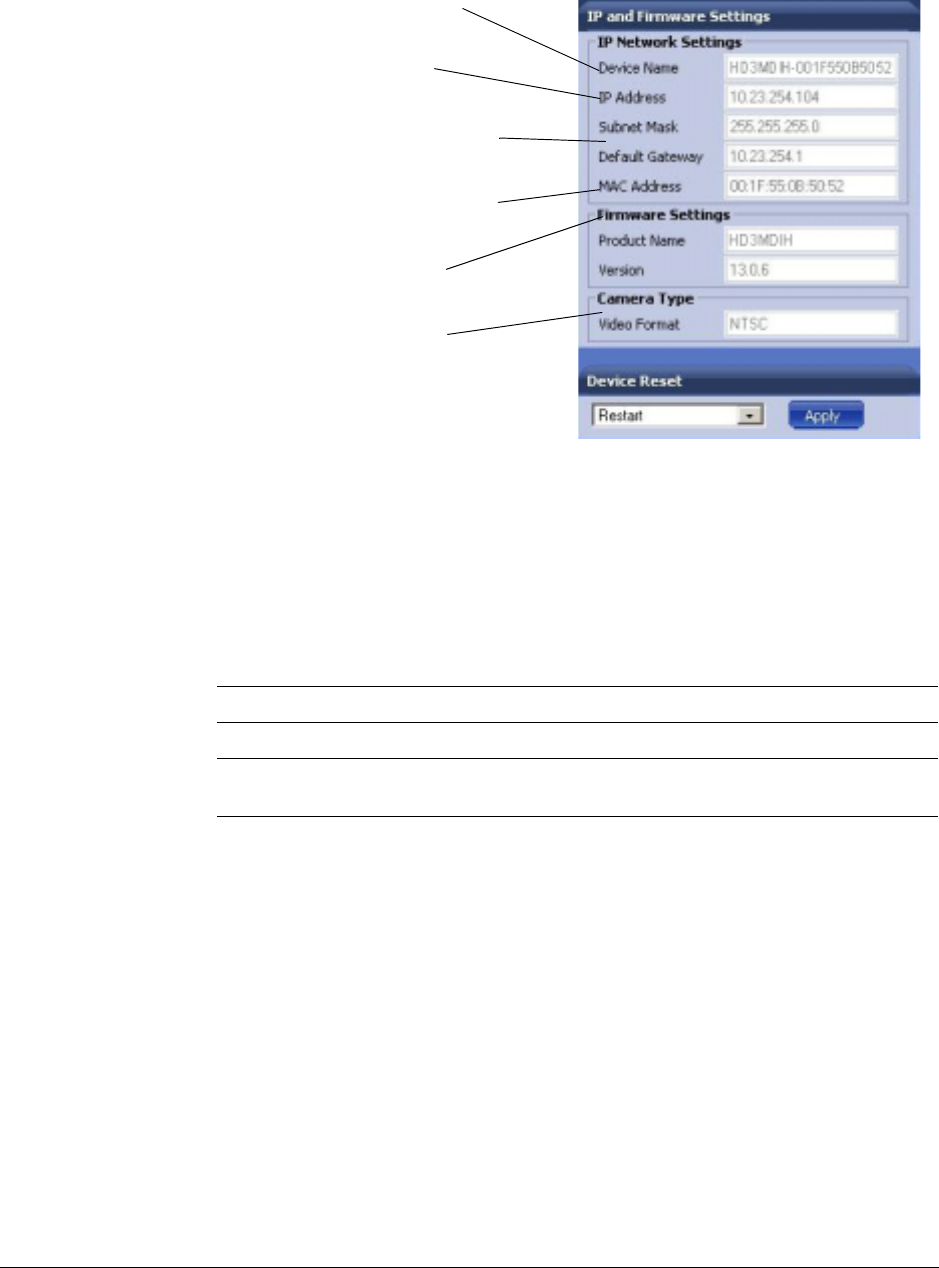

• View the device network settings and firmware details.
• Configure camera settings
• Configure video analytics settings.
• Configure compression settings.
• Configure alarm and audio settings.
User Profiles: Honeywell IP Utility and Web-Client
Both the Honeywell IP Utility and the Web-Client have two user types: Administrator and
Guest as described in Table 3-1.
Note Only one user, an Administrator or a Guest, can be logged on at a time.
After the IP Utility software is installed, you can change the Administrator or Guest
passwords.
Table 3-1 User Profiles for Honeywell IP Utility and the Web-Client
Interface Administrator Guest
Honeywell IP
Utility
• View the list of available network devices
and connect to the devices.
• Configure the IP network settings.
• Upgrade firmware.
• Change the password to access the IP
Utility application.
• Change the access passwords to the
Web-Client application.
• View the list of devices available on the
network.
• View system settings including device
name, IP address, and MAC address.
Web-Client • View video and network settings.
• Configure compression settings.
• Configure camera setup.
• Configure video analytics.
• Configure audio and alarms.
• Guest users are limited to the Live View
tab where they can view video
HD3MDIH/X EQUIP Series Indoor High Resolution True Day/Night IP Dome Camera User Guide
Document 800-07361 Rev A 31
12/10
Step 1: Confirm Your System Requirements
Note Windows administrator privileges are required to install the Honeywell IP
Utility and associated software.
Note Contact the network administrator if there are any questions regarding the
local area network (LAN) or any other network related issues.
Install the Honeywell IP Utility on a work station with the minimum requirements (outlined
in Table 3-2). After the IP Utility is installed, the same computer workstation can be used to
access the Web-Client.
Table 3-2 PC Minimum System Requirements
Component Requirement
Operating System Windows XP®, Windows 7, or WINServer 2003
Processor Intel® Pentium® IV, 3.1 GHz or faster
RAM 1 GB RAM (32-bit) or 2 GB RAM (64-bit)
Table 3-3 Items Installed On Your System
Item Function
Honeywell IP Utility software To enable use of the Web-Client to configure
cameras and view live video.
Bonjour software To discover cameras on the network.
Honeywell PSIA IP Adapter
software
To enable Web-Client and systems operations
with PSIA devices.
Honeywell HD3 ActiveX
software
To enable live streaming of video on the
Web-Client.
EQUIP® Series User Guides To provide detailed information about how to
install and configure your EQUIP Series products.
32
Installing the Honeywell IP Utility and Web-Client Software
Step 2: Install the Honeywell IP Utility Software
1. Close all other applications that might be open on your computer.
2. Open the Honeywell IP Utility InstallShield Wizard.
Method 1: CD
Insert the CD into the CD-ROM drive.
Note If InstallShield does not open automatically, navigate to [CD
drive]\Honeywell IP Utility\Honeywell IP Utility Setup.exe. Double-click on
the file to launch the program.
Method 2: Website
a. Navigate to www.honeywellvideo.com.
b. Click Customer Resources Download Center I Agree to reach the
software downloads page.
c. Locate your device in the list (for example, click Cameras for HD3MDIH/X
camera).
d. Under Honeywell IP Utility, download, extract and open the Honeywell IP Utility
Set-up.exe icon from where you extracted the file.
3. When the Honeywell IP Utility InstallShield Wizard opens, follow the instructions.
After the installation is complete, a Honeywell IP Utility icon displays on the
desktop.
Downloading the EQUIP Series Installation Guides
1. To access the installation documents that were installed with the IP Utility, click Start
All Programs Honeywell Video Systems EQUIP Series Manuals
2. Select the applicable PDF to download to your computer.

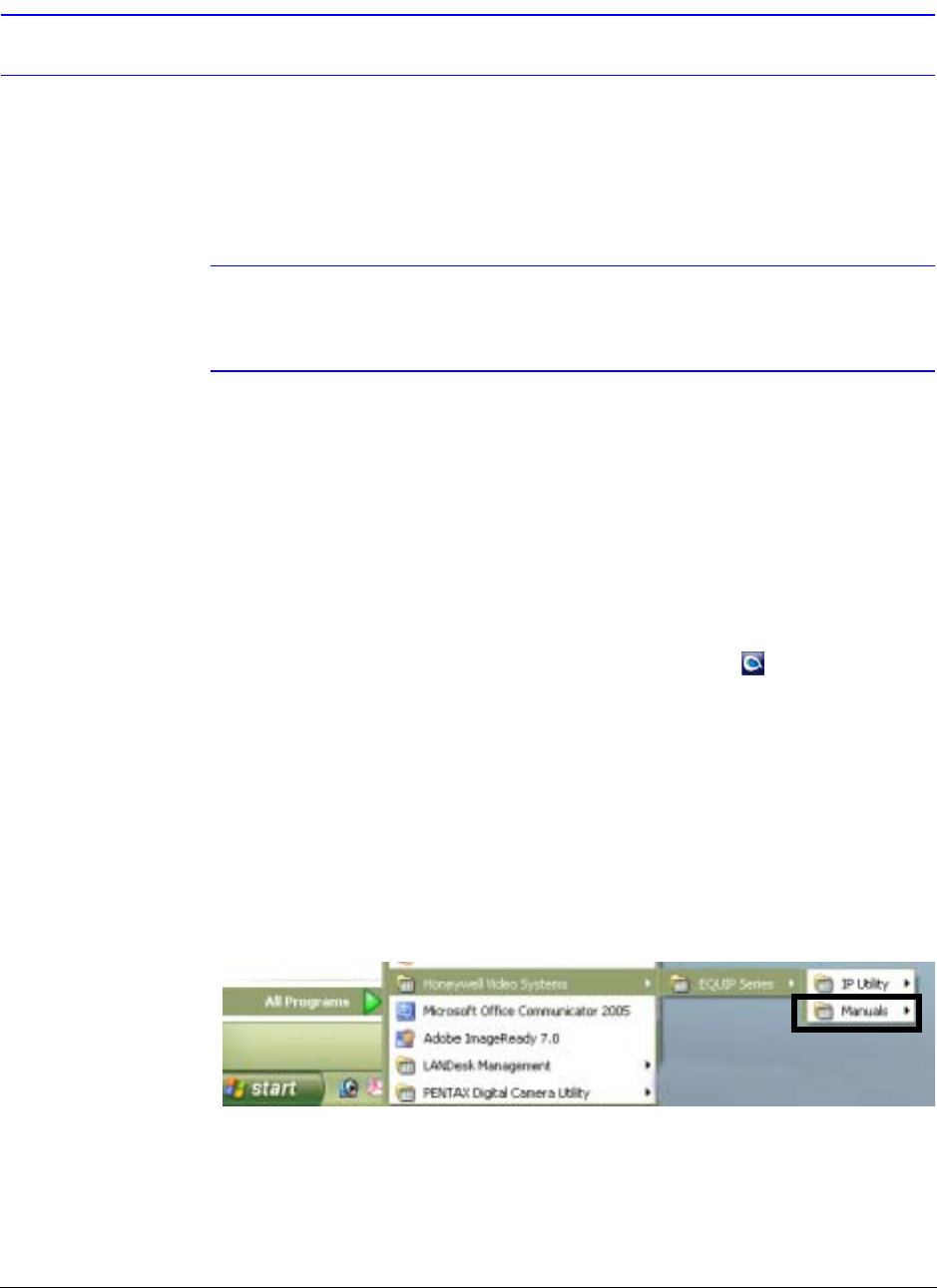

Figure 3-1 Accessing Your Installation Documents
HD3MDIH/X EQUIP Series Indoor High Resolution True Day/Night IP Dome Camera User Guide
Document 800-07361 Rev A 33
12/10
Step 3: Log Onto the IP Utility and Discover Network Devices
1. Double-click the Honeywell IP Utility icon on your desktop.
-OR-
Click Start Programs Honeywell Video Systems EQUIP Series IP
Utility Honeywell IP Utility.
The Honeywell IP Utility Log On window opens.

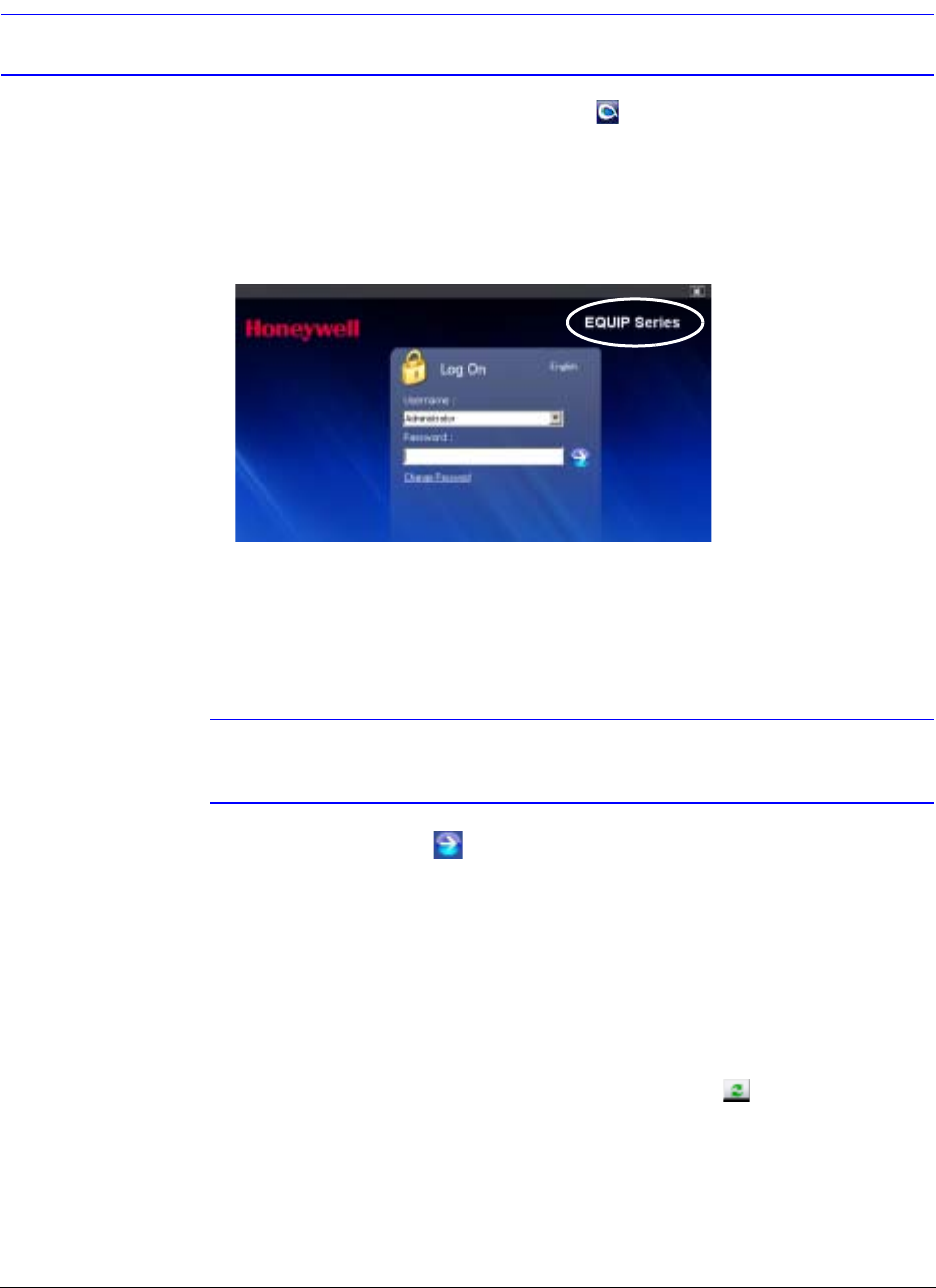

Figure 3-2 Honeywell IP Utility Log On Window
2. Select Administrator or Guest from the User Name drop-down list.
3. Enter the case-sensitive password in the Password field.
• The default Administrator password is 1234.
• The default Guest password is guest.
Note During the installation set up, you must log on as an Administrator to access
all the features.
4. Click the arrow button .
The Honeywell IP Utility program searches for devices on the network and opens to
the Honeywell IP Utility user interface.
5. Automatically discover or manually refresh the list of devices on the network.
Use the manual refresh if a new device was added after you logged onto the system.
• You do not need to do anything to discover devices. When you log on to the IP
Utility, the devices on the network — including the devices on other subnets —
are automatically discovered and listed in the Discovery pane. After the initial
discovery, the network automatically continues to discover devices that are newly
added to the network.
• To manually refresh the device list, click the Refresh ( ) button, located near
the top of the Discovery pane.
6. Enable or disable the HTTP Server checkbox for additional security. Only an
Administrator can disable (uncheck the box), resulting in the user being unable to
access the Web-Client, although video recording is unaffected.
34
Installing the Honeywell IP Utility and Web-Client Software
Figure 3-3 Honeywell IP Utility User Interface
The About menu displays the
software version installed.
The Status bar displays how many
devices are on the network, which
one you are connected to, and
which user is logged on.
The Discovery pane lists
the IP devices found on the
network and groups by
device type.
From the User tab, Administrators
can change the Web-Client user
passwords.
IP Network Setting assigns
network settings automatically
or manually.
Connect button
Disconnect button Limited/No connectivity
button
Refresh button
Upgrade Firmware
downloaded from the
Honeywell website.
Use the Product Filter drop-down
menu to select a specific device,
such as all HD3 series cameras.
Click Apply to save
manually configured
network settings.
Use Launch Browser
to open the HD3
series IP Web-Client
for each device.
Use Batch Firmware Upgrade
to select a group of devices and
upgrade the firmware for all.
Enable or disable HTTP
Server.
HD3MDIH/X EQUIP Series Indoor High Resolution True Day/Night IP Dome Camera User Guide
Document 800-07361 Rev A 35
12/10
Step 4: Connect to a Device and Configure Network Settings
When you log on to the IP Utility, the devices on the network—including the devices on
other subnets—are automatically discovered and are listed in the Discovery pane. After the
initial discovery, auto-refresh continues to discover devices that are newly added to the
network.
You can also manually refresh the device discovery by clicking the Discovery icon ( ),
located near the top of the Discovery pane.
Connecting to or Disconnecting From Devices
Before configuring the IP network settings, you must connect to the IP device.
Connecting to a Device
You can connect to individual Web-Client applications for each discovered device.
•In the Discovery pane, double-click the device to which you want to connect.
-OR-
• Select the device and click the Connect button.
The network settings for the connected device are displayed in the System pane.
Disconnecting from a Device
In the Discovery pane, select the device and click Disconnect .
Note If you disconnect the device without saving configuration details, a warning
dialog box displays. Click Yes to save and disconnect, or click Cancel to
discard the changes and disconnect the device.
Configuring the IP Network Settings Automatically or Manually
Note When you see the Limited/No connectivity button, you cannot fully
connect to the device because the discovered device is on a different subnet
from your PC. Check your network settings for both the device and your PC to
resolve this issue. Consult your network administrator for additional support.
36
Installing the Honeywell IP Utility and Web-Client Software
The IP network setting details, such as device name, IP address, and subnet mask, can be
configured for each connected device either automatically or manually.
Note It is important to click Apply to save any configuration change.

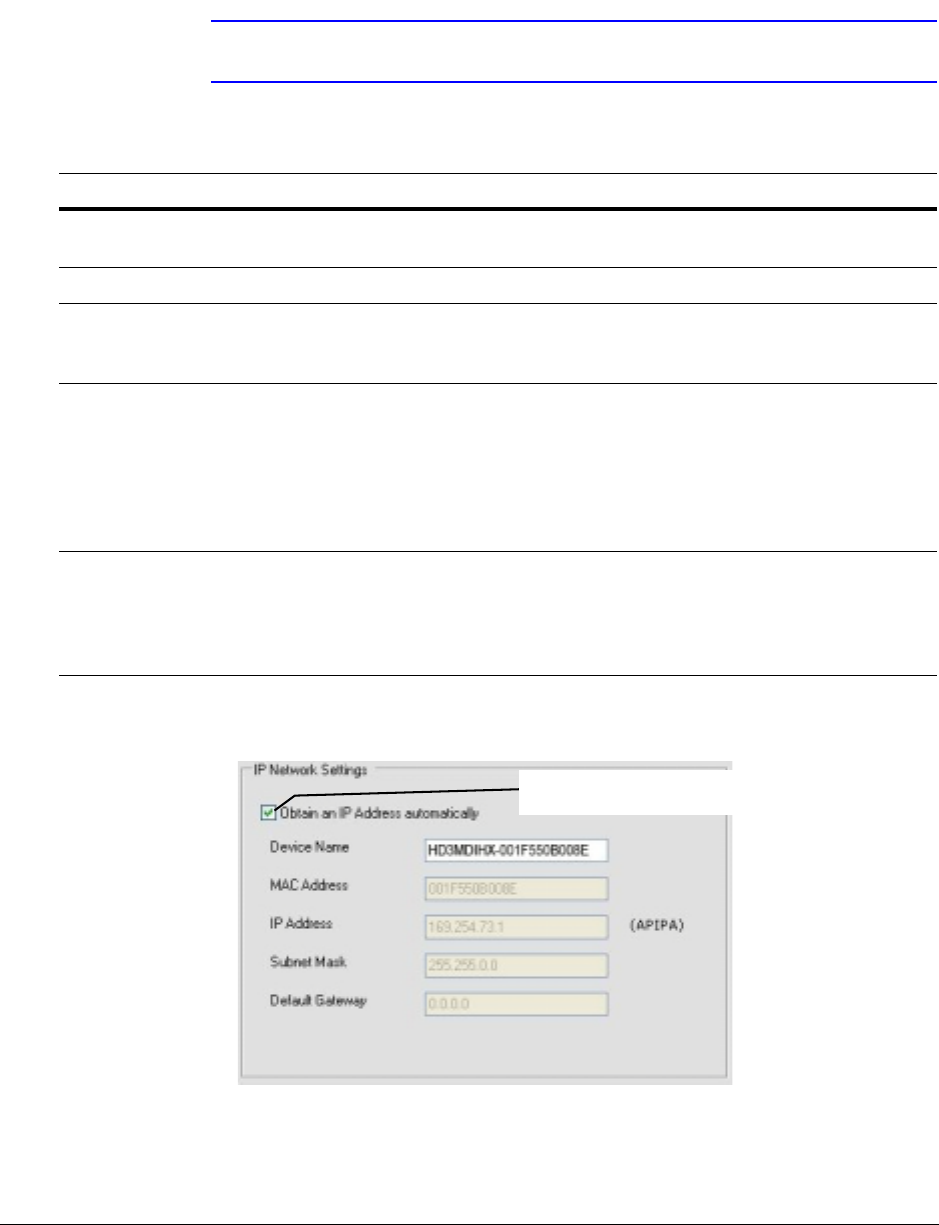

Figure 3-4 Set the IP Network Settings Automatically or Manually
Table 3-4 IP Network Device Setting Options
Option Description
Device Name By default, the device name is the device type plus the MAC Address. Honeywell
recommends, for security, that you change the device name.
MAC Address The MAC address is a factory-assigned address that is unique for each device.
IP Address The IP address of the device on the network.The camera obtains an IP address
by static or dynamic (automatic) means. There are two options: DHCP (dynamic),
assigned by the user, or APIPA (static), assigned by the network.
Subnet Mask The subnet mask, or netmask, value of the device on the network. IP networks
can be divided into several smaller networks by subnetting. When a network is
subnetted, you must specify a subnet mask, which tells network devices which
smaller network they belong to.
Note If the subnet mask is not properly configured, the camera might not be
able to communicate with other devices on the network.
Default Gateway The default gateway address that connects the device to the network. Enter the
host IP address to use as a gateway between networks. The gateway allows
communication between devices that are on different networks. Without a correct
gateway setting, the camera cannot receive or transmit data from or to devices
that are not in the same network address range.
Click to clear this checkbox to
manually set the network details
HD3MDIH/X EQUIP Series Indoor High Resolution True Day/Night IP Dome Camera User Guide
Document 800-07361 Rev A 37
12/10
Updating IP Network Settings Automatically
1. In the Discovery pane, select the device and click Connect .
2. From the System tab click the Obtain an IP Address automatically check box.
3. Enter a Device Name, for example, FrontLobbyDome01.
4. Click Apply.
The network automatically assigns the IP Address based on the DHCP network server
details. If no DHCP server is present on the network, the hardware defaults to an
APIPA address (169.254.x.x).
Updating IP Network Settings Manually
Caution When manually updating the network settings, it is important to enter
the correct IP network settings before applying them. Incorrect values
might cause a failure when connecting to the device. See Table 3-4
for definitions of each setting.
1. In the Discovery pane, select the device, and click Connect .
2. To assign a static IP address to the device, from the System tab click to clear the
Obtain an IP Address automatically check box.
3. Enter a Device Name, for example, FrontLobby01.
Note The MAC address is a factory-assigned address that is unique for each
device.
4. Enter an IP Address of the device on the network.
Note The address must be in the same address range. For example, if the PC is
192.168.1.xx, then the device should be set to a similar address, for example
192.168.1.xy.
5. Enter the device Subnet Mask value. A value is required.
6. Enter a default Gateway Address that connects the device to the static network. A
value is required.
7. Click Apply.
The network settings are updated and a message displays in the status bar to confirm
the update.
38
Installing the Honeywell IP Utility and Web-Client Software
Interfacing with the EQUIP Device Via a Network Video Recorder
Your HD3MDIH/X camera supports the PSIA specification for interoperability between
network video products. There is no support for legacy EQUIP and EQUIP2 protocols.
For further information, refer to the documentation supplied with your NVR or contact your
NVR network administrator.
Step 5: Launch the Web-Client to View Live Video
Note Only one user, an Administrator or a Guest, can log on to the Web-Client
application at one time. After you are logged on as an Administrator, there is
no time out until you click Logout. To allow other Administrators to log on,
you must log out when the session is done.
Note After the IP Utility software is installed for the first time, you can change the
Administrator or Guest passwords and upgrade firmware.
Note It is important to click Apply in order to save any configuration change.
1. Log onto the Web-Client. There are two ways to launch the Web-Client and log on—
via the Honeywell IP Utility Program or directly from Internet Explorer.
Honeywell IP Utility
a. Log onto the Honeywell IP Utility program.
b. From the Discovery pane, click to select the device to launch its browser.
c. To enable or disable the HTTP server, select or clear the Enable HTTP Server
check box. By default, the HTTP server is enabled.
d. From the System tab, click Launch Browser.
The Web-Client application for the selected device opens in Internet Explorer.
Internet Explorer

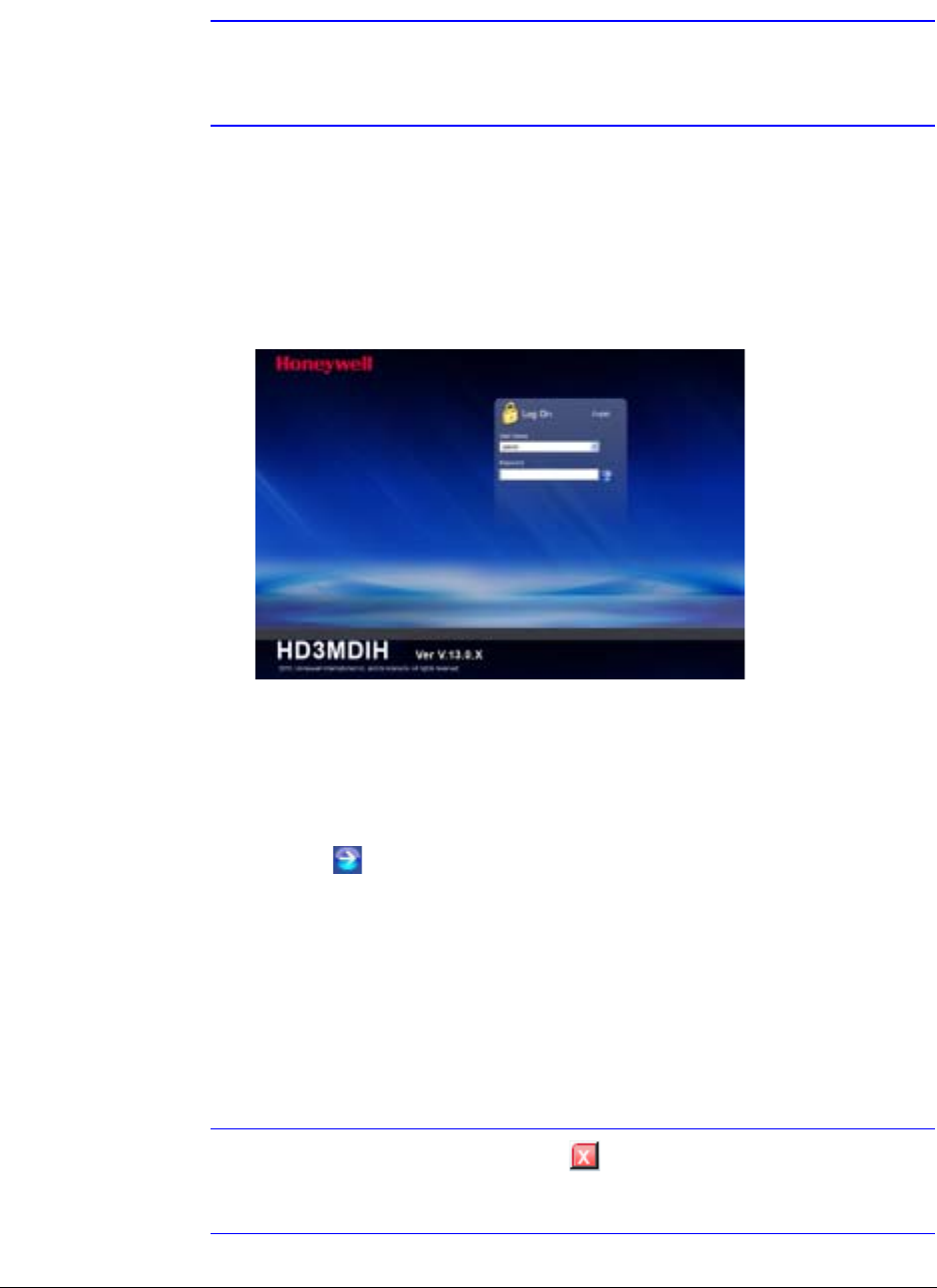

From Internet Explorer (v6.0+), enter the URL (IP address of the device) in the
Address bar to open the logon window.
2. Select a User Name and enter a Password.
a. From the User Name drop-down list, select Administrator or Guest.
HD3MDIH/X EQUIP Series Indoor High Resolution True Day/Night IP Dome Camera User Guide
Document 800-07361 Rev A 39
12/10
b. In the Password field, enter the case-sensitive password.
• The default Administrator password is 1234.
• The default Guest password is guest.
c. Click .
3. A signed version of ActiveX® control is installed when you use the Web-Client to
discover connected devices for the first time. If you have a previous version of IP
ActiveX is installed, you are prompted to upgrade to Honeywell secure ActiveX
control.

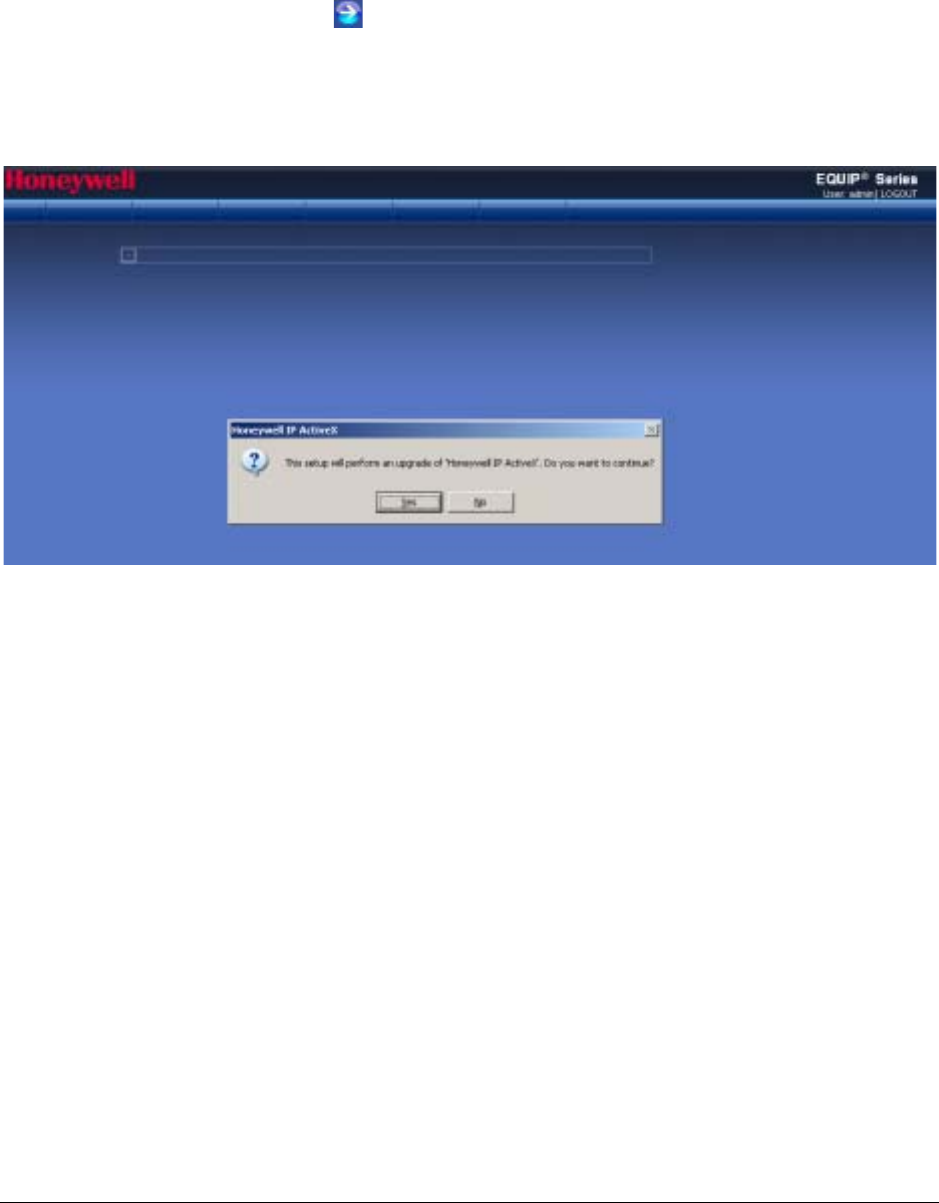

Figure 3-5 ActiveX Prompt
Click Yes.
4. Follow the InstallShield Wizard prompts to install the secure Honeywell IP ActiveX on
your PC.
5. The InstallShield Wizard Completed message indicates a successful ActiveX
upgrade. Click Finish.
The Web-Client interface opens and live streaming video displays on the monitor.
40
Installing the Honeywell IP Utility and Web-Client Software

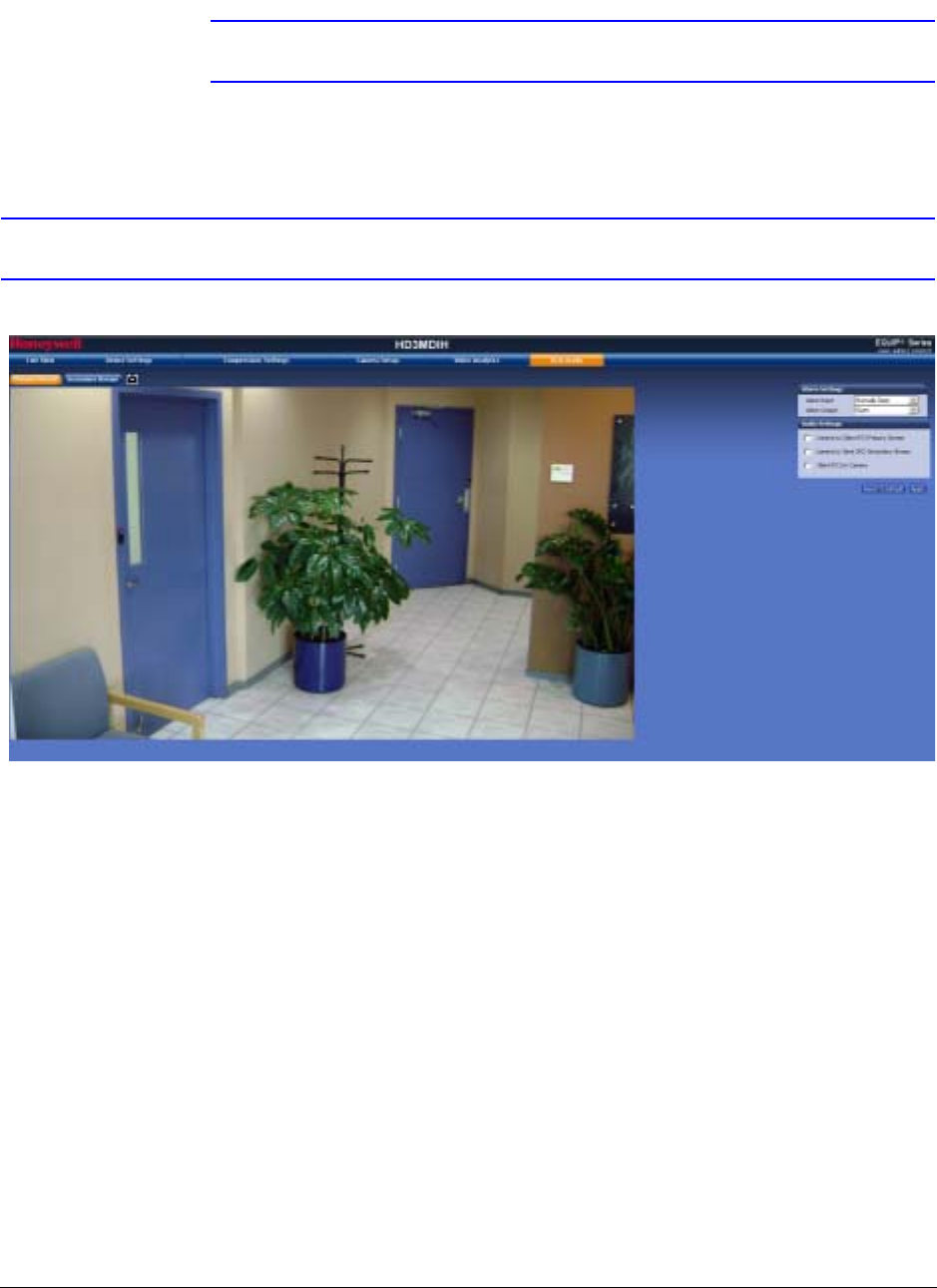

Figure 3-6 Web-Client Interface After Logging On
Uninstalling IP Utility, Bonjour or the ActiveX Plug-in Software
You can uninstall the IP Utility, Bonjour, or IP ActiveX software using:
•The Start menu to uninstall IP Utility and Bonjour
OR
•The Control Panel to uninstall IP Utility, Bonjour and IP ActiveX.
Uninstalling IP Utility Using the Start Menu
1. Click Start All Programs Honeywell Video Systems EQUIP Series IP
Utility Uninstall Honeywell IP Utility.
2. Click Yes.
The Honeywell IP Utility is uninstalled.
3. During the uninstallation process, you are prompted to also uninstall the Bonjour
program. Click Yes to remove Bonjour or No to only uninstall the Honeywell IP Utility.
4. Click Finish.
HD3MDIH/X EQUIP Series Indoor High Resolution True Day/Night IP Dome Camera User Guide
Document 800-07361 Rev A 41
12/10
Uninstalling IP Utility or IP ActiveX Using the Control Panel
1. Click Start Settings Control Panel.
2. Open Add or Remove Programs and select Honeywell IP Utility or Honeywell IP
ActiveX from the Currently installed programs list.
3. Click Change/Remove.
The IP Utility Installation Wizard screen opens.
4. Click Next Remove.
The Honeywell IP Utility is uninstalled.
5. During the uninstallation process, you are prompted to also uninstall the Bonjour
program. Click Yes to remove Bonjour or No to only uninstall the Honeywell IP Utility.
6. Click Finish.
42
Installing the Honeywell IP Utility and Web-Client Software
Document 800-07361 Rev A 43
12/10
4
IP Camera Web-Client
Before you launch the Honeywell IP Web-Client, ensure that you complete the following
sections before configuring your HD3MDIH/X camera:
•Chapter 2, Installation and Setup
•Chapter 3, Installing the Honeywell IP Utility and Web-Client Software
This chapter covers:
• Navigating the Web-Client interface
• Understanding the Web-Client features and functions
• Configuring compression settings
• Configuring camera settings
• Setting tamper detection
• Configuring audio, alarm, and motion detection settings
Overview
The network camera Web-Client is a web-based application that enables you to view
video, listen to audio, and configure camera, sabotage detection, motion detection,
alarm, and audio settings for the network camera.
Certain features of the IP Camera Web-Client are user-based and are available only to the
Administrator. The guest user is limited to the Live View tab. Only one user, an
Administrator or a Guest, can be logged on at a time.
44
IP Camera Web-Client
User Profiles
Table 4-1 describes the roles and privileges for the Web-Client application users:
Logging On and Off the IP Web-Client
Note Only one user, an Administrator or a Guest, can log on to the Web-Client
application at a time.
There are two ways to open each IP Web-Client.
• By clicking Launch Browser from the IP Utility interface.
• Directly from Internet Explorer by entering the URL (the IP address) in the address
bar.
Note The web page where you log on to the Honeywell IP Utility and any IP device
web page (for example, the IP Web-Client) look very similar. You can tell the
difference between the two sites by the IP address in the web browser as well
as the program name in the lower left corner of the window.
Table 4-1 User Roles and Privileges
User Role Privileges
Administrator • View video and network settings
• Configure the alarm and audio settings
• Set up the video compression settings
• Configure auto exposure and white balance for
the camera
• Set up camera sabotage and video motion
detection settings
Guest Operator • View video
HD3MDIH/X EQUIP Series Indoor High Resolution True Day/Night IP Dome Camera User Guide
Document 800-07361 Rev A 45
12/10
Launching the Web-Client from IP Utility
1. From the desktop, double-click the Honeywell IP Utility icon .
-OR-
Click Start All Programs Honeywell Video Systems EQUIP Series IP
Utility Honeywell IP Utility.
The Honeywell IP Utility Log On window opens.
2. From the User Name drop-down list, select Administrator or Guest.
See Table 4-1 on page 44 for User roles and privileges.
3. In the Password field, enter the case-sensitive password.
• The default Administrator password is 1234.
Only one Administrator can be logged in at a time.
• The default Guest password is guest.
4. Click .
The Honeywell IP Utility program searches for devices on the network and opens to
the Honeywell IP Utility user interface.
5. In the Discovery pane, double-click the device you want to connect to.
-OR-
Select the device and click Connect .
The network settings for the connected device are displayed in the System pane.
6. Click Launch Browser (see Figure 4-1) to go to the Web-Client logon page.
Figure 4-1 Launching the Web-Client from the IP Utility
Connect to the device then click
Launch Browser
Enable HTTP
Server must be
enabled. If it isn’t,
the Launch
Browser button
might not be
available.
46
IP Camera Web-Client
Note If the Launch Browser button is inactive, then you must enable Enable HTTP
Server. Click to enable the HTTP Server, and then click Apply. The Launch
Browser button should then be enabled.
Logging Onto the Web-Client from Internet Explorer
1. From Internet Explorer (v6.0+), enter the URL (IP address of the device) in the
Address bar to open the logon window.
The Web-Client log on page opens.
2. Select a User Name and enter a Password.
a. From the User Name drop-down list, select admin or guest.
b. In the Password field, enter the case-sensitive password.
• The default Administrator password is 1234.
• The default Guest password is guest.
c. Click .
3. The Web-Client interface opens and live streaming video displays on the monitor.
Logging Out of the Web-Client
To log out from the Web-Client application, click Logout at the top of the Web-Client
window.
Note Do not use the CLOSE button ( )in Internet Explorer to logout or the
session might not end correctly, and settings that have you changed might
not be saved.
HD3MDIH/X EQUIP Series Indoor High Resolution True Day/Night IP Dome Camera User Guide
Document 800-07361 Rev A 47
12/10
Navigating the Web-Client User Interface
Figure 4-2 Web-Client Window Layout: Administrator Log On
The Web-Client application user interface consists of multiple user-friendly views organized
by function. Access to the views is user-controlled.
The URL corresponds to the IP Address as
configured in the IP Utility.
Click Logout to exit the program.
Confirm the user type logged in.
Each tab has a section for configuration
and/or navigation controls.
Click the tabs
to access the
available
configurations
and settings.
If logged on as a Guest, only the Live
View tab is available. Administrators
can access all tabs.
The image from your
HD3MDIH/X camera
displays on every tab.
SnapShot
Table 4-2 Tabs/Views in the Web-Client Application
Tab Enables you to...
Live View View video and take SnapShots.
Device Settings View the network settings and firmware details of the camera.
Restore to factory defaults and reboot a camera.
Compression
Settings
Configure the compression.
Set the maximum bit rate and/or target bit rate that the camera will
provide across the network based on priority mode settings. This
value is the threshold that you do not want the bit rate to exceed.
View received bit rate and frame rate statistics of the current image
in real time.
Camera Setup Configure auto exposure and white balance for the camera.
Video Analytics Configure the camera sabotage detection settings and view video
display.
IO and Audio Configure the alarm and audio settings.
48
IP Camera Web-Client
Figure 4-3 Web-Client: Administrator User
Figure 4-4 Web-Client: Guest User
Live View
Live View shows live video from the selected camera (see Figure 4-4).
The menu bar displays
which user is logged on
and provides a link to log
out of the application.
Screens are divided
between displaying
current video and the
configuration options
associated with the view.
Click a Tab to
display the
corresponding view.
Click to select the
video stream.
SnapShot
When an alarm is
detected, an alarm
message appears here
to notify the operator.
Logging on as a Guest limits users
to Live View tab functions only.
See Live View for more details.
When an alarm is detected,
an alarm message appears
here to notify the operator.
SnapShot
HD3MDIH/X EQUIP Series Indoor High Resolution True Day/Night IP Dome Camera User Guide
Document 800-07361 Rev A 49
12/10
Taking a SnapShot
The SnapShot function allows you to save an image from Live View to a default folder on
your computer (C:\Program Files\Honeywell Video Systems\Support\Snapshots). Files are
saved as: DeviceName_Date_Time.bmp. You are not asked for confirmation.
SnapShot is available to Administrators and Users with administrator and guest privileges.
Device Settings
The Device Settings tab allows you to view the network settings and firmware details of the
camera. It also allows you to restore to basic or full Factory Defaults, and to reboot a
camera.
Configuring IP and Firmware Settings
Depending on the hardware installation, there is a tab called either Device Information or
Device Settings. In both cases, the IP and Firmware Settings panel mirrors the information
available in the Honeywell IP Utility. It provides read-only network settings, firmware
settings, and video formats without having to access the IP Utility.
The Device Settings are the same for the Primary and Secondary streams.

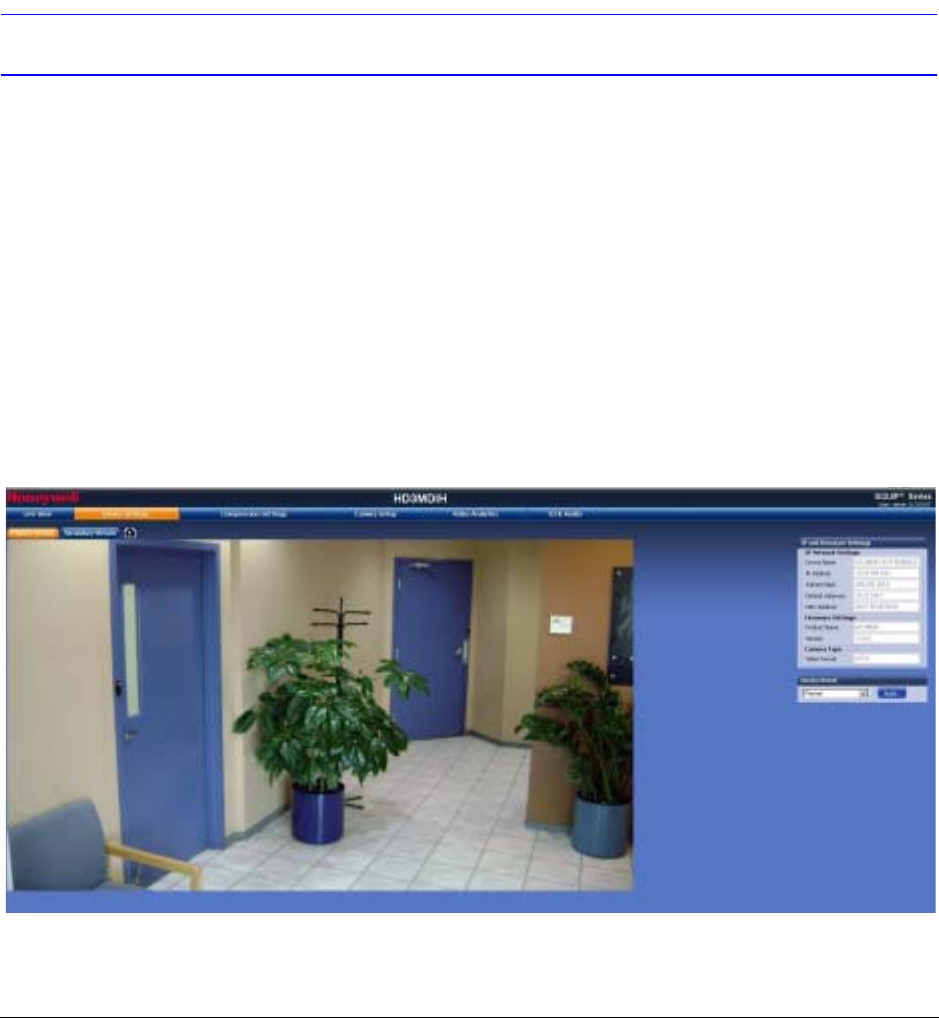

Figure 4-5 Device Settings
50
IP Camera Web-Client
Figure 4-6 IP and Firmware Settings: Device Information Tab
Resetting the Device
You can choose from Restart, Restore, and Reset to Defaults. See Figure 4-6. Each of
these functions take approximately 2 minutes to complete, and during that time, the camera
will lose connection to the Web-Client. You will be asked if you wish to proceed before the
action occurs.
Device Name as entered in the
IP Utility program
IP Address on the network
(DHCP/Static/APIPA)
Firmware Settings including
product name and version
Video Format - NTSC or PAL
Subnet Mask and Default Gateway
address that connects the camera to
the network
MAC Address is a factory assigned
address unique for each device
Restart Restarts the camera while maintaining the existing configurations.
Restore Resets the camera to the factory defaults, except the network settings.
Reset to
Defaults
Resets to the camera’s factory defaults.
HD3MDIH/X EQUIP Series Indoor High Resolution True Day/Night IP Dome Camera User Guide
Document 800-07361 Rev A 51
12/10
Compression Settings
The video signal sent from the camera to the Web-Client has a number of settings that can
be edited which affect how the video displays in the Web-Client. The Compression Settings
view enables you to configure these settings:
•Stream Type
•Resolution
•Frame Rate
•Priority (Quality or Bit Rate)
• Compression Ratio (if Quality is chosen as the priority)
• Target Bit Rate (if Bit Rate is chosen as the priority)
• Maximum Bit Rate that the camera will provide across the network
• GOP (number of frames)

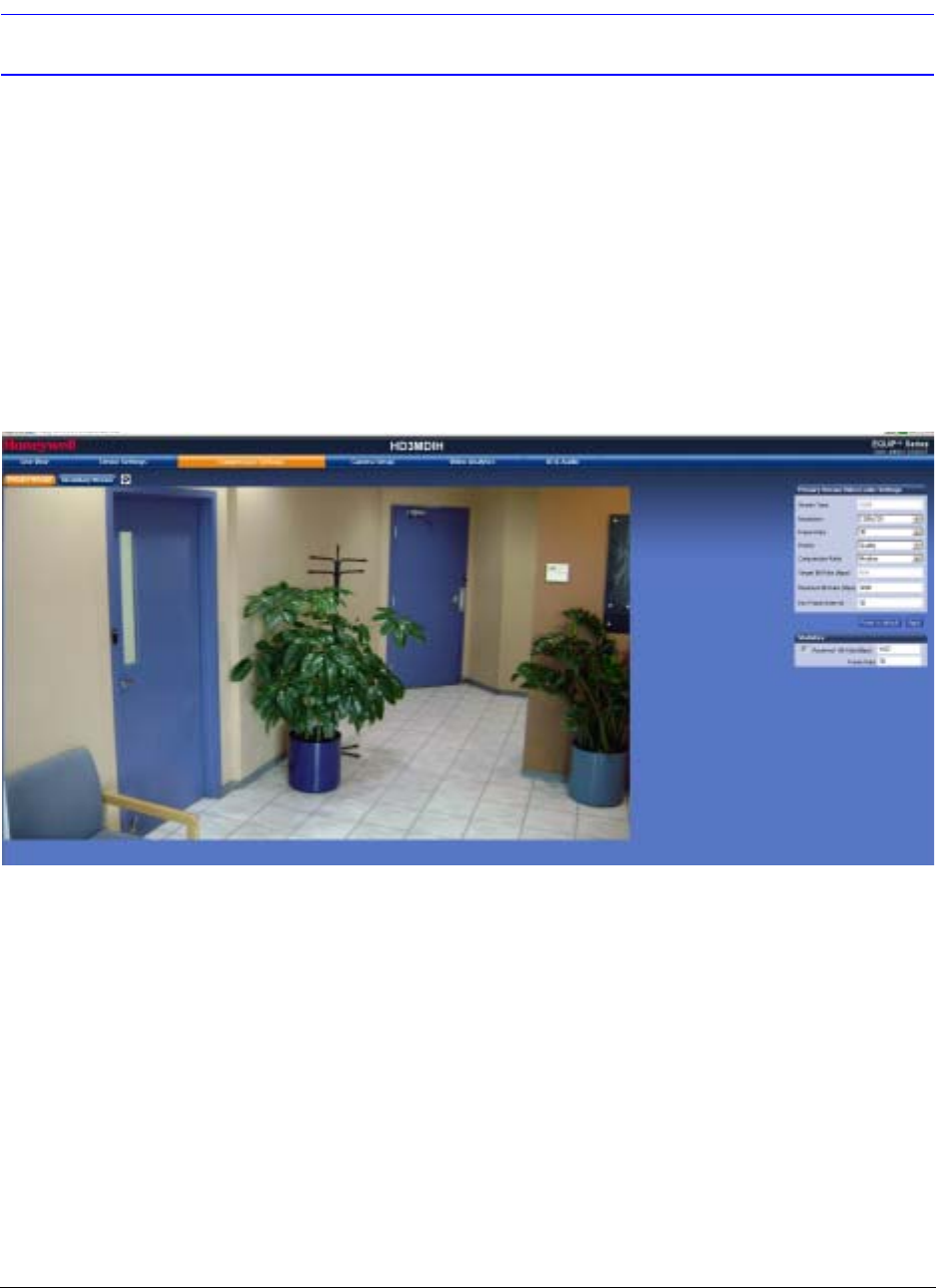

Figure 4-7 Compressions Settings Tab: Primary Stream
Your HD3MDIH/X camera supports simultaneous video streams. The Primary stream
delivers H.264 compressed video in real time 30 fps at 1280 x 720 resolution.The
Secondary stream delivers MJPEG compressed video in real time 30 fps at 640 x 360
resolution.
52
IP Camera Web-Client
Video Codec Settings Tab

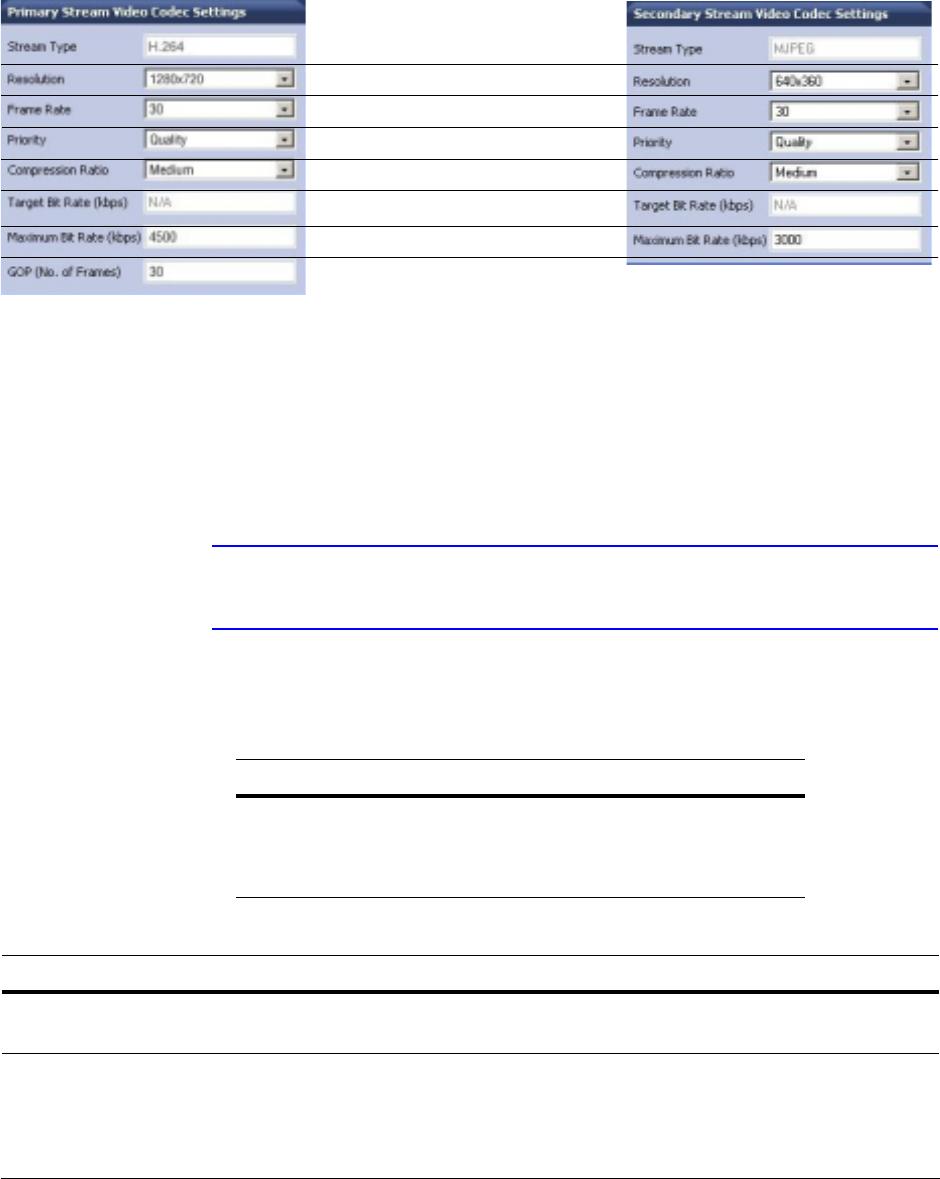

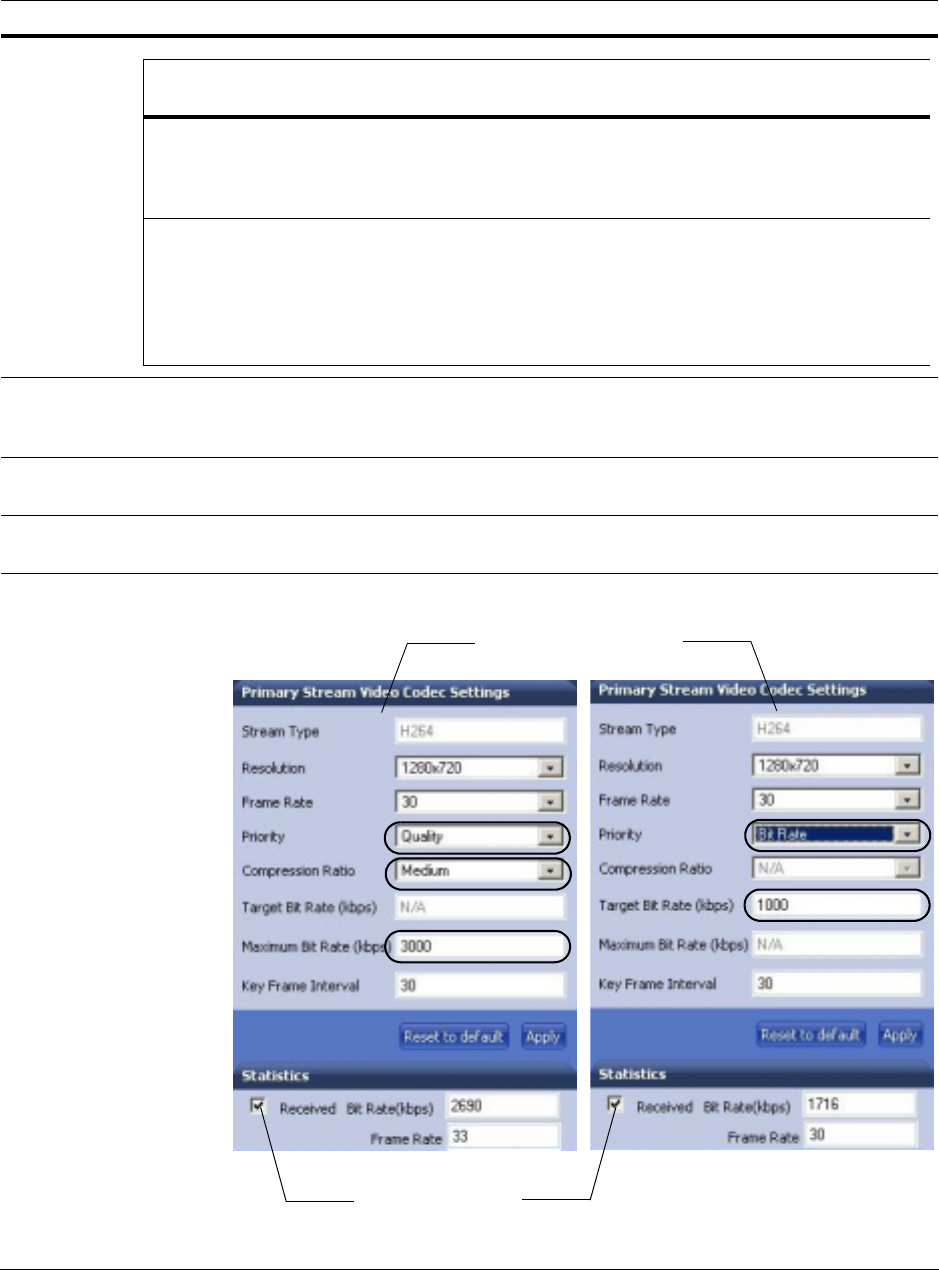

Figure 4-8 Video Codec Settings Tab Available Functions
Configuring the Compression Settings
1. On the Compression Settings tab, in the Statistics area, select the Received check
box to receive in real time the bit rate and frame rates for the current image.
Deselecting the check box disables the refresh rate.
Note The Received check box is disabled by default. When you log out, this check
box reverts to the disabled state.
2. Use Table 4-3 to set up the streaming resolution and Table 4-4 for the other
compression settings.
Set the Resolution
Set the Frame Rate
Set the Priority for Quality or Bit Rate
Set the Compression Ratio
Set the Target Bit Rate
Primary Stream Secondary Stream
Set the Maximum Bit Rate (kbps)
Set the GOP (Group of Pictures)
Default settings shown for NTSC models
Default settings shown for NTSC models
Table 4-3 Video Streaming Resolutions
Primary Stream Resolutions Secondary Stream Resolutions
1280 x 720
800 x 450
640 x 360
320 x 180
640 x 360
320 x 180
Table 4-4 Compression Settings
Setting Options Description
Frame Rate 1–30 (NTSC)
1–25 (PAL)
The frame rate that is displayed per second. For NTSC, select from 1 fps (lowest)
to 30 fps (highest). For PAL, select from 1 fps (lowest) to 25 fps (highest).
Priority Quality, Bit Rate Allows you to set the maximum bit rate and/or target rate value, based on priority
mode settings. This value is the threshold that you do not want the bit rate to
exceed.
HD3MDIH/X EQUIP Series Indoor High Resolution True Day/Night IP Dome Camera User Guide
Document 800-07361 Rev A 53
12/10
Figure 4-9 Video Codec Settings
Compression
Ratio
Minimum, Low,
Medium, High,
Maximum
When Quality is selected as the Priority, select the Compression Ratio.
Minimum is the highest visual quality; Maximum is the lowest visual quality.
Target Bit
Rate (kbps)
250 – 6000 kbps Enter the Target Bit Rate in kbps (kilobits per second) which represents the
amount of data processed per second.
GOP (No. of
Frames)
1– 50 Select the GOP (Group of pictures) number from 1 to 50. (Not available on the
Secondary Stream.)
Table 4-4 Compression Settings(cont’d)
Setting Options Description
Select this Priority
field setting
Field Setting Description
Quality
(see Figure 4-9)
Maximum Bit Rate
The Target Bit Rate field
is grayed out.
If the actual bit rate (use statistics to determine)
from the camera momentarily exceeds the
maximum bit rate (MBR), the camera will maintain
the actual frames per second.
Bit Rate
(see Figure 4-9)
Target Bit Rate and
Maximum Bit Rate
Maximum Bit Rate and
Compression Ratio fields
are grayed out.
Set the target bit rate accordingly. If the actual bit
rate (use statistics to determine) from the camera
momentarily exceeds the target rate, the camera
will maintain target bit rate by adjusting the image
quality, and then reducing the actual frames per
second if necessary.
Statistics are received
for the current image in
real time when
Received is enabled.
Set the Resolution for
NTSC or PAL video signals.
54
IP Camera Web-Client
3. Click Apply. Adjustments in your compression settings are captured in the statistics.
As you make adjustments, the Statistics field acts as a visual reminder of how your
settings affect the bit rate, frame rate, and bandwidth usage.
4. When you are satisfied with your settings — that is, that the image quality and
bandwidth usage meets your requirements — click Apply to save your settings.
Settings are not saved unless you click Apply.
Statistics: Received Bit Rate and Frame Rate
To view in real time the received bit rate and frame rate statistics of the current image:
1. Click the Compression Settings tab.
2. In the Statistics area, select the Received check box.
Deselecting the check box disables the refresh rate.
Note The Received check box is disabled by default. When you log out, this check
box reverts to the disabled state.
Camera Setup
The Camera Setup view provides access to the settings used to configure the camera
configurations for both Primary and Secondary streams. The following section explains
Auto Exposure and White Balance setup.
Note You must click Apply after you make changes to any settings to save those
changes. Settings are not saved unless you click Apply.
HD3MDIH/X EQUIP Series Indoor High Resolution True Day/Night IP Dome Camera User Guide
Document 800-07361 Rev A 55
12/10

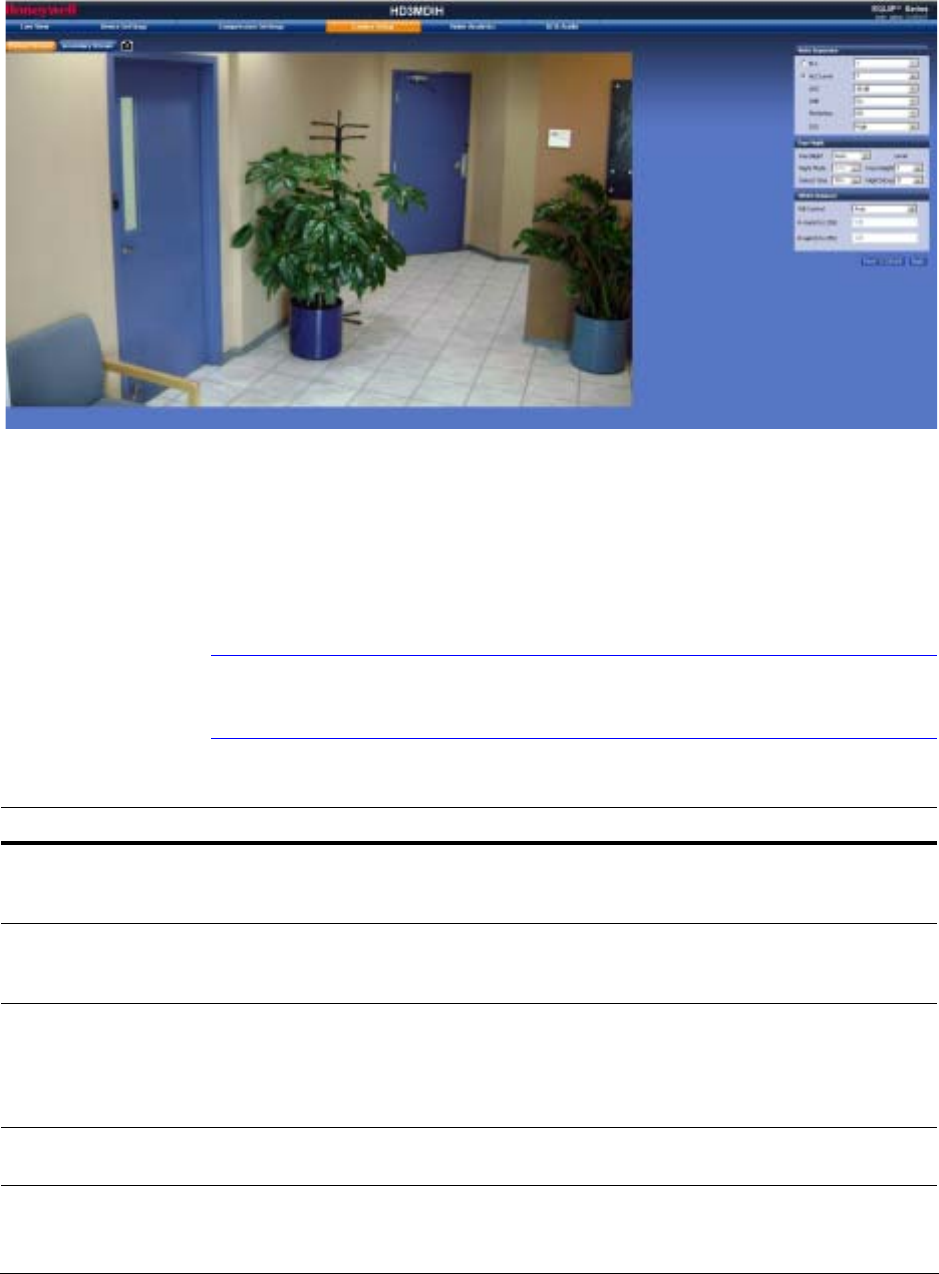

Figure 4-10 Camera Setup
Auto Exposure
The Auto Exposure settings allow the user to access and configure exposure-related
settings as described in Table 4-5.
Note You must click Apply after you make changes to any settings to save those
changes. Settings are not saved unless you click Apply.
Table 4-5 Auto Exposure Settings
Setting Options Description
ELC (Electronic Light
Compensation)
Level 1–25 Electronic shutter control. Select ELC when using a manual iris lens.
Adjust the ELC level to the appropriate value so that the image is well
exposed (neither too bright nor too dark).
ALC (Automatic Light
Compensation)
DC Iris Level: 1–25 Select ALC when using using a DC (auto iris) lens. Adjust the ALC level
to the appropriate value so that the image is well exposed (neither too
bright nor too dark).
AGC (Automatic Gain
Control)
Off, 20 dB–40 dB Adjust the maximum value of AGC gain. AGC can be Off, or set to
20 dB, 30 dB, or 40 dB.
Note As AGC levels are reduced, the threshold ranges for DayToNight
and NightToDay are decreased.
DNR (Digital Noise
Reduction)
Off, On Improves picture performance in low light by reducing video noise.
DNR is deactivated if AGC is turned Off.
56
IP Camera Web-Client
White Balance
White Balance ensures that color integrity is maintained in the camera image by
compensating for the temperature color “casts” that different light sources can cause. Use
Table 4-6 to set up White Balance options.
Flickerless Off, On Eliminates the “flicker” that can appear in an image under certain
lighting conditions (for example, fluorescent lighting). This setting is not
available if you have selected ELC.
DSS
(Digital Slow Shutter)
Off, Low, High Automatically provides a clear image under low-light conditions. DSS
improves the picture quality (brightness) in low-light scenes. DSS might
introduce motion blur; the higher the setting, the more likely motion blur
will occur.
Day/Night Auto, Day, Night Controls True Day/Night (TDN) operation. When Auto is selected, the
IR-cut filter will be removed automatically in low-light scenes. When Day
is selected, the IR-cut filter is on at all times. When Night is selected, the
IR-cut filter is off (removed) at all times.
Night Mode B/W or Color Sets the color mode as B/W (monochrome) or Color in Night Mode.
Day/Night must be set to Night.
Detect Time 5–60 seconds Sets the time (5–60 seconds) before the camera switches to Day or
Night mode after detecting a low-light condition or a normal light
condition, respectively.
Day/Night must be set to Auto.
DayToNight 1–7 Determines the low light detection level (1–7) when the camera
switches to Night mode. The lower the value, the darker the lighting
conditions before the camera switches.
Day/Night must be set to Auto.
Note The DayToNight threshold level must be set at least 2 less than
the NightToDay threshold setting.
Note The DayToNight threshold range is decreased if the AGC level is
reduced.
NightToDay 3–9 Determines the low light detection level (3–9) when the camera
switches to Day mode. The higher the value, the brighter the lighting
conditions before the camera switches.
Day/Night must be set to Auto.
Note The NightToDay threshold range is decreased if the AGC level is
reduced.
Table 4-5 Auto Exposure Settings (cont’d)
Setting Options Description
HD3MDIH/X EQUIP Series Indoor High Resolution True Day/Night IP Dome Camera User Guide
Document 800-07361 Rev A 57
12/10
Note You must click Apply after you make changes to any settings to save those
changes. Settings are not saved unless you click Apply.
Video Analytics
Your HD3MDIH/X camera can be configured to detect camera sabotage and motion within
a scene via the Video Analytics view (see Figure 4-11). The Video Analytics tab enables a
user to set the tamper detection threshold settings for blur, blinding and scene changes.
Table 4-6 White Balance Settings
Option Description
AWC Auto (Auto White
Balance Control Mode)
An automatic white balance mode that can be used in
scenes which have constant lighting. The user can optimize
WB for the given scene by pressing and holding an
adjustment button.
MWB (Manual Mode) Manual white balance mode. Set the Red and Blue gains
from 0–255.
AWC Push (Auto White
Balance Control Mode)
Automatically adjust the white balance to your specific
environment. When selected, the white balance is locked.
Note This setting is recommended for situations in which
the light conditions are constant, so that the
specified color temperature does not change.
58
IP Camera Web-Client
Figure 4-11 Video Analytics Tab
Each setting has three threshold levels: high (80%), medium (50%) and low (30%). When
these thresholds are exceeded, camera sabotage or motion is detected, and alarm
messages appear above the video display and alarm signals are sent to DVRs/NVRs (see
Figure 4-13).
Sabotage Detection
Figure 4-12 Tamper Detection Settings on the Video Analytics Tab
There are three types of sabotage detection in the Tamper Detection Setting tab on the
Video Analytics tab: blinding the camera, blurring the video display, and tampering with the
camera field of view. The user should note that when the following conditions are
applicable, the tamper detection features should be manually disabled to avoid raising false
alarms:
• During the configuration of the video display
• While text is overlaid on the video
• If the video display becomes too dark
Each Tamper Detection
Setting provides 3
threshold levels: High
(80%), Medium (50%)
and Low (30%).
Set the Blur Threshold. Blur
can be affected by elements
such as water, for example
Set the Blinding Threshold.
Blinding applies to obstacles in
front of the camera lens
Set the Scene Change
Threshold
HD3MDIH/X EQUIP Series Indoor High Resolution True Day/Night IP Dome Camera User Guide
Document 800-07361 Rev A 59
12/10
Figure 4-13 Video Analytics Alarm Message
Configuring Video Blur Detection
The video appears blurred when the camera is exposed to elements such as water. When
this occurs, video blurring in the field of view is detected and an alarm message appears
(see Figure 4-13) above the video display. To detect video blurring:
1. Click the Video Analytics tab.
2. In the Blur Threshold list, select one of the following options:
3. Click Apply.
Note To turn off video blur detection, select Disable in the Blur Threshold list.
Disable is the default value.
Note You must click Apply after you make changes to any settings to save those
changes. Settings are not saved unless you click Apply.
Configuring Camera Blinding Detection
An obstacle in front of the camera lens can blind the camera. When this occurs, camera
blinding is detected and an alarm message appears above the video display (see
Figure 4-13). To detect camera blinding:
1. Click the Video Analytics tab.
Table 4-7 Blur Threshold Values
Value To detect …
High (80%) Maximum video blurring. The alarm message appears when
the video display is blurred by 80% or more.
Medium (50%) Medium video blurring. The alarm message appears when
the video display is blurred by 50% or more.
Low (30%) Minimum video blurring. The alarm message appears when
the video display is blurred by 30% or more.
60
IP Camera Web-Client
2. In the Blinding Threshold list, select one of the following options:
3. Click Apply.
Note To turn off camera blind detection, select Disable in the Blinding Threshold
list. Disable is the default value.
Note You must click Apply after you make changes to any settings to save those
changes. Settings are not saved unless you click Apply.
Configuring Camera Field of View Change Detection
The Web-Client application can detect tampering of the camera field of view and show an
alarm message above the video display (see Figure 4-13). To detect a change in the
camera field of view:
1. Click the Video Analytics tab.
2. In the Scene Change Threshold list, select one of the following options:
Table 4-8 Blinding Threshold Values
Value To detect …
High (80%) Maximum blinding. The alarm message appears when your
camera is blinded by 80% or more.
Medium (50%) Medium blinding. The alarm message appears when your
camera is blinded by 50% or more.
Low (30%) Minimum blinding. The alarm message appears when your
camera is blinded by 30% or more.
Table 4-9 Scene Change Threshold Values
Value To detect …
High (80%) Maximum change in the camera field of view. The alarm
message appears when tampering causes at least an 80%
change in your camera field of view.
Medium (50%) Medium change in the camera field of view. The alarm
message appears when tampering causes at least a 50%
change in your camera field of view.
Low (30%) Minimum change in the camera field of view. The alarm
message appears when tampering causes at least a 30%
change in your camera field of view.
HD3MDIH/X EQUIP Series Indoor High Resolution True Day/Night IP Dome Camera User Guide
Document 800-07361 Rev A 61
12/10
3. Click Apply.
Note To turn off camera field of view change detection, select Disable in the Scene
Change Threshold list. Disable is the default value.
Note You must click Apply after you make changes to any settings to save those
changes. Settings are not saved unless you click Apply.
Configuring Video Motion Detection
For motion detection, an Administrator can enable and configure up to 5 zones within a
scene. The enabled and configured zones will be monitored for motion.
1. Click the Region drop-down menu, then select a region from the five available.
2. Click the VMD drop-down arrow, and select Enable.
The Regions appear in their default positions.
3. Click Apply.
4. Click and drag the box to resize and place it over the camera image.
5. Select the sensitivity level (High, Medium, Low).
Figure 4-14 Video Analytics: Defining a Region
Region-defining box
62
IP Camera Web-Client
Note To disable a zone, click the VMD drop-down menu, then select Disable.
Alarm and Audio
Figure 4-15 Audio and IO Settings Tab
Alarm Settings
Connect external devices such as sirens or flashing lights to the alarm output connector to
signal camera users that an alarm is activated. Set the Alarm Output as Normally Open or
Normally Close. See Connecting Alarms on page 20 for more information.
When alarm inputs are connected, the camera triggers an alarm only when the normal state
(open or closed) changes. An alarm message appears on the Web-Client screen (see
Figure 4-13) to notify the operator.
HD3MDIH/X EQUIP Series Indoor High Resolution True Day/Night IP Dome Camera User Guide
Document 800-07361 Rev A 63
12/10
Audio Settings
The network camera supports bi-directional audio. There are two supported voice band
channels that function in full duplex mode. Connect industry-standard line level audio input
and output to the back of your camera. See Connecting Audio on page 20 for more
information.
Audio configuration for your network camera is straightforward.
Figure 4-16 Audio Settings
To listen to or capture audio from the camera, enable the Camera to Client (PC) check box
( ). To listen to audio from the client (PC), enable the Client (PC) to
Camera check box.
64
IP Camera Web-Client
Document 800-07361 Rev A 65
12/10
A
Surface Mounting Template
HD3 Series Cameras Surface Mounting Template
Apply to a clean, dry surface,
free of dust and dirt
6 Holes
Use recommended drill bit
as per screws (supplied)
66
Surface Mounting Template
Document 800-07361 Rev A 67
12/10
B
Troubleshooting
Technical Support
Prior to calling Honeywell technical support, refer to the following topics for possible
solutions to problems with your HD3MDIH/X camera. To contact the Honeywell Video
Systems technical support team, call 1-800-796-2288 (North America only) or send an
e-mail to HVSsupport@honeywell.com.
Any equipment returned to Honeywell Video Systems for warranty or service repair must
have a Return Merchandise Authorization (RMA) number. The RMA number must be
clearly marked on all return packages and internal paperwork.
Problem: Lens Out of Optical Focus
Possible solutions:
1. Verify that the lens cap has been removed from the camera.
2. This can also be caused by dirt, oil, grease, and fingerprints, and so on, that have
accumulated on the lens or bubble. Check the lens and dome bubble, then clean
them, if needed.
Caution Use extreme caution when cleaning the lens and dome bubble so
you do not scratch their optical surfaces. Prepare a washed-out
cotton cloth or lens cleaning paper with alcohol or lens cleaning
liquid. Clean by moving spirally from the lens center towards its rim.
Repeat until the lens is completely clean.
68
Troubleshooting
Problem: Live View Does Not Display the Expected Video
Possible solutions:
• Ensure that your web browser settings have been configured to allow ActiveX controls
(see Installing the Honeywell IP Utility and Web-Client Software on page 29 for
information on setting up your browser).
• Ensure that the network cable from the camera is connected to both the camera and
the network.
• Ensure that the camera assembly board DIP switch settings are configured correctly.
Problem: Cannot Connect to a Device
When the following message (Figure B-1) displays in the status bar of the IP Utility, your
device connection is limited. Usually this warning indicates that your PC and the device
your are connecting to are on different subnets. Contact your network administrator for help
to resolve your network issue(s).
Figure B-1 Limited or No Connection Message
Document 800-07361 Rev A 69
12/10
C
Specifications
Note These specifications refer to all models, except where otherwise noted.
Specifications are subject to change without notice.
Video Signal Specifications NTSC PAL
Scanning System: Progressive
Image Sensor: 1/4” CMOS
Number of Pixels (H x V): 1280 x 720 (HD); 640 x 480 (VGA)
Minimum Illumination: 1.0 lux color @ 50 IRE, F1.2
Video Output (local): 1.0 Vp-p @ 75 Ohms
S/N Ratio: 50 dB or more (AGC Off)
Auto Gain Control (AGC): Off/On, selectable (20 – 40 dB)
Auto Electronic Shutter (ELC): 1/60 – 1/100,000 sec 1/50 – 1/100,000 sec
Automatic Lens Iris Control: DC Iris level 1 – 25
White Balance (AWB): AWC, MWB (Manual Mode), AWC Push
Lens Type: 3.3 mm to 12.0 mm Vari-focal Auto Iris, F1.6
Audio Signal Specifications
Audio/Two-Way: Line in/out
Electrical Specifications
Input Voltage: 24 VAC, PoE IEEE 802.3af
Input Voltage Range: 17 – 28 VAC
Surge Suppression: 1.5 kW transient
Power Consumption: 5 W (max)
Mechanical
Dimensions (WxH): See diagrams (Figure C-1, Figure C-2, Figure C-3,
Figure C-4)
Weight: 1.5 lb (0.68 kg) camera only
Construction: Housing: Polycarbonate
Finish: Matte texture, Off-white
Connectors: Local Video Output: 2-pin Molex connector
Power Input: Removable screw block
Alarm I/O: Removable screw block
Audio I/O: Removable screw block
Network: RJ45 connector
70
Specifications
Environmental
Temperature: Operating: 14°F to 122°F (-10°C to 50°C)
Storage: -4°F to 140°F (-20°C to 60°C)
Relative Humidity: 0% to 85%, non-condensing
IP Specifications
Video Compression: MPEG-4, MJPEG
Resolutions: Primary Stream Secondary Stream
1280 x 720
800 x 450
640 x 360
320 x 180
640 x 360
320 x 180
Software Update: Field Upgradeable
Frame Rate NTSC/PAL: Up to 30/25 fps video in all resolutions
Video Streaming: Dual Streaming: H.264 and MJPEG
Controllable frame rate and bandwidth
Security: Multiple user access levels with password protection
Users: 1 Administrator; 1 Guest
Video access from web
browser:
Camera live view for 1 client. Full control of all camera
settings available to administrator
Minimum web browsing
requirements:
Pentium IV CPU 3.1 GHz or equivalent AMD
1 GB RAM
Windows® 2003/XP
Installation, Management, and
Maintenance:
Honeywell IP Utility software identifies the IP address,
checks the status of the device. Firmware upgrades over
HTTP, firmware available at www.honeywellvideo.com.
Supported Protocols: HTTP, TCP, RTSP, RTP, UDP, ARP, DNS, RTCP, FTP,
ICMP, DHCP, Bonjour, IGMP, Telnet
Regulatory
Emissions: EN55022
Immunity: EN 50024
Safety: General Product Safety Directive 2001/95/EC; UL 60950
Mounts
HD3MDIP-PK: Pendant mount bracket
HD3MDIP-WK: Wall mount bracket
HD3MDIH/X EQUIP Series Indoor High Resolution True Day/Night IP Dome Camera User Guide
Document 800-07361 Rev A 71
12/10
Figure C-1 HD3MDIH/X Camera Side View with Dimensions
Figure C-2 HD3MDIH/X Camera Side View Dimensions without Skirt
Figure C-3 HD3MDIH/X Camera Side View Dimensions with Adapter Plate
4.9” (125.1 mm)
1.84”
(46.7 mm)
3.05”
(77.5 mm)
4.89”
(124.2 mm)
4.5”
(115.7 mm)
3.9” (97.7 mm)
1.5”
(38.2 mm)
6.4” (161.5 mm)
1.2”
(28.5 mm)
72
Specifications
Figure C-4 HD3MDIH/X Camera Bottom View with Dimensions
4.9” (125.1 mm)
1.8”
(46.0 mm)
2.88”
(73.10 mm)
3.2” (82.5 mm)
3.50” (89.0 mm)
Document 800-07361 Rev A 73
12/10
D
Glossary
AGC (Automatic Gain Control) Video Amplifier in a camera that boosts the amount of
video gain (including the noise) to maintain a 1V p-p (1-volt peak-to-peak) video signal
output. It becomes operational when the light level is low. The circuit is designed to
compensate for fluctuations in scene illumination which would cause the video output
level to be too low. If the video level (scene illumination) is adequate, the circuit does not
apply any gain to the signal. As the video level falls, more gain is applied by the AGC
circuit to the video signal.
ALC (Automatic Light Compensation) Setting in an Auto Iris lens to control the iris
opening. Adjusts between peak and average to respond to the bright part of the scene
(peak setting) or the average value of the video signal (average setting).
DHCP (Dynamic Host Configuration Protocol) Allows a server to dynamically assign
IP addresses to nodes (workstations) automatically. Provides client information including
subnetwork mask, gateway address, and DNS (Domain Address Server) addresses.
DNR (Digital Noise Reduction) Digital Noise Reduction eliminates the “flicker” that can
appear in an image under certain lighting conditions (for example, fluorescent lighting).
DSS (Digital Slow Shutter) Automatically provides a clear image under low-light
conditions (increasing magnification may cause noise/distortion).
ELC (Electronic Light Control) Typically used with manual iris lenses. The image
brightness is controlled electronically by the camera through automatically adjusting
shutter speed for a properly exposed picture.
Flickerless Eliminates the “flicker” that can appear in an image under certain lighting
conditions (for example, fluorescent lighting). This is usually caused by the interaction of
the shutter with the AC frequency of the lighting. The flickerless setting changes the
camera shutter speed to a value that will not cause flicker (1/100 sec, NTSC, 1/120 sec
for PAL). The side effect is that the camera sensitivity is reduced because the electronic
iris feature has effectively been turned off and will no longer control the optimum exposure
setting for available light conditions.
FOV (Field of View) The part of the scene visible with a particular lens. The height
(horizontal) and width (vertical) picture size at a given distance that can be seen through
a lens. Generally, shorter focal length lenses have a wider field of view than those with
longer focal lengths.
Gain The amplification a system provides to a signal.
IP Address A unique, 32-bit identifier for a specific TCP/IP host computer on a network.
Iris Adjust Adjusts the iris to either open or close in response to changing light
conditions.
74
Glossary
NTSC (National Television Standards Committee) A standard of specifications for
television transmission in the U.S., Canada, Japan, Central American, and half of South
America. The North American system uses interlaced scans and 525 horizontal lines per
frame at 30 frames per second.
PAL (Phase Alternate Line) A standard of specifications for television transmission for
color TV signals used in West Germany, England, Holland, Australia, and several other
countries. It uses an interlaced format with 625 lines per frame at 25 frames per second.
PoE (Power over Ethernet) A method of powering Ethernet-connected devices via the
Ethernet cabling as defined in the IEEE 802.3af standard.
Shutter Speed The speed at which the charge is read out from the CCD chip. Adjusts the
light sensitivity of the camera. A faster (briefer) shutter speed can arrest the motion of a fast
moving object (reduce image blur), rendering it sharp. Fast shutter speeds allow less light
to all on the CCD and can darken the image. For fast shutter speeds, ensure there is
adequate lighting. Usually selected using DIP switches on the side of the camera.
Subnet Mask A number used to identify a subnetwork so that an IP address can be shared
on a LAN.
True Day/Night The incorporation of a moving mechanical IR filter within the camera
ensures true 24 hour surveillance, providing high quality color images during the day and
similar quality black & white images at night when used with IR lighting.
UPS (Uninterruptible Power Supply) These are power supplies used in the majority of
high security systems, whose purpose is to back up the system when the main power fails.
HD3MDIH/X EQUIP Series Indoor High Resolution True Day/Night IP Dome Camera User Guide
Document 800-07361 Rev A 75
12/10
Index
A
ActiveX control 39
administrator
privileges 30
administrator password, default 33
AGC (Automatic Gain Control) 55
AGC (automatic gain control) 55
alarm configuration 62
alarm output settings 62
alarm settings 62
alarms, connecting 20
ALC (automatic light compensation) 55
APIPA address 36, 37, 50
audio
connections 19
audio configuration 63
audio connections 20
audio settings 63
auto
configuration, IP network 35–37
device discovery 33, 37
log out, IP Utility 38
auto exposure settings 55
Auto White Balance Control mode 57
Automatic Gain Control 55
Automatic Light Compensation 55
AWC (auto white balance control mode) 57
B
bit rate 52, 53
setting 51, 53
viewing statistics 54
blinding threshold 57, 60
blur threshold 57, 59
Bonjour software 31
C
cabling, connecting 21
camera
adjusting 25
components 17
installation 18
type 49
camera blinding 59
camera components 17
camera field of view change 60
camera settings
AGC 55
ALC 55
AWC 57
DayToNight 56
detect time 56
flickerless 56
MWB 57
NightToDay 56
CAT5 Ethernet connector 23
cautions 10, 21
compliance 10
components, camera 17
compression ratio, setting 51
compression settings 51, 52
bit rate 53
frame rate 52
GOP (group of pictures) 53
maximum bit rate 53
picture quality 53
target bit rate 53
configuration
alarm 62
audio 63
configuring
IP network settings 35–37
connect button 34
connecting
to devices 35, 45
connections
alarms 20
audio 20
audio, alarm 19
CAT5 Ethernet 23
video monitor 23
customer service 11
76
D
DayToNight 56
declaration of conformance 11
default
passwords 33
default gateway 36
defaults, restore factory 25
device
connecting 35
disconnecting 35
discovering 33, 37
information tab 49
name 36
DHCP address 36, 37, 50
digital noise reduction 55
digital slow shutter 56
disconnect button 34
disconnecting, from IP Utility 35
DNR 55
DSS 56
E
EQUIP series
manuals 32
F
factory defaults, restoring 25
features, camera 13
field of view adjustment 25
field of view change 60
field of view, adjusting 25
finding installed user manuals 32
firmware
settings 49
upgrading 34
flickerless 56
frame rate 52
setting 51
viewing statistics 54
functions, camera 17
G
gateway 36, 50
GOP (group of pictures) 52, 53
group of pictures (GOP) 53
guest password, default 33
guest user privileges 30
H
HTTP server 33
I
installation
mounting template 65
installation procedure 16
installed components 31
installing the camera 18
IP
address 36, 37, 50
APIPA 36
DHCP 36
network settings 35–37, 49
IP address 36
IP network settings 35
default gateway 36
IP address 36
MAC address 36
subnet mask 36
IP Utility
description 29
disconnecting 35
discovering devices 33, 37
installing 32
interface overview 34
logging on 33
logging out 38
uninstalling 40
user types 30
web-client and 38, 45
IP Utility, logging onto 33
L
LAN 31
launch web-client 34, 38, 45
launching an IP Web-Client 44
launching the IP Utility 33
lens adjustment 27
lens focus, adjusting 27
limited/no connectivity button 34, 35
line lock, adjusting 27
live view tab
layout 47
log off from the IP Web-Client 46
logging onto an IP Web-Client 44
logging onto the IP Utility 33
M
MAC address 36, 37, 50
manual white balance mode 57
manual, configuration, IP network 35–37
maximum bit rate 53
maximum bit rate, setting 51
motion detection 61
mounting template 18, 65
mounting, template 18
HD3MDIH/X EQUIP Series Indoor High Resolution True Day/Night IP Dome Camera User Guide
Document 800-07361 Rev A 77
12/10
MWB (manual white balance) mode 57
N
netmask 36
NightToDay 56
normally closed 20
normally open 20
NTSC
video format 50
video resolution 52
NTSC, video resolution 53
O
opening an IP Web-Client 44
operating system 31
P
PAL
video format 50
video resolution 52
PAL, video resolution 53
password
defaults 33
picture quality 52, 53
power, connecting 21
priority 51
priority order
quality or bit rate 52
processor 31
profiles, user 30
Q
quality 53
quality priority setting 53
R
RAM 31
refresh button 34
resolution 52
resolution, setting 51
S
scene change threshold 57, 60
security settings, ActiveX 39
service 11
setting
IP network 34
settings
alarm 62
audio 63
auto exposure 55
software
downloading from website 29, 32
installing 31, 32
uninstalling 40
version 34
software updates 15
start menu 31
statistics
frame rate 54
received bit rate 54
statistics, viewing bit rate 54
statistics, viewing frame rate 54
subnet mask 36, 50
system requirements 31
T
tamper detection 58
target bit rate 52, 53
target bit rate, setting 51
technical support 67
template, mounting 18
thresholds, video analytics 57
troubleshooting 67
U
uninstalling, software 40
update user manuals 15
updates, software 15
upgrading firmware 34
user manuals, hot to update 15
user manuals, how to find installed 32
user profiles 30
V
video
analytics tab 57
format 50
viewing live 47
video analytics 57
blinding threshold 60
blur threshold 59
camera blinding 59
field of view change 60
motion detection 61
sabotage detection
sabotage detection 58
scene change threshold 60
tamper detection 58
video blurring 59
video blurring 59
video monitor, connecting 23
video motion detection 61
VMD 61
78
W
warnings 10, 21
warranty 11
web browser 31
web client
compression settings 51
web-client
description 30
launching and logging on/off 38
user types 30
website 29, 32
wiring
alarm connection 20
connections on board 22
Honeywell Security Group (Head Office)
