Sensors
Industrial
Switches
Global switches
Heavy duty switches
Compact switches
Precision switches
Hazardous location switches
Safety switches
Relays
Position products
Ultrasonic distance sensors
Pressure sensors
and
Product solutions on the Interactive Catalogue
July 2003
2www.honeywell.com/sensing
Inside front
cover
!
WARNING
MISUSE OF DOCUMENTATION
• The information presented in this product sheet (or
catalogue) is for reference only. DO NOT USE this
document as product installation information.
• Complete installation, operation and maintenance
information is provided in the instructions supplied with
each product.
Failure to comply with these instructions could result in
death or serious injury.
!
WARNING
PERSONAL INJURY
DO NOT USE these products* as safety or emergency stop
devices, or in any other application where failure of the
product could result in personal injury.
*
Does not apply to 24CE/924CE Series (page 23), GSS Series
(page 80), GK Series (pages 78, 83, 85) or CPS Series (page 89)
Failure to comply with these instructions could result in
death or serious injury.
1
www.honeywell.com/sensing
CONTENTS
Introduction - How to use this catalogue
Page 2
EVN2000 Series
Page
Fast Install Limit Switches
A recent addition to our range. Saves over 50 % in installation
time with a design that eliminates the need to gain access to the
inside of the housing in order to connect the switch.
SZL-VL Series
Page
Limit Switches
New, economic, compact, rugged, dependable limit switches.
GL Series EN50041/47
Page
Global Limit Switches
A complete range of CENELEC approved products,
suitable for most industrial applications.
SL1 Series
Page
Space saving size for machine miniaturization,
different contact and actuators available.
14/914CE Series
Page
Miniature Enclosed Switches
Miniature, rugged, pre-wired switches, meeting the requirements
of the Low Voltage directive. They come with a range of head
styles and sealing options.
24/924CE Series
Page
Miniature Enclosed Switches
Miniature, rugged, direct opening action contacts. This switch
is available with a variety of actuators and is pre-wired.
LS Series
Page
Compact Limit Switches
A range of compact limit switches designed for accurate
repeatability under the most stringent conditions. Special oil
resistant and high temperature versions are available.
BF Series
Page
Medium Duty Limit Switches
Rugged plastic enclosure, with large internal cavity for ease of wiring.
BZE/DTE Series
Page
Medium Duty Limit Switches
Side or flange mount, momentary or maintained contact, sealed
or unsealed actuators, removal of bottom enclosure for ease of wiring.
BAF/DTF Series
Page
High Capacity Enclosed Switches
Rugged cast aluminium housed switches, sealed for
wash-down applications. Momentary or maintained contacts,
right or left hand actuators, 3 hole mounting.
HDLS Series
Page
Heavy Duty Limit Switches
Suitable for special applications in corrosive environments. Housed
in a rugged die-cast zinc body and epoxy coated for protection,
they are available with a range of switching and head options.
Explosion Proof Switches
Page
A range of switches designed for use in hazardous applications
in potentially explosive atmospheres. Most are UL-CSA listed and
some meet the requirement of the new European Directive 94/9/EC
(commonly referred to as the ATEX Directive).
Levers for Limit Switches
Page
A range of levers for use with Honeywell’s Limit Switches.
Select the best one for your application.

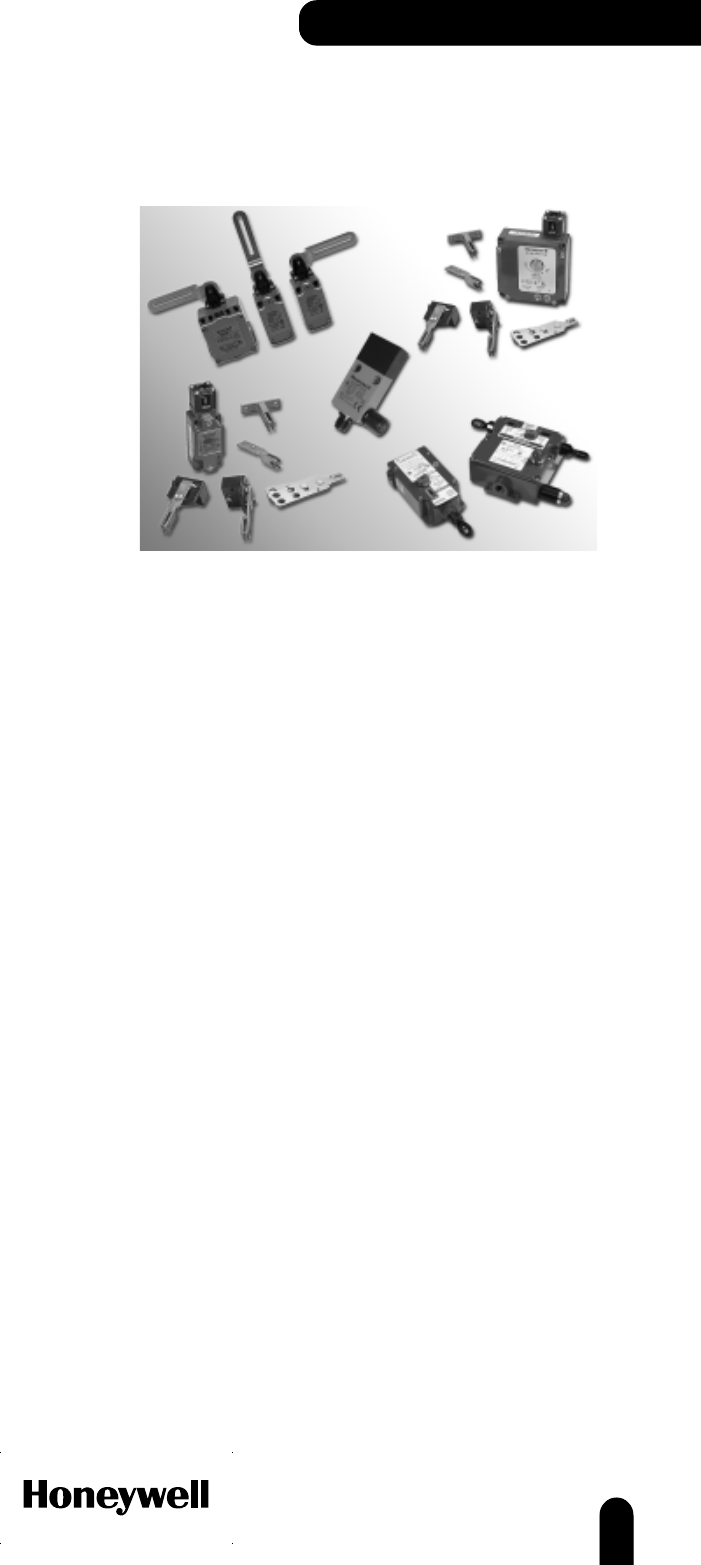

Safety Switches for machine guarding
Page
Safety interlock switches, limit switches and cable-pull limit
switches for industrial machine safety.
Relays
Page
Designed for a wide range of applications including power as
well as logic control for factory machines and control panels.

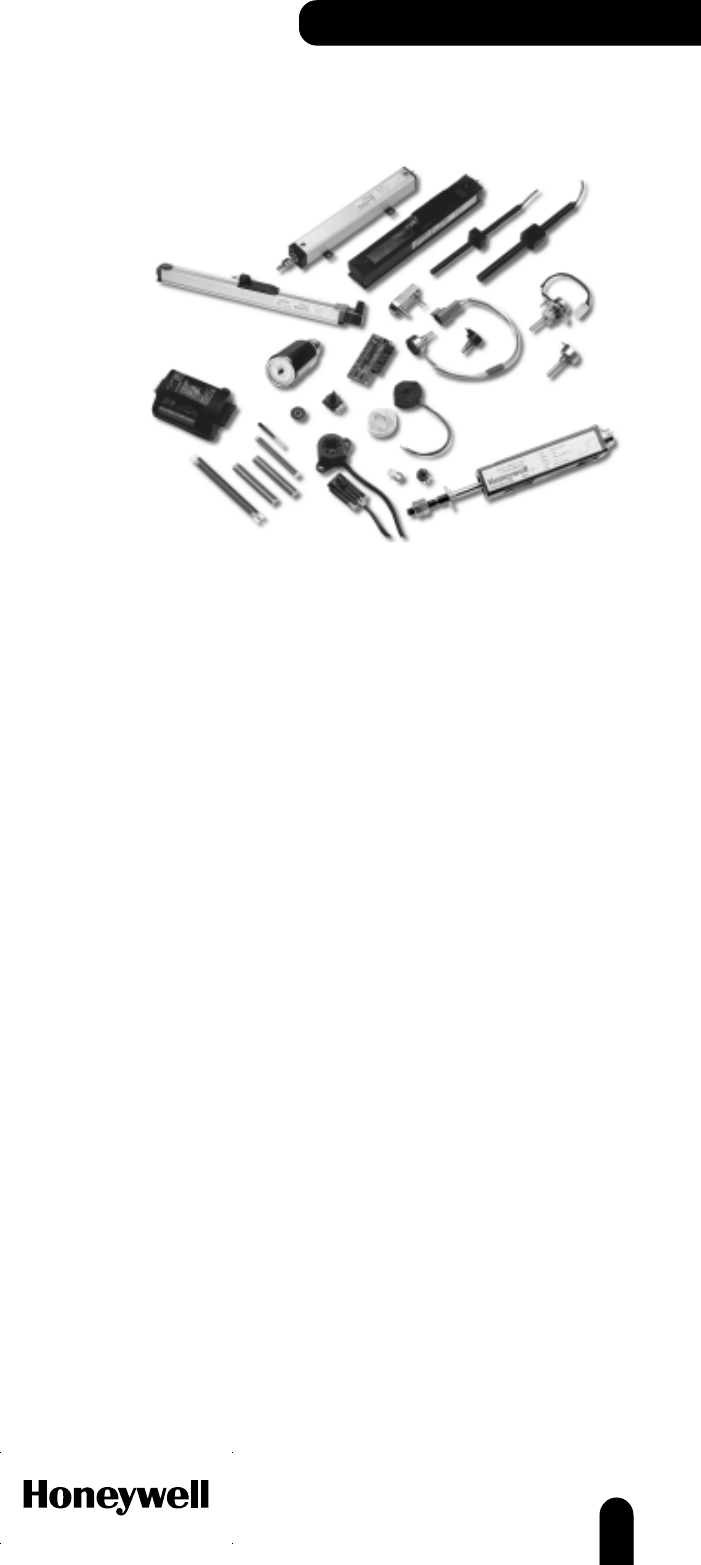

Linear and Rotary Position
Page
A wide selection of Hall-effect, magnetoresistive, and
potentiometric devices for detecting the presence of a magnetic
field or linear and rotary position.
Opto Sensors
Page
Ultrasonic Distance Sensors
Page
Ultrasonic position sensors for presence/absence sensing,
precision distance sensing or tracking for areas where other
sensing technologies have difficulty, such as clear or
shiny objects, foggy or particle laden air, or splashing liquids.
Pressure sensors
Page
We offer stainless steel and silicon pressure sensors depending
on the application, as well as a variety of high purity pressure sensors.
Honeywell Sensing and Control products
Page
Index
Page
2www.honeywell.com/sensing
INTRODUCTION
HONEYWELL INDUSTRIAL SWITCHES AND SENSORS
Honeywell Industrial Switches and Sensors provide a wide selection of products and technologies for applications in most industrial applications. This catalogue
contains our most popular listings. To view our complete range of products, visit our website at http://www.honeywell.com/sensing.
Honeywell is a worldwide leader in advanced switching and sensing technology. Our reputation for technology, quality and reliability is second to none. We have
more than 60 years of experience; and extensive knowledge of Industrial applications, an extensive customer service and support network. Honeywell
manufactures the original MICROSWITCH brand switch and we offer one of the most complete lines of global electro-mechanical heavy duty limit switches.
Sealed versions keep out moisture and other contaminates. Explosion proof types are designed for use in hazardous locations. Safety versions provide direct
opening action contacts for machine guarding and emergency stops.
We are a recognized technology leader in the development and manufacture of pressure and position-sensing transducers and controls. We use the latest in
manufacturing technology to produce hundreds of thousands of transducers a year. Millions of units are currently performing in a multitude of continuous-duty
applications around the world, where they typically outlast the systems they support. We have ISO 9001 certified facilities and Class 10 cleanroom capability, and
we manufacture a full line of high purity pressure sensing and control products; each individually tested, inspected and certified to be in full compliance with the
product specification.
A comprehensive and diverse line of speed and position sensors for the Industrial market place is also available. With the combined capabilities of three well-
known product brands - Data Instruments, Clarostat, Electro and New England Instruments - Honeywell continuously strives to solve customers’ application
problems. Whether you need custom designed sensors for proprietary OEM applications or off-the-shelf sensor solutions, our extensive in-house design,
manufacturing and environmental testing capabilities offer solutions and alternatives to meet your needs.
3
www.honeywell.com/sensing
INTRODUCTION
How to use this catalogue
For each referenced listing, key specification parameters, descriptions and
mounting drawing information are presented. These illustrate our capabilities
while the specifications include allow easy differentiation between similar
products.
There are, of course, many more product options available. Full product
specification may be accessed on our website (www.honeywell.com/sensing).
At the Home page enter the catalogue listing reference in the SEARCH box and
click GO! This will take you directly to the interactive catalogue/specification
search tables for this listing. Alternatively select and click the interactive
catalogue icon on the Home page and then choose a product category against
which to do a specification search.
Also on the website you can access installation instructions, application notes,
Frequently Asked Questions (FAQs), selection guides and additional technical
information.
Mounting dimensions
Mounting dimensions shown in each product section are for reference only.
For exact information, request an engineering drawing from you nearest
Honeywell sales office or visit our website and access it through the interactive
catalogue. Where dual dimensions are shown on mounting drawings, the first
or upper one is millimetres (mm) and the second or lower is inches (in).
Where single dimensions are shown, they are millimetres (mm), unless
otherwise stated.
To order these products
Simply contact your local Honeywell Sales Representative, your Honeywell
Distributor or your local Honeywell office.
If you need a product not listed in this catalogue
One of Honeywell’s strengths is in application-specific packaging of sensing
technology. Honeywell provides many variations of our basic switches and
sensors. For more information, either browse the full interactive catalogue
available on our website, or telephone the following numbers:
USA 1-800-537-6945/1-815-537-6945
UK +44 (0)1698 481 481 Germany +49 69 8064 444
France +33 1 60 19 80 40 Italy +39 02 92146 450/456
More information on Honeywell Sensing & Control products and how to
contact us can be found on our website.
Select the right product – select the right supplier
Delivering excellence in system critical sensing
solutions
A system is critical if the quality, reliability, delivery and customer service
associated with a component part is essential to the performance of the
operation or end product. If a sensor or a switch is critical to the
performance, cost effectiveness, delivery or safety of a product or operation
then it’s systems critical. It is therefore a defining element in the performance
of the system under whatever conditions apply. Failure of the component - or
failure of delivery of the component - results in lost productivity, increased
costs or a catastrophic event such as a shutdown. Therefore selecting the
right product is essential. It can make the difference between success and
failure.
Honeywell Sensing and Control – delivering
excellence
To select the right product, first select the right supplier. To deliver the right
products for our customers’ applications we listen to them to understand their
needs. Using techniques such as “Voice of the Customer and “Concept
Engineering” we make sure that the products and solutions we deliver are the
right ones. As part of Honeywell we can use local knowledge and
understanding combined with global expertise and resources to achieve this.
We can deploy many key technologies to bring innovative solutions to
customers’ problems.
Our products are manufactured to work well and to last. We use Six Sigma
Plus productivity to ensure this is the case. We have award winning
manufacturing facilities around the world and recognised world class
business excellence in manufacturing and supply chain management to
deliver on time, anywhere in the world.
Our e-business approach offers instant access to product information,
technical support and application knowledge through out Internet site. Check
out our powerful new interactive catalogue that can search and find the right
products for customers’ needs and deliver a drawing ready for incorporation
in a CAD system direct to your desk.
And of course, we manage our whole business for the benefit of our
customers, using an acknowledged world-class business excellence approach
that incorporates Six Sigma principles.
Expanded Product Lines
As well as many new and innovative switches, this catalogue includes an
expanded range of Pressure and Position Sensors, previously known under
the Clarostat, NEI and Electrocorporation brand names.
4www.honeywell.com/sensing
Blank page
5
www.honeywell.com/sensing
Industrial Electromechanical
Limit Switches
Honeywell offers an advanced line of heavy duty limit switches and a wide
selection of application-proven enclosed switches (precision snap-acting
switches sealed in rugged metal housing). Sealed versions keep out moisture
and other contaminants. Our products meet or exceed critical standards
allowing for global use. Our rugged switches are suitable for use in harsh-
duty, wash-down environments. We offer a variety of circuitry, terminations
and actuators to ensure that can match your choice of switch to your
application.
Limit and enclosed switches are the cost effective switches of choice for
detecting objects which can be touched. When an object comes in contact
with an actuator, the switch operates. Rugged and dependable, these
switches are offered in a variety of sizes, with different seals, enclosures,
actuation, circuitries and electrical ratings. Enclosed switches are known for
high precision and low cost. Limit Switches are especially rugged and well
sealed. Explosion proof switches are designed for use in hazardous locations.
The Honeywell switches featured here are all proven in a broad range of
Industrial applications - machine tools, packaging machinery, lifting gear,
presses and construction machinery.
More information about our complete product range - and the depth of
product available within each product line - can be found on our interactive
catalogue at www.honeywell.com/sensing.
MICRO SWITCH Brand products
Honeywell has been at the forefront of switching technology since we were the
first to develop the precision snap-action switch more than 60 years ago.
Ever since we introduced the MICRO SWITCH Brand Products in 1937, we
have been recognized as the performance standard that all other switches are
measured against. We continue in that tradition by constantly improving the
technology, cost-effectiveness, and delivery of these hardworking, versatile
electromechanical switches.
LIMIT SWITCHES
6www.honeywell.com/sensing
LIMIT SWITCHES
Proper application of limit switches
The following are guidelines for the correct application of Limit Switches.
Never use the Limit Switch as a physical end stop. Mechanical damage or
incorrect operation may occur if this is done. Always ensure that the
mechanical actuator is protected from excessive mechanical shock. Never
release the actuator suddenly - gradual actuation and release will ensure that
stress on the mechanics of the switch is kept to a minimum. This has the
added benefit that the switch life will be improved. The diagrams illustrate how
to actuate your limit switch for optimum performance.
Standards and Electrical rating
IEC/EN 60947-1 explains the general rules relating to Low Voltage switchgear
and controlgear. The purpose of this standard is to harmonize as much as
possible the product performance and test requirements for equipment where
the rated voltage does not exceed 1,000 Vac or 1,500 Vdc.
IEC 60947-5-1 is part 5 of the general rules which relates to Control-circuit
devices and switching elements, where rated voltage does not exceed 1,000
Vac or 600 Vdc. There are special requirements for control switches with
positive opening operation. These switches are marked on the outside with
this symbol:
The Contact Element form defines the configuration and number of contacts
within the switch.
Form Za – both contact elements have the same polarity
Form Zb – the two contact elements are electrically separated.
The Utilization Category defines the type of current carried – ac or dc – and
the typical application where the switch is used.
The contact rating Designation relates to the Utilization Categories and defines
the conventional thermal current Ith (a) rated operational current Ie (A) at
rated operational voltages Ue and the VA rating.
Actuators
A range of actuators is available for limit switches. Illustrations of actuator
types available from this catalogue are shown at the beginning of each
product family. Other actuators may be available - for more information
please contact your local Honeywell office.
For limit switches with pushrod actuators, the actuating force should be applied as
nearly as possible in line with the pushrod axis.
Cam or dog arrangements should be such that the actuator is not suddently released
to snap back freely.
Operating mechanisms for limit switches shoud be so designed that, under any
operating or emergency conditions, the limit switch is not operated beyond its
overtravel limit position. A limit switch should not be used as a mechanical stop.
For limit switches with lever actuators, the actuating force should be applied as
nearly perpendicular to the lever as practical and perpendicular to the shaft axis
about which the lever rotates.
WRONG WRONG
RIGHT FIXED STOP
RIGHT
WRONG WRONG
RIGHT RIGHT
over-riding
cam
over-riding
cam
WRONG WRONG
RIGHT RIGHT
free position
free position
interference
end of
overtravel
operated
position
end of
overtravel
WRONG
RIGHT
over-riding
non-over-riding
Roller lever Top roller
lever Adjustable
roller lever Top pin
plunger
Top pin
plunger,
boot seal
Top roller
plunger
Top roller
plunger,
boot seal
Top roller
plunger,
perpendicular
Top roller
plunger,
perpendicular,
boot seal
Ball bearing
plunger
Side
roller plunger
Side
pin plunger
Roller lever Yoke lever Rod lever Wobble head
7
www.honeywell.com/sensing
LIMIT SWITCHES
A Note on Degrees of Protection
IP Classification
The IEC 529 standard describes a system for classifying the degree of
protection provided by the enclosures of electrical equipment. The level of
protection given by the enclosure is indicated by the IP code. This code
system uses the letters ‘‘IP’’ (International Protection) followed by up to four
digits. Normally only the first two digits are used.
IP 1st Digit 2nd Digit 3rd Digit 4th Digit
The first digit is numerical and indicates the level of protection within the
enclosure against the ingress of solid foreign objects and access to hazardous
parts by persons.
The second digit is also numerical and indicates the level of protection
against the ingress of WATER into the enclosure.
The third digit is a letter and indicates a higher level of protection for persons
against access to hazardous parts.
The fourth digit is also a letter and is used in exceptional cases for
supplementary information.
If the first or second digit is not required to be specified, then it is replaced by
the letter ‘‘X’’ (‘‘XX’’ if both digits are not required). While the tables below
serve as a guide to the level of protection, Honeywell recommends that
customers refer to the full official IEC specification for the exact definitions. If
in doubt about the degree of protection required for a particular application,
please consult your local Honeywell office.
Note:
The IEC 529 standard does not relate to protection against rust, corrosion,
icing or corrosive solvents (e.g. cutting fluids) and that product coded IP 67
may not necessarily meet IP 66 requirements.
First Digit Protection against ingress of solid objects
IP TEST
0 no protection
1 protected against solid objects with a diameter greater than 50 mm
2 protected against solid objects with a diameter greater than 12 mm
3 protected against solid objects with a diameter greater than 2.5 mm
4 protected against solid objects with a diameter greater than 1 mm
5 protected against dust-limited ingress (no harmful deposit)
6 totally protected against dust
Second Digit Protection against ingress of water
IP TEST
0 no protection
1 protected against vertically falling drops of water
2 protected against vertically falling drops of water when the enclosure is tilted
at an angle up to 15 degrees
3 protected against water sprayed at an angle of 60 degrees from the vertical
4 protected against splashing water from all directions – limited ingress (no
harmful effects)
5 protected against low pressure jets of water from all directions – limited
ingress permitted
6 protected against powerful jets of water from all directions – limited ingress
permitted
7 protected against the effects of temporary immersion in water
8 protected against the effects of continuous immersion in water
NEMA Classification (USA)
NEMA (National Electrical Manufacturer’s Association) prepares standards
which define a product, process or procedure with reference to one or more of
the following: nomenclature, composition, construction, dimensions,
tolerances, safety, operating characteristics, performance, quality, electrical
rating, testing and the service for which designed. This standard provides
degrees of protection for Enclosures for Electrical Equipment (1000 Volts
Maximum) similar to that of the IEC 529 standard. The reference standard
herein reflects the latest data in the NEMA Standards Publication when this
information went to print. Please check for the latest information.
Non-hazardous locations
Type 1 enclosures are intended for indoor use primarily to provide a degree of
protection against contact with the enclosed equipment.
Type 3 enclosures are intended for outdoor use primarily to provide a degree
of protection against windblown dust, rain, sleet, and external ice formation.
Type 4 enclosures are intended for indoor or outdoor use primarily to provide
a degree of protection against windblown dust and rain, splashing water, and
hose-directed water.
Type 4X enclosures are intended for indoor or outdoor use primarily to
provide a degree of protection against corrosion, windblown dust and rain,
splashing water, and hose-directed water.
Type 6 enclosures are intended for indoor or outdoor use primarily to provide
a degree of protection against the entry of water during occasional temporary
submersion at a limited depth.
Type 6P enclosures are intended for indoor or outdoor use primarily to
provide a degree of protection against the entry of water during prolonged
submersion at a limited depth.
Type 12 enclosures are intended for indoor use primarily to provide a degree
of protection against dust, falling dirt, and dripping noncorrosive liquids.
Type 13 enclosures are intended for indoor use primarily to provide a degree
of protection against dust, spraying water, oil and noncorrosive coolant.
Note:
Enclosures are based, in general, on the broad definitions outlined in NEMA
Standards. Therefore, it will be necessary to ascertain that a particular
enclosure will be adequate when exposed to the specific conditions that might
exist in intended applications.
Except as might otherwise be noted, all references to products relative to
NEMA enclosure type are based on Honeywell evaluation and Underwriter’s
Laboratory (UL) tested. This NEMA Standards Publication does test for
environmental conditions such as corrosion, rust, icing, oil, and coolants. The
IEC 529 does not, and does not specify degree of protection against
mechanical damage of equipment. For this reason, and because the tests and
evaluations for other characteristics are not identical, the IEC Enclosure
Classification Designations cannot be exactly equated with NEMA Enclosure
Type Numbers.
8www.honeywell.com/sensing
GLOBAL LIMIT SWITCHES
EVN2000 Series
EN 50047
Global Limit
Switches
The EVN2000 series limit switch is an innovative product which has been developed to address a need
highlighted by Original Equipment Manufacturers (OEM), where “Ease of Wiring” is required. With the
new design there is no need for access to the inside of the housing and therefore the housing cover,
cover screws and gasket become obsolete. Furthermore, the integrated cable gland eliminates the need
for additional conduit or cable gland hardware. All Normally Closed (NC) contacts are Direct Opening.
Mechanical life: 10 million
Sealing: IP 66/67, NEMA 1, 12, 13
Operating temperature: -25 °C to 85 °C (-13 °F to 185 °F)
Approvals: IEC/EN 60947-5-1
EN 60529
EN81-1
AC15 A300
DC13 Q300
UL, CE
Housing material: Plastic
Termination: Insulation Displacement Terminals (IDT)
Switching options: SPDT Single Pole, Double Throw,
Snap action contacts (1NC/1NO)
Zb
OPTIONS
Side rotary plastic roller
REFERENCE
EVN2000A
Top roller plunger, parallel
REFERENCE
EVN2000C
Top pin plunger
REFERENCE
EVN2000B
Top roller plunger, perpendicular
REFERENCE
EVN2000D
Operating characteristics
Actuator Operating Free Pretravel Travel to Overtravel Differential Operating
type torque/force position positive opening travel point
(OF) (FP) (PT) (PO) (OT) (DT) (OP)
Side
rotary 0,120 N m 0° 25° 45° 45° 12° 25°
A(1.10 lb in)
Top pin
plunger 16,0 N 20,0 mm 2,0 mm 3,5 mm 4,0 mm 1,0 mm 18,0 mm
B(3.60 lb) (0.79 in) (0.08 in) (0.14 in) (0.16 in) (0.04 in) (0.71 in)
Top roller
plunger, 16,0 N 30,0 mm 2,0 mm 3,5 mm 4,0 mm 1,0 mm 28,0 mm
parallel (3.60 lb) (1.18 in) (0.08 in) (0.14 in) (0.16 in) (0.04 in) (1.10 in)
C
Top roller
plunger, 16,0 N 30,0 mm 2,0 mm 3,5 mm 4,0 mm 1,0 mm 28,0 mm
perpendicular (3.60 lb) (1.18 in) (0.08 in) (0.14 in) (0.16 in) (0.04 in) (1.10 in)
D
Actuators
9
www.honeywell.com/sensing
VL Series
General Purpose Compact
Limit Switches
The new economical SZL-VL Series miniature type limit switches are specially
designed for applications of small mounting space. These miniature switches
are ideal for OEM machinery which requires a rugged and reliable limit switch
that is capable of being mounted in space restricted applications. A wide range
of actuators and optional neon lamp indicators add additional flexibility. A
special pre-molded flexible cable gland allows for fast and simple wiring
termination.
Mechanical life: up to 10 million operations
Sealing: IP 64
Operating temperature: -20 °C to 60 °C (-4 °F to 140 °F)
Approvals: UL, C-UL, CE
Termination: Cable gland
Contacts: Gold plated silver
Electrical ratings: 250 Vac 125 Vdc max.
Ampere rating: 5 A @ 250 Vac max./0.4 A @ 125 Vdc max.
Switching options:
SPDT Single Pole, Double Throw, Double break
(1NC/1NO)
VL
34
21
NO
NC
NO
NC
Side rotary actuated switches
Pretravel max. (PT): 20°
Overtravel min. (OT): 75°
Differential travel max. (DT): 10°
OPTIONS
Roller lever
(Roller can be
in any position
(with hexagonal
7 .276 in depth
mounting holes
41.2±.08
36.2±0.8
nylon roller
R30
M4 arm
56±0.3
21±0.2
28
M3x6
cover screw
M4 arm fixing nut
12.5
.402
18.5
64
2-M5 (P=0.8)
tapped
14
7.5±0.2
15.1
38.1
25
2-M3x23
20.4±0.3
PT 20˚
max
cover screw
(Standard type)
18 dia.x7
through 360˚)
.827±.008
1.102
2.205±.012
.492
holes)
rotated and locked
1.622±.031
1.425±.031
10.2
.728
.803±.012
2.520
.551
1.5
.984
.594
.295±.008
mounting holes
2-M5 (P=0.8)
tapped
mounting holes
2-4.1 dia.
+0.2
-0
fixing screw
mounting holes
.161 dia.
+0.008
-0
Operating torque max.: 5,88 N (1.32 lb)
REFERENCE
SZL-VL-A
Roller lever, adjustable
hexagonal holes
Arm fastening plate
Mounting metal
M4 arm fastening
plate screw with
Adjustable length
of arm
(30-70)
.402
2.0
(Roller can be rotated
and locked in any
position through 360˚)
2-M3x23
cover screw
M3x6
cover screw
12.5
56±0.3
21±0.2
28
7 .276 in depth
mounting holes
2-M5 (P=0.8) tapped
18.5
64
14
7.5±0.2
15.1
20.4±0.3
25
(46.4)
PT 20˚
max
(Standard type)
1.102
.827±.008
.492
2.205±.012
18 dia.x7 nylon rooler
hexagonal holes
plate screw with
M6 arm fastening
10.2
.728
2.520
.551
.295±.008
(1.827)
.984
.594
.803±.012
2-M5 (P=0.8) tapped
mounting holes
.079
mounting holes
2-4.1 dia.
+0.2
0
1.122±.031
1.319±.031
33.5±0.8
1.878±.031
47.7±0.8
42.7±0.8
1.681±.031
28.5±0.8
mounting holes
.161 dia.
+0.008
-0
Operating torque max.: 3,35 N to 7,84 N (0.75 lb to 1.76 lb)
REFERENCE
SZL-VL-B
GLOBAL LIMIT SWITCHES
Actuators
10 www.honeywell.com/sensing
VL Series
Side rotary actuated switches (continued)
Adjustable rod
7 .276 in depth
mounting holes
hexagonal holes
.217
36.3±0.8
44.9
(Roller can be rotated
and locked in any
position through 360˚)
M4 rod fastening plate
screw with hexagonal holes
Rod fastening plate
12.5
56±0.3
21±0.2
28
Adjustable lenght of rod
(30-118)
.402
18.5
64
14
2-M5 (P=0.8) tapped
7.5±0.2
15.1
20.4±0.3
25
Rod mounting metal
M6 mounting rod
fastening screw with
2-M3x23
cover screw
M3x6
cover screw
(44.9)
PT 20˚
max
(Standard type)
5.5
2.6 .102 dia. rod
.492
2.205±.012
1.102
.827±.008
1.768
1.429±.031
10.2
.728
2.520
.551
.295±.008
(1.768)
.984
.594 .803±.012
2-M5 (P=0.8) tapped
mounting holes
mounting holes
2-4.1 dia.
+0.2
0
mounting holes
.161 dia.
+0.008
-0
Operating torque max.: 2 N to 7,84 N
(0.45 lb to 1.76 lb)
REFERENCE
SZL-VL-C
Plunger actuated switches
Pretravel max. (PT): 1,5 mm (0.060 in)
Overtravel min. (OT): 4,0 mm (0.158 in)
Differential travel max. (DT): 0,7 mm (0.028 in)
Operating force max. (OF): 8,83 N (2 lb)
Top pin plunger
mounting holes
.402
2-M3x23
cover screw
2-4.1 +0.2
mounting holes
2-M5 (P=0.8) tapped
7 .276 in depth
M3x6
cover screw
64
14
7.5±0.2
15.1
25
20.4±0.3
.118
26.5
56±0.3
21±0.2
28
stainless steel plunger
mounting holes
2-M5 (P=0.8) tapped
(Standard type)
7. 276 dia.
dia.
3
1.043
2.205±.012
1.102
.827±.008
10.2
.803±.012
4
2.520
.984
.594
.295±.008
.157
.551
0
PT 1.5 max
.161 +0.008
mounting holes
dia.
-0
REFERENCE
SZL-VL-D
Top roller plunger
56±0.3
38
14.8
12.5 dia.x3.8
stainless steel roller
21±0.2
28
2-M3x23
cover screw
M3x6
cover screw
.402
20.4±0.3
.157
64
14
7 .276 in depth
mounting holes
2-M5 (P=0.8) tapped
mounting holes
2-M5 (P=0.8) tapped
15.1
25
7.5±0.2
(Standard type)
.583
1.496
2.205±.012
1.102
.827±.008
10.2
.803±.012
4
2.520
.551
.295±.008
.594
.984
mounting holes
2-4.1 dia.
+0.2
0
PT 1.5 max
mounting holes
.161 dia.
+0.008
-0
REFERENCE
SZL-VL-H
GLOBAL LIMIT SWITCHES
11
www.honeywell.com/sensing
Plunger actuated switches (continued)
Cross roller plunger
.402
M3x6
cover screw
12.5 dia.x3.8
stainless steel roller
2-M3x23
cover screw
21±0.2
28
56±0.3
38
14.8
7.5±0.2
15.1
25
20.4±0.3
.157
64
14
mounting holes
2-M5 (P=0.8) tapped
7 .276 in depth
mounting holes
2-M5 (P=0.8) tapped
(Standard type)
.583
1.496
2.205±.012
.827±.008
1.102
10.2
4
.803±.012
2.520
.551
.295±.008
.984
.594
mounting holes
2-4.1 dia.
+0.2
0
PT 1.5 max
mounting holes
.161 -0 dia.
+0.008
REFERENCE
SZL-VL-E
Wobble actuated switches
Pretravel max. (PT): 30 mm (1.18 in)
Overtravel min. (OT): 20 mm (0.788 in)
Operating force max. (OF): 0,88 N (0.2 lb)
Plastic rod, coil spring
.402
21±0.2
56±0.3
14
64
7.5±0.2
.157
28
20.4±0.3
25
15.1
5.8 dia.
3 dia.
Nylon rod
41.5
100±1.5
2-M3x23
M3x6
cover screw
7 .276 in depth
mounting holes
2-M5 (P=0.8) tapped
PT 50 max
(Standard type)
cover screw
1.634
3.937±.059
2.205±.012
1.102
.827±.008
10.2
.118
.228
.803±.012
4
2.520
.551
.295±.008
.984
.594
2-M5 (P=0.8) tapped
mounting holes
mounting holes
2-4.1 dia.
+0.2
0
mounting holes
.161 dia.
+0.008
-0
REFERENCE
SZL-VL-F
Coil spring
.402
21±0.2
56±0.3
14
64
7.5±0.2
.157
28
20.4±0.3
25
15.1
.047 stainless
51.5
100±1.5
2-M3x23
cover screw
M3x6
cover screw 7 .276 in depth
mounting holes
2-M5 (P=0
1.2 dia.
PT 30 max
(Standard type)
.8) tapped
2.028
3.937±.059
2.205±.012
.827±.008
1.102
10.2
steel wire
.803±.012
4
2.520
.551
.295±.008
.984
.594
2-M5 (P=0.8)
mounting holes
mounting holes
2-4.1
tapped
dia.
+0.2
0
SZL-VL-G
mounting holes
-0
.161 dia.
+0.008
REFERENCE
SZL-VL-G
GLOBAL LIMIT SWITCHES
12 www.honeywell.com/sensing
GLS Series
Global Limit
Switches
GLOBAL LIMIT SWITCHES
SPDT DPDT SPDT DPDT SPDT DPDT SPDT DPDT SPDT DPDT SPDT DPDT SPDT DPDT
EN50041
(GLA)
EN50047
(GLC, GLD,
GLE)
0,120 N m
(1.10 lb in)
0,165 N m
(1.50 lb in)
GLE only
11.5˚ 8˚
EN50041
(GLA)
EN50047
(GLC, GLD,
GLE)
16,0 N
(3.60 lb)
13,0 N
(2.90 lb)
GLE only
0,9 mm
(0.035 in)
0,6 mm
(0.024 in)
EN50041
(GLA)
EN50047
(GLC, GLD,
GLE)
16,0 N
(3.60 lb)
13,0 N
(2.90 lb)
GLE only
0,9 mm
(0.035 in)
0,6 mm
(0.024 in)
EN50041
(GLA)
EN50047
(GLC, GLD,
GLE)
11,0 N
(2.4 lb)
9,0 N
(1.9 lb)
GLE only
EN50041
(GLA)
EN50047
(GLC, GLD,
GLE)
1,3 N
(0.29 lb)
1,1 N
(0.25 lb)
GLE only
10˚ 7˚
Actuator
type
Body
size
26˚
35,8 mm
(1.41 in)
61,0 mm
(2.40 in)
28,0 mm
(1.10 in)
48,0 mm
(1.89 in)
18,0 mm
(0.71 in)
35,0 mm
(1.38 in)
4,5 mm
(0.18 in)
__
__
59˚
49˚
0,9 mm
(0.035 in)
12˚
0,9 mm
(0.035 in)
1,7 mm
(0.067 in
1,3 mm
(0.19 in)
8˚
16˚
18˚
3,0 mm
(0.12 in)
3,0 mm
(0.12 in)
__
4,5 mm
(0.18 in)
9,0 mm
(0.35 in)
__
5,2 mm
(0.205 in)
2,5 mm
(0.10 in)
3,0 mm
(0.12 in)
4,2 mm
(0.165 in)
3,45 mm
(0.14 in)
Overtravel
(OT)
Differential travel
(DT)
Operating point
(OP)
Top roller
lever
D
Lever types
A,
A*A, A*B,
A4J
Top pin
plunger
B
Top roller
plunger
C
Operating torque/force
(OF)
Pretravel
(PT)
0,330 N m
(2.90 lb in)
Wobble head
E7B, E7D,
K8B, K8C
16,0 N
(3.60 lb)
16,0 N
3.60 lb
9,5 N
(2.10 lb)
0,1 N
(0.90 in lb)
Free position
(FP)
Travel to
positive opening
(PO)
0˚ 55˚26˚
37,5 mm
(1.48 in)
21,0 mm
(0.83 in)
4,5 mm
(0.18 in)
5,0 mm
(0.20 in)
2,5 mm
(0.10 in)
3,0 mm
(0.12 in)
50,5 mm
(2.00 in)
31,0 mm
(1.22 in)
0˚
65,2 mm
(2.57 in)
39,25 mm
(1.55 in)
__
__
4,5 mm
(0.18 in)
5,0 mm
(0.20 in)
8,3 mm
(0.33 in)
6,9 mm
(0.27 in)
Operating characteristics
IEC947-5-1/EN60947-5-1
Designation & Rated operational current Ie (A) VA
Utilization Category at rated operational voltage Ue rating
120V 240V 380V 480V 500V 600V Make Break
AC15 A600 6 3 1.9 1.5 1.4 1.2 7200 720
AC15 A300 6 3 - - - - 7200 720
AC15 B300 3 1.5 - - - - 3600 360
AC14 D300 0.6 0.3 - - - - 432 72
125V 250V
DC13 Q300 0.55 0.27 69 69
DC13 R300 0.22 0.1 28 28
Electrical ratings
GLS Series switches offer a complete range of CENELEC approved products,
and are suitable for most industrial applications.
The standard product EN 50041 norm defines the switch mounting centres as
30 mm x 60 mm and also defines the switching characteristics of the side
rotary head with fixed lever, top pin plunger and top roller plunger. This means
that the switch can be interchanged in the application with other EN 50041
switches with mounting and switching characteristics maintained. Honeywell
offers many more head styles and switching options.
The miniature EN 50047 product range offers the user a choice of plastic,
metal and three conduit versions which are all mounting (20 mm x 22 mm)
compatible with each other. The EN 50047 standard defines how the switches
are mounted and the switching characteristics for fixed side rotary lever, top
pin plunger and top roller plunger.
Switching options:
SPDT Single Pole, Double Throw, Snap action contacts (1NC/1NO)
13 14
21
22
DPDT Double Pole, Double Throw Snap action contacts (2NC/2NO)
13 14
12
11
23
21
24
22
Actuators
13
www.honeywell.com/sensing
GLA EN 50041
Standard metal body
Mechanical life: up to 15 million
Sealing: IP 67, NEMA 1, 4, 12, 13
Operating temperature: -25 °C to 85 °C
(-13 °F to 185 °F)
Approvals: IEC/EN 60947-5-1
AC15 A300/A600
DC13 Q300
UL, CSA, CE
Switching options:
SPDT Single Pole, Double Throw
Snap action contacts (1NC/1NO)
DPDT Double Pole, Double Throw
Snap action contacts (2NC/2NO)
HEAD OPTIONS
Side rotary
No lever
Levers: Levers for side rotary types are ordered
separately (see pages 69-71 for details)
CONTACT CONDUIT REFERENCE
SPDT ½ in NPT GLAA01A
DPDT ½ in NPT GLAA20A
SPDT PG 13,5 GLAB01A
Plastic roller
CONTACT CONDUIT REFERENCE
SPDT ½ in NPT GLAA01A1A
DPDT ½ in NPT GLAA20A1A
SPDT PG 13,5 GLAB01A1A
DPDT PG 13,5 GLAB20A1A
SPDT 20 mm GLAC01A1A
DPDT 20 mm GLAC20A1A
Metal roller
CONTACT CONDUIT REFERENCE
SPDT ½ in NPT GLAA01A1B
DPDT ½ in NPT GLAA20A1B
SPDT PG 13,5 GLAB01A1B
DPDT PG 13,5 GLAB20A1B
SPDT 20 mm GLAC01A1B
DPDT 20 mm GLAC20A1B
Side rotary adjustable roller
Plastic roller
CONTACT CONDUIT REFERENCE
SPDT ½ in NPT GLAA01A2A
DPDT ½ in NPT GLAA20A2A
SPDT PG 13,5 GLAB01A2A
DPDT PG 13,5 GLAB20A2A
SPDT 20 mm GLAC01A2A
Metal roller
CONTACT CONDUIT REFERENCE
SPDT ½ in NPT GLAA01A2B
DPDT ½ in NPT GLAA20A2B
SPDT PG 13,5 GLAB01A2B
DPDT PG 13,5 GLAB20A2B
SPDT 20 mm GLAC01A2B
DPDT 20 mm GLAC20A2B
Side rotary adjustable metal rod
34
(1.34)
41
(1.61)
¯ 3,2
(.13)
75˚75˚
15
(.6)
32 - 134
(1.26 - 5,28)
4,5
(.17)
CONTACT CONDUIT REFERENCE
SPDT ½ in NPT GLAA01A4J
DPDT ½ in NPT GLAA20A4J
SPDT PG 13,5 GLAB01A4J
DPDT PG 13,5 GLAB20A4J
SPDT 20 mm GLAC01A4J
Top pin plunger
37,5
(1.48)
FP
CONTACT CONDUIT REFERENCE
SPDT ½ in NPT GLAA01B
DPDT ½ in NPT GLAA20B
SPDT PG 13,5 GLAB01B
DPDT PG 13,5 GLAB20B
SPDT 20 mm GLAC01B
DPDT 20 mm GLAC20B
Top roller plunger
FP
CONTACT CONDUIT REFERENCE
SPDT ½ in NPT GLAA01C
DPDT ½ in NPT GLAA20C
SPDT PG 13,5 GLAB01C
DPDT PG 13,5 GLAB20C
SPDT 20 mm GLAC01C
DPDT 20 mm GLAC20C
Top roller lever
35
(1.38)
65,2
(2.51)
Ø 18,7
(.74)
13,0
(.51)
FP
CONTACT CONDUIT REFERENCE
SPDT ½ in NPT GLAA01D
DPDT ½ in NPT GLAA20D
SPDT PG 13,5 GLAB01D
DPDT PG 13,5 GLAB20D
SPDT 20 mm GLAC01D
DPDT 20 mm GLAC20D
GLOBAL LIMIT SWITCHES
14 www.honeywell.com/sensing
GLA EN 50041
Standard metal body
(continued)
Wobble, coil actuator
CONTACT CONDUIT REFERENCE
SPDT ½ in NPT GLAA01E7B
SPDT PG 13,5 GLAB01E7B
DPDT PG 13,5 GLAB20E7B
SPDT 20 mm GLAC01E7B
DPDT 20 mm GLAC20E7B
Coil wobble head, stainless steel
spring actuator
CONTACT CONDUIT REFERENCE
SPDT ½ in NPT GLAA01E7D
Wobble, cat whisker
CONTACT CONDUIT REFERENCE
SPDT ½ in NPT GLAA01K8B
SPDT PG 13,5 GLAB01K8B
Wobble, cat whisker, coil actuator
CONTACT CONDUIT REFERENCE
SPDT ½ in NPT GLAA01K8C
DPDT ½ in NPT GLAA20K8C
SPDT PG 13,5 GLAB01K8C
GLC EN 50047
Standard metal body
24,75
(0.97)
14,5
(.57)
30
(1.18)
conduit thread
PG 13,5
22
(.87)
20
(.78)
3
(.12)
2,15
(.08)
R
55
(2.16)
30,5
(1.20)
3,5
(0.138)
15,25
(.600)
Mechanical life: up to 10 million
Sealing: IP 66, NEMA 1, 4, 12, 13
Operating temperature: -25 °C to 85 °C
-13 °F to 185 °F
Approvals: IEC/EN 60947-5-1
AC15 A300
DC13 Q300
UL, CSA, CE
Switching options:
SPDT Single Pole, Double Throw
Snap action contacts (1NC/1NO)
HEAD OPTIONS
Side rotary
°
Plastic roller
CONTACT CONDUIT REFERENCE
SPDT ½ in NPT GLCA01A1A
SPDT PG 13,5 GLCB01A1A
Metal roller
CONTACT CONDUIT REFERENCE
SPDT ½ in NPT GLCA01A1B
SPDT PG 13,5 GLCB01A1B
SPDT 20 mm GLCC01A1B
GLOBAL LIMIT SWITCHES
15
www.honeywell.com/sensing
GLC EN 50047
Standard metal body
(continued)
Side rotary adjustable
Plastic roller
CONTACT CONDUIT REFERENCE
SPDT ½ in NPT GLCA01A2A
SPDT PG 13,5 GLCB01A2A
Metal roller
CONTACT CONDUIT REFERENCE
SPDT ½ in NPT GLCA01A2B
SPDT PG 13,5 GLCB01A2B
SPDT 20 mm GLCC01A2B
Side rotary adjustable, metal rod
34
(1.34)
41
(1.61)
¯ 3,2
(.13)
75˚75˚
15
(.6)
32 - 134
(1.26 - 5,28)
4,5
(.17)
CONTACT CONDUIT REFERENCE
SPDT ½ in NPT GLCA01A4J
SPDT PG 13,5 GLCB01A4J
Top pin plunger
OP
DT
18
±0,5
(.709)
Ø 9.9
(.390)
CONTACT CONDUIT REFERENCE
SPDT ½ in NPT GLCA01B
SPDT PG 13,5 GLCB01B
SPDT 20 mm GLCC01B
Top roller plunger
31,0
1.22
FP
CONTACT CONDUIT REFERENCE
SPDT ½ in NPT GLCA01C
SPDT PG 13,5 GLCB01C
SPDT 20 mm GLCC01C
Top roller lever
Ø
39,2
(1.54)
FP
CONTACT CONDUIT REFERENCE
SPDT ½ in NPT GLCA01D
SPDT PG 13,5 GLCB01D
SPDT 20 mm GLCC01D
Wobble, coil actuator
➞
Mechanical life: up to 5 million
CONTACT CONDUIT REFERENCE
SPDT ½ in NPT GLCA01E7B
SPDT PG 13.5 GLCB01E7B
SPDT 20 mm GLCC01E7B
Wobble, cat whisker
Mechanical life: 5 million
CONTACT CONDUIT REFERENCE
SPDT ½ in NPT GLCA01K8A
SPDT PG 13,5 GLCB01K8A
GLOBAL LIMIT SWITCHES
16 www.honeywell.com/sensing
GLD EN 50047
Double insulated
standard body
24,75
(0.97)
14,5
(.57)
30
(1.18)
conduit thread
PG 13,5
22
(.87)
20
(.78)
3
(.12)
2,15
(.08)
R
55
(2.16)
30,5
(1.20)
3,5
(0.138)
15,25
(.600)
Mechanical life: See GLC section
Sealing: IP 66, NEMA 1, 2, 13
Operating temperature: -25 °C to 85 °C
-13 °F to 185 °F
Approvals: IEC/EN 60947-5-1
AC15 A600
DC13 Q300
UL, CSA, CE
Switching options:
SPDT Single Pole, Double Throw
Snap action contacts (1NC/1NO)
HEAD OPTIONS
See GLC section for dimension
illustrations
Side rotary
Plastic roller/lever
CONTACT CONDUIT REFERENCE
SPDT ½ in NPT GLDA01A1A
SPDT PG 13,5 GLDB01A1A
Metal roller/lever
CONTACT CONDUIT REFERENCE
SPDT ½ in NPT GLDA01A1B
SPDT PG 13,5 GLDB01A1B
SPDT 20 mm GLDC01A1B
Side rotary adjustable
Plastic roller/metal lever
CONTACT CONDUIT REFERENCE
SPDT ½ in NPT GLDA01A2A
SPDT PG 13.5 GLDB01A2A
Metal roller/metal lever
CONTACT CONDUIT REFERENCE
SPDT ½ in NPT GLDA01A2B
SPDT PG 13,5 GLDB01A2B
SPDT 20 mm GLDC01A2B
Side rotary adjustable metal rod
CONTACT CONDUIT REFERENCE
SPDT ½ in NPT GLDA01A4J
SPDT PG 13,5 GLDB01A4J
Top pin plunger
CONTACT CONDUIT REFERENCE
SPDT ½ in NPT GLDA01B
SPDT PG 13,5 GLDB01B
SPDT 20 mm GLDC01B
Top roller plunger
CONTACT CONDUIT REFERENCE
SPDT ½ in NPT GLDA01C
SPDT PG 13,5 GLDB01C
SPDT 20 mm GLDC01C
Top roller lever
CONTACT CONDUIT REFERENCE
SPDT ½ in NPT GLDA01D
SPDT PG 13,5 GLDB01D
SPDT 20 mm GLDC01D
Wobble, coil actuator
CONTACT CONDUIT REFERENCE
SPDT ½ in NPT GLDA01E7B
SPDT PG 13,5 GLDB01E7B
SPDT 20 mm GLDC01E7B
GLE EN 50047 Compatible
3 conduit
metal standard body
Mechanical life: up to 10 million
Sealing: IP 66, NEMA 1, 4, 12, 13
Operating temperature: -25 °C to 85 °C
-13 °F to 185 °F
Approvals: IEC/EN 60947-5-1
AC15 A300
DC13 Q300
UL, CSA, CE
Switching options:
SPDT Single Pole, Double Throw
Snap action contacts (1NC/1NO)
DPDT Double Pole, Double Throw
Snap action contacts (2NC/2NO)
HEAD OPTIONS
Side rotary
Plastic roller
CONTACT CONDUIT REFERENCE
SPDT ½ in NPT GLEA01A1A
SPDT PG 13,5 GLEB01A1A
DPDT PG 13,5 GLEB24A1A
Metal roller
CONTACT CONDUIT REFERENCE
SPDT ½ in NPT GLEA01A1B
DPDT ½ in NPT GLEA24A1B
SPDT PG 13,5 GLEB01A1B
DPDT PG 13,5 GLEB24A1B
SPDT 20 mm GLEC01A1B
GLOBAL LIMIT SWITCHES
17
www.honeywell.com/sensing
GLE EN 50047 Compatible
3 conduit
metal standard body
(continued)
Offset side rotary roller
Plastic roller
CONTACT CONDUIT REFERENCE
SPDT ½ in NPT GLEA01A5A
SPDT PG 13,5 GLEB01A5A
Side rotary adjustable
Plastic roller
CONTACT CONDUIT REFERENCE
SPDT ½ in NPT GLEA01A2A
DPDT ½ in NPT GLEA24A2A
SPDT PG 13,5 GLEB01A2A
Metal roller
CONTACT CONDUIT REFERENCE
SPDT ½ in NPT GLEA01A2B
SPDT PG 13,5 GLEB01A2B
DPDT PG 13,5 GLEB24A2B
GLOBAL LIMIT SWITCHES
Side rotary adjustable metal rod
34
(1.34)
41
(1.61)
¯ 3,2
(.13)
75˚75˚
15
(.6)
32 - 134
(1.26 - 5,28)
4,5
(.17)
CONTACT CONDUIT REFERENCE
SPDT PG 13,5 GLEB01A4J
DPDT PG 13,5 GLEB24A4J
Top pin plunger
18
(0.709)
CONTACT CONDUIT REFERENCE
SPDT ½ in NPT GLEA01B
DPDT ½ in NPT GLEA24B
SPDT PG 13,5 GLEB01B
DPDT PG 13,5 GLEB24B
Top roller plunger
31,0
1.23
Ø 12,4
(0.49)
FP
CONTACT CONDUIT REFERENCE
SPDT ½ in NPT GLEA01C
DPDT ½ in NPT GLEA24C
SPDT PG 13,5 GLEB01C
DPDT PG 13,5 GLEB24C
DPDT 20 mm GLEC24C
Top roller lever
39,2
(1.54)
FP
CONTACT CONDUIT REFERENCE
SPDT ½ in NPT GLEA01D
DPDT ½ in NPT GLEA24D
SPDT PG 13,5 GLEB01D
DPDT 13,5 GLEB24D
SPDT 20 mm GLEC01D
DPDT 20 mm GLEC24D
Wobble, coil actuator
Þ
OT
35˚ (max)
DT
10˚
16˚ ±5˚
(2.37)
OP
100
(3.92)
Mechanical life: up to 5 million
CONTACT CONDUIT REFERENCE
SPDT ½ in NPT GLEA01E7B
DPDT ½ in NPT GLEA24E7B
SPDT PG 13,5 GLEB01E7B
DPDT PG 13,5 GLEB24E7B
18 www.honeywell.com/sensing
OPTIONS
Top pin plunger
25,4
(OP)
CONTACT REFERENCE
Silver SL1-H
Gold clad cross point SL1-HK
Top roller plunger, parallel
31,4
(OP)
CONTACT REFERENCE
Silver SL1-A
Gold clad cross point SL1-AK
SL1 Series
Compact Limit
Switches
The SL1 Series compact limit switches are sealed, sensitive and have a long life. The compact size makes them suitable
for the total miniaturization of machinery or equipment.
Mechanical life: 10 million
Sealing: IP 67, NEMA 3, 4, 13
Operating temperature: -10 °C to 70 °C (14 °F to 160 °F)
Approvals: UL, CSA, CE
Termination: Cable gland
Operating force max. (OF): 11,76 N (2.64 lb)
Pretravel max. (PT): 1,5 mm (0.060 in)
Overtravel min. (OT): 3,0 mm (0.118 in)
Differential travel max. (DT): 0,10 mm (0.004 in)
Electrical rating/contact: SL1-* 5A - 125, 250 Vac Silver
SL1-* K 0.1 A - 125 Vac; 0.1 A - 30 Vdc Gold clad cross point
Switching options:
SPDT Single Pole, Double Throw,
Snap action contacts (1NC/1NO)
Top roller plunger, parallel, boot seal
11 D X 4W ROLLER
PT
CONTACT REFERENCE
Silver SL1-B
Gold clad cross point SL1-BK
Top roller plunger, long, parallel
41,4
(OP)
CONTACT REFERENCE
Silver SL1-E
Gold clad cross point SL1-EK
COMPACT LIMIT SWITCHES
Actuators
19
www.honeywell.com/sensing
Top roller plunger, perpendicular
31,4
(OP)
CONTACT REFERENCE
Silver SL1-D
Gold clad cross point SL1-DK
Top roller plunger, long, perpendicular
41,4
(OP)
CONTACT REFERENCE
Silver SL1-K
Gold clad cross point SL1-KK
Top roller lever
Operating force max. (OF): 3,92 N (0.88 lb)
Pretravel max. (PT): 2,0 mm (0.079 in)
Overtravel min. (OT): 4,0 mm (0.158 in)
Differential travel max. (DT): 0,3 mm (0.012 in)
CONTACT REFERENCE
Silver SL1-P
Gold clad cross point SL1-PK
COMPACT LIMIT SWITCHES
20 www.honeywell.com/sensing
COMPACT LIMIT SWITCHES
14CE/914CE Series
Miniature Enclosed
Switches
The 14CE/914CE Series offers a miniature, rugged, compact, pre-wired switch which has proved itself
successful and gained wide market acceptance. The entire range of 14CE and 914CE switches has been
approved to meet the requirements of the Low Voltage directive and is therefore CE marked.
CE switches have different degrees of protection from IP66 to IP68 for the fully booted head styles. The
cable entry is fully potted using a special compound to ensure that ingress is virtually impossible.
Mechanical life: 10 million
Sealing: IP66, IP67, IP68
NEMA 1, 2, 3, 3R, 4, 6, 6P, 12 (boot seal), 13
Operating temperature: 14CE 0 °C to 70 °C (32 °F to 158 °F)
914CE 0 °C to 105 °C (32 °F to 221 °F)
Approvals: 14CE CE
914CE CSA, UL, CE
AC14 D300
DC13 R300
Operating force (OF): 11,8 N (2,65 lb) max.
Pretravel (PT): 1,8 mm (0.71 in) max.
Overtravel (OT): 3,0 mm (0.118 in) min.
Differential travel (DT): 0,1mm (0.004 in) max.
Contact/Rating: (9)14CE* -* Silver A
(9)14CE* -*G Gold B
(9)14CE* -Q, -AQ, -AQ1 Silver C
Connection: Harmonised CENELEC 4 x 0,75 mm2 cable (14CE)
SJTO 4 x 0,75 mm2 (18 AWG) cable (914CE)
Connector (dc), 4 pin male, M12 thread (-Q)
Connector (ac), 4 pin male, ½ in x 20 thread (-Q1)
Switching options: SPDT Single Pole, Double Throw
Snap action contacts (1NC/1NO)
914CE 14CE
GREEN/YELLOW
BLUE
1
BROWN
2
3
BLACK
S.P.D.T
Electrical ratings: Amps
Make Break
A 240 Vac, ind. 1.2 0.2
240 Vac, res. 5 5
28 Vdc, res. 3 3
28 Vdc, ind. 3 3
UL/CSA: 5 A, 1/10 Hp, 125 or 250 Vac
B 1 A res., 0.5 A ind., 30 Vdc
UL: 1 A, 125 Vac
C UL/CSA: 3 A, 125 or 250 Vac
,
,
,
Operating
point (OP)
Free position
(FP)
1,8 max PT 3 min OT
Side exit cable
(Option 'A')
14CE 7,4 (0.29)
914CE 8,65 (0.34)
Ø
Actuators
21
www.honeywell.com/sensing
COMPACT LIMIT SWITCHES
Plunger actuated switches
OPTIONS
Top pin plunger
Ø 10,0
(0.39) OP
15,7
(0.62)
NORTH AMERICA/GLOBAL REFERENCE
3 ft cable, bottom exit 914CE1-3
3 ft cable, side exit 914CE1-3A
3 ft cable, bottom exit, gold contacts 914CE1-3G
6 ft cable, bottom exit 914CE1-6
6 ft cable, bottom exit, gold contacts 914CE1-6G
9 ft cable, bottom exit 914CE1-9
Connector (dc), bottom exit 914CE1-Q
Connector (ac), bottom exit 914CE1-Q1
EUROPE REFERENCE
1 metre cable, bottom exit 14CE1-1
1 metre cable, side exit 14CE1-1A
1 metre cable, bottom exit, gold contacts 14CE1-1G
2 metre cable, bottom exit 14CE1-2
3 metre cable, bottom exit 14CE1-3
3 metre cable, side exit 14CE1-3A
3 metre cable, bottom exit, gold contacts 14CE1-3G
Connector (dc), side exit 14CE1-AQ
Connector (dc), bottom exit 14CE1-Q
Top pin plunger, boot seal
Ø 7,0
(0.28)
OP
24,6
(0.98)
NORTH AMERICA/GLOBAL REFERENCE
3 ft cable, bottom exit 914CE18-3
3 ft cable, side exit 914CE18-3A
6 ft cable, bottom exit 914CE18-6
9 ft cable, bottom exit 914CE18-9
9 ft cable, side exit 914CE18-9A
Connector (ac), side exit 914CE18-AQ1
Connector (dc), bottom exit 914CE18-Q
Connector (ac), bottom exit 914CE18-Q1
EUROPE REFERENCE
1 metre cable, bottom exit 14CE18-1
3 metre cable, bottom exit 14CE18-3
Connector (dc), bottom exit 14CE18-Q
Top pin plunger, panel mounted
M10x1 Thread
OP
29,2
(1.15)
NORTH AMERICA/GLOBAL REFERENCE
Connector (dc), bottom exit 914CE27-Q
Ball bearing plunger
OP
24,4
(0.96)
NORTH AMERICA/GLOBAL REFERENCE
3 ft cable, bottom exit 914CE66-3
6 ft cable, bottom exit 914CE66-6
EUROPE/ REFERENCE
1 metre cable, bottom exit 14CE66-1
2 metre cable, bottom exit 14CE66-2
Adjustable plunger
OP
NORTH AMERICA/GLOBAL REFERENCE
3 ft cable, bottom exit 914CE19-3
9 ft cable, bottom exit 914CE19-9
Manually operated
OP
27,4
(1.08)
Operating force (OF): 9,0 N (2.02 lb)
NORTH AMERICA/GLOBAL REFERENCE
6 ft cable, bottom exit 914CE22-6
Top roller plunger, parallel
Ø 12,4
(0.49) OP
28,4
(1.12)
NORTH AMERICA/GLOBAL REFERENCE
3 ft cable, bottom exit 914CE2-3
3 ft cable, side exit 914CE2-3A
3 ft cable, bottom exit, gold contacts 914CE2-3G
6 ft cable, bottom exit 914CE2-6
6 ft cable, side exit 914CE2-6A
9 ft cable, bottom exit 914CE2-9
Connector (dc), side exit 914CE2-AQ
Connector (dc), bottom exit 914CE2-Q
Connector (ac), bottom exit 914CE2-Q1
EUROPE REFERENCE
1 metre cable, bottom exit 14CE2-1
1 metre cable, side exit 14CE2-1A
1 metre cable, bottom exit, gold contacts 14CE2-1G
2 metre cable, bottom exit 14CE2-2
2 metre cable, side exit 14CE2-2A
3 metre cable, bottom exit 14CE2-3
3 metre cable, side exit 14CE2-3A
3 metre cable, bottom exit, gold contacts 14CE2-3G
Connector (dc), side exit 14CE2-AQ
Connector (dc), bottom exit 14CE2-Q
Top roller plunger, parallel, boot
seal
Ø 12,4
(0.49)
OP
34,4
(1.35)
Operating force (OF): 17,5 N (3.82 lb)
NORTH AMERICA/GLOBAL REFERENCE
3 ft cable, bottom exit 914CE31-3
6 ft cable, bottom exit 914CE31-6
EUROPE REFERENCE
1 metre cable, bottom exit 14CE31-1
3 metre cable, bottom exit 14CE31-3
Top roller plunger, parallel, panel
mounted
OP
42,5
(1.67)
NORTH AMERICA/GLOBAL REFERENCE
3 ft cable, bottom exit 914CE28-3
6 ft cable, bottom exit 914CE28-6
Connector (dc), bottom exit 914CE28-Q
22 www.honeywell.com/sensing
COMPACT LIMIT SWITCHES
14CE/914CE Series
Plunger actuated switches
(continued)
Top roller plunger, perpendicular
Ø 12,4
(0.49)
OP
28,5
(1.12)
5,1
(0.20)
NORTH AMERICA/GLOBAL REFERENCE
3 ft cable, bottom exit 914CE3-3
6 ft cable, bottom exit 914CE3-6
6 ft cable, side exit 914CE3-6A
9 ft cable, bottom exit 914CE3-9
Connector (dc), bottom exit 914CE3-Q
Connector (ac), bottom exit 914CE3-Q1
EUROPE REFERENCE
1 metre cable, bottom exit 14CE3-1
2 metre cable, bottom exit 14CE3-2
3 metre cable, bottom exit 14CE3-3
Top roller plunger, perpendicular,
boot seal
OP
34,4
(1.35)
Operating force (OF): 17,5 N (3.82 lb)
NORTH AMERICA/GLOBAL REFERENCE
3 ft cable, bottom exit 914CE55-3
3 ft cable, side exit 914CE55-3A
Top roller plunger, perpendicular,
panel mounted
OP
42,5
(1.67)
NORTH AMERICA/GLOBAL REFERENCE
3 ft cable, bottom exit 914CE29-3
6 ft cable, bottom exit 914CE29-6
Side rotary and wobble
actuated switches
OPTIONS
Rotary motion
(actuating lever not included - use any
LSZ51*, LSZ52*, LSZ54*, LSZ55* or LSZ61*
Series shown on page ??
Operating torque: 0,3 Nm (2.66 in lb)
Pretravel (PT): 30° max.
Overtravel (OT) mm: 40° min.
Differential travel: 3°
NORTH AMERICA/GLOBAL REFERENCE
3 ft cable, bottom exit 914CE16-3
3 ft cable, side exit 914CE16-3A
6 ft cable, bottom exit 914CE16-6
9 ft cable, bottom exit 914CE16-9
Connector (dc), bottom exit 914CE16-Q
EUROPE REFERENCE
1 metre cable, bottom exit 14CE16-1
2 metre cable, bottom exit 14CE16-2
3 metre cable, bottom exit 14CE16-3
Wobble Spring wire
Operating Force (OF): 0,55 N (0.12 lb)
NORTH AMERICA/GLOBAL REFERENCE
3 ft cable, bottom exit 914CE20-3
6 ft cable, bottom exit 914CE20-6
9 ft cable, bottom exit 914CE20-9
Connector (dc), bottom exit 914CE20-Q
EUROPE REFERENCE
1 metre cable, bottom exit 14CE20-1
3 metre cable, bottom exit 14CE20-3
23
www.honeywell.com/sensing
COMPACT LIMIT SWITCHES
24CE/924CE Series
Miniature Safety
Electromechanical
Switches
Free position
Note: connector versions also available
2 Holes 5,1 dia
Counter Bored 10,2 dia x 6 deep
(both sides - option 'A' only)
Side exit cable
(Option 'A')
max.
40 /
1.58
max.
16 /
0.63
25 /
0.98
max.
49 /
1.93
8 /
0.32
1NC: 8,4 /
.33
1NC/1NO: 9,5 /
.374
For position sensing and switching applications requiring direct acting, positive opening contacts the
24CE and 924CE ranges are ideal. They have been tested and approved to meet the requirements of the Low
Voltage directive and positive opening safety contacts per IEC/EN 60947-5-1-3. The devices are CE marked.
The red colour clearly differentiates this safety component in the application. The 924CE range also has UL
and CSA approval.
It is possible for the end user to enhance the safety level of these switches from Category 1 on their own to
Categories 2, 3 or 4 when the switches are used in conjunction with our wide range of FF-SR safety relays to
form a safety system.
Typical applications for these switches would use the roller plunger 24CE2- or 24CE3- style in conjunction
with cams on doors with hinges; or our fixed side rotary 24CE16- style for detection of sliding doors. Also
available are a range of panel mounting or top mounting versions to ensure that small space or difficult
mounting can be simply achieved.
Several contact arrangements are available.
Mechanical life: 10 million
Sealing: standard type: IP66; with boot seal type: IP67
Operating temperature: 24CE 0 °C to 70 °C (32 °F to 158 °F)
Low temperature: -40 °C (-40 °F)
924CE 0 °C to 105 °C (32 °F to 221 °F)
Approvals: 24CE CE
AC15 B300
DC13 R300
924CE CSA, CE
per UL file #E41859, 10 A 250 Vac; 1/3 Hp 125-250 Vac
AC15 B300
DC13 R300
Connection: Harmonised CENELEC 3 or 5 x 0,75 mm2 cable (24CE)
SJTO 3 or 5 x 18 AWG cable (924CE)
Contacts: Silver
Switching options:
924CE 24CE
Slow action contacts (1NC)
green
black red
brownblue
green/yellow
Slow action contacts (1NC/1NO), Break Before Make (BBM)
Zb
white
redblack
white
green
Zb
black
brownblue
black
green/yellow
Slow action contacts (1NC/1NO), Make Before Break (MBB)
white
green
red
white
black
Zb
brown
black
green/yellow
black
blue
Zb
Electrical ratings: IEC 60947-5-1/EN 60947-5-1
Designation & Utilization
Rated operational current le (A) VA
Category
at rated operational voltage Ue rating
120 V 240 V 380 V 480 V 500 V 600 V Make Break
AC15 B300 3 1.5 ----3600 360
125 V 250 V
DC13 R300 0,22 0,1 28 28
Actuators
24 www.honeywell.com/sensing
24CE/924CE Series
OPTIONS
Side rotary
PTPT
OTOT DT
DT
North America/Global
CABLE LENGTH CONTACT REFERENCE
3 ft 1NC, BBM 924CE16-S3
9 ft 1NC, BBM 924CE16-S9
3 ft 1NC, MBB 924CE16-T3
3 ft 1NC 924CE16-Y3
9 ft 1NC 924CE16-Y9
Europe
CABLE LENGTH CONTACT REFERENCE
1 m 1NC/1NO, BBM 24CE16-S1
1 m 1NC 24CE16-Y1
6 m 1NC 24CE16-Y6
Top pin plunger
17,5 max.
ø10
North America/Global
CABLE LENGTH CONTACT OPTION REFERENCE
3 ft 1NC, BBM 924CE1-S3
6 ft 1NC, BBM 924CE1-S6
9 ft 1NC, BBM 924CE1-S9
25 ft 1NC, MBB side exit 924CE1-T25A
3 ft 1NC, MBB 924CE1-T3
3 ft 1NC, MBB side exit 924CE1-T3A
6 ft 1NC, MBB side exit 924CE1-T6A
9 ft 1NC, MBB 924CE1-T9
9 ft 1NC, MBB side exit 924CE1-T9A
3 ft 1NC 924CE1-Y3
9 ft 1NC 924CE1-Y9
Europe
CABLE LENGTH CONTACT OPTION REFERENCE
12 m 1NC/1NO, BBM low temperature 24CE1-S12B
2 m 1NC/1NO, BBM 24CE1-S2
2 m 1NC/1NO, BBM side exit 24CE1-S2A
2 m 1NC/1NO, BBM low temperature 24CE1-S2B
3 m 1NC/1NO, BBM 24CE1-S3
6 m 1NC/1NO, BBM 24CE1-S6
1 m 1NC side exit 24CE1-Y1A
2 m 1NC 24CE1-Y2
3 m 1NC 24CE1-Y3
Top pin plunger, boot sealed
24,3 max.
ø7,1
North America/Global
CABLE LENGTH CONTACT REFERENCE
6 ft 1NC/1NO, BBM 924CE18-S6
Adjustable plunger
26,8
(1.05)
North America/Global
CABLE LENGTH CONTACT OPTION REFERENCE
3 ft 1NC/1NO, BBM low temperature 924CE19-S3L1
Top roller plunger, parallel
30,3
max.
ø12,4
North America/Global
CABLE LENGTH CONTACT OPTION REFERENCE
15 ft 1NC, BBM 924CE2-S15
21 ft 1NC, BBM 924CE2-S21
3 ft 1NC, BBM 924CE2-S3
6 ft 1NC, BBM 924CE2-S6
6 ft 1NC, BBM side exit 924CE2-S6A
9 ft 1NC, BBM 924CE2-S9
25 ft 1NC, MBB 924CE2-T25
25 ft 1NC, MBB side exit 924CE2-T25A
3 ft 1NC, MBB 924CE2-T3
6 ft 1NC, MBB 924CE2-T6
9 ft 1NC, MBB 924CE2-T9
3 ft 1NC 924CE2-Y3
9 ft 1NC 924CE2-Y9
Europe
CABLE LENGTH CONTACT OPTION REFERENCE
1 m 1NC/1NO, BBM 24CE2-S1
2 m 1NC/1NO, BBM 24CE2-S2
2 m 1NC/1NO, BBM side exit 24CE2-S2A
2 m 1NC/1NO, BBM low temperature 24CE2-S2B
3 m 1NC/1NO, BBM 24CE2-S3
6 m 1NC/1NO, BBM 24CE2-S6
2 m 1NC/1NO, MBB 24CE2-T2
1 m 1NC 24CE2-Y1
2 m 1NC 24CE2-Y2
2 m 1NC side exit 24CE2-Y2A
4 m 1NC 24CE2-Y4
6 m 1NC side exit 24CE2-Y6A
COMPACT LIMIT SWITCHES
25
www.honeywell.com/sensing
Top roller plunger, parallel,
boot sealed
36,1
max.
ø12,4
North America/Global
CABLE LENGTH CONTACT OPTION REFERENCE
3 ft 1NC, BBM 924CE31-S6
20 ft 1NC 924CE31-
Y20
3 ft 1NC low temperature 924CE31-
Y3L1
Europe
CABLE LENGTH CONTACT OPTION REFERENCE
1 m 1NC/1NO, BBM 24CE31-S1
2 m 1NC/1NO, BBM 24CE31-S2
2 m 1NC/1NO, BBM low temperature 24CE31-S2B
5 m 1NC/1NO, BBM 24CE31-S5
1 m 1NC 24CE31-Y1
2 m 1NC 24CE31-Y2
3 m 1NC 24CE31-Y3
Top roller plunger, parallel, panel
mounted
27,7
(1.75)
North America/Global
CABLE LENGTH CONTACT REFERENCE
15 ft 1NC, BBM 924CE28-
S15
Europe
CABLE LENGTH CONTACT REFERENCE
2 m 1NC/1NO, BBM 24CE28-S2
COMPACT LIMIT SWITCHES
Top roller plunger, perpendicular
30,3
max.
ø12,4
North America/Global
CABLE LENGTH CONTACT REFERENCE
3 ft 1NC, BBM 924CE3-S3
6 ft 1NC, BBM 924CE3-S6
9 ft 1NC, BBM 924CE3-S9
9 ft 1NC, MBB 924CE3-T9
Europe
CABLE LENGTH CONTACT REFERENCE
2 m 1NC/1NO, BBM 24CE3-S2
1 m 1NC 24CE3-Y1
2 m 1NC 24CE3-Y2
Top roller plunger, perpendicular,
boot sealed
36,1 max.
ø12,4
Europe
CABLE LENGTH CONTACT REFERENCE
1 m 1NC/1NO, BBM 24CE55-S1
2 m 1NC/1NO, BBM 24CE55-S2
1 m 1NC 24CE55-Y1
26 www.honeywell.com/sensing
COMPACT LIMIT SWITCHES
Blank page
27
www.honeywell.com/sensing
LS Series
Compact Limit
Switches
LS Series compact limit switches are carefully designed for accurate repeatability under the most stringent conditions.
Compact size and field adjustable features greatly extend the flexibility of these switches. Heads may be positioned at
90° increments. Side rotary models can be adjusted for clockwise and/or counter-clockwise operation. Actuators can be
set and locked in any position through 360°.
The rugged housings and actuator heads are constructed from cast aluminium, capable of withstanding physical abuse.
Protection against oil, water and dust is achieved by O-ring seals on the actuator shaft; a ring seal between head and
body; and a seated compression seal between cover and case.
The LS fits in many places too small for any other fully adjustable limit switch.
Conduit: ½ in - 14 NPT
20 mm
Sealing: ½ in - 14 NPT conduit NEMA 1, 3, 4, 6, 13
20 mm conduit IP67
Operating temperature: Standard -29 °C to 71 °C (-20 °F to 160 °F)
High -29 °C to 121 °C (-20 °F to 250 °F)
Approvals: LS-L UL, CSA
Contacts: Electrical ratings A, B, C, D, E Silver Cadmium Oxide (1)
Electrical ratings F, G Fine Silver
Switching options: SPDT Single Pole, Double Throw
Snap action contacts (1NC/1NO)
4
1
3
2
Electrical ratings: A 10 A, 120, 240 or 480 Vac; 1/3 hp, 120 Vac; ¾ hp, 240
Vac;
0.8 A, 115 Vdc**; 0.4 A, 230 Vdc;** 0.1 A, 550 Vdc;**
Pilot Duty, 600 Vac max.
B 10 A, 120, 240 or 480 Vac; ¼ hp, 120 Vac; ½ hp, 240
Vac.
Pilot Duty, 600 Vac max.
C 10 A, 120 Vac; 1/3 hp, 120 Vac.
D 10 A, 120, 240, 480 Vac; ¼ hp, 120 Vac; ½ hp, 240 Vac;
0.8 A, 115 Vdc**; 0.4 A, 230 Vdc**; 0.1 A, 550 Vdc**;
Pilot Duty, 600 Vac max.
E 10 A, 120, 240 or 480 Vac; 1/3 hp, 120 Vac; ¾ hp, 240
Vac.
Pilot Duty, 600 Vac max.
F UL Rating:
10 A, 125, 250, or 480 Vac; 1/3 hp, 125 Vac; ¾ hp, 250 Vac;
0.8 A, 125 Vdc**; 0.4 A, 250 Vdc**
G UL Rating:
10 A, 125, 250 or 480 Vac; ¼ hp, 125 Vac; ½ hp, 250 Vac;
0.8 A, 125 Vdc**; 0.4 A, 250 Vdc**
** Resistive rating
(1) Designed for use with inductive loads such as relays, contactors, motors and solenoids. Honeywell does
not
recommend the use of silver cadmium oxide switch contacts in non-arcing loads. Non-arcing loads are
generally loads less than 12 volts and/or 0.5 amp.
COMPACT LIMIT SWITCHES
Actuators
28 www.honeywell.com/sensing
COMPACT LIMIT SWITCHES
LS Series
Side rotary actuated switches
OPTIONS
Fixed length lever
Operating force max. (OF): Standard 13,3 N (3.0 lb)
Low 5,0 N (18 oz)
Pretravel max. (PT): Standard 20°
Low 5°
Overtravel min. (OT) 30°
Differential travel max. (DT): Standard 12°
Low 4°
Switching options: SPDT
Lever: Aluminium, steel roller
CONDUIT ELECTRICAL RATING REFERENCE
A 1LS1
F 1LS1-L
20 mm A 1LS1-4C
Low PT/OF B 1LS131
Low PT B 1LS19
Low PT 20 mm B 1LS19-4C
High temperature A 1LS243
High temperature 20 mm A 1LS243-4C
Indicator light C 1LS501
Low OF A 1LS6
Adjustable roller lever
Operating force max. (OF): Standard 13,3 N (3.0 lb)
Low 5,0 N (18 oz)
Pretravel max. (PT): Standard 20°
Low 5°
Overtravel min. (OT) 30°
Differential travel max. (DT): Standard 12°
Low 4°
Switching options: SPDT
Lever: Aluminium, nylon roller
CONDUIT ELECTRICAL RATING REFERENCE
A1LS3
F 1LS3-L
20 mm A 1LS3-4C
Low PT B 1LS58
Low OF/PT/DT B 1LS59
29
www.honeywell.com/sensing
No lever
Note: Levers are ordered separately (see pages 69-71
for details)
Operating force max. (OF): Standard 0,51 N m (4.5 in lb)
Low with standard PT 0,21 N m (30 in oz)
Low with low PT 0,11 N m (1 in lb)
Pretravel max. (PT): Standard 20°
Low 5°
Maintained contact 55°
Overtravel min. (OT) Standard 30°
Maintained contact 35°
Differential travel max. (DT): Standard 12°
Low PT 4°
Maintained contact 20°
Switching options: SPDT
Maintained contact
SPDT contact
CONDUIT ELECTRICAL RATING REFERENCE
A 1LS2
F 1LS2-L
20 mm A 1LS2-4C
Low OF A 1LS23
Low OF/PT B 1LS56
Low PT B 1LS9
Maintained contact
CONDUIT ELECTRICAL RATING REFERENCE
A 6LS2
F 6LS2-L
Adjustable rod
Operating force max. (OF): Standard 1,39 N (5 oz)
Low 0,83 Nm (3 oz)
Pretravel max. (PT): Standard 20°
Low 5°
Overtravel min. (OT) 30°
Differential travel max. (DT): Standard 12°
Low 4°
Switching options: SPDT
Lever: Aluminium rod
CONDUIT ELECTRICAL RATING REFERENCE
A 1LS10
F 1LS10-L
20 mm A 1LS10-4C
Low PT B 1LS47
Low PT/OF/DT B 1LS53
Side rotary, yoke lever, maintained contact
Operating force max. (OF): 8,9 N (2.0 lb)
Pretravel max. (PT): 55°
Switching options: Maintained
Lever: 6LS1 Steel rollers on opposite sides of arm
6LS3 Nylon rollers on same side of arm
CONDUIT ELECTRICAL RATING REFERENCE
A 6LS1
20 mm A 6LS1-4C
A 6LS3
COMPACT LIMIT SWITCHES
30 www.honeywell.com/sensing
COMPACT LIMIT SWITCHES
LS Series
Plunger actuated switches
OPTIONS
Top pin plunger
Operating force max. (OF): Standard 31,14 N (7 lb)
Low 10 N (36 oz)
Pretravel max. (PT): 1,65 mm (0.065 in)
Overtravel min. (OT) Standard 6,35 mm (0.25 in)
Low 5,56 mm (0.219 in)
Differential travel max. (DT): Standard 0,51 mm (0.020 in)
Low 0,23 mm (0.009 in)
Switching options: SPDT
CONDUIT ELECTRICAL RATING REFERENCE
A 2LS1
F 2LS1-L
20 mm A 2LS1-4C
Low OF/OT/DT E 2LS111
Top roller plunger
Operating force max. (OF): 31,14 N (7 lb)
Pretravel max. (PT): 1,65 mm (0.065 in)
Overtravel min. (OT) 5,56 mm (0.219 in)
Differential travel max. (DT): 0,51 mm (0.020 in)
Switching options: SPDT
CONDUIT ELECTRICAL RATING REFERENCE
A 5LS1
F 5LS1-L
20 mm A 5LS1-4C
Side pin plunger
Operating force max. (OF): 40,03 N (9 lb)
Pretravel max. (PT): 2,8 mm (0.110 in)
Overtravel min. (OT) 6,35 mm (0.25 in)
Differential travel max. (DT): 1,02 mm (0.040 in)
Switching options: SPDT
CONDUIT ELECTRICAL RATING REFERENCE
A4LS1
20 mm A 4LS1-4C
Side roller plunger
Operating force max. (OF): 40,03 N (9 lb)
Pretravel max. (PT): 2,8 mm (0.110 in)
Overtravel min. (OT) 5,56 mm (0.219 in)
Differential travel max. (DT): 1,02 mm (0.040 in)
Switching options: SPDT
CONDUIT ELECTRICAL RATING REFERENCE
A3LS1
20 mm A 3LS1-4C
31
www.honeywell.com/sensing
Wobble actuated switches
These switches will operate by moving actuator in any
direction except direct pull.
Operating force max. (OF): 1,39 N (5 oz)
Pretravel max. (PT): 28,6 mm (1,125 in)
Switching options: SPDT
OPTIONS
Flexible cable
141,0 ±2,54
(5,550 ±0.10)
Ø 4,80 ±0.08
(0.189 ±0.003)
CONDUIT ELECTRICAL RATING REFERENCE
D 8LS1
G 8LS1-L
20 mm D 8LS1-4C
Spring rod
CONDUIT ELECTRICAL RATING REFERENCE
D 8LS3
20 mm D 8LS3-4C
Coil spring
Ø 6,17 ±0.08
(0.264 ±0.003)
141,0 ±2,54
(5,550 ±0.10)
CONDUIT ELECTRICAL RATING REFERENCE
D 8LS152
20 mm D 8LS152-4C
Steel wire
Operating force max. (OF): 0,28 N (1 oz)
Pretravel max. (PT): 63,5 mm (2.5 in)
191,3
(7.53)
CONDUIT ELECTRICAL RATING REFERENCE
D 8LS125
20 mm D 8LS125-4C
COMPACT LIMIT SWITCHES
32 www.honeywell.com/sensing
BF Series
Plastic
Enclosed Basic
Switches
PRECISION LIMIT SWITCHES
BF Series Plastic Enclosed Basic Switches are available with a wide variety of actuators, and are designed for easy
mounting and wiring. BF switches are designed to allow mounting with the cover either towards or away from the
mounting surface.
Switches with lever type actuators are adjustable in two directions. The entire actuator can be rotated around its
mounting bushing, and the angle of the lever can also be changed.
Sealing: NEMA 1, 3, 4, 13
Operating temperature: -32 °C to 71 °C (-25 °F to 160 °F)
Approvals: UL
Termination: ½ in - 14NPT
Contacts: Silver
Electrical ratings: A 11 A - 125 Vac, 250 Vac or 277 Vac
B 5 A - 125 Vac, 250 Vac or 277 Vac
Switching options:
SPDT Single Pole, Double Throw,
Snap action contacts (1NC/1NO)
Plunger actuated switches
OPTIONS
Top pin plunger
58,7
2.31
73,5
2.89
35,1
1.38
15,5
0.61
17,5
0.69
4,9
0.19
44,5
1.75
65,28
2.57
Ø 7,1
0.28Max.
14,3
0.56
9,5
0.38
Conduit thread
Operating force max. (OF): 12,23 N (44 oz)
Differential travel max. (DT): 0,64 mm (0.025 in)
ACTUATOR POSITION ELECTRICAL RATING REFERENCE
Left B BFL1-BP1
Right B BFR1-BP1
Top roller arm, adjustable
58,7
2.31
73,5
2.89
35,1
1.38
15,5
0.61
17,5
0.69
4,9
0.19
44,5
1.75
73,6
2.90
9,5
0.38
39,9
1.57
23,1
0.91Max.
18,3
0.72
Operating force max. (OF): 10,56 N (38 oz)
Differential travel max. (DT): 1,65 mm (0.065 in)
ACTUATOR POSITION ELECTRICAL RATING REFERENCE
Left B BFL1-BL1
Right B BFR1-BL1
Actuators
33
www.honeywell.com/sensing
PRECISION LIMIT SWITCHES
Plunger actuated switches
(continued)
Top roller arm, adjustable, one
way
14,73
0.58
32,26
1.27
19,05
0.75
180˚
58,7
2.31
73,5
2.89
35,1
1.38
Ø 15,5
0.61
44,5
1.75
73,6
2.90
9,5
0.38
4,9
0.19
17,5
0.69
39,6
1.56
18,3
0.72
Operating force max. (OF):
Left 3,61 N (13 oz)
Right 10,56 N (38 oz)
ACTUATOR ELECTRICAL REFERENCE
POSITION RATING
Left B BFL1-BL3
Right B BFR1-BL3
Low force rod
58,7
2.31
73,5
2.89
44,5
1.75
73,6
2.90
9,5
0.38
4,9
0.19
14,73
0.58
35,1
1.38
Ø 15,5
0.61
17,5
0.69
18,3
0.72
250˚
Operating force max. (OF):
Left 10,56 N (38 oz)
Right 3,61 N (13 oz)
ACTUATOR ELECTRICAL REFERENCE
POSITION RATING
Left B BFL1-BL2
Right B BFR1-BL2
Wobble actuated switches
Operating force max. (OF): 1,95 N (7 oz)
OPTIONS
Coil spring
58,7
2.31
73,5
2.89
35,1
1.38
15,5
0.61
17,5
0.69
4,9
0.19
44,5
1.75
169,9
6.69
Ø 7,1
0.28Max.
14,3
0.56
9,5
0.38
ACTUATOR ELECTRICAL REFERENCE
POSITION RATING
Left A BFL1-AW1
Left B BFL1-BW1
Right B BFR1-BW1
Plastic
58,7
2.31 73,5
2.89
35,1
1.38
15,5
0.61
17,5
0.69
4,9
0.19
44,5
1.75
249,25
9.81
Ø 7,1
0.28
14,3
0.56
9,5
0.38
C
Type -BW3
ACTUATOR ELECTRICAL REFERENCE
POSITION RATING
Left, A BFL1-AW2
179,3 mm (7.06 in) length rod
Left, B BFL1-BW3
249,25 mm (9.8 in) length rod
Spring wire
14,7
0.58
35,1
1.38
15,5
0.61
17,5
0.69
44,5
1.75
4,9
0.19
9,5
0.38
168,8
6.65
14,3
0.56
Ø 1,02
0.05
73,5
2.89
58,7
2.31
ACTUATOR ELECTRICAL REFERENCE
POSITION RATING
Left B BFL1-BW4
Right B BFR1-BW4
34 www.honeywell.com/sensing
BZE/DTE Series
Compact Enclosed
Switches
The BZE/DTE Series general purpose enclosed limit switches offer precision operation and sturdy
actuation in a compact but rugged aluminium housing. The large wiring enclosure means that the user
can get access to wire the device simply. The switch incorporates high repeatability of the switch point
early in the travel of the switch. This is achieved through a very tolerant over-travel mechanism which
ensures that application drift will not affect long term accuracy of the switch.
Conduit: ½ in - 14 NPT
Sealing: E6 NEMA 1
V6 NEMA 1, 3
Operating temperature: Standard -32 °C to 71 °C (-25 °F to 160 °F)
Low -40 °C to 71°C (-40 °F to 160 °F)
Approvals: UL, CSA, CE
Contacts: Electrical ratings A, B, C Silver
Electrical rating D Gold
Switching options:
SPDT Single Pole, Double Throw
Snap action contacts (1NC/1NO)
DPDT Double Pole, Double Throw
Snap action contacts (2NC/2NO)
Electrical ratings:
A UL/CSA Rating: 15 A, 125, 250 or 480 Vac:
2 A, 600 Vac:
1
/
8
Hp, 125 Vac: ¼ Hp, 250 Vac:
½ A, 125 Vdc: ¼ A, 250 Vdc
B UL/CSA Rating: 10 A, 125 or 250 Vac:
0.3 A, 125 Vdc: 0.15 A, 250 Vdc
C UL/CSA Rating: 15 A, 125, 250 or 480 Vac;
¼ Hp, 125 Vac; ½ Hp, 250 Vac;
½ A, 125 Vdc; ¼ A, 250 Vdc
D UL/CSA Rating: 1 A - 125 Vac
PRECISION LIMIT SWITCHES
Actuators
35
www.honeywell.com/sensing
E6/V6
E6 (side mount) and V6 (flange mount) switches are offered with or without actuator seal boots. Both have a combination insulator/ seal cemented inside the
bottom enclosure. Lead washers are used to seal the mounting holes on side mount switches. All side mount switches are installed with #6 screws, except the
BZE6-2RN7 (#8 screws). Removal of the bottom enclosure exposes the terminals for easy wiring.
Momentary contact
OPTIONS
Top pin plunger
2,0
(0.08)
REF
23,4
(0.92)
43,7
(1.72)
OP
19,0
(0.75)
25,4
(1.00)
25,4
(1.00) 25,4
(1.00)
21,1
(0.83)
77,2
(3.04) 77,2
(3.04)
22,6
(0.89)
Ø 8,4
(0.33)
1/2-14 NPT
Threads 1/2-14 NPT
Threads
10,6
(0.42) Ø 8,4
(0.33)
63,5
(2.50)
OP
44,4
(1.75) 22,6
(0.89)
4,3
(0.17)
Ø (2)
41,4
(1.63)
25,4
(1.00)
54,1
(2.13)
Side mount
with boot seal
Flange mount
without boot seal
With boot seal
Operating force max. (OF):SPDT Standard 2,50 N to 6,67 N (9 oz to 24 oz)
SPDT Low temperature 4,17 N to 10,84 N (15 oz to 39 oz)
DPDT 6,95 N to 16,4 N (25 oz to 59 oz)
Pretravel max. (PT): SPDT 1,98 mm (0.078 in)
DPDT 2,8 mm (0.110 in)
Overtravel min. (OT): SPDT 5,56 mm (0.219 in)
DPDT 3,18 mm (0.125 in)
Differential travel max. (DT): SPDT 0.05 mm (0.002 in)
DPDT 1,52 mm (0.060 in)
Side mount
CONTACT ELECTRICAL RATING REFERENCE
SPDT A BZE6-2RN
DPDT B DTE6-2RN
Low temperature/High OF SPDT A BZE6-2RN34
#8 screws SPDT A BZE6-2RN7
Gold contacts SPDT D BZE6-2RN72
Flange mount
CONTACT ELECTRICAL RATING REFERENCE
SPDT A BZV6-2RN
DPDT B DTV6-2RN
Without boot seal
Operating force max. (OF): SPDT 2,50 N to 3,61 N (9 oz to 13 oz)
DPDT 5,56 N to 11,12 N (20 oz to 40 oz)
Pretravel max. (PT): SPDT 0,38 mm (0.015 in)
DPDT 3,81 mm (0.150 in)
Overtravel min. (OT): SPDT 5,56 mm (0.219 in)
DPDT 2,24 mm (0.088 in)
Differential travel max. (DT): SPDT 0,05 mm (0.002 in)
DPDT 1,52 mm (0.060 in)
Side mount
CONTACT ELECTRICAL RATING REFERENCE
SPDT A BZE6-2RQ
DPDT B DTE6-2RQ
Flange mount
CONTACT ELECTRICAL RATING REFERENCE
SPDT A BZV6-2RQ
PRECISION LIMIT SWITCHES
Top roller plunger, parallel
23,4
(0.92)
56,6
(2,23)
OP
19,0
(0.75)
25,4
(1.00)
25,4
(1.00) 25,4
(1.00)
77,2
(3.04)
22,6
(0.89)
1/2-14 NPT
Threads
12,7 (0.50) Ø
X
4,6 (0.18) W
Roller
Side mount
with boot seal
25,4
(1.0)
19,0
(0.75)
69,6
(2.740)
22,6
(0.89)
12,7 (0.50) Ø
X
4,6 (0.18)
Wide Roller
49,61
(1.953)
OP Ø
15,75
(0.62)
Side mount
without boot seal
With boot seal
Operating force max. (OF): SPDT 2,50 N to 6,67 N (9 oz to 24 oz)
DPDT 5,56 N to 13,34 N (20 oz to 48 oz)
Pretravel max. (PT): SPDT 1,98 mm (0.078 in)
DPDT 2,8 mm (0.110 in)
Overtravel min. (OT): SPDT 5,56 mm (0.219 in)
DPDT 3,18 mm (0.125 in)
Differential travel max. (DT): SPDT 0,01 mm to 0,05 mm
(0.0004 in to 0.0020 in)
DPDT 1,52 mm (0.060 in)
Side mount
CONTACT ELECTRICAL RATING REFERENCE
SPDT A BZE6-2RN80
DPDT B DTE6-2RN80
Flange mount
CONTACT CONDUIT ELECTRICAL RATING REFERENCE
SPDT A BZV6-2RN80
Without boot seal
Operating force max. (OF): SPDT 2,50 N to 3,61 N (9 oz to 13 oz)
DPDT 6,67 N to 13,34 N (24oz to 48 oz)
Pretravel max. (PT): SPDT 0,38 mm (0.015 in)
DPDT 3,58 mm (0.141 in)
Overtravel min. (OT): SPDT 3,55 mm (0.140 in)
DPDT 3,18 mm (0.125 in)
Differential travel max. (DT): SPDT 0,05 mm (0.002 in)
DPDT 1,52 mm (0.060 in)
Side mount
CONTACT CONDUIT ELECTRICAL RATING REFERENCE
SPDT A BZE6-2RQ8
Field adjustable roller SPDT A BZE6-2RQ9
Field adjustable roller DPDT B DTE6-2RQ9
Flange mount
CONTACT CONDUIT ELECTRICAL RATING REFERENCE
SPDT A BZV6-2RQ8
36 www.honeywell.com/sensing
BZE/DTE Series
E6/V6 Momentary contact (continued)
Top roller plunger, perpendicular
Flange mount
without boot seal
56,6
(2,23)
OP
19,0
(0.75)
25,4
(1.00)
25,4
(1.00) 77,2
(3.04)
22,6
(0.89)
12,7 (0.50) Ø
X
4,6 (0.18) W
Roller
Side mount
with boot seal
With boot seal
Operating Force max. (OF): 2,60 N to 6,67 N (9 oz to 24 oz)
Pretravel max. (PT): 1,98 mm (0.078 in)
Overtravel min. (OT): 5,56 mm (0.219 in)
Differential travel max. (DT): 0,01 mm to 0,05 mm
(0.0004 in to 0.0020 in)
Side mount
CONTACT ELECTRICAL RATING REFERENCE
SPDT A BZE6-2RN81
Without boot seal
Operating Force max. (OF): SPDT 2,50 N to 3,61 N (9 oz to 13 oz)
DPDT 6,67 N to 13,34 N (24 oz to 48 oz)
Pretravel max. (PT): SPDT 0,38 mm (0.015 in)
DPDT 3,58 mm (0.141 in)
Overtravel min. (OT): SPDT 3,55 mm (0.140 in)
DPDT 3,18 mm (0.125 in)
Differential travel max. (DT): SPDT 0,05 mm (0.002 in)
DPDT 1,52 mm (0.060 in)
Side mount
CONTACT ELECTRICAL RATING REFERENCE
SPDT A BZE6-2RQ81
DPDT B DTE6-2RQ81
Flange mount
CONTACT ELECTRICAL RATING REFERENCE
SPDT A BZV6-2RQ81
Roller arm, adjustable
Side mount
without boot seal
Flange mount
with boot seal
Operating temperature: Standard -32 °C to 71 °C (-25 °F to 160 °F)
Low -40 °C to 71 °C (-40 °F to 160 °F)
Roller: Steel
With boot seal
Operating Force max. (OF): 2,78 N to 5,56 N (10 oz to 20 oz)
Pretravel max. (PT): 4,78 mm (0.188 in)
Overtravel min. (OT): 5,56 mm (0.219 in)
Differential travel max. (DT): SPDT 0,15 mm (0.006 in)
DPDT 4,19 mm (0.165 in)
Side mount
Operating Force max. (OF): DPDT 13,34 N (48 oz)
Pretravel max. (PT): DPDT 7,92 mm (0.312 in)
CONTACT ELECTRICAL RATING REFERENCE
SPDT A BZE6-2RN2
DPDT B DTE6-2RN2
Low temperature SPDT A BZE6-2RN234
Flange mount
Operating Force max. (OF): DPDT 2,78 N to 8,34 N (10 oz to 30 oz)
Pretravel max. (PT): DPDT 6,76 mm (0.266 in)
CONTACT ELECTRICAL RATING REFERENCE
SPDT A BZV6-2RN2
DPDT B DTV6-2RN2
Without boot seal
Operating Force max. (OF): 2,78 N to 5,00 N (10 oz to 20 oz)
Pretravel max. (PT): 4,78 mm (0.188 in)
Overtravel min. (OT): 5,56 mm (0.219 in)
Differential travel max. (DT): 0,15 mm (0.006 in)
CONTACT ELECTRICAL RATING REFERENCE
Side mount SPDT A BZE6-2RQ2
Flange mount SPDT A BZV6-2RQ2
PRECISION LIMIT SWITCHES
37
www.honeywell.com/sensing
One way roller lever
Side mount
with boot seal
With boot seal
Operating Force max. (OF): 2,22 N to 5,56 N (8 oz to 20 oz)
Pretravel max. (PT): 5,94 mm (0.234 in)
Overtravel min. (OT): 5,56 mm (0.219 in)
Differential travel max. (DT): 0,15 mm (0.006 in)
CONTACT ELECTRICAL RATING REFERENCE
Side mount SPDT A BZE6-2RN28
Rod lever
Pretravel max. (PT): 18,24 mm (0.718 in)
Overtravel min. (OT): 21,29 mm (0.838 in)
Differential travel max. (DT): 5,82 mm (0.229 in)
Flange mount
without boot seal Side mount
with boot seal
Ø 15,75
(0.62)
25,4
(1.00)
77,2
(3.04)
69,60
(2,74)
22,6
(0.89)
19,05
(0.75)
250˚
152,4
(6.0)
18,29
(0.72)
53,19
(2.09)
With boot seal
Operating force max. (OF): 0,83 N to 1,95 N (3 oz to 7 oz)
CONTACT ELECTRICAL RATING REFERENCE
Side mount SPDT A BZE6-2RN62
Flange mount SPDT A BZV6-2RN62
Without boot seal
Operating force max. (OF): 0,56 N to 1,39 N (2 oz to 5 oz)
CONTACT ELECTRICAL RATING REFERENCE
Side mount SPDT A BZE6-2RQ62
Flange mount SPDT A BZV6-2RQ62
Manual palm button
Side mount
with boot seal
36,6
1.44
18,3
0.72 31,8
1.25
1/2 - 14 NPSM
5 THREADS MIN
78,5
3.09
44,4
1.75
77,2
3.04
22,6
0.89
4,3
0.17 Ø (2)
41,4
1.63
38,1
1.50
25,4
1.00
54,1
2.13
With boot seal
Operating force max. (OF): 2,78 N to 5,56 N (10 oz to 20 oz)
Pretravel max. (PT): 4,78 mm (0.188 in)
Overtravel min. (OT): 5,56 mm (0.219 in)
Differential travel max. (DT): 0,15 mm (0.006 in)
CONTACT ELECTRICAL RATING REFERENCE
Flange mount SPDT A BZV6-2RN4
Wobble, coil spring
These switches will operate by moving actuator in any direction except direct
pull.
Flange mount
with boot seal
With boot seal
Operating force max. (OF): 1,95 N (7 oz)
Pretravel max. (PT): 15°
CONTACT ELECTRICAL RATING REFERENCE
Side mount SPDT A BZE6-2RN18
Flange mount SPDT A BZV6-2RN18
PRECISION LIMIT SWITCHES
38 www.honeywell.com/sensing
BZE/DTE Series
E6/V6 Maintained contact (reset) switches
The switches shown below provide maintained contact after the operating
force on either top or bottom plunger is released.
Note: The top plungers on these switches provide more accurate and uniform
operation than the “reset” plungers and should be used when closely held
operating characteristics are required.
Switching:
SPDT Single Pole, Double Throw
(1NC/1NO) Maintained
OPTIONS
Top pin plunger
Side mount
with boot seal
Flange mount
without boot seal
Side mount
Operating force max. (OF): With boot seal 1,67 N to 5,56 N (6 oz to 20 oz)
Without boot seal 1,67 N to 2,64 N (6 oz to 9.5 oz)
Pretravel max. (PT): With boot seal 1,98 mm (0.078 in)
Without boot seal 0.30 mm (0.012 in)
Overtravel min. (OT): 4,75 mm (0.187 in)
CONTACT ELECTRICAL RATING REFERENCE
With boot seal SPDT Maintained C BZE6-RNX1
Without boot seal SPDT Maintained C BZE6-RQX2
Top roller plunger
Side mount
without boot seal
56,69
(2.232)
53,19
(2.094)
Reset
FP
19,0
(0.75)
25,4
(1.00)
22,6
(0.89)
Ø 15,75
(0.62)
Ø 25,4
(1.0)
40,08
(1.58)
14,22
(0.56)
23,19
(0.913)
69,59
(2.74)
Ø 12,7 (0.50) x 4,6 (0.18)
Wide roller
Side mount
with boot seal
Side mount
Operating force max. (OF): With boot seal 3,34 N to 15,57 N (12 oz to 56 oz)
Without boot seal 1,67 N to 2,64 N (6 oz to 9.5 oz)
Pretravel max. (PT): With boot seal 1,98 mm (0.078 in)
Without boot seal 0,30 mm (0.012 in)
Overtravel min. (OT): With boot seal 4,75 mm (0.187 in)
Without boot seal 3,55 mm (0.140 in)
CONTACT CONDUIT ELECTRICAL RATING REFERENCE
With boot seal SPDT C BZE6-RN80X2
Without boot seal SPDT C BZE6-RQ8X2
Roller arm, adjustable
Flange mount
with boot seal
Side mount
without boot seal
Side mount
Operating Force max. (OF): With boot seal 4,45 N (16 oz)
Without boot seal 3,34 N (12 oz)
Pretravel max. (PT): 4,78 mm (0.188 in)
Overtravel min. (OT): 5,56 mm (0.219 in)
CONTACT CONDUIT ELECTRICAL RATING REFERENCE
With boot seal Maintained C BZE6-RN2X1
Without boot seal Maintained C BZE6-RQ2X2
PRECISION LIMIT SWITCHES
39
www.honeywell.com/sensing
E7 Metal standard enclosed switch
Mechanical life: 10 million
Sealing: Without boot seal IP50 Standard
With boot seal IP65 Sealed
Operating temperature: -30 °C to 70 °C (-22 °F to 158 °F)
Approvals: IEC 60947-5-1
EN 60947-5-1
Switching options:
SPDT Single Pole, Double Throw
Snap action contacts (1NC/1NO)
DPDT Double Pole, Double Throw
Snap action contacts (2NC/2NO)
OPTIONS
Top pin plunger
With boot seal
38,58
(1.519)
1,93
(0.076)
Pretravel
13,97
(0.55)
25,4
(1.00)
5,84
(0.23)
4,06
(0.16)
12,7
(0.50)
Ø 14,73
(0.58)
OP
Ø 8,38
(0.33)
76,40
(3,01)
CONTACT CONDUIT ELECTRICAL RATING REFERENCE
SPDT PG 13.5 BZE7-2RN-PG
SPDT 20 mm BZE7-2RN-C
DPDT PG 13.5 DTE7-2RN-PG
Without boot seal
CONTACT CONDUIT ELECTRICAL RATING REFERENCE
SPDT PG 13.5 BZE7-2RQ-PG
Top roller plunger, parallel, without boot seal
44,5
(1.75)
3,8
(0.15)
Pretravel
13,97
(0.55)
25,4
(1.00)
5,84
(0.23)
4,06
(0.16)
12,7
(0.50)
Ø 14,73
(0.58)
OP
Ø 12,7 x 4,5 wide roller
(Ø 0.50 x 0.18)
76,40
(3,01)
CONTACT CONDUIT ELECTRICAL RATING REFERENCE
SPDT PG 13.5 BZE7-2RQ8-PG
Top roller plunger, perpendicular, without boot seal
44,53
(1.75)
0,38
(0.015)
Pretravel
13,97
(0.55)
25,4
(1.00)
5,84
(0.23)
4,06
(0.16)
12,7
(0.50)
Ø 14,73
(0.58)
OP
Ø 12,7 x 4,57
(0.50 x 0.18)
76,40
(3,01)
Wide roller
CONTACT CONDUIT ELECTRICAL RATING REFERENCE
SPDT PG 13.5 BZE7-2RQ81-PG
Top roller lever, boot seal
48,11
(1.894)
13,97
(0.55)
25,4
(1.00)
5,84
(0.23)
4,06
(0.16)
12,7
(0.50)
Ø 14,73
(0.58)
Ø 19,05 x 7,92 wide roller
(Ø 0.75 x 0.312)
76,40
(3,01)
225˚
18,29
(0.72)
39,88
(1.57)
24,38
(0.91)
CONTACT CONDUIT ELECTRICAL RATING REFERENCE
SPDT PG 13.5 BZE7-2RN2-PG
SPDT 20 mm BZE7-2RN2-C
Wobble, coil spring, boot seal
151,13
(5.95)
13,97
(0.55)
25,4
(1.00)
5,84
(0.23)
4,06
(0.16) 76,40
(3,01)
12,7
(0.50)
Ø 14,73
(0.58)
CONTACT CONDUIT ELECTRICAL RATING REFERENCE
SPDT PG 13.5 BZE7-2RN18-PG
PRECISION LIMIT SWITCHES
Actuators
40 www.honeywell.com/sensing
PRECISION LIMIT SWITCHES
BAF/DTF
Series
High Capacity
Enclosed
Switches
The BAF/DTF Series is available with or without boot seals. The elastomer
boot on sealed actuator versions protects the actuating mechanism and the
internal basic switch from contamination. They are therefore suitable for
wash-down applications. Both sealed and unsealed versions are available with
the actuators on the right or left hand side.
The cover plate is removable to allow ease of wiring and switch replacement
without having to dismount the housing.
The BAF/DTF Series is suitable for use in packaging equipment, farm
machinery, conveyors, overhead cranes and hoists.
Approvals: UL, CSA
Sealing: NEMA 1, 3, 4, 13
-2RQ9 NEMA 1
Operating temperature: -32 °C to 71 °C (-25 °F to 160 °F)
Conduit: ½ in - 14 NPT
Contacts: Silver
Electrical ratings: B UL/CSA Rating: 10 A, 125 or 250 Vac;
0.3 A, 125 Vdc; 0.15 A,
250 Vdc.
D UL/CSA Rating: 20 A, 125, 250 or 480 Vac;
1 Hp, 125 Vac; 2 Hp, 250 Vac;
½ A, 125 Vdc; ¼ A, 250 Vdc;
Lamp Load - 10 A, 125 Vac.
Switching options:
D SPDT Single Pole, Double Throw
Snap action contacts (1NC/1NO)
B DPDT Double Pole, Double Throw
Snap action contacts (2NC/2NO)
Momentary contact
OPTIONS
Top pin plunger
Left-hand Right-hand
*28,2 on DTF2 Types
1.11
With boot seal
Operating force max. (OF): BAF/DTF 11,2 N (2.5 lb)
Pretravel max. (PT): BAF 2,39 mm (0.094 in)
DTF 3,59 mm (0.141 in)
Overtravel min. (OT): BAF 5,56 mm (0.219 in)
DTF 3,96 mm (0.156 in)
Differential travel max. (DT): BAF 0,26 mm (0.010 in)
DTF 1,53 mm (0.060 in)
Operating position (OP): BAF 53,19 mm (2.094 in)
DTF 52,07 mm (2.050 in)
ACTUATOR POSITION CONTACT ELECTRICAL RATING REFERENCE
Right SPDT D BAF1-2RN-RH
Left SPDT D BAF1-2RN-LH
Right DPDT B DTF2-2RN-RH
Left DPDT B DTF2-2RN-LH
Actuators
41
www.honeywell.com/sensing
PRECISION LIMIT SWITCHES
Momentary contact (continued)
Top roller plunger, parallel
Right-hand Left-hand
*28,2 on DTF2 Types
1.11
O-ring actuator seal
Operating force max. (OF): BAF/DTF 35,6 N (8.0 lb)
Pretravel max. (PT): BAF/DTF 3,18 mm (0.125 in)
Overtravel min. (OT): BAF 4,75 mm (0.187 in)
DTF 3,18 mm (0.125 in)
Differential travel max. (DT): BAF 0,19 mm (0.0075 in)
DTF 1,53 mm (0.060 in)
Operating position (OP): BAF 64,69 mm (2.547 in)
DTF 63,88 mm (2.515 in)
ACTUATOR POSITION CONTACT ELECTRICAL RATING REFERENCE
Right SPDT D BAF1-2RQN8-RH
Left SPDT D BAF1-2RQN8-LH
Right DPDT B DTF2-2RQN8-RH
Left DPDT B DTF2-2RQN8-LH
Field adjustable roller plunger
Adjustable 360° horizontally
Operating force max. (OF): BAF/DTF 11,2 N (2.5 lb)
Pretravel max. (PT): BAF 2,39 mm (0.094 in)
DTF 3,18 mm (0.125 in)
Overtravel min. (OT): BAF 3,96 mm (0.156 in)
DTF 3,18 mm (0.125 in)
Differential travel max. (DT): BAF 0,26 mm (0.010 in)
DTF 1,53 mm (0.060 in)
Operating position (OP): BAF 64,69 mm (2.547 in)
DTF 63,88 mm (2.515 in)
ACTUATOR POSITION CONTACT ELECTRICAL RATING REFERENCE
Right SPDT D BAF1-2RQ9-RH
Left SPDT D BAF1-2RQ9-LH
Right DPDT B DTF2-2RQ9-RH
Left DPDT B DTF2-2RQ9-LH
Roller arm, adjustable
With boot seal
Operating force max. (OF): BAF 8,90 N (2.0 lb)
DTF 11,1 N (2.5 lb)
Pretravel max. (PT): BAF 5,56 mm (0.219 in)
DTF 7,93 mm (0.312 in)
Overtravel min. (OT): BAF 6,35 mm (0.25 in)
DTF 5,56 mm (0.219 in)
Differential travel max. (DT): BAF 0,51 mm (0.020 in)
DTF 3,05 mm (0.120 in)
ACTUATOR POSITION CONTACT ELECTRICAL RATING REFERENCE
Right SPDT D BAF1-2RN2-RH
Left SPDT D BAF1-2RN2-LH
Right DPDT B DTF2-2RN2-RH
Right DPDT B DTF2-2RN2-LH
One way roller lever
With boot seal
Operating force max. (OF): 8,90 N (2.0 lb)
Pretravel max. (PT): 5,56 mm (0.219 in)
Overtravel min. (OT): 6,35 mm (0.25 in)
Differential travel max. (DT): 0,51 mm (0.020 in)
ACTUATOR POSITION CONTACT ELECTRICAL RATING REFERENCE
Right SPDT D BAF1-2RN28-RH
Left SPDT D BAF1-2RN28-LH
42 www.honeywell.com/sensing
BAF/DTF Series
Momentary contact (continued)
Manual palm button
Left-hand *28,2 on DTF2 Types
1.11
With boot seal
Operating force max. (OF): 8,90 N (2.0 lb)
ACTUATOR POSITION CONTACT ELECTRICAL RATING REFERENCE
Right SPDT D BAF1-2RN4-RH
Left SPDT D BAF1-2RN4-LH
Wobble, coil spring
Left-hand Right-hand
With boot seal
Pretravel max. (PT): 15°
ACTUATOR POSITION CONTACT ELECTRICAL RATING REFERENCE
Right SPDT D BAF1-2RN18-RH
Left SPDT D BAF1-2RN18-LH
Maintained contact (reset) switches
Top pin plunger
Right-hand
With boot seal
Operating force max. (OF): 7,79 N (1.75 lb)
Pretravel max. (PT): 2,39 mm (0.094 in)
Overtravel min. (OT): 5,56 mm (0.219 in)
ACTUATOR POSITION CONTACT ELECTRICAL RATING REFERENCE
Right Maintained SPDT D BAF1-3RNX1
Roller arm, adjustable
82,6
(3.25)
101,6
(4.00)
With boot seals on roller arm and plunger
Operating force max. (OF): 6,67 N (1.5 lb)
Pretravel max. (PT): 5,56 mm (0.219 in)
Overtravel min. (OT): 6,35 mm (0.25 in)
Operating position (OP): 60,71 mm (2.390 in)
ACTUATOR POSITION CONTACT ELECTRICAL RATING REFERENCE
Right Maintained SPDT D BAF1-3RN2X-RH
Left Maintained SPDT D BAF1-3RN2X-LH
PRECISION LIMIT SWITCHES
43
www.honeywell.com/sensing
Wobble, coil spring
82,6
(3.25)
41,4
(1.63) 27,4
(1.08)
27,4
(1.08)
158,5
(6.24)
32,5
(1.28)
20,6
(0.81)
101,6
(4.00)
Ø 7,1
(0.28)
Ø 6,9
(0.27)
(3)
1/2-14 NPT
Threads
With boot seals on wobble stick and plunger
Pretravel max. (PT): 15°
ACTUATOR POSITION CONTACT ELECTRICAL RATING REFERENCE
Right Maintained SPDT D BAF1-3CN18X1
PRECISION LIMIT SWITCHES
44 www.honeywell.com/sensing
HEAVY DUTY LIMIT SWITCHES
HDLS Series
Heavy Duty Limit
Switches
The HDLS Series Heavy Duty Limit Switches offer a wide choice of mounting and actuator options.
Housed in a rugged, die-cast zinc body which is epoxy coated for protection, they are perfectly suited to
special applications in harsh duty environments where conventional limit switches may not be used.
Versatile and full featured, they are designed for long life.
Listings referenced in this section are mainly standard. Low temperature and fluorocarbon (FC, high
temperature) construction is available in all forms of HDLS limit switches. For temperature ranges see
table opposite. Also available are factory sealed, pre-wired switches.
Low temperature switches have fluorosilicone diaphragm, shaft seals and external boot seal (where
applicable) plus a low temperature lubricant. If prewired with cable, temperature limits are -10 °C (14 °F)
flex and -30 °C (22 °F) no flex.
To order a low temperature version insert the additional letters Y and B as in the following example:
LSA1A - standard side rotary plug-in switch
LSYAB1A - low temperature version.
Completely fluorocarbon (FC) sealed, high temperature, chemical resistance switches have a full FC
body gasket covering the switch cavity. Rotary types have an extra FC seal on the operating shaft, while
plunger versions have FC boot seals. They are for use in applications where the environment includes
fire-resistant synthetic fluids. The additional FC seals also promote longer operating life for rotary
actuacted HDLS switches in applications where the temperatures are normally -12 °C to 121 °C (10 °F to
250 °F). If prewired with cable, temperature limits are 105 °C (221 °F) dry and 60 °C (140 °F) wet.
To order a fluorocarbon (FC) sealed switch insert the additional letters Y and C as in the following
example:
LSA1A - standard side rotary plug-in switch
LSYAC1A - completely FC sealed version.
Factory sealed, pre-wired limit switches have the entry area completely sealed and are available with 6 ft
(1,83 m), STOOW-A cable or 4, 5 or 9-pin connectors. NEMA ratings are, for cable version 1, 4, 6, 6P, 12,
for connector version 1, 4, 6, 6P, 12, 13.
To order a factory sealed switch add the appropriate letter:
Circuitry Cable ½ in Connector (available with ½ in conduit tap only)
SPDT CA (4 pin mini)
B (5 pin mini)
DD (4 pin micro)
DPDT M (¾ in only) R (9 pin)
Example:
LSA1AC - LSA1A with 6 ft of 5 conductor STOOW-A cable
LSJ2BM-7N - LSJ2B-7N with 6 ft of 9 conductor STOOW-A cable
LSA1AB - LSA1A with 5 pin receptable
LSA1ADD - 4 pin micro-change connector
Electrical ratings
10 amps continuous carry. Circuits on any one pole must be the same polarity.
ac Volts
Pilot duty: 600 Vac, 720 VA
Amps at 0.35 Power Factor
Vac Make Break
A 120 60 6
SPDT 240 30 3
NEMA 480 15 1.5
A600 600 12 1.2
B 120 30 3
DPDT 240 15 1.5
NEMA 480 7.5 0.75
B600 600 6 0.60
C 250 Vac or 60 Vdc, 0.050 amp max.
SPDT/DPDT
dc Volts
Pilot duty: 240 Vdc, 30 watts
Make and Break Amps
Vdc Inductive Resistive
A 120 0.25 0.8
SPDT 240 0.15 0.4
B 120 0.25 0.8
DPDT 240 0.15 0.4
C 250 Vac or 60 Vdc, 0.050 amp max.
SPDT/DPDT
Levers: Levers for side rotary
types are ordered separately (see
pages 69-71 for details)
Actuators
45
www.honeywell.com/sensing
HEAVY DUTY LIMIT SWITCHES
Operating temperatures
Environmental
seal
performance
46 www.honeywell.com/sensing
HDLS Series Side rotary actuated switches
Levers: Levers for side rotary types are ordered separately (see pages
69-71 for details)
Approvals: NEMA 1, 3, 4, 4X, 6, 6P, 12, 13
UL, CSA, CE
Operating force (Newton meters, N m/in lb): LSA, LSL, LSM, LSM, LSP, LSU 0,45 N m max.
4 in lb max.
LSH, LSR 0,19 N m max.
1.7 in lb max
Conduit: ½ in - 14 NPT
Contacts: Electrical ratings A, B Silver
Electrical rating C Gold
Switching options: Snap action contacts
SPDT DPDT
SPDT Double Break
DPDT Double Break
Side rotary, momentary action
The momentary action listings shown are factory
assembled with the head adjusted for both
clockwise (CW) and counterclockwise (CCW)
operation. The shaft of side rotary heads face the
front (label side of switch).
Actuation direction
A simple field adjustment converts switch to
accept actuation from one or both directions. For
ready reference, adjustment instructions are cast
into the internal lid of side rotary heads.
Head orientation
The head may be orientated and locked in any of
four 90° positions.
Momentary action switches can be factory
assembled for operation in one direction only and/
or with the shaft facing the rear or either side.
Contact Honeywell for more information.
HEAVY DUTY LIMIT SWITCHES
47
www.honeywell.com/sensing
OPTIONS
Standard
Pretravel: 15° max.
Differential travel: SPDT 5° max.
DPDT 7° max.
Overtravel: 60° min.
Plug in
CONTACT CONDUIT ELECTRICAL RATING REFERENCE
SPDT A LSA1A
SPDT C LSA1E
DPDT ¾ in B LSA2B
DPDT B LSA6B
DPDT C LSA6S
SPDT 20 mm A LS4A1A
DPDT 20 mm B LS4A2B
Non plug in
CONTACT CONDUIT ELECTRICAL RATING REFERENCE
SPDT A LSA3K
DPDT ¾ in B LSA4L
SPDT 20 mm A LS4A3K
Low differential travel
Pretravel: 9° max.
Differential travel: SPDT 3° max.
DPDT 4° max.
Overtravel: 66° min.
Plug in
CONTACT ELECTRICAL RATING REFERENCE
SPDT A LSP1A
SPDT C LSP1E
DPDT B LSP2B
DPDT B LSP6B
DPDT C LSP6S
Non plug in
CONTACT CONDUIT ELECTRICAL RATING REFERENCE
SPDT A LSP3K
DPDT ¾ in B LSP4L
Low torque
Pretravel: 15° max.
Differential travel: SPDT 5° max.
DPDT 7° max.
Overtravel: 60° min.
Plug in
CONTACT CONDUIT ELECTRICAL RATING REFERENCE
SPDT A LSR1A
SPDT C LSR1E
DPDT ¾ in B LSR2B
DPDT B LSR6B
DPDT C LSR6S
Non plug in
CONTACT CONDUIT ELECTRICAL RATING REFERENCE
SPDT A LSR3K
DPDT ¾ in B LSR4L
Low differential, low torque
Pretravel: 9° max.
Differential travel: SPDT 3° max.
DPDT 4° max.
Overtravel: 66° min.
Plug in
CONTACT CONDUIT ELECTRICAL RATING REFERENCE
SPDT A LSH1A
SPDT C LSH1E
DPDT ¾ in B LSH2B
DPDT B LSH6B
DPDT C LSH6S
Non plug in
CONTACT CONDUIT ELECTRICAL RATING REFERENCE
SPDT A LSH3K
DPDT ¾ in B LSH4L
5° Pretravel
Pretravel: 5° max.
Differential travel: SPDT 3° max.
DPDT 4° max.
Overtravel: 70° min.
Plug in
CONTACT CONDUIT ELECTRICAL RATING REFERENCE
SPDT A LSU1A
SPDT C LSU1E
DPDT ¾ in B LSU2B
DPDT B LSU6B
DPDT C LSU6S
Non plug in
CONTACT CONDUIT ELECTRICAL RATING REFERENCE
SPDT A LSU3K
DPDT ¾ in B LSU4L
Side rotary, additional circuitry/
action
The following listings, sequential, centre neutral
and maintained switches, are assembled with the
operating shaft facing front. The user can position
and lock the head with the shaft to rear or either
side. They can also be factory assembled with the
shaft to rear or either side. Contact Honeywell for
more information.
OPTIONS
Sequential
One pole operates before the other in each
direction, with 10° lever travel between operations.
Pretravel: 1st pole 15° max.
2nd pole additional 10° max.
Differential travel: Each pole 5° max.
Overtravel: 48° min.
Switching options:
(2) SPDT Double Bread
with 10˚ between operation
Plug in
CONTACT CONDUIT ELECTRICAL RATING REFERENCE
DPDT ¾ in B LSL2C
DPDT B LSL6C
Non plug in
CONTACT CONDUIT ELECTRICAL RATING REFERENCE
DPDT ¾ in B LSL4M
DPDT B LSL7M
Centre neutral
One pole operates on clockwise rotation, the other
on counterclockwise rotation.
Pretravel: 18° max.
Differential travel: 10° max.
Overtravel: 57° min.
Switching options:
SPDT Double Break each direction
Plug in
CONTACT CONDUIT ELECTRICAL RATING REFERENCE
DPDT ¾ in B LSM2D
SPDT 20 mm B LS4M2D
DPDT B LSM6D
Non plug in
CONTACT CONDUIT ELECTRICAL RATING REFERENCE
DPDT ¾ in B LSM4N
DPDT B LSM7N
HEAVY DUTY LIMIT SWITCHES
48 www.honeywell.com/sensing
HDLS Series
Side rotary actuated
switches (continued)
Maintained contact, 2 position
Operation is maintained on counterclockwise
rotation, reset on clockwise rotation and vice
versa.
Pretravel: 65° max.
Differential travel: 40° max.
Overtravel: 20° min.
Switching options:
SPDT DPDT
SPDT Double Break
Maintained
DPDT Double Break
Maintained
Plug in
CONTACT ELECTRICAL RATING REFERENCE
SPDT A LSN1A
DPDT B LSN6B
Non plug in
CONTACT ELECTRICAL RATING REFERENCE
SPDT A LSN3K
DPDT B LSN7L
Plunger actuated switches
HDLS plunger actuated switches are available with
either top or side facing plungers for application
flexibility. Switches with adjustable plungers
simplify installation. They have a hex setscrew
and locknut on the plunger, providing an
adjustment range of 0.25 in (6.35 mm).
Assembled conditions
The listing shown are factory assembled with side
plungers facing front (label side of switch); rollers
on side plungers are in horizontal position.
Rollers on top plunger switches are parallel to
mounting surface. Other options are available.
Contact Honeywell for more information.
Approvals: NEMA 1, 3, 4, 4X, 6, 6P, 12, 13
UL, CSA, CE
Conduit: ½ in - 14 NPT
Contacts:
Electrical ratings A, B Silver
Electrical rating C Gold
Switching options: Snap action contacts
SPDT DPDT
SPDT Double Break
DPDT Double Break
Top plungers, momentary action
Pretravel: 1,78 mm (0.07 in) max.
Differential travel:
SPDT 0,38 mm (0.015 in) max.
DPDT 0,51 mm (0.02 in) max.
Overtravel: 4,83 mm (0.19 in) min.
Operating force: 17,8 N m (4 lb) max.
OPTIONS
Top pin plunger
Operating point: 45,8 mm ± 0,76
1.805 in ± 0.030
Plug in
CONTACT ELECTRICAL RATING REFERENCE
SPDT A LSC1A
SPDT C LSC1E
DPDT B LSC6B
DPDT C LSC6S
Non plug in
CONTACT ELECTRICAL RATING REFERENCE
SPDT A LSC3K
DPDT B LSC7L
Top roller plunger
Operating point: 55,9 mm ± 1,02
2,20 in ± 0.040
Plug in
CONTACT ELECTRICAL RATING REFERENCE
SPDT A LSD1A
SPDT C LSD1E
DPDT B LSD6B
DPDT C LSD6S
Non plug in
CONTACT ELECTRICAL RATING REFERENCE
SPDT A LSD3K
DPDT B LSD7L
Adjustable plunger
Operating point: 53,0 mm to 59,3 mm
2.085 in to 2.335 in
Plug in
CONTACT ELECTRICAL RATING REFERENCE
SPDT A LSV1A
SPDT C LSV1E
DPDT B LSV6B
DPDT C LSV6S
Non plug in
CONTACT ELECTRICAL RATING REFERENCE
SPDT A LSV3K
DPDT B LSV7L
HEAVY DUTY LIMIT SWITCHES
49
www.honeywell.com/sensing
Side plungers, momentary action
Pretravel: 2,54 mm (0.100 in) max.
Differential travel:
SPDT 0,64 mm (0.025 in) max.
DPDT 0,89 mm (0.035 in) max.
Overtravel: 4,83 mm (0.19 in) min.
Operating force: 26,7 N m (6 lb) max.
OPTIONS
Side pin plunger
Operating point: 33 mm ± 0,76
1.300 in ± 0.030
Plug in
CONTACT ELECTRICAL RATING REFERENCE
SPDT A LSE1A
SPDT C LSE1E
DPDT B LSE6B
DPDT C LSE6S
Non plug in
CONTACT ELECTRICAL RATING REFERENCE
SPDT A LSE3K
DPDT B LSE7L
Side roller plunger
Operating point: 44,1 mm ± 1,02
1.735 in ± 0.040
Plug in
CONTACT ELECTRICAL RATING REFERENCE
SPDT A LSF1A
SPDT C LSF1E
DPDT B LSF6B
DPDT C LSF6S
Non plug in
CONTACT ELECTRICAL RATING REFERENCE
SPDT A LSF3K
DPDT B LSF7L
Adjustable side roller plunger
Operating point: 41,0 mm to 47,4 mm
1.615 in to 1.865 in
Plug in
CONTACT ELECTRICAL RATING REFERENCE
SPDT A LSW1A
SPDT C LSW1E
DPDT B LSW6B
DPDT C LSW6S
Non plug in
CONTACT ELECTRICAL RATING REFERENCE
SPDT A LSW3K
DPDT B LSW7L
Side plunger, maintained circuitry
LSG contact transfer is maintained after either
plunger is operated. Operation of other plunger
resets switch.
Pretravel: 4,32 mm (0.170 in) max.
Differential travel:
SPDT 2,29 mm (0.090 in) max.
DPDT 2,29 mm (0.090 in) max.
Overtravel: 2,00 mm (0.0.80 in) max.
Operating force: 44,5 N m (10 lb) min.
Operating point: 37,6 ± 0,76 mm
1.48 ± 0.030 in
Switching options:
SPDT DPDT
Plug in
CONTACT ELECTRICAL RATING REFERENCE
SPDT A LSG1A
SPDT C LSG1E
DPDT B LSG6B
DPDT C LSG6S
Non plug in
CONTACT ELECTRICAL RATING REFERENCE
SPDT A LSG3K
DPDT B LSG7L
HEAVY DUTY LIMIT SWITCHES
50 www.honeywell.com/sensing
HDLS Series
Wobble actuated switches
Momentary action wobble actuated switches have
flexible levers which may be operated with any
movement, except direct pull.
Approvals: NEMA 1, 3, 4, 4X, 6, 6P, 12, 13
UL, CSA, CE
Conduit: ½ in - 14 NPT
Contacts:
Electrical ratings A, B Silver
Switching options: Snap action contacts
SPDT DPDT
SPDT Double Break
DPDT Double Break
OPTIONS
Plastic rod
Pretravel (approx) (Radius): 25,4 mm (1.0 in)
Operating force: 2,78 g (10 oz) max.
Plug in
CONTACT ELECTRICAL RATING REFERENCE
SPDT A LSJ1A-7A
DPDT B LSJ6B-7A
Non plug in
CONTACT ELECTRICAL RATING REFERENCE
SPDT A LSJ3K-7A
DPDT B LSJ7L-7A
Spring wire
Pretravel (approx) (Radius): 102,0 mm (4.0 in)
Operating force: 1,39 g (5 oz) max.
Plug in
CONTACT ELECTRICAL RATING REFERENCE
SPDT A LSJ1A-7M
DPDT B LSJ6B-7M
Non plug in
CONTACT ELECTRICAL RATING REFERENCE
SPDT A LSJ3K-7M
DPDT B LSJ7L-7M
Cable
Pretravel (approx) (Radius): 38,0 mm (1.5 in)
Operating force: 1,95 N (7.0 oz) max.
Plug in
CONTACT ELECTRICAL RATING REFERENCE
SPDT A LSJ1A-7N
DPDT B LSJ6B-7N
Non plug in
CONTACT ELECTRICAL RATING REFERENCE
SPDT A LSJ3K-7N
DPDT B LSJ7L-7N
Cat whisker
Pretravel (approx) (Radius): 51,0 mm (2.0 in)
Operating force: 1,39 N (5.0 oz) max.
Plug in
CONTACT ELECTRICAL RATING REFERENCE
SPDT A LSK1A-8A
DPDT B LSK6B-8A
Non plug in
CONTACT ELECTRICAL RATING REFERENCE
SPDT A LSK3K-8A
DPDT B LSK7L-8A
Coil spring
Pretravel (approx) (Radius): 51,0 mm (2.0 in)
Operating force: 1,95 N (7.0 oz) max.
Plug in
CONTACT ELECTRICAL RATING REFERENCE
SPDT A LSK1A-8C
DPDT B LSK6B-8C
Non plug in
CONTACT ELECTRICAL RATING REFERENCE
SPDT A LSK3K-8C
DPDT B LSK7L-8C
HEAVY DUTY LIMIT SWITCHES
51
www.honeywell.com/sensing
Fully potted HDLS
Fully potted HDLS are designed to meet the
demanding requirements of NEMA 1, 3, 4, 6, 6P
and 13 for wet applications where the integrity of
the conduit seal must be assured. These switches
are the same as the standard HDLS non plug in
limit switch except that the conduit entrance is
factory sealed to simplify installation and ensure
integrity of the conduit seal. They are epoxy filled
and supplied with six feet of 5 or 9 conductor 16
gauge STO cable. Fully potted HDLS are built with
all Fluorocarbon seals. Sealing exceeds Nema 6P.
Low temperature versions are available, see page
4 for temperature range and how to order.
106,7
4.20 59,4
2.34
19,0
0.75
29,4
1.16
70,4
2.77
36,6
1.44
25,4
1.00
5,2
0.20 Ø Mtg holes
(2) 10-32 UNF tapped
from rear only (2)
41,1
1.62 39,6
1.56
14,7
0.58
62,0
2.44
Mtg pads
74,9
2.95
1/2-14 NPT
20,3
0.80
39,0
1.54
44,4
1.75
7,32
0.29
Approvals:
Connector NEMA 1, 4, 6, 6P, 12, 13
Cable NEMA 1, 4, 6, 6P, 12
UL, CSA, CE
Operating temperature:
Cable versions -12 °C to 105 °C
10 °F to 221 °F
Connector versions -12 °C to 121 °C
10 °F to 250 °F
Cable length: 3,658 m (12 ft)
Contacts: Electrical ratings A, B Silver
Switching options: Snap action contacts
SPDT DPDT
Wiring diagrams: Numbers = Connectors
Colours = Cables
Single-Pole Double-Pole
Side rotary actuated
switches
Levers: Levers for side rotary
types are ordered separately (see
pages 69-71 for details)
OPTIONS
Standard
Pretravel: 15° max.
Differential travel: SPDT 5° max.
DPDT 7° max.
Overtravel: 60° min.
Operating force: 0,45 N m (4 in lb) max.
CONTACT TERMINATION ELECTRICAL RATING REFERENCE
SPDT Cable A LSYAC3KP-FP
DPDT Cable B LSYAC4LX-FP
SPDT 5-pin Connector A LSYAC3KQ-FP
DPDT 9-pin Connector B LSYAC7LR-FP
Low differential travel
Pretravel: 9° max.
Differential travel: SPDT 3° max.
DPDT 4° max.
Overtravel: 66° min.
Operating force: 0,45 N m (4 in lb) max.
CONTACT TERMINATION ELECTRICAL RATING REFERENCE
SPDT Cable A LSYPC3KP-FP
DPDT Cable B LSYPC4LX-FP
SPDT 5-pin Connector A LSYPC3KQ-FP
DPDT 9-pin Connector B LSYPC7LR-FP
5° Pretravel
Pretravel: 5° max.
Differential travel: SPDT 3° max.
Overtravel: 70° min.
Operating force: 0,45 N m (4 in lb) max.
CONTACT TERMINATION ELECTRICAL RATING REFERENCE
SPDT Cable A LSYUC3KP-FP
SPDT 5-pin Connector A LSYUC3KQ-FP
For low temperature versions
substitute “Y_B” for “Y_C”
HEAVY DUTY LIMIT SWITCHES
Actuators
52 www.honeywell.com/sensing
Fully potted HDLS
(continued)
Side rotary actuated
switches
Sequential
Pretravel: 1st pole 15° max.
2nd pole additional 10° max.
Differential travel: Each pole 5° max.
Overtravel: 48° max.
Operating force: 0,45 N m (4 in lb) max.
Switching options: DPDT
(2) SPDT Double Break
with 10˚ between operation
CONTACT TERMINATION ELECTRICAL RATING REFERENCE
DPDT Cable B LSYLC4MX-FP
DPDT 9-pin Connector B LSYLC7MR-FP
Centre neutral
Pretravel: 18° max.
Differential travel: 10° max.
Overtravel: 57° min.
Operating force: 0,45 N m (4 in lb) max.
Switching options: DPDT
SPDT Double Break each direction
CONTACT TERMINATION ELECTRICAL RATING REFERENCE
DPDT Cable B LSYMC4NX-FP
DPDT 9-pin Connector B LSYMC7NR-FP
For low temperature versions
substitute “Y_B” for “Y_C”
Plunger actuated switches
OPTIONS
Top plungers
Pretravel: 1,78 mm (0.07 in) max.
Differential travel:
SPDT 0,38 mm (0.015 in) max.
DPDT 0,51 mm (0.02 in) max.
Overtravel: 4,83 mm (0.19 in) min.
Operating force: 17,8 N m (4 lb) max.
Top pin plunger
CONTACT TERMINATION ELECTRICAL RATING REFERENCE
SPDT Cable A LSYCC3KP-FP
DPDT Cable B LSYCC4LX-FP
SPDT 5-pin Connector A LSYCC3KQ-FP
DPDT 9-pin Connector B LSYCC7LR-FP
Top roller plunger
CONTACT TERMINATION ELECTRICAL RATING REFERENCE
SPDT Cable A LSYDC3KP-FP
DPDT Cable B LSYDC4LX-FP
SPDT 5-pin Connector A LSYDC3KQ-FP
DPDT 9-pin Connector B LSYDC7LR-FP
Side plungers
Pretravel: 2,54 mm (0.100 in) max.
Differential travel:
SPDT 0,38 mm (0.015 in) max.
DPDT 0,51 mm (0.02 in) max.
Overtravel: 4,83 mm (0.19 in) min.
Operating force: 26,7 N m (6 lb) max.
Side pin plunger
CONTACT TERMINATION ELECTRICAL RATING REFERENCE
SPDT Cable A LSYEC3KP-FP
DPDT Cable B LSYEC4LX-FP
SPDT 5-pin Connector A LSYEC3KQ-FP
DPDT 9-pin Connector B LSYEC7LR-FP
Wobble actuated switches
Actuator codes **: Head style*
7A Delrin rod J
7M Spring wire J
8A Cat whisker K
7N Cable J
8C Coil spring K
CONTACT TERMINATION ELECTRICAL REFERENCE
RATING
SPDT Cable A LSY*C3KP-**FP
DPDT Cable B LSY*C4LX-**FP
SPDT 5-pin Connector A LSY*C3KQ-**FP
DPDT 9-pin Connector B LSY*C7LR-**FP
HEAVY DUTY LIMIT SWITCHES
53
www.honeywell.com/sensing
Stainless steel
HDLS
HDLS stainless steel switches are designed for use
in highly corrosive environments such as petro-
chemical plants, food processing plants,
shipboard and dockside locations. The type 316
cast stainless steel body is designed to minimise
crevices where food particles could become
trapped. The actuator, operating head and screws
are also stainless steel. All seals are Fluorocarbon
to provide excellent chemical resistance and to
withstand operating temperatures up to 121 °C
(250 °F) and pressurised steam cleaning.
Approvals: NEMA 1, 3, 3R, 4, 4X, 6, 6P, 12, 13
UL, CSA, CE
Operating temperature: -12 °C to 121 °C
10 °F to 250 °F
Contacts: Electrical ratings A, B Silver
Levers: Levers for side rotary
types are ordered separately (see
pages 69-71 for details)
Side rotary actuated
switches
OPTIONS
Standard
Pretravel: 15° max.
Differential travel: SPDT 5° max.
DPDT 7° max.
Overtravel: 60° min
CONTACT ELECTRICAL RATING REFERENCE
SPDT A LS2A4K
DPDT B LS2A4L
Low Torque
Pretravel: 9° max.
Differential travel: SPDT 3° max.
DPDT 4° max.
Overtravel: 60° min.
CONTACT ELECTRICAL RATING REFERENCE
SPDT A LS2H4K
DPDT B LS2H4L
Centre neutral
Pretravel: 18° max
Differential travel: DPDT 10° max.
Overtravel: 57° min.
CONTACT ELECTRICAL RATING REFERENCE
DPDT B LS2M4N
Plunger actuated switches
OPTIONS
Top roller plunger
Pretravel: 1,78 mm (0.07 in) max.
Differential travel: 0,38 mm (0.015 in) max.
Overtravel: 4,83 mm (019 in) min.
Operating point: 55,9 mm ± 1,02
2.20 in ± 0.04
CONTACT ELECTRICAL RATING REFERENCE
SPDT A LS2D4K
DPDT B LS2D4L
Side pin plunger
33,0
1.30
Operating
point
21,6
0.85
9,4
0.37
19,0
0.75
Pretravel: 2,54 mm (1.00 in) max.
Differential travel: 0,64 mm (0.025 in) max.
Overtravel: 4,83 mm (0.19 in) min.
Operating point: 33 mm ± 0,76
1.3 in ± 0.03
CONTACT ELECTRICAL RATING REFERENCE
SPDT A LS2E4K
DPDT B LS2E4L
Side roller plunger
47,7
1.88
39,6
1.56
14,7
0.58
19,1
0.75
31,5
1.24
4,8
0.19
44,2
1.74
Operating
point
21,6
0.85
20,3
0.80
Pretravel: 2,54 mm (1.00 in) max.
Differential travel: 0,64 mm (0.025 in) max.
Overtravel: 4,83 mm (0.19 in) min.
Operating point: 44,1 mm ± 1,02
1.73 in ± 0.04
CONTACT ELECTRICAL RATING REFERENCE
SPDT A LS2F4K
DPDT B LS2F4L
HEAVY DUTY LIMIT SWITCHES
Actuators
54 www.honeywell.com/sensing
Blank page
55
www.honeywell.com/sensing
Explosion proof switches
Honeywell explosion proof switches are designed specifically for use in
hazardous locations. To comply with explosion proof requirements, the flame
path within the housing is designed to contain and cool the escaping hot
gases that otherwise could cause an explosion outside the switch.
Switches are available with UL/CSA for North America. See information below
and product pages for details. In Europe, the usage is governed under the
European Directive on Equipment and Protective Systems Intended for Use in
Potentially Explosive Atmospheres (94/9/EC) commonly referred to as the
ATEX Directive.
The BX, CX and GXE product families comply to the following ATEX Directive:
EExd IIC T6 Category II 2 GD
The 14CE100 product family complies to the following ATEX Directive:
EExd IIC T6 Category II 2 G
NEMA TYPE 7, CLASS I FLAMMABLE GASES OR VAPORS
Type 7 enclosures are for use indoors in locations classified as Class I,
Groups B, C, or D by the National Electrical Code.
Group B — (only switches so noted in the order guides include this listing).
Atmospheres containing hydrogen or manufactured gas.
Group C — atmospheres containing diethyl ether, ethylene, or cyclopropane.
Group D — Atmospheres containing gasoline, hexane, butane, naptha,
propane, acetone, toluene or isoprene.
Division 1
Locations in which hazardous agents are present under normal operating
conditions.
Division 2
Locations in which hazardous agents may be present only in case of
accidental rupture or breakdown.
All Honeywell listings covered in Division 1 are also covered in the same
groups in Division 2.
NEMA TYPE 9, CLASS II COMBUSTIBLE DUSTS
Type 9 enclosures are for use in indoor locations classified as Class II,
Groups E, F or G, as defined in the National Electrical Code.
Group E — Atmospheres containing metal dust.
Group F — Atmospheres containing carbon black, coal dust or coke dust.
Group G — Atmospheres containing flour, starch or grain dust.
ATEX EExd
EXPLOSION PROOF SWITCHES
Places with potentially
explosive
atmospheres, other
than mines susceptible
to fire damp
Gas
could be
present
Flameproof
enclosure
Atmosphere may
contain gases
from groups A, B
or C from table in
EN50014, Annex A
Maximum
surface
temperature of
85 °C (185 °F)
Areas in which an explosion
proof atmosphere is likely to
occur
Dust
could be
present
EExd II c T6 Category II 2 G D
56 www.honeywell.com/sensing
Top pin plunger
M4 ground
screw
40,0 Max.
1,57
16,0 Max.
0.63
25,0
1.00
59,0
2.32 31,4
1.24
15,7 OP
0.62 1,8 PT
0.07
49,0 Max.
1.93
7,6
0.30
(2) Ø 5,1 (0.20)
Mounting holes
Ø 10,0 (0.39)
Stainless steel
plunger
"L"
CABLE LENGTH REFERENCE
1 m (3.3 ft) 14CE101-1
2 m (6.6 ft) 14CE101-2
3 m (9.9 ft) 14CE101-3
4 m (13.2 ft) 14CE101-4
5 m (16.5 ft) 14CE101-5
6 m (19.8 ft) 14CE101-6
10 m (33.0 ft) 14CE101-10
Boot sealed
1,80
(0.07)
Ø 7,1 (0.28)
Stainless steel
plunger
Neoprene boot seal
Max.
PT
24,9
(0.98)
OP
CABLE LENGTH REFERENCE
1 m (3.3 ft) 14CE118-1
6 m (19.8 ft) 14CE118-6
10 m (33.0 ft) 14CE118-10
14CE100 Series
Miniature Enclosed,
Explosion Proof
Switches
The 14CE100 Series has been designed for use in explosive environments. It is approved to meet the
requirements of the Low Voltage directive and is CE marked. The prewired construction allows for ease of
installation where space is at a premium and external operating conditions can be difficult.
Mechanical life: 10 million
Sealing: Standard IP65, NEMA 1, 3
Boot sealed IP67 , NEMA 1, 3, 4 12, 13
Operating temperature: 0 °C to 70 °C (32 °F to 158 °F)
Approvals: CE, PTB 98 ATEX 1064 X EExd IIC T6 Category II 2 G
AC14 D300
DC13 R300
Operating force (OF): 11,8 N max.
Pretravel (PT): 1,8 mm (0.71 in) max.
Overtravel (OT): 3,0 mm (0.118 in) min.
Differential travel (DT): 0,1mm (0.004 in) max.
Contacts: Standard Silver
-*GGold
Connection: Harmonised CENELEC 4 x 0,75 mm2 cable
Switching options:
SPDT Single Pole, Double Throw
Snap action contacts (1NC/1NO)
GREEN/YELLOW
BLUE
1
BROWN
2
3
BLACK
S.P.D.T
Top roller plunger, parallel
M4 ground
screw
40,0 Max.
1,57
16,0 Max.
0.63
25,0
1.00
72,0
2,83
31,4
1.24
28,5 OP
1.11
1,8 PT
0.07
49,0 Max.
1.93
7,6
0.30
(2) Ø 5,1 (0.20)
Mounting holes
Ø 12,0 (0.47) x 5,0 (0.20)
Hardened steel roller
"L"
CABLE LENGTH REFERENCE
1 m (3.3 ft) 14CE102-1
3 m (9.9 ft) 14CE102-3
3 m (9.9 ft) Gold contacts 14CE102-3G
5 m (16.5 ft) 14CE102-5
6 m (19.8 ft) 14CE102-6
6 m (19.8 ft) Gold contacts 14CE102-6G
8 m (26.4 ft) 14CE102-8
12 m (39.6 ft) 14CE102-12
15 m (49.5 ft) 14CE102-15
Top roller plunger, perpendicular
M4 ground
screw
40,0 Max.
1,57
16,0 Max.
0.63
25,0
1.00
72,0
2,83
31,4
1.24
28,5 OP
1.11
1,8 PT
0.07
49,0 Max.
1.93
14,0
0.55
7,6
0.30
(2) Ø 5,1 (0.20)
Mounting holes
"L"
CABLE LENGTH REFERENCE
1 m (3.3 ft) 14CE103-1
3 m (9.9 ft) 14CE103-3
EXPLOSION PROOF SWITCHES
Actuators
57
www.honeywell.com/sensing
GXE Series
Explosion Proof
Limit Switches
The GXE Series explosion proof limit switches are designed specifically for use in hazardous applications.
The GXE enclosure is fully potted and has sealing protection of IP66/67 as per IEC/EN 60529. The entire
GXE Series complies with the European Directive on Equipment and Protective Systems Intended for Use
in Potentially Explosive Atmospheres (94/9/EC) commonly referred to as the ATEX Directive.
Mechanical life: 2 million
Sealing: IP66/67, EN 60529
Operating temperature: -20 °C to 75 °C (-4 °F to 167 °F)
Approvals: CE, EN 50014, EN 50018, EN 50281-1-1
KEMA 00 ATEX 2103 X EExd IIC T6 Category II 2 GD
AC15
DC13
Contacts: Silver
Connection: 5 metre, HO5VV-F, 3 x 0,75 mm2 cable
Switching options:
SPDT Single Pole, Double Throw
Snap action contacts (1NC/1NO)
BLACK
BROWN
BLUE
OPTIONS
Side rotary roller lever
Overtravel min. (OT): 6,0 mm (0.0.236 in)
Differential travel max. (DT): 8°
Operating position max. (PT): 26
REFERENCE
GXE51A1B
Top pin plunger
Overtravel min. (OT): 6,0 mm (0.0.236 in)
Differential travel max. (DT): 0,5mm (0.020 in)
Operating position max. (PT): 2,0 mm (0.079 in)
REFERENCE
GXE51B
GXE Series
Operating force max. (OF): 16 N (3.6 lb)
Top roller plunger, parallel
Overtravel min. (OT): 6,0 mm (0.0.236 in)
Differential travel max. (DT): 0,5mm (0.020 in)
Operating position max. (PT): 2,0 mm (0.079 in)
REFERENCE
GXE51C
EXPLOSION PROOF SWITCHES
Actuators
58 www.honeywell.com/sensing
EX Series
Standard
Explosion
Proof
Switches
The EX Series features the smallest UL listed housings available for use in
hazardous locations. Flame paths within the housing cool exploding gases
below the kindling temperature before they reach the explosive gases
surrounding the housing.
Options available include single or double conduit connection.
These switches are not sealed against liquids and should not be used where
there will be liquid splash. If a weather sealed explosion proof switch is
required please select from the CX or LSX/BX series.
Sealing: NEMA 1, 7 (Class I, Division I, Groups C, D)
9, (Class II, Division I, Groups E, F, G)
Operating temperature: Standard -40 °C to 71 °C (-40 °F to 160 °F)
High 100 hr @ 400 °F
Approvals: UL, CSA
Conduit: ½ in - 14NPT
Contacts: Silver
Electrical ratings:
A UL/CSA Rating: 15 A, 125, 250 or 480 Vac;
1
/
8
Hp, 125 Vac; ¼ Hp, 250 Vac;
½ A, 125 Vdc; ¼ A, 250 Vdc.
B UL/CSA Rating: 20 A, 125, 250 or 480 Vac;
10 A, 125 Vac “L”;
1 Hp, 125 Vac; 2 Hp, 250 Vac;
½ A, 125 Vdc; ¼ A, 250 Vdc.
C UL/CSA Rating: 10 A, 125 or 250 Vac;
0.3 A, 125 Vdc; 0.15 A, 250 Vdc
.
D UL/CSA Rating: 10 A, 125, 250 or 480 Vac;
½ A, 125 Vdc; ¼ A, 250 Vdc.
E UL Rating: 1 A, 125 Vac.
Switching options:
SPDT DPDT
Single Pole, Double Throw Double Pole, Double Throw
Snap action contacts (1NC/1NO) Snap action contacts (2NC/2NO)
Side rotary actuated switches
OPTIONS
No lever
Note: Levers are ordered separately (see pages 69-71
for details)
Operating force max. (OF):
Electrical rating A 0,22 N m (31.25 in oz)
Electrical rating B 3,34 N to 8,90 N (0.75 lb to 2.0 lb)
Pretravel max. (PT): 5,56 mm (0.219 in) 8°
Overtravel max. (OT):
Electrical rating A 90°
Electrical rating B 25°
Differential travel max. (DT):
Electrical rating A 0,18 mm (0.007 in) 0.25°
Electrical rating B 0,3 mm (0.012 in) 4°
ACTUATION CONTACT ELECTRICAL RATING REFERENCE
CW SPDT A EX-AR20
CCW SPDT A EX-AR230
CW SPDT B EXA-AR20
Actuators
EXPLOSION PROOF SWITCHES
59
www.honeywell.com/sensing
Roller lever
Roller material: Bronze
Operating force max. (OF):
Electrical rating A
Clockwise (CW) 2,22 N to 5,56 N (0.5 lb to 1.25 lb)
Counter clockwise (CCW) 11,1 N (2.5 lb)
Electrical rating B 3,34 N to 8,90 N (0.75 lb to 2.0 lb)
Pretravel max. (PT):
Electrical rating A, B
Clockwise (CW) 5,56 mm (0.219 in) 8°
Counter clockwise (CCW) 1,65 mm (0.065 in) 3.5°
Overtravel max. (OT):
Electrical rating A
Clockwise (CW) 90°
Counter clockwise (CCW) 25°
Electrical rating B 25°
Differential travel max. (DT):
Electrical rating A 0,18 mm (0.007 in) 0.25°
Electrical rating B 0,3 mm (0.012 in) 4°
ACTUATION CONTACT ELECTRICAL RATING REFERENCE
CW SPDT A EX-AR
CCW SPDT A EX-AR30
CW/Class 1 Group B SPDT A EX-AR800
CCW/Class 1 Group B SPDT A EX-AR830
CW/High temperature SPDT A EX-AR400
CW SPDT B EXA-AR
CW/No mounting bracket SPDT B EXA-AR62
CW/Nylon roller SPDT A EX-AR182
CW/No mounting bracket SPDT A EX-AR141
CW or CCW actuation, no return spring, low operating
force
Operating force max. (OF): 0,56 N (2 oz)
ACTUATION CONTACT ELECTRICAL RATING REFERENCE
CW/CCW/No mounting bracket SPDT A EX-AR16
Maintained contact
Operating force max. (OF): 3,34 N (0.75 lb)
Pretravel max. (PT): 5,56 mm (0.219 in) 8°
Overtravel max. (OT): 90°
ACTUATION CONTACT ELECTRICAL RATING REFERENCE
CW SPDT A EX-XR3
DPDT, Preleaded with 0,91 m (3 ft) leadwire
Operating force max. (OF):
Clockwise (CW) 2,22 N to 6,67 N (0.5 lb to 1.5 lb)
Counter clockwise (CCW) 12,2 N (2.75 lb)
Pretravel max. (PT): 6,35 mm (0.250 in)
Overtravel max. (OT): 25°
Differential travel max. (DT): 2,77 mm (0.109 in) 4°
Sealing: NEMA Class 1 Group B
ACTUATION CONTACT ELECTRICAL RATING REFERENCE
CW DPDT C EXD-AR-3
CCW DPDT C EXD-AR30-3
Hermetically sealed
Operating force max. (OF):
Clockwise (CW) 2,22 N to 6,67 N (0.5 lb to 1.5 lb)
Counter clockwise (CCW) 11,1 N (2.5 lb)
Pretravel max. (PT):
Clockwise (CW) 5,56 mm (0.219 in) 8°
Counter clockwise (CCW) 1,65 N (0.065 in) 3.5°
Overtravel max. (OT): 25°
Differential travel max. (DT): 0,64 mm (0.025 in)
Sealing: NEMA Class 1 Group B
ACTUATION CONTACT ELECTRICAL RATING REFERENCE
CW/3,2 m (10.5 ft) leadwire SPDT E EXH-AR3
CCW/0,91 m (3 ft) leadwire SPDT E EXH-AR33
CW/0,91 m (3 ft) leadwire SPDT E EXH-AR7
2 Conduit openings
Operating force max. (OF):
Electrical rating A 2,22 N to 5,56 N (0.5 lb to 1.25 lb)
Electrical rating B 3,61 N to 8,90 N (0.8 lb to 2 lb)
Electrical rating C 2,22 N to 6,67 N (0.5 lb to 1.5 lb)
Pretravel max. (PT):
Electrical rating A, B 5,56 mm (0.219 in) 8°
Electrical rating C 6,35 mm (0.250 in)
Overtravel max. (OT):
Electrical rating A 90°
Electrical rating B, C 25°
Differential travel max. (DT):
Electrical rating A 0,18 mm (0.007 in) 0.25°
Electrical rating B 0,3 mm (0.012 in) 0.5°
Electrical rating C 2,77 mm (0.109 in) 4°
CONTACT ELECTRICAL RATING REFERENCE
DPDT C 4EX1-3
SPDT B 2EX1
SPDT A 1EX1
EXPLOSION PROOF SWITCHES
60 www.honeywell.com/sensing
EX Series
Side rotary actuated switches (continued)
Cross roller lever, rotated 90°
Operating force max. (OF): 2,22 N to 5,56 N (0.5 lb to 1.25 lb)
Pretravel max. (PT): 5,56 mm (0.219 in) 8°
Overtravel max. (OT 90°
Differential travel max. (DT): 0,18 mm (0.007 in) 0.25°
CONTACT ELECTRICAL RATING REFERENCE
CW SPDT A EX-CR
Rod lever
Operating force max. (OF): 0,56 N (2 oz)
Pretravel max. (PT): 18°
Overtravel min. (OT): 40°
CONTACT ELECTRICAL RATING REFERENCE
CW/No mounting bracket SPDT A EX-AR1613
Overtravel plunger actuated switches
OPTIONS
Top pin plunger
Operating force max. (OF):
Electrical rating A, C 13,34 N (3.0 lb)
Electrical rating B 8,90 N (2 lb)
Pretravel max. (PT):
Electrical rating A 1,98 mm (0.078 in)
Electrical rating B 1,27 mm (0.050 in)
Electrical rating C 3,96 mm (0.156 in)
Overtravel min. (OT):
Electrical rating A 4,78 mm (0.188 in)
Electrical rating B 3,18 mm (0.125 in)
Electrical rating C 3,48 mm (0.141 in)
Differential travel max. (DT):
Electrical rating A 0,10 mm (0.004 in)
Electrical rating B 0,23 mm (0.009 in)
Electrical rating C 1,52 mm (0.060 in)
CONTACT ELECTRICAL RATING REFERENCE
SPDT A EX-Q
No mounting bracket SPDT A EX-Q62
High temperature SPDT A EX-Q400
Low OF SPDT B EXA-Q
Sealing NEMA Class 1 Group B
CONTACT ELECTRICAL RATING REFERENCE
SPDT A EX-Q800
Preleaded with 0,91 m (3 ft) leadwire DPDT C EXD-Q-3
EXPLOSION PROOF SWITCHES
61
www.honeywell.com/sensing
Boot sealed
Operating force max. (OF):
Electrical rating D 13,34 N (3.0 lb)
Electrical rating B 15,57 N (3.5 lb)
Pretravel max. (PT):
Electrical rating D 1,98 mm (0.078 in)
Electrical rating B 2,77 mm (0.109 in)
Overtravel min. (OT):
Electrical rating D 4,78 mm (0.188 in)
Electrical rating B 3,18 mm (0.125 in)
Differential travel max. (DT):
Electrical rating D 0,10 mm (0.004 in)
Electrical rating B 0,23 mm (0.009 in)
CONTACT ELECTRICAL RATING REFERENCE
SPDT D EX-N15
Class 1 Group B SPDT B EXA-N
Manually actuated
Operating force max. (OF): 11,1 N (2.5 lb)
CONTACT ELECTRICAL RATING REFERENCE
SPDT A EX-AR50
EXPLOSION PROOF SWITCHES
62 www.honeywell.com/sensing
CX Series
Weather Sealed
Explosion Proof
Switches
CX switches, as are the LSX/BX Series, are built especially for outdoor use in hazardous atmospheres.
These enclosures are constructed to withstand the pressure of an internal explosion.
O-ring seals make the enclosure weatherproof but are outside of required flame paths so explosion proof
requirements are maintained.
As factory assembled, all basic switches operate on clockwise and counterclockwise rotation. The
actuating mechanism can be field adjusted for CW or CCW operation only.
Analog output, 4 mA to 20 mA, is available.
Basic switches operate nearly simultaneously in multiple switch devices.
Shafts of devices without shaft restoring force can be rotated through 360°.
Sealing:
NEMA 1, 3, 4, 4X, 6, 6P, 7, 9 and 13
UL listed Class I, Div. 1, Groups B (16CX, 24CX, 26CX, and 84CX only),
C and D; and Class II, Div. 1, Groups E, F and G
CSA certified Class I, Div. 1, Groups B (16CX, 24CX, 26CX, and 84CX only),
C and D; and Class II, Groups E, F and G
Operating temperature: –25 °C to 85 °C (–13 °F to 185 °F)
Approvals: UL, CSA
CX-E only ATEX EExd IIC T6 Category II 2 GD
Housing: Aluminium
80CX Bronze
Conduit: ¾ in - 14NPT
Contacts: A, C, D Silver
F Gold
Electrical Ratings:
A UL/CSA Rating: L96 15 A, 120, 240 or 480 Vac, ind. and res
1/8 Hp, 120 Vac; ¼ Hp, 240 Vac
0.5 A, 125 Vdc, 0.25 A, 250 Vdc, res
C UL/CSA Rating: L59 10 A, 120 or 240 Vax, ind. and res
0.3 A, 125 Vdc, 0.15 A, 250 Vdc, res
D UL/CSA Rating: L22 1 A, 120 Vax, ind. and res
F UL/CSA Rating: L22 1 A, 125 Vac
G Analog Current Output (4 mA to 20 mA) 12.5 Vdc to 40 Vdc
Switching options:
SPDT DPDT
Single Pole, Double Throw Double Pole, Double Throw
Snap action contacts (1NC/1NO) Snap action contacts (2NC/2NO)
Analog position sensing specifications (Electrical rating “G”)
Current output: 4 mA to 20 mA
Voltage compliance range: 12.5 Vdc to 40 Vdc
Maximum load resistance: RL, Max., –V Supply - 12.5
20 mA
Current signal output: 4 mA to 20 mA
Span: Adjustable from 15° to 90° of angular rotation
Null: 4 mA position may be set at any angular position
Actuators
EXPLOSION PROOF SWITCHES
63
www.honeywell.com/sensing
Short housing
Standard housing
OPTIONS
HOUSING BASIC CONTACT ELECTRICAL SHAFT RESTORING REFERENCE
SIZE SWITCHES RATING FORCE TO CENTRE
Short BZ (2) SPDT A With 11CX2
Short BZ (2) SPDT A Without 11CX12
Short BZ (2) SPDT A With 11CX2E
Short BZ (2) SPDT A Without 11CX12E
Short BZ (2) SPDT F With 1172CX2
Short BZ (2) SPDT F Without 1172CX12
Standard BZ (4) SPDT A With 21CX4
Standard BZ (4) SPDT A Without 21CX14
UL listed for Class I, Group B (hydrogen atmospheres)
HOUSING BASIC CONTACT ELECTRICAL SHAFT RESTORING REFERENCE
SIZE SWITCHES RATING FORCE TO CENTRE
Standard DT (2) DPDT C With 24CX2
Standard DT (2) DPDT C Without 24CX12
Short HS (2) SPDT D With 16CX2
Short HS (2) SPDT D Without 16CX12
Standard HS (4) SPDT D With 26CX4
Analog output, 4 mA to 20 mA
HOUSING BASIC CONTACT ELECTRICAL SHAFT RESTORING REFERENCE
SIZE SWITCHES RATING FORCE TO CENTRE
Short None N/A G With 18CX0
Short None N/A G Without 18CX10
Short None N/A G Without 18CX10E
Standard BZ (2) SPDT A, G With 281CX2
Standard BZ (2) SPDT A, G Without 281CX12
Bronze housing for use in corrosive
environments
80CX switches have rugged bronze housings which are resistant to salt water
and other corrosive environments. They comply with the NEMA 4X
requirement for protection against corrosion, in addition to NEMA enclosure
standards met by other CX switches. O-ring seals make the enclosure weather-
proof, but are outside of required flame paths, maintaining explosion-proof
requirements.
HOUSING BASIC CONTACT ELECTRICAL SHAFT RESTORING REFERENCE
SIZE SWITCHES RATING FORCE TO CENTRE
Standard BZ (2) SPDT A With 81CX2
Standard BZ (4) SPDT A With 81CX4
Standard BZ (4) SPDT A Without 81CX14
Standard DT (2) DPDT C With 84CX2
Basic Switch Type BZ BA DT HS
Pretravel (max.)* 15° 15° 30° 30°
Differential Travel (max.) 10° 10° 25° 20°
Overtravel (min.)* 90° 90° 75° 75°
Operating Torque (max.) 11.1 in lb/1,25 N m
* May be modified in field to suit application requirements.
Note: Levers are ordered separately (see pages 69-
71 for details)
Operating characteristics
Notes:
Add the letter “A” to listings with side mounting holes tapped 5/16 (8).
Example: 11CX2A
Add the letter “B” to listings with thru mounting holes tapped 3/8-24 (4).
Example: 11CX2B
Add the letter “C” to listings for low temperature (-40 °C/°F) applications.
Example: 11CX2C
Add “D01” to specify a “direct-couple” listing with 3/8 in. dia by 3/4 in. long
flatted shaft.
Example: 11CX2-D01
Add the letter “E” to listings for European Atex approvals.
Example: 11CX2E
For Replacement Basic Switch Assemblies, change the first number in the
listing to “9”.
Example: 11CX2 becomes 91CX2
EXPLOSION PROOF SWITCHES
64 www.honeywell.com/sensing
LSX/BX Series
Weather sealed
explosion proof
switches
LSX/BX Series weather sealed, explosion proof limit switches are for use either
indoor or outdoors in hazardous atmospheres. They are completely sealed
and designed for use in explosive gas/dust environments.
LSX/BX products meet the sealing standards of NEMA 1, 3, 4, 6, 7, 9 and 13.
BX products are also sealed to IP67 standard and are ATEX approved (see
specifications below).
All heads are field adjustable at 90° increments. Heads with side rotary
actuators can be adjusted for clockwise and counter clockwise operation.
Sealing:
LSX NEMA 1, 3, 4, 6, 7 (Class 1, Division 1, Groups B, C, D),
9 (Class 2, Division 1, Groups E, F, G), 13
BX IP67, NEMA 1, 3, 4, 6, 13
Approvals:
LSX/BX UL, CSA*
BX only EExd IIC T6 category II 2 GD, SIRA 00ATEX 1037X
Contacts:
Electrical ratings A, B Silver
Electrical rating C Gold
Switching options:
SPDT DPDT
Single Pole, Double Throw Double Pole, Double Throw
Snap action contacts (1NC/1NO) Snap action contacts (2NC/2NO)
SPDT Double Break
DPDT Double Break
* Applies only to listings with ½ in NPT or ¾ in NPT
Electrical ratings
10 amps continuous carry. Circuits on any one pole must be the same polarity.
ac Volts
Pilot duty: 600 Vac, 720 VA
Amps at 0.35 Power Factor
Vac Make Break
A 120 60 6
SPDT 240 30 3
NEMA 480 15 1.5
A600 600 12 1.2
B 120 30 3
DPDT 240 15 1.5
NEMA 480 7.5 0.75
B600 600 6 0.60
C 250 Vac or 60 Vdc, 0.050 amp max.
SPDT/DPDT
dc Volts
Pilot duty: 240 Vdc, 30 watts
Make and Break Amps
Vdc Inductive Resistive
A 120 0.25 0.8
SPDT 240 0.15 0.4
B 120 0.25 0.8
DPDT 240 0.15 0.4
C 250 Vac or 60 Vdc, 0.050 amp max.
SPDT/DPDT
Rotary actuated switches
Operating torque max.: Standard 0,45 N m (4.0 in lb)
Low 0,19 Nm (1.7 in lb)
Pretravel max. (PT): Standard 15°
Low 9°
Overtravel min. (OT): Standard 60°
Low 66°
Differential travel max. (DT):
Standard SPDT 5°
Standard DPDT 7°
Low SPDT 3°
Low DPDT 4°
Note: Levers are ordered separately (see pages 69-
71 for details)
Actuators
EXPLOSION PROOF SWITCHES
65
www.honeywell.com/sensing
OPTIONS
Side rotary
Operating temperature: -12 °C to 121 °C (10 °F to 250 °F)
LSX
CONTACT CONDUIT ELECTRICAL RATING REFERENCE
SPDT ½ in - 14NPT A LSXA3K
SPDT 20 mm A LSX4A3K
SPDT ¾ in - 14NPT A LSXA4K
SPDT ½ in - 14NPT C LSXA3E
DPDT ¾ in - 14NPT B LSXA4L
DPDT 20 mm B LSX4A4L
DPDT ½ in - 14NPT B LSXA7L
Low DT SPDT ½ in - 14NPT A LSXP3K
BX
CONTACT CONDUIT ELECTRICAL RATING REFERENCE
SPDT ½ in - 14NPT A BXA3K
SPDT 20 mm A BX4A3K
DPDT ¾ in - 14NPT B BXA4L
Operating temperature: -1 °C to 121 °C (30 °F to 250 °F)
LSX
CONTACT CONDUIT ELECTRICAL RATING REFERENCE
Low DT/Low torque SPDT ½ in - 14NPT A LSXH3K
Low DT/Low torque DPDT ¾ in - 14NPT B LSXH4L
Low torque SPDT ½ in - 14NPT A LSXR3K
Low torque DPDT ¾ in - 14NPT B LSXR4L
BX
CONTACT CONDUIT ELECTRICAL RATING REFERENCE
Low torque SPDT ½ in - 14NPT A BXR3K
Low torque SPDT ½ in - 14NPT C BXR3E
Low torque DPDT ¾ in - 14NPT C BXR4S
Centre neutral
Operating torque max. : 0,45 N m (4.0 in lb)
Pretravel max. (PT): 18°
Overtravel min. (OT): 57°
Differential travel max. (DT): 10°
Operating temperature: -1 °C to 121 °C (30 °F to 250 °F)
CONTACT CONDUIT ELECTRICAL RATING REFERENCE
DPDT ¾ in - 14NPT B LSXM4N
DPDT 20 mm B LSX4M4N
Maintained contact
Operating torque max.: 0,45 N m (4.0 in lb)
Pretravel max. (PT): 65°
Overtravel min. (OT): 20°
Differential travel max. (DT): SPDT 30°
DPDT 35°
Operating temperature: -1 °C to 121 °C (30 °F to 250 °F)
LSX
CONTACT CONDUIT ELECTRICAL RATING REFERENCE
Maintained SPDT ½ in - 14NPT A LSXN3K
Maintained DPDT ¾ in - 14NPT B LSXN4L
Maintained DPDT ½ in - 14NPT B LSXN7L
BX
CONTACT CONDUIT ELECTRICAL RATING REFERENCE
Maintained SPDT ½ in - 14NPT A BXN3K
Maintained DPDT ¾ in - 14NPT B BXN4L
Top rotary
Operating torque max.: 0,28 N m (2.5 in lb)
Pretravel max. (PT): 25°
Overtravel min. (OT): 100°
Differential travel max. (DT): SPDT 10°
DPDT 12°
Operating temperature: -1 °C to 121 °C (30 °F to 250 °F)
CONTACT CONDUIT ELECTRICAL RATING REFERENCE
SPDT ½ in - 14NPT A LSXB3K
DPDT ¾ in - 14NPT B LSXB4L
EXPLOSION PROOF SWITCHES
66 www.honeywell.com/sensing
LSX/BX Series (continued)
Plunger actuated switches
Top plungers
Operating force max. (OF): 17,79 N (4 lb)
Pretravel max. (PT): 1,78 mm (0.07 in)
Overtravel min. (OT): 4,83 mm (0.19 in)
Differential travel max. (DT):
SPDT 0,38 mm (0.015 in)
DPDT 0,51 mm (0.02 in)
Operating temperature: -12 °C to 93 °C (10 °F to 200 °F)
OPTIONS
Top pin plunger
Operating point: 58,5 mm ± 0,76 mm
(2.305 in ± 0.03 in)
LSX
CONTACT CONDUIT ELECTRICAL RATING REFERENCE
SPDT ½ in - 14NPT A LSXC3K
SPDT 20 mm A LSX4C3K
DPDT ¾ in - 14NPT B LSXC4L
BX
CONTACT CONDUIT ELECTRICAL RATING REFERENCE
SPDT 20 mm A BX4C3K
DPDT ¾ in - 14NPT B BXC4L
DPDT 20 mm B BX4C4L
Top pin plunger, adjustable
21,6
(0.85)
7,9
(0.31)
Max.
operating point
72,0
(2,83)
Min.
operating point
65,7
(2,59)
Operating point: 65,66 mm to 72,01 mm
(2.585 in to 2.835 in)
CONTACT CONDUIT ELECTRICAL RATING REFERENCE
SPDT ½ in - 14NPT A LSXV3K
Top roller plunger
Head can be set at 90° increments for cam or slide actuation
Operating point: 68,6 mm ± 1.00 mm
(2.700 in ± 0.04 in)
LSX
CONTACT CONDUIT ELECTRICAL RATING REFERENCE
SPDT ½ in - 14NPT A LSXD3K
SPDT 20 mm A LSX4D3K
DPDT ¾ in - 14NPT B LSXD4L
BX
CONTACT CONDUIT ELECTRICAL RATING REFERENCE
SPDT 20 mm A BX4D3K
EXPLOSION PROOF SWITCHES
67
www.honeywell.com/sensing
Side plungers
Operating force max. (OF): 26,69 N (6 lb)
Pretravel max. (PT): 2,54 mm (0.10 in)
Overtravel min. (OT): 4,83 mm (0.19 in)
Differential travel max. (DT): 1,14 mm (0.045)
Operating temperature: -12 °C to 93 °C
(10 °F to 200 °F)
OPTIONS
Side pin plunger
Operating point: 33,0 mm (1.30 in)
CONTACT CONDUIT ELECTRICAL RATING REFERENCE
SPDT ½ in - 14NPT A LSXE3K
DPDT ¾ in - 14NPT B LSXE4L
Side roller plunger
Roller may be set in vertical or horizontal position for cam or slide actuation
Operating point: 44,1 mm (1.735 in)
LSX
CONTACT CONDUIT ELECTRICAL RATING REFERENCE
SPDT ½ in - 14NPT A LSXF3K
BX
CONTACT CONDUIT ELECTRICAL RATING REFERENCE
SPDT ½ in - 14NPT A BXF3K
Wobble actuated switches
OPTIONS
Plastic rod
Operating force max. (OF): 2,78 N (10 oz)
Pretravel max. (PT): 25,4 mm (1.0 in)
Operating temperature: -12 °C to 93 °C
(10 °F to 200 °F)
CONTACT CONDUIT ELECTRICAL RATING REFERENCE
SPDT ½ in - 14NPT A LSXJ3K-7A
DPDT ¾ in - 14NPT B LSXJ4L-7A
Cat whisker
Operating force max. (OF): 1,39 N (5 oz)
Pretravel max. (PT): 50,8 mm (2.0 in)
Operating temperature: -12 °C to 93 °C
(10 °F to 200 °F)
CONTACT CONDUIT ELECTRICAL RATING REFERENCE
SPDT ½ in - 14NPT A LSXK3K-8A
EXPLOSION PROOF SWITCHES
68 www.honeywell.com/sensing
Blank page
69
www.honeywell.com/sensing
Levers
Separate levers must be ordered with side rotary
types. The table provides a cross reference
between product families and the lever order/
reference numbers. The following pages describe
the levers. Illustrations are for reference only.
Exact mounting drawings and dimensions are
available from your local sales office or from the
website below.
Levers lock in any position, 360° around the shaft.
Rollers may be mounted on the front or back of the
lever.
All levers are supplied with cap screws.
Explosion proof switches
Because of explosion proof requirements, only
nylon rollers or other non sparking material should
be selected. BX/LSX, CX and EX plunger and cat
whisker types are of non sparking material. Do not
mix or substitute.
Specification (unless stated
otherwise)
Lever radius/length: 1.5 in (38,1 mm)
Roller Diameter: 0.75 in (19,1 mm)
Roller Width: 0.25 in (6,35 mm)
-EX 0.312 in (7,92 mm)
Note:
Not all levers are compatible with
all switches
LEVERS
ROLLER LIMIT SWITCH SERIES EXPLOSION PROOF SERIES
REFERENCE MATERIAL GLA HDLS LS2 LS BX/LSX CX EX
6PA57 Aluminium !
6PA63 Stainless steel !
6PA69 Spring rod !
6PA80 Steel !
6PA82 Steel !
6PA102 Nylon !
6PA144 Ball bearing !
GLZ51A Nylon !
GLZ51B Steel !
GLZ52A Nylon !
GLZ52B Steel !
GLZ54J Aluminium !
GLZ55B Steel !
LSZ51 N/A !!!
LSZ51A Nylon !!!!
LSZ51B Steel !!
LSZ51C Nylon !!!
LSZ51D Steel !
LSZ51W Rubber !
LSZ51Y Rubber !
LSZ52 N/A !
LSZ52A Nylon !!
LSZ52B Steel !
LSZ52C Nylon !!!!
LSZ52D Steel !!
LSZ52J Nylon !!!!
LSZ52K Nylon !!!!
LSZ52M Nylon !!!
LSZ52N Nylon !!
LSZ52W Rubber !
LSZ52Y Rubber !
LSZ53A Nylon !
LSZ53B Steel !
LSZ53D Steel !
LSZ53E Nylon !!!
LSZ53P Steel !
LSZ53S Nylon !!!
LSZ53U Steel !
LSZ54 N/A !!!
LSZ54M Aluminium !!!!
LSZ54N Stainless steel !
LSZ54R Spring wire !
LSZ54V Cable !
LSZ55 N/A !!!
LSZ55A Nylon !!!
LSZ55B Steel !
LSZ55C Nylon !!
LSZ55D Steel !
LSZ55W Rubber !
LSZ55Y Rubber !
LSZ61 Nylatron !
LSZ67AA Rubber !
LSZ68 Delrin !
6PA5-EX Bronze !
6PA127-EX Nylon !
6PA130-EX Bronze !
6PA131-EX Bronze !
6PA136-EX Aluminium !
6PA138-EX Nylon !
6PA142-EX Bronze !
6PA204-EX Nylon !
Stainless steel
levers
LS2Z51A Nylon !! !
LS2Z51B Steel !!
LS2Z52A Nylon !! !
LS2Z52B Steel !!
LS2Z54N Steel !!
70 www.honeywell.com/sensing
OPTIONS
Standard fixed lever
MOUNTED ON REFERENCE
Without roller LSZ51*
Nylon roller Front LSZ51A*
Metal roller Front LSZ51B
Nylon roller Back LSZ51C*
Metal roller Back LSZ51D
Nylon roller Front GLZ51A
Metal roller Front GLZ51B
Bronze roller Front 6PA5-EX*
Nylon roller Front 6PA127-EX*
Ball bearing roller Front 6PA144
Offset fixed lever
MOUNTED ON REFERENCE
Without roller LSZ55*
Nylon roller Back LSZ55A*
Metal roller Back LSZ55B
Nylon roller Front LSZ55C*
Metal roller Front LSZ55D
Metal roller Front GLZ55B
Adjustable lever
Operating radius/length: 1.5 in to 3.5 in
(38,1 mm to 88,9 mm)
-EX 1.69 in to 3.0 in
(42,9 mm to 76,2 mm)
MOUNTED ON REFERENCE
Adjustable lever, without roller LSZ52
Nylon roller Back LSZ52A*
Metal roller Back LSZ52B
Nylon roller Front LSZ52C*
Metal roller Front LSZ52D
Nylon roller,
Ø 1.0 in (25,4) x 0.5 in (12,7 mm) Front LSZ52J*
Nylon roller, Ø 1.5 in (38,1) Front LSZ52K*
Nylon roller, Ø 2.0 in (50,8) Front LSZ52M*
Nylon roller, 0.5 in wide (12,7 mm) Front LSZ52N*
Nylon roller Back GLZ52A
Metal roller Back GLZ52B
Nylon roller,
Ø 1.0 in (25,4) x 0.5 in (12,7 mm) Front 6PA138-EX*
One way roller lever
RADIUS/LENGTH REFERENCE
Bronze roller, clockwise 1.56 in (39,6 mm) 6PA130-EX*
Bronze roller, counter clockwise 1.56 in (39,6 mm) 6PA142-EX*
Perpendicular (cross) roller lever
RADIUS/LENGTH REFERENCE
Bronze roller 1.81 in (46,0 mm) 6PA131-EX*
Yoke lever
MOUNTED ON REFERENCE
Nylon roller Front/Back LSZ53A
Metal roller Front/Back LSZ53B
Metal roller Front/Front LSZ53D
Nylon roller Back/Front LSZ53E*
Metal roller Back/Back LSZ53P
Nylon roller Back/Back LSZ53S*
Metal roller Back/Front LSZ53U
Metal roller Front/Back 6PA80
Metal roller Front/Front 6PA82
Nylon roller Front/Front 6PA102
Adjustable rod
RADIUS/LENGTH REFERENCE
Hub only LSZ54*
Aluminium rod 5.5 in (139,7 mm) LSZ54M*
Stainless steel rod 13.0 in (330,2 mm) LSZ54N
Aluminium, spring only 12.0 in (305 mm) LSZ54R
Aluminium, flexible cable 4.8 in (122 mm) LSZ54V
Aluminium rod 7.9 in (200 mm) GLZ54J
Stainless steel rod 13.0 in (330,2 mm) 6PA63
Aluminium rod 5.3 in (134,1 mm) 6PA136-EX*
Adjustable rod, nylon roller
RADIUS/LENGTH REFERENCE
Aluminium rod, nylon roler 12.5 in (317,5 mm) 6PA204-EX*
Spring rod
RADIUS/LENGTH REFERENCE
Ø 0.25 in (6,35 mm) 12.0 in (305 mm) LSZ68
Ø 0.17 in (4,32 mm) 7.4 in (188 mm) 6PA69
LEVERS
Note: Not all levers are compatible with all switches
* denotes lever suitable for Explosion Proof Series switches
71
www.honeywell.com/sensing
NOTICE **
Large rubber rollers and conveyor roller arm
Because of the lever’s mass, the limit switch should be
mounted with the lever facing down. This will enable
gravity to help restore the switch to the free position.
Flexible loop
RADIUS/LENGTH REFERENCE
Flexible loop 6.0 in (152 mm) LSZ61
Hand operated button
REFERENCE
Ø 1.5 in (38,1 mm) 6PA57
**Large rubber roller, fixed lever
REFERENCE
Ø 1.6 in X 0.50 in wide roller LSZ51W
(40,6 mm X 12,7 mm)
Ø 2 in X 0.50 in wide roller LSZ51Y
(50,8 mm X 12,7 mm)
**Large rubber roller, fixed offset
lever
REFERENCE
Ø 1.6 in X 0.50 in wide roller LSZ55W
(40,6 mm X 12,7 mm)
Ø 2 in X 0.50 in wide roller LSZ55Y
(50,8 mm X 12,7 mm)
**Large rubber roller, adjustable
lever
REFERENCE
Ø 1.6 in X 0.50 in wide roller LSZ52W
(40,6 mm X 12,7 mm)
Ø 2 in X 0.50 in wide roller LSZ52Y
(50,8 mm X 12,7 mm)
**Conveyor roller arm
Operating radius/length: 6.78 in (172,2 mm)
REFERENCE
Plastic roller, 1.5 in Ø X 3.8 in long LSZ67AA
(38,1 mm X 96,5 mm)
LEVERS
Stainless steel levers
Roller Diameter: 0.75 in (19,1 mm)
Roller Width: 0.25 in (6,35 mm)
OPTIONS
Standard fixed lever
Operating radius/length: 1.5 in (38,1 mm)
MOUNTED ON REFERENCE
Nylon roller Front LS2Z51A*
Stainless steel roller Front LS2Z51B
Adjustable lever
Operating radius/length: 1.5 in to 3.5 in
(38,1 mm to 88,9 mm)
MOUNTED ON REFERENCE
Nylon roller Back LS2Z52A*
Stainless steel roller Back LS2Z52B
Adjustable rod
Operating radius/length: 13 in (330,2 mm)
REFERENCE
LS2Z54N
Note: Not all levers are compatible with all switches
* denotes lever suitable for Explosion Proof Series switches
72 www.honeywell.com/sensing
MY2 Series
OPTIONS
Standard, PCB Terminal, DPDT
3,5
[0.14]
1,0
[0.04]
3,3
[0.13]
0,5
[0.02]
0,5
[0.02]
Max. 36,0 [1.42] 6,0
[0.24]
Max. 21,5
[0.85]
6,3
[0.25]
Max. 28,0
[1.10]
COIL INPUT VOLTAGE MAX. CONTACT RATING REFERENCE
110/120 Vac 250 Vac/5 amp SZR-MY2-1P-AC110-120V
220/240 Vac 250 Vac/5 amp SZR-MY2-1P-AC220V-240V
24 Vdc 125 Vdc/1 amp SZR-MY2-1P-DC24V
POWER RELAYS
SZR-MY
Series Power
Relay
Solder/Plug-In Terminal, DPDT
8 - O 1,2 [0.05] x 3 Holes
2,6
[0.10]
0,5
[0.02]
0,5
[0.02]
6,0
[0.24]
Max. 36,0 [1.42]
Max. 21,5
[0.85]
Max. 28,0 [1.10]
6,3
[0.25]
Standard
COIL INPUT VOLTAGE MAX. CONTACT RATING REFERENCE
110/120 Vac 250 Vac/5 amp SZR-MY2-1-AC110-120V
220 Vac 250 Vac/5 amp SZR-MY2-1-AC220V
12 Vdc 125 Vdc/1 amp SZR-MY2-1-DC12V
24 Vdc 125 Vdc/1 amp SZR-MY2-1-DC24V
LED Indicator
COIL INPUT VOLTAGE MAX. CONTACT RATING REFERENCE
110/120 Vac 250 Vac/5 amp SZR-MY2-N1-AC110-120V
220 Vac 250 Vac/5 amp SZR-MY2-N1-AC220V
12 Vdc 125 Vdc/1 amp SZR-MY2-N1-DC12V
24 Vdc 125 Vdc/1 amp SZR-MY2-N1-DC24V
Diode Protection
COIL INPUT VOLTAGE MAX. CONTACT RATING REFERENCE
24 Vdc 125 Vdc/1 amp SZR-MY2-D1-DC24V
LED Indicator/Diode Protection
COIL INPUT VOLTAGE MAX. CONTACT RATING REFERENCE
24 Vdc 125 Vdc/1 amp SZR-MY2-X1-DC24V
SZR-MY Series general-purpose power relays are designed for a wide range
of applications including power, as well as logic control, for factory machines
and control panels.
SZR-MY Series relays have a small package design for multiple application
needs. Relays are available in two configurations: DPDT with a 5 A load and
4PDT with a 3 A load. One standard and three options are available: LED
indicator, internal surge protection diode, and LED indicator/diode protection.
Current rating (SZR-MY2): 5 A
Current rating (SZR-MY4): 3 A
Contact resistance: 50 mOhm max.
Contact material: Fine silver
Agency approvals: UL, CE, CSA
Operate time: 20 ms max.
Release time: 20 ms max.
Ambient temperature: -25 °C to 75 °C (-13 °F to 167 °F)
Ambient humidity: 45% RH to 85% RH
Switching options: DPDT, 4PDT
73
www.honeywell.com/sensing
POWER RELAYS
Solder/Plug-In Terminal, 4PDT
14 - O 1.2 [0.05] x 3 Holes
0,5
[0.02]
Max. 36,0 [1.42] 6,0
[0.24]
Max. 21,5
[0.85]
Max. 28,0
[1.10]
6,3
[0.25]
0,5
[0.02]
2,6
[0.10]
Standard
COIL INPUT VOLTAGE MAX. CONTACT RATING REFERENCE
110/120 Vac 250 Vac/3 amp SZR-MY4-1-AC110-120V
220 Vac 250 Vac/3 amp SZR-MY4-1-AC220V
12 Vdc 125 Vdc/0.6 amp SZR-MY4-1-DC12V
24 Vdc 125 Vdc/0.6 amp SZR-MY4-1-DC24V
LED Indicator
COIL INPUT VOLTAGE MAX. CONTACT RATING REFERENCE
110/120 Vac 250 Vac/3 amp SZR-MY4-N1-AC110-120V
220 Vac 250 Vac/3 amp SZR-MY4-N1-AC220V
12 Vdc 125 Vdc/0.6 amp SZR-MY4-N1-DC12V
24 Vdc 125 Vdc/0.6 amp SZR-MY4-N1-DC24V
Diode Protection
COIL INPUT VOLTAGE MAX. CONTACT RATING REFERENCE
24 Vdc 125 Vdc/0.6 amp SZR-MY4-D1-DC24V
LED Indicator/Diode Protection
COIL INPUT VOLTAGE MAX. CONTACT RATING REFERENCE
24 Vdc 125 Vdc/0.6 amp SZR-MY4-X1-DC24V
MY4 Series
OPTIONS
Standard, PCB Terminal, 4PDT
3,5
[0.14]
3,3
[0.13]
1,0
[0.04]
0,5
[0.02]
0,5
[0.02]
5,0
[0.20]
Max. 36,0 [1.42]
Max. 21,5
[0.85]
6,3
[0.25]
Max. 28,0
[1.10]
COIL INPUT VOLTAGE MAX. CONTACT RATING REFERENCE
110/120 Vac 250 Vac/3 amp SZR-MY4-1P-AC110-120V
220/240 Vac 250 Vac/3 amp SZR-MY4-1P-AC220V-240V
24 Vdc 125 Vdc/0.6 amp SZR-MY4-1P-DC24V
74 www.honeywell.com/sensing
POWER RELAYS
SZR-LY Series Power Relay
SZR-LY Series general-purpose power relays are designed for a wide range of
applications including power, as well as logic control, for factory machines
and control panels.
SZR-LY Series relays break 10 A loads are ideal for control panels that require
stable and reliable relays.
One standard and three options are available: LED indicator, internal surge
protection diode, and LED indicator/diode protection.
Current rating: 10 A
Contact resistance: 50 mOhm max.
Contact material: Silver cadium oxide
Agency approvals: UL, CE, CSA
Operating frequency: 18,000 operations/hour (mechanical)
1,800 operations/hour (electrical)
Operate time: 25 ms max.
Release time: 25 ms max.
Ambient temperature: -25 °C to 70 °C (-13 °F to 158 °F)
Ambient humidity: 45% RH to 85% RH
Switching options: DPDT, 4PDT
LY2 Series
OPTIONS
Standard, PCB Terminal, DPDT
0,5
[0.02]
2,0
[0.08]
1,0
[0.04]
4,5
[0.18]
Max. 36,0 [1.42] Max. 21,5 [0.85]
Max. 28,0 [1.10]
5,75
[0.23]
COIL INPUT VOLTAGE MAX. CONTACT RATING REFERENCE
110/120 Vac 250 Vac/10 amp SZR-LY2-1P-AC110-120V
24 Vdc 125 Vdc/2 amp SZR-LY2-1P-DC24V
Solder/Plug-In Terminal, DPDT
Max. 36,0 [1.42]
0,5
[0.02]
5,0
[0.20]
3,0 [0.12]
6,4 [0.26] Max. 21,5
[0.85]
5,75
[0.23]
Max. 28,0 [1.10]
14 - O 3,0 [0.12]
Standard
COIL INPUT VOLTAGE MAX. CONTACT RATING REFERENCE
110/120 Vac 250 Vac/10 amp SZR-LY2-1-AC110-120V
220 Vac 250 Vac/10 amp SZR-LY2-1-AC220V
12 Vdc 125 Vdc/2 amp SZR-LY2-1-DC12V
24 Vdc 125 Vdc/2 amp SZR-LY2-1-DC24V
LED Indicator
COIL INPUT VOLTAGE MAX. CONTACT RATING REFERENCE
110/120 Vac 250 Vac/10 amp SZR-LY2-N1-AC110-120V
220 Vac 250 Vac/10 amp SZR-LY2-N1-AC220V
12 Vdc 125 Vdc/2 amp SZR-LY2-N1-DC12V
24 Vdc 125 Vdc/2 amp SZR-LY2-N1-DC24V
Diode Protection
COIL INPUT VOLTAGE MAX. CONTACT RATING REFERENCE
24 Vdc 125 Vdc/2 amp SZR-LY2-D1-DC24V
LED Indicator/Diode Protection
COIL INPUT VOLTAGE MAX. CONTACT RATING REFERENCE
24 Vdc 125 Vdc/ 2 amp SZR-LY2-X1-DC24V
75
www.honeywell.com/sensing
POWER RELAYS
Solder/Plug-In Terminal, 4PDT
14 - O 3.0 Holes
Max. 36,0 [1.42] 6,4 [0.25]
3,0
[0.12]
5,0
[0.20]
0,5
[0.02]
Max. 41,5 [1.63]
Max. 28,0 [1.10]
Standard
COIL INPUT VOLTAGE MAX. CONTACT RATING REFERENCE
110/120 Vac 250 Vac/10 amp SZR-LY4-1-AC110-120V
220 Vac 250 Vac/10 amp SZR-LY4-1-AC220V
12 Vdc 125 Vdc/2 amp SZR-LY4-1-DC12V
24 Vdc 125 Vdc/2 amp SZR-LY4-1-DC24V
LED Indicator
COIL INPUT VOLTAGE MAX. CONTACT RATING REFERENCE
110/120 Vac 250 Vac/10 amp SZR-LY4-N1-AC110-120V
220 Vac 250 Vac/10 amp SZR-LY4-N1-AC220V
12 Vdc 125 Vdc/2 amp SZR-LY4-N1-DC12V
24 Vdc 125 Vdc/2 amp SZR-LY4-N1-DC24V
Diode Protection
COIL INPUT VOLTAGE MAX. CONTACT RATING REFERENCE
24 Vdc 125 Vdc/2 amp SZR-LY4-D1-DC24V
LED Indicator/Diode Protection
COIL INPUT VOLTAGE MAX. CONTACT RATING REFERENCE
24 Vdc 125 Vdc/2 amp SZR-LY4-X1-DC24V
LY4 Series
OPTIONS
Standard, PCB Terminal, 4PDT
Max. 36,0 [1.42]
1,0
[0.04]
4,5
[0.18]
2,0
[0.08]
0,5
[0.02]
Max. 41,5 [1.63]
Max. 28,0 [1.10]
COIL INPUT VOLTAGE MAX. CONTACT RATING REFERENCE
110/120 Vac 250 Vac/10 amp SZR-LY4-1P-AC110-120V
220/240 Vac 250 Vac/10 amp SZR-LY4-1P-AC220V-240V
24 Vdc 125 Vdc/2 amp SZR-LY4-1P-DC24V
76 www.honeywell.com/sensing
25,0 [0.99]
18,0
[0.70]
15,6
[0.61]
45,0
[1.77]
35,2
[1.39]
3,9
[0.15]
6,0
[0.24]
4,2
[0.17]
62,0 [2.44]
30,0 [1.18]
26,0 [1.02]
3,0
[0.12]
62,0 ± 0,1
[2.44 ± .004]
2 - O 4,5 [0.18] Holes
2-M3 or 2-M4
Max. 61,0 [2.40]
26,0
[1.02]
MY2 Series Socket
TYPE POLES REFERENCE
Rail socket 2 SZX-SMF-08N
MY4 Series Socket
TYPE POLES REFERENCE
Rail socket 4 SZX-SMF-14N
30,0 [1.18]
26,0 [1.02]
3,0
[0.12]
62,0 [2.44]
4,2
[0.17]
45,0 [1.77]
15,6
[0.61]
35,2 [1.39]
62,0 ± 0,1 [2.44 ± .004]
2 - O 4,5 [0.18] Holes
2-M3 or 2-M4
25,0 [0.99]
18,0
[0.70]
Max. 61,0 [2.40]
6,0
[0.24] 3,9
[0.15] 26,0
[1.02]
LY2 Series Socket
TYPE POLES REFERENCE
Rail socket 2 SZX-SLF-08N
LY4 Series Socket
TYPE POLES REFERENCE
Rail socket 4 SZX-SLF-14
2 - O 4,5 [0.18] Holes
2 - M4
25,0 ± 0,2
[0.99 ± .008]
19,0
[0.75]
2,5
[0.10]
14,5
[0.57]
25,0 [0.99]
4,2
[0.17]
30,0 [1.18]
26,0
[1.02]
47,0
[1.85]
67,0 [2.64]
22,0 [0.87]
8,0
[0.31]
Max. 61,0 [2.40]
Max. 30,0 [1.18]
8,0
[0.31]
35,5 [1.40]
69,0 ± 0,3
[2.72 ± 0.01]
36,0 ± 0,2
[1.42 ± 0.008]
2-M4
3,4 [0.13]
14-M3.5x8
7,0
[0.28]
2 - O 6,0 [0.24]
4,5
[0.18]
68,0 [2.68]
Max. 78,5 [3.09]
Max. 45,5
[1.79]
Max. 66,0 [2.60]
POWER RELAYS
77
www.honeywell.com/sensing
SAFETY SWITCHES
Electromechanical Safety
Switches
Honeywell is a worldwide leader in advanced switching and sensing
technology - especially in the area of industrial safety. We offer both
electromechanical safety switches and electronic safety sensors as well as
safety control modules for safety applications in all categories of risk.
Customers can count on our diverse product line to meet all of their machine
safety applications.
Honeywell products meet or exceed European machine safety standards and
have been approved (CE, BG, INRS) for use in Europe for more than 25 years.
As North America moves toward harmonizing with global standards, machine
builders and users can confidently turn to Honeywell for compliant machine
safety solutions. Our products are designed to meet all applicable OSHA and
ANSI standards.
Refer to pages 6 and 7 for more information about degrees of protection and
electrical ratings.
Protective Guarding
Protective guarding around a dangerous machine can be achieved with
tamper-resistant safety switches. Safety switches incorporate positive opening
operation such that even a welded contact will be mechanically broken and a
stop signaled. These switches monitor the position of moveable guards and
doors, which are used to safeguard access to equipment and provide
protection from ejected pieces, chips, projectiles or oil. These safeguards
require a relatively low investment and provide reliable protection if they are
regularly checked and maintained.
Cable Pull Switches
Cable-pull limit switches serve as a readily accessible means of emergency
stop for applications. These cable-pull devices are visible, accessible and easy
to use and they immediately open the emergency stop circuit when activated.
78 www.honeywell.com/sensing
SAFETY SWITCHES
GKM Series
Global Miniature
Safety Key
Operated Switch
Used alone as Category 1 safety components or, in conjunction with other safety switches and our complete
range of safety relays, it is possible to construct comprehensive protection schemes with Category 2, 3 or 4
compliance.
The preleaded versions allow rapid fit, easy cable routing and function testing which cut costs dramatically
in OEM applications. Simple upgrade guarding solution for End User applications.
Low energy basic switches are rated as follows:
Operating Voltage Ue1 Vdc to 60 Vdc or 1 Vac to 125 Vac
Operating Current Ie1 mA to 50 mA
Example of catalog listing using a low energy basic switch - GKMA19
Mechanical life: > 1 million
Sealing: IP66/67, EN 60529, NEMA 1, 12, 13
Operating temperature: -25 °C to 85 °C (-13 °F to 185 °F)
Approvals: CE, UL, CSA
AC15 B300
DC13 Q300
Contacts: Silver
Low energy Gold plated
Switching options: Slow action contacts
1 Normally Closed/1 Normally Open, Break Before Make
1NC/1NO, BBM - GKMF 1NC/1NO, BBM, low energy - GKMA, B, C, D
3
3
4
4
2
21
1
1 Brown
4 Black
Blue 3
White 2
2 Normally Closed
2NC - GKMF 2NC, low energy - GKMA, B, C, D
3
3
4
4
2
21
1
1 Brown
4 Black
Blue 3
White 2
Electrical ratings:
IEC 60947-5-1/EN 60947-5-1
Designation & Utilization
Rated operational current le (A) VA
Category
at rated operational voltage Ue rating
120 V 240 V 380 V 480 V 500 V 600 V Make Break
AC15 A600 6 3 1,9 1,5 1,4 1,2 7200 720
AC15 A300 6 3 ---- 7200 720
AC15 B300 3 1.5 ----3600 360
AC14 D300 0,6 0,3 ---- 43272
125 V 250 V
DC13 Q300 0,55 0,27 69 69
DC13 R300 0,22 0,1 28 28
12,8 /
0.504
1,6 /
0.058
17,2 /
0.67
37,4 /
1.47
2,3 /
0.69
22,0 /
0.866
34 max. /
0.34
32 max. /
1.26
16 max. /
0.63
Key
slot
Of key slot
10 max. /
0.30
90˚ - Key shown in optional
actuating positions Body style 'B'
0.366 0.177
2 X mounting holes
for M4 or #8 screws.
Counter bored both sides
08,3 X 4,5 deep.
79
www.honeywell.com/sensing
SAFETY SWITCHES
OPTIONS
Side exit cable
CABLE LENGTH CONTACT REFERENCE
1 m 2NC, low energy GKMA17
1 m 1NC/1NO, BBM, low energy GKMA19
2 m 1NC/1NO, BBM GKMA23
2 m 2NC GKMA26
2 m 2NC, low energy GKMA27
2 m 1NC/1NO, BBM, low energy GKMA29
3 m 1NC/1NO, BBM GKMA33
3 m 2NC GKMA36
3 m 2NC, low energy GKMA37
3 m 1NC/1NO, BBM, low energy GKMA39
Bottom exit cable
CABLE LENGTH CONTACT REFERENCE
1 m 1NC/1NO, BBM GKMB13
1 m 2NC GKMB16
1 m 2NC, low energy GKMB17
1 m 1NC/1NO, BBM, low energy GKMB19
2 m 1NC/1NO, BBM GKMB23
2 m 2NC GKMB26
2 m 2NC, low energy GKMB27
2 m 1NC/1NO, BBM, low energy GKMB29
3 m 1NC/1NO, BBM GKMB33
3 m 2NC GKMB36
3 m 2NC, low energy GKMB37
3 m 1NC/1NO, BBM, low energy GKMB39
Side exit M12 dc micro-change
connector
CONTACT REFERENCE
1NC/1NO, BBM GKMC03
2NC GKMC06
2NC, low energy GKMC07
1NC/1NO, BBM, low energy GKMC09
Bottom exit M12 dc micro-change
connector
CONTACT REFERENCE
1NC/1NO, BBM GKMD03
2NC, low energy GKMD07
1NC/1NO, BBM, low energy GKMD09
Dual exit M12 dc micro-change
connector
CONTACT REFERENCE
1NC/1NO, BBM GKMF03
2NC GKMF06
2NC, low energy GKMF07
1NC/1NO, BBM, low energy GKMF09
KEY STYLE
Straight key
3,5 /
0.138
2 + max. /
0.945
6,4 min. /
0.252
12,8 /
0.504
Face 'A'
2,5 /
0.093
2 holes for M4
or #8 screws
21,3 /
0.638
22 /
0.866
45 /
1.77
15 /
0.59
REFERENCE
Stainless steel GKZ51M
90° key
6,4 min. /
0.252
24 max. /
0.945
32 max. /
1.25
12,8 /
0.504
14 max. /
0.55
22 /
0.866
Face 'A'
0.083
2 holes for M4
or #8 screws with
45˚ C' SK X 2,1 deep
REFERENCE
Stainless steel GKZ52M
80 www.honeywell.com/sensing
GSS Series
Hinge Mount Safety
Limit Switch
The Hinge Mount Safety Limit Switch is designed for use on machine access doors as an alternative solution
to key operated interlocks and safety limit switches. When the access door is opened, a follower pin (not
supplied) slides down the slot in the actuator lever, forcing the actuator lever to rotate and positively open the
NC safety circuit to shut off the machine. Closing the access door rotates the actuator lever to the reset
position, closing the NC safety contacts.
The Hinge Mount Safety Limit Switch minimizes alignment problems because it may be offset-mounted from
the hinge point of the door. The tamper-resistant design and the positive opening contacts provide a higher
level of safety than the conventional spring-driven limit switches often used to monitor door position.
Low Energy Switching
In today’s demanding age of low energy controls, electromechanical switches are frequently used to interface
directly with safety relays, PLCs and other low energy devices. To accommodate this requirement GSS offers
a new gold plated contact version of the standard basic switch. This improves reliability of switching at low
currents and voltages by protecting the contact surfaces from contamination during operation or storage
prior to use.
Standard silver contacts have a disadvantage in that the contact surface may tarnish under certain
environmental conditions, e.g. in the presence of moisture.
Low energy basic switches are rated as follows:
Operating Voltage Ue1 Vdc to 60 Vdc or 1 Vac to 125 Vac
Operating Current Ie1 mA to 50 mA
Example of catalog listing using a low energy basic switch - GSCB33S2.
Switching options:
GSC/D GSE
Snap action contacts (1NC/1NO) Slow action contacts (4NC)
Zb
2221
14
13
11 12
21 22
31 32
4Y
41 42
Slow action contacts (1NC/1NO) BBM Slow action contacts (2NC/2NO) BBM
Zb
21
13
22
14
11 12
21 22
33 34
2Y, 2X
43 44
Slow action contacts (2NC) Slow action contacts (3NC/1NO) BBM
11
21
12
22
2Y
2221
11 12
3231
4443
3Y, 1X
IEC 60947-5-1/EN 60947-5-1
Designation & Utilization
Rated operational current le (A) VA
Category
at rated operational voltage Ue rating
120 V 240 V 380 V 480 V 500 V 600 V Make Break
AC15 A600 6 3 1,9 1,5 1,4 1,2 7200 720
AC15 A300 6 3 ----7200 720
AC15 B300 3 1.5 ---- 3600 360
AC14 D300 0,6 0,3 ---- 43272
125 V 250 V
DC13 Q300 0,55 0,27 69 69
DC13 R300 0,22 0,1 28 28
Electrical ratings:
SAFETY SWITCHES
81
www.honeywell.com/sensing
GSC Metal body
GSD Plastic body
EN 50047
Safety Standard
24,75 /
0.97
14,5 /
0.57
30 /
1.18
conduit
thread
ø 23 /
ø 0.9
19,8 /
0.78
22 /
0.87
20 /
0.78
3 /
0.12
2,15 /
0.08
R
55 /
2.16
30,5 /
1.20
3,5 /
0.138
Mechanical life: up to 1 million
Sealing: IP 66, NEMA 1, 4 (GSC), 12, 13
Operating temperature: -25 °C to 85 °C
(-13 °F to 185 °F)
Approvals: IEC/EN 60947-5-1
AC15 A300
DC13 Q300
UL, CSA, BG
ACTUATED SWITCHES
Rotated 90° to the left
from center
70 /
2.76
45 /
1.77
104 /
4.09
GSC - Metal body
CONTACT CONDUIT REFERENCE
1NC/1NO ½ in NPT GSCA01S1
1NC/1NO, BBM ½ in NPT GSCA03S1
2NC ½ in NPT GSCA06S1
2NC, low energy 20 mm GSCC36S1
GSD - Plastic body
CONTACT CONDUIT REFERENCE
1NC/1NO, BBM ½ in NPT GSDA03S1
2NC ½ in NPT GSDA06S1
1NC/1NO, BBM PG 13,5 GSDB03S1
2NC PG 13,5 GSDB06S1
1NC/1NO 20 mm GSDC01S1
Rotated 90° either direction from
center
12,5 /
0.49
24,8 /
0.97
2 /
0.08
11,5 /
0.45
5,1 /
0.20
45 /
1.77
70 /
2.76
28 /
90 min. 90 min.
GSC - Metal body
CONTACT CONDUIT REFERENCE
1NC/1NO ½ in NPT GSCA01S2
1NC/1NO, BBM ½ in NPT GSCA03S2
2NC ½ in NPT GSCA06S2
2NC, low energy PG 13,5 GSCB36S2
GSD - Plastic body
CONTACT CONDUIT REFERENCE
1NC/1NO, BBM ½ in NPT GSDA03S2
2NC ½ in NPT GSDA06S2
1NC/1NO, BBM PG 13,5 GSDB03S2
2NC PG 13,5 GSDB06S2
1NC/1NO 20 mm GSDC01S2
Rotated 90° to the right
from center
180 MIN
GSC - Metal body
CONTACT CONDUIT REFERENCE
1NC/1NO ½ in NPT GSCA01S3
1NC/1NO, BBM ½ in NPT GSCA03S3
2NC ½ in NPT GSCA06S3
2NC, low energy PG 13,5 GSCB36S3
GSD - Plastic body
CONTACT CONDUIT REFERENCE
1NC/1NO, BBM ½ in NPT GSDA03S3
2NC ½ in NPT GSDA06S3
1NC/1NO, BBM PG 13,5 GSDB03S3
2NC PG 13,5 GSDB06S3
1NC/1NO 20 mm GSDC01S3
SAFETY SWITCHES
82 www.honeywell.com/sensing
GSE EN 50047 Compatible
Safety 3 Conduit Metal
Standard
conduit
thread
60 /
2.37
4 /
0.16
52 /
2.05
57 /
2.24
65 /
2.56
13,75 /
0.54
2,5 /
0.1
R2,15 /
0.08
3 /
0.12
20 /
0.79
22 /
0.87
40 /
1.57
42 /
1.65
23,8 /
0.94
ø 23 /
ø 0.9
30 /
1.18
12 /
0.47
12,5 /
0.49
24,75 /
0.97
Mechanical life: up to 1 million
Sealing: IP 66, NEMA/UL 1, 4, 12, 13
Operating temperature: -25 °C to 85 °C
(-13 °F to 185 °F)
Approvals: IEC/EN 60947-5-1
AC15 A300
DC13 Q300
UL, CSA, BG
ACTUATED SWITCHES
Rotated 90° to the left
from center
70 /
2.76
45 /
1.77
104 /
4.09
CONTACT CONDUIT REFERENCE
2NC/2NO, BBM ½ in NPT GSEA44S1
3NC/1NO, BBM ½ in NPT GSEA46S1
4NC, low energy 20 mm GSEC41S1
Rotated 90° either direction from
center
12,5 /
0.49
24,8 /
0.97
2 /
0.08
11,5 /
0.45
5,1 /
0.20
45 /
1.77
70 /
2.76
28 /
90 min. 90 min.
CONTACT CONDUIT REFERENCE
2NC/2NO, BBM ½ in NPT GSEA44S2
Rotated 90° to the right
from center
180 MIN
CONTACT CONDUIT REFERENCE
2NC/2NO, BBM ½ in NPT GSEA44S3
SAFETY SWITCHES
83
www.honeywell.com/sensing
SAFETY SWITCHES
GK Series
Dual Entry Key
Operated Safety
Interlock Switch
The GK Series is designed specifically for use on machines where key removal brings the machine to an
immediate safe condition. It provides enhanced operator safety when added to hinged or sliding guard
doors, screens and protective covers on enclosures. The GK Series is especially well suited for large door
applications, typically in the automotive plant floor environment. Its heavy duty construction withstands
harsh industrial environments where rugged, long-term durability is required.
Nearly 1000 options are available in a simple to understand part number tree.
A safety lockout device is also available for use with the GK Series. The lockout device (GKZL2) is specifically
designed to prevent a key from being inserted either manually, or by the access door being closed while
maintenance personnel are working on the machine. When inserted, the lockout device can accommodate
up to four padlocks to prevent unauthorised removal of the device.
Mechanical life: up to 15 million
Sealing: IP 67, NEMA/UL type 1, 4, 12,13
Operating temperature: -25 °C to 85 °C (-13 °F to 185 °F)
Approvals: CE, CSA, UL
AC15 A300/A600
DC13 Q300
Contacts: Silver
Low energy Gold
Switching options:
Snap action contacts (1NC/1NO) Snap action contacts (2NC/2NO)
13
21
14
22
Zb
13 14
21 22
11
23
12
24
Slow action contacts (1NC/1NO), BBM Slow action contacts (2NC)
Zb
21
13
22
14
21
11
22
12
2Y
Slow action contacts (2NC/2NO), BBM Slow action contacts (3NC/1NO)
21 22
13 14
23 24
11 12
2y,2x
21 22
31 32
43 44
11 12
3y,1x
Slow action contacts (4NC)
21 22
31 32
41 42
11 12
4y
Electrical ratings:
IEC 60947-5-1/EN 60947-5-1
Designation & Utilization
Rated operational current le (A) VA
Category
at rated operational voltage Ue rating
120 V 240 V 380 V 480 V 500 V 600 V Make Break
AC15 A600 6 3 1,9 1,5 1,4 1,2 7200 720
AC15 A300 6 3 ---- 7200 720
AC15 B300 3 1.5 ----3600 360
AC14 D300 0,6 0,3 ---- 43272
125 V 250 V
DC13 Q300 0,55 0,27 69 69
DC13 R300 0,22 0,1 28 28
84 www.honeywell.com/sensing
Head orientation
OPTIONS
Opening to front and top
9 /
0.35
Standard
CONDUIT CONTACT KEY REFERENCE
1/2 NPT 1NC/1NO 90° GKBA1L7
1/2 NPT 1NC/1NO Up-down GKBA1L8-F11*
1/2 NPT 1NC/1NO None GKBA1LX
1/2 NPT 4NC 90° GKBA10L7
1/2 NPT 2NC/2NO, BBM Straight GKBA14L6
1/2 NPT 2NC/2NO, BBM 90° GKBA14L7
1/2 NPT 3NC/1NO, BBM Straight GKBA16L6
1/2 NPT 3NC/1NO, BBM 90° GKBA16L7
1/2 NPT 2NC/NO Straight GKBA2L6
1/2 NPT 4NC, low energy None GKBA30LX
1/2 NPT 3NC/1NO, BBM, low energy None GKBA36LX
1/2 NPT 1NC/1NO, BBM Straight GKBA3L6
1/2 NPT 1NC/1NO, BBM 90° GKBA3L7
1/2 NPT 2NC None GKBA6LX
PG 13,5 2NC/2NO, BBM Straight GKBB14L6
PG 13,5 1NC/1NO, BBM 90° GKBB3L7
PG 13,5 2NC 90° GKBB6L7
20 mm 2NC/2NO, BBM 90° GKBC14L7
20 mm 1NC/1NO Straight GKBC1L6
20 mm 1NC/1NO 90° GKBC1L7
20 mm 1NC/1NO None GKBC1LX
20 mm 2NC/NO None GKBC2LX
20 mm 4NC, low energy None GKBC30LX
20 mm 3NC/1NO, BBM, low energy None GKBC36LX
20 mm 2NC None GKBC6LX
* fluorocarbon seal
Single LED indicator
CONDUIT CONTACT KEY REFERENCE
1/2 NPT 1NC/1NO Straight GKCA1L6
1/2 NPT 1NC/1NO 90° GKCA1L7
1/2 NPT 1NC/1NO None GKCA1LX
1/2 NPT 2NC None GKCA6LX
1/2 NPT 4NC Straight GKCA10L6
1/2 NPT 2NC/2NO, BBM Straight GKCA14L6
1/2 NPT 2NC/2NO, BBM 90° GKCA14L7
1/2 NPT 2NC/2NO, BBM Side-side GKCA14L9
1/2 NPT 4NC, low energy None GKCA30LX
1/2 NPT 3NC/1NO, BBM, low energy None GKCA36LX
20 mm 1NC/1NO None GKCC1LX
20 mm 2NC None GKCC6LX
20 mm 4NC, low energy None GKCC30LX
20 mm 3NC/1NO, BBM, low energy None GKCC36LX
Double LED indicator
CONDUIT CONTACT KEY REFERENCE
1/2 NPT 2NC/2NO, BBM 90° GKDA14L7
32 /
1.26
42,6 /
1.68
82 /
3.23
121,6 /
4.79
30 /
1.18
5,3 /
0.21
7,3 /
0.29
35 /
1.38
45,7
1.80
42 /
1.65
75,9 /
2.99
60 /
2.36
31 /
1.22
ø 5,3 /
0.21
Opening to right and top
8 /
0.32
Single LED indicator
CONDUIT CONTACT KEY REFERENCE
1/2 NPT 2NC/2NO, BBM straight GKCA14M6
Opening to left and top
22 /
0.87
Single LED indicator
CONDUIT CONTACT KEY REFERENCE
1/2 NPT 2NC/2NO, BBM Straight GKCA14P6
1/2 NPT 1NC/1NO 90° GKCA1P7
Double LED indicator
CONDUIT CONTACT KEY REFERENCE
1/2 NPT 2NC/2NO, BBM 90° GKDA14P7
SAFETY SWITCHES
GK Series (continued)
85
www.honeywell.com/sensing
SAFETY SWITCHES
GKL/GKR Series
Dual Entry Solenoid
Key Operated Safety
Interlock Switch
The GKR (head to the right) and GKL (head to the left) products offer the user an unrivalled range of standard
options.
The GKR/GKL product is a key actuated device incorporating a key trapping mechanism. The switch is used
on machinery where instant stop and access to the machinery is either impossible (due to the momentum of
the machine) or impractical (due to tool or machine damage or scrapped product if the current machine
cycle is interrupted).
The switch incorporates an optional manual override feature which allows removal of the key for emergency
access.
Over 1000 options are available in a simple to understand part number tree.
A safety lockout device is also available for use with the GKR/GKL Series. The lockout device (GKZL2) is
specifically designed to prevent a key from being inserted either manually, or by the access door being
closed while maintenance personnel are working on the machine. When inserted, the lockout device can
accommodate up to four padlocks to prevent unauthorised removal of the device.
Mechanical life: up to 1 million
Sealing: IP 68, NEMA/UL type 1, 4, 6P, 12,13
Operating temperature: -25 °C to 40 °C (-13 °F to 104 °F)
Approvals: CE, CSA, UL
AC15 A300/A600
DC13 Q300
Contacts: Silver
Low energy Gold-plated
Switching options:
Snap Action
Type 11NC/1NO Direct Opening
Zb
2221
14
13
Slow Acting
Type 3 Type 14/15
1NC/1NO, Break before make (BBM) 2NC/2NO, Break before make (BBM)
Zb
2221
1413
11 12
21 22
33 34
2Y, 2X
43 44
2 Slow Acting
Type 36 Type 40
3NC/1NO, Break before make (BBM),low energy 4NC
2221
11 12
3231
4443
3Y, 1X
11 12
21 22
31 32 4Y
41 42
Type 44 Type 46
2NC/2NO, Break before make (BBM) 3NC/1NO, Break before make (BBM)
2Y,2X
43 44
2221
11 12
3433
43 44
31 32
2221
11 12
3Y,1X
86 www.honeywell.com/sensing
GKL/GKR Series (continued)
Key: Type 6 Straight
Type 9 Side - side, spring loaded
Type X No key
Latching mechanism: Type A Mechanical (solenoid unlock with
screwdriver)
Type B Mechanical (without override)
Type S Electrical (solenoid unlock with
screwdriver)
Solenoid voltage:
Type 2 24 Vdc
Type 4 120 Vac
Electrical ratings:
OPTIONS
Opening to front and top
9 /
0.35
Left
1/2 in - NPT buna-n seals
CONTACT KEY LATCHING SOLENOID REFERENCE
TYPE TYPE VOLTAGE
3 (1NC/1NO, BBM) None A 24 Vdc GKLE3LXA2
40 (4NC) None A 24 Vdc GKLE40LXA2
46 (3NC, BBM) None A 24 Vdc GKLE46LXA2
Right
1/2 in - NPT buna-n seals
CONTACT KEY LATCHING SOLENOID REFERENCE
TYPE TYPE VOLTAGE
40 (4NC) None A 24 Vdc GKRE40LXA2
46 (3NC, BBM) None A 24 Vdc GKRE46LXA2
IEC 60947-5-1/EN 60947-5-1
Designation & Utilization
Rated operational current le (A) VA
Category
at rated operational voltage Ue rating
120 V 240 V 380 V 480 V 500 V 600 V Make Break
AC15 A600 6 3 1,9 1,5 1,4 1,2 7200 720
AC15 A300 6 3 ----7200 720
AC15 B300 3 1.5 ---- 3600 360
AC14 D300 0,6 0,3 ---- 43272
125 V 250 V
DC13 Q300 0,55 0,27 69 69
DC13 R300 0,22 0,1 28 28
32,5 /
1.28
33 /
1.30
20 /
0.79 43 /
1.69
48,8 /
1.92
110 /
4.33
100 /
3.94
19 /
0.75
65 /
2.56
75 /
2.95
110 /
4.33
100 /
3.94
31 /
1.22
43,7 /
1.72
105,3 /
4.13
2 x 5,3 /
0.21
2 x 7,3 /
0.29 2 x ø 5,3 /
0.21
SAFETY SWITCHES
87
www.honeywell.com/sensing
SAFETY SWITCHES
Opening to right and top
12 /
0.47
Right
1/2 in - NPT buna-n seals
CONTACT KEY LATCHING SOLENOID REFERENCE
TYPE TYPE VOLTAGE
3 (1NC/1NO, BBM) None A 24 Vdc GKRE3MXA2
3 (1NC/1NO, BBM) None A 120 Vac GKRE3MXA4
3 (1NC/1NO, BBM) None S 24 Vdc GKRE3MXS2
3 (1NC/1NO, BBM) None S 120 Vac GKRE3MXS4
36 (3NC/1NO, BBM, low energy) None A 24 Vdc GKRE36MXA2
36 (3NC/1NO, BBM, low energy) None A 120 Vac GKRE36MXA4
36 (3NC/1NO, BBM, low energy) None S 24 Vdc GKRE36MXS2
20 mm - buna-n seals
CONTACT KEY LATCHING SOLENOID REFERENCE
TYPE TYPE VOLTAGE
1 (1NC/1NO) None A 24 Vdc GKRG1MXA2
1 (1NC/1NO) None A 120 Vac GKRG1MXA4
1 (1NC/1NO) None S 24 Vdc GKRG1MXS2
1 (1NC/1NO) None S 120 Vac GKRG1MXS4
3 (1NC/1NO, BBM) None A 24 Vdc GKRG3MXA2
36 (3NC/1NO, BBM, low energy) None A 24 Vdc GKRG36MXA2
36 (3NC/1NO, BBM, low energy) None A 120 Vac GKRG36MXA4
36 (3NC/1NO, BBM, low energy) None S 24 Vdc GKRG36MXS2
36 (3NC/1NO, BBM, low energy) None S 120 Vac GKRG36MXS4
Opening to left and top
26 /
1.02
Left
1/2 in - NPT buna-n seals
CONTACT KEY LATCHING SOLENOID REFERENCE
TYPE TYPE VOLTAGE
3 (1NC/1NO, BBM) None A 24 Vdc GKLE3PXA2
3 (1NC/1NO, BBM) None A 120 Vac GKLE3PXA4
3 (1NC/1NO, BBM) None S 24 Vdc GKLE3PXS2
3 (1NC/1NO, BBM) None S 120 Vac GKLE3PXS4
36 (3NC/1NO, BBM, low energy) None A 24 Vdc GKLE36PXA2
36 (3NC/1NO, BBM, low energy) None A 120 Vac GKLE36PXA4
36 (3NC/1NO, BBM, low energy) None S 24 Vdc GKLE36PXS2
36 (3NC/1NO, BBM, low energy) None S 120 Vac GKLE36PXS4
20 mm - buna-n seals
CONTACT KEY LATCHING SOLENOID REFERENCE
TYPE TYPE VOLTAGE
1 (1NC/1NO) Non A 24 Vdc GKLG1PXA2
1 (1NC/1NO) None A 120 Vac GKLG1PXA4
1 (1NC/1NO) None S 24 Vdc GKLG1PXS2
1 (1NC/1NO) None S 120 Vac GKLG1PXS4
3 (1NC/1NO, BBM) None S 24 Vdc GKLG3PXS2
36 (3NC/1NO, BBM, low energy) None A 24 Vdc GKLG36PXA2
36 (3NC/1NO, BBM, low energy) None A 120 Vac GKLG36PXA4
36 (3NC/1NO, BBM, low energy) None S 24 Vdc GKLG36PXS2
36 (3NC/1NO, BBM, low energy) None S 120 Vac GKLG36PXS4
44 (2NC/2NO, BBM) None B 24 Vdc GKLG44PXB2
88 www.honeywell.com/sensing
Keys for GK and
GKL/GKR switches
Straight key
15 /
0.59
8,5 /
0.33
20 /
0.79
49,8 /
1.96
77 /
3.03
14 /
0.55
3 /
0.12
0.21
2x ø 5,3 /
REFERENCE
GKZ56
90° key
8,5 /
0.33
49,8 /
1.96
14 /
0.55
40 /
1.57
52 /
2.05
0.21
2 x ø 5,3 /
REFERENCE
GKZ57
Spring-loaded key: up/down
40 /
1.57
30 /
1.18
18,5 /
0.73
13,5 /
0.53
14 /
0.55
84,9 /
3.34
8,5 /
0.33
17,8 /
0.70
0.21
2 X ø 5,3 /
REFERENCE
GKZ58
Spring-loaded key: left/right
8,5 /
0.33
14 /
0.55
84,9 /
3.34
20,5 /
0.81
13,5 /
0.53
18,5 /
0.73
30 /
1.18
40 /
1.57
0.21
2 X ø 5,3 /
REFERENCE
GKZ59
Locking slider bolt
with actuating key
3x HOLE PROVIDED
FOR LOCKOUT
19,0 /
.75
41,81 ±,76 /
1.646 ±.030
14,0 /
.55
7,0 ±,7 /
.28 ±.03
37,10 ±1,52 /
1.460 ±.060 26,77 ±1,52 /
1.054 ±.060
115,87 /
4.562 140,0 ±,7 /
5.51 ±.03
4x ø 5,1 /
.20 4,93 /
.194
12,04 /
.474
36,8 /
1.45
26,97 /
1.062
REFERENCE
0°key rotation GKZ71
REFERENCE
90° key rotation GKZ72
REFERENCE
180° key rotation GKZ73
REFERENCE
270° key rotation GKZ74
SAFETY SWITCHES
89
www.honeywell.com/sensing
SAFETY SWITCHES
CPS Series
Cable Pull Safety
Switch
CPS Series Cable Pull Safety Switches provide a readily accessible emergency stop signal. This is a cost-
effective means compared to using multiple emergency stop push-buttons. (Cable Pull Safety Switches are
not, however, to be used as a means of personnel safeguarding. They may be used to prevent further injury
or damage to equipment when used for emergency stop signaling.)
The CPS Series Cable Pull Safety switch is designed to provide emergency stop protection for exposed
conveyor and assembly lines. The internal mechanism latches on both slackened cable (push) and pulled
cable. This capability also enhances productivity by eliminating nuisance stops due to variations in temperature,
stretch of cable over time, and other application variables.
The 1CPS is intended for use in applications where the cable span is 76 m (250 ft) or shorter. It is an
economical solution for shorter runs or zone protection typical to automated systems. The 2CPS series is
intended for use in very long cable runs of 152 m (500 ft) or shorter, such as long conveyor lines found in
warehouses.
The CPS complies with: Low Voltage Directive 73/23/EEC, as amended by directive 93/68/EEC; Machinery
Directive 98/37/EEC only as the directives relate to the components being used in a safety function; IEC/EN
60947-1; IEC/EN 60947-5-1; IEC/EN 60947-5-5.
Mechanical life: 1 000 000
Sealing: IP67, NEMA 1, 4, 12,13
Operating temperature: 1CPS -25 °C to 80 °C (-13 °F to 176 °F)
2CPS -40 °C to 80 °C (-40 °F to 176 °F)
Approvals: AC15 A300
DC13 Q300
1CPS UL, CSA
2CPS UL, CSA, BG
Contacts: 1CPS Silver
1CPS, Low energy Gold plated
2CPS Gold plate over silver
Switching options:
1CPS 2CPS
1NC/1NO
2221
1413
N/A
2NC/2NO
2221
1413
2221
1413
2221
1413
2221
1413
3NC/1NO
2221
1413 2221
11 12 2221
1413 2221
11 12
4NC
12
2221
11 12
2221
11 12
2221
11 12
2221
11
2CPS contact block mounting: 1 To housing
2 Removable with heavy duty terminals
1
I
2
I
1CPS indicator Light Code: No letter No indicator provided
A 24 Vdc red LED
B 120 Vac red LED
2CPS indicator Light Code: No letter No indicator provided
A 24 Vdc red multi-cluster LED
B 120 Vac red multi-cluster LED
90 www.honeywell.com/sensing
CPS Series (continued)
OPTIONS
Cable maintained
1/2 in NPT
CONTACT INDICATOR REFERENCE
1NC/1NO None 1CPSA1
1NC/1NO 24 V 1CPSA1A
1NC/1NO 120 V 1CPSA1B
2NC/2NO None 1CPSA2
2NC/2NO 24 V 1CPSA2A
2NC/2NO 120 V 1CPSA2B
3NC/1NO None 1CPSA3
3NC/1NO 24 V 1CPSA3A
3NC/1NO 120 V 1CPSA3B
4NC None 1CPSA4
1NC/1NO, low energy None 1CPSA5
2NC/2NO, low energy None 1CPSA6
2NC/2NO, low energy 24 V 1CPSA6A
2NC/2NO, low energy 120 V 1CPSA6B
3NC/1NO, low energy None 1CPSA7
4NC, low energy None 1CPSA8
12,7
[0.5]
117,42
[4.623]
50,8
[2.1]
172,72
[6.8] 152,4
[6.0]
81,28
[3.2]
6,35
[0.25]
99,06
[3.9]
1CPS
Cable Pull
Switch
TENSIONED
SLACK
RUN
RESET
OFF
4X Ø 7,11
Ø 0.28
88,9
[3.5]
76,2
[3.0]
33,02
[1.3]
65,20
[2.567] 56,79
[2.236] 50,83
[2.001]
2X 26,67
[1.050]
3X 25,4
[1.0]
25,4
[1.00] 25,4
[1.00]
B
CD
A
A Fully extended
B Optional indicator
C Conduit thread (3 total)
D Mounting pad (4 total)
1CPS
SAFETY SWITCHES
20 mm
CONTACT INDICATOR REFERENCE
1NC/1NO None 1CPSC1
1NC/1NO 24 V 1CPSC1A
2NC/2NO None 1CPSC2
2NC/2NO 24 V 1CPSC2A
2NC/2NO 120 V 1CPSC2B
3NC/1NO None 1CPSC3
3NC/1NO 24 V 1CPSC3A
4NC None 1CPSC4
1NC/1NO, low energy None 1CPSC5
2NC/2NO, low energy None 1CPSC6
2NC/2NO, low energy 24 V 1CPSC6A
3NC/1NO, low energy None 1CPSC7
4NC, low energy None 1CPSC8
91
www.honeywell.com/sensing
SAFETY SWITCHES
Cable maintained both sides
1/2 in NPT
CONTACT CONTACT BLOCK INDICATOR REFERENCE
MOUNTING
2NC/2NO 1 None 2CPSA1A1
2NC/2NO 1 24 Vdc 2CPSA1A1A
2NC/2NO 1 120 Vac 2CPSA1A1B
3NC/1NO 1 None 2CPSA1B1
3NC/1NO 1 24 Vdc 2CPSA1B1A
3NC/1NO 1 120 Vac 2CPSA1B1B
2NC/2NO 2 None 2CPSA2A1
2NC/2NO 2 24 Vdc 2CPSA2A1A
2NC/2NO 2 120 Vac 2CPSA2A1B
3NC/1NO 2 None 2CPSA2B1
3NC/1NO 2 24 Vdc 2CPSA2B1A
3NC/1NO 2 120 Vac 2CPSA2B1B
20 mm
CONTACT CONTACT BLOCK INDICATOR REFERENCE
MOUNTING
2NC/2NO 1 None 2CPSC1A1
2NC/2NO 1 24 Vdc 2CPSC1A1A
4NC 1 24 Vdc 2CPSC1D1A
OFF
RUN
40,4
(1.60)
67,8
(2.63)
325,9
(12.75)
152,4
(6.00)
152,4
(6.00)
12,7
(0.50)
TENSIONED
SLACK
TENSIONED
SLACK
57,2
(2.25)
139,7
(5.50)
79,8
(3.14)
92,9
(3.66)
12,7
(0.50)
21,1
(0.75)
34,9
(1.38)
104,8
(4.13)
52,1
(2.05)
81,3
(3.20)
18,3
(0.72)
2X
2X
2X 6,9
(0.27)
2X 8,9
(0.35)
2X 31,75
(1.25)
2X 6,9
(0.27)
3X 21,5
(0.85)
2X
OFF
RUN
244,6
(9.63)
TENSIONED
SLACK
TENSIONED
SLACK
A
A
B
C
C
D
D
6,4
(0.25)
40,5
(1.60)
A Fully extended
B Optional indicator
C Conduit thread (3 total)
D Mounting pad (4 total)
2CPS
No actuation right side, cable maintained left side
1/2 in NPT
CONTACT CONTACT BLOCK INDICATOR REFERENCE
MOUNTING
2NC/2NO 1 None 2CPSA1A2
2NC/2NO 1 24 Vdc 2CPSA1A2A
2NC/2NO 1 120 Vac 2CPSA1A2B
3NC/1NO 1 None 2CPSA1B2
3NC/1NO 1 24 Vdc 2CPSA1B2A
3NC/1NO 1 120 Vac 2CPSA1B2B
2NC/2NO 2 None 2CPSA2A2
2NC/2NO 2 24 Vdc 2CPSA2A2A
2NC/2NO 2 120 Vac 2CPSA2A2B
20 mm
CONTACT CONTACT BLOCK INDICATOR REFERENCE
MOUNTING
2NC/2NO 1 None 2CPSC1A2
2NC/2NO 1 24 Vdc 2CPSC1A2A
No actuation left side, cable maintained right side
1/2 in NPT
CONTACT CONTACT BLOCK INDICATOR REFERENCE
MOUNTING
2NC/2NO 1 None 2CPSA1A3
2NC/2NO 1 24 Vdc 2CPSA1A3A
2NC/2NO 1 120 Vac 2CPSA1A3B
3NC/1NO 1 None 2CPSA1B3
3NC/1NO 1 24 Vdc 2CPSA1B3A
3NC/1NO 1 120 Vac 2CPSA1B3B
2NC/2NO 2 None 2CPSA2A3
2NC/2NO 2 24 Vdc 2CPSA2A3A
2NC/2NO 2 120 Vac 2CPSA2A3B
20 mm
CONTACT CONTACT BLOCK INDICATOR REFERENCE
MOUNTING
2NC/2NO 1 None 2CPSC1A3
2NC/2NO 1 24 Vdc 2CPSC1A3A
92 www.honeywell.com/sensing
Blank page
93
www.honeywell.com/sensing
LINEAR AND ROTARY POSITION
Linear and Rotary Position
Position sensors respond to the movement or location of a target, such as a
molding press slide or a pulley shaft, by producing either a digital or an
analogue output correlated to its location. Honeywell position sensors include
digital and analogue Hall-effect position sensors, magnetoresistive digital
sensors and potentiometric rotary and linear sensors. Sensors are directly
compatible with other electronic circuits for application flexibility.
With the combined capabilities of three well-known brand names - Data
Instruments, Clarostat, Electro and New England Instruments - Honeywell the
group continuously strives to remain at the forefront of position sensing
technology. In this catalogue we present our range of Linear and Rotary
Position transducers and Torque Watch gauges, all suitable for use in
industrial environments.
94 www.honeywell.com/sensing
LINEAR AND ROTARY POSITION
LFII Series
Longfellow II linear position transducer
The new Longfellow II incorporates design innovations to increase transducer
life and provide greater resistance to vibration, while providing a smooth high-
quality signal for demanding factory control applications. It has a solid
stainless steel shaft, longer front-end bearings, a vibration-free damped
element, a spring-loaded ball joint and a high precision precious metal wiper.
Carrier guides are extruded the full length of the housing to ensure smooth
operation even under severe side load conditions.
The newly designed internal components provide improvements based on
worldwide testing and field experience.
Operating temperature: -65 °C to 105 °C (-85 °F to 221 °F)
Supply voltage (max.): 30 Vdc
Linearity: ± 0.1 %
Starting force (max.):
Standard 0,45 kg (1.0 lb)
Water resistant 2,27 kg (5.0 lb)
Backlash (max.): 0,025 mm (0.001 in)
Total Resistance: 5000 Ohm
Shaft Ø: 1/4 in
Termination: Connector, Binder Series 681
Housing length: = Electrical travel + 3.19 in (81,02 mm)
Mechanical travel: = Electrical travel + 0.09 in (2,29 mm)
0.156 x 0.312 Slot, typ.
(3,962 x 7,925)
3
2
1
Shaft
extended
Mounting feet show above are for
standard LFII models only. Mounting
feet are not included with water
resistant LFII models. Water resistant
LFII models are shipped with brackets.
SCHEMATIC
'X' = Electrical travel + 3.19 in (81,0 mm)
'Y' = Electrical travel - 1.0 in (25,4 mm)
2.00
(50,80)
1.00
(25,40)
0.125
(3,175)
0.62
(15,90)
0.62
(15,90)
1.25
(31,80)
1.25
(31,80)
VIEW A-A
1.68
(42,70)
0.84
(21,30)
0.50
(12,70)
0.25
(6,40)
1.36
(34,5)
0.75 ±0.01
(19,00 ±0,20)
1.88
(47,8)
1/4" - 28 NF-2A Thread
7/16" across flats, typ.
"Y"
"X"
A
A
Mounting Feet (2)
OPTIONS
Standard
Mating connector, 3718401, sold separately
ELECTRICAL TRAVEL (IN (MM)) REFERENCE
6.0 (152,4) LF2S06N5KB6A
9.0 (228,6) LF2S09N5KB6A
12.0 (304,8) LF2S12N5KB6A
14.0 (355,6) LF2S14N5KB6A
18.0 (457,2) LF2S18N5KB6A
24.0 (609,6) LF2S24N5KB6A
30.0 (762,0) LF2S30N5KB6A
36.0 (914,4) LF2S36N5KB6A
48.0 (1219,2) LF2S48N5KB6A
Water resistant
Mating connector, E02903021, sold separately
ELECTRICAL TRAVEL (IN (MM)) REFERENCE
6.0 (152,4) LF2W06N5KB6A
9.0 (228,6) LF2W09N5KB6A
12.0 (304,8) LF2W12N5KB6A
14.0 (355,6) LF2W14N5KB6A
18.0 (457,2) LF2W18N5KB6A
24.0 (609,6) LF2W24N5KB6A
30.0 (762,0) LF2W30N5KB6A
36.0 (914,4) LF2W36N5KB6A
48.0 (1219,2) LF2W48N5KB6A
Linear and
Rotary
Position
Transducers
Honeywell Sensing and Control manufactures a variety of potentiometric position sensors. The sensors use a tried and
true potentiometric technology originally developed for military applications and more recently applied to industrial
markets. MystR® conductive plastic potentiometric sensors are long-life units designed for rugged industrial
applications. The proprietary MystR® conductive plastic has an extensive temperature range, infinite resolution and
provides absolute position measurement on power-up. Intermediate signal conditioning is not required for normal
ratio-metric position sensing. Very small stroke units (5 mm [0.2 in]) and units required to withstand exposure to
harsh chemicals or work immersed in many different oils are available. If there is heavy hose down or spray from oil or
water, a water resistant or waterproof potentiometer such as the AQ series should be used.
Linear products have CE approval, Intrinsically Safe For Class I, II, III, Division 1, Groups A, B, C, D, E, F, G With Entity.
Vmax: 30 Vdc, Imax: 100 mA, Ci: 0.0 micro F, Li: 0.0 mH, T4A @ 105 °C Ambient.
Mechanical life: 1 billion dither operations
Approvals: CE, NEMA 4 - water resistant
Housing: Anodized aluminium
Element: MystR® conductive plastic film
Shaft: Stainless steel
Wiper current: < 1 uA
Resolution: Infinite
95
www.honeywell.com/sensing
LINEAR AND ROTARY POSITION
LFII Metric Series
Longfellow II linear position transducer
2
1
3
34,5
(1.36)
19,00
(0.25)
Dimensions in mm (inches)
11,11 (0.48)
Across flats
47,8
(1.88)
50,8 (2.0)
42,7 (1.68)
21,3
(0.84) 12,7
(0.50)
6,4
(0.25)
4,1
(0.16) 3,962 x 7,925 Slot
(0.156 x 0.312)
'Y'
'X'
31,8
(1.25)
3,18
(0.125)
31,8
(1.25)
0,62
(0.02)
0,62
(0.02)
25,4
(1.00)
50,8
(2.00)
3
2
1
Shaft
extended
Connector
end
M6X1
'X' = Electrical travel + 91 mm (3.6 in)
'Y' = Electrical travel - 25 mm (1.0 in)
(EXCEPT for LFII 229:
'Y' = Electrical travel - 29 mm (1.14 in)
Mounting feet show above are for
standard LFII models only. Mounting
feet are not included with water
resistant LFII models. Water resistant
LFII models are shipped with brackets.
Mounting Feet (2)
Operating temperature: -65 °C to 105 °C (-85 °F to 221 °F)
Supply voltage (max.): 30 Vdc
Linearity: ± 0.1 %
Starting force (max.):
Standard 0,45 kg (1.0 lb)
Water resistant 2,27 kg (5.0 lb)
Backlash (max.): 0,025 mm (0.001 in)
Total Resistance: 5000 Ohm
Shaft Ø: 1/4 in
Termination: Connector
A = Binder Series 681
G = DIN 43650
Housing length: = Electrical travel + 91,0 mm (3.6 in)
Mechanical travel: = Electrical travel + 2,2 mm (0.09 in)
OPTIONS
Standard - Binder
Mating connector, 3718401, sold separately
ELECTRICAL TRAVEL (MM (IN)) REFERENCE
152,4 (6.0) LF2S0152M5KB8A
228,6 (9.0) LF2S0229M5KB8A
304,8 (12.0) LF2S0305M5KB8A
355,6 (14.0) LF2S0355M5KB8A
457,2 (18.0) LF2S0457M5KB8A
609,6 (24.0) LF2S0610M5KB8A
762,0 (30.0) LF2S0762M5KB8A
914,4 (36.0) LF2S0914M5KB8A
1219,2 (48.0) LF2S1219M5KB8A
Standard - DIN 43650
Mating connector included
ELECTRICAL TRAVEL (MM (IN)) REFERENCE
152,4 (6.0) LF2S0152M5KB8G
228,6 (9.0) LF2S0229M5KB8G
304,8 (12.0) LF2S0305M5KB8G
355,6 (14.0) LF2S0355M5KB8G
457,2 (18.0) LF2S0457M5KB8G
609,6 (24.0) LF2S0610M5KB8G
762,0 (30.0) LF2S0762M5KB8G
914,4 (36.0) LF2S0914M5KB8G
1219,2 (48.0) LF2S1219M5KB8G
Water resistant - Binder
Mating connector, E02903021, sold separately
ELECTRICAL TRAVEL (MM (IN)) REFERENCE
152,4 (6.0) LF2W0152M5KB8A
228,6 (9.0) LF2W0229M5KB8A
304,8 (12.0) LF2W0305M5KB8A
355,6 (14.0) LF2W0355M5KB8A
457,2 (18.0) LF2W0457M5KB8A
609,6 (24.0) LF2W0610M5KB8A
762,0 (30.0) LF2W0762M5KB8A
914,4 (36.0) LF2W0914M5KB8A
1219,2 (48.0) LF2W1219M5KB8A
Water resistant - DIN 43650
Mating connector included
ELECTRICAL TRAVEL (MM (IN)) REFERENCE
152,4 (6.0) LF2W0152M5KB8G
228,6 (9.0) LF2W0229M5KB8G
304,8 (12.0) LF2W0305M5KB8G
355,6 (14.0) LF2W0355M5KB8G
457,2 (18.0) LF2W0457M5KB8G
609,6 (24.0) LF2W0610M5KB8G
762,0 (30.0) LF2W0762M5KB8G
914,4 (36.0) LF2W0914M5KB8G
1219,2 (48.0) LF2W1219M5KB8G
96 www.honeywell.com/sensing
LINEAR AND ROTARY POSITION
DR Series
Durastar rodless linear position transducer
The DuraStar rodless linear position transducer is the longest lasting factory-
rugged potentiometer. It allows large misalignment of shaft and housing, while
providing whisper-quiet operation and smooth, clean signal output. MystR®
provides the DuraStar excellent durability, especially in dither operation which
is so often the determining factor in a potentiometer’s life. It is an excellent
replacement unit to reduce maintenance operations.
The rodless side-sealed DuraStar can also be used to replace a rodded
potentiometer in contaminated applications to improve performance while
providing long life.
Operating temperature: -65 °C to 105 °C (-85 °F to 221 °F)
Supply voltage (max.): 75 Vdc
Linearity: ± 0.1 %
Starting force (max.): 0,45 kg (1.0 lb)
Backlash (max.): 0,025 mm (0.001 in)
Shaft: M5x0.8 metric thread
Termination: Connector, DIN 43560
Mechanical travel: = Electrical travel + 5,0 mm (0.2 in)
Mating connector included
ELECTRICAL TRAVEL TOTAL RESISTANCE HOUSING LENGTH REFERENCE
(MM (IN)) (OHM) (MM (IN))
101,6 (4.0) 2000 250,0 (9.84 ) DR04N02KB7G
127,0 (5.0) 2000 280,0 (11.02) DR05N02KB7G
152,4 (6.0) 5000 300,0 (11.81) DR06N05KB7G
203,2 (8.0) 5000 352,0 (13.86) DR08N05KB7G
228,6 (9.0) 5000 375,9 (14.80) DR09N05KB7G
304,8 (12.0) 5000 452,1 (17.80) DR12N05KB7G
355,6 (14.0) 5000 514,1 (20.24) DR14N05KB7G
406,4 (16.0) 5000 553,9 (21.8) DR16N05KB7G
457,2 (19.0) 5000 605,0 (23.8) DR18N05KB7G
508,0 (20.0) 5000 656,0 (25.83) DR20N05KB7G
609,6 (24.0) 10000 757,9 (29.84) DR24N10KB7G
762,0 (30.0) 10000 910,0 (35.83) DR30N10KB7G
914,4 (36.0) 10000 1062,5 (41.83) DR36N10KB7G
1016,0 (40.0) 10000 1164,0 (45.83) DR40N10KB7G
1270,0 (50.0) 10000 1418,0 (55.83) DR50N10KB7G
M5 X 0.8
Thread
M5 x 20
Thread
1
3
2
1.30
[33]
.65
[16]
.87
[22]
3.56
[90,4]
"L"
1.025
[26]
0.39 [10]
.60
[15]
3
2
1
SCHEMATIC DIAGRAM
1.50
[38]
.75
[19]
1.97
[50]
2.68
[68]
1.30
[33]
0.44 [11,2]
2.33 [59,27]
1.46 [37,0]
2.05 [52,07]
Pin 1 is at the connector end
97
www.honeywell.com/sensing
LINEAR AND ROTARY POSITION
SLF Series
Short Longfellow linear position transducer
The Short Longfellow is frequently used for measuring linear position or
displacement up to 6 inches (152,4 mm) on a wide variety of manufacturing
and process equipment. The mechanical design of the unit’s front bearing,
anodized extruded aluminum housing, stainless steel shaft and precious metal
wipers are suitable for a factory’s harsh environment.
Based on the proprietary MystR® conductive plastic film, it provides a high
resolution, absolute position measurement without external signal
conditioners.
0.90
(22.9)
0.45
(11.4)
X
Movable
mounting
brackets
7/16 in.
(6.6)
across
flats
1/4-28 NF-2A thread
1/4 in.
(6.3)
across
flats
1
5
0.06
(1.5)
0.45
(11.4)
0.90
(22.8)
0.90
(22.8)
1.36
(34.5)
0.45
(11.4)
1
2000 ohm
current limiting resistor
Shaft
Extended
2
3
0.154 (3.91)
(2 holes per bracket)
MOUNTING BRACKETS
1.35
(34.4)
1.75
(44.5)
0.88
(22.4)
0.68
(17.2)
0.19
(4.8)
0.38
(9.6)
Operating temperature: -65 °C to 105 °C (-85 °F to 221 °F)
Supply voltage (max.): 40 Vdc
Starting force (max.):
Standard 0,45 kg (1.0 lb)
Water resistant 2,27 kg (5.0 lb)
Backlash (max.): 0,025 mm (0.001 in)
Shaft Ø: 1/4 in
Termination: Connector, Binder Series 681
Housing length: = Electrical travel + 3.05 in (77,5 mm)
Mechanical travel: = Electrical travel + 0.2 in (5,1 mm)
Electrical Travel Total Resistance
(in (mm)) (Ohm)
SLF01 or SLW01 1.0 (25,4) 1500
SLF02 or SLW02 2.0 (50,8) 3000
SLF03 or SLW03 3.0 (76,2) 4500
SLF04 or SLW04 4.0 (101,6) 6000
SLF06 or SLW06 6.0 (152,4) 9000
OPTIONS
Standard
Mating connector, 3718401, sold separately
± 0.1 % Linearity
ELECTRICAL TRAVEL REFERENCE
1.0 (25,4) SLF01N1500B6A
2.0 (50,8) SLF02N3000B6A
3.0 (76,2) SLF03N4500B6A
4.0 (101,6) SLF04N6000B6A
6.0 (152,4) SLF06N9000B6A
± 1.0 % Linearity
ELECTRICAL TRAVEL REFERENCE
1.0 (25,4) SLF01N1500F6A
2.0 (50,8) SLF02N3000F6A
3.0 (76,2) SLF03N4500F6A
4.0 (101,6) SLF04N6000F6A
6.0 (152,4) SLF06N9000F6A
Water resistant
Mating connector, E02903021, sold separately
± 0.1 % Linearity
ELECTRICAL TRAVEL REFERENCE
1.0 (25,4) SLW01N1500B6A
2.0 (50,8) SLW02N3000B6A
3.0 (76,2) SLW03N4500B6A
4.0 (101,6) SLW04N6000B6A
6.0 (152,4) SLW06N9000B6A
± 1.0 % Linearity
ELECTRICAL TRAVEL REFERENCE
1.0 (25,4) SLW01N1500F6A
2.0 (50,8) SLW02N3000F6A
3.0 (76,2) SLW03N4500F6A
4.0 (101,6) SLW04N6000F6A
6.0 (152,4) SLW06N9000F6A
98 www.honeywell.com/sensing
LINEAR AND ROTARY POSITION
SLF Metric Series
Short Longfellow linear position transducer
22.9
11.4
1.5
22.9
11.4
X
34.5
11.4
Movable
mounting
brackets
6.6
across
flats
M6 x 1
metric
threa
d
6.3
across
flats
1
5
1
2000
ohm
S
haft
E
xtended
2
3
4.8 9.7
22.2
44.5
3.91
(2 holes
p
er bracket
)
MOUNTING
BRACK
ETS
34.3
17.1
current limiting resistor
Operating temperature: -65 °C to 105 °C (-85 °F to 221 °F)
Supply voltage (max.): 40 Vdc
Starting force (max.):
Standard 0,45 kg (1.0 lb)
Water resistant 2,27 kg (5.0 lb)
Backlash (max.): 0,025 mm (0.001 in)
Shaft Ø: M6x1 metric thread
Termination: Connector, Binder Series 681
Housing length: = Electrical travel + 77,5 mm (3.05 in)
Mechanical travel: = Electrical travel + 5,1 mm (0.2 in)
Electrical Travel Total Resistance
(in (mm)) (Ohm)
SLF025R4 or SLW025R4 25,4 (1.0) 1500
SLF050R8 or SLW050R8 50,8 (2.0) 3000
SLF076R2 or SLW076R2 76,2 (3.0) 4500
SLF101R6 or SLW101R6 101,6 (4.0) 6000
SLF152R4 or SLW152R4 152,4 (6.0) 9000
OPTIONS
Standard
Mating connector, 3718401, sold separately
± 0.1 % Linearity
ELECTRICAL TRAVEL REFERENCE
25,4 (1.0) SLF025R4M1500B8A
50,8 (2.0) SLF050R8M3000B8A
76,2 (3.0) SLF076R2M4500B8A
101,6 (4.0) SLF101R6M6000B8A
152,4 (6.0) SLF152R4M9000B8A
± 1.0 % Linearity
ELECTRICAL TRAVEL REFERENCE
25,4 (1.0) SLF025R4M1500F8A
50,8 (2.0) SLF050R8M3000F8A
76,2 (3.0) SLF076R2M4500F8A
101,6 (4.0) SLF101R6M6000F8A
152,4 (6.0) SLF152R4M9000F8A
Water resistant
Mating connector, E02903021, sold separately
± 0.1 % Linearity
ELECTRICAL TRAVEL REFERENCE
25,4 (1.0) SLW025R4M1500B8A
50,8 (2.0) SLW050R8M3000B8A
76,2 (3.0) SLW076R2M4500B8A
101,6 (4.0) SLW101R6M6000B8A
152,4 (6.0) SLW152R4M9000B8A
± 1.0 % Linearity
ELECTRICAL TRAVEL REFERENCE
25,4 (1.0) SLW025R4M1500F8A
50,8 (2.0) SLW050R8M3000F8A
76,2 (3.0) SLW076R2M4500F8A
101,6 (4.0) SLW101R6M6000F8A
152,4 (6.0) SLW152R4M9000F8A
99
www.honeywell.com/sensing
LINEAR AND ROTARY POSITION
LT Series
Linear position transducer, 1/2 in diameter
The LT Series are ½ inch diameter, linear position transducers rugged enough
to withstand the hostile environment of the factory. The LT can be provided
with shaft seals for spray or hose down environments.
Operating temperature: -40 °C to 80 °C (-40 °F to 176 °F)
Supply voltage (max.): 30 Vdc
Starting force (max.):
Standard 28,35 g (1.0 oz)
Water resistant 340,19 g (12.0 oz)
Backlash (max.): 0,00508 mm (0.0002 in)
Shaft Ø: 1/8 in
Termination: Cable
Housing length: = Electrical travel + 1.50 in (38,10 mm)
Mechanical travel: = Electrical travel + 0.05 in (1,27 mm)
Electrical Travel Total Resistance
(in (mm)) (Ohm)
LTS01 or LTW01 1.0 (25,4) 1000
LTS02 or LTW02 2.0 (50,8) 2000
LTS03 or LTW03 3.0 (76,2) 3000
LTS04 or LTW04 4.0 (101,6) 4000
LTS05 or LTW05 5.0 (127,0) 5000
LTS06 or LTW06 6.0 (152,4) 6000
LTS07 or LTW07 7.0 (177,8) 7000
LTS08 or LTW08 8.0 (203,2) 8000
LTS09 or LTW09 9.0 (228,6) 9000
LTS10 or LTW10 10.0 (254,0) 10000
(Retracted)
#4-40 UNC-2A
Thd x .50 (12.7) Long
1" [25,4]
1/2"
[12.7]
1/8" [3.17]
(Red)
V-in
Shaft
Extended
(Black)
Ground
(Brown)
V-out
Connect to High Impedance Circuit
# 28 Jacketed cable
6.0 (152,4) long min.
Housing length 'X'
(Electrical Travel +1.50 (38,1))
OPTIONS
Standard
± 0.1 % Linearity
ELECTRICAL TRAVEL REFERENCE
1.0 (25,4) LTS01N01KB5C
2.0 (50,8) LTS02N02KB5C
3.0 (76,2) LTS03N03KB5C
4.0 (101,6) LTS04N04KB5C
5.0 (127,0) LTS05N05KB5C
6.0 (152,4) LTS06N06KB5C
7.0 (177,8) LTS07N07KB5C
8.0 (203,2) LTS08N08KB5C
9.0 (228,6) LTS09N09KB5C
10.0 (254,0) LTS10N10KB5C
± 1.0 % Linearity
ELECTRICAL TRAVEL REFERENCE
1.0 (25,4) LTS01N01KF5C
2.0 (50,8) LTS02N02KF5C
3.0 (76,2) LTS03N03KF5C
4.0 (101,6) LTS04N04KF5C
5.0 (127,0) LTS05N05KF5C
6.0 (152,4) LTS06N06KF5C
7.0 (177,8) LTS07N07KF5C
8.0 (203,2) LTS08N08KF5C
9.0 (228,6) LTS09N09KF5C
10.0 (254,0) LTS10N10KF5C
Water resistant
± 0.1 % Linearity
ELECTRICAL TRAVEL REFERENCE
1.0 (25,4) LTW01N01KB5C
2.0 (50,8) LTW02N02KB5C
3.0 (76,2) LTW03N03KB5C
4.0 (101,6) LTW04N04KB5C
5.0 (127,0) LTW05N05KB5C
6.0 (152,4) LTW06N06KB5C
7.0 (177,8) LTW07N07KB5C
8.0 (203,2) LTW08N08KB5C
9.0 (228,6) LTW09N09KB5C
10.0 (254,0) LTW10N10KB5C
± 1.0 % Linearity
ELECTRICAL TRAVEL REFERENCE
1.0 (25,4) LTW01N01KF5C
2.0 (50,8) LTW02N02KF5C
3.0 (76,2) LTW03N03KF5C
4.0 (101,6) LTW04N04KF5C
5.0 (127,0) LTW05N05KF5C
6.0 (152,4) LTW06N06KF5C
7.0 (177,8) LTW07N07KF5C
8.0 (203,2) LTW08N08KF5C
9.0 (228,6) LTW09N09KF5C
10.0 (254,0) LTW10N10KF5C
100 www.honeywell.com/sensing
LINEAR AND ROTARY POSITION
MLT Series
Linear position transducer, 3/8 in Diameter
The MLT Series is 3/8 in diameter linear position transducer that is rugged
enough to withstand hostile factory environments. Using a proprietary dual
wiper, internal ball joint and the MystR® conductive plastic film the MLT
provides a usable output at high vibration levels over long periods of time.
MLT transducers use precious metal wipers to further enhance reliability.
The MLT’s 3/8 inch diameter is among the smallest available and can used to
replace LVDT’s in many applications.
Operating temperature: -40 °C to 80 °C (-40 °F to 176 °F)
Supply voltage (max.): 30 Vdc
Starting force (max.): 28,35 g (1.0 oz)
Backlash (max.): 0,0127 mm (0.0005 in)
Shaft Ø: 1/8 in
Termination: Cable
Housing length: = Electrical travel + 1.20 in (30,48 mm)
Mechanical travel: = Electrical travel + 0.05 in (1,27 mm)
Electrical Travel Total Resistance
(in (mm)) (Ohm)
MLT0R5 0.5 (12,7) 750
MLT001 1.0 (25,4) 1500
MLT002 2.0 (50,8) 3000
MLT003 3.0 (76,2) 4500
MLT004 4.0 (101,6) 6000
MLT005 5.0 (127,0) 7500
MLT006 6.0 (152,4) 9000
(Retracted)
#4-40 UNC-2A
Thd x .50 [12,7] long
3/4"
[19,05]
1/8"
[3,18]
3/8"
[9,53]
(Electrical Travel +1.2 [30,48] )
(Red)
V- i n
Shaft
Extended
(Black)
Ground
(Orange)
V-out
Housing length 'X'
Connect to High Impedance Circuit
3 - conductor cable
#26 AWG [65/44] 12.0 [306] long min.
(color coded per schematic)
3/16 x .063
[4,75 x 1,6]
OPTIONS
± 0.1 % Linearity
ELECTRICAL TRAVEL REFERENCE
2.0 (50,8) MLT002N3000B5C
3.0 (76,2) MLT003N4500B5C
4.0 (101,6) MLT004N6000B5C
5.0 (127,0) MLT005N7500B5C
6.0 (152,4) MLT006N9000B5C
± 0.25 % Linearity
ELECTRICAL TRAVEL REFERENCE
1.0 (25,4) MLT001N1500D5C
± 1.0 % Linearity
ELECTRICAL TRAVEL REFERENCE
0.5 (12,7) MLT0R5N0750F5C
1.0 (25,4) MLT001N1500F5C
2.0 (50,8) MLT002N3000F5C
3.0 (76,2) MLT003N4500F5C
4.0 (101,6) MLT004N6000F5C
5.0 (127,0) MLT005N7500F5C
6.0 (152,4) MLT006N9000F5C
101
www.honeywell.com/sensing
LINEAR AND ROTARY POSITION
AQLT/AQMLT Series
Shaftless, waterproof linear position
transducer
The AQLT and AQMLT are shaftless waterproof linear potentiometers designed
to operate in wet/washdown and in-tank environments.
The AQ series features an external actuator magnetically coupled to a position
feedback element. The magnetic actuator replaces the shaft, found in
traditional linear transducers, and eliminates the need for additional stroke
length mounting space.
Precious metal dual wipers, MystR® proprietary conductive plastic, and
anodized aluminum housings provide long life and reliable operation in
numerous applications.
Operating temperature: -40 °C to 80 °C (-40 °F to 176 °F)
Supply voltage (max.): 30 Vdc
Linearity: ± 1.0 %
Starting force (max.): AQMT 56,7 g (2.0 oz)
AQMLT 28,35 g (1.0 oz)
Sealing: IP68
Termination: Cable
AQLT Series
Housing length: = Electrical travel + 54,87 mm (2.16 in)
Mechanical travel: = Electrical travel + 2,54 mm (0.1 in)
BLACK
CABLE END
RED
BROWN
ELECTRICAL TRAVEL
PLUS 2.16" (54,86)
0.76
(19,30) 0.20
(5,08)
Ø 0.50
(12,7)
3 WIRE JACKETED CABLE (9/64 Ø)
#28 AWG CONDUCTOR
10 FEET LONG
COLOR CODED PER SCHEMATIC
AREA AVAILABLE FOR CLAMPING
WITHOUT RESTRICTING ELECTRICAL TRAVEL
Ø 0.516
(13,11)
Ø 0.156
(3,96)
Ø 0.813
(20,65)
BOLT CIRCLE
#4-40 UNC THD
6 PLACES
Dimensions in inches (mm)
Ø 1.25
(31,75)
0.024 (0,61)
OFF CENTER
0.25
(6,35)
0.50
(12,70)
1.125 ±0.010
(28,575 ±0,25)
120˚ 120˚
1.00 ±0.010
(25,4 ±0,25)
ELECTRICAL TRAVEL TOTAL RESISTANCE REFERENCE
(MM (IN)) (OHM)
152,4 (6.0) 6000 AQLT06N06KFC
304,8 (12.0) 12000 AQLT12N12KFC
457,2 (18.0) 18000 AQLT18N18KFC
609,6 (24.0) 24000 AQLT24N24KFC
762,0 (30.0) 30000 AQLT30N30KFC
965,2 (38.0) 38000 AQLT38N38KFC
AQMLT Series
Housing length: = Electrical travel + 38,1 mm (1.5 in)
Mechanical travel: = Electrical travel + 2,54 mm (0.1 in)
AREA AVAILABLE FOR CLAMPING
WITHOUT RESTRICTING ELECTRICAL OR
MECHANICAL TRAVEL
Dimensions are in inches (mm)
0.52
(13,2)
0.20
(5,1)
Ø 0.375
(9,5)
ELECTRICAL TRAVEL PLUS 1.5 (38,1) MAX
3 WIRE JACKETED CABLE, Ø 0.14 (3,57)
#28 AWG CONDUCTOR
10 FEET LONG (3,05 M)
COLOR CODED PER SCHEMATIC Cable End
Black Red
Wiper
Brown
Schematic
Ø 1.125
(28,58)
Ø 0.388
(9,78)
Ø 0.156
(3,96)
120˚ 120˚
Ø 0.690
(17,53)
BOLT CIRCLE
0.125
(3,18)
0.024
(0,60)
OFF CENTER
#4-40 UNC THD
4 PLACES
0.500
(12,70)
1.000
(25,40)
0.250
(6,35)
ELECTRICAL TRAVEL TOTAL RESISTANCE REFERENCE
(MM (IN)) (OHM)
12,7 (0.5) 750 AQMLTR5N00750FC
25,4 (1.0) 1500 AQMLT01N01500FC
76,2 (3.0) 3000 AQMLT03N04500FC
152,4 (6.0) 9000 AQMLT06N09000FC
228,6 (9.0) 13500 AQMLT09N13500FC
304,8 (12.0) 18000 AQMLT12N18000FC
102 www.honeywell.com/sensing
LINEAR AND ROTARY POSITION
M22 Series
Rotary position transducer
The M22 rotary potentiometer, available in servo and bushing mount, utilizes
wear-resistant MystR® conductive plastic film combined with precious metal
wipers to produce a quiet operating, low-noise, stable signal. Gold plated
terminals eliminate soldering problems due to tarnish. The high-quality
components are packaged in a cost-effective housing designed with an
anodized aluminum face plate or nickel-plated brass bushing to handle
assembly and operating loads. The integral internal terminations eliminate the
need for internal wires which may break under vibration and thermal stress.
The M22 series rotary potentiometers are used in position-sensing
applications which demand high reliability at low cost.
Operating temperature: -40 °C to 85 °C (-40 °F to 185 °F)
Supply voltage (max.): 30 Vdc
Starting force (max.): M22B 0.3 oz in (torque)
M22S 1.0 oz in (torque)
Total resistance: 2000 Ohm
Backlash (max.): 0.1°
Shaft Ø: 3,175 mm (0.125 in)
Termination: Gold plated solder terminals
Housing size: 22,0 mm (0.87 in)
Bearing type: Sleeve
Mechanical travel: M22B 330°
M22S Continuous rotation
Electrical travel: M22B 320°
M22S 340°
OPTIONS
Threaded bushing mount
LINEARITY REFERENCE
± 0.5 % M22B2KE1S
± 1.0 % M22B2KF1S
Servo mount
LINEARITY REFERENCE
± 0.25 % M22S2KD1S
± 0.5 % M22S2KE1S
± 1.0 % M22S2KF1S
slot
M22S
13
2
30
60
R 0.19
(R 4.93)
( 22.40)
0.88
0.15
(3.81)
0.062
(1.57)
0.750/.749
( 19.05/19.025)
0.125/.124
( 3.175/3.150)
0.062
(1.57)
0.057 min.
(1.44)
0.50
(12.60)
( 19.05)
0.75 max.
0.50 ±0.03
(12.70 ±0.8)
13
2
0.15
(3.81)
0.38
(9.70)
0.38
(9.70)
0.06
(1.57)
0.87 ±.03
(22.00 ±0.8)
0.06
(1.57) 30
60
3/8-32 UNEF-2A
R 0.19
(R 4.93)
0.406 / 0.401
( 10.312 / 10.185)
0.125/.124
( 3.175/3.150)
( 1.57)
0.06
0.09
( 2.36)
( 22.40)
0.88
0.31
(7.92)
0.03
(0.8)
0.06
(1.5)
0.38
(9.5)
0.03
(0.8)
0.09
( 2.36)
M22B
flat
103
www.honeywell.com/sensing
LINEAR AND ROTARY POSITION
WPM Series
Rotary position transducer, servo mount
Available in servo mount styles, the WPM Series rotary transducer provides
long life by utilizing the proprietary MystR® conductive plastic film, precious
metal wipers and shielded ball bearings on the stainless steel shaft.
The MystR® film provides exceptionally long rotational and dither life without
sacrificing microlinearity or resolution. The shielded ball bearings ensure long
life even with side load conditions.
Operating temperature: -55 °C to 125 °C (-67 °F to 257 °F)
Supply voltage (max.): 60 Vdc
Total resistance: 5000 Ohm
Backlash (max.): 0.01 %
Shaft Ø: WPM5KA4* 3,175 mm (0.125 in)
WPM5KB1* 6,35 mm (0.25 in)
Termination: Gold plated solder terminals
Bearing type: Ball bearings
Mechanical travel: Continuous rotation
Approvals: MIL-PRF-39023 qulaified
OPTIONS
A4
ELECTRICAL TRAVEL STARTING FORCE LINEARITY REFERENCE
(MAX.)
350° 0.8 oz in (torque) ± 0.075 % WPM5KA4S4513
353° 1.0 oz in (torque) ± 0.075 % WPM5KA4S6520
B1
ELECTRICAL TRAVEL STARTING FORCE LINEARITY REFERENCE
(MAX.)
340° 0.4 oz in (torque) ± 0.1 % WPM5KB1S1809
345° 0.4 oz in (torque) ± 0.1 % WPM5KB1S2511
.062
(1.57)
.078
(1.98)
2.000
Dia.
(50.80)
1.875 / 1.874
Dia.
(47.62 / 47.60)
0.2497 / 0.2494
Dia. shaft
(6.342 / 6.334)
0.093
(2.36)
0.333
(8.46)
0.500 ±0.032
(12.70 ±0.81)
0.800
(20.32)
M
A
D
E
I
N
U
.
S
.
A
.
123
1
5
˚
3
0
˚
1.25
Rad. max.
(31.7)
WPM 65-20
0.062
(1.57) 0.078
(1.98)
1.3125 / 1.3120
Dia.
(33.34 / 33.32)
0.2497 / 0.2494
Dia. shaft
(6.342 / 6.334)
0.093
(2.36)
0.335
(8.51)
0.500 ±0.032
(12.70 ±0.81)
0.774
(19.66)
1.437
Dia.
(36.50)
4
0
˚
M
A
D
E
I
N
U
.
S
.
A
.
123
0.98
Rad. max.
(24.9)
2
0
˚
WPM 45-13
0.062
(1.57)
0.064 / 0.057
(1.63 / 1.45)
0.7500 / 0.7495
Dia.
(19.05/19.04)
0.1249 / 0.1246
Dia.
(3.172/3.165)
0.260
(6.60)
0.500 ±0.032
(12.70 ±0.81) 0.625
(15.88)
0.062
(1.57)
WPM 18-09
1
2
3
0.68 Rad.
max.
M
A
D
E
I
N
U
.
S
.
A
.
3
0
˚
T
y
p
.
0.875 Dia.
(22.22)
3
0
˚
0.062
(1.57)
0.064/0.057
(1.63/1.45)
0.9688 / 0.9683
Dia.
(24.608 / 24.595)
0.1249 / 0.1246
Dia.
(3.172 / 3.165)
0.275
(6.98)
0.500 ±0.032
(12.70±.81) 0.609
(16.29)
0.062
(1.57)
1
2
3
0.78 Rad.
max.
M
A
D
E
I
N
U
.
S
.
A
.
1.062
Dia.
(26.97)
0.970
Dia.
(24.64)
3
0
˚
3
0
˚
WPM 25-11
104 www.honeywell.com/sensing
LINEAR AND ROTARY POSITION
Torque Watch
Guages
The Torque Watch, an industry mainstay when an accurate indication of rotary force is necessary, is
simple to use, requiring no special tools or setups. Available in three models they cover ranges from
0.003 to 200 inch-ounces. Attach the gauge to the device being measured, and simply rotate it, for a
direct reading dial.
Protection against over-torque is provided by a stainless steel internal rotation stop. The low range
366 Series will prevent damage from over-torque up to three times the normal range, whilst the mid range
641 Series and the high range 940 Series will prevent damage up to twice the normal range.
Models are available in standard (ounce inch), metric (gram centimeter) and System International
(Newton meter) measuring options.
366 Series
Low range
0.003 - 0.60 oz in
The Series 366 Torque Watch accurately measures
very low torque. Three miniature adapter chucks
allow simple coupling to the device being
measured.
OPTIONS
Standard
OUNCE INCHES REFERENCE
0.06 to 0.6 366-0
0.01 to 0.1 366-2
0.003 to 0.03 366-3
Metric
GRAM CENTIMETER REFERENCE
6 to 42 366-0M
1 to 7.5 366-2M
0.2 to 2 366-3M
651 Series
Mid range
0.05 - 40.0 oz in
The Series 651 Torque Watch provides accurate
measurement of low static torque. A 1/4 inch
keyed chuck provides a simple means of coupling
to the device under measurement.
OPTIONS
Standard
OUNCE INCHES REFERENCE
0.05 to 1.2 651C-1
1 to 20 651C-2
2 to 40 651C-3
0.1 to 2.4 651X-2
0.25 to 5 651X-3
0.5 to 10 651X-4
Metric
GRAM CENTIMETER REFERENCE
2.5 to 80 651C-1M
50 to 1.2 K 651C-2M
150 to 2.8 K 651C-3M
5 to 150 651X-2M
10 to 300 651X-3M
25 to 600 651X-4M
System International
NEWTON METER REFERENCE
0.5 to 9 651C-1SI
10 to 140 651C-2SI
15 to 285 651C-3SI
1 to 18 651X-2SI
2 to 36 651X-3SI
5 to 70 651X-4SI
940 Series
High range
15.0 - 200.0 oz in
The Series 940 Torque Watch accurately measures
torque in values that range form 15.0 to 200 oz/in.
A 3/8 inch keyed chuck and 3/8 inch square socket
driver adapter provide a simple means of coupling
to the device under measurement.
OPTIONS
Standard
OUNCE INCHES REFERENCE
30 to 200 940-1
15 to 100 940-2
Metric
GRAM CENTIMETER REFERENCE
2.5 K to 14.3 K 940-1M
1 K to 7.1 K 940-2M
System International
NEWTON METER REFERENCE
0.25 to 1.4 940-1SI
0.1 to 0.7 940-2SI
105
www.honeywell.com/sensing
LINEAR AND ROTARY POSITIONINDEX
TH100 Series
The TH-100 Series puts Honeywell’s proven variable-resistor technology to
work in angle-management applications such as control-lever sensing and
equipment position feedback. High performance and low cost make it
attractive for a wide range of applications. Special electrical and mechanical
configurations, including dual tracks, D-shape rotor holes, etc. are available on
special order.
The device provides for angle measurements, has 152,4 mm (6.0 in) wire
leads, a 6,35 mm (0.25 in) slotted thru hole and is sealed.
Power rating: 0.5 W max.
Element type: Conductive plastic
Terminal type: three 20 AWG
Shaft: 6,35 mm (0.25 in) thru hole with .105 w x .090 d slot
Body: 38,1 mm (1.5 in) x 45,72 mm (1.8 in)
Electrical taper: Linear
Storage & operating temperature: -40 °C to 120 °C (-40 °F to 248 °F)
Working voltage (max): 350 Vdc
Linearity: ± 5% standard; to ± 1% special
Total resistance: 10 K
Total resistance tolerance: ± 15%
Rotational cycles: > 1 million
OPTIONS
180° Rotation
TAPER CABLE CONNECTOR REFERENCE
Linear No 640CS103A06NAAY
90° Rotation
TAPER CABLE CONNECTOR REFERENCE
Linear No 640ES103A06NAAY
HRS100 Series, Hall-effect
The HRS100 provides angular position information for a variety of sensing
and control applications in the automotive, marine, truck, off-road, industrial
implementation, aerospace, and rail industries. The use of magnetically
coupled information in place of a mechanical wiper assembly provides a long
life, cost-effective solution for harsh environments that include temperature,
vibration, dither, moisture and dirt.
This position sensor incorporates Hall-effect to provide a sensing device that
will last for more than 50 million operations. The device is packaged in a metal
housing with a 9,5 mm (0.375 in) diameter bushing and a
6,35 mm (0.25 in) diameter slotted shaft and solder lug terminals.
Terminal type: Straight solder lug
Bushing: 9,52 mm (.375 in) FMS, includes C-ring
Shaft: Slotted 6,32 mm ± 0,03 (0.249 in ± 0.001)
Body: 27,79 mm (1.094 in) Ø
Electrical taper: Linear
Operating temperature: -40 °C to 85 °C (-40 °F to 185 °F)
Supply voltage (max): 5 Vdc
Linearity: ± 2%
Rotational cycles: 10 million
Mechanical operating angle: 90°
3.3 [0.13]
2,84 [0.12]
13,2 [0.52]
20,32 [0.08]
9,53 [0.375]
Mounting Surface
27,69 [1.09]
2
2,23 [0.875]
GRD VDD
Output 19,05 [0.75]
OPTIONS
90° Rotation
SHAFT LUG REFERENCE
Slotted Straight Solder HRS100SSAB090
Clarostat Rotary Position Transducers
106 www.honeywell.com/sensing
LINEAR AND ROTARY POSITION
578 Series, Precision potentiometer
The 578 Series conductive plastic precision potentiometer puts Honeywell’s
proven variable resistor technology to work in a high performance, cost-
effective device. With its compact size, rugged construction and advanced
versatility, the 578 provides superior control for applications such as joy-stick
controllers and position-sensing devices.
The model 578 features a 9,5 mm x 9,5 mm (0.375 in x 0.375 in) bushing,
6,35 mm x 19,05 mm (0.25 in x 0.75 in) slotted shaft, linear taper, and type A
pc pins (please consult with the factory for custom OEM configurations).
Power rating: 0.5 W @ 70 °C (158 °F)
Element type: Conductive plastic
Terminal type: PC pin type A
Bushing: 9,52 mm (0.375 in) D x 9,52 mm (0.375 in) L
Shaft: 6,35 mm x 19,05 mm (0.25 in x 0.75 in) Slotted
Body: 22,86 mm (0.900 in) Ø
Electrical taper: Linear
Operating temperature: -40 °C to 100 °C (-40 °F to 212 °F)
Working voltage: 400 Vdc
Linearity: 1%
Total resistance tolerance: ± 10%
Revolutions: 5 million
Mechanical rotation: 320° ± 5°
Ø22,96 [Ø 0.90 ]
14,49 ± 0,25 [0.57 ±.010] 12,16 ± 0,25 [0.48 ± 0.01]
15,24 ± 0,25 [0.60 ±.01]
5,08 ± 0,25 [0.20 ±.010] (2X)
19,05 ± 0,25 [0.075 ±.010] (2X)
30°
TCW
C
L
C
L
W CCW
ANTI-ROTATIONAL PIN
Ø 1,52 ± 0,13 [Ø 0.06 ±.005]
11,08 [0.46]
.010
3/8-32 UNEF
3,3 ± 0,25 [0.13 ±.01]
1,02 ± 0,25 [0.04 ±.01]
5,8
4
TYPE "A" MOUNTING
Ø 6,35
[Ø 0.25]
OPTIONS
1 kOhm Resistance
SHAFT RESISTANCE TAPER REFERENCE
Slotted stainless steel Linear 578X1G48S102SA
5 kOhm Resistance
SHAFT RESISTANCE TAPER REFERENCE
Slotted stainless steel Linear 578X1G48S502SA
10 kOhm Resistance
SHAFT RESISTANCE TAPER REFERENCE
Slotted stainless steel Linear 578X1G48S103SA
574 Series, Commercial potentiometer
The 574 Series conductive plastic potentiometer offers low mounting profile,
smooth feel, and robust construction with a thermoplastic housing, bushing,
and shaft. Terminals are PC style with a bracket for vertical mounting. No
hardware is included.
Power rating: 0.25 W @ 70 °C (158 °F)
Element type: Conductive plastic
Terminal type: PC terminals type C with C mounting bracket
Bushing: M9 x 6,35 mm (0.25 in) L
Shaft: 6,35 (0.25 in) Ø x 19,05 (0.75 in) L
Body: 21,08 mm (0.830 in) square
Electrical taper: Linear
Operating temperature: -40 °C to 120 °C (-40 °F to 248 °F)
Working voltage: 350 Vac
Linearity: ± 5%
Total resistance tolerance: ± 20%
Rotational cycles: 50,000
Mechanical rotation: 300° ± 5°
10,54 [0.415]
8,13 [0.32]
21,09 ± 0,13
[0.83 ± 0.005]
3,96 [0.156]
8,71 [0.343]
PC Terminals
Type C-30
3,96 [0.156] 9,22[0.363]
Type “C” Mtg.
With Bracket
OPTIONS
Flatted Shaft
RESISTANCE TAPER REFERENCE
1 kOhm Linear 574SX1M48F102SD
10 kOhm Linear 574SX1M48F103SD
100 kOhm Linear 574SX1M48F104SD
50 kOhm Linear 574SX1M48F503SD
Slotted Shaft
RESISTANCE TAPER REFERENCE
1 kOhm Linear 574SX1M48S102SD
10 kOhm Linear 574SX1M48S103SD
100 kOhm Linear 574SX1M48S104SD
50 kOhm Linear 574SX1M48S503SD
Clarostat Rotary Potentiometers and Position Transducers
107
www.honeywell.com/sensing
LINEAR AND ROTARY POSITION
590 Series, Commercial potentiometer
The 590 Series conductive plastic modular potentiometer features low
electrical noise, smooth feel, robust construction, and brass bushing and
shaft. Terminals are PC style. Hardware included. Multiple sections(up to
three) are available on special order.
Power rating: 0.5 W @ 70 °C (158 °F)
Element type: Conductive plastic
Terminal type: PC, 6,35 mm (0.25 in) long
Bushing: 6,35 mm (0.25 in) Ø x 6,35 mm (0.25 in) L
Shaft: Slotted, 3,17 mm (0.125 in) Ø x 22,23 mm (0.875 in) L
Body: 12,7 mm (0.50 in) Ø
Electrical taper: Linear
Operating temperature: -40 °C to 120 °C (-40 °F to 248 °F)
Linearity: ± 5%
Total resistance tolerance: ± 10% (up to 500 kOhms)
± 20 % (1 MOhm and over)
Rotational cycles: 50,000
Mechanical rotation: 295° ± 5°
OPTIONS
Slotted Shaft
RESISTANCE TAPER REFERENCE
100 Ohm Linear 590SX1N56S101SP
500 Ohm Linear 590SX1N56S501SP
1 kOhm Linear 590SX1N56S102SP
5 kOhm Linear 590SX1N56S502SP
10 kOhm Linear 590SX1N56S103SP
100 kOhm Linear 590SX1N56S104SP
500 kOhm Linear 590SX1N56S504SP
1 MOhm Linear 590SX1N56S105SP
575 Series, Commercial potentiometer
The 575 Series conductive plastic potentiometer offers a smooth feel and
robust construction, with a thermoplastic housing, bushing, and shaft.
Terminals are solder-hook style for panel mounting. No hardware is included.
Power rating: 0.5 W @ 70 °C (158 °F)
Element type: Conductive plastic
Terminal type: Solder hook-200 grid
Bushing: 9,52 mm (.375 in) D x 6,35 mm (0.25 in) L
Shaft: 6,35 mm (0.25 in) Ø x 19,05 mm (0.75 in) L
Body: 21,08 mm (0.830 in) square
Electrical taper: Linear
Operating temperature: -40 °C to 120 °C (-40 °F to 248 °F)
Working voltage: 350 Vac
Linearity: ± 5%
Total resisteance tolerance: ± 20%
Rotational cycles: 50,000
Mechanical rotation: 300° ± 5°
OPTIONS
Flatted Shaft
RESISTANCE TAPER REFERENCE
1 kOhm Linear 575SX1A48F102SS
10 kOhm Linear 575SX1A48F103SS
50 kOhm Linear 575SX1A48F503SS
Slotted Shaft
RESISTANCE TAPER REFERENCE
1 kOhm Linear 575SX1A48S102SS
10 kOhm Linear 574SX1A48S103SS
50 kOhm Linear 574SX1A48S503SS
108 www.honeywell.com/sensing
LINEAR AND ROTARY POSITION
380 Series, Industrial potentiometer
The 380 Series “Quiet One” is a 2-watt conductive plastic potentiometer
offering superior dynamic noise and a long rotational life. It meets MIL-R-94
specifications where applicable.
Approvals: MIL-R-94
Power rating: 2.0 W max.
Element type: Conductive plastic
Terminal type: Solder lug
Shaft: Slotted
Body: 27,79 mm (1.094 in) Ø
Electrical taper: Linear
Operating temperature: -55 °C to 120 °C (-67 °F to 248 °F)
Working voltage: 500 Vdc
Linearity: ± 5%
Total resistance tolerance: ± 10% (up to 500 kOhms)
± 20 % (1 MOhm and over)
Rotational cycles: 100,000
Mechanical rotation: 312° ± 3°
OPTIONS
C1: 2.0 in (50,8 mm) Round Shaft;
0.375 in (9,5 mm) L bushing
50,8
[
2.0
]6,35
[
.025
]
27,78
[
1.09
]
14,27
[
0.56
]
C1
RESISTANCE REFERENCE
100 Ohm 380C1100
250 Ohm 380C1250
500 Ohm 380C1500
1 kOhm 380C11000
1.5 kOhm 380C11500
2 kOhm 380C12000
2.5 kOhm 380C12500
5 kOhm 380C15000
10 kOhm 380C110K
15 kOhm 380C115K
20 kOhm 380C120K
25 kOhm 380C125K
50 kOhm 380C150K
100 kOhm 380C1100K
200 kOhm 380C1200K
250 kOhm 380C1250K
500 kOhm 380C1500K
1 MOhm 380C11MEG
C2: 0.625 in (15,88 mm) screwdriver slotted shaft;
0.5 in (12,7 mm) L locking bushing
C2
27,78
[
1.09
]
14,27
[
0.56
]15,87
[
0.625
]
RESISTANCE REFERENCE
250 Ohm 380C2250
1 kOhm 380C21000
5 kOhm 380C25000
10 kOhm 380C210K
25 kOhm 380C225K
50 kOhm 380C250K
100 kOhm 380C2100K
250 kOhm 380C2250K
1 MOhm 380C21MEG
C3: 0.875 in (22,23 mm) shaft;
0.375 in (9,5 mm) L bushing
14,27
[0.56
]
C3
27,78
[
1.09
]
22,23
[
0.875
]
RESISTANCE REFERENCE
100 Ohm 380C3100
250 Ohm 380C3250
500 Ohm 380C3500
1 kOhm 380C31000
2 kOhm 380C32000
2.5 kOhm 380C32500
5 kOhm 380C35000
10 kOhm 380C3310K
25 kOhm 380C325K
50 kOhm 380C350K
100 kOhm 380C3100K
150 kOhm 380C3150K
200 kOhm 380C3200K
250 kOhm 380C3250K
500 kOhm 380C3500K
1 MOhm 380C31MEG
5 MOhm 380C35MEG
Clarostat Rotary Potentiometers and Position Transducers (continued)
109
www.honeywell.com/sensing
LINEAR AND ROTARY POSITION
RV4 MIL Series potentiometer
The RV4 is a dual-marked potentiometer with all the fine features of the
380 Series in a more economical package. It is built in strict accordance with
MIL-R-94.
Approvals: MIL-R-94
Power rating: 2.0 W max.
Element type: Conductive plastic
Terminal type: Solder lug
Shaft: Slotted
Body: 27,79 mm (1.094 in) Ø
Electrical taper: Linear
Operating temperature: -55 °C to 120 °C (-67 °F to 248 °F)
Working voltage: 500 Vdc
Linearity: ± 5%
Rotational cycles: 25,000
Mechanical rotation: 312° ± 3°
OPTIONS
Standard Bushing,
0.875 in (22,23 mm) shaft length
RESISTANCE TOLERANCE REFERENCE
100 Ohm ± 10% RV4NAYSD101A
250 Ohm ± 10% RV4NAYSD251A
500 Ohm ± 10% RV4NAYSD501A
1 kOhm ± 10% RV4NAYSD102A
2.5 kOhm ± 10% RV4NAYSD252A
5 kOhm ± 10% RV4NAYSD502A
10 kOhm ± 10% RV4NAYSD103A
25 kOhm ± 10% RV4NAYSD253A
50 kOhm ± 10% RV4NAYSD503A
100 kOhm ± 10% RV4NAYSD104A
250 kOhm ± 10% RV4NAYSD254A
500 kOhm ± 10% RV4NAYSD504A
750 Kohm ± 10% RV4NAYSD754A
1 MOhm ± 10% RV4NAYSD105A
5 MOhm ± 20% RV4NAYSD505B
Locking Bushing
RESISTANCE TOLERANCE REFERENCE
100 Ohm ± 10% RV4LAYSA101A
250 Ohm ± 10% RV4LAYSA251A
500 Ohm ± 10% RV4LAYSA501A
1 kOhm ± 10% RV4LAYSA102A
2.5 kOhm ± 10% RV4LAYSA252A
5 kOhm ± 10% RV4LAYSA502A
10 kOhm ± 10% RV4LAYSA103A
25 kOhm ± 10% RV4LAYSA253A
50 kOhm ± 10% RV4LAYSA503A
100 kOhm ± 10% RV4LAYSA104A
250 kOhm ± 10% RV4LAYSA254A
500 kOhm ± 10% RV4LAYSA504A
750 kOhm ± 10% RV4LAYSA754A
1 MOhm ± 10% RV4LAYSA105A
5 MOhm ± 20% RV4LAYSA505B
110 www.honeywell.com/sensing
LINEAR AND ROTARY POSITION
RV6/392M MIL Series potentiometer
RV6/392M Series are economical potentiometers designed to meet wave
soldering applications for mounting PC boards. They meet flow solderability
and washability test requirements, and MIL-R-94 standard apply.
Approvals: MIL-R-94
Power rating: 0.5 W max.
Element type: Conductive plastic
Terminal type: Solder hook
Shaft: Slotted
Body: 12,7 mm (0.5 in) Ø
Electrical taper: Linear
Operating temperature: -40 °C to 120 °C (-40 °F to 248 °F)
Working voltage: 350 Vdc
Linearity: ± 5%
Total resistance tolerance: ± 10% (up to 500 kOhms)
± 20 % (1 MOhm and over)
Rotational cycles: 50,000
Mechanical rotation: 295° ± 5°
RV6/392M
Locking Bushing Type
15,88 ± 0,76
[0.625 ± 0.03]
12,7 ± 0,5
[0.5 ± 0.02] 3,18
[0.125] Dia.
12,7 [0.5]
Dia.
Type Bushing
Length
Shaft
Length
RV6 6,35
0.25 22,23
0.875
Clarostat Rotary Potentiometers and Position Transducers (continued)
OPTIONS
Standard Bushing, 6,35 mm (0.25 in) L;
0.875 in (22,23 mm) shaft length
RESISTANCE REFERENCE
100 Ohm RV6NAYSD101A
250 Ohm RV6NAYSD251A
500 Ohm RV6NAYSD501A
1 kOhm RV6NAYSD102A
2.5 kOhm RV6NAYSD252A
5 kOhm RV6NAYSD502A
10 kOhm RV6NAYSD103A
25 kOhm RV6NAYSD253A
50 kOhm RV6NAYSD503A
100 kOhm RV6NAYSD104A
250 kOhm RV6NAYSD254A
500 kOhm RV6NAYSD504A
1 MOhm RV6NAYSD105A
Locking Bushing, 12,7 mm (0.50 in) L;
0.625 in (15,88 mm) shaft length
RESISTANCE REFERENCE
100 Ohm RV6LAYSA101A
250 Ohm RV6LAYSA251A
500 Ohm RV6LAYSA501A
1 kOhm RV6LAYSA102A
2.5 kOhm RV6LAYSA252A
5 kOhm RV6LAYSA502A
10 kOhm RV6LAYSA103A
25 kOhm RV6LAYSA253A
50 kOhm RV6LAYSA503A
100 kOhm RV6LAYSA104A
250 kOhm RV6LAYSA254A
500 kOhm RV6LAYSA504A
1 MOhm RV6LAYSA105A
111
www.honeywell.com/sensing
LINEAR AND ROTARY POSITION
53 Series potentiometer
The 53 Series has all the fine features of the Series 380 in a more economical
package. It is available with a 50,8 mm [2.0 in] long shaft.
Power rating: 2.0 W max.
Element type: Conductive plastic
Terminal type: Solder lug
Shaft: Slotted, 50,8 mm (2.0 in) L
Body: 27,79 mm (1.094 in) Ø
Electrical taper: Linear
Operating temperature: -55 °C to 120 °C (-67 °F to 248 °F)
Working voltage: 500 Vdc
Linearity: ± 5%
Rotational cycles: 25,000
Mechanical rotation: 312° ± 3°
OPTIONS
Standard Bushing, 2.0 in (50,8 mm) shaft length
RESISTANCE TOLERANCE REFERENCE
100 Ohm ± 10% 53C1100
250 Ohm ± 10% 53C1250
500 Ohm ± 10% 53C1500
1 kOhm ± 10% 53C11K
2.5 kOhm ± 10% 53C12500
5 kOhm ± 10% 53C15K
10 kOhm ± 10% 53C110K
25 kOhm ± 10% 53C125K
50 kOhm ± 10% 53C150K
100 kOhm ± 10% 53C1100K
150 kOhm ± 10% 53C1150K
250 kOhm ± 10% 53C1250K
500 kOhm ± 10% 53C1500K
750 kOhm ± 10% 53C1750K
1 MOhm ± 20% 53C11MEG
2.5 MOhm ± 20% 53C12.5MEG
5 MOhm ± 20% 53C15MEG
585 Series, Commercial potentiometer
Our Series 585 offers a robust construction in a low-cost commercial
package, using carbon composition elements and a metal shaft and bushing.
Power rating: 0.05 W max. @ 40 °C
Element type: Carbon composition
Terminal type: 3 in-line
Bushing: M 7 x 0.75 thread, 7 mm L
Shaft: 6,0 mm (0.24 in) Ø by 25,0 mm (0.98 in) L
Flatted shaft: 12,0 mm (0.47 in) long by 4,5 mm (0.18 in) D standard; round
end available
Body: 9,5 mm (0.37 in) square
Operating temperature: -55 °C to 120 °C (-67 °F to 248 °F)
Resistance tolerance: ± 20%
Rotational cycles: 10,000
Mechanical rotation: 300°
OPTIONS
Linear taper
RESISTANCE SECTION REFERENCE
1 kOhm Single 585SX4Q25F102SP
5 kOhm Single 585SX4Q25F502SP
10 kOhm Single 585SX4Q25F103SP
1 kOhm Double 585DX4Q25F102SP
5 kOhm Double 585DX4Q25F502SP
10 kOhm Double 585DX4Q25F103SP
Audio taper
RESISTANCE SECTION REFERENCE
1 kOhm Single 585SX4Q25F102ZP
5 kOhm Single 585SX4Q25F502ZP
10 kOhm Single 585SX4Q25F103ZP
112 www.honeywell.com/sensing
LINEAR AND ROTARY POSITION
510 Series , Mechanical
The 510 Series controls are manually operated, rotary, mechanical encoders
that provide a two-bit gray code for relative reference applications and a four-
bit gray code for absolute electrical reference applications. The “L” channel
leads the “R” channel by 90° electrically in the CW position. It features
continuous electrical travel and has a rotational life of more than 100,000
shaft revolutions with a positive detent feel.
This series is small-sized, 21,08 mm2 by 8,71 mm deep (0.83 in2 x 0.343 in)
long and commonly used in limited-space, panel-mounted applications where
the need for costly, front-panel displays can be completely eliminated. Digital
gray-code outputs eliminate the need for
A/D converters.
Bushing: 9,52 mm (0.375 in) Ø x 6,35 mm (0.25 in) L
Shaft: Flatted, 6,35 mm (0.25 in) Ø x 19,05 mm (0.75 in) L
Body: 21,08 mm (0.830 in) square
Operating temperature: -40 °C to 105 °C (-40 °F to 221 °F)
Rotational cycles: 100,000
OPTIONS
Vertical Mount, PC Terminals/bent back
GREY CODE OPTIONS REFERENCE
2 bit/4 cycles 510E1A48F204PC
2 bit/6 cycles 510E1A48F206PC
2 bit/9 cycles 510E1A48F209PC
4 bit/16 cycles 510E1A48F416PC
Horizontal Mount, PC Terminals/straight
GREY CODE OPTIONS REFERENCE
2 bit/4 cycles 510E1A48F204PB
2 bit/6 cycles 510E1A48F206PB
2 bit/9 cycles 510E1A48F209PB
4 bit/16 cycles 510E1A48F416PB
Brackets
MOUNTING DIRECTION REFERENCE
Vertical 510VBKT
Horizontal 510HBKT
600 Series, Optical
The 600 Series controls are manually operated, rotary, optical encoders that
output two square waves in quadrature at a rate of 128 pulse per channel per
revolution as a standard with other resolutions down to 60 pulses available.
The outputs are TTL compatible. PC terminals or cable leads are available.
Pulses per revolution: 128
Supply voltage: 5.0 V
Body: 34,93 mm (1.375 in) Ø
Shaft: 6.35 mm [0.25 in] dia by 22.23 mm [0.875] long
Bushing: 9,52 mm [0.375 in] dia by 9,52 mm [0.375 in] long
Operating temperature: -40 °C to 65 °C (-40 °F to 149 °F)
Revolutions: 10 million
1,27 typ.
[
0.05 Typ.
]
12 34
1,91 [
0.075
]
17,5 [
0.69
]
“A”
12,2 [
0.48
]
0,64 x 3,05
[
0.025 x 0.012
]
OPTIONS
Series 600
TERMINATION REFERENCE
177,8 mm (7.0 in) long cable 600EN-128-CBL
PC terminals exiting side 600EN-128-B66
PC terminals exiting rear 600EN-128-C24
177,8 mm (7.0 in) long cable with connector 600EN-128-CN1
Encoders
113
www.honeywell.com/sensing
LINEAR AND ROTARY POSITION
S-510 Series
The S-510 Series consists of a gallum arsenide IRED and silicon
phototransitor mounted in a small injection-molded housing. An IR-opaque
housing is offered for applications where high levels of ambient infrared
radiation may be present and an IR-transparent housing for applications
requiring protection from dust and dirt in the apertures. This series is also
available with 305,0 mm (12.0 in) minimum length flexible wire leads.
Operating temperature: -40 °C to 85 °C (-40 °F to 185 °F)
IRED continuous forward current: 50 mA
IRED peak forward current: 3 A
IRED reverse voltage: 3 V
IRED power dissipation: 100 mW
Sensor collector-emitter voltage: 30 V
Sensor emitter-collector voltage: 5 V
Sensor power dissipation: 100 mW
OPTIONS
IR-opaque housing
TERMINATION ELECTRICAL SELECTION REFERENCE
PC Board mount A S-510-A
Wire A S-510-AW
PC Board mount B S-510-B
Wire B S-510-BW
IR-transparent housing
TERMINATION ELECTRICAL SELECTION REFERENCE
PC Board mount A S-511-A
Wire A S-511-AW
PC Board mount B S-511-B
Wire B S-511-BW
PARAMETER ILVCE(sat)
A 0.5 mA @ IF = 20 mA and VCE = 5 V 0.4 V max @ IF = 20 mA and IC = 0.25 mA
1.0 mA @ IF = 35 mA and VCE = 5V 0.4 V max @ IF = 35 mA and IC = 0.50 mA
B 1.0 mA @ IF = 20 mA and VCE = 5 V 0.4 V max @ IF = 20 mA and IC = 0.50 mA
2.0 mA @ IF = 35 mA and VCE = 5V 0.4 V max @ IF = 35 mA and IC = 1.0 mA
S-180 Series
The S-180 Series consists of a gallum arsenide IRED and silicon
phototransistor mounted in a rigid one-piece polycarbonate housing. All
electrical options are available with either PCB mount or 457,0 mm
(18.0 in) minimum length wire termination (26 AWG type UL 1429)
Operating temperature: -40 °C to 85 °C (-40 °F to 185 °F)
IRED continuous forward current: 50 mA
IRED peak forward current: 3 A
IRED reverse voltage: 3 V
IRED power dissipation: 100 mW
Sensor collector-emitter voltage: 30 V
Sensor emitter-collector voltage: 5 V
Sensor power dissipation: 100 mW
OPTIONS
PCB Mount
VCE(sat) ILREFERENCE
0.4 V max @ IF = 20 mA, IC = 0.4 mA 0.5 mA min @ IF = 20 mA and VCE = 5 V S-180-A55
0.4 V max @ IF = 10 mA, IC = 0.8 mA 1.0 mA min @ IF = 10 mA and VCE = 5 V S-180-B55
0.4 V max @ IF = 20 mA, IC = 2.0 mA 2.0 mA min @ IF = 20 mA and VCE = 5 V S-180-C55
Wire Leads
VCE(sat) ILREFERENCE
0.4 V max @ IF = 20 mA, IC = 0.4 mA 0.5 mA min @ IF = 20 mA and VCE = 5 V S-180-A55W
0.4 V max @ IF = 10 mA, IC = 0.8 mA 1.0 mA min @ IF = 10 mA and VCE = 5 V S-180-B55W
0.4 V max @ IF = 20 mA, IC = 2.0 mA 2.0 mA min @ IF = 20 mA and VCE = 5 V S-180-C55W
Slotted Optical Switches
OPTO SENSORS
114 www.honeywell.com/sensing
LINEAR AND ROTARY POSITION
S-860/870 Series
The S-860/870 family of optical switches offers the designer the most flexible
semi-custom specification available in commercial optoelectronics. Electrical,
optical and mechanical parameters may be specified allowing the use of this
standard product in many applications that would otherwise have to be
custom designed.
Operating temperature: -25 °C to 85 °C (-13 °F to 185 °F)
IRED continuous forward current: 50 mA
IRED peak forward current: 3 A
IRED reverse voltage: 3 V
IRED power dissipation: 100 mW
Sensor collector-emitter voltage: 30 V
Sensor emitter-collector voltage: 5 V
Sensor power dissipation: 100 mW
Slotted Optical Switches (continued)
OPTIONS
IR Transparent; 5,59 mm (0.220 in) Lead spacing;
IRED aperture, 1,27 mm (0.05 in)
ELECTRICAL PARAMETER MOUNTING/SENSOR REFERENCE
A No Tabs/0,25 mm (0.01 in) S-865-N51
B No Tabs/0,25 mm (0.01 in) S-866-N51
C No Tabs/0,25 mm (0.01 in) S-867-N51
A No Tabs/1,27 mm (0.05 in) S-865-N55
B No Tabs/1,27 mm (0.05 in) S-866-N55
C No Tabs/1,27 mm (0.05 in) S-867-N55
A 2 Tabs/0,25 mm (0.01 in) S-865-T51
B 2 Tabs/0,25 mm (0.01 in) S-866-T51
C 2 Tabs/0,25 mm (0.01 in) S-867-T51
A 2 Tabs/1,27 mm (0.05 in) S-865-T55
B 2 Tabs/1,27 mm (0.05 in) S-866-T55
C 2 Tabs/1,27 mm (0.05 in) S-867-T55
IR Transparent; 8,13 mm (0.320 in) Lead spacing;
IRED aperture, 1,27 mm (0.05 in)
ELECTRICAL PARAMETER MOUNTING/SENSOR REFERENCE
A No Tabs/0,25 mm (0.01 in) S-860-N51
B No Tabs/0,25 mm (0.01 in) S-861-N51
C No Tabs/0,25 mm (0.01 in) S-862-N51
A No Tabs/1,27 mm (0.05 in) S-860-N55
B No Tabs/1,27 mm (0.05 in) S-861-N55
C No Tabs/1,27 mm (0.05 in) S-862-N55
A 2 Tabs/0,25 mm (0.01 in) S-860-T51
B 2 Tabs/0,25 mm (0.01 in) S-861-T51
C 2 Tabs/0,25 mm (0.01 in) S-862-T51
A 2 Tabs/1,27 mm (0.05 in) S-860-T55
B 2 Tabs/1,27 mm (0.05 in) S-861-T55
C 2 Tabs/1,27 mm (0.05 in) S-862-T55
IR Opaque; 5,59 mm (0.220 in) Lead spacing;
IRED aperture, 1,27 mm (0.05 in)
ELECTRICAL PARAMETER MOUNTING/SENSOR REFERENCE
A No Tabs/0,25 mm (0.01 in) S-875-N51
B No Tabs/0,25 mm (0.01 in) S-876-N51
C No Tabs/0,25 mm (0.01 in) S-877-N51
A No Tabs/1,27 mm (0.05 in) S-875-N55
B No Tabs/1,27 mm (0.05 in) S-876-N55
C No Tabs/1,27 mm (0.05 in) S-877-N55
A 2 Tabs/0,25 mm (0.01 in) S-875-T51
B 2 Tabs/0,25 mm (0.01 in) S-876-T51
C 2 Tabs/0,25 mm (0.01 in) S-877-T51
A 2 Tabs/1,27 mm (0.05 in) S-875-T55
B 2 Tabs/1,27 mm (0.05 in) S-876-T55
C 2 Tabs/1,27 mm (0.05 in) S-877-T55
IR Opaque; 8,13 mm (0.320 in) Lead spacing; IRED
aperture, 1,27 mm (0.05 in)
ELECTRICAL PARAMETER MOUNTING/SENSOR REFERENCE
A No Tabs/0,25 mm (0.01 in) S-870-N51
B No Tabs/0,25 mm (0.01 in) S-871-N51
C No Tabs/0,25 mm (0.01 in) S-872-N51
A No Tabs/1,27 mm (0.05 in) S-870-N55
B No Tabs/1,27 mm (0.05 in) S-871-N55
C No Tabs/1,27 mm (0.05 in) S-872-N55
A 2 Tabs/0,25 mm (0.01 in) S-870-T51
B 2 Tabs/0,25 mm (0.01 in) S-871-T51
C 2 Tabs/0,25 mm (0.01 in) S-872-T51
A 2 Tabs/1,27 mm (0.05 in) S-870-T55
B 2 Tabs/1,27 mm (0.05 in) S-871-T55
C 2 Tabs/1,27 mm (0.05 in) S-872-T55
PARAMETER ILVCE(sat)
A 0.5 mA @ IF = 20 mA and VCE = 5 V 0.4 V max @ IF = 20 mA and IC = 0.4 mA
B 1.0 mA @ IF = 10 mA and VCE = 5 V 0.4 V max @ IF = 10 mA and IC = 0.8 mA
C 2.0 mA @ IF = 20 mA and VCE = 0.4 V 0.4 V max @ IF = 20 mA and IC = 2.0 mA
OPTO SENSORS
115
www.honeywell.com/sensing
LINEAR AND ROTARY POSITION
S-800W Series, Wide gap
The S-800W Series of wide gap slotted switches consists of a gallium arsenide
IRED and silicon phototransistor in an injection-molded housing. The output
current range options allow the design engineer the flexibility to choose from
three current minimums to best solve application requirements.
Operating temperature: -40 °C to 80 °C (-40 °F to 176 °F)
IRED continuous forward current: 50 mA
IRED peak forward current: 3 A
IRED reverse voltage: 3 V
IRED power dissipation: 100 mW
Sensor collector-emitter voltage: 30 V
Sensor emitter-collector voltage: 5 V
Sensor power dissipation: 100 mW
OPTIONS
ILVCE(sat) REFERENCE
500 uA min @ VCE = 10 V & IF = 20 mA 0.4 V max @ IC = 250 uA & IF = 20 mA S-800W
1.0 mA min @ VCE = 5 V & IF = 10 mA 0.4 V max @ IC = 500 uA & IF = 20 mA S-801W
1.8 mA min @ VCE = 0.6 V & IF = 20 mA 0.4 V max @ IC = 1.8 mA & IF = 20 mA S-802W
OPTO SENSORS
116 www.honeywell.com/sensing
LINEAR AND ROTARY POSITION
Blank page
117
www.honeywell.com/sensing
ULTRASONIC DISTANCE SENSORS
Ultrasonic Distance Sensors
Ultrasonic sensing systems offer no-touch distance measurements to an
accuracy of 1 mm through dust, smoke and vapour, in areas of high noise
level, and with all types of target materials, shapes and colours, with sensing
ranges from 100 mm up to 6000 mm.
High performance no-touch position sensing
Increased reliability, no contamination. Honeywell ultrasonic sensors operate
by exciting an acoustic transducer with voltage pulses, causing the transducer
to vibrate ultrasonically. These oscillations are directed at a target and by
measuring the time for the echo to return to the transducer, the distance may
be calculated. This measurement technique in no way interferes with the
object - it does not contaminate the target, nor does it affect the position. And
being no-touch, there are no mechanical linkages to wear out.
Ultrasonic
Factory noise does not affect operation because the operating frequency is
well above the frequency of ambient sound. And because sound is used, air
pressure, humidity and airborne contamination have little effect on accuracy;
target shape, material and colour are also not critical.
Working method
The sensors work with an ultrasonic transducer used for both transmitting
and receiving. In each cycle, ultrasonic pulses will be transmitted. The pulses
are then reflected back from the target, and received by the sensor. By means
of the temperature compensated measurement of the elapsed time of the
acoustic signal, the target distance is determined, with a high degree of
accuracy. The resulting measurement can be output either as an analogue or a
digital signal.
Figure 1 shows the elapsed time of the acoustic pulse. The diagram shows how the pulse
travels from the transducer to the target, is reflected at time T/2, and reaches the
transducer at time T. Below is a diagram of the voltage at the ultrasonic transducer.
Elapsed time T is directly proportional to object distance a. a = cT/2, where c is the
velocity of sound.
Application criteria
The maximum sensing range depends on a number of factors such as target
shape, surface, inclination to the beam axis, surface composition and
environmental influences. The range values included in this catalogue are
based on a target made of flat, sound-reflecting material at 25°C and still air,
placed vertical to the beam axis.
0 T/2 T
Target object distance
Time
Time
Voltage
Reflective properties
Almost all materials and targets reflect sound, and can therefore be detected.
Only sound-absorbing materials such as cotton wool, or foam rubber are
either difficult or impossible to detect. Certain materials, such as textiles,
weaken the ultrasonic signals, as a result of which the maximum sensing
distance is less than half of the nominal value.
Target shape and surface
All object shapes and surfaces can be measured using ultrasonic sensors, up
to the maximum distance at which a sufficient echo reaches the sensor.
Cylindrical, conical and small objects reduce the measuring range.
Inclination to beam angle
If a smooth, flat target is inclined at more than half of the nominal beam angle
to the normal beam axis (e.g. 5°), the echo is deflected so far that, under
certain conditions, no signal is received by the sensor (see Figure 2 overleaf).
At shorter target distances, the target can be inclined up to the beam (e.g.
10°) from the beam axis. In the case of targets with a rough surface, the
acoustic beam is reflected diffusely. The angle of inclination to the beam may,
under certain circumstances, be up to 50°, but the maximum sensing
distance is reduced.
118 www.honeywell.com/sensing
ULTRASONIC DISTANCE SENSORS
Figure 2: Effect of target inclination on the measurement
Environmental influences
The velocity of sound in air is temperature-dependent, and increases at a rate
of 0.18 %/°C. Honeywell ultrasonic distance sensors have their own
temperature transducer, which adjusts both the clock frequency of the elapsed
time counter and the carrier frequency. Major temperature fluctuations within
the measuring path can, however, lead to sound dispersion and refraction,
which disturb the measuring result and limit the stability of the measurement
(Figure 3). Air streams, turbulence and air layers of different densities can, in
certain conditions, attenuate or deflect the echo to such an extent that the
sensor cannot detect it. On the other hand, air humidity and normal
atmospheric air pressure fluctuations have virtually no influence on the
measurements.
Figure 3: Effect of warm air turbulence on the measurement
Repeatability
All information concerning repeatability and hysteresis in this data sheet is
valid for axial target movements (Figure 4). If a target approaches the sensor
from a distance, the output switches at the set value ± the given repeatability.
If the target moves further away from the sensor, the output switches back
into its original condition, at a distance which is equal to the sum of the
setpoint and the given hysteresis ± the repeatability. If a target moves laterally
into the acoustic beam, the echo energy increases. If the measurement
threshold of the sensor is reached, the output becomes active. This threshold
depends on the target properties and its distance from the sensor. The
position can only be determined experimentally.
Target
1400 (mm)120010008006004002000
-5
-3
-1
1
3
5
(cm)
Repeatability
Switching point in
forwards direction
Switching point in
backwards direction
Output
Hysteresis
Figure 4: Repeatability and hysteresis
Mutual interference
Despite pulse coding, if several sensors are used simultaneously in a single
application, mutual interference can occur. This phenomenon will, however,
only arise if, as a result of the inclination of the object, or the positioning of
two sensors opposite one another, false echo signals can be received. By
using the inhibitor input, maintaining minimum distances or restricting the
beam angle with a focusing reflector, the problem can be almost entirely
avoided.
Synchronisation
The majority of Honeywell ultrasonic distance sensors can be very easily
synchronised by interconnecting the appropriate inputs or connecting them
with an external synchronisation unit. The transmission of the acoustic pulses
then occurs simultaneously. This makes it possible to use the sensors for
applications in which the ultrasonic transducers are facing each other, while
still avoiding mutual interference.
Protective measures
All sensors are protected against water and dust, according to the DIN
standard IP 65. The transducer is coated with silicone rubber or epoxy, but it
can be attacked by aggressive acid or caustic atmospheres. It is also
necessary to ensure that the transducer face remains clear of liquid or solid
deposits, which could limit the performance of the sensor. Drops of water may
be deposited on the transducer surface, as a result of condensation. These
could severely reduce the sensor range. Also because of the risk of icing up,
and because sensors detect raindrops, the suitability of these sensors for
outdoor use, despite the protective measures, is limited.
Electrical interference
All Honeywell ultrasonic sensors are protected against reverse polarity, short
circuits, overloads and voltage spikes. Special protective circuitry makes the
sensor almost entirely immune to electromagnetic and radio frequency
interference. However, unstable measurements may arise if the sensor is
placed in the vicinity of strong electrical fields. In such cases, the
interconnection cables should be screened as far as possible, or separated
from power cables. The use of regulated power supplies with mains filters,
and limiting the maximum cable length to 50 metres can also offer possible
solutions. All sensors are CE marked.
Alignment aid
The majority of Honeywell ultrasonic distance sensors have an LED, the
output intensity of which is proportional to the ultrasonic echo received. The
brighter the LED, the better aligned the sensor.
Please contact your nearest Honeywell office for details of other models
available.
Sn 10 cm
10 cm
< 5°
< 5°
< 5°
< 5°
Sn
10 cm
10 cm
Sn
Sn
10 cm
10 cm
10 cm
10 cm
cold
warm
119
www.honeywell.com/sensing
ULTRASONIC DISTANCE SENSORS
The new 940/947 Series is microprocessor controlled, can be set up quickly and are fitted with epoxy
transducers. All the housings are sealed to IP67. The retroreflective versions allow detection of any kind
of target without any dead zone. They work with a reflector target.
940/947 Series
Compact,
microprocessor
controlled with
internal temperature
compensation
OPTIONS
1 adjustable switching output
PNP NO
Max. sensing distance: 600 mm
Min. sensing distance: 100 mm
Beam angle: 8°
Repeatability: 0,3 % or ±1 mm
Switching frequency: 25 Hz
Supply voltage: 18 to 30 V
Sealing: IP67
Housing: M18 x 1 mm plastic (PBTB)
REFERENCE
940-F4Y-2D-001-300E
Max. sensing distance: 1500 mm
Min. sensing distance: 200 mm
Beam angle: 8°
Repeatability: 0,3 % or ±1 mm
Switching frequency: 8 Hz
Supply voltage: 18 to 30 V
Sealing: IP67
Housing: M18 x 1 mm plastic (PBTB)
REFERENCE
940-F4Y-2D-001-180E
Max. sensing distance: 3000 mm
Min. sensing distance: 300 mm
Beam angle: 8°
Repeatability: 0,3% or ±1 mm
Switching frequency: 1 Hz
Supply voltage: 18 to 30 V
Sealing: IP67
Housing: M30 x 1,5 mm plastic (PBTB)
Termination: Preleaded 2 m
3,5
M30 x 1,5
125 ±0,5
90 ±0,5
REFERENCE
947-T4Y-2D-001-130E
Analogue voltage output, 0-10 V
Max. sensing distance: 600 mm
Min. sensing distance: 100 mm
Beam angle: 8°
Repeatability: 0,2 % or ±2 mm
Response time: 50 ms
Supply voltage: 18 to 30 V
Sealing: IP67
Housing: M18 x 1 mm plastic (PBTB)
Termination: Preleaded 2 m
REFERENCE
947-F4Y-2D-1C0-300E
Max. sensing distance: 1500 mm
Min. sensing distance: 200 mm
Beam angle: 8°
Repeatability: 0,2 % or ±2 mm
Response time: 100 ms
Supply voltage: 18 to 30 V
Sealing: IP67
Housing: M18 x 1 mm plastic (PBTB)
Termination: Preleaded 2 m
REFERENCE
947-F4Y-2D-1C0-180E
Max. sensing distance: 2500 mm
Min. sensing distance: 300 mm
Beam angle: 8°
Repeatability: 0,2 % or ±2 mm
Response time: 90 ms
Supply voltage: 18 to 30 V
Sealing: IP67
Housing: M30 x 1,5 mm plastic (PBTB)
Termination: Preleaded 2 m
3,5
M30 x 1,5
125 ±0,5
90 ±0,5
REFERENCE
947-T4Y-2D-1C0-130E
Retroreflective, PNP NO
Max. sensing distance: 600 mm
Min. sensing distance: 0 mm
Min. reflector distance: 300 mm
Beam angle: 8°
Switching frequency: 25 Hz
Supply voltage: 18 to 30 V
Sealing: IP67
Housing: M18 x 1 mm plastic (PBTB)
Termination: Preleaded 2 m
REFERENCE
947-FSY-2D-001-300E
Max. sensing distance: 1500 mm
Min. sensing distance: 0 mm
Min. reflector distance: 400 mm
Beam angle: 8°
Switching frequency: 8 Hz
Supply voltage: 18 to 30 V
Sealing: IP67
Housing: M18 x 1 mm plastic (PBTB)
Termination: Preleaded 2 m
REFERENCE
947-FSY-2D-001-180E
Max. sensing distance: 2500 mm
Min. sensing distance: 0 mm
Min. reflector distance: 600 mm
Beam angle: 8°
Switching frequency: 1 Hz
Supply voltage: 18 to 30 V
Sealing: IP67
Housing: M30 x 1,5 mm plastic (PBTB)
Termination: Preleaded 2 m
3,5
M30 x 1,5
125 ±0,5
90 ±0,5
REFERENCE
947-TSY-2D-001-130E
120 www.honeywell.com/sensing
ULTRASONIC DISTANCE SENSORS
948 Series
Thru scan, 2 part
The 948 series perform presence measurement by
using an ultrasonic beam. The 948 series is one of
the smallest ultrasonic scan through devices in the
world. It is especially suited for food and beverage
applications, in particular bottle counting. Easy to
install, the 948 series is suitable when space is at a
premium.
1 switching output
NO/NC; NPN/PNP
Max. sensing distance: 300 mm
Beam angle: 8°
Supply voltage: 18 to 30 V
Sealing: IP67
Housing: Plastic rectangular
30,0
(1.18) 2000
(78.74)
12,0
(0.47)
20,0
(0.79)
6,5
(0.04)
5,5
(0.22)
17,0
(0.67)
3,2
(0.13)
10,0
(0.39)
2,0
(0.08)
30,0
(1.18) 2000
(78.74)
12,0
(0.47)
20,0
(0.79)
6,5
(0.04)
5,5
(0.22)
17,0
(0.67)
3,2
(0.13)
10,0
(0.39)
2,0
(0.08)
SWITCHING REFERENCE
PNP/NO 948-HSY-2D-001-300E
NPN/NO 948-HSY-2D-002-300E
PNP/NC 948-HSY-2D-003-300E
NPN/NC 948-HSY-2D-004-300E
944 Series
Teach in,
Analogue and
2 switching outputs
The new 944 series are microprocessor controlled and fully programmable by teach-in, with the simple
pressing of a button. They offer analogue and two switching outputs through a standard M-12, 5-pin
connector. All the models are IP67 with chemical-resistant body and epoxy face. Parameters are stored in
non-volatile memory.
OPTIONS
2 switching outputs PNP NO
Analogue output 0-10 volts
Beam angle: 8°
Repeatability : 0,4 % or ±2 mm
Supply voltage: 19 to 30 V
Sealing: IP67
Housing: M30 x 1,5 mm plastic (PBTB)
M30 x 1,5
3,5 11,2
Max. sensing distance: 3500 mm
Min. sensing distance: 350 mm
Switching frequency: 0,8 Hz
REFERENCE
944-T4V-2D-1C1-130E
Max. sensing distance: 2000 mm
Min. sensing distance: 250 mm
Switching frequency: 1 Hz
REFERENCE
944-T4V-2D-1C1-180E
Max. sensing distance: 1500 mm
Min. sensing distance: 150 mm
Switching frequency: 1 Hz
REFERENCE 944-T4V-2D-1C1-200E
Max. sensing distance: 350 mm
Min. sensing distance: 60 mm
Switching frequency: 8 Hz
REFERENCE 944-T4V-2D-1C1-300E
2 switching outputs PNP NO
Analogue output 4-20 mA
Beam angle: 8°
Repeatability : 0,4 % or ±2 mm
Supply voltage: 19 to 30 V
Sealing: IP67
Housing: M30 x 1,5 mm plastic (PBTB)
M30 x 1,5
3,5 11,2
Max. sensing distance: 3500 mm
Min. sensing distance: 350 mm
Switching frequency: 0,8 Hz
REFERENCE
944-T4V-2D-1D1-130E
Max. sensing distance: 2000 mm
Min. sensing distance: 250 mm
Switching frequency: 1 Hz
REFERENCE
944-T4V-2D-1D1-180E
Max. sensing distance: 1500 mm
Min. sensing distance: 150 mm
Switching frequency: 1 Hz
REFERENCE
944-T4V-2D-1D1-200E
Max. sensing distance: 350 mm
Min. sensing distance: 60 mm
Switching frequency: 8 Hz
REFERENCE
944-T4V-2D-1D1-300E
121
www.honeywell.com/sensing
ULTRASONIC DISTANCE SENSORS
OPTIONS
2 switching outputs PNP 2NO/NC
Analogue output 0-10 volts
Beam angle: 8°
Repeatability : 0,4 % or ±2 mm
Supply voltage: 19 to 30 Vdc
Sealing: Connector IP65
Front face IP67
Housing: M30 x 1,5 mm plastic (PBTB)
Switching frequency: 5 to 30 Hz
Max. sensing distance: 3500 mm
Min. sensing distance: 350 mm
REFERENCE
942-T4N-2D-1C1-130E
Max. sensing distance: 2000 mm
Min. sensing distance: 250 mm
REFERENCE
942-T4N-2D-1C1-180E
Max. sensing distance: 1500 mm
Min. sensing distance: 150 mm
REFERENCE
942-T4N-2D-1C1-200E
The new, plastic housing (PBTB), programmable 942-T series provides flexibility to customers through
independent analogue and 2 switching outputs to suit most of the applications. The programming is easy
to do using Window™ based software.
942-T Series
with Digital Link,
Analogue and 2
switching outputs
942 Series
Compact
programmable
30 mm diameter
sensor
Voltage output, 0-10 V
2 switching outputs PNP
Max. sensing distance: 1500 mm
Min. sensing distance: 150 mm
Beam angle: 10°
Repeatability: 0,4 % or ±2 mm
Switching frequency: 5 to 30 Hz
Response time: 100 ms
Supply voltage: 19 to 30 V
Sealing: IP65
Housing: M30 x 1,5 mm stainless steel
REFERENCE
942-A4N-2D-1C1-220S
Max. sensing distance: 3000 mm
Min. sensing distance: 300 mm
Beam angle: 8°
Repeatability: 0,4 % or ±2 mm
Switching frequency: 5 to 30 Hz
Response time: 100 ms
Supply voltage: 19 to 30 V
Sealing: IP65
Housing: M30 x 1,5 mm stainless steel
REFERENCE
942-A4N-2D-1C1-130E
2 switching outputs PNP 2NO/NC
Analogue output 4-20 mA
Beam angle: 8°
Repeatability : 0,4 % or ±2 mm
Supply voltage: 19 to 30 Vdc
Sealing: Connector IP65
Front face IP67
Housing: M30 x 1,5 mm plastic (PBTB)
Switching frequency: 5 to 30 Hz
Max. sensing distance: 3500 mm
Min. sensing distance: 350 mm
REFERENCE
942-T4N-2D-1D1-130E
Max. sensing distance: 2000 mm
Min. sensing distance: 250 mm
REFERENCE
942-T4N-2D-1D1-180E
Max. sensing distance: 1500 mm
Min. sensing distance: 150 mm
REFERENCE
942-T4N-2D-1D1-200E
122 www.honeywell.com/sensing
ULTRASONIC DISTANCE SENSORS
942 Series
2 Piece
30 mm diameter sensor with
RS232 Interface
Voltage and current output
2 switching RS232 interface
Max. sensing distance: 1500 mm
Min. sensing distance: 150 mm
Beam angle: 10°
Repeatability: 0,2 % or ±1 mm
Switching frequency: 5 to 8 Hz
Response time: 120 ms
Supply voltage: 19 to 30 V
Sealing: IP65
Housing: M30 stainless steel
REFERENCE
Complete sensor: 942-M3A-2D-1G1-220S
941 Series
Limit switch style
Max. sensing distance: 1500 mm
Min. sensing distance (adjustable): 200 mm
Beam angle: 10°
Repeatability: ±1 mm
Supply voltage: 18 to 50 V
Sealing: IP65
Housing: Zinc die-cast, sea water resistant paint finish
OPTIONS
Analogue voltage output, 0-10 V
Response time: 150 ms
REFERENCE
941-C2V-2E-1C0
Switching
2 adjustable switching outputs PNP NO
Switching frequency: 10 Hz
REFERENCE
941-C2V-2E-001
123
www.honeywell.com/sensing
ULTRASONIC DISTANCE SENSORS
946 Series
Teach In
30 mm diameter
precision output
OPTIONS
Analogue voltage (0-10 V) and
current (4-20 mA) output
Beam angle: 5°
Repeatability: < 0,1 %
Supply voltage: 10 to 30 V
Sealing: IP65
Housing: M30 x 1,5 mm stainless steel
Termination: M12 connector
Max. sensing distance: 500 mm
Min. sensing distance: 60 mm
Response time: 35 ms
REFERENCE
946-A4V-2D-2C0-380E
Max. sensing distance: 2000 mm
Min. sensing distance: 200 mm
Response time: 100 ms
REFERENCE
946-A4V-2D-2C0-175E
Max. sensing distance: 4000 mm
Min. sensing distance: 500 mm
Response time: 300 ms
REFERENCE
946-A4V-2D-2C0-85E
Max. sensing distance: 6000 mm
Min. sensing distance: 800 mm
Response time: 500 ms
REFERENCE
946-A4V-2D-2C0-65E
2 adjustable switching outputs
PNP NO
Beam angle: 5°
Repeatability: < 1 %
Supply voltage: 10 to 30 V
Sealing: IP65
Housing: M30 x 1,5 mm stainless steel
Termination: M12 connector
Max. sensing distance: 300 mm
Min. sensing distance: 60 mm
Switching frequency: 15 Hz
REFERENCE
946-A4V-2D-001-400E
Max. sensing distance: 2000 mm
Min. sensing distance: 200 mm
Switching frequency: 5 Hz
REFERENCE
946-A4V-2D-001-175E
Max. sensing distance: 6000 mm
Min. sensing distance: 800 mm
Switching frequency: 1 Hz
REFERENCE
946-A4V-2D-001-65E
124 www.honeywell.com/sensing
ULTRASONIC DISTANCE SENSORS
Accessories
Due to regional agency approval requirements, some products may not be available in your area. Please
contact your regional Honeywell office regarding your choice of product.
Power supply
24 Vdc regulated power supply
with output relay
The FF-MADB24RB is a small and versatile power
supply usually used with the ultrasonic distance
sensors, but may be used for any purpose. The
power supply accepts 115 or 230 Vac input, is
regulated to 24 Vdc. An internal SPDT relay may
be triggered by NPN or PNP sensor output.
Use with Series: 940, 941, 942, 944, 946, 947
Supply voltage: 110 Vac or 220 to 240 Vac
Circuit protection: Short circuit
Load current: 150 mA max.
LED indication: Output relay
Output type: Relay SPDT 4 A/250 Vac, 3 A/60 Vdc
Termination: Screw
Housing: Plastic
Housing type: DIN rail mount, 2 holes Ø4,5 mm
75,0
2.95
50,0
1.97 35,0
1.38
37,5
1.48
60,0
2,36
62,5
2.46
4,8
0.19
110,0
4.33
6,0
0.24
REFERENCE
FF-MADB24RB
Beam Deflectors
Beam deflectors deflect the ultrasonic beam by 90° with virtually no
signal loss. They are extremely useful in applications where space is
limited; they allow the space required for the dead zone to be
accommodated when setting up the sensor. The focusing beam
deflector concentrates the ultrasonic beam, preventing unwanted
reflection. It reduces the beam angle by approximately half.
The 43192871 series is made of stainless steel and may be used
to fix the sensor. The 66195116-001, made of plastic, is available
for M30 sensors only and cannot be used to fix the sensor.
OPTIONS
Compact - M30
Use with Series: 942, 944, 946, 947
Housing: Plastic
REFERENCE
66195116-001
M30
Use with Series: 940, 942, 944, 946, 947
Housing: Stainless steel
REFERENCE
43192871-001
Focusing 43192871-002
M18
Use with Series: 940, 942, 944, 946, 947
Housing: Stainless steel
REFERENCE
43192871-003
Focusing 43192871-004
125
www.honeywell.com/sensing
ULTRASONIC DISTANCE SENSORS
M12 Connectors
OPTIONS
WITHOUT CABLES
M12 female, 5 pin, 5 screw terminals
The 66195044-001 is used for the 940, 941, 944,
947 series but may be used for any industrial
sensor with standard M12 4 pin or 5 pin
connector. The 66195044-001 connector is
usually included with every sensor of the above
series for connectorised models.
Use with Series: 940, 941, 944, 947
Housing: Plastic
Termination: Female M12
Number of pins: 5
REFERENCE
66195044-001
M12 female, 7 pin (942 Series)
The 66195074-001 is used for the ultrasonic
distance sensor heads 942-A4M. It needs to be
wired and soldered at the setup of the sensor. The
66195074-001 is included in every package of the
942 separate series (942 M3A...) but not in the
spare ultrasonic heads (942-A4M..).
Use with Series: 942
Housing: Stainless Steel
Termination: Female Binder
Number of pins: 7
REFERENCE
66195074-001
WITH CABLES
M12 female, 5 pin, 2 metre cable
(supplied with 946 Series)
The 55002 is a 5 pin, M12 female, metal, cable
connector with 2 metres of cable attached. It is
used with the 946 series but may be used for any
industrial sensor with standard M12 4 pin or 5 pin
connector. The 55002 cable connector is included
with every sensor of the 946 series.
Use with Series: 940, 941, 944, 946, 947
Termination: Female M12
Number of pins: 5
REFERENCE
55002
Female, 8 pin, 2 metre cable (942
Series Compact)
The 55195126-001 is an 8 pin, female, metal,
cable connector with 2 metres of cable attached.
It used with the 942-A4N compact series. This
device is useful but not necessary to setup the
sensor, as every ultrasonic distance sensor 942-
A4N is provided with a female connector without
cable, with pins to solder.
Use with Series: 942
Housing: Stainless steel
Termination: Female Binder
Number of pins: 8
REFERENCE
55195126-001
Mounting Clamps
The 43178389 are plastic mounting clamps
usually used with the ultrasonic distance sensors,
but may be used with any M18 or M30 industrial
sensors. The 43178389 feature 2-part plastic
clamps with 2 M5x60 mm screws and nuts.
OPTIONS
M18
Use with Series: 940
Housing: Plastic
REFERENCE
43178389-018
M30
Use with Series: 942, 944, 946, 947
Housing: Plastic
REFERENCE
43178389-030
126 www.honeywell.com/sensing
ULTRASONIC DISTANCE SENSORS
Accessories (continued)
Programming
OPTIONS
Software
The software package 55195101-101 contains
software for programming 942 series separate
and 55195101-102 for the 942 series compact .
The software runs under Microsoft Windows™
versions 95™ and later.
Both packages contain an RS-232 cable (crossed)
with 2 Sub-D 9 pin connectors, to connect to a PC.
For 55195101-101 (942 Series separate), the
other end of the cable connects to the control box
942-M0A.... by screw terminals. For 55195101-
102 (942 Series compact), the other end of the
cable connects to programming module
55000005-002.
For sensor series 942T... the programming cable
gives easy access to the RS232 interface. The
RS232 interface of the connector is directly
connected to the Sub-D 9 pin connector, which
allows easy connection to a PC. The Windows™
based software is easy to use and is supplied on a
floppy disc with the programming cable.
REFERENCE
942-A Series Separate 55195101-101
942-N Series Compact 55195101-102
942-T Series 55000018-001
(includes programming cable)
Programming adaptor for 946
Series
Use with Series: 946
Sealing: IP65
Number of pins: 4
REFERENCE
40779
942 Series Compact programming
module
The 55000005-002 is a programming module for
the 942-A4N series. Although this device is not
necessary to setup the sensor, it is very useful as
it provides quick connections for the RS-232 data
link and the ‘hold’ switch.
It features 1 connector din Sub-D 9 pin,
compatible with the cable included in the software
package 55195101-102, 1 microswitch to put the
sensor in ‘hold’ mode (necessary for the RS-232
link), 1 female and 1 male connector to be inserted
between the customer’s interface and the 942-A4N
sensor.
The 55000005-002 may be used to programme
any number of sensors and is not necessary in the
usual run of the application. It is not compatible
with 942 separate series.
REFERENCE
55000005-002
127
www.honeywell.com/sensing
PRESSURE SENSORS
Pressure Sensors
Honeywell has over 40 years of experience in the pressure transducer
industry. We offer three pressure sensor measurement types - absolute,
differential and gage - including vacuum gage and bidirectional types. A wide
variety of pressure ranges, along with both amplified and unamplified
versions, are available. Silicon-based versions in stainless steel and brass
housings allow for use in harsh environmental conditions. A wide choice of
mounting, package, and port configurations allows customers to choose from
standard off-the-shelf designs.
Pressure sensors contain sensing elements that consist of four piezoresistors
buried in the face of a thin, chemically-etched silicon diaphragm. A pressure
change causes the diaphragm to flex, inducing a stress or strain in the
diaphragm and the buried resistors. The resistor values change in proportion
to the stress applied and produce an electrical output.
All Honeywell pressure sensors feature excellent repeatability, high accuracy
and reliability under varying environmental conditions. In addition, they
feature highly consistent operating characteristics from one sensor to the next
and interchangeability without recalibration.
Stainless Steel versions
Honeywell also offers stainless steel pressure transducers that use bonded
strain gauge technology with stainless steel media isolation, which eliminates
the need for internal seals. Our stainless steel pressure transducers utilize
bonded semiconductor strain gauge technology and are designed for
demanding environments involving corrosive media. They are manufactured
in a variety of packages that are widely used in medical equipment,
compressors, hydraulic controls, transportation, agriculture, and refrigeration
applications. Laser trimmed and tested, they are fully calibrated and
temperature compensated to assure long-term reliability and performance.
Stainless steel pressure transducers are fully compensated to eliminate known
sources of errors.
Most of our transducers utilize the ‘bonded strain gage’ technology and are
fully stainless steel media isolated, eliminating the need for internal elastomer
seals. Our strain gage design is very resistant to the effects of shock,
vibration and hostile environments. All of our transducers are fully
compensated and tested against the appropriate specifications before
shipment.
High Purity versions
High purity pressure sensors are focused on high-purity applications in the
wafer-processing segment of the semiconductor industry. With ISO 9001
certified facilities and Class 10 cleanroom capability, Honeywell manufactures
a full line of high purity pressure sensing and control products; each
individually tested, inspected and certified to be in full compliance with the
product specification.
The long life of the high-purity pressure sensors, coupled with long-term
stability, greatly reduces or eliminates the need for zero and span adjustments.
128 www.honeywell.com/sensing
PRESSURE SENSORS
AB/HP Series
The AB-High Performance pressure transducer is extremely accurate down to
0.25% span over a wide compensated temperature range. Both zero and full-
scale temperature compensation are held to extremely narrow limits.
The transducer’s body is made in a configuration permitting its use as a ‘flush-
mounted’ device in situations where ease of cleaning or low-fluid volumes are
major requirements. It may also be mounted in an adaptor for more
conventional installations. Made from 316L or 15-5PH stainless steel, the AB/
HP offer premium performance and flexibility at OEM prices.
Approvals: CE
Supply voltage: 5.0 Vdc, 6.0 Vdc max.
Signal conditioning: Unamplified compensation
Compensated temperature range: -1 °C to 71 °C (30 °F to 160 °F)
Port style: Flush Diaphragm
Output type: 0 mV to 100 mV
+ Excitation: Red
+ Signal: Grn
– Excitation: Blk
– Signal: Wht
4 conductor
color coded
shielded cable
0.91 m long
(3 ft. )
Shield
(drain)
23
,
8
max. dia.
(0.935)
19
,
0 max. dia.
(0.749)
A
Pressure sensitive surface
(diaphragm)
29
,
2
max.
(1.15)
6
,
4
(0.25)
OPTIONS
0,91 m (3 ft) 4-Conductor Shielded Cable
-54 °C to 93 °C (-65 °F to 200 °F)
MEASUREMENT TYPE PRESSURE RANGE REFERENCE
Absolute 0 psia to 15 psia ABH015PAC1B
Absolute 0 psia to 50 psia ABH050PAC1B
Gauge 0 psig to 6 psig ABH006PGC1B
Gauge 0 psig to 25 psig ABH025PGC1B
Gauge 0 psig to 15 psig ABH015PGC1B
Sealed Gauge 0 psis to 100 psis ABH100PSC1B
Sealed Gauge 0 psis to 200 psis ABH200PSC1B
Sealed Gauge 0 psis to 500 psis ABH500PSC1B
Sealed Gauge 0 psis to 1,000 psis ABH01KPSC1B
Sealed Gauge 0 psis to 2,000 psis ABH02KPSC1B
Sealed Gauge 0 psis to 3,000 psis ABH03KPSC1B
Bendix High Temperature Connector
-54 °C to 149 °C (-65 °F to 300 °F)
MEASUREMENT TYPE PRESSURE RANGE REFERENCE
Absolute 0 psia to 25 psia ABH025PABB
Sealed Gauge 0 psis to 3,000 psis ABH03KPSBB
Sealed Gauge 0 psis to 10,000 psis ABH10KPSBB
BL Series
The BL pressure transmitter has a conventional 4 mA to 20 mA output and is
available with accuracies to 0.25%. It has Factory Mutual approval as an
intrinsically safe device for use in hazardous areas. Class I, Division I, Groups
A through G (when used within approved barriers).
Approvals: CE, FM
Supply voltage: 12.0 Vdc to 30.0 Vdc
Signal conditioning: Amplified compensated
Operating temperature range: -40 °C to 82 °C (-40 °F to 180 °F)
Compensated temperature range: -1 °C to 54 °C (-30 °F to 130 °F)
Port style: Flush Diaphragm
Output type: 4 mA to 20 mA
Termination type: Bendix Connector
A
B
C
D
E
F
CONNECTOR
PTIH-10-6P
20,6
79,0 max.
A
B
19,05 max.
(0.75)
23,75 max.
(0.875)
(3.125)
(0.75)
PRESSURE
SENSITIVE
DIAPHRAGM
A
B
C & D
E
+ EXCITATION
RETURN
ZERO BALANCE
CASE GROUND
OPTIONS
MEASUREMENT TYPE PRESSURE RANGE REFERENCE
Gauge 0 psig to 15 psig BLH015PGBG
Gauge 0 psig to 15 psig BL015PGBG
Sealed Gauge 0 psis to 100 psis BL100PSBG
Sealed Gauge 0 psis to 100 psis BLH100PSBG
Sealed Gauge 0 psis to 200 psis BL200PSBG
Sealed Gauge 0 psis to 500 psis BL500PSBG
Sealed Gauge 0 psis to 5,000 psis BL05KPSBG
Sealed Gauge 0 psis to 10,000 psis BLH10KPSBG
PRESSURE RANGE (PSI)
)ISP(egnaRerusserPXAMA.miDB.miD
5-0172.)9.6(52.)4.6(
05-0ot51-1232.)9.5(52.)4.6(
002-0ot001-0832.)1.6(52.)4.6(
0001-0ot005-0832.)1.6(91.)8.4(
0005-0ot0002-0372.)9.6(91.)8.4(
00051-0ot00001-0782.)3.7(91.)8.4(
00002-0582.)5.7(91.)8.4(
129
www.honeywell.com/sensing
PRESSURE SENSORS
BX Series
The BX pressure sensor is intended for OEMs who need a small, high
performance pressure sensor. The unique sensor module design eliminates
the need for oil-filled capsules and corrugated diaphragms providing a true,
robust sensing surface for long life and superior performance.
Supply voltage: 5.0 Vdc
Signal conditioning: Unamplified compensated
Operating temperature range: -40 °C to 100 °C (-40 °F to 212 °F)
Compensated temperature range: 0 °C to 80 °C (32 °F to 130 °F)
Port style: Flush diaphragm
Output type: 0 mV to 50 mV
Termination type: 4 - 22 AWG tinned Cu wires
22 AWG 0,6
(0.025)
DIA.
TINNED Cu WIRES
APPROX. 9,6
(0.38)
LONG
4 PLCS
(0.75)
(0.5)
(0.375)
19,0
13,05,8 max.
8,6
c
a
b
d
(0.23)
PRESSURE
SENSITIVE
DIAPHRAGM
- EXCITATION
+ EXCITATION
+ SIGNAL
- SIGNAL
OPTIONS
MEASUREMENT TYPE PRESSURE RANGE REFERENCE
Gauge 0 psig to 15 psig BX015PGTA
Datamate Series
The DATAMATE is a two-wire pressure transmitter which is compatible with
data loggers and instrumentation used in processing environments. Its 4 mA
to 20 mA output is ideal for remote monitoring of both primary and secondary
process variables.
The DATAMATE is made of series 300 stainless steel. It is suitable for use with
a variety of media that would otherwise require insulators. It is also
intrinsically safe (when used within approved barriers) for use in Class I,
Division I, Groups A through G hazardous areas.
Approval: FM
Supply voltage: 12.0 Vdc to 40.0 Vdc
Signal conditioning: Amplified compensated
Operating temperature range: -40 °C to 100 °C (-40 °F to 212 °F)
Compensated temperature range: -1 °C to 54 °C (30 °F to 130 °F)
Port style: 1/8 - 27 NPT
Output type: 4 mA to 20 mA
Termination type: 3-wire, 24 AWG, 1/2 in. NPT internal conduit
19,0
71,4 431,8
(0.75)
(2.81 ) (17.0)
12,7
(0.5)
NPT
INTERNAL
Ø 38,1
(Ø1.5)
RED
BLK
GRN
+ EXCITATION
- EXCITATION
CASE GROUND
1/8-27 NPT, 12,7
(0.5)
HEX
OPTIONS
MEASUREMENT TYPE PRESSURE RANGE REFERENCE
Gauge 0 psig to 15 psig DM015PG1WG
Gauge 0 psig to 50 psig DM050PG1WG
Sealed Gauge 0 psis to 100 psis DM100PS1WG
Sealed Gauge 0 psis to 200 psis DM200PS1WG
Sealed Gauge 0 psis to 500 psis DM500PS1WG
Sealed Gauge 0 psis to 5,000 psis DM05KPS1WG
130 www.honeywell.com/sensing
PRESSURE SENSORS
25,0 (1.0)
25,0
(1.0)
PSI: 1/8-27 NPT, 15,9 (0.625) Hex
BAR: G 16,0 (0.25) Hex
76,0 (3.0) max.
38,0 (1.5) max. max.
2
4
3
1
23
Ground
4
Excitation
Output
EA Series
The EA Series is designed for OEM users requiring high output and corrosion-
resistance. It has operated through millions of pressure cycles without
damage and is well suited for the cycling regimes found in automatic
equipment, robots, and hydraulic systems.
Approval: UL
Supply voltage: 85.0 Vdc
Signal conditioning: Amplified compensated
Compensated temperature range: 1 °C to 85 °C (30 °F to 185 °F)
Port style: 1/8 in - 27 NPT
Termination type: Quick disconnect
Measurement type: Gauge
20,32
38,10
54,61
34,29
41,91
15,75
41,91
20,83
5,11
(Ø.201)
2 PLCS
PINS
3,56 X 0,38
(.140 X .015)
1/4 OD STRAIGHT SS PORT (0-6 to 0-50 PSI)
1/8-27 NPT, 13,0
(0.5)
HEX (FOR EA/100 THROUGH 5000)
3/8-24 UNF, 14,0
(0.5625)
HEX (OPTIONAL ON 5000)
(2.15)
(1.375)
(0.75)
(1.50)
(1.65)
(0.625)
(0.82)
(1.65)
b
a
d
c
OPTIONS
Output 1 Vdc to 6 Vdc
-55 °C to 100 °C (-67 °F to 212 °F)
MEASUREMENT TYPE PRESSURE RANGE REFERENCE
Gauge 0 psig to 6 psig EA006PG1QD
Gauge 0 psig to 15 psig EA015PG1QD
Gauge 0 psig to 25 psig EA025PG1QD
Gauge 0 psig to 100 psig EA100PG1QD
Gauge 0 psig to 200 psig EA200PG1QD
Gauge 0 psig to 300 psig EA300PG1QD
Gauge 0 psig to 500 psig EA500PG1QD
Gauge 0 psig to 1,000 psig EA01KPG1QD
Gauge 0 psig to 5,000 psig EA05KPG1QD
Output 1 kHz to 6 kHz
-40 °C to 85 °C (-40 °F to 185 °F)
MEASUREMENT TYPE PRESSURE RANGE REFERENCE
Gauge 0 psig to 300 psig EA300PG1QF
Gauge 0 psig to 500 psig EA500PG1QF
Eclipse Series
The Eclipse (EC) Series pressure transducers are designed for OEMS who
require a reliable pressure transducer for industrial or heavy-duty applications.
The model EC features our proven all-wetted stainless steel design, rugged
packaging, internal signal amplification, and price which makes it an ideal
sensor for a variety of applications. The model EC offers a broad selection of
pressure ranges, output ranges, process connections, and electrical
termination to meet the demanding requirements of customers worldwide.
Approvals: UL, CE
Supply voltage: 5.0 Vdc
Signal conditioning: Amplified compensated
Operating temperature range: -40 °C to 105 °C (-40 °F to 221 °F)
Compensated temperature range: -40 °C to 105 °C (-40 °F to 221 °F)
OPTIONS
The Model Eclipse is available with a mini DIN style electrical connector. This
connection is a popular choice throughout the world and offers quick
disconnection, but can be rigidly attached with the center screw fastener. The
cable exit may be adjusted to any 90° direction.
Hirschmann - 0.5 Vdc to 4.5 Vdc Output
1/8 in - 27 NPT Connector
MEASUREMENT TYPE PRESSURE RANGE REFERENCE
Sealed Gauge 0 psis to 200 psis EC200PS1HC
Sealed Gauge 0 psis to 500 psis EC500PS1HC
131
www.honeywell.com/sensing
PRESSURE SENSORS
10,0 in. (0.375) max
.
PSI: 1/8-27 NPT, 16,0 (0.625) Hex
7/16 UNF, 14,0 (05625) Hex
BAR: G1/4, 19,0 (0.75) Hex
3 Conductor, 24 AWG,
Color Coded, Shielded
Cable, 0,91 m (3 ft.)
(1.875)
48,0 max.
(1.0)
max.
25,0
10,0 (0.375) max.
(1.0) ma
x
25,0
C
Ground
B
Output
A
Excitation
PSI: 1/8-27 NPT, 15,9 (0.625) Hex
BAR: G 16,0 (0.25) Hex
23,0
38,0
25,0 max
25,0
(1.0)
(0.875) (1.5) (1.0)
OPTIONS
To meet the requirements of automotive applications, the Model Eclipse is
offered with the Packard Metri-PackTM electrical connector. This connector
has been specified for the extreme environments found in engine and
hydraulic applications. The connector has a locking lug to maintain the
connection with the mating plug.
Packard - 0.5 Vdc to 4.5 Vdc Output
1/8 in - 27 NPT Connector
MEASUREMENT TYPE PRESSURE RANGE REFERENCE
Sealed Gauge 0 psis to 200 psis EC200PS1PC
Sealed Gauge 0 psis to 300 psis EC300PS1PC
Sealed Gauge 0 psis to 500 psis EC500PS1PC
Sealed Gauge 0 psis to 2,000 psis EC02KPS1PC
Sealed Gauge 0 psis to 3,000 psis EC03KPS1PC
G1/4 in - 19 BSP Connector
MEASUREMENT TYPE PRESSURE RANGE REFERENCE
Sealed Gauge 0 bar to 350 bar EC350BS6PC
4 mA to 20 mA Output
G1/4 in - 19 BSP Connector
MEASUREMENT TYPE PRESSURE RANGE REFERENCE
Gauge 0 bar to 1 bar EC001BG6PG
OPTIONS
The Model Eclipse can be provided with an all stainless steel case and an
integral cable for electrical connection. The advantage of this arrangement is
that the environment rating is increased to IP66 and would be recommended
for extreme outdoor or industrial environments.
Model Cable
MEASUREMENT TYPE PRESSURE RANGE REFERENCE
Sealed Gauge 0 psis to 100 psis EC100PS1CG
Sealed Gauge 0 psis to 5,000 psis EC05KPS1CG
Eclipse Series (continued)
132 www.honeywell.com/sensing
PRESSURE SENSORS
MediaMate Series
The MEDIAMATE pressure transducer provides the user with the corrosion
resistance of stainless steel at low OEM pricing. It is fully compensated and
completely interchangeable without further calibration. The MEDIAMATE’s
wetted parts and outer case are made from 300 series stainless steel. It is now
being used with a wide variety of corrosive medial such as Freon®, ammonia,
water, and hydraulic fluids.
Approvals: CE
Supply voltage: 5.0 Vdc, 6.0 Vdc max.
Signal conditioning: Unamplified compensated
Operating temperature range: -40 °C to 100 °C (-40 °F to 212 °F)
Compensated temperature range: -1 °C to 82 °C (30 °F to 180 °F)
Output type: 0 mV to 50 mV
Measurement type: Gauge
MEDIAMATE WITH HOLLINGSWORTH
19,14
(0.75)
40,64
(1.60)
46,48
(1.83)
25,4
(1.0)
41
32
Ø
1/8-27 NPT
12,7 HEX
(0.5)
OPTIONS
Hollingsworth - 1/8 in - 27 NPT Connector
MEASUREMENT TYPE PRESSURE RANGE REFERENCE
Gauge 0 psig to 15 psig MM015PG1QA
Gauge 0 psig to 100 psig MM100PG1QA
Gauge 0 psig to 200 psig MM200PG1QA
Gauge 0 psig to 500 psig MM500PG1QA
Gauge 0 psig to 1,000 psig MM01KPG1QA
Gauge 0 psig to 5,000 psig MM05KPG1QA
Hollingsworth - 3/8 in UNF Connector
MEASUREMENT TYPE PRESSURE RANGE REFERENCE
Gauge 0 psig to 5,000 psig MM05KPG3QA
PIN CODES ARE FOR OPTIONAL HIRSCHMANN
AND HOLLINGSWORTH CONNECTORS
MEDIAMATE WITH HIRSCHMANN
1/8-27 NPT
12,7 HEX
(0.5)
VENT HOLE
2
4
3
1
19,14
(0.75)
40,64
(1.60)
54
,
61
[(2.15)
16,0
(0.63)SQUARE
Hollisworth Hirshmann
Pin Code Pin Code Function
1 1 + Signal
2 2 + Excitation
3 3 - Signal
4 4 - Excitation
OPTIONS
Hirschmann - G-1/8 in BSP Connector
MEASUREMENT TYPE PRESSURE RANGE REFERENCE
Gauge 0 psig to 25 psig MM025PG10HA
Gauge 0 psig to 200 psig MM200PG10HA
Gauge 0 psig to 5,000 psig MM05KPG10HA
Gauge 0 psig to 7,000 psig MM07KPG10HA
Hirschmann - 1/8 in - 27 NPT Connector
MEASUREMENT TYPE PRESSURE RANGE REFERENCE
Gauge 0 psig to 50 psig MM050PG1HA
Gauge 0 psig to 100 psig MM100PG1HA
Hirschmann - G-1/4 in BSP Connector
MEASUREMENT TYPE PRESSURE RANGE REFERENCE
Gauge 0 psig to 5,000 psig MM05KPG6HA
133
www.honeywell.com/sensing
PRESSURE SENSORS
SA Series
The harsh duty SA pressure transducer has a water resistant, stainless steel
case for complete protection from harsh environments. Internal hermetic
sealing is used to provide measurement from absolute pressures (psia) or
pressures referenced to a sealed chamber (psis). Underwriters Laboratories
has approved the SA as a component in float and pressure-operated motor
controllers (File #E93356).
Approvals: UL (*C1D products)
CE (*C1DE products)
Supply voltage: 9.0 Vdc to 24.0 Vdc
Signal conditioning: Amplified compensated
Operating temperature range: -55 °C to 105 °C (-48 °F to 221 °F)
Compensated temperature range: -1 °C to 85 °C (30 °F to 185 °F)
Port style: 1/8-27 NPT
Output type: 1 Vdc to 6 Vdc
Termination type: 0,91 m (3 ft) 3-conductor shielded cable
10,0
(0.38)
19,0
(0.75)
48,0
(1.88)
40,0
(1.56)
3 conductor
color coded
shielded cable
0,91 m long (
3 ft)
Excitation: Red
Signal: Wht
Common: Blk
Bare
(case shield)
1/8-27 NPT
3/8-24 UNF (optional ≥100 PSI)
1/2 Hex for 1/8-27 NPT port
9/16 Hex for 3/8-24 UNF port
SA WITH CABLE
OPTIONS
UL Approval
MEASUREMENT TYPE PRESSURE RANGE REFERENCE
Absolute 0 psia to 15 psia SA015PA1C1D
Absolute 0 psia to 25 psia SA025PA1C1D
Absolute 0 psia to 50 psia SA050PA1C1D
Absolute 0 psia to 100 psia SA100PA1C1D
Gauge 0 psig to 15 psig SA015PG1C1D
Sealed Gauge 0 psis to 100 psis SA100PS1C1D
Sealed Gauge 0 psis to 200 psis SA200PS1C1D
Sealed Gauge 0 psis to 500 psis SA500PS1C1D
Sealed Gauge 0 psis to 3,000 psis SA03KPS1C1D
CE Approval
MEASUREMENT TYPE PRESSURE RANGE REFERENCE
Absolute 0 psia to 25 psia SA025PA1C1DE
Absolute 0 psia to 50 psia SA050PA1C1DE
SR Series
The Model SR is intended for OEMs requiring a small pressure sensor with
high pressure capability and superior corrosion resistance. Constructed of
brazen assembly of 300 series stainless steels, the SR can tolerate a wide
variety of corrosive medial without risk of leaking. The SR’s design provide
high working pressures and high overload and burst pressures at no extra
cost.
Supply voltage: 5.0 Vdc
Signal conditioning: Unamplified compensated
Operating temperature range: -40 °C to 100 °C (-40 °F to 212 °F)
Compensated temperature range: 0 °C to 75 °C (32 °F to 167 °F)
Port style: Capsule
Output type: 0 mV to 100 mV
Termination type: 4 - 22 AWG tinned Cu wires
b
d
A
4, 22 AWG
TINNED Cu SOLID WIRES
14,0
(0.55)
LONG
O-RING GROOVE
(0.625)
15,0 max.
4,3 max.
7,6 max.
19,0 / 18,95 18,5 19,5 max.
(0.766)
(0.75)
(0.748 / 0.746)
c
a
+ Signal
- Signal
- Excitation
+ Excitation
(0.30)
(0.17)
CAUTION: Contact with sensing surface at bottom of cavity will affect
accuracy and may cause damage. The O-ring groove on 2000 psi unit is
wider to accommodate a backup ring behind the O-ring.
All dimensions in inches (mm).
erusserP
egnaR
)ISP(
A*
.aiDeroBgniR-O gnilaeS
**htpeD
ytivaC
htpeD
005-51 005.
)07.21( 210-2)33.5(12.)85.5(22.
0051-0001 )25.9(573.010-2)33.5(12.)85.5(22.
0002 )25.9(573.010-2)33.5(12.)85.5(22.
PRESSURE RANGE (PSI)
OPTIONS
MEASUREMENT TYPE PRESSURE RANGE REFERENCE
Gauge 0 psig to 15 psig SR015PGTB
Gauge 0 psig to 25 psig SR025PGTB
Gauge 0 psig to 50 psig SR050PGTB
Gauge 0 psig to 100 psig SR100PGTB
Gauge 0 psig to 200 psig SR200PGTB
Gauge 0 psig to 300 psig SR300PGTB
Gauge 0 psig to 500 psig SR500PGTB
Gauge 0 psig to 1,000 psig SR01KPGTB
Gauge 0 psig to 2,000 psig SR02KPGTB
134 www.honeywell.com/sensing
PRESSURE SENSORS
ML Series
The Model ML pressure transducers combines the latest in ASIC technology
with our proven stainless steel design. This digitally compensated transducer
offers an unparalleled value and performance combination making it the ideal
pressure sensing solution for demanding automotive and industrial
applications. Fully temperature compensated, calibrated, and amplified, the
ML is available in 100 to 5,000 psis pressure ranges.
Approval: UL
Supply voltage: 5.0 Vdc
Signal conditioning: Amplified compensated
Operating temperature range: -40 °C to 105 °C (-40 °F to 221 °F)
Compensated temperature range: -40 °C to 105 °C ( -40 °F to 221 °F)
Termination type: Packard Metri-Pack™ Connector
Measurement type: Sealed Gauge
(1.58)
40,0 *
(0.73)
19,0
(0.85)
22,0
1/8-27 NPT or 1/4-18 NPT
27,0 (0.063) HEX
(1.06)
27,0
(0.60)
15,0 **
a
c
b
Not Intended for
Customer use
* Maximum
** 19,0
(0.75)
for 1/4-18 NPT
OPTIONS
0.5 Vdc to 4.5 Vdc Output
1/8 in - 27 NPT Connector
SUPPLY VOLTAGE PRESSURE RANGE REFERENCE
5.0 Vdc 0 psis to 1,000 psis ML01KPS1PC
5.0 Vdc 0 psis to 100 psis ML100PS1PC
1/4 in - 18 NPT Connector
SUPPLY VOLTAGE PRESSURE RANGE REFERENCE
5.0 Vdc 0 bar to 10 bar ML010BS2PC
4 mA to 20 mA Output
1/8 in - 27 NPT Connector
SUPPLY VOLTAGE PRESSURE RANGE REFERENCE
9.5 Vdc to 35.0 Vdc 0 psis to 100 psis ML100PS1PG
1/4 in - 18 NPT Connector
SUPPLY VOLTAGE PRESSURE RANGE REFERENCE
9.5 Vdc to 35.0 Vdc 0 psis to 100 psis ML100PS2PG
9.5 Vdc to 35.0 Vdc 0 psis to 300 psis ML300PS2PG
9.5 Vdc to 35.0 Vdc 0 bar to 60 bar ML060BS2PG
ST Series
The Model ST pressure transducer combines Honeywell’s proven silicon
pressure sensing with the latest in ASIC technology in a rugged, industrial
package. High value, coupled with outstanding performance, make this an
ideal transducer for industrial control applications such as air compressors
and pneumatic equipment.
Signal conditioning: Amplified compensated
Operating temperature range: -40 °C to 100 °C (-40 °F to 212 °F)
Compensated temperature range: -40 °C to 100 °C (-40 °F to 212 °F)
Termination type: Packard Metri-Pack™ Connector
Measurement type: Gauge
* 1/4-18 NPT and G1/4-18 BSP configurations are both optional.
Contact the factory to discuss other pressure port options.
(1.58)
40,0
(0.73)
19,0
(0.85)
22,0
1/8-27 NPT*
27,0
(1.06)
HEX
(1.06)
27,0
(0.60)
15,0
a
c
b
Not Intended for
Customer use
OPTIONS
4.0 mA to 20 mA Output
1/8 in - 27 NPT Connector
SUPPLY VOLTAGE PRESSURE RANGE REFERENCE
9.5 Vdc to 35 Vdc 0 bar to 10 bar ST010BG1SPGF
9.5 Vdc to 35 Vdc 0 psig to 200 psig ST200PG1SPGF
1/4 in - 18 NPT Connector
SUPPLY VOLTAGE PRESSURE RANGE REFERENCE
9.5 Vdc to 35 Vdc 0 bar to 10 bar ST010BG2SPGF
9.5 Vdc to 35 Vdc 0 bar to 2.5 bar ST2R5BG2SPGF
9.5 Vdc to 35 Vdc 0 bar to 6.0 bar ST006BG2SPGF
0.5 Vdc to 4.5 Vdc Ratiometric Output
1/4 in - 18 NPT Connector
SUPPLY VOLTAGE PRESSURE RANGE REFERENCE
5.0 Vdc 0 psig to 50 psig ST050PG2SPCF
135
www.honeywell.com/sensing
PRESSURE SENSORS
VENT HOLE
(GAUGE UNITS ONLY)
-OUT
+OUT
-IN
+IN
CERAMIC SHOWN
(COMP. UNITS ONLY)
Ø 16,98 (0.668)
CKT CAVITY
A
1
30,0 (1.22)
17,78 (0.70)
11,43 (0.45)
.000
9,9 (0.39)
50,0 (2.0)
NOMEX INSULATED
STRIP CABLE
W/
2,54 (0.10)
PIN SPACING
(24 AWG EQUIV.)
4X 3,2 (0.125)
TIG WELD
LOCATION
1/8-27 NPT
Ø 18,95
(0.746)
19,0 (0.75)
HEX
Ø 4,34 (0.17)
50,0 (2.0)
NOMEX INSULATED
RIBBON CABLE
W/
.2,54
(0.10)
PIN SPACING
(24 AWG EQUIV.)
9,27
(0.365)
7,37 (0.290)
5,59 (0.220)
3,18 (0.125)
.000
4X 3,2
(0.125)
GROOVE FOR
AS568-016 O-RING
VENT HOLE
(GAUGE UNITS ONLY)
-OUT
+OUT
-IN
+IN
CERAMIC SHOWN
(COMP. UNITS ONLY)
Ø.
16,98
(0.668)
CKT CAVITY
Ø.
18,69(0.736)
WELD RELIEF
Ø.18,95
(0.746)
Ø
.16,51 (0.650)
O-RING GROOVE
A
1
Ø.22,1
(0.870)
EXPOSED
DIAPHRAGM
VENT HOLE
(GAUGE UNITS ONLY)
50,0 (2.0) NOMEX INSULATED
RIBBON CABLE
W/ 2,54 (0.10)PIN SPACING
(24 AWG EQUIV.)
14,61
(0.575)
10,67
(0.42)
8,26
(0.325)
.000
Ø 15,09 (0.594)
RING I.D.
4X 3,2 (0.125) TIG WELD
LOCATION
GROOVE FOR
AS568-016 O-RING
-OUT
+OUT
-IN
+IN
CERAMIC SHOWN
(COMP. UNITS ONLY)
Ø 16,98 (0.668)
CKT CAVITY
Ø 18,69 (0.736)
Ø 18,95
(0.746) Ø 16,51 (0.650)
O-RING GROOVE
A
1
19mm Series
The ICT stainless steel 19C and 19 Vacuum Gauge Series devices are designed
for pressure applications that involve measurement of hostile media in harsh
environments compatible with 316 stainless steel. The special Vacuum Gauge
Series devices are specifically designed for applications that can be exposed
to a vacuum.
Supply voltage: 1.5 mA or 10.0 Vdc
Signal conditioning: Unamplified compensated
Operating temperature range: -40 °C to 125 °C (-40 °F to 257 °F)
Compensated temperature range: 0 °C to 82 °C (32 °F to 179 °F)
Output type: 98 mV to 102 mV
Termination type: 50,0 mm (2.0 in) Nomex ribbon cable
OPTIONS
19 Vacuum Gauge Series - Flush Mount with Flange
MEASUREMENT PRESSURE RANGE REFERENCE
Vacuum Gauge 0 psig to 15 psig 19C015PV3K
1/4 in - 18 NPT
MEASUREMENT PRESSURE RANGE REFERENCE
Vacuum Gauge 0 psig to 100 psig 19C100PV5L
Vacuum Gauge 0 psig to 15 psig 19C015PV5L
50,0 (2.0)
NOMEX INSULATED
RIBBON CABLE
W/
.2,54
(0.10)
PIN SPACING
(24 AWG EQUIV.)
9,27
(0.365)
7,37 (0.290)
5,59 (0.220)
3,18 (0.125)
.000
4X 3,2
(0.125)
GROOVE FOR
AS568-016 O-RING
VENT HOLE
(GAUGE UNITS ONLY)
-OUT
+OUT
-IN
+IN
CERAMIC SHOWN
(COMP. UNITS ONLY)
Ø.
16,98
(0.668)
CKT CAVITY
Ø.
18,69(0.736)
WELD RELIEF
Ø.18,95
(0.746)
Ø
.16,51 (0.650)
O-RING GROOVE
A
1
Ø
.22,1
(0.870)
EXPOSED
DIAPHRAGM
VENT HOLE
(GAUGE UNITS ONLY)
-OUT
+OUT
-IN
+IN
CERAMIC SHOWN
(COMP. UNITS ONLY)
Ø 16,98 (0.668)
CKT CAVITY
A
1
31,8 (1.23)
18,8 (0.74)
12,45 (0.49)
.000
11,2 (0.44)
50,0 (2.0) NOMEX INSULATED
STRIP CABLE
W/ 2,54 (0.10) PIN SPACING
(24 AWG EQUIV. )
4X
3,2 (0.125)
TIG WELD
LOCATION
1/4-18 NPT
Ø 18,95
(0.746)
Ø
13,72
(0.54)
19,0 (0.75)
HEX
Ø
4,34 (0.171)
Cell with Body Ring, 10 Vdc Excitation
MEASUREMENT PRESSURE RANGE REFERENCE
Gauge 0 psig to 15 psig 19C015PG1K
Gauge 0 psig to 5.0 psig 19C005PG1K
Cell with Body Ring, 1.5 mA Excitation
MEASUREMENT PRESSURE RANGE REFERENCE
Gauge 0 psig to 100 psig 19C100PG1L
Gauge 0 psig to 300 psig 19C300PG1L
Gauge 0 psig to 3.0 psig 19C003PG1L
Gauge 0 psig to 5.0 psig 19C005PG1L
Flush Mount with Flange
MEASUREMENT PRESSURE RANGE REFERENCE
Gauge 0 psig to 5.0 psig 19C005PG3K
1/8 in - 27 NPT
MEASUREMENT PRESSURE RANGE REFERENCE
Gauge 0 psig to 15 psig 19C015PG4K
Gauge 0 psig to 300 psig 19C300PG4K
VENT HOLE
(GAUGE UNITS ONLY)
50,0 (2.0) NOMEX INSULATED
RIBBON CABLE
W/ 2,54 (0.10)PIN SPACING
(24 AWG EQUIV.)
14,61 (0.575)
10,67 (0.42)
8,26 (0.325)
.000
Ø 15,09 (0.594)
RING I.D.
4X 3,2 (0.125) TIG WELD
LOCATION
GROOVE FOR
AS568-016 O-RING
-OUT
+OUT
-IN
+IN
CERAMIC SHOWN
(COMP. UNITS ONLY) Ø 16,98 (0.668)
CKT CAVITY
Ø 18,69 (0.736)
Ø 18,95
(0.746) Ø 16,51 (0.650)
O-RING GROOVE
A
1
136 www.honeywell.com/sensing
PRESSURE SENSORS
13mm Series
1/8 in - 27 NPT
50,0 mm (2.0 in) Nomex ribbon cable
MEASUREMENT TYPE PRESSURE RANGE OUTPUT TYPE REFERENCE
Absolute 0 psi to 5,000 psi 148 mV to 152 mV 13C5000PA4K
Uncompensated Series
Pin Connector
MEASUREMENT TYPE PRESSURE RANGE OUTPUT TYPE REFERENCE
Absolute 0 psi to 1,000 psi 175 mV to 300 mV 13U1000PA0K
Absolute 0 psi to 5,000 psi 290 mV to 500 mV 13U5000PA0K
-OUT
IDENTIFIER
Ø 19,0 (0.748)
4X 3,2 (0.13)
TIG WELD
LOCATION
1/8-27 NPT
19,1 (0.75)
HE
X
Ø 4,34 (Ø0.171)
26,9 (1.06)
16,51 (0.65)
10,16 (0.40)
.000
50,0 (2.0)
NOMEX INSULATED
STRIP CABLE
W/
2,54 (0.10)
PIN SPACING
(24 AWG EQUIV)
-OUT (A)
+OUT (B)
-IN (C)
+IN (D)
Ø 11,91 (Ø0.469)
CKT CAVITY
A
PIN NUMBERS
REF. ONLY
O-RING GROOVE
(10mm X 1.5mm O-RING
NOT PROVIDED)
TIG WELD
LOCATION
Ø 10,59 (0.417) Ø 12,62 (0.497)
20,3 (0.80)
10,16 (0.40)
8,25 (0.325)
5,84 (0.23)
.000
6X Ø0,51 (0.63) ON
Ø 7,62 (0.30)
PIN CIRCLE
Ø 8,56 (Ø0.337)
RING I.D.
BALL WELD AREA
6
5
43
2
1
These ICT 13 mm stainless steel devices are designed for high pressure
applications that involve measurement of hostile media in harsh
environments. This series uses ICT’s proven piezoresistive semiconductor
sensor chip in an oil-isolated housing with or without an integral ceramic for
temperature compensation and calibration. This design has proven to be
highly reliable, stable, and accurate.
Supply voltage: 1.5 mA or 10 Vdc
Signal conditioning: Unamplified
Operating temperature range: -40 °C to 125 °C (-40 °F to 257 °F)
Compensated temperature range: 0 °C to 82 °C (32 °F to 179 °F)
OPTIONS
Compensated Series - Ring with Back Support
50,0 mm (2.0 in) Nomex ribbon
cable
-OUT (A)
-OUT
IDENTIFIER
50,0 (2.0) NOMEX INSULATED
STRIP CABLE
W/ 2,54 (.010) PIN SPACING
(24 AWG EQUIV)
O-RING GROOVE
(10mm X 1.5mm O-RING
NOT PROVIDED)
BACK SUPPORT TIG WELD
LOCATION
+OUT (B)
-IN (C)
A
+IN (D) 4X 3,2 (0.375)
Ø 10,59 (0.417)
O-RING GROOVE
Ø 8,56 (Ø 0.337
RING I.D.
Ø 15,67 (Ø0.617)
Ø 12,62 (0.497)
15,3 (0.60)
9,8 (0.39)
8,25 (0.325)
5,84 (0.23)
.000
MEASUREMENT TYPE PRESSURE RANGE OUTPUT TYPE REFERENCE
Sealed Gauge 0 psi to 5,000 psi 148 mV to 152 mV 13C5000PS1L
Sealed Gauge 0 psi to 3,000 psi 98 mV to 102 mV 13C3000PS1L
Sealed Gauge 0 psi to 1,000 psi 98 mV to 102 mV 13C1000PS1L
1/4 in - 18 NPT
50,0 mm (2.0 in) Nomex ribbon cable
-OUT
IDENTIFIER
Ø19,0
(0.748)
4X 3,2 (0.13)
TIG WELD
LOCATION
1/4-18 NPT
19,1 (0.75) HEX
Ø 4,34 (Ø0.171)
29,2 (1.15)
18,29 (0.72)
11,94 (0.47)
.000
50.0 (2.0)
NOMEX INSULATED
STRIP CABLE
W/
2,54 (0.10)
PIN SPACING
(24 AWG EQUIV)
-OUT (A)
+OUT (B)
-IN (C)
+IN (D)
Ø 11,91 (Ø0.469)
CKT CAVITY
A
MEASUREMENT TYPE PRESSURE RANGE OUTPUT TYPE REFERENCE
Sealed Gauge 0 psi to 1,000 psi 98 mV to 102 mV 13C1000PS5L
Sealed Gauge 0 psi to 5,000 psi 148 mV to 152 mV 13C5000PS5L
Sealed Gauge 0 psi to 3,000 psi 98 mV to 102 mV 13C3000PS5L
137
www.honeywell.com/sensing
PRESSURE SENSORS
SPT Series
The SPT stainless steel devices are designed for pressure applications that
involve measurement of hostile media in harsh environments and will
accommodate any media that will not adversely attack 304 or 316 stainless
steel wetted parts. The SPT stainless steel devices are rugged and reliable
transducers for use in a wide variety of pressure sensing applications where
corrosive liquids or gases are monitored.
Signal conditioning: Amplified and unamplified compensated
Compensated temperature range: -10 °C to 85 °C (14 °F to 185 °F)
Operating temperature range: -40 °C to 125 °C (-40 °F to 257 °F)
Measurement type: Absolute, Sealed, and Gauge
OPTIONS
4mA to 20 mA Output
0,609 m (2 ft) 4-Conductor shielded pairs
22,2 (0.875)
HEX
Ø 4,34 (Ø0.171)
4-CONDUCTOR CABLE
24 AWG CONDUCTORS
SHIELDED, IN PAIRS,
WITH DRAIN WIRE
CUSTOMER SPECIFIED
LENGTH (IN FEET)
VENT TUBE
(GAUGE UNITS ONLY)
72,8
(2.87)
TIG WELD
LOCATION TIG WELD
LOCATION
19,0 (0.70)
Ø20,7 (0.815)
18,8 (0.74)
12,45 (0.49)
11,0
(0.44)
.000
1/4-18 NPT
Ø13,72
(0.54)
SUPPLY VOLTAGE PRESSURE RANGE REFERENCE
12.5 Vdc to 30.0 Vdc 0 psi to 100 psi STPMA0100PG5W02
12.5 Vdc to 30.0 Vdc 0 psig to 5.0 psig SPTMA0005PG5W02
1/4 in - 18 NPT - 0 mV to 100 mV Output
Bayonet Connector
4 -PIN SHELL SIZE
8 BAYONET
LOCK CONNECTOR
RECEPTACLE
72,8 (2.87)
18,8 (0.74)
12,45 (0.49)
11,0 (0.44)
.000
1/4-18 NPT
TIG WELD
LOCATION TIG WELD
LOCATION
13,2
(0.52)
Ø 20,7 (0.815) Ø 13,72
(0.54)
22,2 (0.875)
HEX
Ø 4,34 (Ø0.171)
VENT HOLE
(GAUGE UNITS ONLY)
PIN D
PIN CPIN B
PIN A
A
BC
D
SUPPLY VOLTAGE PRESSURE RANGE REFERENCE
10.0 Vdc 0 psig to 100 psig STPMA0100PG5B
1/8 in - 27 NPT - 0 mV to 100 mV Output
0,609 m (2 ft) 4-Conductor shielded pairs
4-CONDUCTOR CABLE
24 AWG CONDUCTORS
SHIELDED, IN PAIRS,
WITH DRAIN WIRE
CUSTOMER SPECIFIED
LENGTH (IN FEET)
VENT TUBE
(GAUGE UNITS ONLY)
71,7 (2.82)
17,77 (0.70)
11,42 (0.45)
10,0 (0.39)
.000
1/8-27 NPT
TIG WELD
LOCATION TIG WELD
LOCATION
Ø 10,29
(0.405)
22,2 (0.875)
HEX
Ø 4,34 (Ø0.171)
19,0 (0.70)
Ø 20,7 (0.815)
SUPPLY VOLTAGE PRESSURE RANGE REFERENCE
10.0 Vdc 0 psi to 100 psi SPTMV0100PG4W02
1/8 in - 27 NPT
0,609 m (2 ft) 4-Conductor shielded pairs
1.0 Vdc to 5.0 Vdc Output
4-CONDUCTOR CABLE
24 AWG CONDUCTORS
SHIELDED, IN PAIRS,
WITH DRAIN WIRE
CUSTOMER SPECIFIED
LENGTH (IN FEET)
VENT TUBE
(GAUGE UNITS ONLY)
71,7 (2.82)
17,77 (0.70)
11,42 (0.45)
10,0 (0.39)
.000
1/8-27 NPT
TIG WELD
LOCATION TIG WELD
LOCATION
Ø 10,29
(0.405)
22,2 (0.875)
HEX
Ø 4,34 (Ø0.171)
19,0 (0.70)
Ø 20,7 (0.815)
SUPPLY VOLTAGE PRESSURE RANGE REFERENCE
12.0 Vdc to 30.0 Vdc 0 psi to 15 psi SPT4V0015PG4W02
1/4 in - 18 NPT
0,304 m (1 ft) 4-Conductor shielded pairs
1.0 Vdc to 5.0 Vdc Output
22,2 (0.875)
HEX
Ø 4,34 (Ø0.171)
4-CONDUCTOR CABLE
24 AWG CONDUCTORS
SHIELDED, IN PAIRS,
WITH DRAIN WIRE
CUSTOMER SPECIFIED
LENGTH (IN FEET)
VENT TUBE
(GAUGE UNITS ONLY)
72,8 (2.87)
TIG WELD
LOCATION TIG WELD
LOCATION
19,0 (0.70)
Ø20,7 (0.815)
18,8 (0.74)
12,45 (0.49)
11,0
(0.44)
.000
1/4-18 NPT
Ø13,72
(0.54)
SUPPLY VOLTAGE PRESSURE RANGE REFERENCE
12.0 Vdc to 30.0 Vdc 0 psig to 10 psig SPT4V0010PG5W01
1/4 in - 18 NPT
0,609 m (2 ft) 4-Conductor shielded pairs
1.0 Vdc to 5.0 Vdc Output
SUPPLY VOLTAGE PRESSURE RANGE REFERENCE
12.0 Vdc to 30.0 Vdc 0 psi to 100 psi STP4V0100PG5W02
7/16 in UNF
1.0 Vdc to 5.0 Vdc Output
4-CONDUCTOR CABLE
24 AWG CONDUCTORS
SHIELDED, IN PAIRS,
WITH DRAIN WIRE
CUSTOMER SPECIFIED
LENGTH (IN FEET)
VENT TUBE
(GAUGE UNITS ONLY)
69,2 (2.73)
TIG WELD
LOCATION
22,2 (0.875)
HEX
Ø4,34 (Ø0.171)
19,0 (0.70)
Ø20,7 (0.815)
15,24 (0.60)
8,89 (0.35)
7,0 (0.28)
.000
7/16-20 UNF-2A
TIG WELD
LOCATION
GLAND PER
MS33656
SUPPLY VOLTAGE PRESSURE RANGE REFERENCE
12.0 Vdc to 30.0 Vdc 0 psi to 200 psi SPT4V0200PG6W02
138 www.honeywell.com/sensing
PRESSURE SENSORS
F1 Series
All F1 pressure transducers are manufactured in our Class 10 clean room
environment. Our flow-through pressure transducers are specifically
designed for the semiconductor industry. Their long life, coupled with long-
term stability, can greatly reduce or eliminate the need for zero and span
adjustments. All Honeywell transducers are CE certified with EMI/RFI
protection and are manufactured to an electropolished wetted surface finish of
5 micro inch Ra maximum.
Approvals: CE, FM
Supply voltage: 12 Vdc to 36.0 Vdc
Signal conditioning: Amplified compensated
Operating temperature range: -40 °C to 85 °C (-40 °F to 185 °F)
Compensated temperature range: 0 °C to 70 °F (32 °F to 158 °F)
OPTIONS
0 Vdc to 5.0 Vdc Output
1/4 in Male Face Seal Connector
Bendix Male Connector
MEASUREMENT TYPE PRESSURE RANGE REFERENCE
Absolute 0 psi to 1,000 psi F15VM0100AB
Compound -14.7 psig to 100 psig F15VMV100CB
1/4 tube stub
77,0 max.
6,3
(0.25)
0.035 typ.
11,0
(3.20)
(0.44)
47,0
(1.86)
24,1
(0.96)
typ.
9,3
(0.37)
0.035 typ.
11,0
(0.44)
3/8 tube stub
23,5
(0.93)
52,0
(2.43)
21,0
(0.83)
47,0
(1.86)
24,1
(0.96)
typ.
Tube stub ends
24,1
11,0
1/2 tube stub
77,0 max.
47,0
12,0
(0.50)
(1.86)
.05 typ.
(0.96)
(0.44)
(3.20)
typ.
4.0 mA to 20.0 mA Output
1/2 in Male Face Seal Connector
1,83 m (6 ft) 2-Conductor Cable
MEASUREMENT TYPE PRESSURE RANGE REFERENCE
Compound -14.7 psig to 250 psig F14WMV250CP
1/4 in Male Face Seal
Bendix Male Connector
MEASUREMENT TYPE PRESSURE RANGE REFERENCE
Compound -14.7 psig to 100 psig F14VMV100CB
Compound -14.7 psig to 250 psig F14VMV250CB
1/4 in Male Face Seal
1,83 m (6 ft) 2-Conductor Cable
MEASUREMENT TYPE PRESSURE RANGE REFERENCE
Gauge -14.7 psig to 250 psig F14VM0250GP
Compound -14.7 psig to 250 psig F14VMV250CP
Compound 0 psi to 3,000 psi F14VMV3000CP
1/4 in Male Fixed by Female Face Seal
Bendix Male Connector
MEASUREMENT TYPE PRESSURE RANGE REFERENCE
Compound -14.7 psig to 7.0 psig F14VPV7BCB
1/4 in Male Fixed by Female Face Seal
1,83 m (6 ft) 2-Conductor Cable
MEASUREMENT TYPE PRESSURE RANGE REFERENCE
Compound -14.7 psig to 100 psig F14VPV100CP
1/4 in OD 0.035 wall, 1/4 in long tube stub
Bendix Male Connector
MEASUREMENT TYPE PRESSURE RANGE REFERENCE
Compound -14.7 psig to 100 psig F14TV4V100CB
OPTIONAL
1/4" fittings
24,1
1/4 female face seal
82,0
(3.23)
(0.96)
24,1
11,0
21,5
1/4 male face seal
typ.
typ.
typ.
56,0
(2.24)
(0.96)
(0.43)
(0.74)
24,1
1/4 male face seal swivel
(0.96)
82,0
(3.23)
139
www.honeywell.com/sensing
PRESSURE SENSORS
OPTIONS
VF 1/4 in Female Face Seal
Bendix Male Connector
MEASUREMENT TYPE PRESSURE RANGE REFERENCE
Compound -14.7 psig to 100 psig S14VFV100CB
VM 1/4 in Male Face Seal
Bendix Male Connector
MEASUREMENT TYPE PRESSURE RANGE REFERENCE
Compound -14.7 psig to 100 psig S14VMV100CB
Compound -14.7 psig to 250 psig S14VMV250CB
VM 1/4 in Male Face Seal
1,83 m (6 ft) 2-Conductor Cable
MEASUREMENT TYPE PRESSURE RANGE REFERENCE
Gauge 0 psi to 3,000 psi S14VM3000GP
Compound 0 psi to 3,000 psi S14VMV3000CP
VS 1/4 in Male Face Seal, Swivel
Bendix Male Connector
MEASUREMENT TYPE PRESSURE RANGE REFERENCE
Compound -14.7 psig to 100 psig S14VSV100CB
Compound -14.7 psig to 250 psig S14VSV250CB
Compound -14.7 psig to 100 psig S14VSV1755BCB
Compound -14.7 psig to 100 psig S14VSV210BCB
Compound -14.7 psig to 100 psig S14VSV70BCB
Compound -14.7 psig to 100 psig S14VSV7BCB
VS 1/4 in Male Face Seal, Swivel
1,83 m (6 ft) 2-Conductor Cable
MEASUREMENT TYPE PRESSURE RANGE REFERENCE
Compound -14.7 psig to 100 psig S14VSV210BCP
Compound -14.7 psig to 100 psig S14VSV70BCP
S1 Series
All S1 pressure transducers are manufactured in our Class 10
clean room environment. Our single port pressure
transducers are specifically designed for the semiconductor industry. Their
long life, coupled with long-term stability, can greatly reduce or eliminate the
need for zero and span adjustments. All Honeywell transducers are CE
certified with EMI/RFI protection and are manufactured to an electropolished
wetted surface finish of 5 micro in Ra maximum.
Approvals: CE, FM
Supply voltage: 12.0 Vdc to 36.0 Vdc
Signal conditioning: Amplified compensated
Operating temperature range: -40 °C to 85 °C (-40 °F to 185 °F)
Compensated temperature range: 0 °C to 70 °C (32 °F to 158 °F)
Output type: 4 mA to 20 mA
1/4" male swivel
106,7 max.
(0.93)
30,4
(1.20)
(4.20)
23,6
20,3
(0.80)
with pigtail
1/4" female face seal
(0.93)
30,4
(1.20)
23,6
1/4" tube stub
0.035 typ.
(0.93)
10,9
(0.43)
23,6
116,9 max.
1/4" male swivel
23,6
(0.93)
20,3
(0.80)
(4.60)
67,5 typ.
(2.74)
30,4
.80 across flats typ.
(1.20)
.30 typ
with Bendix
1/4" male face seal
(0.93)
15,4
(0.61)
23,6
Fitting Options
140 www.honeywell.com/sensing
PRESSURE SENSORS
TLD Series
OPTIONS
Flow-through/Output Signal 4 mA to 20 mA
MEASUREMENT TYPE PRESSURE RANGE CONNECTIONS REFERENCE
Compound -14.7 psig to 100 psig 1/4 in. OD 0.035 in. wall, 1/4 in long tube stub TLDF4CVT4V100CP
Compound -14.7 psig to 100 psig 1/4 in. female face seal, swivel TLDF4CVVFV100CP
Compound -14.7 psig to 100 psig 1/4 in. female face seal, swivel TLDF4BSVFV100CP
Flow-through/Output Signal 0 Vdc to 5.0 Vdc
MEASUREMENT TYPE PRESSURE RANGE CONNECTIONS REFERENCE
Compound -14.7 psig to 100 psig 1/4 in. OD 0.035 in. wall, 1/4 in long tube stub TLDF5CVT4V100CP
Single Port/Output Signal 4 mA to 20 mA
MEASUREMENT TYPE PRESSURE RANGE REFERENCE
Compound -14.7 psig to 100 psig 1/4 in. female face seal, swivel TLDS4BNVFV100CP
Flow-through display orientation and transducer location
zs72,4
2.85
38,1
1.50
35,9
1.42
26,1
1.03
CABLE
2 COND
1,8 m (6 ft)
38,1
1.50
82,5
3.25
zs
38,1
1.50
38,1
1.50
zs
38,1
1.50
38,1
1.50
72,4
2.85
38,1
1.50 CABLE
2 COND
1,8 m (6 ft)
zs
38,1
1.50
82,5
3.25
26,1
1.03
35,9
1.42
77,0
3.03
42,7
1.68 CABLE
2 COND
1,8 m (6 ft)
BF - Transducer at bottom, front display orientation
BS - Transducer at bottom, side display orientation
CV - Transducer at center back,
vertical display orientation
CH - Transducer at center back,
horizontal display orientation
With space at a premium in semiconductor gas distribution systems, the Series TLD pressure transducer with local
display offers an integrated solution that reduces the overall height of the transducer/display assembly to as little as 3.5
in [88,9 mm]. To accomplish this, the transducer’s signal amplifier is mounted within the display, with the added benefit
of zero and span adjustments conveniently located on the LED display face.
Supply voltage: 12.0 Vdc to 30.0 Vdc
Signal conditioning: Amplified compensated
Operating temperature range: -40 °C to 85 °C (-40 °F to 185 °F)
Compensated temperature range: 0 °C to 70 °C (32 °F to 158 °F)
Termination type: 1,83 m (6 ft) 2-conductor cable
141
www.honeywell.com/sensing
PRESSURE SENSORS
6,4
0.25
4,57
0.18
47,0
1.85
11,2
0.44
24,1
0.95
75,2
2.96
56,9
2.24
11,2
0.44
24,1
0.95
81,5
3.21
38,1
1.50
zs
38,1
1.50
100,9
3.97
42,7
1.68 CABLE
2 COND
1,8 m (6 ft)
CABLE
2 COND
1,8 m (6 ft)
zs
38,1
1.50
38,1
1.50
35,9
1.42
26,1
1.03
Single port display orientation and transducer location
BN - Transducer at bottom
CN - Transducer at center back
32,9
1.29
32,3
1.27
10,9
0.43
6,4
0.25
4,57
0.18
32,3
1.27
VM - 1/4 in
male face seal
VS - 1/4 in
male face seal,
swivel
VF - 1/4 in
female face seal
T4 - 1/4 in
tube seal
Single port connection options
Flow-through connection options
T4 - 1/4 in tube stub
VF - 1/4 in female face seal
VM - 1/4 in male face seal
VS - 1/4 in male face seal, swivel
TLD Series (continued)
142 www.honeywell.com/sensing
PRESSURE SENSORS
COMMON
V out
+V
0,95
[0.04]
0.43
[0.015]
GT 150
SERIES - 3 PIN
1,37
[0.05]
7/16-20UNF
GLAND PER MS33656
(3-904 O-RING SEAL
NOT PROVIDED)
STAINLESS STEEL OR
PLATED CRS HOUSING
COMMON
V out
+V
0,95
[0.04]
0,60
[0.02]
1,37
[0.05]
1/4-18NPT
PLATED CRS
HOUSING
GT 150
SERIES - 3 PIN
COMMON
V out
+V
0,95
[0.04]
0.43
[0.015]
GT 150
SERIES - 3 PIN
1,37
[0.05]
7/16-20UNF
GLAND PER MS33656
(3-904 O-RING SEAL
NOT PROVIDED)
STAINLESS STEEL OR
PLATED CRS HOUSING
COMMON
V out
+V
0,95 [0.04]
0,42 [0.016]
1,37 [0.05]
1/8-27 NPT
STAINLESS STEEL
HOUSING
GT 150
SERIES - 3 PIN
Bonded Element Series
OPTIONS
SS Housing - 1/4 in NPT
MEASUREMENT TYPE PRESSURE RANGE REFERENCE
Gauge 0 psig to 125 psig BE-4R125PG5DS
CRS Housing - 1/4 in NPT
MEASUREMENT TYPE PRESSURE RANGE REFERENCE
Gauge 0 psig to 125 psig BE-4R125PG5DC
SS Housing - 1/8 in NPT
MEASUREMENT TYPE PRESSURE RANGE REFERENCE
Gauge 0 psig to 500 psig BE-4R500PG4DS
SS Housing - 7/16 in - 20 UNF
MEASUREMENT TYPE PRESSURE RANGE REFERENCE
Gauge 0 psig to 5,000 psig BE-4R5000PG6DS
CRS Housing - 7/16 in - 20 UNF
MEASUREMENT TYPE PRESSURE RANGE REFERENCE
Gauge 0 psig to 5,000 psig BE-4R5000PG6DC
COMMON
V out
+V
0,95
[0.04]
0,60
[0.02]
1,37
[0.05]
1/4-18NPT
PLATED CRS
HOUSING
GT 150
SERIES - 3 PIN
The Bonded Element general-purpose industrial pressure transducers were
developed for a variety of pressure applications and industries, providing
excellent media compatibility with all stainless steel wetted parts. It is the ideal
choice for applications where both media compatibility and high cycle life are
essential
Supply voltage: 4.75 Vdc to 5.25 Vdc
Signal conditioning: Amplified
Operating temperature range: -40 °C to 125 °C (-40 °F to 257 °F)
Compensated temperature range: -20 °C to 85 °C (-4 °F to 185 °F)
Output type: 0.5 V to 4.5 V Ratio-metric
Termination type: GT 150 Series - 3 pin
1
www.honeywell.com/sensing
SENSING AND CONTROL PRODUCTS
HONEYWELL SENSING AND CONTROL PRODUCTS
Selecting the right sensor or switch for your application has never been easier. Honeywell Sensing and Control has one of the broadest product ranges of any
supplier in the world, and the depth of our technology and product lines ensure that we are able to supply you with the right product for most applications.
We also have the outstanding technical support staff and responsive service to back this up, so you can always find what you need, when you need it. We aim to
supply on time, every time, anywhere in the world.
Honeywell - Taking the risk and high costs out of system critical sensing and control.
You can find out more about Honeywell’s extensive product range by visiting our website at
www.honeywell.com/sensing
There you can browse our interactive catalogue and discover our full range of products for use in Industrial, Automotive, Aviation, Transportation, Motion Control,
Medical applications and more. Some of our more popular product families include:
Accelerometers
Utilizing Quartz Flexure and Resonating Beam technologies for inertial, control,
and industrial applications.
Automotive Sensors
Speed and position sensors for engine management, wheel speed sensors,
and position sensors for comfort, convenience, and motor control
applications.
Basic Switches
Standard size, miniature, subminiature, hermetically sealed, and high
temperature snap-action switches for applications requiring compactness,
light weight, accurate repeatability and long life.
Current Sensors
Adjustable linear, null balance, digital, and linear output current sensors for
monitoring ac or dc current.
Electronic and Electromechanical Safety products for
Machine Safeguarding
Safety light curtains, laser scanners, mats, door interrupt devices and single
and multi-beam optoelectronic devices for industrial machine safety. Safety
interlock switches, limit switches and cable-pull limit switches for industrial
machine safety. Safety control modules for industrial machine safety.
Environment Sealed Switches and Sensors
Designed for use in the harsh environments encountered in aerospace,
transportation, ordnance and marine applications.
Fibre Optic Sensors
Active optoelectronic components and sub-assemblies (LEDs/transmitters,
fiber-DIPs, receivers and modules) for the datacom market.
Force Sensors
Precise reliable performance in compact commercial grade packaging.
Hour Meters
Honeywell’s Hobbs brand products are designed for elapsed time
measurement for testing, leasing, maintenance and warranty programs. The
meter family includes LCD, Counter, Battery Controller, AC Electro-Mechanical
and DC Electro-Mechanical.
Humidity Sensors
Relative humidity/temperature and relative humidity sensors in chemically
resistant packages to accommodate harsh environments.
Infrared Sensors
Optoelectronic standard infrared emitting diodes (IREDs), sensors and
assemblies for object presence, limit, and motion sensing, position encoding,
and movement counting.
Limit and Enclosed Switches
Heavy duty limit switches, enclosed switches (precision snap-acting switches
sealed in rugged metal housing) and sealed and explosion-proof switches.
Liquid Level Sensors
Basic and industrial (designed for harsh industrial environments) liquid level
sensors used to indicate the presence or absence of liquid.
Mass Airflow Sensors
Amplified and unamplified microbridge mass airflow sensors provide a
sensitive and fast response to the flow of air or other gas over the chip.
Off-Highway Vehicular Lighting
Honeywell’s Hobbs brand halogen sealed beams, composites, custom
designer lights, specialty lighting and indicator modules for vehicular and
non-vehicular applications.
Position Sensors
Hall-effect, magnetoresistive, and potentiometric devices for detecting the
presence of a magnetic field or linear and rotary position.
Pressure Sensors
Stainless steel and silicon pressure sensors depending on the application, as
well as a variety of high purity pressure sensors.
Proximity Sensors
Severe environment proximity sensors designed for use in applications with
particularly demanding requirements on temperature, vibration, shock, and
EMI/lightning resistance.
Pushbuttons, Keyswitches and Indicators
MICRO SWITCH brand pushbuttons, keyswitches, and indicators for use
anywhere manual operation is desired.
Railway Sensors and Control Systems
Railwheel proximity sensors, interface modules, train departure control
systems, solid state sensors, pressure sensors and electromechanical
switches for on-board and off-board rail industry applications.
2www.honeywell.com/sensing
INTRODUCTION
Relays
General-purpose power relays and relay sockets designed for a wide range of
applications that require stability and reliability.
Resolvers
Absolute position sensors which provides high angular accuracy, high
resolution and repeatability under severe environmental conditions.
Temperature Sensors
Platinum- and silicon-based thin film resistance temperature devices (RTDs)
for applications that require small package size, accuracy, and linear outputs.
Thermal Products
Bimetal thermostats, Discrete and Packaged Thermistors, Precision Hi-Rel
Negative Temperature Coefficient (NTC) Thermistors., Thermal cut offs and
Flexible Heaters
Thermocouples, Non-contact probes and RTDs
Megopak thermocouples, thermocouples with protecting tubes, Radiamatic/
Rayotube Sensors, and the platinum RTD 100 Ohm.
Toggle and Rocker Switches
MICRO SWITCH brand toggles, rockers and paddle switches for use anywhere
manual operation is desired. Military grade and environment sealed options
are available.
HONEYWELL’S SENSOTEC RANGE OF SPECIALIST TEST AND MEASUREMENT PRODUCTS
The Honeywell Sensotec product range of industrial pressure transducers,
load cells and electronic sensor instrumentation is one of the broadest in the
world. We have a comprehensive range of strain gauge based, piezoelectric
and coil wound transducers. We offer pressure ranges to 170,000 psi and
load ranges to 3 million pounds with complete instrumentation and signal
conditioning. We achieve accuracies of 0.05 in pressure sensing, and our
calibration load cells have accuracies of 0.002 %.
Our unique expertise is in the packaging of our sensor technology, but we can
provide you with reliable engineered solutions whether they are standard off-
the-shelf transducers developed for general applications or sensors developed
to meet unique requirements. The Sensotec range of transducers can be
designed to withstand the harshest environments such as temperatures as
low as –325 °F or as high as +425 °F, or ambient conditions up to 10,000 ft of
seawater.
For more information about these products visit
www.honeywell.com/sensotec
Turbidity Sensors
Wash process turbidity sensors to improve product quality, minimize
ingredient consumption, and reduce wastewater discharge in commercial and
industrial bath applications.
Ultrasonic Sensors
Ultrasonic position sensors for presence/absence sensing, precision distance
sensing or tracking for areas where other sensing technologies have difficulty,
such as clear or shiny objects, foggy or particle laden air, or splashing liquids.
VCSEL Products
Vertical Cavity Surface Emitting Laser sensors for high speed data
communication applications and a wide variety of sensor applications.
VRS Speed and Timing Sensors
Completely self-powered, VRS (magnetic) sensors are simple, rugged devices
that do not require an external voltage source for operation. They are generally
used to provide speed, timing or synchronization data to a display (or control
circuitry) in the form of a pulse train.
This list of our products is not exhasustive,
so check out our full range at
www.honeywell.com/sensing
SENSING AND CONTROL PRODUCTS
3
www.honeywell.com/sensing
Sales and Service
Honeywell serves its customers through a worldwide network of sales offices,
representatives and distributors. For application assistance, current
specifications, pricing or name of the nearest Authorised Distributor or Sales
Representative, contact your local sales office or:
INTERNET: www.honeywell.com/sensing
E-mail: info.sc@honeywell.com
ASIA PACIFIC
Control Products
Asia Pacific Headquarters
Phone: +(65) 6355-2828
Fax: +(65) 6445-3033
Australia
Honeywell Limited
Phone: +(61) 2-9370-4500
FAX: +(61) 2-9370-4525
Toll Free 1300-36-39-36
Toll Free Fax: 1300-36-04-70
China – PRC - Beijing
Honeywell China Inc.
Phone: +(86-10) 8458-3280
Fax: +(86-10) 8458-3102
China – PRC - Shanghai
Honeywell China Inc.
Phone: (86-21) 6237-0237
Fax: (86-21) 6237-1237
China - Hong Kong S.A.R.
Honeywell Ltd.
Phone: +(852) 2953-6412
Fax: +(852) 2953-6767
Indonesia
Honeywell Indonesia Pte Ltd.
Phone: +(62) 21-535-8833
FAX: +(62) 21-5367 1008
India
TATA Honeywell Ltd.
Phone: +(91) 20 6870 445/
446
Fax: +(91) 20 681 2243/ 687
5992
Japan
Honeywell Inc
Phone: +(81) 3 5440 1425
Fax: +(81) 3 5440 1368
South Korea
Honeywell Korea Co Ltd
Phone: +(822) 799-6167
Fax: +(822) 792-9013
Malaysia
Honeywell Engineering Sdn
Bhd
Phone: +(60-3) 7958-4988
Fax: +(60-3) 7958-8922
New Zealand
Honeywell Limited
Phone: +(64-9) 623-5050
Fax: +(64-9) 623-5060
Toll Free (0800) 202-088
Philippines
Honeywell Systems
(Philippines) Inc.
Phone: +(63-2) 636-1661 /
1662
Fax: +(63-2) 638-4013
Singapore
Honeywell South East Asia
Phone: +(65) 6355-2828
Fax: +(65) 6445-3033
Thailand
Honeywell Systems (Thailand)
Ltd.
Phone: +(662) 693-3099
FAX: +(662) 693-3085
Taiwan R.O.C.
Honeywell Taiwan Ltd.
Phone: +(886-2) 2245-1000
FAX: +(886-2) 2245-3242
EUROPE
Austria
Honeywell Austria GmbH
Phone: +(43) 1 727 80 366/
246
FAX: +(43) 1 727 80 337
Belgium
Honeywell SA/NV
Phone: +(32) 2 728 2522
FAX: +(32) 2 728 2502
Bulgaria
Honeywell EOOD
Phone: +(359) 2 979 00 23
FAX: +(359) 2 979 00 24
Czech Republic
Honeywell spol. s.r.o.
Phone: +(420) 261 123 457
FAX: +(420) 261 123 461
Denmark
Honeywell A/S
Phone: +(45) 39 55 55 55
FAX: +(45) 39 55 55 58
Finland
Honeywell OY
Phone: +(358) 9 3480101
FAX: +(358) 9 34801375
France
Honeywell SA
Phone: +(33) 1 60 19 80 40
FAX: +(33) 1 60 19 81 73
Germany
Honeywell AG
Phone: +(49) 69 8064 444
FAX: +(49) 69 8064 442
Hungary
Honeywell Kft.
Phone: +(361) 451 43 00
FAX: +(361) 451 43 43
Italy
Honeywell S.p.A.
Phone: +(39) 02 92146 450/
456
FAX: +(39) 02 92146 490
The Netherlands
Honeywell B.V.
Phone: +(31) 20 565 69 11
FAX: +(31) 20 565 66 00
Norway
Honeywell A/S
Phone: +(47) 66 76 20 00
FAX: +(47) 66 76 20 90
Poland
Honeywell Sp. zo.o
Phone: +(48) 606 09 64
FAX: +(48) 606 09 01
Portugal
Honeywell Portugal Lda
Phone: +(351 21) 424 50 00
FAX: +(351 21) 424 50 99
Romania
Honeywell Bucharest
Phone: +(40) 1 2110076
FAX: +(40) 1 2103375
Commonwealth of
Independent States (CIS)
Z.A.O. Honeywell
Phone: +(7 095) 796 98 36
FAX: +(7 095) 797 99 06
Slovak Republic
Honeywell s.r.o.
Phone: +(421 2) 58 247 403
FAX: +(421 2) 58 247 415
South Africa (Republic of)
Honeywell Southern Africa
Honeywell S.A. Pty. Ltd
Phone: +(27) 11 695 8000
FAX +(27) 11 805 1504
Spain
Honeywell S.A.
Phone: +(34) 91 313 6100
FAX: +(34) 91 313 6129
Sweden
Honeywell AB
Phone: +(46) 8 775 55 00
FAX: +(46) 8 775 56 00
Switzerland
Honeywell AG
Phone: +(41) 1 855 24 40
FAX: +(41) 1 855 24 45
Turkey
Honeywell Turkey A.S.
Phone: +(90) 216 5756620
FAX: +(90) 216 5756637
Ukraine
Honeywell
Phone: +(380) 44 201 44 74
FAX: +(380) 44 201 44 75
United Kingdom
Honeywell Control Systems
Ltd
Phone: +(44) 1698 481481
FAX: +(44) 1698 481276
Mediterranean & African
Distributors
Honeywell SpA
Phone: +(39) 2 921 46 232
FAX: +(39) 2 921 46 233
Middle East Headquarters
Honeywell Middle East Ltd.
Phone: +(9712) 443 2119
FAX +(9712) 443 2536
NORTH AMERICA
Canada
Honeywell LTD
Phone: 1-800-737-3360
FAX: 1-800-565-4130
USA
Honeywell
Control Products,
International Headquarters
Phone: 1-800-537-6945
1-815-235-6847
FAX: 1-815-235-6545
E-mail:
info.sc@honeywell.com
LATIN AMERICA
Argentina
Honeywell S.A.I.C.
Phone: +(54-11) 4383-3637
FAX: +(54-11) 4325-6470
Brazil
Honeywell do Brasil & Cia
Phone: +(55-11) 7266-1900
FAX: +(55-11) 7266-1905
Chile
Honeywell Chile, S.A.
Phone: +(56-2) 233-0688
FAX: +(56-2) 231-6679
Columbia
Honeywell Columbia, S.A.
Phone: +(57-1) 623-3239/
3051
FAX: +(57-1) 623-3395
Ecuador
Honeywell S.A.
Phone: +(593-2) 981-560/1
FAX: +(593-2) 981-562
Mexico
Honeywell S.A. de C.V.
Phone: +(52) 55 5259-1966
FAX: +(52) 55 5570-2985
Puerto Rico
Honeywell Inc.
Phone: +(809) 792-7075
FAX: +(809) 792-0053
Venezuela
Honeywell CA
Phone: +(58-2) 238-0211
FAX: +(58-2) 238-3391
Inside back cover
Warranty/Remedy
Honeywell warrants goods of its manufacture as being free of defective
material and faulty workmanship. Contact your local sales office for warranty
information. If warranted goods are returned to Honeywell during that period
of coverage, Honeywell will repair or replace without charge those items it
finds defective. The foregoing is Buyer’s sole remedy and is in lieu of all
other warranties, expressed or implied, including those of merchantability
and fitness for a particular purpose.
While we provide application assistance, personally, through our literature
and the Honeywell web site, it is up to the customer to determine the suitability
of the product in the application.
Specifications may change at any time without notice. The information
we supply is believed to be accurate and reliable as of this printing. However,
we assume no responsibility for its use.
This publication does not constitute a contract between Honeywell and its customers. The contents may be changed at any time without notice. It is the
customer’s responsibility to ensure safe installation and operation of the products. Detailed mounting drawings of all products illustrated are available on
request.
© 2003 Honeywell International Inc.
Sensing and Control
Honeywell Inc
11 West Spring Street
Freeport, Illinois 61032
USA
www.honeywell.com/sensing
100456-EN Issue 1 07/03 UK07 GLO Printed on environmentally friendly paper
Honeywell Control Systems Ltd
Newhouse Industrial Estate
Motherwell ML1 5SB
Scotland, UK
1-800-537-6945
1-815-235-6847
info.sc@honeywell.com
www.honeywell.com/sensing
YOUR HONEYWELL CONTACT:
