Xenon™ 1900/1902 User’s Guide

™

Xenon™ 1900/1902

Area-Imaging Scanner

User’s Guide

Disclaimer

Honeywell International Inc. (“HII”) reserves the right to make changes in speci-

fications and other information contained in this document without prior notice,

and the reader should in all cases consult HII to determine whether any such

changes have been made. The information in this publication does not repre-

sent a commitment on the part of HII.

HII shall not be liable for technical or editorial errors or omissions contained

herein; nor for incidental or consequential damages resulting from the furnish-

ing, performance, or use of this material.

This document contains proprietary information that is protected by copyright.

All rights are reserved. No part of this document may be photocopied, repro-

duced, or translated into another language without the prior written consent of

HII.

Other product names or marks mentioned in this document may be trademarks

or registered trademarks of other companies and are the property of their

respective owners.

Web Address: www.honeywellaidc.com

Microsoft® Windows®, Windows NT®, Windows 2000, Windows ME, Windows

XP, and the Windows logo are trademarks or registered trademarks of Microsoft

Corporation.

The Bluetooth® word mark and logos are owned by Bluetooth SIG, Inc.

Other product names or marks mentioned in this document may be trademarks

or registered trademarks of other companies and are the property of their

respective owners.

Product Agency Compliance - Xenon 1900

USA

FCC Part 15 Subpart B Class B

This device complies with part 15 of the FCC Rules. Operation is subject to

the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including

interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a

Class B digital device pursuant to part 15 of the FCC Rules. These limits

are designed to provide reasonable protection against harmful interference

in a residential installation. This equipment generates, uses, and can radi-

ate radio frequency energy and, if not installed and used in accordance

with the instructions, may cause harmful interference to radio communica-

tions. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to

radio or television reception, which can be determined by turning the equip-

ment off and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

• Consult the dealer or an experienced radio or television technician for

help.

If necessary, the user should consult the dealer or an experienced radio/

television technician for additional suggestions. The user may find the fol-

lowing booklet helpful: “Something About Interference.” This is available at

FCC local regional offices. Honeywell is not responsible for any radio or

television interference caused by unauthorized modifications of this equip-

ment or the substitution or attachment of connecting cables and equipment

other than those specified by Honeywell. The correction is the responsibil-

ity of the user.

Use only shielded data cables with this system. This unit has been tested

with cables less than 3 meters. Cables greater than 3 meters may not meet

class B performance.

Caution: Any changes or modifications made to this equipment not

expressly approved by Honeywell may void the FCC authorization to oper-

ate this equipment.

UL Statement

UL listed: UL60950-1.

Canada

Industry Canada ICES-003

This Class B digital apparatus complies with Canadian ICES-003. Opera-

tion is subject to the following conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including

interference that may cause undesired operation.

Conformité à la règlementation canadienne

Cet appareil numérique de la Classe A est conforme à la norme NMB-003

du Canada. Son fonctionnement est assujetti aux conditions suivantes :

1. Cet appareil ne doit pas causer de brouillage préjudiciable.

2. Cet appareil doit pouvoir accepter tout brouillage reçu, y compris le

brouillage pouvant causer un fonctionnement indésirable.

cUL Statement

cUL listed: CSA C22.2 No.60950-1-07.

Europe

The CE marking indicates compliance to 2004/108/EC EMC Directive

with Standards EN55022 CLASS B, EN55024, EN61000-3-2,

EN61000-3-3. In addition, complies to 2006/95/EC Low Voltage Direc-

tive, when shipped with recommended power supply.

For further information please contact:

Honeywell Imaging & Mobility Europe BV

Nijverheidsweg 9-13

5627 BT Eindhoven

The Netherlands

Honeywell International Inc. shall not be liable for use of our product with

equipment (i.e., power supplies, personal computers, etc.) that is not CE

marked and does not comply with the Low Voltage Directive.

Waste Electrical and Electronic Equipment

Information

Honeywell complies with Directive 2002/96/EC OF THE EUROPEAN PAR-

LIAMENT AND OF THE COUNCIL of 27 January 2003 on waste electrical

and electronic equipment (WEEE).

This product has required the extraction and use of natural resources for its

production. It may contain hazardous substances that could impact health

and the environment, if not properly disposed.

In order to avoid the dissemination of those substances in our environment

and to diminish the pressure on the natural resources, we encourage you to

use the appropriate take-back systems for product disposal. Those sys-

tems will reuse or recycle most of the materials of the product you are dis-

posing in a sound way.

The crossed out wheeled bin symbol informs you that the product

should not be disposed of along with municipal waste and invites you to

use the appropriate separate take-back systems for product disposal.

If you need more information on the collection, reuse, and recycling sys-

tems, please contact your local or regional waste administration.

You may also contact your supplier for more information on the environ-

mental performances of this product.

Germany

If your product is marked with the GS symbol, then the product

has been issued a GS certificate showing compliance to EN

60950-1, Second Edition.

Australia/NZ

C-Tick Statement

Conforms to AS/NZS 3548 EMC requirement

Mexico

Conforms to NOM-019.

Japan

Russia

Gost-R certificate

South Korea

This product meets Korean agency approval.

Taiwan

If the following label is attached to your product, the product meets Taiwan

agency approval:

BSMI Standard: CNS13438, CNS14336

依據標準 : CNS13438, CNS14336

International

LED Safety Statement

LEDs have been tested and classified as “EXEMPT RISK GROUP” to the

standard: IEC 62471:2006.

CB Scheme

Certified to CB Scheme IEC 60950-1, Second Edition.

Laser Safety Statement

If the following label is attached to your product, it indicates the product

contains a laser engine or laser aimer:

This device has been tested in accordance with and complies with

IEC60825-1 ed2.0 and 21 CFR 1040.10 and 1040.11, except for deviations

pursuant to Laser Notice No.50, dated June 24, 2007.

LASER LIGHT, DO NOT STARE INTO BEAM, CLASS 2 LASER PROD-

UCT, 1.0 mW MAX OUTPUT: 630-650nM.

LASER LIGHT. DO NOT STARE INTO BEAM

1.0 mW MAX OUTPUT: 650nM

IEC 60825-1 Ed 2 (2007).

CLASS 2 LASER PRODUCT

Complies with 21 CFR 1040.10 and 1040.11

except for deviations pursuant to Laser

Notice No. 50, dated June 24, 2007.

Caution - use of controls or adjustments or performance of procedures

other than those specified herein may result in hazardous radiation expo-

sure.

Patents

For patent information, please refer to www.honeywellaidc.com/patents.

Solids and Water Protection

The Xenon 1900 has a rating of IP41, immunity of foreign particles and dripping

water.

Warning

To reduce the possibility of heat-related injuries, avoid touching sec-

tions of the scanner that feel warm.

Product Agency Compliance - Xenon 1902 and

CCB01-010BT Base

USA

FCC Part 15 Subpart C

This device complies with part 15 of the FCC Rules. Operation is subject

to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including

interference that may cause undesired operation.

Caution: Any changes or modifications made to this equipment not

expressly approved by Honeywell may void the FCC

authorization to operate this equipment.

Use only shielded data cables with this system. This unit has been tested

with cables less than 3 meters. Cables greater than 3 meters may not meet

class B performance.

UL Statement

UL listed: UL60950-1.

Canada

Industry Canada

This device complies with Canadian RSS-210. Operation is subject to the

following conditions:

1. This device may not cause interference.

2. This device must accept any interference, including interference that

may cause undesired operation.

Conformité à la règlementation canadienne

Cet appareil ISM est conforme à la norme CNR-210 du Canada. Son fonc-

tionnement est assujetti aux conditions suivantes :

1. Cet appareil ne doit pas causer de brouillage préjudiciable.

2. Cet appareil doit pouvoir accepter tout brouillage reçu, y compris le

brouillage pouvant causer un fonctionnement indésirable.

C-UL Statement

C-UL listed: CSA C22.2 No.60950-1-07 for I.T.E product safety.

Europe

The CE marking on the product indicates that this device is in confor-

mity with all essential requirements of the 1999/5/EC R&TTE Directive.

In addition, complies to 2006/95/EC Low Voltage Directive, when

shipped with recommended power supply. For further information, con-

tact:

Honeywell Imaging & Mobility Europe BV

International Inc.

Nijverheidsweg 9-13

5627 BT Eindhoven

The Netherlands

Honeywell shall not be liable for use of our product with equipment (i.e.,

power supplies, personal computers, etc.) that is not CE marked and does

not comply with the Low Voltage Directive. This equipment is intended for

use throughout the European Community and has been assessed to the

following standards:

EN 300 328

EN 301 489-1

EN 301 489-17

EN60950-1

Waste Electrical and Electronic Equipment

Information

Honeywell complies with Directive 2002/96/EC OF THE EUROPEAN PAR-

LIAMENT AND OF THE COUNCIL on waste electrical and electronic

equipment (WEEE).

This product has required the extraction and use of natural resources for its

production. It may contain hazardous substances that could impact health

and the environment, if not properly disposed.

In order to avoid the dissemination of those substances in our environment

and to diminish the pressure on the natural resources, we encourage you to

use the appropriate take-back systems for product disposal. Those sys-

tems will reuse or recycle most of the materials of the product you are dis-

posing in a sound way.

The crossed out wheeled bin symbol informs you that the product

should not be disposed of along with municipal waste and invites you to

use the appropriate separate take-back systems for product disposal.

If you need more information on the collection, reuse, and recycling sys-

tems, contact your local or regional waste administration.

You may also contact your supplier for more information on the environ-

mental performances of this product.

Germany

If your product is marked with the GS symbol, then the product

has been issued a GS certificate showing compliance to EN

60950-1, Second Edition.

Australia/NZ

C-Tick Statement

Conforms to AS/NZS 3548 EMC requirements.

Brazil

This product is approved by Anatel, according to the procedures regulated

by Resolution No. 242/2000 and meets the technical requirements applied.

Este produto está homologado pela ANATEL, de acordo com os procedi-

mentos regulamentados pela Resolução No. 242/2000 e atende aos requi-

sitos técnicos aplicados.

Para maiores informações, consulte o site da ANATEL – www.anatel.gov.br

China

SRRC Radio Certificate.

CCC safety (CCB01-101BT base only)

Modelo: Xenon 1902

2876-10-6583

(01)07898927490072

" Este equipamento opera em caráter secundário, isto é, não tem

direito a proteção contra interferência prejudicial, mesmo de estações

do mesmo tipo, e não pode causar interferência a sistemas operando

em caráter primário."

Japan

Complies with Technical Regulations Conformity Certification of

Specified Radio equipment.

Korea

This product meets Korean agency approval.

Mexico

Conforms to NOM-019.

Russia

Taiwan

If the following label is attached to your product, the product meets Taiwan

agency approval:

BSMI Standard: CNS13438, CNS14336 (Xenon 1902 only)

依據標準 : CNS13438, CNS14336

NCC standard: Low power frequency electric machineries technical

standard: LP0002

International

LED Safety Statement

LEDs have been tested and classified as “EXEMPT RISK GROUP” to

the standard: IEC 62471:2006.

Radio Technology

Class II

CB Scheme

Certified to CB Scheme IEC 60950-1, Second Edition.

Laser Safety Statement

If the following label is attached to your product, it indicates the product

contains a laser engine or laser aimer:

This device has been tested in accordance with and complies with

IEC60825-1 ed2.0 and 21 CFR 1040.10 and 1040.11, except for deviations

pursuant to Laser Notice No.50, dated June 24, 2007.

LASER LIGHT, DO NOT STARE INTO BEAM, CLASS 2 LASER PROD-

UCT, 1.0 mW MAX OUTPUT: 630-650nM.

Caution - use of controls or adjustments or performance of procedures

other than those specified herein may result in hazardous radiation expo-

sure.

Solids and Water Protection

The Xenon 1902 has a rating of IP41, immunity of foreign particles and

dripping water.

Patents

For patent information, please refer to www.honeywellaidc.com/patents.

Warning

To reduce the possibility of heat-related injuries, avoid touching

sections of the scanner that feel warm.

LASER LIGHT. DO NOT STARE INTO BEAM

1.0 mW MAX OUTPUT: 650nM

IEC 60825-1 Ed 2 (2007).

CLASS 2 LASER PRODUCT

Complies with 21 CFR 1040.10 and 1040.11

except for deviations pursuant to Laser

Notice No. 50, dated June 24, 2007.

Required Safety Labels

Scanner

Compliance

Label

location

Item

Number, Serial

Number and

Revision

Information

location

Illumination output

CCB01-010BT Base

Item Number,

Serial

Number and

Revision

Information

location

Compliance

Label

location

Chapter 1 - Getting Started

About This Manual ...................................................... 1-1

Unpacking Your Device............................................... 1-1

Connecting the Device ................................................ 1-2

Connecting with USB ............................................ 1-2

Connecting with Keyboard Wedge........................ 1-3

Connecting with RS232 Serial Port....................... 1-5

Connecting with RS485......................................... 1-6

Reading Techniques ................................................... 1-8

Menu Bar Code Security Settings ............................... 1-8

Setting Custom Defaults ............................................. 1-9

Resetting the Custom Defaults ................................... 1-9

Resetting the Factory Defaults.................................. 1-10

Chapter 2 - Programming the Interface

Introduction ................................................................. 2-1

Programming the Interface - Plug and Play ................ 2-1

Keyboard Wedge................................................... 2-1

Laptop Direct Connect........................................... 2-1

RS232 Serial Port.................................................. 2-2

RS485 ................................................................... 2-2

RS485 Packet Mode ............................................. 2-3

USB IBM SurePos................................................. 2-4

USB PC or Macintosh Keyboard........................... 2-4

USB HID................................................................ 2-5

USB Serial............................................................. 2-5

Verifone® Ruby Terminal Default Settings ............ 2-6

Gilbarco® Terminal Default Settings ..................... 2-7

Honeywell Bioptic Aux Port Configuration............. 2-7

Datalogic™ Magellan© Bioptic Aux Port

Configuration.................................................... 2-7

NCR Bioptic Aux Port Configuration...................... 2-8

Wincor Nixdorf Terminal Default Settings ............. 2-8

Table of Contents

Wincor Nixdorf Beetle™ Terminal

Default Settings................................................2-9

Keyboard Country Layout..........................................2-10

Keyboard Style ..........................................................2-17

Keyboard Conversion ................................................2-18

Control Character Output...........................................2-19

Keyboard Modifiers....................................................2-19

RS232 Baud Rate......................................................2-22

RS232 Word Length: Data Bits, Stop Bits,

and Parity ................................................................2-23

RS232 Receiver Time-Out.........................................2-24

RS232 Handshaking..................................................2-24

RS232 Timeout....................................................2-25

XON/XOFF ..........................................................2-25

ACK/NAK .............................................................2-25

Scanner to Bioptic Communication............................2-26

Scanner-Bioptic Packet Mode .............................2-26

Scanner-Bioptic ACK/NAK Mode.........................2-27

Scanner-Bioptic ACK/NAK Timeout.....................2-27

Chapter 3 - Cordless System Operation

How the Cordless Charge Base

/Access Point Works .................................................3-1

Linking the Scanner to a Charge Base........................3-1

Linking the Scanner to an Access Point ......................3-2

Communication Between the Cordless System

and the Host..............................................................3-2

RF (Radio Frequency) Module Operation....................3-3

System Conditions.......................................................3-3

Linking Process .....................................................3-3

Scanner Is Out of Range .......................................3-4

Scanner Is Moved Back Into Range ......................3-4

Out of Range and Back into Range

with Batch Mode On.........................................3-4

Page Button.................................................................3-4

About the Battery.........................................................3-4

iii

Charging Information............................................. 3-5

Battery Recommendations.................................... 3-5

Proper Disposal of the Battery .............................. 3-6

Beeper and LED Sequences and Meaning................. 3-6

Scanner LED Sequences and Meaning ................ 3-7

Base/Access Point LED Sequences and

Meaning ........................................................... 3-7

Base Power Communication Indicator .................. 3-8

Reset Scanner ............................................................ 3-8

Scanning While in Base Cradle................................... 3-8

Paging ......................................................................... 3-9

Paging Mode ......................................................... 3-9

Paging Pitch ......................................................... 3-9

Error Indicators............................................................ 3-9

Beeper Pitch - Base Error ..................................... 3-9

Number of Beeps - Base Error............................ 3-10

Scanner Report ......................................................... 3-10

Scanner Address....................................................... 3-11

Base or Access Point Address.................................. 3-11

Scanner Modes ......................................................... 3-11

Charge Only Mode .............................................. 3-11

Linked Modes...................................................... 3-12

Unlinking the Scanner ............................................... 3-13

Override Locked Scanner.................................... 3-13

Out-of-Range Alarm .................................................. 3-13

Alarm Sound Type............................................... 3-14

Flexible Power Management..................................... 3-15

Batch Mode ............................................................... 3-16

Batch Mode Beep................................................ 3-17

Batch Mode Storage............................................ 3-17

Batch Mode Quantity........................................... 3-18

Batch Mode Output Order ................................... 3-20

Delete Last Code................................................. 3-20

Clear All Codes ................................................... 3-20

Transmit Records to Host.................................... 3-21

Batch Mode Transmit Delay................................ 3-21

Multiple Scanner Operation....................................... 3-21

Scanner Name...........................................................3-22

Application Work Groups...........................................3-24

Application Work Group Selection .......................3-25

Resetting the Factory Defaults:

All Application Work Groups....................................3-25

Resetting the Custom Defaults:

All Application Work Groups....................................3-26

Using the Scanner with Bluetooth Devices................3-26

PCs/Laptops ........................................................3-26

PDAs/Mobility Systems Devices..........................3-27

Changing the Scanner’s Bluetooth PIN Code......3-27

Minimizing Bluetooth/ISM Band Network Activity ......3-27

Auto Reconnect Mode .........................................3-28

Maximum Link Attempts ......................................3-29

Relink Time-Out...................................................3-30

Bluetooth/ISM Network Activity Examples...........3-30

Host Command Acknowledgment .............................3-31

Chapter 4 - Input/Output Settings

Power Up Beeper ........................................................4-1

Beep on BEL Character...............................................4-1

Trigger Click.................................................................4-2

Good Read and Error Indicators..................................4-2

Beeper – Good Read.............................................4-2

Beeper Volume – Good Read................................4-3

Beeper Pitch – Good Read....................................4-3

Beeper Pitch – Error ..............................................4-4

Beeper Duration – Good Read ..............................4-4

LED – Good Read .................................................4-4

Number of Beeps – Good Read ............................4-5

Number of Beeps – Error.......................................4-5

Good Read Delay ..................................................4-6

User-Specified Good Read Delay..........................4-6

Manual Trigger Modes.................................................4-6

Serial Trigger Mode .....................................................4-7

Read Time-Out ......................................................4-7

Scanner Power Time-Out Timer............................ 4-7

Presentation Mode ...................................................... 4-9

Presentation LED Behavior after Decode ............. 4-9

Presentation Sensitivity......................................... 4-9

Presentation Centering........................................ 4-10

In-Stand Sensor Mode .............................................. 4-11

CodeGate®................................................................ 4-12

Streaming Presentation™ Mode ............................... 4-12

Streaming Presentation In-Stand

Programming ................................................. 4-13

Mobile Phone Read Mode......................................... 4-13

Image Snap and Ship................................................ 4-14

Hands Free Time-Out ............................................... 4-14

Reread Delay ............................................................ 4-14

User-Specified Reread Delay.................................... 4-15

Illumination Lights ..................................................... 4-15

Aimer Delay............................................................... 4-16

User-Specified Aimer Delay ................................ 4-16

Scanner Time-Out..................................................... 4-16

Aimer Mode............................................................... 4-17

Centering................................................................... 4-17

Preferred Symbology ................................................ 4-19

High Priority Symbology...................................... 4-20

Low Priority Symbology....................................... 4-20

Preferred Symbology Time-out ........................... 4-20

Preferred Symbology Default .............................. 4-21

Output Sequence Overview ...................................... 4-21

Require Output Sequence................................... 4-21

Output Sequence Editor...................................... 4-21

To Add an Output Sequence............................... 4-22

Other Programming Selections ........................... 4-22

Output Sequence Editor...................................... 4-24

Partial Sequence................................................. 4-24

Require Output Sequence................................... 4-25

Multiple Symbols ....................................................... 4-25

No Read .................................................................... 4-26

Video Reverse........................................................... 4-26

Working Orientation...................................................4-27

Chapter 5 - Data Editing

Prefix/Suffix Overview..................................................5-1

To Add a Prefix or Suffix:.......................................5-1

To Clear One or All Prefixes or Suffixes ................5-2

To Add a Carriage Return Suffix

to All Symbologies............................................5-3

Prefix Selections..........................................................5-3

Suffix Selections ..........................................................5-4

Function Code Transmit ..............................................5-4

Intercharacter, Interfunction,

and Intermessage Delays..........................................5-4

Intercharacter Delay ..............................................5-5

User Specified Intercharacter Delay ......................5-5

Interfunction Delay.................................................5-6

Intermessage Delay...............................................5-6

Chapter 6 - Data Formatting

Data Format Editor Introduction...................................6-1

Add a Data Format ......................................................6-1

Other Programming Selections..............................6-3

Terminal ID Table ........................................................6-4

Data Format Editor Commands...................................6-4

Move Commands...................................................6-6

Search Commands ................................................6-6

Miscellaneous Commands.....................................6-8

Data Formatter.............................................................6-9

Data Format Non-Match Error Tone ....................6-10

Primary/Alternate Data Formats ................................6-11

Single Scan Data Format Change .......................6-11

Chapter 7 - Symbologies

All Symbologies ...........................................................7-2

Message Length Description .......................................7-2

vii

Codabar ...................................................................... 7-3

Codabar Concatenation ........................................ 7-4

Code 39....................................................................... 7-6

Code 32 Pharmaceutical (PARAF)........................ 7-8

Full ASCII .............................................................. 7-9

Code 39 Code Page.............................................. 7-9

Interleaved 2 of 5 ...................................................... 7-10

NEC 2 of 5................................................................. 7-12

Code 93..................................................................... 7-14

Code 93 Code Page............................................ 7-15

Straight 2 of 5 Industrial (three-bar start/stop) .......... 7-16

Straight 2 of 5 IATA (two-bar start/stop).................... 7-17

Matrix 2 of 5 .............................................................. 7-18

Code 11..................................................................... 7-19

Code 128................................................................... 7-20

ISBT 128 Concatenation ..................................... 7-20

Code 128 Code Page.......................................... 7-22

GS1-128.................................................................... 7-23

Telepen ..................................................................... 7-24

UPC-A ....................................................................... 7-25

UPC-A/EAN-13

with Extended Coupon Code .................................. 7-27

Coupon GS1 DataBar Output ................................... 7-28

UPC-E0 ..................................................................... 7-28

UPC-E1 ..................................................................... 7-31

EAN/JAN-13.............................................................. 7-31

ISBN Translate.................................................... 7-33

EAN/JAN-8................................................................ 7-34

MSI............................................................................ 7-36

GS1 DataBar Omnidirectional................................... 7-38

GS1 DataBar Limited ................................................ 7-38

GS1 DataBar Expanded............................................ 7-39

Trioptic Code............................................................. 7-40

Codablock A.............................................................. 7-40

Codablock F .............................................................. 7-42

PDF417 ..................................................................... 7-43

MicroPDF417 ............................................................ 7-44

viii

GS1 Composite Codes..............................................7-45

UPC/EAN Version................................................7-45

GS1 Emulation...........................................................7-46

TCIF Linked Code 39 (TLC39) ..................................7-47

QR Code....................................................................7-47

QR Code Page ....................................................7-48

Data Matrix ................................................................7-49

Data Matrix Code Page .......................................7-49

MaxiCode...................................................................7-51

Aztec Code ................................................................7-52

Aztec Code Page.................................................7-53

Chinese Sensible (Han Xin) Code.............................7-54

Postal Codes - 2D......................................................7-55

Single 2D Postal Codes:......................................7-55

Combination 2D Postal Codes:............................7-56

Postal Codes - Linear ................................................7-59

China Post (Hong Kong 2 of 5)............................7-59

Korea Post ...........................................................7-61

Chapter 8 - Imaging Commands

Single-Use Basis .........................................................8-1

Command Syntax ........................................................8-1

Image Snap - IMGSNP................................................8-2

IMGSNP Modifiers .................................................8-2

Image Ship - IMGSHP .................................................8-5

IMGSHP Modifiers .................................................8-5

Intelligent Signature Capture - IMGBOX....................8-14

Signature Capture Optimize ................................8-14

IMGBOX Modifiers...............................................8-15

RF Default Imaging Device........................................8-19

Chapter 9 - Interface Keys

Keyboard Function Relationships................................9-1

Supported Interface Keys ............................................9-3

Chapter 10 - Utilities

To Add a Test Code I.D. Prefix to All

Symbologies ........................................................... 10-1

Show Decoder Revision............................................ 10-1

Show Scan Driver Revision....................................... 10-1

Show Software Revision ........................................... 10-1

Show Data Format .................................................... 10-2

Test Menu ................................................................. 10-2

TotalFreedom............................................................ 10-2

Application Plug-Ins (Apps)....................................... 10-3

EZConfig Introduction ............................................... 10-3

Installing EZConfig from the Web........................ 10-4

Chapter 11 - Serial Programming Commands

Conventions .............................................................. 11-1

Menu Command Syntax............................................ 11-1

Query Commands ..................................................... 11-2

Responses .......................................................... 11-3

Trigger Commands ................................................... 11-4

Resetting the Custom Defaults ................................. 11-4

Menu Commands...................................................... 11-5

Chapter 12 - Product Specifications

1900 Scanner Product Specifications ....................... 12-1

1902 Scanner Product Specifications ....................... 12-2

CCB01-010BT Charge Base

Product Specifications ............................................ 12-3

CCB01-010BT Charge Base Mounting ..................... 12-4

Standard Cable Pinouts ............................................ 12-5

Keyboard Wedge................................................. 12-5

Serial Output ...................................................... 12-6

RS485 Output ..................................................... 12-7

USB..................................................................... 12-8

Chapter 13 - Maintenance

Repairs ......................................................................13-1

Maintenance ..............................................................13-1

Cleaning the Scanner ..........................................13-1

Cleaning the Window...........................................13-1

Health Care Housing ...........................................13-1

Inspecting Cords and Connectors .......................13-2

Replacing Cables in Corded Scanners......................13-2

Replacing an Interface Cable ..............................13-3

Replacing Cables and Batteries

in Cordless Systems................................................13-3

Replacing an Interface Cable in a Base ..............13-3

Changing a scanner Battery ................................13-4

Troubleshooting a Xenon Scanner ............................13-4

Troubleshooting a Cordless System..........................13-5

Troubleshooting a Base.......................................13-5

Troubleshooting a Cordless Scanner ..................13-6

Chapter 14 - Customer Support

Appendix A - Reference Charts

Symbology Chart ........................................................ A-1

ASCII Conversion Chart (Code Page 1252)............... A-4

Code Page Mapping of Printed Bar Codes................. A-6

Unicode Key Maps...................................................... A-8

1 - 1

Getting Started

About This Manual

This User’s Guide provides installation and programming instructions for the

Xenon™ 1900 and 1902 area-imaging scanners. Product specifications,

dimensions, warranty, and customer support information are also included.

Honeywell bar code scanners are factory programmed for the most common

terminal and communications settings. If you need to change these settings,

programming is accomplished by scanning the bar codes in this guide.

An asterisk (*) next to an option indicates the default setting.

Unpacking Your Device

After you open the shipping carton containing the product, take the following

steps:

• Check for damage during shipment. Report damage immediately to the

carrier who delivered the carton.

• Make sure the items in the carton match your order.

• Save the shipping container for later storage or shipping.

1 - 2

Connecting the Device

Connecting with USB

A scanner or a cordless base can be connected to the USB port of a com-

puter.

1. Connect the appropriate interface cable to the device first, then to the

computer.

Corded Scanner USB

Connection:

Cordless Base USB

Connection:

1 - 3

2. Make sure the cables are secured in the wireways in the bottom of the

cordless base and that the base sits flat on a horizontal surface.

3. The scanner beeps.

4. Verify the scanner or cordless base operation by scanning a bar code

from the Sample Symbols in the back of this manual.

The unit defaults to a USB PC Keyboard. Refer to page 2-4 for other USB

terminal settings.

For additional USB programming and technical information, refer to “USB

Application Note,” available at www.honeywellaidc.com.

Connecting with Keyboard Wedge

A scanner or cordless base can be connected between the keyboard and

PC as a “keyboard wedge,” plugged into the serial port, or connected to a

portable data terminal in wand emulation or non decoded output mode.

The following is an example of a keyboard wedge connection:

1. Turn off power and disconnect the keyboard cable from the back of the

terminal/computer.

2. Connect the appropriate interface cable to the device and to the

terminal/computer.

Corded Scanner

Keyboard Wedge

Connection:

1 - 4

3. Make sure the cables are secured in the wireways in the bottom of the

cordless base and that the base sits flat on a horizontal surface.

4. Turn the terminal/computer power back on. The scanner beeps.

5. Verify the scanner or cordless base operation by scanning a bar code

from the Sample Symbols in the back of this manual. The scanner

beeps once.

The unit defaults to an IBM PC AT and compatibles keyboard wedge inter-

face with a USA keyboard. A carriage return (CR) suffix is added to bar

code data.

Cordless Base

Keyboard Wedge

Connection:

1 - 5

Connecting with RS232 Serial Port

1. Turn off power to the terminal/computer.

2. Connect the appropriate interface cable to the scanner.

Note: For the scanner or cordless base to work properly, you must have the

correct cable for your type of terminal/computer.

Corded Scanner

RS232 Serial Port

Connection:

Cordless Base

RS232 Serial Port

Connection:

1 - 6

3. Make sure the cables are secured in the wireways in the bottom of the

cordless base and that the base sits flat on a horizontal surface.

4. Plug the serial connector into the serial port on your computer.

Tighten the two screws to secure the connector to the port.

5. Once the scanner or cordless base has been fully connected, power

up the computer.

This interface programs 115,200 baud, 8 data bits, no parity, and 1 stop bit.

Connecting with RS485

A scanner or cordless base can be connected for an IBM POS terminal

interface.

1. Connect the appropriate interface cable to the device, then to the com-

puter.

Corded Scanner

RS485

Connection:

1 - 7

2. Make sure the cables are secured in the wireways in the bottom of the

cordless base and that the base sits flat on a horizontal surface.

3. Turn the terminal/computer power back on. The scanner beeps.

4. Verify the scanner or cordless base operation by scanning a bar code

from the Sample Symbols in the back of this manual. The scanner

beeps once.

For further RS485 settings, refer to RS485, page 2-2.

Cordless Base

RS485

Connection:

1 - 8

Reading Techniques

The scanner has a view finder that projects a bright red aiming beam that corre-

sponds to the scanner’s horizontal field of view. The aiming beam should be

centered over the bar code, but it can be positioned in any direction for a good

read.

The aiming beam is smaller when the scanner is closer to the code and larger

when it is farther from the code. Symbologies with smaller bars or elements

(mil size) should be read closer to the unit. Symbologies with larger bars or ele-

ments (mil size) should be read farther from the unit. To read single or multiple

symbols (on a page or on an object), hold the scanner at an appropriate dis-

tance from the target, pull the trigger, and center the aiming beam on the sym-

bol. If the code being scanned is highly reflective (e.g., laminated), it may be

necessary to tilt the code up 15° to 18° to prevent unwanted reflection.

Menu Bar Code Security Settings

Honeywell scanners are programmed by scanning menu bar codes or by send-

ing serial commands to the scanner. If you want to restrict the ability to scan

menu codes, you can use the Menu Bar Code Security settings. Please contact

the nearest technical support office (see Technical Assistance on page 14-1)

for further information.

Linear bar code 2D Matrix symbol

1 - 9

Setting Custom Defaults

You have the ability to create a set of menu commands as your own, custom

defaults. To do so, scan the Set Custom Defaults bar code below before each

menu command or sequence you want saved. If your command requires scan-

ning numeric codes from the back cover, then a Save code, that entire

sequence will be saved to your custom defaults. Scan the Set Custom

Defaults code again before the next command you want saved to your custom

defaults.

When you have entered all the commands you want to save for your custom

defaults, scan the Save Custom Defaults bar code.

Note: If using a cordless system, scanning the Save Defaults bar code also

causes both the scanner and the base

or Access Point to perform a reset

and become unlinked. The scanner must be placed in its base to re-

establish the link before any setup codes are entered. If using an Access

Point, the linking bar code must be scanned. See Cordless System

Operation beginning on page 3-1 for additional information.

You may have a series of custom settings and want to correct a single setting.

To do so, just scan the new setting to overwrite the old one. For example, if you

had previously saved the setting for Beeper Volume at Low to your custom

defaults, and decide you want the beeper volume set to High, just scan the Set

Custom Defaults bar code, then scan the Beeper Volume High menu code,

and then Save Custom Defaults. The rest of the custom defaults will remain,

but the beeper volume settiing will be updated.

Resetting the Custom Defaults

If you want the custom default settings restored to your scanner, scan the Acti-

vate Custom Defaults bar code below. This is the recommended default bar

code for most users. It resets the scanner to the custom default settings. If

Save Custom Defaults

Set Custom Defaults

1 - 10

there are no custom defaults, it will reset the scanner to the factory default set-

tings. Any settings that have not been specified through the custom defaults

will be defaulted to the factory default settings.

Note: If using a cordless system, scanning this bar code also causes both the

scanner and the base or Access Point to perform a reset and become

unlinked. The scanner must be placed in its base to re-establish the link.

If using an Access Point, the linking bar code must be scanned. See

Cordless System Operation beginning on page 3-1 for additional

information.

Resetting the Factory Defaults

If you aren’t sure what programming options are in your scanner, or you’ve

changed some options and want to restore the scanner to factory default set-

tings, first scan the Remove Custom Defaults bar code, then scan Activate

Defaults. This resets the scanner to the factory default settings.

Note: If using a cordless system, scanning the Activate Defaults bar code also

causes both the scanner and the base or Access Point to perform a reset

and become unlinked. The scanner must be placed in its base to re-

establish the link before any setup codes are entered. If using an Access

Point, the linking bar code must be scanned. See Cordless System

Operation beginning on page 3-1 for additional information.

The Menu Commands, beginning on page 11-5 list the factory default settings

for each of the commands (indicated by an asterisk (*) on the programming

pages).

This selection erases all your settings and resets the scanner to the

original factory defaults. It also disables all plugins

Activate Custom Defaults

Remove Custom Defaults

Activate Defaults

2 - 1

Programming the Interface

Introduction

This chapter describes how to program your system for the desired interface.

Programming the Interface - Plug and Play

Plug and Play bar codes provide instant scanner set up for commonly used

interfaces.

Note: After you scan one of the codes, power cycle the host terminal to have

the interface in effect.

Keyboard Wedge

If you want your system programmed for an IBM PC AT and compatibles

keyboard wedge interface with a USA keyboard, scan the bar code below.

Keyboard wedge is the default interface.

Note: The following bar code also programs a carriage return (CR) suffix.

Laptop Direct Connect

For most laptops, scanning the Laptop Direct Connect bar code allows

operation of the scanner in parallel with the integral keyboard. The follow-

ing Laptop Direct Connect bar code also programs a carriage return (CR)

suffix and turns on Emulate External Keyboard (page 2-18).

IBM PC AT and Compatibles with

CR suffix

Laptop Direct Connect

with CR suffix

2 - 2

RS232 Serial Port

The RS232 Interface bar code is used when connecting to the serial port

of a PC or terminal. The following RS232 Interface bar code also pro-

grams a carriage return (CR) and a line feed (LF) suffix, baud rate, and

data format as indicated below. It also changes the trigger mode to man-

ual.

RS485

Scan one of the following “Plug and Play” codes to program the scanner for

an IBM POS terminal interface.

Note: After scanning one of these codes, you must power cycle the cash

Option Setting

Baud Rate 115,200 bps

Data Format 8 data bits, no parity bit, 1 stop bit

RS232 Interface

IBM Port 5B Interface

IBM Port 9B

HHBCR-1 Interface

IBM Port 17 Interface

IBM Port 9B

HHBCR-2 Interface

2 - 3

Each bar code above also programs the following suffixes for each symbol-

ogy:

* Suffixes programmed for Code 128 with IBM 4683 Port 5B, IBM 4683 Port 9B

HHBCR-1, and IBM 4683 Port 17 Interfaces

**Suffixes programmed for Code 128 with IBM 4683 Port 9 HHBCR-2 Interface

RS485 Packet Mode

The following selection allows you to break up large bar code data into

smaller packets on an IBM POS terminal. To break up large bar codes into

small packets, scan the Packet Mode On bar code below. Scan the Packet

Mode Off bar code if you want large bar code data to be sent to the host in

a single chunk.

Default = Packet Mode Off.

RS485 Packet Length

If you are using Packet mode, you can specify the size of the data

“packet” that is sent to the host. Scan the Packet Length bar code,

then then the packet size (from 20 - 256) from the Programming Chart

inside the back cover of this manual, then Save.

Default = 40

Symbology Suffix Symbology Suffix

EAN 8 0C Code 39 00 0A 0B

EAN 13 16 Interleaved 2 of 5 00 0D 0B

UPC A 0D Code 128 * 00 0A 0B

UPC E 0A Code 128 ** 00 18 0B

MaxiCode 00 2F 0B

Packet Mode On

* Packet Mode Off

Packet Length

2 - 4

USB IBM SurePos

Scan one of the following “Plug and Play” codes to program the scanner for

an IBM SurePos (USB handheld scanner) or IBM SurePos (USB tabletop

scanner) interface.

Note: After scanning one of these codes, you must power cycle the cash

Each bar code above also programs the following suffixes for each symbol-

ogy:

USB PC or Macintosh Keyboard

Scan one of the following codes to program the scanner for USB PC Key-

board or USB Macintosh Keyboard. Scanning these codes also adds a CR

and LF.

Symbology Suffix Symbology Suffix

EAN 8 0C Code 39 00 0A 0B

EAN 13 16 Interleaved 2 of 5 00 0D 0B

UPC A 0D Code 128 00 18 0B

UPC E 0A Code 39 00 0A 0B

USB IBM SurePos

(USB Handheld Scanner)

Interface

USB IBM SurePos

(USB Tabletop Scanner)

Interface

USB Keyboard (PC)

USB Keyboard (Mac)

USB Japanese Keyboard (PC)

2 - 5

USB HID

Scan the following code to program the scanner for USB HID bar code

scanners.

USB Serial

Scan the following code to program the scanner to emulate a regular

RS232-based COM Port. If you are using a Microsoft® Windows® PC, you

will need to download a driver from the Honeywell website

(www.honeywellaidc.com). The driver will use the next available COM Port

number. Apple® Macintosh computers recognize the scanner as a USB

CDC class device and automatically uses a class driver.

Note: No extra configuration (e.g., baud rate) is necessary.

CTS/RTS Emulation

USB HID Bar Code Scanner

USB Serial

CTS/RTS Emulation On

* CTS/RTS Emulation Off

2 - 6

ACK/NAK Mode

Verifone® Ruby Terminal Default Settings

Scan the following Plug and Play code to program the scanner for a Veri-

fone Ruby terminal. This bar code sets the baud rate to 1200 bps and the

data format to 8 data bits, no parity bit, 1 stop bit. It also also adds a line

feed (LF) suffix and programs the following prefixes for each symbology:

Symbology Prefix

UPC-A A

UPC-E A

EAN-8 FF

EAN-13 F

ACK/NAK Mode On

* ACK/NAK Mode Off

Verifone Ruby Settings

2 - 7

Gilbarco® Terminal Default Settings

Scan the following Plug and Play code to program the scanner for a Gil-

barco terminal. This bar code sets the baud rate to 2400 bps and the data

format to 7 data bits, even parity, 2 stop bits. It also also adds a carriage

return (CR) suffix and programs the following prefixes for each symbology:

Honeywell Bioptic Aux Port Configuration

Scan the following Plug and Play code to program the scanner for a Honey-

well bioptic scanner auxiliary port configuration. This bar code sets the

baud rate to 38400 bps and the data format to 8 data bits, no parity, 1 stop

bit.

Datalogic™ Magellan

Bioptic Aux Port

Configuration

Scan the following Plug and Play code to program the scanner for a Data-

logic Magellan bioptic scanner auxiliary port configuration. This bar code

sets the baud rate to 9600 bps and the data format to 8 data bits, no parity,

1 stop bit.

Symbology Prefix

UPC-A A

UPC-E E0

EAN-8 FF

EAN-13 F

Gilbarco Settings

Honeywell Bioptic Settings

Datalogic Magellan Bioptic Settings

2 - 8

NCR Bioptic Aux Port Configuration

Scan the following Plug and Play code to program the scanner for an NCR

bioptic scanner auxiliary port configuration. The following prefixes are pro-

grammed for each symbology:

Wincor Nixdorf Terminal Default Settings

Scan the following Plug and Play code to program the scanner for a Wincor

Nixdorf terminal. This bar code sets the baud rate to 9600 bps and the

data format to 8 data bits, no parity, 1 stop bit.

Symbology Prefix Symbology Prefix

UPC-A A Code 39 B1

UPC-E E0 Interleaved 2 of 5 B2

EAN-8 FF All other bar

codes

EAN-13 F

NCR Bioptic Settings

Wincor Nixdorf Terminal Settings

2 - 9

Wincor Nixdorf Beetle™ Terminal Default Settings

Scan the following Plug and Play code to program the scanner for a Wincor

Nixdorf Beetle terminal. The following prefixes are programmed for each

symbology:

Symbology Prefix Symbology Prefix

Code 128 K EAN-13 A

Code 93 L GS1-128 P

Codabar N Interleaved 2 of 5 I

UPC-A A0 Plessey O

UPC-E C Straight 2 of 5 IATA H

EAN-8 B All other bar codes M

Wincor Nixdorf Beetle Settings

2 - 10

Keyboard Country Layout

Scan the appropriate country code below to program the keyboard layout for

your country or language. As a general rule, the following characters are sup-

ported, but need special care for countries other than the United States:

@ | $ # { } [ ] = / ‘ \ < > ~

* United States

United States (Dvorak left)

United States (International)

Albania

Azeri (Cyrillic)

Azeri (Latin)

Belarus

Belgium

United States (Dvorak)

United States (Dvorak right)

Bosnia

Brazil

2 - 11

Keyboard Country (continued)

Bulgaria (Latin)

Canada (French)

Canada (Multilingual)

Croatia

Czech

Czech (Programmers)

Czech (QWERTY)

Czech (QWERTZ)

Bulgaria (Cyrillic)

Canada (French legacy)

Brazil (MS)

Denmark

Dutch (Netherlands)

2 - 12

Keyboard Country (continued)

Finland

Gaelic

Germany

Greek

Greek (220 Latin)

Greek (220)

Greek (319 Latin)

Greek (319)

Faeroese

France

Estonia

Greek (Latin)

Greek (MS)

2 - 13

Keyboard Country (continued)

Italian (142)

Hungarian (101 key)

Iceland

Irish

Italy

Japan ASCII

Kazakh

Kyrgyz (Cyrillic)

Hebrew

Hungary

Greek (Polytonic)

Latin America

Latvia

2 - 14

Keyboard Country (continued)

Lithuania (IBM)

Malta

Mongolian (Cyrillic)

Norway

Poland

Polish (214)

Polish (Programmers)

Portugal

Lithuania

Macedonia

Latvia (QWERTY)

Romania

Russia

2 - 15

Keyboard Country (continued)

SCS

Serbia (Latin)

Slovakia

Slovakia (QWERTY)

Slovakia (QWERTZ)

Slovenia

Spain

Spanish variation

Russian (Typewriter)

Serbia (Cyrillic)

Russian (MS)

Sweden

Switzerland (French)

2 - 16

Keyboard Country (continued)

Refer to the Honeywell website (www.honeywell.com/aidc) for complete key-

board country support information and applicable interfaces. If you need to pro-

gram a keyboard for a country other than one listed above, scan the Program

Keyboard Country bar code below, then scan the numeric bar code(s) for the

Turkey F

Ukrainian

United Kingdom

United Stated (Dvorak right)

United States (Dvorak left)

United States (Dvorak)

United States (International)

Uzbek (Cyrillic)

Tatar

Turkey Q

Switzerland (German)

2 - 17

appropriate country from the inside back cover, then the Save bar code.

Keyboard Style

This programs keyboard styles, such as Caps Lock and Shift Lock. If you have

used Keyboard Conversion settings, they will override any of the following Key-

board Style settings.

Default = Regular.

Regular is used when you normally have the Caps Lock key off.

Caps Lock

is used when you normally have the Caps Lock key on.

Shift Lock

is used when you normally have the Shift Lock key on (not common

to U.S. keyboards).

Automatic Caps Lock is used if you change the Caps Lock key on and off.

The software tracks and reflects if you have Caps Lock on or off . This selection

can only be used with systems that have an LED that notes the Caps Lock sta-

tus (AT keyboards).

Program Keyboard Country

* Regular

Caps Lock

Shift Lock

Automatic Caps Lock

2 - 18

Autocaps via NumLock

bar code should be scanned in countries (e.g., Ger-

many, France) where the Caps Lock key cannot be used to toggle Caps Lock.

The NumLock option works similarly to the regular Autocaps, but uses the Num-

Lock key to retrieve the current state of the Caps Lock.

Emulate External Keyboard should be scanned if you do not have an external

keyboard (IBM AT or equivalent).

Note: After scanning the Emulate External Keyboard bar code, you must power

cycle your computer.

Keyboard Conversion

Alphabetic keyboard characters can be forced to be all upper case or all lower-

case. So if you have the following bar code: “abc569GK,” you can make the

output “ABC569GK” by scanning Convert All Characters to Upper Case, or to

“abc569gk” by scanning Convert All Characters to Lower Case.

These settings override Keyboard Style selections.

Note: If your interface is a keyboard wedge, first scan the menu code for

Automatic Caps Lock (page 2-17). Otherwise, your output may not be as

expected.

Default = Keyboard Conversion Off

Autocaps via NumLock

Emulate External Keyboard

* Keyboard Conversion Off

Convert All Characters

to Upper Case

Convert All Characters

to Lower Case

2 - 19

Control Character Output

This selection sends a text string instead of a control character. For example,

when the control character for a carriage return is expected, the output would

display [CR] instead of the ASCII code of 0D. Refer to ASCII Conversion Chart

(Code Page 1252) on page A-4. Only codes 00 through 1F are converted (the

first column of the chart).

Note: Control + ASCII Mode overrides this mode.

Default = Off.

Keyboard Modifiers

This modifies special keyboard features, such as CTRL+ ASCII codes and

Turbo Mode.

Control + ASCII Mode On: The scanner sends key combinations for ASCII

control characters for values 00-1F. Windows is the preferred mode. All key-

board country codes are supported. DOS mode is a legacy mode, and it does

not support all keyboard country codes. New users should use the Windows

mode. Refer to Keyboard Function Relationships, page 9-1 for CTRL+ ASCII

Values.

Windows Mode Prefix/Suffix Off: The scanner sends key combinations for

ASCII control characters for values 00-1F, but it does not transmit any prefix or

suffix information.

Control Character Output On

* Control Character Output Off

2 - 20

Default = Control + ASCII Mode Off.

Turbo Mode: The scanner sends characters to a terminal faster. If the termi-

nal drops characters, do not use Turbo Mode.

Default = Off

Numeric Keypad Mode: Sends numeric characters as if entered from a

numeric keypad.

Default = Off

Windows Mode Control + ASCII

Mode On

* Control + ASCII Mode Off

DOS Mode Control + ASCII Mode

Windows Mode Prefix/Suffix Off

Turbo Mode On

* Turbo Mode Off

Numeric Keypad Mode On

* Numeric Keypad Mode Off

2 - 21

Automatic Direct Connect Mode: This selection can be used if you have an

IBM AT style terminal and the system is dropping characters.

Default = Off

Automatic Direct Connect Mode

* Automatic Direct Connect

Mode Off

2 - 22

RS232 Baud Rate

Baud Rate sends the data from the scanner to the terminal at the specified rate.

The host terminal must be set for the same baud rate as the scanner.

Default =

9600.

300

2400

600

1200

4800

38400

* 9600

19200

115,200

57,600

2 - 23

RS232 Word Length: Data Bits, Stop Bits,

and Parity

Data Bits sets the word length at 7 or 8 bits of data per character. If an applica-

tion requires only ASCII Hex characters 0 through 7F decimal (text, digits, and

punctuation), select 7 data bits. For applications that require use of the full

ASCII set, select 8 data bits per character.

Default = 8.

Stop Bits sets the stop bits at 1 or 2.

Default = 1.

Parity provides a means of checking character bit patterns for validity.

Default = None.

7 Data, 1 Stop, Parity Even

7 Data, 1 Stop, Parity None

7 Data, 1 Stop, Parity Odd

7 Data, 2 Stop, Parity Even

7 Data, 2 Stop Parity None

* 8 Data, 1 Stop, Parity None

8 Data, 1 Stop, Parity Even

7 Data, 2 Stop, Parity Odd

8 Data, 1 Stop, Parity Odd

2 - 24

RS232 Receiver Time-Out

The unit stays awake to receive data until the RS232 Receiver Time-Out

expires. A manual or serial trigger resets the time-out. When an RS232

receiver is sleeping, a character may be sent to wake up the receiver and reset

the time-out. A transaction on the CTS line will also wake up the receiver. The

receiver takes 300 milliseconds to completely come up. Change the RS232

receiver time-out by scanning the bar code below, then scanning digits from the

inside back cover of this manual, then scanning Save. The range is 0 to 300

seconds.

Default = 0 seconds (no time-out - always on).

RS232 Handshaking

RS232 Handshaking allows control of data transmission from the scanner using

software commands from the host device. When RTS/CTS is turned Off, no

data flow control is used.

Flow Control, No Timeout: The scanner asserts RTS when it has data to

send, and will wait indefinitely for CTS to be asserted by the host.

Two-Direction Flow Control: The scanner asserts RTS when it is OK for the

host to transmit. The host asserts CTS when it is OK for the device to transmit.

Flow Control with Timeout: The scanner asserts RTS when it has data to

send and waits for a delay (see RS232 Timeout on page 2-25) for CTS to be

asserted by the host. If the delay time expires and CTS is not asserted, the

device transmit buffer is cleared and scanning may resume.

Default = RTS/CTS Off.

RS232 Receiver Time-Out

Flow Control, No Timeout

* RTS/CTS Off

Two-Direction Flow Control

Flow Control with Timeout

2 - 25

RS232 Timeout

When using Flow Control with Timeout, you must program the length of the

delay you want to wait for CTS from the host. Set the length (in millisec-

onds) for a timeout by scanning the bar code below, then setting the time-

out (from 1-5100 milliseconds) by scanning digits from the inside back

cover, then scanning Save.

XON/XOFF

Standard ASCII control characters can be used to tell the scanner to start

sending data (XON/XOFF On) or to stop sending data (XON/XOFF Off).

When the host sends the XOFF character (DC3, hex 13) to the scanner,

data transmission stops. To resume transmission, the host sends the XON

character (DC1, hex 11). Data transmission continues where it left off

when XOFF was sent.

Default = XON/XOFF Off

ACK/NAK

After transmitting data, the scanner waits for an ACK character (hex 06) or

a NAK character (hex 15) response from the host. If ACK is received, the

communications cycle is completed and the scanner looks for more bar

codes. If NAK is received, the last set of bar code data is retransmitted and

RS232 Timeout

* XON/XOFF Off

XON/XOFF On

2 - 26

the scanner waits for ACK/NAK again. Turn on the ACK/NAK protocol by

scanning the ACK/NAK On bar code below. To turn off the protocol, scan

ACK/NAK Off.

Default = ACK/NAK Off

Scanner to Bioptic Communication

The following settings are used to set up communication between Honeywell

scanners and bioptic scanners.

Note: The scanner’s baud rate must be set to 38400 and the RS232 timeout

must be set to 3000 in order to communicate with a bioptic scanner. See

RS232 Baud Rate on page 2-22, and RS232 Timeout on page 2-25 for

further information.

Scanner-Bioptic Packet Mode

Packet Mode On must be scanned to set the scanner’s format so it is com-

patible with a bioptic scanner.

Default = Packet Mode Off.

ACK/NAK On

* ACK/NAK Off

* Packet Mode Off

Packet Mode On

2 - 27

Scanner-Bioptic ACK/NAK Mode

Bioptic ACK/Nak On must be scanned so the scanner will wait for an ACK

or NAK from a bioptic scanner after each packet is sent. The Scanner-

Bioptic ACK/NAK Timeout (below) controls how long the scanner will wait

for a response.

Default =

Bioptic ACK/NAK Off.

Scanner-Bioptic ACK/NAK Timeout

This allows you to set the length (in milliseconds) for a timeout for a bioptic

scanner’s ACK/NAK response. Scan the bar code below, then set the time-

out (from 1-30,000 milliseconds) by scanning digits from the inside back

cover, then scanning Save.

Default = 5100.

* Bioptic ACK/NAK Off

Bioptic ACK/NAK On

ACK/NAK Timeout

2 - 28

3 - 1

Cordless System Operation

Note: This chapter applies only to cordless scanning systems. It does not apply

to corded scanners.

How the Cordless Charge Base/Access Point

Works

A cordless charge base or an Access Point provide the link between the cord-

less scanner and the host system. The base/Access Point contains an interface

assembly and an RF communication module. The RF communication module

performs the data exchange between the cordless scanner and the interface

assembly. The control assembly coordinates the central interface activities

including: transmitting/receiving commands and data to/from the host system,

performing software activities (parameter menuing, visual indicator support,

power-on diagnostics), and data translation required for the host system.

The cordless charge base is also a scanner’s battery charger. Refer to

Charging Information, page 3-5, for additional information.

Linking the Scanner to a Charge Base

Turn off power before connecting a base, then power up the computer once the

base is fully connected. When the base is connected and powered up, put the

scanner in the base to establish a link. The green LED on the base flashes to

indicate the scanner’s battery is charging.

If the scanner and base have previously been linked, you do not receive any

feedback. If this is the first time that the scanner and base are linked, both

devices emit a short chirp when their radios link. At this point, that one scanner

is linked to one base.

To determine if your cordless system is set up correctly, scan one of the sample

bar codes in the back of this manual. If the scanner provides a single good read

beep and the green LED lights, the scanner has successfully linked to the base.

If you receive an error tone and the red LED lights, the scanner has not linked to

the base. Refer to page 13-6 for troubleshooting information.

Scanner

CCB01-010BT

Charge Base

Page Button and

Base LEDs

3 - 2

Linking the Scanner to an Access Point

Turn on the computer (laptop/desktop). Plug the

interface cable into the Access Point first and then

into the appropriate port on the computer. The

Page button lights up when the connection to the

host is made.

Scan the linking bar code on the top of the

Access Point to establish a connection between

the Access Point and the scanner. The scanner

emits a short beep and flashes the green LED

to confirm a connection with the Access Point.

The Access Point’s Page button remains blue.

Communication Between the Cordless System

and the Host

The cordless scanner provides immediate feedback in the form of a “good read”

indication (a green LED on the scanner and an audible beep) after a bar code is

scanned correctly and the base or Access Point has acknowledged receiving

the data. This is possible since the cordless system provides two-way commu-

nication between the scanner and the base or Access Point.

When data is scanned, the data is sent to the host system via the base or

Access Point. The cordless scanner recognizes data acknowledgement (ACK)

from the base or Access Point. If it cannot be determined that the data has

Page

Button

3 - 3

been properly sent to the base or Access Point, the scanner issues an error

indication. You must then check to see if the scanned data was received by the

host system.

RF (Radio Frequency) Module Operation

The cordless system uses a two-way Bluetooth® radio to transmit and receive

data between the scanner and the base or Access Point. Designed for point-to-

point and multipoint-to-single point applications, the radio operates using a

license free ISM band, which sends relatively small data packets at a fast data

rate over a radio signal with randomly changing frequencies, makes the cord-

less system highly responsive to a wide variety of data collection applications

and resistant to noisy RF environments. Bluetooth Class 2 power level provides

a communication range of 33 feet (10m) between the scanner and base or

Access Point, depending on the environment. See Flexible Power

Management, page 3-15, for information about controlling this range.

System Conditions

The components of the cordless system interact in specific ways as you associ-

ate a scanner to a base or Access Point, as you move a scanner out of range,

bring a scanner back in range, or swap scanners between two cordless sys-

tems. The following information explains the cordless system operating condi-

tions.

Linking Process

Once a scanner is placed into a cordless charge base, the scanner’s bat-

tery charge status is checked, and software automatically detects the scan-

ner and links it to the base depending on the selected link mode.

Refer to Linking the Scanner to an Access Point, page 3-2, for information

about linking to an Access Point.

1) Good Read

2) ACK from

base or

Access

Point

3) Base or Access Point

sends data to host

3 - 4

Scanner Is Out of Range

The cordless scanner is in communication with its base or Access Point,

even when it is not transmitting bar code data. Whenever the scanner can’t

communicate with the base or Access Point for a few seconds, it is out of

range. If the scanner is out of range and you scan a bar code, the scanner

issues an error tone indicating no communication with the base or Access

Point. A cordless charge base can also sound an alarm. Refer to Out-of-

Range Alarm, page 3-13.

Scanner Is Moved Back Into Range

The scanner relinks if the scanner or the base or Access Point have been

reset, or the scanner comes back into range. If the scanner relinks, you will

hear a single chirp when the relinking process (uploading of the parameter

table) is complete. Refer to Out-of-Range Alarm on page 3-13 for further

information.

Out of Range and Back into Range

with Batch Mode On

The scanner may store a number of symbols (approximately 500 U.P.C.

symbols; others may vary) when it is out of range and then send them to

the base or Access Point when back in range (see Batch Mode on page 3-

16).

You will not hear a communication error tone in this mode, but you will hear

a short buzz when you pull the trigger if the radio communication is not

working. Once the radio connection is made, the scanner produces a

series of beeps while the data is being transferred to the base or Access

Point.

Page Button

When you press the Page button on the base or Access Point, the scan-

ners associated with that base or Access Point will begin beeping (3 short

and 1 long beep). If you pull the trigger on a scanner that is beeping in

response, or press the Page button on the base or Access Point a second

time, all associated scanners will stop beeping. See Paging on page 3-9

for further information about Page Button settings.

About the Battery

There is a danger of explosion if the batteries are incorrectly replaced.

Replace the batteries with only the same or equivalent type recom-

mended by the manufacturer. Dispose of used batteries according to

the recycle program for batteries as directed by the governing agency

for the country where the batteries are to be discarded.

Power is supplied to the cordless scanner by a rechargeable battery that is inte-

grated in the scanner handle. Batteries are shipped approximately 30% to 60%

charged. The battery should be charged for a minimum of 4 hours before initial

use to ensure optimal performance.

3 - 5

Charging Information

The battery is designed to charge while the scanner is positioned in the

cordless base unit. Refer to Base/Access Point LED Sequences and

Meaning, page 3-7, for an interpretation of the Charge Status indicators.

Refer to Charge Only Mode (page 3-11) if you need to charge a scanner

without linking it to the base.

Place the scanner in the base that is connected to an appropriate power

supply. Use only a Listed Limited Power Source (LPS) or Class 2 type

power supply with output rated 5 to 5.2Vdc, 1A.

Note: If you are powering the base through the interface cable (for

example, a USB cable) and not using an external power supply

plugged into the aux port, the current available for charging is

reduced and charge times are increased.

Battery Recommendations

• The battery is a lithium ion cell and can be used without a full charge, and

can also be charged without fully discharging, without impacting the

battery life. There is no need to perform any charge/discharge

conditioning on this type of battery.

• Keep the base connected to power when the host is not in use.

• Replace a defective battery immediately since it could damage the

scanner.

• Although your battery can be recharged many times, it will eventually be

depleted. Replace it after the battery is unable to hold an adequate

charge.

• If you are not sure if the battery or charger is working properly, send it to

Honeywell International Inc. or an authorized service center for

inspection. Refer to Customer Support on page 14-1 for additional

information.

Caution:

Use only Honeywell Li-ion battery packs, part number

100000495, rated 3.7 Vdc, 7.4Whr, in this device. Use of any

non-Honeywell battery may result in damage not covered by

the warranty.

Safety Precautions for Lithium Batteries

• Do not place batteries in fire or heat the batteries.

• Do not store batteries near fire or other high temperature locations.

• Do not store or carry batteries together with metal objects.

• Do not expose batteries to water or allow the batteries to get wet.

• Do not connect (short) the positive and negative terminals, of the

batteries, to each other with any metal object.

• Do not pierce, strike or step on batteries or subject batteries to strong

impacts or shocks.

• Do not disassemble or modify batteries.

3 - 6

Caution:

Danger of explosion if batteries are incorrectly replaced.

Dispose of used batteries according to the recycle program for

batteries as directed by the governing agency for the country

where the batteries are to be discarded.

Proper Disposal of the Battery

When the battery has reached the end of its useful life,

the battery should be disposed of by a qualified recycler

or hazardous materials handler. Do not incinerate the

battery or dispose of the battery with general waste

materials. You may send the scanner’s battery to us.

(postage paid). The shipper is responsible for complying

with all federal, state, and local laws and regulations

related to the packing, labeling, manifesting, and ship-

ping of spent batteries. Contact the Product Service Department (page 14-

1) for recycling or disposal information. Since you may find that your cost

of returning the batteries significant, it may be more cost effective to locate

a local recycle/disposal company.

Beeper and LED Sequences and Meaning

The scanner contains LEDs on the rear of the unit that indicate linking status,

decoding state, and battery condition. The base has LEDs on the top of the unit

that indicate its power up, communication, and battery charge condition. The

red LED = error; green LED = success of any type. The unit’s audible indicators

have meaning as well: 1 razz or error tone = error; 2 beeps = menu change; 1

beep = all other successes.

The table below lists the indication and cause of the LED illumination and beeps

for the scanner.

3 - 7

Scanner LED Sequences and Meaning

Base/Access Point LED Sequences and Meaning

The base contains a red LED and the Access Point has a blue LED that

indicate the status of the unit and verifies its communication with the host

system. The base also has a green LED that indicates scanner battery

charge condition.

LED Indication Beeper Indication Cause

Normal Operation

Red Flash None Battery low

Green Flash 1 beep Successful

communication or linking

Red, blinking Razz or error tone Failed communication

Menu Operation

Green Flash 2 beeps Successful menu change

Red, blinking Razz or error tone Unsuccessful menu

change

Red or Blue LED - Host Communication

Communication Condition Red or Blue LED

USB suspend Off

Power on, system idle On continuously

Receiving data Short blinks in multiple pulses. Occurs

while transferring data to/from the RF

module or the Host port.

Green LED - Scanner Battery

(base only, does not apply to Access Point)

Charge Condition Green LED

Battery not detected or charge

suspended

Off

Pre-charge and charging Slow flash, 1 second on, 1 second off

Charge complete On continuously

Charge Error Fast flash, 300 mSec on, 300 mSec off

3 - 8

Base Power Communication Indicator

To display the power indicator on a base or an Access Point, scan the Base

Power Communication Indicator On bar code. To turn off the power indi-

cator, scan the Off bar code.

Default =

Reset Scanner

Scanning this bar code reboots the scanner and causes it to relink with the

base or Access Point.

Scanning While in Base Cradle

Note: This feature does not apply to the Access Point.

If you want to be able to scan bar codes while the scanner is in the base cradle,

scan the Scanning in Cradle On bar code below. If you want to only allow

scanning when the scanner is out of the base cradle, scan Scanning in Cradle

Off. If you want the scanner to shut down when in the base cradle, scan Shut

Down Scanner in Cradle.

Default = Scanning in Cradle On

* Base Power Communication

Indicator On

Base Power Communication

Indicator Off

Reset Scanner

Scanning in Cradle Off

* Scanning in Cradle On

Shut Down Scanner in Cradle

3 - 9

Paging

Paging Mode

By default, the paging button on the base or Access Point pages the scan-

ners associated with that base or Access Point. If you want the paging but-

ton on your base or Access Point to be disabled, scan the Paging Mode

Off bar code, below. When Paging Mode is off, the base or Access Point

will no longer page scanners when the button is pressed. The red LED on

the base or blue LED on the Access Point will remain lit to indicate that

Paging Mode is off. (This light will go out when the button is pressed, then

back on when it’s released.)

Default = Paging Mode On.

Paging Pitch

When you press the Page button on the base or Access Point, the scan-

ners associated with that base or Access Point will begin beeping (see

Page Button on page 3-4). You can set the pitch of the paging beep for

each scanner by scanning one of the following bar codes.

Default = Low.

Error Indicators

Beeper Pitch - Base Error

Note: This feature does not apply to the Access Point.

* Paging Mode On

Paging Mode Off

* Low (1000 Hz)

Medium (3250 Hz)

High (4200 Hz)

3 - 10

The base can be configured to beep at a particular pitch when an error

occurs, such as transmission problems to a host system. The beeper pitch

codes modify the pitch (frequency) of the error tone the base emits when

there is an error.

Default = Low.

Number of Beeps - Base Error

Note: This feature does not apply to the Access Point.

The number of beeps and LED flashes emitted by the base for an error

condition can be programmed from 1 - 9. For example, if you program this

option to have five error beeps, there will be five error beeps and five LED

flashes in response to an error. To change the number of error beeps, scan

the bar code below and then scan a digit (1-9) bar code and the Save bar

code on the Programming Chart inside the back cover of this manual.

Default = 1.

Scanner Report

Scan the bar code below to generate a report for the connected scanners. The

report indicates the port, work group, scanner name, and address. To assign a

name to your scanner, refer to Menu Command Syntax, page 11-1.

* Razz (250 Hz)

Medium (3250 Hz)

High (4200 Hz)

Number of Base Error Beeps/LED Flashes

Scanner Report

3 - 11

Scanner Address

Scan the bar code below to determine the address of the scanner you are

using.

Base or Access Point Address

Scan the bar code below to determine the address of the base or Access Point

you are using.

Scanner Modes

The Xenon is capable of working in single scanner mode, multiple scanner

mode, or with Bluetooth devices other than the CCB01-010BT charge base or

Access Point.

Charge Only Mode

There may be times when you want to charge your scanner, but not link to

the base. For example, if a scanner is linked to an Access Point or other

Bluetooth device and you need to charge the scanner, but want to retain

your existing link.

In order to program the base for Charge Only Mode, you must link a scan-

ner to it. Once the scanner is linked to the base, scan the Charge Only

Mode bar code. Any subsequent scanners placed in that base will charge

without linking to it. The scanner used to program the base remains linked

to the base. To unlink this scanner, scan Unlink Scanner on page 3-13.

Note: When in Charge Only Mode, the scanner periodically wakes up and

beeps. See "Power Up Beeper" on page 4-1 to change this setting.

Scanner Address

Base Address

Charge Only Mode

3 - 12

If you want to charge a scanner and link to the base, use Charge and Link

Mode. If the base is programmed for Charge Only Mode, you must link a

scanner to it first in order to program it for Charge and Link Mode. Scan

the linking bar code on the base to link the scanner, then scan Charge and

Link Mode.

Default = Charge and Link Mode.

Linked Modes

Locked Link Mode and Open Link Mode are the link modes that accommo-

date different applications. Scan the appropriate bar codes included in the

Open Link and Locked Link Mode explanations that follow to switch from

one mode to another.

Default = Open Link Mode

Locked Link Mode - Single Scanner

If you link a scanner to a base or an Access Point using the Locked

Link Mode, other scanners are blocked from being linked if they are

inadvertently placed into the base, or if the Access Point linking bar

code is scanned. If you do place a different scanner into a base, it will

charge the scanner, but the scanner will not be linked.

To use a different scanner, you need to unlink the original scanner by

scanning the Unlink Scanner bar code. (See Scanner Modes, page

3-11.)

Open Link Mode - Single Scanner

When newly shipped or defaulted to factory settings, a scanner is not

linked to a base or an Access Point. A link is established when the

scanner is placed into a base, or an Access Point linking bar code is

scanned. When in Open Link Mode, a new link is established when a

new scanner is placed in the base, or you scan an Access Point linking

* Charge and Link Mode

Locked Link Mode

(Single Scanner)

3 - 13

bar code. Each time a scanner is placed into a base or scans an

Access Point linking bar code, the scanner becomes the linked to the

base or Access point and the old scanner is unlinked.

Unlinking the Scanner

If a base or an Access Point has a scanner linked to it, that scanner must be

unlinked before a new scanner can be linked. Once the previous scanner is

unlinked, it will no longer communicate with the base or Access Point. To unlink

the scanner from a base or an Access Point, scan the Unlink Scanner bar code

below.

Override Locked Scanner

If you need to replace a broken or lost scanner that is linked to a base or an

Access Point, scan the Override Locked Scanner bar code below with a

new scanner and place that scanner in the base, or scan the Access Point

linking bar code. The locked link will be overridden; the broken or lost

scanner’s link with the base or Access Point will be removed, and the new

scanner will be linked.

Out-of-Range Alarm

If your scanner is out range of the base, an alarm sounds from both your base

and scanner. If your scanner is out range of an Access Point, an alarm sounds

from just the scanner. The alarm stops when the scanner is moved closer to the

base or Access Point, when the base or Access Point connects to another scan-

ner, or when the alarm duration expires. To activate the alarm options for the

scanner or the base and to set the alarm duration, scan the appropriate bar

* Open Link Mode

(Single Scanner)

Unlink Scanner

Override Locked Scanner

(Single Scanner)

3 - 14

code below and then set the time-out duration (from 0-3000 seconds) by scan-

ning digits on the Programming Chart inside the back cover, then scanning

Save.

Default = 0 sec (no alarm).

Note: If you are out of range when you scan a bar code, you will receive an error

tone even if you do not have the alarm set. You receive the error tone

since the data could not be communicated to the base or Access Point or

the host.

Alarm Sound Type

You may change the alarm type for the scanner or base by scanning the

appropriate bar code below and then scanning a digit (0-7) bar code and

the Save bar code on the Programming Chart inside the back cover of this

manual.

Default = 0.

The sounds are as follows:

Setting Sound

0 3 long beeps, medium pitch

1 3 long beeps, high pitch

2 4 short beeps, medium pitch

3 4 short beeps, high pitch

4 single chirps, medium pitch

5 2 chirps, then 1 chirp, medium pitch

6 single chirps, high pitch

7 2 chirps, then 1 chirp, high pitch

Base Alarm Duration

Scanner Alarm Duration

Note: The Access Point does not

have a base alarm.

Base Alarm Type

Scanner Alarm Type

Note: The Access Point does not

have a base alarm.

3 - 15

Flexible Power Management

If you are experiencing network performance issues, and suspect the scanner is

interfering with other devices, you can turn down the power output of the scan-

ner. This reduces the range between the scanner and a base or an Access

Point as shown in the following illustration:

Scan one of the bar codes below to set the scanner’s power output to Full

Power (100%) [2.5mW, 4dBm], Medium Power (35%) [.875mW, 0dBm],

Medium Low Power (5%) [.125mW, -9dBm], or Low Power (1%, .025mW,

-16dBm).

Default = Full Power.

For the new power setting to take effect, the scanner and the base or Access

Point must be reset. See Reset Scanner and Base/Access Point (page 3-

16).

1902

Scanner

802.11

LAN

* Full Power

Medium Power

Medium Low Power

Low Power

3 - 16

Reset Scanner and Base/Access Point

Once the power level is set, you must scan the Reset Base bar code and

wait for the scanner to unlink and relink to a base or an Access Point.

Once that is done, scan the Reset Scanner bar code and wait for the base

or Access Point to unlink and relink to the scanner.

Batch Mode

Batch mode is used to store bar code data when a scanner is out of range of its

base or Access Point, or when performing inventory. The data is transmitted to

the base or Access Point once the scanner is back in range or when the records

are manually transmitted.

Note: Batch mode has limitations when using multiple scanners to one base or

Access Point. If a cordless system is being used in "multiple link mode,"

where up to 7 scanners are to be connected to one base or Access Point,

some accumulated or batched scans could be lost if scanners are

constantly being moved in and out of range.

Automatic Batch Mode stores bar code data when the scanner is out of range

of the base or Access Point. The data is automatically transmitted to the base

or Access Point once the scanner is back in range. When the scanner’s buffer

space is full, any bar codes scanned generate an error tone. In order to scan

bar codes again, the scanner must be moved back into range of the base or

Access Point so data can be transmitted.

Inventory Batch Mode stores bar code data, whether or not you are in range of

the base or Access Point. To transmit the stored data to the base or Access

Point, either place the scanner in the base, or scan Transmit Inventory Records

(page 3-21). When the scanner’s buffer space is full, any bar codes scanned

generate an error tone. In order to scan bar codes again, the data must be

transmitted to the base or Access Point.

:*:RESET_.³

Reset Scanner

Reset Base

3 - 17

Default = Batch Mode Off.

Batch Mode Beep

When using Batch Mode, scan Batch Mode Beep On to program the scan-

ner to click when each bar code is read to storage.

Default = Batch Mode

Beep On.

Batch Mode Storage

When a scanner is storing data during a Batch Mode process, you can

select whether the data is stored in Flash memory or in RAM.

Flash Storage: The scanner writes any untransmitted data to flash mem-

ory prior to powering down. The data will still be there when the scanner

powers back up. However, the scanner will power down, even with untrans-

mitted data, if it reaches a power down timeout or if the battery power is

very low.

Automatic Batch Mode

* Batch Mode Off

Inventory Batch Mode

* Batch Mode Beep On

Batch Mode Beep Off

3 - 18

RAM Storage: The scanner will not power down while it contains data that

has not been transmitted to the base or Access Point, even if it reaches a

power down timeout. However, if the scanner runs out of battery power, it

will power down and the data will be lost.

Default = Flash Storage.

Batch Mode Quantity

When in Batch Mode, you may wish to transmit the number of multiple bar

codes scanned, rather than a single bar code multiple times. For example,

if you scan three bar codes called XYZ with Batch Mode Quantity Off,

when you transmit your data it will appear as XYZ three times. Using

Batch Mode Quantity On and the Quantity Codes (page 3-19), you could

output your data as “XYZ, 00003” instead.

Default = Batch Mode Quantity

Off.

Entering Quantities

Quantity Codes (page 3-19) allow you to enter a quantity for the last item

scanned, up to 9999 (default = 1). Quantity digits are shifted from right to

left, so if a 5th digit is scanned, the 1st digit scanned is discarded and the

2nd, 3rd and 4th digits are moved to the left to accommodate the new digit.

For example, if the Quantity 5 bar code is scanned after the quantity has

been set to 1234, then the 1 is dropped, the quantity will be 2345.

Example: Add a quantity of 5 for the last item scanned.

1. Scan the item's bar code.

2. Scan the quantity 5 bar code.

Example: Add a quantity of 1,500 for the last item scanned.

1. Scan the item's bar code.

RAM Storage

* Flash Storage

Batch Mode Quantity On

* Batch Mode Quantity Off

3 - 19

2. Scan the quantity 1 bar code.

3. Scan the quantity 5 bar code.

4. Scan the quantity 0 bar code.

5. Scan the quantity 0 bar code.

Example: Change a quantity of 103 to 10.

To correct an incorrect quantity, scan the quantity 0 bar code to replace the

incorrect digits, then scan the correct quantity bar codes.

1. Scan the quantity 0 bar code to change the quantity to 1030.

2. Scan the quantity 0 bar code to change the quantity to 0300.

3. Scan the quantity 1 bar code to change the quantity to 3001.

4. Scan the quantity 0 bar code to change the quantity to 0010.

Default = 1.

Quantity Codes

3 - 20

Quantity Codes (continued)

Batch Mode Output Order

When batch data is transmitted, select whether you want that data sent as

FIFO (first-in first-out), or LIFO (last-in last-out).

Delete Last Code

If you want to delete the last bar code scanned when in Batch Mode, scan

Delete Last Code.

Clear All Codes

If you want to clear the scanner’s buffer of all data accumulated in Batch

Mode, scan Clear All Codes.

Batch Mode LIFO

Batch Mode FIFO

Delete Last Code

Clear All Codes

3 - 21

Transmit Records to Host

If you are operating in Inventory Batch Mode (see Inventory Batch Mode on

page 3-17), you must scan the following bar code to transmit all the stored

data to the host system.

Batch Mode Transmit Delay

Sometimes when accumulated scans are sent to the host system, the

transmission of those scans is too fast for the application to process. To

program a transmit delay between accumulated scans, scan one of the fol-

lowing delays.

Default = Off.

Note: In most cases, a short (250 ms (milliseconds)) delay is ideal,

however, longer delays may be programmed. Contact Technical

Support (page 14-3) for additional information.

Multiple Scanner Operation

Note: Multiple Scanner Operation Mode allows you to link up to 7 scanners to

one base or Access Point. You cannot join an 8th scanner until you unlink

one of the 7 scanners or take a scanner out of range.

Transmit Inventory Records

* Batch Mode Transmit Delay Off

(No Delay)

Batch Mode Transmit Delay Short

(250 ms)

Batch Mode Transmit Delay Medium

(500 ms)

Batch Mode Transmit Delay Long

(1000 ms)

3 - 22

To put the scanner in multiple scanner mode, scan the bar code below. Once

you scan this bar code, the scanner is unlinked from the base or Access Point

and must either be placed into the base, or you must scan the Access Point link-

ing bar code in order to relink.

Scanner Name

You may assign a name to each scanner you are using for identification pur-

poses. For example, you may want to have a unique identifier for a scanner that

is receiving imaging commands sent from the base or Access Point.

The default name for a Xenon is “Xenon.” If you have more than one scanner

linked to a base, and they all have the same default name, the first scanner

linked to the base receives commands. When renaming a series of scanners

with identical default names, unlink all except one of the scanners from the

base.

Perform the rename operation using either the bar codes on page 3-23, or by

sending the serial command :Xenon:BT_NAM

name

. where

name

is the new

name for the scanner. If you wish to change the names of additional scanners,

link them one at a time and repeat the :Xenon:BT_NAM

name

command for

each scanner.

Multiple Scanner Operation

3 - 23

To rename scanners with sequential, numeric names, scan the bar codes

below.

Scan the Reset code after each name change and wait for the scanner

to relink to the base or Access Point before scanning a bar code to rename the

next scanner.

You may also scan the Scanner Name bar code below and scan a number for

the scanner name. For example, if you wanted to name the linked scanner

“312,” you would scan the bar code below, scan the 3, 1, and 2 bar codes on the

Programming Chart inside the back cover of this manual, then scan Save. Scan

the Reset bar code and wait for the scanner to relink to the base.

0001

0002

0003

0005

0007

0004

Reset

0006

Scanner Name

3 - 24

Application Work Groups

Your cordless system can have up to 7 scanners linked to one base or Access

Point. You can also have up to 7 work groups. If you want to have all of the

scanners’ settings programmed alike, you don’t need to use more than 1 work

group. If you want each scanner to have unique settings (e.g., beeper volume,

prefix/suffix, data formatter), then you may program each scanner to its own

unique work group and may program each scanner independently. For exam-

ple, you might want to have multiple work groups in a retail/warehouse applica-

tion where you need to have different data appended to bar codes used in the

warehouse area versus the retail area. You could assign all the scanners in the

retail area to one work group and those in the warehouse to another. Conse-

quently, any desired changes to either the retail or warehouse area would apply

to all scanners in that particular work group. Honeywell’s online configuration

tool, EZConfig (page 10-2), makes it easy for you to program your system for

use with multiple scanners and multiple work groups.

The scanner keeps a copy of the menu settings it is using. Whenever the scan-

ner is connected or reconnected to a base or an Access Point, the scanner is

updated with the latest settings from the base or Access Point for its work

group. The scanner also receives menu setting changes processed by the

base or Access Point. If a scanner is removed from a base or an Access Point

and placed into another base or linked to another Access Point, it will be

updated with the new base/Access Point settings for whatever work group to

which that the scanner was previously assigned. For example, if the scanner

was in work group 1 linked to the first base, it will be placed in work group 1 in

the second base with the associated settings.

3 - 25

Application Work Group Selection

This programming selection allows you to assign a scanner to a work group

by scanning the bar code below. You may then program the settings (e.g.,

beeper volume, prefix/suffix, data formatter) that your application requires.

Default = Group 0.

Resetting the Factory Defaults:

All Application Work Groups

The following bar code defaults all of the work groups to the factory default set-

tings.

* Group 0

Group 1

Group 2

Group 4

Group 6

Group 5

Group 3

Factory Default Settings:

All Work Groups

PAPDFT&

3 - 26

To see what the factory default settings are, refer to the table of Menu

Commands, beginning on page 11-5. The standard product default settings for

each of the commands are indicated by an asterisk (*).

Note: Scanning this bar code also causes both the scanner and the base or

Access Point to perform a reset and become unlinked. The scanner must

be placed in the base, or the Access Point linking bar code must be

scanned to re-establish the link. Refer to Scanner Modes, page 3-11 for

additional information.

If your scanner is in multiple scanner mode, you will hear up to 30

seconds of beeping while all scanners are relinked to the base or Access

Point and the settings are changed.

Resetting the Custom Defaults:

All Application Work Groups

If you want the custom default settings restored to all of the work groups, scan

the Custom Product Default Settings bar code below. (If there are no custom

defaults, it will reset the work groups to the factory defaults.) See Setting

Custom Defaults on page 1-9 for further information about custom defaults.

Note: Scanning this bar code also causes both the scanner and the base or

Access Point to perform a reset and become unlinked. The scanner must

be placed in its base, or the Access Point linking bar code must be

scanned to re-establish the link. Refer to Scanner Modes, page 3-11 for

additional information.

If your scanner is in multiple scanner mode, you will hear up to 30

seconds of beeping while all scanners are relinked to the base or Access

Point and the settings are changed.

Using the Scanner with Bluetooth Devices

The scanner can be used either with the CCB01-010BT charge base, an

Access Point, or with other Bluetooth devices. Those devices include personal

computers, laptops, PDAs, and Honeywell mobility systems devices.

PCs/Laptops

Scanning the Non-Base BT Connection bar code below allows the scan-

ner to be used with other Bluetooth devices (e.g., PC/laptop). After you

scan the bar code below, follow the instructions supplied with your Blue-

tooth device to locate the scanner and connect to it. If you go out of range

Custom Default Settings:

All Work Groups

3 - 27

with your scanner, the scanner will not reconnect to the Bluetooth device

when it is back in range. If you want to relink to the charge base or Access

Point, refer to Override Locked Scanner, page 3-13.

Note: The multiple work groups option is not available when you are using

the scanner with Bluetooth devices other than the charge base or

Access Point.

PDAs/Mobility Systems Devices

You may also use the scanner with a PDA or a Honeywell Mobility Systems

device. Scan the bar code below and follow the instructions supplied with

your Bluetooth device to locate the scanner, and connect with it.

Changing the Scanner’s Bluetooth PIN Code

Some devices require a PIN code as part of the Bluetooth security features.

Your scanner’s default PIN is 1234, which you may need to enter the first

time you connect to your PDA or PC. The PIN code must be between 1

and 16 characters. To change the PIN, scan the bar code below and then

scan the appropriate numeric bar codes from the Programming Chart

inside the back cover of this manual. Scan Save to save your selection.

Minimizing Bluetooth/ISM Band Network Activity

The settings described below can help you customize the relinking behavior of

the cordless area-imaging system to obtain the best compromise between con-

venience and low interference.

Note: ISM band refers to the 2.4 to 2.48 GHz frequency band used by wireless

networks, cordless phones, and Bluetooth.

Non-Base BT Connection

BT Connection - PDA/Mobility Systems Device

Bluetooth PIN

3 - 28

Auto Reconnect Mode

Auto Reconnect controls whether or not the scanner automatically begins

the relink process when a loss of connection is detected. When the Auto

Reconnect On bar code is scanned, the scanner begins the relink process

immediately, without user intervention.

Default = Auto Reconnect On.

Note: If you are connecting to a Bluetooth Interface Module, set Auto

Reconnect to Off.

The table below shows the results of the Auto Reconnect On and Off set-

tings:

Event Auto Reconnect On Auto Reconnect Off

Scanner out of

range

Relink occurs

automatically. If

maximum number of link

attempts is

unsuccessful, then the

scanner must be

relinked by either pulling

the trigger, placing the

scanner in the base, or

scanning the Access

Point linking bar code.

(See Maximum Link

Attempts on page 3-29.)

The scanner is

relinked by pulling the

trigger, or scanning

the Access Point

linking bar code.

Base or Access

point reset

(firmware upgrade

or power cycle)

Scanner behaves as if

out of range.

No attempt to relink

made while base or

Access Point is

powered off. Trigger

must be pulled to

initiate relinking.

* Auto Reconnect On

Auto Reconnect Off

3 - 29

Maximum Link Attempts

The Maximum Link Attempts setting controls the number of times the scan-

ner tries to form a connection with a base or an Access Point. During the

connection setup process, the scanner transmits in order to search for and

connect to a base or an Access Point. In order to prevent continuous trans-

missions that could interfere with other users of the ISM band, the number

of attempts to connect is limited by this setting. After the maximum number

of attempts is reached, the scanner will not attempt to reconnect to a base

or an Access Point. Pressing the trigger, scanning an Access Point linking

bar code, or placing the scanner in the cradle resets the attempt count and

the scanner will again try to link.

Scan the Maximum Link Attempts bar code, then scan the number of

attempts for the setting (from 0-100) from the inside back cover. Scan Save

to save the setting.

Default = 0.

Note: When Auto Reconnect Mode is On, setting Maximum Link Attempts

to zero will cause the scanner to try to link until the Power Time-Out

Timer setting (see page 4-7) expires. When Auto Reconnect Mode

is Off, setting Maximum Link Attempts to zero will cause the scanner

to only attempt linking one time after a trigger pull.

Scanner power

down due to Power

Time-Out Timer

setting (see page 4-

Trigger must be pulled, Access Point linking bar

code must be scanned, or the scanner must be

placed in the base unit to relink.

(Note: scanner relinks on power up, but powers

on due to one of the above actions.)

Scanner reset due

to firmware

upgrade

Relink occurs automatically.

Scanner reset due

to battery change

Relink occurs automatically.

Scanner placed in

different base unit

Relink to new base occurs automatically.

Event Auto Reconnect On Auto Reconnect Off

Maximum Link Attempts

3 - 30

Relink Time-Out

Relink Time-Out controls the idle time between relink attempts. An attempt

to link a scanner to a base or an Access Point typically lasts up to 5 sec-

onds. This is the time when the scanner is actually attempting a contact .

Relink Time-Out controls the amount of time, in seconds, that elapses

between the end of one connection attempt and the start of the next.

Note: The length of time for an attempt depends on the number of scanners

connected to a base unit or Access Point. An extra 7 seconds may

be required when a connection is successful.

Scan the Relink Time-Out bar code, then scan the number of seconds for

the setting (from 1-100) from the inside back cover. Scan Save to save the

setting.

Default = 3 seconds.

Bluetooth/ISM Network Activity Examples

Default values

When the scanner goes out of range, the scanner repeatedly attempts to

connect to the base unit or Access Point. Each attempt consists of approx-

imately 5 seconds of active time followed by 3 seconds of idle time. After

one hour, the scanner powers off and batch mode data is lost.

Maximum Link Attempts set to 15

Other values at default setting

When the scanner goes out of range, 15 attempts are made to link to the

base unit or Access Point. Each attempt consists of approximately 5 sec-

onds of active time followed by 3 seconds of idle time. After 15 cycles

(8*15 =120), or about 2 minutes, the scanner stops trying to connect to the

base or Access Point, but retains any bar codes that may have been saved

in batch mode. After one hour, the scanner powers off and batch mode

data is lost.

Auto Reconnect Mode set to 0

Maximum Link Attempts set to 15

Other values at default setting

When the scanner goes out of range, no action is taken to relink. When

the trigger is pulled, 15 attempts are made to link to the base or Access

Point. Each attempt consists of approximately 5 seconds of active time fol-

lowed by 3 seconds of idle time. After 15 cycles (8*15 =120), or about 2

minutes, the scanner stops trying to connect to the base or Access Point,

but retains any bar codes that may have been saved in batch mode. After

one hour, the scanner powers off and batch mode data is lost. Refer to

Auto Reconnect Mode, page 3-28, to review other events that can start the

relink process.

Relink Time-Out

3 - 31

Auto Reconnect Mode set to 1

Maximum Link Attempts set to 0

Relink Time-Out set to 10

Scanner Power Time-Out Timer set to 1800

Note: See Scanner Power Time-Out Timer on page 4-7.

The scanner attempts to connect to the base or Access Point every 15 sec-

onds, measured from one attempt start to the next attempt start. After one

half hour, the scanner powers off.

Host Command Acknowledgment

Some applications require that the host terminal (or server) approve or reject

incoming bar code data and notify the operator of these actions. These applica-

tions require that the host maintain control over the response indicators emitted

from the scanner. Turning on Host ACK configures the scanner to respond to

commands from the host system.

Note: System performance degrades when using Host ACK at rates lower than

9600 baud.

The following criteria must be met for the Host ACK to work correctly:

• The cordless system must be configured for Host Port RS232 (terminal ID =

000) or USB COM Emulation (terminal ID = 130).

• RTS/CTS is defaulted off. You must enable it if the host system requires it.

• Host ACK must be set to On (page 3-32).

• The host terminal software must be capable of interpreting the bar code data,

make decisions based on the data content, and send out appropriate escape

commands to the scanner.

Escape commands are addressed to the scanner via “Application Work

Groups.” Once a command is sent, all scanners in a group respond to that com-

mand. Because of this, it is recommended that each scanner is assigned to

its own group in Host ACK mode.

The commands to which the scanner responds are listed on page 3-32. The

<ESC> is a 1B in hex. A typical command string is y <ESC> x, where “y” is the

application work group number, “<ESC> x” is the escape command, and the

comma is the terminator, which is required.

Commands may be strung together to create custom response sequences. An

example of a command string is listed below.

0<ESC>4<ESC>5<ESC>6,

The above example will make a scanner in application work group zero beep

low, then medium, then high.

Once Host ACK is enabled, the system works as follows:

• The scanner reads a code and sends data to the base or Access Point to

transmit to the host system. No audible or visual indication is emitted until the

scanner receives an escape command. The scanner read illumination goes

out when there’s a successful read.

3 - 32

• Scanner operation is suspended until 1) a valid escape string is received from

the host system (via the base or Access Point) or 2) the scanner times out.

• Once condition 1 or 2 above has been met, the scanner is ready to scan

again, and the process repeats.

A time-out occurs if the scanner does not receive a valid escape command

within 10 seconds. A time-out is indicated by an error tone. If a time-out

occurs, the operator should check the host system to understand why a

response to the scanner was not received.

Host ACK On/Off

Host ACK Responses

Command Action

<ESC> a Double beeps to indicate a successful menu change

was made.

<ESC> b Razz or error tone to indicate a menu change was

unsuccessful.

<ESC> 1 The green LED illuminates for 135 milliseconds followed

by a pause.

<ESC> 2 The green LED illuminates for 2 seconds followed by a

pause.

<ESC> 3 The green LED illuminates for 5 seconds followed by a

pause.

<ESC> 4 Emits a beep at a low pitch.

<ESC> 5 Emits a beep at a medium pitch.

<ESC> 6 Emits a beep at a high pitch.

<ESC> 7 Beeps to indicate a successful decode and

communication to host.

Host ACK On

* Host ACK Off

3 - 33

<ESC> 8 Razz or error tone to indicate a decode/communication

to host was unsuccessful.

Command Action

3 - 34

4 - 1

Input/Output Settings

Power Up Beeper

The scanner can be programmed to beep when it’s powered up. If you are

using a cordless system, the base can also be programmed to beep when it is

powered up. Scan the Off bar code(s) if you don’t want a power up beep.

Default = Power Up Beeper On - Scanner.

Beep on BEL Character

You may wish to force the scanner to beep upon a command sent from the host.

If you scan the Beep on BEL On bar code below, the scanner will beep every

time a BEL character is received from the host.

Default = Beep on BEL Off.

Power Up Beeper Off -

Scanner

* Power Up Beeper On -

Scanner

Power Up Beeper Off -

Cordless Base

Power Up Beeper On -

Cordless Base

*Beep on BEL Off

Beep on BEL On

4 - 2

Trigger Click

To hear an audible click every time the scanner trigger is pressed, scan the

Trigger Click On bar code below. Scan the Trigger Click Off code if you don’t

wish to hear the click. (This feature has no effect on serial or automatic trigger-

ing.)

Default =

Trigger Click Off.

Good Read and Error Indicators

Beeper – Good Read

The beeper may be programmed On or Off

in response to a good read.

Turning this option off, only turns off the beeper response to a good read

indication. All error and menu beeps are still audible.

Default = Beeper -

Good Read On.

Trigger Click On

*Trigger Click Off

* Beeper - Good Read On

Beeper - Good Read Off

4 - 3

Beeper Volume – Good Read

The beeper volume codes modify the volume of the beep the scanner emits

on a good read.

Default = High.

Beeper Pitch – Good Read

The beeper pitch codes modify the pitch (frequency) of the beep the scan-

ner emits on a good read.

Default = Medium.

* High

Medium

Off

Low

Low (1600 Hz)

* Medium (2700 Hz)

High (4200 Hz)

4 - 4

Beeper Pitch – Error

The beeper pitch codes modify the pitch (frequency) of the sound the scan-

ner emits when there is a bad read or error.

Default = Razz.

Beeper Duration – Good Read

The beeper duration codes modify the length of the beep the scanner emits

on a good read.

Default = Normal.

LED – Good Read

The LED indicator can be programmed On or Off in response to a good

read.

Default = On.

* Razz (250 Hz)

Medium (3250 Hz)

High (4200 Hz)

* Normal Beep

Short BeepShort Beep

* LED - Good Read On

LED - Good Read Off

4 - 5

Number of Beeps – Good Read

The number of beeps of a good read can be programmed from 1 - 9. The

same number of beeps will be applied to the beeper and LED in response

to a good read. For example, if you program this option to have five beeps,

there will be five beeps and five LED flashes in response to a good read.

The beeps and LED flashes are in sync with one another. To change the

number of beeps, scan the bar code below and then scan a digit (1-9) bar

code and the Save bar code on the Programming Chart inside the back

cover of this manual.

Default = 1.

Number of Beeps – Error

The number of beeps and LED flashes emitted by the scanner for a bad

read or error can be programmed from 1 - 9. For example, if you program

this option to have five error beeps, there will be five error beeps and five

LED flashes in response to an error. To change the number of error beeps,

scan the bar code below and then scan a digit (1-9) bar code and the Save

bar code on the Programming Chart inside the back cover of this manual.

Default = 1.

Number of Good Read Beeps/LED Flashes

Number of Error Beeps/LED Flashes

4 - 6

Good Read Delay

This sets the minimum amount of time before the scanner can read another

bar code.

Default = 0 ms (No Delay).

User-Specified Good Read Delay

If you want to set your own length for the good read delay, scan the bar

code below, then set the delay (from 0-30,000 milliseconds) by scanning

digits from the inside back cover, then scanning Save.

Manual Trigger Modes

When in manual trigger mode, the scanner scans until a bar code is read, or

until the trigger is released. Two modes are available, Normal and Enhanced.

Normal mode offers good scan speed and the longest working ranges (depth of

field). Enhanced mode will give you the highest possible scan speed but

* No Delay

Short Delay (500 ms)

Medium Delay (1,000 ms)

Long Delay (1,500 ms)

User-Specified Good Read Delay

4 - 7

slightly less range than Normal mode. Enhanced mode is best used when you

require a very fast scan speed and don’t require a long working range.

Default

= Manual Trigger-Normal.

Serial Trigger Mode

You can activate the scanner either by pressing the trigger, or using a serial trig-

ger command (see Trigger Commands on page 11-4). When in serial mode,

the scanner scans until a bar code has been read or until the deactivate com-

mand is sent. The scanner can also be set to turn itself off after a specified time

has elapsed (see Read Time-Out, which follows).

Read Time-Out

Use this selection to set a time-out (in milliseconds) of the scanner’s trigger

when using serial commands to trigger the scanner. Once the scanner has

timed out, you can activate the scanner either by pressing the trigger or

using a serial trigger command. After scanning the Read Time-Out bar

code, set the time-out duration (from 0-300,000 milliseconds) by scanning

digits on the Programming Chart inside the back cover, then scanning

Save.

Default = 30,000 ms.

Scanner Power Time-Out Timer

Note: Scanner Power Time-out Timer only applies to cordless systems. It

does not apply to corded scanners.

When there is no activity within a specified time period, the scanner enters

low power mode. Scan the appropriate scanner power time-out bar code to

change the time-out duration (in seconds).

Note: Scanning zero (0) is the equivalent of setting no time-out.

* Manual Trigger - Normal

Manual Trigger - Enhanced

Read Time-Out

4 - 8

If there are no trigger pulls during the timer interval, the scanner goes into

power down mode. Whenever the trigger is enabled, the timer is reset. If

the scanner is placed in the charge base cradle and the battery is in the

process of being charged, the scanner will not go into power down mode.

Default = 3600 seconds.

Note: When the scanner is in power down mode, pull the trigger to power

the unit back up. There will be a set of power up beeps and a delay

of up to a few seconds for the radio to join. The scanner will then be

ready to use.

0 seconds

200 seconds

400 seconds

900 seconds

* 3600 seconds

7200 seconds

4 - 9

Presentation Mode

Presentation Mode uses ambient light to detect bar codes. The LEDs remain

off until a bar code is presented to the scanner, then the LEDs turn on automat-

ically to read the code. If the light level in the room is not high enough, Presen-

tation Mode may not work properly.

Note: If you are using a cordless charge base in Presentation Mode, the battery

will not charge unless the power supply is plugged into the base’s

auxiliary power port.

Presentation LED Behavior after Decode

When a scanner is in presentation mode, the LEDs dim 30 seconds after a

bar code is decoded. If you wish to dim the LEDs immediately after a bar

code is decoded, scan the LEDs Off bar code, below.

Default = LEDs On.

Presentation Sensitivity

Presentation Sensitivity is a numeric range that increases or decreases the

scanner's reaction time to bar code presentation. To set the sensitivity,

scan the Sensitivity bar code, then scan the degree of sensitivity (from 0-

20) from the inside back cover, and Save. 0 is the most sensitive setting,

and 20 is the least sensitive.

Default = 1.

Presentation Mode

* LEDs On

LEDs Off

Sensitivity

4 - 10

Presentation Centering

Use Presentation Centering to narrow the scanner’s field of view when it is

in the stand to make sure the scanner reads only those bar codes intended

by the user. For instance, if multiple codes are placed closely together,

Presentation Centering will insure that only the desired codes are read.

Note: To adjust centering when the scanner is hand-held, see

Centering (page 4-17).

If a bar code is not touched by a predefined window, it will not be decoded

or output by the scanner. If Presentation Centering is turned on by scan-

ning Presentation Centering On, the scanner only reads codes that pass

through the centering window you specify using the Top of Presentation

Centering Window, Bottom of Presentation Centering Window, Left,

and Right of Presentation Centering Window bar codes.

In the example below, the white box is the centering window. The centering

window has been set to 20% left, 30% right, 8% top, and 25% bottom.

Since Bar Code 1 passes through the centering window, it will be read. Bar

Code 2 does not pass through the centering window, so it will not be read.

Note: A bar code needs only to be touched by the centering window in

order to be read. It does not need to pass completely through the

centering window.

Bar Code 1

Bar Code 2

10 20 30 40 50 60 70 80 90 100%

100

4 - 11

Scan Presentation Centering On, then scan one of the following bar

codes to change the top, bottom, left, or right of the centering window.

Then scan the percent you want to shift the centering window using digits

on the inside back cover of this manual. Scan Save.

Default Presentation

Centering = 40% for Top and Left, 60% for Bottom and Right.

In-Stand Sensor Mode

This feature senses when the scanner is removed from the stand and tells it to

begin manual triggering. When Sensor On is enabled, the scanner defaults to

Streaming Presentation Mode when it is in the stand, and to Manual Trigger

Mode when it is removed from the stand.

Default = Sensor On.

Note: If you are taking images (see Imaging Commands beginning on page 8-

1), you must set the In-Stand Sensor to Off.

Left of

Presentation Centering

Window

Top of Presentation Centering

Window

Right of Presentation Centering

Window

Bottom of Presentation

Centering Window

* Presentation Centering Off

Presentation Centering On

* Sensor On

Sensor Off

4 - 12

You may program a Streaming Presentation Mode (Normal, Enhanced, or

Mobile Phone) you wish to use for in-stand scanning, and a Manual Trigger

mode (Normal, Enhanced, or Mobile Phone) you wish to use for out-of-stand

scanning. To do this, you must first scan the preferred Streaming Presentation

mode (see below), then scan the Manual Trigger mode (see page 4-6 and page

4-13) you want to use.

CodeGate®

When CodeGate is On, the trigger is used to allow decoded data to be transmit-

ted to the host system. The scanner remains on, scanning and decoding bar

codes, but the bar code data is not transmitted until the trigger is pressed.

When CodeGate is Off, bar code data is transmitted when it is decoded.

Default = CodeGate Off Out-of-Stand.

Streaming Presentation

™

Mode

When in Streaming Presentation mode, the scanner’s aimer goes out after a

short time, but the scan illumination remains on all the time to continuously

search for bar codes. Two modes are available, Normal and Enhanced. Nor-

mal mode offers good scan speed and the longest working ranges (depth of

field). Enhanced mode will give you the highest possible scan speed but

slightly less range than Normal mode. Enhanced mode is best used when you

require a very fast scan speed and don’t require a long working range.

When using Preferred Symbology (page 4-19), a lower priority symbol must be

centered on the aiming pattern to be read in Streaming Presentation Mode.

CodeGate On

Out-of-Stand

* CodeGate Off

Out-of-Stand

Streaming Presentation Mode

- Normal

Streaming Presentation Mode

- Enhanced

4 - 13

You cannot take images when in Streaming Presentation Mode. To take

images, scan Image Snap and Ship (see page 4-14).

Note: If you are using a cordless charge base, it must have an external power

supply plugged into the aux port for Streaming Presentation to work

properly.

Streaming Presentation In-Stand Programming

This option is available when using In-Stand Sensor Mode, page 4-11. You

may program a specific Streaming Presentation Mode for in-stand scan-

ning, and a Manual Trigger mode for out-of-stand scanning. To do this, you

must first scan the preferred Streaming Presentation mode (Normal,

Enhanced, or Mobile Phone), then scan the Manual Trigger mode (Normal,

Enhanced, or Mobile Phone) you want to use.

Mobile Phone Read Mode

When this mode is selected, your scanner is optimized to read bar codes from

mobile phone or other LED displays. However, the speed of scanning printed

bar codes may be slightly lower when this mode is enabled. You can enable

Mobile Phone Reading for either a hand held device, or for a hands-free (pre-

sentation) application.

Note: To turn off Mobil Phone Read Mode, scan a Manual or Serial Trigger

Mode bar code (see page 4-6).

Hand Held Scanning - Mobile

Phone

Streaming Presentation -

Mobile Phone

4 - 14

Image Snap and Ship

Image Snap and Ship tells the scanner to take a picture (rather than read a bar

code) when the trigger is pressed. Once the picture is snapped, it is shipped to

the host system as a jpeg file by default. To revert to bar code reading, you

must change to a different trigger mode (see Manual Trigger Modes beginning

on page 4-6).

Note: You must use an RS232 interface to use this code. Otherwise, menu

codes will not work until you send a serial command for Manual Trigger

Modes (see page 11-18).

Hands Free Time-Out

The Scan Stand and Presentation Modes are referred to as “hands free”

modes. If the scanner’s trigger is pulled when using a hands free mode, the

scanner changes to manual trigger mode. You can set the time the scanner

should remain in manual trigger mode by setting the Hands Free Time-Out.

Once the time-out value is reached, (if there have been no further trigger pulls)

the scanner reverts to the original hands free mode.

Scan the Hands Free Time-Out bar code, then scan the time-out duration

(from 0-300,000 milliseconds) from the inside back cover, and Save.

Default =

5,000 ms.

Reread Delay

This sets the time period before the scanner can read the

same

bar code a sec-

ond time. Setting a reread delay protects against accidental rereads of the

same bar code. Longer delays are effective in minimizing accidental rereads.

Image Snap and Ship

Hands Free Time-Out

4 - 15

Use shorter delays in applications where repetitive bar code scanning is

required. Reread Delay only works when in Presentation Mode (see page 4-9).

Default = Medium.

User-Specified Reread Delay

If you want to set your own length for the reread delay, scan the bar code below,

then set the delay (from 0-30,000 milliseconds) by scanning digits from the

inside back cover, then scanning Save.

Illumination Lights

If you want the illumination lights on while reading a bar code, scan the Lights

On bar code, below. However, if you want to turn just the lights off, scan the

Lights Off bar code.

Default = Lights On.

Note: This setting does not affect the aimer light. The aiming light can be set

using Aimer Mode (page 4-17).

Short (500 ms)

* Medium (750 ms)

Long (1000 ms)

Extra Long (2000 ms)

User-Specified Reread Delay

Lights Off

* Lights On

4 - 16

Aimer Delay

The aimer delay allows a delay time for the operator to aim the scanner before

the picture is taken. Use these codes to set the time between when the trigger

is pulled and when the picture is taken. During the delay time, the aiming light

will appear, but the LEDs won’t turn on until the delay time is over.

Default =

Off.

User-Specified Aimer Delay

If you want to set your own length for the duration of the delay, scan the bar

code below, then set the time-out by scanning digits (0 - 4,000 ms) from the

Programming Chart inside the back cover of this manual, then scan Save.

Scanner Time-Out

Note: Scanner Time-Out applies only to corded scanners. It does not apply to

cordless systems.

Scanner Time-Out powers down the scanner after the unit has been idle for the

specified time. To prevent the scanner from powering down, set this time-out to

0. Scan Scanner Time-Out, then set the time-out by scanning digits (from 0 -

999,999 ms) from the inside back cover, then scanning Save.

Default = 1 ms.

400 milliseconds

* Off

(no delay)

200 milliseconds

Delay Duration

Scanner Time-Out

4 - 17

Aimer Mode

This feature allows you to turn the aimer on and off. When the Interlaced bar

code is scanned, the aimer is interlaced with the illumination LEDs.

Default =

Interlaced.

Centering

Use Centering to narrow the scanner’s field of view to make sure that when the

scanner is hand-held, it reads only those bar codes intended by the user. For

instance, if multiple codes are placed closely together, centering will insure that

only the desired codes are read. (Centering can be used in conjunction with

Aimer Delay, page 4-16, for the most error-free operation in applications where

multiple codes are spaced closely together. Using the Aimer Delay and Center-

ing features, the scanner can emulate the operation of older systems, such as

linear laser bar code scanners.)

Note: To adjust centering when the scanner is in the stand, see Presentation

Centering (page 4-10).

If a bar code is not touched by a predefined window, it will not be decoded or

output by the scanner. If centering is turned on by scanning Centering On, the

scanner only reads codes that pass through the centering window you specify

using the Top of Centering Window, Bottom of Centering Window, Left, and

Right of Centering Window bar codes.

* Interlaced

Off

4 - 18

In the example below, the white box is the centering window. The centering

window has been set to 20% left, 30% right, 8% top, and 25% bottom. Since

Bar Code 1 passes through the centering window, it will be read. Bar Code 2

does not pass through the centering window, so it will not be read.

Note: A bar code needs only to be touched by the centering window in order to

be read. It does not need to pass completely through the centering

window.

Bar Code 1

Bar Code 2

10 20 30 40 50 60 70 80 90 100%

100

4 - 19

Scan Centering On, then scan one of the following bar codes to change the

top, bottom, left, or right of the centering window. Then scan the percent you

want to shift the centering window using digits on the inside back cover of this

manual. Scan Save.

Default Centering = 40% for Top and Left, 60% for Bot-

tom and Right.

Preferred Symbology

The scanner can be programmed to specify one symbology as a higher priority

over other symbologies in situations where both bar code symbologies appear

on the same label, but the lower priority symbology cannot be disabled.

For example, you may be using the scanner in a retail setting to read U.P.C.

symbols, but have occasional need to read a code on a drivers license. Since

some licenses have a Code 39 symbol as well as the PDF417 symbol, you can

use Preferred Symbology to specify that the PDF417 symbol be read instead of

the Code 39.

Preferred Symbology classifies each symbology as high priority, low priority,

or as an unspecified type. When a low priority symbology is presented, the

scanner ignores it for a set period of time (see Preferred Symbology Time-out

on page 4-20) while it searches for the high priority symbology. If a high priority

symbology is located during this period, then that data is read immediately.

If the time-out period expires before a high priority symbology is read, the scan-

ner will read any bar code in its view (low priority or unspecified). If there is no

bar code in the scanner’s view after the time-out period expires, then no data is

reported.

Note: A low priority symbol must be centered on the aiming pattern to be read.

Left of Centering Window

Top of Centering Window

Right of Centering Window

Bottom of Centering Window

* Centering Off

Centering On

4 - 20

Scan a bar code below to enable or disable Preferred Symbology.

Default =

Preferred Symbology Off.

High Priority Symbology

To specify the high priority symbology, scan the High Priority Symbology

bar code below. On the Symbology Chart on page A-1, find the symbology

you want to set as high priority. Locate the Hex value for that symbology

and scan the 2 digit hex value from the Programming Chart (inside back

cover). Scan Save to save your selection.

Default = None

Low Priority Symbology

To specify the low priority symbology, scan the Low Priority Symbology bar

code below. On the Symbology Chart on page A-1, find the symbology you

want to set as low priority. Locate the Hex value for that symbology and

scan the 2 digit hex value from the Programming Chart (inside back cover).

If you want to set additional low priority symbologies, scan FF, then scan

the 2 digit hex value from the Programming Chart for the next symbology.

You can program up to 5 low priority symbologies. Scan Save to save your

selection.

Default = None

Preferred Symbology Time-out

Once you have enabled Preferred Symbology and entered the high and low

priority symbologies, you must set the time-out period. This is the period of

time the scanner will search for a high priority bar code after a low priority

* Preferred Symbology Off

Preferred Symbology On

High Priority Symbology

Low Priority Symbology

4 - 21

bar code has been encountered. Scan the bar code below, then set the

delay (from 1-3,000 milliseconds) by scanning digits from the inside back

cover, then scanning Save.

Default = 500 ms.

Preferred Symbology Default

Scan the bar code below to set all Preferred Symbology entries to their

default values.

Output Sequence Overview

Require Output Sequence

When turned off, the bar code data will be output to the host as the scanner

decodes it. When turned on, all output data must conform to an edited

sequence or the scanner will not transmit the output data to the host

device.

Note: This selection is unavailable when the Multiple Symbols Selection is

turned on.

Output Sequence Editor

This programming selection allows you to program the scanner to output

data (when scanning more than one symbol) in whatever order your appli-

cation requires, regardless of the order in which the bar codes are

scanned. Reading the

Default Sequence

symbol programs the scanner to

the Universal values, shown below. These are the defaults. Be certain

you want to delete or clear all formats before you read the

Default

Sequence

symbol.

Note: To make Output Sequence Editor selections, you’ll need to know the

code I.D., code length, and character match(es) your application

requires. Use the Alphanumeric symbols (inside back cover) to read

these options. You must hold the trigger while reading each bar code

in the sequence.

Preferred Symbology Time-out

Preferred Symbology Default

4 - 22

To Add an Output Sequence

1. Scan the

Enter Sequence

symbol (see Require Output

Sequence, page 4-25).

2. Code I.D.

On the Symbology Chart on page A-1, find the symbology to which you

want to apply the output sequence format. Locate the Hex value for

that symbology and scan the 2 digit hex value from the Programming

Chart (inside back cover).

3. Length

Specify what length (up to 9999 characters) of data output will be

acceptable for this symbology. Scan the four digit data length from the

Programming Chart. (Note: 50 characters is entered as 0050. 9999 is

a universal number, indicating all lengths.) When calculating the length,

you must count any programmed prefixes, suffixes, or formatted

characters as part of the length (unless using 9999).

4. Character Match Sequences

On the ASCII Conversion Chart (Code Page 1252), page A-4, find the

Hex value that represents the character(s) you want to match. Use the

Programming Chart to read the alphanumeric combination that

represents the ASCII characters. (99 is the Universal number,

indicating all characters.)

5. End Output Sequence Editor

Scan

F F

to enter an Output Sequence for an additional symbology, or

Save

to save your entries.

Other Programming Selections

•

Discard

This exits without saving any Output Sequence changes.

4 - 23

Output Sequence Example

In this example, you are scanning Code 93, Code 128, and Code 39 bar

codes, but you want the scanner to output Code 39 1st, Code 128 2nd, and

Code 93 3rd, as shown below.

Note: Code 93 must be enabled to use this example.

You would set up the sequence editor with the following command line:

SEQBLK62999941FF6A999942FF69999943FF

The breakdown of the command line is shown below:

SEQBLKsequence editor start command

62 code identifier for Code 39

9999 code length that must match for Code 39, 9999 = all lengths

41 start character match for Code 39, 41h = “A”

FF termination string for first code

6A code identifier for Code 128

9999 code length that must match for Code 128, 9999 = all lengths

42 start character match for Code 128, 42h = “B”

FF termination string for second code

69 code identifier for Code 93

9999 code length that must match for Code 93, 9999 = all lengths

43 start character match for Code 93, 43h = “C”

FF termination string for third code

To program the previous example using specific lengths, you would have to

count any programmed prefixes, suffixes, or formatted characters as part of

the length. If you use the example on page 4-23, but assume a <CR> suffix

and specific code lengths, you would use the following command line:

SEQBLK62001241FF6A001342FF69001243FF

The breakdown of the command line is shown below:

A - Code 39

B - Code 128

C - Code 93

4 - 24

SEQBLKsequence editor start command

62 code identifier for Code 39

0012 A - Code 39 sample length (11) plus CR suffix (1) = 12

41 start character match for Code 39, 41h = “A”

FF termination string for first code

6A code identifier for Code 128

0013 B - Code 128 sample length (12) plus CR suffix (1) = 13

42 start character match for Code 128, 42h = “B”

FF termination string for second code

69 code identifier for Code 93

0012 C - Code 93 sample length (11) plus CR suffix (1) = 12

43 start character match for Code 93, 43h = “C”

FF termination string for third code

Output Sequence Editor

Partial Sequence

If an output sequence operation is terminated before all your output

sequence criteria are met, the bar code data acquired to that point is a

“partial sequence.”

Scan Discard Partial Sequence to discard partial sequences when the

output sequence operation is terminated before completion. Scan Trans-

mit Partial Sequence to transmit partial sequences. (Any fields in the

sequence where no data match occurred will be skipped in the output.)

Default Sequence

Enter Sequence

Transmit Partial Sequence

* Discard Partial Sequence

4 - 25

Require Output Sequence

When an output sequence is Required, all output data must conform to an

edited sequence or the scanner will not transmit the output data to the host

device. When it’s On/Not Required, the scanner will attempt to get the

output data to conform to an edited sequence but, if it cannot, the scanner

transmits all output data to the host device as is.

When the output sequence is

Off

, the bar code data is output to the host as

the scanner decodes it.

Default = Off.

Note: This selection is unavailable when the Multiple Symbols Selection is

turned on.

Multiple Symbols

When this programming selection is turned On, it allows you to read multiple

symbols with a single pull of the scanner’s trigger. If you press and hold the trig-

ger, aiming the scanner at a series of symbols, it reads unique symbols once,

beeping (if turned on) for each read. The scanner attempts to find and decode

new symbols as long as the trigger is pulled. When this programming selection

is turned Off, the scanner will only read the symbol closest to the aiming beam.

Default = Off.

Required

On/Not Required

*Off

* Off

4 - 26

No Read

With No Read turned On, the scanner notifies you if a code cannot be read. If

using an EZConfig Tool Scan Data Window (see page 10-3), an “NR” appears

when a code cannot be read. If No Read is turned Off, the “NR” will not appear.

Default = Off.

If you want a different notation than “NR,” for example, “Error,” or “Bad Code,”

you can edit the output message (see Data Formatting beginning on page 6-1).

The hex code for the No Read symbol is 9C.

Video Reverse

Video Reverse is used to allow the scanner to read bar codes that are inverted.

The Video Reverse Off bar code below is an example of this type of bar code.

Scan Video Reverse Only to read

only

inverted bar codes. Scan Video

Reverse and Standard Bar Codes to read both types of codes.

Note: After scanning Video Reverse Only, menu bar codes cannot be read.

You must scan Video Reverse Off or Video Reverse and Standard Bar

Codes in order to read menu bar codes.

Note: Images downloaded from the unit are not reversed. This is a setting for

decoding only.

* Off

Video Reverse Only

* Video Reverse Off

VIDREV0.

Video Reverse and Standard Bar

Codes

4 - 27

Working Orientation

Some bar codes are direction-sensitive. For example, KIX codes and OCR can

misread when scanned sideways or upside down. Use the working orientation

settings if your direction-sensitive codes will not usually be presented upright to

the scanner.

Default = Upright.

Upright:

Vertical, Top to Bottom:

(Rotate CW 90°)

Upside Down:

Vertical, Bottom to Top:

(Rotate CCW 90°)

* Upright

Upside Down

Vertical, Top to Bottom

Vertical, Bottom to Top

4 - 28

5 - 1

Data Editing

Prefix/Suffix Overview

When a bar code is scanned, additional information is sent to the host computer

along with the bar code data. This group of bar code data and additional,

user-defined data is called a “message string.” The selections in this section

are used to build the user-defined data into the message string.

Prefix and Suffix characters are data characters that can be sent before and

after scanned data. You can specify if they should be sent with all symbologies,

or only with specific symbologies. The following illustration shows the break-

down of a message string:

Points to Keep In Mind

• It is not necessary to build a message string. The selections in this

chapter are only used if you wish to alter the default settings.

Default

prefix = None. Default suffix = None

• A prefix or suffix may be added or cleared from one symbology or all

symbologies.

• You can add any prefix or suffix from the ASCII Conversion Chart (Code

Page 1252), beginning on page A-4, plus Code I.D. and AIM I.D.

• You can string together several entries for several symbologies at one

time.

• Enter prefixes and suffixes in the order in which you want them to appear

on the output.

• When setting up for specific symbologies (as opposed to all

symbologies), the specific symbology ID value counts as an added prefix

or suffix character.

• The maximum size of a prefix or suffix configuration is 200 characters,

which includes header information.

To Add a Prefix or Suffix:

Step 1. Scan the Add Prefix or Add Suffix symbol (page 5-3).

Step 2. Determine the 2 digit Hex value from the Symbology Chart

(included in the Symbology Chart, beginning on page A-1) for the

Prefix Scanned DataSuffix

1-11

alpha numeric &

control characters

variable length1-11

alpha numeric &

control characters

5 - 2

symbology to which you want to apply the prefix or suffix. For

example, for Code 128, Code ID is “j” and Hex ID is “6A”.

Step 3. Scan the 2 hex digits from the Programming Chart inside the back

cover of this manual or scan 9, 9 for all symbologies.

Step 4. Determine the hex value from the ASCII Conversion Chart (Code

Page 1252), beginning on page A-4, for the prefix or suffix you wish

to enter.

Step 5. Scan the 2 digit hex value from the Programming Chart inside the

back cover of this manual.

Step 6. Repeat Steps 4 and 5 for every prefix or suffix character.

Step 7. To add the Code I.D., scan 5, C, 8, 0.

To add AIM I.D., scan 5, C, 8, 1.

To add a backslash (\), scan 5, C, 5, C.

Note: To add a backslash (\) as in Step 7, you must scan 5C twice – once

to create the leading backslash and then to create the backslash

itself.

Step 8. Scan Save to exit and save, or scan Discard to exit without saving.

Repeat Steps 1-6 to add a prefix or suffix for another symbology.

Example: Add a Suffix to a specific symbology

To send a CR (carriage return)Suffix for U.P.C. only:

Step 1. Scan Add Suffix.

Step 2. Determine the 2 digit hex value from the Symbology Chart

(included in the Symbology Chart, beginning on page A-1) for

U.P.C..

Step 3. Scan 6, 3 from the Programming Chart inside the back cover of this

manual.

Step 4. Determine the hex value from the ASCII Conversion Chart (Code

Page 1252), beginning on page A-4, for the CR (carriage return).

Step 5. Scan 0, D from the Programming Chart inside the back cover of this

manual.

Step 6. Scan Save, or scan Discard to exit without saving.

To Clear One or All Prefixes or Suffixes

You can clear a single prefix or suffix, or clear all prefixes/suffixes for a

symbology. If you have been entering prefixes and suffixes for single sym-

bologies, you can use Clear One Prefix (Suffix) to delete a specific char-

acter from a symbology. When you Clear All Prefixes (Suffixes), all the

prefixes or suffixes for a symbology are deleted.

5 - 3

Step 1. Scan the Clear One Prefix or Clear One Suffix symbol.

Step 2. Determine the 2 digit Hex value from the Symbology Chart

(included in the Symbology Chart, beginning on page A-1) for the

symbology from which you want to clear the prefix or suffix.

Step 3. Scan the 2 digit hex value from the Programming Chart inside the

back cover of this manual or scan 9, 9 for all symbologies.

Your change is automatically saved.

To Add a Carriage Return Suffix to All Symbologies

Scan the following bar code if you wish to add a carriage return suffix to all

symbologies at once. This action first clears all current suffixes, then pro-

grams a carriage return suffix for all symbologies.

Prefix Selections

Add CR Suffix

All Symbologies

Add Prefix

Clear One Prefix

Clear All Prefixes

5 - 4

Suffix Selections

Function Code Transmit

When this selection is enabled and function codes are contained within the

scanned data, the scanner transmits the function code to the terminal. Charts

of these function codes are provided in Supported Interface Keys starting on

page 9-3. When the scanner is in keyboard wedge mode, the scan code is con-

verted to a key code before it is transmitted.

Default = Enable.

Intercharacter, Interfunction, and

Intermessage Delays

Some terminals drop information (characters) if data comes through too quickly.

Intercharacter, interfunction, and intermessage delays slow the transmission of

data, increasing data integrity.

Add Suffix

Clear One Suffix

Clear All Suffixes

* Enable

Disable

5 - 5

Intercharacter Delay

An intercharacter delay of up to 5000 milliseconds (in 5ms increments) may

be placed between the transmission of each character of scanned data.

Scan the Intercharacter Delay bar code below, then scan the number of

5ms delays, and the Save bar code using the Programming Chart inside

the back cover of this manual.

To remove this delay, scan the Intercharacter Delay bar code, then set the

number of delays to 0. Scan the Save bar code using the Programming

Chart inside the back cover of this manual.

Note: Intercharacter delays are not supported in USB serial emulation.

User Specified Intercharacter Delay

An intercharacter delay of up to 5000 milliseconds (in 5ms increments)

may be placed after the transmission of a particular character of scanned

data. Scan the Delay Length bar code below, then scan the number of

5ms delays, and the Save bar code using the Programming Chart inside

the back cover of this manual.

Next, scan the Character to Trigger Delay bar code, then the 2-digit hex

value for the ASCII character that will trigger the delay ASCII Conversion

Chart (Code Page 1252), beginning on page A-4.

To remove this delay, scan the Delay Length bar code, and set the number

of delays to 0. Scan the Save bar code using the Programming Chart

inside the back cover of this manual.

12345

Intercharacter Delay

Prefix Scanned Data Suffix

Intercharacter Delay

Delay Length

Character to Trigger Delay

5 - 6

Interfunction Delay

An interfunction delay of up to 5000 milliseconds (in 5ms increments) may

be placed between the transmission of each segment of the message

string. Scan the Interfunction Delay bar code below, then scan the num-

ber of 5ms delays, and the Save bar code using the Programming Chart

inside the back cover of this manual.

To remove this delay, scan the Interfunction Delay bar code, then set the

number of delays to 0. Scan the Save bar code using the Programming

Chart inside the back cover of this manual.

Intermessage Delay

An intermessage delay of up to 5000 milliseconds (in 5ms increments)

may be placed between each scan transmission. Scan the Intermessage

Delay bar code below, then scan the number of 5ms delays, and the Save

bar code using the Programming Chart inside the back cover of this man-

ual.

To remove this delay, scan the Intermessage Delay bar code, then set the

number of delays to 0. Scan the Save bar code using the Programming

Chart inside the back cover of this manual.

Interfunction Delays

Prefix Scanned Data Suffix

12345STX HT CR LF

Interfunction Delay

2nd Scan Transmission1st Scan Transmission

Intermessage Delay

6 - 1

Data Formatting

Data Format Editor Introduction

You may use the Data Format Editor to change the scanner’s output. For exam-

ple, you can use the Data Format Editor to insert characters at certain points in

bar code data as it is scanned. The selections in the following pages are used

only if you wish to alter the output.

Default Data Format setting = None.

Normally, when you scan a bar code, it gets outputted automatically; however

when you create a format, you must use a “send” command (see Send

Commands on page 6-4) within the format program to output data.

Multiple formats may be programmed into the scanner. They are stacked in the

order in which they are entered. However, the following list presents the order

in which formats are applied:

1. Specific Terminal ID, Actual Code ID, Actual Length

2. Specific Terminal ID, Actual Code ID, Universal Length

3. Specific Terminal ID, Universal Code ID, Actual Length

4. Specific Terminal ID, Universal Code ID, Universal Length

5. Universal Terminal ID, Actual Code ID, Actual Length

6. Universal Terminal ID, Actual Code ID, Universal Length

7. Universal Terminal ID, Universal Code ID, Actual Length

8. Universal Terminal ID, Universal Code ID, Universal Length

The maximum size of a data format configuration is 2000 bytes, which includes

header information.

If you have changed data format settings, and wish to clear all formats and

return to the factory defaults, scan the Default Data Format code below.

Add a Data Format

Step 1. Scan the Enter Data Format symbol (page 6-2).

Step 2. Select Primary/Alternate Format

Determine if this will be your primary data format, or one of 3 alternate

formats. This allows you to save a total of 4 different data formats. To

program your primary format, scan 0 using the Programming Chart

inside the back cover of this manual. If you are programming an

alternate format, scan 1, 2, or 3, depending on which alternate format

* Default Data Format

6 - 2

you are programming. (See Primary/Alternate Data Formats on page

6-11 for further information.)

Step 3. Terminal Type

Refer to Terminal ID Table (page 6-4) and locate the Terminal ID

number for your PC. Scan three numeric bar codes on the inside back

cover to program the scanner for your terminal ID (you must enter 3

digits). For example, scan 0 0 3 for an AT wedge.

Note: The wildcard for all terminal types is 099.

Step 4. Code I.D.

In the Symbology Chart, beginning on page A-1, find the symbology to

which you want to apply the data format. Locate the Hex value for that

symbology and scan the 2 digit hex value from the Programming Chart

inside the back cover of this manual.

Note: If you wish to create a data format for all symbologies, with the

exception of some specific symbologies, refer to B8 (page 6-9).

Step 5. Length

Specify what length (up to 9999 characters) of data will be acceptable

for this symbology. Scan the four digit data length from the

Programming Chart inside the back cover of this manual. (Note: 50

characters is entered as 0050. 9999 is a universal number, indicating

all lengths.)

Step 6. Editor Commands

Refer to Data Format Editor Commands (page 6-4). Scan the symbols

that represent the command you want to enter. 94 alphanumeric

characters may be entered for each symbology data format.

Step 7. Scan Save to save your data format, or Discard to exit without saving

your changes.

Enter Data Format

Save

Discard

6 - 3

Other Programming Selections

Clear One Data Format

This deletes one data format for one symbology. If you are clearing the

primary format, scan 0 from the Programming Chart inside the back

cover of this manual. If you are clearing an alternate format, scan 1, 2,

or 3, depending on the format you are clearing. Scan the Terminal Type

and Code I.D. (see Symbology Chart on page A-1), and the bar code

data length for the specific data format that you want to delete. All other

formats remain unaffected.

Clear all Data Formats

This clears all data formats.

Save to exit and save your data format changes.

Discard to exit without saving any data format changes.

Clear One Data Format

Clear All Data Formats

Save

Discard

6 - 4

Data Format Editor Commands

Send Commands

Send all characters

F1 Include in the output message all of the characters from the input

message, starting from current cursor position, followed by an insert

character.

Syntax = F1xx

where xx stands for the insert character’s hex

value for its ASCII code.

Refer to the ASCII Conversion Chart (Code Page 1252), beginning on

page A-4 for decimal, hex and character codes.

Send a number of characters

F2 Include in the output message a number of characters followed by an

insert character. Start from the current cursor position and continue for

“nn” characters or through the last character in the input message,

followed by character “xx.”

Syntax = F2nnxx

where nn stands for the

numeric value (00-99) for the number of characters, and xx stands for

the the insert character’s hex value for its ASCII code.

Refer to the ASCII Conversion Chart (Code Page 1252), beginning on

page A-4 for decimal, hex and character codes.

Send all characters up to a particular character

F3 Include in the output message all characters from the input message,

starting with the character at the current cursor position and continuing

to, but not including, the search character “ss,” followed by an insert

character. The cursor is moved forward to the “ss” character.

Syntax

= F3ssxx

where ss stands for the search character’s hex value for its

Terminal ID Table

Terminal Model(s) Terminal

IBM PC/AT and compatibles 003

USB SurePOS Handheld

Scanner 128

USB SurePOS Tabletop

Scanner 129

RS232 True 000

TTL 000

RS485 051

USB Serial 130

PC Keyboard 124

Mac Keyboard 125

Japanese Keyboard (PC) 134

HID POS 131

6 - 5

ASCII code, and xx stands for the insert character’s hex value for its

ASCII code.

Refer to the ASCII Conversion Chart (Code Page 1252), beginning on

page A-4 for decimal, hex and character codes.

Send all but the last characters

E9 Include in the output message all but the last “nn” characters, starting

from the current cursor position. The cursor is moved forward to one

position past the last input message character included.

Syntax = E9nn

where nn stands for the numeric value (00-99) for the number of

characters that will not be sent at the end of the message.

Insert a character multiple times

F4 Send “xx” character “nn” times in the output message, leaving the

cursor in the current position.

Syntax = F4xxnn

where xx stands for the

insert character’s hex value for its ASCII code, and nn is the numeric

value (00-99) for the number of times it should be sent.

Refer to the ASCII Conversion Chart (Code Page 1252), beginning on

page A-4 for decimal, hex and character codes.

Insert symbology name

B3 Insert the name of the bar code’s symbology in the output message,

without moving the cursor. Only symbologies with a Honeywell ID are

included (see Symbology Chart on page A-1).

Refer to the ASCII Conversion Chart (Code Page 1252), beginning on

page A-4 for decimal, hex and character codes.

Insert bar code length

B4 Insert the bar code’s length in the output message, without moving the

cursor. The length is expressed as a numeric string and does not

include leading zeroes.

Insert key strokes

B5 Insert a key stroke or combination of key strokes. Key strokes are

dependent on your keyboard (see Unicode Key Maps on page A-8).

Any key can be inserted, including arrows and functions.

Syntax =

B5xxssnn

where xx is the number of keys pressed (without key

modifiers), ss is the key modifier from the table below, and nn is the key

number from the Unicode Key Maps, page A-8.

Key Modifiers

No Key Modifier 00

Shift Left 01

Shift Right 02

Alt Left 04

Alt Right 08

6 - 6

For example, B501021F inserts an “A” on a 104 key, U.S. style

keyboard. B5 = the command, 01 = number of keys pressed (without

the key modifier), 02 is the key modifier for Shift Right, and 1F is the “a”

key. If a lower case “a” were to be inserted, B501001F would be

entered.

If there are three keystrokes, the syntax would change from B5xxssnn

for one keystroke to B5xxssnnssnnssnn. An example that would insert

"abc" is as follows: B503001F00320030F833.

Note: Key modifiers can be added together when needed. Example:

Control Left+Shift Left = 11.

Move Commands

Move the cursor forward a number of characters

F5 Move the cursor ahead “nn” characters from current cursor position.

Syntax = F5nn

where nn is the numeric value (00-99) for the number

of characters the cursor should be moved ahead.

Move the cursor backward a number of characters

F6 Move the cursor back “nn” characters from current cursor position.

Syntax = F6nn

where nn is the numeric value (00-99) for the number

of characters the cursor should be moved back.

Move the cursor to the beginning

F7 Move the cursor to the first character in the input message.

Syntax =

F7.

Move the cursor to the end

EA Move the cursor to the last character in the input message.

Syntax =

EA.

Search Commands

Search forward for a character

F8 Search the input message forward for “xx” character from the current

cursor position, leaving the cursor pointing to the “xx” character.

Syntax = F8xx

where xx stands for the search character’s hex value for

its ASCII code.

Refer to the ASCII Conversion Chart (Code Page 1252), beginning on

page A-4 for decimal, hex and character codes.

Control Left 10

Control Right 20

Key Modifiers

6 - 7

Search backward for a character

F9 Search the input message backward for “xx” character from the current

cursor position, leaving the cursor pointing to the “xx” character.

Syntax

= F9xx

where xx stands for the search character’s hex value for its

ASCII code.

Refer to the ASCII Conversion Chart (Code Page 1252), beginning on

page A-4 for decimal, hex and character codes.

Search forward for a string

B0 Search forward for “s” string from the current cursor position, leaving

cursor pointing to “s” string. Syntax = B0nnnnS where nnnn is the string

length (up to 9999), and S consists of the ASCII hex value of each

character in the match string. For example, B0000454657374 will

search forward for the first occurrence of the 4 character string “Test.”

Refer to the ASCII Conversion Chart (Code Page 1252), beginning on

page A-4 for decimal, hex and character codes.

Search backward for a string

B1 Search backward for “s” string from the current cursor position, leaving

cursor pointing to “s” string. Syntax = B1nnnnS where nnnn is the string

length (up to 9999), and S consists of the ASCII hex value of each

character in the match string. For example, B1000454657374 will

search backward for the first occurrence of the 4 character string “Test.”

Refer to the ASCII Conversion Chart (Code Page 1252), beginning on

page A-4 for decimal, hex and character codes.

Search forward for a non-matching character

E6 Search the input message forward for the first non-“xx” character from

the current cursor position, leaving the cursor pointing to the non-“xx”

character.

Syntax = E6xx

where xx stands for the search character’s

hex value for its ASCII code.

Refer to the ASCII Conversion Chart (Code Page 1252), beginning on

page A-4 for decimal, hex and character codes.

Search backward for a non-matching character

E7 Search the input message backward for the first non-“xx” character

from the current cursor position, leaving the cursor pointing to the non-

“xx” character.

Syntax = E7xx

where xx stands for the search

character’s hex value for its ASCII code.

Refer to the ASCII Conversion Chart (Code Page 1252), beginning on

page A-4 for decimal, hex and character codes.

6 - 8

Miscellaneous Commands

Suppress characters

FB Suppress all occurrences of up to 15 different characters, starting at the

current cursor position, as the cursor is advanced by other commands.

When the FC command is encountered, the suppress function is

terminated. The cursor is not moved by the FB command.

Syntax = FBnnxxyy . .zz where nn is a count of the number of

suppressed characters in the list, and xxyy .. zz is the list of characters

to be suppressed.

Stop suppressing characters

FC Disables suppress filter and clear all suppressed characters.

Syntax =

FC.

Replace characters

E4 Replaces up to 15 characters in the output message, without moving

the cursor. Replacement continues until the E5 command is

encountered.

Syntax = E4nnxx1xx2yy1yy2...zz1zz2

where nn is the

total count of of the number of characters in the list (characters to be

replaced plus replacement characters); xx1 defines characters to be

replaced and xx2 defines replacement characters, continuing through

zz1 and zz2.

Stop replacing characters

E5 Terminates character replacement.

Syntax = E5.

Compare characters

FE Compare the character in the current cursor position to the character

“xx.” If characters are equal, move the cursor forward one position.

Syntax = FExx

where xx stands for the comparison character’s hex

value for its ASCII code.

Refer to the ASCII Conversion Chart (Code Page 1252), beginning on

page A-4 for decimal, hex and character codes.

Compare string

B2 Compare the string in the input message to the string “s.” If the strings

are equal, move the cursor forward past the end of the string. Syntax

= B2nnnnS where nnnn is the string length (up to 9999), and S consists

of the ASCII hex value of each character in the match string. For

example, B2000454657374 will compare the string at the current

cursor position with the 4 character string “Test.”

Refer to the ASCII Conversion Chart (Code Page 1252), beginning on

page A-4 for decimal, hex and character codes.

Check for a number

EC Check to make sure there is an ASCII number at the current cursor

position. The format is aborted if the character is not numeric.

6 - 9

Check for non-numeric character

ED Check to make sure there is a non-numeric ASCII character at the

current cursor position. The format is aborted if the character is

numeric.

Insert a delay

EF Inserts a delay of up to 49,995 milliseconds (in multiples of 5), starting

from the current cursor position. Syntax = EFnnnn where nnnn stands

for the delay in 5ms increments, up to 9999. This command can only

be used with keyboard wedge interfaces.

Discard Data

B8 Discards types of data. For example, you may want to discard Code

128 bar codes that begin with the letter A. In step 4 (page 6-2), select

6A (for Code 128), and in step 5, select 9999 (for all lengths). Enter

B8FE41 to compare and discard Code 128 bar codes that begin with

the letter A.

Syntax = B8.

Note: Other data format settings impact the B8 command. If Data Format

Non-Match Error Tone is On (page 6-11), the scanner emits an error

tone. If Data format Non-Match Error Tone is Off, the code is

disabled for reading and no tone is sounded. If Data Format is On,

but Not Required (page 6-10), bar code data that meets the B8

format is scanned and output as usual.

Data Formatter

When Data Formatter is turned Off, the bar code data is output to the host as

read, including prefixes and suffixes.

You may wish to require the data to conform to a data format you have created

and saved. The following settings can be applied to your data format:

Data Formatter On, Not Required, Keep Prefix/Suffix

Scanned data is modified according to your data format, and prefixes and

suffixes are transmitted.

Data Formatter On, Not Required, Drop Prefix/Suffix

Scanned data is modified according to your data format. If a data format is

found for a particular symbol, those prefixes and suffixes are not

transmitted. If a data format is

not

found for that symbol, the prefixes and

suffixes

are

transmitted.

Data Formatter Off

6 - 10

Data Format Required, Keep Prefix/Suffix

Scanned data is modified according to your data format, and prefixes and

suffixes are transmitted. Any data that does not match your data format

requirements generates an error tone and the data in that bar code is not

transmitted. If you wish to process this type of bar code without generating

an error tone, see Data Format Non-Match Error Tone.

Data Format Required, Drop Prefix/Suffix

Scanned data is modified according to your data format. If a data format is

found for a particular symbol, those prefixes and suffixes are not

transmitted. Any data that does not match your data format requirements

generates an error tone. If you wish to process this type of bar code without

generating an error tone, see Data Format Non-Match Error Tone.

Choose one of the following options.

Default = Data Formatter On, Not

Required, Keep Prefix/Suffix.

Data Format Non-Match Error Tone

When a bar code is encountered that doesn’t match your required data for-

mat, the scanner normally generates an error tone. However, you may

want to continue scanning bar codes without hearing the error tone. If you

scan the Data Format Non-Match Error Tone Off bar code, data that

doesn’t conform to your data format is not transmitted, and no error tone

* Data Formatter On,

Not Required,

Keep Prefix/Suffix

Data Formatter On,

Not Required,

Drop Prefix/Suffix

Data Format Required,

Keep Prefix/Suffix

Data Format Required,

Drop Prefix/Suffix

6 - 11

will sound. If you wish to hear the error tone when a non-matching bar

code is found, scan the Data Format Non-Match Error Tone On bar code.

Default = Data Format Non-Match Error Tone On

Primary/Alternate Data Formats

You can save up to four data formats, and switch between these formats. Your

primary data format is saved under 0. Your other three formats are saved under

1, 2, and 3. To set your device to use one of these formats, scan one of the bar

codes below.

Single Scan Data Format Change

You can also switch between data formats for a single scan. The next bar

code is scanned using an alternate data format, then reverts to the format

you have selected above (either Primary, 1, 2, or 3).

* Data Format Non-Match Error

Tone On

Data Format Non-Match

Error Tone Off

Primary Data Format

Data Format 1

Data Format 2

Data Format 3

6 - 12

For example, you may have set your device to the data format you saved as

Data Format 3. You can switch to Data Format 1 for a single trigger pull by

scanning the Single Scan-Data Format 1 bar code below. The next bar

code that is scanned uses Data Format 1, then reverts back to Data For-

mat 3.

Single Scan-Data Format 1

Single Scan-Data Format 2

Single Scan-Data Format 3

Single Scan-Primary

Data Format

7 - 1

Symbologies

This programming section contains the following menu selections. Refer to

Chapter 11 for settings and defaults.

• All Symbologies • Interleaved 2 of 5

• Aztec Code • Korea Post

• China Post (Hong Kong 2 of 5) • Matrix 2 of 5

• Chinese Sensible (Han Xin) Code • MaxiCode

• Codabar • MicroPDF417

• Codablock A • MSI

• Codablock F • NEC 2 of 5

• Code 11 • Postal Codes - 2D

• Code 128 • Postal Codes - Linear

• Code 32 Pharmaceutical (PARAF) • PDF417

• Code 39 • GS1 DataBar Omnidirectional

• Code 93 • QR Code

•Data Matrix • Straight 2 of 5 IATA (two-bar start/

stop)

•EAN/JAN-13 • Straight 2 of 5 Industrial (three-bar

start/stop)

• EAN/JAN-8 • TCIF Linked Code 39 (TLC39)

• GS1 Composite Codes • Telepen

• GS1 DataBar Expanded • Trioptic Code

• GS1 DataBar Limited • UPC-A

• GS1 DataBar Omnidirectional • UPC-A/EAN-13 with Extended

Coupon Code

• GS1 Emulation • UPC-E0

• GS1-128 • UPC-E1

7 - 2

All Symbologies

If you want to decode all the symbologies allowable for your scanner, scan the

All Symbologies On

code. If on the other hand, you want to decode only a

particular symbology, scan All Symbologies Off followed by the On symbol for

that particular symbology.

Note: When All Symbologies On is scanned, 2D Postal Codes are not enabled.

2D Postal Codes must be enabled separately.

Message Length Description

You are able to set the valid reading length of some of the bar code symbolo-

gies. If the data length of the scanned bar code doesn’t match the valid read-

ing length, the scanner will issue an error tone. You may wish to set the same

value for minimum and maximum length to force the scanner to read fixed

length bar code data. This helps reduce the chances of a misread.

EXAMPLE: Decode only those bar codes with a count of 9-20 characters.

Min. length = 09Max. length = 20

EXAMPLE: Decode only those bar codes with a count of 15 characters.

Min. length = 15Max. length = 15

For a value other than the minimum and maximum message length defaults,

scan the bar codes included in the explanation of the symbology, then scan the

digit value of the message length and Save bar codes on the Programming

Chart inside the back cover of this manual. The minimum and maximum

lengths and the defaults are included with the respective symbologies.

All Symbologies On

All Symbologies Off

7 - 3

Codabar

Codabar On/Off

Codabar Start/Stop Characters

Start/Stop characters identify the leading and trailing ends of the bar code.

You may either transmit, or not transmit Start/Stop characters.

Default = Don’t Transmit

Codabar Check Character

Codabar check characters are created using different “modulos.” You can

program the scanner to read only Codabar bar codes with Modulo 16 check

characters.

Default = No Check Character.

No Check Character

indicates that the scanner reads and transmits bar

code data with or without a check character.

When Check Character is set to

Validate and Transmit

, the scanner will

only read Codabar bar codes printed with a check character, and will trans-

mit this character at the end of the scanned data.

* On

Off

Transmit

* Don’t Transmit

7 - 4

When Check Character is set to

Validate, but Don’t Transmit

, the unit will

only read Codabar bar codes printed

with

a check character, but will not

transmit the check character with the scanned data.

Codabar Concatenation

Codabar supports symbol concatenation. When you enable concatena-

tion, the scanner looks for a Codabar symbol having a “D” start character,

adjacent to a symbol having a “D” stop character. In this case the two mes-

sages are concatenated into one with the “D” characters omitted.

Select Require to prevent the scanner from decoding a single “D” Codabar

symbol without its companion. This selection has no effect on Codabar

symbols without Stop/Start D characters.

* No Check Character

Validate Modulo 16

and Transmit

Validate Modulo 16, but

Don’t Transmit

A12 34D

D5 6 7 8 A

* Off

Require

7 - 5

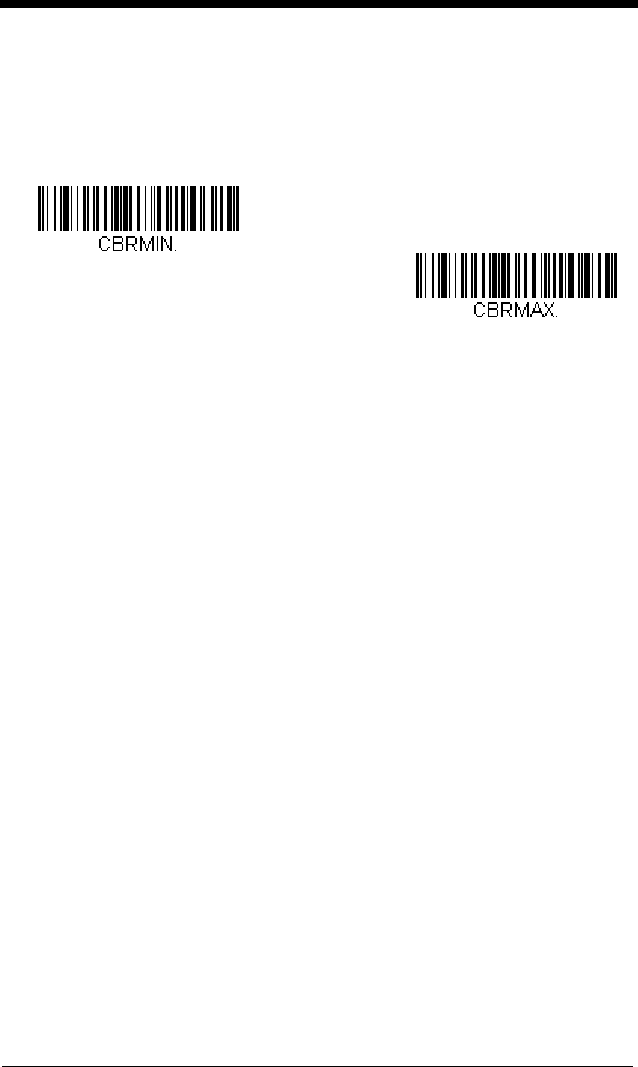

Codabar Message Length

Scan the bar codes below to change the message length. Refer to

Message Length Description (page 7-2) for additional information. Mini-

mum and Maximum lengths = 2-60. Minimum Default = 4, Maximum

Default = 60.

Minimum Message Length

Maximum Message Length

7 - 6

Code 39

< Default All Code 39 Settings >

Code 39 On/Off

Code 39 Start/Stop Characters

Start/Stop characters identify the leading and trailing ends of the bar code.

You may either transmit, or not transmit Start/Stop characters.

Default =

Don’t Transmit.

Code 39 Check Character

No Check Character indicates that the scanner reads and transmits bar

code data with or without a check character.

When Check Character is set to Validate, but Don’t Transmit, the unit

only reads Code 39 bar codes printed with a check character, but will not

transmit the check character with the scanned data.

* On

Off

Transmit

* Don’t Transmit

7 - 7

When Check Character is set to Validate and Transmit, the scanner only

reads Code 39 bar codes printed with a check character, and will transmit

this character at the end of the scanned data.

Default = No Check Charac-

ter.

Code 39 Message Length

Scan the bar codes below to change the message length. Refer to

Message Length Description (page 7-2) for additional information. Mini-

mum and Maximum lengths = 0-48. Minimum Default = 0, Maximum

Default = 48.

Code 39 Append

This function allows the scanner to append the data from several Code 39

bar codes together before transmitting them to the host computer. When

the scanner encounters a Code 39 bar code with the append trigger char-

* No Check Character

Validate and Transmit

Validate, but Don’t Transmit

Minimum Message Length

Maximum Message Length

7 - 8

acter(s), it buffers Code 39 bar codes until it reads a Code 39 bar code that

does not have the append trigger. The data is then transmitted in the order

in which the bar codes were read (FIFO).

Default = Off.

Code 32 Pharmaceutical (PARAF)

Code 32 Pharmaceutical is a form of the Code 39 symbology used by Ital-

ian pharmacies. This symbology is also known as PARAF.

Note: Trioptic Code (page 7-40) must be turned off while scanning Code

32 Pharmaceutical codes.

* Off

7 - 9

Full ASCII

If Full ASCII Code 39 decoding is enabled, certain character pairs within

the bar code symbol will be interpreted as a single character. For example:

$V will be decoded as the ASCII character SYN, and /C will be decoded as

the ASCII character #.

Default = Off

Character pairs /M and /N decode as a minus sign and period respectively.

Character pairs /P through /Y decode as 0 through 9.

Code 39 Code Page

Code pages define the mapping of character codes to characters. If the

data received does not display with the proper characters, it may be

because the bar code being scanned was created using a code page that

is different from the one the host program is expecting. If this is the case,

scan the bar code below, select the code page with which the bar codes

were created (see Code Page Mapping of Printed Bar Codes on page A-6),

NUL %U DLE $P

SP SPACE

00@%VPP‘%Wp+P

SOH $A DC1 $Q !/A 11AAQQa+Aq+Q

STX $B DC2 $R “/B 22BBRRb+Br+R

ETX $C DC3 $S #/C 33CCSSc+Cs+S

EOT $D DC4 $T $/D 44DDTTd+Dt+T

ENQ $E NAK $U %/E 55EEUUe+Eu+U

ACK $F SYN $V &/F 66FFVVf+Fv+V

BEL $G ETB $W ‘/G77GGWWg+Gw+W

BS $H CAN $X (/H 88HHXXh+Hx+X

HT $I EM $Y )/I 99IIYYi+Iy+Y

LF $J SUB $Z */J :/ZJJZZj+Jz+Z

VT $K ESC %A +/K ;%FKK[%Kk+K{%P

FF $L FS %B ,/L <%GLL\%Ll+L|%Q

CR $M GS %C -- =%HMM]%Mm+M}%R

SO $N RS %D .. >%INN^%Nn+N~%S

SI $O US %E //O ?%JOO_%Oo+ODEL %T

* Full ASCII Off

Full ASCII On

7 - 10

and scan the value and the Save bar code from the Programming Chart on

the inside the back cover of this manual. The data characters should then

appear properly.

Interleaved 2 of 5

< Default All Interleaved 2 of 5 Settings >

Interleaved 2 of 5 On/Off

Check Digit

No Check Digit indicates that the scanner reads and transmits bar code

data with or without a check digit.

When Check Digit is set to Validate, but Don’t Transmit, the unit only

reads Interleaved 2 of 5 bar codes printed with a check digit, but will not

transmit the check digit with the scanned data.

Code 39 Code Page

* On

Off

7 - 11

When Check Digit is set to Validate and Transmit, the scanner only reads

Interleaved 2 of 5 bar codes printed with a check digit, and will transmit this

digit at the end of the scanned data.

Default = No Check Digit.

Interleaved 2 of 5 Message Length

Scan the bar codes below to change the message length. Refer to

Message Length Description (page 7-2) for additional information. Mini-

mum and Maximum lengths = 2-80. Minimum Default = 4, Maximum

Default = 80.

Validate, but Don’t Transmit

* No Check Digit

Validate and Transmit

Minimum Message Length

Maximum Message Length

7 - 12

NEC 2 of 5

< Default All NEC 2 of 5 Settings >

NEC 2 of 5 On/Off

Check Digit

No Check Digit indicates that the scanner reads and transmits bar code

data with or without a check digit.

When Check Digit is set to Validate, but Don’t Transmit, the unit only

reads NEC 2 of 5 bar codes printed with a check digit, but will not transmit

the check digit with the scanned data.

When Check Digit is set to Validate and Transmit, the scanner only reads

NEC 2 of 5 bar codes printed with a check digit, and will transmit this digit

at the end of the scanned data.

Default = No Check Digit.

* On

Off

* No Check Digit

Validate and Transmit

Validate, but Don’t Transmit

7 - 13

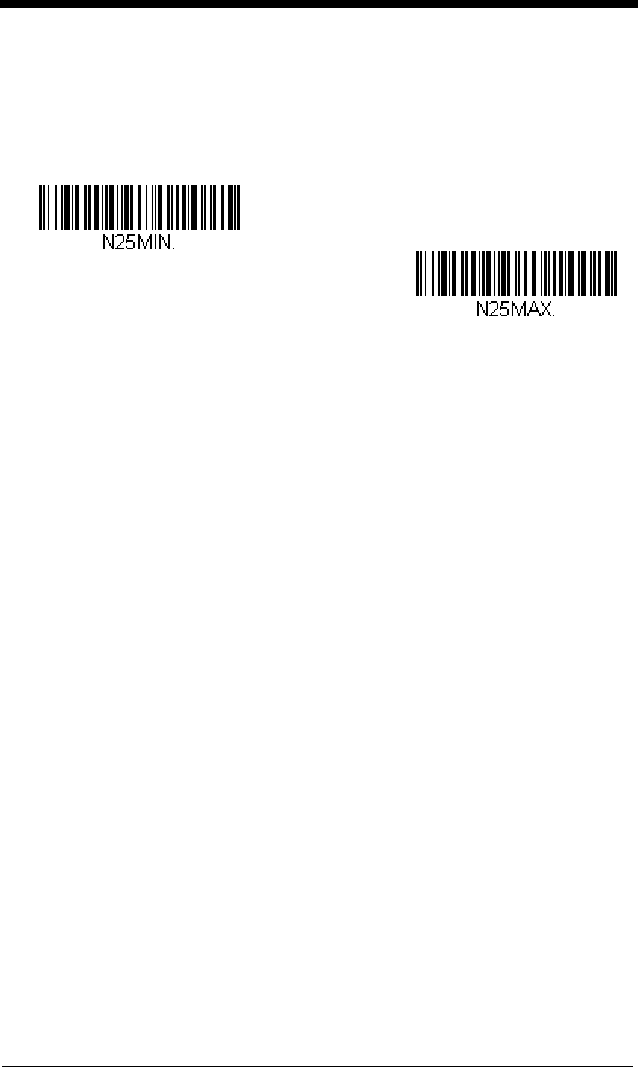

NEC 2 of 5 Message Length

Scan the bar codes below to change the message length. Refer to

Message Length Description (page 7-2) for additional information. Mini-

mum and Maximum lengths = 2-80. Minimum Default = 4, Maximum

Default = 80.

Minimum Message Length

Maximum Message Length

7 - 14

Code 93

< Default All Code 93 Settings >

Code 93 On/Off

Code 93 Message Length

Scan the bar codes below to change the message length. Refer to

Message Length Description (page 7-2) for additional information. Mini-

mum and Maximum lengths = 0-80. Minimum Default = 0, Maximum

Default = 80.

Code 93 Append

This function allows the scanner to append the data from several Code 93

bar codes together before transmitting them to the host computer. When

this function is enabled, the scanner stores those Code 93 bar codes that

start with a space (excluding the start and stop symbols), and does not

immediately transmit the data. The scanner stores the data in the order in

* On

Off

Minimum Message Length

Maximum Message Length

7 - 15

which the bar codes are read, deleting the first space from each. The

scanner transmits the appended data when it reads a Code 93 bar code

that starts with a character other than a space.

Default = Off.

Code 93 Code Page
