User Manual 4820
™
User’s Guide
2020/4820/4820 i
2D Cordless Imaging System
Disclaimer
Hand Held Products, Inc. (“Hand Held Products”) reserves the right to make
changes in specifications and other information contained in this document
without prior notice, and the reader should in all cases consult Hand Held
Products to determine whether any such changes have been made. The
information in this publication does not represent a commitment on the part of
Hand Held Products.
Hand Held Products shall not be liable for technical or editorial errors or
omissions contained herein; nor for incidental or consequential damages
resulting from the furnishing, performance, or use of this material.
This document contains proprietary information which is protected by copyright.
All rights are reserved. No part of this document may be photocopied,
reproduced, or translated into another language without the prior written consent
of Hand Held Products.
© 2005-2007 Hand Held Products, Inc. All rights reserved.
Web Address: www.handheld.com
Microsoft® Pocket PC 2002, Windows®, Windows NT®, Windows 2000,
Windows ME, Windows XP, ActiveSync®, Outlook®, and the Windows logo are
trademarks or registered trademarks of Microsoft Corporation.
The
Bluetooth
® word mark and logos are owned by Bluetooth SIG, Inc.
The 2020/4820/4820i system meets or exceeds the requirements of all
applicable standards organizations for safe operation. However, as with any
electrical equipment, the best way to ensure safe operation is to operate them
according to the agency guidelines that follow. Please read these guidelines
carefully before using your 2020/4820/4820i system.
FCC Class B Compliance Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference
that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class
B digital device pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced radio or television technician for help.
If necessary, the user should consult the dealer or an experienced radio/
television technician for additional suggestions. The user may find the following
booklet helpful: “Something About Interference.” This is available at FCC local
regional offices. Hand Held Products, Inc. is not responsible for any radio or
television interference caused by unauthorized modifications of this equipment
or the substitution or attachment of connecting cables and equipment other than
those specified by Hand Held Products, Inc. The correction is the responsibility
of the user. Use only shielded data cables with this system.
Caution: Any changes or modifications made to this equipment not expressly
approved by Hand Held Products, Inc. may void the FCC authorization to
operate this equipment.
This device and its antenna must not be co-located or operating in
conjunction with any other antenna or transmitter. To maintain
compliance with FCC RF exposure guidelines, use only the
accessories specified by the manufacturer.
!
Agency Compliance Statements
Canadian Compliance
This Class B digital apparatus complies with Canadian ICES-003. Operation is
subject to the following conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference
that may cause undesired operation.
3. To prevent radio interference to the licensed service, this device is intended
to be operated indoors and away from windows to provide maximum
shielding. Equipment (or its transmit antenna) that is installed outdoors is
subject to licensing.
Conformité à la règlementation canadienne
Cet appareil numérique de la Classe B est conforme à la norme ICES-003 du
Canada. Son fonctionnement est assujetti aux conditions suivantes :
1. Cet appareil ne doit pas causer de brouillage préjudiciable.
2. Cet appareil doit pouvoir accepter tout brouillage reçu, y compris le
brouillage pouvant causer un fonctionnement indésirable.
3. Pour éviter toute interférence radio avec le service concédé, cet appareil
doit être utilisé en intérieur et à l'écart des fenêtres pour pouvoir fournir une
protection maximale.L’équipement (ou son antenne de transmission)
installé à l’extérieur est soumis à licence.
This device meets or exceeds the requirements of all applicable standards organiza-
tions for safe operation. However, as with any electrical equipment, the best way to
ensure safe operation is to operate them according to the agency guidelines that follow.
Please read these guidelines carefully before using your device.
Regulatory and Safety Approvals
USA: FCC Part 15, Class B
Canada: ICES-003
Regulatory Approvals for Bluetooth Radio Devices
RF devices are designed to comply with the most current applicable standards on safe
levels of RF energy developed by the Institute of Electrical and Electronics Engineers
(IEEE) and the American National Standards Institute (ANSI) and have been recom-
mended for adoption by the Federal Communications Commission (FCC).
RF Approvals
USA: FCC Part 15.247
Canada: RSS 210
CE Compliance
The CE mark on the product indicates that the system has been tested
to and conforms with the provisions noted within the 89/336/EEC
Electromagnetic Compatibility Directive and the 73/23/EEC Low
Voltage Directive.
For CE-related inquiries, please contact:
Hand Held Products
Nijverheidsweg 9-13
5627 BT Eindhoven
The Netherlands
Hand Held Products shall not be liable for use of our product with equipment
(i.e., power supplies, personal computers, etc.) that is not CE marked and does
not comply with the Low Voltage Directive.
European Regulatory and Safety Approvals
EN 55022 (CISPR 22) Class B
EN60950
EN60825-1
EN55024:1998
This product is marked with in accordance with the Class II product
requirements specified in the R&TTE Directive, 1999/5/EC. The equipment is
intended for use throughout the European Community.
Bluetooth Qualified Product
Bluetooth Qualified Body approved as a Bluetooth Class II radio.
Bluetooth Radio Device R&TTE Compliance
This device is in conformity with all essential requirements of the R&TTE
Directive (1999/5/EC). This equipment has been assessed to the following
standards:
EN 300 328-2:2000
EN 301 489-1 (2002-08)
EN 301 489-17 (2002-08)
EN 60950:2000
This product is marked with in accordance with the product
requirements specified in the R&TTE Directive, 1999/5/EC.
The equipment is intended for use throughout the European Community.
CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN
INCORRECT TYPE. The battery should be disposed of by a qualified
recycler or hazardous materials handler. Do not incinerate the battery or
dispose of the battery with general waste materials.
NOTE: Any modifications to this device not expressly approved by Hand Held
Products may void your authority to operate it.
Patents
Please refer to product packaging for patent information.
LED Safety Statement
This device has been tested in accordance with IEC60825-1 LED safety, and
has been certified to be under the limits of a Class 1 LED device.
GS Mark
If your product is marked with the GS symbol, then the product has
been issued a GS certificate.
UL and cUL Statement
UL and cUL listed: UL60950-1 and CSA C22.2 No.60950-1-03.
C-Tick Statement
Conforms to AS/NZS 3548. C-Tick number: N10410.
Mexico
Comision Federal de Telecomunicaciones
Solids and Water Protection
The 2020 and 4820 have ratings of IP41, immunity of foreign particles and
dripping water.
The 4820i has a rating of IP54, immunity of foreign particles and sprayed water.
!

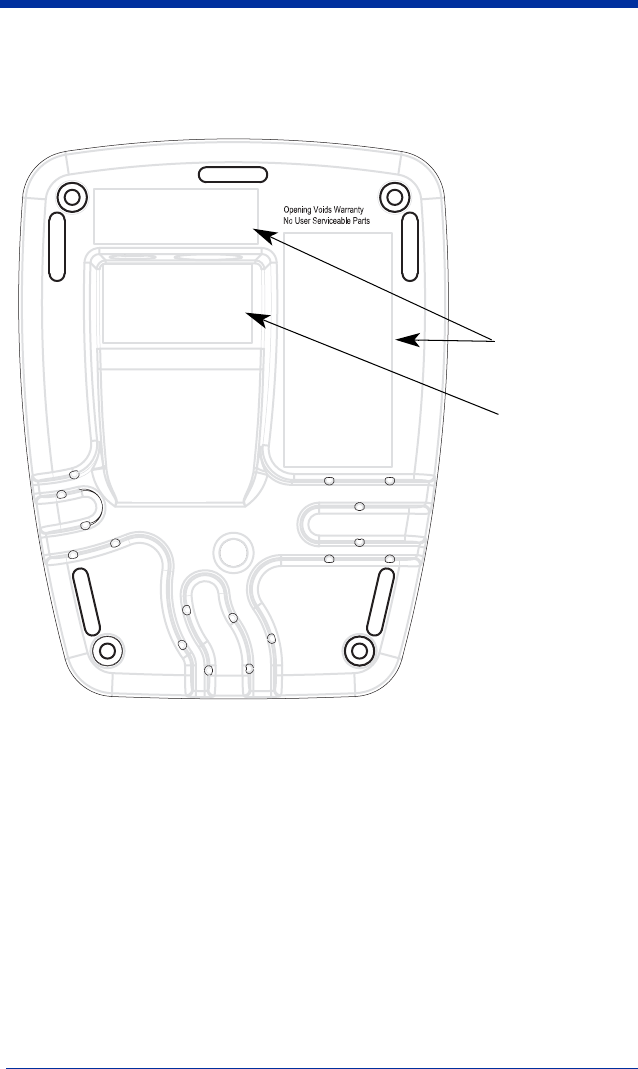

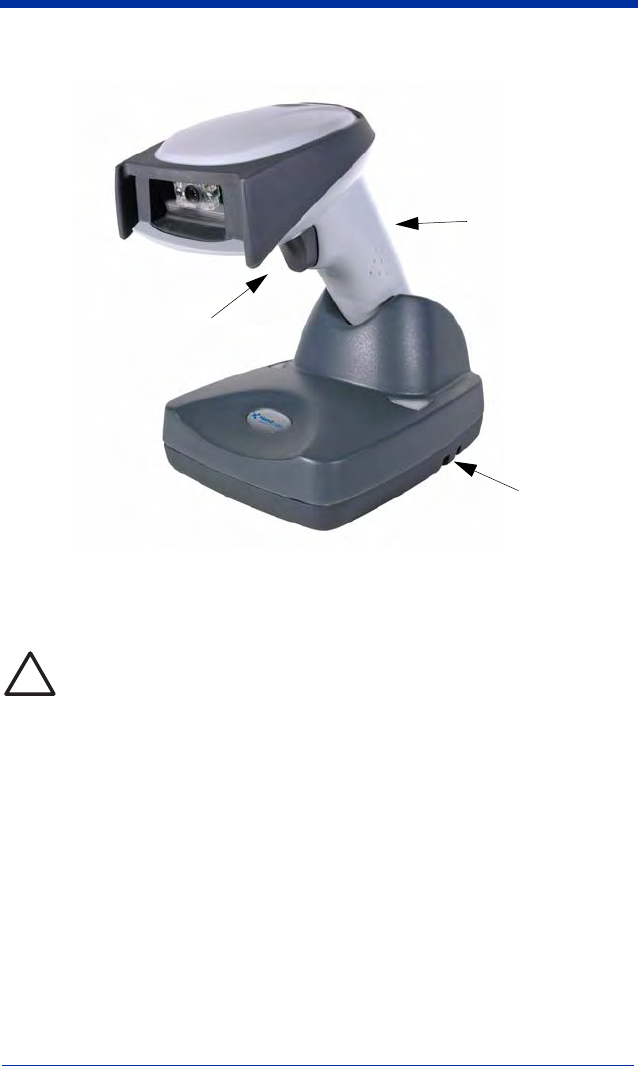

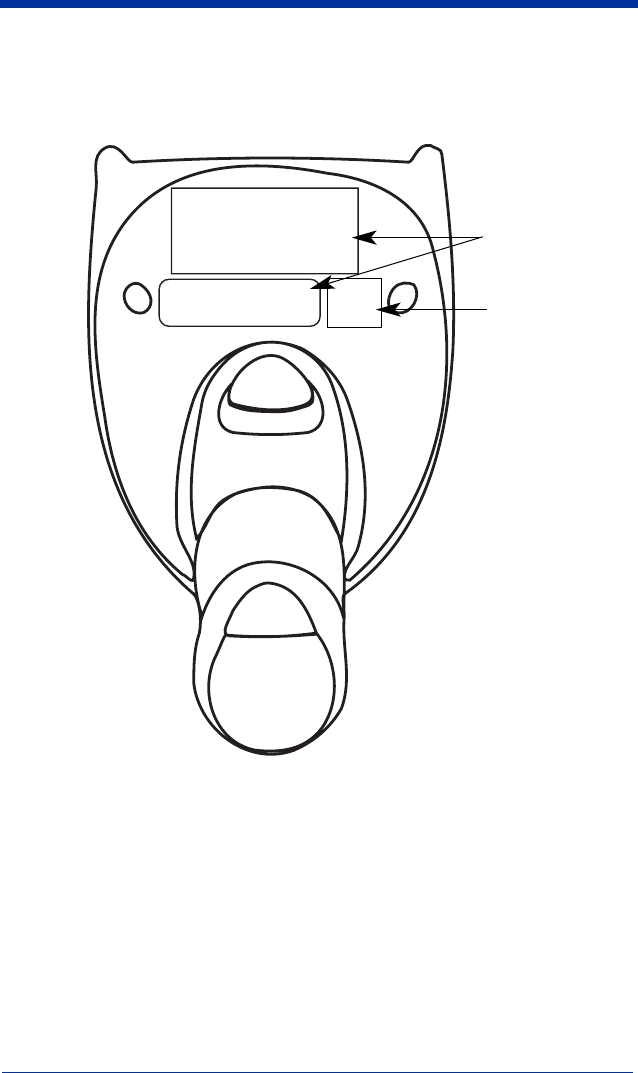

Required Safety Labels
Scanner
Compliance
Label
locations
Item Number,
Serial
Number and
Revision
Information
location
Base
Compliance
Label
locations
Item Number,
Serial
Number and
Revision
Information
location
i
Chapter 1 - Getting Started
About This Manual ............................................................... 1-1
Unpacking the System .......................................................... 1-1
Image Scanner Models ......................................................... 1-1
Cordless System: Main Components.................................... 1-2
About the Battery.................................................................. 1-2
Proper Disposal of the Battery.............................................. 1-3
Connecting the Base ............................................................. 1-3
Connecting the Base with USB...................................... 1-4
Connecting the Base with Keyboard Wedge ................. 1-4
Connecting the Base with RS-232 Serial Port ............... 1-6
Connecting the Base with RS-232 Wedge..................... 1-6
Linking Image Scanner to Base............................................ 1-8
Communication Between the Cordless System
and the Host ....................................................................... 1-8
Reading Techniques............................................................ 1-10
Chapter 2 - Programming the Interface
Introduction........................................................................... 2-1
Programming the Interface - Plug and Play.......................... 2-1
Keyboard Wedge Connection............................................... 2-1
Laptop Direct Connect ................................................... 2-1
RS-232............................................................................ 2-2
Wand Emulation Plug & Play ........................................ 2-2
IBM 4683 Ports 5B, 9B, and 17 Interface ............................ 2-3
IBM SurePos......................................................................... 2-4
USB PC or Macintosh Keyboard ................................... 2-5
USB HID........................................................................ 2-5
USB Com Port Emulation.............................................. 2-6
Serial Wedge......................................................................... 2-7
Programming the Interface - Terminal ID Method............... 2-7
Supported Terminals............................................................. 2-8
Keyboard Country .............................................................. 2-10
Keyboard Style ................................................................... 2-12
Table of Contents
ii
Keyboard Modifiers............................................................ 2-13
RS-232 Baud Rate........................................................ 2-15
RS-232 Word Length: Data Bits, Stop Bits, and Parity2-16
RS-232 Receiver Time-Out.......................................... 2-17
RS-232 Handshaking ................................................... 2-17
Host ACK Selection..................................................... 2-18
Host ACK Enable......................................................... 2-19
Wand Emulation ................................................................. 2-21
Wand Emulation Connection ....................................... 2-21
Wand Emulation Data Block Size................................ 2-21
Wand Emulation Delay Between Blocks..................... 2-22
Wand Emulation Overall Checksum............................ 2-22
Wand Emulation Transmission Rate............................ 2-23
Wand Emulation Polarity............................................. 2-23
Wand Emulation Idle ................................................... 2-24
Chapter 3 - Basic System Operation
Cordless Base........................................................................ 3-1
RF (Radio Frequency) Module Operation............................ 3-1
Cordless Image Scanner ....................................................... 3-1
System Conditions................................................................ 3-2
Linking Process.............................................................. 3-2
Image Scanner Is Out of Range ..................................... 3-2
Image Scanner Is Moved Back Into Range.................... 3-2
Out of Range and Back into Range with Data Accumulation
Mode On......................................................................... 3-2
Base Charge Mode................................................................ 3-3
Beeper and LED Sequences and Meaning............................ 3-4
Image Scanner LED Sequences and Meaning ............... 3-4
2020 LED Sequences and Meaning ............................... 3-4
Image Scanner Modes........................................................... 3-5
Unlinking the Image Scanner......................................... 3-5
Single Image Scanner Operation .......................................... 3-5
Locked Link Mode - Single Image Scanner .................. 3-6
Open Link Mode - Single Image Scanner...................... 3-6
Override Locked Image Scanner.................................... 3-6
iii
Multiple Image Scanner Operation....................................... 3-7
Image Scanner Name ............................................................ 3-8
Image Scanner Report......................................................... 3-10
Application Work Groups................................................... 3-10
Application Work Group Selection.............................. 3-11
Resetting the Standard Product Default Settings:
All Application Work Groups .......................................... 3-12
Resetting the Standard Product Default Settings:
Current Application Work Group..................................... 3-12
Using the Image Scanner with Bluetooth Devices ............. 3-13
Changing Bluetooth PIN Code..................................... 3-13
Out-of-Range Alarm ........................................................... 3-14
Duration........................................................................ 3-14
Alarm Sound Type ....................................................... 3-14
Data Accumulation Mode ................................................... 3-15
Chapter 4 - Output
Good Read Indicators ........................................................... 4-1
Beeper – Good Read....................................................... 4-1
Beeper Volume – Good Read......................................... 4-1
Beeper Pitch – Good Read ............................................. 4-2
Beeper Duration – Good Read ....................................... 4-2
LED – Good Read .......................................................... 4-2
Number of Beeps – Good Read...................................... 4-3
Good Read Delay.................................................................. 4-3
User-Specified Good Read Delay......................................... 4-3
Serial Trigger Modes ............................................................ 4-4
Manual/Serial Trigger, Low Power................................ 4-4
Scan Stand Mode .................................................................. 4-6
Scan Stand Symbol......................................................... 4-6
Presentation Mode ................................................................ 4-6
Presentation LED Behavior after Decode ...................... 4-7
Presentation Sensitivity .................................................. 4-7
Hands Free Time-Out ........................................................... 4-7
Reread Delay......................................................................... 4-8
User-Specified Reread Delay................................................ 4-8
iv
LED Power Level ................................................................. 4-9
Illumination Lights ............................................................... 4-9
Aimer Delay........................................................................ 4-10
User-Specified Aimer Delay ........................................ 4-10
Aimer Mode........................................................................ 4-10

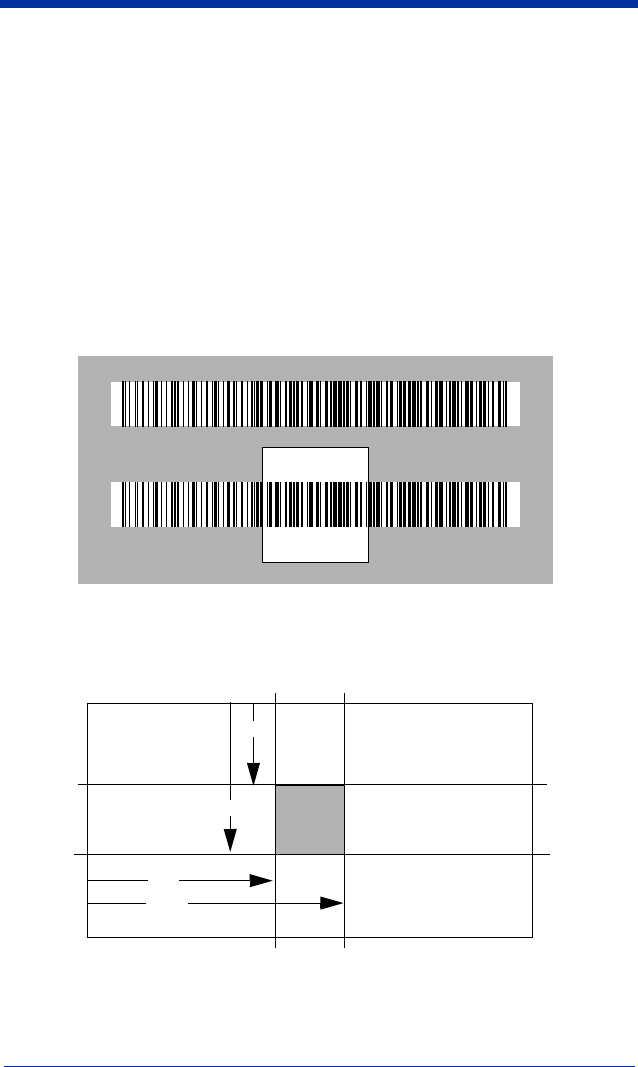

Centering............................................................................. 4-11
Decode Search Mode.......................................................... 4-13
Output Sequence Overview ................................................ 4-14
Output Sequence Editor ............................................... 4-16
Require Output Sequence............................................. 4-16
Multiple Symbols ............................................................... 4-17
No Read .............................................................................. 4-17
Print Weight........................................................................ 4-18
Video Reverse..................................................................... 4-18
Working Orientation........................................................... 4-19
Chapter 5 - Data Editing
Prefix/Suffix Overview......................................................... 5-1
To Add a Prefix or Suffix: ............................................. 5-1
To Clear One or All Prefixes or Suffixes:...................... 5-3
To Add a Carriage Return Suffix to all Symbologies .... 5-3
Prefix Selections............................................................. 5-4
Suffix Selections ............................................................ 5-4
Function Code Transmit................................................. 5-4
Intercharacter, Interfunction, and Intermessage Delays ....... 5-5
Intercharacter Delay ....................................................... 5-5
User Specified Intercharacter Delay .............................. 5-6
Interfunction Delay ........................................................ 5-6
Intermessage Delay ........................................................ 5-7
v
Chapter 6 - Data Formatting
Data Format Editor Introduction........................................... 6-1
To Add a Data Format.................................................... 6-1
Other Programming Selections ...................................... 6-2
Data Format Editor Commands...................................... 6-2
Data Format Editor......................................................... 6-4
Data Formatter................................................................ 6-5
Alternate Data Formats .................................................. 6-5
Chapter 7 - Symbologies
All Symbologies ................................................................... 7-2
Message Length Description................................................. 7-2
Codabar ................................................................................ 7-3
Codabar Start/Stop Characters....................................... 7-3
Codabar Check Character............................................... 7-3
Codabar Concatenation .................................................. 7-4
Codabar Message Length ............................................... 7-5
Code 39 ................................................................................ 7-5
Code 39 Start/Stop Characters....................................... 7-6
Code 39 Check Character............................................... 7-6
Code 39 Message Length ............................................... 7-7
Code 39 Append............................................................. 7-7
Code 32 Pharmaceutical (PARAF) ................................ 7-8
Full ASCII ...................................................................... 7-8
Code 39 Code Page ........................................................ 7-9
Interleaved 2 of 5 ................................................................. 7-9
Check Digit................................................................... 7-10
Interleaved 2 of 5 Message Length .............................. 7-10
Code 93 .............................................................................. 7-11
Code 93 Message Length ............................................. 7-11
Code 93 Code Page ...................................................... 7-12
Straight 2 of 5 Industrial (three-bar start/stop) .................. 7-12
Straight 2 of 5 Industrial Message Length ................... 7-13
Straight 2 of 5 IATA (two-bar start/stop) .......................... 7-13
Straight 2 of 5 IATA Message Length ......................... 7-14
vi
Matrix 2 of 5 ...................................................................... 7-14
Matrix 2 of 5 Message Length ..................................... 7-15
Code 11 .............................................................................. 7-15
Check Digits Required ................................................. 7-16
Code 11 Message Length ............................................. 7-16
Code 128 ............................................................................ 7-16
ISBT 128 Concatenation.............................................. 7-17
Code 128 Message Length ........................................... 7-17
Code 128 Code Page .................................................... 7-18
Telepen .............................................................................. 7-18
Telepen Output............................................................. 7-19
Telepen Message Length.............................................. 7-19
UPC-A ............................................................................... 7-19
UPC-A Check Digit ..................................................... 7-20
UPC-A Number System............................................... 7-20
UPC-A Addenda .......................................................... 7-21
UPC-A Addenda Required........................................... 7-21
UPC-A Addenda Separator .......................................... 7-21
UPC-A/EAN-13
with Extended Coupon Code .......................................... 7-22
UPC-E0 .............................................................................. 7-22
UPC-E0 ........................................................................ 7-22
UPC-E0 Expand........................................................... 7-23
UPC-E0 Addenda Required ......................................... 7-23
UPC-E0 Addenda Separator ........................................ 7-23
UPC-E0 Check Digit.................................................... 7-24
UPC-E0 Number System ............................................. 7-24
UPC-E0 Addenda......................................................... 7-24
UPC-E1 .............................................................................. 7-25
EAN/JAN-13 ..................................................................... 7-25
EAN/JAN-13 Check Digit ........................................... 7-26
EAN/JAN-13 Addenda ................................................ 7-26
EAN/JAN-13 Addenda Required................................. 7-26
EAN/JAN-13 Addenda Separator ................................ 7-27
ISBN Translate............................................................. 7-27
vii
EAN/JAN-8 ........................................................................ 7-27
EAN/JAN-8 Check Digit.............................................. 7-28
EAN/JAN-8 Addenda................................................... 7-28
EAN/JAN-8 Addenda Required................................... 7-29
EAN/JAN-8 Addenda Separator .................................. 7-29
MSI .................................................................................... 7-29
MSI Check Character ................................................... 7-30
MSI Message Length.................................................... 7-30
Plessey Code ...................................................................... 7-30
Plessey Message Length............................................... 7-31
GS1 DataBar ...................................................................... 7-31
GS1 DataBar Limited ........................................................ 7-32
GS1 DataBar Expanded ..................................................... 7-32
GS1 DataBar Expanded Message Length .................... 7-33
PosiCode ............................................................................ 7-33
PosiCode Message Length ........................................... 7-34
Trioptic Code ..................................................................... 7-34
Codablock F ....................................................................... 7-35
Codablock F Message Length ...................................... 7-35
Code 16K ........................................................................... 7-35
Code 16K Message Length .......................................... 7-36
Code 49 .............................................................................. 7-36
Code 49 Message Length ............................................. 7-37
PDF417 .............................................................................. 7-37
PDF417 Message Length ............................................. 7-38
MicroPDF417 .................................................................... 7-38
MicroPDF417 Message Length.................................... 7-39
EAN•UCC Composite Codes ............................................ 7-39
UPC/EAN Version ....................................................... 7-39
EAN•UCC Composite Code Message Length ............. 7-40
viii
EAN•UCC Emulation ........................................................ 7-40
TCIF Linked Code 39 (TLC39) ......................................... 7-41
Postal Codes ....................................................................... 7-41
4-CB (4-State Customer Barcode) ............................... 7-41
ID-tag (UPU 4-State) ................................................... 7-41
Postnet.......................................................................... 7-42
Planet Code .................................................................. 7-42
British Post................................................................... 7-43
Canadian Post............................................................... 7-43
Kix (Netherlands) Post................................................. 7-43
Australian Post ............................................................. 7-43
Japanese Post................................................................ 7-44
China Post .......................................................................... 7-45
China Post Message Length ......................................... 7-45
Korea Post .......................................................................... 7-46
Korea Post Message Length......................................... 7-46
QR Code ............................................................................ 7-47
QR Code Message Length ........................................... 7-47
Data Matrix ........................................................................ 7-48
Data Matrix Message Length ....................................... 7-48
MaxiCode .......................................................................... 7-49
MaxiCode Message Length.......................................... 7-49
Aztec Code ......................................................................... 7-50
Aztec Code Message Length........................................ 7-50
Aztec Runes ................................................................. 7-51
Chapter 8 - Imaging Commands
Image Snap - IMGSNP......................................................... 8-1
IMGSNP Modifiers........................................................ 8-1
Image Ship - IMGSHP.......................................................... 8-2
IMGSHP Modifiers........................................................ 8-3
Image Size Compatibility............................................... 8-6
Intelligent Signature Capture - IMGBOX ............................ 8-7
IMGBOX Modifiers....................................................... 8-7
RF Default Imaging Device.................................................. 8-9
ix
Chapter 9 - OCR Programming
OCR Fonts ........................................................................... 9-1
OCR ...................................................................................... 9-1
U.S. Currency Font .............................................................. 9-2
MICR E13 B Font ................................................................ 9-2
SEMI Font ............................................................................ 9-3
OCR Templates..................................................................... 9-3
Creating an OCR Template ............................................ 9-4
Stringing Together Multiple Formats
(Creating “Or” Statements) ............................................ 9-6
OCR User-Defined Variables ............................................... 9-7
Reading Multi-Row OCR............................................... 9-7
OCR Check Character........................................................... 9-8
OCR Modulo 10 Check Character ................................. 9-9
OCR Modulo 36 Check Character ................................. 9-9
OCR User-Defined Check Character.................................... 9-9
Weighting Options ....................................................... 9-10
OCR ISBN Application Example ....................................... 9-12
OCR Template Codes ......................................................... 9-13
Chapter 10 - Interface Keys
Keyboard Function Relationships....................................... 10-1
Supported Interface Keys.................................................... 10-3
Chapter 11 - Utilities
To Add a Test Code I.D. Prefix to All Symbologies .......... 11-1
Show Decoder Revision...................................................... 11-1
Show Engine Revision........................................................ 11-1
Show Scan Driver Revision ................................................ 11-1
Show Software Revision..................................................... 11-2
Show Data Format .............................................................. 11-2
Reset Image Scanner........................................................... 11-2
Image Scanner Report......................................................... 11-2
Image Scanner Address....................................................... 11-2
Base Address....................................................................... 11-3
x
Resetting the Standard Product Default Settings:
Current Application Work Group .................................... 11-3
Resetting the Standard Product Default Settings:
All Application Work Groups.......................................... 11-3
Test Menu ........................................................................... 11-4
Visual Xpress...................................................................... 11-4
Installing Visual Xpress from the Web........................ 11-5
Quick*View........................................................................ 11-5
Installing Quick*View from the Web .......................... 11-6
Chapter 12 - Serial Programming Commands
Conventions ........................................................................ 12-1
Menu Command Syntax ..................................................... 12-1
Query Commands......................................................... 12-2
Concatenation of Multiple Commands ........................ 12-2
Responses..................................................................... 12-3
Examples of Query Commands ................................... 12-3
Trigger Commands ............................................................. 12-4
Menu Commands................................................................ 12-5
Programming the Interface .......................................... 12-5
Basic System Operation .............................................. 12-8
Output Selections ........................................................ 12-9
Prefix/Suffix Selections ............................................ 12-11
Data Formatter Selections ......................................... 12-12
Symbologies .............................................................. 12-12
Imaging Default Commands ..................................... 12-21
Image Snap ................................................................ 12-21
Image Snap (continued) ............................................ 12-22
OCR Selections ......................................................... 12-24
Minimizing Bluetooth/ISM Band Network Activity 12-24
Chapter 13 - Product Specifications
4820 Product Specifications ............................................... 13-1
4820i Product Specifications .............................................. 13-2
2020 Product Specifications ............................................... 13-3
xi
Chapter 14 - Maintenance
Repairs ................................................................................ 14-1
Maintenance........................................................................ 14-1
Cleaning the Image Scanner’s Window ....................... 14-1
Inspecting Cords and Connectors................................. 14-1
Replacing the 2020 Interface Cable: ............................ 14-2
Assembling the Battery Charge Sleeve Kit ........................ 14-3
Troubleshooting Base ......................................................... 14-4
Chapter 15 - Customer Support
Product Service and Repair................................................. 15-1
Online Product Service and Repair Assistance ............ 15-2
Technical Assistance........................................................... 15-2
Online Technical Assistance ........................................ 15-3
Limited Warranty ......................................................... 15-3
Appendix A - Reference Charts
Symbology Chart ................................................................. A-1
ASCII Conversion Chart (Code Page 1252)........................ A-4
Code Page Mapping of Printed Barcodes ............................ A-6
Appendix B - Minimizing Bluetooth/ISM Band Network Activity
Auto Reconnect Mode................................................... B-1
Maximum Link Attempts .............................................. B-2
Relink Time-Out............................................................ B-3
Bluetooth/ISM Network Activity Examples........................ B-3
xii
2020/4820/4820 i User’s Guide 1 - 1
1
Getting Started
About This Manual
This User’s Guide provides installation and programming instructions for the
4820/4820i. Product specifications, dimensions, warranty, and customer
support information are also included.
Hand Held Products barcode image scanners are factory programmed for the
most common terminal and communications settings. If you need to change
these settings, programming is accomplished by scanning the barcodes in this
guide.
An asterisk (*) next to an option indicates the default setting.
Unpacking the System
After you open the shipping carton containing the product, take the following
steps:
• Check for damage during shipment. Report damage immediately to the
carrier who delivered the carton.
• Make sure the items in the carton match your order.
• Save the shipping container for later storage or shipping.
Image Scanner Models
Models Description
4820SF0C1CBE Cordless Area Image Scanner, Green aimer, Spe-
cial Focus
4820SR0C1CBE Cordless Area Image Scanner, Green aimer, Stan-
dard Range
4820ISFE Industrial Cordless Area Image Scanner, Green
aimer, Special Focus
4820ISRE Industrial Cordless Area Image Scanner, Green
aimer, Standard Range
2020-5BE Cordless Base that supports the following inter-
faces: Keyboard wedge, TTL level 232, TTL level
232 serial wedge, IBM 4683, wand emulation,
USB keyboard, USB HID, USB retail (IBM Sure-
POS)
2020-CBE Charge-Only Base
1 - 2 2020/4820/4820 i User’s Guide
Cordless System: Main Components
About the Battery
Use only the Li-ion battery packs provided by Hand Held Products. The
use of any battery pack not sold by Hand Held Products will void your
warranty and may result in damage to your unit.
Power is supplied to the cordless image scanner by a rechargeable battery that
is integrated in the image scanner handle. Each image scanner is shipped with
a battery. (See
Product Specifications beginning on page 13-1
.
)
Charging Information
The battery is designed to charge while the image scanner is positioned in the
cordless base unit. Refer to "2020 LED Sequences and Meaning" on page 3-4
for an interpretation of the Charge Status indicators.
• Place the image scanner in the base that is connected to an appropriate
power supply.
Battery Recommendations
• Batteries are shipped approximately 30% to 60% charged and should be fully
charged for maximum charge capacity.

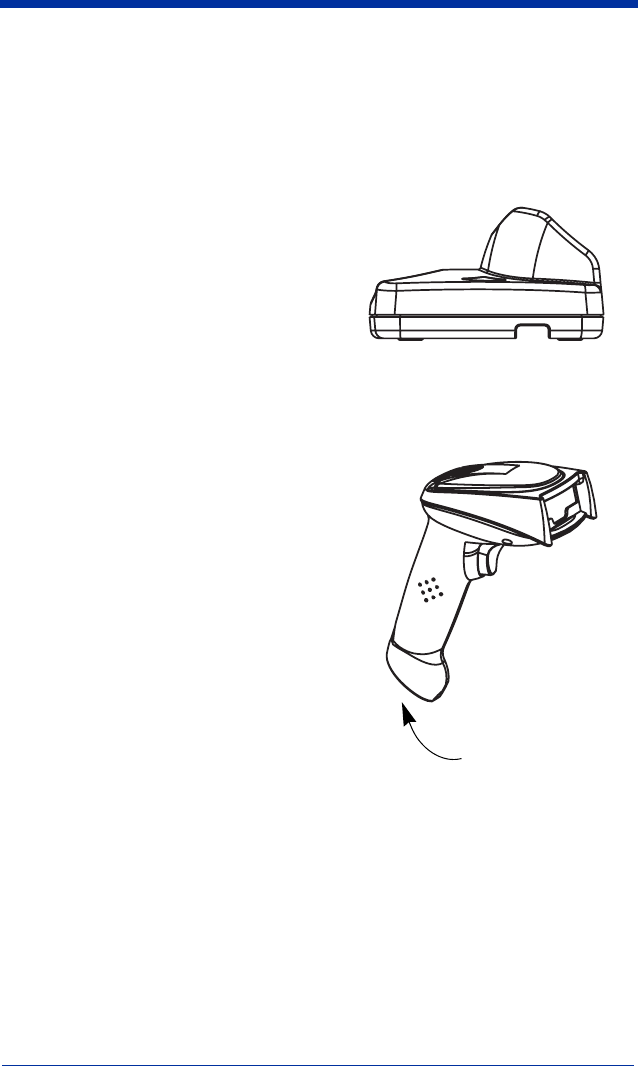

in Handle
Battery Contained
Image Scanner
2020
Cordless Base
!
2020/4820/4820 i User’s Guide 1 - 3
• The battery is a lithium ion cell and can be used without a full charge, and can
also be charged without fully discharging, without impacting the battery life.
There is no need to perform any charge/discharge conditioning on this type of
battery.
• Do not disassemble the battery. There are no user-serviceable parts in the
battery.
• Keep the base connected to power when the host is not in use.
• Replace a defective battery immediately since it could damage the image
scanner.
• Don’t short-circuit a battery or throw it into a fire. It can explode and cause
severe personal injury.
• Although your battery can be recharged many times, it will eventually be
depleted. Replace it after the battery is unable to hold an adequate charge.
• If you are not sure if the battery or charger is working properly, send it to Hand
Held Products or an authorized Hand Held Products service center for
inspection.
Proper Disposal of the Battery
When the battery has reached the end of its useful life, the
battery should be disposed of by a qualified recycler or
hazardous materials handler. Do not incinerate the battery or
dispose of the battery with general waste materials. You may
send batteries to Hand Held Products (postage paid). The
shipper is responsible for complying with all federal, state, and
local laws and regulations related to the packing, labeling,
manifesting, and shipping of spent batteries. Contact the
Product Service Department (page 15-1) for recycling or disposal information.
Since you may find that your cost of returning the batteries significant, it may be
more cost effective to locate a local recycle/disposal company.
Connecting the Base
A base can be connected between the keyboard and PC as a “keyboard wedge,”
plugged into the serial port, plugged into a USB port, or connected to a portable
data terminal in wand emulation or non decoded output mode.
Turn off power before connecting the base, then power up the computer once the
base is fully connected. When the base is connected and powered up, put the
image scanner in the base to establish a link. The green LED on the base flashes
to indicate the image scanner’s battery is charging.
1 - 4 2020/4820/4820 i User’s Guide

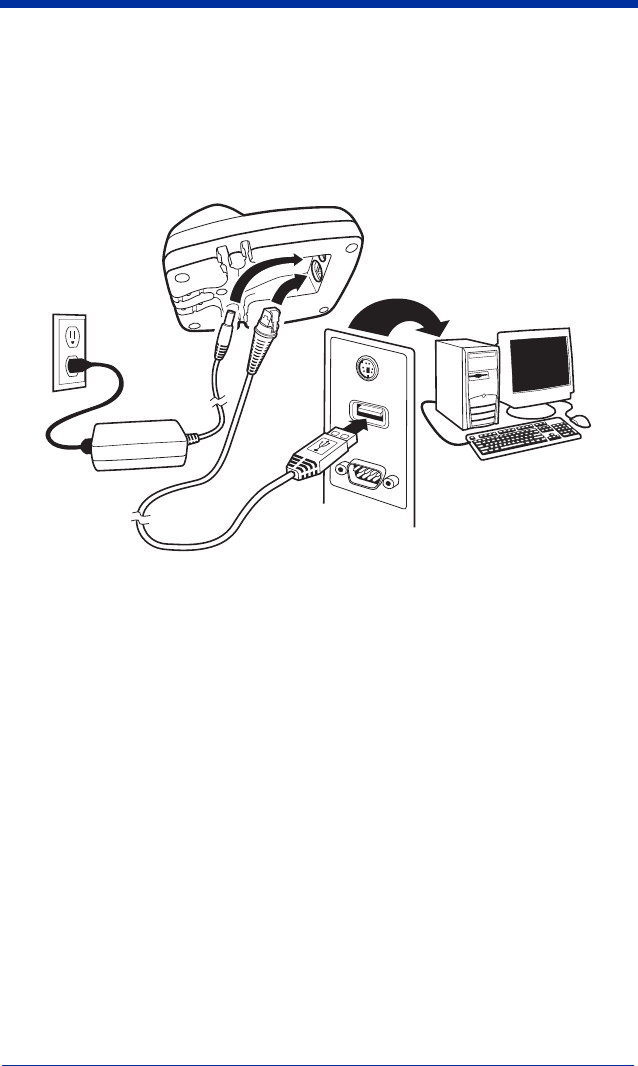

Connecting the Base with USB
A base can be connected to the USB port of a computer.
1. Connect the appropriate interface cable to the base first and then to the com-
puter. Make sure the cables are secured in the wireways in the bottom of the
base and that the base sits flat on a horizontal surface.
2. Program the base for the USB interface by scanning the appropriate
programming barcode See page 2-5.
3. Verify the base operation by scanning a barcode from the Sample Symbols
in the back of this manual.
For additional USB programming and technical information, refer to the Hand
Held Products “USB Application Note,” available at www.handheld.com.

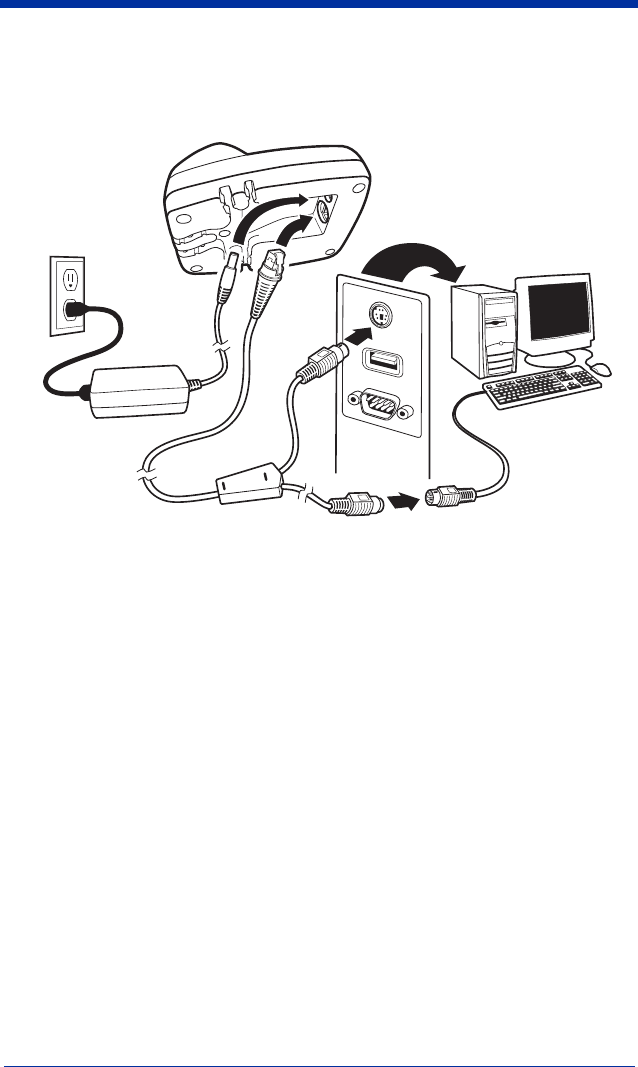

Connecting the Base with Keyboard Wedge
1. Turn off power and disconnect the keyboard cable from the back of the ter-
minal/computer.
2020/4820/4820 i User’s Guide 1 - 5
2. Connect the appropriate interface cable to the base and to the terminal/
computer and keyboard. Make sure the cables are secured in the wireways
in the bottom of the base and that the base sits flat on a horizontal surface.
3. Turn the terminal/computer power back on.
4. Program the base for the keyboard wedge interface. See "Keyboard Wedge
Connection" on page 2-1.
5. Verify the base operation by scanning a barcode from the Sample Symbols
in the back of this manual.
1 - 6 2020/4820/4820 i User’s Guide
Connecting the Base with RS-232 Serial Port
1. Turn off power to the terminal/computer.
2. Connect the appropriate interface cable to the base. Make sure the cables
are secured in the wireways in the bottom of the base and that the base sits
flat on a horizontal surface.
Note: For the base to work properly, you must have the correct cable for your
type of terminal/computer.
3. Plug the serial connector into the serial port on your computer. Tighten the
two screws to secure the connector to the port.
4. Once the image scanner has been fully connected, power up the computer.

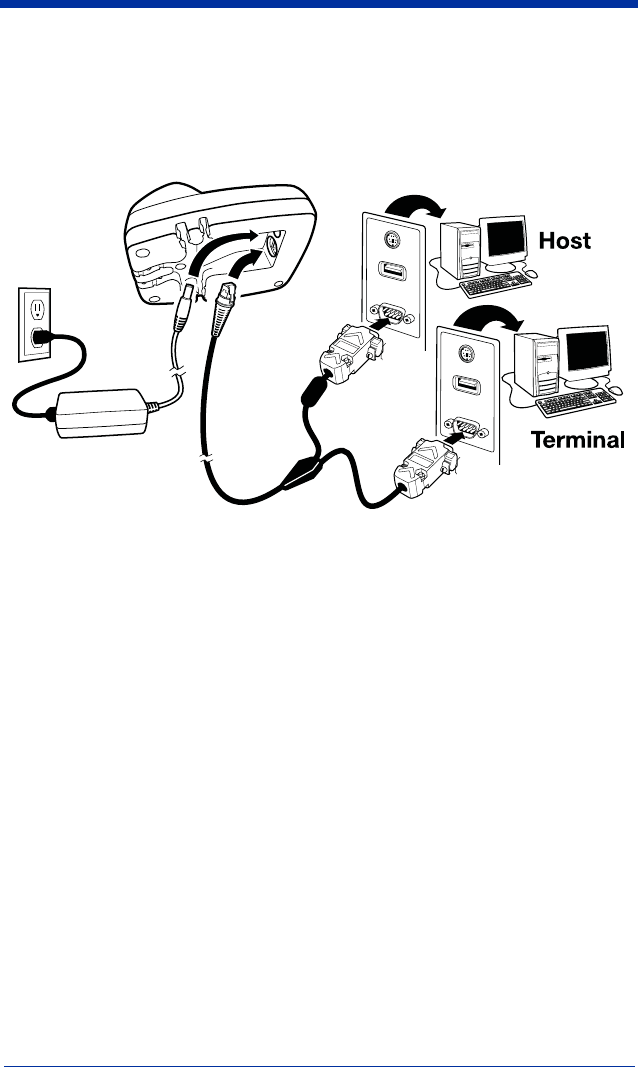

Connecting the Base with RS-232 Wedge
The 2020 uses TTL signal levels to wedge into an RS-232 serial network. Use
only 2020 serial wedge cables to prevent damage to the base. Refer to RS-232
Baud Rate on page 2-15 to set the baud rate and communications protocol.
1. Turn off power to the computer.
2. Disconnect the existing serial cable from the computer.
2020/4820/4820 i User’s Guide 1 - 7
3. Connect the appropriate interface cable to the base. Make sure the cables
are secured in the wireways in the bottom of the base and that the base sits
flat on a horizontal surface.
Note: For the base to work properly, you must have the correct cable for your
type of computer.
4. Plug the serial connector into the serial port on your computer. Tighten the
two screws to secure the connector to the port.
5. Plug the other serial connector into the host connection and tighten the two
screws.
6. Plug the power supply to the base and plug into the AC source.
7. Once the base has been fully connected, power up the computer.
1 - 8 2020/4820/4820 i User’s Guide
Linking Image Scanner to Base
When newly shipped or defaulted to factory settings, the base and image
scanner are not linked. Once the image scanner is placed into the base, the
software automatically links the image scanner and the base. If the image
scanner and base have previously been linked, you do not receive any feedback.
If this is the first time that the image scanner and base are linked, both devices
emit a short chirp when their radios link. At this point, you are set to one image
scanner to one base.
1. Provide power to the base.
2. Place the image scanner into the base. The image scanner and base link.
3. To determine if your cordless system is set up correctly, scan one of the
sample barcodes in the back of this manual. If the image scanner provides a
single good read beep and the green LED lights, the image scanner has
successfully linked to the base. If you receive a triple error beep and the red
LED lights, the image scanner has not linked to the base. Refer to page 14-
4 for troubleshooting information.

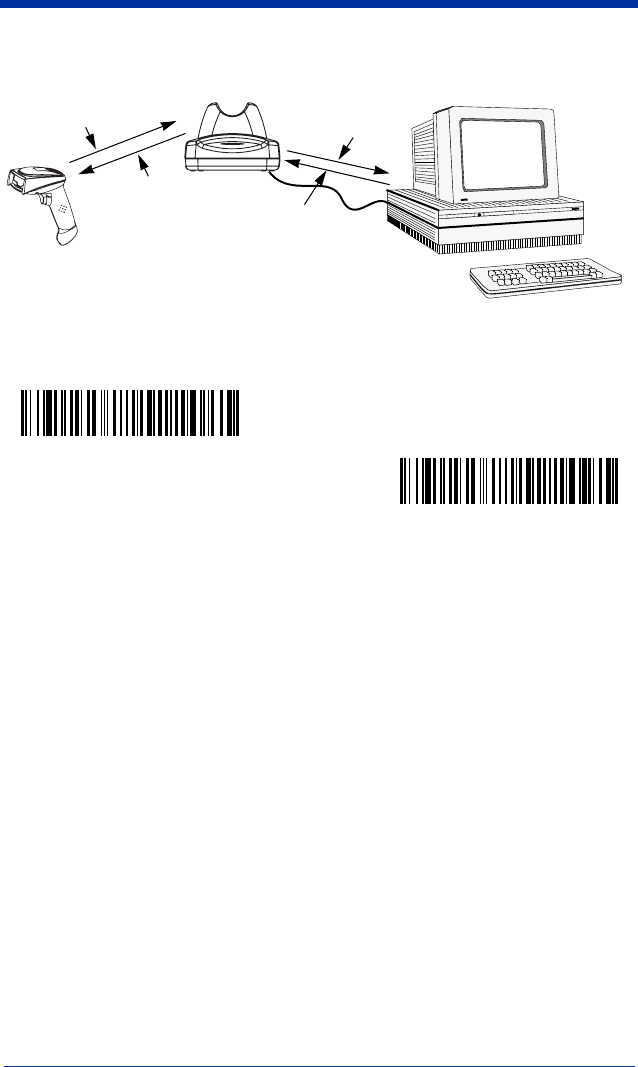

Communication Between the Cordless System
and the Host
The cordless image scanner provides immediate feedback in the form of a “good
read” indication (a green LED on the image scanner and an audible beep) after
a barcode is scanned correctly and the base has acknowledged receiving the
data. This is possible since the cordless system provides two-way
communication between the image scanner and the base.

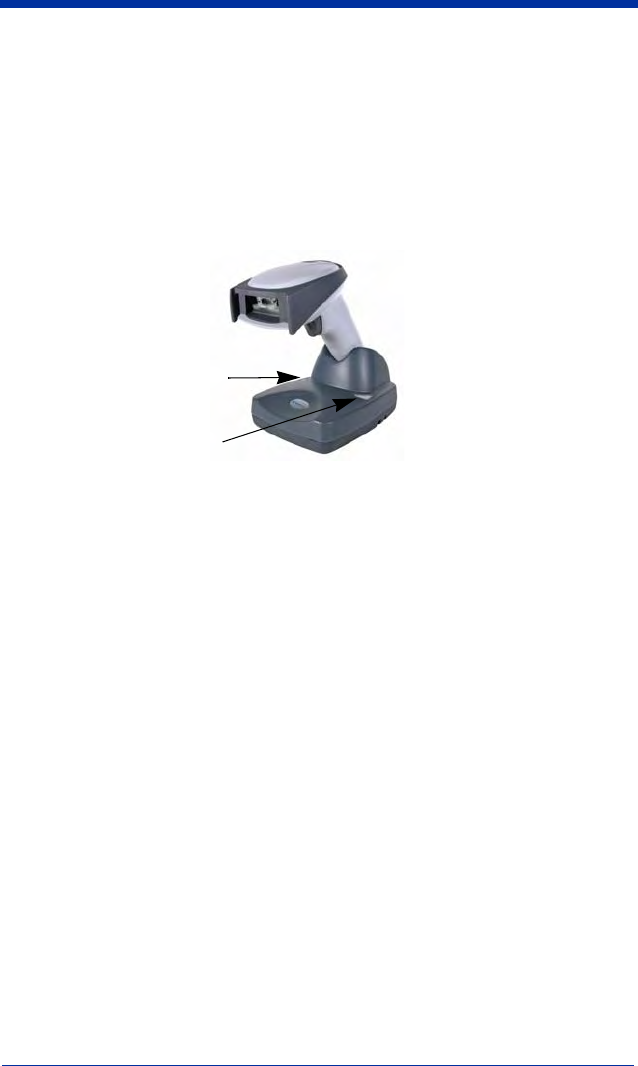

Image Scanner
2020 Cordless Base
Green LED
Red LED
2020/4820/4820 i User’s Guide 1 - 9

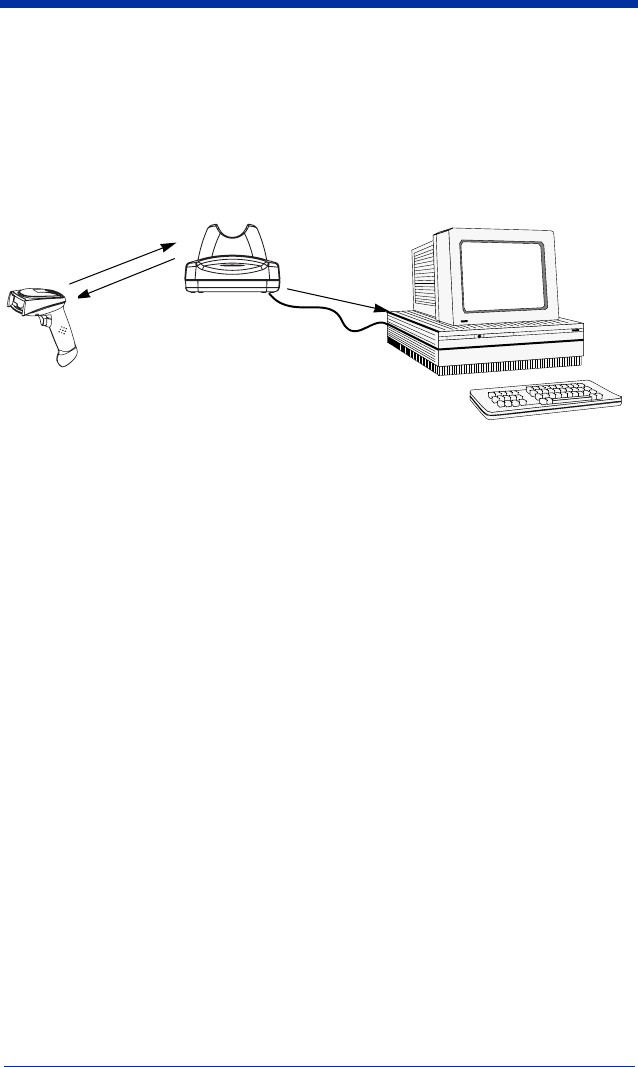

When data is scanned, the data is sent to the host system via the base unit. The
cordless image scanner recognizes data acknowledgement (ACK) from the base
unit. If it cannot be determined that the data has been properly sent to the base,
the image scanner issues an error indication. You must then check to see if the
scanned data was received by the host system.

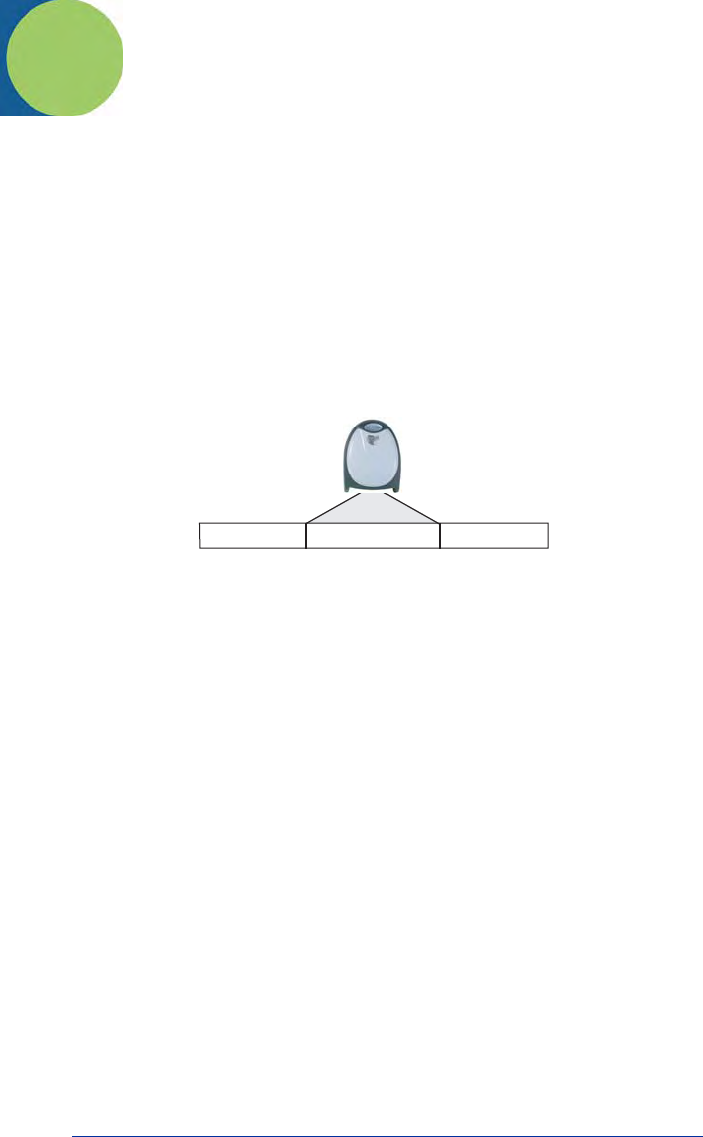

3) Base sends
data to host
1) Good Read
2) ACK from base
1 - 10 2020/4820/4820 i User’s Guide

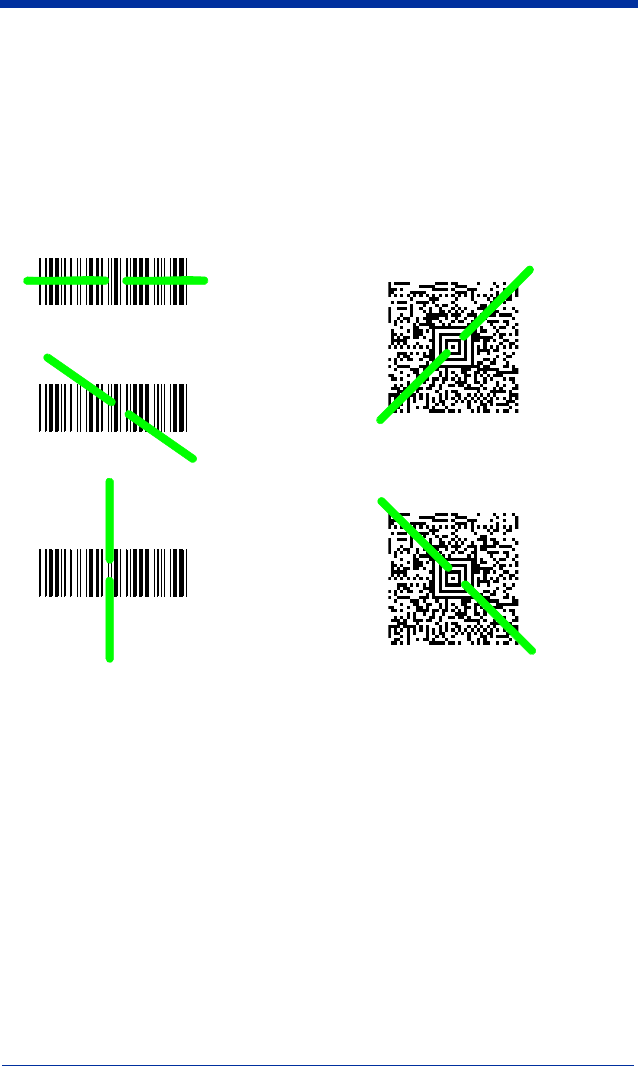

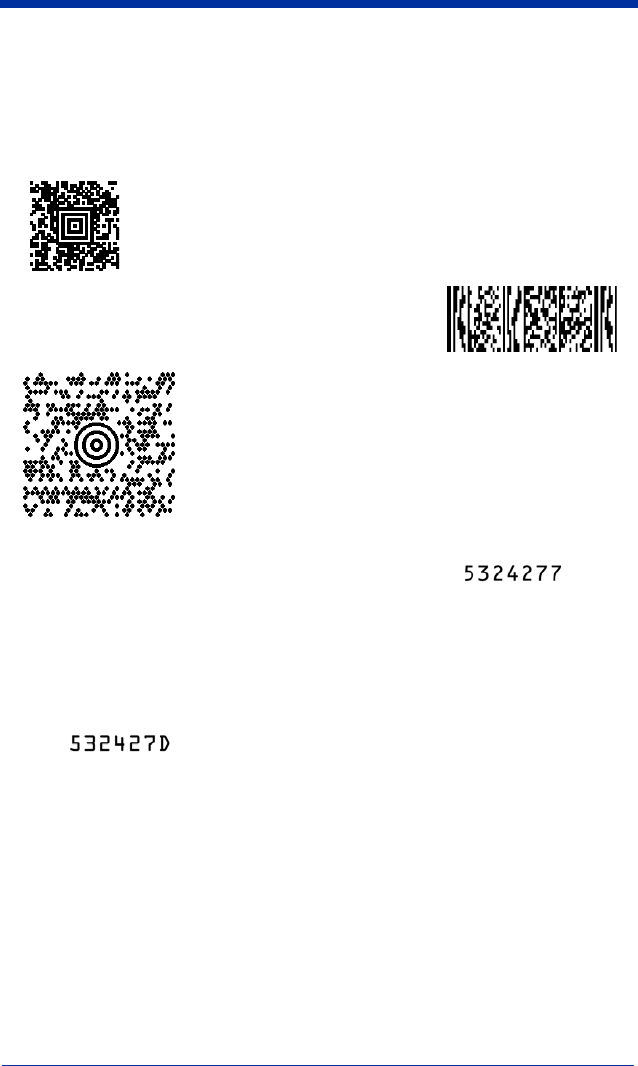

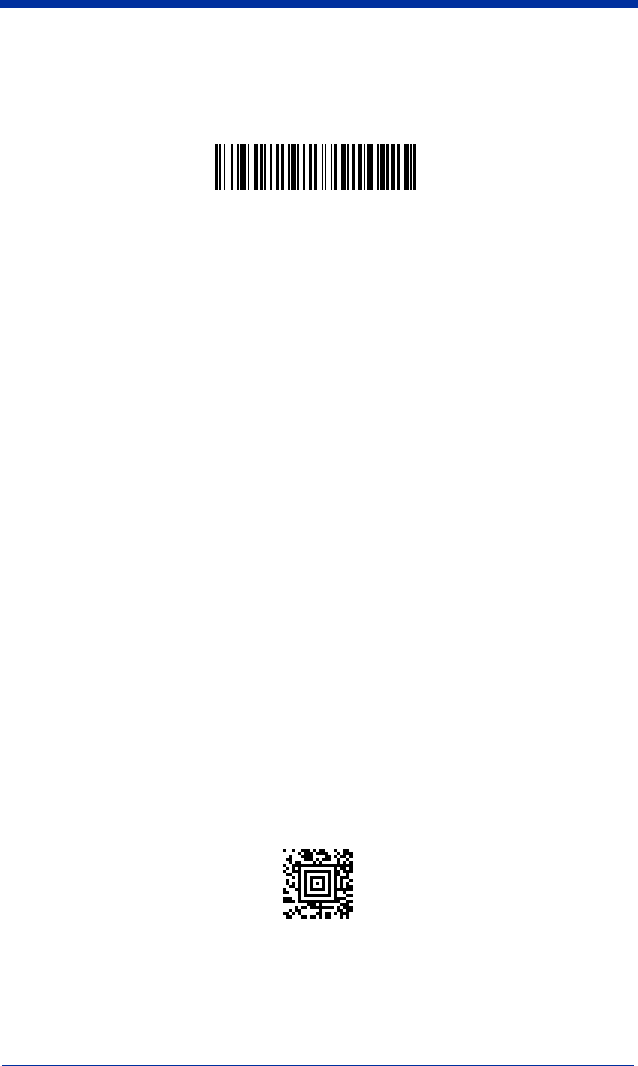

Reading Techniques
The image scanner has a view finder that projects a bright green aiming beam
that corresponds to the image scanner’s horizontal field of view. The aiming
beam should be centered over the barcode, but it can be positioned in any
direction for a good read.
The aiming beam is smaller when the image scanner is closer to the code and
larger when it is farther from the code. Symbologies with smaller bars or
elements (mil size) should be read closer to the unit. Symbologies with larger
bars or elements (mil size) should be read farther from the unit. To read single
or multiple symbols (on a page or on an object), hold the image scanner at an
appropriate distance from the target, pull the trigger, and center the aiming beam
on the symbol. If the code being scanned is highly reflective (e.g., laminated), it
may be necessary to tilt the code up 15° to 18° to prevent unwanted reflection.

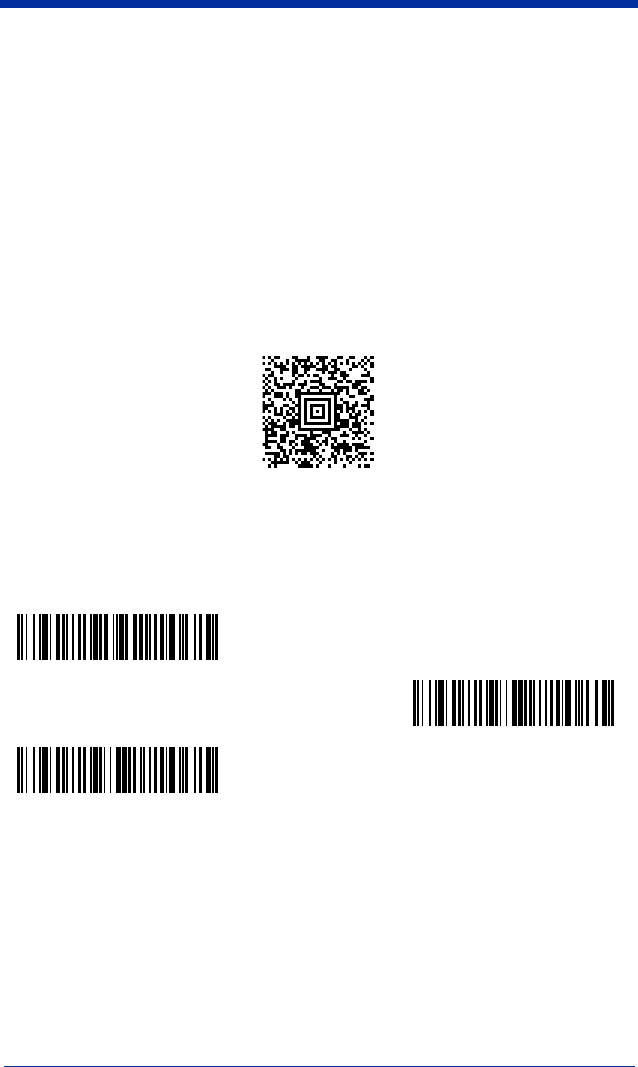

Linear barcode 2D Matrix symbol
2020/4820/4820 i User’s Guide 2 - 1
2

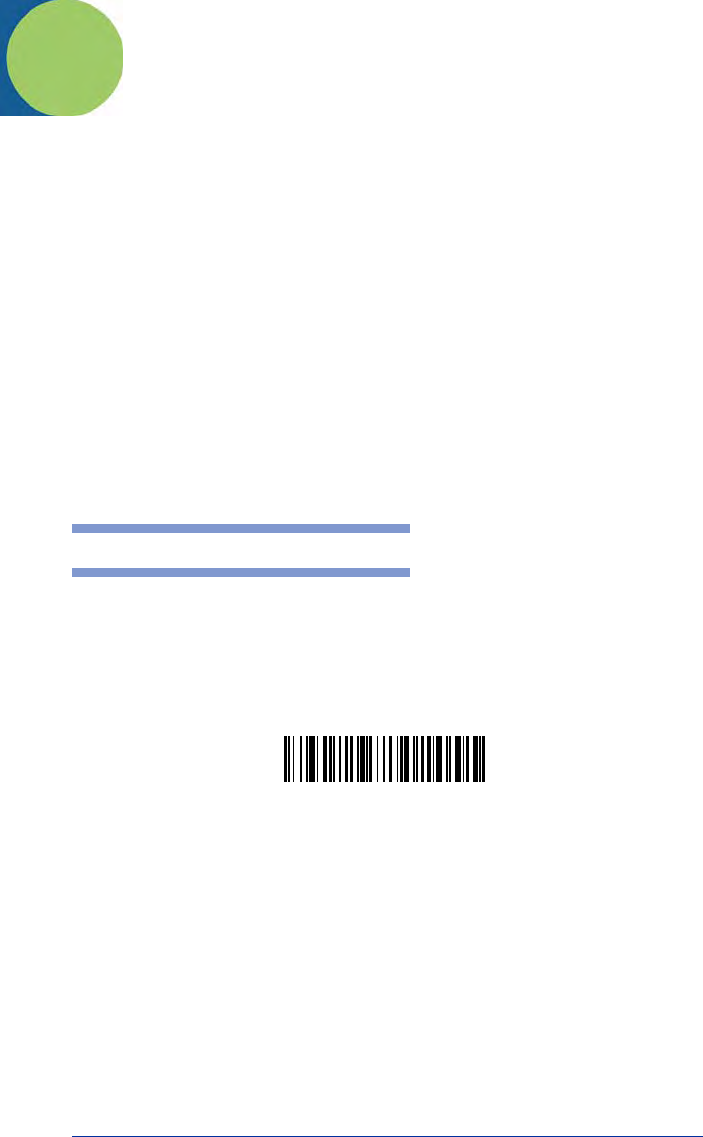

Programming the Interface
Introduction
Chapter 1 describes connecting the base to the computer with the appropriate
interface cable. This chapter describes how to program your system for the
desired interface.

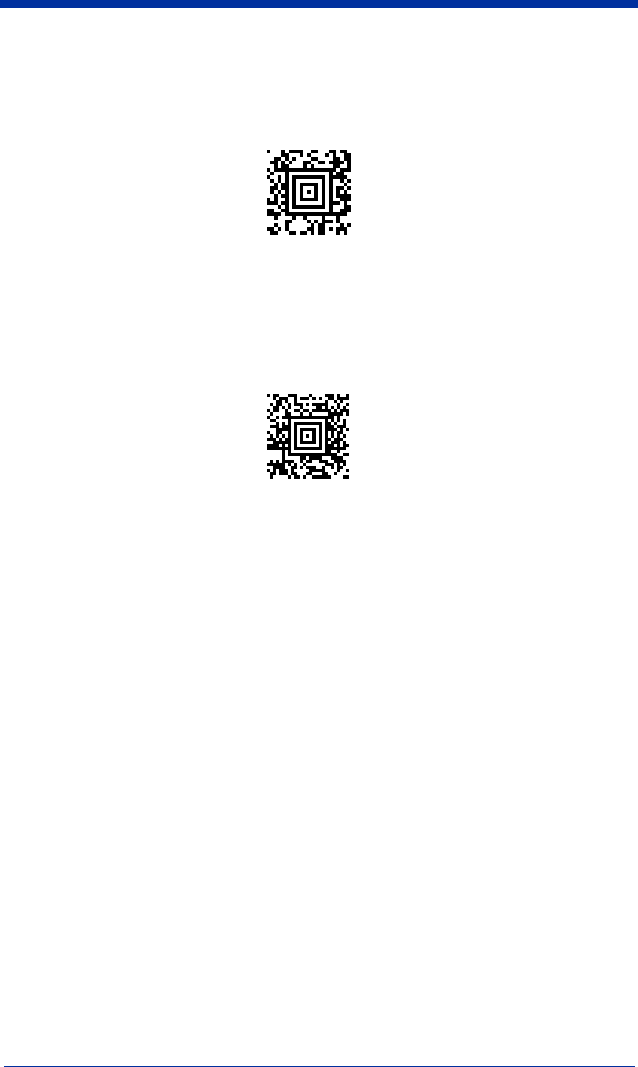

Programming the Interface - Plug and Play
Plug and Play barcodes provide instant image scanner set up for commonly used
interfaces.
Note: After you scan one of the codes, power cycle the host terminal to have the
interface in effect.

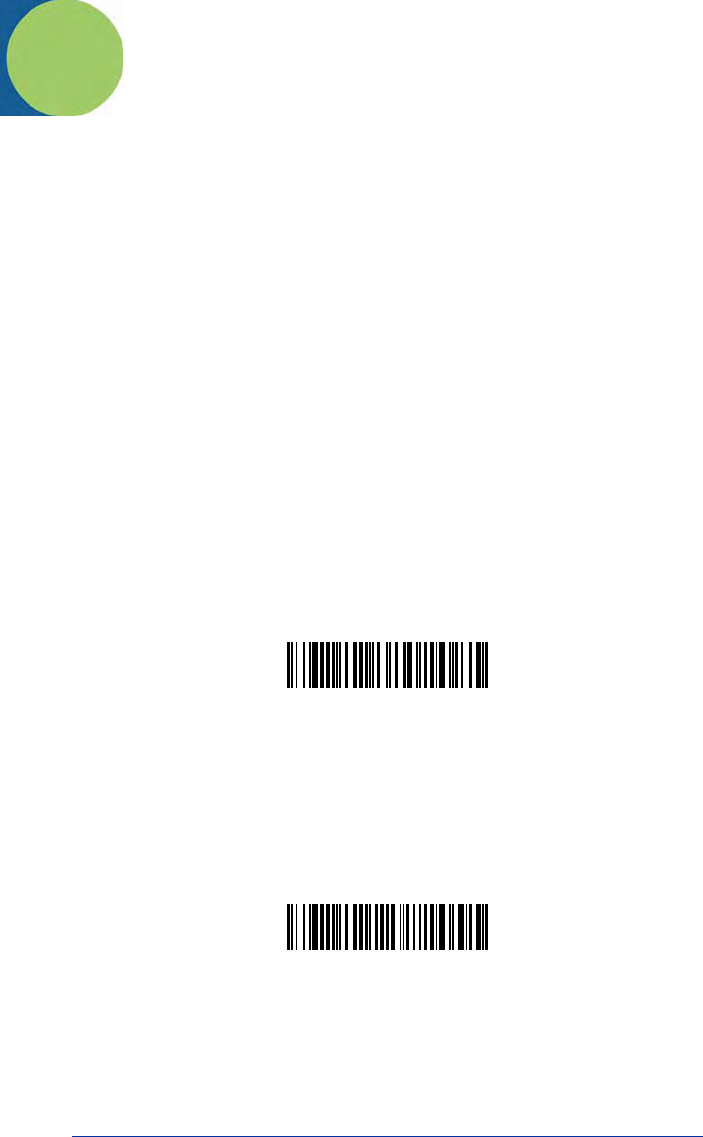

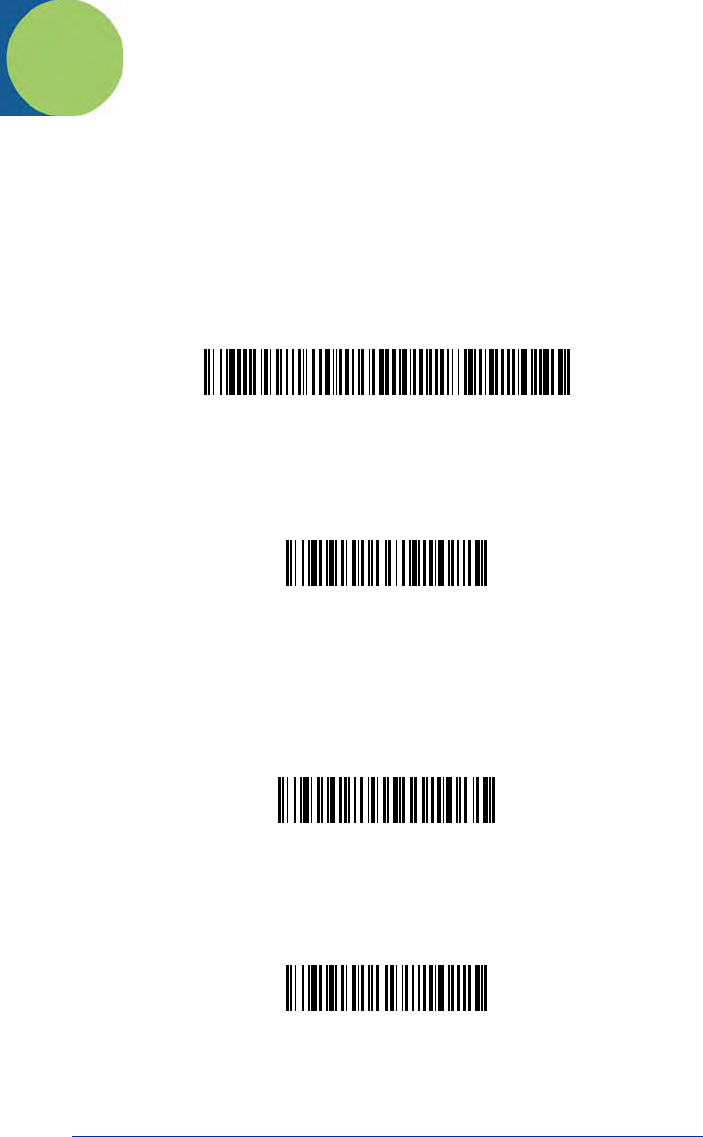

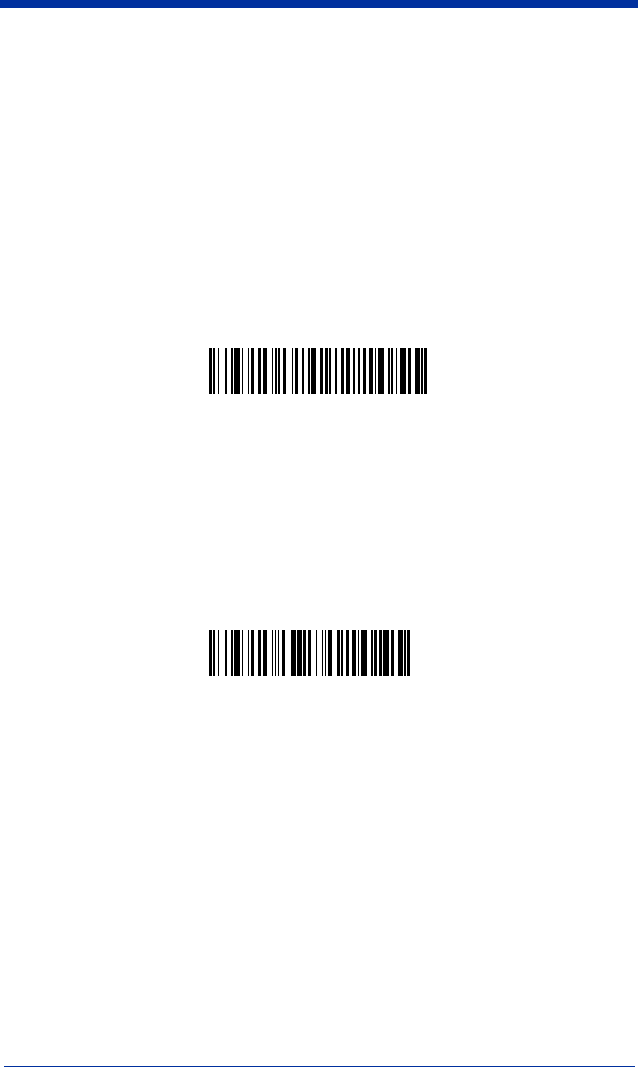

Keyboard Wedge Connection
If you want your system programmed for an IBM PC AT and compatibles
keyboard wedge interface with a USA keyboard, scan the barcode below.
Keyboard wedge is the default interface.
Note: The following barcode also programs a carriage return (CR) suffix.
Laptop Direct Connect
For most laptops, scanning the Laptop Direct Connect barcode allows
operation of the image scanner in parallel with the integral keyboard. The
following Laptop Direct Connect barcode selects terminal ID 03, programs a
carriage return (CR) suffix and turns on Emulate External Keyboard (page 2-13).

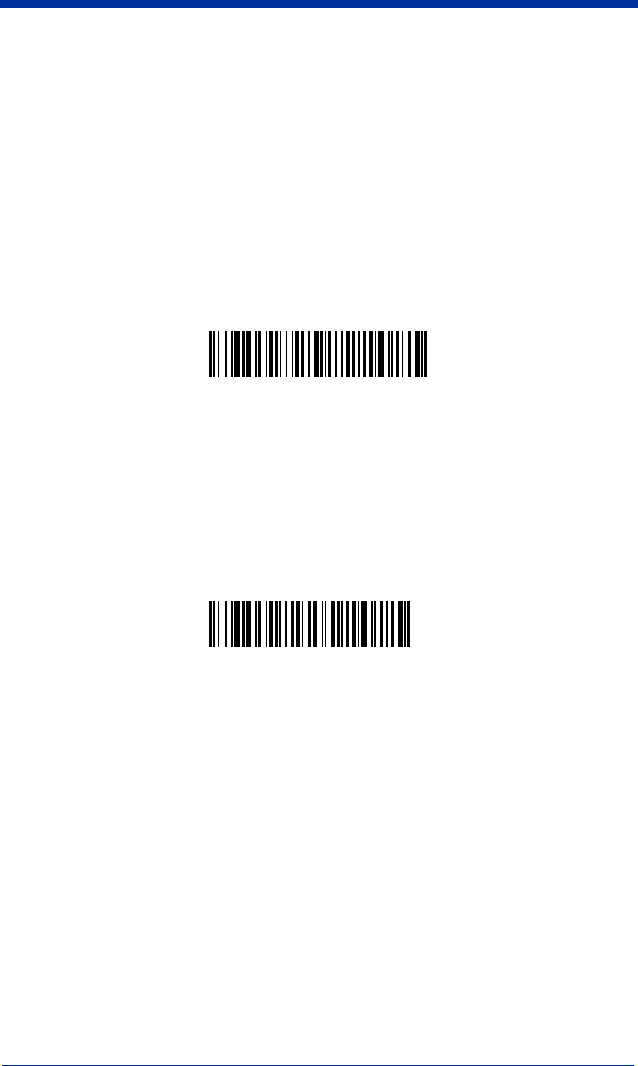

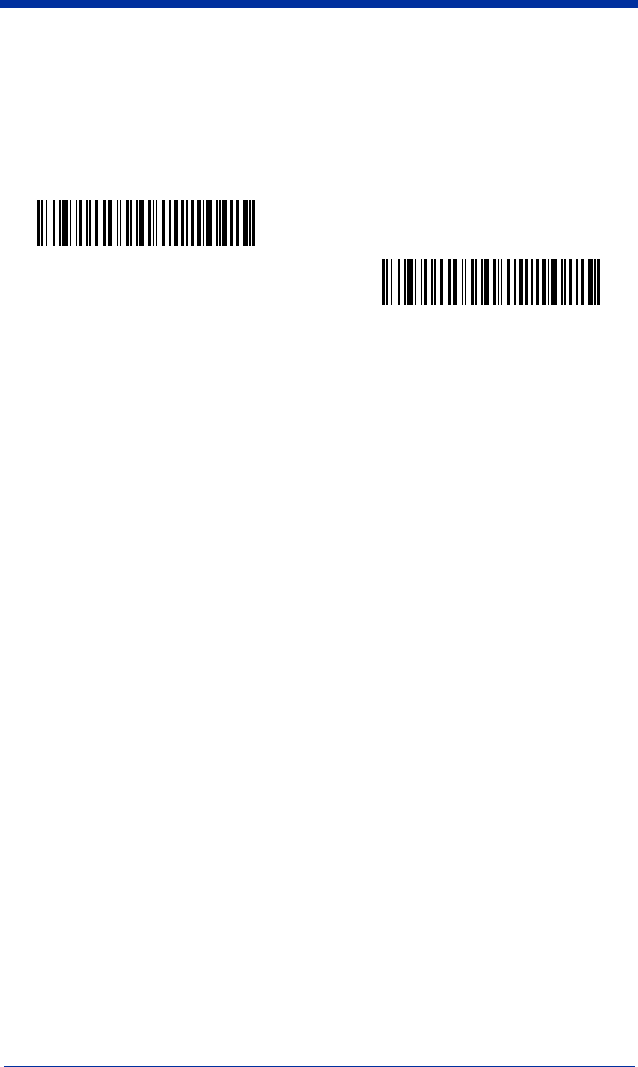

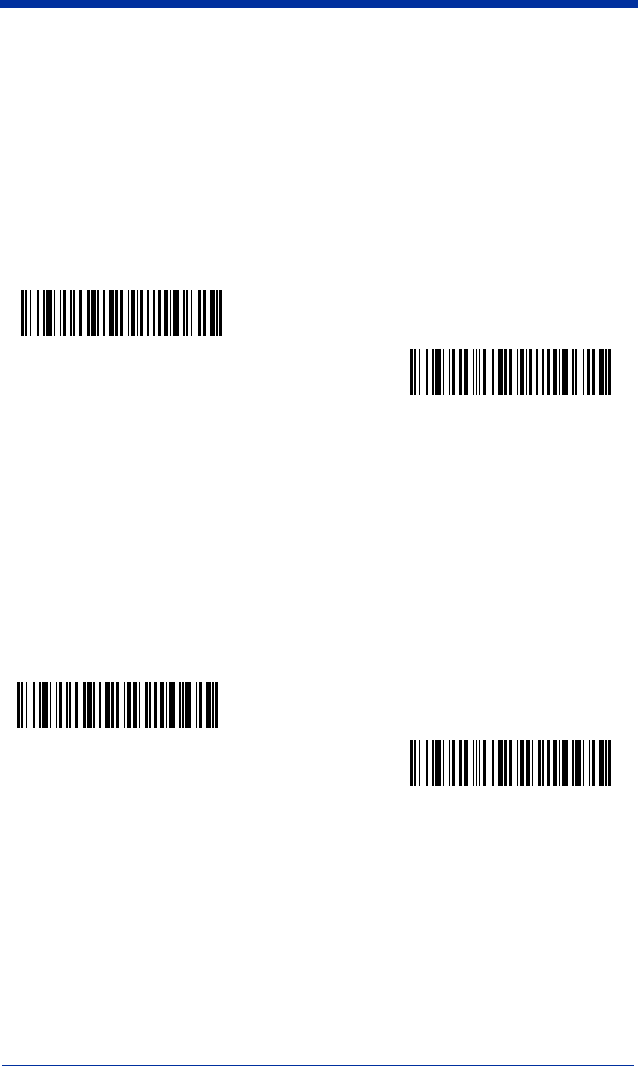

IBM PC AT and Compatibles
with CR suffix
Laptop Direct Connect
with CR suffix
2 - 2 2020/4820/4820 i User’s Guide
RS-232
The RS-232 Interface barcode is used when connecting to the serial port of a PC
or terminal. The following RS-232 Interface barcode also programs a carriage
return (CR) and a line feed (LF) suffix, baud rate, and data format as indicated
below. It also changes the trigger mode to manual.

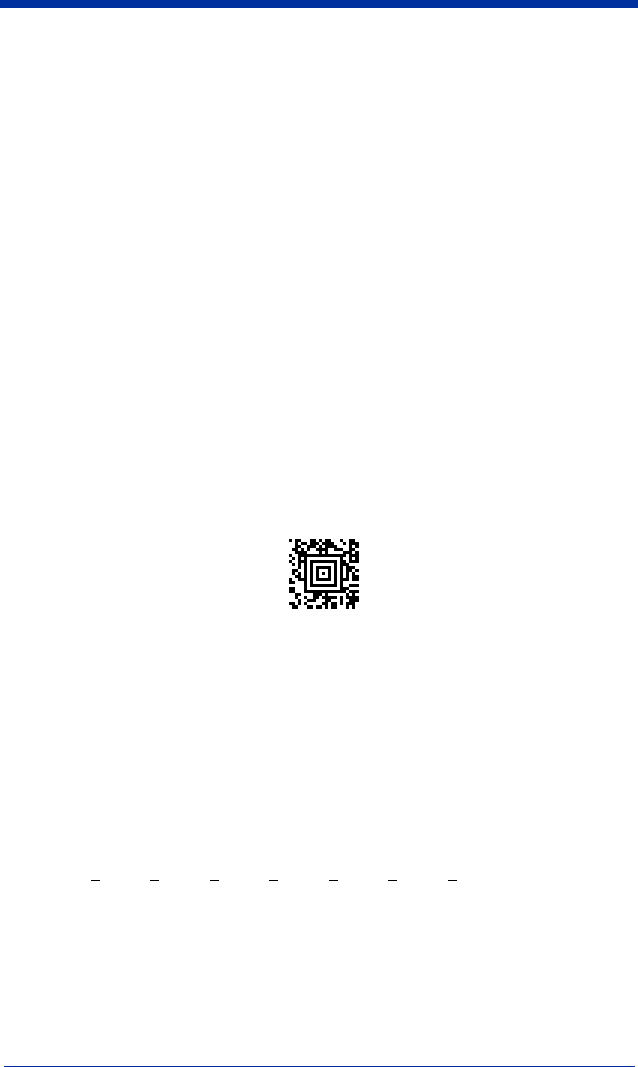

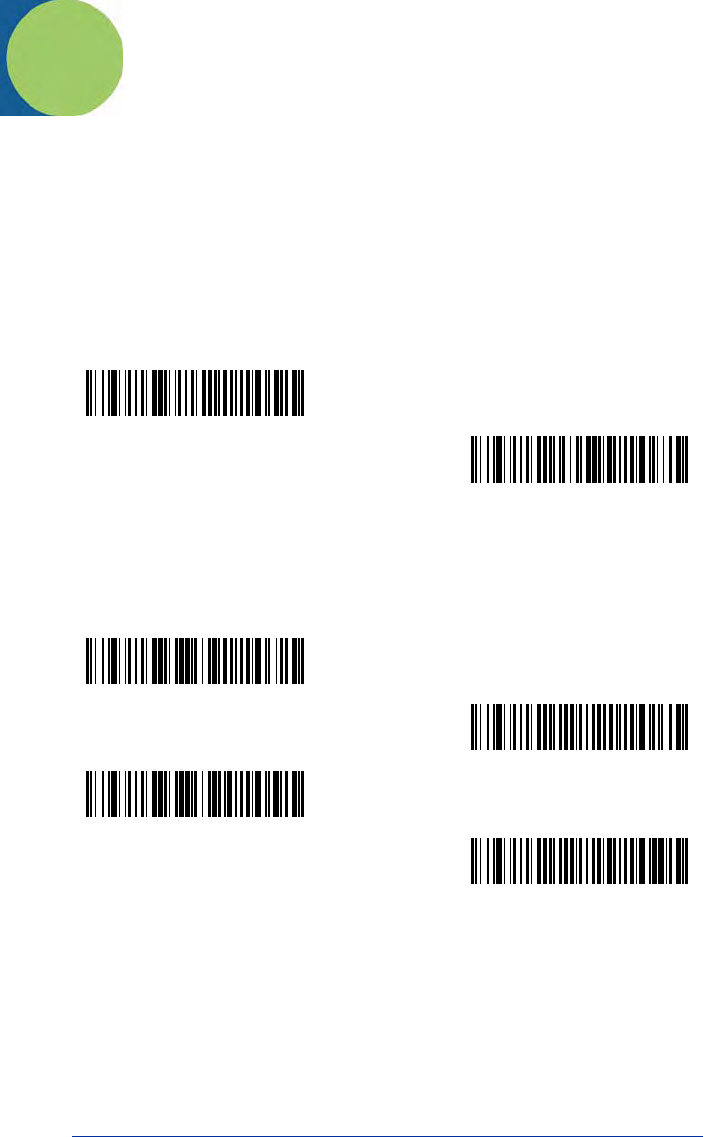

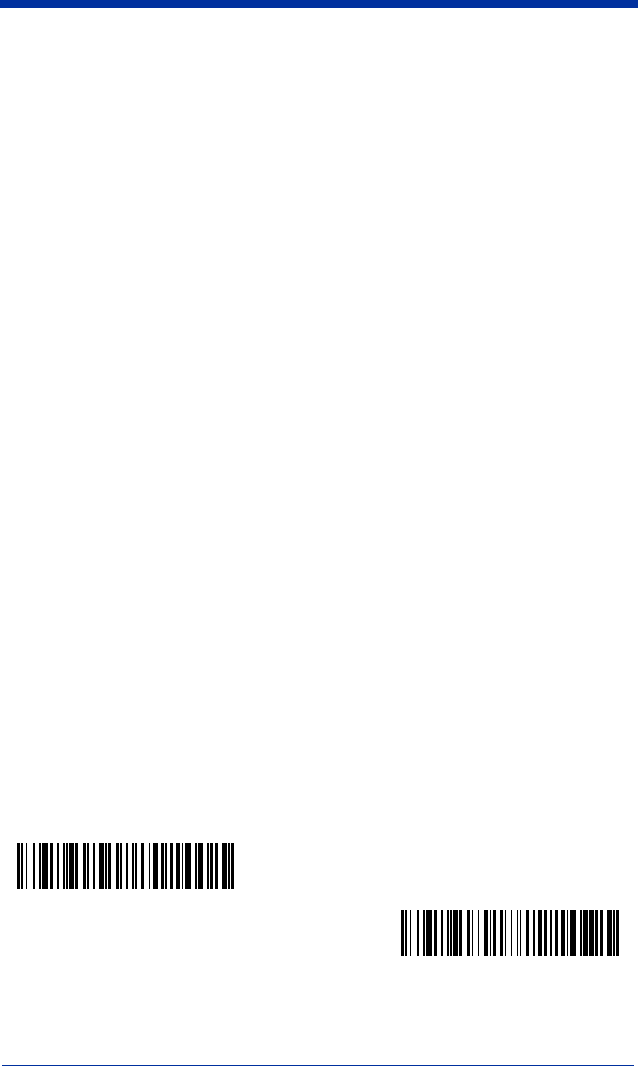

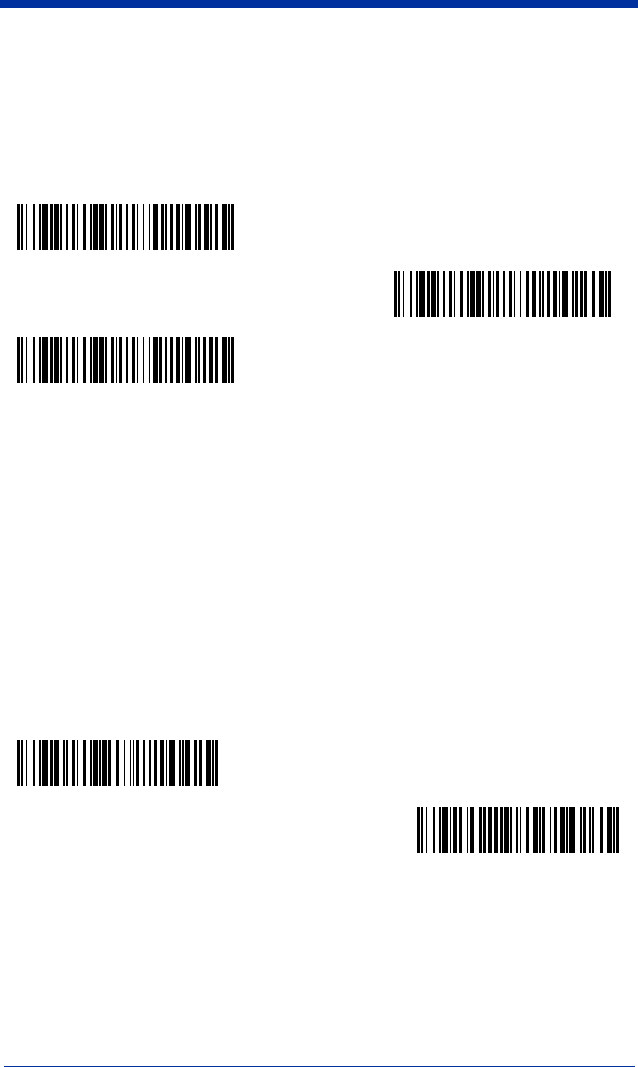

Wand Emulation Plug & Play
In Wand Emulation mode, the image scanner decodes the barcode then sends
data in the same format as a scanner image scanner. The Code 39 Format
converts all symbologies to Code 39.
The Same Code Format transmits UPC, EAN, Code 128 and Interleaved 2 of 5
without any changes, but converts all other symbologies to Code 39.
The
Wand Emulation Plug & Play Code 39 Format
barcode below sets the
terminal ID to 61. The
Wand Emulation Plug & Play Same Code Format
barcode sets the terminal ID to 64. These Plug & Play barcodes also set the
Transmission Rate to 25 inches per second, Output Polarity to black high, and
Idle State to high. (If you want to change the terminal ID
only
, without changing
any other image scanner settings, please refer to Programming the Interface -
Terminal ID Method on page 2-7.)

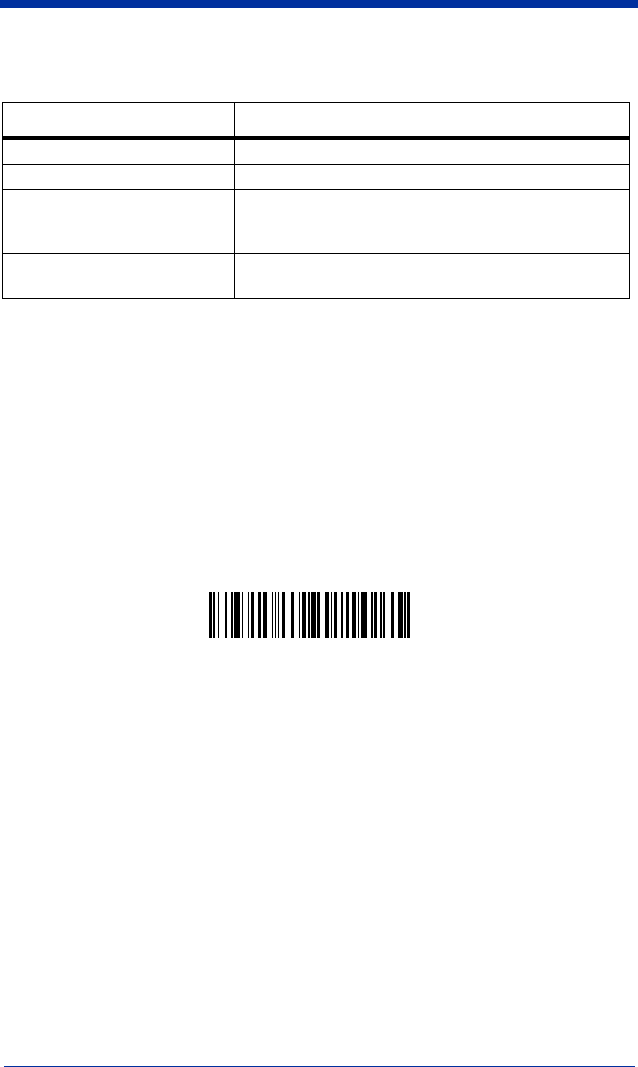

Option Setting
Baud Rate 115200 bps
Data Format 8 data bits, no parity bit, 1 stop bit
RS-232 Interface

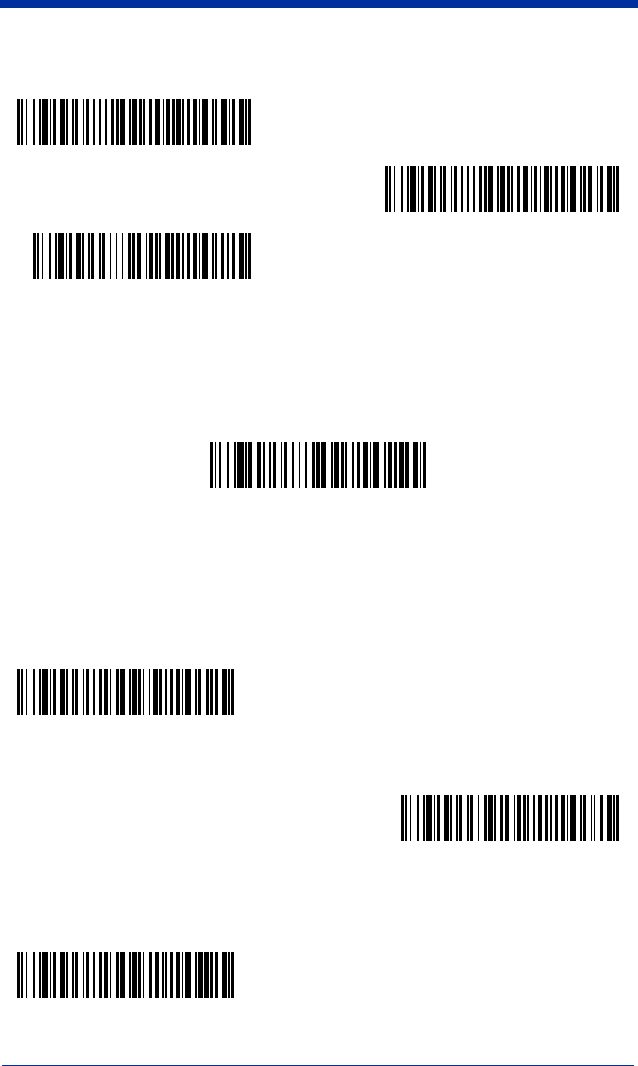

Wand Emulation
Plug & Play
Same Code
Wand Emulation
Plug & Play
(Code 39 Format)
2020/4820/4820 i User’s Guide 2 - 3

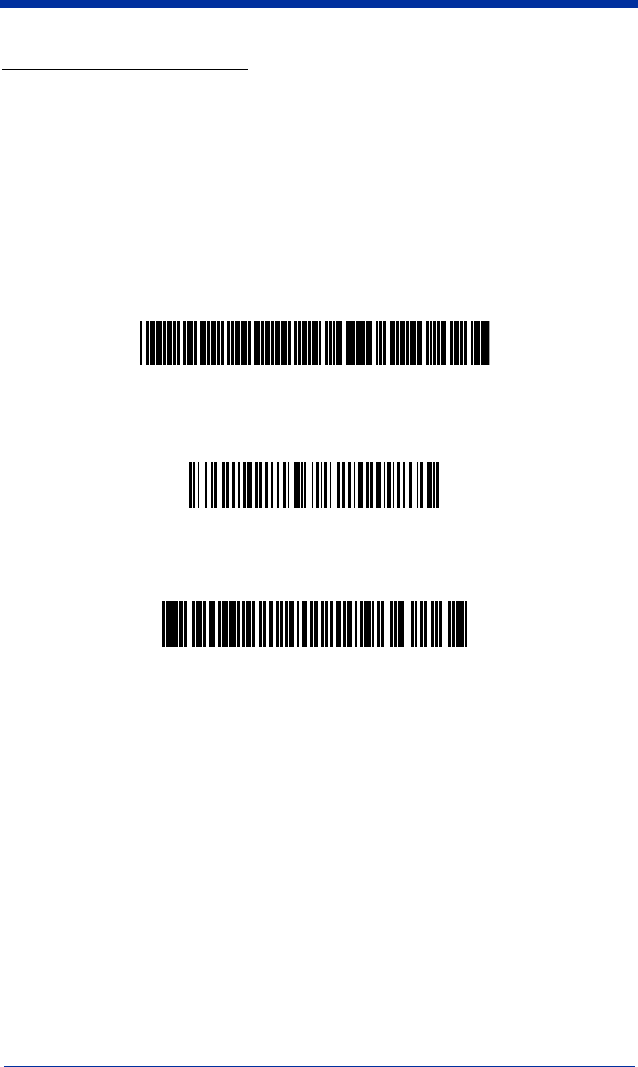

IBM 4683 Ports 5B, 9B, and 17 Interface
Scan one of the following “Plug and Play” codes to program the image scanner
for IBM 4683 Port 5B, 9B, or 17.
Note: After scanning one of these codes, you must power cycle the cash
register.
Each barcode above also programs the following suffixes for each symbology:
* Suffixes programmed for Code 128 with IBM 4683 Port 5B, IBM 4683 Port 9B HHBCR-1,
and IBM 4683 Port 17 Interfaces
**Suffixes programmed for Code 128 with IBM 4683 Port 9 HHBCR-2 Interface
Symbology Suffix
EAN 8 0C
EAN 13 16
UPC A 0D
UPC E 0A
Code 39 00 0A 0B
Interleaved 2 of 5 00 0D 0B
Code 128 * 00 0A 0B
Code 128 ** 00 18 0B
IBM 4683 Port 5B Interface
IBM 4683 Port 9B
HHBCR-1 Interface
IBM 4683 Port 17 Interface
IBM 4683 Port 9B
HHBCR-2 Interface
2 - 4 2020/4820/4820 i User’s Guide
IBM SurePos
Scan one of the following “Plug and Play” codes to program the image scanner
for IBM SurePos (USB Hand Held image scanner) or IBM SurePos (USB
Tabletop image scanner).
Note: After scanning one of these codes, you must power cycle the cash
register.
Each barcode above also programs the following suffixes for each symbology:
Symbology Suffix
EAN 8 0C
EAN 13 16
UPC A 0D
UPC E 0A
Code 39 00 0A 0B
Interleaved 2 of 5 00 0D 0B
Code 128 00 18 0B
IBM SurePos
(USB Handheld Scanner)
Interface
IBM SurePos
(USB Tabletop Scanner)
Interface
2020/4820/4820 i User’s Guide 2 - 5

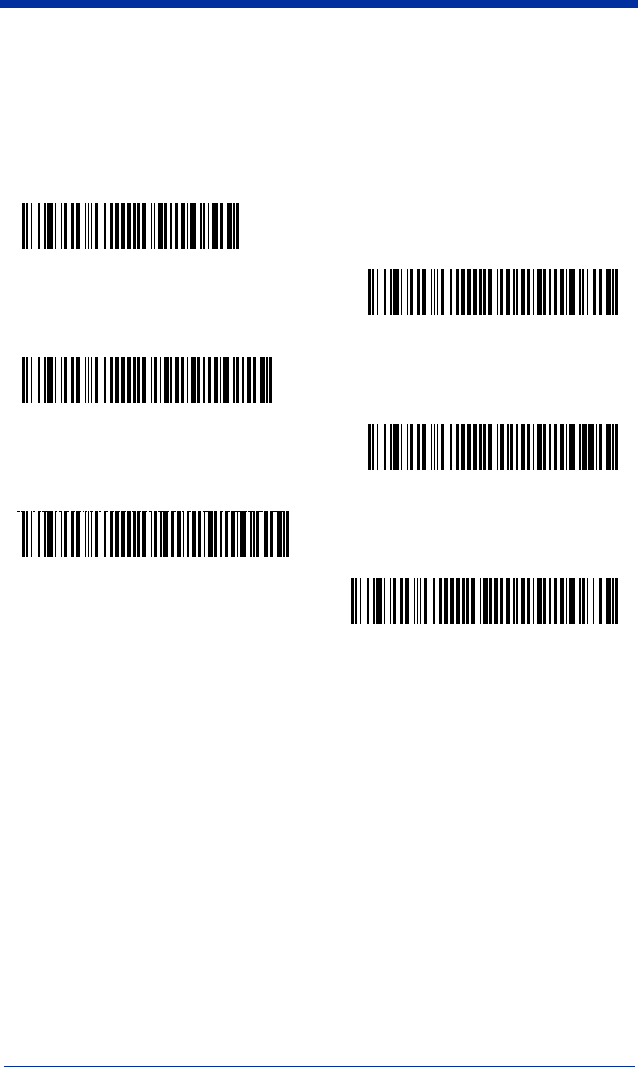

USB PC or Macintosh Keyboard
Scan one of the following codes to program the image scanner for USB PC
Keyboard or USB Macintosh Keyboard. Scanning these codes adds a CR and
LF, along with selecting the terminal ID (USB PC Keyboard - 124, USB
Macintosh Keyboard - 125, USB PC Japanese Keyboard - 134).
USB HID
Scan the following code to program the image scanner for USB HID barcode
image scanners. Scanning this code changes the terminal ID to 131.
USB Keyboard (PC)
USB Keyboard (Mac)
USB Japanese Keyboard (PC)
USB HID Barcode Image
2 - 6 2020/4820/4820 i User’s Guide

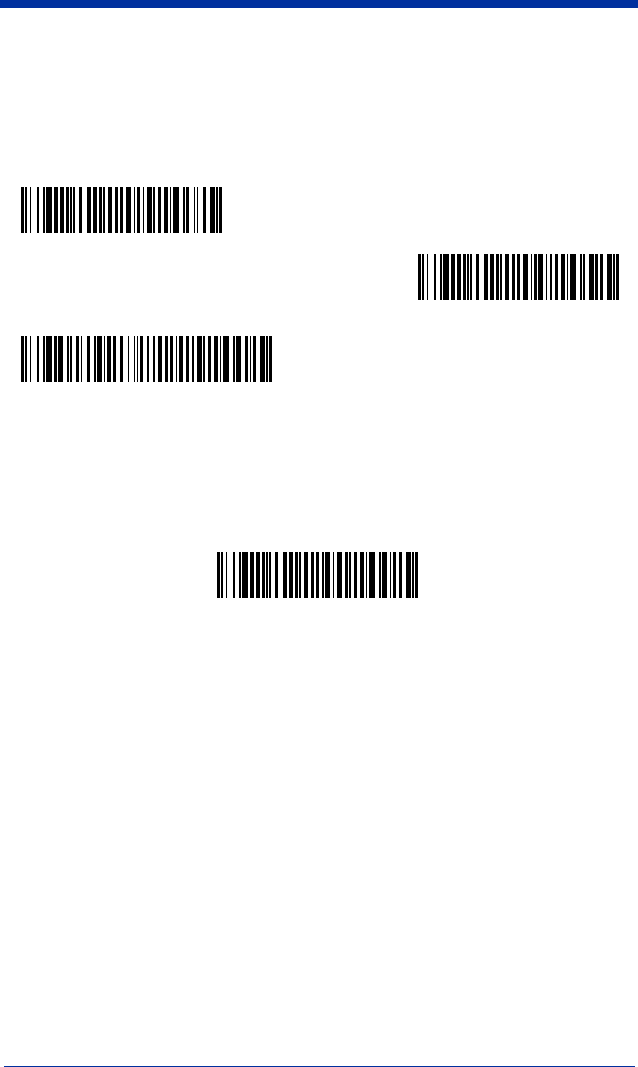

USB Com Port Emulation
Scan the following code to program the image scanner to emulate a regular RS-
232-based Com Port. If you are using a Microsoft® Windows® PC, you will need
to download a driver from the Hand Held Products website (www.handheld.com).
The driver will use the next available Com Port number. Apple® Macintosh
computers recognize the image scanner as a USB CDC class device and
automatically uses a class driver. Scanning the code below changes the terminal
ID to 130.
Note: No extra configuration (e.g., baud rate) is necessary.
CTS/RTS Emulation
ACK/NAK Mode
USB COM Port Emulation
CTS/RTS Emulation On
* CTS/RTS Emulation Off
ACK/NAK Mode On
* ACK/NAK Mode Off
2020/4820/4820 i User’s Guide 2 - 7

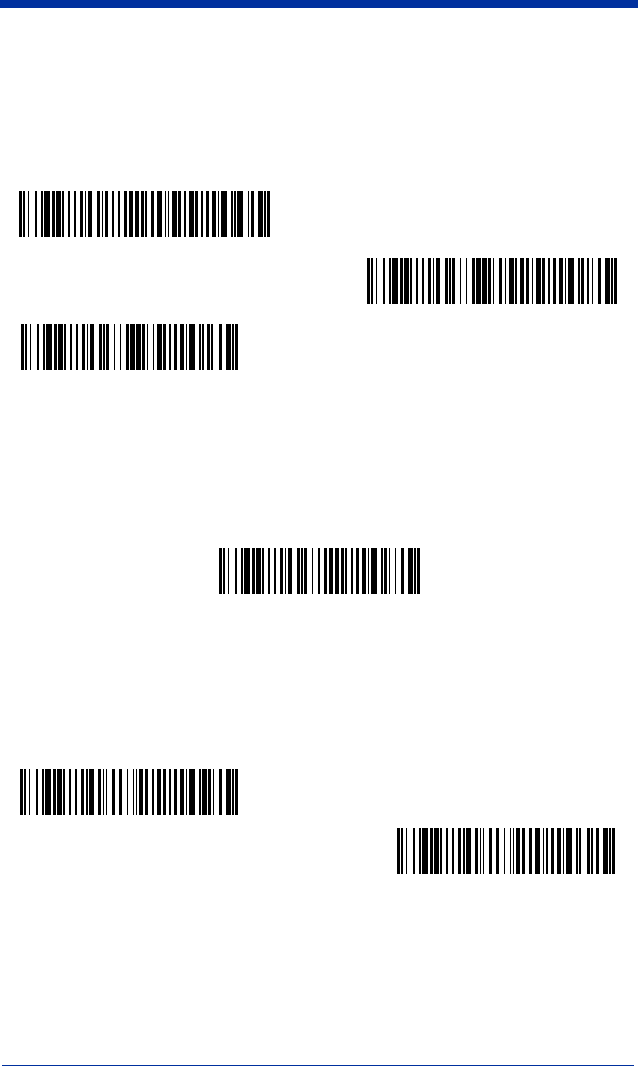

Serial Wedge
To set up the serial wedge terminal ID, use the serial terminal ID 050 and follow
the instructions on page 2-7. Make sure that all of the communication
parameters match on all of the connected devices. Choosing Both sends
scanned data to P1 and P2. Default = P1.
Programming the Interface - Terminal ID Method
If your interface is not a standard PC AT, refer to Supported Terminals, beginning
on page 2-8, and locate the Terminal ID number for your PC. Scan the Terminal
ID barcode below, then scan the numeric barcode(s) from the Programming
Chart inside the back cover of this manual to program the image scanner for your
terminal ID. Scan Save to save your selection.
For example, an IBM AT terminal has a Terminal ID of 003. You would scan the
Terminal ID barcode, then 0, 0, 3 from the Programming Chart inside the back
cover of this manual, then Save. If you make an error while scanning the digits
(before scanning Save), scan the Discard code on the Programming Chart, scan
the Terminal ID barcode, scan the digits, and the Save code again.
Note: The default interface is Keyboard Wedge (Term ID = 003).
Note: After scanning one of these codes, you must power cycle your computer.
* P1
P2
Both P1 and P2
Terminal ID
Save
2 - 8 2020/4820/4820 i User’s Guide
Supported Terminals
Terminal Model(s) Terminal
ID
DDC 3496, 3497, 122 key 005
DDC 3496, 3497, 102 key 071
DEC VT510, 520, 525 (PC style) 084
DEC VT510, 520, 525 (DEC style
LK411) 104
Esprit 200, 400 005
Heath Zenith PC, AT 003 *
Heath Zenith 090
HP Vectra 003 *
HP Vectra 023
IBM XT 001
IBM PS/2 25, 30, 77DX2 002
IBM AT, PS/2 30–286, 50, 55SX,
60, 70, 70–061, 70–121, 80 003 *
IBM 102 key 3151, 3161, 3162, 3163, 3191,
3192, 3194, 3196, 3197, 3471,
3472, 3476, 3477
006
IBM 122 key 3191, 3192, 3471, 3472 007
IBM 122 key 3196, 3197, 3476, 3477, 3486,
3482, 3488 008
IBM 122 key 3180 024
IBM 122 key 3180 data entry keyboard 114
IBM DOS/V 106 key PC & Workstation 102
IBM SurePOS USB Hand Held Image Scan-
ner 128**
IBM SurePOS USB Tabletop Image Scanner 129**
IBM Thinkpad 360 CSE, 340, 750 097
IBM Thinkpad 106
IBM Thinkpad 365, 755CV 003 *
I/O 122 key 2676D, 2677C, 2677D 008
ITT 9271 007
Lee Data IIS 007
NEC 98XX Series 103
Olivetti M19, M200 001
Olivetti M240, M250, M290, M380,
P500 003
RS-232 TTL 000
Serial Wedge 050
Silicon Graphics Indy, Indigoll 005
2020/4820/4820 i User’s Guide 2 - 9
* Default for 2020-5B and 2020-5BE models
**It is best to use the Plug and Play barcodes, beginning on page 2-1 to program these in-
terfaces, rather than scanning the terminal ID listed in this table.
Telex 88 key 078, 078A, 79, 80, 191, 196,
1191,1192, 1471, 1472, 1476,
1477, 1483
025
Telex 88 key Data Entry Keyboard 112
Telex 102 key 078, 078A, 79, 80, 191, 196,
1191,1192, 1471, 1472, 1476,
1477, 1483
045
Telex 122 key 078, 078A, 79, 80, 191, 196,
1191,1192, 1471, 1472, 1476,
1477, 1482, 1483
046
USB COM Port Emulation 130
USB PC Keyboard 124**
USB Mac Keyboard 125**
USB Japanese Keyboard
(PC) 134**
USB HID POS 131**
Wand Emulation (Code 39
Format) 061
Wand Emulation (Same
Code Format) 064
Supported Terminals
Terminal Model(s) Terminal
ID
2 - 10 2020/4820/4820 i User’s Guide

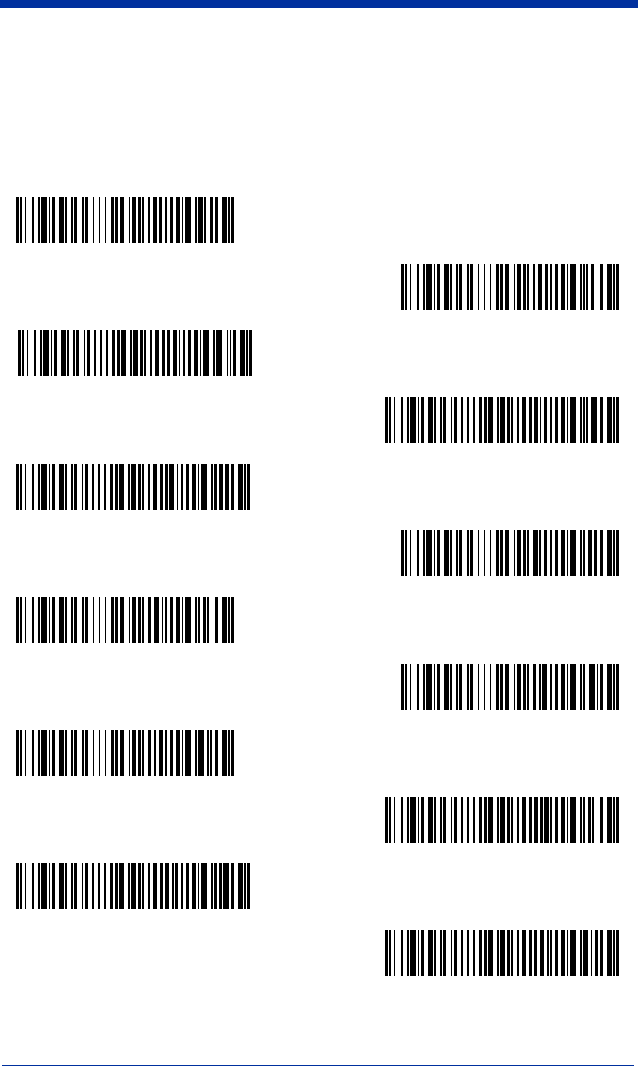

Keyboard Country
Scan the appropriate country code below to program the keyboard for your
country. As a general rule, the following characters are supported, but need
special care for countries other than the United States:
@ | $ # { } [ ] = / ‘ \ < > ~
* United States
Brazil
Czech Republic
Denmark
Finland (Sweden)
France
Germany/Austria
Greece
Hungary
Belgium
Canada (French)
Israel (Hebrew)
2 - 12 2020/4820/4820 i User’s Guide

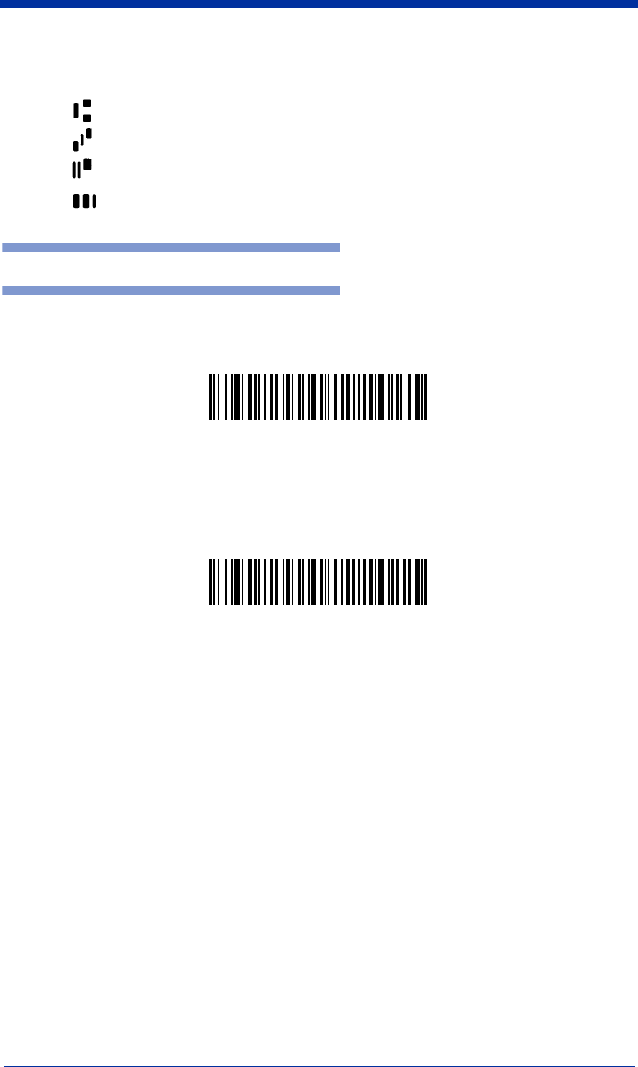

Keyboard Country (continued)
Please refer to the Hand Held Products website (www.handheld.com) for
complete keyboard country support information and applicable interfaces. If you
need to program a keyboard for a country other than one listed above, scan the
Program Keyboard Country barcode below, then scan the numeric barcode(s)
for the appropriate country from the inside back cover, then the Save barcode.
Keyboard Style
This programs keyboard styles, such as Caps Lock and Shift Lock.
Default =
Regular.
Regular
is used when you normally have the Caps Lock key off.
Caps Lock
is used when you normally have the Caps Lock key on.
Shift Lock
is used when you normally have the Shift Lock key on (not common
to U.S. keyboards).
Turkey Q
U.K.
Turkey F
Program Keyboard Country
* Regular
Caps Lock
Shift Lock
2020/4820/4820 i User’s Guide 2 - 13
Automatic Caps Lock
is used if you change the Caps Lock key on and off. The
software tracks and reflects if you have Caps Lock on or off (AT and PS/2 only).
This selection can only be used with systems that have an LED which notes the
Caps Lock status.
Autocaps via NumLock
barcode should be scanned in countries (e.g.,
Germany, France) where the Caps Lock key cannot be used to toggle Caps
Lock. The NumLock option works similarly to the regular Autocaps, but uses the
NumLock key to retrieve the current state of the Caps Lock.
Emulate External Keyboard
should be scanned if you do not have an external
keyboard (IBM AT or equivalent).
Note: After scanning the Emulate External Keyboard barcode, you must power
cycle your computer.
Keyboard Modifiers
This modifies special keyboard features, such as CTRL+ ASCII codes and Turbo
Mode.
Control + ASCII Mode On:
The image scanner sends key combinations for
ASCII control characters for values 00-1F. Refer to Keyboard Function
Relationships, page 10-1 for CTRL+ ASCII Values.
Default = Off
Automatic Caps Lock
Autocaps via NumLock
Emulate External Keyboard
Control + ASCII Mode On
* Control + ASCII Mode Off
2 - 14 2020/4820/4820 i User’s Guide
Turbo Mode:
The image scanner sends characters to a terminal faster. If the
terminal drops characters, do not use Turbo Mode.
Default = Off
Numeric Keypad Mode:
Sends numeric characters as if entered from a
numeric keypad.
Default = Off
Automatic Direct Connect Mode:
This selection can be used if you have an
IBM AT style terminal and the system is dropping characters.
Default = Off
Turbo Mode On
* Turbo Mode Off
Numeric Keypad Mode On
* Numeric Keypad Mode Off
Automatic Direct
Connect Mode On
* Automatic Direct Connect
Mode Off
2 - 16 2020/4820/4820 i User’s Guide

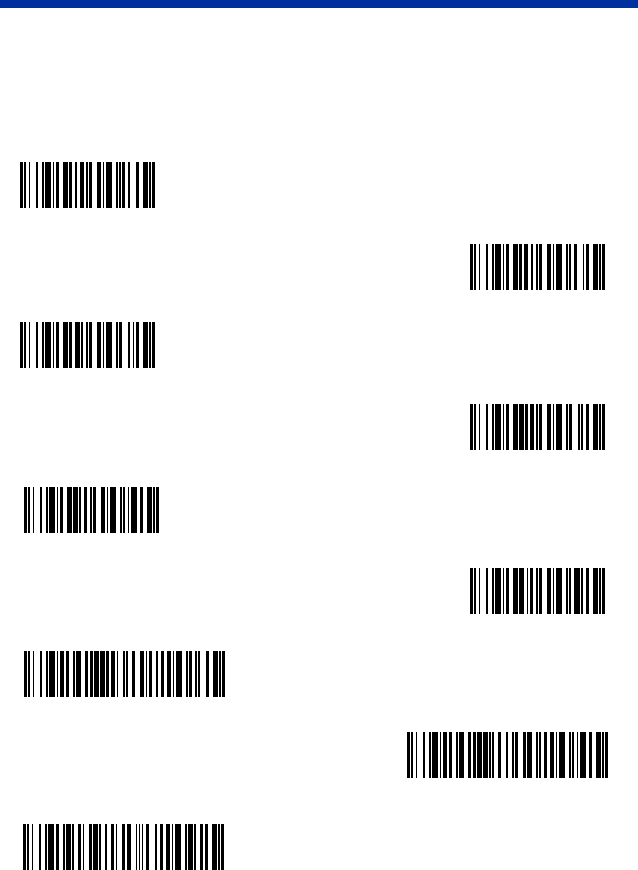

RS-232 Word Length: Data Bits, Stop Bits, and Parity
Data Bits
sets the word length at 7 or 8 bits of data per character. If an
application requires only ASCII Hex characters 0 through 7F decimal (text, digits,
and punctuation), select 7 data bits. For applications which require use of the full
ASCII set, select 8 data bits per character.
Default = 8.
Stop Bits
sets the stop bits at 1 or 2.
Default = 1.
Parity
provides a means of checking character bit patterns for validity.
Default = None.
7 Data, 1 Stop, Parity Even
7 Data, 1 Stop, Parity None
7 Data, 1 Stop, Parity Odd
7 Data, 2 Stop, Parity Odd
7 Data, 2 Stop, Parity Even
7 Data, 2 Stop Parity None
* 8 Data, 1 Stop, Parity None
8 Data, 1 Stop, Parity Even
8 Data, 1 Stop, Parity Odd
2020/4820/4820 i User’s Guide 2 - 17
RS-232 Receiver Time-Out
The unit stays awake to receive data until the RS-232 Receiver Time-Out
expires. A manual or serial trigger resets the time-out. When an RS-232
receiver is sleeping, a character may be sent to wake up the receiver and reset
the time-out. A transaction on the CTS line will also wake up the receiver. The
receiver takes 300 milliseconds to completely come up. Change the RS-232
receiver time-out by scanning the barcode below, then scanning digits from the
inside back cover of this manual, then scanning
Save
. The range is 0 to 300
seconds.
Default = 0 seconds (no time-out - always on).
RS-232 Handshaking
RS-232 Handshaking allows control of data transmission from the image
scanner using software commands from the host device. CTS/RTS operates in
mode 2. When this feature is turned
Off
, no data flow control is used. When
Data Flow Control is turned
On
, the host device suspends transmission by
sending the XOFF character (DC3, hex 13) to the image scanner. To resume
transmission, the host sends the XON character (DC1, hex 11). Data
transmission continues where it left off when XOFF was sent.
Default = RTS/
CTS, XON/XOFF and ACK/NAK Off
.
RS-232 Receiver Time-Out
RTS/CTS On
* XON/OFF Off
* RTS/CTS Off
XON/XOFF On
ACK/NAK On
* ACK/NAK Off
2 - 18 2020/4820/4820 i User’s Guide
Host ACK Selection
Some applications require that the host terminal (or server) approve or reject
incoming barcode data and notify the operator of these actions. These
applications require that the host maintain control over the response indicators
emitted from the source image scanner. Turning the Host ACK selection on,
configures the cordless system image scanners to respond to commands from
the host system.
The following criteria must be met for the Host ACK to work correctly:
• The cordless system must be configured for Host Port RS-232 (terminal ID =
000) or USB COM Emulation (terminal ID = 130).
• RTS/CTS is defaulted off. You must enable it if the host system requires it.
• Host ACK must be enabled (page 2-19).
• System performance degrades when using Host ACK at rates lower than
9600.
• The host terminal software must be capable of interpreting the barcode data,
make decisions based on the data content, and send out appropriate escape
commands to the source image scanner.
Escape commands are addressed to the source image scanner via “Application
Work Groups.” Once a command is sent, all image scanners in a group respond
to that command. Because of this situation, it is recommended that each
image scanner is assigned to its own group in host ACK mode.
The commands to which the image scanner responds are listed on page 2-20.
The <ESC> is a 1B in hex. A typical command string is y <ESC> x, where “y” is
the application work group number, “<ESC> x” is the escape command, and the
comma is the terminator, which is required.
Commands may be strung together to create custom response sequences. An
example of a command string is listed below.
0<ESC>4<ESC>5<ESC>6,
The above example will make an image scanner in application work group zero
beep low, medium, high.
Once Host ACK is enabled, the system works as follows:
• The image scanner reads a code and sends data to the base/host system. No
audible or visual indication is emitted until the image scanner receives an
escape command. The image scanner read illumination goes out upon a
successful read.
• Image Scanner operation is suspended until 1) a valid escape string is
received from the host system (via the base) or 2) the image scanner “times
out.”
• Once condition 1 or 2 above has been met, the image scanner is ready to
scan again, and the process repeats.
Time out is indicated by three rapid beeps at the same pitch. A time out occurs
if the source image scanner does not receive a valid escape command in 10
seconds. If a time out occurs, the operator should check the host system to
understand why a response to the image scanner was not received.
2 - 20 2020/4820/4820 i User’s Guide
2020 Host Escape Commands
Command Action
<ESC> a Indicate as if successful menu change made
<ESC> b Indicate as if unsuccessful menu change made
<ESC> 1 Illuminate green LED for 135 milliseconds (followed by at least 70 mSecs.
dark time when multiple blinks)
<ESC> 2 Illuminate green LED for two seconds (followed by at least 500 mSecs.
dark time when multiple blinks)
<ESC> 3 Illuminate green LED for five seconds (followed by at least 500 mSecs.
dark time when multiple blinks)
<ESC> 4 One beep at low pitch tone
<ESC> 5 One beep at medium pitch tone
<ESC> 6 One beep at high pitch tone
<ESC> 7 Indicate as successful decode and communication to host.
<ESC> 8 Indicate as unsuccessful decode and communication to host.
2020/4820/4820 i User’s Guide 2 - 21
Wand Emulation
Wand Emulation Connection
The Wand Emulation Connection barcodes should be used if you want to change
the terminal ID
only
, without changing any other image scanner settings. We
recommend using Wand Emulation Plug & Play barcodes to program your image
scanner to emulate a wand reader. The Wand Emulation Plug & Play barcodes
change other parameters, in addition to changing the terminal ID. Please refer
to Wand Emulation Plug & Play on page 2-2 for further information.
In Wand Emulation mode, the image scanner decodes the barcode then sends
data in the same format as a wand scanner. The Code 39 Format converts all
symbologies to Code 39.
The Same Code Format transmits UPC, EAN, Code 128 and Interleaved 2 of 5
without any changes, but converts all other symbologies to Code 39. 2D
symbologies are converted to Code 128.
The
Code 39 Format
barcode below sets the terminal ID to 61, and the
Same
Code Format
barcode sets the terminal ID to 64.
Default = Code 39 Format.

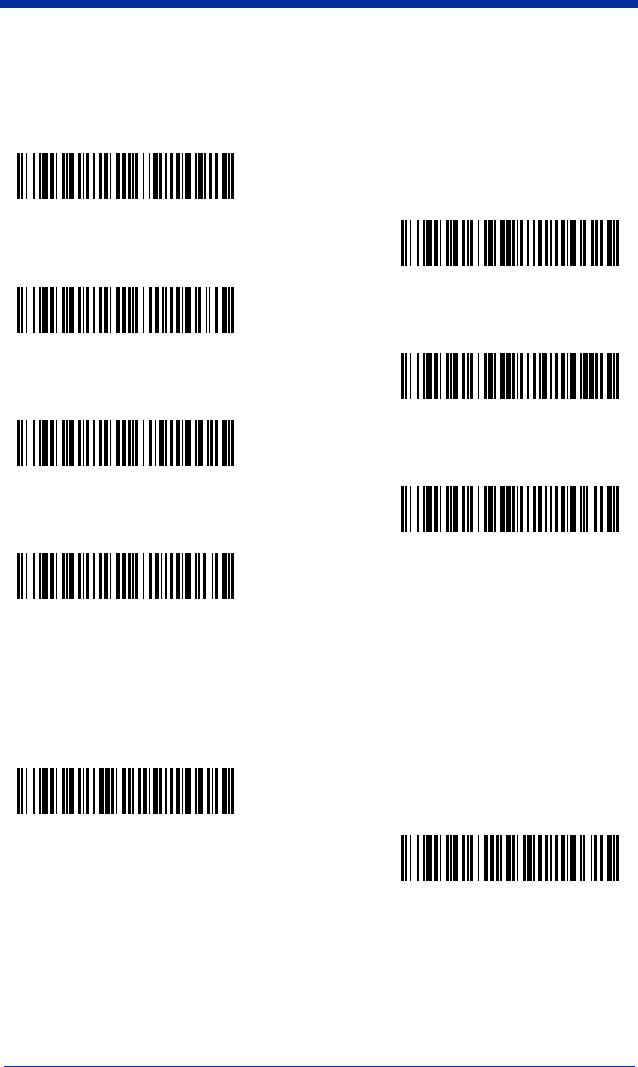

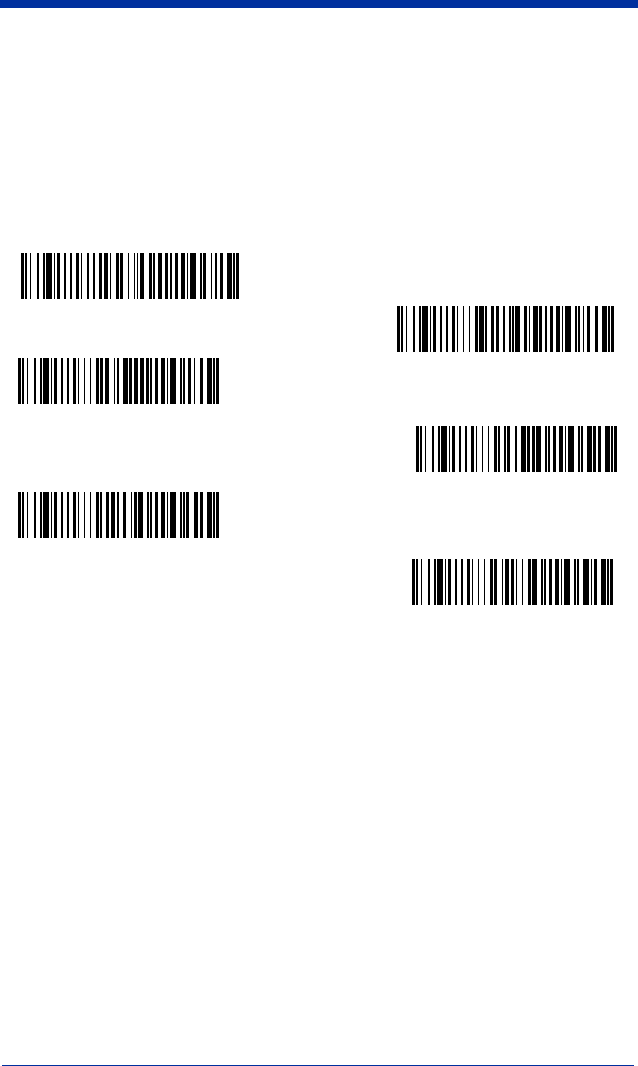

Wand Emulation Data Block Size
This transmits the data in smaller blocks to prevent buffer overflow.
Default = 40.
Code 39 Format
Same Code Format
20
80
* 40
60
2 - 22 2020/4820/4820 i User’s Guide
Wand Emulation Delay Between Blocks
This sets the delay time between data blocks.
Default = 50ms.
Wand Emulation Overall Checksum
When this option is turned on, a computed check character is added at the end
of the entire message. The check character is the character which when
Exclusive-OR’d with every preceding character of the message yields a result of
0x00 (00H).
Default = Off.
5ms
500ms
* 50ms
150ms
Wand Emulation Overall
Checksum On
* Wand Emulation Overall
Checksum Off
2020/4820/4820 i User’s Guide 2 - 23

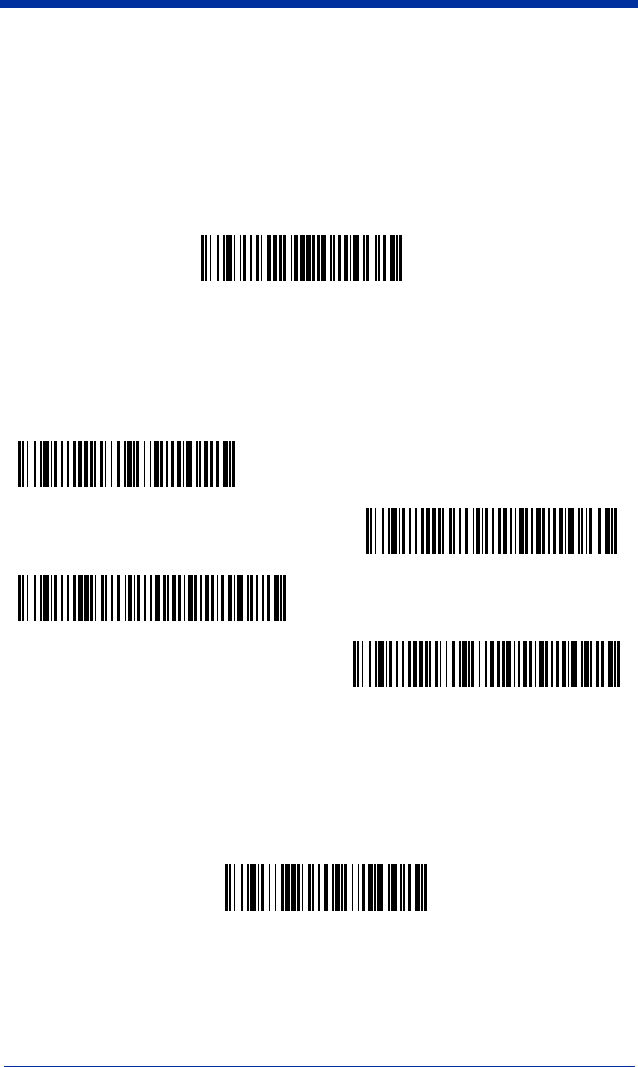

Wand Emulation Transmission Rate
The Transmission Rate is limited by the terminal’s ability to receive data without
dropping characters.
Default = 25 inches/second.
Wand Emulation Polarity
The Polarity can be sent as standard with black bars high, or reversed with white
spaces high.
Default = Black High.
10
80
* 25
40
120
150
200
* Black High
White High
2 - 24 2020/4820/4820 i User’s Guide
Wand Emulation Idle
The idle describes the state of the image scanner when no data is being
transmitted. When in Wand Emulation mode, you must set the image scanner’s
idle state to match the idle state for the device to which the image scanner is
connected.
Default = Idle High
.
* Idle High
Idle Low
2020/4820/4820 i User’s Guide 3 - 1
3
Basic System Operation
Cordless Base
The cordless base provides the link between the cordless image scanner and the
host system. The base contains an interface assembly and an RF
communication module. The RF communication module performs the data
exchange between the cordless image scanner and the interface assembly. The
control assembly coordinates the central interface activities including:
transmitting/receiving commands and data to/from the host system, performing
software activities (parameter menuing, visual indicator support, power-on
diagnostics), and data translation required for the host system.
The base also is the image scanner’s battery charger. Refer to "Base Charge
Mode" on page 3-3 for additional information.
RF (Radio Frequency) Module Operation
The cordless system uses a two-way Bluetooth radio to transmit and receive
data between the image scanner and the base. Designed for point-to-point and
multipoint-to-single point applications, the radio operates using a license free
ISM band, which sends relatively small data packets at a fast data rate over a
radio signal with randomly changing frequencies, makes the cordless system
highly responsive to a wide variety of data collection applications and resistant
to noisy RF environments. Bluetooth Class 2 power level provides a
communication range of 33 feet (10m) between the image scanner and base/
Bluetooth adapter, depending on the environment.
Cordless Image Scanner
The cordless image scanner enables fast and accurate barcode scanning using
a non-contact area image scanner.
The image scanner is comprised of an area image engine, a decode/control
assembly, and an RF communication module. The image engine performs the
barcode image illumination and sensing. The decode/control assembly
coordinates the central communication activities including: capturing and
decoding the barcode image data, performing software activities (parameter
menuing, visual indicator support, low battery indication), and data translation
required for the host system. The RF communication module performs the data
exchange between the image scanner and the base.
3 - 2 2020/4820/4820 i User’s Guide
System Conditions
The components of the cordless system interact in specific ways as you
associate an image scanner to a base, as you move an image scanner out of
range, bring an image scanner back in range, or swap image scanners between
two cordless systems. The following information explains the cordless system
operating conditions.
Linking Process
Once an image scanner is placed into the base, the image scanner’s battery
charge status is checked, and software automatically detects the image scanner
and links it to the base depending on the selected link mode.
Image Scanner Is Out of Range
The cordless image scanner is in communication with its base, even when it is
not transmitting barcode data. Whenever the image scanner can’t communicate
with the base for a few seconds, it is out of range. If the image scanner is out of
range and you scan a barcode, the image scanner issues a triple beep indicating
no communication with the base. In addition, your image scanner and base can
sound an alarm if programmed to emit an alarm. Refer to "Out-of-Range
Alarm" on page 3-14.
Image Scanner Is Moved Back Into Range
The image scanner re-links if the image scanner or the base have been reset or
the image scanner comes back into range. If the image scanner re-links, you will
hear a single chirp when the re-linking process (uploading of the parameter table)
is complete.
Out of Range and Back into Range with Data Accumulation
Mode On
The image scanner may store a number of symbols (approximately 500 UPC
symbols, others may vary) when out of range and then send them to the base
when back in range. You will not hear a communication error beep in this mode,
but you will hear a short buzz when you pull the trigger if the radio communication
is not working. Once the radio connection is made, the image scanner produces
a series of beeps while the data is being transferred to the base.
2020/4820/4820 i User’s Guide 3 - 3

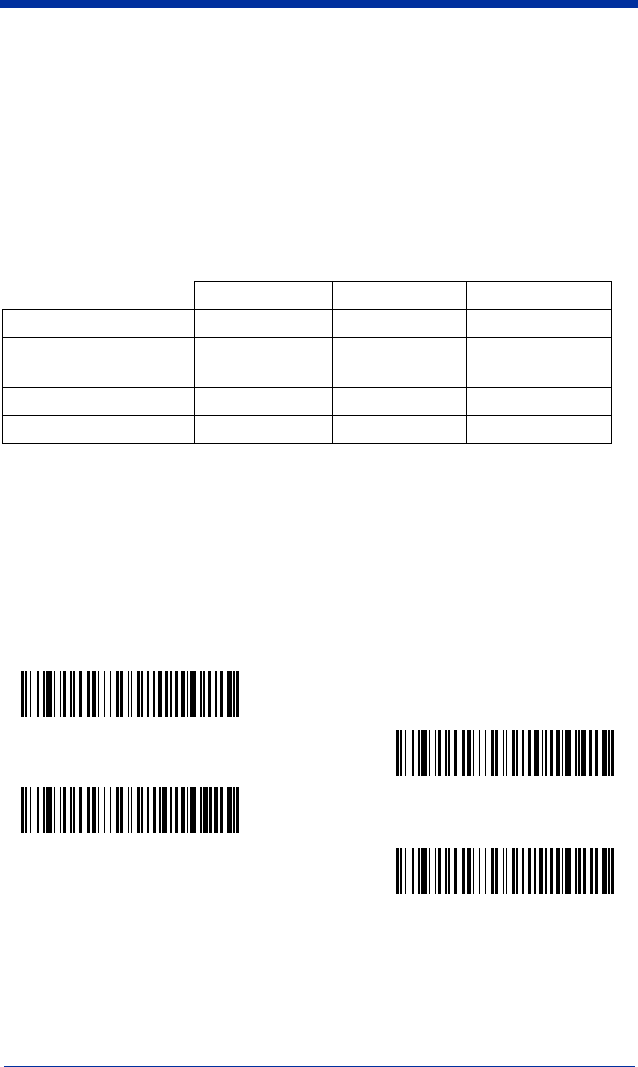

Base Charge Mode
In order for the battery to be charged, there must be enough voltage for the
circuitry to work. There are three methods during which power can be supplied
to the base:
1: 9VDC power supply connected to the barrel connector
2: 12VDC host power source only
3: 5VDC host power source only
The chart below describes each selection by condition.
Using a slow charge rate draws less current (power) from the input power source
when the battery is mostly discharged.
Note: If you attach the 4820/4820i system to a host with a 12V power source,
the 12V host is dominant; the system pulls power from the host and not
the 9V power supply. For example, if you have a host system with a 12
volt available to the base, it will supersede the 9V power supply. The 9V
supply is not needed for 12V host applications and only serves as a
backup if the system goes down.
Scan the appropriate barcode for your application.
Default = Automatic
.
12 3
Automatic Fast Charge Slow Charge No Charge
Full Charge Rate Fast Charge Fast Charge No Charge
Low Charge Rate Slow Charge Slow Charge No Charge
Battery Charge Off No Charge No Charge No Charge
* Automatic
Low Charge Rate
Full Charge Rate
Battery Charge Off
3 - 4 2020/4820/4820 i User’s Guide
Beeper and LED Sequences and Meaning
The image scanner contains LEDs on the top of the unit to indicate its power up,
communication, and battery status. Simply stated, red LED = error; green
LED = success of any type. The unit’s audible indicators have meaning as well:
3 beeps = error; 2 beeps = menu change; 1 beep = all other successes.
The table below lists the indication and cause of the LED illumination and beeps
for the image scanner.
Image Scanner LED Sequences and Meaning
2020 LED Sequences and Meaning
The base contains a red LED that indicates the status of the unit and verifies its
communication with the host system and a green LED that indicates image
scanner battery charge condition.
Note: Charging only occurs with external power applied to the 2020 or 12 volt
host power.
LED Indication Beeper Indication Cause
Normal Operation
Red Flash None Battery low
Green Flash 1 beep Successful communication
or linking
Red, blinking 3 beeps Failed communication
Menu Operation
Green Flash 2 beeps Successful menu change
Red, blinking 3 beeps Unsuccessful menu change
Charge Condition Charge Status Indicator (Green LED)
Image Scanner inserted into
base Three flashes
>80% charged On continuously
30% to 80% charged Slow flash, 1 second on, 1 second off
<30% charged Fast flash, 300 mSec on, 300 mSec off
2020/4820/4820 i User’s Guide 3 - 5
The table below list the indication and cause of the LED illumination and beeps
for the 2020.
Image Scanner Modes
The 4820/4820i is capable of working in single image scanner mode, multiple
image scanner mode, or with Bluetooth devices, other than the 2020 base.
Unlinking the Image Scanner
If the base has an image scanner linked to it, that image scanner must be
unlinked before a new image scanner can be linked. Once the previous image
scanner is unlinked, it will no longer communicate with the base. To unlink an

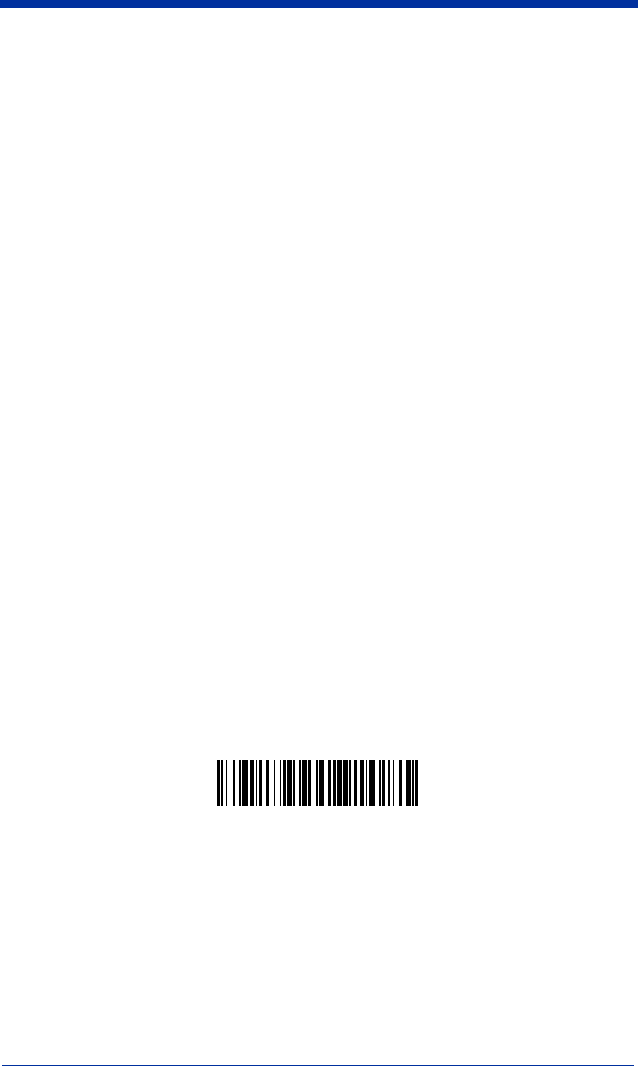

image scanner from the base, scan the Unlink Image Scanner barcode below.
Single Image Scanner Operation
There are two link modes to accommodate different applications: Locked Link
Mode and Open Link Mode. Scan the appropriate barcodes included in the Open
Link and Locked Link Mode explanations that follow to switch from one mode to
another.
Default = Locked Link Mode
.
System Condition System Status Indicator (Red LED)
Power On/System Idle LED is on
Power On/Diagnostic Error Blink LED for long duration, pulsing indefinitely
Receiving Data (2020 only)
Blink LED for short duration in multiple pulses. Occurs
while transferring data to/from the RF module or the Host
port.
Base requests status from its
own Bluetooth radio Blink LED once (occurs approx. every 30 seconds)
Unlink Image Scanner
3 - 6 2020/4820/4820 i User’s Guide
Locked Link Mode - Single Image Scanner
If you link an image scanner to a base using the Locked Link Mode, other image
scanners are blocked from being linked if they are inadvertently placed into the
base. If you do place a different image scanner into the base, it will charge the
image scanner, but the image scanner will not be linked.
To use a different image scanner, you need to unlink the original image scanner
by scanning the Unlink Image Scanner barcode. (See "Image Scanner
Modes" on page 3-5.)
Open Link Mode - Single Image Scanner
When newly shipped or defaulted to factory settings, the base and image
scanner are not linked. By placing an image scanner into the base, they
establish a link. Placing a different image scanner into the base establishes a
new link and the old image scanner is unlinked. Each time an image scanner is
placed into the base, it becomes the linked image scanner; the old image
scanner is unlinked.
Override Locked Image Scanner
If you need to replace a broken or lost image scanner that is linked to a base,
scan the Override Locked Image Scanner barcode below with a new image
scanner and place that image scanner in the base. The locked link will be
overridden; the broken or lost image scanner’s link with the base will be removed,
and the new image scanner will be linked.

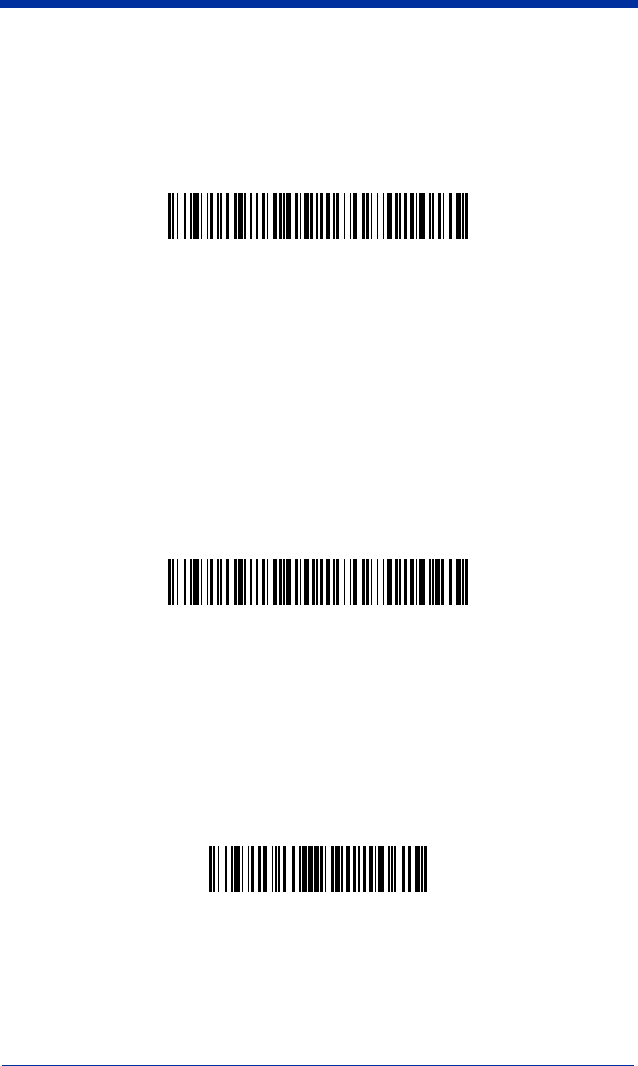

* Locked Link Mode
(Single Image Scanner)
Open Link Mode
(Single Image Scanner)
Override Locked Image Scanner
(Single Image Scanner)
2020/4820/4820 i User’s Guide 3 - 7
Multiple Image Scanner Operation
Note: Multiple Image Scanner Operation Mode allows you to link up to 7 image
scanners to one base. You cannot join an eighth image scanner until you
unlink one of the 7 image scanners or take an image scanner out of range.
To put the image scanner in multiple image scanner mode, scan the barcode
below. Once you scan this barcode, the image scanner is unlinked from the base
and must be placed into the base to re-link.
Multiple Image Scanner
3 - 8 2020/4820/4820 i User’s Guide
Image Scanner Name
You may assign a name to each image scanner you are using. When you have
multiple image scanners linked to one base, you may want to name each image
scanner so you will be able to control the image scanner receiving imaging
commands sent from the base.
The default name for a 4820 is “4820,” and ”4820i” for a 4820i. If you have more
than one image scanner linked to a base, and they all have the default names,
the first image scanner linked to the base receives commands. You can change
the name of an image scanner using a serial command (refer to "Image Scanner
Name" on page 12-8) or using a barcode command. To change the name
serially, unlink all except one of the image scanners from the base. Send
“:4820:BT_NAM
name
.” or “:4820i:BT_NAM
name
.”, where
name
is the new
image scanner name. If you wish to change the names of additional image
scanners, re-link them one at a time and repeat the “:4820:BT_NAM
name
.” or
“:4820i:BT_NAM
name
.”
command for each image scanner.
2020/4820/4820 i User’s Guide 3 - 9
To rename image scanners with sequential, numeric names, scan the barcodes
below.
Scan the Reset code after each name change and wait for the scanner
to re-link to the base before scanning another barcode to rename the next image
scanner.
Alternatively, you may change the name with a barcode command if you cannot
send serial commands to the base. One way to do this is to scan the barcode
below and scan a number for the image scanner name. For example, if you had
7 image scanners to one base, scan the barcode below with the first image
scanner, scan the 1 barcode on the Programming Chart inside the back cover
of this manual and scan Save. Then scan the Reset barcode and wait for the
scanner to re-link to the base before scanning the next barcode. Repeat that
process for image scanner number 2, 3, 4 etc.

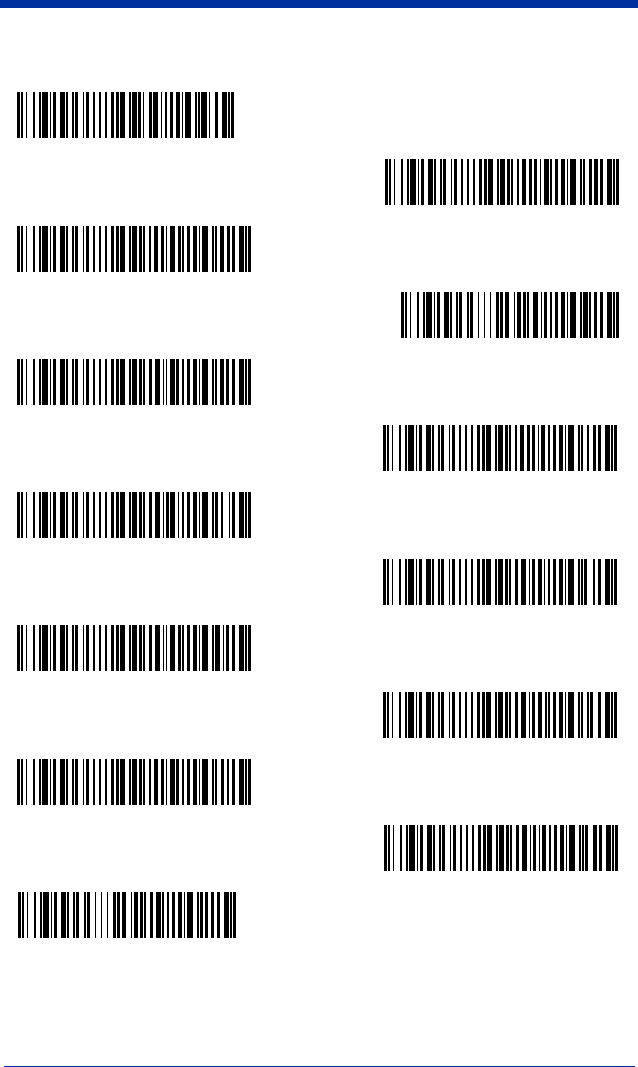

0001
0002
0003
0005
0007
0004
0006
Reset
Image Scanner Name
3 - 10 2020/4820/4820 i User’s Guide
If you want to assign an alphabetic name to the image scanner, create a Code
128 barcode containing “~BT_NAM
name
.” followed by a FNC3 character
(hexidecimal 83), where
name
is the new image scanner name. Scan the Reset
barcode (page 3-9 or on the Programming Chart inside the back cover of this
manual). You may use Barcode Builder, which is included with Quick*View.
Refer to Quick*View on page 11-5 for instructions about downloading
Quick*View from the Hand Held Products website: www.handheld.com.
Image Scanner Report
Scan the barcode below to generate a report for the connected image scanners.
The report indicates the port, work group, image scanner name, and address.
Application Work Groups
Your cordless system can have up to seven image scanners linked to one base.
You can also have up to seven work groups. If you want to have all of the image
scanners’ settings programmed alike, you don’t need to use more than one work
group. If you want each image scanner to have unique settings (e.g., beeper
volume, prefix/suffix, data formatter), then you may program each image scanner
to its own unique work group and may program each image scanner
independently. For example, you might want to have multiple work groups in a
retail/warehouse application where you need to have different data appended to
barcodes used in the warehouse area versus the retail area. You could assign
all of the image scanners in the retail area to one work group and those in the
warehouse to another. Consequently, any desired changes to either the retail or
warehouse area would apply to all image scanners in that particular work group.
Visual Xpress (page 11-4) makes it easy for you to program your system for use
with multiple image scanners and multiple work groups.
The image scanner keeps a copy of the menu settings it is using. Whenever the
image scanner is connected or reconnected to a base, the image scanner is
updated with the latest settings from the base for its work group. The image
scanner also receives menu setting changes processed by the base. If an image
scanner is removed from one base and placed into another base, it will be
updated with the new base settings for whatever work group that the image
scanner was previously assigned. For example, if the image scanner was in
work group 1 linked to the first base, it will be placed in work group 1 in the
second base with the associated settings.
Image Scanner Report
2020/4820/4820 i User’s Guide 3 - 11
Application Work Group Selection
This programming selection allows you to assign an image scanner to a work
group by scanning the barcode below. You may then program the settings (e.g.,
beeper volume, prefix/suffix, data formatter) that your application requires.
* Group 0
Group 1
Group 2
Group 4
Group 6
Group 3
Group 5
3 - 12 2020/4820/4820 i User’s Guide
Resetting the Standard Product Default Settings:
All Application Work Groups
The following barcode defaults all of the work groups to the factory settings.
The Menu Commands, beginning on page 12-5 list the standard product default
settings for each of the commands (indicated by an asterisk (*) on the
programming pages).
Resetting the Standard Product Default Settings:
Current Application Work Group
If you aren’t sure what programming options are in your image scanner, or you’ve
changed some options and want the standard product default settings restored,
scan the
Standard Product Default Settings: Current Application Group
barcode below.
The Menu Commands, beginning on page 12-5 list the factory default settings for
each of the commands (indicated by an asterisk (*) on the programming pages).
Note: Scanning this barcode also causes both the image scanner and the base
to perform a reset and become unlinked. The image scanner must be
placed in its base to re-establish the link before any setup codes are
entered. Refer to "Image Scanner Modes" on page 3-5 for additional
information.
Note: If your image scanner is in multiple image scanner mode and you scan
either the current or all application group default barcode, you will hear up
to 30 seconds of beeping while all image scanners are re-linked from the
base and the settings are defaulted to * settings. The default interface is
keyboard wedge and the default image scanner mode is single image
scanner locked link mode.

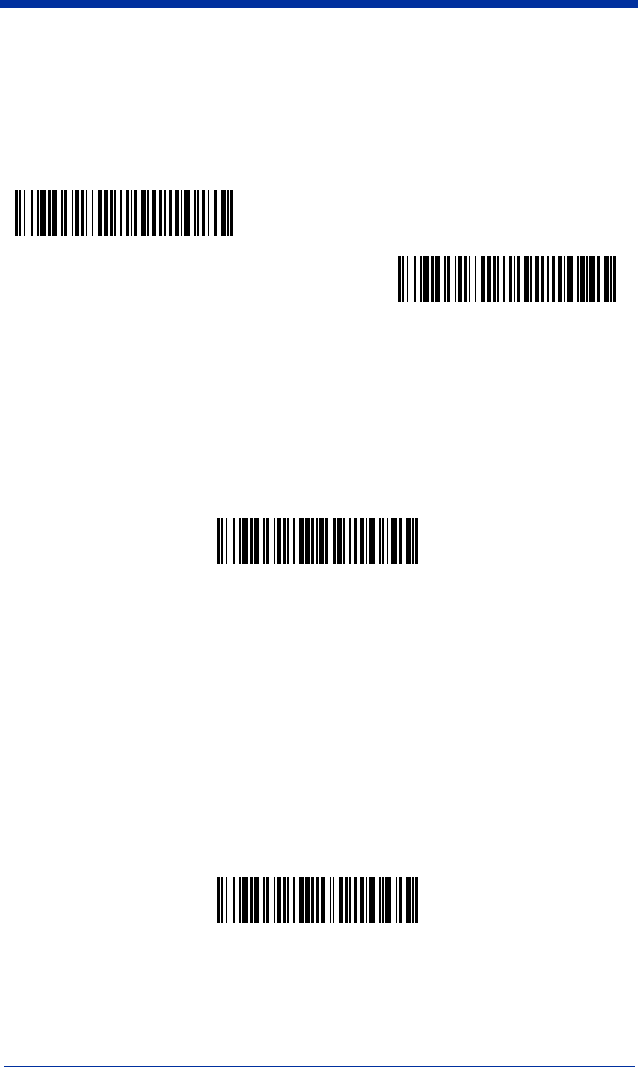

Standard Product Default Settings:
All Application Groups
Standard Product Default Settings:
Current Application Group
2020/4820/4820 i User’s Guide 3 - 13
Using the Image Scanner with Bluetooth Devices
The image scanner can be used either with the 2020 base or with other Bluetooth
devices. Scanning the Non-Base Bluetooth Connection barcode below allows
the image scanner to be used with other Bluetooth devices (e.g., PDA, PC -
Bluetooth USB Adapter). After you scan the barcode below, follow the
instructions supplied with your Bluetooth device to locate the image scanner and
connect to it. If you go out of range with your image scanner, the image scanner
automatically reconnects to the Bluetooth device when it is back in range. If you
want to re-link to the 2020 base, refer to
"Override Locked Image Scanner"
on
page 3-6 or
"Resetting the Standard Product Default Settings: Current
Application Work Group"
on page 3-12
.
Note: The multiple work groups option is not available when you are using the
image scanner with Bluetooth devices other than the 2020 base.
Changing Bluetooth PIN Code
Some devices require a PIN code as part of the Bluetooth security features. Your
image scanner’s default PIN is 1234, which you may need to enter the first time
you connect to your PDA or PC. The PIN code must be between 1 and 16
characters. To change the PIN, scan the barcode below and then scan the
appropriate numeric barcodes from the Programming Chart inside the back
cover of this manual. Scan Save to save your selection.
Non-Base BT Connection
Bluetooth PIN
3 - 14 2020/4820/4820 i User’s Guide
Out-of-Range Alarm
Duration
If your image scanner is out range of the base, an alarm sounds from both your
base and image scanner. To activate the alarm options for the image scanner
or the base and to set the alarm duration, scan the appropriate barcode below
and then set the time-out duration (from 0-3000 seconds) by scanning digits on
the Programming Chart inside the back cover, then scanning Save.
Default = 0
sec (no alarm).
Note: If you are out of range when you scan a barcode, you will receive an error
beep even if you do not have the alarm set. You receive the error beep
since the data could not be communicated to the base or the host.
Alarm Sound Type
If you have set the out-of-range alarm enabled, you may change the alarm type
for the image scanner or base by scanning the appropriate barcode below and
then scanning a digit (0-7) barcode and the Save barcode on the Programming
Chart inside the back cover of this manual.
Default = 0.
Set the sound type to fit
your application.
Base Alarm Duration
Image Scanner Alarm
Base Alarm Type
Image Scanner Alarm Type
2020/4820/4820 i User’s Guide 3 - 15
Data Accumulation Mode
Scan the barcodes below to turn data accumulation (batch) mode on and off. If
data accumulation mode is on, barcode data is stored when the image scanner
is out of range of the base and transmitted once the image scanner is back in
range.
Data Accumulation Mode On
* Data Accumulation Mode Off
2020/4820/4820 i User’s Guide 4 - 1
4
Output
Good Read Indicators
Beeper – Good Read
The beeper may be programmed
On
or
Off
in response to a good read. Turning
this option off, only turns off the beeper response to a good read indication. All
error and menu beeps are still audible.
Default = On.
Beeper Volume – Good Read
The beeper volume codes modify the volume of the beep the image scanner
emits on a good read.
Default = Medium.
* Beeper - Good Read On
Beeper - Good Read Off
High
* Medium
Off
Low
4 - 2 2020/4820/4820 i User’s Guide
Beeper Pitch – Good Read
The beeper pitch codes modify the pitch (frequency) of the beep the image
scanner emits on a good read.
Default = Medium.
Beeper Duration – Good Read
The beeper duration codes modify the length of the beep the image scanner
emits on a good read.
Default = Normal.
LED – Good Read
The LED indicator can be programmed
On
or
Off
in response to a good read.
Default = On.
Low (1600 Hz)
* Medium (3250 Hz)
High (4200 Hz)
* Normal Beep
Short Beep
* LED - Good Read On
LED - Good Read Off
2020/4820/4820 i User’s Guide 4 - 3
Number of Beeps – Good Read
The number of beeps of a good read can be programmed from 1 - 9. The same
number of beeps will be applied to the beeper and LED in response to a good
read. For example, if you program this option to have five beeps, there will be
five beeps and five LED flashes in response to a good read. The beeps and LED
flashes are in sync with one another. To change the number of beeps, scan the
barcode below and then scan a digit (1-9) barcode and the
Save
barcode on the
Programming Chart inside the back cover of this manual.
Default = One.
Good Read Delay
This sets the minimum amount of time before the image scanner can read
another barcode.
Default = 0 ms (No Delay).
User-Specified Good Read Delay
If you want to set your own length for the good read delay, scan the barcode
below, then set the delay (from 0-30,000 milliseconds) by scanning digits from
the inside back cover, then scanning
Save
.
Number of Beeps/LED Flashes
* No Delay
Short Delay (500 ms)
Medium Delay (1,000 ms)
Long Delay (1,500 ms)
User-Specified Good Read Delay
4 - 4 2020/4820/4820 i User’s Guide
Serial Trigger Modes
Manual/Serial Trigger, Low Power
You can activate the image scanner either by pressing the trigger, or using a
serial trigger command (see Trigger Commands on page 12-4). When in manual
trigger mode, the image scanner scans until a barcode is read, or until the trigger
is released.
When in serial mode, the image scanner scans until a barcode has been read or
until the deactivate command is sent. In serial mode, the image scanner can also
be set to turn itself off after a specified time has elapsed (see Read Time-Out
(Serial Trigger Mode), which follows).
Read Time-Out (Serial Trigger Mode)
Use this selection to set a time-out (in milliseconds) of the image scanner’s
trigger when using serial commands to trigger the image scanner. Once the
image scanner has timed out, you can activate the image scanner either by
pressing the trigger or using a serial trigger command. After scanning the Read
Time-Out barcode, set the time-out duration (from 0-300,000 milliseconds) by
scanning digits on the Programming Chart inside the back cover, then scanning
Save.
Default = 300,000 ms.
Image Scanner Power Time-Out Timer
Note: The Image Scanner Power Time-out Timer option only applies to Manual/
Serial Trigger.
When there is no activity within a specified time period, the image scanner enters
low power mode. Scan the appropriate Image Scanner Power Time-Out
barcode to change the time-out duration (in seconds).
* Manual/Serial Trigger
Read Time-Out
2020/4820/4820 i User’s Guide 4 - 5
Note: Scanning zero (0) is the equivalent of setting no time-out.
If there are no trigger pulls during the “image scanner power time-out timer”
interval, the image scanner goes into power down mode. Whenever the trigger
is enabled, the “image scanner power time-out timer” is reset. If the image
scanner is placed in the 2020 cradle and the battery is in the process of being
charged, the image scanner will not go into power down mode.
Note: When the image scanner is in power down mode, pull the trigger to power
the unit back up. There will be a set of power up beeps and a delay of up
to a few seconds for the radio to join. The image scanner will then be
ready to use.
0 seconds
200 seconds
400 seconds
900 seconds
* 3600 seconds
7200 seconds
4 - 6 2020/4820/4820 i User’s Guide
Scan Stand Mode
When a unit is in Scan Stand mode, it remains idle as long as it sees the Scan
Stand symbol. (See
Scan Stand Symbol
that follows.) When a different code
is presented, the image scanner is triggered to read the new code.
Note:The image scanner automatically adjusts the illumination LEDs to the
lowest light level possible to maintain a good lock on the Scan Stand symbol.
When a symbol is presented, the image scanner’s light levels adjust to the saved
setting (see LED Power Level on page 4-9). This mode requires at least 50 lux
of ambient light to operate correctly.
Scan Stand Symbol
When a unit is in Scan Stand mode, the LEDs shine at the Scan Stand symbol
on the base of the stand which tells it to remain idle.
When the Scan Stand
symbol is covered, the image scanner turns the LEDs on at the configured power
level (Default High) and attempts to find and decode barcodes in its field of view.
Presentation Mode
Note: This mode requires at least 50 lux of ambient light to operate correctly.
Scanning the barcode below programs the image scanner to work in
Presentation Mode. Presentation Mode uses ambient light to detect barcodes.
The LEDs are off until a barcode is presented to the image scanner, then the
LEDs turn on automatically to read the code. If the light level in the room is not
high enough, Presentation Mode may not work properly.
Scan Stand Mode
Scan Stand Symbol
Presentation Mode
2020/4820/4820 i User’s Guide 4 - 7
Presentation LED Behavior after Decode
When an image scanner is in presentation mode, the LEDs remain on and
continue scanning for a short time after a barcode is decoded. If you wish to turn
the LEDs off immediately after a barcode is decoded, scan the LEDs Off
barcode, below.
Default = LEDs On.
Presentation Sensitivity
Presentation Sensitivity is a numeric range that increases or decreases the
image scanner's reaction time to barcode presentation. To set the sensitivity,
scan the
Sensitivity
barcode, then scan the degree of sensitivity (from 0-20)
from the inside back cover, and
Save
. 0 is the most sensitive setting, and 20 is
the least sensitive.
Default = 1.
Hands Free Time-Out
The Scan Stand and Presentation Modes are referred to as “hands free” modes.
If the image scanner’s trigger is pulled when using a hands free mode, the image
scanner changes to manual trigger mode. You can set the time the image
scanner should remain in manual trigger mode by setting the Hands Free Time-
Out. Once the time-out value is reached, (if there have been no further trigger
pulls) the image scanner reverts to the original hands free mode.
Scan the
Hands Free Time-Out
barcode, then scan the time-out duration (from
0-300,000 milliseconds) from the inside back cover, and
Save
.
Default = 5,000
ms.
* LEDs On
LEDs Off
Sensitivity
Hands Free Time-Out
4 - 8 2020/4820/4820 i User’s Guide
Reread Delay
This sets the time period before the image scanner can read the
same
barcode
a second time. Setting a reread delay protects against accidental rereads of the
same barcode. Longer delays are effective in minimizing accidental rereads.
Use shorter delays in applications where repetitive barcode scanning is required.
Default = Medium.
Reread Delay only works when in Presentation Mode (see page 4-6).
User-Specified Reread Delay
If you want to set your own length for the reread delay, scan the barcode below,
then set the delay (from 0-30,000 milliseconds) by scanning digits from the inside
back cover, then scanning
Save
.
Short (500 ms)
* Medium (750 ms)
Long (1000 ms)
Extra Long (2000 ms)Extra Long (2000 ms)
User-Specified Reread Delay
2020/4820/4820 i User’s Guide 4 - 9
LED Power Level
This selection allows you to adjust LED and aimer brightness.
Off
is used when
no illumination is needed.
Low
is used if low illumination is sufficient.
High
(the
default) is the brightest setting.
If you have an aimer delay programmed (see Aimer Delay on page 4-10), the
aimer will be at 100% power during the delay, regardless of the LED Power
Level.
Note: If you scan the Off barcode, both the aimer and illumination lights turn off,
making it impossible to scan barcodes in low light. To turn the LED Power
Level back on, move to a brightly lit area and scan either the Low or the
High barcode below.
Illumination Lights
If you want the illumination lights on while reading a barcode, scan the Lights On
barcode, below. However, if you want to turn just the lights off, scan the Lights
Off barcode.
Note: This setting does not affect the aimer light. The aiming light can be set
using Aimer Mode (page 4-10).
Off
Low (50%)
* High (100%)
Lights Off
* Lights On
4 - 10 2020/4820/4820 i User’s Guide
Aimer Delay
The aimer delay allows a delay time for the operator to aim the image scanner
before the picture is taken. Use these codes to set the time between when the
trigger is pulled and when the picture is taken. During the delay time, the aiming
light will appear, but the LEDs won’t turn on until the delay time is over.
User-Specified Aimer Delay
If you want to set your own length for the duration of the delay, scan the barcode
below, then set the time-out by scanning digits (0 - 4,000 ms) from the
Programming Chart inside the back cover of this manual, then scan Save.
Aimer Mode
This feature allows you to turn the aimer on and off. When the Interlaced
barcode is scanned, the aimer is interlaced with the illumination LEDs.
400 milliseconds
* Off
(no delay)
200 milliseconds
Delay Duration
Off
* Interlaced
2020/4820/4820 i User’s Guide 4 - 11
Centering
Use Centering to narrow the image scanner’s field of view to make sure the
image scanner reads only those barcodes intended by the user. For instance, if
multiple codes are placed closely together, centering will insure that only the
desired codes are read. (Centering can be used in conjunction with Aimer
Delay, page 4-10, for the most error-free operation in applications where multiple
codes are spaced closely together. Using the Aimer Delay and Centering
features, the image scanner can emulate the operation of older systems, such as
linear laser barcode image scanners.)
In the example below, the gray area is the full image scanner field of view and
the white area is the centering window. Barcode 1 will not be read, while
Barcode 2 will
be.
The default centering window is a 128x96 pixel area in the center of the image
scanner’s field of view. The following diagram illustrates the default top, bottom,
left, and right pixel positions, measured from the top and the left side of the image
scanner’s field of view, which is 640 by 480 pixels.
Barcode 1
Barcode 2
0
100%
100%
Default
Center
40% 60%
40%
60%
Left
Right
Bottom
Top
4 - 12 2020/4820/4820 i User’s Guide
If a barcode is not within the predefined window, it will not be decoded or output
by the image scanner. If centering is turned on by scanning
Centering
On
, the
image scanner only reads codes that intersect the centering window you specify
using the
Top
,
Bottom
,
Left
, or
Right
barcodes.
Scan
Centering On
, then scan one of the following barcodes to change the top,
bottom, left, or right of the centering window. Then scan the percent you want to
shift the centering window using digits on the inside back cover of this manual.
Scan
Save
.
Default Centering = 40% for Top and Left, 60% for Bottom and
Right.
Left of Centering Window
Top of Centering Window
Right of Centering Window
Bottom of Centering Windo
w
* Centering Off
Centering On
2020/4820/4820 i User’s Guide 4 - 13
Decode Search Mode
There are two selectable decode (scanning) modes:
Full Omnidirectional
- Searches for barcode features beginning at the center of
an image, and searches to the image’s limits. This mode reads all symbologies
(including OCR), in any orientation. The Full Omnidirectional search is very
thorough which may slow performance time.
Note: This search mode is the default setting for the image scanner.
Quick Omnidirectional
- This is an abbreviated search for barcode features
around the center region of an image. This mode quickly reads all symbologies
in any orientation. The Quick Omnidirectional mode may miss some off-center
symbols, as well as larger Data Matrix and QR Code symbols.
Full Omnidirectional
Quick Omnidirectional
4 - 14 2020/4820/4820 i User’s Guide
Output Sequence Overview
Require Output Sequence
When turned off, the barcode data will be output to the host as the image scanner
decodes it. When turned on, all output data must conform to an edited sequence
or the image scanner will not transmit the output data to the host device.
Note: This selection is unavailable when the Multiple Symbols Selection is
turned on.
Output Sequence Editor
This programming selection allows you to program the image scanner to output
data (when scanning more than one symbol) in whatever order your application
requires, regardless of the order in which the barcodes are scanned. Reading
the
Default Sequence
symbol programs the image scanner to the Universal
values, shown below. These are the defaults. Be certain you want to delete or
clear all formats before you read the
Default Sequence
symbol.
Note: You must hold the trigger while reading each barcode in a sequence.
Note: To make Output Sequence Editor selections, you’ll need to know the code
I.D., code length, and character match(es) your application requires. Use
the Alphanumeric symbols (inside back cover) to read these options.
To Add an Output Sequence
1. Scan the
Enter Sequence
symbol (see Require Output Sequence, page 4-
16).
2. Code I.D.
On the Symbology Chart on page A-1, find the symbology to which you want
to apply the output sequence format. Locate the Hex value for that symbol-
ogy and scan the 2 digit hex value from the Programming Chart (inside back
cover).
3. Length
Specify what length (up to 9999 characters) of data output will be acceptable
for this symbology. Scan the four digit data length from the Programming
Chart. (Note: 50 characters is entered as 0050. 9999 is a universal num-
ber, indicating all lengths.) When calculating the length, you must count any
programmed prefixes, suffixes, or formatted characters as part of the length
(unless using 9999).
4. Character Match Sequences
On the Code Page Mapping of Printed Barcodes, page A-6, find the Hex
value that represents the character(s) you want to match. Use the Program-
ming Chart to read the alphanumeric combination that represents the ASCII
characters. (99 is the Universal number, indicating all characters.)
5. End Output Sequence Editor
Scan
F F
to enter an Output Sequence for an additional symbology, or
Save
to save your entries.
2020/4820/4820 i User’s Guide 4 - 15
Other Programming Selections
•
Discard
This exits without saving any Output Sequence changes.
Output Sequence Example
In this example, you are scanning Code 93, Code 128, and Code 39 barcodes,
but you want the image scanner to output Code 39 1st, Code 128 2nd, and Code
93 3rd, as shown below.
Note: Code 93 must be enabled to use this example.
You would set up the sequence editor with the following command line:
SEQBLK62999941FF6A999942FF69999943FF
The breakdown of the command line is shown below:
SEQBLKsequence editor start command
62 code identifier for Code 39
9999 code length that must match for Code 39, 9999 = all lengths
41 start character match for Code 39, 41h = “A”
FF termination string for first code
6A code identifier for Code 128
9999 code length that must match for Code 128, 9999 = all lengths
42 start character match for Code 128, 42h = “B”
FF termination string for second code
A - Code 39
B - Code 128
C - Code 93
4 - 16 2020/4820/4820 i User’s Guide
69 code identifier for Code 93
9999 code length that must match for Code 93, 9999 = all lengths
43 start character match for Code 93, 43h = “C”
FF termination string for third code
To program the previous example using specific lengths, you would have to
count any programmed prefixes, suffixes, or formatted characters as part of the
length. If you use the example on page 4-15, but assume a <CR> suffix and
specific code lengths, you would use the following command line:
SEQBLK62001241FF6A001342FF69001243FF
The breakdown of the command line is shown below:
SEQBLK sequence editor start command
62 code identifier for Code 39
0012 A - Code 39 sample length (11) plus CR suffix (1) = 12
41 start character match for Code 39, 41h = “A”
FF termination string for first code
6A code identifier for Code 128
0013 B - Code 128 sample length (12) plus CR suffix (1) = 13
42 start character match for Code 128, 42h = “B”
FF termination string for second code
69 code identifier for Code 93
0012 C - Code 93 sample length (11) plus CR suffix (1) = 12
43 start character match for Code 93, 43h = “C”
FF termination string for third code
Output Sequence Editor
Require Output Sequence
When an output sequence is
Required
, all output data must conform to an edited
sequence or the image scanner will not transmit the output data to the host
device. When it’s
On/Not Required
, the image scanner will attempt to get the
output data to conform to an edited sequence, but if it cannot, the image scanner
transmits all output data to the host device as is.
Enter Sequence
Default Sequence
2020/4820/4820 i User’s Guide 4 - 17
When the output sequence is
Off
, the barcode data is output to the host as the
image scanner decodes it.
Note: This selection is unavailable when the Multiple Symbols Selection is
turned on.
Multiple Symbols
When this programming selection is turned
On
, it allows you to read multiple
symbols with a single pull of the image scanner’s trigger. If you press and hold
the trigger, aiming the image scanner at a series of symbols, it reads unique
symbols once, beeping (if turned on) for each read. The image scanner attempts
to find and decode new symbols as long as the trigger is pulled. When this
programming selection is turned
Off
, the image scanner will only read the symbol
closest to the aiming beam.
No Read
With No Read turned
On
, the image scanner notifies you if a code cannot be
read. If using a Quick*View Scan Data Window, an “NR” appears when a code
cannot be read. If No Read is turned
Off
, the “NR” will not appear.
Required
On/Not Required
*Off
On
* Off
On
* Off
4 - 18 2020/4820/4820 i User’s Guide
If you want a different notation than “NR,” for example, “Error,” or “Bad Code,”
you can edit the output message using the Data Formatter (page 6-5). The hex
code for the No Read symbol is 9C.
Print Weight
Print Weight is used to adjust the way the image scanner reads Matrix symbols.
If an image scanner will be seeing consistently heavily printed matrix symbols,
then a print weight of 6 may improve the reading performance. For consistently
light printing, a print weight of 2 may help. After scanning the
Set Print Weight
barcode, set the print weight (from 1-7) by scanning digits from the inside back
cover, then scanning
Save
.
Default = 4
.
Video Reverse
Video Reverse is used to allow the image scanner to read barcodes that are
inverted. The “Off” barcode below is an example of this type of barcode. If
additional menuing is required, Video Reverse must be disabled to read the
menu barcodes and then re-enabled after menuing is completed.
Note: Images downloaded from the unit will not be reversed. This is a setting for
decoding only.
Set Print Weight
* Default
On
* Off
2020/4820/4820 i User’s Guide 4 - 19
Working Orientation
Some barcodes are direction-sensitive. For example, KIX codes and OCR can
misread when scanned sideways or upside down. Use the working orientation
settings if your direction-sensitive codes will not usually be presented upright to
the image scanner.
Default = Upright.
Upright:
Rotate Code Clockwise 90°:
Upside Down:
Rotate Code
Counterclockwise 90°:
* Upright
Rotate Code Clockwise 90°
(Rotate Image Scanner
Counterclockwise)
Upside Down
Rotate Code
Counterclockwise 90°
(Rotate Image Scanner
2020/4820/4820 i User’s Guide 5 - 1
5
Data Editing
Prefix/Suffix Overview
When a barcode is scanned, additional information is sent to the host computer
along with the barcode data. This group of barcode data and additional,
user-defined data is called a “message string.” The selections in this section are
used to build the user-defined data into the message string.
Prefix and Suffix characters are data characters that can be sent before and after
scanned data. You can specify if they should be sent with all symbologies, or
only with specific symbologies. The following illustration shows the breakdown
of a message string:
Points to Keep In Mind
• It is not necessary to build a message string. The selections in this chapter
are only used if you wish to alter the default settings.
Default prefix = None.
Default suffix = None
.
• A prefix or suffix may be added or cleared from one symbology or all
symbologies.
• You can add any prefix or suffix from the Code Page Mapping of Printed
Barcodes on page A-6, plus Code I.D. and AIM I.D.
• You can string together several entries for several symbologies at one time.
• Enter prefixes and suffixes in the order in which you want them to appear on
the output.
• When setting up for specific symbologies (as opposed to all symbologies), the
specific symbology ID value counts as an added prefix or suffix character.
To Add a Prefix or Suffix:
Step 1. Scan the Add Prefix or Add Suffix symbol (page 5-4).
Step 2. Determine the 2 digit Hex value from the Symbology Chart (included in
the Symbology Chart, beginning on page A-1) for the symbology to
Prefix Scanned DataSuffix
1-11
alpha numeric &
control characters
variable length1-11
alpha numeric &
control characters
5 - 2 2020/4820/4820 i User’s Guide
which you want to apply the prefix or suffix. For example, for Code 128,
Code ID is “j” and Hex ID is “6A”.
Step 3. Scan the 2 hex digits from the Programming Chart inside the back
cover of this manual or scan 9, 9 for all symbologies.
Step 4. Determine the hex value from the Code Page Mapping of Printed
Barcodes on page A-6, for the prefix or suffix you wish to enter.
Step 5. Scan the 2 digit hex value from the Programming Chart inside the back
cover of this manual.
Step 6. Repeat Steps 4 and 5 for every prefix or suffix character.
Step 7. To add the Code I.D., scan 5, C, 8, 0.
To add AIM I.D., scan 5, C, 8, 1.
To add a backslash (\), scan 5, C, 5, C.
Note: To add a backslash (\) as in Step 7, you must scan 5C twice – once to
create the leading backslash and then to create the backslash itself.
Step 8. Scan Save to exit and save, or scan Discard to exit without saving.
Repeat Steps 1-6 to add a prefix or suffix for another symbology.
Example: Add a Suffix to a specific symbology
To send a CR (carriage return)Suffix for UPC only:
Step 1. Scan Add Suffix.
Step 2. Determine the 2 digit hex value from the Symbology Chart (included in
the Symbology Chart, beginning on page A-1) for UPC.
Step 3. Scan 6, 3 from the Programming Chart inside the back cover of this
manual.
Step 4. Determine the hex value from the Code Page Mapping of Printed
Barcodes on page A-6, for the CR (carriage return).
Step 5. Scan 0, D from the Programming Chart inside the back cover of this
manual.
Step 6. Scan Save, or scan Discard to exit without saving.
2020/4820/4820 i User’s Guide 5 - 3
To Clear One or All Prefixes or Suffixes:
You can clear a single prefix or suffix, or clear all prefixes/suffixes for a
symbology. When you Clear One Prefix (Suffix), the specific character you
select is deleted from the symbology you want. When you Clear All Prefixes
(Suffixes), all the prefixes or suffixes for a symbology are deleted.
Step 1. Scan the Clear One Prefix or Clear One Suffix symbol.
Step 2. Determine the 2 digit Hex value from the Symbology Chart (included in
the Symbology Chart, beginning on page A-1) for the symbology from
which you want to clear the prefix or suffix.
Step 3. Scan the 2 digit hex value from the Programming Chart inside the back
cover of this manual or scan 9, 9 for all symbologies.
Your change is automatically saved.
To Add a Carriage Return Suffix to all Symbologies
Scan the following barcode if you wish to add a carriage return suffix to all
symbologies at once. This action first clears all current suffixes, then programs
a carriage return suffix for all symbologies.

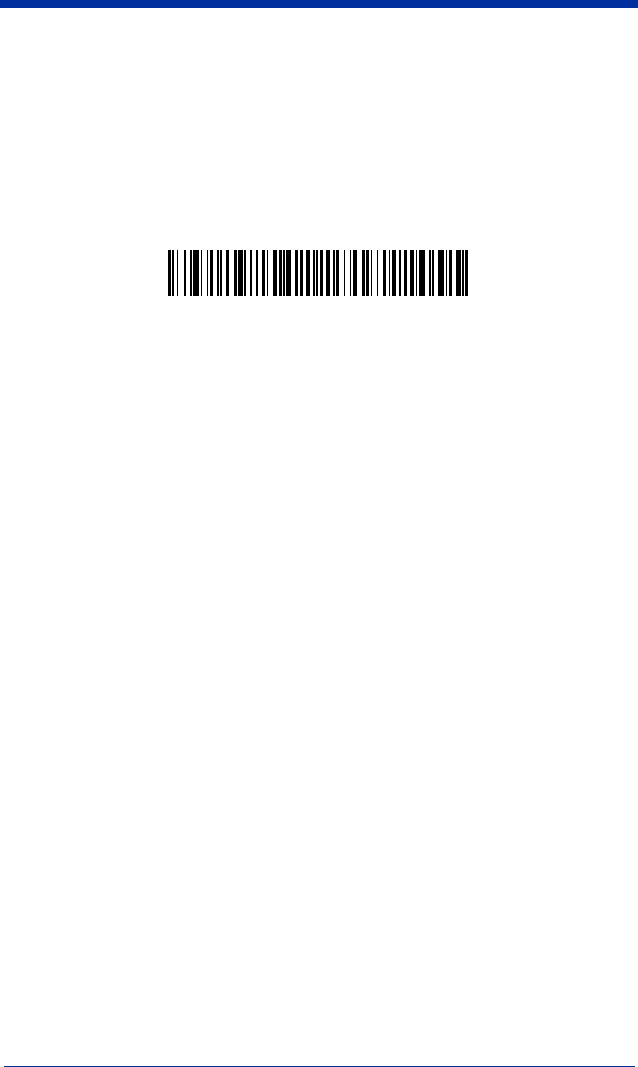

Add CR Suffix
All Symbologies
5 - 4 2020/4820/4820 i User’s Guide
Prefix Selections
Suffix Selections
Function Code Transmit
When this selection is enabled and function codes are contained within the
scanned data, the image scanner transmits the function code to the terminal.
Charts of these function codes are provided in Supported Interface Keys starting
on page 10-3. When the image scanner is in keyboard wedge mode, the scan
code is converted to a key code before it is transmitted.
Default = Enable.
Add Prefix
Clear One Prefix
Clear All Prefixes
Add Suffix
Clear One Suffix
Clear All Suffixes
* Enable
Disable
2020/4820/4820 i User’s Guide 5 - 5
Intercharacter, Interfunction, and Intermessage Delays
Some terminals drop information (characters) if data comes through too quickly.
Intercharacter, interfunction, and intermessage delays slow the transmission of
data, increasing data integrity.
Each delay is composed of a 5 millisecond step. You can program up to 99 steps
(of 5 ms each) for a range of 0-495 ms.

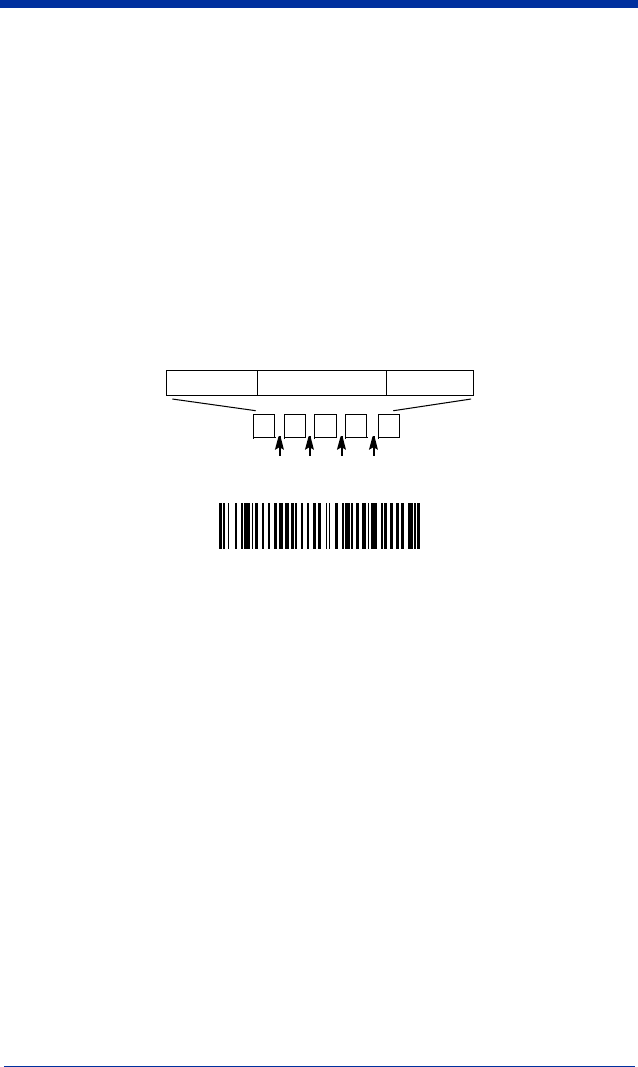

Intercharacter Delay
An intercharacter delay of up to 495 milliseconds may be placed between the
transmission of each character of scanned data. Scan the Intercharacter Delay
barcode below, then scan the number of milliseconds and the SAVE barcode
using the Programming Chart inside the back cover of this manual.
To remove this delay, scan the Intercharacter Delay barcode, then set the
number of steps to 0. Scan the SAVE barcode using the Programming Chart
inside the back cover of this manual.
12345
Intercharacter Delay
Prefix Scanned Data Suffix
Intercharacter Delay
5 - 6 2020/4820/4820 i User’s Guide

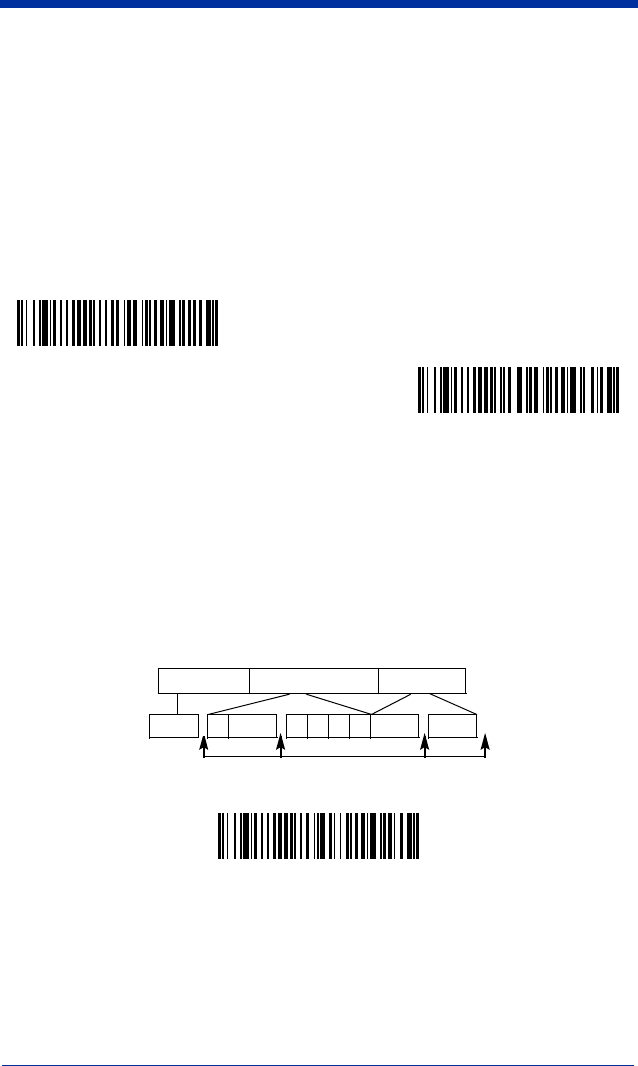

Note: Intercharacter delays are not supported in USB serial emulation.
User Specified Intercharacter Delay
An intercharacter delay of up to 495 milliseconds may be placed after the
transmission of a particular character of scanned data. Scan the Delay Length
barcode below, then scan the number of milliseconds and the SAVE barcode
using the Programming Chart inside the back cover of this manual.
Next, scan the Character to Trigger Delay barcode, then the 2-digit hex value
for the ASCII character that will trigger the delay Code Page Mapping of Printed
Barcodes on page A-6.
To remove this delay, scan the Delay Length barcode, and set the number of
steps to 0. Scan the SAVE barcode using the Programming Chart inside the
back cover of this manual.
Interfunction Delay
An interfunction delay of up to 495 milliseconds may be placed between the
transmission of each segment of the message string. Scan the Interfunction
Delay barcode below, then scan the number of milliseconds and the SAVE
barcode using the Programming Chart inside the back cover of this manual.
To remove this delay, scan the Interfunction Delay barcode, then set the
number of steps to 0. Scan the SAVE barcode using the Programming Chart
inside the back cover of this manual.
Delay Length
Character to Trigger Delay
Interfunction Delays
Prefix Scanned Data Suffix
12345STX HT CR LF
Interfunction Delay
2020/4820/4820 i User’s Guide 5 - 7

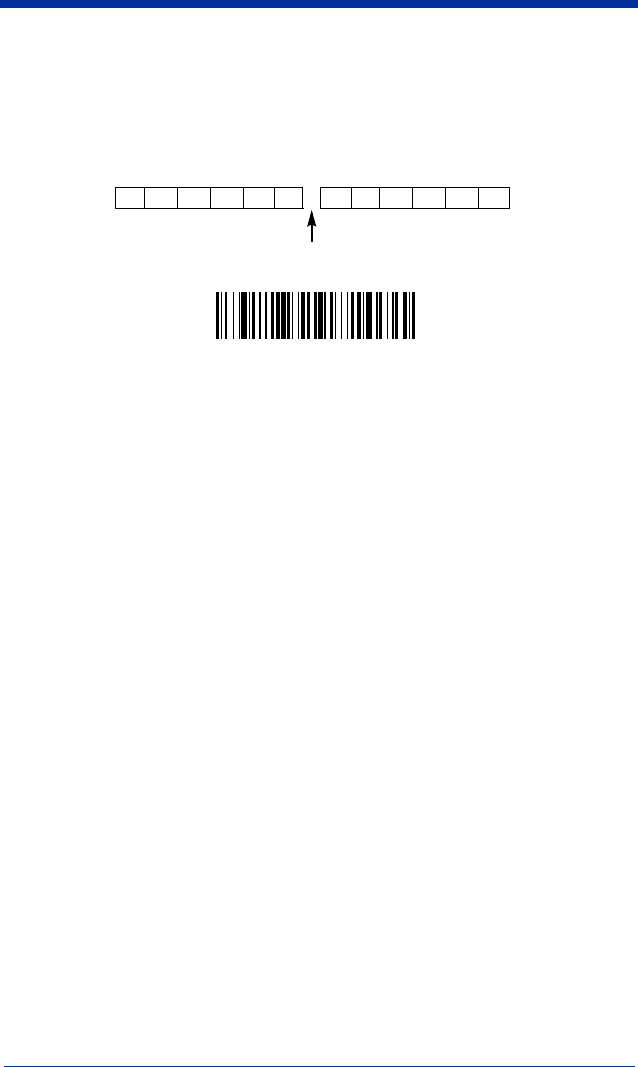

Intermessage Delay
An intermessage delay of up to 495 milliseconds may be placed between each
scan transmission. Scan the Intermessage Delay barcode below, then scan the
number of milliseconds and the SAVE barcode using the Programming Chart
inside the back cover of this manual.
To remove this delay, scan the Intermessage Delay barcode, then set the
number of steps to 0. Scan the SAVE barcode using the Programming Chart
inside the back cover of this manual.
2nd Scan Transmission1st Scan Transmission
Intermessage Delay
Intermessage Delay
2020/4820/4820 i User’s Guide 6 - 1
6
Data Formatting
Data Format Editor Introduction
You may use the Data Format Editor to change the image scanner’s output. For
example, you can use the Data Format Editor to insert characters at certain
points in barcode data as it is scanned. The selections in the following pages are
used only if you wish to alter the output.
Default Data Format setting = None.
Normally, when you scan a barcode, it gets outputted automatically; however
when you do a format, you must use a “send” command (see Send Commands
on page 6-2) within the format program to output data.
Multiple formats may be programmed into the image scanner. They are stacked
in the order in which they are entered. However, the following list presents the
order in which formats are applied:
1. Specific Term ID, Actual Code ID, Actual Length
2. Specific Term ID, Actual Code ID, Universal Length
3. Specific Term ID, Universal Code ID, Actual Length
4. Specific Term ID, Universal Code ID, Universal Length
5. Universal Term ID, Actual Code ID, Actual Length
6. Universal Term ID, Actual Code ID, Universal Length
7. Universal Term ID, Universal Code ID, Actual Length
8. Universal Term ID, Universal Code ID, Universal Length
If you have changed data format settings, and wish to clear all formats and return
to the factory defaults, scan the Default Data Format code on page 6-4.
To Add a Data Format
Step 1. Scan the Enter Data Format symbol (page 6-4).
Step 2. Primary/Alternate Format
Determine if this will be your primary data format, or one of 3 alternate
formats. (Alternate formats allow you “single shot” capability to scan
one barcode using a different data format. After the one barcode has
been read, the image scanner reverts to the primary data format. See
page 6-5.) If you are programming the primary format, scan 0 using the
Programming Chart inside the back cover of this manual. If you are
programming an alternate format, scan 1, 2, or 3, depending on the
alternate format you are programming.
Step 3. Terminal Type
Refer to Supported Terminals (page 2-8) and locate the Terminal ID
number for your PC. Scan three numeric barcodes on the inside back
cover to program the image scanner for your terminal ID (you must
enter 3 digits). For example, scan 0 0 3 for an AT wedge.
6 - 2 2020/4820/4820 i User’s Guide
Note: The wildcard for all terminal types is 099.
Step 4. Code I.D.
In the Symbology Chart, beginning on page A-1, find the symbology to
which you want to apply the data format. Locate the Hex value for that
symbology and scan the 2 digit hex value from the Programming Chart
inside the back cover of this manual.
Step 5. Length
Specify what length (up to 9999 characters) of data will be acceptable
for this symbology. Scan the four digit data length from the Program-
ming Chart inside the back cover of this manual. (Note: 50 characters is
entered as 0050. 9999 is a universal number, indicating all lengths.)
Step 6. Editor Commands
Refer to Data Format Editor Commands (page 6-2). Scan the symbols
that represent the command you want to enter. 94 alphanumeric char-
acters may be entered for each symbology data format.
Step 7. Scan Save from the Programming Chart inside the back cover of this
manual to save your entries.
Other Programming Selections
•Clear One Data Format
This deletes one data format for one symbology. If you are clearing the
primary format, scan 0 from the Programming Chart inside the back cover of
this manual. If you are clearing an alternate format, scan 1, 2, or 3, depending
on the alternate format you are clearing. Scan the Terminal Type and Code
I.D. (see Supported Terminals on page 2-8), and the barcode data length for
the specific data format that you want to delete. All other formats remain
unaffected.
•Save from the Programming Chart inside the back cover of this manual
This exits, saving any Data Format changes.
•Discard from the Programming Chart inside the back cover of this manual
This exits without saving any Data Format changes.
Data Format Editor Commands
Send Commands
F1 Send all characters followed by “xx” key or function code, starting from cur-
rent cursor position.
Syntax = F1xx
(xx stands for the hex value for an
ASCII code, see Code Page Mapping of Printed Barcodes on page A-6.)
F2 Send “nn” characters followed by “xx” key or function code, starting from
current cursor position.
Syntax = F2nnxx
(nn stands for the numeric value
(00-99) for the number of characters and xx stands for the hex value for an
ASCII code. See Code Page Mapping of Printed Barcodes on page A-6.)
F3 Send up to but not including “ss” character (Search and Send) starting from
current cursor position, leaving cursor pointing to “ss” character followed by
“xx” key or function code.
Syntax = F3ssxx
(ss and xx both stand for the
2020/4820/4820 i User’s Guide 6 - 3
hex values for ASCII codes, see Code Page Mapping of Printed
Barcodes on page A-6.)
F4 Send “xx” character “nn” times (Insert) leaving cursor in current cursor posi-
tion.
Syntax = F4xxnn
(xx stands for the hex value for an ASCII code, see
Code Page Mapping of Printed Barcodes on page A-6, and nn is the
numeric value (00-99) for the number of times it should be sent.)
E9 Send all but the last “nn” characters, starting from the current cursor posi-
tion.
Syntax = E9nn
(nn is the numeric value (00-99) for the number of
characters that will not be sent at the end of the message.)
Move Commands
F5 Move the cursor ahead “nn” characters from current cursor position.
Syntax = F5nn
(nn stands for the numeric value (00-99) for the number of
characters the cursor should be moved ahead.)
F6 Move the cursor back “nn” characters from current cursor position.
Syntax = F6nn
(nn stands for the numeric value (00-99) for the number of
characters the cursor should be moved back.)
F7 Move the cursor to the beginning of the data string.
Syntax = F7.
EA Move the cursor to the end of the data string.
Syntax = EA
Search Commands
F8 Search ahead for “xx” character from current cursor position, leaving cursor
pointing to “xx” character.
Syntax = F8xx
(xx stands for the hex value for
an ASCII code, see Code Page Mapping of Printed Barcodes on page A-6.)
F9 Search back for “xx” character from current cursor position, leaving cursor
pointing to “xx” character.
Syntax = F9xx
(xx stands for the hex value for
an ASCII code, see Code Page Mapping of Printed Barcodes on page A-6.)
E6 Search ahead for the first non “xx” character from the current cursor posi-
tion, leaving cursor pointing to non “xx” character.
Syntax = E6xx
(xx
stands for the hex value for an ASCII code, see Code Page Mapping of
Printed Barcodes on page A-6.
E7 Search back for the first non “xx” character from the current cursor position,
leaving cursor pointing to non “xx” character.
Syntax = E7xx
(xx stands for
the hex value for an ASCII code, see Code Page Mapping of Printed
Barcodes on page A-6.)
Miscellaneous Commands
FB Suppress all occurrences of up to 15 different characters, starting at the cur-
rent cursor position, as the cursor is advanced by other commands. When
the FC command is encountered, the suppress function is terminated. The
cursor is not moved by the FB command. Syntax = FBnnxxyy . .zz where
nn is a count of the number of suppressed characters in the list and xxyy ..
zz is the list of characters to be suppressed. (xx stands for the hex value for
an ASCII code, see Code Page Mapping of Printed Barcodes on page A-6.)
FC Disables suppress filter and clear all suppressed characters.
Syntax = FC.
E4 Replaces up to 15 characters in the data string with user specified charac-
ters. Replacement continues until the E5 command is encountered.
Syn-
tax = E4nnxx1xx2yy1yy2...zz1zz2
where nn is the total count of both
6 - 4 2020/4820/4820 i User’s Guide
characters to be replaced plus replacement characters; xx1 defines charac-
ters to be replaced and xx2 defines replacement characters, continuing
through zz1 and zz2.
E5 Terminates character replacement.
Syntax = E5.
FE Compare character in current cursor position to the character “xx.” If char-
acters are equal, increment cursor. If characters are not equal, no format
match.
Syntax = FExx
(xx stands for the hex value for an ASCII code, see
Code Page Mapping of Printed Barcodes on page A-6.)
EC Check to make sure there is an ASCII number at the current cursor position.
If character is not numeric, format is aborted.
Syntax = EC
.
ED Check to make sure there is a non-numeric ASCII character at the current
cursor position. If character is numeric, format is aborted.
Syntax = ED
.
Data Format Editor
Enter Data Format
* Default Data Format
Clear One Data Format
Save
Discard
Clear All Data Formats
2020/4820/4820 i User’s Guide 6 - 5
Data Formatter
When Data Formatter is turned off, the barcode data is output to the host as read
(including prefixes and suffixes). Choose one of the following options.
Default =
Data Formatter On, but Not Required.
When Data Formatter is required, all input data must conform to an edited format
or the image scanner does not transmit the input data to the host device.
Alternate Data Formats
Alternate formats allow you “single shot” capability to scan one barcode using a
different data format than your primary format. When data formats are
programmed (see page 6-1), you must input whether you are programming the
primary format, or an alternate format numbered 1, 2, or 3.
An alternate format is initiated by scanning one of the 3 alternate format
barcodes below. The image scanner will scan the next barcode, formatting the
data with the selected alternate format, then revert immediately to the primary
format.
Data Formatter Off
* Data Formatter On,
but Not Required
Data Format On, Format Required
Alternate Data Format 1
Alternate Data Format 2
Alternate Data Format 3
2020/4820/4820 i User’s Guide 7 - 1
7

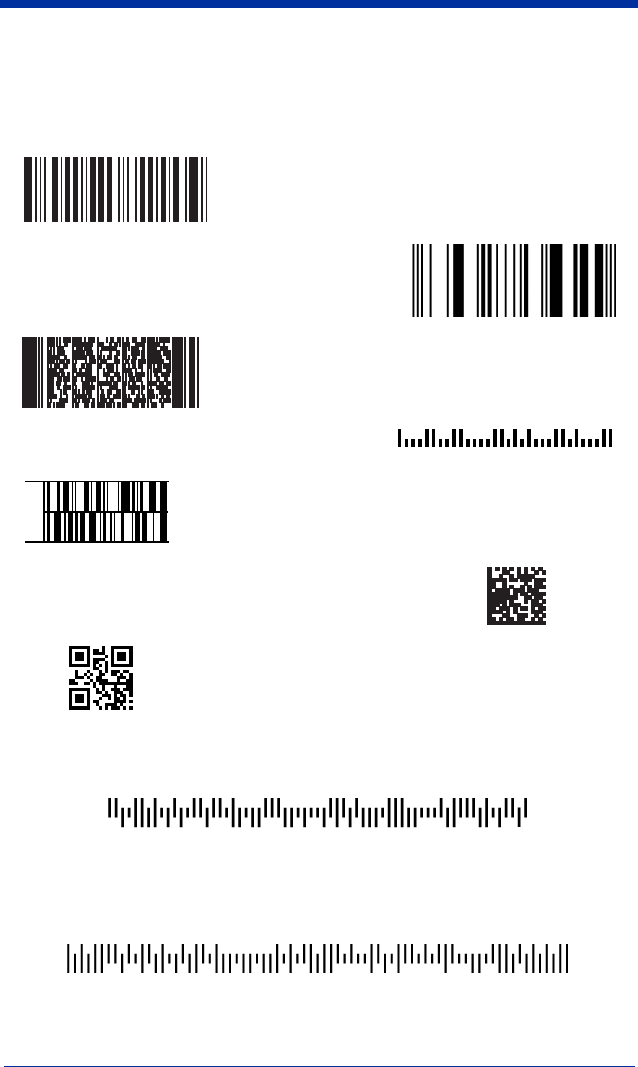

Symbologies
This programming section contains the following menu selections. Refer to
Chapter 12 for settings and defaults.
•All Symbologies •Kix (Netherlands) Post
• 4-CB (4-State Customer Barcode) •Korea Post
•Australian Post •Matrix 2 of 5
•Aztec Code •MaxiCode
•British Post •MicroPDF417
•Canadian Post •MSI
•China Post •PDF417
•Codabar •Planet Code
•Codablock F •Plessey Code
•Code 11 •PosiCode A and B
•Code 128 •Postnet
•Code 16K •QR Code
•Code 39 •GS1 DataBar Expanded
•Code 49 •GS1 DataBar Limited
•Code 93 •GS1 DataBar
•Data Matrix •Straight 2 of 5 IATA
•EAN/JAN-13 •Straight 2 of 5 Industrial
•EAN/JAN-8 •TCIF Linked Code 39 (TLC39)
•EAN•UCC Composite Codes •Telepen
•Interleaved 2 of 5 •UPC-A
• ID-tag (UPU 4-State) •UPC-A/EAN-13 with Extended
Coupon Code
• Japanese Post
2020/4820/4820 i User’s Guide 8 - 1
8
Imaging Commands
The image scanner can be used as a digital camera for capturing, manipulating,
and transferring images.
Imaging Commands with their modifiers send imaging commands to the image
scanner on a single-use basis, and take effect for the next subsequent image
capture. Once that capture is complete, the image scanner reverts to its imaging
default settings. If you wish to change a default setting, you must use the serial
default command (see Imaging Default Commands on page 12-21). When the
serial default command is used, that selection becomes the new default setting
for the image scanner.
Image Snap - IMGSNP
An image is taken whenever the trigger of the image scanner is pressed, or when
the Image Snap (IMGSNP) command is processed. Image Snap is the
command processor for image capture, or taking a picture.
The image snap command has many different modifiers that can be used to
change the look of the image in memory. Modifiers always begin with numbers
and end with a letter (case insensitive). Any number of modifiers may be
appended to the IMGSNP command. For example, you can use the following
command to snap an image, increase the gain, and have the beeper sound once
the snap is complete:
IMGSNP2G1B
IMGSNP Modifiers
P - Imaging Style: Sets the Image Snap style.
0P Decoding Style. This is similar to the current format for decoding,
however, this processing allows a few frames to be taken until the
exposure parameters are met. Then the last frame is available for
further use.
1P Photo Style
(default).
This attempts to mimic a simple digital
camera, and results in a visually optimized image.
2P Manual Style. This is an advanced style, and should not normally
be used. It allows you the most freedom to set up the image
scanner, and has no auto-exposure.
B - Beeper: Causes a beep to sound after an image is snapped.
0B No beep
(default)
1B Sounds a beep when the image is captured, notifying the user that
the image scanner can be moved.
E - Exposure: This allows you to set the exposure time. Units are 127
microseconds. Exposure is used in Manual Style only.
(Default = 7874)
n
E Range: 1 - 7874
8 - 2 2020/4820/4820 i User’s Guide
G - Gain: This modifier boosts the signal and multiplies the pixel value.
1G No gain
(default)
2G Medium gain
4G Heavy gain
8G Maximum gain
D - Delta for Acceptance: This sets the allowable range for the white value
setting (see W - Target White Value). Delta is only available when using Photo
Style.
(Default = 25)
n
D Range: 0 - 255
L - LED State: Determines if the LEDs should be on or off, and when.
Ambient illumination (0L) is preferred for taking pictures of color documents,
such as ID cards, especially when the image scanner is in a stand. LED
illumination (1L) is preferred when the image scanner is hand held. LED State
is not available when using Decoding Style.
0L LEDs off
(default)
1L LEDs on
T - Wait for Trigger: Waits for a hardware trigger pull before taking the image.
0T Takes image immediately
(default)
1T Waits for a trigger pull, then takes the image. This option only
works with Imaging Style 1P (Photo Style). Refer to page 8-1.
U - Update Tries: The maximum number of frames the image scanner should
take to reach the Delta for Acceptance. Update Tries is only available when
using Photo Style.
(Default = 6)
n
U Range: 0 - 10
W - Target White Value: Sets the target for the median grayscale value in the
captured image. For capturing close-up images of high contrast documents,
a lower setting, such as 75, is recommended. Higher settings result in longer
exposure times and brighter images, but if the setting is too high, the image
may be overexposed. Target White Value is only available when using Photo
Style.
(Default = 125)
n
W Range: 0 - 255
% - Target Set Point Percentage: Sets the target point for the light and dark
values in the captured image. A setting of 75% means 75% of the pixels are
at or below the target white value, and 25% of the pixels are above the target
white value. Altering this setting from the default is not recommended under
normal circumstances. To alter grayscale values, Target White Value should
be used.
(Default = 50)
n% Range: 1 - 99
Image Ship - IMGSHP
An image is taken whenever the trigger of the image scanner is pressed, or when
the Image Snap (IMGSNP) command is processed. The last image is always
stored in memory. You may “ship” the image by using the IMGSHP command.
2020/4820/4820 i User’s Guide 8 - 3
The image ship command has many different modifiers that can be used to
change the look of the image output by the image scanner. Modifiers affect the
image that is transmitted, but do not affect the image in memory. Modifiers
always begin with numbers and end with a letter (case insensitive). Any number
of modifiers may be appended to the IMGSHP command. For example, you can
use the following command to ship a bitmap image with gamma correction and
document image filtering:
IMGSHP8F75K26U
IMGSHP Modifiers
A - Infinity Filter: Enhances pictures taken from very long distances (greater
than 10 feet or 3 m).
0A Infinity filter off
(default)
1A Infinity filter on
C - Compensation: Flattens the image to account for variations in illumination
across the image.
0C Compensation disabled
(default)
1C Compensation enabled
D - Pixel Depth: Indicates the number of bits per pixel in the transmitted
image (KIM or BMP format only).
8D 8 bits per pixel, grayscale image
(default)
1D 1 bit per pixel, black and white image
E - Edge Sharpen: Causes the transmitted image to be convolved with an
edge sharpening filter. Entering a 23E gives the sharpest edges, but also
increases noise in the image.
0E Don’t sharpen image
(default)
14E Apply edge sharpen for typical image
n
e Apply edge sharpen using strength
n
(
n
= 1-24)
F - File Format: Indicates the desired format for the image.
0F KIM format
1F TIFF binary
2F TIFF binary group 4, compressed
3F TIFF grayscale
4F Uncompressed binary (upper left to lower right, 1 pixel/bit, 0
padded end of line)
5F Uncompressed grayscale (upper left to lower right, bitmap format)
6F JPEG image
(default)
8F BMP format (lower right to upper left, uncompressed)
8 - 4 2020/4820/4820 i User’s Guide
H - Histogram Stretch: Increases the contrast of the transmitted image. Not
available with some image formats.
0H No stretch
(default)
1H Histogram stretch
I - Invert Image: Used to rotate the image around the X or Y axis in fixed
mount applications where the image scanner is mounted upside down.
1IX Invert around the X axis (flips picture upside down)
1IY Invert around the Y axis (flips picture left to right)
IF- Noise Reduction: Used to reduce the salt and pepper noise.
0IF No salt and pepper noise reduction (default)
1IF Salt and pepper noise reduction
IR - Image Rotate:
0IR Image as snapped (rightside up) (
default
)
1IR Rotate image 90 degrees to the right
2IR Rotate image 180 degrees (upside down)
3IR Rotate image 90 degrees to the left
J - JPEG Image Quality: Sets the desired quality when the JPEG image
format is selected. Higher numbers result in higher quality, but larger files.
Smaller numbers result in greater amounts of lossy compression, faster
transmission times, lower quality, but smaller files.
(Default = 50)
n
J Image is compressed as much as possible while preserving quality
factor of
n
(
n
= 0 - 100)
0J worst quality (smallest file)
100J best quality (largest file)
K - Gamma Correction: Gamma measures the brightness of midtone values
produced by the image. You can brighten or darken an image using gamma
correction. A higher gamma correction yields an overall brighter image. The
lower the setting, the darker the image. The optimal setting for text images is
50K.
0K Gamma correction off
(default)
50K Apply gamma correction for brightening typical document image
n
K Apply gamma correction factor
n
(
n
= 0-1000)
2020/4820/4820 i User’s Guide 8 - 5
L, R, T, B, M - Image Cropping: Ships a window of the image by specifying
the left, right, top, and bottom pixel coordinates. Device columns are
numbered 0 through 639, and device rows are numbered 0 through 479. The
resulting cropped image must have two or more rows and two or more columns
of pixels or the IMGSHP command will fail (1x1 is not acceptable). For
example, sending IMGSHP10L15R5T8B will cause a 6 column by 4 row image
to be transmitted.
n
L The left edge of the shipped image corresponds to column
n
of the
image in memory. Range: 000 - 639.
(Default = 0)
n
R The right edge of the shipped image corresponds to column
n
- 1
of the image in memory. Range: 000 - 639.
(Default = all columns,
or 639 for VGA image scanner)
n
T The top edge of the shipped image corresponds to row
n
of the
image in memory. Range: 000 - 479.
(Default = 0)
n
B The bottom edge of the shipped image corresponds to row
n
- 1 of
the image in memory. Range: 000 - 479.
(Default = all rows, or
479 for VGA image scanner)
Alternately, specify the number of pixels to cut from the outside margin of the
image; thus only the center pixels are transmitted.
n
M Margin: cut
n
columns from the left,
n
+ 1 columns from the right,
n
rows from the top, and
n
+ 1 rows from the bottom of the image.
Ship the remaining center pixels. Range: 1 - 238.
(Default = 0, or full image)
P - Protocol: Used for shipping an image. Protocol covers two features of the
image data being sent to the host. It addresses the protocol used to send the
data (Hmodem, which is an Xmodem 1K variant that has additional header
information), and the format of the image data that is sent.
0P None (raw data)
2P None
(default for USB)
3P Hmodem compressed
(default for RS-232)
4P Hmodem
S - Pixel Ship: Can be used to decimate the image by shipping only certain,
regularly spaced pixels. For example, 4S would transmit every fourth pixel
from every fourth line. The smaller number of pixels shipped, the smaller the
image. However, after a certain point, the image becomes unusable.
1S ship every pixel
(default)
2S ship every 2nd pixel, both horizontally and vertically
(default)
3S ship every 3rd pixel, both horizontally and vertically
8 - 6 2020/4820/4820 i User’s Guide
U - Document Image Filter: Sharpens the edges and smooths the area
between the edges of the transmitted text image. The Document Image Filter
enhances images of documents such as ID cards and prescriptions. This filter
should be used with gamma correction (see page 8-4), with the image scanner
in a stand, and the image captured using the command:
IMGSNP1P0L168W90%32D
This filter typically provides better JPEG compression than the standard E -
Edge Sharpen command (see page 8-3). This filter also works well when
shipping pure black and white images (1 bit per pixel). The optimal setting is
26U.
0U Document image filter off
(default)
26U Apply document image filter for typical document image
n
U Apply document image filter using grayscale threshold n. Use
lower numbers when the image contrast is lower. 1U will have a
similar effect to 22e. Range: 0-255.
V - Blur Image: Smooths transitions by averaging the pixels next to the hard
edges of defined lines and shaded areas in an image.
0V Don’t blur
(default)
1V Blur
W - Histogram Ship: A histogram gives a quick picture of the tonal range of
an image, or key type. A low-key image has detail concentrated in the
shadows; a high-key image has detail concentrated in the highlights; and an
average-key image has detail concentrated in the midtones. This modifier
ships the histogram for an image.
0W Don’t ship histogram
(default)
1W Ship histogram
Image Size Compatibility
If you prefer that an image ship returns images at the sensor’s native resolution
(752x480 pixels for the 5X00 engine, 640x480 pixels for the 4X00 engine), scan
the Native Resolution code. If you have an image scanner with a 4X00 image
engine and have designed applications that expect an image ship to return
exactly 640x480 pixels, scan the Force VGA Resolution barcode. Refer to
"Show Engine Revision"
on page 11-1
for information on determining the engine
in your unit.
Default = Force VGA Resolution
* Force VGA Resolution
Native Resolution
2020/4820/4820 i User’s Guide 8 - 7
Intelligent Signature Capture - IMGBOX
Note: IMGBOX commands can only be used with PDF417, Code 39, Code 128,
Aztec, Codabar, and Interleaved 2 of 5 symbologies.
Intelligent signature capture ships only part of an image to the host application.
This method reduces transfer time and file size, while simplifying signature
capture.
Below is an example of an intelligent signature capture application. In this
example, the operator reads the barcode, which is then transmitted to the host
application. Upon the receipt of the barcode data, the host application sends the
IMGBOX command, which tells the image scanner to output only the area of the
image corresponding to the signature capture box. The image scanner also
automatically adjusts for aspect ratio and distortion, issues that arise due to
image scanner skew with respect to the barcode.
Align the aimers with the signature area (not with the barcode), then pull the
trigger. Send the IMGBOX command string after the trigger pull.
An important aspect of intelligent signature capture is that all dimensions used in
the application are measured as multiples of the minimum element size of the
barcode. Using this method, intelligent signature capture always outputs the
correct image size and resolution, no matter the distance at which the image
scanner is held from the barcode, assuming that the entire signature capture
area is within the image scanner’s field of view.
The intelligent signature capture command string for this application is:
IMGBOX40S0X70Y190W100H1R0F
IMGBOX Modifiers
A - Output Image Width: This option is used to output an image of a
particular width. If using this option, set the resolution to zero.
B - Output Image Height This option is used to output an image of a
particular height. If using this option, set the resolution to zero.
D - Pixel Depth: Indicates the number of bits per pixel in the transmitted
image.
8D 8 bits per pixel, grayscale image
1D 1 bit per pixel, black and white image
0123456789
negative
positive
8 - 8 2020/4820/4820 i User’s Guide
F - File Format: Indicates the type of file format in which to save the image.
0F KIM format
(default)
1F TIFF binary
2F TIFF binary group 4, compressed
3F TIFF grayscale
4F Uncompressed Binary
5F Uncompressed grayscale
6F JPEG image
7F Outlined image
8F BMP format
H - Height of Signature Capture Area: In the example, the height of the area
to be captured is 1 inch, resulting in a value of H = 1/0.01 = 100. The value for
H is slightly larger, to accommodate some extra image capture area outside of
the signature capture box.
K - Gamma Correction: Gamma measures the brightness of midtone values
produced by the image. You can brighten or darken an image using gamma
correction. A higher gamma correction yields an overall brighter image. The
lower the setting, the darker the image. A setting of 100 results in no
adjustment to the image.
(Default = 50K)
0K Gamma correction off
50K Apply gamma correction for brightening typical document image
n
K Apply gamma correction factor
n
(
n
= 1-255)
R - Resolution of Signature Capture Area: The number of pixels that the
image scanner outputs per each minimum bar width. The higher the value for
R, the higher the quality of the image, but also the larger the file size. To
specify a non-integer value for the resolution, use a number greater than or
equal to 1000. For example, use 2500 to specify a resolution of 2.500. The
image scanner automatically inserts a decimal point between the first and
second digit. Set to zero when using the A and B modifiers.
S - Barcode Aspect Ratio: The ratio of the barcode height to the narrow
element width. In the example, the narrow element width is .010 inches and
the barcode height is 0.400 inches, resulting in a value of S = 0.4/0.01 = 40.
W - Width of Signature Capture Area: In the example, the width of the area
to be captured is 1.90 inches, resulting in a value of W = 1.9/0.01 = 190. The
value for W is slightly larger, to accommodate some extra image capture area
outside of the signature capture box.
X - Horizontal Barcode Offset: The horizontal ratio offset of the center of the
signature capture area, in multiples of the minimum bar width. In the example,
the horizontal offset is 0.
Y - Vertical Barcode Offset: The vertical offset of the center of the signature
capture area, in multiples of the minimum bar width. Negative numbers
indicate that the signature capture is above the barcode, and positive numbers
indicate that the area is below the barcode. In the example, the horizontal
offset is 0.70 inches, resulting in a value for Y = 0.7/0.01 = 70.
2020/4820/4820 i User’s Guide 8 - 9
RF Default Imaging Device
The image scanner supports imaging command processing (IMGSHP, IMGSNP,
IMGBOX) so that Quick*View (see "Quick*View" on page 11-5) and other
applications are able to perform imaging functions as if they were talking directly
to an image scanner. To accomplish this, the image scanner uses a menu
command called RF_DID (RF Default Imaging Device). RF_DID is the name of
the image scanner (BT_NAM) that is to receive imaging commands. The default
for RF_DID is “*”indicating that imaging commands are to be sent to all
associated image scanners. Change this setting to RF_DID
scanner_name
to ensure that they are sent to a particular image scanner. Refer
to "Image Scanner Report" on page 11-2 to generate a report containing the
port, work group, image scanner name, and address for each image scanner.
Refer to "Image Scanner Name" on page 3-8 set a unique name for each image
scanner.
2020/4820/4820 i User’s Guide 9 - 1
9
OCR Programming
Use this section to program the image scanner for optical character recognition
(OCR). The image scanner reads 6 to 60 point OCR typeface.
Note: OCR is not as secure as barcodes. To enhance security in OCR
applications, create an OCR template to match the data and print an OCR
check character.
The image scanner will read OCR-A, OCR-B, U.S. Currency Serial Number
(Money), MICR E-13B, and SEMI Font.
You can either select an OCR default, or create your own custom template for
the type of OCR format you intend to read. See "OCR" on page 9-1 for
programming codes that will enable your image scanner to read OCR-A, OCR-
B, U.S. Currency, MICR E 13 B, or SEMI fonts. See "OCR Templates" on page
9-3 if you want to create a custom “template,” or character string that defines the
length and content of OCR strings that will be read with your image scanner.
Note: Setting the template and check character options are essential for OCR
reading.
OCR Fonts
Default All OCR Settings
turns off all OCR capability in the image scanner, so
the image scanner will be able to scan linear, stacked, matrix, and composite
barcodes, but not OCR fonts. In addition, any OCR templates you have created
are erased. The eight digit default templates are reinstated for any future use of
the
OCR On
codes listed below.
< Default All OCR Settings >
OCR
Note: OCR symbols can misread when scanned sideways or upside down. Use
Working Orientation, page 4-19, if your OCR symbols will not usually be
presented upright to the image scanner.
Only one OCR symbology can be read at a time.
9 - 2 2020/4820/4820 i User’s Guide
OCR-A On
allows you to scan characters in the OCR-A font. The default setting
allows you to scan any eight digit combination. If you have created an OCR
template, character combinations that fit the template can be scanned (see
Creating an OCR Template, page 9-4).
OCR-B On
allows you to scan characters in the OCR-B font. The default setting
allows you to scan any eight digit combination. If you have created an OCR
template, character combinations that fit the template can be scanned (see
Creating an OCR Template, page 9-4).
U.S. Currency Font
U.S. Currency On
allows you to scan characters in the font used on U.S.
currency. The default setting allows you to scan any eight digit combination. If
you have created an OCR template, character combinations that fit the template
can be scanned (see Creating an OCR Template, page 9-4).
MICR E13 B Font
MICR E13 B On
allows you to scan MICR characters on a bank check. The
default setting allows you to scan any eight digit combination. If you have
created an OCR template, character combinations that fit the template can be
scanned (see Creating an OCR Template, page 9-4).
OCR-A On
OCR-B On
U.S. Currency On
MICR E 13 B On
2020/4820/4820 i User’s Guide 9 - 3
Note: TOAD characters (Transit, On Us, Amount and Dash) are output in the
following manner:
SEMI Font
SEMI Font On
allows you to scan the SEMI font used in the semiconductor
industry.
All OCR Off
turns off all OCR capability in the image scanner, so the image
scanner will be able to scan linear, stacked, matrix, and composite barcodes, but
not OCR fonts. However, any OCR templates you have created will be retained
in memory.
OCR Templates
You can create a custom “template,” or character string that defines the length
and content of OCR strings that will be read with your image scanner. There are
several choices when creating a custom template for your application. You can
create a template for a single format, you can string together several formats,
and you can create a template for a user-defined variable. These choices are
described in detail below.
the transit character is output as T
the amount character is output as A
the on us character is output as O
the dash character is output as D
SEMI Font On
* All OCR Off
9 - 4 2020/4820/4820 i User’s Guide
Creating an OCR Template
A single template allows you to program the image scanner to read any
combination of characters in the order you specify. Refer to examples that follow
the Template Characters table below.
Template Characters
Note: OCR templates default to eight digits, no check character.
To Add an OCR Template
1. Turn on the OCR font you want to read (page 9-2).
2. Begin building the template.
Scan the
Enter OCR Template
symbol (page 9-13).
3. Scan the characters for the string.
Use the Template Characters chart above to determine what characters you
need to create your format. Use the OCR Programming Chart (after the
Sample Codes in the back of this manual) to scan the characters for your
template.
Example: You need to read any combination of eight digits. The template would
be:
a represents any alphanumeric character (digit or letter)
c represents a check character position
d represents any digit
e represents any available OCR character
g represents character from user-defined variable “g”
h represents character from user-defined variable “h”
i represents character from user-defined variable “g” or “h”
k represents that a check character is verified but transmitted
l represents any uppercase letter
t marks the start of a new template
r multi row indicator
All other characters represent themselves. Spaces can be used.
Note: In MICR E13 B templates, TOAD characters (capital letters T, O, A, and D),
represent Transit, On Us, Amount, and Dash.
2020/4820/4820 i User’s Guide 9 - 5
dddddddd
To create this template, you would enable the OCR-A font. Scan the
Enter
OCR Template
symbol (page 9-13), then scan the
d
from the OCR
Programming Chart in the back of this manual eight times. Scan
Save OCR
Template
(page 9-14). This would let you read any string of eight digits, for
example:
37680981
Character Match Sequences
On the Code Page Mapping of Printed Barcodes, page A-6, find the Hex
value that represents the character(s) you want to match. Use the
Programming Chart (inside the back cover) to scan the numbers that
represent these characters.
Example: You need to read three digits, three specific characters (ABC), three
digits. The template would be:
ddd414243ddd
To create this template, you would enable the OCR-A font. Scan the
Enter
OCR Template
symbol (page 9-13). Scan the
d
from the OCR Programming
Chart in the back of this manual three times. Then scan
414243
from the
inside back cover (the hex characters for “A,” “B,” and “C”), and scan the
d
three more times. Scan
Save OCR Template,
page 9-14. This would let you
read any string of three digits, “ABC,” then any string of three digits, for
example:
551ABC983
Adding Spaces
You may also need to put spaces in your template.
Example: You need to read three digits, space, three specific characters (ABC),
space, three digits. The template would be:
ddd2041424320ddd
}
hex codes for
letters A, B, and C
hex code for a space
9 - 6 2020/4820/4820 i User’s Guide
To create this template, you would enable the OCR-A font. Scan the
Enter
OCR Template
symbol (page 9-13). Scan the
d
from the OCR Programming
Chart in the back of this manual three times, then scan
2041424320
from the
Programming Chart on the inside back cover (the hex characters for “space,”
“A,” “B,” “C,” “space”). Scan the
d
three more times, then scan
Save OCR
Template
(page 9-14). This would let you read any string of three digits,
space, “ABC,” space, then any string of three digits. For example:
551 ABC 983
Note: If using Quick*View to program, use the space bar to designate a space
and not the hex value of 20.
4. Exit OCR Template Editor
Scan
Save OCR Template
to save your entries.
Discard OCR Template
exits without saving any OCR Template changes.
Stringing Together Multiple Formats
(Creating “Or” Statements)
You may want to program the image scanner to accept many OCR formats. To
do this, you would string together each format with a “t.” This tells the image
scanner to read optical characters that match any one of the formats in the
template.
Example: You need to read any combination of eight digits,
or
a combination of
four digits, two uppercase letters, and two digits. The template would
be:
ddddddddtddddlldd
To create this template, you would enable the OCR-A font. Scan the
Enter
OCR Template
symbol (page 9-13). Scan the
d
from the OCR Programming
Chart in the back of this manual eight times, then scan the
t
to create the “or”
statement. Then you would scan the characters for the second template.
Scan
d
four times, scan
l
two times, then scan
d
two more times. Scan
Save
OCR Template
(page 9-14). This would let you read either type of format, for
example:
99028650
or
9902XZ50
You can string together as many templates as you need.
2020/4820/4820 i User’s Guide 9 - 7
OCR User-Defined Variables
You can create up to two of your own user variables for an OCR template. These
variables will represent any OCR readable characters. The user-defined
variables are stored under the letters “g” and “h.” Creating a user variable follows
the same steps as creating a template, but instead of scanning the
Enter OCR
Template
symbol, you scan the
Enter User-Defined Variable
symbol (page 9-
13). The letters g and h can then be used in an OCR template to define the
variable you specified.
Example: You need a variable to represent the letters “A,” “B,” or “C.” The
template for this variable would be:
414243
To create this template, you would enable the OCR-A font. Scan the
Enter
User-Defined Variable
g
symbol (page 9-13). Scan
414243
from the
Programming Chart (the hex characters for “A,” “B,” and “C”). Scan
Save
OCR Template
(page 9-14). This will let you read either A or B or C in any
position where you place the g. For example, you could create the following
template:
ddddddggg
This template would then let you read data that began with six digits, and had
an A, B, or C trailing. So you would be able to read:
654321ABC
or
654321BAC
or
654321CCC
Reading Multi-Row OCR
The image scanner is capable of decoding multi-row OCR text.
Note: Reading rows longer than sixteen characters is not recommended.
Consider the following example. This example shows serial commands as they
would be entered using Quick*View.
Example: You need to read multiple rows of OCR-A data as shown below:
12345678
ABCDEFGH
First, enable the OCR-A font. To read the first row of OCR data, you would
program the following template:
9 - 8 2020/4820/4820 i User’s Guide
OCRTMP"dddddddd".
This template is the default OCR template. If you wanted to read the second
line of data, you would use the following template:
OCRTMP"llllllll".
To read both lines of OCR at one time, use the variable
r
to indicate the start
of a new row. All the other templating variables for the individual rows work
the same as previously described. For instance, in the above example, you
would use the following template to read both rows:
OCRTMP"ddddddddrllllllll".
To read the three rows below, you would use the template command
"OCRTMP"ddddddddrllllllllrlllldddd".
12345678
ABCDEFGH
ABCD1234
OCR Check Character
You may want to print and verify a check character in order to enhance the
security of your OCR application. The image scanner can be programmed for
almost any type of check character. A number of presets are provided for
common check character uses (e.g., modulo 10 and modulo 36).
Scan the
OCR Modulo 10
or
OCR Modulo 36
Check Character
barcode to
specify the type of check character used in the OCR strings you’re scanning.
The image scanner will then only read OCR character strings with a valid check
character. The image scanner transmits the OCR data without the check
character data. You must specify the location of the check character in the
template with a
c
.
Example: You need to read any combination of seven digits, with a modulo 10
check character in the eighth position. The template would be:
dddddddc
To create this template, you would enable the OCR-A font. Scan the
Modulo
10 Check Character
symbol. Then scan the
Enter OCR Template
symbol,
and scan the
d
from the OCR Programming Chart seven times, and scan the
c
once. Scan
Save OCR Template
(page 9-14). This template will let you
read any combination of six digits with a correct check character after. (If the
check character is invalid, data is discarded.) For example, the following
string could be scanned:
01234569
and the output would be: 0123456
2020/4820/4820 i User’s Guide 9 - 9
OCR Modulo 10 Check Character
Scan this symbol to program the OCR template for a simple modulo 10
checksum of the digits 0 through 9.
OCR Modulo 36 Check Character
Scan this symbol to program the OCR template for a simple modulo 36
checksum of the digits 0 through 9 and the letters A through Z.
OCR User-Defined Check Character
You can customize the check character calculation to suit your application. Each
character of the check character alphabet can be programmed in its proper
order. The number of characters you enter determines the modulo value for the
calculation. By default, the check character computation is unweighted, but the
image scanner also supports two weighted modulo 10 checking schemes.
Example:
To program a modulo 11 check character, you would enter the
following 11 characters in order:
0123456789X
Also enter the OCR template:
dddddddc
Enable the OCR-A font, then scan the following string:
6512351X
The image scanner performs the following check character computation:
(6 + 5 + 1 + 2 +3 + 5 + 1 + X) modulo 11 = 0
Since the result is zero, the message is considered to be valid, so the reader
outputs the message: 6512351
OCR Modulo 10 Check Character
OCR Modulo 36 Check Character
9 - 10 2020/4820/4820 i User’s Guide
Programming a User-Defined Check Character
1. Scan the Enter OCR Check Character barcode, below.
2. Enter the characters in order. For each character, look up the corresponding
hex value from the Code Page Mapping of Printed Barcodes on page A-6.
Use the Programming Chart on the inside the back cover of this manual to
scan the two symbols for each hex value.
3. Scan the Save barcode on the inside back cover.
Example: To program the modulo 11 check character from example #8 on
page 9-9, enable the OCR-A font. Scan the Enter OCR Check
Character barcode on page 9-10, then scan the following hex values
in order:
3031323334353637383958
After you enter all the desired hex values, scan the Save barcode on the
inside back cover of this manual.
Weighting Options
By default, the check character computation is unweighted. It is possible to use
one of two weighted modulo 10 schemes. Weighting is often used to detect if
two neighboring characters are transposed, a common error when an operator
keys in data.
3-1-3-1 Weighted Modulo 10 Check Character
Starting with the check character and working backward through the message,
the image scanner applies a multiplier of 1, then 3, then 1, then 3, and so on.
This is the checking scheme used in many EAN•UCC symbologies, including
U.P.C. and Interleaved 2 of 5 (when a check digit is invoked). To apply this
weighting scheme, set the OCR check character to “0123456789x3x1” or scan
the following symbol:
Enter OCR Check Character
3-1-3-1 Weighted Modulo 10
Check Character
2020/4820/4820 i User’s Guide 9 - 11
Example: Scan the 3-1-3-1 Weighted Modulo 10 Check Character symbol. Also
enter the OCR template:
dddddddc
Then scan the string below:
01234565
The reader performs the check character computation below:
(0 x 3 + 1 x 1 + 2 x 3 + 3 x 1 + 4 x 3 + 5 x 1 + 6 x 3 + 5 x 1) modulo 10 = 0
Since the result is zero, the message is considered to be valid, so the reader
outputs the message: 0123456
2-1-2-1 Weighted Modulo 10 Check Character
Starting with the check character and working backward through the message,
the image scanner applies a multiplier of 1, then 2, then 1, then 2, and so on.
When the result of the multiplication is greater than 9, add both digits to the
running sum. This is often referred to as the LUHN formula. One common
application of the LUHN formula is validate credit card numbers. This is the
modulo 10 checking scheme used in MSI Code and in Code 32 Pharmaceutical
(PARAF). To apply this weighting scheme, set the OCR check character to
"0123456789x2x1" or scan the following symbol:
Example: Scan the 2-1-2-1 Weighted Modulo 10 Check Character symbol. Also
enter the OCR template:
ddddddc
Then scan the string below:
0128454
The reader performs the check character computation below:
(0 x 1 + 1 x 2 + 2 x 1 + 8 x 2 + 4 x 1 + 5 x 2 + 4 x 1) modulo 10
= (0 + 2 + 2 + (1 + 6) + 4 + (1 + 0) + 4) modulo 10
= 0
Since the result is zero, the message is considered to be valid, so the reader
outputs the message: 012845
2-1-2-1 Weighted Modulo 10
Check Character
9 - 12 2020/4820/4820 i User’s Guide
OCR ISBN Application Example
One application of OCR is to read the ISBN characters typically encoded using
the OCR-A or OCR-B font. This is especially useful when the ISBN number is
not encoded in an EAN-13 barcode. The following example shows how to
configure the image scanner to read the ISBN strings on books in Japan. After
you have followed the steps below, you will be able to scan the following ISBN
number or the additional data below it, depending on the line of text at which the
image scanner is aimed.
1. Scan the OCR-B On barcode on page 9-2.
2. Program the user-defined variable “g” to comprise the ten digits plus the
dash:
0123456789-
3. In Japan, it is common for two fields to follow the ISBN number, the three
digit price field, and the four digit price field. The first field typically starts with
a “C” (uppercase c), followed by four digits. The second field typically starts
with a “P” or a yen symbol, followed by three or four digits, followed by an
“E.” Program the user-defined variable “h” to comprise the “P” and the yen
symbol (represented by a backslash).
P\
4. Scan the symbol below to set up three templates to handle the ISBN
number, the three digit price field, and the four digit price field.
2020/4820/4820 i User’s Guide 9 - 13
5. Finally, set up the ISBN check digit, which is a special position-weighted
modulo 11 checksum. The image scanner automatically invokes the ISBN
checksum for template rows that are:
1.) at least fourteen characters long,
2.) whose first four characters are the letters “ISBN,”
3.) whose last character is a check character, and
4.) when the modulo 11 check character “0123456789X” is programmed.
Please note that all these commands can be combined into a single serial
programming command:
OCRENA2,TMP”ISBNggggggggggggctCdddd hdddEtCdddd
hddddE”,GPG”0123456789-”,GPH”P\”,CHK”0123456789X”.
These commands can be encoded into the following Aztec Code symbol:
OCR Template Codes
Note: Reading more than three rows of OCR is not recommended. Contact the
factory if you have an application that requires reading four or more rows
of OCR.
† One or more two-digit numbers and
Save
are required after reading this
programming symbol. Refer to the Programming Chart on the inside the back
cover of this manual.
Enter OCR Template †
Enter User-Defined
Variable “h”†
Enter User-Defined
Variable “g”†
2020/4820/4820 i User’s Guide 10 - 1
10
Interface Keys
Keyboard Function Relationships
The following Keyboard Function Code, Hex/ASCII Value, and Full ASCII
“CTRL”+ relationships apply to all terminals that can be used with the image
scanner. Refer to page 2-13 enable Control + ASCII mode.
Function Code HEX/ASCII Value Full ASCII “CTRL” +
NUL 00 @
SOH 01 A
STX 02 B
ETX 03 C
EOT 04 D
ENQ 05 E
ACK 06 F
BEL 07 G
BS 08 H
HT 09 I
LF 0A J
VT 0B K
FF 0C L
CR 0D M
SO 0E N
SI 0F O
DLE 10 P
DC1 11 Q
DC2 12 R
DC3 13 S
DC4 14 T
NAK 15 U
SYN 16 V
ETB 17 W
CAN 18 X
EM 19 Y
SUB 1A Z
ESC 1B [
FS 1C \
GS 1D ]
RS 1E ^
US 1F _
10 - 2 2020/4820/4820 i User’s Guide
The last five characters in the Full ASCII “CTRL”+ column ( [ \ ] 6 - ), apply to US
only. The following chart indicates the equivalents of these five characters for
different countries.
Country Codes
United States [ \ ] 6 -
Belgium [ < ] 6 -
Scandinavia 8 < 9 6 -
France ^ 8 $ 6 =
Germany à + 6 -
Italy \ + 6 -
Switzerland <. . 6 -
United Kingdom [ ¢ ] 6 -
Denmark 8 \ 9 6 -
Norway 8 \ 9 6 -
Spain [ \ ] 6 -
2020/4820/4820 i User’s Guide 10 - 3
Supported Interface Keys
ASCII HEX
IBM AT/XT and
PS/2 Compatibles,
WYSE PC/AT
Supported Keys
IBM XTs and
Compatibles
Supported Keys
IBM, DDC, Memorex
Telex, Harris*
Supported Keys
NUL 00 Reserved Reserved Reserved
SOH 01 Enter (KP) CR/Enter Enter
STX 02 Cap Lock Caps Lock F11
ETX 03 ALT make Reserved F12
EOT 04 ALT break Reserved F13
ENQ 05 CTRL make Reserved F14
ACK 06 CTRL break Reserved F15
BEL 07 CR/Enter CR/Enter New Line
BS 08 Reserved Reserved F16
HT 09 Tab Tab F17
LF 0A Reserved Reserved F18
VT 0B Tab Tab Tab/Field Forward
FF 0C Delete Delete Delete
CR 0D CR/Enter CR/Enter Field Exit/New Line
SO 0E Insert Insert Insert
SI 0F Escape Escape F19
DLE 10 F11 Reserved Error Reset
DC1 11 Home Home Home
DC2 12 Print Print F20
DC3 13 Back Space Back Space Back Space
DC4 14 Back Tab Back Tab Backfield/Back Tab
NAK 15 F12 Reserved F21
SYN 16 F1 F1 F1
ETB 17 F2 F2 F2
CAN 18 F3 F3 F3
EM 19 F4 F4 F4
SUB 1A F5 F5 F5
ESC 1B F6 F6 F6
FS 1C F7 F7 F7
GS 1D F8 F8 F8
RS 1E F9 F9 F9
US 1F F10 F10 F10
* IBM 3191/92, 3471/72, 3196/97, 3476/77, Telex (all models)
10 - 4 2020/4820/4820 i User’s Guide
Supported Interface Keys
ASCII HEX IBM, Memorex Telex (102)*
Supported Keys Memorex Telex (88)**
Supported Keys
NUL 00 Reserved Reserved
SOH 01 Enter Enter
STX 02 F11 PF10
ETX 03 F12 PF11
EOT 04 F13 PF12
ENQ 05 F14 Reserved
ACK 06 F15 Reserved
BEL 07 New Line New Line
BS 08 F16 Field Forward
HT 09 F17 Field Forward
LF 0A F18 Reserved
VT 0B Tab/Field Forward Field Forward
FF 0C Delete Delete
CR 0D Field Exit New Line
SO 0E Insert Insert
SI 0F Clear Erase
DLE 10 Error Reset Error Reset
DC1 11 Home Reserved
DC2 12 Print Print
DC3 13 Back Space Back Space
DC4 14 Back Tab Back Field
NAK 15 F19 Reserved
SYN 16 F1 PF1
ETB 17 F2 PF2
CAN 18 F3 PF3
EM 19 F4 PF4
SUB 1A F5 PF5
ESC 1B F6 PF6
FS 1C F7 PF7
GS 1D F8 PF8
RS 1E F9 PF9
US 1F F10 Home
* IBM 3196/97, 3476/77, 3191/92, 3471/72, Memorex Telex (all models) with 102
key keyboards
** Memorex Telex with 88 key keyboards
2020/4820/4820 i User’s Guide 10 - 5
Supported Interface Keys
ASCII HEX
Esprit 200, 400
ANSI
Supported Keys
Esprit 200, 400
ASCII
Supported Keys
Esprit 200, 400
PC
Supported Keys
NUL 00 Reserved Reserved Reserved
SOH 01 New Line New Line New Line
STX 02 N/A N/A N/A
ETX 03 N/A N/A N/A
EOT 04 N/A N/A N/A
ENQ 05 N/A N/A N/A
ACK 06 N/A N/A N/A
BEL 07 New Line New Line New Line
BS 08 N/A N/A N/A
HT 09 Tab Tab Tab
LF 0A N/A N/A N/A
VT 0B Tab Tab Tab
FF 0C N/A N/A Delete
CR 0D New Line New Line New Line
SO 0E N/A N/A Insert
SI 0F Escape Escape Escape
DLE 10 F11 F11 F11
DC1 11 Insert Insert Home
DC2 12 F13 F13 Print
DC3 13 Back Space Back Space Back Space
DC4 14 Back Tab Back Tab Back Tab
NAK 15 F12 F12 F12
SYN 16 F1 F1 F1
ETB 17 F2 F2 F2
CAN 18 F3 F3 F3
EM 19 F4 F4 F4
SUB 1A F5 F5 F5
ESC 1B F6 F6 F6
FS 1C F7 F7 F7
GS 1D F8 F8 F8
RS 1E F9 F9 F9
US 1F F10 F10 F10
10 - 6 2020/4820/4820 i User’s Guide
Supported Interface Keys
ASCII HEX
Apple Mac/iMac
Supported Keys
NUL 00 Reserved
SOH 01 Enter/Numpad Enter
STX 02 CAPS
ETX 03 ALT make
EOT 04 ALT break
ENQ 05 CNTRL make
ACK 06 CNTRL break
BEL 07 RETURN
BS 08 APPLE make
HT 09 TAB
LF 0A APPLE break
VT 0B TAB
FF 0C Del
CR 0D RETURN
SO 0E Ins Help
SI 0F ESC
DLE 10 F11
DC1 11 Home
DC2 12 Prnt Scrn
DC3 13 BACKSPACE
DC4 14 LSHIFT TAB
NAK 15 F12
SYN 16 F1
ETB 17 F2
CAN 18 F3
EM 19 F4
SUB 1A F5
ESC 1B F6
FS 1C F7
GS 1D F8
RS 1E F9
US 1F F10
DEL 7F BACKSPACE
2020/4820/4820 i User’s Guide 11 - 1
11
Utilities
To Add a Test Code I.D. Prefix to All Symbologies
This selection allows you to turn on transmission of a Code I.D. before the
decoded symbology. (See the Symbology Chart, beginning on page A-1) for the
single character code that identifies each symbology.) This action first clears all
current prefixes, then programs a Code I.D. prefix for all symbologies. This is a
temporary setting that will be removed when the unit is power cycled.
Show Decoder Revision
Scan the barcode below to output the decoder revision.
Show Engine Revision
Scan the barcode below to output the engine revision. It will return the engine
type, revision number, and status character [ACK]. For example, an image
scanner with a 5100 engine, version 26 would return:
ENGREVType: 1 Revision: 26[ACK]
Show Scan Driver Revision
Scan the barcode below to output the scan driver revision. The scan driver
controls image capture.
Add Code I.D. Prefix to
All Symbologies (Temporary)
Show Decoder Revision
Show Engine Revision
Show Scan Driver Revision
11 - 2 2020/4820/4820 i User’s Guide
Show Software Revision
Scan the barcode below to output the current software revision, unit serial
number, and other product information for both the image scanner and base.
Show Data Format
Scan the barcode below to show current data format settings.
Reset Image Scanner
Scanning this barcode causes the image scanner to re-link with the base.
Image Scanner Report
Scan the barcode below to generate a report for the connected image scanners.
The report indicates the port, work group, image scanner name, and address. To
assign a name to your image scanner, refer to "Menu Command Syntax" on
page 12-1.
Image Scanner Address
Scan the barcode below to determine the address of the image scanner you are
using.
Show Revision
Data Format Settings
Reset Imager
Image Scanner Report
Image Scanner Address
2020/4820/4820 i User’s Guide 11 - 3
Base Address
Scan the barcode below to determine the address of the base you are using.
Resetting the Standard Product Default Settings:
Current Application Work Group
If you aren’t sure what programming options are in your image scanner, or you’ve
changed some options and want the standard product default settings restored,
scan the
Standard Product Default Settings: Current Application Group
barcode below.
The Menu Commands starting on page 12-5 list the factory default settings for
each of the commands (indicated by an asterisk (*) on the programming pages).
Note: Scanning this barcode also causes both the image scanner and the base
to perform a reset and become unlinked. The image scanner must be
placed in its base to re-establish the link before any setup codes are
entered. Refer to "Image Scanner Modes" on page 3-5 for additional
information.
Resetting the Standard Product Default Settings:
All Application Work Groups
The following barcode defaults all of the work groups to the factory settings.
The Menu Commands starting on page 12-5 list the standard product default
settings for each of the commands (indicated by an asterisk (*) on the
programming pages).
Base Address
Standard Product Default Settings:
Current Application Group
Standard Product Default Settings:
All Application Groups
11 - 4 2020/4820/4820 i User’s Guide
Test Menu
When you scan the Test Menu
On
code, then scan a programming code in this
manual, the image scanner displays the content of a programming code. The
programming function will still occur, but in addition, the content of that
programming code is output to the terminal.
Note: This feature should not be used during normal image scanner operation.
Visual Xpress
Visual Xpress provides a wide range of PC-based programming functions that
can be performed on an image scanner connected to your PC's COM port.
Visual Xpress allows you to download upgrades to the image scanner's firmware,
change programmed parameters, and create and print programming barcodes.
Using Visual Xpress, you can even save/open the programming parameters for
an image scanner. This saved file can be e-mailed or, if required, you can create
a single barcode that contains all the customized programming parameters and
mail or fax that barcode to any location. Users in other locations can scan the
barcode to load in the customized programming.
To communicate with an image scanner, Visual Xpress requires that the PC have
at least one available serial communication port, or a serial port emulation using
a physical USB port. If you are using the serial port and RS-232 cable, an
external power supply is required. When using a USB serial port emulation, only
a USB cable is required.
Visual Xpress Operations
The Visual Xpress software performs the following operations:
Scan Data
Scan Data allows you to scan barcodes and display the barcode data in a
window. Scan Data lets you send serial commands to the image scanner and
receive image scanner response that can be seen in the Scan Data window. The
data displayed in the Scan Data window can either be saved in a file or printed.
On
* Off
2020/4820/4820 i User’s Guide 11 - 5
Configure
Configure displays the programming and configuration data of the image
scanner. The image scanner's programming and configuration data is grouped
into different categories. Each category is displayed as a tree item under the
"Configure" tree node in the application explorer. When one of these tree nodes
is clicked, the right-hand side is loaded with the parameters' form belonging to
that particular category. The "Configure" tree option has all the programming
and configuration parameters specified for an image scanner. You can set or
modify these parameters as required. You can later write the modified settings
to the image scanner, or save them to a dcf file.
Imaging
Imaging provides all the image-related functions that a 2D Image Scanner can
perform. You can capture an image using the current settings, and the image will
be displayed in an image window. Images captured from the image scanner can
be saved to files in different image formats. You can modify the image settings
and save the image settings to an INI file, which can be loaded later to capture
new images. Imaging also lets you preview the images continuously captured by
the image scanner.
Installing Visual Xpress from the Web
1. Access the Hand Held Products web site at www.handheld.com.
2. Click in the Quick Search text box and enter Visual Xpress.
3. Click on Search Now.
4. Click on the entry for Visual Xpress.
5. When prompted, select Save File, and save the files to the
c:\windows\temp directory.
6. Once you have finished downloading the file, exit the web site.
7. Using Explorer, go to the c:\windows\temp file and unzip the file you saved.
8. Double click on Setup.exe and follow the screen prompts to install the Visual
Xpress program.
9. If you’ve selected the defaults during installation, you can click on Start
Menu-Programs-Hand Held Products-Visual Xpress.
Quick*View
Quick*View is a Microsoft® Windows® program that displays decoded symbol
messages and captures images (for instance, ID photographs) from the image
scanner. Barcode information and images are displayed in the Quick*View
window.
11 - 6 2020/4820/4820 i User’s Guide
Installing Quick*View from the Web
1. Access the Hand Held Products web site at www.handheld.com.
2. Click on Search and enter Quick*View.
3. Click on Search.
4. Click on the entry for Software. Select Quick*View Software Utility.
5. When prompted, select Save, and save the files to the c:\windows\temp
directory.
6. Once you have finished downloading the file, exit the web site.
7. Using Explorer, go to the c:\windows\temp file.
8. Double click on the Quickview.exe file. Follow the screen prompts to install
the Quick*View program.
9. To start Quick*View, from the Start Menu click on Programs, Quick*View,
Quick*View.
Note: If you wish, you can create a shortcut to the Quick*View executable on
your desktop.
Temporary Quick*View Configuration
For a quick download communication configuration, scan the Quick*View
barcode and the image scanner will be temporarily configured for Quick*View
settings.
Note: If you have a unit capable of keyboard wedge mode, scan the barcode
below and the unit will communicate in RS-232 mode, allowing it to work
with Quick*View. To convert the image scanner back to keyboard wedge
communication, cycle the power.
Quick*View
2020/4820/4820 i User’s Guide 12 - 1
12
Serial Programming Commands
The serial programming commands can be used in place of the programming
barcodes. Both the serial commands and the programming barcodes will
program the image scanner. For complete descriptions and examples of each
serial programming command, refer to the corresponding programming barcode
in this manual.
The device must be set to an RS-232 interface (see page 2-2). The following
commands can be sent via a PC COM port using terminal emulation software.
Conventions
The following conventions are used for menu and query command descriptions:
parameter
A label representing the actual value you should send as part of a
command.
[
option
] An optional part of a command.
{Data} Alternatives in a command.
bold Names of menus, menu commands, buttons, dialog boxes, and
windows that appear on the screen.
Menu Command Syntax
Menu commands have the following syntax (spaces have been used for clarity
only):
Prefix [:Name:] Tag SubTag {Data} [, SubTag {Data}] [; Tag SubTag {Data}] […]
Storage
Prefix Three ASCII characters: SYN M CR (ASCII 22,77,13).
:Name: To send information to the image scanner (with the base connect-
ed to host), use :4820: or :4820i: The default factory setting for a
4820 image scanner is 4820, and 4820i for a 4820i image scanner.
This setting is changed by using the BT_NAM command, which ac-
cepts alphanumeric values. If the name is not known, a wildcard
(*) can be used :*:.
Note: Since the base stores all work group settings and transfers to them to
image scanner once they are linked, changes are typically done to the
base and not to the image scanner.
Tag A 3 character case-insensitive field that identifies the desired menu
command group. For example, all RS-232 configuration settings
are identified with a Tag of 232.
SubTag A 3 character case-insensitive field that identifies the desired menu
command within the tag group. For example, the SubTag for the
RS-232 baud rate is BAD.
Data The new value for a menu setting, identified by the Tag and Sub-
Tag.
12 - 2 2020/4820/4820 i User’s Guide
Storage A single character that specifies the storage table to which the
command is applied. An exclamation point (!) performs the com-
mand’s operation on the device’s volatile menu configuration table.
A period (.) performs the command’s operation on the device’s
non-volatile menu configuration table. Use the non-volatile table
only for semi-permanent changes you want saved through a power
cycle.
Query Commands
Several special characters can be used to query the device about its settings.
^What is the default value for the setting(s).
?What is the device’s current value for the setting(s).
*What is the range of possible values for the setting(s). (The de-
vice’s response uses a dash (-) to indicate a continuous range of
values. A pipe (|) separates items in a list of non-continuous val-
ues.)
:Name: Field Usage (Optional)
This command returns the query information from the image scanner.
Tag Field Usage
When a query is used in place of a Tag field, the query applies to the
entire
set
of commands available for the particular storage table indicated by the Storage
field of the command. In this case, the SubTag and Data fields should not be
used because they are ignored by the device.
SubTag Field Usage
When a query is used in place of a SubTag field, the query applies only to the
subset of commands available that match the Tag field. In this case, the Data
field should not be used because it is ignored by the device.
Data Field Usage
When a query is used in place of the Data field, the query applies only to the
specific command identified by the Tag and SubTag fields.
Concatenation of Multiple Commands
Multiple commands can be issued within one Prefix/Storage sequence. Only the
Tag, SubTag, and Data fields must be repeated for each command in the
sequence. If additional commands are to be applied to the same Tag, then the
new command sequence is separated with a comma (,) and only the SubTag and
Data fields of the additional command are issued. If the additional command
requires a different Tag field, the command is separated from previous
commands by a semicolon (;).
2020/4820/4820 i User’s Guide 12 - 3
Responses
The device responds to serial commands with one of three responses:
ACK Indicates a good command which has been processed.
ENQ Indicates an invalid Tag or SubTag command.
NAK Indicates the command was good, but the Data field entry was out of the
allowable range for this Tag and SubTag combination, e.g., an entry for a
minimum message length of 100 when the field will only accept 2
characters.
When responding, the device echoes back the command sequence with the
status character inserted directly before each of the punctuation marks (the
period, exclamation point, comma, or semicolon) in the command.
Examples of Query Commands
In the following examples, a bracketed notation [ ] depicts a non-displayable
response.
Example #1:What is the range of possible values for Codabar Coding Enable?
Enter: cbrena*.
Response: CBRENA0-1[ACK]
This response indicates that Codabar Coding Enable (CBRENA) has a range of
values from 0 to 1 (off and on).
Example #2: What is the default value for Codabar Coding Enable?
Enter: cbrena^.
Response: CBRENA1[ACK]
This response indicates that the default setting for Codabar Coding Enable
(CBRENA) is 1, or on.
Example #3: What is the device’s current setting for Codabar Coding Enable?
Enter: cbrena?.
Response: CBRENA1[ACK]
This response indicates that the device’s Codabar Coding Enable (CBRENA) is
set to 1, or on.
12 - 4 2020/4820/4820 i User’s Guide
Example #4: What are the device’s settings for all Codabar selections?
Enter: cbr?.
Response: CBRENA1[ACK],
SSX0[ACK],
CK20[ACK],
CCT1[ACK],
MIN2[ACK],
MAX60[ACK],
DFT[ACK].
This response indicates that the device’s Codabar Coding Enable (CBRENA) is
set to 1, or on;
the Start/Stop Character (SSX) is set to 0, or Don’t Transmit;
the Check Character (CK2) is set to 0, or Not Required;
concatenation (CCT) is set to 1, or Enabled;
the Minimum Message Length (MIN) is set to 2 characters;
the Maximum Message Length (MAX) is set to 60 characters;
and the Default setting (DFT) has no value.
Trigger Commands
You can activate and deactivate the image scanner with serial trigger com-
mands. First, the image scanner must be put in Manual/Serial Trigger Mode
either by scanning the Manual/Serial Trigger Mode barcode (page 4-4), or by
sending the Manual/Serial Menu Command (page 12-9). Once the image scan-
ner is in serial trigger mode, the trigger is activated and deactivated by sending
the following commands:
Activate: SYN T CR
Deactivate: SYN U CR
The image scanner scans until a barcode has been read, until the deactivate
command is sent, or until the serial time-out has been reached (see "Read
Time-Out (Serial Trigger Mode)" on page 4-4 for a description, and the serial
command on page 12-9).
2020/4820/4820 i User’s Guide 13 - 1
13
Product Specifications
4820 Product Specifications
Parameter Specification
Dimensions (Typical):
Height 6.2 inches (15.7 cm)
Length 5.3 inches (13.5 cm)
Width 3.2 inches (8.1 cm)
Weight 9.2 ounces (260.8 g)
Aimer:
Illumination LEDs
Aiming LEDs
626nm +30nm
526nm +30nm
Image VGA, 640x480 (4X00); 752x480 (5X00). Binary, TIFF,
or JPEG output.
Skew Angle ±40 degrees
Pitch Angle ±40 degrees
Motion Tolerance 4 inches (10 cm) per second in both lateral and
horizontal directions
Symbol Contrast 45% minimum for Matrix codes, 37.5% minimum for all
others
Battery:
Lithium Ion 3.6 Volt
1600 mAHr minimum
Battery Capacity: Standby Heavy Usage (1 scan per second)
20 hours 12 hours (minimum)
Storage: 5% loss per month
Radio:
Frequency 2.4 to 2.4835 GHz (ISM Band) Frequency Hopping
Bluetooth v.1.2
Range 33 ft. (10 m) typical
Data Range 720 KBps
Temperature Ranges:
Operating 32° F to +122° F (0° C to +50° C)
Battery Charge 41° F to +104° F (5° C to +40° C)
Storage* -4° F to +95° F (-20° C to +35° C)
Humidity Up to 95% non-condensing
Mechanical Drop Operational after 50 drops from 6 feet
(1.8 m) to concrete
Vibration Withstands 5G peak from 22 to 300 Hz
13 - 2 2020/4820/4820 i User’s Guide
4820i Product Specifications
ESD Sensitivity 15 kV to any external surface
MTBF per MIL-HDBK-217F Ground Benign exceeds 71,000
hours
Sealant Rating IP41
Parameter Specification
Dimensions (Typical):
Height 6.5 in. (16.5 cm)
Length 5.3 inches (13.5 cm)
Width 3.2 inches (8.1 cm)
Weight 9.6 oz. (272 g)
Aimer:
Illumination LEDs
Aiming LEDs
626nm +30nm
526nm +30nm
Image VGA, 640x480 (4X00); 752x480 (5X00). Binary, TIFF,
or JPEG output.
Skew Angle ±40 degrees
Pitch Angle ±40 degrees
Motion Tolerance 4 inches (10 cm) per second in both lateral and
horizontal directions
Symbol Contrast 45% minimum for Matrix codes, 37.5% minimum for all
others
Battery:
Lithium Ion 3.6 Volt
1600 mAHr minimum
Battery Capacity: Standby Heavy Usage (1 scan per second)
20 hours 12 hours (minimum)
Storage: 5% loss per month
Radio:
Frequency 2.4 to 2.4835 GHz (ISM Band) Frequency Hopping
Bluetooth v.1.2
Range 33 ft. (10 m) typical
Data Range 720 KBps
Temperature Ranges:
Operating 14° to 122° F (-10° to 50° C)
Battery Charge 41° F to +104° F (5° C to +40° C)
Storage* -40° to 158° F (-40° to 70° C)
2020/4820/4820 i User’s Guide 13 - 3
*Storage outside of this temperature range could be detrimental to battery life.
2020 Product Specifications
Humidity Up to 95% non-condensing
Mechanical Drop Operational after 50 drops from 6.5 feet
(1.9 m) to concrete
Vibration Withstands 5G peak from 22 to 300 Hz
ESD Sensitivity 15 kV to any external surface
MTBF per MIL-HDBK-217F Ground Benign exceeds 71,000
hours
Sealant Rating IP54
Parameter Specification
Dimensions (Typical):
Height 3.1 inches (7.9 cm)
Length 5.6 inches (14.2 cm)
Width 4.3 inches (10.9 cm)
Weight 8.8 ounces (250 g)
Voltage:
DC Barrel 8.5 to 9.5 volts
Host Port 4.5-12 volts
Current Draw: Base Only Base/Image Scanner w/ max
charging
5 Volt Host 125 125mA (will not charge)
9 Volt DC Barrel 100 850mA
12 Volt Host 100 825mA
Charge Rate
41° F to +104° F (5° C to +40° C)
9 Volt DC Barrel (external
power)
Maximum 4 hours full charge for fully discharged
battery
Temperature Ranges:
Operating 32° F to +122° F (0° C to +50° C)
Battery Charge 41° F to +104° F (5° C to +40° C)
Storage -40° F to +140° F (-40° C to +60° C)
Humidity Up to 95% non-condensing
Mechanical Drop Operational after 50 drops from 3.3 feet (1 m) to
concrete
Vibration Withstands 5G peak from 22 to 300 Hz
13 - 6 2020/4820/4820 i User’s Guide

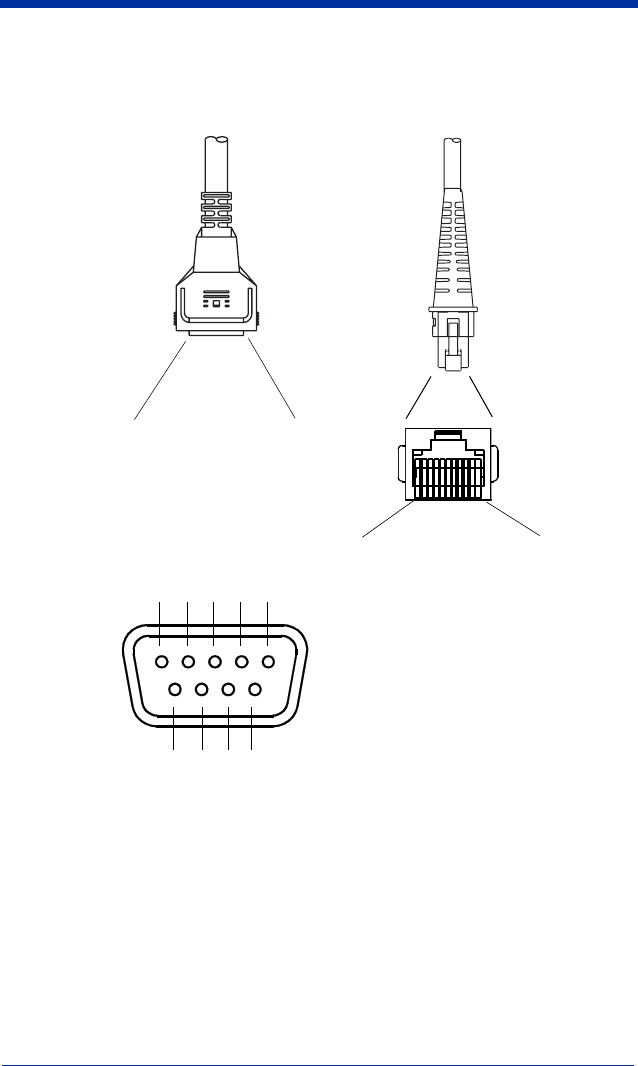

Standard Cable Pinouts
Wand Emulation
10 Pin Modular Plug
connects to the base
1
2Cord shield
3 Prog 1 (Tied to supply power for primary cable)
4 Supply ground
5
6 Barcode data output
7 Supply power input (Refer to tables on page 13-1.)
8
9
10
Barcode data output
Supply power input
9 Pin Type D Female
connects to your terminal
Supply ground
Cord shield
1
2
3
4
5
6
7
8
9
2020/4820/4820 i User’s Guide 13 - 7

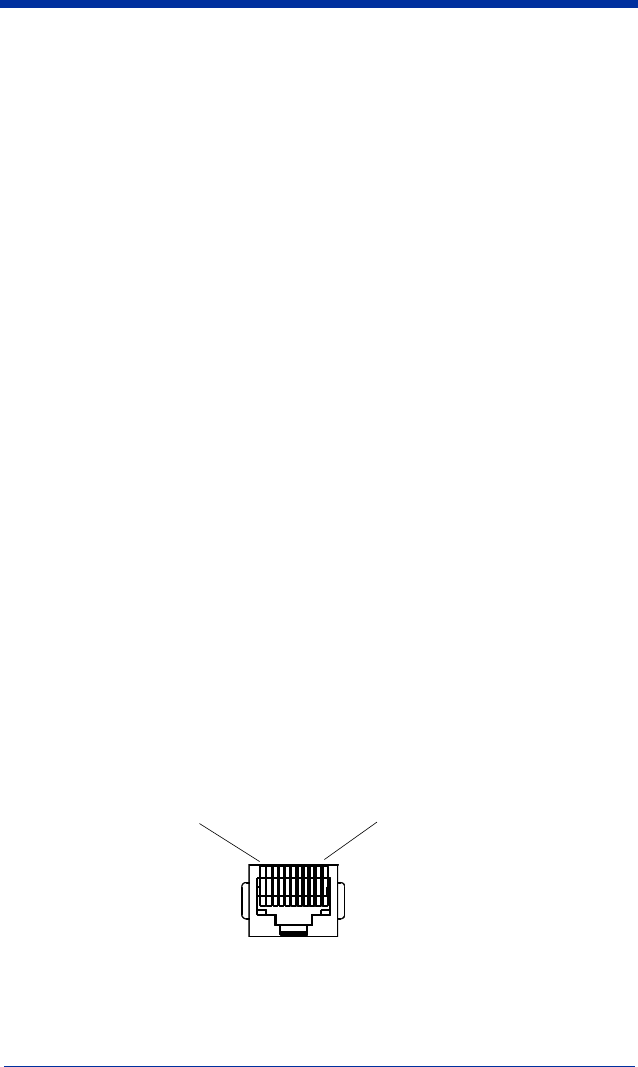

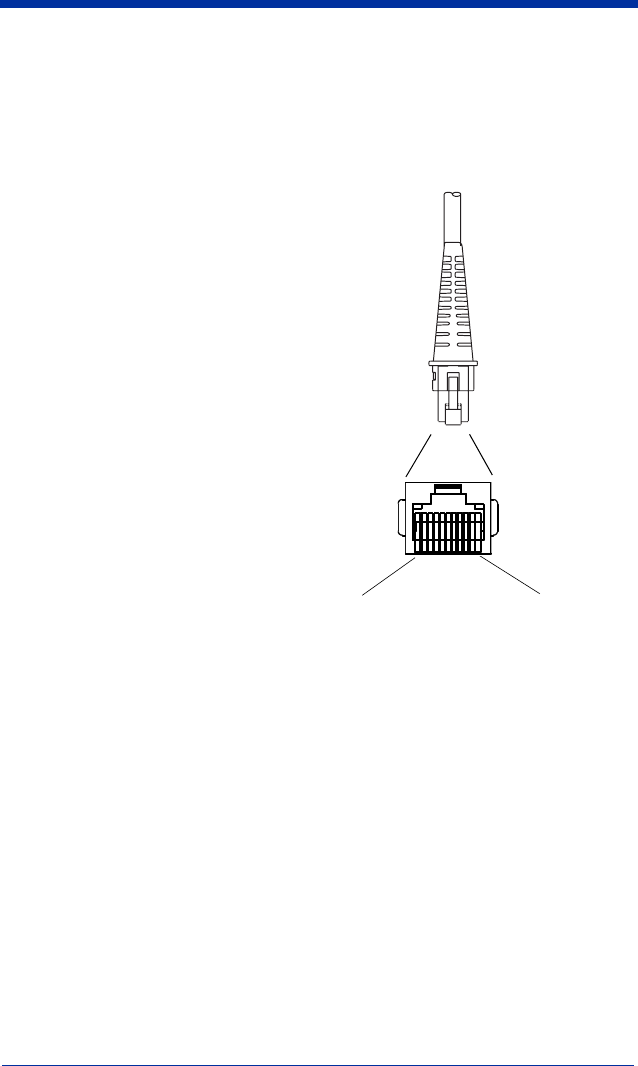

Standard Cable Pinouts
Serial Output
10 Pin RJ41 Modular Plug
connects to the base
1
2 Cord shield
3 Prog 1 (Tied to supply power for primary cable)
4 Supply ground
5 Receive data - Serial data to image scanner
6 Transmit data - Serial data from image scanner
7 Supply power input (Refer to tables on page 13-1.)
8 Request to send data
9 Clear to send data
10
2020/4820/4820 i User’s Guide 14 - 1
14
Maintenance
Repairs
Repairs and/or upgrades are not to be performed on this product. These
services are to be performed only by an authorized service center. See
"Customer Support" on page 15-1 for further information.
Maintenance
The cordless system provides reliable and efficient operation with a minimum of
care. Although specific maintenance is not required, the following periodic
checks ensure dependable operation:
Cleaning the Image Scanner’s Window
Reading performance may degrade if the image scanner’s window is not clean.
If the window is visibly dirty, or if the image scanner isn’t operating well, clean the
window with a soft cloth or lens tissue dampened with water (or a mild detergent-
water solution). If a detergent solution is used, rinse with a clean lens tissue
dampened with water only.
The image scanner and base’s housing may also be cleaned the same way.
Inspecting Cords and Connectors
Inspect the base’s interface cable and connector for wear or other signs of
damage. A badly worn cable or damaged connector may interfere with image
scanner operation. Contact your Hand Held Products distributor for information
about cable replacement. Cable replacement instructions are on page 14-2.
Do not submerge the image scanner in water. The image
scanner’s housing is not watertight.
Do not use abrasive wipes or tissues on the image
scanner’s window – abrasive wipes may scratch the
window. Never use solvents (e.g., alcohol or acetone) on
the housing or window – solvents may damage the finish
!Caution:
14 - 2 2020/4820/4820 i User’s Guide
Replacing the 2020 Interface Cable:
1. Turn the power to the host system
OFF.
2. Disconnect the base’s cable from the
terminal or computer.
3. Turn the base upside down.
4. Pull the connector out while
maintaining pressure on the connector
release clip.
5. Replace with the new cable.
Insert the connector into the opening
and press firmly. The connector is
keyed to go in only one way, and will
click into place.
Changing the Image
Scanner Battery:
1. Remove the screw on the end
cap. (For a 4820, use a Phil-
lips screwdriver. For a 4820i,
loosen the thumbwheel screw
by hand, or use a flat screw-
driver or hex wrench.)
2. Remove the battery from the
handle.
3. Insert replacement battery.
4. Replace end cap and screw.
End Cap
2020/4820/4820 i User’s Guide 14 - 3
Assembling the Battery Charge Sleeve Kit
Attach Tether
1. Use the phillips screw to connect the metal
ring of the coiled tether to the battery charge
sleeve.
2. Peel the backing from the
metal plate on the coiled
tether and affix the metal
plate to the back of the 2020
base.
Note: For best adhesion, allow
a 24 hour cure time
before placing stress on
the metal plate.
Remove Battery
Remove the end cap of the image scanner (turn
the thumbwheel or use a hex wrench).
14 - 4 2020/4820/4820 i User’s Guide
Insert Battery into Charge Sleeve
1. Place the squared-off end of the battery
into the sleeve and slide it until it stops.
The battery contacts should be show-
ing through the small rectangular open-
ing in the battery sleeve.
2. Press other end of the battery until you
feel a click.
Charge Battery
With the battery inside the battery charge
sleeve, place the battery charge sleeve into
the base with the battery contacts going in first
and facing up.
Troubleshooting Base
Note: Please visit the Services and Support section of our website
(www.handheld.com) to check for the latest software for both the image
scanner and the base.
If your base is not functioning properly, review the following troubleshooting
guidelines to try to isolate the problem.
Is the red LED on?
If the red LED isn’t illuminated, check that:
• The power cable is connected properly and there is power at the power
source.
• The host system power is on (if external power isn’t used).
Is the green LED on?
If the
green
LED isn’t illuminated, check that:
• The image scanner is correctly placed in the base.
• There is external power or 12 volt host power.
• Charge mode is turned on. (See "Base Charge Mode" on page 3-3)
2020/4820/4820 i User’s Guide 14 - 5
• The battery is not bad or deeply discharged. In some cases, the image
scanner’s battery may trickle charge to bring it into an acceptable level and
then transition to a normal charge cycle.
Troubleshooting Image Scanner
Note: Make sure that your image scanner’s battery is charged.
Note: Please visit the Services and Support section of our website
(www.handheld.com) to check for the latest software for both the image
scanner and the base.
Is the image scanner having trouble reading your symbols?
If the image scanner isn’t reading symbols well, check that the symbols:
• Aren’t smeared, rough, scratched, or exhibiting voids.
• Aren’t coated with frost or water droplets on the surface.
• Are enabled in the base to which the image scanner connects.
Is the barcode displayed but not entered into the application?
The barcode is displayed on the host device correctly, but you still have to press
a key to enter it (the Enter/Return key or the Tab key, for example).
You need to program a suffix. Programming a suffix enables the image scanner
to output the barcode data plus the key you need (such as “CR”) to enter the data
into your application. Refer to Prefix/Suffix Overview on page 5-1 for further
information.
Does the image scanner read the barcode incorrectly?
If the image scanner reads a barcode, but the data is not displayed correctly on
the host screen:
• The base may not be programmed for the appropriate terminal interface.
For example, you scan “12345” and the host displays “@es%.”
Reprogram the base with the correct Plug and Play or Terminal selection
barcode. See Chapter 1 and Chapter 2.
• The base may not be programmed to output your barcode data properly.
For example, you scan “12345” and the host displays “A12345B.”
Reprogram the base with the proper symbology selections. See Chapter 7.
The image scanner won’t read your barcode at all.
1. Scan the sample barcodes in the back of this manual. If the image scanner
reads the sample barcodes, check that your barcode is readable.
Verify that your barcode symbology is enabled (see Chapter 7).
2020/4820/4820 i User’s Guide 15 - 1
15
Customer Support
Product Service and Repair
Hand Held Products provides service for all its products through service centers
throughout the world. To obtain warranty or non-warranty service, return the unit
to Hand Held Products (postage paid) with a copy of the dated purchase record
attached. Contact the appropriate location below to obtain a Return Material
Authorization number (RMA #) before returning the product.
North America
Hand Held Products Corporate Offices
Telephone: (800) 782-4263, option 3
Fax: (704) 566-6015
E-mail: naservice@handheld.com
América Latina
Hand Held Products América Latina
Teléfono: (704) 998-3998, opción 8, opción 4
Teléfono: (800) 782-4263,, opción 8, opción 3
Fax: (239) 263-9689
E-mail: laservice@handheld.com
Brasil
Hand Held Products
Rio de Janeiro
Telefone: +55 (21) 2178-0500
Fax: +55 (21) 2178-0505
E-mail: brservice@handheld.com
México
Hand Held Products México
Teléfono: +52 (55) 5203-2100
Fax: +52 (55) 5531-3672
E-mail: mxservice@handheld.com
Europe, Middle East, and Africa
Hand Held Products Europe
Telephone: +31 (0) 40 2901 633
Fax: +31 (0) 40 2901 631
E-mail: euservice@handheld.com
Asia Pacific
Hand Held Products Asia/Pacific
Telephone: +852-2511-3050
Fax: +852-2511-3557
E-mail: apservice@handheld.com
15 - 2 2020/4820/4820 i User’s Guide
Japan
Hand Held Products Japan
Telephone: +81-3-5770-6312
Fax: +81-3-5770-6313
E-mail: apservice@handheld.com
Online Product Service and Repair Assistance
You can also access product service and repair assistance online at
www.handheld.com.
Technical Assistance
If you need assistance installing or troubleshooting, please call your Distributor
or the nearest Hand Held Products technical support office:
North America/Canada
Telephone: (800) 782-4263, option 4 (8 a.m. to 6 p.m. EST)
Fax number: (315) 685-4960
E-mail: natechsupport@handheld.com
América Latina
Teléfono: (704) 998-3998, opción 8, opción 3
Teléfono: (800) 782-4263, opción 8, opción 3
E-mail: latechsupport@handheld.com
Brasil
Telefone: +55 (21) 2178-0500
Fax: +55 (21) 2178-0505
E-mail: brtechsupport@handheld.com
México
Teléfono: (704) 998-3998, opción 8, opción 3
E-mail: latechsupport@handheld.com
Europe, Middle East, and Africa
Telephone: +31 (0) 40 7999 393
Fax: +31 (0) 40 2425 672
E-mail: eurosupport@handheld.com
Asia Pacific
Telephone - Hong Kong: +852-3188-3485
or
2511-3050
Telephone - China: +86 21 6361 3818
E-mail: aptechsupport@handheld.com
2020/4820/4820 i User’s Guide 15 - 3
Online Technical Assistance
You can also access technical assistance online at www.handheld.com.
Limited Warranty
Hand Held Products, Inc. (“Hand Held Products“) warrants its products to be free
from defects in materials and workmanship and to conform to Hand Held
Products published specifications applicable to the products purchased at the
time of shipment. This warranty does not cover any Hand Held Products product
which is (i) improperly installed or used; (ii) damaged by accident or negligence,
including failure to follow the proper maintenance, service, and cleaning
schedule; or (iii) damaged as a result of (A) modification or alteration by the
purchaser or other party, (B) excessive voltage or current supplied to or drawn
from the interface connections, (C) static electricity or electro-static discharge,
(D) operation under conditions beyond the specified operating parameters, or (E)
repair or service of the product by anyone other than Hand Held Products or its
authorized representatives.
This warranty shall extend from the time of shipment for the duration published
by Hand Held Products for the product at the time of purchase ("Warranty
Period"). Any defective product must be returned (at purchaser’s expense)
during the Warranty Period to Hand Held Products factory or authorized service
center for inspection. No product will be accepted by Hand Held Products
without a Return Materials Authorization, which may be obtained by contacting
Hand Held Products. In the event that the product is returned to Hand Held
Products or its authorized service center within the Warranty Period and Hand
Held Products determines to its satisfaction that the product is defective due to
defects in materials or workmanship, Hand Held Products, at its sole option, will
either repair or replace the product without charge, except for return shipping to
Hand Held Products.
15 - 4 2020/4820/4820 i User’s Guide
EXCEPT AS MAY BE OTHERWISE PROVIDED BY APPLICABLE LAW, THE
FOREGOING WARRANTY IS IN LIEU OF ALL OTHER COVENANTS OR
WARRANTIES, EITHER EXPRESSED OR IMPLIED, ORAL OR WRITTEN,
INCLUDING, WITHOUT LIMITATION, ANY IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
HAND HELD PRODUCTS’ RESPONSIBILITY AND PURCHASER’S
EXCLUSIVE REMEDY UNDER THIS WARRANTY IS LIMITED TO THE
REPAIR OR REPLACEMENT OF THE DEFECTIVE PRODUCT. IN NO EVENT
SHALL HAND HELD PRODUCTS BE LIABLE FOR INDIRECT, INCIDENTAL,
OR CONSEQUENTIAL DAMAGES, AND, IN NO EVENT, SHALL ANY
LIABILITY OF HAND HELD PRODUCTS ARISING IN CONNECTION WITH
ANY PRODUCT SOLD HEREUNDER (WHETHER SUCH LIABILITY ARISES
FROM A CLAIM BASED ON CONTRACT, WARRANTY, TORT, OR
OTHERWISE) EXCEED THE ACTUAL AMOUNT PAID TO HAND HELD
PRODUCTS FOR THE PRODUCT. THESE LIMITATIONS ON LIABILITY
SHALL REMAIN IN FULL FORCE AND EFFECT EVEN WHEN HAND HELD
PRODUCTS MAY HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH
INJURIES, LOSSES, OR DAMAGES. SOME STATES, PROVINCES, OR
COUNTRIES DO NOT ALLOW THE EXCLUSION OR LIMITATIONS OF
INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE
LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.
All provisions of this Limited Warranty are separate and severable, which means
that if any provision is held invalid and unenforceable, such determination shall
not affect the validity of enforceability of the other provisions hereof. Hand Held
Products, Inc. extends these warranties only to the first end-users of the
products. These warranties are nontransferable.
The limited duration of the warranty for the 2020 and 4820/4820i is for three (3)
years. The limited duration of the warranty for the image scanner battery is for
one (1) year.
2020/4820/4820 i User’s Guide A - 1
A
Reference Charts
Symbology Chart
Symbology AIM
ID
Possible AIM ID
Modifiers (
m
)
Hand Held
Products
Code ID
(hex)
All Symbologies
(0x99)
4-CB (4-State Customer Barcode) ]X0 M (0x4D)
Australian Post ]X0 A (0x41)
Aztec Code ]z
m
0-9, A-C z (0x7A)
British Post ]X0 B (0x42)
Canadian Post ]X0 C (0x43)
China Post ]X0 Q (0x51)
Codabar ]F
m
0-1 a (0x61)
Codablock F ]O
m
0, 1, 4, 5, 6 q (0x71)
Code 11 ]H3 h (0x68)
Code 128 ]C
m
0, 1, 2, 4 j (0x6A)
Code 16K ]K
m
0, 1, 2, 4 o (0x6F)
Code 32 Pharmaceutical (PARAF)
]X0 < (0x3C)
Code 39 ]A
m
0, 1, 3, 4, 5, 7 b (0x62)
Code 49 ]T
m
0, 1, 2, 4 l (0x6C
Code 93 and 93i ]G
m
0-9, A-Z,
a-m i (0x69
Data Matrix ]d
m
0-6 w (0x77)
EAN-13 ]E0 d (0x64)
EAN-8 ]E4 D (0x44)
EAN•UCC Composite ]e
m
0-3 y (0x79)
EAN-13 with Extended
Coupon Code ]E3 d (0x64)
ID-tag (UPU 4-State) ]X0 N (0x4E)
Interleaved 2 of 5 ]l
m
0, 1, 3 e (0x65)
Japanese Post ]X0 J (0x4A)
KIX (Netherlands) Post ]X0 K (0x4B)
Korea Post ]X0 ? (0x3F)
A - 2 2020/4820/4820 i User’s Guide
* Only available by special order.
Matrix 2 of 5 ]X0 m (0x6D)
MaxiCode ]U
m
0-3 x (0x78)
MicroPDF417 ]L
m
3-5 R (0x52)
MSI ]M
m
0 g (0x67)
No Read (0x9C)
OCR-A ]o1 O (0x4F)
OCR-B ]o2 O (0x4F)
OCR MICR E-13B ]ZE O (0x4F)
OCR US Money Font ]o3 O (0x4F)
SEMI Font ]o3 O (0x4F)
PDF417 ]L
m
0-2 r (0x72)
Planet Code ]X0 L (0x4C)
Plessey Code ]P0 n (0x6E)
PosiCode ]p
m
0, 1, 2 W (0x57)
Postnet ]X0 P (0x50)
QR/Micro QR Code ]Q
m
0-6 s (0x73)
Reduced Space Symbology (GS1
DataBar, GS1 DataBar Limited, GS1
DataBar Expanded)
]e
m
0 y (0x79)
Straight 2 of 5 IATA (two-bar start/
stop) ]R
m
0, 1, 3 f (0x66)
Straight 2 of 5 Industrial (three-bar
start/stop) ]S0 0, 1, 3 f (0x66)
TCIF Linked Code 39 (TLC39) ]L2 T (0x54)
Telepen ]B
m
0, 1, 2, 4 t (0x74)
Trioptic Code ]X0 = (0x3D)
UCC/EAN-128 ]C1 I (0x49)
UPC-A ]E0 c (0x63)
UPC-A with Extended Coupon Code ]E3 c (0x63)
UPC-E ]E0 E (0x45)
VeriCode* ]X0 v (0x76)
Symbology AIM
ID
Possible AIM ID
Modifiers (
m
)
Hand Held
Products
Code ID
(hex)
2020/4820/4820 i User’s Guide A - 3
Note: “m” represents the AIM modifier character. Refer to International
Technical Specification, Symbology Identifiers, for AIM modifier character
details.
Note: Prefix/Suffix entries for specific symbologies override the universal (All
Symbologies, 99) entry.
Refer to <Italics>Data Editing beginning on page 5-1 and <Italics>Data
Formatting beginning on page 6-1 for information about using Code ID and AIM
ID.
A - 4 2020/4820/4820 i User’s Guide
ASCII Conversion Chart (Code Page 1252)
Note: This table applies to U.S. style keyboards. Certain characters may differ
depending on your Country Code/PC regional settings.
Dec Hex Char Dec Hex Char Dec Hex Char Dec Hex Char
000 NUL 32 20 64 40 @96 60 ‘
101 SOH 33 21 !65 41 A97 61 a
202 STX 34 22 “66 42 B98 62 b
303 ETX 35 23 #67 43 C99 63 c
404 EOT 36 24 $68 44 D100 64 d
505 ENQ 37 25 %69 45 E101 65 e
606 ACK 38 26 &70 46 F102 66 f
707 BEL 39 27 ‘71 47 G103 67 g
808 BS 40 28 (72 48 H104 68 h
909 HT 41 29 )73 49 l105 69 i
10 0A LF 42 2A *74 4A J106 6A j
11 0B VT 43 2B +75 4B K107 6B k
12 0C FF 44 2C ,76 4C L108 6C l
13 0D CR 45 2D -77 4D M109 6D m
14 0E SO 46 2E .78 4E N110 6E n
15 0F SI 47 2F /79 4F O111 6F o
16 10 DLE 48 30 080 50 P112 70 p
17 11 DC1 49 31 181 51 Q113 71 q
18 12 DC2 50 32 282 52 R114 72 r
19 13 DC3 51 33 383 53 S115 73 s
20 14 DC4 52 34 484 54 T116 74 t
21 15 NAK 53 35 585 55 U117 75 u
22 16 SYN 54 36 686 56 V118 76 v
23 17 ETB 55 37 787 57 W119 77 w
24 18 CAN 56 38 888 58 X120 78 x
25 19 EM 57 39 989 59 Y121 79 y
26 1A SUB 58 3A :90 5A Z122 7A z
27 1B ESC 59 3B ;91 5B [123 7B {
28 1C FS 60 3C <92 5C \124 7C |
29 1D GS 61 3D =93 5D ]125 7D }
30 1E RS 62 3E >94 5E ^126 7E ~
31 1F US 63 3F ?95 5F _127 7F
2020/4820/4820 i User’s Guide A - 5
Dec. Hex Char Dec. Hex Char Dec. Hex Char Dec. Hex Char
128 80 €
€160 A0 192 C0 À224 E0 à
129 81 161 A1 ¡193 C1 Á225 E1 á
130 82 ‚162 A2 ¢194 C2 Â226 E2 â
131 83 ƒ163 A3 £195 C3 Ã227 E3 ã
132 84 „164 A4 ¤196 C4 Ä228 E4 ä
133 85 …165 A5 ¥197 C5 Å229 E5 å
134 86 †166 A6 ¦198 C6 Æ230 E6 æ
135 87 ‡167 A7 §199 C7 Ç231 E7 ç
136 88 ˆ168 A8 ¨200 C8 È232 E8 è
137 89 ‰169 A9 ©201 C9 É233 E9 é
138 8A Š170 AA 202 CA Ê234 EA ê
139 8B ‹171 AB «203 CB Ë235 EB ë
140 8C Œ172 AC ¬204 CC Ì236 EC ì
141 8D 173 AD -205 CD Í237 ED í
142 8E Ž174 AE ®206 CE Î238 EE î
143 8F 175 AF ¯207 CF Ï239 EF ï
144 90 176 B0 °208 D0 Ð240 F0 ð
145 91 ‘177 B1 ±209 D1 Ñ241 F1 ñ
146 92 ’178 B2 ²210 D2 Ò242 F2 ò
147 93 “179 B3 ³211 D3 Ó243 F3 ó
148 94 ”180 B4 ´212 D4 Ô244 F4 ô
149 95 •181 B5 µ213 D5 Õ245 F5 õ
150 96 –182 B6 ¶214 D6 Ö246 F6 ö
151 97 —183 B7 ·215 D7 ×247 F7 ÷
152 98 ˜184 B8 ¸216 D8 Ø248 F8 ø
153 99 ™185 B9 ¹217 D9 Ù249 F9 ù
154 9A š186 BA 218 DA Ú250 FA ú
155 9B ›187 BB »219 DB Û251 FB û
156 9C œ188 BC ¼220 DC Ü252 FC ü
157 9D 189 BD ½221 DD Ý253 FD ý
158 9E ž190 BE ¾222 DE Þ254 FE þ
159 9F Ÿ191 BF ¿223 DF ß255 FF ÿ
ª
A - 6 2020/4820/4820 i User’s Guide
Code Page Mapping of Printed Barcodes
Code pages define the mapping of character codes to characters. If the data
received does not display with the proper characters, it may be because the
barcode being scanned was created using a code page that is different from the
one the host program is expecting. If this is the case, select the code page with
which the barcodes were created. The data characters should then appear
properly.
Note: The Code Page option is available for Code 39, Code 93, and Code 128.
Code Page Standard Description
1CP ISO646
2 (Default) ISO 2022 Automatic National Replacement Charac-
ters
3CP Binary
82 ISO 2022 11 Swe Swedish Replacement Characters
83 ISO 2022 69 Fra French/Belgium Replacement Characters
81 ISO 2022 25 Fra French/Belgium Replacement Characters
84 ISO 2022 11 Ger German Replacement Characters
85 ISO 2022 11 Ita Italian Replacement Characters
86 ISO 2022 11 Swi Swiss Replacement Characters
87 ISO 2022 11 UK British Replacement Characters
88 ISO 2022 11 Dan Danish Replacement Characters
89 ISO 2022 11 Nor Norwegian Replacement Characters
90 ISO 2022 11 Spa Spanish Replacement Characters
2020/4820/4820 i User’s Guide B - 1
B
Minimizing Bluetooth/ISM Band Network
Activity
The settings described below can help you customize the re-linking behavior of
the cordless linear imaging system to obtain the best compromise between
convenience and low interference.
Note: ISM band refers to the 2.4 to 2.48 GHz frequency band used by wireless
networks, cordless phones, and Bluetooth.
Auto Reconnect Mode
Auto Reconnect controls whether or not the image scanner automatically begins
the re-link process when a loss of connection is detected. When the Auto
Reconnect On barcode is scanned, the image scanner begins the re-link
process immediately, without user intervention.
Default = Auto Reconnect On.
The table below shows the results of the Auto Reconnect On and Off settings:
Event Auto Reconnect On Auto Reconnect Off
Image scanner out
of range
Re-link occurs
automatically. If
maximum number of link
attempts (see Maximum
Link Attempts on page
B-2) is unsuccessful,
then the trigger must be
pulled or the image
scanner must be placed
in the base unit to re-
link.
The trigger must be pulled
to initiate re-linking.
Base reset
(firmware upgrade
or power cycle)
Image scanner behaves
as if out of range.
No attempt to re-link
made while base unit is
powered off. Trigger must
be pulled to initiate re-
linking.
* Auto Reconnect On
Auto Reconnect Off
B - 2 2020/4820/4820 i User’s Guide
Maximum Link Attempts
The Maximum Link Attempts setting controls the number of times the image
scanner tries to form a connection with a base unit or PC. During the
connection setup process, the image scanner transmits in order to search for
and connect to a base unit. In order to prevent continuous transmissions that
could interfere with other users of the ISM band, the number of attempts to
connect is limited by this setting. After the maximum number of attempts is
reached, the image scanner will not attempt to reconnect to the base unit.
Pressing the trigger or placing the image scanner in the cradle resets the
attempt count and the image scanner will again try to link to the base unit.
When set to zero, the image scanner will try to link until the Power Time-Out
Timer setting (see page 4-4) expires.
Scan the Maximum Link Attempts barcode, then scan the number of attempts
for the setting (from 0-100) from the inside back cover. Scan Save to save the
setting.
Default = 0.
Image scanner
power down due to
Power Time-Out
Timer setting (see
page 4-4)
Trigger must be pulled or the image scanner must be
placed in the base unit to re-link.
(Note: image scanner re-links on power up, but
powers on due to one of the above actions.)
Image scanner
reset due to
firmware upgrade
Re-link occurs automatically.
Image scanner
reset due to battery
change
Re-link occurs automatically.
Image scanner
placed in different
base unit
Re-link to new base occurs automatically.
Event Auto Reconnect On Auto Reconnect Off
Maximum Link Attempts
2020/4820/4820 i User’s Guide B - 3
Relink Time-Out
Relink Time-Out controls the idle time between re-link attempts. An attempt to
link an image scanner to a base unit typically lasts up to 5 seconds. This is the
time when the image scanner is actually attempting to contact base unit. Relink
Time-Out controls the amount of time, in seconds, that elapses between the end
of one connection attempt and the start of the next.
Note: The length of time for an attempt depends on the number of image
scanners connected to a base unit. An extra 7 seconds may be required
when a connection is successful.
Scan the Relink Time-Out barcode, then scan the number of seconds for the
setting (from 1-100) from the inside back cover. Scan Save to save the setting.
Default = 3 seconds.
Bluetooth/ISM Network Activity Examples
Default values:
When the image scanner goes out of range, the image scanner repeatedly
attempts to connect to base unit. Each attempt consists of approximately 5
seconds of active time followed by 3 seconds of idle time. After one hour, the
image scanner powers off and batch mode data is lost.
Maximum Link Attempts set to 15
Other values at default setting:
When the image scanner goes out of range, 15 attempts are made to link to
the base unit. Each attempt consists of approximately 5 seconds of active time
followed by 3 seconds of idle time. After 15 cycles (8*15 =120), or about 2
minutes, the image scanner stops trying to connect to the base unit, but retains
any barcodes that may have been saved in batch mode. After one hour, the
image scanner powers off and batch mode data is lost.
Auto Reconnect Mode set to 0
Maximum Link Attempts set to 15
Other values at default setting:
When the image scanner goes out of range, no action is taken to re-link. When
the trigger is pulled, 15 attempts are made to link to the base unit. Each
attempt consists of approximately 5 seconds of active time followed by 3
seconds of idle time. After 15 cycles (8*15 =120), or about 2 minutes, the
image scanner stops trying to connect to the base unit, but retains any
barcodes that may have been saved in batch mode. After one hour, the image
scanner powers off and batch mode data is lost. Refer to Auto Reconnect
Mode, page B-1, to review other events that can start the re-link process.
Relink Time-Out
B - 4 2020/4820/4820 i User’s Guide
Auto Reconnect Mode set to 1
Maximum Link Attempts set to 0
Relink Time-Out set to 10
Image Scanner Power Time-Out Timer set to 1800:
Note: See Image Scanner Power Time-Out Timer on page 4-4.
The image scanner attempts to connect to the base unit every 15 seconds,
measured from start of attempt to start of attempt. After one half hour, the
image scanner powers off.
Sample Symbols
UPC-A
0 123456 7890 Interleaved 2 of 5
Code 128
EAN-13
Code 39
Codabar
1234567890
Code 128
9 780330 290951
BC321
A13579B
Code 93
123456-9$ Straight 2 of 5 Industrial
123456
Sample Symbols
6543210 GS1 DataBar
(01)00123456789012
PDF417
Postnet
Code 49
Car Registration
Zip Code
1234567890 Data Matrix
QR Code Test Symbol
Numbers
Matrix 2 of 5
ID-tag (UPU 4-State)
J18CUSA8E6N062315014880T
4-CB (4-State Customer Barcode)
01,234,567094,987654321,01234567891
Sample Symbols
Aztec
MaxiCode
Micro PDF417
Package Label
Test Message
Test Message
OCR-B with Modulo 10
check character
OCR-A with Modulo 36
check character
OCR Programming Chart
a
e
d
g
c
h
t
l
Discard
Save
r
Programming Chart
A
C
B
F
E
D
1
0
2
3
Programming Chart
6
7
5
4
8
9
Save
Discard
Note:
If you make an error while scanning the letters or digits (before scanning
Save), scan Discard, scan the correct letters or digits, and Save again.
Reset
