Honeywell WNMNFHSS Multinode FHSS Radio User Manual
Honeywell International Inc. Multinode FHSS Radio
Contents
User Manual
Honeywell Proprietary A 51121307
and Confidential REVISIONS
FCF: OneWireless Multinode Agency Compliance
Professional Installation Guide Honeywell
FMF: IACD/Ft.W
Made by: David Shipley Approval
Prints to A 51121307
Issue: AT5 8/1/2007 SIZE Sh. No.: 1 of 31
OneWireless Multinode
Agency Compliance
Professional Installation Guide
Honeywell Industrial Automation and Control
Ft. Washington, Pennsylvania
NOTICE – HONEYWELL INTERNATIONAL, INCORPORATED
TRADE SECRET - PROPRIETARY
Proprietary Notice:
This document and the information contained herein are confidential to, and the property of Honeywell, Inc. This
document and the information contained herein is made available only to employees of Honeywell, for the sole
purpose of conducting Honeywell's business. This document, and the information contained herein, shall be
maintained in strictest confidence; shall not be copied in whole or in part; and shall not be disclosed or distributed
to persons who are not employees of Honeywell, and for whom such information is not necessary in connection
with their assigned responsibilities. Upon request, or when the employee in possession of this document no longer
has need for this document for the authorized Honeywell purpose, this document shall be returned to the
employee's manager. There shall be no exceptions to the terms and conditions set forth herein except as
authorized in writing by the responsible Honeywell Vice President.
PRELIMINARY
Honeywell Proprietary A 51121307
and Confidential REVISIONS
FCF: OneWireless Multinode Agency Compliance
Professional Installation Guide Honeywell
FMF: IACD/Ft.W
Made by: David Shipley Approval
Prints to A 51121307
Issue: AT5 8/1/2007 SIZE Sh. No.: 2 of 31
APPROVAL SIGNATURES
________________________________________________________________
Gary Brown, Hardware Engineering Manager Date
________________________________________________________________
John Herman, Program Management Date
__________________________________________________July 18, 2007__
Yu-Gene Chen, Product Marketing Date
________________________________________________________________
William Osei-Bonsu, Hardware Engineering Date
__________________________________________________July 18, 2007___
David Shipley, Agency Compliance Date
________________________________________________________________
Richard Allen, Agency Compliance Date
Revision Record
Revision
Date
Purpose/Distribution
AT5 07/18/2007 Draft for Peer Review and signature sign off
Honeywell Proprietary A 51121307
and Confidential REVISIONS
FCF: OneWireless Multinode Agency Compliance
Professional Installation Guide Honeywell
FMF: IACD/Ft.W
Made by: David Shipley Approval
Prints to A 51121307
Issue: AT5 8/1/2007 SIZE Sh. No.: 3 of 31
TABLE OF CONTENTS
1 DESIGNATION, SCOPE AND PREFACE...........................................................................................6
1.1 DESIGNATION .....................................................................................................................................6
1.1.1 Model Numbers and Revisions :..................................................................................................6
1.2 SCOPE ...............................................................................................................................................6
1.3 PREFACE ...........................................................................................................................................6
2 FEDERAL COMMUNICATION COMMISSION (FCC) ........................................................................7
2.1 FCC COMPLIANCE STATEMENT...........................................................................................................7
2.2 IMPORTANT FCC NOTE.................................................................................................................7
2.2.1 RF Safety Statement:...................................................................................................................7
2.3 FCC AND INDUSTRY CANADA (IC) IDENTIFICATION NUMBERS:..............................................................8
3 ABBREVIATIONS & DEFINITIONS ....................................................................................................9
4 MULTINODE GENERAL DESCRIPTION..........................................................................................10
4.1 INTENDED USE .................................................................................................................................10
4.2 MULTINODE DEVICE DIAGRAMS .........................................................................................................10
5 PRODUCT SPECIFICATIONS...........................................................................................................11
5.1 FREQUENCY HOPPING SPREAD SPECTRUM (FHSS) RADIO, 2.4GHZ..................................................11
5.2 IEEE 802.11A/B/G (WI-FI) RADIOS ..................................................................................................12
5.3 MULTINODE USER ENVIRONMENT......................................................................................................13
5.4 MULTINODE POWER SPECIFICATIONS ................................................................................................13
5.5 WEIGHT ...........................................................................................................................................13
5.6 DIMENSIONS.....................................................................................................................................14
6 CABLES.............................................................................................................................................15
6.1 EXTERNAL INTERFACE CABLES..........................................................................................................15
6.2 ANTENNA CABLES.............................................................................................................................16
7 ANTENNA LIGHTNING ARRESTORS .............................................................................................16
7.1 FOR USE WITH INTEGRAL ANTENNA(S) ...............................................................................................16
7.2 FOR USE WITH REMOTE ANTENNA(S).................................................................................................16
8 APPROVED ANTENNA TYPES/GAINS ...........................................................................................17
8.1 FHSS RADIO: ..................................................................................................................................17
8.2 802.11A/B/G ACCESS POINT AND BRIDGE (MESH) RADIO ...................................................................17
9 EQUIVALENT ISOTROPICALLY RADIATED POWER (EIRP)........................................................18
10 EIRP LIMITS, FHSS RADIO ..............................................................................................................19
11 EIRP LIMITS, 802.11A (5.8GHZ) ACCESS POINT AND BRIDGE RADIO......................................20
12 EIRP LIMITS, 802.11A (5.4GHZ) ACCESS POINT AND BRIDGE RADIO......................................21
Honeywell Proprietary A 51121307
and Confidential REVISIONS
FCF: OneWireless Multinode Agency Compliance
Professional Installation Guide Honeywell
FMF: IACD/Ft.W
Made by: David Shipley Approval
Prints to A 51121307
Issue: AT5 8/1/2007 SIZE Sh. No.: 4 of 31
13 EIRP LIMITS, 802.11B/G (2.4GHZ) ACCESS POINT AND BRIDGE RADIO..................................22
14 SETTING POWER AND COUNTRY CODE: FHSS RADIO..............................................................23
15 SETTING POWER & COUNTRY CODE: 802.11 ACCESS POINT & BRIDGE RADIO ..................24
15.1 POWER SETTING REFERENCE TABLE, 802.11 ACCESS POINT & BRIDGE RADIO:.................................26
16 AGENCY LABEL INFORMATION.....................................................................................................27
17 RF SAFETY, MAXIMUM PERMISSIBLE EXPOSURE (MPE) STATEMENT...................................28
18 AGENCY COMPLIANCE...................................................................................................................29
18.1 RADIO AND EMC CERTIFICATIONS ....................................................................................................29
18.1.1 Federal Communication Commission (FCC).........................................................................29
18.1.2 Industry Canada (IC) .............................................................................................................29
18.1.3 European Telecommunications Standards Institue (ETSI) ...................................................29
18.1.4 Australian communications and media authority (ACMA).....................................................29
18.2 PRODUCT SAFETY AGENCY CERTIFICATIONS .....................................................................................30
18.2.1 Canadian Standards Association (CSA) ...............................................................................30
18.2.2 Factory Mutual (FM) ..............................................................................................................30
18.2.3 European ATEX Certification (ATEX)....................................................................................31
18.3 EUROPEAN UNION CERTIFICATION (CE-MARK)...................................................................................31
19 REFERENCE DOCUMENTS .............................................................................................................31
Honeywell Proprietary A 51121307
and Confidential REVISIONS
FCF: OneWireless Multinode Agency Compliance
Professional Installation Guide Honeywell
FMF: IACD/Ft.W
Made by: David Shipley Approval
Prints to A 51121307
Issue: AT5 8/1/2007 SIZE Sh. No.: 5 of 31
LIST OF FIGURES

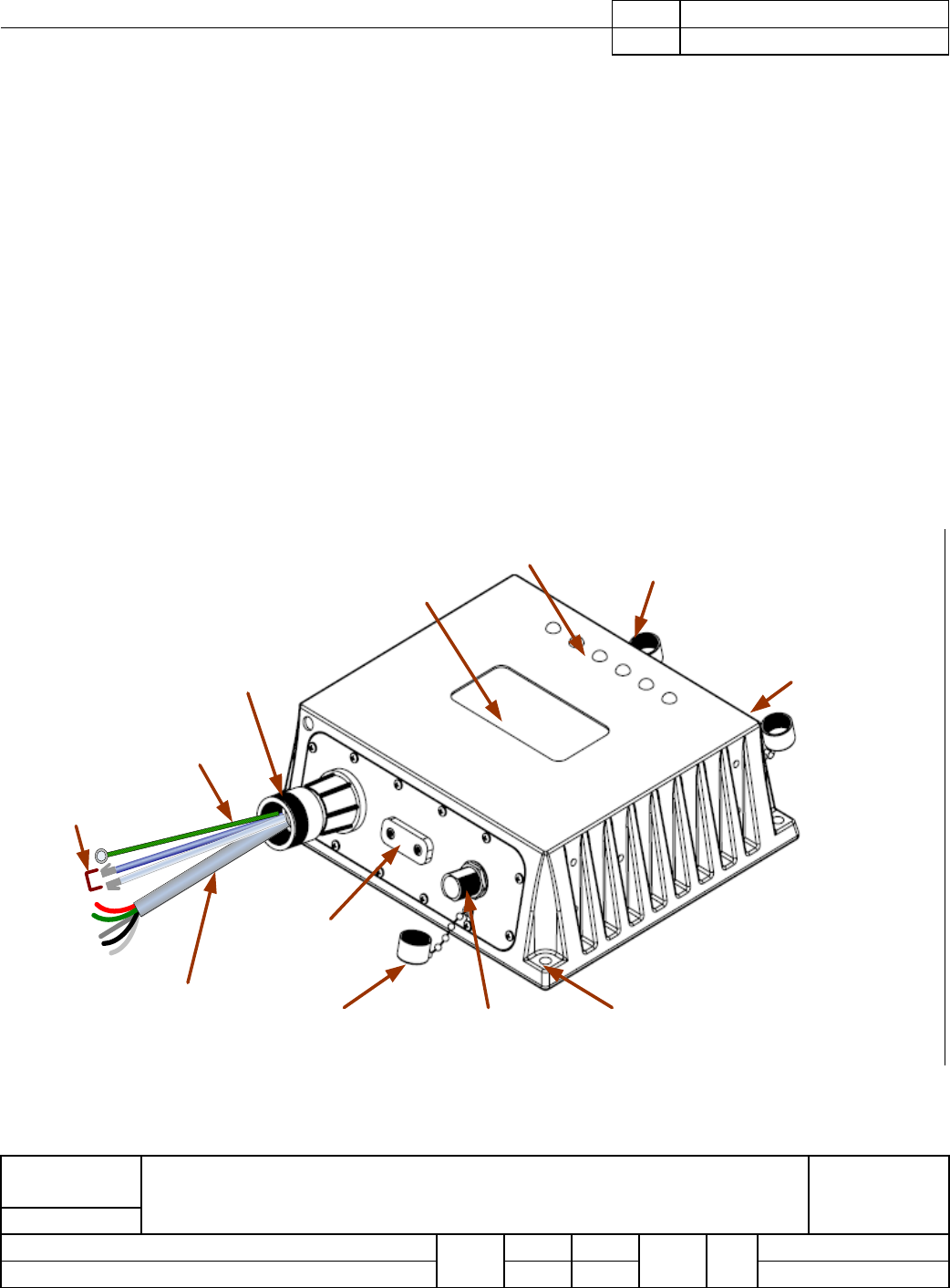

Figure 1 –Diagram of Multinode Unit showing various external attributes ____________________________ 10
Figure 3 – Dimension of the Multinode Device _________________________________________________ 14
LIST OF TABLES
Table 1 – Assembly Number and Revision........................................................................................................... 6
Table 2 –Table of Abbreviations and Definitions .................................................................................................. 9
Table 3 – Specifications of FHSS Radio in Multinode Device. ........................................................................... 11
Table 4 – IEEE 802.11a/b/g Wi-Fi Radio Specifications..................................................................................... 12
Table 5 – Specifications User Environment Multinode Device. .......................................................................... 13
Table 6 – Power Specifications Multinode Device.............................................................................................. 13
Table 7 – External Cable Specification for Multinode Device............................................................................. 15
Table 8 - Antenna Cable Specifications for Multinode Device............................................................................ 16
Table 9 – Lightning Arrestor Specifications for Integral Antenna(s) ................................................................... 16
Table 10 – Lightning Arrestor Specifications for Remote Antenna(s)................................................................. 16
Table 11 – Approved Antenna Types/Gains, FHSS Radio................................................................................. 17
Table 12 – Approved Antenna Types/Gains, 802.11a/b/g Radios .....................................................................17
Table 13 – EIRP Limits, FHSS Radio ................................................................................................................. 19
Table 14 – EIRP Limits, 802.11a (5.8GHz) Radios ............................................................................................ 20
Table 15 – EIRP Limits, 802.11a (5.4GHz) Radios ............................................................................................ 21
Table 16 – EIRP Limits, 802.11b/g (2.4GHz) Radios ......................................................................................... 22
Table 17 – Reference documents...................................................................................................................... 31
Honeywell Proprietary A 51121307
and Confidential REVISIONS
FCF: OneWireless Multinode Agency Compliance
Professional Installation Guide Honeywell
FMF: IACD/Ft.W
Made by: David Shipley Approval
Prints to A 51121307
Issue: AT5 8/1/2007 SIZE Sh. No.: 6 of 31
1 DESIGNATION, SCOPE AND PREFACE
1.1 Designation
HONEYWELL ONEWIRELESS MULTINODE DEVICE.
1.1.1 Model Numbers and Revisions :
This document is valid for the following Multinode assembly number :
Number Revision Description
51153884-100 B
Honeywell OneWireless Multinode Device -
Top Level Assembly Drawing
Table 1 – Assembly Number and Revision
1.2 Scope
This document outlines professional installation requirements for the Honeywell Multinode
Device for the Honeywell OneWireless Network. Professional installation is required to
comply with certification agency and legal requirements. This document must be adhered to
for all installations of the Honeywell OneWireless Multinode device.
1.3 Preface
This manual covers professional installation of the optional external antennas for use with the
Honeywell OneWireless Multinode device. Since this device requires manual power limit
settings for use with the higher gain antennas, it is classified by the FCC as a professional
install device. To be in compliance with FCC requirements, the radio must be installed with
one of several approved antennas listed in this document. The Honeywell OneWireless
Multinode device works in conjunction with Honeywell XYR5000 and XYR6000 wireless
transmitters and Wi-Fi access point devices. See the Getting Started with Honeywell
OneWireless, Honeywell OneWireless Planning Guide and Honeywell OneWireless
Multinode User’s Guide, for general information on overall system implementation,
configuration, and management of the multimode.
Honeywell Proprietary A 51121307
and Confidential REVISIONS
FCF: OneWireless Multinode Agency Compliance
Professional Installation Guide Honeywell
FMF: IACD/Ft.W
Made by: David Shipley Approval
Prints to A 51121307
Issue: AT5 8/1/2007 SIZE Sh. No.: 7 of 31
2 FEDERAL COMMUNICATION COMMISSION (FCC)
2.1 FCC Compliance Statement
This device complies with Part 15 of FCC Rules and Regulations. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference and (2) this
device must accept any interference received, including interference that may cause
undesired operation. This equipment has been tested and found to comply with the limits for
a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radiofrequency energy and, if not installed and
used in accordance with these instructions, may cause harmful interference to radio
communications.
2.2 IMPORTANT FCC NOTE
Intentional or unintentional changes or modifications must not be made to the Multinode
unless under the express consent of the party responsible for compliance. Any such
modifications could void the user’s authority to operate the equipment and will void the
manufacturer’s warranty.
2.2.1 RF Safety Statement:
To comply with FCC’s and Industry Canada’s RF exposure requirements, the following
antenna installation and device operating configurations must be satisfied.
Remote Point-to-Multi-Point antenna(s) for this unit must be fixed and
mounted on outdoor permanent structures with a separation distance
between the antenna(s) of greater than 20cm and a separation distance of at
least 20cm from all persons.
Remote Fixed Point–to-Point antenna(s) for this unit must be fixed and
mounted on outdoor permanent structures with a separation distance
between the antenna(s) of greater than 20cm and a separation distance of at
least 100cm from all persons.
Furthermore, when using integral antenna(s) the Multinode unit must not be
co-located with any other antenna or transmitter device and have a
separation distance of at least 20cm from all persons.
Honeywell Proprietary A 51121307
and Confidential REVISIONS
FCF: OneWireless Multinode Agency Compliance
Professional Installation Guide Honeywell
FMF: IACD/Ft.W
Made by: David Shipley Approval
Prints to A 51121307
Issue: AT5 8/1/2007 SIZE Sh. No.: 8 of 31
2.3 FCC and Industry Canada (IC) Identification Numbers:
• Honeywell Multinode FHSS Radio Limited Modular Approval
o Federal Communication Commission Identification: S57 – WNMNFHSS
• Honeywell Multinode 802.11a/b/g Radio Limited Modular Approval
o Federal Communication Commission Identification: S57 – WNMNCM9
• Honeywell Multinode FHSS Radio Limited Modular Approval
o Industry Canada Identification: 573I – WNMNFHSS
• Honeywell Multinode 802.11a/b/g Radio Limited Modular Approval
o Industry Canada Identification: 573I – WNMNCM9
Honeywell Proprietary A 51121307
and Confidential REVISIONS
FCF: OneWireless Multinode Agency Compliance
Professional Installation Guide Honeywell
FMF: IACD/Ft.W
Made by: David Shipley Approval
Prints to A 51121307
Issue: AT5 8/1/2007 SIZE Sh. No.: 9 of 31
3 Abbreviations & Definitions
The term Honeywell Multinode Device (or simply Multinode) will be used to describe the
composite unit which includes the Honeywell FHSS Radio Board, 3eTI Mesh Board, Power
Supply board, and all subassemblies housed inside the Multinode enclosure.
ACMA Australian Communications and Media Authority
ATEX Potentially Explosive Atmospheres Directive
AWG American Wire Gauge
Co-located Two or more radios transmitting simultaneously and with less than
20cm of separation distance.
COTS Commercial Off-The-Shelf
CSA Canadian Standards Association
EMC Electromagnetic Compatibility
ETSI European Telecommunications Standards Institute
EU European Union
FCC Federal Communications Committee
FHSS Frequency-Hopping Spread Spectrum
FM Factory Mutual
IC Industry Canada
IEEE Institute of Electrical and Electronics Engineers
IR Infrared
IrDA Infrared Data Association
LED Light Emitting Diode
MPE Maximum Permissible Exposure
MTBF Mean Time Between Failures
NEMA National Electrical Manufacturers Association
PCB Printed Circuit Board
PCI Peripheral Components Interconnect
RAM Random Access Memory
RJ-45 Registered Jack-45
RPN Reverse Polarity N-type
SQA Supplier Quality Assurance
Wi-Fi Wireless Local Area Network based on IEEE 802.11 Specifications
WNSIA Wireless Network for Secure Industrial Application
Table 2 –Table of Abbreviations and Definitions
Honeywell Proprietary A 51121307
and Confidential REVISIONS
FCF: OneWireless Multinode Agency Compliance
Professional Installation Guide Honeywell
FMF: IACD/Ft.W
Made by: David Shipley Approval
Prints to A 51121307
Issue: AT5 8/1/2007 SIZE Sh. No.: 10 of 31
4 MULTINODE GENERAL DESCRIPTION
4.1 Intended Use
The Multinode unit is a key component of the Honeywell Wireless Network for Secure
Industrial Application (WNSIA). It provides wireless mesh connectivity for wireless sensor
networks and wireless worker appliances. The Multinode uses powerful radios to
communicate with gateway devices connected to a wired DCS network, and a low-powered
radio to communicate with wireless sensors. The Multinode unit consists of two types of
radios: a sensor radio for communication with XYR 6000 transmitters and IEEE 802.11a/b/g
radios for mesh (bridge) network and communication with mobile access point (client)
devices.
4.2 Multinode Device Diagrams
Figure 1 shows the unit-level drawing of the Multinode Device. All cables exit the unit via a ¾”
conduit hub. The conduit hub allows end user to land conduit on the Multinode Device. Figure
1 shows the Multinode and all of external interfaces.
¾” Conduit Hub
FHSS Ant. Con.
(N-Type)
Infrared Port
LEDs (6X)
Honeywell Logo
Recess Area
Mounting Holes (4X)
Dust Boots
for Ant Con (3X)
Client Ant. Con.
(RPN-Type)
(Not Shown)
Mesh Ant. Con.
(RPN-Type)
(Not Shown)
24VDC Power
Cable
Ground Cable
Ethernet
Cables
Mesh Ant Con.
Client Ant Con.
Figure 1 –Diagram of Multinode Unit showing various external attributes
Honeywell Proprietary A 51121307
and Confidential REVISIONS
FCF: OneWireless Multinode Agency Compliance
Professional Installation Guide Honeywell
FMF: IACD/Ft.W
Made by: David Shipley Approval
Prints to A 51121307
Issue: AT5 8/1/2007 SIZE Sh. No.: 11 of 31
5 PRODUCT SPECIFICATIONS
5.1 Frequency Hopping Spread Spectrum (FHSS) Radio, 2.4GHz
Warning! The Multinode unit must be Professionally Installed in accordance with the
requirements specified in this document. See Section 10, for professional installation
maximum power setting requirements. Only the specified power settings, antenna types and
gains and cable lengths (attenuation) as outlined in this document are valid for Multinode
installations.
Table 3 – Specifications of FHSS Radio in Multinode Device.
Item Specification
Wireless Standard Frequency Hopping Spread Spectrum (FHSS), 2.4GHz
Data Rates and Modulation Data Rate: 250kbps
Modulation: Gaussian Frequency Shift Keying (GFSK)
Frequency Band 2,402 – 2,482MHz
Transmit Power
Maximum: 19dBm
(Maximum transmit power will vary by channel and individual country
regulations.
Receive Sensitivity
(typical) -98dBm
Honeywell Proprietary A 51121307
and Confidential REVISIONS
FCF: OneWireless Multinode Agency Compliance
Professional Installation Guide Honeywell
FMF: IACD/Ft.W
Made by: David Shipley Approval
Prints to A 51121307
Issue: AT5 8/1/2007 SIZE Sh. No.: 12 of 31
5.2 IEEE 802.11a/b/G (Wi-Fi) Radios
The Multinode has two IEEE 802.11 radios for implementing client (access point) and mesh
(bridge) networks.
Warning! The Multinode unit must be Professionally Installed in accordance with the
requirements specified in this document. See Section 11, for professional installation
maximum power setting requirements. Only the specified power settings, antenna types and
gains and cable lengths (attenuation) as outlined in this document are valid for Multinode
installations.
Table 4 – IEEE 802.11a/b/g Wi-Fi Radio Specifications.
Item Specification
Wireless Standards IEEE 802.11a/b/g
Data Rates and
Modulation • 802.11a: 54, 48, 36, 24, 18, 12, 9, 6 Mbps, Orthogonal Frequency Division
Multiplexing (OFDM)
• 802.11b: 11, 5.5, 2, 1 Mbps, Direct Sequence Spread Spectrum (DSSS)
• 802.11g: 54, 48, 36, 24, 18, 12, 9, 6 Mbps, OFDM
Frequency Bands and
Operating Channels United States and Canada (FCC and IC):
• 802.11b/g: 2,412 – 2,462MHz, Channels 1 – 11
• 802.11a: 5,745 – 5,825, Channels 149,153,157,161,165
Europe (ETSI):
• 802.11b/g: 2,412 – 2,472MHz, Channels 1 – 13
• 802.11a: 5,500 – 5,700, Channels
100,104,108,112,116,120,124,128,132,136,140
Australia (ACMA):
• 802.11b/g: 2,412 – 2,472MHz, Channels 1 – 13
• 802.11a: 5,745 – 5,825, Channels 149,153,157,161,165
Transmit power
(Maximum transmit
power will vary by
channel, data rate, and
individual country
regulations.
Maximum:
• 802.11a: 23 dBm
• 802.11b: 16 dBm
• 802.11g: 16 dBm
Receive sensitivity
(typical)
802.11a:
-88dB@6Mbps, -87dB@9Mbps, -85@12Mbps, -83dB@18Mbps,
-80dB@24Mbps, -75dB@36Mbps, -73dB@48Mbps, -71dB@54Mbps
802.11b:
-95dB@1Mbps, -94dB@2Mbps, -92dB@5.5Mbps, -90dB@11Mbps
802.11g:
-90dB@6Mbps, -89dB@9Mbps, -87@12Mbps, -85dB@18Mbps,
-82dB@24Mbps, -79dB@36Mbps, -76dB@48Mbps, -74dB@54Mbps
Honeywell Proprietary A 51121307
and Confidential REVISIONS
FCF: OneWireless Multinode Agency Compliance
Professional Installation Guide Honeywell
FMF: IACD/Ft.W
Made by: David Shipley Approval
Prints to A 51121307
Issue: AT5 8/1/2007 SIZE Sh. No.: 13 of 31
5.3 Multinode User Environment
Item Specification
Operating Temperature: -20 OC to +60 OC
Storage Temperature: -20 OC to +60 OC
Operating Humidity: 0 to 100% RH
Table 5 – Specifications User Environment Multinode Device.
5.4 Multinode Power Specifications
Item Specification
Operating Voltage: 20.4Vdc to 26.4Vdc
Power Consumption
(typical): 25W
Table 6 – Power Specifications Multinode Device.
5.5 Weight
The weight of the complete Multinode units shall be 7.0 lb. (3.2 kg) maximum. This weight
does not include the integral antennas.
.
Honeywell Proprietary A 51121307
and Confidential REVISIONS
FCF: OneWireless Multinode Agency Compliance
Professional Installation Guide Honeywell
FMF: IACD/Ft.W
Made by: David Shipley Approval
Prints to A 51121307
Issue: AT5 8/1/2007 SIZE Sh. No.: 14 of 31
5.6 Dimensions

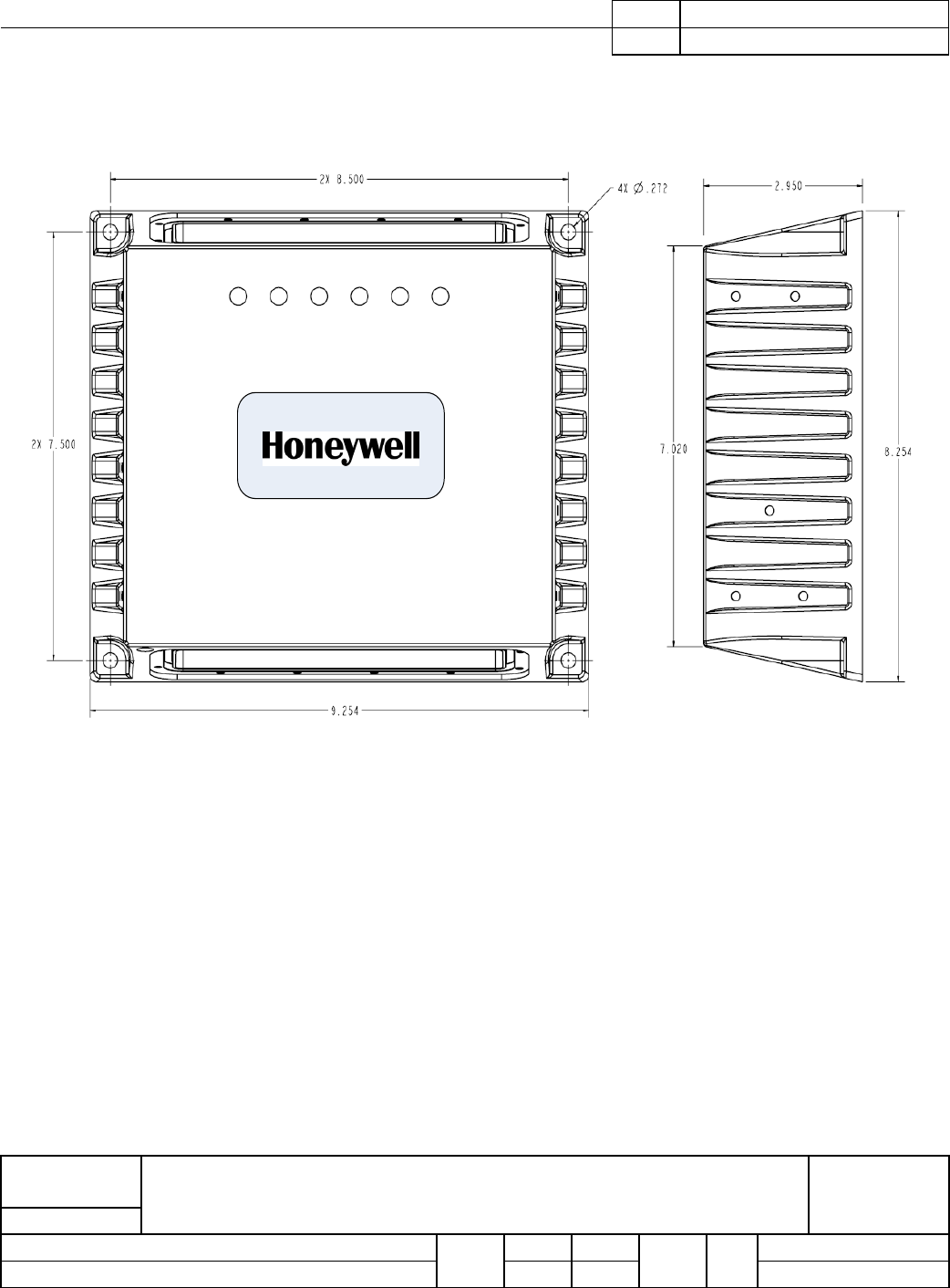

Figure 2 – Dimension of the Multinode Device
Honeywell Proprietary A 51121307
and Confidential AT1 REVISIONS
FCF: OneWireless Multinode Agency Compliance
Professional Installation Guide Honeywell
FMF: IACD/Ft.W
Made by: David Shipley Approval
Prints to A 51121307
Issue: AT1 08/01/2007 SIZE Sh. No.: 15 of 31
6 Cables
6.1 External Interface Cables
Cable Type Specification Qty Comments/Specification
External
Ethernet CAT5E
Stranded Core 2 Routed through conduit hub.
Termination = RJ-45 Modular Plug
Finished Length = 24 inches
24VDC Power Multi-
conductor,
AWG
1 Finished Length = 24 inches
Routed through conduit hub
Conductor Color:
Red & Black = 24VDC
White & Green = Common
Drain wire = Chassis potential
Ground
Conductor AWG10 1 Routed through conduit hub
Color = Green or Green with yellow stripes.
Finished length = 24 inches
Note:
• Finished length is measured from conduit hub to outside tip of cable.
• Ground conductor must be attached to product safety protective earth and building steel ground.
• All external wiring must be routed through metal conduit.
Table 7 – External Cable Specification for Multinode Device.
Honeywell Proprietary A 51121307
and Confidential AT1 REVISIONS
FCF: OneWireless Multinode Agency Compliance
Professional Installation Guide Honeywell
FMF: IACD/Ft.W
Made by: David Shipley Approval
Prints to A 51121307
Issue: AT1 08/01/2007 SIZE Sh. No.: 16 of 31
6.2 Antenna Cables
Cable
Application Honeywell
Part # Cable
Type Connector
Type Frequency
(GHz) Length
(m) Loss
(dB)
FHSS 50018278-
001 400
Series N male to N male 2.4 1 0.9
FHSS 50018278-
003 400
Series N male to N male 2.4 3 1.1
FHSS 50018278-
010 400
Series N male to N male 2.4 10 2.4
802.11a/b/g 51202358-
001 400
Series RPN plug to N
male 2.4/5.8 1 0.9 / 1.8
802.11a/b/g 51202358-
003 400
Series RPN plug to N
male 2.4/5.8 3 1.1 / 2.3
802.11a/b/g 51202358-
010 400
Series RPN plug to N
male 2.4/5.8 10 2.4 / 3.8
Table 8 - Antenna Cable Specifications for Multinode Device.
7 Antenna Lightning Arrestors
7.1 For use with Integral Antenna(s)
Application Honeywell
Part Number Specification Connector
Type Frequency
(GHz) Attenuation
(dB)
FHSS 51202359-200 50 ohm NM - NF 0 – 6 0.4 (max)
802.11 a/b/g 51202359-300 50 ohm RPN Plug -
NF 0 - 6 0.5 (max)
Table 9 – Lightning Arrestor Specifications for Integral Antenna(s)
7.2 For use with Remote Antenna(s)
Application Honeywell
Part Number Specification Connector
Type Frequency
(GHz) Attenuation
(dB)
FHSS 50018279-090 50 ohm NF to NF 0 – 3 0.4 (max)
802.11 a/b/g 51202359-100 50 ohm NF toNF 0 - 6 0.5 (max)
NOTE: Depending on application needs, the “integral” arrestors may be used for remote antennas.
Table 10 – Lightning Arrestor Specifications for Remote Antenna(s)
Honeywell Proprietary A 51121307
and Confidential AT1 REVISIONS
FCF: OneWireless Multinode Agency Compliance
Professional Installation Guide Honeywell
FMF: IACD/Ft.W
Made by: David Shipley Approval
Prints to A 51121307
Issue: AT1 08/01/2007 SIZE Sh. No.: 17 of 31
8 Approved Antenna Types/Gains
8.1 FHSS Radio:
Antenna
Type Antenna
Application Manufacture
r Manufacturer
Part Number
Honeywell
Part
Number
Beam
Width
Peak
Gain
(dBi)
Freq.
(GHz
)
Agency
Compliance
Omni
(integral) Point to
Multi-Point SMARTANT HON04-
052160 51506534-
100 Omni 5 2.4 FCC, IC,
ETSI, ACMA
Omni
(remote) Point to
Multi-Point HYPERLINK HGV-2409U 50018414-
001 Omni 8 2.4 FCC, IC,
ETSI, ACMA
Sector
(remote) Point to
Multi-Point HYPERLINK HG2414SP-
120 NA 120° 14 2.4
FCC, IC,
ETSI, ACMA
Table 11 – Approved Antenna Types/Gains, FHSS Radio
8.2 802.11a/b/g Access point and Bridge (Mesh) Radio
Antenna
Type Antenna
Application Manufacturer Manufacturer
Part Number
Honeywell
Part
Number
Beam
Width
Peak
Gain
(dBi)
Freq
(GHz)
Agency
Compliance
4.5 2.4
802.11b/g FCC, IC,
ETSI, ACMA
5.4
802.11a ETSI
Omni
(integral) Point to
Multi-Point SMARTANT SAA04-220080 51153883-
305 Omni
7 5.8
802.11a FCC, IC,
ACMA
Omni
(remote) Point to
Multi-Point HYPERLINK HGV-2409U 50018414-
001 Omni 8 2.4
802.11b/g FCC, IC,
ETSI, ACMA
Omni
(remote) Point to
Multi-Point HYPERLINK HG5412U NA Omni 12 5.4
802.11a ETSI
Omni
(remote) Point to
Multi-Point HYPERLINK HG5812U-PRO NA Omni 12 5.8
802.11a FCC, IC,
ACMA
Sector
(remote) Point to
Multi-Point HYPERLINK HG2414SP-120 NA 120° 14 2.4
802.11b/g FCC, IC,
ETSI, ACMA
Sector
(remote) Point to
Multi-Point HYPERLINK HG5417P-090 NA 90° 17 5.4
802.11a ETSI
Sector
(remote) Point to
Multi-Point HYPERLINK HG5817P-090 NA 90° 17 5.8
802.11a FCC, IC,
ACMA
YAGI
(remote) Point to
Multi-Point TELEX 5816AB NA 19° 16.5
5.8
802.11a FCC, IC,
ACMA
DISH
(remote) Fixed Point
to Point HYPERLINK HG5423D NA 9° 23 5.4
802.11a ETSI
DISH
(remote) Fixed Point
to Point HYPERLINK HG5824D NA 9° 24 5.8
802.11a FCC, IC,
ACMA
Table 12 – Approved Antenna Types/Gains, 802.11a/b/g Radios
Honeywell Proprietary A 51121307
and Confidential AT1 REVISIONS
FCF: OneWireless Multinode Agency Compliance
Professional Installation Guide Honeywell
FMF: IACD/Ft.W
Made by: David Shipley Approval
Prints to A 51121307
Issue: AT1 08/01/2007 SIZE Sh. No.: 18 of 31
9 Equivalent Isotropically Radiated Power (EIRP)
In radio communication systems, Equivalent isotropically radiated power (EIRP), or
alternatively, Effective isotropic radiated power is the amount of power that would have to be
emitted by an isotropic antenna (that evenly distributes power in all directions and is a
theoretical construct) to produce the peak power density observed in the direction of
maximum antenna gain. EIRP can take into account the losses in transmission line and
connectors and includes the gain of the antenna. The EIRP is often stated in terms of
decibels over a reference power level, that would be the power emitted by an isotropic
radiator with an equivalent signal strength. The EIRP allows making comparisons between
different emitters regardless of type, size or form. From the EIRP, and with knowledge of a
real antenna's gain, it is possible to calculate real power and field strength values.
EIRP(dBm) = (Radio Power (dBm)) – (Cable Loss (dB)) + (Antenna Gain(dBi))
Antenna gain is expressed relative to a (theoretical) isotropic reference antenna (dBi).
Honeywell Proprietary A 51121307
and Confidential AT1 REVISIONS
FCF: OneWireless Multinode Agency Compliance
Professional Installation Guide Honeywell
FMF: IACD/Ft.W
Made by: David Shipley Approval
Prints to A 51121307
Issue: AT1 08/01/2007 SIZE Sh. No.: 19 of 31
10 EIRP LIMITS, FHSS RADIO
Antenna
Type Radio Usage /
Application Freq.
(GHz)
Max.
Ant.
Gain
(dBi)
Min. Cable
Length
(m)
Min.
Cable
Loss
(dB)
Max. Radio
Output
Power (dBm)
Max.
EIRP
(dBm)
Agency/
Country
19 24
FCC, IC
Omni Point to
Multi-
Point Integral 2.4 5 0 0 14 19
ETSI, ACMA
17 24
FCC, IC
Omni Point to
Multi-
Point Remote 2.4 8 1 0.9 12 19
ETSI, ACMA
12 25
FCC, IC
Sector Point to
Multi-
Point Remote 2.4 14 1 0.9 6 19
ETSI, ACMA
Notes:
1. The values in the above table have been determined through agency certification testing.
2. The following shall apply for antenna type, frequency range, application/usage and agency/country
compliance:
• Antenna gains above the maximum values shown shall not be used.
• Cable length/loss below the minimum values shown shall not be used.
• Maximum overall radio output power shown shall not be exceeded.
• Maximum EIRP values shown above shall not be exceeded.
Table 13 – EIRP Limits, FHSS Radio
Honeywell Proprietary A 51121307
and Confidential AT1 REVISIONS
FCF: OneWireless Multinode Agency Compliance
Professional Installation Guide Honeywell
FMF: IACD/Ft.W
Made by: David Shipley Approval
Prints to A 51121307
Issue: AT1 08/01/2007 SIZE Sh. No.: 20 of 31
11 EIRP LIMITS, 802.11a (5.8GHz) Access Point and Bridge Radio
Ant.
Type Radio Usage /
Application Freq.
(GHz)
Max.
Ant.
Gain
(dBi)
Min.
Cable
Length
(m)
Min.
Cable
Loss
(dB)
Max.
Radio
Output
Power
(dBm)
Max.
EIRP
(dBm)
Pro-
Install
Power
Setting
Agency/
Country
23 30 25 FCC, IC
Omni Point to
Multi-Point Integral 5.8
802.11a 7 0 0
23 30 25 ACMA
23 33 25 FCC, IC
Omni Point to
Multi-Point Remote 5.8
802.11a 12 1 1.8
20 30 2 ACMA
17 32 -7 FCC, IC
Sector Point to
Multi-Point Remote 5.8
802.11a 17 1 1.8
14 30 -12 ACMA
17 31 -7 FCC, IC
Yagi Point to
Multi-Point Remote 5.8
802.11a 16.5 1 1.8 15 30 -11 ACMA
23 45 25 FCC, IC
Dish Fixed
Pt. to Pt. Remote 5.8
802.11a 24 1 1.8
8 30 -24 ACMA
Notes:
1. The values in the above table have been determined through agency certification testing.
2. Maximum transmit power will vary by channel, data rate, and individual country regulations.
3. The following shall apply for antenna type, frequency range, application/usage and agency/country
compliance:
• Antenna gains above the maximum values shown shall not be used.
• Cable length/loss below the minimum values shown shall not be used.
• Maximum overall radio output power shown shall not be exceeded.
• Maximum EIRP values shown above shall not be exceeded.
Table 14 – EIRP Limits, 802.11a (5.8GHz) Radios
Honeywell Proprietary A 51121307
and Confidential AT1 REVISIONS
FCF: OneWireless Multinode Agency Compliance
Professional Installation Guide Honeywell
FMF: IACD/Ft.W
Made by: David Shipley Approval
Prints to A 51121307
Issue: AT1 08/01/2007 SIZE Sh. No.: 21 of 31
12 EIRP LIMITS, 802.11a (5.4GHz) Access Point and Bridge Radio
Ant.
Type Radio Usage /
Application Freq.
(GHz)
Max.
Ant.
Gain
(dBi)
Min.
Cable
Length
(m)
Min.
Cable
Loss
(dB)
Max.
Radio
Output
Power
(dBm)
Max.
EIRP
(dBm)
Pro-
Install
Power
Setting
Agency/
Country
Omni Point to
Multi-Point Integral 5.4
802.11a 7 0 0
23 30 2 ETSI
Omni Point to
Multi-Point Remote 5.4
802.11a 12 1 1.8
19 30 -6 ETSI
Sector Point to
Multi-Point Remote 5.4
802.11a 17 1 1.8
14 30 -17 ETSI
Dish Fixed
Pt. to Pt. Remote 5.4
802.11a 23 1 1.8
8 30 -35 ETSI
Notes:
1. The values in the above table have been determined through agency certification testing.
2. Maximum transmit power will vary by channel, data rate, and individual country regulations.
3. The following shall apply for antenna type, frequency range, application/usage and agency/country
compliance:
• Antenna gains above the maximum values shown shall not be used.
• Cable length/loss below the minimum values shown shall not be used.
• Maximum overall radio output power shown shall not be exceeded.
• Maximum EIRP values shown above shall not be exceeded.
Table 15 – EIRP Limits, 802.11a (5.4GHz) Radios
Honeywell Proprietary A 51121307
and Confidential AT1 REVISIONS
FCF: OneWireless Multinode Agency Compliance
Professional Installation Guide Honeywell
FMF: IACD/Ft.W
Made by: David Shipley Approval
Prints to A 51121307
Issue: AT1 08/01/2007 SIZE Sh. No.: 22 of 31
13 EIRP LIMITS, 802.11b/g (2.4GHz) Access Point and Bridge Radio
Ant.
Type Radio Usage /
Application Freq.
(GHz)
Max.
Ant.
Gain
(dBi)
Min.
Cable
Length
(m)
Min.
Cable
Loss
(dB)
Max.
Radio
Output
Power
(dBm)
Max.
EIRP
(dBm)
Pro-
Install
Power
Setting
Agency/
Country
16 21 40 FCC, IC
Omni Point to
Multi-Point Integral 2.4
802.11b/g 4.5 0 0 15 19 2
ETSI, ACMA
16 23 40 FCC, IC
Omni Point to
Multi-Point Remote 2.4
802.11b/g 8 1 0.9
12 19 -4
ETSI, ACMA
10 2.4 16 28 40 FCC, IC
Sector Point to
Multi-Point Remote 2.4
802.11b/g 14 1 0.9 6 19 -23
ETSI, ACMA
Notes:
1. The values in the above table have been determined through agency certification testing.
2. Maximum transmit power will vary by channel, data rate, and individual country regulations.
3. The following shall apply for antenna type, frequency range, application/usage and agency/country
compliance:
• Antenna gains above the maximum values shown shall not be used.
• Cable length/loss below the minimum values shown shall not be used.
• Maximum overall radio output power shown shall not be exceeded.
• Maximum EIRP values shown above shall not be exceeded.
Table 16 – EIRP Limits, 802.11b/g (2.4GHz) Radios
Honeywell Proprietary A 51121307
and Confidential AT1 REVISIONS
FCF: OneWireless Multinode Agency Compliance
Professional Installation Guide Honeywell
FMF: IACD/Ft.W
Made by: David Shipley Approval
Prints to A 51121307
Issue: AT1 08/01/2007 SIZE Sh. No.: 23 of 31

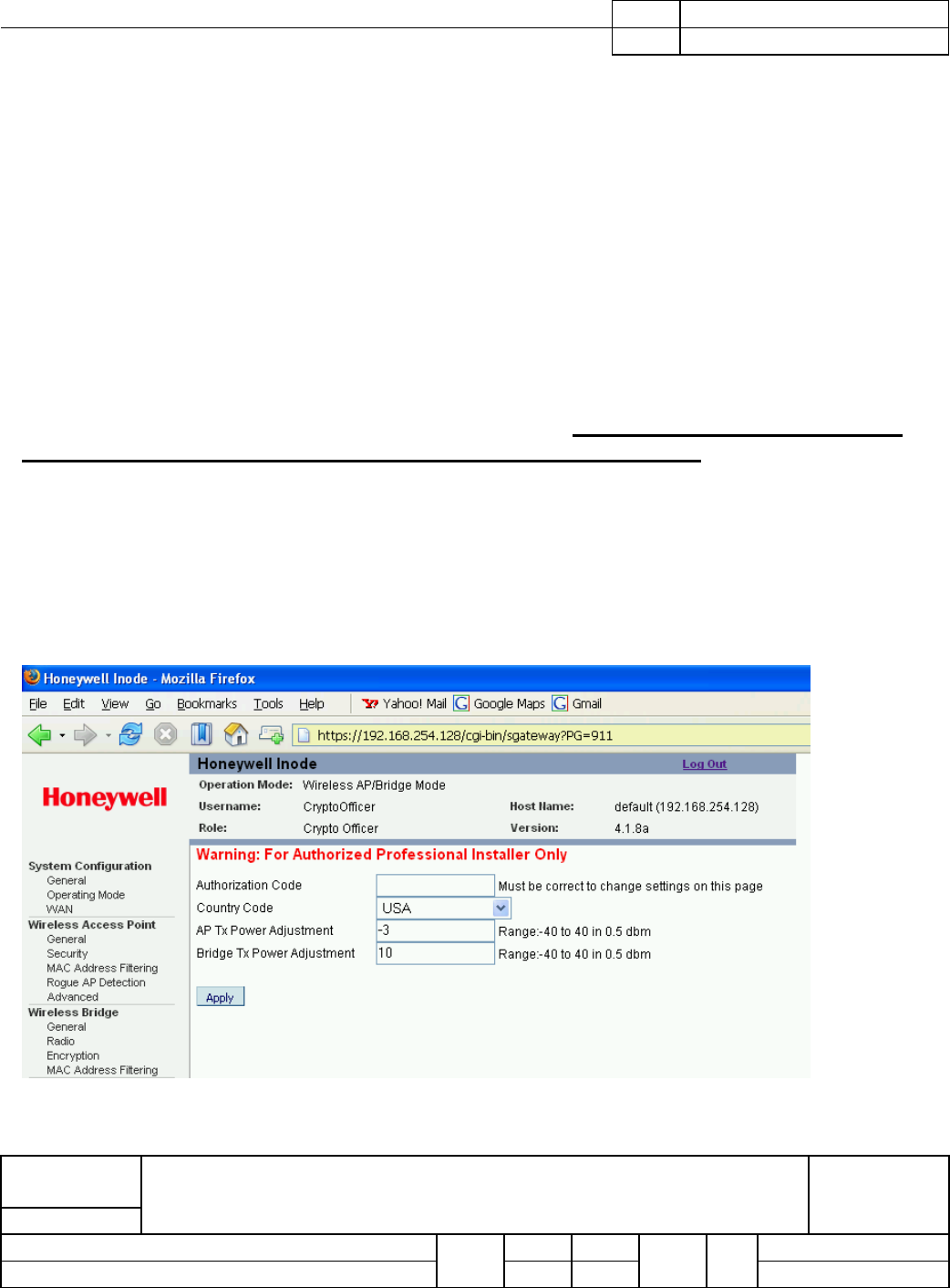

14 Setting Power and Country Code: FHSS Radio
Warning! The Multinode unit must be Professionally Installed in accordance with the
requirements specified in this document. Only the specified power settings, antenna types
and gains and cable lengths (attenuation) as outlined in this document are valid for Multinode
installations.
Set the radio power level using the Authentication Device application. Due to regulations, this
command is only available if professional installer options have explicitly been enabled on
your PDA. If you have not enabled professional installer options and would like to do so,
please contact Honeywell DE or TAC. A separate application, AuthDev Power Settings, is
required to enable the "Write TX Power Level" option.
Perform the following procedure to read and change the radio power level on your multinode
or wireless device:
• Open the Authentication Device application on your Windows Mobile PDA.
• From the main menu, choose the Advanced Options menu to open the Advanced
Options form.
• From the Advanced Options form, choose "Read TX Power Level" from the command
drop down box.
• Aim the Authentication Device at your node and press the Transmit Command button
to read the data from the node. The TX Power reading will be presented on your
screen.
• If you have enabled professional installer options within the Authentication Device,
choose the "Write TX Power Level" from the command drop down box.
• Choose a new power level. Aim the Authentication Device at your node and press the
Transmit Command button to write the data to the node.
Honeywell Proprietary A 51121307
and Confidential AT1 REVISIONS
FCF: OneWireless Multinode Agency Compliance
Professional Installation Guide Honeywell
FMF: IACD/Ft.W
Made by: David Shipley Approval
Prints to A 51121307
Issue: AT1 08/01/2007 SIZE Sh. No.: 24 of 31
15 Setting Power & Country Code: 802.11 Access Point & Bridge Radio
Warning! The Multinode unit must be Professionally Installed in accordance with the
requirements specified in this document. Only the specified power settings, antenna types
and gains and cable lengths (attenuation) as outlined in this document are valid for Multinode
installations.
Programming the Country Code
A hidden page on the Multinode Configuration Tool has been designed for professional
installers to change country code and radio output power settings. A valid authorization code
has to be entered for the any information to be modified. This authorization code is hard-
coded in the firmware and shall be kept as a SECRET at all times.
To access the hidden page, type the following URL in your browser:
https://192.168.254.128/cgi-bin/sgateway?PG=911
Change 192.168.254.128 to the IP address of your unit, and make sure you login as:
Login: CryptoOfficer, Password: CryptoFIPS
You should see something like this:

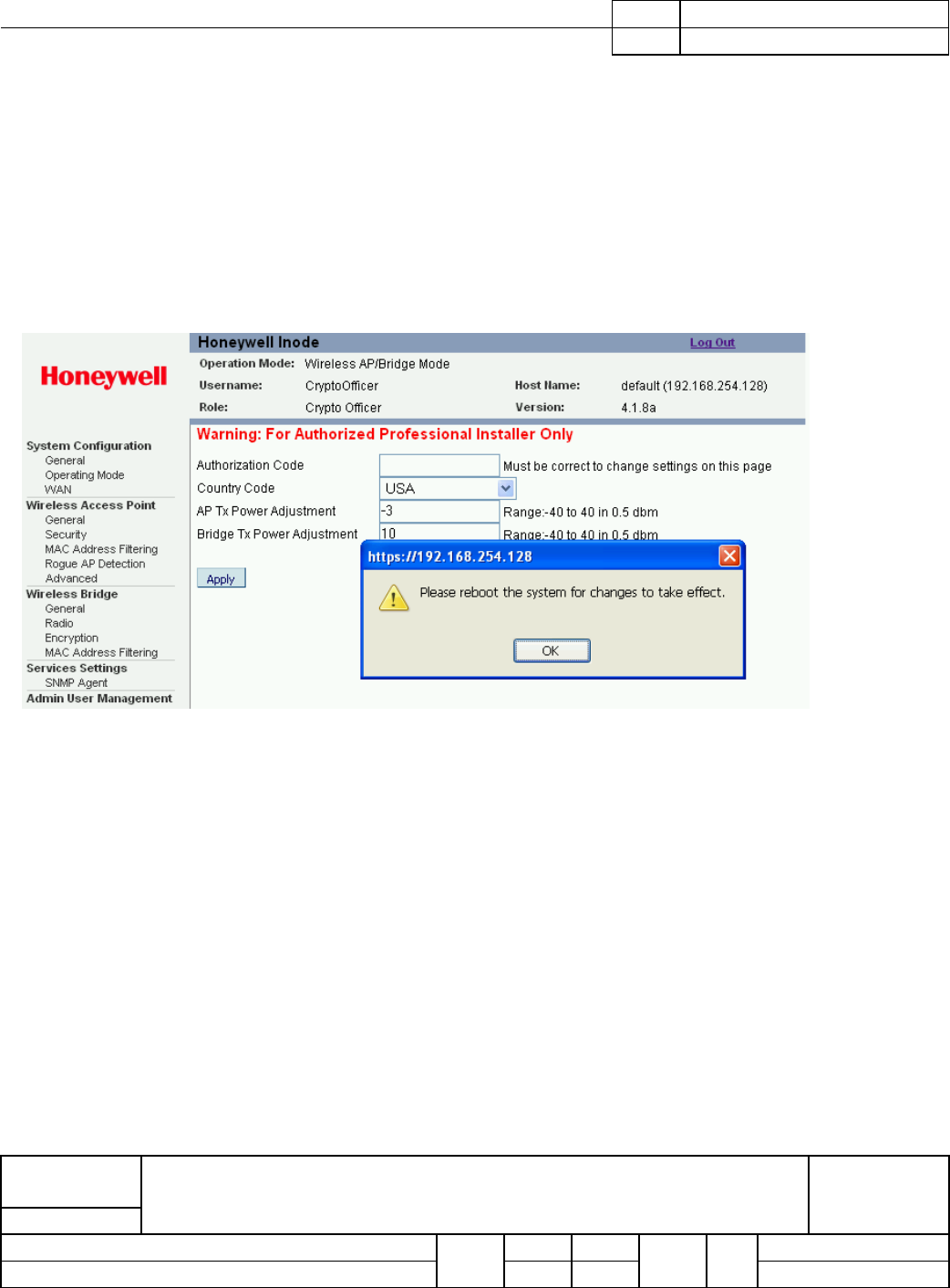

Honeywell Proprietary A 51121307
and Confidential AT1 REVISIONS
FCF: OneWireless Multinode Agency Compliance
Professional Installation Guide Honeywell
FMF: IACD/Ft.W
Made by: David Shipley Approval
Prints to A 51121307
Issue: AT1 08/01/2007 SIZE Sh. No.: 25 of 31
The authorization code is: “Raptor2007!” without the quote (YOU MUST KEEP THIS AS A
SECRET)
Change the following options based on values you determined in Section 11:
Country Code
Adjustment to Max TX power of Access Point Radio (increase or decrease)
Adjustment to Max TX power of Bridge Radio (increase or decrease)
After applying the changes, you will be notified to reboot the unit for any changes to take
effect.
Note that the adjustment of radio Max TX power has limits. It will level off on both the low end
and high end. This feature is provided for professional installers to adjust the card output
power to match the specific selection of antenna and keep the total output power under the
regulatory threshold.
The setting here are saved in non-volatile memory inside the unit. Restoring the unit to
factory default settings does not change these values.
Honeywell Proprietary A 51121307
and Confidential AT1 REVISIONS
FCF: OneWireless Multinode Agency Compliance
Professional Installation Guide Honeywell
FMF: IACD/Ft.W
Made by: David Shipley Approval
Prints to A 51121307
Issue: AT1 08/01/2007 SIZE Sh. No.: 26 of 31
15.1 Power Setting Reference Table, 802.11 Access Point & Bridge Radio:
Multinode Bridge and Access Point Radio Ports
WIRELESS MODE 802.11a 802.11a 802.11b/g mixed 802.11b/g mixed
CHANNEL 120 (5.6GHz) 157 (5.785GHz) 7 (2.442GHz) 6 (2.437GHz)
TX PWR MODE FIXED, 8 FIXED, 8 FIXED, 8 FIXED, 8
Professional
Installer TX Power
Setting
MEASURED
OUTPUT POWER
(dBm)
MEASURED
OUTPUT POWER
(dBm)
MEASURED
OUTPUT POWER
(dBm)
MEASURED
OUTPUT POWER
(dBm)
40 24.0 23.0 17.2 16.2
35 24.0 23.0 17.2 16.2
30 24.0 23.0 17.2 16.2
25 24.0 23.0 17.2 16.2
20 24.0 23.0 17.2 16.2
15 24.0 23.0 17.2 16.2
10 23.9 20.7 17.2 16.2
5 23.7 20.1 15.7 16.2
0 21.8 19.6 13.8 16.1
-5 19.7 17.2 11.3 12.4
-10 17.0 15.7 9.0 10.7
-15 15.0 11.8 7.4 8.4
-20 12.5 8.9 6.7 6.4
-25 9.7 7.3 5.2 4.9
-30 8.5 5.2 2.4 2.8
-35 8.4 4.6 2.3 1.6
-40 8.4 4.6 2.3 1.4
Honeywell Proprietary A 51121307
and Confidential AT1 REVISIONS
FCF: OneWireless Multinode Agency Compliance
Professional Installation Guide Honeywell
FMF: IACD/Ft.W
Made by: David Shipley Approval
Prints to A 51121307
Issue: AT1 08/01/2007 SIZE Sh. No.: 27 of 31
16 Agency Label Information
The following information shall be clearly and permanently labeled on the Multinode unit:

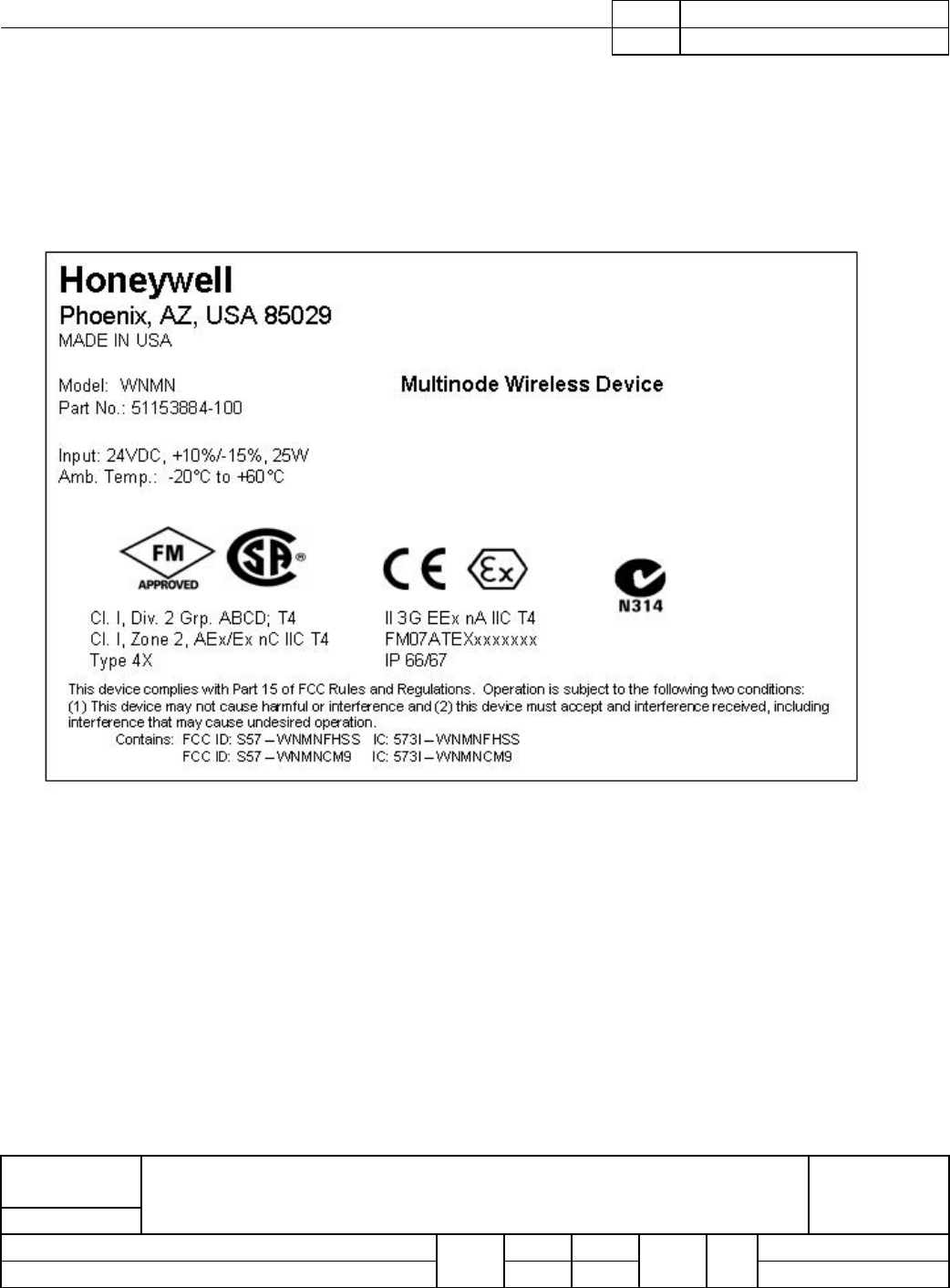

Honeywell Proprietary A 51121307
and Confidential AT1 REVISIONS
FCF: OneWireless Multinode Agency Compliance
Professional Installation Guide Honeywell
FMF: IACD/Ft.W
Made by: David Shipley Approval
Prints to A 51121307
Issue: AT1 08/01/2007 SIZE Sh. No.: 28 of 31
17 RF Safety, Maximum Permissible Exposure (MPE) statement
To comply with FCC’s and Industry Canada’s RF exposure requirements, the following
antenna installation and device operating configurations must be satisfied.
Remote Point-to-Multi-Point antenna(s) for this unit must be fixed and mounted
on outdoor permanent structures with a separation distance between the
antenna(s) of greater than 20cm and a separation distance of at least 20cm from all
persons.
Remote Fixed Point–to-Point antenna(s) for this unit must be fixed and mounted
on outdoor permanent structures with a separation distance between the
antenna(s) of greater than 20cm and a separation distance of at least 100cm from
all persons.
Furthermore, when using integral antenna(s) the Multinode unit must not be co-
located with any other antenna or transmitter device and have a separation
distance of at least 20cm from all persons.
Honeywell Proprietary A 51121307
and Confidential AT1 REVISIONS
FCF: OneWireless Multinode Agency Compliance
Professional Installation Guide Honeywell
FMF: IACD/Ft.W
Made by: David Shipley Approval
Prints to A 51121307
Issue: AT1 08/01/2007 SIZE Sh. No.: 29 of 31
18 AGENCY COMPLIANCE
18.1 Radio and EMC Certifications
18.1.1 Federal Communication Commission (FCC)
Specification: FCC Part 15.247 Subpart B for unintentional radiators
Specification: FCC Part 15.247 Subpart C for intentional radiators
18.1.2 Industry Canada (IC)
Specification: FCC Part 15.247 Subpart B for unintentional radiators
Specification: FCC Part 15.247 Subpart C for intentional radiators
Method: RSS-210, Issue 6 and RSS-Gen, Issue 1
18.1.3 European Telecommunications Standards Institue (ETSI)
Emissions Specification and Method: EN 300 328 V1.7.1
Emissions Spec and Method: EN 301 893 V1.3.1
Immunity Specification: EN 301 489-17 V1.2.1
Immunity Method: EN 301 489-1 V1.6.1
Product Standard: IEC61326-1 (1st Edition, 2002-02, Industrial Locations)
18.1.4 Australian communications and media authority (ACMA)
Specification: AS NZS 4771-2000
Honeywell Proprietary A 51121307
and Confidential AT1 REVISIONS
FCF: OneWireless Multinode Agency Compliance
Professional Installation Guide Honeywell
FMF: IACD/Ft.W
Made by: David Shipley Approval
Prints to A 51121307
Issue: AT1 08/01/2007 SIZE Sh. No.: 30 of 31
18.2 Product Safety Agency Certifications
18.2.1 Canadian Standards Association (CSA)
IEC61010-1 (2nd Edition, 2001-02), "Safety Requirements for Electrical Equipment for
Measurement, Control and Laboratory Use, part 1: General Requirements
CSA HAZ-LOC Standards?
• Temperature code: T4 (135°C) based on the maximum specified ambient of 60°C.
18.2.2 Factory Mutual (FM)
FM electrical equipment requirements for use within Class I, Division 2, Groups A, B, C and
D/Zone 2, Group IIC Hazardous Locations.
Factory Mutual Approval Standard Class No. 3600, "Electrical Equipment for Use in
Hazardous (Classified) Locations - General Requirements
Factory Mutual Approval Standard Class No. 3810, "Electrical and Electronic Test,
Measuring, and Process Control Equipment
Factory Mutual Approval Standard Class No. 3611, "Electrical Equipment for Use in Class I,
Division 2, Class II, Division 2 and Class III, Division 1 and 2 Hazardous (Classified)
Locations
• Temperature code: T4 (135°C) based on the maximum specified ambient of 60°C.
Honeywell Proprietary A 51121307
and Confidential AT1 REVISIONS
FCF: OneWireless Multinode Agency Compliance
Professional Installation Guide Honeywell
FMF: IACD/Ft.W
Made by: David Shipley Approval
Prints to A 51121307
Issue: AT1 08/01/2007 SIZE Sh. No.: 31 of 31
18.2.3 European ATEX Certification (ATEX)
The completely assembled Multinode will conform to European electrical equipment
requirements for use within Zone 2, Ex n IIC, Hazardous Locations.
European Norms Standard EN 50014:1992, "Electrical Apparatus for Potentially Explosive
Atmospheres - General Requirements"
European Norms Standard EN 50021:1999, "Electrical Apparatus for Potentially Explosive
Atmospheres - Type of Protection "n"
The temperature code for the Multinode shall not exceed T4 (135°C) based on the maximum
specified ambient of 60°C.
18.3 European Union Certification (CE-mark)
• Compliance with:
o R&TTE Directive 1999/5/EC
o EMC Directive 2004/108/EC
o LVD Directive 73/23/EEC
o ATEX Directive 94/9/EC
19 Reference Documents
1 Getting Started with Honeywell OneWireless
2 Honeywell OneWireless Planning Guide
3 Honeywell OneWireless Multinode User’s Guide
4 Radio Antenna: A Primer White Paper
5 Honeywell OneWireless System Administration Guide
6 Honeywell OneWireless Field Network Dictionary
7 OneWireless Builder Parameter Reference
8 OneWireless Builder User’s Guide
Table 17 – Reference documents
