Hoover Fully Integrated Washing Machine HWB 814DN1 S Instruction Manual Product Code 31800176 814 DN UK 41039682

User Manual: Hoover Instruction Manual HWB 814DN1-S - Washing Machine Help and Advice from Hoover

Open the PDF directly: View PDF .
Page Count: 40

W

a

shin

g

machine

I

nstructions

f

or use

®

H

WB

8

14 D

N

2

Introduction

Please read these instructions for use carefully and all other information enclosed with the

washing machine.

Keep all documentation in a safe place for future reference or for any future owners.

This appliances is intended to be used in household and

similar applications such as:

- staff kitchen areas in shops, offices and other working environments;

- farm houses;

- by clients in hotels, motels and other residential type environments;

- bed and breakfast type environments.

A different use of this appliance from household environment or from typical housekeeping

functions, as commercial use by expert or trained users, is excluded even in the above

applications.

If the appliance is used in a manner inconsistent with this it may reduce the life of the

appliance and may void the manufacturer’s warranty.

Any damage to the appliance or other damage or loss arising through use that is not

consistent with domestic or household use (even if located in a domestic or household

environment) shall not be accepted by the manufacturer to the fullest extent permitted by law.

Notes on disposal

All packaging material used is environmentally-friendly and recyclable. Please help dispose of

the packaging via environmentally-friendly means.

Your supplier or local council will be able to give you

details of current means of disposal.

Valuable materials can be salvaged from an old appliance via scrap reprocessing.

Note: pull out the mains plug from any old appliance.

Cut the power cable and dispose of it, together with the

plug.

When disposing of an old washing machine, please ensure that the door lock is rendered

inoperable to prevent children shutting themselves in the appliance.

Contents Page

Introduction 2

General delivery notes 4

Safety notes 4

Quick start 5

Description of controls 6

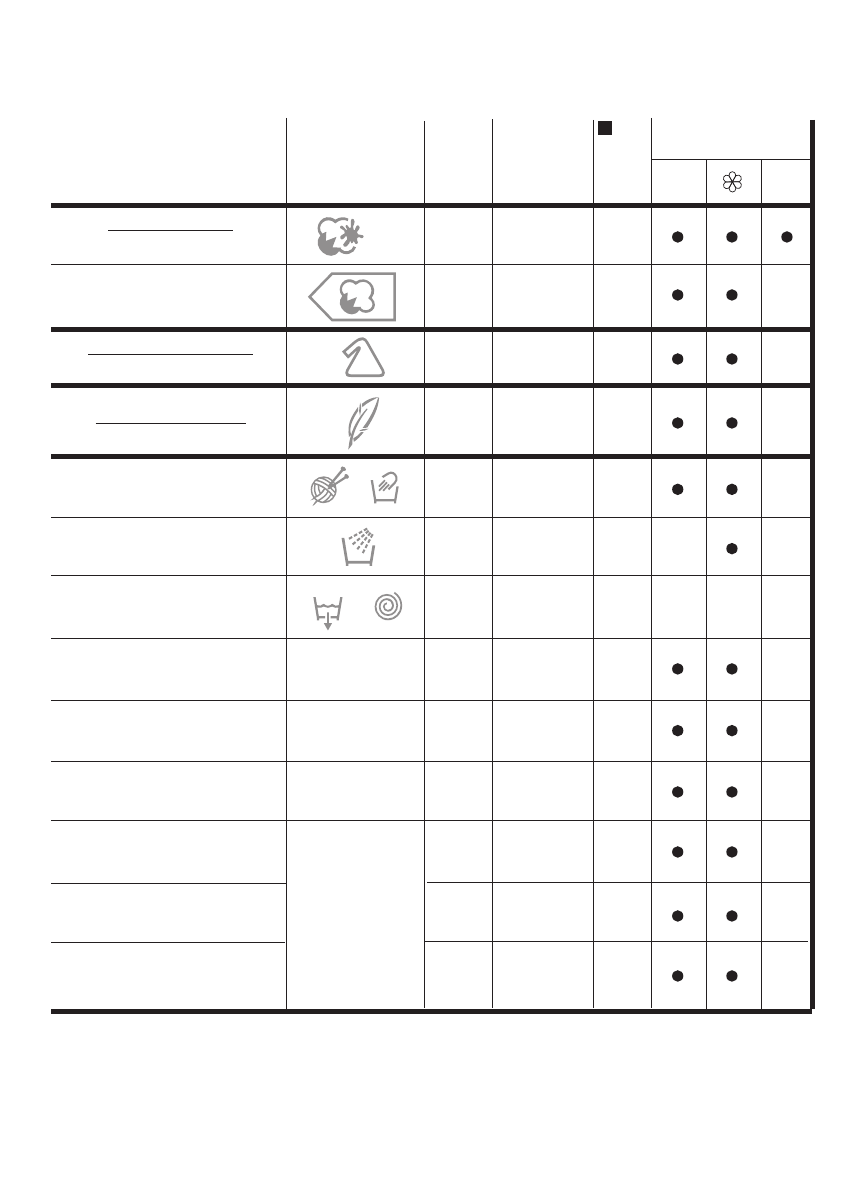

Programme Table 12

Programme selector 14

Kg MODE 16

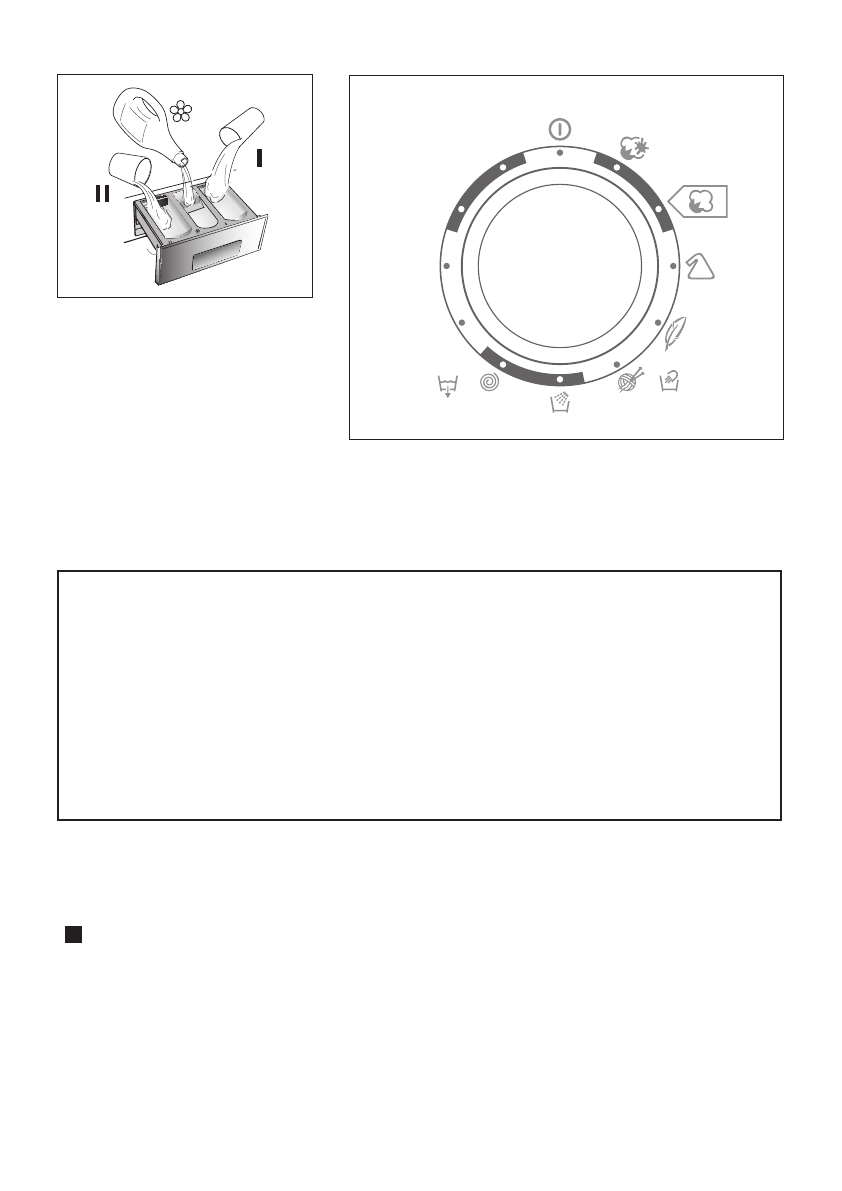

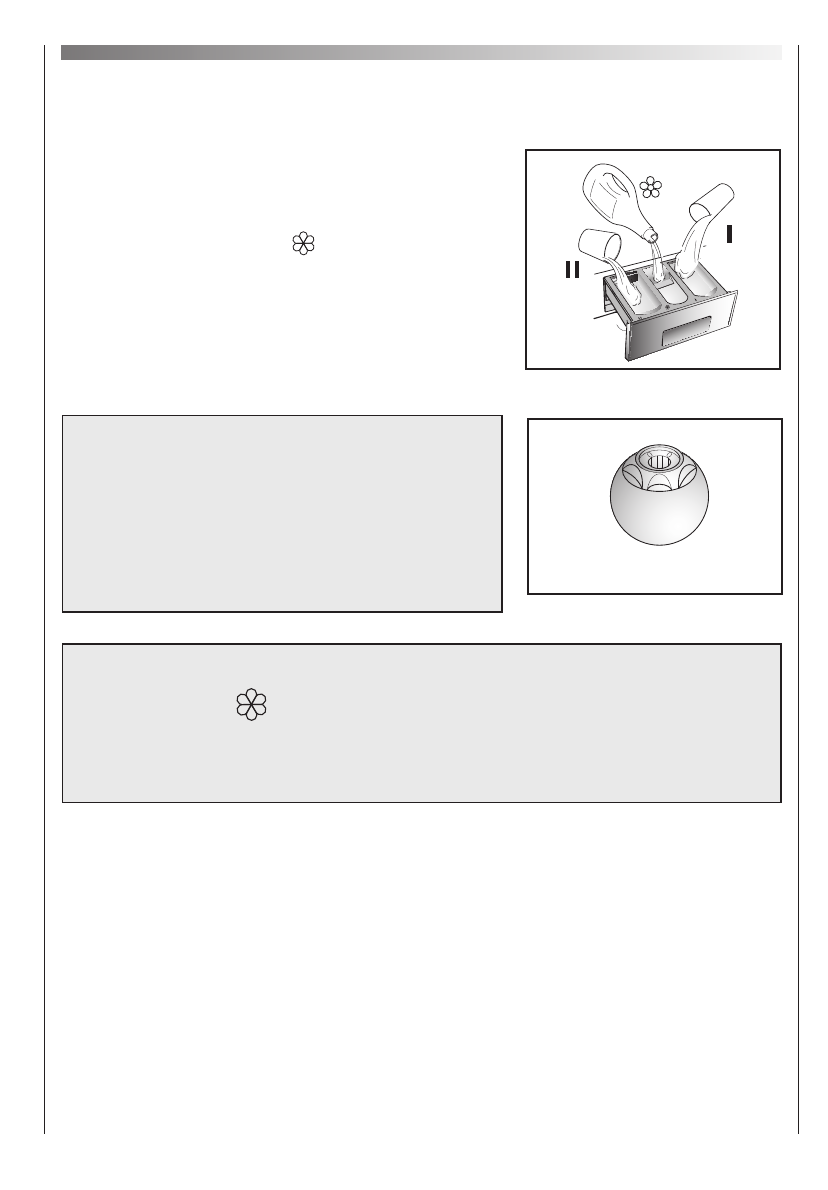

Detergent drawer 17

Detergents, washing aids and amounts to use 18

Useful advice for the user 20

The main wash 21

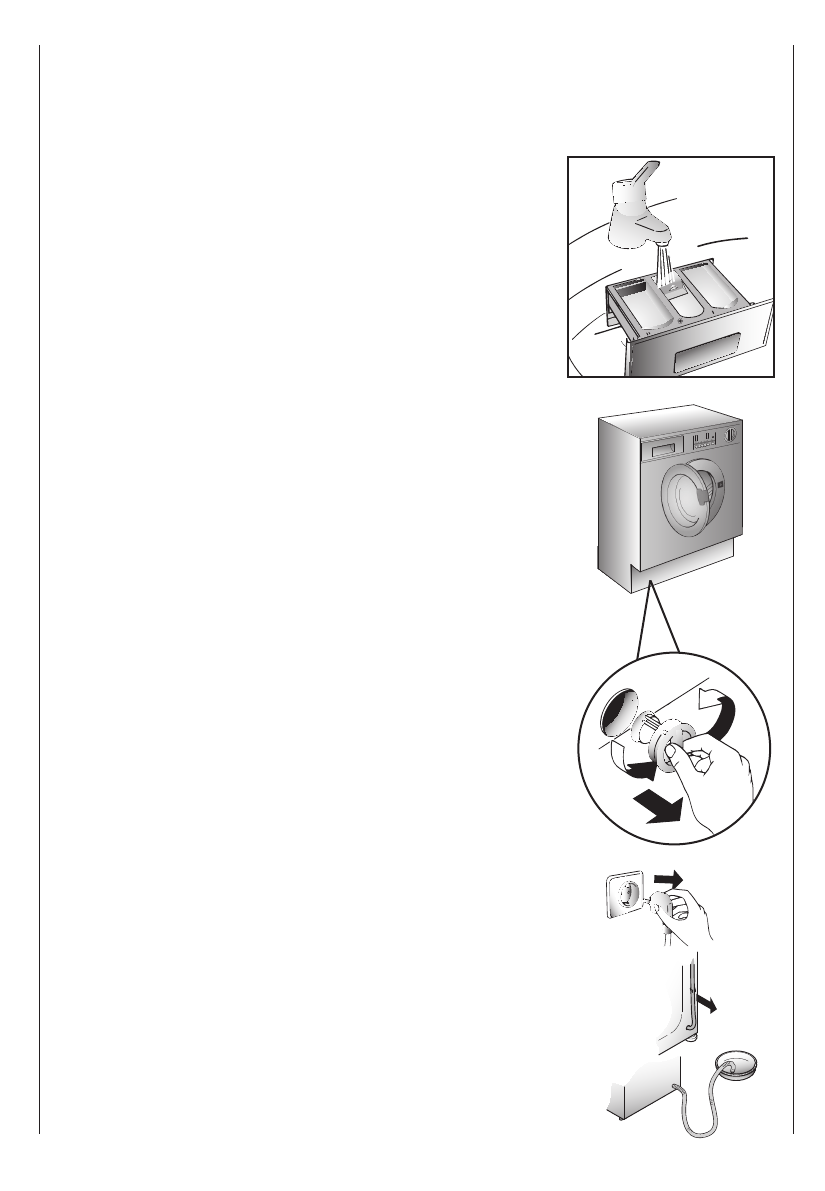

Cleaning and routine maintenance 23

Investigating malfunctions 24

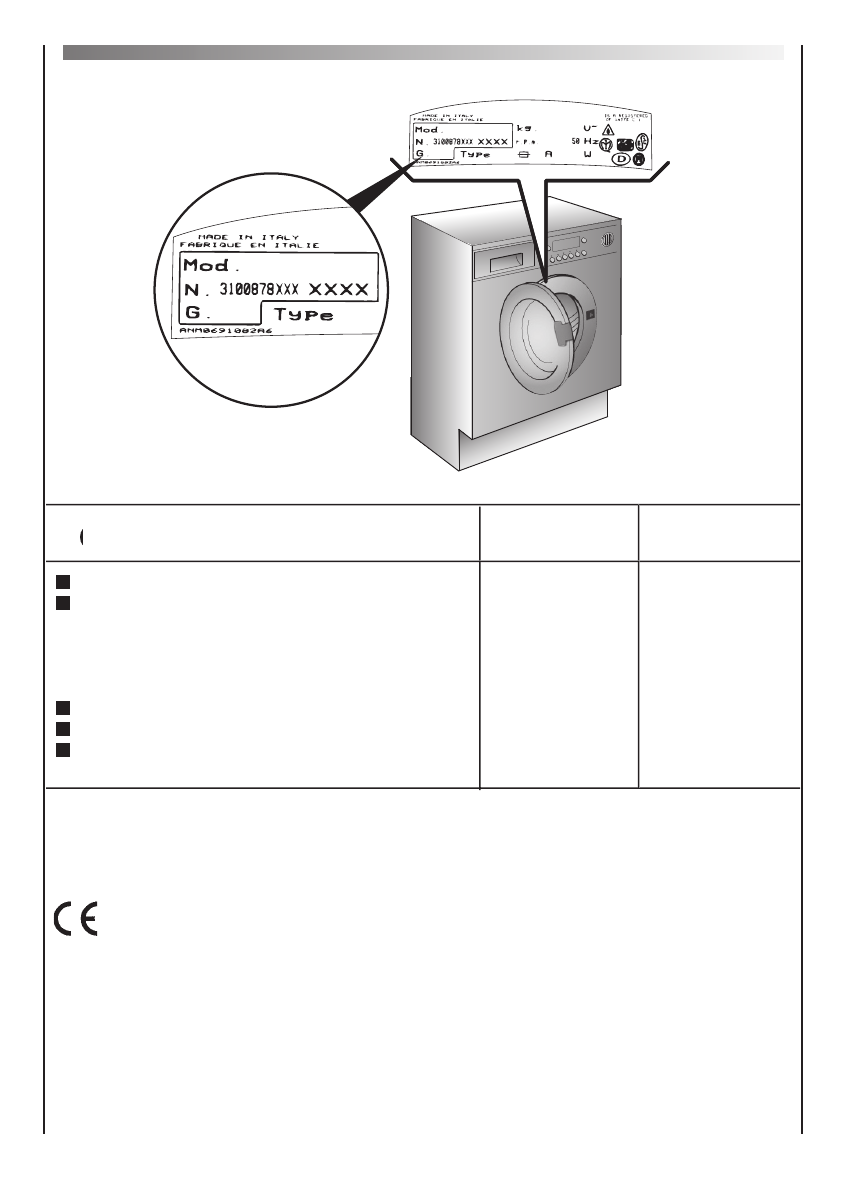

Technical data 26

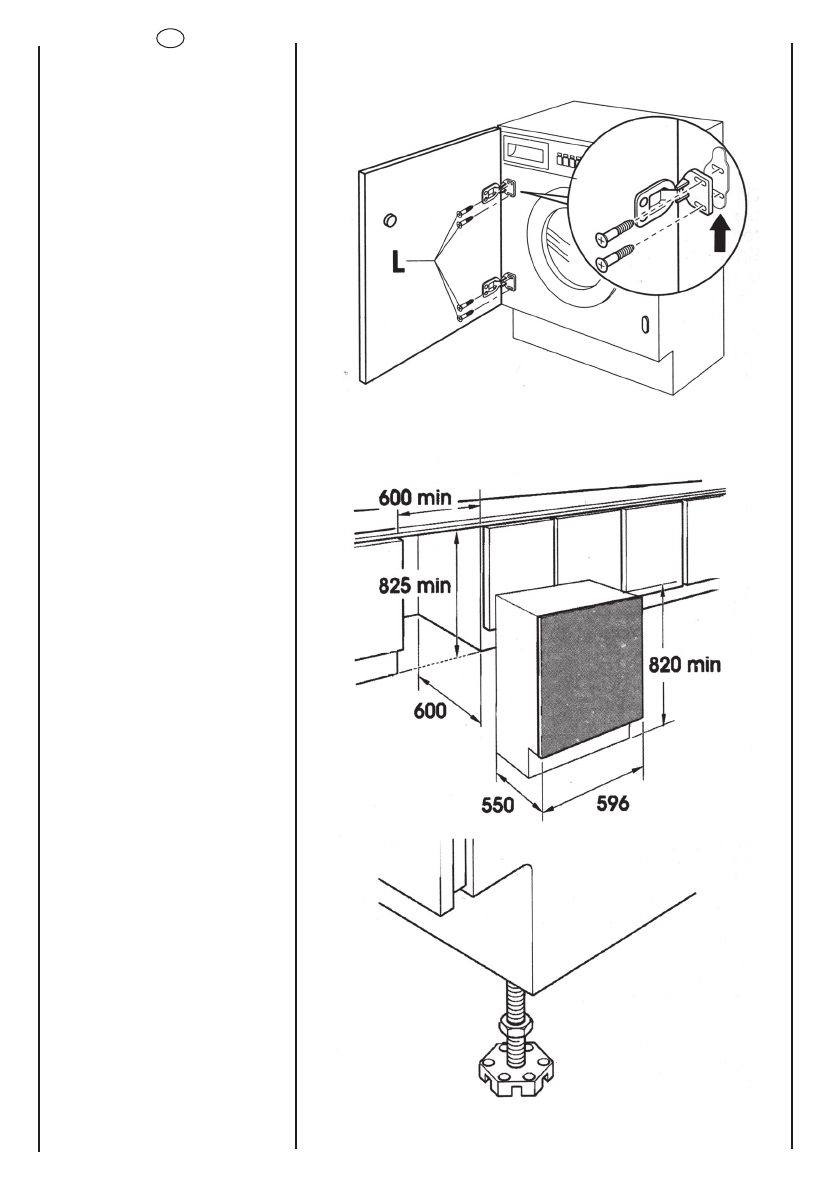

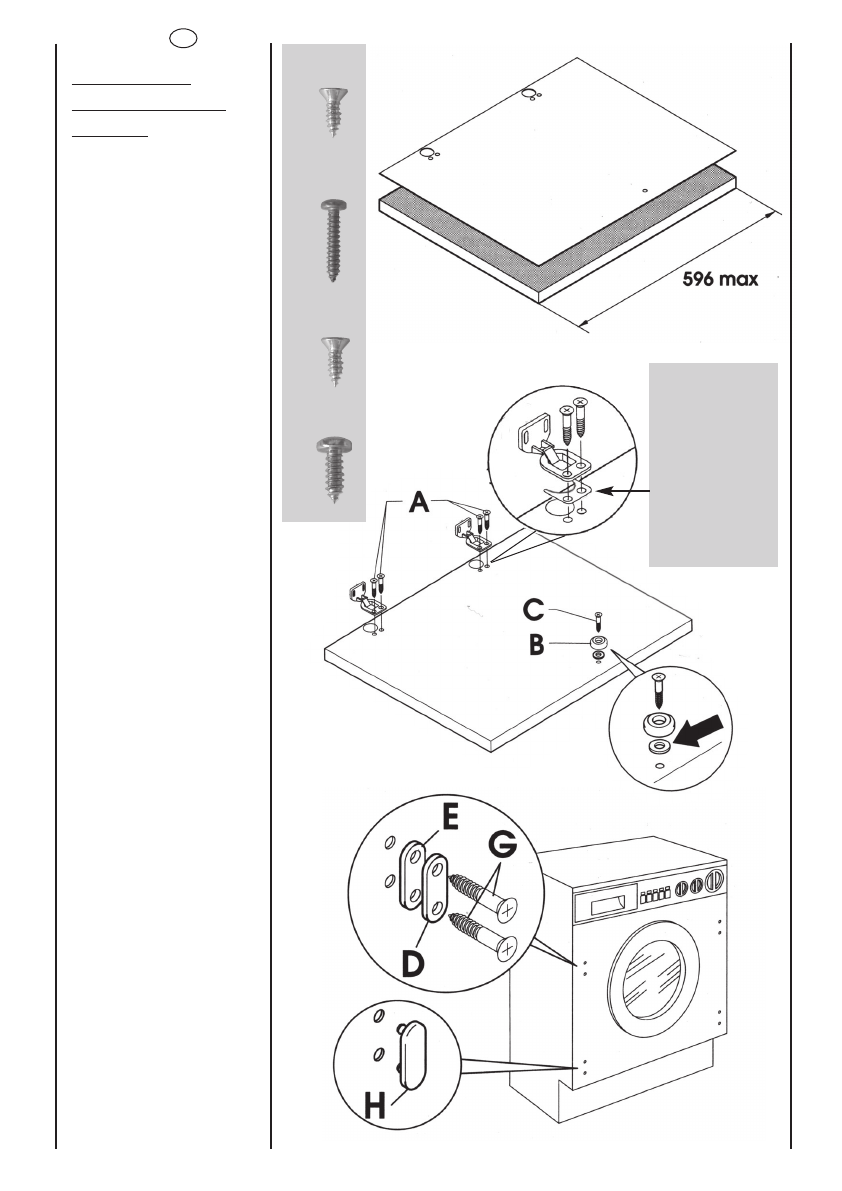

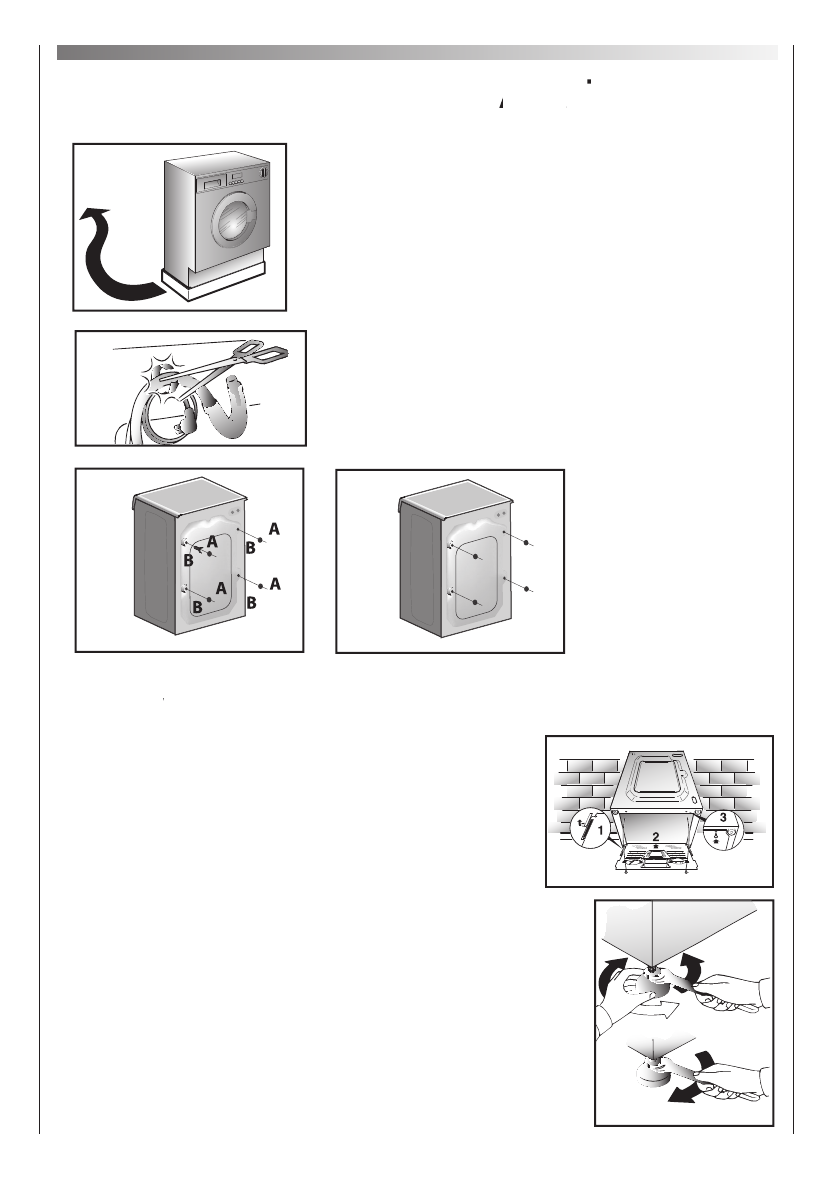

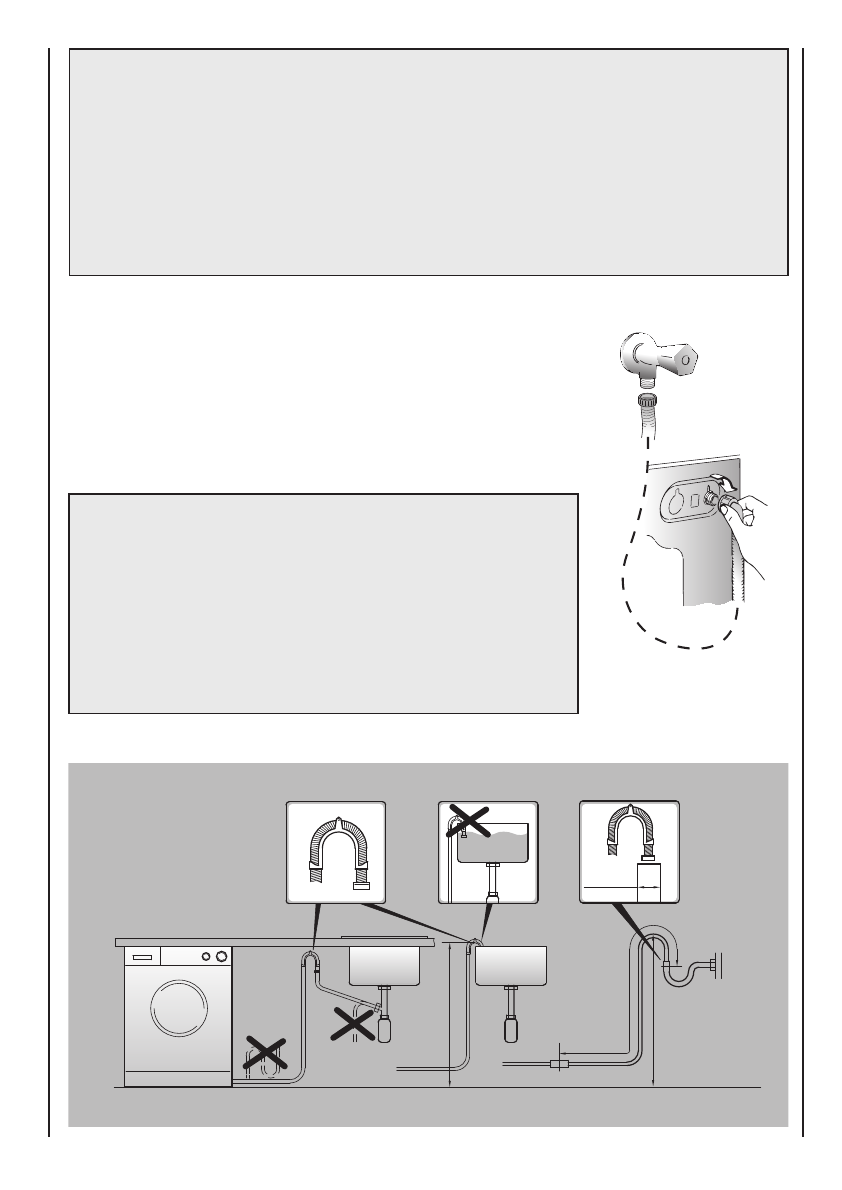

Setting up + installation 27

BEFORE SWITCHING ON THE APPLIANCE MAKE SURE

IT IS CORRECTLY INSTALLED AND THAT THE FIXING

SCREWS ARE REMOVED AS SHOWN IN PAGE 27.

3

General delivery notes

Please check that the following items are delivered with the appliance:

- Instruction manual

- Certificate of guarantee

- Inlet hose

Check that no damage has occurred during transit, and if so, call your nearest Authorised

Technical Support Service agent.

Safety notes.

Note:

for cleaning or maintenance of the washing machine.

A) Pull out the plug

B) Turn off the tap

C) Hoover equips all its appliances with earthing. Ensure that the mains supply is earthed,

and if it is not, seek assistance from a qualified person.

D) Do not touch the appliance when hands or feet are wet or damp. Do not use the appliance

with bare feet.

E) The use of adapters, multiple connectors and/or extensions is not recommended.

Note:

water temperature can reach 90°C during the wash cycle.

F) Check there is no water left in the drum before opening the door.

G) This appliance is not intended for use by persons (including children) with reduced

physical, sensory or mental capabilities, or lack of experience and knowledge, unless they

have been given supervision or instruction concerning use of the appliance by a person

responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

H) Do not pull the power cable or the appliance itself to remove the plug from the socket.

I) The appliance must not be exposed to weather conditions (rain, direct sun, etc...)

L) When moving the appliance never lift it by the controls or by the detergent drawer.

When in transit never rest the door against the trolley or transport the appliance without

the polystyrene base.

4

M) N.B!

If the appliance is installed on a carpeted floor ensure that the ventilation holes on the

base of the appliance are not obstructed.

N) If the appliance is not running properly or breaks down, switch it off, turn off the tap and do

not tamper with the appliance.

Consult only the Authorised Technical Support Service for possible repair and ask them to

use original spare parts.

Failure to comply with the above can compromise the safety of the appliance.

O) If the appliance’s power cable should ever need replacing, consult the Authorised

Technical Support Service

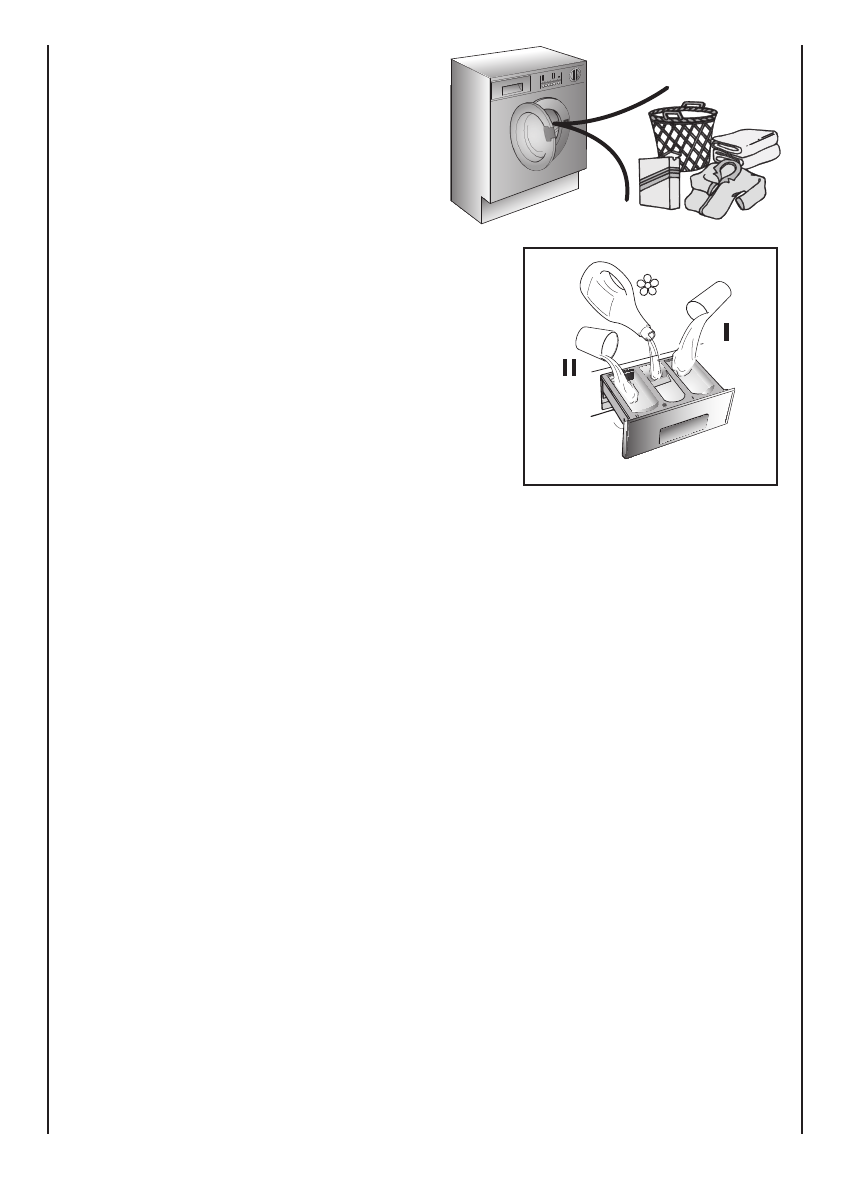

Quick start

Washing

- Open the door by using the handle “A” (Fig. 1, page 6)

- Select laundry and put it in the machine

- Close the door

- Put detergent in the compartments as indicated in the programme guide in this instruction

manual

- Select programme

- The display will show the settings for the programme selected.

- Adjust the wash temperature if necessary.

Press additional function buttons (if required)

- Press the “Start/Pause” button (page 7)

- The programme starts.

After washing

- The word “End” will appear on the display.

- Wait for the door lock to be released

(about 2 minutes after the programme has finished).

The “Door Security” indicator light will go out.

- Switch off the washing machine by turning the

selector to “OFF” position.

- Open the door and remove the laundry.

Ensure that the machine is correctly installed in line with the instructions found on page 27.

5

6

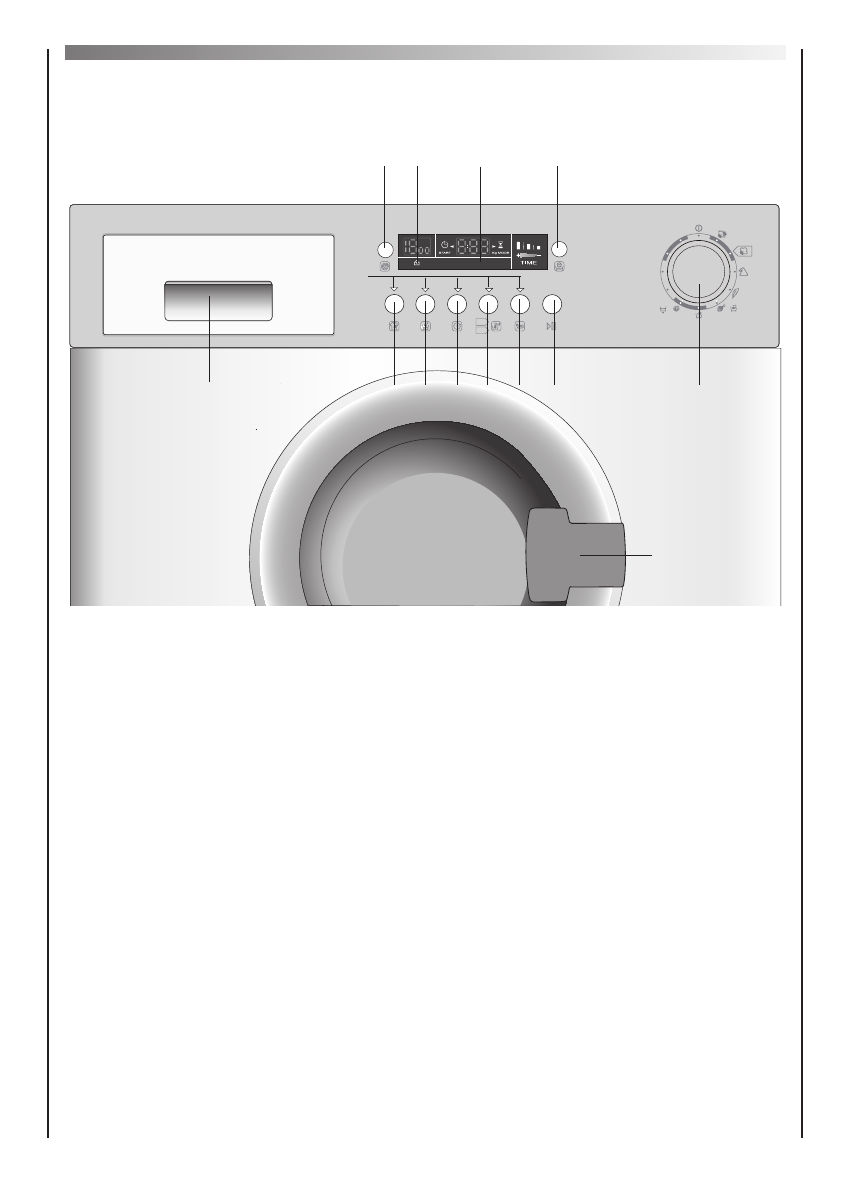

Description of controls

A handle rooD

Bthgil rotacidni "ytiruceS rooD"

C nottub "esuaP/tratS"

Dnottub "norI tsaF"

Enottub erutarepmet hsaW

Fnottub "tratS yaleD"

Gnottub "eraC evitisneS"

Hnottub "retsalB niatS"

I nottub "deepS nipS"

Lyalpsid latigiD

Mnottub emit hsaW

Programme selector with “OFF” position N

Othgil rotacidni snottuB

Preward tnegreteD

P

A

L

O

IM

HGFEDC N

B

2030406090

ActivEco

20°

Sports

& &

Rapid Wash

14’-30’-44’ +Pre

A 59’

40°C

60°C

7

“DOOR SECURITY” indicator light

The “Door Security” indicator light is illuminated when the door is fully closed and the machine is ON.

When "Start/Pause" is pressed on the machine with the door closed the indicator will flash

momentarily and then illuminate.

If the door is not closed the indicator will continue to flash.

A special safety device prevents the door from being opened immediately after the end of the cycle.

Wait for 2 minutes after the wash cycle has finished and the “Door Security” light has gone out

before opening the door. At the end of the cycle turn the programme selector to "OFF" .

B

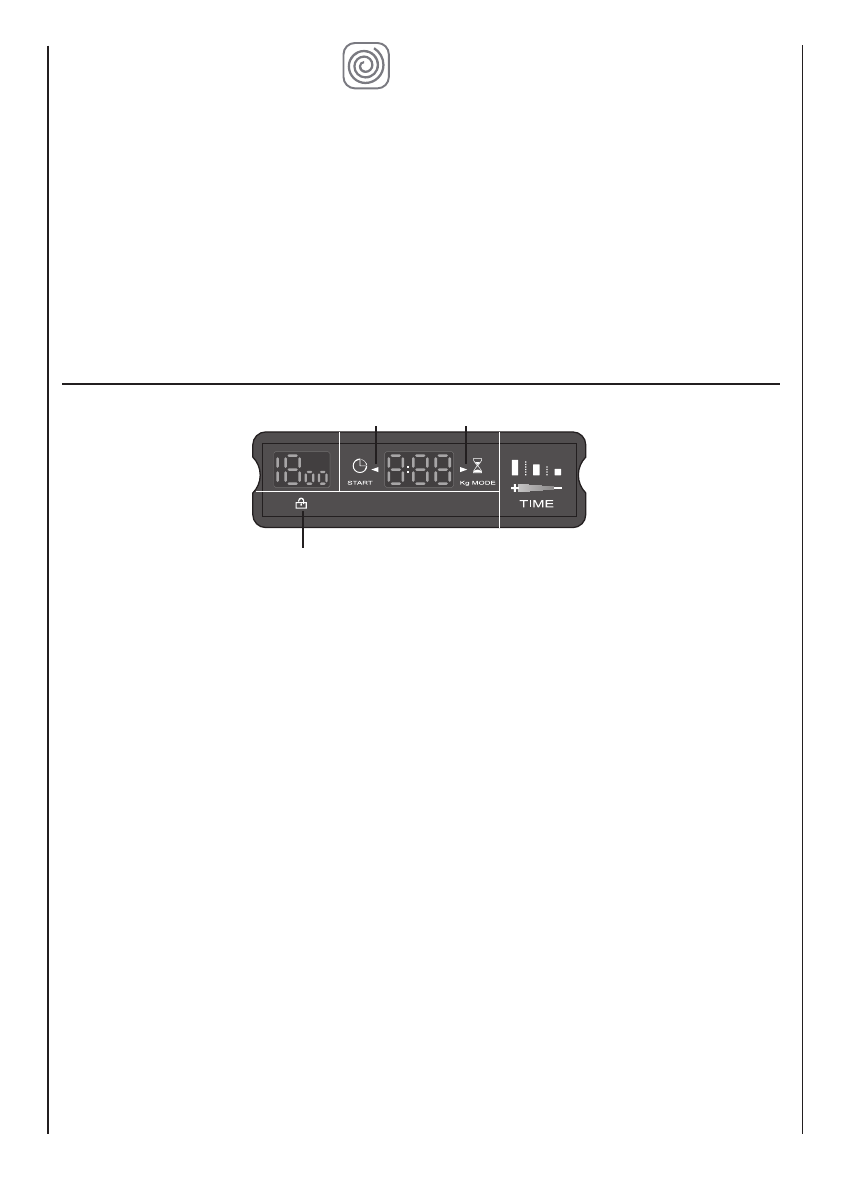

NOTE:

FEW SECONDS AFTER THE START THE WASH CYCLE WILL

BEGIN. DURING THE FIRST 4 MINUTES OF THE WASH CYCLE,

THE KG MODE (ACTIVE ONLY ON COTTON AND SYNTHETICS

PROGRAMMES) WILL WEIGH THE CLOTHES AND UPDATE THE

MAXIMUM WASH TIME REMAINING ON THE DISPLAY EVERY

FIVE SECONDS UNTIL THE WEIGHT HAS BEEN DETERMINED.

WHILE THIS FUNCTION IS OPERATING THE “Kg MODE”

INDICATOR IS ON.

“START/PAUSE” button

Press to start the selected cycle .

Changing the settings after the programmes has started (PAUSE)

Press and hold the “START/PAUSE” button for about 2 seconds, the flashing lights on the

options buttons and time remaining indicator will show that the machine has been paused,

adjust as required and press the “START/PAUSE” button again to cancel the flashing lights.

If you wish to add or remove items during washing, wait 2 minutes until the safety device

unlocks the door. When you have carried out the manoeuvre, close the door, press

Start/Pause" button and the appliance will continue working where it left off.

CANCELLING THE PROGRAMME

To cancel the programme, set the selector to the OFF position.

Select a different programme. Re-set the programme selector to the OFF position.

C

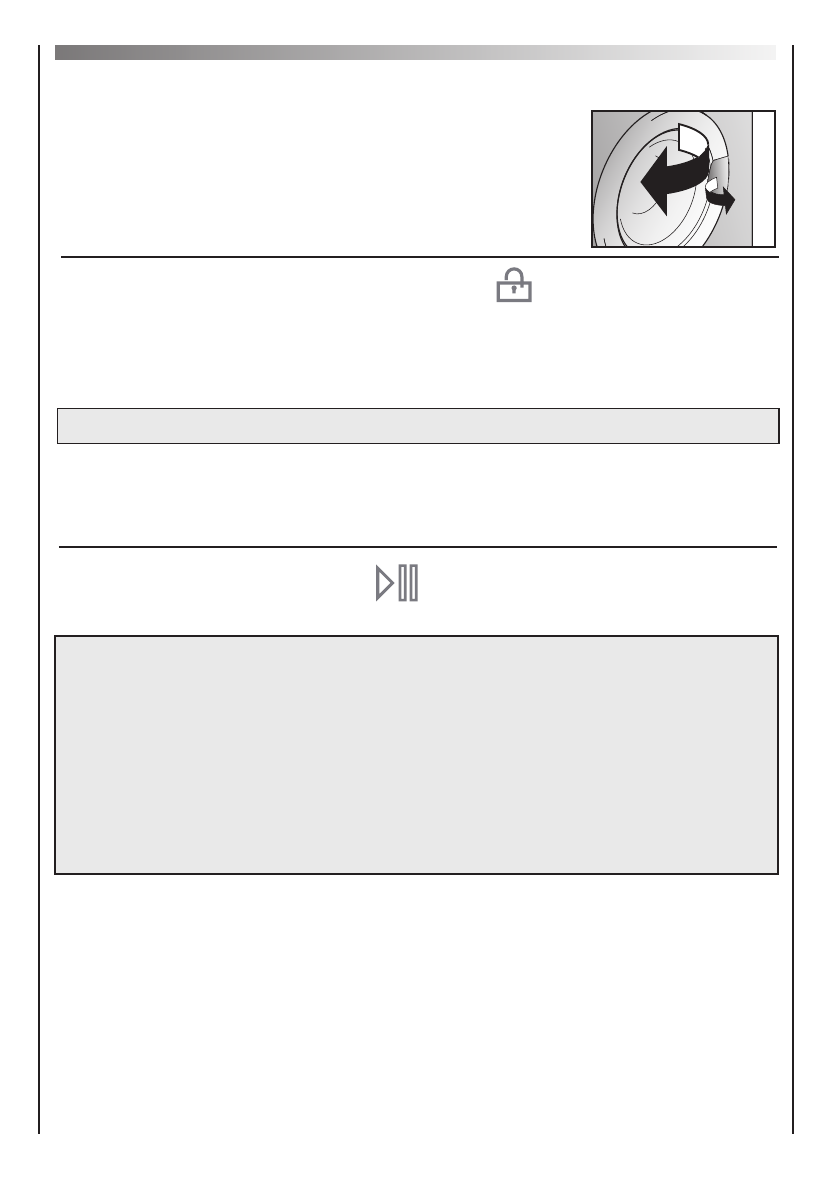

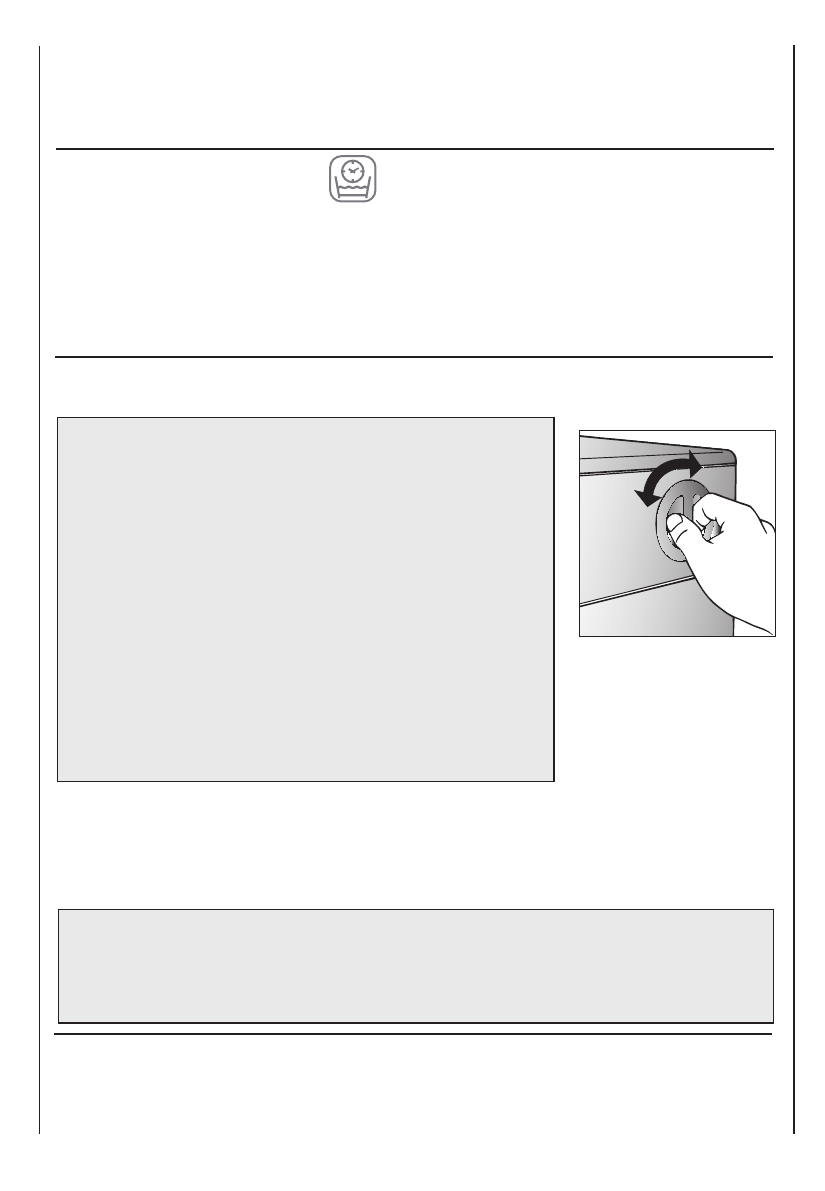

Door handle

To open the door turn the handle in the manner illustrated in fig.

A

8

“FAST IRON” button

The Fast Iron function (Not available on COTTON programmes) minimizes creases as much

as possible with a uniquely designed anti-crease system that is tailored to specific fabrics.

MIXED FABRICS - the water is gradually cooled throughout the final two rinses with no

spinning and then a delicate spin assures the maximum relaxation of the fabrics.

DELICATE FABRICS – after the final two rinses with no spinning the machine stops in the

final rinse stage and the option indicators blink.

The load is held in the water in the drum, thus reducing creasing and enabling easier ironing.

WOLLENS/SILK – after the final rinse the load is held in the water in the drum, thus

reducing creasing and enabling easier ironing and the option indicators blink.

To complete the cycle press the Fast Iron button and the machine will pump out the water

and complete the cycle.

If you do not want to spin the clothes and activate drain only:

- Turn the programme selector to the "OFF" position;

- Select programme drain only ;

- Switch on the appliance again by pressing the "Start/Pause" button.

D

“WASH TEMPERATURE” button

When a programme is selected the relevant indicator will light up to show the recommended

wash temperature.

The Temperature button can be used to decrease or increase the temperature of your chosen

wash cycle.

Each time the button is pressed, the new temperature level is shown on the Wash

Temperature Indicator.

E

“DELAY START” button

This button allows you to pre-programme the wash cycle to delay the start of the cycle for up

to 24 hours.

To delay the start use the following procedure:

Set the required programme.

Press the button once to activate it (h00 appears on the display) and then press it again to set

a 1 hour delay (h01 appears on the display); the pre-set delay increases by 1 hour each time

the button is pressed, until h24 appears on the display, at which point pressing the button

again will reset the delay start to zero.

.

The option buttons should be selected before pressing

the "Start/Pause" button.

F

If you want carry out a cold wash all the indicators must be off.

40°C

60°C

9

Warning: If there is any break in the power supply while

the machine is operating, a special memory stores the

selected programme and, when the power is restored, it

continues where it left off.

Confirm by pressing the “START/PAUSE” button (the light on the display starts to flash). The

countdown will begin and when it has finished the programme will start automatically

It is possible to cancel the delay start by taking the following action:

Press and hold the button for 5 seconds until the display will show the settings for the

programme selected.

At this stage it is possible to start the programme previously selected by pressing the

“START/PAUSE” button or to cancel the process by setting the selector to the OFF position

and then selecting another programme.

“SENSITIVE CARE” button

By pressing this button you can activate a special new wash cycle in the Cotton and Mixed

Fabrics programs, thanks to the new Sensor System. This option treats with care the fibres of

garments and the delicate skin of those who wear them.

The load is washed in a much larger quantity of water and this, together with the new combined

action of the drum rotation cycles, where water is filled and emptied, will give you garments which

have been cleaned and rinsed to perfection. The amount of water in the wash is increased so that

the detergent dissolves perfectly, ensuring an efficient cleaning action. The amount of water is also

increased during the rinse procedure so as to remove all traces of detergent from the fibres. This

function has been specifically designed for people with delicate and sensitive skin, for whom even

a very small amount of detergent can cause irritation or allergy.

You are advised to also use this function for children’s clothing and for delicate fabrics in general,

or when washing garments made of towelling, where the fibres tend to absorb a greater quantity of

detergent. To ensure the best performance for your wash, this function is always activated on the

Delicates and Woollens/Silk programs.

G

“STAIN BLASTER” Button

By pressing this button, which can only be activated in the Cotton cycles, the sensors in the

new system come into operation. They affect both the selected temperature, keeping it at a

constant level throughout the wash cycle, and the mechanical function of the drum.

The drum is made to turn at two different speeds at crucial moments. When the detergent

enters the garments, the drum rotates in such a way that the detergent is distributed in a

uniform manner; during the wash and rinse procedures, however, the speed increases in

order to maximise the cleaning action. Thanks to this special system, the efficiency of the

wash procedure is improved WITHOUT ANY INCREASE IN THE LENGTH OF THE

PROGRAM.

H

10

“SPIN SPEED” button

The spin cycle is very important to remove as much water as possible from the laundry without

damaging the fabrics. You can adjust the spin speed of the machine to suit your needs.

By pressing this button, it is possible to reduce the maximum speed, and if you wish, the spin cycle

can be cancelled.

To reactivate the spin cycle press the button until you reach the spin speed you would like to set.

To prevent damage to the fabrics, it is not possible to increase the speed over that which is

automatically suitable during the selection of the program.

It is possible to modify the spin speed without to pausing the machine.

Note:

The machine is fitted with a special electronic device, which prevents the spin cycle should

the load be unbalanced.

This reduces the noise and vibration in the machine and so prolongs the life of your

machine.

I

“DIGITAL” Display

The display’s indicator system allows you to be constantly informed about the status of the

machine:

1) WASH TEMPERATURE

When a programme is selected the relevant indicator will light up to show the recommended

wash temperature. The Temperature button can be used to decrease or increase the

temperature of your chosen wash cycle. Each time the button is pressed, the new

temperature level is shown on the Wash Temperature Indicator.

2) DOOR LIGHT

Once the START/PAUSE button has been pressed the light first flashes then stops flashing

and remains on until the end of the wash. 2 minutes after the end of the wash the light goes

off to show that the door can now be opened.

3) SPIN SPEED

Once the programme has been selected, the maximum spin speed allowed for that

programme appears on the display. Pressing the spin button will reduce the speed by 100

rpm each time the button is pressed. The minimum speed allowed is 400 rpm, or it is

possible to omit the spin by pressing the spin button repeatedly.

4) DELAY START LIGHT

This flashes when delay start has been set.

5) CYCLE DURATION

When a programme is selected the display automatically shows the maximum cycle duration

for a full load, which can vary, depending on the options selected.

6) KG Mode Indicator

Available on Cotton and Synthetic cycles, during the first 4 minutes of the cycle the intelligent

sensor will weigh the laundry and adjust the cycle time, water and electricity consumption

accordingly.

L

3

46

{

{

{

1

5

7

{

2

2030406090

If you want carry out a cold wash all the indicators must be off.

7) WASH TIME

Once the programme has been selected the indicator light will automatically show the wash

time set for that programme. Selecting a different wash time the relevant indicator will light

up.

11

PROGRAMME selector with "OFF" position

When the programme selector is turned the

display lights up to show the settings for the

programme selected.

N.B. To switch the machine off, turn the

programme selector to the “OFF”

position.Today, most detergents have been

improved to wash efficiently at lower

temperatures, therefore we have set the default

temperature settings of each programme to a

lower level, saving electricity and reducing the

carbon footprint of your machine.

You can select an high temperature by pressing

the temperature button.

Please refer to the programme guide for the

maximum temperature to which each

programme can be set.

Press the "Start/Pause" button to start the selected cycle.

Once a programme is selected the programme selector remains stationary on the selected

programme till cycle ends.

Switch off the washing machine by turning the selector to "OFF".

Note:

The programme selector must be returned to the "OFF" position

at the end of each cycle or when starting a subsequent wash

cycle prior to the next programme being selected and started.

N

Buttons indicator light

These light up when the relevant buttons are pressed.

If an option is selected that is not compatible with the selected programme then the light on

the button first flashes and then goes off.

O

“WASH TIME” button

By selecting this button (active only on COTTON and MIXED FIBRES programmes) there is

a choice of 3 levels of wash intensity, depending on how much the fabrics are soiled.

Once the programme has been selected the indicator light will automatically show the wash

time set for that programme. Selecting a different wash time the relevant indicator will light

up. For example: Using this button on the Rapid Wash cycle will enable you to select either

a 14, 30 or 44 minute wash cycle.

M

MAX

TEMP.

°C

Up to:

90°

Up to:

60°

Up to:

60°

Up to:

40°

-

-

Up to:

20°

Up to:

40°

Up to:

30°

Up to:

30°

Up to:

40°

Up to:

40°

II I

Resistant fabrics

Cotton, linen

with prewash

Cotton, mixed

resistant,

Coloureds

Mixed fabrics and synthetics

Cotton, mixed fabrics, synthetics

Very delicate fabrics

Rinse

Fast spin / Drain only

ActivEco 20°

“MACHINE WASHABLE”

woollens / Hand wash

Mixed Fabrics

Rapid 14’

Rapid 30’

Rapid 44’

8

8

4

2,5

-

-

8

2

2,5

1,5

2,5

3,5

**

1)

1)

1)

TABLE OF PROGRAMMES

CHARGE DETERGENT

PROGRAMME

SELECTOR ON:

PROGRAM FOR:

RECOMMENDED

TEMP

°C

WEIGHT

MAX

kg

60°

40°

40°

40°

-

-

20°

40°

30°

Up to:

60°

Resistant Fabrics 360°

30°

30°

30°

*

ActivEco

20°

Sports

&

&

Rapid Wash

14’-30’-44’

+Pre

A 59’

12

Please read these notes

When washing heavily soiled laundry it is recommended the load is reduced to 4 kg

maximum.

** STANDARD COTTON PROGRAMMES ACCORDING TO (EU) No 1015/2010 and

No 1061/2010

COTTON PROGRAMME with a temperature of 60°C

COTTON PROGRAMME with a temperature of 40°C

These programmes are suitable to clean normally soiled cotton laundry and they are the

most efficient programmes in terms of combined energy and water consumptions for

washing cotton laundry.

These programmes have been developed to be compliant with the temperature on the

wash label on the garments and the actual water temperature may slightly differ from the

declared temperature of the cycle.

The spin speed may also be reduced, to match any guidelines suggested on the

fabric label, or for very delicate fabrics cancel the spin completely this option is

available with a spin speed button.

Pressing the wash temperature button makes it possible to wash at any

temperature below the maximum allowed.

1) For the programmes shown you can adjust the duration and intensity of the wash

using the Wash Time button.

*Using the Wash Time button on the Rapid cycle will enable you to select either a 14, 30 or

44 minute wash cycle.

13

ActivEco

20°

Sports

&&

Rapid Wash

14’-30’-44’ +Pre

A 59’

14

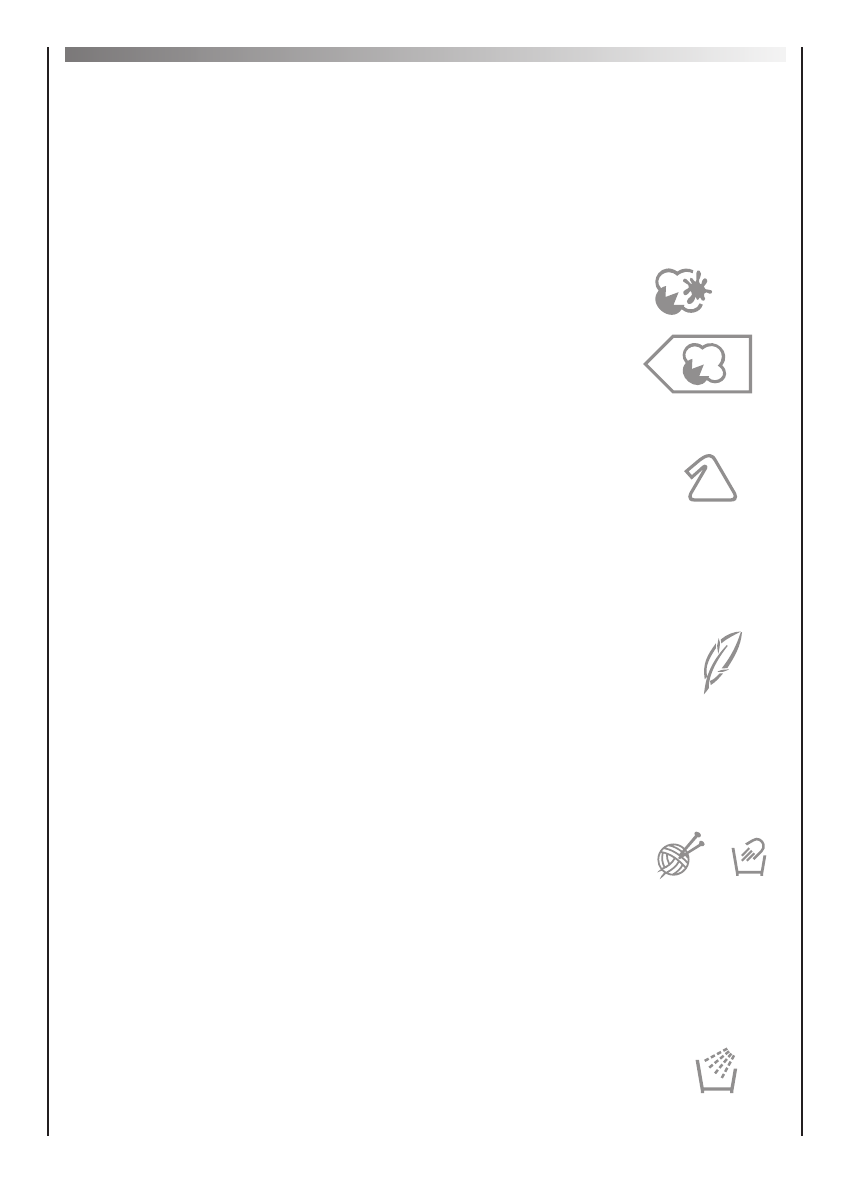

Programme selector

For the various types of fabrics and various degrees of dirt the washing

machine has different programme bands according to: wash cycle,

temperature and lenght of cycle (see table of washing cycle programmes).

RESISTANTS FABRICS

The programmes have been designed for a maximum wash and the

rinses, with spin intervals, ensure perfect rinsing.

The final spin gives more efficient removal of water.

MIXED AND SYNTHETIC FABRICS

The main wash and the rinse gives best results thanks to the rotation

rhythms of the drum and to the water levels.

A gentle spin will mean that the fabrics become less creased.

SPECIAL DELICATE FIBRES

This is a new wash cycle which alternates washing and soaking and is

particularly recommended for very delicate fabrics.

The wash cycle and rinses are carried out with high water levels to

ensure best results.

SPECIAL “RINSE” PROGRAMME

This programme carries out three rinses with a intermediate spin

WOOL & HAND WASH PROGRAMME

This programme allows a complete washing cycle for garments specified

as “Machine-Washable”Wool fabrics and laundry items specified as

“Hand Wash only”on the fabric label.The programme has a maximum

temperature of 30°C and concludes with 3 rinses,one for fabric conditioner,

and a slow spin.

(which can be reduced or excluded by using the correct button). It can

be used for rinsing any type of fabric, eg. use after hand-washing.

&

+Pre

15

“A” WASH 59 '

This specially designed programme maintains the high quality wash

performance identified with the “A” rating whilst greatly reducing the wash

time. The progrramme is designed for a maximum load of 3 kg with a

temperature of 60°C and concludes with 2 rinses and a high speed spin

sequence.

14 MINUTE RAPID PROGRAMME

The Rapid programme allows a washing cycle to be completed in just 14

minutes! This programme is particularly suited to slightly dirty cottons and

mixed fabrics.

Using the Wash Time button on the Rapid cycle will enable you to select

either a 14, 30 or 44 minute wash cycle.

When selecting the rapid programme, please note that we recommend you

use only 20% of the recommended quantities shown on the detergent pack.

For information about these programmes please refer to the programmes

table.

ActivEco

20°

Sports

&

Rapid Wash

14’-30’-44’

A 59’

SPORTS

Hoover has given sports items their own wash care programme.

The washing machine has a unique Sportswear programme. It is specially

designed to wash mixed sportswear fabrics that cannot be washed on

hotter programmes and is designed to remove the soil and staining created

by participation in sports activities. This programme washes at a cool 30°C,

rinses and spins slowly for the best care of your heavily soiled, delicate

garments.

SPIN & DRAIN

The spin programme completes the spin at the maximum spin speed,

can be reduced by using the Spin Speed option button or excluded if

you want drain only.

“ActivEco” PROGRAMME

This innovative programme, allows you to wash different fabrics and colours

together, such as cottons, synthetics and mixed fabrics at only 20°C and

provides an excellent cleaning performance.

Consumption on this program is about 40% of a conventional 40°C cottons wash.

16

“Kg MODE”

(Function active only on Cotton and Synthetics

programmes)

Through every wash phase “Kg MODE” allows to monitor information on

the wash load in the drum.

So, as soon as the “Kg MODE” is set in motion, in the first 4 minutes of the wash, it:

- adjusts the amount of water required

- determines the length of the wash cycle

- controls rinsing

according to the type of fabric selected to be washed it:

- adjusts the rhythm of drum rotation for the type of fabric being washed

- recognises the presence of lather, increasing, if necessary, the amount of water during rinsing

- adjusts the spin speed according to the load, thus avoiding any imbalance.

In this way “Kg MODE” is able to decide, by itself, the most suitable programme for each

individual wash from the hundreds of possible wash combinations.

“Kg MODE” meets the need for easy use by permitting a simplified programme selection. In fact,

the user need only tell the machine the type of fabric in the drum and the degree of soiling, to

obtain a perfect wash with the highest level of drying possible with a spin which really cares for

your clothes.

Detergent drawer

The detergent drawer is split into 3 compartments:

- the compartment labelled "I" is for prewash detergent;

- the compartment labelled " " is for special additives,

fabric softeners, fragrances, starch, brighteners etc;

- the compartment labelled "II" is for main wash

detergent.

NOTE:

Some Detergents are Difficult to

utilise. Ensure to use an in drum

dispenser if recommended by

the detergent Manufacturer.

Note: only put liquid products in the compartment

labelled “ ”. The machine is programmed to

automatically take up additives during the final rinse

stage for all wash cycles.

P

17

Detergents, washing aids and amounts to use

Choice of detergent

General purpose detergents

- Powder detergents, for a thorough wash, with bleaching agent, particularly suitable for

use in hot wash programmes (60°C and over), for heavily soiled and stained laundry.

- Liquid detergents, particularly suitable for grease stains, such as greasy skin marks,

cosmetics and oil.

These detergents are not suitable for washing stained laundry, as they do not contain

bleach.

-Biological detergents, not all the products available give a really thorough wash.

Additional laundry aids

-Water softener, means less detergent can be used where water hardness is classed as

hard to very hard.

-Prewash substances, for the programmed treatment of stains prior to the main wash.

Using them means the subsequent wash can be at a low temperature or with bleach-free

detergents.

-Fabric softener, prevents static build-up in synthetic fabrics and softens fabrics.

If you own a tumble dryer, clothes are softened even without the use of a fabric softener.

Do not put solvents in the washing machine!

Keep detergents and other laundry products out of children’s reach.

Before pouring in the detergent check that there are no foreign bodies in the detergent

drawer.

Dosage details are usually shown on the detergent packaging. Follow those instructions.

18

Dosages

Only use detergents which are suitable for use in a washing machine.

You will obtain the best results from your wash with the minimum use of chemical products

and the best care for your laundry if you take into consideration the degree of soiling as well

as the type of detergent to choose.

The amount of detergent to use depends on:

- water hardness: depending on the hardness of the water and the type of detergent used, it

is possible to reduce the amount of detergent.

- the degree of soiling: it is possible to reduce the amount of detergent used depending on

the degree of soiling.

- amount of laundry: it is possible to reduce the amount of detergent when washing only a

small amount of laundry.

Dosage for powder detergent

For normal and low concentration detergents: for normally soiled laundry choose a

programme without prewash.

Put the detergent in compartment “II” of the drawer.

For heavily soiled laundry, choose a programme with prewash.

Put 1/4 of the detergent in compartment “I”, 3/4 in compartment “II” of the drawer.

When using water softeners, first put in the detergent, then add the softener to compartment “II”.

For highly concentrated detergents not in single dose format, follow what is shown on pack

exactly as regards type and amount of dosage.

To avoid the difficulty of checking if the detergent has been taken up, use the dosage aids

provided in the detergent packaging.

Liquid detergent dosage

Liquid detergents may be used in accordance with the instructions on the relevant

packaging, for all programmes without prewash, by using the special container which is

placed in the drum or, for those models that have it, in the special insert for liquid detergents.

19

Recommendations on the use of detergent at various temperatures

When washing heavily soiled whites, we recommend using cotton programs of 60°C or above

and a normal washing powder (heavy duty) that contains bleaching agents that at medium/

high temperatures provide excellent results. For washes between 40°C and 60°C the type

of detergent used needs to be appropriate for the type of fabric and level of soiling. Normal

powders are suitable for “white” or colour fast fabrics with high soiling, while liquid detergents

or “colour protecting” powders are suitable for coloured fabrics with light levels of soiling.

For washing at temperatures below 40°C we recommend the use of liquid detergents or

detergents specifi cally labeled as suitable for low temperature washing. For washing wool or

silk, only use detergents specifi cally formulated for these fabrics. For dosage amounts please

follow the instructions on the detergent package label.

Useful advice for users

Tips on using your domestic appliance in the most environmentally-friendly and economical

way

Do a full load in your washing machine

To prevent any possible waste of energy, water or detergent we recommend that you put a

full load in your washing machine, not exceed the recommended maximum load size.

Up to 50% energy saving can be made with one full load compared to two half load washes

When is prewashing really needed?

Only with particularly dirty loads!

Energy savings of 5 to 15% are made by not selecting the prewash option for normal soiled

laundry.

Which wash temperature should you choose?

Using stain removers before machine washing reduces the need to wash at temperatures

over 60°C.

Energy savings of up to 50% can be made by using a 60°C wash temperature rather than

90°C

20

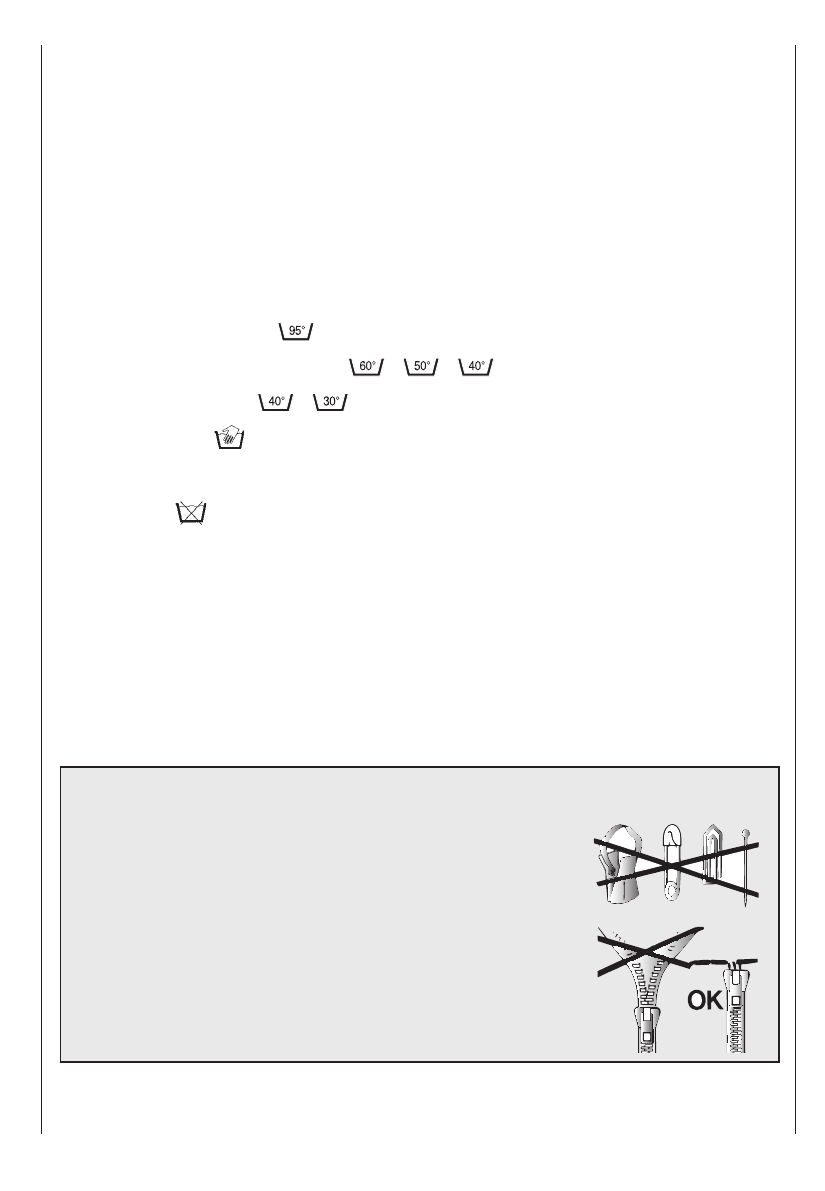

Main wash

Sorting the laundry

- It is recommended you wash only items which are machine washable with water and

detergent and not dry-clean items.

- If you need to wash rugs, bedspreads or other heavy items, it is best not to spin them.

- Sort the laundry according to fabric type, degree of soiling and wash temperature: Always

follow the wash care advice on the garment label for the most suitable care and

treatment of the laundry

Laundry for hot wash

Coloured, easy-care materials

Delicates and wool

Wash by hand

Items labelled with the following symbol are not suitable for machine washing:

Dry clean

For very delicate items, such as net curtains, underwear, tights etc., you are advised to

use a laundry net or wash bag.

- Woollen items must be labelled with the "Pure New Wool" symbol to be washed in the

machine, and must also be labelled "non-matting" or "machine washable".

- Colour often leaks from new coloured items.

This can then colour other lighter items being washed.

We therefore recommend that coloured items should be washed for the first time

separately.

For future washes, colourfast items can only be washed with whites up to 40°C.

Note: when sorting laundry

- check there are no metal objects in the laundry

(such as paper clips, safety pins, pins, coins

etc...);

- button up pillowcases, fasten zips, hook & eye

fasteners, belts and long dressing gown cords;

- remove curtain hooks;

- pay close attention to the labels on items

- if you notice stubborn stains whilst sorting the

laundry, remove them using a special detergent or

a special stain remover.

- We recommend that you do not do a full load of towelling items only as these become too

heavy since they absorb a lot of water.

21

The correct way to wash

Preparing the laundry

A) Select the laundry.

Loading the laundry

B) Open the porthole.

C) Put the laundry in the washing machine.

Close the porthole again, ensuring that no items of

laundry are obstructing the lock.

Putting detergent in machine

D) Open the drawer, choose the detergent and put in

the correct amount, according to the manufacturer’s

instructions and the advice on page 18.

Add any other laundry aids (see page 18). Close the

drawer again.

Selecting the wash programme

Refer to the programme guide or the programme descriptions on the machine to select the

most suitable programme.

Turning the selector knob, the required programme is activated.

Adjust the wash temperature if necessary.

Press additional function buttons (if required).

Check that the tap is turned on and that the discharge hose is positioned correctly.

Press the "Start/Pause" button.

When the "Start/Pause" button is pressed the machine sets the working sequence in motion.

The programme carries out with the programme selector stationary on the selected

programme till cycle ends.

Warning: If there is any break in the power supply while the machine is operating, a special

memory stores the selected programme and, when the power is restored, it continues where

it left off.

When the programme is finished

The word “End” will appear on the display.

Wait for the door lock to be released (about 2 minutes after the programme has finished).

The "Door Security" indicator light will go out.

Switch off the machine by turning the programme selector on the “OFF” position. Open the

door and remove the laundry. Turn off the tap.

22

23

Cleaning and routine maintenance

Do not use alcohol-based scourers and / or thinners on the outside of your washing machine,

just a wipe with a damp cloth will suffice. The washing machine needs very little maintenance:

- Cleaning the drawer compartments.

- Cleaning the filter.

- Cleaning the door glass.

Cleaning the drawer compartments

Even if it is not strictly necessary, it is good to clean the

compartments for bleaching detergents and additives

occasionally.

A) To do this you just need to pull them out firmly, but without

forcing them.

B) Clean everything in the compartment under running water.

C) Put everything back in its proper place.

Cleaning the filter

The washing machine is fitted with a special filter for handling

large deposits which could block the discharge hose (coins,

buttons etc.) and which can, therefore, be easily retrieved.

We recommend that the filter be cleaned at least once a month.

The cleaning operation is as follows:

1) Before removing the filter, place an absorbent towel below

the filter cap to collect the small amount of water likely to

be inside the pump

2) Turn the filter anti-clockwise until it stops in the vertical

position.

Remove and clean.

3) After cleaning, replace by turning the notch on the end of

the filter clockwise.

Cleaning the door glass

Regularly clean the door glass with a damp cloth. A build up of

soiling and residues from the water may result in water leaking

from the door.

Do not use abrasive cleaners as they can scratch the surface.

Transporting the appliance or long

periods when appliance is not in use

If the appliance is being transported or is out of use for long

periods in unheated places, all remaining water must be

completely removed from the hoses.

Ensure mains power is off, then unclip the hose and point it

downwards into a basin until all the water has emptied

out.When finished, repeat the operation in the reverse order.

24

Investigating malfunctions

What might be the cause of…

Defects you can remedy yourself

Plug not in socket.

Not switched on.

Power failure.

Fuse blown.

Door open.

See cause 1.

Tap turned off.

Programme selector not correctly

positioned.

Fill hoses are kinked

Kink in discharge hose.

House drain is blocked

Odd material blocking filter

Leaking gasket between tap and water

inlet hose.

House drain is blocked

Soap drawer blocked with soap residues

Water has not yet drained away.

"No spin" selected (certain models only).

Washing machine not completely level.

Transit brackets not removed yet.

Load not distributed evenly.

Two minutes have not elapsed since the

programme finished.

–

No water fill.

No pump out.

Machine overfilled with water.

MALFUNCTION CAUSE REMEDY

1. Does not work on any

programme

2. Does not fill with water

3. Water does not drain

away

4. Water on floor around

the washing machine

5. Does not spin

6. Machine vibrates a lot

during spin

7. Door will not open

8. Display reads error

0, 1, 5, 7, 8, 9

9. Display reads error 2

10. Display reads error 3

11. Display reads

error 4

Plug it in.

Switch on.

Check.

Check.

Close door.

Check.

Turn on tap.

Position programme selector

correctly.

Straighten fill hoses

Straighten discharge hose.

Clean drain

Check filter

Replace gasket and tighten hose and

tap well.

Clean drain

Clean soap drawer

Wait a few minutes for machine to empty.

Reset button or turn "no spin" knob.

Adjust the special adjustable feet.

Remove transit brackets.

Rearrange the laundry evenly.

Wait two minutes.

Call service.

Check water supplies are on.

Check drain is clear.

Check drain hose is not kinked.

Turn off water supply to machine.

Call service.

The machine makes a

different noise when

spinning! This is because it

has a brush motor for better

performance.

Only a small level of water can be

seen in the drum! This is because

new machines do not use much

water, yet achieve the same

standard of washing and rinsing.

25

Note:

The use of environmentally-friendly, phosphate-free detergents can have the following effects:

- waste water from rinsing may be cloudier because of the presence of zeolites held in

suspension, without the rinse performance being adversely affected;

- presence of white powder (zeolites) on laundry after washing, which is not absorbed by

the fabric and does not alter the colour of the fabric.

- The presence of foam in the final rinsing water is not necessarily an indication of poor

rinsing.

- Anionic surfactants used in washing detergent formulae often prove to be difficult to

remove from the laundry itself and, even in small quantities, can still cause considerable

foam production.

- Carrying out more rinse cycles does not serve any purpose in such cases.

CUSTOMER SERVICE AND GUARANTEE

Your new appliance is fully guaranteed by the manufacturer for 12 months against

electrical/mechanical breakdown excluding:

A. Any faults which occur due to bad installation or misuse of the machine.

B. Any faults which occur due to repair of, or interference with, the machine by any person

not authorised by the manufacturer to carry out service.

C. Any faults which arise from parts fitted to the machine which are not the manufacturers

original parts.

D. Any faults arising from non-domestic use or unusual or abnormal use of the machine.

E. Any faults arising from operation at an incorrect voltage.

F. Any faults arising from incorrect operation of the machine.

The guarantee applies to Gt. Britain and Northern Ireland only, and is an addition to your

statutory rights.

After Sales Service

If, having investigated the possible malfunctions on the chart on the previous page, you

believe the appliance is not working correctly, please call our After Sales Service dept. on

telephone number:

Gias Service - Tel: 08444 995599

Support Service (Eire 0818 200021)

A

pplianc

e

c

omp

li

es

w

i

th

Europea

n

D

irective

s

73

/2

3

/EE

C

an

d

89/336/EEC

,

r

eplace

d

b

y

2006/95/EC and 2004/108/EC, and subsequent amendments

.

T

echnical dat

T

T

a

M

ax. load o

f

dr

y

laundr

y

W

a

t

er pressur

e

M

ea

s

uremen

t

s

W

i

dt

h

D

ep

t

h

H

ei

gh

t

NB: For speci

f

ications re

g

ardin

g

electrical data, see the data panel on the

f

ront o

f

the washi

n

g

machine (porthole area) - as shown in dia

g

ram abov

e

.

Fi

g.

2

2

6

8

k

g

0

,

05

÷

0

,

8 M

P

a

60

cm

5

4

cm

8

2 cm

27

1

S

ETTIN

G

U

P + IN

S

T

ALL

T

T

A

L

L

TIO

A

A

N

Re

m

o

v

e

t

he

po

ly

st

y

ren

e

b

a

se

an

d

p

l

ac

e

t

he

mac

h

in

e

n

e

a

r

its permanent position (dia

g

ram 1

)

.

C

ar

e

f

ully

c

u

t

t

h

rou

gh

t

he

h

o

se

re

t

a

i

n

i

n

g

clip

a

t

t

he

re

ar

o

f

the appliance (dia

g

ram 2

)

.

Re

m

o

v

e

t

he

4

f

ixin

g

sc

rew

s

mark

ed

(

A

)

an

d

re

m

o

v

e

t

he

4

spa

c

ers mark

ed

(

B

)

(dia

g

ram

3)

.

Co

v

e

r

t

he

4

ho

l

e

s

u

s

i

n

g

t

he

c

a

p

s

p

r

o

v

i

ded

in

t

h

e

i

n

s

truct

i

o

n

boo

kl

et

pac

k

(dia

g

ram 4

)

.

W

ARNING

WW

:

D

O N

O

T

L

E

A

VE

A

A

THE

P

ACKAGING WITHIN REACH OF CHILDREN

PP

AS

I

T

I

S

A

POTENTIA

L

S

OURCE OF DANGE

R

.

A

pply the insulation sheet o

f

corru

g

ated material to the bas

e

a

s

sh

ow

n

.

Us

e the 4

f

eet to level the machine with the

f

loor

:

a

)

T

u

rn the nut clockwise to release the screw adjuster on the

f

oo

t

.

b) Rotate the foot to raise or lower it until it stands firml

y

on t

h

e

g

roun

d

.

c

) Lock the foot in position by turnin

g

the nu

t

anti-clockwise until it comes up a

g

ainst the bottom o

f

the machin

e

.

A

B

B

C

2

3

4

Note: we recommend you keep the braces and screws

to immobilise the machine for future transit.

The Manufacturers will not be responsible for any

possible damage to the machine caused by not

following the rules relating to releasing the mechanism.

The user is responsible for all costs of installation.

Water connection

The appliance must be connected to the water mains using new

hose-sets.

The old hose-sets should not be re-used.

The machine has an inlet hose with 3/4" B.S.P threaded end

connection to attach between the threaded connector on the

appliance and the cold water supply.

This machine only uses cold water, therefore

only one hose is needed to connect to the cold

water supply. Do not connect to the hot supply.

Cold fill is an energy efficient system. Only the

water required for the washing is heated.There

is no loss of heat in the pipeline from a hot

water tank or boiler to the machine.

28

min 50 cm

max 85 cm

+2,6 mt max

max 100 cm

min 4 cm

Note: it is advisable to turn off the tap after each wash

to isolate the washing machine from the water supply.

For the washing machine to function properly the terminal end of the discharge hose (mouth)

must be at a minimum of 50 cm and a maximum of 85 cm from the ground.

ELECTRICAL CONNECTIONS

After installation, the appliance must be positioned so that the plug is accessible.

If the plug we supply does not fit

CUT IT OFF AND DESTROY IT!

You can’t use it on other appliances, and the exposed wires could be dangerous if plugged in.

To fit a replacement plug, proceed as follows:

Connect to the terminal in the plug

green and yellow wire marked with the letter E,

OR marked

with the symbol,

OR coloured green,

OR coloured green and yellow.

blue wire marked N

OR coloured black.

brown wire marked L

OR coloured red.

WARNING

This appliance must be earthed

Fuses and plugs

This appliance should be used only on a socket with a minimum rating of 13 Amp.

Our ready-fitted plug is already equipped with a 13 amp fuse which is BS 1362 ASTA

approved. Any replacement should be exactly the same.

If the fuse cover is lost, do not use the plug until it is replaced. A correct replacement fuse

cover (obtainable from your local retailer) must be the same colour as shown or named on

the insert on the base of the plug.

29

07.10 - 9258998.5.D - Printed in Italy - Imprimé en Italie

IT

ISTRUZIONI

MONTAGGIO

PORTA

Forare la porta

utilizzando la dima in

cartone come

indicato in figura per

applicare le cerniere

e la calamita di

chiusura, in posizione

dx o sx secondo vs.

esigenza. La posizione

delle cerniere é

riferita al bordo

superiore.

Applicare le cerniere

mediante le 4 viti (A).

Applicare la calamita

(B) mediante vite (C).

Montare sulla

lavatrice in posizione

dx o sx secondo le vs.

esigenze la piastrina

(D) interponendo le

guarnizioni in gomma

(E) ed avvitando le

viti (G). Montare a

scatto il tappo (H)

nella posizione

inferiore.

Solo per

alcuni modelli

Disponible sur certains

modèles uniquement

Sólo algunos modelos

Alleen op bepaalde

modellen

Only available on certain

models

Nur bei einigen Modellen

Apenas disponível em

alguns modelos

4x

1x

2x

A

C

G

4x

L

FR ES NL

INSTRUCTION POUR

LE MONTAGE DE

LA PORTE

Percer la porte en

utilisant le gabarit en

carton suivant les

indication fig. 1 pour

monter les charnières et

l’aimant de fermeture à

droite, ou à gauche,

suivant votre exigence.

La position des

charnières est référée au

bord supérieur.

Monter les charnières à

l’aide des 4 vis (A).

Monter l’aimant (B) par

les vis (C).

Monter sur la machine à

laver, à droite ou à

gauche suivant vos

exigences, la plaque (D)

en interposant les joints

en caoutchouc (E) et

vissant la vis (G). Monter

par enclenchement le

bouchon (H) sur la

position ìnférieure.

INSTRUCCIONES DE

MONTAJE DE LA

PUERTA

Perfore la puerta

utilizando la plantilla de

cartón tal como viene

indicado en la fig. 1 para

colocar las bisagras y el

imán de cierre, en

posición dcha. o izqda.

según sus necesidades.

La posición de las

bisagras se muestra en el

borde superior.

Fije las bisagras mediante

los 4 tornillos (A).

Coloque el imán (B)

mediante el tornillo (C).

Coloque la placa (D)

sobre la lavadora en

posición dcha. o izqda.

según sus necesidades,

interponiendo las

guarniciones de goma

(E) y enroscando el

tornillo (G). Coloque a

presión el tapón (H) en la

posición inferior.

AANWIJZINGEN

VOOR HET

MONTEREN

VAN DE DEUR

Boor gaten in de deur

Gebruike hiervoor de kar

tonnen sjabloon zoals

aangegeven in Fig. 1 om

de magneetsluiter

desgewenst rechts of

links aan te brengen. De

plaats van de

scharnieren verwijst naar

de bovenkant.

Schroef de scharnieren

op de plaats met de 4

schroeven (A).Schroef

de magneet (B) op met

schroef (C).

Breng de plaat (D)

naargelang uw behoefte

rechts-of linksdraaiend

aan. Zet de rubberen

ringen onder de plaat en

schroef ze aan met

schroef (G). Druk het

kapje (H) in de laagste

stand.

GB DE PT

INSTRUCTIONS FOR

MOUNTING DOOR

Drill holes in the door

using the cardboard

template as indicated in

Fig. 1 to mount the hinges

and closure magnet in

the right or left-hand

position according to

your requirements.The

position of the hinges

refers to the upper edge.

Screw the hinges in place

with the 4 screws (A).

Screw on the magnet (B)

with screw (C).

Mount the plate (D) in the

right or left-hand position,

according to your

requirements. Place the

rubber washers under the

plate and screw in place

with screw (G).

Snapmount cap (H) in the

lower position.

ANLEITUNG ZUR

TÜRMONTAGE

Türbohrungen unter

Zuhillfenahme der

Pappschablone

vornehmen wie in

Zeichnung 1 gezeigt, um

die Scharniere und den

Verschlußmagneten

nach Ihren Wünschen in

Position dx oder sx (mit

Rechts-oder

Linksanschlag)

anzubringen. Die Position

der Scharniere ist an der

Oberkante angezeigt.

Die Scharniere mit den 4

Schrauben (A)

befestigen.

Den Magneten (B) mit

Schraube (C) befestigen.

Nach Wunsch das

Blechstück (D) an der

rechten (dx) oder linken

(sx) Seite der Maschine

anbringen, dabei die

Gummidichtungen (E)

einlegen und mit der

Schraube (G) befestigen.

Unten am

Schnappverschluß den

Zapfen (H) anbringen.

INSTRUÇÕES DE

MONTAGEM DA

PORTA

Regendo-se pela figura 1

e utilizando o escantilhão

de cartão fornecido

juntamente com a

máquina, perfure os

orifícios na porta para

montar as dobradicas e o

imã de fecho, do lado

direito ou do lado

esquerdo, dependendo

do lado escolhido para a

abertura da porta.

A posição das

dobradicas reporta-se à

borda superior.

Aparafuse as dobradiças

na posição com os 4

parafusos (A).

Aparafuse o imã (B) com

o parafusó (C).

Monte a placa (D) na

máquina, do lado direito

ou do lado esquerdo,

dependendo do lado

escolhido para a

abertura da porta,

intercalando as

guarnições de borracha

(E) e aparafusando-as

com o parafuso (G).

Monte o tampão (H) na

posição inferior.

EN

IT

Montare la porta

corredata di cerniere

avvitando le viti (L) sul

frontale della

lavabiancheria.

Nota: È consigliabile

montare la porta con il

senso di apertura verso sx

come è l’apertura

dell’oblò per dare

migliore spazio al

caricamento dei panni.

Incassare la

lavabiancheria nel vano

di dimensioni opportune.

Lo zoccolo inferiore può

essere applicato nel

modo da voi preferito

entro le dimensioni

previste.

I 4 piedini regolabili

consentono di variare

l’altezza della

lavabiancheria da 820

mm (togliendo i dadi in

dotazione e sostituendoli

con dadi altezza 5 mm)

a 840 mm max, alzando i

piedini ricordarsi di

bloccare il controdado

al fondo della lamiera.

FR ES NL

Monter la porte et ses

charnières en vissant les

vis (L) sur le devant de la

machine à laver.

Remarque: Nous

conseillons de monter la

porte s’ouvrant vers la

gauche, comme

l’ouverture du hublot,

pour laìsser plus

d’espace au

chargement du linge.

Emboîter la machine

dans la niche prévue. Le

socle inférieur peut être

appliqué selon vos

exigences en respectant

les dimensions prévues.

Le 4 pattes réglables

permettent de varier la

hauteur de la machine à

laver en passant de

820 mm (enlever les

écrous et les remplacer

par des écrous de 5 mm)

à 840 mm maxi. En

haussant les pattes ne

pas oublier de bloquer

les contreécrous sur le

fond en tôle

Coloque la puerta

provista de bisagras

roscando los tornillos (L)

en la parte delantera de

la lavadora.

Nota: Se aconseja

montar la puerta en el

sentido de apertura

hacia la izqda. igual a la

apertura del ojo de buey

para disponer de más

espacio al cargar la

ropa.

Encajar la lavadora en

un hueco de

dimensiones justas.

El zócalo inferior puede

fijarse del modo que

usted prefiera sin que

sobrepase las

dimensiones previstas.

Las 4 patas regulables

permiten variar la altura

de la lavadora de

820 mm (quitando las

tuercas adjuntas y

sustituyéndolas por

tuercas de 5 mm de

altura) a 840 mm máx., al

levantar las patas no

olvide fijar la

contratuerca por detrás

de la plancha.

Breng de deur met

scharnieren op de

voorkant van de

wasautomaat aan door

die met de schroeven (L)

aan te schroeven.

N.B.: Om meer

laadruimte te krijgen

adviseren wij u de deur

zodanig aan te brengen

dat deze naar links

opent, in dezelfde

richting als de vuldeur

van de wasautomaat.

Schuif de wasautomaat

in een opening die ruim

genoeg is.

De onderste afdekplaat

kan aangebracht

worden als er voldoende

ruimte voor is.

Met de vier verstelbare

voetjes kan de hoogte

van de wasautomaat

worden ingesteld van

820 mm (door de

bijgeleverde moeren er

af te halen en te

verwisselen met de 5 mm

moeren) tot een

maximum hoogte van

840 mm door de voetjes

uit te trekken en de

contramoer vast te

zetten tot aan de

onderkant van de plaat.

GB DE PT

Mount the door with

hinges by screwing with

screws (L) to the front of

the washing machine.

NOTE: You are advised to

mount the door so that it

opens towards the left, in

the same direction as the

washing machine load

door for more loading

space.

Slide the washing

machine into an opening

of adequate size.

The lower skirting may be

applied as preferred but

within the size provided

for.

The four adjustable feet

allow the height of the

washing machine to be

adjusted from 820 mm

(by removing the nuts

supplied and substituting

with 5 mm nuts) to a

max. 840 mm by raising

the feet and blocking the

lock nut to the base of

the plate.

Die Tür mit den

Scharnieren an das

Vorderteil der

Waschmachine

montieren, die Schrauben

(L) anziehen.

Achtung: Die Tür sollte, wie

das Bullauge, nach links zu

öffnen sein, um das

Einfüllen der Wäsche zu

erleichtern.

Die Waschmaschine in die

passende Öffnung

einsetzen. Innerhalb der

vorgesehenen Maße kann

der Sockel Ihren

Wünschen entsprechend

angepaßt werden.

Mittels der vier

regulierbaren Füße kann

die Höhe der

Waschmaschine von 820

mm auf max. 840 mm

geändert werden (dazu

die zur Ausstattung

gehörenden

Schraubenmuttern

entfernen und durch die 5

mm hohen

Schraubenmuttern

ersetzen). Nach dem

Ausrichten die

Kontermuttern an der

Geräteunterseite

anziehen.

Monte a porta com as

dobradiças

aparafusando-a à parte

da frente da máquina

de lavar roupa com os

parafusos (L).

ATENÇÃO:

Recomendamos que a

porta seja montada de

modo a abrir para a

esquerda, tal como a

porta da máquina de

lavar, a fim de dispor de

mais espaço para

carregar a máquina.

Introduza a máquina de

lavar no espaço previsto

para o encastre, cujas

dimensões deverão ser

as adequadas. O rodapé

pode ser montado da

forma que melhor lhe

convenha, mas dentro

das dimensões definidas.

Os quatro pés reguláveis

permitem ajustar a altura

da máquina entre

820 mm (para o que

deverá remover as

porcas fornecidas com a

máquina e substituí-las

por porcas de 5 mm) e

840 mm (altura máxima),

para o que deverá

regular a altura dos pés e

fixá-los em posição com

a respectiva

contraporca de aperto,

aparafusando-a contra

o fundo de chapa.

EN

The manufacturer declines all responsibility in the event of any printing mistakes in

this booklet. The manufacturer also reserves the right to make appropriate

modifications to its products without changing the essential characteristics.

This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic

Equipment (WEEE).

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the

environment and human health, which could otherwise be caused by inappropriate waste handling of this

product.

The symbol on the product indicates that this product may not be treated as household waste. Instead it shall

be handed over to the applicable collection point for the recycling of electrical and electronic equipment

Disposal must be carried out in accordance with local environmental regulations for waste disposal.

For more detailed information about treatment, recovery and recycling of this product, please contact your

local city office, your household waste disposal service or the shop where you purchased the product.

®

EN

13.06 - 41039682 - Canon Italia - Business Services Channel - Printed in Italy - Imprimé en Italie
