SPECIFICATIONS
Frequency Range
Sensitivity
I.F. Frequency
Frequency Response
Stereo Separation
S/N Ratio
FM TUNER
87.5~108.0MHz
12dB µV
10.7MHz
40Hz~15KHz(±3dB)
＞28dB
＞50dB
GENERAL
Power Supply Voltage
Max Current Consumption
Max Output Power
12V DC, Negative Ground
15A
4x60W
Note: specifications and the design are subject to possible modification without notice
due to improvement.

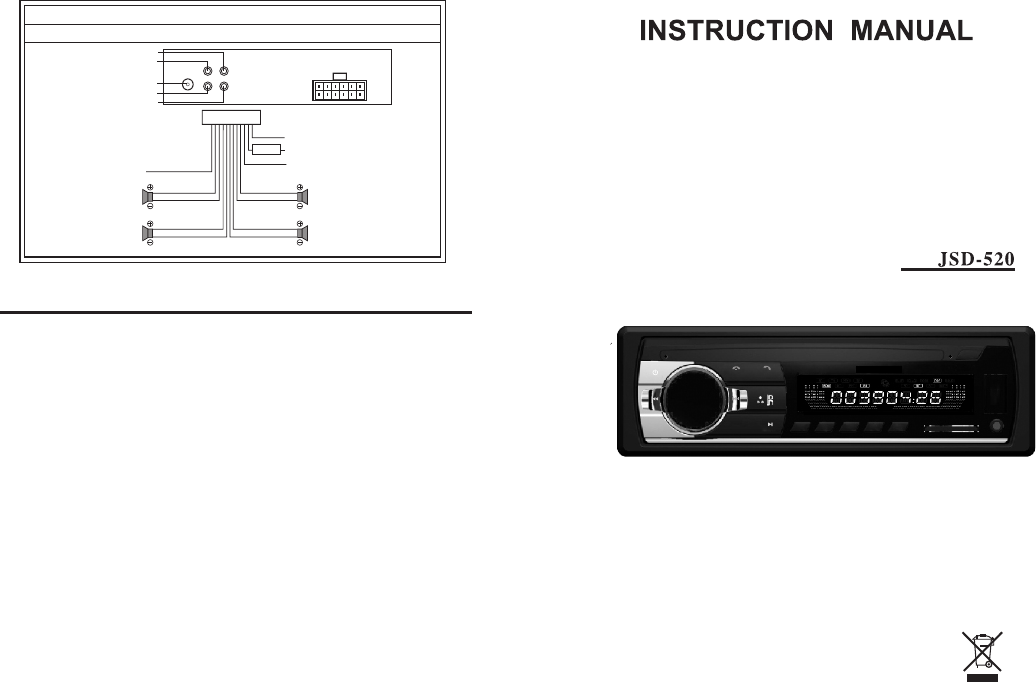

WIRING DIAGRAM
MO DE B AN D
AM S 2/INT 3/RPT
4/RDM
5/-10 6/+10
1/
60WX4 JSD-520
CL K
EQ/LOUD
MIC
DIR- DIR+
RES
BT /A PE /WAV /W MA /M P3 /F M
Operating Voltage:12V DC
Frequency Range: FM 87.5~108.0MHz
Blue: Power Antenna
Front Left Speaker
Rear Left Speaker
Black: Ground (B-)
Yellow: Memory Backup(B+)
Red: Ignition Switch(ACC)
Front Right Speaker
Rear Right Speaker
Fuse
WIRING PLUG
White
White/black
Green
Green/black
Grey
Grey/black
Purple
Purple/black
Antenna Input Connector
White: Left Front Audio Out
Red: Right RearAudio Out
Red: Right Front Audio Out
White: Left Rear Audio Out
WIRING SOCKET
Bluetooth: Search for Bluetooth devices on your phone. Pair to device using the
password "0000". Some phone automatically connect to the search.

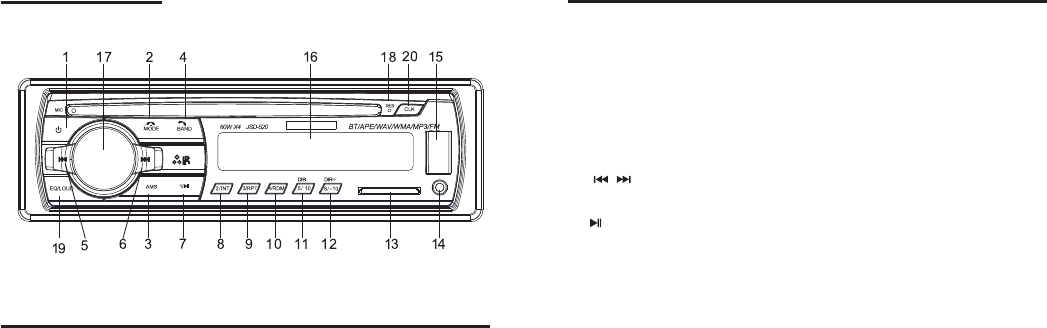

LOCATION OF CONTROL
OPERATION MANUAL
1.POWER ON/OFF
Short press turn on, long press three seconds turn off.
2.MODE--FUNCTION SELECTOR
Push this button repeatedly and the lcd will display the following sequence: RADIO →USB
→SD .
3.AUTO SEEK SEARCH TUNING (AMS)
, short press for the browser, long press to automatically save the station.
In playback , the function is to choose the song.
4.BAND BUTTON
In radio mode, each band is toggled cyclically by pressing the key FM1-FM2-FM3.
5./6. / BUTTON
Track skip in MP3 player mode (usb/sd/mmc) / radio search; Press the button during playback
to go to the desired track; Press to search to the desired radio station.
7. 1/ BUTTON
Memory station 1-6 for radio control the playback of your music coming through the usb or
sd/mmc external device by pressing once to start playback. During "play" repress the button to
pause playback. Press the button once more to resume play.
→AUX-IN→BTIn bluetooth mode, short press to end call.
In radio mode
mode
In bluetooth mode, short press to answer call.
8. 2/INT BUTTON
When this button is pressed, 'INT' indication is displayed and the first several seconds of each
track is played. Press again to stop intro and listen to track.
9. 3/RPT BUTTON
When this button is pressed, 'RPT' indication is displayed and the selected track will be
continually repeated until the track repeat mode is cancelled by pressing the 'RPT' button again.
10. 4/RDM BUTTON
When this button is pressed, 'RDM' indication is displayed and the tracks are played in
random instead of normal progression. To cancel random mode, press the 'RDM' button again.
11. 5/-10 BUTTON
In playback mode, short press to -10, long press to choose a folder.
12. 6/+10 button
In playback mode, short press to +10, long press to choose a folder.
13.SD CARD SLOT
Insert the SD/MMC card in the slot by pushing it gently inward. Select SD with the mode
selector. The music starts to play automatically. * Support music file format: MP3,WMA .
14.AUX IN JACK
Insert your portable player into the jack, in any playing mode, audio will come through the car
speaker.
15.USB PORT
Use a usb cable (not included) if necessary, to connect your portable mp3 player.
16.LCD DISPLAY
The LCD display show the actual reception and function.
17.VOLUME / SELECT CONTROL
Rotate the volume knob to control the volume. To select other function, Press the select
button shortly until the desired function is shown on the display. * volume (rotate knob) →
select (push down) →bass→treble balance→fader→loud→ EQ (flat-pop-classic-rock)
18.RESET BUTTON
Restore factory defaults.
19.EQ & LOUD BUTTON
EQ (flat-pop-classic-rock); Loudness ON/OFF
20.CLK BUTTON
Electronic clock button.
OPERATING INSTRUCTIONS
1. Power ON/OFF
2. Function Selector ( )
3. Auto Seek Search Tuning (AMS)
4. Band Button (FM1-2-3)
5./6. Track Skip/ Search Forward/ Backward , Manual Auto Search Radio
7. Memory Station 1~6 for Radio and Play/pause Function for MP3/WMA
8. Intro Function for MP3/WMA
9. Repeat Function for
10. Random Function for
11. -10 Function for
12. +10 Function for
13. SD Card Slot
14. Aux In Jack
15. USB Port
16. LCD Display
17. Volume / Select Control
18. Reset Button
19. EQ Button
20. CLK Button
radio/usb/sd/aux-in/bt& End call
FMFM& Answer call
MP3/WMA
MP3/WMA
MP3/WMA
MP3/WMA
FCC Warning:
FCC ID: 2ABQZ-JSD
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate
the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
This device complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be
co-located or operating in conjunction with any other antenna or transmitter
